GAS
HEATER
MODEL WL39001
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
www.warmlite.co
This product is not suitable for primary heating purposes.
2
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
TECHNICAL DATA
Description: Gas Heater
Model: WL39001
Gas Heat Input: 4.1kW
Gas Category: Butane l3+ (28-30)
Gas Pressure: 28~30mbar
Pin Code: 2531CT-0032
DOCUMENTATION
This product is not suitable for primary heating purposes.
The energy eciency class: Class A
The direct heat output: 4.1kW
The energy eciency index: EEI=89%
Please refer to the instruction manual for the assembly, installation, maintenance, disassembly,
recycling and/ or disposal at end-of-life.
RK Wholesale LTD gas heater is in conformity with following EC directive and Regulations:
(EU) 2016/426(GAR) Gas Appliances Regulation
(EU) 2015//1186 and 2015/1188 Commission Delegated Regulation
And that the following harmonised
standards have been applied: EN449:2002 + A1:2007
This lot of product is in conformity with: EU 2015 /1186 and 2015/1188 directive and regulations.
(*) NOx = nitrogen oxide
Signed for and on behalf of RK Wholesale LTD Quality Assurance, United Kingdom
3
www.warmlite.co
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.
4
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
PRODUCT SAFETY
When using any appliance, basic safety precautions should always be
followed including the following:
• For your safety and to ensure
correct operation of the
heater, read these instructions
carefully before attempting to
use the appliance.
• ALWAYS use the appliance
in accordance with the
instructions supplied. Keep
these instructions in a safe
place for future reference.
• Please ensure that the
appliance is used on a stable,
level, and heat resistant
surface.
• DO NOT leave the appliance
unattended while it is
operating.
• Close supervision is
necessary when any
appliance is used by or near
children or pets.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
• The appliance is not to be
used by persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction.
• In order to avoid overheating,
DO NOT cover the heater.
• Children of less than 3 years
should be kept away unless
continuously supervised.
• Children aged from 3 years
and less than 8 years shall
only switch on/o the
appliance provided that it has
been placed or installed in its
intended normal operating
position and they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved. Children aged from
3 years and less than 8 years
shall not plug in, regulate
and clean the appliance or
perform user maintenance.
• CAUTION! Some parts of this
product can become very hot
and cause burns. Particular
attention has to be given
where children and vulnerable
people are present.
5
www.warmlite.co
• Children shall not play with
the appliance.
• Cleaning and user
maintenance shall not be
made by children without
supervision.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer, apart
from those supplied with this
product.
• DO NOT t the heater with a
timer or any other device that
switches it on automatically.
• DO NOT use this product
for anything other than its
intended use.
• This appliance is for
household use only.
• DO NOT use the appliance
outdoors.
• If any parts of this appliance
need replacing, they must
be replaced only with
genuine parts supplied
by the manufacturer.
The use of incorrect or
unlicensed substitute parts
may be dangerous and
will automatically void any
warranties protecting the
product.
• ALWAYS ensure that the
heater is placed on a rm
level surface. Ensure that the
heater is not positioned close
to walls, furniture, hangings,
net curtains, bed linen or any
other inammable materials
as this could create a re
hazard.
• The heater must not be
located immediately below a
mains socket outlet.
• DO NOT cover the heater as
this may lead to a re risk.
• DO NOT obstruct any of the
openings of the heater.
• DO NOT insert any object
through any openings on the
heater.
• Check all inlets and outlets
from time to time for
accumulated dust.
• DO NOT use the heater
in areas where ammable
liquids are stored or where
ammable fumes may be
present.
• DO NOT install this heater in
high rise ats, basements,
bathrooms or bedrooms.
• ALWAYS observe a distance
of at least 1000mm (1m) on
all sides between the heater
and any other combustible
materials.
6
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056

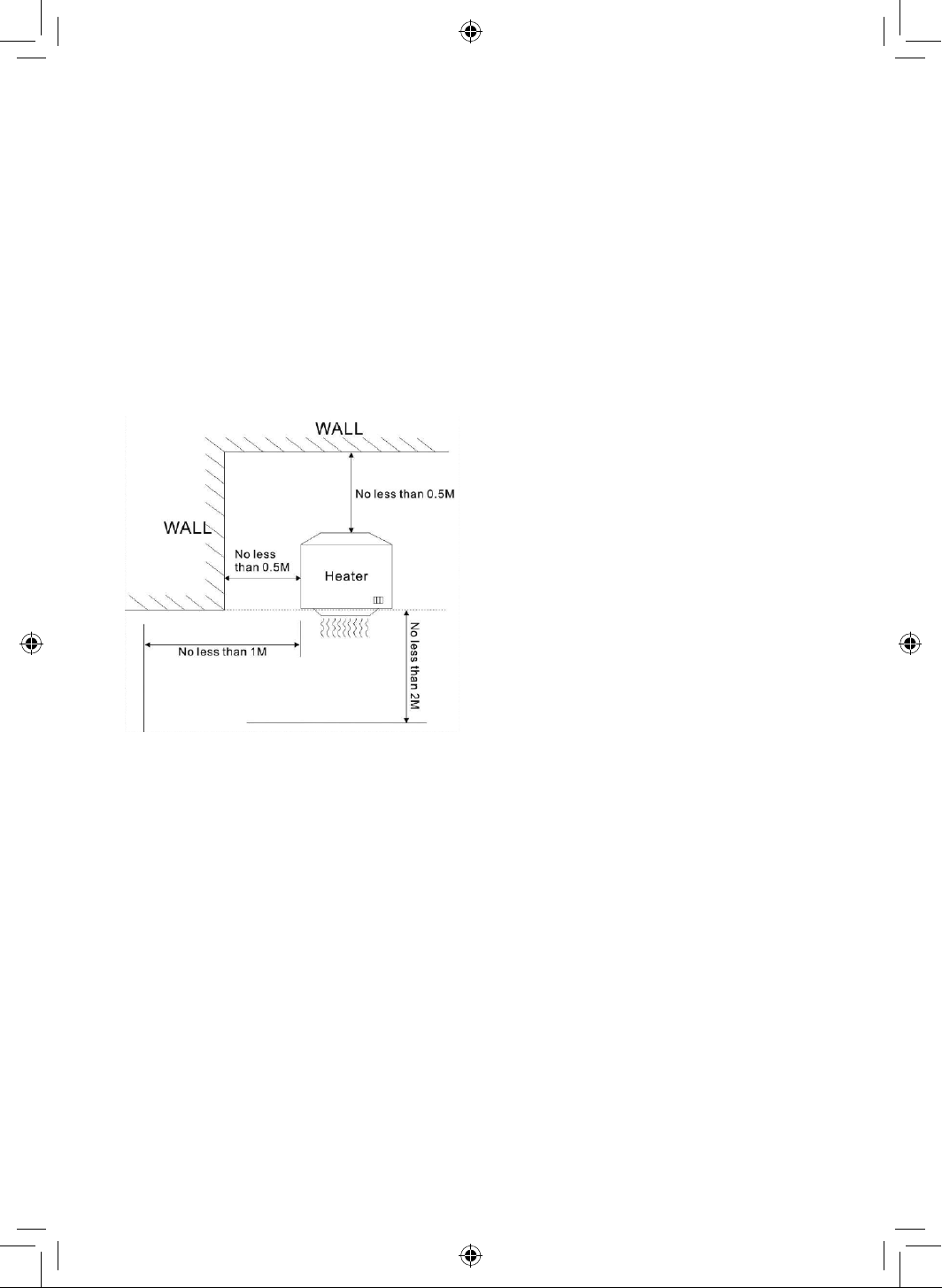

• ALWAYS observe a distance
of at least 50cm between
the back of the heater and
the wall, 50 cm between
either side of the heater
and the wall, and at least 1
metre in front of the heater
in all directions. If necessary,
use the diagram below for
reference when placing or
installing your heater.
• When lighting your heater for
the rst time or after a period
of time has passed since
the last use, light the heater
outside, in dry weather and
burn briey outdoors for 15
minutes.
NOTE: DO NOT OPERATE
UNDER GENERAL USE
OUTDOOR.
• DO NOT leave on overnight.
• DO NOT attempt to dismantle
or repair any part of the
heater. This should only be
done by a qualied service
agent.
• Your heater should be
checked annually by a
qualied person for safe
operation and to detect
any faults. If any faults are
detected, stop using the
heater IMMEDIATELY and
contact the manufacturer or
our Customer Support Team.
• WARNING! Ensure the
isolating valve is accessible
at all times when using the
heater.
• Turn o the gas container
valve after use.
• ALWAYS change the LPG
cylinder in a well ventilated
area, and away from any
source of ignition such as lit
candles, cigarettes, etc.
• ALWAYS change the gas
containers in accordance with
the instructions provided.
• DO NOT move the appliance
when in operation or when
cooling.
• Avoid twisting the gas hose
as this may cause the hose to
stress and fracture.
• Turn o the regulator and
disconnect the regulator from
the cylinder.
• Turn the heater to the o
position before removing and
replacing the cylinder
7
www.warmlite.co
• DO NOT attempt to remove
the regulator while the heater
is still running.
• Should the regulator need
replacing, the replacement
regulator should be certied
according to EN16129, have
a maximum ow rate of
1.5kg/h, and a maximum gas
pressure of 28-30mBar for
gas type G30.
• ALWAYS face the heater
towards the centre of the
room.
• Use it only in a well-ventilated
room. This is vital for the
ecient performance of this
heater and for the safety of
the occupants of the room in
which it is being used.
• The heater should not be
used in a room with a oor
area of less than 5m2 or a
ventilation area of less than
105cm2.
• Allow plenty of fresh air in.
Never seal up the doorways
and windows.
• The normal dress guard only
protects against accidental
clothing contact.
• DO NOT place clothes or
other material on the heater.
• Keep all ammable materials
at least one meter away from
the heater.
• Never use or store solvents
and pressure pack cans
near a gas heater-even if the
heater is turned o.
• Never dispose of rubbish
such as cigarette butts in
a gas re-this can aect
combustion and produce
dangerous pollutants and
carbon monoxide.
• DO NOT use electrical items
such as kettles or cookers
near the gas heater, as they
may produce electrical sparks
and result in a re hazard.
• ALWAYS operate the gas
control and cylinder valve
from the side or rear of the
heater. Standing in front of the
heater exposes you to the risk
of burns.
• Be careful with the gas supply
hose. Always check for signs
of damage, wear and kinks.
8
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
TESTING GAS FOR LEAKS:
NOTE: This appliance should be
leakage-tested before rst use
and whenever the cylinder has
been reconnected after lling.
• If you suspect that the heater
is leaking, turn o the gas
supply and have the unit
inspected by a qualied
technician.
• DO NOT attempt to locate
the source of leak with a
naked ame. Locate a leak by
sound, smell or by applying
soapy water, bubbles will form
and indicate the site of the
leak.
• In the event of a gas leak
open all doors and windows
and DO NOT use electrical
equipment as these may
produce a spark which could
ignite the LPG vapours. Keep
the heater away from heated
surfaces.
• Please be advised the
regulator provided will either
be the UK or Irish standard
regulator (depending on
location of retail outlet) and
may require changing in
dierent countries as the
connection on the gas bottle
will vary depending on the
country of purchase. If you
have any doubt please
contact your local gas bottle
retailer for advice.
• In the unlikely event the
appliance develops a fault,
stop using it immediately
and seek advice from the
Customer Support Team.
HOT SURFACE DO NOT COVER
9
www.warmlite.co
WHAT’S IN THE BOX
Instruction Manual
Gas Heater
Regulator Valve
1. Ceramic Heating Plates
2. Piezo Quartz Ignition Button
3. Temperature Controls
4. Moving Handle (one on each side)
BEFORE YOUR FIRST USE:
WARNING! Before assembly, make sure the appliance is switched o and unplugged.
1. Remove your appliance from the packaging.
2. Connect an approved gas bottle to the appliance as per the user instructions.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
4
1
2 3
Typical U.K. Regulators
Other Types of Regulators which can be used
in countries such as Ireland and Spain
10
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
USING YOUR APPLIANCE

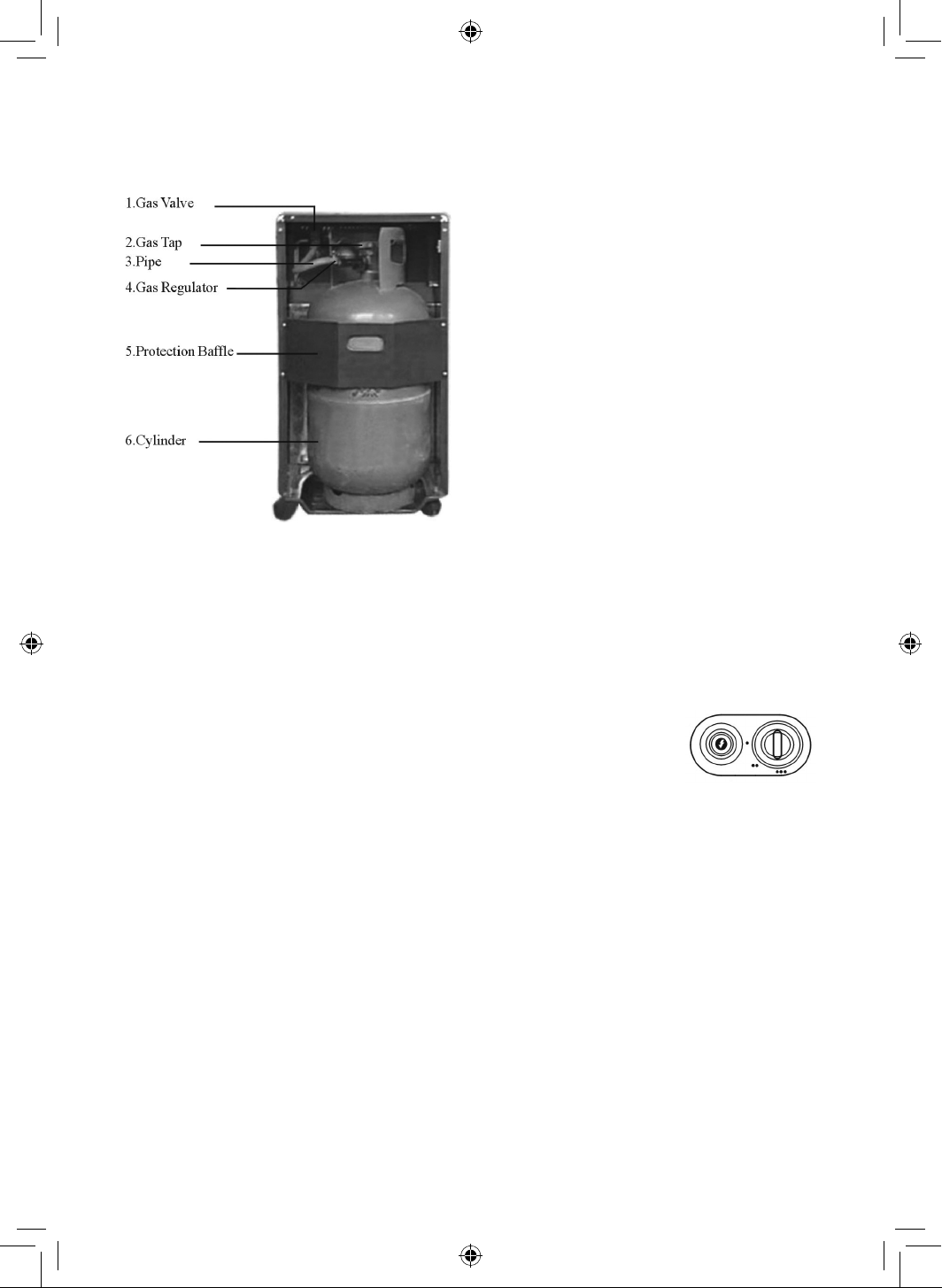

Installing the gas bottle:
1. Put the cylinder into the gas heater then
install the protection bae to make sure
the cylinder is not displaced when it is
moved from room to room.
2. Connect the pipe to the gas valve with the
cap (make sure there is no leakage)
3. Connect another side of the pipe to the
regulator with the cap (make sure there is
no leakage).
4. Before using the heater, open the gas
valve, and close it after you are nished.
Lighting the heater:
1. To open the gas cylinder and allow gas
ow turn the lever from the horizontal
(closed) position to the upright position
(open). For Irish adapters the red indicator
spot should be in the down position
(closed) when tting, to open the ow turn
the switch so that the red indicator spot
is upright.
2. Turn the gas control knob on the heater to
setting 1.
3. Press the control knob down and hold in
the pressed condition.
This will allow gas to ow to the pilot and
centre burner.
4. While holding the control knob in the
pressed position, push the piezoelectric
ignition button 2 or 3 times. Each time
you strike the piezoelectric ignition you
will hear a clicking sound as well as see a
spark on the pilot burner.
5. Once the pilot has lit, continue holding the
gas control knob in the pressed position
for a further 10 to 15 seconds thus
activating the ame failure safety device.
6. The pilot and centre burner should remain
alight.
7. You may now adjust
the heater setting to
Low/Med/High as
required.
Turning off the heater:
1. To turn o the heater, turn the control
knob to position 1, and close the gas
cylinder valve by turning the knob on the
cylinder clockwise.
2. Ensure that the pilot ame in the centre
burner is extinguished.
Piezo Quartz Ignition
Button And Temperature
settings
11
www.warmlite.co
Regulators:
1. The type of regulator that is used is
dependant on the connection on the
gas bottle which is used. This may be
dependant on gas supplier and your
geographical location.
2. Seek advice from your gas supplier if you
are unsure of what type of regulator you
will need.
Removing UK regulator fittings:
1. Check that the temperature control is set
to ‘0’
2. Push the supply lever on the valve down
so it is horizontal and the gas ow is
stopped.
3. Beneath the level is the release button.
Press this rmly and lift away the valve.
4. If the cylinder has a dust-cap secure it
now.
Removing Irish regulator fittings:
1. Make sure that the regulator switch is
ame side down (ame not visible).
2. Place your ngers around the bottom
of the valve and rmly pull up. This will
release the valve.
3. If the cylinder has a dust-cap secure it
now.
CLEANING AND CARE
• Ensure that the unit is cool enough to
work on.
• To remove the dust, wipe the appliance
with a dry cloth
• Never use abrasive powders or solvents.
• If the heater shows any signs of wear or
damage disconnect immediately from
the gas supply, DO NOT use it – have it
checked by a suitably qualied person.
• If the pilot fails to light this may be due to
a blockage. To clean the vent supplying
the pilot take a pipe cleaner and gently
insert into the vent. Twist the pipe cleaner
a few times to clear away any blockage
and then attempt to relight again.
STORING THE UNIT
1. CAUTION! ALWAYS disconnect the
cylinder before storing the unit. Store the
cylinder separately.
2. Store the cylinder in a well-ventilated area,
preferably an outhouse, and away from
combustible material. DO NOT store the
cylinder in a basement or high-rise at.
3. The heater should be covered and stored
in a dry, dust-free area in its original
packaging.
WARNING:
DO NOT IMMERSE ANY PART OF THE
APPLIANCE IN WATER
12
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
Information requirements for Gaseous/ Liquid Fuel Local Space Heaters
Model identier(s): WL39001
Indirect heating functionality: [NO]
Direct heat output: 4.1(kW)
Indirect heat output: N/A (kW)
Fuel Space Heating Emissions (*)
NOx
Select fuel type [gaseous] [specify] 33 [mg/ kWh input] (GCV)
Item Symbol Value Unit
Item Symbol Value Unit
Heat Output Useful Efficiency (NCV)
Nominal heat
output
Pnom 4.1 kW
Useful eciency at
nominal heat output
ηth,nom 100 %
Minimum
heat output
(indicative)
Pmin N/A kW
Useful eciency at
minimum heat output
(indicative)
ηth,min N/A %
Auxiliary Electricity Consumption Type of Heat Output/Room Temperature Control (select one)
At nominal heat
output
elmax N/A kW
Single stage heat output, no room temperature control [NO]
At minimum heat
output
elmin N/A kW
Two or more manual stages, no room temperature
control
[YES]
In standby mode elSB N/A kW With mechanic thermostat room temperature control [NO]
With electronic room temperature control [NO]
With electronic room temperature control plus day timer [NO]
With electronic room temperature control plus week
timer
[NO]
Other Control Options (multiple selections possible)
Room temperature control with presence detection [NO]
Room temperature control with open window detection [NO]
With distance control option [NO]
With adaptive start control [NO]
With working time limitation [NO]
With black bulb sensor [NO]
Permanent pilot flame power requirement
Pilot ame power
requirement
(if applicable)
Ppilot 0.2 kW
Contact Details
RK Wholesale LTD., Sutton House, Berry Hill Road, Stoke-on-Trent, ST4 2NL
www.rkwltd.com; [email protected]
(*) NOx = nitrogen oxide
13
www.warmlite.co
NOTES
14
CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
NOTES
15
www.warmlite.co
NOTES
We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by visiting:
www.warmlite.co
Make sure to retain your original receipt.
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
+44 (0) 333 220 6056
Distributed throughout the UK by RK Wholesale LTD
0220.V11
