User Manual
LED GROW LIGHT
BBT-CS400
+1 833 635 0955
+1 833 635 0955
Any question? Please contact us at [email protected]
Read all safety rules and instructions carefully before operating this tool.
Please scan the QR CODE for more services.
2
IMPORTANT SAFETY INSTRUCTIONS:
WATCH OUT THE WATER AND FIRE
-Keep the device away from re, water and avert the product immersed in water
in order to avoid explosion, leakage.
DO NOT DISASSEMBLE THE LIGHT
-No one except professional technicians should attempt to disassemble the
device in order to avoid damaging the product.
NEVER LOOK STRAIGHT THE LIGHT
-Do not stare directly at the light beam. ensure that it is not directed towards the
eye of a person for longer than 2 seconds.
TEAR OFF THE PROTECTIVE FILM
-Inorder to prevent damage during transportation, we have put a transparent
protective lm on the light bar, please tear it o before use.
+1 833 635 0955
+1 833 635 0955
3
Package Size: 13.8 * 5.5 * 3.1 inches
Product Weight: 1.8 lbs
Wavelength: (Red:622nm/Blue:460nm)
Material: PVC/Metal
Power: Max 80W
Input voltage: 5V
Input Current: 3A
Life time: 50000 hours
Working Temperature: -20℃~40℃
Certication: CE FCC
1 x 4-Head LED Grow Light 1 x Bracket
3 x Garden Tools 1 x User Manual
15.7in
(400mm)
10in
(250mm)
0.75in
(20mm)
USB Plug
1.5in
(38mm)
8.5in
(220mm)
2.5in
(60mm)
0.7in
(18mm)
7.3in
(185mm)
9.6in
(245mm)
1.3in
(34mm)
+1 833 635 0955
+1 833 635 0955
PACKING LIST:
SPECIFICATION:
4
Timer
Timing-3hours
Circulation Button-Adjust
Brightness-9 Levels
Blue Light
Red Light
Bule+Red Light
Switch NO/OFF
Timing-9hours
Timing-12hours
UNPACK: In order to prevent damage during transportation, we have put a
transparent protective lm on the light bar, please tear it o before use.
POWER ON: Plug the USB cable into an adapter.
BRIGHT YOUR LIGHT: Press to turn on your light, press again to turn o the
light.
+1 833 635 0955
+1 833 635 0955
PRODUCT OVERVIEW:
GETTING STARTED:
360-DEGREE ROTATABLE GOOSENECK: The gooseneck can be rotated 360
degrees. You can rotate the angle of the gooseneck at will to ensure that plants
in dierent positions can get enough light.
STRONG CLIP: The planting light clip can be xed at most 1.5 inches on any surface.
The Blue spectrum promotes plant germination.
The Red spectrum promotes plant owering and fruit.
The Red and blue spectrum ensure the healthy and prosperous growth of plants.
Set dierent brightness levels and spectrum modes according to the stage of
your plant growth.
ADJUST THE LIGHT MODE: Press to change the lighting mode: Blue light/ Red
light/ Blue+Red light.
SETTING THE TIME: Press to setting the timer for 3h/9h/12h.
ADJUST THE BRIGHTNESS: Press to adjust the brightness of the light
(total 9 levels).
5
+1 833 635 0955
+1 833 635 0955
USED FOR DIFFERENT PLANTS:
6
+1 833 635 0955
+1 833 635 0955
USAGE SCENARIOS:
Clips should be clamped on both sides of the stabilizer
Note: If the stabilizer becomes loose, please tighten the screw on it again.
Feel free to contact us if there is any problem.
7
20.4~40.8in
(518~1036mm)
20.4~40.8in
(518~1036mm)
20.4~40.8in
(518~1036mm)
20.4~40.8in
(518~1036mm)
+1 833 635 0955
+1 833 635 0955

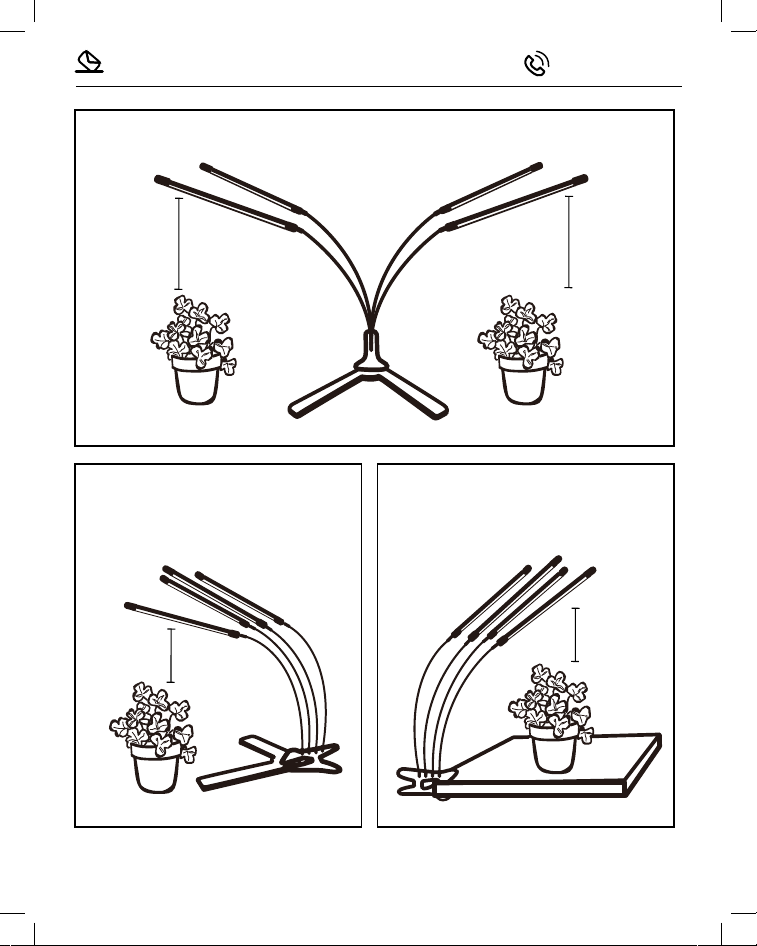

360-degree lighting mode（on the table）
One-way lighting mode
(on the table)
One-way lighting mode
(clamp the table)
8
Warranty
Ningbo Babytec Technology Co., Ltd (Hereinafter referred to as Babytec)
promises the product you receive against any defects. And we provide a one-
year warranty for every customer.
If there is a defect arises during one year, please feel free to contact us to get
your valid claim. To obtain warranty service, please your model and order of the
product via:
We will provide the most satisfactory after-sales service to you.
Faulty and/or discarded electrical or electronic apparatus have to be
collected at the appropriate recycling locations.
Any question? Please contact us at [email protected]
+1 833 635 0955
+1 833 635 0955
ENVIRONMENT:
WARRANTY:
+1 833 635 0955
(Monday - Friday 9 a.m. - 5 p.m. EST 6 a.m. - 2 p.m. PST)
Allrightsreservedby Ningbo Babytec Technology Co.,Ltd
