1 Safety ............................................ 3
1.1 General information .................... 3
1.2 Intended use ................................ 3
1.3 Restriction on user group .......... 4
1.4 Safe installation ........................... 4
1.5 Safe use ........................................ 6
1.6 Safe cleaning and mainten-
ance ............................................... 8
2 Preventing material damage ...... 9
3 Environmental protection and
saving energy ............................ 10
3.1 Disposing of packaging ........... 10
3.2 Save energy and conserve re-
sources ....................................... 10
3.3 Energy saving mode ................ 10
4 Installation and connection ...... 10
4.1 Unpacking the appliance ........ 10
4.2 Contents of package ................ 11
4.3 Requirements for the installa-
tion location ................................ 11
4.4 Removing the transit bolts ...... 12
4.5 Connecting the appliance ....... 13
4.6 Aligning the appliance ............. 14
5 Before using for the first time .. 15
5.1 Starting an empty washing
cycle ............................................ 15
6 Familiarising yourself with
your appliance ........................... 16
6.1 Appliance .................................... 16
6.2 Detergent drawer ...................... 16
6.3 Control panel ............................. 17
7 Display ........................................ 17
8 Buttons ....................................... 19
9 Programmes .............................. 20
10 Accessories ............................. 23
11 Laundry .................................... 24
11.1 Preparing the laundry ............ 24
11.2 Care symbols on the care la-
bels ............................................ 24
12 Detergents and care
products ................................... 25
13 Basic operation ....................... 25
13.1 Switching on the appliance .. 25
13.2 Setting a programme ............. 25
13.3 Opening the door ................... 25
13.4 Loading laundry ...................... 26
13.5 Adding detergent and care
product ..................................... 26
13.6 Starting the programme ........ 26
13.7 Soaking laundry ...................... 26
13.8 Adding laundry ........................ 27
13.9 Cancelling the washing pro-
gramme .................................... 27
13.10 Cancelling the drying pro-
gramme .................................. 27
13.11 Resuming the programme
when the programme status
is Rinse Hold ......................... 27
13.12 Unloading the laundry ......... 27
13.13 Switching off the appli-
ance ........................................ 27
14 Dryness level ........................... 27
14.1 Changing the dryness level .. 28
15 Childproof lock ........................ 28
15.1 Activating the childproof
lock ............................................ 28
15.2 Deactivating the childproof
lock ............................................ 28
16 Basic settings .......................... 28
16.1 Overview of the basic set-
tings ........................................... 28
2
Safety en
16.2 Changing the basic set-
tings ........................................... 29
17 Cleaning and servicing ........... 29
17.1 Cleaning the drum and clean-
ing fluff ...................................... 29
17.2 Cleaning the detergent
drawer ....................................... 29
17.3 Cleaning the drain pump ...... 30
17.4 Cleaning the rubber gasket .. 33
18 Troubleshooting ...................... 33
18.1 Emergency release ................ 39
19 Transportation, storage and
disposal ................................... 40
19.1 Removing the appliance ....... 40
19.2 Inserting the transit bolts ....... 40
19.3 Using the appliance again .... 40
19.4 Disposing of old appliance ... 40
20 Customer Service ................... 41
20.1 Product number (E-Nr.) and
production number (FD) ........ 41
21 Consumption values ............... 41
22 Technical data ......................... 42
Safety 1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ for washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ with tap water and commercially available detergents and care
products suitable for washing machines.
¡ for drying and freshening up fabrics that are washed with water
and suitable for dryers.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of 4000 m above sea level.
3
en Safety
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
Connect and operate the appliance only in accordance with the
specifications on the rating plate.
Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
When using a residual current circuit breaker, only use a type
with the mark.
Never equip the appliance with an external switching device,
e.g. a timer or remote control.
Never connect the appliance to a circuit that is regularly
switched on and off by the energy supplier.
When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
isolating switch must be integrated into the permanent electrical
installation according to the installation regulations.
When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
Never let the power cord come into contact with hot appliance
parts or heat sources.
4
Safety en
Never let the power cord come into contact with sharp points or
edges.
Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
Do not use extension cables or multiple socket strips.
Only use adapters and power cords approved by the manufac-
turer.
If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
Do not lift the appliance on your own.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
Keep packaging material away from children.
Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
Place the appliance on a clean, even, solid surface.
Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
Do not touch the sharp edges on the appliance.
Wear protective gloves when installing and transporting the ap-
pliance.
5
en Safety
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
Call customer service.
Page41
An ingress of moisture can cause an electric shock.
Only use the appliance in enclosed spaces.
Never expose the appliance to intense heat or humidity.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
When spinning larger, waterproof items of laundry, imbalances
may arise and lead to injuries.
Do not wash and spin larger items of laundry, such as blankets
or mattress covers, in the appliance.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
Keep small parts away from children.
Do not let children play with small parts.
WARNING‒Risk of explosion!
If there is coal dust or flour in the air around the appliance, this
may cause an explosion.
Keep the area around the appliance clean during operation.
6
Safety en
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Highly flammable objects such as lighters or matches may ignite
during the drying process.
Remove all highly flammable objects from any pockets in your
laundry before the drying process.
Unwashed laundry that has come into contact with solvents, oil,
wax, wax remover, paint, grease or stain remover may ignite when
drying is in progress.
Do not place laundry in this appliance to be dried if the laundry
has not been washed first.
Rinse the laundry thoroughly with warm water and detergent be-
fore drying it in the machine.
Do not use the appliance if industrial chemicals have been used
to clean the laundry beforehand.
Laundry that has been pretreated with flammable cleaning agents
that contain solvents may cause an explosion in the appliance.
Rinse pretreated laundry thoroughly with water before washing.
WARNING‒Risk of fire!
If drying is interrupted early, the laundry is not cooled sufficiently
and may ignite.
Do not interrupt the drying programme early.
If drying is interrupted early, remove the laundry immediately
and spread it out.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
Do not sit on or lean against the appliance door.
Do not place any objects on the appliance door.
7
en Safety
Reaching into the drum while it is still turning may cause hand in-
juries.
Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk ofscalding!
When you wash at high temperatures, the detergent solution gets
hot.
Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance.
Contact with eyes or skin may cause irritation.
Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
Never make any technical modifications to the appliance or its
features.
Repairs to the appliance should only be carried out by trained
specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
8
Preventing material damage en
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
Do not use cleaning agents that contain solvents.
Preventing material damage2 Preventing material
damage
ATTENTION
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
Observe the maximum load capa-
city for each programme and do
not exceed it.
"Programmes", Page20
Foam and foam rubber may deform
or melt during the drying process.
Do not dry laundry that contains
foam or foam rubber.
The appliance is secured for trans-
portation using transit bolts.
Transit bolts which have not been re-
moved may result in material dam-
age and damage to the appliance.
Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
Before transport, fit the transit bolts
fully in order to prevent damage in
transit.
Material damage may be caused if
the water inlet hose is connected in-
correctly.
Tighten the screw connections on
the water inlet until they are hand-
tight.
Connect the water inlet hose dir-
ectly to the water tap, without any
additional connecting elements
such as adapters, extensions or
valves.
Ensure that the inner diameter of
the water tap is at least 17mm.
Make sure that the length of the
thread on the connection to the
water tap is at least 10mm.
If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the drinking water
connection and the hose set of the
appliance.
Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler.
9
en Environmental protection and saving energy
Modified or damaged water hoses
may result in material damage and
damage to the appliance.
Never kink, crush, modify or cut
through water hoses.
Only use the water hoses supplied
with the appliance or genuine
spare hoses.
Never re-use water hoses that
have been used before.
Operating the appliance using water
that is dirty or too hot may lead to
material damage and damage to the
appliance.
Only operate the appliance with
cold mains water.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
Do not use harsh or abrasive de-
tergents.
Do not use cleaning products with
a high alcohol content.
Do not use hard scouring pads or
cleaning sponges.
Clean the appliance with nothing
but water and a soft, damp cloth.
Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
Environmental protection and saving energy3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
Sort the individual components by
type and dispose of them separ-
ately.
3.2 Save energy and conserve
resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programs with low temper-
atures and longer wash times and
use maximum load capacity.
Add detergent based on the laun-
dry's degree of soiling. Detergent
dosage
Reduce the washing temperature
for lightly and normally soiled laun-
dry.
Set the maximum spin speed if
you want to dry the laundry in the
appliance afterwards.
Wash the laundry without prewash.
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode.
Energy-saving mode ends when you
use the appliance again.
Installation and connection4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
10
Installation and connection en
1.
Remove any packaging and pro-
tective covers completely from the
appliance.
"Disposing of packaging",
Page10
2.
Check the appliance for visible
damage.
3.
Open the door.
Page25
4.
Remove any accessories from the
drum.
5.
Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
Do not operate the appliance with
incomplete or defective accessor-
ies.
Replace the accessories in ques-
tion before operating the appli-
ance.
"Accessories", Page23
Note: The appliance has undergone
a function test at the factory. This
may cause water stains in the appli-
ance, which the first wash cycle re-
moves.
The delivery consists of the following:
Washer dryer
Accompanying documents
Transit bolts
Page12
Cover caps
Water inlet hose
Page13
4.3 Requirements for the in-
stallation location
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
Do not operate the appliance
without a cover cap.
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
Always secure the feet of the appli-
ance to a base using the manufac-
turer's fixing brackets
Page24
before using the appliance for the
first time.
ATTENTION
If residual water in the appliance
freezes, this may cause damage to
the appliance.
Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
Tilt the appliance carefully.
Transport the appliance in an up-
right position.
Installation loca-
tion
Requirements
Base Secure the appli-
ance with fixing
brackets
Page24
.
Wooden joist
floor
Place the appli-
ance on a water-
resistant wooden
11
en Installation and connection
Installation loca-
tion
Requirements
board (minimum
thickness of
30mm) which is
screwed tightly to
the floor.
Kitchen unit Only install the ap-
pliance under-
neath a continu-
ous worktop that
is securely con-
nected to adja-
cent cabinets. Re-
quired niche
width: 60cm.
Against a wall Do not trap the
power cord or the
hoses between
the wall and the
appliance.

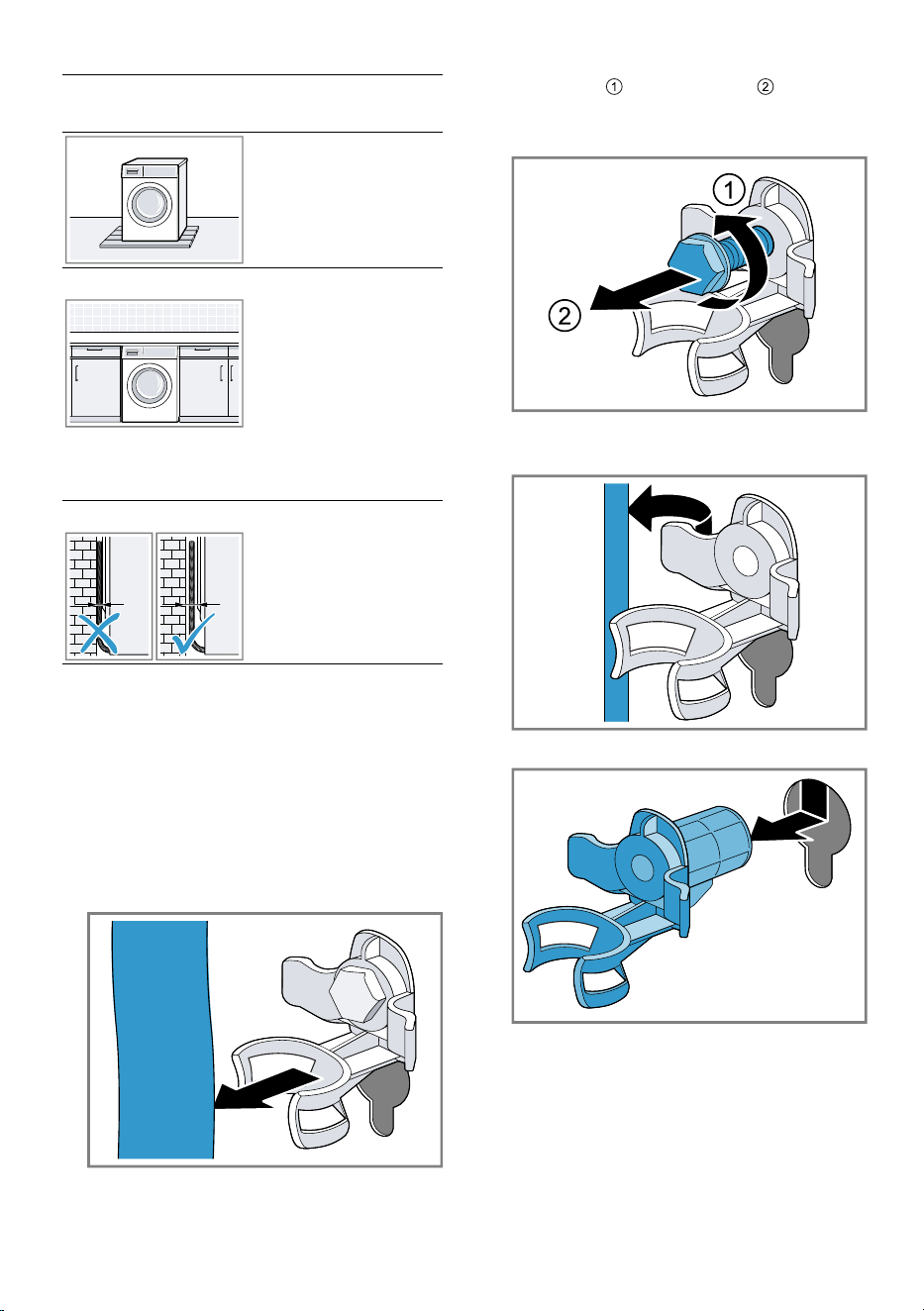

4.4 Removing the transit bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Note: Keep the transit bolt screws
and the sleeves in a safe place for fu-
ture transport.

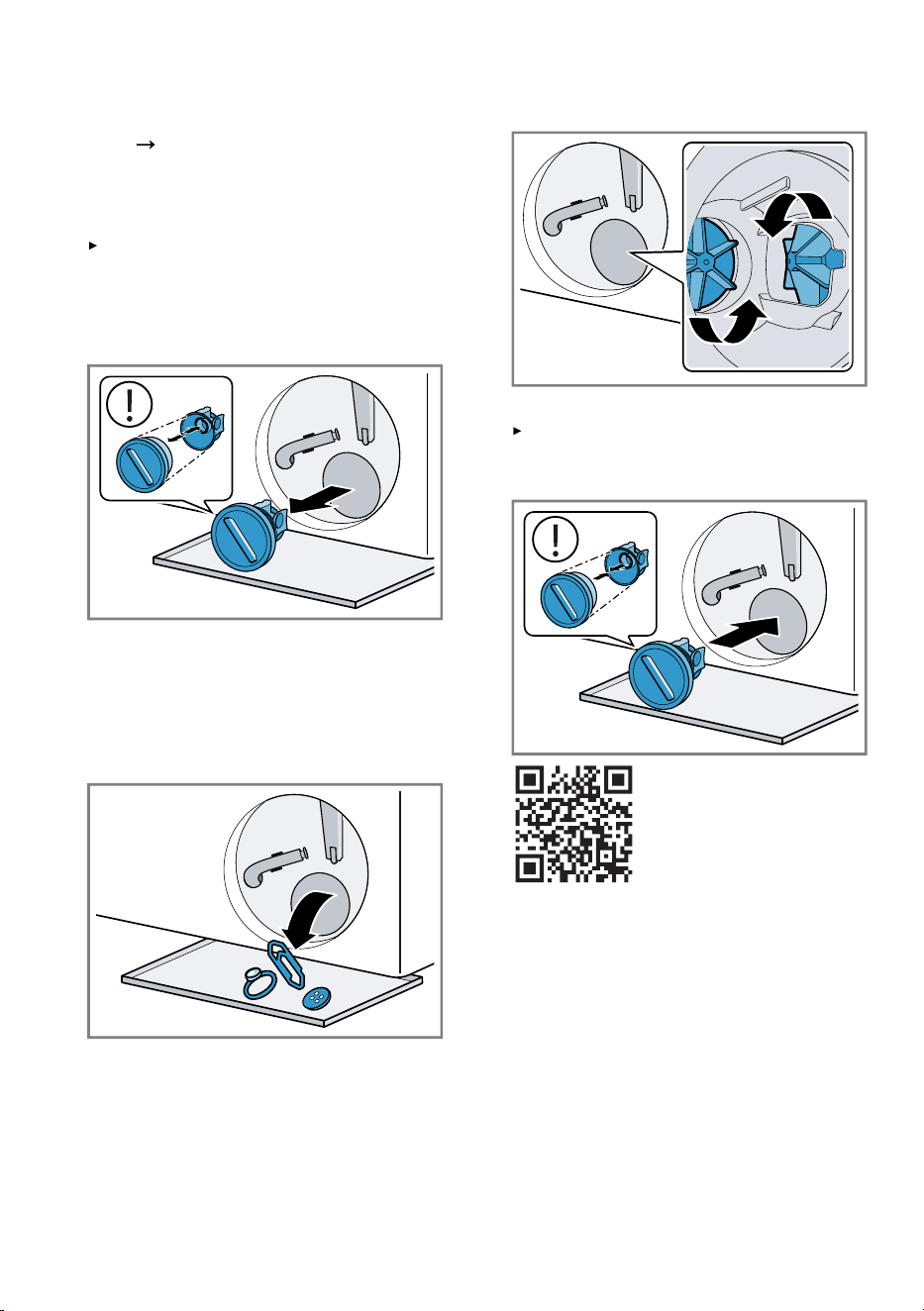

1.
Pull the hose out of the holders.
2.
Unscrew and remove all of
the screws for the 4 transit bolts
using a WAF 13 wrench.
3.
Remove the power cable from the
holder.
4.
Remove the 4 sleeves.
12
Installation and connection en
5.
Insert the 4 cover caps and
push them downwards .
Note: To install the transit bolts to
transport the appliance, perform
these steps again in the reverse or-
der.

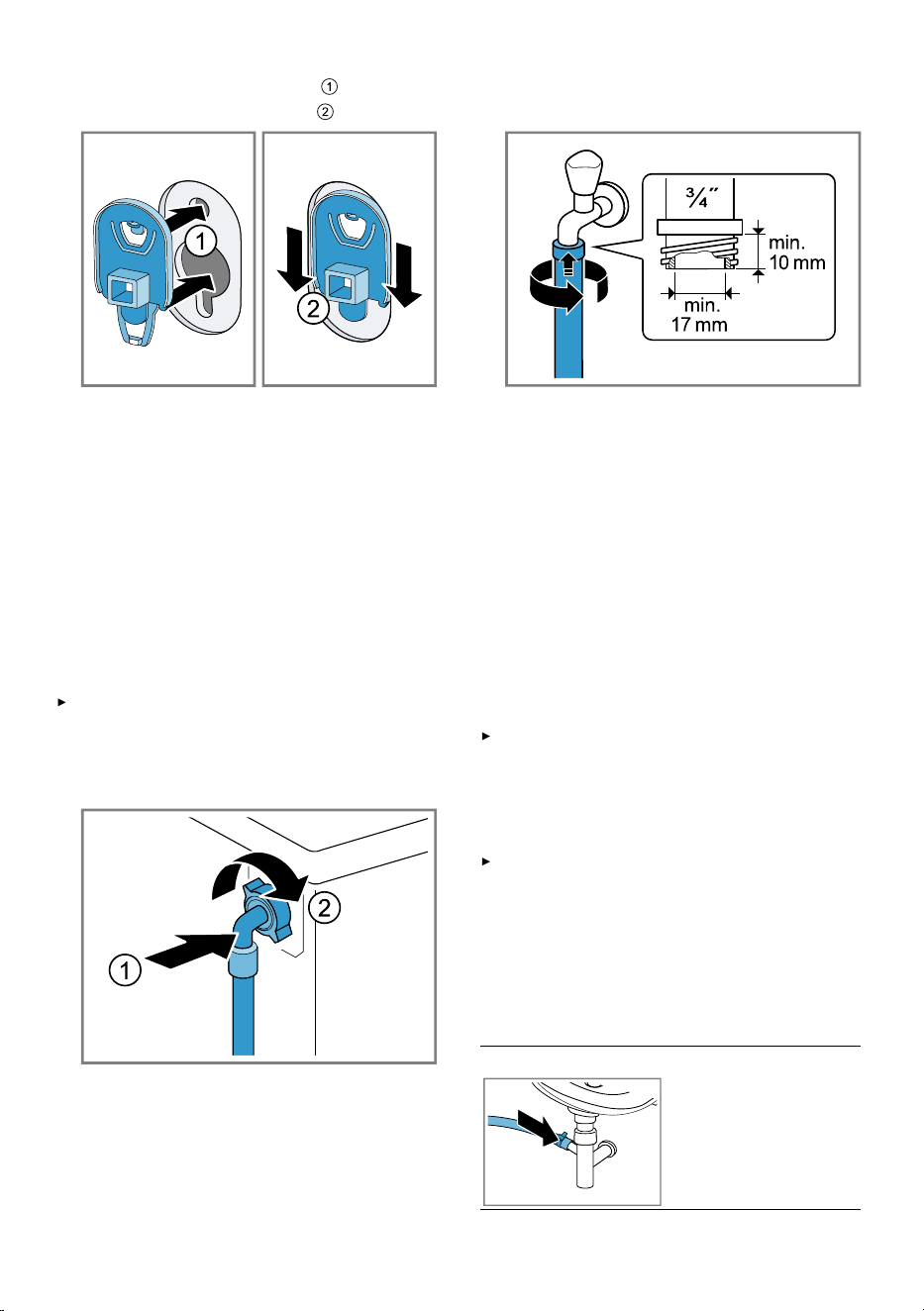

4.5 Connecting the appliance
Connecting the water inlet hose
ATTENTION
Material damage may be caused if
the water inlet hose is connected in-
correctly.
Tighten the screw connections on
the water inlet until they are hand-
tight.
1.
Connect the water inlet hose.
2.
Connect the water inlet hose to a
tap (26.4mm=3/4").
3.
Open the water tap carefully and
check that the connection points
are tight.

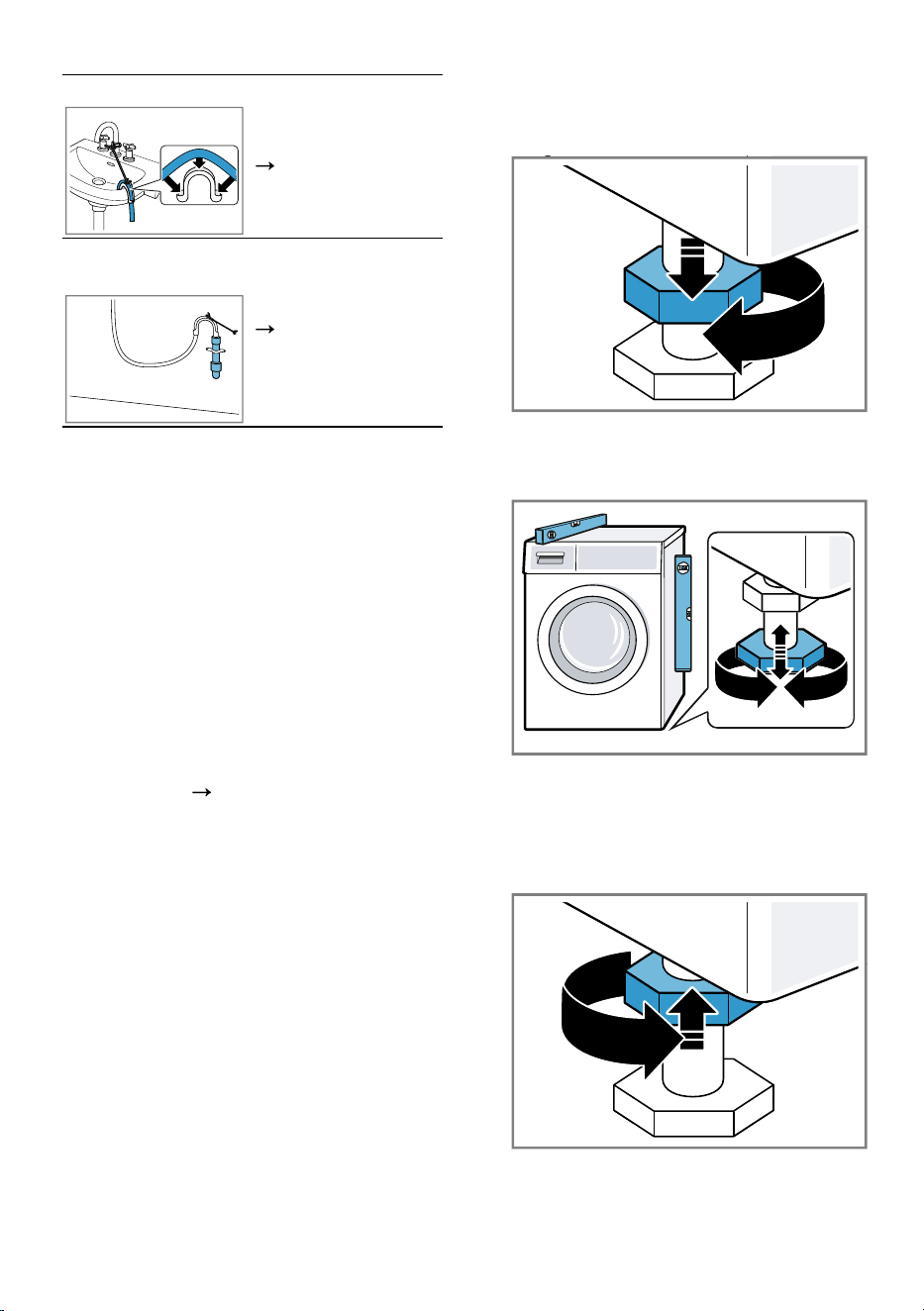

Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
ATTENTION
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
Secure the water outlet hose
against unintentional loosening.
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.
Note: Observe the draining heights.
The draining heights are: minimum:
60cm, maximum: 100cm
Siphon Secure the con-
nection point with
a (24–40 mm)
hose clamp.
13
en Installation and connection
Sink Fix and secure the
water outlet hose
with an elbow.
"Accessories",
Page24
Plastic pipe with
rubber sleeve
Fix and secure the
water outlet hose
with an elbow.
"Accessories",
Page24
Connecting the appliance to the
electricity supply
Note: Your electrical domestic install-
ation for this appliance must comply
with the local legal provisions and
safety regulations, and should in-
clude a residual current circuit-
breaker.
1.
Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data
Page42
.
2.
Check the mains plug is inserted
properly.
4.6 Aligning the appliance
In order to reduce noise and vibra-
tion and to prevent the appliance
from moving, align the appliance cor-
rectly.
1.
Use a WAF 17 wrench to loosen
the lock nuts in a clockwise direc-
tion.
2.
To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
3.
Use a WAF 17 wrench to tighten
the lock nuts against the housing
until they are hand-tight.
In doing so, hold the foot tight and
do not adjust its height.
14
Before using for the first time en
Before using for the first time5 Before using for the
first time
Prepare the appliance for use.
5.1 Starting an empty washing
cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
1.
Turn the programme selector to
Cottons 90° .
2.

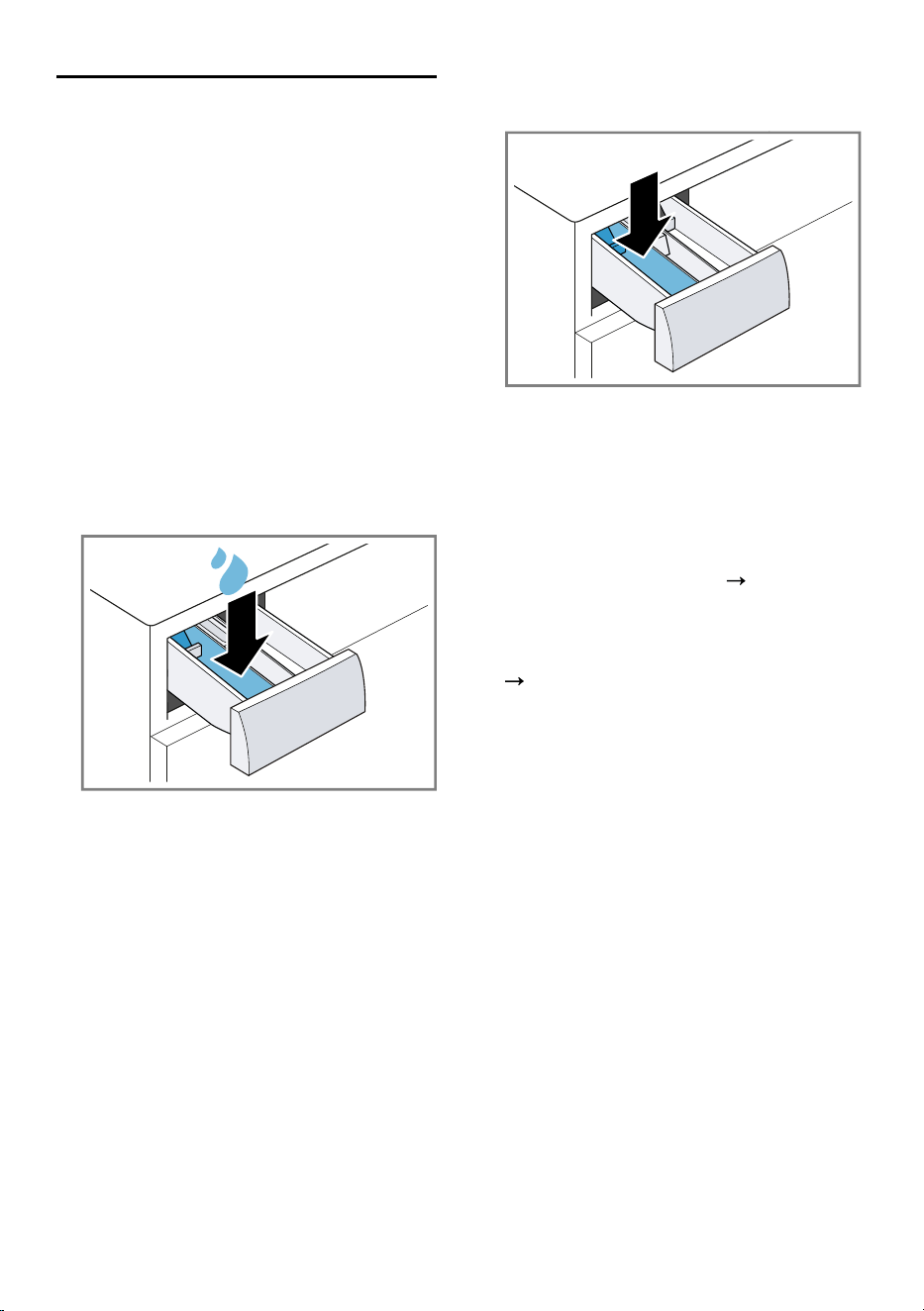

Close the door.
3.
Pull out the detergent drawer.
4.
Pour approx. 1 litre of tap water
into compartment II.
5.
Add washing powder containing
oxygen bleach to compartment II.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
6.
Push in the detergent drawer.
7.
Start the programme.
Page26
8.
Start the first wash cycle or set the
programme selector to Off to
switch off the appliance.
"Basic operation", Page25
15
en Familiarising yourself with your appliance
Familiarising yourself with your appliance6 Familiarising yourself with your appliance

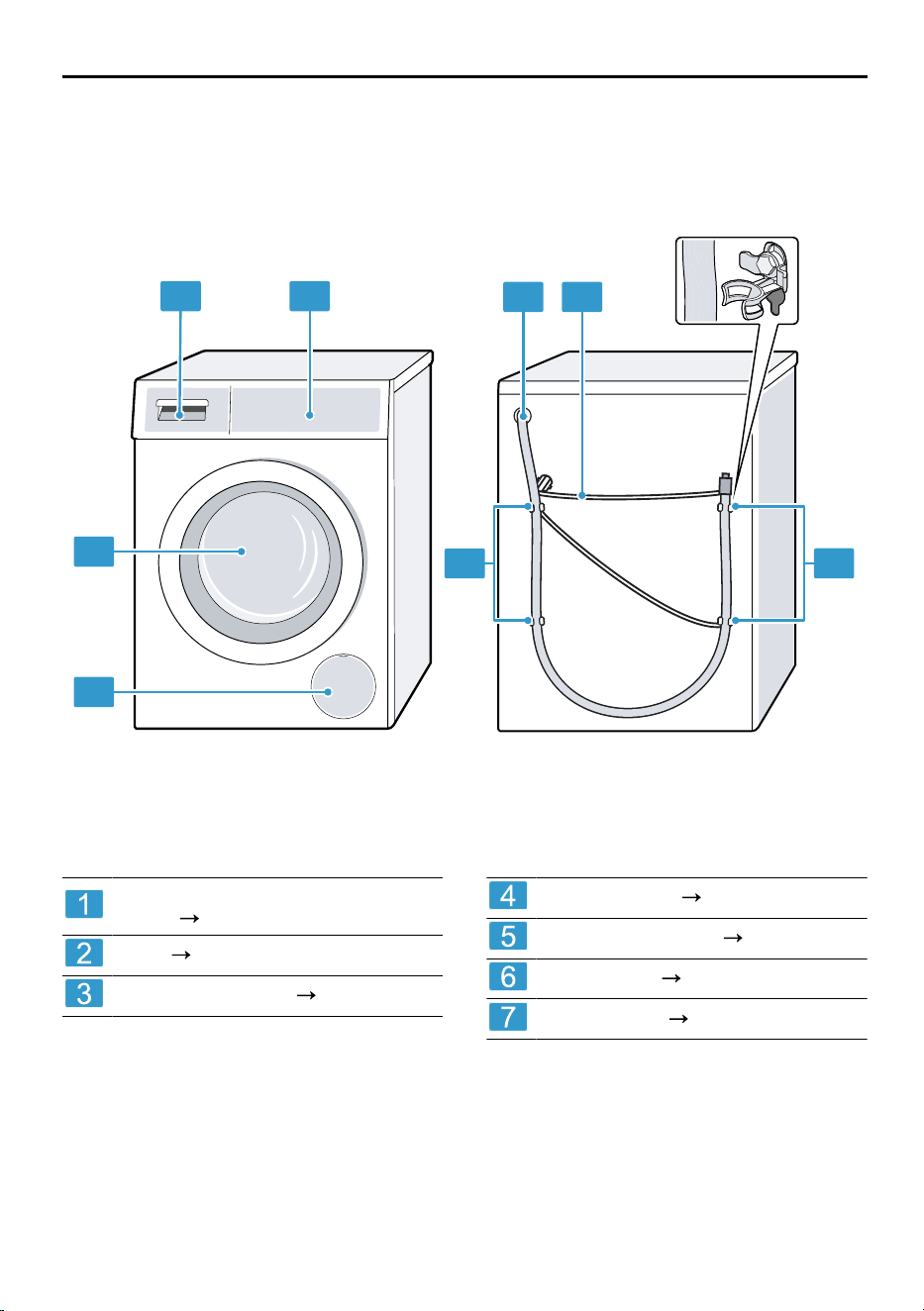

6.1 Appliance
You can find an overview of the parts of your appliance here.
1
2
4
6
3
5
7
7
On certain models, specific details such as the colour and shape may differ from those
pictured.
Maintenance flap for the drain
pump
Page30
Door
Page25
Detergent drawer
Page16
Control panel
Page17
Water outlet hose
Page13
Power cord
Page14
Transit bolts
Page12

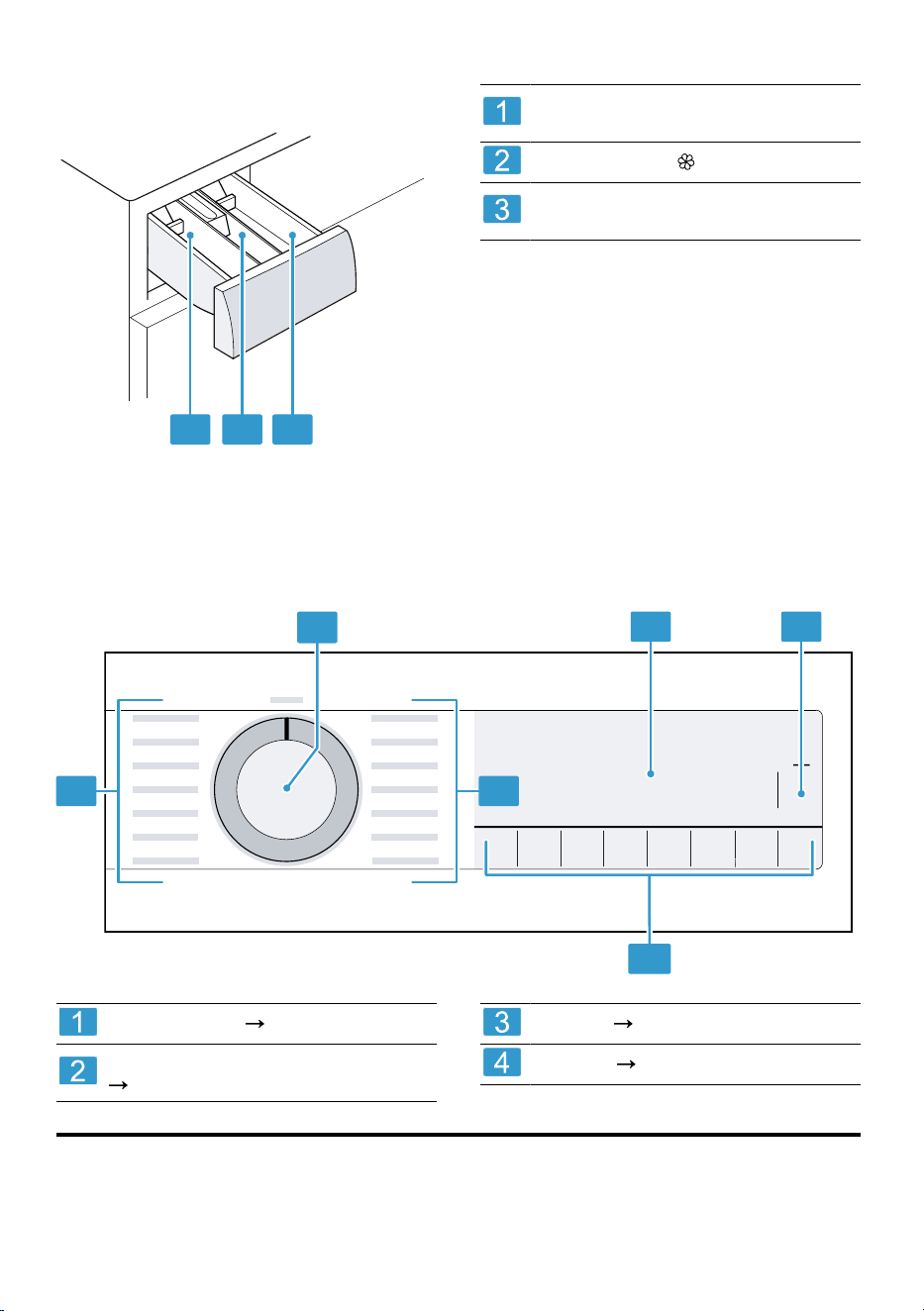

6.2 Detergent drawer
Note: Observe the manufacturer's in-
structions on the use and dosage of
the detergent and care product and
16
Display en
the information in the programme de-
scriptions.
1 2 3
Compartment II: Detergent for
the main wash
Compartment : Fabric softener
Compartment I: Detergent for
prewash
6.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2 3
1 1
4
4
Programmes
Page20
Programme selector
Page25
Display
Page17
Buttons
Page19
Display7 Display
The display shows the current settings, options or relevant information.
17
en Display
Depending on the programme status, the display shows some information in
the area, e.g. .

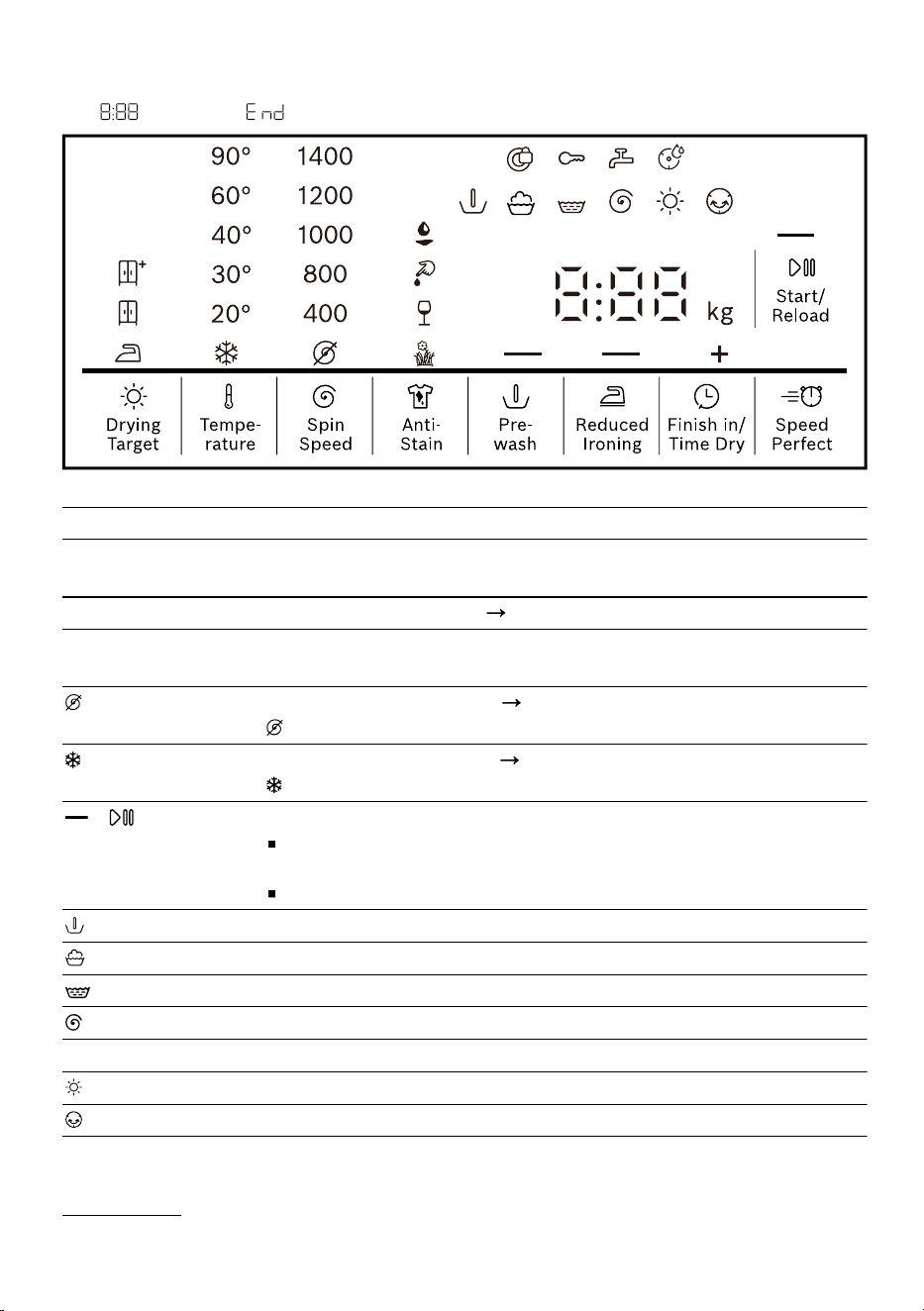

Example: Display
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
+8h
1
Programme end time
Page20
6.0
1
Recommendation for the maximum load capacity for the
selected program in kg.
- 1400 Set spin speed in rpm.
Page20
: No spin cycle, draining only
- 90 Set temperature in °C.
Page20
(cold)
（ Start/ Re-
load）
Start, cancel or pause
Lights up: The programme is running and can be can-
celled or paused.
Flashes: The programme can be started or continued.
Programme status: Prewashing
Programme status: Washing
Programme status: Rinsing
Programme status: Spinning
End Programme status: Programme end
Programme status: Drying
Programme status: Crease-reduction function
1
Example
18
Buttons en
Display Description
Lights up: The childproof lock is activated.
Flashes: The childproof lock is activated and the appli-
ance has been operated.
Page28
（ Reduced
Ironing）
The crease-reduction function is activated.
Page20
（ Prewash） Prewash is activated.
Page20
Hot The cooling process cools the laundry for a few minutes
while the drum is rotating, in order to avoid damage to the
laundry.
Note: Do not interrupt the cooling process, and wait for
the door lock to open.
- - - Rinse Hold is activated.
（ Speed
Perfect）
Shortened programme duration is activated.
Page20
The dryness level is activated.
Page27
The dryness level is activated.
Page27
The dryness level is activated.
Page27
The "Blood" stain type is activated.
The "Grass" stain type is activated.
The "Red wine" stain type is activated.
The "Cooking fat/cooking oil" stain type is activated.
Flashes: Drum cleaning is required. Run the Cottons 90°
programme for cleaning and caring for the drum and the
outer tub.
Page29
Lights up: The door is locked and cannot be opened.
Flashes: The door is not closed properly.
Off: The door is unlocked and can be opened.
No water pressure.
Page34
The water pressure from the tap is too low.
1
Error code, error display, signal.
Page33
Buttons8 Buttons
The selection of programme settings and options to change these depend on
the programme that is set as well as the programme status.
1
Example
19
en Programmes
Button Description
Temperature Adjust the temperature.
Spin Speed Adjust the spin speed or deactivate the spin cycle.
If is selected, the water is drained and the spin cycle is
deactivated. The laundry stays wet inside the drum.
Start/ Reload Start, cancel or pause the programme.
Finished in/
Time Dry
Set the programme end time. The programme duration is
already included in the set number of hours. Once the
programme has started, the programme duration is dis-
played.
Speed Perfect Activate or deactivate a shorter programme duration.
Note: The energy consumption increases. The washing
result is not affected by this.
Prewash Activate or deactivate prewash, e.g. for washing heavily
soiled laundry.
Note: Add the detergent for the prewash in compartment I
and the detergent for the main wash in compartment II of
the detergent drawer.
Page16
Reduced Iron-
ing
Activate or deactivate the reduced creasing programme.
The spin cycle and the spin speed are adapted. The laun-
dry has a higher residual moisture after washing. Hang up
the laundry immediately after washing.
Reduced
Ironingand Finis
hed in/ Time Dry
Activate or deactivate the childproof lock.
Page28
Anti Stain Select the type of stain.
The temperature, drum movement and soaking time are
all adjusted to suit the type of stain.
Drying Target When Drying Target is selected, drying is activated after
washing.
When , or is selected, the dryness level is activated.
Page27
Note: For the adjustable combinations of washing, drying
or washing and drying, observe the information for the se-
lected programme.
Page20
Programmes9 Programmes
Note: The laundry's care labels provide you with additional information about
programme selection.
"Care symbols on the care labels", Page24
20
Programmes en
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Cottons Wash hard-wearing items made from cotton or
linen.
Also suitable as a short programme for nor-
mally soiled laundry when you activate
Speed Perfect.
Programme setting:
Max. 90 °C
Max. 1400rpm
10.0
5.0
1
6.0
Eco 40-60 Wash items made from cotton or linen.
Note: Fabrics which can be washed from
40°C up to 60°C as per the care sym-
bol can be washed together.
The washing performance corresponds to the
best possible washing performance class ac-
cording to the legal requirements.
For this programme, the washing temperature
is automatically adjusted depending on the
load size, in order to achieve the best pos-
sible energy efficiency with the best possible
washing result. You cannot change the wash-
ing temperature.
The maximum spin speed is 1400 rpm.
10.5 6.0
Easy Care Wash items made from synthetic fabrics.
Programme setting:
Max. 60 °C
Max. 1400 rpm
4.0 2.5
Mixed Load Wash items made from cotton, linen or syn-
thetic fabrics.
Suitable for lightly soiled laundry.
Programme setting:
Max. 60 °C
Max. 1400rpm
4.0 2.5
Delicates/Silk Wash delicate, washable items made from
silk, viscose and synthetic fabrics.
Use a detergent that is suitable for delicates
or silk.
2.0 –
2
1
Speed Perfect activated
2
Drying not possible
21
en Programmes
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Note: Wash especially delicate items or items
with hooks, eyelets or clips in a mesh laundry
bag.
Programme setting:
Max. 40 °C
Max. 800rpm
Wool Hand- or machine-washable items that are
made from wool or contain wool.
To prevent the laundry from shrinking, the
drum moves the items very gently with long
pauses.
Use a detergent that is suitable for wool.
Programme setting:
Max. 40 °C
Max. 800rpm
2.0 1.0
Rinse Rinse and then spin the laundry, and drain the
water.
Programme setting: Max. 1400 rpm
– –
Spin/Drain Spin the laundry and drain the water.
If you only want to drain the water, activate .
The laundry is not spun.
Programme setting: Max. 1400 rpm
– –
Gentle Dry Dry items made from synthetic fabrics.
Gentle programme with low temperatures for
delicate fabrics.
–
1
2.5
Intensive
Dry
Dry items made from cotton or linen.
Intensive programme with temperatures for
hard-wearing fabrics.
–
1
6.0
Hygiene Care Pre-treat delicate fabrics hygienically.
The fabrics are pre-treated with hot steam up
to 65°C in order to kill bacteria.
After the fabrics have been pre-treated, they
are washed at low temperatures.
Programme setting:
Max. 30 °C
Max. 1400rpm
4.0 2.5
1
Washing not possible
22
Accessories en
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Iron Assist Reduce creases and airborne odours in suits
and fabrics made of cotton and down.
Tip: To prevent creasing, remove the laundry
immediately after the programme has ended.
Notes
The laundry is not dried or cleaned.
If you use the programme often without
washing in between, this may cause odours
in the appliance.
–
1
1.0
My Time
Dry
Dry items made from synthetic fabrics.
Programme with adjustable programme dura-
tion.
–
1
6.0
Super Quick
15'/Wash &
Dry 60'
Wash and dry items made from cotton, linen
or synthetic fabrics.
Short programme for small items of lightly
soiled laundry.
Note: If you only want to wash the laundry and
not dry it, press Drying Target.
Programme setting:
Max. 40 °C
Max. 1200rpm
2.0 1.0
Accessories10 Accessories
Use original accessories. These have been made especially for your appliance.
Tip: Some accessories are available in other colours. Contact customer ser-
vice.
Page41
Use Order num-
ber
Water inlet hose ex-
tension
Extend the water inlet hose for cold water
or AquaStop (approx. 2.50 m).
WMZ2381
Water outlet hose
extension
Extend the water outlet hose (2.20m). 11057910
1
Washing not possible
23
en Laundry
Use Order num-
ber
Fixing brackets Improves the stability of the appliance. WMZ2200
Elbow Secure the water outlet hose in place. 00655300
Platform Install the appliance at a raised height so
that it can be easily loaded and unloaded.
WMZPW20W
Laundry11 Laundry
11.1 Preparing the laundry
WARNING
Risk of explosion!
Fillings made of polyamide, polyes-
ter, polyethylene, polypropylene or
polystyrene can leak out of openings
in items of laundry, melt during the
drying process and cause an explo-
sion in the appliance.
Do not dry items of laundry with
fillings made of polyamide, polyes-
ter, polyethylene, polypropylene or
polystyrene in the appliance.
ATTENTION
Objects remaining in the laundry may
damage the laundry and the drum.
Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are protec-
ted when you prepare your laundry.
Brush off sand and soil
Sort the laundry according to col-
our and textiles and observe the
care labels
Close all zips, hook and loop
fasteners, hooks and eyes
Tie cloth belts, cloth straps and
cords together
Remove curtain fittings and lead
strips
Wash small or particularly delicate
items in a mesh washing bag
Wash large and small items of
laundry together
Wash laundry with fresh stains im-
mediately
Pretreat laundry with dried stains
and wash several times
Load the laundry unfolded into the
drum
Spin the laundry before drying
Before loading the drum, any laun-
dry that has been pre-treated with
chlorine bleach should be rinsed
several times
11.2 Care symbols on the care
labels
Washing care symbols
Symbol Recommended pro-
gramme
Cottons (normal)
Easy Care (gentle)
Delicates/Silk for washing
by hand (particularly
gentle)
Woollens (hand wash)
(not suitable for machine-
washing)
Drying care symbols
Symbol Fabrics
Items made from cotton
and linen, e.g. towels, bed
linen, underwear
24
Detergents and care products en
Symbol Fabrics
Items made from synthetic,
blended or delicate fab-
rics, e.g. functional gar-
ments, shirts
Do not tumble dry items
made from silk, nylon, air-
impermeable and rubber-
coated fabrics, synthetic
curtains
Detergents and care products12 Detergents and care
products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
When using liquid detergents, only
use liquid detergents that are self-
flowing
Do not mix different liquid deter-
gents
Do not mix detergent and fabric
softener
Do not use products that have ex-
pired or are highly congealed
Do not use products containing
solvents, caustic agents or volatile
substances
Do not use chlorine bleach
Do not use dyes regularly as fixing
salt can damage stainless steel
Do not use color-bleaching agents
in the appliance
Basic operation13 Basic operation
13.1 Switching on the appli-
ance
Requirement: The appliance has
been correctly installed and connec-
ted.
Page10
Turn the programme selector to a
programme.
Note: The lighting for the drum goes
out automatically.
13.2 Setting a programme
1.
Turn the programme selector and
set the required programme.
Page20
2.
If required, adjust the programme
settings.
Page19
The programme settings are not
saved permanently for the pro-
gramme.
13.3 Opening the door
1.
Grip under the door handle and
pull on the door.
25

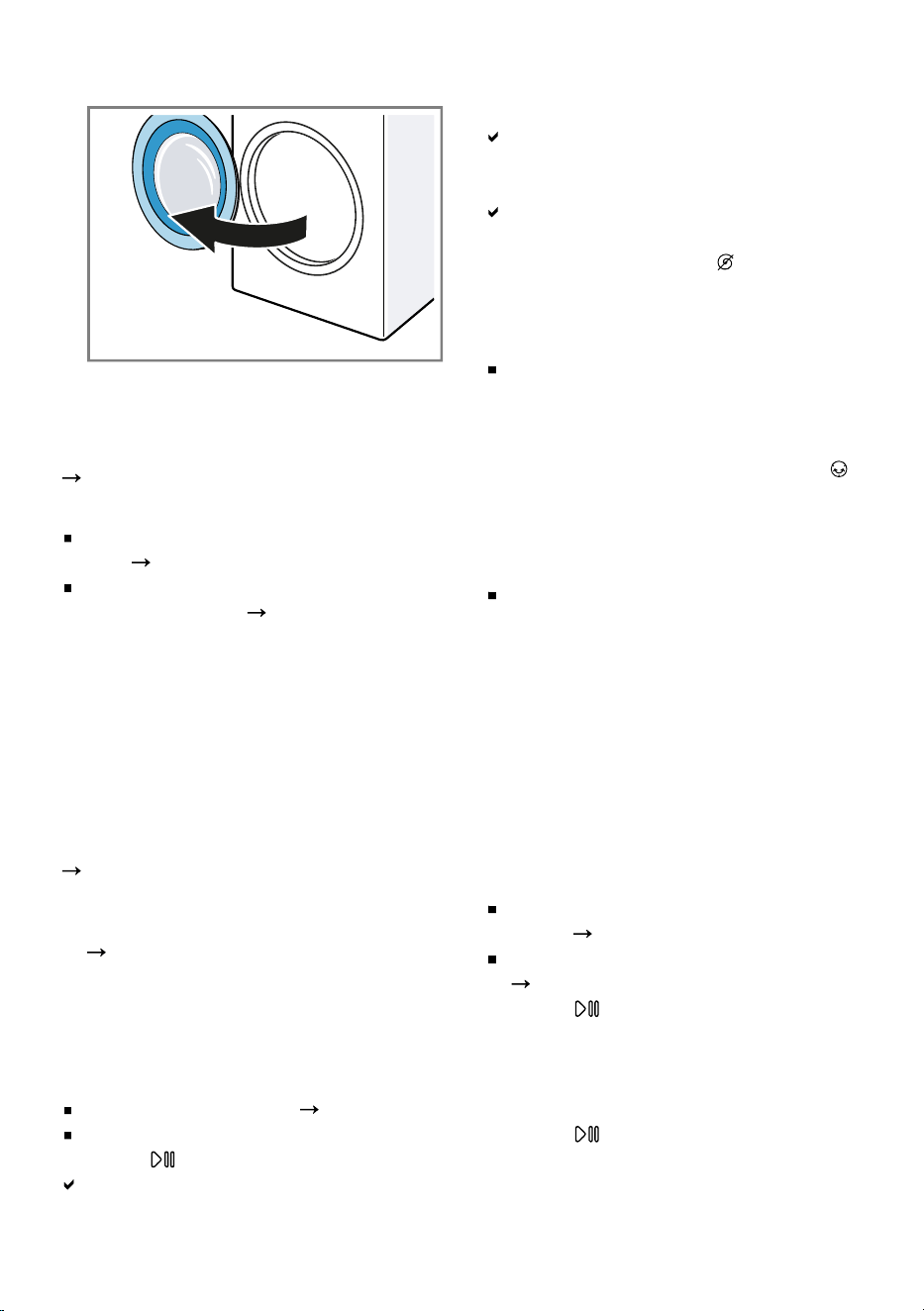

en Basic operation
2.
Open the door.
13.4 Loading laundry
Note: To prevent creasing, note the
maximum load for the programmes.
Page20
Requirements
The laundry is prepared and sor-
ted.
Page24
The drum is empty.
1.
Open the door.
Page25
2.
Place the laundry in the drum.
3.
Close the door.
Ensure that there is no laundry
trapped in the door.
13.5 Adding detergent and
care product
Note: Observe the information about
detergents and care products
Page25
.
1.
Pull out the detergent drawer.
2.
Pour in the detergent.
"Detergent drawer", Page16
3.
If required, add the care product.
4.
Push in the detergent drawer.
13.6 Starting the programme
Requirements
A programme is set.
Page25
The door is closed.
1.
Press Start/ Reload.
The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
The display shows the programme
duration or the programme end
time.
After the programme has ended,
the display shows: End.
2.
If the display shows , the laundry
is not spun. The water is pumped
out after the rinse cycle.
Notes
If you do not remove the laundry
once the programme has ended,
the crease-reduction function starts
after 15 minutes and takes approx.
30 minutes. The display shows .
Press any button on the display to
cancel the crease-reduction pro-
gramme and to remove the laun-
dry.
When "Hot" is shown on the dis-
play, the appliance cools the laun-
dry.
When "Hot" goes out, the laundry
has cooled down.
13.7 Soaking laundry
Note: No additional detergent is re-
quired for soaking. The appliance
uses the filled detergent for soaking
and washing.
Requirements
The laundry is placed in the appli-
ance.
Page26
A programme has started.
Page26
1.
Press Start/ Reload approx.
10minutes after the programme
start.
The programme pauses and the
laundry can soak.
2.
Press Start/ Reload after the re-
quired soaking time.
26
Dryness level en
13.8 Adding laundry
After the programme starts, you can
remove or add laundry depending on
the programme status.
1.
Press Start/ Reload.
During the washing cycle, the ap-
pliance pauses.
Page17
During the drying cycle, the appli-
ance checks whether it is possible
to add laundry.
Note: If you want to add laundry,
follow the instructions on the dis-
play.
Page19
2.
Open the door.
Page25
3.
Add or remove laundry.
4.
Close the door.
5.
Start the programme.
Page26
13.9 Cancelling the washing
programme
1.
Press Start/ Reload.
2.
Open the door.
Page25
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Rinse programme.
– If the water level is high, start
the Spin programme or select
a suitable programme for drain-
ing.
Page20
3.
Remove the laundry.
Page27
13.10 Cancelling the drying
programme
Turn the programme selector to
set any other programme.
The door lock opens automatically
after a cooling period of a few
minutes.
13.11 Resuming the pro-
gramme when the pro-
gramme status is Rinse
Hold
Requirements
Rinse Stop is activated.
The last rinse cycle of the set pro-
gramme has ended and the laun-
dry is in the rinsing water.
1.
Set the Spin programme or a pro-
gramme for draining the water.
Page20
2.
Press Start/ Reload.
13.12 Unloading the laundry
1.
Open the door.
Page25
2.
Remove the laundry from the
drum.
13.13 Switching off the appli-
ance
1.
Turn the programme selector to
Off.
2.
Turn off the tap.
3.
Cleaning the rubber gasket.
Page33
Note: Leave the appliance door and
the detergent drawer open to dry.
Dryness level14 Dryness level
In some programmes, a dryness
level is predefined. The dryness level
defines how dry or damp your laun-
dry is after the programme ends.
Dryness
level
Description
For multi-layered,
thick laundry that
does not dry readily.
For normal, single-
layered laundry.
27
en Childproof lock
Dryness
level
Description
For normal, single-
layered laundry.
The laundry is still
slightly damp after the
programme ends. To
prevent creasing after
drying, iron the laun-
dry or hang it up.
14.1 Changing the dryness
level
For some programmes, you can
change the dryness level so that your
laundry will be drier or more damp.
1.
Set a washing and drying pro-
gramme or a drying programme.
Page20
The display shows the specified
dryness level.
2.
Press Drying Target repeatedly
until the display shows your re-
quired dryness level.
Childproof lock15 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
15.1 Activating the childproof
lock
Press on both Reduced
Ironingand Finished in/ Time
Drybuttons for approx. 3seconds.
The display shows .
The control elements are locked.
The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
15.2 Deactivating the child-
proof lock
Requirement: To deactivate the
childproof lock, the appliance must
be switched on.
Press on both Reduced
Ironingand Finished in/ Time
Drybuttons for approx. three
seconds.
So that the programme currently
running is not cancelled, the pro-
gramme selector must be set to
the initial programme.
goes out on the display.
Basic settings16 Basic settings
You can configure the basic settings
for your appliance to meet your
needs.
16.1 Overview of the basic set-
tings
1
2
3
4
5
Programme selector with programme po-
sitions
No basic setting.
Set the volume of the signal at
the end of the programme:
0 (off) to 4 (very loud)
28
Cleaning and servicing en
Set the volume of the signal
tone emitted when the buttons
are pressed:
0 (off) to 4 (very loud)
Activate (On) or deactivate
(OFF) the reminder to clean the
drum.
Display the number of finished
programmes.
16.2 Changing the basic set-
tings
1.
Set the programme selector to po-
sition 1.
Page28
2.
Press Spin Speedand, at the
same time, turn the programme
selector to position2.
The display shows the current
value.
3.
Use the programme selector to se-
lect the required basic setting.
Page28
4.
To change the value, press
Finished in/ Time Dry.
5.
To save the changes, switch off
the appliance.
Cleaning and servicing17 Cleaning and servi-
cing
17.1 Cleaning the drum and
cleaning fluff
Clean the drum if you have carried
out 20 washing cycles at a temperat-
ure of 40°C or lower, if flashes, or
if you have not used the appliance
for a prolonged period, but at least
once a year. Also clean the drum if
you find fluff on the laundry after dry-
ing.
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
Run the Cottons 90° programme
without laundry but with washing
powder that contains oxygen
bleach or a cleaning agent for
caring for the inside of the appli-
ance.
Note: If you only want to clean
fluff, you can do this without wash-
ing powder or cleaning agent.
17.2 Cleaning the detergent
drawer
Note: Scan the QR code to see an
animation of the process.
1.
Pull out the detergent drawer.
29

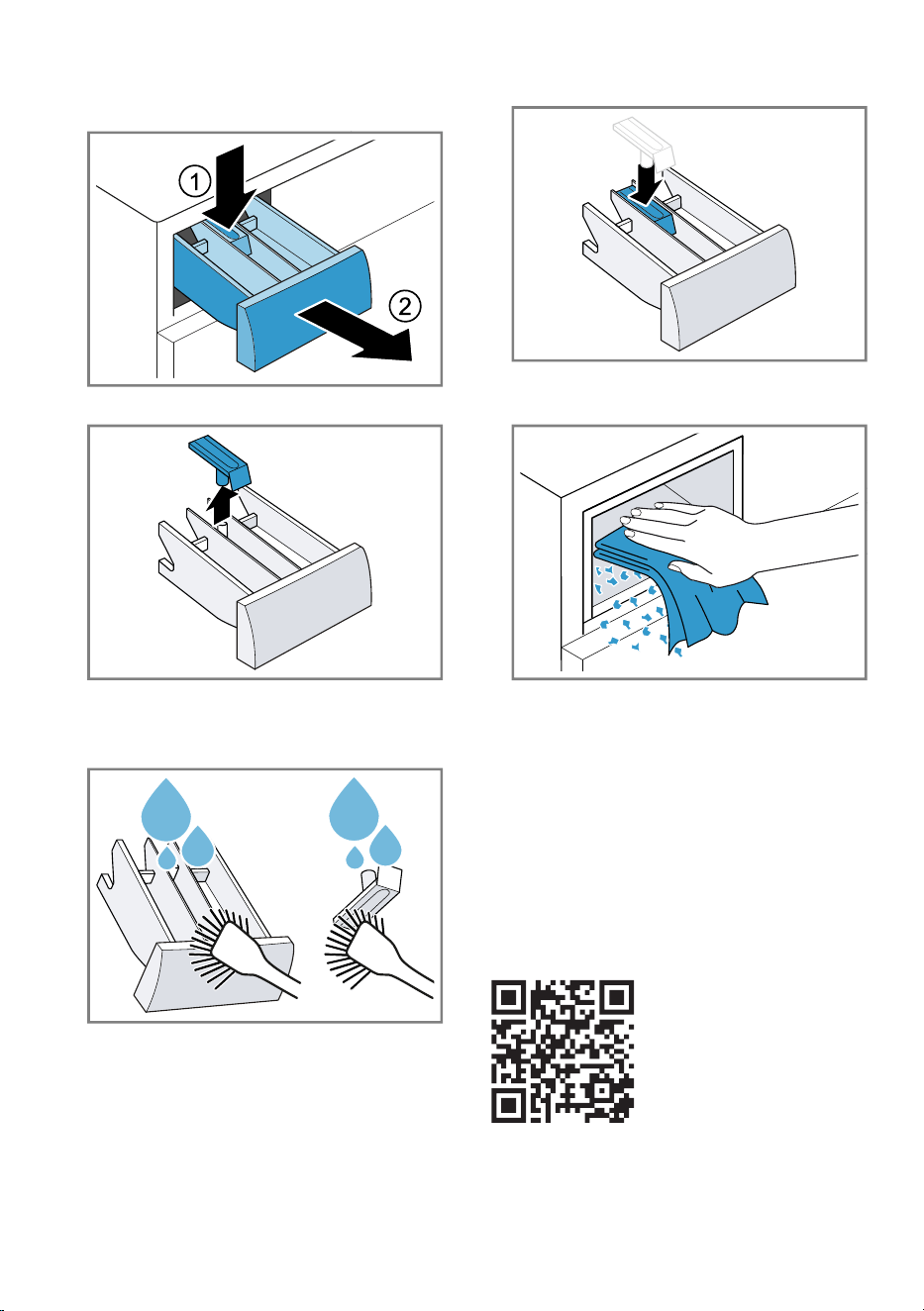

en Cleaning and servicing
2.
Press down on the insert and re-
move the detergent drawer.
3.
Pull out the insert upwards.
4.
Clean the detergent drawer and in-
sert with water and a brush, and
then dry them.
5.
Fit the insert and click it into place.
6.
Clean the opening for the deter-
gent drawer.
7.
Push in the detergent drawer.
17.3 Cleaning the drain pump
Clean the drain pump regularly, at
least once a year, as well as in the
event of faults, e.g. blockages or rat-
tling noises.
Note: Scan the QR code to see an
animation of the process.
Observe the following safety instruc-
tions before you start the animation.
Emptying the drain pump
1.
Turn off the tap.
30

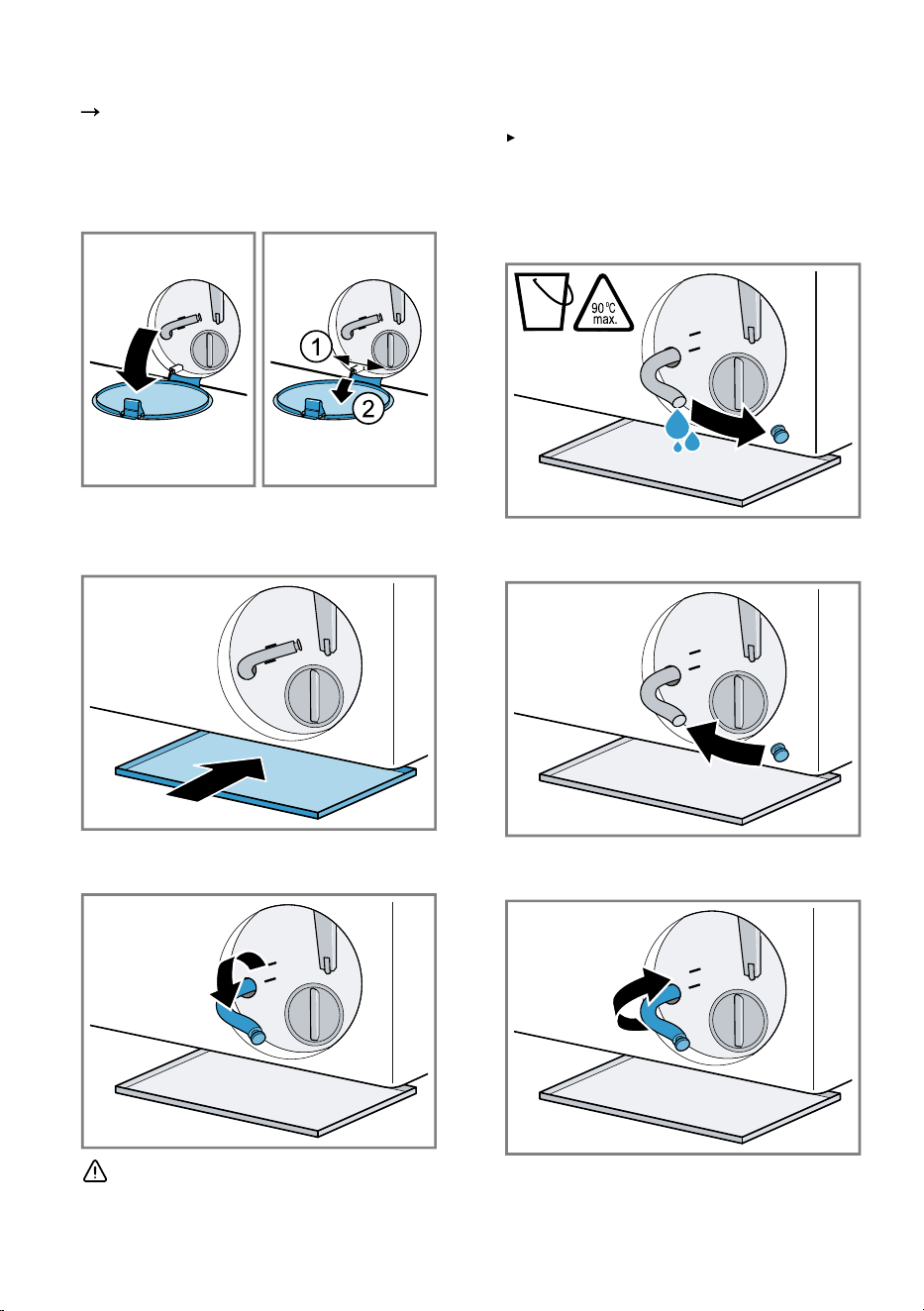

Cleaning and servicing en
2.
Switch off the appliance.
Page27
3.
Disconnect the appliance's mains
plug from the power supply.
4.
Open and remove the mainten-
ance flap.
5.
Slide a suitable receptacle under
the opening for draining the deter-
gent solution.
6.
Take the drain hose out of the
holder.
7.
CAUTION‒Risk ofscalding!
When you wash at high temperat-
ures, the detergent solution gets
hot.
Do not touch the hot detergent
solution.
To allow the detergent solution to
flow out into the container, remove
the sealing cap.
8.
Once emptied, press firmly on the
locking cap.
9.
Insert the drain hose into the
holder.
31
en Cleaning and servicing
Cleaning the drain pump
Requirement: The drain pump is
empty.
Page30
1.
Since water may remain in the
drain pump, unscrew the pump
cap carefully.
The filter insert in the pump
housing may become stuck due
to coarse particles of dirt.
Loosen the dirt and remove the
filter insert.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
2.
Clean the interior, the thread on
the pump cap and the pump hous-
ing.
3.
Ensure that both impellers can
turn.
4.
Insert the pump cap.
Ensure that the parts of the
pump cap are correctly as-
sembled.
32

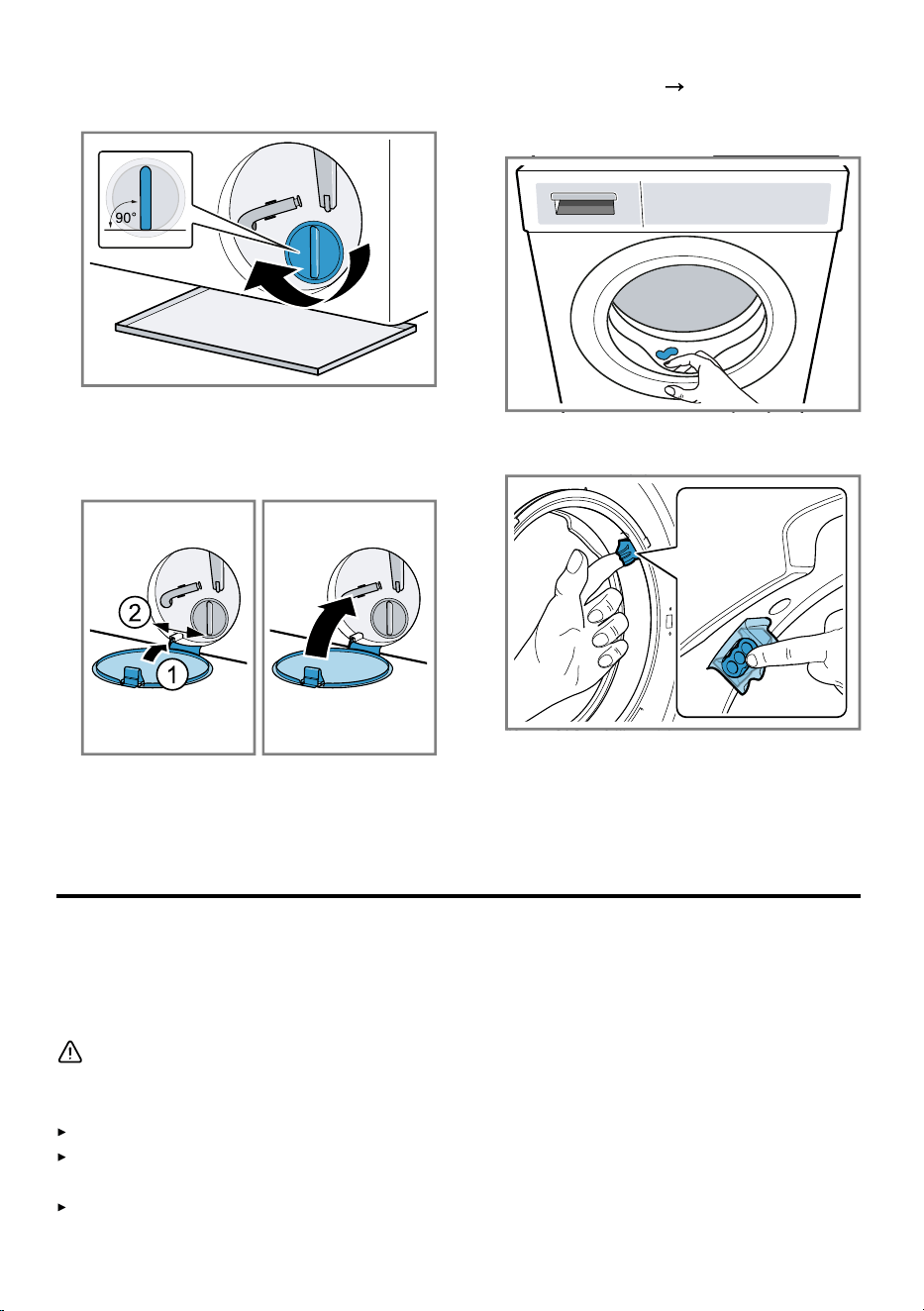

Troubleshooting en
5.
Screw the pump cap as far as it
will go.
The handle on the pump cap must
be in a vertical position.
6.
Insert and close the maintenance
flap.
17.4 Cleaning the rubber gas-
ket
Clean the rubber gasket regularly.
1.
Open the door.
Page25
2.
Remove any foreign objects and
fluff from the rubber gasket.
3.
Remove any blockages from the
intake opening.
4.
Clean the outside and the inside of
the rubber gasket with a damp
cloth and wipe dry.
Troubleshooting18 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
Never make any technical modifications to the appliance or its features.
Repairs to the appliance should only be carried out by trained specialist
staff.
Only use genuine spare parts when repairing the appliance.
33
en Troubleshooting
If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and （ Start/ Re-
load） flashes.
Energy-saving mode is active
Press Start/ Reload.
E:36 -10 / E:30 -80 /
E:18
The detergent solution
is not being pumped
out.
The water outlet hose is connected too high, is kinked
or trapped, or has been extended impermissibly.
Check the installation of the water outlet hose.
Page13
Drain pipe or water outlet hose is blocked.
Clean the drain pipe and the water outlet hose.
The drain pump is blocked or the pump cover is not in-
stalled correctly.
Check that the pump cover is installed correctly.
Page30
Clean the drain pump.
Page30
Detergent dosage is too high.
Reduce the amount of detergent for the next wash-
ing cycle with the same load.
E:36 -25 -26 Drain pump is blocked.
Clean the drain pump.
Page30
E:60 -2B / E:32 /
H:32
The appliance has interrupted the spin cycle because
the laundry is unevenly distributed.
Redistribute the laundry in the drum.
E:30 -10 / H:95 / The tap is turned off.
Turn on the tap.
The water inlet hose is kinked or jammed.
Check the installation of the water inlet hose.
Page13
The filters in the water inflow are blocked.
Clean the filters in the water inflow.
Scan the QR code to see an animation of the pro-
cess.
The water pressure is low.
Check whether the tap has sufficient water pressure.
34
Troubleshooting en
Fault Cause and troubleshooting
E:30 -10 / H:95 / The water level measuring system is defective.
With this error message, the appliance starts a draining
process.
1.
Wait approx. 5 minutes until the draining process
ends.
2.
Restart the appliance.
If required, start the draining process again.
3.
If the fault persists, call customer service.
Page41
E:30 -20 Critical malfunction.
Turn off the water tap.
With this error message, the appliance starts a draining
process.
1.
Wait approx. 5 minutes until the draining process
ends.
2.
Restart the appliance.
If required, start the draining process again.
3.
If the fault persists, call customer service.
Page41
Detergent dosage is too high.
Reduce the amount of detergent for the next wash-
ing cycle with the same load.
Additional water has been added.
Do not add any extra water to the appliance while it
is operating.
All other error codes. Malfunction
1.
Restart the appliance.
2.
If the fault occurs again, disconnect the appliance
from the power supply for at least 30 seconds.
Unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
3.
If the fault persists, call customer service.
Page41
Please specify the exact error message when call-
ing. If possible, document the fault with photos and
videos.
Heavy foam build-up. Detergent dosage is too high.
Mix one tablespoon of fabric softener with 0.5 litres
of water and pour the mixture into compartment II
(not for outdoor clothing, sportswear or items stuffed
with down).
Reduce the amount of detergent for the next wash-
ing cycle with the same load.
35
en Troubleshooting
Fault Cause and troubleshooting
flashes. The door is not completely closed.
1.
Ensure that there is no laundry trapped in the door.
2.
Close the door.
Drum cleaning is required.
Clean the drum.
Page29
"Hot" and the drum ro-
tates.
Not a fault. The cooling process is active.
No action required.
Note: Do not change the programme during the cool-
ing process. The cooling process takes up to 10
minutes.
The programme does
not start.
Childproof lock is activated.
Deactivate the childproof lock.
Page28
Finished in/ Time Dry is activated.
Check whether Finished in/ Time Dry is activated.
Page20
The programme is
paused or has been
interrupted, but the
door will not open.
The temperature is too high.
Start the Rinse programme or wait until the temper-
ature has dropped.
Water level is too high.
Start the Spin programme or a suitable draining
programme.
Page20
The door cannot be
opened due to a
power cut.
The door is locked.
Open the door using the emergency release.
Page39
Drum jerks after the
programme starts.
Not a fault. An internal motor test is started.
No action required.
Drum rotates, water
does not flow in.
Not a fault. Load detection is active for up to 2
minutes.
No action required.
No water is visible in
the drum.
Not a fault. Water is below the visible area.
No action required.
The spin cycle runs
several times.
Not a fault. The appliance eliminates an imbalance by
repeatedly redistributing the laundry.
No action required.
The appliance is vi-
brating, 'wandering'
and making loud
noises during the spin
cycle.
Appliance is not correctly aligned.
Align the appliance.
Page14
The appliance feet are not fixed.
Secure the appliance's feet.
Page14
Transit bolts have not been removed.
Remove the transit bolts.
36
Troubleshooting en
Fault Cause and troubleshooting
High spin speed not
reached.
Reduced Ironing is activated.
Select a programme that is suitable for the type of
fabric.
Page20
The appliance is using a reduced spin speed to elimin-
ate an imbalance.
No action required.
The programme dura-
tion changes during
the wash cycle.
Not a fault. The programme sequence is optimised
electronically, another rinse cycle is switched on due to
heavy foam build-up, or an imbalance is eliminated.
No action required.
The drying time is too
long.
The ambient temperature is higher than 30°C.
Ensure that the ambient temperature is below 30 °C.
The air circulation at the appliance's installation loca-
tion is insufficient.
Ventilate the appliance's installation location.
Fluff has accumulated in the drum.
Start the Cottons 90° programme without any laun-
dry or detergent.
Water intake during
the drying phase.
Not a fault. The drying phase requires water.
No action required.
Spinning during the
drying phase.
Not a fault. Thermal spinning is active.
No action required.
Whooshing, hissing,
whirring or sucking
noises.
Not a fault. Water is pumped in, the process fan is act-
ive, or detergent solution is pumped out.
No action required.
Banging noises, rat-
tling in the drain
pump.
A foreign object is in the drain pump.
Clean the drain pump.
Page30
There are detergent
residues on the laun-
dry.
Detergents may contain water-insoluble substances
that deposit on the laundry.
Start the Rinse programme or brush out the laundry
after drying.
Fluff on the laundry. Fluff has accumulated in the drum.
Start the Cottons 90° programme without any laun-
dry or detergent.
The laundry is too wet
after the spinning
cycle.
A low spin speed is selected.
Start the Spin programme.
The next time you run a wash cycle, set a higher
spin speed.
37
en Troubleshooting
Fault Cause and troubleshooting
The laundry is too wet
after the spinning
cycle.
The appliance is using a reduced spin speed to elimin-
ate an imbalance.
1.
Redistribute the laundry in the drum.
2.
Start the Spin programme.
Reduced Ironing is activated.
Set a suitable programme.
Page20
The laundry is too
damp.
The selected programme is unsuitable for the type of
fabric.
Set a suitable programme for subsequent drying.
Page20
The load is too large.
Observe the programme's maximum load capacity.
Page20
After the end of the programme, warm laundry feels
damper than it actually is.
1.
Remove the laundry from the drum as soon as the
drying programme has finished.
2.
Spread the items of laundry for cooling.
The selected dryness level is unsuitable.
Change the dryness level.
Page28
The load is too small.
Set a suitable programme for subsequent drying.
Page20
The laundry has not been spun sufficiently.
Always select the highest possible spin speed for
the washing programme in question.
Creasing. The selected programme is unsuitable for the type of
fabric.
Set a suitable programme.
Page20
A high spin speed is selected.
The next time you run a wash cycle, set a lower spin
speed.
The load is unsuitable.
Observe the programme's maximum load capacity.
Page20
Prepare the laundry.
Page24
The laundry lies in the drum for too long after drying.
1.
Remove the laundry from the drum as soon as the
drying programme has finished.
2.
Spread the items of laundry for cooling.
38
Troubleshooting en
Fault Cause and troubleshooting
Creasing. Easy Care fabrics have been dried for too long.
Change the dryness level.
Page28
Water is leaking out at
the water inlet hose.
The water inlet hose is not correctly connected or is
damaged.
Check the installation of the water inlet hose.
Page10
Replace the water inlet hose if it is damaged.
Water is leaking out at
the water outlet hose.
The water outlet hose is not connected correctly or is
damaged.
Check the installation of the water outlet hose.
Page10
Replace the water outlet hose if it is damaged.
Water is leaking from
below the door.
Dirt on the door or seal causes leaks.
Clean the door and the seal.
Detergent or fabric
softener drips off the
seal and collects on
the door or in the seal
fold.
There is too much detergent or fabric softener in the
detergent drawer.
When dosing, observe the marking in the detergent
drawer.
Page26
Residual water is
present in the com-
partment .
Insert in compartment is blocked.
Clean the detergent drawer.
Page29
Fabric softener re-
mains in the detergent
drawer.
The use of fabric softener is not supported for the se-
lected programme.
Check whether the use of fabric softener is suppor-
ted for the selected programme.
Page20
Odours have formed
in the appliance.
Humidity and detergent residue may promote the form-
ation of bacteria.
Clean the drum.
Page29
If you are not using the appliance, leave the door
and detergent drawer open so that residual water
can evaporate.
18.1 Emergency release
Releasing the door
Requirement: The drain pump is
empty.
Page30
1.
ATTENTION‒Escaping water
may cause material damage.
Do not open the door if you can
see water through the glass.
39

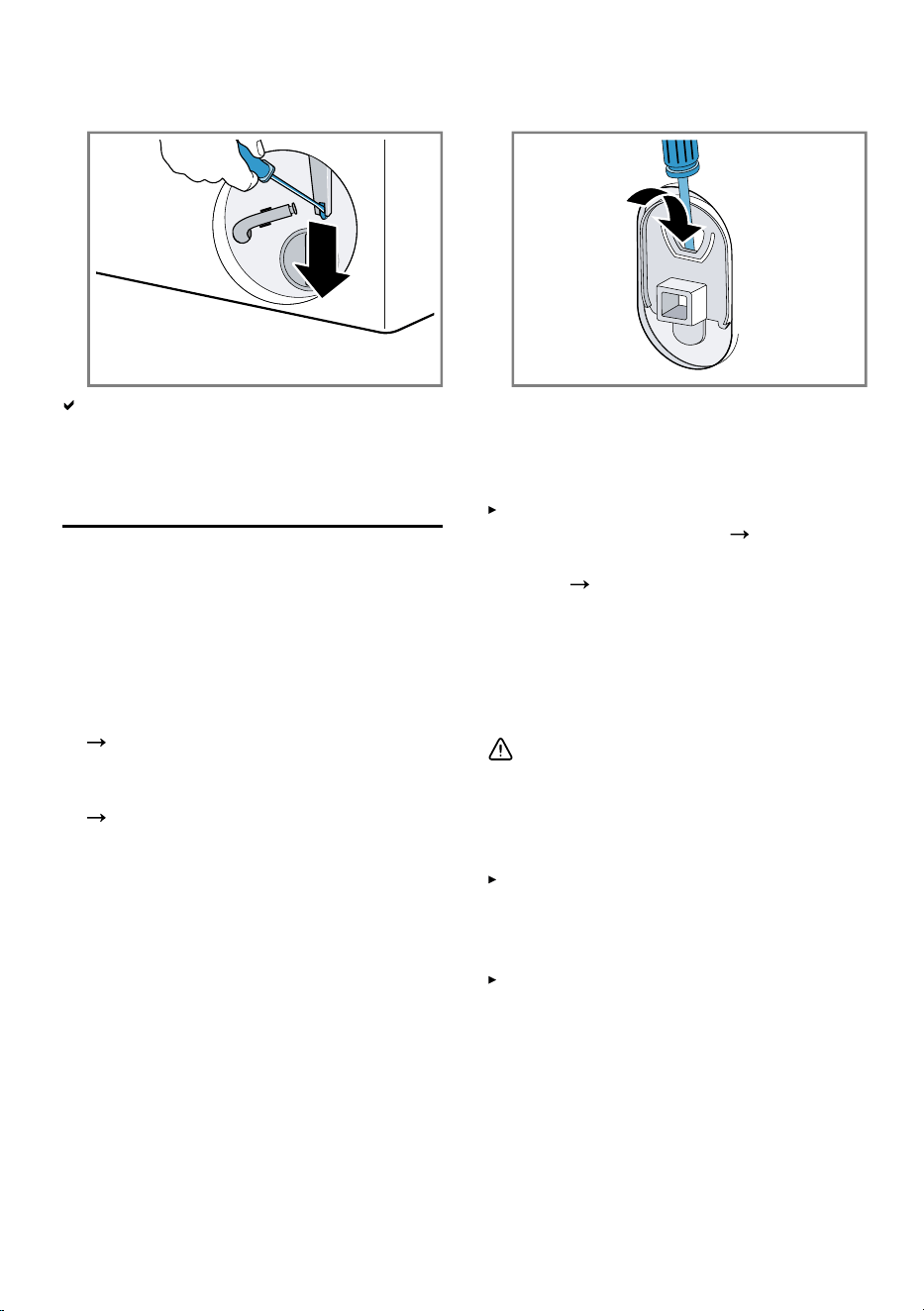

en Transportation, storage and disposal
Pull the emergency unlock down-
wards with a tool and release.
The door lock is released.
2.
Insert the maintenance flap and
lock it into place.
3.
Close the service flap.
Transportation, storage and disposal19 Transportation, stor-
age and disposal
19.1 Removing the appliance
1.
Turn off the tap.
2.
Empty the water inlet hose.
3.
Switch off the appliance.
Page27
4.
Unplug the appliance's mains plug.
5.
Drain the water.
"Cleaning the drain pump",
Page30
6.
Detach the hoses.
19.2 Inserting the transit bolts
Secure the appliance before trans-
portation using transit bolts in order
to prevent transport damage.
1.
Use a screwdriver to remove the 4
cover caps.
Keep the cover caps.
2.
Insert the 4 transit bolts.
19.3 Using the appliance again
For further information, see Install-
ation and connection
Page10
and Starting an empty washing
cycle
Page15
.
19.4 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1.
Unplug the appliance from the
mains.
40
Customer Service en
2.
Cut through the power cord.
3.
Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is labelled
in accordance with
European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines
the framework for the re-
turn and recycling of
used appliances as ap-
plicable throughout the
EU.
Customer Service20 Customer Service
Function-relevant genuine spare parts
according to the corresponding Eco-
design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on
which your appliance was placed on
the market within the European Eco-
nomic Area.
Note: Under the terms of the manu-
facturer's warranty the use of Cus-
tomer Service is free of charge.
Detailed information about the war-
ranty period and the warranty condi-
tions in your country is available via
the QR code on the enclosed docu-
ment on service contacts and war-
ranty conditions, from our customer
service or on our website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
You can find the contact details for
our customer service via the QR
code on the enclosed document on
service contacts and warranty condi-
tions or on our website.
20.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
On the inside of the door.
On the inside of the maintenance
flap.
On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
Consumption values21 Consumption values
The following information is provided in accordance with the EU Ecodesign
Regulation. The values specified for programmes other than Eco 40-60 are
only given as a guide and were determined in accordance with the applicable
standards EN60456 and EN62512.
41
en Technical data
Programme Load
(kg)
Pro-
gramm
e dura-
tion
(h:min)
1
Energy
con-
sump-
tion
(kWh/
cycle)
1
Water
con-
sump-
tion (l/
cycle)
1
Max-
imum
temper-
ature
(°C) 5
mins
1
Spin
speed
(rpm)
1
Resid-
ual
mois-
ture
(%)
1
Eco 40-60
2
10.5 3:59 1.110 78.0 41 1400 53.00
Eco 40-60
2
5.3 2:59 0.440 52.0 28 1400 53.00
Eco 40-60
2
2.5 2:25 0.200 37 22 1400 53.00
Eco 40-60 +
Drying Tar-
get +
2
6.0 8:40 3.820 100.0 23 - -0.1
Eco 40-60 +
Drying Tar-
get +
2
3.0 5:00 1.920 55.0 21 - -0.1
Cottons
20°C
10.0 4:05 0.550 90.0 25 1400 50.00
Cottons
40°C
10.0 4:05 1.300 90.0 40 1400 50.00
Cottons
60°C
10.0 4:05 2.200 90.0 60 1400 50.00
Cottons
40°C +
Prewash
10.0 4:25 1.500 105.0 40 1400 50.00
Easy Care
40°C
4.0 2:35 0.900 68.0 43 1400 30.00
Mixed Load
40°C
4.0 1:10 0.750 50.0 41 1400 45.00
Wool
30°C
2.0 0:41 0.180 45.0 22 800 30.00
Technical data22 Technical data
Appliance height 84.8cm
Appliance width 59.8cm
Appliance depth 59.0cm
Appliance depth
with door closed
63.5cm
1
Due to the influence of water pressure, hardness and inlet temperature, ambient tem-
perature, type, amount and soiling of laundry, detergent used, fluctuations in the
power supply and the selected additional functions, the actual values may deviate
from the stated values.
2
Test programme in accordance with the EU Ecodesign Directive and the EU Energy
Labelling Regulation with cold water (15°C).
42
Technical data en
Appliance depth
with door open
107.2cm
Weight 79.3kg
Maximum load 10.5kg
Mains voltage 220-240V, 50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 1900-2300W
Power consump-
tion
Off mode: 0.50
W
Left-on mode:
0.50W
Water pressure Minimum:
100kPa (1bar)
Maximum:
1000kPa
(10bar)
Length of the wa-
ter inlet hose
150cm
Length of the wa-
ter outlet hose
150cm
Length of the
power cord
210cm
This product contains light sources
from energy efficiency class F. These
light sources are available as a spare
part and must only be replaced by
trained specialist staff.
More information about your model
can be found online at
https://
eprel.ec.europa.eu/qr/1297257
1
.
This web address is linked to the offi-
cial EU EPREL product database.
1
Only applies to countries in the European Economic Area
43
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service
directory.
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
*9001801567*
9001801567 (050714)
en
