User Guide
Contents
CONTENTS
Troubleshooting
Warranty
HOW IT WORKS
Shokz App & Shokz Connect
Headset Controls
ON/OFF
Pairing to Mobile Device
Pairing to PC
How to Wear
Music and Calls
Wireless Adapter
LED indicator
Check Battery Status
EQ Modes
Switching EQ Modes
EXTRA FEATURES
Restore Factory Settings
Charging Tips
CARE AND MAINTENANCE
24
04
05
07
06
08
10
12
14
15
16
18
19
20
22
23
01
CONTENTS
WHAT’S IN THE BOX
25
26
REGULATORY AND LEGAL INFORMATION
02
How It Works
03
Shokz App & Shokz
Connect
SHOKZ APP & SHOKZ CONNECT
Download the Shokz App for your phone and Shokz Connect for
your computer to get additional features, the latest updates, and
to get technical support.
Shokz Connect
*Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
and other countries. Google Play is a trademark of Google LLC.
04
HEADSET CONTROLS
05
USB-C Charging Port
Headset Controls
Multifunction Button
LED indicator
Answer/End Call
Mute/Unmute Microphone
ON/OFF
Power On:
Press and hold the Multifunction Button for 2 seconds until
the LED indicator flashes blue.
Power Off:
Press and hold the Multifunction Button for 3 seconds until
the LED indicator flashes red.
ON/OFF
06
OpenMeet by Shokz
Settings
BLUETOOTH
Operate controls with your headset powered off.

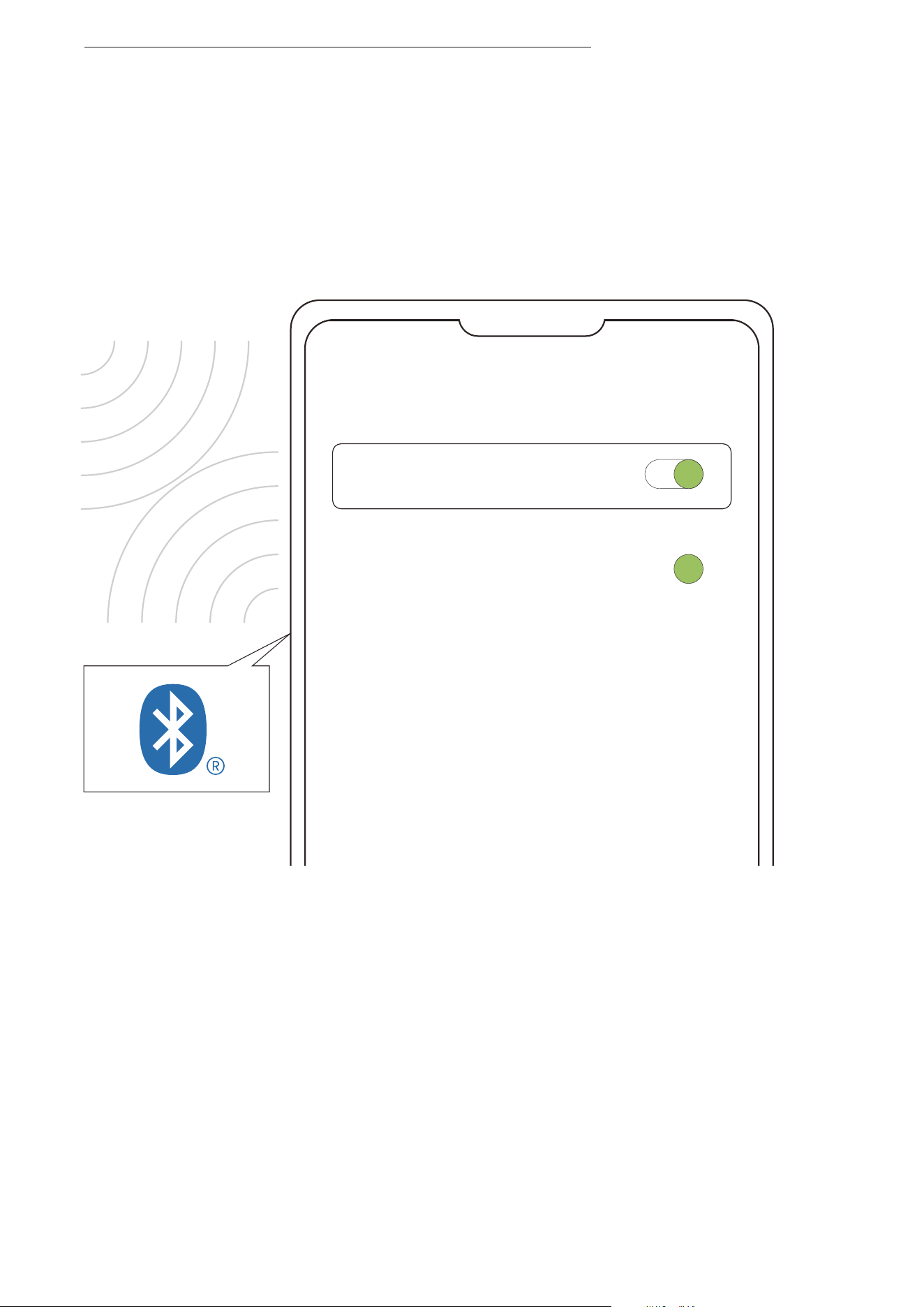

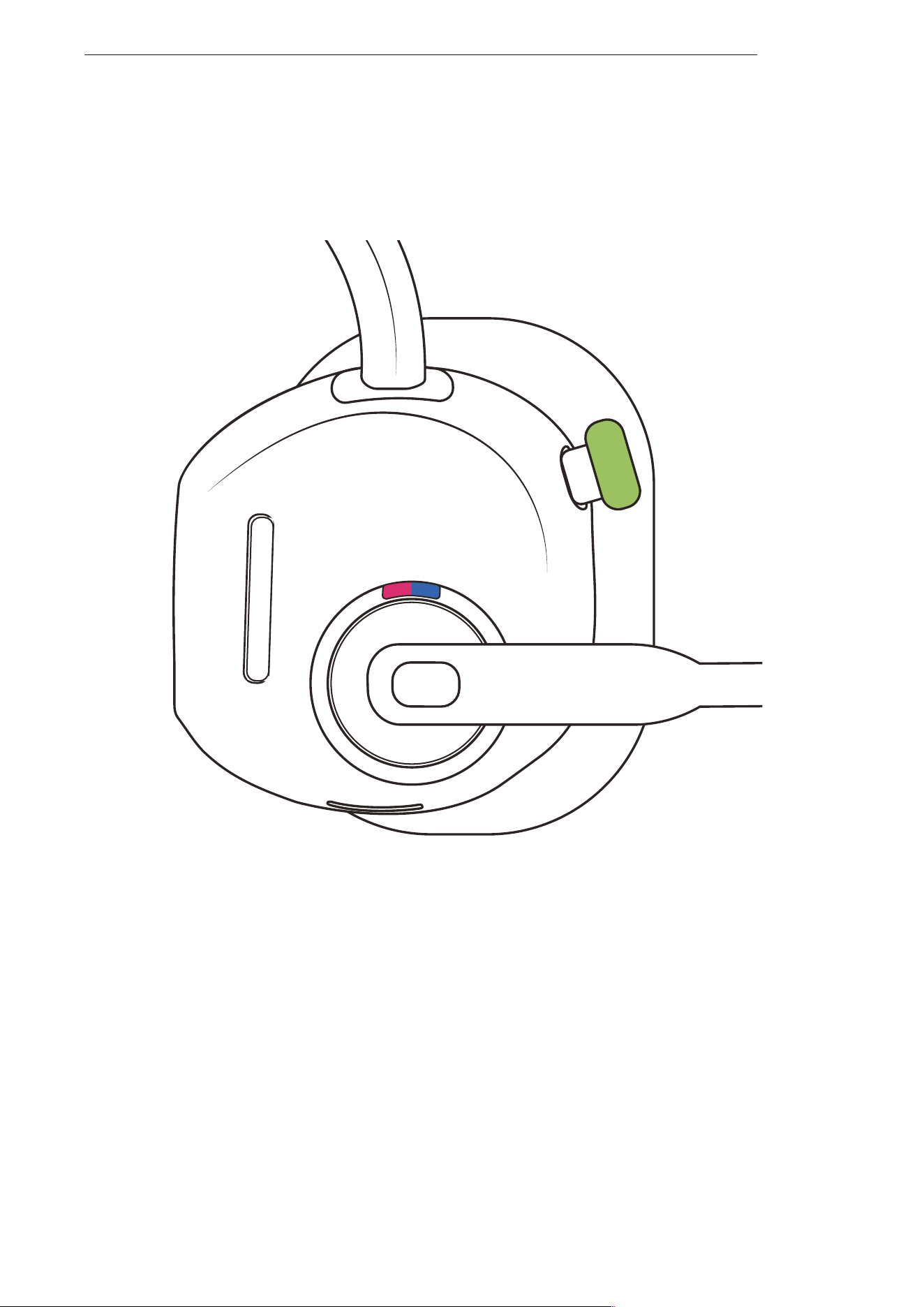

1. Start with your headset turned off.
2. Press and hold the Multifuction Button until the LED indicator
flashes red and blue alternately.
3. Select "OpenMeet by Shokz" on your device's Bluetooth
settings.
Pairing to Mobile Device
PAIRING TO MOBILE DEVICE
07
* Only the UC version is equipped with a wireless adapter. For non-UC
version, visit www.shokz.com to purchase wireless adapter if necessary.

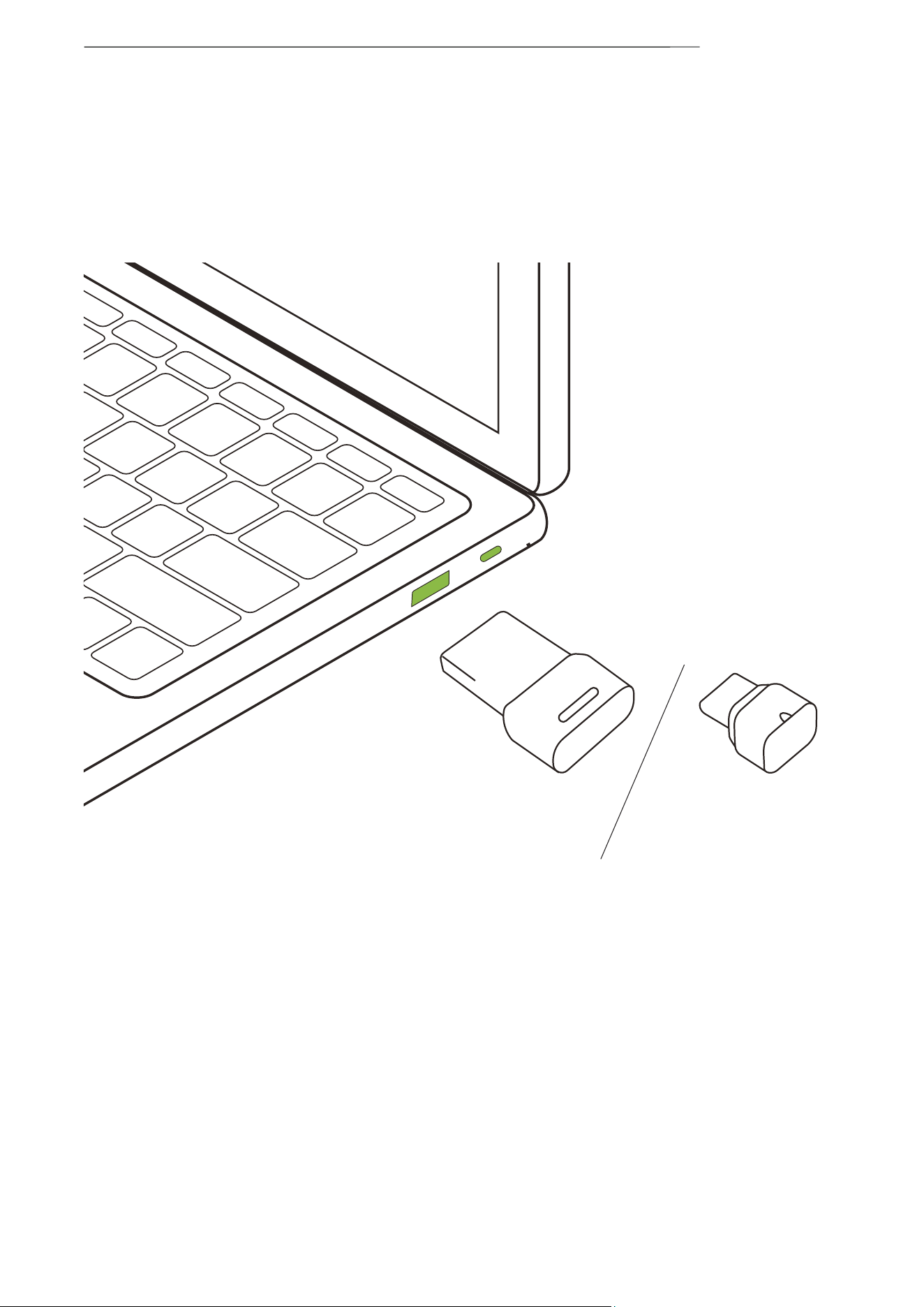

Pairing to PC
1. Start with your headset turned on.
2. Plug the included wireless adapter into a USB port on your PC.
3. Connection is established when the LED indicator on the USB
adapter is solid cyan.
Loop120
USB-C
Loop120
USB-A
PAIRING TO PC
08
Loop120 by Shokz
Connected
SELECT AUDIO DEVICE :
Configure
*To play music or take calls on the headset, please ensure the
“Loop120 by Shokz” is both identified as the default input and
output devices in your operating system’s audio settings.
PAIRING TO PC
09

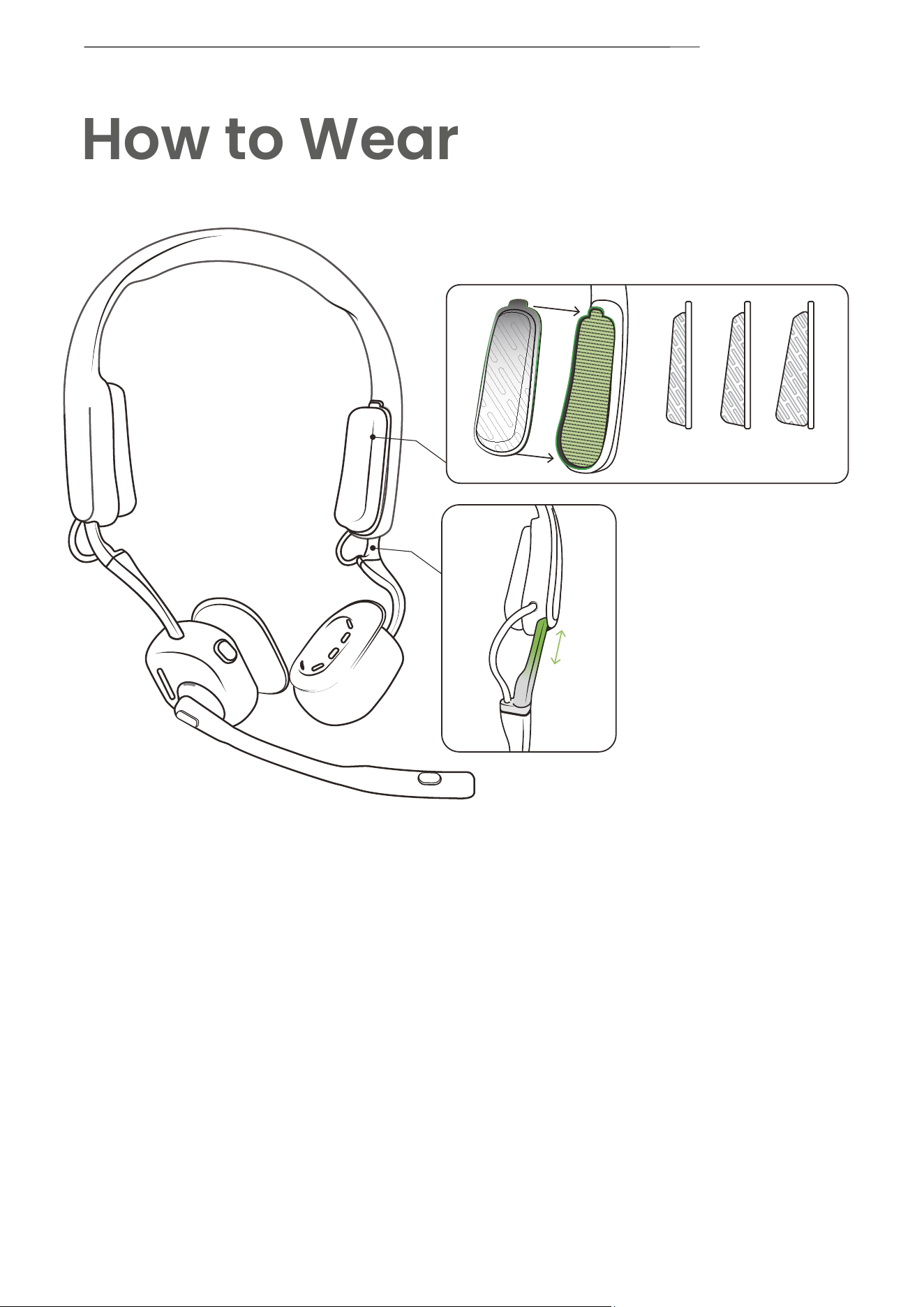

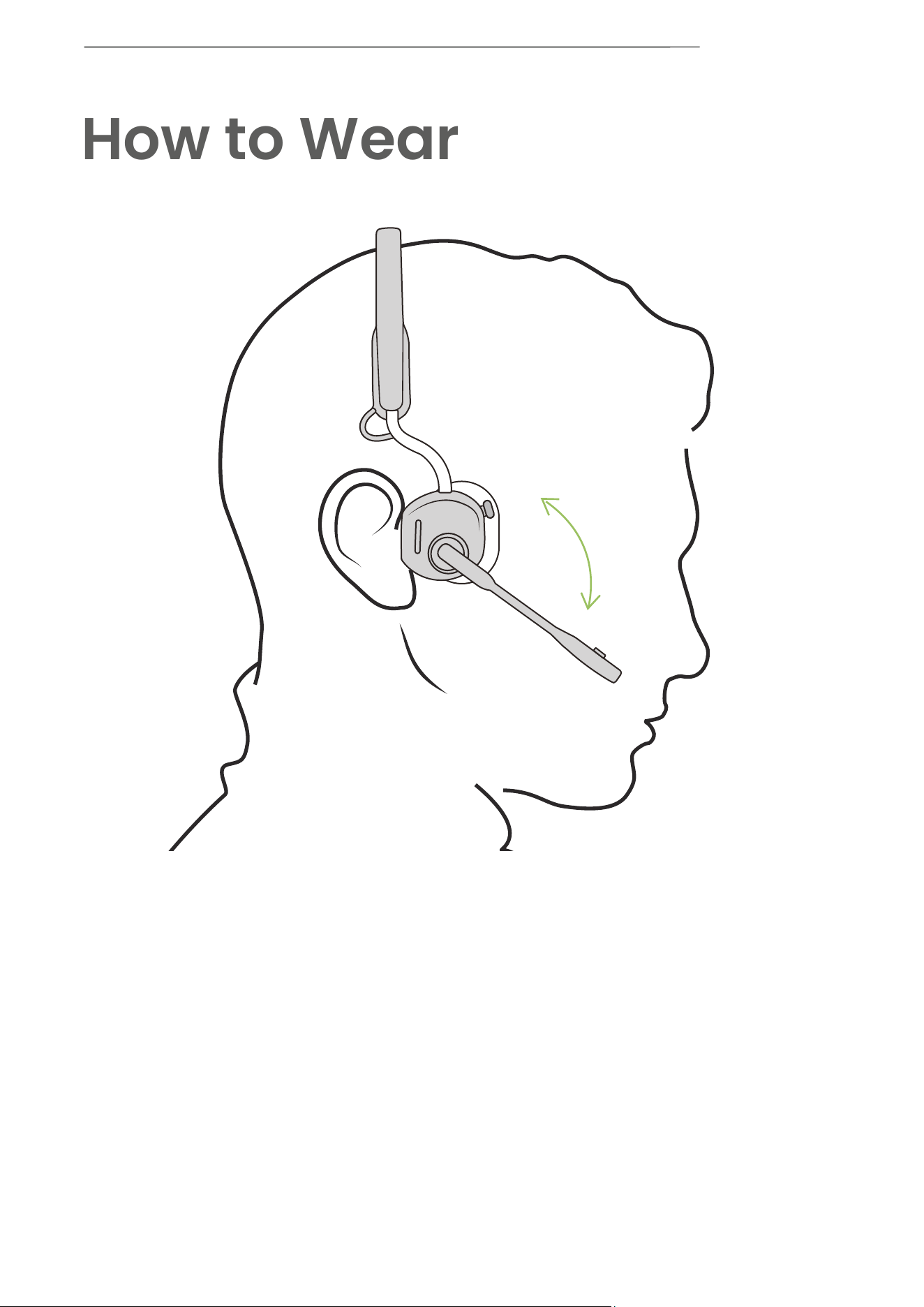

How to Wear
HOW TO WEAR
If necessary, replace the pressure relief cushions with a different
size for optimal comfort and fit.
S M L
10
1. Put the headset on your head with the earpieces placed in front
of your ears.
2. Adjust the size of the headpiece, so the headset fits comfortably.
3. Adjust the microphone to a position close to your mouth.
4. If necessary, replace the pressure relief cushions with a different
size for optimal comfort and fit.
How to Wear
HOW TO WEAR
11
MUSIC AND CALLS
Music and Calls
Adjust volume
When playing music, slide up to
increase the volume and slide down to
decrease the volume.
*A “beep” will sound when the volume is at its max.
Play/pause music
Click once while music is playing
Next song
Double-click while music is playing
Previous song
Triple-click while music is playing
*Listening with your headset at a high volume may
affect your hearing and the audio will be distorted.
12
Answer call
Click once when a call comes in
End call
Click once
Reject call
Double-click
Answer an incoming call and end the current call
Click once
Answer an incoming call and place the current on hold
Press for 2 seconds
Switch between two calls
Press for 2 seconds
End a call and switch to a call on hold
Click once
MUSIC AND CALLS
Music and Calls
13
Mute microphone
Click once when on a call
Unmute microphone
Click once when on a call
Activate voice assistant
Click once when NOT on a call
Switch EQ Modes
Press and hold for 3 seconds while music is playing

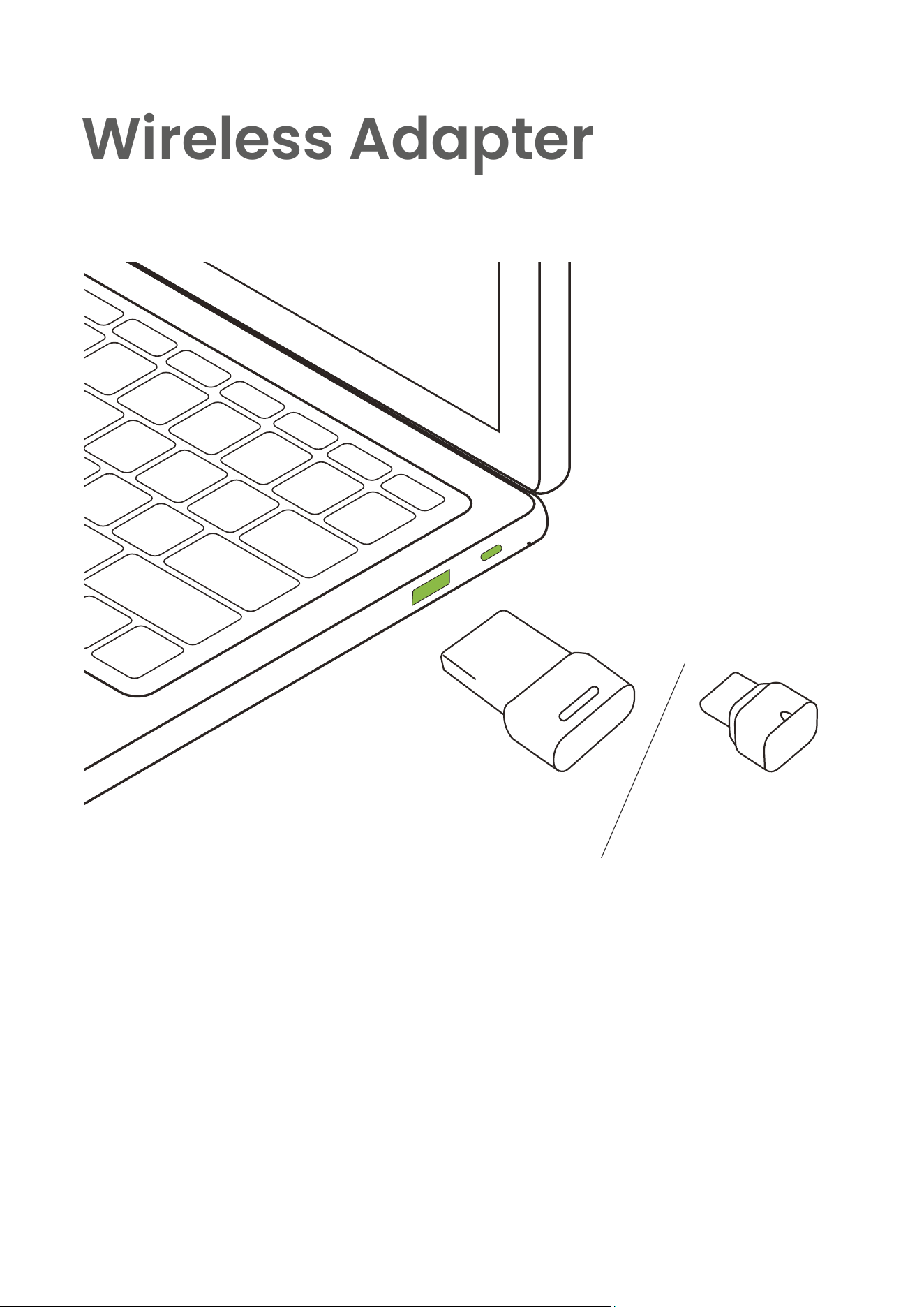

Wireless Adapter
Install Shokz Connect on your computer to access additional
information related to pairing, firmware updates, feature settings,
and resets for the Shokz Bluetooth adapter.
WIRELESS ADAPTER
Loop120
USB-C
Loop120
USB-A
14
LED INDICATOR
LED indicator
15
Pairing mode
Charging
Battery full
Low battery
Incoming call
Busylight
Pairing
Reconnect
Connected
Standby Mode
Music streaming
Incoming call
In-call
Microphone on mute
①
②
16

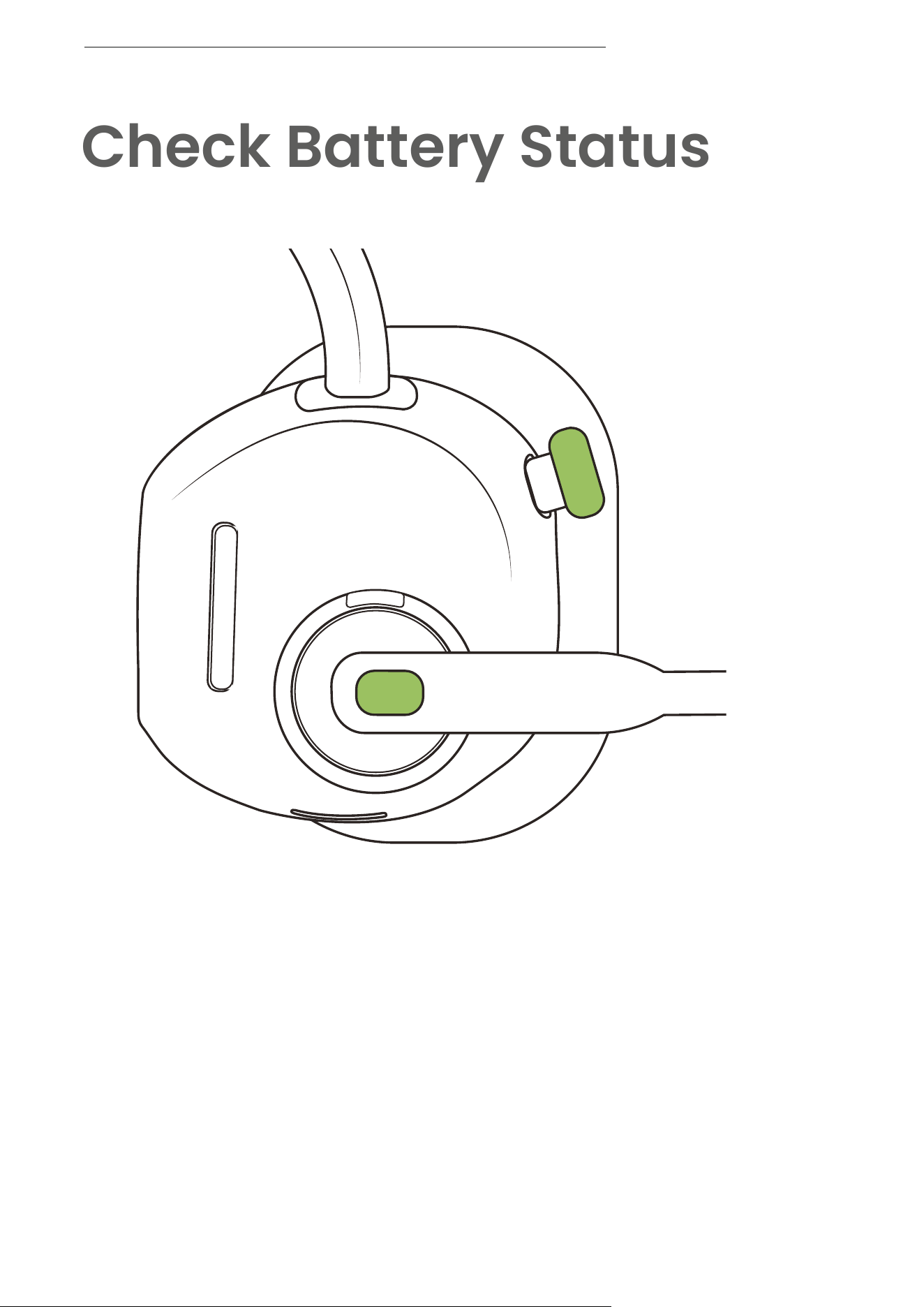

How to check battery status:
Click the multifunction button or answer/end call button
while audio is not playing.
Check Battery Status
CHECK BATTERY STATUS
17
Extra Features
18
EQ Modes
EQ MODES
Vocal Booster Mode
Enhanced intermediate frequencies
for audiobooks, podcasts, etc.
Standard Mode
Balanced frequency for listening to music.
19

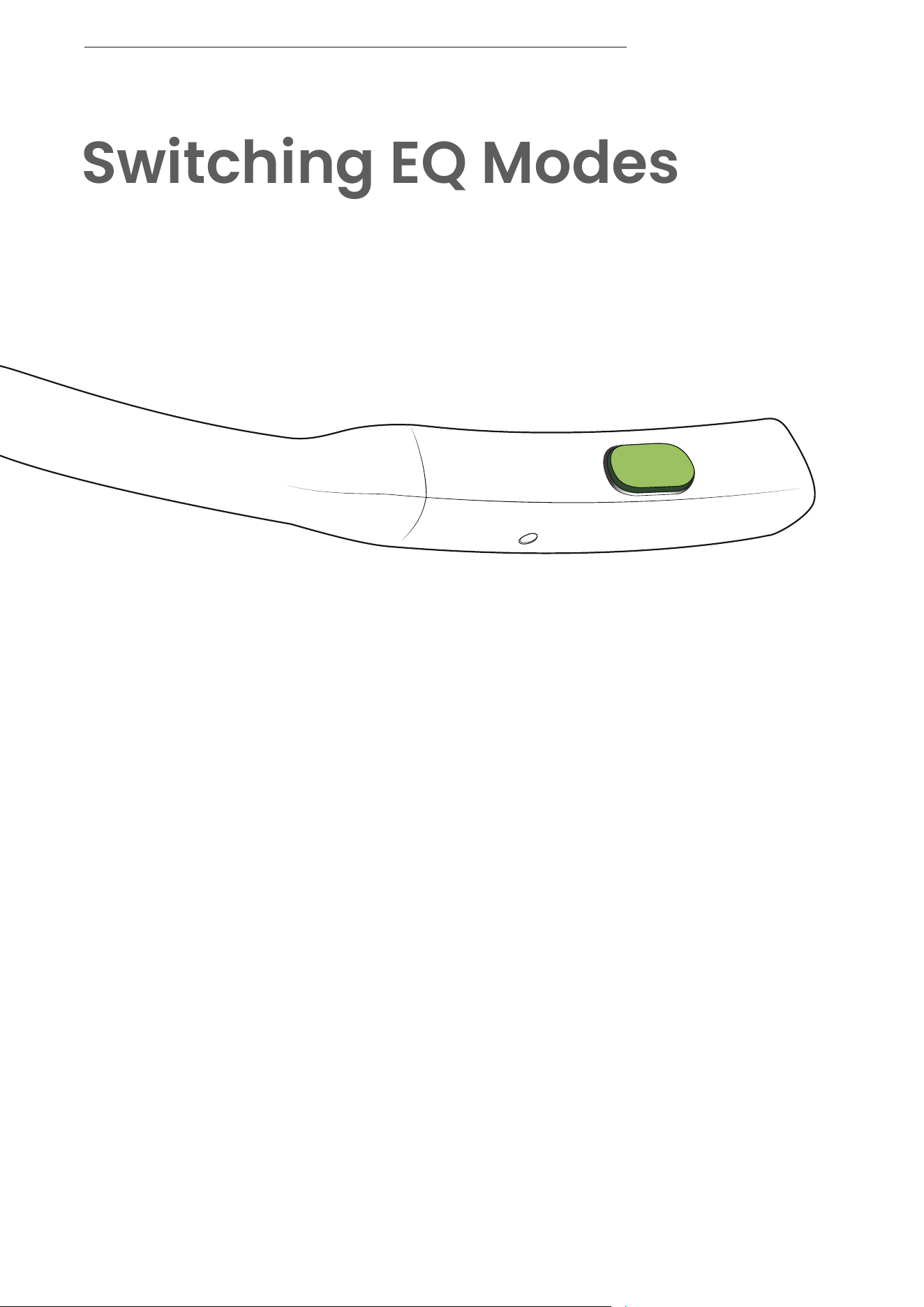

Switching EQ Modes
How to switch EQ modes:
Press and hold mute/unmute button while music is playing.
SWITCHING EQ MODES
20
Restore Factory Settings
1. Start with your headset turned off.
2. Press and hold the Multifuction Button until the LED indicator
flashes red and blue alternately.
3. Press and hold the Answer/End Call Button and Mute/Unmute
Button for 5 seconds until you hear a beep.
RESTORE FACTORY SETTINGS
Multifunction Button
Answer/End Call
Mute/Unmute Microphone
21
Care and
Maintenance

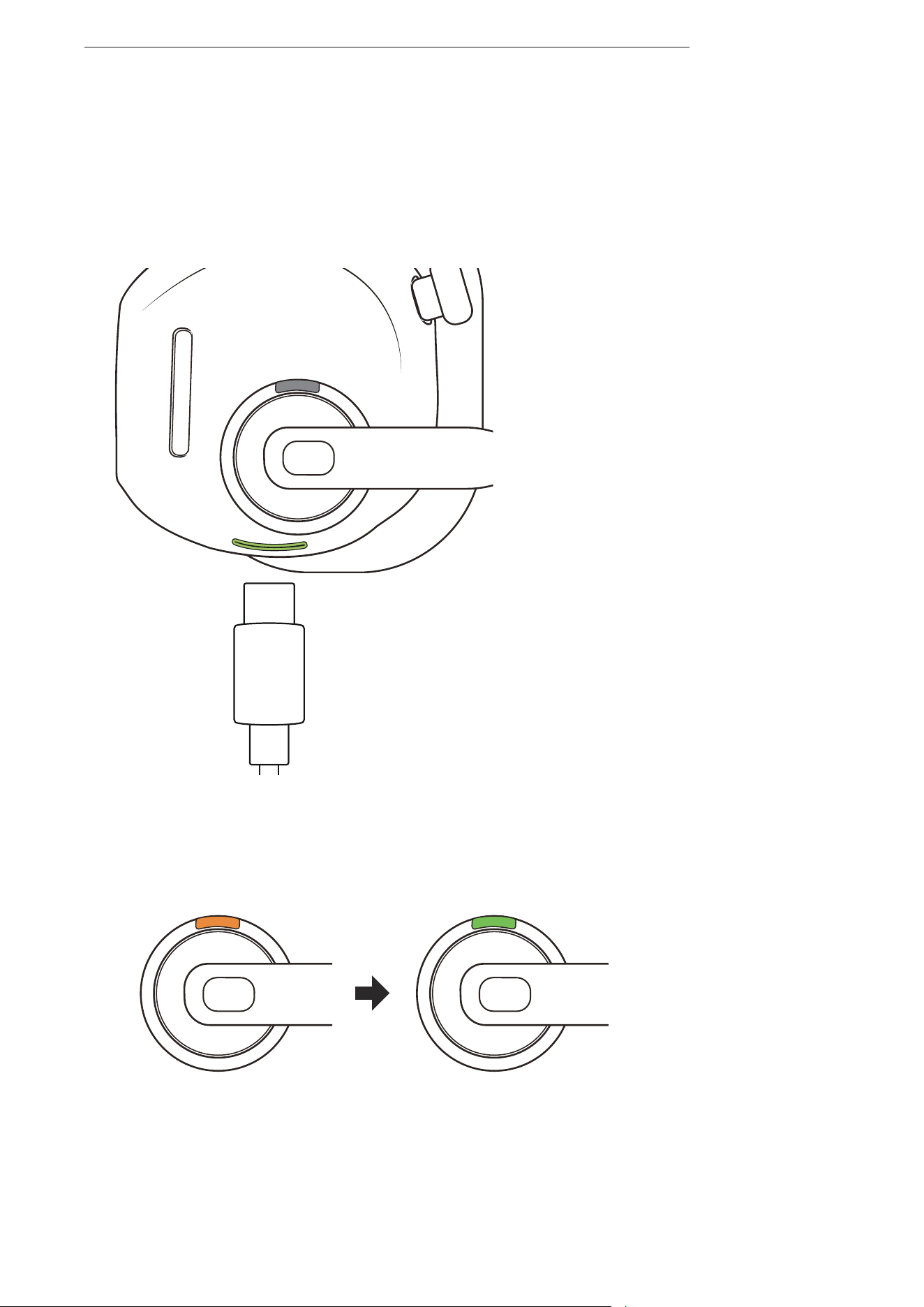

The LED indicator will turn orange while charging. Once fully
charged, the LED indicator will turn from orange to green.
Charging Tips
CHARGING TIPS
When the headset battery is low there will be a prompt and the
red light will flash intermittently. Use the corresponding charging
cable to charge.
22
Your headset is covered by a warranty. Visit our website at
https://shokz.com/pages/warranty-landing for details of the
limited warranty. *Failure to register will not affect your limited
warranty rights.
Warranty
WARRANTY
23
If you experience any issues or problems,
please visit https://shokz.com/pages/faq
for more support
Troubleshooting
TROUBLESHOOTING
24
What’s in the Box
If any part of your product is damaged or missing, do not use it.
Contact an authorized Shokz dealer or Shokz customer service.
*Please note that product packaging may vary depending on
the sales region.
WHAT’S IN THE BOX
OpenMeet Headset OpenMeet & UC
Package
OpenMeet & UC
Box
Legal Statement*2
Legal
Legal
Warranty
User Guide
USB-C
Charging Cable
User Guide
Warranty Card
Cushions
(M*2 + L*2)
*Loop 120 USB-A/USB-C Dongle
(UC version only)
+
25
Regulatory and Legal Information
· Store the headset in a cool, dry place. The working temperature
should be 0~45°C(32~113°F). Working in a cold/hot environment,
a highly humid area, or an extremely low air pressure may
reduce the battery life.
· Keep the product away from heat sources, direct sunlight,
combustible gas or other liquids.
· Keeping the charging port dry before connecting to the
charger will reduce the risk of damage.
· This headset is water-resistant, but is not waterproof. Please
do not submerse the headset in water.
· Clean the headset with a soft dry cloth.
· Do not charge right after exercising, in case there's sweat
inside the charging port, which could lead to circuit burning
while charging.
· After storage for a long period, please charge the headset
before using again.
Note
Design and specification are subject to change without notice.
For the most up-to-date product information, please visit
https://shokz.com.
Warning
To avoid the risk of explosion, fire, or leakage from toxic
chemicals, please do not disassemble the product or replace,
warp, or damage the battery.
Although rare, some users may experience skin allergies or
skin sensitivity when coming into long-term contact with the
product’s outer materials.
To avoid the risk of an allergic reaction, please do not wear the
product if you are experiencing skin injuries or irritations on or
around the neck, ears, and/or head.
If you experience any redness of the skin, swelling, or itchiness
while wearing the product, discontinue use of the product
REGULATORY AND LEGAL INFORMATION
26
immediately and consult a physician.
Onlychargewiththemagneticchargingcableapprovedby
themanufacturer.Otherchargingcablesmaynotmeet
applicablesafetystandards,andchargingwithsuchcables
couldposeariskofinjurytotheusersordamagetothedevice.
Use this product only with an agency-approved power supply
that meets local regulatory requirements
(e.g., UL, CSA, VDE, CCC).
