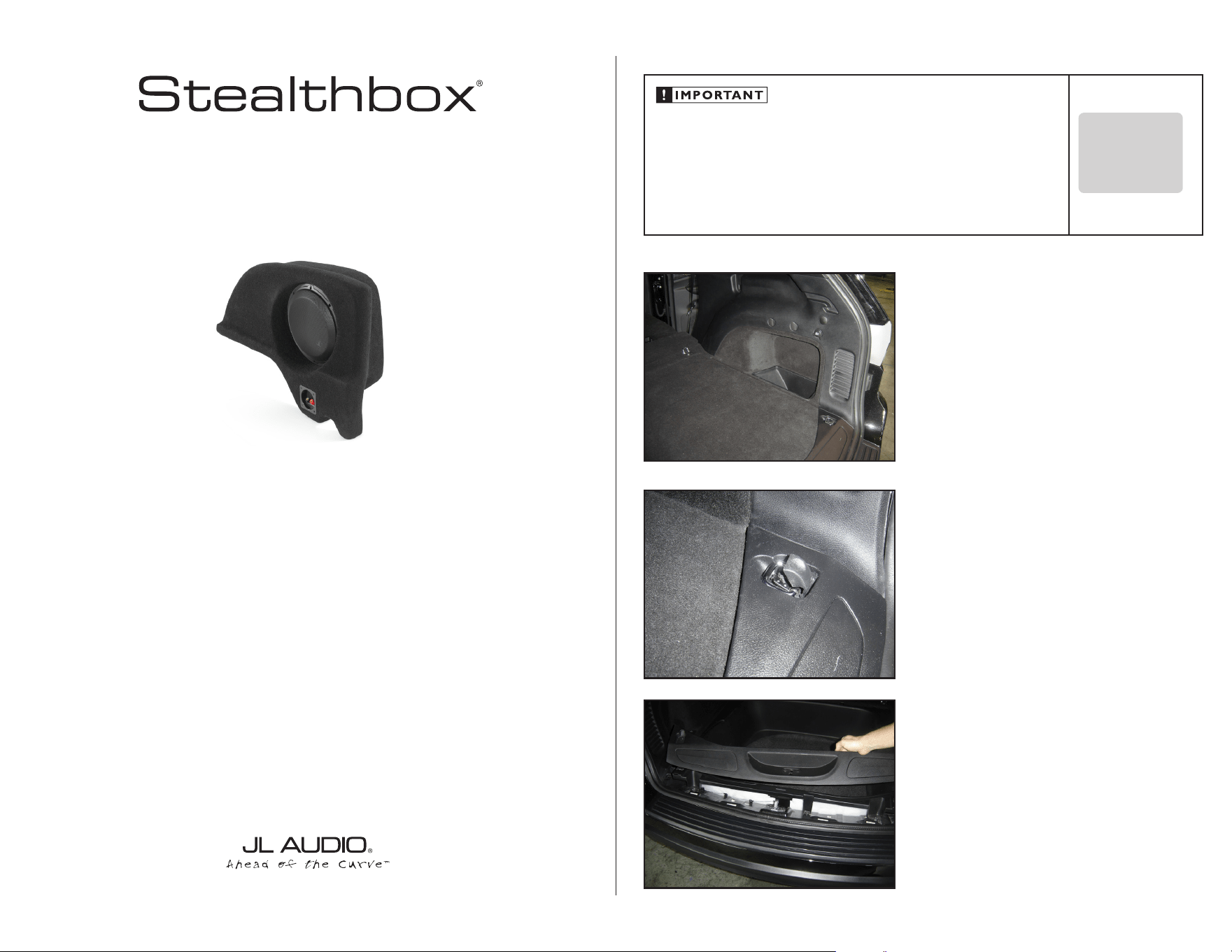

INSTALLATION GUIDE
for the
SB-J-GCHWK2/10W3v3
SKU# 94508 - 94510
2011 & Up Jeep Grand Cherokee
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Empty out the cargo area so that you have a clean area to
work in.
Continued on Next Page
STEP 2
Unclip the screw cover on each of the tie down hooks, and
remove the screws and hooks.
STEP 3
Remove the rear sill panel by carefully pulling up on the
panel to release the clips.
SB-J-GCHWK2/10W3v3 INSTR_SKU# 011321
INSTALLATION
DIFFICULTY:
3
5
OUT
OF
ESTIMATED TIME:
2-3 HOURS
Continued on Next Page
SB-J-GCHWK2/10W3v3 INSTR_SKU# 011321

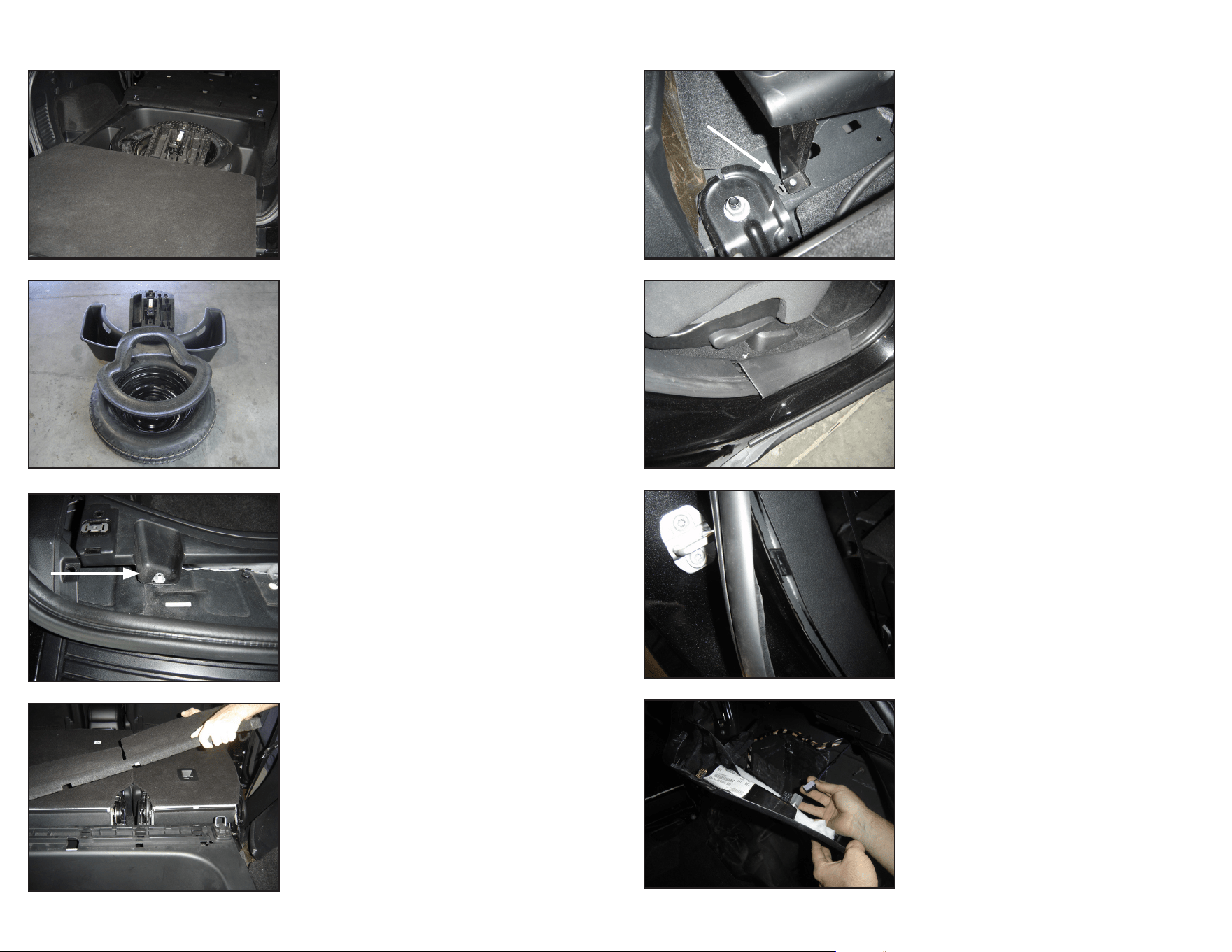

STEP 7
Remove the seat extension panel by carefully pulling up on
the panel to release the clips.
STEP 6
Remove the two hex nuts that hold the rear of the plastic
tub in place.
STEP 5
Remove the tool kit, the two storage pockets, the spare tire,
and the padding from the tire well.
STEP 4
Remove the floor panel.
Page 2 • JL Audio, Inc 2016
STEP 9
Remove the right rear door sill panel by carefully pulling up
on the panel to release the clips.
STEP 11
Disconnect the power outlet from the side panel, and
remove the panel from the vehicle.
STEP 10
Pull the weather-stripping away from the side panel as
shown, then unclip the side panel.
STEP 8
From behind the back seat, remove the two Phillips head
screws that hold the front of the plastic tub in place, then
remove the tub.
Continued on Next Page
SB-J-GCHWK2/10W3v3 INSTR_SKU# 011321

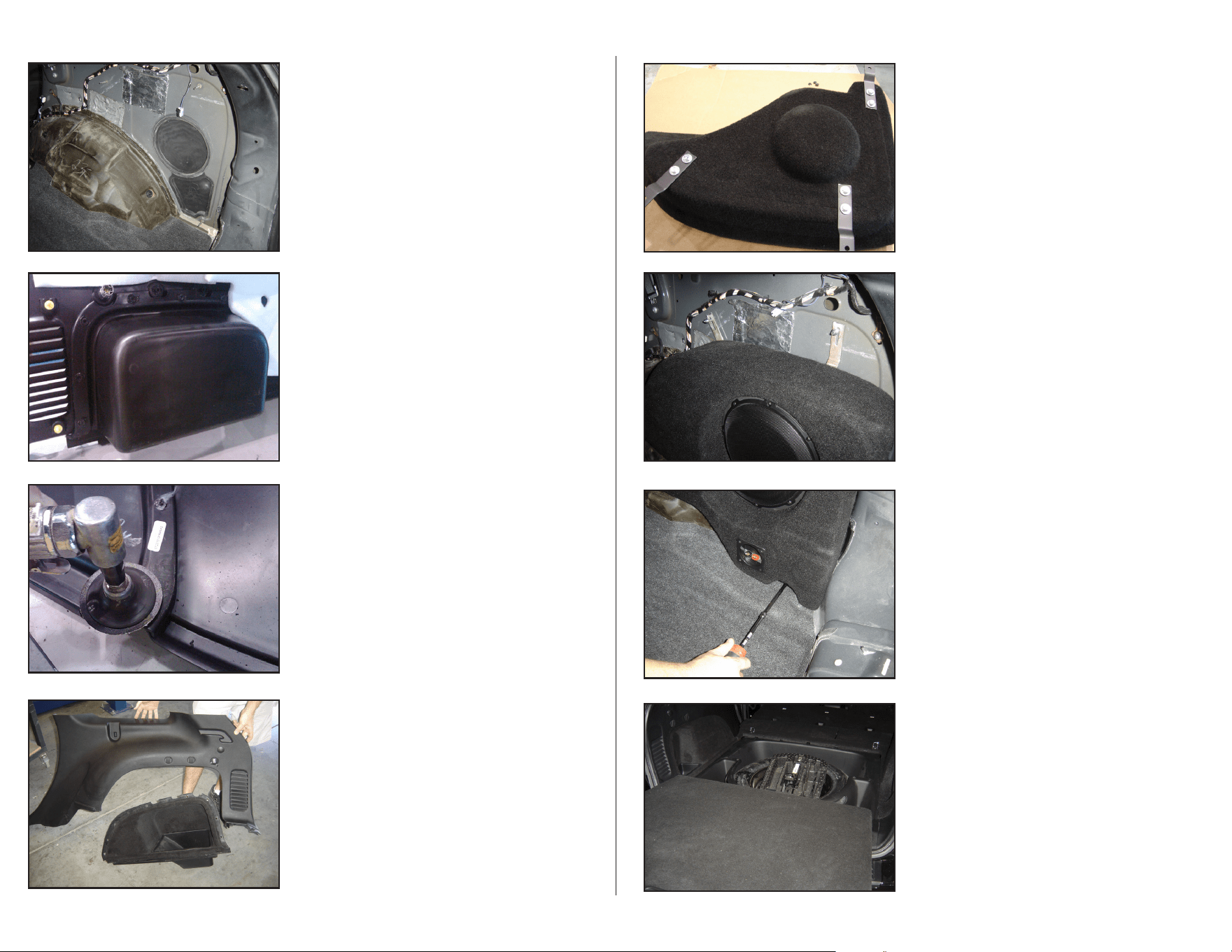

STEP 15
Pictured are the side panel and pocket after being separated.
STEP 14
Using a die grinder, carefully grind down the plastic welds
to separate the pocket from the panel, using caution to not
grind through the panel itself.
STEP 13
From the back of the side panel, the plastic welds that hold
the pocket to the panel are visible.
STEP 12
Pictured is the vehicle with the side panel removed.
Page 3 • JL Audio, Inc 2016
STEP 17
Place the Stealthbox® into the vehicle, aligning the Brackets
with the factory studs, as shown. Thread a 6mm x 1.0 Flange
Nut onto each of the two upper studs, and hand tighten.
STEP 19
Reinstall the weather-stripping, door sill panel, plastic tub,
and seat extension panel. Then, reinstall the padding, spare
tire, storage pockets, and tool kit. Finally, reinstall the floor
panel.
STEP 18
Thread a 6mm x 1.0 Flange Nut over the lower stud, and
hand tighten.
Reinstall the side panel and check the fitment of the
Stealthbox®. Align the enclosure as necessary, then remove
the side panel and firmly tighten the three 6mm x 1.0 Flange
Nuts. Attach speaker cable to the terminal cup, and route
the cable as necessary. Reinstall the side panel.
STEP 16
Using a pair of 1/4” Flat Washers, 1/4” Lock Washers, and 1/4-
20 Hex Tap Bolts, attach each of the three brackets to the
back of the Stealthbox as shown, and firmly tighten.
SB-J-GCHWK2/10W3v3 INSTR_SKU# 011321

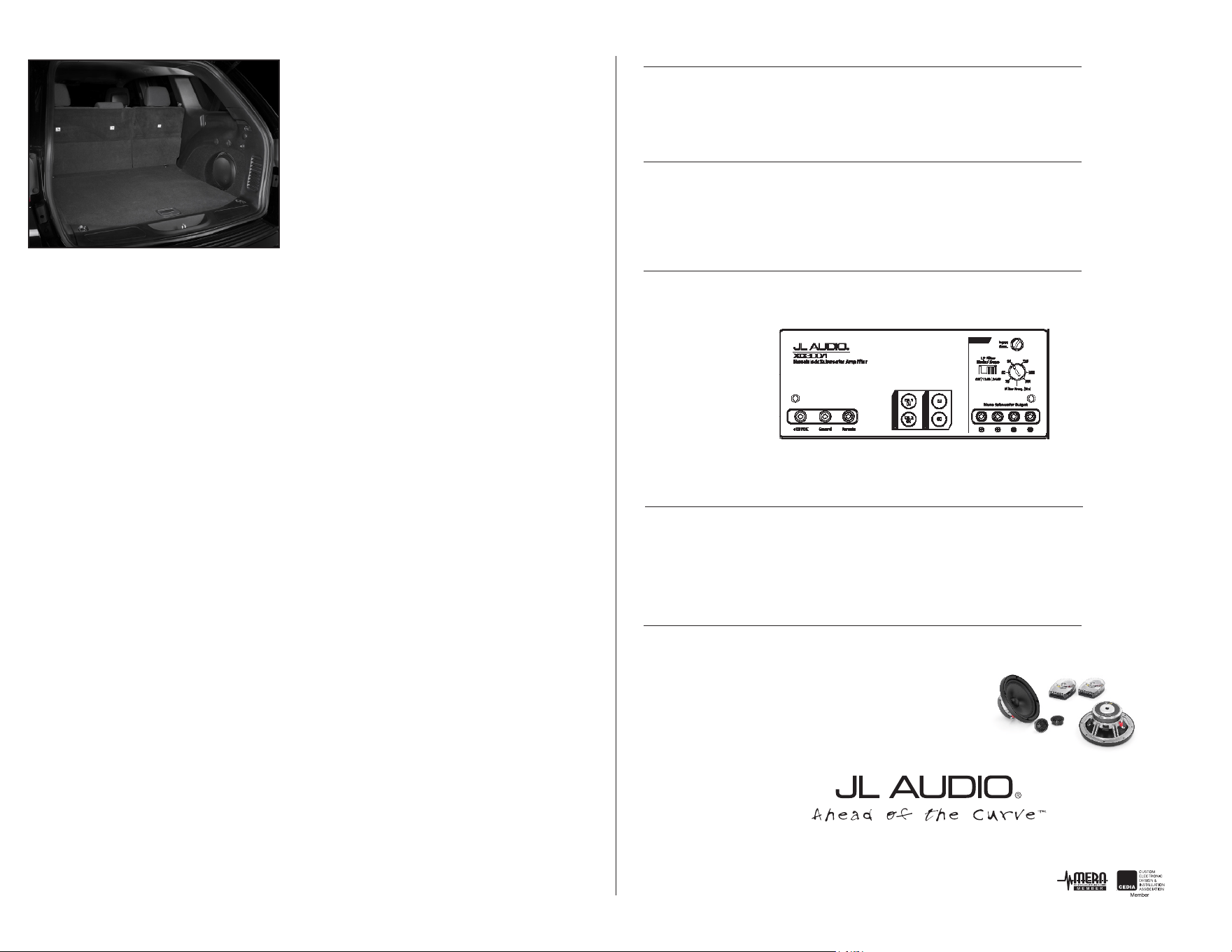

STEP 20
CONGRATULATIONS!
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
Page 4 • JL Audio, Inc 2016
INCLUDED HARDWARE
(3) 6mm x 1.0 Flange Nut (6) 1/4” Flat Washer
(3) Bracket (6) 1/4” Lock Washer
(6) 1/4 - 20 Hex Tap Bolt
SPECIFICATIONS
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W3v3-2
Nominal Impedance: 2 ohm
Continuous Power Handling: 500 watts
POWER RECOMMENDATION
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows
the recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox
®
.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6 x 9”- Front Doors
Fits JL Audio Models: TR690-TXi, C2-690tx
Rear Speaker Size / Location: 6-1/2”- Rear Door
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x, & ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011321 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
