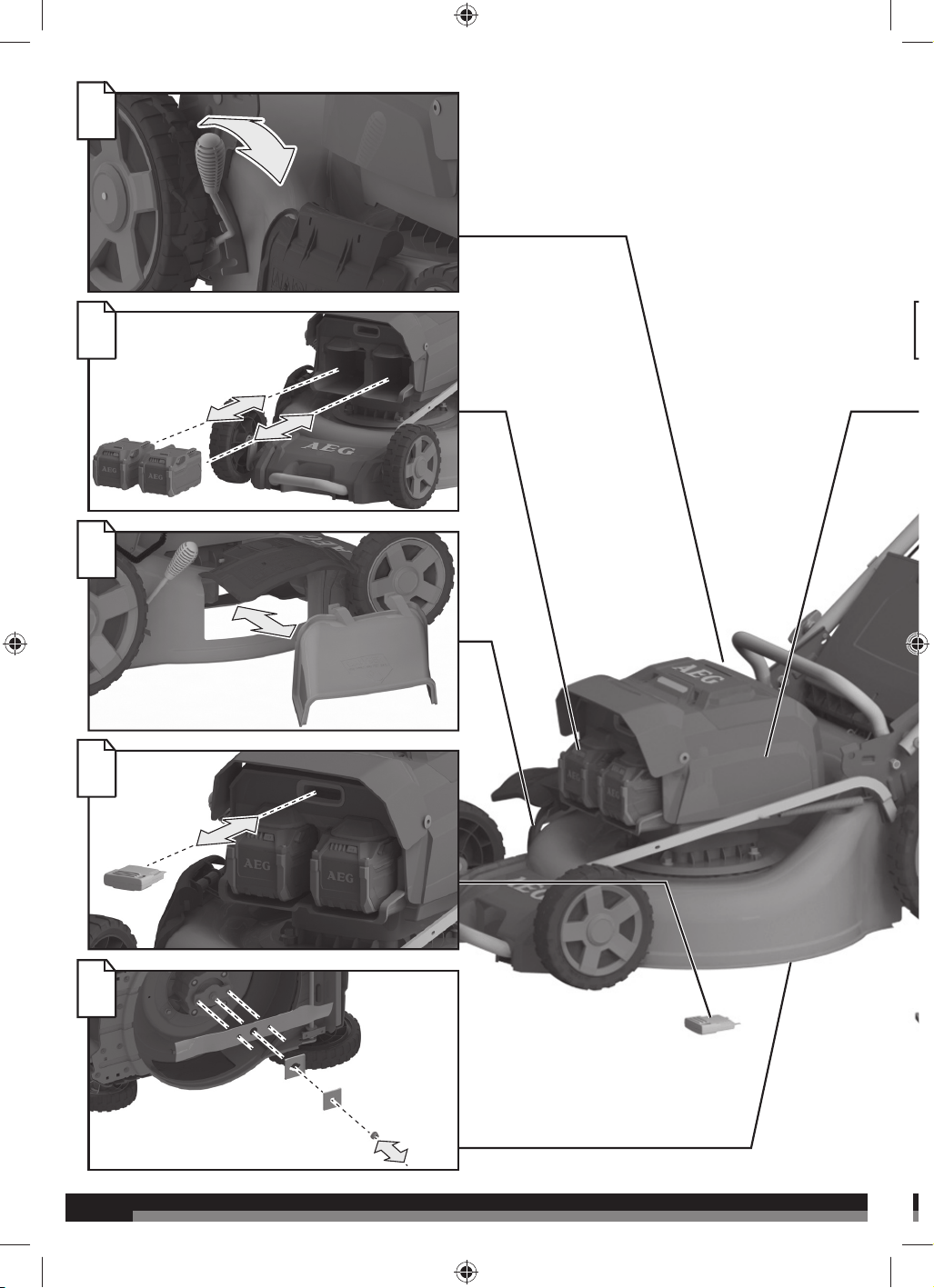

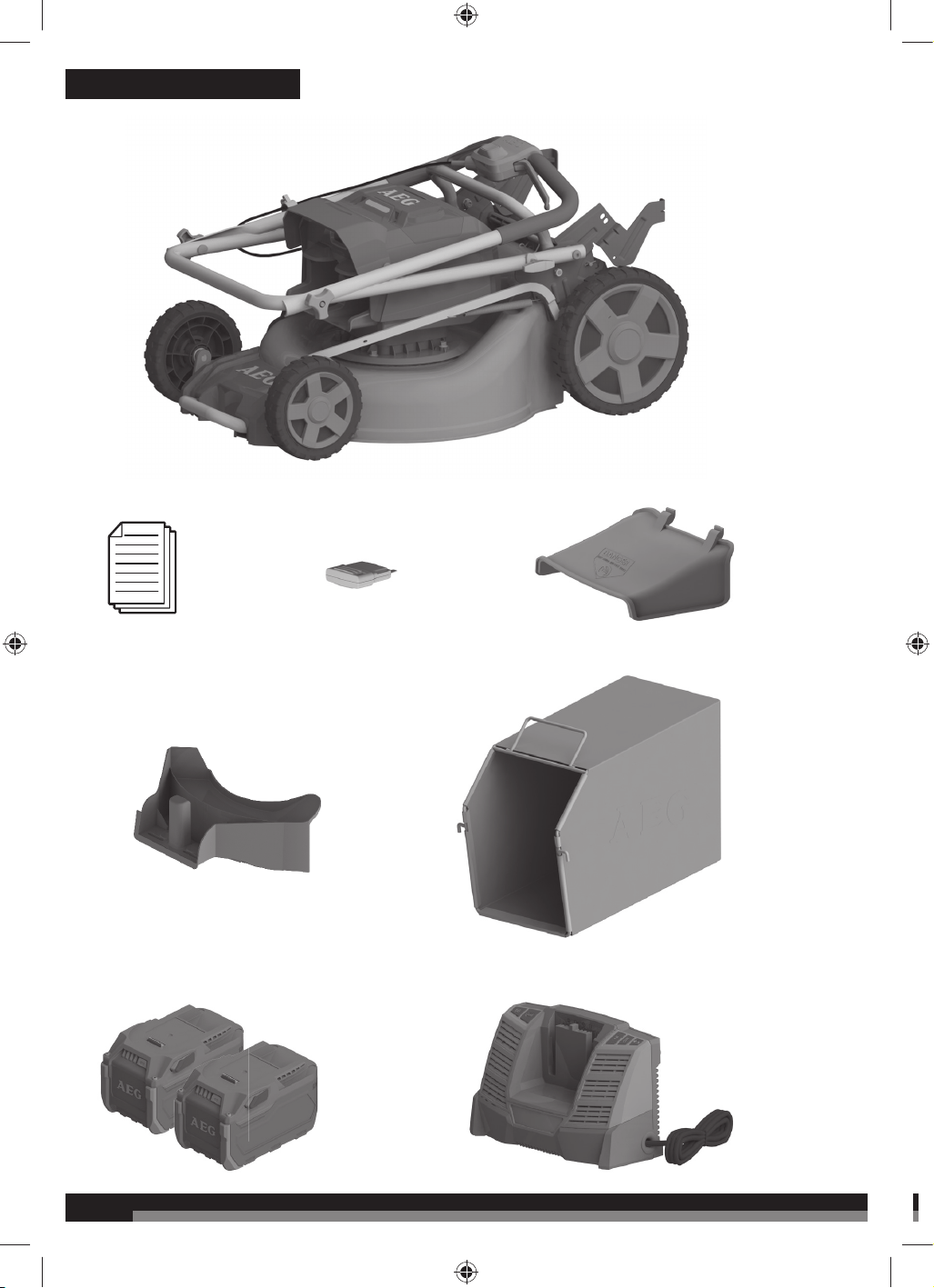

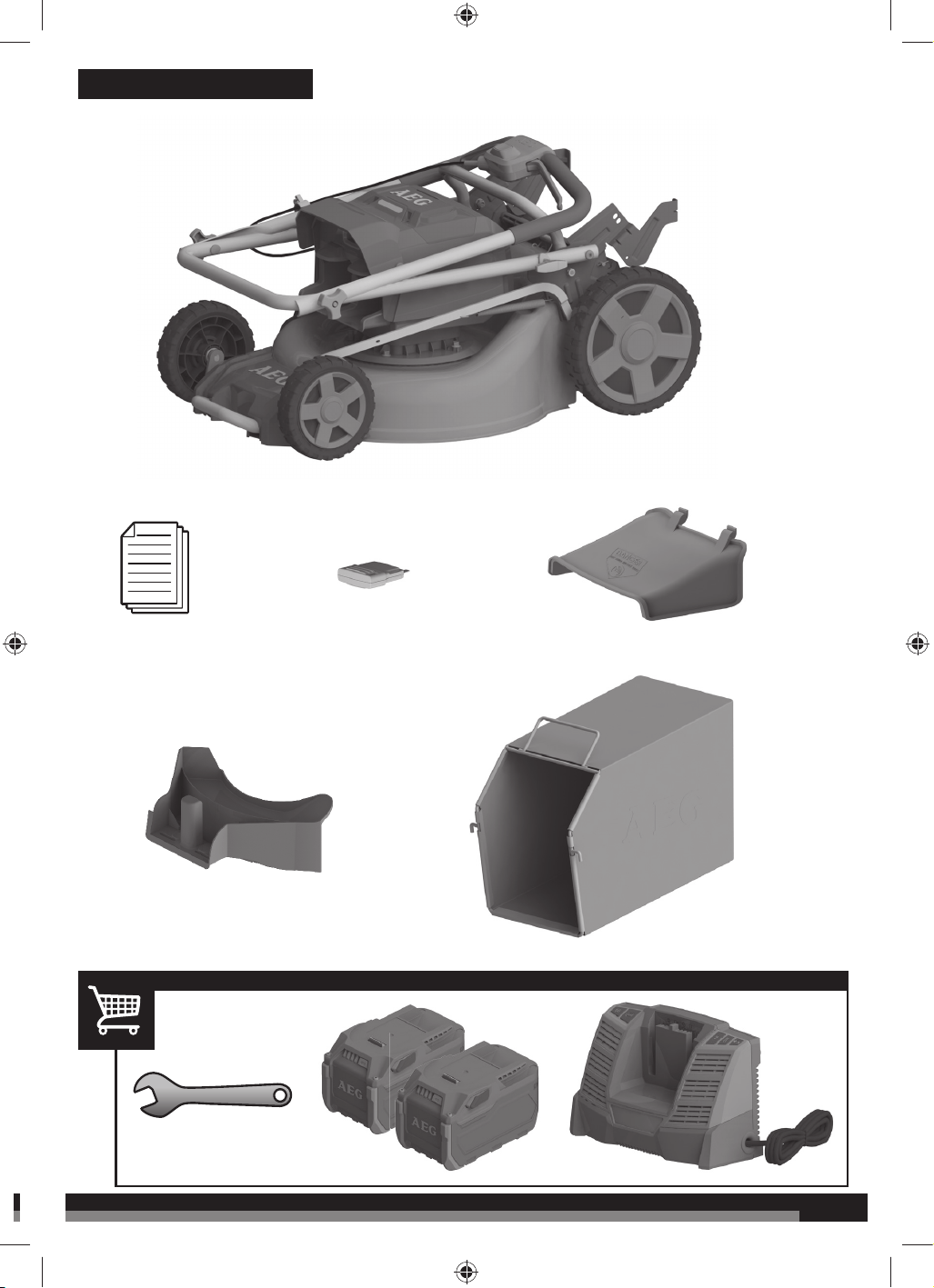

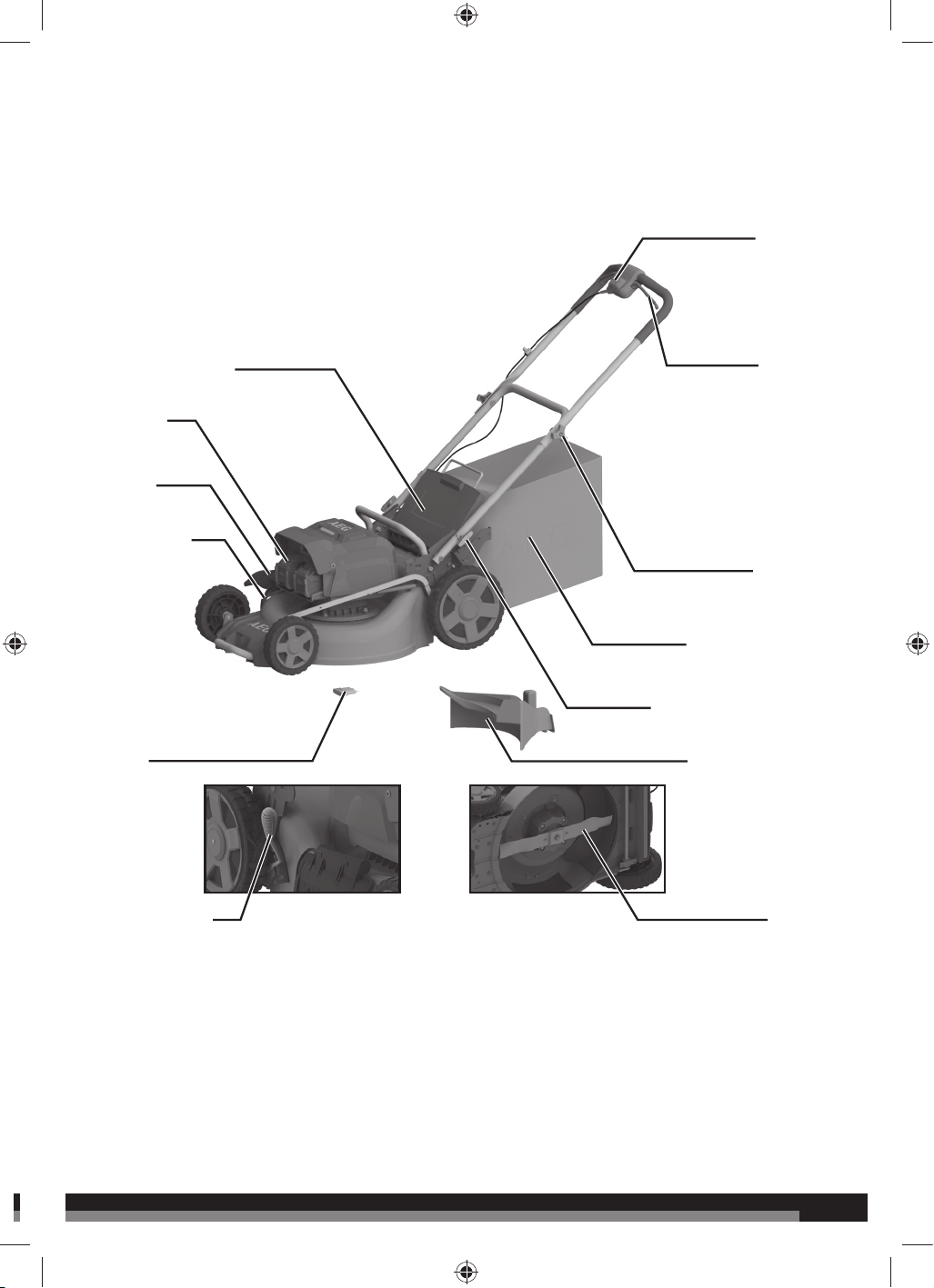

BATTERY
SIDE
DISCHARGE
DEFLECTOR
SAFETY
START
KEY
START
BUTTON
ON/OFF
LEVER
UPPER
HANDLE
KNOBS
HANDLE ADJUSTMENT
KNOBS
GRASS CATCHER
(50 LITRE)
MULCHING PLUG
BLADE
SIDE
DISCHARGE
CHUTE
COVER
DECK
HEIGHT
ADJUSTMENT
LEVER
REAR DISCHARGE
CHUTE COVER
6
6
20
26
23
12
10

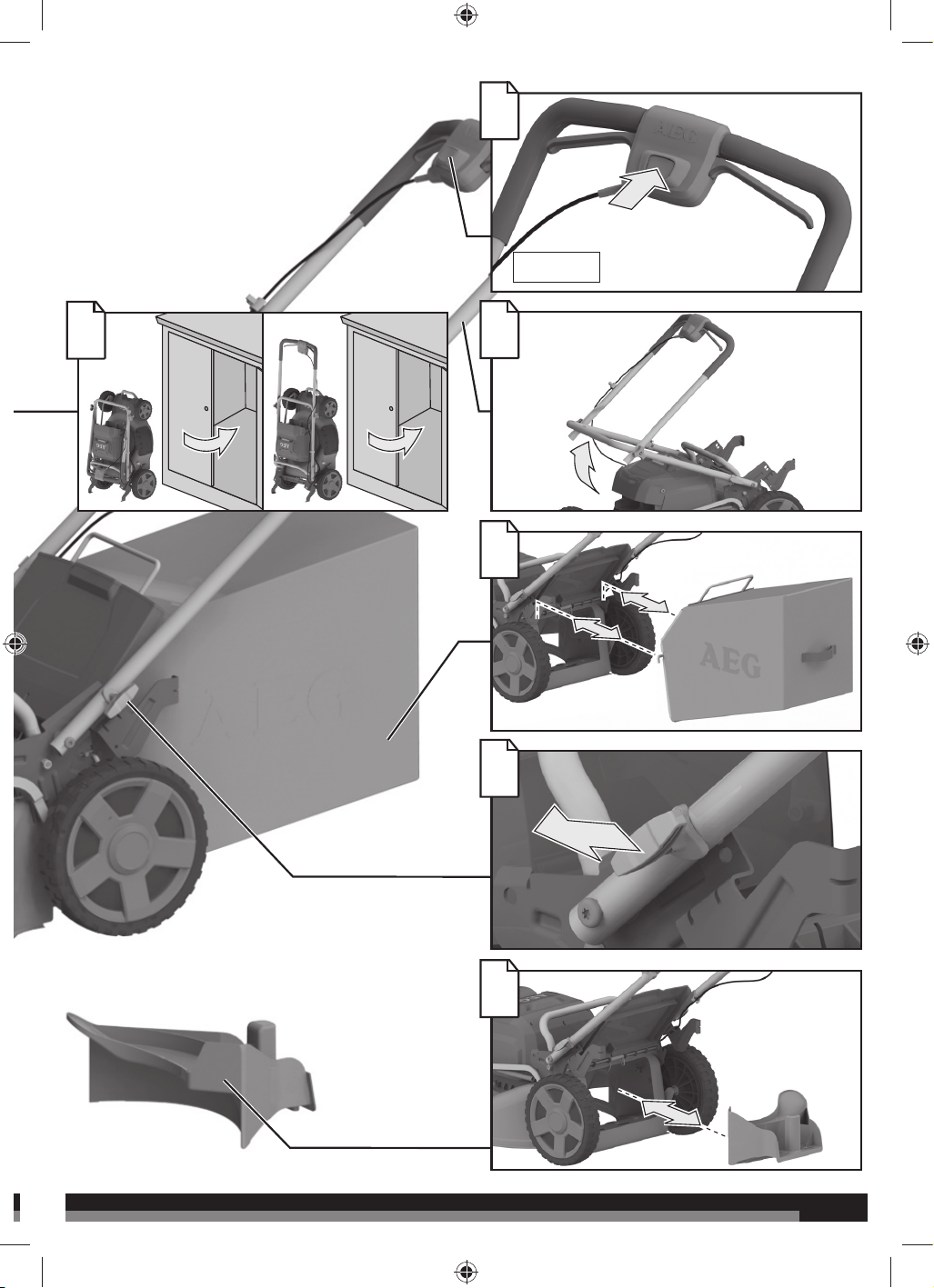

7
7
17
24
14
8
13
START
28

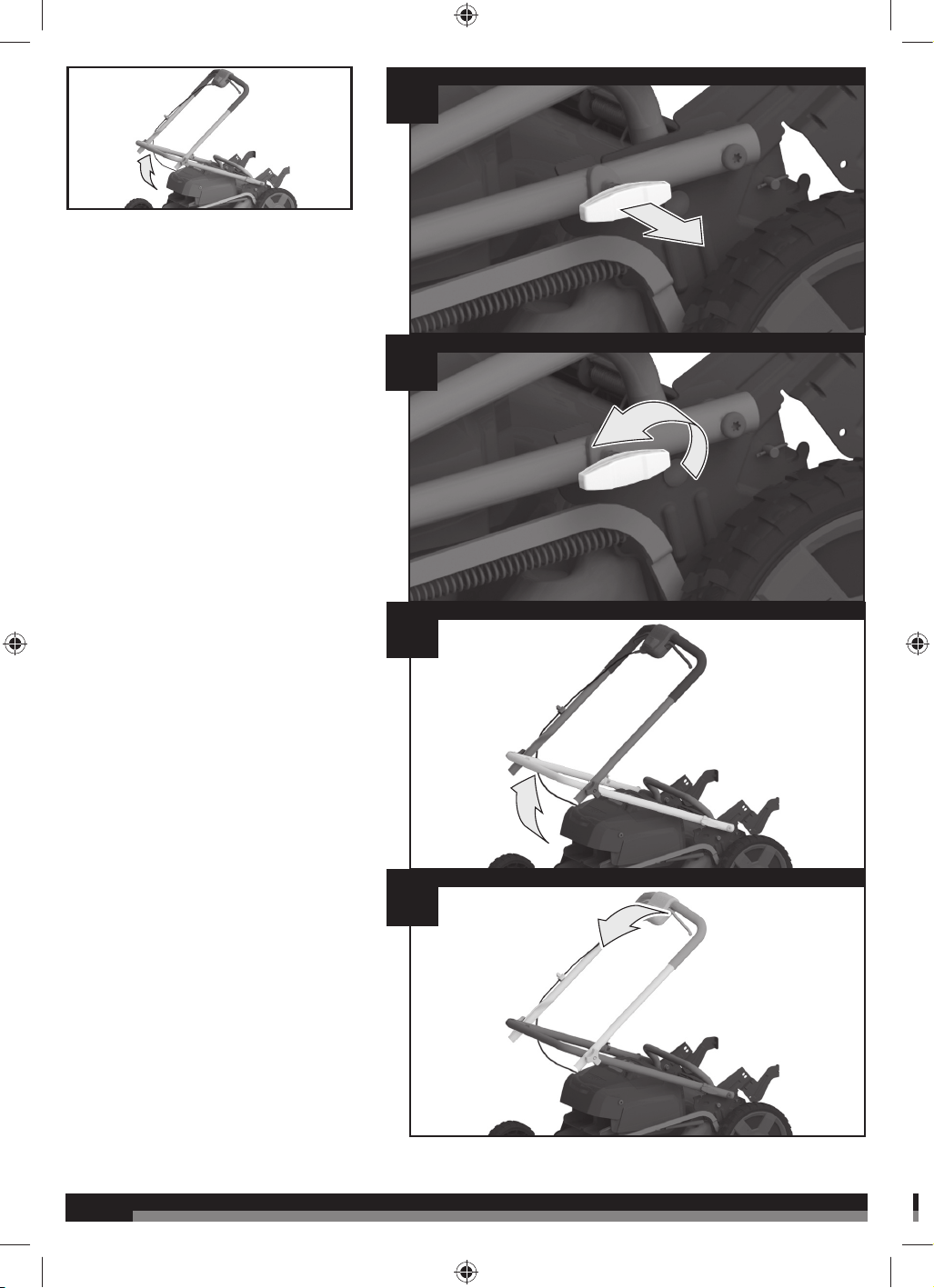

8
8
1
2
3
4
9
9

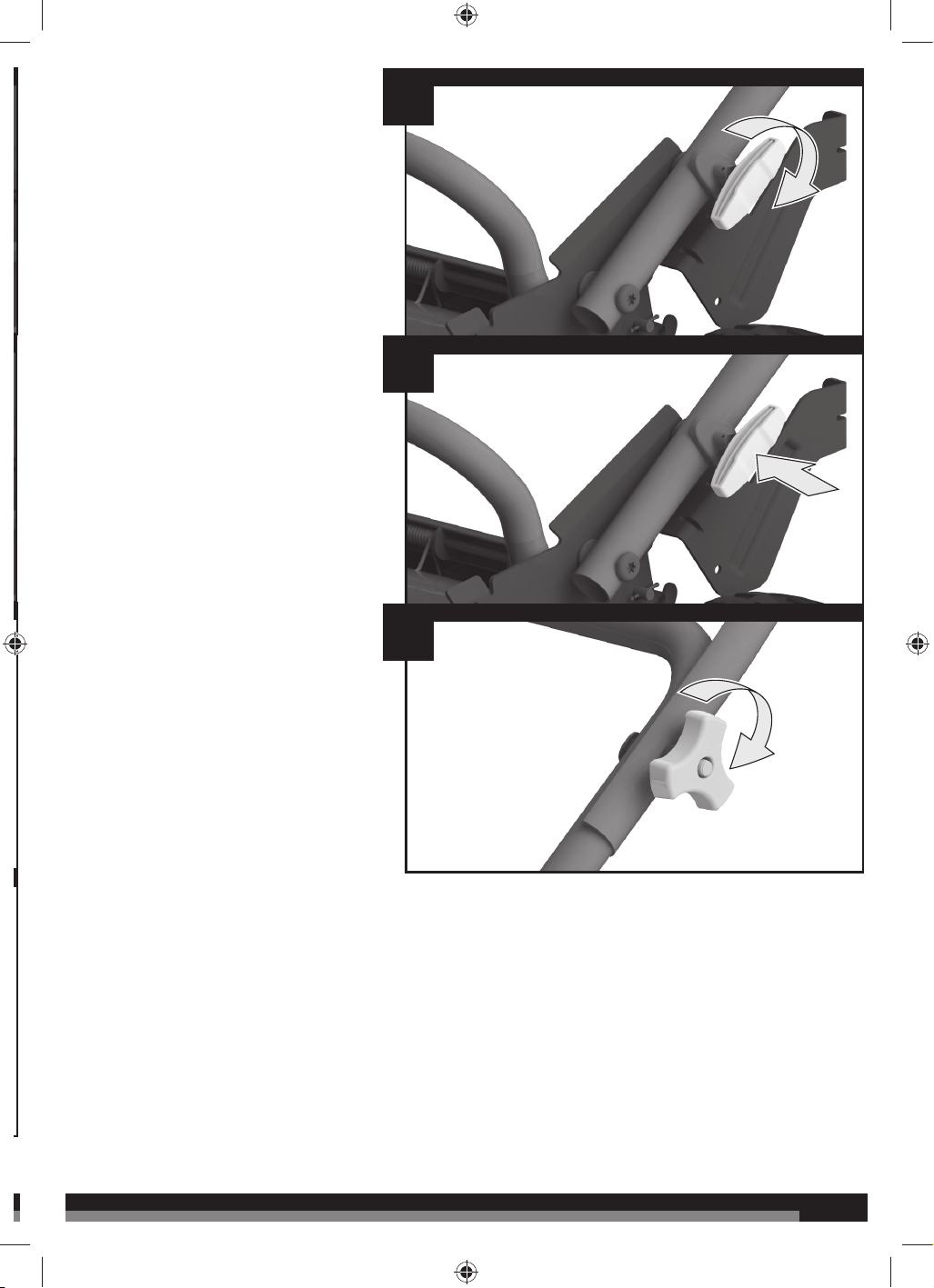

7
6
5
10
10

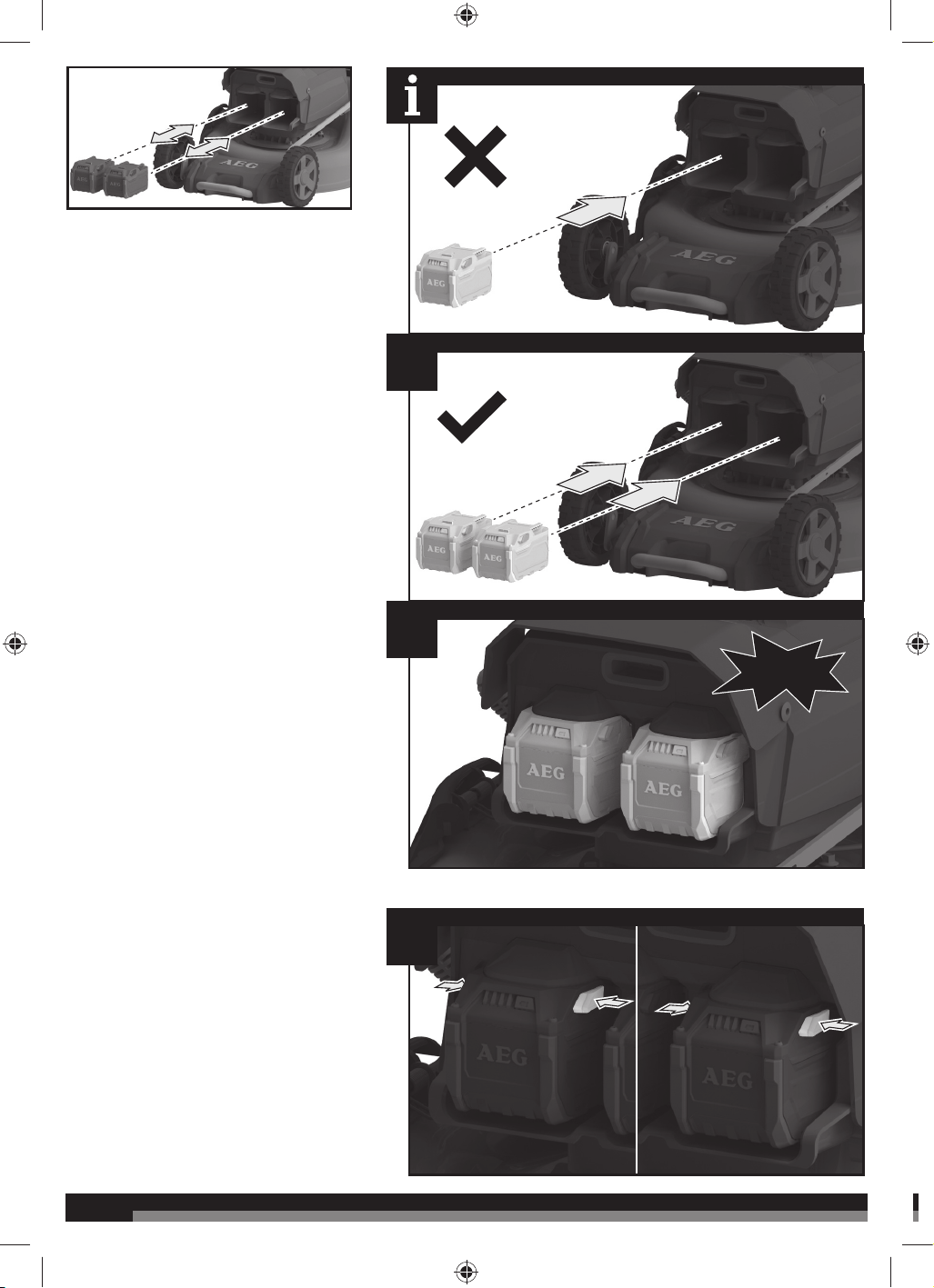

1
2
1
click
11
11

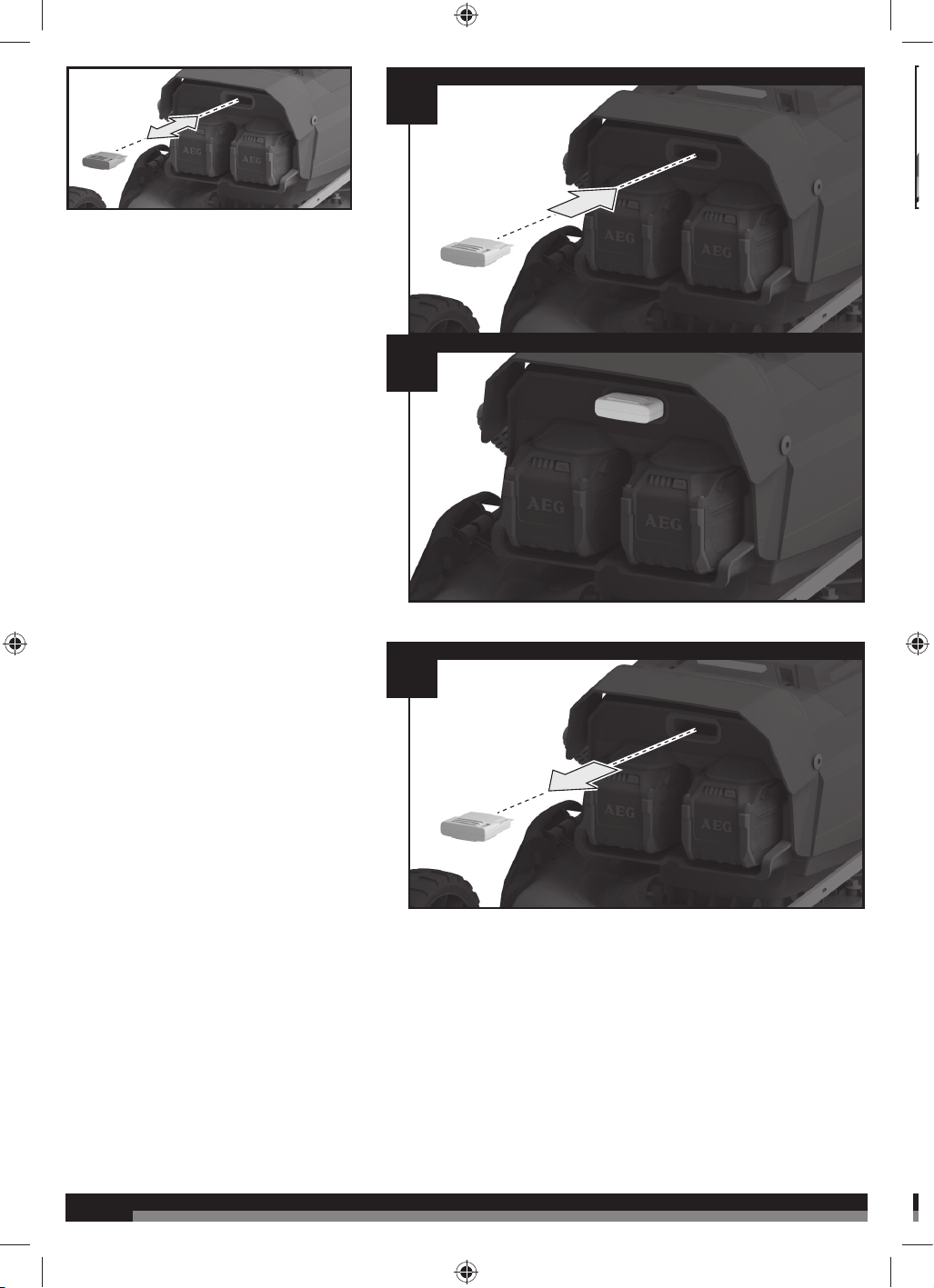

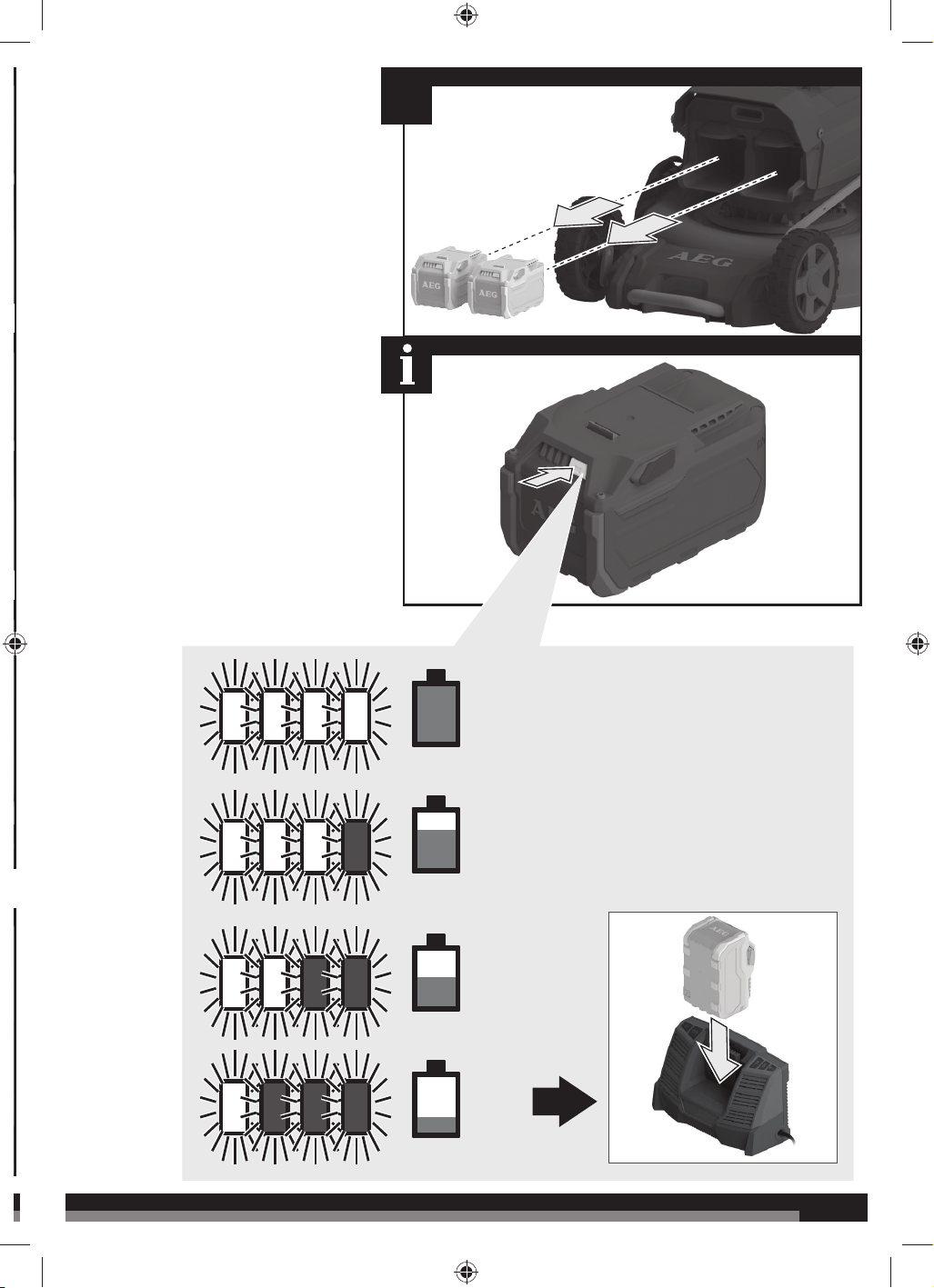

2
75-100 %
0-25 %
50-75 %
25-50 %
12
12

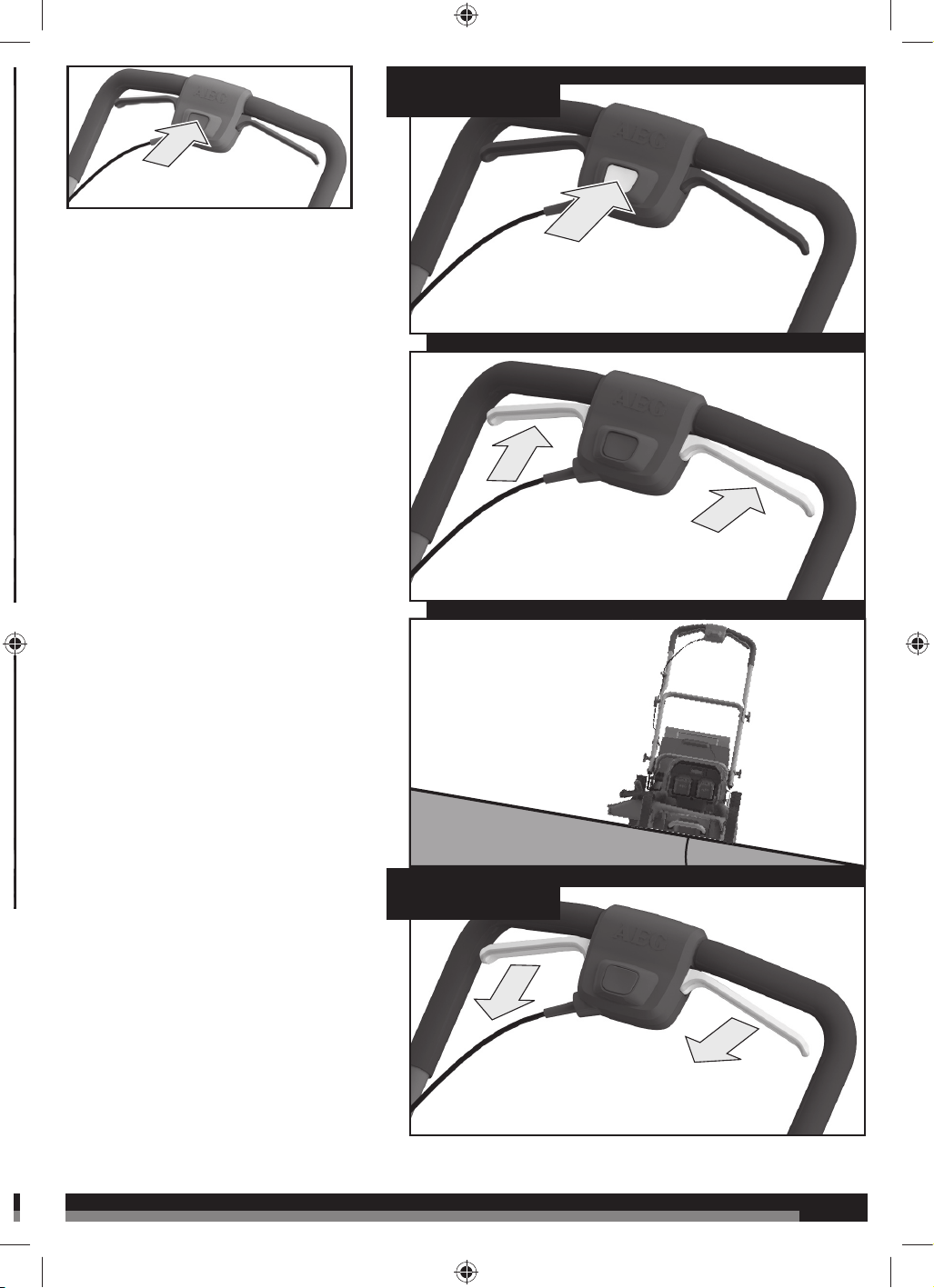

1
2
1
13
13

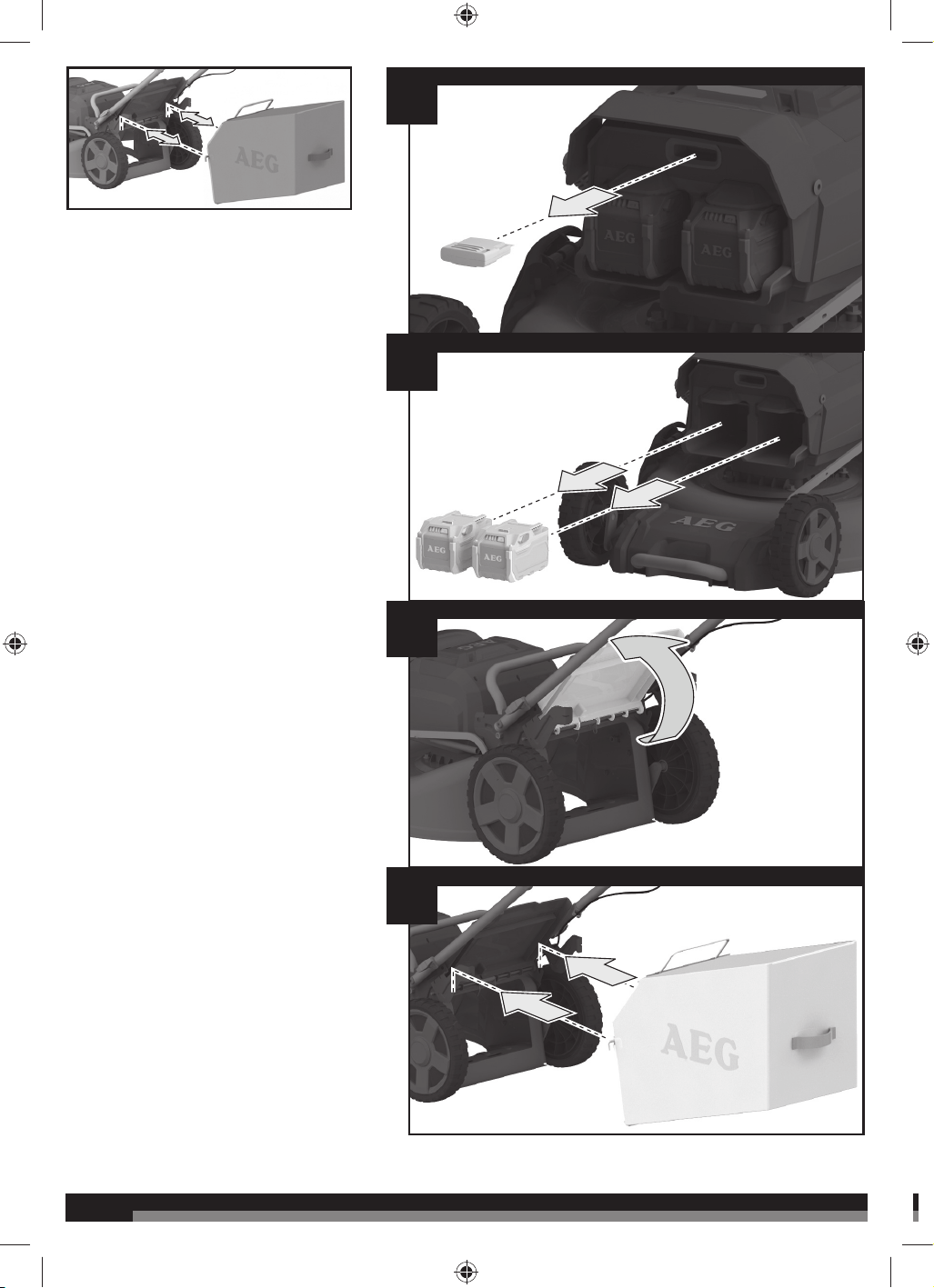

0D[Û
START
STOP
14
14

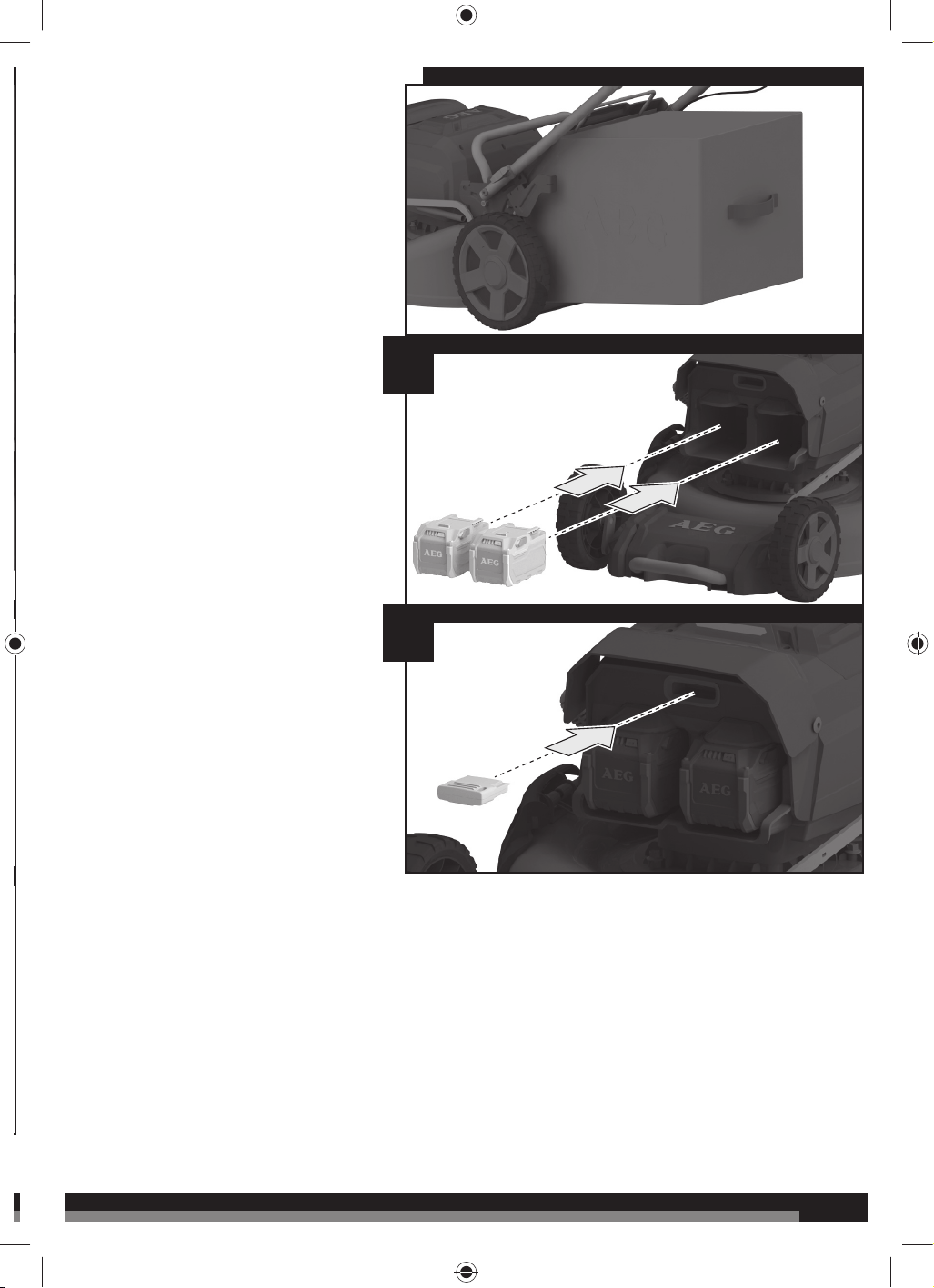

3
4
1
2

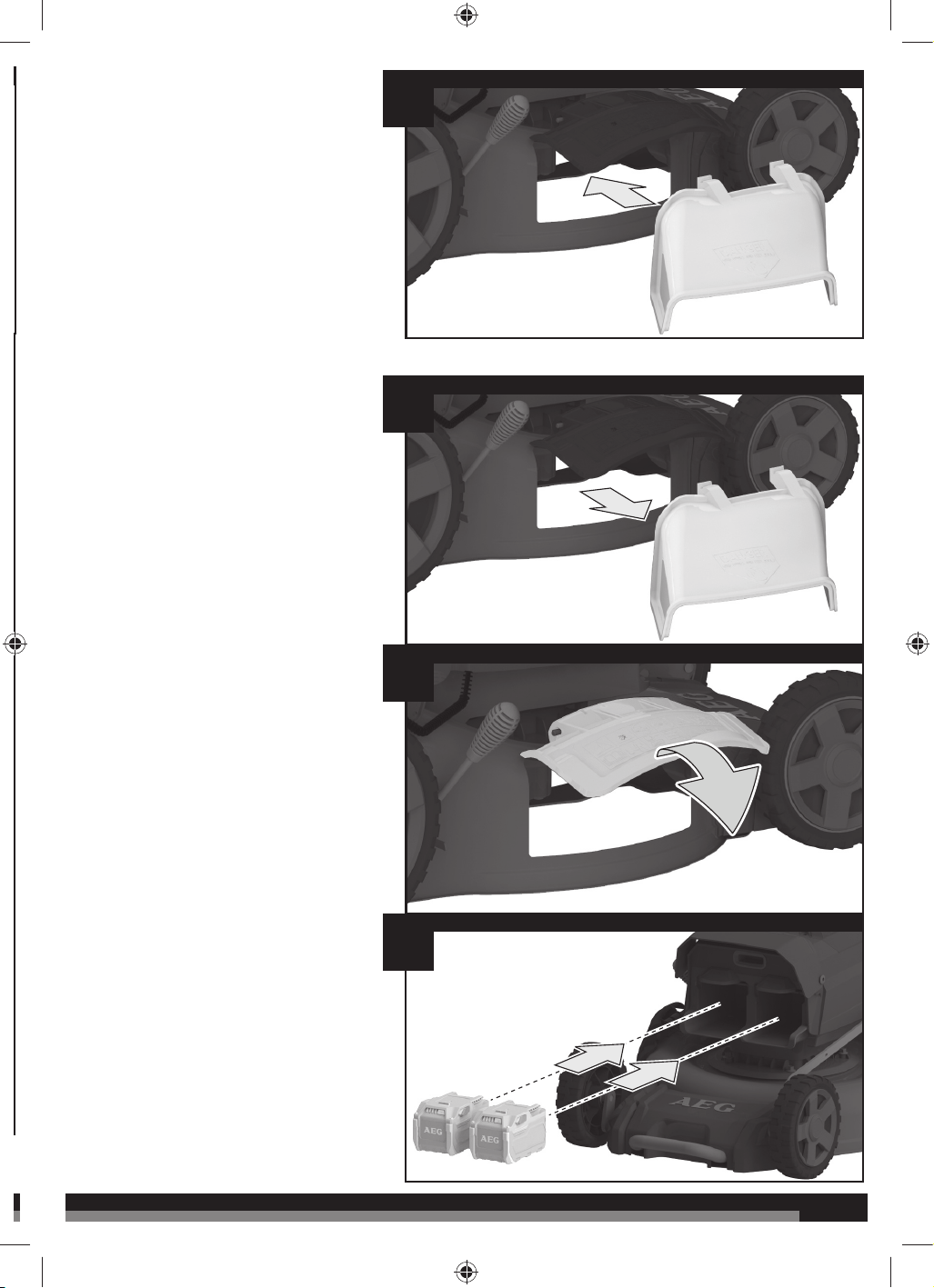

15
15

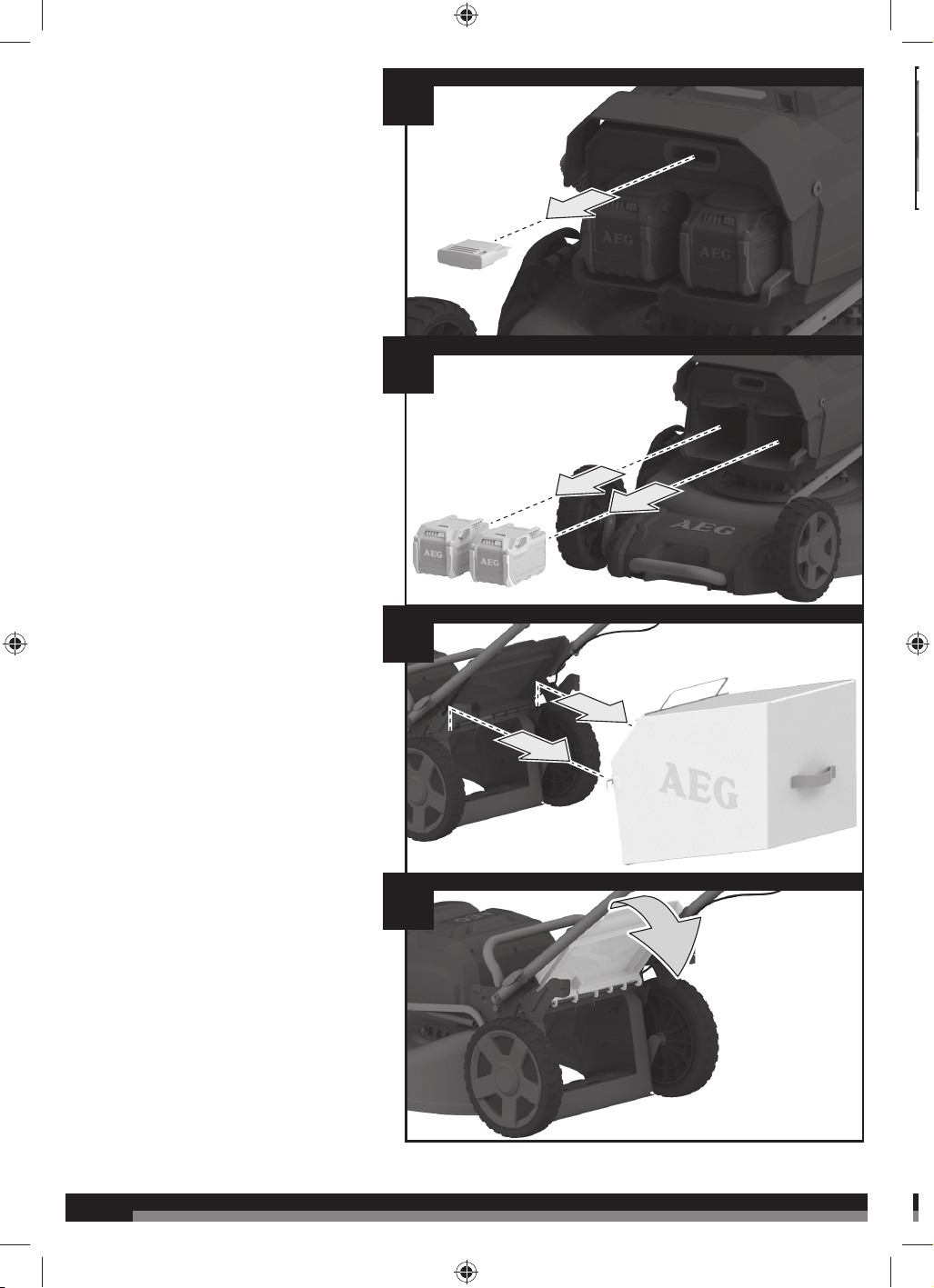

6
5
16
16

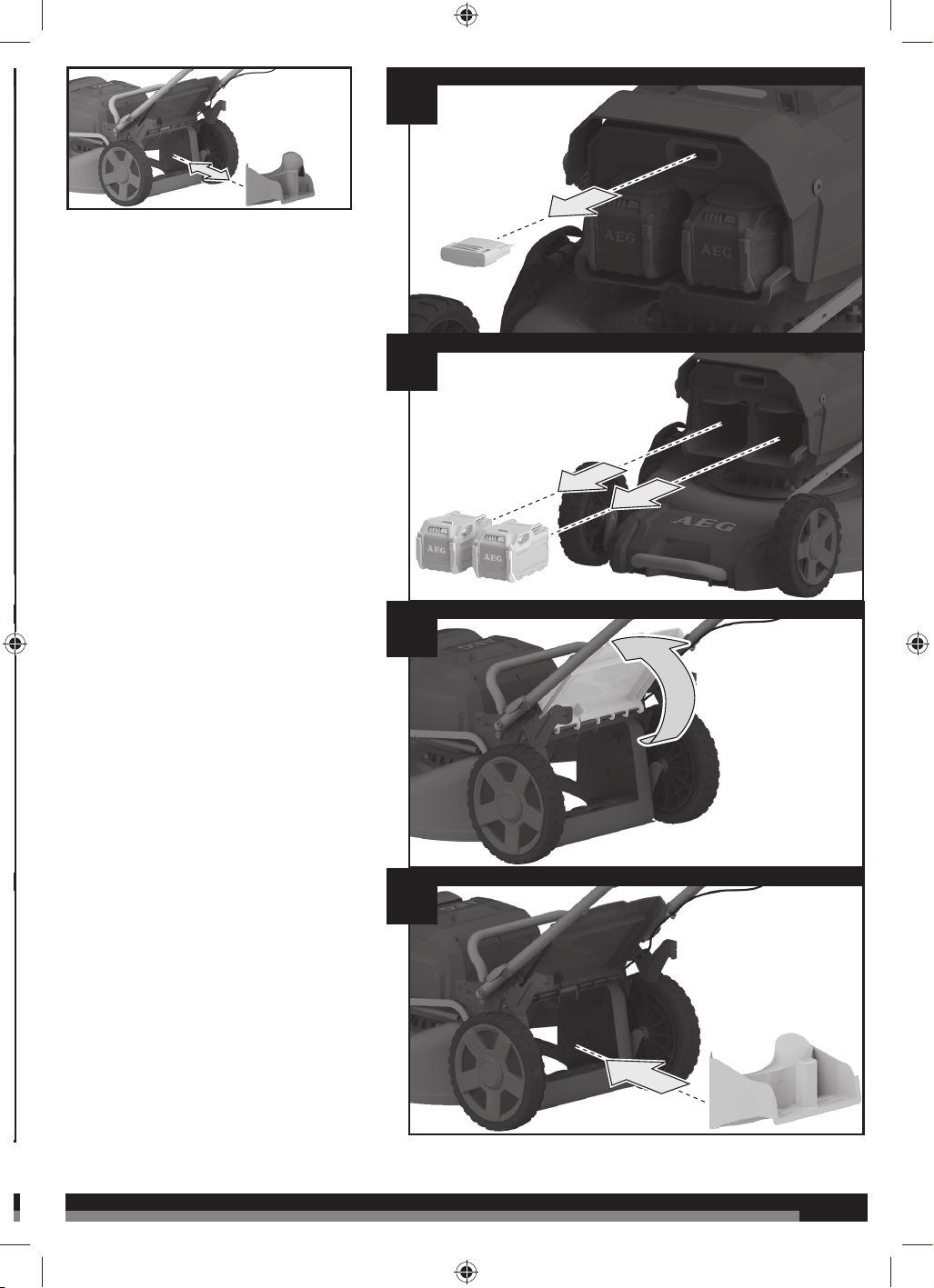

3
4
1
2
17
17
1
2
5
6
3
4
18
18

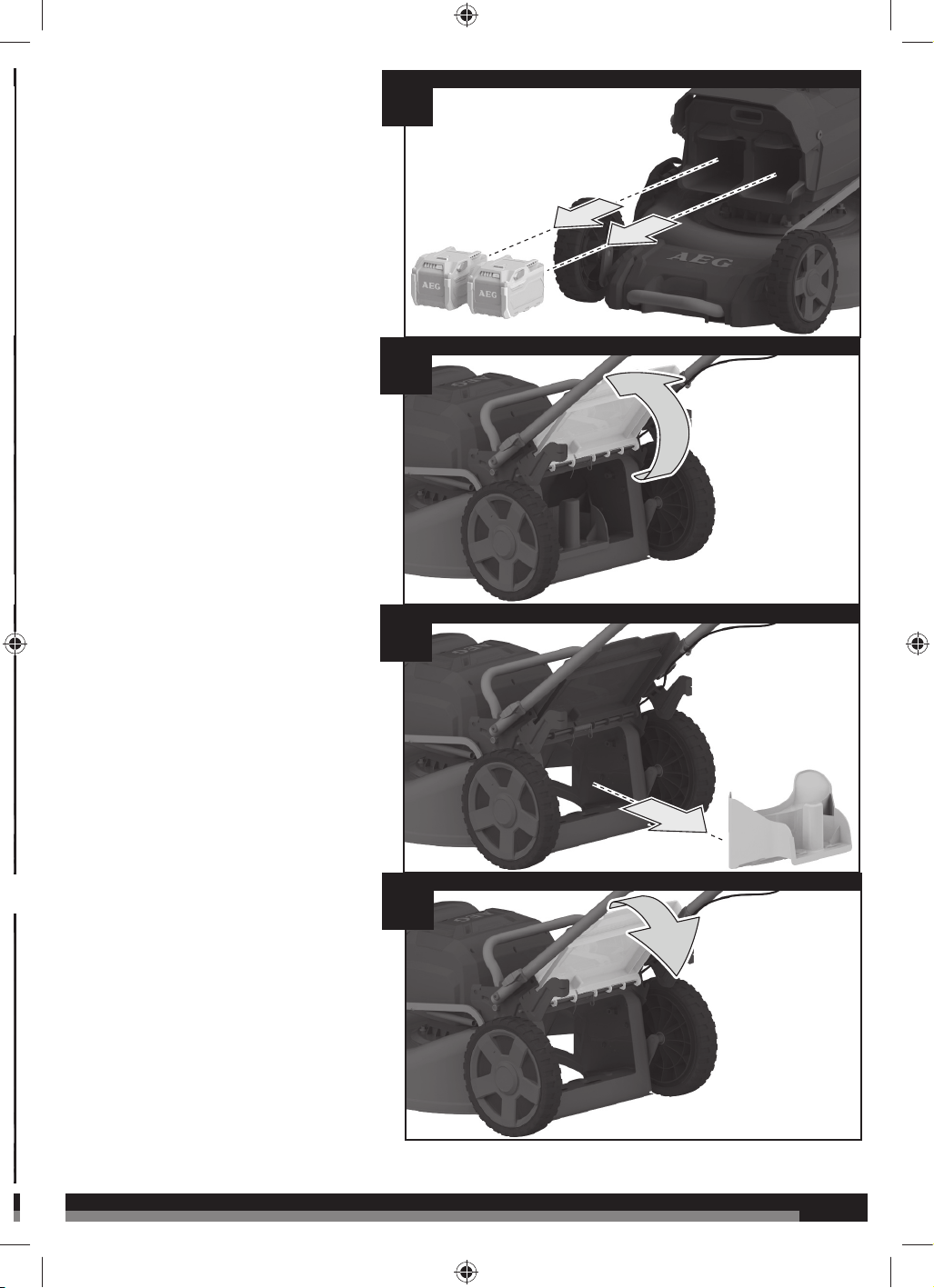

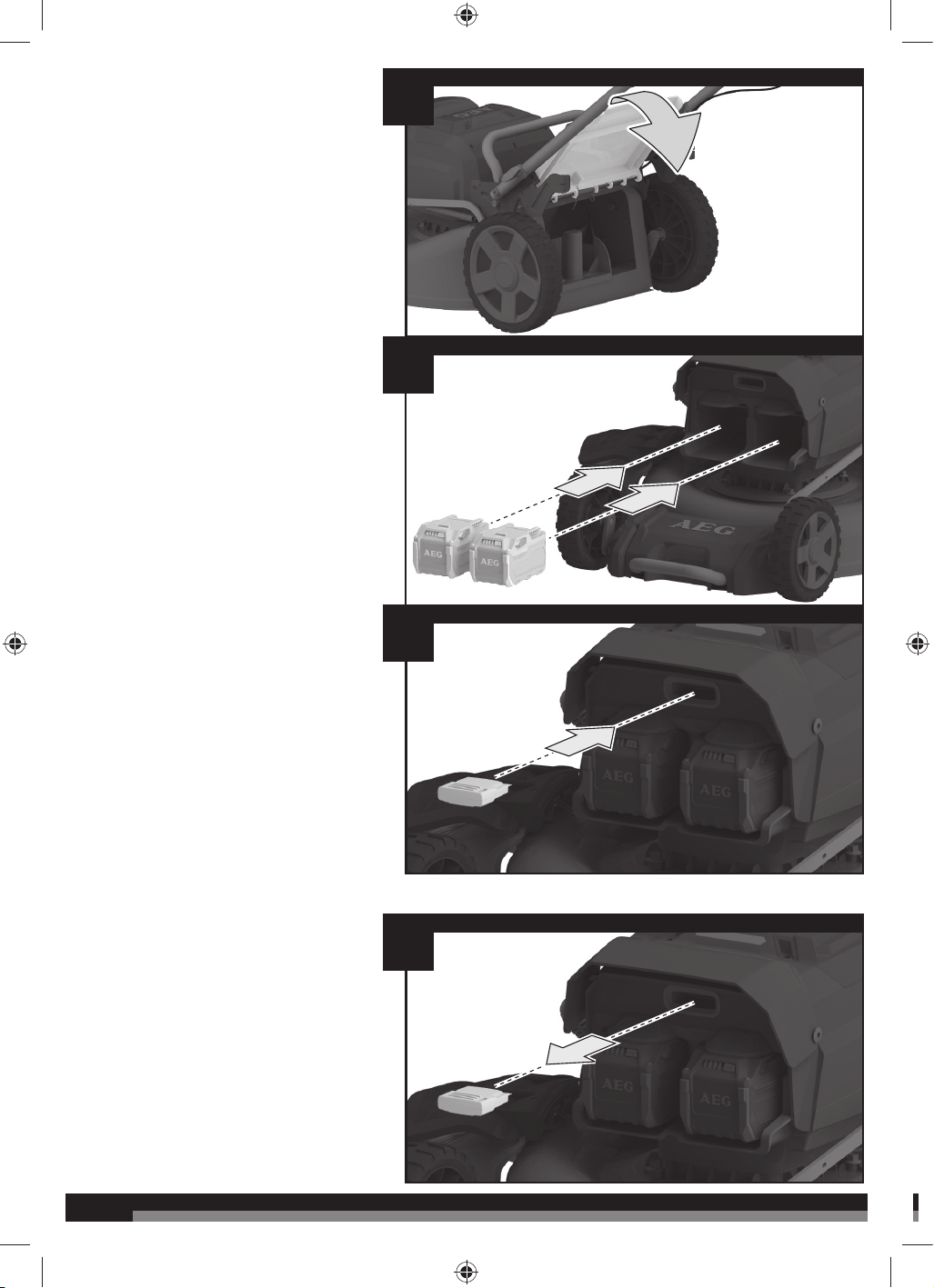

5
6
7
1
19
19
3
2
4
5
20
20

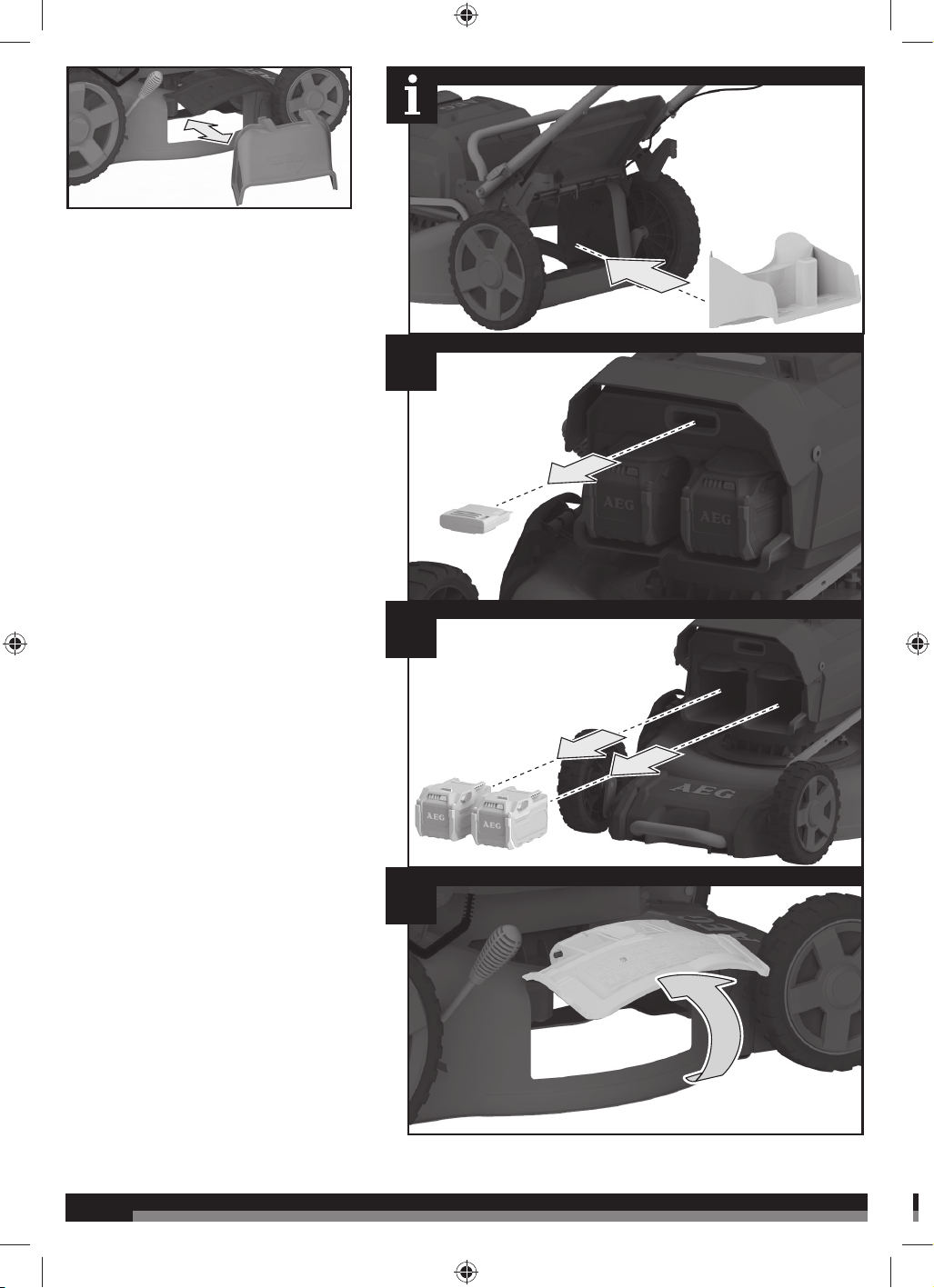

3
1
2
21
21
4
2
1
3
22
22

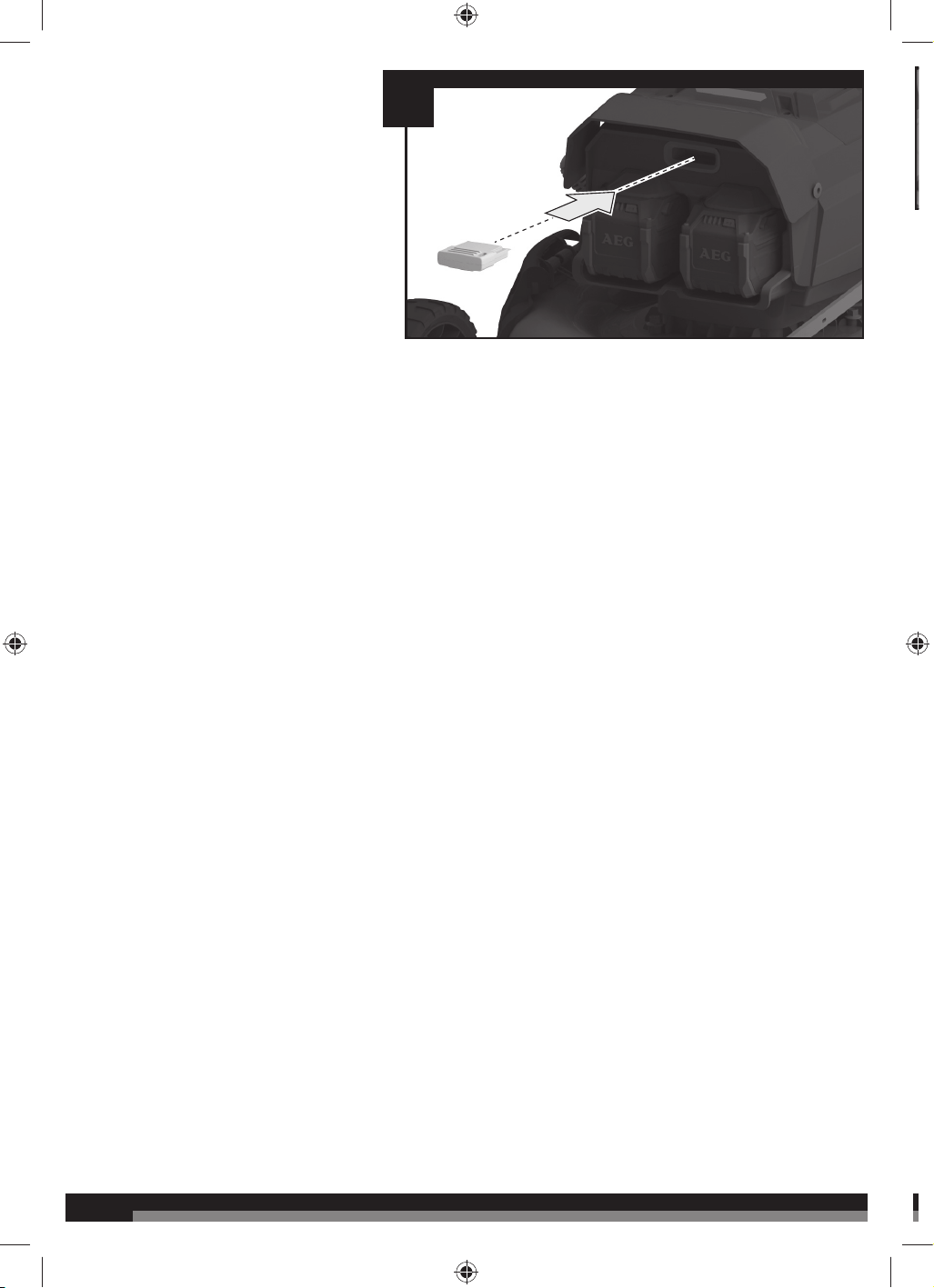

4
23
23

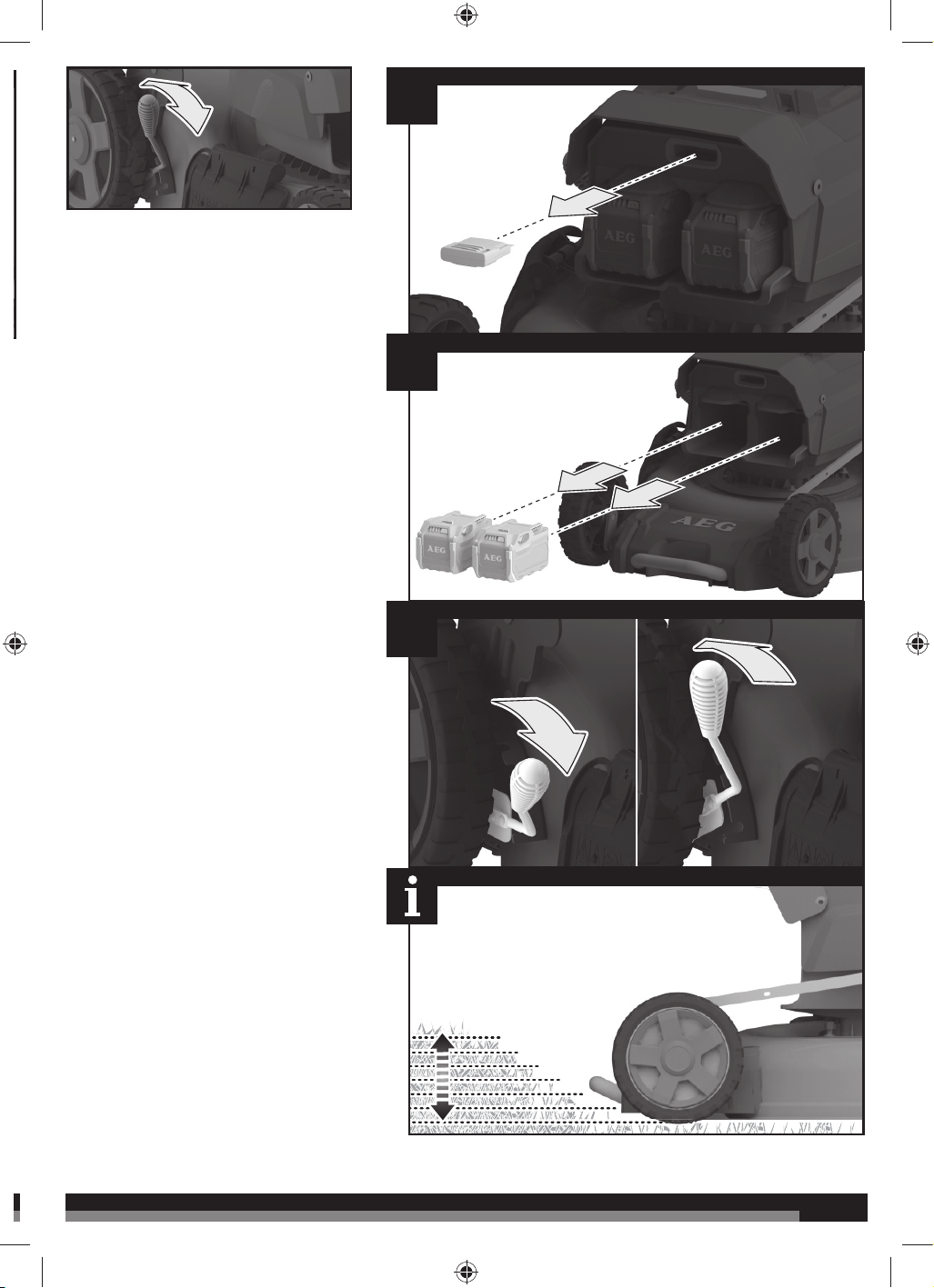

3

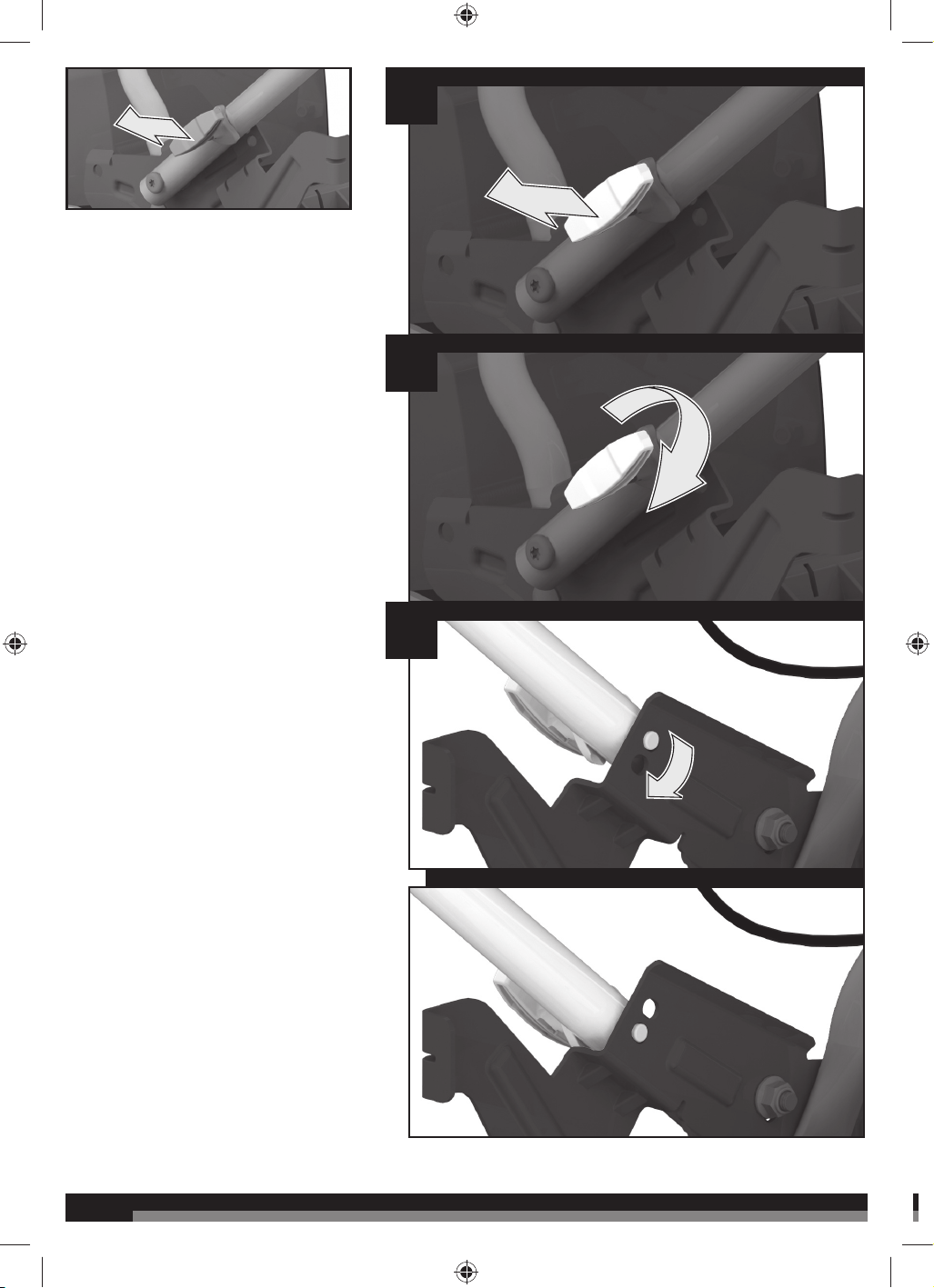

1
2
24
24

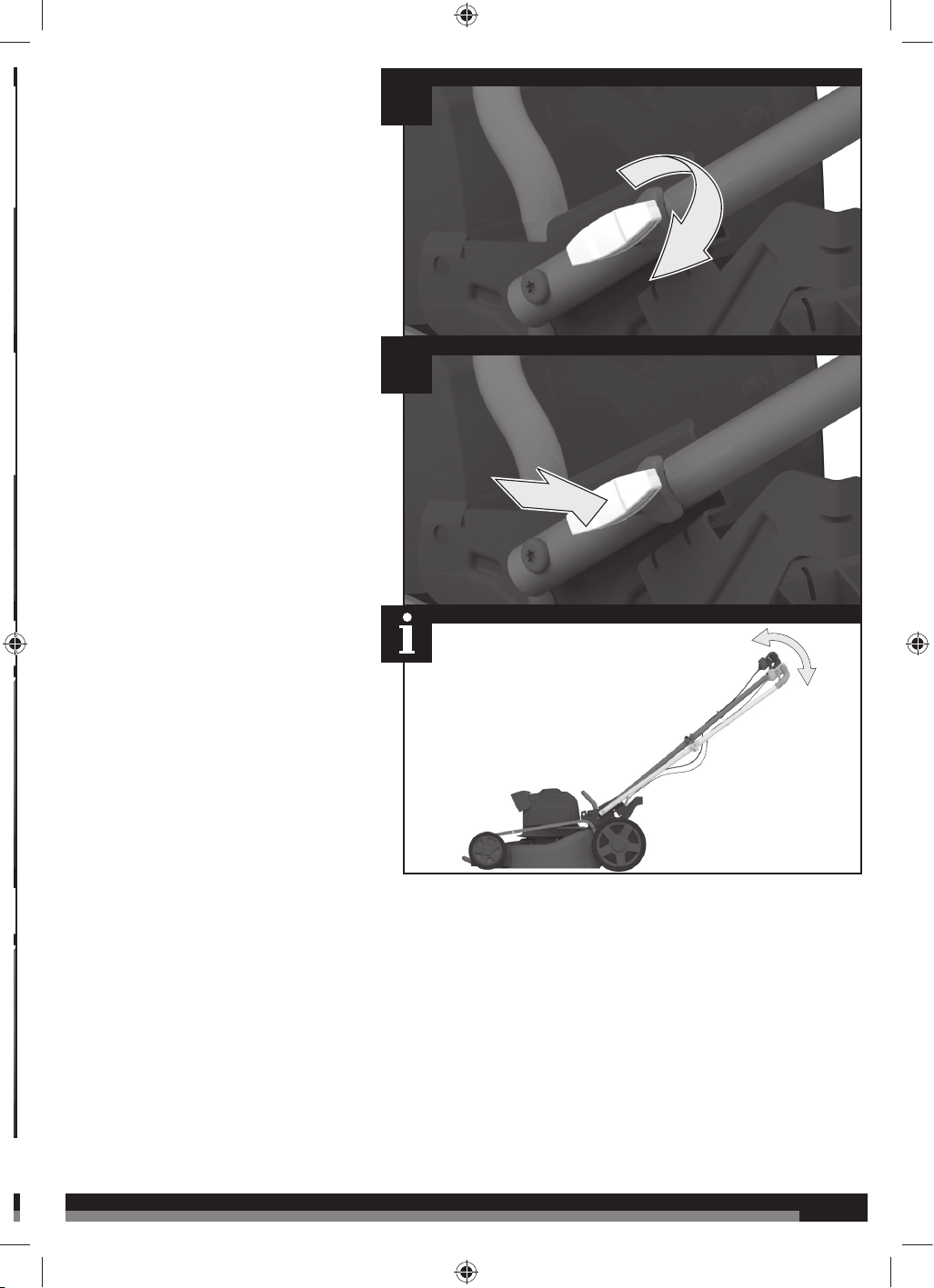

3
1
2
25
25

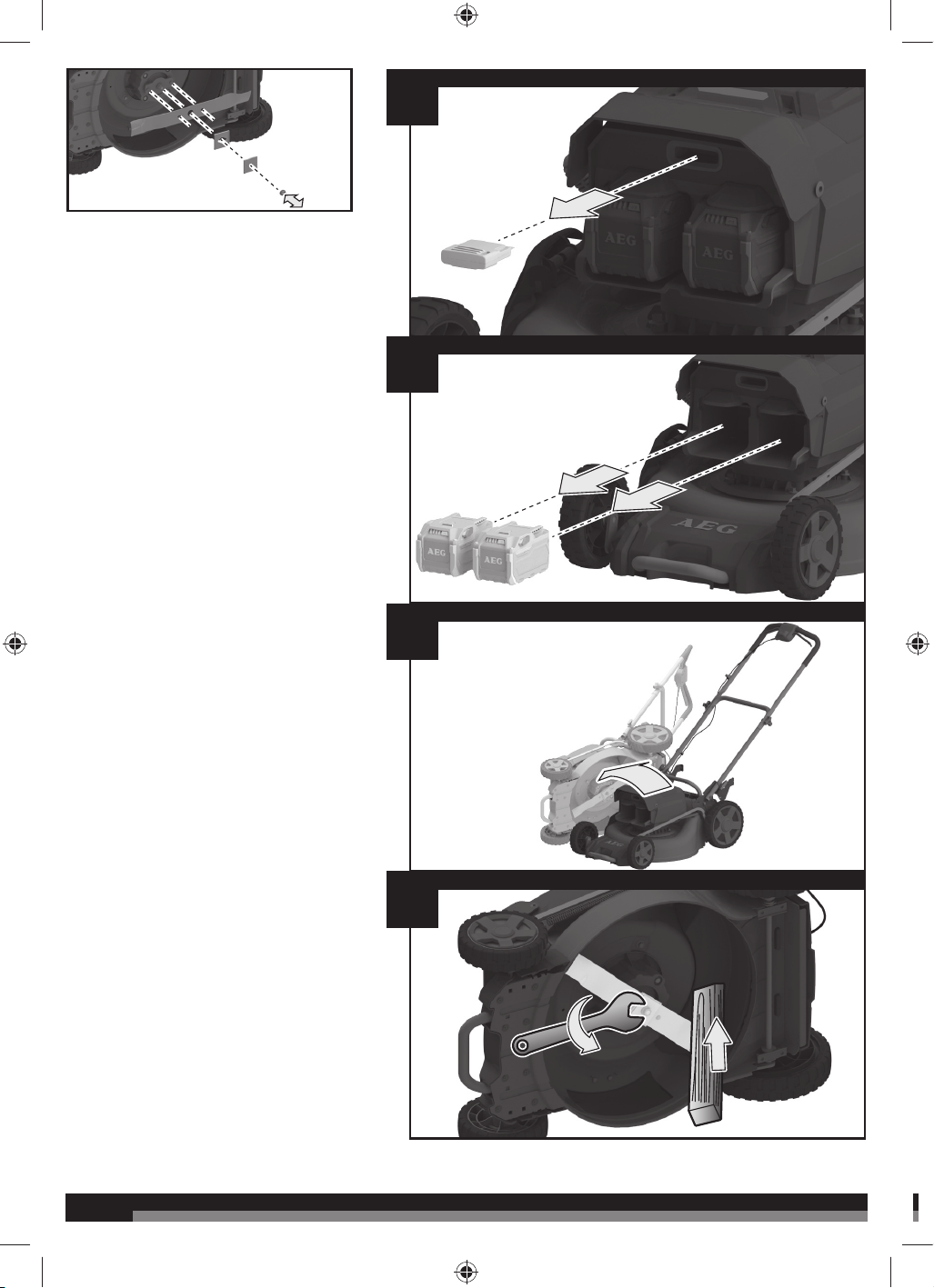

5
4
26
26

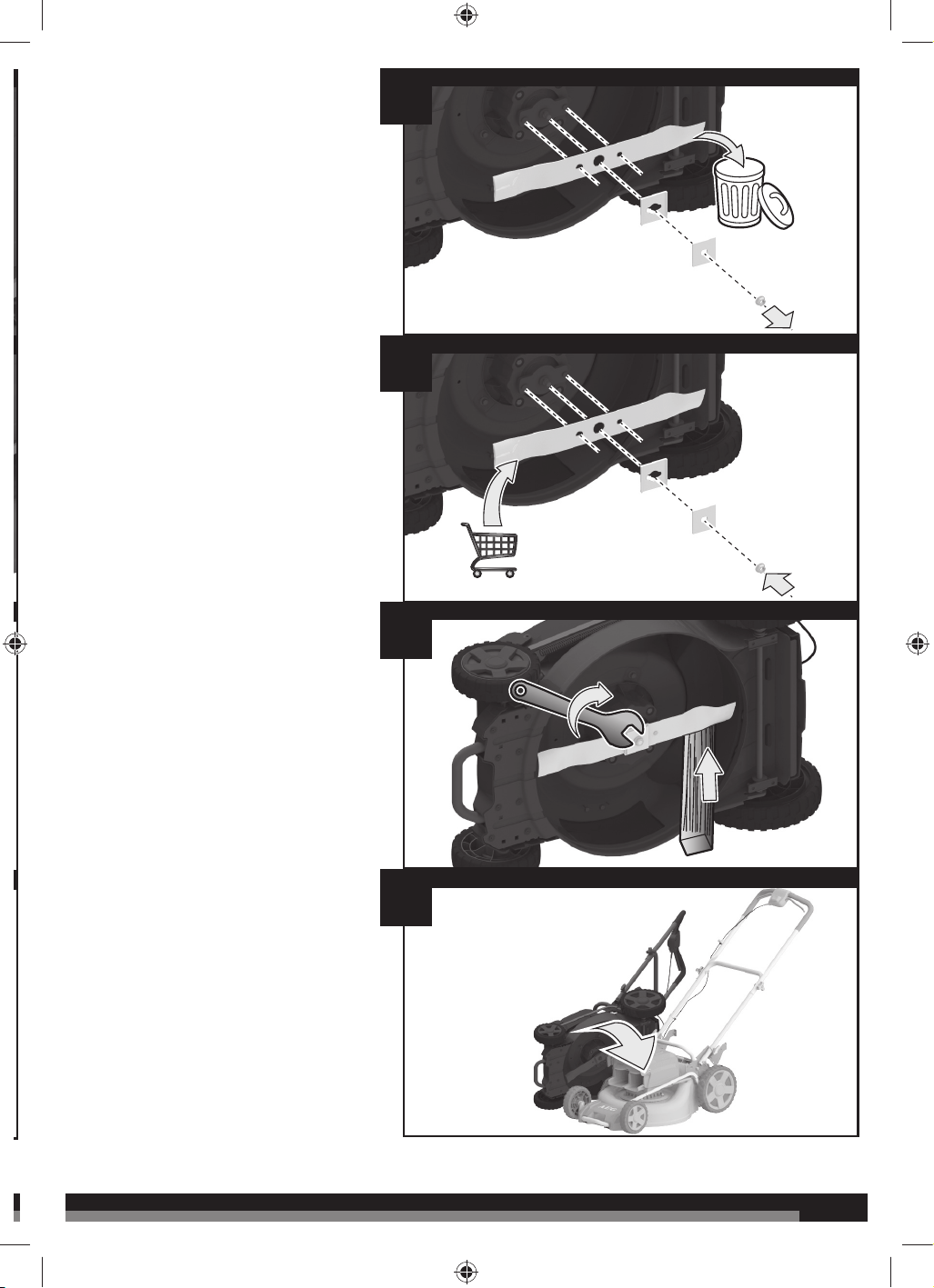

3
4
1
2
27
27

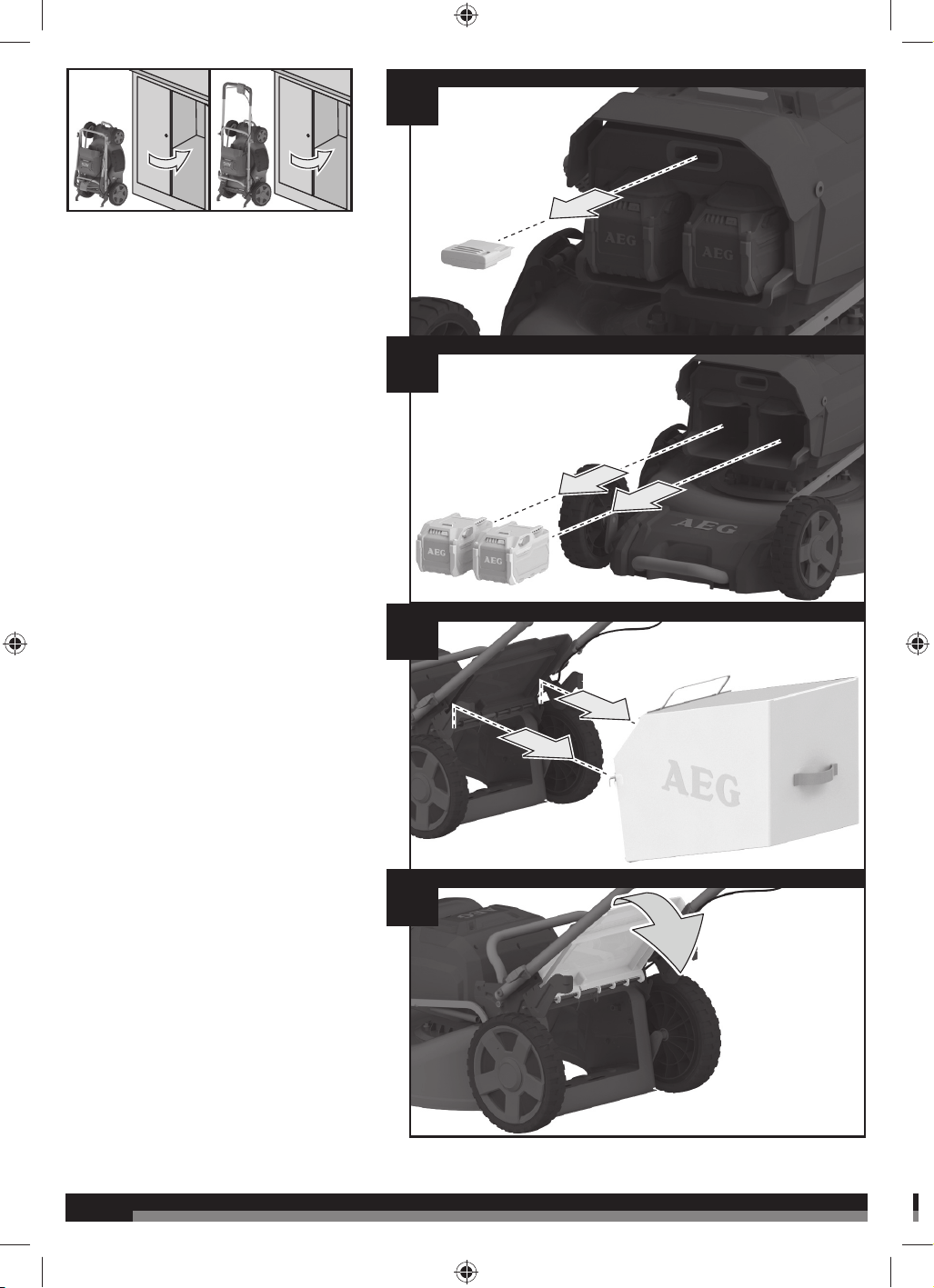

7
5
8
6
Blade bolt tightening
torque (35~40 Nm)
28
28
3
4
1
2
29
29

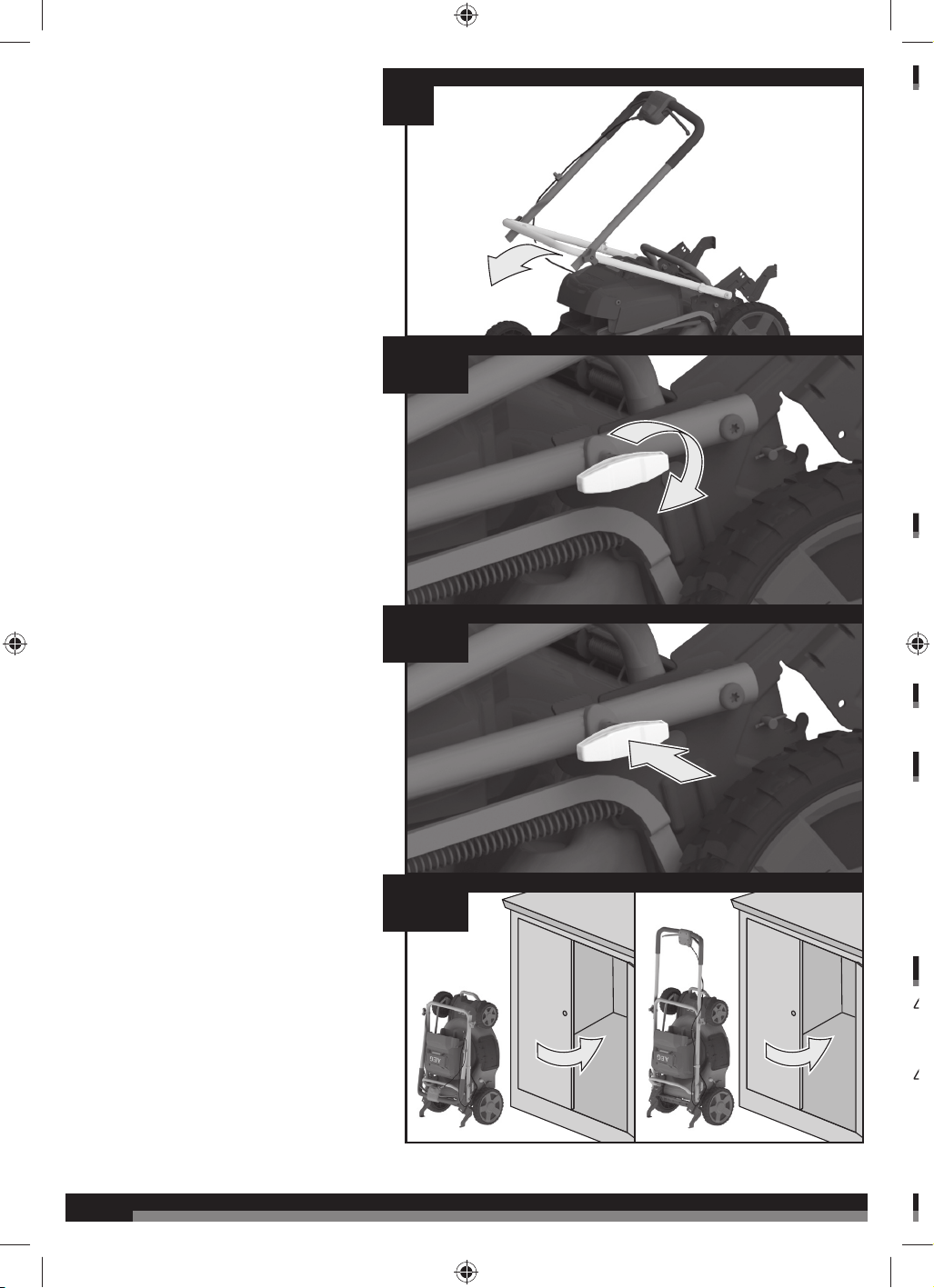

8
7
5
6
30
30

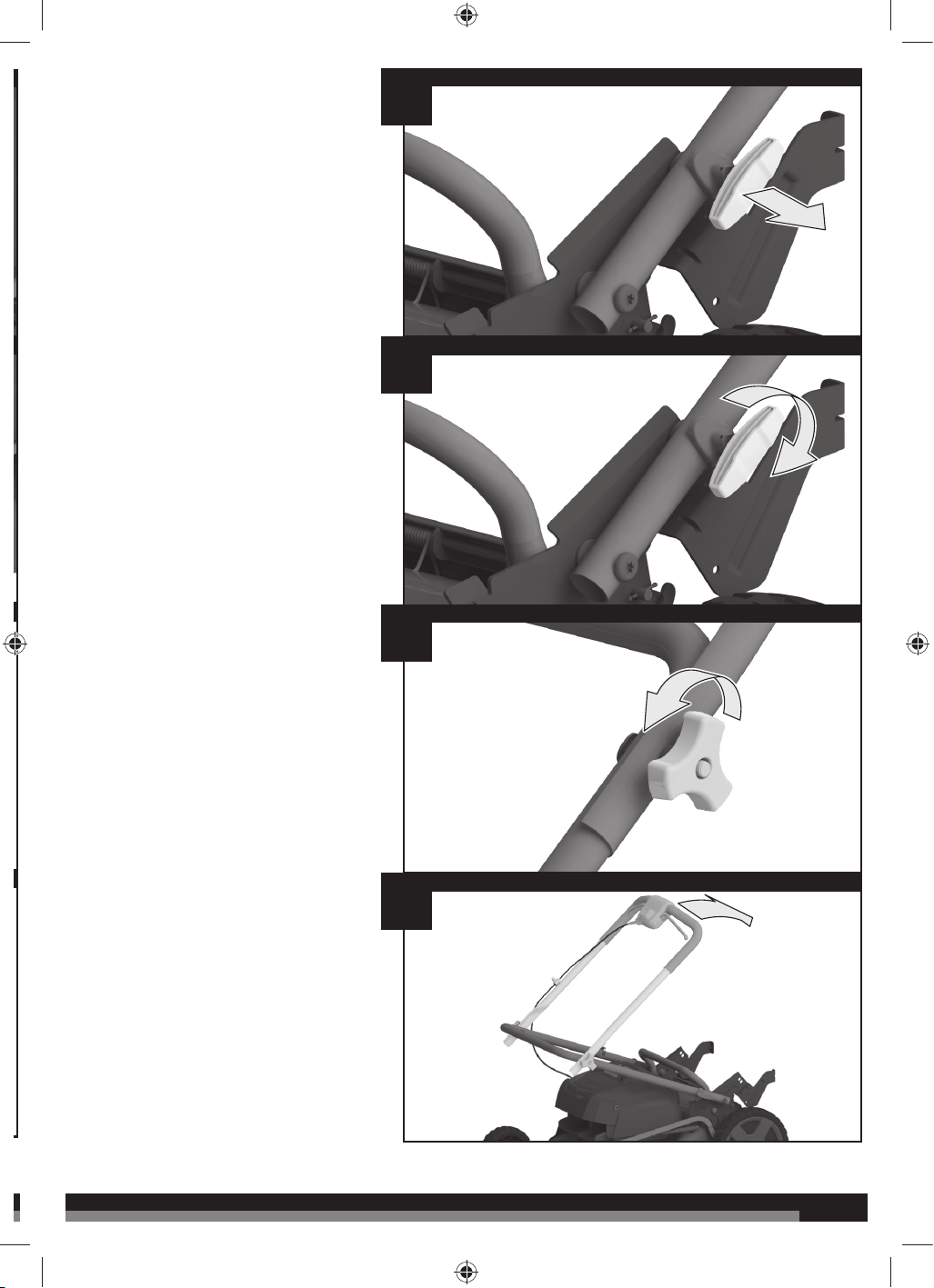

10
11
12
9
T
T
b
i
t
m
t
o
T
g
c
f
o
t
h
i
n
b
S
l
e
P
T
31
31
INTENDED USE
The cordless lawn mower is only intended for use outdoors.
The product is designed for domestic lawn mowing. The cutting
blade should rotate approximately parallel to the ground over which
it is being wheeled. All four wheels should touch the ground while
mowing. It is a pedestrian-controlled walk-behind mower designed
to be pushed by hand.
The mower should never be operated with the wheels off the
ground; it should not be pulled or ridden on. It should not be used to
cut anything other than domestic grass lawns.
GENERAL SAFETY WARNINGS
WARNING! When using the product, the safety rules must be
followed. For your own safety and that of bystanders, please read
these instructions before operating the product. Please keep the
instructions safe for later use.
WARNING! The product should only be operated with the
battery pack. When using battery operated product, basic safety
SUHFDXWLRQV VKRXOG DOZD\V EH IROORZHG WR UHGXFH WKH ULVN RI ¿UH
leaking batteries and personal injury.
PERSONAL SAFETY
The product is capable of amputating hands and feet, and
throwing objects. Failure to observe all safety instructions could
result in serious injury or death.
Read and understand the instructions and safety warnings. Be
familiar with the controls and the correct use of the product.
Never allow children or people with reduced physical,
sensory or mental capabilities, or people unfamiliar with these
instructions, to operate, clean or maintain the product. Local
regulations may restrict the age of the operator. Children should be
adequately supervised to ensure they do not play with the product.
Stay alert, watch what you are doing, and use common sense
when operating the product. Do not operate the product while
WLUHGRUXQGHUWKHLQÀXHQFHRIGUXJVDOFRKRORUPHGLFDWLRQ$ODSVH
in concentration while operating the product may result in serious
personal injury.
Wear heavy, long trousers, long sleeves, and sturdy anti-slip
footwear. Do not wear short trousers, sandals, or go barefoot.
$YRLGZHDULQJFORWKLQJWKDWLVORRVH¿WWLQJRUWKDWKDVKDQJLQJFRUGV
or ties.
Always wear safety glasses with side shields.
Always be sure of your footing..HHS¿UPIRRWLQJDQGEDODQFH
Walk, never run.
Always be sure of your footing on slopes.
Use the product across the face of slopes, never up and down.
Exercise extreme caution when changing direction on slopes.
TECHNICAL DATA CORDLESS LAWN MOWER
ALM18B/ALM18BS6
Rated voltage 36 V DC
Ingress protection IPX1
Width of cut 46 cm
Height of cut 18 - 75 mm
Rated input 800 W
No load speed 2900/min
Weight (without battery and charger) 25.5 kg
Grass catcher capacity 50 L
Blade bolt tightening torque 35~40 Nm
Vibration level
(in accordance with Annex FF of EN 60335-2-77)
Handle 0.4 m/s
2
Uncertainty of measurement 1.5 m/s
2
Noise emission level
(in accordance with Annex GG of EN 60335-2-77)
A-Weighted sound pressure level at operator’s position 81.3 dB(A)
Uncertainty of measurement 2.3 dB
A-Weighted sound power level 94.9 dB(A)
Uncertainty of measurement 1.0 dB
BATTERY AND CHARGER
ALM18B ALM18BS6
Battery pack Not included L1860R-X5
Charger Not included BL1218
Compatible battery packs
L1815G, L1815R, L1820R, L1825R, L1830R, L1840R, L1850R,
L1850R-X5, L1860B, L1860R, L1860R-X5, L1890R, L1890R-X5
Compatible chargers BL1218, AL1218G, BLK1218, BL18DP, BL18DP2-X5
REPLACEMENT PART
Blade AAC4002 (682262)
32
32
Do not use the product near drop-offs, ditches, excessively
steep slopes, or embankments. Poor footing could cause a slip-
and-fall accident.
WORK AREA SAFETY
Never use product while people, especially children, or pets
are within 15 m because of the danger of objects being thrown
by contact with the blade.
Objects struck by the lawn mower blade can cause severe
injuries to persons. Thoroughly inspect the area where the product
is to be used and remove all rocks, sticks, metal, wire, bones, toys,
or other foreign objects. Remember, string or wire may entangle
with the cutting means.
$OZD\VXVH WKHSURGXFWLQWKHGD\OLJKWRUZLWKJRRGDUWL¿FLDO
light.
Do not operate the product in explosive atmospheres, such
DV LQ WKH SUHVHQFH RI ÀDPPDEOH OLTXLGV JDVHV RU GXVW The
product creates sparks which may ignite the dust or fumes.
Do not operate the product in wet grass or in the rain.
Do not use the product when there is a risk of lightning.
Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the product
and the mowing activity. Never assume that children will remain
where you last saw them.
Keep children out of the mowing area and under the watchful
care of a responsible adult other than the operator, be alert and
turn the product off if a child enters the area.
Use extra care when approaching blind corners, shrubs, trees,
or other objects including overhanging shrubs, etc. which may
block your view.
BATTERY TOOL USE AND CARE
Read, understand and always follow the safety instructions
which came with your battery and charger. Failure to do so may
UHVXOWLQHOHFWULFVKRFN¿UHRURWKHUKD]DUGRXVVLWXDWLRQV.HHSDOO
the instructions together in a safe place for future reference.
Battery-operated products do not have to be plugged into
an electrical outlet; therefore, they are always in operating
condition. Remove the safety start key whenever you are not
operating the product.
Remove the battery pack before making any adjustments,
cleaning, or removing material from the product.
Ensure the safety start key is removed before inserting battery
pack.
A battery pack must be recharged only with the charger
VSHFL¿HG E\ WKH PDQXIDFWXUHU Using a charger with an
LQFRPSDWLEOHEDWWHU\SDFNPD\FUHDWHDULVNRI¿UH8VHEDWWHU\SDFN
only with charger listed.
8VH RQO\ EDWWHU\ SDFN LQWHQGHG VSHFL¿FDOO\ IRU WKH SURGXFW
8VHRIDQ\RWKHUEDWWHU\SDFNVPD\UHVXOWLQDULVNRI¿UHHOHFWULF
shock, or injury to persons.
When battery pack is not in use, keep it away from other metal
objects like, paper clips, coins, keys, nails, screws, or other
small metal objects, that can make a connection from one
terminal to another. Shorting the battery pack terminals together
PD\FDXVHVSDUNVEXUQV¿UHRUH[SORVLRQ
'R QRW SODFH EDWWHU\ SURGXFWV RU WKHLU EDWWHULHV QHDU ¿UH RU
heat. This increases the risk of explosion and possibly injury.
Do not open or mutilate the battery pack. Released electrolyte
is corrosive and may cause damage to the eyes or skin. It may be
toxic if swallowed.
Protect the battery pack against moisture and water. Do not
charge the product in a damp or wet location. Following this rule will
reduce the risk of electric shock.
In case of damage and improper use of the battery, vapour may
be emitted. Provide for fresh air and seek medical help in case of
complaints. The vapour can irritate the respiratory system.
Do not leave the battery pack inside a vehicle in hot or cold
conditions.
Do not incinerate the battery.
8QGHU DEXVLYH FRQGLWLRQV OLTXLG PD\ EH HMHFWHG IURP WKH
battery; avoid contact. ,I FRQWDFW DFFLGHQWDOO\ RFFXUV ÀXVK ZLWK
water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
LAWN MOWER SAFETY WARNINGS
Before using, always visually inspect to ensure blades, blade
bolts, and cutter assembly are not worn or damaged.
Replace worn or damaged blades and bolts in sets to preserve
balance.
The blade on this mower is sharp, use extreme caution and
wear heavy duty gloves when fitting, replacing, cleaning or
checking bolt security.
Bring the product to an authorised service centre to replace
damaged or unreadable labels.
&KHFN DOO QXWV EROWV DQG VFUHZV DW IUHTXHQW LQWHUYDOV IRU
SURSHUWLJKWQHVVWREHVXUHWKHHTXLSPHQWLVLQVDIHZRUNLQJ
condition.
&KHFN WKH JUDVV FDWFKHU IUHTXHQWO\ IRU ZHDU KROHV RU
deterioration.
Replace worn or damaged parts before operating the product.
The mower must be started with the user behind the handlebars
in the operator safety zone. Never start the product if:
Ŷ all four wheels are not on the ground
Ŷ the grass discharge chute is exposed without being protected
by either the mulching plug and grass discharge chute cover, or
the grass catcher and grass discharge chute cover
Ŷ hands and feet of all persons are not clear of the cutting
enclosure
Never operate the product if the on/off switch on the handlebar
does not properly start and stop the mower.
Never attempt to lock the on/off switches in the on position,
this is extremely dangerous.
Do not force the product. It will do the job better and safer at the
speed for which it was designed.
Stop the blade when crossing gravel surfaces.
Do not pull the product backward unless absolutely necessary.
If you must back the product away from a wall or obstruction, first
look down and behind to avoid tripping or pulling the product over
your feet.
Stop the motor and allow the blade to stop if the mower has to
be tilted for transportation when crossing surfaces other than
grass, and when transporting the product to and from the area
to be mowed.
Never use the product with defective guards or shields, or
without safety devices, for example, deflectors and/ or grass
catcher, in place.
Do not tilt the lawn mower when switching on the motor or
while the motor is running. This exposes the blade and increases
the probability of objects being thrown.
Switch on the motor carefully according to instructions and
keep hands and feet away from cutting area. Keep clear of
the discharge opening at all times. Do not start the product when
standing in front of the discharge opening.
Do not put hands or feet near or under rotating parts. Keep
c
N
S
t
Ŷ
Ŷ
Ŷ
Ŷ
Ŷ
I
f
Ŷ
Ŷ
Ŷ
A
h
a
A
p
f
o
p
W
R
L
Q
c
p
T
i
s
p
s
T
c
p
o
N
p
t
h
f
r
n
T
b
w
i
n
E
t
o
K
a
Ŷ
33
33
y
o
f
d
H
K
d
e
e
d
o
r
e
R
U
J
R
U
.
s
d
o
r
g
a
r
n
,
e
y
.
s
t
e
r
o
n
a
o
r
s
o
r
s
d
o
f
n
p
clear of the discharge opening at all time.
Never pick up or carry the product while it is running.
Stop the mower motor and remove safety start key, make sure
that all moving parts have come to a complete stop:
Ŷ whenever you leave the product unattended (including disposal
of grass clippings)
Ŷ before cleaning a blockage or unclogging discharge chute
Ŷ before checking, cleaning or working on the product
Ŷ after striking a foreign object; inspect the product for damage
and make repairs as necessary before restarting and operating
the product
Ŷ before removing the grass catcher or opening the grass
discharge chute cover
If the product starts to vibrate abnormally (check immediately):
Ŷ inspect for damage, particularly the blades
Ŷ replace or repair any damaged parts
Ŷ check for and tighten any loose parts
Avoid holes, ruts, bumps, rocks, property stakes, or other
hidden objects. Uneven terrain could cause a slip-and-fall
accident.
Always ensure the motor control cable is never trapped,
pinched, or otherwise damaged during assembly or when
folding the handle.
ADDITIONAL BATTERY SAFETY WARNINGS
:$51,1*7RUHGXFHWKHULVNRI¿UHSHUVRQDOLQMXU\DQG
product damage due to a short circuit, never immerse your
WRRO EDWWHU\ SDFN RU FKDUJHU LQ ÀXLG RU DOORZ D ÀXLG WR ÀRZ
LQVLGHWKHP&RUURVLYHRUFRQGXFWLYHÀXLGVVXFKDVVHDZDWHU
certain industrial chemicals, and bleach or bleach-containing
products, etc., can cause a short circuit.
OVERLOAD, OVERHEAT, AND TILT PROTECTION
The product has an overload protection device. When overloading
is detected, the product will automatically switch off. If the overload
protector is actuated, the on-off lever must be released. Press the
start button to restart the product.
The product has overheat protection. Excessive temperatures will
cause the battery to stop powering the product. Feel the battery
pack; if it is too warm, allow it to cool down before resuming
operation. If the product still does not work, recharge the battery.
NOTE: The battery pack LED indicator will not work if the battery
protection feature has caused the battery pack to stop powering
the product. Release the on-off lever or remove the battery pack
from the product and the battery pack LED indicator will resume
normal function.
The product also has a tilt protection function. If the product is tilted
beyond 40°, for about 7 seconds, the product will stop. The product
will not function if the tilt angle limit is exceeded or if the product is
in the vertical storage position.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
KD]DUGV PD\ DULVH LQ XVH DQG WKH RSHUDWRU VKRXOG SD\ VSHFLDO
attention to avoid the following:
Ŷ Injury caused by vibration. Always use the right tool for the
job. Use designated handles and restrict working time and
exposure.
Ŷ Exposure to noise can cause hearing injury. Wear ear protection
and limit exposure.
Ŷ Contact with the blades.
Ŷ Injury from thrown objects.
RISK REDUCTION
It has been reported that vibrations from handheld tools may
contribute to a condition called Raynaud’s Syndrome. Symptoms
PD\ LQFOXGH WLQJOLQJ QXPEQHVV DQG EODQFKLQJ RI WKH ¿QJHUV
usually apparent upon exposure to cold. Hereditary factors,
exposure to cold and dampness, diet, smoking, and work practices
are all thought to contribute to the development of these symptoms.
There are measures that can be taken by the operator to possibly
reduce the effects of vibration:
Ŷ Keep your body warm in cold weather. When operating the
product wear gloves to keep the hands and wrists warm.
Ŷ After each period of operation, exercise to increase blood
circulation.
Ŷ Take frequent work breaks. Limit the amount of exposure per
day.
Ŷ If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor.
WARNING! Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any tool for prolonged
periods, ensure you take regular breaks.
TRANSPORTATION AND STORAGE
Stop the product, remove the safety start key, and the battery. Make
sure that all moving parts have come to a complete stop. Allow the
product to cool down before storing or transporting.
Clean all foreign material from the product. Store it in a cool, dry,
and well-ventilated place that is inaccessible to children. Keep away
from corrosive agents such as garden chemicals and de-icing salts.
Do not store outdoors.
For transportation, remove safety start key, secure the product
against movement or falling to prevent injury to persons or damage
to the product.
WARNING! Use extreme caution when lifting or tilting the
product for maintenance, cleaning, storage, or transportation.
The blade is sharp. Keep all body parts away from the blade while
it is exposed.
MAINTENANCE
WARNING! Use only original manufacturer’s replacement
parts, accessories and attachments. Failure to do so can cause
injury, poor performance and may void your warranty.
:$51,1*6HUYLFLQJUHTXLUHVH[WUHPHFDUHDQGNQRZOHGJH
DQGVKRXOGEHSHUIRUPHGRQO\E\DTXDOL¿HGVHUYLFHWHFKQLFLDQ
For service, bring the product to an authorised service centre for
repair. When servicing, use only original replacement parts.
Remove the safety start key and the battery before any cleaning or
maintenance task.
You may make adjustments and repairs described here. For other
repairs, contact the authorised service centre.
Check the grass catcher frequently for wear or deterioration.
34
34
After each use, clean the product with a soft dry cloth. Any part
that is damaged should be properly repaired or replaced by an
authorised service centre.
Check all nuts, bolts and screws at frequent intervals for proper
tightness to ensure the product is in safe working condition.
Be careful during adjustment of the product to prevent entrapment
RIWKH¿QJHUVEHWZHHQPRYLQJEODGHVDQG¿[HGSDUWVRIWKHSURGXFW
When servicing the blades, be aware that even though the power
source is switched off, the blades can still be moved.
The blade on the product is sharp. Use extreme caution and wear
KHDY\GXW\JORYHVZKHQ¿WWLQJUHSODFLQJFOHDQLQJRUFKHFNLQJEROW
security.
Replace damaged blades and bolts in sets to preserve balance.
CLEARING BLOCKAGES
Ŷ Stop the product, remove the safety start key and the battery
pack. Make sure that all moving parts have come to a complete
stop.
Ŷ Always wear heavy-duty gloves when checking or clearing a
blockage.
Ŷ The blades are sharp and the blockage itself could be a sharp
object.
Ŷ Remove the grass catcher, check for and carefully clear
obstructions.
Ŷ Check the grass discharge chute for blockages and carefully
clear.
Ŷ Turn the product on its side, check its underside, and the area
around the blade. If any blockages are found, remove carefully.
Remember the blade may move during cleaning.

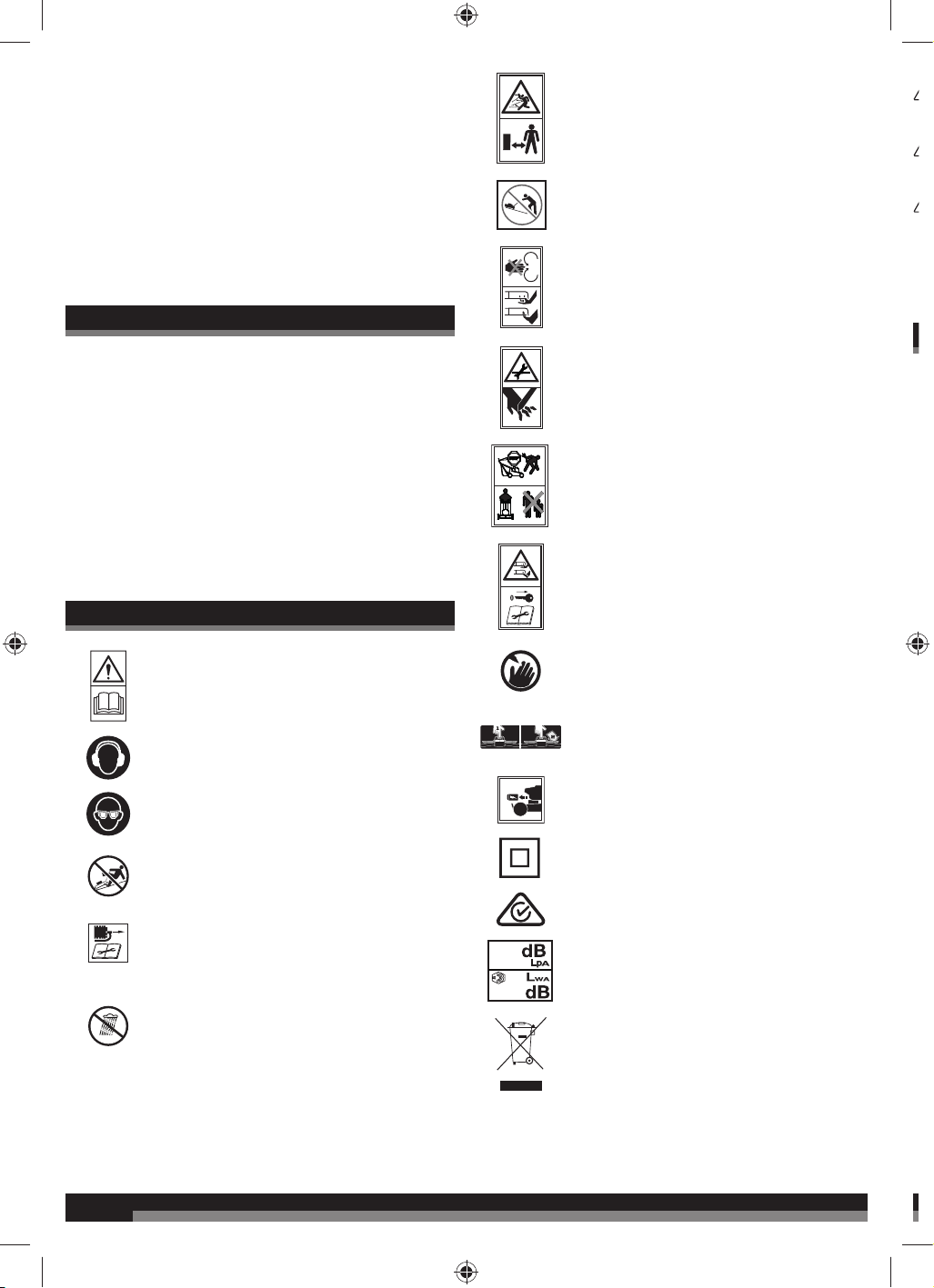

SYMBOLS
Read and understand all instructions before
operating the product, follow all warnings and
safety instructions.
Wear ear protection.
Wear eye protection.
Do not operate on inclines greater than 15°. Mow
across the face of slopes, never up and down.
Remove spark plug lead before maintenance.
NOTE: This icon applies only for petrol lawn
mower.
Do not expose to rain or damp condition.
Beware of thrown or flying objects. Keep all
bystanders, especially children and pets, at least
15m away from the operating area.
Do not operate on inclines greater than 15°. Mow
across the face of slopes, never up and down.
To prevent serious injury, do not touch the cutting
blades.
Use the appropriate tools for maintenance to
prevent serious injuries.
Keep hands away from blade.
Always stop the product before cleaning the work
place.
Keep children out of the mowing area and under
the watchful care of a responsible adult other than
the operator.
Beware of sharp blades. Blades continue to rotate
after the motor is switched off – Remove the safety
start key before maintenance.
To prevent serious injury, keep hands and feet
away.
To turn on product:
1. Press the start button.
2. Press and hold the paddle switch.
Always remove the battery pack from the product
before cleaning, doing maintenance, or leaving the
product unattended.
Class II tool, double insulation.
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
96
84
The guaranteed sound pressure level is 84 dB.
The guaranteed sound power level is 96 dB.
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authority or
retailer for recycling advice.
The following signal words and meanings are intended to explain
t
h
C
T
d
s
F
h
Ŷ
Ŷ
Ŷ
Ŷ
Ŷ
Ŷ
Ŷ
35
35
n
the levels of risk associated with this product.
DANGER
,QGLFDWHV DQ LPPLQHQWO\ KD]DUGRXV VLWXDWLRQ ZKLFK LI QRW
avoided, will result in death or serious injury.
WARNING
,QGLFDWHV D SRWHQWLDOO\ KD]DUGRXV VLWXDWLRQ ZKLFK LI QRW
avoided, could result in death or serious injury.
CAUTION
,QGLFDWHV D SRWHQWLDOO\ KD]DUGRXV VLWXDWLRQ ZKLFK LI QRW
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
GENERAL MOWING TIPS
The run time of the battery depends on the condition, length, and
density of the grass. Adjust the cutting height of the lawn mower to
suit the current condition of the lawn.
For best performance, always cut off one-third or less of the total
height of the grass.
Ŷ When cutting long grass, reduce walking speed to allow for
more effective cutting and a proper discharge of the clippings.
Ŷ Do not cut wet grass; it will stick to the underside of the deck
and prevent proper collection or discharge of grass clippings.
Ŷ New or thick grass may require a higher cutting height.
Ŷ If you wish to collect the grass cuttings for disposal, remove
the mulching plug and fit the grass catcher making sure the
top flap is properly closed. Empty the grass catcher regularly;
otherwise, the discharge chute will become blocked with grass
cuttings.
Ŷ If you are making a light cut and wish for the grass cuttings to
remain on the lawn, fit the mulching plug and close the top flap
to cover the discharge opening. It is not necessary to fit the
grass catcher in this case.
Ŷ The product is designed to operate and cut most effectively
when moving forwards.
Ŷ A higher cutting height will extend the run time of the battery
pack.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trademark used under
license from AB Electrolux (publ).961087019-03
