Refrigerator
TWO DOOR SERIES
MRU21C7BST
MRU21C7BWW
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Download the app
& activate product
02
03
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance oers in a safe way.
CONTENTS
THANK YOU LETTER
------------------------------------------- 03
SPECIFICATIONS
------------------------------------------------- 04
PRODUCT OVERVIEW
------------------------------------------ 05
PRODUCT INSTALLATION
------------------------------------ 06
OPERATION INSTRUCTIONS
--------------------------------- 15
APP SETUP AND OPERATION
------------------------------- 19
CLEANING AND MAINTENANCE
---------------------------- 20
TROUBLESHOOTING
------------------------------------------- 21
DOC AND CERTIFICATIONS
---------------------------------- 23
04
SPECIFICATIONS
Wireless Network module model MWB-S-WB01
Standard IEEE 802.11b/g/n
Antenna Type Printed PCB antenna
Frequency Band 2400-2483.5 MHz
Operating Temperature
0
°C
~ 85
°C
/32
°F
~185
°F
Operation
humidity: 10%~85%
Power Input DC5V/500mA Maximum
Transmission power: <20dBm
05
PRODUCT OVERVIEW

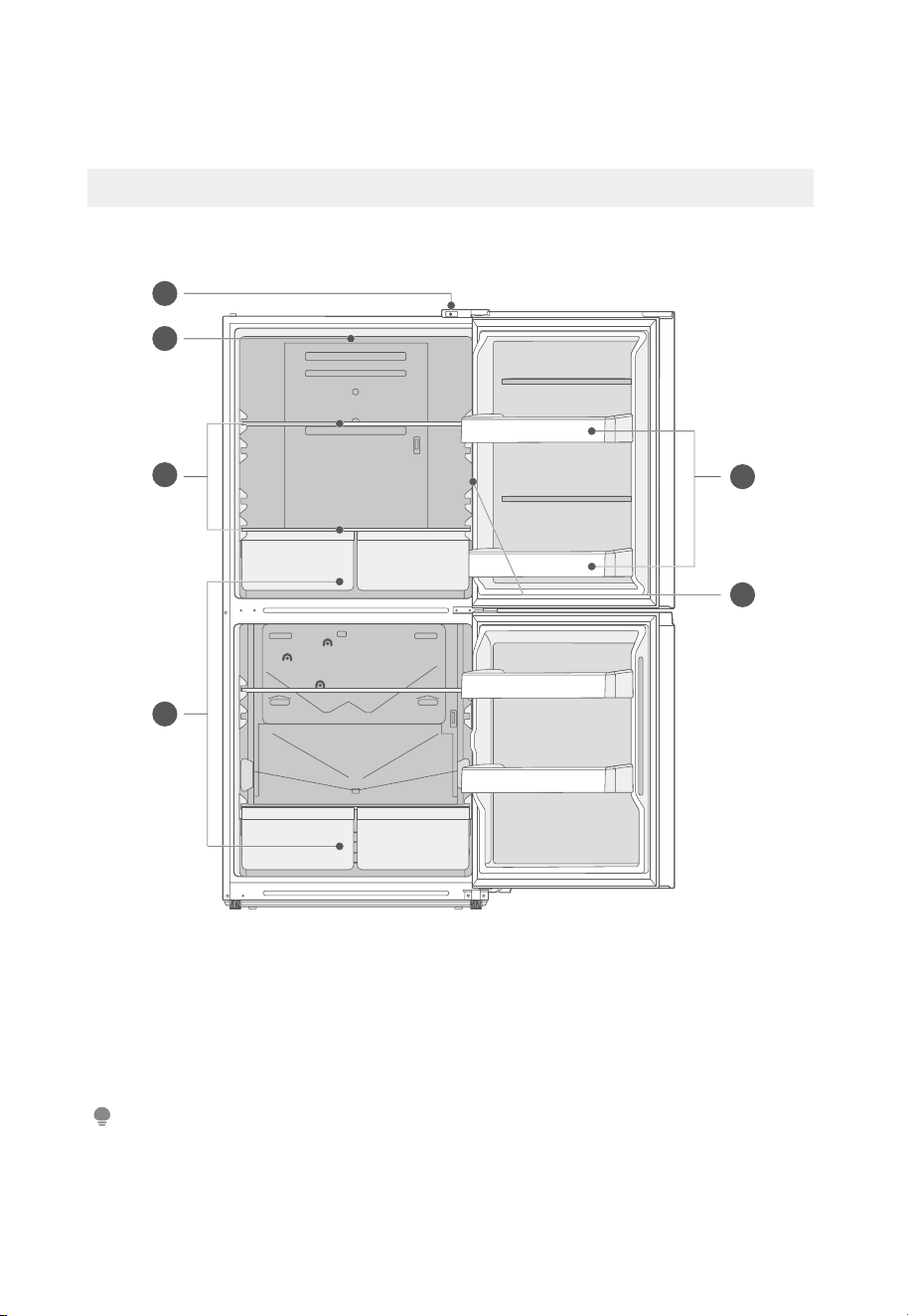

Names of components
1
2
3
4
5
6
1
Door switch
4
Drawer
2
LED light
5
Door tray
3
Shelf
6
Control panel
ATTENTION
The picture above is only for reference. Wire drawers cannot be used as fruits and vegetables,
and there is a risk of frostbite
.
The actual configuration will depend on the physical product or
statement by the distributor.
06
PRODUCT INSTALLATION
Install Instruction
Finding a suitable location
> This refrigerator is designed to be free standing only, and should not be
recessed or built-in.
> The refrigerator should be placed in a well-ventilated indoor place; the ground
shall be flat and sturdy.
> Keep away from heat and avoid direct sunlight. Do not place the refrigerator in
moist or watery places to prevent rust or reduction of insulating eect.
Dimensions and Clearances
> Too small of a distance from adjacent items may result in the degradation of
freezing capability and increased electricity costs. The refrigerator both sides
should be placed against the wall with a free distance more than 100mm, and
the refrigerator back against the wall distance not more than 75mm.
>100mm
>100mm
＜75mm
>100mm
>100mm
>100mm
Required space
for air circulation
Top
View
Providing a proper power supply
> Check your local power source. This refrigerator requires a 115 V, 60 Hz power
supply.
> Use a receptacle that accepts the grounding prong. The power cord is
equipped with a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of electric shock
hazard from this refrigerator.
CAUTION
The freezer should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating plate.
Never unplug your freezer by pulling on the power cord. Always grip the plug firmly
and pull straight out from the outlet.
Start to use
> The freezer shall stay for half an hour before connecting power when it is firstly
started.
> The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer
shall run for more than 4 hours in summer in advance considering that the ambient
temperature is high.
07
Space requirement diagram (when the door is open and when the door is closed)
A
B
E
D
C
C1
Width
Overall
Height
Depth Without door
Depth
doors open
135
o
Width
doors open
135
o
A B C C1 D E
755 1692 830 734 1351 1275
Notice: All dimensions in mm
08
Door reversal (Optional)
Based on the location where you plan to use your refrigerator, you may find it
more convenient to reverse the position of the door.
CAUTION
To avoid injury to yourself or your property, we recommend that someone assist you during
the door reversal process.
Preparing to reverse the door position
You will need: A flathead screwdriver, a Phillips screwdriver, and the included Allen
wrench..
>
Make sure that your refrigerator is unplugged and empty.
>
Have someone available to assist you in the process.
>
Keep all of the parts you remove to reuse them later.

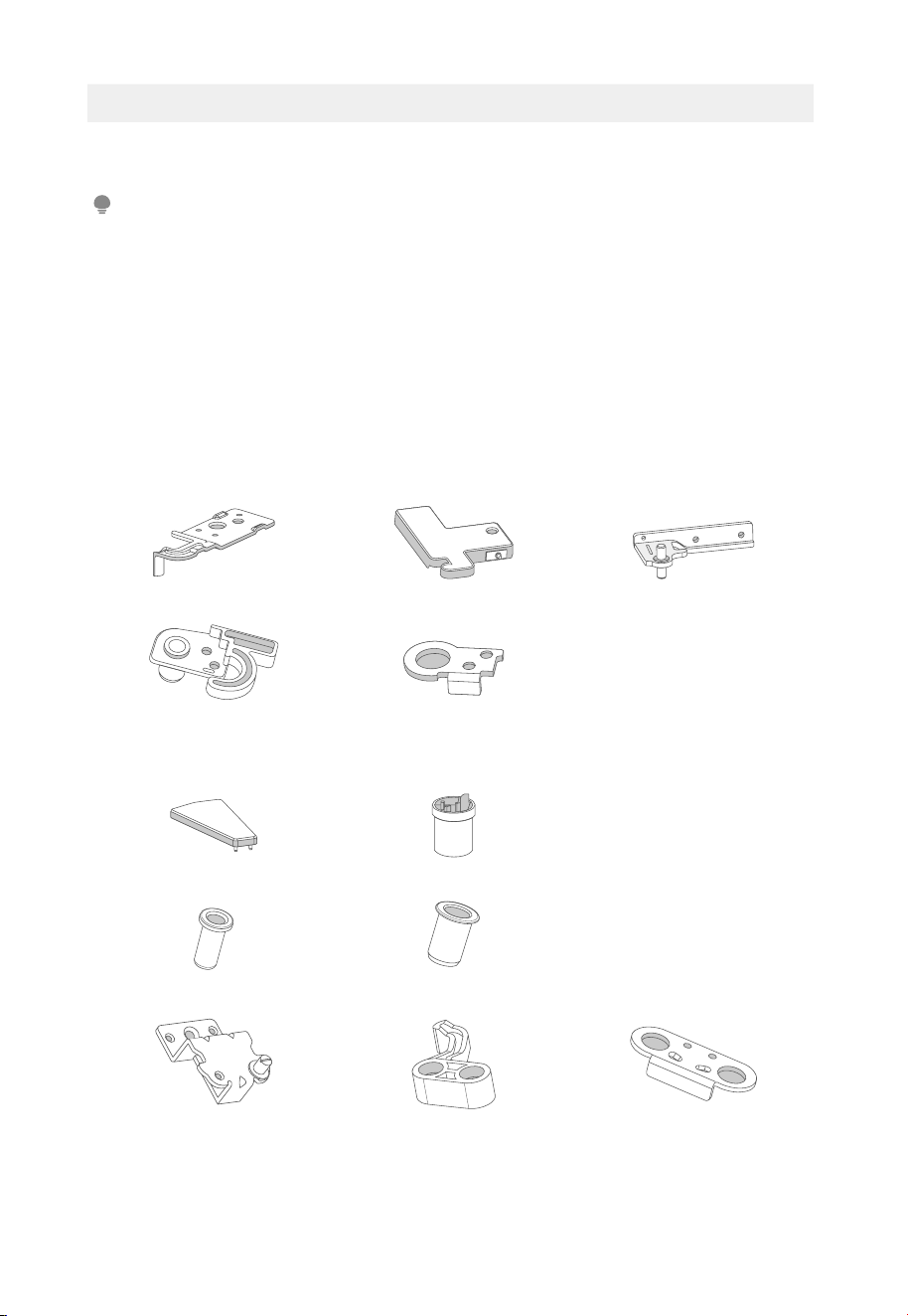

Parts included with the hinge kit:
Left upper hinge Left upper hinge cover Left middle hinge
Top door left self-lock Top door left stopper
Parts already mounted on the door (as shipped):
Hole cover Upper hinge shaft sleave
Middle hinge Shaft sleave Lower hinge shaft sleave
Lower hinge Bottom door self-lock Bottom door Stopper
09
Parts currently open on the right side:
Right upper hinge Right upper hinge cover Right middle hinge
Top door right self-lock Top door right stopper
10

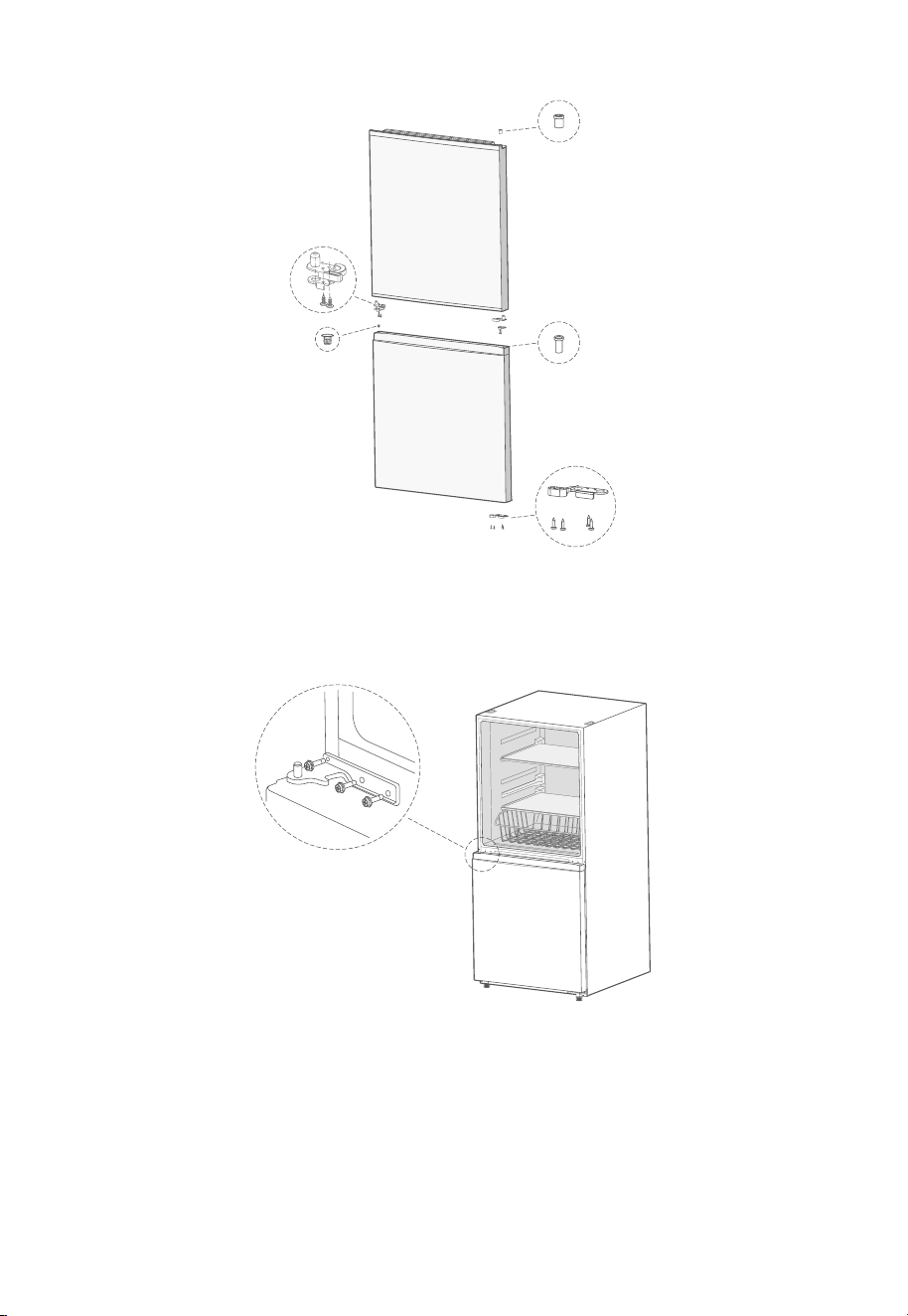

STEP:
1. Power o the refrigerator and remove all food items from the door shelves.
Secure the door with tape.
2. Remove the left hole cover and the right upper hinge cover with a Phillips and
flathead screwdriver, remove the upper hinge, and save the screws for use.
1
1
3. Remove the upper door body.
4. Remove the middle hinge and screw cover with a Phillips screwdriver, and then
remove the lower door body from the refrigerator’s body upward, and save the
bolts for use.
11

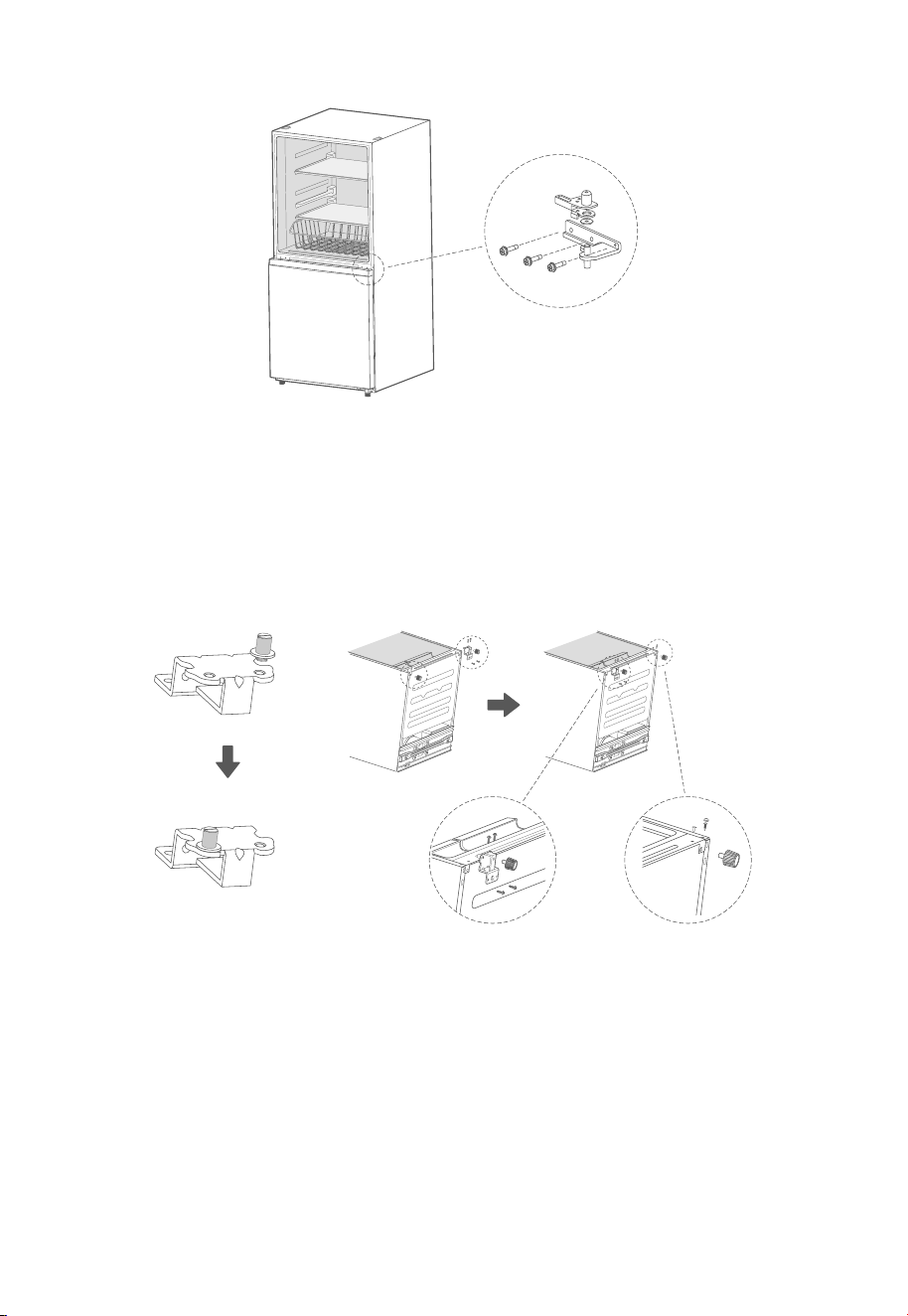

5. Remove the right lower hinge screws, and then remove the lower hinge and
adjustable feet. Pry o the insert pin,screw cap and adjustable feet on the left
side and remove the screw
.
6. Remove the lower hinge shaft and move it to the left of the lower hinge and
tighten it, then install the removed right lower hinge to the left lower end of the
refrigerator and secure it with the screws that were kept aside.
7. Remove the shaft sleeves at the right end of the lower door body and the
upper door body and the hole cover on the shaft hole at the left end of the
lower door, and install them on the opposite side.
8. Remove the door stop at the lower right end of the lower door body and install
it on the opposite side of the door body. Remove the door stop and self-lock
at the lower right end of the upper door body and save it, remove the left stop
and self-lock in the accessory package of the machine and install them on the
upper door body
.
12
9. Install the lower door onto the lower hinge, and Pry o the insert pin, screw
cap and remove the screw, remove the middle hinge on the other side from the
accessory package and install the middle hinge on the opposite side.

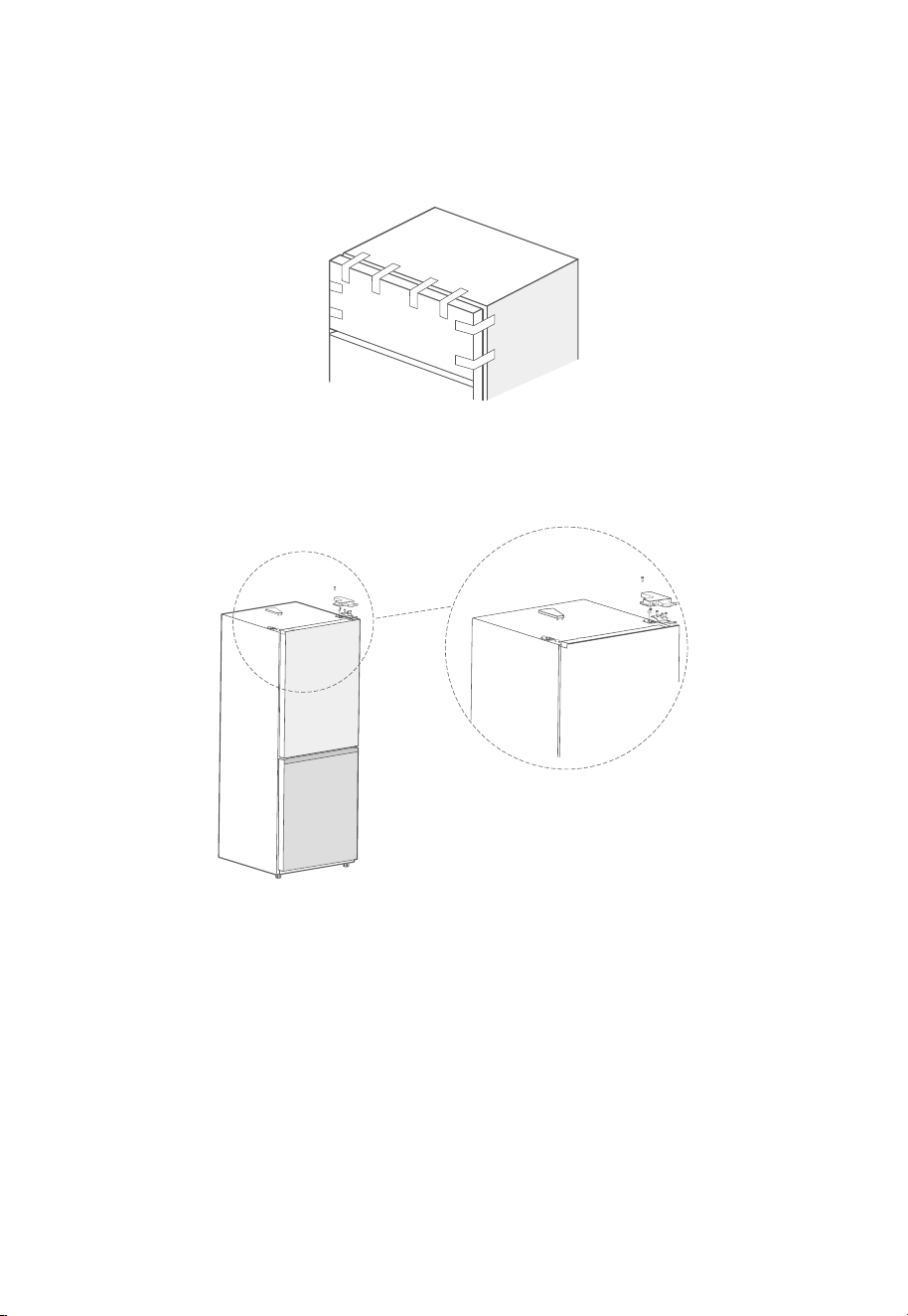

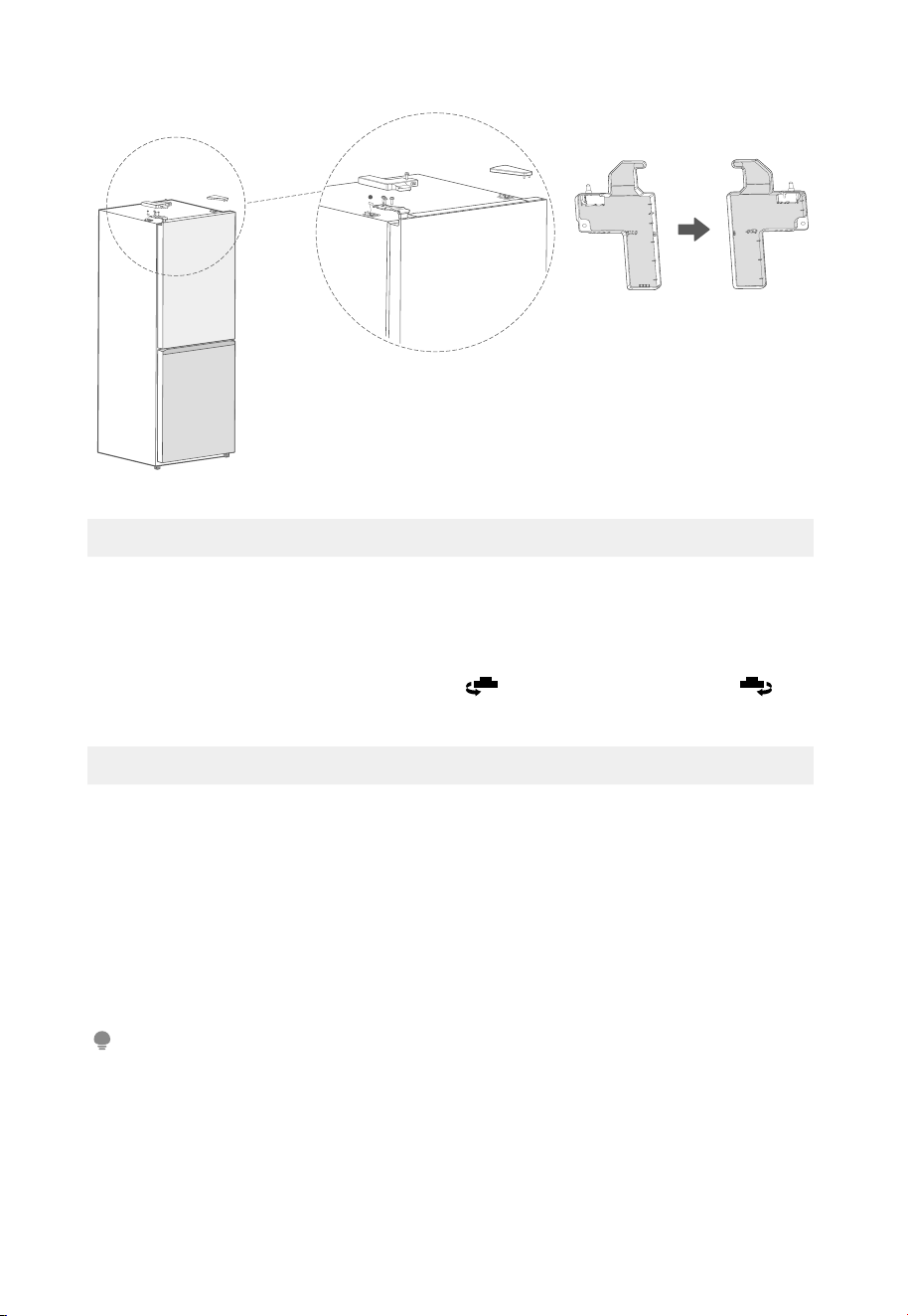

10. Remove the other side’s upper hinge cover from the accessory package,
remove the switch installed on the right hinge cover and install it on the left
upper hinge cover; install the upper door body on the left middle hinge and
install the left upper hinge; connect the switch on the left hinge cover of the
refrigerator, cover and fix the left hinge cover, and finally install the hinge cover
decorative cover to the right side of the refrigerator’s body. After installation,
let stand for at least 2 hours
13
2
2
Leveling feet
To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate for the uneven floor.
The front should be slightly higher than the rear to aid in door closing.
Leveling screws can be turned easily by tipping the cabinet slightly.
Turn the leveling screws counterclockwise to raise the unit, clockwise to
lower it.
Moving the appliance
1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or
on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling o while
moving the appliance.
4. Move the appliance with more than two people carefully. When transporting
the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to
switch on the appliance.
ATTENTION
Precautions before operation:
Before making changes the refrigerator must be disconnected from power.
precautions should be taken to prevent any personal injury.
14
Changing the light
>
Any replacement or maintenance of the LED lamps is intended to be made by
the manufacturer, its service agent or similar qualified person.
Connecting the appliance
After installing the appliance, connect the power plug into a socket outlet.
ATTENTION
After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you
put food into the appliance. If you add food before the appliance has cooled completely, your
food may spoil.
Tips for energy saving
>
Do not place the appliance near cookers, radiators or other heat sources. If the
ambient temperature is high, the compressor will run more frequently and for longer,
resulting in increased energy consumption.
>
Ensure that there is sucient ventilation at the base of the appliance, on the sides of
the appliance and at the back of the appliance. Never cover ventilation openings.
>
Please also observe the spacing dimensions in the chapter “Installation”.
>
The arrangement of drawers, shelves and racks as shown in the illustration oers the
most ecient use of energy and should therefore be retained as far as possible. All
drawers and shelves should remain in the appliance to keep the temperature stable
and save energy.
>
To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the
middle drawers can be removed. The top and bottom drawers and shelves should be
removed last if necessary.
>
An evenly filled refrigerator/freezer compartment contributes to optimal energy use.
Therefore, avoid empty or half-empty compartments.
>
Allow warm food to cool before placing it in the refrigerator/freezer. Food that has
already cooled down increases energy eciency.
>
Allow frozen food to defrost in the refrigerator. The coldness of the frozen food
reduces the energy consumption in the refrigerator compartment and thus increases
the energy eciency.
>
Open the door only as briefly as necessary to minimise cold loss. Opening the door
briefly and closing it properly reduces energy consumption.
>
The door seals of your appliance must be perfectly intact so that the doors close
properly and energy consumption is not increased unnecessarily.
15
OPERATION INSTRUCTIONS
Control panel
Display Button
1
WiFi display icon
A
Mode button
2
Refrigerator/Freeze mode
B
Temperature selection button
3
Refrigerator/Refrigerator mode
4
Freeze/Freeze mode
5
Coldest
6
Colder
7
Colder
8
Cold
ATTENTION
• The actual control panel may dier from model to model.
• The control panel will turn o automatically for energy saving.
1
5
6
7
8
2
3
4
A
B
16
MODE button
>
Mode button to switch full freezing mode - > full refrigerated mode - >
refrigerated freezing mode
Temperature button
>
Press the temperature adjustment button to adjust the setting gear, COLDEST-
> COLD.
>
The four gears in the refrigerated mode are 2 °C, 4 °C, 6 °C, 8 °C.
>
The four gears in the freezing mode are -24 °C, -20 °C, -18 °C, -16 °C.
>
The four gears in the refrigerated/freezing mode are 2/-24 °C, 4/-20 °C, 6/-18
°C, 8/-16 °C
.
Network configuration button
>
Press and hold the mode button for 3 seconds to enter the network
configuration mode, with wifi light blinking.
Engineering mode
>
Press the mode button and the temperature adjustment button at the same
time for 10s, the refrigerator enters the engineering mode, and all LEDs flash;
Then press the temperature adjustment button to select the appropriate
mode.
Error code
>
The following warnings appearing on the display indicate corresponding faults
of the refrigerator. Though the refrigerator may still have cold storage function
with the following faults, the user shall contact a maintenance specialist for
maintenance, so as to ensure optimized operation of the appliance.
Fault Code Fault Description
LED7/8 Blinking Fault of the fridge’s temperature sensor
LED6/8 Blinking Fault of the freezer’s defrosting sensor
LED5/8 Blinking Fault of the environmental temperature
LED5/7 Blinking Fault of the freezer’s temperature sensor
17
OPEN API
1. Demand response
• Get the current pattern POST /vl/api/plugin/ get Demand Responselnfo.
• Accepts DAL signals POST /v1/api/plugin/demand Response/dal.
• Accepts TALR signals POST /v1/api/plugin/demand Response/ dal.
2. Energy consumption report
• Get the energy statistics report POST /v1/api/plugin/get Energy Statistics Rep.
3. Delay defrosting
• Control switch interface POST /vl/api/plugin/switch Delay Defrost.
• Get the delay interval POST /v1/api/plugin/get Delay Defrostinfo.
• Added delay interval POST /vl/api/plugin/save Delay DefrostInfo.
• Remove the delay interval POST /vl/api/plugin/delete Delay Defrostinfo.
4. Refrigerator self-inspection
• Get refrigerator health status information POST /vl/api/plugin/get Fridge
Current Heath.
5. Sabbath mode
• Set the Sabbath mode POST /v1/api/plugin/set Sabbath Mode.
ATTENTION
• The application (SmartHome) interface (about the demand response interface) allows the
user to operate according to the smart grid signal intervention mode.
18
Tips on storing food
Freezer compartment
>
The freezer is designated for the storage of food frozen at very low temperature,
long-term storage of frozen food, and for the production of ice.
>
Only use the shelves in the door of the freezer to store frozen food, not for storing
hot food designated for freezing.
>
Do not put fresh and frozen food next to each other. The frozen food may thaw.
>
When freezing fresh food (such as meat, fish or chopped meat), cut them into parts
that can be used at the same time.
>
Storing frozen food: instructions are usually stated on the packages, which must be
followed. If there is no information on the packaging, food should not be stored for
longer than three months from the date of purchase.
>
When purchasing frozen food, make sure that it was frozen at a suitable temperature
and that the packaging is not damaged.
>
Frozen food should be kept in suitable packages to retain the quality and should be
returned to the freezer compartment as soon as possible.
>
If a package of frozen food shows moisture or abnormal bulging, it is probable that
it was stored at the wrong temperature and the content is spoiled.
>
The storage period for frozen food depends on the room temperature, the
thermostat setting, the frequency of opening the door of the freezer, the type of
food and the time of transporting the product from the shop to the household.
Always follow the instructions printed on the packaging and never exceed the
maximum storage time stated on the package.
Cooling compartment
>
To reduce moisture and subsequent ice build-up, never put liquid into the
refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts
of the evaporator. Storing uncovered liquids results in a more frequent need for
defrosting.
>
Never put warm foods in the refrigerator. These should first cool down at room
temperature and then be placed so as to ensure adequate air circulation in the
refrigerator.
>
Foods or food containers should not touch the back wall of the refrigerator because
they could freeze to the wall. Do not keep regularly opening the door of the
refrigerator.
>
Meat and clean fish (packed in a package or plastic foil) can be placed in the
refrigerator, which can be used in 1–2 days.
>
Fruit and vegetables without packaging can be placed in the part designated for
fresh fruit and vegetables.
Recommended Temperature
The optimal temperature setting for food storage:
>
Fridge: 4 °C , Freezer: -20 °C.
ATTENTION
The optimal temperature setting of each compartment depends on the ambient temperature.
Above optimal temperature is based on the ambient temperature of 25 °C.
19
APP SETUP AND OPERATION

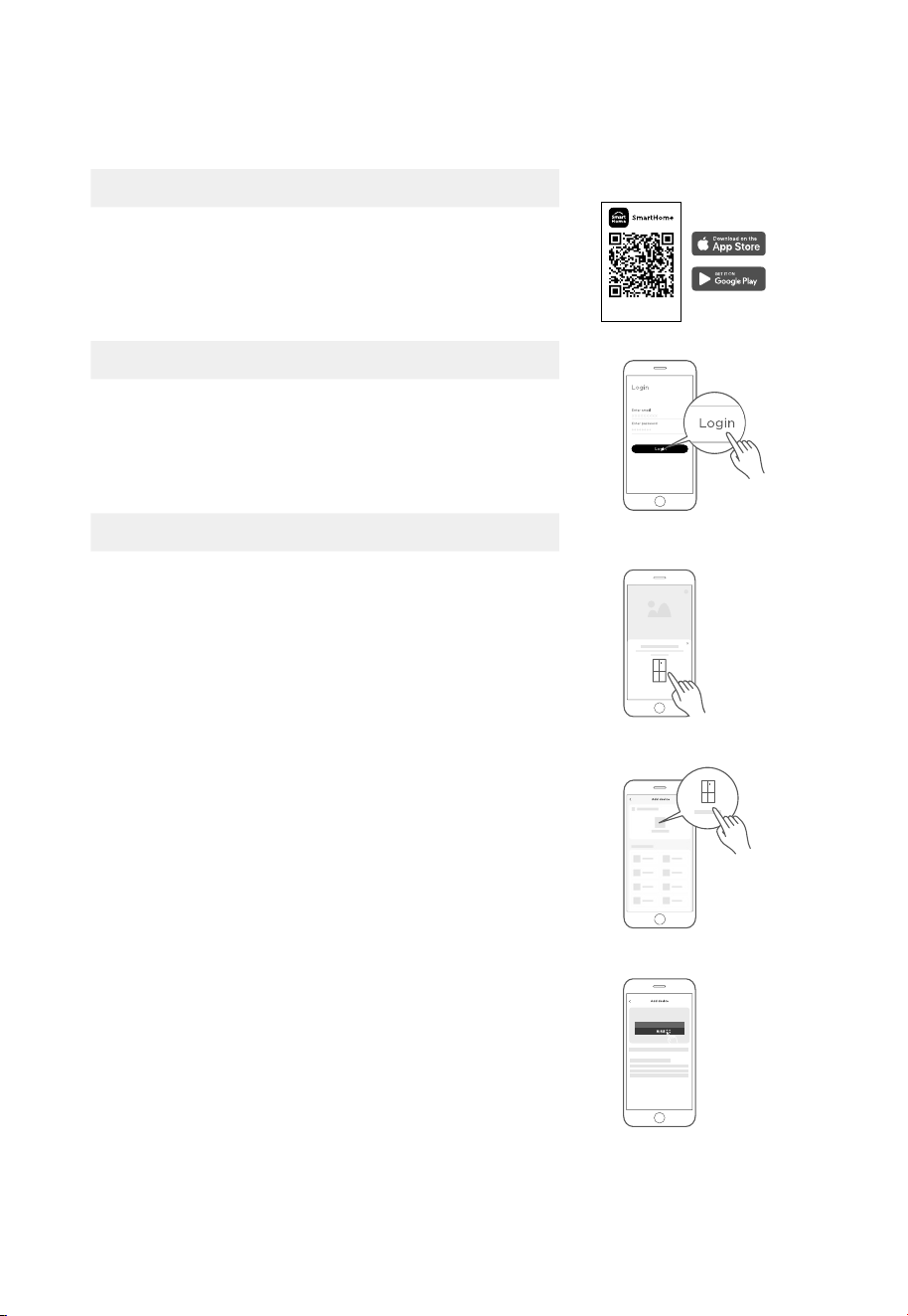

Download the SmartHome App
On an app market (Google Play Store, Apple App Store),
search for “SmartHome” and find the SmartHome app.
Download and install it on your phone. You can also
download the app by scanning the QR code below.
Register and log in
Open the SmartHome app, and create a new account
to start (you can also register through a third-party
account). If you already have an existing account, use
the account to log in.
Connect your devices to SmartHome
1. Please make sure your mobile phone is connected
to a wireless network. If it is not, go to Settings
and enable wireless networks and Bluetooth.
2. Please power on your devices.
3. Open SmartHome App on your phone.
4. If a message of "Smart devices discovered
nearby" appears, click to add.
5. If no message appears, select “+” on the page and
select your device in the list of nearby devices
available. If your device is not listed, please add
your device manually by the device category and
device model.
6. Connect your device to the wireless network
according to instructions on app. If the connection
fails, please follow the instructions provided by
the app to continue with the operation.
Download the app
& activate product
20
CLEANING AND MAINTENANCE
Defrosting
>
The refrigerator is made based on the air-cooling principle and thus has
automatic defrosting function. Frost formed due to change of season or
temperature may also be manually removed by disconnection of the appliance
from power supply or by wiping with a dry towel.

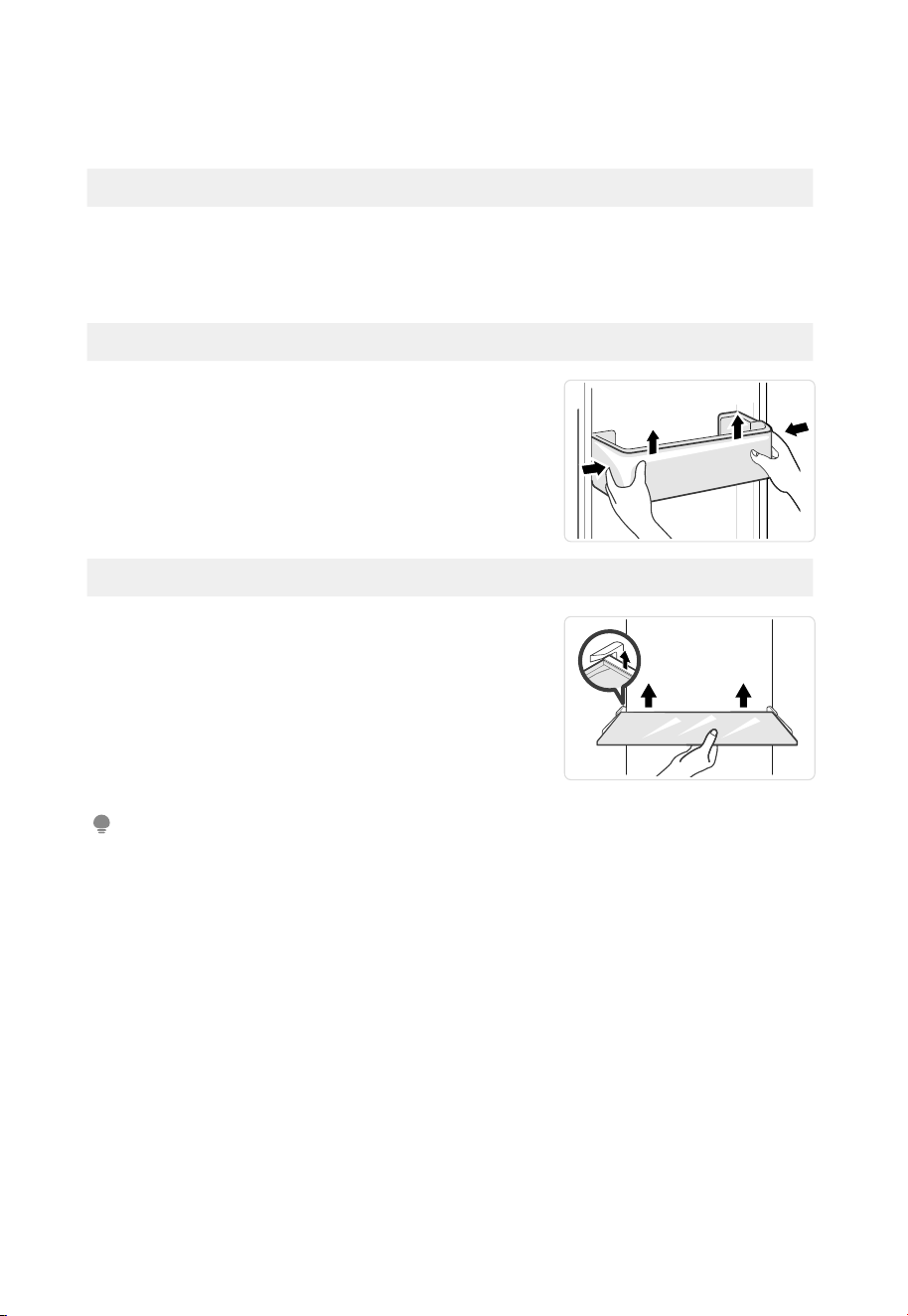

Cleaning of door tray
>
According to the direction arrow in the figure
below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
>
After washing the tray having been taken
out, you can adjust its installing height in
accordance with your requirement.
Cleaning of glass shelf
>
As the innermost part of the refrigerator liner
where contacting the shelves has a backstop,
you shall raise the shelves upward, then you
can be able to take it out.
>
Adjust or clean the shelves according to your
requirement.
ATTENTION
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested
for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the
door for natural drying before the power is turned on. Do not use hard brushes, clean steel
balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,
banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this
may damage the fridge surface and interior.
21
TROUBLESHOOTING
The following simple issues can be handled by the user. Please call the after-sale
service department if the issues are not solved.
Problem Possible reason
Failed operation
• Check whether the appliance is connected to power or
whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial circuits have
tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time operation
of the compressor
• Long operation of the refrigerator is normal in summer
• When the ambient temperature is high it is not suggestible
having too much food in the appliance at the same time
• Food shall get cool before being put into the appliance
• The doors are opened too frequently
Light fails to get lit
• Check whether the refrigerator is connected to power supply
and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not be
properly closed
• The door is stuck by food packages Too much food is placed
• The refrigerator is tiltedr.
Door seal fails to be
tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration (or blow it
with an electrical drier or use a hot towel for heating)
Water pan overflows
• There is too much food in the chamber or food stored
contains too much water, resulting in heavy defrosting
• The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the housing,
which is normal When housing becomes hot due to high
ambient temperature, storage of too much food or shutdown
of the compressor is shut down, provide sound ventilation to
facilitate heat dissipation
Surface
condensation
• Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high.
Just wipe the condensate with a clean towel.
22

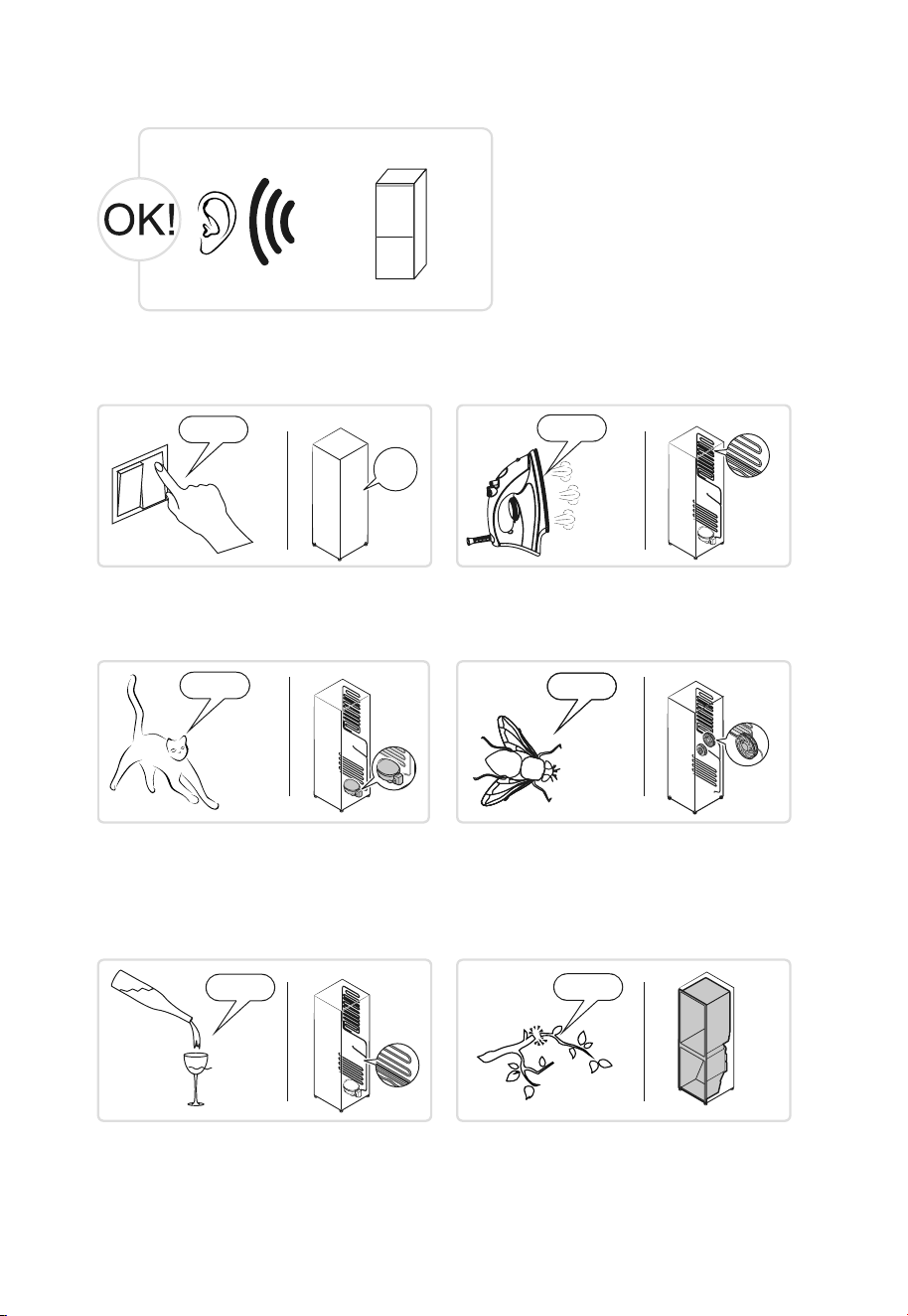

Do you hear these abnormal sounds as below? Usually these sounds are normal.
S
S
SRR
R
!
HISSS!
BLUBB!
C
L
IC
K
!
BRRR!
CRA
CK!
CLICK:
Some electrical parts in the
refrigerator, such as electric valve will
make this noise when working. This is
normal.
HISSS:
When the refrigerant flows into the
evaporator, it will make this noise. This is
normal.
CLICK！
CLICK！
HISSS!
HISSS!
BRRR:
The compressor will make this noise
when working, and the buzzes are loud
particularly upon start or stop. This is
normal.
SSSRRR:
The fan motor in the No frost
refrigerator will make this noise when
working. This is normal.
BRRR!
BRRR!
SSSRRR!
SSSRRR!
SSSRRR!
SSSRRR!
BLUBB:
Refrigerant flowing through the
pipes in the refrigerator will make this
noise. This is normal.
CRACK
：
Cracking sound or broken
ice sound: the overall structure of the
refrigerator, air duct frost will be with the
thermal expansion and contraction of the
expansion sound, these are also normal
physical phenomenon.
BLUBB!
BLUBB!
CRACK!
CRACK!
23
DOC AND CERTIFICATIONS
Federal Communications Commission (FCC) Compliance
Statement for USA
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
Industry Canada (IC) Compliance Statement for Canada
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
CAN ICES-003(B)/NMB-003(B)
Midea is not responsible forany changes ormodifications not expresslyapproved
by Midea. Suchmodifications could void the user’s authority to operate the
equipment.
For model: MWB-S-WB01
FCC ID: 2ADQOMWB-SWB01
IC ID: 12575A-MM3SB3350N3
