E600
LFP
FUNCTION INTRODUCTION
① ②
DC 32V~95V Charging Port
③
AC 100V~120V Switch
④ ⑤
Wireless Charger
⑦
LCD Display
DC12V Auxiliary Output
⑧
⑥
DC 12V/USB/Wireless Switch
DC 12V~18V Charging Port
⑨
DC12V(5525)Output
USB-A/USB-C Ports
⑩
AC 100V~120V Output
①
②
③
④
⑥
⑦
⑧
⑨
⑤
⑩
INPUT SPECS
DC Charging(32V~95V)
Max 300W
5521*1
DC Charging(12V~18V)
Max 100W
GX16MF*1
SPECIFICATIONS
LiFePO4 Battery
Retain 80%+
Original Capacity
At 3500 Cycles
Dimension
L11.7*W7.8*H8.5 in
L298*W199*H215
mm
Capacity
Battery Type
Net Weight
Around 20lb
Around 9.4kg
614Wh
(25.6V24Ah)
Protections
Over-Voltage,
Overheat,
Overload,
Short-Circuit,
Self-Recovery
Temperature
0℃~45℃/32°F~113°F
(Charging)
-20℃~45℃/-4°F~113°F
(Discharging)
Charging Time
2.5 hours to 80%
and 3.3 hours to
100% by adapter
OUTPUT SPECS
AC Out*3
USB-A*2
(5V,9V,12V,
Max 18W)*1
(5V,9V,12V,20V,
Max 100W)*1
USB-C*2
Cigar Port*1
Max 15W
Wireless Charger*1
DC 5525 Output*2
(5V,9V,12V,
Max 18W)*2
DC 12V 10A
DC 12V 5A
Pure sine wave
100V~120V
Rated 1200W
E600
LFP
E600
LFP
HOW TO USE THE E600 LFP
press and hold to turn on / off DC / USB / Wireless Charger
press and hold to turn on / off AC (
Please turn off the AC
function if there is no AC load on the unit)
LCD SMART DISPLAY
AC Overload Alarm Icon
E600 LFP can power most devices with consumption power
less than 1200 watts.
If your devices exceed 1200W, The AC overload alarm
indicator will flash, The unit will stop supplying power.
Temperature Alarm Icon
E600 LFP can power your devices at temperatures ranging
from -20~45℃.
If your working temperature is more than 45℃, the temperature
alarm indicator will flash,the unit may stop working.
Charge Indicator
Discharge Indicator
Net Input/Output Wattage
AC Output Wattage(W)/Voltage(V)
AC Overload Alarm
PF Value/Remaining Charging/
Discharging Time(Hrs)
Time Indicator
DC Out
AC Output Wattage(%)
AC
Out
Battery Soc(%)
Voltage(V)
Temperature Alarm
PACKING LIST
RECHARGE TIME
Around 3.3Hours Around 7Hours
Car Charger
Around 3.3Hours
MC4 Solar Charging Cable
PECRON 200W
SOLAR CHARGE TIME
The solar charging time depends on weather conditions. E600 LFP has a built-in
MPPT charge controller that supports 32~95V, 15A PV charging up to 300W.
200W(×1)
3~4 Hours
Recommended
PECRON E600 LFP *1
AC Charger *1
MC4 Solar Charging
Cable(LSMC4-5GX16) *1
Car Charging Cable *1
Wall Charger
E600
LFP
Electric Generator
E600
LFP
USING SOLAR PANELS TO CHARGE THE E600 LFP
1. DC5521 Charging Port: PV/DC 12V~18V, 100W maximum; VOC(open circuit voltage) of solar panel must be less than
25V;
2. GX16MF-5 Charging Port: PV(operating voltage) range 32V~95V, 300W maximum; VOC(open circuit voltage) of solar
panel/array must be less than 95V, otherwise, it will damage the unit! Do not wire more than two 36V solar panels in
series. (36V stands for Vmp, the operating voltage, of the solar panel)
3. If you have any questions, Please feel free to contact us：[email protected]
DC5521 Charging Port:
PV12V~18V-100W Maximum Input
GX16MF-5 Charging Port:
PV32~95V-300W Maximum Input

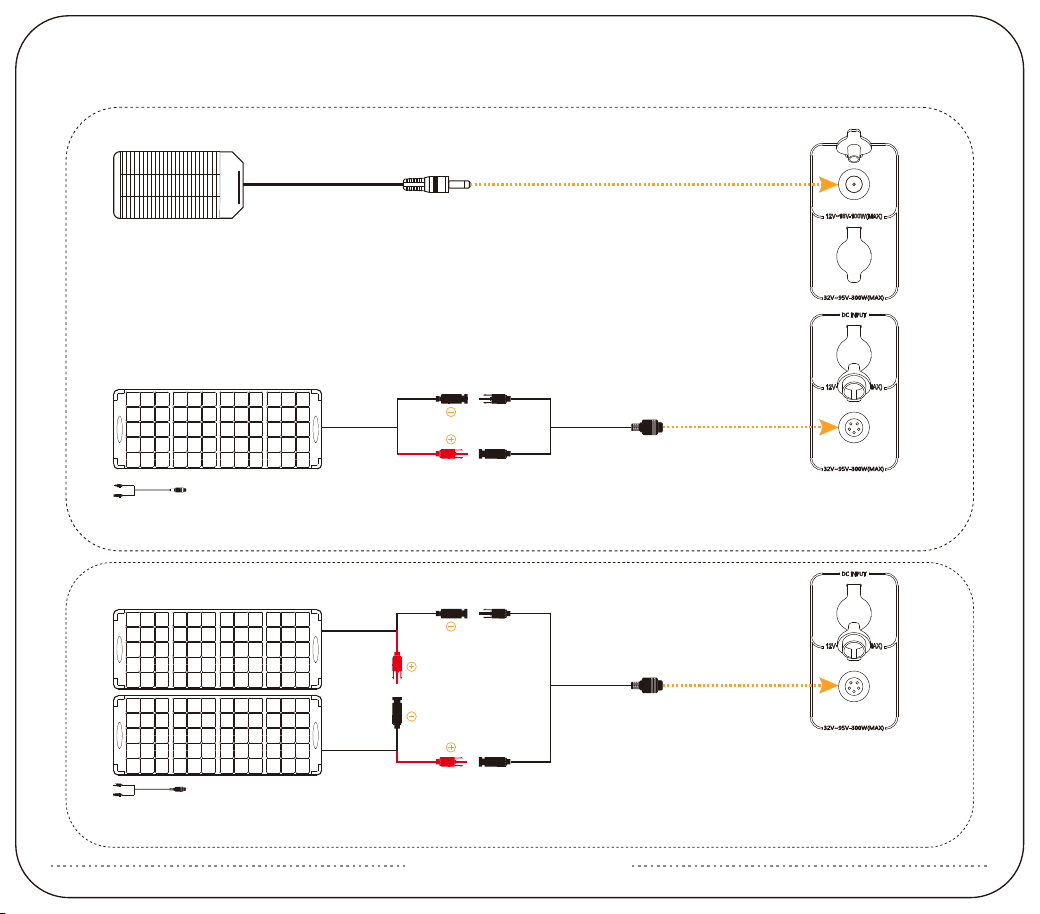

USING SOLAR PANELS TO CHARGE THE E600 LFP
Charging the E600 LFP with one solar panel
MC4 Solar Charging Cable*1
※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be
less than 95V, and the VMP should be greater than 32V.
MC4 Solar Charging Cable*1
Use two solar panels in series to charge the E600 LFP
※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be
less than 48V, and the VMP should be greater than 16V.
Q1： What kind of battery is used in E600 LFP? How long it can last?
A： E600 LFP utilizes high quality UL certified automotive LiFePO4 battery, it can retain 80% of its original capacity at
3500 complete charge cycles.
Q2： What devices can E600 LFP power?
A： The AC output ports can power appliances which use less than 1200 watts of electricity. However, inductive types of
loads such as freezer, fridge, compressor, motor require a much higher power to start (approx. 3-7 time lager than
its rated power)
The DC output ports can supply a maximum DC power of 120W(12V@10A).
Q3： Can the E600 LFP be used as UPS?
A： The UPS function is not supported.
Q4： Can the E600 LFP be charged while discharging?
A： Yes, E600 LFP can run devices while it is being charged. The battery will eventually run out if the discharging is
greater than the charging during the pass through charging.
Q5： How to calculate the E600 LFP running time?
A： Running Time=Total Capacity(614Wh) * 0.85 (Depth of Discharge)/Loading Power(Watts)
Q6： Can I use the E600 LFP indoors and charge the E600 LFP indoors?
A： Yes, the E600 LFP is safe to use indoors.
Q7： Does E600 LFP have built-in MPPT controller?
A： Yes, E600 LFP has a built-in MPPT charge controller, which supports 12V-18V(max 100W) or 32V-95V(max 300W)
PV input.
Q8： How to store the E600 LFP?
A： Please turn off the unit and then store it in a dry, ventilated place at normal room temperature. Do not place this
unit near water sources or a wet/moist environment. For long-term storage, it is recommended to discharge the
battery to 30% every three months and recharge it to 60% to sustain the battery life.
FAQS
1、 Do not place the device near heat source, such as a fire or a heating furnace.
2、 Do not immerse in any liquid, or expose the unit to rain or wet conditions.
3、 Do not use the battery in a strong static electricity or electromagnetic environment.
4、 Do not disassemble or puncture the product with sharp objects in any way.
5、 Short circuits can be caused by: vermin or pests chewing through wires; water or other fluids coming into contact
with electrical wiring.
6、 It's prohibited to be used as car jump starter, only can be used to charge the car battery.
7、 Do not use accessories or parts other than those provided by PECRON. Please visit our website www.pecron.com or
reach our support team for a complete list of accessories and parts.
Please read the user manual thoroughly before using this product, and keep this manual in a safe place for future
reference. Failure to follow the instructions for proper set up, use, and care for the device can increase the risk of serious
personal injury, death, or property damage. Once you use this device, you are deemed to have understood, recognized
and accepted all terms and contents of this document. The user shall be responsible for his own actions and all
consequences arising from failure to use the device in accordance with the “User Manual”, or as authorized in PECRON's
current product literature.
In compliance with laws and regulations, PECRON reserves all rights for final explanation, and to change these terms and
conditions at any time without prior notice. In the event that any revisions are made, the revised terms and conditions
shall be posted on our website immediately, please visit our website to inform yourself of any changes.
DISCLAIMER
WARNING
9、 Do not stack heavy objects on this product.
10、Do not block the air vents during use, or leave the device in a non-ventilated or dusty space.
11、Please avoid impacts, fall off, and violent vibration. Please turn off the device immediately and stop using it in the
event of major exterior impact. Please fasten the unit firmly during transportation to avoid vibration and impact.
12、In the event of immersing the device into the water accidently, please place the unit in a safe open area and keep
away from the unit until it is completely dry. The dried unit should not be reused and should be disposed of properly
according to the local regulation. If the device catches fire, use the fire extinguishing equipment in the following
recommended order: water or mist, sand, fire blanket, dry chemical, carbon dioxide fire extinguisher.
13、Please wipe it with a dry cloth to clean the surface of the device.
14、Please place this device with care to prevent the product from being damaged due to fall off. If the product is
damaged due to fall off, please turn off the unit immediately and place it in an open area, keep away from
combustibles and crowds, and dispose of in accordance with local laws and regulations.
15、Please store this device in a place out of reach of children and pets.
EXCLUSIONS
PECRON’s warranty does not apply to：
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer
use as authorized in PECRON’s current product literature.
CUSTOMER SUPPORT：[email protected]
WEBSITE：www.pecron.com
PECRON.LLC
DISPOSAL
1、When conditions permit, please be sure to completely discharge the battery of this product, and then put the product
in the designated battery recycling box. This product contains batteries. Batteries are dangerous chemicals and are
strictly prohibited from being disposed of in ordinary trash. For details, please follow local laws and regulations on
battery recycling and disposal.
2、If the battery cannot be completely discharged due to the failure of the product itself, please do not dispose of the
battery directly in the battery recycling box, and contact a professional battery recycling company for further disposal.
3、The battery will not be able to start after being over-discharged, please dispose of it according to the principle of
disposal.
