CLOSE QUARTERS DRILL
0370-20
Aug. 2008
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
WIRING INSTRUCTION
STARTING
SERIAL NO.
DATE
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

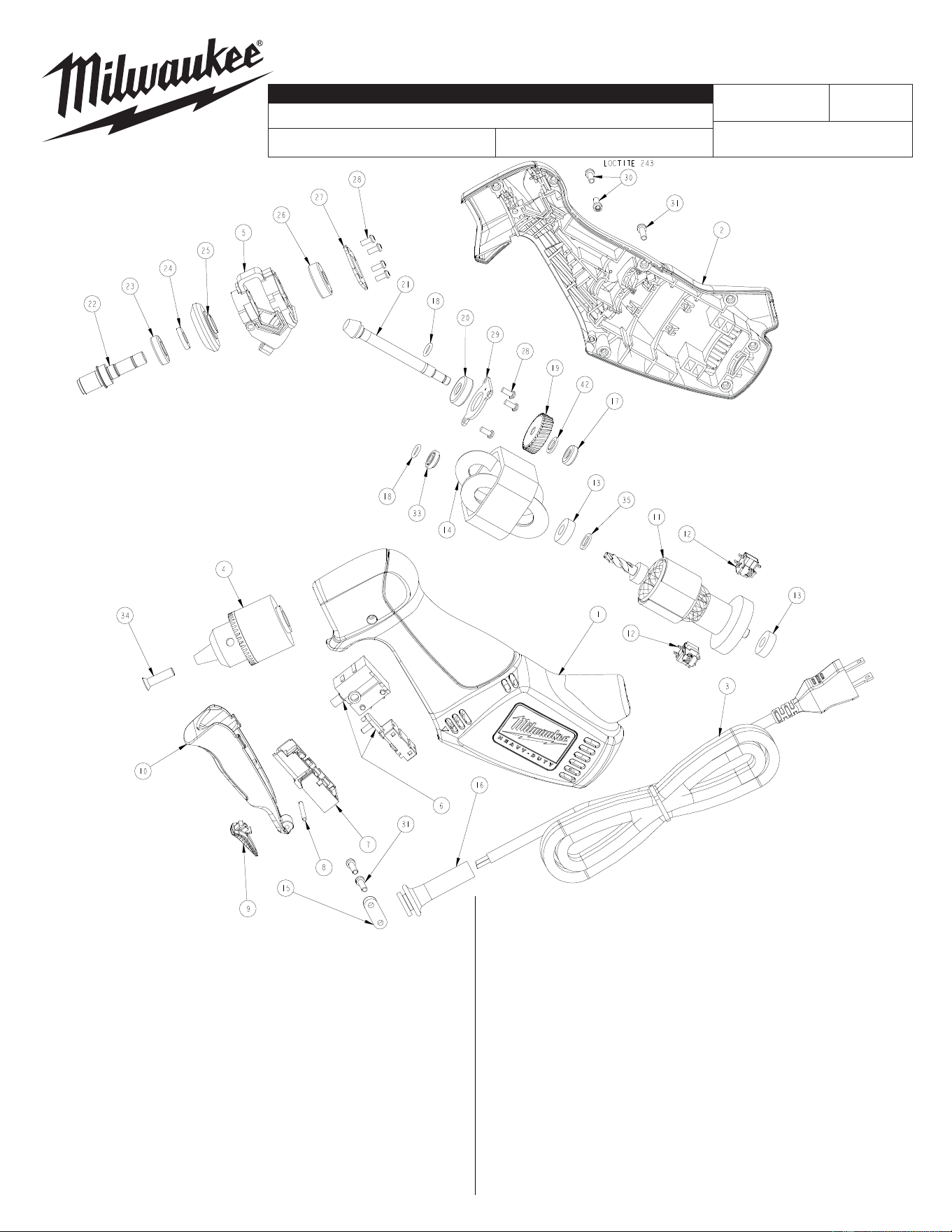

Drwg. 3
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 31-44-1575 Handle Half (1)
2 31-44-1578 Handle Half (1)
3 22-64-1822 Cord (1)
4 48-66-1540 3/8” Drill Chuck (1)
5 28-90-0300 Gear Box (1)
6 23-66-1070 Switch (1)
7 31-89-0040 F/R Switch Holder (1)
8 06-65-0080 Steel Dowel Pin (1)
9 45-24-0140 F/R Switch (1)
10 45-72-0190 Switch Trigger (1)
11 16-10-0840 Service Armature (1)
12 22-22-0375 Brush Tube w/ Wires & Spring (2)
13 02-04-0510 8x19x6 Ball Bearing (2)
14 18-10-0175 Service Field (1)
15 31-17-0300 Cord Clamp (1)
16 44-76-0315 Cord Protector (1)
17 02-04-0515 6x15x5 Ball Bearing (1)
18 45-36-1670 O-ring, 7.4 ID x 1.8 Dia. (2)
19 32-42-1100 Helical Gear (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
20 02-04-0530 8x22x7 Ball Bearing (1)
21 32-60-2715 Bevel Pinion (1)
22 38-50-2410 Output Shaft (1)
23 02-04-0540 10x22x6 Ball Bearing (1)
24 45-88-0885 Washer 9.2 ID x 17 OD (1)
25 32-60-2710 Bevel Gear (1)
26 02-04-0535 9x26x8 Ball Bearing (1)
27 44-66-0315 Fastening Plate (1)
28 05-74-0740 Screw M3.5 x 8 (7)
29 44-66-0320 Fastening Plate (1)
30 05-74-0735 Screw M4 x10 (2)
31 05-74-0730 Set Screw M4 x 16 (9)
33 42-40-0145 Bushing (1)
34 05-88-1440 Chuck Screw (1)
35 45-88-0888 Washer 8.5 ID x 13 OD (1)
42 45-88-0890 Washer 6.1 ID x 11 OD (1)
12-20-1372 Nameplate (Not Shown) (1)
48-66-3240 Chuck Key (Not Shown) (1)
48-66-4040 Chuck Key Holder (Not Shown) (1)
Place 1/2 oz. (14 gm) of *Type 'Z' Grease,
No 49-08-7655, into gear area of Bevel Gear Box [5].
*NOTE:
'Z' Grease (yellow in color) is not compatible with
original grease (Green in color). Remove all original
Green grease prior to using Type 'Z'.
Place 1/2 oz. (14 gm) total of *Type 'Z' Grease,
No. 49-08-7655, into Helical Gear pocket of
handle halves [1,2].
*NOTE
'Z' Grease (yellow in color) is not compatible
with original grease (Green in color). Remove all
original Green grease prior to using Type 'Z'.
