Milwaukee 0721-20 M28 Cordless Right Angle Drill User Manual

OPERATOR'S MANUAL

MANUEL de L'UTILISATEUR

MANUAL del OPERADOR

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S

MANUAL.

AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN

COMPRENDRE LE MANUEL DE L'UTILISATEUR.

PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL

MANUAL DEL OPERADOR.

Cat. No.

No de cat.

0721-20

28 VOLT 1/2" RIGHT ANGLE DRILL

13 mm (1/2") POIGNÉE COUDEE ANGLE DROIT 28 V

TALADROS EN ANGULOS RECTOS, DE 13 mm (1/2") CON

EMPUNADURA EN "D" DE 28 V

PERSONAL SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WORK AREA SAFETY

ELECTRICAL SAFETY

• Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

• Do not operate power tools in explosive atmos-

pheres, such as in the presence of ﬂ ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Keep children and bystanders away while

operating a power tool. Distractions can cause

you to lose control.

• Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power

tools. Unmodiﬁ ed plugs and matching outlets will

reduce risk of electric shock.

• Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase

the risk of electric shock.

• Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords

increase the risk of electric shock.

• When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use

of a cord suitable for outdoor use reduces the risk

of electric shock.

• If operating a power tool in a damp location is

unavoidable, use a ground fault circuit inter-

rupter (GFCI) protected supply. Use of an GFCI

reduces the risk of electric shock.

• Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewel-

lery or long hair can be caught in moving parts.

• If devices are provided for the connection of

dust extraction and collection facilities, ensure

these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

WARNING

READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.

Failure

to follow the warnings and instructions may result in electric shock, ﬁ re and/or serious

injury.

Save all warnings and instructions for future reference.

The term "power

tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated

(cordless) power tool.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct

power tool for your application. The correct

power tool will do the job better and safer at the

rate for which it was designed.

• Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must

be repaired.

• Disconnect the plug from the power source

and/or the battery pack from the power tool

before making any adjustments, changing

accessories, or storing power tools. Such pre-

ventive safety measures reduce the risk of starting

the power tool accidentally.

• Store idle power tools out of the reach of chil-

dren and do not allow persons unfamiliar with

the power tool or these instructions to operate

the power tool. Power tools are dangerous in the

hands of untrained users.

• Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts

and any other condition that may affect the

power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits

etc. in accordance with these instructions, tak-

ing into account the working conditions and

the work to be performed. Use of the power tool

for operations different from those intended could

result in a hazardous situation.

• Stay alert, watch what you are doing and use

common sense when operating a power tool.

Do not use a power tool while you are tired or

under the inﬂ uence of drugs, alcohol or medi-

cation. A moment of inattention while operating

power tools may result in serious personal injury.

• Use personal protective equipment. Always

wear eye protection. Protective equipment such

as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions

will reduce personal injuries.

• Prevent unintentional starting. Ensure the

switch is in the off-position before connecting

to power source and/or battery pack, picking

up or carrying the tool. Carrying power tools with

your ﬁ nger on the switch or energising power tools

that have the switch on invites accidents.

BATTERY TOOL USE AND CARE

• Recharge only with the charger speciﬁ ed by

the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of ﬁ re

when used with another battery pack.

PERSONAL SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WORK AREA SAFETY

ELECTRICAL SAFETY

• Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

• Do not operate power tools in explosive atmos-

pheres, such as in the presence of ﬂ ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Keep children and bystanders away while

operating a power tool. Distractions can cause

you to lose control.

• Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power

tools. Unmodiﬁ ed plugs and matching outlets will

reduce risk of electric shock.

• Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase

the risk of electric shock.

• Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords

increase the risk of electric shock.

• When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use

of a cord suitable for outdoor use reduces the risk

of electric shock.

• If operating a power tool in a damp location is

unavoidable, use a ground fault circuit inter-

rupter (GFCI) protected supply. Use of an GFCI

reduces the risk of electric shock.

• Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewel-

lery or long hair can be caught in moving parts.

• If devices are provided for the connection of

dust extraction and collection facilities, ensure

these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

WARNING

READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.

Failure

to follow the warnings and instructions may result in electric shock, ﬁ re and/or serious

injury.

Save all warnings and instructions for future reference.

The term "power

tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated

(cordless) power tool.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct

power tool for your application. The correct

power tool will do the job better and safer at the

rate for which it was designed.

• Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must

be repaired.

• Disconnect the plug from the power source

and/or the battery pack from the power tool

before making any adjustments, changing

accessories, or storing power tools. Such pre-

ventive safety measures reduce the risk of starting

the power tool accidentally.

• Store idle power tools out of the reach of chil-

dren and do not allow persons unfamiliar with

the power tool or these instructions to operate

the power tool. Power tools are dangerous in the

hands of untrained users.

• Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts

and any other condition that may affect the

power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits

etc. in accordance with these instructions, tak-

ing into account the working conditions and

the work to be performed. Use of the power tool

for operations different from those intended could

result in a hazardous situation.

• Stay alert, watch what you are doing and use

common sense when operating a power tool.

Do not use a power tool while you are tired or

under the inﬂ uence of drugs, alcohol or medi-

cation. A moment of inattention while operating

power tools may result in serious personal injury.

• Use personal protective equipment. Always

wear eye protection. Protective equipment such

as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions

will reduce personal injuries.

• Prevent unintentional starting. Ensure the

switch is in the off-position before connecting

to power source and/or battery pack, picking

up or carrying the tool. Carrying power tools with

your ﬁ nger on the switch or energising power tools

that have the switch on invites accidents.

BATTERY TOOL USE AND CARE

• Recharge only with the charger speciﬁ ed by

the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of ﬁ re

when used with another battery pack.

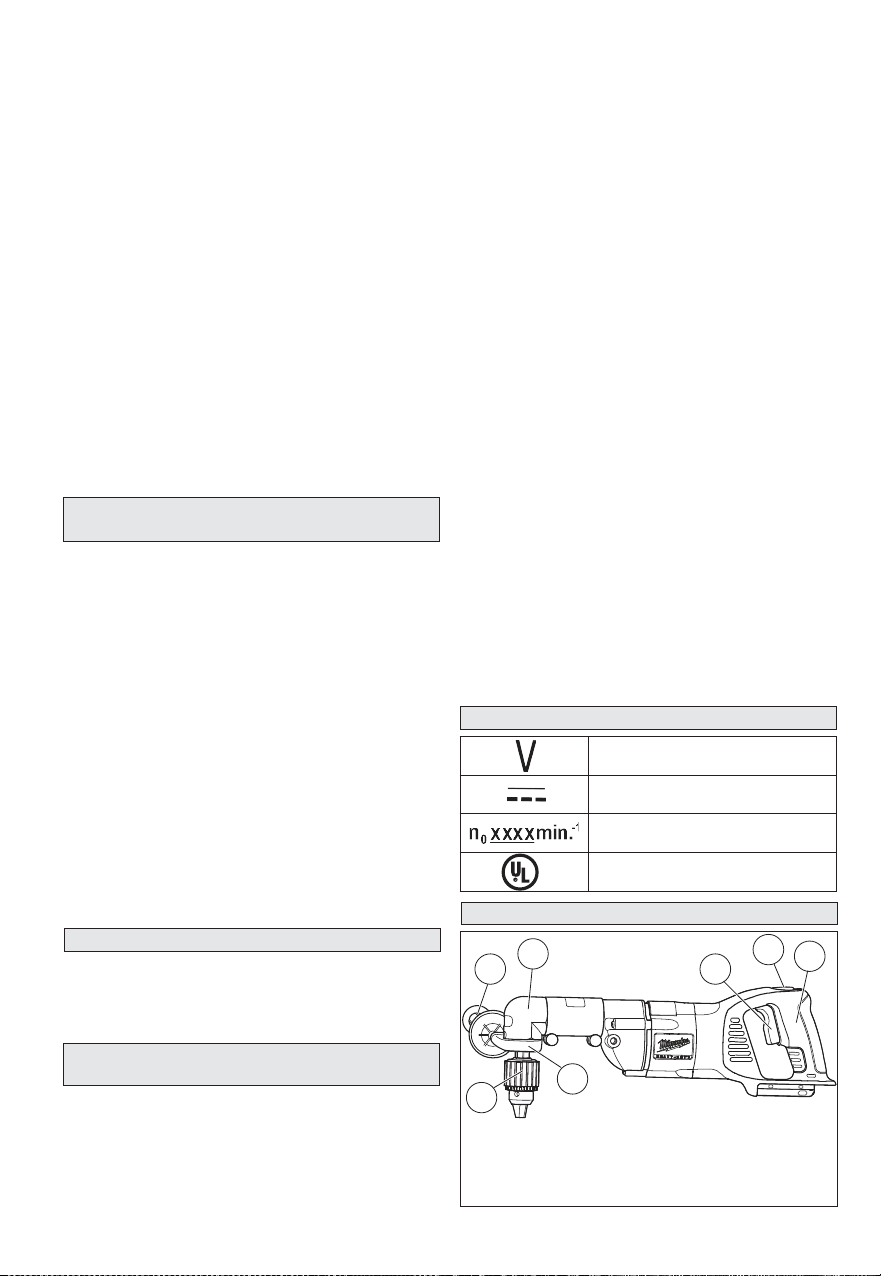

FUNCTIONAL DESCRIPTION

SYMBOLOGY

SPECIFICATIONS

Cat. No.

Volts

No load

RPM

Capacities in Wood

Flat Boring Bits Hole Saw Auger Bit Ship Auger Bit Selfeed Bit

0721-20 28

Hi 0 - 1000

Lo 0 - 400

1-1/2"

3-1/2"

4-1/2"

3/4"

1-1/2"

2-9/16"

1. Handle

2. Forward/Reverse/Trigger

lock switch

3. Trigger

4. Right angle

drive unit

5. Side handle

6. Chuck

7. Ring clamp

Attaching Right Angle Drive to a Drill

1. Remove the chuck from the drill fol-

lowing instructions (see “Removing

the Chuck from the Drill”). Slip the

double hex coupling (1) over the hex

on the drill spindle.

Loosen the clamping screws on

the clamping sleeve (2) and slip the

sleeve onto the drill collar.

2. Slide the right angle drill head (3)

into the other side of the sleeve

and turn the drive head slightly in

either direction so the hexagonal

hole in the coupling engages the

hexagonal portion of the spindle.

NOTE: Attaching the drill chuck to the side des-

ignated “low” reduces the speed by 1/3, or 33%.

Attaching the drill chuck to the opposite side of

the right angle drill head increases the speed by

1/2, or 50%.

3. When assembled, turn the right angle head to the

desired position and tighten the clamping screws

to secure the unit. Thread the chuck onto the right

angle drive spindle and install the chuck screw.

Removing the Chuck from the RAD

The chuck can be removed

from the right angle drive

unit in the same manner

it is removed from the

drill; however, ALWAYS

REMOVE RIGHT ANGLE

DRIVE FROM THE DRILL

BEFORE ATTEMPTING

TO LOOSEN THE CHUCK.

This will prevent damaging

the drill's gearing. Use the open end wrench pro-

vided to hold the right angle drive spindle before

attempting to loosen the chuck.

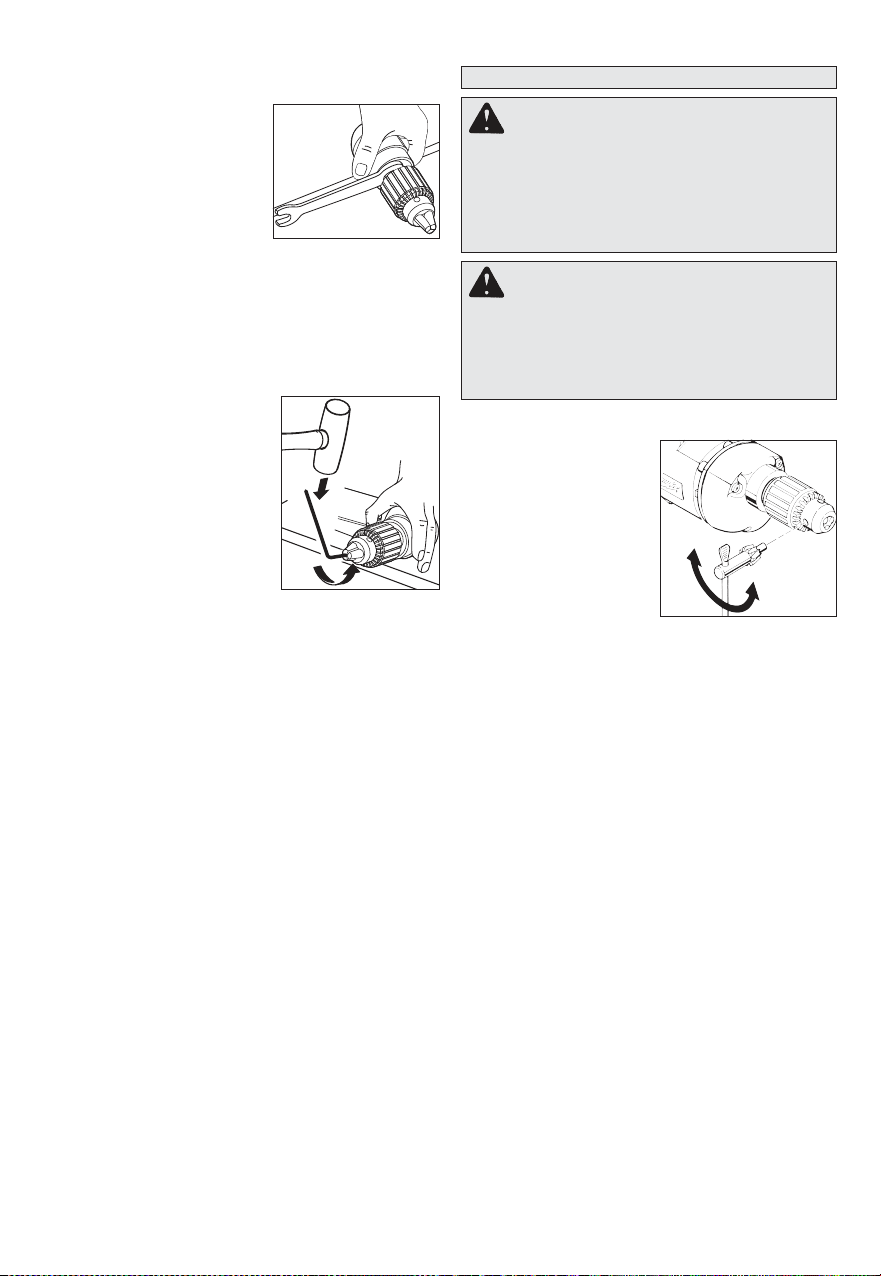

Removing the Chuck from the Drill

1. To remove the left-hand

screw inside the chuck,

remove the battery pack

from the tool and open

the chuck jaws. Insert a

T-handle hex key into the

screw inside the chuck.

Turn the T-handle hex key

and remove the screw.

Save the screw for install-

ing your new chuck.

2. To remove chuck: Tighten

a large hex key into the chuck. Place the chuck

on a workbench as shown. Strike the hex key

with a soft-headed mallet to loosen the chuck.

Remove the chuck by hand.

ASSEMBLY

WARNING

Recharge only with the char-

ger speciﬁ ed for the battery. For speciﬁ c charg-

ing instructions, read the operator’s manual

supplied with your charger and battery.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

Removing Battery Pack from Tool

Push in the release buttons and pull the battery

pack away from the tool.

Inserting Battery Pack into Tool

To insert the battery pack onto the tool, slide the

pack onto the body of the tool. Make sure it latches

securely into place.

WARNING

To reduce the risk of injury,

always use a side handle when using this tool.

This tool operates with high torque. Always

brace or hold the tool securely.

WARNING

When using the D-handle

drill without the right angle drive unit, do

not clamp the ring clamp with attached side

handle to the front of the gear case; use the

side handle instead.

Do not use the extension when using the

ring clamp.

Ring Clamp, Extension, and Side Handle for

Right Angle Drive (RAD)

For D-handle drill with RAD:

A ring clamp, extension, and side handle are sup-

plied with the Right Angle Drive Unit. When using a

right angle drive unit, attach the side handle to the

ring clamp. Do not use the extension when using

the ring clamp. The ring clamp with attached side

handle clamps onto the right angle drive unit and

can swivel 360° and locked tight in any position.

For D-handle drill without RAD:

When using the D-handle drill without the right

angle drive unit, remove the ring clamp with at-

tached side handle from the RAD, then remove

the side handle from the ring clamp. Attach the

side handle to the extension. The side handle can

be installed on either side of the tool for right or left

handed use. To install the extension with attached

side handle, thread it into the socket on the desired

side of the tool (for right or left-handed use) and

tighten securely.

NOTE: If you have an extra ring clamp with at-

tached side handle and extension with attached

side handle, do not use the extension with attached

side handle when using the right angle drive unit.

Remove it from the tool.

Use only MILWAUKEE M28™ or V28

battery packs.

Volts

Direct Current

No Load Revolutions per

Minute (RPM)

Underwriters Laboratories, Inc.

United States and Canada

SERVICE

• Have your power tool serviced by a qualiﬁ ed

repair person using only identical replacement

parts. This will ensure that the safety of the power

tool is maintained.

SPECIFIC SAFETY RULES

• Use auxiliary handle(s), if supplied with the

tool. Loss of control can cause personal injury.

• Hold power tool by insulated gripping

surfaces, when performing an operation

where the cutting accessory may contact

hidden wiring. Cutting accessory contacting a

“live” wire may make exposed metal parts of the

power tool “live” and could give the operator an

electric shock.

• Maintain labels and nameplates. These carry

important information. If unreadable or missing,

contact a MILWAUKEE service facility for a free

replacement.

• WARNING Some dust created by power sanding,

sawing, grinding, drilling, and other construction

activities contains chemicals known to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and

other masonry products, and

• arsenic and chromium from chemically-treated

lumber.

Your risk from these exposures varies, depending

on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well

ventilated area, and work with approved safety

equipment, such as those dust masks that are spe-

cially designed to ﬁ lter out microscopic particles.

• Use power tools only with speciﬁ cally desig-

nated battery packs. Use of any other battery

packs may create a risk of injury and ﬁ re.

• When battery pack is not in use, keep it away

from other metal objects, like paper clips,

coins, keys, nails, screws or other small metal

objects, that can make a connection from one

terminal to another. Shorting the battery terminals

together may cause burns or a ﬁ re.

• Under abusive conditions, liquid may be eject-

ed from the battery; avoid contact. If contact

accidentally occurs, ﬂ ush with water. If liquid

contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation

or burns.

FUNCTIONAL DESCRIPTION

SYMBOLOGY

SPECIFICATIONS

Cat. No.

Volts

No load

RPM

Capacities in Wood

Flat Boring Bits Hole Saw Auger Bit Ship Auger Bit Selfeed Bit

0721-20 28

Hi 0 - 1000

Lo 0 - 400

1-1/2"

3-1/2"

4-1/2"

3/4"

1-1/2"

2-9/16"

1. Handle

2. Forward/Reverse/Trigger

lock switch

3. Trigger

4. Right angle

drive unit

5. Side handle

6. Chuck

7. Ring clamp

Attaching Right Angle Drive to a Drill

1. Remove the chuck from the drill fol-

lowing instructions (see “Removing

the Chuck from the Drill”). Slip the

double hex coupling (1) over the hex

on the drill spindle.

Loosen the clamping screws on

the clamping sleeve (2) and slip the

sleeve onto the drill collar.

2. Slide the right angle drill head (3)

into the other side of the sleeve

and turn the drive head slightly in

either direction so the hexagonal

hole in the coupling engages the

hexagonal portion of the spindle.

NOTE: Attaching the drill chuck to the side des-

ignated “low” reduces the speed by 1/3, or 33%.

Attaching the drill chuck to the opposite side of

the right angle drill head increases the speed by

1/2, or 50%.

3. When assembled, turn the right angle head to the

desired position and tighten the clamping screws

to secure the unit. Thread the chuck onto the right

angle drive spindle and install the chuck screw.

Removing the Chuck from the RAD

The chuck can be removed

from the right angle drive

unit in the same manner

it is removed from the

drill; however, ALWAYS

REMOVE RIGHT ANGLE

DRIVE FROM THE DRILL

BEFORE ATTEMPTING

TO LOOSEN THE CHUCK.

This will prevent damaging

the drill's gearing. Use the open end wrench pro-

vided to hold the right angle drive spindle before

attempting to loosen the chuck.

Removing the Chuck from the Drill

1. To remove the left-hand

screw inside the chuck,

remove the battery pack

from the tool and open

the chuck jaws. Insert a

T-handle hex key into the

screw inside the chuck.

Turn the T-handle hex key

and remove the screw.

Save the screw for install-

ing your new chuck.

2. To remove chuck: Tighten

a large hex key into the chuck. Place the chuck

on a workbench as shown. Strike the hex key

with a soft-headed mallet to loosen the chuck.

Remove the chuck by hand.

ASSEMBLY

WARNING

Recharge only with the char-

ger speciﬁ ed for the battery. For speciﬁ c charg-

ing instructions, read the operator’s manual

supplied with your charger and battery.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

Removing Battery Pack from Tool

Push in the release buttons and pull the battery

pack away from the tool.

Inserting Battery Pack into Tool

To insert the battery pack onto the tool, slide the

pack onto the body of the tool. Make sure it latches

securely into place.

WARNING

To reduce the risk of injury,

always use a side handle when using this tool.

This tool operates with high torque. Always

brace or hold the tool securely.

WARNING

When using the D-handle

drill without the right angle drive unit, do

not clamp the ring clamp with attached side

handle to the front of the gear case; use the

side handle instead.

Do not use the extension when using the

ring clamp.

Ring Clamp, Extension, and Side Handle for

Right Angle Drive (RAD)

For D-handle drill with RAD:

A ring clamp, extension, and side handle are sup-

plied with the Right Angle Drive Unit. When using a

right angle drive unit, attach the side handle to the

ring clamp. Do not use the extension when using

the ring clamp. The ring clamp with attached side

handle clamps onto the right angle drive unit and

can swivel 360° and locked tight in any position.

For D-handle drill without RAD:

When using the D-handle drill without the right

angle drive unit, remove the ring clamp with at-

tached side handle from the RAD, then remove

the side handle from the ring clamp. Attach the

side handle to the extension. The side handle can

be installed on either side of the tool for right or left

handed use. To install the extension with attached

side handle, thread it into the socket on the desired

side of the tool (for right or left-handed use) and

tighten securely.

NOTE: If you have an extra ring clamp with at-

tached side handle and extension with attached

side handle, do not use the extension with attached

side handle when using the right angle drive unit.

Remove it from the tool.

Use only MILWAUKEE M28™ or V28

battery packs.

Volts

Direct Current

No Load Revolutions per

Minute (RPM)

Underwriters Laboratories, Inc.

United States and Canada

SERVICE

• Have your power tool serviced by a qualiﬁ ed

repair person using only identical replacement

parts. This will ensure that the safety of the power

tool is maintained.

SPECIFIC SAFETY RULES

• Use auxiliary handle(s), if supplied with the

tool. Loss of control can cause personal injury.

• Hold power tool by insulated gripping

surfaces, when performing an operation

where the cutting accessory may contact

hidden wiring. Cutting accessory contacting a

“live” wire may make exposed metal parts of the

power tool “live” and could give the operator an

electric shock.

• Maintain labels and nameplates. These carry

important information. If unreadable or missing,

contact a MILWAUKEE service facility for a free

replacement.

• WARNING Some dust created by power sanding,

sawing, grinding, drilling, and other construction

activities contains chemicals known to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and

other masonry products, and

• arsenic and chromium from chemically-treated

lumber.

Your risk from these exposures varies, depending

on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well

ventilated area, and work with approved safety

equipment, such as those dust masks that are spe-

cially designed to ﬁ lter out microscopic particles.

• Use power tools only with speciﬁ cally desig-

nated battery packs. Use of any other battery

packs may create a risk of injury and ﬁ re.

• When battery pack is not in use, keep it away

from other metal objects, like paper clips,

coins, keys, nails, screws or other small metal

objects, that can make a connection from one

terminal to another. Shorting the battery terminals

together may cause burns or a ﬁ re.

• Under abusive conditions, liquid may be eject-

ed from the battery; avoid contact. If contact

accidentally occurs, ﬂ ush with water. If liquid

contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation

or burns.

OPERATION

WARNING

To reduce the risk of injury,

keep hands away from the bit and all moving

parts. Always wear safety goggles or glasses

with side shields. Always remove the chuck

key from the chuck after each use.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

Tighten

Loosen

Installing Bits into Keyed Chuck

1. Open the chuck jaws

wide enough to insert

the bit. Be sure the

bit shank and chuck

jaws are clean. Dirt

particles may prevent

the bit from lining up

properly.

2. When using drill bits,

insert the bit into the

chuck. Center the bit in

the chuck jaws and lift it about 1/16" off of the

bottom. Tighten the chuck jaws by hand to align

the bit.

When using screwdriver bits, insert the bit far

enough for the chuck jaws to grip the bit shank.

Tighten the chuck jaws by hand to align the bit.

3. Place the chuck key in each of the three holes in

the chuck, turning it clockwise as shown. Tighten

securely.

4. To remove the bit, insert the chuck key into one

of the holes in the chuck and turn it counterclock-

wise.

Forward/Reverse/Trigger Lock Switch

To set the direction of bit rotation or lock

the trigger, move the forward/reverse/trig-

ger lock switch to the following positions:

For forward rotation (clockwise): Move the

switch to the right." " will be displayed

above the switch. To vary the speed in

forward rotation, increase or decrease

pressure on the trigger.

For reverse rotation (counter-clockwise):

Move the switch to the left. " " will be dis-

played above the switch. To vary the speed

in reverse rotation, increase or decrease

pressure on the trigger.

To lock the trigger: Move the switch to the

center. " " will be displayed above the

switch. The trigger will not work while the

switch is in the locked position. Always lock

the trigger and remove the battery pack be-

fore performing maintenance and changing

accessories. Lock the trigger when storing

the tool and when the tool is not in use.

Starting, Stopping and Controlling Speed

1. To start the tool, grasp the handle ﬁ rmly and pull

the trigger.

2. To vary the speed, increase or decrease the

pressure on the trigger. The further the trigger

is pulled, the greater the speed.

3. To stop the tool, release the trigger. Make sure

the tool comes to a complete stop before laying

the tool down.

Electric Brake

The electric brake engages when the trigger is

released, causing the bit to stop and allowing you

to proceed with your work. Generally, the bit stops

within two seconds. However, there may be a delay

between the time you release the trigger and when

the brake engages. Occasionally the brake may

miss completely. If the brake misses frequently, the

tool needs servicing by an authorized MILWAUKEE

service facility.

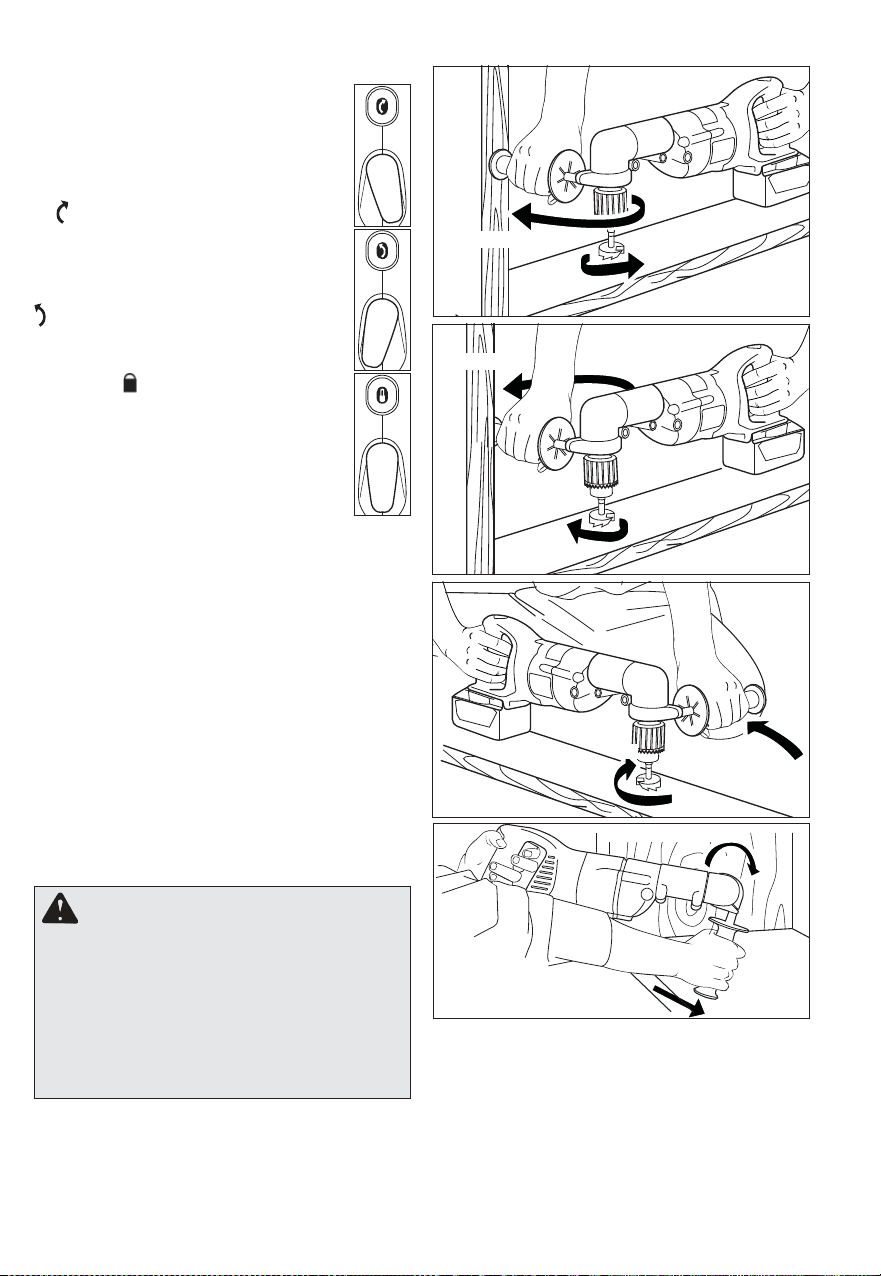

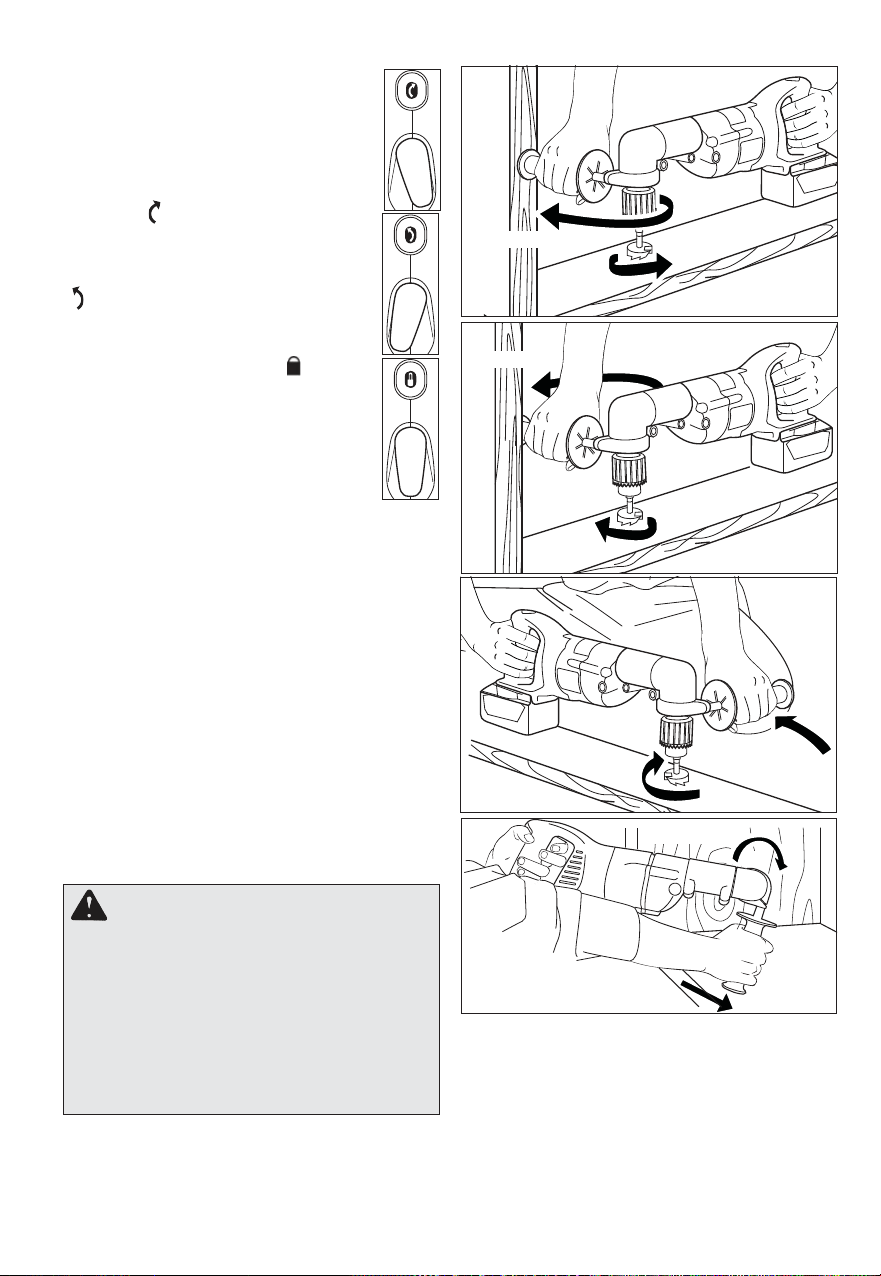

Bracing against

a stud

Reaction

Reverse

rotation

WARNING

To reduce the risk of

personal injury, always brace or hold the tool

securely. Brace tools with side handles as

shown. If the bit binds, the tool will be forced

in the opposite direction. Bits may bind if they

are misaligned or when breaking through a

hole. Wood boring bits can also bind if they

run into nails or knots.

Forward

rotation

Reaction

Bracing against

a stud

Bracing

against

your leg

Reaction

Forward

rotation

Bracing

against the

ﬂ oor

Reaction

Forward

rotation

Selecting Bits

When selecting a bit, use the right type for your job.

For best performance, always use sharp bits.

Drilling

1. Before drilling, be sure the workpiece is clamped

securely. Use backing material to prevent dam-

age to the workpiece during breakthrough.

2. When starting a hole, place the drill bit on the

work surface and apply ﬁ rm pressure. Begin

drilling at a slow speed, gradually increasing the

speed as you drill.

3. Always apply pressure in line with the bit. Use

enough pressure to keep the drill biting, but do

not push hard enough to stall the motor.

4. Reduce pressure and ease the bit through the

last part of the hole. While the tool is still running,

pull the bit out of the hole to prevent jamming.

Drilling in Wood, Composition Materials and

Plastic

When drilling in wood, composition materials and

plastic, start the drill slowly, gradually increasing

speed as you drill. When drilling into wood, use

wood augers or twist drill bits. Always use sharp

bits. When using twist drill bits, pull the bit out of the

hole frequently to clear chips from the bit ﬂ utes. To

reduce the chance of splintering, back work with a

piece of scrap wood. Select low speeds for plastics

with a low melting point.

APPLICATIONS

OPERATION

WARNING

To reduce the risk of injury,

keep hands away from the bit and all moving

parts. Always wear safety goggles or glasses

with side shields. Always remove the chuck

key from the chuck after each use.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

Tighten

Loosen

Installing Bits into Keyed Chuck

1. Open the chuck jaws

wide enough to insert

the bit. Be sure the

bit shank and chuck

jaws are clean. Dirt

particles may prevent

the bit from lining up

properly.

2. When using drill bits,

insert the bit into the

chuck. Center the bit in

the chuck jaws and lift it about 1/16" off of the

bottom. Tighten the chuck jaws by hand to align

the bit.

When using screwdriver bits, insert the bit far

enough for the chuck jaws to grip the bit shank.

Tighten the chuck jaws by hand to align the bit.

3. Place the chuck key in each of the three holes in

the chuck, turning it clockwise as shown. Tighten

securely.

4. To remove the bit, insert the chuck key into one

of the holes in the chuck and turn it counterclock-

wise.

Forward/Reverse/Trigger Lock Switch

To set the direction of bit rotation or lock

the trigger, move the forward/reverse/trig-

ger lock switch to the following positions:

For forward rotation (clockwise): Move the

switch to the right." " will be displayed

above the switch. To vary the speed in

forward rotation, increase or decrease

pressure on the trigger.

For reverse rotation (counter-clockwise):

Move the switch to the left. " " will be dis-

played above the switch. To vary the speed

in reverse rotation, increase or decrease

pressure on the trigger.

To lock the trigger: Move the switch to the

center. " " will be displayed above the

switch. The trigger will not work while the

switch is in the locked position. Always lock

the trigger and remove the battery pack be-

fore performing maintenance and changing

accessories. Lock the trigger when storing

the tool and when the tool is not in use.

Starting, Stopping and Controlling Speed

1. To start the tool, grasp the handle ﬁ rmly and pull

the trigger.

2. To vary the speed, increase or decrease the

pressure on the trigger. The further the trigger

is pulled, the greater the speed.

3. To stop the tool, release the trigger. Make sure

the tool comes to a complete stop before laying

the tool down.

Electric Brake

The electric brake engages when the trigger is

released, causing the bit to stop and allowing you

to proceed with your work. Generally, the bit stops

within two seconds. However, there may be a delay

between the time you release the trigger and when

the brake engages. Occasionally the brake may

miss completely. If the brake misses frequently, the

tool needs servicing by an authorized MILWAUKEE

service facility.

Bracing against

a stud

Reaction

Reverse

rotation

WARNING

To reduce the risk of

personal injury, always brace or hold the tool

securely. Brace tools with side handles as

shown. If the bit binds, the tool will be forced

in the opposite direction. Bits may bind if they

are misaligned or when breaking through a

hole. Wood boring bits can also bind if they

run into nails or knots.

Forward

rotation

Reaction

Bracing against

a stud

Bracing

against

your leg

Reaction

Forward

rotation

Bracing

against the

ﬂ oor

Reaction

Forward

rotation

Selecting Bits

When selecting a bit, use the right type for your job.

For best performance, always use sharp bits.

Drilling

1. Before drilling, be sure the workpiece is clamped

securely. Use backing material to prevent dam-

age to the workpiece during breakthrough.

2. When starting a hole, place the drill bit on the

work surface and apply ﬁ rm pressure. Begin

drilling at a slow speed, gradually increasing the

speed as you drill.

3. Always apply pressure in line with the bit. Use

enough pressure to keep the drill biting, but do

not push hard enough to stall the motor.

4. Reduce pressure and ease the bit through the

last part of the hole. While the tool is still running,

pull the bit out of the hole to prevent jamming.

Drilling in Wood, Composition Materials and

Plastic

When drilling in wood, composition materials and

plastic, start the drill slowly, gradually increasing

speed as you drill. When drilling into wood, use

wood augers or twist drill bits. Always use sharp

bits. When using twist drill bits, pull the bit out of the

hole frequently to clear chips from the bit ﬂ utes. To

reduce the chance of splintering, back work with a

piece of scrap wood. Select low speeds for plastics

with a low melting point.

APPLICATIONS

ACCESSORIES

For a complete listing of accessories refer to your

MILWAUKEE Electric Tool catalog or go online

to www.milwaukeetool.com. To obtain a catalog,

contact your local distributor or service center.

WARNING

Always remove battery pack

before changing or removing accessories.

Only use accessories speciﬁ cally recommend-

ed for this tool. Others may be hazardous.

Maintaining Tool

Keep your tool, battery pack and charger in good

repair by adopting a regular maintenance program.

After six months to one year, depending on use,

return the tool, battery pack and charger to A

MILWAUKEE service facility for:

• Lubrication

• Mechanical inspection and cleaning (gears, spin-

dles, bearings, housing, etc.)

• Electrical inspection (battery pack, charger,

motor)

• Testing to assure proper mechanical and electrical

operation

If the tool does not start or operate at full power

with a fully charged battery pack, clean the contacts

on the battery pack. If the tool still does not work

properly, return the tool, charger and battery pack,

to a MILWAUKEE service facility for repairs.

MAINTENANCE

Cleaning

Clean dust and debris from charger and tool vents.

Keep tool handles clean, dry and free of oil or

grease. Use only mild soap and a damp cloth to

clean the tool, battery pack and charger since certain

cleaning agents and solvents are harmful to plastics

and other insulated parts. Some of these include

gasoline, turpentine, lacquer thinner, paint thinner,

chlorinated cleaning solvents, ammonia and house-

hold detergents containing ammonia. Never use

ﬂ ammable or combustible solvents around tools.

Repairs

For repairs, return the tool, battery pack and

charger to the nearest service center.

WARNING

To reduce the risk of per-

sonal injury and damage, never immerse your

tool, battery pack or charger in liquid or allow

a liquid to ﬂ ow inside them.

WARNING

To reduce the risk of injury,

always unplug the charger and remove the

battery pack from the charger or tool before

performing any maintenance. Never disas-

semble the tool, battery pack or charger.

Contact a MILWAUKEE service facility for

ALL repairs.

TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date.

This warranty card covers any defect in material and workmanship on this Power Tool.

To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you pur-

chased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the

original proof of purchase to the ASC.

Call toll-free 1 800 832 1949 to ﬁ nd the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you pur-

chased the product, and there any faulty piece or component will be replaced without cost for you. We will cover all

freight costs relative with this warranty process.

Exceptions

This warranty is not valid in the following situations:

a) When the product is used in a different manners from the end-user guide or instruction manual.

b) When the conditions of use are not normal.

c) When the product was modiﬁ ed or repaired by people not authorized by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER

Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales

Miguel Hidalgo, Distrito Federal, Mexico

Ph. 52 55 4160-3547

IMPORTED AND COMMERCIALIZED BY:

TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.

Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales

Miguel Hidalgo, Distrito Federal, Mexico

LIMITED WARRANTY - USA AND CANADA

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA AND CARIBBEAN

Model:

Date of Purchase:

Distributor or Store Stamp:

Every MILWAUKEE power tool (including cordless product – tool, battery pack(s) - see separate & distinct

CORDLESS BATTERY PACK LIMITED WARRANTY statements & battery charger and Work Lights*) is war-

ranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain

exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is

determined by MILWAUKEE to be defective in material or workmanship for a period of ﬁ ve (5) years* after the

date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center

location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the

proof of purchase should be included with the return product. This warranty does not apply to damage that

MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized

personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

*The warranty period for, Job Site Radios, M12™ Power Port, M18™ Power Source, and Trade Titan™ Indus-

trial Work Carts is one (1) year from the date of purchase. The warranty period for a LED Work Light and LED

Upgrade Bulb is a limited LIFETIME warranty to the original purchaser only, if during normal use the LED bulb
