Operating instructions
Commercial steam ironing system
To avoid the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 12 046 340
Caring for the environment
2
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Contents
3
Caring for the environment .............................................................................. 2
Warning and Safety instructions ..................................................................... 6

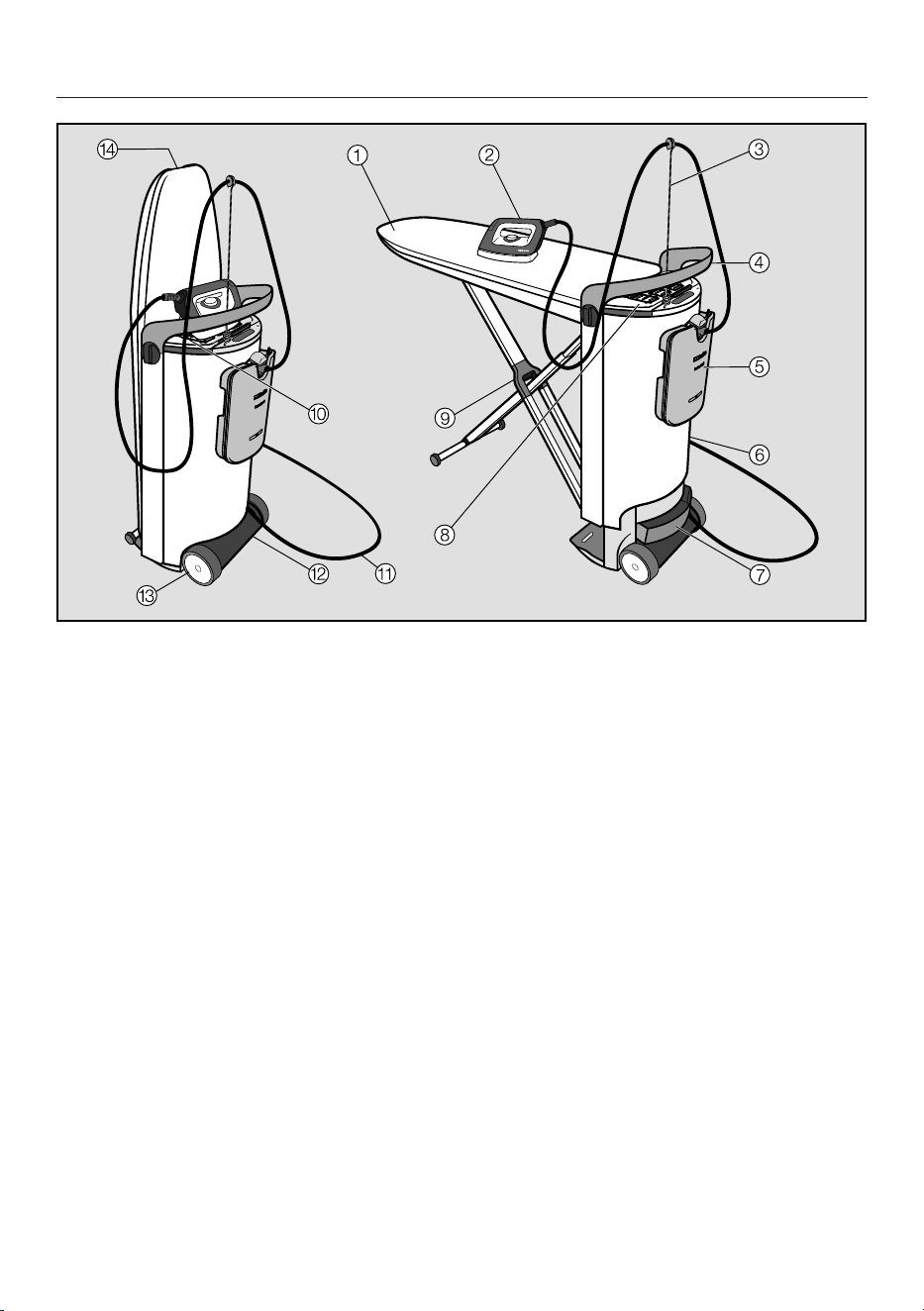

Guide to the appliance...................................................................................... 14

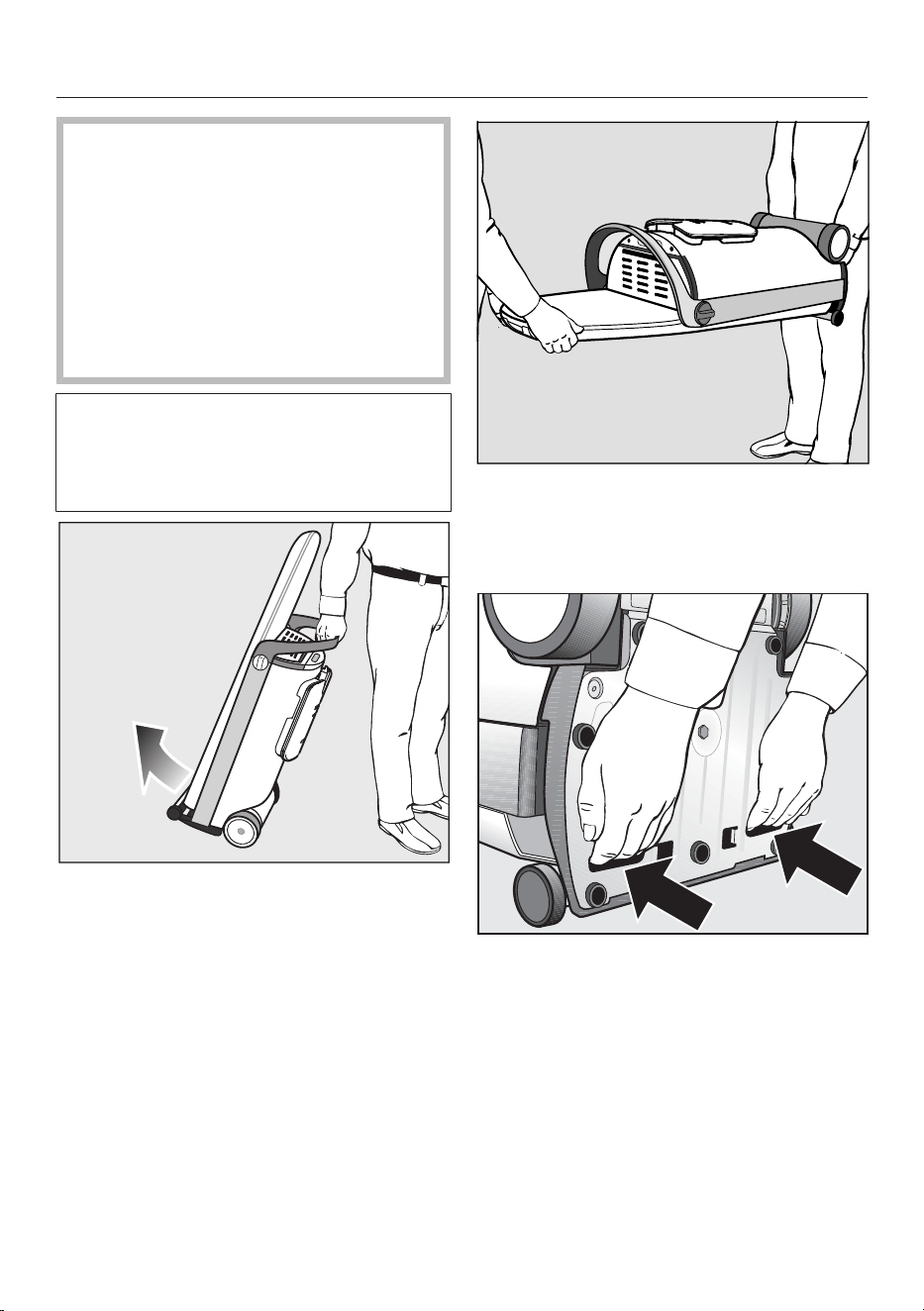

Transporting....................................................................................................... 17
Assembly............................................................................................................ 18

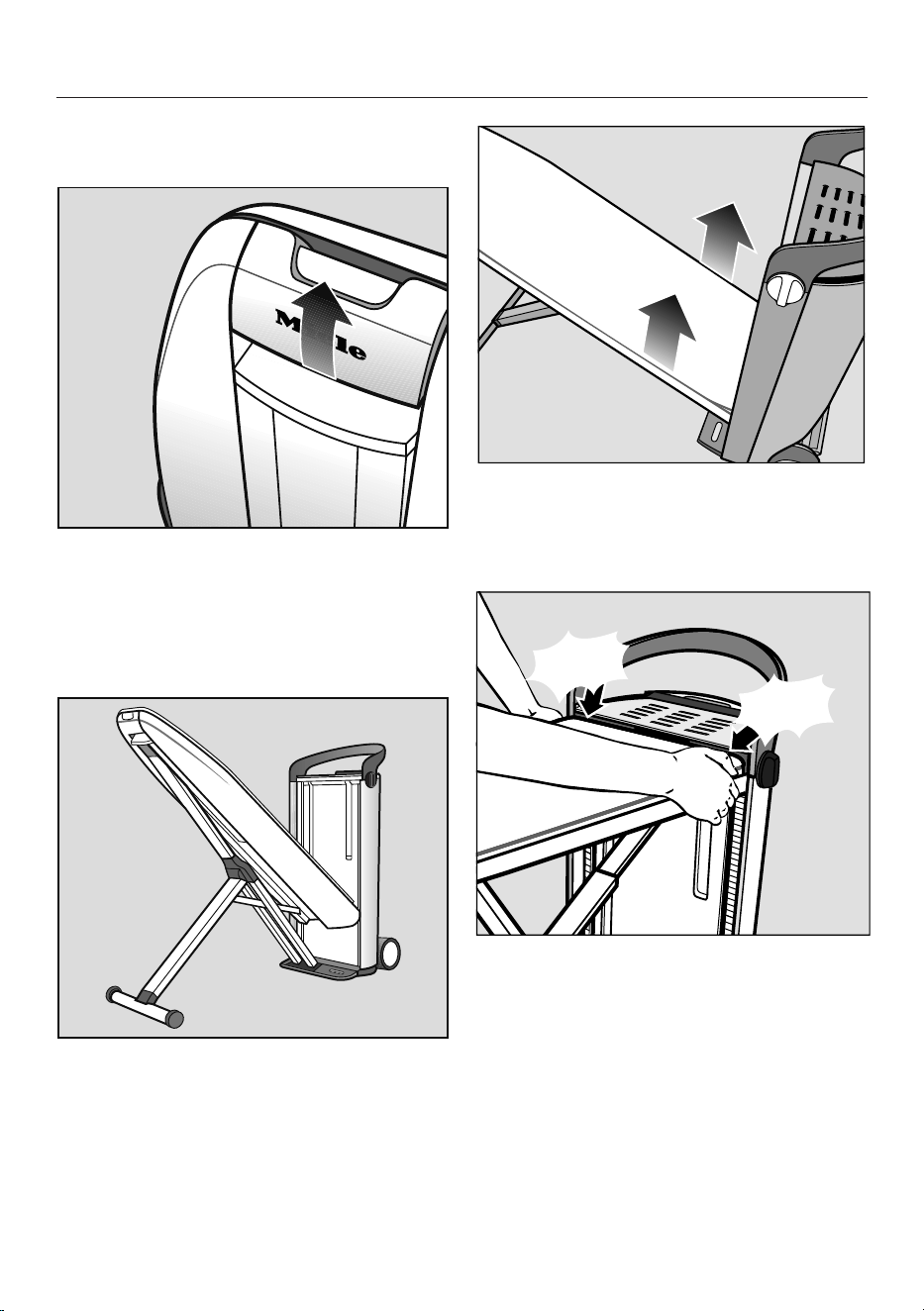

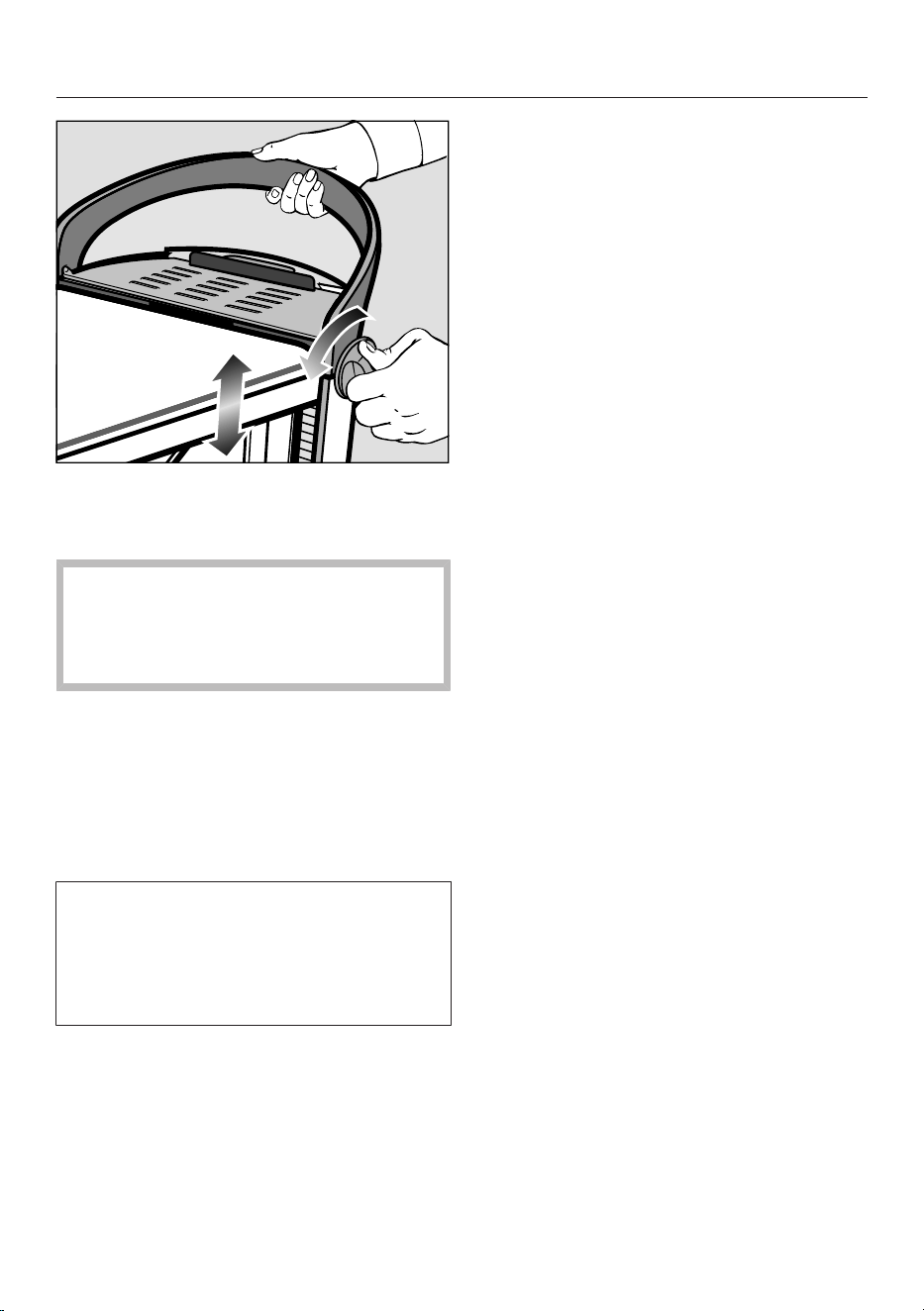

Adjusting the height ............................................................................................ 19
Connecting......................................................................................................... 21

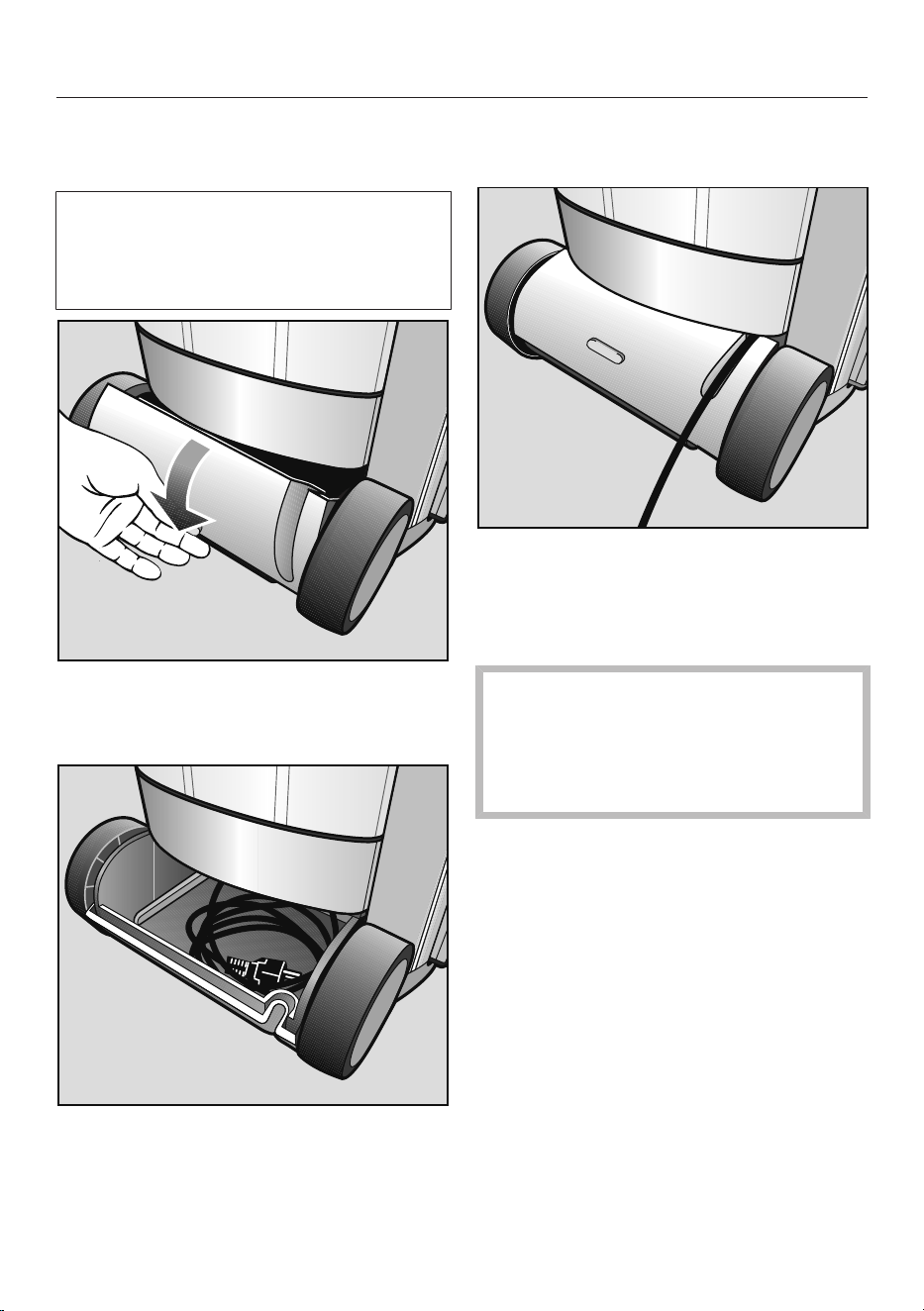

Connecting the mains connection cable............................................................. 21

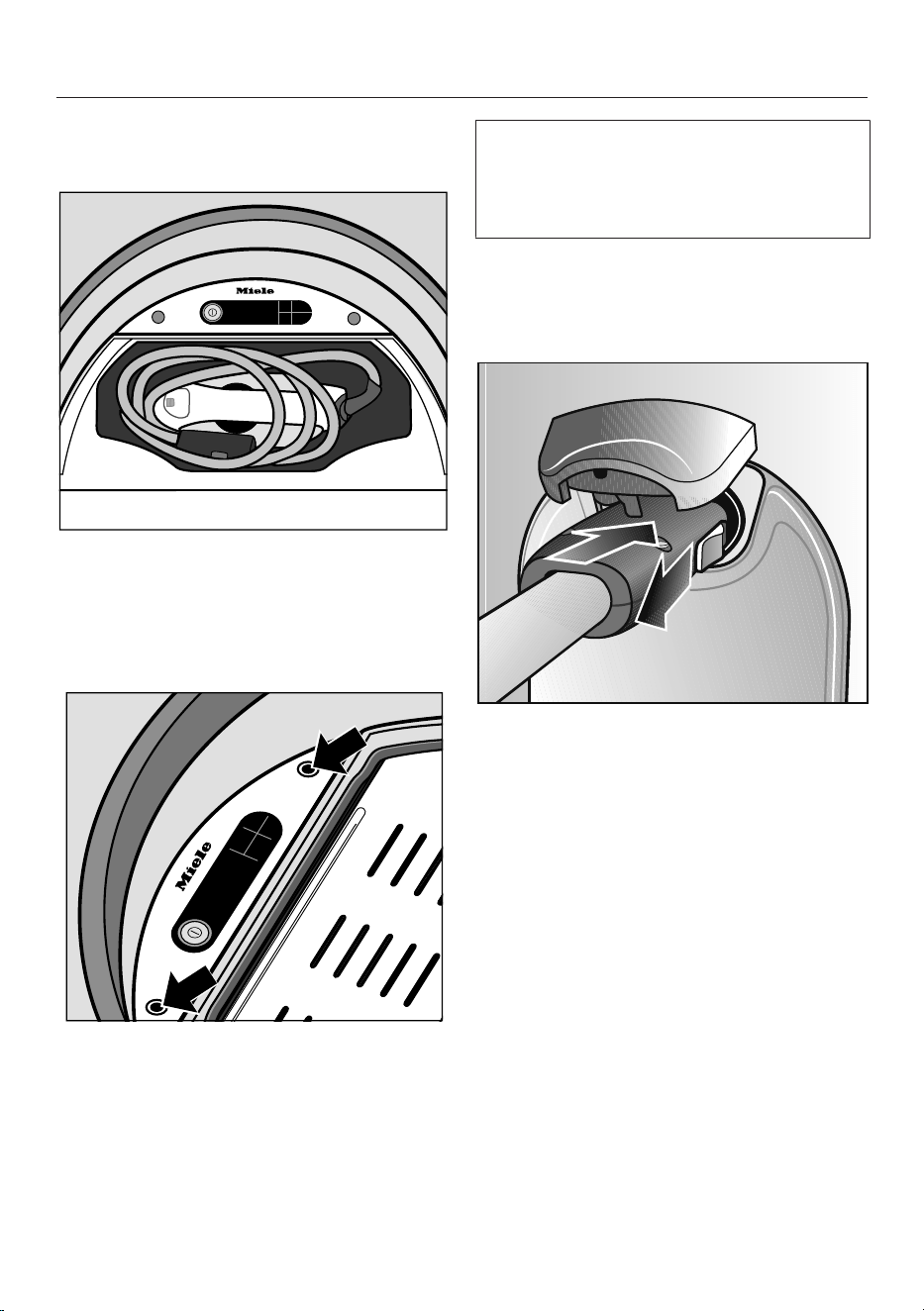

Removing the iron and the steam hose holder ................................................... 22

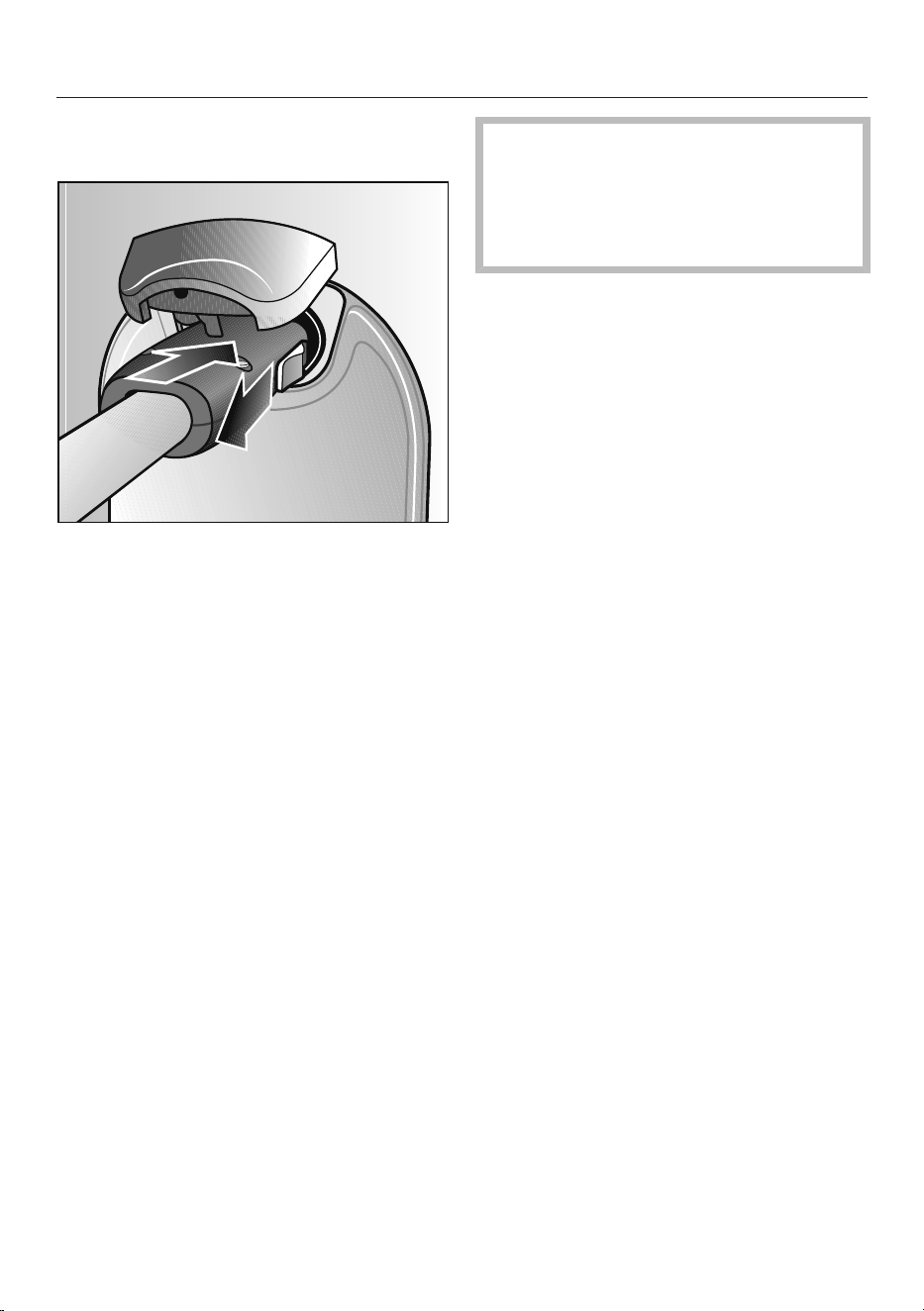

Connecting the steam hose ................................................................................ 22
Before using for the first time .......................................................................... 24
Determining water hardness ............................................................................... 24
Using the test strips ....................................................................................... 24
Before using for the first time.............................................................................. 25

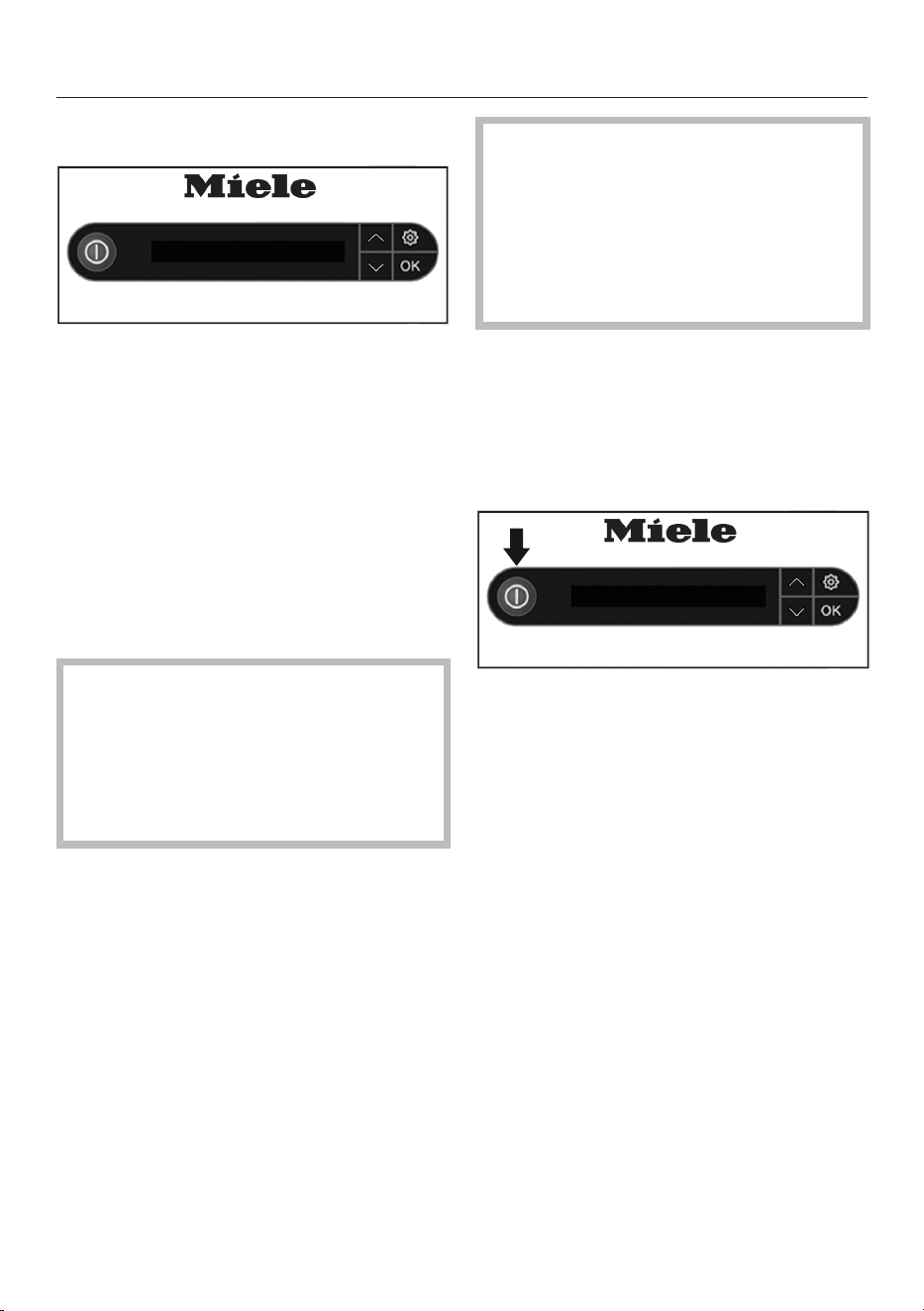

Switching on the steam ironing system ......................................................... 25

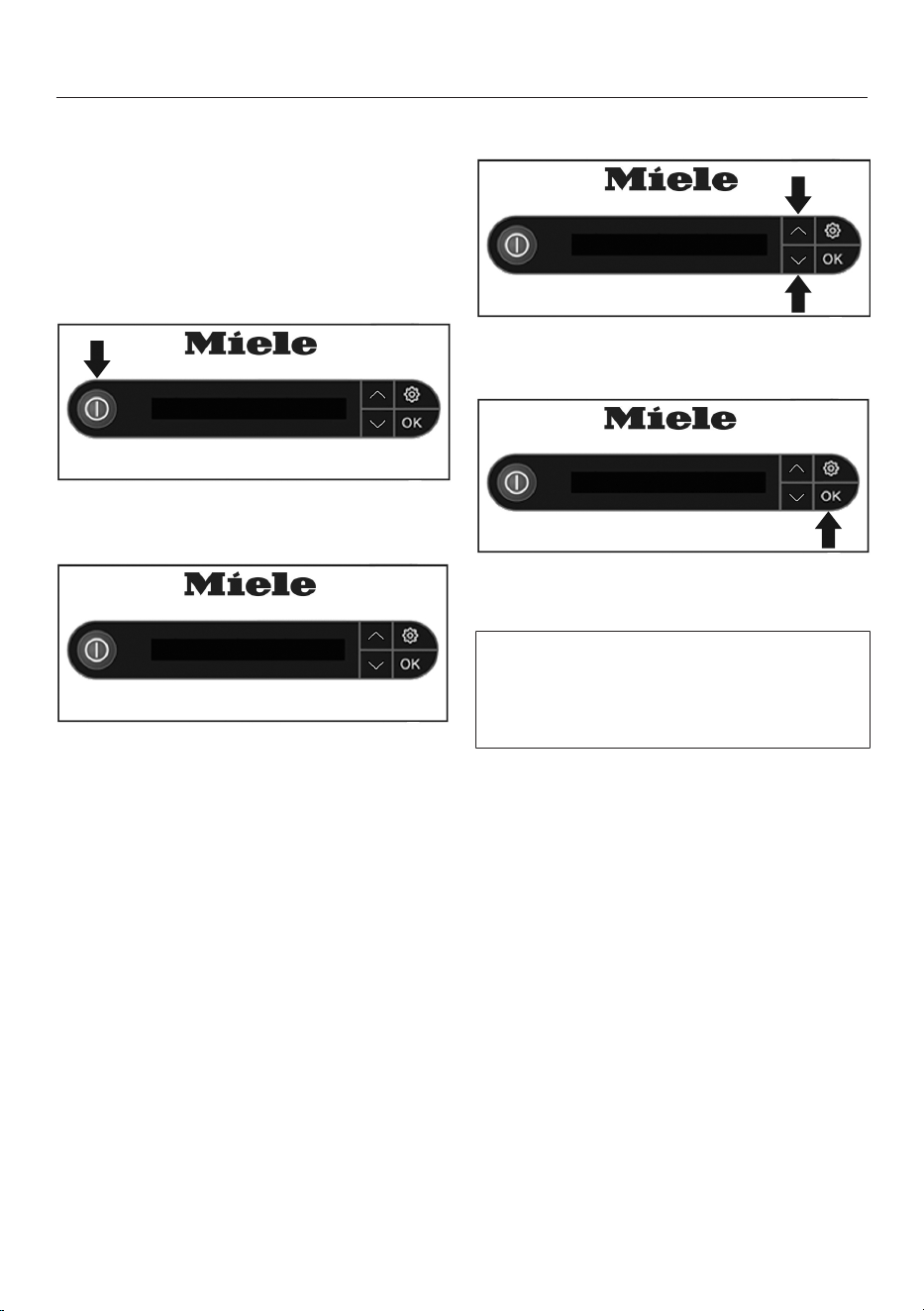

Language settings.......................................................................................... 25
Setting the water hardness ............................................................................ 26
Set-up is now complete ................................................................................. 27
Switching on ...................................................................................................... 28
Switching on the steam ironing system .............................................................. 28
Filling the water container ................................................................................... 29

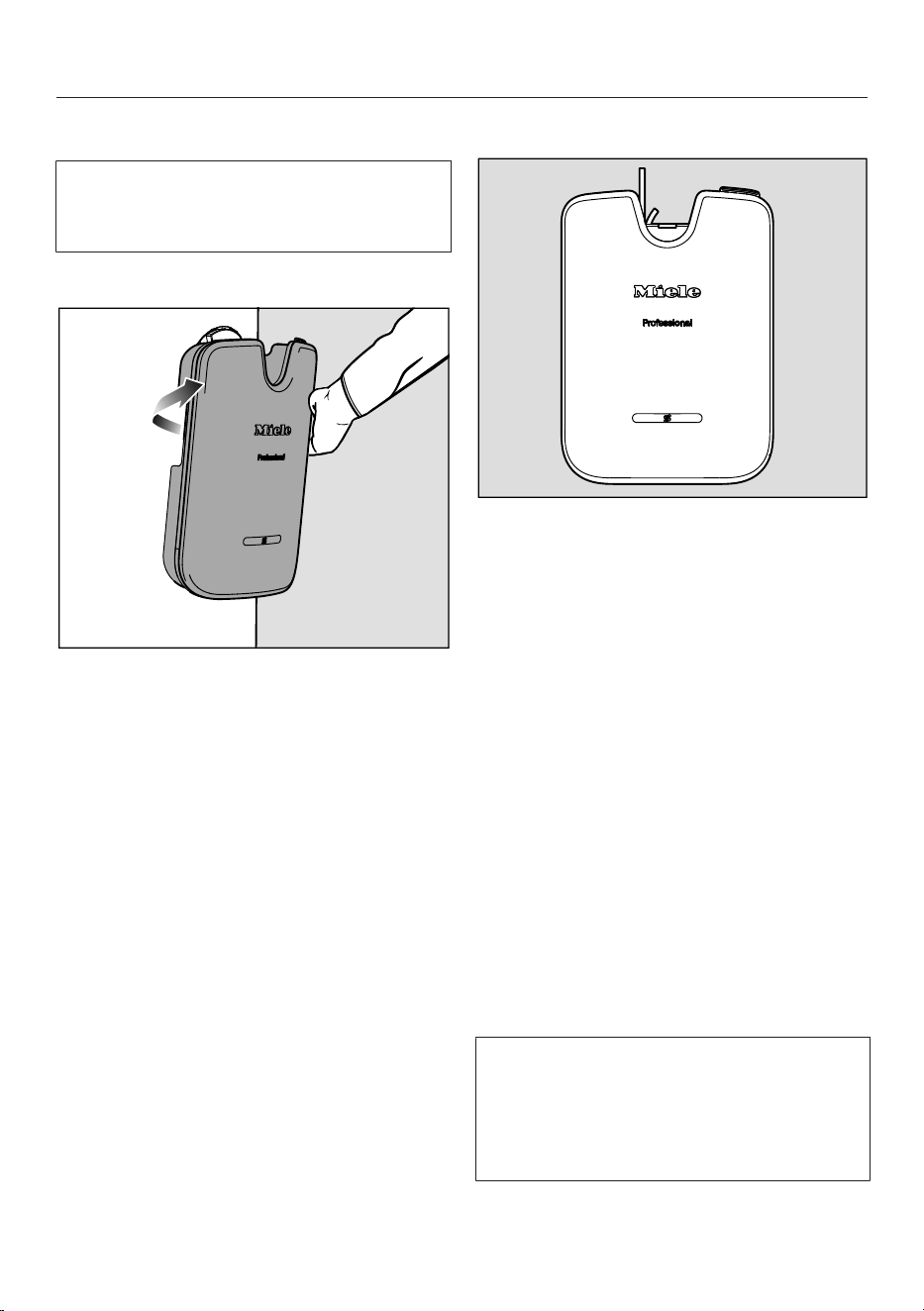

Removing the water container ....................................................................... 29
Filling with water............................................................................................. 29
Steam operation............................................................................................. 30
Water quality .................................................................................................. 30

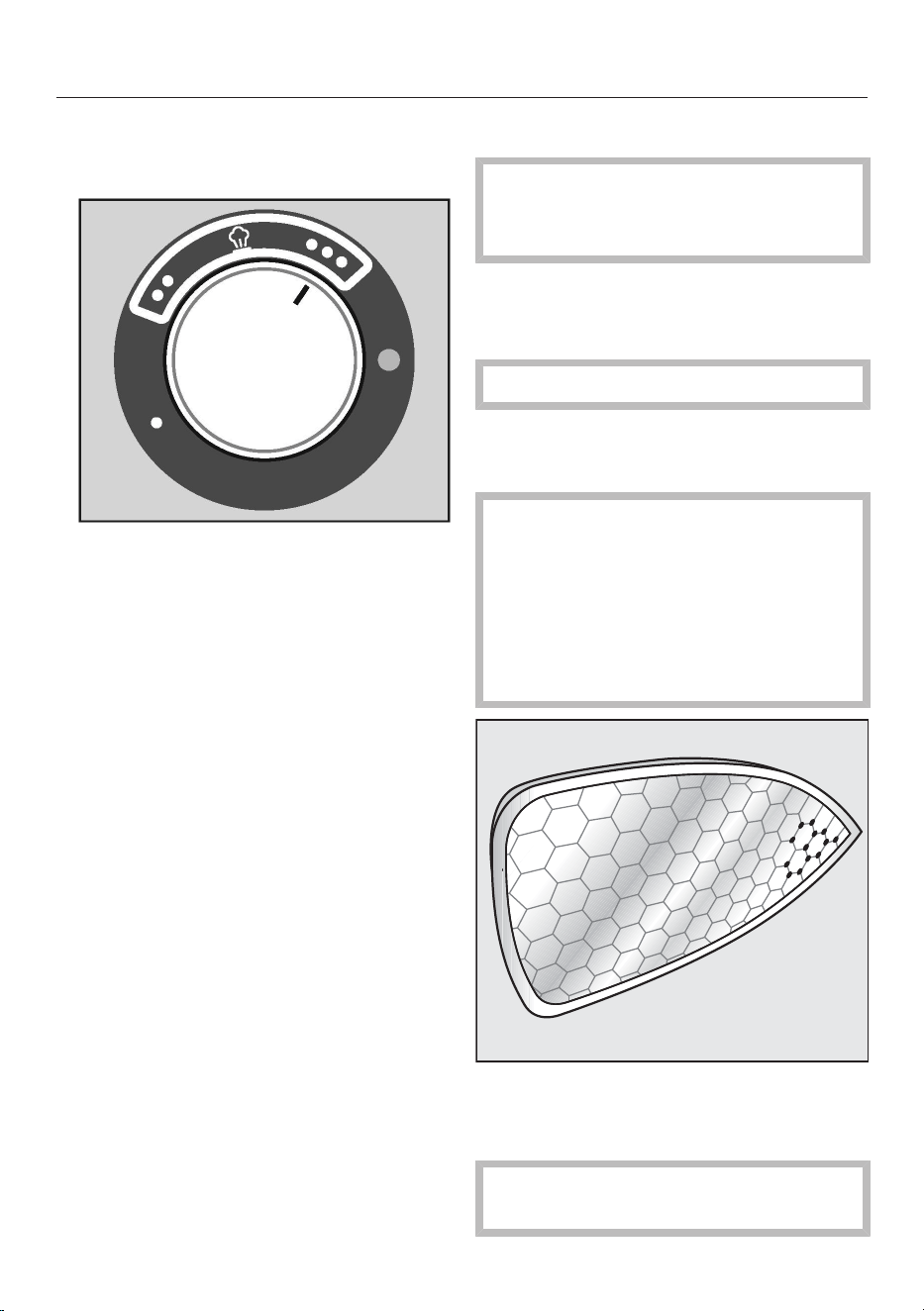

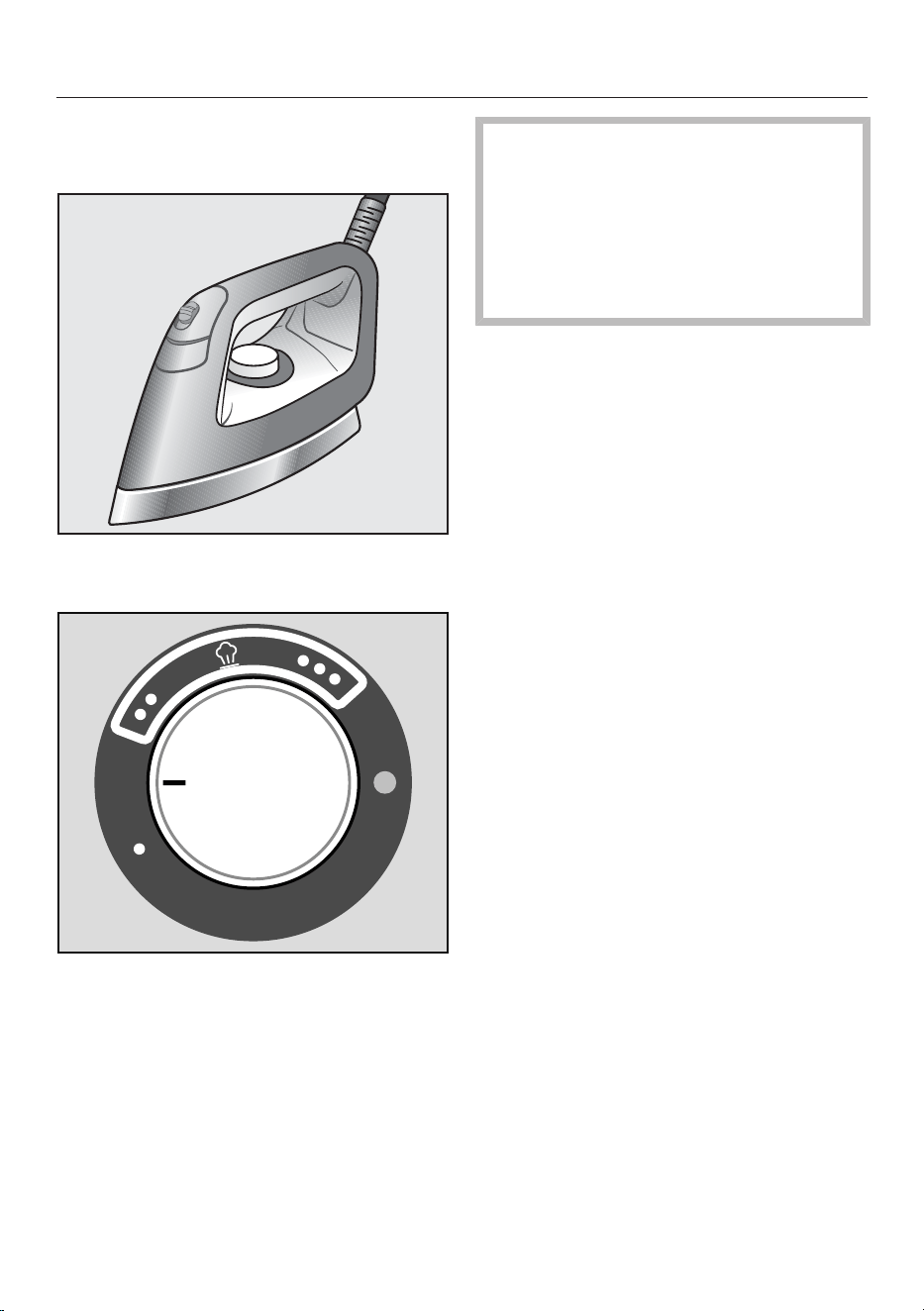

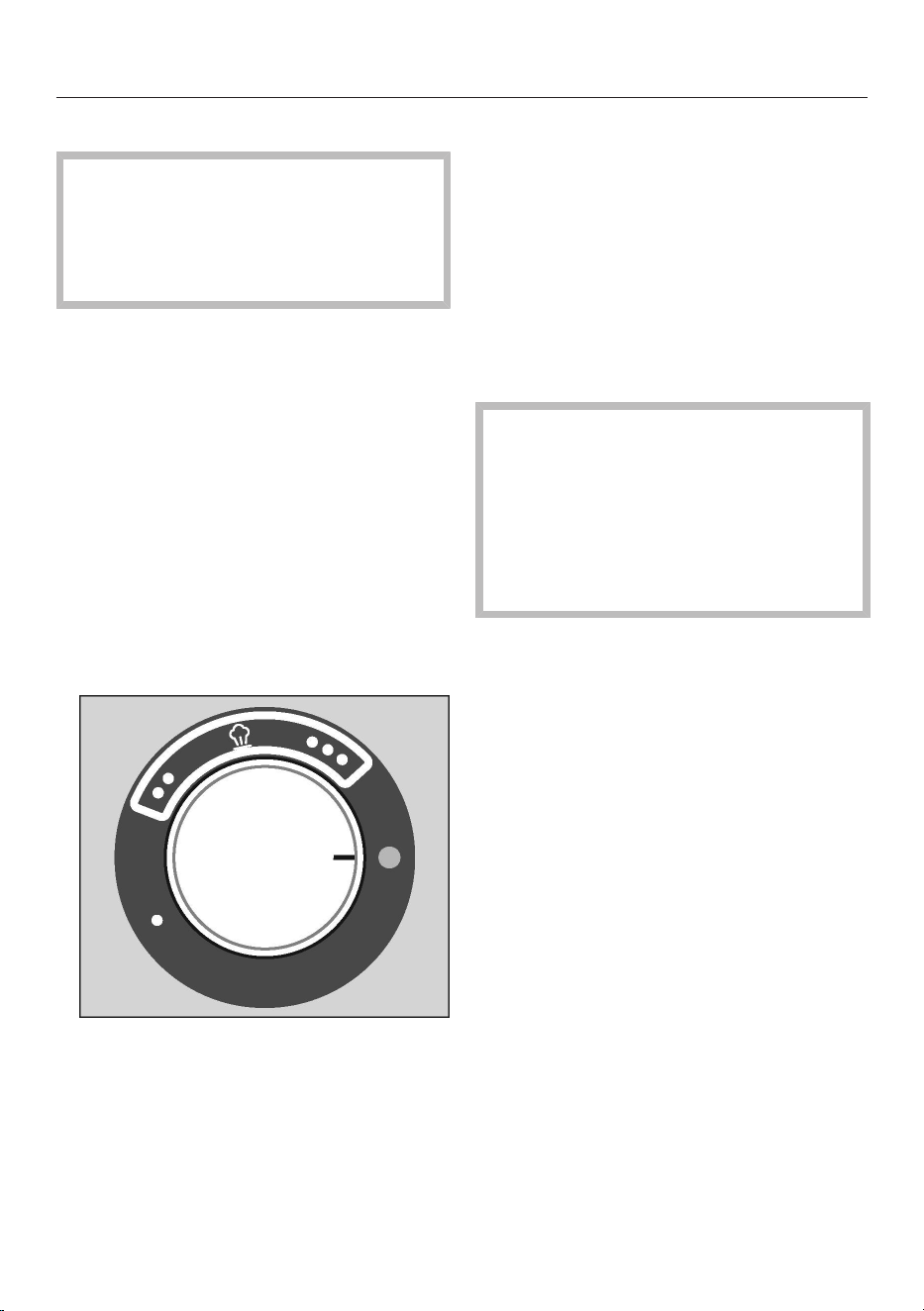

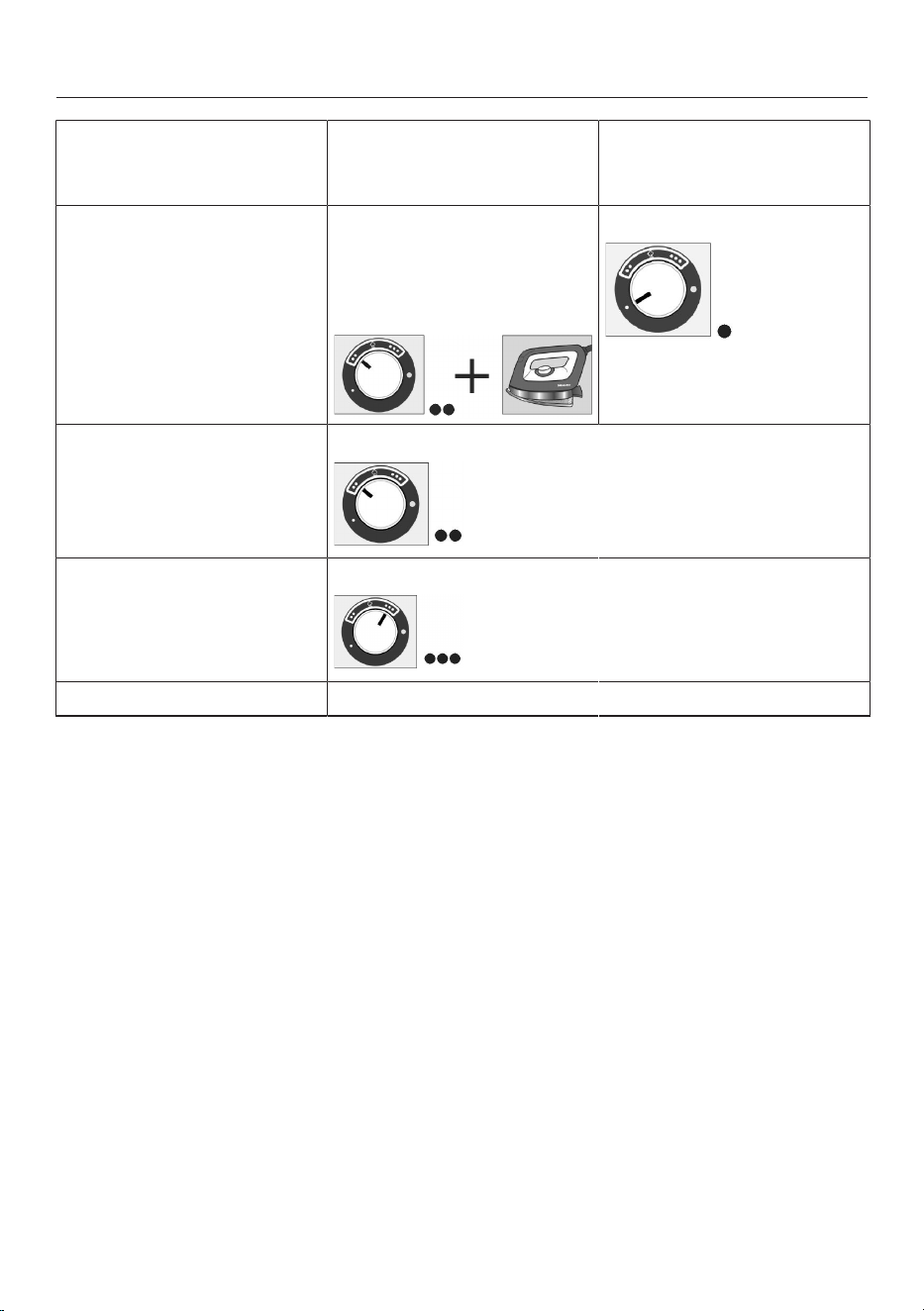

Selecting the ironing temperature ....................................................................... 31
CoolDown function.............................................................................................. 33
AutoOff function .................................................................................................. 33
Ironing ................................................................................................................ 34
Ironing with steam ............................................................................................... 34
Ironing without steam.......................................................................................... 35
Ironing with the non-stick soleplate (optional accessory) ................................... 35
Attaching the non-stick soleplate................................................................... 36

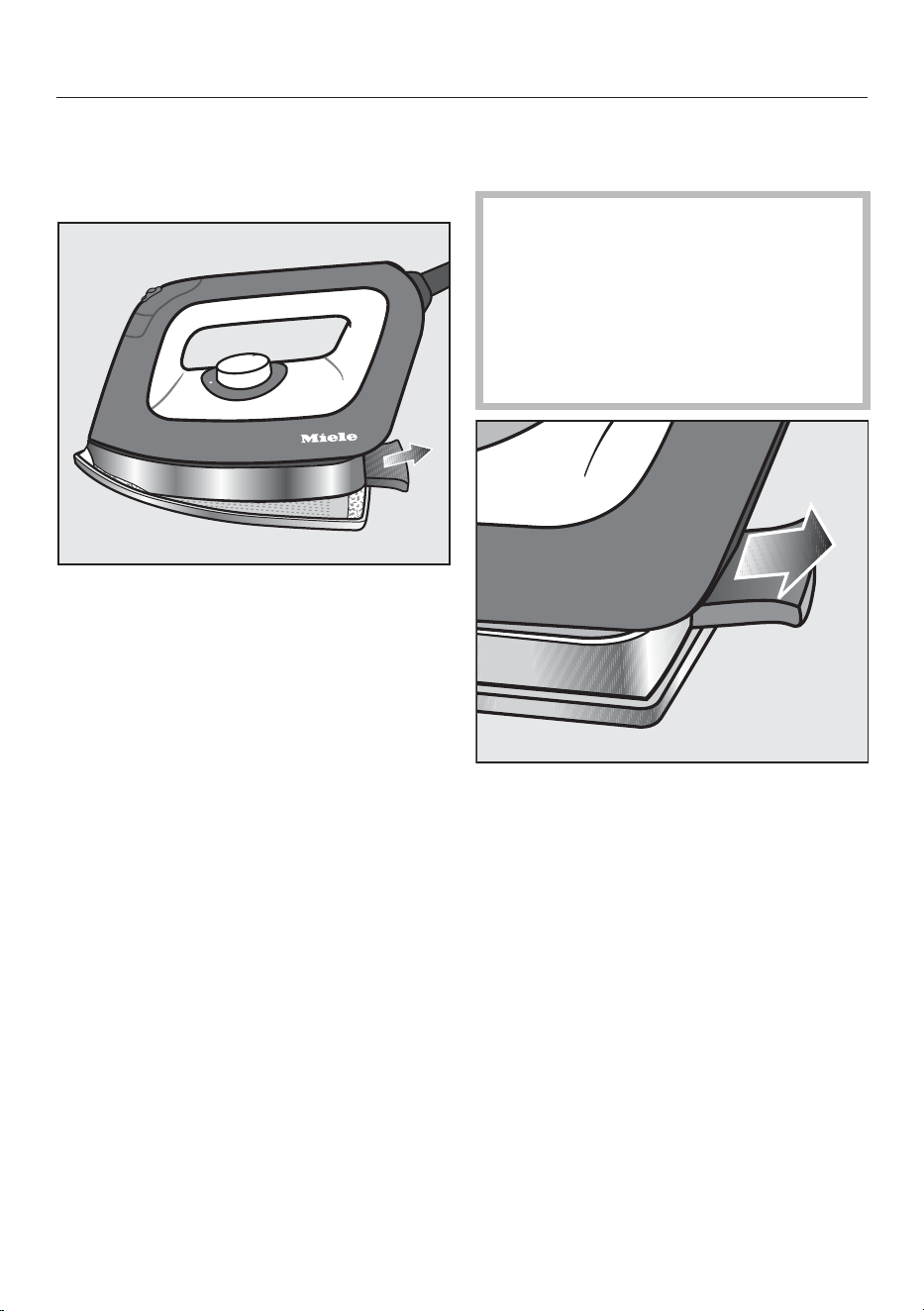

Removing the non-stick soleplate.................................................................. 36
Contents
4

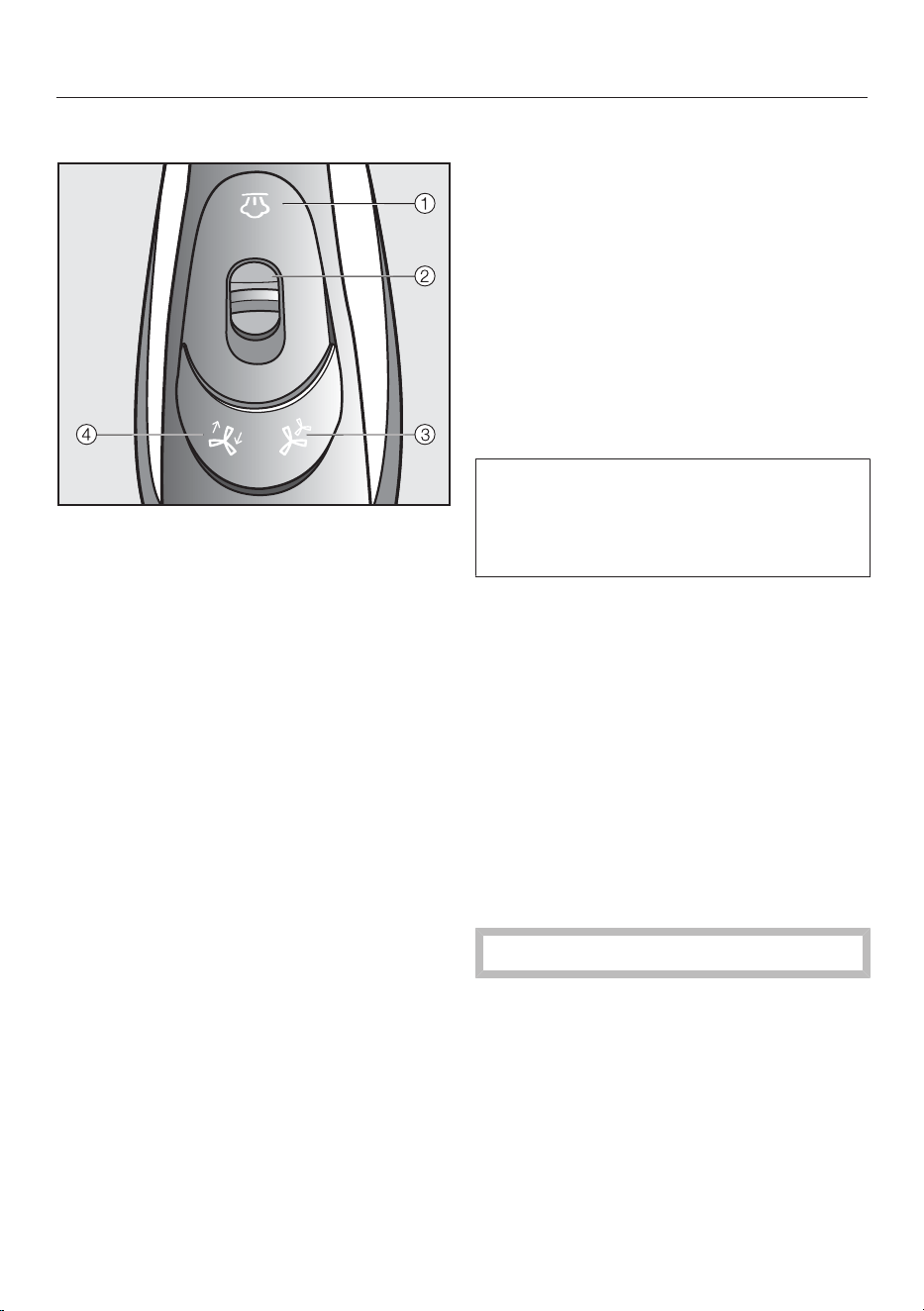

Active ironing board ............................................................................................ 37

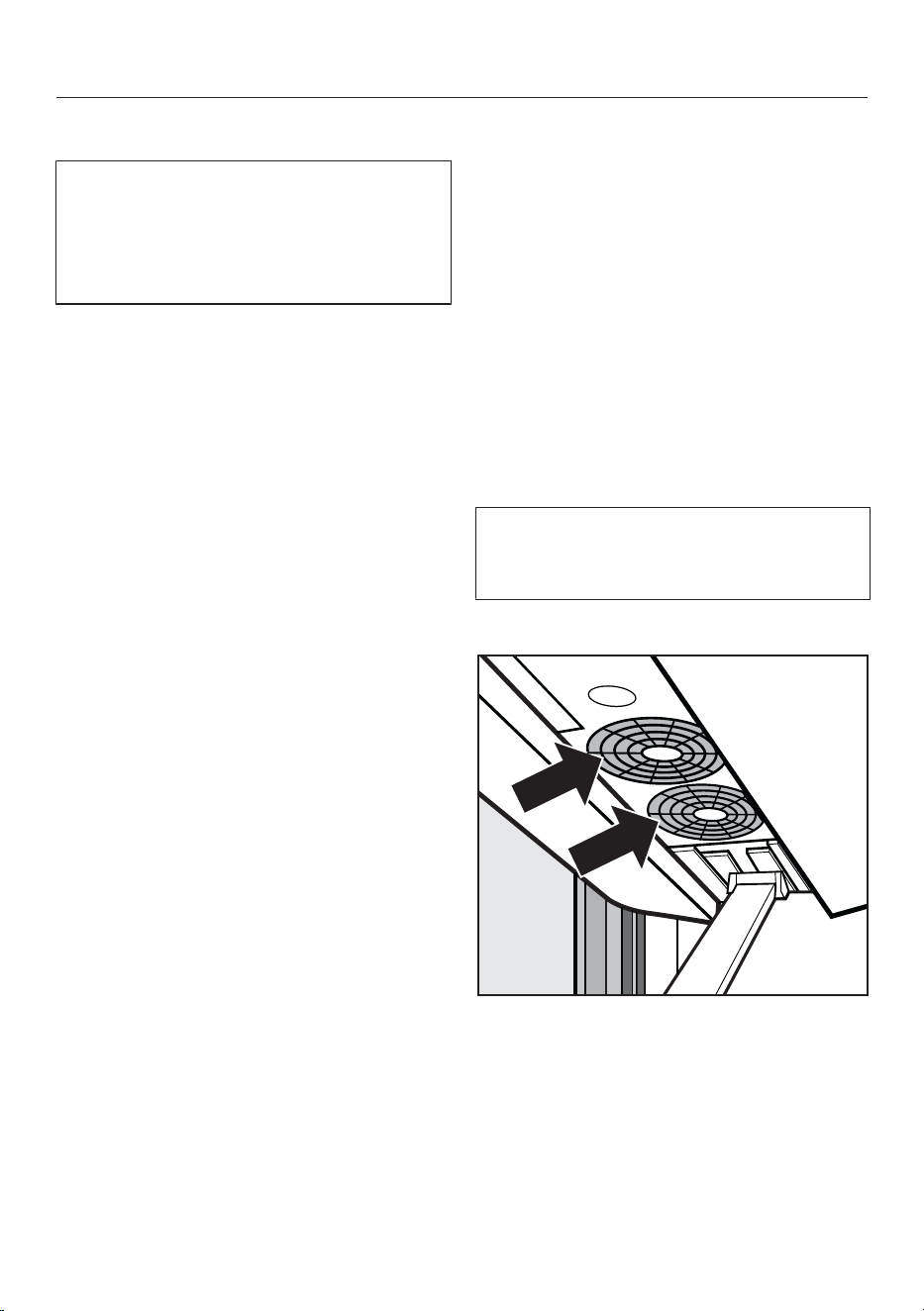

Suction function ............................................................................................. 37
Inflation function............................................................................................. 37
Automatic switch on/off ................................................................................. 37
Memory function ............................................................................................ 37
Heated ironing surface ................................................................................... 37
Steamer .............................................................................................................. 39

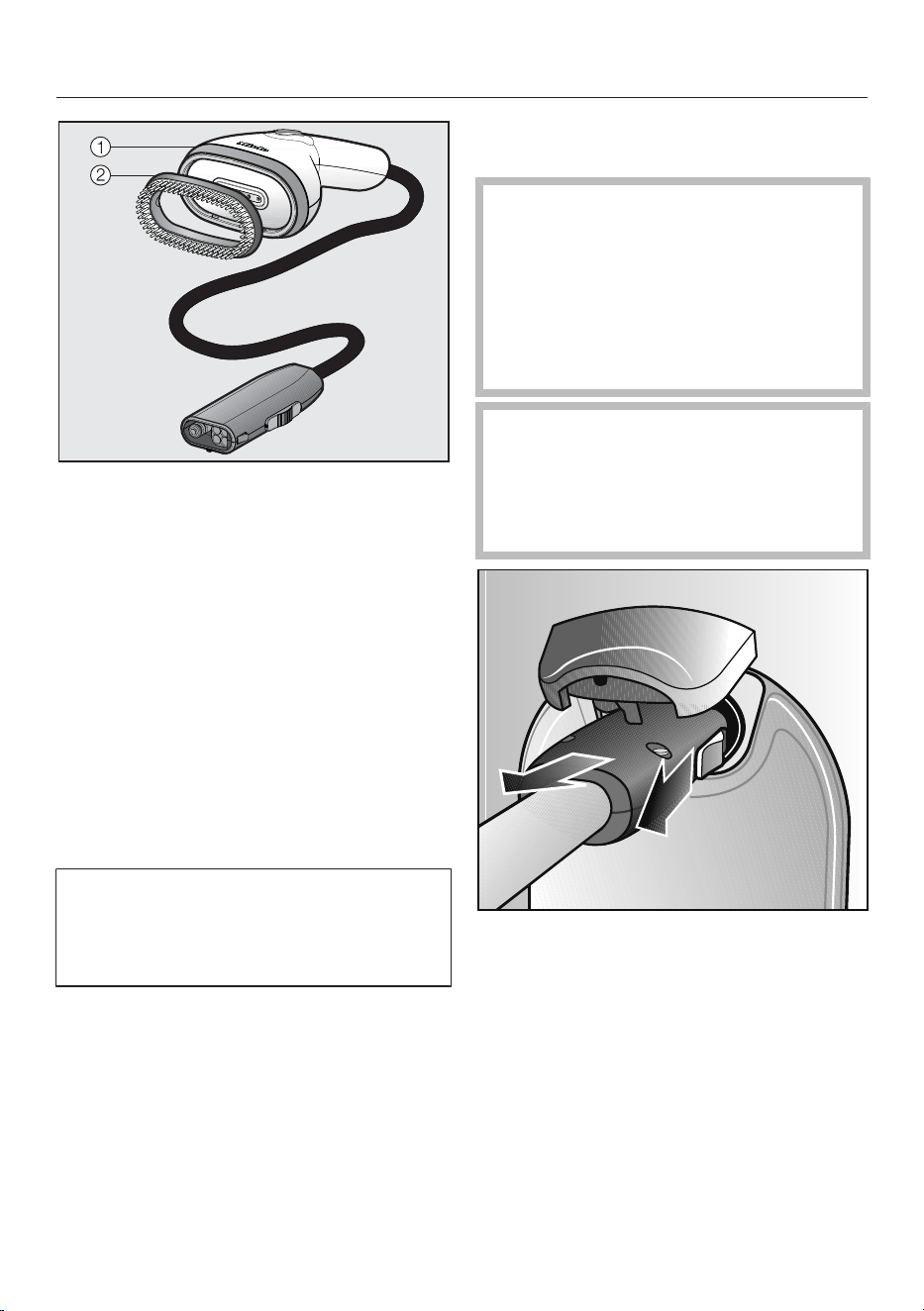

Connecting the steamer...................................................................................... 39

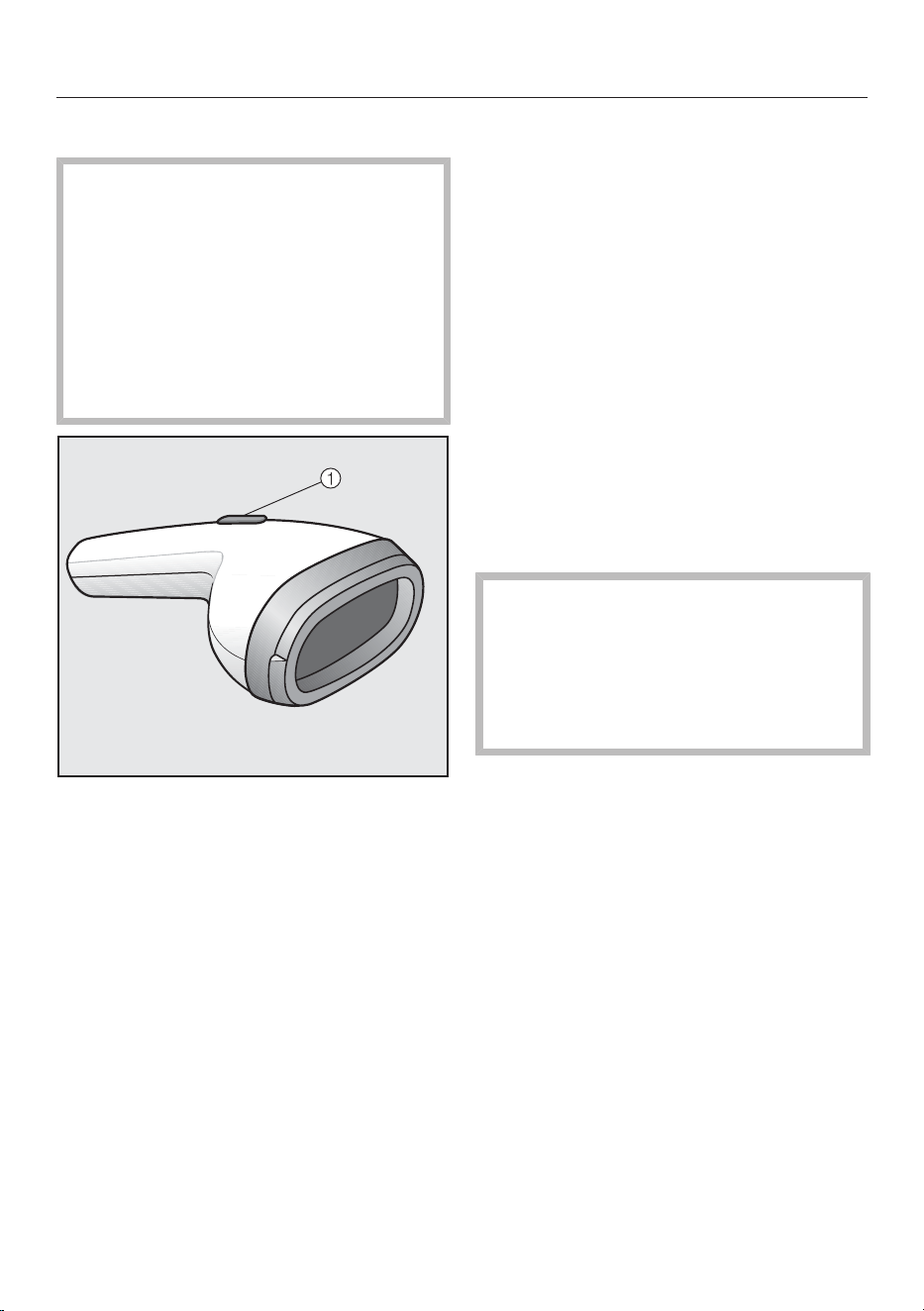

Using the steamer ............................................................................................... 41
Brush attachment................................................................................................ 42

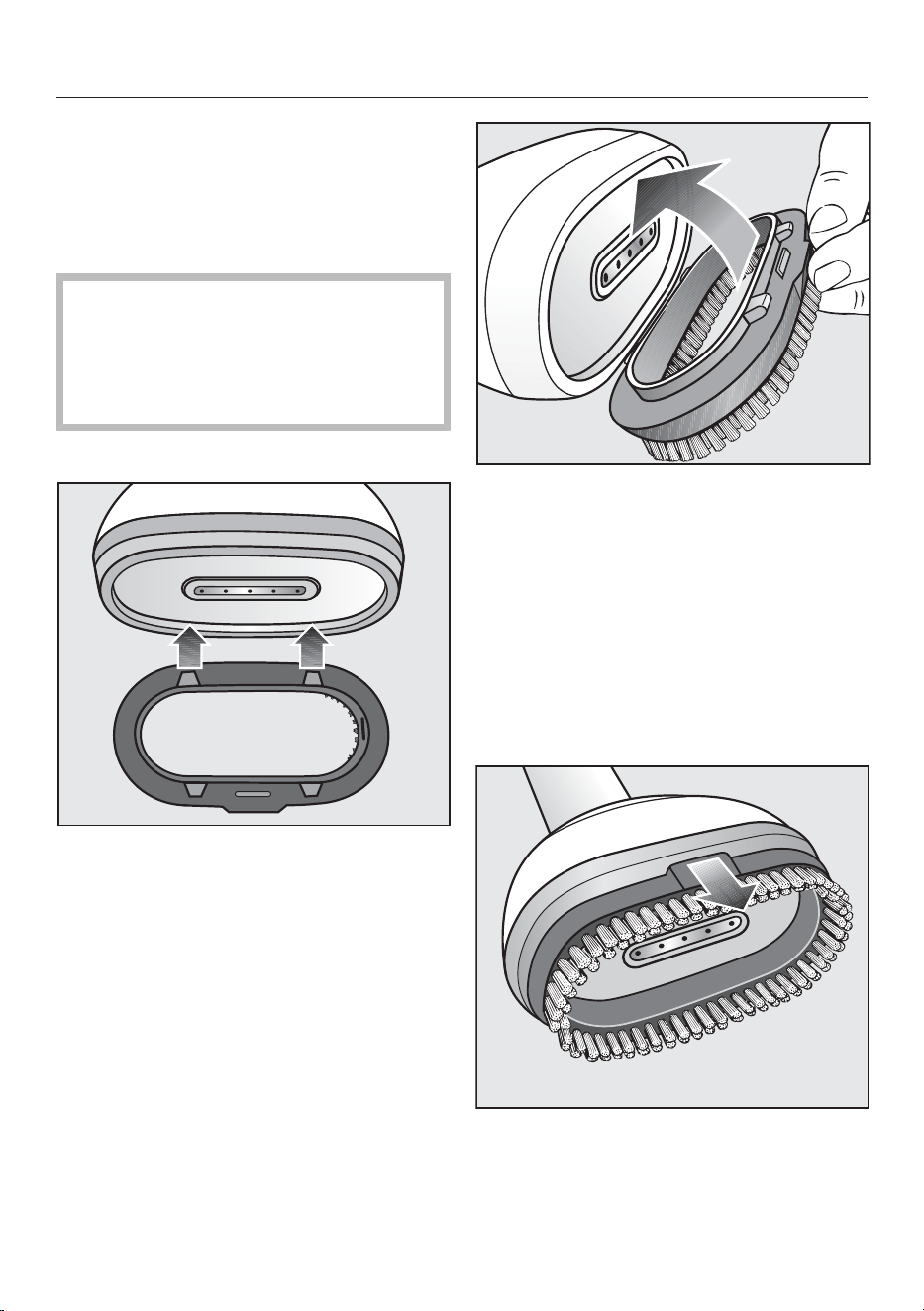

Connecting the brush attachment ................................................................. 42
Removing the brush attachment.................................................................... 42

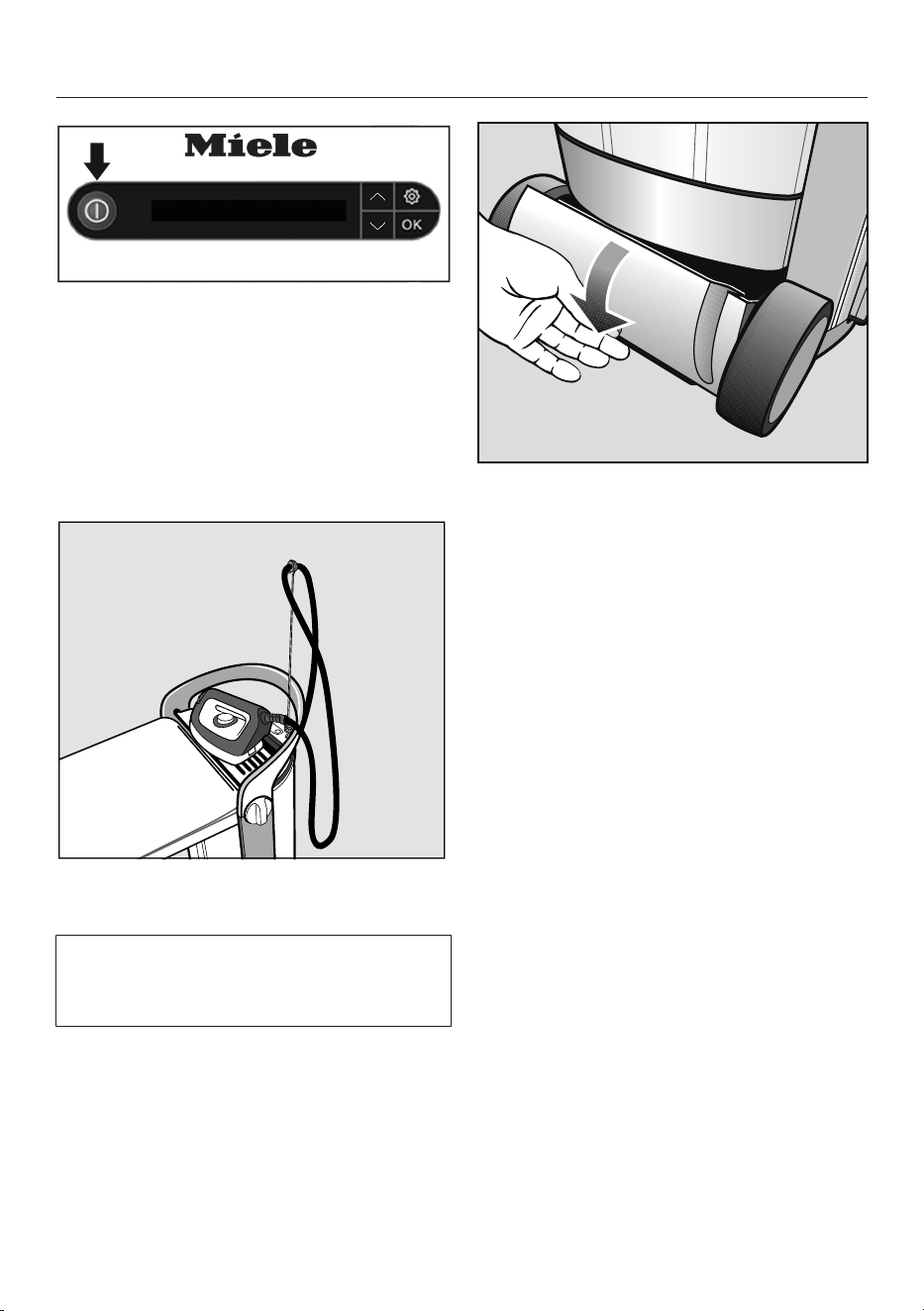

Switching off the steam ironing system.......................................................... 43
Dismantling ........................................................................................................ 44

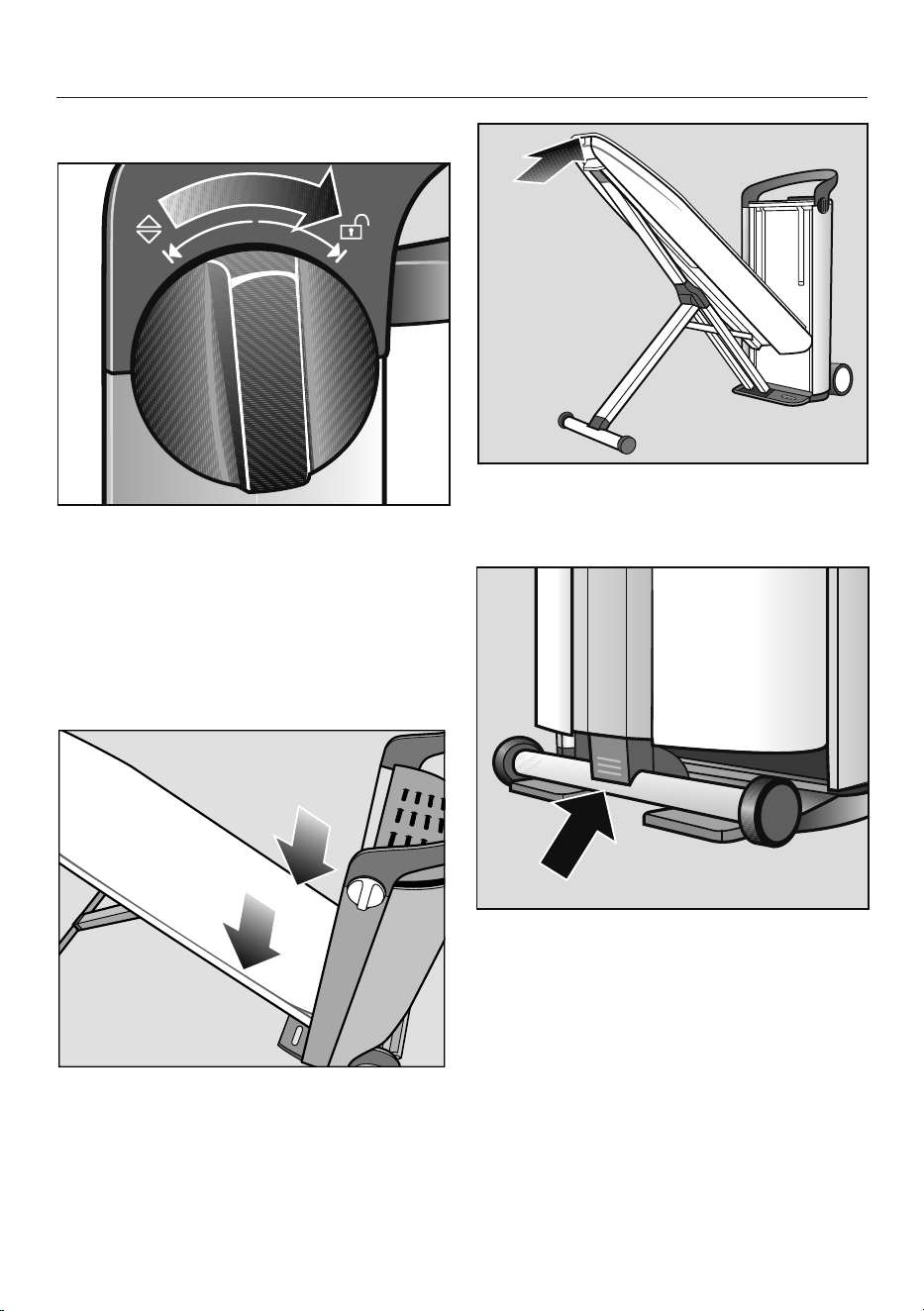

Setting the ironing board to its lowest working height........................................ 44
Folding the ironing board .................................................................................... 45
Disconnecting the steam hose............................................................................ 46
Storing the iron .................................................................................................... 46
Storing the steamer ............................................................................................. 46
Emptying the water container ............................................................................. 47
Storing the steam ironing system........................................................................ 47
Cleaning and care ............................................................................................. 48
Automatic rinsing ................................................................................................ 48
Preparing for the rinsing process ................................................................... 48
Emptying the residual water drawer............................................................... 48
Descaling............................................................................................................. 49
Descaling warning.......................................................................................... 50

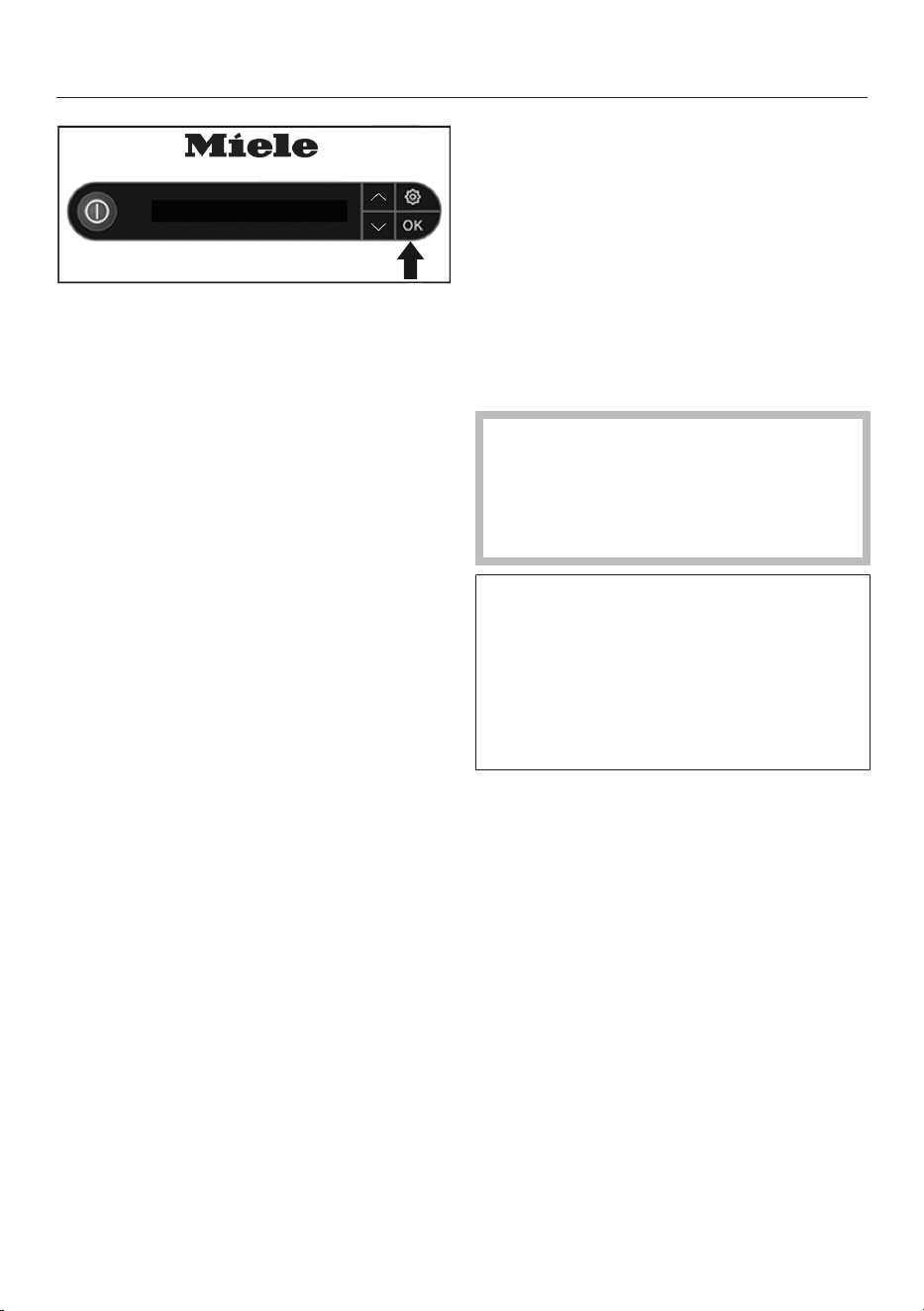

Starting the descaling process early.............................................................. 51
Descaling process.......................................................................................... 51
Cleaning the housing........................................................................................... 58
Cleaning the soleplate of the iron........................................................................ 58
Cleaning or replacing the ironing board cover .................................................... 59

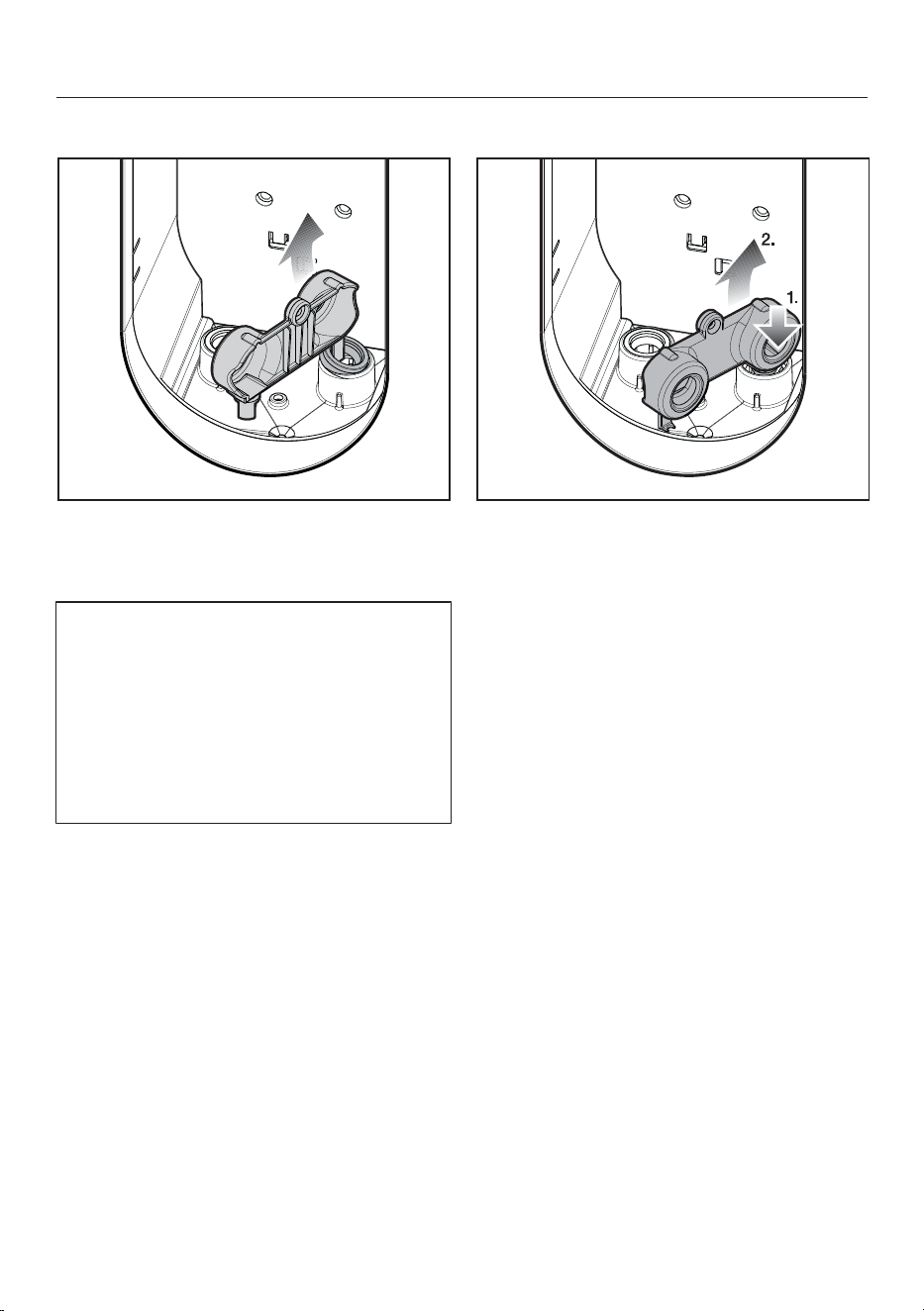

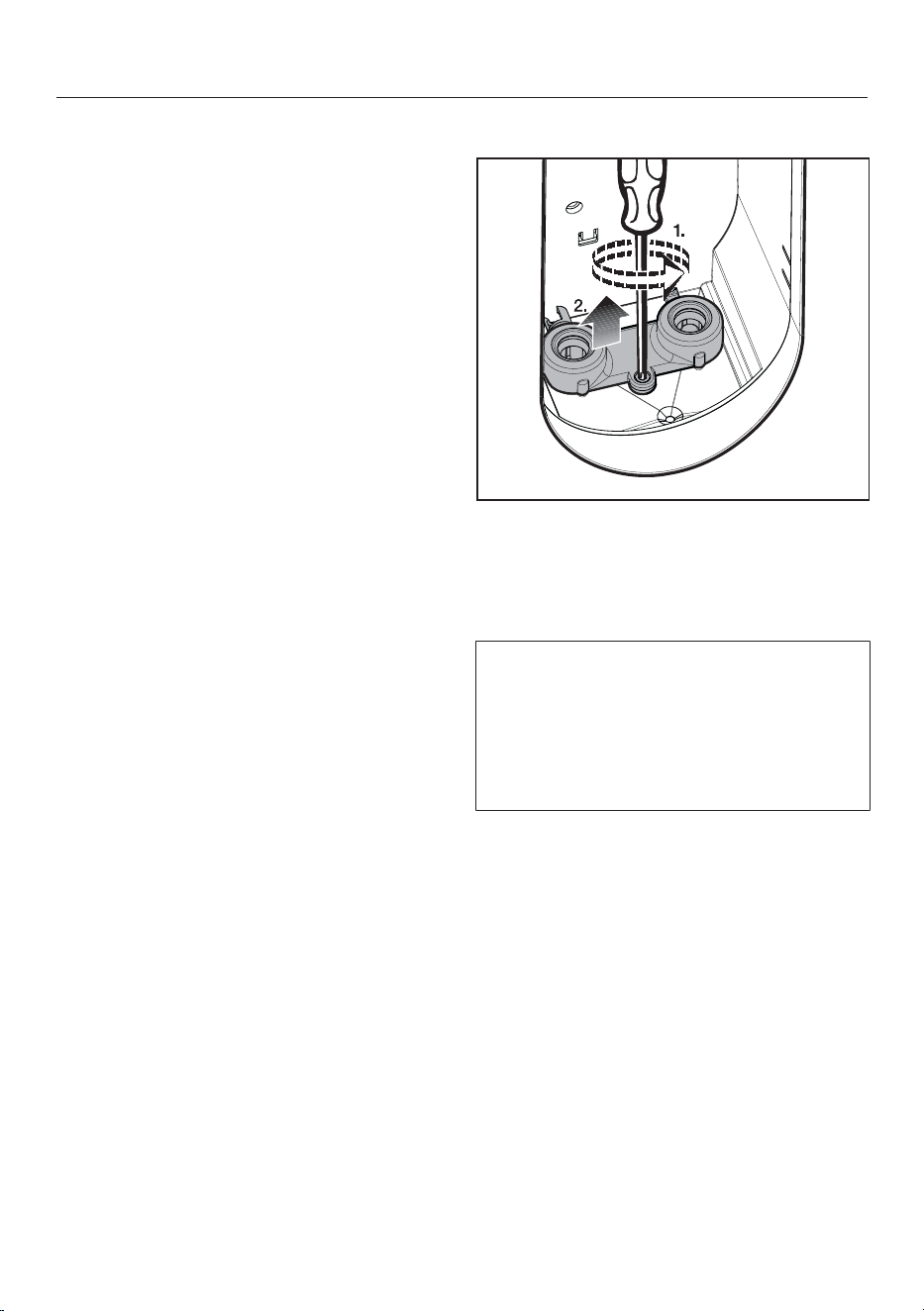

Cleaning the water filter....................................................................................... 60
Removing the water container ....................................................................... 60
Optional accessories ........................................................................................ 65
Accessories ......................................................................................................... 65
Non-stick soleplate ........................................................................................ 65
Commercial-grade ironing board cover (APIB003) ....................................... 65
Steamer.......................................................................................................... 65
Contents
5
Care products...................................................................................................... 65
Descaling tablets............................................................................................ 65
Problem solving guide ...................................................................................... 66
Problem solving guide......................................................................................... 67
Display messages ............................................................................................... 73
After sales service............................................................................................. 77
Electrical connection ........................................................................................ 78
Technical data.................................................................................................... 79
Warning and Safety instructions
6
This steam ironing system complies with current safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the steam ironing
system, please read these instructions carefully before using it for
the first time. They contain important information on its safety,
installation, use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
The steam ironing system is intended for domestic and
commercial use.
The steam ironing system must only be used for ironing textiles
which are suitable for ironing according to the care label.
Only use the steam ironing system for the types of application
described in the instructions for use.
Any other use is not permitted. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
This steam ironing system can be used by older children and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the steam ironing system in a safe way
and understand the dangers involved. Do not allow children to play
with the steam ironing system. Cleaning and user maintenance must
not be carried out by older children without supervision.
This steam ironing system is not suitable for outdoor use.
Warning and Safety instructions
7
Safety with children
Young children must be kept away from the steam ironing system.
Older children may only use the steam ironing system when its
operation has been clearly explained to them and they are able to
use it safely, recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the steam ironing
system and do not let them play with it.
Ensure that young children cannot reach the iron, the steam hose
or the mains connection cable of the steam ironing system during
operation or cooling down.
Miele recommends that children should not be allowed to operate
the steam ironing system without supervision until they are 14
years of age or older.
Risk of suffocation!
Children may be able to wrap themselves in packing material or pull
it over their heads with the risk of suffocation. Keep children away
from any packing material.
Warning and Safety instructions
8
Technical safety
Before setting up the steam ironing system, inspect it visually for
any external damage. Never use a damaged steam ironing system. A
damaged steam ironing system can be dangerous.
Check the iron of the steam ironing system for damage. Do not
use the iron if it has been dropped, if there is any visible damage or if
it is leaking.
Before connecting the steam ironing system to the mains
electricity supply, make sure that the connection data on the data
plate (voltage and frequency) matches the mains electricity supply.
Connection to a supply voltage other than the one quoted on the
data plate can lead to functional faults and damage to the steam
ironing system. If in doubt, contact a suitably qualified electrician.
Always remove and unwind the mains connection cable of the
steam ironing system completely from its (lower) storage
compartment.
If the mains connection cable is damaged, it must be replaced
with a special cable of the same type (available from Miele). For
safety reasons, this must only be fitted by a Miele service technician.
If the ironing board cover is damaged, do not operate the steam
ironing system.
A damaged ironing board cover can endanger your safety.
Never operate the steam ironing system without the ironing board
cover.
Always replace the ironing board cover with an original spare part.
Warning and Safety instructions
9
The electrical safety of this steam ironing system can only be
guaranteed when continuity is complete between it and an effective
earthing system which complies with current local and national
safety regulations. It is most important that this basic safety
requirement is present and regularly tested and, where there is any
doubt, the household wiring system should be inspected by a
qualified electrician. Miele cannot be held liable for the
consequences of an inadequate earthing system (e.g. electric
shock).
Do not connect the steam ironing system to the mains electricity
supply via a multi-socket unit or an extension lead. These do not
guarantee the required safety of the appliance (e.g. danger of
overheating).
This steam ironing system complies with all relevant safety
requirements. Unauthorised repairs could result in unforeseen
dangers for the user, for which the manufacturer cannot accept
liability. Repairs must only be undertaken by a Miele authorised
service technician, otherwise any subsequent damage will not be
covered by the warranty.
Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can Miele
guarantee the safety standards of the appliance.
Warning and Safety instructions
10
The steam ironing system must be isolated from the electricity
supply during installation, maintenance and repair work. The steam
ironing system is only considered disconnected from the power
supply if:
- the power plug of the steam ironing system is switched off at the
wall socket and unplugged, or
- it is switched off at the mains circuit breaker.
Do not damage, remove or bypass the safety features and control
elements of the steam ironing system.
Only operate the steam ironing system when all removable outer
panels are in place so that it is impossible to touch an electrical
component or moving part.
Do not place open containers of liquid on the steam ironing
system.
If liquid from containers leaks or is spilled on the steam ironing
system, the mains plug must be disconnected immediately. Do not
use the steam ironing system if liquid has got into it. Call Miele.
The steam ironing system must not be operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
11
Correct use
Risk of burns from hot components and steam.
The soleplate and the adjacent areas on the iron, as well as the
nozzles of the steamer become very hot during operation. The
escaping steam can cause severe burns.
Avoid direct contact with the escaping steam, the soleplate and
the nozzles of the steamer.
Never point the soleplate or steamer at other people, animals or
electrical appliances of any kind.
Do not use a pressure washer or water hose to clean the steam
ironing system.
Clean the steam ironing system only after it has cooled down.
There is a risk of crushing and pinching. Do not reach between the
moving parts when setting up, dismantling or adjusting the height of
the steam ironing system.
Only set up the steam ironing system on a level and stable
surface. Only operate the steam ironing system when it is
assembled. The iron must be used and stored on a flat stable
surface.
The steam ironing system must be assembled when ironing.
However, the steamer can be used when the ironing board is in the
upright position.
Ensure that the power cable does not present a tripping hazard
when unwound.
Use caution when the appliance is heated. There is an acute risk
of burning if you come in contact with the soleplate of the iron or the
steamer jets. The warning symbol “Hot surface”() on the iron
indicates that it is hot.
Warning and Safety instructions
12
Do not use solely demineralised water (e.g. distilled, battery
water) to fill the water container. This could cause the steam ironing
system to malfunction.
Always place the iron with its soleplate horizontally on the resting
surface of the steam ironing system. Ensure the steam function is
switched off and the soleplate does not protrude over the edges. Do
not place the iron anywhere else as this presents a fire hazard.
Danger of burning! If the iron remains on the resting surface for a
long period of time, the surface will become hot. Avoid direct contact
with the resting surface.
Danger of burning! Never direct the steam or the steam jets of the
iron or steamer at people, animals or electrical appliances of any
kind.
Danger of burning! Never point the steam at clothing while the
clothes are being worn! The clothing will intensify burning of the skin.
Switch off the steam ironing system before disconnecting the
mains connection cable.
Switch off at the wall socket and withdraw the plug from the
socket. Always pull by the plug to withdraw the plug from the socket.
Do not leave the steam ironing system unattended when it is
ready for use. Before you leave the steam ironing system, disconnect
the steam ironing system from the mains and withdraw the plug from
the mains socket.
Do not touch the mains connection cable or the steam hose with
the soleplate of the heated iron as this could result in damage.
During descaling, the iron or steamer must not be connected to
the steam ironing system.
The iron must not be stowed in its storage compartment when it is
connected. This could result in damage to the steam ironing system.
Warning and Safety instructions
13
Do not use the residual water drawer to store accessories or
similar items. The residual water drawer should be used only to
collect residual water.
Do not insert any objects into the apertures on the steam ironing
system. If an aperture is blocked, do not use the system.
Do not hang items of laundry on the folded steam ironing system.
This may cause the steam ironing system to tip over due to the effect
of leverage.
Avoid ironing across hard or sharp-edged items. These can leave
marks on the soleplate.
Do not store the steam ironing system near petrol, paraffin or
other highly flammable substances. Risk of fire and explosion!
Only use the steam ironing system inside buildings where the
ambient temperature is between 10°C and 40°C.
Freezing temperatures, excessive heat and humidity will adversely
affect the functionality of the steam ironing system.
Do not store the steam ironing system in a room where there is a
risk of frost occurring. Frozen water in the water container, steam
generator or steam hose will cause damage to the appliance.
Using accessories
Only use genuine Miele spare parts and accessories with this
appliance. If spare parts or accessories from other manufacturers
are used, this will invalidate the warranty, and Miele cannot accept
liability.
Guide to the appliance
14
a
Ironing board
b
Iron with steam hose
c
Steam hose holder
d
Handle
e
Water container
f
Tower
g
Residual water container
h
Top storage compartment
For the iron and the steam hose
holder.
i
Ironing board X-frame
j
Iron resting surface
k
Mains connection cable
l
Lower storage compartment
For the mains connection cable, the
steamer, and the non-stick soleplate
(optional accessory).
m
Castors
n
Release handle
For setting up the steam ironing
system.
Guide to the appliance
15

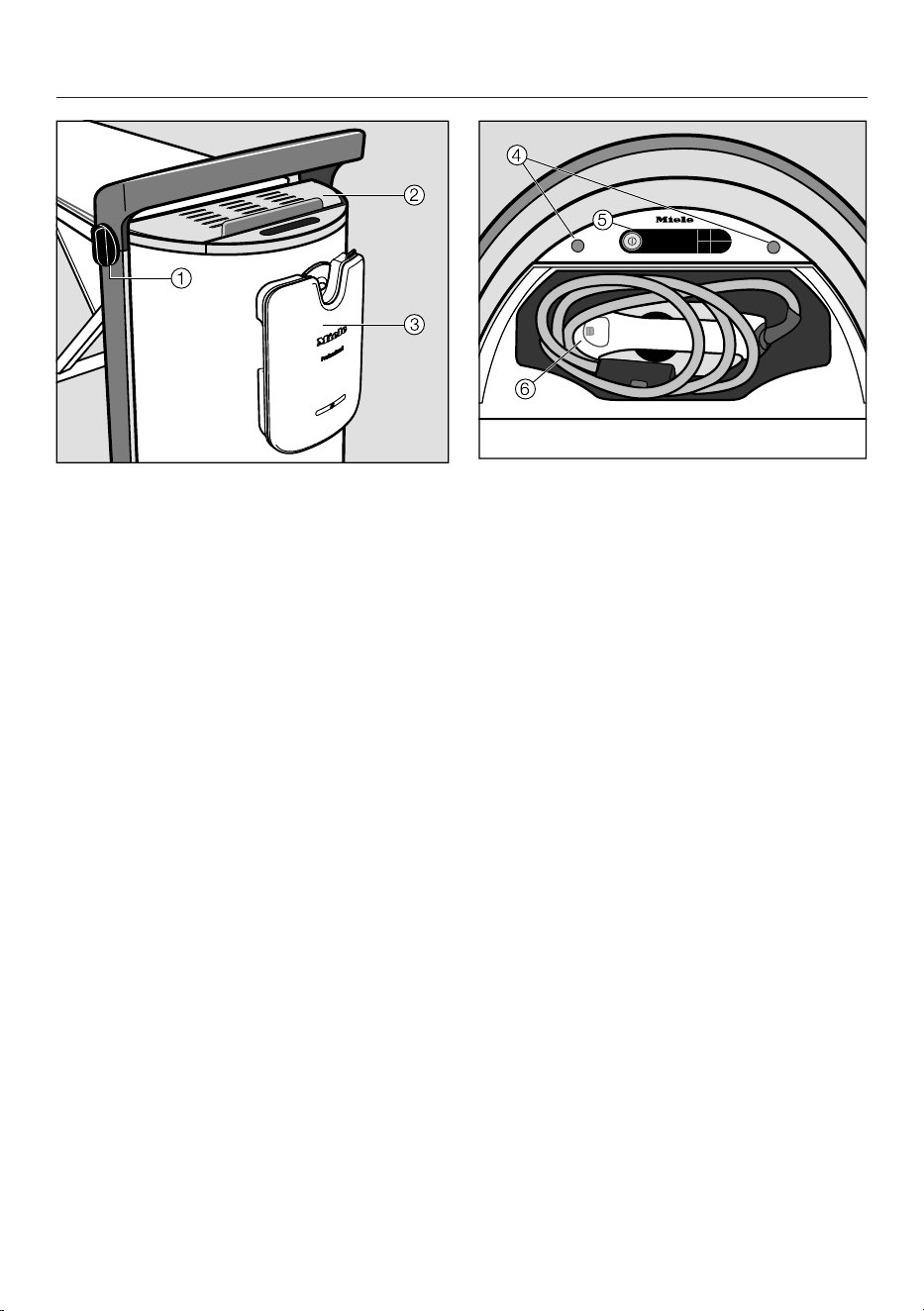

Tower
a
Rotary control for height adjustment
and folding the appliance away
b
Iron resting surface
c
Steam connection
Tower (top view) with open storage
compartment (top)
d
Sockets for the steam hose holder
e
Control panel
f
Iron with steam hose
Guide to the appliance
16

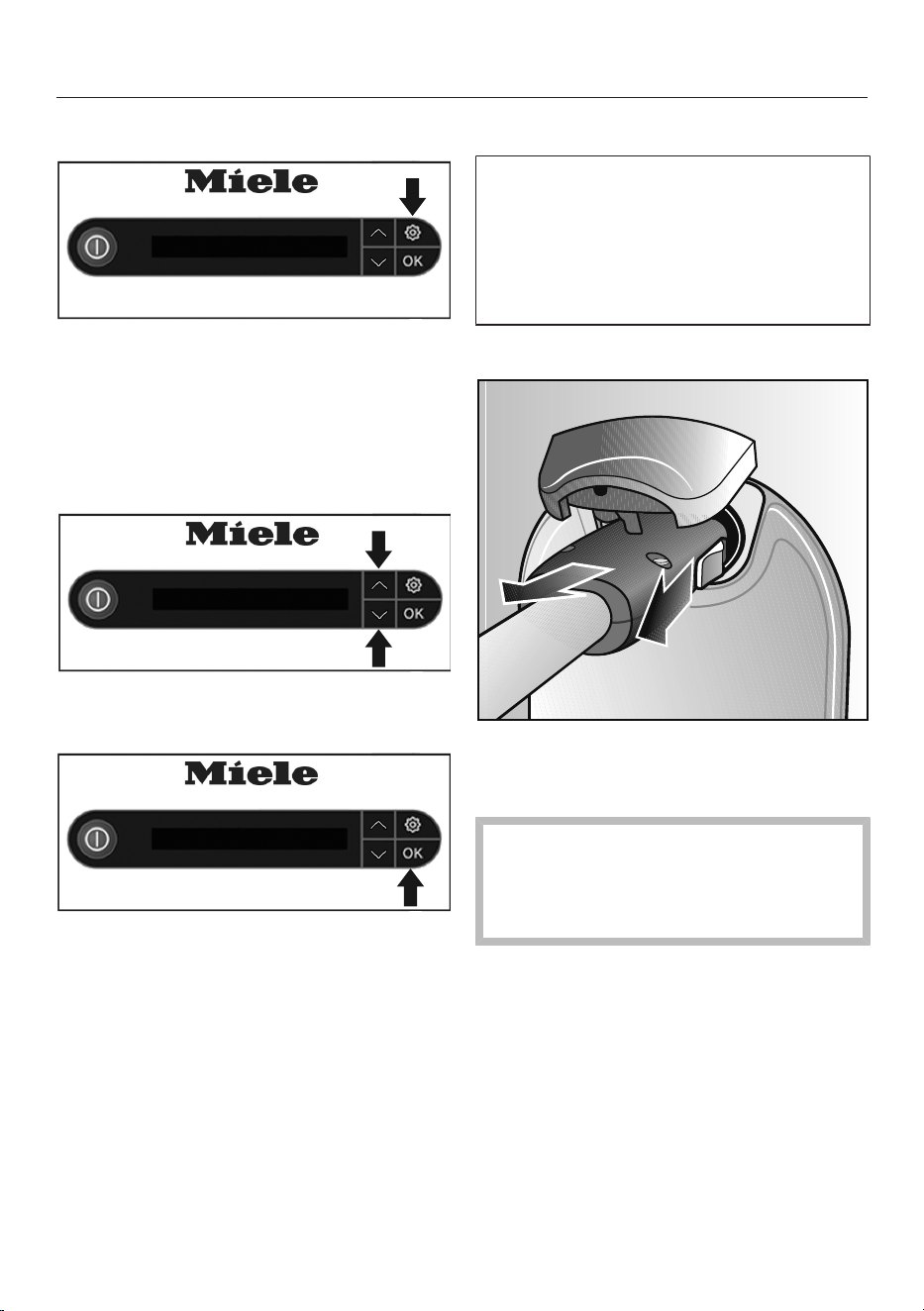

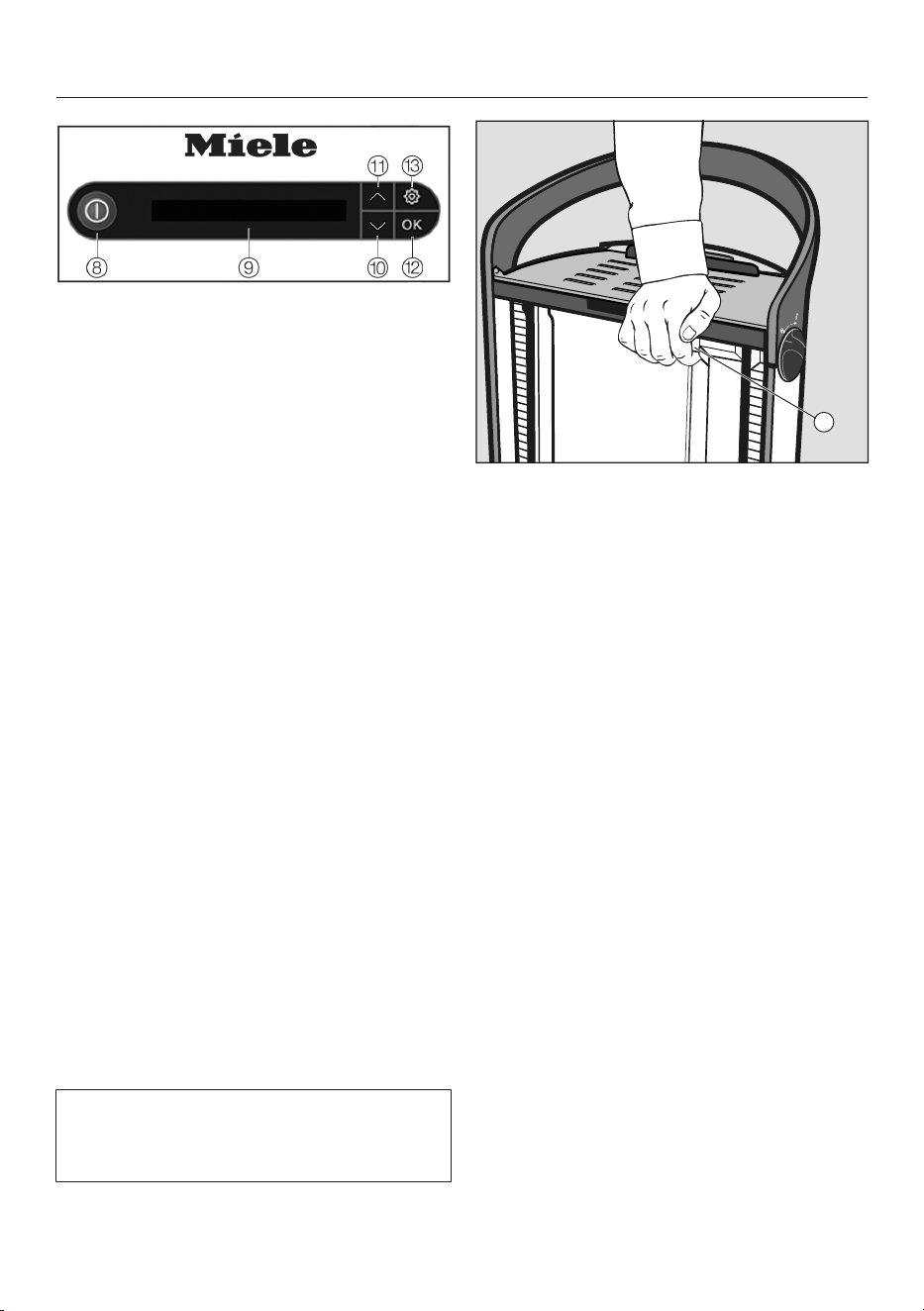

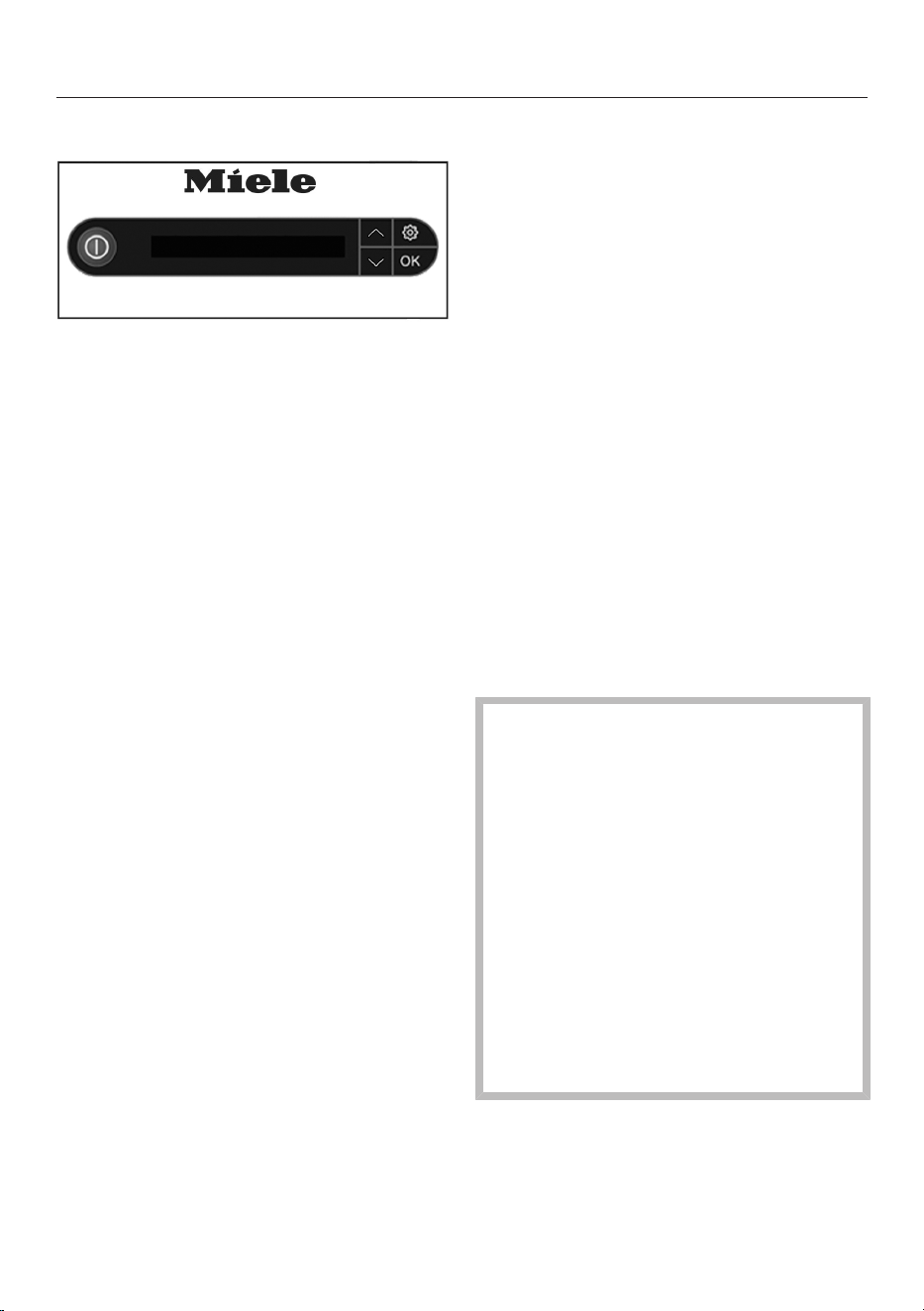

Control panel on tower
h

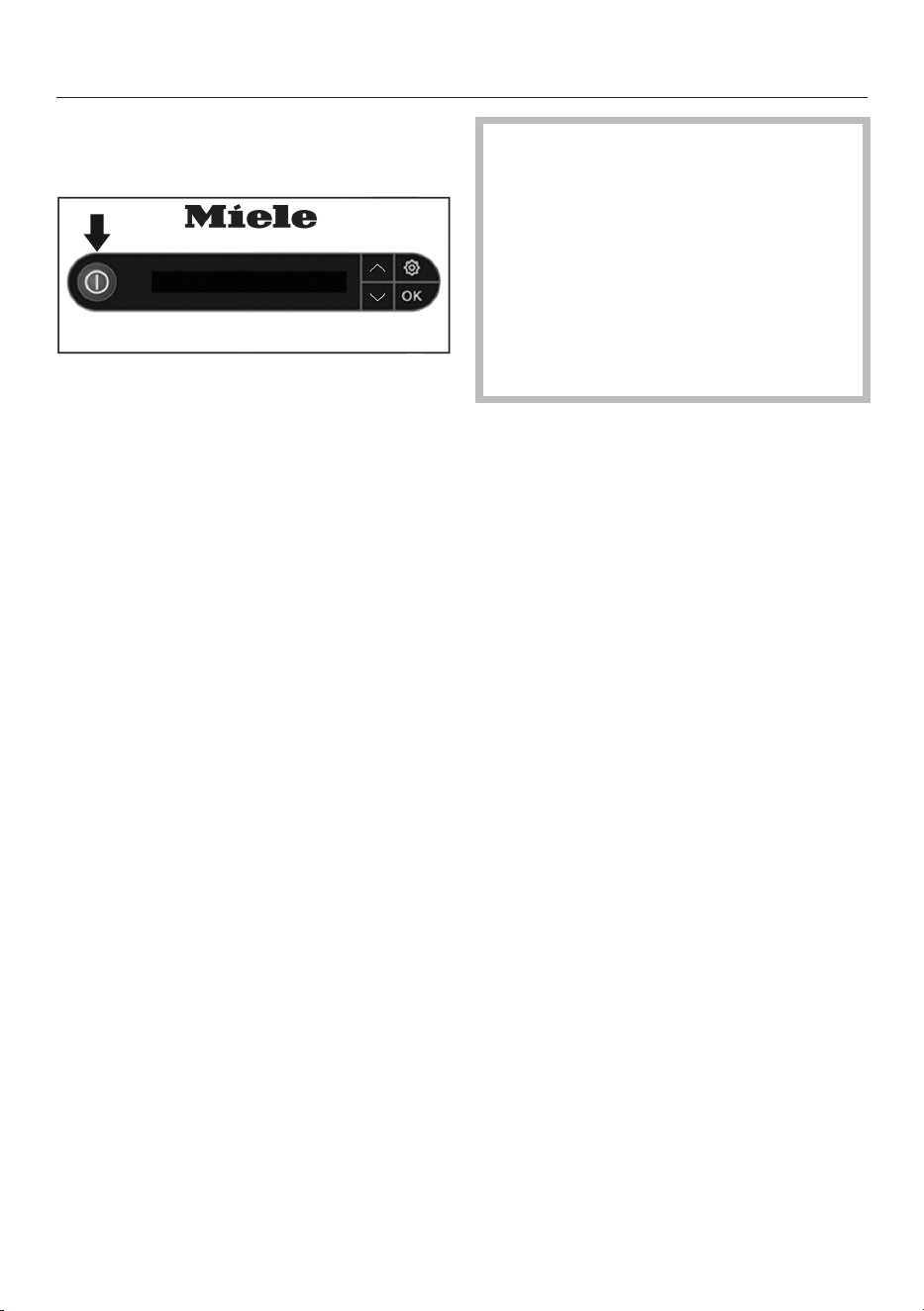

On/Off button
Switches the steam ironing system
on or off.
i
Display
Displays messages and instructions
for the user.
j
Arrow button
Lights up if additional options are
provided or the display text exceeds
the specified length of a line. Scrolls
down the selection list to the next
option or decreases a value.
k
Arrow button
Lights up if additional options are
provided or the display text exceeds
the specified length of a line. Scrolls
up the selection list to the next
option or increases a value.
l
OK button
Confirms the selection or the
information in the display.
m
button
Opens the settings menu. While in
the settings menu, the language and
the level of the water hardness can
be adjusted, or the descaling
process can be started.
Some of the messages in the display
are more than one line long. Touch the
or button to read them in full.
14

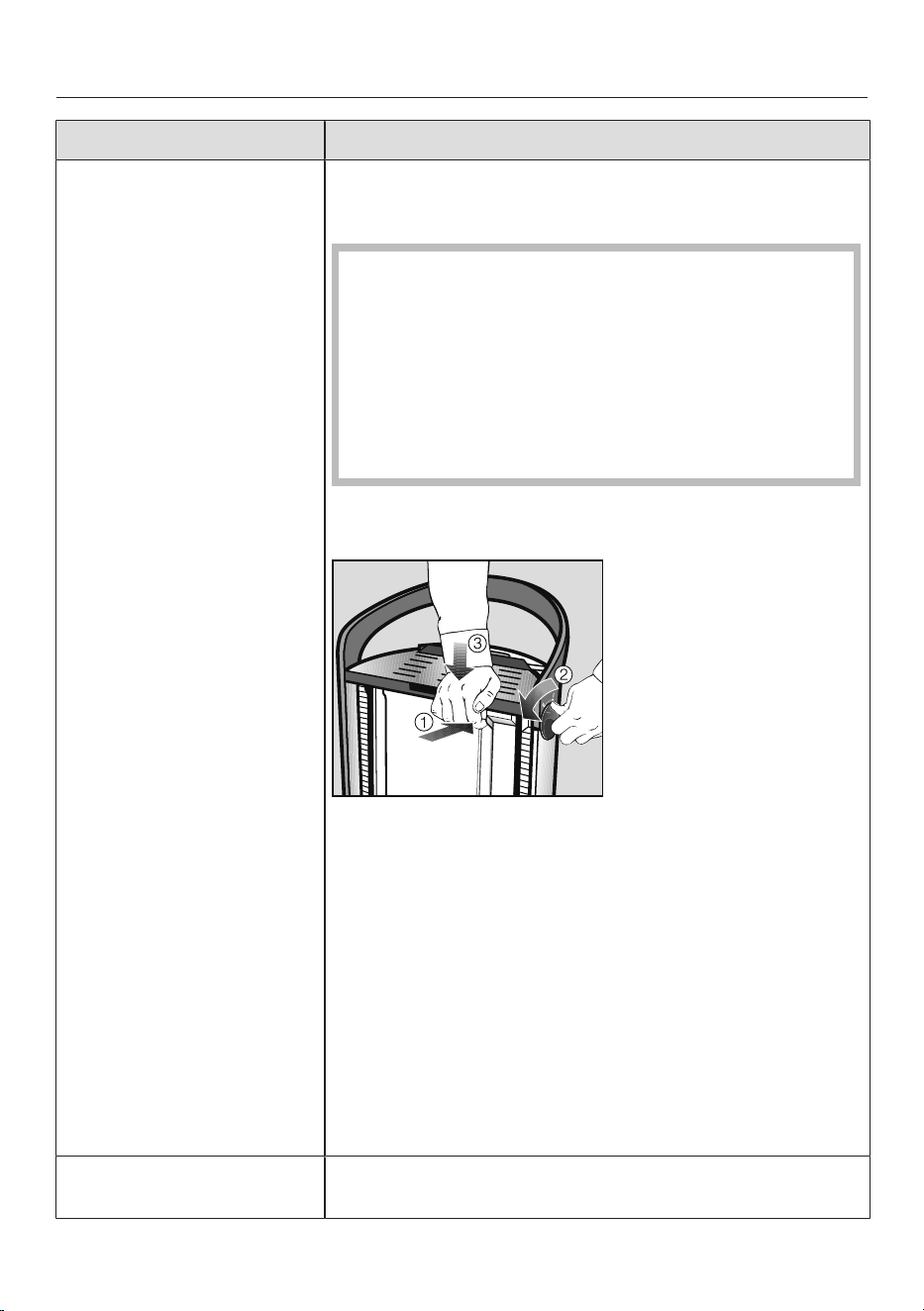

n
Emergency releasebutton
This releases the steam ironing
system. The button is only required if
the ironing board cannot be set in
the final position during assembly or
dismantling (see “Problem solving
guide”).
Transporting
17
Danger of injury and damage to
the appliance due to released ironing
board.
The ironing board lock may become
dislodged if the steam ironing system
is transported or lifted while it is
assembled.
Only ever transport the steam ironing
system while it is folded up.
The steam ironing system is fitted with
2castors. This allows it to be pulled
across an even surface when folded
up.

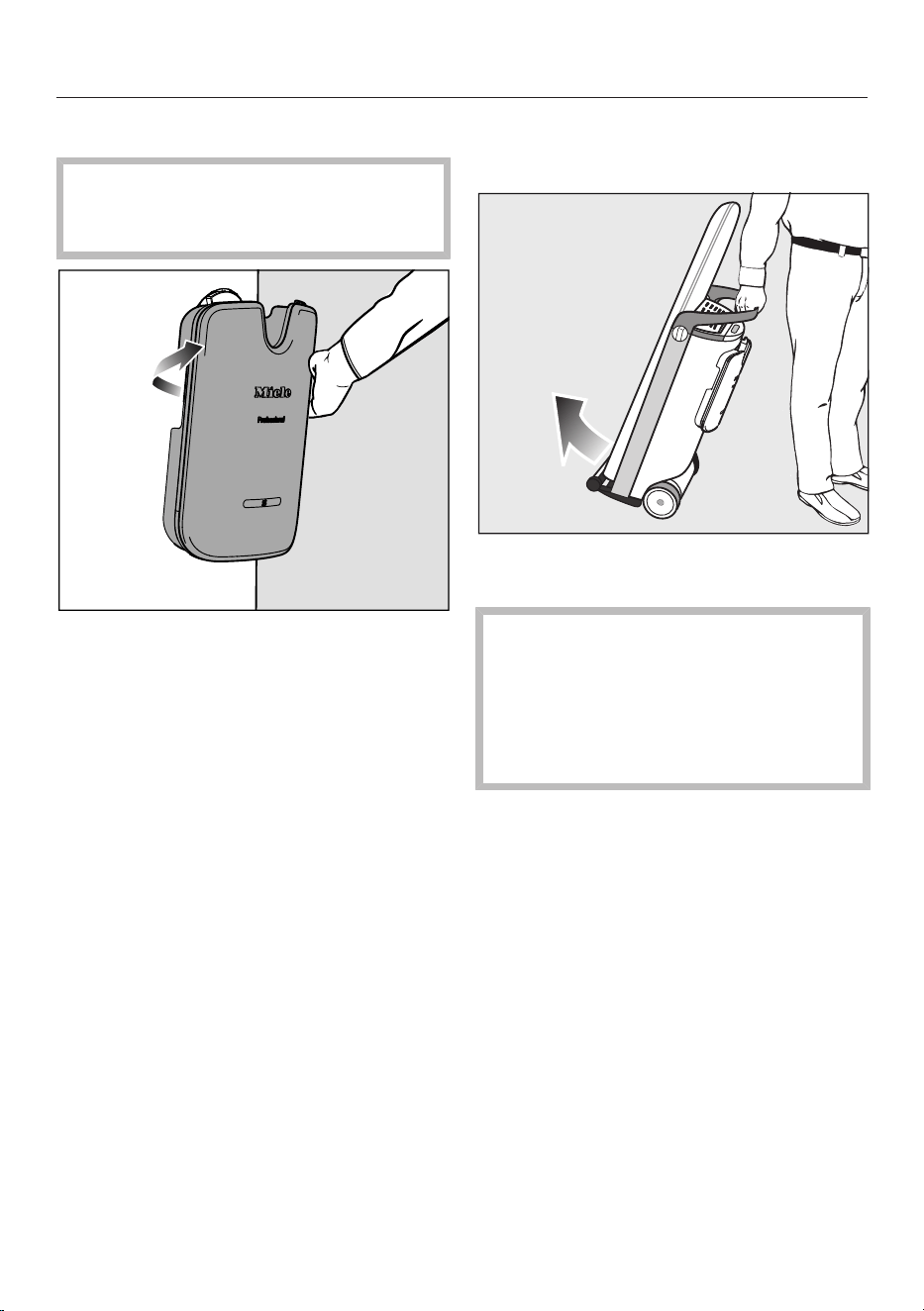

Hold the steam ironing system by its
handle and tip it gently towards you
until the wheels are free to roll.
This allows you to navigate easily
across obstacles such as carpet edges,
door thresholds or single steps.
2people are required for carrying the
steam ironing system up or down
stairs. When doing so, ensure the
ironing board is at the bottom.
When transporting the appliance, use
both recessed grips on the underside
of the appliance.
Assembly
*INSTALLATION*
18
Move the steam ironing system to its
installation location.
Use one hand to pull the release
mechanism upwards.
This releases the locking mechanism of
the ironing board and the X-frame folds
down.
Hold onto the release mechanism
and guide the ironing board into a
position of approx. 45°.
The ironing board remains in this
position by itself.

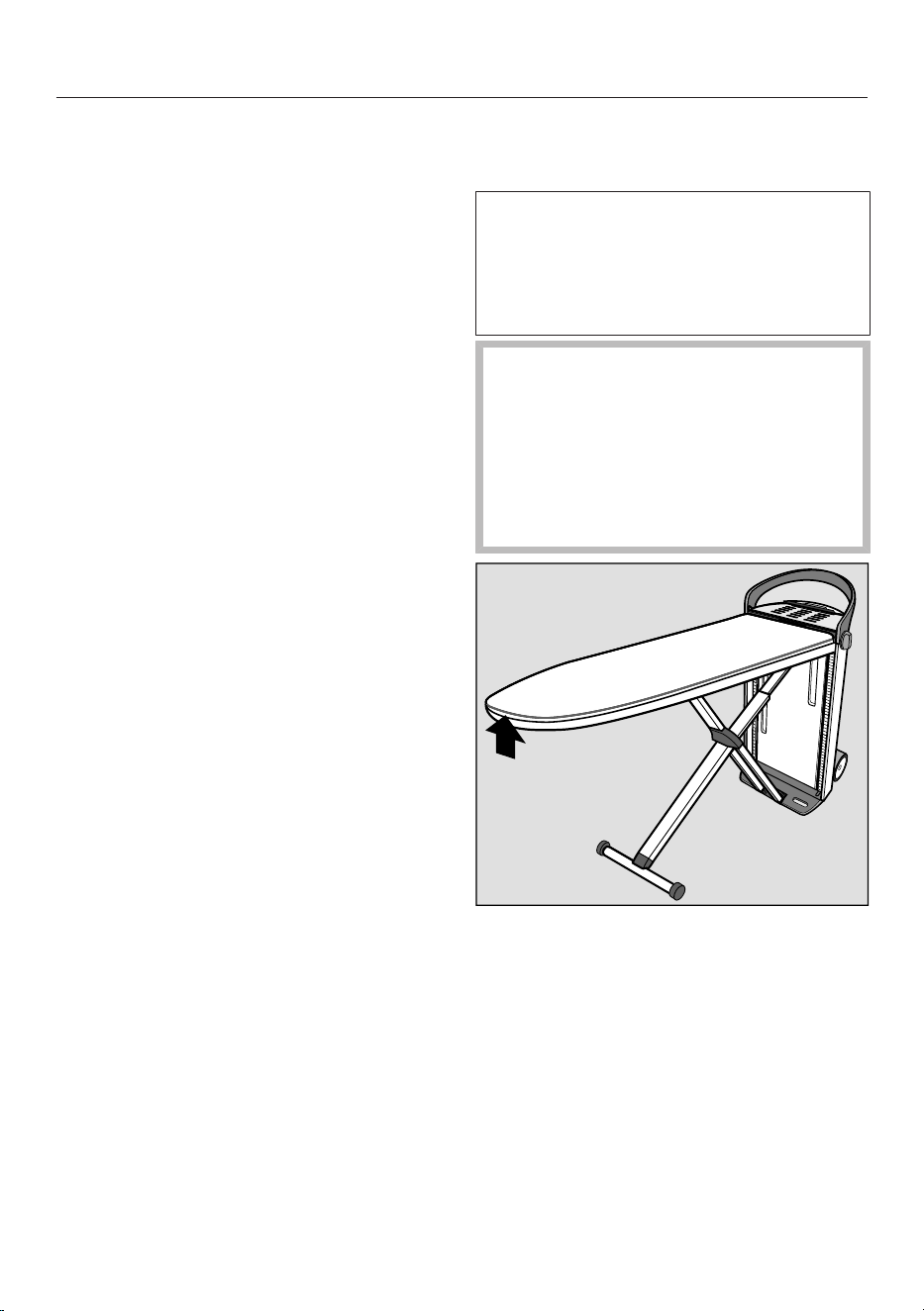

Use both hands to pull the ironing
board upwards into a horizontal
position until this audibly clicks into
place on both sides of the tower.
Click!
Click!
Ensure the ironing board has locked
into place on both sides of the tower.
Engaging on both sides is a prerequisite
for the height adjustment and the fan in
the ironing board to work.
Assembly
*INSTALLATION*
19

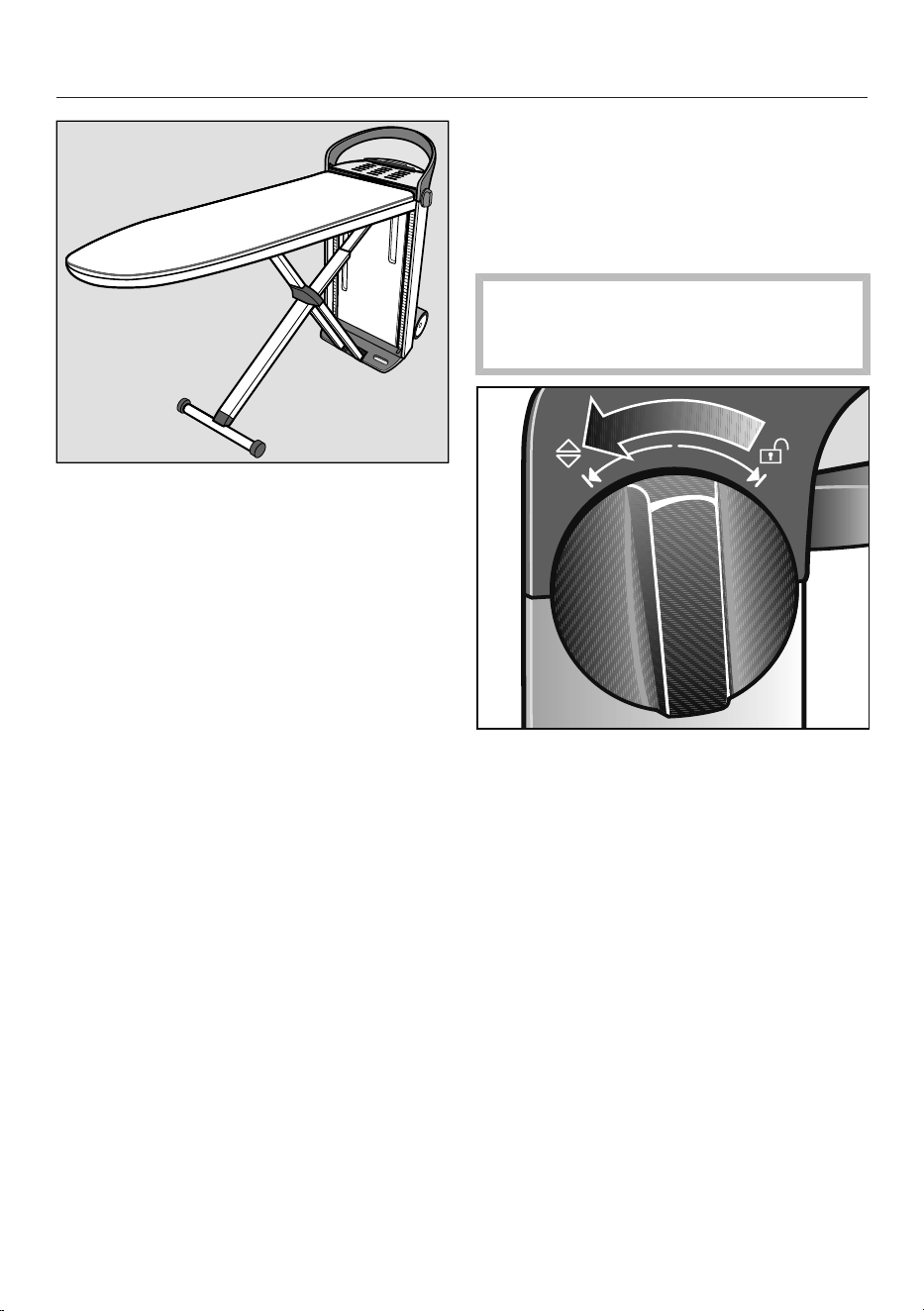

The steam ironing system is now
assembled. This corresponds to the
lowest working height of approx. 83 cm.
Adjusting the height
The steam ironing system can be
adjusted to suit your personal
preference. The maximum working
height is around 102cm.
When adjusting the height, ensure
the mains connection cable does not
become trapped in the mechanism.

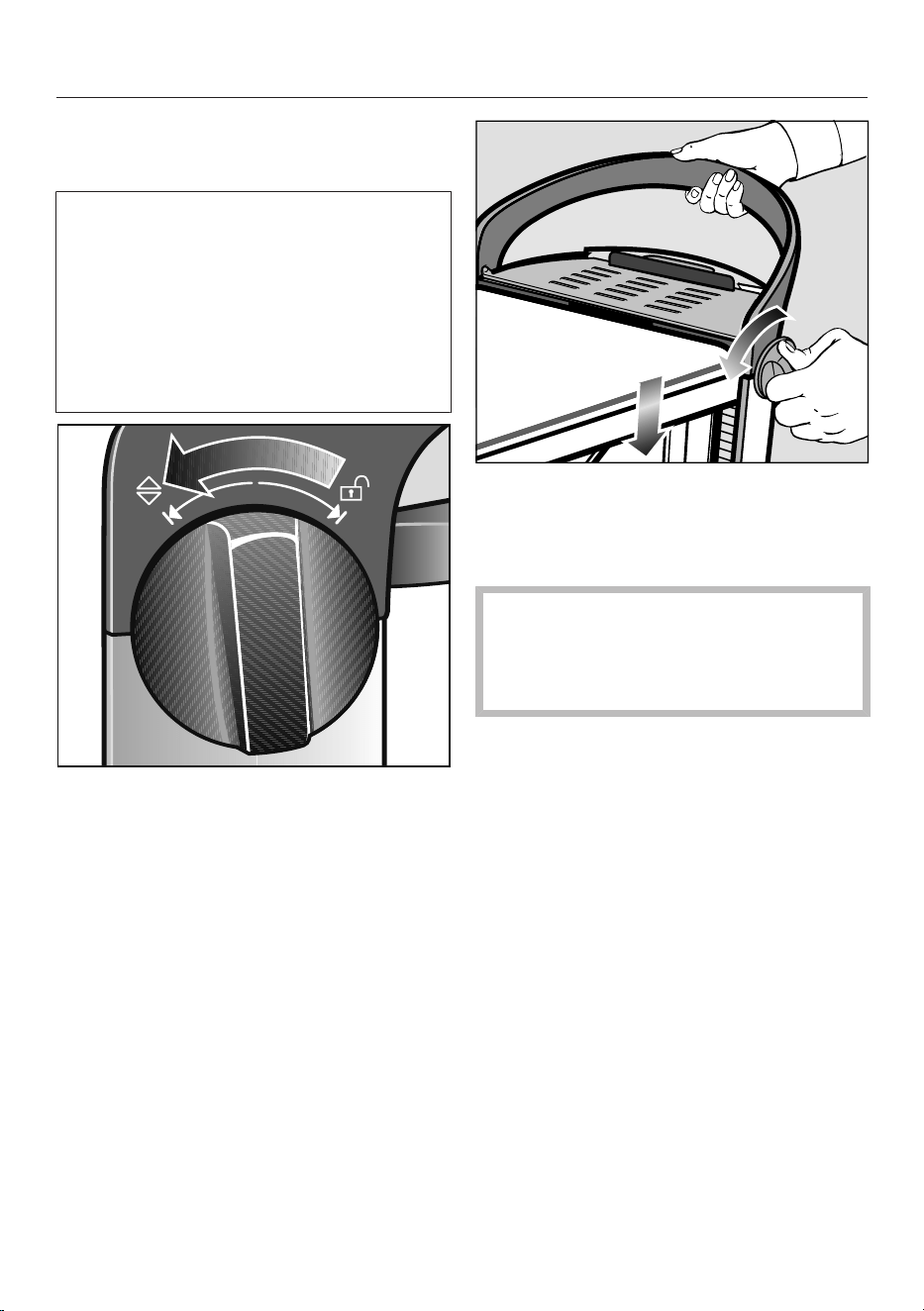

Turn one of the rotary dials on the
side of the tower handle as far as it
will go in thedirection. Hold the
rotary dial in this position.
Assembly
*INSTALLATION*
20
At the same time, pull the handle
upwards with the other hand or press
the handle down.
Do not push down on the ironing
board while adjusting the height.
Always use the handle on the tower
to adjust the height.
When you have reached your desired
working height, release the rotary
dial.
The rotary dial will spring back into the
centre position. The ironing board will
remain at the adjusted height.
For additional stability, the ironing
board locks into place under extra
pressure with an audible click. Now
the working height you selected is
twice as secure.
Useful tip: Adjust your working position
to approximately hip height for optimum
comfort.
Connecting
*INSTALLATION*
21
Connecting the mains
connection cable
The steam ironing system is designed
for connection to a properly installed
earthed socket for AC220-240V,
50-60Hz.

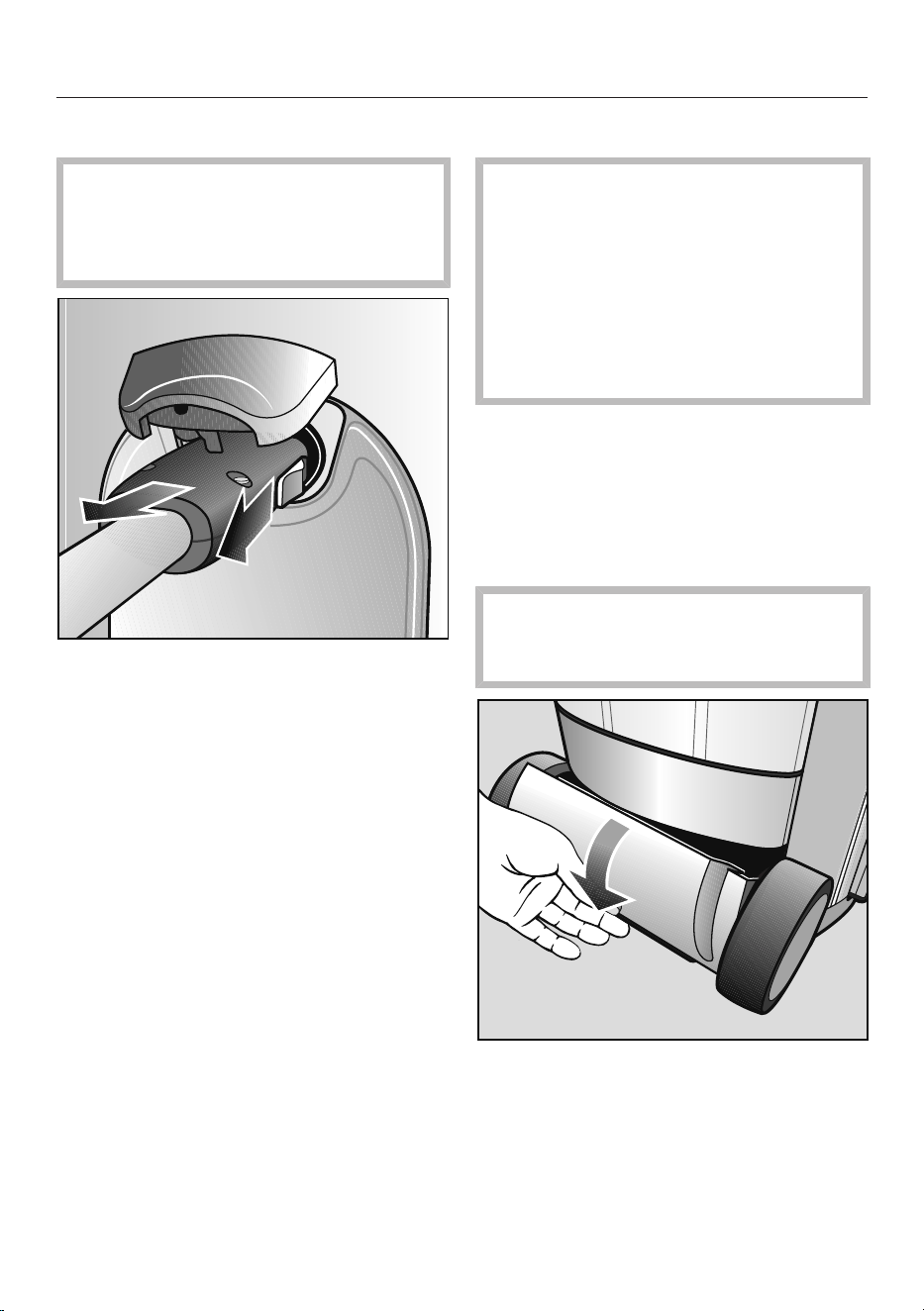

Open the (lower) storage
compartment by swinging the lid
downwards.
Remove the mains connection cable
from the (lower) storage
compartment.
Insert the plug into a suitable earthed
socket (see “Electrical connection”).
Guide the mains connection cable
through the slot in the lid.
Close the (lower) storage
compartment.
When closing the compartment,
ensure the mains connection cable
does not become trapped between
the lid and the housing or between
the castor and the tower.
Connecting
*INSTALLATION*
22
Removing the iron and the
steam hose holder
Open the lid of the (top) storage
compartment on the tower.
Take out the iron.
Close the storage compartment.
Plug the steam hose holder supplied
into one of the sockets provided.
Useful tip: Use the socket on the side
on which you are ironing.
The steam ironing system is suitable
for right-handed or left-handed
people. Operation is optimised for
both sides.
Connecting the steam hose
Open the steam connection socket
by pulling it upwards.
Pull back the sliding switch on the
steam hose plug.
Insert the plug into the steam
connection socket.
Release the sliding switch on the plug
when it is locked into the steam
connection socket.
The iron is now connected to the steam
connection socket.
Connecting
*INSTALLATION*
23

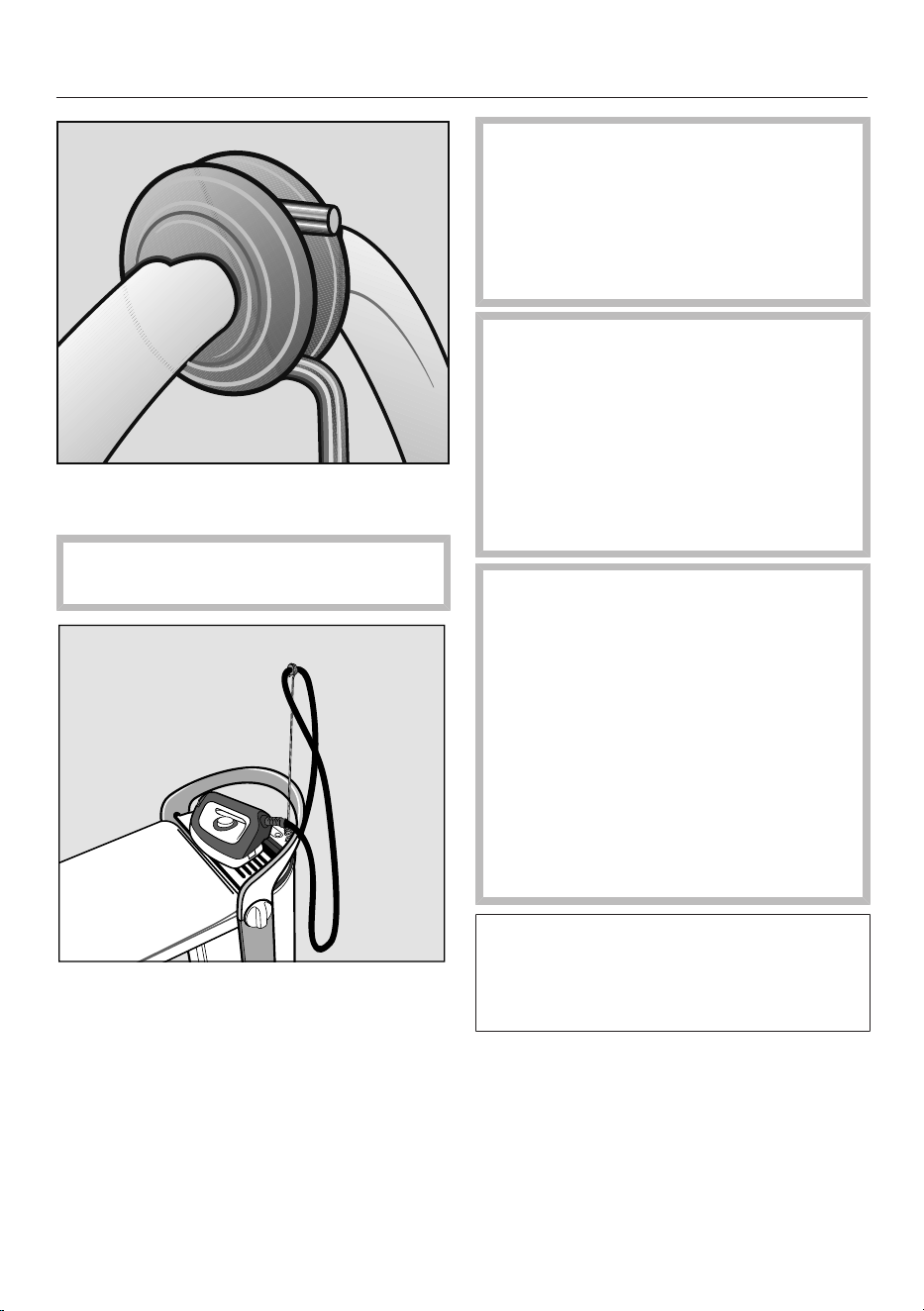

Slot the rubber ring on the steam
hose into the steam hose holder.
Ensure the steam hose is secure and
is not twisted.
To avoid damage or discolouration to
the ironing board cover, always place
the iron on the resting surface before
starting to iron and during breaks in
ironing.
Danger of tipping over when the
iron is placed in an upright position.
An iron placed in an upright position
can easily tip over and fall.
Always place the iron onto the iron
resting area with its soleplate down.
Danger of burning on the resting
surface while it is hot.
The resting surface becomes hot if
the iron is left on the surface for a
long time.
Avoid direct contact with the resting
surface.
Only touch the handle on the lid.
It is essential to switch off the
continuous steam function before
switching on the steam ironing
system and before placing the iron
on the resting surface.
If the continuous steam function is
not switched off, the message
Release stm. button appears in the
display.
Unlock the button by pushing the
sliding switch on the iron forwards
(see "Ironing").
Condensation may form on the iron
resting surface. This does not affect
the function of the steam ironing
system.
Before using for the first time
24
Before using the steam ironing
system for the first time, remove all
packaging (e.g. the protective film
from the tower).
Determining water hardness
In order for the steam ironing system to
function properly and to display a
message prompting you to descale it at
the correct time, it is important to set
the steam ironing system to the
hardness of your local water supply.
The water hardness level indicates
how much calcium is dissolved in the
water. The higher the calcium content,
the harder the water, and the harder
the water, the more often the steam
ironing system will need to be
descaled.
Your local water supplier can inform you
of the water hardness level in your area.
This information can also be found
online on the website of the water
supply company.
As an alternative, you can also
determine the approximate water
hardness by using the test strips
supplied.
Using the test strips
Dip the test strip in the water for
approx. 1second.
Remove the test strip from the water
and shake the water off the test strip.
After approx. 1minute, and based on
the colouration, you will be able to read
the water hardness from the table
below:
Hardness range on the test strip
Test strips Water hardness
4 green zones < 0.5 mmol/l
1 red zone > 0.7 mmol/l
2 red zones > 1.3 mmol/l
3 red zones > 2.5 mmol/l
4 red zones > 3.8 mmol/l
Useful tip: It is useful to know your
water hardness so that you can provide
the service technician with this
information in the event of any service
calls. Please note your water hardness
level here: .................................. mmol/l
Before using for the first time
25
Before using for the first time
The following steps must be carried
out before using the appliance for the
first time:
Switching on the steam ironing
system
Press the button on the control
panel on the tower.
Willkommen
The Welcome screen appears for a few
seconds in the display. The display will
then guide you through the following
settings:
Language settings
deutsch
Use the or arrow buttons to
select your preferred language.
english (AU)
Press the OKbutton to confirm your
selection.
The language settings can be
changed at any time via the settings
menu ( button, menu option
Language ).
Before using for the first time
26

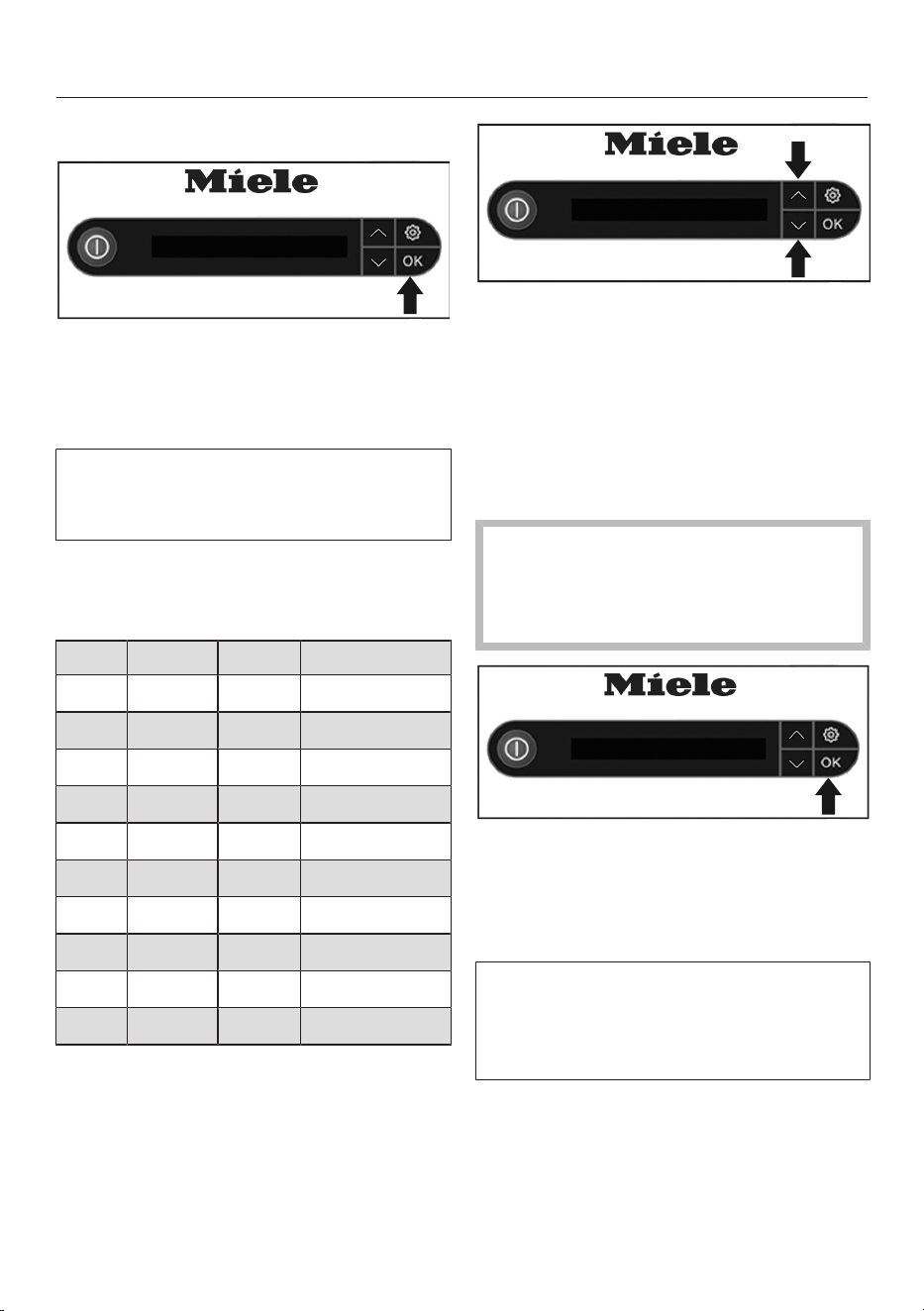

Setting the water hardness
Set water
hardness ...
Before the water hardness can be set,
the display message Set water
hardness ... must first be confirmed by
pressing the OK button.
The steam ironing system gives you
the option to set the water hardness to
one of 10 settings.
Use the following table to determine the
water hardness level that must be set
for your steam ironing system:
°dH mmol/l °f Setting
1-4 0.2 - 0.7 2-7
Level 1
5-7 0.9 - 1.3 9-13
Level 2
8-11 1.4 - 2.0 14-20
Level 3
12-15 2.2 - 2.7 22-27
Level 4
16-20 2.9 - 3.6 29-36
Level 5
21-25 3.8 - 4.5 38-45
Level 6
26-30 4.7 - 5.4 47-54
Level 7
31-36 5.6 - 6.5 56-65
Level 8
37-45 6.7 - 8.1 67-81
Level 9
46-70 8.3 - 12.6 83-126
Level 10
Note: If the level in your area falls between water
hardness settings in the table, e.g. 0.8, set your
water hardness to the next highest level.
Level 7
Use the or arrow button on the
control panel to set the water
hardness level for your household.
Useful tip: If the water hardness
fluctuates (e.g. 37- 50°dH/6.7-
9.0mmol/l), always set the highest
value (in this example 50°dH/9.0mmol/
l = Level 10).
Make sure the correct water
hardness level is set.
An incorrect setting will invalidate all
warranty claims.
Level 10
Confirm your selection by pressing
the OKbutton.
The steam ironing system is now set for
the specified water hardness.
The water hardness level can be
changed at any time via the settings
menu (button, option
Water hardness).
Before using for the first time
27
Set-up is now complete
This completes the settings for using
the appliance for the first time. The
message Initial set-up complete will
appear in the display. Confirm this
message by pressing the OK button.
The steam ironing system will normally
run a rinse cycle automatically after it
has been set up for use.
The steam ironing system can then be
switched off or you can continue using
it.
When using the appliance for the first
time, a slight odour may be noticeable
during the heating-up phase. This will
dissipate with further use.
During operation of the steam ironing
system, pumping, boiling and
knocking noises may be heard. These
are normal noises and do not indicate
a malfunction.
Switching on
28
Switching on the steam ironing
system
Press the button on the control
panel of the tower to switch on the
steam ironing system.
The button lights up and the
Welcome screen appears for several
seconds in the display.
If the iron was not connected to the
steam connection before switching it
on, the message Attach hose is
displayed. In this case, the steam hose
must be attached to the steam
connection (see "Connecting").
If the steam button on the iron is
locked when the steam ironing system
is switched on, Release stm. button
will appear in the display. If this is the
case, first unlock the steam button by
pushing the sliding switch on the iron
forwards (see "Ironing").
The message Heating-up phase then
appears in the display. The steam
ironing system starts to heat up. During
the heating-up phase, some steam may
be discharged from the iron.
As soon as the steam ironing system is
ready and steam is available, the
message Ready for use will be
displayed.
Depending on the operating duration,
immediately after switching the
steam ironing system on, the
automatic rinse function can be
started (see "Automatic rinsing") or
you may be prompted to start the
descaling process (see "Descaling").
The steam ironing system is not
available for ironing while the rinse or
descaling process is running.
Switching on
29
Filling the water container
If the water container is empty or not
fitted in the tower, the message Fill
water cont. will appear in the display.
Removing the water container
Hold the water container by its
handle.
Pull the handle downwards.
The water container is released from the
holder.
Pull the water container upwards and
out.
When removing, the water container
may drip a little while the valves of the
container close.
Useful tip: Dripping can be avoided by
slowly removing the water container.
Filling with water
Open the screw cap on the back of
the water container by turning it anti-
clockwise.
Remove the screw cap.
Fill the water container with fresh tap
water (water temperature approx.
15-35°C).
Useful tip: If the tap is installed very
low, the water container can also be
filled by placing it in a horizontal
position.
Put the screw cap back into the
opening of the water container.
Close the screw cap by turning it
clockwise as far as it will go.
Put the water container back into the
tower.
The water container can be removed
and refilled at any time (even during
the ironing process). The required
amount of water depends on how
much steam is used.
Switching on
30
Steam operation
Ready for use
After inserting the water container, wait
until the steam ironing system is ready
to use steam. This is indicated by the
Ready for use message in the display.
If the water container is refilled during
the ironing process, the steam
generator may have to reheat.
Useful tip: If you fill the water container
as soon as the Fill water cont.
message is displayed and the container
is inserted into the tower there is no
delay.
The steam ironing system is not active
whilst the message Fill water cont. is
shown in the display. However, you may
continue to use the iron.
Useful tip: You can save energy by
ironing dry and without steam. To do
this, remove the water container. In this
case, the steam generator will not be
heated. As a result, the inflation and
suction function of the ironing board is
not available (see “Active ironing
board”).
Water quality
Use only fresh tap water.
Water prepared using commercially
available water filters may also be
used.
For water hardness of more than
14°dH / 2.5mmol/l, you can use tap
water mixed at a 1:1 ratio with distilled
water. This halves the water hardness.
Set the halved water hardness to the
corresponding level on the steam
ironing system (see “Setting the water
hardness”).
If your tap water has a water hardness
of 60°dH / 10.8mmol/l, the mixing ratio
of 1:1 with distilled water results in a
water hardness of 30°dH / 5.4mmol/l.
The water hardness level that must be
set on your steam ironing system must
now be Level 7.
Never use solely demineralised
(distilled) water to fill the water
container.
This may cause the steam ironing
system to malfunction.
Do not use water from a water
softener system.
Do not use condensate (e.g. from
other appliances such as air
conditioning units or dryers).
Never use rainwater.
Do not use additives in the water,
(e.g. perfumes, ironing water, starch,
carbon dioxide).
Switching on
31
Selecting the ironing
temperature
➨
Use the temperature selector on the
iron to set the ironing temperature.
The temperature settings are indicated
by dots around the selector. These dots
correspond to the international care
symbols used for ironing.
At temperature levels and you
can use steam when ironing.
With temperature level the
soleplate temperature is too low for
ironing with steam. If you use this
temperature level, do not use the
steam button.
If you do, water will escape from the
steam jets.
Useful tip: Sort your laundry according
to the heat sensitivity of the fabric. This
allows you to iron faster: First, iron your
laundry that is made of heat-sensitive
fabric (e.g. synthetics) at temperature
level . Then, iron all laundry made of
wool or silk, using temperature level .
Finally, iron all laundry made of cotton
and linen, using temperature level .
Set the temperature selector to the
required temperature setting.
The indicator light on the temperature
selector will light up yellow whilst the
iron is heating up. It will go out once the
set temperature has been reached.
The iron is then ready for use.
Switching on
32
Care label
(on the garment)
Ironing with steam for best
results
(Material / Temperature setting)
Ironing without steam
(Material / Temperature setting)
Low temperature
With non-stick soleplate
(see “Ironing with the non-stick
soleplate”)
Minimum iron, synthetics,
appliqués, prints, flocking, etc.
Minimum iron, synthetics
Medium temperature
Woollens, silks
High temperature
Cottons, linens
Do not iron
Switching on
33
CoolDown function
Iron switched off
The heating of the iron switches off
automatically if the iron is not moved for
longer than 3minutes. The message
Iron switched off appears in the display
to indicate that the heating has
switched off. After a certain time, steam
is no longer available. The message
Release stm. button appears when
the steam button is locked. In this case,
unlock the steam button by pushing
the sliding switch on the iron forwards
(see "Ironing").
Danger of burns due to hot iron
soleplate.
The soleplate is still hot immediately
after the heating has been switched
off.
Avoid direct contact.
As soon as the iron is moved, or the
steam button has been released, the
iron will start heating up again
automatically. The time taken for the
steam to be available again depends on
the length of time the heating was
switched off.
When the steam ironing system is ready
and steam is available, the message
Ready for use will be shown in the
display on the tower.
Do not leave the steam ironing
system unattended with the iron or
steamer connected.
Always switch off at the wall socket
and withdraw the plug before leaving
the steam ironing system
unattended.
AutoOff function
If the iron or the steamer is not used for
approx. 25minutes, the entire steam
ironing system switches off
automatically.
The steam ironing system is switched
on again by pressing the button on
the control panel.
Ironing
34
Steam ironing system PIB 100
a
Steam button
b
Sliding switch for continuous steam
c
Power level button
d
Inflation/Suction function button
Ironing with steam
The steam ironing system is ready for
steam when Ready for use is shown in
the display. You control the steam burst
with the button on the iron.
When you press the button, the fan
on the underside of the ironing board
also starts automatically.
When you release the button again,
the fan also stops automatically after a
short run-on time.
When using the steam function for a
long time, ensure that the room is well
ventilated, as high humidity can build
up.
Using short bursts of steam
Briefly press and release the
button.
Using continuous steam
Press the button while
simultaneously pulling the sliding
switch back.
Release the button again.
While the sliding switch is pulled
back, the button remains locked.
The steam hose may become warm.
Steam is now emitted continuously.
Stopping the continuous steam
function
Push the sliding switch forwards
again.
This will unlock the button again and
the steam burst function is ended.
Ironing
35
It is essential that the continuous
steam function is stopped before the
iron is placed back on the resting
surface!
If the steam button is not unlocked
before putting the iron down, steam
will stop being produced after
approx. 3 minutes and Release
stm. button will appear in the display.
When putting the iron down, unlock
the button by pushing the sliding
switch forwards.
Filling the water container
Fill the water tank when the message
Fill water cont. appears in the
display (see "Filling the water
container").
If the steam function is used for a
long time, condensation may form in
the ironing board.
Sensitive floors could be damaged
by droplets of water.
If you notice condensation
underneath the ironing board, wipe it
up with a cloth.
Useful tip: During breaks in ironing,
condensation can form in the steam
hose, which is expelled when the
button is pressed. To avoid damp
spots on your clothes, do not direct the
first burst of steam onto the garment
after a break from ironing.
Ironing without steam
Remove the water container from the
steam ironing system if you want to
iron without steam.
The steam generator will not heat up,
thus saving you electricity.
Ironing with the non-stick
soleplate (optional accessory)
The optional accessories include a
non-stick soleplate that can be placed
on the iron by simply clicking it into
place.
With the non-stick soleplate you can
iron appliqués, prints, flocking etc.
There is no need to turn the garment
inside out. This soleplate also reduces
or eliminates the formation of shiny
patches on dark textiles.
Always try it first on an inconspicuous
part of the fabric.
The iron soleplate gets very hot
during use.
Avoid direct contact.
Ironing
36
Attaching the non-stick soleplate
Place the tip of the iron inside the
non-stick soleplate.
Pull back the tab which is located at
the back of the non-stick soleplate.
Hold the tab in this position.
Push the iron completely onto the
non-stick soleplate.
Release the tab again.
The non-stick soleplate is now secured
onto the iron.
Before you start ironing, let the non-
stick soleplate heat up for approx.
1minute until it has reached the
ironing temperature.
The iron is now ready for use.
Removing the non-stick soleplate
Hold the iron by the handle.
Risk of burns from hot iron and
hot non-stick soleplate.
The non-stick sole is still hot after
use.
Avoid direct contact.
Only touch the tab of the hot non-
stick soleplate.
Pull back the tab at the back of the
non-stick soleplate.
Remove the iron from the non-stick
soleplate.
Only store the non-stick soleplate in
the storage compartment (lower) after
the soleplate has cooled down.
Ironing
37
Active ironing board
The steam ironing system uses a fan
that sucks away the steam or uses the
inflation function to inflate the ironing
board for optimum positioning while
ironing garments.
The , or , buttons on the
iron control the fan in the ironing board.
Suction function
The suction function ensures optimum
steam penetration of the fabric. At the
same time, the suction avoids the
formation of condensation on the
ironing board. The suction function also
holds the garment in place and ensures
it does not shift on the ironing board.
Inflation function
The inflation function forms a cushion of
air between the fabric and the ironing
board. This helps prevent seams being
pressed into the garment. The inflation
function allows you to iron without
flattening the fabric.
Useful tip: The inflation function also
assists with ironing ruffles and sequins.
Automatic switch on/off
The automatic switch on/off feature
ensures that the fan starts at exactly the
right moment. If the steam function is
being used, the fan starts automatically.
If steam is no longer needed, the fan
will stop after a short run-on time.
Memory function
The memory function saves the fan
direction and the power setting used
last with your steam ironing system.
When you use the appliance the next
time, you do not need to set it again.
Heated ironing surface
When the iron is connected and the
steam ironing system is switched on,
the surface of the ironing board will
heat up automatically. This function
reduces the formation of condensation
on the ironing board.
If the steamer is connected to the
steam ironing system, the surface of
the ironing board will not be heated.
Fan control for the PIB 100
Activating the inflation and suction
function
Press the button to switch between
the inflation function and the suction
function. Use the button to activate the
function.
Ironing
38
Setting the power level
When using the button, you can
switch between both fan power levels.
Each press of the button switches
between the following power levels:
- Level1 = 1 fan active
- Level2 = 2 fans active
Steamer
39
The steamer makes smoothing
hanging textiles, such as dresses and
jackets, easier. The removable brush
attachment supports the
straightening of the fibres.
The steamer is lighter than the iron. It
also does not have a hot iron soleplate
and therefore cannot create shiny spots
even if it comes into accidental contact
with the textiles.
You can also use the steamer when the
ironing board is folded.
Connecting the steamer
As an alternative to the iron, you can
connect the steamer to the steam
connection of the steam ironing
system.
Removing the iron from the steam
connection
Danger of burns due to hot iron
soleplate.
The soleplate of the iron is still hot
after use.
Avoid direct contact.
Allow the iron to cool completely on
the resting surface before storing it.
Do not pull on the steam hose.
Always grasp the plug at the end of
the steam hose when disconnecting
the steam hose from the steam
connection.
Pull back the sliding switch located
on the side of the steam hose plug.
Hold back the sliding switch.
Disconnect the plug from the steam
connection.
Now you can connect the steamer to
the steam connection.
Steamer
40
Connecting the steamer to the steam
connection
Pull back the sliding switch located
on the side of the steam hose plug.
Insert the plug of the steam hose into
the steam connection on the tower.
Release the sliding switch after it
locks into the steam connection.
The steamer is now connected to the
steam connection.
You can connect the iron and the
steamer alternately to the steam
connection at any time.
You do not need to switch off the
steam ironing system for this.
After switching between the iron and
the steamer, there is a waiting period
until the steamer is ready to use. This
ensures that sufficient steam is
available.
The steamer is ready for operation
when the message Ready for use
appears in the display.
Steamer
41
Using the steamer
Danger of burning due to hot
steam!
Never direct the steam or the steam
jets at people, animals or electrical
appliances of any kind.
Never point the steam at clothing
while the clothes are being worn. The
clothing will intensify burning of the
skin.
The emission of steam is controlled by
thebutton on the steamer.
Useful tip: Always steam the fabric in
the direction of the fibres.
Using short bursts of steam
Briefly press the button.
Then release the button.
Using continuous steam
Press the button.
Keep the button pressed in.
Stopping the continuous steam
function
Release the button.
If you take a break from steaming,
condensate may collect in the steam
hose. Press the button to expel the
condensate from the hose.
The optimum distance between the
steamer and the fabric depends on
the sensitivity of the fabric and can
vary from one fabric to another.
Always try it first on an
inconspicuous part of the fabric.
Steamer
42
Brush attachment
The steamer is equipped with a brush
attachment which can be clipped on.
The brush attachment helps to raise
garment fibres.
You can hold the steamer directly
onto the fabric while the brush
attachment is in place.
Always try it first on an
inconspicuous part of the fabric.
Connecting the brush attachment
Hold the brush attachment in front of
the steamer so that the lugs on one
side fit into the notches on the
steamer.
Press the side of the brush
attachment against the steamer until
the lugs snap into place.
Guide the brush attachment into the
notches on the opposite side.
Press the brush attachment against
the steamer until the lugs snap into
the notches.
The brush attachment is now
connected to the steamer and can be
used.
Removing the brush attachment
To remove the brush attachment, pull
it off the steamer by the raised
section.
Switching off the steam ironing system
43
To switch off the steam ironing
system, press thebutton.
The light in thebutton goes out.
The steam ironing system is now
switched off. The last selected fan
settings are saved and are available the
next time you switch on the appliance.
Place the iron on the resting surface
until it has cooled down.
The steam ironing system can be
dismantled while the iron is cooling
down (see “Dismantling”).
Switch off at the wall socket and
withdraw the plug.
Lower storage compartment
Store the mains connection cable in
the lower storage compartment.
Dismantling
44
Setting the ironing board to its
lowest working height
To dismantle the steam ironing
system, the ironing board must first be
placed at its lowest working height.
Make sure you do not trap the mains
connection cable in the mechanism.
Ensure the residual water drawer is
completely emptied, pushed in and
locked in place.
Turn one of the rotary dials on the
side of the handle as far as it will go
in the direction.
Hold the rotary dial in the position.
The height of the ironing board can now
be adjusted.
Keep holding the rotary dial in the
position and, simultaneously, use the
handle to push the ironing board
down as far as possible.
Do not push down directly on the
ironing board.
Use only the handle to push the
ironing board down.
Release the rotary dial.
The rotary dial will spring back into the
centre position.
The ironing board is now at its lowest
working height and can be folded up.
Dismantling
45
Folding the ironing board
Turn one of the two rotary dials as far
as it will go towards the position.
The ironing board is now unlocked.
Release the rotary dial.
The rotary dial will spring back into the
centre position.
Guide the ironing board downwards
or allow it to slide down by itself.
The ironing board will remain in this
position by itself.
Push the ironing board up by the
tapered end until it is upright and
locks into position on the tower.
Push the protruding end of the X-
frame onto the ironing board until the
frame locks into place.
Dismantling
46
Disconnecting the steam hose
Do not pull on the steam hose.
Hold the plug at the end of the steam
hose. The plug may still be warm
immediately after using the system.
Pull back the sliding switch located
on the side of the steam hose plug.
Hold back the sliding switch.
Withdraw the plug from the steam
connection socket.
After withdrawing the plug, drops of
water may escape from the steam hose.
Storing the iron
Danger of burns due to hot iron
soleplate.
The soleplate of the iron is still hot
after ironing.
Avoid direct contact.
Allow the iron to cool down after use.
Never store the iron while it is still
connected to the steam connection.
Allow the iron to cool on the resting
surface on the tower.
Store the cooled iron in the top
storage compartment.
Storing the steamer
Never put the steamer away while it
is still connected to the steam
connection socket.
Store the steamer in the (lower)
storage compartment.
Dismantling
47
Emptying the water container
Empty the water container if the
steam ironing system is not going to
be used for a long period of time.
Remove the water container (see
"Filling the water container").
Make sure the water container is
completely emptied.
Storing the steam ironing
system
Move the steam ironing system to its
storage place.
Do not place the steam ironing
system in rooms where there is a risk
of frost.
Ice in the water container, steam
generator and steam hose can cause
damage.
Cleaning and care
48
Automatic rinsing
Automatic rinsing clears the steam
generator of mineral deposits from the
evaporated water.
After approx. 3 litres of water have been
passed through the system, an
automatic rinse will start the next time
the steam ironing system is switched
on.
The rinsing process takes several
minutes. Some water vapour escapes
from the residual water drawer and
splashing noises can be heard. In the
meantime, the display on the tower
shows the message Appliance rinsing.
Ironing is not possible during the
rinsing process.
The steam ironing system is only
available for ironing again after the
automatic rinsing process has been
completed.
Preparing for the rinsing process
Set the steam ironing system to its
highest working position to enable
the residual water drawer to be
removed later on (see “Assembling -
Adjusting the height”).
If the message Fill water cont.
appears in the display, fill the water
container (see “Filling the water
container”).
Emptying the residual water drawer
After the rinsing process has finished,
the residual water drawer must be
emptied. The message Empty
drawer will appear in the display on the
control panel when the residual water
drawer needs to be emptied. The
residual water drawer can only be
removed from the tower when the
steam ironing system is set at its
highest working level.
Only remove the residual water
drawer from the tower when
prompted to do so by the message
Empty drawer in the display.
The residual water drawer may still
be warm after the rinsing process.
Empty the residual water drawer.
As long as the residual water drawer is
not fitted in the tower, the display will
show the following message Fit
drawer.
Clean and dry the residual water
drawer.
Cleaning and care
49
The residual water drawer is
dishwasher-safe or can be washed by
hand using warm water and a little
washing-up liquid.
Make sure the metal discs (contacts)
at the top of the residual water
drawer are clean and dry. These
metal discs send a signal to the
steam ironing system when the
residual water drawer is full or if it is
fitted in the tower.
The discs will not function correctly if
they are dirty or damp.
Slide the residual water drawer back
into the tower until it clicks into place.
Steam cannot be produced until the
empty residual water drawer is
replaced in the tower. Steam is only
available again when the message
Ready for use appears in the display.
Descaling
The steam ironing system must be
descaled regularly to ensure that it
functions correctly. The steam ironing
system has an automatic descaling
function to assist you.
The interval for descaling depends on
the water hardness level set. Descaling
is required more frequently with hard
water than with soft water.
We recommend using the Miele
descaling tablets. These have been
specially developed for use with
Miele appliances to optimise the
descaling process. Your appliance is
supplied with one pack of Miele
descaling tablets.
Other descaling agents, which
contain other acids besides citric
acid and/or other undesirable
substances, such as chlorides, could
damage the steam ironing system.
Moreover, the required descaling
effect cannot be guaranteed.
You will need 2descaling tablets to
descale the machine.
Miele descaling tablets are available to
order from Miele (see “Optional
accessories”).
The iron or steamer must not be
connected during descaling of the
steam ironing system.
The steam ironing system can be left
unattended during descaling,
provided that the iron or steamer is
not connected.
Cleaning and care
50
Descaling warning
Descale soon will appear in the
display the next time you switch the
steam ironing system on if there are
only about 2hours of ironing available
before the system needs descaling.
You can start the descaling process
whilst the system is cold via the
Settings menu (see “Starting the
descaling process early”) or you can
press the OK button to confirm the
message in the display and continue
ironing as normal. The symbol will
continue to show in the display until
descaling is carried out.
After the remaining operating hours
have elapsed, the descaling process
must be carried out before the steam
ironing system can be used again.
You can also start the descaling
process at a time that suits you (see
“Starting the descaling process
early”).
You can interrupt the descaling process
by switching the steam ironing system
off with the button. When you switch
the system back on, descaling will start
again from the point where the process
was interrupted.
The messages in the display will guide
you through the descaling process. The
entire descaling process takes approx.
90minutes.
Only proceed with stages of the
process when prompted to do so by the
appropriate message in the display.
Once the descaling process has
started, your presence is required after
around 20minutes and again after a
further 60minutes. For the rest of the
descaling process, you can leave the
steam ironing system unattended.
Useful tip: To optimise the descaling
process, start the procedure while the
system is still cold immediately after
switching the steam ironing system on.
This way, you will avoid a delay of up to
3hours that may be caused by the
cooling phase.
Cleaning and care
51
Starting the descaling process early
Ready for use
When the steam ironing system is
switched on, press the button on
the control panel.
The settings menu will be displayed.
Use the arrow buttons to select
individual settings.
Language
Use the or arrow buttons to
select the Descale option.
Descale
Confirm your choice by pressing the
OKbutton.
Select the Start descaling option.
Confirm your choice by pressing the
OKbutton.
The descaling process will now start.
Descaling process
The following display messages will
guide you through the entire descaling
process. Only proceed with the
required action if you are prompted to
do so by the appropriate message in
the display.
Detach hose
Remove the steam hose of the iron or
the steamer from the steam
connection socket on the tower.
The iron or the steamer must not be
attached to the steam connection
socket at any time during the
descaling process.
Cleaning and care
52

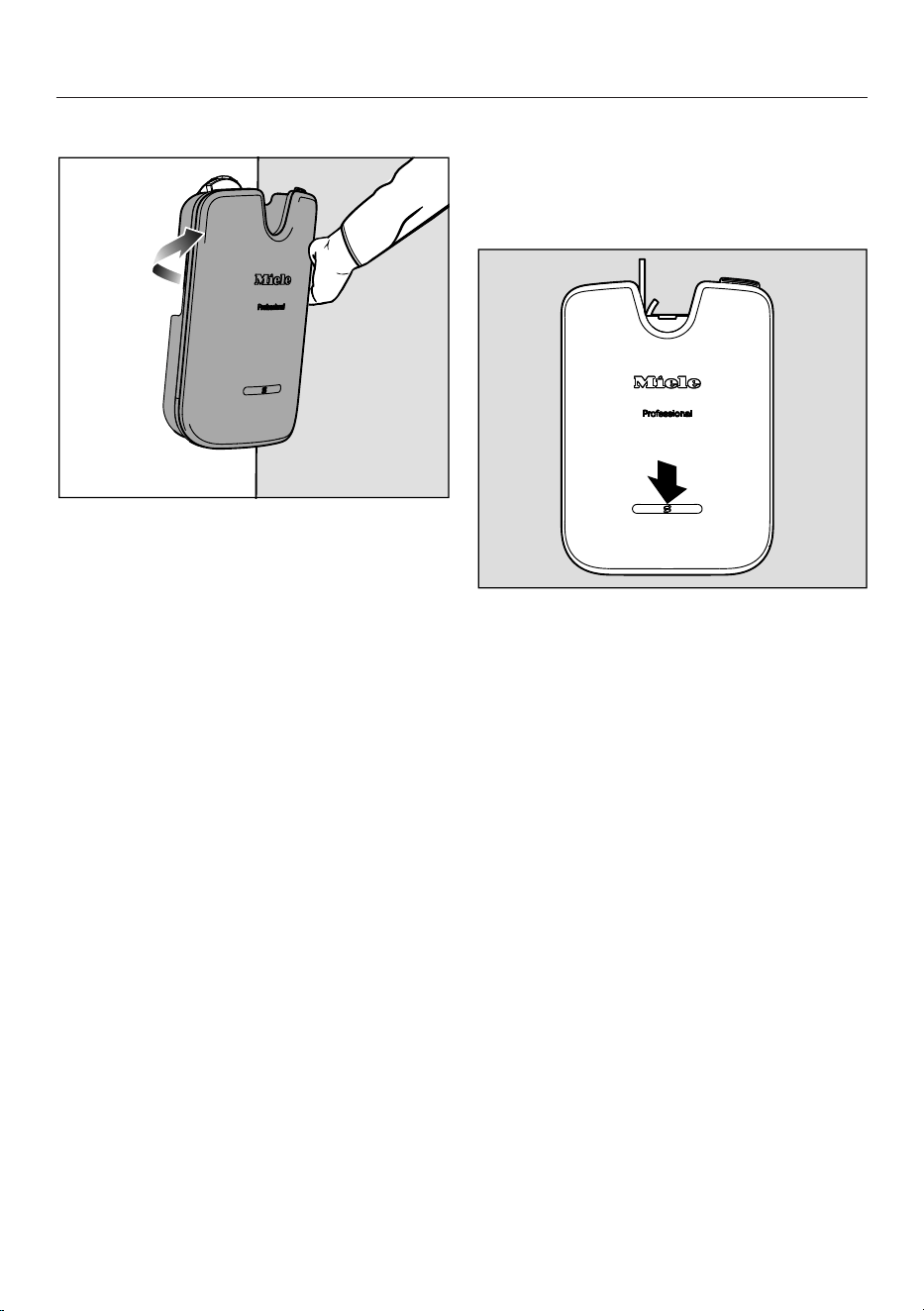

Fill water container to mark
Hold the water container by its
handle.
Pull the handle downwards.
The water container will release from
the retainer.
Pull the water container upwards and
out.
When removing the water container,
you may notice some water dripping
while the water container valves are
closing.
Useful tip: The dripping can be
prevented by removing the water
container slowly.
After removing the water container, the
message Add descaler will appear in
the display.
Add descaler
Turn the screw cap at the back of the
water container anti-clockwise and
remove the cap.
Level mark on the water container
Use fresh tap water to fill the water
container (water temperature approx.
15 to 35°C) to the level mark. It is
important not to fill the water
container with more or with less
water.
Add 2 descaling tablets to the water
container.
Replace the screw cap on the water
container.
Turn the screw cap clockwise as far
as it will go.
The screw cap is now closed.
Cleaning and care
53
Add descaler
Press the OKbutton to display the
next step.
The message Fit water container will
now appear in the display.
Fit water container
Fit the water container back in the
tower.
After about 10minutes (the time it takes
for the descaling tablet to dissolve), the
descaling process begins automatically.
Messages in the display will tell you
when to empty the residual water
container or when to fill the water
container.
If the water container becomes
empty during descaling or if it is
removed from the tower
unprompted, the messageFit or
refill water container will appear.
During the descaling process, water is
pumped into the steam generator at
various times and is drained back
again into the residual water drawer.
Some steam will escape and
splashing noises can be heard during
this process.
Cleaning and care
54
Empty drawer
This message may be displayed after
inserting the water container with the
descaling tablet. If you do not see this
message, you can skip the following
steps and continue as soon as you
seePre-rinse in the display.
Set the steam ironing system to its
highest working position in order to
remove the residual water drawer
(see “Assembling - Adjusting the
height”).
Remove the residual water drawer
from the tower.
The residual water drawer may still
be warm after the rinsing process.
Empty the residual water drawer.
As long as the residual water drawer is
not inserted into the tower, the display
will show the following message Fit
drawer.
Fit drawer
Slide the residual water drawer back
into the tower until it clicks into place.
Pre-rinse
If the steam ironing system is still hot
from the previous use, the cooling
down phase will start first. This may
take up to 3hours.
The pre-rinse phase then follows
(duration approx. 20minutes). During
this time, a portion of the descaling
solution is pumped into the steam
generator.
After the pre-rinse phase you will be
prompted to carry out further actions.
This will be shown for a few seconds
before the pre-rinse phase starts and
will be indicated by the message In
20 min. .
Cleaning and care
55
Rinse water container and fill to
the mark
Remove the water container from the
tower.
As long as the water container is not
fitted in the tower, the display will show
the following message Fit water
container.
Open the screw cap.
Rinse the water container thoroughly.
Make sure no residues of the
descaling tablet remain in the water
container.
Fill the water container with fresh tap
water at least up to the level mark.
Close the screw cap.
Fit the water container back in the
tower.
Empty drawer
Remove the residual water drawer
from the tower.
The message Fit drawer will appear
in the display.
Empty the residual water drawer.
Slide the residual water drawer back
into the tower until it clicks into place.
Cleaning and care
56
Descale
After an activation time of approx.
1hour, the descaling solution is drained
from the steam generator into the
residual water drawer.
The steam generator is then rinsed with
water. This rinse cycle takes approx.
5minutes. Before starting, the
Rinsing (5 min.) message is displayed
for a few seconds.
During the rinsing cycle, the message
Rinsing is displayed.
Once the rinsing cycle is completed, the
water is drained completely into the
residual water drawer and the message
Empty drawer is displayed.
Empty drawer
Remove the residual water drawer
and empty it.
The message Fit drawer is now
shown in the display.
Rinse the residual water drawer
thoroughly.
The residual water drawer is
dishwasher-safe or can be washed by
hand using warm water and a little
washing-up liquid.
Dry the residual water drawer. Make
sure that the metal discs (contacts) at
the top of the residual water drawer
are clean and dry.
Slide the residual water drawer back
into the tower until it clicks into place.
The message Descaling finished will
appear in the display.
Press the OK button.
The soleplate of the iron must then be
rinsed.
Cleaning and care
57
Rinsing the soleplate
The iron must not be warm from
previous use.
Let the iron cool down for at least
60minutes before rinsing the
soleplate.
Make sure that the non-stick
soleplate has been removed from the
iron.
If the non-stick soleplate is still on the
iron, remove it now (see “Ironing -
Removing the non-stick soleplate”).
Fill the water container with fresh tap
water (see “Filling the water
container”).
Set the temperature selector on the
iron to “cold” so that the line on the
selector is pointing to the indicator
light.
Plug the steam hose of the iron into
the steam connection on the tower
(see “Connecting the steam hose”).
If the steam ironing system is switched
off, switch it on now by pressing the
button. When the steam ironing
system is ready and steam is available,
the message Ready for use will be
shown in the display.
Hold the iron over a washbasin or a
heat-resistant container. You can also
use the residual water drawer from
the steam ironing system. Be aware,
though, that the drawer can only be
taken out of the steam ironing system
once the appliance is switched on.
During the rinsing process, hot
water and steam come out of the
iron.
Danger of burning!
Never direct the iron at people,
animals or electrical appliances of
any kind.
Press the button on the iron for
around a minute and tilt the iron.
Keep the tip of the iron pointing
downward slightly.
Hot water and steam will come out of
the iron and dislodge any deposits that
have built up. As soon as there is only
steam coming out, you can release the
button.
Cleaning and care
58
Now set the temperature selector on
the iron to the highest temperature
setting.
The indicator light on the temperature
selector will light up yellow whilst the
iron is heating up.
Useful tip: During the heating-up
phase, you can set down the iron on
the designated surface on the steam
ironing system.
As soon as the indicator light goes out,
the rinsing process is complete.
Remove drops of water and deposits
from the soleplate by moving the iron
over a soft, absorbent cotton cloth
while it is still hot. Press the steam
button briefly 2-3 times in the
process.
The descaling process is now
complete. The steam ironing system
can now be switched off or used.
Cleaning the housing
Before cleaning the housing,
switch off at the socket and
withdraw the plug.
Depending on the level of soiling, use a
dry or moist soft cloth to wipe the
housing.
Do not use abrasive cleaning agents.
Cleaning the soleplate of the
iron
The soleplate of the iron remains
hot after ironing.
Danger of burning!
Switch off at the wall socket and
withdraw the plug. Let the soleplate
of the iron cool down before you
start the cleaning process.
Depending on the level of soiling, use
a dry or moist microfibre cloth to
clean the iron soleplate.
Only use the microfibre cloth to clean
the iron soleplate!
Cleaning and care
59
To avoid damaging the surface, do
not use the following for cleaning:
- abrasive cleaning agents, (e.g.
powder cleaners, cream cleaners,
chrome polish, eraser sponges).
- hard, abrasive brushes or sponges,
(e.g. pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents.
- pointed objects.
Cleaning or replacing the
ironing board cover
If the ironing board cover is soiled, you
can wash and dry it. If the ironing
board cover is damaged, it must be
replaced before using the steam
ironing system again.
When removing the ironing board
cover, always ensure the steam
ironing system is switched off and
the plug is removed from the wall
socket.
Wait until the ironing board has
cooled down.
Pull the fastener of the ironing board
cover out of the cavity at the tapered
end of the ironing board.
Undo the fastener on the ironing
board cover by pushing the small
toothed wheel at the centre of the
fastener outwards.
Remove the cover in the direction of
the tower.
The felt pad remains on the ironing
board.
Cleaning and care
60
Wash and dry the ironing board cover
according to the care label or replace
the cover if it is damaged.
Never use the steam ironing system
without the ironing board cover in
place.
Put the dry or new cover onto the
ironing board from the tower end first
and draw it down towards the
tapered end of the ironing board.
Use the cord to pull the cover taut.
Ensure the cover is secure.
Secure the ironing board cover in
position by pushing the small toothed
wheel on the fastener to the middle.
Push the fastener back into the cavity
at the tip of the ironing board.
Cleaning the water filter
The water filter prevents foreign
objects in the water from entering the
steam ironing system and causing
damage.
The water filter can be cleaned if it is
dirty or clogged. You will notice if the
water filter is dirty since this will cause
more frequent pumping noises from the
water feed pump.
Disconnect the power supply
Switch off at the wall socket and
withdraw the plug before cleaning the
water filter.
Removing the water container
Hold the water container by its
handle.
Pull the handle downwards.
The water container is released from the
holder.
Pull the water container upwards and
out.
Cleaning and care
61
When removing, the water container
may drip a little while the valves of the
container close.
Useful tip: Dripping can be avoided by
slowly removing the water container.
Removing the water filter cover
Use a Phillips head screwdriver to
remove the screw of the water filter
cover.
Pull the water filter cover upwards.
The water filter must be taken out of
the right-hand socket for cleaning.
There is a hook and a round tool at the
sides of the water filter cover. Use
these to remove the sealing ring from
the socket and pull out the water filter.
Cleaning and care
62
Removing the sealing ring
Use the hook on the water filter cover
to pull the sealing ring up and out of
the right-hand socket.
Please note that the top of the sealing
ring looks different to the bottom of it.
The top has a smooth surface all
round and the bottom has a narrow
ridge around it. After cleaning the
water filter, make sure that the seal is
replaced with the ridge facing
downwards.
Pulling out the water filter
Push the round tool on the water filter
cover onto the water filter from
above.
The round tool will click into the water
filter.
Pull the water filter out of the socket.
Cleaning and care
63
Cleaning the water filter
Detach the water filter from the round
tool.
Clean the water filter thoroughly
under running water.

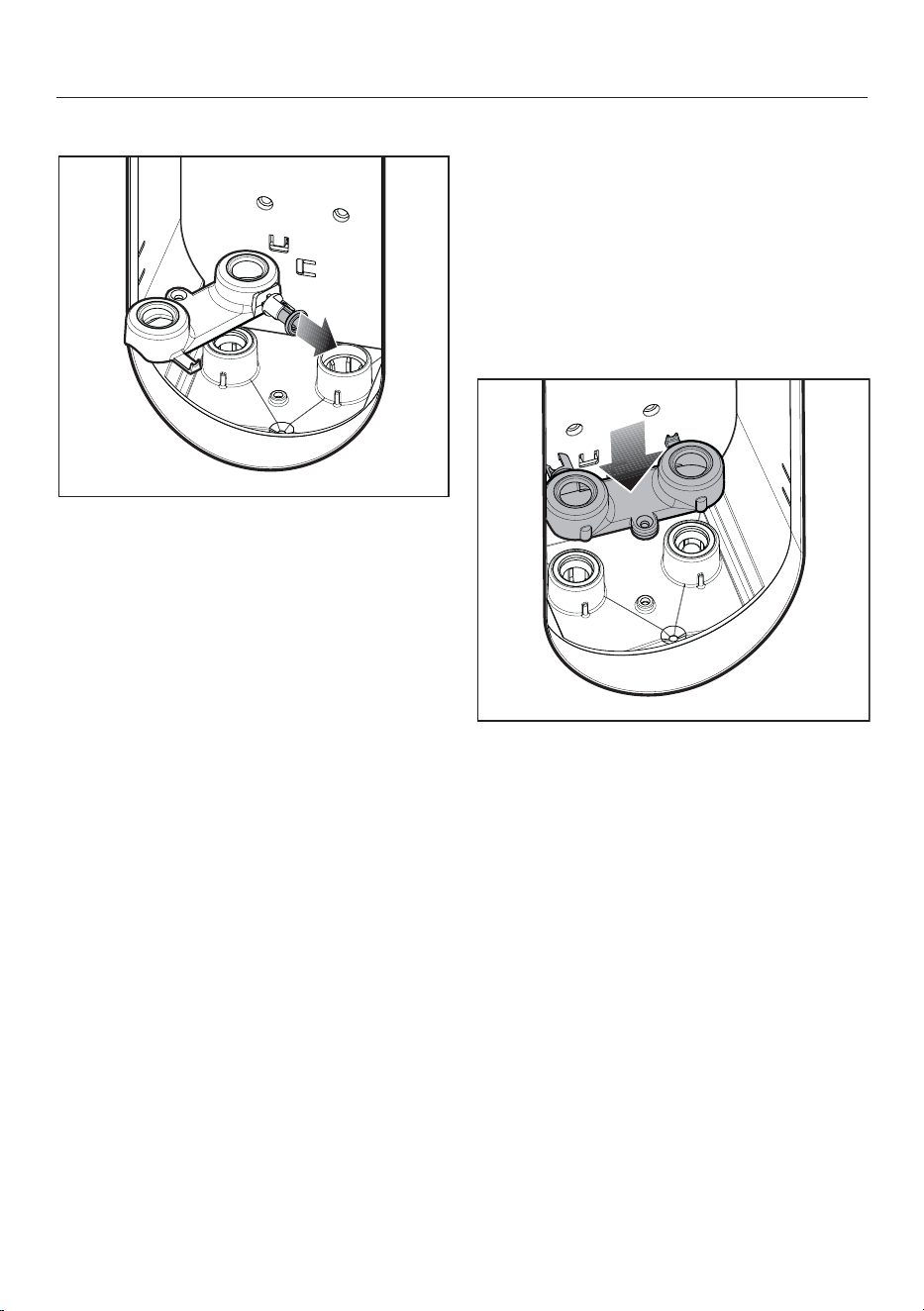

Inserting the water filter
Position the water filter with the small
seal facing downwards.
Press the water filter fully into the
right-hand socket.
Then refit the seal in the right-hand
socket. The side with the ridge must
face downwards.

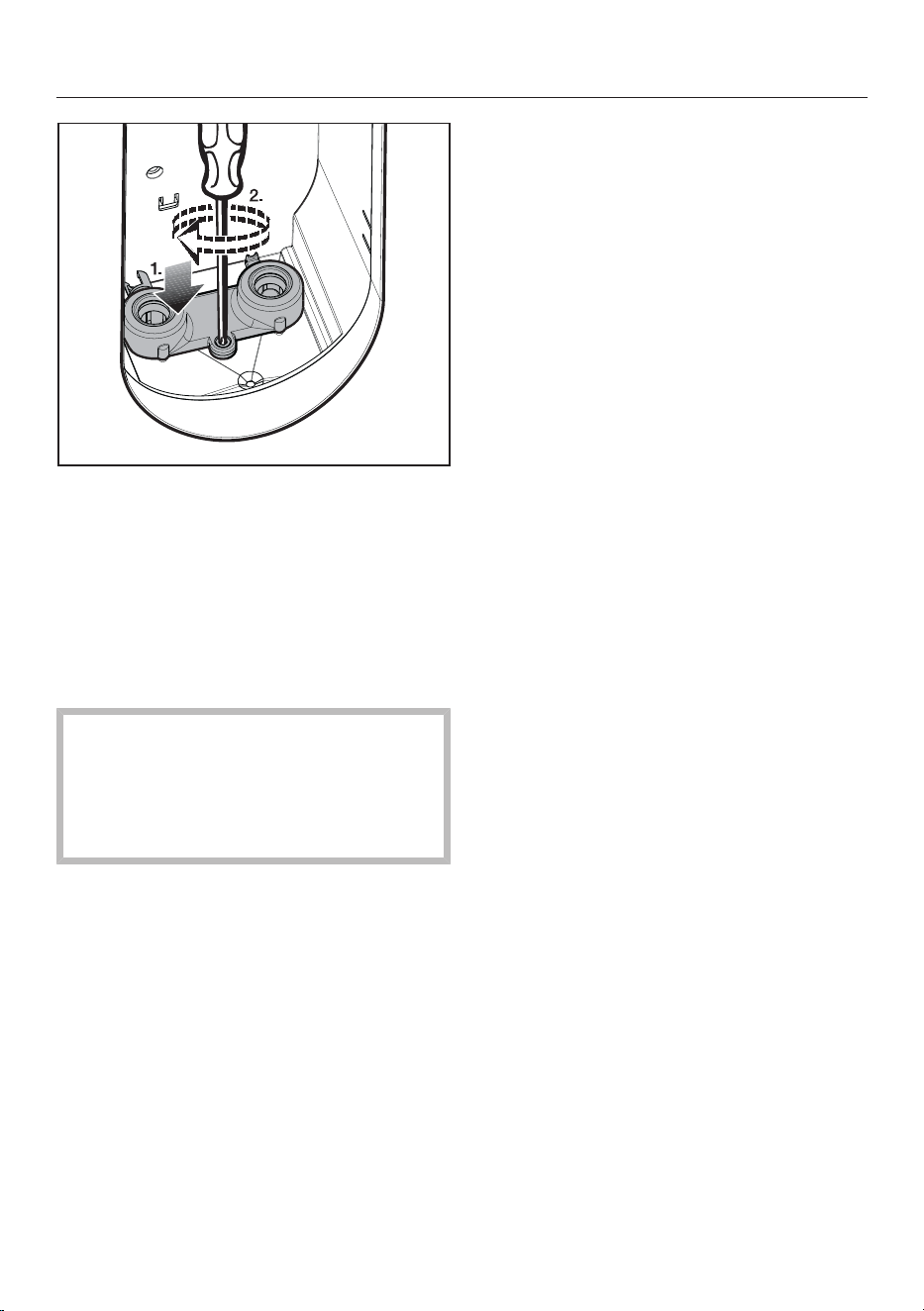

Then refit the water filter cover over
both sockets.
Cleaning and care
64
Use a Phillips head screwdriver to
tighten the screw.
Inserting the water container
Refit the water container in the
retainer in the tower.
The steam ironing system is now ready
for operation again.
If the water filter is not inserted, the
steam ironing system will not work.
The water filter must be replaced if it
is worn or damaged. Replacement
filters are available from Miele.
Optional accessories
65
Miele appliances are designed to
achieve the best possible results and to
provide uncompromising satisfaction
for as long as possible. To achieve this,
all factors must interact perfectly with
one another. Therefore Miele offers a
comprehensive range of accessories
that harmonise with Miele appliances
for optimum performance.
The following items are just a few
examples from our broad range of
products and are available to order from
shop.miele.com.
Accessories
Non-stick soleplate
With the non-stick soleplate you can
iron appliqués, prints, flocking etc.
There is no need to turn the garment
inside out. This soleplate also reduces
or eliminates the formation of shiny
patches on dark textiles.
Commercial-grade ironing board
cover (APIB003)
Professional ironing board cover
designed for intensive commercial use.
100% PES woven fabric. Particularly
durable and robust with excellent
vapour permeability.
Steamer
The steamer makes ironing hanging
textiles easier, e.g. dresses and jackets.
It comes with a removable brush
attachment for lifting the fibres.
Care products
The Miele care product range has been
developed specially to clean your
appliance thoroughly and gently.
Descaling tablets
Miele descaling tablets guarantee the
best cleaning result when descaling
your Miele steam ironing system.
2tablets are required for each
descaling process.
Problem solving guide
66
With the help of the following notes minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be corrected
without contacting Miele. This will save time and money as a call-out charge will
apply to customer service visits where the problem could have been rectified as
described in these operating instructions.
Repair work to electrical appliances should only be carried out by an
authorised Miele service technician. Repairs and other work by unqualified
persons could be dangerous. Miele cannot be held liable for unauthorised work.
Some of the messages in the display are more than one line long. Touch the or
button to read them in full.
Problem solving guide
67
Problem solving guide
Problem Possible cause and remedy
The steam ironing
system cannot be
switched on.
The steam ironing system does not have any power.
Check that
– the plug is inserted into the wall socket and that
the socket is switched on.
– the circuit breaker has not tripped.
After an interruption to
the power supply, the
steam ironing system
does not work any
more.
The steam ironing system is switched off.
Use the button on the control panel to switch
the steam ironing system on.
If the power cut occurred during the automatic rinse,
the cycle will be repeated when the steam ironing
system is switched on again.
If the power cut occurred during descaling, the
process will be resumed from the stage at which it
was interrupted when the appliance is switched on
again.
The height of the
ironing board cannot be
adjusted.
The ironing board is not locked into place on both
sides of the tower.
Use both hands to pull the ironing board up and
into the horizontal position until the locking
mechanism audibly clicks into place on both sides
of the tower (see “Assembling”).
The steam ironing
system cannot be
dismantled.
The steam ironing system is not in its lowest working
position.
Adjust the steam ironing system to its lowest
working height (see “Dismantling”).
The residual water drawer is not inserted completely
and is not locked in place.
Push the residual water drawer back into the tower
until it locks into place.
Then adjust the steam ironing system to its lowest
working height (see “Dismantling”).
Problem solving guide
68
Problem Possible cause and remedy
The ironing board
cannot be set in the
final position during
assembly or
dismantling.
The ironing board became dislodged from the
latching mechanism when the board was not in its
lowest position.
Danger of burning on the resting surface while
it is hot.
The resting surface for the iron remains hot after
ironing.
Switch off at the wall socket and withdraw the
plug. Let the iron and the resting surface cool
down before removing the iron from the resting
surface, and proceed with the following steps.
Make sure the resting surface is cold before
touching it.
Press and hold the yellowemergency release
button on the tower ().
At the same time, turn one of the rotary controls
on the side of the tower as far as it will go in the
direction and hold it in this position ().
Push the tower down as far as possible ().
Release the rotary dial first. Then release
theemergency releasebutton.
Now the ironing board can either be dismantled or
brought into its working position.
If the ironing board still will not lock into place,
contact Miele.
The iron does not heat
up.
The steam ironing system is switched off.
Problem solving guide
69
Problem Possible cause and remedy
Use the button on the control panel to switch
the steam ironing system on.
The steam hose is not plugged in properly.
Plug the steam hose into the steam connection
socket on the tower again (see “Connecting”).
The iron has not been used for some time.
Move the iron or activate the steam button.
The steam button is locked.
Unlock the steam button by pushing the sliding
switch on the iron forwards.
The temperature set on the temperature controller
has already been reached.
Set the temperature controller to a higher
temperature, if necessary.
The steam ironing system is rinsing.
Wait until the rinsing process has been completed
(see “Automatic rinsing”).
The display is indicating a malfunction.
Rectify the indicated malfunction and proceed as
described on the following pages (see “Display
messages”).
The steam ironing system is damaged.
Call Miele.
Problem solving guide
70
Problem Possible cause and remedy
The ironing board is not
heated.
Steam has not been used for a while.
Press the steam button. This will activate the
ironing board's heating system.
The steamer is attached to the steam connection
socket on the tower.
The ironing board does not heat up when the
steamer is connected.
The ironing board is not locked into place on both
sides of the tower.
Ensure the ironing board locks into place on both
sides of the tower (see “Assembling”).
The steam ironing system is damaged.
Call Miele.
The temperature of the
iron is always high.
There is a fault with the steam ironing system.
Call Miele.
The ironing board cover
is damp.
There is a fault with the steam ironing system.
Remove the ironing board cover and allow it to
dry.
Put the dry ironing board cover back on (see
“Cleaning or replacing the ironing board cover”).
If the ironing board gets damp again, contact Miele.
During transport, water
leaks out at the level of
the water container.
The frequent removal and replacement of the water
container may cause water droplets to collect in the
area under the water container.
Dry the area under the water container with a
cloth.
The water filter is not inserted correctly.
Check the water filter.
The sealing rings are leaking.
Replace the sealing rings.
Problem solving guide
71
Problem Possible cause and remedy
The fan on the ironing
board is not running.
Steam was not used.
The fan only runs when the steam function on the
iron is activated.
The appliance is not yet ready to produce steam.
Wait until the message Ready for use is
displayed to indicate that steam is ready.
The water container is empty or missing.
Refill the water container with fresh tap water and
refit it in the tower.
The steamer is connected.
The fan only runs when the iron is connected.
Connect the iron.
There is a fault with the steam ironing system.
Call Miele.
The steam function on
the iron or the steamer
is not working.
The steam ironing system is not connected to the
wall socket.
Insert the plug into the socket correctly.
Use the button on the control panel to switch
the steam ironing system on.
The iron or steamer is not connected.
Attach the steam hose of the iron or the steamer to
the steam connection socket on the tower.
The water container is empty or not fitted.
Fill the water container with fresh water.
Fit the water container in the tower.
Wait until the message Ready for use is
displayed.
The appliance is not yet ready to produce steam.
Wait until the message Ready for use is
displayed.
The display is indicating a malfunction.
Rectify the indicated malfunction and proceed as
described on the following pages (see “Display
messages”).
If there is still no steam, contact Miele.
Problem solving guide
72
Problem Possible cause and remedy
When using the steam
button on the iron,
drops of water or white
deposits escape from
the steam jets.
The selected temperature level on the iron is too low.
Set the temperature selector to at least (see
“Switching on - Selecting the ironing
temperature”).
The iron has not yet reached the selected
temperature.
Wait until the selected ironing temperature has
been reached (see “Switching on - Selecting the
ironing temperature”).
During a longer ironing break, condensation has
accumulated in the steam hose.
After a break in ironing, do not direct the first burst
of steam onto the garment.
Deposits have formed in the soleplate.
Rinse the soleplate (see “Descaling process -
Rinsing the soleplate”).
Problem solving guide
73
Display messages
Message Possible cause and remedy
Drain valve closing When the steam ironing system was switched on,
the steam generator drain was open. The drain is
closed automatically during this message.
Drain valve fault
Switch off/on
The descaling or rinsing process has not been
carried out properly.
Press the button to switch the steam ironing
system off and then back on again.
If the fault message continues to be displayed,
contact Miele.
Memory fault
Switch off/on
There is a fault with the steam ironing system.
Press the button to switch the steam ironing
system off and then back on again.
The steam ironing system must now be reset.
Complete the steps required when using for the
first time (see “Before using for the first time”).
If the fault message continues to be displayed,
contact Miele.
Unplug at mains
Electronic fault.
Switch off at the wall socket and withdraw the
plug.
Wait a while and then insert the plug back in the
socket and switch on.
Press the button to switch the steam ironing
system back on again.
The steam ironing system will try and rectify the fault
itself.
If the fault message continues to be displayed,
switch off at the wall socket and withdraw the
plug. Contact Miele.
Problem solving guide
74
Message Possible cause and remedy
Inlet fault, boiler
Switch off/on
There is a fault with the steam system.
Press the button to switch the steam ironing
system off and then back on again.
After the cool-down phase, the steam ironing system
will carry out a rinse and attempt to correct the fault
itself. The cool-down phase can take up to 3hours.
Remove the residual water drawer if you are
prompted to do so by the appropriate message in
the display.
Empty and dry the residual water drawer.
Push the residual water drawer back in the tower
until it clicks into place.
There is a fault with the steam ironing system.
If the fault message continues to be displayed,
contact Miele.
Press. switch fault
Switch off/on
There is a fault with the steam system.
Press the button to switch the steam ironing
system off and then back on again.
If the fault continues to be displayed, contact
Miele.
Boiler fault, warm
Switch off/on
There is a fault with the steam ironing system.
Press the button to switch the steam ironing
system off and then back on again.
If the fault continues to be displayed, contact
Miele.
The steam generator is soiled with water containing
too much limescale or salt.
Start a descaling process (see "Starting the
descaling process early"). To avoid this problem in
the future, the preset water hardness level can be
set one level higher (e.g. from Level 4 to Level 5.
See "Setting the water hardness").
If the fault continues to be displayed, contact
Miele.
Problem solving guide
75
Message Possible cause and remedy
Boiler fault, cold
Switch off/on
There is a fault with the steam ironing system.
Press the button to switch the steam ironing
system off and then back on again.
If the fault continues to be displayed, contact
Miele.
Release stm. button
The iron has switched itself off because it has not
been used for a period of time and the steam
button has locked.
Unlock the steam button by pushing the sliding
switch for continual steam on the iron forwards.
Attach hose The steam hose is not plugged into the steam
connection.
Plug the steam hose into the steam connection on
the tower.
Problem solving guide
76
Message Possible cause and remedy
Drain valve fault
Switch off/on
The residual water drawer has not been detected.
Press the button to switch the steam ironing
system off and then back on again.
After switching the steam ironing system off and
back on, the residual water drawer is not detected.
Press the button to switch the steam ironing
system off.
Clean and dry the metal discs (contacts) on the
residual water drawer.
Use the button to switch the steam ironing
system back on and follow the instructions shown
in the display:
Remove the residual water drawer and fill it with
fresh tap water.
Fit the filled residual water drawer back in the
tower.
Remove the residual water drawer again when you
are prompted to do so and the appropriate
messages are shown in the display.
Empty and dry the residual water drawer.
Fit the empty residual water drawer back in the
tower.
The steam ironing system is now ready for operation
and will continue to operate from the point reached
before the fault was registered.
There is a fault with the steam ironing system.
If the fault message continues to be displayed,
contact Miele.
Fault codes:
F38: ELP/EW/LNG
F44
F45: LNG
F47
There is an internal fault.
Press the button to switch the steam ironing
system off and then back on again.
The steam ironing system will try and rectify the fault
itself.
If the fault message continues to be displayed,
contact Miele.
After sales service
77
After sales service
In the event of a fault which you cannot
correct yourself, please contact Miele.
The contact details for Miele are given
at the back of these instructions.
When contacting Miele please quote
the model and serial number of your
appliance.
This information can be found on the
data plate which is located on the tower
behind the water container.
Electrical connection
*INSTALLATION*
78
Before you connect the steam
ironing system to the electricity
supply, you must check the
connection data (voltage and
frequency) on the data plate and
compare it with the data applicable
to your local power supply.
This data must match, otherwise
there is a risk of damage to the
steam ironing system.
If in doubt, consult a suitably
qualified electrician.
You will find the necessary connection
data on the data plate, which is located
in the tower behind the water container.
The steam ironing system is supplied
with a cable and moulded plug ready
for use with an alternating current of
50-60 Hz, 220-240 V. Connect the
steam ironing system only to a properly
installed and compliant earthed socket.
All electrical work must be carried out
by a suitably qualified and competent
person in accordance with current local
and national safety regulations.
The fuse must have a rating of at least
10A. For extra safety, we recommend
protecting the appliance with a 30mA
residual current device (RCD).
The socket should be next to the
appliance and easily accessible.
If the mains connection cable is faulty,
it must only be replaced by a suitably
qualified electrician.
Do not use a multi-socket adapter or
an extension lead to connect the
steam ironing system to the power
supply.
Extension leads or multi-socket
adapters do not guarantee the
required safety of the steam ironing
system (e.g. danger of overheating).
Do not connect the steam ironing
system to an off-grid inverter. These
devices are used for autonomous
power supply, e.g. a solar power
system.
Power surges could cause a safety
cut-out. This could damage the
electronics.
Do not use the steam ironing system
with so-called “energy saving plugs”.
These reduce the energy supply to
the appliance, which could generate
excessive heat.
Technical data
79
Dimensions, folded (HxWxD) 1280 × 470 × 370mm
Assembled dimensions (HxWxD) 970 × 470 × 1480mm
Weight 30kg
Supply voltage see data plate
Total rated load see data plate
Fuse rating ≥ 10A
Steam pressure 4.0bar
Steam quantity 100g/min
Capacity of water container 4.5l
Length of mains connection cable 2.50m
Length of steam hose 1.80m
Height of ironing board 830–1020mm
Width of ironing board 400mm
Length of ironing board 1200mm
Product safety standard in accordance with AS/NZS60335-1,
AS/NZS60335-2-3, EN60335-2-44
Test certifications awarded see data plate
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Telephone: 1300 731 411
Melbourne:
www.miele.com.au/professional
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay
Auckland 1011
New Zealand
Telephone:
www.miele.com.au/professional
0800 4 MIELE
(0800 464 353)
Miele Global Headquarters: Miele & Cie. KG
Carl-Miele-Straße 29, 33332 Gütersloh, Germany
M.-Nr. 12 046 340 / 02en-AU, NZ
PIB100
