Air Hydraulic Truck Jack
Model
HAJ22
Operating Instructions & Parts Manual
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Capacity
22 Ton
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
! ADVERTENCIA
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
! WARNING
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. ALWAYS use adequately rated
jack stands.
U.S. Patent No's.
5,341,723 • 5,946,912
MATCO TOOLS
http://www.matcotools.com
Printed in P.R.C.
HAJ22-M0_032016
2
SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack
before using. The owner and operator of this equipment shall have an understanding of this jack and safe operating
procedures before attempting to use. The owner and operator shall be aware that use and repair of this product
may require special skills and knowledge. Instructions and safety information shall be conveyed in the operator's
native language before use of this jack is authorized. If any doubt exists as to the safe and proper use of this jack,
remove from service immediately.
Inspect before each use. Do not use if broken, bent, cracked or damaged parts are noted. Any jack that appears
damaged in any way, or operates abnormally shall be removed from service immediately. If the jack has been or
suspected to have been subjected to a shock load (a load dropped suddenly, unexpectedly upon it), immediately
discontinue use until jack has been checked by a factory authorized service center (contact distributor or manufacturer
for list of authorized service centers). It is recommended that an annual inspection be done by qualied personnel.
Labels and Operator's Manuals are available from manufacturer.
PRODUCT DESCRIPTION
These Hydraulic Truck Jacks are designed to lift, but not support, rated capacity partial vehicle loads consisting of one
end of a vehicle. Immediately after lifting, loads must be supported by a pair of appropriately rated jack stands.
WARNING: NEVER use a hydraulic truck jack as a stand-alone device. After lifting, immediately support the
lifted vehicle with a pair of appropriately rated jack stands.
PREPARATION
Assemble, align and insert the handle assembly and handle position bar into the handle sleeve, then tighten the
bolt on handle sleeve to prevent accidental removal of handle while in use (see Replacement Parts pages 6-7 for
reference to parts location & assembly sequence).
Before Use
1.
Verify that product and application are compatible, if in doubt call MATCO Tools Technical Service (888) 332-
6419.
2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards associated with its use.
3. To familiarize yourself with basic operation, locate and turn the release valve (handle knob):
a. Clockwise until rm resistance is felt to further turning. This is the ‘CLOSED’ release valve position used to
raise the load.
b. Counter-clockwise, no more than 1 full turn from the closed position. This is the ‘OPEN’ release valve
position used to lower the load. The further release valve is turned counter-clockwise, the faster load
will descend.
4. With ram fully lowered, remove oil ller plug. Check oil level. Proper oil level should be just below the rim of the
opening. Reinstall oil ller plug.
5. Pour a teaspoon of good quality air tool lubricant into the air supply inlet of the lift control valve. Connect to air
supply, then squeeze the lift control valve for 3 seconds to evenly distribute lubricant.
Notice: These models are equipped with the popular 1/4" NPT air coupler. When installing a different air coupler of
your choice, ensure that thread tape or compound is used. To ensure dependable, trouble free operation an inline
air dryer and oiler is recommended.
6. Ensure that jack rolls freely. Raise and lower the unloaded ram throughout the lifting range before putting into
service to ensure the jack operates smoothly. Replace worn or damaged parts and assemblies with MATCO
authorized replacement parts only.
Bleeding / Venting Trapped Air
WARNING: Wear eye protection that meets ANSI Z87.1 and OSHA requirements.
With ram fully lowered and release valve in the OPEN position (ref. page 3), locate and remove the oil ller plug.
!
3
SPECIFICATIONS
Model Capacity Jack Size (L x W)
Min.
Height
Max.
Height
Hyd.
Range
Extension
Screw
HAJ22 22 Ton 22-7/8" x 12-1/2" 9-3/4" 19-1/4" 5-5/8" 3-7/8"

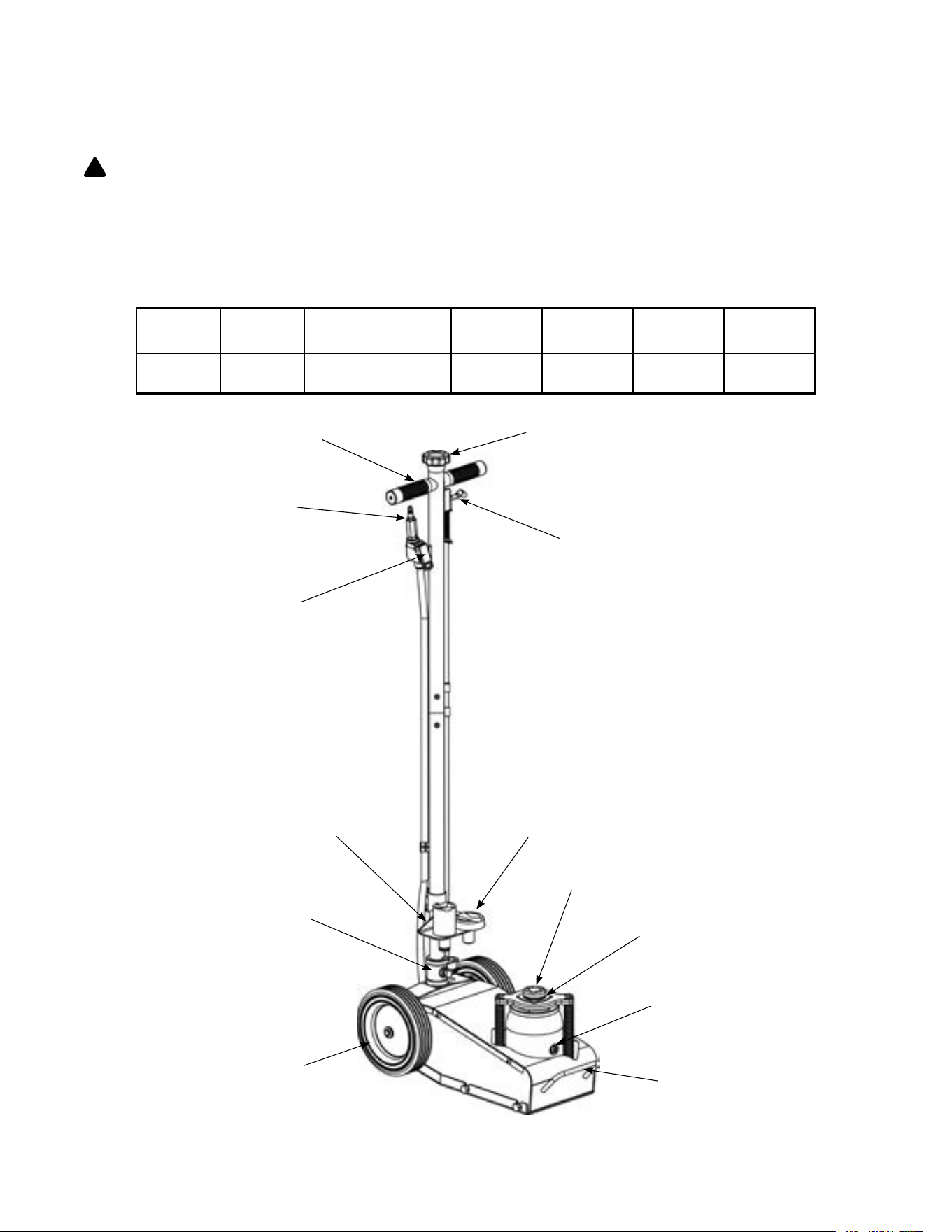

Figure 1 - Typical Truck Jack Nomenclature
Activate air motor to vent reservoir pressure. Remove raised set screw on block between air motor and cylinder.
Use a screw driver to hold the check ball in place and CAREFULLY activate air motor until oil ows steadily with no
bubbles.
WARNING: With set screw removed, use very slight pressure to operate air motor. Excessive air pressure will
cause rapid expulsion of oil.
Partially reinstall set screw (approx. 2 threads into block) then give air motor a few more pumps while fully tightening
the screw. Check oil level and reinstall ller plug.
!
Handle Knob
(release valve)
Carrying
Handle
Oil Filler Screw
Wheel
Handle Sleeve
Air Supply Inlet,
1/4NPT
Lift Control
Valve
Adapter Holder
Adapters
Saddle
Extension Screw
Handle Position
Release
Handle
4
! WARNING
• Study, understand, and follow all instructions
before operating this device.
• Do not exceed rated capacity.
• Use only on hard, level surface.
• This is a lifting device only. Immediately after
lifting, support the vehicle with appropriate
means.
• Do not move or dolly the vehicle while on the
jack.
• Lift only on areas of the vehicle as specied by
the vehicle manufacturer.
• Never wire, clamp or otherwise disable the lift
control valve to function by other than operator's
hand.
• No alterations shall be made to this product.
• Failure to heed these markings may result in
personal injury and/or property damage.
OPERATION (see Fig 1)
WARNING: The wheels provided with this jack
are for positioning the jack under a load ONLY.
The wheels are not load wheels. Do not try to
move or dolly the vehicle with the jack.
Lifting
Notice: The jack is equipped with handle position lock. To adjust the handle, release lock device by pulling the lever
up, lever is spring loaded and will lock in desired position. Ensure lever locking mechanism is fully engaged when
not in use.
1. Connect adequate air source to the air supply inlet.
2. Follow the vehicle manufacturer’s recommended guidelines for lifting. Engage the emergency brake and chock
each unlifted wheel in both directions to prevent inadvertent vehicle movement.
3.
Close the release valve by turning the handle knob clockwise until rm resistance is felt.
4. Center jack saddle under lift point, then squeeze the lift control valve until saddle contacts the lift point. To lift,
continue squeezing the lift control valve until load reaches desired height. Simply release your grip on the lift
control valve to end lift event.
5. Transfer the load immediately to appropriately rated jack stands.
WARNING: Only attachments and/or adapters supplied by the manufacturer shall be used.
Lowering
WARNING: Be sure all tools and personnel are clear before
lowering vehicle The further handle knob is turned
counter-clockwise, the faster the load will descend. Maintain control of the rate of descent at all times.
1. Raise load high enough to clear jack stands.
2.
Remove jack stands carefully.
3. Slowly turn handle knob counter-clockwise, but no more than 1 full turn. If the load fails to lower:
a. Use another jack to raise the vehicle high enough to reinstall jack stands.
b. Remove the malfunctioning jack and then the jack stands.
c.
Use the functioning jack to lower the
vehicle.
4. After removing jack from under the vehicle, fully retract the jack to reduce ram exposure to rust and
contamination.
!
!
!
To avoid crushing and related injuries:
•
Never work on, under or around a load supported
only by hydraulic jack.
•
Always use adequately rated jack stands.
• Chock each unlifted tire in both directions.
• Do not use this device to lift, level, lower, support nor
move a house, mobile home, travel trailer, camper or
any building structure.
• Be alert and sober when using this product. Do not
operate under the inuence of drugs or alcohol.
! WARNING
X
5
MAINTENANCE
Notice: Use quality grade hydraulic jack oil. Avoid mixing different types of uid and NEVER use brake uid, turbine
oil, transmission uid, motor oil or glycerin. Improper uid can cause premature failure of the jack and the potential
for sudden and immediate loss of load. MATCO recommends Mobil DTE 13M or equivalent.
Adding/Changing Oil
Notice: For best performance and longest life, replace the complete uid supply at least once per year. Dispose
of hydraulic uid in accordance with local environmental regulations.
1. With saddle fully lowered remove cover plate, then oil ller plug.
2. Lay jack on its side and drain uid into a suitable container.
3. Set jack in its upright, level position.
4. Fill with oil. Proper oil level is just below the rim of the plug opening. Reinstall the oil ller plug.
Lubrication
A periodic coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and assure that
wheels move freely and the pump functions smoothly. To help ensure trouble free operation, an inline air dryer and
oiler is recommended.
Cleaning
Periodically check the ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.
Notice: Never use sandpaper or abrasive material on ram surfaces.
Storage
When not in use, store the jack with saddle fully lowered.
TROUBLESHOOTING
Symptom Possible Causes Corrective Action
Jack will not lift load
• Release valve not tightly closed
• Load is too heavy
• Air supply inadequate
• Ensure release valve tightly closed
• Consider higher capacity jack
• Ensure adequate air supply
Jack will lift, but not maintain
pressure
• Release valve not tightly closed
• Hydraulic unit malfunction
• Ensure release valve tightly closed
• Discontinue use, contact Omega
technical service
Jack will not lower after unloading
• Reservoir overlled
• Linkages binding
• Drain uid to proper level
• Clean and lubricate moving parts
Poor lift performance
• Fluid level low
• Air trapped in system
• Ensure proper uid level
• With ram fully retracted, remove
oil ller plug to let pressurized air
escape. Reinstall oil ller plug
Will not lift to full extension • Fluid level low • Ensure proper uid level
REPLACEMENT PARTS (see pages 6 & 7)
Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence. When ordering parts, please give the Model number, part number and parts
description. Call or write for current pricing: MATCO Tools, 4403 Allen Rd, Stow, OH 44224-1096, U.S.A.
Tel: (866) BUY-TOOL MATCO Tools Website: http://www.matcotools.com
6

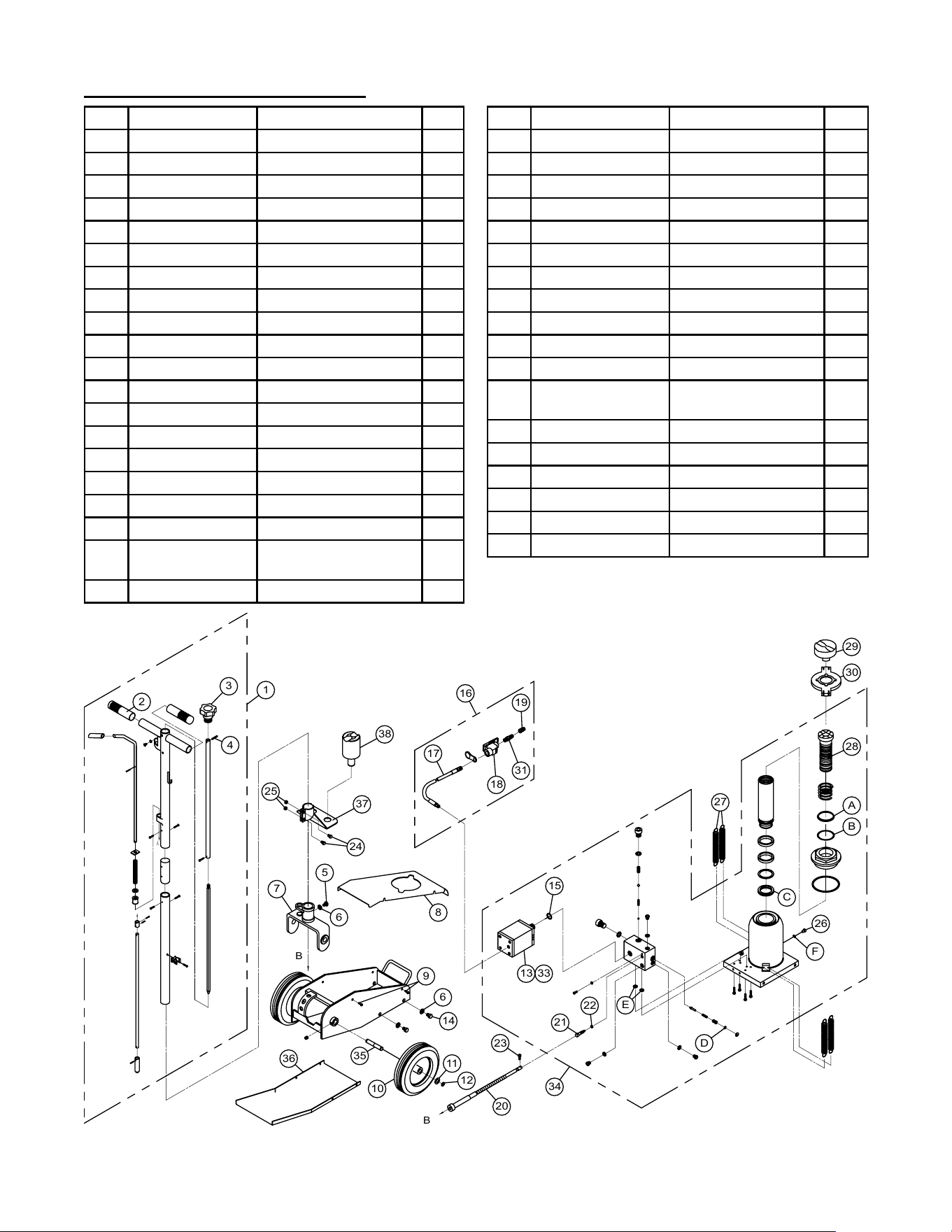

Figure 2 - Replacement Parts Illustration for Model HAJ22
Replacement Parts for models HAJ22:
Item Part No. Description Qty
1 A070-40000-000 Handle Assembly 1
2 G251-00007-000 Handle Grip 2
3 G251-40001-000 Knob 1
4 5402-04028-000 Spring Pin 1
5 5115-10017-000 Bolt 1
6 5303-00010-100 Washer, Lock 5
7 A070-00006-000 Handle Sleeve 1
8 A090-00001-000 Cover Plate 1
9 5110-06010-000 Screw 4
10 A070-00001-000 Wheel 2
11 5308-00013-006 Washer 2
12 5304-00013-000 C-clip 2
13 G831-03200-000 Air Motor 1
14 5102-10025-000 Bolt 4
15 5308-00095-000 Copper Gasket 1
16 A220-01000-000 Air Hose Assembly 1
17 A20060-0006 Air Hose 1
18 A20060-0007 Lift Control Valve 1
19 A20060-0016
Air Coupler, Male, 1/4
NPT
1
20 A070-3000-000 Release Valve Cable 1
Item Part No. Description Qty
21 A09-5-1701-105 Release Valve 1
22 5905-00054-000 Oil Seal 1
23 5105-05016-000 Screw 1
24 5102-08025-000 Screw 2
25 5202-00008-000 Nut 2
26 G62S-03301-000
Filler Screw
1
27 A070-00009-000 Spring 4
28 A070-11001-000 Extension Screw 1
29 A070-00007-000 Saddle 1
30 A070-00008-000 Spring Plate 1
31 A27010-0028
Air Filter
1
32 A0901S-077
Repair Kit
(includes
#22 & A~F)
-
33 A27010-0008 Piston, Air Motor #13 1
34 A090-10000-000
Hydraulic Unit
1
35
A070-00003-000
Wheel Axle 2
36 A090-00002-000 Base Plate 1
37 A070-81001-000 Adapter Holder 1
38 A070-00015-000 Adapter, 2-1/2" 1
B
B
38
16
37
24
8
5
6
25
36
9
14
6
23
20
13
15
35
10
11
12
E
22
21
34
D
F
27
C
A
B
29
30
28
7
18
31
19
17
33
39
26
4
3
2
1
Ａ
7
ONE YEAR LIMITED WARRANTY
For a period of one (1) year from date of purchase, MATCO Tools will repair or replace, at its option, without
charge, any of its products, which fails due to a defect in material or workmanship under normal usage. This limited
warranty is a consumer's exclusive remedy.
Performance of any obligation under this warranty may be obtained by returning the warranted product,
freight prepaid, to MATCO Tools Warranty Service Department, 4403 Allen Road, Stow, OH 44224-1096.
Except where such limitations and exclusions are specically prohibited by applicable law, (1) THE
CONSUMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE
PRODUCTS AS DESCRIBED ABOVE. (2) MATCO Tools SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER. (3) ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO ONE YEAR, OTHERWISE THE REPAIR, REPLACEMENT OR REFUND AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER,
AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. (4) ANY MODIFICATION,
ALTERATION, ABUSE, UNAUTHORIZED SERVICE OR ORNAMENTAL DESIGN VOIDS THIS WARRANTY AND
IS NOT COVERED BY THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you may also
have other rights, which vary from state to state.
MATCO Tools
4403, Allen Road, Stow, OH 44224-1096, U.S.A.
Tel: (866) BUY-TOOL
Matco Website: http://www.matcotools.com
8
Matco Tools
4403, Allen Road, Stow, OH 44224-1096, U.S.A.
Tel: (866) BUY-TOOL
Matco Website: http://www.matcotools.com
