MSC4FDFISH24 1 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
Copyright © 2023
All rights reserved.
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the device
owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not legible, contact
Matco Tools for replacements. If the operator is not fluent in English, the product and safety instructions shall be read and discussed with the opera-
tor in the operator's native language by the purchaser/owner or his designee, making sure that the operator
comprehends its contents. PLEASE NOTE: Loading cart beyond rated capacity may cause structural damage to the cart as well as personal and /or
property damage. Please educate your customers to the dangers of overloading.
MSC4FD: Overall, Total Load Capacity: ............ 600 lbs.
MSC4: Overall, Total Load Capacity: .................. 500 lbs.
Lid: When Closed, Total Load Capacity: ............ 150 lbs. (evenly dispersed on top)
Lid: When Open, Total Load Capacity: .............. 5 lbs. (evenly dispersed on inside/outside)
Top Compartment Total Load Capacity: ............ 180 lbs. (evenly dispersed)
3" Split Drawers, Each: ...................................... 30 lbs. (evenly dispersed)
3" Non-Split Drawer:........................................... 70 lbs. (evenly dispersed)
4" Drawer: ........................................................... 70 lbs. (evenly dispersed)
5" Drawer: ........................................................... 70 lbs. (evenly dispersed)
Bottom Shelf ....................................................... 150 lbs. (evenly dispersed on bottom)
• Read and follow all instructions in User's Manual.
• Do not load carts beyond rated capacity
PLEASE NOTE: Loading cart beyond rated capacity may cause structural damage to the cart as well as personal and/or property
damage. Please educate your customers to the "dangers of overloading". Do not attempt to push cart with items on the top lid.
• Lock lid and drawers before moving. • Apply brake on locking casters anytime cart is in place. • Do not pull cart. Push from handle on end
to move. • Units can tip or fall causing damage or personal injury. • Cart is designed to roll easily on flat surfaces and should not be used on
uneven or inclined surfaces. • Do not open more than one loaded drawer at a time. • Do not stand on or step in drawers. • Keep children away
from unit. • Wear gloves when lifting edges. • Before connecting to a power supply, always check to make sure the power supply corresponds
to the voltage required on the product. • Fully insert plug to reduce the risk of electric shock. • Always unplug when not in use. • Disconnect
power before installing or servicing. • Do not try to plug in unit or product when hands are wet or damp, or if standing on a wet or damp
surface or in water. • Never attempt to pick up unit or plugged in product that should fall in standing water. • This unit is not waterproof
and is intended for general use indoors. • Do not use in potentially dangerous locations, such as flammable or explosive atmospheres.
• Keep cord away from heat, oil, sharp edges or moving parts. • Failure to heed these warnings may result in personal injury and/or property
damage.
WARNING
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
TROUBLESHOOTING
Problem: Drawers appear not to fit, do not slide in accurately and
bump the cart sides.
Solution: The roller bearing slides must be fully engaged into the
mounting slots on all drawers. They potentially could fall out of posi-
tion during shipment. Check the side of the cart to determine which
slide is out of position.
Remove the drawer that is out of position. The drawer is removed by
the two clips on the actual roller bearing slide.
Simply push the roller bearing slide back down into position.
Insert the drawer back onto the roller bearing slides.
Problem: Back Lock/Unlock Switch does not engage
the drawer.
Solution: The inside Lock/Unlock slide potentially could fall
out of its groove during shipment. Unscrew the four screws that are
holding the Lock/Unlock slide in place.
Once the screws are removed, simply place the latch back onto the
slide and tighten the four screws back down.
MSC4FDFISH24 2 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
TOTAL DIMENSIONS
Capacity MSC4 ............................................................. 500 lbs.
Capacity MSC4FD ........................................................600 lbs.
Total Storage Volume MSC4: ...................................19,548"^3
Total Storage Volume MSC4FD ................................ 12,105"^3
Total Lockable Storage Volume MSC4: .................... 9,845"^3
Total Lockable Storage Volume MSC4FD: ............... 12,105"^3
Height, Open Lid: ......................................................... 63.750"
Height, Closed Lid: ....................................................... 39.563"
Width without handle: ................................................. 34.969"
Width with Handle: ...................................................... 38.875"
Width with Handle & Shelf: ........................................ 52.938"
Depth: ............................................................................21.750"
WEIGHT RATINGS MSC4
Max Total Capacity MSC4: ........................................... 500 lbs.
Max Total Capacity MSC4FD ........................................600 lbs.
On top of Closed Lid: ...................................................150 lbs.
Top Surface with Opened Lid: ....................................150 lbs.
3" Split Drawer: .............................................................. 30 lbs.
3" Drawer ........................................................................70 lbs.
4" Drawer: .......................................................................70 lbs.
5" Drawer: .......................................................................70 lbs.
Bottom Shelf: ................................................................150 lbs.
SLIDES MSC4 / MSC4FD
Capacity each ..................................................................90 lbs.
CASTERS MSC4 / MSC4FD
Ground to Brace ......................................................................6"
Caster Nominal .......................................................................5"
Diameter ...........................................................................4.760"
Width ................................................................................ 1.938"
Swivel, Non-Locking ........................................................ 2 Qty.
Swivel, Locking ................................................................ 2 Qty.
Capacity Each ................................................................ 265 lbs.
PRY BAR HOLDER, 2X
Maximum Total Length ................................................. 32.750"
Maximum Handle Length of 3x ...................................... 7.125"
Max Handle Width of 3x ..................................................... 2.5"
Maximum Handle Length of 8x ..................................... 4.938"
Screw Driver Component Width: ................................... 2.750"
Large Hole Diameter (3x): ..................................................... 1"
Medium Hole Diameter (4x): .......................................... 0.750"
Small Hole Diameter: ......................................................... 0.5"
5" - FULL WIDTH, DRAWER
MSC4 (QTY. 1) / MSC4FD (QTY. 1)
Height: .................................................................................... 5"
Width ............................................................................. 29.375"
Depth: ................................................................................... 19"
Volume: ........................................................................ 2,791"^3
Qty on Cart: ......................................................................1 Qty.
4" - FULL WIDTH, DRAWER
MSC4 (QTY. 1) / MSC4FD (QTY. 2)
Height: ............................................................................. 3.938"
Width ............................................................................. 29.375"
Depth: ................................................................................... 19"
Volume: ........................................................................ 2,198"^3
3" - HALF WIDTH, DRAWER MSC4 (QTY. 2)
Height: ............................................................................ 2.938"
Width ............................................................................ 13.875"
Depth: ...................................................................................19"
Volume: .......................................................................... 775"^3
Qty on Cart: ......................................................................2 Qty
3" - FULL WIDTH, DRAWER MSC4FD (QTY. 3)
Height .............................................................................. 2.938"
Width ............................................................................. 29.375"
Depth .................................................................................... 19"
Volume ......................................................................... 1,640"^3
TOP MSC4 / MSC4FD
Height .................................................................................. 4.9"
Width ............................................................................. 33.750"
Depth .................................................................................... 20"
Volume ......................................................................... 3,308"^3
Gas Piston Strength, 2x: (70N ea) ......................... 15.737 lbf.
MATS MSC4 (QTY. 6) / MSC4FD (QTY. 7)
Thickness: ........................................................................ 0.068"
Material: ..............................................................................EVA
HANDLE MSC4 / MSC4FD
Width of Handle ............................................................ 16.875"
Grip, Depth .......................................................................1.838"
Thickness, Depth ..............................................................1.040"
STEEL THICKNESS MSC4 / MSC4FD
Lid: ( 1.5mm ) ...................................................................0.059"
Tray: ( 1.2mm ) .................................................................0.047"
Drawer: (1.2mm ) .............................................................0.047"
Legs: (2mm ) ....................................................................0.079"
HARDWARE MSC4 / MSC4FD
Size/Grade ...................................................................... M8/8.8
Torque Specifications ................................................ 16 ft. lbs.
Size/Grade ...................................................................... M5/8.8
Torque Specifications ............................................... 4.1 ft. lbs.
Size/Grade ...................................................................... M4/8.8
Torque Specifications ............................................... 2.1 ft. lbs.
MSC4FD SHIPPING DIMENSIONS
38.19" L x 25.2" W x 44.89" H
97cm L x 64cm W x 114cm H
269.0 lbs Gross Weight / 220.5 lbs Net Weight
122kg Gross / 100kg N.W.
Shipped w/Brown Box & Pallet
MSC4 SHIPPING DIMENSIONS
38.19" L x 28.35" W x 24.8" H
96cm L x 72cm W x 63cm H
202.9 lbs Gross Weight / 167.6 lbs Net Weight
92kg Gross / 76kg N.W.
Shipped w/Brown Box & Pallet
MSC4FDFISH24 3 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
MSC4 VS MSC4FD IDENTIFICATION:
MSC4 AND MSC4QAPP HAVE 4 DRAWERS
MSC4FD AND MSC4FDPP HAVE 6 DRAWERS
POWER PREP IDENTIFICATION
( "PP" OR "/PP" ):
YOUR UNIT IS A "PP" OR POWER PREP UNIT
IF IT HAS THE RUBBER CORD PROTECTOR

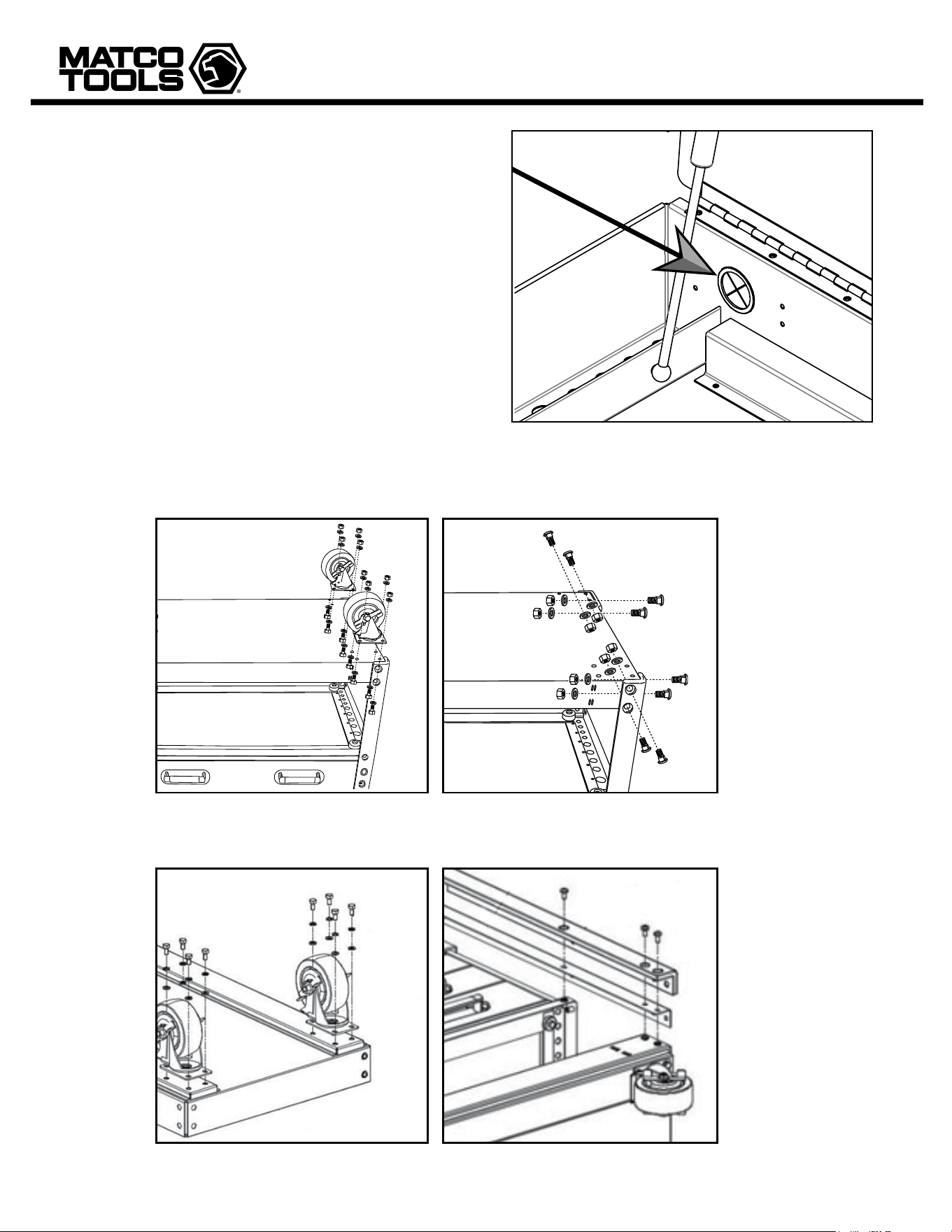

QUICK ASSEMBLY INDENTIFICATION
NON-QUICK ASSEMBLY USES CARRIAGE BOLTS WITH FLAT WASHERS AND LOCK NUTS.
QUICK ASSEMBLY USES T40 ROUND HEADED BOLTS INTO PRE-INSTALLED RIVETS.
MSC4FDFISH24 4 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024

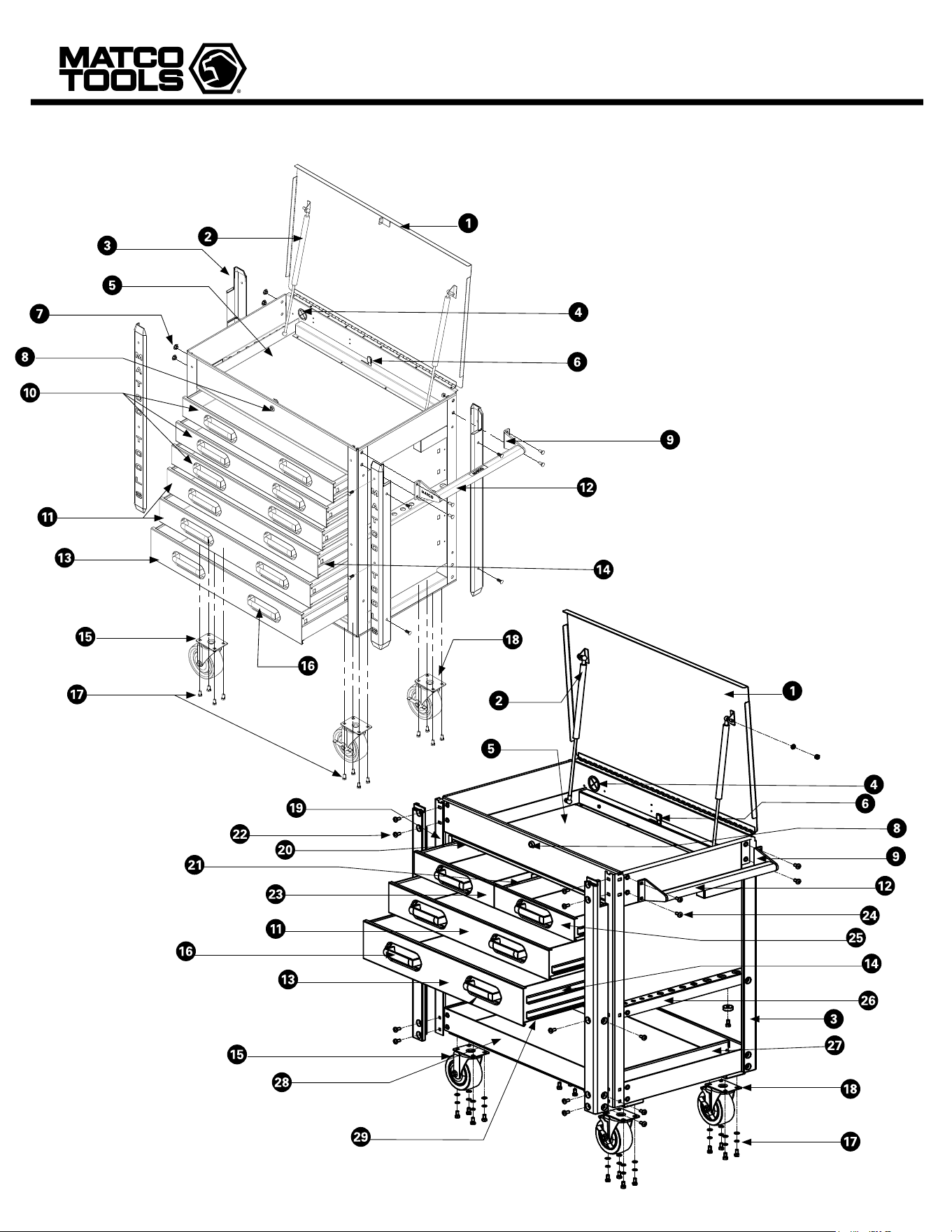

Swivel Casters
Swivel Casters
Locking
Swivel
Caster
Caster Hardware
5" Drawer
5" Drawer
Pulls
4" Drawer
4" Drawer
3" Drawer Left
3" Drawer Right
Ball Bearing Slides
3" Drawer
Bottom Tray
Reinforcement
Leg
Leg Hardware
"J" Channel
Center Clip
Ball Bearing Slides
Pulls
EVA Liner
EVA Liner
Plastic Push Caps
Push Handle Bracket
Push Handle Bracket
Push Handle
Bracket Hardware
Push Handle
Lock with Key
Lock with Key
Lock Mechanism
Lock Mechanism
Grommet
Grommet
Piston
Piston
Bumpers
Lid
Lid
HARWARE MSC4 / MSC4FD
Size/Grade ...........................M8/8.8 Torque Specifications 16 ft. lbs.
Size/Grade ...........................M5/8.8 Torque Specifications 4.1 ft. lbs.
Size/Grade ...........................M4/8.8 Torque Specifications 2.1 ft. lbs.
Bumpers
Screwdriver and
Prybar Holder
Locking
Swivel Caster
Caster
Hardware
Divider
MSC4FDFISH24 5 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
Ref
No.
Color: Description: Unit: Qty:
MSC4FD
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
1
Black
Lid, 9 Hole Each 1 MSC4FDLIDBK9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4FDLIDBK 10 Rivets, Domed, 2.6mm OD
Blue
Lid, 9 Hole Each 1 MSC4FDLIDBL9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4FDLIDBL 10 Rivets, Domed, 2.6mm OD
Red
Lid, 9 Hole Each 1 MSC4FDLIDR9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4FDLIDR 10 Rivets, Domed, 2.6mm OD
Titanium
Lid, 9 Hole Each 1 MSC4FDLIDTI9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4FDLIDTI 10 Rivets, Domed, 2.6mm OD
Silver Vein
Lid, 9 Hole Each 1 MSC4FDLIDSV9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4FDLIDSV 10 Rivets, Domed, 2.6mm OD
2
Black w/Chome
Arm
Piston
Each 2 RSGP
Qty 2 M8 Washers, Qty 2 M8 x
1.25mm Locking Hex Nuts
All Black Each 2 RSGPBK
3 Black Bumpers 4-Pc Set 1 RSMSC4FDBP 16 Push Clip Fasteners
4 Black Grommet Each 1 None RS4RCP None
5 Black EVA Liners Set 1 RSMSC4FD7LK None
6
Black
Lock Bar
Set 1 RSMSC4FDLMBK RSMSC4FDLMPBK
Qty 4 Pan Head P#2 M5x2.25mm
9.5mmL, Qty 2 Pan Head P#2
M5x0.8mm 10mmL, Qty 2 M5
Flat Washers, Qty 2 M5x0.8mm
Hex Lock Nut 8mmW 5mmThk
Blue Set 1 RSMSC4FDLMBL RSMSC4FDLMPBL
Red Set 1 RSMSC4FDLMR RSMSC4FDLMPR
Titanium Set 1 RSMSC4FDLMTI RSMSC4FDLMPTI
Silver Vein Set 1 RSMSC4FDLMBK RSMSC4FDLMPBK
7 Black Plastic Push Caps 4-Pc Set 4 RSFDPCK Qty 4 Plastic Push Caps
8
Chrome Lock w/Keys, After March, 2010 Set 1 RSLKB Complete Lock & Arm Assmbly
Chrome Lock w/Keys, Before March, 2010 Set 1 RSLKA Complete Lock & Arm Assmbly
9
Chrome
Push Handle Bracket
Pair 1 RSMSC4HB
Qty 4 Carriage M8x1.25mm SQ-
8mmWx4mmL 11mmL, Qty 4 M8
Washer, Qty4 M8 Lock Nut
Black Pair 1 RSMSC4HBBK
10
Black
3" Drawer
Each 3 MSC4FD3BK MSC4FDP3BK None
Blue Each 3 MSC4FD3BL MSC4FDP3BL None
Red Each 3 MSC4FD3R MSC4FDP3R None
Titanium Each 3 MSC4FD3TI MSC4FDP3TI None
Silver Vein Each 3 MSC4FD3SVA MSC4FDP3SVA None
11
Black
4" Drawer
Each 2 MSC4LD4BK MSC4PLD4BK None
Blue Each 2 MSC4LD4BL MSC4PLD4BL None
Red Each 2 MSC4LD4R MSC4PLD4R None
Titanium Each 2 MSC4LD4TI MSC4PLD4TI None
Silver Vein Each 2 MSC4LD4SVA MSC4PLD4SVA None
12
Black
5" Drawer
Each 1 MSC4LD5BK MSC4PLD5BK None
Blue Each 1 MSC4LD5BL MSC4PLD5BL None
Red Each 1 MSC4LD5R MSC4PLD5R None
Titanium Each 1 MSC4LD5TI MSC4PLD5TI None
Silver Vein Each 1 MSC4LD5SVA MSC4PLD5SVA None
MSC4FDFISH24 6 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
Ref
No.
Color: Description: Unit: Qty:
MSC4FD
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
13 Black Push Bar Handle Center Each 1 RSMSC4HDL None
14 Steel Ball Bearing Slides Pair 6 RSRBS None
15
Chrome
Swivel Caster, 5" x 2"
Each 2 RSSWCS None
Black Each 2 RSSWCSBK None
Black Swivel Caster, 6” Each 2 RS6INNLC01
None
None
16
Black
Drawer Pulls
6-Pc Set 1 MSC4HBK
Qty 6 Pan Head P#2
M4x0.7mm 6mmL, Qty 6
M4 Flat Washers
Chrome 6-Pc Set 1 MSC4HC
Blue 6-Pc Set 1 MSC4HBL
Red 6-Pc Set 1 MSC4HBR
17
Chrome
Caster Hardware Kit
Set 1 RSMSC4FDBK
Qty 16 Hex Head 13mmW
M8x1.25mm 16mmL, Qty
16 M8 Spring Washer
Black Set 1 RSMSC4FDBKBK
18
Chrome
Locking Swivel Caster, 5" x 2"
Each 2 RSSWLCS None
Black Each 2 RSSWLCSBK None
Black Locking Swivel Caster, 6” Each 2 RS6INLC01
None
None
19
Black
Leg
Each 4
None
Blue Each 4
Red Each 4
Titanium Each 4
Silver Vein Each 4
20
Black
J-Channel
Each 2
None
Blue Each 2
Red Each 2
Titanium Each 2
Silver Vein Each 2
21
Black
Center Clip
Each 1
None
Blue Each 1
Red Each 1
Titanium Each 1
Silver Vein Each 1
22
Chrome
Hardware for Leg
Each 32
None
Black Each 32
23
Black
Blue
Red
Titanium
Silver Vein
3" Drawer Left
Each 1
None
Each 1
Each 1
Each 1
Each 1
24
Chrome
Black
Bracket Hardware for Push Handle
Set 8
None
Set 8
MSC4FDFISH24 7 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
Ref
No.
Color: Description: Unit: Qty:
MSC4FD
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
25
Black
3" Drawer Right
Each 1
None
Blue Each 1
Red Each 1
Titanium Each 1
Silver Vein Each 1
26
Black
Screwdriver & Pry Bar Holder
Each 2
None
Blue Each 2
Red Each 2
Titanium Each 2
Silver Vein Each 2
27
Black
Divider for
Bottom Shelf
Each 1
None
Blue Each 1
Red Each 1
Titanium Each 1
Silver Vein Each 1
28
Black
Bottom shelf for 5” Caster
Each 1
None
Blue Each 1
Red Each 1
Titanium Each 1
Silver Vein Each 1
Black
Bottom Shelf for 6” Caster
Each 1
None
Blue Each 1
Red Each 1
Titanium Each 1
Silver Vein Each 1
29
Black
Reinforcement Piece
Each 2
None
Blue Each 2
Red Each 2
Titanium Each 2
Silver Vein Each 2
Ref
No.
Color: Description: Unit: Qty:
MSC4FD
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
13 Black Push Bar Handle Center Each 1 RSMSC4HDL None
14 Steel Ball Bearing Slides Pair 6 RSRBS None
15
Chrome
Swivel Caster, 5" x 2"
Each 2 RSSWCS None
Black Each 2 RSSWCSBK None
Black Swivel Caster, 6” Each 2 RS6INNLC01
None
None
16
Black
Drawer Pulls
6-Pc Set 1 MSC4HBK
Qty 6 Pan Head P#2
M4x0.7mm 6mmL, Qty 6
M4 Flat Washers
Chrome 6-Pc Set 1 MSC4HC
Blue 6-Pc Set 1 MSC4HBL
Red 6-Pc Set 1 MSC4HBR
17
Chrome
Caster Hardware Kit
Set 1 RSMSC4FDBK
Qty 16 Hex Head 13mmW
M8x1.25mm 16mmL, Qty
16 M8 Spring Washer
Black Set 1 RSMSC4FDBKBK
18
Chrome
Locking Swivel Caster, 5" x 2"
Each 2 RSSWLCS None
Black Each 2 RSSWLCSBK None
Black Locking Swivel Caster, 6” Each 2 RS6INLC01
None
None
19
Black
Leg
Each 4
None
Blue Each 4
Red Each 4
Titanium Each 4
Silver Vein Each 4
20
Black
J-Channel
Each 2
None
Blue Each 2
Red Each 2
Titanium Each 2
Silver Vein Each 2
21
Black
Center Clip
Each 1
None
Blue Each 1
Red Each 1
Titanium Each 1
Silver Vein Each 1
22
Chrome
Hardware for Leg
Each 32
None
Black Each 32
23
Black
Blue
Red
Titanium
Silver Vein
3" Drawer Left
Each 1
None
Each 1
Each 1
Each 1
Each 1
24
Chrome
Black
Bracket Hardware for Push Handle
Set 8
None
Set 8
MSC4FDFISH24 8 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
Ref
No.
Color: Description: Unit: Qty:
MSC4 MSC4FD
Non QA/PP w/QA w/PP
Included Hardware:
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU: SKU: SKU:
30
Black
Touch Up Paint
Each 1 RSPAINTJGSF114
Blue Each 1 RSPAINTJGSF012
Red Each 1 RSPAINTJGSF028
Titanium Each 1 RSPAINTJGSF031
Silver Vein Each 1 Not Offered
SKU: Description: Color:
MSC4C Cover for MSC4/MSC4FD Black
MSC4SSBK Side Shelf for MSC4/MSC4FD Black
MSC4SSBL Side Shelf for MSC4/MSC4FD Blue
MSC4SSR Side Shelf for MSC4/MSC4FD Red
MSC4SSTI Side Shelf for MSC4/MSC4FD Titanium
MSC4SSSVA Side Shelf for MSC4/MSC4FD Silver Vein
CART-POWER3 Power Strip, 3 Outlet, 2 USB Black
If you have a limited edition MSC4 or MSC4FD
please contact customer service
for availability of cart specic part numbers.
MSC4FDFISH24 9 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024

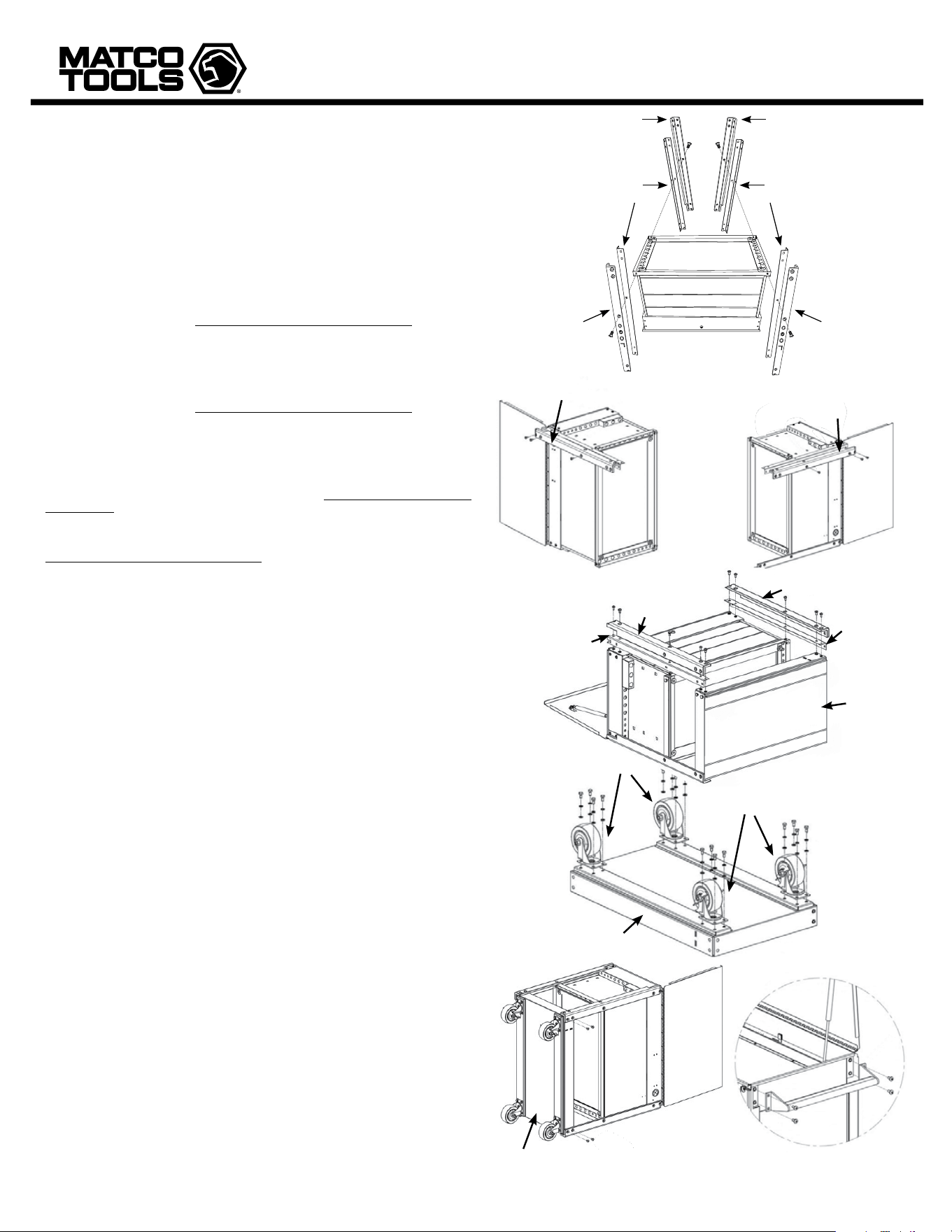

STEP 1 While the cart lid is in the locked position, gently place the cart’s main body
UPSIDE DOWN on a protected surface that will not scratch the lid.
Repeat on each corner:
A. Place the correct bumper onto the leg and then place this group onto the main
cart body.
B. Insert (1) round headed T40 bolt (16mm L) from hardware kit into the CENTER
HOLE of the bumper/leg and into the CENTER HOLE of the main cart body.
C. Loosely hand tighten each of the round headed T40 bolts.
STEP 2 Gently rotate the cart assembly onto its LEFT SIDE on a protected surface so
that no scratches are made on the main cart. Unlock the lid and lift it open. Insert
an additional (2) round headed T40 bolt (16mm L) from hardware kit into the back
TOP REAR RIGHT HOLE of the bumper/leg and into the back TOP REAR RIGHT
HOLE of the main cart body. DO NOT place these bolts in the top sides. Loosely
hand tighten each of the round headed T40 bolts.
STEP 3 Gently rotate the cart assembly onto its RIGHT SIDE onto a protected surface
so that no scratches are made on the main cart. Unlock the lid and lift it open.
Insert an additional (2) round headed T40 bolt (16mm L) from hardware kit into the
back TOP REAR LEFT HOLE of the bumper/leg and into the back TOP REAR LEFT
HOLE of the main cart body. DO NOT place these bolts in the top sides. Loosely
hand tighten each of the round headed T40 bolts.
STEP 4 Gently rotate the cart assembly onto its BACK SIDE onto a protected
surface so that no scratches are made on the main cart.
Bumper /Leg: Insert an additional (2) round headed T40 bolts (16mm L) from
hardware kit (#11) into the back TOP REAR LEFT HOLE of the bumper/leg and into
the back TOP REAR LEFT HOLE of the main cart body. DO NOT place these bolts in
the top sides. Loosely hand tighten each of the round headed T40 bolts. Bumper /
Leg: Insert an additional (2) round headed T40 bolts (16mm L) from hardware kit
(#11) into the back TOP REAR RIGHT HOLE of the bumper/leg and into the back TOP
REAR RIGHT HOLE of the main cart body.
DO NOT place these bolts in the top sides. Loosely hand tighten each of the round
headed T40 bolts.
STEP 5 Place the bottom shelf into the bottom portion of the four bumper/leg
assemblies protruding from the main cart body. Repeat for EACH Bumper/Leg
(12Xs): Insert (1) round headed T40 bolt (16mm L) from hardware kit into FRONT
LEFT and FRONT RIGHT holes at the bottom of each bumper/leg and the bottom
shelf. Loosely hand tighten each of the round headed T40 bolts.
STEP 6 Repeat 4Xs: Insert (1) round headed T40 bolt (16mm L) from hardware kit
into each CENTER LEFT and CENTER RIGHT holes of the bumper/leg and into the
main cart body. Loosely hand tighten each of the round headed T40 bolts.
STEP 7 Tighten all (32) round headed T40 bolts from Steps 1 through 6.
After all (32) bolts are tightened, torque all to 16 ft-lbs.
STEP 8 On your desired side (left or right), place the locking swivel casters onto the
bottom of the bottom shelf. Repeat 8Xs: From the caster hardware (#30), Insert (1)
hex head bolt into (1) M8 Spring washer, and then into (1) M8 flat washer. Insert
full bolt assembly into the bottom shelf. Tighten and then torque all (8) bolts to 16
ft-lbs.
STEP 9 On the other side, place the non-locking swivel casters onto the bottom of
the bottom shelf.
Repeat 8Xs: From the caster hardware , insert (1) hex head bolt into (1) M8 Spring
washer, and then into (1) M8 flat washer. Insert full bolt assembly into the bottom
shelf. Tighten and then torque all (8) bolts to 16 ft-lbs.
STEP 10 Gently rotate the cart assembly onto its RIGHT SIDE onto a protected
surface so that no
scratches are made on the main cart. Repeat 4Xs: Insert (1) round headed T40 bolt
(16mm L) from hardware kit into each BACK BOTTOM HOLE of the bumper/leg and
the bottom shelf. Tighten all (10) round headed T40 bolts on the back of the cart
assembly. After all (10) bolts are tightened, torque all to 16 ft-lbs.
STEP 11 On the side with the locking swivel casters : place the push handle into
the (2) handle brackets and onto the cart assembly. Repeat 4Xs: Insert (1) round
headed T40 bolt (18mm L) from hardware kit into each of the (4) holes of the
handle brackets and into the cart assembly. Tighten and then torque all (4) T40
bolts to 16 ft-lbs.
STEP 12 For the other side: Repeat 4Xs: insert and tighten (1) round headed T40 bolt
(16mm L) from hardware kit (#11) into each of the (4) holes of the cart assembly.
Tighten and then torque all (4) T40 bolts to 16 ft-lbs. to complete assembly.
MSC4 ASSEMBLY:
Back RIGHT Bumper/Leg
LEFT SIDE
(Back View)
STEP 2
Back LEFT Bumper/Leg
RIGHT SIDE
(Back View)
STEP 3
Back RIGHT
Bumper
Main Cart Body
(Upside Down)
Leg
Leg
Back LEFT
Bumper
Front RIGHT
Bumper
Front LEFT
Bumper
STEP 1
Bottom Shelf
Locking Swivel Casters
Non-Locking Swivel Casters
STEP 8, 9
Bottom Shelf
RIGHT SIDE
(Back View)
STEP 10
STEP 11, 12
Front LEFT
Bumper
Front RIGHT
Bumper
Leg
Leg
Bottom
Shelf
STEP 4
MSC4FDFISH24 10 REV. 102323
MSC4FDFISH24
FULL DRAWER SERVICE CART THEME - FISH 2024
WARRANTY
This MATCO TOOLS service/storage cart carries a one (1) year warranty (only for the parts listed below) subject to the terms and
conditions below.
What is Covered
MATCO TOOLS warrants the following components of this product to be free from defects in workmanship and materials.
The components covered by the one (1) year warranty include welded joints, paint, drawers, lid, hinge, slides, casters, handles
and pulls, gas pistons, bumpers, key lock, drawer lock mechanism, hardware, clips, and grommets.
What is NOT Covered (Exclusions)
This warranty does not cover normal wear, damage caused by neglect and misuse. Disassembly of any product will void the
warranty. This warranty also only applies to a genuine MATCO TOOLS branded product that was purchased from an authorized
MATCO TOOLS dealer. Purchases outside of this are not covered. If the product has been modified in any way it will not be
covered.
Drawer liners are not covered under warranty.
Themed, Special or Limited Edition Product - Any MATCO TOOLS storage/service cart that is a limited, special, or themed design
will not be covered under the one (1) year warranty due to the special paint, decals, and screen-printing. Therefore, decals and
screen-printing, and will only carry an OUT OF THE BOX warranty. However, other interchangeable components such as the
drawers, lid, gas pistons, bumpers, casters, slides, hardware, key lock, drawer lock mechanism, clips and grommets will all retain
the one (1) year warranty.
