• Page 1: SI1F7955B User Manual Hob Notice dutili sation Table de cuisson Benutzerin formation Kochfeld
• Page 2 - English - : CONTENTS Safety information 2 Safety instructions 4 Product description 6 Daily use 8 Flexible induction cooking area 12 Hints and tips 15 Care and cleaning 18 Troubleshooting 18 Installation 21 Technical data 22 Energy efficiency 23 Subject to change without notice SAFETY INFORMATION Before the installation and use of the appliance carefully read the supplied instructions The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage Always keep the instructions in a safe and accessible location for future reference Children and vulnerable people safety This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised Children of less than 3 years of age should be kept away unless continuously supervised Do not let children play with the appliance Keep all packaging away from children and dispose of it appropriately Keep children and pets away from the appliance when it operates or when it cools down Accessible parts are hot If the appliance has a child safety device it should be activated Children shall not carry out cleaning and user maintenance of the appliance without supervision
• Page 3 - English - : General Safety WARNING The appliance and its accessible parts become hot during use Care should be taken to avoid touching heating elements Do not operate the appliance by means of an external timer or separate remotecontrol system WARNING Unattended cooking on a hob with fat or oil can be dangerous and may result in fire NEVER try to extinguish a fire with water but switch off the appliance and then cover flame eg with a lid or a fire blanket CAUTION The cooking process has to be supervised A short term cooking process has to be supervised continuously WARNING Danger of fire Do not store items on the cooking surfaces Metallic objects such as knives forks spoons and lids should not be placed on the hob surface since they can get hot Do not use a steam cleaner to clean the appliance After use switch off the hob element by its control and do not rely on the pan detector If the glass ceramic surface glass surface is cracked switch off the appliance and unplug it from the mains In case the appliance is connected to the mains directly using junction box remove the fuse to disconnect the appliance from power supply In either case contact the Authorised Service Centre If the supply cord is damaged it must be replaced by the manufacturer an authorized Service or similarly qualified persons in order to avoid a hazard WARNING Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance The use of inappropriate guards can cause accidents
• Page 4 - English - : SAFETY INSTRUCTIONS Installation WARNING Only a qualified person must install this appliance WARNING Risk of injury or damage to the appliance Remove all the packaging Do not install or use a damaged appliance Follow the installation instructions supplied with the appliance Keep the minimum distance from other appliances and units Always take care when moving the appliance as it is heavy Always use safety gloves and enclosed footwear Seal the cut surfaces with a sealant to prevent moisture to cause swelling Protect the bottom of the appliance from steam and moisture Do not install the appliance adjacent to a door or under a window This prevents hot cookware falling from the appliance when the door or the window is opened Each appliance has cooling fans on the bottom If the appliance is installed above a drawer Do not store any small pieces or sheets of paper that could be pulled in as they can damage the cooling fans or impair the cooling system Keep a distance of minimum 2 cm between the bottom of the appliance and parts stored in the drawer Electrical Connection WARNING Risk of fire and electric shock All electrical connections should be made by a qualified electrician The appliance must be earthed Before carrying out any operation make sure that the appliance is disconnected from the power supply Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply Make sure the appliance is installed correctly Loose and incorrect electricity mains cable or plug if applicable can make the terminal become too hot Use the correct electricity mains cable Do not let the electricity mains cable tangle Make sure that a shock protection is installed Use the strain relief clamp on the cable Make sure the mains cable or plug if applicable does not touch the hot appliance or hot cookware when you connect the appliance to the near sockets Do not use multiplug adapters and extension cables Make sure not to cause damage to the mains plug if applicable or to the mains cable Contact our Authorised Service Centre or an electrician to change a damaged mains cable The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools Connect the mains plug to the mains socket only at the end of the installation Make sure that there is access to the mains plug after the installation If the mains socket is loose do not connect the mains plug Do not pull the mains cable to disconnect the appliance Always pull the mains plug Use only correct isolation devices line protecting cutouts fuses screw type fuses removed from the holder earth leakage trips and contactors The electrical installation must have an isolation device which lets you
• Page 5 - English - : disconnect the appliance from the mains at all poles The isolation device must have a contact opening width of minimum 3 mm Use WARNING Risk of injury burns and electric shock Remove all the packaging labelling and protective film if applicable before first use Use this appliance in a household environment Do not change the specification of this appliance Make sure that the ventilation openings are not blocked Do not let the appliance stay unattended during operation Set the cooking zone to off after each use Do not rely on the pan detector Do not put cutlery or saucepan lids on the cooking zones They can become hot Do not operate the appliance with wet hands or when it has contact with water Do not use the appliance as a work surface or as a storage surface If the surface of the appliance is cracked disconnect immediately the appliance from the power supply This to prevent an electrical shock Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation When you place food into hot oil it may splash WARNING Risk of fire and explosion Fats and oil when heated can release flammable vapours Keep flames or heated objects away from fats and oils when you cook with them The vapours that very hot oil releases can cause spontaneous combustion Used oil that can contain food remnants can cause fire at a lower temperature than oil used for the first time Do not put flammable products or items that are wet with flammable products in near or on the appliance WARNING Risk of damage to the appliance Do not keep hot cookware on the control panel Do not put a hot pan cover on the glass surface of the hob Do not let cookware to boil dry Be careful not to let objects or cookware fall on the appliance The surface can be damaged Do not activate the cooking zones with empty cookware or without cookware Do not put aluminium foil on the appliance Cookware made of cast iron aluminium or with a damaged bottom can cause scratches on the glass glass ceramic Always lift these objects up when you have to move them on the cooking surface This appliance is for cooking purposes only It must not be used for other purposes for example room heating Care and cleaning Clean the appliance regularly to prevent the deterioration of the surface material Deactivate the appliance and let it cool down before you clean it Disconnect the appliance from the electrical supply before maintenance Do not use water spray and steam to clean the appliance Clean the appliance with a moist soft cloth Only use neutral detergents Do not use any abrasive products abrasive cleaning pads solvents or metal objects
• Page 6 - English - : Service To repair the appliance contact an Authorised Service Centre Use original spare parts only Disposal WARNING Risk of injury or suffocation Contact your municipal authority for information on how to discard the appliance correctly Disconnect the appliance from the mains supply Cut off the mains electrical cable close to the appliance and dispose of it PRODUCT DESCRIPTION Cooking surface layout 3 2 Induction cooking zone Control panel Flexible induction cooking area consisting of four sections Control panel layout 751 2 3 4 8 12 910 Use the sensor fields to operate the appliance The displays indicators and sounds tell which functions operate Sensor field Function Comment ON OFF To activate and deactivate the hob Lock Child Safety De vice To lock unlock the control panel FlexiHeat To activate and deactivate the function
• Page 7 - English - : Sensor field Function Comment Flexi4Zone To switch between three modes of the func tion Heat setting display To show the heat setting Timer indicators of cooking zones To show for which zone you set the time Timer display To show the time in minutes AutoVent To activate and deactivate the manual mode of the function Pause To activate and deactivate the function Control bar To set a heat setting To select the cooking zone To increase or decrease the time Control bar To show the heat setting for the flexible in duction cooking area Heat setting displays Display Description The cooking zone is deactivated The cooking zone operates Pause operates Accelerator operates Power function operates digit There is a malfunction EcoHeat 3step Residual heat indicator continue cooking keep warm residual heat Lock Child Safety Device operates Incorrect or too small cookware or no cookware on the cooking zone Automatic Switch Off operates FlexiHeat operates
• Page 8 - English - : EcoHeat 3 step Residual heat indicator WARNING There is a risk of burns from residual heat The indicators show the level of the residual heat for the cooking zones you are currently using The indicators may also come on for the neighbouring cooking zones even if you are not using them The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware The glass ceramic is heated by the heat of the cookware DAILY USE WARNING Refer to Safety chapters Activating and deactivating Touch for 1 second to activate or deactivate the hob Automatic Switch Off The function deactivates the hob automatically if all cooking zones are deactivated you do not set the heat setting after you activate the hob you spill something or put something on the control panel for more than 10 seconds a pan a cloth etc An acoustic signal sounds and the hob deactivates Remove the object or clean the control panel the hob gets too hot eg when a saucepan boils dry Let the cooking zone cool down before you use the hob again you use incorrect cookware The symbol comes on and the cooking zone deactivates automatically after 2 minutes you do not deactivate a cooking zone or change the heat setting After some time comes on and the hob deactivates The relation between the heat setting and the time after which the hob deactivates Heat setting The hob deacti vates after 1 3 6 hours 4 7 5 hours 8 9 4 hours 10 14 15 hour The heat setting To set or change the heat setting Touch the control bar at the correct heat setting or move your finger along the control bar until you reach the correct heat setting Using the cooking zones Place the cookware in the centre of the selected zone Induction cooking zones adapt to the dimension of the bottom of the cookware automatically
• Page 9 - English - : Accelerator Activate this function to get a desired heat setting in a shorter time When it is on the zone operates on the highest setting in the beginning and then continues to cook at the desired heating setting To activate the function the cooking zone must be cold To activate the function for a cooking zone touch the end of the control bar on the right comes on Immediately touch a desired heat setting After 3 seconds comes on To deactivate the function change the heat setting Power function This function makes more power available to the induction cooking zones The function can be activated for the induction cooking zone only for a limited period of time After this time the induction cooking zone automatically sets back to the highest heat setting Refer to Technical information chapter To activate the function for a cooking zone touch the end of the control bar on the right comes on To deactivate the function change the heat setting Timer Count Down Timer You can use this function to set how long the cooking zone should operate for a single cooking session First set the heat setting for the cooking zone then set the function To set the cooking zone touch again and again until the indicator of a necessary cooking zone comes on To activate the function touch of the timer to set the time 00 99 minutes When the indicator of the cooking zone starts to flash slowly the time counts down To see the remaining time set the cooking zone with The indicator of the cooking zone starts to flash quickly The display shows the remaining time To change the time set the cooking zone with Touch or To deactivate the function set the cooking zone with and touch The remaining time counts back to 00 The indicator of the cooking zone goes out When the time comes to an end the sound operates and 00 flashes The cooking zone deactivates To stop the sound touch CountUp Timer The count up timer You can use this function to monitor how long the cooking zone operates To set the cooking zone touch again and again until the indicator of a necessary cooking zone comes on To activate the function touch of the timer comes on When the indicator of the cooking zone starts to flash slowly the time counts up The display switches between and counted time minutes To see how long the cooking zone operates set the cooking zone with The indicator of the cooking zone starts to flash quickly The display shows how long the zone operates To deactivate the function set the cooking zone with and touch or The indicator of the cooking zone goes out Minute Minder You can use this function as a Minute Minder when the hob is activated and the
• Page 10 - English - : cooking zones do not operate The heat setting display shows To activate the function touch Touch or of the timer to set the time When the time comes to an end the sound operates and 00 flashes To stop the sound touch The function has no effect on the operation of the cooking zones Pause This function sets all cooking zones that operate to the lowest heat setting When the function operates all other symbols on the control panels are locked The function does not stop the timer functions Touch to activate the function comes on The heat setting is lowered to 1 To deactivate the function touch The previous heat setting comes on Lock You can lock the control panel while cooking zones operate It prevents an accidental change of the heat setting Set the heat setting first To activate the function touch comes on for 4 seconds The Timer stays on To deactivate the function touch The previous heat setting comes on When you deactivate the hob you also deactivate this function Child Safety Device This function prevents an accidental operation of the hob To activate the function activate the hob with Do not set the heat setting Touch for 4 seconds comes on Deactivate the hob with To deactivate the function activate the hob with Do not set the heat setting Touch for 4 seconds comes on Deactivate the hob with To override the function for only one cooking time activate the hob with comes on Touch for 4 seconds Set the heat setting in 10 seconds You can operate the hob When you deactivate the hob with the function operates again OffSound Control Deactivating and activating the sounds Deactivate the hob Touch for 3 seconds The display comes on and goes out Touch for 3 seconds or comes on Touch of the timer to choose one of the following the sounds are off the sounds are on To confirm your selection wait until the hob deactivates automatically When the function is set to you can hear the sounds only when you touch Minute Minder comes down Count Down Timer comes down you put something on the control panel Power management Cooking zones are grouped according to the location and number of the phases in the hob See the illustration Each phase has a maximum electricity loading of 3700 W The function divides the power between cooking zones connected to the same phase The function activates when the total electricity loading of the cooking zones
• Page 11 - English - : connected to a single phase exceeds 3700 W The function decreases the power to the other cooking zones connected to the same phase The heat setting display of the reduced zones changes between two levels AutoVent It is an advanced automatic function which connects the hob to an AutoVent hood Both the hob and the hood have an infrared signal communicator Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob You can also operate the fan from the hob manually For most of the hoods the remote system is originally deactivated Activate it before you use the function For more information refer to hood user manual Operating the function automatically To operate the function automatically set the automatic mode to H1 H6 The hob is originally set to H5 The hood reacts whenever you operate the hob The hob recognizes temperature of the cookware automatically and adjusts the speed of the fan Automatic modes Auto matic light Boil ing 1 Fry ing 2 Mode H0 Off Off Off Mode H1 On Off Off Mode H2 3 On Fan speed Fan speed Mode H3 On Off Fan speed Mode H4 On Fan speed Fan speed Mode H5 On Fan speed Fan speed Mode H6 On Fan speed Fan speed 1 The hob detects the boiling process and activates fan speed in accordance with automatic mode 2 The hob detects the frying process and activates fan speed in accordance with automatic mode 3 This mode activates the fan and the light and does not rely on the temperature Changing the automatic mode 1 Deactivate the appliance 2 Touch for 3 seconds The display comes on and goes off 3 Touch for 3 seconds 4 Touch a few times until comes on 5 Touch of the Timer to select an automatic mode To operate the hood directly on the hood panel deactivate the automatic mode of the function
• Page 12 - English - : When you finish cooking and deactivate the hob the hood fan may still operate for a certain period of time After that time the system deactivates the fan automatically and prevents you from accidental activation of the fan for the next 30 seconds Operating the fan speed manually You can also operate the function manually To do that touch when the hob is active This deactivates automatic operation of the function and allows you to change the fan speed manually When you press you raise the fan speed by one When you reach an intensive level and press again you will set fan speed to 0 which deactivates the hood fan To start the fan again with fan speed 1 touch To activate automatic operation of the function deactivate the hob and activate it again Activating the light You can set the hob to activate the light automatically whenever you activate the hob To do so set the automatic mode to H1 H6 The light on the hood deactivates 2 minutes after deactivating the hob FLEXIBLE INDUCTION COOKING AREA WARNING Refer to Safety chapters Flexi4Zone function The flexible induction cooking area consists of four sections The sections can be combined into two cooking zones with different size or into one large cooking area You choose the combination of the sections by choosing the mode applicable to the size of the cookware you want to use There are three modes Standard activated automatically when you activate the hob Big mode and Max mode To set the heat setting use two left side control bars Switching between the modes To switch between the modes use sensor field When you switch between the modes the heat setting is set back to 0 Diameter and position of the cookware Choose the mode applicable to the size and the shape of the cookware The cookware should cover the selected area as much as possible Place the cookware centrally on the selected area Place the cookware with the bottom diameter smaller than 160 mm centrally on a single section

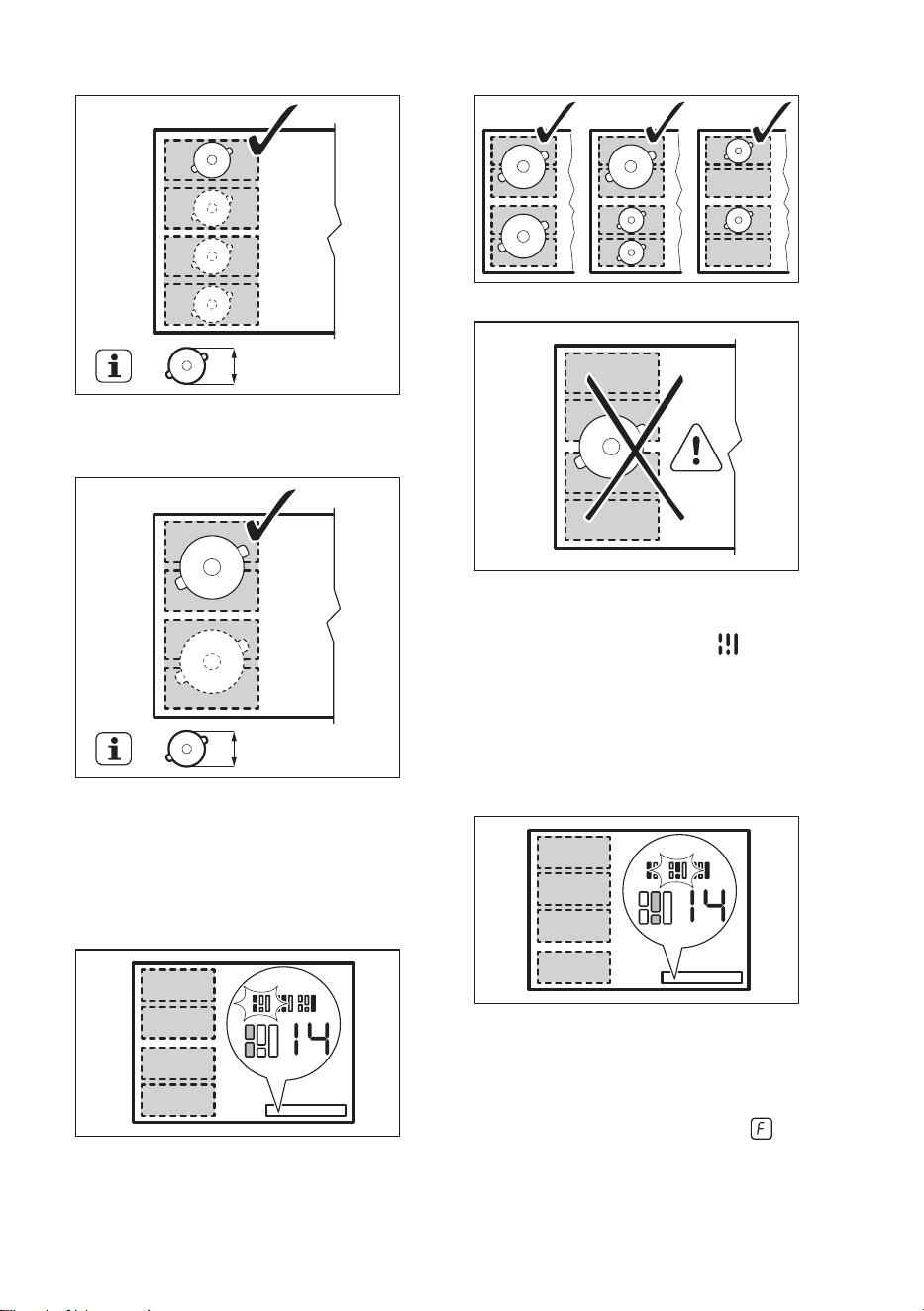

• Page 13 - English - : 100160mm Place the cookware with the bottom diameter larger then 160 mm centrally between two sections gt 160 mm Flexi4Zone standard mode This mode is active when you activate the hob It connects the sections into two separate cooking zones You can set the heat setting for each zone separately Use two left side control bars Correct cookware position Incorrect cookware position Flexi4Zone big mode To activate the mode press until you see the correct mode indicator This mode connects three rear sections into one cooking zone The one front section is not connected and operates as a separate cooking zone You can set the heat setting for each zone separately Use two left side control bars Correct cookware position To use this mode you have to place the cookware on the three connected sections If you use cookware smaller than two sections the display shows and after 2 minutes the zone switches off

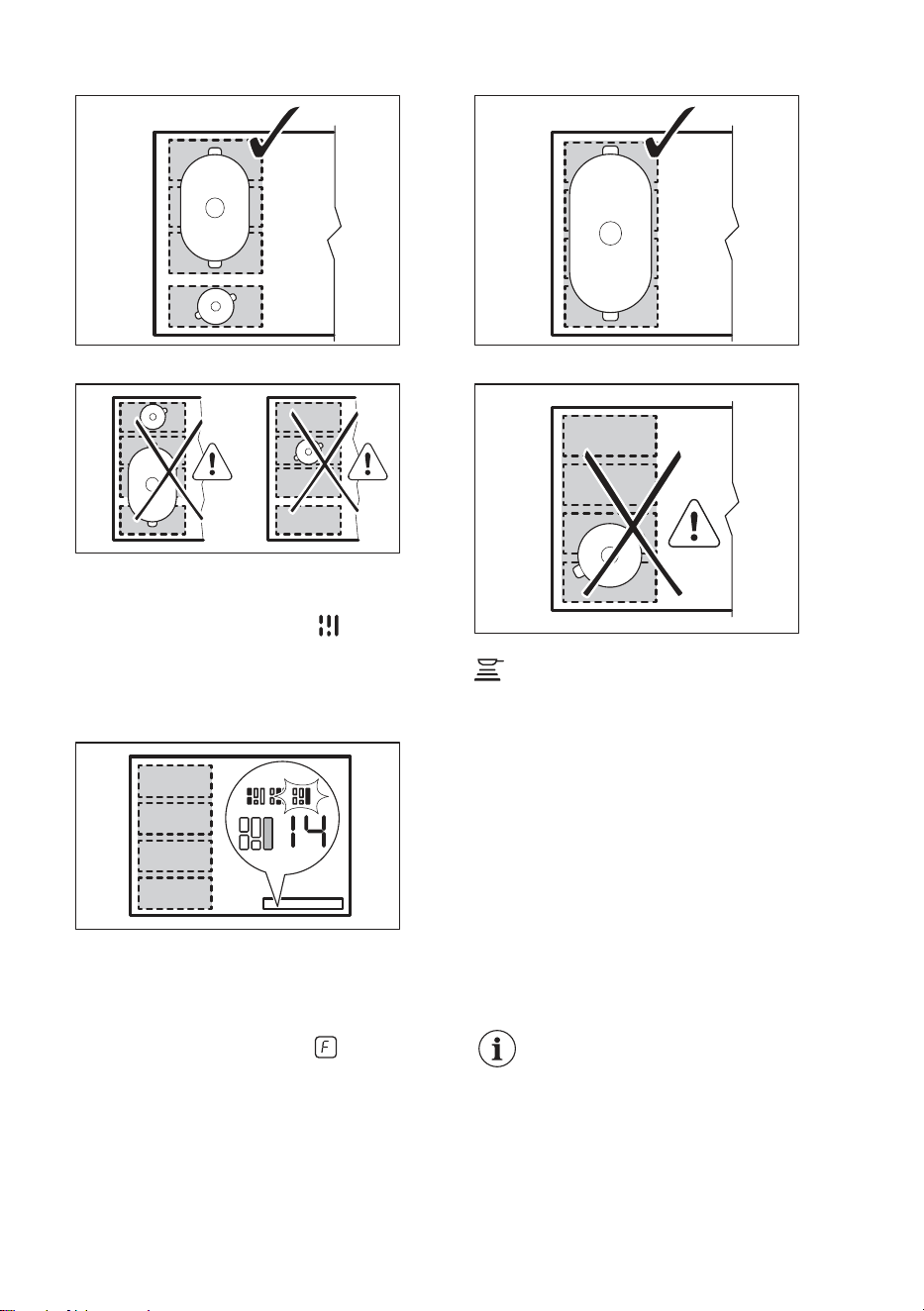

• Page 14 - English - : Incorrect cookware position Flexi4Zone max mode To activate the mode press until you see the correct mode indicator This mode connects all sections into one cooking zone To set the heat setting use any of the two control bars on the left side Correct cookware position To use this mode you have to place the cookware on the four connected sections If you use cookware smaller than three sections the display shows and after 2 minutes the zone switches off Incorrect cookware position FlexiHeat This function allows you to adjust the temperature by moving the cookware to a different position on the induction cooking area The function divides the induction cooking area into three areas with different heat settings The hob detects the position of the cookware and adjust the heat setting corresponding with the position You can place the cookware in the front middle or rear position If you place the cookware in the front you get the highest heat setting To decrease it move the cookware to middle or rear position Use only one pot when you operate the function

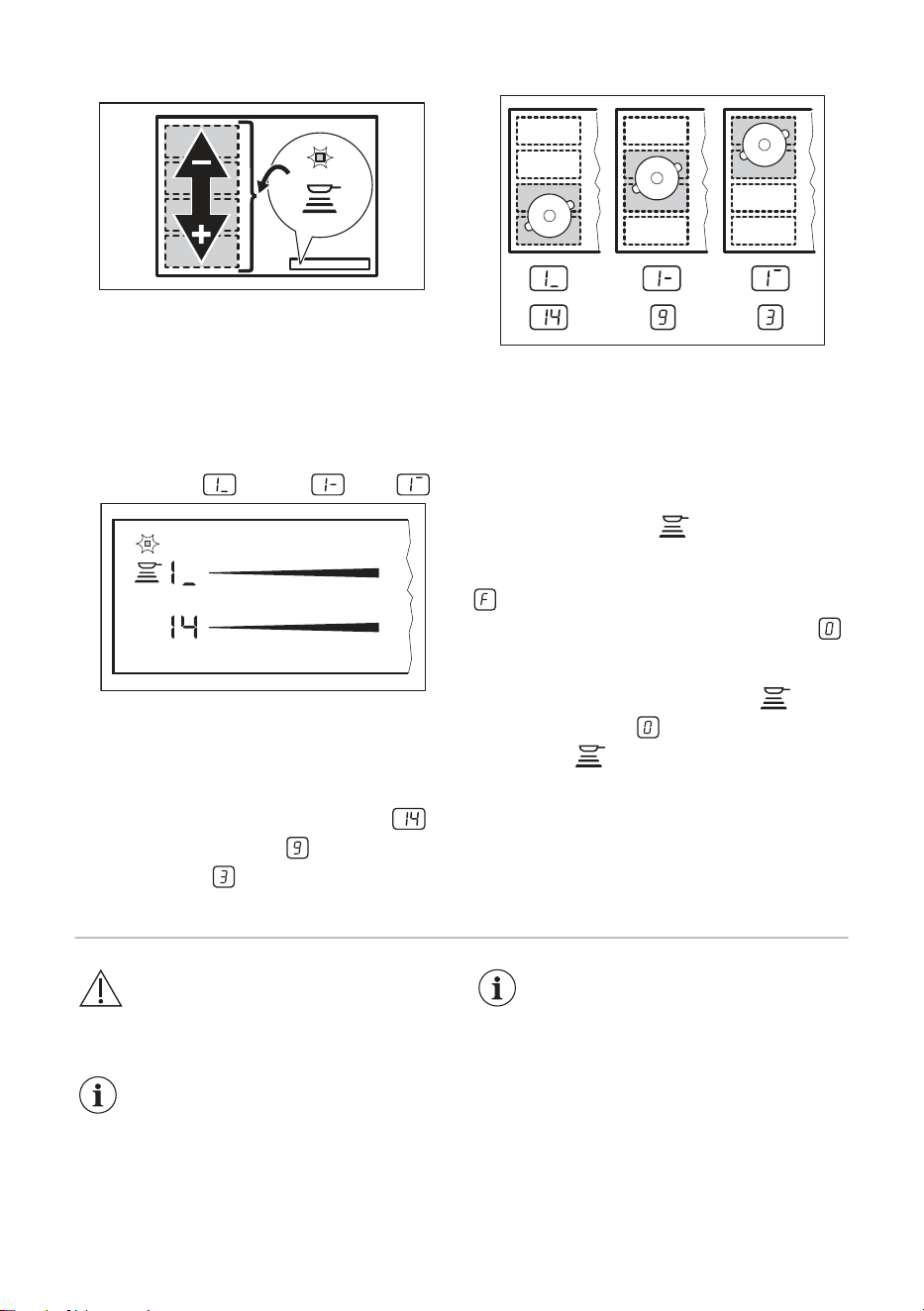

• Page 15 - English - : General information 160 mm is the minimum bottom diameter of the cookware for this function Heat setting display for the left rear control bar shows the position of the cookware on the induction cooking area Front middle rear Heat setting display for the left front control bar shows the heat setting To change the heat setting use left front control bar When you activate the function for the first time you will get heat setting for the front position for the middle position and for the rear position You can change the heat settings for each position separately The hob will remember your heat settings next time you activate the function Activating the function To activate the function place the cookware in the correct position on the cooking area Touch The indicator above the symbol comes on If you do not place the cookware on the cooking area comes on and after 2 minutes the flexible induction cooking area is set to Deactivating the function To deactivate the function touch or set the heat setting to The indicator above the symbol goes off HINTS AND TIPS WARNING Refer to Safety chapters Cookware For induction cooking zones a strong electromagnetic field creates the heat in the cookware very quickly Use the induction cooking zones with suitable cookware Cookware material correct cast iron steel enamelled steel stainless steel multilayer bottom with a correct marking from a manufacturer not correct aluminium copper brass glass ceramic porcelain Cookware is suitable for an induction hob if
• Page 16 - English - : water boils very quickly on a zone set to the highest heat setting a magnet pulls on to the bottom of the cookware The bottom of the cookware must be as thick and flat as possible Ensure pan bases are clean and dry before placing on the hob surface Cookware dimensions Induction cooking zones adapt to the dimension of the bottom of the cookware automatically The cooking zone efficiency is related to the diameter of the cookware The cookware with a diameter smaller than the minimum receives only a part of the power generated by the cooking zone Refer to quotTechnical dataquot The noises during operation If you can hear crack noise cookware is made of different materials a sandwich construction whistle sound you use a cooking zone with a high power level and the cookware is made of different materials a sandwich construction humming you use a high power level clicking electric switching occurs hissing buzzing the fan operates The noises are normal and do not indicate any malfunction EcoOff Eco Timer To save energy the heater of the cooking zone deactivates before the count down timer sounds The difference in the operation time depends on the heat setting level and the length of the cooking operation Examples of cooking applications The correlation between the heat setting of a zone and its consumption of power is not linear When you increase the heat setting it is not proportional to the increase of the consumption of power It means that a cooking zone with the medium heat setting uses less than a half of its power The data in the table is for guidance only Heat setting Use to Time min Hints 1 Keep cooked food warm as nec essary Put a lid on the cookware 1 3 Hollandaise sauce melt but ter chocolate gelatine 5 25 Mix from time to time 1 3 Solidify fluffy omelettes baked eggs 10 Cook with a lid on 3 5 Simmer rice and milkbased dishes heat up readycooked meals 25 Add at least twice as much liq uid as rice mix milk dishes halfway through the proce dure
• Page 17 - English - : Heat setting Use to Time min Hints 5 7 Steam vegetables fish meat 20 Add a couple of tablespoons of liquid 7 9 Steam potatoes 20 Use max ¼ l of water for 750 g of potatoes 7 9 Cook larger quantities of food stews and soups 60 Up to 3 l of liquid plus ingredi ents 9 12 Gentle fry escalope veal cor don bleu cutlets rissoles sausages liver roux eggs pancakes doughnuts as nec essary Turn halfway through 12 13 Heavy fry hash browns loin steaks steaks 5 15 Turn halfway through 14 Boil water cook pasta sear meat goulash pot roast deepfry chips Boil large quantities of water Power function is activated Hints and Tips for AutoVent When you operate the hob with the function Protect the hood panel from direct sunlight Do not spot halogen light on the hood panel Do not cover the hob control panel Do not interrupt the signal between the hob and the hood for example with a hand or a cookware handle See the picture The hood in the picture is only exemplary Other remotely controlled appliances may block the signal Do not use any remotely controlled appliances at the time when you use the function on the hob Cooker hoods with the AutoVent function To find the full range of cooker hoods which work with this function refer to our consumer website
• Page 18 - English - : CARE AND CLEANING WARNING Refer to Safety chapters General information Clean the hob after each use Always use cookware with a clean base Scratches or dark stains on the surface have no effect on how the hob operates Use a special cleaner suitable for the surface of the hob Use a special scraper for the glass The printing on the flexible induction cooking area may become dirty or change its colour from sliding the cookware You can clean the area in a standard way Cleaning the hob Remove immediately melted plastic plastic foil sugar and food with sugar otherwise the dirt can cause damage to the hob Take care to avoid burns Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface Remove when the hob is sufficiently cool limescale rings water rings fat stains shiny metallic discoloration Clean the hob with a moist cloth and a nonabrasive detergent After cleaning wipe the hob dry with a soft cloth Remove shiny metallic discoloration use a solution of water with vinegar and clean the glass surface with a cloth TROUBLESHOOTING WARNING Refer to Safety chapters What to do if Problem Possible cause Remedy You cannot activate or oper ate the hob The hob is not connected to an electrical supply or it is connected incorrectly Check if the hob is correctly connected to the electrical supply Refer to the connec tion diagram The fuse is blown Make sure that the fuse is the cause of the malfunc tion If the fuse is blown again and again contact a qualified electrician You do not set the heat set ting for 10 seconds Activate the hob again and set the heat setting in less than 10 seconds You touched 2 or more sen sor fields at the same time Touch only one sensor field Pause function operates Refer to quotDaily usequot
• Page 19 - English - : Problem Possible cause Remedy There is water or fat stains on the control panel Clean the control panel An acoustic signal sounds and the hob deactivates An acoustic signal sounds when the hob is deactivated You put something on one or more sensor fields Remove the object from the sensor fields The hob deactivates You put something on the sensor field Remove the object from the sensor field Residual heat indicator does not come on The zone is not hot because it operated only for a short time or the sensor is dam aged If the zone operated suffi ciently long to be hot speak to an Authorised Service Centre AutoVent does not work You covered the control panel Remove the object from the control panel Accelerator does not oper ate The zone is hot Let the zone become suffi ciently cool The highest heat setting is set The highest heat setting has the same power as the func tion The heat setting changes between two levels Power management oper ates Refer to quotDaily usequot The sensor fields become hot The cookware is too large or you put it too near to the controls Put large cookware on the rear zones if possible There is no sound when you touch the panel sensor fields The sounds are deactivated Activate the sounds Refer to quotDaily usequot The flexible induction cook ing area does not heat up the cookware The cookware is in a wrong position on the flexible in duction cooking area Place the cookware in the correct position on the flexi ble induction cooking area The position of the cook ware depends on the activa ted function or function mode Refer to quotFlexible in duction cooking areaquot

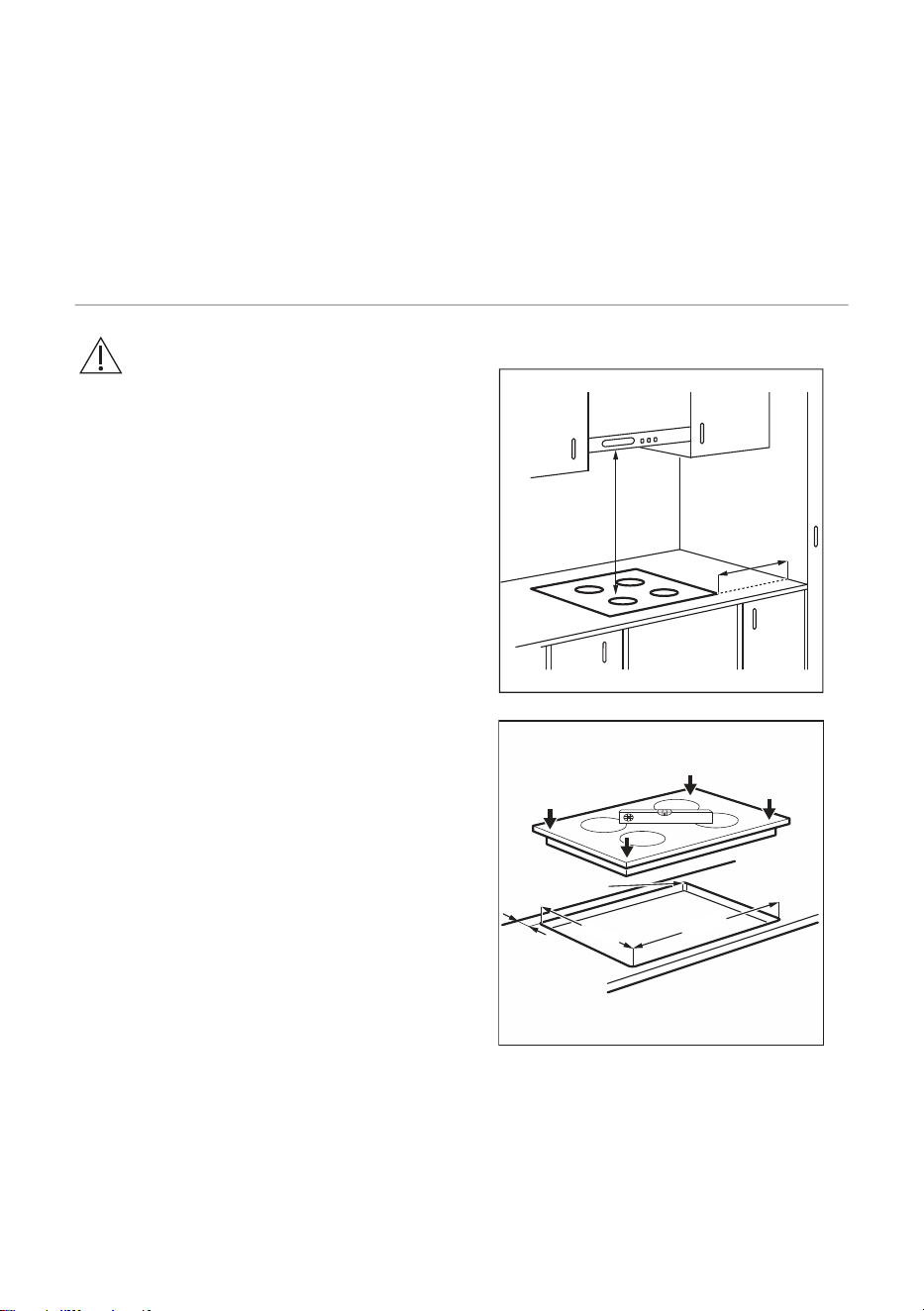

• Page 20 - English - : Problem Possible cause Remedy The diameter of the bottom of the cookware is incorrect for the activated function or function mode Use cookware with a diame ter applicable to the activa ted function or function mode Use cookware with a diameter smaller than 160 mm on a single section of the flexible induction cook ing area Refer to quotFlexible induction cooking areaquot comes on Automatic Switch Off oper ates Deactivate the hob and acti vate it again comes on Child Safety Device or Lock operates Refer to quotDaily usequot comes on There is no cookware on the zone Put cookware on the zone The cookware is unsuitable Use suitable cookware Re fer to quotHints and tipsquot The diameter of the bottom of the cookware is too small for the zone Use cookware with correct dimensions Refer to quotTech nical dataquot Flexi4Zone operates One or more sections of the func tion mode which operates are not covered by the cook ware Place the cookware on the correct number of sections of the function mode which operates or change the function mode Refer to quotFlexible induction cooking areaquot FlexiHeat operates Two pots are placed on the flexi ble induction cooking area Use only one pot Refer to quotFlexible induction cooking areaquot and a number come on There is an error in the hob Deactivate the hob and acti vate it again after 30 sec onds If comes on again disconnect the hob from the electrical supply After 30 seconds connect the hob again If the problem contin ues speak to an Authorised Service Centre You can hear a constant beep noise The electrical connection is incorrect Disconnect the hob from the electrical supply Ask a qualified electrician to check the installation
• Page 21 - English - : If you cannot find a solution If you cannot find a solution to the problem yourself contact your dealer or an Authorised Service Centre Give the data from the rating plate Give also three digit letter code for the glass ceramic it is in the corner of the glass surface and an error message that comes on Make sure you operated the hob correctly If not the servicing by a service technician or dealer will not be free of charge also during the warranty period The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet INSTALLATION WARNING Refer to Safety chapters Before the installation Before you install the hob write down the information bellow from the rating plate The rating plate is on the bottom of the hob Serial number Builtin hobs Only use the builtin hobs after you assemble the hob into correct builtin units and work surfaces that align to the standards Connection cable The hob is supplied with a connection cable To replace the damaged mains cable use the cable type H05V2V2F which withstands a temperature of 90C or higher Speak to your local Service Centre Assembly min 50mm min 500mm min 55mm R 5mm mm mm

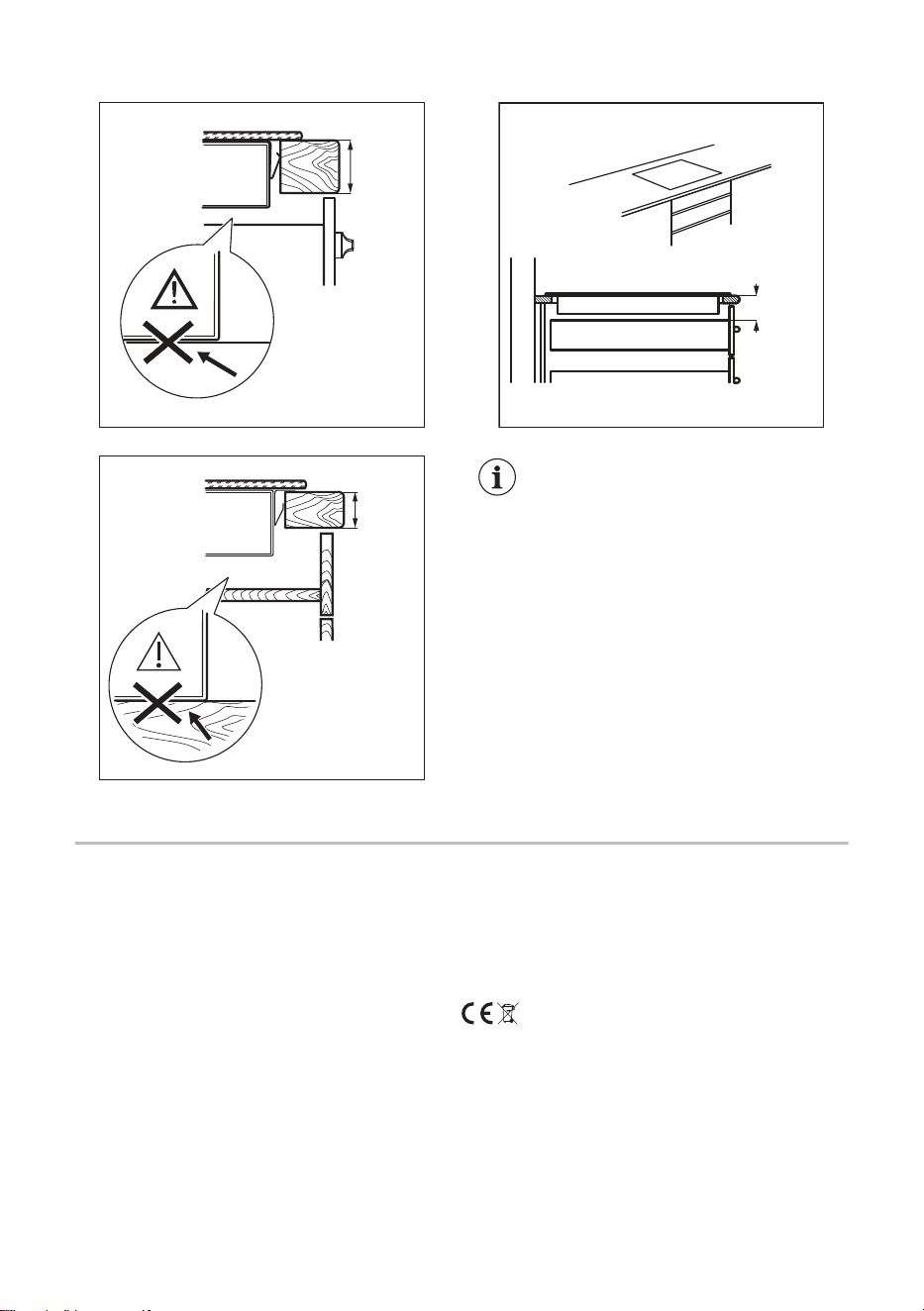

• Page 22 - English - : min 28 mm min 12 mm min 60mm If the appliance is installed above a drawer the hob ventilation can warm up the items stored in the drawer during the cooking process You can instal a separation panel but it is not mandatory TECHNICAL DATA Rating plate Model SI1F7955B PNC 949 594 445 00 Typ 62 E5A 05 AA 400 V 3N 50 60 Hz Induction 110 kW Made in Germany SerNr 110 kW SMEG
• Page 23 - English - : Cooking zones specification Cooking zone Nominal pow er maximum heat setting W Power func tion W Power func tion maximum duration min Cookware di ameter mm Middle front 1800 145 245 245 280 Right front 1400 2500 4 125 145 Right rear 2300 3200 10 125 210 Flexible induc tion cooking area 2300 3200 10 minimum 100 The power of the cooking zones can be different in some small range from the data in the table It changes with the material and dimensions of the cookware For optimal cooking results use cookware no larger than the diameter in the table ENERGY EFFICIENCY Product information according to EU 662014 Model identification SI1F7955B Type of hob BuiltIn Hob Number of cooking zones 3 Number of cooking areas 1 Heating technology Induction Diameter of circular cook ing zones Ø Middle front Right front Right rear 280 cm 145 cm 210 cm Lenght L and width W of the cooking area Left L 453 cm W 214 cm Energy consumption per cooking zone EC electric cooking Middle front Right front Right rear 1765 Wh kg 1802 Wh kg 1796 Wh kg Energy consumption of the cooking area EC electric cooking Left 1826 Wh kg Energy consumption of the hob EC electric hob 1807 Wh kg
• Page 24 - English - : EN 603502 Household electric cooking appliances Part 2 Hobs Methods for measuring performance Energy saving You can save energy during everyday cooking if you follow below hints When you heat up water use only the amount you need If it is possible always put the lids on the cookware Before you activate the cooking zone put the cookware on it Put the smaller cookware on the smaller cooking zones Put the cookware directly in the centre of the cooking zone Use the residual heat to keep the food warm or to melt it ENVIRONMENTAL CONCERNS Recycle materials with the symbol Put the packaging in relevant containers to recycle it Help protect the environment and human health by recycling waste of electrical and electronic appliances Do not dispose of appliances marked with the symbol with the household waste Return the product to your local recycling facility or contact your municipal office
