Features:
• 8'' Slim Waterproof Subwoofer
• Completely Waterproof
• For Marine or Car Use
• Multi-Color RGB Lights and Remote Control
• PP Cone with Rubber Edge
• High-Powered Car Subwoofer
• Lab Tested Pro Audio Woofer Performance
• Massive Butyl Rubber Surround
• High Strength Engineering Plastic Basket
• Quick Connect Speaker Terminal
• Compatible with Sealed Enclosure Speaker Box Audio Setup
• Impressive Bass Response, Low-Resonance Frequency Output
• Designed for Custom Audio Car, Truck, Mobile Vehicle Applications
Installation Guide
Screw down each of the four Phillips
head screws. The locking tabs will
swivel into place and secure the unit
to the rear surface of the drywall.
Put in the strips of adhesive to
secure the grille.
Replace the metal grille.
8'' Slim Waterproof Subwoofer
300 Watts at Dual 4-Ohms Car Audio Powered Subwoofer with Multi-Color RGB Lights
and Remote Control, PP Cone with Rubber Edge
PLRGSW84WT - PLRGSW84BK
www.PyleUSA.com

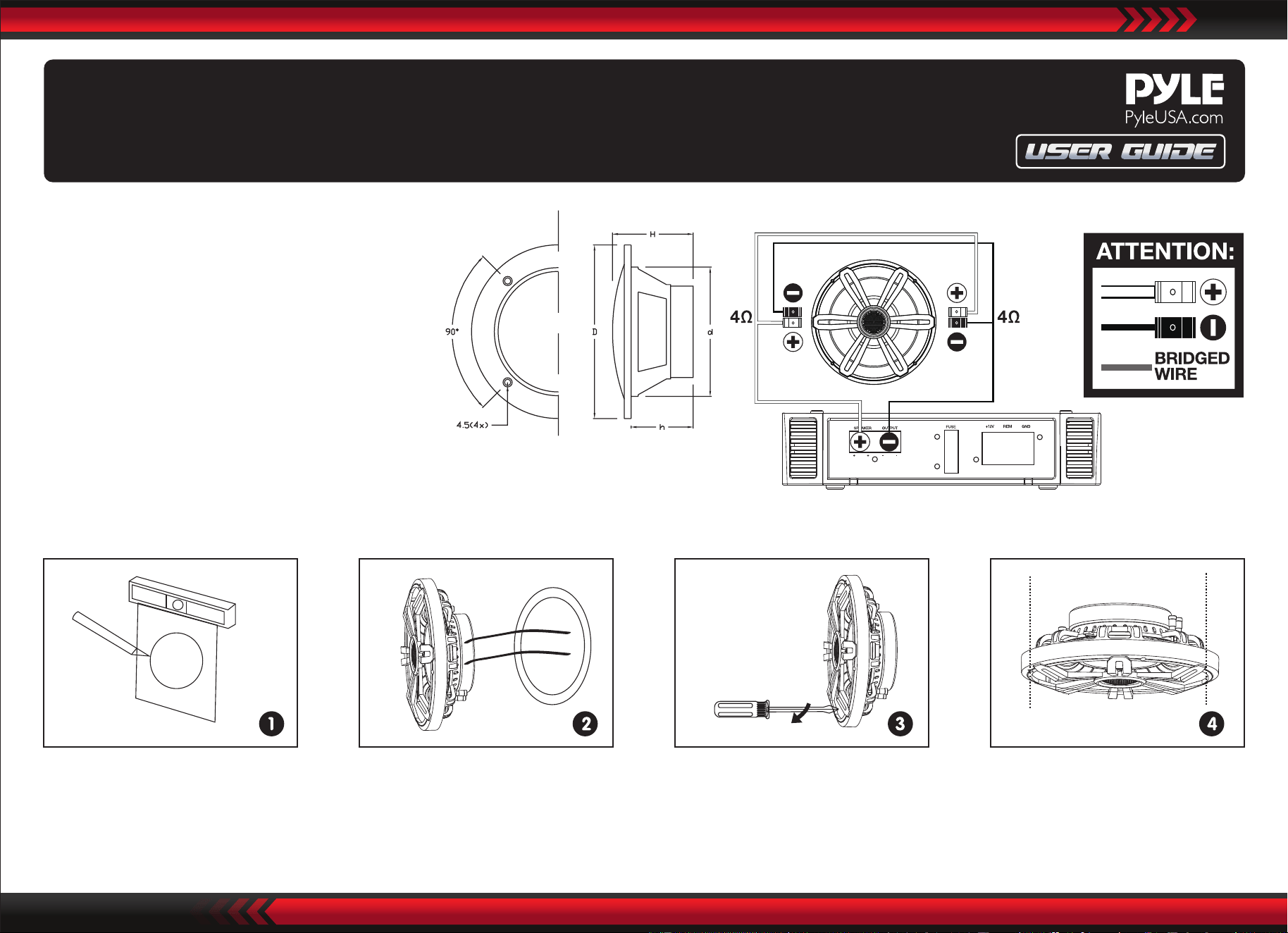

Connection Diagram
Cut the drywall.
Note: Always allow at least one-half
inch between a wall stud and the
speaker cutout or the locking tabs
will not be able to swivel into place.
Connect the speaker wires to the
speaker.
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: [email protected]
Remote Control
www.PyleUSA.com
1. Turn On/Standby: Press this key to turn ON unit or switch to stand by mode. At power on, unit will automatically
turn ON and restore to previous status.
2/9. Dynamic Mode Adjust: Switch to dynamic mode from static color or switch between dynamic modes.
3/10. Dynamic Speed Adjust: Adjust dynamic playing speed. Press SPEED+ to increase speed and press SPEED- to
decrease. Unit will switch to dynamic mode if pressing this key at static color mode.
4/5. Static Color Adjust: Switch to static color mode from dynamic mode, or switch between static colors.
6. Direct Color Select: Shortcut key to static colors. When pressing the specic color key, LED will play the same
static color. The direct colors are included in 'COLOR+' and 'COLOR-' operation.
7/8. Brightness Adjust: Adjust static color brightness. Press BRIGHT+ to increase brightness and press BRIGHT- to
decrease. Unit will switch to static color mode if this key is pressed at dynamic mode.
11. Demo Mode: Press this key to switch to Demo mode. At demo mode, it plays 17 dynamic modes in loop, each
mode repeat 3 times.
What's in the Box:
• 8'' Slim Waterproof Subwoofer; RGB wire; remote control
Technical Specs:
• Construction Materials: Engineered ABS
• Power Handling: 300W Max, 150W RMS
• Impedance: Dual 4 Ohms
• Voice Coil: 1.5'' -in
• Voice Coil Type: High-Temp Aluminum
• Magnet Size: 30 Oz
• Magnet Type: Barium Ferrite Magnet
• Frequency Response: 40Hz - 300Hz
• Sensitivity: 91 dB
• Remote Control Battery Operated, Requires (1) x ‘CR2025’ Batteries
• Battery Type: 3V Lithium Battery
• Battery Life: Up to 2+ Hours
• Product Dimensions: 8.5'' x 7.4'' x 2.5'' –inches
