MSC4FDGST23 1 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES

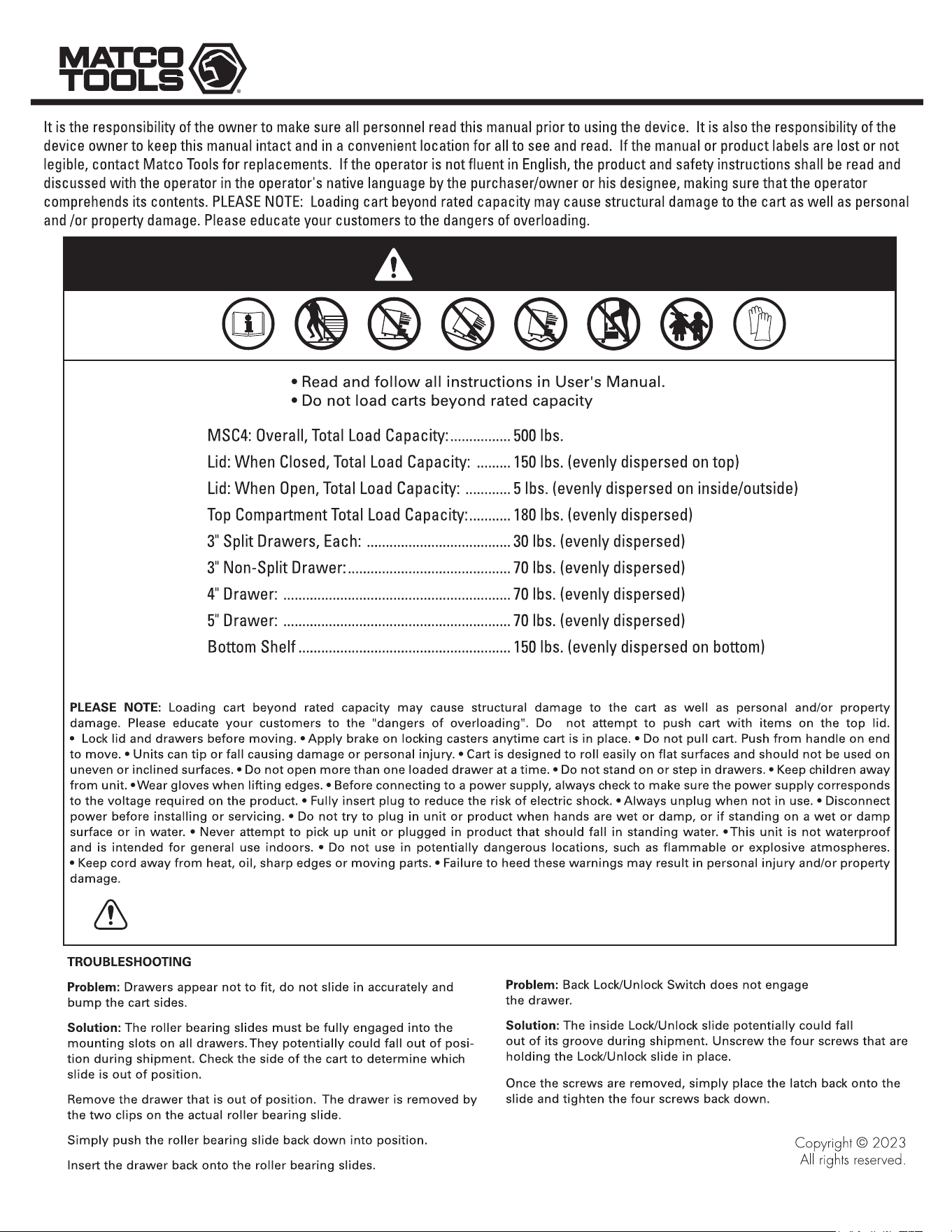

WARNING
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
MSC4FDGST23 2 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES
MSC4FDGST23 3 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES
MSC4FDGST23 4 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES
MSC4FDGST23 5 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES
Ref
No.
Color: Description: Unit: Qty:
MSC4
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
1
Black
Lid, 9 Hole Each 1 MSC4LIDBK9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4LIDBK 10 Rivets, Domed, 2.6mm OD
Blue
Lid, 9 Hole Each 1 MSC4LIDBL9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4LIDBL 10 Rivets, Domed, 2.6mm OD
Red
Lid, 9 Hole Each 1 MSC4LIDR9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4LIDR 10 Rivets, Domed, 2.6mm OD
Titanium
Lid, 9 Hole Each 1 MSC4LIDTI9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4LIDTI 10 Rivets, Domed, 2.6mm OD
Silver Vein
Lid, 9 Hole Each 1 MSC4LIDSVA9 9 Rivets, Domed, 2.6mm OD
Lid, 10 Hole Each 1 MSC4LIDSVA 10 Rivets, Domed, 2.6mm OD
2
Black w/Chome
Arm
Piston
Each 2 RSGP
Qty 2 M8 Washers, Qty 2 M8 x
1.25mm Locking Hex Nuts
All Black Each 2 RSGPBK
3 Black Bumpers 4-Pc Set 1 RSMSC4BP None
4 Black Grommet Each 1 None RS4RCP None
5 Black EVA Liners Set 1 RSMSC46LK None
6
Black
Lock Bar
Set 1 RSLMMBKN RSLMQPMBKN
Qty 4 Pan Head P#2
M5x2.25mm 9.5mmL, Qty 2 Pan
Head P#2 M5x0.8mm 10mmL,
Qty 2 M5 Flat Washers, Qty
2 M5x0.8mm Hex Lock Nut
8mmW 5mmThk
Blue Set 1 RSLMMBLN RSLMQPMBLN
Red Set 1 RSLMMRN RSLMQPMRN
Titanium Set 1 RSLMMTIN RSLMQPMTIN
Silver Vein Set 1 RSLMMSVAN
RSLMQPMS-
VA N
7 Black Plastic Push Caps 4-Pc Set 4 None None None
8
Chrome Lock w/Keys, After March, 2010 Set 1 RSLKB Complete Lock & Arm Assmbly
Chrome Lock w/Keys, Before March, 2010 Set 1 RSLKA Complete Lock & Arm Assmbly
9
Chrome
Push Handle Bracket
Pair 1 None RS4QPHBC
Qty 4 Round Head T40
M8x1.25mm 18mmL
Black Pair 1 None RS4QPHBBK
10
Black
3" Drawer
Each 3
None
Blue Each 3
Red Each 3
Titanium Each 3
Silver Vein Each 3
11
Black
4" Drawer
Each 2 MSC4LD4BK MSC4PLD4BK None
Blue Each 2 MSC4LD4BL MSC4PLD4BL None
Red Each 2 MSC4LD4R MSC4PLD4R None
Titanium Each 2 MSC4LD4TI MSC4PLD4TI None
Silver Vein Each 2 MSC4LD4SVA MSC4PLD4SVA None
12
Black
5" Drawer
Each 1 MSC4LD5BK MSC4PLD5BK None
Blue Each 1 MSC4LD5BL MSC4PLD5BL None
Red Each 1 MSC4LD5R MSC4PLD5R None
Titanium Each 1 MSC4LD5TI MSC4PLD5TI None
Silver Vein Each 1 MSC4LD5SVA MSC4PLD5SVA None
MSC4FDGST23 6 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES

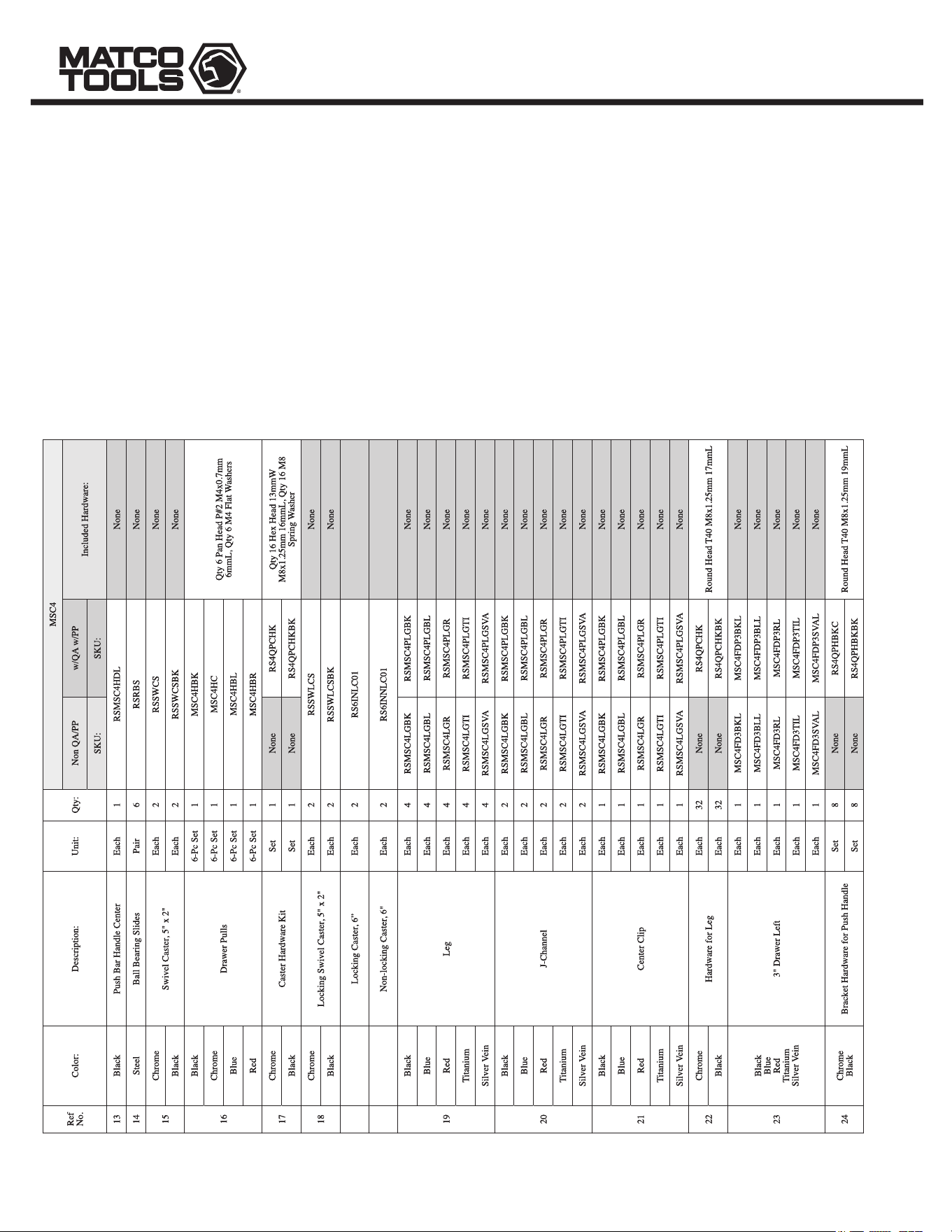

Ref
No.
Color: Description: Unit: Qty:
MSC4
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
13 Black Push Bar Handle Center Each 1 RSMSC4HDL None
14 Steel Ball Bearing Slides Pair 6 RSRBS None
15
Chrome
Swivel Caster, 5" x 2"
Each 2 RSSWCS None
Black Each 2 RSSWCSBK None
16
Black
Drawer Pulls
6-Pc Set 1 MSC4HBK
Qty 6 Pan Head P#2 M4x0.7mm
6mmL, Qty 6 M4 Flat Washers
Chrome 6-Pc Set 1 MSC4HC
Blue 6-Pc Set 1 MSC4HBL
Red 6-Pc Set 1 MSC4HBR
17
Chrome
Caster Hardware Kit
Set 1 None RS4QPCHK
Qty 16 Hex Head 13mmW
M8x1.25mm 16mmL, Qty 16 M8
Spring Washer
Black Set 1 None RS4QPCHKBK
18
Chrome
Locking Swivel Caster, 5" x 2"
Each 2 RSSWLCS None
Black Each 2 RSSWLCSBK None
Locking Caster, 6” Each 2 RS6INLC01
Non-locking Caster, 6" Each 2 RS6INNLC01
19
Black
Leg
Each 4 RSMSC4LGBK RSMSC4PLGBK None
Blue Each 4 RSMSC4LGBL RSMSC4PLGBL None
Red Each 4 RSMSC4LGR RSMSC4PLGR None
Titanium Each 4 RSMSC4LGTI RSMSC4PLGTI None
Silver Vein Each 4 RSMSC4LGSVA RSMSC4PLGSVA None
20
Black
J-Channel
Each 2 RSMSC4LGBK RSMSC4PLGBK None
Blue Each 2 RSMSC4LGBL RSMSC4PLGBL None
Red Each 2 RSMSC4LGR RSMSC4PLGR None
Titanium Each 2 RSMSC4LGTI RSMSC4PLGTI None
Silver Vein Each 2 RSMSC4LGSVA RSMSC4PLGSVA None
21
Black
Center Clip
Each 1 RSMSC4LGBK RSMSC4PLGBK None
Blue Each 1 RSMSC4LGBL RSMSC4PLGBL None
Red Each 1 RSMSC4LGR RSMSC4PLGR None
Titanium Each 1 RSMSC4LGTI RSMSC4PLGTI None
Silver Vein Each 1 RSMSC4LGSVA RSMSC4PLGSVA None
22
Chrome
Hardware for Leg
Each 32 None RS4QPCHK
Round Head T40 M8x1.25mm 17mmL
Black Each 32 None RS4QPCHKBK
23
Black
Blue
Red
Titanium
Silver Vein
3" Drawer Left
Each 1 MSC4FD3BKL MSC4FDP3BKL None
Each 1 MSC4FD3BLL MSC4FDP3BLL None
Each 1 MSC4FD3RL MSC4FDP3RL None
Each 1 MSC4FD3TIL MSC4FDP3TIL None
Each 1 MSC4FD3SVAL MSC4FDP3SVAL None
24
Chrome
Black
Bracket Hardware for Push Handle
Set 8 None RS4QPHBKC
Round Head T40 M8x1.25mm 19mmL
Set 8 None RS4QPHBKBK
MSC4FDGST23 7 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES

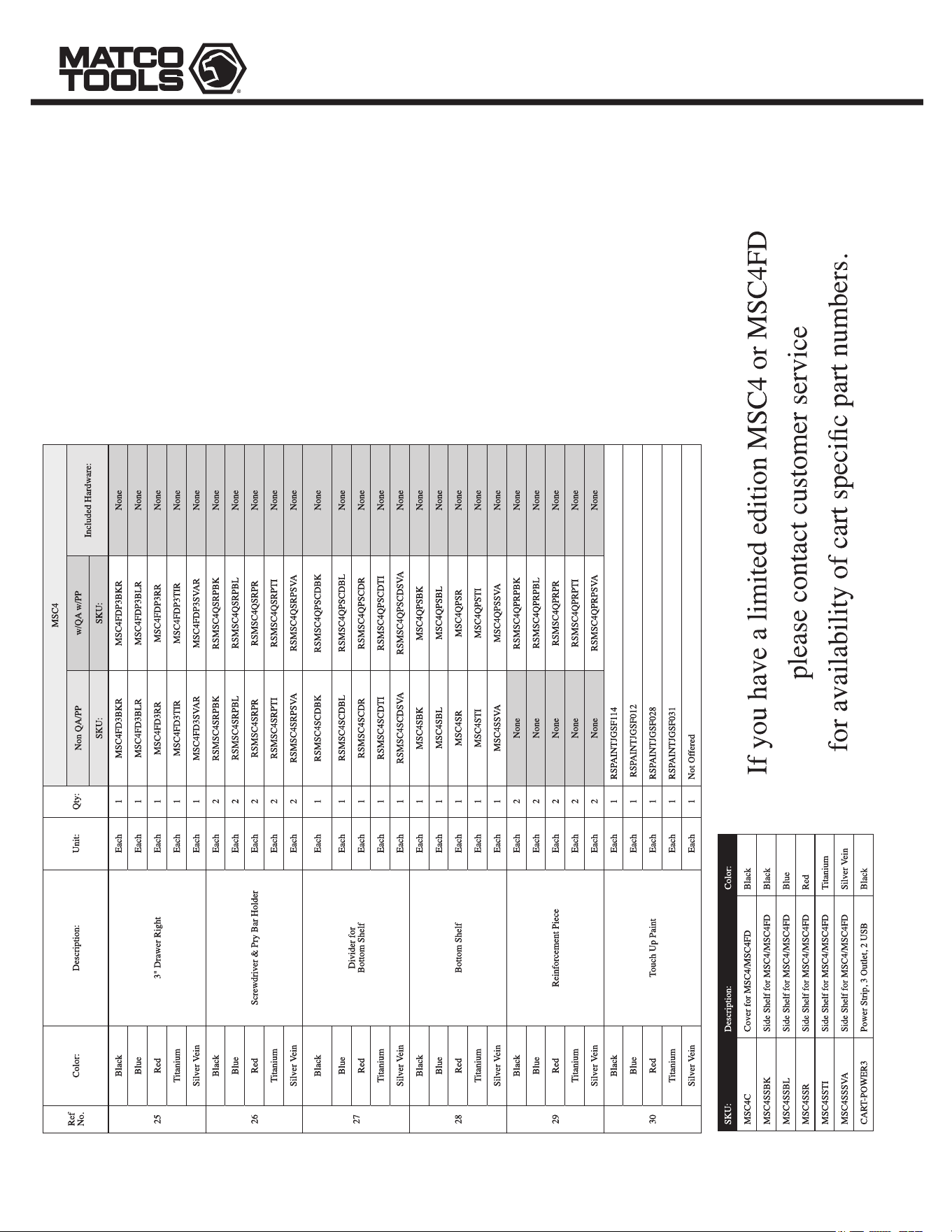

Ref
No.
Color: Description: Unit: Qty:
MSC4
Non QA/PP w/QA w/PP
Included Hardware:
SKU: SKU:
25
Black
3" Drawer Right
Each 1 MSC4FD3BKR MSC4FDP3BKR None
Blue Each 1 MSC4FD3BLR MSC4FDP3BLR None
Red Each 1 MSC4FD3RR MSC4FDP3RR None
Titanium Each 1 MSC4FD3TIR MSC4FDP3TIR None
Silver Vein Each 1 MSC4FD3SVAR MSC4FDP3SVAR None
26
Black
Screwdriver & Pry Bar Holder
Each 2 RSMSC4SRPBK RSMSC4QSRPBK None
Blue Each 2 RSMSC4SRPBL RSMSC4QSRPBL None
Red Each 2 RSMSC4SRPR RSMSC4QSRPR None
Titanium Each 2 RSMSC4SRPTI RSMSC4QSRPTI None
Silver Vein Each 2 RSMSC4SRPSVA RSMSC4QSRPSVA None
27
Black
Divider for
Bottom Shelf
Each 1 RSMSC4SCDBK RSMSC4QPSCDBK None
Blue Each 1 RSMSC4SCDBL RSMSC4QPSCDBL None
Red Each 1 RSMSC4SCDR RSMSC4QPSCDR None
Titanium Each 1 RSMSC4SCDTI RSMSC4QPSCDTI None
Silver Vein Each 1 RSMSC4SCDSVA RSMSC4QPSCDSVA None
28
Black
Bottom Shelf
Each 1 MSC4SBK MSC4QPSBK None
Blue Each 1 MSC4SBL MSC4QPSBL None
Red Each 1 MSC4SR MSC4QPSR None
Titanium Each 1 MSC4STI MSC4QPSTI None
Silver Vein Each 1 MSC4SSVA MSC4QPSSVA None
29
Black
Reinforcement Piece
Each 2 None RSMSC4QPRPBK None
Blue Each 2 None RSMSC4QPRPBL None
Red Each 2 None RSMSC4QPRPR None
Titanium Each 2 None RSMSC4QPRPTI None
Silver Vein Each 2 None RSMSC4QPRPSVA None
30
Black
Touch Up Paint
Each 1 RSPAINTJGSF114
Blue Each 1 RSPAINTJGSF012
Red Each 1 RSPAINTJGSF028
Titanium Each 1 RSPAINTJGSF031
Silver Vein Each 1 Not Offered
SKU: Description: Color:
MSC4C Cover for MSC4/MSC4FD Black
MSC4SSBK Side Shelf for MSC4/MSC4FD Black
MSC4SSBL Side Shelf for MSC4/MSC4FD Blue
MSC4SSR Side Shelf for MSC4/MSC4FD Red
MSC4SSTI Side Shelf for MSC4/MSC4FD Titanium
MSC4SSSVA Side Shelf for MSC4/MSC4FD Silver Vein
CART-POWER3 Power Strip, 3 Outlet, 2 USB Black
MSC4FDGST23 8 061023
MSC4FDGST23
2023 LIMITED EDITION GHOST SERIES

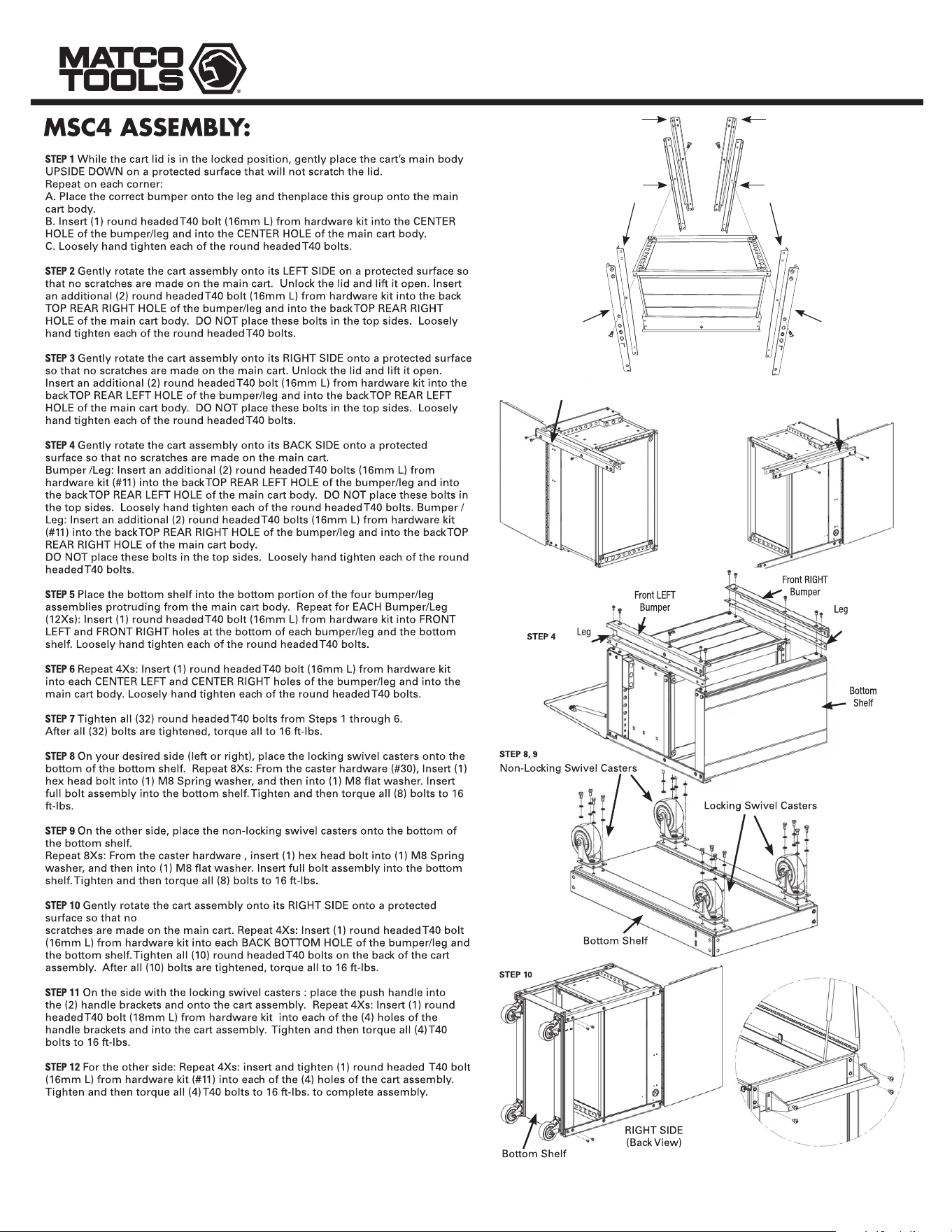

Back RIGHT Bumper/Leg
LEFT SIDE
(Back View)
STEP 2
Back LEFT Bumper/Leg
RIGHT SIDE
(Back View)
STEP 3
Back RIGHT
Bumper
Main Cart Body
(Upside Down)
Leg
Leg
Back LEFT
Bumper
Front RIGHT
Bumper
Front LEFT
Bumper
STEP 1
STEP 11, 12
