USER’S MANUAL
Model No. PFTL59721-INT.4
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
MEMBER CARE
UNITED KINGDOM
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
iconeurope.com
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................15
HOW TO FOLD AND MOVE THE TREADMILL ...................................................24
MAINTENANCE AND TROUBLESHOOTING .....................................................25
EXERCISE GUIDELINES ....................................................................27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

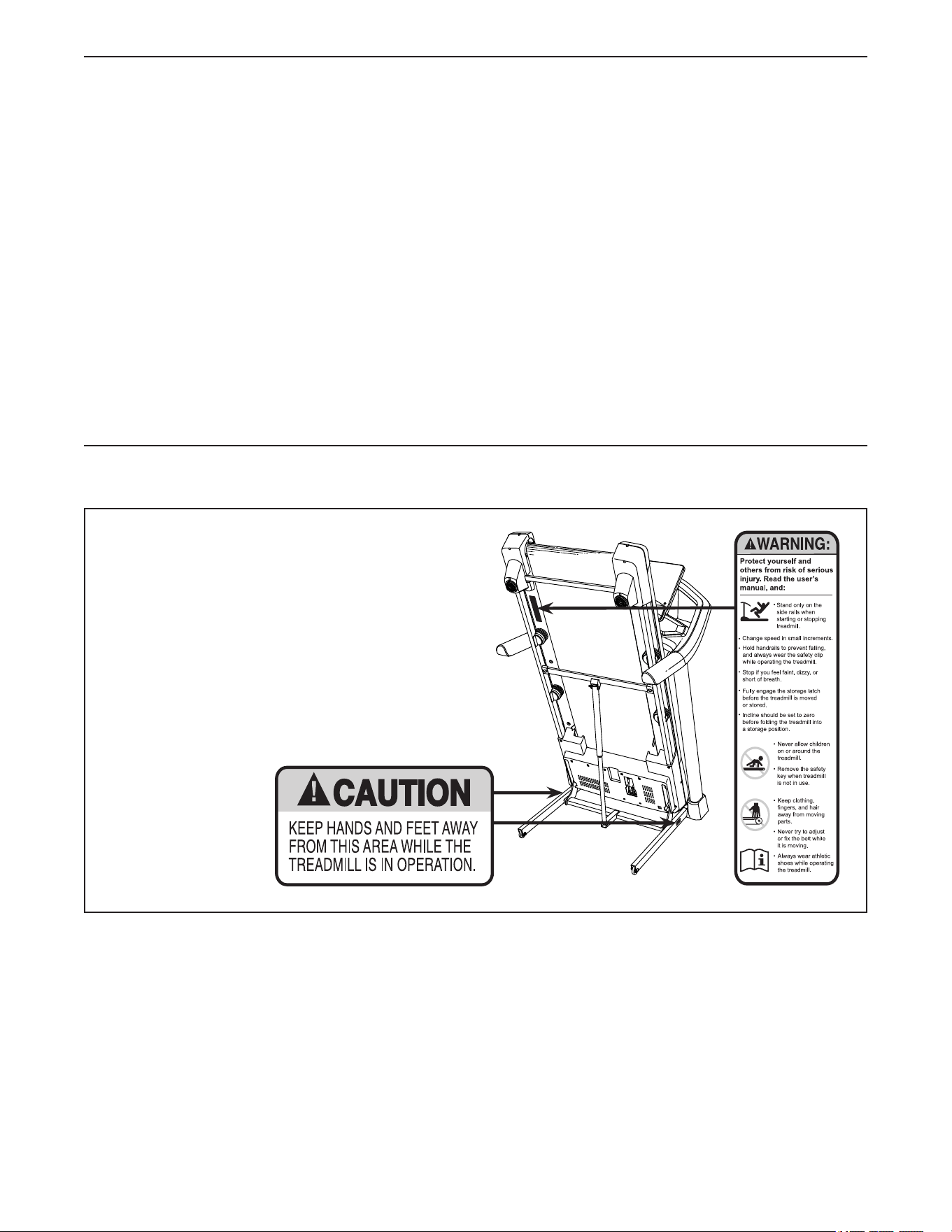

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown at actual size.
WARNING DECAL PLACEMENT
305284
TABLE OF CONTENTS
PROFORM and IFIT are registered trademarks of iFIT Inc. App store is a trademark of Apple Inc., registered in
the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The Bluetooth
®
word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or
registered trademark of Cisco in the U.S. and other countries and is used under license.
3
1. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
2. Keep children under age 16 and pets away
from the treadmill at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age
35 or persons with pre-existing health
problems.
4. Consult your health care provider before
beginning or continuing any exercise
program during pregnancy. Use the tread-
mill only as authorized by your health care
provider.
5. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
6. Use the treadmill only as described in this
manual.
7. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
8. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
9. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
10. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
11. The treadmill should be used only by
persons weighing 300 lbs. (135 kg) or less.
12. Never allow more than one person on the
treadmill at a time.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
14. When connecting the power cord (see
page 15), plug the power cord into an
earthed circuit. No other appliance should be
on the same circuit. When replacing the fuse
in the power cord adapter, insert an ASTA-
approved BS1362, 13-amp fuse into the fuse
carrier.
15. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm
2
) cord that is
no longer than 5 ft. (1.5 m).
16. Keep the power cord away from heated
surfaces.
17. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 25 if the treadmill is not working
properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
18. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 17). Always wear the clip while using
the treadmill.
19. Be careful when mounting and dismounting
the treadmill. Always stand on the foot rails
when starting or stopping the walking belt.
Always hold the handrails while using the
treadmill.
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 24.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the new PROFORM
®
TRAINER 8.0 treadmill. The TRAINER 8.0 treadmill
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

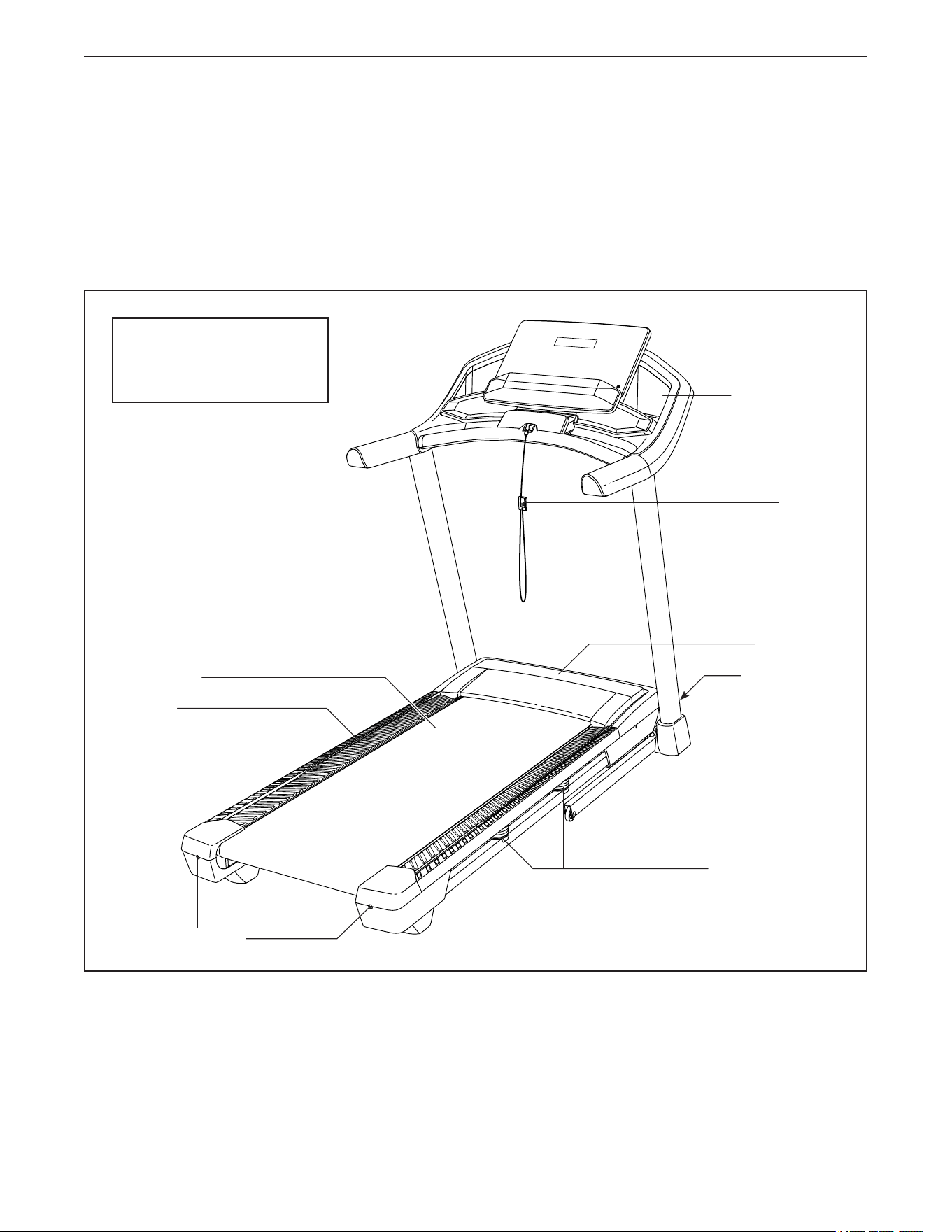

the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Key/Clip
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Platform Cushions
Length: 6 ft. 3 in. (190 cm)
Width: 2 ft. 11 in. (90 cm)
Weight: 177 lbs. (80 kg)
6
PART IDENTIFICATION CHART

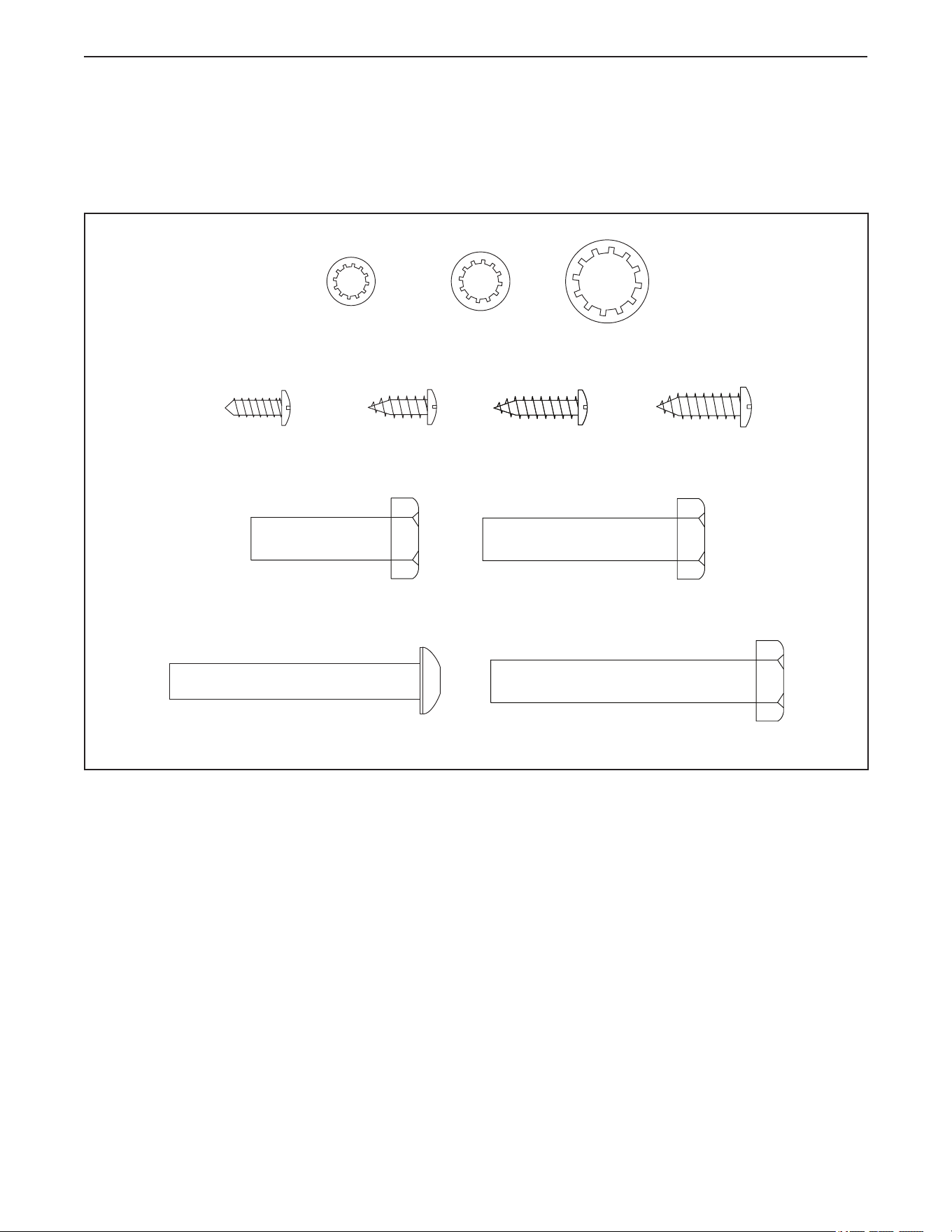

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
#10 x 3/4"
Screw (6)–4
3/8" Star
Washer (11)–8
5/16" Star
Washer (12)–6
#8 x 1/2" Ground
Screw (9)–1
#8 x 1/2"
Screw (5)–8
5/16" x 2 1/4" Screw (7)–4
3/8" x 2 3/8" Screw (3)–4
3/8" x 1 3/4" Screw (2)–2
3/8" x 1 1/4"
Screw (1)–2
#8 x 3/4"
Screw (4)–8
1/4" Star
Washer (10)–8
7

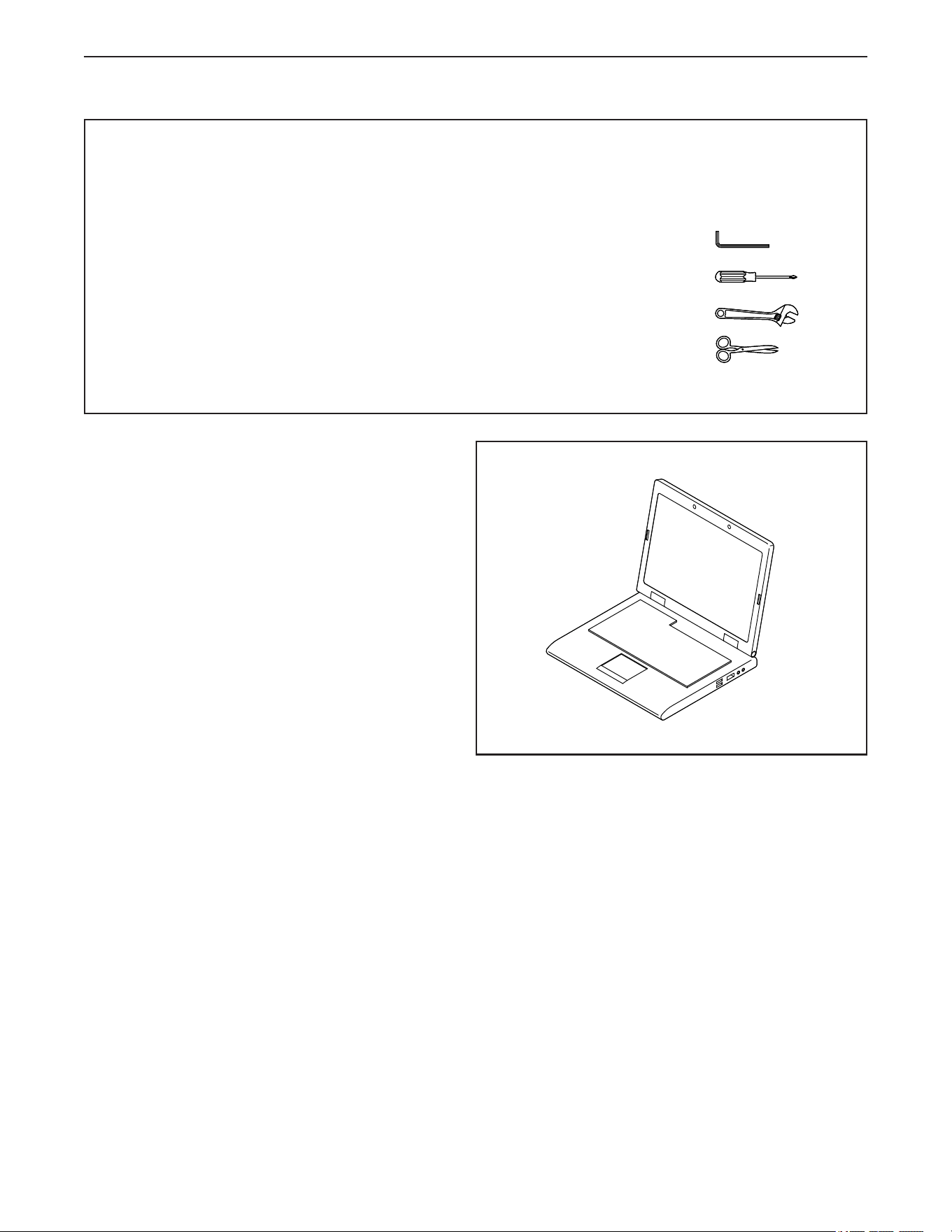

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• To identify small parts, see page 6.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
one pair of scissors
To avoid damaging parts, do not use power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, complete the
warranty registration card in the warranty booklet
and send it by registered post to the address on
the back cover of the warranty booklet.
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
8
2
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (88) to
the front of the Base (97).

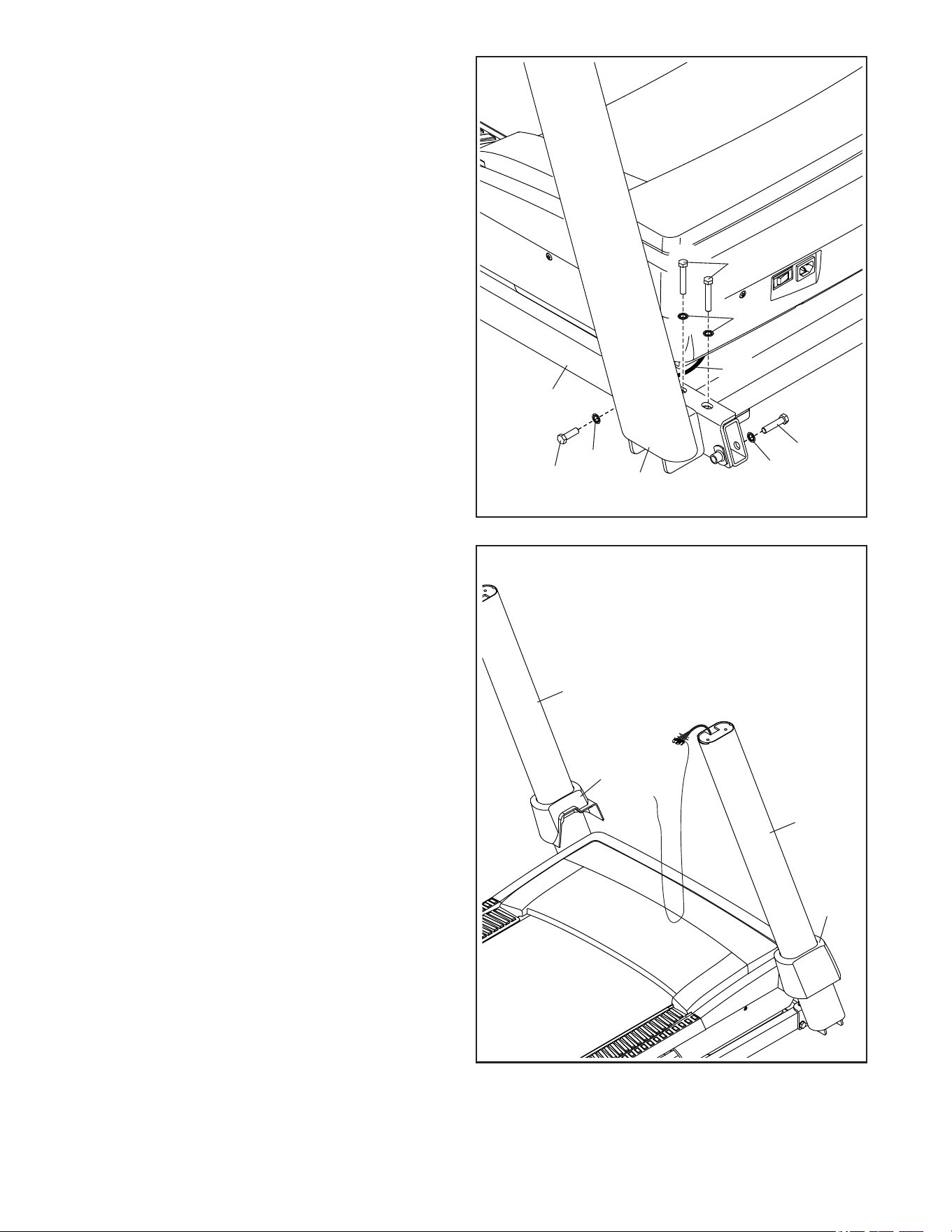

Next, identify the Right Upright (86). Have a
second person hold the Right Upright near the
Base (97).

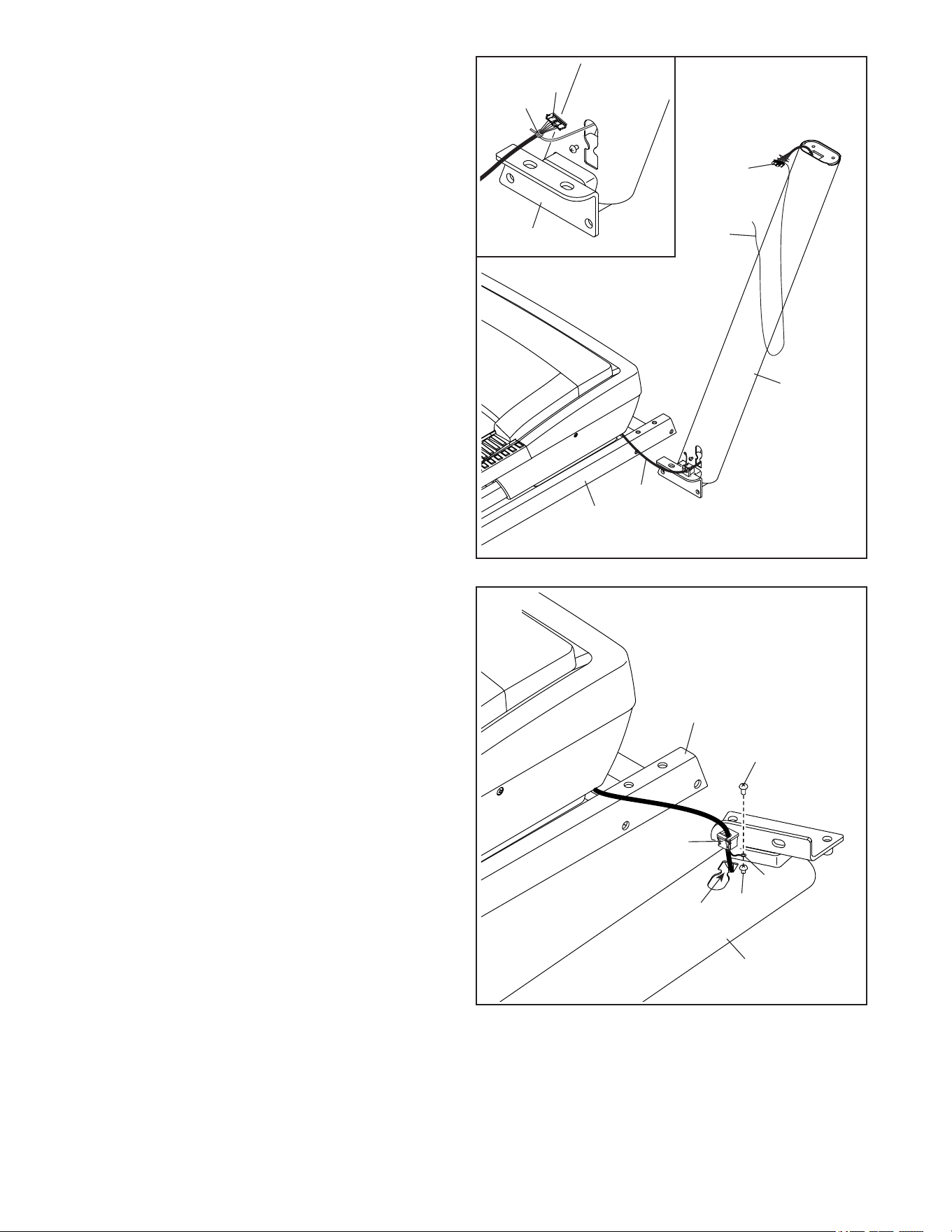

See the inset drawing. Tie the wire tie (A) in
the Right Upright (86) securely around the end
of the Upright Wire (88). Then, insert the Upright
Wire into the lower end of the Right Upright, and
pull the upper end of the wire tie until the Upright
Wire is routed through the Right Upright.
86
88
A
3. Lay the Right Upright (86) near the Base (97).
Press the Grommet (89) into the square hole (B)
in the Right Upright. Make sure not to pinch
the ground wire (C).
Next, remove and discard the indicated
screw (D).
Then, attach the ground wire (C) to the Right
Upright (86) with a #8 x 1/2" Ground Screw (9).
3
97
86
88
88
A
97
86
D
C
B
9
89
9
4. Hold the Right Upright (86) against the Base
(97). Make sure not to pinch the Upright
Wire (88).
Insert two 3/8" x 2 3/8" Screws (3) with two 3/8"
Star Washers (11) into the top of the bracket on
the Right Upright (86). Partially tighten the two
Screws into the Base (97); do not fully tighten
the Screws yet.
Then, partially tighten a 3/8" x 1 1/4" Screw
(1) and a 3/8" x 1 3/4" Screw (2) with 3/8" Star
Washers (11) into the bottom of the Right Upright
(86); do not fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the
left side.
4
5. Identify the Left and Right Base Covers (93, 92).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (85, 86) as shown.
5
1
2
97
11
86
3
11
11
88
92
86
93
85
10
6

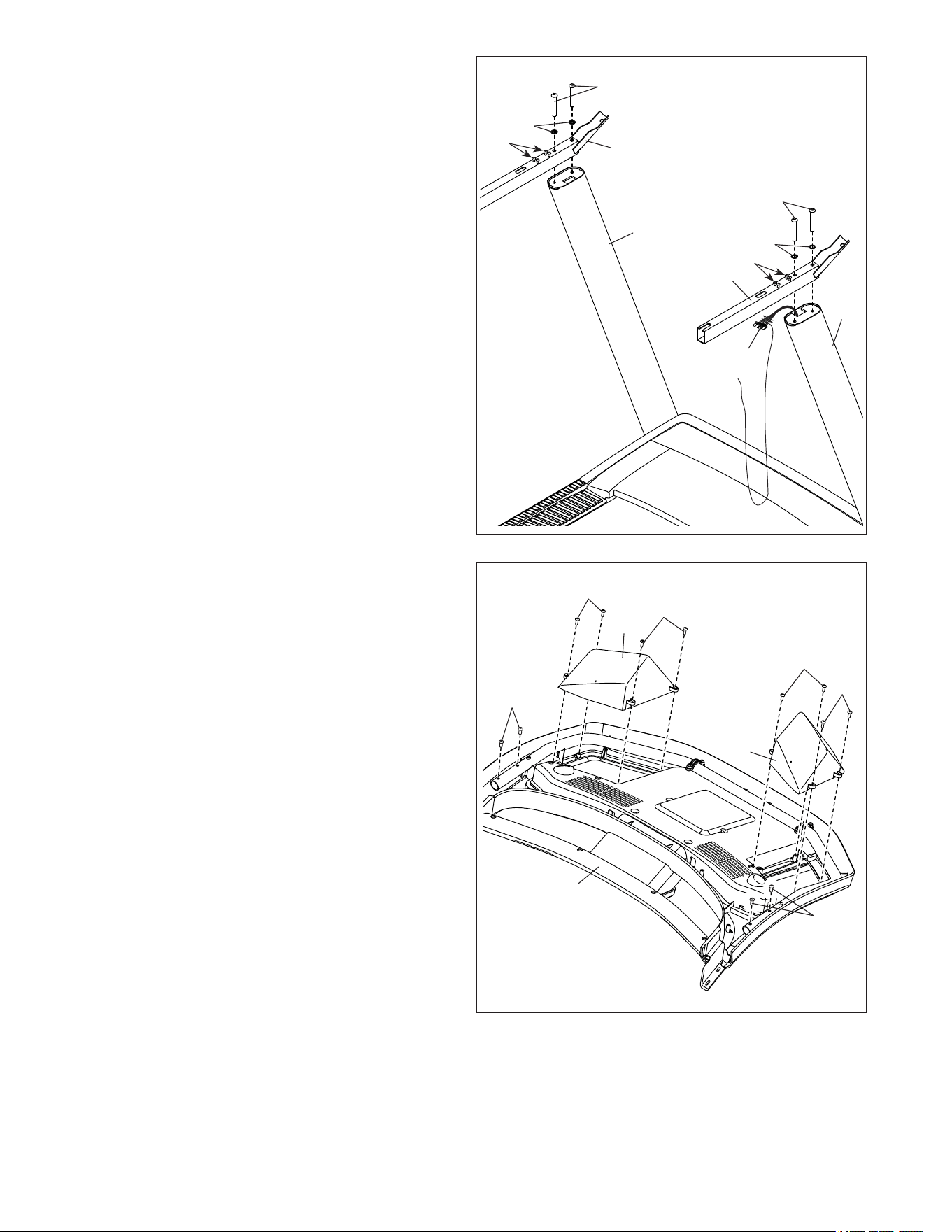

6. Attach a Handrail (81) to the Right Upright (86)
with two 5/16" x 2 1/4" Screws (7) and two 5/16"
Star Washers (12) in the location shown; start
both Screws, and then tighten them. Make
sure not to pinch the Upright Wire (88), and
make sure that the wire is on the indicated
side of the Right Upright.
Attach the other Handrail (81) to the Left
Upright (85) in the same way. Note: There are
no wires on the left side.
Then, remove and discard the indicated
screws (E).
7
7. Set the console assembly (F) facedown on a soft
surface to avoid scratching the console assem-
bly. Attach the Left and Right Trays (98, 99)
with eight #8 x 1/2" Screws (5); start all eight
Screws, and then tighten them. Do not over-
tighten the Screws.
Remove and save the four 1/4" x 1/2"
Screws (24).
5
24
99
98
24
F
5
5
5
88
86
85
81
E
81
7
12
12
7
E
11
8
9
F
88
A

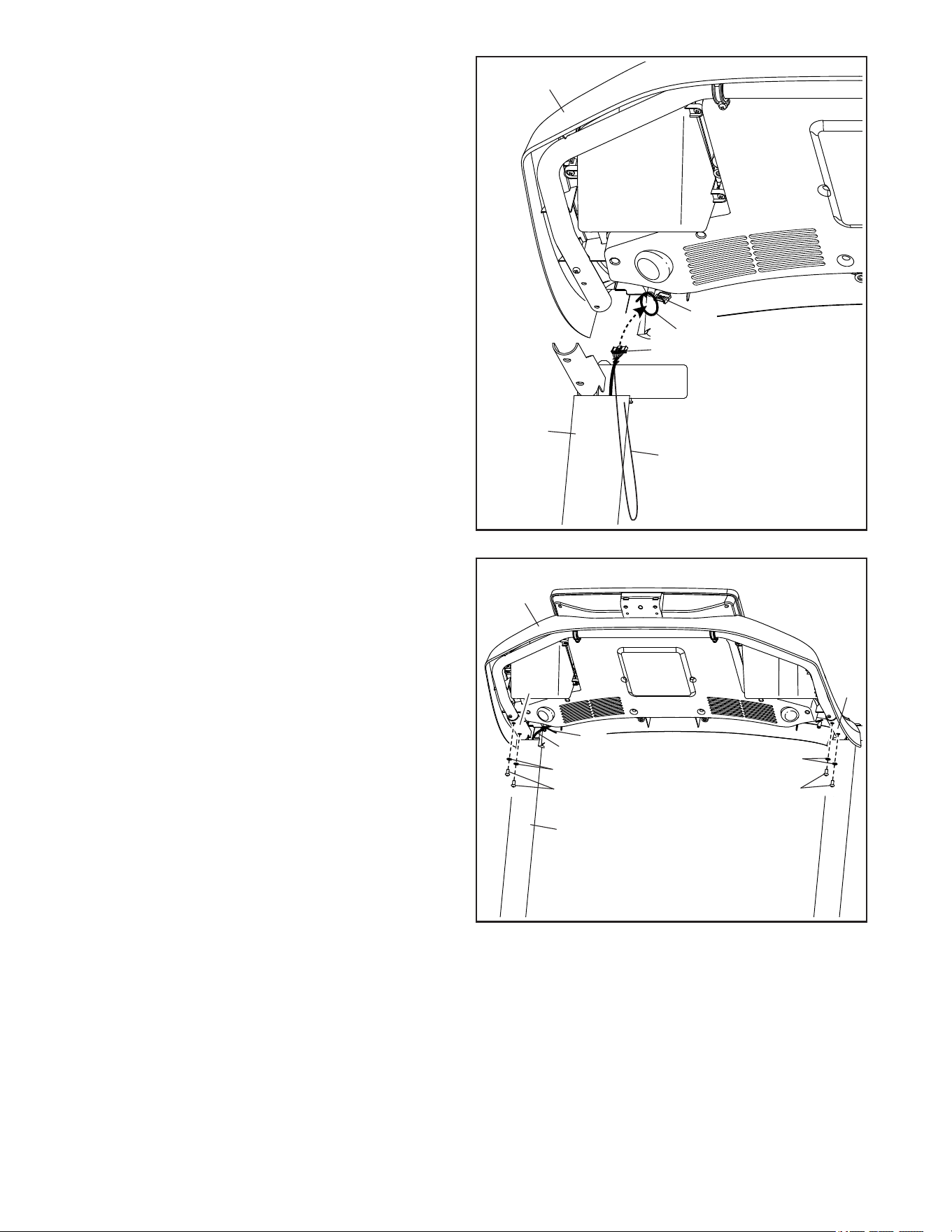

8. With the help of a second person, hold the con-
sole assembly (F) near the Right Upright (86).
Next, insert the Upright Wire (88) through the
indicated looped tie (G).
Connect the Upright Wire (88) to the wire (H)
from the console assembly (F). The connectors
should slide together easily and snap into
place with an audible click. If they do not,
turn one connector and try again.
Then, remove any wire ties (A) from the Upright
Wire (88).

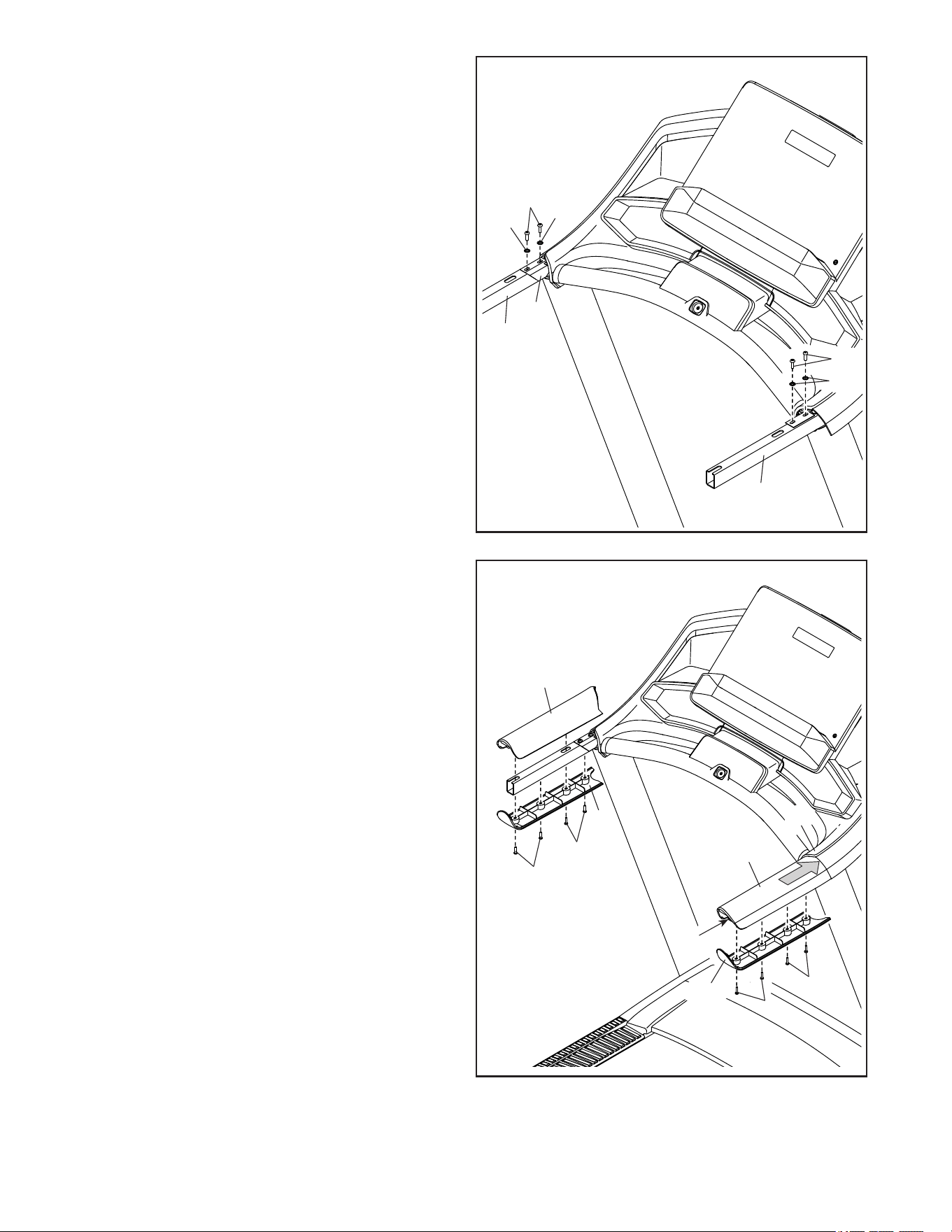

9. Set the console assembly (F) on the Handrails
(81); do not pinch any wires.
Attach the console assembly (F) with the four
1/4" x 1/2" Screws (24) that you removed in step
7 and four 1/4" Star Washers (10); start all four
Screws, and then tighten them.
Insert the excess Upright Wire (88) into the Right
Upright (86). Then, tighten the tie (G) around the
Upright Wire and cut off the end of the tie.
86
G
H
F
10
24
24
10
81
81
88
G
86
12
10
10. IMPORTANT: To avoid damaging the
Crossbar (87), do not use power tools and do
not overtighten the #10 x 3/4" Screws (6).
Attach the Crossbar (87) to the Handrails (81)
with four #10 x 3/4" Screws (6) and four 1/4" Star
Washers (10); start all four Screws, and then
tighten them.
11
11. Identify the Right Handrail Cover (79). Set the
Right Handrail Cover on the right Handrail (81),
and slide the Right Handrail Cover forward until
it rests against the console assembly (F).
Next, attach the Right Bottom Handrail Cover
(83) to the right Handrail (81) and to the Right
Handrail Cover (79) with four #8 x 3/4" Screws
(4); start all four Screws, and then tighten
them.
Attach the Left Handrail Cover (78) and
the Left Bottom Handrail Cover (82) in the
same way.
6
10
10
81
81
87
6
10
79
4
78
82
4
4
83
4
81
F
13

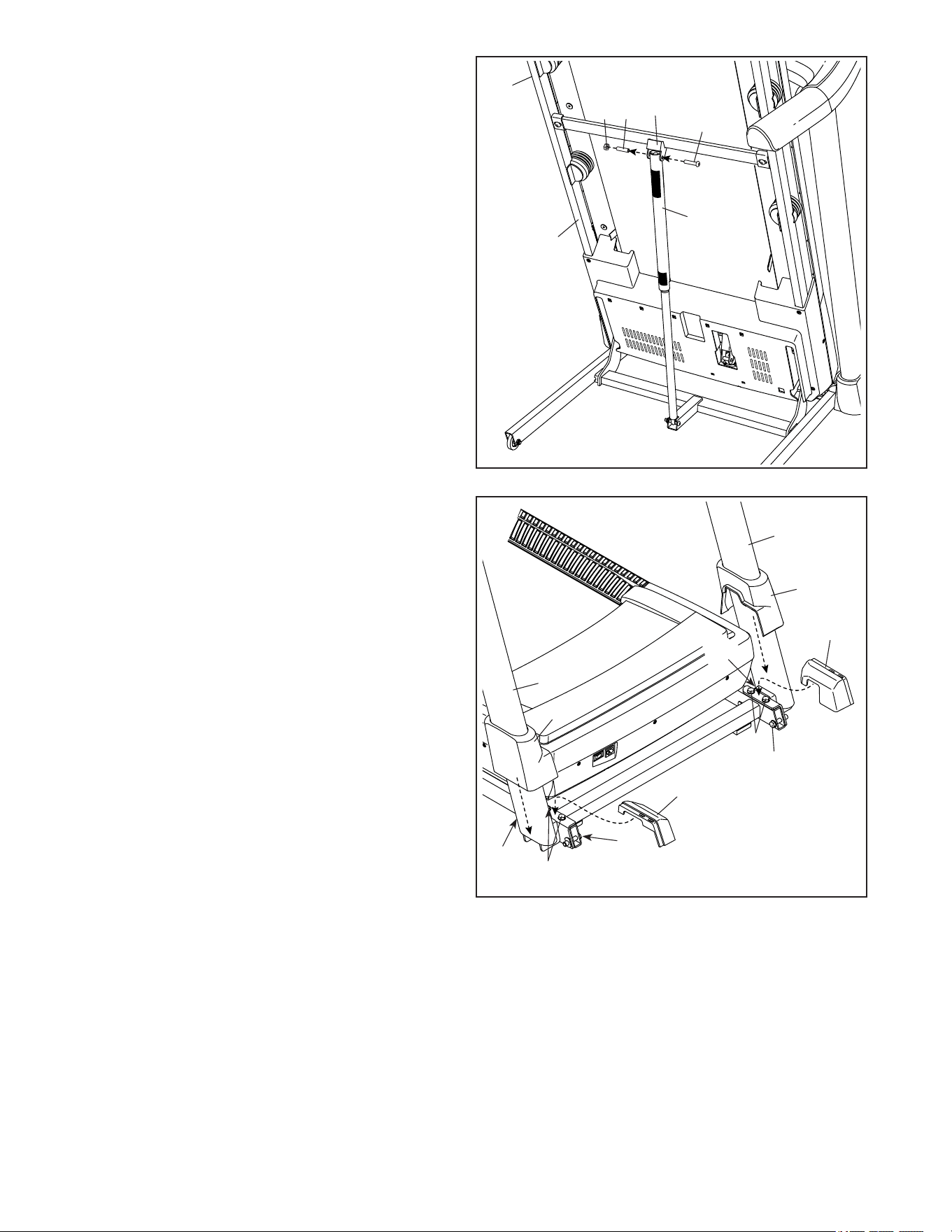

12. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Raise the Frame (60) to the upright position.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 14 is completed.
Remove the two 5/16" x 3/4" Screws (8) from the
Latch Crossbar (48). Note: The Latch Crossbar
is not preattached.
Next, orient the Latch Crossbar (48) as shown.
Make sure that the “This side toward belt”
sticker (I) is facing the treadmill. Attach the
Latch Crossbar to the brackets (J) on the Frame
(60) with the two 5/16" x 3/4" Screws (8) and two
5/16" Star Washers (12).
60
48
I
12
12
8
8
12
J
J

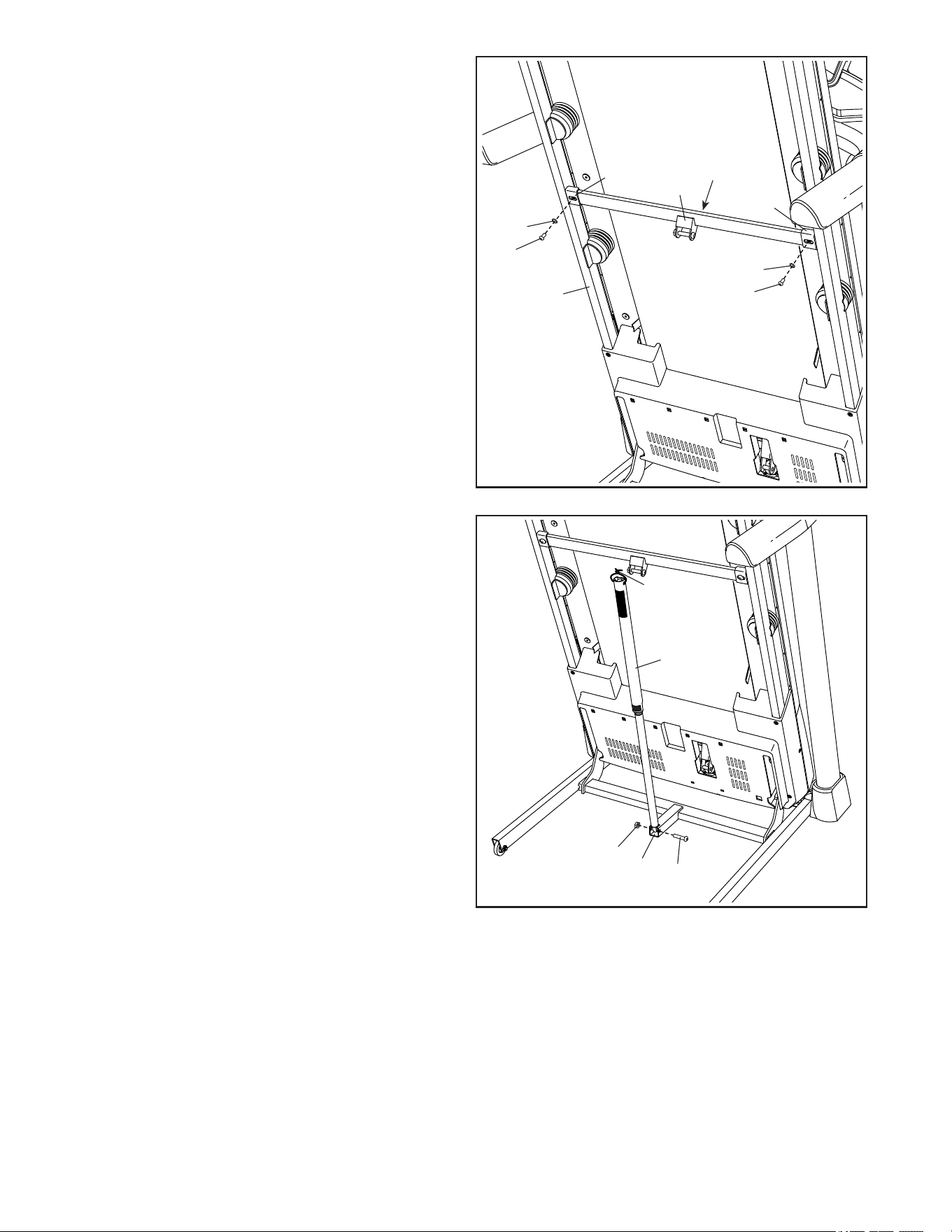

13. Remove the 5/16" Nut (39) and the 5/16" x 1 3/4"
Bolt (26) from the bracket on the Base (97).
Next, orient the Storage Latch (84) as shown.
Attach the lower end of the Storage Latch
(84) to the bracket on the Base (97) with the
5/16" x 1 3/4" Bolt (26) and the 5/16" Nut (39).
Then, raise the Storage Latch (84) to a vertical
position, and remove the tie (K).
97
84
26
39
K
13
14
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see page 26). Note: Extra hardware may be
included.
14. Remove the 5/16" Nut (39) and the 5/16" x 2
1/4" Bolt (117) from the bracket on the Latch
Crossbar (48).
Align the upper end of the Storage Latch (84)
with the bracket on the Latch Crossbar (48), and
insert the 5/16" x 2 1/4" Bolt (117) through the
bracket and the Storage Latch. This will push a
spacer (L) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (39) onto the 5/16" x
2 1/4" Bolt (117). Do not overtighten the Nut;
the Storage Latch (84) must be able to pivot.

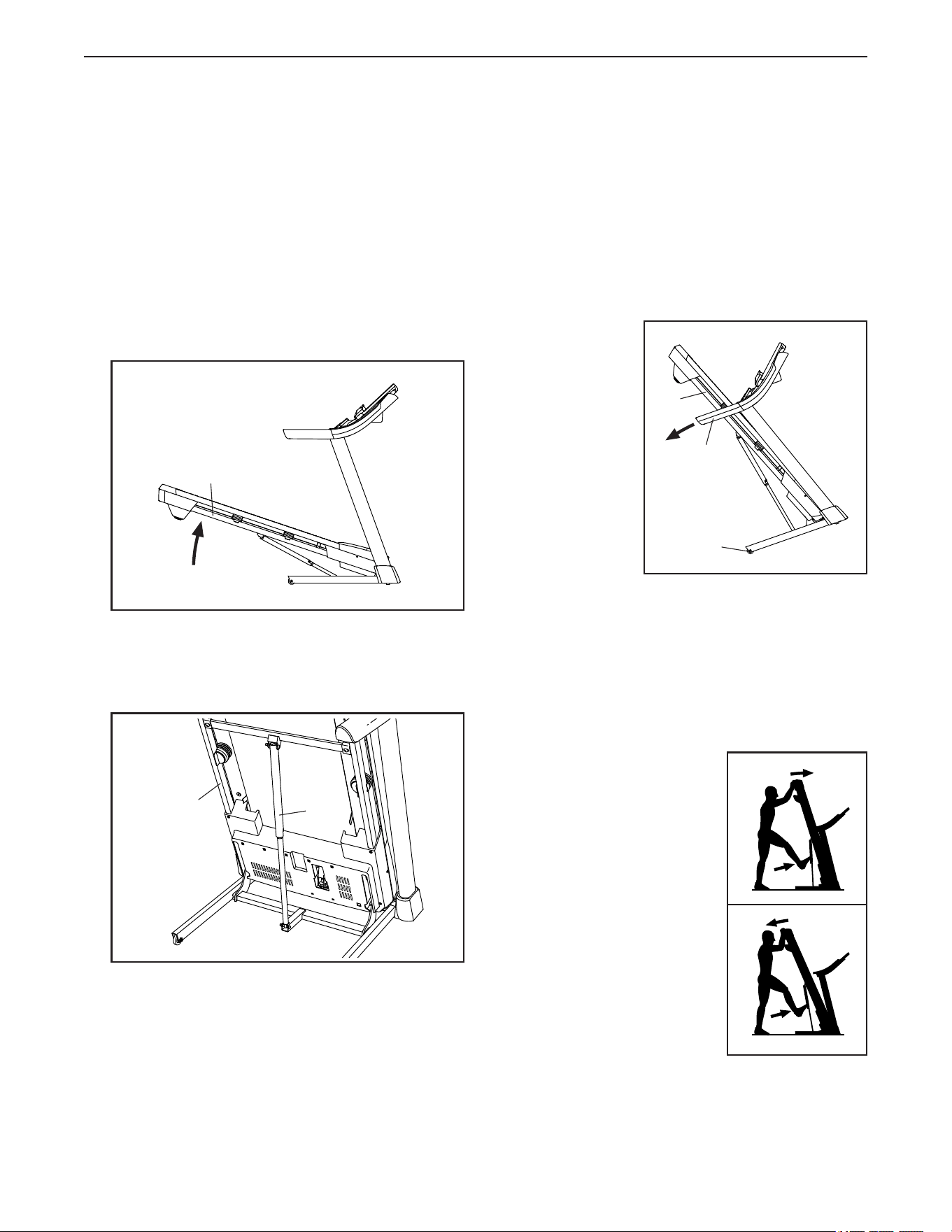

Then, lower the Frame (60) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 24).
48
117
60
39
L
84
14
15. Firmly tighten the four 3/8" x 2 3/8" Screws
(3), the two 3/8" x 1 1/4" Screws (1), and the
two 3/8" x 1 3/4" Screws (2).
Next, set the Left Inner Base Cover (95) onto the
lower end of the Left Upright (85). Then, slide
the Left Base Cover (93) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (94) onto
the lower end of the Right Upright (86). Then,
slide the Right Base Cover (92) downward and
press it onto the Right Inner Base Cover.
15
95
92
93
2
85
3
3
1
2
94
86
1
15
HOW TO USE THE TREADMILL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should
malfunction or break down, earthing provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.

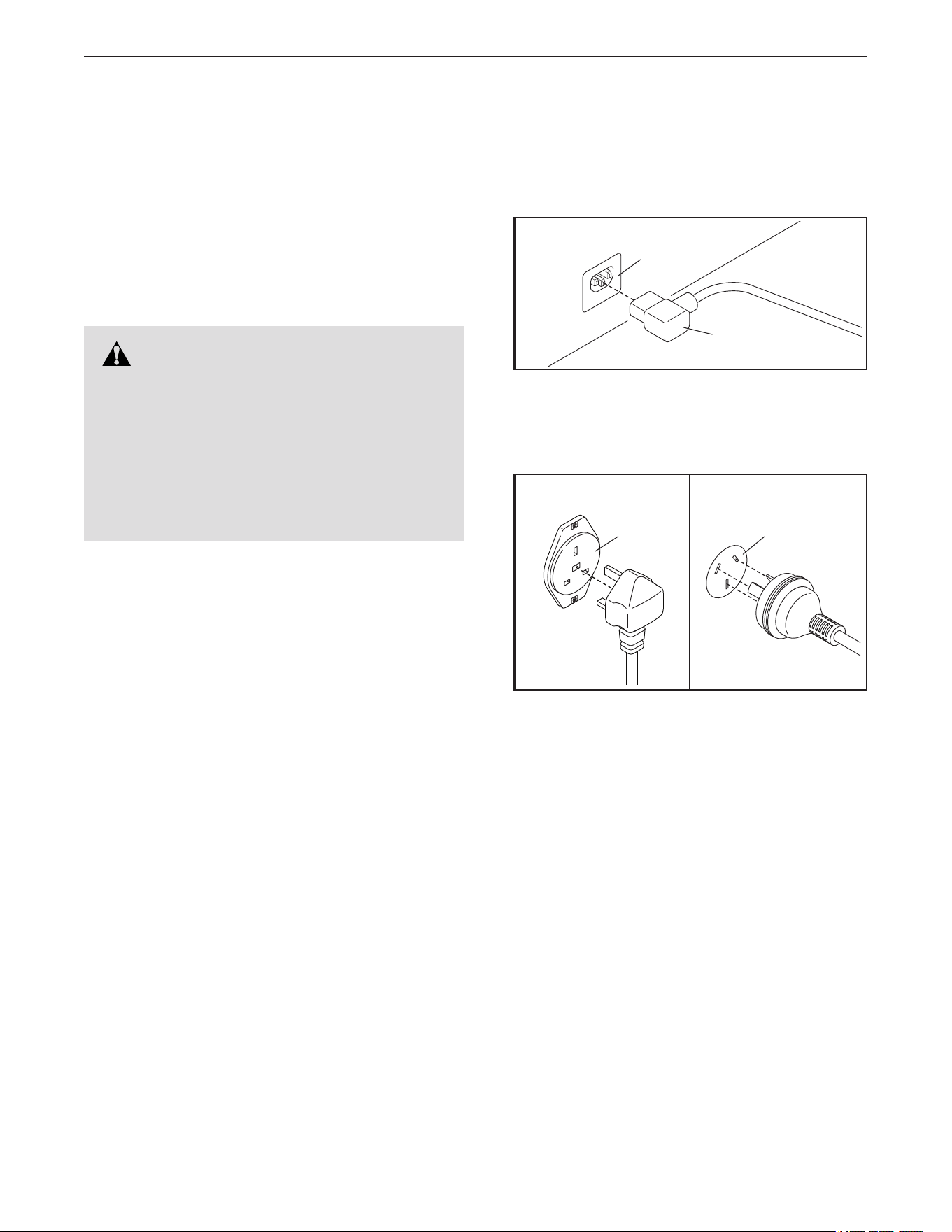

Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord (A) into
the socket (B) on the treadmill.
2. Plug the power cord into an appropriate outlet (C)
that is properly installed and earthed in accordance
with all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
UK
B
A
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
UK
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
UK
C
UK
Australia
C
16
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode, you can
change the speed and incline of the treadmill with the
touch of a button. As you exercise, the console will dis-
play instant exercise feedback. You can even measure
your heart rate using a compatible heart rate monitor.
See page 23 for information about purchasing an
optional heart rate monitor.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
With an iFIT subscription, you can connect your tablet
to the console and use the iFIT app to access iFIT’s
unrivaled selection of studio and destination workouts.
Each workout automatically controls the speed and
incline of the treadmill as a trainer guides you through
an effective exercise session. You can even set fitness
goals, record your workouts, and track your progress.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 17. To use the
manual mode, see page 17. To use an onboard
workout, see page 19. To use an iFIT workout,
see page 20. To connect a heart rate monitor to
the console, see page 21. To use the settings
mode, see page 22. To use the sound system, see
page 23.
Note: The console can display speed and distance
in either miles or kilometers. To change which unit of
measurement is selected, press the ST/M button.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 26).

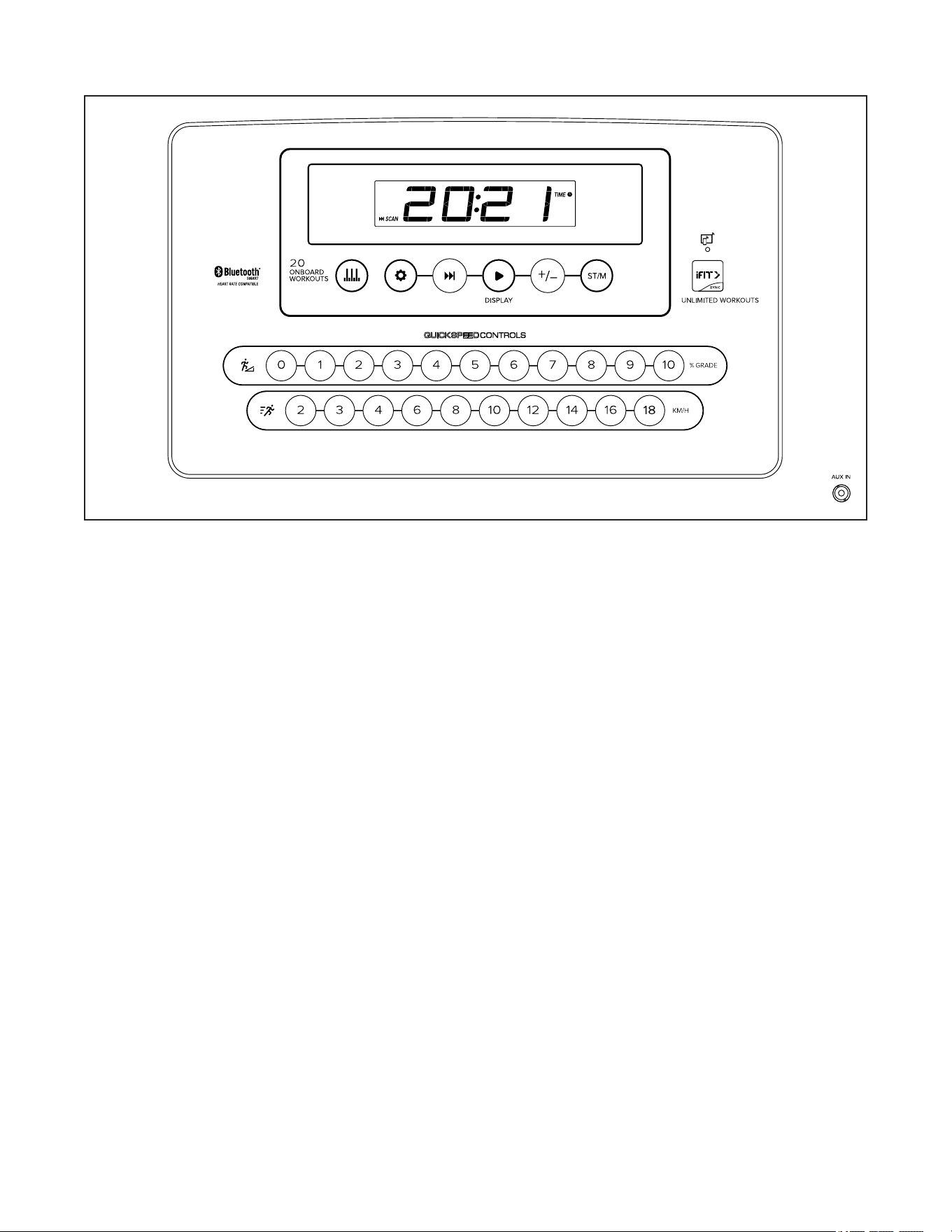

CONSOLE DIAGRAM
ETPF59721-18KPH-INT
17
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 15). Next, locate the
power switch on the treadmill
frame near the power cord.
Press the power switch into the
reset position (D).
Next, stand on the
foot rails of the
treadmill. Find the
clip (E) attached
to the key (F) and
slide the clip onto
the waistband of
your clothes. Then,
insert the key into
the console. After
a moment, the displays will light. IMPORTANT: In an
emergency, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
IMPORTANT: The first time you use the treadmill,
you must calibrate the incline system (see step 3
on page 22).
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
If the manual mode is not selected, press the Stop
button repeatedly.
3. Start the walking belt.
To start the walking belt, press the Start button or
one of the Quick Speed buttons.
If you press the Start button, the walking belt will
begin to move at a low speed. As you exercise,
change the speed of the walking belt as desired by
pressing the Speed increase and decrease but-
tons. Each time you press one of the buttons, the
speed setting will change in small increments; if
you hold down the button, the speed setting will
change more quickly. Note: After you press the
button, it may take a moment for the walking belt to
reach the selected speed setting.
If you press one of the Quick Speed buttons, the
walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. The
time will begin to flash in the display. To restart the
walking belt, press the Start button.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button or one of the
numbered incline buttons. Each time you press one
of the buttons, the treadmill will gradually adjust to
the selected incline setting.
D
ETPF59721-18KPH-INT
F
E
18
5. Follow your progress with the display.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Distance (MI or KM)—The distance that you have
walked or run in miles or kilometers. To change the
unit of measurement, press the ST/M button.
Pace—Your speed in minutes per mile or minutes
per kilometer.
Pulse (BPM and heart symbol)—Your heart rate
when you use a compatible heart rate monitor (see
page 23).
Speed (MPH or KPH)—Your speed in miles per
hour or kilometers per hour.
Time—The elapsed time.
Press the Display
button (G) repeatedly
to view the desired
workout information in
the display.
Scan mode—The console also has a scan mode
that will display workout information in a repeating
cycle. To turn on the scan mode, press the Scan
button (H); the scan indicator (I) will turn on in the
display.
To manually advance the scan cycle, press the
Scan button repeatedly.
To turn off the scan mode, press the Display
button; the scan indicator and the word SCAN will
turn off.
You can also customize the scan mode to display
only the desired workout information in the
repeating cycle.
To customize the scan mode, first press the
Display button repeatedly until the workout
information that you want to add to or remove from
the scan cycle appears in the display.
Next, press the +/- button (J) to add or remove that
workout information from the scan cycle. When
workout information is added, its indicator will
turn on in the display. When workout information
is removed, its indicator will turn off.
Then, press the Scan button to turn on the scan
mode.
To reset the displays, press the Stop button twice,
remove the key, and then reinsert the key.
6. When you are finished exercising, remove the
key from the console.
When you are finished using the treadmill, step
onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to zero. The
incline must be at zero or you may damage the
treadmill when you fold it to the storage posi-
tion. Next, remove the key from the console and
put it in a secure place.
Then, press the power switch into the off position
and unplug the power cord. IMPORTANT: If you
do not do this, the treadmill’s electrical compo-
nents may wear prematurely.
H
JG
I
19
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 17.
2. Select an onboard workout.
To select an onboard workout, press the 20
Onboard Workouts button repeatedly until the
desired workout appears in the display.
A few seconds after you select a workout, the dura-
tion, distance, and maximum speed settings of the
workout will appear in the display for a few
seconds.
3. Start the walking belt.
Press the Start button. A moment after you press
the button, the treadmill will automatically adjust to
the first speed and incline settings for the workout.
Hold the handrails and begin walking.
Each workout is divided into several one-minute
segments. One speed setting and one incline set-
ting are programmed for each segment. Note: The
same speed and/or incline settings may be pro-
grammed for consecutive segments.
At the end of each segment, the speed and/or
incline setting for the next segment will flash in the
display to alert you if the setting is about to change.
The treadmill will then automatically adjust to the
speed and incline settings for the next segment.
The workout will continue in this way until the
last segment ends. The walking belt will then
slow to a stop.
If the speed or incline setting for the current
segment is too high or too low, you can manu-
ally override the setting by pressing the Speed
or Incline buttons; however, when the current
segment of the workout ends, the treadmill will
automatically adjust to the speed and incline
settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 2 Km/H.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for that segment.
4. Follow your progress with the display.
See step 5 on page 18.
5. When you are finished exercising, remove the
key from the console.
See step 6 on page 18.
20
HOW TO USE AN IFIT WORKOUT
The console offers access to a large and varied library
of iFIT workouts when you download the iFIT app to
your smart device and connect it to the console.
Note: The console supports Bluetooth connections to
smart devices via the iFIT app and to compatible heart
rate monitors. Other Bluetooth connections are not
supported.
1. Download and install the iFIT app on your
smart device.
On your iOS
®
or Android™ smart device, open the
App Store℠ or the Google Play™ store, search
for the free iFIT app, and then install the app on
your smart device. Make sure that the Bluetooth
option is enabled on your smart device.
Then, open the iFIT app and follow the instructions
to set up an iFIT account and customize settings.
Take time to explore the iFIT app and learn about
its features and settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate moni-
tor and your smart device to the console, you
must connect your heart rate monitor before
you connect your smart device. See HOW TO
CONNECT A HEART RATE MONITOR TO THE
CONSOLE on page 21.
3. Connect your smart device to the console.
Press the iFIT Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFIT app to con-
nect your smart device to the console.
When a connection is established, the LED on the
console will turn solid blue.
4. Select an iFIT workout.
In the iFIT app, touch the buttons at the bottom of
the screen to select either the main menu (Home
button) or the workout library (Browse button).
To select a workout from the main menu or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll upward or downward if necessary.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
5. Start the workout.
Touch Start Workout to start the workout.
During some workouts, an iFIT coach will guide
you through a video workout. Touch the sound but-
ton (music notes symbol) to select music, trainer
voice, and volume options for the workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
If the speed or incline settings for the current
segment of the workout are too high or too low,
you can manually override the setting by press-
ing the Speed or Incline buttons on the console.
IMPORTANT: When the current segment
ends, the speed and incline will automatically
adjust to the settings programmed for the next
segment.
Note: The calorie goal shown in the workout
description is an estimate of the number of
calories that you will burn during the workout.
The actual number of calories that you burn
will depend on various factors, such as your
weight. In addition, if you manually change the
speed or incline during the workout, the num-
ber of calories you burn will be affected.
21
To pause the workout, simply touch the screen or
press the Stop button. To continue the workout,
press the play icon on the screen, or press the
Start button.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the main menu.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule or adding the workout to your favorites list.
Then, touch Save Workout to return to the main
menu.
6. Disconnect your smart device from the
console.
To disconnect your smart device from the console,
first select the disconnect option in the iFIT app.
Then, press and hold the iFIT Sync button on the
console until the LED on the console turns solid
green.
Note: All Bluetooth connections between the
console and other devices (including any smart
devices, heart rate monitors, and so forth) will be
disconnected.
7. When you are finished exercising, remove the
key from the console.
See step 6 on page 18.
HOW TO CONNECT A HEART RATE MONITOR TO
THE CONSOLE
The console is compatible with Bluetooth Smart heart
rate monitors. For information about purchasing an
optional heart rate monitor, see page 23.
To connect your Bluetooth Smart heart rate monitor to
the console, press the iFIT Sync button on the console;
the console pairing number will appear in the display.
When a connection is established, the LED on the
console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the iFIT Sync button on the console
until the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any tablets, heart rate
monitors, and so forth) will be disconnected.
22
THE SETTINGS MODE
1. Select the settings mode.
To select the settings mode, press
the gear button (K). The first set-
tings screen will appear in the
display. Note: If you have selected
a workout, you may need to press
the Stop button repeatedly to
return to the main menu before
selecting the settings mode.
2. Navigate the settings mode.
While the settings mode is selected, you can
navigate through several settings screens. Press
the Stop button repeatedly to select the desired
settings screen.
3. Change settings as desired.
Software Version Number—The software version
number will appear in the display.
Incline System Calibration—The letters CAL will
appear in the display. If the incline system is not
functioning properly, it may need to be calibrated.
To calibrate the incline system, press the Incline
increase or decrease button. The treadmill will
automatically rise to the maximum incline level and
then return to the minimum level. When the tread-
mill stops moving, the incline system is calibrated.
Note: Occasionally, the incline calibration may
run automatically when you turn on the tread-
mill. Wait for the calibration to be completed
before attempting to use the treadmill.
Unit of Measurement—The currently selected
unit of measurement will appear in the display. The
console can show speed and distance in standard
or metric units of measurement. To change the unit
of measurement, press the Speed increase button
repeatedly. To view workout information in standard
units, select Std. To view workout information in
metric units, select Met.
Display Test—This screen is intended to be used
by service technicians to identify whether the
display is working correctly.
Button Test—This screen is intended to be used
by service technicians to identify whether a certain
button is working correctly.
Total Time—The word TIME will appear in the
display. The display will show the total number of
hours that the treadmill has been used.
Total Distance—The letters MI or KM will appear
in the display. The display will show the total dis-
tance (in miles or kilometers) that the walking belt
has moved.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Incline
increase and decrease buttons to adjust the con-
trast level.
K
23
Demo Mode—The currently selected demo mode
option will appear in the display. The console
features a demo mode, designed to be used if the
treadmill is displayed in a store. If the demo mode
is turned on, the console will not turn off and the
display will not be reset when you finish exercis-
ing. Press the Speed increase button repeatedly to
select a demo mode option. To turn on the demo

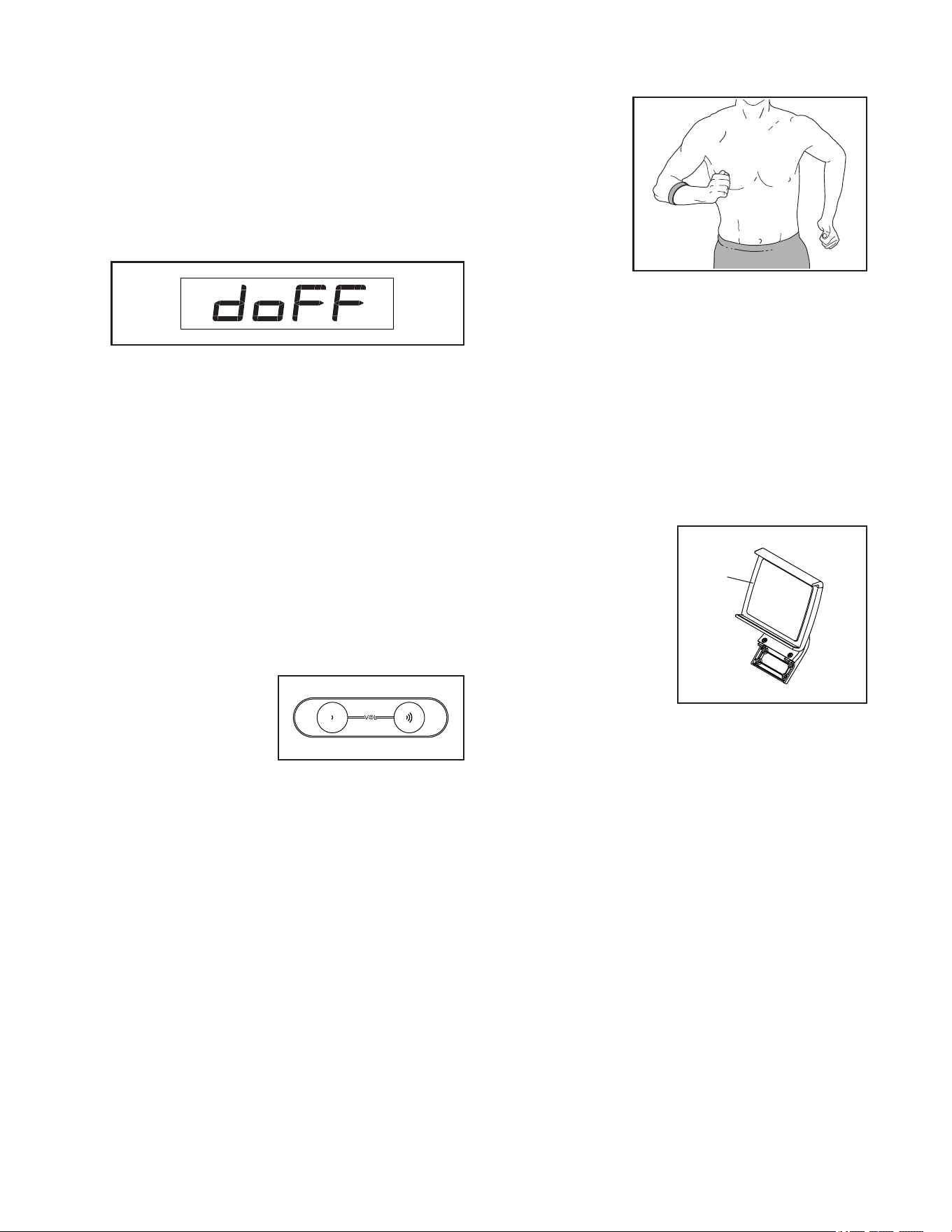

mode, select Don. To turn off the demo mode,
select Doff.
4. Exit the settings mode.
Press the gear button (see step 1 on page 22) to
exit the settings mode.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play
button on your personal
audio player. Adjust
the volume level using
the volume increase
and decrease buttons
on the console or the volume control on your personal
audio player.
THE OPTIONAL HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. An optional heart rate monitor will enable
you to continuously monitor your heart rate while you
exercise, helping you to reach your personal fitness
goals. To purchase a heart rate monitor, please see
the front cover of this manual.
Note: The console is compatible with Bluetooth Smart
heart rate monitors.
THE OPTIONAL TABLET HOLDER
The optional tablet
holder (L) will hold
your tablet securely in
place and enable you
to use your tablet while
you exercise. The
optional tablet holder is
designed for use with
most full-size tablets.
To purchase a tablet
holder, please see
the front cover of this manual.
L
24
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to zero before you fold the treadmill. Then, remove
the key and unplug the power cord. CAUTION: You
must be able to safely lift 45 lbs. (20 kg) to raise,
lower, or move the treadmill.
1. Hold the metal frame (A) firmly in the location
shown by the arrow below. CAUTION: Do not
hold the frame by the plastic foot rails. Bend
your legs and keep your back straight.
2. Raise the frame (A) until the storage latch (B) locks
in the storage position. CAUTION: Make sure that
the storage latch locks.
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight. Do
not leave the treadmill in the storage position in tem-
peratures above 85°F (30°C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the storage latch is
in the locked position. Moving the treadmill may
require two people. Take any necessary measures
to protect your floor.
1. Hold the frame (A) and one of the handrails (C),
and place one foot against a wheel (D).
2. Pull back on
the handrail
(C) until the
treadmill will
roll on the
wheels (D),
and carefully
move it to
the desired
location.
CAUTION:
Do not move
the treadmill
without tip-
ping it back,
do not pull on the frame, and do not move the
treadmill over an uneven surface.
3. Place one foot against a wheel (D), and carefully
lower the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. Push the upper end of the
frame forward, and gently
press the upper part of the
storage latch with your foot
at the same time.
2. While pressing the storage
latch with your foot, pull
the upper end of the frame
toward yourself.
3. Step back and let the
frame lower to the floor.
A
1
2
A
B
C
A
D
1
1
2
25
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and
properly tighten all parts each time the treadmill is
used. Replace any worn parts immediately. Use only
manufacturer-supplied parts.
Regularly clean the treadmill and keep the walking belt
clean and dry. First, press the power switch into the
off position and unplug the power cord. Wipe exte-
rior parts of the treadmill with a damp cloth and a small
amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Most treadmill problems can be solved by follow-
ing the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm
2
) cord that is no
longer than 5 ft. (1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown (A), the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in (B).
SYMPTOM: The power turns off during use
a. Check the power switch (see drawing c at the left).
If the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode,
designed to be used if the treadmill is displayed in
a store. See step 3 on page 22 to check your
console settings and turn off the demo mode if
needed.
SYMPTOM: The incline of the treadmill does not
change correctly
a. See step 3 on page 22 to calibrate the incline
system.
c
B
A
MAINTENANCE AND TROUBLESHOOTING
26
SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm
2
) cord that is no
longer than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws (C) counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened,
you should be able to lift each edge of the walking
belt 2 to 3 in. (5 to 7 cm) off the walking platform.
Be careful to keep the walking belt centered.
Then, plug in the power cord, insert the key, and
walk on the treadmill for a few minutes. Repeat
until the walking belt is properly tightened.
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.

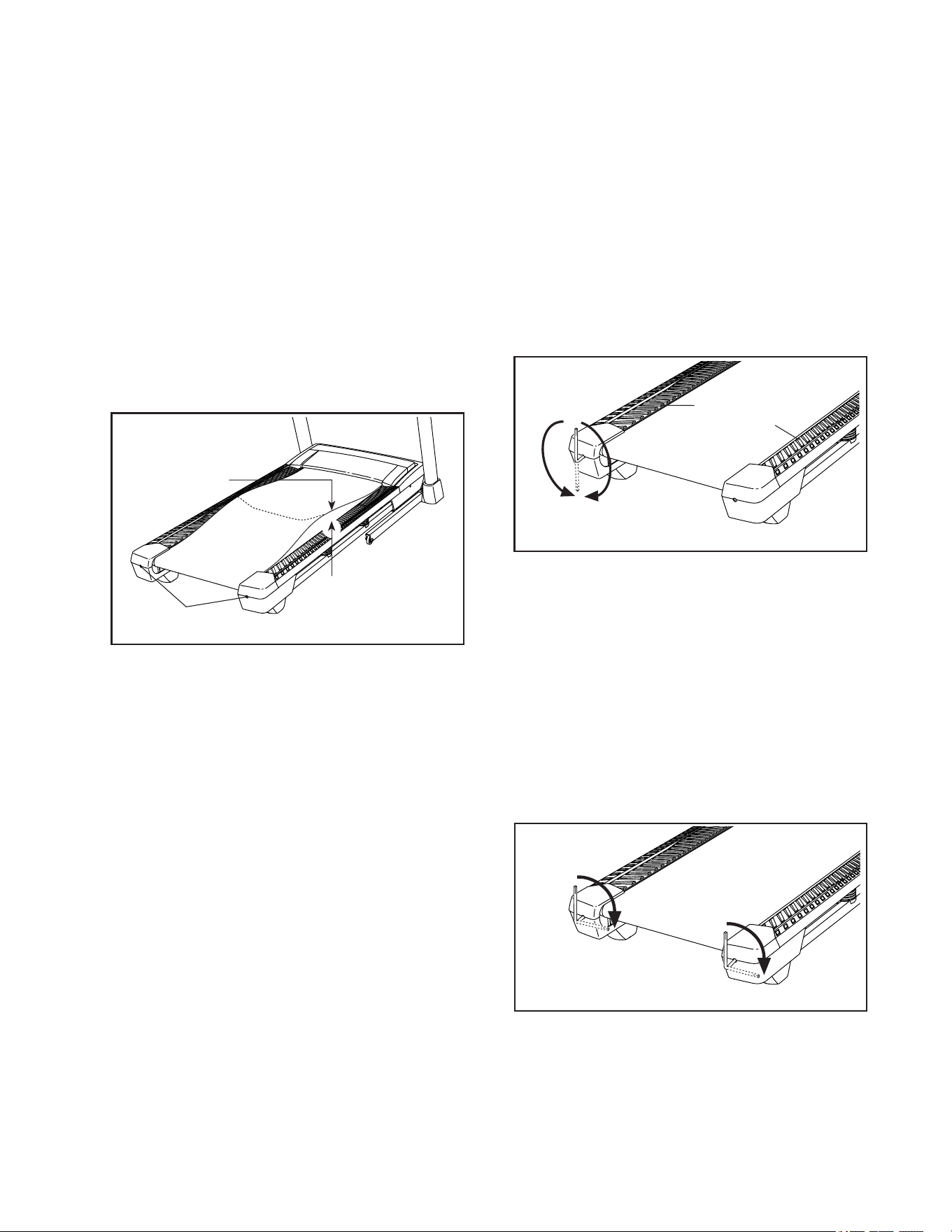

SYMPTOM: The walking belt is not centered
between the foot rails
a. IMPORTANT: If the walking belt rubs against
the foot rails (D), the walking belt may become
damaged. First, remove the key and UNPLUG
THE POWER CORD. If the walking belt has shifted
to the left, use the hex key to turn the left idler
roller screw clockwise 1/2 of a turn; if the walking
belt has shifted to the right, turn the left idler roller
screw counterclockwise 1/2 of a turn. Be careful
not to overtighten the walking belt. Then, plug
in the power cord, insert the key, and walk on the
treadmill for a few minutes. Repeat until the walk-
ing belt is centered.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walking
belt is correctly tightened, you should be able to lift
each edge of the walking belt 2 to 3 in. (5 to 7 cm)
off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power
cord, insert the key, and walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
C
2–3 in.
b
a
D
D
a
27

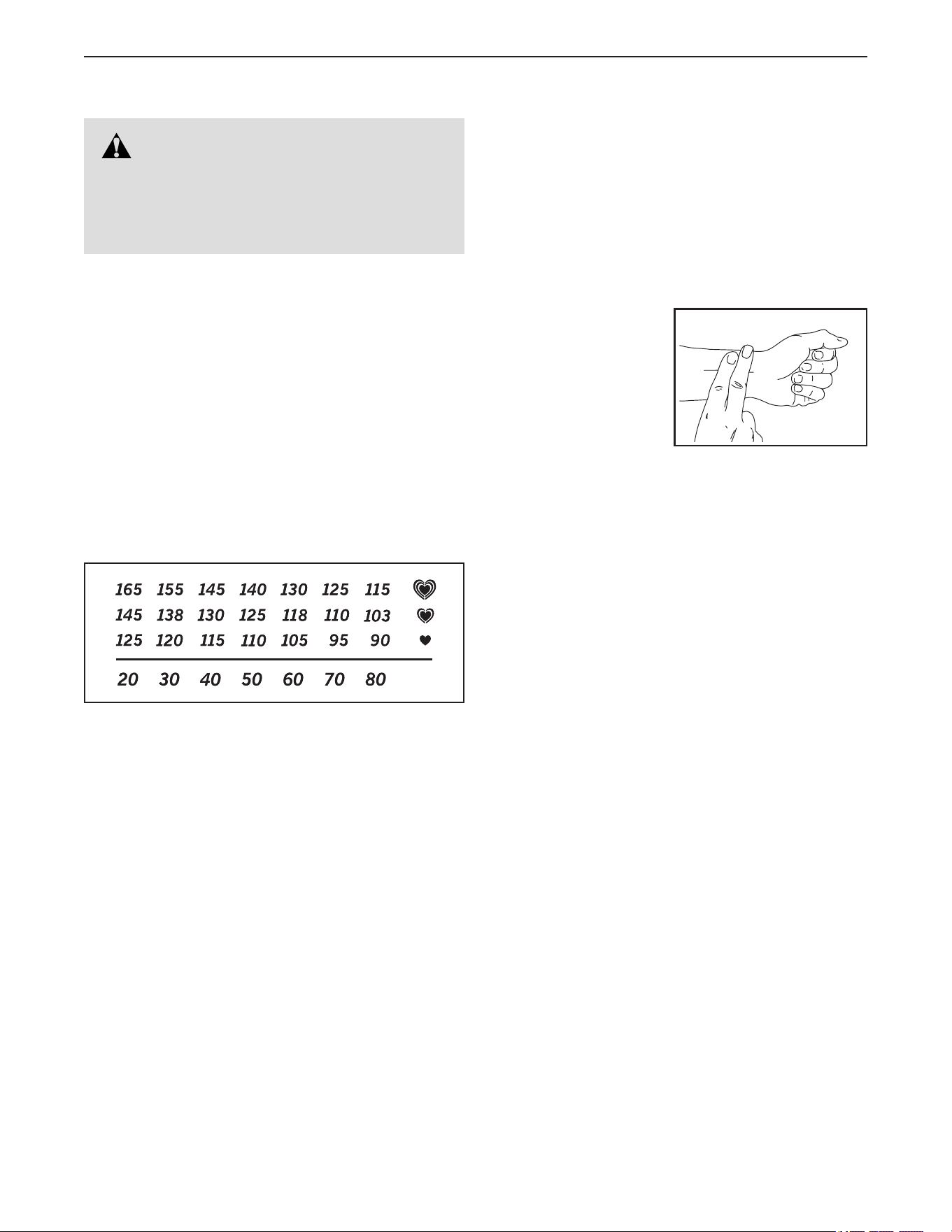

EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at
least four minutes.
Then, stop exercis-
ing and place two
fingers on your wrist
as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
28

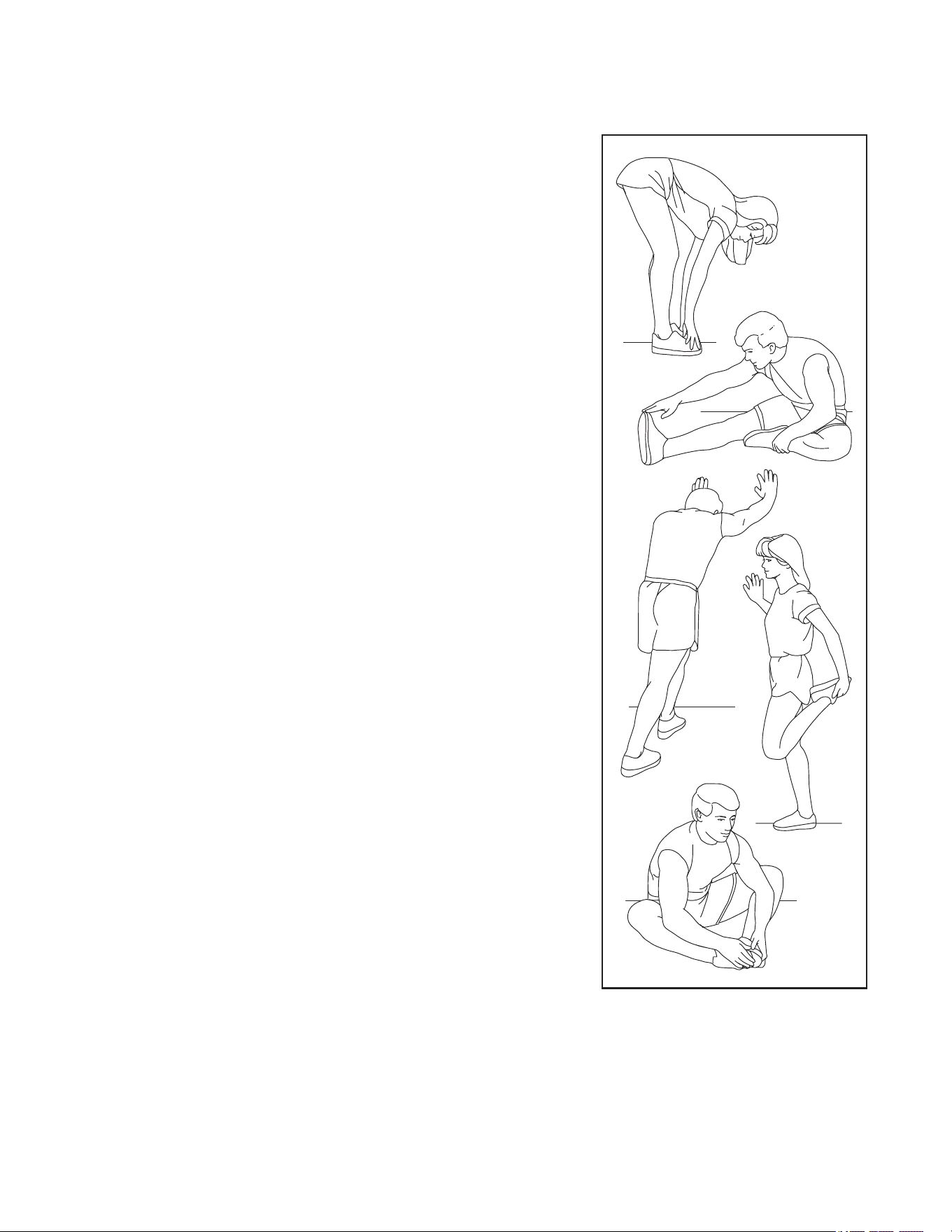

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your
hips. Allow your back and shoulders to relax as you reach down toward
your toes as far as possible. Hold for 15 counts, then relax. Repeat 3
times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To
cause further stretching of the achilles tendons, bend your back leg as
well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
29
NOTES
30
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. PFTL59721-INT.4 R0322A
1 2 3/8" x 1 1/4" Screw
2 2 3/8" x 1 3/4" Screw
3 4 3/8" x 2 3/8" Screw
4 59 #8 x 3/4" Screw
5 11 #8 x 1/2" Screw
6 4 #10 x 3/4" Screw
7 4 5/16" x 2 1/4" Screw
8 2 5/16" x 3/4" Screw
9 1 #8 x 1/2" Ground Screw
10 8 1/4" Star Washer
11 8 3/8" Star Washer
12 6 5/16" Star Washer
13 2 3/8" x 1 3/8" Bolt
14 3 1/4" x 2 1/2" Screw
15 2 3/8" x 1 1/8" Bolt
16 8 #8 x 3/4" Truss Head Screw
17 4 1/4" x 1 1/4" Screw
18 2 1/4" x 1 1/4" Patch Screw
19 4 #8 x 1" Screw
20 6 #8 x 5/8" Screw
21 1 3/8" x 1 3/4" Bolt
22 1 3/8" x 1 1/2" Bolt
23 2 1/4" Motor Screw
24 4 1/4" x 1/2" Screw
25 4 #8 Belt Guide Screw
26 5 5/16" x 1 3/4" Bolt
27 6 #8 x 1/2" Washer Head Screw
28 1 M8 x 102mm Screw
29 2 M8 x 20mm Screw
30 2 #8 Star Washer
31 8 M4 Flat Washer
32 4 5/16" Flat Washer
33 2 3/8" Thrust Washer
34 6 Small Flat Washer
35 2 M8.4 Star Washer
36 1 1/4" Nut
37 5 Hood Clip
38 6 3/8" Nut
39 6 5/16" Nut
40 1 M8 Nut
41 2 M8 Flange Nut
42 4 Platform Cushion
43 4 Cushion Bottom
44 1 Left Foot Rail
45 1 Right Foot Rail
46 1 Warning Decal
47 1 Walking Platform
48 1 Latch Crossbar
49 1 Walking Belt
50 2 Belt Guide
51 4 Rubber Cushion
52 2 3/8" Pin
53 1 Drive Roller/Pulley
54 1 Controller Clamp
55 1 Electronics Plate
56 3 Cable Tie
57 1 Motor Bracket
58 1 Drive Motor
59 1 Motor Belt
60 1 Frame
61 1 Right Rear Foot
62 1 Left Rear Foot
63 2 Rear Foot
64 1 Idler Roller
65 1 Motor Hood
66 1 Motor Hood Cover
67 2 Incline Frame Spacer
68 2 Frame Spacer
69 4 3/8" Plastic Bushing
70 1 Incline Motor
71 1 Incline Frame
72 2 Incline Motor Spacer
73 1 Controller
74 1 Power Cord
75 1 Receptacle
76 1 Power Switch
77 1 Belly Pan
78 1 Left Handrail Cover
79 1 Right Handrail Cover
80 1 #8 x 3/4" Machine Screw
81 2 Handrail
82 1 Left Bottom Handrail Cover
83 1 Right Bottom Handrail Cover
84 1 Storage Latch
85 1 Left Upright
86 1 Right Upright
87 1 Crossbar
88 1 Upright Wire
89 2 Grommet
90 2 Base Pad Spacer
91 2 Base Pad
92 1 Right Base Cover
93 1 Left Base Cover
94 1 Right Inner Base Cover
95 1 Left Inner Base Cover
96 2 Caution Decal
97 1 Base
98 1 Left Tray
99 1 Right Tray
100 1 Console Base
31
Key No. Qty. Description Key No. Qty. Description
101 1 Console Frame
102 1 Console Ground Wire
103 2 Console Clamp
104 1 Key/Clip
105 1 Console
106 2 Console Cable Tie
107 2 Wheel
108 2 9/32" Plastic Bushing
109 – (Not Used)
110 1 Motor Isolator
111 1 #8 Nut
112 2 M4 Nut
113 2 M4 x 10mm Bolt
114 1 Filter
115 2 Motor Bushing
116 4 #8 x 1" Screw
117 1 5/16" x 2 1/4" Bolt
* – User’s Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
32
43
16
31
16
31
60
51
32
39
61
4
63
14
63
51
64
26
20
17
34
46
47
20
34
50
25
34
53
20
39
51
52
26
18
40
28
55
27
30
54
80
111
113
113
114
112
27
18
27
14
26
36
52
34
51
32
39
56
50
25
20
34
20
32
44
17
49
42
43
42
26
17
17
45
32
39
14
62
4
4
4
108
108
59
58
23
29
35
41
35
29
57
110
115
43
16
31
42
34
20
43
42
31
16
12
8
12
8
48
84
39
26
117
39

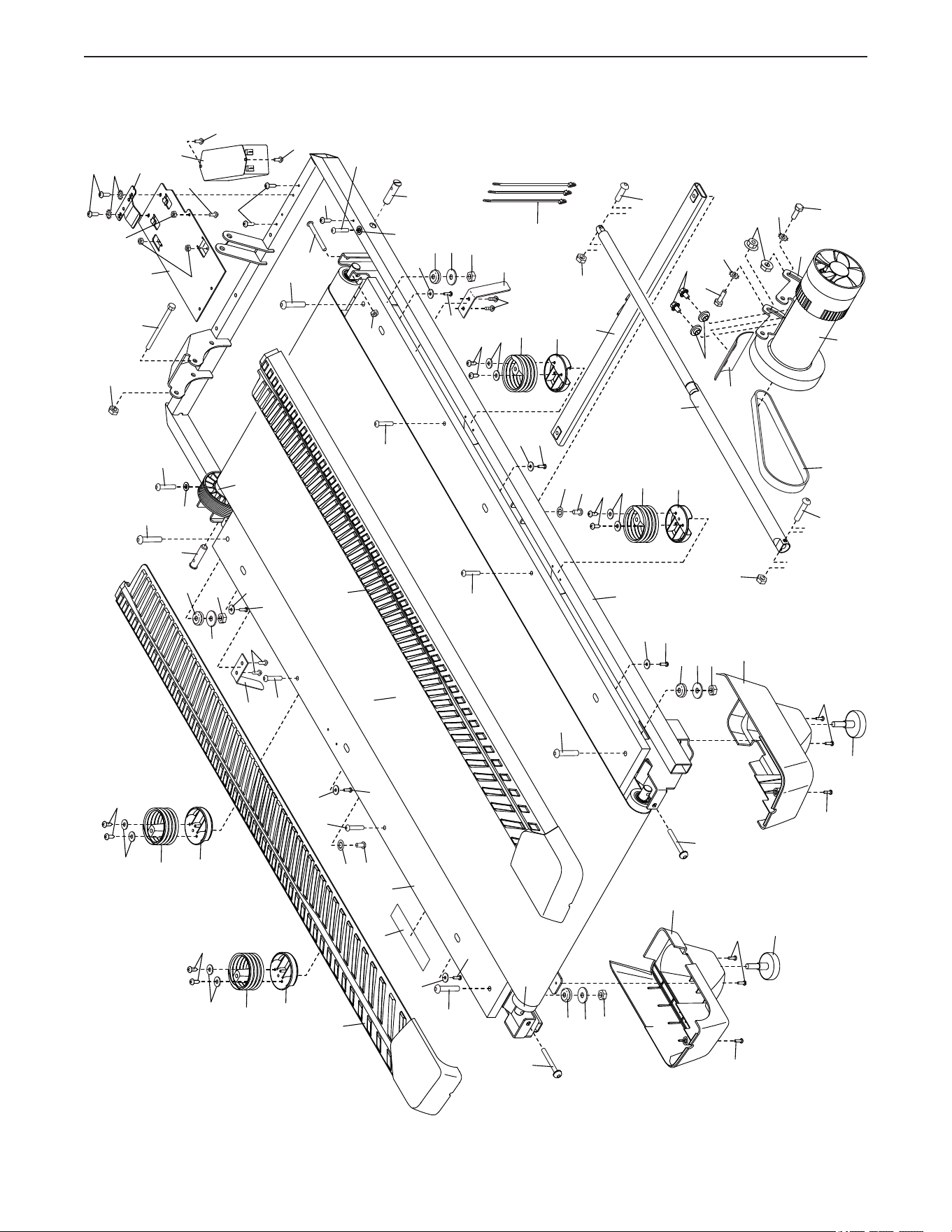

EXPLODED DRAWING A
Model No. PFTL59721-INT.4 R0322A
33
66
65
68
38
33
69
67
71
22
72
38
38
33
69
67
38
68
73
4
4
4
4
4
4
4
77
4
76
21
70
4
5
5
4
4
5
4
4
4
37
37
4
37
37
37
4
4
74
75

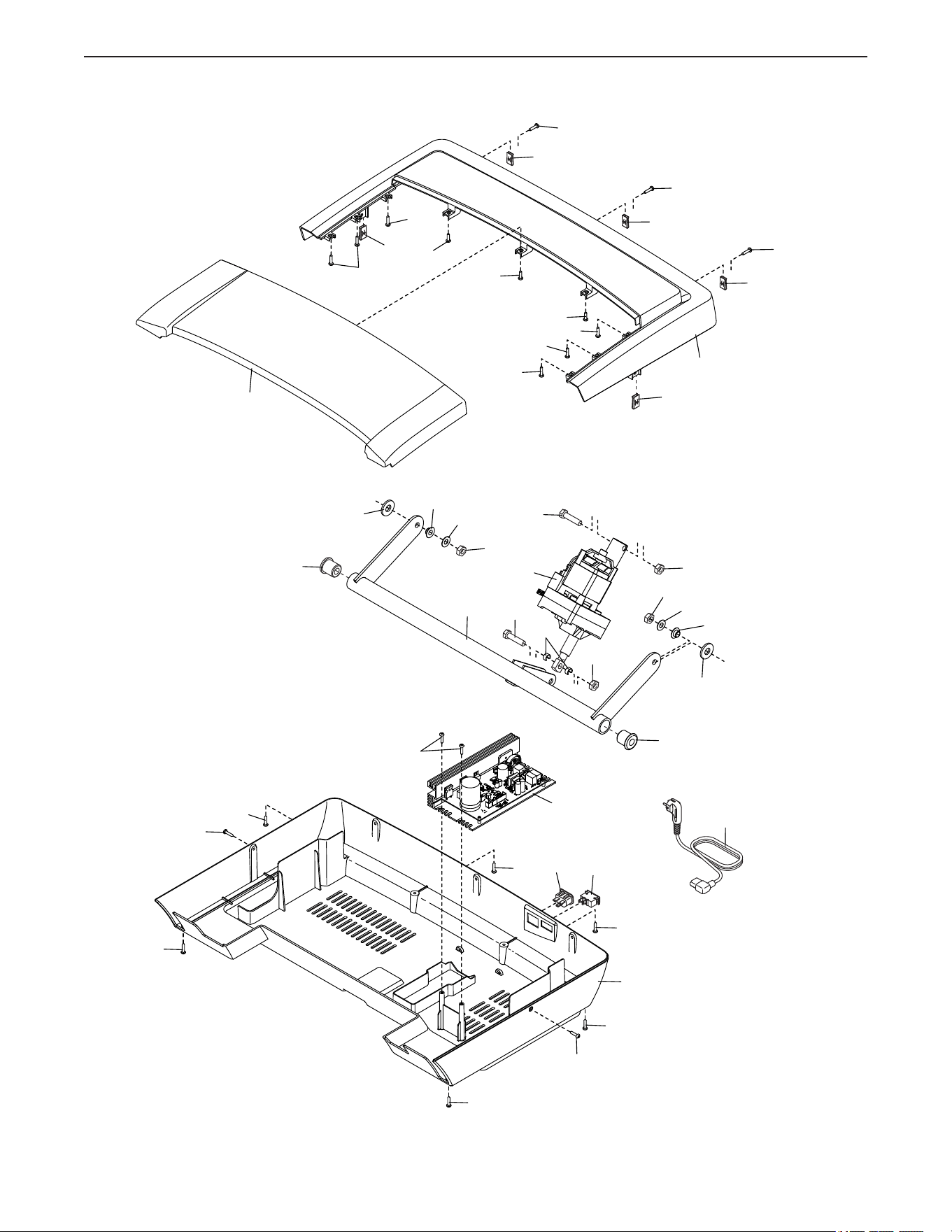

EXPLODED DRAWING B
Model No. PFTL59721-INT.4 R0322A
34
4
4
4
4
81
83
7
6
6
10
4
10
10
24
10
24
12
7
12
4
4
85
78
87
79
81
82
4
4
3
11
11
15
69
96
95
38
97
96
91
90
94
13
89
88
11
90
91
92
19
19
2
69
15
2
11
89
3
11
11
1
9
3
11
107
107
13
38
93
1
88
86

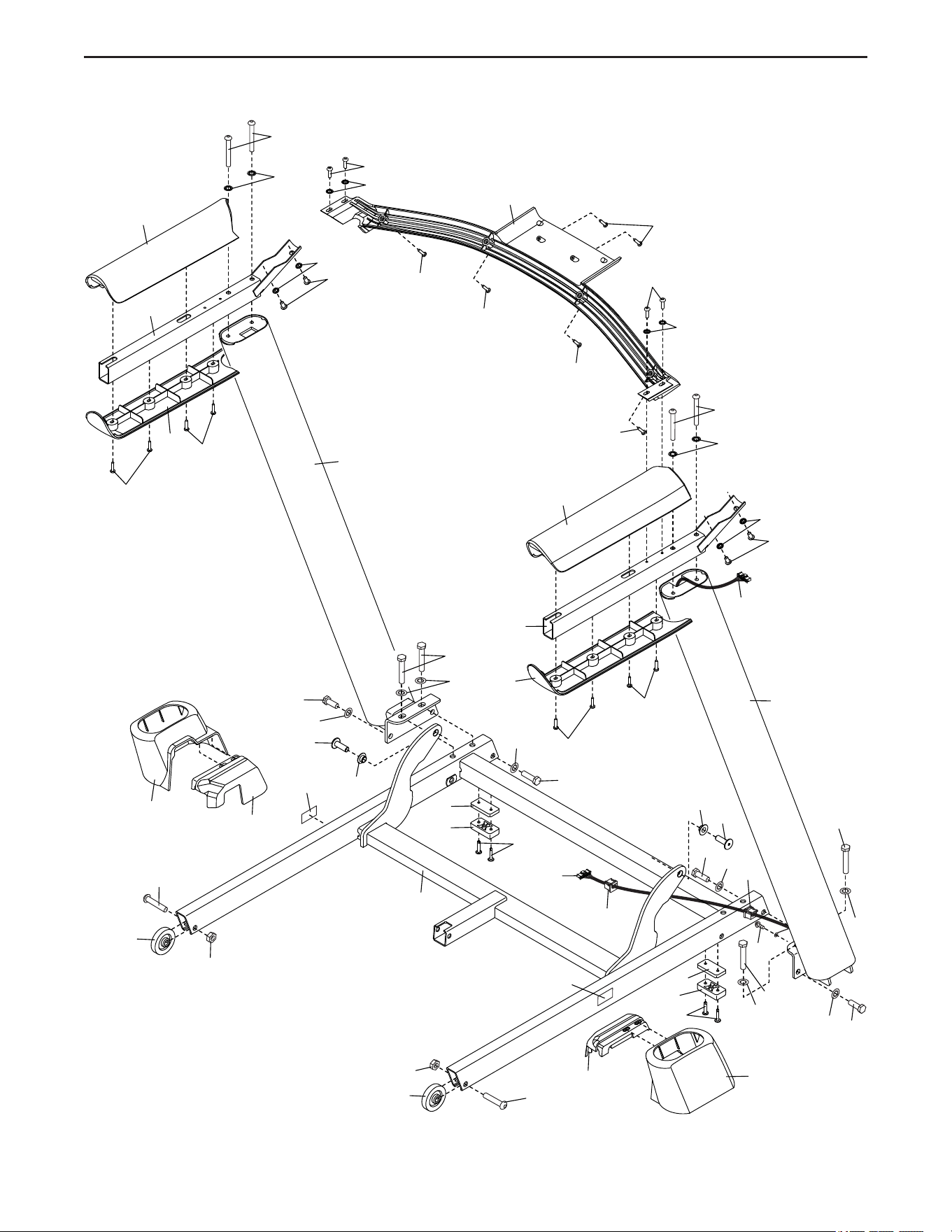

EXPLODED DRAWING C
Model No. PFTL59721-INT.4 R0322A
35
103
4
4
103
116
101
27
99
98
5
5
106
4
116
4
4
4
4
4
104
102
100
105
4
5
5
5
5
5
4
4
4
5

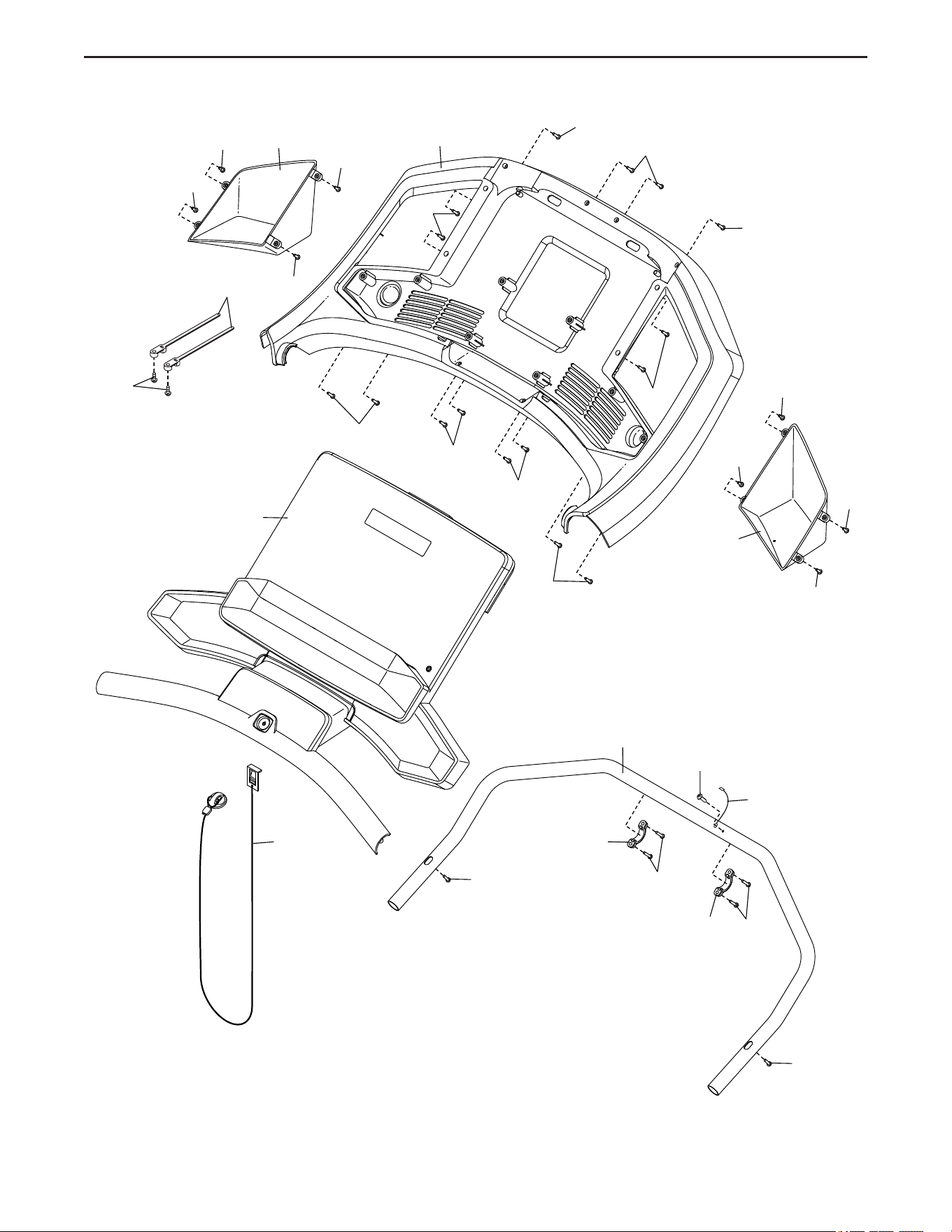

EXPLODED DRAWING D
Model No. PFTL59721-INT.4 R0322A
Part No. 440110 R0322A Printed in China © 2022 iFIT Inc.
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
RECYCLING INFORMATION
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
