2
Table of Contents
Usage Notices
5 Precautions for Repair
6 ESD (Electrostatic Discharge) Precautions
7 Instructional Icons
Software Update
8 Updating Software through FOTA
8 Software Update Failure
8 Updating Software through Smart Switch
9 Recovering from a Software Update Failure
9 Recovering on Another Computer
10 Performing a Factory Data Reset
Quality Test
12 Quality Test Using the Samsung Members App
12 Device Diagnostics

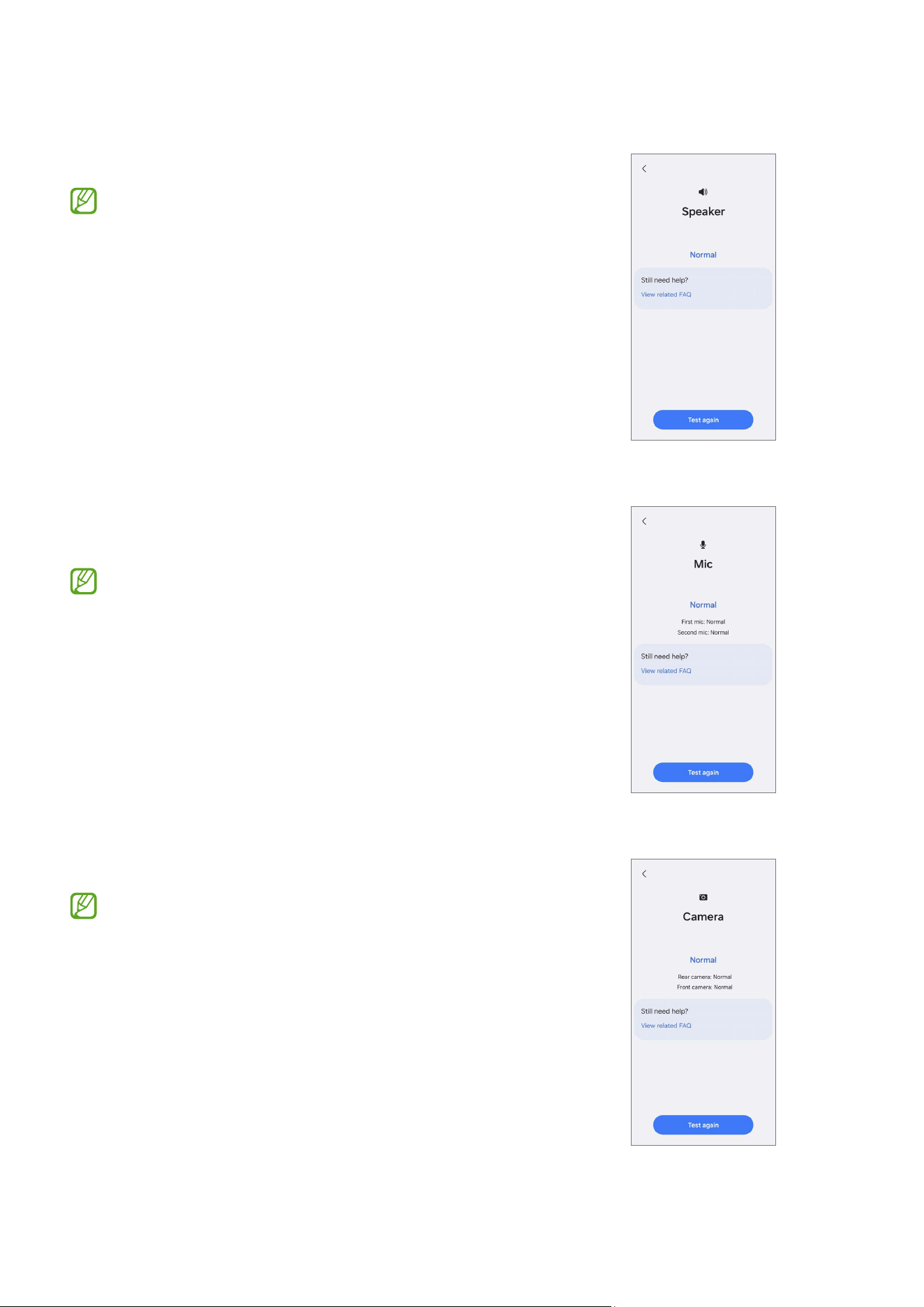

13 Test Items
Calibrations
22 Calibrations
22 Used Parts and Calibration Functions in Supported Models

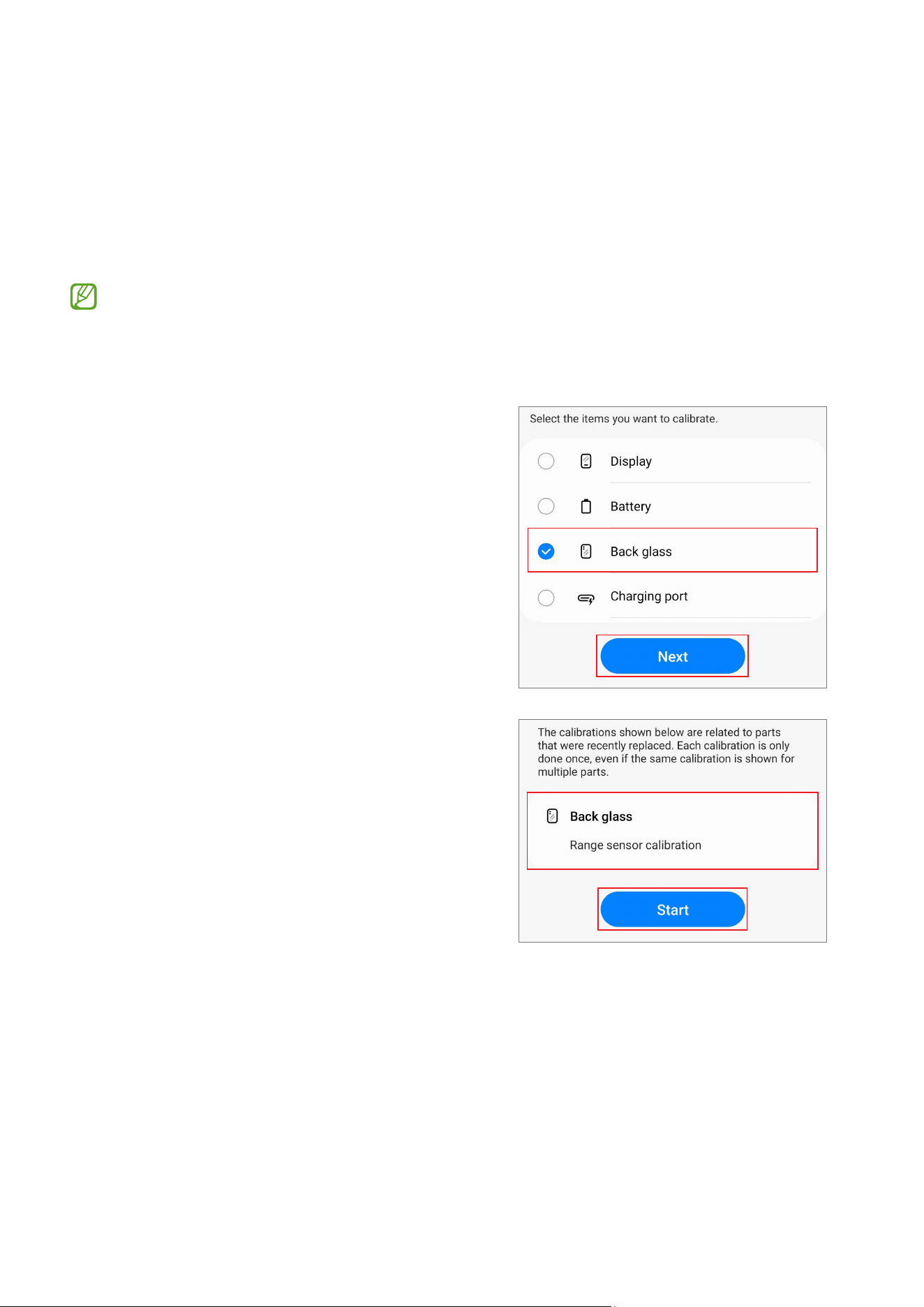

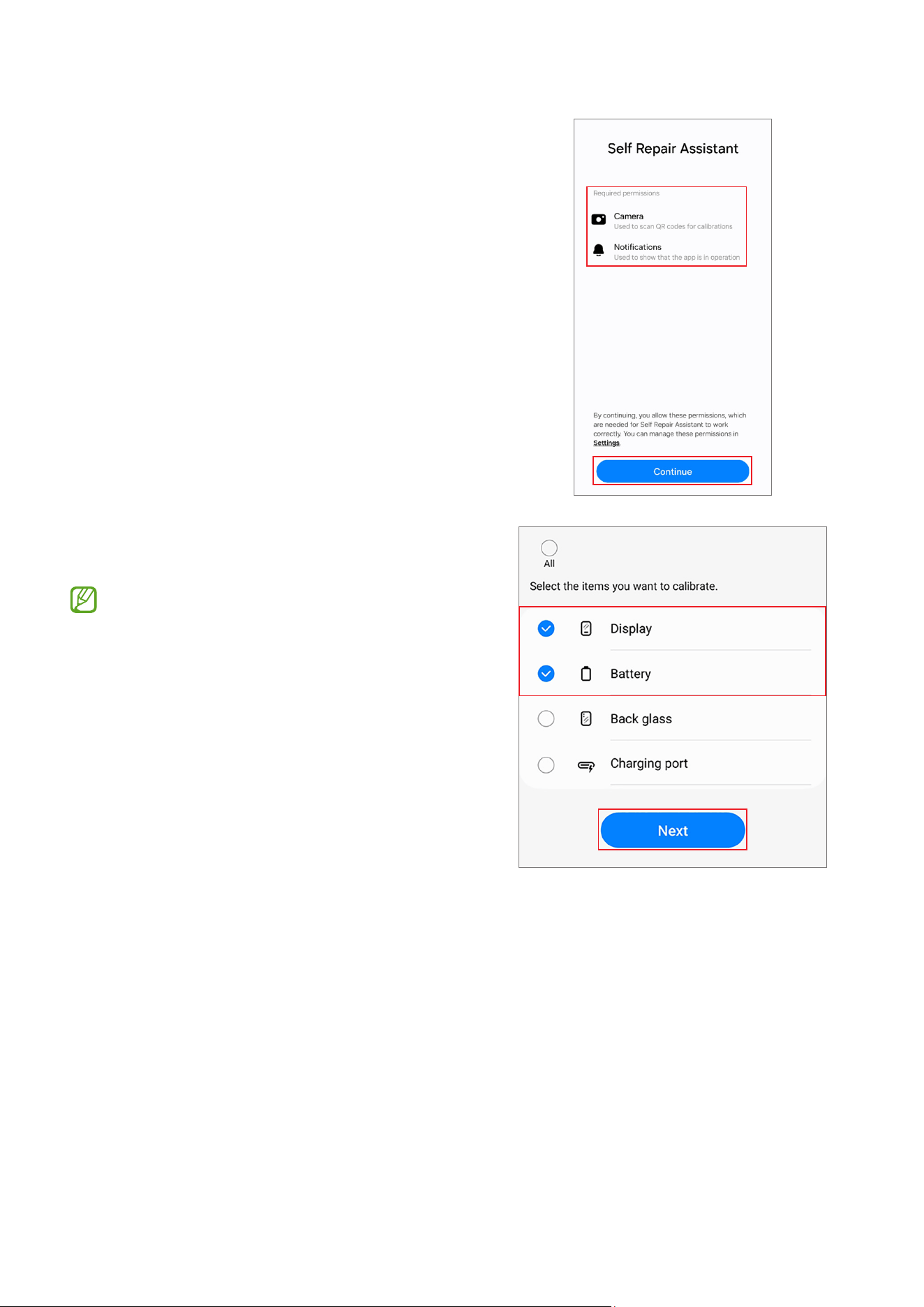

23 Using the Self Repair Assistant App

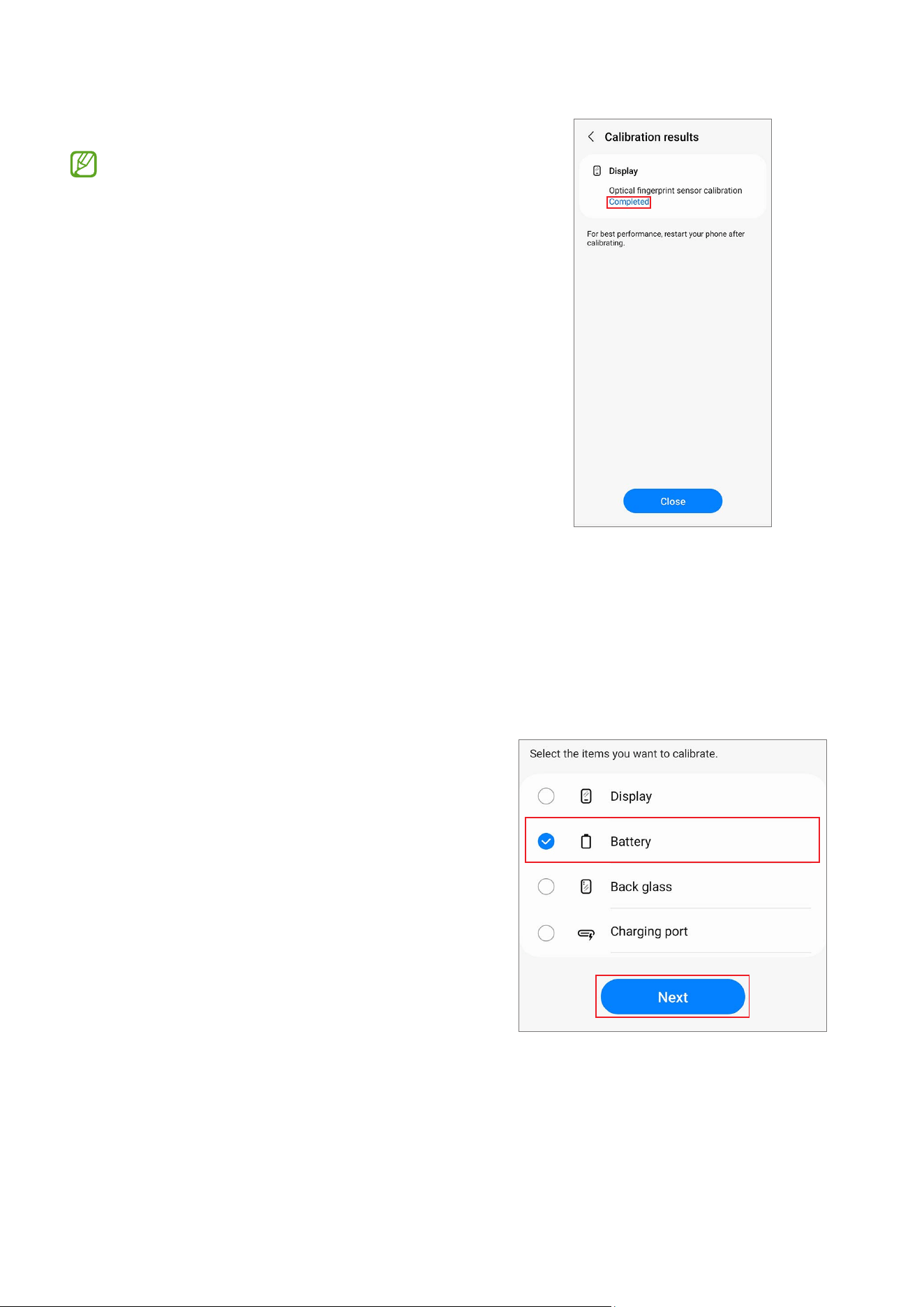

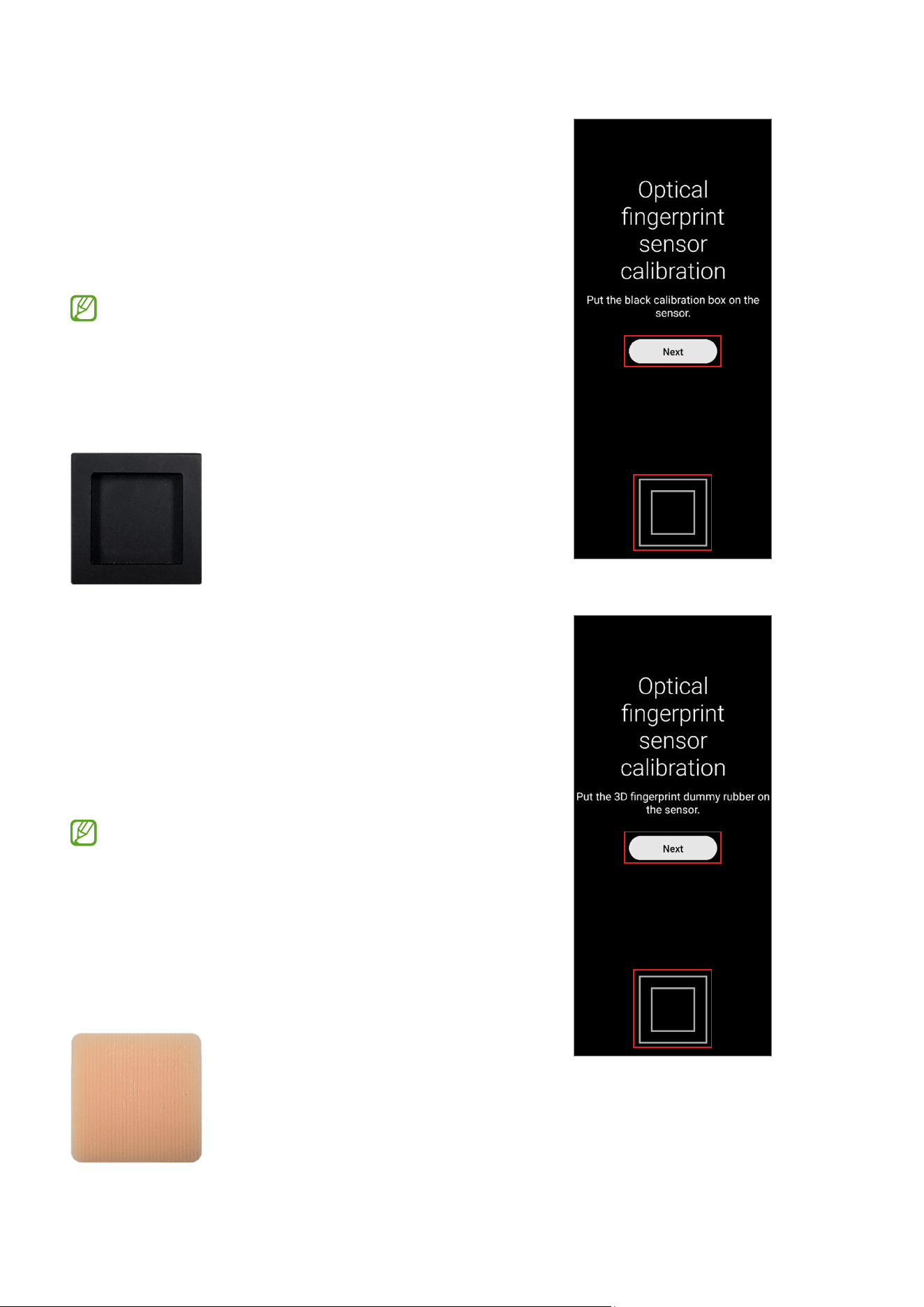

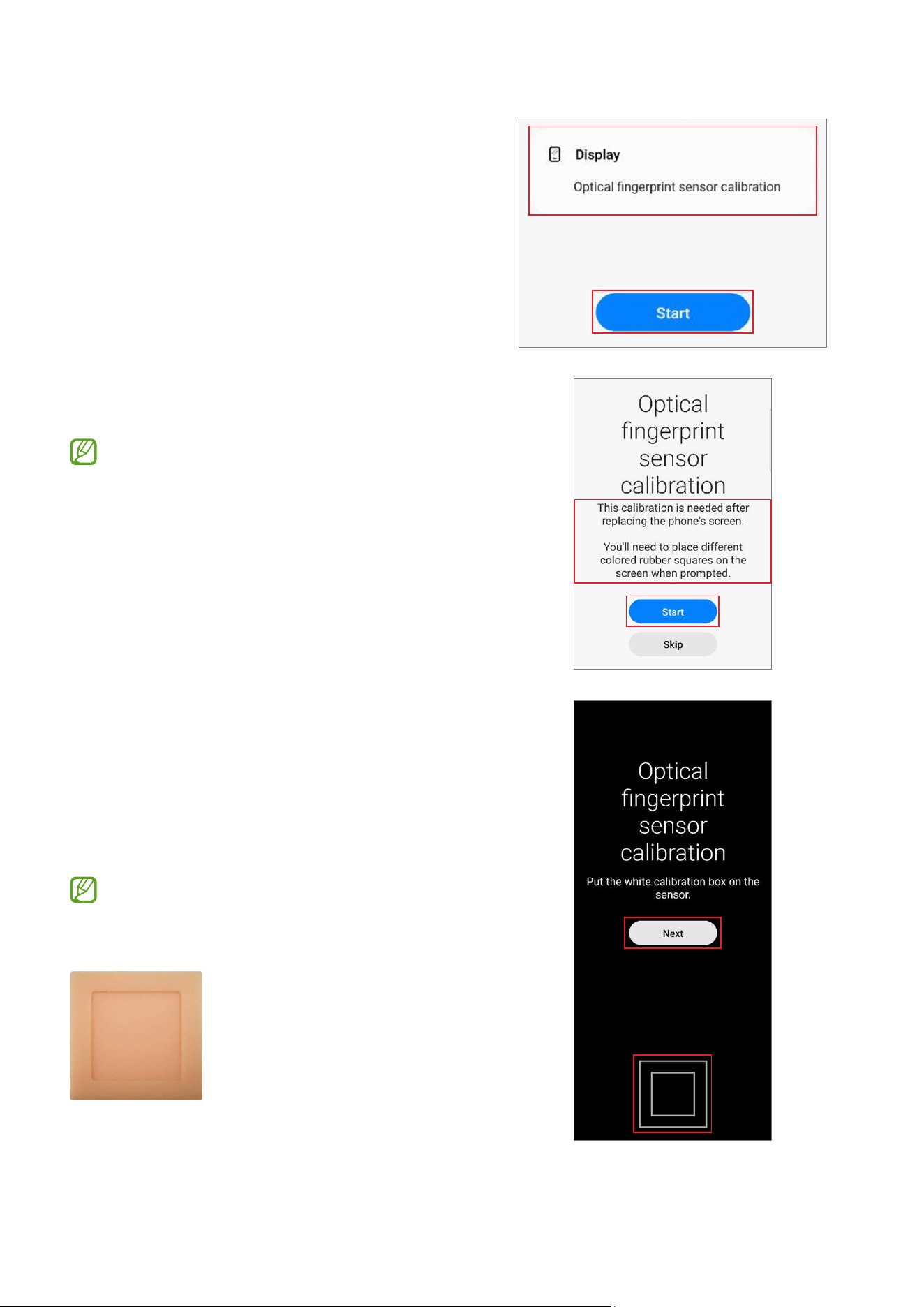

28 Optical Fingerprint Sensor Calibration

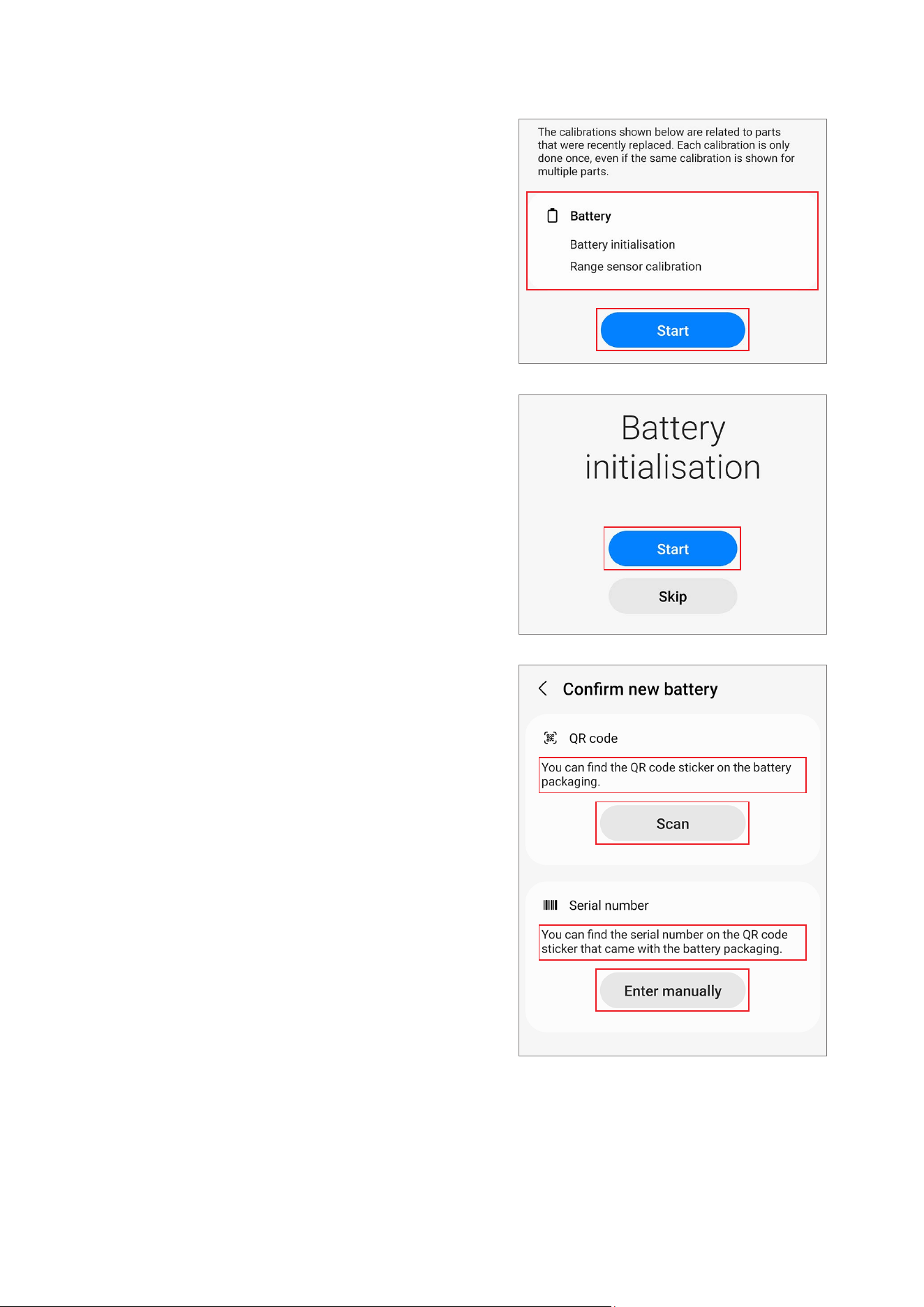

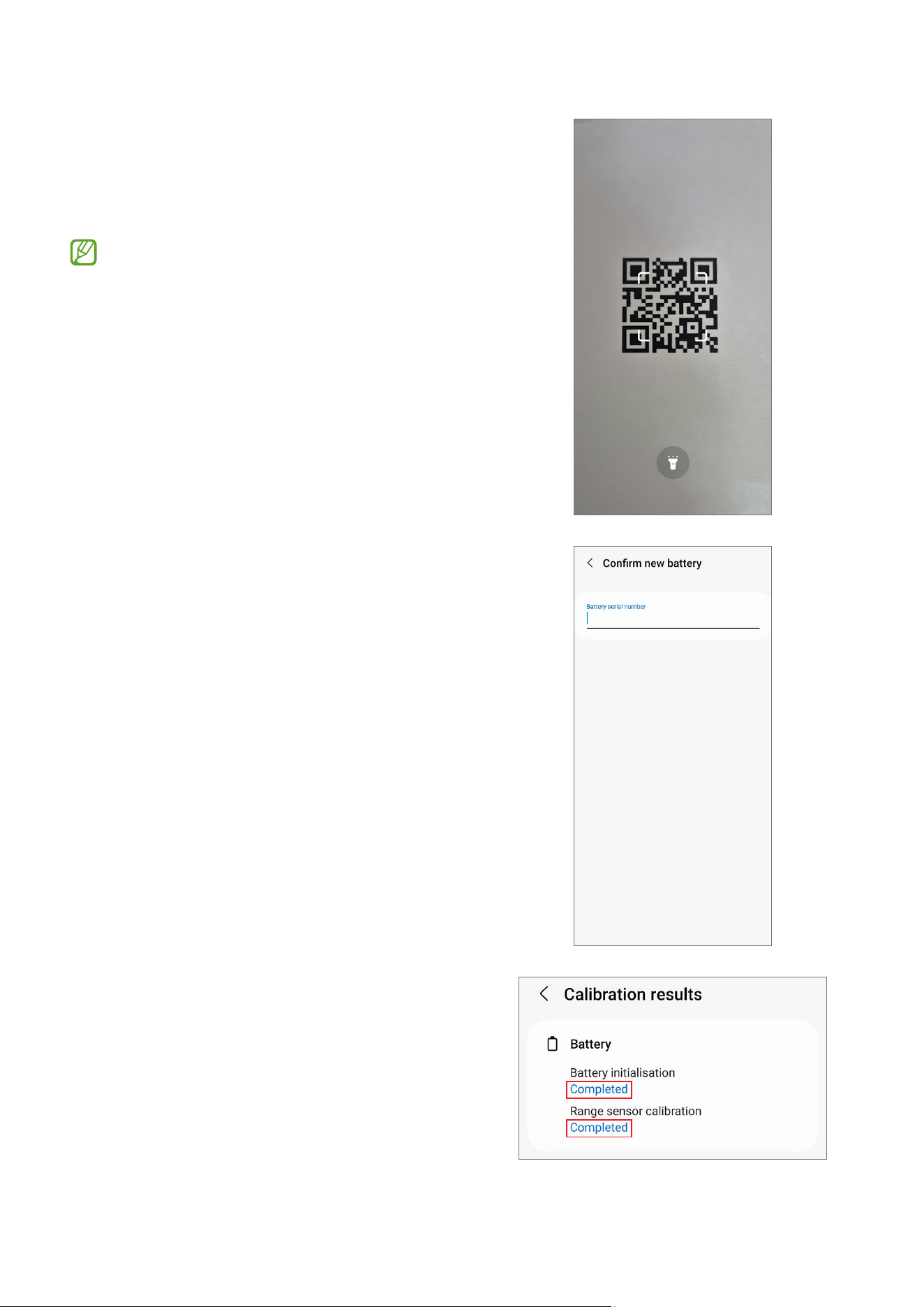

31 Resetting the Battery Cycle Count

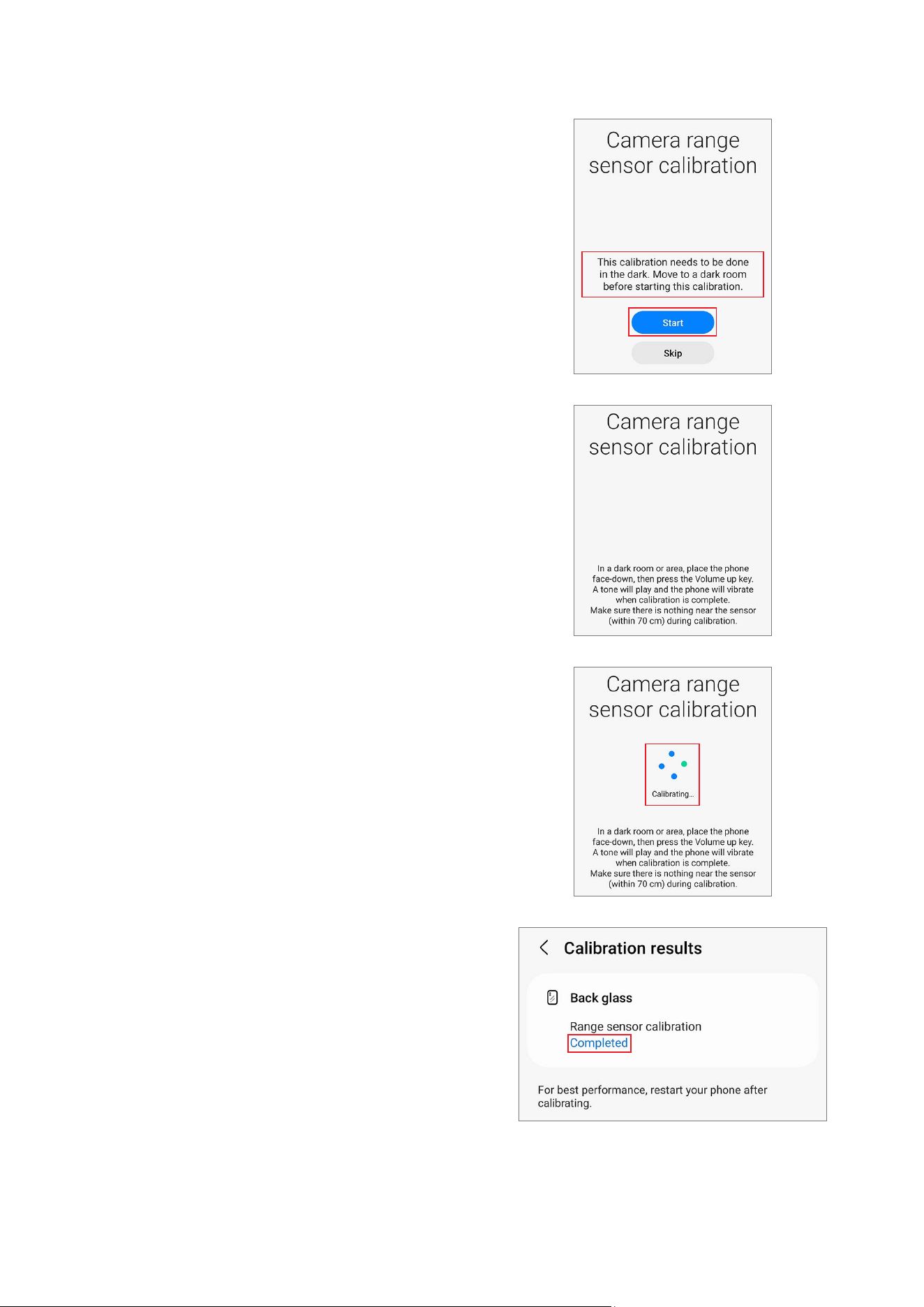

34 Range Sensor Calibration

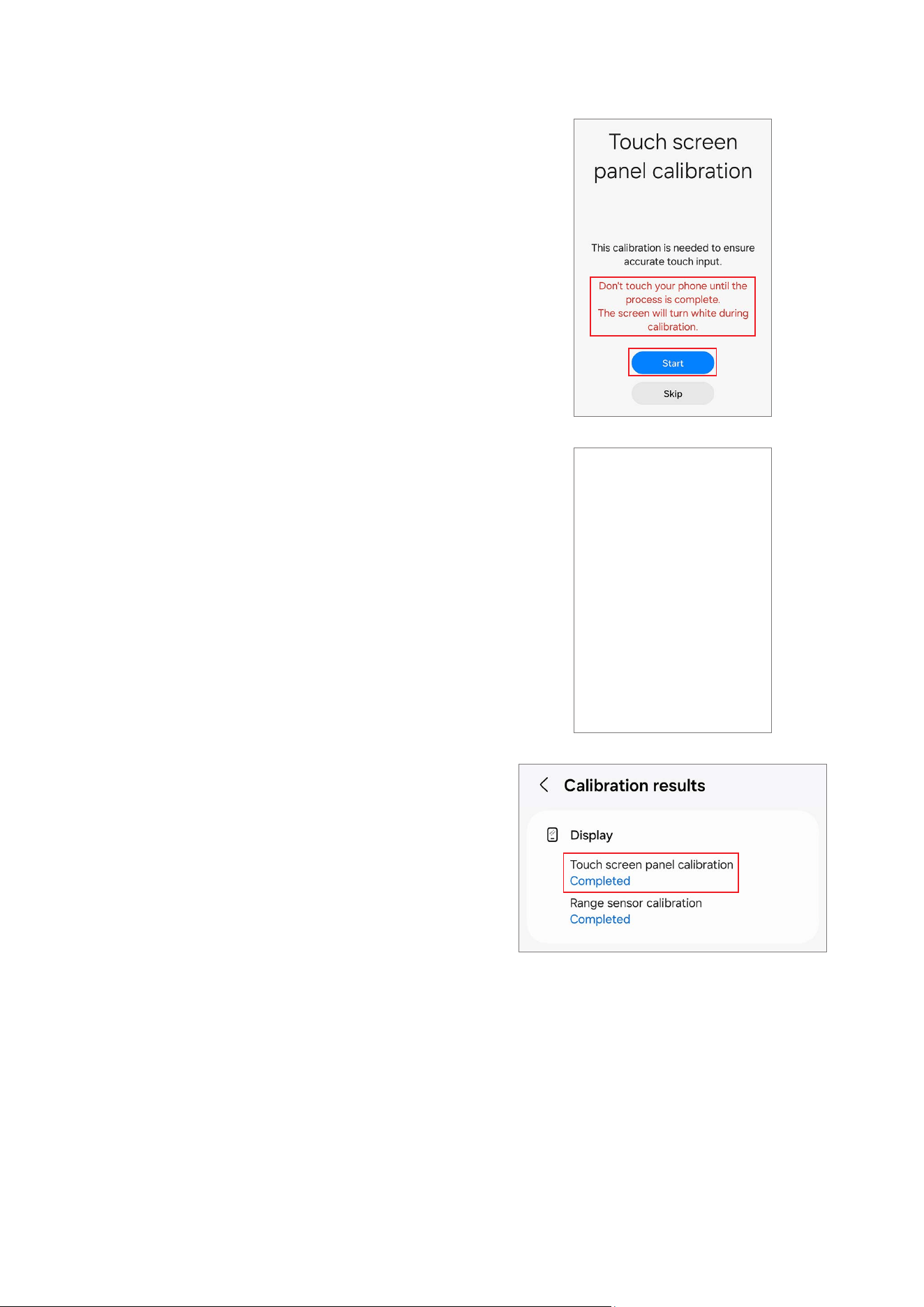

36 Touch Screen Panel Calibration

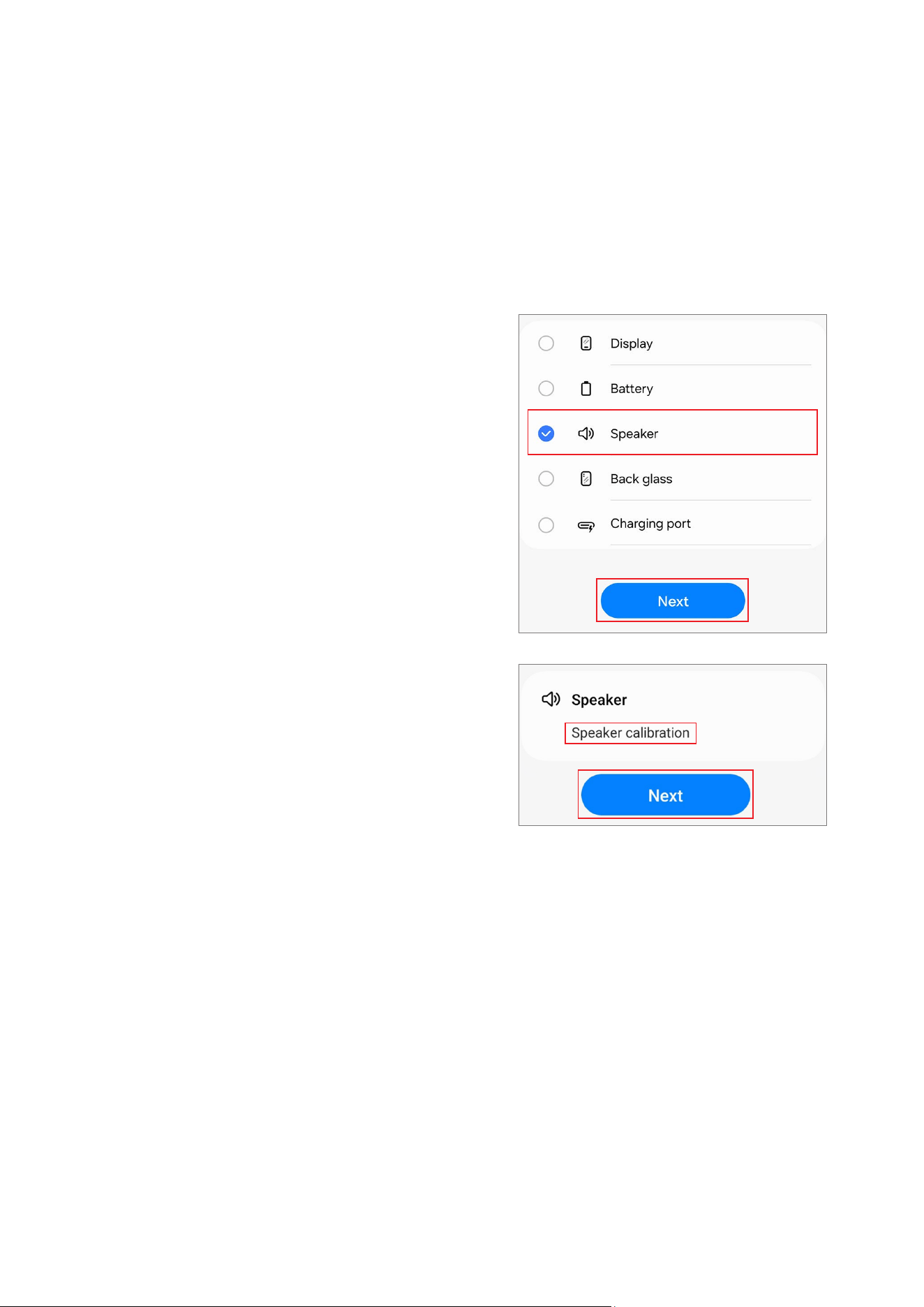

38 Speaker Calibration
3
Table of Contents

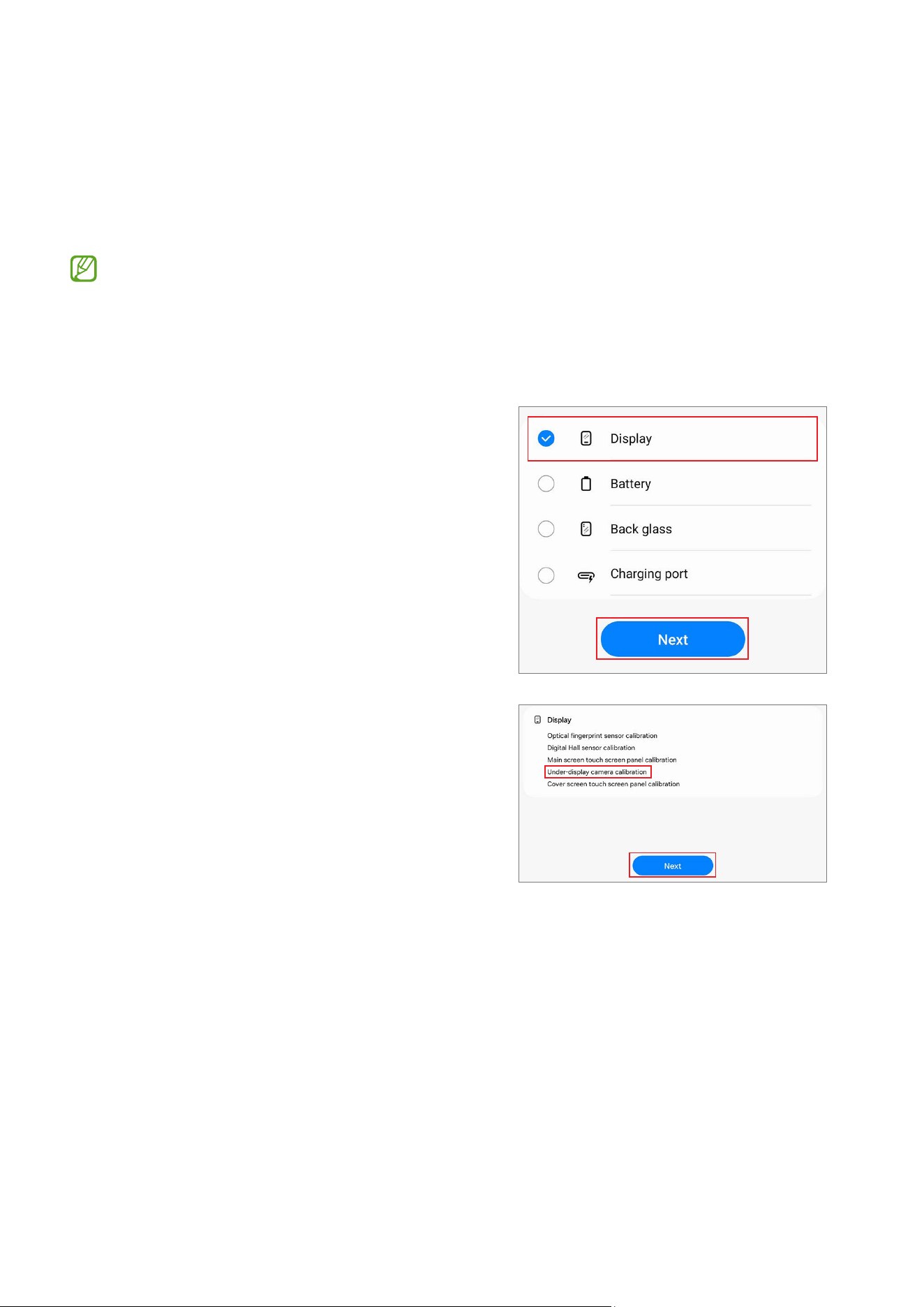

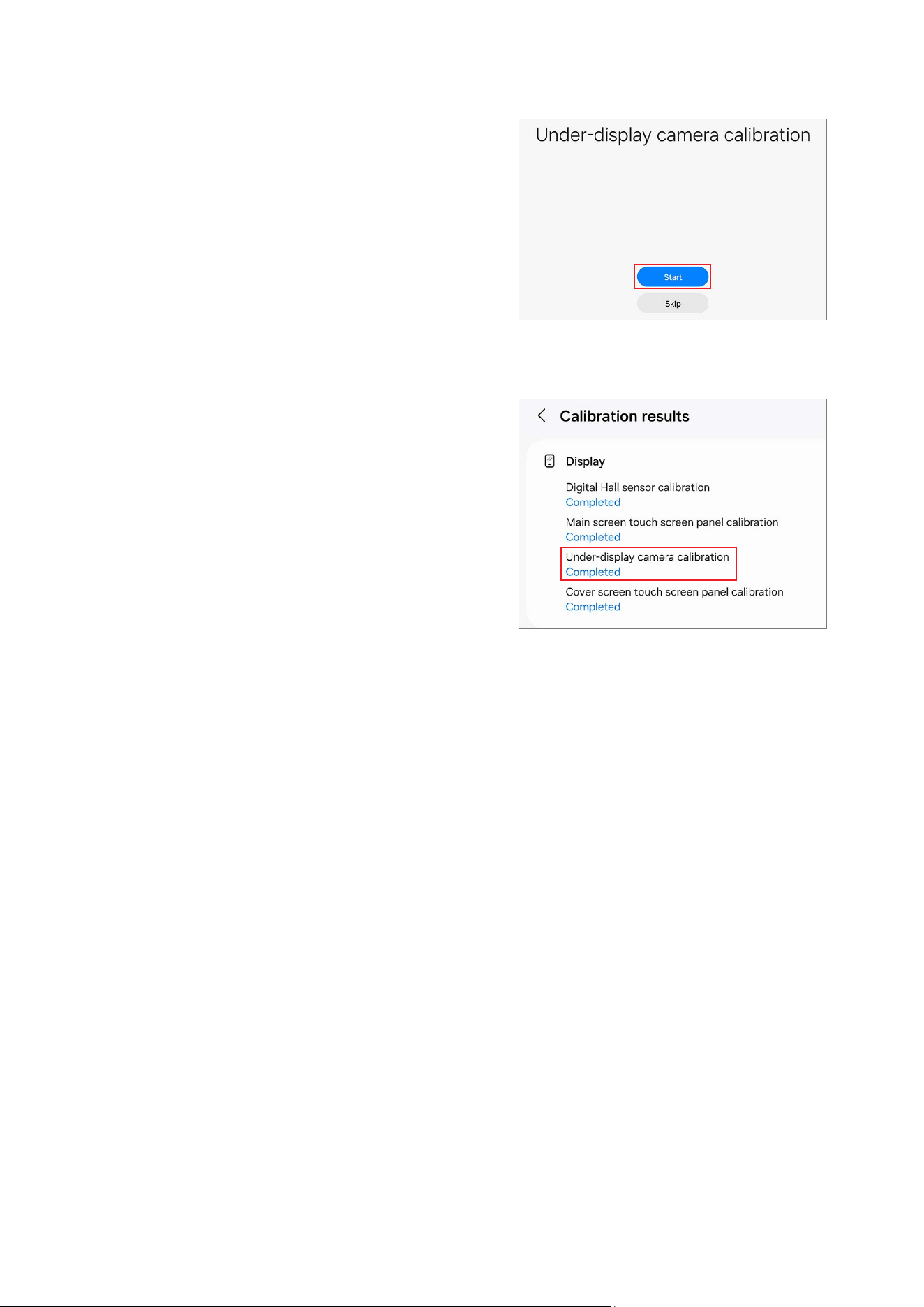

40 Under-display Camera Calibration (Fold Models Only)

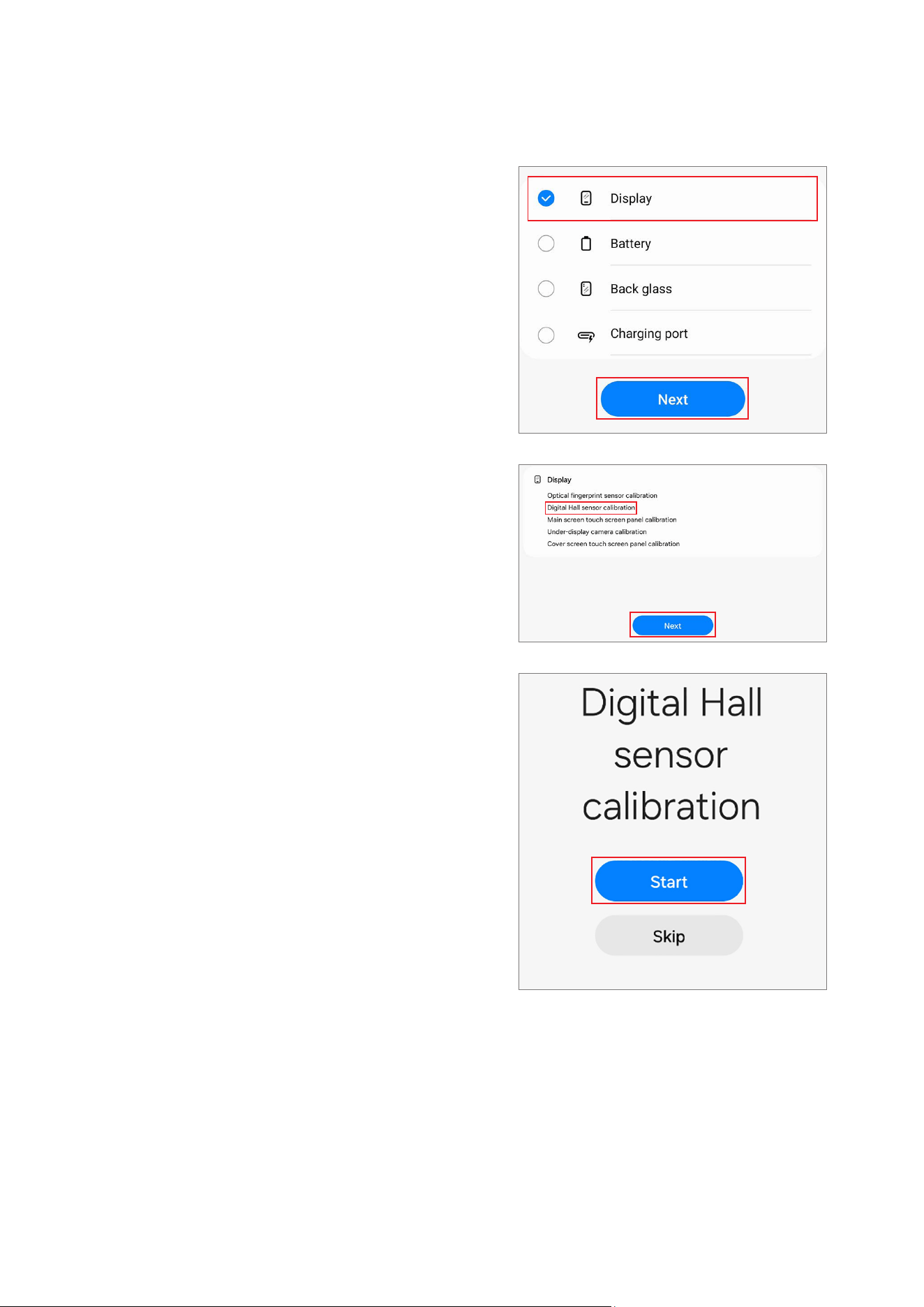

42 Digital Hall Sensor Calibration (Fold and Flip Models Only)
Exploded View and Parts List

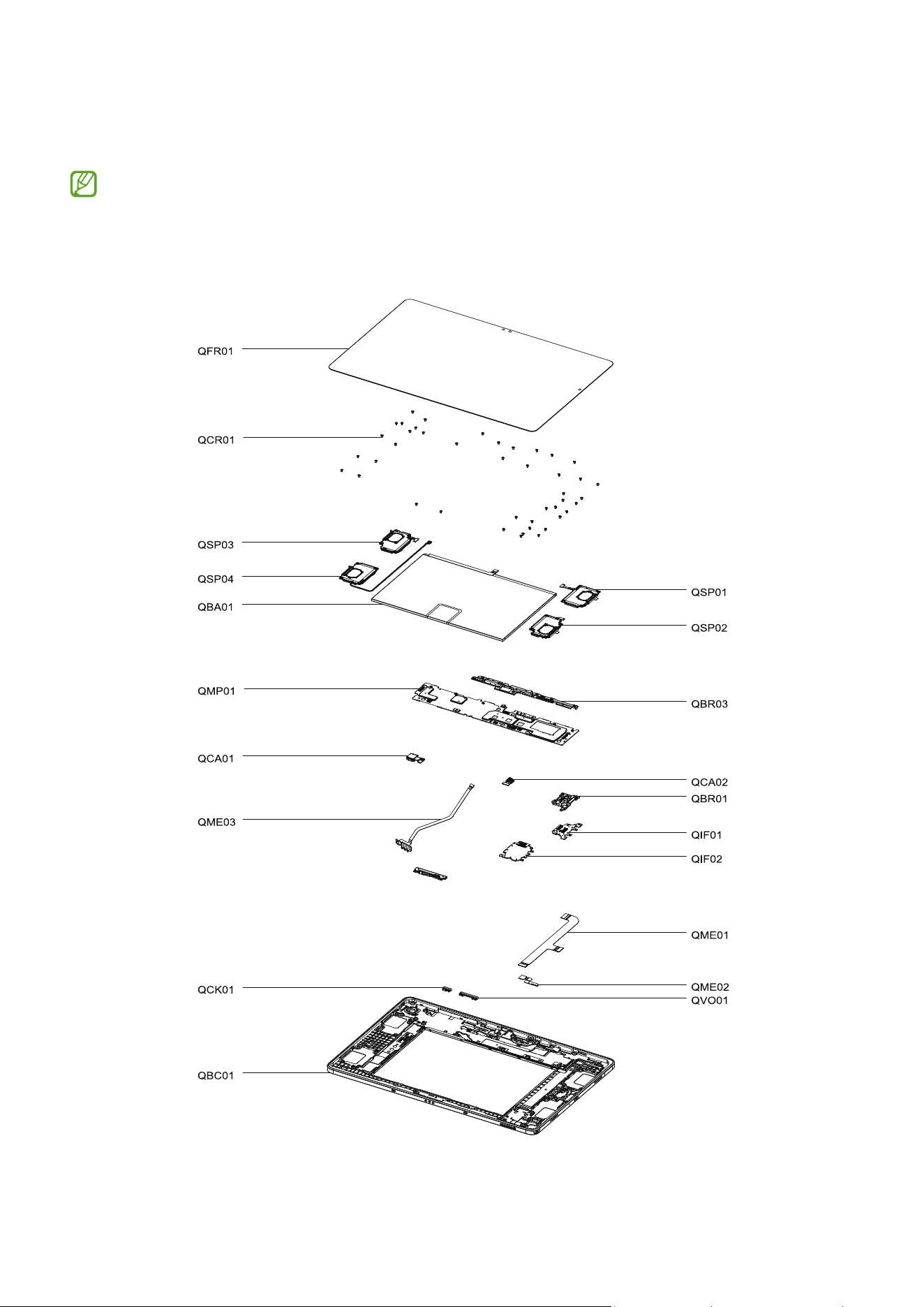

45 Exploded View
46 Parts List
Disassembly and Assembly

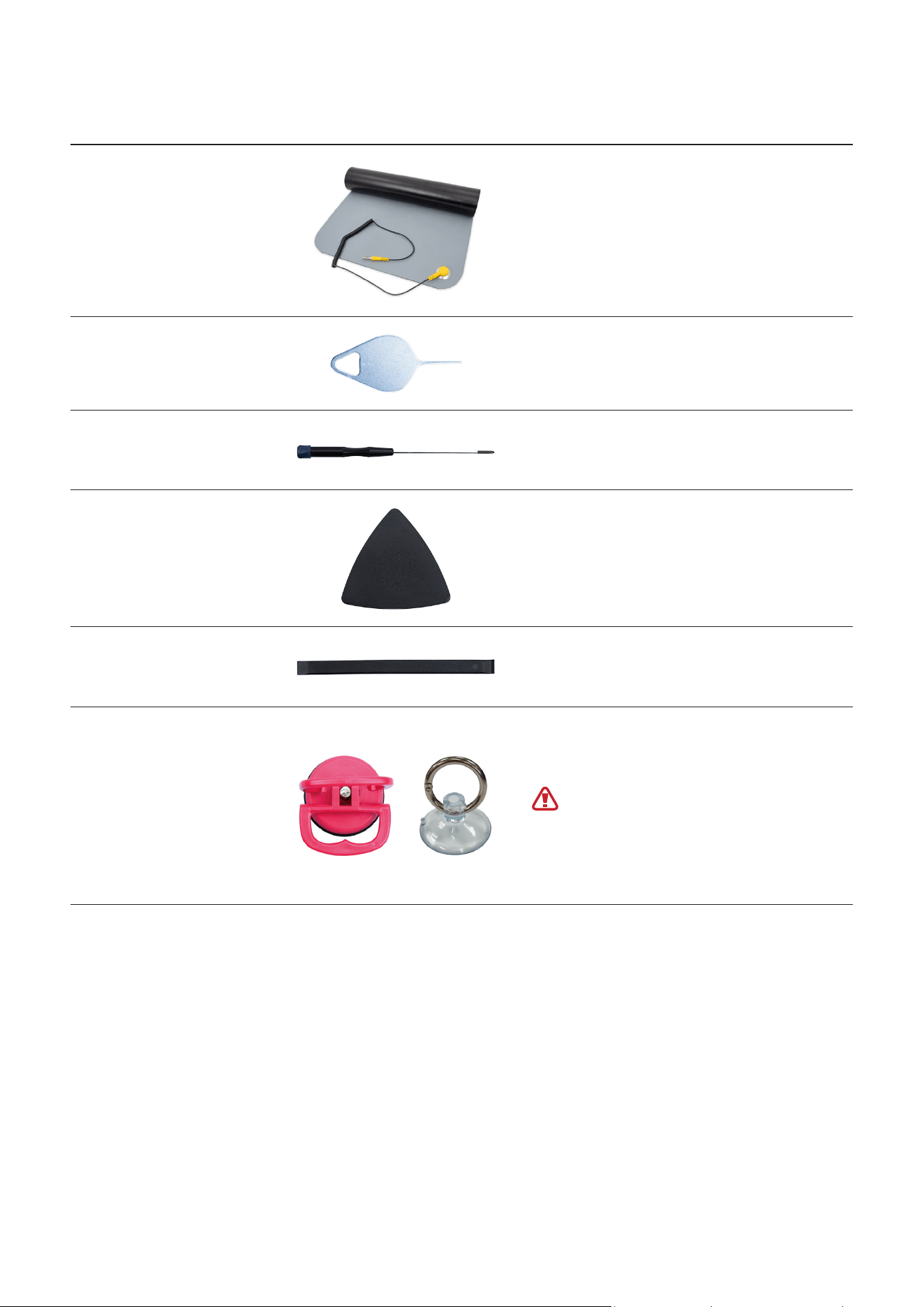

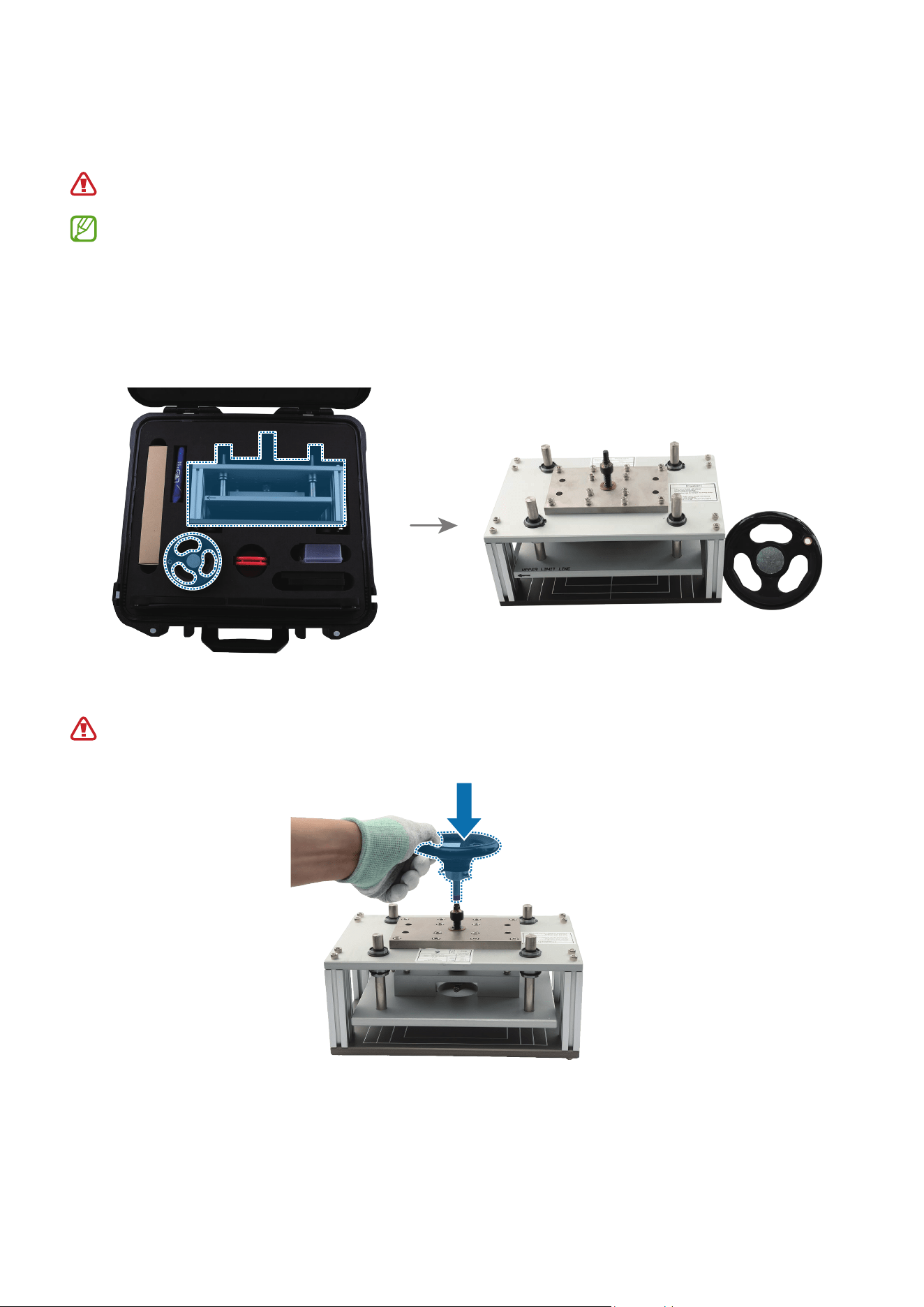

47 Tools for Disassembly and Assembly

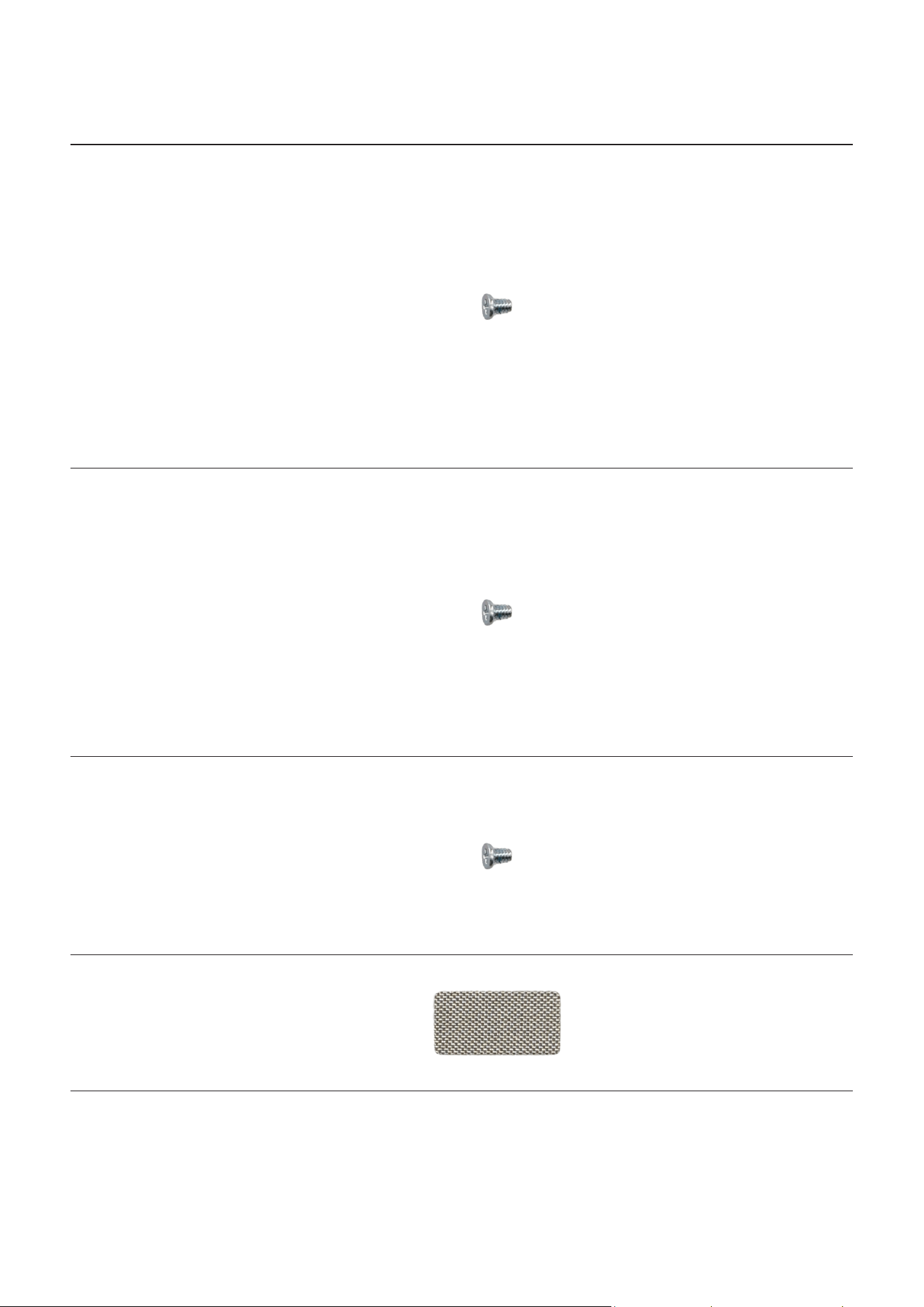

52 Fasteners (Adhesives and Materials) for Assembly
55 Disassembly and Reassembly for replacement

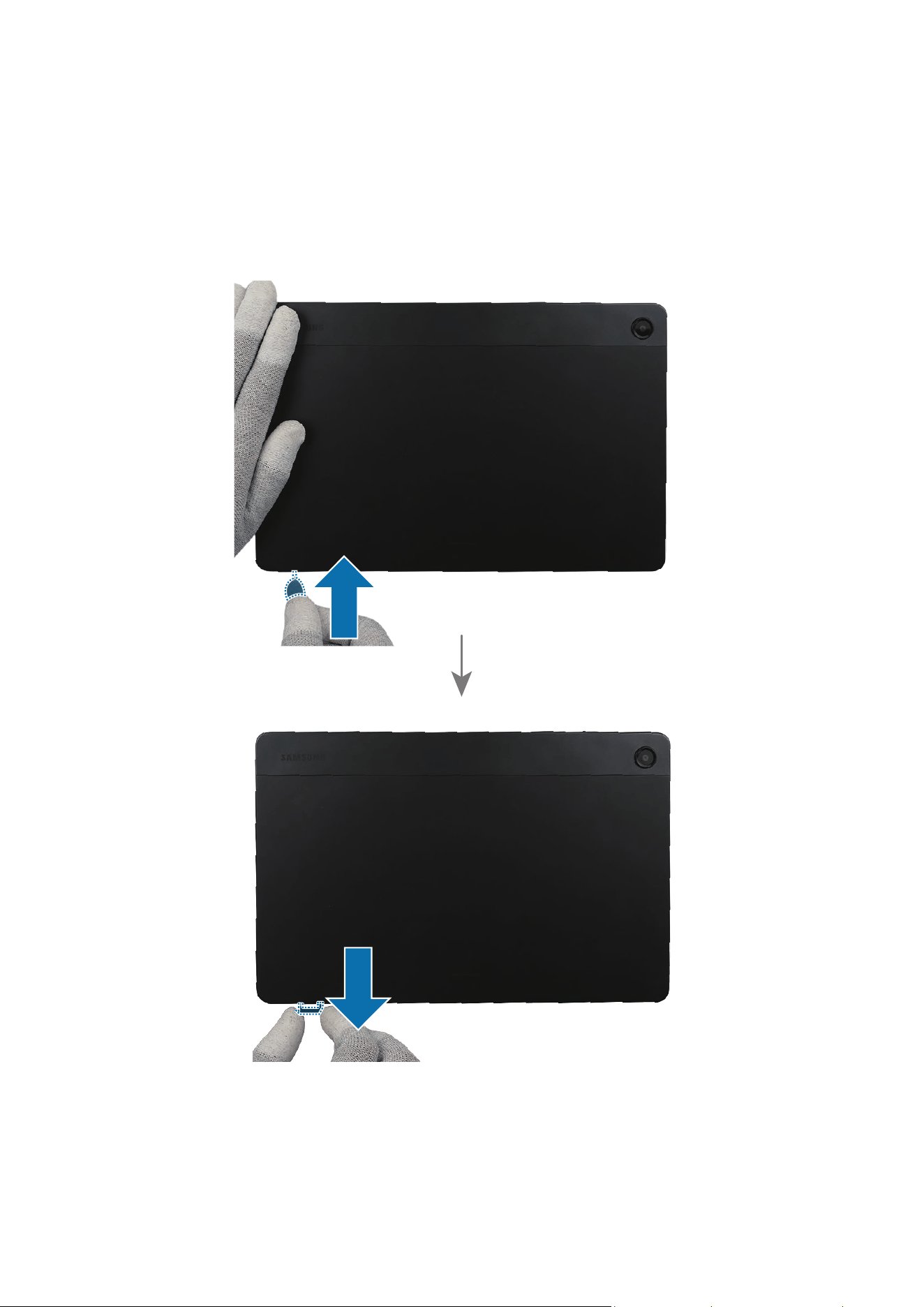

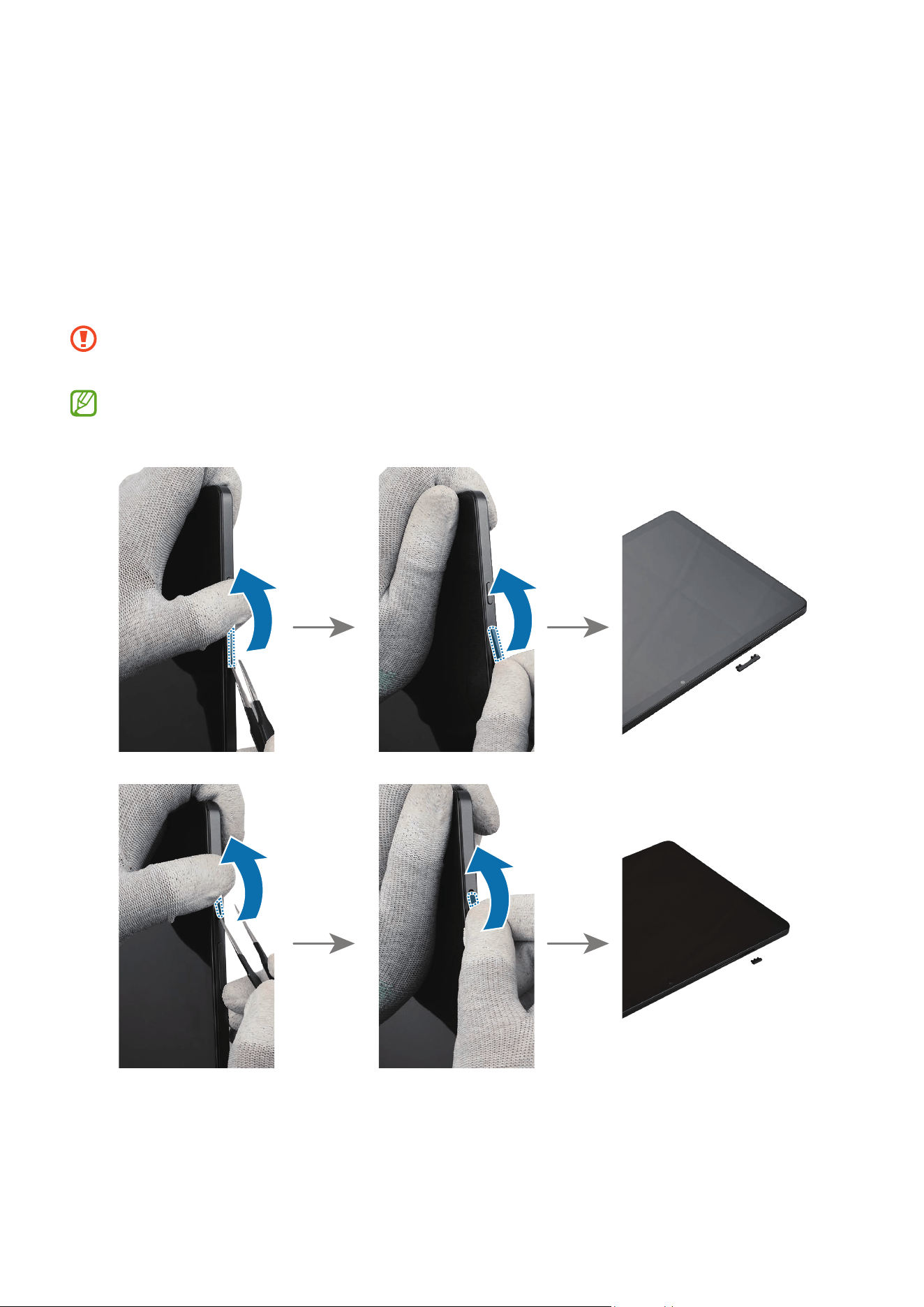

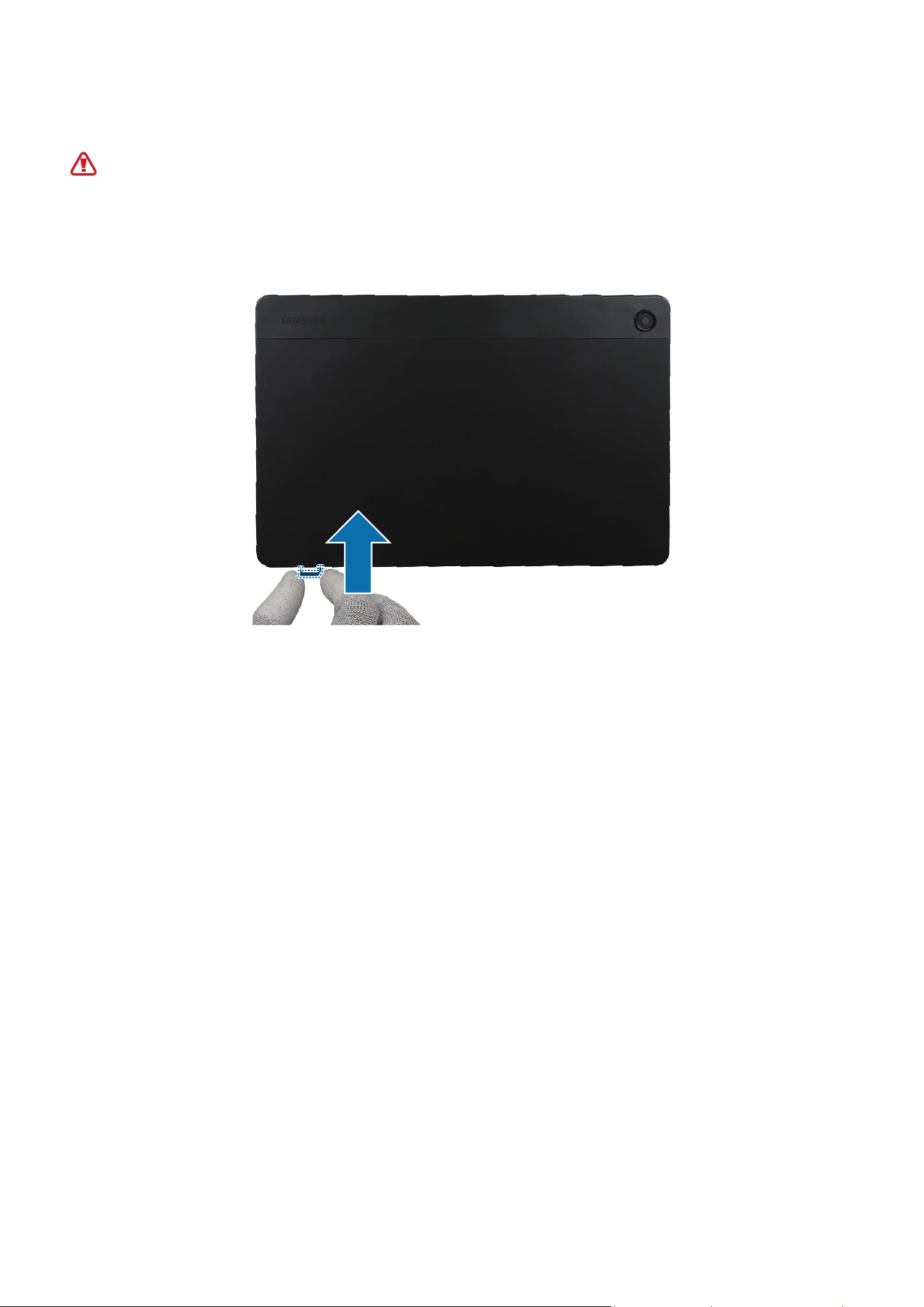

56 SIM Card Tray
56 Disassembly
58 Reassembly
59 Screen
59 Disassembly
68 Reassembly
91 Front Camera
91 Disassembly
95 Reassembly
99 Rear Camera
99 Disassembly
103 Reassembly
107 Charging Port and Microphone
107 Disassembly
112 Reassembly
115 Headphone Jack
115 Disassembly
122 Reassembly
4
Table of Contents
127 Speaker 1
127 Disassembly
131 Reassembly
137 Speaker 2
137 Disassembly
149 Reassembly
162 Speaker 3
162 Disassembly
166 Reassembly
171 Speaker 4
171 Disassembly
177 Reassembly
182 Button
182 Disassembly
183 Reassembly
185 Battery
185 Disassembly
191 Reassembly
206 Directive 2012/19/EU Annex VII Components
Usage Notices
5
Usage Notices
All functionality, features, specifications, and other device information provided in
this document, including but not limited to, benefits, design, pricing, components,
performance, availability, and capabilities of the device are subject to change without
notice. Samsung reserves the right to alter this document or the device described herein
at any time, without obligation to provide notification of such changes.
Precautions for Repair
Samsung is not liable for any damage or defect determined to be caused by repair by
a non-authorised carrier, self repair or non-professional repair of the device. Samsung
is not liable for any resulting damage to the device, or any injury or other device safety
issue caused by any attempt to repair the device which does not follow these repair and
maintenance instructions.
Any damage to the device or defect caused by an attempt to repair the device by any
person other than a Samsung certified carrier will not be covered by the warranty.
•
Use only demagnetised tools that are specifically designed for small electronic
repairs, as most electronic parts are sensitive to electromagnetic forces.
•
Use only high quality screwdrivers when servicing devices. Low quality screwdrivers
can easily damage the heads of screws.
•
Always use genuine replacement parts. Third-party replacement parts may not
function properly and could cause a fire or injury.
•
Some parts, such as sensors (laser AF/proximity/fingerprint), the rear camera,
the TSP (touch panel), speakers, and other components, may need calibration to
guarantee their performance after repair.
•
The performance of the device’s water and dust resistance cannot be guaranteed
when it is repaired by the user or another unskilled worker.
•
If you need to access the failure data of your device or need to get a more detailed
diagnosis, visit a Samsung Service Centre.
•
If you need to replace unsold parts, visit a Samsung Service Centre and receive
further instruction.
•
Before conducting repairs, remember to make backup copies of all important data
stored in the device.
Usage Notices
6
•
Make sure to wear the appropriate safety equipment before carrying out repairs.
Samsung is not responsible for injuries that may occur because of not wearing the
proper safety equipment. Refer to Tools for Disassembly and Assembly for a list of
tools that you will need for assembling and disassembling the device.
•
Repair the device in a safe place.
•
Before repairing the device, make sure the device is turned off. To turn off the
device, press the Volume Down button and the Side button at the same time, or open
the notification panel and tap the Power icon.
•
If the device is damaged, emits smoke, or if you smell something burning, stop using
the device immediately and contact Samsung.
•

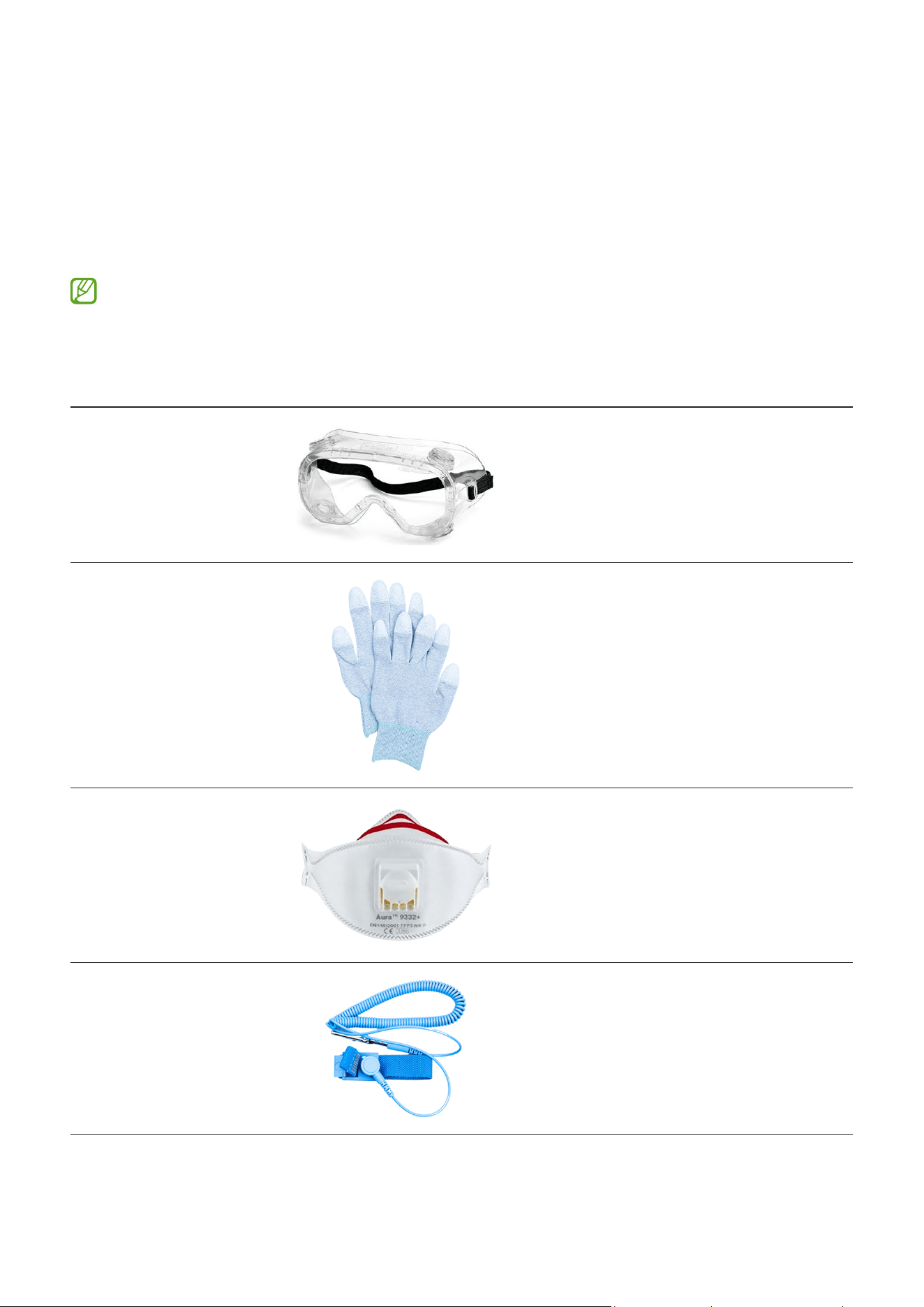

It is recommended to use safety equipment such as glasses, gloves, and a mask
when repairing the device.
•
Be careful not to damage the device when removing the back cover.
•
Before assembly, ensure that there are no screws or foreign objects around the
battery.
•
During assembly, check if there are any abnormalities before reattaching the back
cover, and be careful not to damage the battery by hitting or denting it. If the battery
is damaged, visit a Samsung Service Centre.
•
Do not place the device directly into a microwave and heat it.
•
Before repairing your device, make sure its battery is fully discharged.
•
Visit www.samsung.com to view the device information, related material, and safety
information.
ESD (Electrostatic Discharge) Precautions
It is the sudden flow of electricity between two electrically charged objects caused by
contact, an electrical short, or dielectric breakdown. ESD can cause negative effects on
mobile devices, especially electrical parts.
•
It is recommended to use ESD safety (Anti-static) equipment such as an anti-static
wrist strap and gloves, and an ESD safe mat when repairing the device.
•
Increase the airflow to the work area to decrease the chance of accidental static
electricity discharges, as the potential for static electricity discharge may be
increased in low-humidity environments, such as air-conditioned rooms.
Usage Notices
7
Instructional Icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
Software Update
8
Software Update
Updating Software through FOTA
Update your device’s software through the firmware over-the-air (FOTA) service. You can
also schedule software updates.
Launch the
Settings
app and tap
Software update
→
Download and install
.
•
Install now
: Install updates.
•
Schedule install
: Set the time to install updates automatically.
•
You may incur additional charges when updating the software through a mobile
network.
•
If the latest software has been downloaded to the device, these options will not
appear.
Software Update Failure
If your device becomes disconnected from a network before the update is complete, the
update may fail. Reconnect to a network and complete the update.
Updating Software through Smart Switch
You can use Smart Switch to update your device’s software to the latest
version. You must download the desktop version of the Smart Switch app from
www.samsung.com/smartswitch.
•
This feature may not be supported on some devices or computers.
•
Limitations apply. Visit www.samsung.com/smartswitch for details. Samsung
takes copyright seriously.
1 On the computer, visit www.samsung.com/smartswitch to download Smart Switch.
2 On the computer, launch
Smart Switch
.
3 Connect your device to the computer using the device’s USB cable.
4 Click
Update
.
Software Update
9
5 Read the on-screen instructions and click
Continue
.
6 Read the precautions about the update and click
OK
.
7 Read and agree to the terms and conditions.
The update will start.
Recovering from a Software Update Failure
If a software update is interrupted because of an error on your device or computer, your
device may fail to operate normally. If this occurs, you can perform a factory data reset
on your device for emergency recovery.
Before performing the factory data reset, remember to make backup copies of all
important data stored in the device. Samsung is not responsible for the loss of data
stored in the device.
1 Disconnect your device from the computer and launch
Smart Switch
again on the
computer.
2 Click
→
Emergency Software Recovery and Reset
.
The device list will appear.
3 Click the device that experienced a software update error and click
Device reset
→
OK
.
The device will perform a factory data reset.
Recovering on Another Computer
If the emergency recovery process continues to fail on the computer where the software
update failed, you can repair your device on another computer using the recovery code.
This will include a factory data reset of your device.
•
Before performing the factory data reset, remember to make backup copies of
all important data stored in the device. Samsung is not responsible for the loss
of data stored in the device.
•
The recovery code can be found only on the computer where the software
update has failed.
1 On the computer where the software update has failed, launch
Smart Switch
.
2 Click
→
Emergency Software Recovery and Reset
.
Software Update
10
3 On the devices list, click the device that failed to update the software and check the
recovery code.
4 On another computer, launch
Smart Switch
.
5 Click
→
Emergency Software Recovery and Reset
→
Emergency code recovery
.
6 Enter the recovery code and click
OK
.
7 Follow the on-screen instructions to put your device into recovery mode and
complete the emergency recovery.

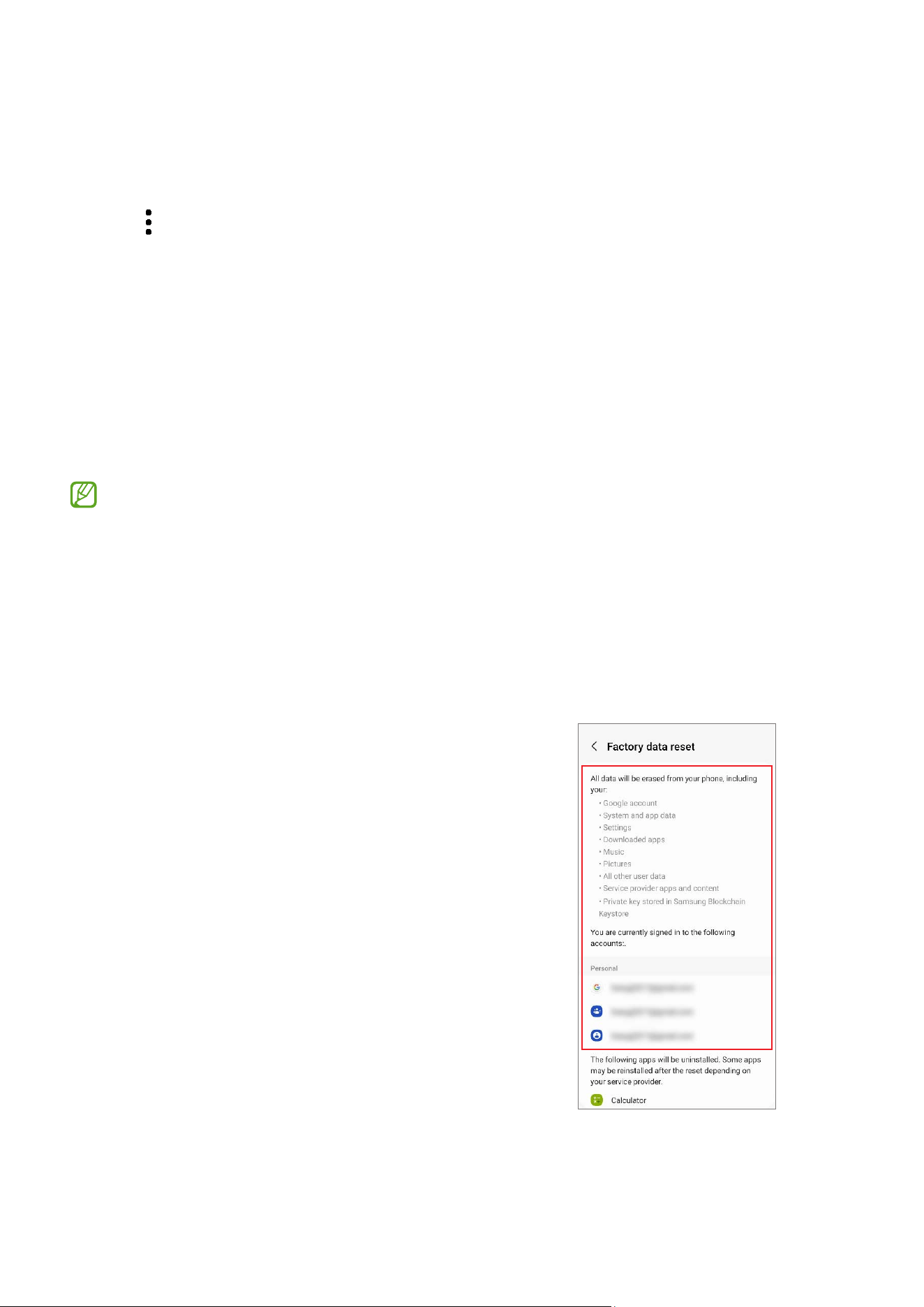

Performing a Factory Data Reset
The factory data reset restores the device’s default settings. This erases all data,
including files and downloaded apps, from the device.
Before performing the factory data reset, remember to make backup copies of all
important data stored in the device. Samsung is not responsible for the loss of data
stored in the device.
Make sure your device’s battery level is sufficient, as losing power during a factory
reset may result in system problems.
1 Launch the
Settings
app and tap
General management
→
Reset
→
Factory data
reset
.
2 Read the on-screen instructions and check
which account you are signed in with.
If your device is signed in to your Google
account, log out of your Google account. If
you do not log out of your Google account,
logging in to another account after the
factory data reset will not be possible,
because your device will be locked.
Software Update
11
3 Tap
Reset
→
Delete all
.
All data will be deleted when rebooting.
During a factory data reset, the device may repeat rebooting and the logo may be
displayed for a long time.
Quality Test
12
Quality Test
Quality Test Using the Samsung Members App
It is recommended to evaluate your device through the Samsung Members app
after it has been repaired to guarantee its performance. If the test results show any
abnormalities or that another malfunction has occurred because of the repair, visit a
Samsung Service Centre to receive further instruction. Any malfunctions caused by your
repair may incur additional repair charges.
•
The Samsung Members app is subject to update without any prior notice.
•
To use this feature, you must sign in to your Samsung account.
•
Some features may not be available depending on the carrier or model.

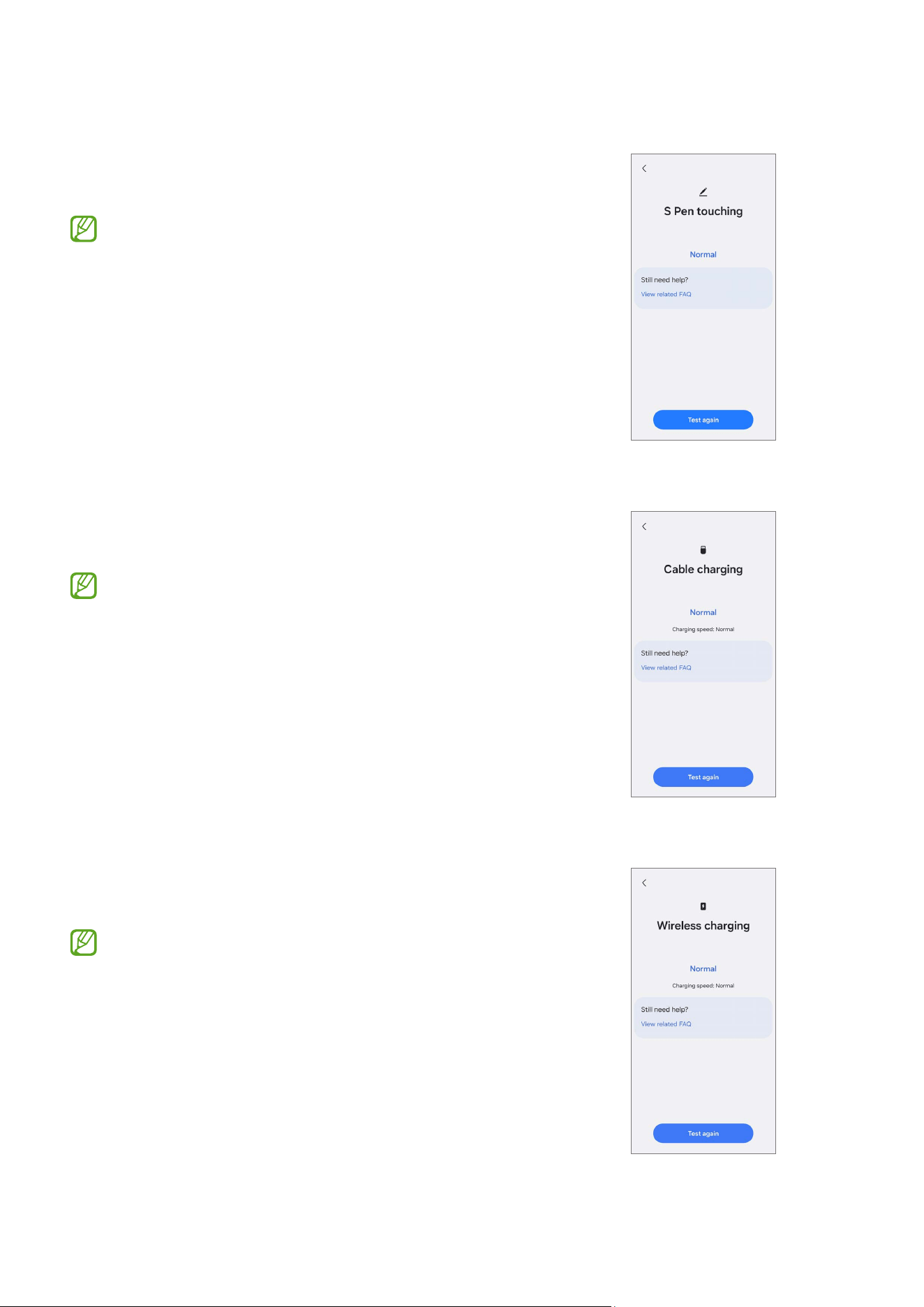

Device Diagnostics
1 Launch the
Samsung Members
app.
If you do not have the app, download it from the
Galaxy Store
or
Play Store
.

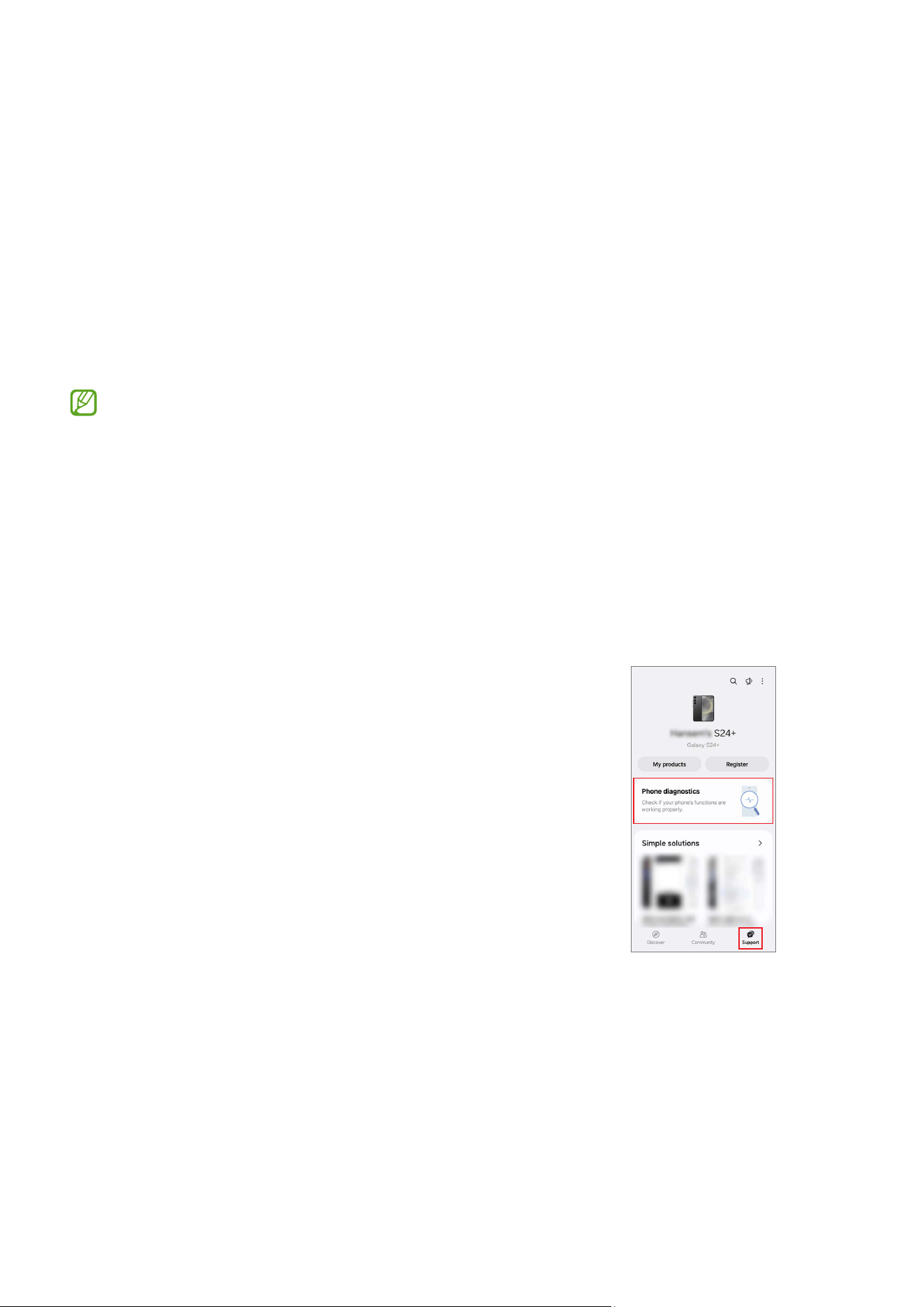

2 Tap
Support
→
Phone diagnostics
.

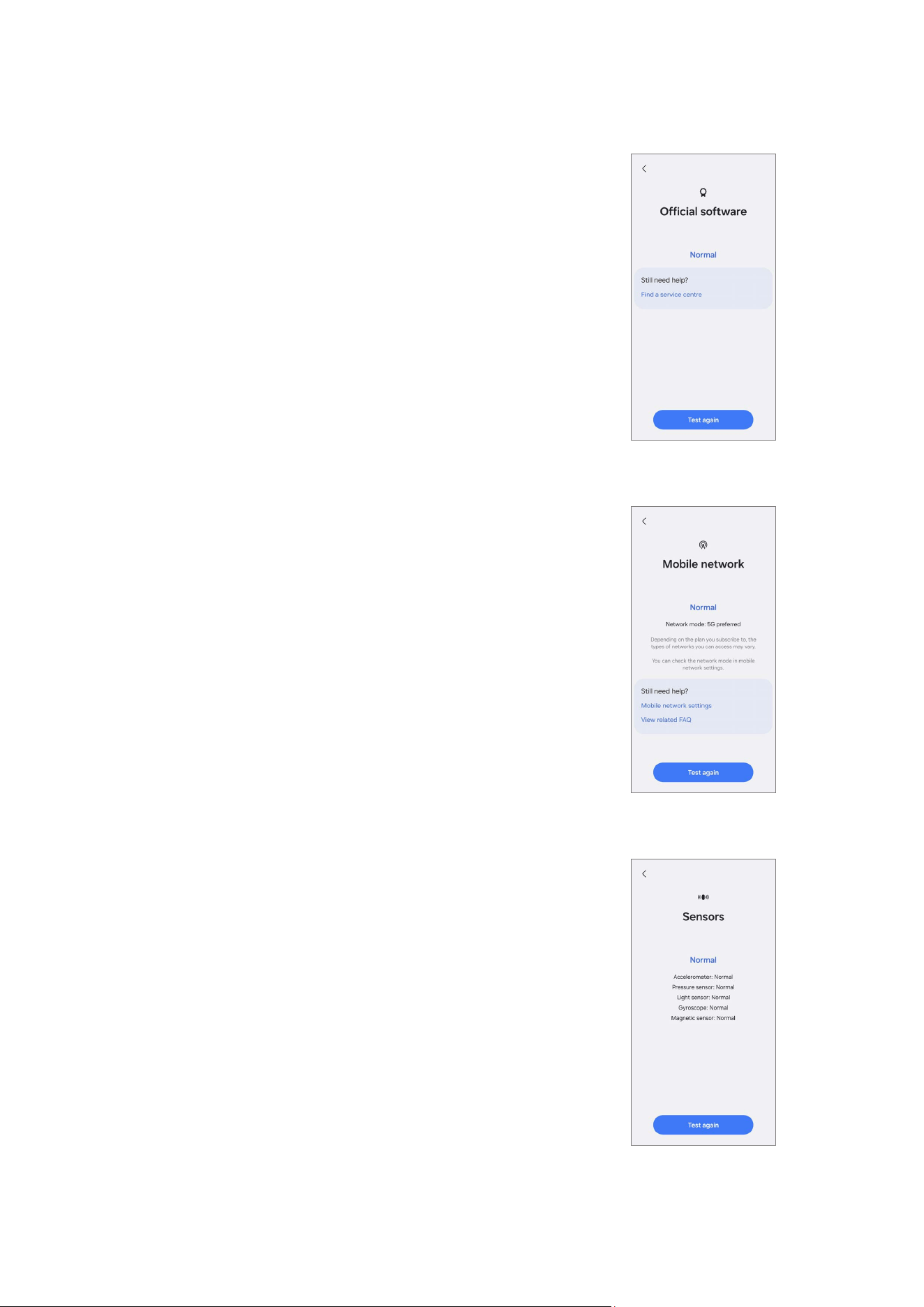

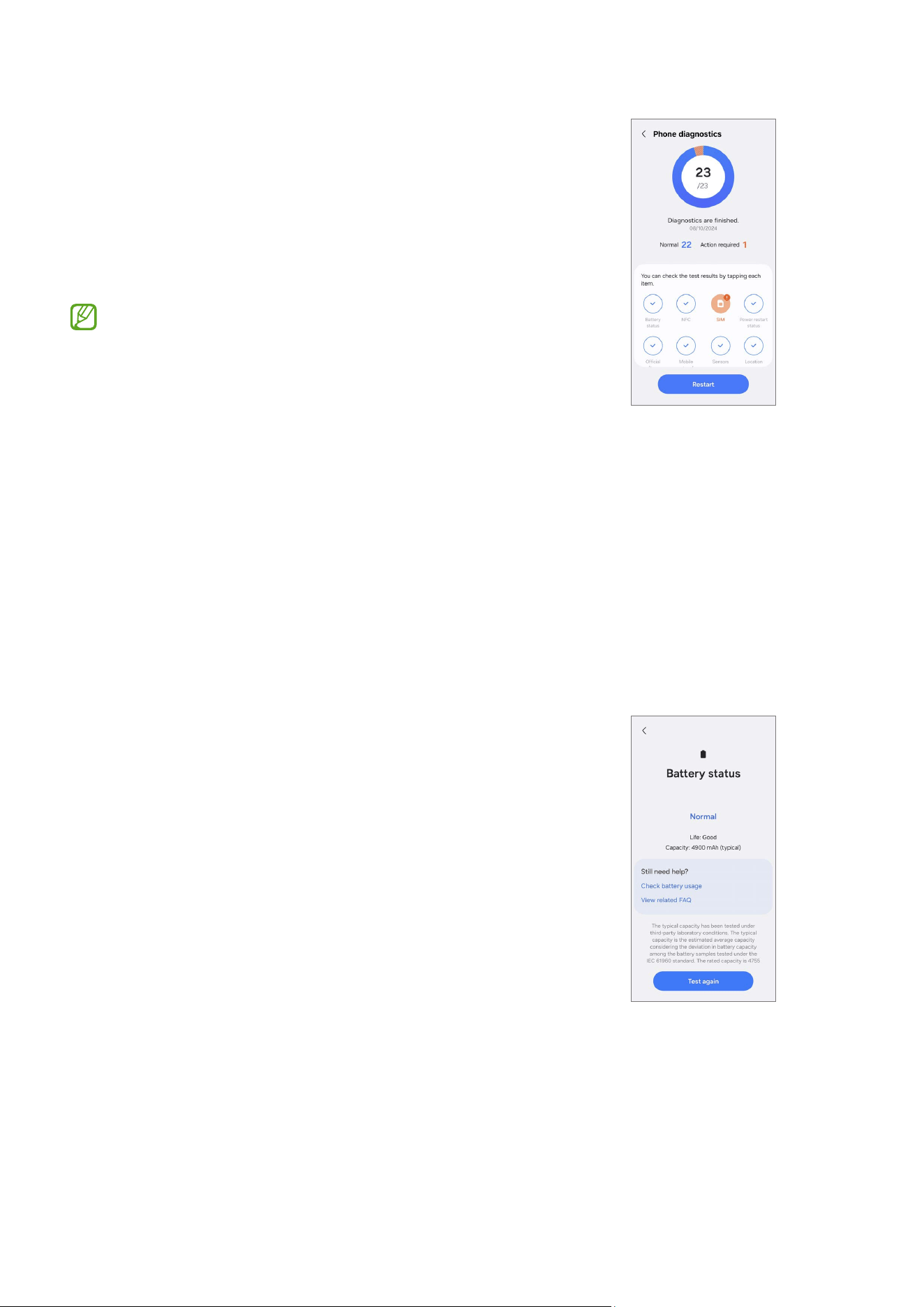

The diagnostics screen will appear and you can
check the test status and items.
Quality Test
13
3 Tap
Test all
.
The device performs a test on all items.
When the test is finished, you can check the test
results.
•
Tick mark: Working normally
•
Exclamation mark: Needs further inspection
•
The test proceeds automatically, but you may
need to follow the on-screen instructions
depending on the test item. Keep an eye on
the screen during testing to ensure smooth
progress.
•
If the exclamation mark appears on any test
items after finishing the test, tap them to find
the solutions. If the problem persists, visit a
Samsung Service Centre.
Test Items
Battery status
Check the battery life and capacity.
Quality Test
14

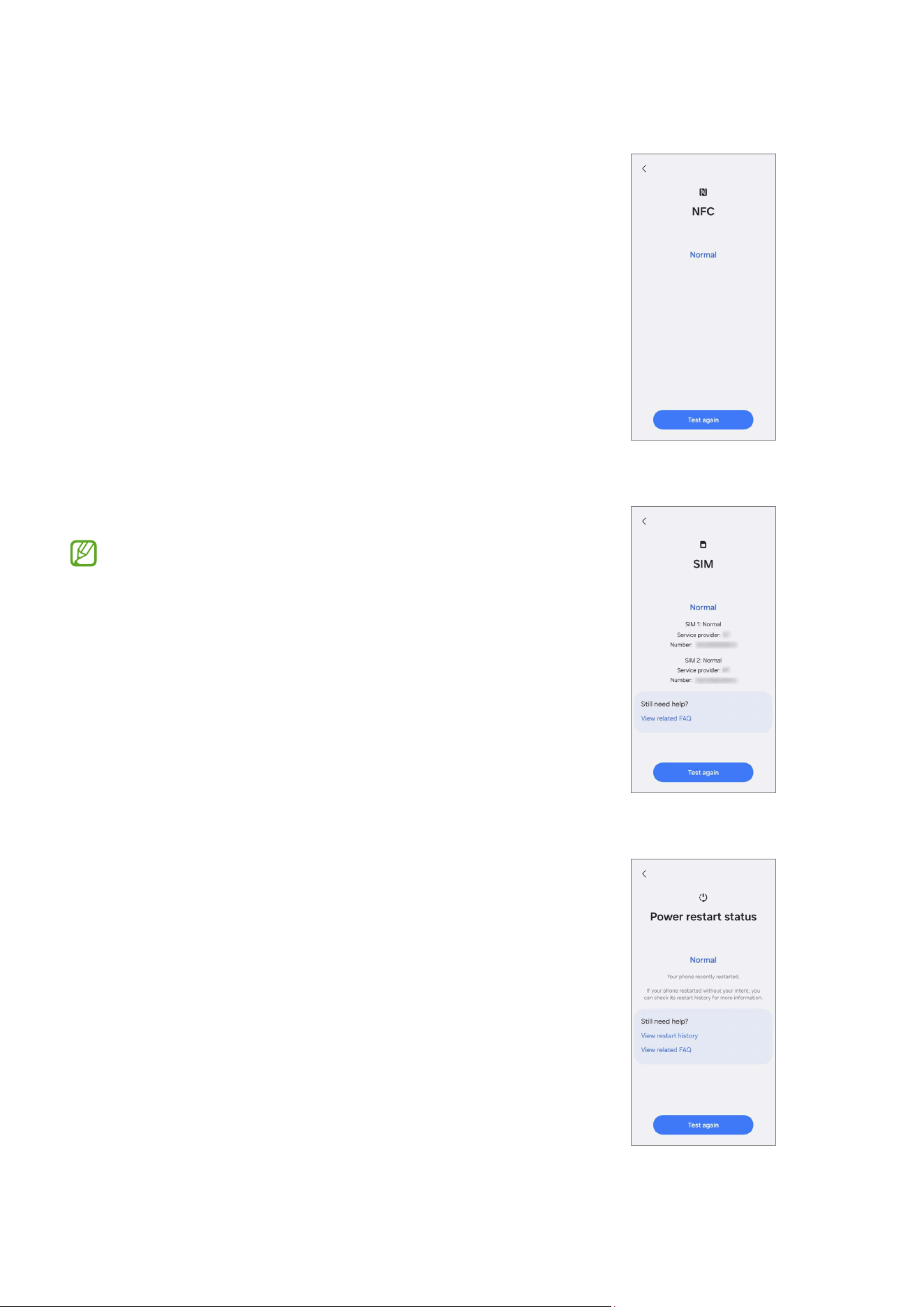

NFC
Check whether the near field communication (NFC)
feature is working normally.

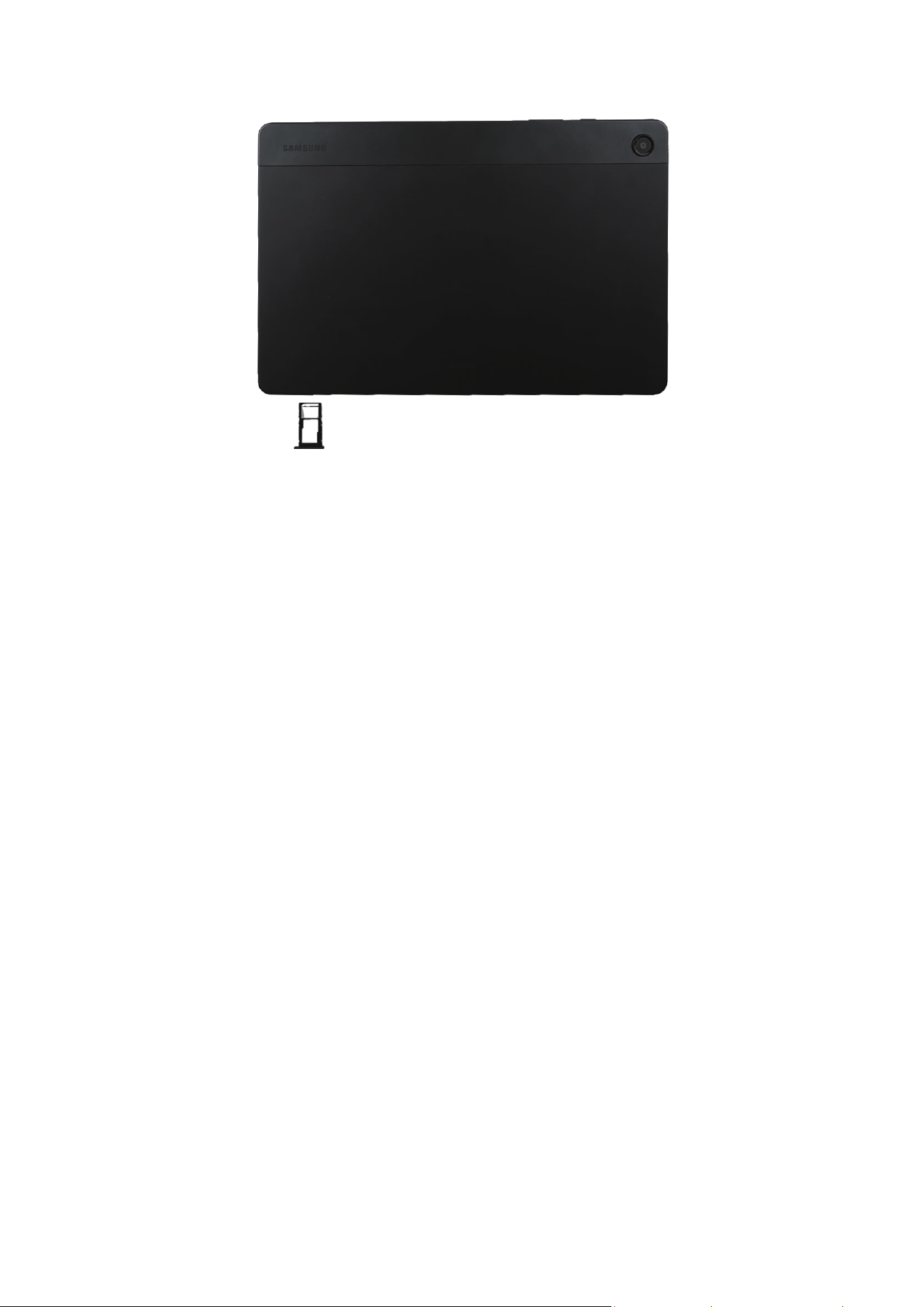

SIM
Check whether the SIM is working normally.
If the test result is not
Normal
, remove the SIM
card from the SIM card tray and replace it. If
possible, try again with another SIM card.
Power restart status
Check whether the device has restarted within the
last 7 days.
Quality Test
15
Official software
Check whether the official software is being used.
Mobile network
Check whether your mobile network is working
normally.
Sensors
Check whether the sensors are working normally.
Quality Test
16

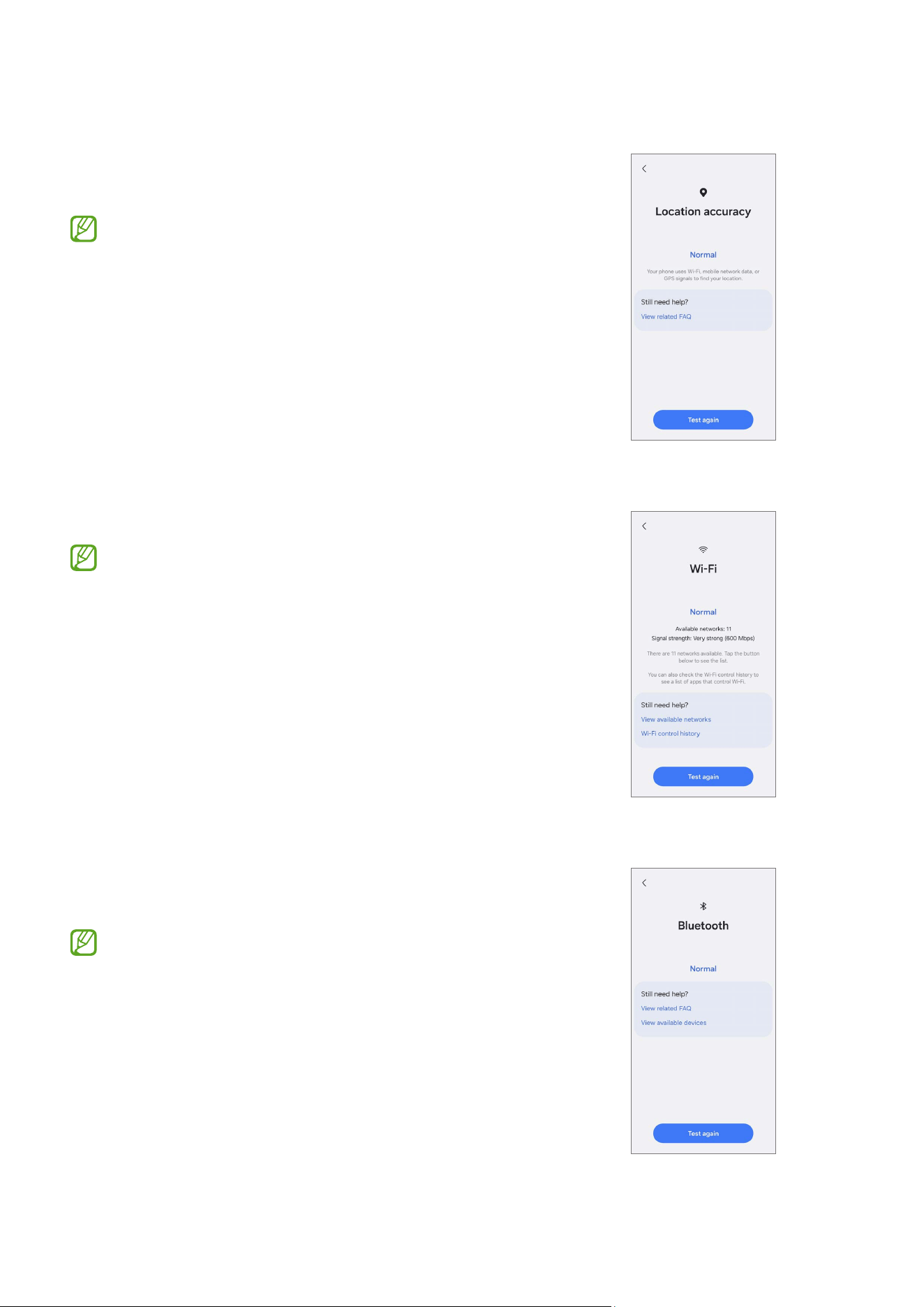

Location accuracy
Check whether the location feature is working
normally.
The results might be more accurate when you
test outside.
Wi-Fi
Check whether the Wi-Fi feature is working normally.
To test this feature, the Wi-Fi feature must be
activated.
Bluetooth
Check whether Bluetooth can search for other
Bluetooth devices.
To test this feature, the Bluetooth feature must
be activated.
Quality Test
17

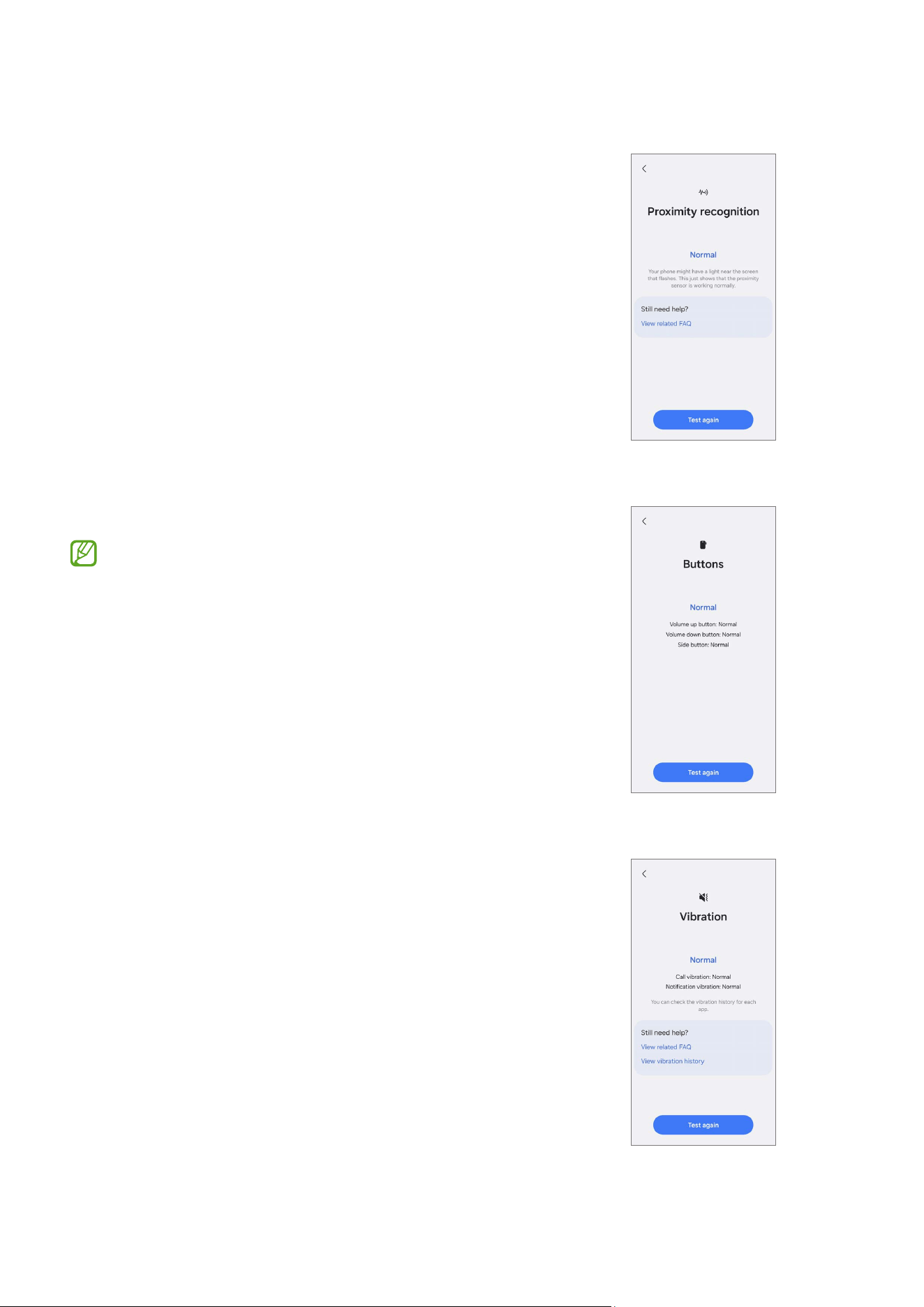

Proximity recognition
Check whether the proximity recognition feature is
working normally.
Buttons
Check whether the buttons are working normally.
Make sure that the buttons are not
contaminated to get more accurate test results.
Vibration
Check whether the vibration feature is working
normally.
Quality Test
18
Speaker
Check whether the speakers are working normally.
If you cannot hear the sound well, check
whether the media volume is turned up and if
the speaker is obstructed by foreign objects, the
case, or the protective film.
Mic
Check whether the microphones are working
normally.
•
The number of tests may vary depending on
the model.
•
If you cannot hear anything after recording,
check whether the media volume is turned
up and if the microphone or speaker is
obstructed by foreign objects, the case, or the
protective film.
Camera
Check whether the cameras are working normally.
To test this more accurately, check if the camera
is obstructed by foreign objects, the case, or the
protective film.
Quality Test
19
Fingerprint recognition
Check whether the fingerprint recognition sensor is
working normally.
To test this feature, your fingerprint must be
registered.
Face recognition
Check whether the face recognition sensor is working
normally.
To test this feature, your face must be
registered.
Touch screen
Check whether touch inputs are recognised normally
in all areas of the screen.
Make sure that the screen is clean to get more
accurate test results.
Quality Test
20
S Pen touching
Check whether the S Pen is recognised in all areas of
the touch screen.
•
Make sure that the screen is clean to get
more accurate test results.
•
This test is only available for the S Pen
supported models.
Cable charging
Check whether the cable charging feature is working
normally.
Use only Samsung-approved chargers.
Wireless charging
Check whether the wireless charging feature is
working normally.
Use only Samsung-approved wireless chargers.
Quality Test
21

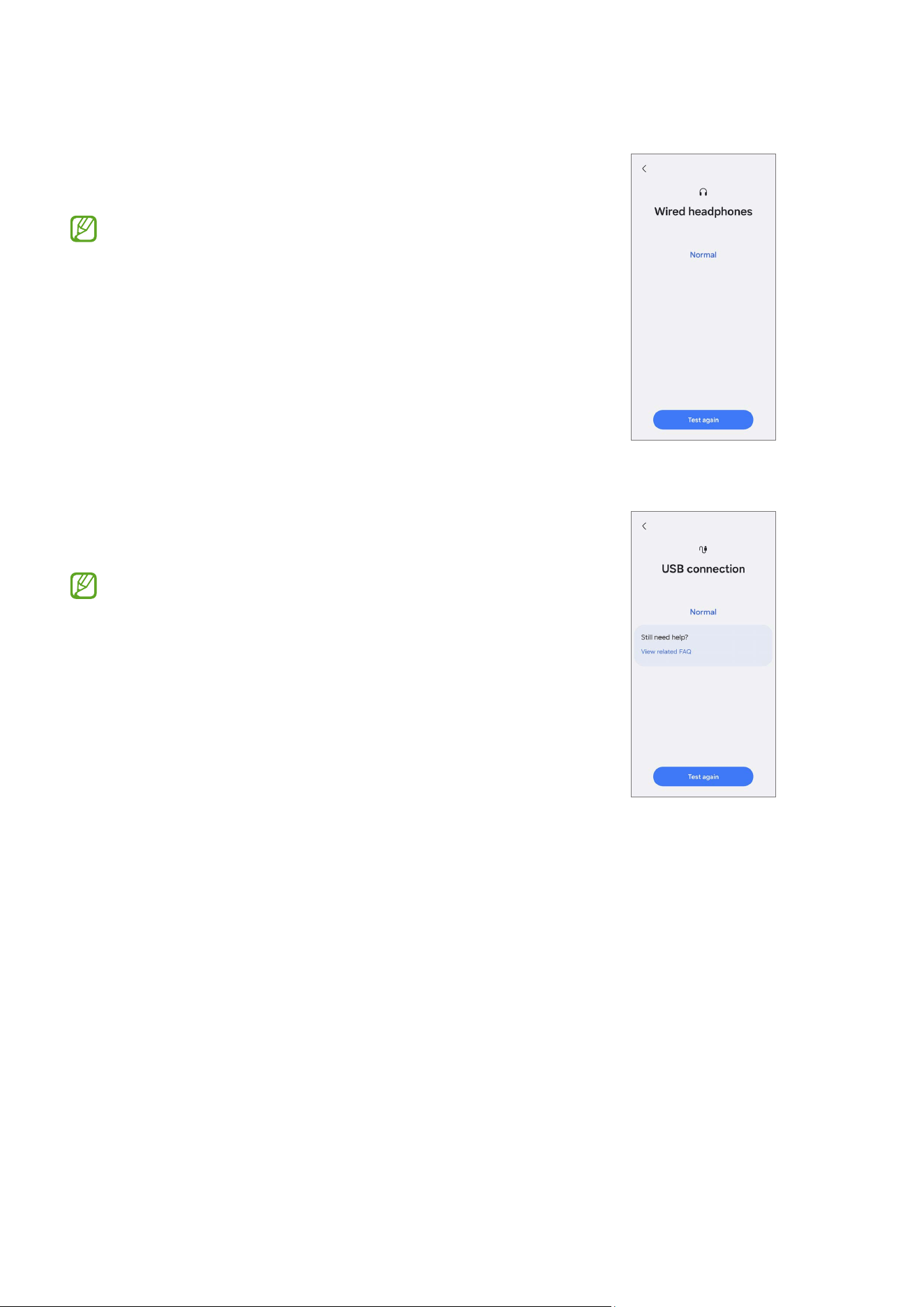

Wired headphones
Check whether the headphone jack recognises the
headphones normally.
To test this feature, you must connect
headphones.
USB connection
Check whether the multipurpose jack recognises the
USB cable normally.
To test this feature, the USB cable must be
connected to a computer.
Calibrations
22
Calibrations
Calibrations
In order to guarantee the stable and correct performance of components or sensors, it is
required to conduct calibrations through the
Self Repair Assistant
app after repair.
If the calibration results show any malfunctions, visit a Samsung Service Centre for
further action. Any malfunctions caused by your repair may incur additional repair
charges.
•
The
Self Repair Assistant
app is subject to update without any prior notice.
•
In order to conduct the accurate calibrations after repair, visit a Samsung Service
Centre or website to buy calibration equipment if you do not have any.
Used Parts and Calibration Functions in Supported Models
The calibration functions are automatically conducted based on the selected parts.
Screen Battery Back Glass Charging Port Speaker
Optical
Fingerprint Cal.
Yes No No No No
Range Sensor
Cal.
Yes Yes Yes Yes Yes
Battery Cycle
Resets.
No Yes No No No
Touch Screen
Panel Cal.
Yes No No No No
Speaker Cal. No No No No Yes
Under-display
Camera Cal.
Yes No No No No
Digital Hall
Sensor Cal.
Yes No No No No
Calibrations
23
•
Depending on the model, the screen module may include batteries. So when
the screen module is replaced, the battery also has to be selected and a battery
cycle reset must be performed.
•
In the Fold models, touch screen panel calibration is performed for both the
main and cover screens.
•
Digital hall sensor calibration is only for the Fold and Flip models and
under-display camera calibration is only for the Fold models.
Using the Self Repair Assistant App
1 Download the
Self Repair Assistant
app from
Galaxy Store
.

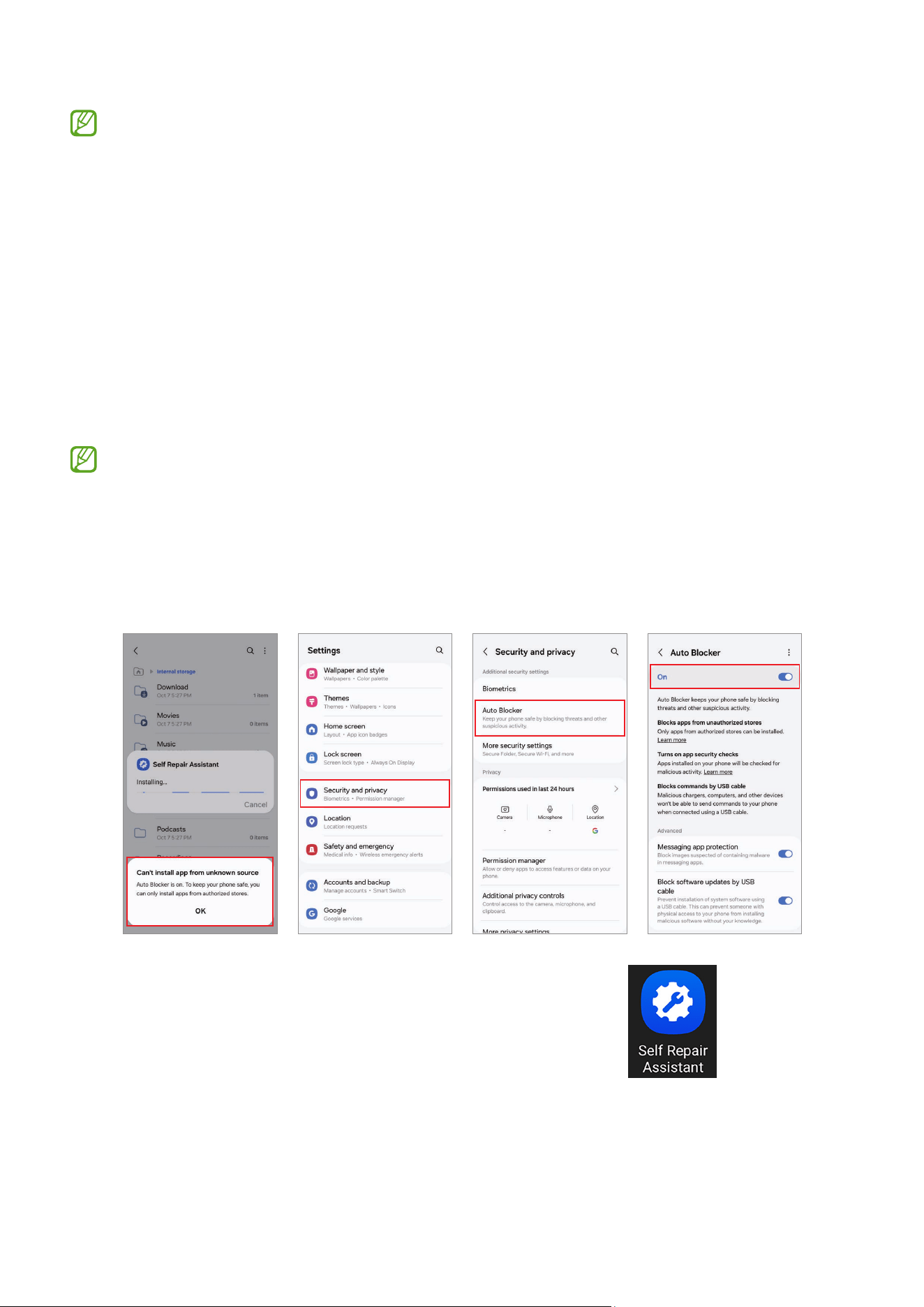

For US devices, you need to install the APK file for the
Self Repair Assistant
app
manually. However, if the
Auto Blocker
function which is provided from Android
OS 14 (U OS) is turned on, you cannot install any APK files manually through the
My
Files
app. In this case, launch the
Settings
app, tap
Security and privacy
→
Auto
Blocker
, and then tap the switch to turn it off to install the
Self Repair Assistant
app.
2 Launch the
Self Repair Assistant
app.
Calibrations
24

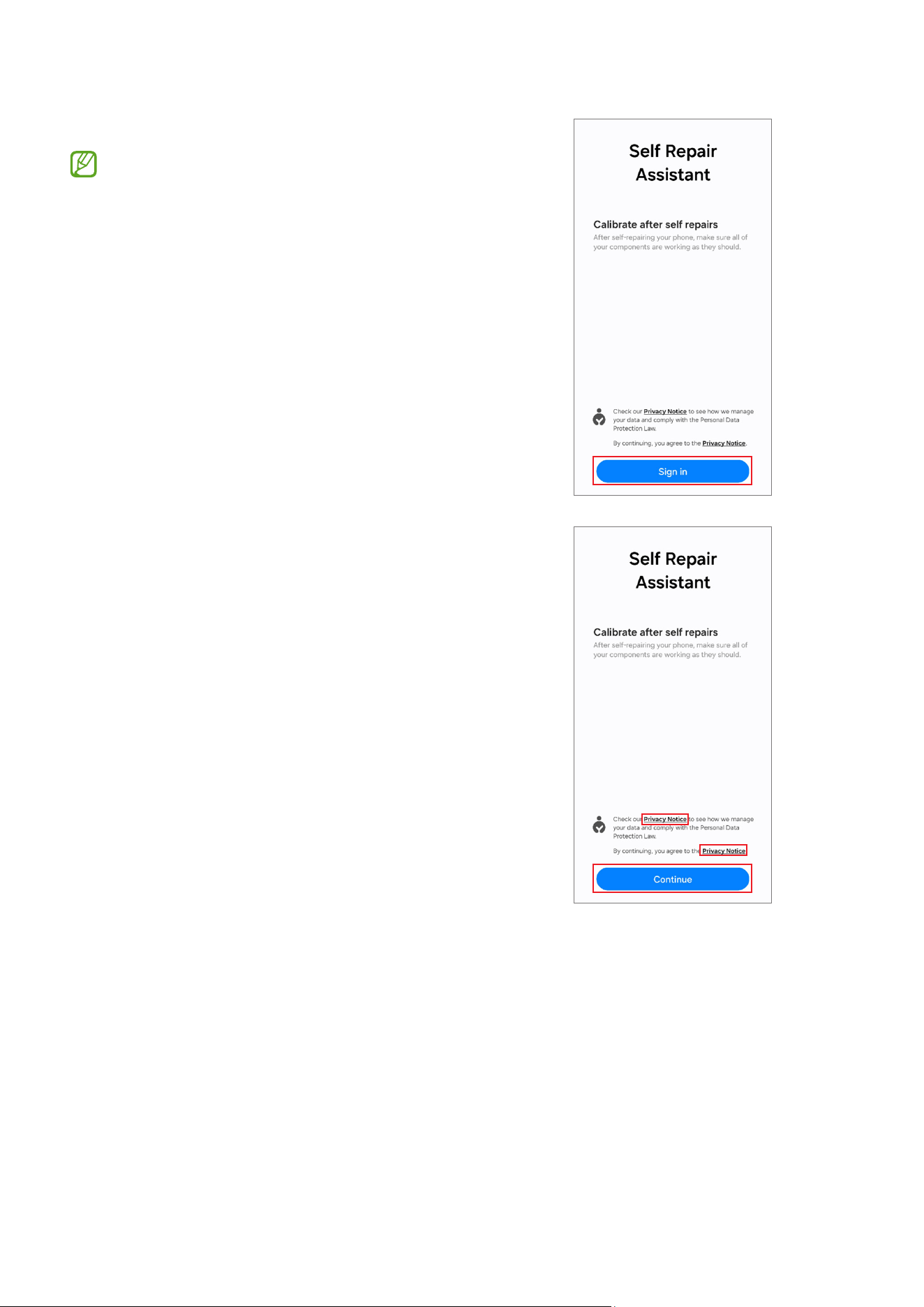

3 Read Privacy Notice and tap
Continue
.
•
If you are not signed in to your
Samsung account, a button will appear
to sign in.
•
If you select the link to read the full
Privacy Notice, you will be directed to
our site.
Calibrations
25
4 Check permissions and tap
Continue
.
5 Select the part that you have replaced and
tap
Next
.
•
The required calibrations will be
conducted automatically.
•
If the device does not have certain
components or sensors associated
with the part that has been replaced,
relative calibration will be skipped
automatically.
Calibrations
26

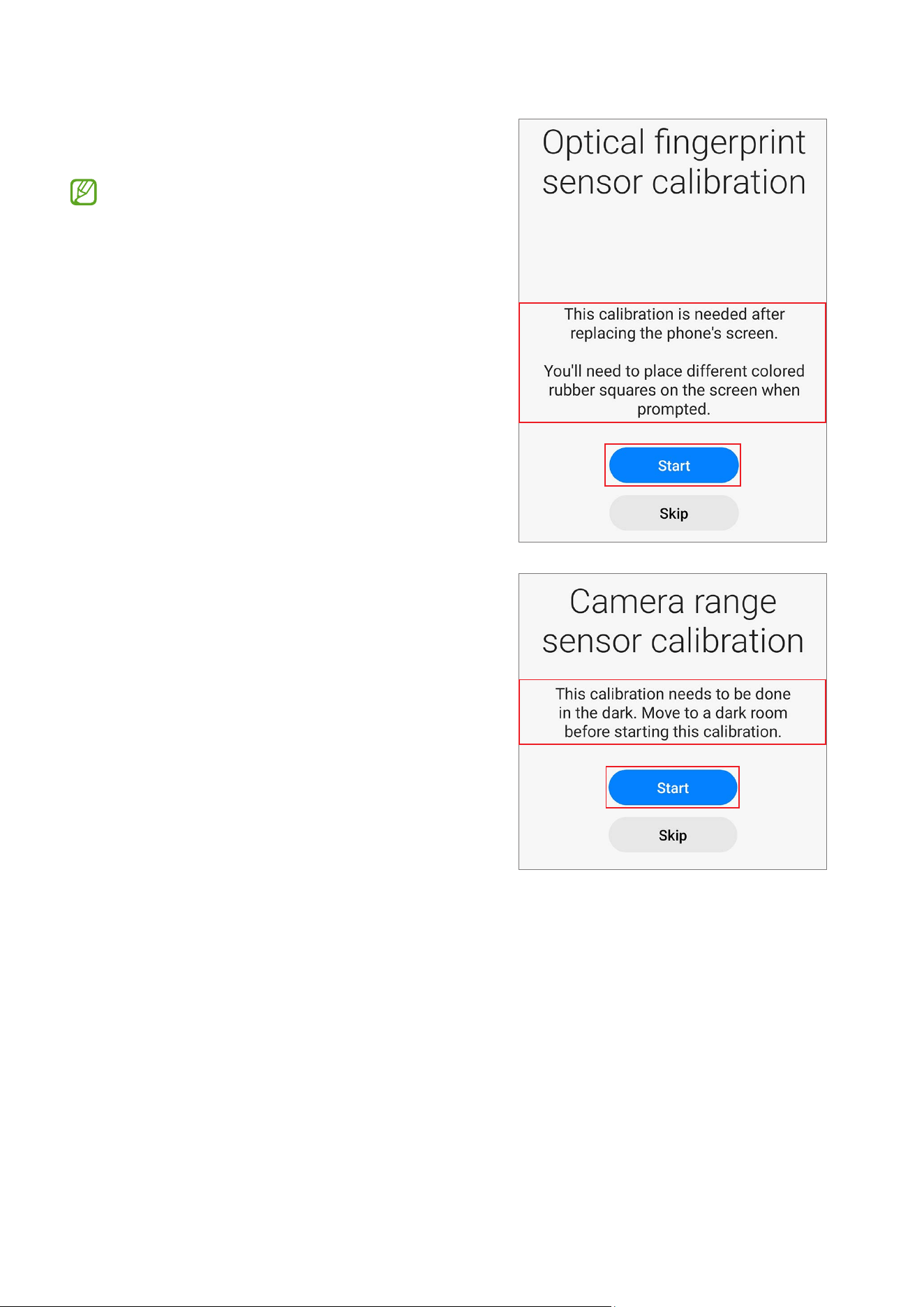

6 Read the on-screen instructions and tap
Start
.
Refer to Optical Fingerprint Sensor
Calibration, Resetting the Battery Cycle
Count, Range Sensor Calibration, Touch
Screen Panel Calibration, Speaker
Calibration, Under-display Camera
Calibration (Fold Models Only), and
Digital Hall Sensor Calibration (Fold and
Flip Models Only) for more information.
Calibrations
27

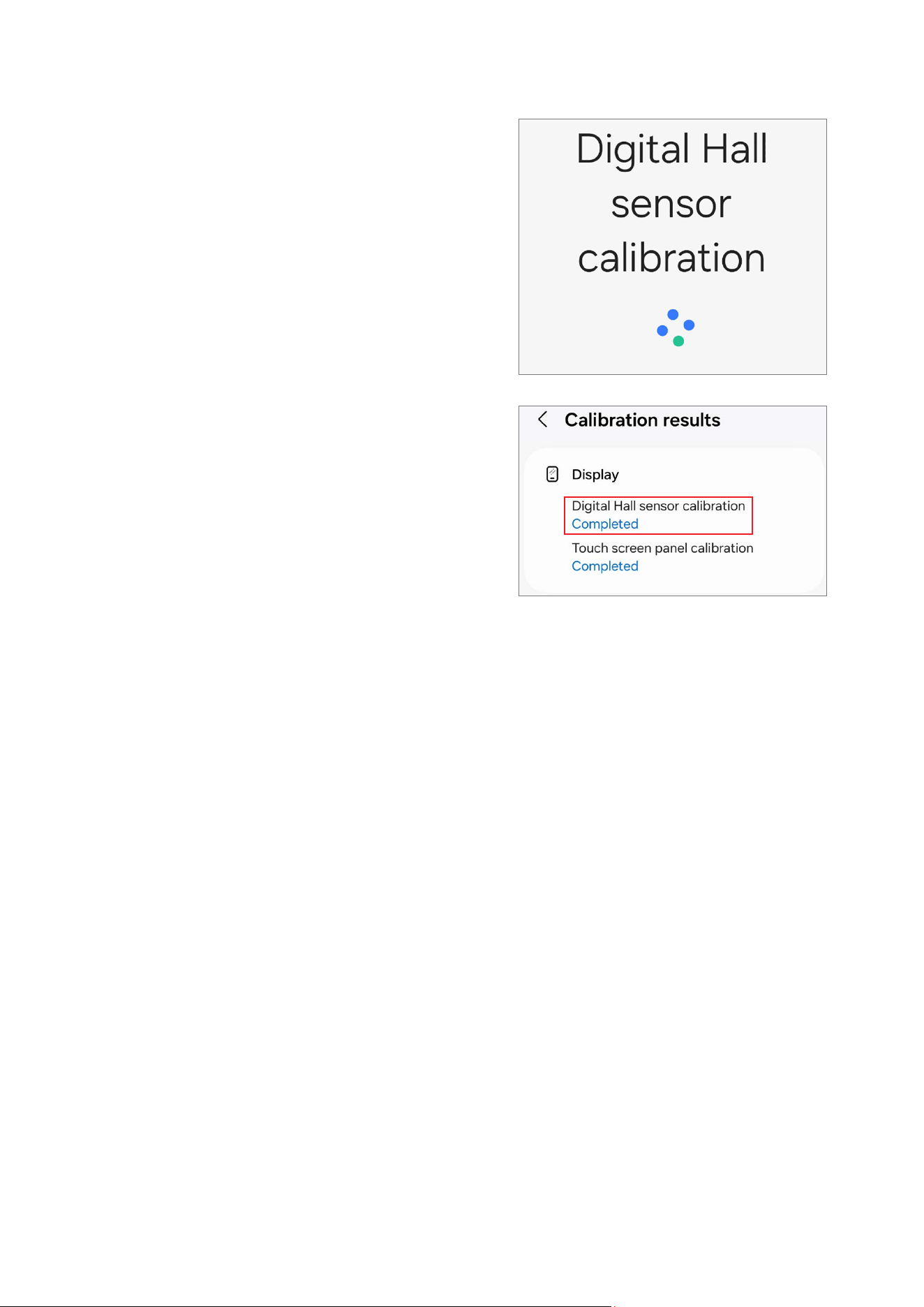

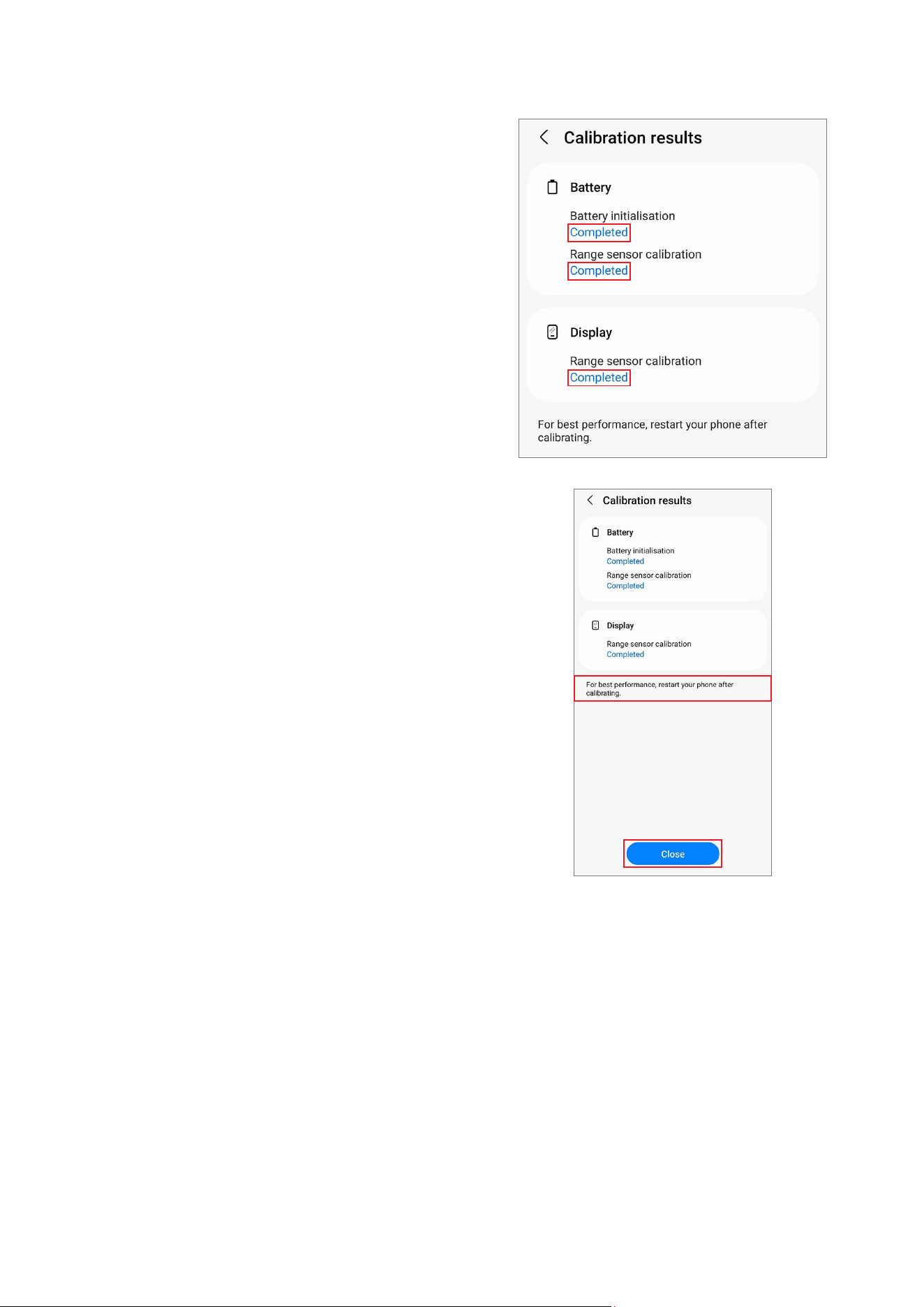

7 Check the results of each calibration item.
•
Completed
: Calibration was done
normally.
•
Failed
: Calibration failed.
•
Skipped
: Calibration was skipped.
8 On the calibration results page, tap
Close
to close the app.
Restart your device to finish calibrating.
Calibrations
28
Optical Fingerprint Sensor Calibration
Whenever the screen is replaced, the optical fingerprint sensor must be calibrated to
guarantee optimised fingerprint sensor performance for devices that have it.
Optical fingerprint sensor calibration is available through the
Self Repair Assistant
app.
•
This feature may not be available depending on the model. The availability of
this feature can be automatically checked in the Self Repair Assistant app, so
please follow the guidance of the Self Repair Assistant app.
•

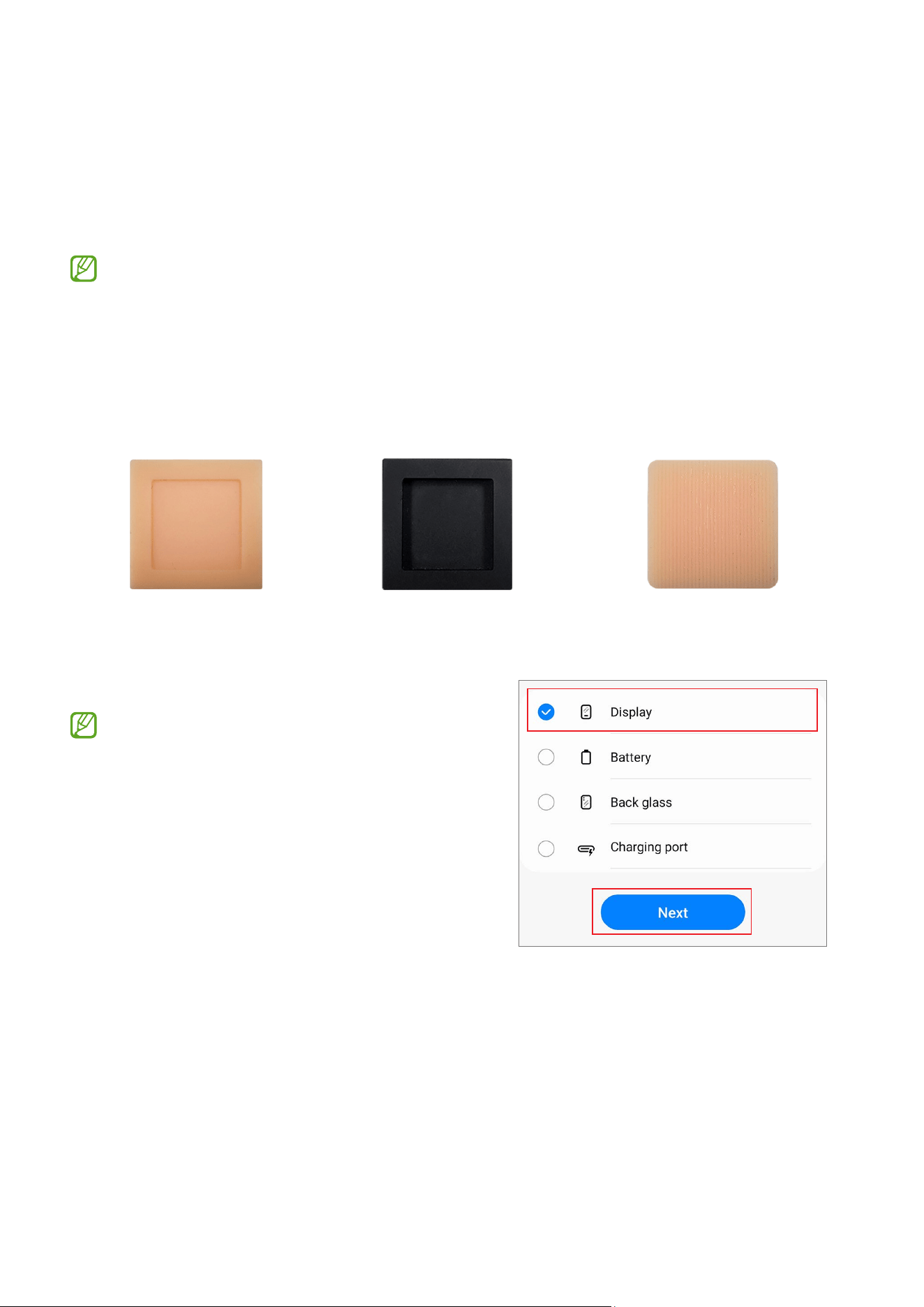

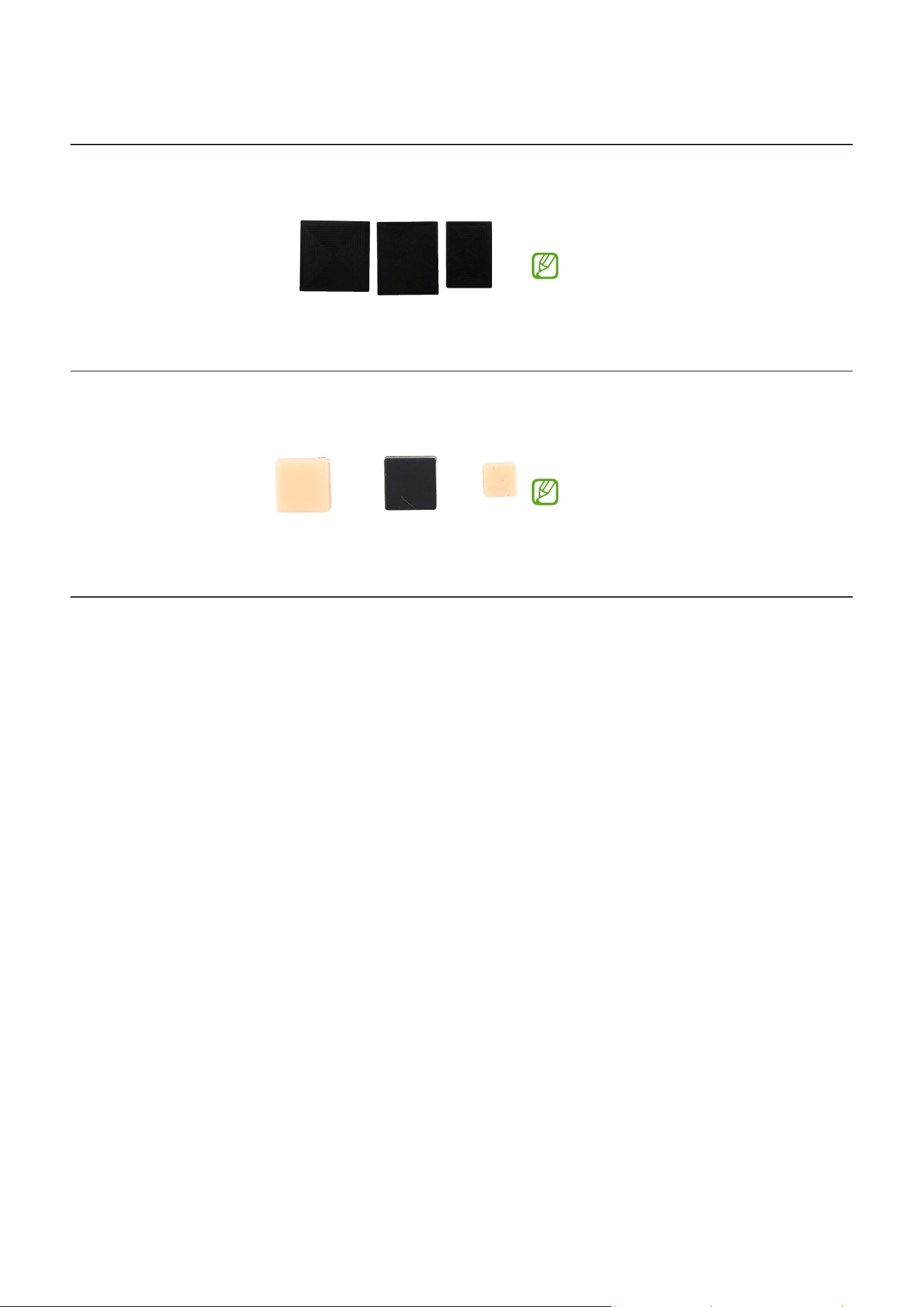

Three rubbers (the white calibration box, the black calibration box, and the 3D
fingerprint dummy rubber) are required to start this calibration.
White calibration box Black calibration box 3D fingerprint dummy rubber
1 Launch the
Self Repair Assistant
app.

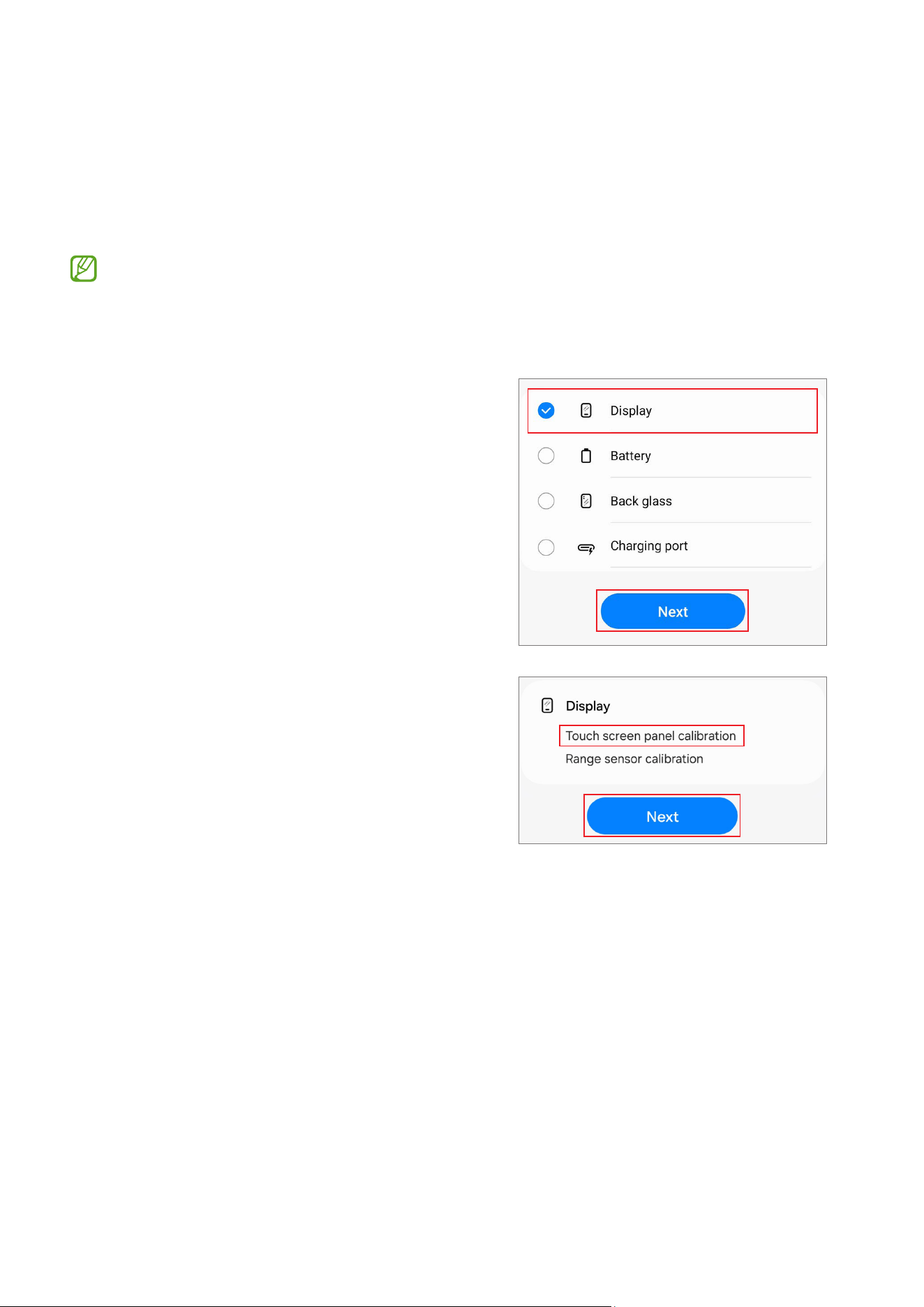

2 Tap
Display
→
Next
.
•
The required calibration or test items
will be processed automatically.
•
If the device does not have certain
components or sensors associated
with the part that has been replaced,
relative calibration will be skipped
automatically.
Calibrations
29
3 Check the part and calibration and then tap
Start
.
4 Read the on-screen instructions and tap
Start
.
The white calibration box must be
prepared before you start.
5 Put the white calibration box on the sensor
area (below the square side) and push the
rubber by applying force with your finger.
Tap
Next
and keep pushing the rubber
with your finger until you see the success
message.
The bottom side of the rubber that is
shaped like a square should be located
on the square guide line.
Calibrations
30
6 Put the black calibration box on the sensor
area (below the square side) and push the
rubber by applying force with your finger.
Tap
Next
and keep pushing the rubber
with your finger until you see the success
message.
•
The black calibration box must be
prepared before you start.
•
The bottom side of the rubber that is
shaped like a square should be located
on the square guide line.
7 Put the 3D fingerprint dummy rubber on
the sensor area (below the square side) and
push the rubber by applying force with your
finger.
Tap
Next
and keep pushing the rubber
with your finger until you see the success
message.
•
The 3D fingerprint dummy rubber
must be prepared before you start.
•
The bottom side of the rubber that is
shaped like a square should be located
on the square guide line. (Do not place
the pattern horizontally on the 3D
fingerprint dummy rubber.)
Calibrations
31
8 Check the result of the calibration.
Completed
appears only when the
calibration is successfully completed.
If
Completed
does not appear, try
calibrating again.
Resetting the Battery Cycle Count
The battery cycle count should be reset whenever your device’s battery is replaced.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced.
Tap
Battery
→
Next
.
Calibrations
32
3 Check part and calibration and tap
Start
.
4 Tap
Start
.
5 Read the on-screen instructions and tap
Scan
to scan the QR code, or tap
Enter
manually
to enter the serial number
manually.
Calibrations
33
6 Scan the QR code or enter the serial
number that appears on the battery
package.
The reset will begin.
This image is an example of the QR code.
Make sure to scan the QR code on the
battery package.
7 Check the calibration results.
Calibrations
34
Range Sensor Calibration
When replacing screens, batteries, back glasses, or charging ports, range sensor
calibration is required to ensure the range sensors of devices equipped with them are
optimised.
Range sensor calibration is available through the
Self Repair Assistant
app.
Some content may differ from your device depending on the region, service
provider, model specifications, or device’s software.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Start
.
Calibrations
35
4 Read the on-screen instructions and tap
Start
.
5 In a dark room or area, place the phone
face-down, then press the Volume button.
6 The calibration will perform automatically.
A tone will play when calibration is
complete.
7 Check the calibration result.
Calibrations
36
Touch Screen Panel Calibration
When replacing screens, touch screen panel calibration is required to ensure accurate
touch input.
Touch screen panel calibration is available through the
Self Repair Assistant
app.
In the Fold models, touch screen panel calibration is performed for both the main
and cover screens.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
Calibrations
37
4 Read the on-screen instructions and tap
Start
.
5 The calibration will perform automatically
and the screen will turn white during
calibration.
6 Check the calibration result.
Calibrations
38
Speaker Calibration
When replacing speakers, the speaker must be calibrated to guarantee optimised
speaker performance for devices that have it.
Speaker calibration is available through the
Self Repair Assistant
app.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
Calibrations
39

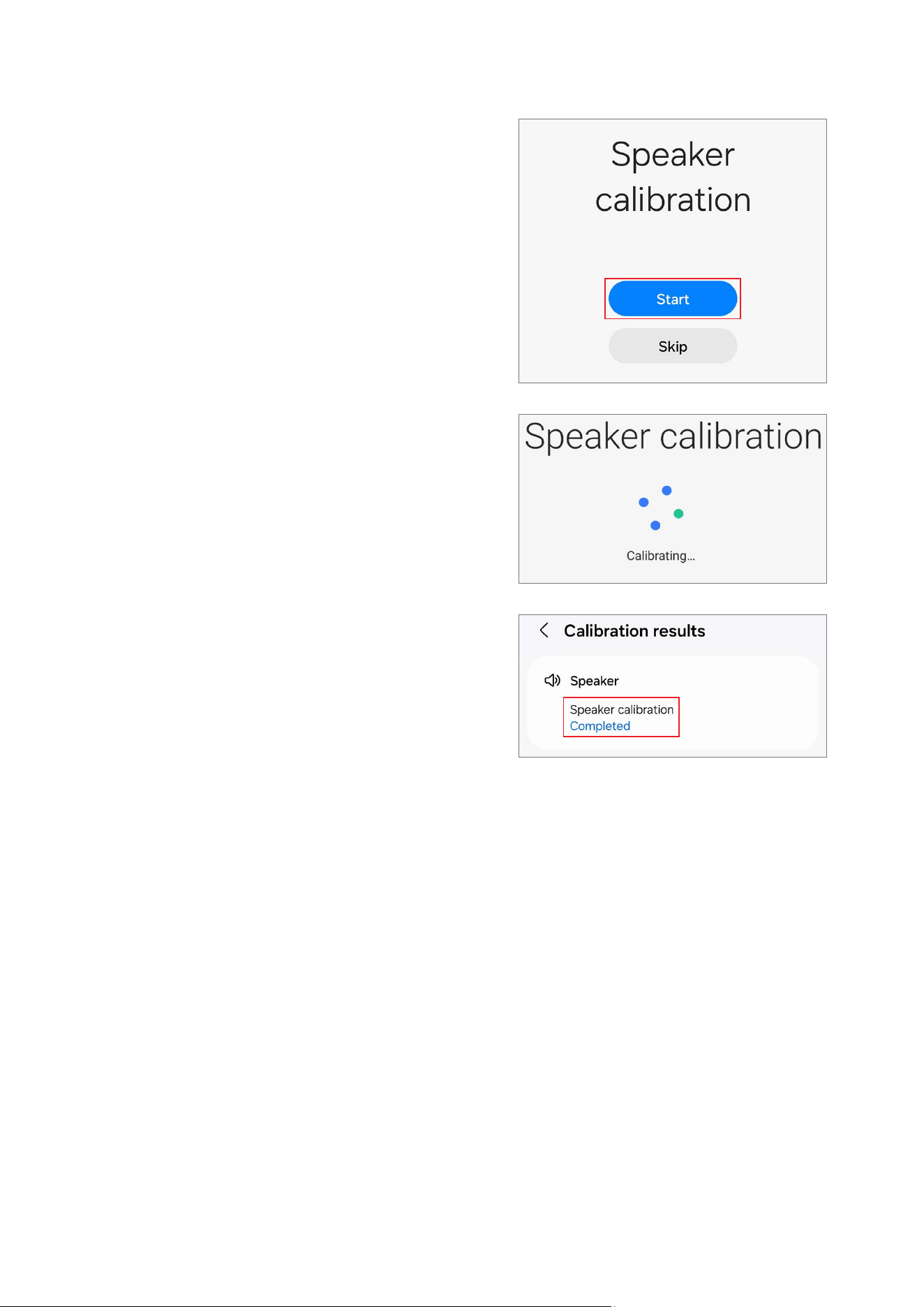

4 Tap
Start
.
5 The calibration will perform automatically.
6 Check the calibration result.
Calibrations
40
Under-display Camera Calibration (Fold Models Only)
Whenever the screen is replaced, the under-display camera must be calibrated to
guarantee optimised under-display camera performance for devices that have it.
Under-display camera calibration is available through the
Self Repair Assistant
app.
This feature may not be available depending on the model. The availability of this
feature can be automatically checked in the Self Repair Assistant app, so please
follow the guidance of the Self Repair Assistant app.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
Calibrations
41
4 Tap
Start
.
5 The calibration will perform automatically.
6 Check the calibration result.
Calibrations
42
Digital Hall Sensor Calibration (Fold and Flip Models Only)
Whenever the screen is replaced, the digital hall sensor must be calibrated to guarantee
optimised digital hall sensor performance for devices that have it.
Digital hall sensor calibration is available through the
Self Repair Assistant
app.
•
This feature may not be available depending on the model. The availability of
this feature can be automatically checked in the Self Repair Assistant app, so
please follow the guidance of the Self Repair Assistant app.
•
For Fold models: If the main screen does not turn on after being replaced (the
main screen is off and the cover screen is on when the device is unfolded),
follow the steps below to perform digital hall sensor calibration. The boot
screen (the screen where the Samsung and carrier logos appear) will appear
normally and then turn off, so it is not a hardware failure.
1) Fold the device and launch the
Self Repair Assistant
app on the cover
screen.
2) Move to the digital hall sensor calibration screen, unfold the device, and
then press the Volume Up button or the Volume Down button.
3) You will hear a vibration, and the calibration will be performed
automatically.
When calibration is complete, the main screen will turn on normally.
•
For Flip models: If the main screen does not turn on after being replaced (the
main screen is off and the cover screen is on when the device is unfolded),
follow the steps below to force the main screen to turn on and perform digital
hall sensor calibration. The boot screen (the screen where the Samsung and
carrier logos appear) will appear normally and then turn off, so it is not a
hardware failure.
1) Connect the USB cable to the device, and connect the other end of the USB
cable to the USB power adapter or your computer.
2) While pressing and holding the Side button, press the Volume Up button
once and the Volume Down button twice.
3) When the main screen turns on, perform digital hall sensor calibration.
Calibrations
43
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
4 Tap
Start
.
Calibrations
44
5 The calibration will perform automatically.
6 Check the calibration result.
Exploded View and Parts List
45
Exploded View and Parts List
The product’s composition may vary depending on the country, region, or carrier.
Exploded View
Exploded View and Parts List
46
Parts List
Number Name

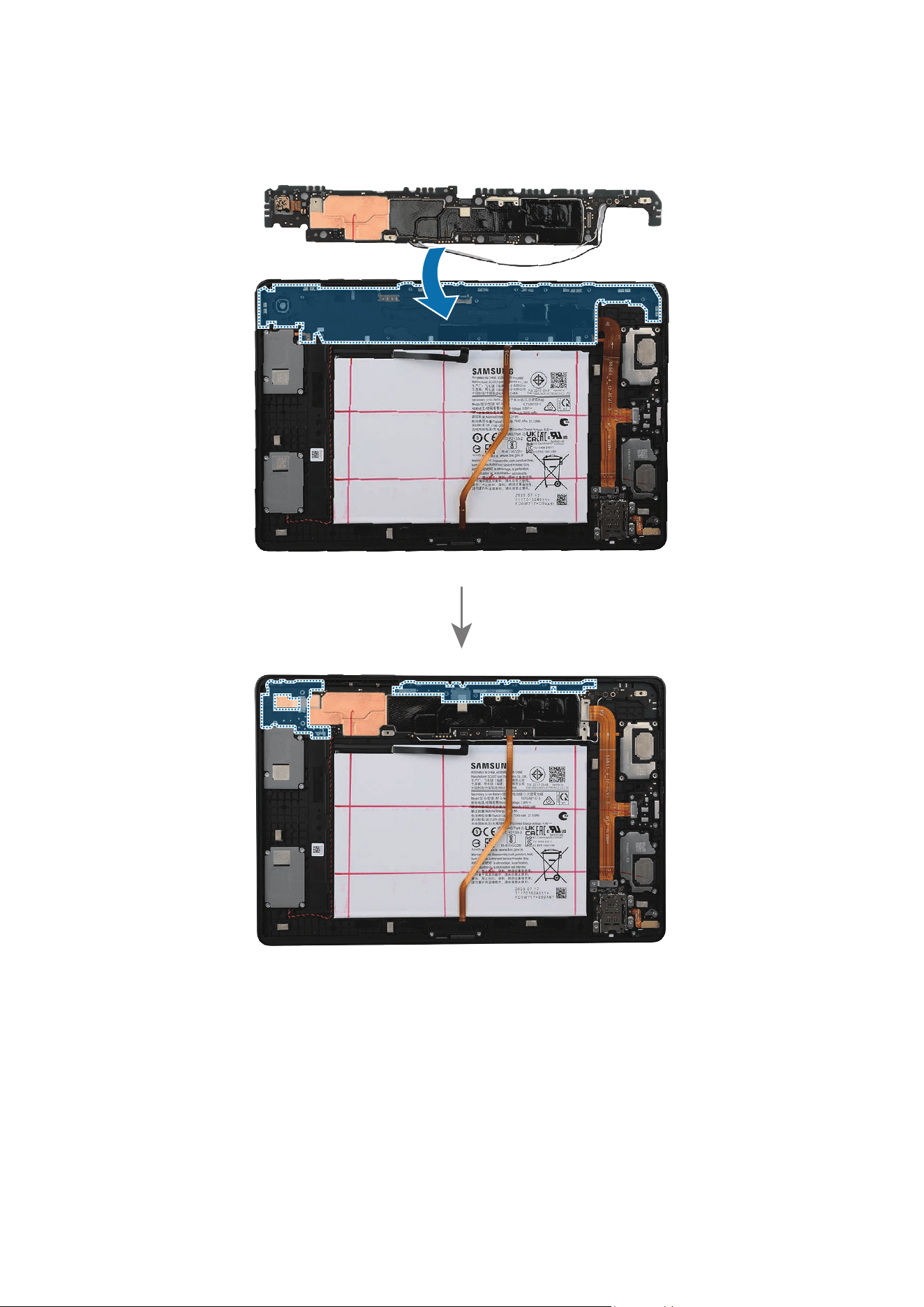

QMP01 Main Board (PBA)
QFR01 Screen
QBA01 Battery
QCA01 Rear Camera
QIF02 SIM Card Socket
QCA02 Front Camera
QSP04 Speaker 1
QSP02 Speaker 4
QSP01 Speaker 3
QSP03 Speaker 2
QBR01 Charging Port Bracket
QME03 POGO FPCB cable
QME01 Main Flex Cable (Charging Port to Main Board)
QME02 Headphone Jack
QBR03 Front Camera Bracket
QCK01 Side Button
QVO01 Volume Button
QCR01 Screw 24530A
QBC01 Back Cover Module
QIF01 Charging Port
Disassembly and Assembly
47
Disassembly and Assembly
Tools for Disassembly and Assembly
When repairing devices, you absolutely must wear protective equipment for your safety.
Availability of rental services for toolkits with a complete set of tools for self
repair service may vary depending on the country and is currently available only in
limited countries.
Tool & Part Code Image Description
Safety Goggles
Prevents accidents during repair
(protective equipment)
Safety Gloves (ESD
safe, cut-resistant)
Prevents accidents during repair
(protective equipment)
Safety Mask
Prevents accidents during repair
(protective equipment)
Anti-static Wrist
Strap
Prevents electrostatic damage
(recommended)
Disassembly and Assembly
48
Tool & Part Code Image Description
ESD Safe Mat
Prevents electrostatic damage
(recommended)
Ejection Pin
Pin for ejecting the SIM card tray
Cross-head
Screwdriver
Tool for screwing in cross-head
screws
Opening Pick
Tool for disassembling the screen
and other parts
Opening Tool
Tool for disassembling the
connector and other parts
Suction Cup
Tool for disassembling the screen
and other parts
For separable handle suction
cups, be careful not to injure
yourself as the handle can be
parted during use.
Disassembly and Assembly
49
Tool & Part Code Image Description

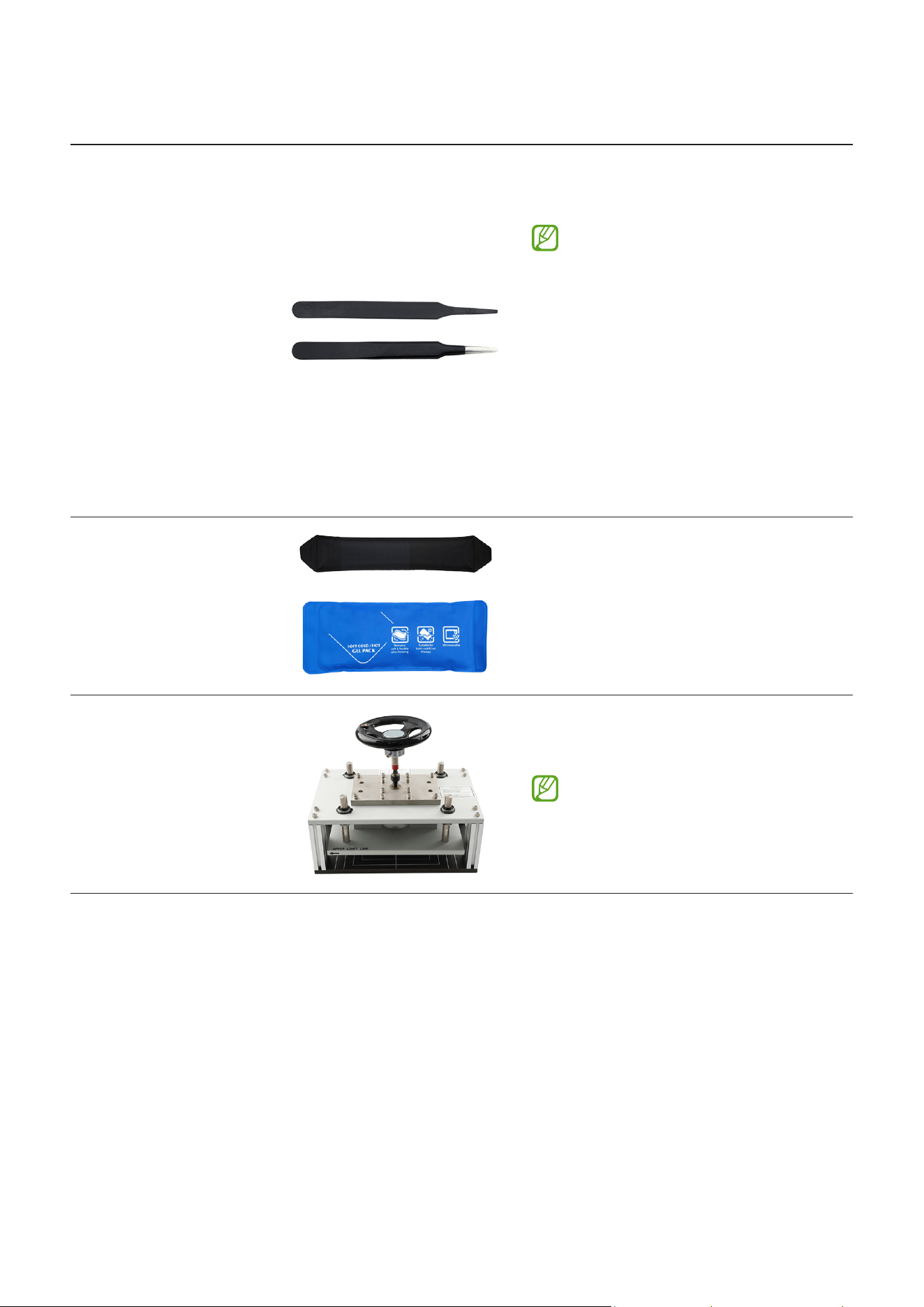

ESD Safe Tweezers
and Round Tip
Metal Tweezers
Tool for handling connectors,
cables, and other parts
•
Because it is possible
to damage parts or
components when using
sharp tweezers, use
tweezers made with plastic
or rubber material.
•
When removing a vibrator
motor, it is required to
use the round tip metal
tweezers.

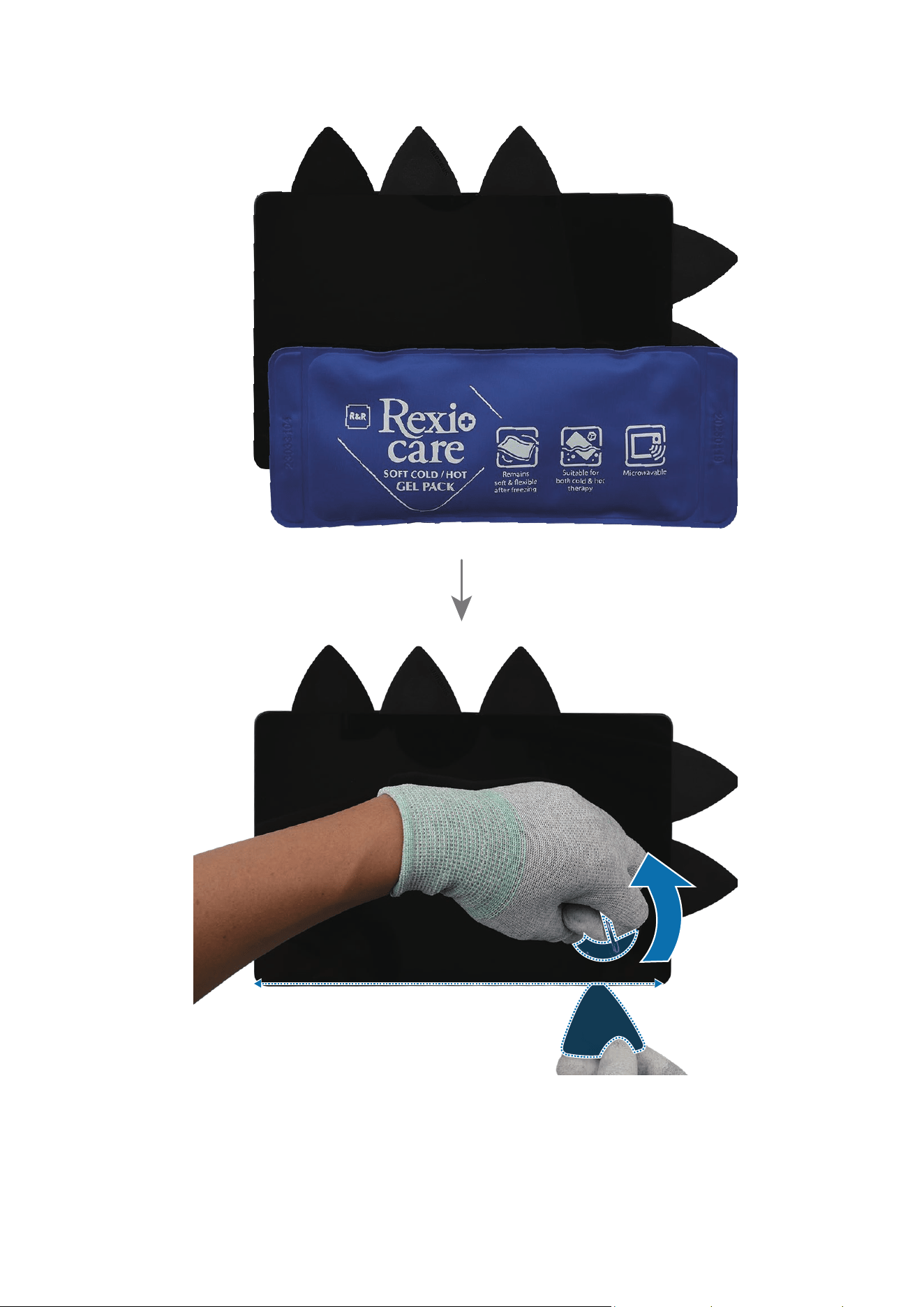

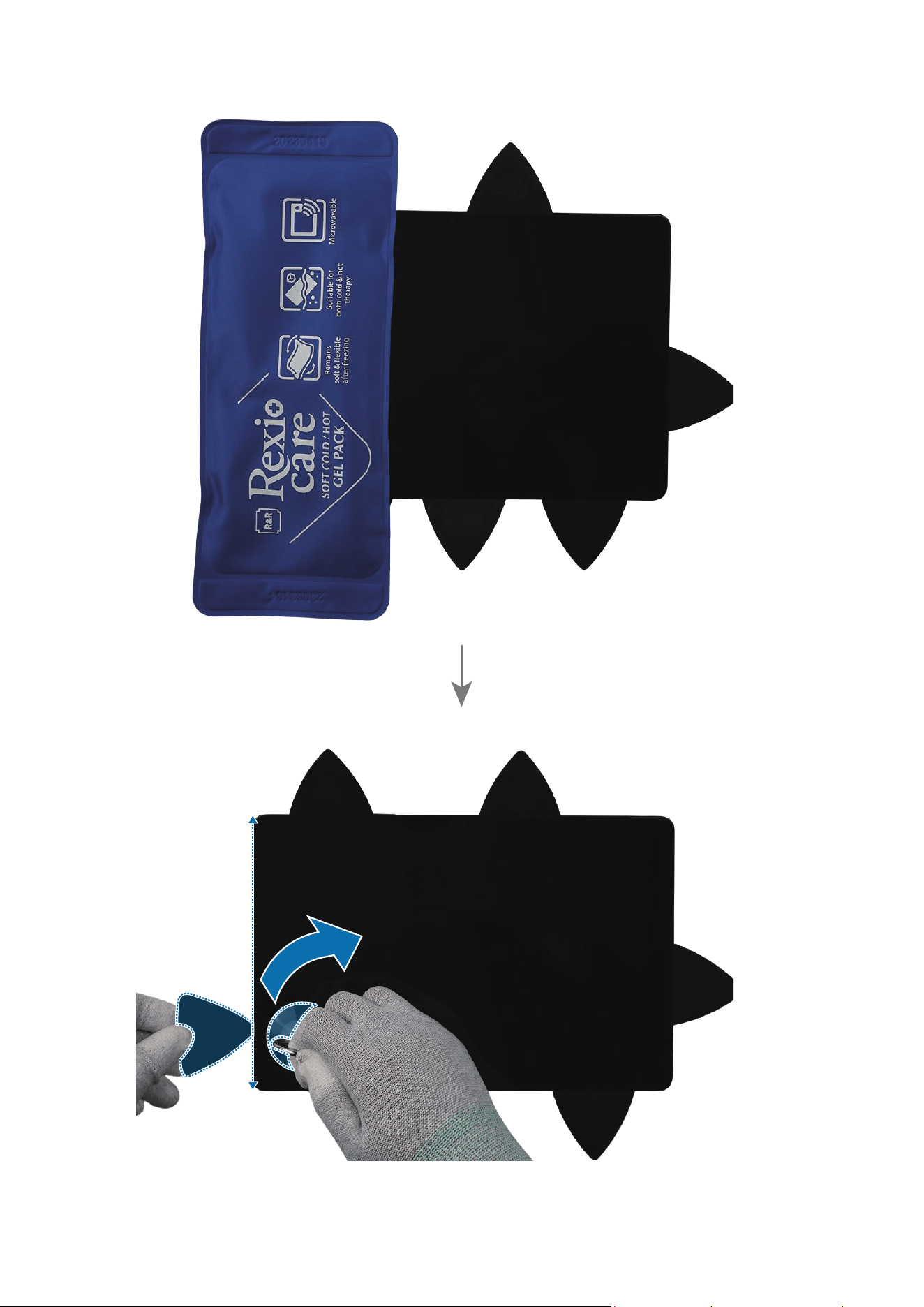

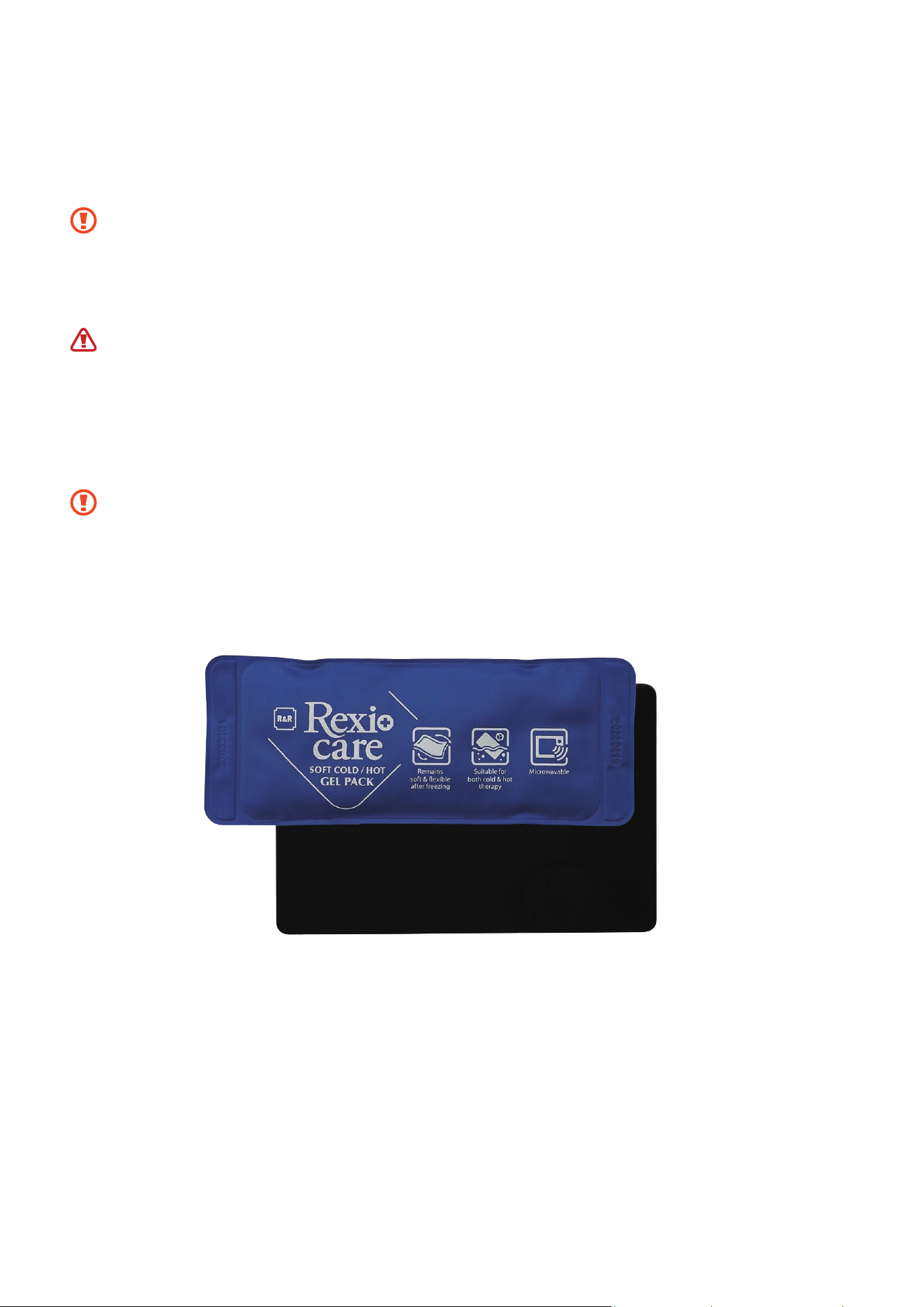

Heating Bag
Tool for disassembling the screen
and other parts

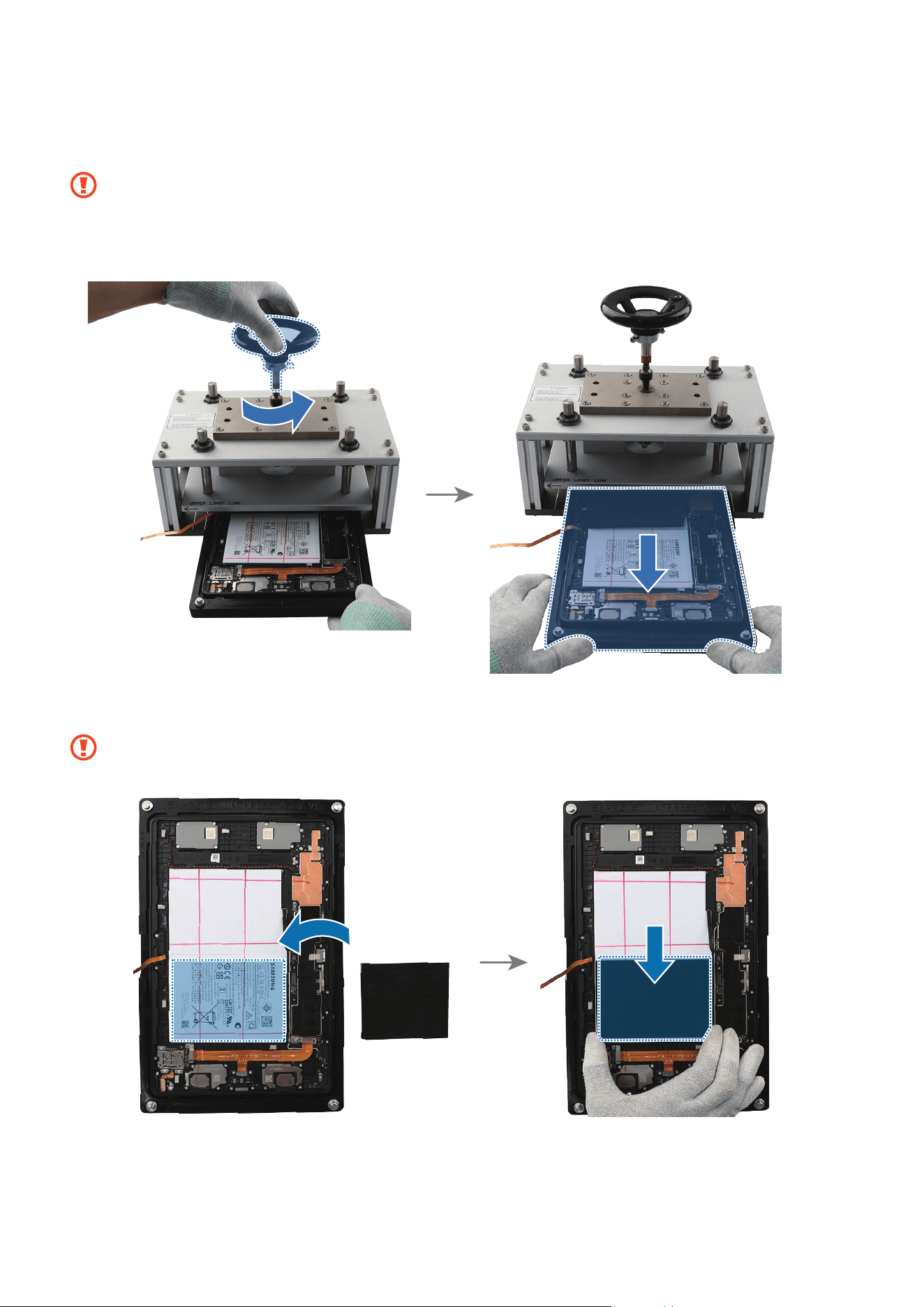

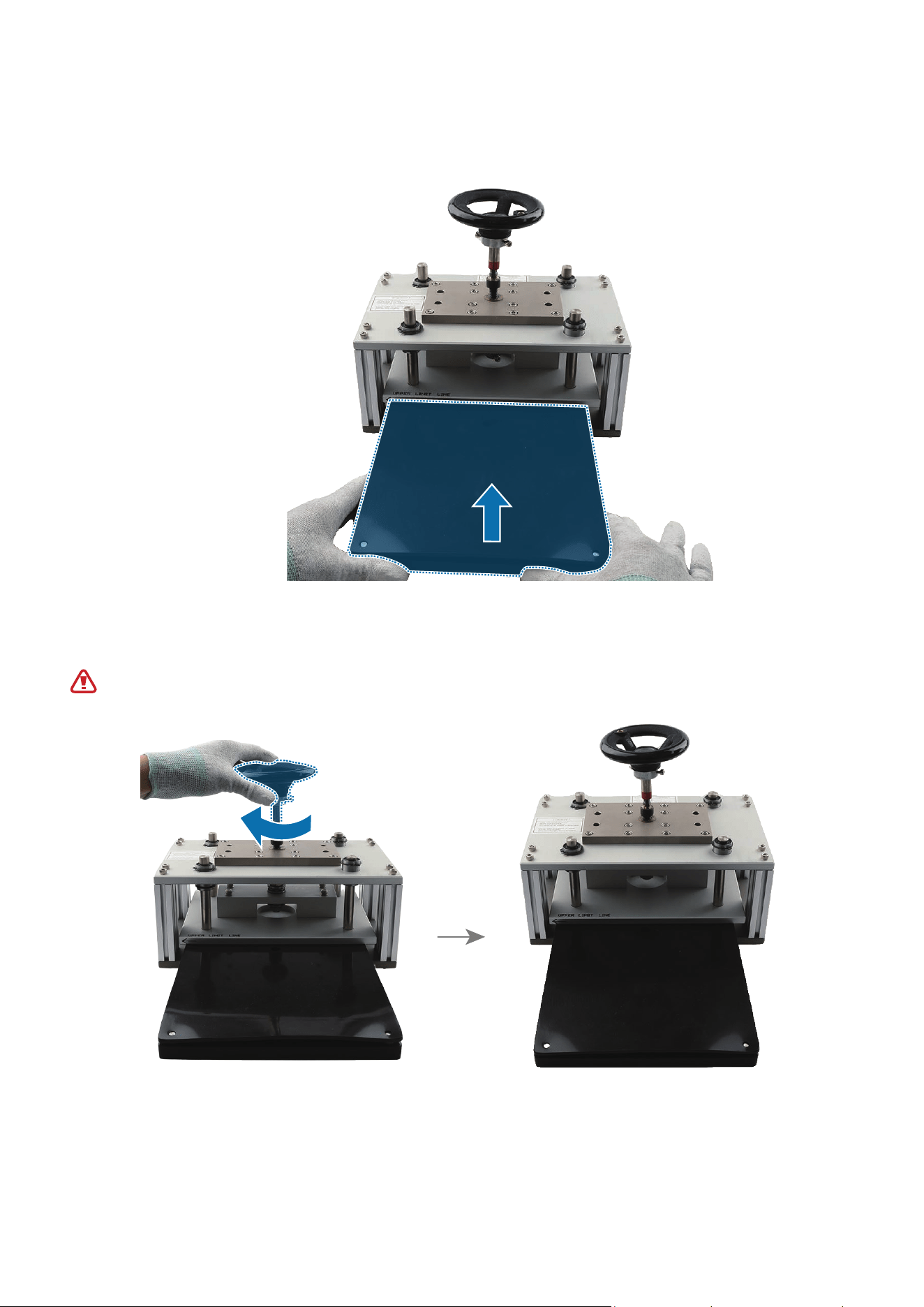

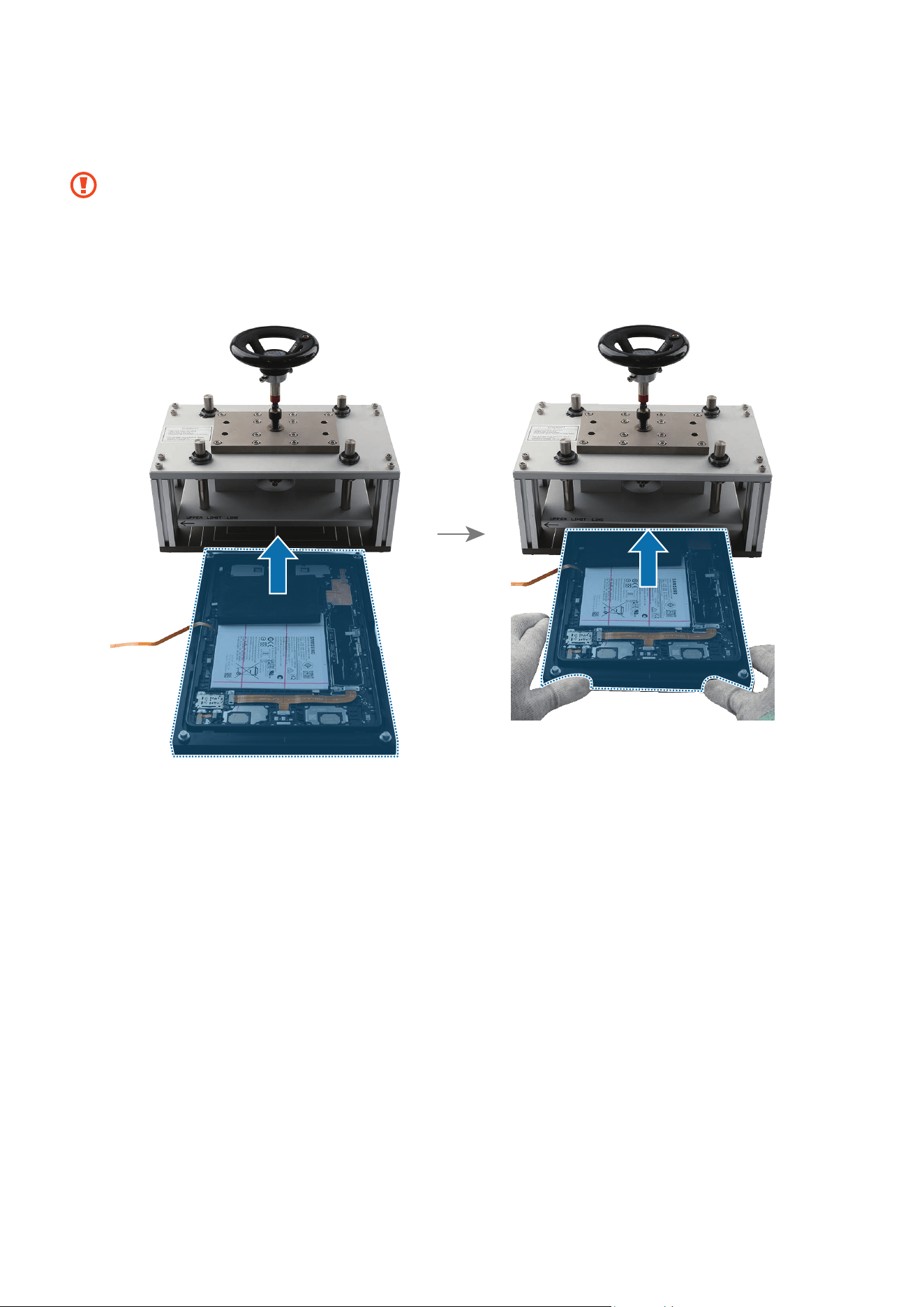

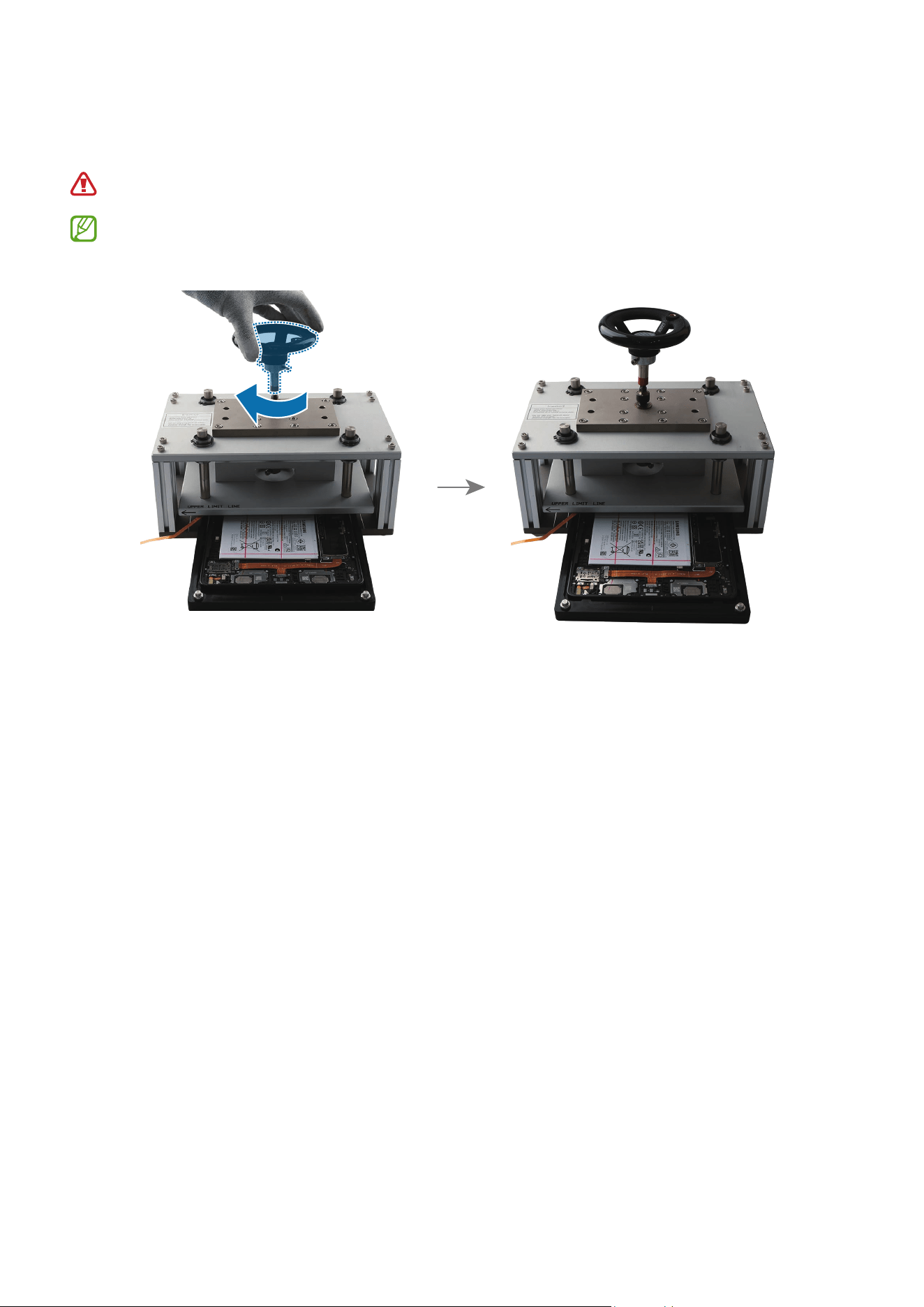

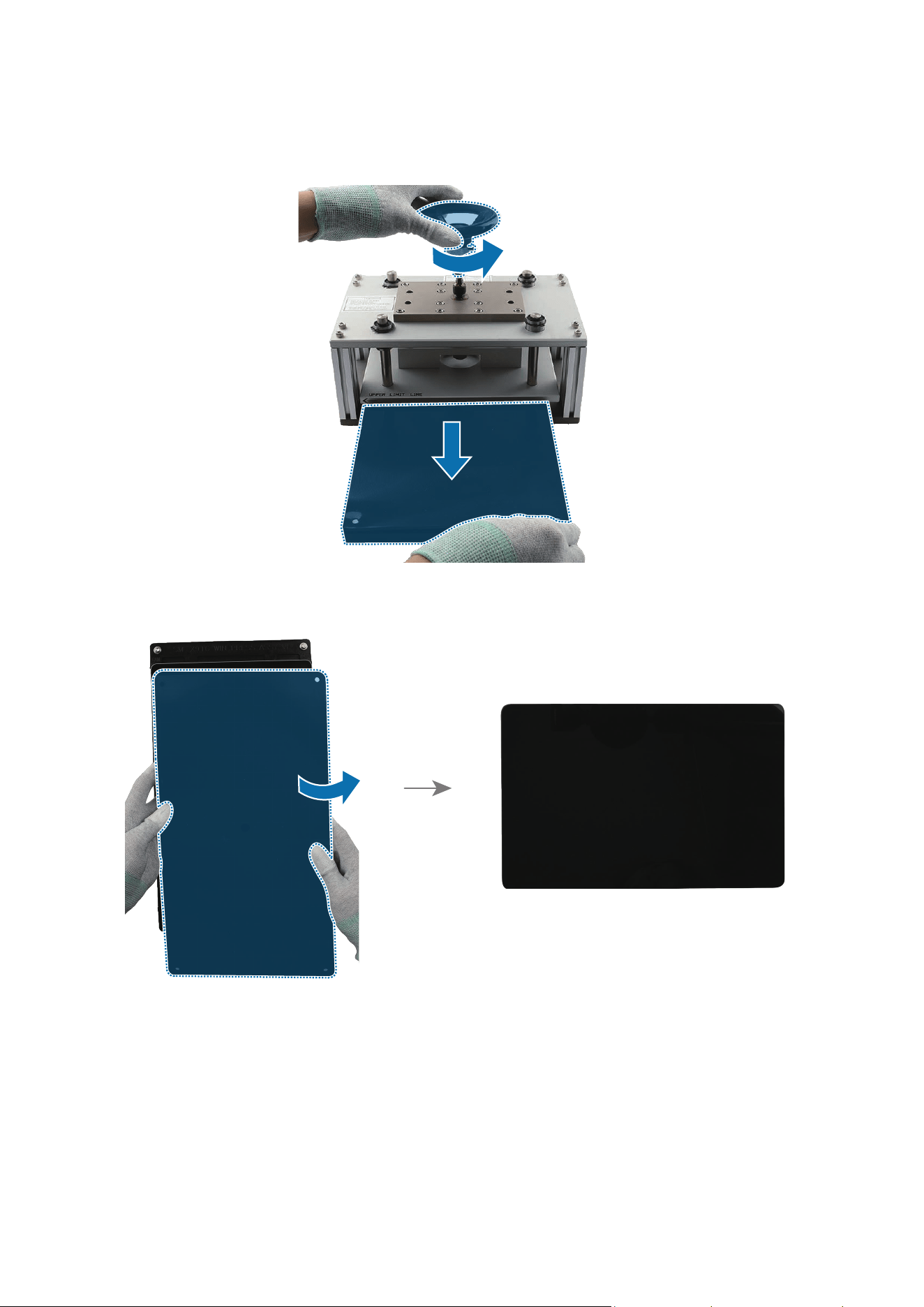

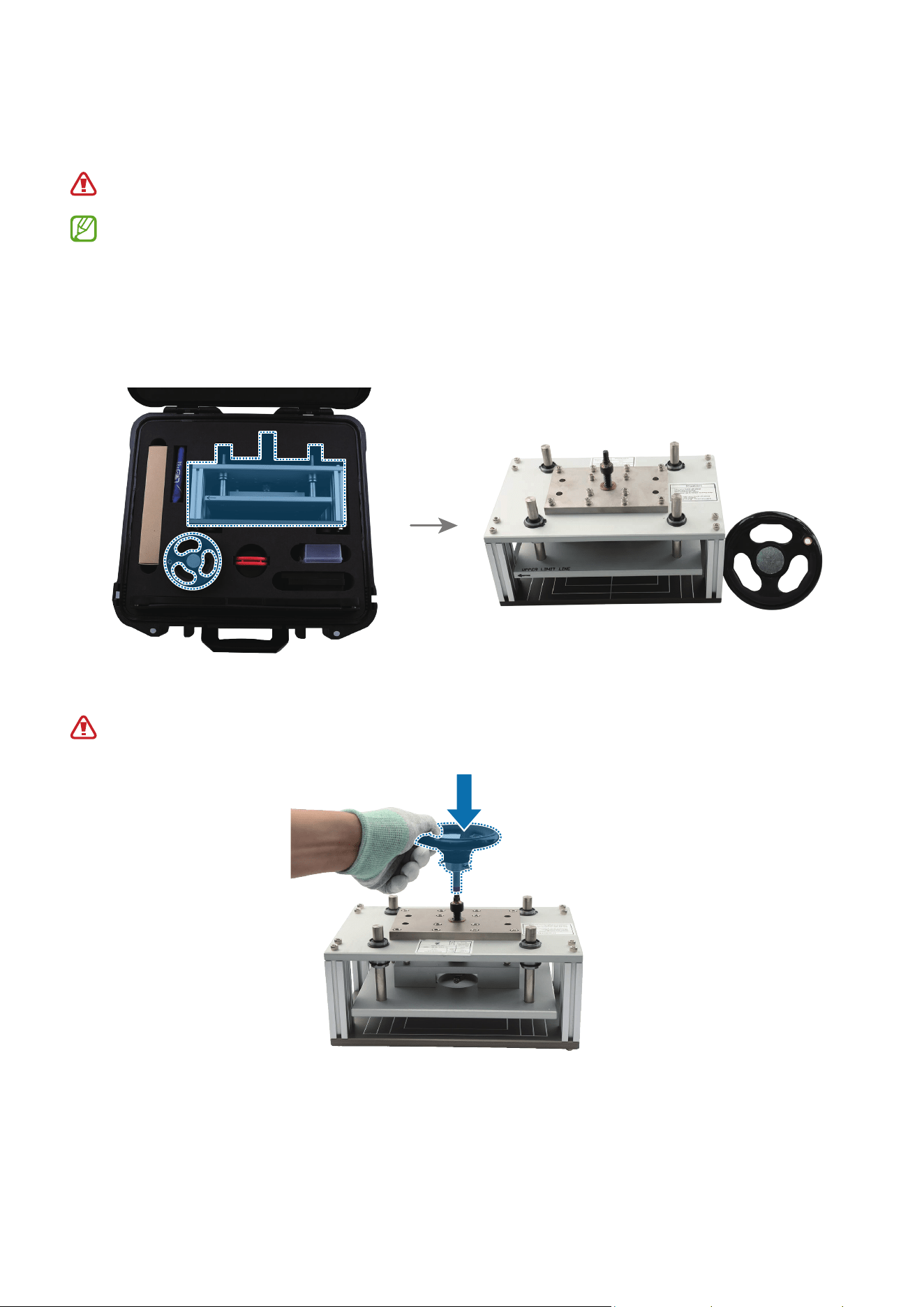

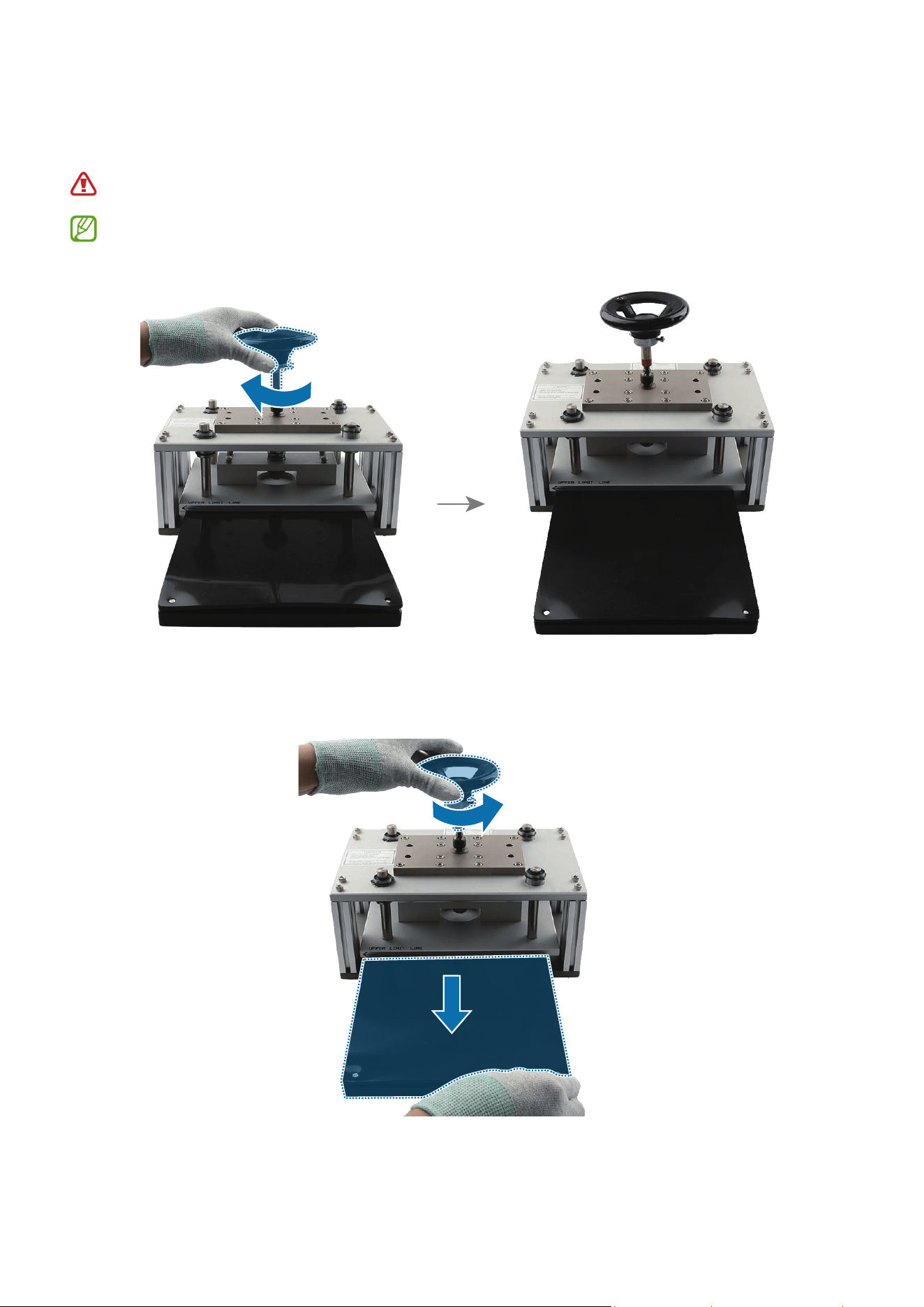

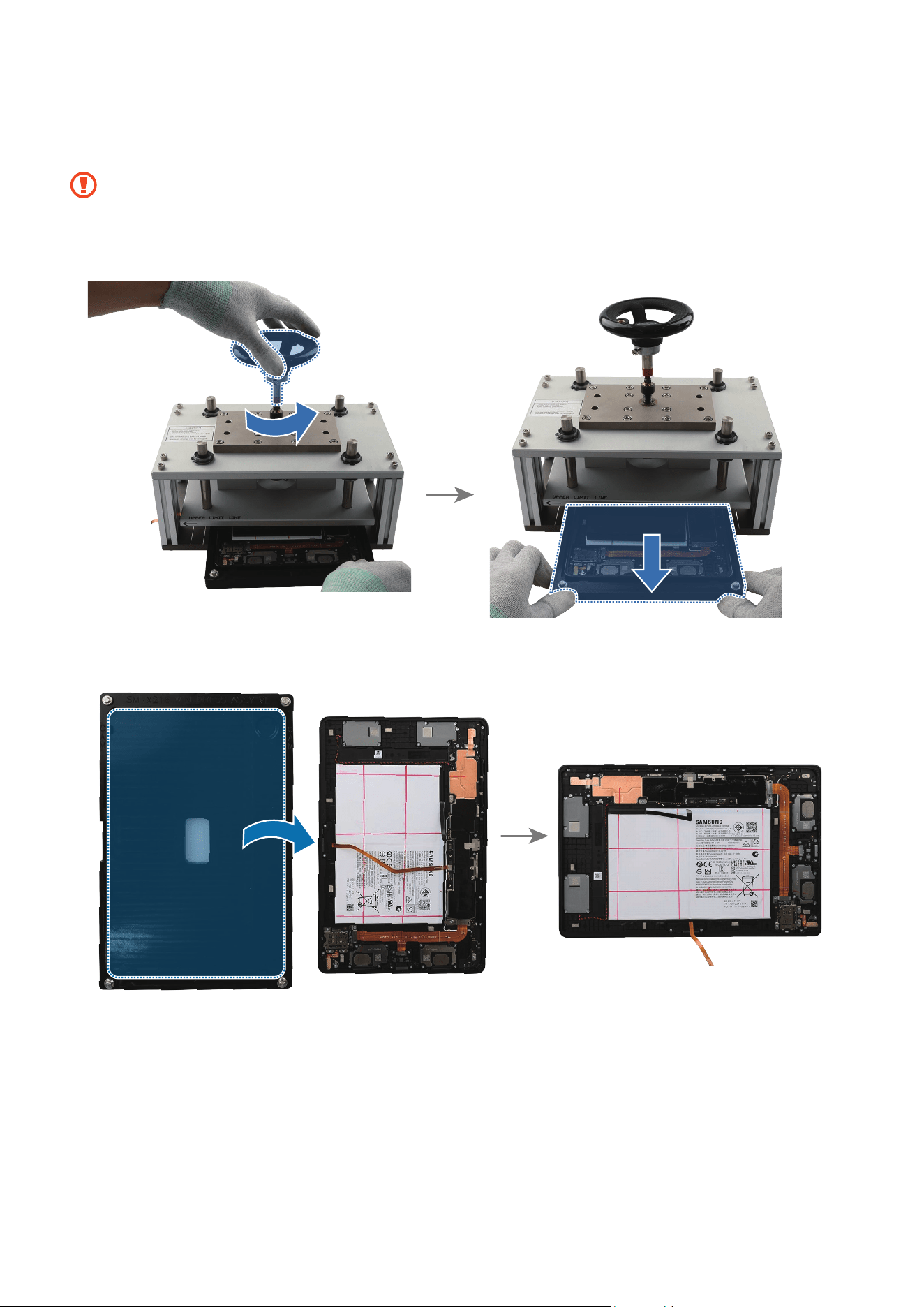

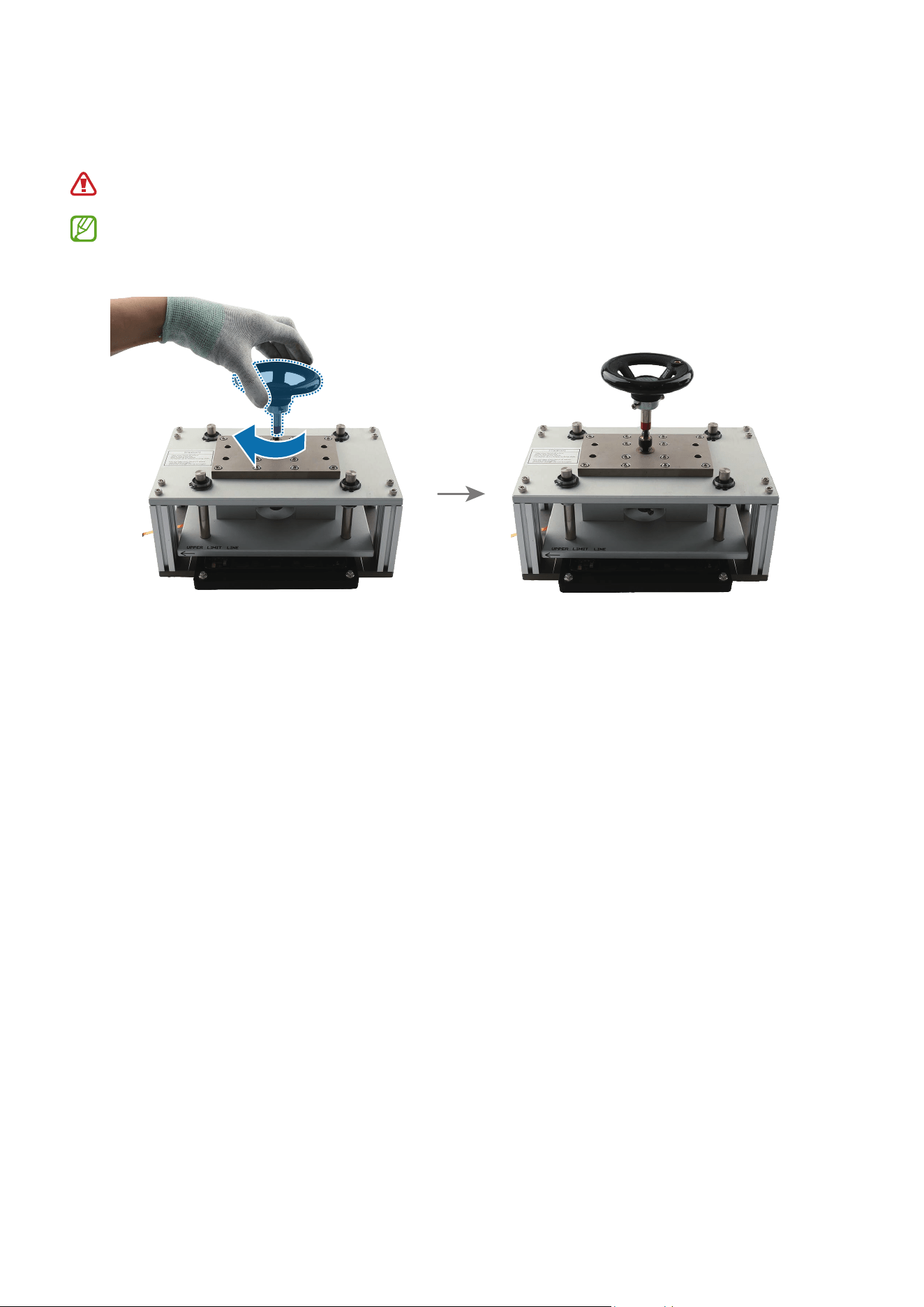

Press Fixture
Tool for pressing the screen or
battery
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Disassembly and Assembly
50
Tool & Part Code Image Description

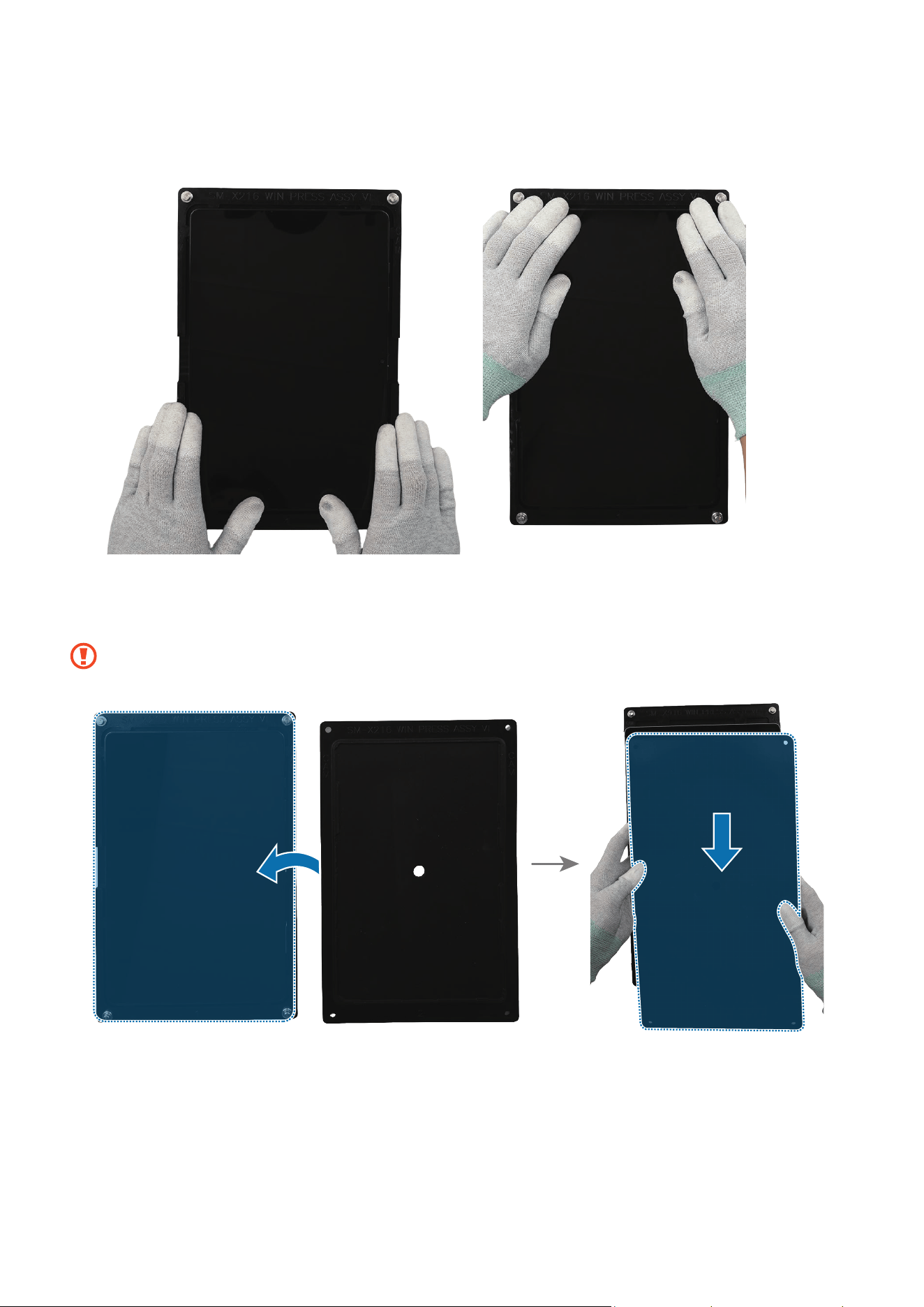

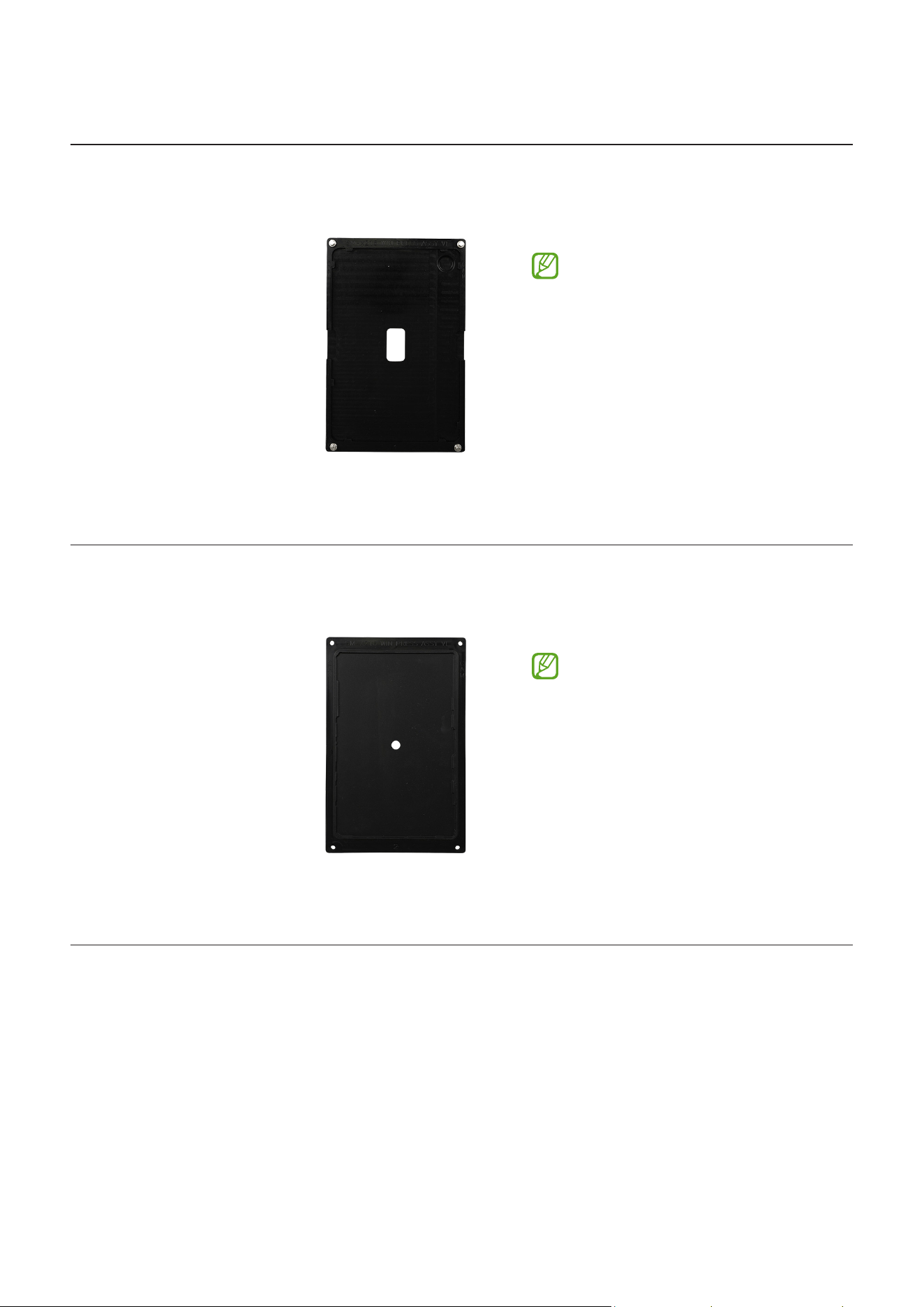

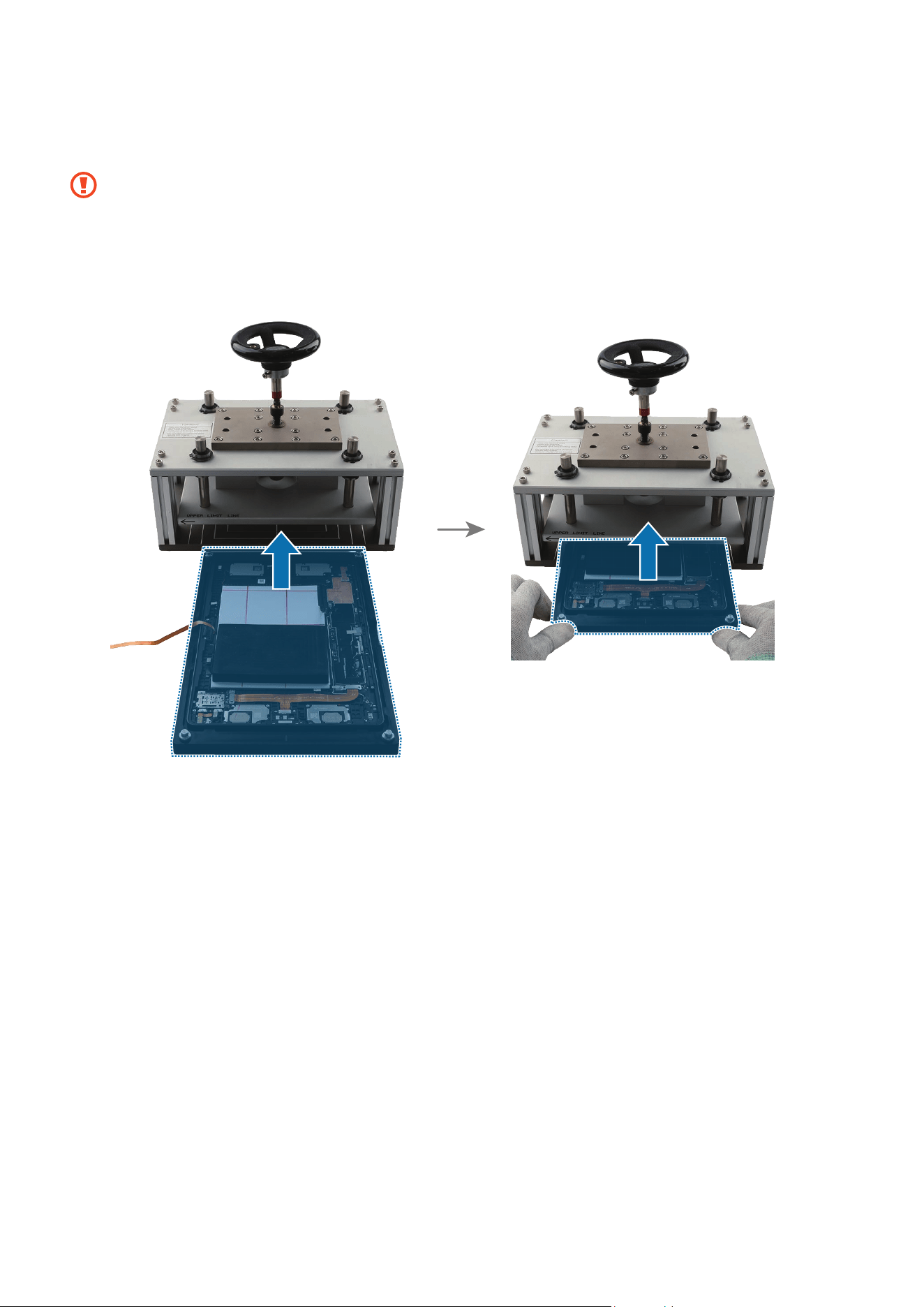

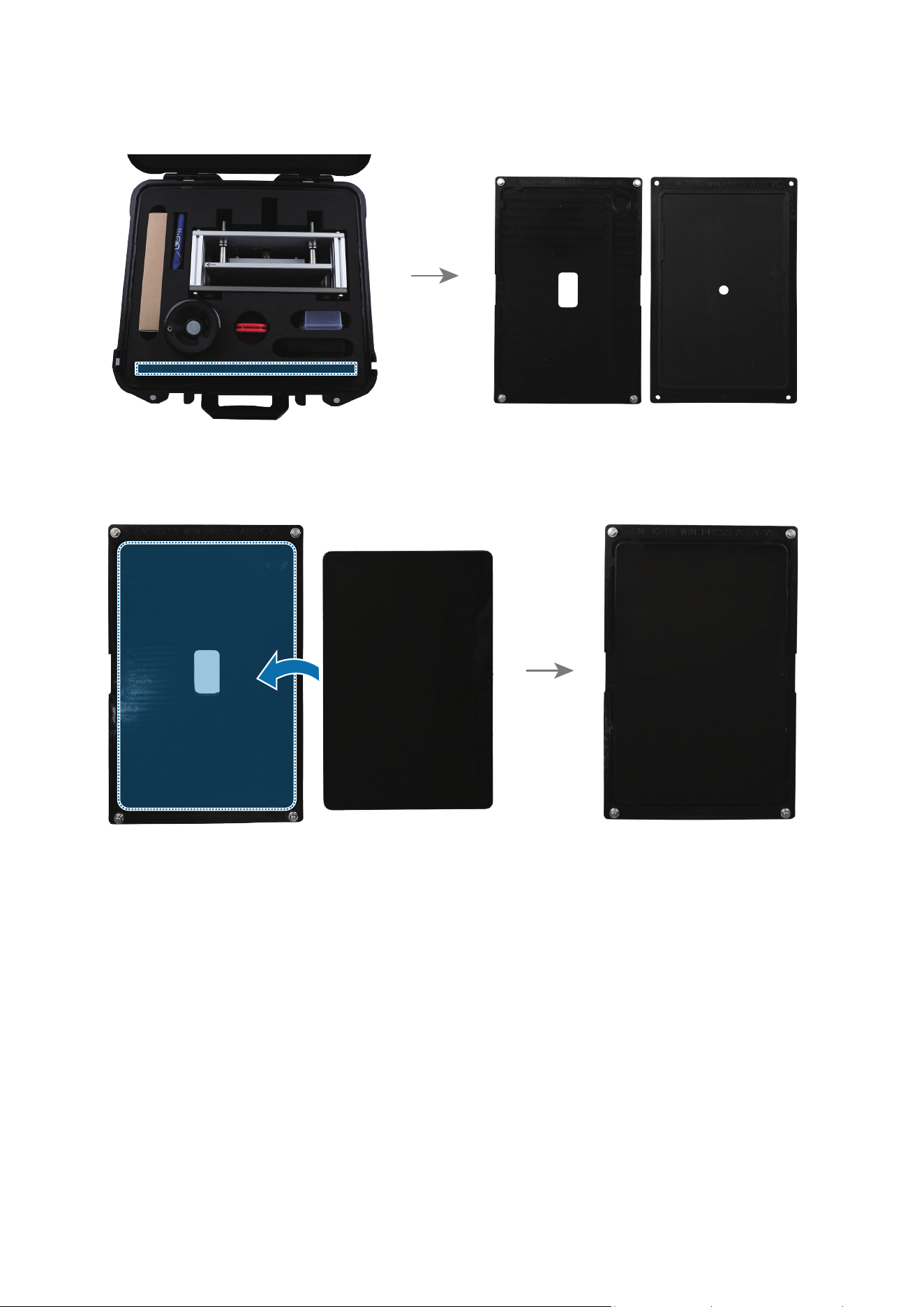

Bottom Press Tray
Tool to place the device when
pressing the screen or battery
using the press fixture
•
This tool is available to use
by the rental of tool kit that
contains a complete set
of the tools for self repair
service.
•
This tray can be used
in common with other
models, so the labeled
model name on tray may
differ.
Top Press Tray
Tool to cover the bottom press tray
when pressing the screen using
the press fixture
•
This tool is available to use
by the rental of tool kit that
contains a complete set
of the tools for self repair
service.
•
This tray can be used
in common with other
models, so the labeled
model name on tray may
differ.
Disassembly and Assembly
51
Tool & Part Code Image Description
Battery Rubber Pad
Tool to cover the battery when
pressing the battery using the
press fixture
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Calibration
Rubber for Optical
Fingerprint Sensor
Tool to calibrate the optical
fingerprint sensor after replacing
the screen
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Disassembly and Assembly
52
Fasteners (Adhesives and Materials) for Assembly
The fasteners composition may vary depending on the repair parts, country, region, or
carrier.
Item Quantity Image Description

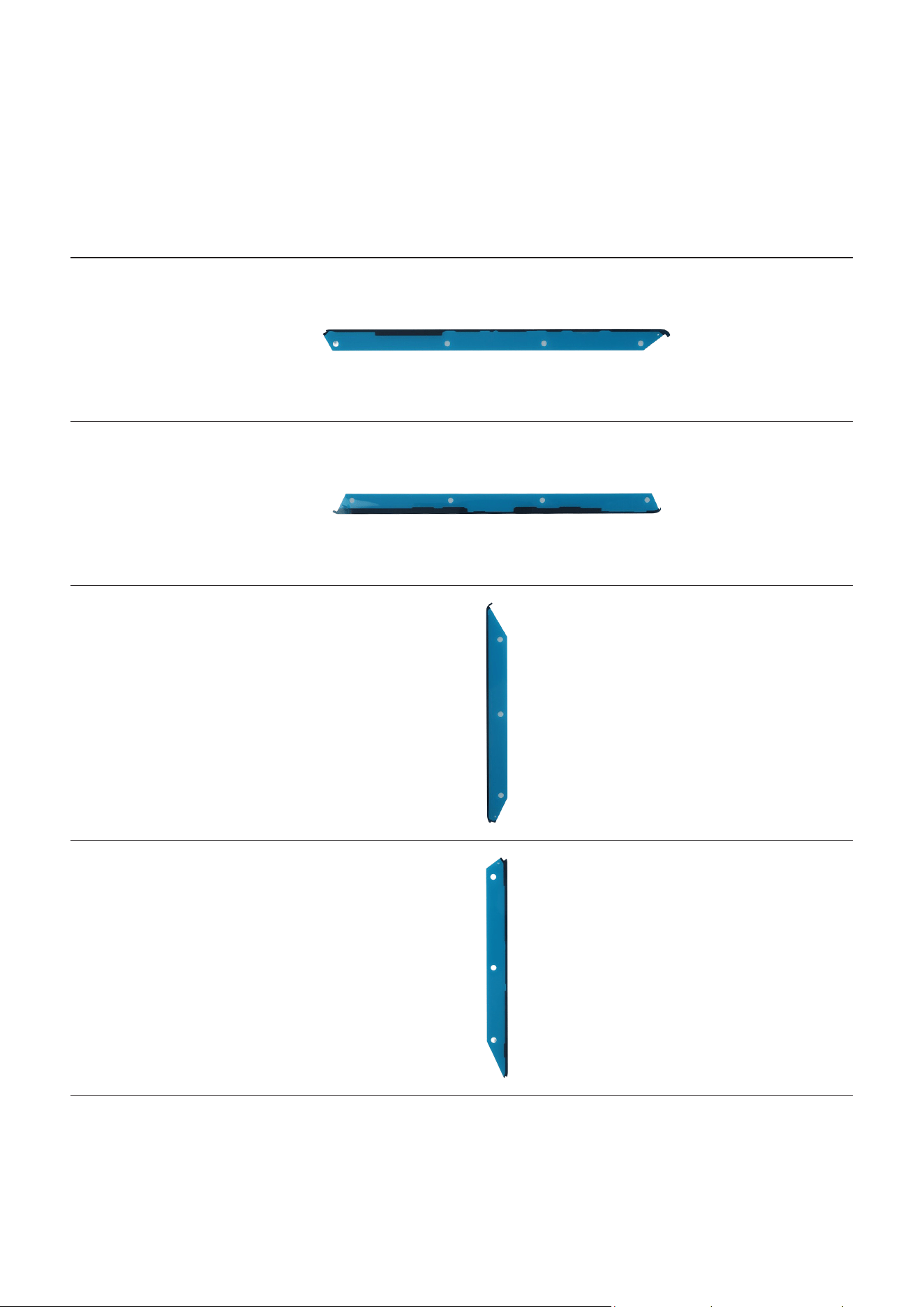

Screen Top
Adhesive Tape
1
Double sided
adhesive tape
for attaching the
top edge of the
screen
Screen Bottom
Adhesive Tape
1
Double sided
adhesive tape
for attaching the
bottom edge of
the screen
Screen Left
Adhesive Tape
1
Double sided
adhesive tape
for attaching the
left edge of the
screen
Screen Right
Adhesive Tape
1
Double sided
adhesive tape
for attaching the
right edge of the
screen
Disassembly and Assembly
53
Item Quantity Image Description

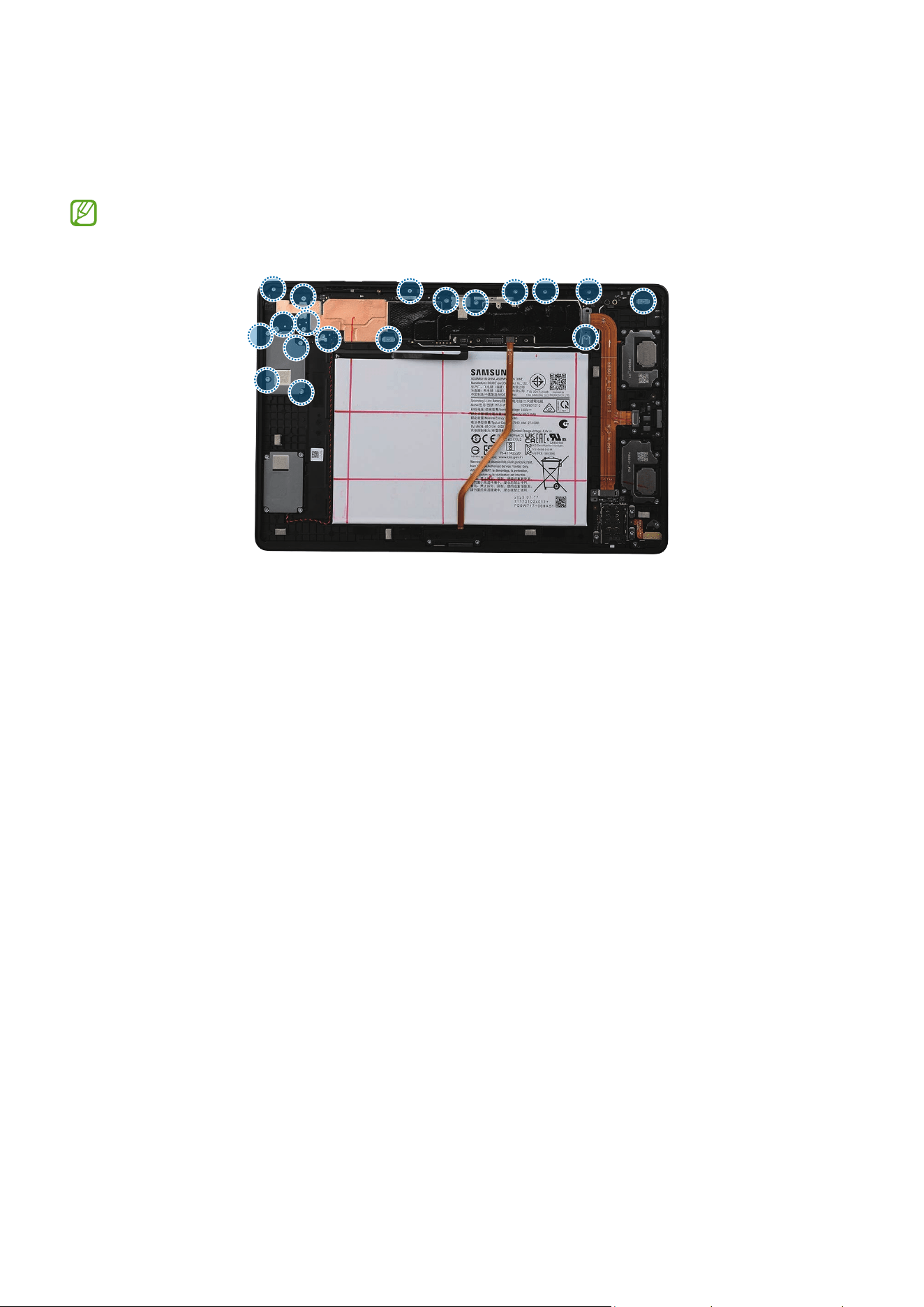

Screw 24530A 29
Screws for the
speakers (16 ea)
Screws for the
main board (2 ea)
Screws for the
rear camera
(5 ea)
Screws for the
front camera
(6 ea)
Screw 24530A 9
Screws for the
headphone jack
(2 ea)
Screws for the
SIM card socket
(3 ea)
Screws for the
charging port
(4 ea)
Screw 24530A 4
Screws for the
screen connector
metal plate (2 ea)
Screws for the
FPCB metal plate
(2 ea)
Front Camera
Conductive
Tape
1
Conductive tape
attached to the
front camera
bracket
Disassembly and Assembly
54
Item Quantity Image Description

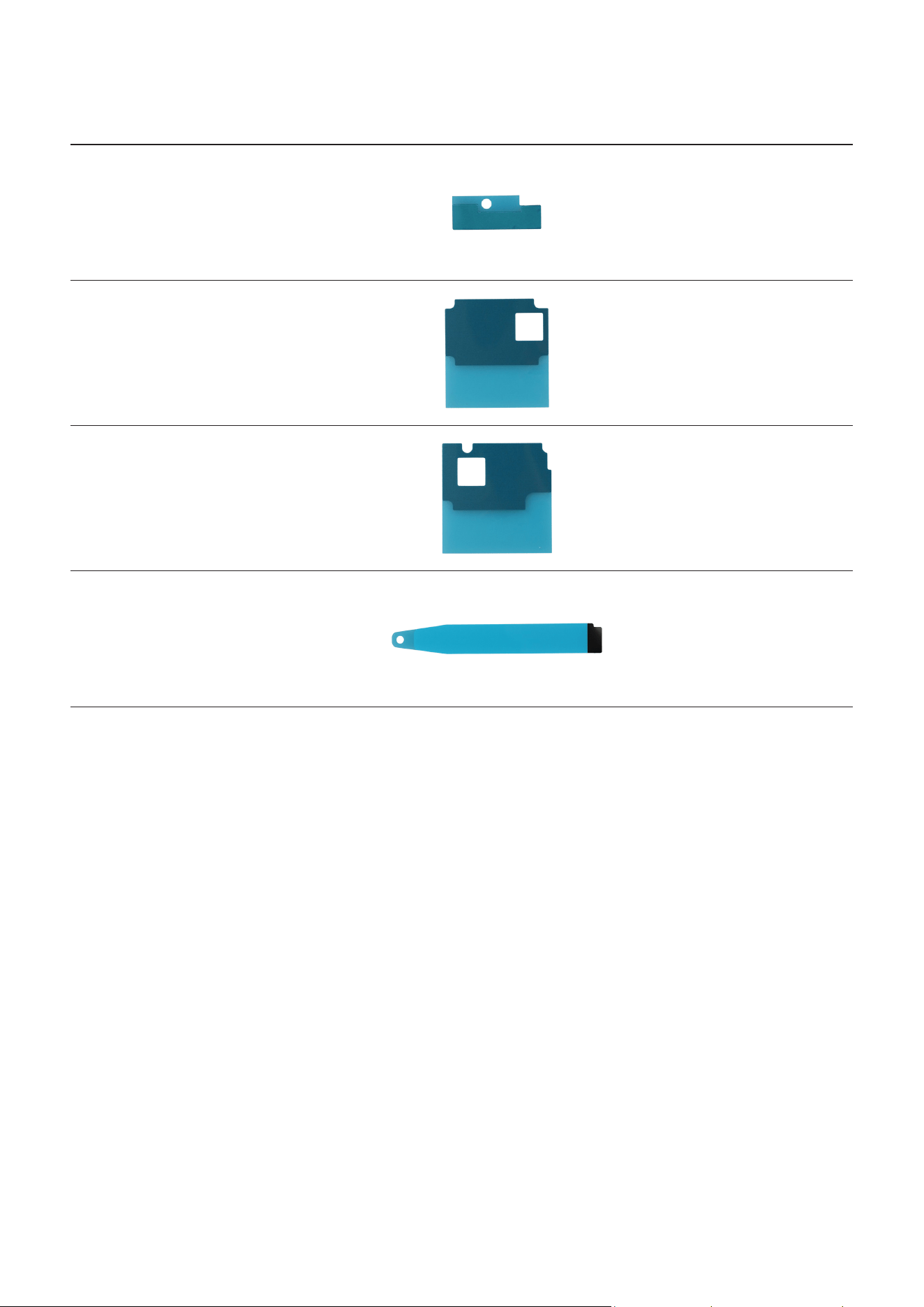

Rear Camera
Copper Foil
1
Copper foil
attached to the
rear camera
bracket
Speaker 1
Foam Tape
1
Foam tape
attached to the
speaker 1
Speaker 2
Foam Tape
1
Foam tape
attached to the
speaker 2

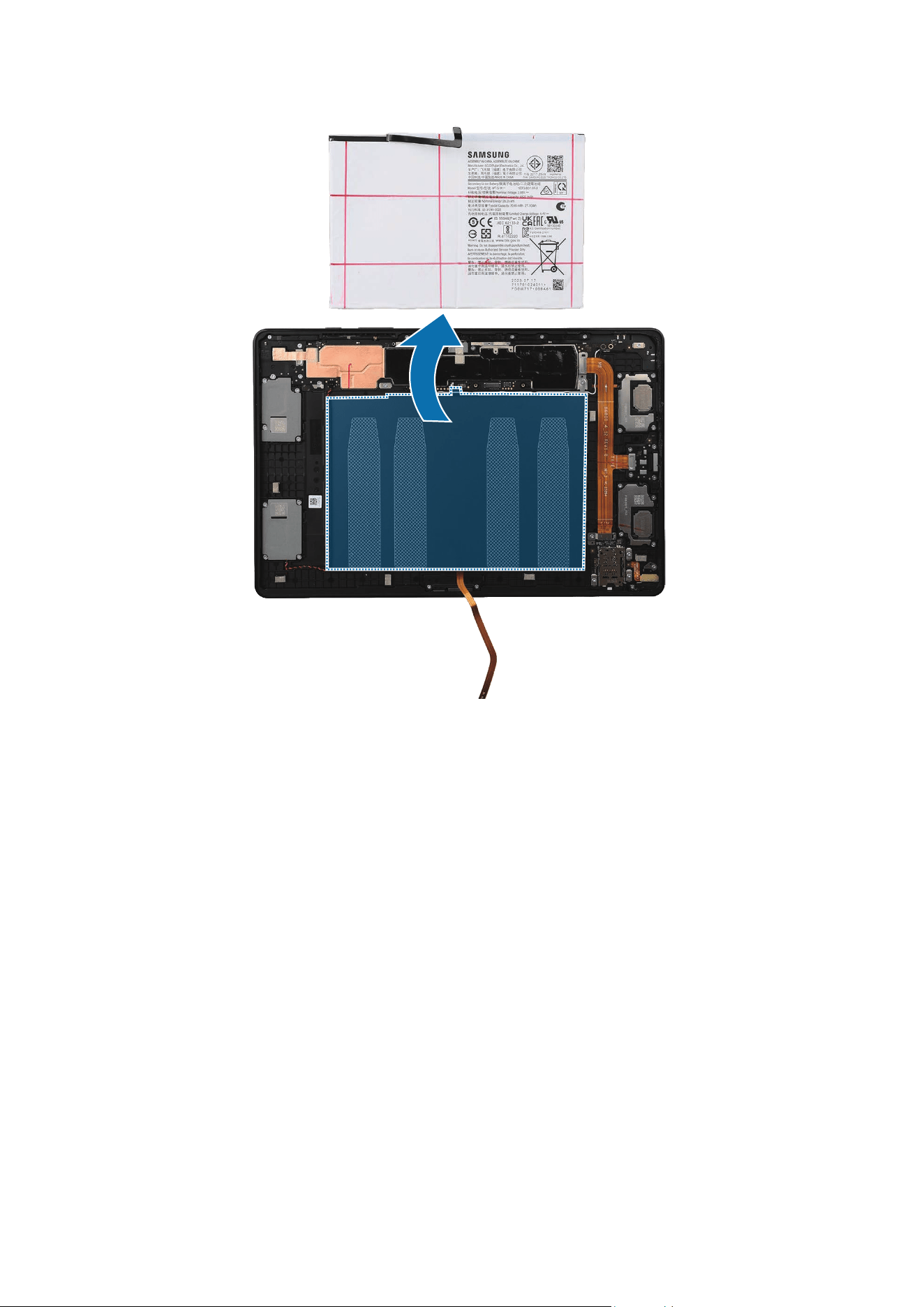

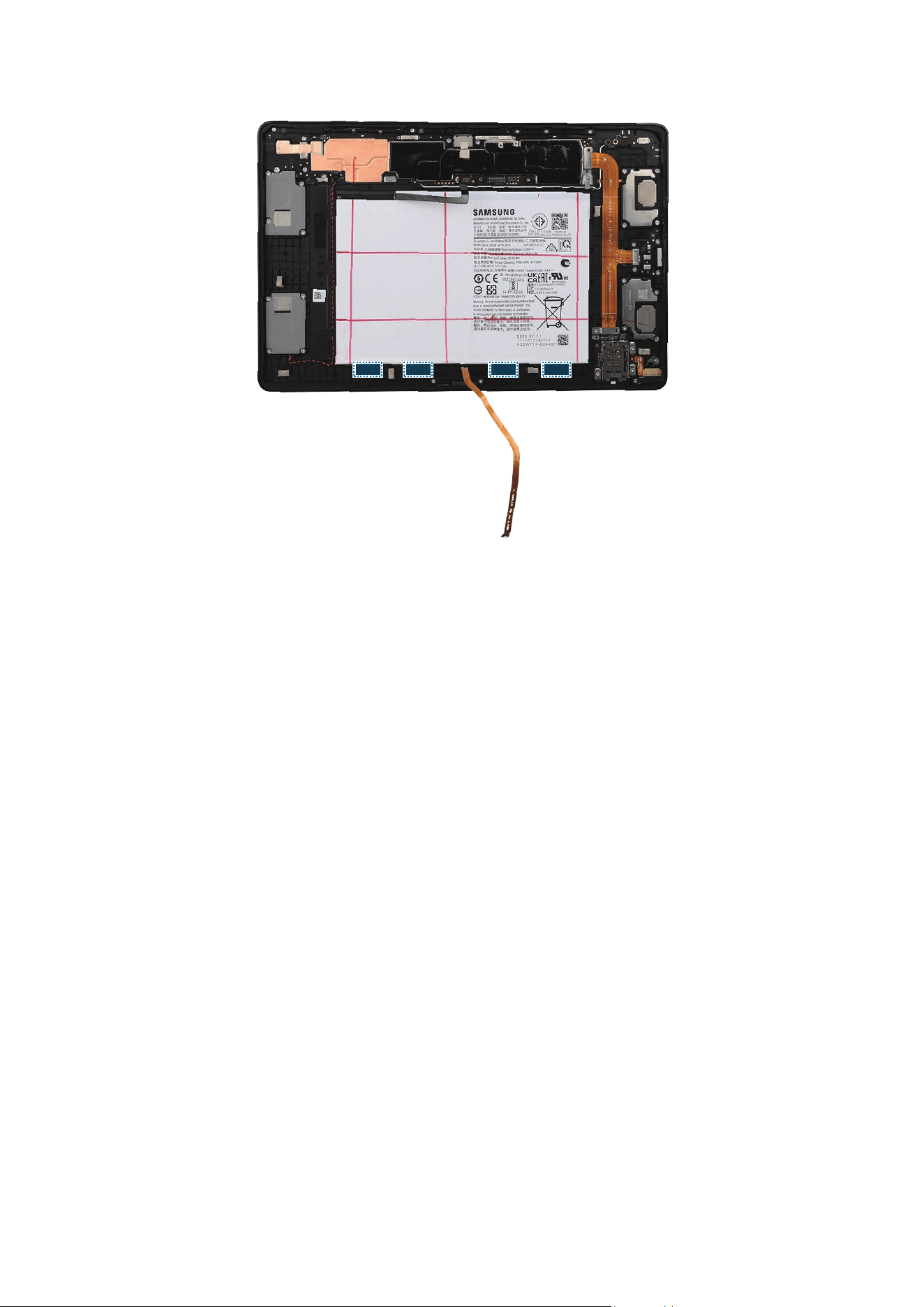

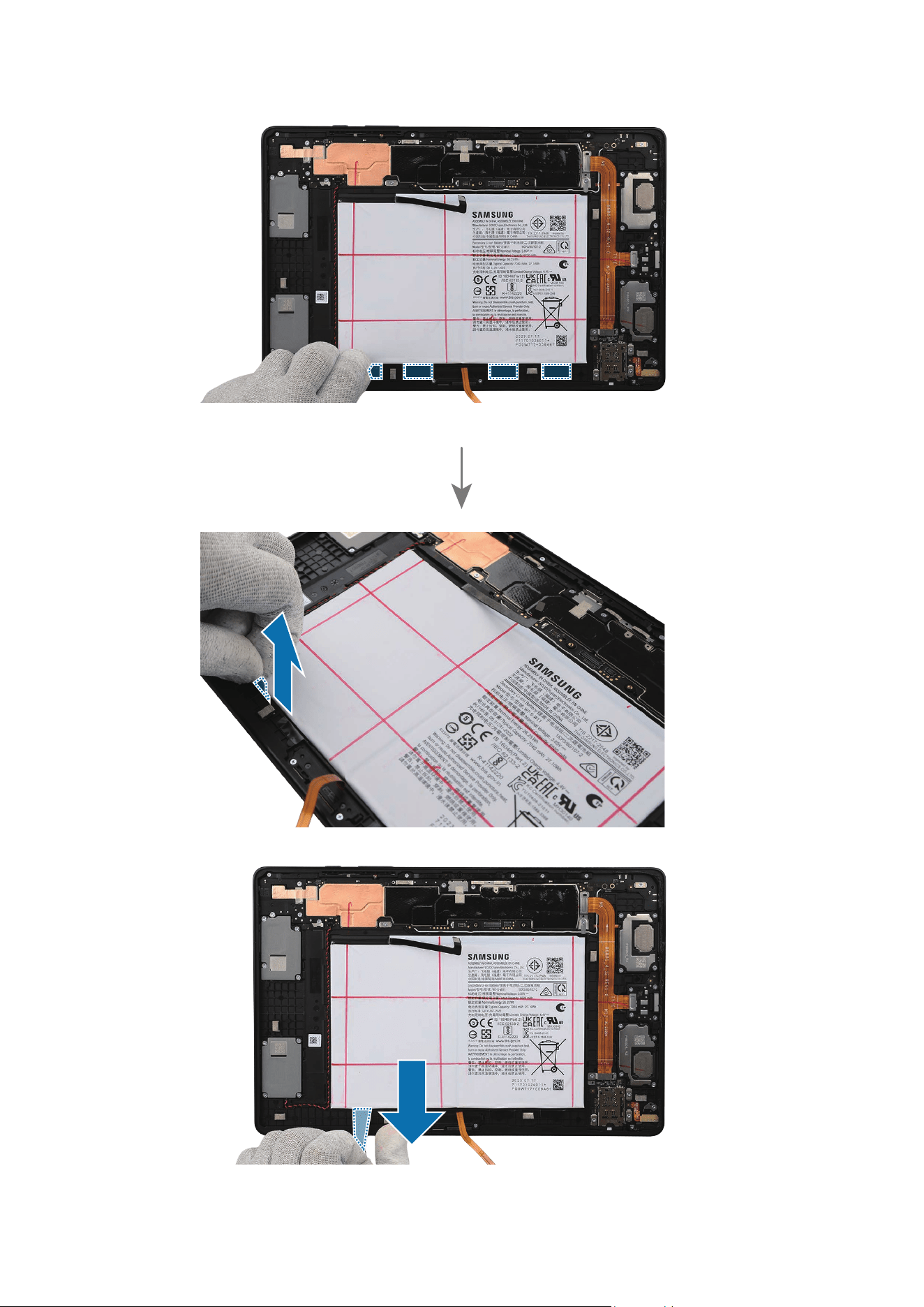

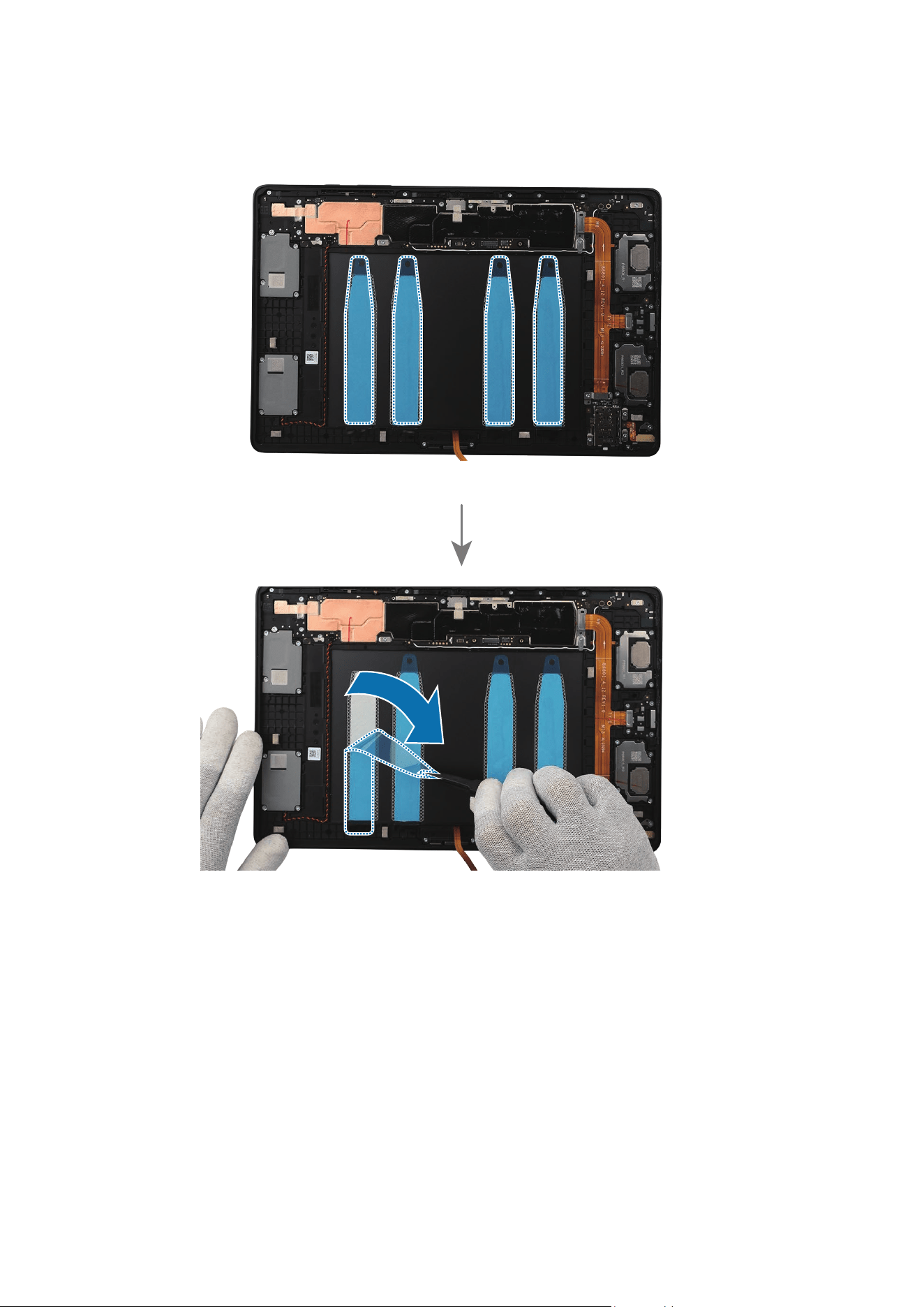

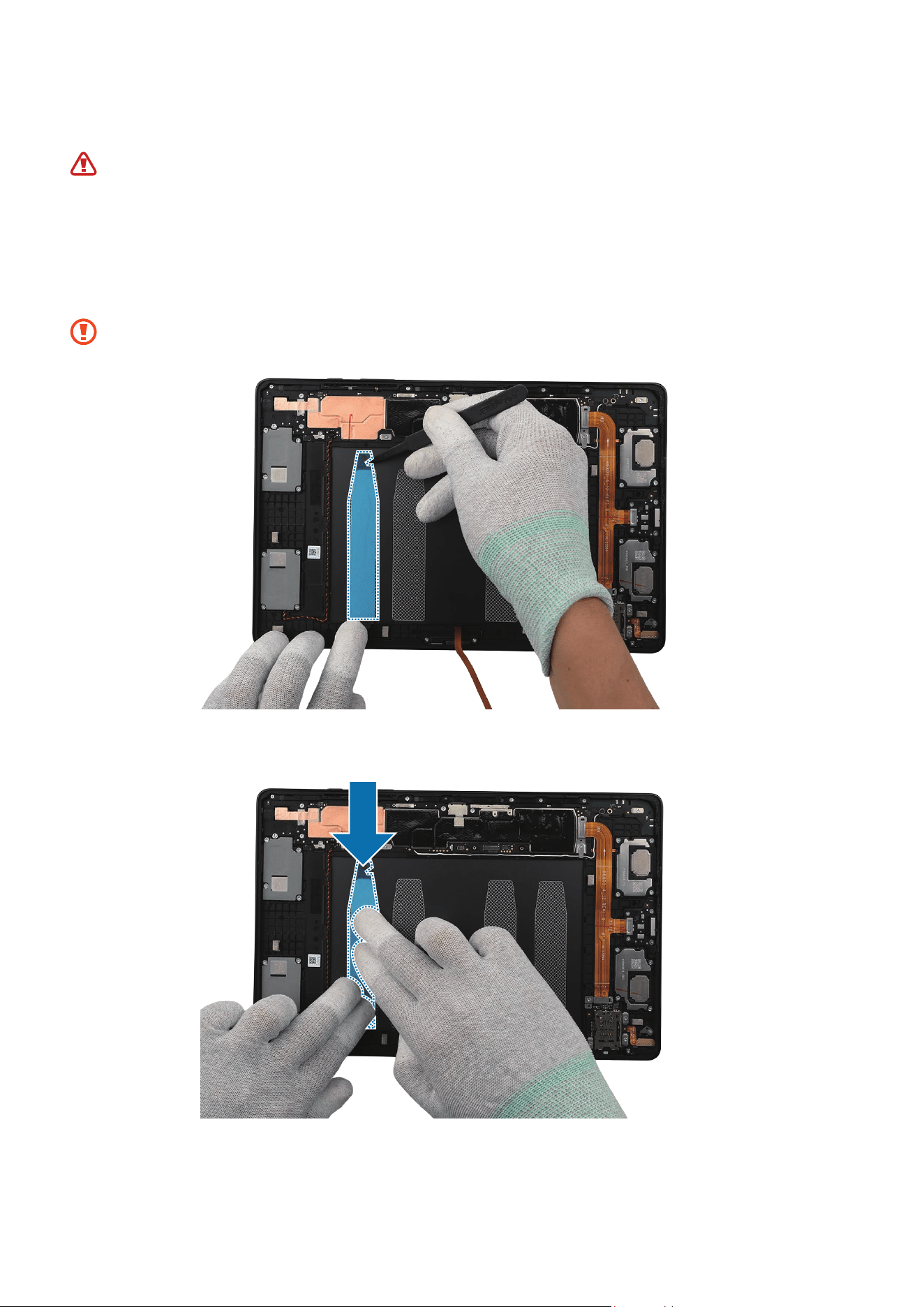

Battery
Adhesive Tape
4
Double sided
adhesive tape
for attaching the
battery
Disassembly and Assembly
55
Disassembly and Reassembly for replacement
•
The product’s composition may vary depending on the country, region, or
carrier.
•
Repairable parts may vary depending on the country or region.
Before disassembling:
•
Unplug and turn off device before disassembling.
•
Wear an anti-static wrist strap and connect it to the grounded ESD safe mat.
Before reassembling:
•
Remove the adhesive tape residues perfectly.
•
Prepare all existing screws of this device and adhesive tapes.
•
Wear an anti-static wrist strap and connect it to the grounded ESD safe mat.
•
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
For all cases of broken glass:
1 Wear safety goggles and cut-resistant gloves.
2 To prevent injuries and scattering caused by broken glass, attach the tape on the
broken glass.
If your device’s glass breaks, be careful not to injure your hands or other body parts
on debris.
3 Press the tape with strong force so that it is strongly attached to the broken glass.
Wait until the adhesive between the tape and the glass is strengthened.
4 Follow the disassembly steps in this guide.
Disassembly and Assembly
56
SIM Card Tray
Disassembly
Prepare the device to repair by yourself. Insert the ejection pin into the hole of the SIM
card tray to loosen the tray and pull out the tray gently from the tray slot.
Disassembly and Assembly
57
Disassembly and Assembly
58

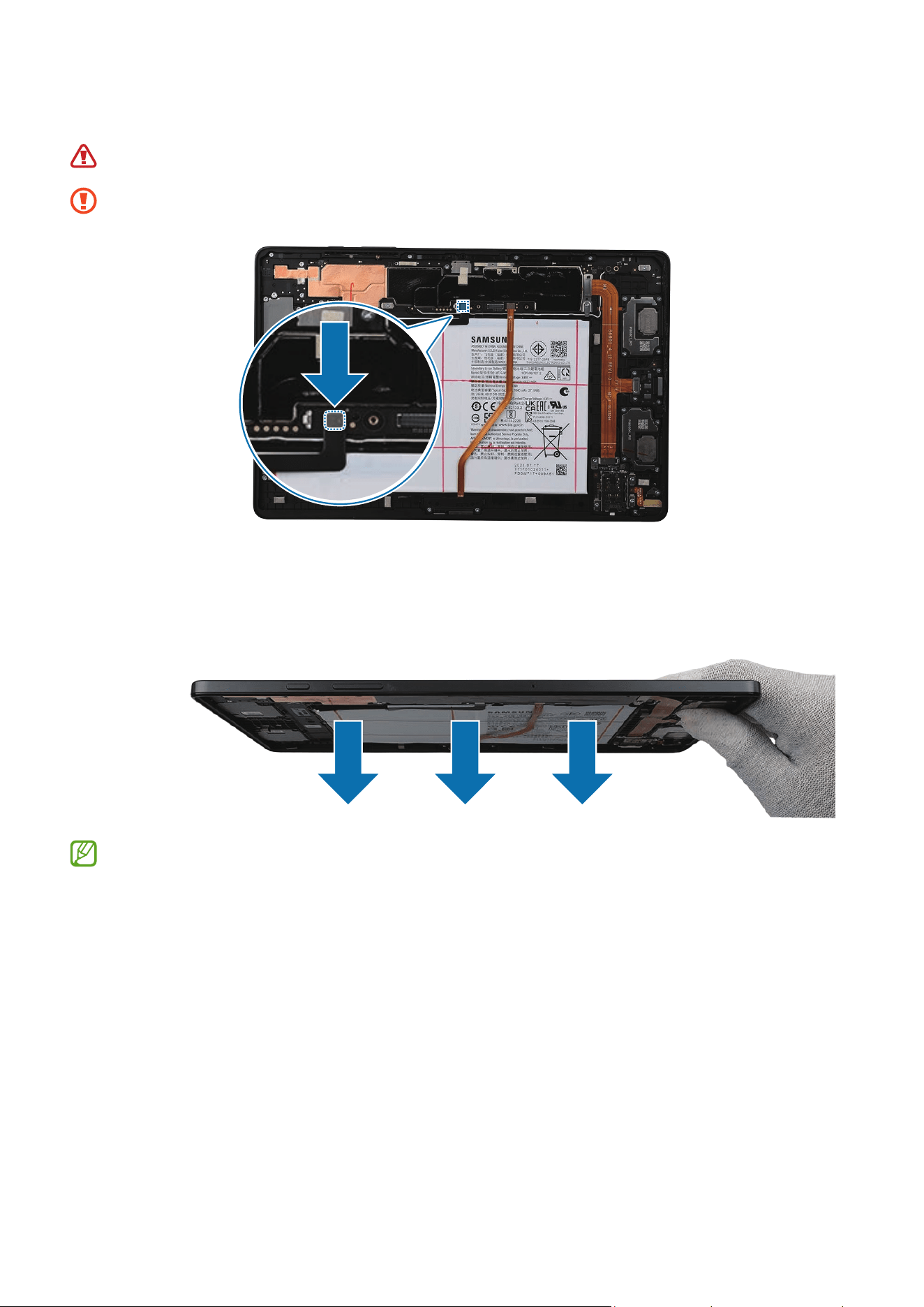

Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. During assembly, be extra careful not to leave any unassembled screws
inside the device.

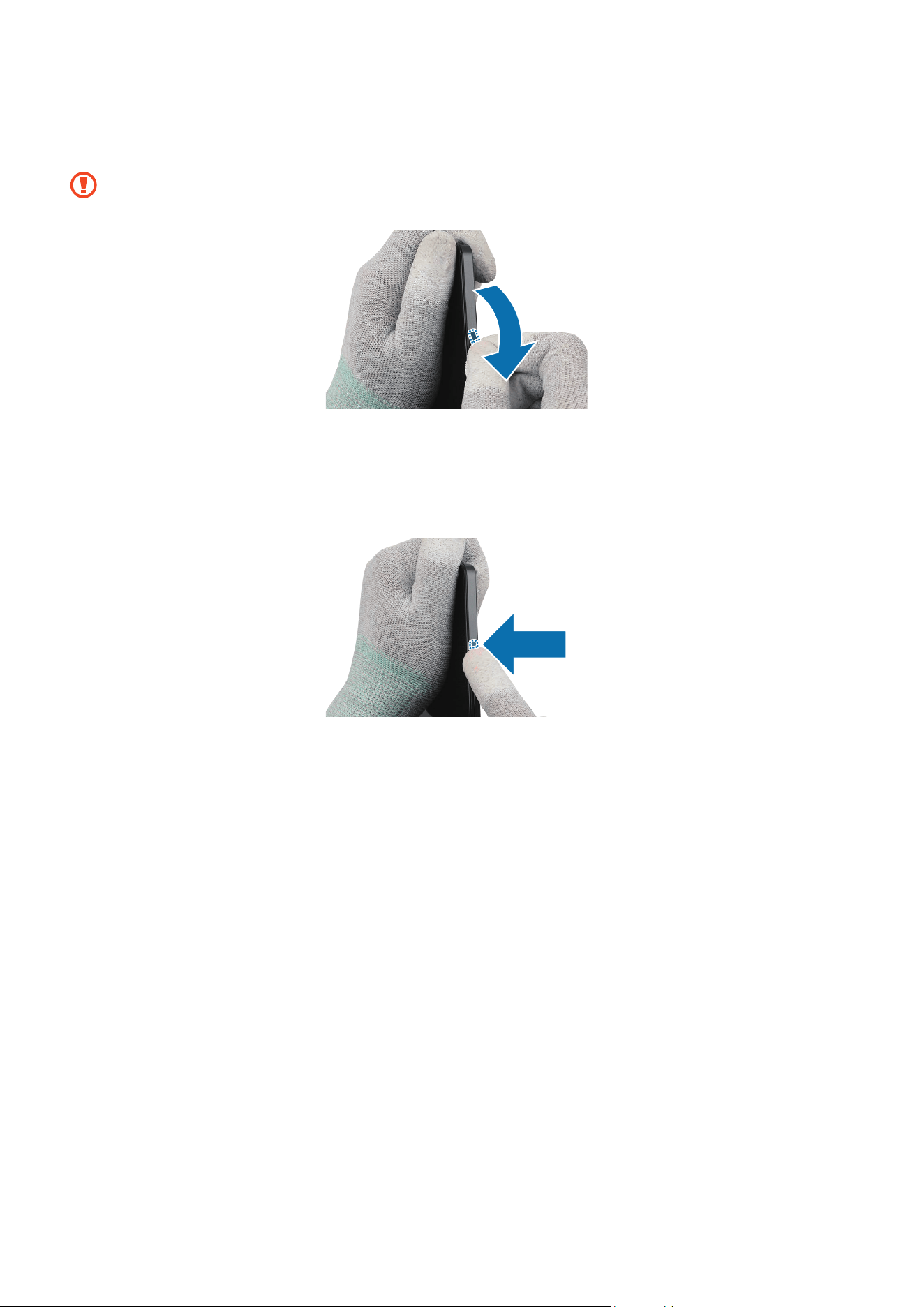

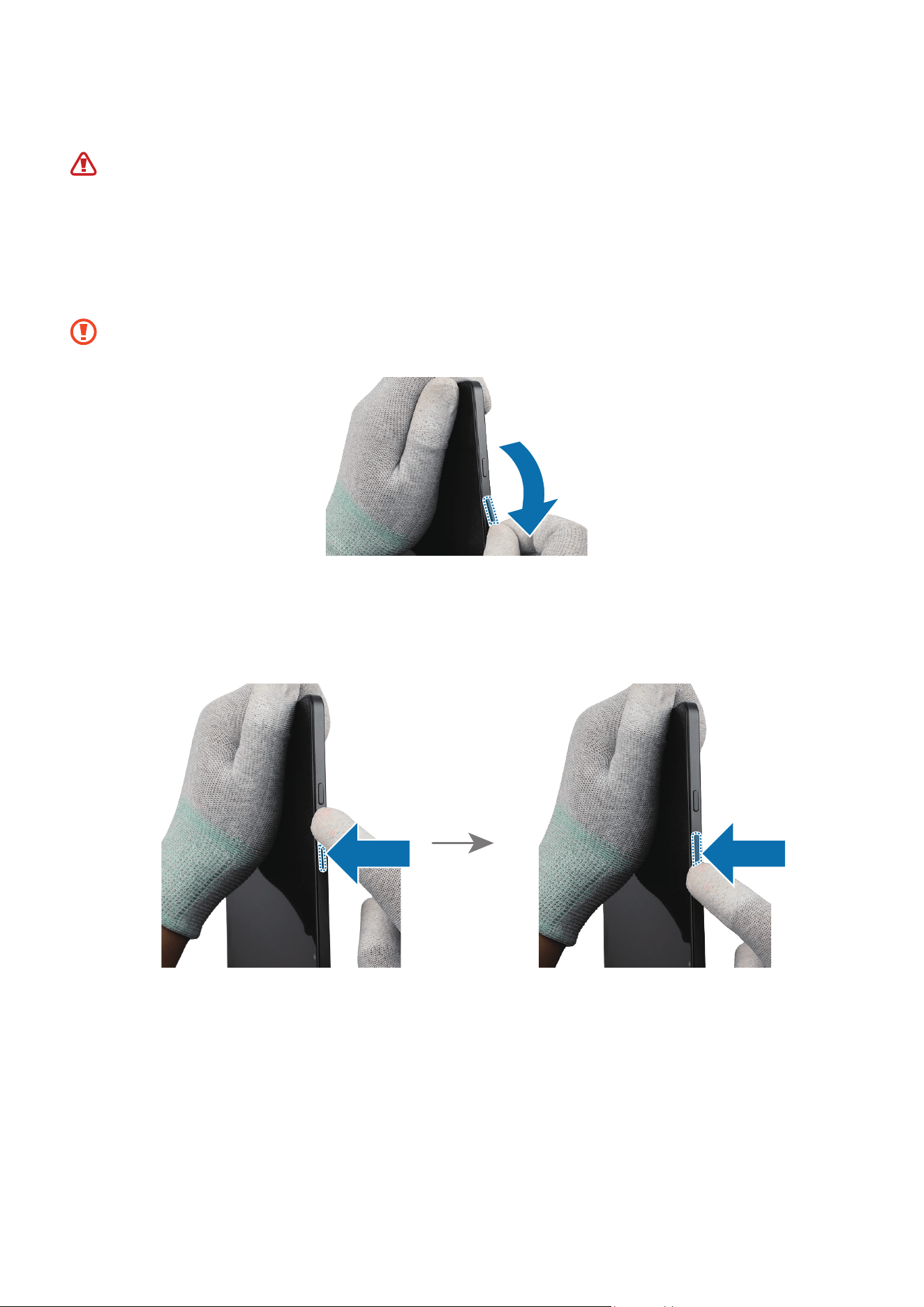

Insert the SIM card tray back into the slot. Ensure that there are no abnormalities.
Disassembly and Assembly
59
Screen
Disassembly
When removing the screen, ensure that the device is fixed on a flat surface.
1 Heat the microwaveable heating bag and apply it on the top edge of the screen for
3 minutes.
•
It is possible for the device or battery to be damaged by heat.
•
Do not heat the device in a microwave. Doing so could cause an explosion.
•
If your device’s glass breaks, the debris can cause injury to your hands or
other body parts. For your safety, attach the tape on the broken glass before
disassembling the device.
•
Follow the heating bag’s instructions for heating. The recommended time for
heating the bag is 50 seconds in a 1000 W microwave and 70 seconds in a 700 W
microwave. (Correct temperature for use: 55-65 ℃.)
•
Be careful not to damage the device through excessive heat. (It is
recommended to disassemble the device in an area with a temperature gauge.)
Disassembly and Assembly
60

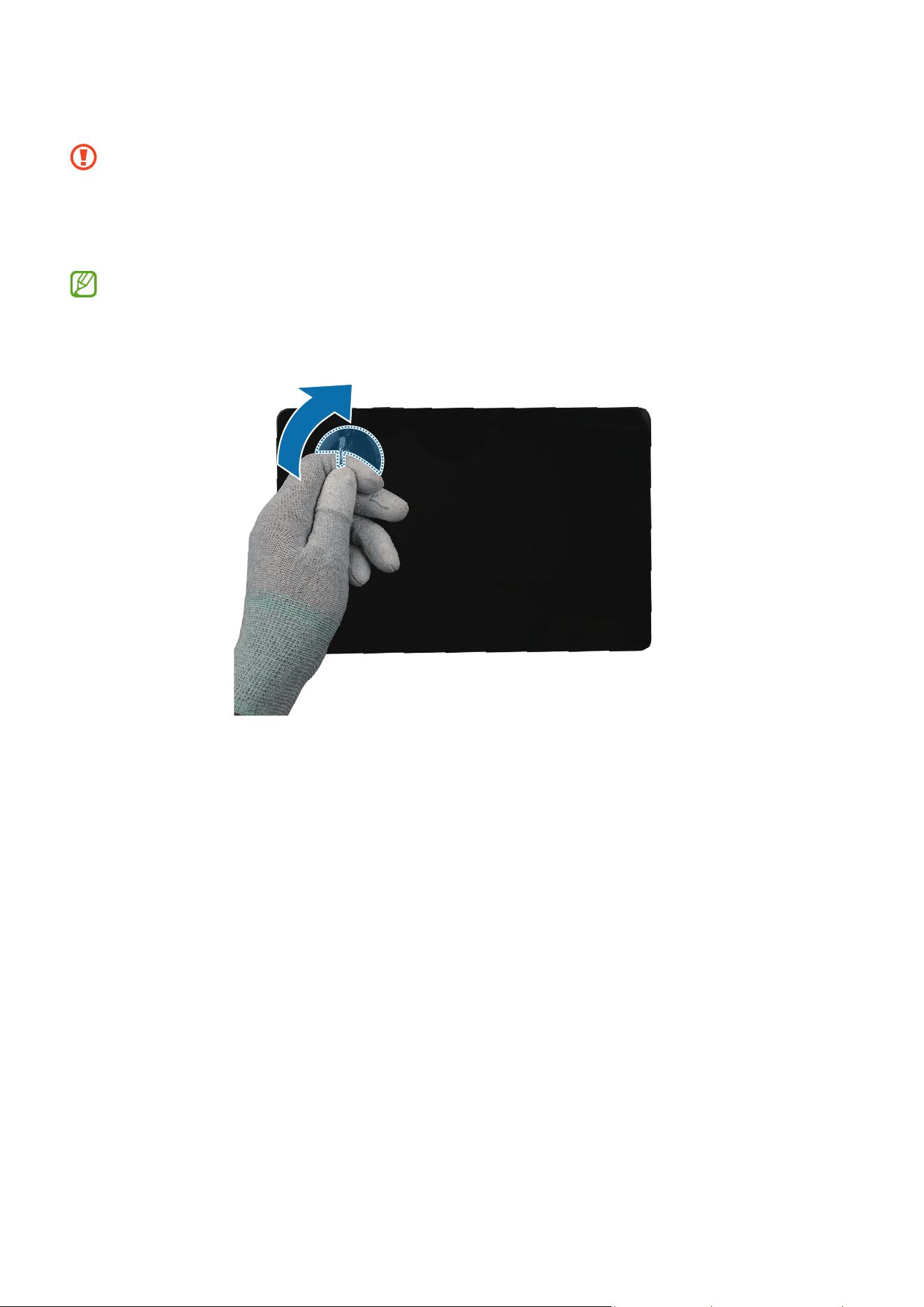

2 Place the suction cup on the top left edge of the screen, and lift it upwards carefully.
•
As the screen can be damaged by excessive force, be careful not to damage the
screen.
•
Be careful that the suction cup does not adhere to the area where the tape or
sticker is attached.
If you have trouble creating a gap, heat the microwaveable heating bag
additionally, and apply it on the screen to further soften the adhesive. When
reheating, it should be heated no longer than 30 seconds.
Disassembly and Assembly
61

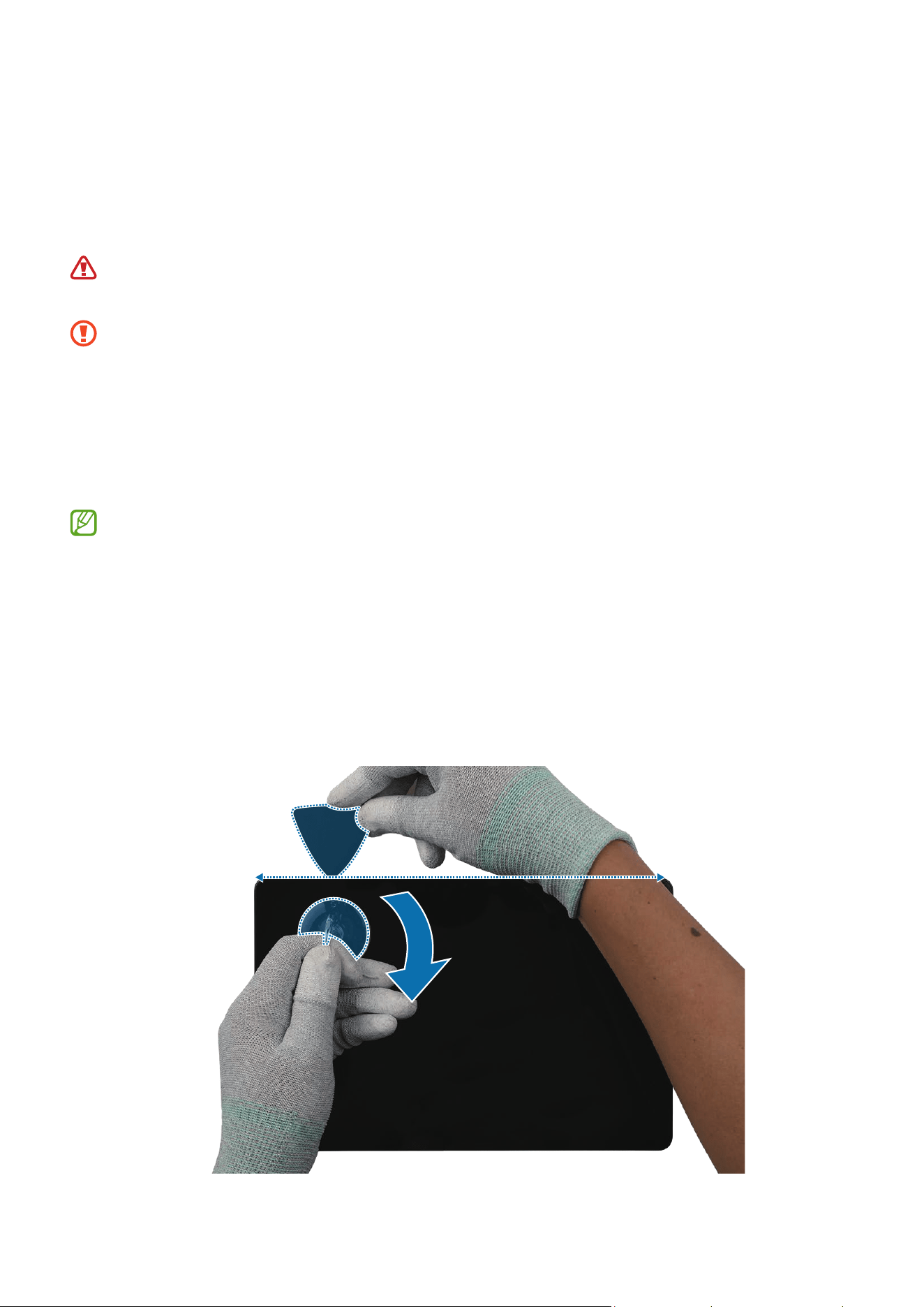

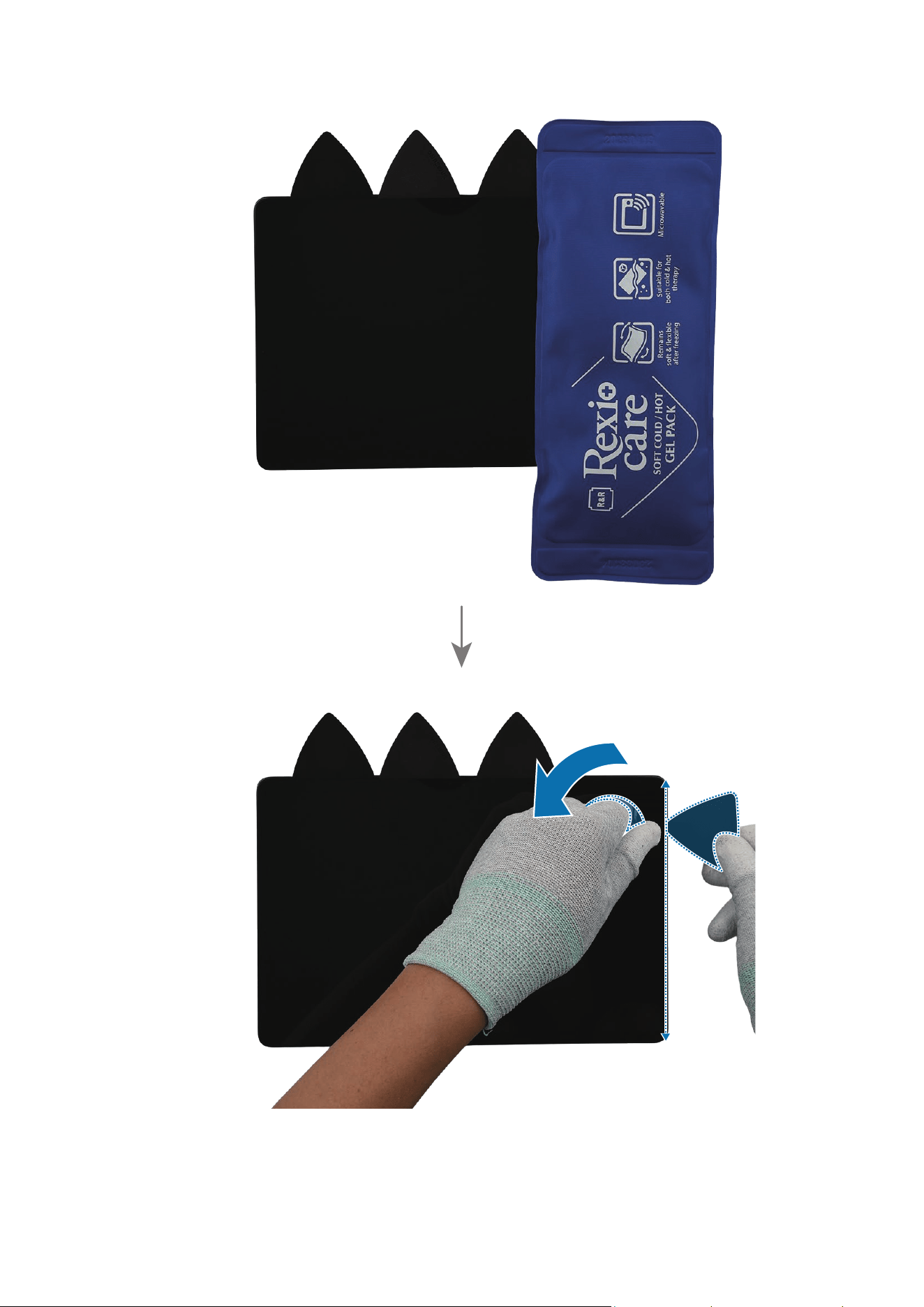

3 While pulling up the suction cup with strong, steady force to create the gap between
the screen and the back cover module, place the opening pick in the gap between the
edge of the screen and the back cover module and slide the opening pick back and
forth along the edge to slice through the adhesive. Repeat this on the all sides and
slice through the adhesive. Lift up the screen slowly and carefully.
Be careful when inserting the opening pick too deeply as this could damage the
internal circuitry, leading to problems such as abnormal operation of the screen.
•
As the screen can be damaged by excessive force, be careful not to damage the
screen.
•
As the internal circuitry can be damaged, do not insert the opening pick more
than 1–2 mm.
•
In case of the bottom edge side of the screen, very weak circuits are located
very close to the edge. Just insert only about 1 mm.
•
Make sure to leave the opening pick inserted in the edges to prevent the
adhesive from resealing. It is recommended that a large area of the opening
pick be inserted.
•
To prevent the adhesive from resealing, change the location of the inserted
opening picks properly according to the adhesive state of the screen.
•
If you have trouble creating a gap, heat the microwaveable heating bag
additionally, and apply it on the screen to further soften the adhesive. When
reheating, it should be heated no longer than 30 seconds.
Disassembly and Assembly
62
Disassembly and Assembly
63
Disassembly and Assembly
64
Disassembly and Assembly
65

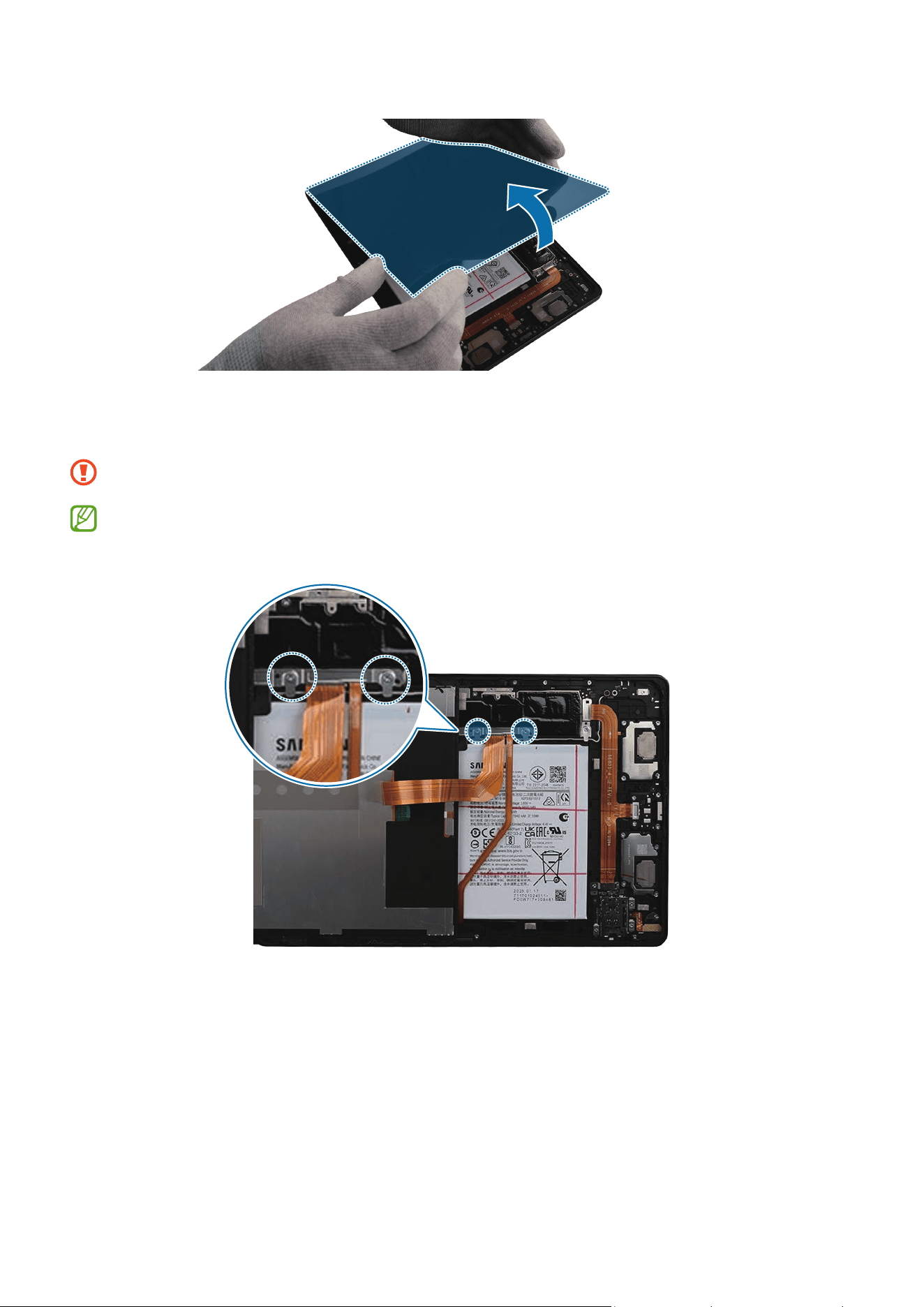

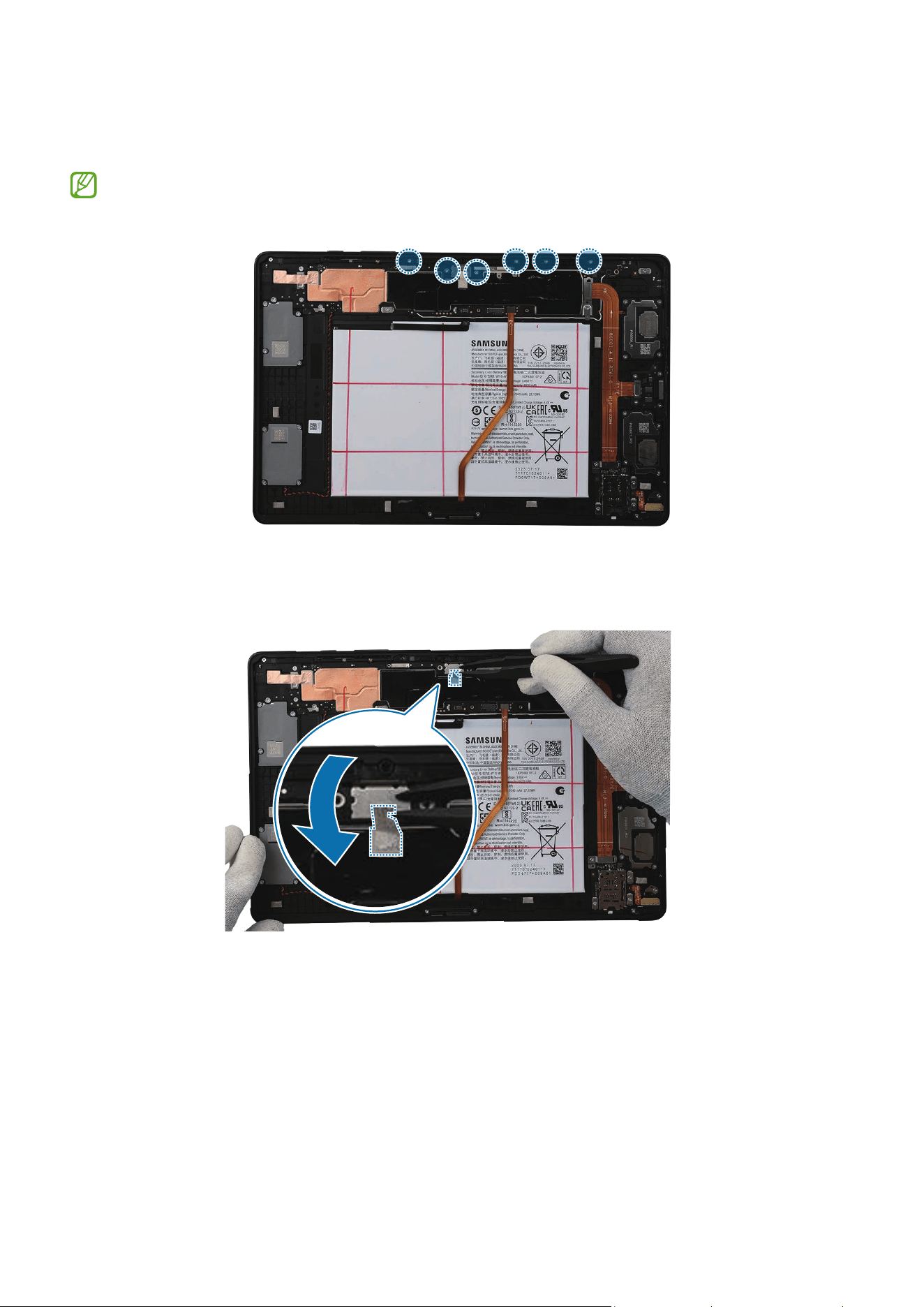

4 Before removing the screen completely, check and remove the screws at the 2
different points on the screen connector metal plate using a cross-head screwdriver.
Be careful not to damage the cable and connector.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
66

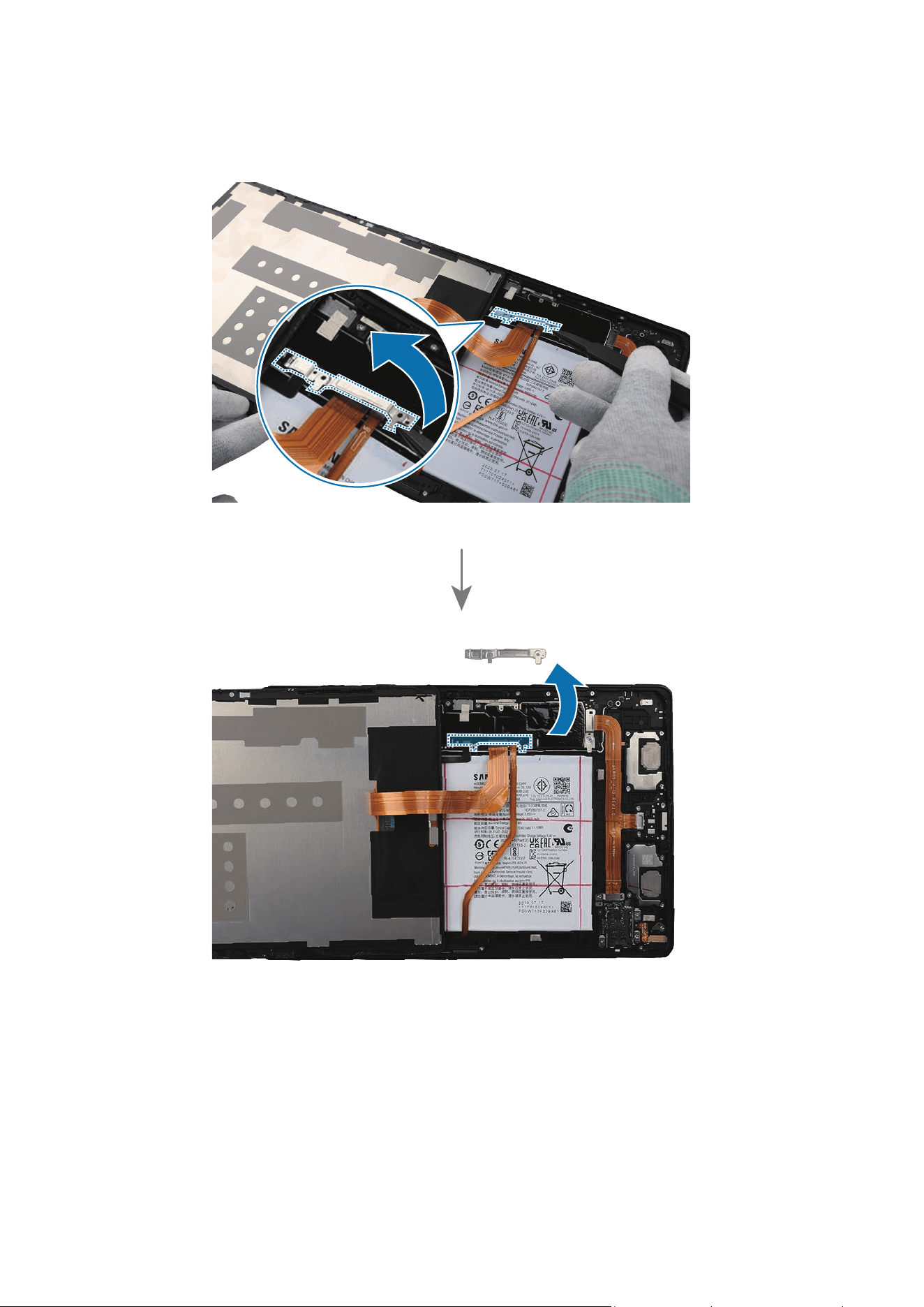

5 Using the tweezers, separate the screen connector metal plate from the back cover
module.
Disassembly and Assembly
67

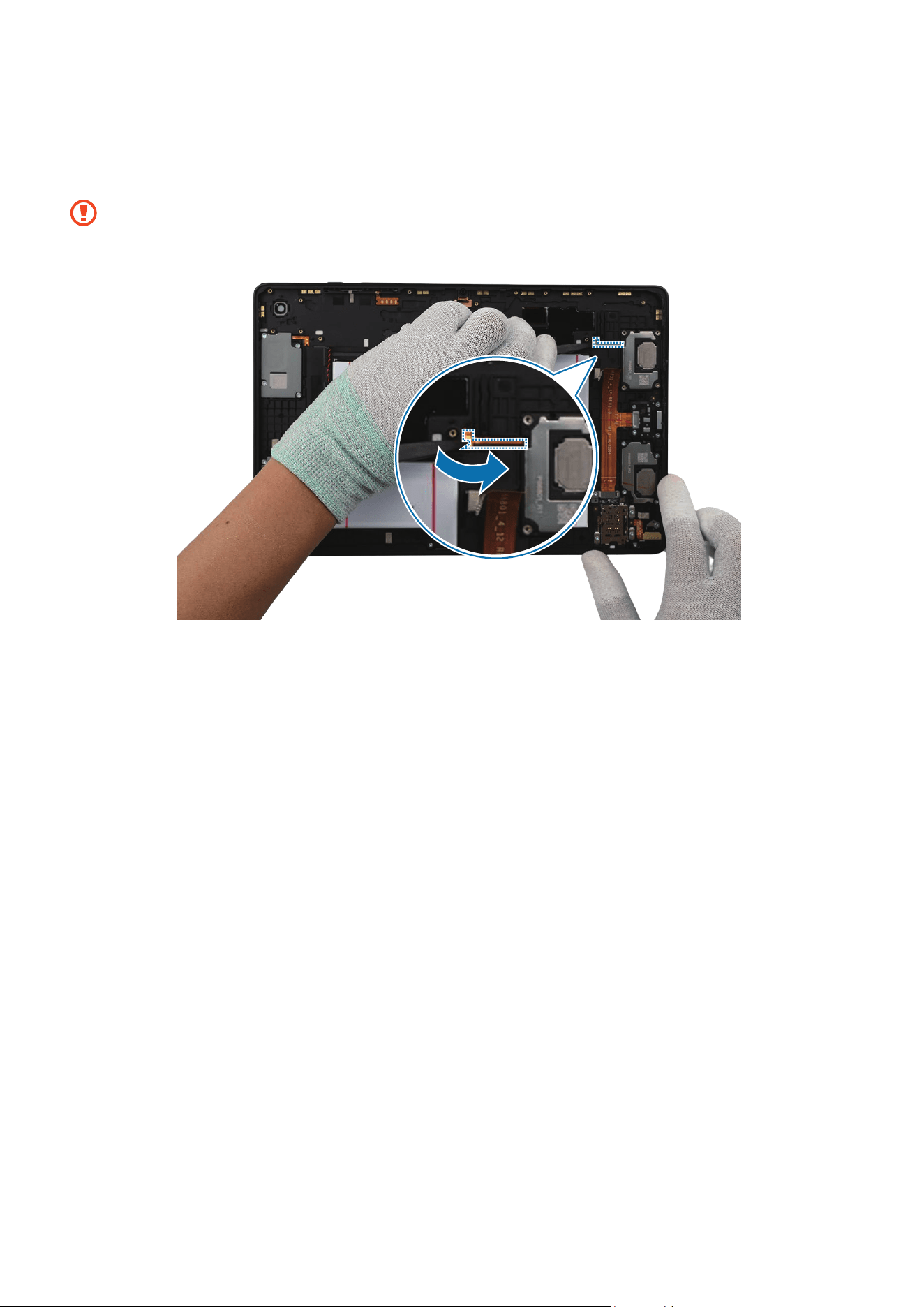

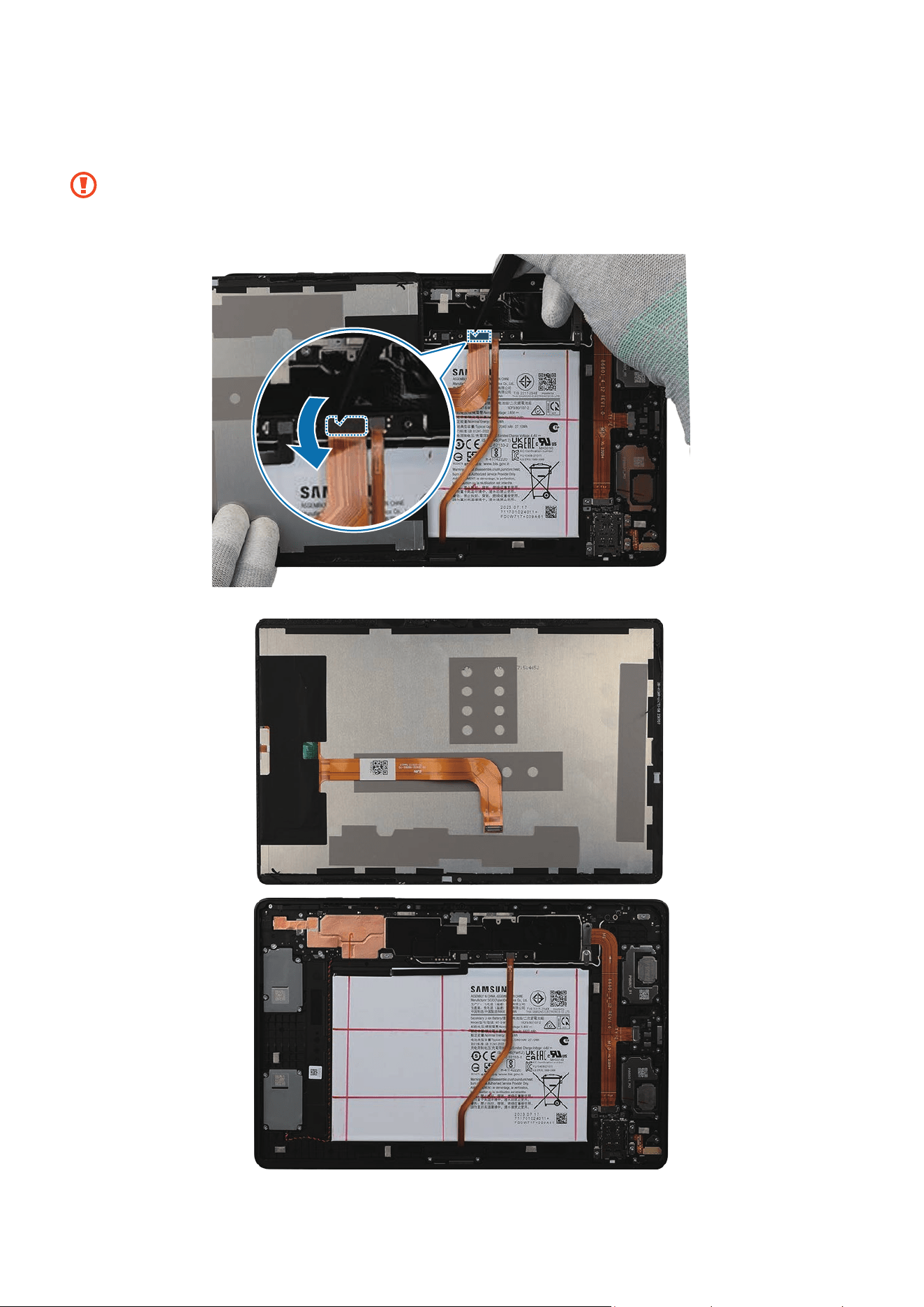

6 Using the tweezers, separate the flex cable connector. Lift up the screen and separate
it from the back cover module completely.
•
Make sure to separate the connectors.
•
Be careful not to damage the cable while removing the connector.
Disassembly and Assembly
68
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

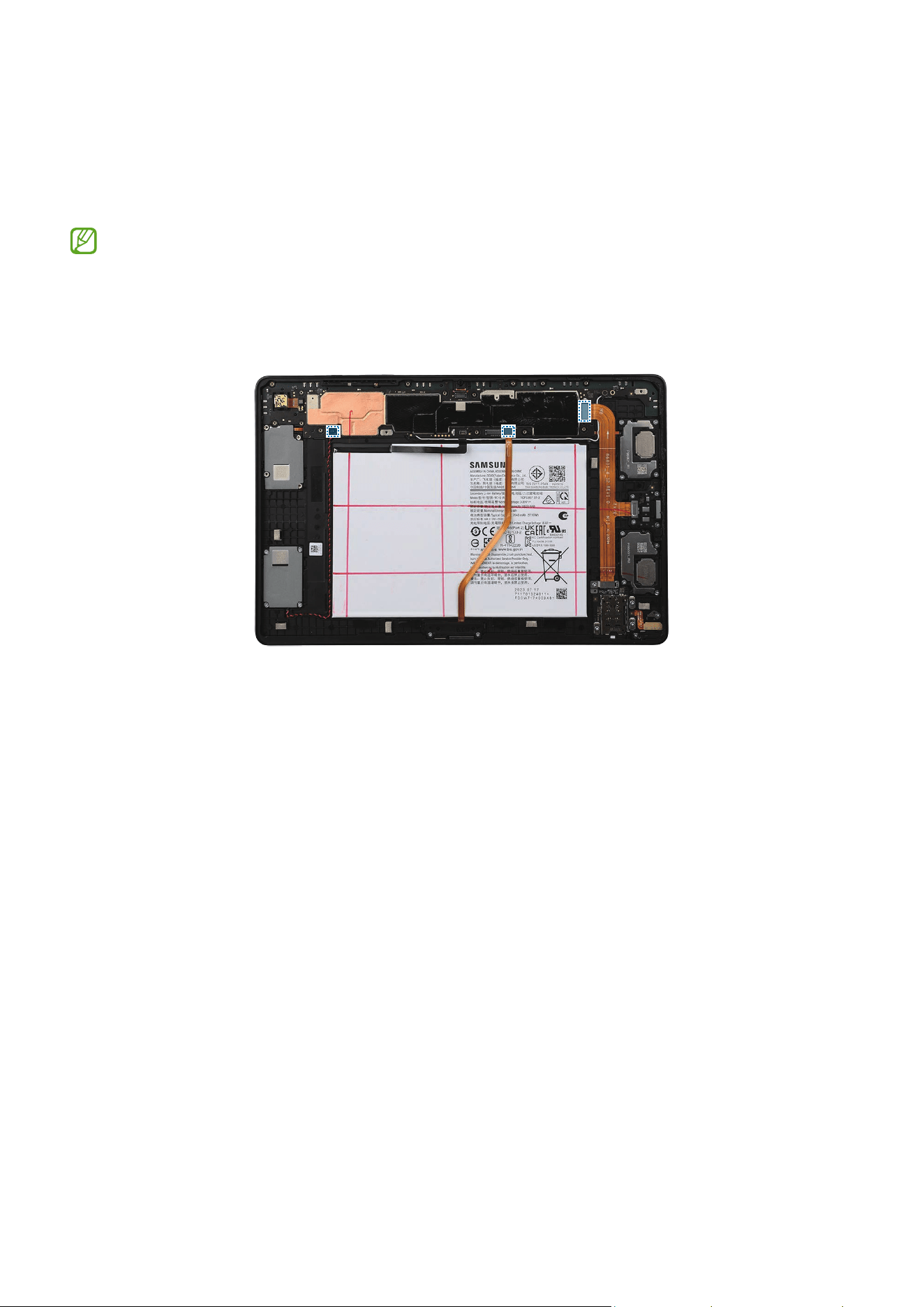

Before attaching the screen, make absolutely sure that there are no screws,
miscellaneous parts, or other foreign objects on the inside of the device (among
the battery, PBA, etc.).

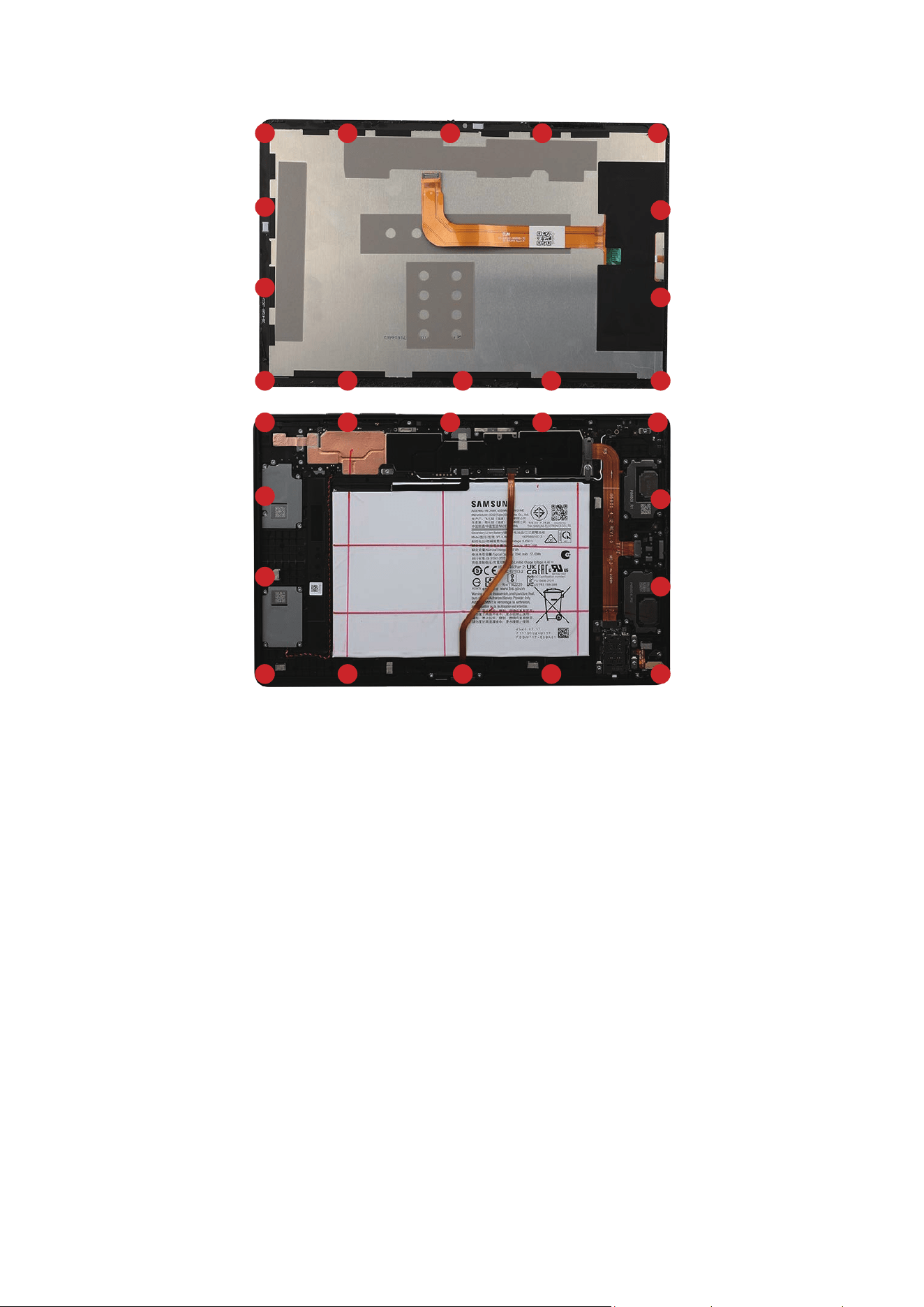

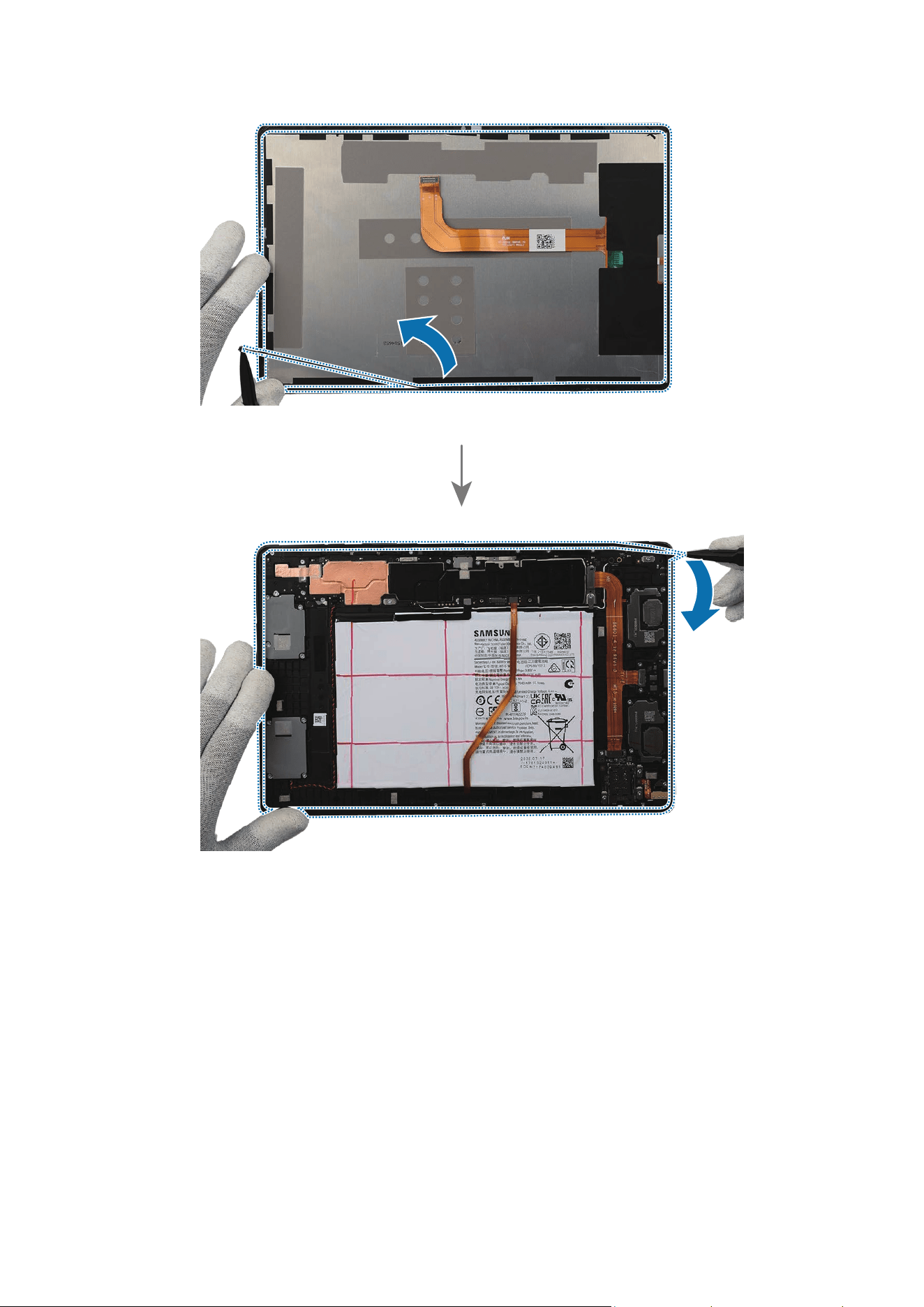

1 Using the tweezers and your fingers, remove all adhesive tapes ( ) on the inside of
the separated screen if you use the existing screen as it is. Also, remove all adhesive
tapes on the edges (
) of the back cover module.
•
Make sure to remove any residual tapes ( ) attached to the separated screen
and the back cover module before reassembling the screen.
•
Be careful not to damage the near components.
Apply additional heat with a microwaveable heating bag if you are having trouble
separating the adhesive.
Disassembly and Assembly
69
Disassembly and Assembly
70
Disassembly and Assembly
71

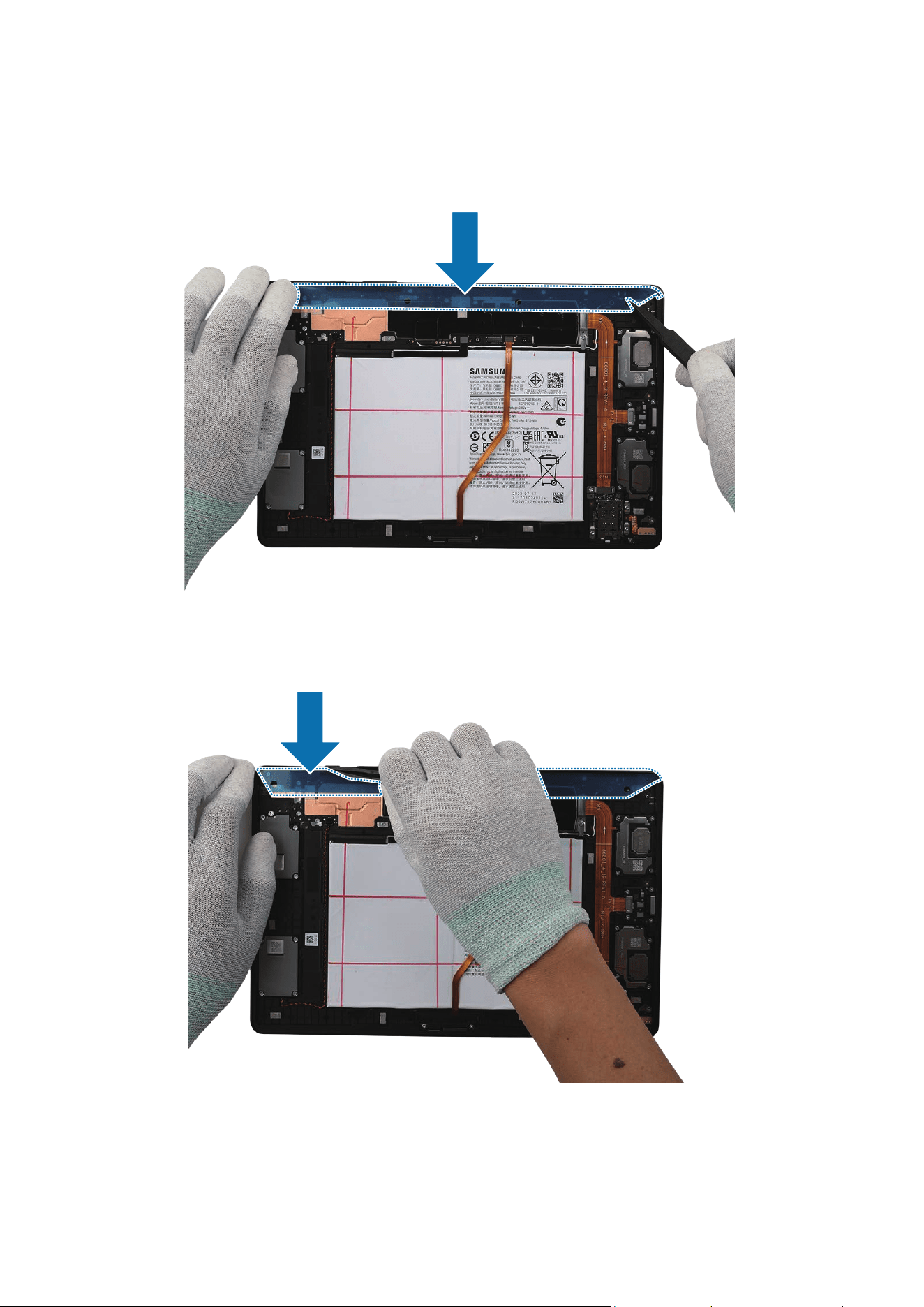

2 Remove the release film of the new screen top adhesive tape. Align the tape precisely
on the top edge of the back cover module and attach it with the tweezers and your
fingers.
3 Using the tweezers and your fingers, gently press down the adhesive tape to ensure a
secure fit.
Disassembly and Assembly
72

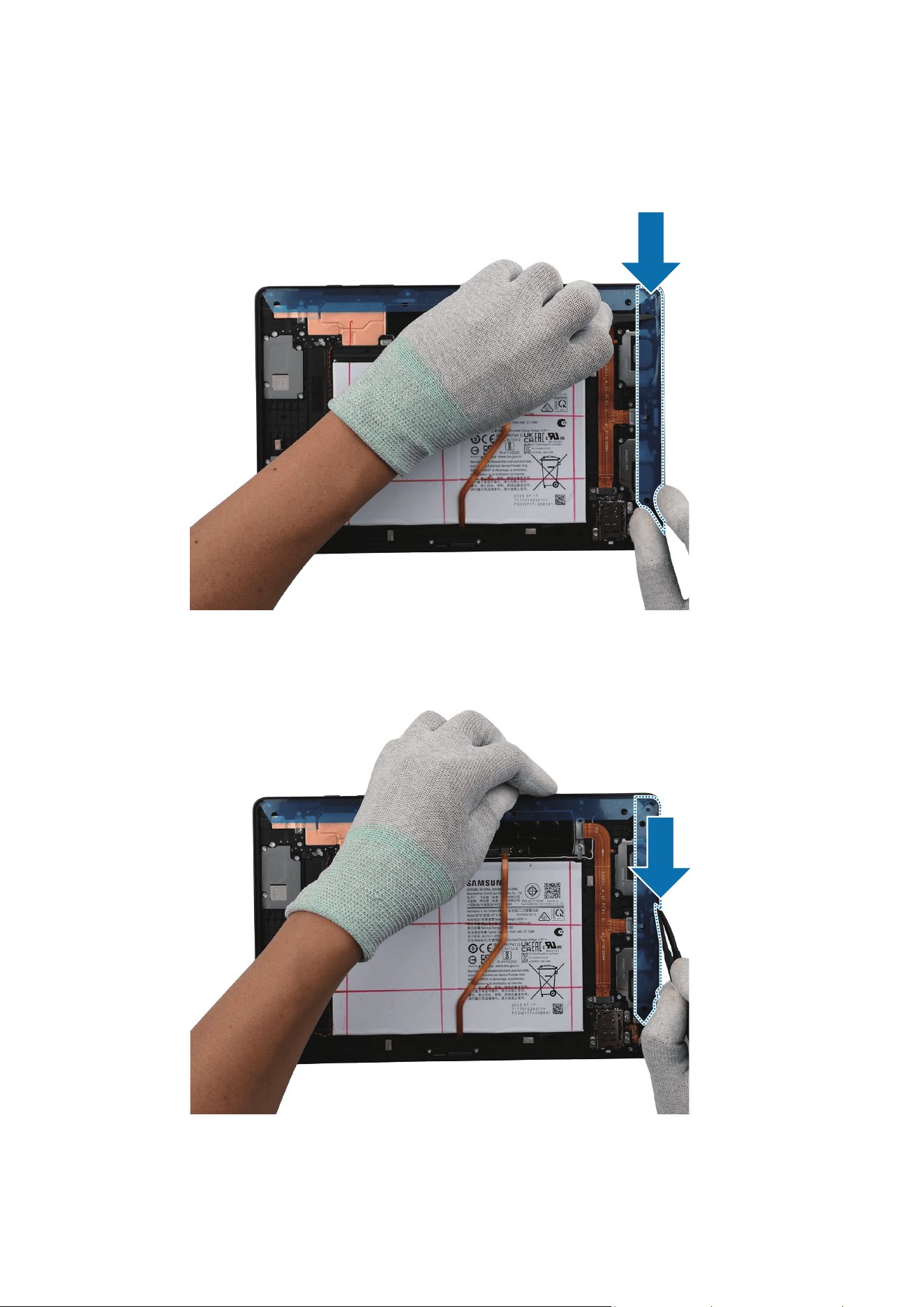

4 Remove the release film of the new screen right adhesive tape. Align the tape
precisely on the right edge of the back cover module and attach it with the tweezers
and your fingers.
5 Using the tweezers and your fingers, gently press down the adhesive tape to ensure a
secure fit.
Disassembly and Assembly
73

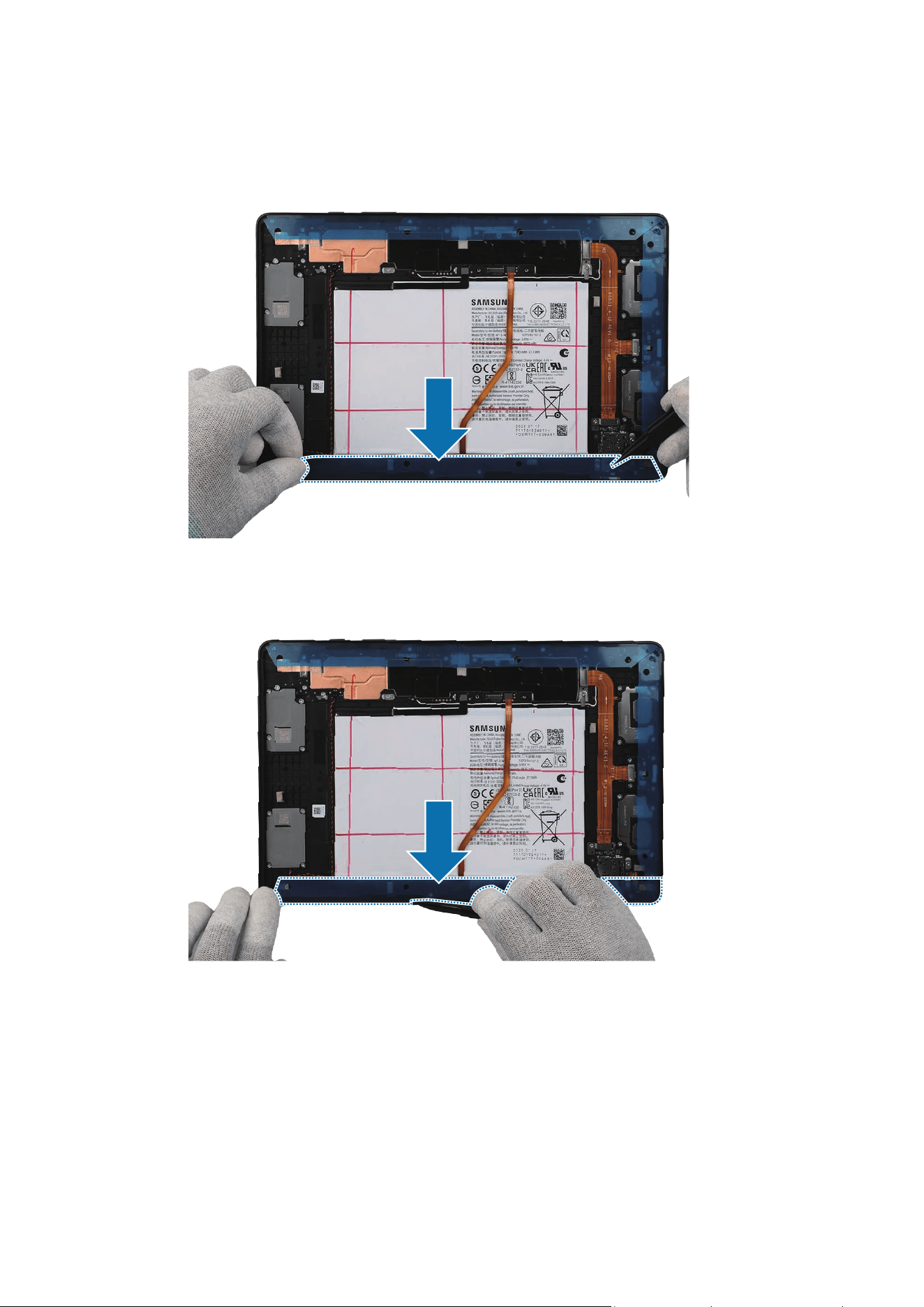

6 Remove the release film of the new screen bottom adhesive tape. Align the tape
precisely on the bottom edge of the back cover module and attach it with the
tweezers and your fingers.
7 Using the tweezers and your fingers, gently press down the adhesive tape to ensure a
secure fit.
Disassembly and Assembly
74

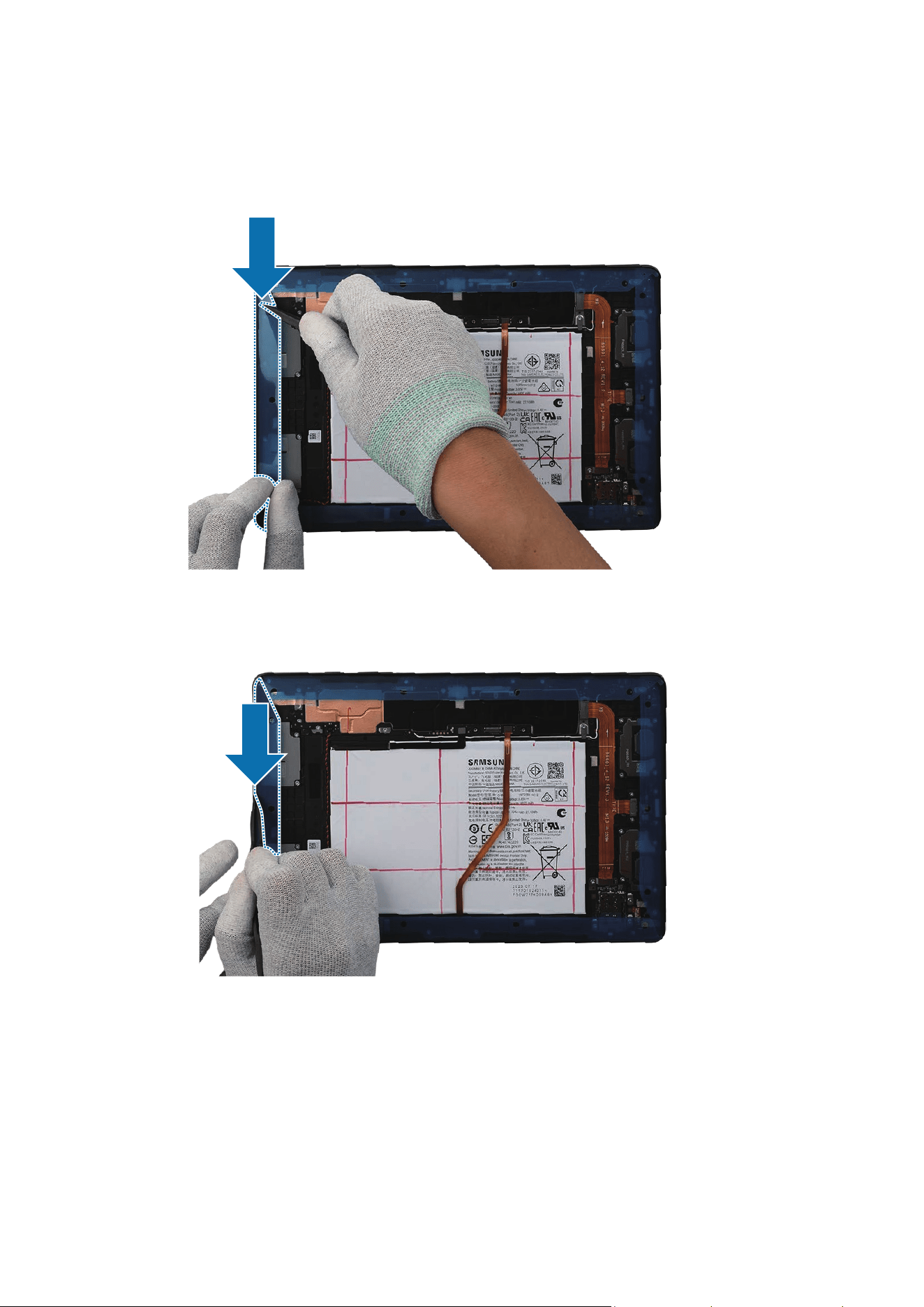

8 Remove the release film of the new screen left adhesive tape. Align the tape precisely
on the left edge of the back cover module and attach it with the tweezers and your
fingers.
9 Using the tweezers and your fingers, gently press down the adhesive tape to ensure a
secure fit.
Disassembly and Assembly
75
10

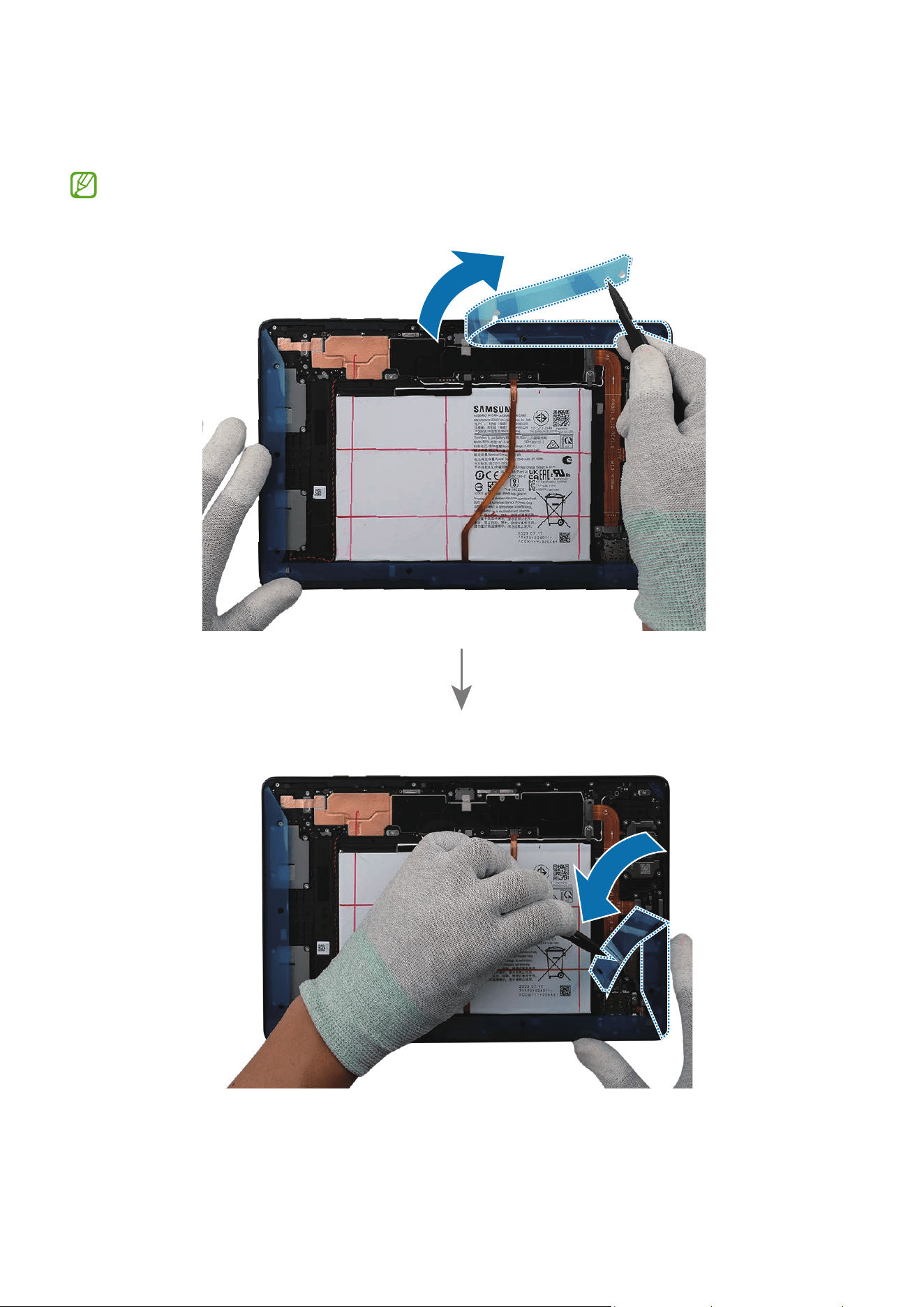

Remove the release films from all edges of the back cover module while holding the
handle of the release film.
When removing the outer release films, you can check the inner release films and
leave them at this moment.
Disassembly and Assembly
76
Disassembly and Assembly
77

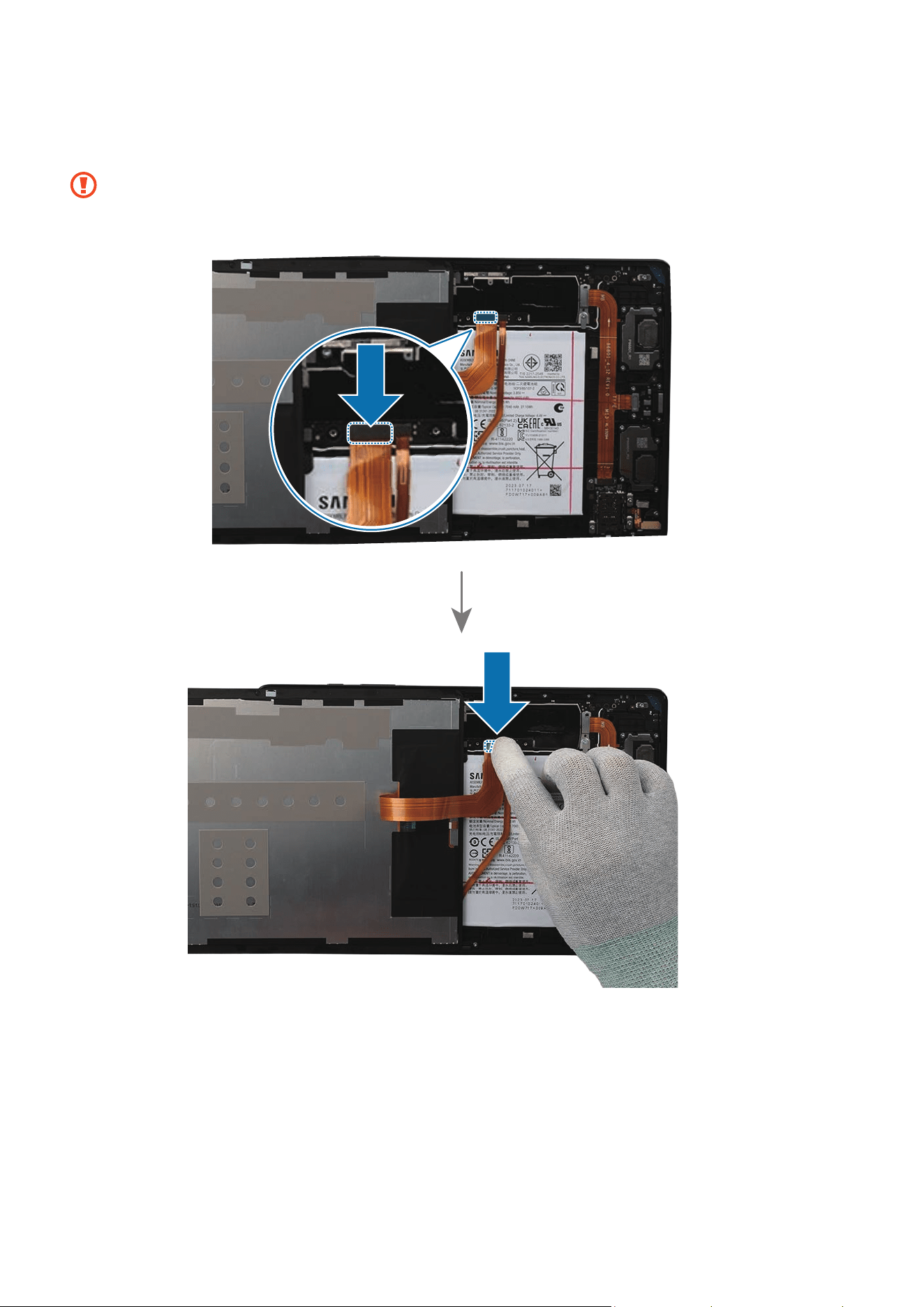

11

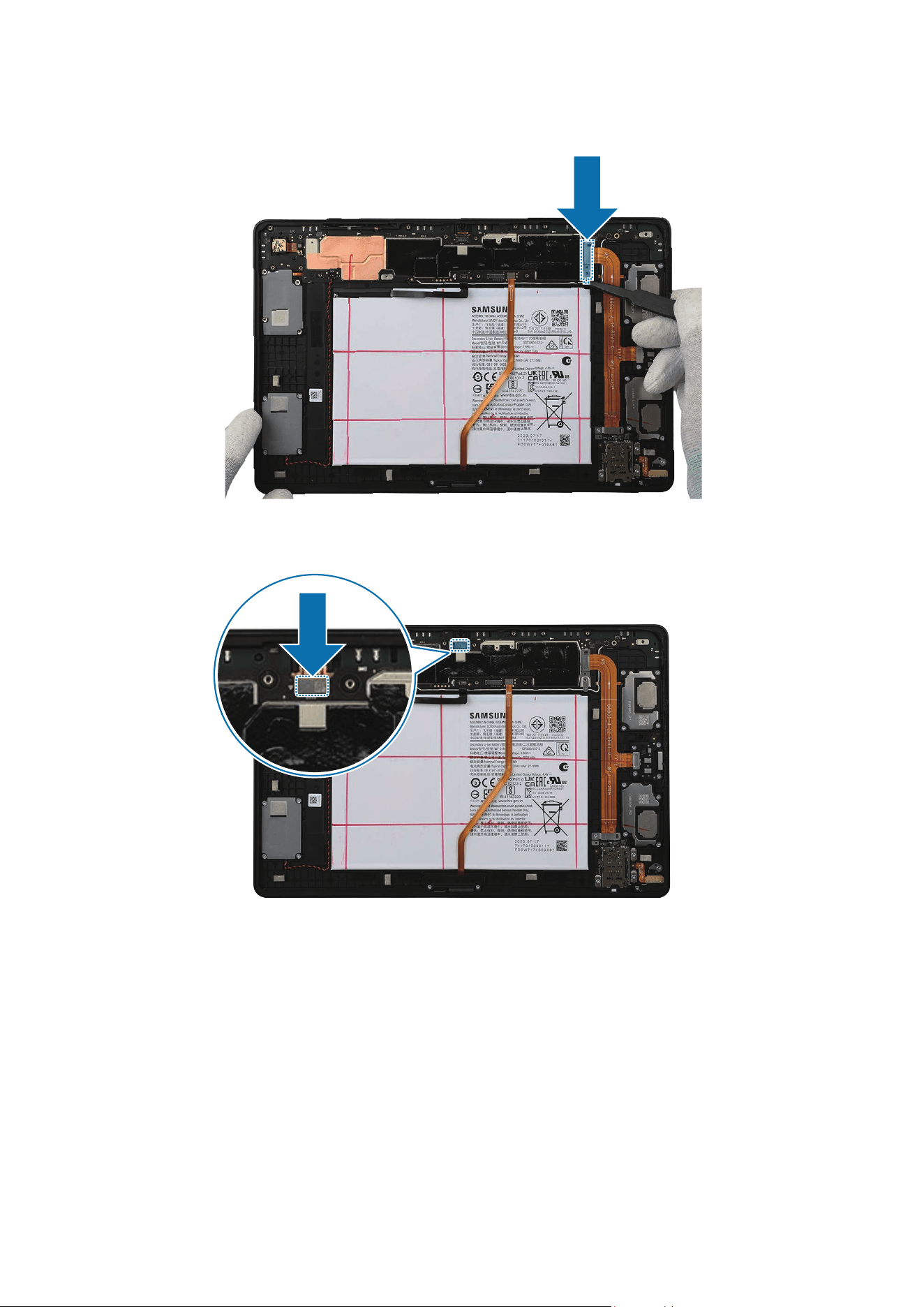

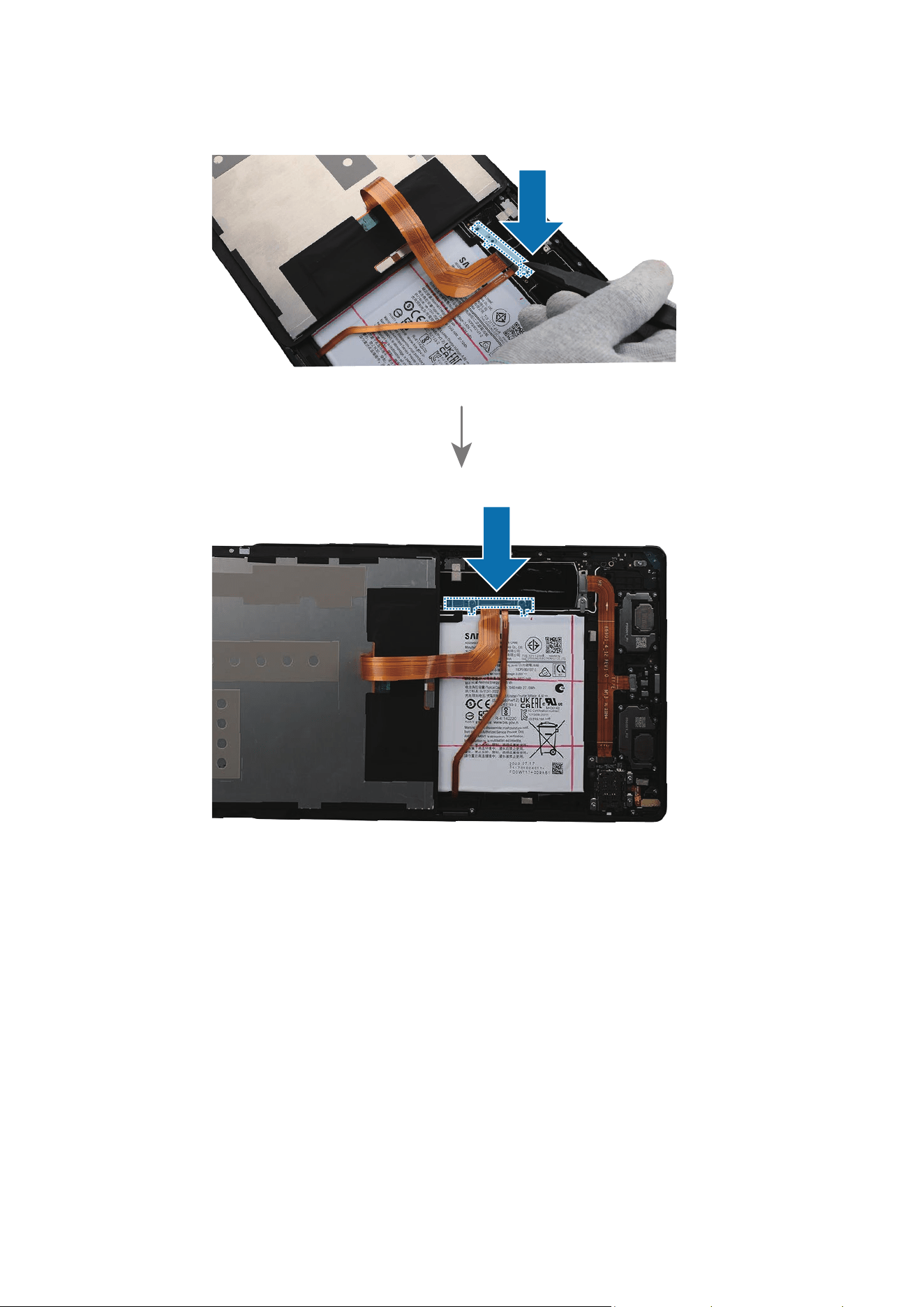

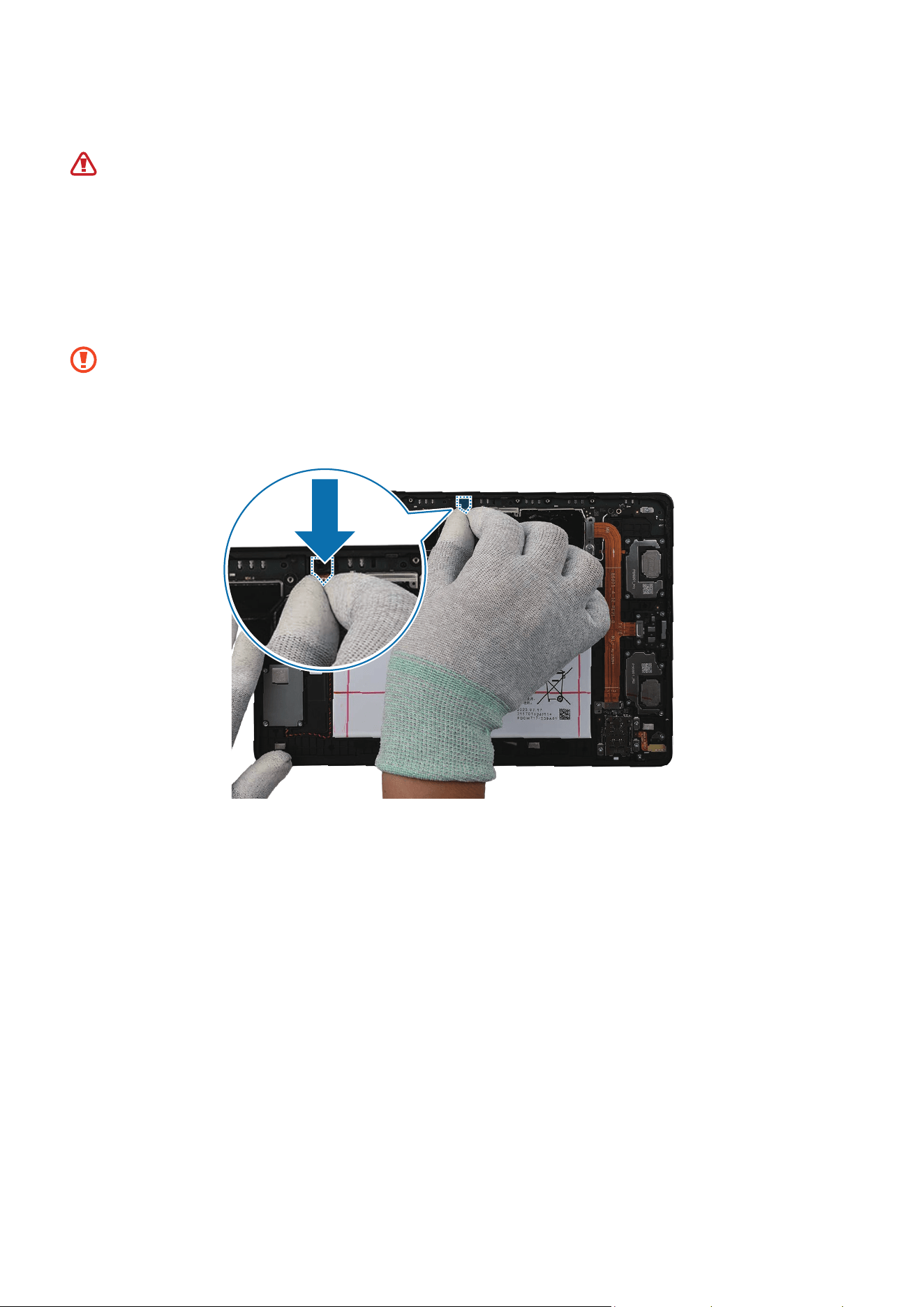

Leave the inside of the screen visible and connect the flex cable connector. Press
down the connector softly with your fingers.
•
Do not forget to connect the connector.
•
Be careful not to damage the cable while connecting the connector.
Disassembly and Assembly
78
12
Assemble the screen connector metal plate to the back cover module.
Disassembly and Assembly
79

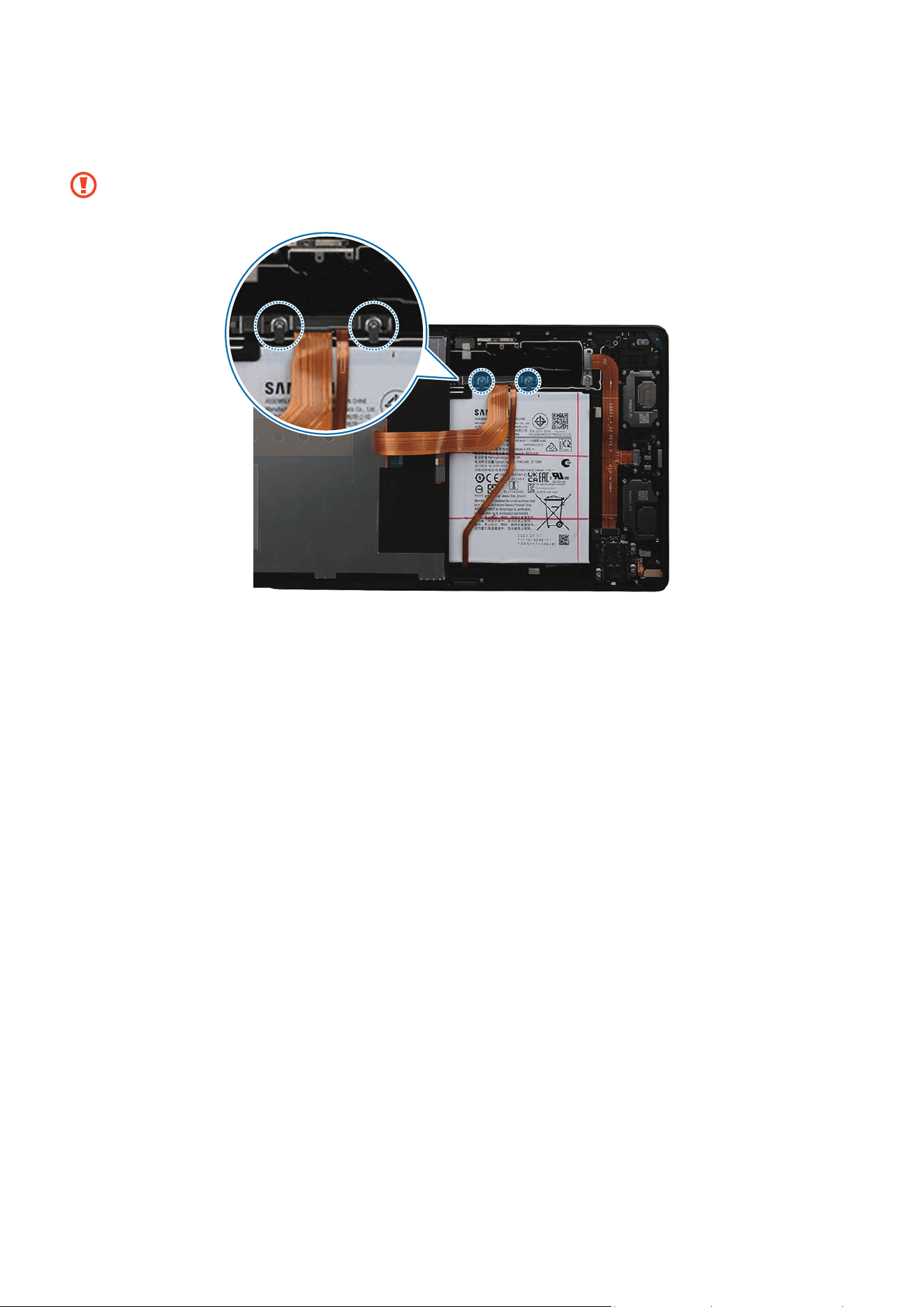

13
Check the screw 24530A (2 ea) and fasten them to the metal plate using a cross-head
screwdriver.
Be careful not to damage the cable and near components.
Disassembly and Assembly
80

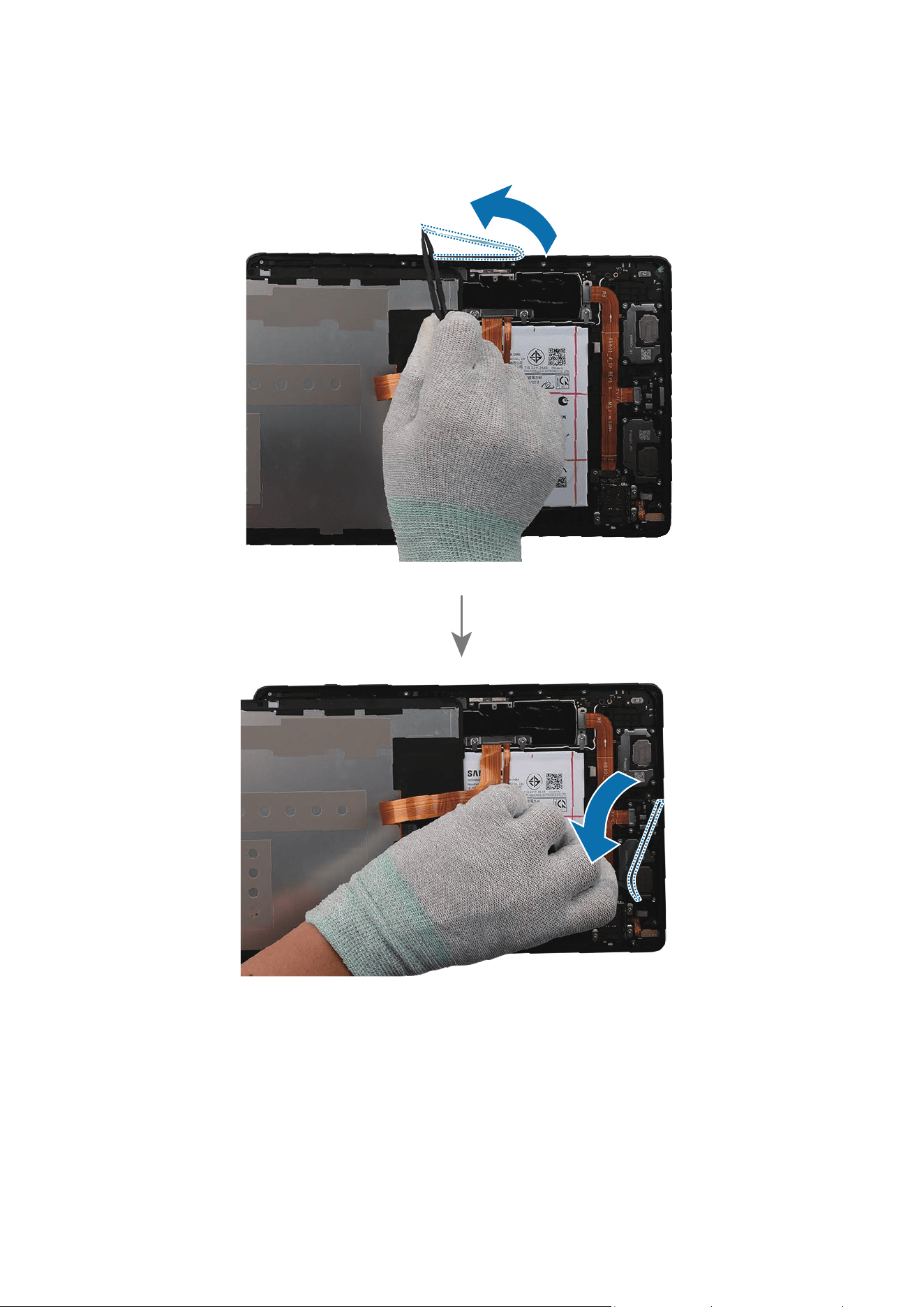

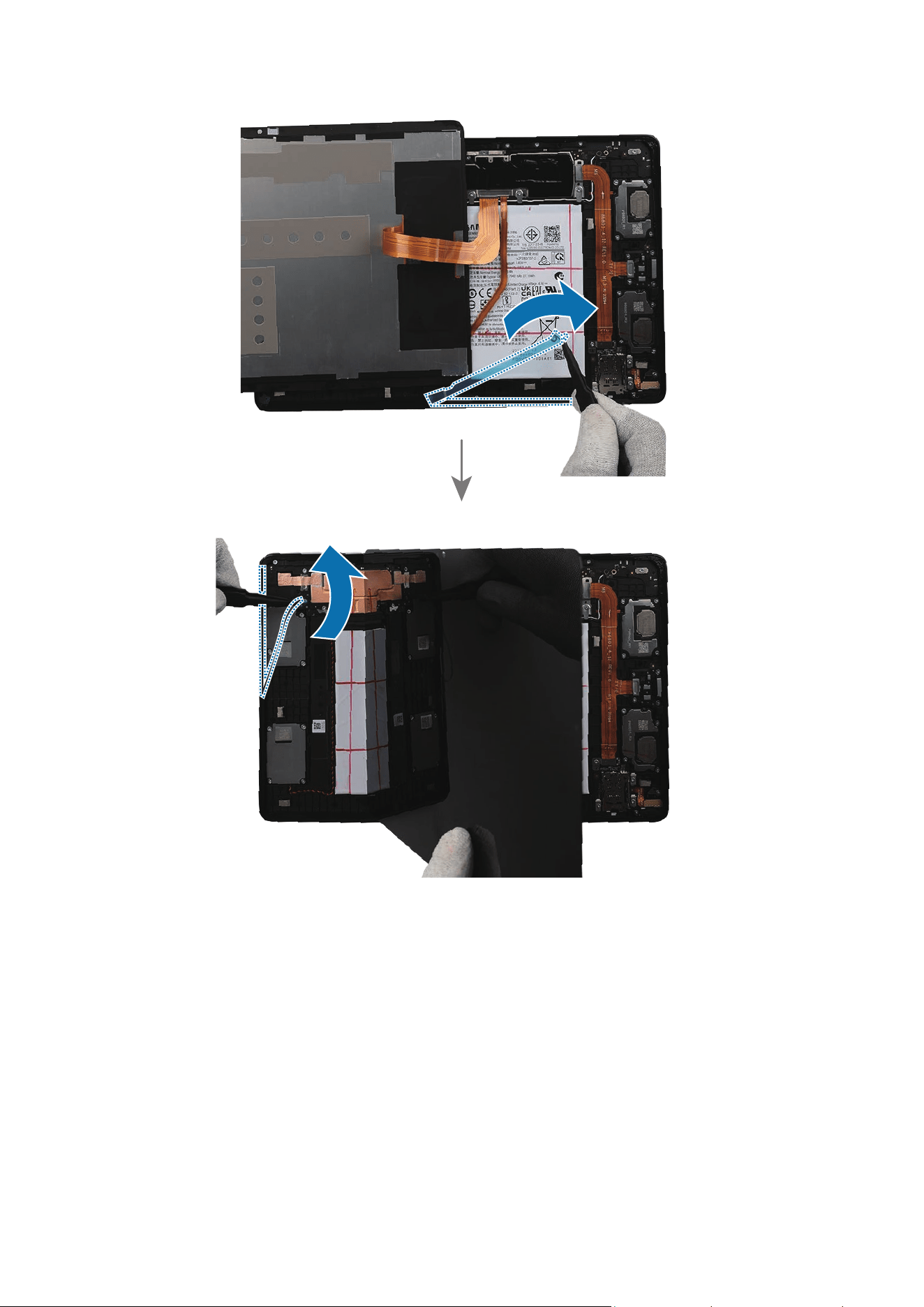

14

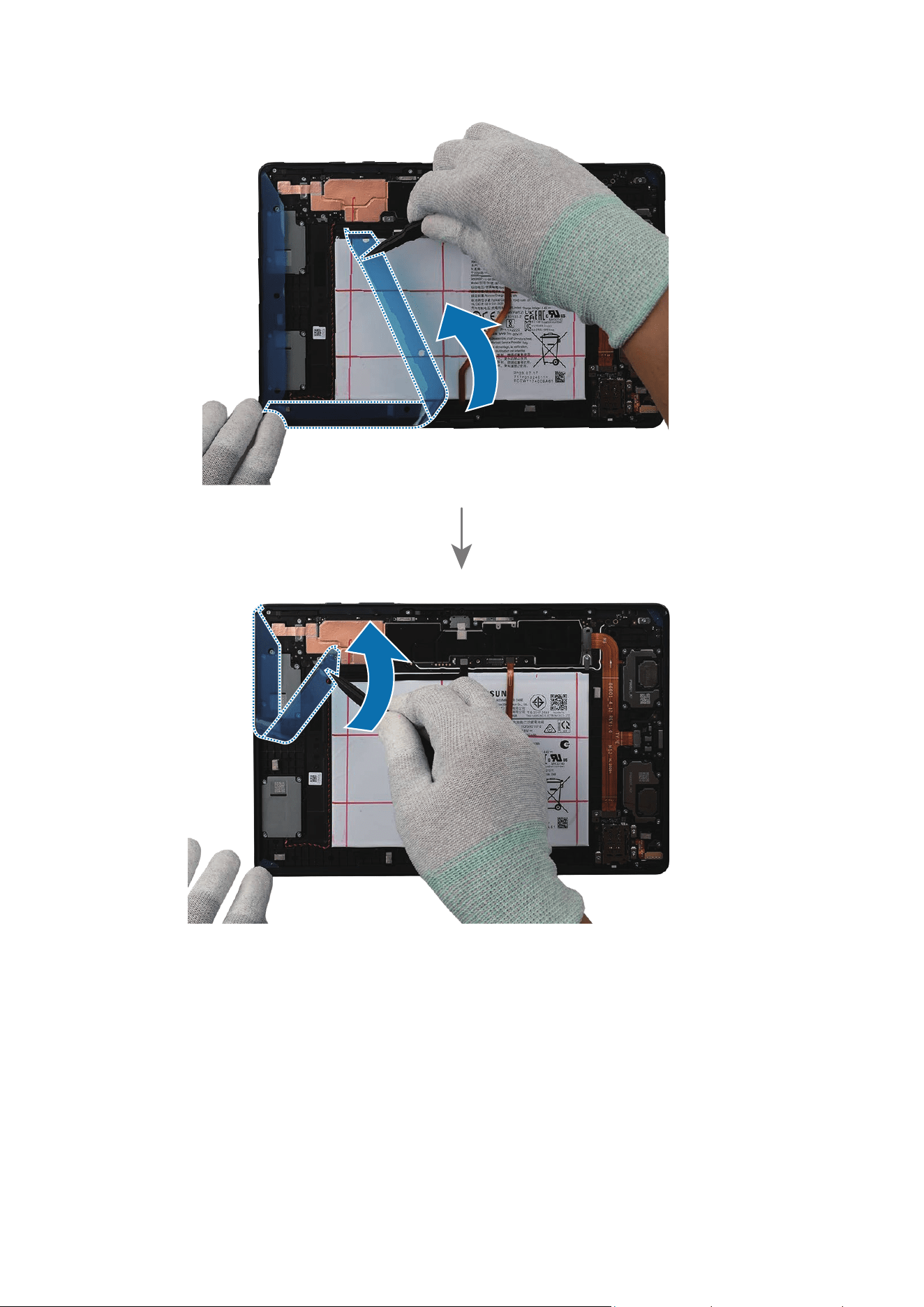

Before attaching the screen completely, remove the all remaining inner release films
from the edges of the back cover module.
Disassembly and Assembly
81
Disassembly and Assembly
82
15

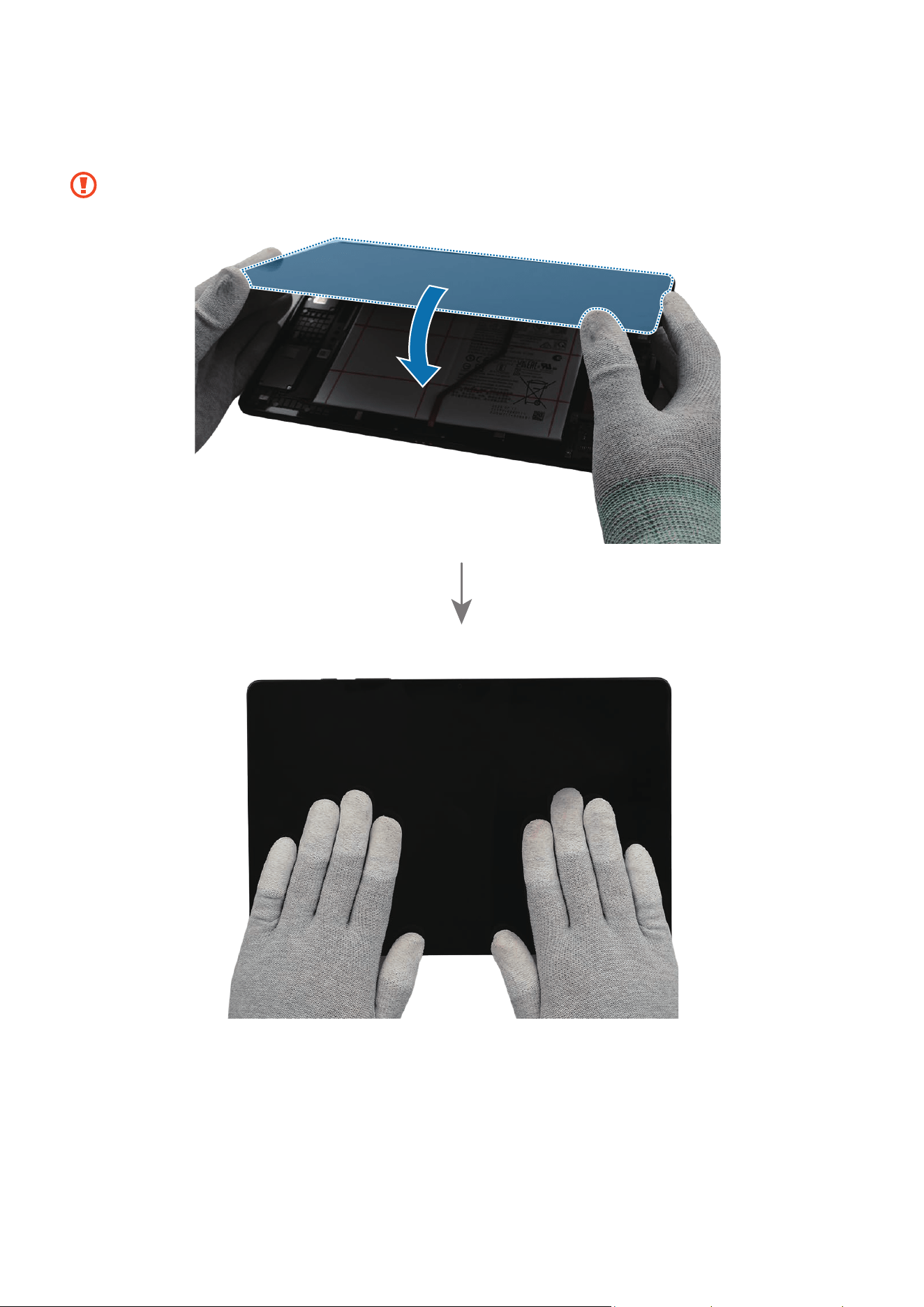

Turn the screen slowly over back to its original state and attach it to the back cover
module.
Be careful not to damage the screen.
Disassembly and Assembly
83
16

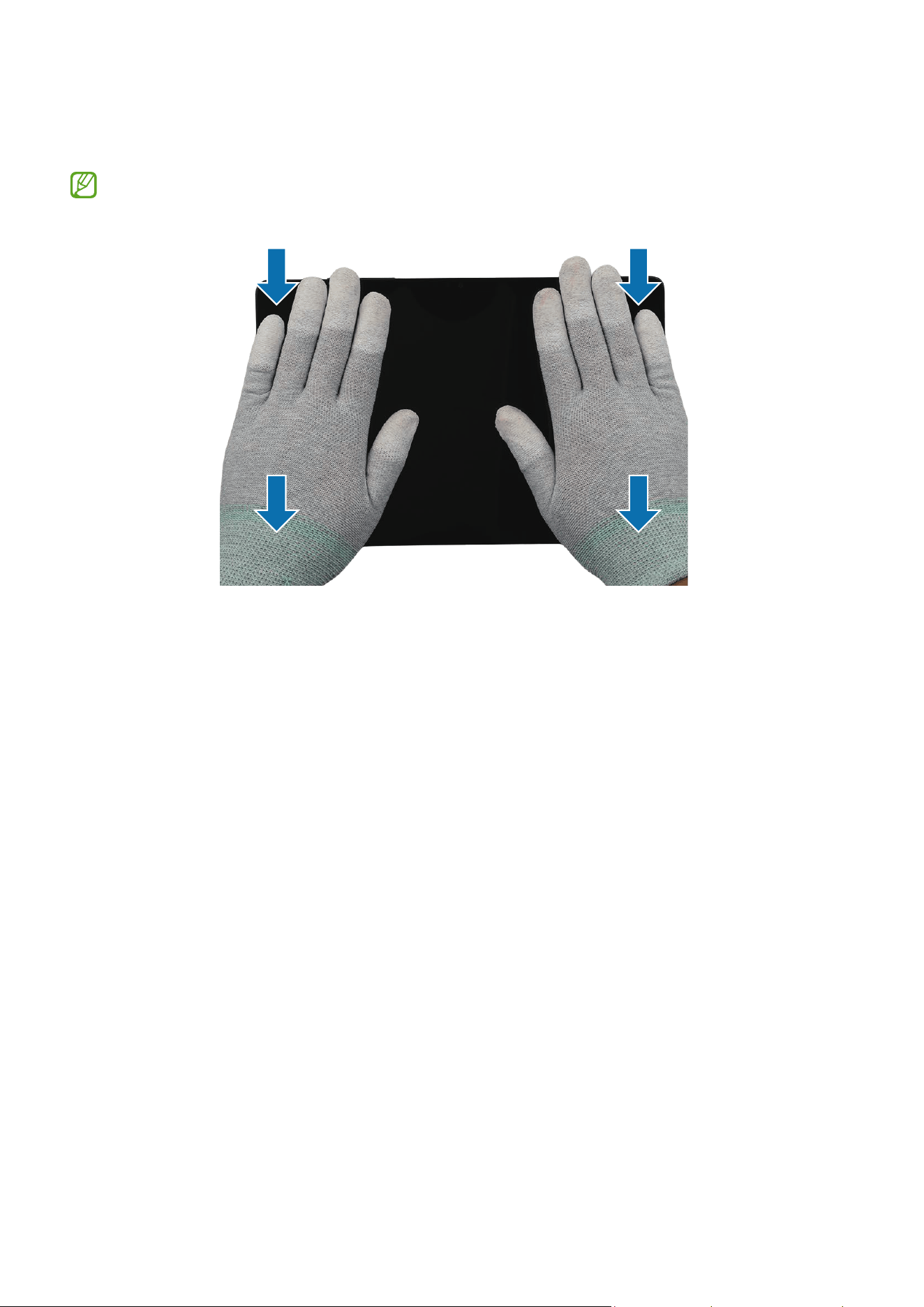

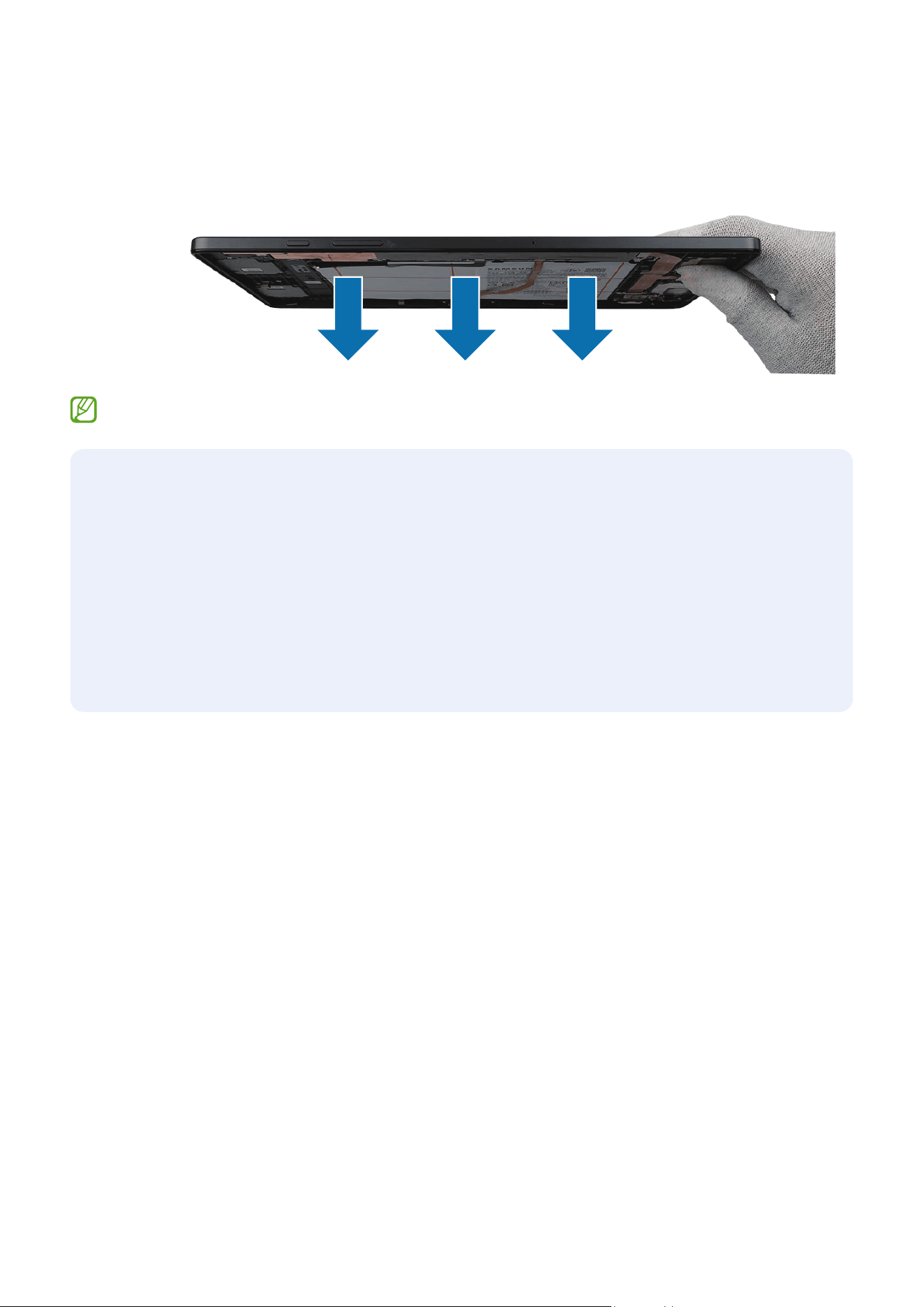

Attach the screen and press down on the edges of the screen evenly in order to attach
the screen perfectly. Check the gap between the screen and the back cover module.
If you feel some gap, remove the screen and attach it again. Some foreign
materials can be inside the device.
Disassembly and Assembly
84
17

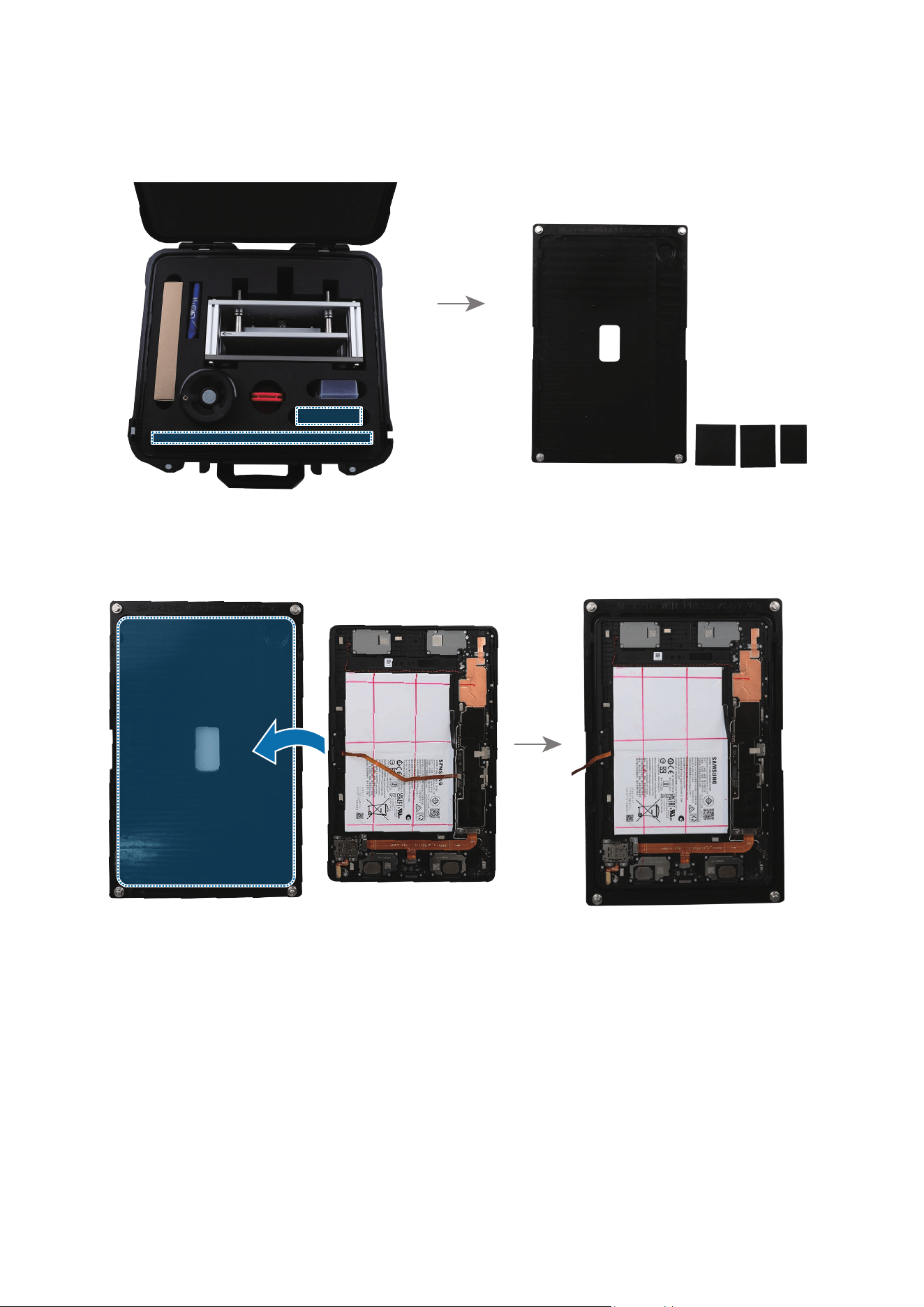

Now you can press the fully assembled screen using the press fixture. Remove the
press fixture body and its handle from the rental tool kit packaging.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
•
This tool is only available to use by the rental of tool kit that contains a
complete set of the tools for self repair service.
•
Availability of rental service may vary depending on the country and is currently
available only in limited countries.
•
A rented tool kit packaging may have different packaging than shown.
18
Carefully position the torque limit handle horizontally at the top of the press fixture.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
Disassembly and Assembly
85
19
Remove the bottom press tray and top press tray from the rental tool kit packaging.
20
Leave the inside of the bottom press tray visible and place the device into the tray
facing up.
Disassembly and Assembly
86
21
Using your fingers, press down the all edges carefully and make sure that the device
is completely secured to the bottom tray.
22

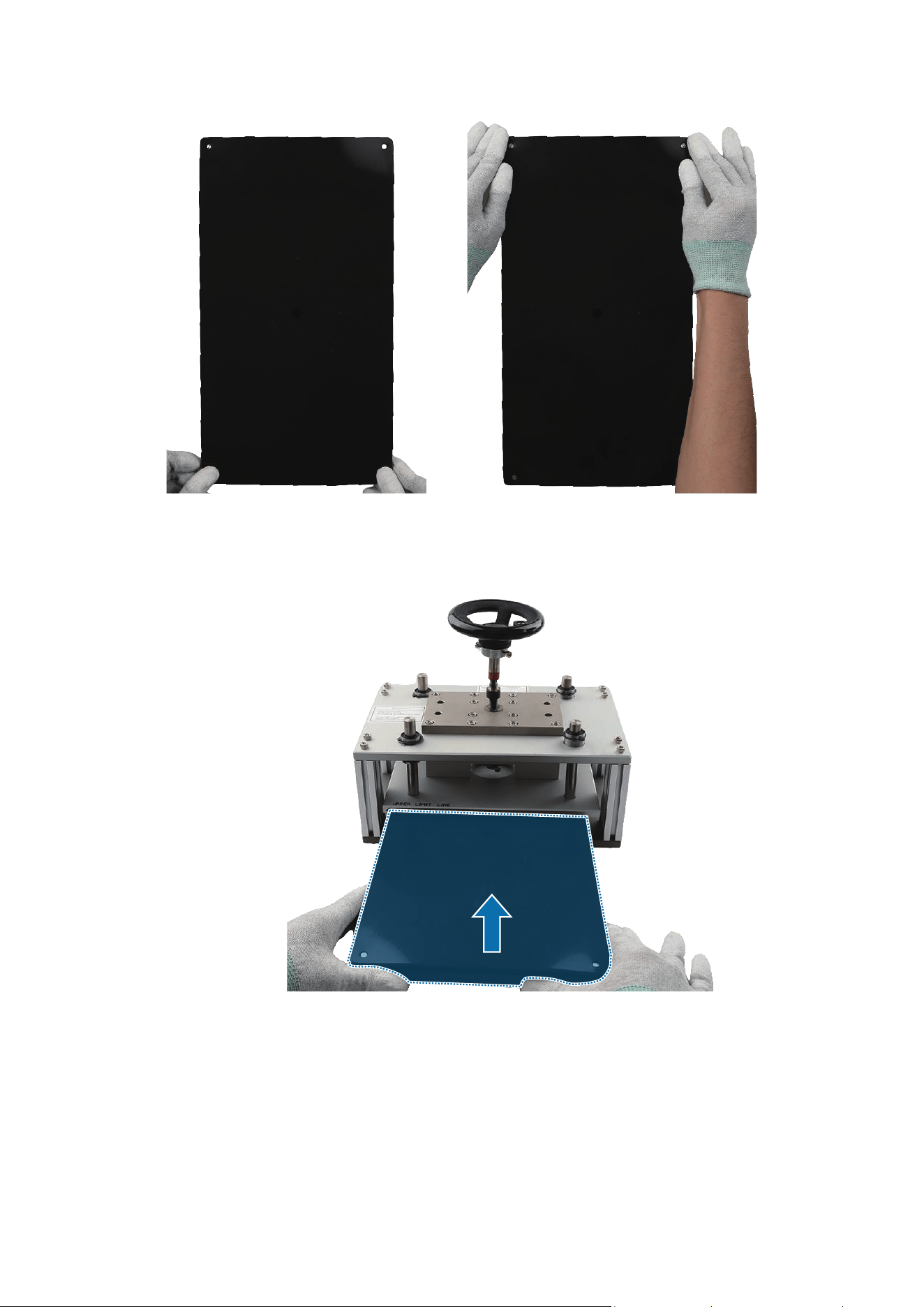

Carefully place the top press tray over the bottom press tray and gently press on all
corners of the tray to secure it.
Be careful not to damage the screen and the device.
Disassembly and Assembly
87
23
Position the top half of the press tray with the device lengthwise in the centre of the
press fixture.
Disassembly and Assembly
88
24
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray for 30 seconds.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
When you reach the required maximum force (1 N), a sound is made from the
handle if you turn the handle.
25
When the press is completed after 30 seconds, rotate the torque limit handle to the
anticlockwise and remove the tray from the press fixture.
Disassembly and Assembly
89
26
Position the bottom half of the press tray with the device lengthwise in the centre of
the press fixture.
27
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray again for 30 seconds.
Keep your hands out the of press fixture to avoid mechanical pinching and injury.
Disassembly and Assembly
90
28
When the second press is completed after 30 seconds, rotate the torque limit handle
to the anticlockwise and remove the tray from the press fixture.
29
Remove the device carefully from the tray.
Disassembly and Assembly
91
Front Camera
Disassembly
Remove the Screen first before you begin.

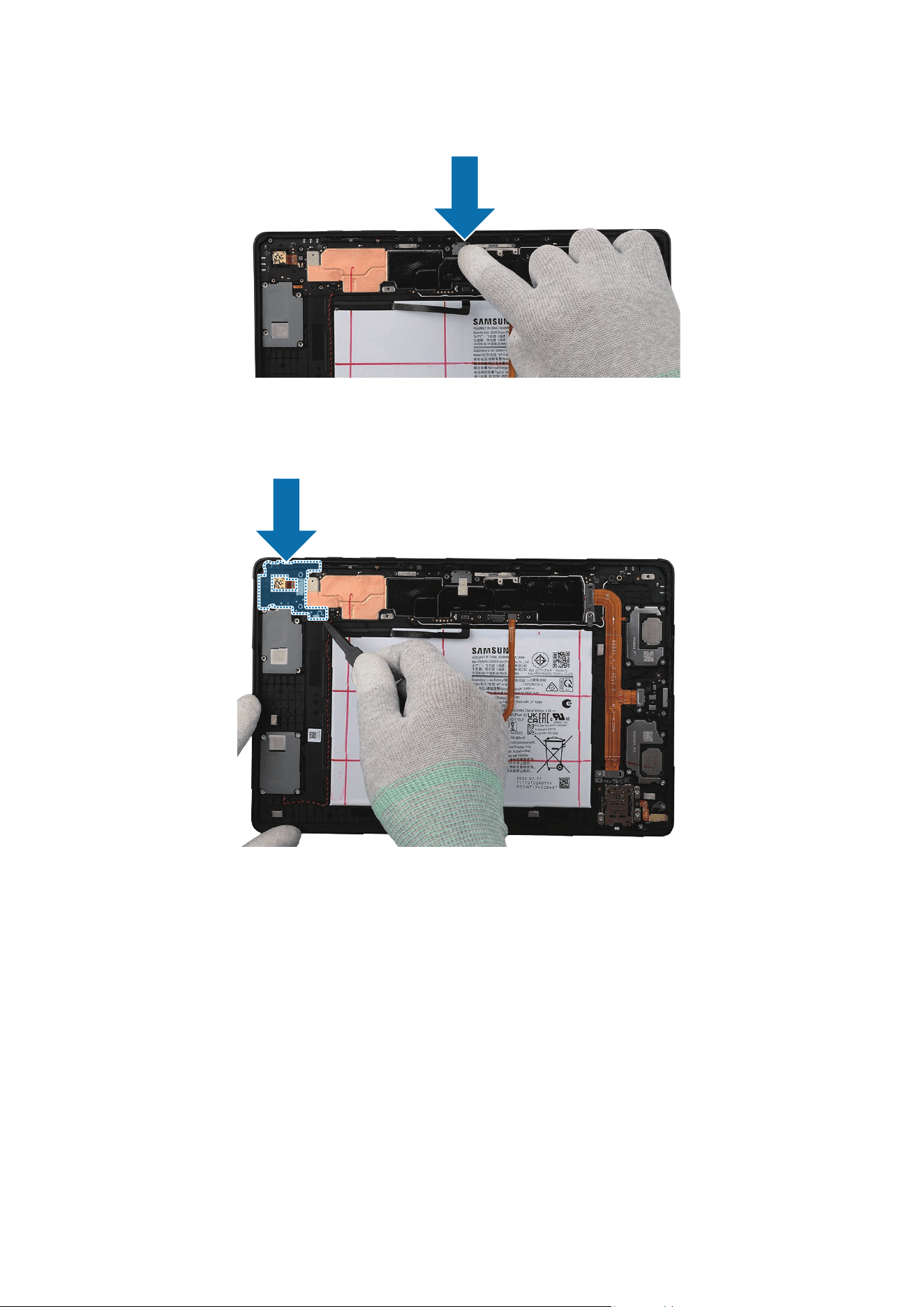

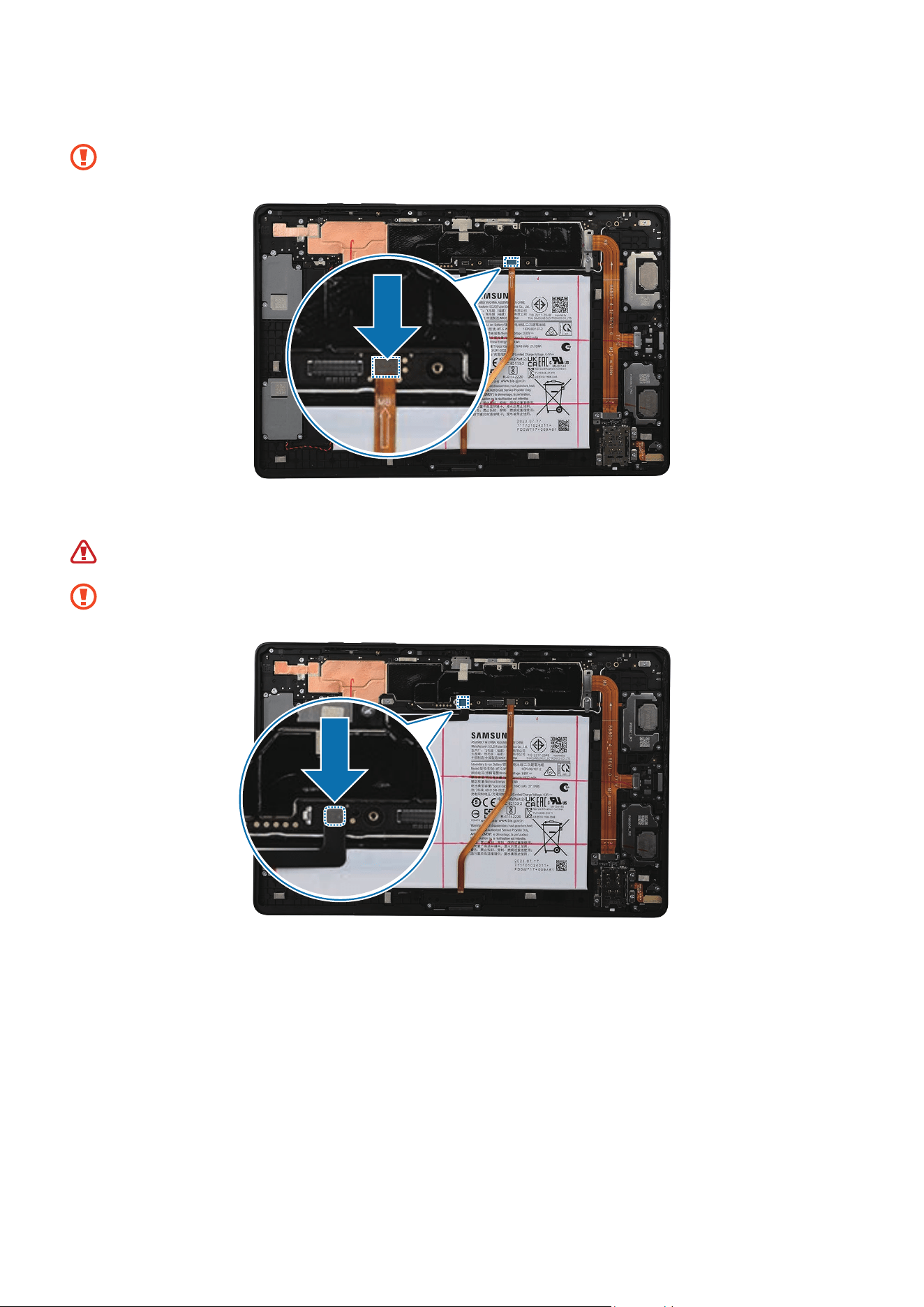

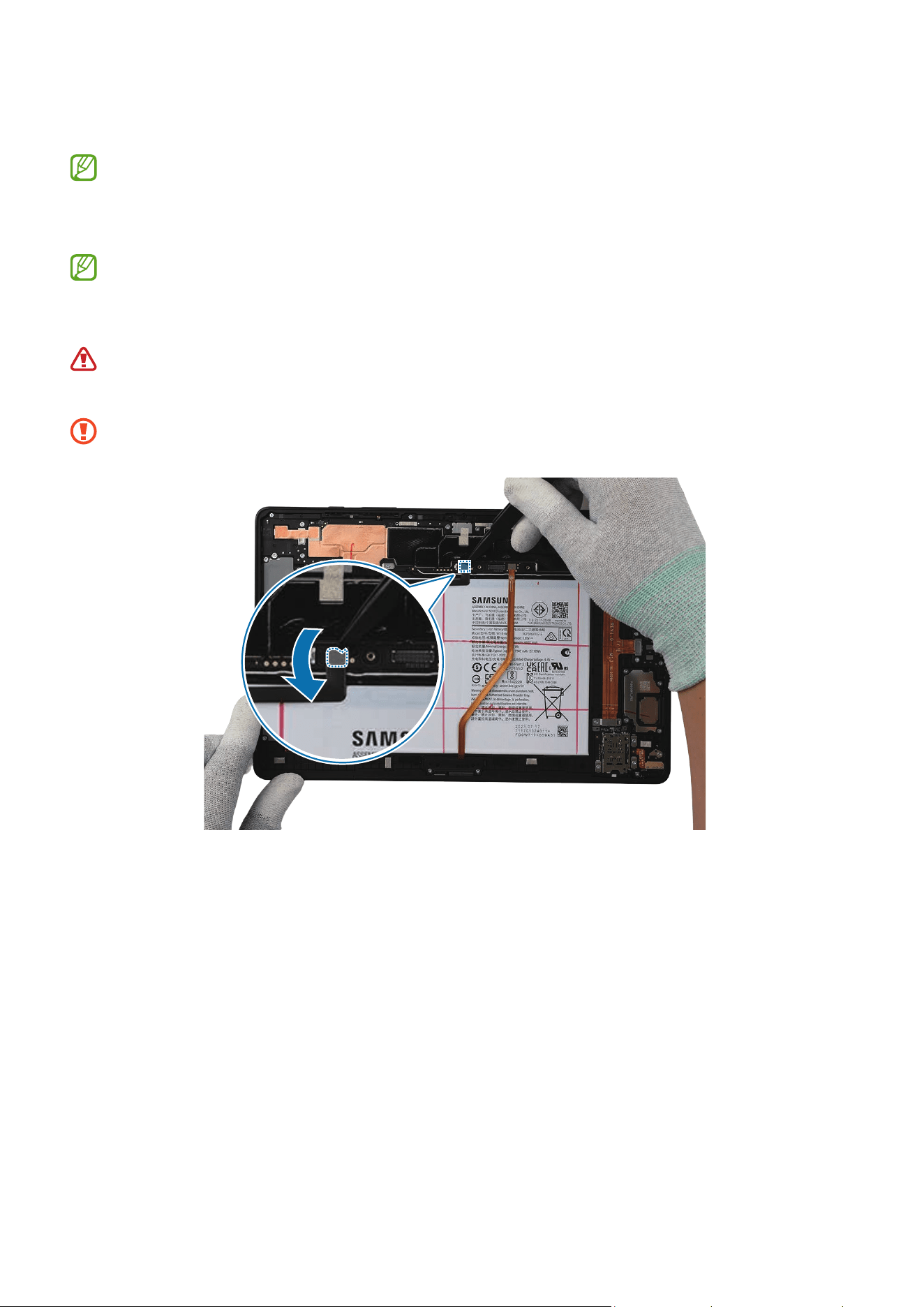

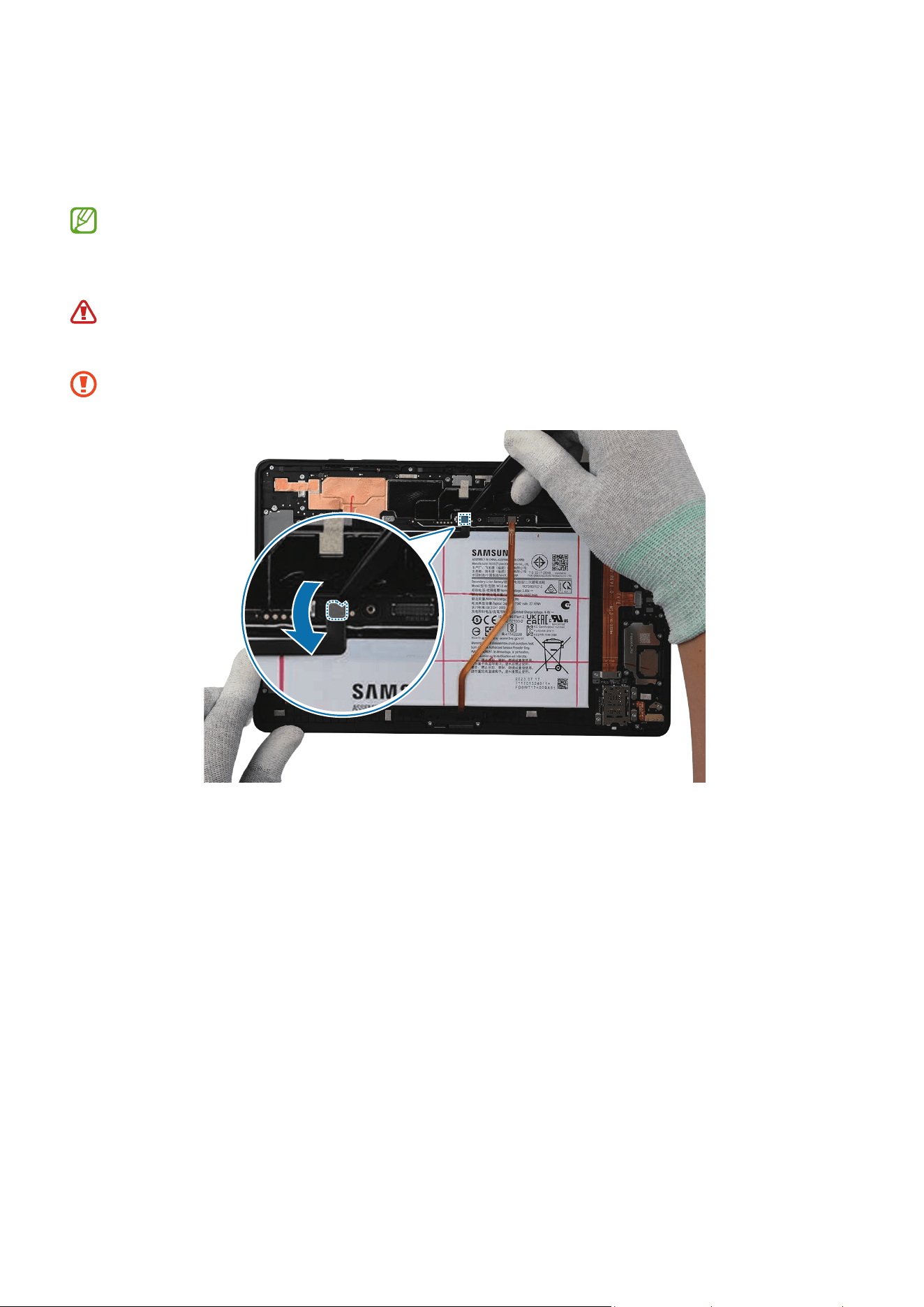

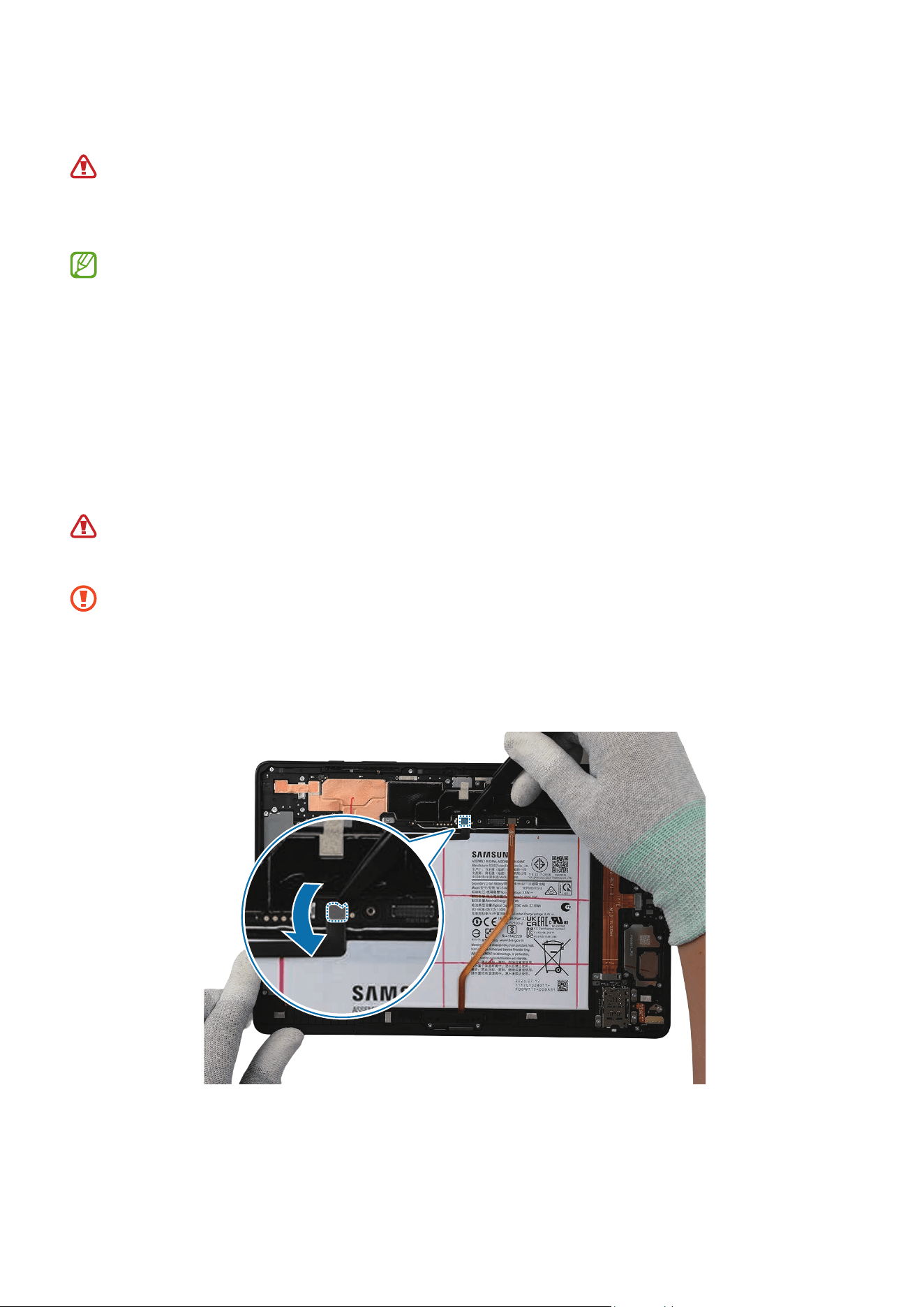

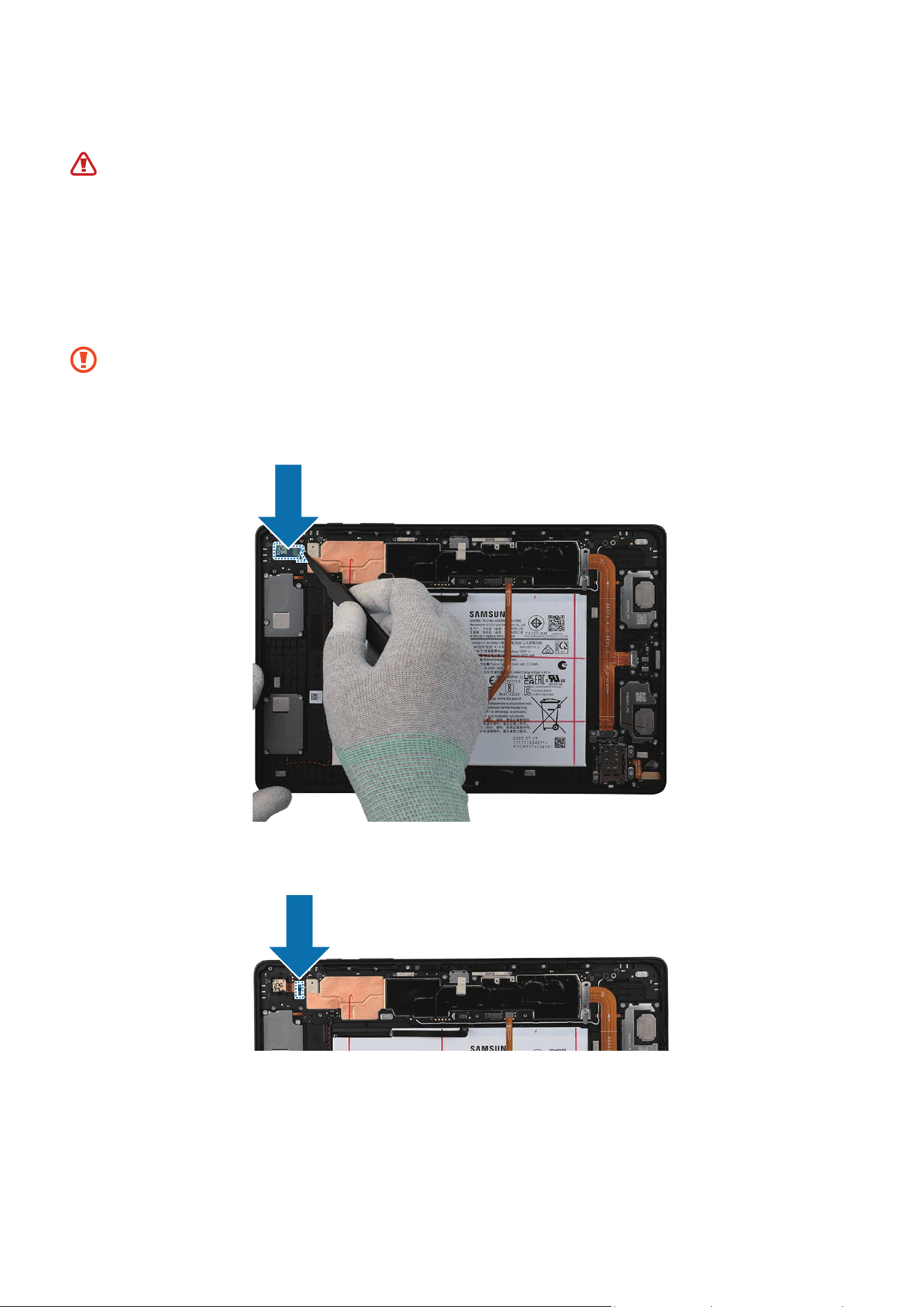

1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
92

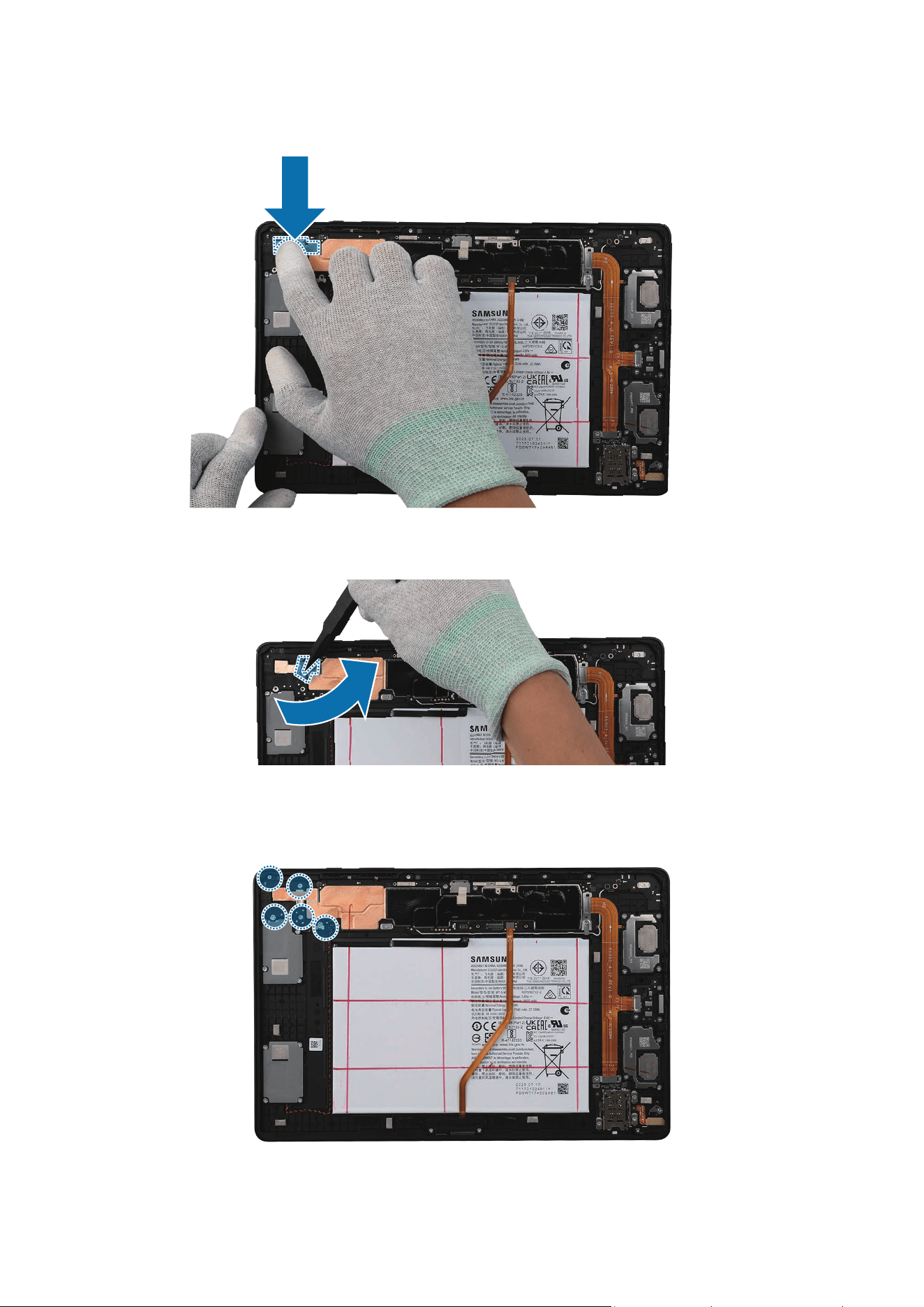

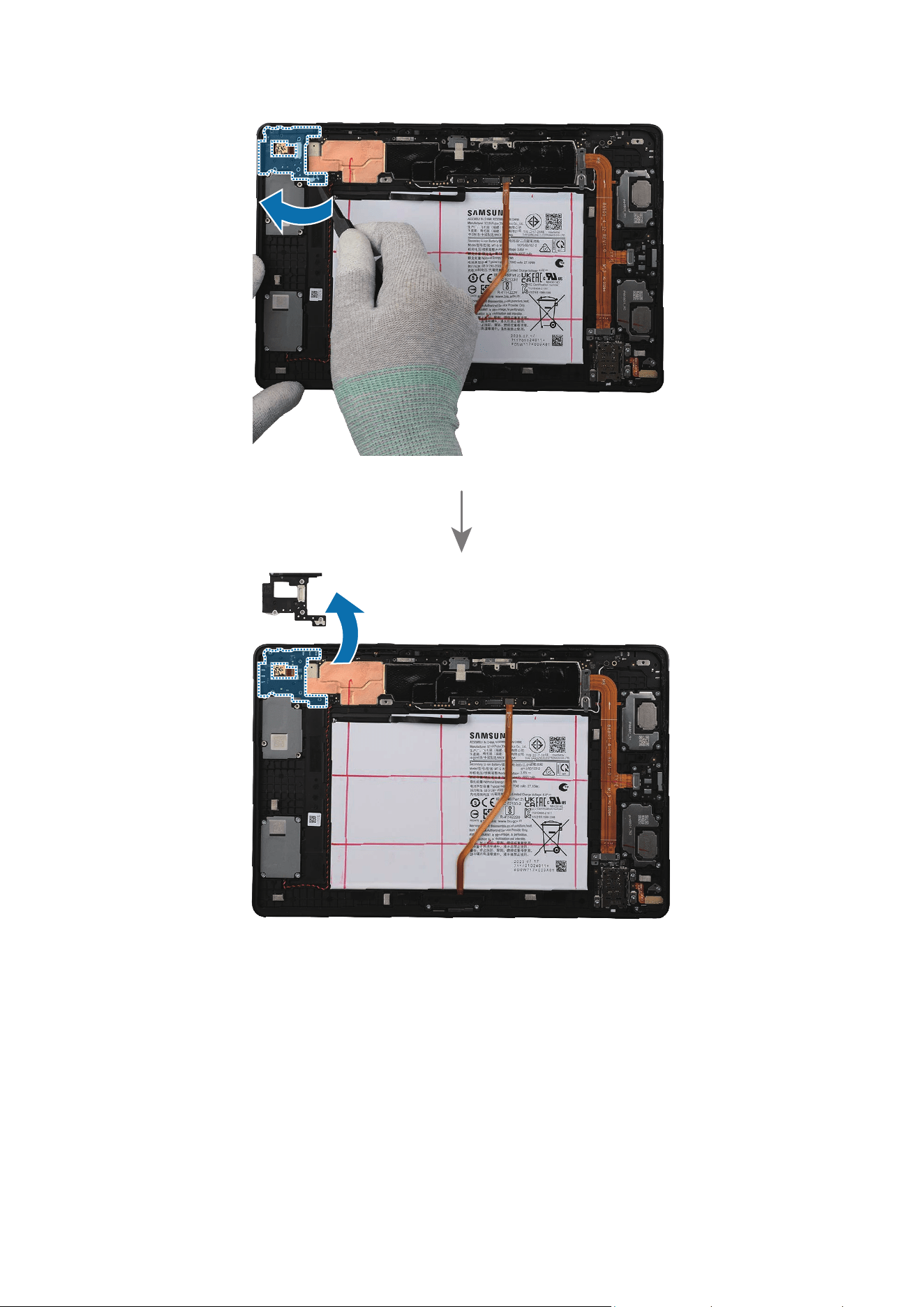

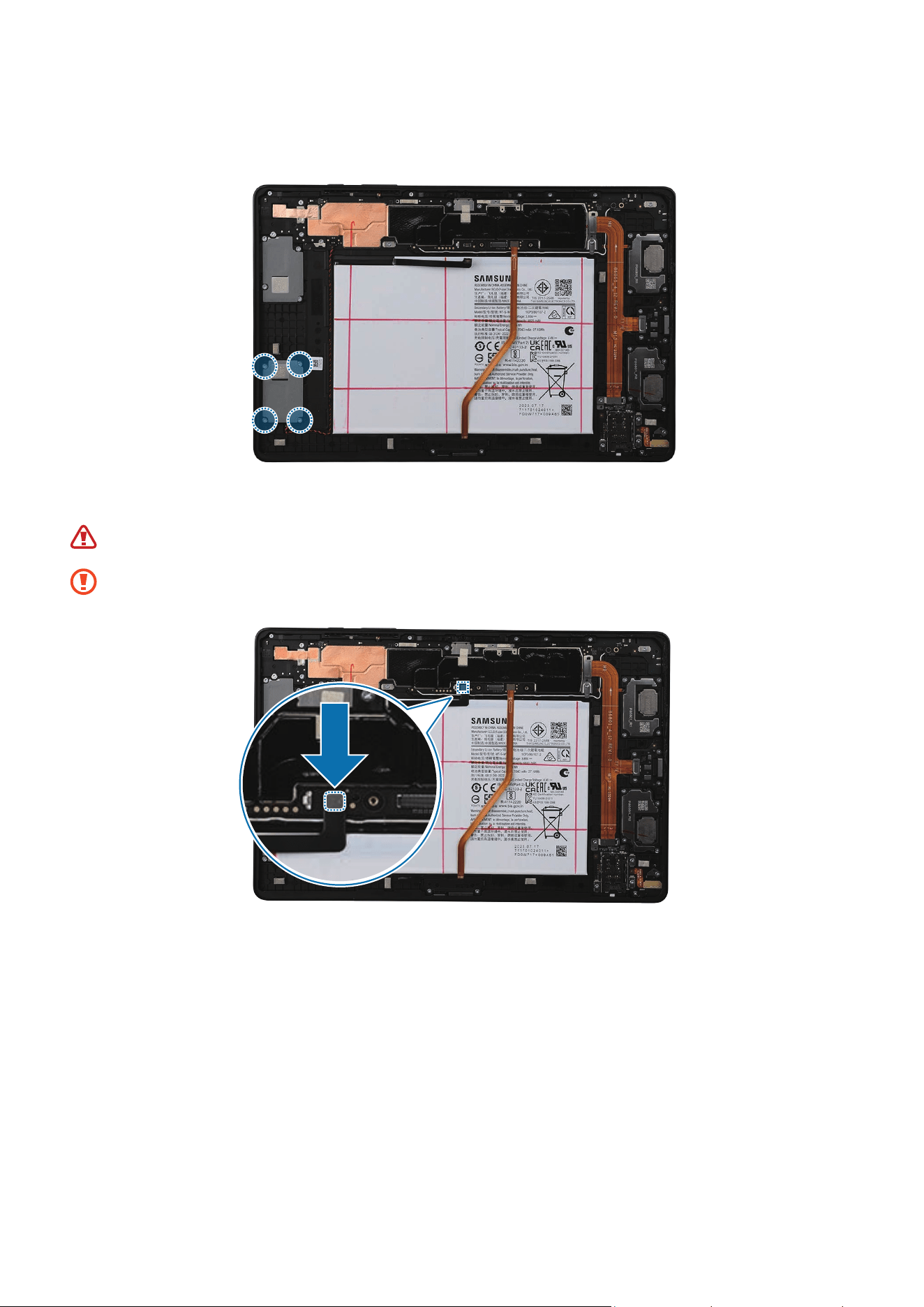

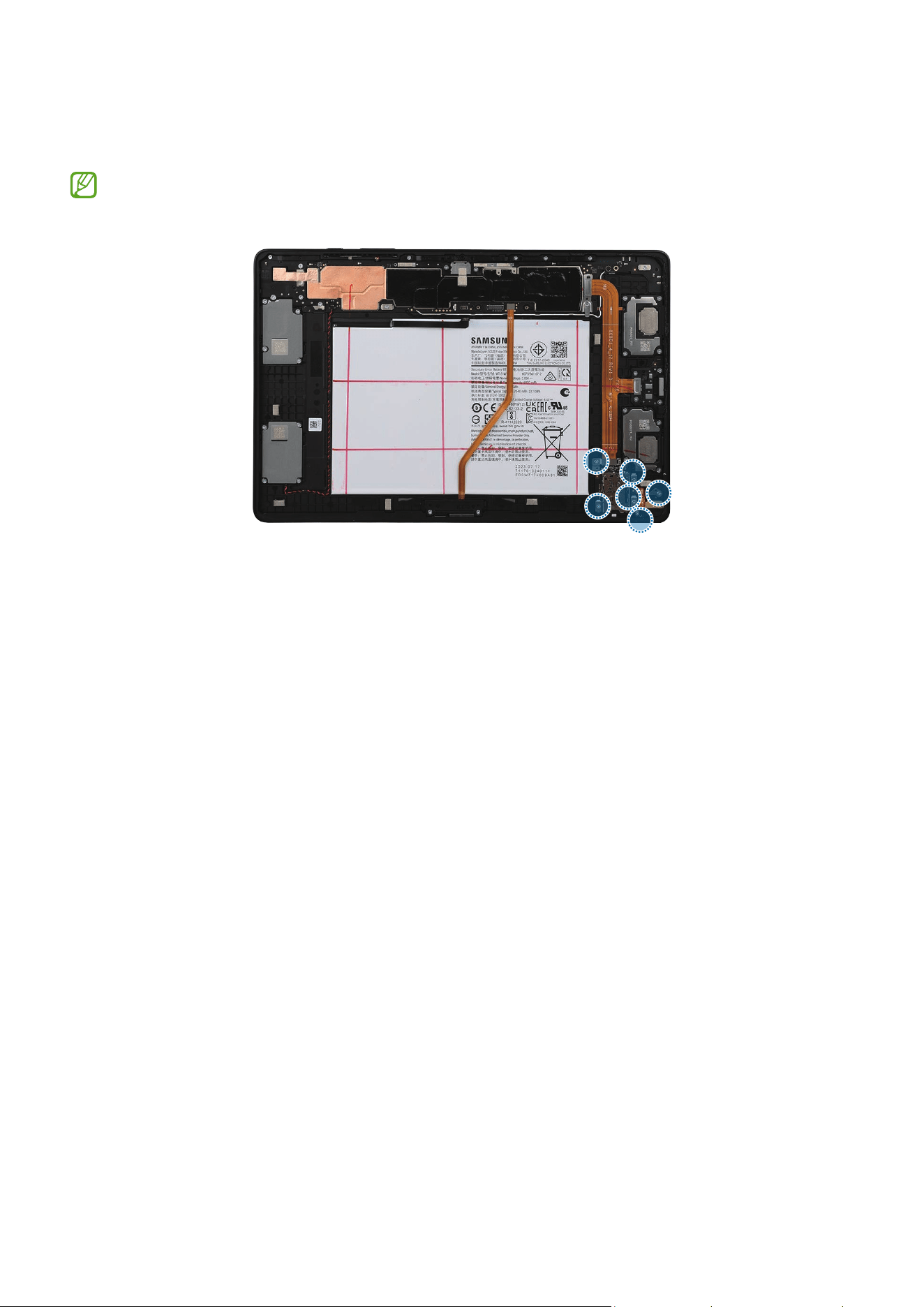

2 Check the 6 screws on the front camera bracket and remove them using a cross-head
screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.

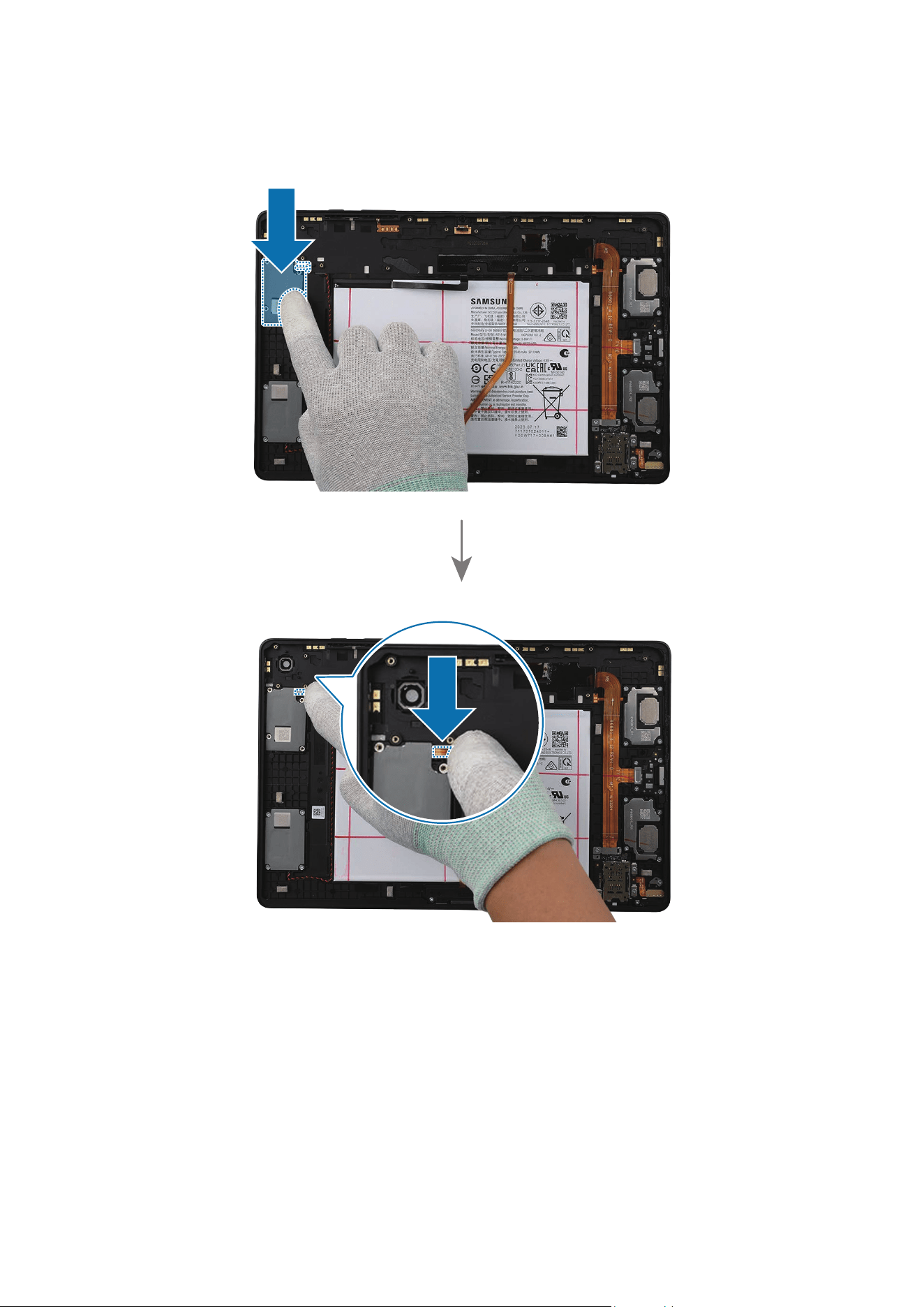

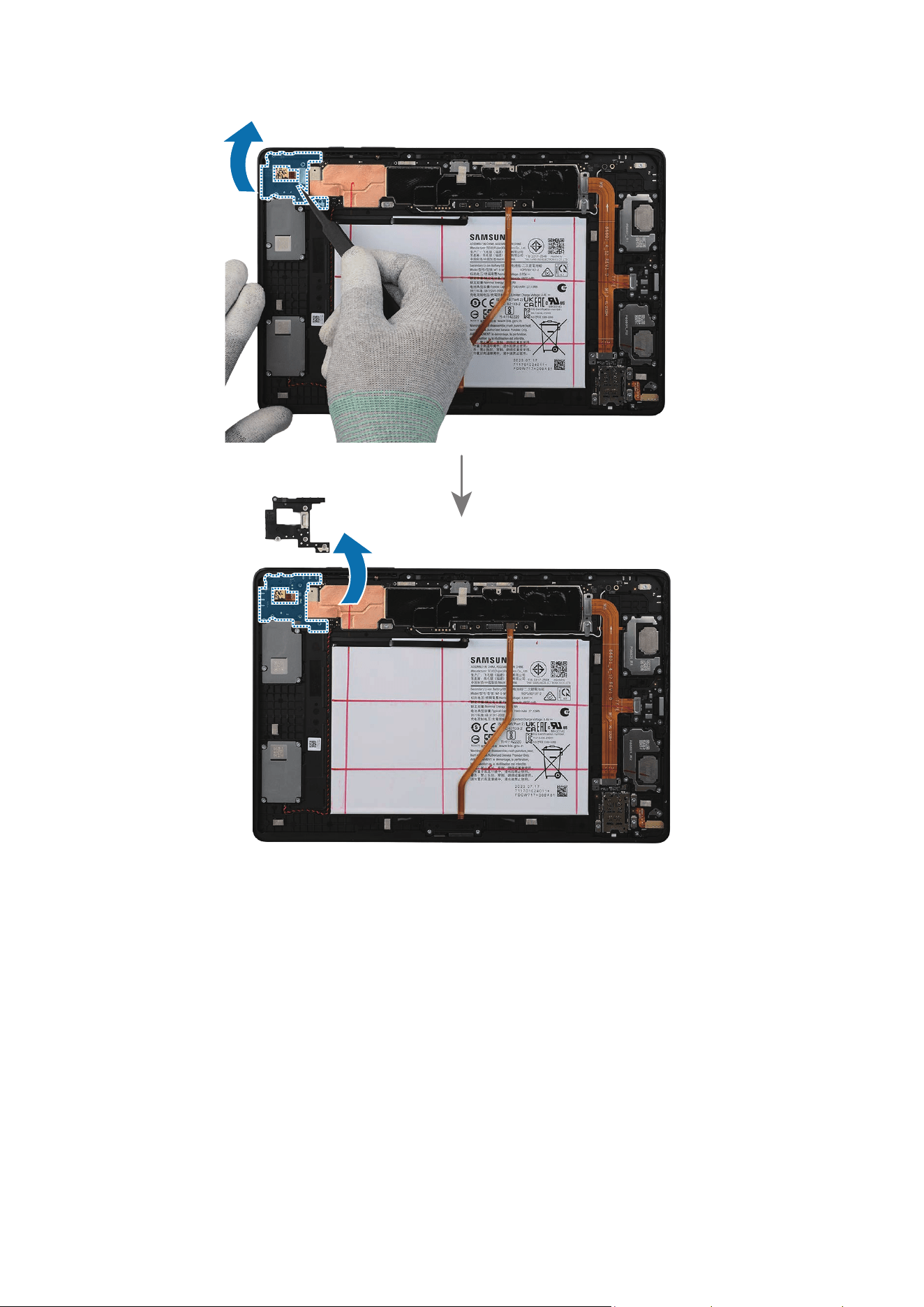

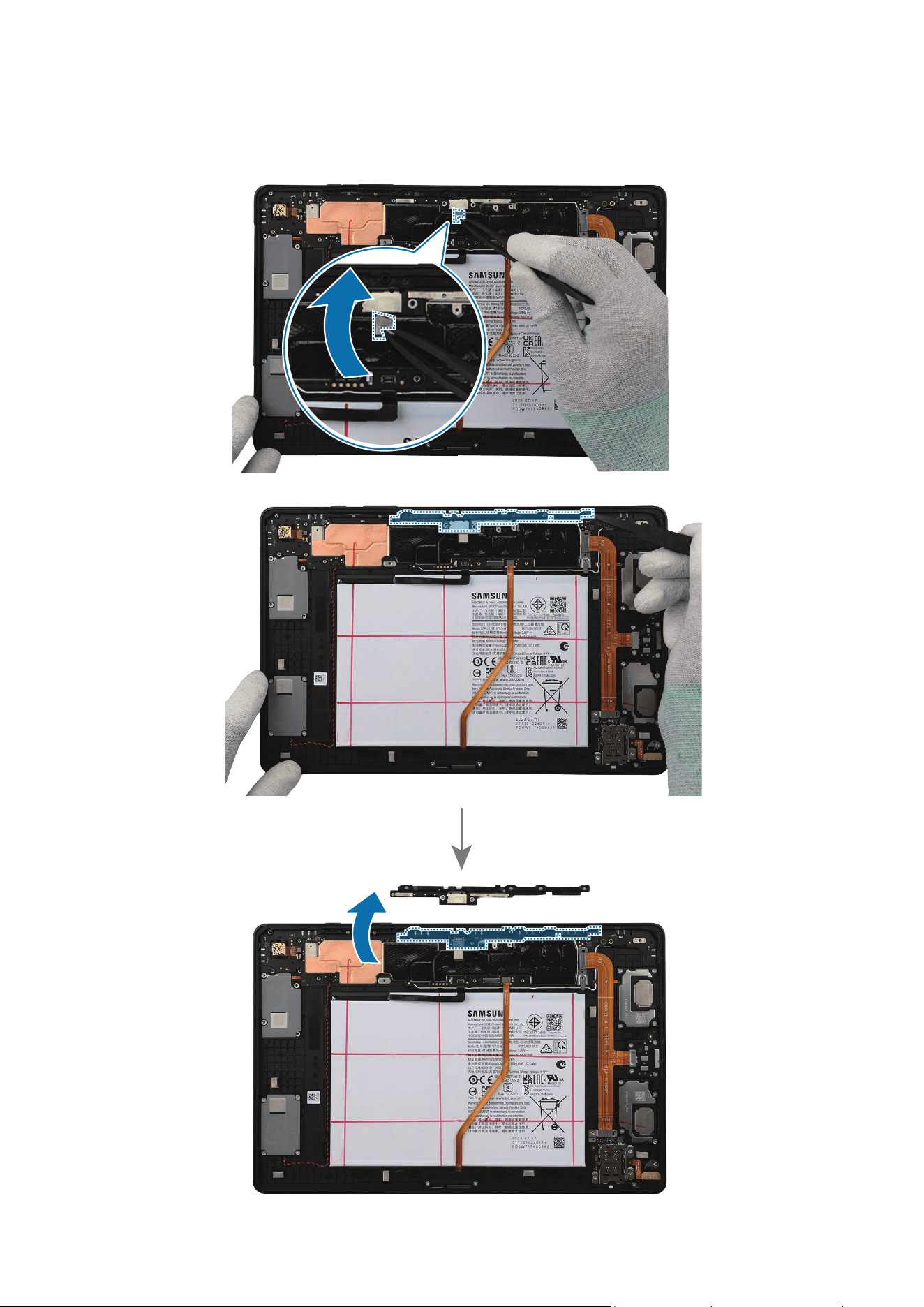

3 Using the tweezers, remove the conductive tape from the front camera bracket and
then remove the front camera bracket.
Disassembly and Assembly
93
Disassembly and Assembly
94

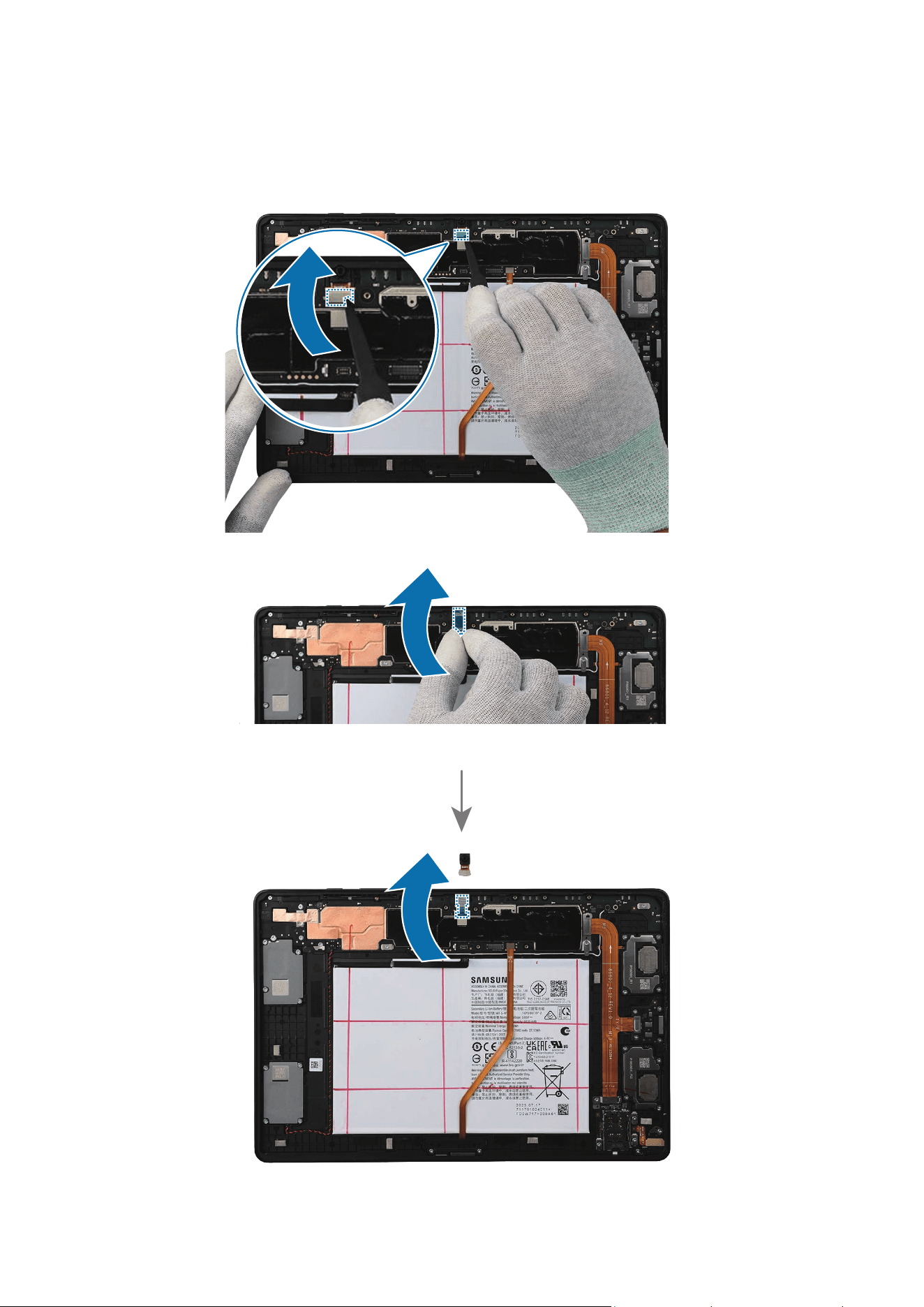

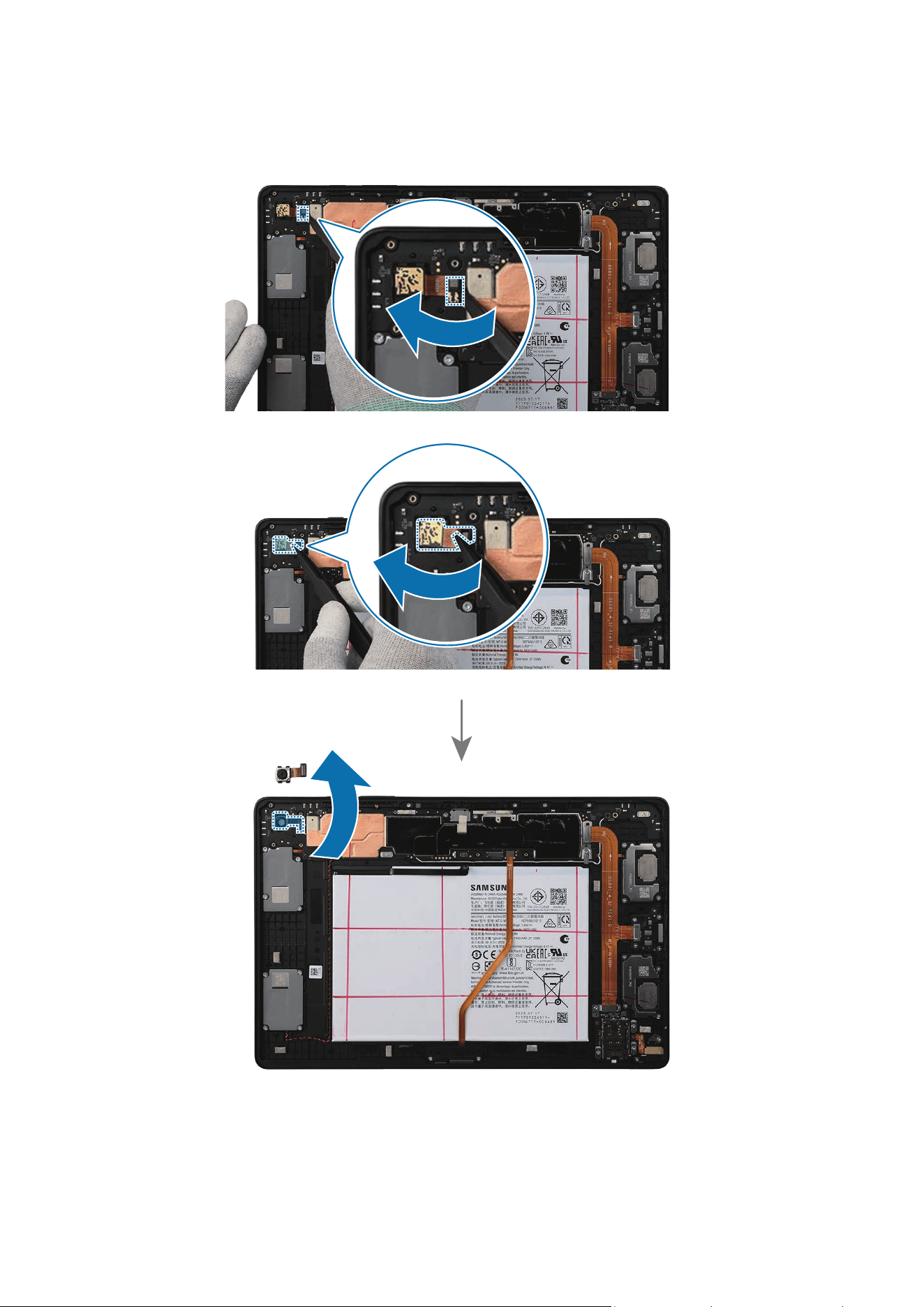

4 Using the tweezers, separate the front camera connector from the main board. Using
the tweezers or your fingers, carefully remove the front camera. Leave the camera
lens facing up.
Disassembly and Assembly
95
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
1 Remove all release films from the new front camera module. Using the tweezers and
your fingers, gently insert the front camera in the camera hole so that the lens faces
upward.
•
Be careful not to damage the camera lens and near components.
•
Be careful not to damage the main board.
•
Be careful not to damage and scratch the camera module.
Disassembly and Assembly
96

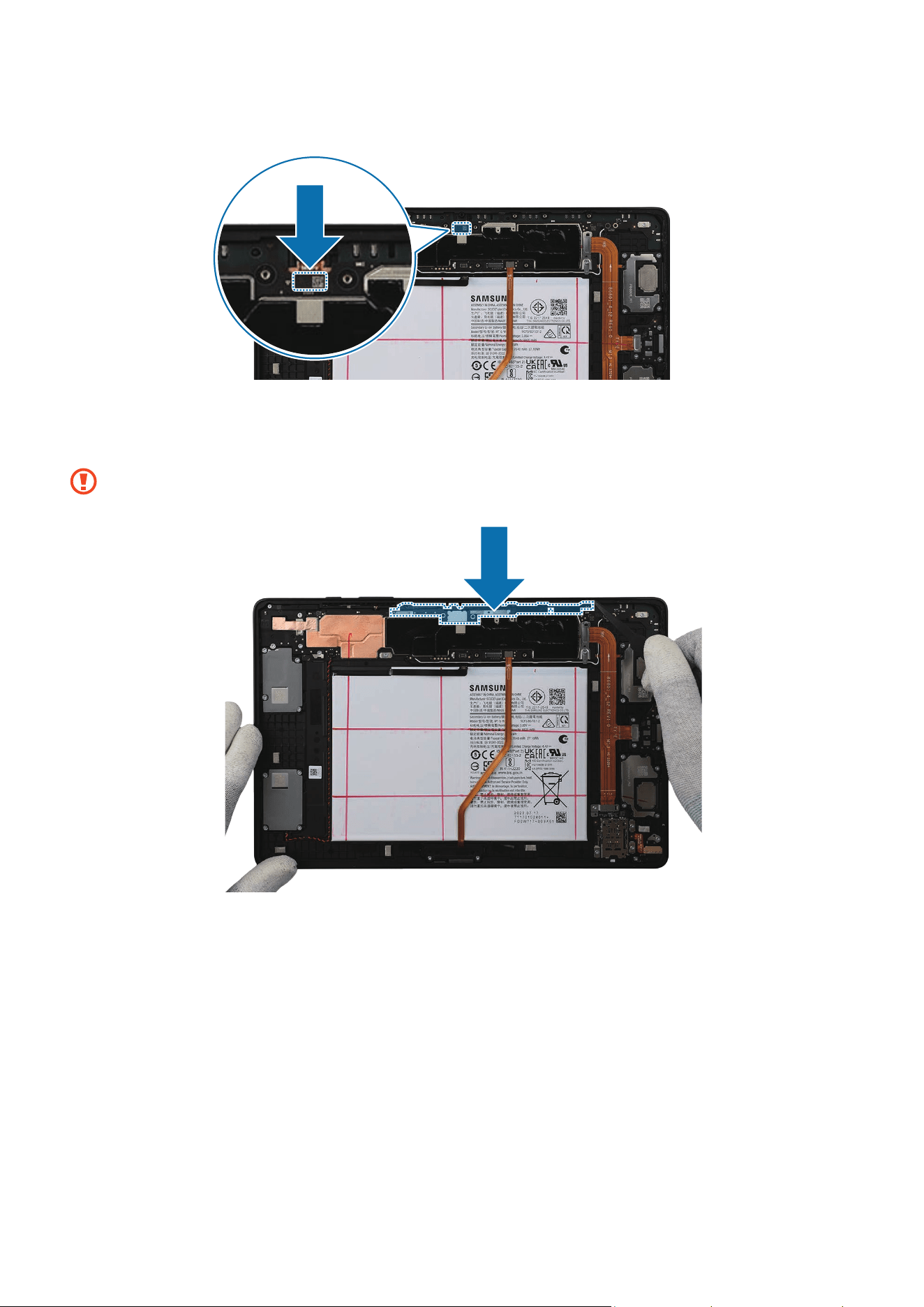

2 Connect the front camera connector carefully to the main board.
3 Using the tweezers, place the front camera bracket to the back cover module and
press down on it in its position smoothly.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
97

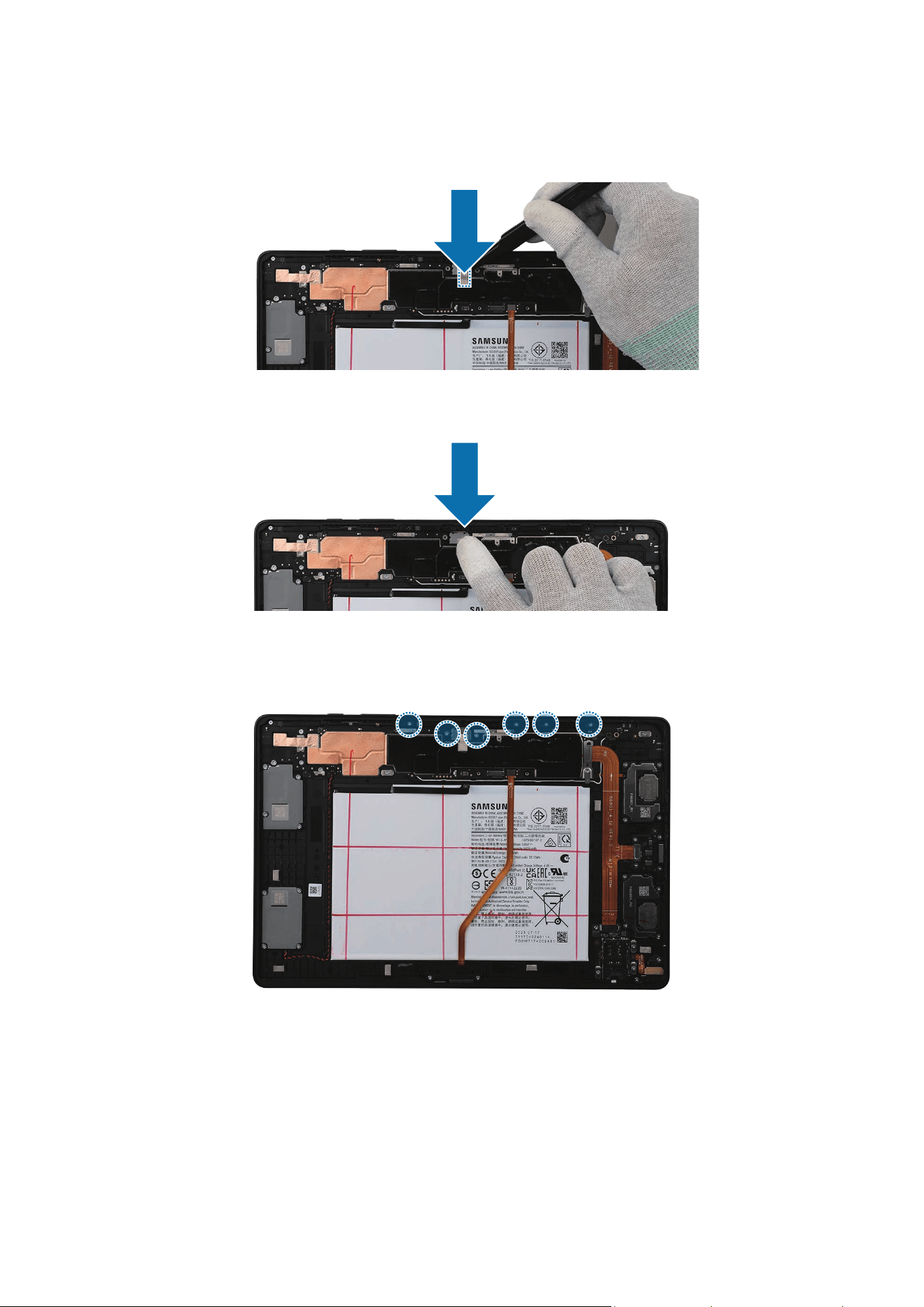

4 Using the tweezers, remove the release film of the new front camera conductive tape
and attach it on the front camera bracket.
5 Gently press down the conductive tape to ensure a secure fit.
6 Check the screw 24530A (6 ea) at the 6 different points on the front camera bracket
and fasten them using a cross-head screwdriver.
Disassembly and Assembly
98
7 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
8 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
99
Rear Camera
Disassembly
Remove the Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
100

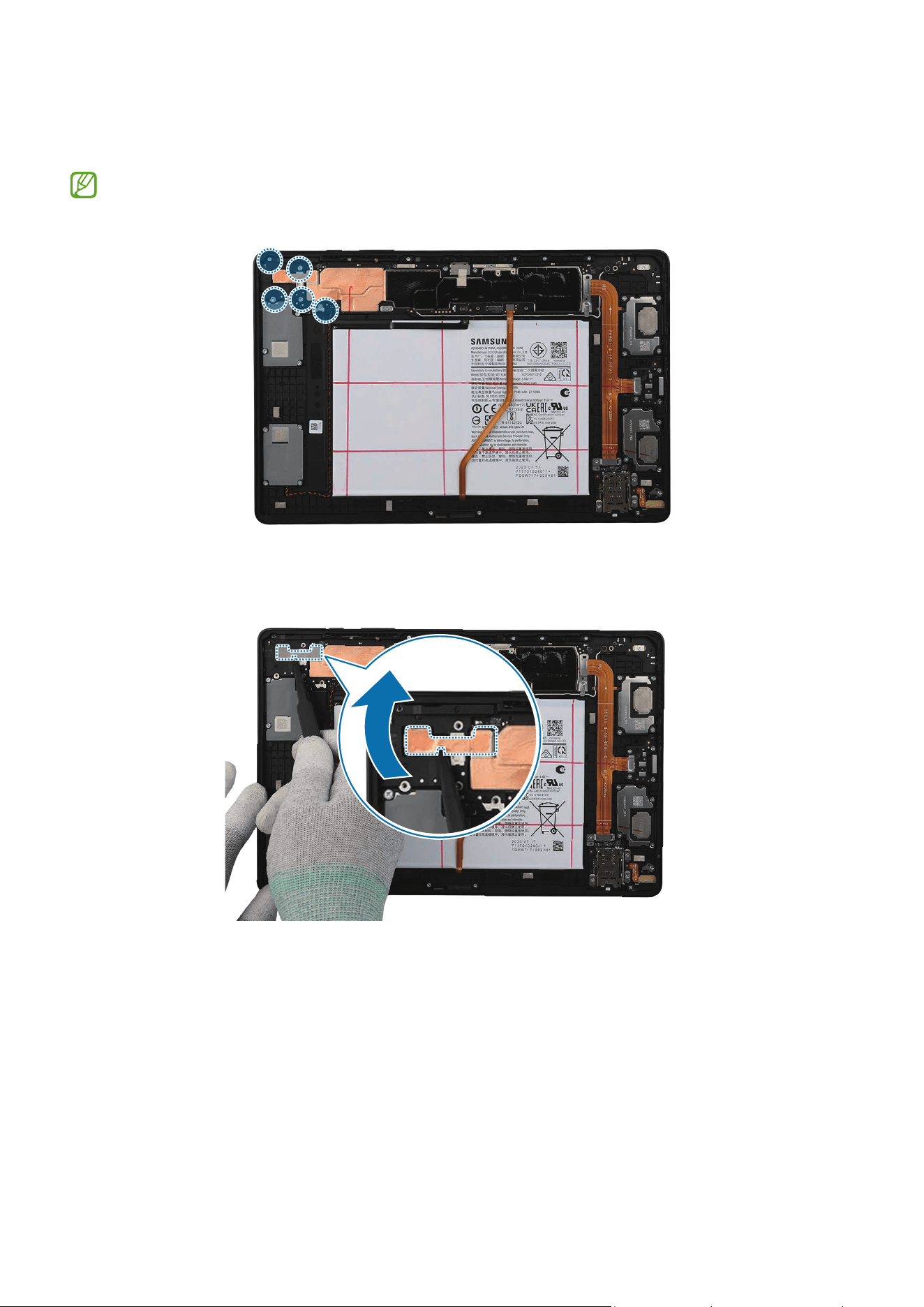

2 Check the 5 screws on the rear camera bracket and remove them using a cross-head
screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
3 Using the tweezers, remove the copper foil from the rear camera bracket and then
remove the rear camera bracket.
Disassembly and Assembly
101
Disassembly and Assembly
102
4 Using the tweezers, disconnect the rear camera connector from main board and
remove the rear camera carefully. Leave the camera lens facing up.
Disassembly and Assembly
103
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
1 Remove all release films from the new rear camera module. Using the tweezers and
your fingers, gently insert the rear camera into the camera hole so that the lens faces
backward.
•
Be careful not to damage the camera lens and near components.
•
Be careful not to damage the main board.
•
Be careful not to damage and scratch the camera module.
2 Connect the rear camera connector carefully on the main board.
Disassembly and Assembly
104

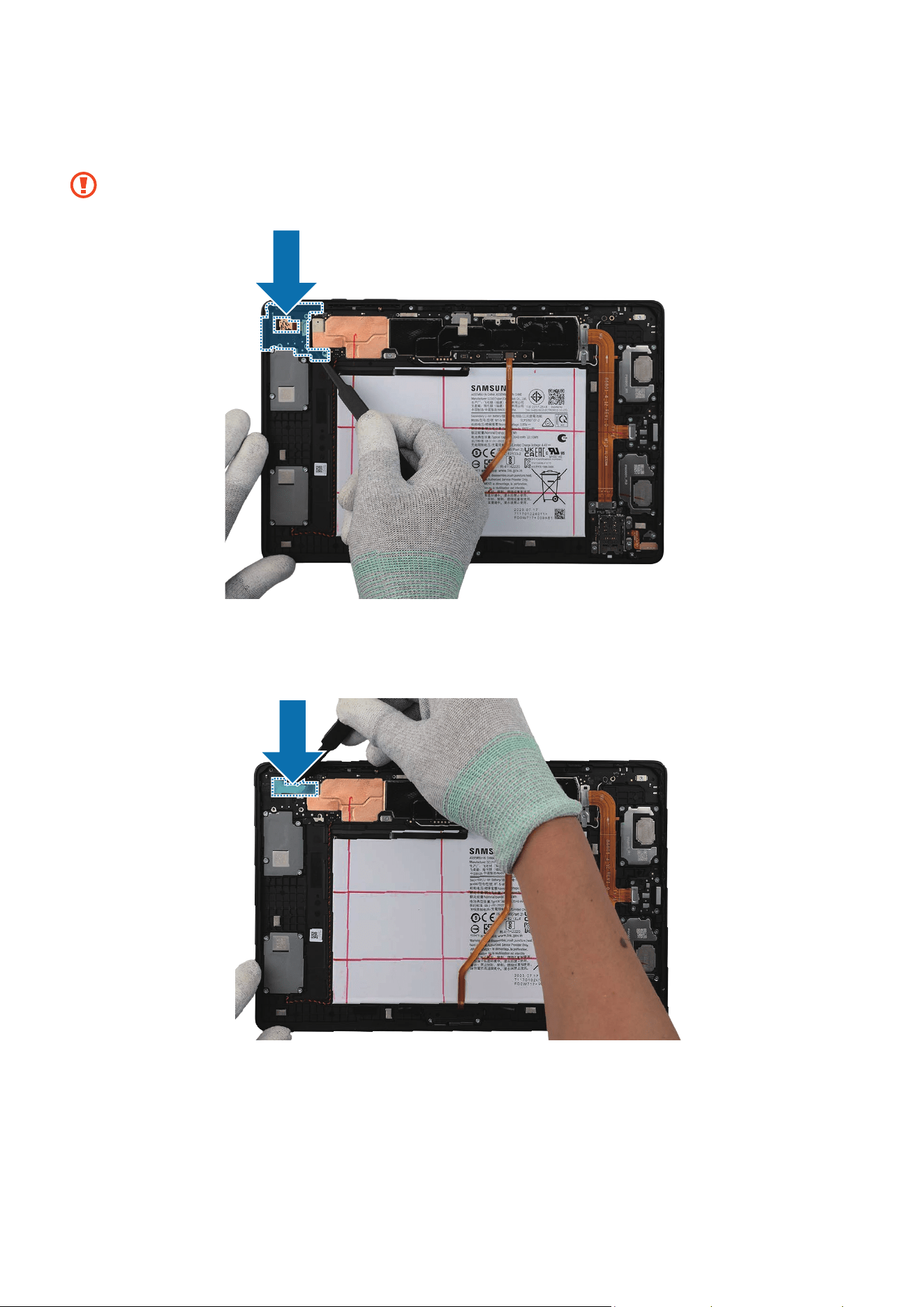

3 Using the tweezers, place the rear camera bracket to the back cover module and
press down on it in its position smoothly.
Be careful not to damage the bracket and near components.
4 Using the tweezers, remove the release film of the new rear camera copper foil and
attach it on the rear camera bracket.
Disassembly and Assembly
105
5 Gently press down the copper foil to ensure a secure fit.
6 Remove the release film from the attached copper foil.
7 Check the screw 24530A (5 ea) at the 5 different points on the rear camera bracket
and fasten them using a cross-head screwdriver.
Disassembly and Assembly
106
8 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
9 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
107
Charging Port and Microphone
The microphone is built into the charging port module.
Disassembly
Remove the Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
108

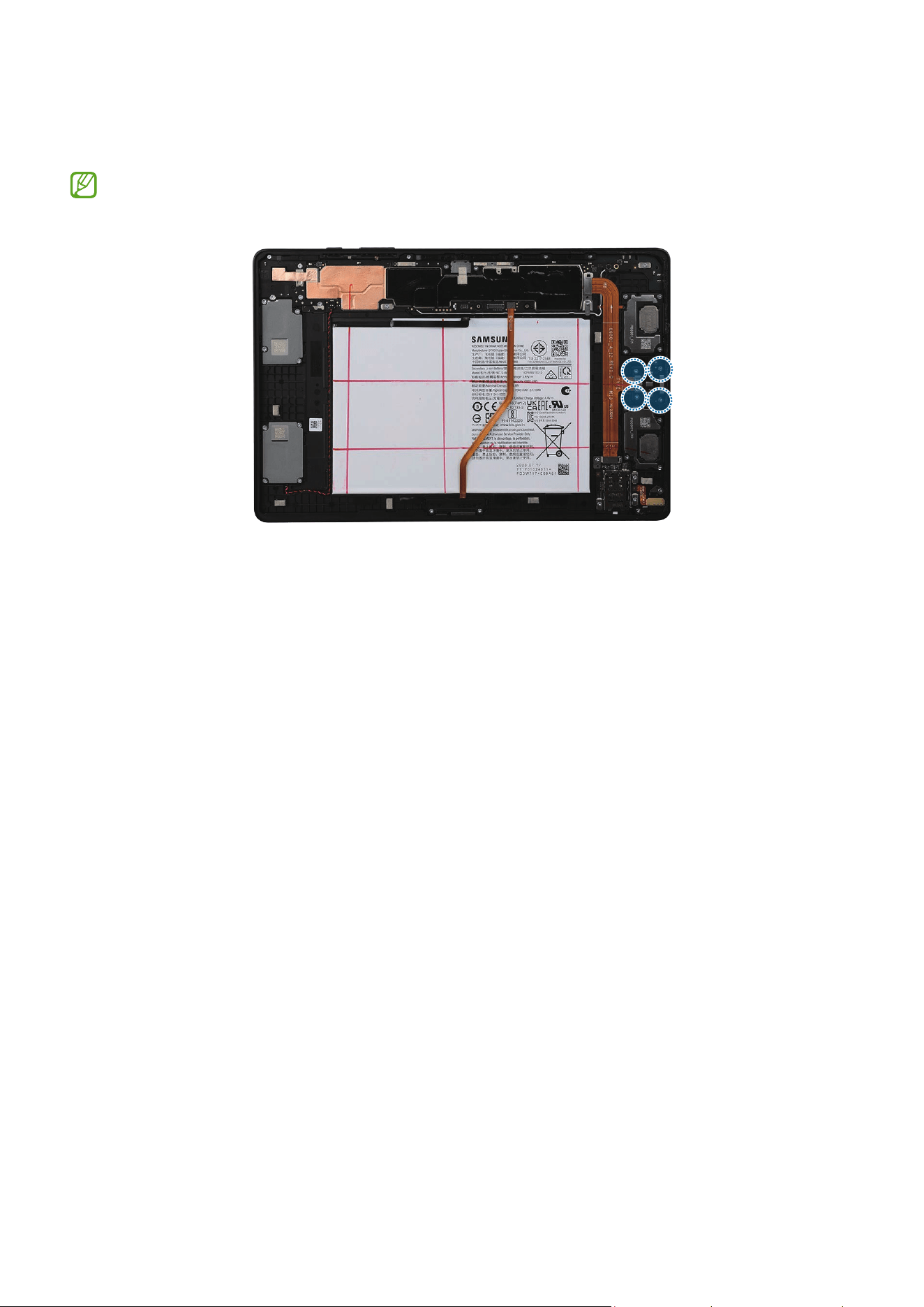

2 Check the 4 screws on the charging port bracket and remove them using a
cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
109

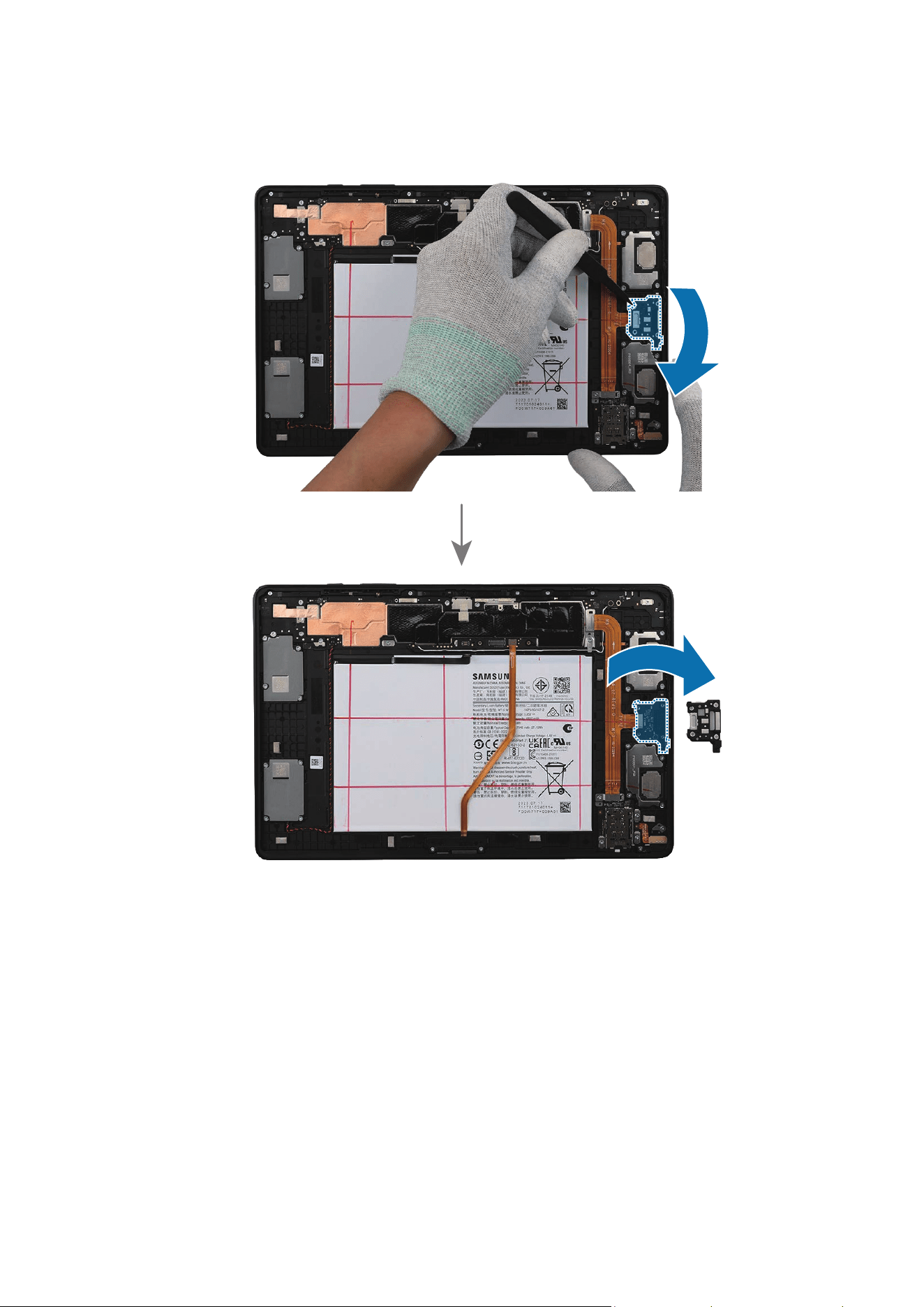

3 Using the tweezers, lift up the charging port bracket very slowly and separate it
completely from the back cover module.
Disassembly and Assembly
110

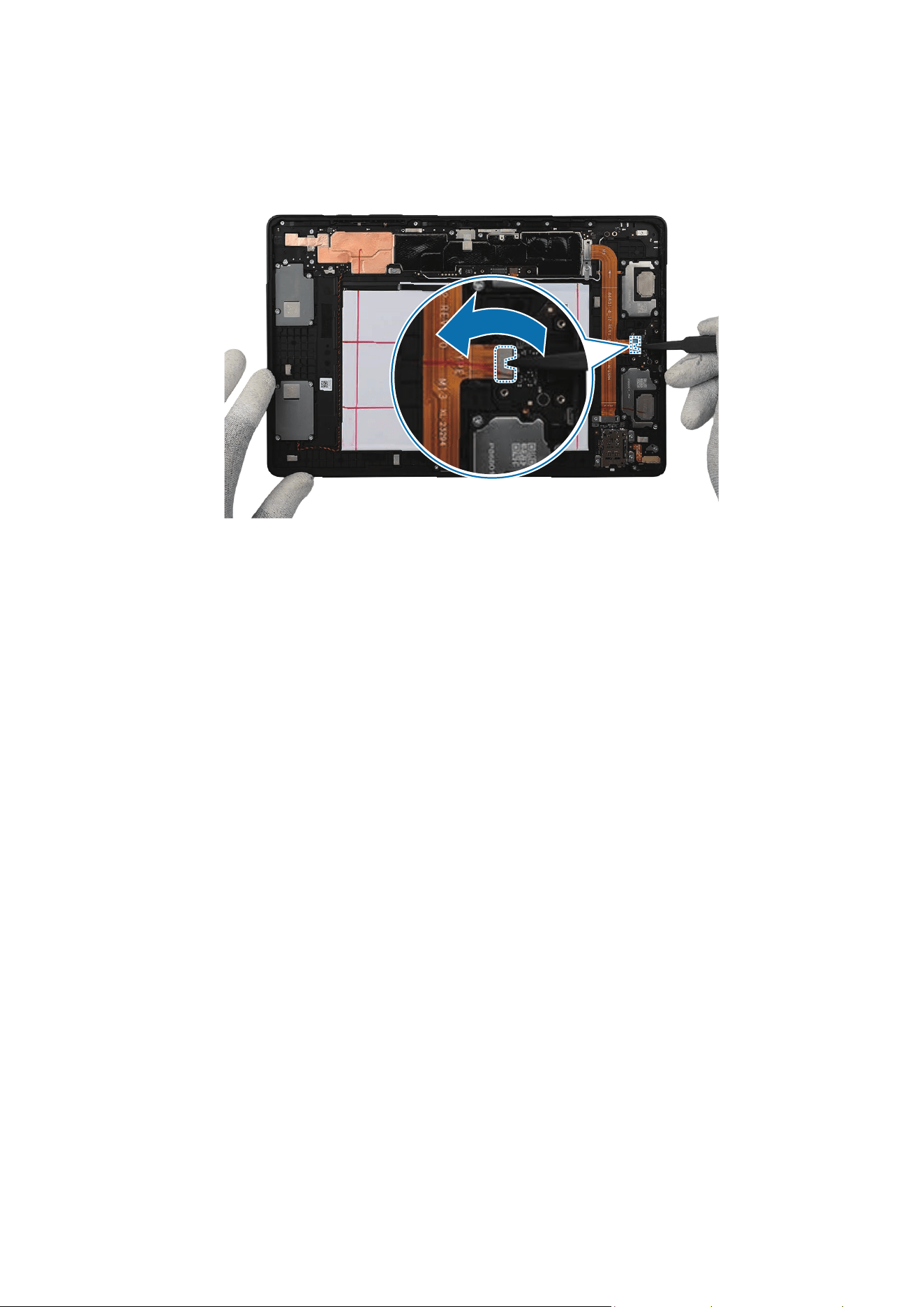

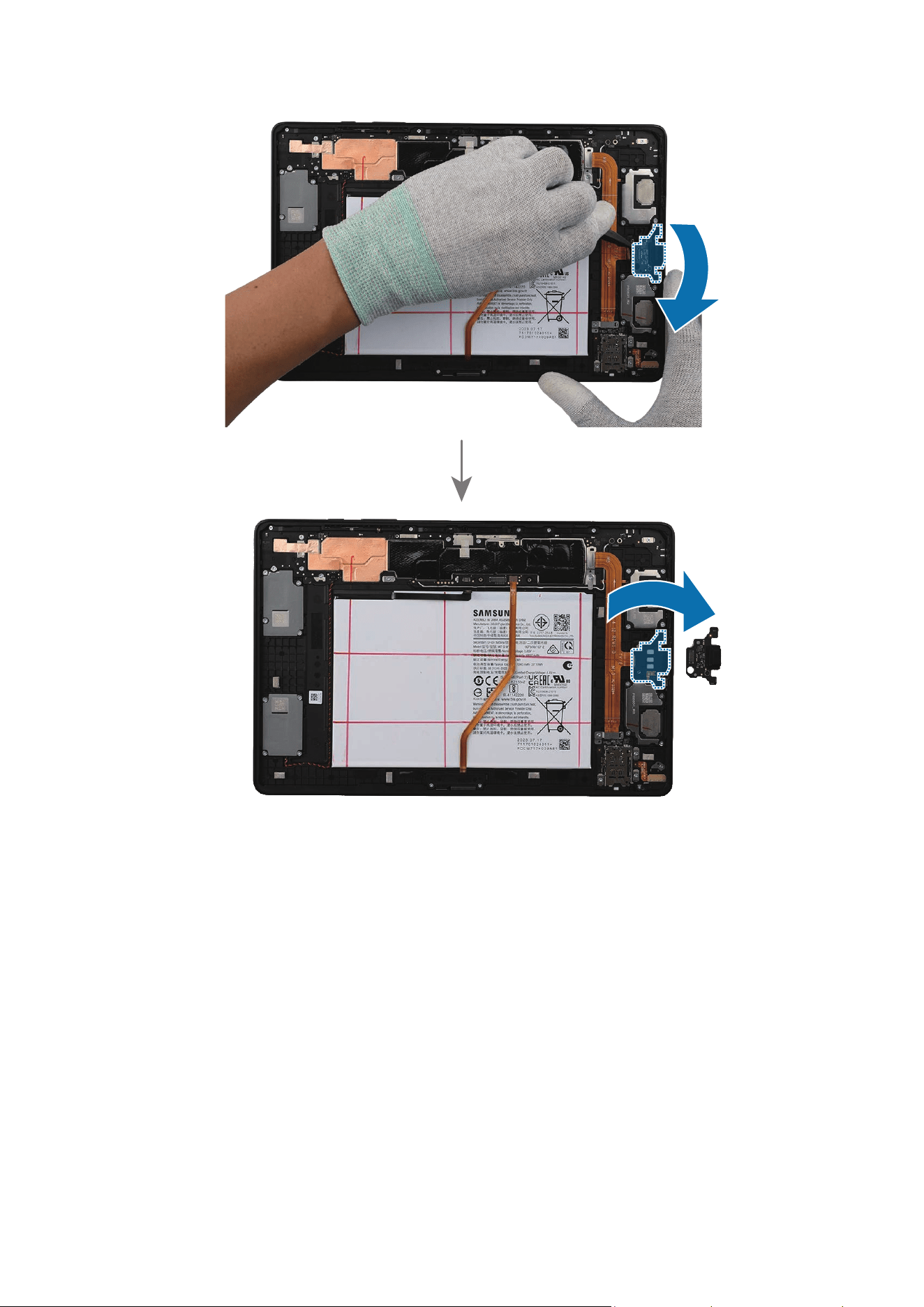

4 Using the tweezers, separate the flex cable connector from the charging port. Using
the tweezers, lift up on the separator groove of the charging port and separate it
from the back cover module slowly.
Disassembly and Assembly
111
Disassembly and Assembly
112
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

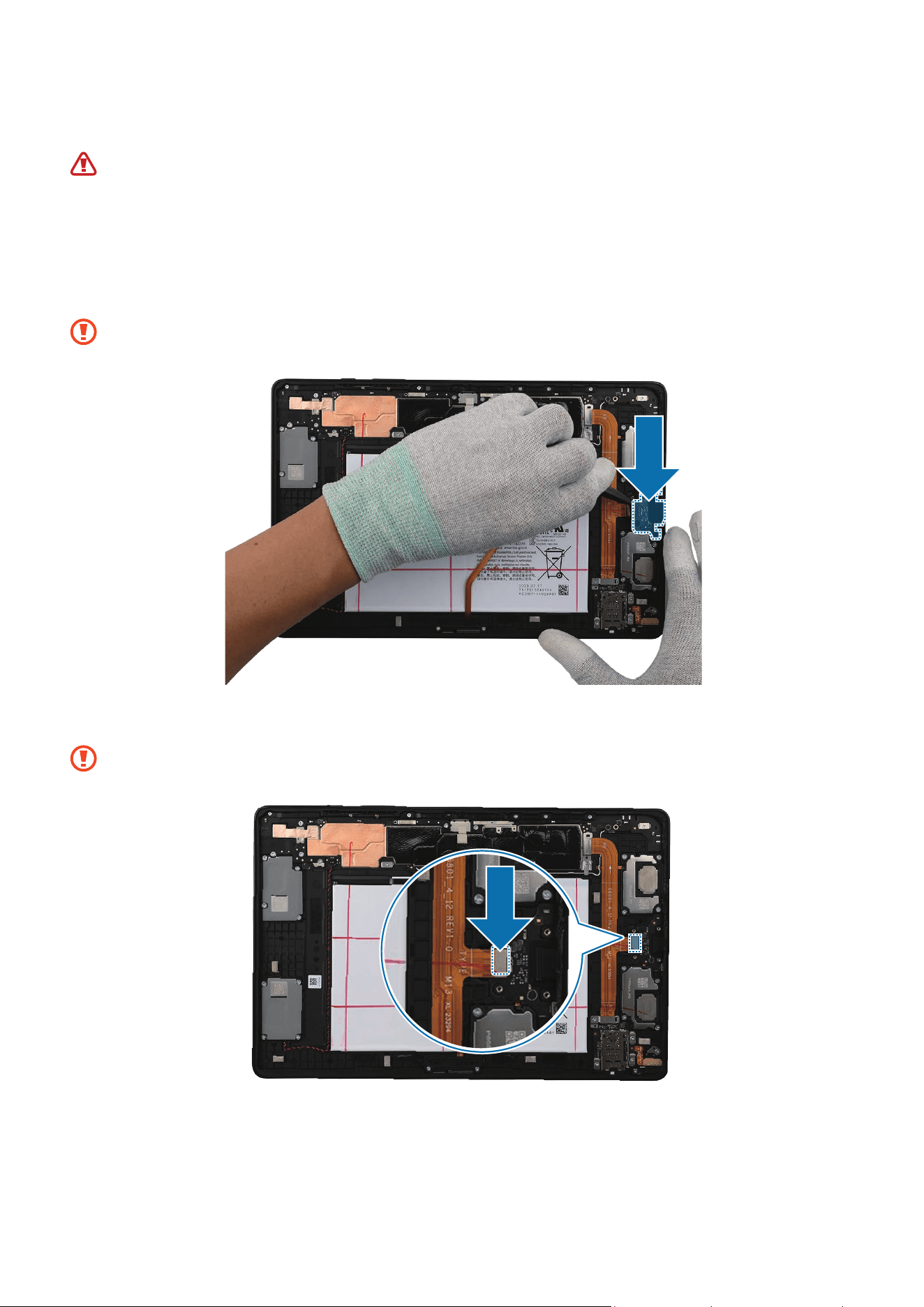

1 Insert the charging port module into the exact position and press down on it in its
position smoothly.
Be careful not to damage the charging port and near components.
2 Connect the flex cable connector on the charging port.
When connecting the connector, be careful not to damage the cable.
Disassembly and Assembly
113
3 Using the tweezers, place the charging port bracket to the back cover module and
press down on it in its position smoothly.
Be careful not to damage the bracket.
4 Check the screw 24530A (4 ea) at the 4 different points on the charging port bracket
and fasten them using a cross-head screwdriver.
Disassembly and Assembly
114
5 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
6 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
115
Headphone Jack
Disassembly
Remove the SIM Card Tray and Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
116

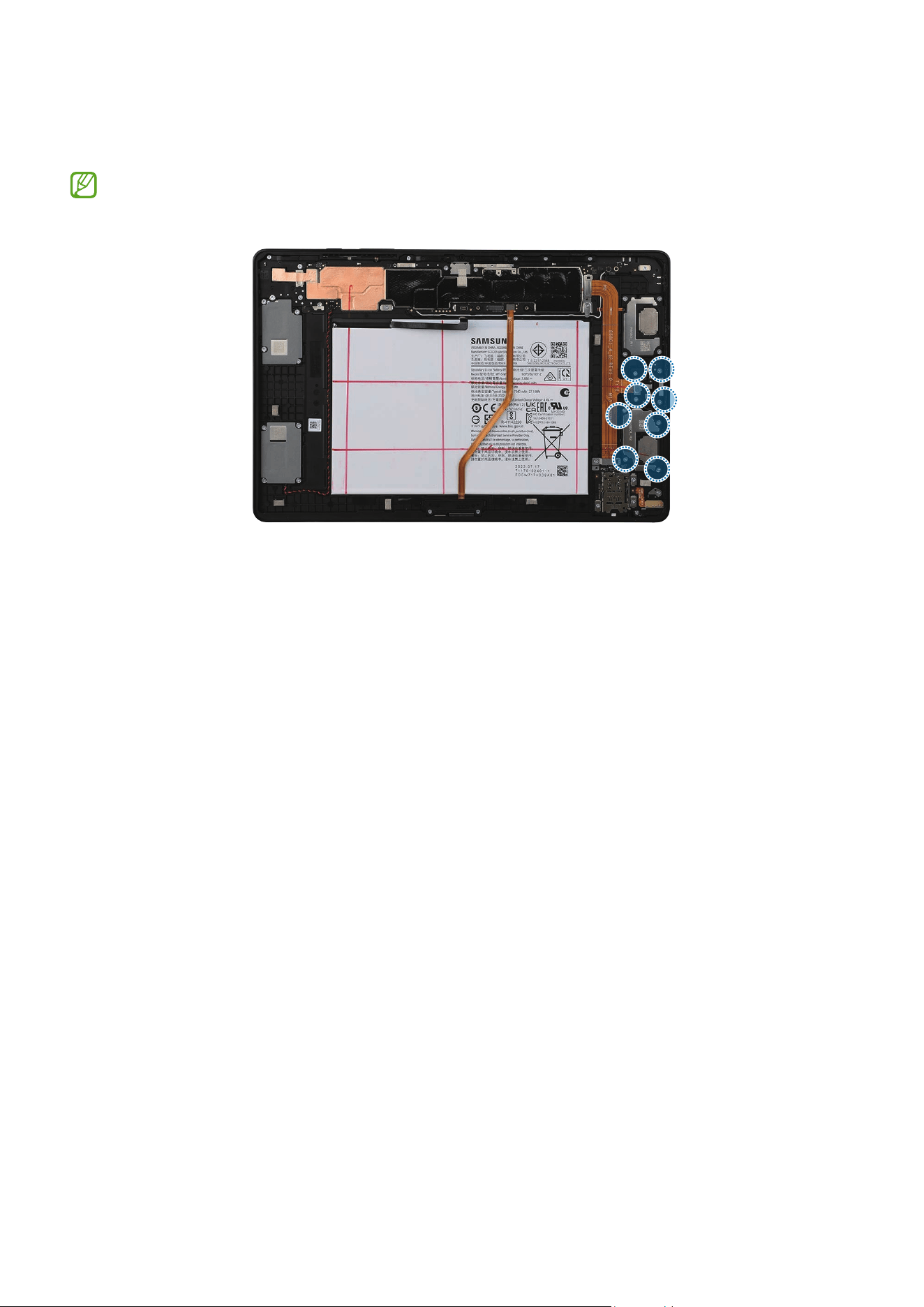

2 Check the 6 screws around the headphone jack module and remove them using a
cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
117

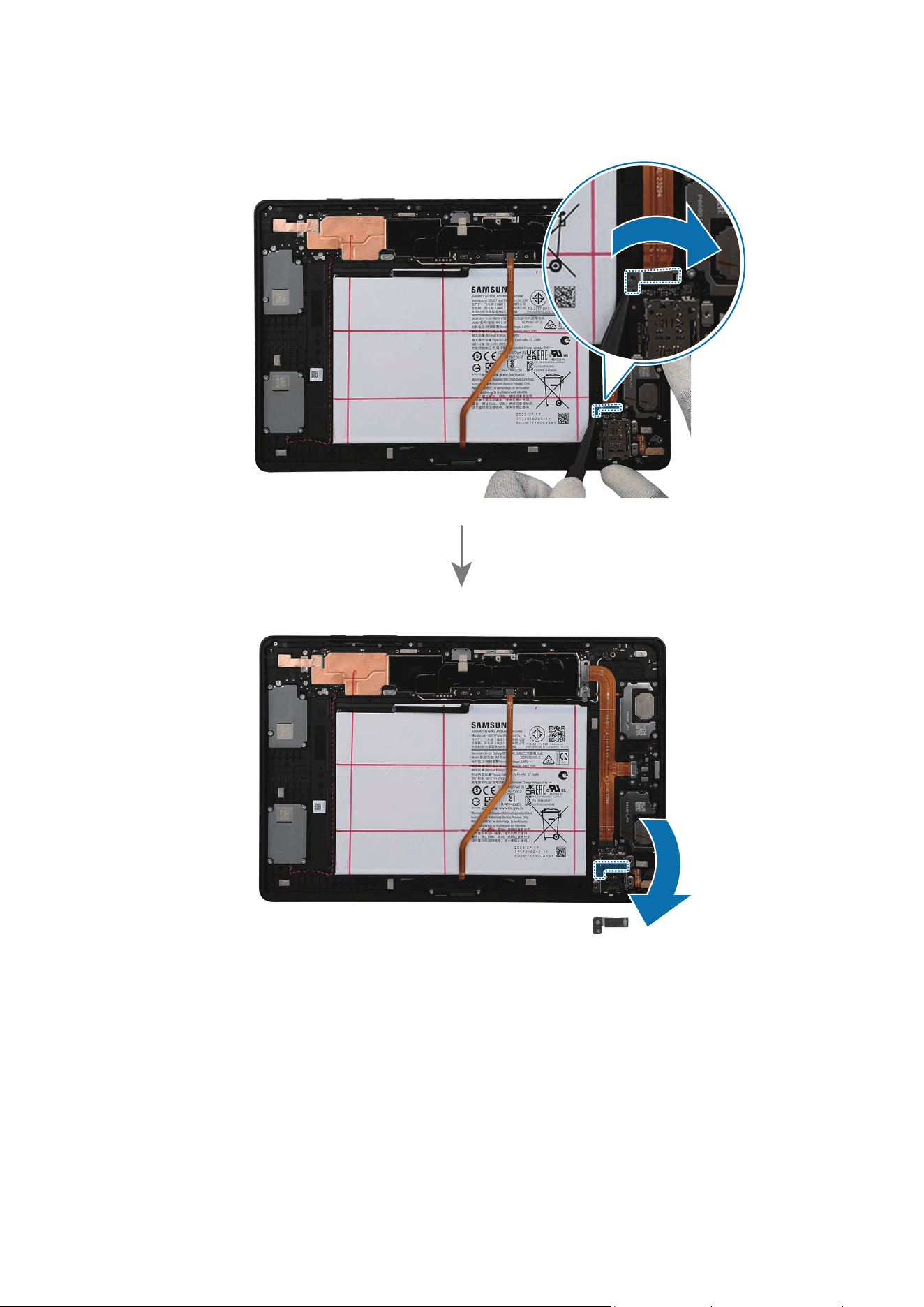

3 Using the tweezers, remove the bottom metal plate of the flex cable.
Disassembly and Assembly
118

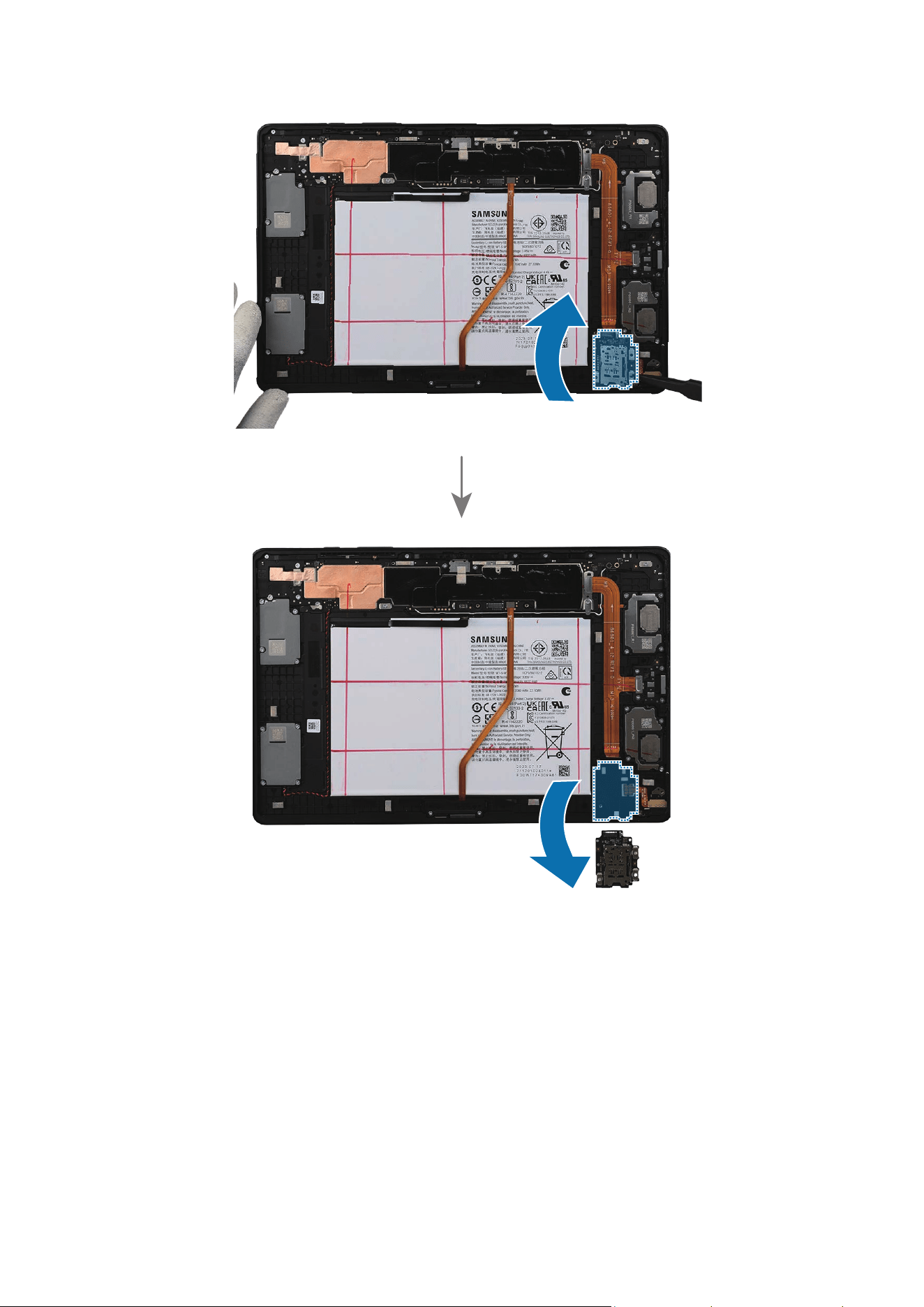

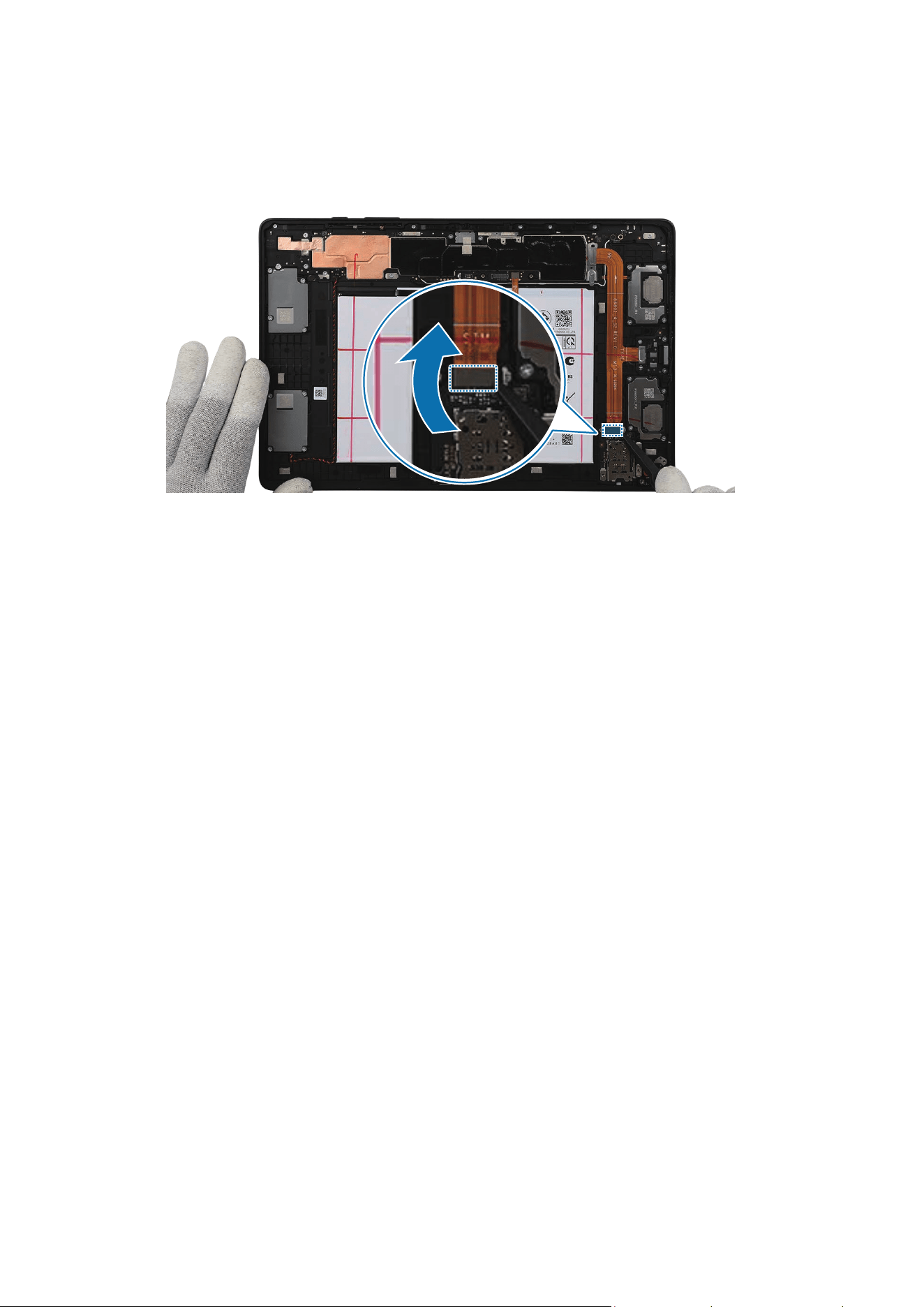

4 Using the tweezers, disconnect the flex cable connector from the SIM card socket.
Using the tweezers, lift up on the separator groove of the SIM card socket and
separate it from the back cover module slowly.
Disassembly and Assembly
119
Disassembly and Assembly
120

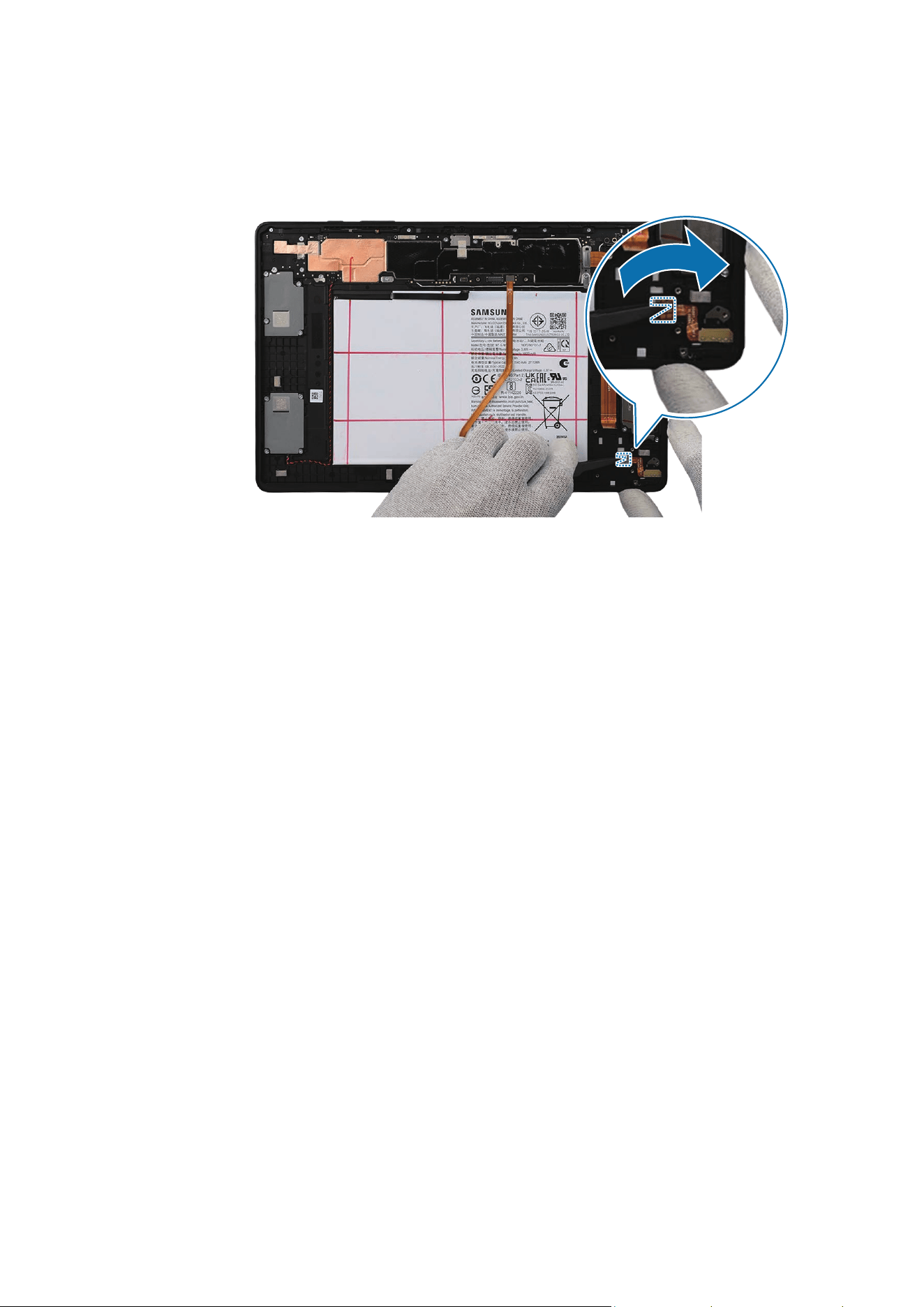

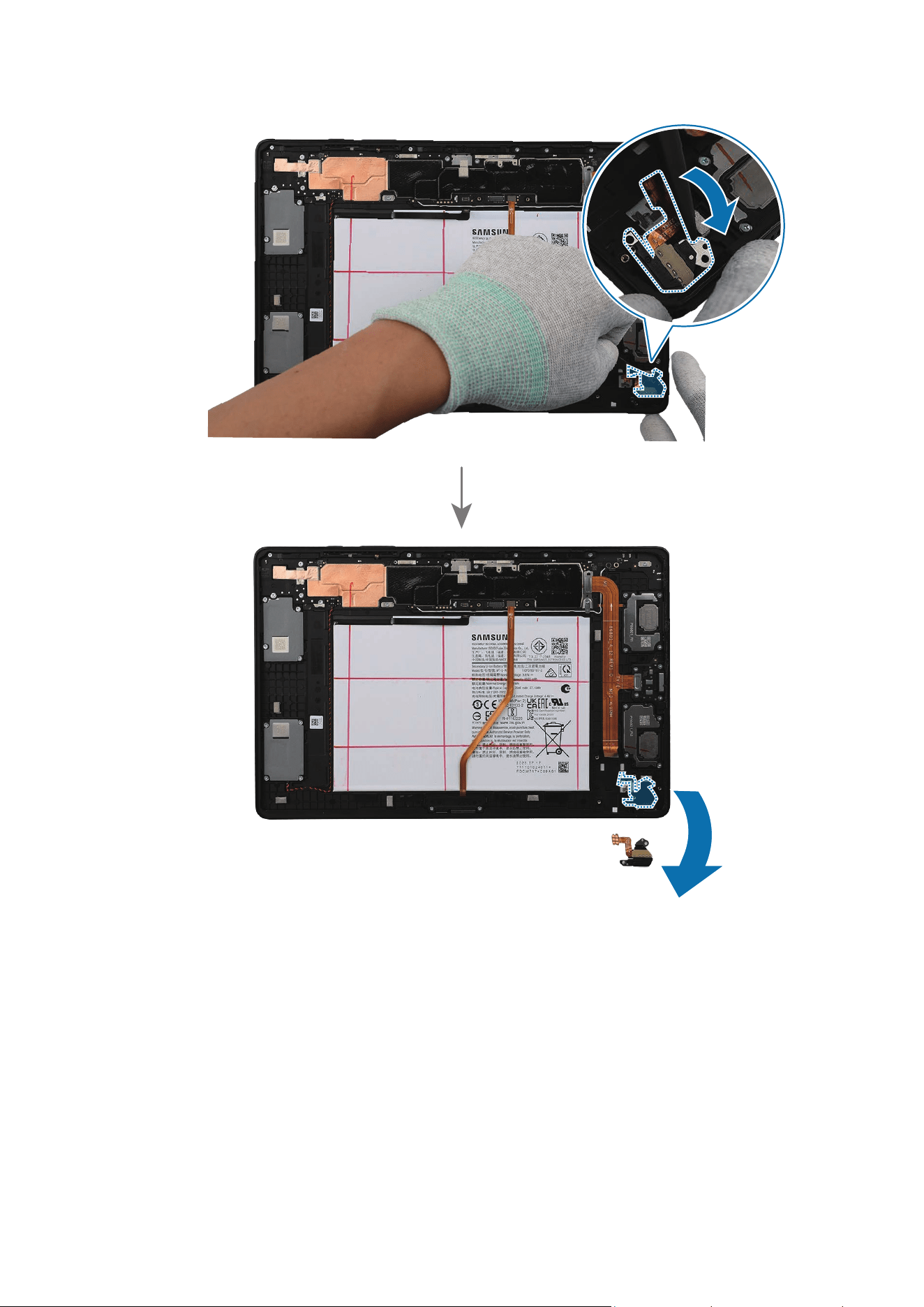

5 Using the tweezers, separate the FPCB of the headphone jack module carefully. Then,
lift up on the separator groove of the headphone jack module and remove it from the
back cover module.
Disassembly and Assembly
121
Disassembly and Assembly
122
Reassembly

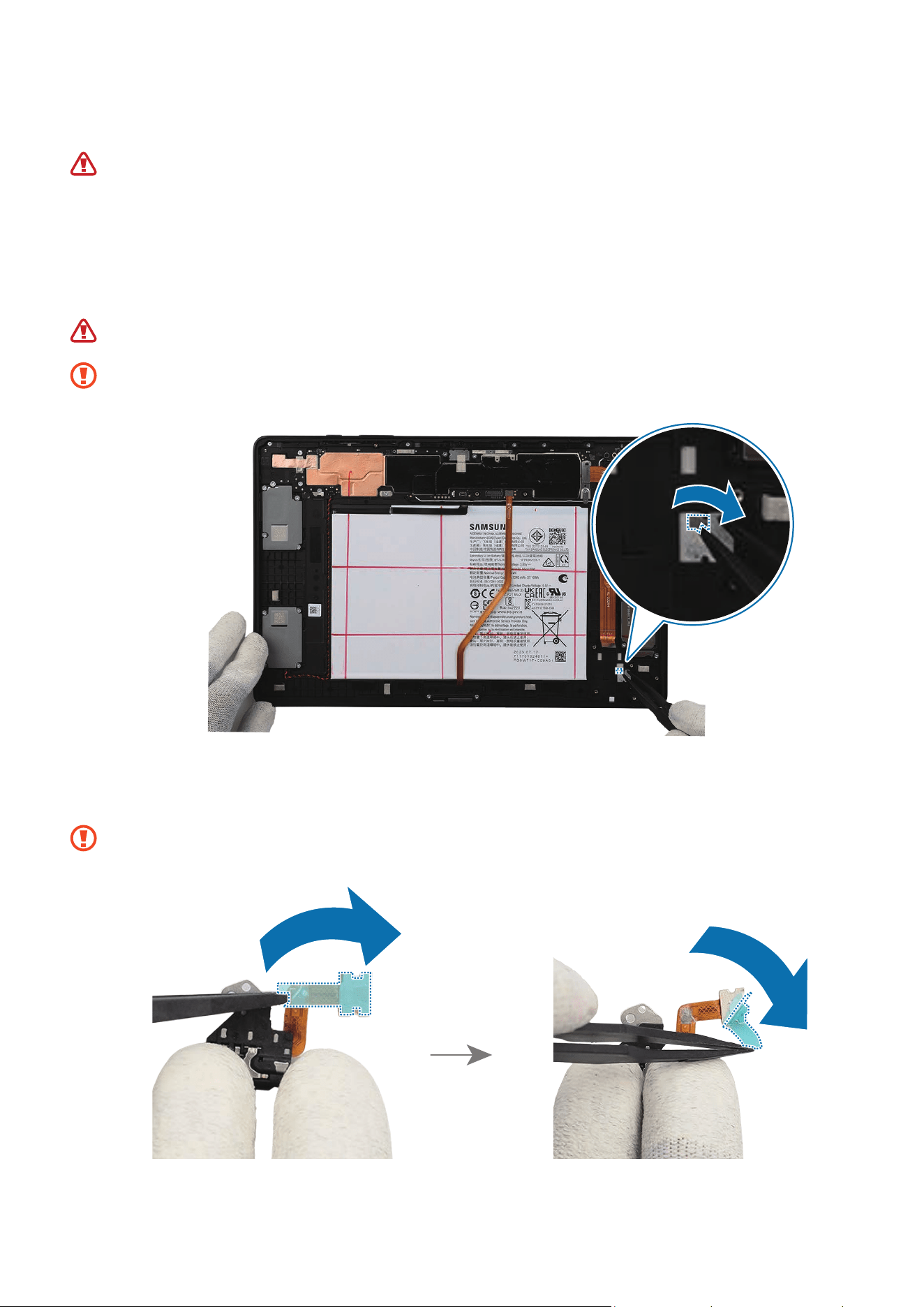

Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
1 Using tweezers and your fingers, remove all adhesive tapes from where the
headphone jack was attached.
Be careful not to damage the battery.
Be careful not to damage the near components.
2 Using the tweezers, remove all release films from the new headphone jack module
carefully.
Be careful not to damage the headphone jack module.
Disassembly and Assembly
123

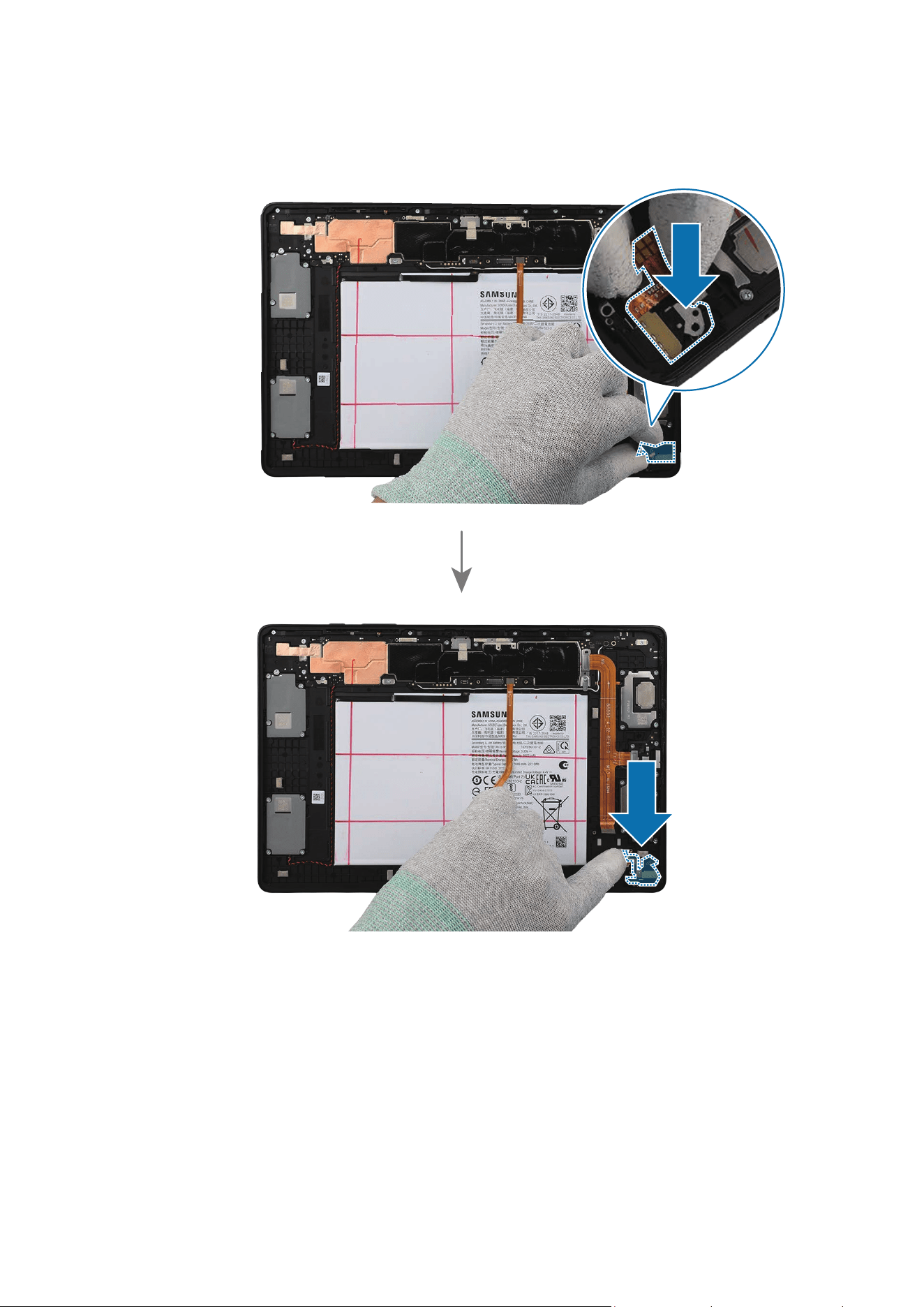

3 Using the tweezers and your fingers, place the new headphone jack module to the
exact position of the back cover module and press it with your fingers softly.
Disassembly and Assembly
124

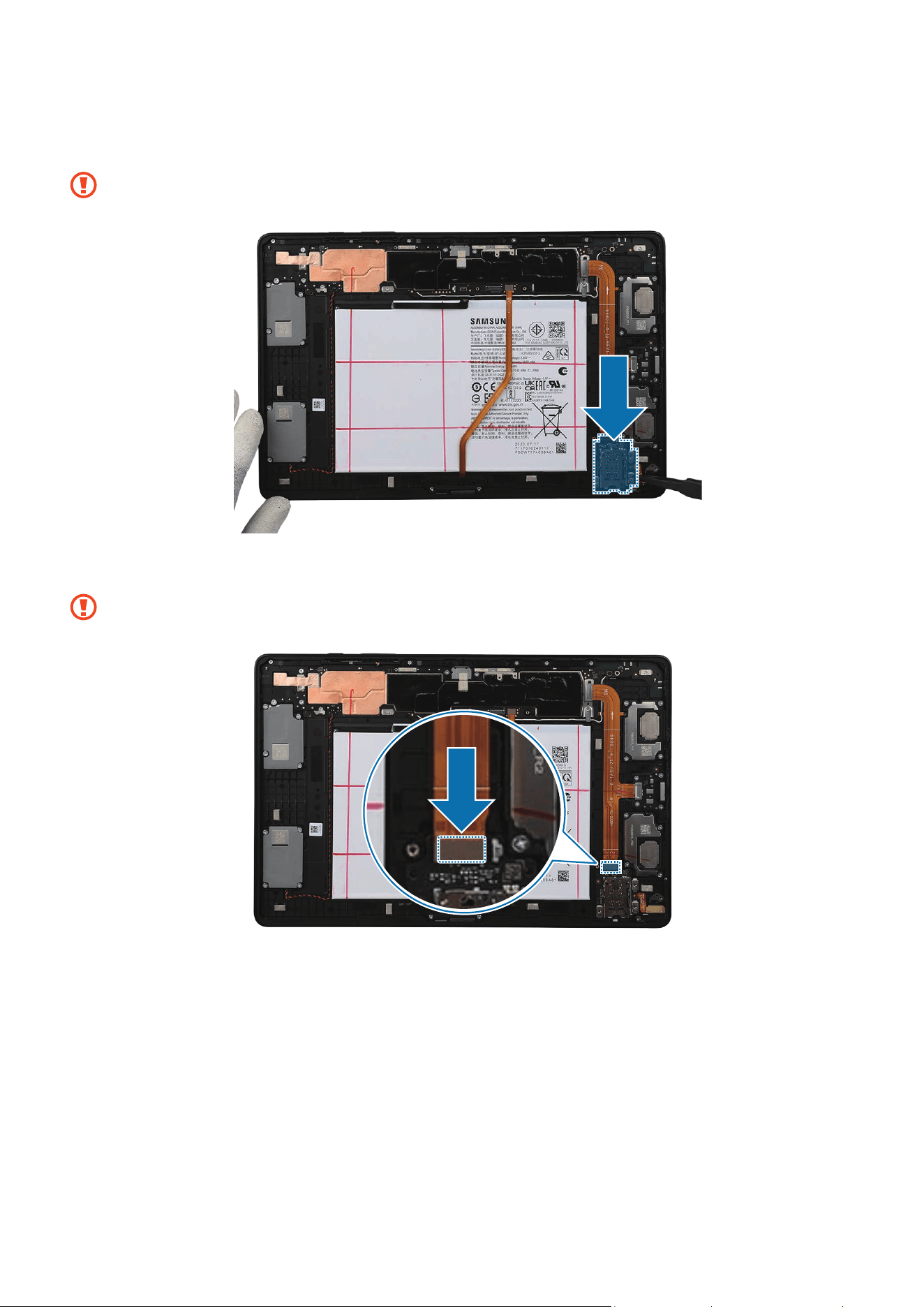

4 Insert the SIM card socket to the exact position and press down on it in its position
smoothly.
Be careful not to damage the charging port and near components.
5 Connect the flex cable connector to the SIM card socket.
When connecting the connector, be careful not to damage the cable.
Disassembly and Assembly
125

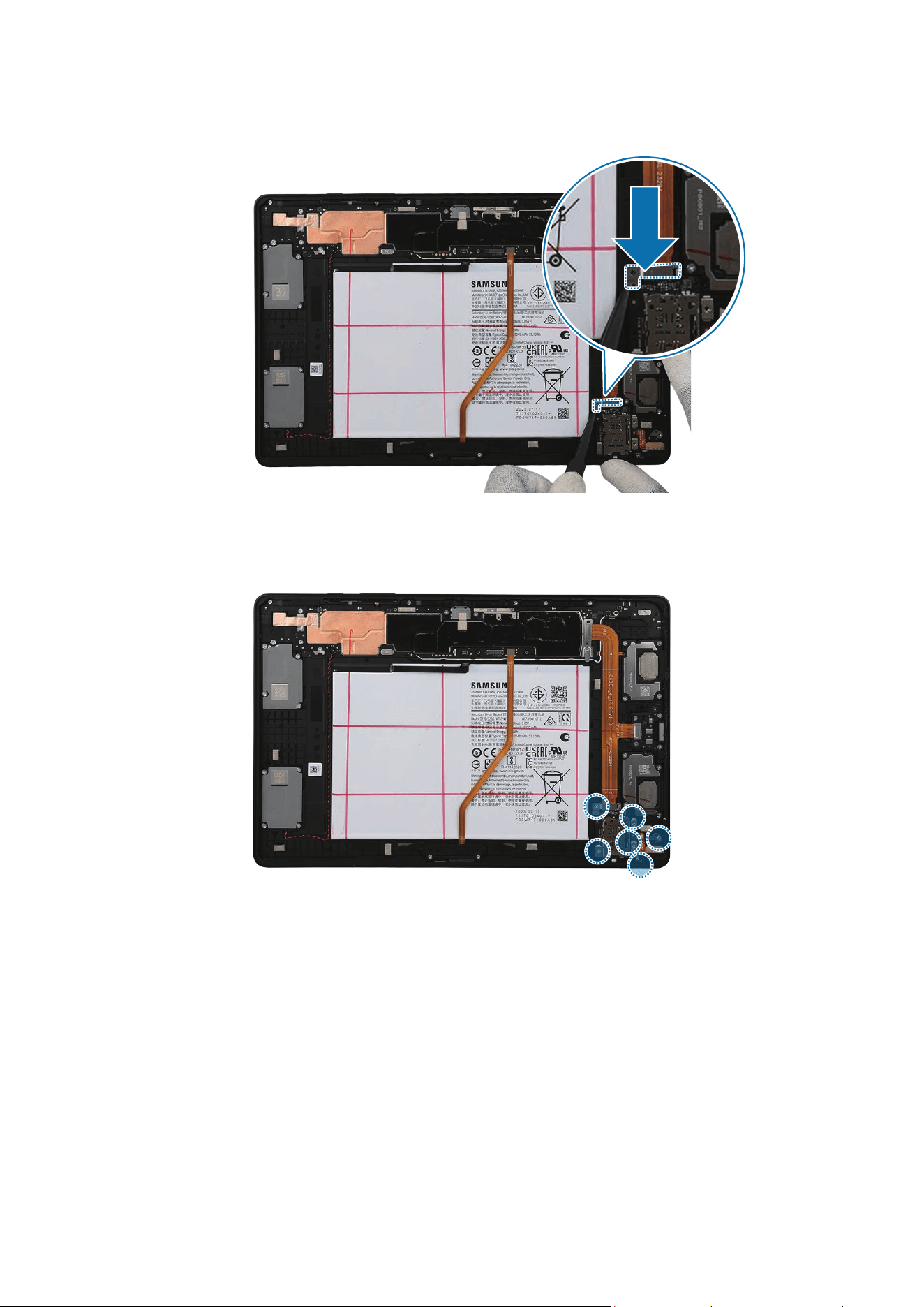

6 Using the tweezers, assemble the bottom metal plate of the flex cable.
7 Check the screw 24530A (6 ea) around the headphone jack module and fasten them
using a cross-head screwdriver.
Disassembly and Assembly
126
8 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
9 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen and SIM Card Tray to complete assembly.
Disassembly and Assembly
127
Speaker 1
Disassembly
Remove the Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
128

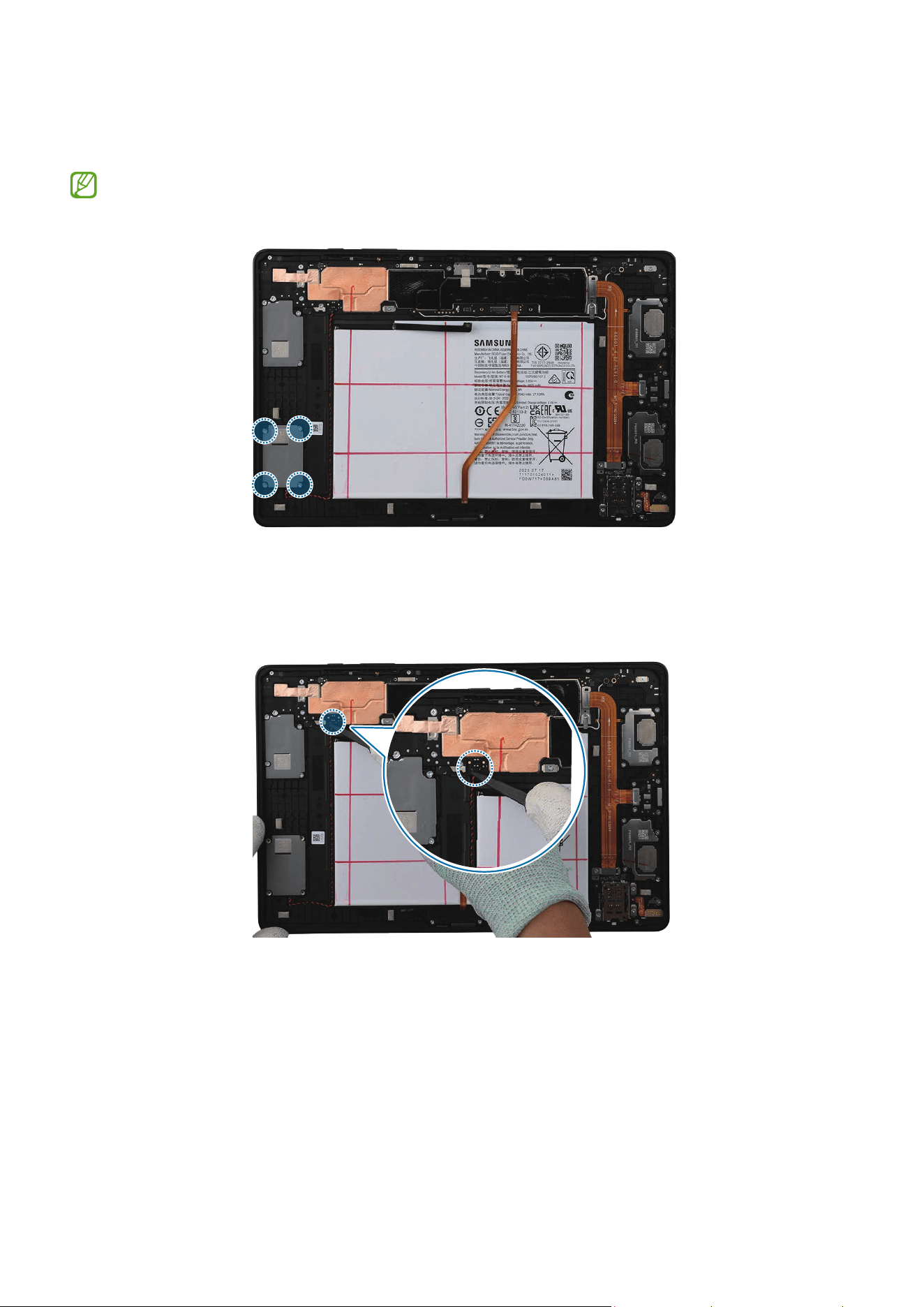

2 Check the 4 screws on the speaker module and remove them using a cross-head
screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.

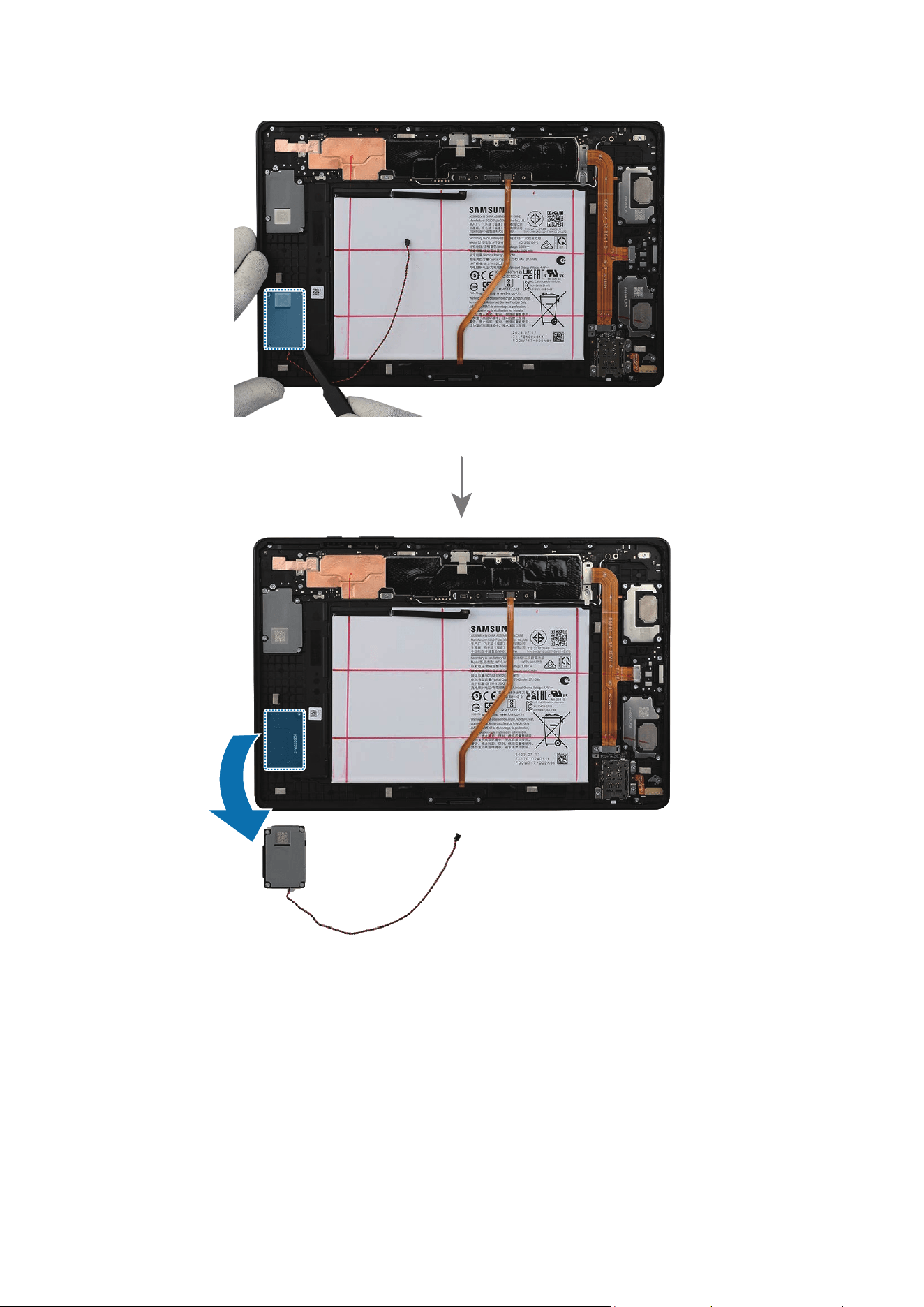

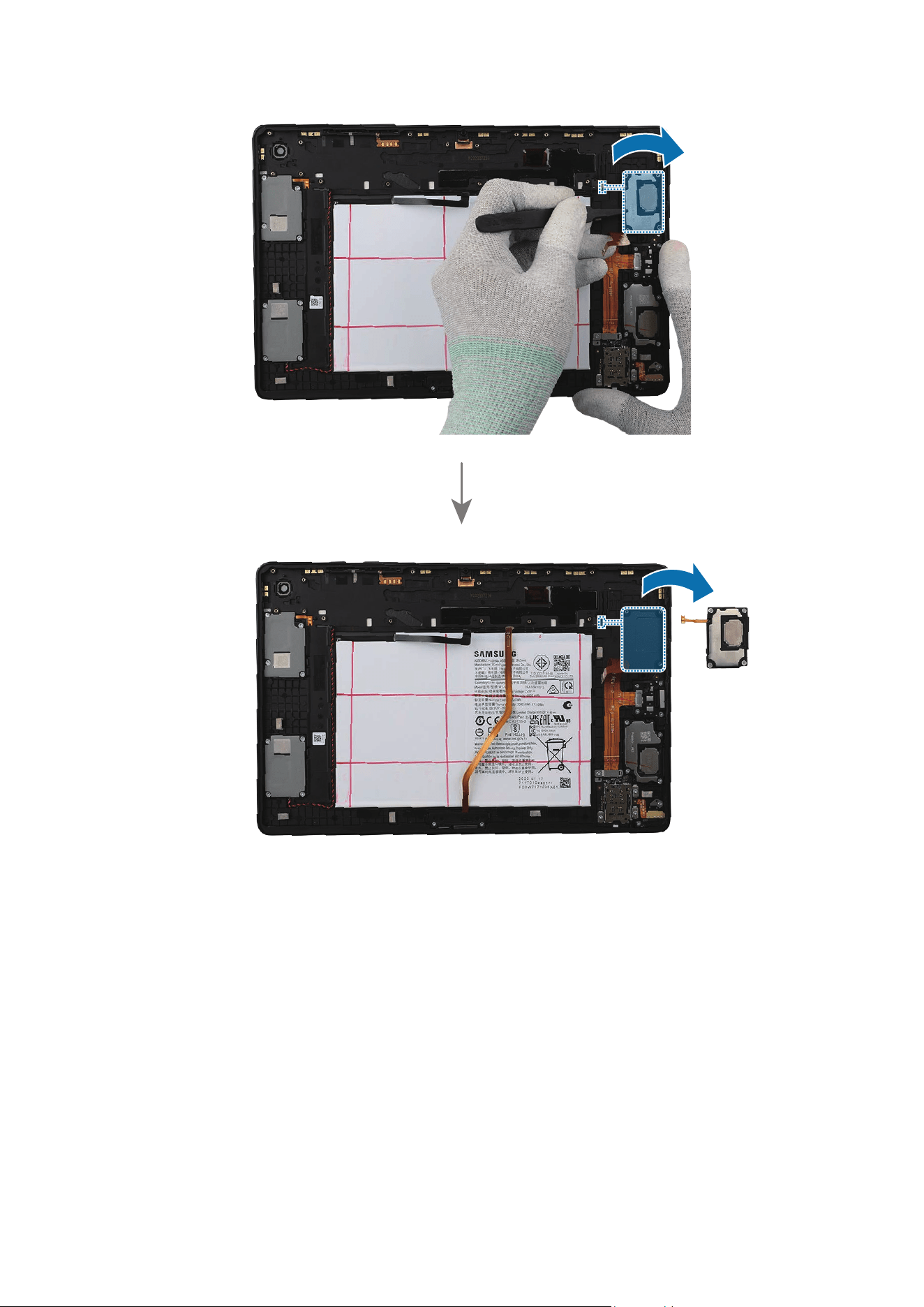

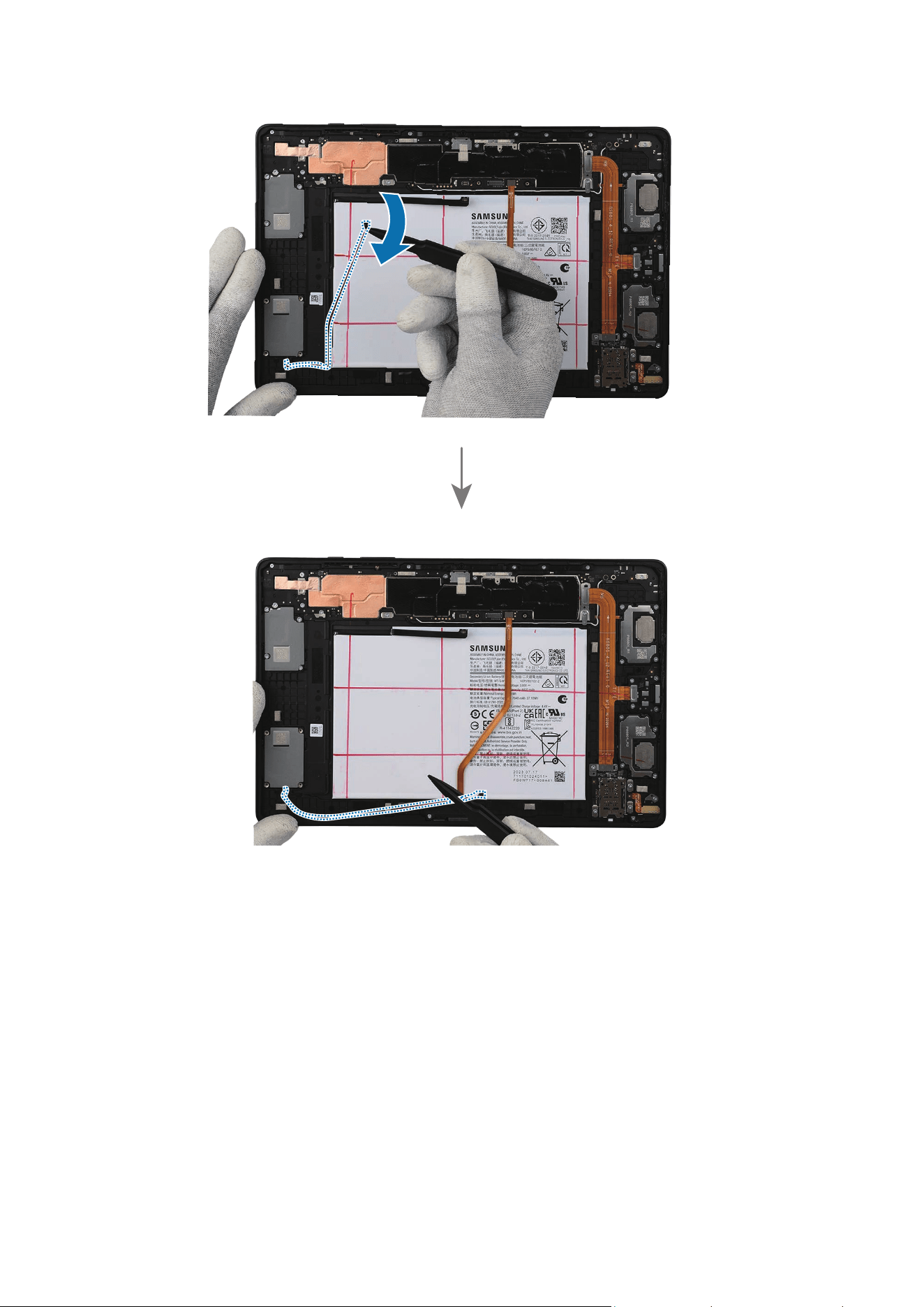

3 Using the tweezers, disconnect the cable connector of the speaker module and
separate the cable completely from the back cover module. Lift up on the separator
groove of the speaker module and remove it carefully from the back cover module.
Disassembly and Assembly
129
Disassembly and Assembly
130
Disassembly and Assembly
131
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
1 Remove the release film from the new speaker 1 foam tape. Align the tape precisely
on the new speaker module and attach it.
Be careful not to damage the speaker module.
2 Gently press down the tape with your fingers to ensure a secure fit.
Disassembly and Assembly
132

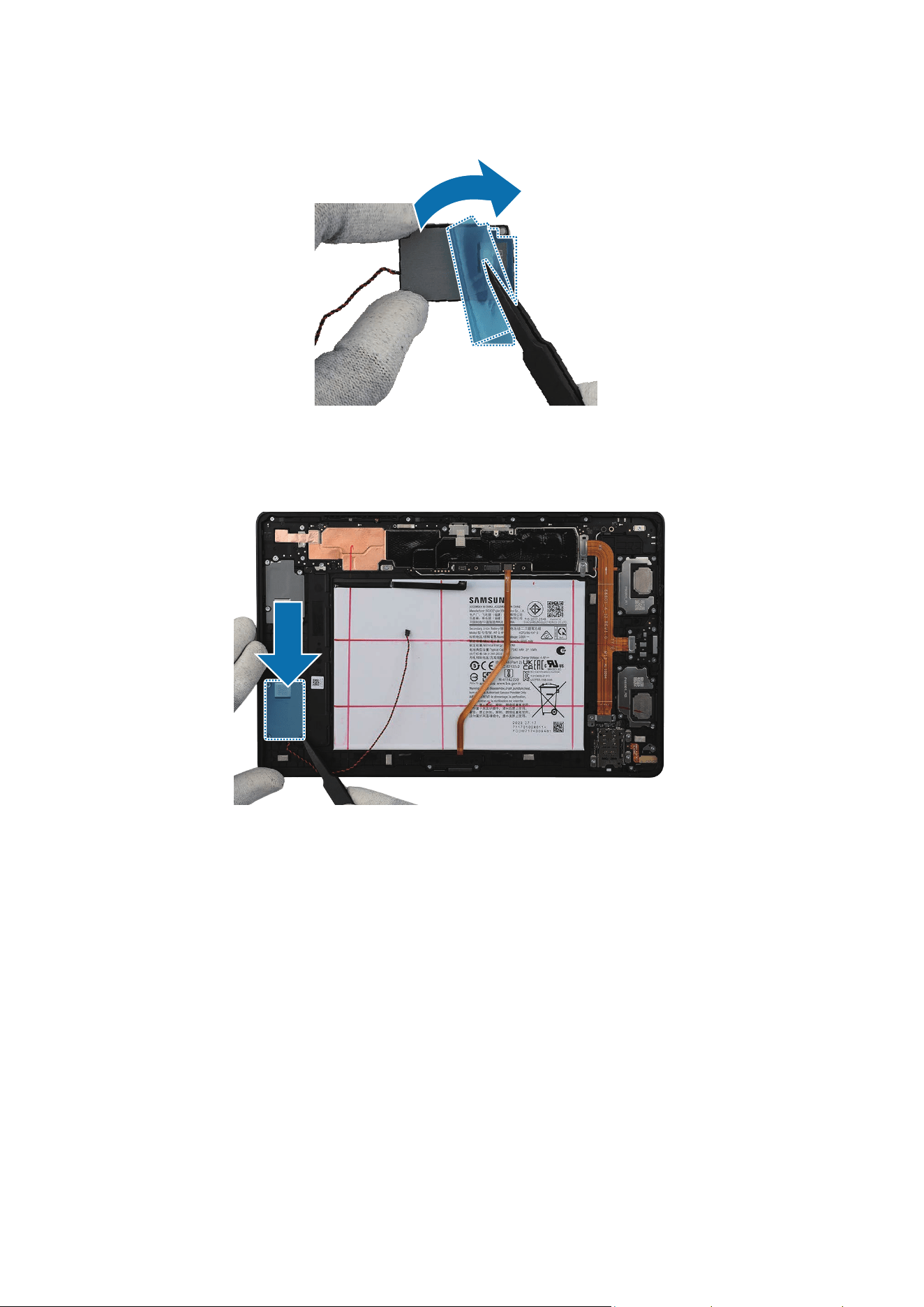

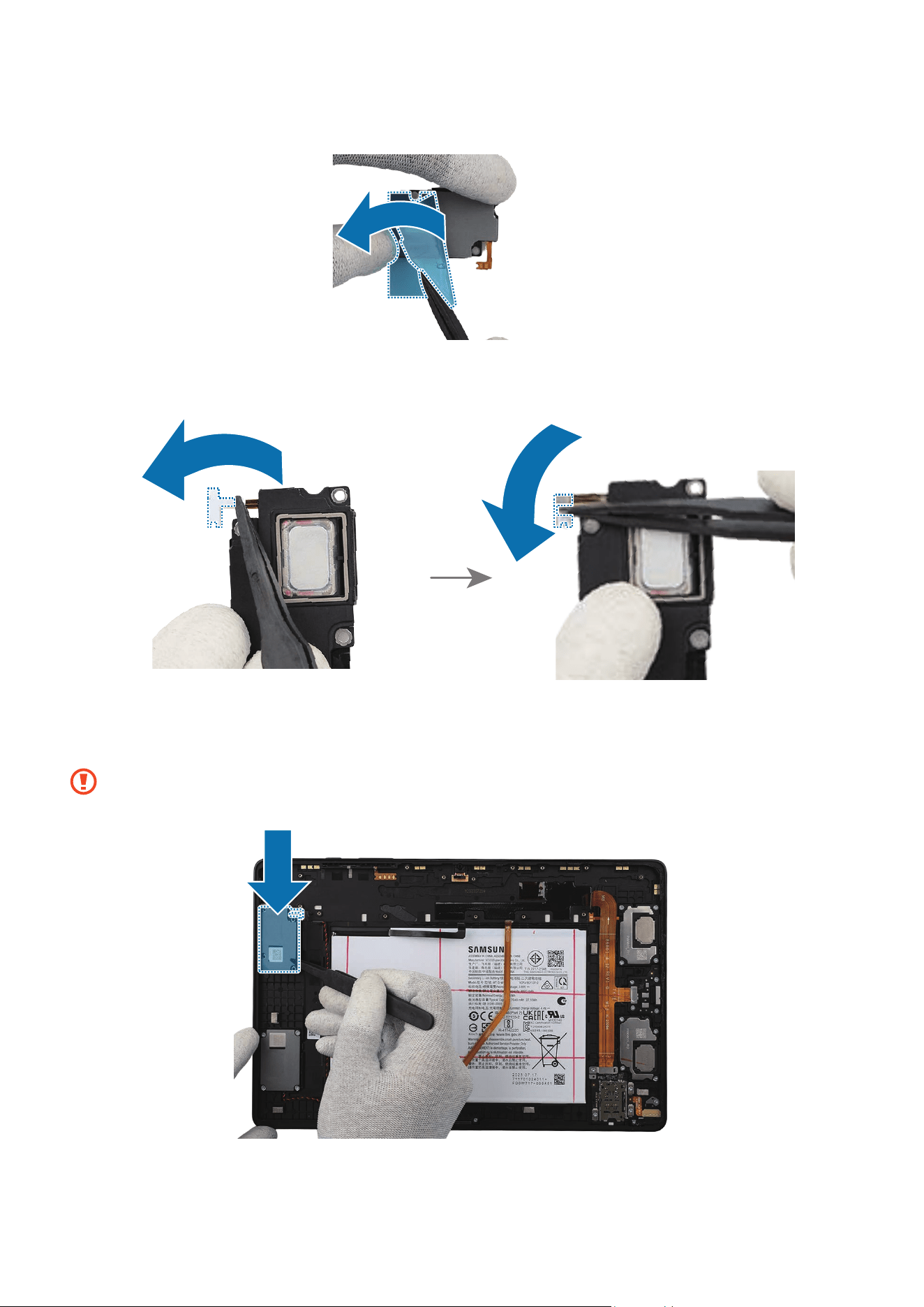

3 Using the tweezers, remove the release film from the attached foam tape carefully.
4 Place the speaker module to the exact position and assemble it to the back cover
module.
Disassembly and Assembly
133

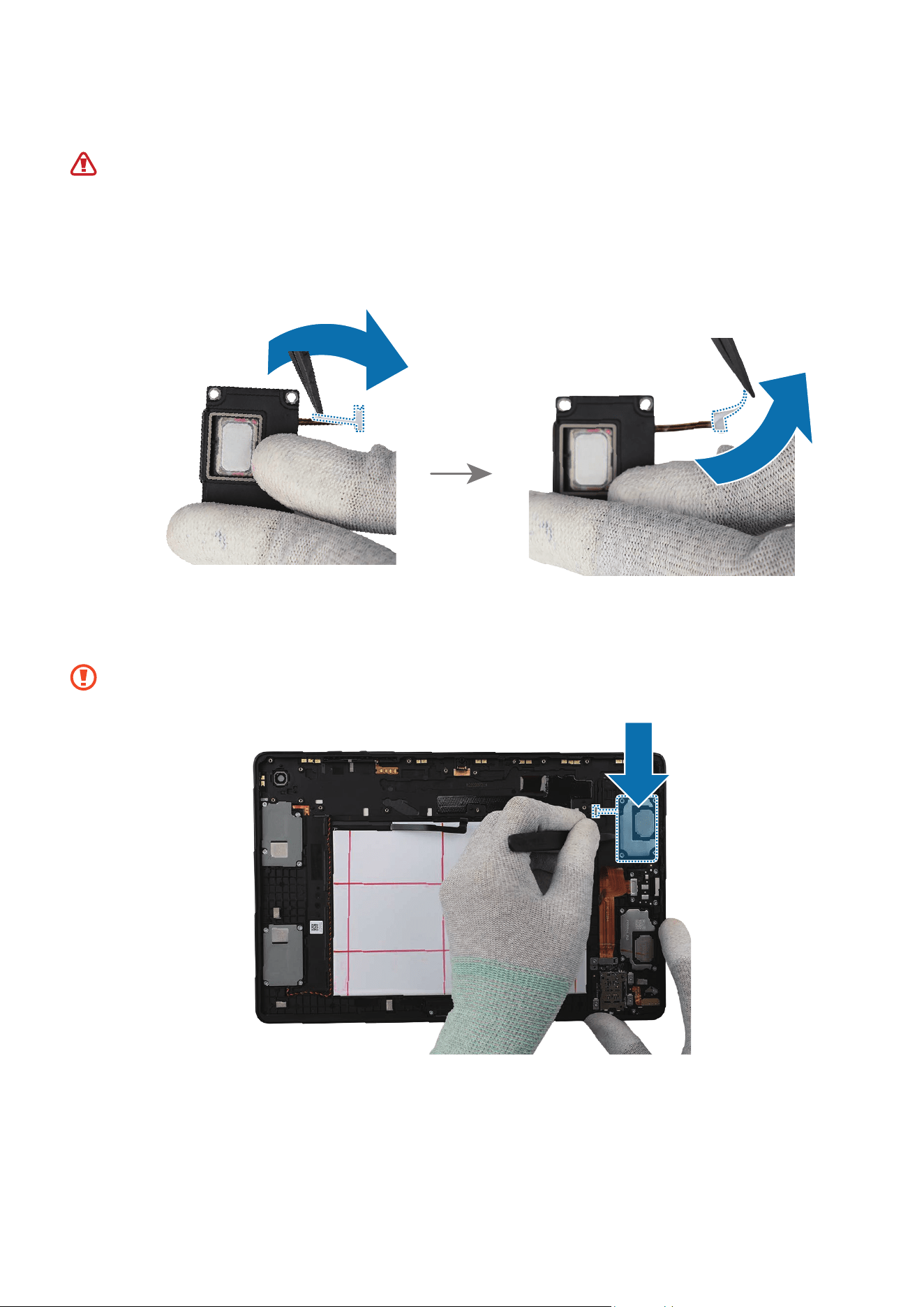

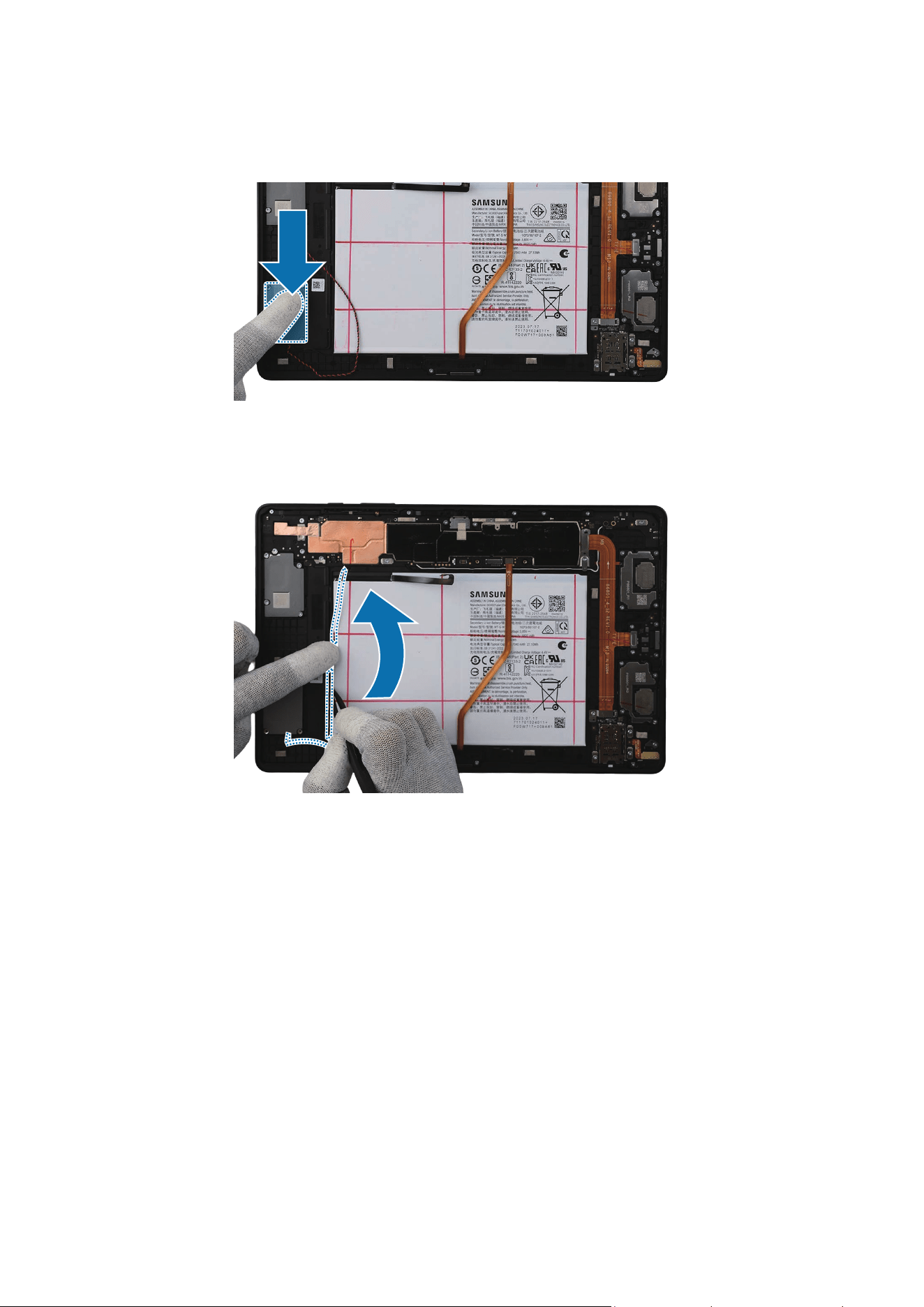

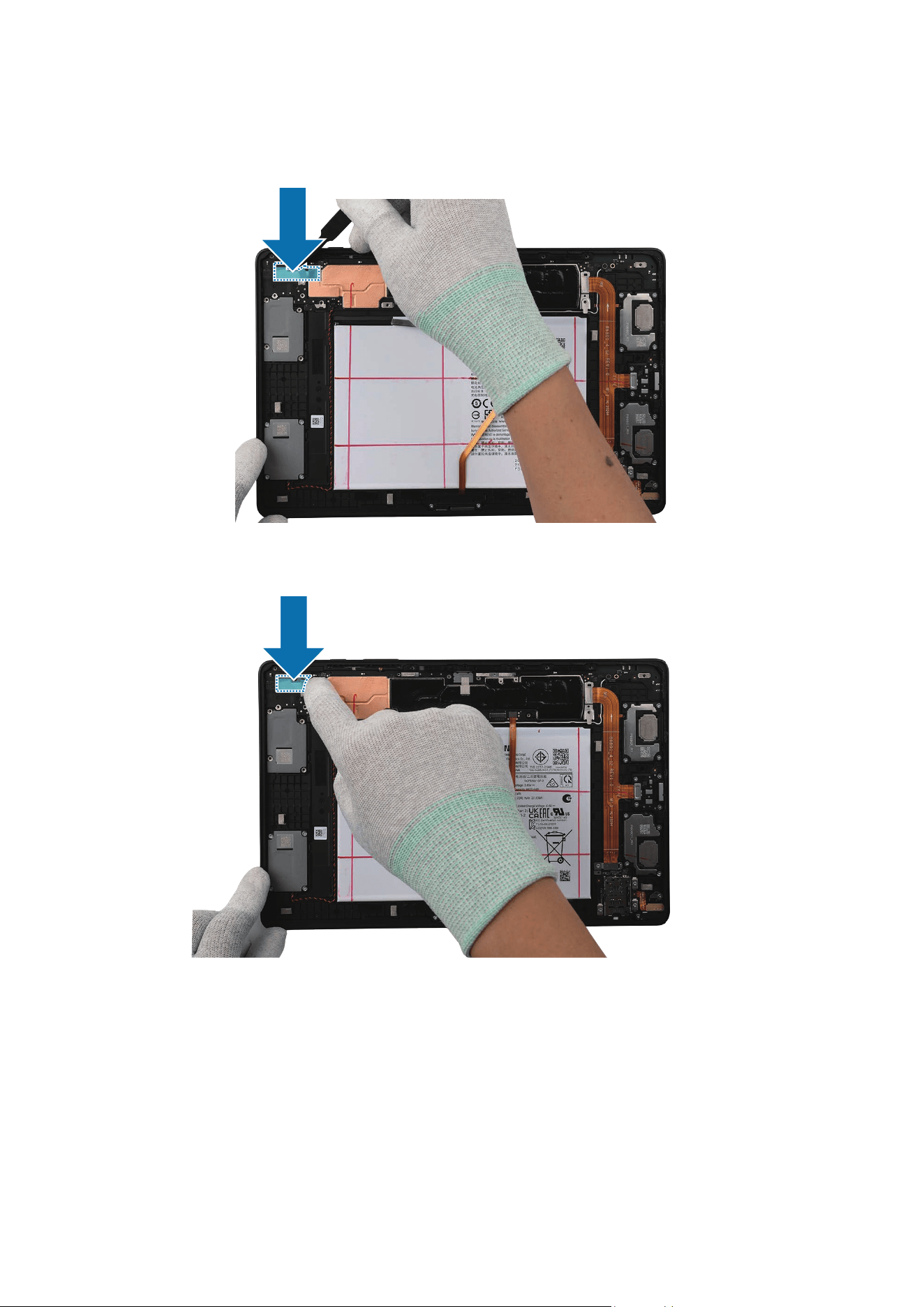

5 Press down softly and evenly on the speaker module so that the speaker module can
be completely assembled.

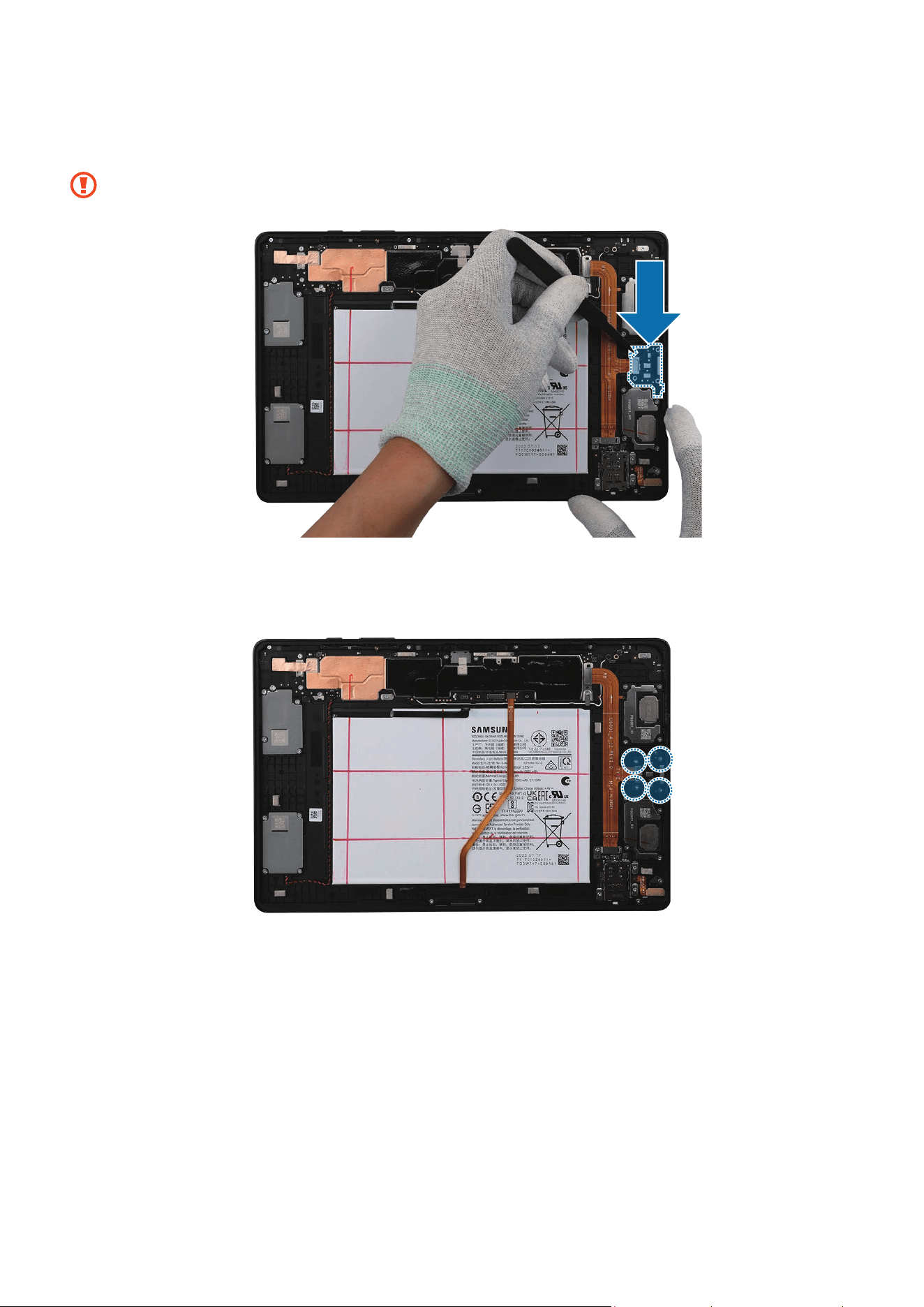

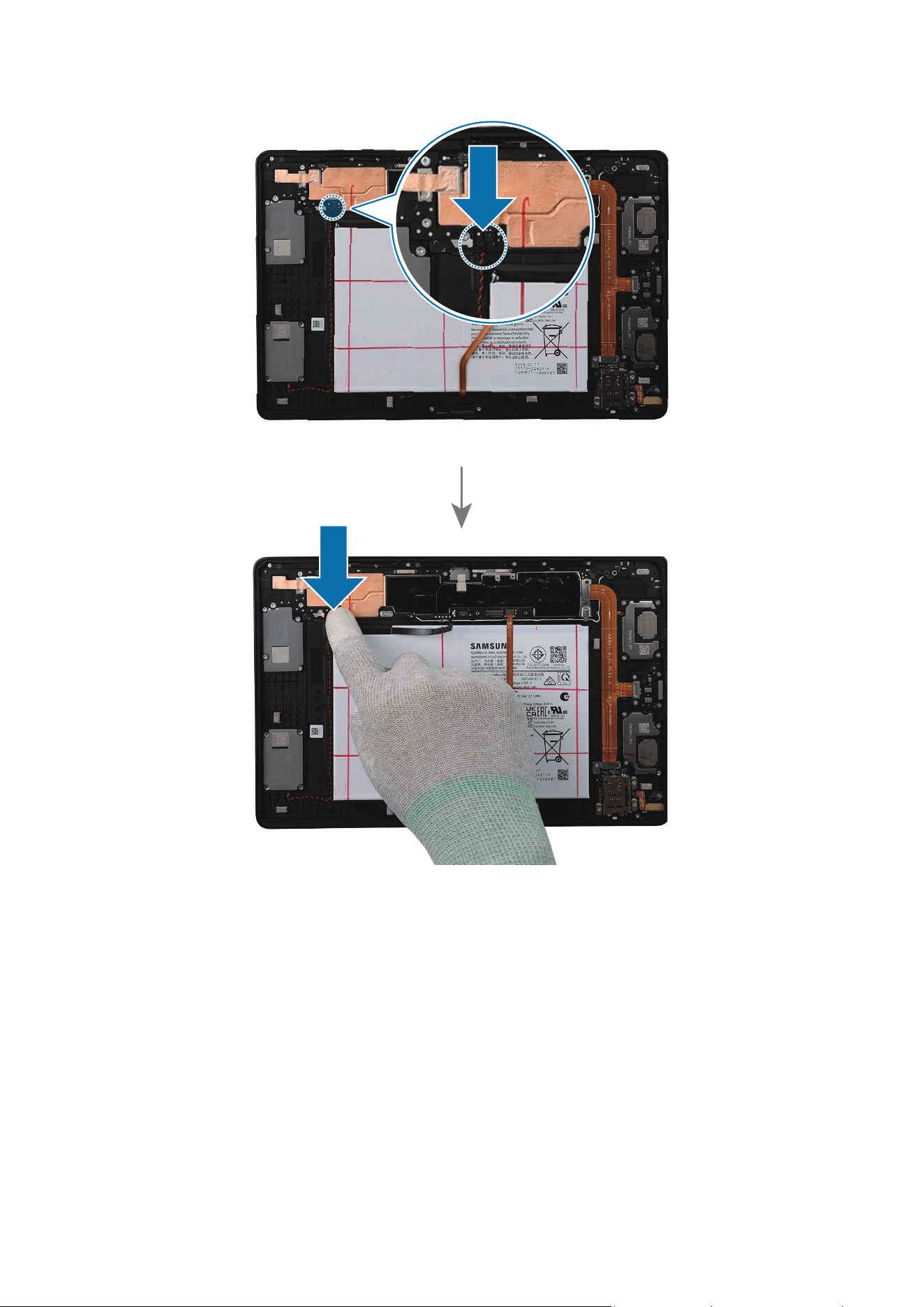

6 Using the tweezers and your fingers, assemble the cable of the speaker module
carefully to the back cover module and connect the cable connector.
Disassembly and Assembly
134
Disassembly and Assembly
135
7 Check the screw 24530A (4 ea) and fasten them on the speaker module using a
cross-head screwdriver.
8 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
Disassembly and Assembly
136
9 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
137
Speaker 2
Disassembly
Remove the Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the main board and near components.
Disassembly and Assembly
138
2 Check the 4 screws on the speaker module, the 11 screws on the camera brackets,
the 2 screws on the main board, and the screw on the top metal plate. Remove them
using a cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
139

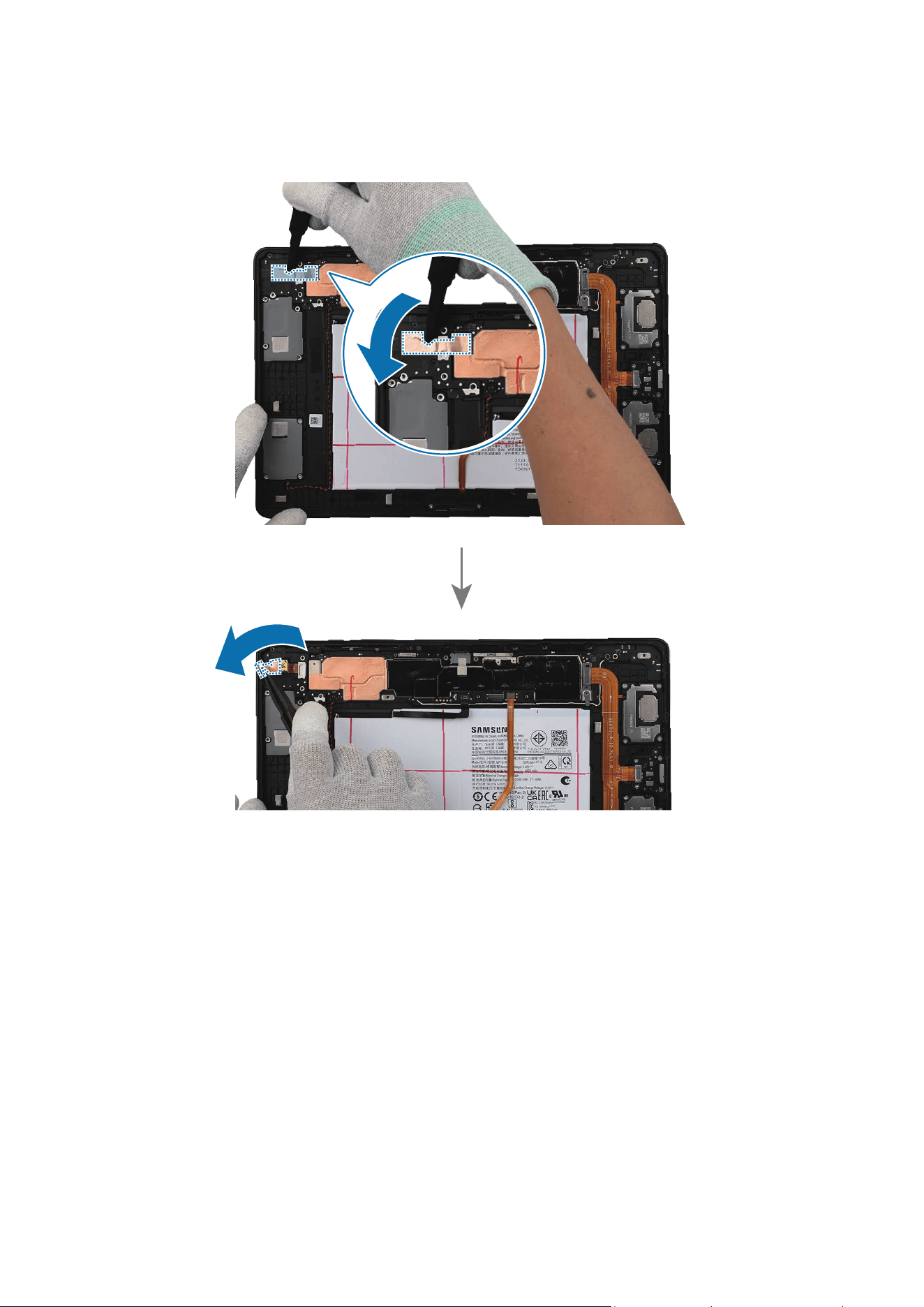

3 Using the tweezers, remove the copper foil from the rear camera bracket and then
remove the rear camera bracket.
Disassembly and Assembly
140
Disassembly and Assembly
141
4 Using the tweezers, remove the conductive tape from the front camera bracket and
then remove the front camera bracket.
Disassembly and Assembly
142

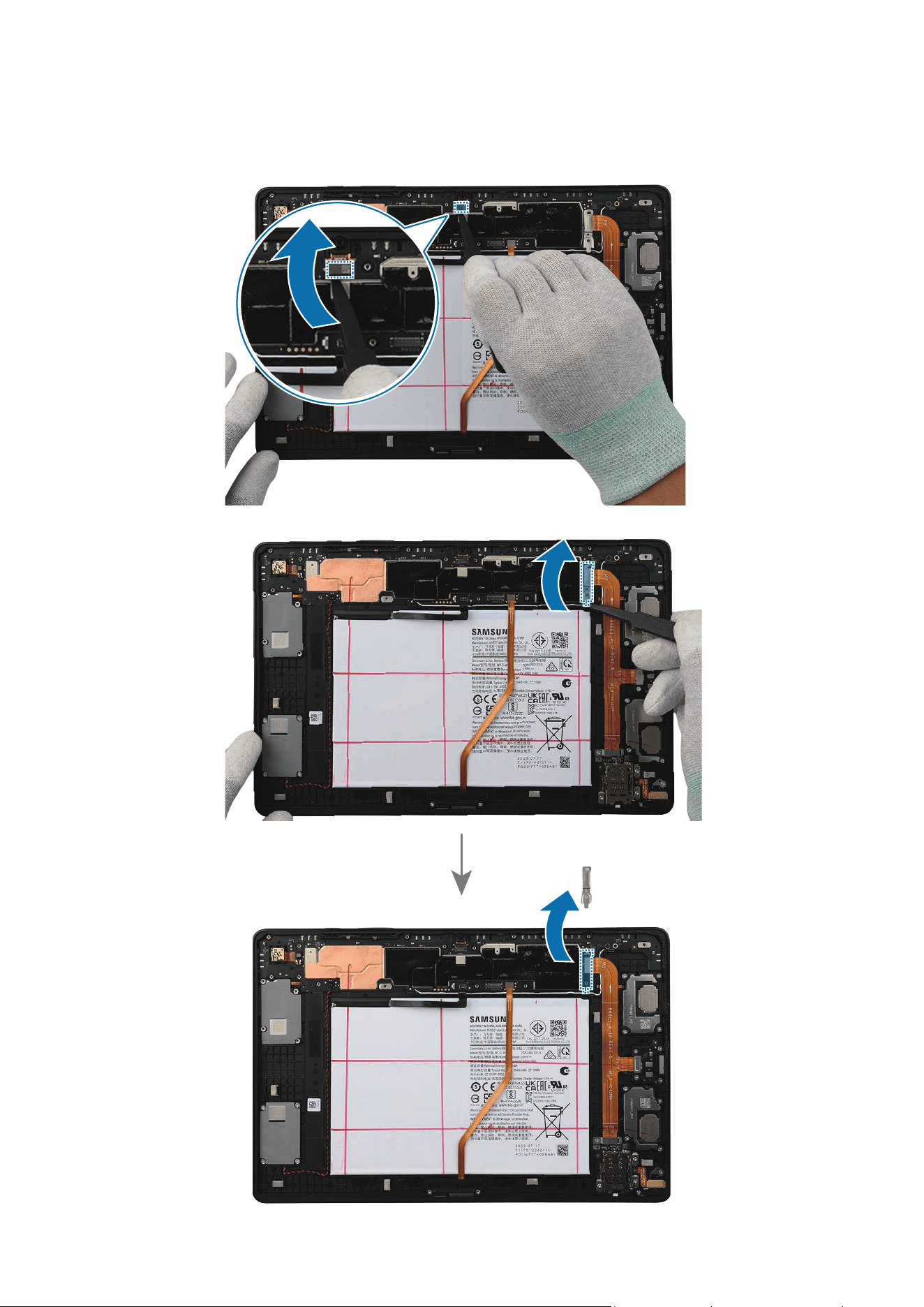

5 Using the tweezers, disconnect the front camera connector from the main board.
Using the tweezers, remove the top metal plate of the flex cable.
Disassembly and Assembly
143

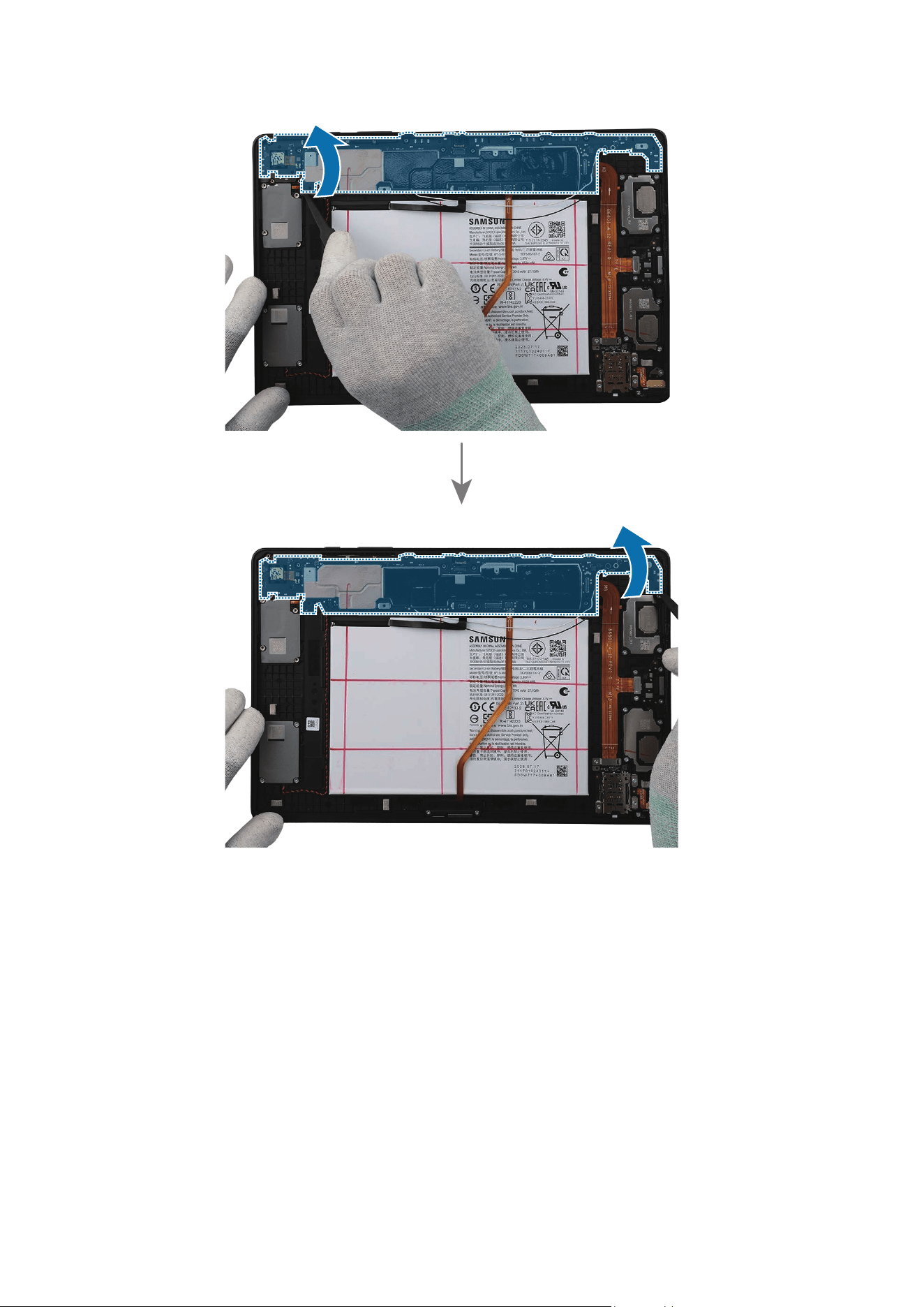

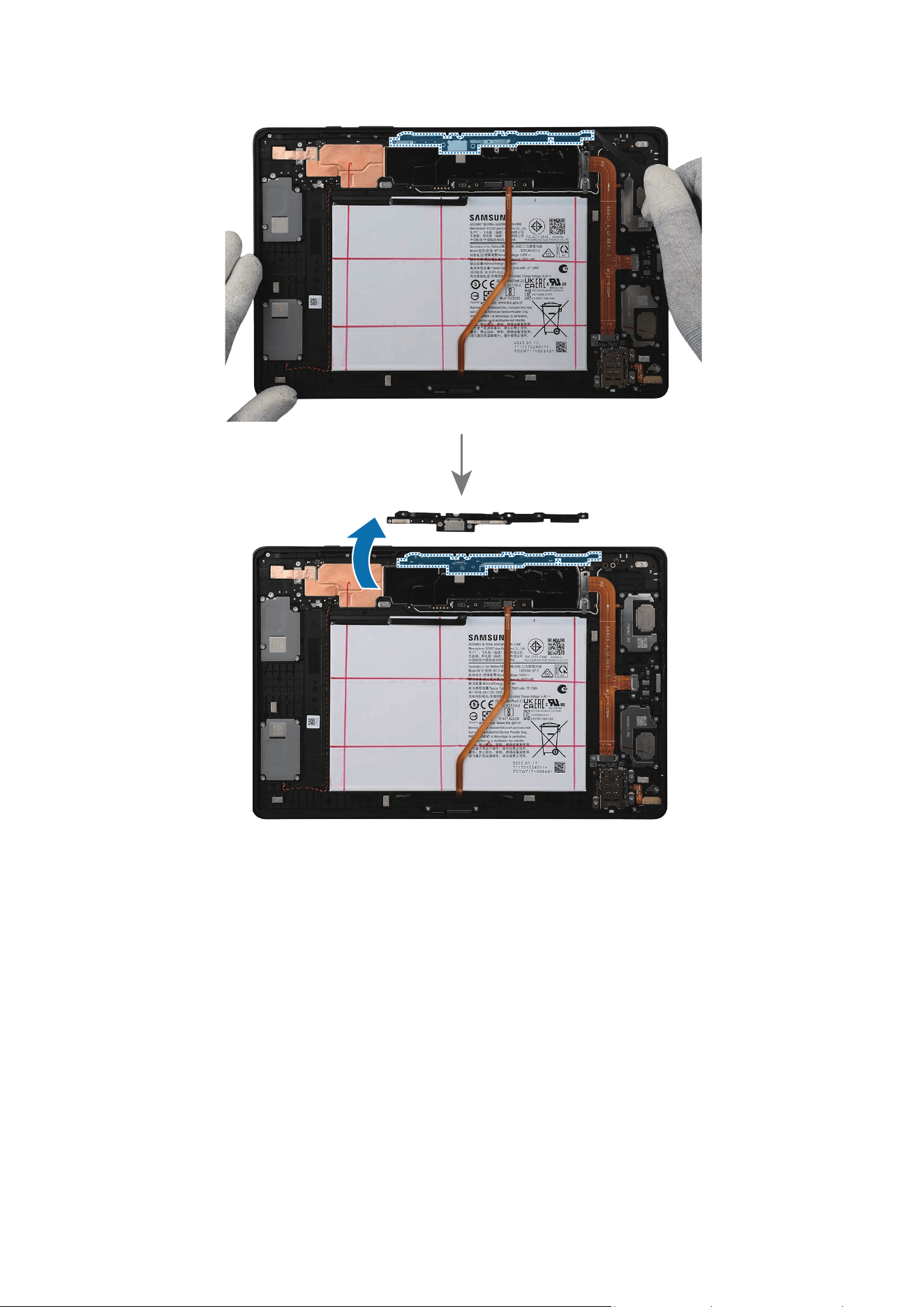

6 Using the tweezers, disconnect the 3 flex cable connectors from the main board.
For the 5G or LTE devices, carefully lift up the 2 additional coaxial cables (White/
Black) completely from the main board. Using the tweezers, separate the main board
completely.
•
The 2 coaxial cables (White/Black) are only available for the 5G or LTE devices.
•
The cables and connectors may vary depending on the country, region, or
specifications.
•
If you find that the main board is stuck too firmly, gradually lift its lower part.
Disassembly and Assembly
144
Coaxial cable
(White)
Coaxial cable
(Black)
Disassembly and Assembly
145
Disassembly and Assembly
146

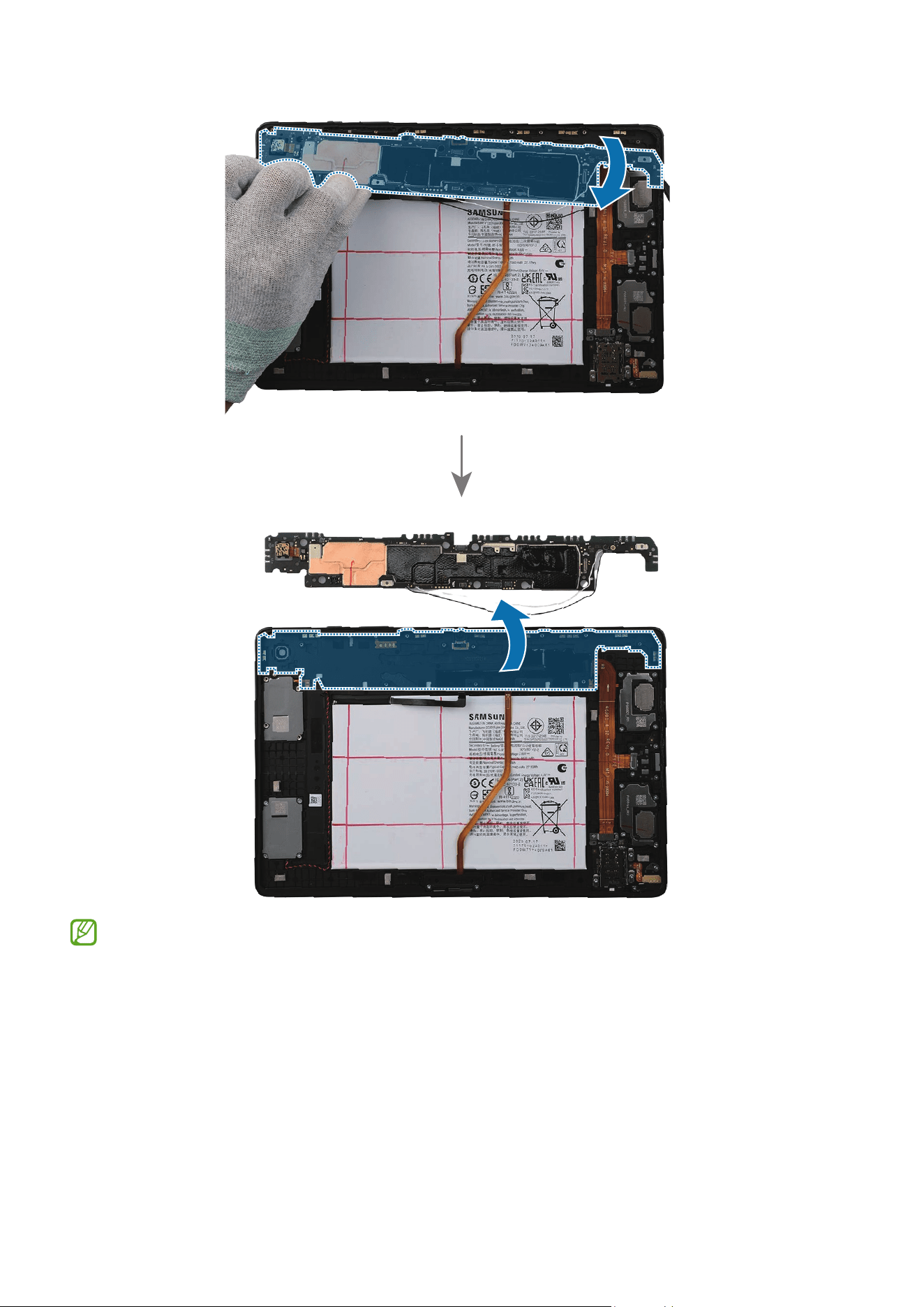

Remove the front camera and the 2 coaxial cables (White/Black) additionally to
disassemble only the main board.
Disassembly and Assembly
147

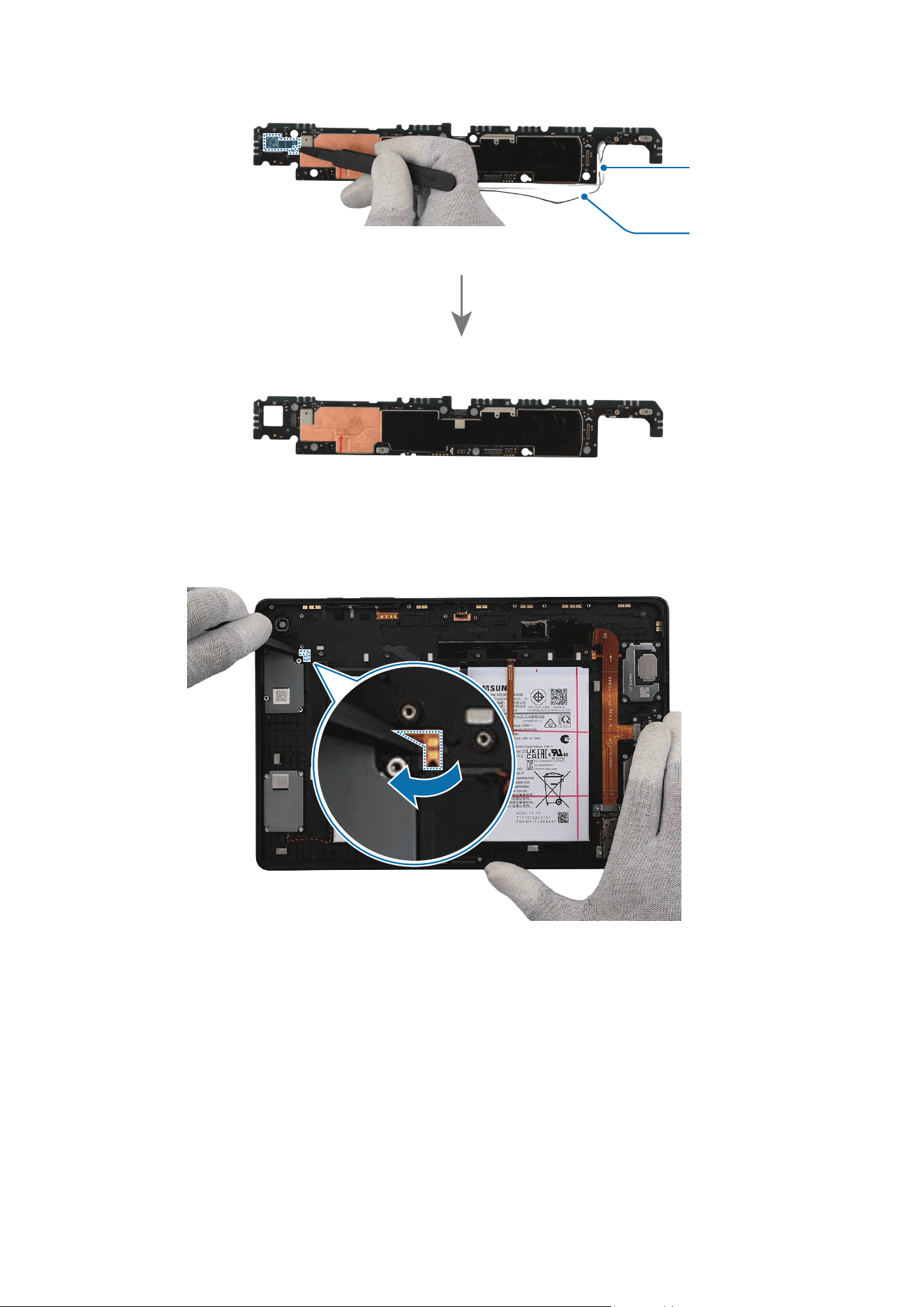

Coaxial cable
(White)
Coaxial cable
(Black)

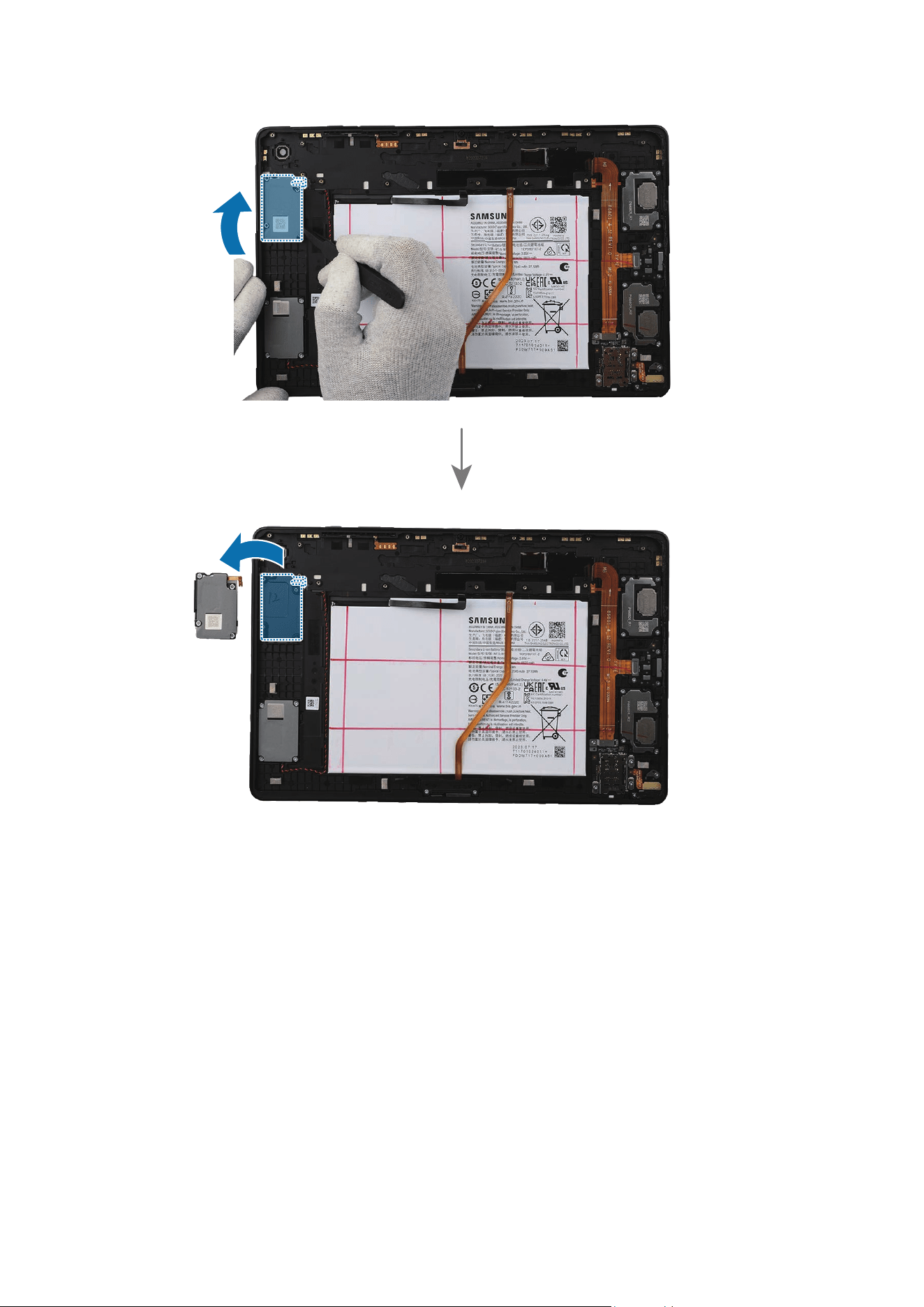

7 Using the tweezers, separate the FPCB of speaker module carefully. Lift up on the
separator groove of the speaker module and remove it carefully from the back cover
module.
Disassembly and Assembly
148
Disassembly and Assembly
149
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

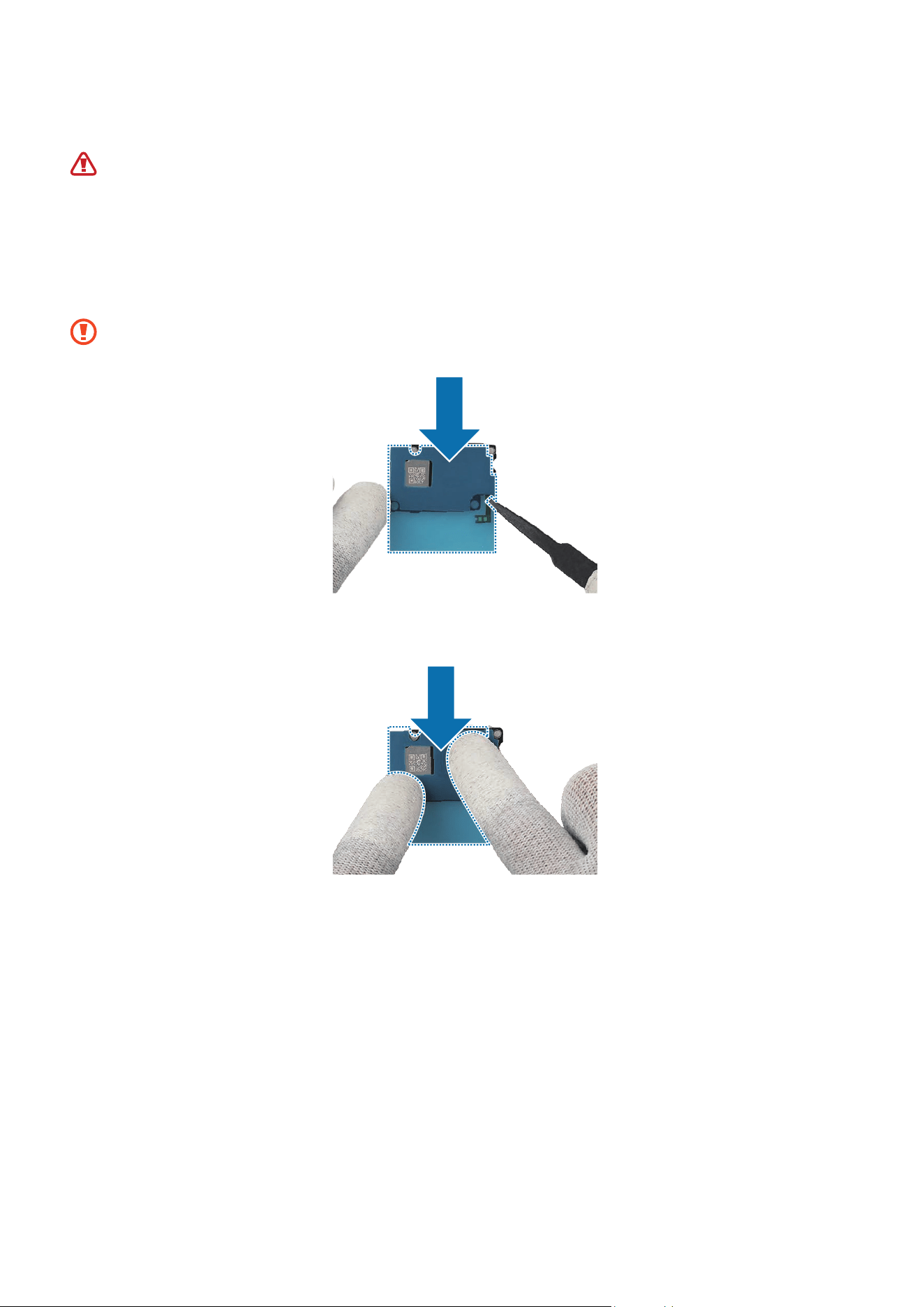

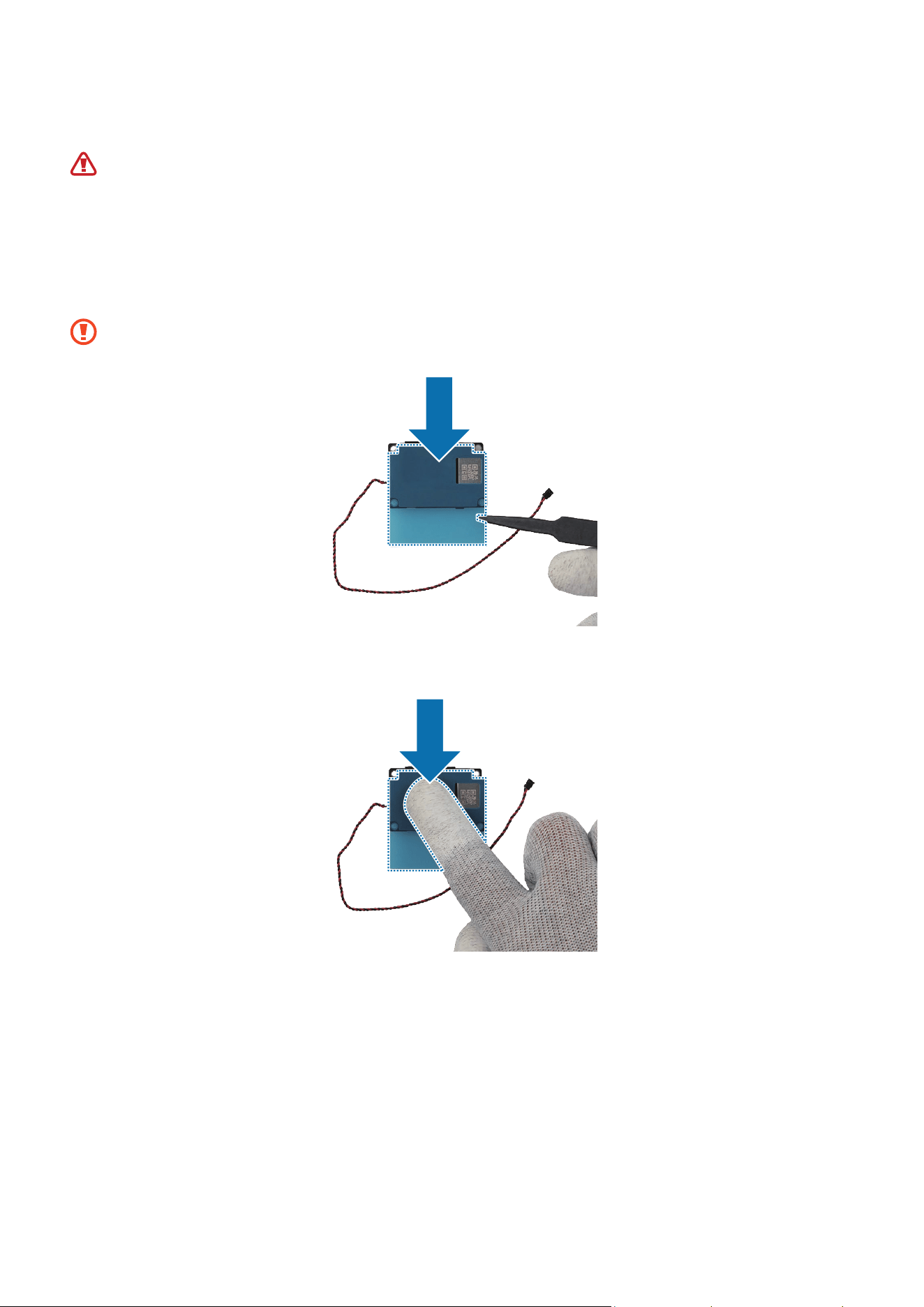

1 Remove the release film from the new speaker 2 foam tape. Align the tape precisely
to the new speaker module and attach it.
Be careful not to damage the speaker module.
2 Gently press down the tape with your fingers to ensure a secure fit.
Disassembly and Assembly
150
3 Using the tweezers, remove the release film from the attached foam tape carefully.
4 Remove all release films from the new speaker module.
5 Place the speaker module to the exact position and assemble it to the back cover
module.
Be careful not to damage the speaker module and near components.
Disassembly and Assembly
151
6 Press down softly and evenly on the speaker module so that the speaker module can
be completely assembled.
Disassembly and Assembly
152

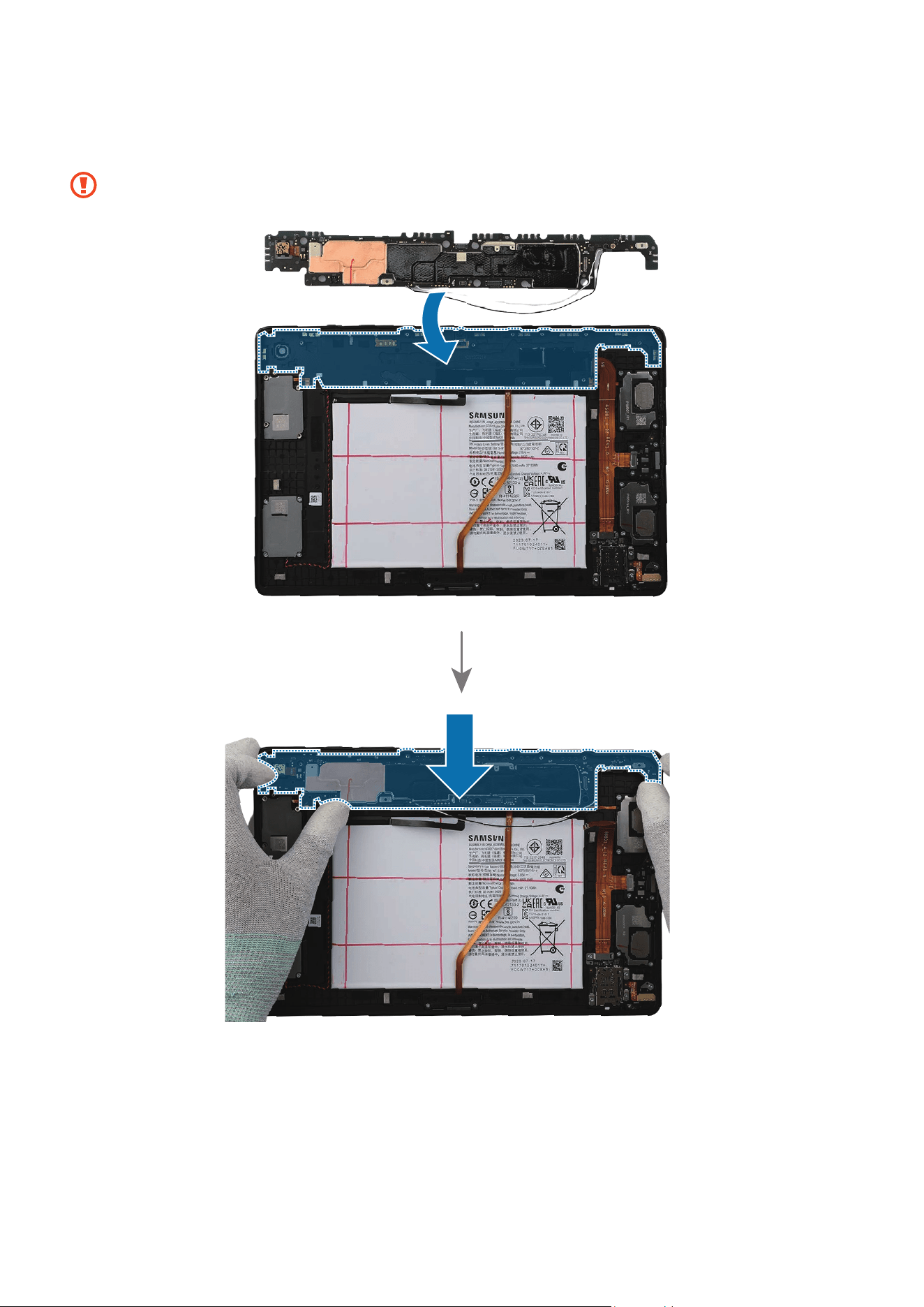

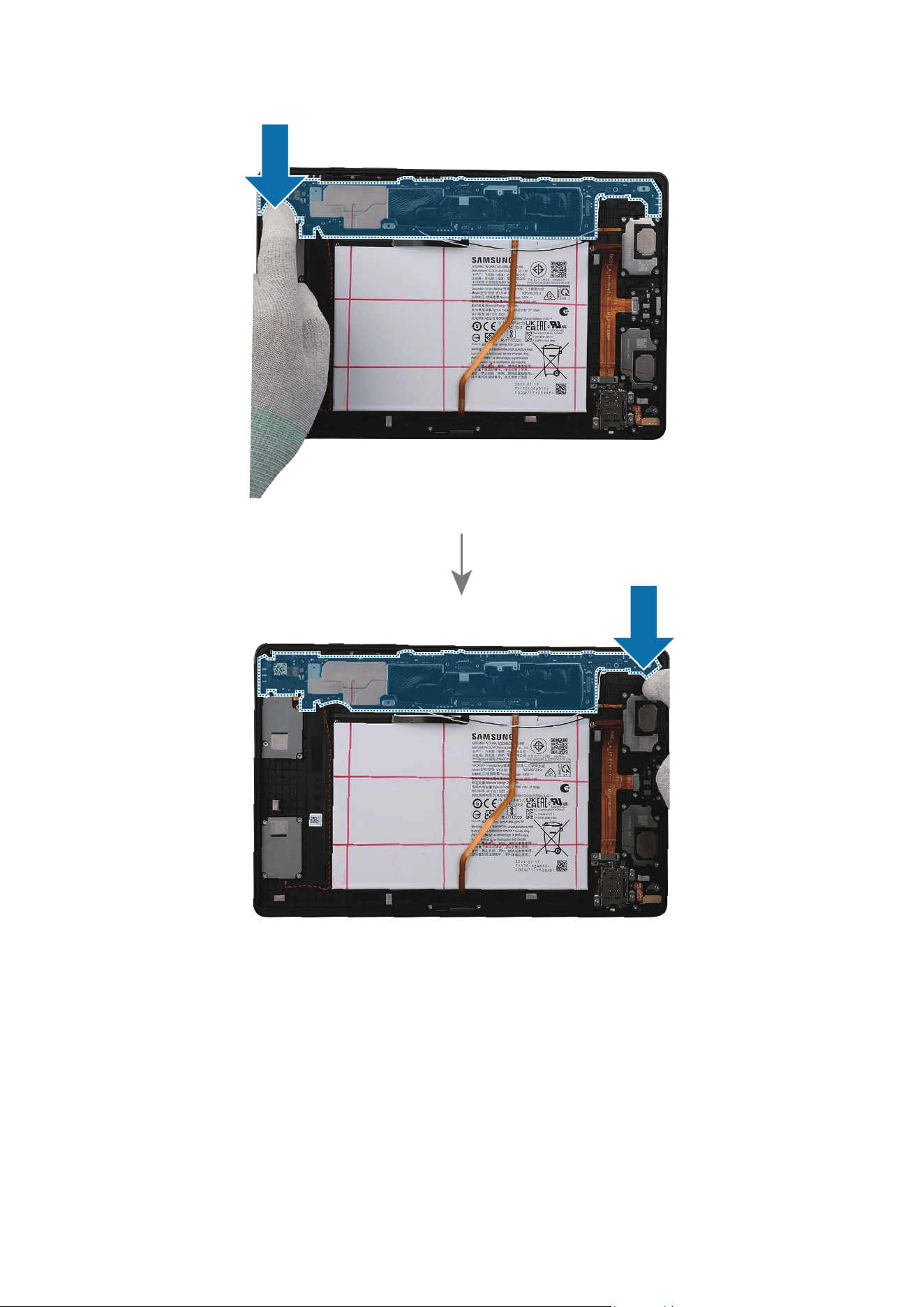

7 Place the main board to the exact position of the back cover module and press it
down softly to assemble it.
Be careful not to damage the main board and speaker module.
Disassembly and Assembly
153
Disassembly and Assembly
154

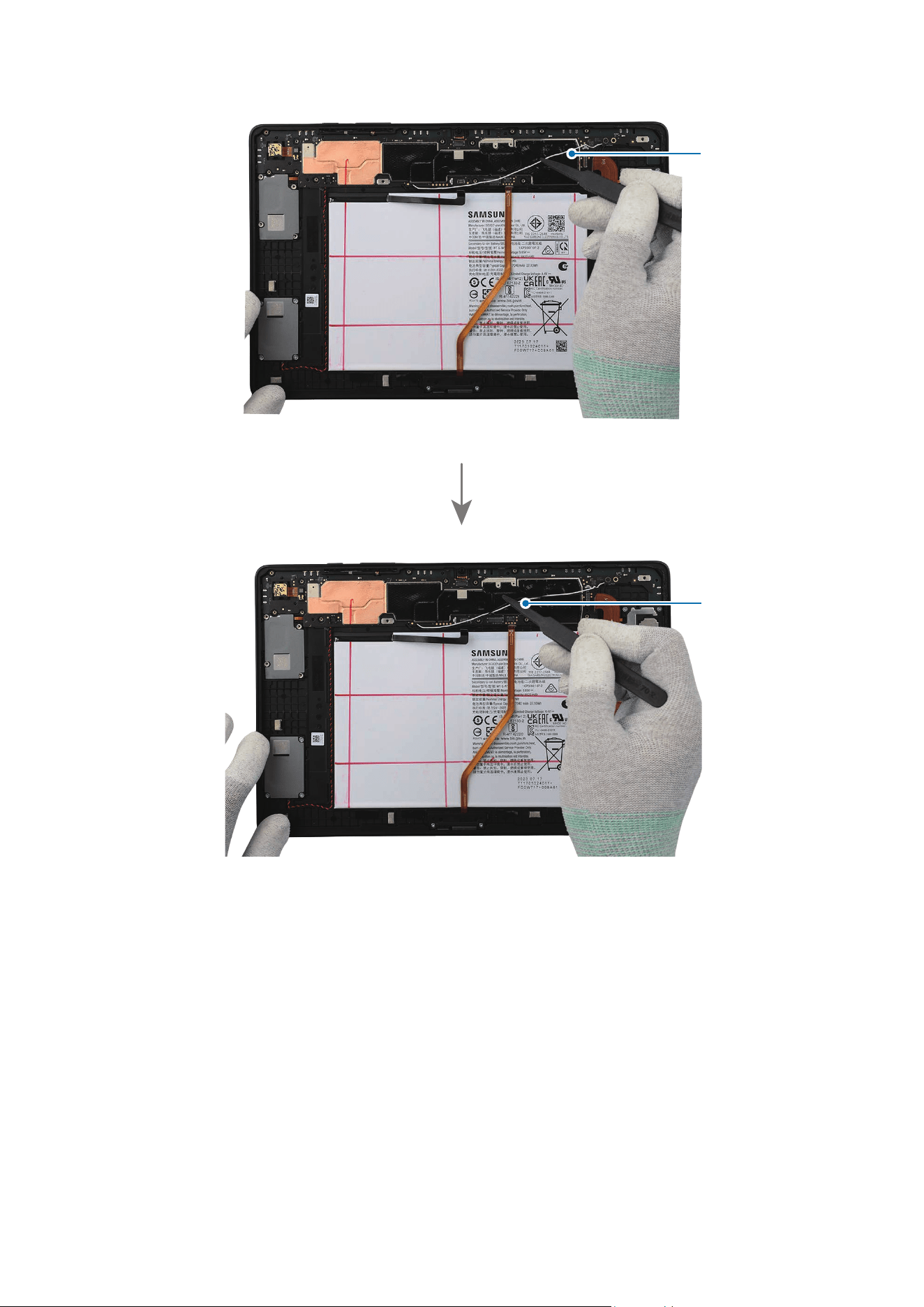

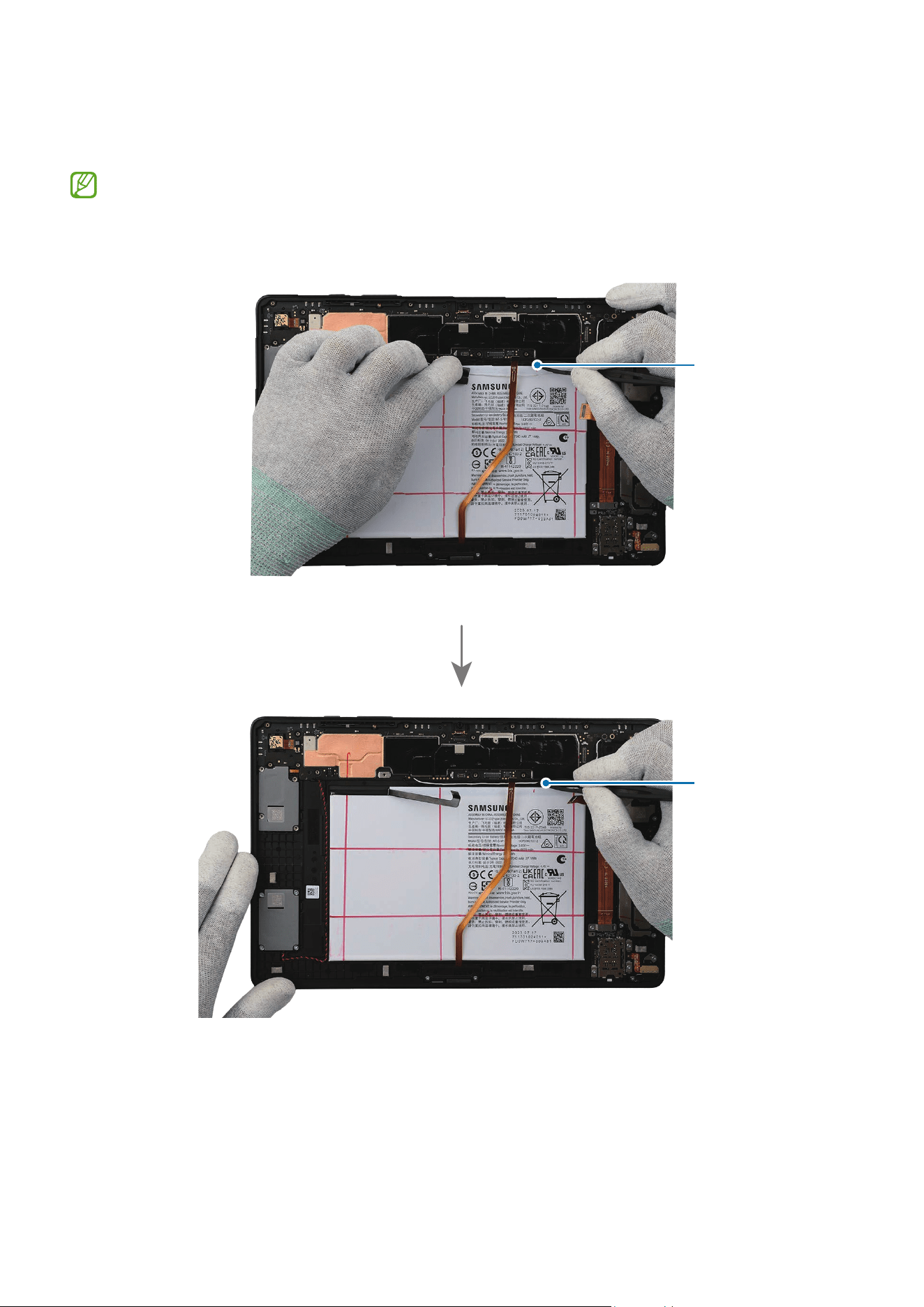

8 For the 5G or LTE devices, assemble the 2 coaxial cables (White/Black) to the back
cover module.
•
The 2 coaxial cables (White/Black) are only available for the 5G or LTE devices.
•
The cables and connectors may vary depending on the country, region, or
specifications.
Coaxial cable
(Black)
Coaxial cable
(White)
Disassembly and Assembly
155

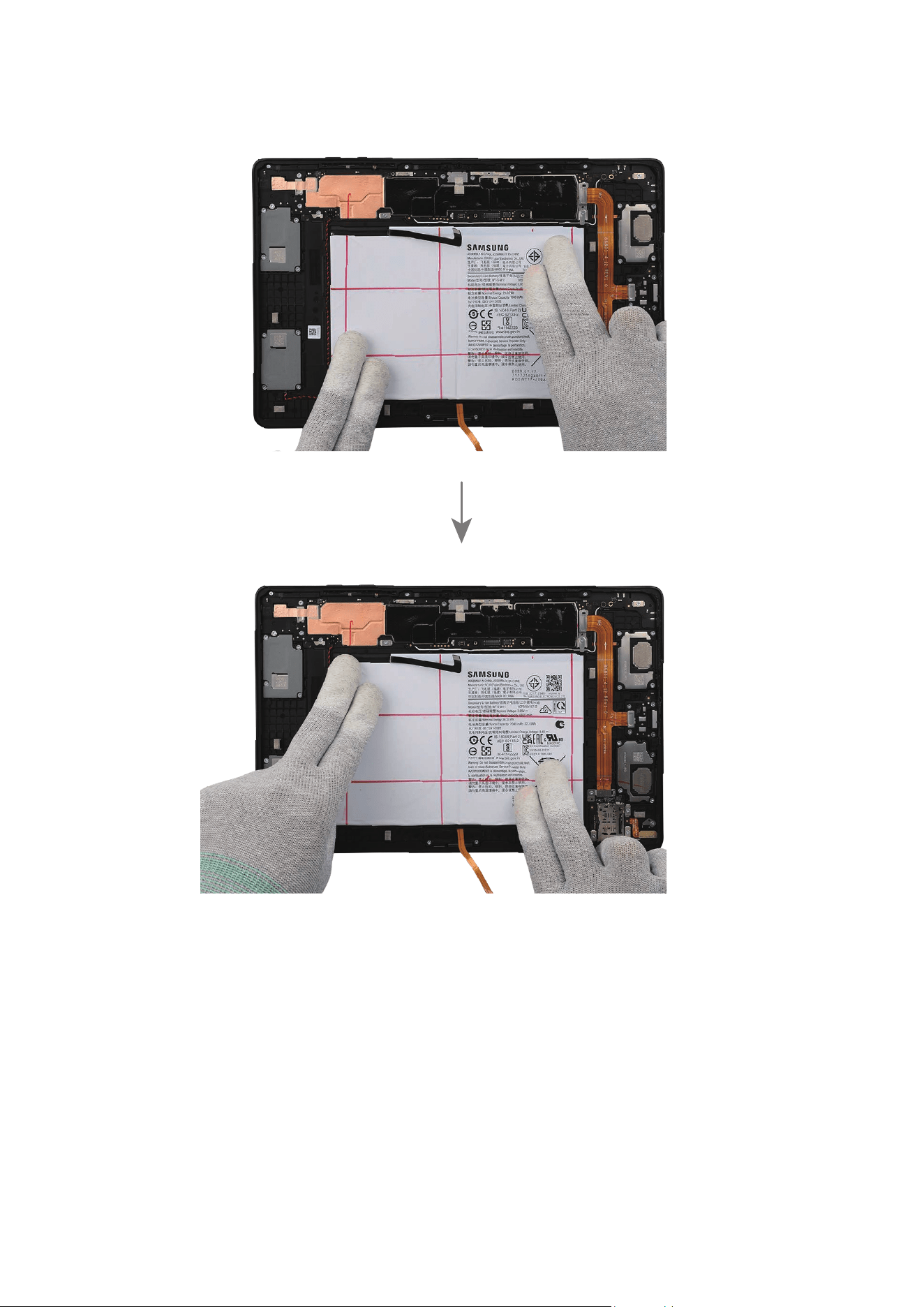

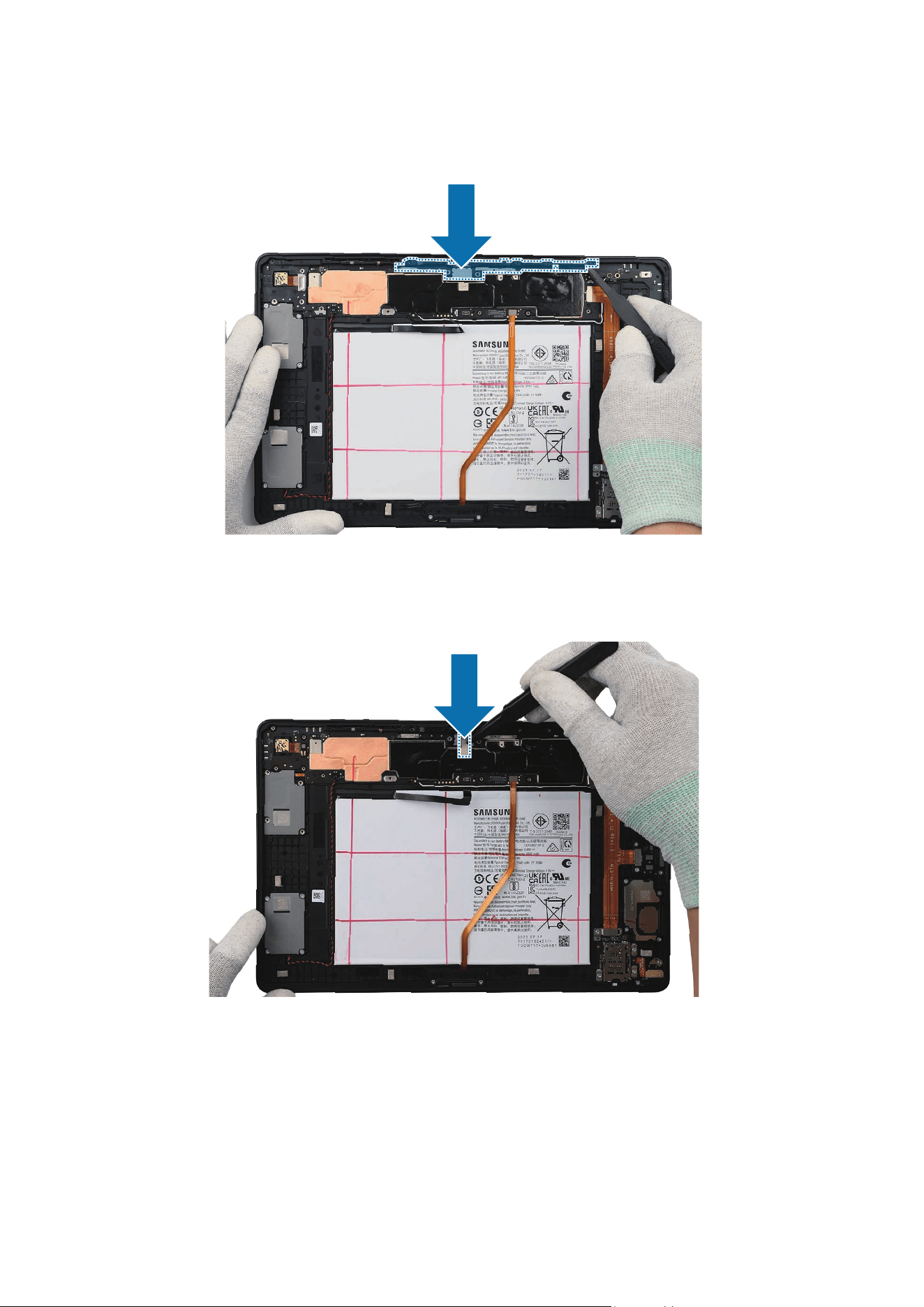

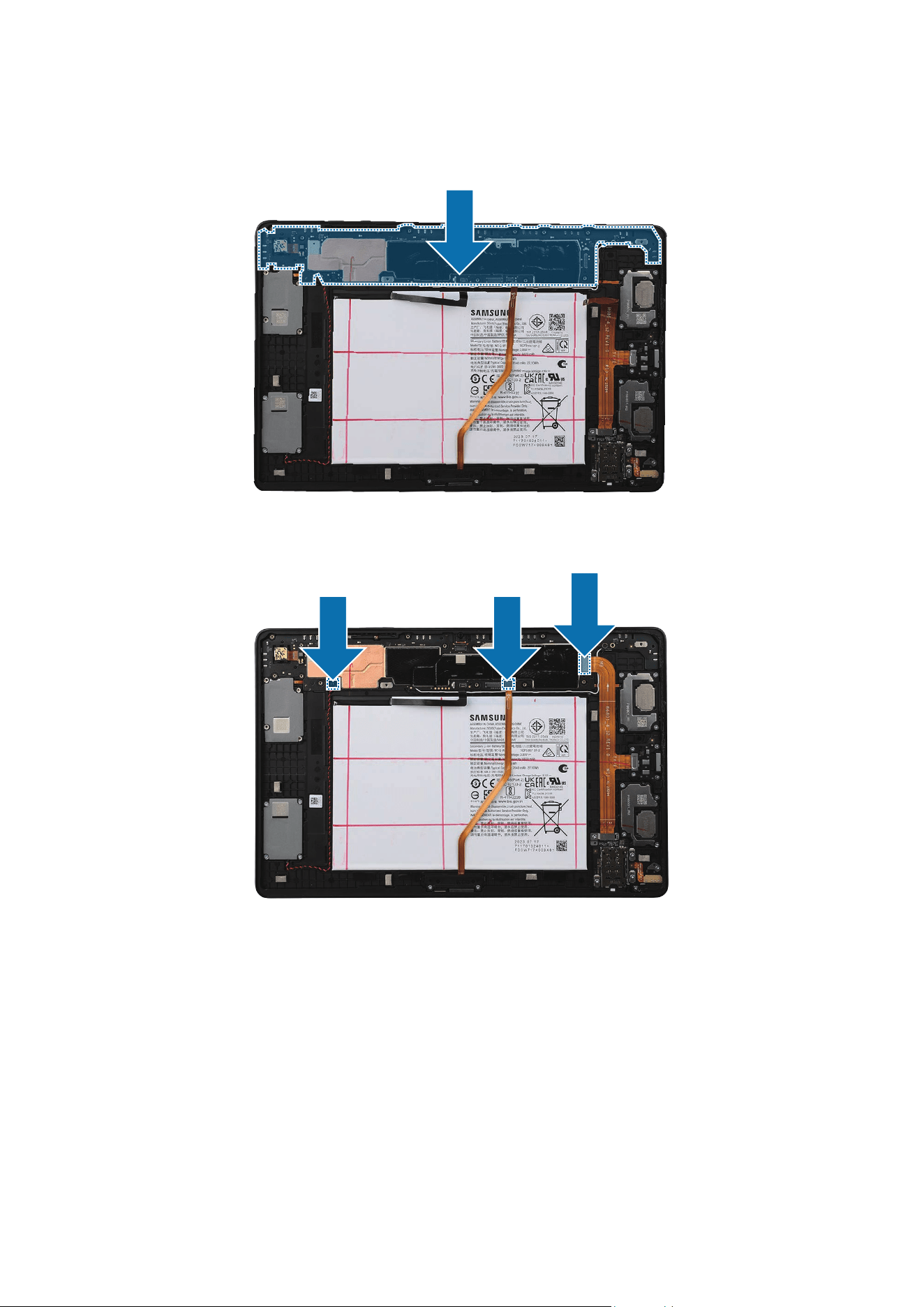

9 Press down softly and evenly on the main board so that the main board can be
completely attached.
10
Connect the 3 flex cable connectors to the main board.
Disassembly and Assembly
156
11
Using the tweezers, assemble the top metal plate of the flex cable.
12
Connect the front camera connector carefully on the main board.
Disassembly and Assembly
157
13
Using the tweezers, place the front camera bracket to the back cover module and
press down on it in its position smoothly.
14
Using the tweezers, remove the release film of the new front camera conductive tape
and attach it on the front camera bracket.
Disassembly and Assembly
158
15
Gently press down the conductive tape to ensure a secure fit.
16
Using the tweezers, place the rear camera bracket to the back cover module and
press down on it in its position smoothly.
Disassembly and Assembly
159
17
Using the tweezers, remove the release film of the new rear camera copper foil and
attach it on the rear camera bracket.
18
Gently press down the copper foil to ensure a secure fit.
Disassembly and Assembly
160

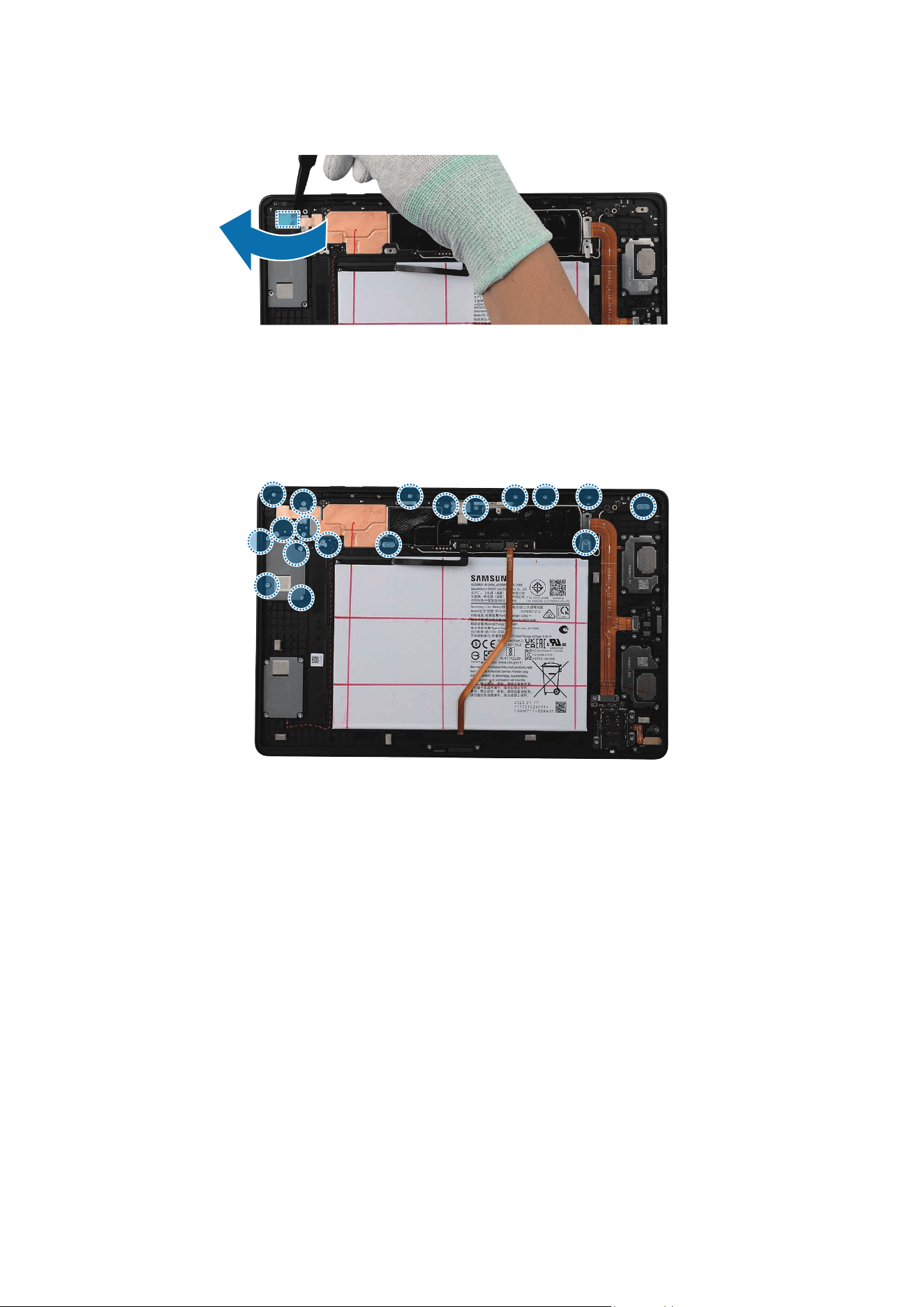

19
Remove the release film from the attached copper foil.
20
Check the screw 24530A (4 ea) at the 4 different points on the speaker module, the
screw 24530A (11 ea) at the 11 different points on the camera brackets, the screw
24530A (2 ea) at the 2 different points on the main board, and the screw 24530A (1 ea)
at the point on the top metal plate. Fasten them using a cross-head screwdriver.
Disassembly and Assembly
161
21
Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
22
Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
162
Speaker 3
Disassembly
Remove the Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the main board and near components.
Disassembly and Assembly
163

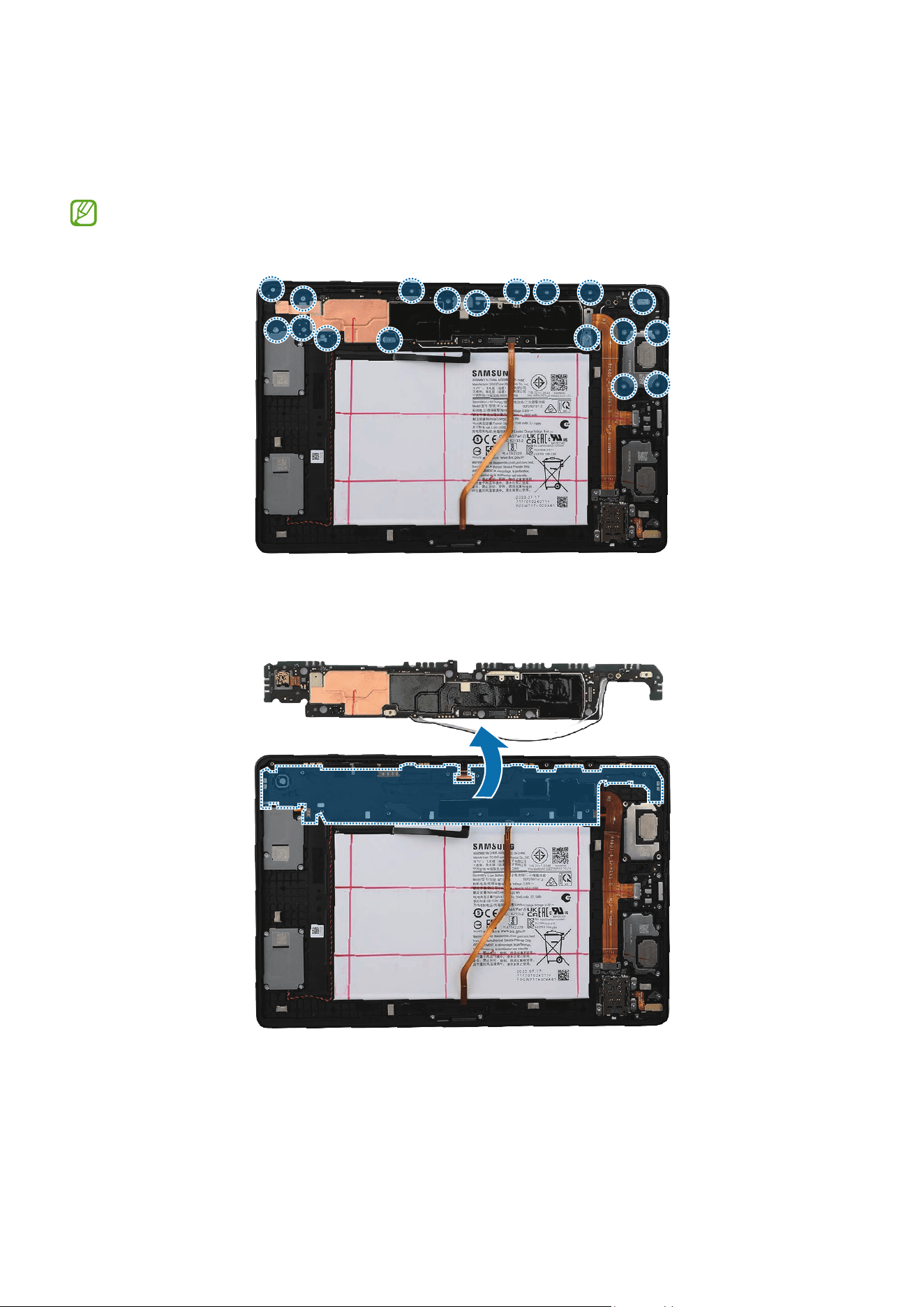

2 Check the 4 screws on the speaker module, the 11 screws on the camera brackets, the
2 screws on the main board, and the screw on the top metal plate. Remove all the
screws using a cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
3 Check for the disassembly steps of the Speaker 2 and remove the main board
completely.
Disassembly and Assembly
164
4 Using the tweezers, separate the FPCB of speaker module carefully. Lift up on the
separator groove of the speaker module and remove it carefully from the back cover
module.
The FPCB cables have to be positioned outside so as not to interfere when
disassembling the speaker.
Disassembly and Assembly
165
Disassembly and Assembly
166
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. During assembly, be extra careful not to leave any unassembled screws
inside the device.
1 Remove all release films from the new speaker module.
2 Place the speaker module to the exact position and assemble it to the back cover
module.
Be careful not to damage the speaker module and near components.
Disassembly and Assembly
167

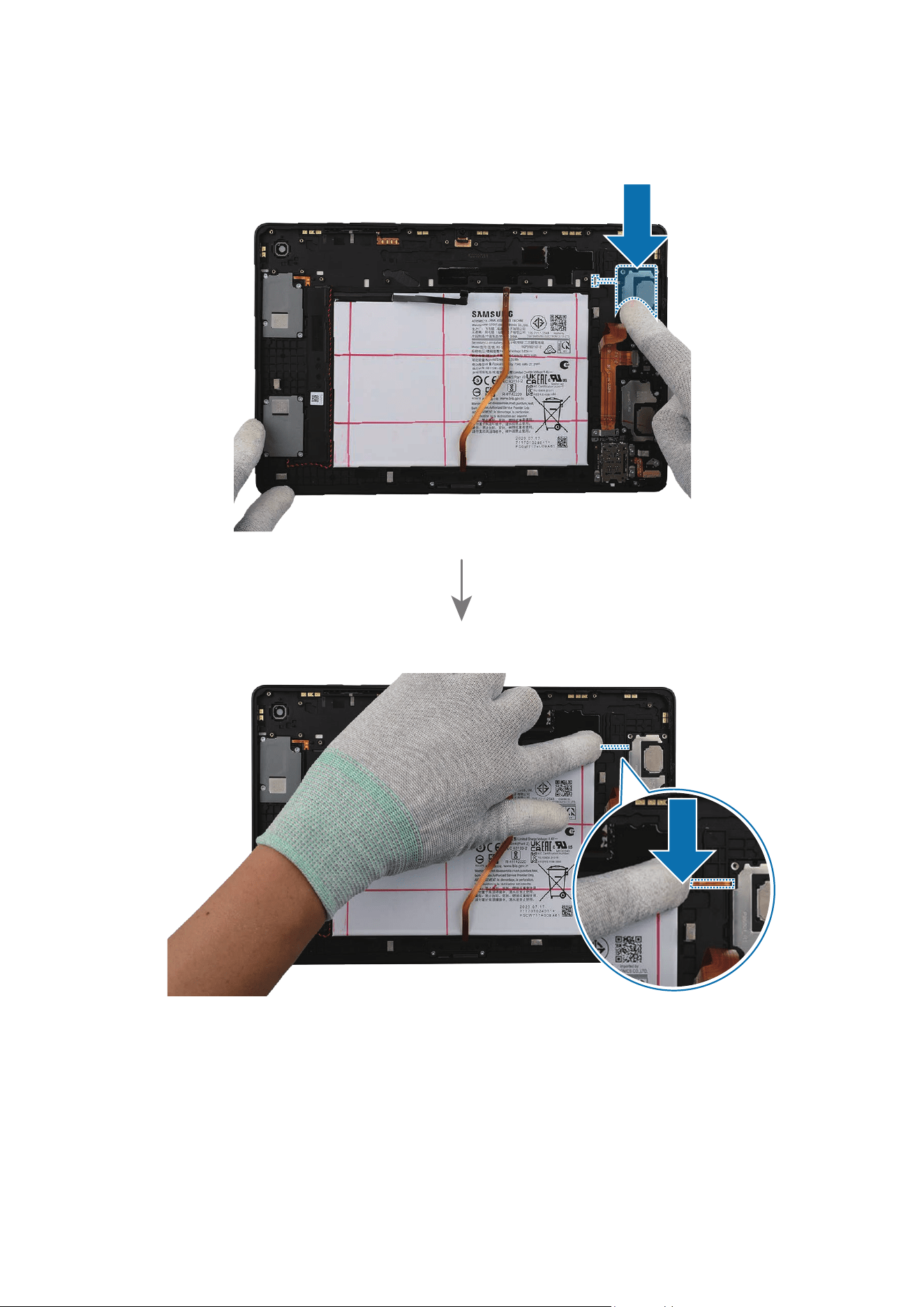

3 Press down softly and evenly on the speaker module so that the speaker module can
be completely assembled.
Disassembly and Assembly
169

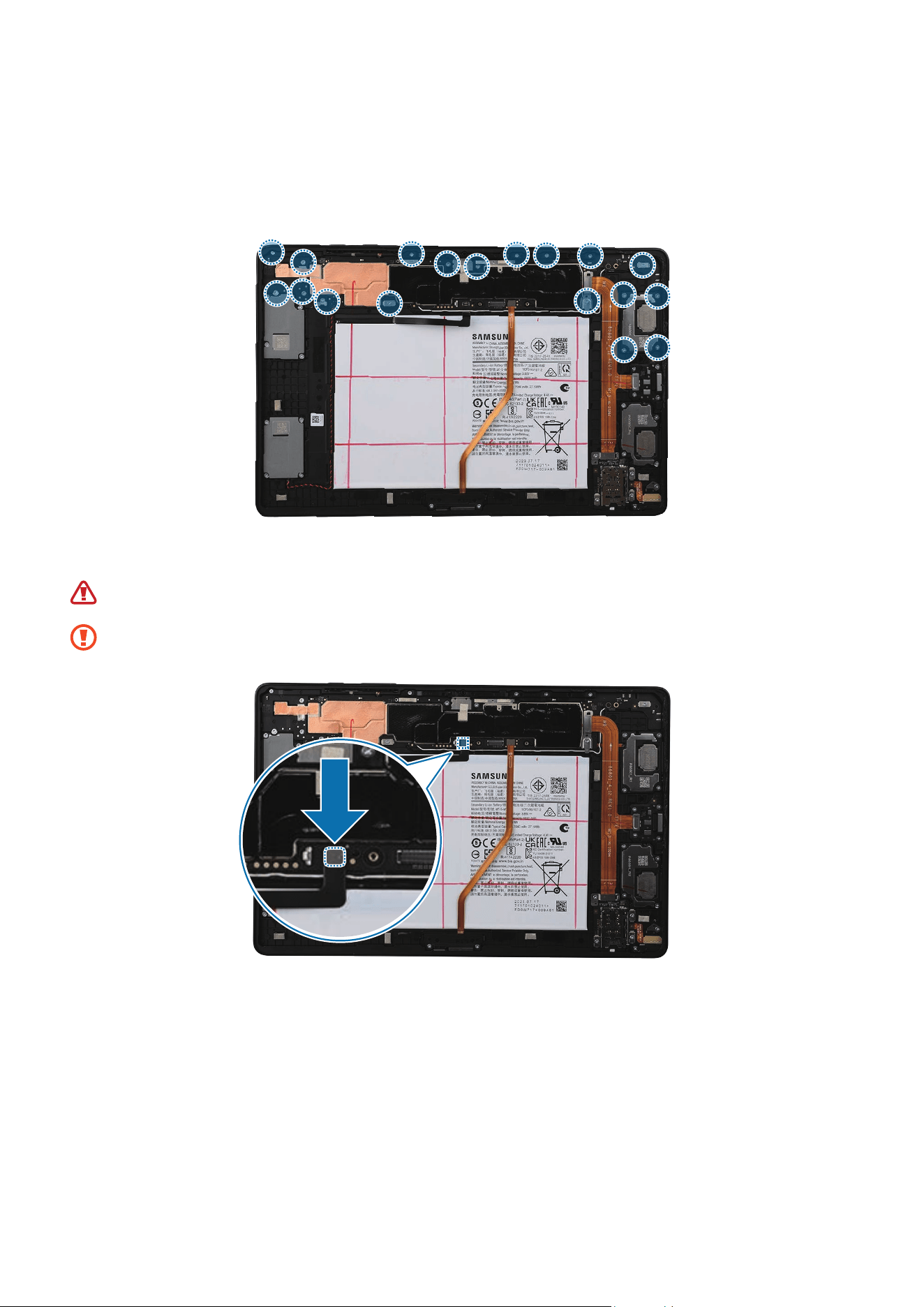

5 Check the screw 24530A (4 ea) at the 4 different points on the speaker module, the
screw 24530A (11 ea) at the 11 different points on the camera brackets, the screw
24530A (2 ea) at the 2 different points on the main board, and the screw 24530A (1 ea)
at the point on the top metal plate. Fasten them using a cross-head screwdriver.
6 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
Disassembly and Assembly
170

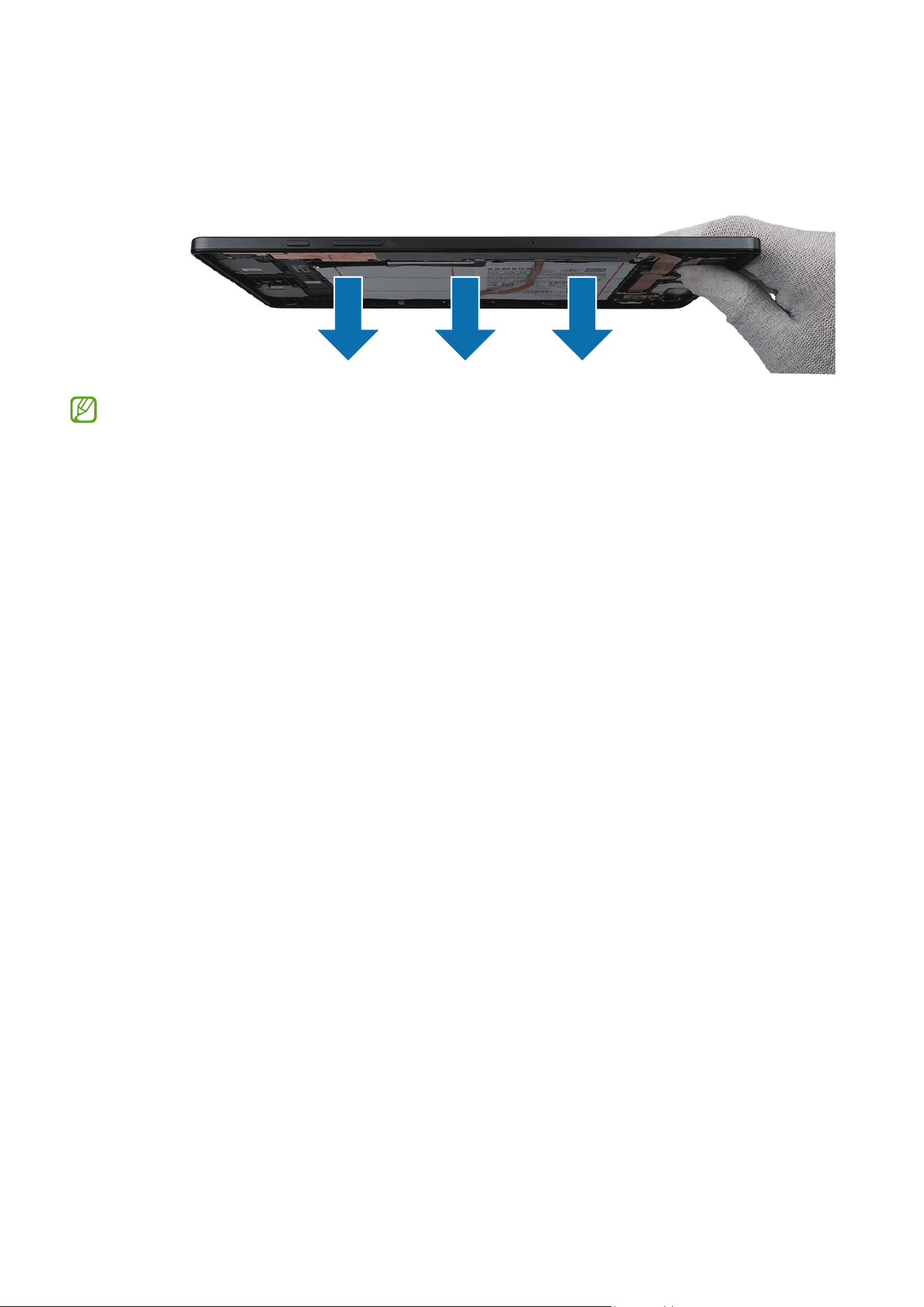

7
Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
171
Speaker 4
Disassembly
Remove the Screen first before you begin.
1 Using the tweezers, disconnect the battery connector first from the main board.
•
Make sure to first disconnect the battery connector for your own safety.
•
Be careful not to damage the battery.
Be careful not to damage the bracket and near components.
Disassembly and Assembly
172
2 Check the 8 screws on the speaker module and the charging port bracket. Remove
them using a cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
173

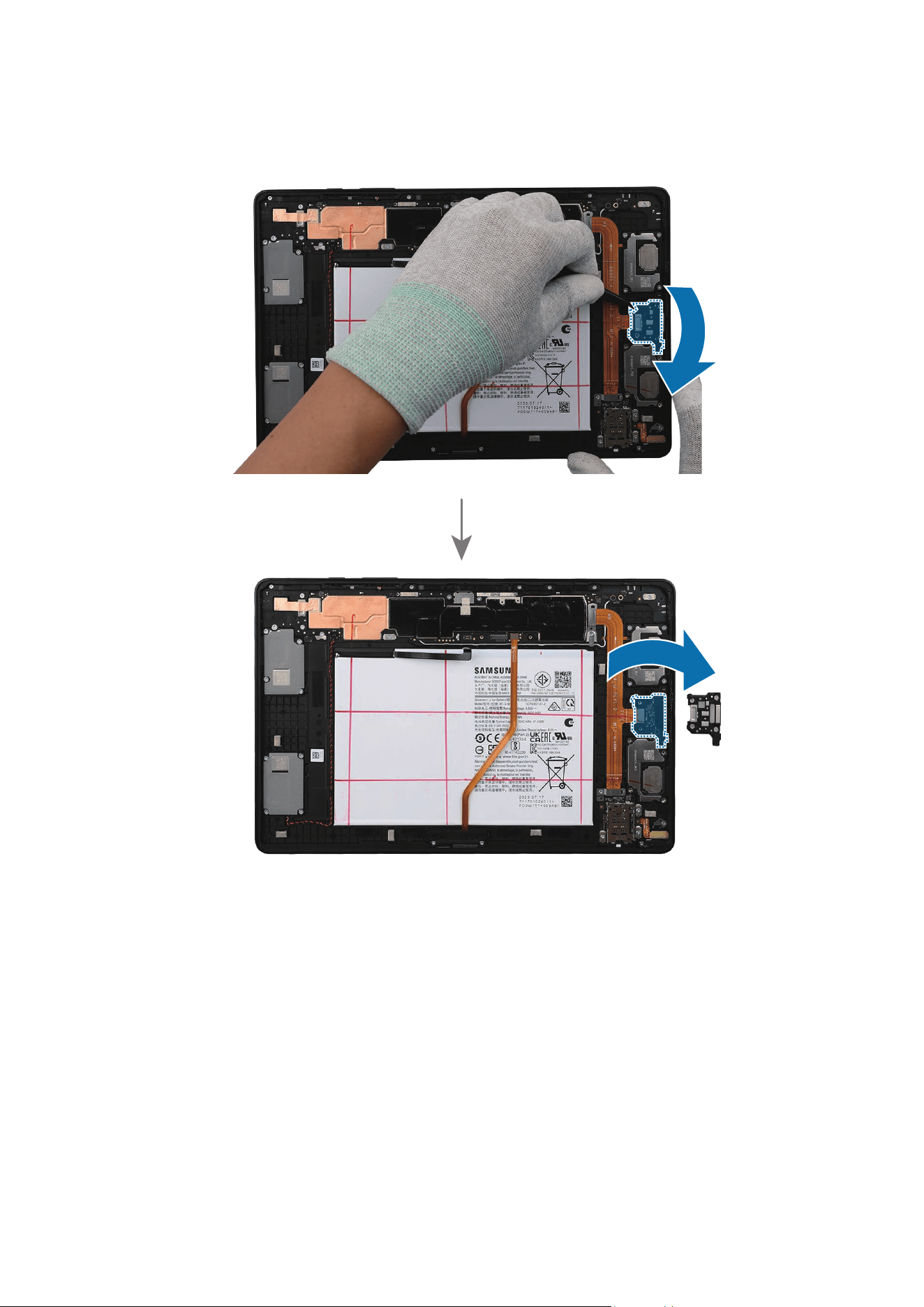

3 Using the tweezers, lift up the charging port bracket very slowly and separate it
completely from the back cover module.
Disassembly and Assembly
174
4 Using the tweezers, disconnect the flex cable connector from the charging port.
Using the tweezers, lift up on the separator groove of the charging port and separate
it from the back cover module slowly.
Disassembly and Assembly
175

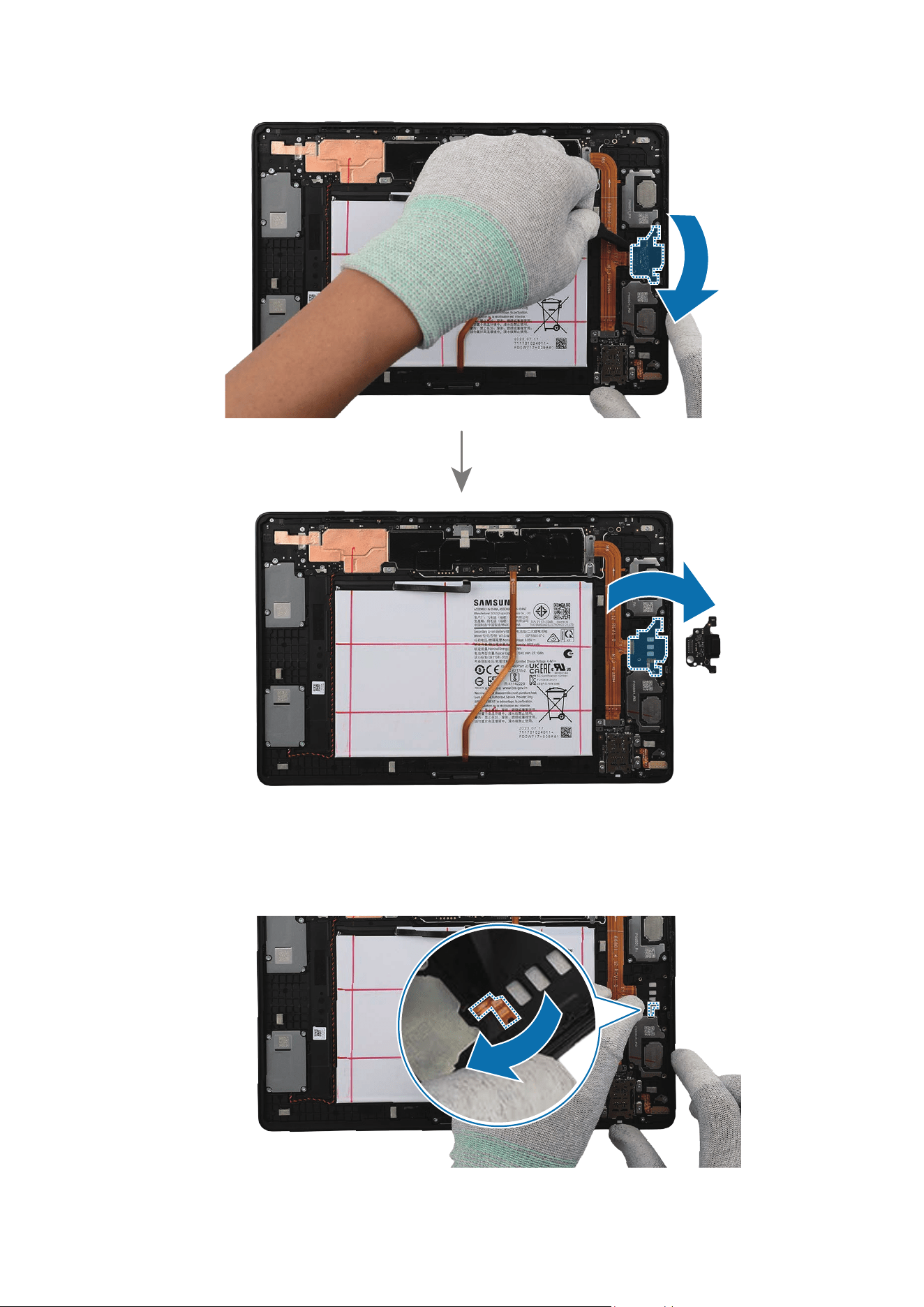

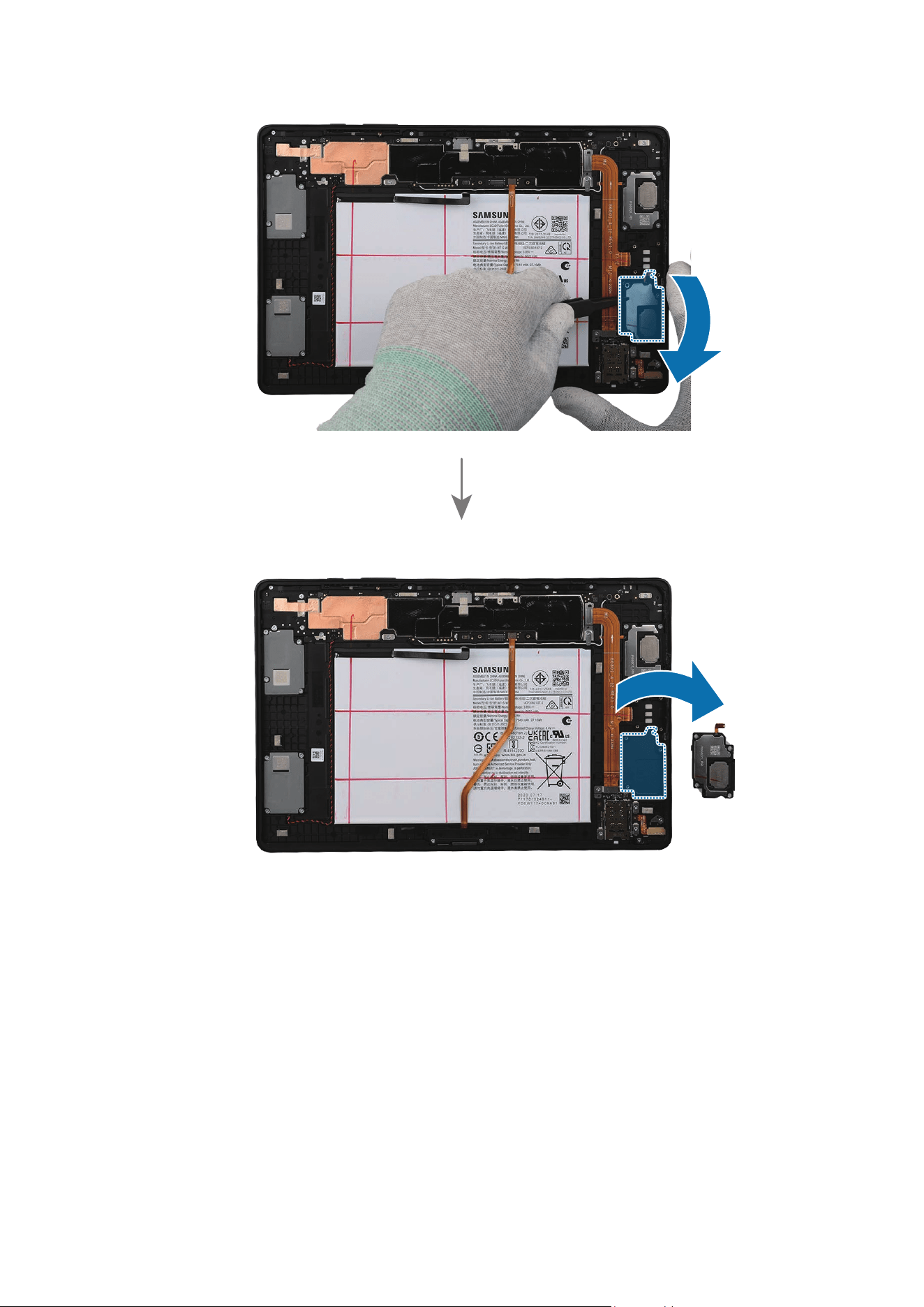

5 Using the tweezers, separate the FPCB of the speaker module carefully. Lift up on the
separator groove of the speaker module and remove it carefully from the back cover
module.
Disassembly and Assembly
176
Disassembly and Assembly
177
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

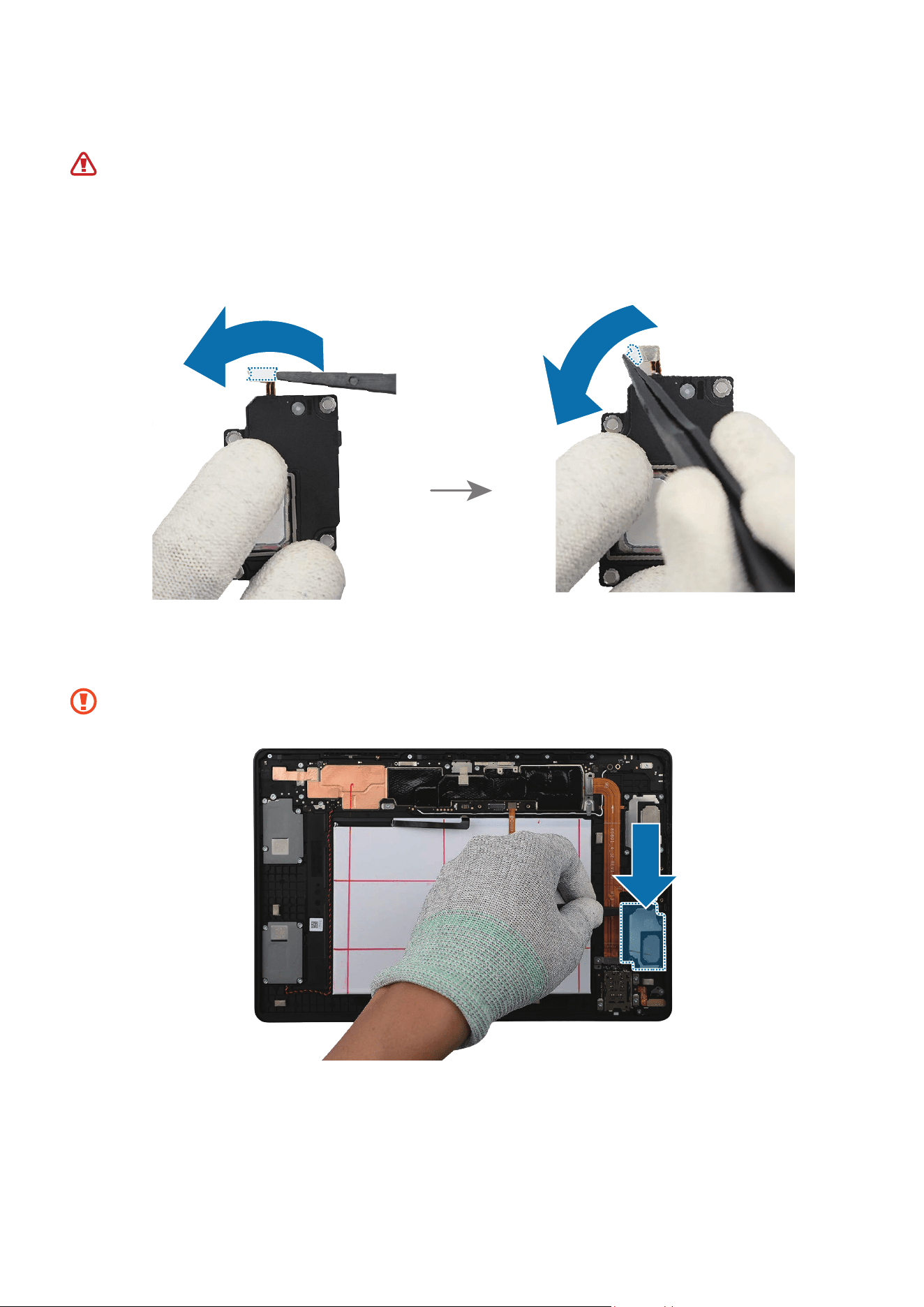

1 Remove all release films from the new speaker module.
2 Place the new speaker module to the exact position, and assemble it to the back
cover module.
Be careful not to damage the cables and speaker module.
Disassembly and Assembly
178

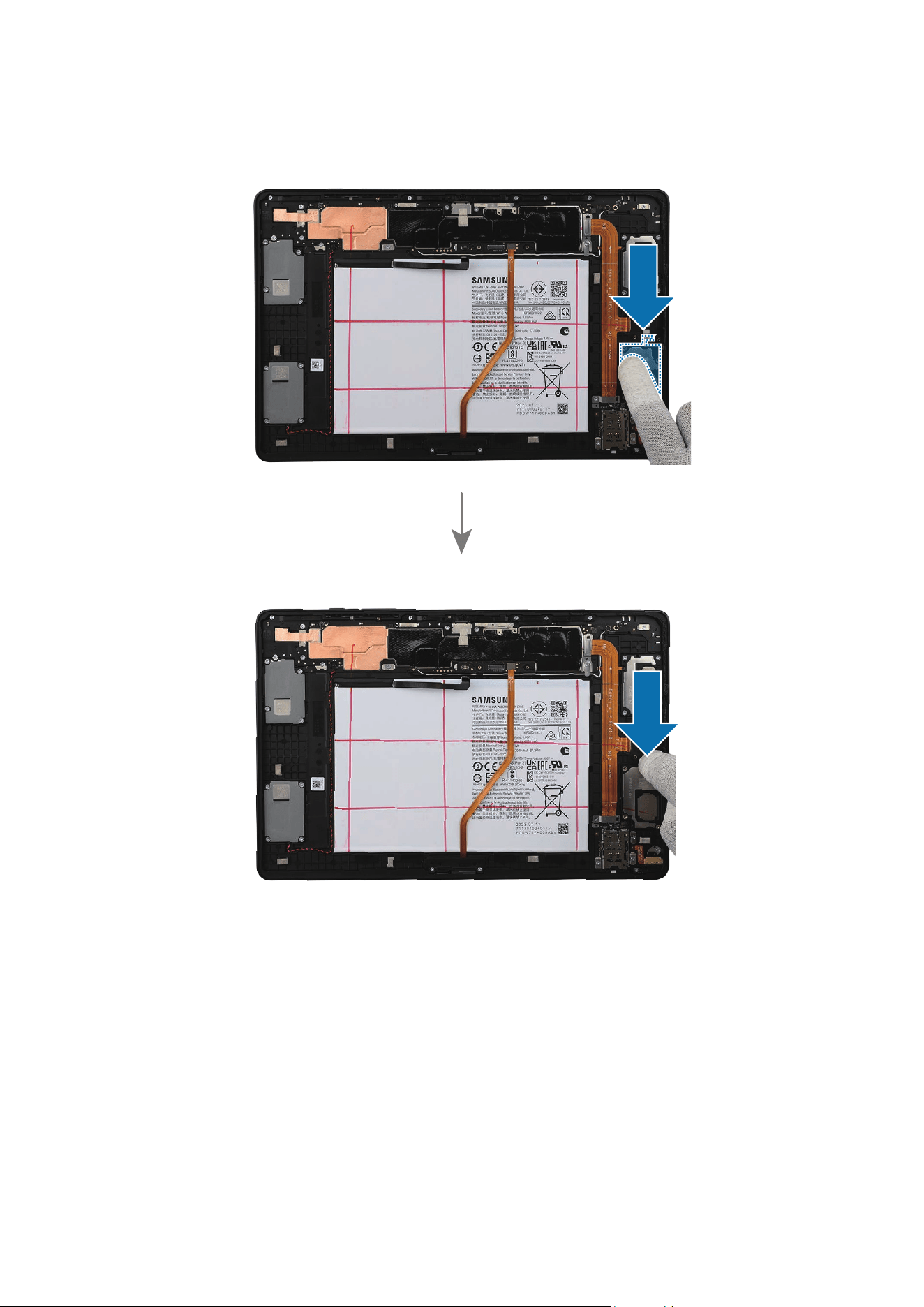

3 Press down softly and evenly on the speaker module so that the speaker module can
be completely assembled.
Disassembly and Assembly
179

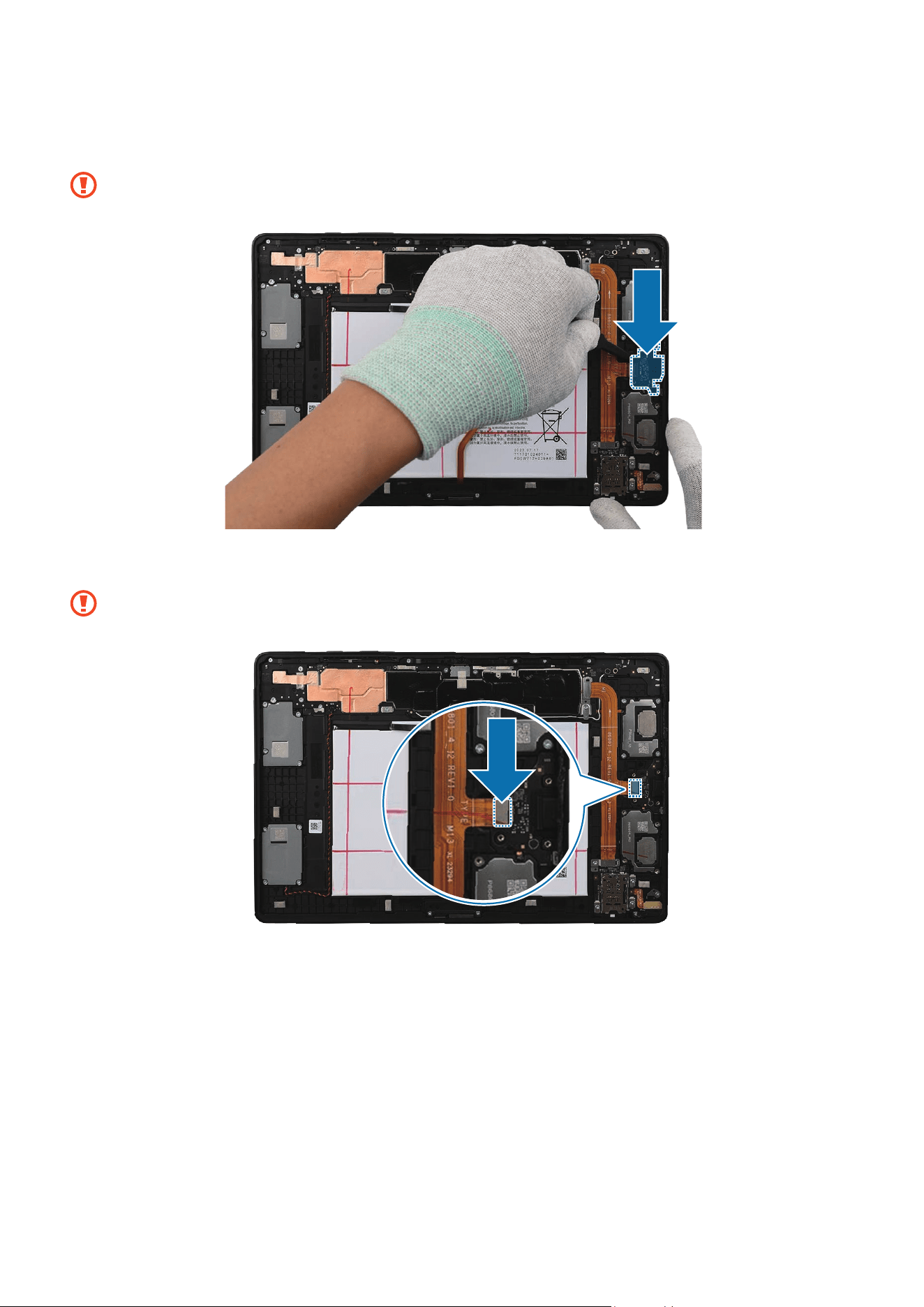

4 Insert the charging port module into the exact position and press down on it in its
position smoothly.
Be careful not to damage the charging port and near components.
5 Connect the flex cable connector on the charging port.
When connecting the connector, be careful not to damage the cable.
Disassembly and Assembly
180

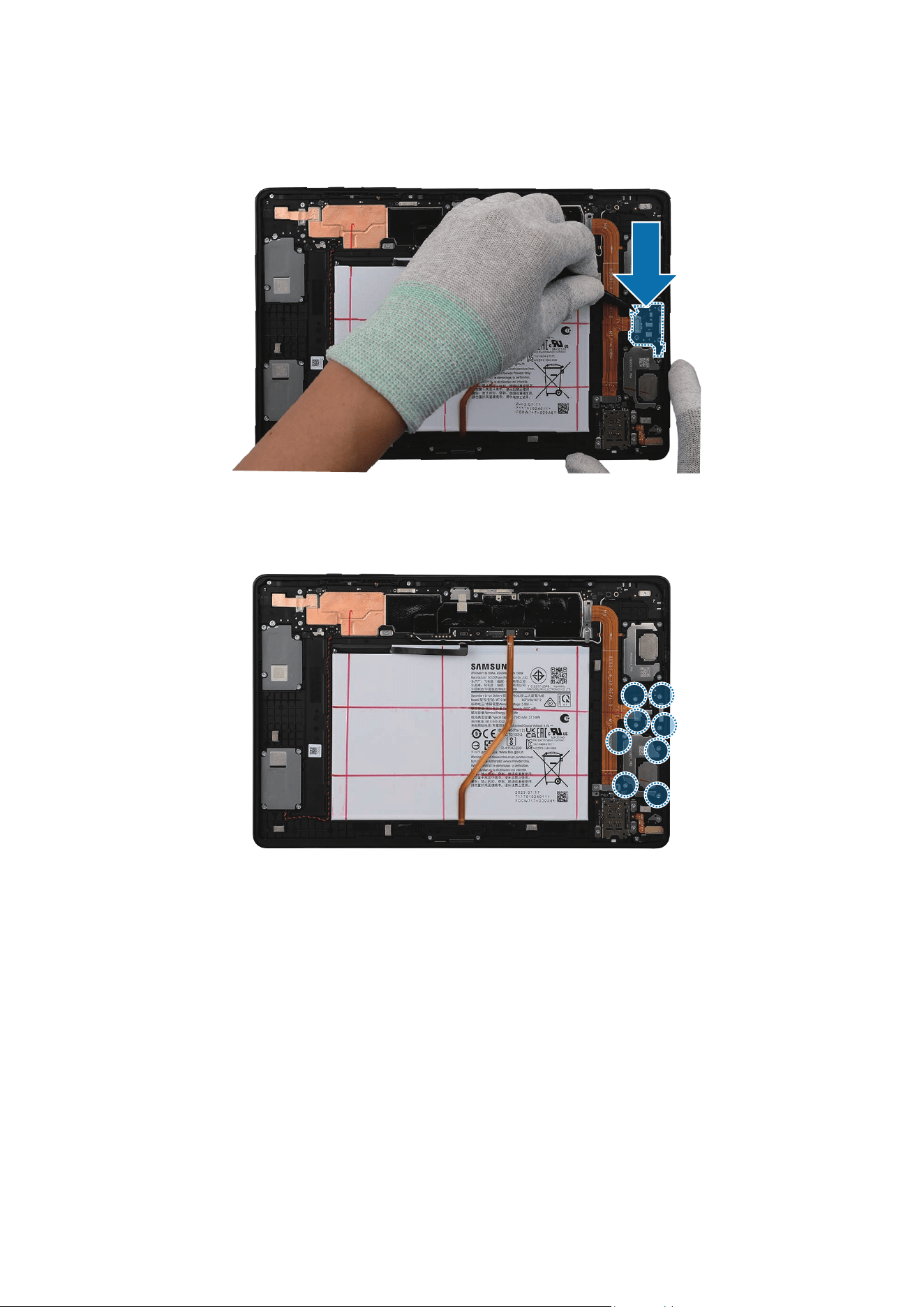

6 Using the tweezers, place the charging port bracket to the back cover module and
press down on it in its position smoothly.
7 Check the screw 24530A (8 ea) at the 8 different points on the speaker module and
the charging port bracket. Fasten them using a cross-head screwdriver.
Disassembly and Assembly
181
8 Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
9 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
Disassembly and Assembly
182
Button
Disassembly
To remove the Volume button or the Side button, lightly press one end of the button with
your fingers so that the other end protrudes. Push the tip of the protruding button up
carefully with the round-tip metal tweezers and lift it up until you can grab it with your
fingers. Grab the button with your fingers and pull it out carefully from the device.
When holding the buttons with the tweezers, be careful not to damage or scratch
the device.
If you have trouble separating the buttons with your tweezers, please try using a
sharper and thinner tool.
Disassembly and Assembly
183
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. During assembly, be extra careful not to leave any unassembled screws
inside the device.
1 Remove the release film of the new Volume button. Using your fingers, grab the
Volume button and insert it on the slot carefully.
Be careful not to damage the button and device.
2 Press down the Volume button softly and evenly so that the button can be completely
assembled. Press the button to make sure it clicks. It should have the same sound
and feel as before disassembly.
Disassembly and Assembly
184
3 Remove the release film of the new Side button. Using your fingers, grab the Side
button and insert it on the slot carefully.
Be careful not to damage the button and device.
4 Press down the Side button softly and evenly so that the button can be completely
assembled. Press the button to make sure it clicks. It should have the same sound
and feel as before disassembly.
Disassembly and Assembly
185
Battery
The separated battery may be damaged. Do not use it again.
Disassembly
Remove the Screen first before you begin.

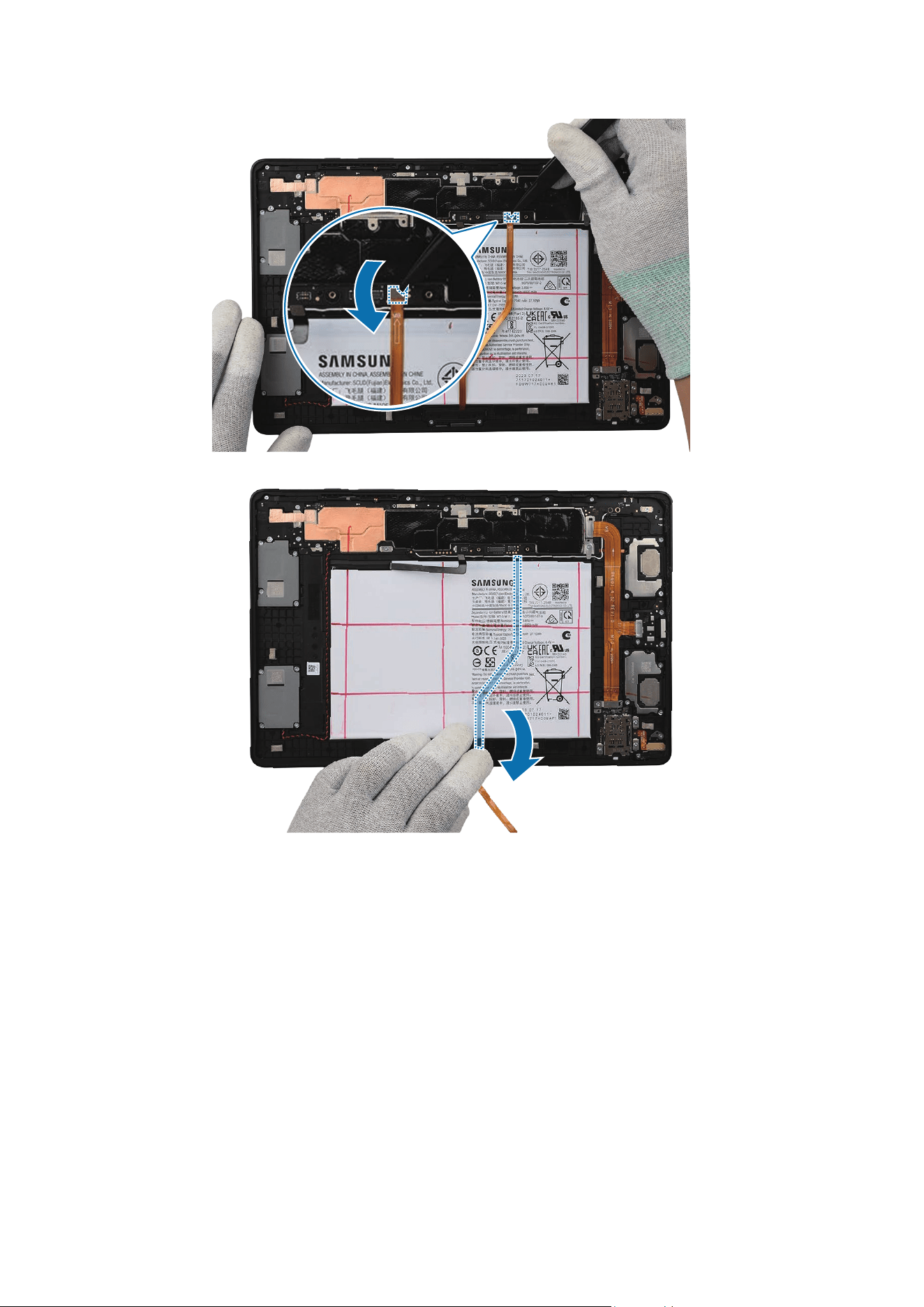

Using the tweezers, disconnect the battery connector first from the main board. Using
the tweezers, disconnect the POGO FPCB cable connector from the main board and
place the cable to the outside carefully. Using your fingers, hold the battery tape handle
attached to the downside of the back cover module and pull it out strongly from the

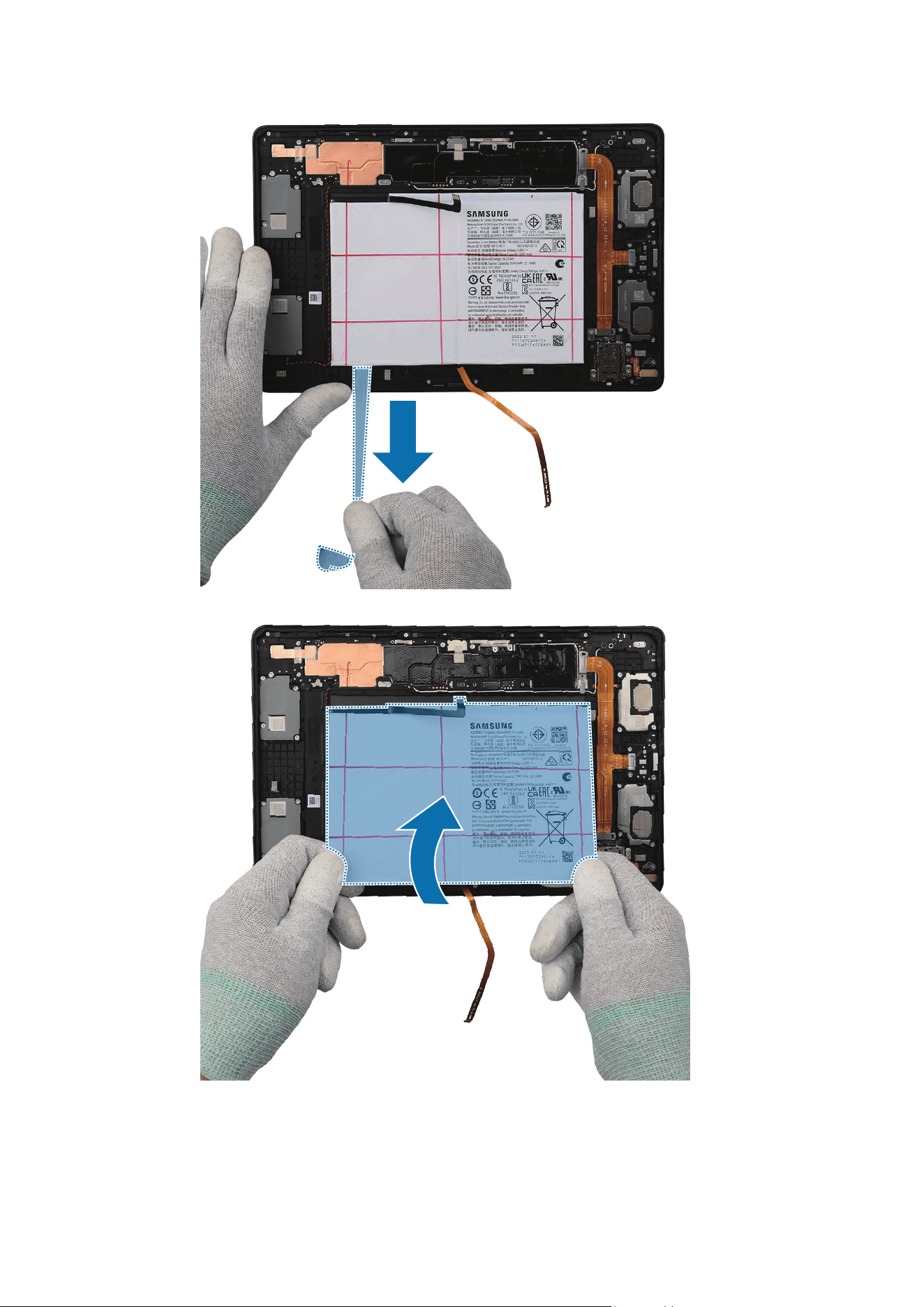

back cover module. Pull out the all tape handles in the same way and remove all the
tapes attached under the battery. Then, grab the battery with your fingers and remove it
completely.
•
Make sure to first disconnect the battery connector for your own safety.
•
The separated battery may be damaged. Do not use it again.
•
As the adhesive securing the battery is very strong, remove the battery slowly.
•
The FPCB cables have to be positioned outside so as not to interfere when
disassembling the battery.
•
Be careful not to damage the bracket and near components.
Disassembly and Assembly
186
Disassembly and Assembly
187
Disassembly and Assembly
188
Disassembly and Assembly
189
Disassembly and Assembly
190
Disassembly and Assembly
191
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
1 Remove the release film from the new battery adhesive tape and attach it carefully to
the exact position of the back cover module.
Be careful not to damage the bracket and near components.
2 Gently press down the attached tape to ensure a secure fit.
Disassembly and Assembly
192
3 Attach all battery adhesive tapes to the back cover module and gently press down
the tapes to ensure a secure fit. Then, remove all the release films carefully.
Disassembly and Assembly
193
4 With the battery connector on the top, carefully place the battery based on the upper
side of the battery. Then, assemble the battery to the exact position of the back cover
module using your fingers.
Be careful not to damage the battery.
•
The FPCB cables and connectors have to be positioned outside so as not to
interfere when assembling the battery.
•
Be careful not to damage the near components.
Disassembly and Assembly
194
5 Press the battery with your fingers softly so that the battery can be attached well.
Disassembly and Assembly
195
6 Now you can press the fully assembled battery using the press fixture. Remove the
press fixture body and its handle from the rental tool kit packaging.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
•
This tool is only available to use by the rental of tool kit that contains a
complete set of the tools for self repair service.
•
Availability of rental service may vary depending on the country and is currently
available only in limited countries.
•
A rented tool kit packaging may have different packaging than shown.
7 Carefully position the torque limit handle horizontally at the top of the press fixture.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
Disassembly and Assembly
196
8 Remove the bottom press tray and the battery rubber pads (3 ea) from the rental tool
kit packaging.
9 Leave the inside of the bottom press tray visible and carefully place the device into
the tray facing up.
Disassembly and Assembly
197

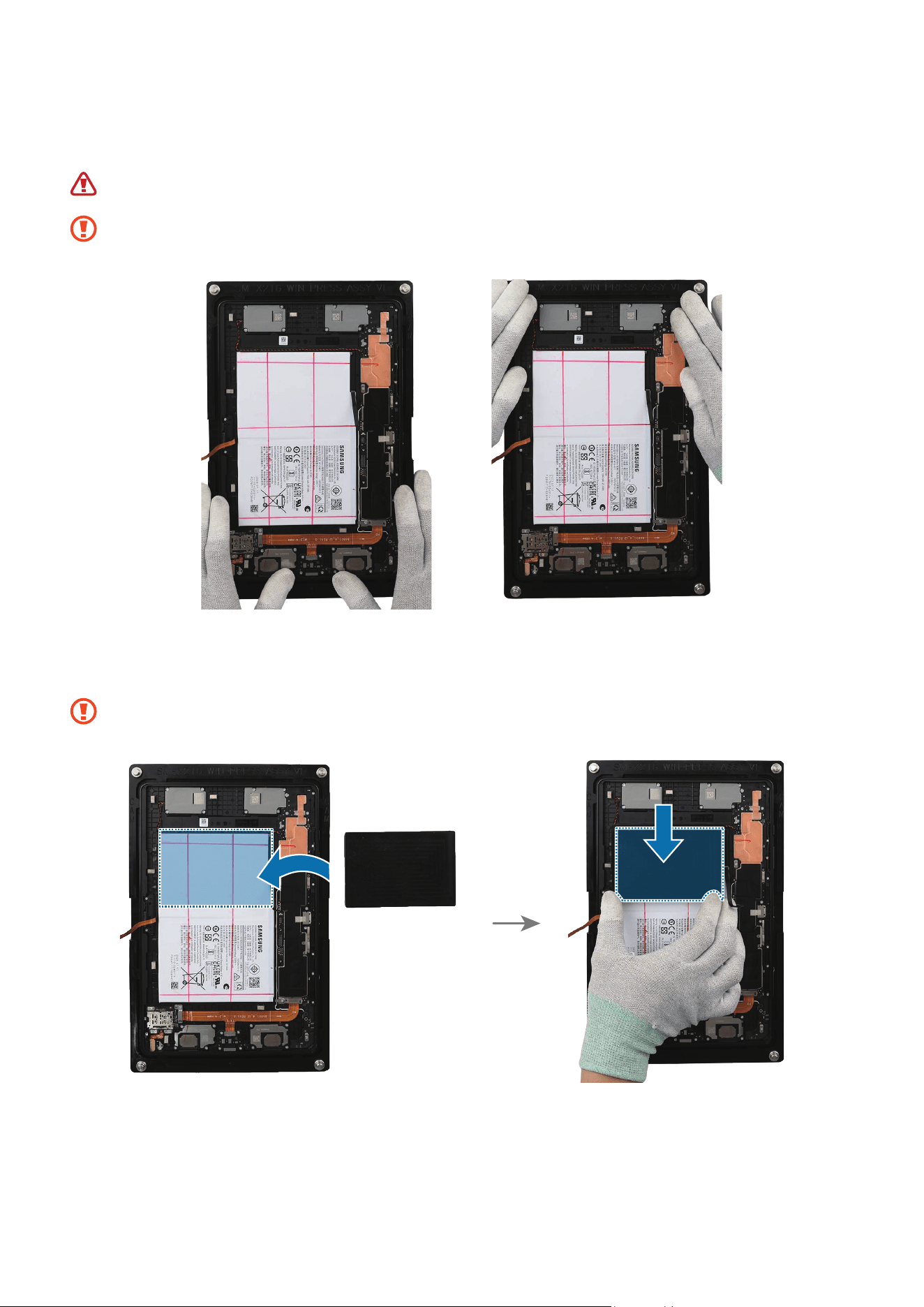

10
Using your fingers, press down the all edges carefully and make sure that the device
is completely secured to the bottom tray.
Be careful not to damage the battery.
Be careful not to damage the device and near components.
11
Choose a top battery-sized pad from the provided battery rubber pads and place it
carefully on the top battery.
Be careful not to cover the battery rubber pad beyond the battery size.
Disassembly and Assembly
198
12
Position the bottom tray with the device lengthwise in the centre of the press fixture
so that the top battery is fully placed into the press fixture.
•
The FPCB cables and connectors have to be positioned outside so as not to
interfere when pressing the battery.
•
Be careful not to damage the cables and near components.
•
Be careful not to move the battery pad out of its position.
Disassembly and Assembly
199
13
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray for 5 seconds.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
When you reach the required maximum force (1 N), a sound is made from the
handle if you turn the handle.
Disassembly and Assembly
200
14
When the press is completed after 5 seconds, rotate the torque limit handle to the
anticlockwise and remove the tray from the press fixture.
•
The FPCB cables and connectors have to be positioned outside so as not to
interfere when removing the tray.
•
Be careful not to damage the cables and near components.
15
Place the battery rubber pad carefully on the bottom battery.
Be careful not to cover the battery rubber pad beyond the battery size.
Disassembly and Assembly
201
16
Position the bottom tray with the device lengthwise in the centre of the press fixture
so that the bottom battery is fully placed into the press fixture.
•
The FPCB cables and connectors have to be positioned outside so as not to
interfere when pressing the battery.
•
Be careful not to damage the cables and near components.
•
Be careful not to move the battery pad out of its position.
Disassembly and Assembly
202
17
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray for 5 seconds.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
When you reach the required maximum force (1 N), a sound is made from the
handle if you turn the handle.
Disassembly and Assembly
203
18
When the press is completed after 5 seconds, rotate the torque limit handle to the
anticlockwise and remove the tray from the press fixture.
•
The FPCB cables and connectors have to be positioned outside so as not to
interfere when removing the tray.
•
Be careful not to damage the cables and near components.
19
Remove the device carefully from the bottom tray.
Disassembly and Assembly
204
20
Connect the POGO FPCB cable connector to the main board.
Be careful not to damage the main board and near components.
21
Connect the battery connector to the main board.
Be careful not to damage the battery.
Be careful not to damage the battery connector and near components.
Disassembly and Assembly
205
22
Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen to complete assembly.
After reassembling
•
Check whether the parts or sensors in the device work properly with the Self
Repair Assistant app after repairing and assembling your device. Refer to
Calibrations for more information.
•
Visit a Samsung Service Centre when finding some issues from the calibration
results. However, you may incur additional charges if the device has a
malfunction because of DIY repairs.
Disassembly and Assembly
206
Directive 2012/19/EU Annex VII Components
Directive 2012/19/EU Annex VII requirements apply to the following components.
Component Samsung Part Name Removal Instructions
Printed circuit board
if the surface is
greater than 10 square
centimetres
Main Board (PBA)
Check for the disassembly steps
of the Speaker 2 and separate the
main board.
Liquid crystal display
of a surface greater
than 100 square
centimetres and all
those back-lighted
with gas discharge
lamps
Screen
Check for the disassembly steps of
the Screen and separate the screen.
Battery Battery
Check for the disassembly steps
of the Battery and separate the
battery.
External electric cable USB Cable
Disconnect the USB cable.
This guide is a property of Samsung Electronics Co., Ltd.
Any unauthorised use of guide can be punished under applicable international and/or
domestic law.
© Samsung Electronics Co., Ltd.

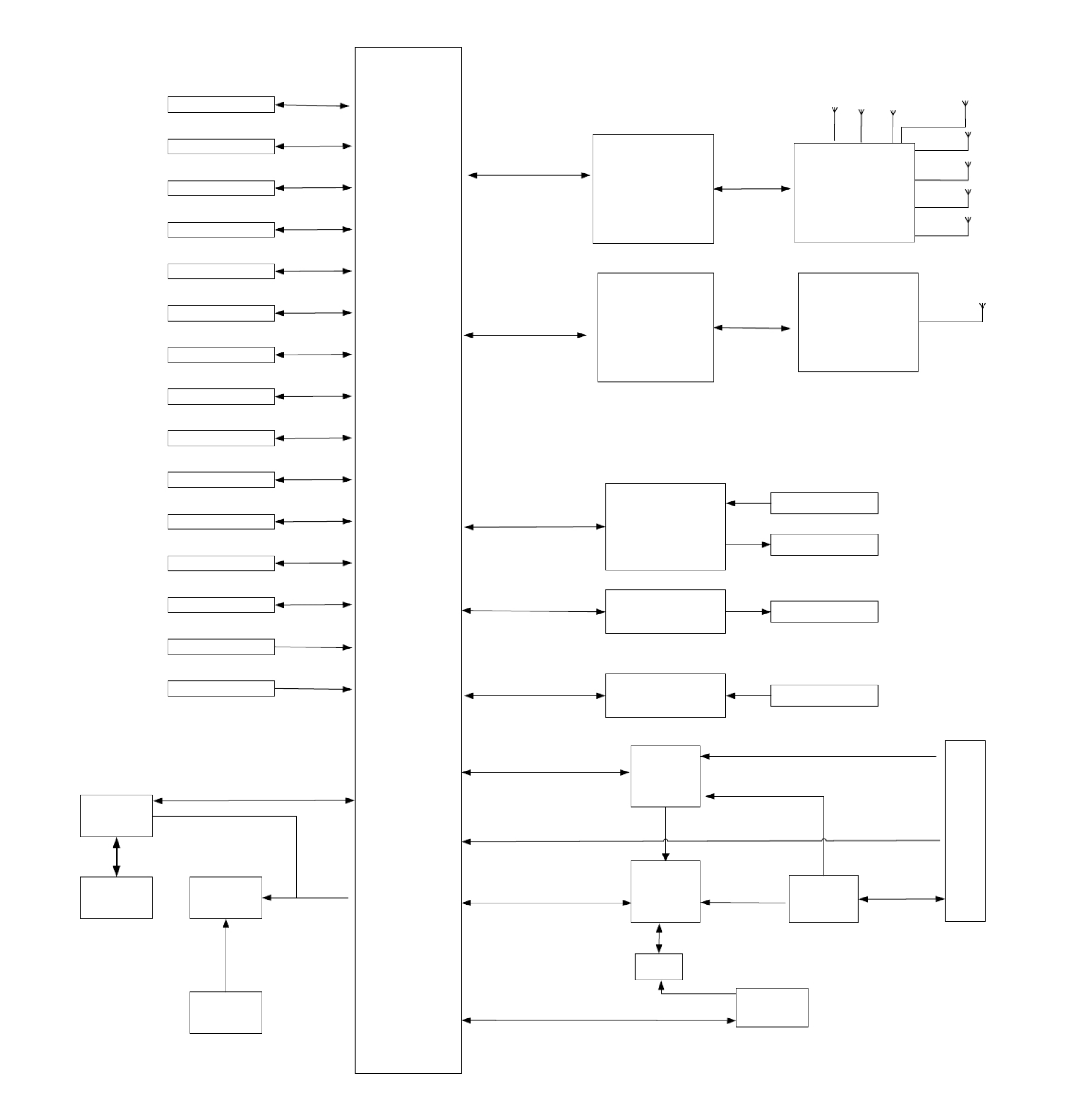

PD IC
USB
TypeC
OVP
Battery
Fuel
Gauge
Charg er
Pogo Keyboard
Security_I C
JTAG
UART
Pogo
3Pin
Pogo MCU
Pogo Debug
Connect
AP
Memory
LCD&CTP
Main CAM 8M
Front CAM 5M
SIM*1+TF
M Sensor
ALS Sensor
ALS-2 Sensor
GRO Sen sor
HALL
SAR
LCD Bias
HEADSET JACK
Audio PA 1-4
PMIC
Speak1-4
76.8mhz
Transceiver
EIFI/BT
Audio Codec
ANT3
ANT4
ANT5
ANT6
ANT7
WIFI/BT/GPS
ANT0 ANT1
ANT2
2/3/4G ， 5G Sub-6
WWAN Front End
GPS
WLAN,BT
Front End
AMIC*2
