REPAIR PARTS
© 2009 Goodman M
Houston, TX 77056
RP-4335
This manual is to be used by qualified technicians only.
June 2021
CAUFA Indoor Uncased Coil
© 2021 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe St, Suite 500 ◊ Houston, TX 77056
www.amana-hac.comwww.goodmanmfg.com
CAUFA1714A6BA
CAUFA1714B6BA
CAUFA1818A6CA
CAUFA1818B6CA
CAUFA1818C6CA
CAUFA2318A6BA
CAUFA2318B6BA
CAUFA2318C6BA
CAUFA2418A6BA
CAUFA2418B6BA
CAUFA2418C6BA
CAUFA2422A6BA
CAUFA2422B6BA
CAUFA2422C6BA
CAUFA2922A6BA
CAUFA2922B6BA
CAUFA2922C6BA
CAUFA3022A6BA
CAUFA3022B6BA
CAUFA3022C6BA
CAUFA3022D6BA
Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
I
llustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
Homeowner Support
Goodman Manufacturing Company, L.P.
19001 Kermier Road
Waller, Texas 77484
877-254-4729-Telephone
713-863-2382-Facsimile
International Division
Goodman Manufacturing Company, L.P.
19001 Kermier Road
Waller, Texas 77484
713-861-2500-Telephone
713-863-2382-Facsimile
www.amana-hac.comwww.goodmanmfg.com
4 - 5
3
RP-4335
Functional Parts
Part
No:
Description:
SPECIAL PARTS
BT1369063 90 DEGREE STUB
B1373311 ACCESS VALVE FITTING
PKCG-4001ZB PISTON KIT CHART
Expanded Model Nomenclature
M1 - CAUFA1714A6BA
M2 - CAUFA1714B6BA
M3 - CAUFA1818A6CA
M4 - CAUFA1818B6CA
M5 - CAUFA1818C6CA
M6 - CAUFA2318A6BA
M7 - CAUFA2318B6BA
M8 - CAUFA2318C6BA
M9 - CAUFA2418A6BA
M10 - CAUFA2418B6BA
M11 - CAUFA2418C6BA
M12 - CAUFA2422A6BA
M13 - CAUFA2422B6BA
M14 - CAUFA2422C6BA
M15 - CAUFA2922A6BA
M16 - CAUFA2922B6BA
M17 - CAUFA2922C6BA
M18 - CAUFA3022A6BA
M19 - CAUFA3022B6BA
M20 - CAUFA3022C6BA
M21 - CAUFA3022D6BA
3RP-4335
www.goodmanmfg.com www.amana-hac.com

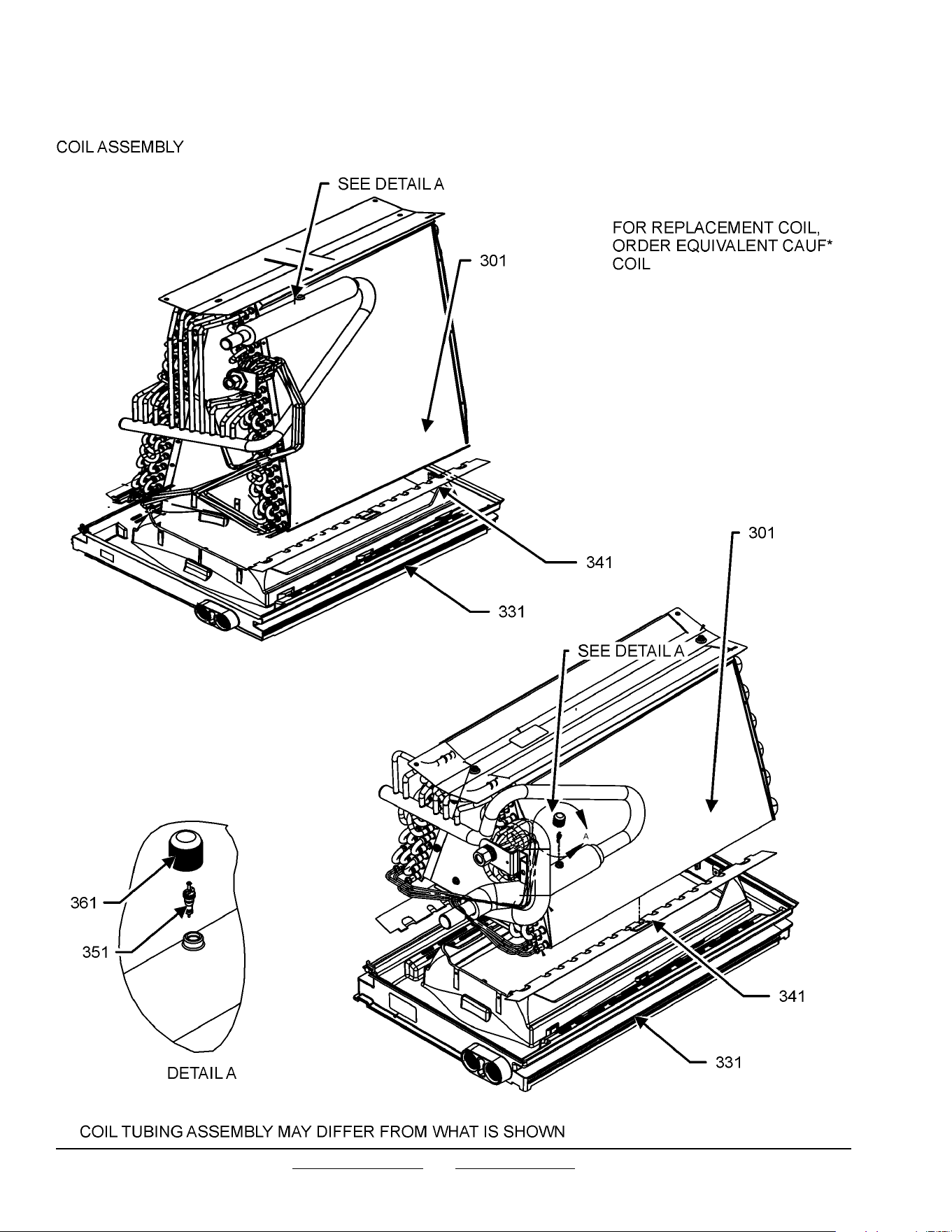

COIL ASSEMBLY
4 RP-4335
www.goodmanmfg.com www.amana-hac.com
COIL ASSEMBLY
Ref.
No:
Part
No: Description:
Ref.
No:
Part
No: Description:
Ima ge 1:
0270D01190
301
0270D01191
301
0270D01192
301
0270D01251
301
0270D01252
301
0270D01256
301
0270D01261
301
0270D01262
301
0270D01263
301
0270D01264
301
0270D01213
301
0270D01214
301
0270D01215
301
0270D01253
301
0270D01254
301
0270D01255
301
0270D01257
301
0270D01258
301
0270D01259
301
0270D01260
301
0161D00049
331
0161D00050
331
0161D00051
331
0161D00116
331
B1787000
351
0163M00175
361
BT1369063
NS
B1373311
NS
PKCG-4001ZB
NS
TUBING ASSY, E COIL (M1)
TUBING ASSY, E COIL (M3, M9)
TUBING ASSY, E COIL (M6)
TUBING ASSY, E COIL (M2)
TUBING ASSY, E COIL (M4)
TUBING ASSY, E COIL (M11)
TUBING ASSY, E COIL (M19)
TUBING ASSY, E COIL (M20)
TUBING ASSY, E COIL (M21)
TUBING ASSY, E COIL (M10)
TUBING ASSY, EVAP COIL (M12)
TUBING ASSY, EVAP COIL (M15)
TUBING ASSY, EVAP COIL (M18)
TUBING ASSY, EVAP COIL (M5)
TUBING ASSY, EVAP COIL (M7)
TUBING ASSY, EVAP COIL (M8)
TUBING ASSY, EVAP COIL (M13)
TUBING ASSY, EVAP COIL (M14)
TUBING ASSY, EVAP COIL (M16)
TUBING ASSY, EVAP COIL (M17)
DRAIN PAN MAIN, E COIL (M2, M4, M7, M10, M13,
M16, M19)
DRAIN PAN MAIN, E COIL (M5, M8, M11, M14,
M17, M20)
DRAIN PAN MAIN, E COIL (M21)
DRAIN PAN MAIN, E COIL (M1, M3, M6, M9, M12,
M15, M18)
VALVE CORE
CAP W/O-RING
90 DEGREE STUB
ACCESS VALVE FITTING
PISTON KIT CHART
SCREW-WASHERED (QTY 2)
0163M00097
NS
FOR REPLACEMENT COIL, ORDER EQUIVALENT CAUF*
C
OIL.
Expanded Model Nom enclature
M1 - CAUFA1714A6BA
M2 - CAUFA1714B6BA
M3 - CAUFA1818A6CA
M4 - CAUFA1818B6CA
M5 - CAUFA1818C6CA
M6 - CAUFA2318A6BA
M7 - CAUFA2318B6BA
M8 - CAUFA2318C6BA
M9 - CAUFA2418A6BA
M10 - CAUFA2418B6BA
M11 - CAUFA2418C6BA
M12 - CAUFA2422A6BA
M13 - CAUFA2422B6BA
M14 - CAUFA2422C6BA
M15 - CAUFA2922A6BA
M16 - CAUFA2922B6BA
M17 - CAUFA2922C6BA
M18 - CAUFA3022A6BA
M19 - CAUFA3022B6BA
M20 - CAUFA3022C6BA
M21 - CAUFA3022D6BA
