Model#048-TL-W5KW
Read all instructions before use this device.
Product appearance and color may vary from pictures.
Keep the manual properly for future reference.
Recommended Room Size: 100~150 sp.ft / -1 m
INTRODUCTION
IMPORTANT SAFETY INSTRUCTION ............................................................................

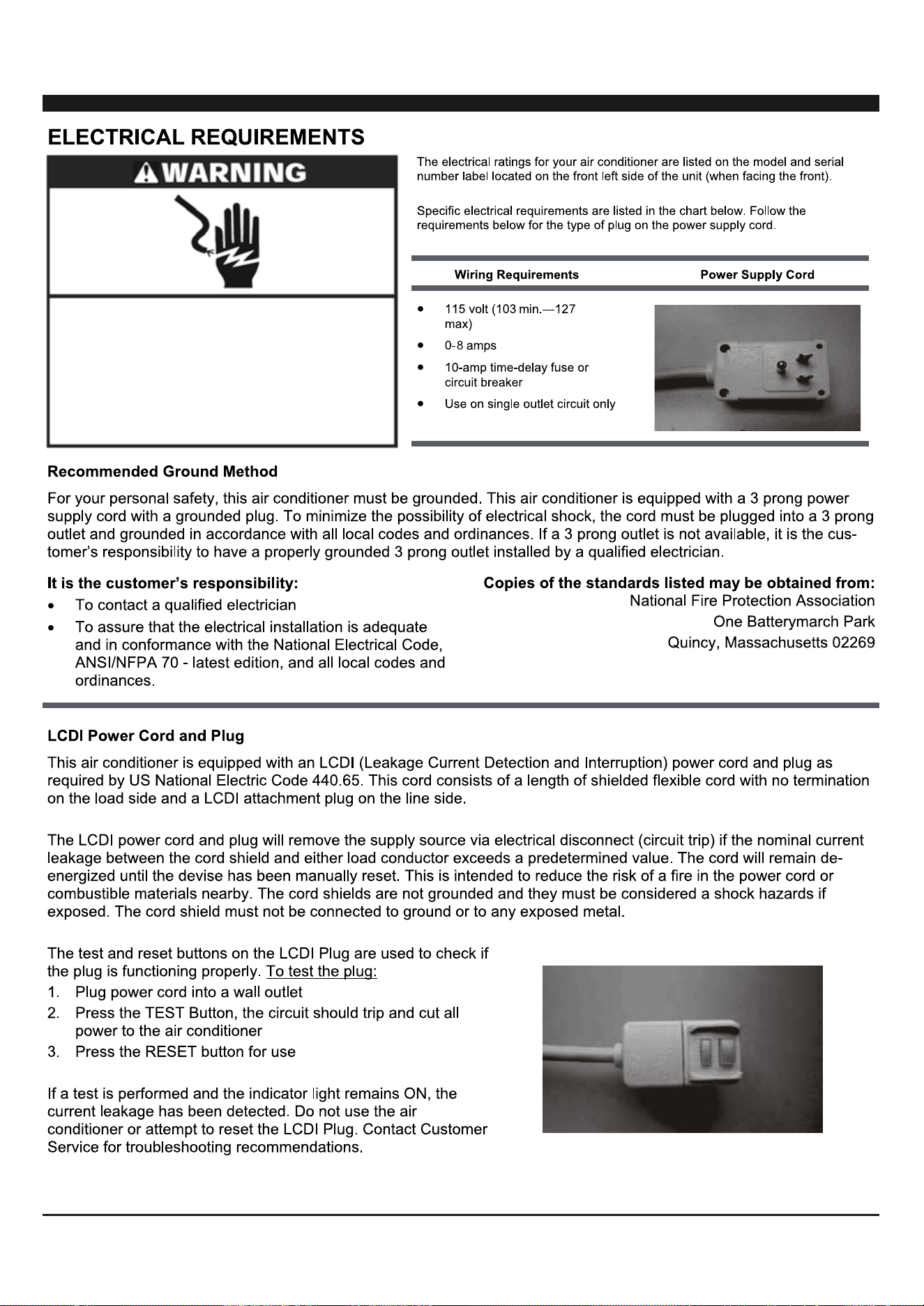

ELECTRICAL REQUIREMENTS ....................................................................................

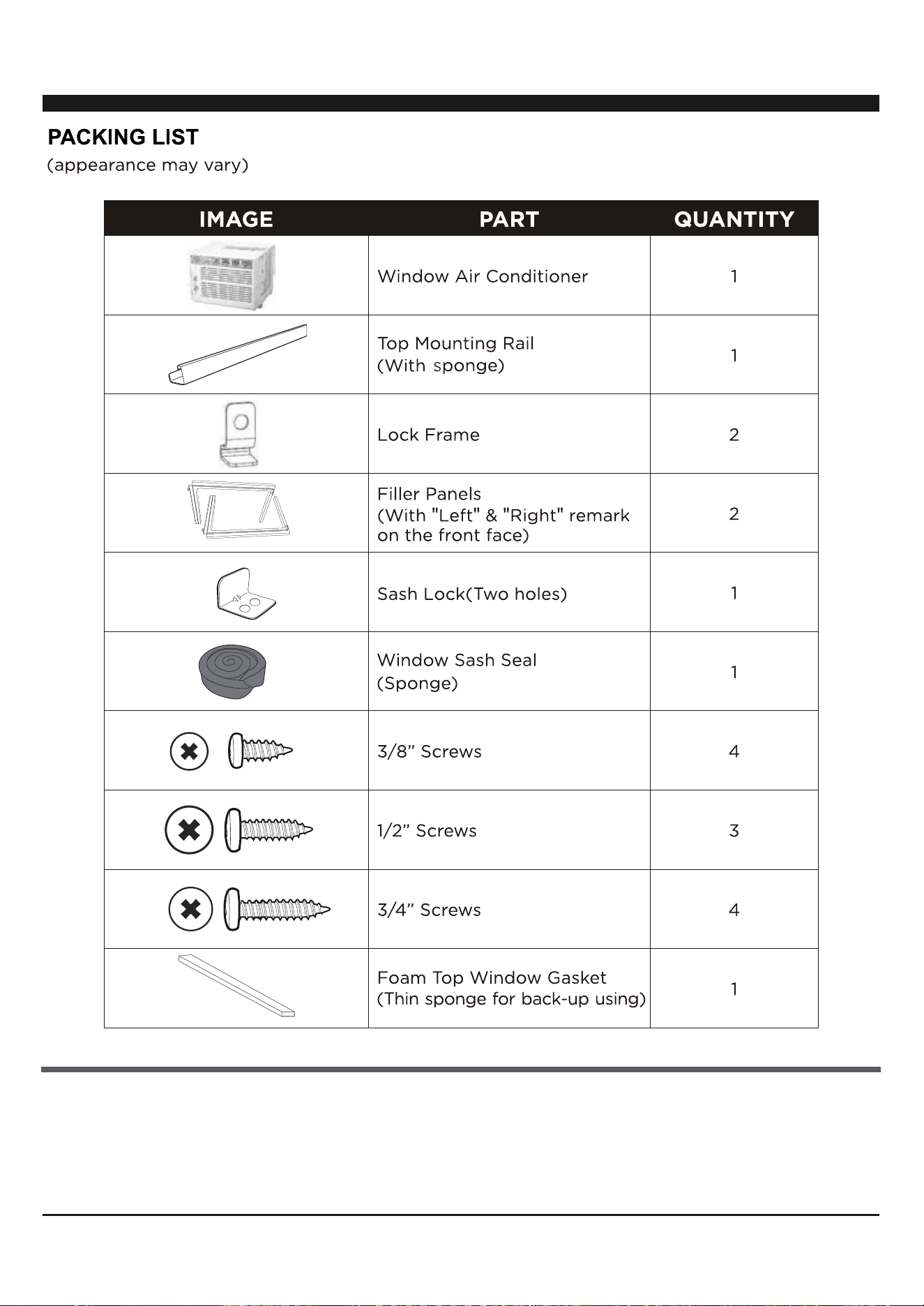

PACKING LIST .............................................................................................................

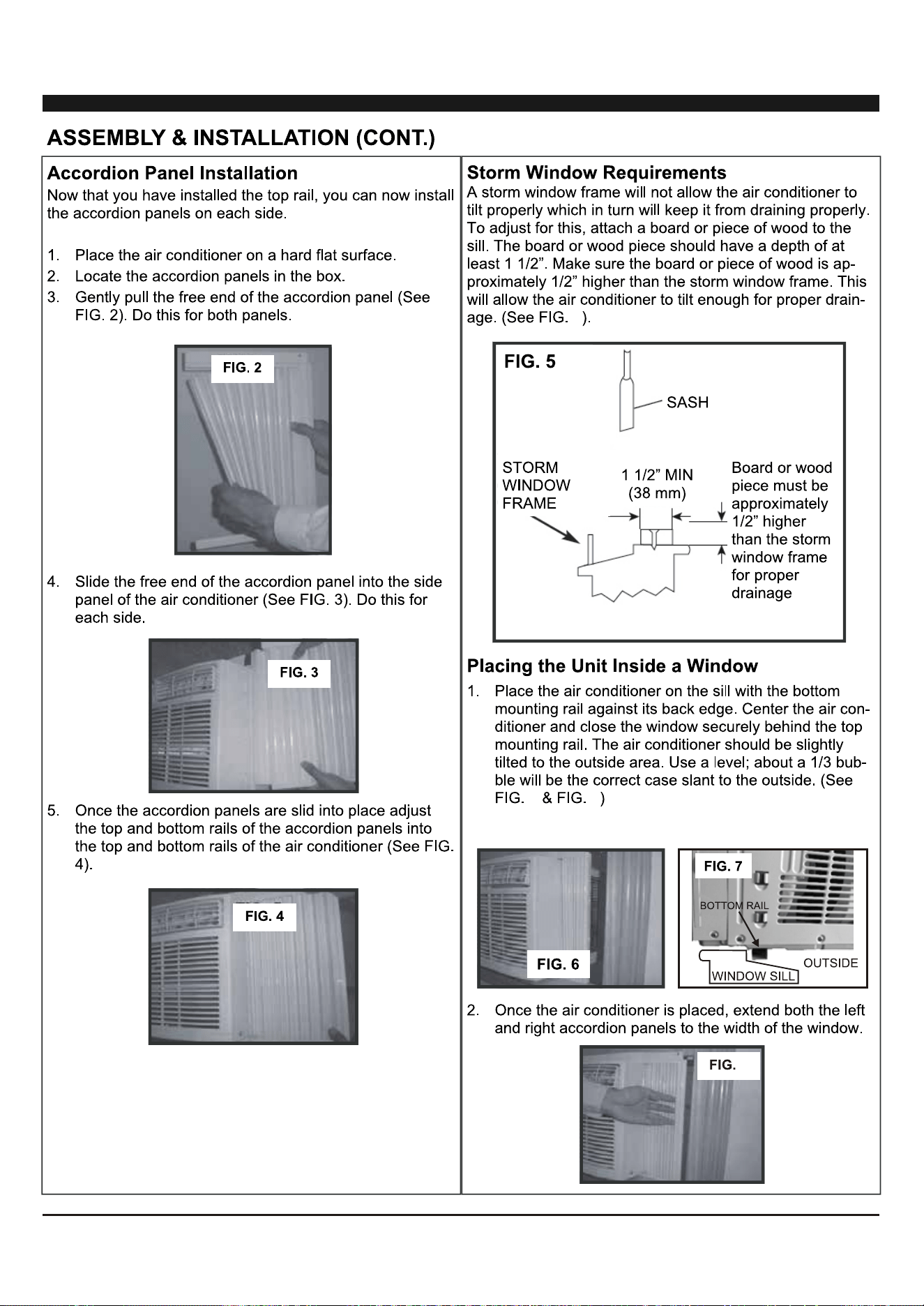

INSTALLATION&ASSEMBLY INSTRUCTIONS ................................................................
USING YOUR AIR CONDITIONER ..................................................................................

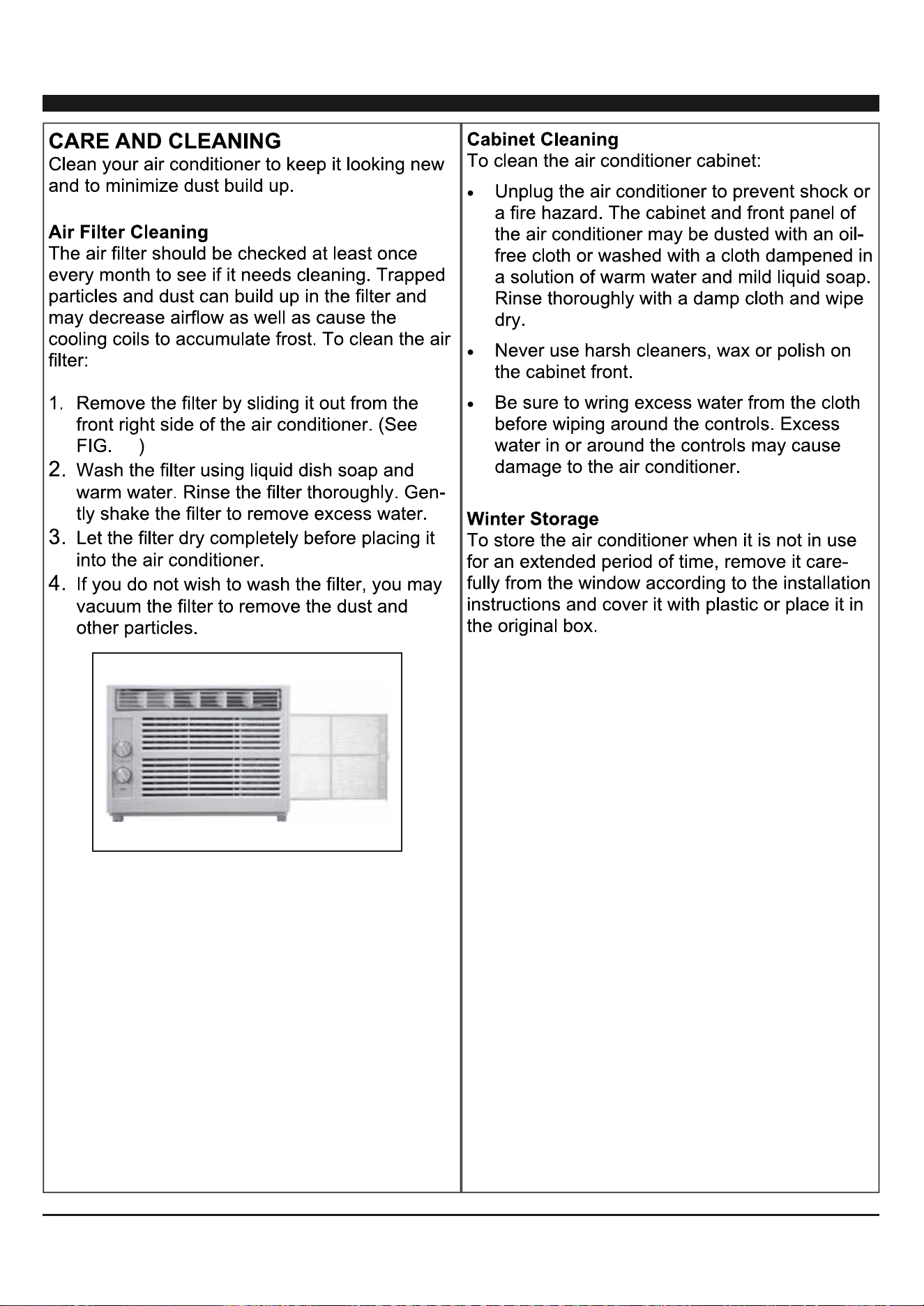

CARE AND CLEANING ................................................................................................ .

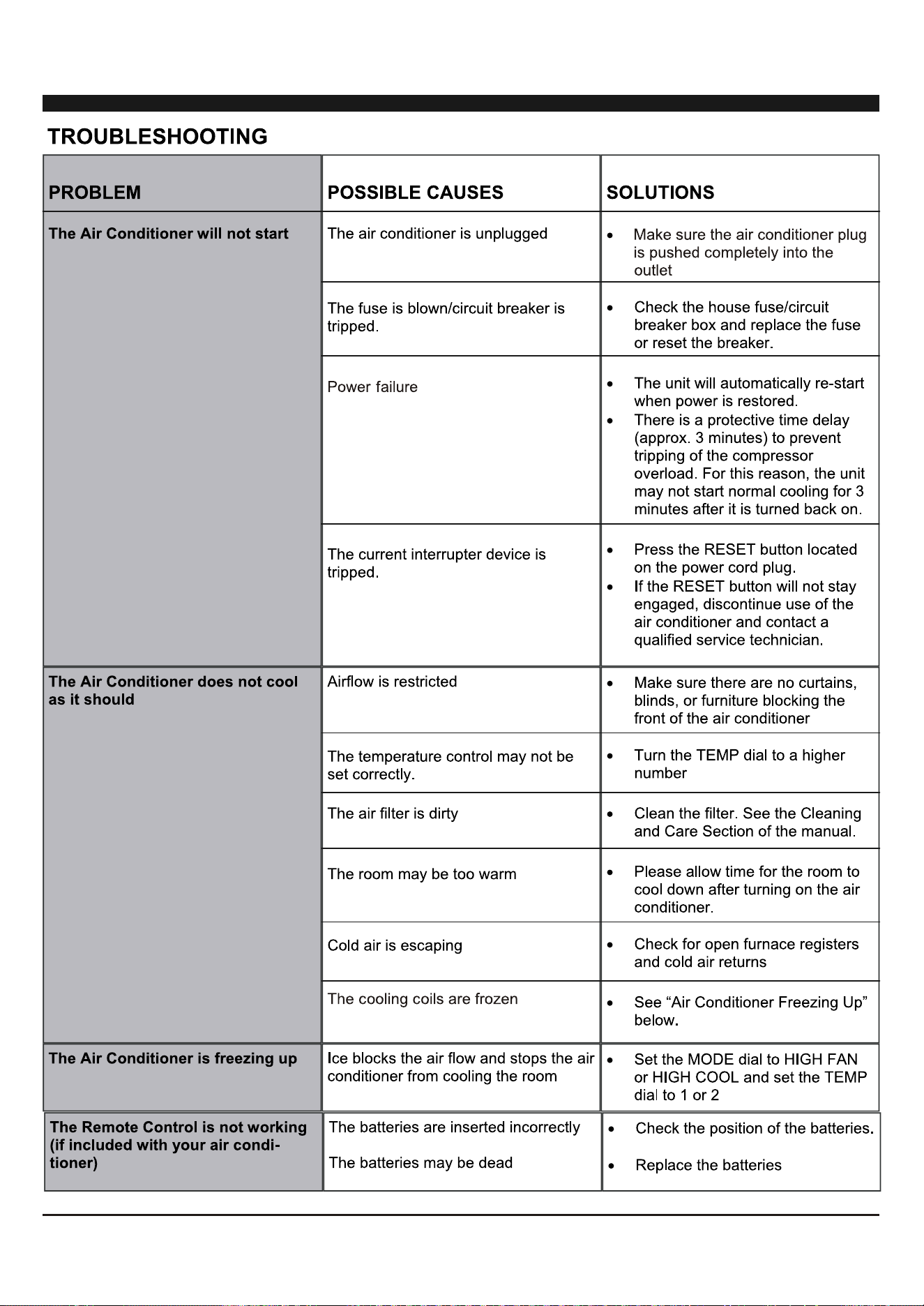

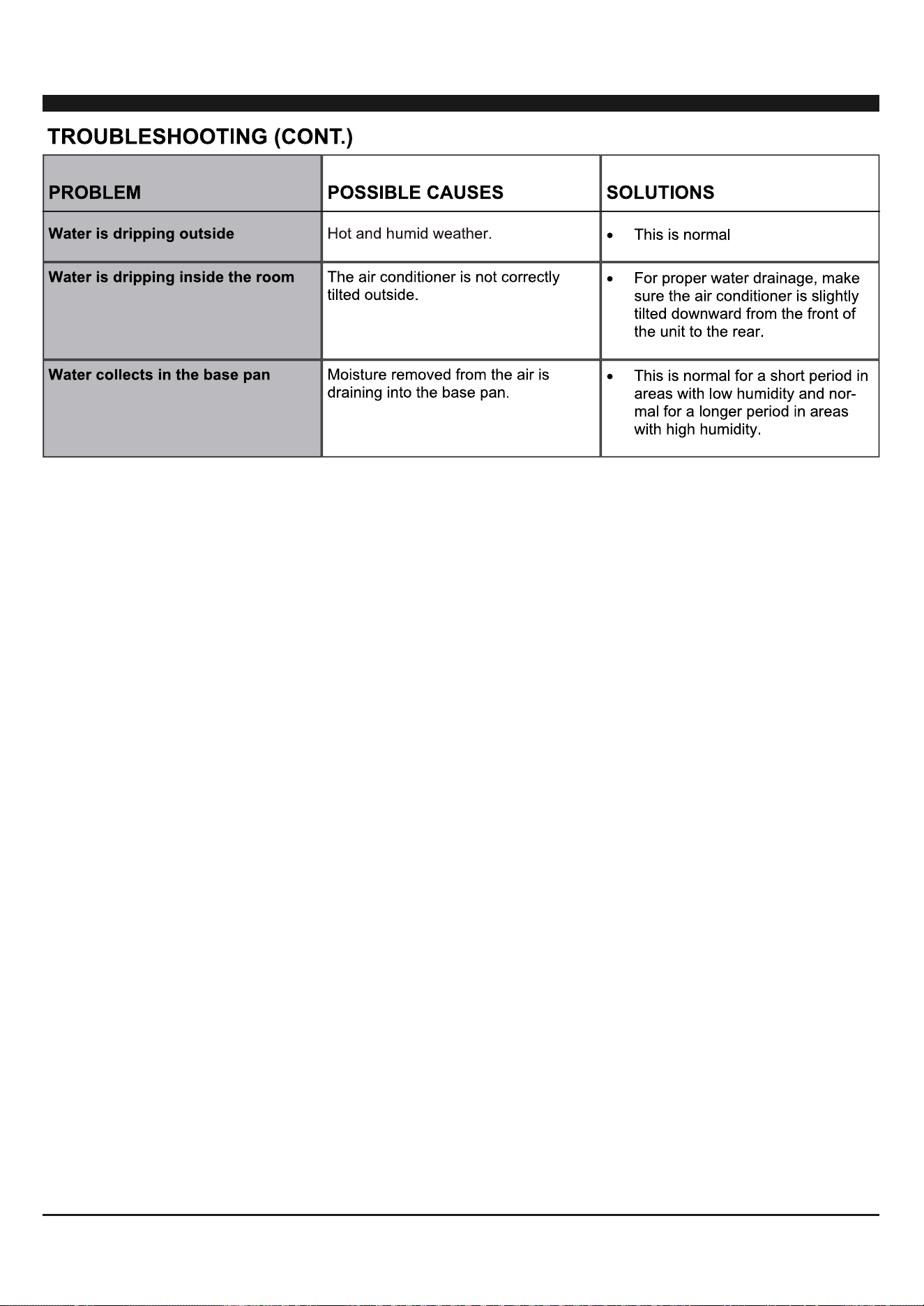

TROUBLESHOOTING ...................................................................................................
1
1 / 12
048-TL-W5KWModel Number:
Power supply(Ph-V-Hz)
RATED Capacity(Btu/h)
RATED Input(W)
RATED Current(A)
Moisture Removal(L/h)
Refrigerant type (R32)(g)
Refrigerant type (R32)(ozs)
Indoor noise level (Hi/Med/Lo)(dBA)
Outdoor noise level (Hi/Med/Lo) (dBA)
Application area (m2)
Application area (sp.ft)
Dimension(W*D*H)(mm/in)
Net weight (kg/lbs)
1Ph, 115V~, 60Hz
5000
450
4.5
0.6
175
R32/6.17
55/-/51
60/-/55
9-14
100-150
406x3x305/15.98x13.x12.0
16./3.
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use a plug adapter.
Do not use an extension cord.
Use two or more people to move and install
the air conditioner.
Unplug the air conditioner before servicing.
Please read the manual before installation, using, maintenance.
Please contact the nearest after-sale service center when maintenance is necessary. At the time of
maintenance, the maintenance personnel must strictly comply with the Operation Manual provided
by the corresponding manufacturer and any non-professional is prohibited to maintain the air
conditioner.
The handling, installation, storage, servicing and disposal must comply with the provisions of
gas-related national laws and regulations, and also national wiring regulation.
It is necessary to clear away the refrigerant in the system when maintaining or scrapping an air
conditioner. Be aware that refrigerants may not contain an odour.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Unit operation limits: Outdoor side 61~110 F, 80%RH; indoor side 61~90 F, 80%RH.
The appliance shall be stored in a room without continuously operating sources (for example: open
flames, an operating ignition gas appliance or an operating electric heater.)
Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacturer.
Do not pierce or burn the appliance.
O O
2 / 12
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock
Electrical Shock Hazard
3 / 12
5 / 12
2 " to 34"3
584 mm to 863 mm
When handling the unit, be careful to avoid
cuts from the sharp metal edges and aluminum
fins on the front and rear coils.
(Suggest to keep a downward
oblique, to let accumulated rain water to drain out,
from back side of the unit bottom.)
8
5
76

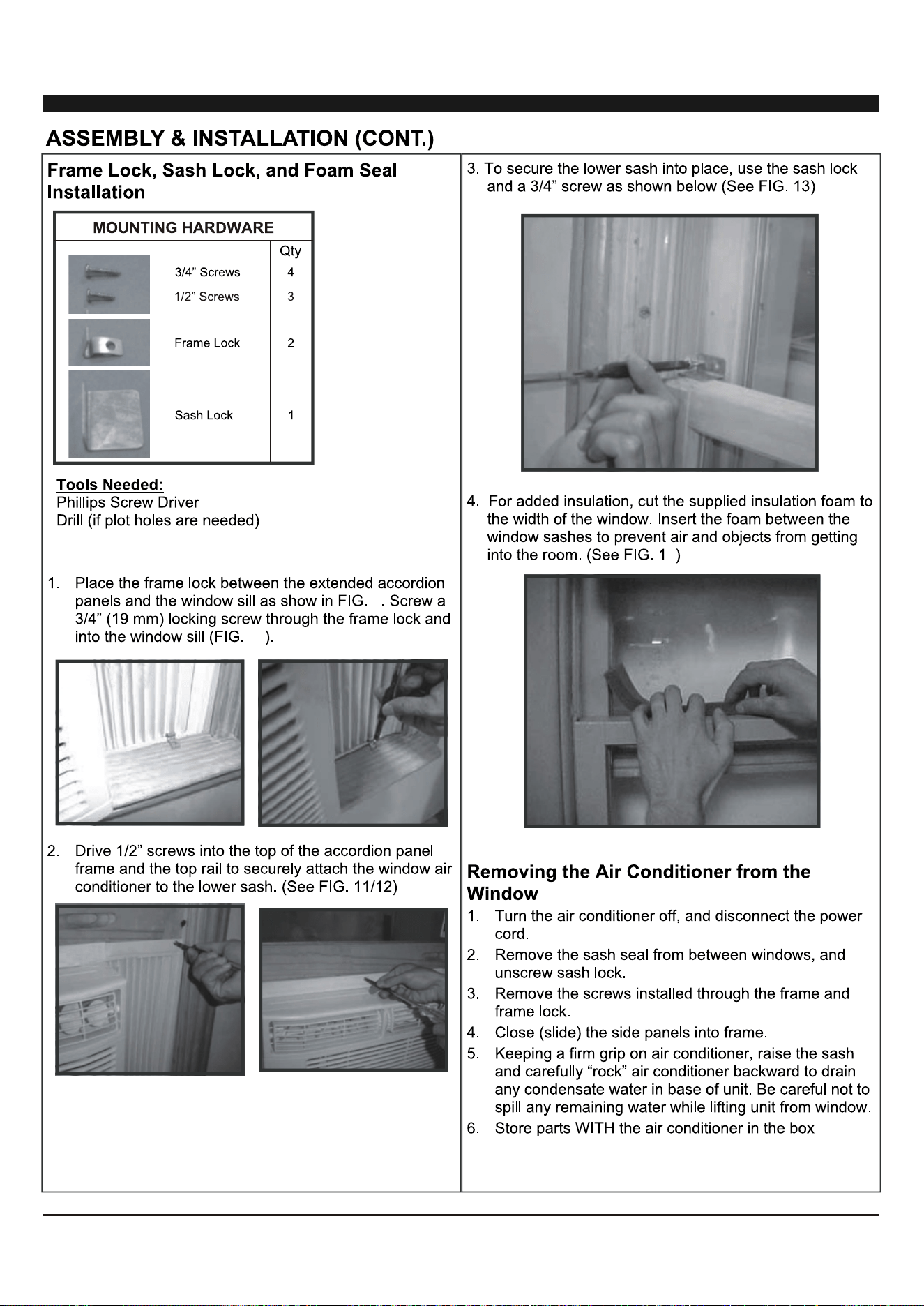

FIG. 9
9
10
FIG. 10
FIG. 11 FIG. 12
FIG. 13
FIG. 14
4

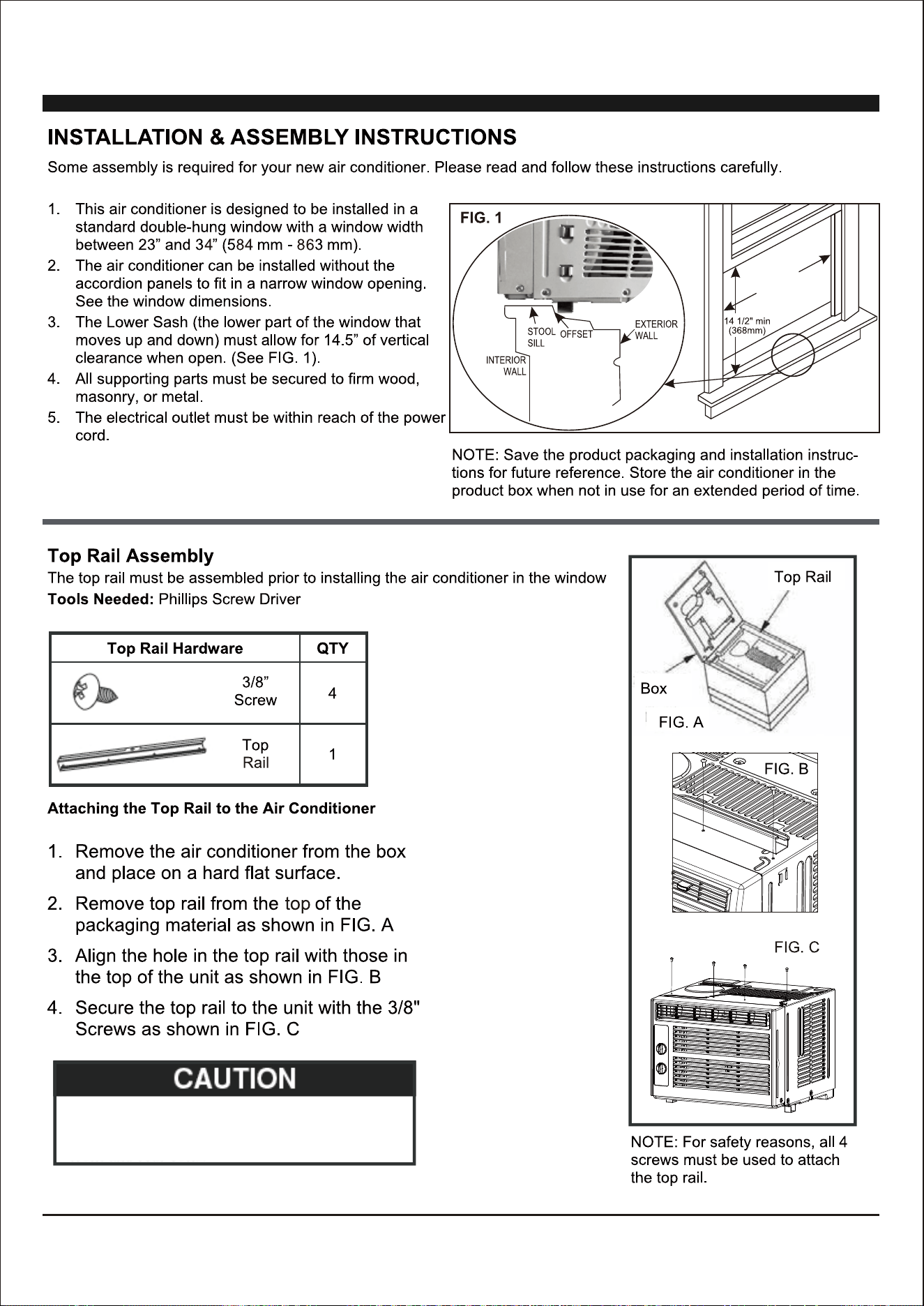

INSTALLATION & ASSEMBLY INSTRUCTIONS

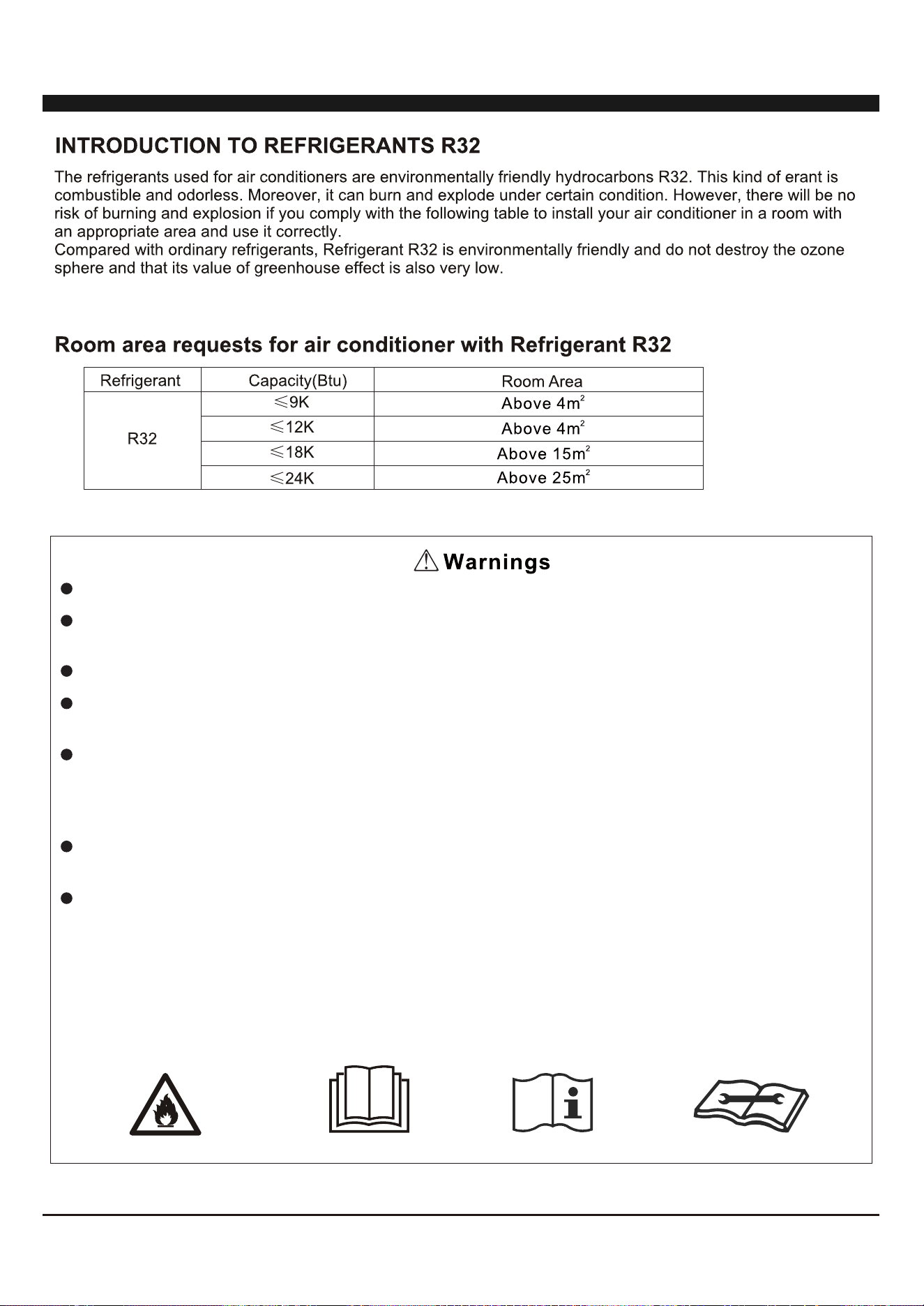

Introduction to Refrigerants R32
Before installing the appliance, you must read the manual carefully to get the safety
information and notes.
When filling the combustible refrigerant, any of your rude operations may cause serious
injury or injuries to human body or bodies and object or objects.
A leak test must be done after the installation is completed.
It is a must to do the safety inspection before maintaining or repairing an air conditioner
using combustible refrigerant in order to ensure that the fire risk is reduced to minimum.
It is necessary to operate the machine under a controlled procedure in order to ensure
that any risk arising from the combustible gas or vapor during the operation is reduced to
minimum.
Requirements for the total weight of filled refrigerant and the area of a room to be equipped
with an air conditioner

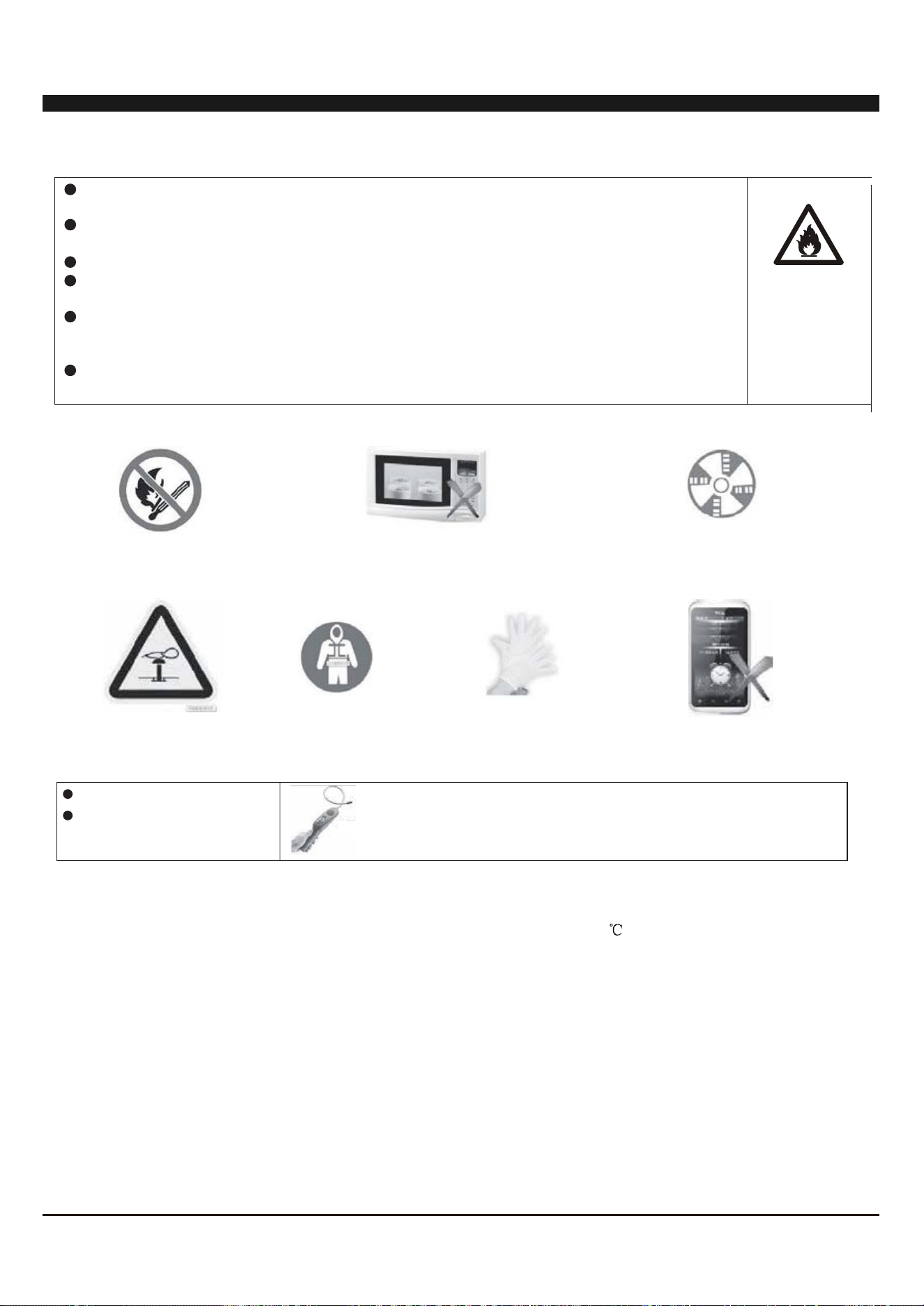

1. Site Safety
2. Operation Safety
Open Flames Prohibited Ventilation Necessary
Open Flames Prohibited
Mind Static Electricity Must Wear Protective Clothing and anti-static gloves
Don't use mobile phone
3. Installation Safety
Refrigerant Leak Detector
Appropriate Installation Location
The left picture is the schematic diagram of a refrigerant leak detector.
Please note that:
1. The installation site should be in a well-ventilated condition.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire
or welding, smoking, drying oven or any other heat source higher than 548 which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static measures such as wear anti-
static clothing and/or gloves.
4. It is necessary to choose the site convenient for installation or maintenance wherein the air inlets and outlets of
the indoor and outdoor units should be not surrounded by obstacles or close to any heat source or combustible
and/or explosive environment.
5. If the indoor unit suffers refrigerant leak during the installation, all the personnel should go out till the refrigerant
leaks completely for 15 minutes. If the product is damaged, it is a must to carry such damaged product back to
the maintenance station and it is prohibited to weld the refrigerant pipe or conduct other operations on the user's
site.
6. It is necessary to choose the place where the inlet and outlet air of the indoor unit is even.
7. It is necessary to avoid the places where there are other electrical products, power switch plugs and sockets,
kitchen cabinet, bed, sofa and other valuables right under the lines on two sides of the indoor unit, and also
prevent mechanical damage from occurring.

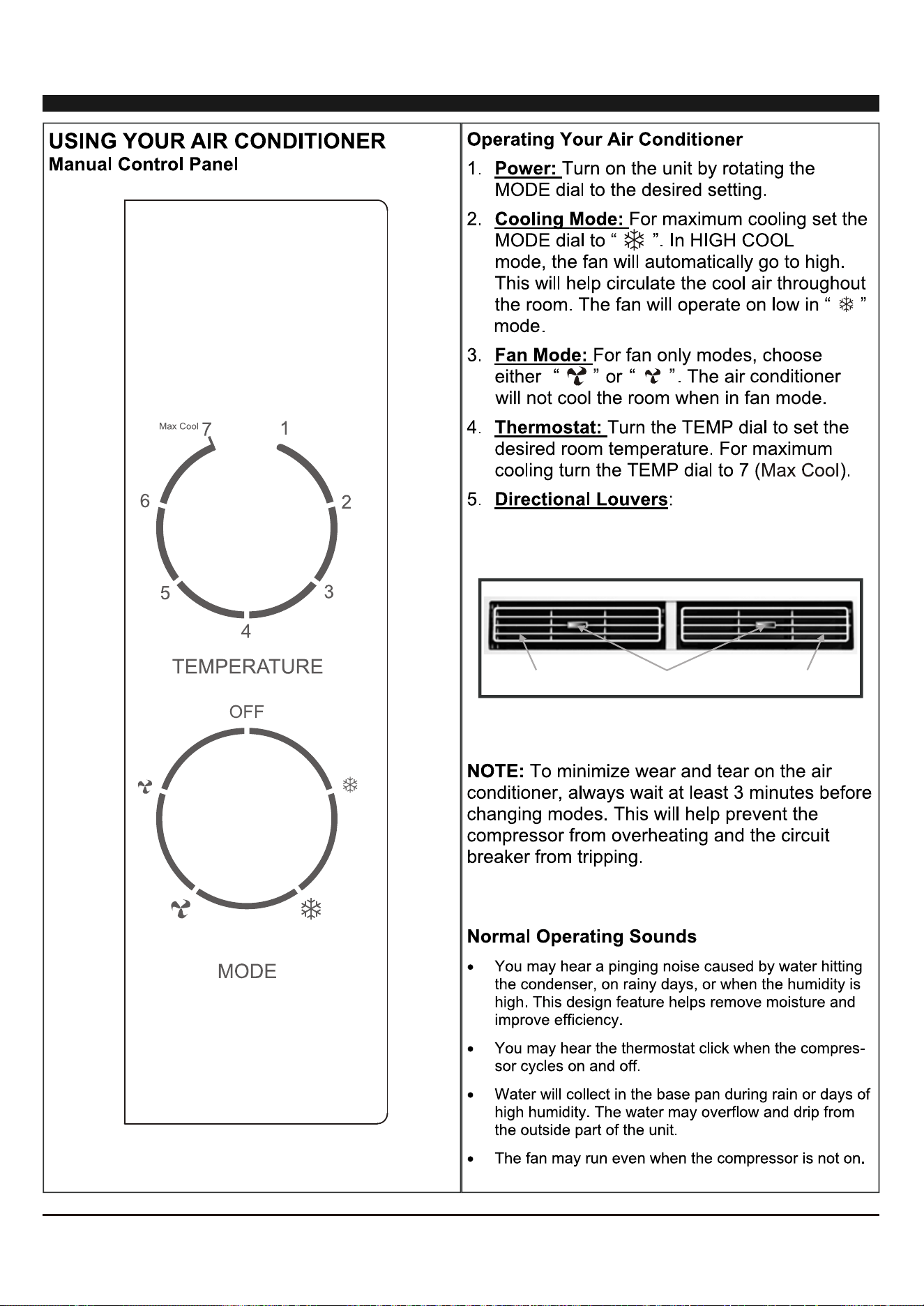

To direct the airflow,
horizontal wheel to control the horizontal
direction, air deflector to control the vertical
direction.
horizontal wheelair deflector air deflector
FIG. 15
15
