BULLETIN NO.
54-26-2820
SERVICE PARTS LIST
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 06-82-2366 M5 x 26.5mm Pan Hd. ST T-25 Screw (4)
2 28-50-0021 Gearcase Assembly (1)
3 45-88-0101 Plastic Gearcase Washer (1)
7 02-02-7010 7/32" Steel Ball (1)
18 34-40-0067 O-Ring (1)
24 02-04-0330 Ball Bearing (1)
25 45-88-3071 Washer (1)
26 --------------- Armature (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
27 02-04-1930 Ball Bearing (1)
28 34-60-2493 Retaining Ring (1)
29 06-82-2367 M3 x 38mm Pan Hd. ST T-10 Screw (2)
30 06-82-2368 M3.5 x 16mm Pan Hd. ST T-10 Screw (6)
31 --------------- Housing Cover - Right Housing Halve (1)
32 06-65-0465 Pin (1)
33 06-82-2369 M3.5 x 22mm Pan Hd. ST T-10 Screw (1)
34 40-50-1090 Spring (1)
35 --------------- Housing Support - Left Housing Halve (1)
36 --------------- Belt Clip (1)
37 06-82-0130 6-32 x .275 Pan Hd. T-15 Screw (1)
38 42-42-0018 Forward/Reverse Shuttle (1)
42 44-60-0597 Detent Pin (1)
43 40-50-0925 Spring (1)
44 --------------- 1/2" Square (Detent Pin) Anvil (1)
45 44-60-0022 Solid Pin (1)
47 42-06-0129 1/2" Square Detent Pin Anvil Assembly (1)
48 14-46-0131 Impact Assembly (1)
49 14-20-2860 Electronics Assembly (1)
50 16-01-2860 Rotor Assembly (1)
51 31-44-0069 Housing Assembly (1)
52 45-24-2656 Speed Selector Assembly (1)
53 42-70-2653 Belt Clip Assembly (1)
54 12-20-2860 Service Nameplate (1)
56 42-55-2860 Carrying Case (1)
59 34-60-0011 Retaining Ring (1)
CATALOG NO. 2860-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
M18™ FUEL™ 1/2" Square Impact Wrench
STARTING
SERIAL NO.
DATE
Sept. 2016
WIRING INSTRUCTION
H61A
SEE PAGE 2
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, Wisc. 53005

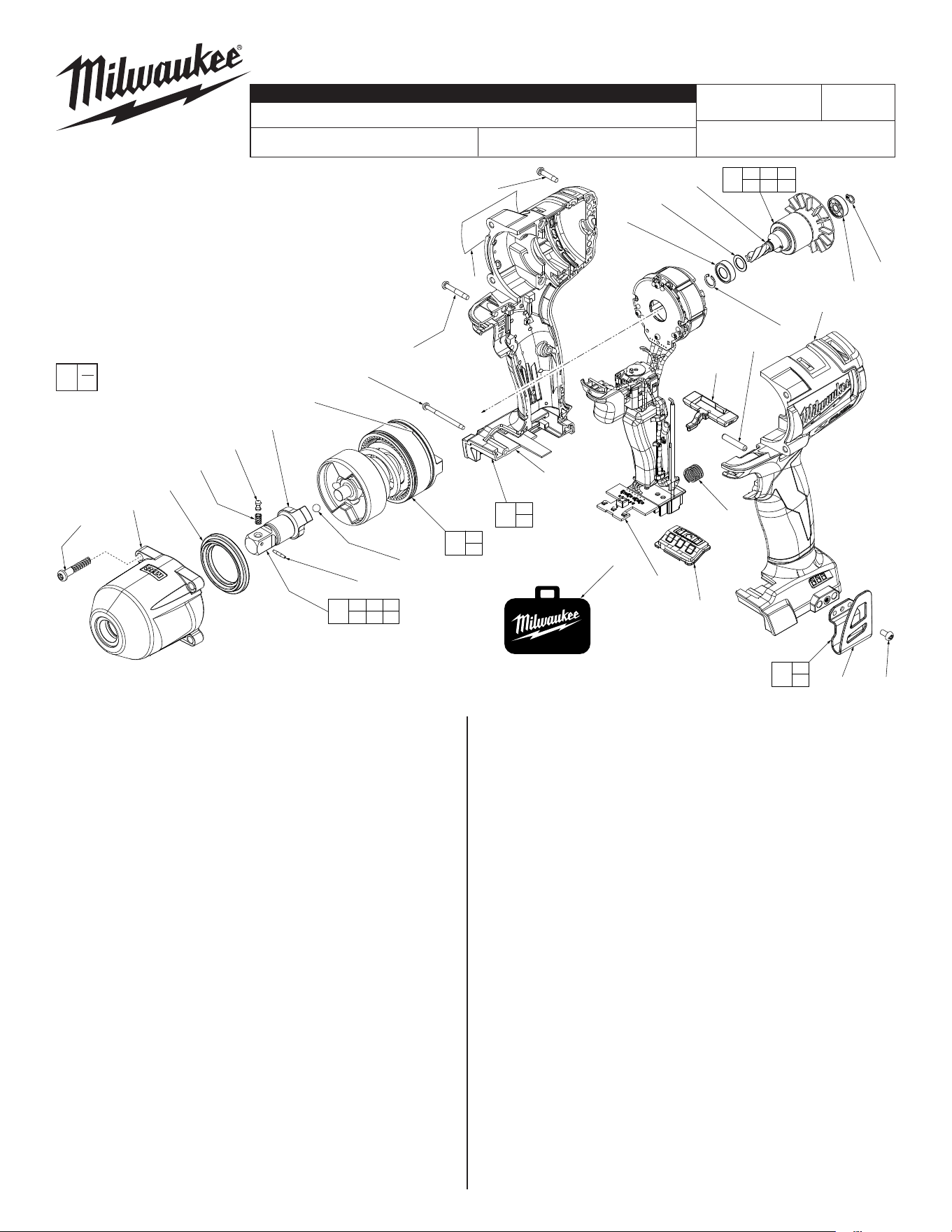

Drwg. 1
FIG. LUBRICATION
Use Type 'J' Grease, No. 49-08-4220 (1 lb. can)
Service grease may not be compatable with grease used
during manufacturing. 90-95% of the old grease must be
removed prior to any new grease being added.
54
56
18
29(2x)
33(1x)
31
30(6x)
49
34
52
37
36
53
36
37
51
31
35
48
18
47
7 42 43
44 45
7
1(4x)
2
3
43
42
44
45
38
32
35
24
25
26
28
27
50
24 25 26
27 28 59
59

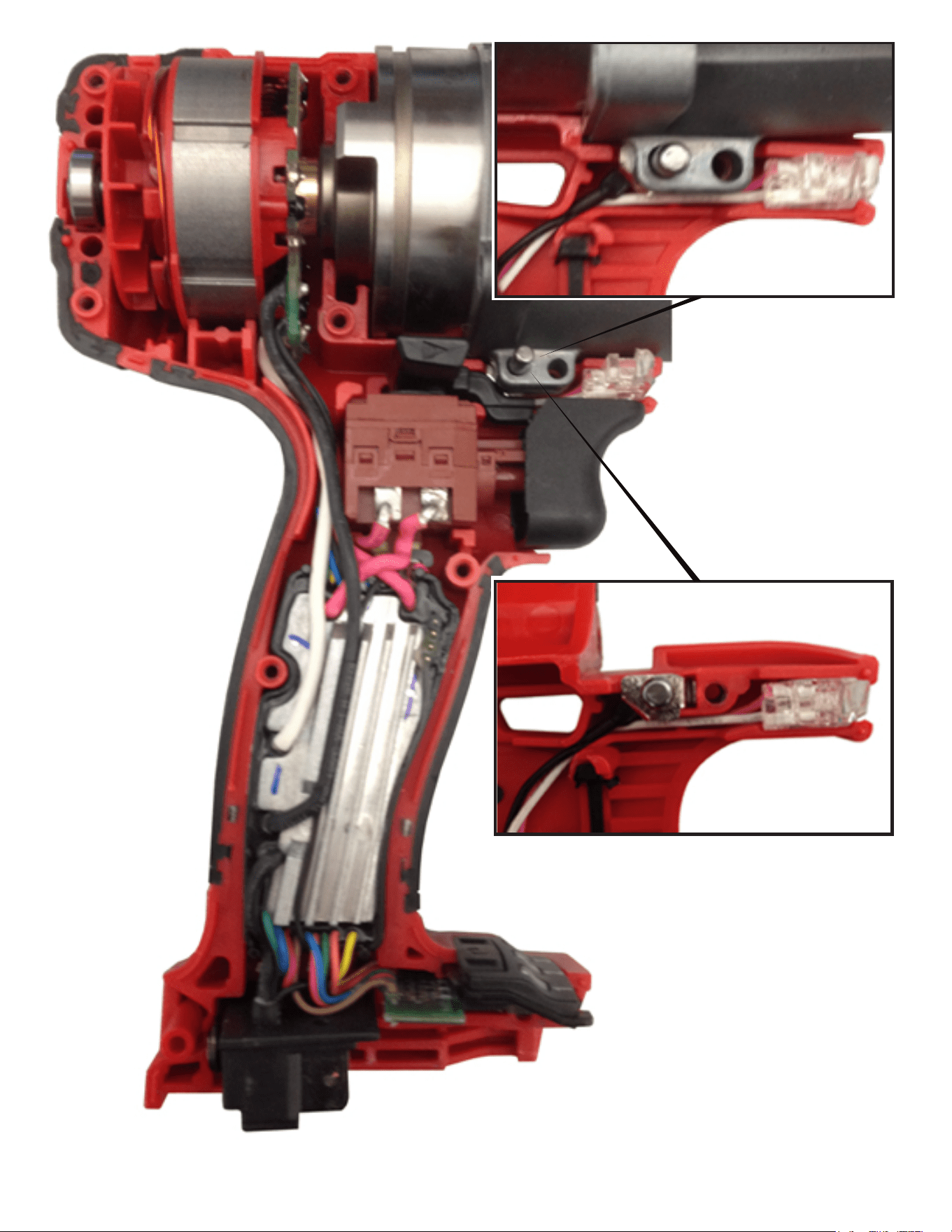

Detail shown with Switch and
Fwd/Rev Shuttle removed to
illustrate LED wires and Ground
wire trapping and routing.
Detail shown with Switch, Fwd/Rev
Shuttle, Impact Assembly and Gear
Case removed to illustrate the
Grounding Terminal placement over
the Pin.
As an aid to reassembly, take note
of wire routing and position in wire
guides and traps while dismantling
tool. Be careful and avoid pinching
wires between handle halves when
assembling.
Check for proper switch and shuttle
functionality prior to securing
handle halves._
