SLOW JUICER JS3009
USER MANUAL
Before operating the appliance, please read this manual and all the
safety instructions thoroughly and retain it for future reference.
TABLE OF CONTENTS
Safety Use Precautions
Product Components
Key Operation Specification

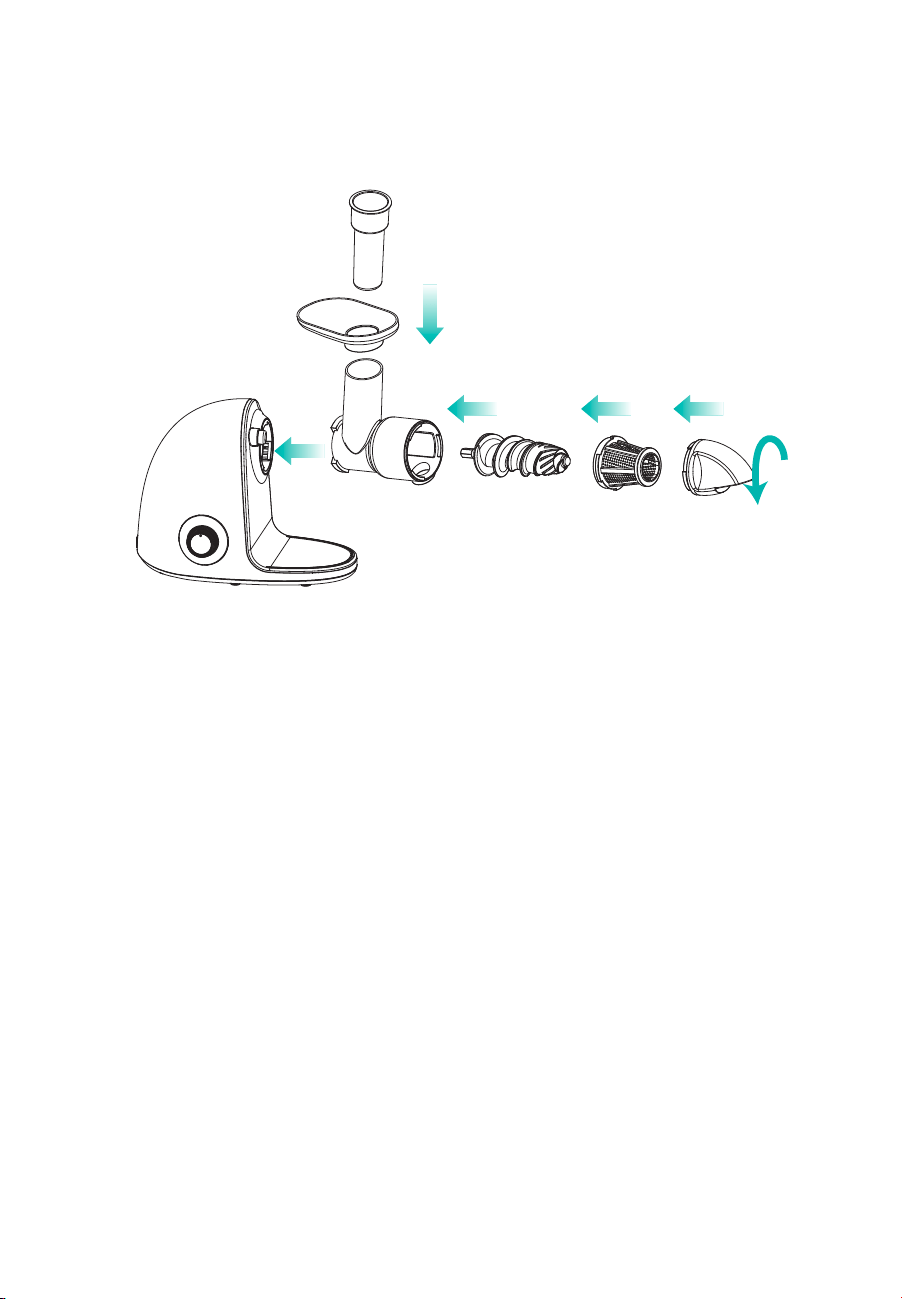

Quick Assembly
Operating Instructions

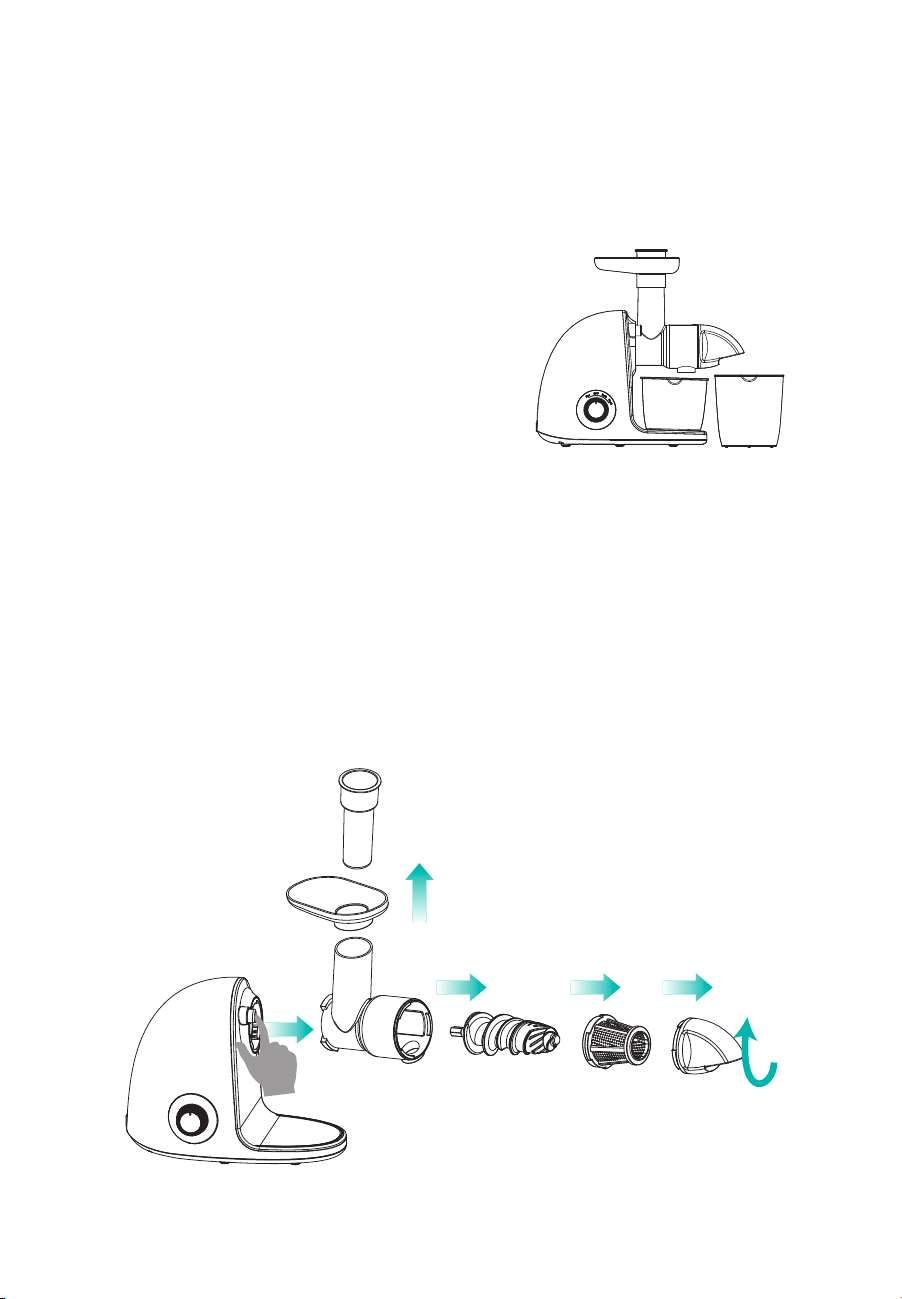

Quick Disassembly
Tips for Handling Foods
Troubleshooting
01
04
05
06
07
09
10
13
SAFETY USE PRECAUTIONS
• NOTE: Input voltage of this product is 120V~60Hz. Please confirm
this before use.
• WARNING: Please cut off the power supply before detaching,
installing or adjusting any condiments.
• NOTE: This product has Y connections, therefore, please contact
with our company's customer service department ,if the flexible cord
of the power supply is damaged. Please do not detach and repair this
product by yourself
• WARNING: Check whether all parts are damaged before use. If the
component is found to be damaged, please stop using this product
and contact our company's customer service. Please do not detach
and repair the damaged component by yourself because it may be
dangerous.
• WARNING: If this product needs maintenance during the process of
use, please contact customer service. Please do not detach this
product by yourself because it may be dangerous.
• NOTE: Please ensure that the detachable components such as the
feed chute, filter,auger and the end cap are correctly installed before
powering this product on.
• WARNING: It is forbidden to stretch your hands or sharp objects into
the feeding hole, or mixing ice and other rotatable parts when this
product is working. For the avoidance of injury or damaging the
product; it is forbidden to use any objects to replace the pusher and
keep the eyes away from the feeding hole for fear of accidents.
• NOTE: The food material needs to be cut into pieces which is
suitable for the feeding hole; the fruit and vegetable with core, hard
seed, thick peel or hard shell shall be processed after removing such
core, hard seed, thick peel or hard shell.
• NOTE: Push the food lightly when adding.
• NOTE: After squeezing some fruits and vegetables, the filter, the
auger, and the feed chute and other components may be dyed, which
are normal phenomena, without prejudice to consumption and health.
01
TABLE OF CONTENTS
Safety Use Precautions
Product Components
Key Operation Specification
Quick Assembly
Operating Instructions
Quick Disassembly
Tips for Handling Foods
Troubleshooting
01
04
05
06
07
09
10
13
SAFETY USE PRECAUTIONS
• NOTE: Input voltage of this product is 120V~60Hz. Please confirm
this before use.
• WARNING: Please cut off the power supply before detaching,
installing or adjusting any condiments.
• NOTE: This product has Y connections, therefore, please contact
with our company's customer service department ,if the flexible cord
of the power supply is damaged. Please do not detach and repair this
product by yourself
• WARNING: Check whether all parts are damaged before use. If the
component is found to be damaged, please stop using this product
and contact our company's customer service. Please do not detach
and repair the damaged component by yourself because it may be
dangerous.
• WARNING: If this product needs maintenance during the process of
use, please contact customer service. Please do not detach this
product by yourself because it may be dangerous.
• NOTE: Please ensure that the detachable components such as the
feed chute, filter,auger and the end cap are correctly installed before
powering this product on.
• WARNING: It is forbidden to stretch your hands or sharp objects into
the feeding hole, or mixing ice and other rotatable parts when this
product is working. For the avoidance of injury or damaging the
product; it is forbidden to use any objects to replace the pusher and
keep the eyes away from the feeding hole for fear of accidents.
• NOTE: The food material needs to be cut into pieces which is
suitable for the feeding hole; the fruit and vegetable with core, hard
seed, thick peel or hard shell shall be processed after removing such
core, hard seed, thick peel or hard shell.
• NOTE: Push the food lightly when adding.
• NOTE: After squeezing some fruits and vegetables, the filter, the
auger, and the feed chute and other components may be dyed, which
are normal phenomena, without prejudice to consumption and health.
01
• WARNING: This product should be stored in places out of reach of
children and do not let persons with physical impairment, feeling or
mental abnormalities or persons lacking related experience or
knowledge (including children) to use or play with this product.
• WARNING: This product only applies to personal use or home use.
• WARNING: This product is a class-I electrical appliance, so the
socket ground wire shall be grounded well.
• NOTE: Turn the machine on, it will start within 3 seconds, please wait
for a while.
• NOTE: This product is not suitable for food that is too hard, such as
sugar cane, soybean, etc.
• NOTE: In order to balance your nutrition, please try to extract the
juice according to the recipe we provide.
• NOTE: Fresh Carrot Juice will dye the machine's auger, this is due to
the chlorophyll staining of carrots. Please feel free to use it, and don't
worry.
• NOTE: After squeezing lemon and orange,Please clean all the parts
in time.
• NOTE: The product is equipped with intelligent protection chip, a
period of non-working for 20 to 30 minutes shall proceed after
automatic shutdown of the product when working successively for 20
minutes and working can begin again only after the motor is cooled
down. The methods above are in favor of extending service life of this
product. So we recommend that you use the product continuously for
no more than 10 minutes.
• NOTE: This product is designed with current-limiting. In the process
of comparatively hard food materials, the motor will be stalled,
bringing about current increase. When the current is larger than 1.3A,
the motor will stop working if the machine produces "beep" sounds
this mechanism is an overcurrent protection of the motor, extending
service life of this product.
• NOTE: In case the motor stops and cannot reverse automatically by
virtue of current-limiting protection or stalling during operation. At that
time, shut off the power switch and make the switch in the state of the
"OFF" key. Start the "Rev" key of the power switch to withdraw the
food, and then start the machine again. In the event stalling occurs
again, it is recommended to remove the food material in the screw
propeller and then use this machine again. This method is a
protection to the motor.
• NOTE: After use, ensuring disconnecting the power and then remove
all the parts for cleaning.
• WARNING: All accessories of this product cannot be sterilized by hot
water higher than 80°C or microwaves because the accessories may
be deformed or damaged by hot temperature. Materials of the
components that touch food materials are all clean, healthy and
reliable and meeting food hygiene standards.
• Do not place the body of this machine into water or other liquids or
wash it with water or other liquids for avoidance of damaging the
body of this machine.
• Do not use steel wool, abrasive cleaner or corrosive liquids (such as
petrol or acetone) to clean this product.
Model:
Power source:
Rated power:
JS3009
120V~ 60Hz
150W
02
03
• WARNING: This product should be stored in places out of reach of
children and do not let persons with physical impairment, feeling or
mental abnormalities or persons lacking related experience or
knowledge (including children) to use or play with this product.
• WARNING: This product only applies to personal use or home use.
• WARNING: This product is a class-I electrical appliance, so the
socket ground wire shall be grounded well.
• NOTE: Turn the machine on, it will start within 3 seconds, please wait
for a while.
• NOTE: This product is not suitable for food that is too hard, such as
sugar cane, soybean, etc.
• NOTE: In order to balance your nutrition, please try to extract the
juice according to the recipe we provide.
• NOTE: Fresh Carrot Juice will dye the machine's auger, this is due to
the chlorophyll staining of carrots. Please feel free to use it, and don't
worry.
• NOTE: After squeezing lemon and orange,Please clean all the parts
in time.
• NOTE: The product is equipped with intelligent protection chip, a
period of non-working for 20 to 30 minutes shall proceed after
automatic shutdown of the product when working successively for 20
minutes and working can begin again only after the motor is cooled
down. The methods above are in favor of extending service life of this
product. So we recommend that you use the product continuously for
no more than 10 minutes.
• NOTE: This product is designed with current-limiting. In the process
of comparatively hard food materials, the motor will be stalled,
bringing about current increase. When the current is larger than 1.3A,
the motor will stop working if the machine produces "beep" sounds
this mechanism is an overcurrent protection of the motor, extending
service life of this product.
• NOTE: In case the motor stops and cannot reverse automatically by
virtue of current-limiting protection or stalling during operation. At that
time, shut off the power switch and make the switch in the state of the
"OFF" key. Start the "Rev" key of the power switch to withdraw the
food, and then start the machine again. In the event stalling occurs
again, it is recommended to remove the food material in the screw
propeller and then use this machine again. This method is a
protection to the motor.
• NOTE: After use, ensuring disconnecting the power and then remove
all the parts for cleaning.
• WARNING: All accessories of this product cannot be sterilized by hot
water higher than 80°C or microwaves because the accessories may
be deformed or damaged by hot temperature. Materials of the
components that touch food materials are all clean, healthy and
reliable and meeting food hygiene standards.
• Do not place the body of this machine into water or other liquids or
wash it with water or other liquids for avoidance of damaging the
body of this machine.
• Do not use steel wool, abrasive cleaner or corrosive liquids (such as
petrol or acetone) to clean this product.
Model:
Power source:
Rated power:
JS3009
120V~ 60Hz
150W
02
03
PRODUCT COMPONENTS
1. Power line
2. Housing
3. On/Off Switch (In rear)
4. Locking Clip
5. Juice Container
6. Pulp Container
7. Pusher
8. Hopper
9. Feed Chute&Drum
10. Auger (Inside Drum)
11. Filter (Inside Drum)
12. End Cap
13. Cleaning Brush

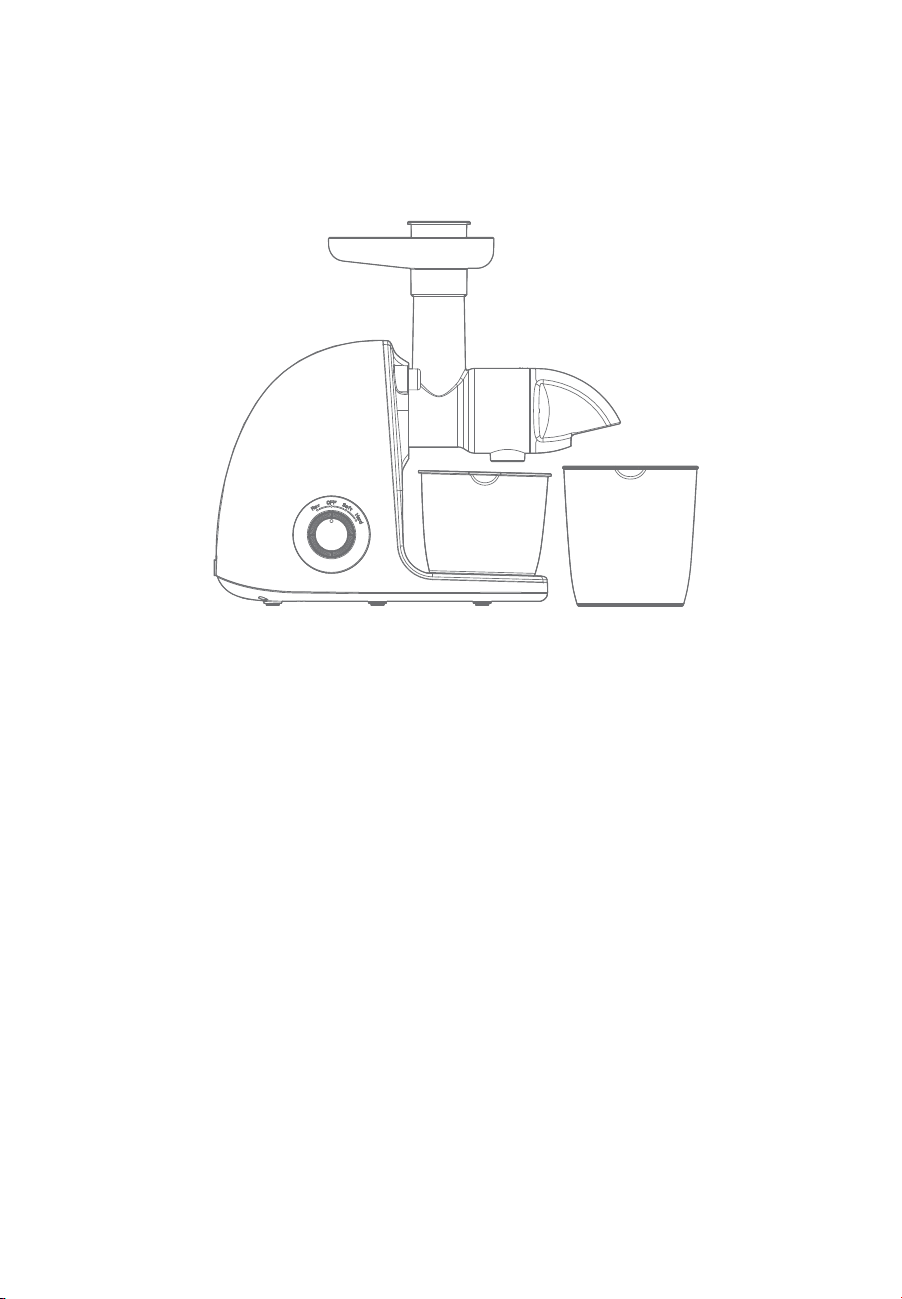

KEY OPERATION SPECIFICATION
"OFF" key: Close, Stop Gear
"Soft" key: Low Gear
Note: Suitable for squeezing soft fruits and vegetables like oranges,
grapes, watermelon, cherry and tomatoes.
"Hard" key: High Gear
Note: Suitable for squeezing hard fruits and vegetables like carrots,
apples, pears and celery.
“Rev” key: Reverse
Note: If the juicer is blocked, hold the "Rev" switch for 3-5 seconds, the
auger will start to reverse to allow the pomace to flow back, then turn
the switch to “Hard” or “Soft” gear again, and the machine recovers to
rotate in forward direction and work on.
13
1 3
2 4 5 6
7
8
9 10 11 12
04
05
PRODUCT COMPONENTS
1. Power line
2. Housing
3. On/Off Switch (In rear)
4. Locking Clip
5. Juice Container
6. Pulp Container
7. Pusher
8. Hopper
9. Feed Chute&Drum
10. Auger (Inside Drum)
11. Filter (Inside Drum)
12. End Cap
13. Cleaning Brush
KEY OPERATION SPECIFICATION
"OFF" key: Close, Stop Gear
"Soft" key: Low Gear
Note: Suitable for squeezing soft fruits and vegetables like oranges,
grapes, watermelon, cherry and tomatoes.
"Hard" key: High Gear
Note: Suitable for squeezing hard fruits and vegetables like carrots,
apples, pears and celery.
“Rev” key: Reverse
Note: If the juicer is blocked, hold the "Rev" switch for 3-5 seconds, the
auger will start to reverse to allow the pomace to flow back, then turn
the switch to “Hard” or “Soft” gear again, and the machine recovers to
rotate in forward direction and work on.
13
1 3
2 4 5 6
7
8
9 10 11 12
04
05
Install all parts according to the picture.
Note: The connection position of each component is marked with the
insertion mark and the direction of rotation. Please install it strictly
according to the position of the mark.
QUICK ASSEMBLY
1. Wash the fruit and vegetable, cut
into pieces suitable for the feeding
hole, put on the hopper and set aside.
Note: The core, hard seed, thick peel
or hard shell of the fruit and vegetable
shall be removed first. Please see the
fruit classification table in page 11-12
for specific operations.
2. Plug in the socket, switch on and
ready to work.
Note: Ensure the switch is in off state
before switching on
OPERATING INSTRUCTIONS
3. The product begins to work after
pressing the “Hard” or “Soft” key and we
recommend that you use the product
continuously for no more than 10
minutes in order to protect the motor.
Note: Must wait for 3-5 seconds to start
after pressing the “Hard“ or “Soft” button.
WARNING: It is forbidden to touch the
power switch with wet hands for
avoidance of electric shock, electric
leakage and fire.
06
07
Install all parts according to the picture.
Note: The connection position of each component is marked with the
insertion mark and the direction of rotation. Please install it strictly
according to the position of the mark.
QUICK ASSEMBLY
1. Wash the fruit and vegetable, cut
into pieces suitable for the feeding
hole, put on the hopper and set aside.
Note: The core, hard seed, thick peel
or hard shell of the fruit and vegetable
shall be removed first. Please see the
fruit classification table in page 11-12
for specific operations.
2. Plug in the socket, switch on and
ready to work.
Note: Ensure the switch is in off state
before switching on
OPERATING INSTRUCTIONS
3. The product begins to work after
pressing the “Hard” or “Soft” key and we
recommend that you use the product
continuously for no more than 10
minutes in order to protect the motor.
Note: Must wait for 3-5 seconds to start
after pressing the “Hard“ or “Soft” button.
WARNING: It is forbidden to touch the
power switch with wet hands for
avoidance of electric shock, electric
leakage and fire.
06
07
4. Please put the food material which
in small pieces into the hopper, and
then use the pusher to push the food
material into the feeding hole.
Note: Push the diced food lightly.
Note: When using the pusher, please
pay attention to align the red marks on
the pusher and the hopper to prevent
jam by using the wrong direction.
WARNING: It is forbidden to stretch
your fingers or other objects into
feeding hole of the feed chute! If the
juice container or the pulp container is
full, turn off the power and continue to
use it after cleaning.
5. After juicing, shut down the switch,
disconnect the power when no juice
discharges from the nozzle any longer,
and take the juice container away from
the nozzle after the auger stops
rotating completely.
Note: Recommend drinking the juice
immediately and its taste and nutritive
value are influenced by being exposed
to the air for a while.
WARNING: It is forbidden to touch the
power switch with wet hands for
avoidance of electric shock, electric
leakage and fire.
6. After juicing, we recommend
cleaning all the accessories
immediately, to prevent the food from
sticking to the juicing parts. Install it
back to the host after drying to prevent
moisture.
Note: You can thoroughly wash parts
by immersing in warm water diluted
with one or two drops of baking soda
or dishwashing soap for about 30
minutes.
QUICK DISASSEMBLY
08
09
4. Please put the food material which
in small pieces into the hopper, and
then use the pusher to push the food
material into the feeding hole.
Note: Push the diced food lightly.
Note: When using the pusher, please
pay attention to align the red marks on
the pusher and the hopper to prevent
jam by using the wrong direction.
WARNING: It is forbidden to stretch
your fingers or other objects into
feeding hole of the feed chute! If the
juice container or the pulp container is
full, turn off the power and continue to
use it after cleaning.
5. After juicing, shut down the switch,
disconnect the power when no juice
discharges from the nozzle any longer,
and take the juice container away from
the nozzle after the auger stops
rotating completely.
Note: Recommend drinking the juice
immediately and its taste and nutritive
value are influenced by being exposed
to the air for a while.
WARNING: It is forbidden to touch the
power switch with wet hands for
avoidance of electric shock, electric
leakage and fire.
6. After juicing, we recommend
cleaning all the accessories
immediately, to prevent the food from
sticking to the juicing parts. Install it
back to the host after drying to prevent
moisture.
Note: You can thoroughly wash parts
by immersing in warm water diluted
with one or two drops of baking soda
or dishwashing soap for about 30
minutes.
QUICK DISASSEMBLY
08
09
Press and hold the locking clip and turn clockwise to remove the
feed chute
Disassemble all parts according to the picture.
CaloriesOperation Name Gear Vitamins/Minerals
Peeled
and diced
Cored
and diced
Hard
Soft
Soft
Soft
Soft
Hard
Hard
Hard
Hard
Soft
Soft
Hard
Soft
Soft
Soft
Soft
Hard
N/A
N/A
Pineapple
Orange
Lemon
Watermelon
Cantaloupe
Apple
Apricot
Pear
Peach
Mango
Cherry
Pawpaw
Raspberry
Cranberry
Kiwi
Blackberries
Pomegranate
Sugarcane
Passion fruit
Vitamins C, A, K, phosphorus,
zinc, calcium
Vitamin C, thiamine, folate,
and potassium
Vitamin C, folate,
potassium, calcium
Vitamin C, A, potassium
Vitamin K, niacin,
choline, calcium
Vitamin C, fiber, potassium
Vitamin A,C, potassium,
dietary fiber
Folate, vitamin C, copper,
and potassium
Vitamin C, A, potassium
Vitamin A,C, K, potassium
Antioxidants vitamin A,
vitamin C, vitamin E
Vitamin A, potassium,
calcium, folic acid
Forbidden
Few juicing
Vitamin A, thiamine, riboflavin,
vitamin B6, calcium, zinc
Vitamins A, C, E, potassium,
magnesium, calcium
Vitamins C, K, calcium,
potassium, iron
Vitamin A, C, potassium,
magnesium
Iron, magnesium,
vitamin B1, riboflavin
Vitamin C, A, folate,
potassium
Vitamin C, K, E,
folate, potassium
TIPS FOR HANDLING FOODS
This heavy-duty nutrition system features a patented, stone mill-like
auger, made of hygienic U.S. FDA-approved melamine. The low speed
of 80 RPMs ensures full taste and the highest nutritional value.
• FRUIT JUICE.
Efficiently juices hard and soft fruits, even citrus fruits.
• VEGETABLE JUICE.
Juices all kinds of vegetables including carrots, beets, celery,
peppers, and radishes without destroying the natural flavor and
nutritional benefits. Fresh taste and full nutrition are guaranteed with
this unique extraction process.
• WHEATGRASS AND LEAFY GREENS.
Kale, cabbage, spinach are some of the natural products that can be
juiced. Enjoy the best that nature offers in raw foods and juice them
for full nutritional benefits.
• HERBS.
Celery is the most common of herbs that can be juiced.
Extract liquid from raw celery stalks. While you can juice fruits,
vegetables, leafy greens, and herbs to make one tasty drink, you may
occasionally (or always) only juice one type to concentrate a fruit,
vegetable, or herb's health-enhancing benefits.
WARNING: DO NOT PUT FROZEN FRUITS IN
100g=209KJ
(50calories)
100g=196KJ
(47calories)
100g=121KJ
(29calories)
100g=125KJ
(30calories)
100g=138KJ
(33calories)
100g=217KJ
(52calories)
100g=200KJ
(48calories)
100g=238KJ
(57calories)
100g=238KJ
(39calories)
100g=250KJ
(60calories)
100g=209KJ
(50calories)
100g=238KJ
(39calories)
100g=217KJ
(52calories)
100g=192KJ
(46calories)
100g=255KJ
(61calories)
100g=180KJ
(43calories)
100g=284KJ
(68calories)
100g=309KJ
(74calories)
100g=405KJ
(97calories)
10
11
Press and hold the locking clip and turn clockwise to remove the
feed chute
Disassemble all parts according to the picture.
CaloriesOperation Name Gear Vitamins/Minerals
Peeled
and diced
Cored
and diced
Hard
Soft
Soft
Soft
Soft
Hard
Hard
Hard
Hard
Soft
Soft
Hard
Soft
Soft
Soft
Soft
Hard
N/A
N/A
Pineapple
Orange
Lemon
Watermelon
Cantaloupe
Apple
Apricot
Pear
Peach
Mango
Cherry
Pawpaw
Raspberry
Cranberry
Kiwi
Blackberries
Pomegranate
Sugarcane
Passion fruit
Vitamins C, A, K, phosphorus,
zinc, calcium
Vitamin C, thiamine, folate,
and potassium
Vitamin C, folate,
potassium, calcium
Vitamin C, A, potassium
Vitamin K, niacin,
choline, calcium
Vitamin C, fiber, potassium
Vitamin A,C, potassium,
dietary fiber
Folate, vitamin C, copper,
and potassium
Vitamin C, A, potassium
Vitamin A,C, K, potassium
Antioxidants vitamin A,
vitamin C, vitamin E
Vitamin A, potassium,
calcium, folic acid
Forbidden
Few juicing
Vitamin A, thiamine, riboflavin,
vitamin B6, calcium, zinc
Vitamins A, C, E, potassium,
magnesium, calcium
Vitamins C, K, calcium,
potassium, iron
Vitamin A, C, potassium,
magnesium
Iron, magnesium,
vitamin B1, riboflavin
Vitamin C, A, folate,
potassium
Vitamin C, K, E,
folate, potassium
TIPS FOR HANDLING FOODS
This heavy-duty nutrition system features a patented, stone mill-like
auger, made of hygienic U.S. FDA-approved melamine. The low speed
of 80 RPMs ensures full taste and the highest nutritional value.
• FRUIT JUICE.
Efficiently juices hard and soft fruits, even citrus fruits.
• VEGETABLE JUICE.
Juices all kinds of vegetables including carrots, beets, celery,
peppers, and radishes without destroying the natural flavor and
nutritional benefits. Fresh taste and full nutrition are guaranteed with
this unique extraction process.
• WHEATGRASS AND LEAFY GREENS.
Kale, cabbage, spinach are some of the natural products that can be
juiced. Enjoy the best that nature offers in raw foods and juice them
for full nutritional benefits.
• HERBS.
Celery is the most common of herbs that can be juiced.
Extract liquid from raw celery stalks. While you can juice fruits,
vegetables, leafy greens, and herbs to make one tasty drink, you may
occasionally (or always) only juice one type to concentrate a fruit,
vegetable, or herb's health-enhancing benefits.
WARNING: DO NOT PUT FROZEN FRUITS IN
100g=209KJ
(50calories)
100g=196KJ
(47calories)
100g=121KJ
(29calories)
100g=125KJ
(30calories)
100g=138KJ
(33calories)
100g=217KJ
(52calories)
100g=200KJ
(48calories)
100g=238KJ
(57calories)
100g=238KJ
(39calories)
100g=250KJ
(60calories)
100g=209KJ
(50calories)
100g=238KJ
(39calories)
100g=217KJ
(52calories)
100g=192KJ
(46calories)
100g=255KJ
(61calories)
100g=180KJ
(43calories)
100g=284KJ
(68calories)
100g=309KJ
(74calories)
100g=405KJ
(97calories)
10
11
Failures Analysis of causes Troubleshooting
Plug in and there
is no power
Poor contact
between a
powerplug and
socket
1. Check whether the power cord is plugged in correctly
2. Check if the socket is suitable
3. Check if the socket is faulty
4. Wait for 3 seconds after booting
5. Contact customer service
Juicer stops
during normal
operation
1. Product working
time is too long;
2. Put in too much food
3. Low voltage
1. After the product is turned off and cooled down,
turn it on again (it is recommended that the use
time should not exceed 10 minutes each time)
2. Press "Rev" to use the reverse function
3. Check whether the power supply voltage is too low
Auger wear
1. Product working
time is too long;
2. Put in inappropriate
food material
1. It is recommended that the use time should not
exceed ten minutes;
2. Please refer to page 11-12 for food material
3. Contact customer service
Pomace blockage
1. Put too much
ingredients;
2. Put in inappropriate
food material;
3. The filter is not
cleaned in time
1. Press "Rev" to use the reverse function; if there is no
effect, cut off the power and take out the excess
food material
2. Please refer to page 11-12 for food material
3. Restart the product after cleaning the filter
(please clean the product in time after each use)
4. Contact customer service
End cap stuck
and cannot be
disassembled
1. Inadequate assembly
of product
components;
2. Put in inappropriate
food material;
3. Put too much food
material
1. Reassemble the components
2. Use the wrench to remove the end cap in clockwise
direction
3. Press "Rev" to use the reverse function; if there is no
effect, cut off the power and take out the excess
food material
4. Contact customer service
Parts are damaged
or missing
N/A Contact customer service
TROUBLESHOOTING
Juice Leaks
Over the Base
1. The feed chute
assembly is not in place;
2. The feed chute is broken
1. Reassemble the components
2. Contact customer service
Juicer Shakes
when In-Use
Normal
This is normal as the auger rotates. It is not a
malfunction.
Hard ingredients such as carrots, potatoes, radish,
beets, etc. may cause shaking more than soft
ingredients.
• Depending on the firmness of the ingredient, there
may be a more pronounced shaking of the motor
• Slight shaking may be caused by the motor
Loud noise
1. Juicing accessories are
not installed in place
2. The motor inside the
machine is damaged.
1. Reinstall the auger, the filter and the end cap
2. Contact customer service
NormalUnpleasant smell
when used at the
beginning
This is the smell of the new machine after leaving the
factory, if there is still a peculiar smell after several
times of use, Contact customer service
CaloriesOperation Name Gear Vitamins/Minerals
WARNING: DO NOT PUT FROZEN FRUITS IN
Diced
and juicing
Hard
Soft
Hard
Hard
Hard
Soft
Soft
Soft
Soft
Soft
Soft
Soft
Hard
Soft
Soft
Hard
Hard
Hard
Carrot
Lettuce
Parsley
Celery
Cucumber
Cabbage
Tomato
Kale
Spinach
Coriander
Wheatgrass
Lettuce
Beet
Ginger
Turmeric
Vitamin A, C, and B6
and dietary fiber
Vitamin C, K, folate
Vitamins A, K, calcium,
iron, magnesium
Vitamins A, K, and C,
potassium, folate
Vitamin C, beta-carotene,
manganese
Vitamin C, folic acid, potassium,
B6, dietary fiber
Vitamins C, E, calcium,
magnesium
Vitamins A, K, B6 and C, calcium,
potassium, copper, manganese
Vitamins A, C, K, and B6
Vitamins A, C, K, magnesium,
iron, manganese
Vitamins A, C, E, iron, magnesium,
calcium, amino acids
Vitamins A, K, E,
manganese,iron
Few
juicing
Juicing
directly
Vitamins A, C, K, calcium,
potassium
Folic acid, dietary fiber,
vitamin C, potassium
Vitamin C, B vitamins thiamine,
riboflavin, niacin
Vitamin C, vitamin B6,
manganese, iron
Vitamin C, B, B6 and E,
folic acid, dietary fiber
Vitamin C, vitamin K, folate
Chinese
cabbage
Brussels
sprout
Purple
cabbage
100g=171KJ
(41calories)
100g=62KJ
(15calories)
100g=150KJ
(36calories)
100g=58KJ
(14calories)
100g=58KJ
(14calories)
100g=105KJ
(25calories)
100g=75KJ
(18calories)
100g=209KJ
(50calories)
100g=130KJ
(31calories)
100g=96KJ
(23calories)
100g=96KJ
(23calories)
100g=96KJ
(23calories)
100g=54KJ
(13calories)
100g=180KJ
(43calories)
100g=62KJ
(15calories)
100g=180KJ
(43calories)
100g=334KJ
(80calories)
100g=1479KJ
(354calories)
12
13
Failures Analysis of causes Troubleshooting
Plug in and there
is no power
Poor contact
between a
powerplug and
socket
1. Check whether the power cord is plugged in correctly
2. Check if the socket is suitable
3. Check if the socket is faulty
4. Wait for 3 seconds after booting
5. Contact customer service
Juicer stops
during normal
operation
1. Product working
time is too long;
2. Put in too much food
3. Low voltage
1. After the product is turned off and cooled down,
turn it on again (it is recommended that the use
time should not exceed 10 minutes each time)
2. Press "Rev" to use the reverse function
3. Check whether the power supply voltage is too low
Auger wear
1. Product working
time is too long;
2. Put in inappropriate
food material
1. It is recommended that the use time should not
exceed ten minutes;
2. Please refer to page 11-12 for food material
3. Contact customer service
Pomace blockage
1. Put too much
ingredients;
2. Put in inappropriate
food material;
3. The filter is not
cleaned in time
1. Press "Rev" to use the reverse function; if there is no
effect, cut off the power and take out the excess
food material
2. Please refer to page 11-12 for food material
3. Restart the product after cleaning the filter
(please clean the product in time after each use)
4. Contact customer service
End cap stuck
and cannot be
disassembled
1. Inadequate assembly
of product
components;
2. Put in inappropriate
food material;
3. Put too much food
material
1. Reassemble the components
2. Use the wrench to remove the end cap in clockwise
direction
3. Press "Rev" to use the reverse function; if there is no
effect, cut off the power and take out the excess
food material
4. Contact customer service
Parts are damaged
or missing
N/A Contact customer service
TROUBLESHOOTING
Juice Leaks
Over the Base
1. The feed chute
assembly is not in place;
2. The feed chute is broken
1. Reassemble the components
2. Contact customer service
Juicer Shakes
when In-Use
Normal
This is normal as the auger rotates. It is not a
malfunction.
Hard ingredients such as carrots, potatoes, radish,
beets, etc. may cause shaking more than soft
ingredients.
• Depending on the firmness of the ingredient, there
may be a more pronounced shaking of the motor
• Slight shaking may be caused by the motor
Loud noise
1. Juicing accessories are
not installed in place
2. The motor inside the
machine is damaged.
1. Reinstall the auger, the filter and the end cap
2. Contact customer service
NormalUnpleasant smell
when used at the
beginning
This is the smell of the new machine after leaving the
factory, if there is still a peculiar smell after several
times of use, Contact customer service
CaloriesOperation Name Gear Vitamins/Minerals
WARNING: DO NOT PUT FROZEN FRUITS IN
Diced
and juicing
Hard
Soft
Hard
Hard
Hard
Soft
Soft
Soft
Soft
Soft
Soft
Soft
Hard
Soft
Soft
Hard
Hard
Hard
Carrot
Lettuce
Parsley
Celery
Cucumber
Cabbage
Tomato
Kale
Spinach
Coriander
Wheatgrass
Lettuce
Beet
Ginger
Turmeric
Vitamin A, C, and B6
and dietary fiber
Vitamin C, K, folate
Vitamins A, K, calcium,
iron, magnesium
Vitamins A, K, and C,
potassium, folate
Vitamin C, beta-carotene,
manganese
Vitamin C, folic acid, potassium,
B6, dietary fiber
Vitamins C, E, calcium,
magnesium
Vitamins A, K, B6 and C, calcium,
potassium, copper, manganese
Vitamins A, C, K, and B6
Vitamins A, C, K, magnesium,
iron, manganese
Vitamins A, C, E, iron, magnesium,
calcium, amino acids
Vitamins A, K, E,
manganese,iron
Few
juicing
Juicing
directly
Vitamins A, C, K, calcium,
potassium
Folic acid, dietary fiber,
vitamin C, potassium
Vitamin C, B vitamins thiamine,
riboflavin, niacin
Vitamin C, vitamin B6,
manganese, iron
Vitamin C, B, B6 and E,
folic acid, dietary fiber
Vitamin C, vitamin K, folate
Chinese
cabbage
Brussels
sprout
Purple
cabbage
100g=171KJ
(41calories)
100g=62KJ
(15calories)
100g=150KJ
(36calories)
100g=58KJ
(14calories)
100g=58KJ
(14calories)
100g=105KJ
(25calories)
100g=75KJ
(18calories)
100g=209KJ
(50calories)
100g=130KJ
(31calories)
100g=96KJ
(23calories)
100g=96KJ
(23calories)
100g=96KJ
(23calories)
100g=54KJ
(13calories)
100g=180KJ
(43calories)
100g=62KJ
(15calories)
100g=180KJ
(43calories)
100g=334KJ
(80calories)
100g=1479KJ
(354calories)
12
13
SLOW JUICER JS3009
USER MANUAL
Before operating the appliance, please read this manual and all the
safety instructions thoroughly and retain it for future reference.
