USER MANUAL
xtrovac 310
Pool Vacuum Cleaner
ENGLISH
1
Remark: Depending on the model you own, accessories/ parts
shown in this manual are not necessarily included in every model.
Product/parts in photos/drawings may vary with the model purchased.
Check the spare parts drawing to understand the parts included in your
model purchased.
SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely, protect
yourself and others from hazards, and prevent damage to the device and other property.
SAVE THESE INSTRUCTIONS
WARNING!
- This is not a TOY. Children should be kept out of reach from this pool
vacuum and its accessories.
- Never allow children to operate this pool vacuum.
- This appliance is not intended for use by persons with reduced
physical, sensory, mental capabilities, or a lack of experience and
knowledge, unless they are given supervision or instructions
concerning the safe use of the appliance and understand the hazards
involved by a person responsible for their safety.
- Children must not play with this product.
- Cleaning and maintenance of the pool vacuum must not be carried
out by children.
- Make sure the pool vacuum is fully immersed in the pool before
initiating operation. The minimum water level required to operate
the pool vacuum must reach above the power ON/OFF switch of
the pool vacuum when it is held in a vertical position. Operating the
pool vacuum when it is not immersed correctly could damage the
unit and void the warranty.
- Maximum operating depth in water is 3 meters (10ft).
- Maximum water temperature: 5˚C (41˚F) –35˚C (95˚F).
- Detachable supply unit (external adaptor).
- For the purpose of recharging the battery, only use the charging base
and detachable supply unit that provided with this pool vacuum.
- Connect the external adaptor to a power source through a residential
current device (RCD) / a ground fault circuit interrupter (GFCI). If in
doubt, consult a qualied electrician.
- Do not use this pool vacuum if any damage is detected.
- To prevent damage to the pool vacuum, not to leave it outside during
freezing weather.
- Replace damaged parts with ones that are certied by the distributor
or manufacturer.
ENGLISH
2
- Turn o the power, disconnect the external adaptor from the power
source, and unplug the external adaptor from the charging base
before detaching the pool vacuum from the charging base.
- Disconnect the pool vacuum from the supply mains and make sure
the pool vacuum is OFF prior to carrying out regular maintenance –
such as cleaning the lter and the charging contact plates.
- Do not attempt to replace the installed rechargeable Li-ion battery
pack.
- DO NOT handle the pool vacuum, external adaptor, and charging
base while it is charging with wet limbs and without shoes.
- Ensure that children do not attempt to access the pool vacuum while
it is operating.
- DO NOT use this pool vacuum without an intact lter bag/lter cage
in place, as your warranty will be voided as a result.
- Suction entrapment hazard: This pool vacuum generates suction.
Do not allow hair, body, or any loose parts of your clothing to make
contact with the suction hole of the pool vacuum during its operation.
- Never insert body parts, clothing or other objects into the openings
and moving parts of the pool vacuum.
- DO NOT use this pool vacuum to pick up any toxic substance,
ammable, and combustible liquids (i.e. gasoline) in the presence of
explosive or ammable fumes.
- Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor, and battery by yourself.
- Never insert ngers or any object to touch the impeller.
- The built-in battery must be removed by a skilled technician before
it is scrapped.
- This pool vacuum contains a battery that are only to be removed by
skilled persons.
- The pool vacuum must be disconnected from the supply mains as
the battery is removed.
- For details regarding battery recycling/disposal, refer to the section
“BATTERY DISPOSAL” in this manual and contact your local authorities
for more information.
- The battery must be disposed safely in accordance with local
ordinances or regulations.
- External adaptor and charging base:
· Never use the external adaptor and charging base for anything
other than charging the battery of the pool vacuum that is supplied
in the same pack.
· The external adaptor and charging base should not be used
outdoors, nor should it be exposed to rain, humidity, and any liquid
ENGLISH
3
or heat.
·
The transformer (or external adaptor) is to be located outside zone 1.
· Keep the external adaptor and charging base out of reach of
children.
· Never use the external adaptor and charging base if any damage is
detected.
· DO NOT handle the external adaptor and charging base with wet
hands.
· DO NOT handle the pool vacuum, external adaptor, and charging
base while charging with wet hands and without shoes.
· Keep the external adaptor disconnected from power when it is not
in use.
· Never attempt to open the external adaptor and charging base.
· If the supply cord of the external adaptor is damaged, the external
adaptor must be replaced by the manufacturer or its service agent
to prevent hazards of any kind.
· Make sure the pool vacuum and the charging base are completely
dry before charging.
CAUTION!
- This pool vacuum is designed for underwater use only; it is not an all-purpose vacuum cleaner. DO
NOT attempt to use it to clean anything other than your pool / spa / hot tube.
- Use only original accessories delivered with this product.
- DO NOT use this pool vacuum right after pool-shocking. It is recommended to leave the pool
circulating for at least 24-48 hours.
- If you are planning on using the pool vacuum in a saltwater pool, make sure all salt are dissolved
before deploying the pool vacuum.
- DO NOT use this pool vacuum with another automatic cleaner/cleaner simultaneously in the pool/
spa / hot tube.
- Avoid picking up hard, sharp objects with this product. They may damage the pool vacuum and
lter.
- Exercise caution when cleaning pool stairs.
- To avoid damages to the external adaptor and charging base, do not attempt to carry the pool
vacuum by the cord of external adaptor / charging base or pull the cord to disconnect it from the
power source andcharging base.
- Charge the pool vacuum indoor in a clean, dry area with good ventilation and an ambient
temperature between 5˚C (41˚F) and 35˚C (95˚F).
- DO NOT leave the pool vacuum charged for over 10 hours.
- If the pool vacuum will not be used for an extended period, detach it from the charging base and
use a damp cloth to clean and dry the pool vacuum and accessories. Make sure to charge the pool
vacuum to about 30% to 50% of the battery capacity before it is stored. Store in a well-ventilated
area away from sunlight, heat, ignition sources, pool chemicals, and children. Never leave the pool
vacuum plugged in for long-term storage. Recharge the pool vacuum every three months.
Above warnings and cautions are not intended to incorporate all
possible instances for risks and / or severe injuries. Pool / spa / hot
tube owners should always exercise extra caution and common sense
when utilizing the product.
ENGLISH
4

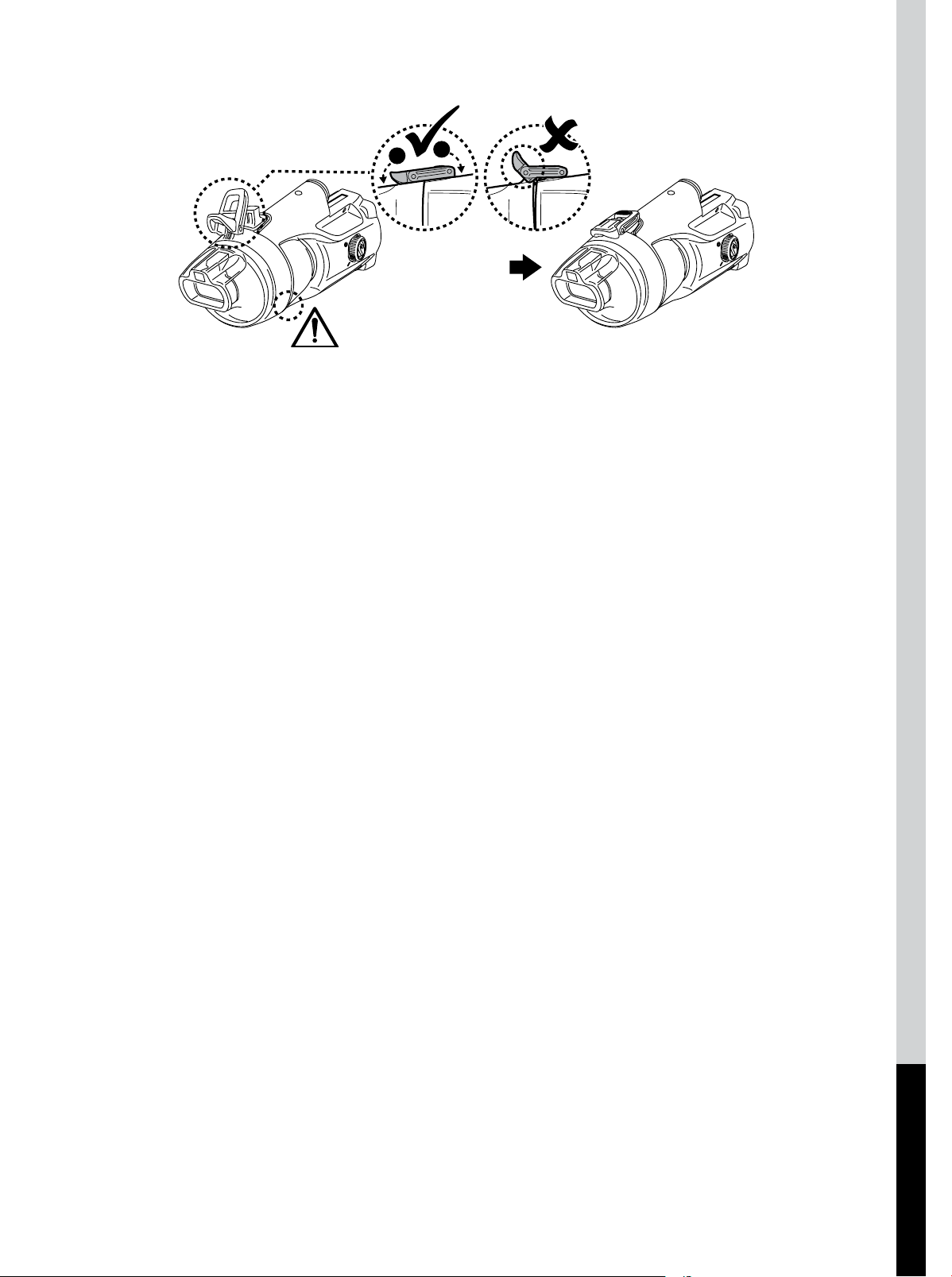

1. Place the unit on a at surface. Make sure the pool vacuum is o
by turning the power ON/OFF switch to the OFF position prior to
charging.
2. Align and slide the hook of the charging base onto the side notch at
the bottom of the main body until it stops. Make sure their contact
plates are properly in contact.
GETTING STARTED
Charging The Battery
IMPORTANT NOTE: Fully charge the pool vacuum (about 6 hrs) before
using it for the rst time.
WARNING!
- Use only the original external adaptor and charging base provided.
- Make sure the pool vacuum and the charging contact plates are
clean and dry before set-up and charging. (TIPS: Use a cotton bud to
dry the charging contact plates)
- Charging must be done indoors, in a well-ventilated area away
from sunlight, children, heat, ignition sources, and with an ambient
temperature between 5˚C (41˚F) and 35˚C (95˚F).
- Never use the external adaptor and charging base if any damage is
detected.
- The charging contact plates are waterproof. However, remnants of
water on the contact plates could result in natural occurrence of
stains (a byproduct of chemical reaction between water and electric
currents). Otherwise, the stains can be removed by light scrubbing
with a cotton bud soaked with juice of lemon or vinegar.
- Make sure that the pool vacuum is turned o prior to charging.
OFF
ON
ENGLISH
5

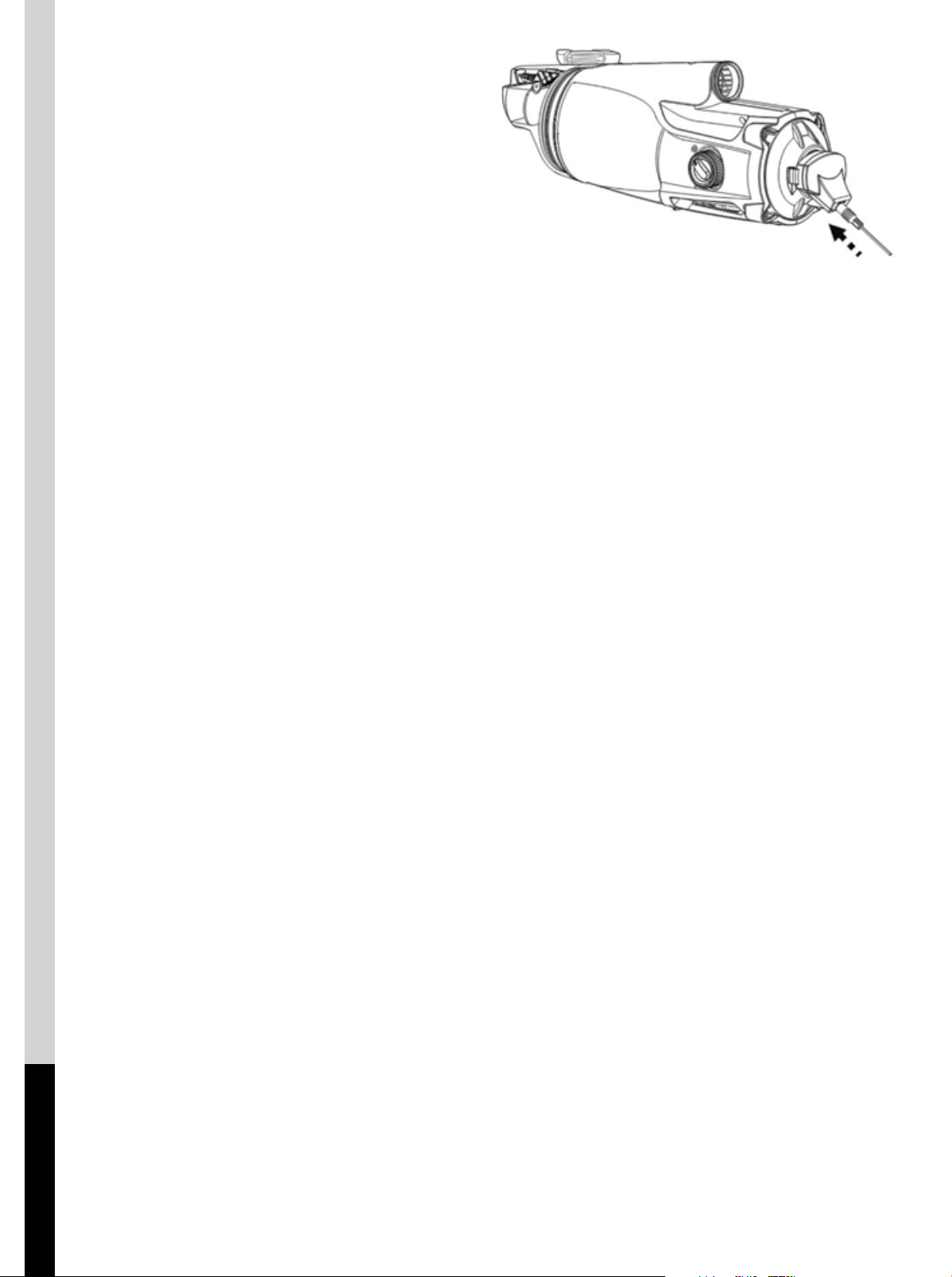

3. Plug the jack of the external
adaptor into the charging port
at the end of the charging base.
4. Connect the external adaptor to the power source. Once the pool
vacuum begins charging, the indicator light on the external adaptor
will turn red. Normally, it takes about 4-6 hours to reach a full charge.
The indicator light will turn green when the pool vacuum is almost
fully charged.
NOTE: if the motor is generating noise, ensure “OFF” is selected on
the power switch.
5. When charging is complete, disconnect the external adaptor from
the power source and detach the charging base from the unit and
external adaptor.
Normally, the pool vacuum can operate up to 30 minutes on a full charge
(charged for 4-6 hours) .
Note: Clean the lter bag/lter cage regularly. Excessive debris inside
the lter bag/lter cage increases the burden to the motor operation
and shortens the operating duration as a result.
FACT: Rechargeable lithium-Ion battery is classied as a consumable
item. It has a limited life and will gradually lose its capacity to hold a
charge. Therefore, running time of the pool vacuum will gradually
reduce through repeated charging and discharging in operation.
Once the lifespan of the battery reaches its end, refer to section “BATTERY
DISPOSAL” for instructions regarding battery disposal.
NOTE: Let the pool vacuum rest for around 30 to 40 minutes before
charging it again.
· Immediately disconnect the external adaptor from the power
source if you detect any of the following:
- Oensive or unusual odor
- Excessive heat
- Deformation, cracks, leaks
- Smoke
ENGLISH
6
1
2
3
Set-Up Before Use

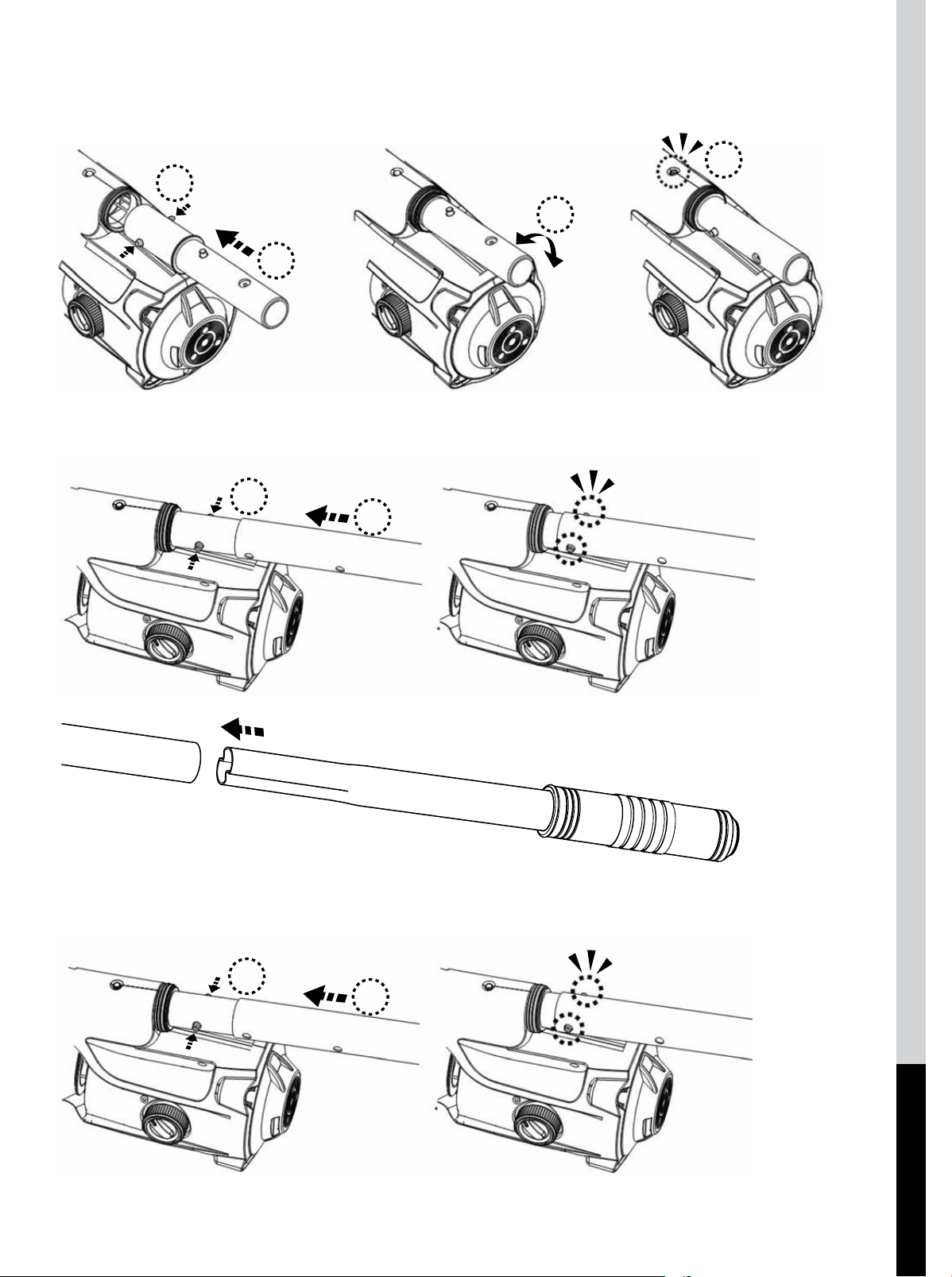

Pole Connector Assembly
Pole Assembly
Telescopic Pole (Not Included) Assembly
To release the telescopic pole, press down the side pins simultaneously and pull out the pole.
1
2
4
3
1
2
3
ENGLISH
7
Pool Preparation
- If there are stones, roots or metal corrosion in contact with the underside of the liner, discard them prior
to using the pool vacuum. If necessary, seek assistance from a qualied professional.
- If the liner is brittle, damaged or wrinkled, contact a qualied professional to perform the necessary repairs
or perform a liner replacement prior to using the pool vacuum.
- If you are using a saltwater pool, make sure all salt are dissolved before placing the pool vacuum into the
water.
Suction Head Assembly
Insert the suction head directly into the suction mouth of the pool vacuum until the side tabs of
transparent case will clip in the holes of the suction head’s pivot.

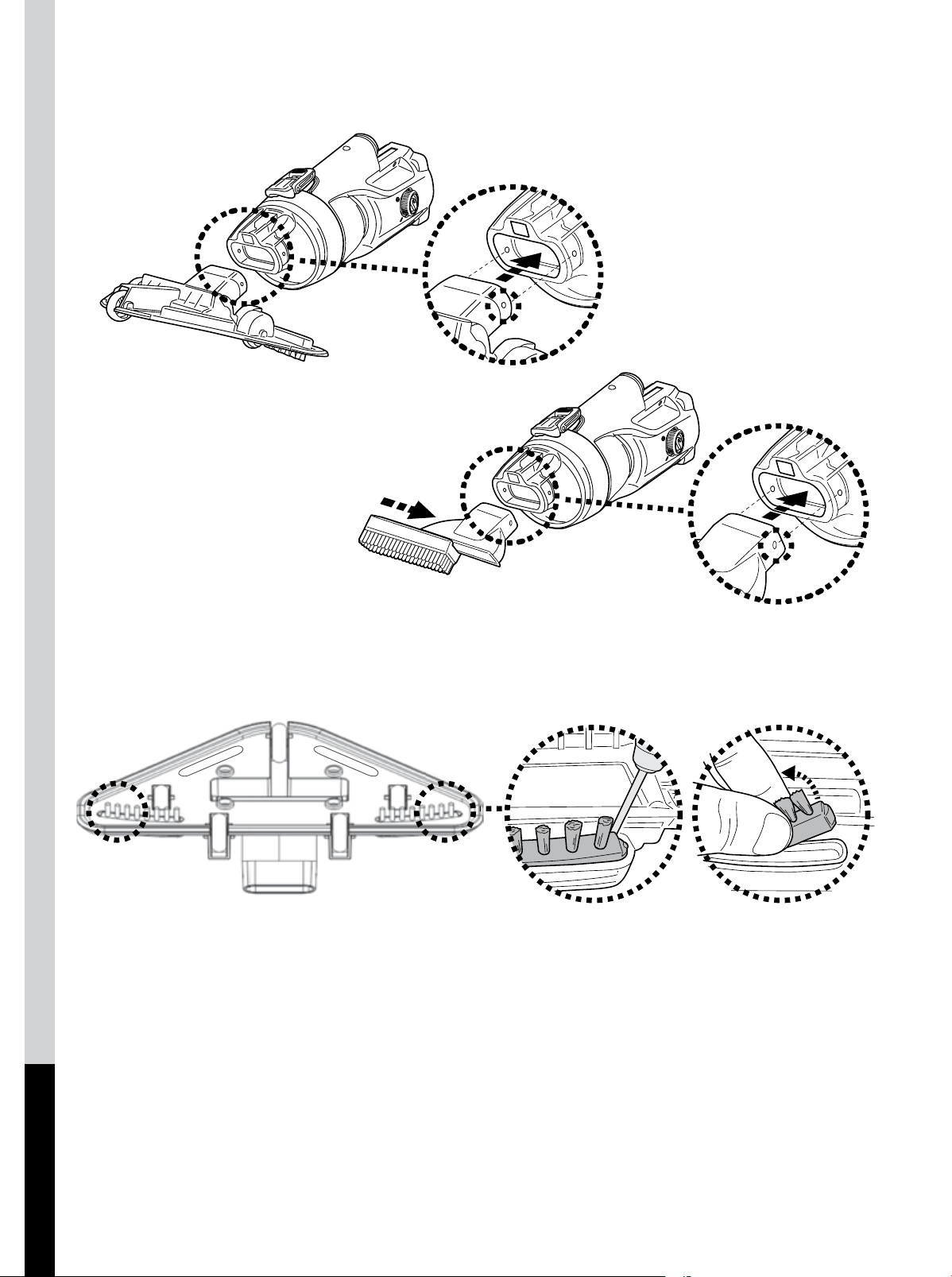

NOTE: To replace the brushes on the suction head, lift the end and pull it out to make space for a new
one.
WARNING! For vinyl liner and breglass pools/spa/hot tube, it is
recommended to keep the brushes on the suction head to avoid
damaging the pool/spa/hot tube.
21
ENGLISH
8

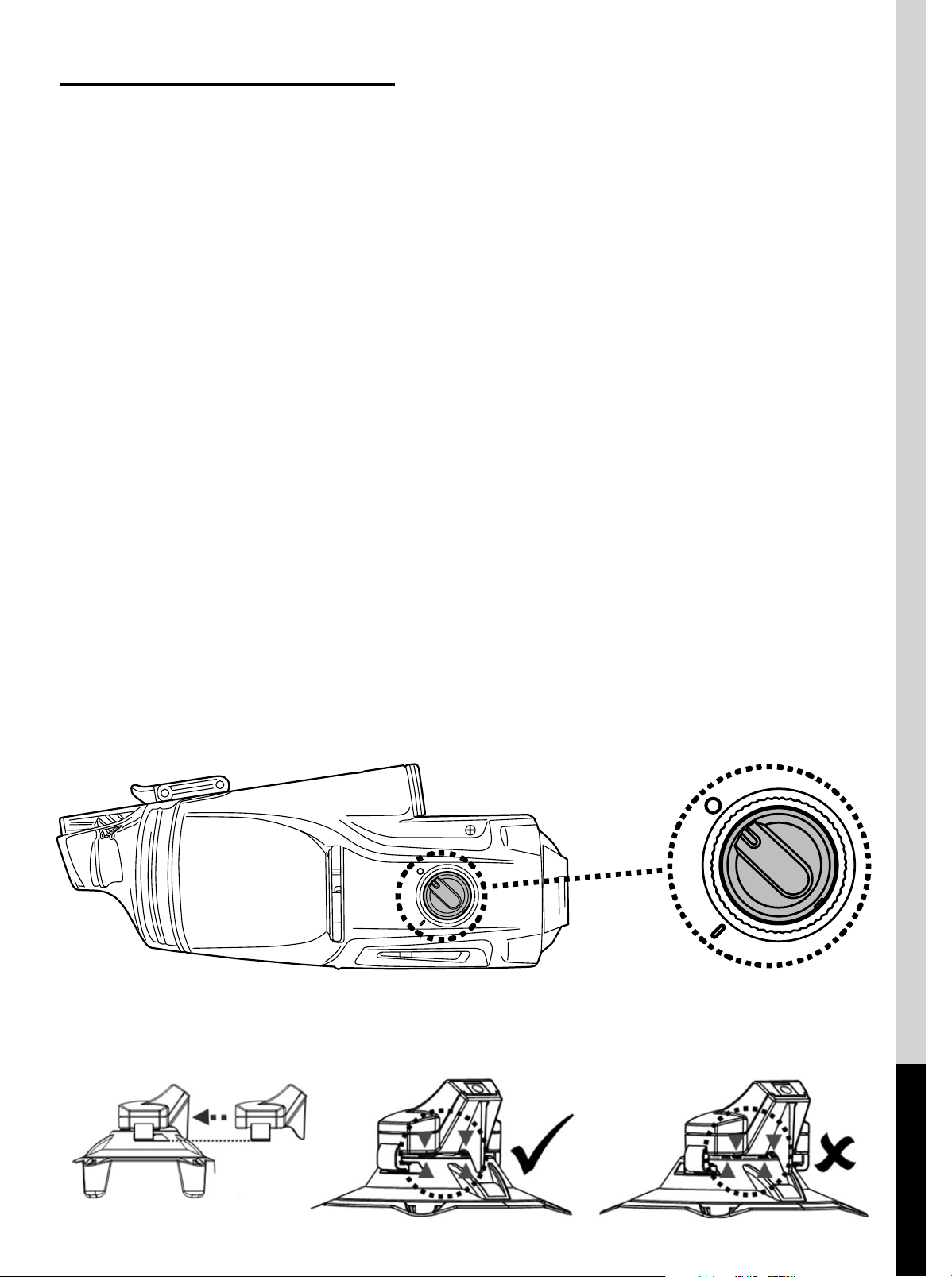

OPERATION
WARNING!
• Make sure the pool vacuum is o.
• Do not use the pool vacuum if any damage is detected.
• Oil stain could occur due to possible leakage of lubricants applied
to the O-ring.
• Make sure the pool vacuum is fully immersed in the pool before
initiating operation. The minimum water level required to operate
the pool vacuum must reach above the power ON/OFF switch of
the pool vacuum when it is held in a vertical position. Operating
the pool vacuum when it is not immersed correctly could damage
the unit and void the warranty.
• DO NOT use the pool vacuum without an intact lter bag/lter
cage in place. Using your pool vacuum without an intact lter bag/
lter cage in place will VOID your warranty.
• DO NOT leave the pool vacuum in the water when it is not in use.
1) Bring your pool vacuum to the side of your pool / spa / hot tube. Immerse the pool vacuum in water
and turn the power ON/OFF switch to the ON position to initiate operation.
CAUTION! Make sure the pool vacuum is always facing downwards when it is placed into the pool /
spa / hot tube. Otherwise it may bend the pole connector and damage it during the process.
2) To remove the pool vacuum from the pool / spa / hot tube, lift the pool vacuum while pointing it
downwards in order to allow water to escape from the outlet valve. Water is going to escape via the
handle / pole connector and draining holes inside the handle chamber on the rear body.
CAUTION! Make sure the pool vacuum is always facing downwards when it is removed from the
pool / spa / hot tube. Otherwise, the pole connector may be bent and damage the pool vacuum in
the process.
3) Rinse the pool vacuum with fresh water after every use. DO NOT use any detergent.
ENGLISH
9
Emptying The Filter Bag
WARNING! Using the pool vacuum without a lter bag/lter cage in
place will VOID your warranty.
In order to maximize the cleaning eciency, be sure to clean the lter bag/lter cage before and after
each use.
CAUTION! If the pool vacuum is charging, disconnect the external adaptor from the power source
and detach the pool vacuum from the charging base. Make sure the pool vacuum is OFF.

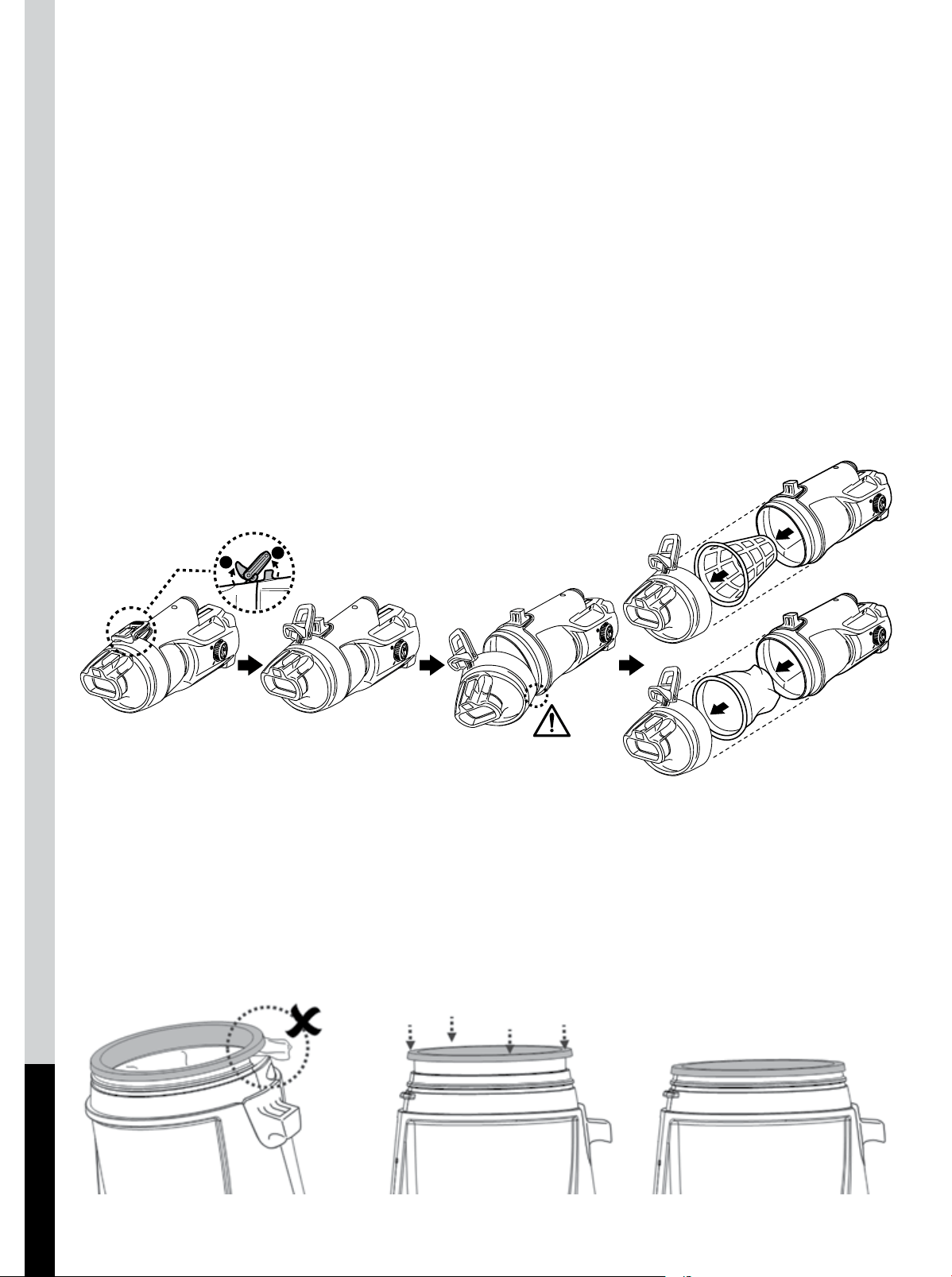

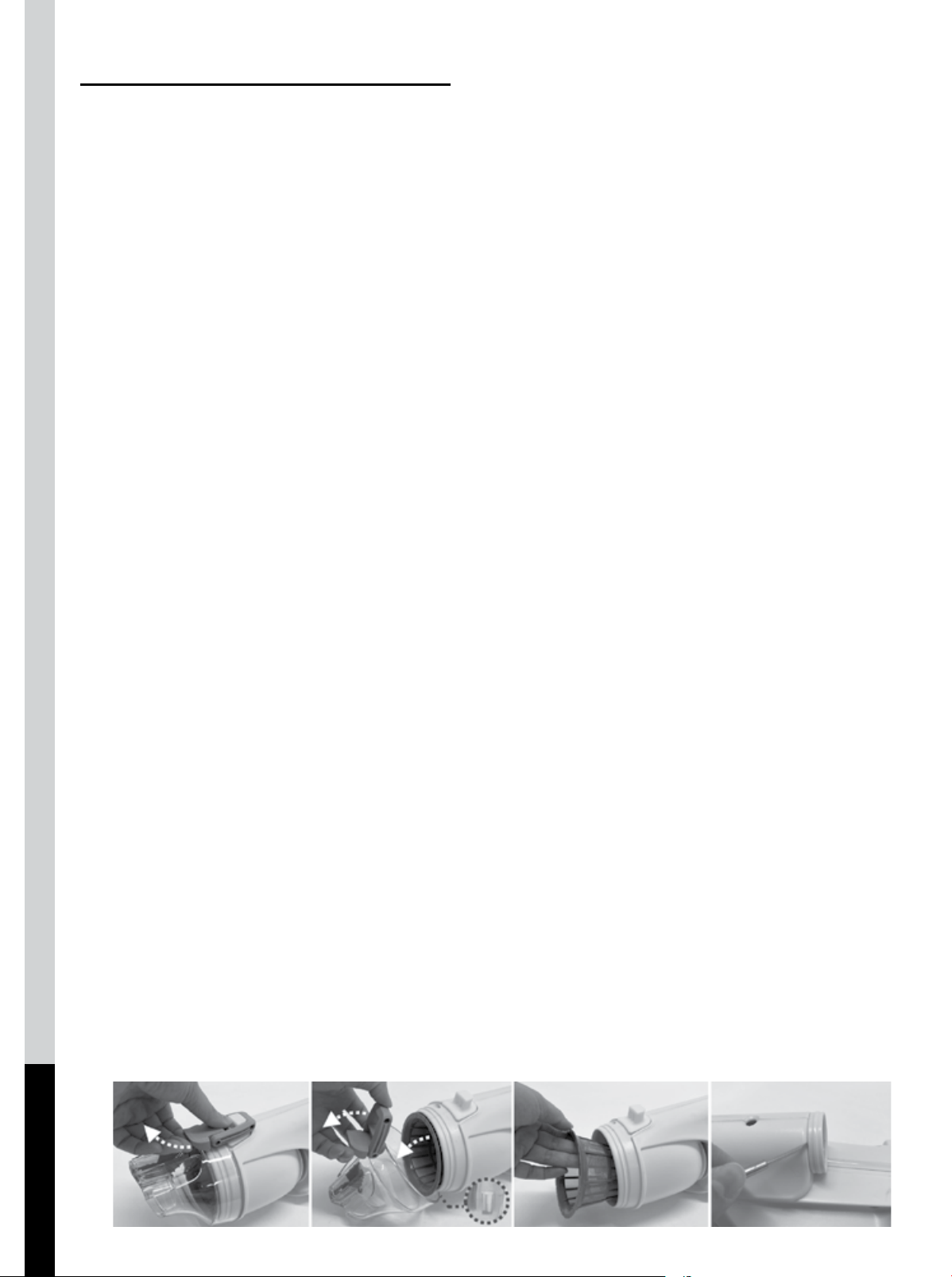

Emptying The Filter Bag/Filter Cage
• Place the pool vacuum on a stable surface.
• Pry the lever of the latch to disengages the latch bolt from the catch. Slide the canister away until
the notch on the bottom of canister opening is released from the hook on the bottom of main
body. Remove the lter bag/lter cage from the main body.
CAUTION! Replace the damaged lter bag/lter cage immediately before the next operation.
• Clean out the debris and rinse the lter bag/lter cage with water. If brushing is deemed necessary,
use only a soft brush to clean the lter bag/lter cage gently and carefully.
• Re-position the lter bag/lter cage inside the main body. Make sure the lter bag/lter cage is
completely inserted inside the main body. Make sure the net is completely inserted inside the main
body and does not stick out.
1
2
1. 2.
4.
3.
4.
ENGLISH
10
To re-install the canister, rst align the notch of the canister with the hook on main body and then press
the canister onto main body. Align the latch bolt to the catch and press down the lever completely to
secure the locking.
Maintenance & Storage
NOTE:
1) Be sure to clean and dry the charging contact plates after every use to avoid the forming of stains
(byproduct of a natural chemical reaction between electric current and water). Otherwise, the
stains can be removed by light scrubbing with a cotton bud soaked with juice of lemon or vinegar.
2) Battery discharges on its own during storage. Make sure to charge the pool vacuum to about 30%
to 50% of the battery capacity before it is stored.
3) You must re-charge the battery at least once every three months when it is not in use.
· Unplug the external adaptor from socket and then unplug the adapter jack from the charging
base.
· Detach accessories from the pool vacuum. If necessary, rinse the pool vacuum and accessories
with fresh water. DO NOT use detergent.
· Make sure to drain the water from the unit, handle and pole connector.
· Use a damp cloth to clean and dry the pool vacuum and its accessories.
· Store them in a well-ventilated area away from the sunlight, children, heat, ignition sources, and
pool chemicals. Ambient temperature for storage should be 10˚C – 25˚C (50˚F – 77˚F). NOTE: A
higher temperature may reduce the battery life during storage.
WARNING!
- Never attempt in any way to disassemble the pool vacuum.
- Under no circumstances should you attempt to disassemble the
pool vacuum and replace the impeller, motor and battery by
yourself.
CAUTION !
· Excessive heat can damage the battery and reduce its lifespan as a result.
· Consult your dealer regarding battery replacement if the following happens:
- Battery does not charge fully.
- Battery operation time is noticeably reduced. Observe and record the run times of the rst few
operations (on a full charge). Use these run times as a reference point for comparison with run times
in the future.
· The battery must be removed from the pool vacuum before it is scrapped.
· The pool vacuum must be disconnected from the supply mains when removing the battery
· The battery is to be disposed safely and according to local ordinances or regulations.
NOTE: Incorrect maintenance may reduce the battery life and aect its capacity as a result.
1
2
1.
2.
ENGLISH
11
BATTERY DISPOSAL (To be carried out by authorized technician)
Your pool vacuum battery is a maintenance-free rechargeable lithium-ion battery pack, which must
be disposed properly. Recycling is required; please contact your local authority for information.
WARNING! Never attempt to disassemble a battery pack.
· Remove all personal items such as rings, bracelets, necklaces and
watches when the battery pack is unwired from the pool vacuum.
· A battery can produce a short circuit current high enough to weld a
ring (or similar item) to metal, causing a severe burn in the process.
· Wear complete eye protection, gloves and protective clothing when
the battery pack is being removed.
· Avoid touching the wires altogether and avoid allowing them to
make contact with any metal items, which could cause sparking and/
or short circuit the battery.
· Never smoke or allow a spark or ame in the vicinity of the battery or
the pool vacuum.
· Do not expose the battery to re or intense heat as this may result in
an explosion.
CAUTION!
If a battery leak occurs, avoid contact with the leaking uids and place the damaged battery in a
plastic bag.
- If leaking uids come in contact with skin and clothing, wash immediately with plenty of soap and
water.
- If leaking uids come in contact with eyes, immediately ush eyes with cool running water for at
least 15 minutes and do not rub them. Seek medical attention as soon as possible.

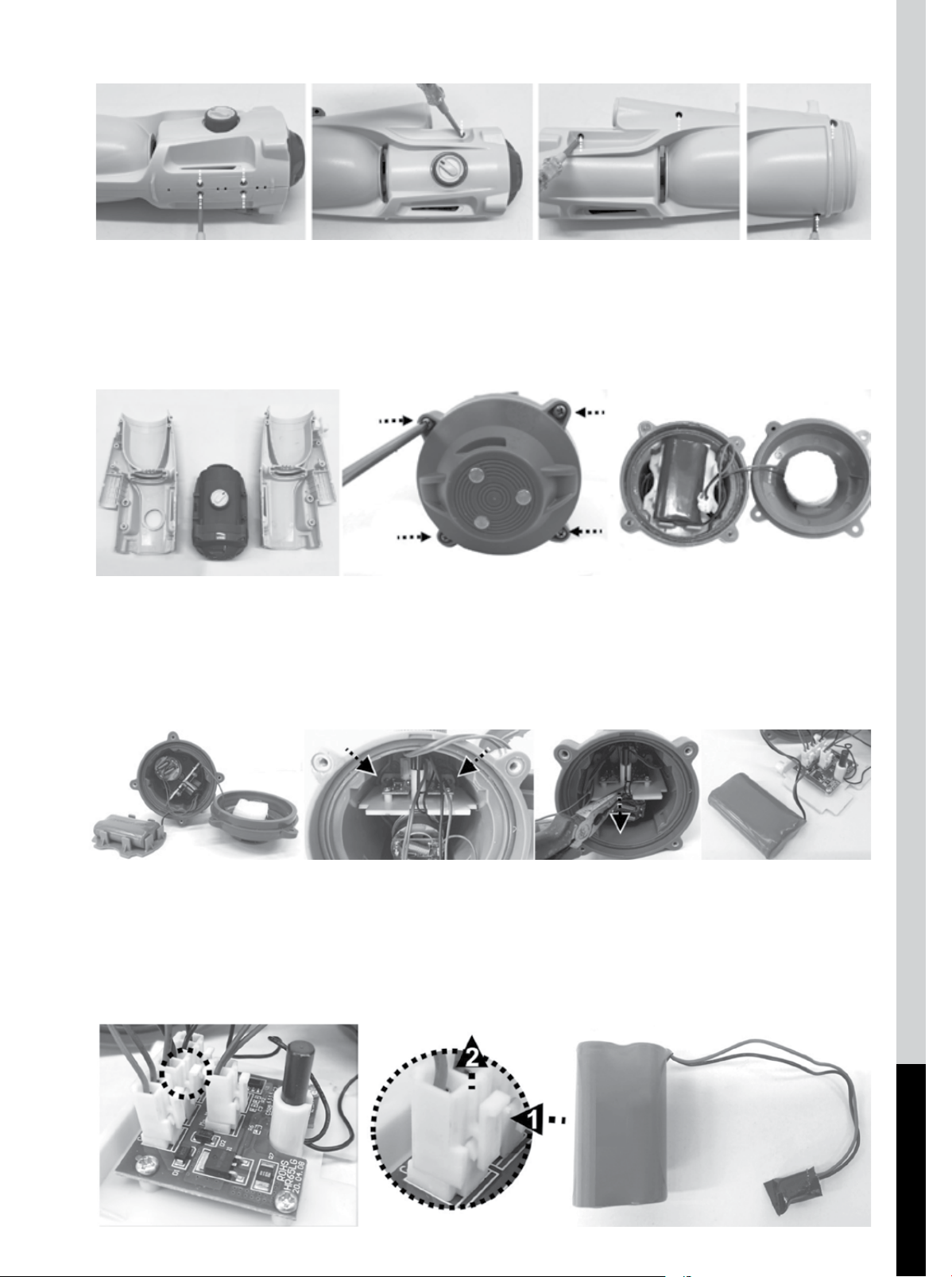

How to remove the battery pack for battery disposal only (To be done
by authorized technician)
Recommended tools (not included): Philips screwdriver and small slot
screwdriver.
1) Press on the locking button and detach the clear canister from the
body. Use a small screwdriver to detach the ring from the body. It is
hard to detach the ring by screwdriver, use cutting plier to cut.
ENGLISH
12
2) Use Philips screwdriver to unscrew all the screws on the main body.
3) Separate the body in two halves to access the main chamber. Use a
Philips screwdriver to remove the end cover and access the battery
pack.
4) Use Philips screwdriver to unscrew screw on the corner of the
supporting plate as pointed at. Use clamp to catch the plate and pull
it out to expose the wire connectors on the PCB.
5) Locate the middle connector as indicated, press the clip on the
connector and pull it out. NOTE: Wrap the connector immediately
with insulating tape in order to avoid short circuit caused by the
contact of both wire terminals.
ENGLISH
13
Problem Possible Cause Solution
Pool vacuum does not
capture debris
Battery is running out Charge the battery again.
Impeller is jammed
Power o the pool vacuum and visually check the gap in the
middle of the pool vacuum to see if the impeller is jammed
by large debris. If possible, use a small tool to remove the
debris carefully. If necessary, contact your dealer for further
instructions.
WARNING! Make sure the pool vacuum is
powered o when the unit is being serviced.
Impeller is broken Contact your dealer for impeller replacement.
Filter bag/lter cage is full Clean the lter bag/lter cage.
Debris escapes from the
lter
Suction nozzle ap is broken
Suction nozzle ap works like a door to prevent debris from
escaping from the lter. Contact dealer for replacement part
and instructions.
Filter bag/lter cage is
damaged
Replace with a new lter bag/lter cage.
Outlet valve comes o
Without the outlet valve, the pool vacuum might capture
debris through this opening. Contact dealer for a valve
replacement.
Telescopic pole
connector cannot be
secured in assembly
Side pin on pole connector is
broken
Replace with a new pole connector.
Pool vacuum is activated
even though the switch
indicates it’s o
Presence of magnetic objects
nearby has inadvertently
switched on the motor.
Move the magnetic objects or vacuum away from each
other.
Pool vacuum cannot be
charged / recharged
Battery is damaged
Contact dealer for battery replacement.
WARNING! DO NOT open the pool vacuum and
replace the battery by yourself. This could result in severe or
fatal injury and the warranty will be voided as a result.
Charging plates on charging
base and pool vacuum are not
contacted properly
Make sure that the charging base is assembled on the pool
vacuum completely and their contact plates are contacted
properly.
External adaptor damaged
Contact dealer for replacement.
WARNING! Using the wrong external adaptor
will result in damaging the pool vacuum / battery and
voiding the warranty as a result.
Pool vacuum does not
move smoothly
Wheel is jammed Clean out the debris from the wheel.
Operation time is shorter
as expected
Battery is not fully charged
Charge the pool vacuum for at least 6 hrs. NOTE: if any stains
are found on the charging contact plates, remove them by
using a cotton bud soaked with lemon juice or vinegar.
All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission of Kokido Development Ltd. (L-24002001)
TROUBLESHOOTING
SAVE THESE INSTRUCTIONS
Support Email: [email protected]
Toll-Free Voicemail: (866) 683-7672
Download Instruction Manual & Videos:
QR Code:
https://shop.kokido.com/pages/support-xtrovac-310
Manufacturer: Kokido Development Limited. Unit 1319, Sunbeam Centre,
27 Shing Yip Street, Kwun Tong, Kowloon, HK
EV32/POL/AMZ Made in China
We reserve the right to change
all or part of the features of
the articles or contents of this
document, without prior notice.
International patents pending
