Pioneer DMHW-3000NEX 6.8-inch DMH AV L-Shape Receiver User Manual

English

DMH-W3050NEX

DMH-W3000NEX

DMH-2000NEX

RDS AV RECEIVER

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be

sure to record this number on the Limited Warranty sheet. Please visit pioneerelectronics.com/

warranty to download the warranty sheet, or you can receive a copy by calling 1-800-421-1404 or

writing to Customer Support, Pioneer Electronics (USA) Inc., P.O. Box 1720, Long Beach, California

90801 USA.

pioneerelectronics.com/warranty

Operation Manual

- 2 -

English

Important

■Precaution ................................................................................... 4

■Parts and controls....................................................................... 9

■Basic operation ......................................................................... 10

■Bluetooth®................................................................................. 18

■Wi-Fi®......................................................................................... 25

■AV source................................................................................... 26

■HD Radio™ Technology/Radio................................................. 27

■USB............................................................................................. 31

■WebLink®................................................................................... 35

■Apple CarPlay............................................................................ 38

■Android Auto™ .......................................................................... 41

■SiriusXM® Satellite Radio ......................................................... 44

■AUX ............................................................................................ 48

■Camera View.............................................................................. 49

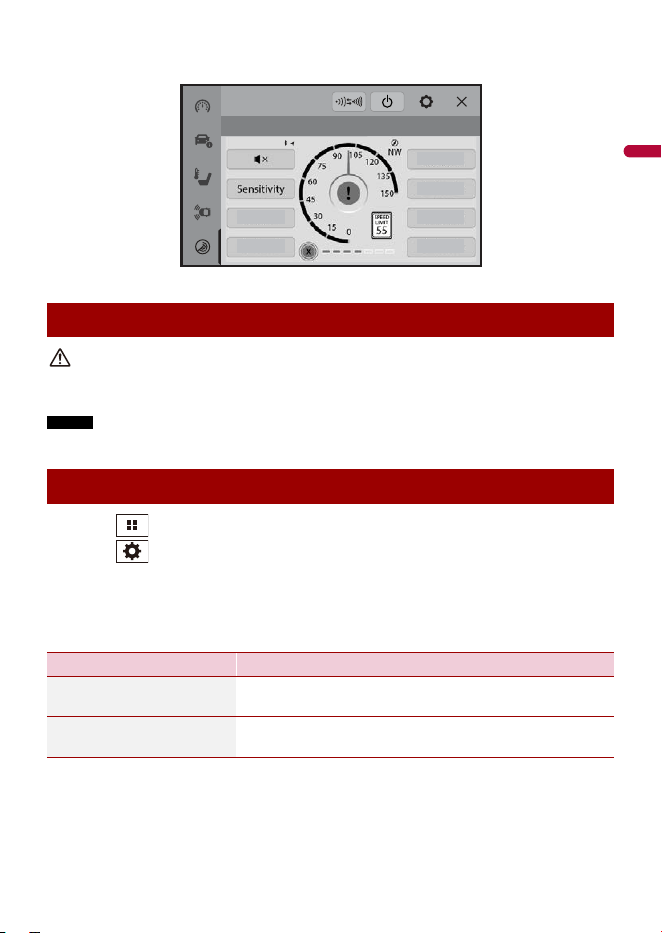

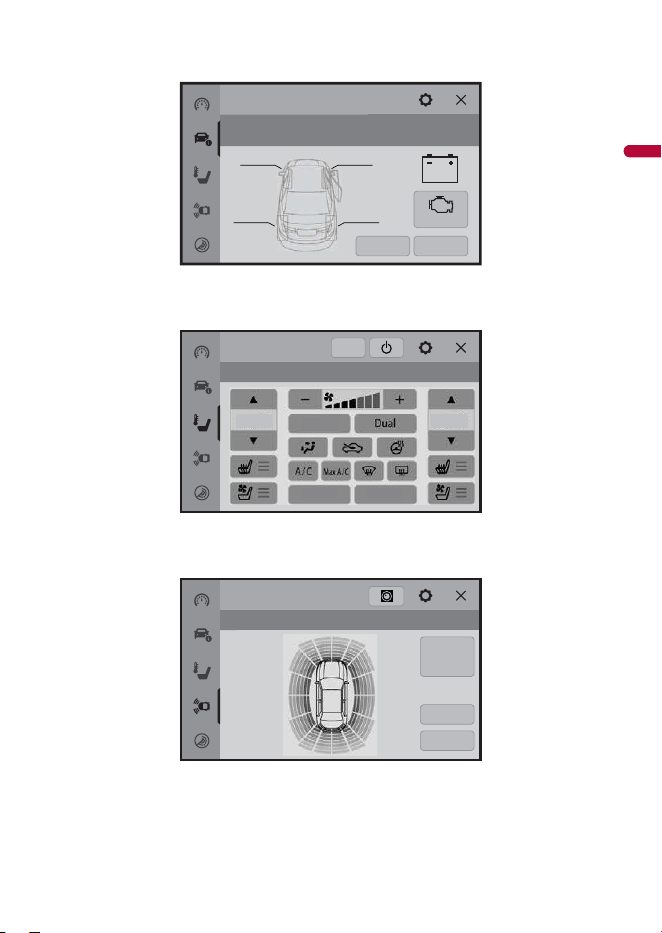

■iDatalink®.................................................................................. 50

■Settings...................................................................................... 55

Displaying the setting screen..................................................................................................................... 55

System Settings................................................................................................................................................ 55

Display Settings............................................................................................................................................... 59

Audio & EQ Settings....................................................................................................................................... 60

Camera settings............................................................................................................................................... 63

Contents

Thank you for buying this Pioneer product.

Please read through these instructions so you will know how to operate your model

properly. After you have finished reading the instructions, keep this document in a safe

place for future reference.

The screen shown in the examples may differ from actual screens, which may be

changed without notice for performance and function improvements.

English

- 3 -

Phone Connectivity Settings....................................................................................................................... 65

■Other functions......................................................................... 66

■Appendix................................................................................... 69

- 4 -

English

WARNING

•Do not attempt to install or service this product by yourself. Installation or servicing of this product by

persons without training and experience in electronic equipment and automotive accessories may

be dangerous and could expose you to the risk of electric shock, injury or other hazards.

•Do not allow this product to come into contact with liquids. Electrical shock could result. Also,

damage to the product, smoke, and overheating could result from contact with liquids.

•If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the

ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer

Service Station. Do not use this product in this condition because doing so may result in a fire, electric

shock, or other failure.

•If you notice smoke, a strange noise or odor from this product, or any other abnormal signs on the

LCD screen, turn off the power immediately and consult your dealer or the nearest authorized

Pioneer Service Station. Using this product in this condition may result in permanent damage to the

system.

•Do not disassemble or modify this product, as there are high-voltage components inside which may

cause an electric shock. Be sure to consult your dealer or the nearest authorized Pioneer Service

Station for internal inspection, adjustments or repairs.

Before using this product, be sure to read and fully understand the following safety

information:

•Do not operate this product, any applications, or the rear view camera option (if

purchased) if doing so will divert your attention in any way from the safe operation of

your vehicle. Always observe safe driving rules and follow all existing traffic

regulations. If you experience difficulty in operating this product, pull over, park your

vehicle in a safe location and apply the parking brake before making the necessary

adjustments.

•Never set the volume of this product so high that you cannot hear outside traffic and

emergency vehicles.

•To promote safety, certain functions are disabled unless the vehicle is stopped and the

parking brake is applied.

•Keep this manual handy as a reference for operating procedures and safety

information.

•Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the

performance of any of the vehicle’s operating systems or safety features, including air

bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the

vehicle.

•Please remember to fasten your seat belt at all times while operating your vehicle. If

you are ever in an accident, your injuries can be considerably more severe if your seat

belt is not properly buckled.

Precaution

Important safety information

English

- 5 -

•Never use headphones while driving.

•Rear visibility systems (backup cameras) are required in certain new vehicles sold in

the U.S. and Canada. U.S. regulations began according to a two year phase-in on May

1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on

or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with

compliant rear visibility systems should not install or use this product in a way

that alters or disables that system's compliance with applicable regulations. If

you are unsure whether your vehicle has a rear visibility system subject to the U.S. or

Canadian regulations, please contact the vehicle manufacturer or dealer.

If your vehicle has a compliant backup camera that displays the backup view through

the factory receiver, do not use the Pioneer receiver unless it is connected to and

displays the same view as the factory backup camera. Connection to the factory

backup camera will require an adaptor, sold separately. Not all vehicles may be able to

connect. Please check with a qualified professional installer for installation options

specific to your vehicle.

WARNING

•LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND

MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH.

IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY

RESULT IN SERIOUS INJURY OR DAMAGE.

•To avoid the risk of damage and injury and the potential violation of applicable laws, this

product is not for use with a video image that is visible to the driver.

•In some countries the viewing of video image on a display inside a vehicle even by persons other

than the driver may be illegal. Where such regulations apply, they must be obeyed.

If you attempt to watch video image while driving, the warning “Viewing of front seat

video source while driving is strictly prohibited.” will appear on the screen. To watch

video image on this display, stop the vehicle in a safe place and apply the parking brake.

Please keep the brake pedal pushed down before releasing the parking brake.

Be sure to run the vehicle engine while using this product. Using this product without

running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an ACC wire or circuitry available.

To ensure safe driving

To avoid battery exhaustion

- 6 -

English

With an optional rear view camera, you are able to use this product as an aid to keep an

eye on trailers, or back into a tight parking spot.

WARNING

•SCREEN IMAGE MAY APPEAR REVERSED.

•USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN

INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up.

Do not use this function for entertainment purposes.

CAUTION

•To prevent data loss and damage to the storage device, never remove it from this product while data

is being transferred.

•Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no

responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using

this product.

•It may not be recognized properly by this product if a USB device that had been incorrectly

disconnected from the computer is connected.

After-sales service for Pioneer products

Rear view camera

Handling the USB connector

Failure to operate

Please contact the dealer or distributor from which you purchased the product for after-sales service

(including warranty conditions) or any other information. In case the necessary information is not

available, please contact the companies listed below.

Please do not ship your product to the companies at the addresses listed below for repair without

making advance contact.

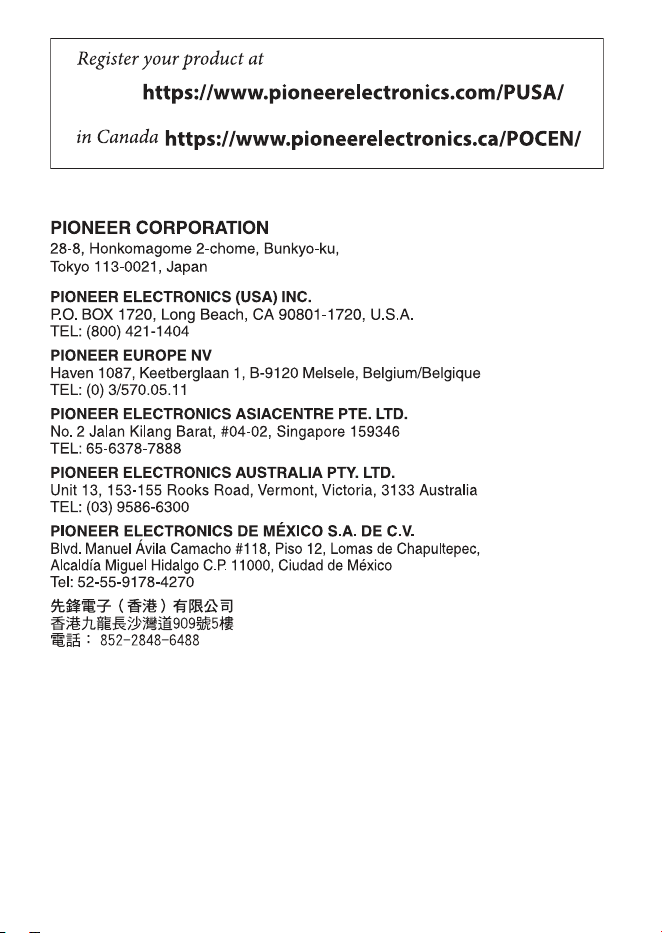

–USA&CANADA

Pioneer Electronics (USA) Inc.

SERVICE SUPPORT DIVISION

P.O. Box 1720, Long Beach, CA 90801-1720, U.S.A.

800-421-1404

For warranty information, please see the Limited Warranty sheet.

For the Limited Warranty sheet, please see Important (Serial number) on the cover of this manual.

English

- 7 -

Visit us at the following site:

https://www.pioneerelectronics.com/PUSA/

https://www.pioneerelectronics.ca/POCEN/

1Register your product.

2Receive updates on the latest products and technologies.

3Download owner’s manuals, order product catalogs, research new products, and

much more.

4Receive notices of software upgrades and software updates.

•Do not expose the LCD screen to direct sunlight when this product is not used. This

may result in LCD screen malfunction due to the resulting high temperatures.

•When using a cellular phone, keep the antenna of the cellular phone away from the

LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.

•To protect the LCD screen from damage, be sure to touch the touch panel keys only

with your finger and do so gently.

•The information will be erased by disconnecting the yellow lead from the battery (or

removing the battery itself).

•Some of the settings and recorded contents will not be reset.

Visit our website

Protecting the LCD panel and screen

Notes on internal memory

- 8 -

English

This manual uses diagrams of actual screens to describe operations. However, the

screens on some units may not match those shown in this manual depending on the

model used.

About this manual

Meanings of symbols used in this manual

This indicates model names that are supported by the described operations.

This indicates to touch the appropriate soft key on the touch screen.

This indicates to touch and hold the appropriate soft key on the touch screen.

English

- 9 -

*1This function is available when Apple CarPlay or Android Auto is activated, or an iPhone is

connected to this product via Bluetooth.

*2This function is not available when Apple CarPlay or Android Auto is activated.

*3This function is available only when Apple CarPlay or Android Auto is activated.

Parts and controls

Main unit

Touch to display the Apple CarPlay phone screen when Apple CarPlay is activated.

Touch to display the phone menu screen when Android Auto or hands-free phoning is activated.

Touch to start the searching screen when the device is not connected.

Touch to go to the device select screen when the device is already connected.

TIP

If there is no connected device, the illumination color of this button differs from the

color of other buttons.

Touch to activate the voice recognition mode.*1

Touch and hold to display the device search or select screen.*2

Touch to display the application screen.*3

Touch to display the home menu screen.

Touch and hold to power off. To power back on, touch any button.

TIP

If you power the unit off, you can turn off almost all functions.

VOL (+/-)Touch to adjust the volume.

RESETPress to reset the microprocessor (page 11).

LCD screen

- 10 -

English

1Start the engine to boot up the system.

NOTE

From the second time on, the screen shown will differ depending on the previous conditions.

2Select the language.

3Touch .

4Select the speaker mode.

[Standard Mode]

4-speaker system with front and rear speakers, or a 6-speaker system with front and

rear speakers and subwoofers.

[Network Mode]

3-way system with a high range speaker, middle range speaker and subwoofer (low

range speaker) for reproduction of high, middle and low frequencies (bands).

NOTE

Once the speaker mode is set, the setting cannot be changed unless this product is restored to the

default settings (page 68).

WARNING

Do not use the unit in Standard Mode when a speaker system for 3-way Network Mode is

connected to the unit. This may cause damage to the speakers.

5Touch [OK].

Initial Legal Disclaimer screen appears.

6Touch [OK].

The message for the Bluetooth connection appears.

7Turn on the Bluetooth function on your device to connect your device to this

product via Bluetooth.

Follow the on-screen instructions to finish the initial setup.

TIPS

•Select [Skip] to finish the initial setup without connecting the Bluetooth device. You can make

the Bluetooth connection later (page 18).

•Connecting the Bluetooth device during the initial setup process is recommended to easily start

using hands-free phoning, Apple CarPlay, or Android Auto wirelessly.

Basic operation

Starting up the unit

English

- 11 -

CAUTION

•Pressing the RESET button restarts this product. In that case, some of the settings and recorded

contents are reset to the factory settings.

– Do not perform this operation when a device is connected to this product.

•The microprocessor must be reset under the following conditions:

– If this product fails to operate properly.

– If there appears to be problems with the operation of the system.

1Press RESET with a pen tip or other pointed tools.

Settings and recorded contents are reset to the factory settings.

Resetting the microprocessor

- 12 -

English

You can operate this product by touching the keys on the screen directly with your

fingers.

NOTE

To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.

: Returns to the previous screen.

: Close the screen.

Using the touch panel

Common touch panel keys

Operating list screens

Touching an item on the list allows you to narrow down the options and

proceed to the next operation.

Appears when items cannot be displayed on a single page.

Drag the side bar or the initial search bar to view any hidden items.

video folder

abcdefghi

USB

abcdefghi

English

- 13 -

Operating the time bar

You can change the playback point by dragging the key.

25:00 50:00

- 14 -

English

TIP

[Reconnect] is displayed on the home menu screen only when the Wi-Fi connection (Wireless Apple

CarPlay or Android Auto) has failed or been disconnected automatically (page 68).

Home menu screen

Favorite source/application area

Touch to see the selected source/application.

Album art

The artwork of the audio currently being played is displayed.

NOTE

The artwork may not be displayed depending on some audio sources.

Current time

Touch to set the clock display (page 66).

Shortcuts

Functions frequently used are preset (page 15).

Edit

•Changing the home menu screen layout (page 16).

•Rearranging the displayed icons in the favorite source/application area

(page 17).

Sources

Touch to display all sources/applications.

Abcdefg

Apple CarPlay

Sources

Edit

1/3

12/28

Wed

Android Auto SettingsWebLink

Bluetooth

Audio

HD Radio

English

- 15 -

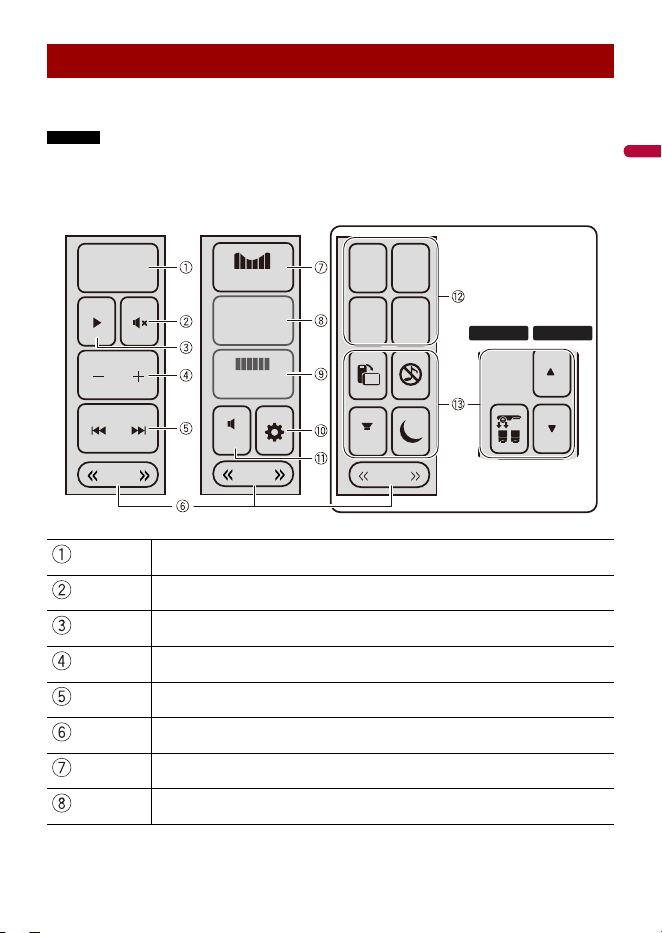

Shortcuts enable you to easily operate frequently used functions on the home menu

screen.

NOTES

•The position of the shortcuts on the home menu screen depends on the driving position setting

(page 56).

•Some of the shortcut keys become unavailable depending on the source.

Shortcuts

Touch to display the operation screen of each AV source.

Touch to mute. Touch again to cancel mute.

Touch to switch between playback and pause.

Touch to adjust the volume.

Touch to skip files forward or backward.

Touch to display the next or previous page of the shortcuts.

Touch to set the equalizer curve to “Powerful” (page 62).

Touch to set the equalizer curve to “Custom” (page 62).

3/3

78.5

Abcdefg

Powerful

Custom

Flat

Rear

2/3

1/3

W3050NEX 2000NEX

- 16 -

English

NOTES

•This function is available only when you stop your vehicle in a safe place and apply the parking brake.

•The [Apple CarPlay] icon, the [Android Auto] icon and the [Settings] icon cannot be removed from the

favorite source/application area.

•The [Android Auto] icon may not be displayed on the home menu screen depending on the Phone

Connectivity Settings (page 65).

1Touch [Edit].

2Touch [Add].

3Touch the icon you want to add to the favorite source/application area.

When you finish adding, touch .

TIPS

•The clock and the artwork can also be set to be shown or hidden.

•If the area is full, remove unneeded icons, the clock, or the artwork first.

4Touch [Done].

1Touch [Edit].

2Touch [Delete].

3Touch the icon you want to remove from the favorite source/application area.

Touch to set the equalizer curve to “Flat” (page 62).

Touch to display the setting screen.

Touch to turn the rear speaker output on or off.

Touch to recall the preset channel stored to a key from memory.

Touch to adjust the climate setting of iDatalink or various settings such as

WebLink® Cast, Source OFF, Subwoofer on/off, or Dimmer on/off.

TIP

The climate setting is available when the climate function of iDatalink is activated.

Customizing the home menu screen

Adding the source icons to the favorite source/application area

Removing the displayed icons from the favorite source/application area

W3050NEX

2000NEX

English

- 17 -

When you finish removing, touch [Done].

TIP

The clock and the artwork can also be removed from the favorite source/application area.

4Touch [Done].

1Touch [Edit].

2Drag the icon to the desired position.

TIP

The clock and the artwork cannot be moved.

3Touch [Done].

Rearranging the icons in the favorite source/application area

- 18 -

English

1Turn on the Bluetooth function on the device.

2Display the connected Bluetooth device list screen on the device.

3Touch .

4Touch then [Bluetooth Settings].

5Touch [Search].

The unit starts to search for available devices, then displays them in the device list.

To search for available devices again, touch .

6Touch a desired device on the screen.

TIPS

•If you touch , the device name and address of the Bluetooth device on this product are

displayed.

•A pop-up message may appear if another device is already connected to the unit. Touch [OK] on

the message.

7Touch [Yes] to pair with the device.

8Perform the pairing operation by operating the device.

After the device is successfully registered, a Bluetooth connection is established by

the system. Once the connection is established, the device name is displayed on the

list.

TIP

You can register up to five Bluetooth devices on this product.

TIPS

•Once an Apple CarPlay or Android Auto compatible device is connected via Bluetooth, the device

may be automatically connected with Wireless Apple CarPlay or Android Auto at the timing of

Bluetooth reconnection such as by turning the ignition switch to on (ACC ON).

•Two cellular phones can be connected to this product at the same time.

•If you try to connect an unconnected cellular phone while two cellular phones are already connected,

the first one of the two connected cellular phones will be disconnected and the unconnected cellular

phone will be connected instead.

Bluetooth®

Bluetooth connection

W3050NEX

W3000NEX

English

- 19 -

NOTES

•If five devices are already paired, the message confirming whether to delete the registered device is

displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch

[Go To DeviceList] and delete the devices manually.

•If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this

product. Make sure that the six-digit number matches the one that is displayed on the mobile device

before touching [Yes] to pair the device.

1Touch .

2Touch then [Bluetooth Settings].

CAUTION

Never turn this product off and disconnect the device while the Bluetooth setting operation is being

processed.

To use this function, you need to connect your cellular phone to this product via

Bluetooth in advance (page 18).

NOTES

•You can connect one of the registered devices to this product. In cases where the registered device is

equipped with a phone function, a total of two devices can be connected at the same time when

using the phone function. If two of the five registered devices are already connected, the first one of

Bluetooth Settings

Menu ItemDescription

[Connection]

[On] [Off]

Setting Bluetooth function activation.

TIP

Activate to connect the last connected Bluetooth device

automatically.

[Auto Answer](page 22)

[Search]Search for available devices.

[Bluetooth Memory Clear]Touch [OK] to clear the Bluetooth memory.

[Bluetooth Paired Device

List]

Display the paired device list.

Touch to delete registered device.

Touch to activate/deactivate hands-free phoning or

Bluetooth audio.

[Bluetooth Device Info]Displaying the device name of this product.

Hands-free phoning

W3050NEX

W3000NEX

- 20 -

English

the two connected devices will be disconnected when you connect the remaining third device to use

the audio function.

•The icon for the cellular phone currently being used is displayed on the phone menu screen. If you

connect two cellular phones to this product at the same time, you can switch between the cellular

phones using the switch devices key. The contents of the phone menu are memorized for each

connected cellular phone (page 20).

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

1Touch .

2Touch [Sources].

3Touch .

The phone menu screen appears.

TIP

You can also start this function by touching the button.

4Touch one of the call icons on the phone menu screen.

Making a phone call

The following items are displayed.

•Name of the current cellular phone

•Reception status of the current cellular phone

•Battery status of the current cellular phone

•List number of the current cellular phone

TIP

If you connect two cellular phones to this product at the same time, you can

switch between the cellular phones using this key.

Synchronizes the contacts on this product's phone book with the contacts on

your phone manually.

Using phone book

Select a contact from the phone book. Touch the desired name on the list then

select the phone number.

TIP

The contacts on your phone will be automatically transferred to this product.

Using call history

Make a phone call from the received call , dialed call , or missed call .

Direct phone number input

Touch the number keys to enter the phone number then touch to make a call.

Abcdefg

W3050NEX

W3000NEX

2000NEX

English

- 21 -

▶To end the call

1Touch .

1Touch to answer the call.

Touch to end the call.

TIPS

•Touch while getting a call waiting, switch to the talking person.

•Touch while getting a call waiting to reject the call.

NOTE

When two phones are connected at the same time, if an incoming call is received on the second phone

while you are talking on the first phone, the dial confirmation screen for the second phone will be

displayed.

By connecting your iPhone to this product, you can use the voice recognition function

(Siri Eyes Free Mode) on this product.

NOTE

When an iPhone is used, Siri Eyes Free Mode is available with this product.

1Touch .

2Touch [Sources].

3Touch .

The phone menu screen appears.

4Touch .

TIP

You can also launch the voice recognition function by touching the button (page 9).

TIPS

•If two cellular phones are automatically connected to this product with the Bluetooth device auto

connect function, the voice recognition function (Siri Eyes Free Mode) will be set on the first phone.

•If you want to use the voice recognition function (Siri Eyes Free Mode) on another connected iPhone,

touch with numbered to the other iPhone. The iPhone that you switch to will be set as the

current device.

Receiving a phone call

Voice recognition function (for iPhone)

W3050NEX

W3000NEX

W3050NEX

W3000NEX

- 22 -

English

1Touch .

2Touch then [Bluetooth Settings].

This product can be adjusted to the other party’s listening volume.

1Touch to switch between the three volume levels.

▶General notes

•Connection to all cellular phones featuring Bluetooth wireless technology is not

guaranteed.

•The line-of-sight distance between this product and your cellular phone must be 10

meters or less when sending and receiving voice and data via Bluetooth technology.

•With some cellular phones, the ring sound may not be output from the speakers.

•If private mode is selected on the cellular phone, hands-free phoning may be disabled.

▶Registration and connection

•Cellular phone operations vary depending on the type of cellular phone. Refer to the

instruction manual that came with your cellular phone for detailed instructions.

•When phone book transfer does not work, disconnect your phone and then perform

pairing again from your phone to this product.

▶Making and receiving calls

•You may hear a noise in the following situations:

– When you answer the phone using the button on the phone.

– When the person on the other end of the line hangs up the phone.

•If the person on the other end of the line cannot hear the conversation due to an echo,

decrease the volume level for hands-free phoning.

•With some cellular phones, even after you press the accept button on the cellular

phone when a call comes in, hands-free phoning may not be performed.

•The registered name will appear if the phone number is already registered in the

phone book. When multiple names are registered for the same phone number, the

names are displayed in the same order as in the phone book.

Phone settings

Menu ItemDescription

[Auto Answer]

[On] [Off]

Activate to answer an incoming call automatically.

Adjusting the other party’s listening volume

Notes for hands-free phoning

English

- 23 -

▶The received call and dialed number histories

You cannot make a call to the entry of an unknown user (no phone number) in the

received call history.

▶Phone book transfers

•If there are more than 1 000 phone book entries on your cellular phone, not all entries

may download completely.

•Depending on the phone, this product may not display the phone book correctly.

•If the phone book in the phone contains image data, the phone book may not be

transferred correctly.

•Depending on the cellular phone, phone book transfer may not be available.

Before using the Bluetooth audio player, register and connect the device to this product

(page 18).

NOTES

•Depending on the Bluetooth audio player connected to this product, the available operations with

this product may be limited to the following two levels:

– A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is

possible.

– A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc.,

are possible.

•Depending on the Bluetooth device connected to this product, the available operations with this

product may be limited or differ from the descriptions in this manual.

•While you are listening to songs on your Bluetooth device, refrain from operating the phone function

as much as possible. If you try operating, the signal may cause noise for song playback.

•When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause

playback.

1Touch .

2Touch [Bluetooth Audio].

The Bluetooth audio playback screen appears.

TIP

If [Bluetooth Audio] is not available, try the following:

•Pull out the USB cable from the cellular phone.

•Confirm whether Bluetooth audio is activated.

Bluetooth audio

- 24 -

English

Basic operation

Switches between playback and pause.

Skips files forward or backward.

Sets a repeat play range.

Plays files in random order.

Bluetooth

25:00 50:00

Abcdefghi

Abcdef

Abcdefghijk

English

- 25 -

By connecting your Wi-Fi certified mobile device to this product via Wi-Fi connection,

you can use Apple CarPlay or Android Auto wirelessly.

See the following chapters for the procedure on how to make a Wi-Fi connection for

each application.

•Apple CarPlay (page 38)

•Android Auto (page 41)

1Touch .

2Touch .

3Touch [Wi-Fi Settings].

Wi-Fi®

Wi-Fi connection

Wi-Fi Settings

Menu ItemDescription

[Wi-Fi]

[On] [Off]

Switches Wi-Fi connection on or off.

[Device Information]Displays the network name and MAC address of this

product.

[Password]Displays a Wi-Fi connection password.

[Password reset]Touch to reset the Wi-Fi connection password.

W3050NEX

W3000NEX

- 26 -

English

You can play or use the following sources with this product.

•HD Radio™ Technology/Radio (page 27)

The following sources can be played back or used by connecting an auxiliary device.

•Apple CarPlay (page 38)

•Android Auto (page 41)

•WebLink®(page 35)

•Bluetooth Audio (page 23)

•SiriusXM Satellite Radio (page 44)

•USB (page 31)

•AUX (page 48)

•Car Sources (iDatalink) (page 50)

•Car Features (iDatalink) (page 50)

•Camera View (page 49)

1Touch .

2Touch [Sources].

3Touch the source icon.

TIP

You can display the hidden source icons by swiping left on the screen.

NOTES

•When you select [Source OFF], the AV source is turned off.

•When you select [Display OFF], the display is turned off. Touch anywhere on the screen to turn it back

on.

•When you select [Power OFF], almost all functions are turned off. Touch any button to power back on.

AV source

Supported AV source

Selecting a source

English

- 27 -

HD Radio Technology

Radio

HD Radio stations offer high quality audio and data services. HD Radio stations are

brought to you by your local FM or AM stations.

HD Radio stations feature the following:

•High quality audio

•FM multicasting

•Data service

HD Radio™ Technology/

Radio

About HD Radio stations

W3050NEX

2000NEX

W3000NEX

: Sub channel

AM band

Analog AM

Analog AM Digital AM

FM band

Analog FM

Analog FM Digital FM

Analog FM Digital FM-1ch

Digital FM-2ch

Digital FM-3ch

: Main channel

- 28 -

English

Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast

a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

Program Info: Contributes to the superior user experience of HD Radio Technology.

Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other relevant data

streams.

Adjacent to traditional main stations are extra local FM channels. These HD2/HD3

Channels provide new, original music as well as deep cuts into traditional genre.

Visual information related to content being played on your HD Radio receiver, such as

Album Art, historical photographs, still art from live broadcasts, among other related

content.

1Touch .

2Touch [HD Radio] or [Radio].

The HD Radio or Radio screen appears.

Starting procedure

English

- 29 -

HD Radio, Radio screen

The BSM (best stations memory) function automatically stores the six strongest

broadcast frequencies under the preset channel keys [1] to [6].

Basic operation

HD Radio indicator and signal type indicator

Recalls the preset channel stored to a key from memory.

Stores the current broadcast frequency to a key.

Selects the FM1, FM2, FM3, AM1 or AM2 band.

Performs BSM (best stations memory) function (page 29).

Manual tuning

Seek tuning

Skips to the nearest station from the current frequency.

Switches the text display between the main channel and sub channels.

Storing the strongest broadcast frequencies (BSM)

HD Radio

XXX

MHz

BSM

FM1

XXXXX-FM

Xxxxx xxxx

DIGITAL

HD2

HD2 HD2 HD2 HD2 HD2HD2

W3050NEX

2000NEX

XX.XX

FM1

BSM

W3050NEX

2000NEX

- 30 -

English

NOTES

•Storing broadcast frequencies with BSM may replace those you have already saved.

•Previously stored broadcast frequencies may remain stored if the number of frequencies stored has

not reached the limit.

1Touch to begin search.

While the message is displayed, the six strongest broadcast frequencies will be

stored under the preset channel keys in the order of their signal strength.

1Touch .

2Touch .

3Touch [System Settings].

4Touch [Radio settings].

The menu items vary according to the source.

Radio settings

Menu ItemDescription

[Blending]

[On] [Off]

Switches to the analog broadcast of the same

frequency level automatically when reception

of a digital broadcast becomes weak. Select

[Off] to receive only an analog signal.

[Seek]

Select the method of seek tuning.

[Seek All]Seeks stations from both analog and digital

broadcasting.

[Seek HD]Only seeks stations from digital broadcasting.

[Local]

[On] [Off]

Local seek tuning allows you to only tune into

radio stations with sufficiently strong signals.

BSM

W3050NEX

2000NEX

W3050NEX

2000NEX

English

- 31 -

You can play compressed audio, compressed video, or still image files stored in an

external storage device.

1Pull out the plug from the USB port of the USB cable.

2Plug a USB storage device into the USB cable.

NOTES

•This product may not achieve optimum performance with some USB storage devices.

•Connection via a USB hub is not possible.

•A USB cable is required for connection.

1Pull out the USB storage device from the USB cable.

NOTES

•Check that no data is being accessed before pulling out the USB storage device.

•Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.

1Plug the USB storage device into the USB cable.

USB

Plugging/unplugging a USB storage device

Plugging a USB storage device

USB cable

USB storage device

Unplugging a USB storage device

Starting procedure

- 32 -

English

TIP

You can also start this source by touching [USB] on the source screen.

Basic operation

Audio source

Switches between playback and pause.

Skips files forward or backward.

Performs fast forward or fast reverse.

Sets a repeat play range for all files/the current folder/the current file.

Switches between random and normal file playback order.

Selects a file from the list.

Touch a file on the list to playback.

TIPS

•Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

•You can switch the following media file types.

–: Compressed audio files

–: Compressed video files

–: Image files

USB

25:00 50:00

99/99

Abcdefghi

Abcdef

Abcdefghijk

English

- 33 -

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video

images, stop in a safe place and apply the parking brake.

TIP

You can hide the touch panel keys by touching the screen. To display the keys again, touch anywhere

on the screen.

Video source

Switches between playback and pause.

Skips files forward or backward.

Performs fast forward or fast reverse.

Sets a repeat play range for all files/the current folder/the current file.

Sets the screen mode for the video image (page 67).

Selects a file from the list.

Touch a file on the list to playback.

TIPS

•Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

•You can switch the following media file types.

–: Compressed audio files

–: Compressed video files

–: Image files

USB

25:00 50:00

ROOT

99/99

Abcdefghijk

Full

- 34 -

English

TIP

You can hide the touch panel keys by touching the screen. To display the keys again, touch anywhere

on the screen.

Still image source

Switches between playback and pause.

Skips files forward or backward.

Rotates the displayed picture 90° counterclockwise.

Sets a repeat play range for all files/the current folder/the current file.

Sets the screen mode for the still image (page 67).

Selects a file from the list.

Touch a file on the list to playback.

TIPS

•Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

•You can switch the following media file types.

–: Compressed audio files

–: Compressed video files

–: Image files

USB

ROOT

99/99

Abcdefghijk

Normal

English

- 35 -

You can operate WebLink® compatible applications with finger gestures such as tapping,

dragging, scrolling, or flicking on the screen of this product.

NOTES

•The supported finger gestures may vary depending on the WebLink® compatible application.

•To use WebLink®, you must first install the WebLink® Host app on the iPhone or smartphone. For

details about the WebLink® Host app, visit the following site: https://helloweblink.com/

•Be sure to read Using app-based connected content (page 77) before you perform this operation.

•Copyright protected files such as DRM cannot be played.

WARNING

Certain uses of the iPhone or smartphone may not be legal while driving in your jurisdiction, so you

must be aware of and obey any such restrictions. If in doubt as to a particular function, only perform it

while the car is parked. No feature should be used unless it is safe to do so under the driving conditions

you are experiencing.

Important

•Pioneer is not responsible for content or functions accessed via WebLink®, which are the

responsibility of the application and content providers.

•Availability of non-Pioneer content and services, including apps and connectivity, may change or

discontinue without notice.

•When using WebLink® with the Pioneer product, available content and functions will be limited while

driving.

•WebLink® allows access to applications other than those listed, subject to limitations while driving.

System requirement

For the latest OS support information, please visit HelloWebLink.com.

1Unlock your iPhone and connect it to this product via USB.

TIP

A screen other than WebLink® may appear after the USB connection.

2Touch .

3Touch [WebLink].

WebLink®

Using WebLink®

Starting procedure

For iPhone users

- 36 -

English

NOTE

For USB connection, refer to the Installation Manual.

System requirement

For the latest OS support information, please visit HelloWebLink.com.

NOTE

The video playback capability depends on the connected Android device.

1Unlock your smartphone and connect it to this product via USB.

TIP

A screen other than WebLink® may appear after the USB connection.

2Touch .

3Touch [WebLink].

NOTES

•For USB connection, refer to the Installation Manual.

•Make sure that file transfer mode for USB connection is enabled on your smartphone if WebLink®

does not start automatically.

Touch the desired application icon after the WebLink® app is launched. The desired

application is launched, and the application operation screen appears.

TIPS

•If you connect your device to this product while a WebLink® compatible application is already

running, the application operation screen will appear on this product.

•When the volume of WebLink® is low, adjust the volume on your device. If you increase the volume on

this product, the volume of the AV source may be too high when you switch to other AV sources.

•Check the Bluetooth connection between the mobile device and this unit if there is no sound output

from this unit (page 18).

•If the WebLink® app is launched, the Bluetooth audio connection will switch to the device used for

launching.

TIP

If you start WebLink®, the Bluetooth connection with the cellular phone will be established. The first

one of the two already connected cellular phones will be disconnected and the other cellular phone

used for WebLink® will be connected via Bluetooth instead.

For smartphone (Android™) users

Basic operation

Displays the main menu of the WebLink® source screen.

W3050NEX

W3000NEX

English

- 37 -

TIP

If you start WebLink®, the Bluetooth connection with the cellular phone will be established. The cellular

phone already connected will be disconnected and the other cellular phone used for WebLink® will be

connected via Bluetooth instead.

You can project your iPhone or smartphone screen onto the screen of this product and

operate the projected screen with finger gestures.

NOTE

The supported finger gestures may vary depending on the WebLink® Cast compatible application.

1Start WebLink®.

2Touch .

Follow the instructions on the display when the message appears on your connected

iPhone or smartphone.

TIP

You can also start WebLink® Cast by touching from the shortcuts (page 15).

TIP

is displayed on the shortcuts only when the optional iDatalink adaptor is not connected.

Using WebLink® Cast

2000NEX

W3050NEX

2000NEX

- 38 -

English

You can operate iPhone applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

Compatible iPhone models

For details about compatibility of iPhone models, refer to the following website.

https://www.apple.com/ios/carplay

NOTE

The compatible finger gestures vary depending on the application for the iPhone.

WARNING

Certain uses of the iPhone may not be legal while driving in your jurisdiction, so you must be aware of

and obey any such restrictions. If in doubt as to a particular function, only perform it while the car is

parked. No feature should be used unless it is safe to do so under the driving conditions you are

experiencing.

Important

Apple CarPlay may not be available in your country or region.

For details about Apple CarPlay, visit the following site:

https://www.apple.com/ios/carplay

•The content and functionality of the supported applications are the responsibility of the App

providers.

•In Apple CarPlay, usage is limited while driving, with availability of functions and content determined

by the App providers.

•Apple CarPlay allows access to applications other than those listed that are subject to limitations

while driving.

•PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS

AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE

INFORMATION.

•Before using Apple CarPlay, make sure the GPS antenna and speed cable are properly connected and

installed, and the unit angle is properly set. For details, refer to the Installation Manual.

To achieve optimum usability of Apple CarPlay, set the driving position setting correctly

according to the vehicle. The setting will be applied the next time an Apple CarPlay

compatible device is connected to this product.

1Touch .

2Touch .

Apple CarPlay

Using Apple CarPlay

Setting the driving position

English

- 39 -

3Touch [System Settings].

4Touch [Driving Position].

[Left]

Select for a left-hand drive vehicle.

[Right]

Select for a right-hand drive vehicle.

1Connect an Apple CarPlay compatible device to this product via USB.

The application screen appears.

TIP

You can start this source by touching then touching [Apple CarPlay] if a screen other than Apple

CarPlay appears after the USB connection.

Before using Apple CarPlay wirelessly, perform the following:

•Attach the GPS antenna to this product.

•Turn on Apple CarPlay in the setting menu of your iPhone.

Turn on the Wi-Fi function and the Bluetooth function on the device.

Display the Bluetooth setting menu on the device.

Touch .

Touch [Sources].

Touch .

Touch [Yes] to start searching.

TIP

Touch if another device is already connected to the unit.

Touch a desired device on the screen.

Starting procedure

Wired connection

Wireless connection

W3050NEX

W3000NEX

- 40 -

English

TIP

A pop-up message may appear if another device is already connected to the unit. Touch [OK] on

the message.

Touch [Yes] to pair with the device.

Perform the pairing operation by operating the device.

Touch [Yes] to activate the Apple CarPlay function.

Follow the on-screen instructions on the device to start the application.

TIPS

•When the USB connection with the other device has been made, the message that shows that the

new device is available will appear. If you want to switch from the current device to the new one for

use in the application, touch the pop-up message.

•You can use the Siri function by touching the button once Apple CarPlay is activated.

NOTES

•For details on USB connection, refer to the Installation Manual.

•If five devices are already paired, the message confirming whether to delete the registered device is

displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch

[Go To DeviceList] and delete the devices manually.

•If an Apple CarPlay compatible device has been connected and another screen is displayed, touch

[Apple CarPlay] on the home menu screen to display the application screen.

•Hands-free phoning via Bluetooth wireless technology is not available while Apple CarPlay is on. If

Apple CarPlay is turned on during a call on a cellular phone other than an Apple CarPlay compatible

device, the Bluetooth connection will be terminated after the call ends.

•The Bluetooth connection will be terminated automatically if Apple CarPlay is turned on.

English

- 41 -

You can operate Android applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

Compatible Android devices

For details about compatibility of Android models, refer to the following website.

https://support.google.com/androidauto

Compatible Android phone and compatible active data plan required.

NOTE

The compatible finger gestures vary depending on the application for the smartphone.

WARNING

Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you must be

aware of and obey any such restrictions. If in doubt as to a particular function, only perform it while the

car is parked. No feature should be used unless it is safe to do so under the driving conditions you are

experiencing.

Important

Android Auto may not be available in your country or region.

For details about Android Auto, please refer to the Google support site:

https://support.google.com/androidauto

•The content and functionality of the supported applications are the responsibility of the App

providers.

•In Android Auto, usage is limited while driving, with availability of functions and content determined

by the App providers.

•Android Auto allows access to applications other than those listed that are subject to limitations

while driving.

•PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS

AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE

INFORMATION.

•Before using Android Auto, make sure the GPS antenna and speed cable are properly connected and

installed, and the unit angle is properly set. For details, refer to the Installation Manual.

To achieve optimum usability of Android Auto, set the driving position setting correctly

according to the vehicle. The setting will be applied the next time an Android Auto

compatible device is connected to this product.

1Touch .

Android Auto™

Using Android Auto

Setting the driving position

- 42 -

English

2Touch .

3Touch [System Settings].

4Touch [Driving Position].

[Left]

Select for a left-hand drive vehicle.

[Right]

Select for a right-hand drive vehicle.

1Connect an Android Auto compatible device to this product via USB.

The application screen appears.

TIP

You can start this source by touching then touching [Android Auto] if a screen other than Android

Auto appears after the USB connection.

Turn on the Wi-Fi function and the Bluetooth function on the device.

Display the connected Bluetooth devices list screen on the device.

Touch .

Touch [Sources].

Touch .

Touch [Yes] to start searching.

TIP

Touch if another device is already connected to the unit.

Touch a desired device on the screen.

TIP

A pop-up message may appear if another device is already connected to the unit. Touch [OK] on

the message.

Touch [Yes] to pair with the device.

Starting procedure

Wired connection

Wireless connection

W3050NEX

W3000NEX

English

- 43 -

Perform the pairing operation by operating the device.

Touch [Start] to start Android Auto.

The unit configures the connection then starts the application.

TIP

You can use the voice recognition function by touching the button once Android Auto is activated.

NOTES

•For details on USB connection, refer to the Installation Manual.

•If five devices are already paired, the message confirming whether to delete the registered device is

displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch

[Go To DeviceList] and delete the devices manually.

•If Android Auto is turned on during a call on a cellular phone other than the Android Auto compatible

device, the Bluetooth connection will switch to the Android Auto compatible device after the call.

NOTES

•The Bluetooth connection for the phone function with a device other than the device used for

Android Auto will be terminated automatically if Android Auto is turned on.

•The Bluetooth audio connection with the device used for Android Auto will be terminated

automatically if Android Auto is turned on.

NOTES

•The Bluetooth connection for the phone function with a device other than the device used for

Android Auto will be terminated automatically if Android Auto is turned on.

•If the Android Auto phone function does not work properly, confirm whether hands-free phoning via

Bluetooth is activated in the paired device list (page 19).

•The Bluetooth audio connection will be terminated automatically if Android Auto is turned on.

W3050NEX

W3000NEX

2000NEX

- 44 -

English

SiriusXM is where moments happen. The widest, deepest variety of music, ad-free. More

games, more sports, more coverage than anywhere. The most extensive entertainment,

complete news coverage and every kind of comedy. Listen in your car, on your phone,

online and at home. A SiriusXM Vehicle Tuner and subscription are required. For more

information, visit www.siriusxm.com

1Touch .

2Touch [Sources].

3Touch [SiriusXM].

You should be able to tune in to Channel 1. If you cannot get Channel 1, ensure that

your SiriusXM Connect Vehicle Tuner is installed correctly.

4Switch to Channel 0 and check the Radio ID.

The SiriusXM Radio ID can be found by tuning in to Channel 0. In addition, the Radio

ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging.

You will need this number to activate your subscription.

NOTE

The SiriusXM Radio ID does not include the letters I, O, S, or F.

5Activate the service either online or by phone.

TIP

In the USA, you can activate online or by calling SiriusXM Listener Care:

•Visit www.siriusxm.com/activatenow

•Call SiriusXM Listener Care at

1-866-635-2349

For Canadian Subscriptions, please contact:

•Visit www.siriusxm.ca/activate

•Call SiriusXM Customer Care at

1-888-539-7474

NOTES

•The SiriusXM satellites will send an activation message to your tuner. When the tuner has received the

message, [Subscription Updated Press Enter to Continue] is displayed.

•The activation process usually takes 10 to 15 minutes, but it may take up to an hour. Do not turn off

this product while the activation message is displayed.

SiriusXM® Satellite Radio

Subscribing to the SiriusXM Satellite Radio service

English

- 45 -

1Touch .

2Touch [Sources].

3Touch [SiriusXM].

TIP

[RADIO ID] is displayed when Channel 0 is selected.

Current channel display (Live broadcast mode)

Listening to SiriusXM

Basic operation

Selects a band.

There are 3 bands. You can store 6 channels per band for a total of 18 presets.

Tunes a channel directly.

Recalls the preset channel stored to a key from the memory.

Stores the current channel to a key.

Performs channel number up/down.

Performs fast channel number up/down.

Sirius

Ch.

XX Xxxxx

Tune

SXM1

Xxxxx xxxx/xxxx xxxx

Xxxxx xxxx

SXM

Pre3

Pre1

Pre2

Pre4

Pre5

Pre6

SXM1

Tune

Pre1

Pre6

- 46 -

English

The Parental Control feature allows you to limit access to any SiriusXM channels,

including those with mature content. When enabled, the Parental Control feature

requires you to enter a passcode to tune to the locked channels.

For details, see [Parental Control] in SiriusXM settings (page 46).

1Touch .

2Touch .

3Touch [System Settings].

4Touch [SiriusXM settings].

The menu items vary depending on whether SiriusXM is selected as the source.

Selects a channel from the list.

Scroll through the list of all channels then touch the desired channel to tune to

that channel.

TIP

When is selected, the channel list will be shown according to different

categories.

Touch or to select other Category.

NOTES

•The types of categories available depend on the types of channels available.

•It may take time to display the channel list depending on the SiriusXM reception

condition.

Parental Control

SiriusXM settings

Menu ItemDescription

[Change Passcode]Edit the passcode.

1Enter the current passcode and then touch [OK].

2Enter the new passcode and then touch [OK].

3Enter the confirm passcode and then touch [OK].

[Parental Control]Enter the current passcode then touch [OK] to set this function

(the default passcode is 0000).

•To lock the channel, touch the appropriate channel.

appears and the channel is locked.

TIP

When you touch the locked channel, the channel is unlocked.

English

- 47 -

[Clear Locked All]Touch the switch, enter the current passcode then touch [OK],

all locked channels are unlocked.

[Version]Displaying the firmware version and the model number, etc.

Menu ItemDescription

- 48 -

English

You can display the video image output by the device connected to video input.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video

images, stop in a safe place and apply the parking brake.

NOTE

A Mini-jack AV cable (sold separately) is required for connection. For details, refer to the Installation

Manual.

1Touch .

2Touch [Sources].

3Touch [AUX].

The AUX screen appears.

TIPS

•You can hide the touch panel keys by touching the screen. To display the keys again, touch

anywhere on the screen.

•You can set the screen mode for the video image (page 67).

AUX

Starting procedure

English

- 49 -

You can display the video image output by the device connected to video or camera

input. For details, refer to the Installation Manual.

1Touch .

2Touch [Sources] then swipe left on the screen.

3Touch [Camera View] for connected camera view.

The video image is displayed on the screen.

Camera View

Starting procedure

- 50 -

English

You can access the satellite radio source provided for the vehicle. The vehicle

information and many OEM systems such as steering wheel controls, warning chimes,

driver safety systems, and etc. can be displayed on this product by connecting the

optional iDatalink adaptor. It is also possible to add visual screens such as gauges,

vehicle information, climate control, and parking assist. However, an extra interface

module is required to access these features.

NOTE

Since the type of module varies depending on the vehicle model, search for your vehicle via the

following URL to determine which features are available for each module. Remember to select the

correct radio model for accurate results.

https://www.idatalinkmaestro.com/en

Important

•For details about vehicle models that are compatible with the iDatalink adaptor, refer to the

information on our website.

•After installing the iDatalink adaptor, be sure to check that it operates properly.

•Functions and displays vary depending on the vehicle model. For details on the functions available

for each model, refer to the information on our website.

•For troubleshooting information about iDatalink functions, visit the following website:

https://www.idatalinkmaestro.com/en/support/faq

Limitations

•The data is transmitted to this product from your vehicle system via the connected

iDatalink adaptor. Therefore, the actual data contents displayed on your product may

differ from the contents on the screen described in this manual.

•When information on your vehicle or on the devices in your vehicle is sent from the

iDatalink Maestro® module, a screen notifying you of such information may pop up.

TIP

The operating buttons, text information, etc. overlaid on the camera view screen may not appear

immediately after turning on the ignition switch.

Before using and/or connecting the iDatalink Maestro adaptor, you will need to first flash

the Maestro RR module with the appropriate vehicle and head unit firmware.

iDatalink®

Using iDatalink

Activating iDatalink Maestro

W3050NEX

2000NEX

English

- 51 -

1Find the device number (12 alphanumeric characters) on the label on the

packaging of this product or on the product itself.

2Access the following website and follow the on-screen instructions to configure

the desired firmware.

https://www.idatalinkmaestro.com/en

NOTE

When the serial number input is required, input the device number of this product.

3Install the vehicle/head unit-specific firmware on your iDatalink Maestro module.

4Connect this product to the iDatalink Maestro and install this product to the

vehicle.

The iDatalink function will be active.

NOTES

•For details on installing the firmware, refer to iDatalink Maestro website.

•For details on connecting this product to iDatalink Maestro, refer to the Installation Manual.

•You can also check the device number (serial number) on the [System Information] screen of this

product (page 58).

1Connect the iDatalink Maestro adaptor to this product.

For details, refer to the Installation Manual.

2Touch .

3Touch [Sources].

4Touch [Car Sources] or [Car Features].

The menu screen you touched appears.

TIP

You can display the hidden source icons by swiping left on the screen.

NOTE

The iDatalink function is available only when the input signal is received by the iDatalink Maestro

adaptor.

[Car Sources] is operated almost the same way as the built-in AV sources on this product

is operated. For details on the operation, refer to the following relevant pages.

•Operating via USB (page 31)

•Operating via SiriusXM (page 44)

Starting procedure

Using the functions on [Car Sources]

- 52 -

English

•Operating via Bluetooth audio (page 23)

•Operating via Hands-free phone (page 19)

You can check and use the following screens after selecting [Car Features] in the starting

procedure. Touch one of the icons on the left side of the screen to change a feature.

Gauges screen

Using the functions on [Car Features]

Displays the Gauges screen.

Displays the Vehicle Information screen.

Displays the Climate screen.

Displays the Parking Assist screen.

Displays the Speed Radar Detector screen.

Gauges

Ignition is OFF

5200

Button1 Button2

psi

Intake Man Presssu

Intake Air Temp

Coolant Temp

Engine Lord

Tachometer

RPM

Peak

kWh/km

English

- 53 -

Vehicle Information screen

Climate screen

Parking Assist screen

Vehicle Information

Low Tire Pressure

Button1 Button2

36 psi

36 psi36 psi

Check Engine

12.6v

Climate

OUT TEMP : 70.0℉

Rear

Auto

70.0℉70.0℉

Button1 Button2

Parking Assist

6 feet

Button2

Button

Camera

composition

- 54 -

English

Speed Radar Detector screen

CAUTION

This function is intended solely to assist the driver’s vision. It does not detect all dangers and obstacles

and is not a substitute for your attentiveness, judgement, and care while parking your vehicle.

NOTE

This function is only available for vehicles equipped with a parking sensor system.

1Touch .

2Touch .

3Touch [System Settings].

4Touch [OEM Settings] or [OEM Volume Settings].

The setting screen for iDatalink appears.

Displaying obstacle detection information

iDatalink settings

Menu ItemDescription

[OEM Settings]Setting for iDatalink function when the iDatalink adaptor is

connected to the unit.

[OEM Volume Settings]Setting for iDatalink function volume when the iDatalink

adaptor is connected to the unit.

Radar Detector

Front Radar Alert

Custom1

Custom2 Custom6

Custom5

Custom4

Custom3

Auto Lock Auto Mute

English

- 55 -

You can adjust various settings in the main menu.

1Touch .

2Touch .

3Touch one of the following categories, then select the options.

System Settings (page 55)

Display Settings (page 59)

Audio & EQ Settings (page 60)

Wi-Fi Settings (page 25)

Bluetooth Settings (page 19)

Camera settings (page 63)

Phone Connectivity Settings (page 65)

Settings

Displaying the setting screen

System Settings

Menu ItemDescription

[Choose Language]Select the system language.

NOTES

•If the embedded language and the selected language setting

are not the same, the text information may not display properly.

•Some characters may not be displayed properly.

[Date & Time]Setting or adjusting the following time and clock display.

•Date display format:

day-month-year, month-day-year, or year-month-day

•Time display format:

[12hour] or [24hour]

•UTC (Universal Time Coordinated) time zone difference:

UTC-12.00h to UTC+14.00h

•Day-light saving time:

[On] or [Off]

[Beep Tone]

[On] [Off]

Set off to disable the beep sound when the button is

touched or the screen is touched.

- 56 -

English

[Demo Mode]

[On] [Off]

Setting the demo mode.

[Driving Position]

[Right] [Left]

Setting the driving position.

•Apple CarPlay (page 38)

•Android Auto (page 41)

NOTE

The position of the shortcuts on the home menu screen depends

on the driving position setting (page 15).

[SiriusXM settings](page 44)

[Radio settings](page 30)

[ACC ON settings]

[Previous Source]

[Power Off]

Setting the condition of the power off mode on the next

startup.

•[Previous Source]: The last used source screen will be

shown after turning on the ignition switch (ACC ON).

•[Power Off]: The power off mode will be kept after

turning on the ignition switch (ACC ON).

[Dimmer Settings]

NOTE

This setting is available only when you stop your vehicle in a safe

place and apply the parking brake.

[Dimmer Trigger]Setting the dimmer brightness.

•[Auto]: Switches the dimmer to on or off automatically

according to your vehicle’s headlight turning on or off.

•[Manual]: Switches the dimmer to on or off manually.

[Day/Night]Setting the dimmer duration by day or night.

You can use this function when [Dimmer Trigger] is set to

[Manual].

Menu ItemDescription

English

- 57 -

[Picture Adjustment]You can adjust the picture for each source, rear view

camera.

To adjust following menu, touch , , , to adjust.

CAUTION

For safety reasons, you cannot use some of these functions while

your vehicle is in motion. To enable these functions, you must

stop in a safe place and apply the parking brake.

NOTES

•The adjustment settings of [Dimmer] for when your vehicle's

headlights are off (daytime) and on (nighttime) are stored

separately.

•The value of [Dimmer] is switched automatically depending on

the setting of [Dimmer Settings].

•The picture adjustment may not be available with some rear

view cameras.

•The setting contents can be memorized separately.

[Brightness]

[-10] to [+10]

Adjust the black intensity.

[Contrast]

[-10] to [+10]

Adjust the contrast.

[Color]

[-10] to [+10]

Adjust the color saturation.

[Hue]

[-10] to [+10]

Adjust the tone of color (which color is emphasized, red, or

green).

[Dimmer]

[0] to [+8]

Adjust the brightness of the display.

[Temperature]

[-3] to [+3]

Adjust the color temperature, resulting in a better white

balance.

[Factory Reset]Touch [OK] to restore the settings to the default settings.

CAUTION

Do not turn off the engine while restoring the settings.

NOTES

•This setting is available only when you stop your vehicle in a safe

place and apply the parking brake.

•The source is turned off and the Bluetooth connection is

disconnected before the process starts.

•Before starting the restore process, disconnect any device that is

connected to the USB port. Otherwise, some settings may not

be restored correctly.

Menu ItemDescription

- 58 -

English

[Connection Status]Check that the leads are properly connected between this

product and vehicle.

[GPS Antenna]Displays the connection status of the GPS antenna ([OK] or

[NOK]) and the reception sensitivity.

NOTE

If reception is poor, change the installation position of the GPS

antenna.

[Positioning Status]Displays the positioning status (3D positioning, 2D

positioning, or no positioning), the number of satellites

used for positioning (orange), and the number of satellites

that have received signals (yellow). If signals from more

than six satellites are received, the current location can be

measured.

[Installation]Indicates whether the inertial navigation is successfully

learned. If the learning is successful, [OK] will appear. If the

learning is not successful or due to failure after the

learning is successful, [NOK] will appear.

NOTE

If this product is not firmly fixed into place or the speed pulse wire

is not connected or properly connected, [NOK] is displayed due to

the learning failure.

[Speed Pulse]The speed pulse value detected by this product is shown.

NOTE

Check that the speed pulse wire is properly connected if [0] is still

displayed while driving.

[Back Signal]When the shift lever is shifted to “R” (reverse position), the

signal switches to [High] or [Low]. The signal displayed

varies depending on the vehicle.

[System Information]Displaying the firmware version.

Menu ItemDescription

English

- 59 -

[Firmware Update]Updating the firmware version.

CAUTION

•The USB storage device for updating must contain only the

correct update file.

•Never turn this product off, disconnect the USB storage device

while the firmware is being updated.

•You can only update the firmware when the vehicle is stopped

and the parking brake is engaged.

1Download the firmware update files into your

computer.

2Connect a blank (formatted) USB storage device to

your computer then locate the correct update file and

copy it onto the USB storage device.

3Connect the USB storage device to this product

(page 31).

4Display the [System Settings] screen (page 55).

5Touch [Firmware Update].

New firmware version information is displayed.

6Touch [Update].

Follow the on-screen instructions to finish updating the

firmware.

NOTES

•This product will restart automatically after the firmware

update is completed if the update is successful.

•If an error message appears on the screen, touch the

display and perform the above steps again.

[OEM Settings]

(page 54)

[OEM Volume Settings]

(page 54)

[License]Displaying the open-source license.

Display Settings

Menu ItemDescription

[Illumination]Select an illumination color from the preset list.

[Background]Touch the wallpaper from the preset items in this product

or original pictures via the external device and touch

[Apply].

Menu ItemDescription

W3050NEX

2000NEX

W3050NEX

2000NEX

- 60 -

English

Preset DisplaySelect the desired preset background display.

You can set your favorite screen from the connected USB

device by touching and sliding the bottom of screen to the

right.

Select the background display image of the connected USB

storage device.

1Connect the USB storage device to this product

(page 31).

2Touch .

3Select the desired image.

(custom)Displays the background display image imported from the

USB storage device.

(off)Hides the background display.

[Splash screen]

[Import] [Restore]

Select [Import] to change the image on the opening screen

to the one imported from the connected USB device.

Select [Restore] to restore the default image.

NOTES

•The image files that can be imported are as follows:

– Format: BMP and JPEG

– Data size: 6 MB or less (for both BMP and JPEG)

– Image size (W×H): 800 × 480 pixels

•Make sure that the image file is located within the root (top)

folder of the USB device.

•If multiple image files are stored on the USB device, the desired

image file may not be imported from the USB device. Store only

one desired image file on the USB device.

Audio & EQ Settings

Menu ItemDescription

[Fader/Balance]Touch or to adjust the front/rear speaker balance.

Set [Front] and [Rear] to [0] when using a dual speaker

system.

Touch or to adjust the left/right speaker balance.

TIP

You can also set the value by dragging the point on the displayed

table.

NOTE

This function is available when [Standard Mode] is selected as the

speaker mode.

Menu ItemDescription

English

- 61 -

[Loudness]

[Off] [Low] [Mid] [High]

Compensates for deficiencies in the low-frequency and

high-frequency ranges at low volume.

[Speaker Level]

Listening Position*1*2

[Off] [Front Left]

[FrontRight] [Front] [All]

Standard Mode*3

[FrontLeft] [Front Right]

[Rear Left] [Rear Right]

[Subwoofer]

Network Mode*3

[High Left] [High Right]

[Mid Left] [Mid Right]

[Subwoofer]

Speaker output level

[-24] to [10]

Adjust the speaker output level of the listening position.

1Touch or to select the listening position then

select the output speaker.

2Touch or to adjust the selected speaker output

level.

NOTE

You can adjust the subwoofer output level if the [Subwoofer]

setting is set to [On].

[Listening Position]*1

[Off] [Front-L] [Front-R]

[Front] [All]

Select a listening position that you want to make as the

center of sound effects.

[Balance]Touch or to adjust the left/right balance.

NOTE

This function is available when [Network Mode] is selected as the

speaker mode.

[Time Alignment]

[TA On] [TA Off]

Listening Position*1*2

[Off] [Front Left]

[FrontRight] [Front] [All]

Standard Mode*3*4

[FrontLeft] [Front Right]

[Rear Left] [Rear Right]

[Subwoofer]

Network Mode*3*4

[High Left] [High Right]

[Mid Left] [Mid Right]

[Subwoofer]

Distance

[0] to [210]

Select or customize the time alignment settings to reflect

the distance between the listener’s position and each

speaker. You need to measure the distance between the

head of the listener and each speaker unit.

1Touch or to select the listening position then

select the alignment speaker.

2Touch or to input the distance between the

selected speaker and listening position.

TIP

If you touch [TA On], the time alignment is turned off mandatorily.

NOTE

This function is available only when the listening position setting

is set to [Front Left] or [Front Right].

Menu ItemDescription

- 62 -

English

*1[All] is not available when [Network Mode] is selected as the speaker mode.

*2If you change the listening position setting, the set values for all speakers will change in conjunction

with this setting.

*3To use this function, the vehicle’s acoustics must be measured in advance.

*4This function is available only when the listening position setting is set to [Front Left] or [Front

Right].

*5This function is not available when adjusting the High speaker in [Network Mode].

[EQ]

[Super Bass] [Powerful]

[Natural] [Vocal] [Flat]

[Custom]

Select or customize the equalizer curve.

Select a curve that you want to use as the basis of

customizing then touch the frequency that you want to

adjust.

TIP

If you make adjustments when the [Super Bass], [Powerful],

[Natural], [Vocal], or [Flat] curve is selected, the equalizer curve

settings will be changed to [Custom] mandatorily.

[Subwoofer]

[On] [Off]

Select enable or disable rear subwoofer output from this

product.

[Crossover]*5Select a speaker unit (filter) to adjust the HPF or LPF cutoff

frequency and the slope for each speaker unit.

•[LPF]/[HPF]: Switches the [LPF]/[HPF] setting to [On] or

[Off].

•[Phase]: Switches the subwoofer phase between normal

and reverse position.

TIP

You can also adjust the [High] and [Mid] phase in [Network Mode].

[Bass Boost]

[0] to [6]

Adjust the bass boost level.

NOTE

This function is available when [Standard Mode] is selected as the

speaker mode.

[Mute Level]If an interruption caused by an audio signal occurs while

Apple CarPlay or Android Auto is being used, select mute

or attenuate the volume of the AV source and iPhone/

smartphone application.

[ATT]The volume becomes 10 dB lower than the current volume.

[Mute]The volume becomes 0.

[Off]The volume does not change.

[Subwoofer Settings]*5Select the subwoofer phase.

NOTE

[Subwoofer Settings] is available only when [Subwoofer] is [On].

Menu ItemDescription

English

- 63 -

A separately sold rear view camera is required for utilizing the rear view camera function.

(For details, consult your dealer.)

▶Rear view camera

This product features a function that automatically switches to the full-screen image of

the rear view camera installed on your vehicle when the shift lever is in the REVERSE (R)

position.

Camera View mode also allows you to check what is behind you while driving.

TIP

The parking assist guidelines can be displayed temporarily on the rear view camera screen by touching

the icon at the top left of the screen. When you reverse the gear and display the rear view camera

screen immediately after turning on the ignition switch, it takes approximately 10 seconds to be

available for the icon. The guidelines can be adjusted. For details on how to adjust the guidelines, see

[Parking Assist Guide Adjust] (page 64).

▶Camera for Camera View mode

Camera View can be displayed at all times. Note that with this setting, the camera image

is not resized to fit, and that a portion of what is seen by the camera is not viewable.

To display the camera image, touch [Camera View] on the source screen (page 49).

NOTE

To set the rear view camera as the camera for Camera View mode, activate [Back-up Camera Input]

(page 63).

CAUTION

Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen

image may appear reversed.

•Immediately verify whether the display changes to the rear view camera image when the shift lever is

moved to REVERSE (R) from another position.

Camera settings

Menu ItemDescription

[Back-up Camera Input]

[On] [Off]

Setting rear view camera activation.

[Back-up Camera view]

[Normal] [Reverse]

Select the way the screen image of a camera appears.

- 64 -

English

[Parking Assist Guide

Adjust]

1Adjusting the guidelines by dragging or touching /

// on the screen.

2Touch [OK] to finish the settings.

TIP

Touch [Reset] to reset the settings.

This setting may not be available according to the

connected camera if the iDatalink adaptor is connected to

the unit.

CAUTION

•When adjusting the guidelines, park the vehicle in a safe place

and apply the parking brake; this setting is available only when

the vehicle is parked with the parking brake applied.

•Turn the vehicle off before getting out to place the markings.

•The range projected by the rear view camera is limited. Also, the

vehicle width and distance guidelines displayed on the rear view

camera image may differ from the actual vehicle width and

distance. (The guidelines are straight lines.)

•The image quality may deteriorate depending on the usage

environment, such as at night or in dark surroundings.

NOTES

•Use painter's tape or similar tape to place markings as shown

below before setting up the guidelines.

•Adjust the guidelines so that they overlay the tape markings as

closely as possible.

•Install the rear view camera as near the center of the vehicle as

possible, and do not install it too low. Otherwise, the guideline

comes on the edge of the screen, preventing the guideline from

being adjusted.

[Picture Adjustment](page 57)

Menu ItemDescription

W3050NEX

2000NEX

50 cm (1.67 ft)

Markings

Rear bumper

2 m (6.67 ft)

25 cm (0.83 ft)

MAX 2.7 m (9 ft)

English

- 65 -

Phone Connectivity Settings

Menu ItemDescription

[Android Auto]

[On] [Off]

Setting Android Auto activation.

NOTE

The [Android Auto] icon may not be displayed on the home menu

screen depending on the Phone Connectivity Settings.

- 66 -

English

You can set the time format, time zone, daylight saving, and the date format.

However, the time and date are automatically adjusted by the GPS antenna and cannot

be adjusted by the user.

1Touch the current time on the screen.

2Set the following items in the settings.

•The date display format:

[d/m/y] (day-month-year), [m/d/y] (month-day-year), or [y/m/d] (year-month-day)

•The time display format:

[12hour] or [24hour]

•The UTC (Universal Time Coordinated) time zone difference:

UTC-12.00h to UTC+14.00h

•Day-light saving time:

[On] or [Off]

You can also configure these items in [Date & Time] (page 55).

Other functions

Setting the clock display

English

- 67 -

You can set the screen mode for the AV screen and image files.

1Touch the screen display mode key.

2Touch the desired mode.

TIPS

•Different settings can be stored for each video source.

•When a video is viewed in the widescreen mode with a setting that does not match its original aspect

ratio, it may appear different.

•The video image will appear coarser when viewed in [Zoom] mode.

NOTES

•Image files can be set to either [Normal] or [Trimming] in the widescreen mode.

•Depending on the software version of this unit, this function may vary.

Changing the widescreen mode

Screen display mode key

[Full]Displays images across the entire screen.

NOTE

Some images may not be displayed across the entire screen.

[Zoom]Displays images by enlarging them vertically.

[Normal]Displays images without changing the ratio.

[Trimming]An image is displayed across the entire screen with the horizontal-to-vertical ratio

left as-is. If the screen ratio differs from the image, the image may be displayed

partly cut off either at the top/bottom or sides.

NOTE

[Trimming] is for image files only.

AUX

Full

- 68 -

English

You can reconnect the iPhone or smartphone by touching [Reconnect] on the home

menu screen.

TIPS

•[Reconnect] is displayed on the home menu screen only when the Wi-Fi connection (Wireless Apple

CarPlay or Android Auto) has failed or been disconnected automatically.

•If you touch [Reconnect], the message confirming whether to restart this product appears on the

display. Touch [Yes] to restart this product.

You can restore settings or recorded content to the default settings from [Factory Reset]

in the [System Settings] menu (page 57).

About the reconnection function

Restoring this product to the default settings

English

- 69 -

If you have problems operating this

product, refer to this section. The most

common problems are listed below, along

with likely causes and solutions. If a

solution to your problem cannot be found

here, contact your dealer or the nearest

authorized Pioneer service facility.

A black screen is displayed, and

operation is not possible using the touch

panel keys.

 Power off mode is on.

–Touch any button on this product to

release the mode.

Bluetooth operation does not work.

 The power failed for the Bluetooth

module of this product.

–Turn the ignition switch to OFF and

then to ON. If the error message is still

displayed after performing the above

action, please contact your dealer or

an authorized Pioneer Service Station.

The screen is covered by a caution

message and the video cannot be shown.

 The parking brake lead is not connected

or the parking brake is not applied.

–Connect the parking brake lead

correctly, and apply the parking brake.

 The speed sensor detects that the

vehicle is moving.

–Park your vehicle in a safe place and

apply the parking brake.

The audio or video skips.

 This product is not firmly secured.

–Secure this product firmly.

No sounds are produced. The volume

level will not rise.

 Cables are not connected correctly.

–Connect the cables correctly.

iPhone cannot be operated.

 The iPhone is frozen.

–Reconnect the iPhone with the USB

interface cable for iPhone.

–Update the iPhone software version.

 An error has occurred.

–Reconnect the iPhone with the USB

interface cable for iPhone.

–Park your vehicle in a safe place, and

then turn off the ignition switch (ACC

OFF). Subsequently, turn the ignition

switch to on (ACC ON) again.

–Update the iPhone software version.

 Cables are not connected correctly.

–Connect the cables correctly.

Sound from the iPhone cannot be heard.

 The audio output direction may switch

automatically when the Bluetooth and

USB connections are used at the same

time.

–Use the iPhone to change the audio

output direction.

No back camera image when the vehicle

is in reverse.

 The back camera input setting on the

receiver is set to Off.

–Change the back camera setting to On

in the settings menu. (Refer to the

System Settings section of this manual

to adjust.)

Appendix

Troubleshooting

Common problems

Problems with the AV screen

English

- 70 -

 The camera input may be loose or not

connected.

–Check the connection and make sure

the male end of the camera is

connected to the brown input on the

back of the receiver. (Refer to the

installation manual.)

 The reverse lead on the receiver may

not be connected to the proper wire at

the reverse lamp.

–Check the connection and make sure

that the violet/white lead of the

receiver is connected to the lead

whose voltage changes when the shift

lever is put in reverse. (Refer to the

installation manual.)

A black screen is displayed when the

vehicle is in reverse, with no camera

installed.

 Back camera input is set to On.

–Turn the setting to Off in the settings

menu. (Refer to the System Settings

section of this manual to adjust.)

Dialing is impossible because the touch

panel keys for dialing are inactive.

 Your phone is out of range for service.

–Retry after re-entering the range for

service.

 The connection between the cellular

phone and this product cannot be

established.

–Perform the connection process.

A black screen is displayed.

 While operating an application, the

application was ended on the

smartphone side.

–Touch to display the home menu

screen.

 The smartphone OS may be awaiting

screen operation.

–Stop the vehicle in a safe place and

check the screen on the smartphone.

The screen is displayed, but operation

does not work at all.

 An error has occurred.

–Park your vehicle in a safe place, and

then turn off the ignition switch (ACC

OFF). Subsequently, turn the ignition

switch to on (ACC ON) again.

The smartphone was not charged.

 Charging stopped because the

temperature of the smartphone rose

due to prolonged use of the

smartphone during charging.

–Disconnect the smartphone from the

cable, and wait until the smartphone

cools down.

 More battery power was consumed

than was gained from charging.

–This problem may be resolved by

stopping any unnecessary services on

the smartphone.

When problems occur with this product, an

error message appears on the display.

Refer to the table below to identify the

problem, then take the suggested

corrective action. If the error persists,

record the error message and contact your

dealer or your nearest Pioneer service

center.

Check Antenna

 The antenna connection is incorrect.

Problems with the phone screen

Problems with Application

screen

Error messages

SiriusXM Satellite Radio

English

- 71 -

–Check the antenna connection. If the

message fails to disappear even after

the engine is switched off/on, contact

your dealer or the nearest authorized

Pioneer service center for assistance.

Check Tuner

 The SiriusXM Connect Vehicle Tuner

connection is incorrect.

–Check the tuner connection and

battery voltage. If the message fails to

disappear even after the engine is

switched off/on, contact your dealer

or the nearest authorized Pioneer

service center for assistance.

No Signal

 The SiriusXM Connect Vehicle Tuner is

having difficulty receiving the SiriusXM

satellite signal.

–Verify that your vehicle is outdoors

with a clear view of the southern sky.

–Verify that the SiriusXM magnetic

mount antenna is mounted on a metal

surface on the outside of the vehicle.

–Move the SiriusXM antenna away from

any obstructions.

Channel Not Available

 The channel that you have requested is

not a valid SiriusXM channel.

–Visit www.siriusxm.com for more

information about the SiriusXM

channel lineup.

Subscription Updated Press Enter to

Continue

 This product has detected a change in

your SiriusXM subscription status.

–Touch [Enter] to clear the message.

In the U.S.A., visit www.siriusxm.com

or call 1-866-635-2349 if you have

questions about your subscription. In

Canada, visit www.siriusxm.ca or call

1-888-539-7474 if you have questions

about your subscription.

Channel Not Subscribed Call SiriusXM to

 The channel that you have requested is

not included in your SiriusXM

subscription package.

–Check the content of your SiriusXM

subscription package.

In the U.S.A., visit www.siriusxm.com

or call 1-866-635-2349 if you have

questions about your subscription

package or would like to subscribe to

this channel. In Canada, visit

www.siriusxm.ca or call 1-888-539-

7474.

Channel Locked Please Enter the Lock

Code

 Locked by the radio Parental Control

feature.

–Release the channel lock.

Incorrect Pass Code entered

 The pass code is incorrect.

–Enter the correct pass code.

Unsupport USB device

 The connected USB device is not

supported by this product.

–Check the supported USB formats

(page 81).

Unsupport USB hub device

 The connected USB hub is not

supported by this product.

–Directly connect the USB storage

device to this product.

This content cannot be played.

 There is no playable file in the USB

storage device.

–Check that the files in the USB storage

device are compatible with this

product.

USB storage device

English

- 72 -

 This type of file is not supported on this

product.

–Select a file that can be played.

 Security for the connected USB storage

device is enabled.

–Follow the USB storage device

instructions to disable security.

 This product cannot recognize the

connected USB storage device.

–Disconnect the device and replace it

with another USB storage device.

Audio Format not supported

 This type of file is not supported on this

product.

–Select a file that can be played.

No Data

 There is no playable file in the USB

storage device.

–Check that the files in the USB storage

device are compatible with this

product.

 Security for the connected USB storage

device is enabled.

–Follow the USB storage device

instructions to disable security.

Connection failed.

 Communication failed and the system is

trying to connect.

 Wait for a while. Then, perform the

actions below if the error message is still

displayed.

–Restart the iPhone.

–Disconnect the cable from the iPhone,

and then connect the iPhone again

after a few seconds.

–Turn the ignition switch to OFF and

then to ON.

Please attach the GPS antenna in order to

use Apple CarPlay over Wireless.

 This unit cannot properly detect the

GPS signal from the GPS antenna.

–Check the GPS antenna installation

and connection. For details about the

connection and installation, refer to

the Installation Manual.

• Connect a USB cable to get started.

• Your phone does not support wireless,

check your phone.

 The connected device is not compatible

with Android Auto.

–Check if the device is compatible with

Android Auto (page 41).

 Android Auto app is not installed on the

device.

–Install the Android Auto app on the

device.

Connection failed. Please check your

phone to confirm connection.

 Wi-Fi connection failed and Android

Auto app did not start.

–Check if the Wi-Fi function on the

device is turned on.

Android Auto has disconnected.

 Wi-Fi function on the device or the unit

is turned off.

–Turn on the Wi-Fi function on the

device and the unit when you use

Android Auto (page 25).

To use Android Auto, please stop your car

and follow the instructions on your

phone

 The default settings are displayed on

the screen of the Android Auto

compatible device or images are not

output from the Android Auto

compatible device.

Apple CarPlay

Android Auto

English

- 73 -

–Park your vehicle in a safe place, and

follow the instructions displayed on

the screen. If the error message is still

displayed after performing on-screen

instructions, please reconnect the

device.

No Video Signal

 There is no video signal input.

–Confirm whether the connection with

the unit is established and there is an

output from the external device.

Handsfree device is not connected

 The phone’s Bluetooth HFP is not

connected and cannot make calls.

–Make a Bluetooth connection

(page 18).

Phone book access is not authorized

 The Bluetooth PBAP of the cellular

phone is not connected and the phone

book cannot be downloaded.

–Make a PBAP connection. You need to

operate your phone and allow the unit

to access the contact information on

your phone. When the related

information pops up on your phone,

follow the pop-up message.

Caution! USB Overcurrent

 Overcurrent is detected.

–Check the USB connection. Perform

one of the following operations to fix

the situation.

–Turn off the ignition switch (ACC OFF)

and then turn the ignition switch to on

(ACC ON) again.

–Power the unit off and then power it

on again.

–Disconnect the (+) battery cable and

then connect it again.

Caution! AMP Overload

 An amplifier overload is detected.

–Check the amp connection. Perform

one of the following operations to fix

the situation.

–Turn off the ignition switch (ACC OFF).

After 9 seconds or more, turn the

ignition switch to on (ACC ON) again.

–Disconnect the (+) battery cable and

then connect it again.

Common notes about the USB storage

device

•Do not leave the USB storage device in

any location with high temperatures.

•Depending on the kind of the USB

storage device you use, this product may

not recognize the storage device or files

may not be played back properly.

•The text information of some audio and

video files may not be correctly

displayed.

•File extensions must be used properly.

•There may be a slight delay when starting

playback of files on a USB storage device

with complex folder hierarchies.

•Operations may vary depending on the

kind of USB storage device.

•It may not be possible to play some music

files from USB because of file

characteristics, file format, recorded

application, playback environment,

storage conditions, and so on.

Camera View & AUX

Bluetooth

Others

Detailed information

for playable media

Compatibility

English

- 74 -

USB storage device compatibility

•For details about USB storage device

compatibility with this product, refer to

Specifications (page 80).

•Protocol: bulk

•You cannot connect a USB storage device

to this product via a USB hub.

•Partitioned USB storage device is not

compatible with this product.

•Firmly secure the USB storage device

when driving. Do not let the USB storage

device fall onto the floor, where it may

become jammed under the brake or gas

pedal.

•There may be a slight delay when starting

playback of audio files encoded with

image data.

•Some USB storage devices connected to

this product may generate noise on the

radio.

•Do not connect anything other than the

USB storage device.

Handling guidelines and supplemental

information

•Copyright protected files cannot be

played back.

General

•Maximum playback time of audio file

stored on a USB storage device: 7.5 h (450

minutes)

USB storage device

MP3 compatibility

•Ver. 2.x of ID3 tag is prioritized when both

Ver. 1.x and Ver. 2.x exist.

•This product is not compatible with the

following: MP3i (MP3 interactive), mp3

PRO, m3u playlist

WMA compatibility

•This product is not compatible with the

following: Windows Media™ Audio 9.2

Professional, Lossless, Voice

WAV compatibility

•The sampling frequency shown in the

display may be rounded.

AAC compatibility

•This product plays back AAC files

encoded by iTunes.

FLAC compatibility

Video files compatibility

•Files may not be played back properly

depending on the environment in which

the file was created or on the contents of

the file.

•This product is not compatible with

packet write data transfer.

Media compatibility chart

CODEC FORMATMP3, WMA,

WAV, AAC,

FLAC, AVI,

MPEG-PS, MP4,

3GP, MKV,

MOV, ASF, FLV,

M4V, MPEG-TS

SAMPLING FREQUENCY8 kHz to 48 kHz

TRANSMISSION RATECBR (8 kbps to

320 kbps)/VBR

ID3 TAGver.1.0/1.1/2.2/

2.3/2.4

SAMPLING FREQUENCY8 kHz to 48 kHz

TRANSMISSION RATECBR (8 kbps to

320 kbps)/VBR

SAMPLING FREQUENCY16 kHz to 192

kHz

QUANTIZATION BIT RATE8 bit, 16 bit

SAMPLING FREQUENCY8 kHz to 96 kHz

TRANSMISSION RATECBR (16 kbps to

320 kbps)

SAMPLING FREQUENCY8 kHz to 192

kHz

QUANTIZATION BIT RATE8 bit, 16 bit, 24

bit

English

- 75 -

•This product can recognize up to 255

characters, beginning with the first

character, including extension for the file

and folder name. Depending on the

display area, this product may try to

display them with a reduced font size.

However, the maximum number of the

characters that you can display varies

according to the width of each character,

and of the display area.

•Folder selection sequence or other

operations may be altered, depending on

the encoding or writing software.

•Regardless of the length of blank section

between the songs of original recording,

compressed audio files play with a short

pause between songs.

•Files may not be able to be played back

depending on the bit rate.

•The maximum resolution depends on the

compatible video codec.

H.264 video decoding format

Base Line Profile, Main Profile, High Profile

H.263 video decoding format

Base Line Profile 0/3

VC-1 video decoding format

Simple Profile, Main Profile, Advanced

Profile

MPEG-4 video decoding format

Simple Profile, Advanced Simple Profile

MPEG-1, 2 video decoding format

Main Profile

Example of a hierarchy

NOTE

This product assigns folder numbers. The

user cannot assign folder numbers.

The Bluetooth® word mark and logos are

registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by Pioneer

Corporation is under license. Other trademarks

and trade names are those of their respective

owners.

SiriusXM and all related marks and logos are

trademarks of Sirius XM Radio, Inc. All rights

reserved.

HD Radio™ Technology manufactured under

license from iBiquity Digital Corporation, a

subsidiary of Xperi Inc., U.S. and Foreign Patents.

For patents see https://xperi.com/hd-radio-

patents/. Xperi, HD Radio, HD, and ‘ARC’ logos

and their respective logos are trademarks or

registered trademarks of Xperi Inc. and its

subsidiaries in the United States and other

countries.
