Page
1
INDEX
Trademarks ..................................................................................2
Safety Instructions ....................................................................... 2
Safety Warning ............................................................................ 2
Chapter 1 General Introduction ............................................... 4
1.1 Layout for IFIX430 Diagnostic Scanner...............................4
1.2 Technical Specifications..................................................... 5
1.3 Standard Accessory Kits.....................................................5
Chapter 2 Get Ready before Diagnosis ...................................5
2.1 Cable Connection for On-Board Diagnosis ........................5
2.2 Application Icon Introduction ............................................. 6
Chapter 3 To Start a New Test ................................................9
3.1 Vehicle Selection ............................................................... 9
3.2 Manual Selection.............................................................. 11
Chapter 4 Software Update ................................................... 14

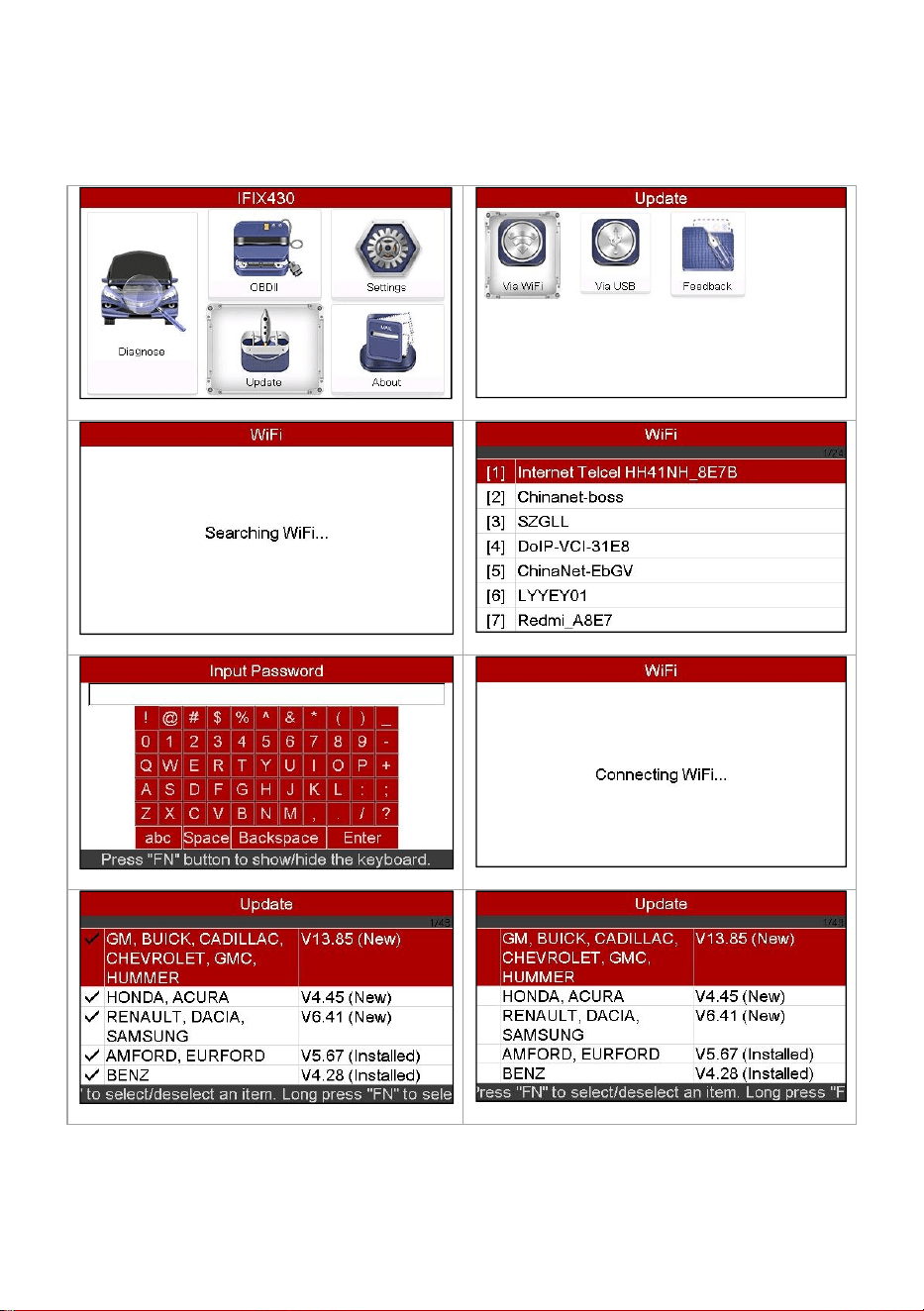

4.1 Update via WIFI................................................................14

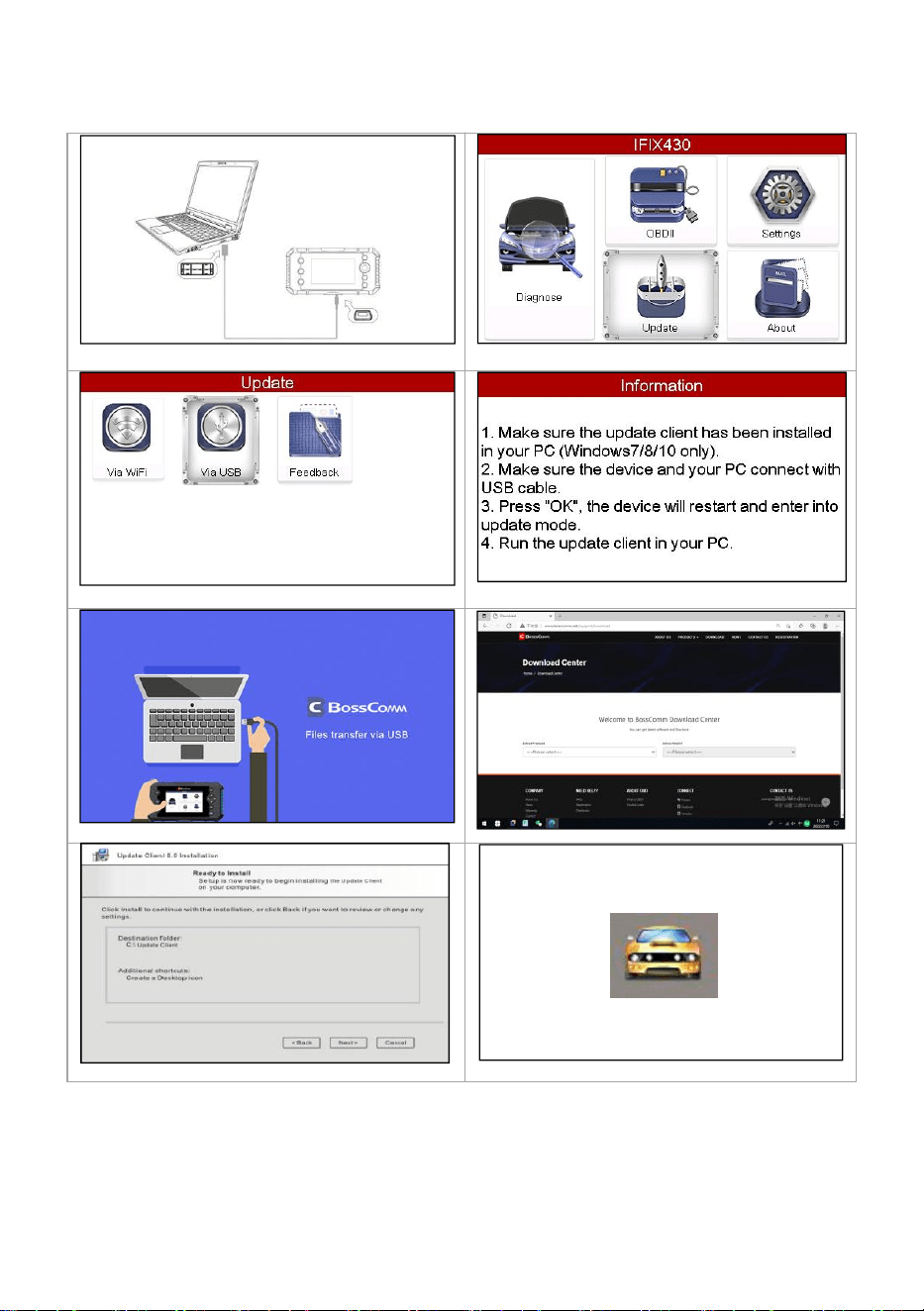

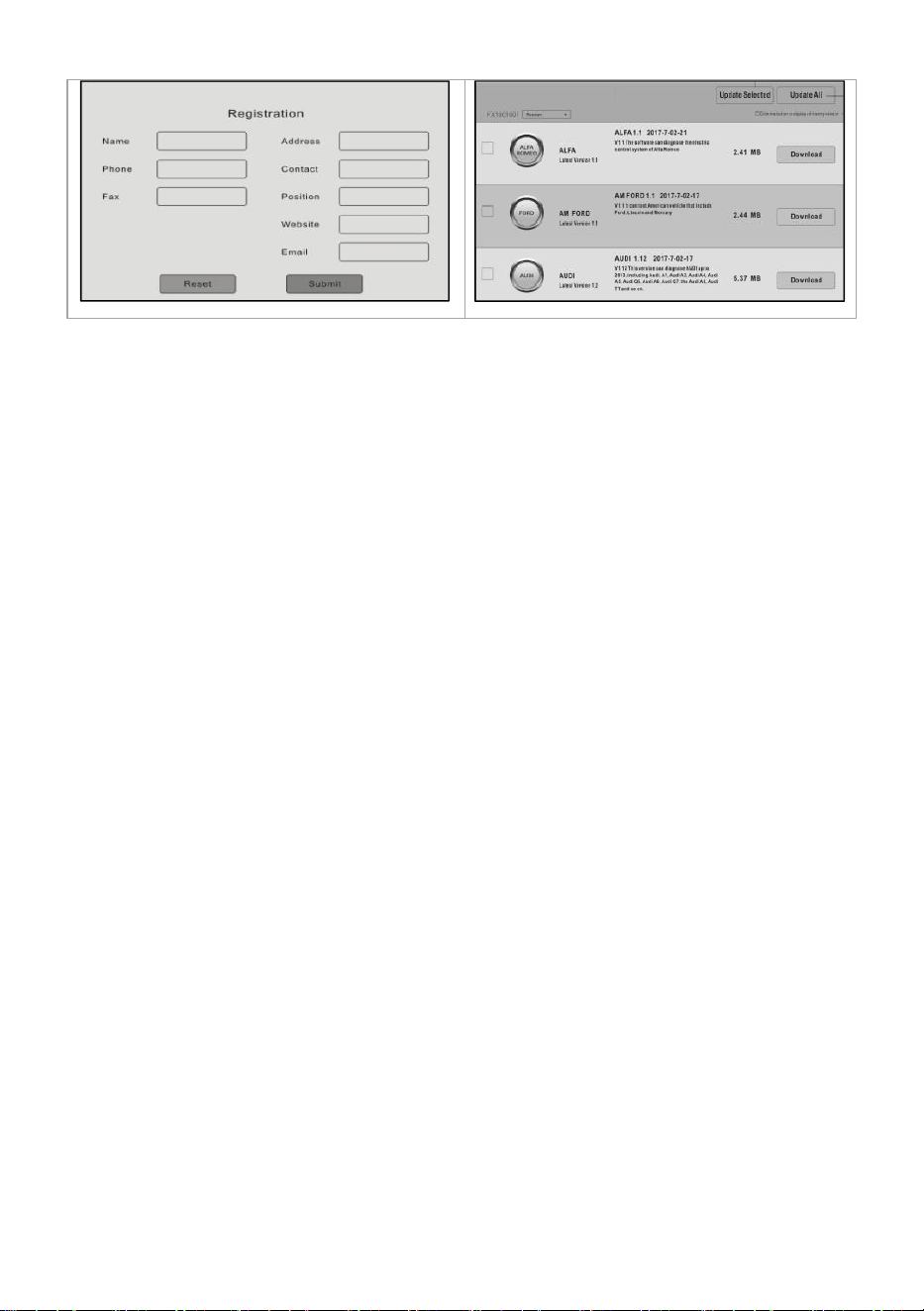

4.2 Update via USB ................................................................16
Chapter 5 Troubleshooting .................................................... 17
Services ..................................................................................... 18
Warranty .................................................................................... 18
Copyright ................................................................................... 20
Disclaimer .................................................................................. 20
Page
2
Trademarks
BOSSCOMM is the trademark of BOSSCOMM TECH CORP registered
worldwide. All other marks are trademarks or registered trademarks of
their respective holders.
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written
permission of BOSSCOMM TECH CORP.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based
on the latest information available at the time of printing. BOSSCOMM
reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no
guarantee is given for the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and
illustrations.
BOSSCOMM will not be liable for any direct damages or for any special,
incidental, or indirect damages or for any economic consequential
damages (including lost profits).
Safety Instructions
The safety messages herein cover situations BOSSCOMM is aware of.
BOSSCOMM cannot know, evaluate or advise you as to all of the
possible hazards. You must be certain that any condition or service
procedure encountered does not jeopardize your personal safety.
Safety Warning
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all
moving or hot engine parts.
Operate the vehicle in a well-ventilated work area, for exhaust gases
are poisonous.
Put the transmission in PARK (for automatic transmission) or
NEUTRAL (for manual transmission) and make sure the parking
brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while testing.
Be extra cautious when working around the ignition coil, distributor
Page
3
cap, ignition wires and spark plugs. These components create
hazardous voltages when the engine is running.
Keep a fire extinguisher suitable for gasoline, chemical, and electrical
fires nearby.
Do not connect or disconnect any test equipment while the ignition is
on or the engine is running.
Keep the test equipment dry, clean, free from oil, water or grease.
Use a mild detergent on a clean cloth to clean the outside of the
equipment as necessary.
Do not drive the vehicle and operate the test equipment at the same
time. Any distraction may cause an accident.
Refer to the service manual for the vehicle being serviced and adhere
to all diagnostic procedures and precautions. Failure to do so may
result in personal injury or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make
sure the vehicle battery is fully charged and the connection to the
vehicle DLC is clean and secure.
Do not place the test equipment on the distributor of the vehicle.
Strong electro-magnetic interference can damage the equipment.
Page
4
Chapter 1 General Introduction
The IFIX430 is the handheld diagnosis scanner combing with the best
possible coverage of OE-level to help you diagnose symptoms, codes,
and customer complaints easily, quickly and efficiently. This manual
describes the construction and operation of the device and how it works.

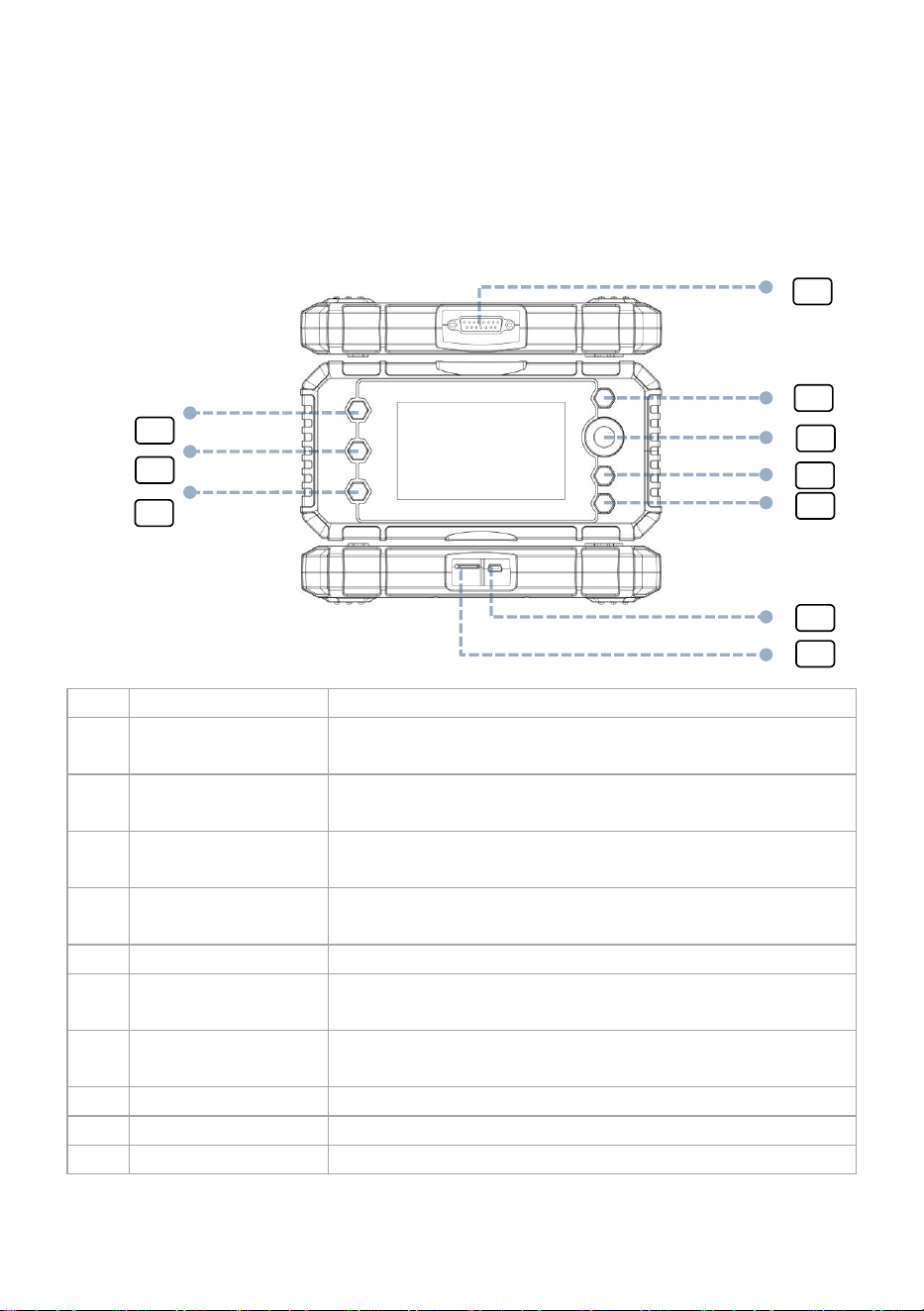

1.1 Layout for IFIX430 Diagnostic Scanner
No.
Key Definition
Key Definition
1
Diagnostic Port
Provides connection between vehicle and the
scanner
2
Back Key
Exits a screen and generally returns to
previous screen.
3
Direction Keys
Select an option or scroll through a screen of
data or text
4
OK Key
Executes a selected option and generally goes
to the next screen
5
Help Key
Displays helpful information.
6
USB Port
Provides USB power connection between the
scanner and PC/laptop
7
TF Card Port
Holds the TF memory card for data backup and
software update
8
F1 Key
One key with WiFi Update
9
F2 Key
Setting Sound On and Off
10
F3 Key
Display About Information
6
3
2
1
5
4
7
8
9
10
Page
5
①
1.2 Technical Specifications
1
Screen Display
Backlit, 4.3” TFT color display
2
Packing Dimension (LxWxH)
265*150*80mm
3
Gross Weight for Full Kits
0.6kg
4
OS Platform
Linux
5
Memory
16G
6
Input Voltage
DC 12V
1.3 Standard Accessory Kits
1
Tool Box
2
Main Unit
3
OBD main cable
4
USB Cable
5
User Manual
Chapter 2 Get Ready before Diagnosis

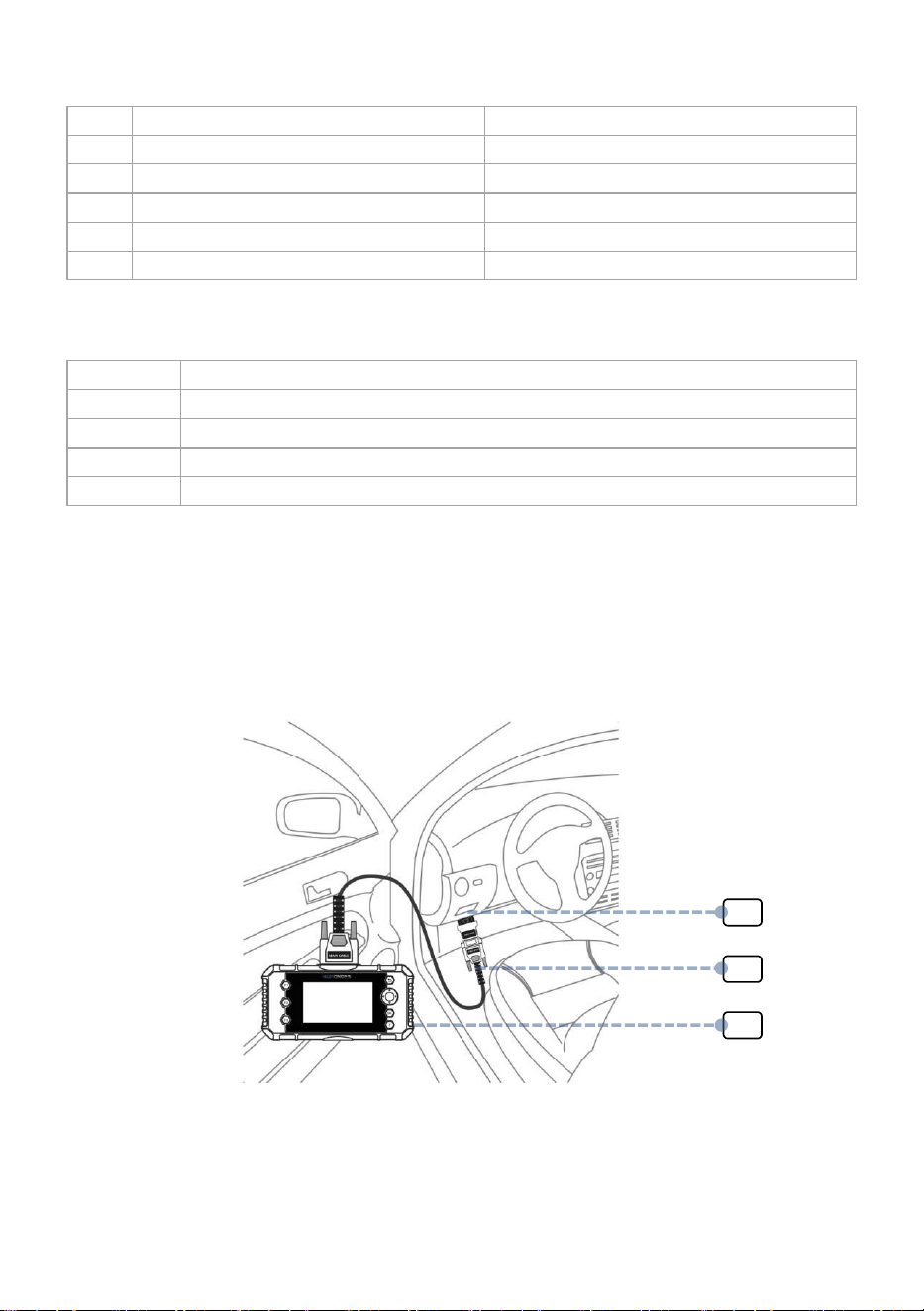

2.1 Cable Connection for On-Board Diagnosis
Make sure the IFIX430 diagnostic scanner is well connected for vehicle
diagnosis.
Connection:
To connect the main unit with the OBD main cable to get power supply.
3
1
2
Page
6
No.
Description
Features and Functions
1
Main Cable
To connect the connector and the vehicle
2
Diagnostic Scanner
Main Unit
To communicate with vehicle and display the
diagnostic result
3
Diagnostic Socket
on car
Socket location varies based on different car
makes/models

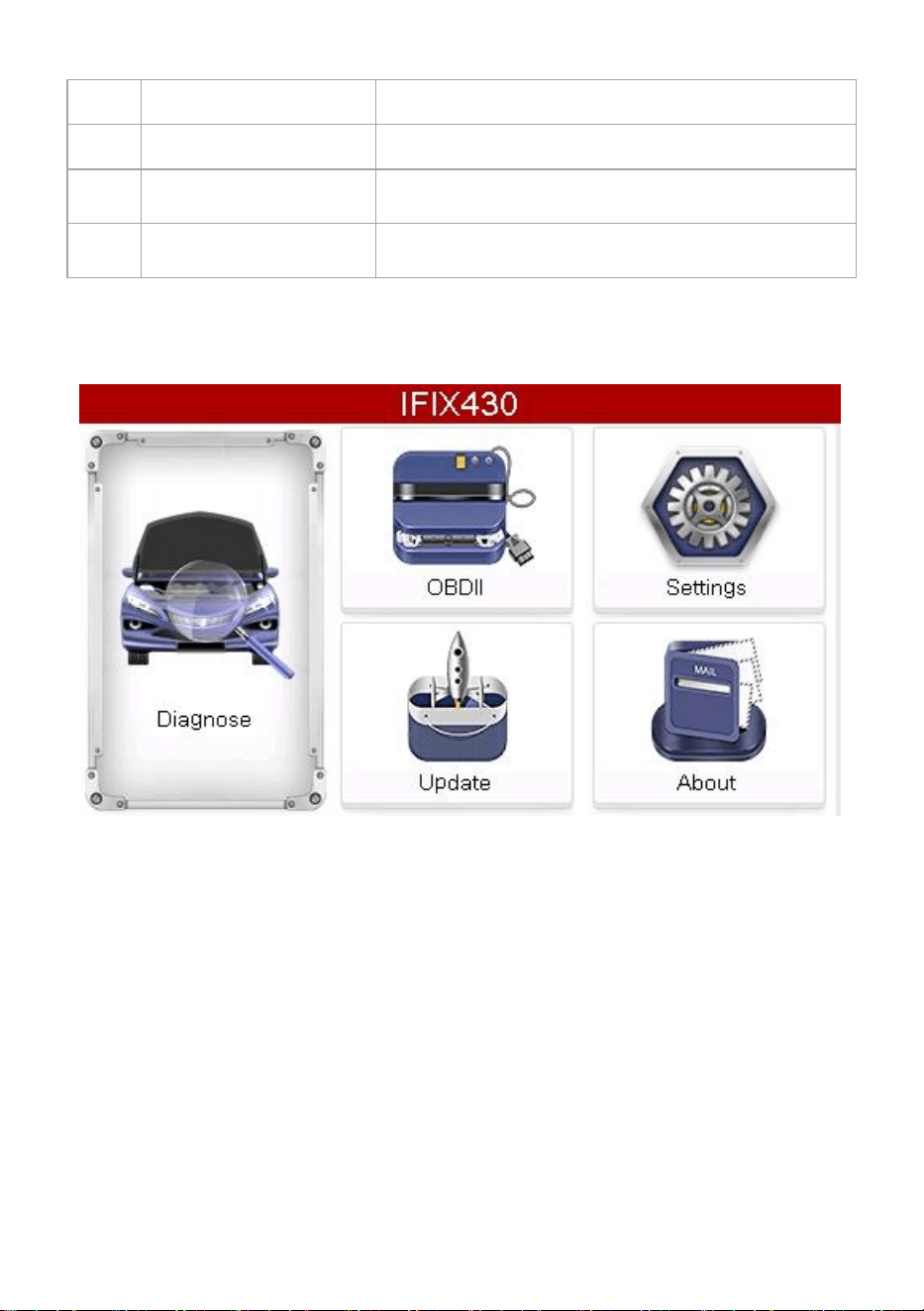

The system boots up and shows the screen with the IFIX430 Diagnostic
Scanner Job Menu as below:
Almost all operations on the display are controlled by menu driven, which
allows you to quickly locate the test procedure, or data that you need,
through a of choices and questions. Detailed descriptions of the menu
structures are found in the chapters for the various applications.
2.2 Application Icon Introduction
The Application buttons configure the IFIX430 Diagnostic Scanner for the
type of operation or activity to be performed.
Page
7
NAME
PICTURES
DESCRIPTION
Diagnose
Executes the corresponding vehicle
diagnostic program based on the selected
region and vehicle make.
European
Displays the European vehicle menu.
Including BMW, Alfa, Jaguar, Land Rover,
Fiat, Ford, Citroen, Mercedes-Benz, VW,
Audi, Volvo, Renault, etc.
Asian
Displays the Asian vehicle menu. Including
Toyota, Lexus, Honda, Acura, Nissan,
Infiniti, Mitsubishi, Daewoo, Mazda,
Hyundai, Kia, Isuzu, Suzuki, etc.
American
Displays the USA vehicle menu including
GM, Chrysler, Ford, etc
Chinese
Displays Chinese vehicle menu including
Chana, Chery, Geely, GWM, MG, Roewe
OBDII
All modes of OBDII test for cars after1996
and newer
I/M
Including read/erase codes, view live data,
view freeze frame data, view I/M readiness,
O2 monitor test, on-board monitor test etc.
DTC Library
To provide you with the latest definition of
PCBU fault codes. For example, after
entering "P02AE", you will get its definition
as "Cylinder 6 – Fuel Trim at Max Limit"
Update
When the device is connected to the
Internet, checks for the latest version for
vehicle diagnostic programs, and performs
updating procedures.
Via WiFi
Update via Wi-Fi
Page
8
Via USB
Update via PC client
Feedback
You can upload the vehicle diagnosis log to
faster solve your problems during vehicle
diagnosing.
Settings
Adjusts and views system settings,
including the measurement unit for the
diagnostic system, the display language for
the device, log and sound settings.
Language
English, Portuguese,Hungarian, Russian,
Polish, Italian, Traditional Chinese, Dutch,
Simplified Chinese, Spanish, French, German,
Turkish
Unit
To provide two options for the unit of live data:
Metric Unit and Imperial Unit.
Beep
Sets the sound on or off.
Log
Two options for Logging On and OFF with the
slide button. [Logging ON] must be set if the
client wants to record the live data, otherwise
the client cannot send logging files.
Button Test
To provide the key test options.
LCD Test
To provide the display test option.
About
Displays the device information including
serial number, register password, firmware
version and system software version.
Page
9
Chapter 3 To Start a New Test
To start a new test, you need to establish the proper vehicle communication
to the IFIX430 Diagnostic Scanner; you need to follow the screen
instructions step by step for the car testing. The operations require
connecting the IFIX430 Diagnostic Scanner main unit to the test vehicle
through the main cable. (For details please refer to Chapter 2.1 Cable
Connection for On-Board Diagnosis)

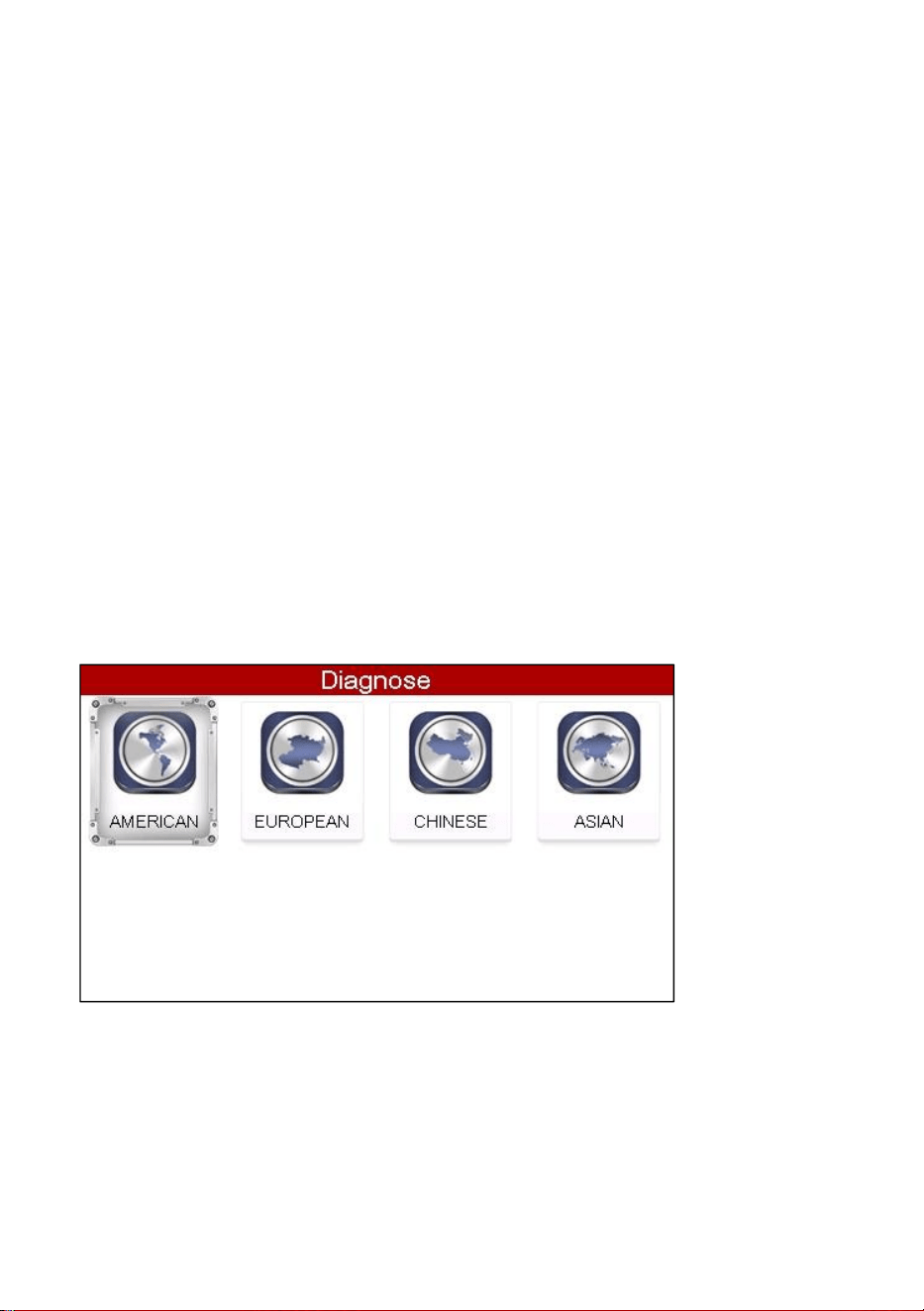

3.1 Vehicle Selection
When the main unit is properly connected to the vehicle, click the
Diagnostics icon button on the IFIX430 Diagnostic Scanner.
The IFIX430 Diagnostic Scanner supports more than three methods for
Vehicle Identification with the Automatic Selection, Manual Selection.
3.1.1 Automatic selection
The IFIX430 Diagnostic Scanner features the latest VIN-based Auto VIN
Scan function to identify vehicles in just one touch, which allows the
technician to quickly detect vehicles, scan all the diagnose ECUs on every
vehicle and run diagnostics on the selected system.

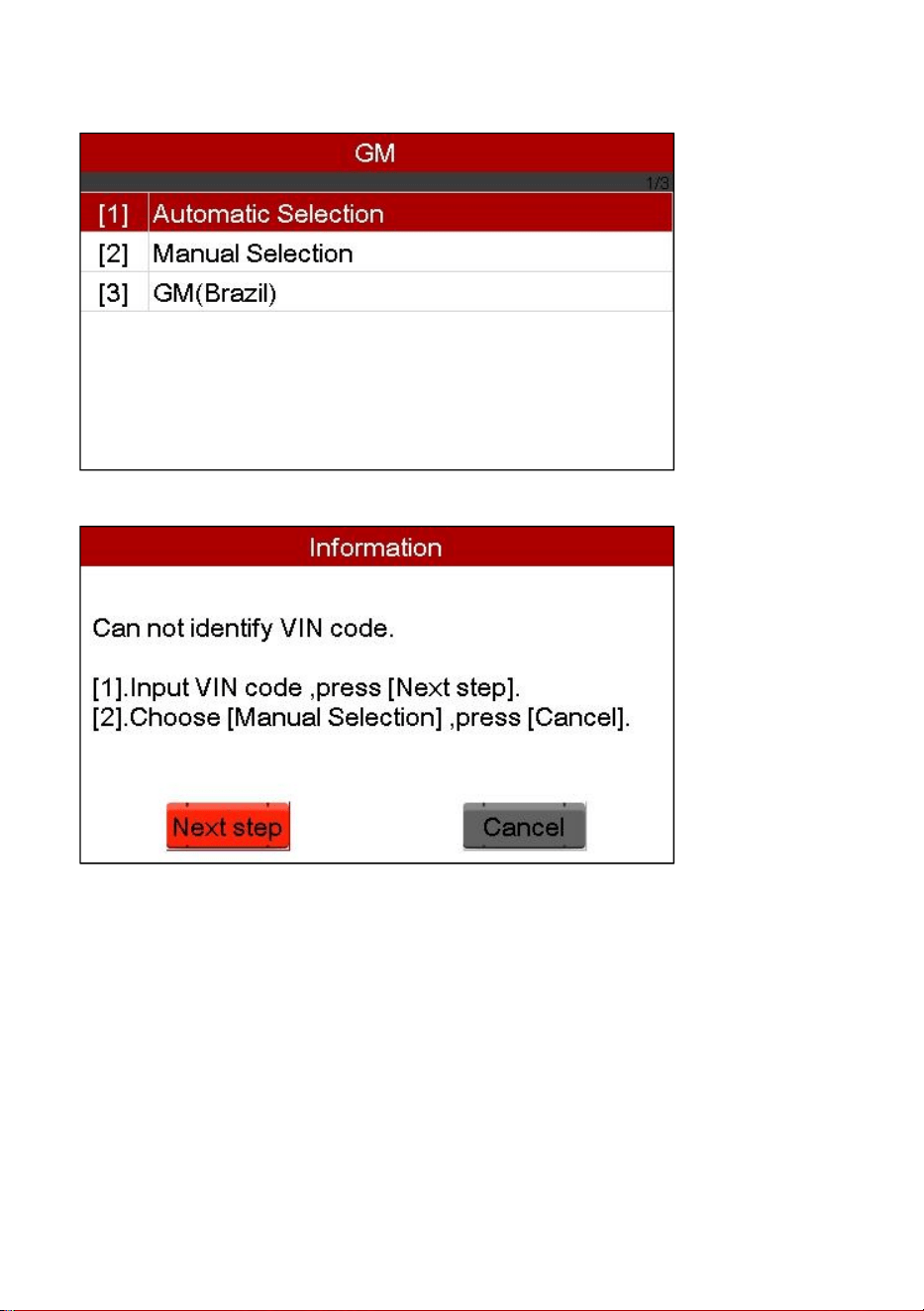

3.1.1.1 To perform Auto VIN Scan
Select [GM] from [AMERICAN]. The vehicle menu displays.
Page
10
Select [Automatic Selection] and the system will proceed to acquire VIN
information automatically.

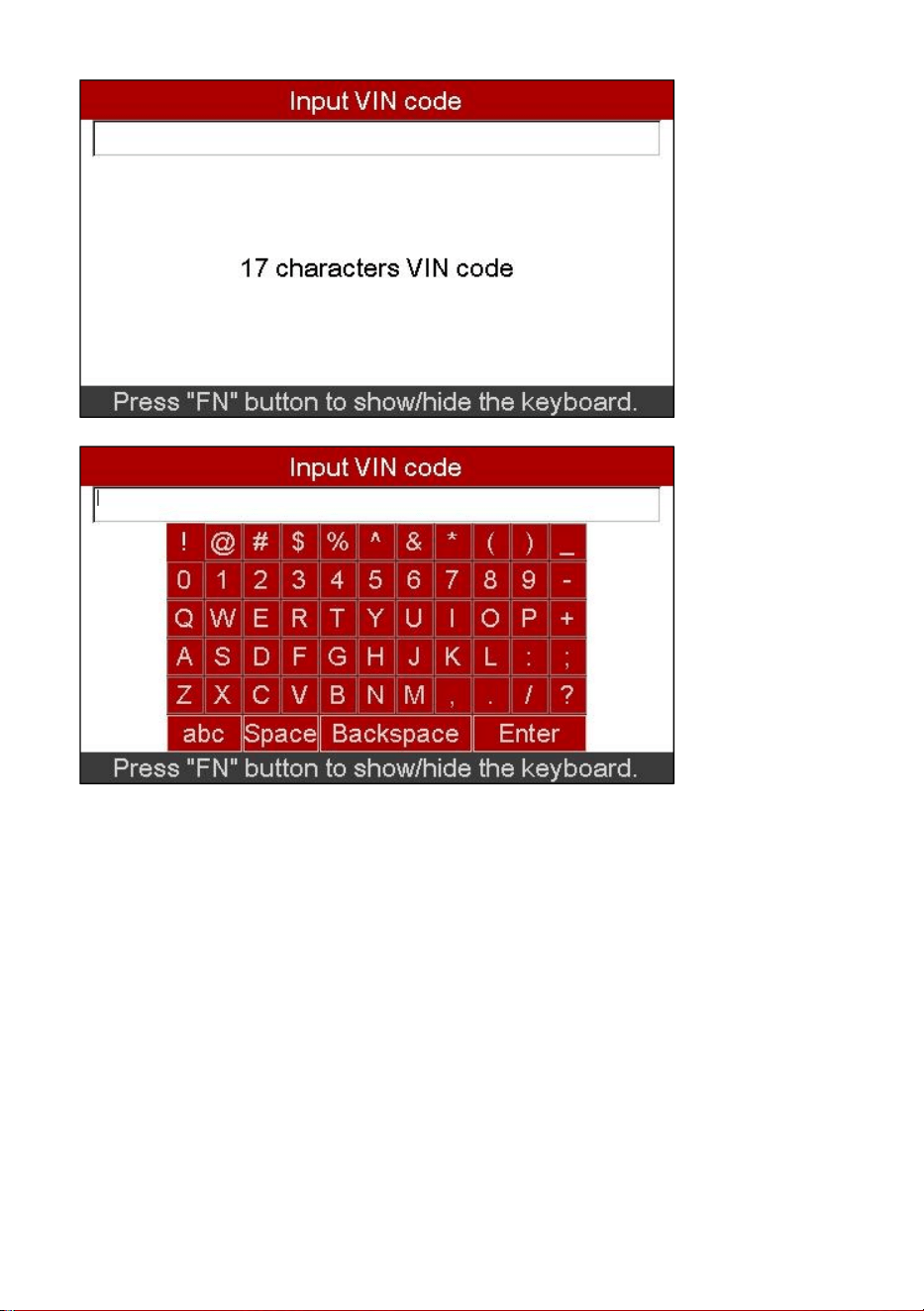

3.1.1.2 VIN code input via virtual keyboard
In case the IFIX430 diagnostic scanner provides an option for vehicle VIN
scan allowing users to input the VIN manually.
Page
11

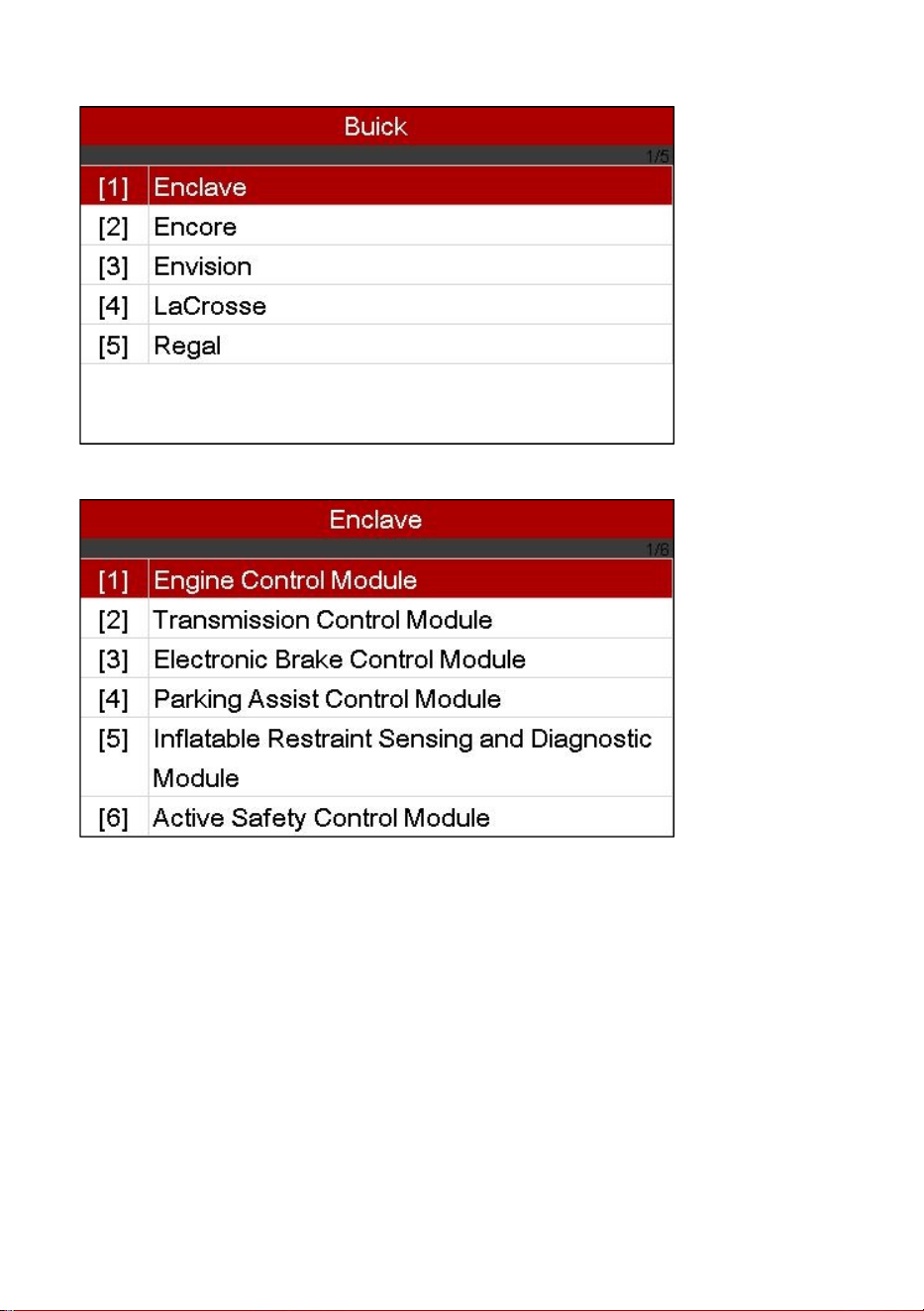

Select the model of the vehicle accordingly. The BOSSCOMM IFIX430
Diagnostic Scanner display ECU information in details:
3.2 Manual Selection
The BOSSCOMM IFIX430 Diagnostic Scanner also provides manual
selection (system selection) for some vehicles.

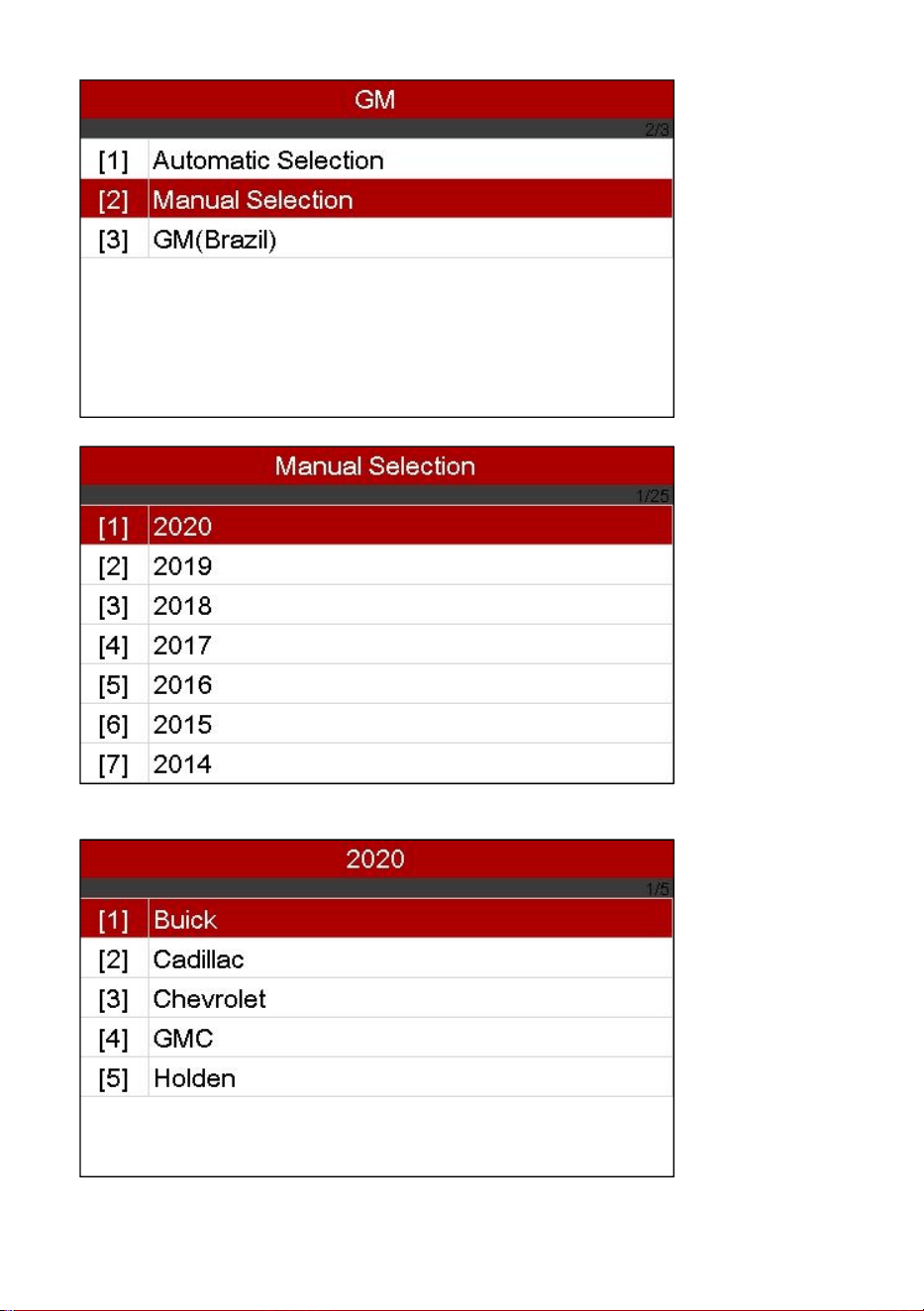

3.2.1 To perform Manual Selection
Tap the [Manual Selection] button on the screen as below.
Select the year to be tested accordingly. Take 2020 GM as an example:
The vehicle will be identified in a few seconds, and once the matching is
successful, the system will guide you the diagnostics screen directly.
Page
12
Select [Buick] from the list as below:
Page
13
Select [Enclave] as below:
Select [Engine Control Module] from the list as below:
Page
14
Chapter 4 Software Update
Providing two ways for update: USB mode and WIFI mode.
4.1 Update via WIFI
Select [UPDATE], and press the [OK].
Select [Via WIFI], and press the [OK].
Searching WIFI ……
WIFI hotpot nearby. Select the correct and join.
Press [FN] to show keyboard and input password
Connecting WIFI ……
Select [GM], press [OK].
Continue the operation step by step accordingly
Page
15
How to set WIFI if the mobile is iPhone 11 or higher version?
Step 1: Settings Person Hotspot
Personal Hotspot on your iPhone can provide Internet access to other
devices signed into your iCloud account without requiring you to enter the
password.
Step 2: Allow Others to Join
Allow other users or devices not signed into iCloud to look for your shared
network when you are in Personal Hotpot settings.
Note:
The device can only display Wi-Fi name consisting of English character.
Step 3: Maximize Compatibility.
1- Choose the correct name from the Wi-Fi settings on your computer or
other device.
2- Enter the password when promoted.
Page
16
4.2 Update via USB
Providing the USB update procedures for software as below.
Connect the main unit to PC with the USB cable.
Select [UPDATE] and press [OK].
Select [Via USB], and press the [OK].
The system will provide some information.
The device will reboot and access the USB mode.
Login the website www.bosscomm.net
Install the Update Client on PC step by step.
Double click the icon of Update Client.
Page
17
Input necessary details for the first registration.
Select the car makes to update the software.
Chapter 5 Troubleshooting
Why can't the PC update client automatically identify the device serial
number?
Please connect the scanner to PC before running the PC update client, and
put the scanner in the USB update mode, that is, the screen displays
"Files transfer via USB".
Why the vehicle linking error?
Follow the steps if the scanner fails to communicate with the ECU.
1– Verify the ignition is ON.
2– Check cable or connector securely connected to the vehicle DLC.
3– Turn the ignition off and wait for about 10 seconds and turn the ignition
back to ON and continue the testing.
4– Verify the control module is not defective.
Why the device doesn’t power up?
If the auto scanner won’t power up or operate correctly in any other way,
follow the steps to check the connections:
1– Check the connector properly inserted to the socket seat.
2– Check the DLC pins bent or broken.
3– Clean the DLC pins if necessary.
Why the devices have no permission to update?
Please contact the local distributor to get authorization.
Why cannot find the WIFI name?
The device can only display the Wi-Fi name consisting of English character
or numbers.
Page
18
When the display does not work properly:
Make sure the machine has been registered online.
Make sure the system software and diagnostic application software are
properly updated.
Check all cables, connections, and indicators to see if the signal is
being received.
Services
This section introduces information for technical support and repair.
If you have any question or problem on the operation of the product,
please contact BOSSCOMM Tech Support for help.
Website: www.bosscomm.net
Email: sales@bosscomm.net
If it becomes necessary to return your device for repair, please contact
BOSSCOMM local dealer for help.
The following information must be included:
Contact name
Return address
Telephone number
Product name
Complete description of the problem
Proof-of-purchase for warranty repairs
Warranty
Thank you for choosing our products, we will provide you with the following
services and promises.
After the warranty period expires, repairs will be charged for replacement
parts.
After the failure, please contact the manufacturer, we will give you the most
complete service in the shortest time.
12-Month Limited Warranty
BC BOSSCOMM INC. warrants to the original retail purchaser of this auto
scanner, that should this product or any part thereof during normal
consumer usage and conditions, be proven defective in material or
workmanship that results in product failure within twelve (12) months period
from the date of delivery, such defects will be repaired, or replaced (with
new or rebuilt parts) with Proof of Purchase, at the Company’s option,
without charge for parts or labor directly related to the defects.
Page
19
The Company shall not be liable for any incidental or consequential
damages arising from the use, misuse, or mounting of the auto scanner.
Some states do not allow limitation on how long an implied warranty lasts,
so the above limitations may not apply to you.
The following items are not covered by the warranty:
1) Product subject to abnormal use or conditions, accident, mishandling,
neglect, unauthorized alternation, misuse, improper installation or
repair or improper storage;
2) Products whose mechanical serial number or electronic serial number
has been removed, altered or defected;
3) Damage from expose to excessive temperatures or extreme
environmental conditions;
4) Damage resulting from connection to, or use of any accessory or other
product not approved or authorized by Company;
5) Defects in appearance, cosmetic, decorative or structural items such as
framing and non-operative parts;
6) Product damaged from external causes such as fire, dirt, sand, battery
leakage, blown fuse, theft or improper usage of any electrical source.
All contents of the product may be deleted during the process of repair. You
should create a back-up copy of any contents of your product before
delivering the product for warranty service.
Page
20
Copyright
BOSSCOMM is a registered trademark of BOSSCOMM TECH CORP
(short for BOSSCOMM) in China and other countries. All other
BOSSCOMM trademarks, service marks, domain names, logos, and
company names referred to in this manual are either trademarks,
registered trademarks, service marks, domain names, logos, company
names of or are otherwise the property of BOSSCOMM or its affiliates. In
countries where any of the BOSSCOMM trademarks, service marks,
domain names, logos and company names is not registered, BOSSCOMM
claims other rights associated with unregistered trademarks, service
marks, domain names, logos, and company names. Other products or
company names referred in this manual may be trademarks of their
respective owners.
You may not use any trademark, service mark, domain name, logo, or
company name of BOSSCOMM or any third party without permission from
the owner of the applicable trademark, service mark, domain name, logo,
or company name.
Disclaimer
All information, illustrations, and specifications contained in this manual,
BOSSCOMM resumes the right of modification this manual and the
machine itself with no prior notice. The physical appearance and color may
differ from what is shown in the manual, please refer to the actual product.
Every effort has been made to make all descriptions in the book accurate,
but inevitably there are still inaccuracies, if in doubt, please contact your
local dealer of BOSSCOMM after service center, we are not responsible for
any consequences arising from misunderstanding.
