Version
V2.0 0123
Everything you need
for your 60cm
Integrated Dishwasher
is in this User Manual
Model/s
EDWI605S
User Manual
2
Welcome
Congratulations on purchasing your new Dishwasher. The Esatto brand is
proudly distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information
regarding your product’s parts and labour warranty, or visit us online at:
www.residentia.group
At Residentia Group, we are customer obsessed and our Support Team are
there to ensure you get the most out of your appliance. Should you want to
learn more about your new dishwasher, it's features or importantly taking care
of the appliance, our Support Team are here to help.
You can use our online Support Centre at anytime by visiting:
http://support.residentiagroup.com.au
Or you can contact us via phone by dialing: 1300 11 HELP (4357).
It is important that you read through the following use and care manual
thoroughly to familiarise yourself with the installation and operation
requirements of your appliance to ensure optimum performance.
Again, thank you for choosing an Esatto appliance and we look forward
to being of service to you.
Kind Regards,
The Residentia Team
Residentia Group
—
Head Office
165 Barkly Avenue
Burnley, Victoria
Australia 3121
—
ACN
600 546 656
—
Online
residentia.group
www.esatto.house
@esatto.house
—
Postage
PO Box 5177
Burnley, Victoria
Australia 3121
—
Telephone
1300 11 4357
www.esatto.house
esatto.house
3
Page 2
Welcome
Page 4
Safety Instructions
Page 5
Your Dishwasher
Page 6
Quick Start Guide
Page 7
Control Panel
Page 8
Installation Instructions
Page 14
Operation Instructions
Page 16
Preparing
& Loading Dishes
Page 17
Loading
Recommendations
Page 18
Basket Tips
Page 19
Rinse Aid & Detergent
Page 21
Cleaning & Maintenance
Page 23
Troubleshooting
Page 26
Technical Information
Page 27
Purchase Details
Page 28
Warranty
Contents
User Manual
4
Warning!
When using your dishwasher , follow the precautions
listed below:
• Installation and repair can only be carried out by a
qualied technician.
• This appliance is only intended for use indoors
only within a domestic environment.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they
do not play with the appliance.
• If the power cord is in any way damaged it must
be replaced by the manufacturer, its service agent
or a qualied and licensed electrician.
• To protect against the risk of electrical shock,
do not immerse the unit, cord or plug in water
or other liquid
• Please unplug before cleaning and performing
maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and
then use a dry cloth to wipe it again.
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety. (For IEC60335-1 )
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and performing
maintenance on the appliance.
Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
4
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
EARTHING INSTRUCTIONS
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of an electric shock by providing a path of
least resistance of electric current. This appliance
is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Improper connection of the equipment-earthing
conductor can result in the risk of an electric
shock.
• Check with a qualied electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
• Do not modify the plug provided with the
appliance; If it does not t the outlet.
• Have a proper outlet installed by a qualied
electrician.
• Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
• Do not operate your dishwasher unless all
enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the
door when it is open. The appliance could
tip forward.
• When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points facing down or placed in a
horizontal position.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
• Check that the detergent powder is empty after
completion of the wash cycle.
• Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check
the manufacturer’s recommendations.
• Use only detergent and rinse agents recommended
for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand
washing detergent in your dishwasher.
• The door should not be left open, since this could
increase the risk of tripping.
• If the supply cord is damaged, it must be
replaced by the manufacturer or its service agent
or a similarly qualied person in order to avoid
a hazard.
• During installation, the power supply must not be
excessively or dangerously bent or attened.
• Do not tamper with controls.
• The appliance needs to be connected to the main
water valve using new hose sets. Old sets should
not be reused.
• To save energy, in stand by mode , the appliance
will switch o automatically while there is no any
operation in 30 minutes .
UNPACKING
• After unpacking, please dispose of all elements of
packaging in a way that will not cause damage to
the environment.
Caution! During unpacking, the packaging
materials (polythene bags,
polystyrene pieces, etc.) should be
kept out of reach of children.
DISPOSAL OF THE APPLIANCE
• For disposing of package and the
appliance please go to a recycling center.
Therefore cut o the power supply
cable and make the door closing device
unusable.
• Cardboard packaging is manufactured from
recycled paper and should be disposed in the
waste paper collection for recycling.
• By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
• For more detailed information about recycling of
this product, please contact your local city oce
and your household waste disposal service.
• DISPOSAL: Do not dispose this product
as unsorted municipal waste. Collection of
such waste separately for special treatment
is necessary.
Disposal
For disposing of package and the
appliance please go to a recycling center.
Therefore cut off the power supply cable
and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recyclin
g of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separately for special treatment is
necessary.
7
Safety Instructions
esatto.house
5
6
PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
Cutlery basket
Lower basket
Pictures are only for reference, different models may be different. Please prevail
in kind.
NOTE:
upper spray arm
Upper basket
Cup rack
Dispenser
Filter assembly
Lower spray arm
Inner pipe
Important!
To get the best performance from your dishwasher, read all operating instructions before using it
for the rst time.
6
PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
Cutlery basket
Lower basket
Pictures are only for reference, different models may be different. Please prevail
in kind.
NOTE:
upper spray arm
Upper basket
Cup rack
Dispenser
Filter assembly
Lower spray arm
Inner pipe
NOTE
Diagrams and pictures in this manual are only for reference, your appliance may appear dierently.
Your Dishwasher
Inner pipe
Lower spray arm
Dispenser
Cutlery basket Upper basket
Glass rack Upper spray arm
Lower basket
Filter assembly
User Manual
6
Please read the corresponding content in the instruction manual for detailed operating method.

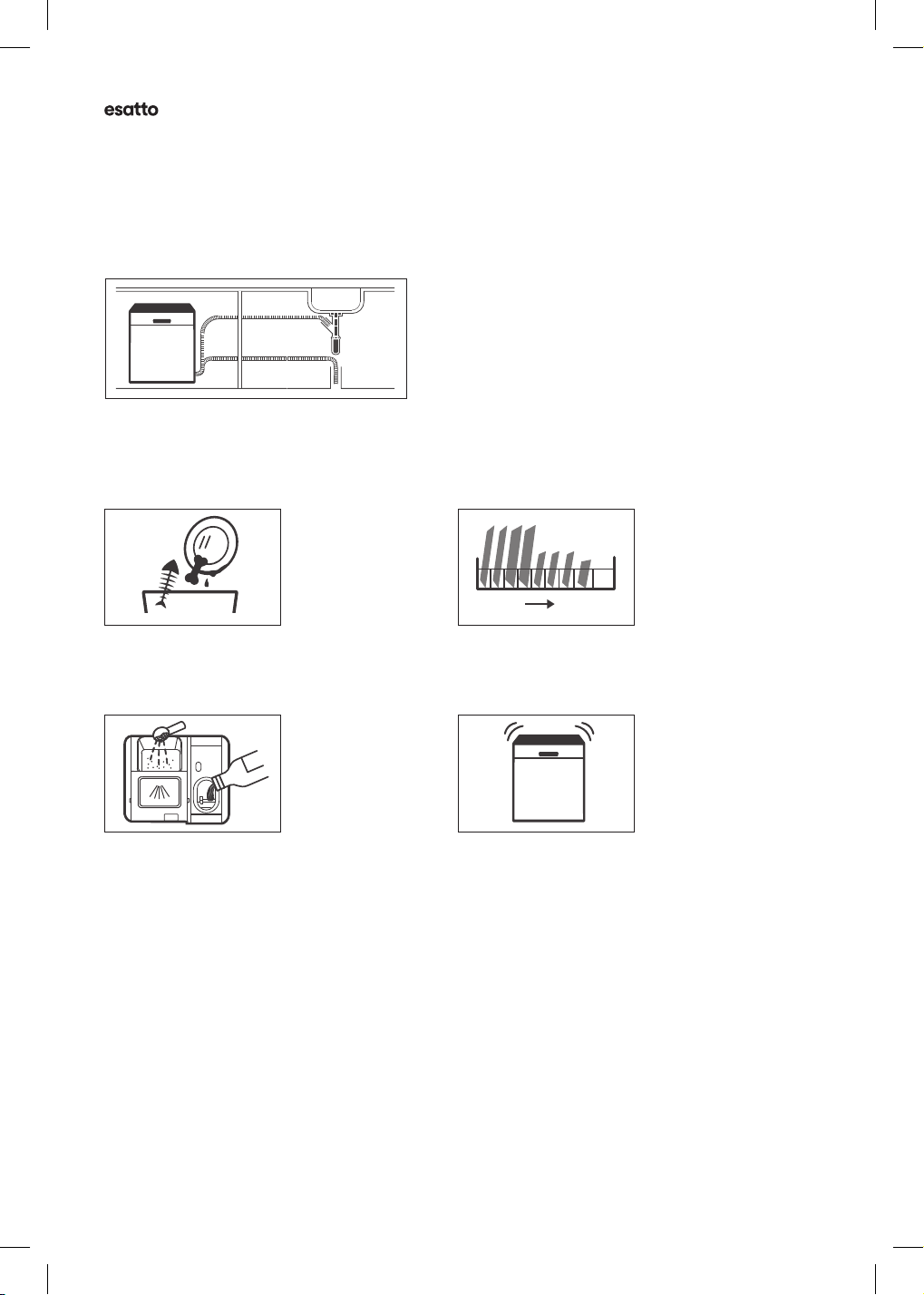

STEP 1:
Install the dishwasher. Refer to the Installation Instructions section of this manual.
STEP 2:
Remove any large residue
on the dishes & cutlery.
STEP 4:
Fill the dispenser.
STEP 3:
Load the dishwasher baskets.
STEP 5:
Select a program and any optional settings
and then run the dishwasher.
5
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2
Removing the larger residue on the
cutlery
3
Loading the baskets
4
Filling the dispenser
Selecting a program and running
the dishwasher
Inside Outside
3
1
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)
5
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2
Removing the larger residue on the
cutlery
3
Loading the baskets
4
Filling the dispenser
Selecting a program and running
the dishwasher
Inside Outside
3
1
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)
5
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2
Removing the larger residue on the
cutlery
3
Loading the baskets
4
Filling the dispenser
Selecting a program and running
the dishwasher
Inside Outside
3
1
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)
5
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2
Removing the larger residue on the
cutlery
3
Loading the baskets
4
Filling the dispenser
Selecting a program and running
the dishwasher
Inside Outside
3
1
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)
5
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2
Removing the larger residue on the
cutlery
3
Loading the baskets
4
Filling the dispenser
Selecting a program and running
the dishwasher
Inside Outside
3
1
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)
Quick Start Guide
esatto.house
7
KEY
1. Program indicators
Intensive
For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes
that have been sitting with dried food on them for some time.
Heavy
For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.
*
ECO
This program is for normally soiled loads at rated capacity.
Super 90’
A fast 90 minute daily program for lightly soiled dishes.
Rapid
A quick 30 minute wash suitable for lightly soiled dishes.
This program does not include a drying stage.
2. Program Select the appropriate washing program, the selected program indicator will be lit.
3. Delay indicators To show the set delay settings (3h/6h/9h).
4. Delay Press this button to increase the delay start time. You can delay a cycle 3, 6 or 9 hours later.
5. Extra Drying For better drying results (Cannot be used with Rapid program).
6. Extra Drying indicator To show if the Extra Drying setting is selected.
7. Power Button Press this button to turn on your dishwasher on and o.
8. Warning indicators Rinse Aid
If the “
” indicator is lit, the dishwasher is low on dishwasher rinse aid and requires a rell.
Program End
If the “ ” indicator is lit, it means the Program Cycle has nished.
*AS/NZS 2007.1: This program is the test cycle.
The information for comparability test in accordance with *AS/NZS 2007.1
Control Panel
3 5 7 862 41
User Manual
8
WARNING:
ELECTRICAL SHOCK HAZARD
Disconnect electrical power
before installing dishwasher.
Failure to do so could result in
death or electrical shock.
IMPORTANT!
The installation of the pipes and electrical equipments
should be done by professionals.
POWER CONNECTION
WARNING:
For your personal safety:
• Do not use an extension cord or an adapter plug
with this appliance.
• Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
Electrical requirements
Please look at the rating label to know the rating
voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse 10A,
time delay fuse or circuit breaker recommended and
provide separate circuit serving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power
being corresponds to those on the rating plate.
Only insert the plug into an electrical socket which
is earthed properly. If the electrical socket to which
the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using a
adapters or the like as they could cause overheating
and burns.
WARNING:
Ensure that proper earthing exists before use
WATER SUPPLY AND DRAIN
Cold water connection
Connect the cold water supply hose to a threaded
3/4 inch connector and make sure that it is fastened
tightly in place.
If the water pipes are new or have not been used for
an extended period of time, let the water run to make
sure that the water is clear. This precaution is needed
to avoid the risk of the water inlet to be blocked and
damage the appliance.
NOTE: Please close the hydrant after use.
POSITIONING THE APPLIANCE
Position the appliance in the desired location. The
back should rest against the wall behind it, and the
sides, along the adjacent cabinets or walls. The
dishwasher is equipped with water supply and drain
hoses that can be positioned either to the right or the
left sides to facilitate proper installation.
Levelling the appliance
Once the appliance is positioned for levelling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet.
In any case, the appliance should not be inclined
more than 2°.
INSTALLATION INSTRUCTION
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug, replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Electrical requirements
Electrical connection
Ensure that proper earthing exists before use
About Power Connection
WARNING
For personal safety:
Do not use an extension cord or an adapter
plug with this appliance.
Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
The installation of the pipes and electrical equipments should be done by professionals.
Attention
WARNING
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so could result in death or
electrical shock.
13
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse
or circuit breaker recommended and provide separate circuit serving only this appliance.
Installation Instructions
8
Water Supply And Drain
Cold water connection
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear. This precaution is needed to avoid the risk of
the water inlet to be blocked and damage the appliance.
Please close the hydrant after using.
NOTE:
Position The Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the right
or the left sides to facilitate proper installation.
Levelling the appliance
Once the appliance is positioned for levelling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet.
In any case, the appliance should not be inclined
more than 2°.
NOTE:
Only apply to the free standing dishwasher.
8
Water Supply And Drain
Cold water connection
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear. This precaution is needed to avoid the risk of
the water inlet to be blocked and damage the appliance.
Please close the hydrant after using.
NOTE:
Position The Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the right
or the left sides to facilitate proper installation.
Levelling the appliance
Once the appliance is positioned for levelling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet.
In any case, the appliance should not be inclined
more than 2°.
NOTE:
Only apply to the free standing dishwasher.
esatto.house
9
WARNING:
A hose that attaches to a sink spray can burst if it is
installed on the same water line as the dishwasher.
If your sink has one, it is recommended that the hose
be disconnected and the hole plugged.
DRAIN HOSE CONNECTION
Insert the drain hose into a drain pipe with a minimum
diameter of 4 cm, or let it run into the sink, making
sure to avoid bending or crimping it. The height of
drain pipe must be less than 1000mm. The free end of
the hose must not be immersed in water to avoid the
back ow of it.
Ensure that the drain hose is securely fixed in
either position A or position B.
How to drain excess water from hoses
If the sink is 1000 higher from the oor, the excess
water in hoses cannot be drained directly into the
sink. It will be necessary to drain excess water from
hoses into a bowl or suitable container that is held
outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be
correctly tted to avoid water leaks. Ensure that the
water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a
similar drain hose. It must be no longer than 4 meters;
otherwise the cleaning eect of the dishwasher could
be reduced.
Syphon connection
The waste connection must be at a height less than
100 cm (maximum) from the bottom of the dish.
The water drain hose should be xed.
Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
B
A
MAX 1000mm
Counter
Drain hose
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run
into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 1000mm. The free end of the hose must not be immersed in water
to avoid the back flow of it.
Extension hose
Water outlet
How to drain excess water from hoses
Syphon connection
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained
directly into the sink. It will be necessary to drain excess water from hoses into a bowl
or suitable container that is held outside and lower than the sink.
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
The waste connection must be at a height less than 100 cm (maximum) from the
bottom of the dish. The water drain hose should be fixed .
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher
could be reduced.
17
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
Installation Instructions (Continued)
User Manual
10
2. If dishwasher is installed at the corner of the cabinet, there should
be some space when the door is opened.
NOTE: Depending on where your electrical outlet is,
you may need to cut a hole in the opposite cabinet side.
STEP 1:
SELECTING THE BEST LOCATION FOR THE DISHWASHER
The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.
1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.
Installation Instructions (Continued)
Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only one
single work top under which cabinets and
electrical appliances are fitted. In this case remove
the work top of the dishwasher by unscrewing the
screws under the rear edge of the top (a).
a
a
b
b
Built-In Installation(for the integrated model)
Step 1. Selecting the best location for the dishwasher
The installation position of dishwasher should be near the existing inlet and drain hoses
and power cord.
Illustrations of cabinet dimensions and installation position of the dishwasher.
1. Less than 5 mm between the top of dishwasher and cabinet and the outer door
aligned to cabinet.
90 °
90 °
580mm
580mm
820mm
820mm
100
100
Electrical, drain
and water supply
line entrances
Electrical, drain
and water supply
line entrances
Space between cabinet
bottom and floor
Space between cabinet
bottom and floor
600 mm(
for 60cm model)
450
mm(for 45cm model)
80
80
After removing the work top, the screws must be screwed again under the rear edge
of the top (b).
Attention
The height will then be reduced to 815 mm, as scheduled by the International
Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top
19
90° 90°
Electrical, drain
and water supply
line entrances
600 mm
820 mm
580 mm
80
100
Space between cabinet
bottom and oor
Step 2. Aesthetic panel's dimensions and installation
2. If dishwasher is in stalled at the corner of the cabinet,
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
20
The aesthetic wooden panel could be processed according to the
installation drawings.
The aesthetic wooden panel could be processed according to the
installation drawings.
A
Magical paster
Magical paster
Magical paster A and magical paster B be disjoinedon, magical paster A on the
aesthetic wooden panel and felted magical paster B of the outer door of dishwasher
(see figure A). After positioning of the panel, fix the panel onto the outer door by
screws and bolts (See figure B) .
Semi-integrated model
B
2.Pin up the four long screws
1.Take away the four short screws
Dishwasher
Dishwasher
Door
Cabinet
Minimum space
of 50 mm
esatto.house
11
STEP 2:
AESTHETIC DOOR PANEL INSTALLATION
This appliance is integrated and does not include
a door panel. Before installing this product please
contact a kitchen cabinetmaker to organise a door
panel in your chosen nish.
NOTE: Refer to the aesthetic door panel installation
template for panel measurements.
1. Install the hook on the aesthetic door panel
and put the hook into the slots on the outer door
of the dishwasher.
2. After positioning of the panel, x the panel onto
the outer door by screws and bolts.
a) Remove the four short screws
b) Install the four long screws
STEP 3:
ADJUSTING THE DOOR SPRING TENSION
The door springs are set at the factory default tension
for the outer door. Once the aesthetic wooden panel
is installed, you will have to adjust the door spring
tension.
1. Rotate the adjusting screw to tighten or loosen the
steel cable.
2. Door spring tension is correct when the door
remains horizontal in the fully opened position,
yet rises to a close with the slight lift of a nger.
Installation Instructions (Continued)
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to
the proper tension for the outer door. If
aesthetic wooden panel are installed, you
will have to adjust the door spring tension.
Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the
door remains horizontal in the fully opened
position, yet rises to a close with the slight
lift of a finger.
Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher (see figure A). After positioning of the panel, fix the panel
onto the outer door by screws and bolts (See figure B).
B
2.Pin up the four long screws
A
1.Take away the four short screws
Full-integrated model
21
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to
the proper tension for the outer door. If
aesthetic wooden panel are installed, you
will have to adjust the door spring tension.
Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the
door remains horizontal in the fully opened
position, yet rises to a close with the slight
lift of a finger.
Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher (see figure A). After positioning of the panel, fix the panel
onto the outer door by screws and bolts (See figure B).
B
2.Pin up the four long screws
A
1.Take away the four short screws
Full-integrated model
21
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to
the proper tension for the outer door. If
aesthetic wooden panel are installed, you
will have to adjust the door spring tension.
Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the
door remains horizontal in the fully opened
position, yet rises to a close with the slight
lift of a finger.
Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher (see figure A). After positioning of the panel, fix the panel
onto the outer door by screws and bolts (See figure B).
B
2.Pin up the four long screws
A
1.Take away the four short screws
Full-integrated model
21
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to
the proper tension for the outer door. If
aesthetic wooden panel are installed, you
will have to adjust the door spring tension.
Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the
door remains horizontal in the fully opened
position, yet rises to a close with the slight
lift of a finger.
Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher (see figure A). After positioning of the panel, fix the panel
onto the outer door by screws and bolts (See figure B).
B
2.Pin up the four long screws
A
1.Take away the four short screws
Full-integrated model
21
User Manual
12
STEP 4
DISHWASHER INSTALLATION STEPS
1. Ax the condensation strip under the work surface of cabinet.
Please ensure the condensation strip is ush with edge of work surface. (Step 2)
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into position.
6. Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the Philips
screw in the middle of the base of dishwasher use an Philips screw. To adjust the front feet, use a at screw
driver and turn the front feet until the dishwasher is level. (Step 5)
7. Install the aesthetic door to the outer door of the dishwasher. (Step 7 to Step 10)
8. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left
and right door springs. Failure to do this could cause damage to your dishwasher. (Step 11)
9. The dishwasher must be secured in place. There are two ways to do this:
a. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work
surface with the wood screws.
b. Marble or granite work top:
Fix the side with Screw.
Installation Instructions (Continued)
Step 4. Dishwasher installation steps
1. Affix the condensation strip under the work surface of cabinet. Please ensure the
condensation strip is flush with edge of work surface. (Step 2)
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into position. (Step 4)
6. Level the dishwasher. The rear food can be adjusted from the front of the
dishwasher by turning the Philips screw in the middle of the base of dishwasher
use an Philips screw. To adjust the front feet, use a flat screw driver and turn the
front feet until the dishwasher is level. (Step 5 to Step 6)
7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 10)
8. Adjust the tension of the door springs by using an Allen key turning in a clockwise
motion to tighten the left and right door springs. Failure to do this could cause
damage to your dishwasher. (Step 11)
9. The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane and
secure it to the work surface with the wood screws.
B. Marble or granite work top: Fix the side with Screw.
A
B
22
Please refer to the specified installation steps in the installation
drawings.
Please refer to the specified installation steps in the installation
drawings.
A
B
esatto.house
13
STEP 5
LEVELLING THE DISHWASHER
Dishwasher must be level for proper dish rack operation and wash performance.
1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling legs individually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over.
NOTE: The maximum adjustment height of the feet is 50 mm.
Installation Instructions (Continued)
UP
DOWN
Check level
front to back
Check level
side to side
Step 5. Levelling the dishwasher
Dishwasher must be level for proper dish rack operation and wash performance.
Place a spirit level on door and rack track inside the tub as shown to check that the
dishwasher is level.
Level the dishwasher by adjusting the three levelling legs individually.
When level the dishwasher, please pay attention not to let the dishwasher tip over.
1.
2.
3.
The maximum adjustment height of the feet is 50 mm.
NOTE:
23
Check level
front to back
Check level
side to side
User Manual
14
WASH CYCLE TABLE
The table below shows which programs are best for the levels of food residue on
them and how much detergent is needed. It also show various information about
the programs.
(
) Rinse Aid required
PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
Program
Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
12
170
160
170
1.6
1.4
0.69
18.5
15
10.2
Pre-wash(50℃)
Wash(60℃)
Rinse
Rinse
Rinse(65℃)
Drying
Pre-wash(45℃)
Wash(55℃)
Rinse
Rinse(65℃)
Drying
Pre-wash
Wash(45℃)
Rinse(50℃)
Drying
30 0.6
11.5
Wash(40℃)
Rinse
Rinse(45℃)
25g
90
1.2
11.5
Wash(65℃)
Rinse
Rinse(65℃)
Drying
Heavy
Intensive
(*AS/NZS 2007.1)
90 Min
Rapid
AS/NZS 2007.1:
test in accordance with AS/NZS 2007.1.
This program is the test cycle. The information for comparability
NOTE:
5/25g
(Or all in 1)
5/25g
(Or all in 1)
5/25g
(Or all in 1)
30g
(Or all in 1)
NOTE:
*AS/NZS 2007.1: This is the program for a normally soiled load at rated capacity. This program is the test
cycle. The information for comparability test in accordance with *AS/NZS 2007.1.
Intensive
Heavy
Super 90’
Quick 30’
* ECO 50° C
Operation Instructions
esatto.house
15
STARTING A CYCLE WASH
1. Draw out the lower and upper basket, load the
dishes and push them back. It is recommended to
load the lower basket rst, then the upper one.
2. Add the detergent.
3. Insert the plug into the socket. The Power supply
refer to the Technical Specications section.
4. Make sure that the water supply is turned on to
full pressure.
5. Open the door and press the Power button to
switch on the machine.
6. Choose your wash cycle settings and the
corresponding the indicator lights will illuminate.
7. Then press close the door and the dishwasher will
begin its cycle.
CHANGING THE PROGRAM MID-CYCLE
A wash cycle can only be changed if it has been
running for a short time otherwise, the detergent
may have already been released and the dishwasher
may have already drained the wash water. If this is
the case, the dishwasher needs to be reset and the
detergent dispenser must be relled. To reset the
dishwasher, follow the instructions below:
1. Open the door a little to stop the dishwasher.
After the spray arms stop working, you can fully
open the door.
2. Press program button for more than 3 seconds
and the dishwasher will return to a standby state.
3. You can then change the program to your desired
cycle setting.
4. Close the door to begin the new cycle.
ADDING A DISH MID-CYCLE
A forgotten dish can be added any time before the
detergent dispenser opens. If this is the case, follow
the instructions below:
1. Open the door a little to stop the dishwasher.
After the spray arms stop working, you can fully
open the door.
2. Add the additional dishes.
3. Close the door.
4. The dishwasher will resume its cycle
after 10 seconds.
WARNING
It is dangerous to open the door mid-cycle, as hot
steam may scald you.
Operation Instructions (Continued)
3 sec
Starting A Cycle Wash
1. Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Open the door, touch the Power button.
5. Choose a program, the response light will turn on. Then close the door, the
dishwasher will start its cycle.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
1. Open the door a little to stop the dishwasher, after the spray arm stop working,
you can open the door completely.
2. Press Program button more than three seconds the machine will be in stand by
state.
3. You can change the program to the desired cycle setting.
13
Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1.
2.
3. Add the forgotten dishes.
4. Close the door.
5. The dishwasher will run after 10 seconds.
Open the door a little to stop the washing.
After the spray arms stop working, you can open the door completely.
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.
14
User Manual
16
• Consider buying utensils which are identied as
dishwasher-proof.
• For particular items, select a program with the
lowest possible temperature.
• To prevent damage, do not take glass and cutlery
out of the dishwasher immediately after the
program has ended.
CUTLERY/DISHES SUITABILITY
The following are not suitable
• Cutlery with wooden, horn china
or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts
that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic bers
The following are of limited suitability
• Some types of glasses can become dull
after a large number of washes
• Silver and aluminum parts have a tendency
to discolour during washing
• Glazed patterns may fade if machine
washed frequently
RECOMMENDATIONS FOR LOADING
THE DISHWASHER
Scrape o any large amounts of leftover food. Soften
remnants of burnt food in pans. It is not necessary to
rinse the dishes under running water.
For best performance of the dishwasher, follow these
loading guidelines.
• Items such as cups, glasses, pots/pans, etc.
are faced downwards.
• Curved items, or ones with recesses, should be
loaded aslant so that water can run o.
• All utensils are stacked securely and can not tip
over.
• All utensils are placed in the way that the spray
arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc.
With the opening facing downwards so that water
cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one
another, or cover each other.
• To avoid damage, glasses should not touch
one another.
• The upper basket is designed to hold more
delicate and lighter dishware such as glasses,
coee and tea cups.
• Long bladed knives stored in an upright position
are a potential hazard!
• Long and / or sharp items of cutlery such as
carving knives must be positioned horizontally
in the upper basket.
• Please do not overload your dishwasher.
This is important for good results and for
reasonable consumption of energy.
NOTE: Very small items should not be washed in the
dishwasher as they could easily fall out of the basket.
Removing the dishes
To prevent water dripping from the upper basket into
the lower basket, we recommend that you empty the
lower basket rst, followed by the upper basket.
WARNING
Items will be hot! To prevent damage,
do not take glass and cutlery out of the
dishwasher for around 15 minutes after
the program has ended.
Loading the upper basket
The upper basket is designed to
hold more delicate and lighter
dishware such as glasses,
coee and tea cups and saucers, as well as plates,
small bowls and shallow pans (as long as they are not
too dirty). Position the dishes and cookware so that
they will not get moved by the spray of water.
Loading the lower basket
We suggest that you place large
items and the most dicult to
clean items are to be placed into
the lower basket: such as pots,
pans, lids, serving dishes and bowls, as shown in the
gure below. It is preferable to place serving dishes
and lids on the side of the racks in order to avoid
blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of
the detergent dispenser is of 19 cm, this not to hamper
the opening of it.
Loading the cutlery basket
Cutlery should be placed in the cutlery rack
separately from each other in the appropriate
positions, and do make sure the utensils do not nest
together, this may cause bad performance.
WARNING
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp
end downwards!
NOTE:
For the best washing eect, please
load the baskets referred in the Loading
Recommendations section.
Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
8
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.
Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
8
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.
7
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
8
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.
Preparing & Loading Dishes
19
1.Upper basket:
2.Lower basket:
1
2
3
Cups
Saucers
Glasses
Item
Number
4
5
6
7
Dinner plates
Soup plates
Dessert dishes
Cutlery basket
Item
Number
11
11
11
11
11
11
11
22
22
33
33
66
66
66
66
77
55
44
Loading The Baskets According To AS/NZS 2007.1
19
1.Upper basket:
2.Lower basket:
1
2
3
Cups
Saucers
Glasses
Item
Number
4
5
6
7
Dinner plates
Soup plates
Dessert dishes
Cutlery basket
Item
Number
11
11
11
11
11
11
11
22
22
33
33
66
66
66
66
77
55
44
Loading The Baskets According To AS/NZS 2007.1
20
3.Cutlery basket:
2
2
2
2 2 2 2
1
1 3
3
5
5
5
5
5
5
3
3
3
3
3
3
3
3
3
31
11
2
2
2
44 4 4 4 4
44
2 2
1
1 1
1
1 1
5
5
4 4 4 4
2 51 4443
1
2
3
4
5
Forks
Soup spoons
Dessert spoons
Teaspoons
Knives
Item
Number
Information for comparability tests in accordance with (*AS/NZS 2007.1 )
Capacity: 12 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Detergent(Pre/main): 5/25g
Door is open at the end of the drying cycle for the drying performance test
and last 40mins.
(Door position: Open 50 mm)
1
5 5 5 5
esatto.house
17
Loading the baskets according to AS/NZS 2007.1:
1. UPPER BASKET
2. LOWER BASKET
3. CUTLERY BASKET
19
1.Upper basket:
2.Lower basket:
1
2
3
Cups
Saucers
Glasses
Item
Number
4
5
6
7
Dinner plates
Soup plates
Dessert dishes
Cutlery basket
Item
Number
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
3
3
3
3
66
66
66
66
77
55
44
Loading The Baskets According To AS/NZS 2007.1
19
1.Upper basket:
2.Lower basket:
1
2
3
Cups
Saucers
Glasses
Item
Number
4
5
6
7
Dinner plates
Soup plates
Dessert dishes
Cutlery basket
Item
Number
11
11
11
11
11
11
11
22
22
33
33
6
6
6
6
6
6
6
6
7
7
5
5
4
4
Loading The Baskets According To AS/NZS 2007.1
20
3.Cutlery basket:
2
2
2
2 2 2 2
1
1 3
3
5
5
5
5
5
5
3
3
3
3
3
3
3
3
3
31
11
2
2
2
44 4 4 4 4
44
2 2
1
1 1
1
1 1
5
5
4 4 4 4
2 51 4443
1
2
3
4
5
Forks
Soup spoons
Dessert spoons
Teaspoons
Knives
Item
Number
Information for comparability tests in accordance with (*AS/NZS 2007.1 )
Capacity: 12 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Detergent(Pre/main): 5/25g
Door is open at the end of the drying cycle for the drying performance test
and last 40mins.
(Door position: Open 50 mm)
1
5 5 5 5
29
3.Cutlery basket:
Information for comparability tests in accordance with (*AS/NZS 2007.1 )
Capacity: 14 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Detergent(Pre/main): 5g/27.5g
Door is open at the end of the drying cycle for the drying performance test
(Door position: Open 50 mm)
1
2 51 4443
1
2
3
4
5
Forks
Soup spoons
Dessert spoons
Teaspoons
Knives
Item
Number
3
4
2
5
4
3
1
2
5
29
3.Cutlery basket:
Information for comparability tests in accordance with (*AS/NZS 2007.1 )
Capacity: 14 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Detergent(Pre/main): 5g/27.5g
Door is open at the end of the drying cycle for the drying performance test
(Door position: Open 50 mm)
1
2 51 4443
1
2
3
4
5
Forks
Soup spoons
Dessert spoons
Teaspoons
Knives
Item
Number
3
4
2
5
4
3
1
2
5
Information for comparability tests in accordance with (*AS/NZS 2007.1 )
Capacity: 12 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Detergent (Pre/main): 5g/25g
Door is open at the end of the drying cycle for the drying performance test
(Door position: Open 50 mm)
Loading Recommendation
User Manual
18
ADJUSTING THE UPPER BASKET
The height of the upper basket can be easily adjusted
to accommodate tall glasses in either the upper
basket or large cookware in the lower basket.
To adjust the height of the upper rack,
follow these steps:
STEP 1:
To raise the upper basket, just lift the upper basket at
the center of each side until the basket locks into
place in the upper position. It is not necessary to lift
the adjuster handles.
STEP 2:
To lower the upper basket, lift the adjuster handles
on each side to release the basket and lower it to the
lower position.
FOLDING BACK THE CUP SHELVES
To make room for taller items in the upper basket,
raise the cup rack upwards. You can then lean the tall
glasses against it. You can also remove it when it is
not required for use.
FOLDING BACK THE RACK SHELVES
The spikes of the lower basket are used for holding
plates and a platter. They can be lowered to make
more room for large items.
10
raise upwards fold backwards
1
To raise the
the upper basket at the center of
each side until the basket locks into
place in the upper position. It is not
necessary to lift the adjuster handle.
upper basket just lift ,
2
To lower the lift the
adjust handles on each side to
release the basket and lower it to
the lower position.
upper basket,
Type 2:
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
10
raise upwards fold backwards
1
To raise the
the upper basket at the center of
each side until the basket locks into
place in the upper position. It is not
necessary to lift the adjuster handle.
upper basket just lift ,
2
To lower the lift the
adjust handles on each side to
release the basket and lower it to
the lower position.
upper basket,
Type 2:
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
Basket Tips
10
raise upwards fold backwards
1
To raise the
the upper basket at the center of
each side until the basket locks into
place in the upper position. It is not
necessary to lift the adjuster handle.
upper basket just lift ,
2
To lower the lift the
adjust handles on each side to
release the basket and lower it to
the lower position.
upper basket,
Type 2:
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
10
raise upwards fold backwards
1
To raise the
the upper basket at the center of
each side until the basket locks into
place in the upper position. It is not
necessary to lift the adjuster handle.
upper basket just lift ,
2
To lower the lift the
adjust handles on each side to
release the basket and lower it to
the lower position.
upper basket,
Type 2:
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
esatto.house
19
The rinse aid is released during the nal rinse to
prevent water from forming droplets on your dishes,
which can leave spots and streaks. It also improves
drying by allowing water to roll o the dishes. Your
dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never ll
the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
When to refill the rinse aid
The regularity of the dispenser needing to be relled
depends on how often dishes are washed and the
rinse aid setting used.
• The Low Rinse Aid indicator (
) will appear in
the display when more rinse aid is needed.
• Do not overll the rinse aid dispenser.
• You should never let the rise aid level to be less
than 1/4 full.
• As the rise aid diminishes, the size of the black
dot on the rinse aid level indicator changes, as
illustrated below:
Full 3/4 full 1/2 full 1/4 full Empty
Function of detergent
The chemical ingredients that compose the detergent
are necessary to remove, crush and dispense all dirt
out of the dishwasher. Most of the commercial quality
detergents are suitable for this purpose.
WARNING
• Proper Use of Detergent
Use only detergent specically made for
dishwashers use. Keep your detergent fresh
and dry.
• Don’t put powdered detergent into the dispenser
until you are ready to wash dishes.
• Dishwasher detergent is corrosive!
Keep dishwasher detergent out of the reach
of children.
FILLING THE RINSE AID COMPARTMENT
STEP 1:
To open the dispenser, turn the cap
to the “open” (left) arrow and lift it out.
STEP 2:
Pour the rinse aid into the dispenser, being careful
not to overll.
STEP 3:
Close the rinse aid reservoir cap by
rotating it clockwise.
Adjusting the rinse aid compartment
• Turn the rinse aid indicator dial to a number
between 1 and 6. Default setting is 4.
• The higher the number, the more rinse aid the
dishwasher uses.
• If the dishes are not drying properly or are
spotted, adjust the dial to the next higher number
until your dishes are spot-free.
• Reduce it if there are sticky white stains or blue
lm on your dishes, glassware or cutlery.
The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Function Of The Rinse Aid And Detergent
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.
9
When to refill the rinse aid
The regularity of the dispenser needing to be refilled depends on how often dishes are
washed and the rinse aid setting used.
The Low Rinse Aid indicator ( ) will appear in the display when more rinse aid
is needed.
Do not overfill the rinse aid dispenser.
Rinse Aid & Detergent
3
Replace the cap by inserting it
aligned with "open" arrow and
turning it to the closed (right) arrow.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
To open the dispenser, turn the cap
to the "open" (left) arrow and lift
it out.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Rinse-Aid indicator
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
The rinse aid reservoir has six settings. Both the
recommended setting and the factory setting is “4”. If the
dishes are not drying properly or are spotted, adjust the dial
to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or
a bluish film on glassware or knife blades.
AAddjjuusstt lleevveerr((RRiinnssee))
10
13
3
Close the rinse aid reservoir cap by
rotating it clockwise.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
Remove the rinse aid reservoir cap
by rotating it counterclockwise.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
AAddjjuusstt lleevveerr((RRiinnssee))
Turn the rinse aid indicator dial to a number between 1 and 6.
The higher the number, the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
13
3
Close the rinse aid reservoir cap by
rotating it clockwise.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
Remove the rinse aid reservoir cap
by rotating it counterclockwise.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
AAddjjuusstt lleevveerr((RRiinnssee))
Turn the rinse aid indicator dial to a number between 1 and 6.
The higher the number, the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
13
3
Close the rinse aid reservoir cap by
rotating it clockwise.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
Remove the rinse aid reservoir cap
by rotating it counterclockwise.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
A
A
d
d
j
j
u
u
s
s
t
t
l
l
e
e
v
v
e
e
r
r
(
(
R
R
i
i
n
n
s
s
e
e
)
)
Turn the rinse aid indicator dial to a number between 1 and 6.
The higher the number, the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
Adjust rinse level
User Manual
20
Filling The Detergent Dispenser
STEP 1:
Press the release catch on the detergent dispenser
to open the cover
STEP 2:
Add detergent into the larger cavity (A) for the main
wash cycle. For more heavily soiled wash loads, also
add some detergent into the smaller cavity (B) for
the pre-wash cycle.
STEP 3:
Close the cover and press on it until
it locks into place.
NOTE
• Be aware that depending on the soiling of water,
setting may be dierent.
• Please observe the manufacturer’s
recommendations on the detergent packaging.
Rinse Aid & Detergent (Continued)
14
Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AA
B
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3
Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
14
Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AA
B
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3
Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
14
Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AA
B
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3
Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
esatto.house
21
EXTERNAL CARE
The door seal
Clean the door seals regularly with a soft damp cloth
to remove food deposits. When the dishwasher is
being loaded, food and drink residues may drip onto
the sides of the dishwasher door. The surfaces outside
the wash cabinet and are not accessed by water from
the spray arms. Any deposits should be wiped o
before the door is closed.
The control panel
If cleaning is required, the control panel should be
wiped with a soft damp cloth only.
WARNING
• To avoid penetration of water into the door lock
and electrical components, do not use a spray
cleaner of any kind.
• Never use abrasive cleaners or scouring pads on
the outer surfaces because they may scratch the
nish. Some paper towels may also scratch or
leave marks on the surface.
INTERNAL CARE
Filtering System
The ltering system in the base of the wash cabinet
retains coarse debris from the washing cycle. The
collected coarse debris may cause the lters to
clog. Check the condition of the lters regularly and
clean them if necessary under running water. Refer
to the following steps to clean the lters in the wash
cabinet.
NOTE
Diagrams and pictures in this manual are only for
reference, the ltering system and spray arms may
appear dierently.
STEP 1:
Hold the coarse lter and rotate it anticlockwise to
unlock the lter. Lift the lter upwards and out of the
dishwasher.
STEP 2:
The ne lter can be pulled o the bottom of the lter
assembly. The coarse lter can be detached from the
main lter by gently squeezing the tabs at the top and
pulling it away.
STEP 3:
Larger food remnants can be cleaned by rinsing the
lter under running water. For a more thorough clean,
use a soft cleaning brush.
STEP 4:
Reassemble the lters in the reverse order of the
disassembly, replace the lter insert, and rotate
clockwise to the close arrow.
WARNING
• Do not over tighten the lters. Put the lters back
in sequence securely, otherwise coarse debris
could get into the system and cause a blockage.
• Never use the dishwasher without lters in place.
Improper replacement of the lter may reduce the
performance level of the appliance and damage
dishes and utensils.
1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
Main filter Main filter
Coarse filterCoarse filter
Fine filter
12
Open
Open
1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
Main filter Main filter
Coarse filterCoarse filter
Fine filter
25
1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
Main filter Main filter
Coarse filterCoarse filter
Fine filter
12
OpenOpen
1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
Main filter
Main filter
Coarse filter
Coarse filter
Fine filter
12
OpenOpen
Cleaning & Maintenance
User Manual
22
SPRAY ARMS
It is necessary to clean the spray arms regularly
for hard water chemicals will clog the spray arm
jets and bearings.
To clean the spray arms, follow the instructions
below:
STEP 1:
To remove the upper spray arm, hold the nut in the
center still and rotate the spray arm counterclockwise
to remove it.
STEP 2:
To remove the lower spray arm, pull out the spray
arm upward.
STEP 3:
Wash the arms in soapy and warm water and use a
soft brush to clean the jets. Replace them after rinsing
them thoroughly.
CARING FOR THE DISHWASHER
Frost precaution
Please take frost protection measures on the
dishwasher in winter. Every time after washing cycles,
please operate as follows:
1. Cut o the electrical power to the dishwasher at
the supply source.
2. Turn o the water supply and disconnect the
water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water
valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the lter at the bottom of the tub and use
a sponge to soak up water in the sump.
After every wash
After every wash, turn o the water supply to the
appliance and leave the door slightly open so that
moisture and odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always
remove the plug from the socket..
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the
dishwasher, do not use solvents or abrasive cleaning
products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specically for
dishwashers.
After prolonged inactivity
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn o the water supply and leave the door
of the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance
Moving the appliance
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent
this from occurring.
Spray arms
Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
It is necessary to clean the spray arms regularly for hard water chemicals will clog the
spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
2
3
To remove the lower spray arm, pull
out the spray arm upward.
13
1
To remove the upper spray arm,
hold the nut in the center still and
rotate the spray arm counterclockwise
to remove it.
Spray arms
Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
It is necessary to clean the spray arms regularly for hard water chemicals will clog the
spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
2
3
To remove the lower spray arm, pull
out the spray arm upward.
13
1
To remove the upper spray arm,
hold the nut in the center still and
rotate the spray arm counterclockwise
to remove it.
Spray arms
Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
It is necessary to clean the spray arms regularly for hard water chemicals will clog the
spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
2
3
To remove the lower spray arm, pull
out the spray arm upward.
13
1
To remove the upper spray arm,
hold the nut in the center still and
rotate the spray arm counterclockwise
to remove it.
Cleaning & Maintenance (Continued)
esatto.house
23
OPERATION IN CASE OF EMERGENCY
In the event of an emergency you should:
• Switch o the appliance using the Power button
• Switch the clothes dryer o at the power point and unplug the unit. If the power point isn’t accessible,
switch the relevant circuit o at your fuse box/switch board.
• Call our support team on 1300 334 357.
ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these.
Error Code Description Cause
E1 Longer inlet time
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
E3
Not reaching required
temperature.
Malfunction of heating element.
E4 Overow. Some element of dishwasher leaks.
Ed
Failure of communication
between main PCB with
display PCB.
Open circuit or break
wiring for the communication.
WARNING
• If overow occurs, turn o the main water supply before calling a service.
• If there is water in the base pan because of an overll or small leak,
the water should be removed before restarting the dishwasher.
FURTHER PROBLEM SOLVING
Before calling for service, review the following:
Issue Possible cause What to do
Dishwasher will
not start
• Fuse blown, or the circuit
break tripped.
• Power supply is not
turned on.
• Water pressure is low
• Door of dishwasher not
properly closed
• Replace fuse or reset circuit breaker.
Remove any other appliances sharing the same
circuit with the dishwasher.
• Make sure the dishwasher is turned on and the door
is closed securely. Make sure the power cord is
properly plugged into the wall socket.
• Check that the water supply is connected properly
and the water is turned on.
• Make sure to close the door properly
and latch it.
Water not pumped
form dishwasher
• Twisted or trapped
drain hose.
• Filter clogged.
• Kitchen sink clogged.
• Check the drain hose.
• Check coarse the lter.
• Check the kitchen sink to make sure it is draining
well. If the problem is the kitchen sink that is not
draining, you may need a plumber rather than a
serviceman
for dishwashers.
Troubleshooting
User Manual
24
FURTHER PROBLEM SOLVING CONTINUED
Issue Possible cause What to do
Suds in the tub • Wrong detergent.
• Spilled rinse-aid.
• Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the bottom
of the dishwasher. Close the dishwasher door, then
select any cycle. Initially, the dishwasher will drain
out the water. Open the door after draining stage is
complete and check if the suds have disappeared.
Repeat if necessary.
• Always wipe up rinse-aid spills immediately.
Stained tub
interior
Detergent with colourant
may have been used.
Make sure that the detergent has no colourant.
White lm on
inside surface
Hard water minerals. To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent
otherwise, it may cause foaming or suds.
There are rust
stains on cutlery
The aected items are not
corrosion resistant.
The items should be corrosion resistant.
Knocking noise in
the dishwasher
A spray arm is knocking
against an item in a basket
Interrupt the program and rearrange the items which
are obstructing the spray arm.
Rattling noise in
the dishwasher
Items of crockery are loose
in the dishwasher.
Interrupt the program and rearrange the items of
crockery.
Knocking noise in
the water pipes
This may be caused by
on-site installation or the
cross-section of the piping.
This has no inuence on the dishwasher function. If in
doubt, contact a qualied plumber.
The dishes are
not clean
• The dishes were not
loaded correctly.
• The program was not
powerful enough.
• Not enough detergent
was dispensed.
• Items are blocking
the movement of the
spray arms.
• The lter combination
is not clean or is not
correctly tted in the
base of wash cabinet.
This may cause the
spray arm jets to get
blocked.
• See notes in “Preparing & Loading Dishes”.
• Select a more intensive program.
• Use more detergent, or change your detergent.
• Rearrange the items so that the spray can
rotate freely.
• Clean and/or t the lter correctly.
• Clean the spray arm jets.
Cloudiness on
glassware.
Combination of soft water
and too much detergent.
Use less detergent if you have soft water and select
a shorter cycle to wash the glassware and to get
them clean.
Black or grey
marks on dishes
Aluminium utensils have
rubbed against dishes
Use a mild abrasive cleaner to eliminate those marks.
Troubleshooting (Continued)
esatto.house
25
FURTHER PROBLEM SOLVING CONTINUED
Issue Possible cause What to do
Detergent left in
dispenser
Dishes block detergent
dispenser
Re-loading the dishes properly.
The dishes aren’t
drying
• Improper loading
• Too little rinse-aid
• Dishes are removed too
soon
• Wrong program has
been selected.
• Use of cutlery with a
low-quality coating.
• Load the dishwasher as suggested in the directions.
• Increase the amount of rinse-aid/rell the rinse-aid
dispenser.
• Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam
can come out. Take out the dishes until the inside
temperature is safe to touch. Unload the lower
basket rst to prevent the dropping water from the
upper basket.
• With a short program, the washing temperature is
lower, decreasing cleaning performance. Choose a
program with a long washing time.
• Water drainage is more dicult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
Troubleshooting (Continued)
User Manual
26
TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
845mm
598mm
600mm (with the door closed)
1175mm (with the door opened 90°)
W
W
D1
D1
H
H
32
D2
D2
TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
815mm
598mm
550mm (with the door closed)
1150mm (with the door opened 90°)
WW
D1D1
HH
16
D2D2
DIMENSIONS
Technical Information
TECHNICAL SPECIFICATIONS
17
Product fiche
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Energy consumption of the standard cleaning cycle
Water consumption of the standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
Power consumption
Water pressure (flow pressure)
Could be built-in
Esatto
EDWI605S
12
0.69 kWh
10.2 liter
170 min
1760-2100W
49 dB(A) re 1 pW
built-in
0.04-1.0MPa=0.4-10 bar
YES
Water consumption class
Standard cleaning cycle
ECO
3
4.5
Rated voltage / frequency
AC 220-240V/50Hz
Esatto
EDWI605S
esatto.house
27
Purchase Details
For your records, please record details of your purchase below and staple your receipt to this page.
Your serial number can be found on the rating plate of your Dishwasher.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
Attach your receipt to this page
User Manual
28
WARRANTY TERMS AND CONDITIONS
DISHWASHERS
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of
this warranty has the same meaning referred to in
the ACL;
(b) ‘ACL’ means Trade Practices Amendment
(Australian Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 165 Barkly Ave, Burnley VIC 3121, ACN 600 546
656 in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the
ACL and includes a situation when an Appliance
cannot be repaired or it is uneconomic for
Residentia Group, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months,
following the date of original purchase of the
Appliance;
(h) ‘you’ means the purchaser of the Appliance not
having purchased the Appliance for re-sale, and
‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or
its ASR will, at no extra charge if your Appliance
is readily accessible for service, without special
equipment and subject to these terms and
conditions, repair or replace any parts which it
considers to be defective. Residentia Group or its
ASR may use remanufactured parts to repair your
Appliance. You agree that any replaced Appliances
or parts become the property of Residentia Group.
This warranty does not apply to light globes,
batteries, lters, seals or similar perishable parts.
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
Warranty
— THIS WARRANTY IS VALID IN AUSTRALIA ONLY —
esatto.house
29
5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the service
area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and
from Residentia Group or its ASR, in all instances,
unless the Appliance is transported by Residentia
Group or its ASR, the Appliance is transported at
the owner’s cost and risk while in transit to and from
Residentia Group or its ASR.
6. Proof of purchase is required before you can make
a claim under this warranty.
7. You may not make a claim under this warranty
unless the defect claimed is due to faulty or
defective parts or workmanship. Residentia Group
is not liable in the following situations (which are
not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional
instructions supplied with the Appliance;
(b) the Appliance is modied without authority from
Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Residentia Group, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and
the relationship between you and Residentia Group
are governed by the law applicable where the
Appliance was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than
as contained in this document) including liability
for any loss or damage whether direct or indirect
arising from your purchase, use or non use of the
Appliance.
10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the Appliance repaired or
replaced if the Appliance fails to be of acceptable
quality and the failure does not amount to a major
failure. The benets to you given by this warranty
are in addition to your other rights and remedies
under a law in relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable
to it.
12. Missing parts are not covered by warranty.
Residentia Group reserves the right to assess each
request for missing parts in a case by case basis.
Any parts that are not reported missing in the rst
week after purchase will not provide free of charge.
13. To enquire about claiming under this warranty,
please follow these steps:
(a) carefully check the operating instructions, user
manual and the terms of this warranty;
(b) have the model and serial number of the Appliance
available;
(c) have the proof of purchase (e.g. an invoice)
available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 13 have been followed.
CONTACT SERVICE
→ Service: 1300 11 HELP (4357)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The Australian Consumer Law requires
the inclusion of the following statement
with this warranty:
— THIS WARRANTY IS VALID IN AUSTRALIA ONLY —
User Manual
30
— THIS WARRANTY IS VALID IN NEW ZEALAND ONLY —
NEW ZEALAND WARRANTY TERMS & CONDITIONS
DISHWASHER APPLIANCES
To help care for your investment, be sure to register your
appliance online. Registration will help you if you need to
arrange service in the future, and serves as a record of
your purchase—including critical information like model
number and serial number – that you can refer to at any
time. Simply visit the below website, or ask your retailer
for help: www.esatto.house/nz/registration
WARRANTY
These products are covered by a warranty for a period
of 24 months from the date of purchase, subject to the
following conditions*. The warranty covers rectication
free of charge of any fault arising from defective materials
or components, or faulty workmanship or assembly.
* The conditions above mentioned are:
1. That the purchaser carefully follows all instructions
packed with the product;
2. That the purchaser and/or installer carefully
follows the installation instructions provided
and complies with electrical wiring regulations,
gas and/or plumbing codes;
3. That the purchaser carefully follows instructions
provided in the owner’s handbook relating to the
proper use and care of the product and does not use
the product for any purpose other than the domestic
use for which it has been designed;
4. Commercial use of the product for professional
or industrial purposes will void this warranty.;
5. That the product was purchased and installed
in New Zealand;
6. That this warranty does not extend to:
a) optional glass lids for hobs apart from claims
which relate to mechanical or physical damage
thereof at the date of purchase;
b) ‘consumable’ parts such as light bulbs or lters;
c) damage to ceramic glass caused by liquid or solid
spill-overs, lack of maintenance, or impact;
d) damage to surface coatings caused by cleaning
or maintenance using products not recommended
by the owner’s handbook;
e) defects caused by normal wear and tear,
accident, negligence, alteration, misuse
or incorrect installations;
f) a product dismantled, repaired or serviced
by any serviceman other than an authorised
service agent;
g) a product not in possession of the original
purchaser;
h) damage caused by power outages or surges
i) damage caused by pests
(eg. rats, cockroaches etc.)
7. That if the product is a freestanding microwave oven
or small appliance it must be returned to the dealer/
retailer for servicing. These products, unless stated
otherwise, have a 12 month warranty from original
date of purchase with 24 months on the microwave
magnetron; Waste disposers have a 12 month
warranty.
8. The provision of service under this warranty is limited
by a 25km boundary from the retailer where the
product was purchased except for microwaves. Such
travelling outside of these limits will incur commercial
cost to be paid by you, regulated by the number of
kilometres travelled beyond the 25km limit (50km
return trip). Microwaves are to be delivered to the
nearest authorised service agent by the customer.
Please refer to your user manual for any further conditions
that may apply to your specic model.
Nothing herein contained shall be construed in any way
as excluding or limiting your rights under the Consumer
Guarantees Acts 1993.
For Service please visit www.applico.co.nz/service or
contact the dealer/retailer from whom you purchased the
product from or call the 0800 number listed below. If you
are unable to establish the date of purchase, or the fault
is not covered by this warranty, or if the product is found
to be in working order, you will be required to bear all
service call charges.
Registration of this warranty constitutes acceptance of
the terms and conditions of this warranty.
Should you require any assistance, please call Customer
Services on 0800 763 448.
Distributed by Applico Ltd. www.applico.co.nz July 2019
After registering your appliance online, we recommend
you ll out the below information for your reference and
keep this warranty card in a safe place.
Warranty (NZ)
esatto.house
31
This page is intentionally blank.
But if you want to draw something, make notes or even write
a recipe, it’s all yours!
A RESIDENTIA
GROUP INITIATIVE
everything
you need
