USER MANUAL
xtrovac 710
Pool Vacuum Cleaner
SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely,
protect yourself and others from hazards, and prevent damage to the device and other
property.
SAVE THESE INSTRUCTIONS
WARNING!
- This is not a TOY. Children should be kept out of reach from this pool
vacuum and its accessories.
- Never allow children to operate this pool vacuum.
- This appliance is not intended for use by persons with reduced physical,
sensory, mental capabilities, or a lack of experience and knowledge,
unless they are given supervision or instructions concerning the safe
use of the appliance and understand the hazards involved by a person
responsible for their safety.
- Children must not play with this product.
- Cleaning and maintenance of the pool vacuum must not be carried out
by children.
- Make sure the pool vacuum is fully immersed in the pool before initiating
operation. The minimum water level required to operate the pool
vacuum must cover the entire pool vacuum. Operating the pool vacuum
when it is not immersed correctly could damage the unit and void the
warranty.
- Maximum
operating depth in water is 3 meters (9.8ft).
- Maximum water temperature: 5˚C (41˚F) – 35˚C (95˚F)
-
Detachable supply unit (external adaptor).
- The pool vacuum should only be recharged with the external adaptor
and charging plug delivered with this product.
- For the purposes of recharging the battery, only use the detachable
supply unit (external adaptor model number: DSS12D-1351000-B /
DSS12D-1351000-C / DSS12D-1351000-D/ LX135100U) that provided
with this pool vacuum to charge the battery.
- Connect the external adaptor to a power source through a residential
current device (RCD) / a ground fault circuit interrupter (GFCI). If in
doubt, consult a qualified electrician.
- Do not use this pool vacuum if any damage is detected.
- Replace damaged parts with ones that are certified by the distributor or
manufacturer.
- Turn off the power, disconnect the external adaptor from the power
source, and unplug the external adaptor from the charging plug before
detaching the pool vacuum from the charging plug.
- Disconnect the pool vacuum from the supply mains and make sure the
pool vacuum is OFF prior to carrying out regular maintenance – such as
cleaning the filter and the charging pins.
- Do not attempt to replace the installed rechargeable Li-
ion battery pack.
- DO NOT handle the pool vacuum, external adaptor, and charging plug
ENGLISH
1
while it is charging with wet limbs and without shoes.
- You should not operate this pool vacuum when people/pets are present
in the water.
- DO NOT use this pool vacuum without an intact filter cone in place, as
your warranty will be voided as a result.
- Suction entrapment hazard: This pool vacuum generates suction. Do
not allow hair, body, or any loose parts of your clothing to make contact
with the suction hole of the pool vacuum during its operation.
- Never insert body parts, clothing or other objects into the openings and
moving parts of the pool vacuum.
- DO NOT use this pool vacuum to pick up any toxic substance,
flammable, and combustible liquids (i.e. gasoline) in the presence of
explosive or flammable fumes.
- Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor, and battery by yourself.
- Never insert fingers or any object to touch the impeller.
- The built-in battery must be removed by a skilled technician before it
is
scrapped.
- This pool vacumm contains a battery that are only to be removed by
skilled persons.
- The pool vacumm must be disconnected from the supply mains as the
battery is removed.
- For details regarding battery recycling/disposal, refer to the section
“BATTERY DISPOSAL” in this manual and contact your local authorities
for more information.
- The battery must be disposed safely in accordance with local
ordinances or regulations.
- External adaptor and charging plug:
Never use the external adaptor and charging plug for anything
other than charging the battery of the pool vacuum that is
supplied in the same pack.
The external adaptor and charging plug should not be used
outdoors, nor should it be exposed to rain, humidity, and any
liquid or heat.
The transformer (or external adaptor) is to be located outside
zone 1
Keep the external adaptor and charging plug out of reach of
children.
Never use the external adaptor and charging plug if any damage
is detected.
DO NOT handle the external adaptor and charging plug with wet
hands.
DO NOT handle the pool vacuum, external adaptor, and
charging plug while charging with wet hands and without shoes.
ENGLISH
2
Remark: Product/parts photos/drawings in this manual are for demonstration only.
Product/parts in photos/drawings may vary with the model purchased.
Accessories / parts shown in this manual & parts diagram are not necessarily
included with every model.
Keep the external adaptor disconnected from power when it is
not in use.
Never attempt to open the external adaptor and charging plug.
If the supply cord of the external adaptor is damaged, the
external adaptor must be replaced by the manufacturer or its
service agent to prevent hazards of any kind.
Make sure the pool vacuum and the charging plug are
completely dry before charging.
CAUTION!
- This pool vacuum is designed for underwater use only; it is not an
all-purpose vacuum cleaner. DO NOT attempt to use it to clean anything
other than your pool / spa.
- Use only original accessories delivered with this product.
- DO NOT use this pool vacuum right after pool-shocking. It is
recommended to leave the pool circulating for at least 24-48 hours.
- If you are planning on using the pool vacuum in a saltwater pool, make
sure all salt are dissolved before deploying the pool vacuum.
- DO NOT use this pool vacuum with another automatic cleaner/cleaner
simultaneously in the pool/spa.
- Avoid picking up
hard, sharp objects with this product. They may damage
the pool vacuum and filter.
- Exercise caution when cleaning pool stairs.
- To avoid damages to the external adaptor and charging plug, do not
attempt to carry the pool vacuum by the cord of external adaptor / charging
plug or pull the cord to disconnect it from the power source and charging
plug.
- Charge the pool vacuum indoor in a clean, dry area with good ventilation
and an ambient temperature between 5˚C (41˚F) – 35˚C (95˚F).
- DO NOT leave the pool vacuum charged for over 10 hours.
- If the pool vacuum will not be used for an extended period, detach it from
the charging plug and use a damp cloth to clean and dry the pool vacuum
and accessories. Make sure to charge the pool vacuum to about 30% to
50% of the battery capacity before it is stored. Store in a well-ventilated
area away from sunlight, heat, ignition sources,
pool chemicals, and
children. Never leave the pool vacuum plugged in for long-term storage.
Recharge the pool vacuum every three months.
Above warnings and cautions are not intended to incorporate all possible
instances for risks and / or severe injuries. Pool / spa owners should always
exercise extra caution and common sense when utilizing the product.
ENGLISH
3
GETTING STARTED
Charging the battery
IMPORTANT NOTE: Fully charge the pool vacuum (about 6 hrs) before
using it for the first time.
WARNING!
Use only the original external adaptor and charging plug provided.
Make sure the pool vacuum and the charging port are clean and dry
before set-up and charging. (TIPS : use a cotton bud to dry the charging
port and charging pins)
Charging must be done indoors, in a well-ventilated area away from
sunlight, children, heat, ignition sources, and with an ambient
temperature between 5˚C (41˚F) – 35˚C (95˚F).
Never use the external adaptor and charging plug if any damage is
detected.
The charging pins are waterproof. However, remnants of water in the
port and around the pins could result in natural occurrence of stains (a
byproduct of chemical reaction between water and electric currents).
Otherwise, the stains can be removed by light scrubbing with a cotton
bud soaked with juice of lemon or vinegar.
Make sure that the pool vacuum is turned off prior to charging.
1. Place the unit on a flat surface. Set the pool vacuum to Power
Off/Charging Mode by turning
the switching knob anticlockwise until it
clicks and completely exposes the charging port.

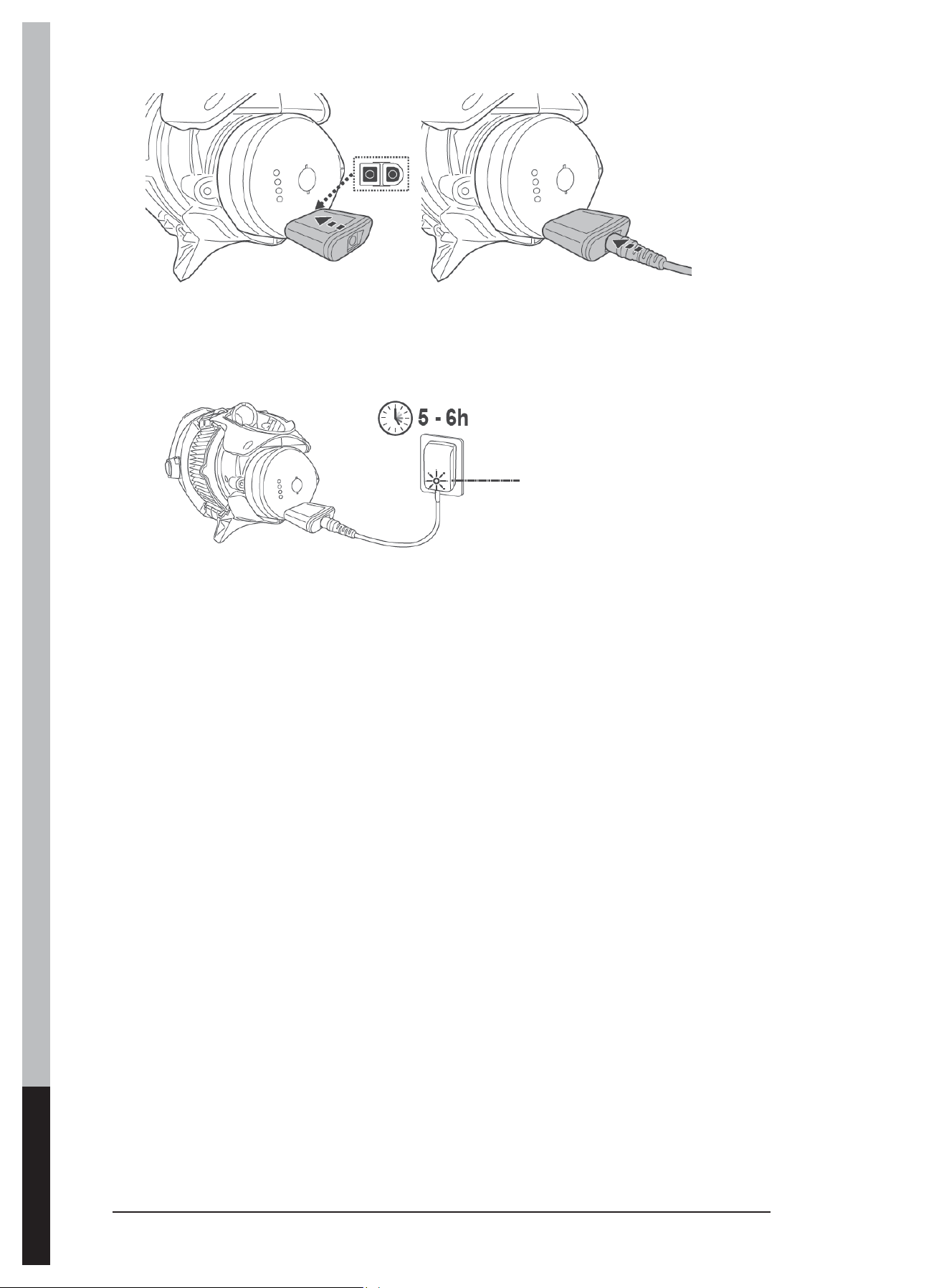

2. Align and insert the charging plug to the charging port.
WARNING! Be sure not to invert the charging plug and ensure both the
charging plug and charging port are clean and dry before charging them.
TIPS: Use cotton bud to dry the charging port and pins. Plug the charging
cable of the external adaptor into the charging plug.
ENGLISH
4
3. Connect the external adaptor to the power source. The indicator light on
the external adaptor will turn red when the vacuum is charging and green
when it is fully charged. Charge it for 5-6 hours for best performance.
NOTE: if the motor is generating noise, turn off the unit by positioning the
switching knob to Power Off/Charging Mode position.
Immediately disconnect the external adaptor from the power source if you
detect any of the following:
- Offensive or unusual odor
- Excessive heat
- Deformation, cracks, leaks
- Smoke
4. When charging is complete, disconnect the external adaptor from the
power source and detach the charging plug from the unit and external
adaptor.
Normally, the pool vacuum can operate up to 75 minutes on a full charge (charged for
5-6 hours)
Note: Clean the cartridge filter/filter cone regularly. Excessive debris inside the cartridge
filter /filter cone increases the burden to the motor operation and shortens the operating
duration as a result.
FACT: Rechargeable Lithium-Ion battery is classified as a consumable item. It has a
limited
life and will gradually lose its capacity to hold a charge. Therefore, running time of
the pool vacuum will gradually reduce through repeated charging and discharging in
operation.
Once the lifespan of the battery reaches its end, refer to section “BATTERY DISPOSAL”
for instructions regarding battery disposal.
NOTE: Let the pool vacuum rest for 30 to 40 minutes before charging it again.
RED light - Charging
GREEN light - Charged
ENGLISH
5
Set-Up Before Use

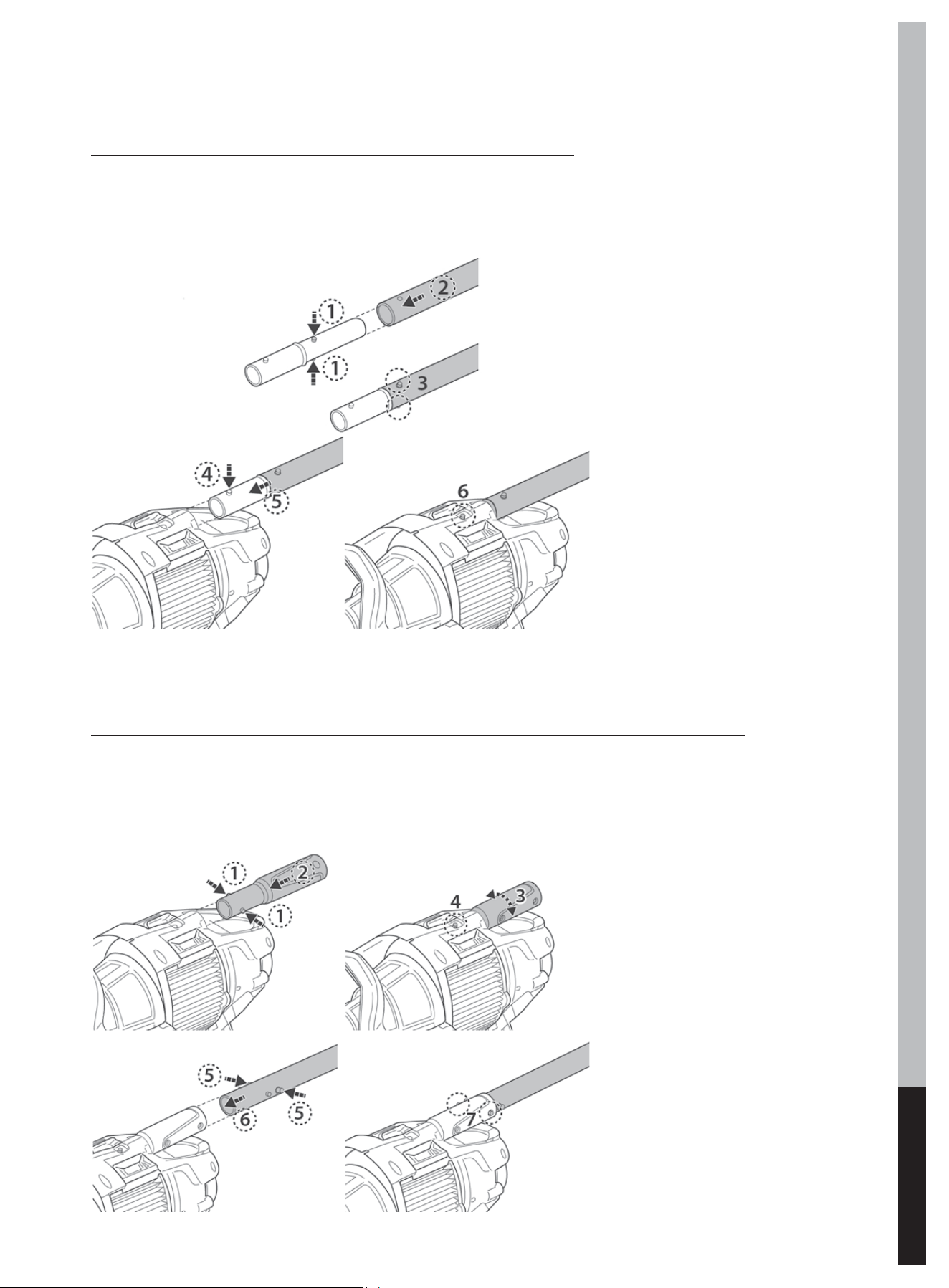

Telescopic pole (not included) assembly (For EU & USA only)
Press down the side pins of the connector and slide the telescopic pole to the
connector until both side pins secured in the holes of the pole. Press down the top pin
of the connector and insert it into the connector chamber until top pin is secured in the
hole.
To release the telescopic pole, press down the top pin of the pole connector and pull out
the pole. Press down side pins of the connector to release the pole.
Specific Telescopic pole (not included) assembly (For Australia and New Zealand only)
Insert the end (with two side pins) of the specific telescopic pole connector into the pool
vacuum as shown until its side pins are secured to the handle’s locking hole on the rear
body. Install the specific telescopic pole (with internal wishbone clip) to the pole
connector as shown:
ENGLISH
6

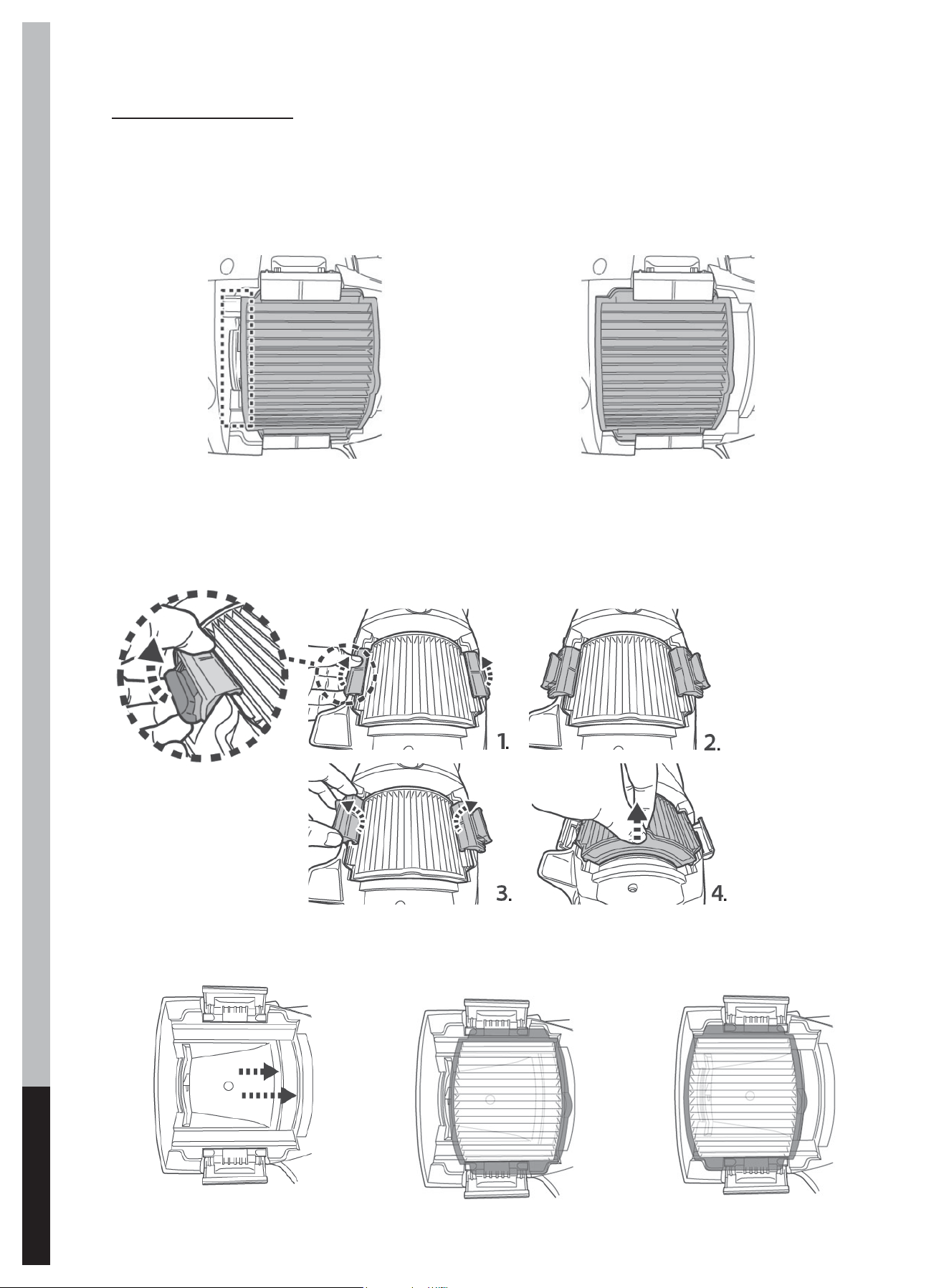

Cartridge filter setting
For general cleaning, place the cartridge filter on NORMAL position or completely
remove the cartridge filter in order to prolong the cartridge life.
For fine filtration, place the cartridge filter at the FINE position for picking up fine debris
(i.e., sand, fine dust etc).
noitisop ENIF noitisop LAMRON

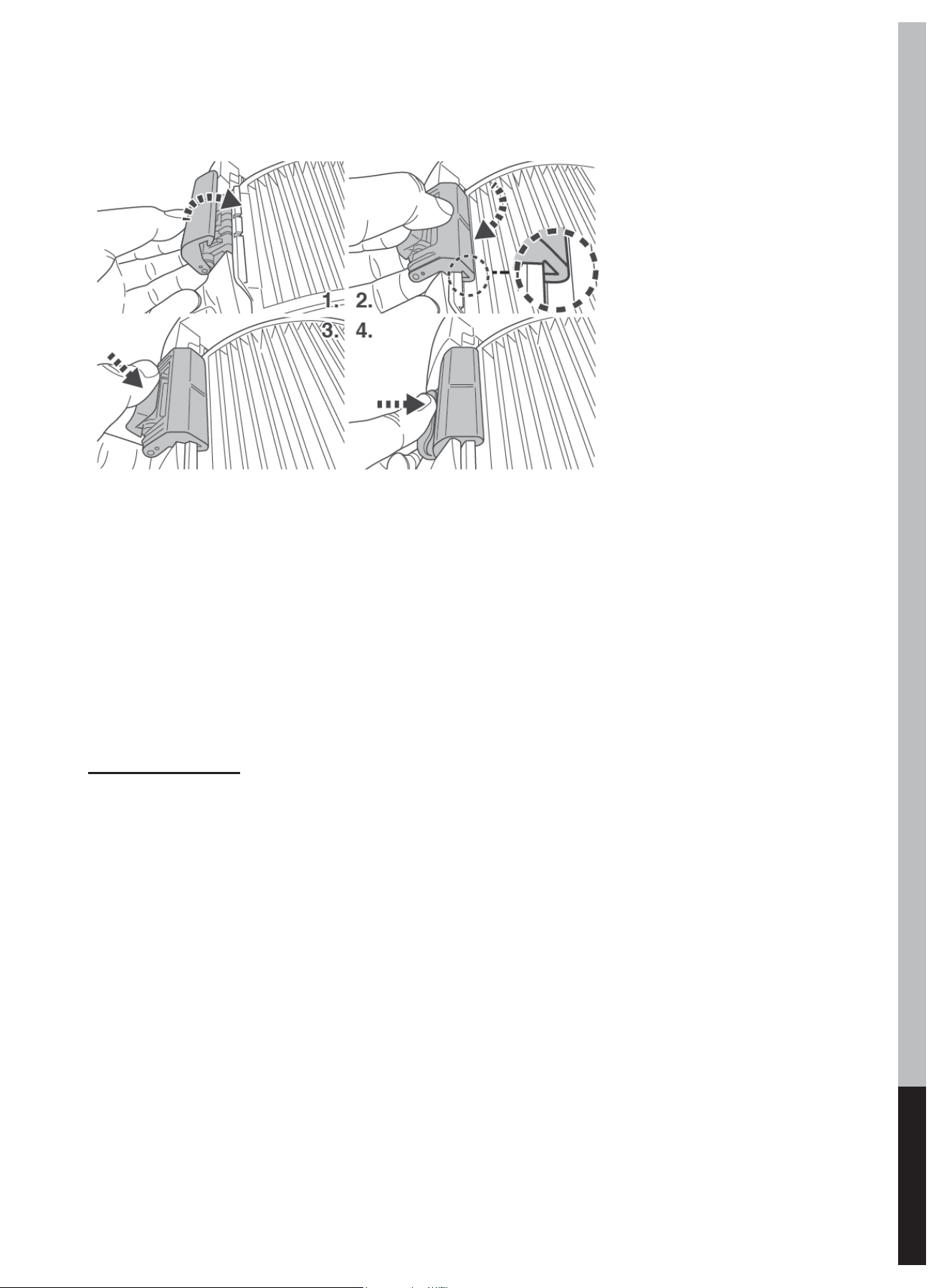

There are 2 identical latches on both sides of the cartridge filter. Pry the clip of the latch
to release the locking and flip over the hinge to completely release the latch. Repeat
same steps to release opposite latch. Hold the tab on the cartridge side to detach the
cartridge filter.

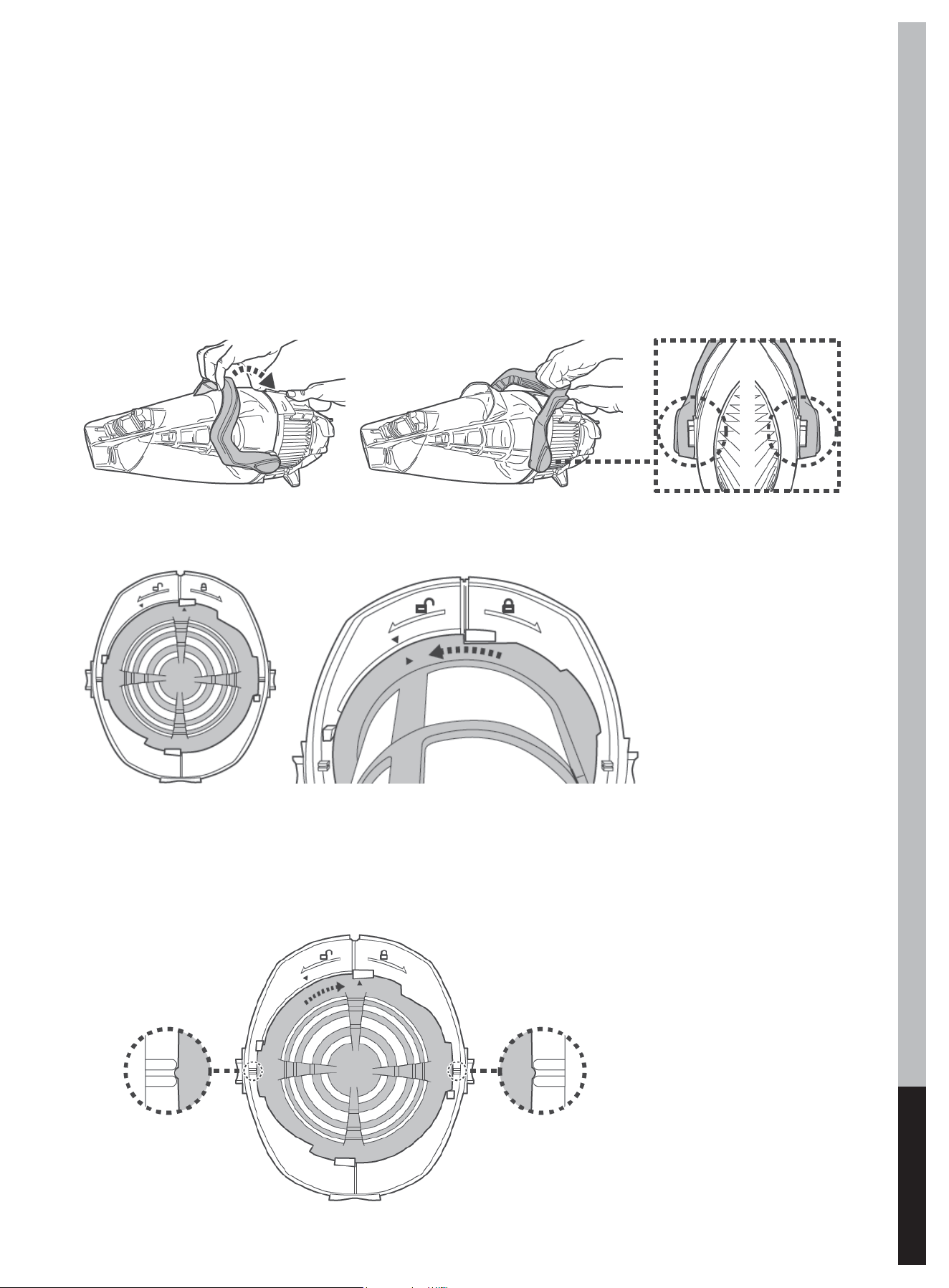

Align the cartridge filter to the notch on the cavity to achieve the desired position.
NORMAL position FINE position
ENGLISH
7
Reverse the steps to lock both latches. Make sure the hook is secured on the edge of the
cartridge filter and the latch is completely pressed down to the body.
Pool Preparation
- If there are stones, roots or metal corrosion in contact with the underside of the
liner, discard them prior to using the pool vacuum. If necessary, seek assistance
from a qualified professional.
- If the liner is brittle, damaged or wrinkled, contact a qualified professional to
perform the necessary repairs or perform a liner replacement prior to using the
pool vacuum.
- If you are using a saltwater pool, make sure all salt are dissolved before placing
the pool vacuum into the water.
OPERATION
WARNING!
Make sure the pool vacuum is off
Do not use the pool vacuum if any damage is detected.
Oil stain could occur due to possible leakage of lubricants applied to the
O-ring.
Do not operate this pool vacuum if there are people/pets present in the
water.
Make sure the pool vacuum is fully immersed in the pool before initiating
operation. The minimum water level required to operate the pool
vacuum must reach above the power ON/OFF switch of the pool
vacuum when it is held in a vertical position. Operating the pool vacuum
when it is not immersed correctly could damage the unit and void the
warranty.
DO NOT use the pool vacuum without an intact filter cone in place.
Using your pool vacuum without an intact filter cone in place will VOID
your warranty.
DO NOT leave the pool vacuum in the water when it is not in use.
ENGLISH
8
Ensure the charging cable is detached before the pool vacuum is
deployed.

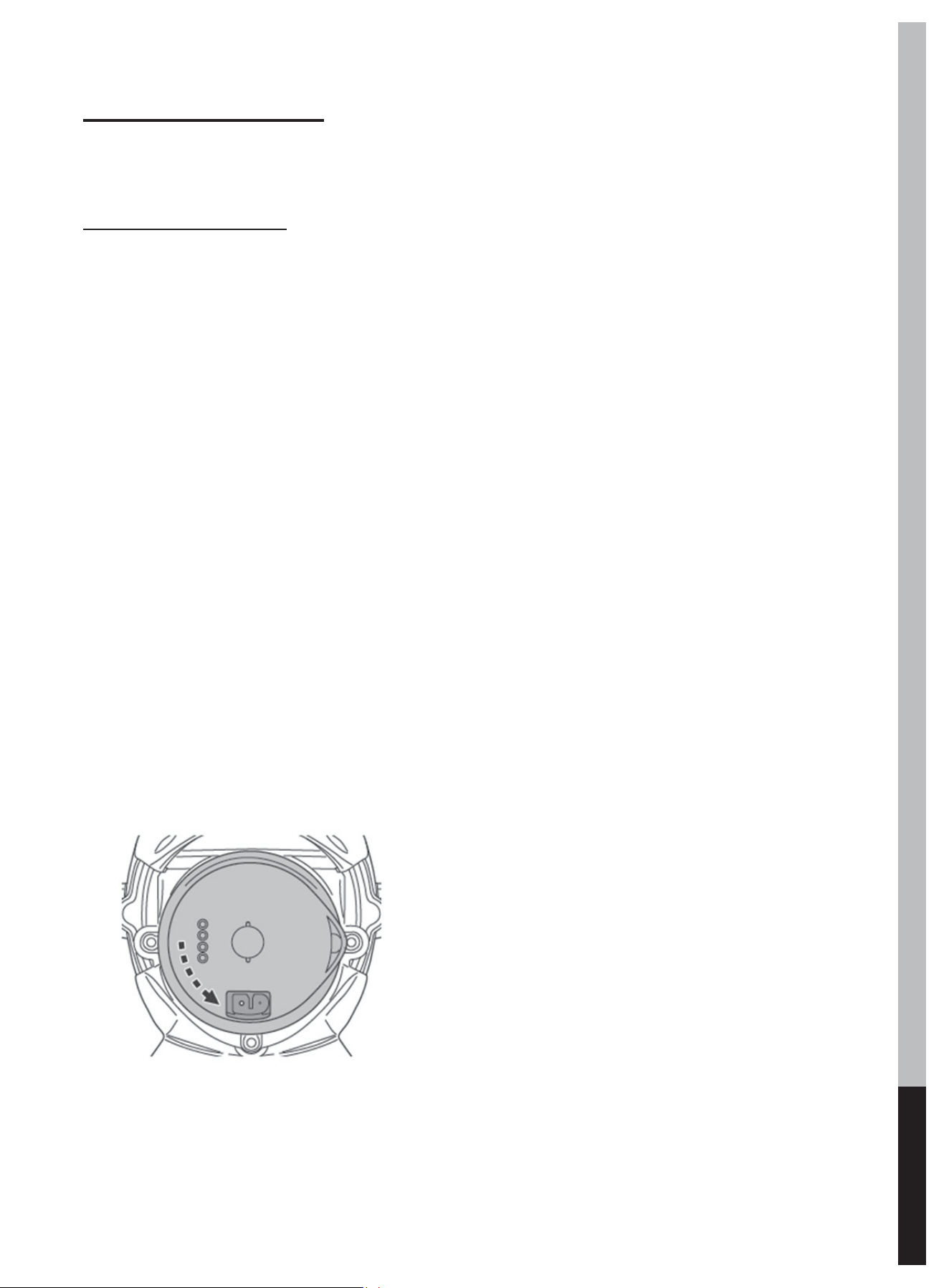

1) Bring your pool vacuum to the side of your pool / spa. Immerse the pool vacuum in
water and turn the power switching knob clockwise to initiate operation.

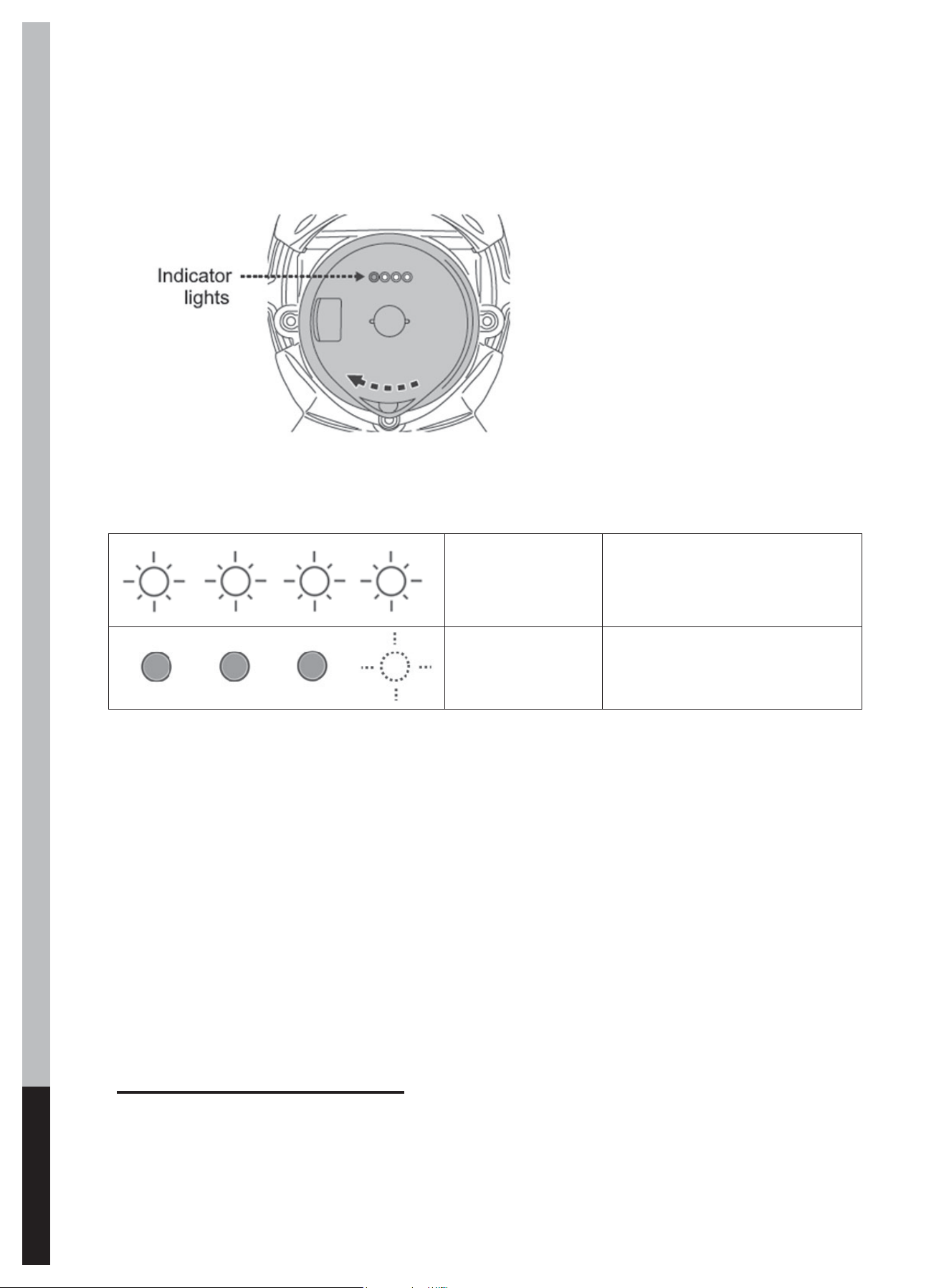

Power indicator lights:
4 lights ON Up to 75 minutes left.
Last light blinks
Only 10-15 minutes of usage
remains once the last light
starts blinking.
CAUTION! Make sure the pool vacuum is always facing downwards when it is placed
into the pool. Otherwise, it may bend the pole connector and damage it during the
process.
2) To remove the pool vacuum from the pool / spa, lift the pool vacuum while pointing it
downwards. Water is going to escape via the pole, draining valve on the canister and
bottom of the pool vacuum. Turn the pool vacuum to have the draining valve face to
the pool to drain the water.
CAUTION! Make sure the pool vacuum is always facing downwards when it is removed
from the pool. Otherwise, the pole connector may be bent and damage the pool vacuum
in the process.
3) Rinse the pool vacuum with fresh water after every use. DO NOT use any detergent.
CLEANING THE FILTER
WARNING! Using the pool vacuum without a filter cone in place will
VOID your warranty.
In order to maximize the cleaning efficiency, be sure to clean the cartridge filter/filter cone
before and after each use.
ENGLISH
9
CAUTION! If the pool vacuum is charging, disconnect the external adaptor from the
power source and detach the pool vacuum from the charging plug. Make sure the pool
vacuum is OFF.
Cleaning the filter cone
1. Place the pool vacuum on a stable surface.
2. Hold the pool vacuum and pry up the canister lever to the end to completely release
the side locks.
Detach the canister and turn the filter cone anticlockwise until the both triangular idents
are aligned. Take the filter cone out of the cleaner.
CAUTION! Replace the damaged filter cone immediately before the next operation.
3. Clean out the debris and rinse the filter cone with water. If brushing is deemed
necessary, use only a soft brush to clean the filter cone gently and carefully.
4. Reverse the previous steps to re-assemble the filter cone. Turn the filter cone
clockwise until its side tab is secured inside the notch on both sides as shown. You
will hear a “click” sound.
ENGLISH
10
5. Align and re-assemble the hood to the pool vacuum and make sure the lever is
completely pushed down to the hood. You will hear a “click” sound.
Clean the cartridge filter
Follow the instruction in “Cartridge filter setting” to detach cartridge filter.
Inspect everything for damage and wear. If you find any damages or tears, it’s time to
replace the cartridge.
It is recommended to wash the cartridge filter with a water jet after each pool cleaning
cycle. Spray at an angle to get rid of the debris between the pleats of the cartridge filter.
Never use a pressure washer as it will damage the cartridges. If the cartridge is really
dirty, soak it in water with detergent for 2-3 hours, then rinse it with a water jet. If brushing
is deemed necessary, use only a soft brush to clean it carefully and gently to avoid any
damages.
MAINTENANCE & STORAGE
NOTE:
1. Be sure to clean and dry the areas around the charging port and charging pins after
every use to avoid the forming of stains (byproduct of a natural chemical reaction
between electric current and water). Otherwise, the stains can be removed by light
scrubbing with a cotton bud soaked with juice of lemon or vinegar.
2. Battery discharges on its own during storage. Make sure to charge the pool vacuum
to about 30% to 50% of the battery capacity before it is stored.
3. You must re-charge the battery at least once every three months when it is not in use.
Unplug the external adaptor from socket and then unplug the adapter jack from the
charging plug.
Detach accessories from the pool vacuum. If necessary, rinse the pool vacuum and
accessories with fresh water. DO NOT use detergent.
Make sure to drain the water from the unit, handle and pole connector.
Use a damp cloth to clean and dry the pool vacuum and its accessories.
Store them in a well-ventilated area away from the sunlight, children, heat, ignition
sources, and pool chemicals. Ambient temperature for storage should be 10˚C – 25˚C
(50˚F – 77˚F). NOTE: A higher temperature may reduce the battery life during storage.
WARNING!
- Never attempt in any way to disassemble the pool vacuum.
- Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor and battery by yourself.
CAUTION!
Excessive heat can damage the battery and reduce its lifespan as a result.
Consult your dealer regarding battery replacement if the following happens:
- Battery does not charge fully.
- Battery operation time is noticeably reduced. Observe and record the run times of the
first few operations (on a full charge). Use these run times as a reference point for
comparison with run times in the future.
The battery must be removed from the pool vacuum before it is scrapped.
ENGLISH
11
The pool vacuum must be disconnected from the supply mains when removing the
battery.
The battery is to be disposed safely and according to local ordinances or regulations.
NOTE: Incorrect maintenance may reduce the battery life and affect its capacity as a
result.
BATTERY DISPOSAL
(To be carried out by an authorized technician)
Your pool vacuum battery is a maintenance-free rechargeable lithium-ion battery
pack, which must be disposed properly. Recycling is required; please contact your
local authority for information.
WARNING!
Never attempt to disassemble a battery pack
Remove all personal items such as rings, bracelets, necklaces and
watches when the battery pack is unwired from the pool vacuum.
A battery can produce a short circuit current high enough to weld a ring
(or similar item) to metal, causing a severe burn in the process.
Wear complete eye protection, gloves and protective clothing when the
battery pack is being removed.
Avoid touching the wires altogether and avoid allowing them to make
contact with any metal items, which could cause sparking and/or short
circuit the battery.
Never smoke or allow a spark or flame in the vicinity of the battery or the
pool vacuum.
Do not expose the battery to fire or intense heat as this may result in an
explosion.
CAUTION!
If a battery leak occurs, avoid contact with the leaking fluids and place the damaged
battery in a plastic bag.
- If leaking fluids come in contact with skin and clothing, wash immediately with plenty
of soap and water.
- If leaking fluids come in contact with eyes, immediately flush eyes with cool running
water for at least 15 minutes and do not rub them. Seek medical attention as soon as
possible.
ENGLISH
12
ENGLISH
13

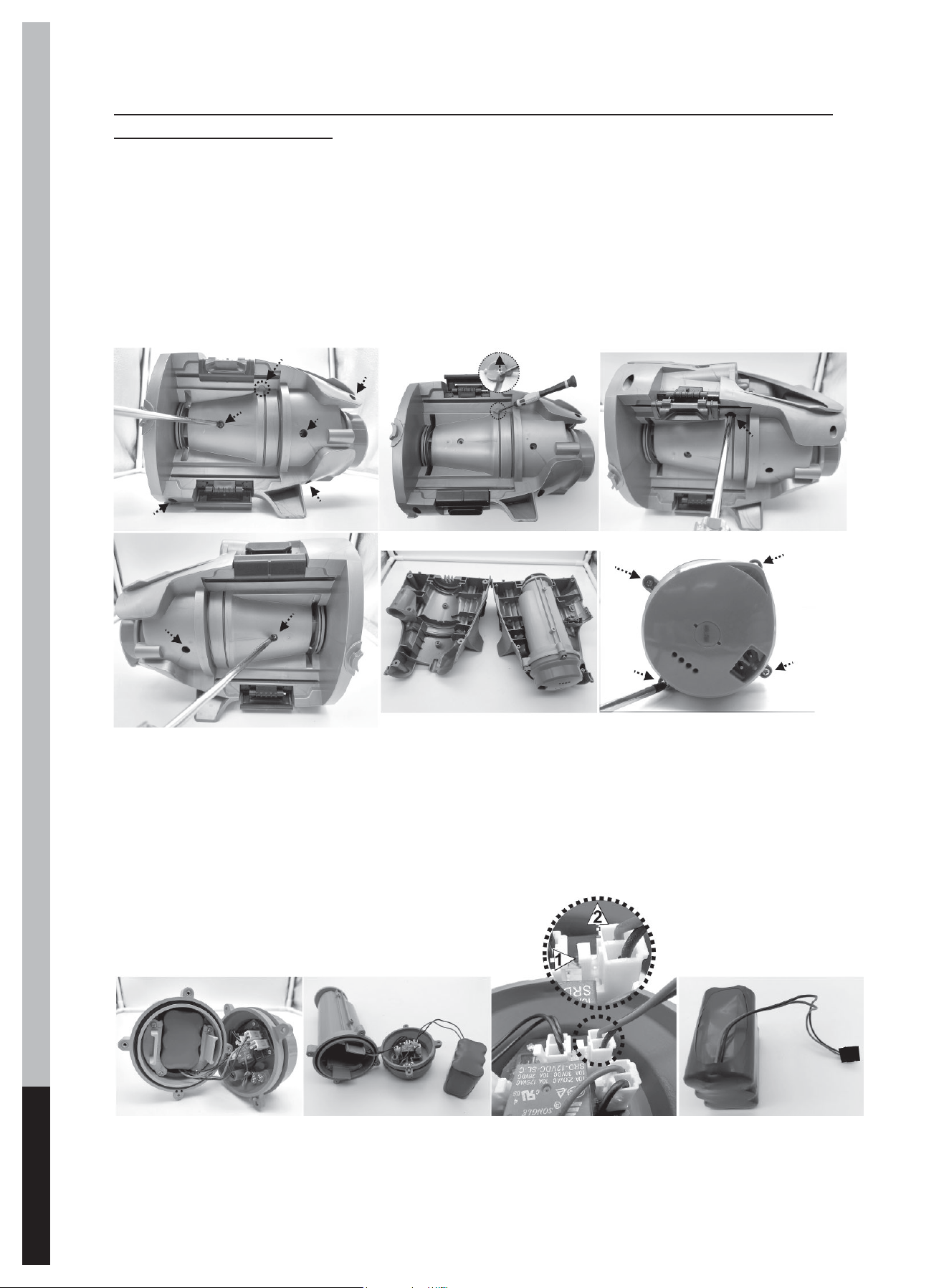

How to remove the battery pack for battery disposal only (To be done by
authorized technician)
Recommended tools (not included): Philips screwdriver
1. Use Philips screwdriver to unfasten all screws on the body. Pay
attention that it needs to detach the small cap to locate the screw on the
top of the left body. Separate the body halves to expose the main unit.
Use screwdriver to unfasten the screws on the front cover of the main
unit. Remove the cover and expose inside.
2. Pull out the battery and locate its wire connector. Press the clip of the
wire connector and detach it. NOTE: Wrap the wire connector of the
battery immediately with insulating tape in order to avoid short circuit
caused by contact of both wire terminals.
SAVE THESE INSTRUCTIONS
Support Email: [email protected]
Toll-Free Voicemail: (866) 683-7672
Download Instruction Manual & Videos:
QR Code:
https://shop.kokido.com/pages/support-xtrovac-710
Manufacturer: Kokido Development Limited. Unit 1319, Sunbeam Centre,
27 Shing Yip Street, Kwun Tong, Kowloon, HK
EV75BX/AMZ/US Made in China
RoHS
We reserve the right to change all or part of the
features of the articles or contents of this document,
without prior notice.
International patents pending
TROUBLESHOOTING
Problem Possible Cause Solution
Pool vacuum does not
capture debris
Battery is running out Charge the battery again.
Impeller is jammed Power off the pool vacuum and visually check the gap in
the middle of the pool vacuum to see if the impeller is
jammed by large debris. If possible, use a small tool to
remove the debris carefully. If necessary, contact your
dealer for further instructions.
WARNING!
Make sure the pool vacuum is powered
off when the unit is being serviced.
Impeller is broken Contact you
r
dealer for impeller replacement.
Canister is full Empty the caniste
r
.
Cartridge filter is not in
NORMAL position
Shift the cartridge filter to the NORMAL position or even
detach the cartridge filter.
Debris escapes from the
canister
Suction nozzle flap is
broken
Suction nozzle flap works like a doo
r
to prevent debris from
escaping from the canister. Replace a new nozzle flap.
Filter net of water draining
valve is broken
Replace a new filter net.
Replace with a new filter cone.
Debris goes side the
filter cone
Filter cone is damaged
Fine deb
r
is escapes
from the cleaner
Cartridge filter is not in
FINE position
Shift the cartridge filter to the FINE position.
Cartridge filter is broken Replace a new cartridge filter
Telescopic pole
connector cannot be
secured in assembly
Side pin on pole connector
is broken
Replace with a new pole connector.
Pool vacuum cannot be
charged / recharged
Battery is damaged
Contact dealer for battery replacement.
WARNING! DO NOT open the pool vacuum and
replace the battery by yourself. This could result in severe
or fatal injury and the warranty will be voided as a result.
Charging plug is not
correctly connected to
external adaptor and pool
vacuum
Refer to instruction manual and connect the charging
accessories correctly.
External adapto
r
damaged
Contact dealer for replacement.
WARNING! Using the wrong external adaptor will
result in damaging the pool vacuum / battery and voiding
the warranty as a result.
Charging time is longer
than advertised
Stained charging pins The stains can be removed by using a cotton bud soaked
with juice of lemon or vinegar to clean the areas around
the charging pins.
Operation time is shorter
as expected
Battery is not fully charged Charge the pool vacuum for at least 6 hrs. NOTE: if any
stains are found on the charging pins, remove them by
using a cotton bud soaked with lemon juice or vinegar
Environmental Programmes, WEEE European Directive
Please respect the European Union regulations and help to protect the envi
r
onment.
Return non-working electrical equipment to a facility appointed by your municipality that properly
recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins. For
items containing removable batteries, remove batteries before disposing of the product.
© 2023 Kokido Development Ltd. 23002016
All rights reserved. No part of this document may be reproduced or transmitted in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written
permission of Kokido Development Ltd. (V2)
ENGLISH
14
