A18SFN16GA
A18SFN16GANZ
Original instructions
2
p. 5 p. 5
p. 6
p. 5
p. 7 p. 8
p. 4 p. 4p. 3

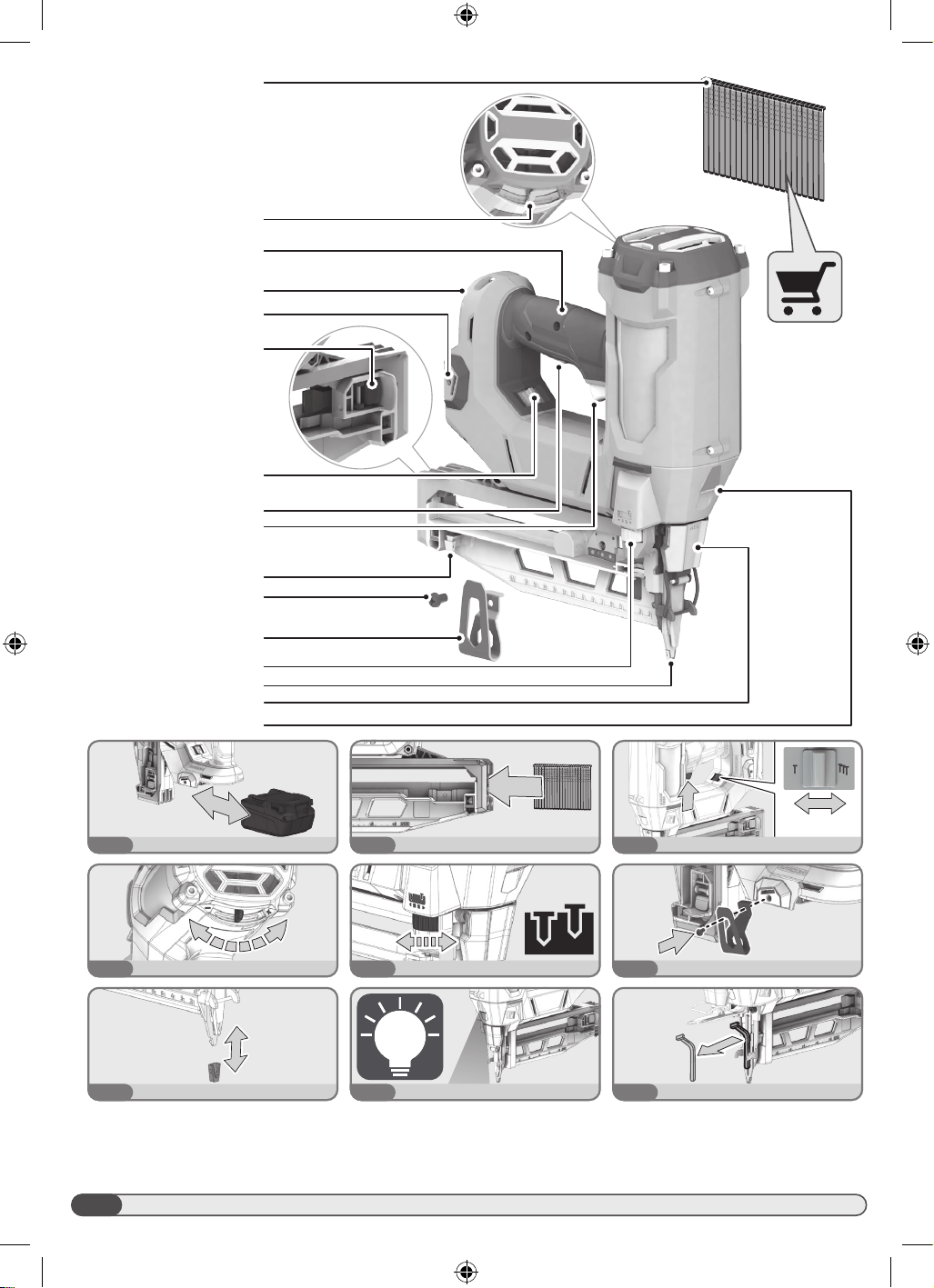

Nails
Belt clip screw hole
Pusher
Belt clip screw
Battery port
Belt clip
LED light
Jam release
Depth-of-drive adjustment
No-mar pad
No-mar pad
Air pressure dial
Handle,
insulated gripping surface
Mode selector
(for A18SFN16GA)
LED light button
Trigger switch
for A18SFN16GA only

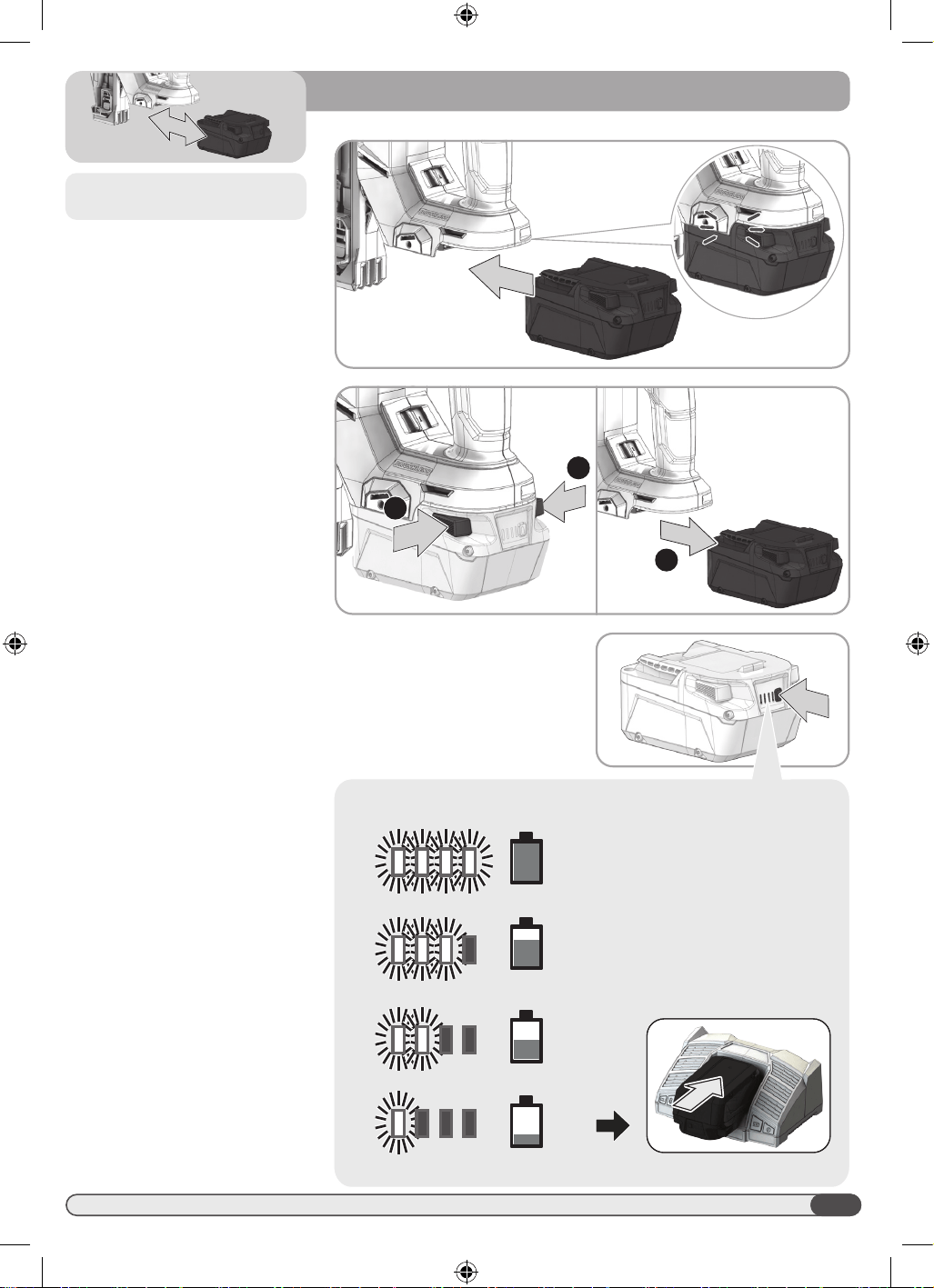

3

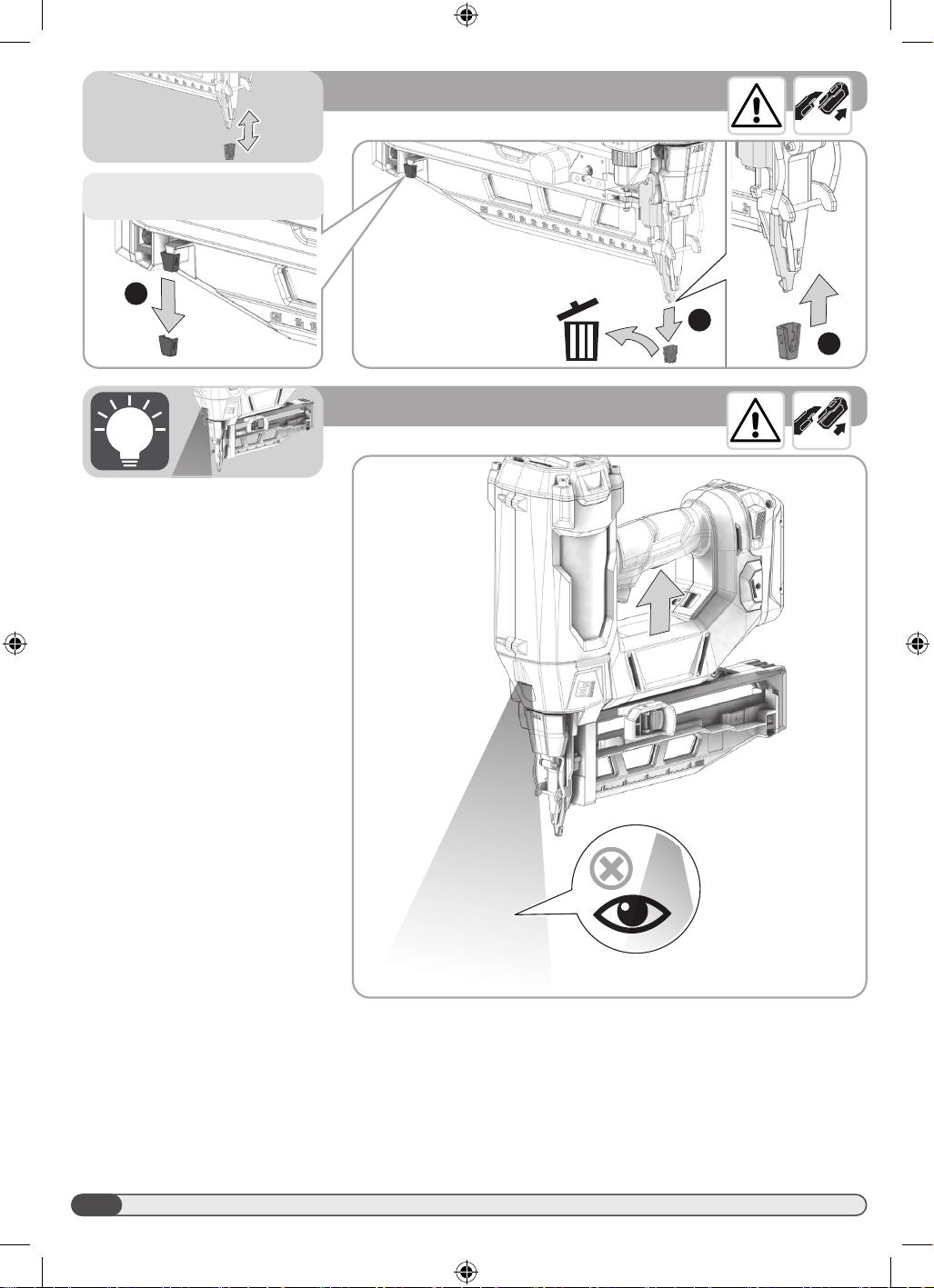

1
1
2
75-100 %
50-75 %
25-50 %
0-25 %
Remove the battery pack before starting any
work on the product.

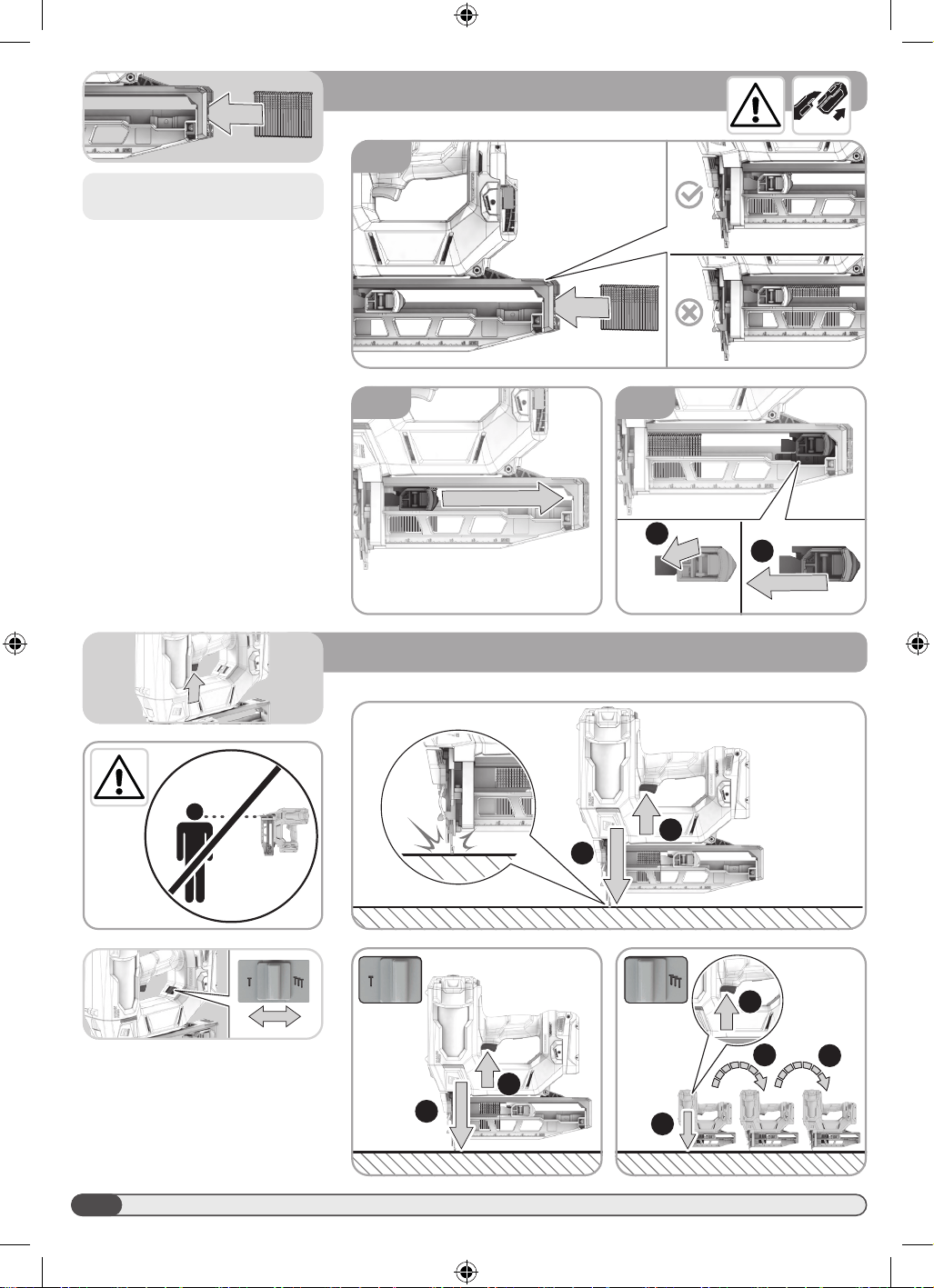

4
1
3
2
1
2
1
2
2
3
4
1
2
for A18SFN16GA only
1
Remove the battery pack before starting any
work on the product.

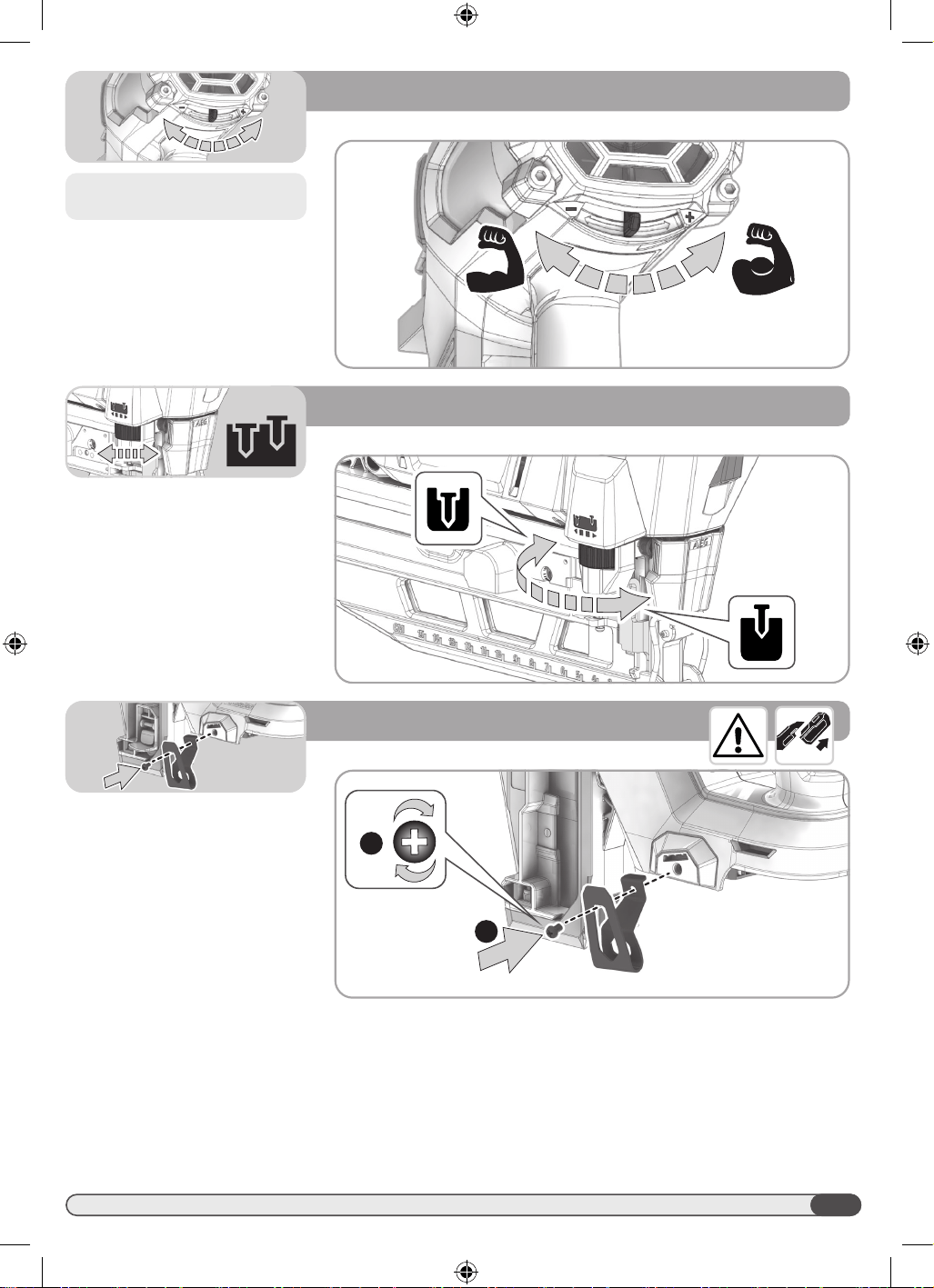

5
1
2
Remove the battery pack before starting any
work on the product.
6
2
3
1
Remove the battery pack before starting any
work on the product.

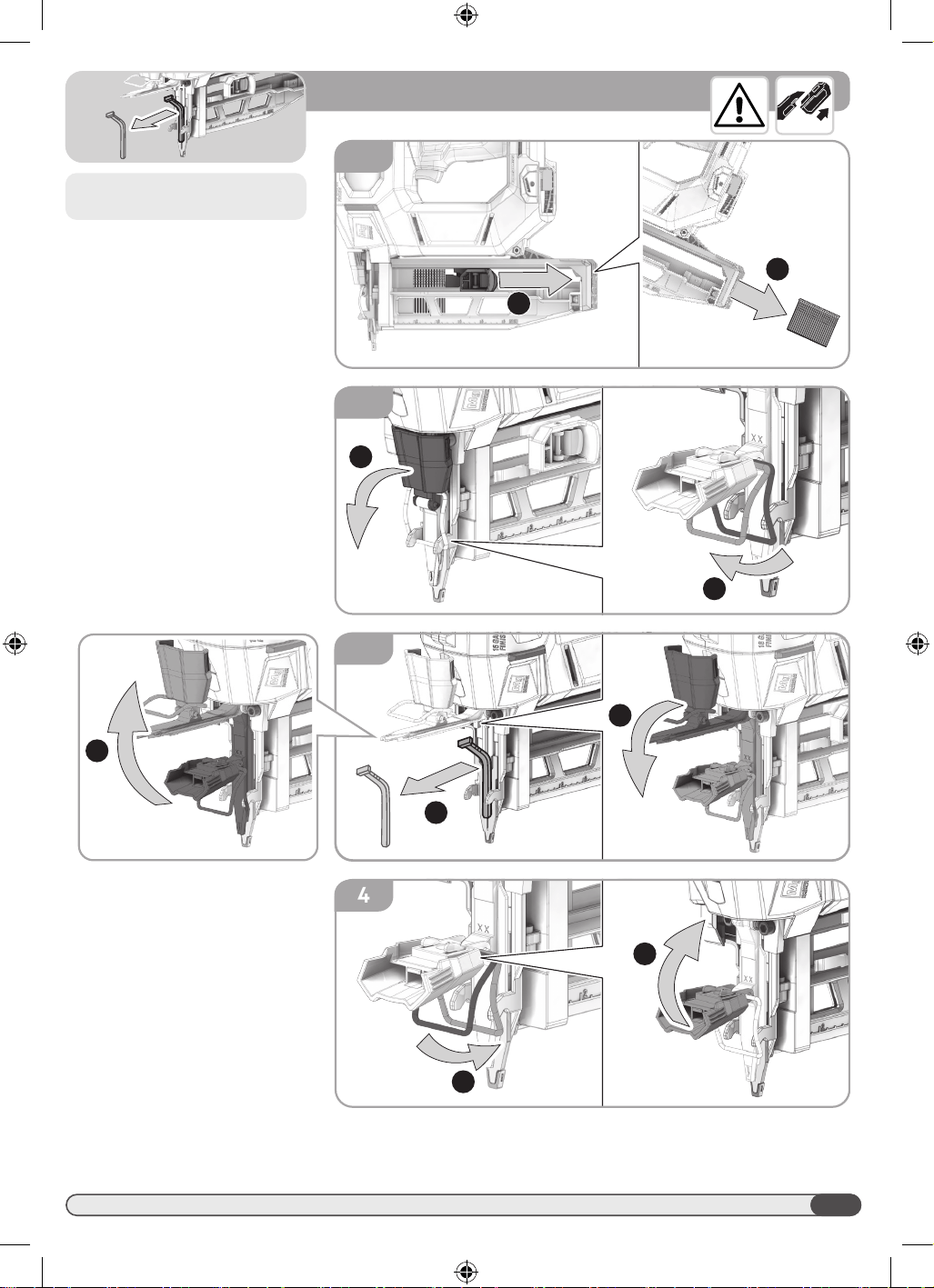

7
1
2
3
4
2
2
3
2
2
1
1
1
1
Remove the battery pack before starting any
work on the product.
8
TECHNICAL DATA A18SFN16GA / A18SFN16GANZ
Type Brad nailer
Battery voltage 18 V
Fastener type 16GA Brad nails
Diameter 1.6 mm
Length min./max 25 - 65 mm
Recommended cycle rate 700 / hour
Burst cycle rate (A18SFN16GA) – bump re mode 2 / second
Burst cycle rate (A18SFN16GANZ) 1 / second
Magazine capacity 112 nails
Fastener range 25 to 65 mm
Weight without battery pack 2.6 kg
Noise Information
Measured values determined according to EN 60745. Typically, the A-weighted noise
levels of the tool are:
Sound pressure level / Uncertainty
Sound power level / Uncertainty
Wear ear protection!
L
pA
=83 dB (A) / K
pA
=3 dB(A)
L
WA
=94 dB (A) / K
WA
=3 dB(A)
Vibration Information
Vibration total values (triaxial vector sum) determined according to EN 60745.
Vibration emission value / Uncertainty a
h
=3.6 m/s
2
/ K=1.5 m/s
2
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of
exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for dierent
applications, used with dierent accessories, or poorly maintained, the vibration and noise emission may dier. These conditions may
signicantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o or when it is
running idle. These conditions may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
A18FB6
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re, and/or serious injury.
Save all warnings and instruction for future reference.
NAILER SAFETY WARNINGS
Always assume that the tool contains fasteners. Careless
handling of the nailer can result in unexpected ring of fasteners and
personal injury.
Do not point the tool towards yourself or anyone nearby.
Unexpected triggering will discharge the fastener causing an injury.
Do not actuate the tool unless the tool is placed rmly against
the workpiece. If the tool is not in contact with the workpiece, the
fastener may be deected away from your target.
Disconnect the tool from the power source when the fastener
jams in the tool. While removing a jammed fastener, the nailer may
be accidentally activated if it is plugged in.
Use caution while removing a jammed fastener. The mechanism
may be under compression and the fastener may be forcefully
discharged while attempting to free a jammed condition.
Do not use this nailer for fastening electrical cables. It is
not designed for electric cable installation and may damage the
insulation of electric cables thereby causing electric shock or re
hazards.
ADDITIONAL SAFETY WARNINGS
The product is designed for single-hand use. Do not hold the
product by the front of the magazine. Do not put hands, head, or
other parts of your body near the bottom of the magazine where
the fastener exits the product, as serious personal injury could be
caused.
Always ensure that the workpiece contact is fully positioned above
the workpiece. Positioning the workpiece contact only partially
above the workpiece could cause the fastener to miss the workpiece
completely and result in serious personal injury.
Do not drive fasteners near edge of material. The workpiece may
split causing the fastener to ricochet, injuring you or a coworker. Be
aware that the fastener may follow the grain of the wood, causing
it to protrude unexpectedly from the side of the work material or
deect, possibly causing injury.
Keep hands and body parts clear of immediate work area. Hold
workpiece with clamps when necessary to keep hands and body out
of potential harm. Be sure the workpiece is properly secured before
pressing the fastener against the material. The workpiece contact
may cause the work material to shift unexpectedly.
Keep face and body parts away from back of the tool cap when
working in restricted areas. Sudden recoil can result in impact to the
body, especially when nailing into hard or dense material.
During normal use the product will recoil immediately after driving a
fastener. This is a normal function of the product. Do not attempt to
prevent the recoil by holding the nailer against the work. Restriction
9
to the recoil can result in a second fastener being driven from the
nailer. Grip the handle rmly, let the product do the work and do not
place second hand on top of product or near exhaust at any time.
Failure to heed this warning can result in serious personal injury.
Do not drive fasteners on top of other fasteners or with the product at an
overly steep angle as this may cause deection of fasteners which could
cause injury.
Always check the work area for hidden wiring, gas lines, water lines,
etc., before using the product on such work area.
After using the product in the contact actuation mode, switch it back
to the full sequential mode.
The driving depth of the fastener may be adjusted beyond air
pressure. It is advisable to test the depth on a scrap workpiece to
determine the required depth for the application.
Only fasteners matching the description in the product specications
table can be used with this product. Using incorrect fasteners may
lead to jamming or other malfunctions.
Always remove the battery before adjusting the depth of drive.
Do not press the trigger while adjusting the depth of drive.
Always select full sequential ring mode before adjusting the depth
of drive.
Do not point the product towards yourself or anyone nearby when
adjusting the depth of drive.
Ambient temperature range for tool during operation is between 0°C
and 40°C.
Ambient temperature range for tool storage is between 0°C and
40°C.
The recommended ambient temperature range for the charging
system during charging is between 10°C and 38°C.
Ambient temperature range for battery during use is between 0°C
and 40°C.
Ambient temperature range for battery storage is between 0°C and
20°C.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your tool,
battery pack, or charger in uid or allow uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG distributors oer to retrieve old batteries to
protect our environment.
Battery packs that have not been used for some time should be
recharged before use.
For an optimum lifetime, the battery packs have to be fully charged
after use.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
Battery pack protection
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life.
Under extreme stress, the battery electronics turn o the product
automatically. To restart, turn the product o and then on again.
If the product does not start up again, the battery pack may have
discharged completely. Recharge the battery pack.
Transporting lithium batteries
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national, and international provisions and regulations.
• Batteries can be transported by road without further requirement.
• Commercial transport of lithium-ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
• Ensure that the battery contact terminals are protected and
insulated to prevent short circuit.
• Ensure that the battery pack is secured against movement within
the packaging.
• Do not transport batteries that are cracked or leaking.
• Check with the forwarding company for further advice.
SPECIFIED CONDITIONS OF USE
The nailer is intended to drive nails in soft materials such as wood.
This product is not suitable for xing electric cables.
Do not use the product for any other purpose.
MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are
susceptible to various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove dirt, carbon dust,
etc.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
Accessory - Not included in standard equipment,
available as an accessory.
Wear eye protectors.
Keep hands away.
10
Do not dispose of electric tools, batteries/rechargeable
batteries together with household waste material.
Electric tools and batteries that have reached the end
of their life must be collected separately and returned
to an environmentally compatible recycling facility.
Check with your local authority or retailer for recycling
advice and collection point.
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Product does nothing or
operates sluggishly
Inadequate lubrication.
Worn or damaged O-ring seals or bumper.
Exposure to low temperatures.
Exposure to high temperatures.
Contact Authorised Service Centre for product
lubrication.
Contact Authorised Service Centre for repair.
Allow product to warm to proper operating
temperature.
Allow product to cool to proper operating
temperature.
Product jams frequently
Incorrect fasteners
Damaged fasteners
Loose magazine
Dirty magazine
Worn or damaged driver
Verify that fasteners are of the correct size.
Replace fasteners.
Tighten screws.
Clean magazine.
Contact Authorised Service Centre for repair.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
961001866-02A
