Washer Dryer
10kg/7kg
POWD50107AD15
User manual
Thank you for purchasing your new POINT WASHER DRYER.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational fea
ead all the
GB
safety instructions carefully before use and keep this instruction manual for
future reference.
NO
Takk for at du kjøpte din nye kombinerte vaskemaskin og tørketrommel fra POINT.
Denne bruksanvisningen vil hjelpe deg med å bruke den på en trygg og riktig
måte. Vi anbefaler at du tar deg tid til å lese gjennom hele bruksanvisningen for å
bli fortrolig med alle funksjonene som tilbys. Les alle sikkerhetsanvisningene
nøye før bruk, og oppbevar bruksanvisningen for fremtidig referanse.
FI
Kiitos, kun valitsit uuden kuivaavan POINT-pesukoneen.
Nämä käyttöohjeet opastavat sinua käyttämään laitetta oikein ja turvallisesti.
Suosittelemme, että käytät hetken tämän käyttöoppaan lukemiseen, jotta
ymmärrät täysin, mitä toimintoja laitteessa on. Lue kaikki turvallisuusohjeet
huolellisesti ennen laitteen käyttöä ja säilytä käyttöopas myöhempää tarvetta
varten.
DK
Tak for købet af din nye vaskemaskine/tørretumbler fra POINT.
Disse brugervejledninger hjælper dig med at bruge dette apparat rigtigt og
sikkert. Vi anbefaler, at du læser denne brugervejledning, så du får en fuld
forståelse af hvordan alle funktionerne virker. Læs sikkerhedsforskrifterne
grundigt inden brug, og gem denne brugervejledning til senere brug.
SE
Tack för att du har köpt din nya kombinerad tvättmaskin med torktumlare från
POINT. Denna bruksanvisning hjälper dig att använda den på ett säkert och korrekt
sätt. Vi rekommenderar att du tar dig tid att läsa igenom denna bruksanvisning för
att till fullo förstå alla driftfunktioner som den erbjuder. Läs noga igenom alla
säkerhetsinstruktioner före användning och spara bruksanvisningen för framtida
bruk.
34344
44 83
84
1 23
1 24 164
1 65 204

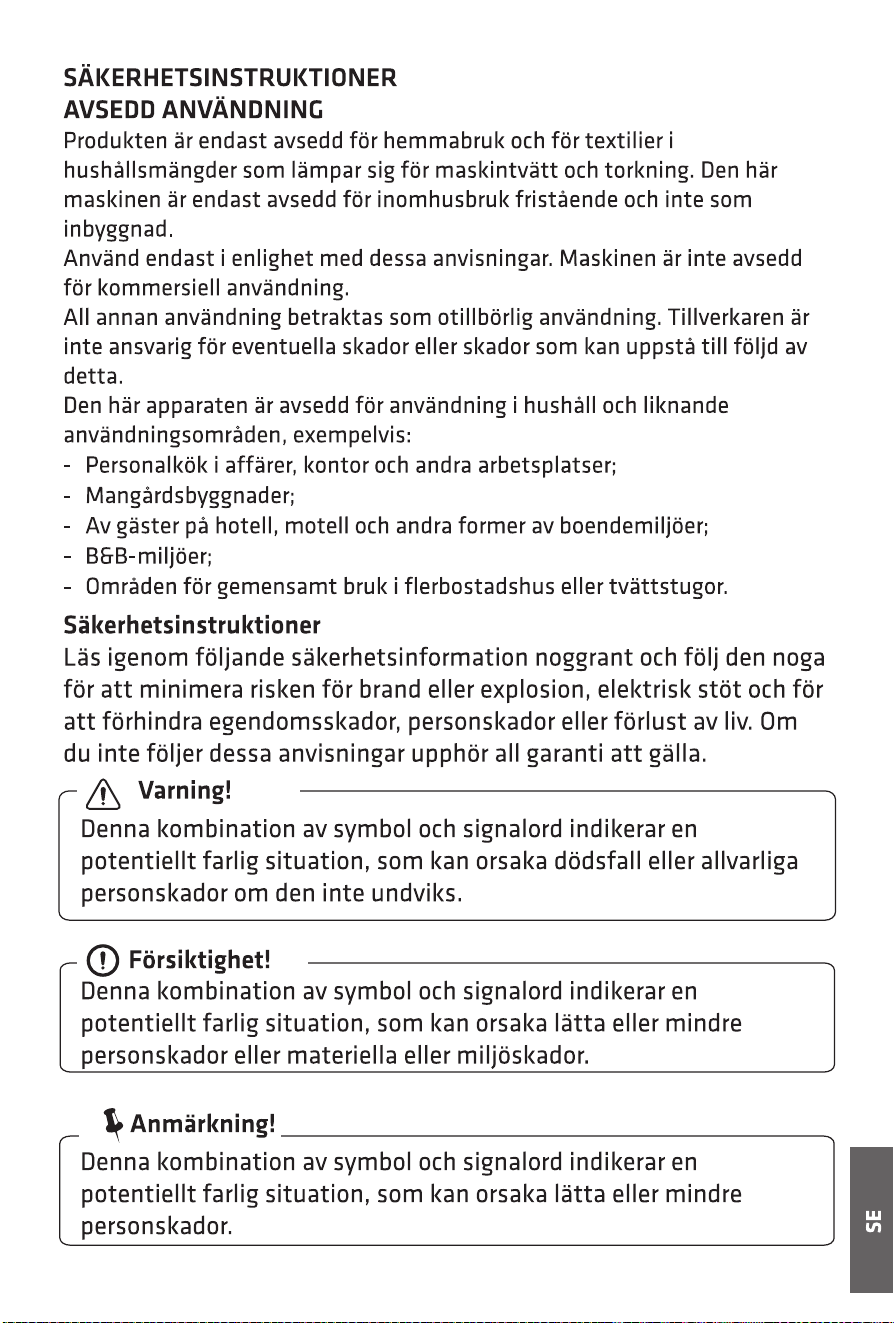

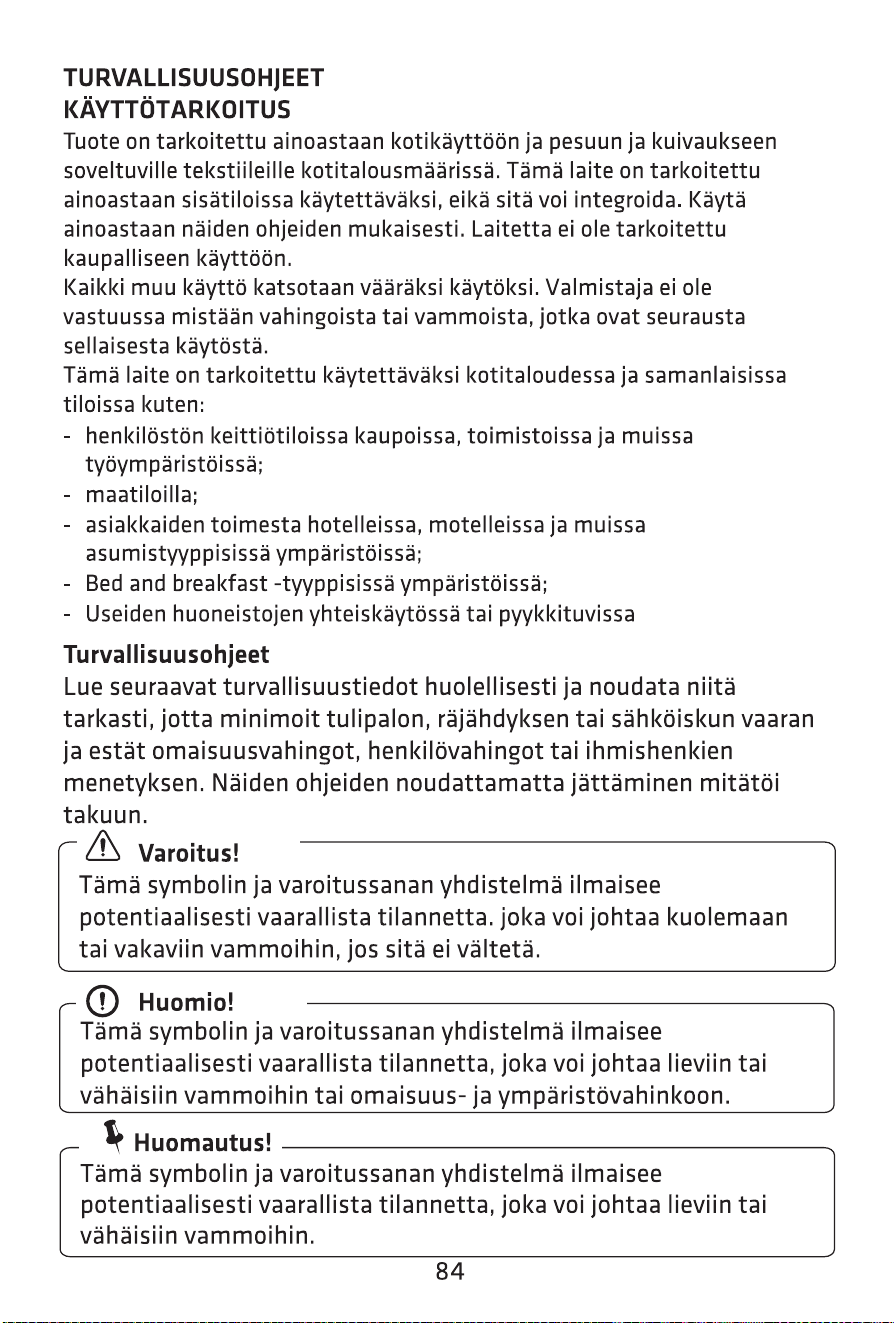

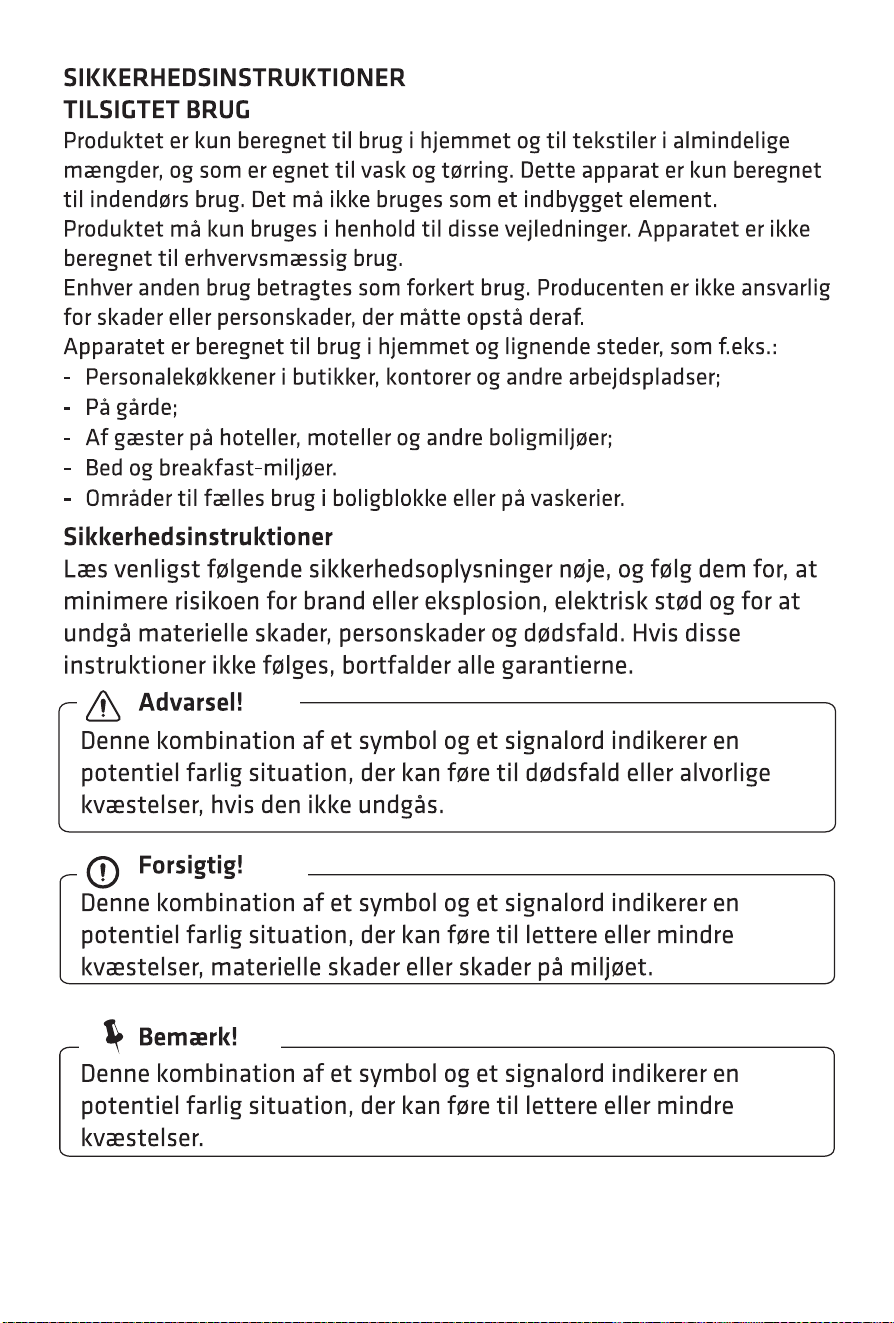

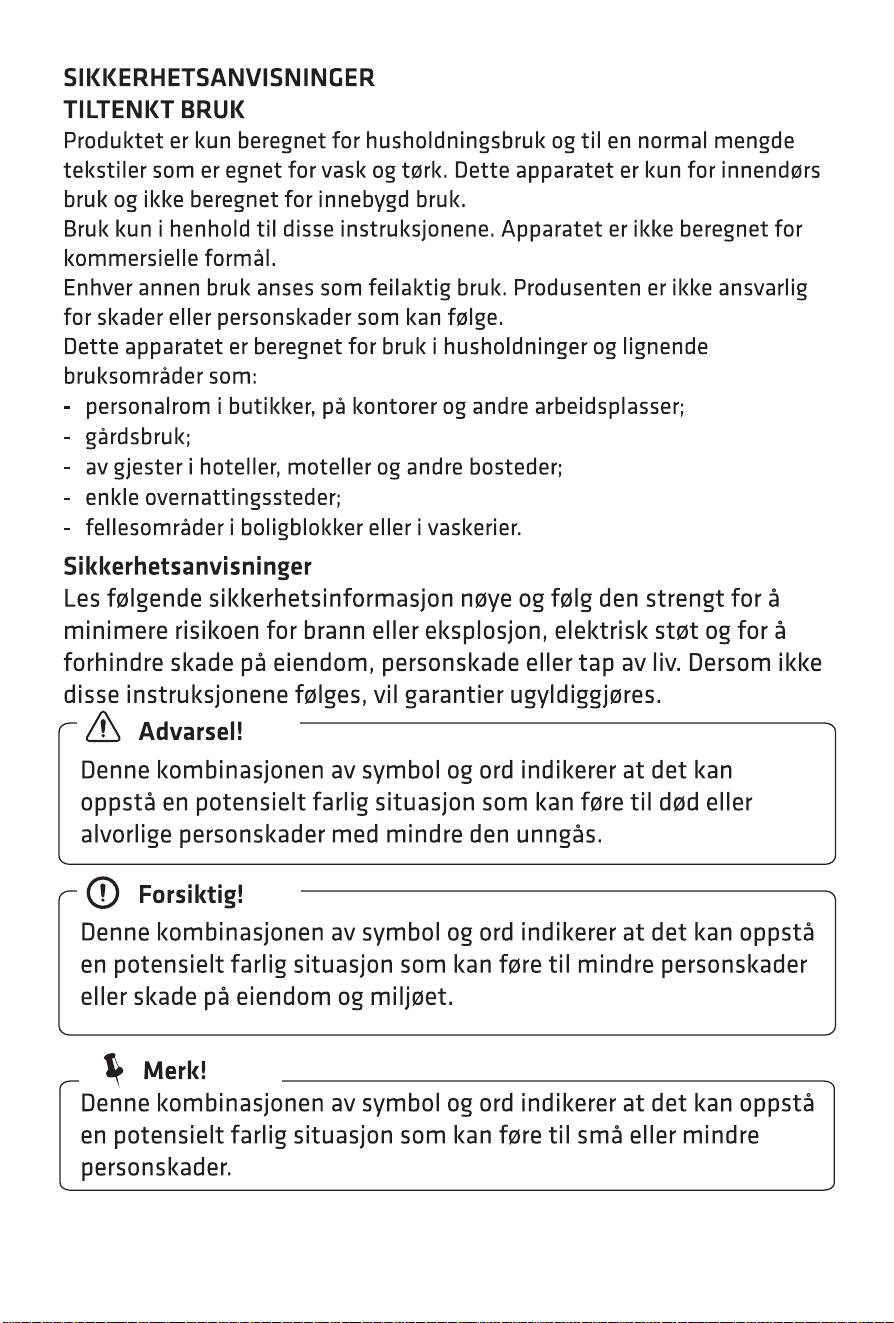

SAFETY INSTRUCTIONS
INTENDED USE
4
The product is intended only for home use and for textiles in
household amounts suitable for washing and drying. This
appliance is for indoor use only and not intended for built-in use.
Only use according to these instructions. The appliance is not
intended for commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
This appliance is intended to be used in household and similar
applications such as:
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses;
- By clients in hotels, motels and other residential type
environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
•
Please read the following safety information thoroughly
and follow it strictly to minimize the risk of fire or
explosion, electric shock and to prevent property
damage, personal injury or loss of life. Failing to follow
these instructions shall void any warranty.
Safety Instructions
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Caution!
This combination of symbol and signal word
indicates a potentially dangerous situation which
may result in slight or minor injuries or damage to
property and the environment.
indicates a potentially dangerous situation which
may result in slight or minor injuries.
This combination of symbol and signal word
Note!
5

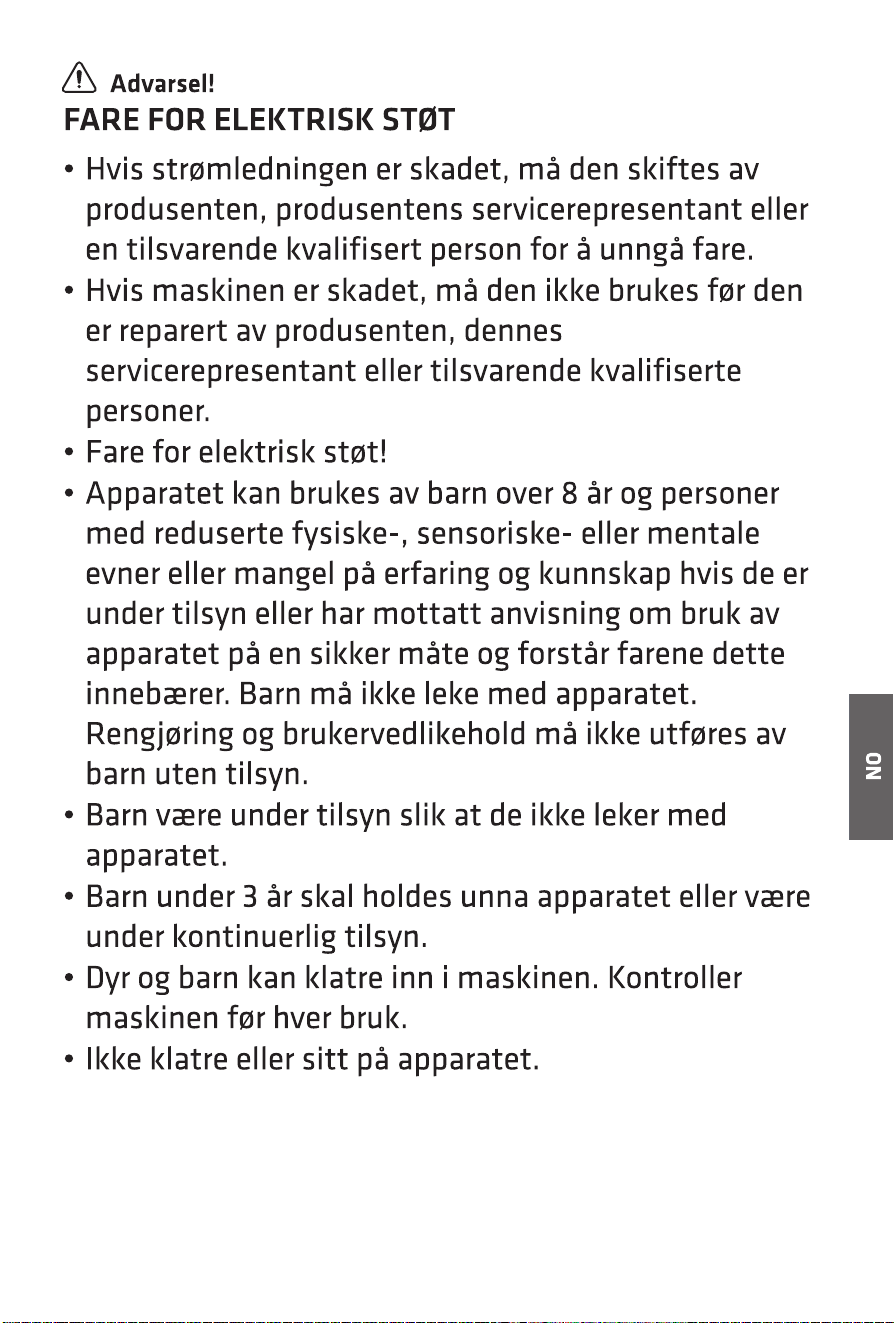

Warning!
•
•
•
•
•
•
•

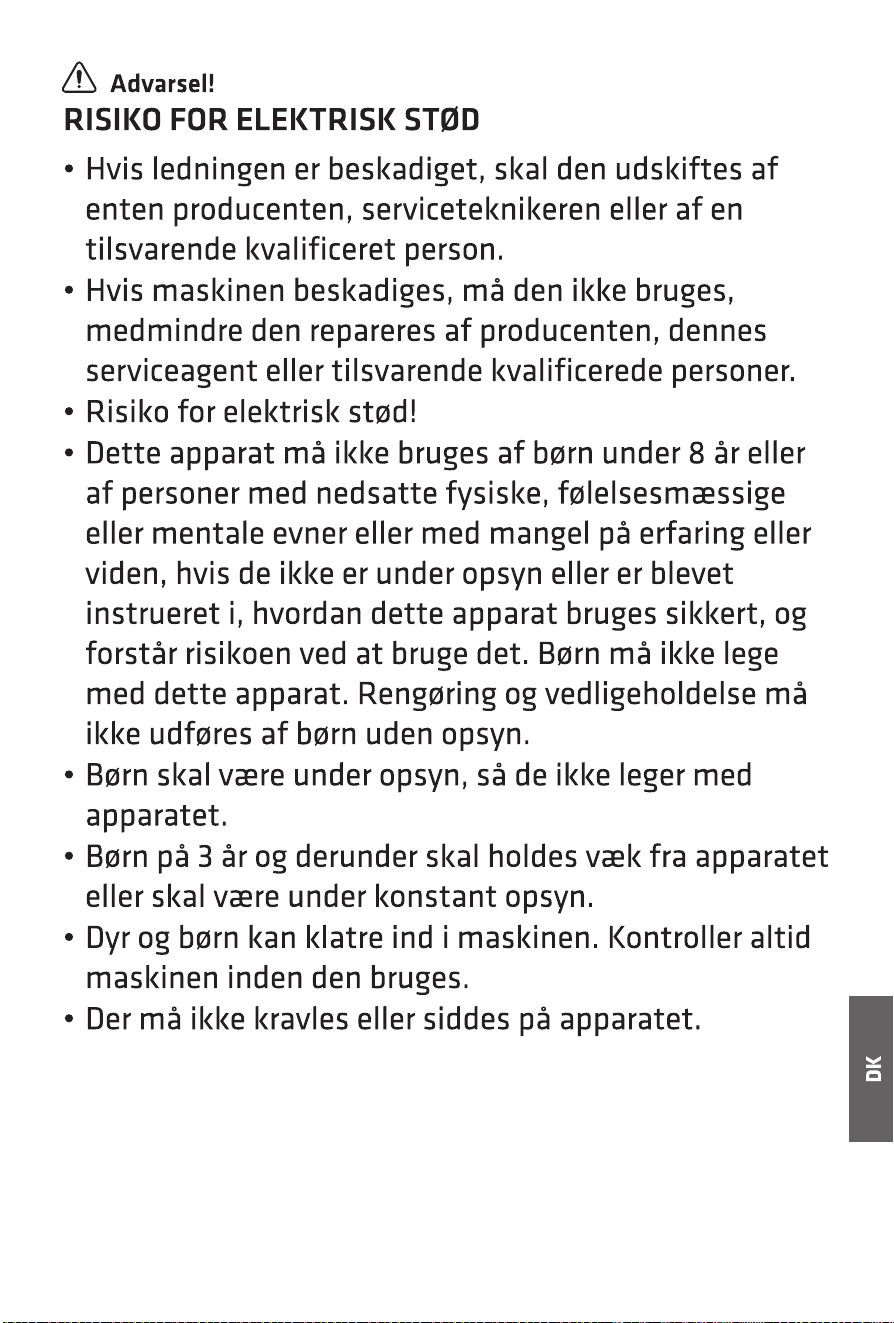

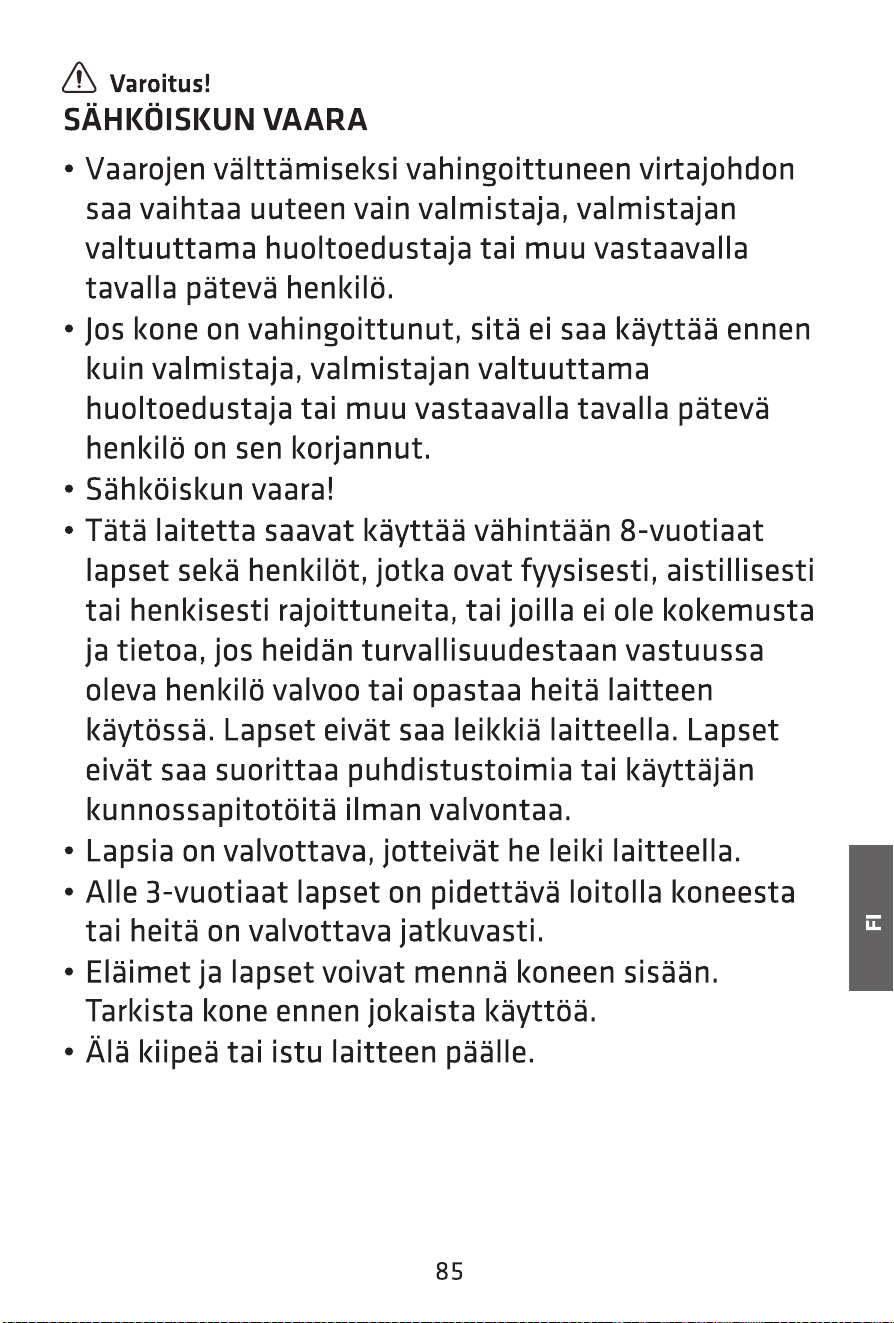

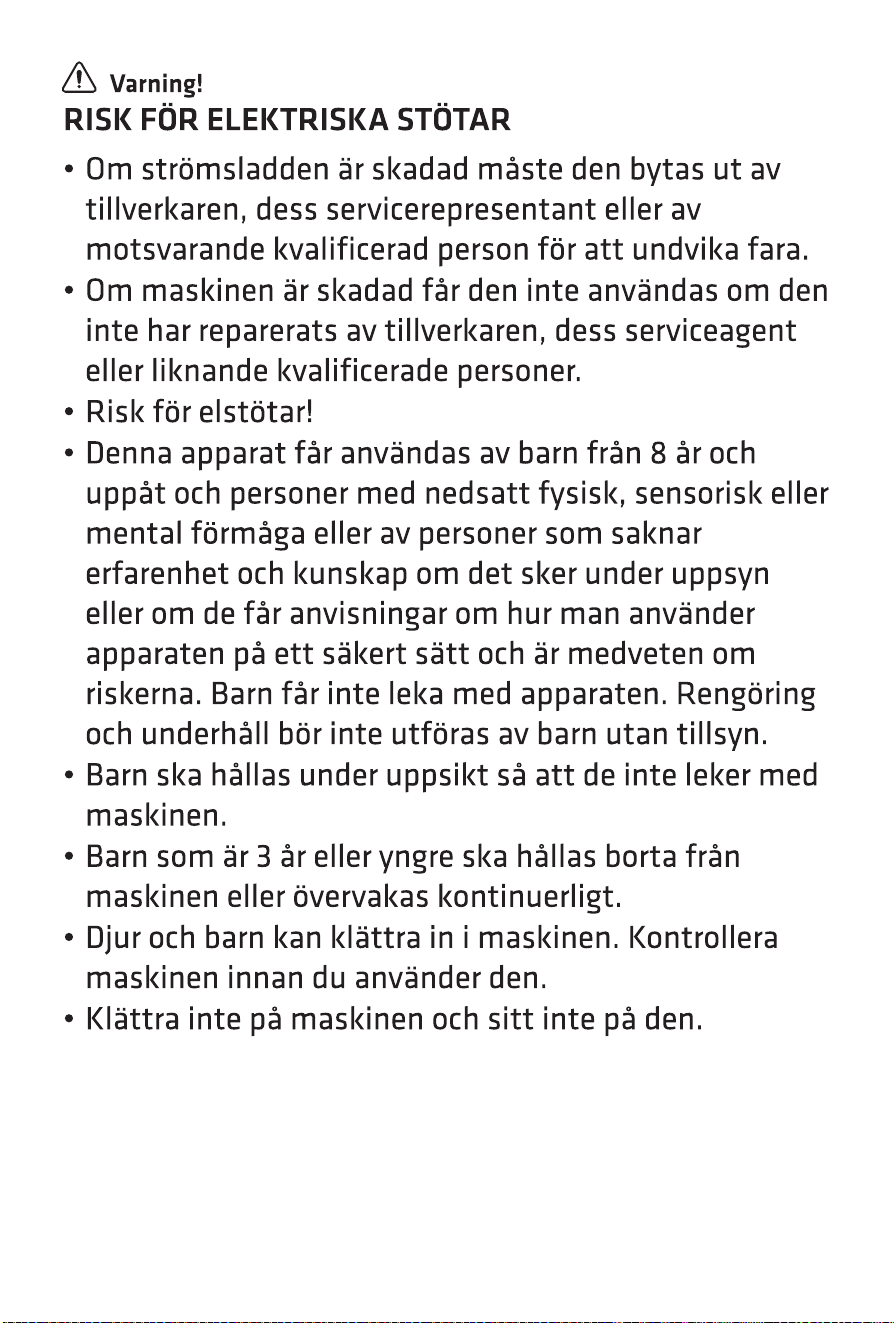

ELECTRIC SHOCK HAZARD
If the supply cord is damaged, it must be replaced by the
manufacturer
, its service agent or similarly qualified
persons in order to avoid a hazard.
If the machine is damaged, it must not be operated
unless repaired by the manufacturer, its service agent or
similarly qualified persons.
Risk of electric shock!
The appliance can be used by children 8 years
and older
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they
are supervised or instructed on the safe use of the
appliance and understand the risks involved. Children are
not to play with the appliance. Cleaning and user
maintenance are not be carried out by children without
supervision.
•
Children should be supervised to ensure that they do not
play with
the appliance.
Children 3 years and under ought to be kept away from
the
appliance or continuously supervised.
Animals and children may climb into the machine. Check
the machine before every operation.
Do not climb or sit on the appliance.
6

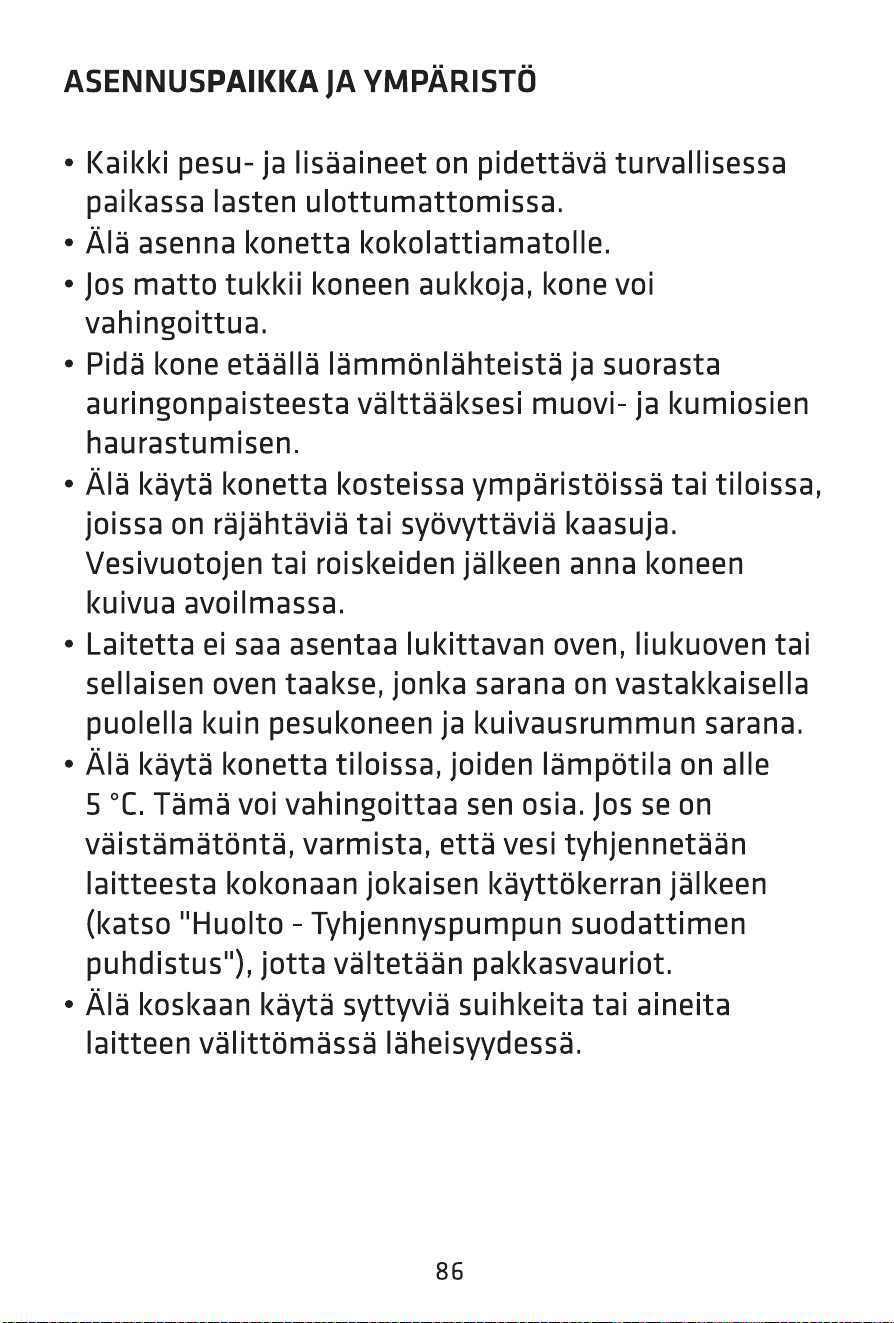

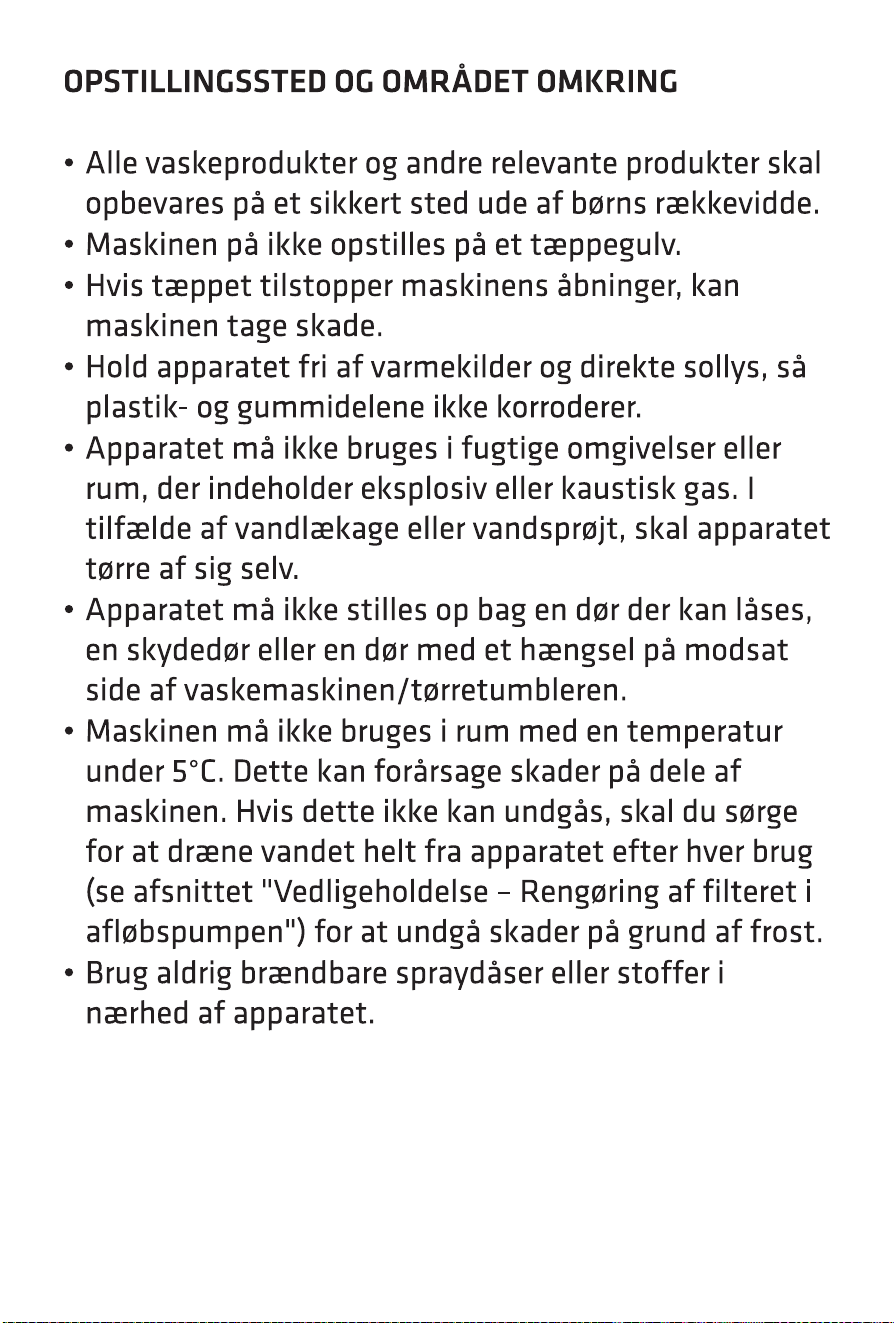

INSTALLATION LOCATION AND SURROUNDING
Keep the appliance clear from heating sources and
Do not operate the machine in rooms with a
temperature of below 5°C. This can cause damages to
parts of it. If it is unavoidable, make sure to drain the
water completely from the appliance after every use
(see “Maintenance - Cleaning the drain pump filter”) to
avoid damages caused by frost.
Never use flammable sprays or substances in the
immediate proximity of the appliance.
•
All washing agents and additional substances are to be
kept in a safe place out of the reach of children.
Do not install the machine on a carpeted floor.
•
•
•
The obstruction of the openings by a carpet can
damage
the machine.
•
direct sunlight to avoid the corroding of the plastic and
rubber parts.
Do not use the appliance in humid environments or
rooms containing explosive or caustic gas. In case of
water leakage or water splashes, let the appliance dry in
the open air.
The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the washer dryer.
•
•
•
7

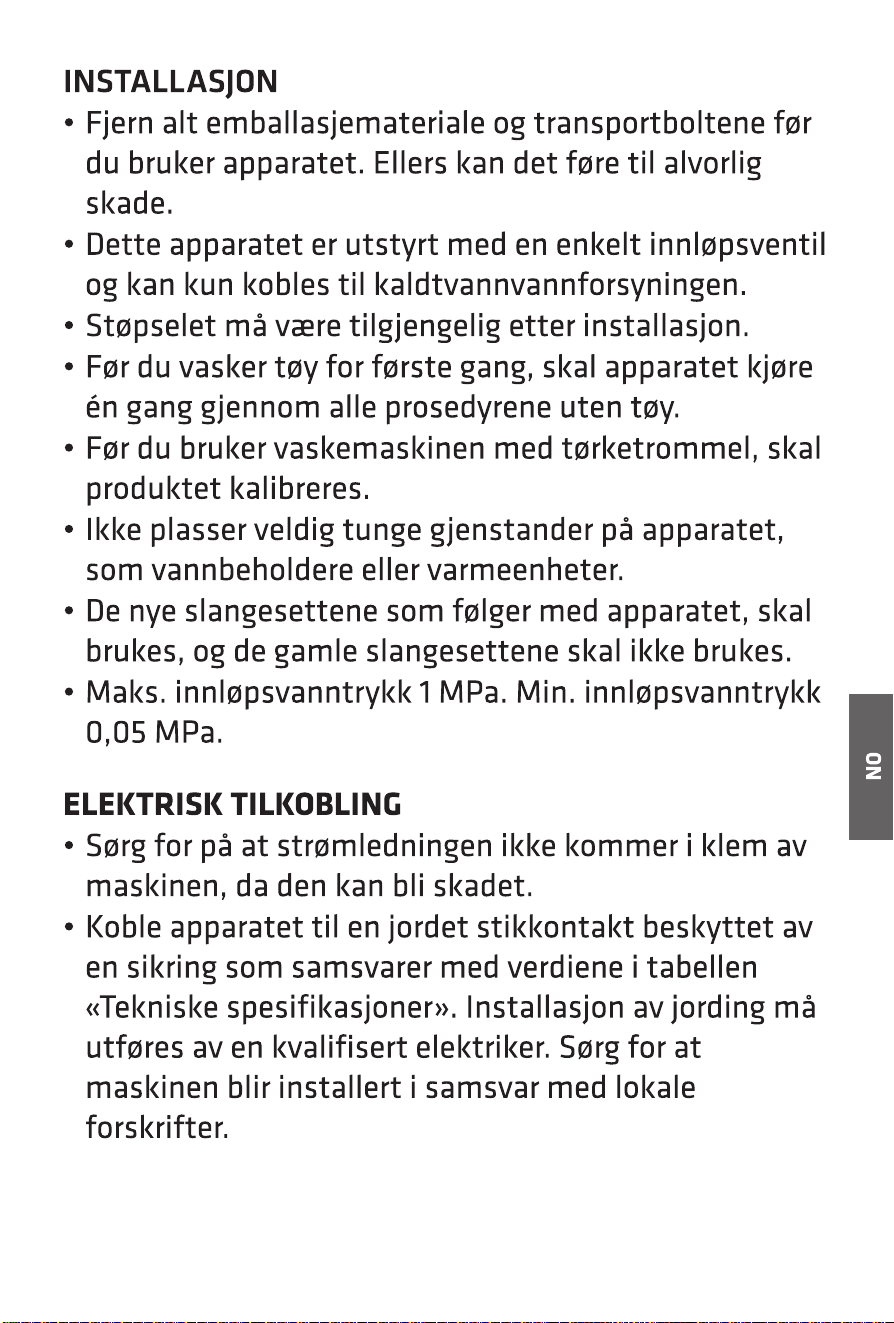

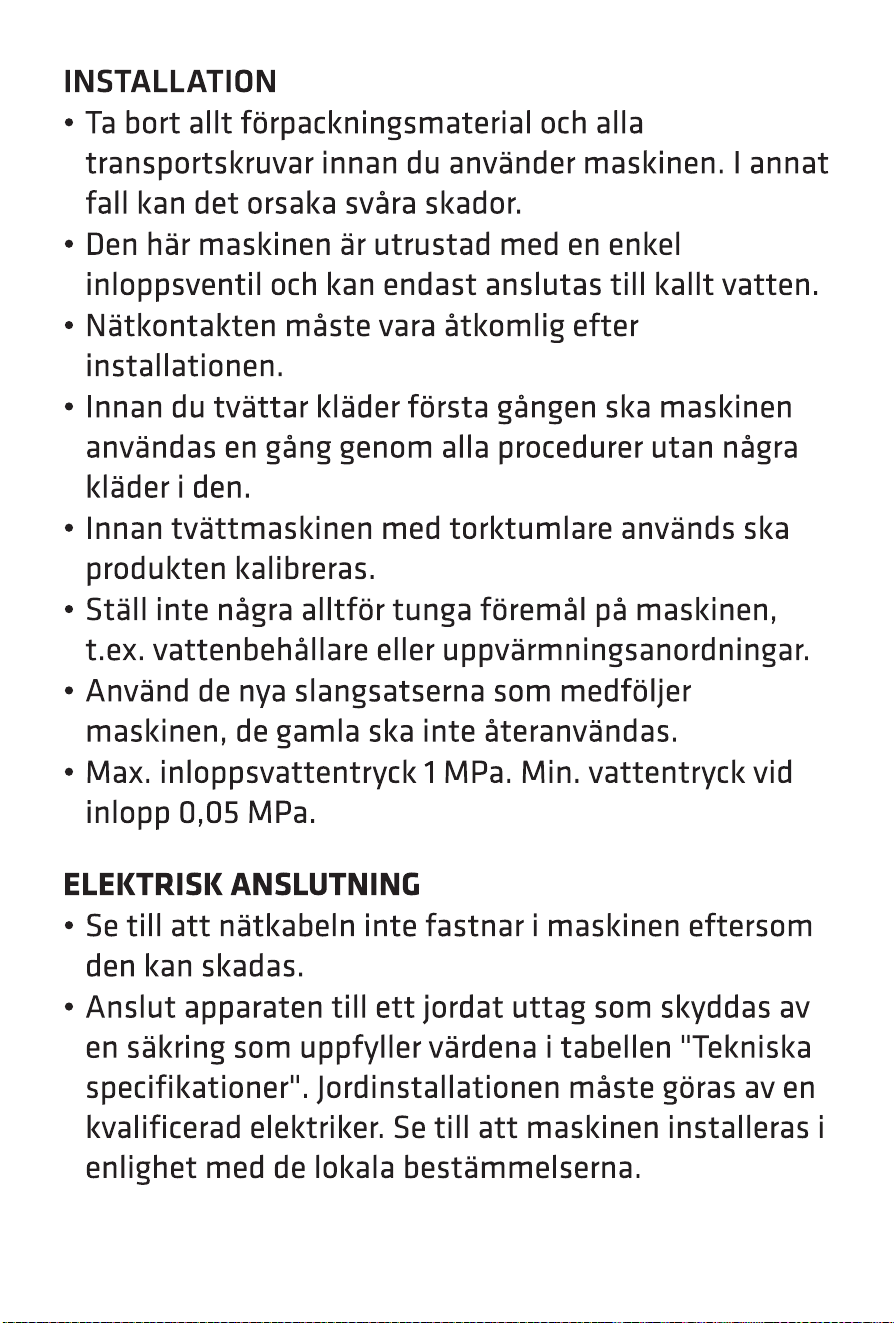

INSTALLATION
•
•
•
•
•
•
•
ELECTRICAL CONNECTION
Make sure the supply cable is not trapped by the
machine, it can get damaged.
Connect the appliance to a grounded outlet protected by
a fuse complying with the values in the “ Technical
specifications” table. The grounding installation has to
be made by a qualified electrician. Ensure that the
machine is installed in accordance with the local
regulations.
•
•
Remove all packaging material and transport bolts
before using the appliance. Otherwise, serious damage
may result.
This appliance is equipped with a single inlet valve and
can be connected to the cold water supply only.
Mains plug must be accessible after installation.
Before washing clothes for the first time, the appliance
sh
ould go through an entire washing and drying cycle
without clothing inside.
Before using the washer dryer, the product should be
calibrated.
Do not put any excessively heavy objects on the
appliance, like water containers or heating devices.
The new hose-sets supplied with the appliance are to be
used. Old hose-sets should not be reused.
•
Max. inlet water pressure 1 MPa. Min. inlet water
pressure 0.05 MPa.
8

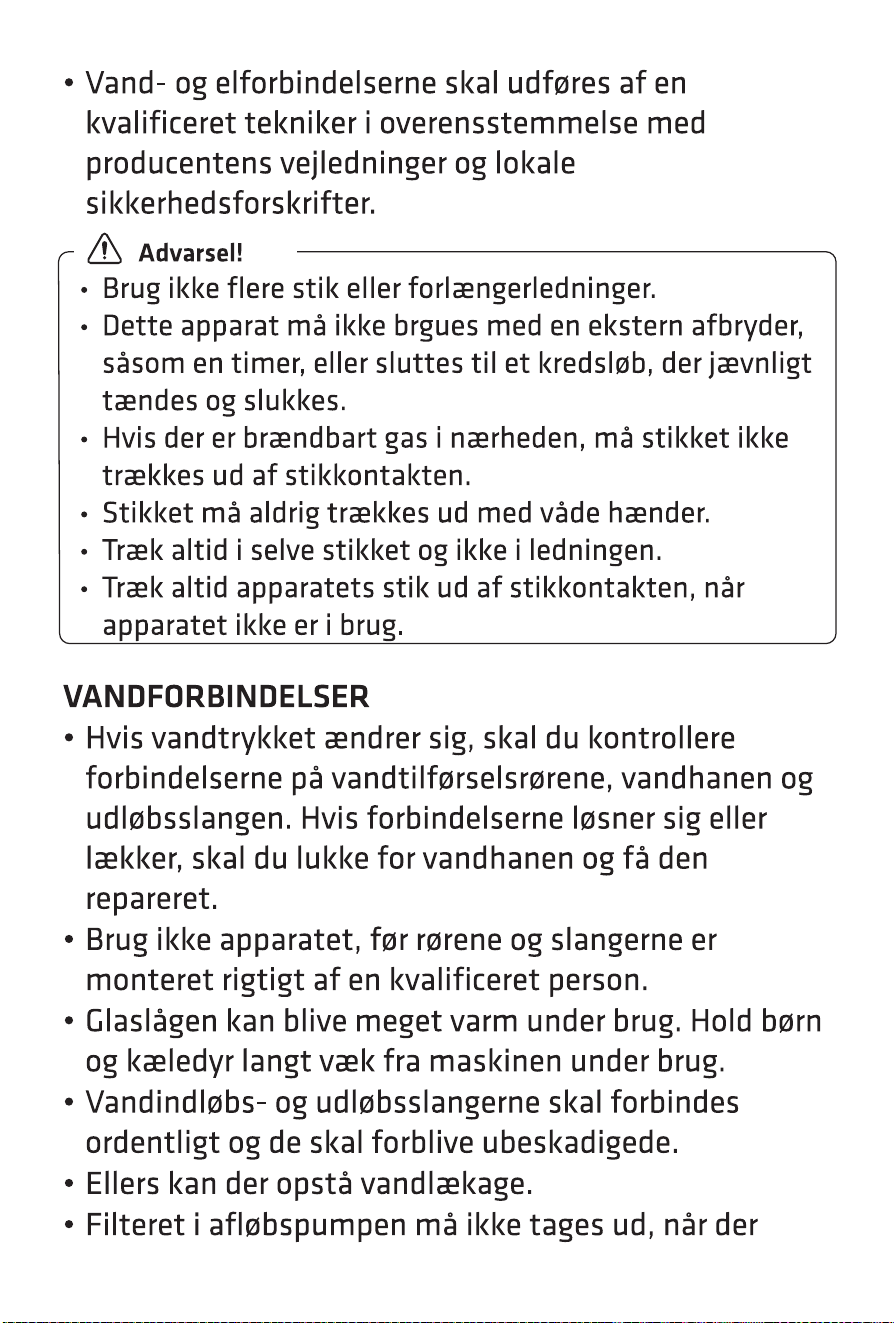

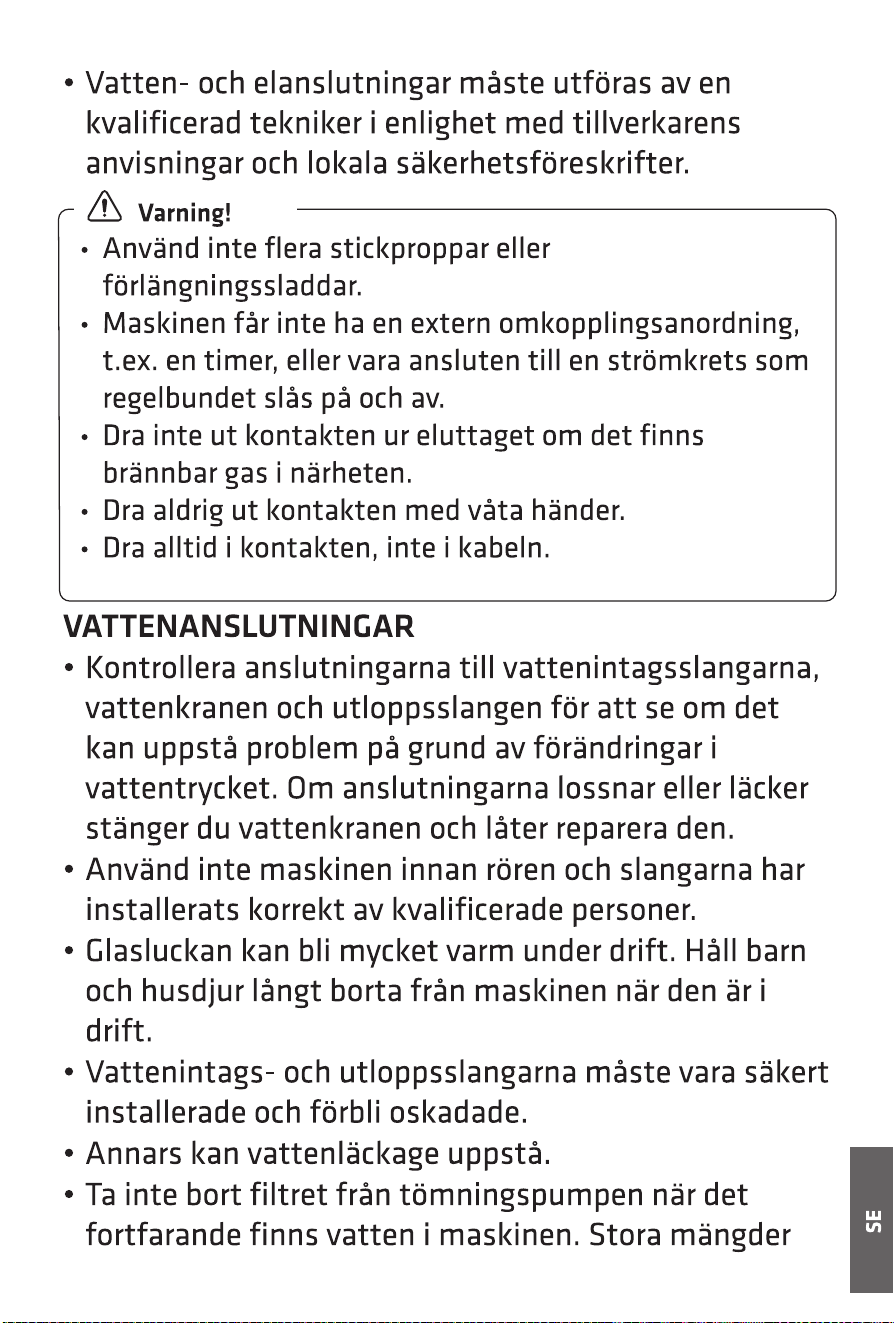

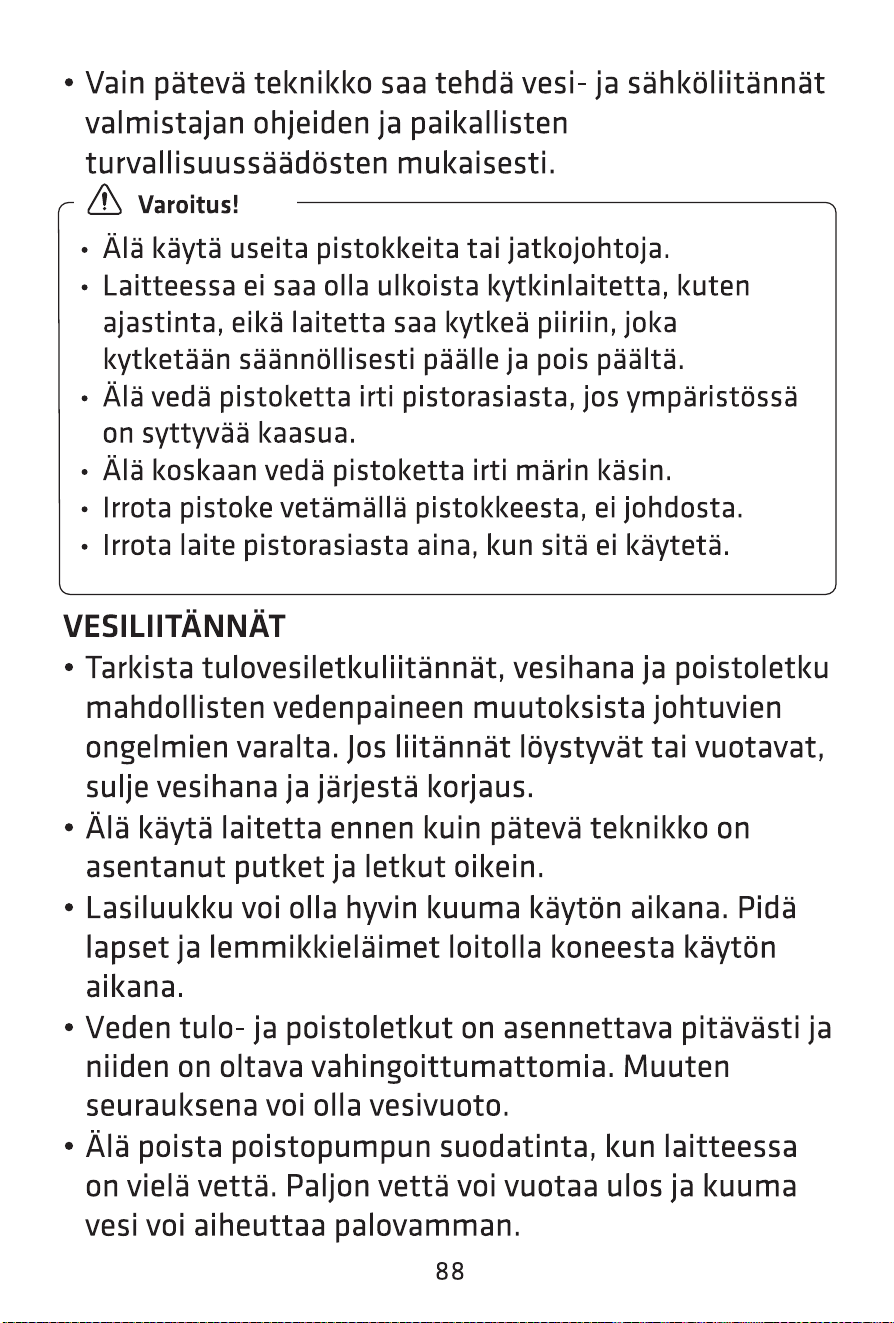

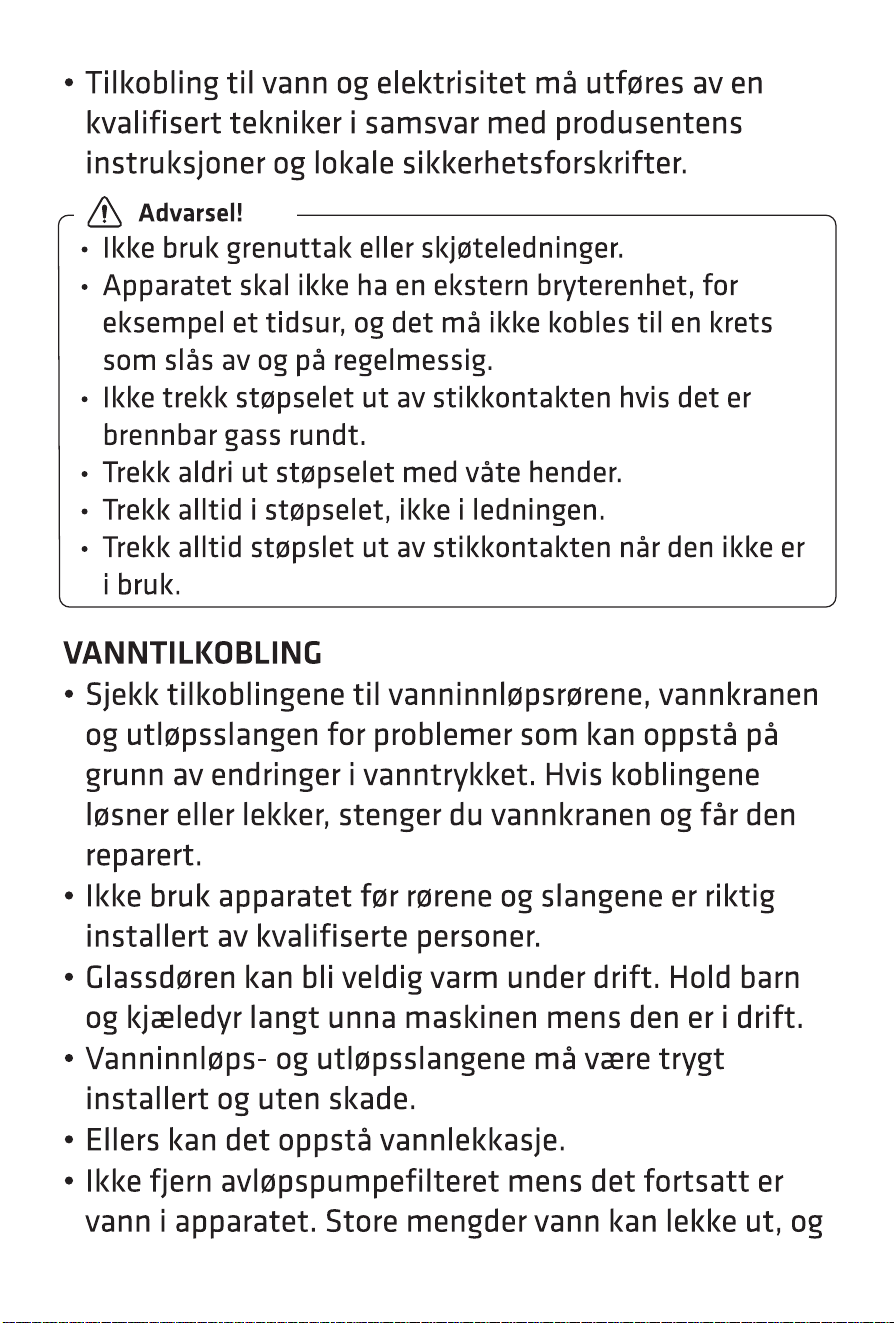

Warning!
•
•
•
Don't use multiple plugs or extension cords.
The appliance must not have an external switching
device such as a timer or connected to a circuit that is
regularly switched on and off.
Do not pull the plug out of the mains outlet if there is
flammable gas around.
Never pull out power plug with wet hands.
Always pull at the plug, not at the cable.
Always unplug the appliance if it is not being used.
Water and electrical connections must be carried out by a
qualified technician in accordance with the
manufacturer’s instructions and local safety regulations.
•
WATER CONNECTIONS
•
•
•
•
Check the connections of the water inlet tubes, the
water tap and the outlet hose for possible problems
due to changes of water pressure. If the connections
loosen or leak, close the water tap and get it repaired.
Do not use the appliance before the pipes and hoses are
installed properly by qualified persons.
The glass door may become very hot during the
operation.
Keep children and pets far away from the
machine while it is operating.
The water inlet and outlet hoses have to be safely
installed and remain undamaged.
Otherwise, water leakage can occur.
•
•
•
9

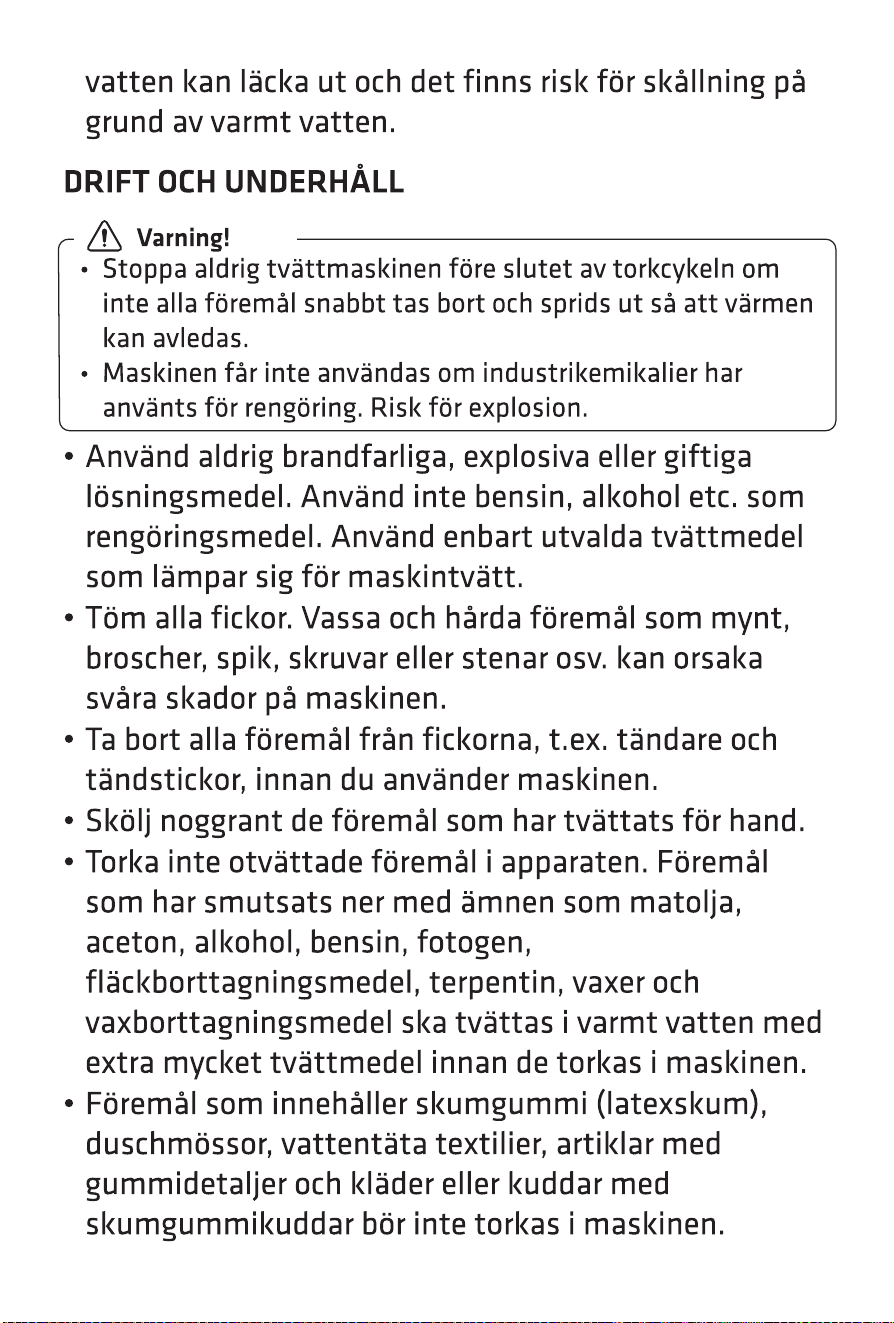

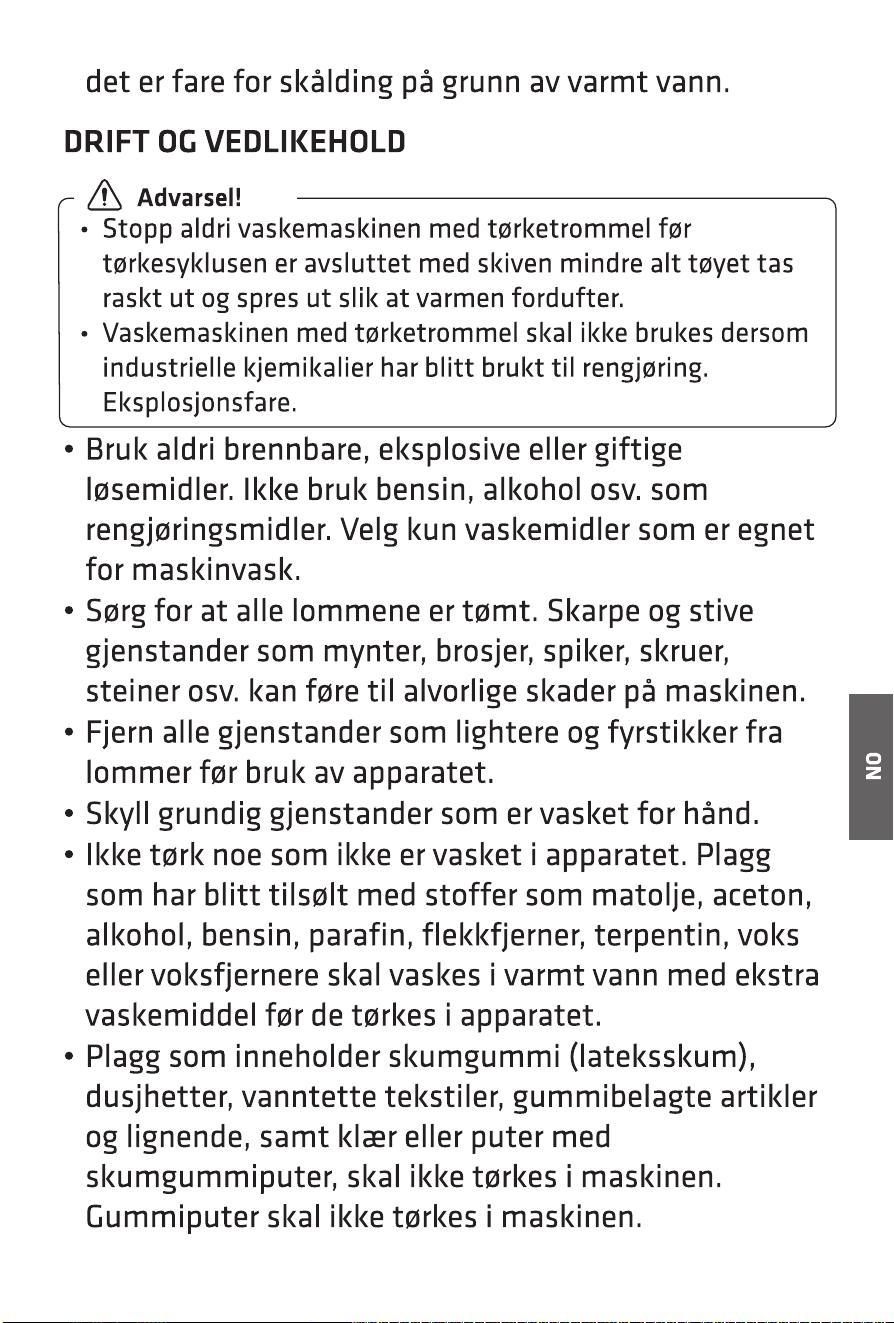

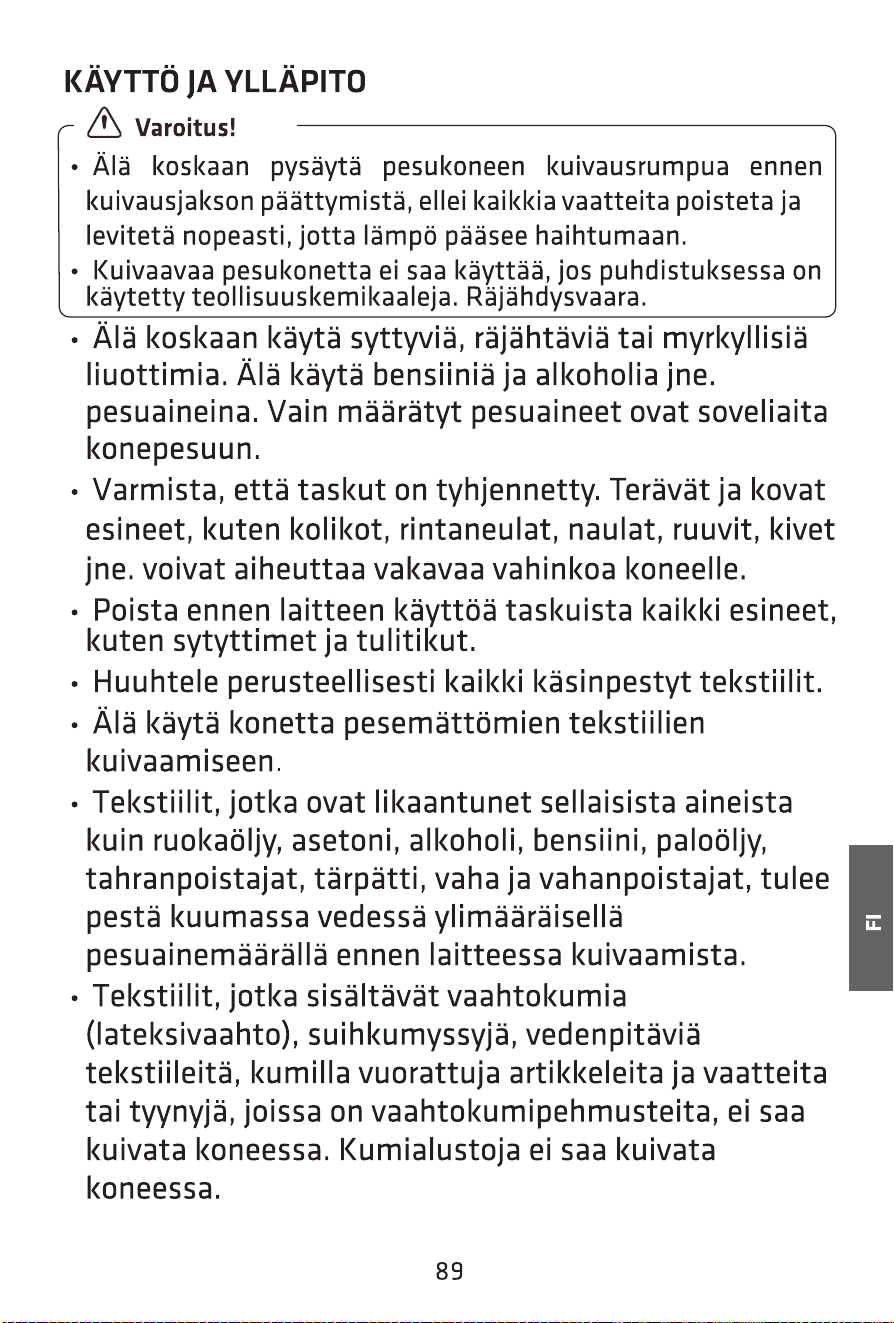

OPERATION AND MAINTENANCE
Never stop the washer dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat can dissipate.
The washer dryer is not to be used if industrial
chemicals have been used for cleaning. Risk of
explosion.
•
•
Warning!
Do not remove the drain pump filter while there is still
water in the appliance. Big quantities of water can leak
out, and there is a risk of scalding due to hot water.
•
Never use any flammable, explosive or toxic solvents. Do
not use gasoline and alcohol etc. as detergents. Only
select detergents that are suitable for machine washing.
Make sure that all pockets are emptied. Sharp and rigid
items such as coins, brooches, nails, screws, stones etc.
may cause serious damages to this machine.
Remove all objects from pockets such as lighters and
matches before using the appliance.
Thoroughly rinse items that have been washed by hand.
Do not dry unwashed items in the appliance.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, wax and wax removers should be
washed in hot with an extra amount of detergent before
being dried in the appliance.

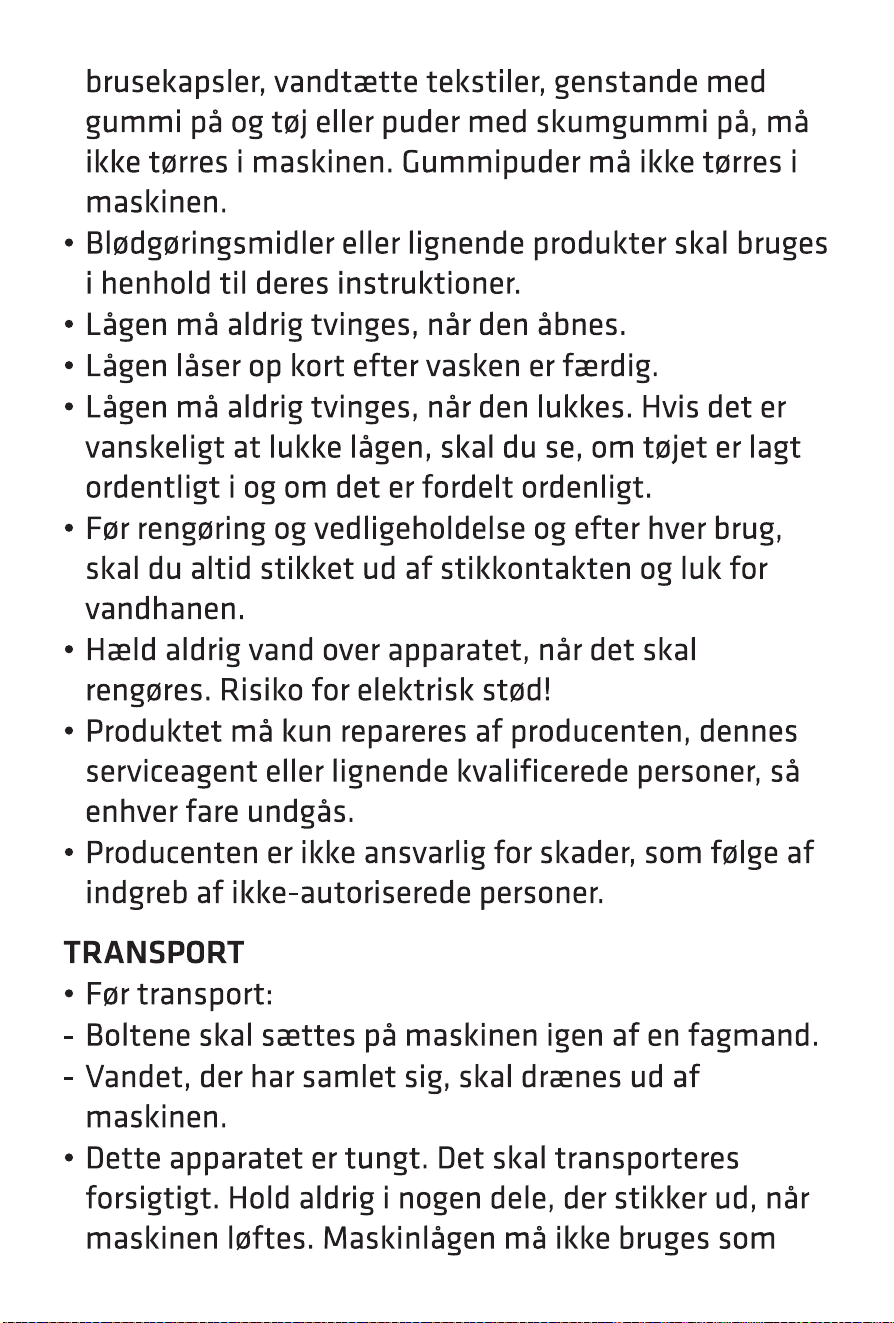

Items containing foam rubber (latex foam), shower caps,
water proof textiles, rubber backed articles and clothes
•
•
•
•
•
•
•
•
•
•
•

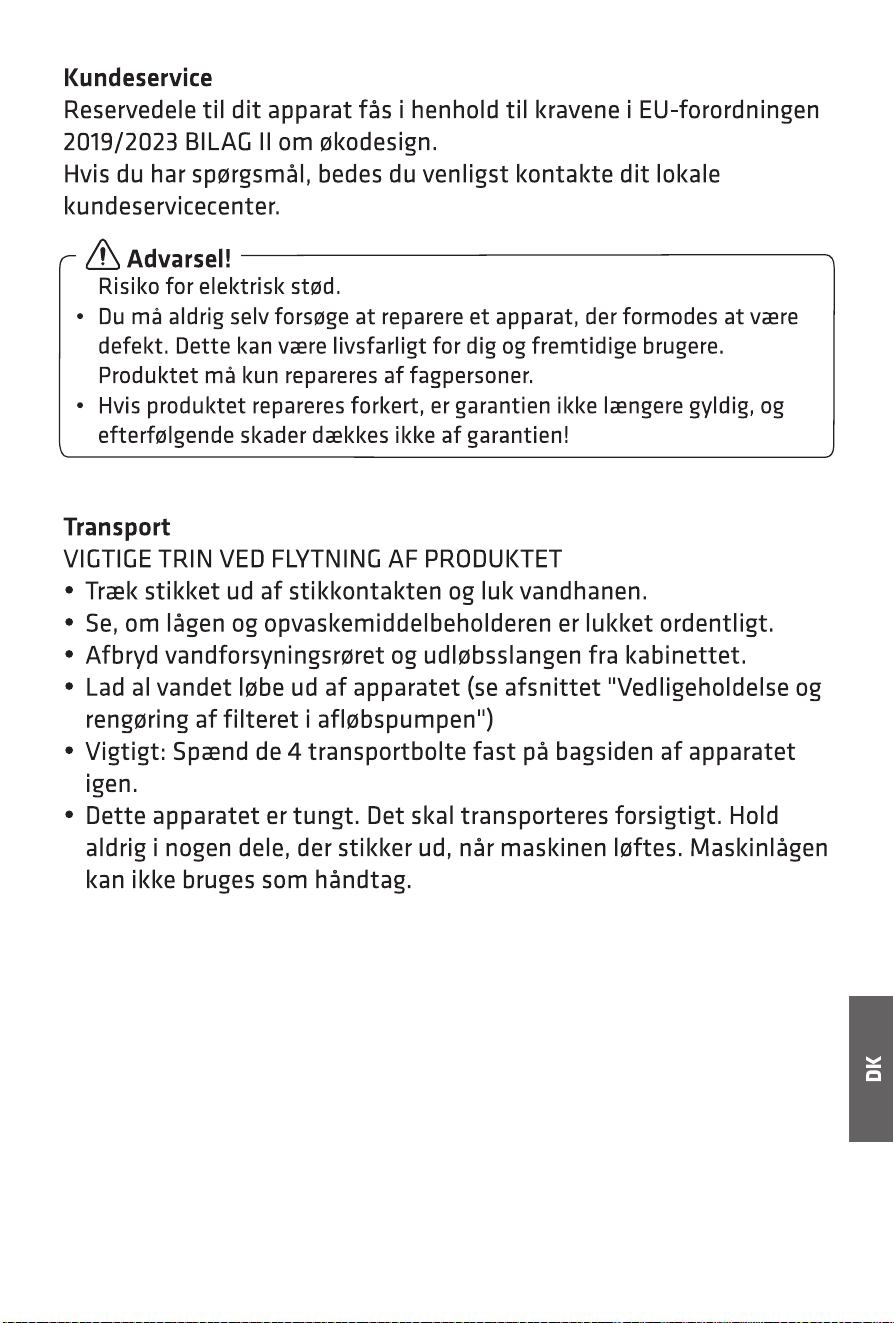

•Before transport:
- Bolts shall be reinstalled to the machine by a
specialized person;
- Accumulated water shall be drained out of
the machine.
•This appliance is heavy. Transport with care. Never
hold any protruding part of the machine when
lifting. The machine door can not be used as a
handle.
•
•
or pillows fitted with foam rubber pads should not be
dried in the machine.
Rubber pads should not be dried in the machine.

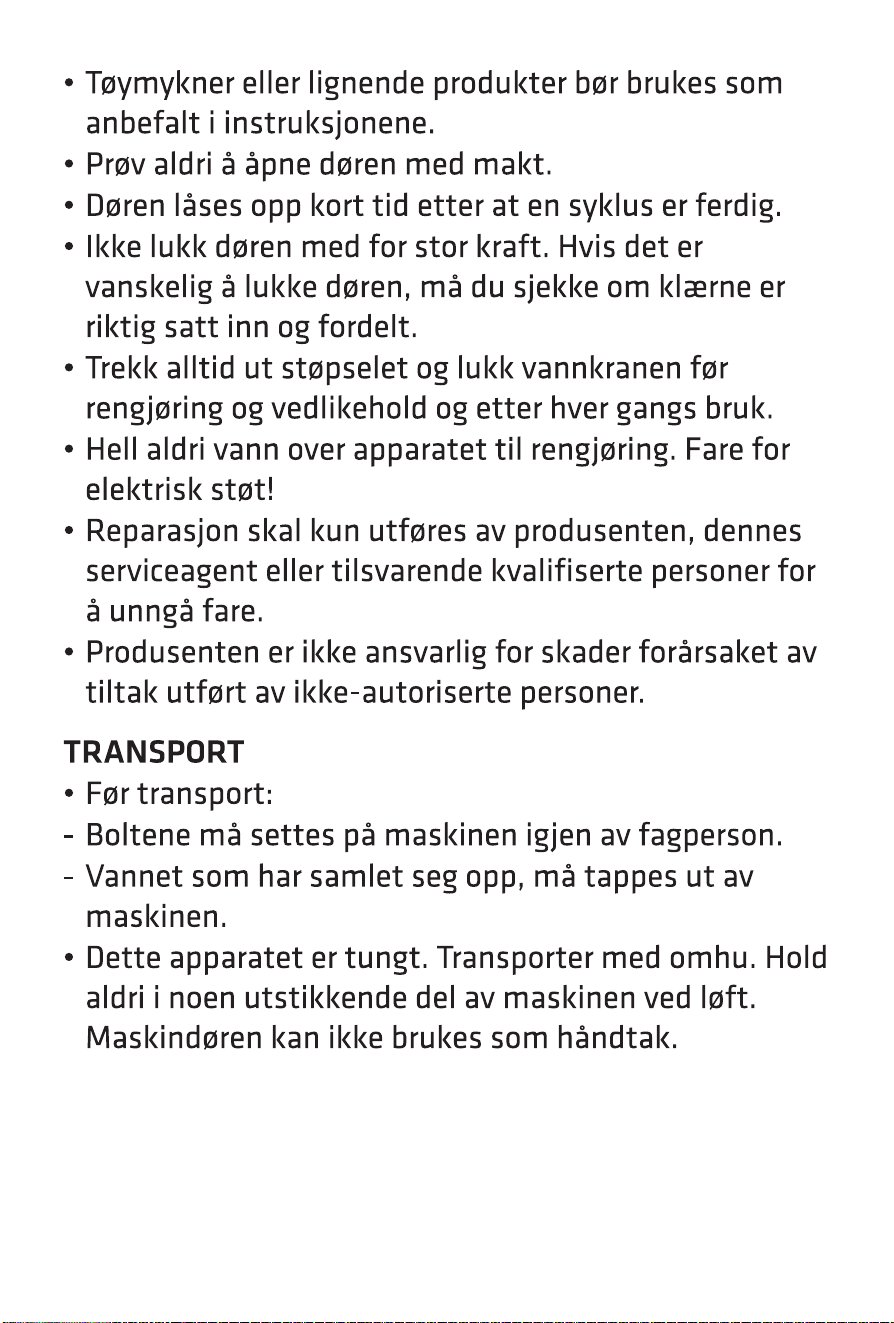

Fabric softeners or similar products should be used as
recommended in their instructions.
Never try to open the door forcefully
.
The door will unlock shortly after the end of a cycle.
Please do not close the door with excessive force. If it is
found difficult to close the door, please check if the
clothes are properly inserted and distributed.
Always unplug the appliance and close the water tap
before cleaning and maintenance and after each use.
Never pour water over the appliance for cleaning
purpose. Risk of electric shock!
Repairs shall only be carried out by the manufacturer, its
service agent or similarly qualified persons in order to
avoid a hazard.
The manufacturer will not be responsible for damages
caused by the intervention of non-authorized persons.

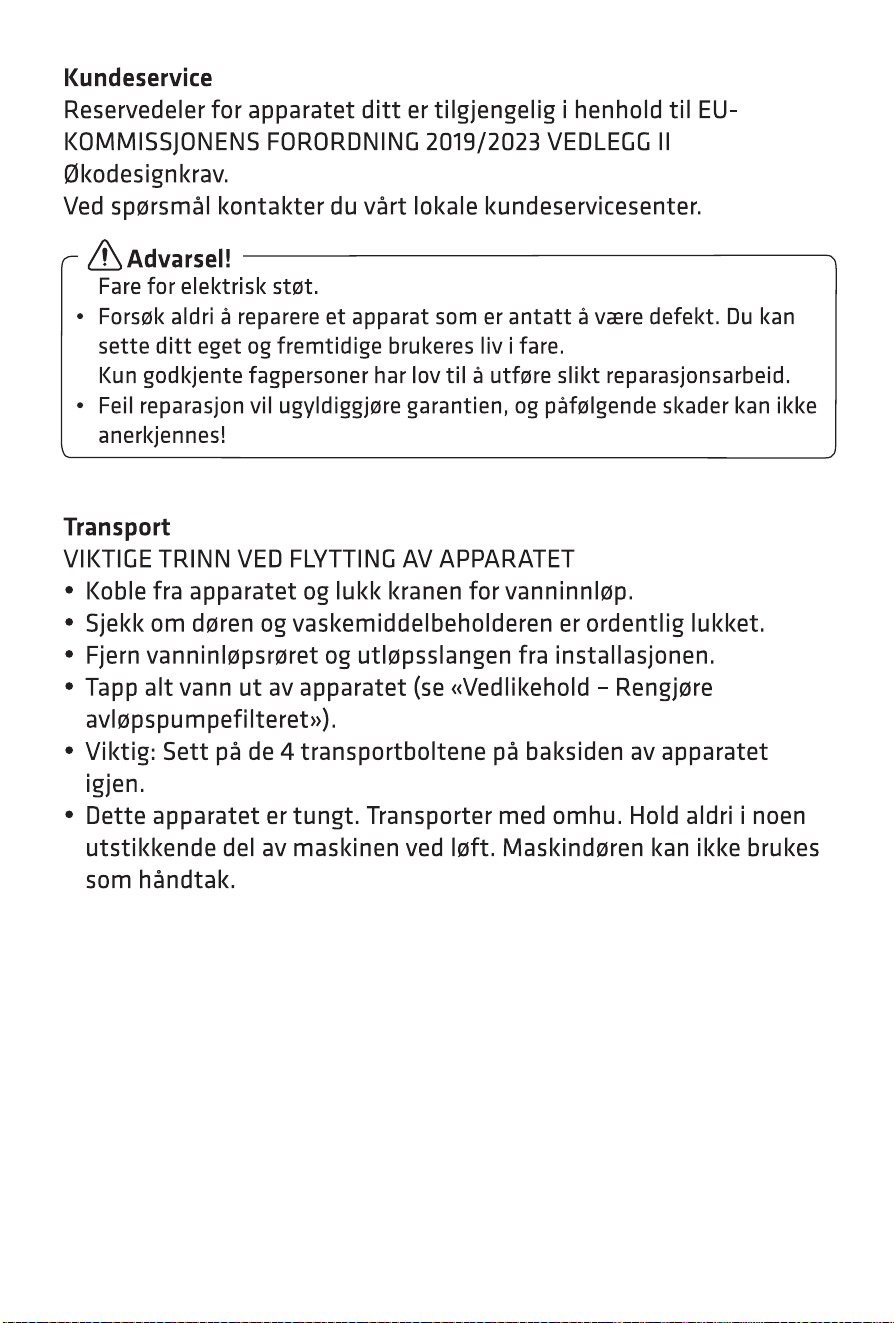

TRANSPORT
10
11

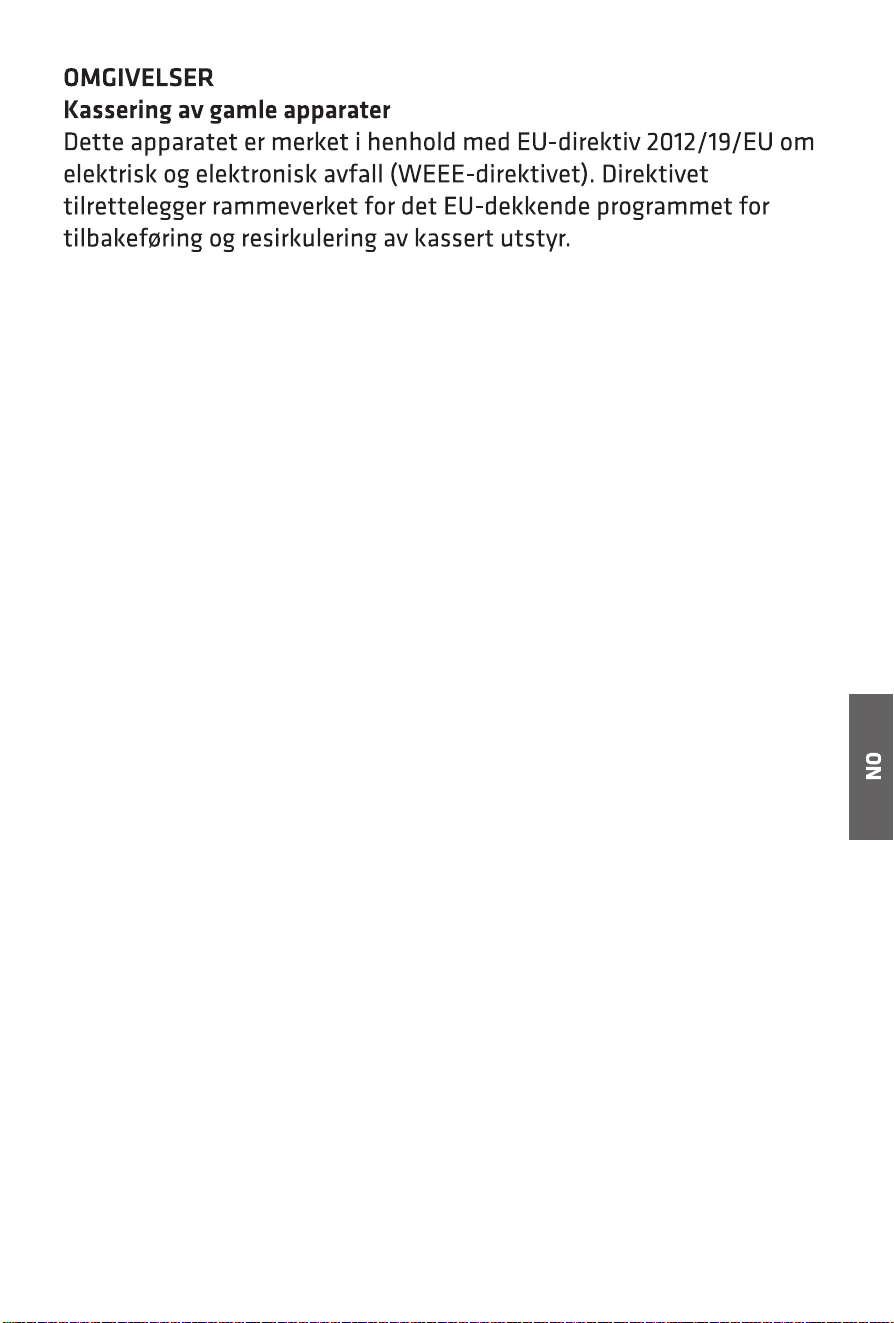

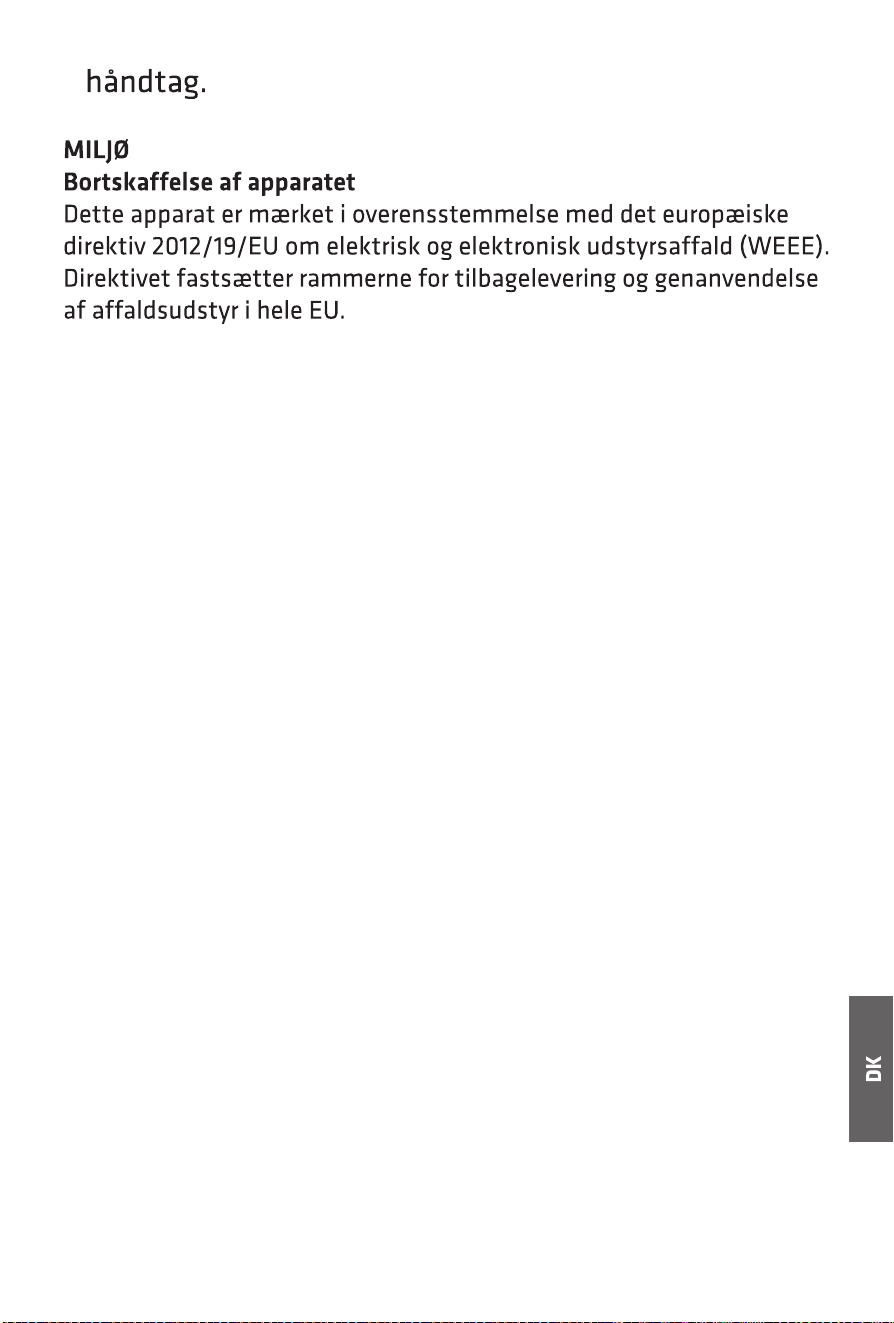

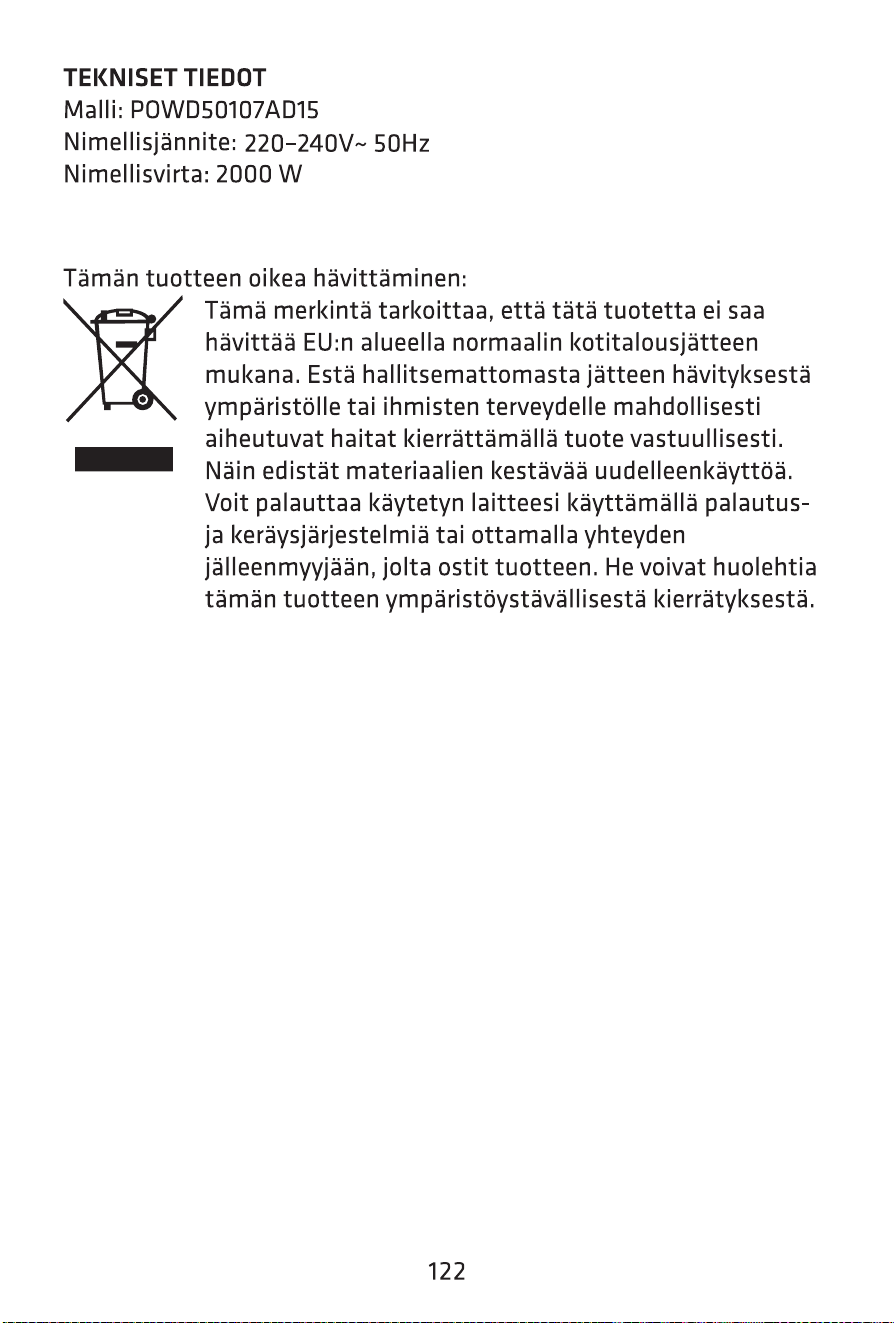

ENVIRONMENT
This appliance is labelled in accordance with the European Directive
2012/19/EU on waste electrical and electronic equipment (WEEE). The
directive provides the framework for the EU-wide take-back and
recycling of waste equipment.

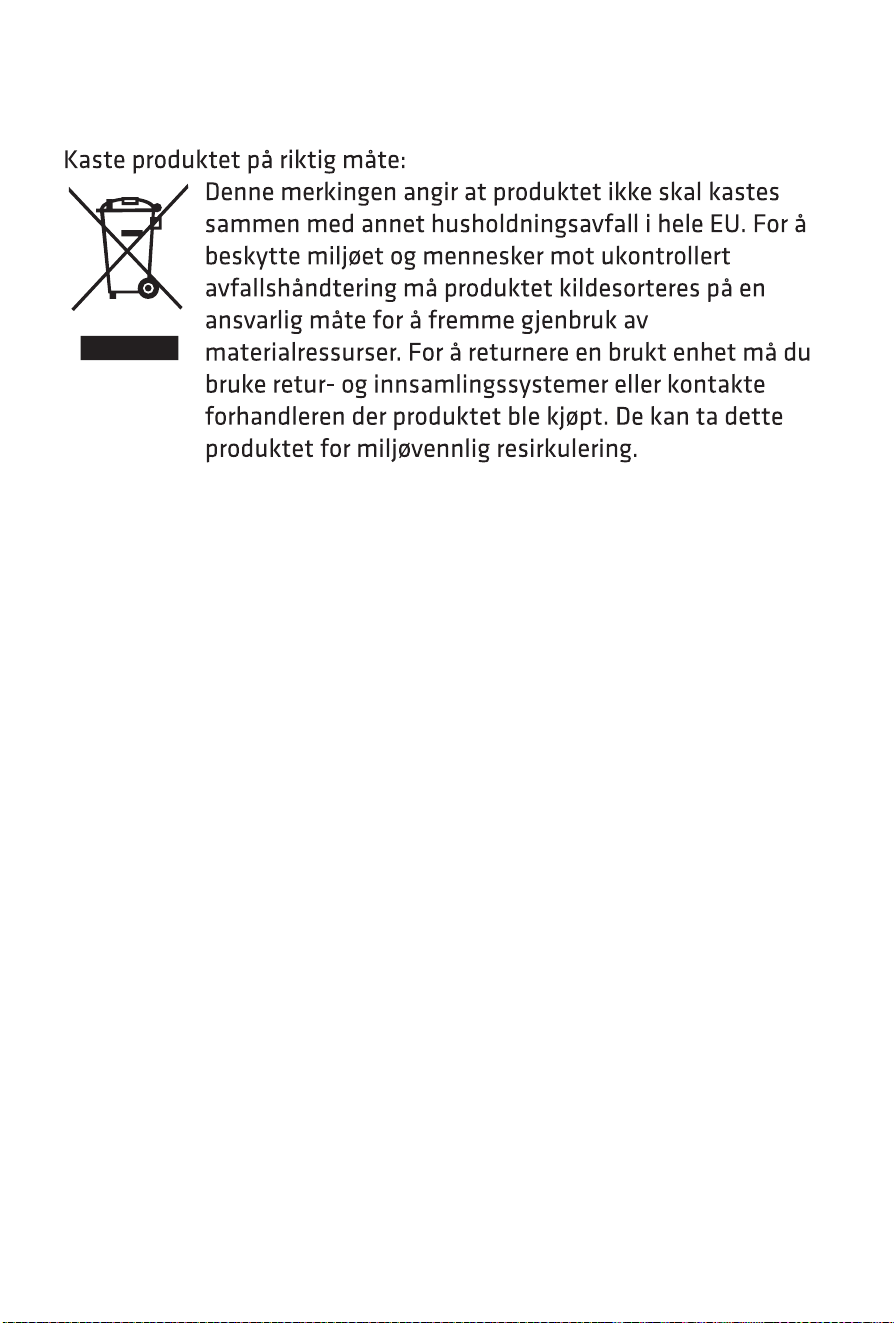

Disposal of old appliances
12
INSTALLATION

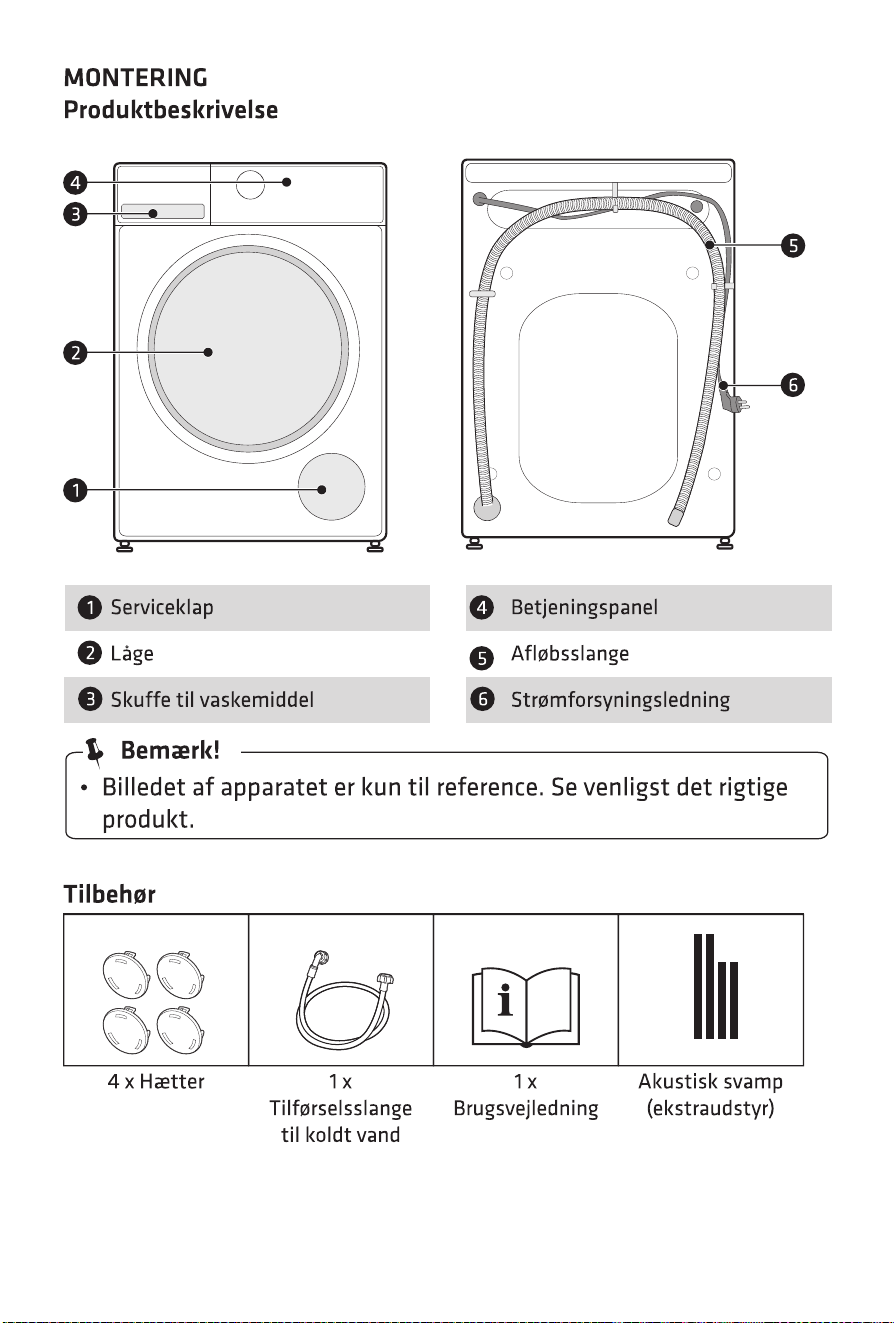

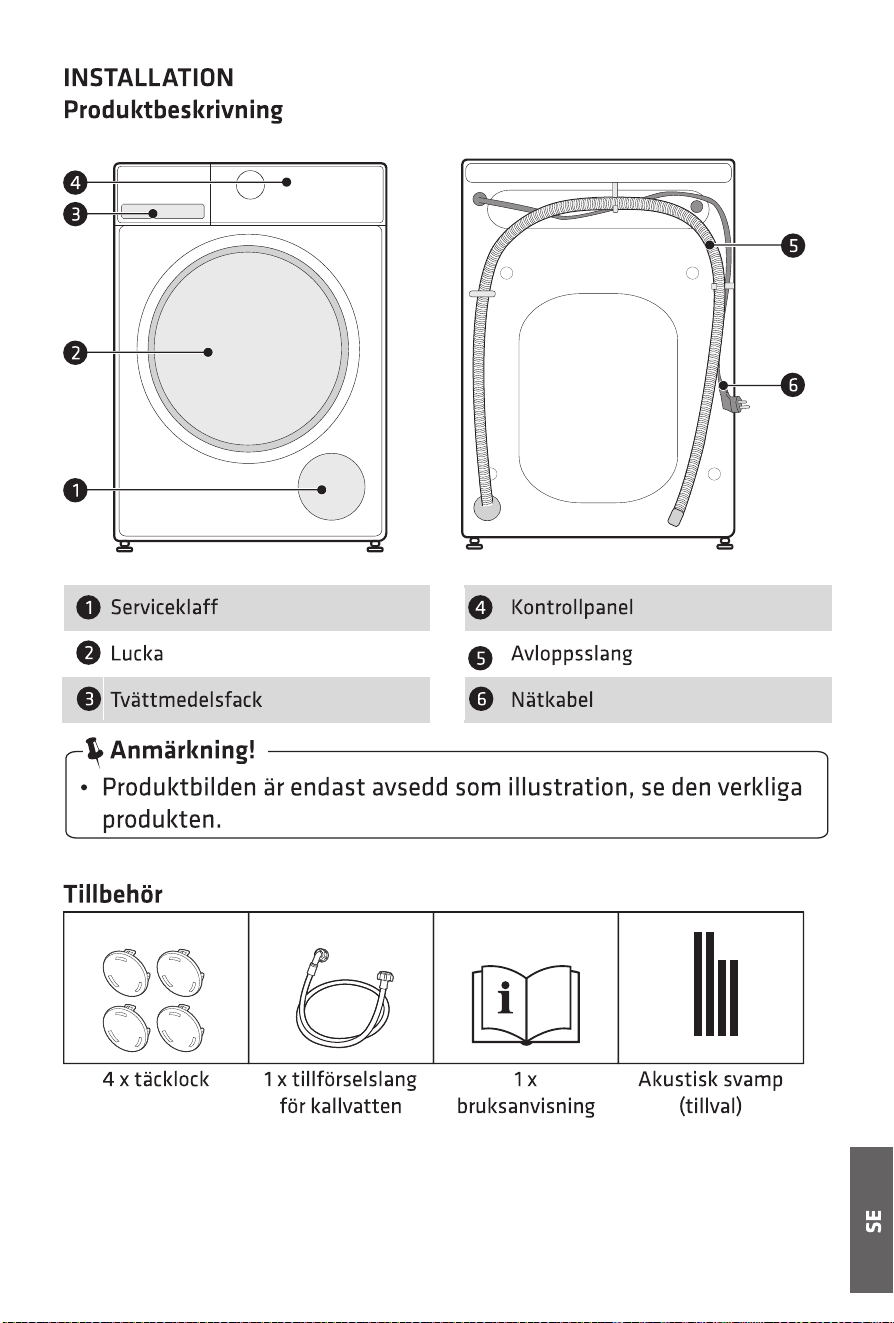

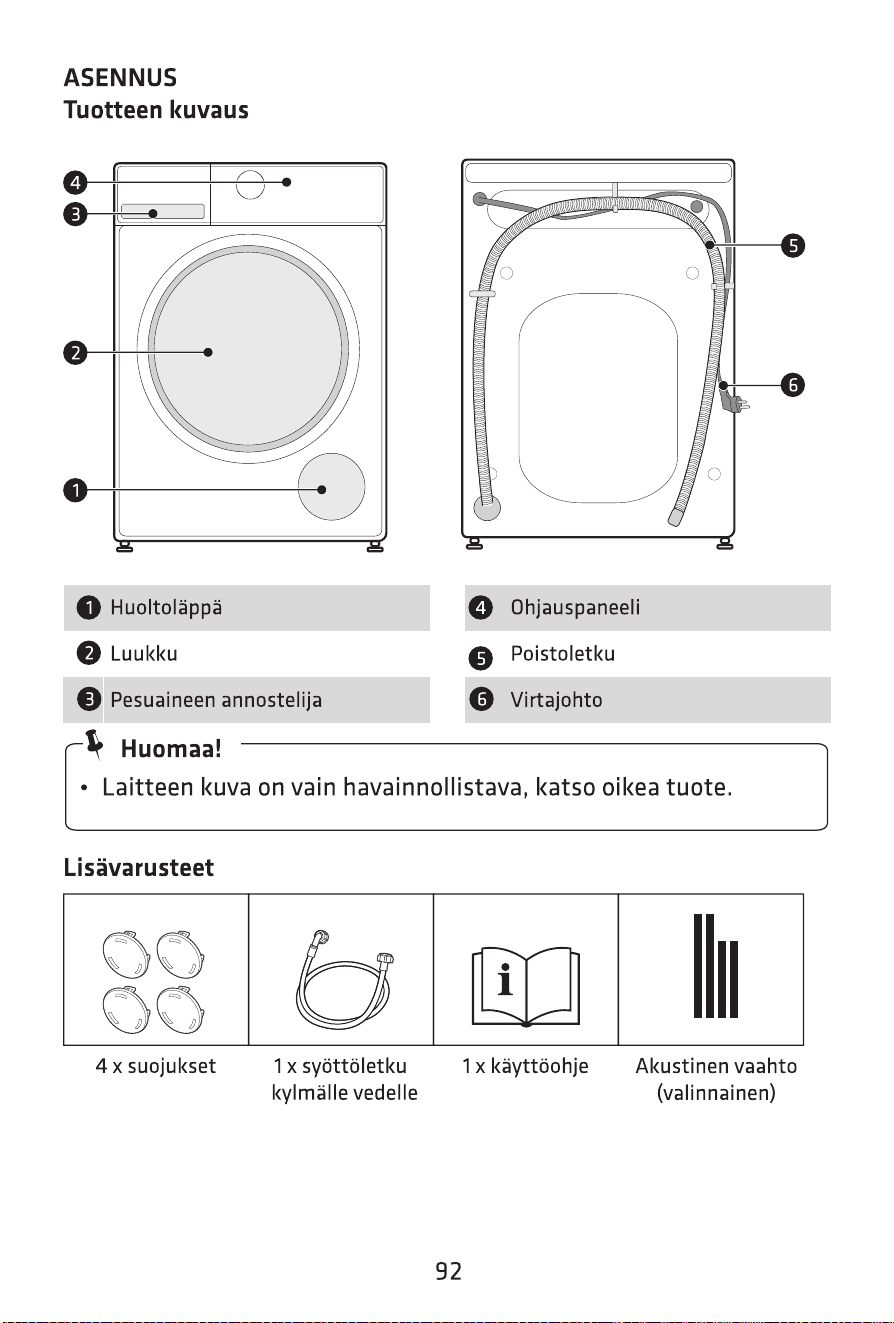

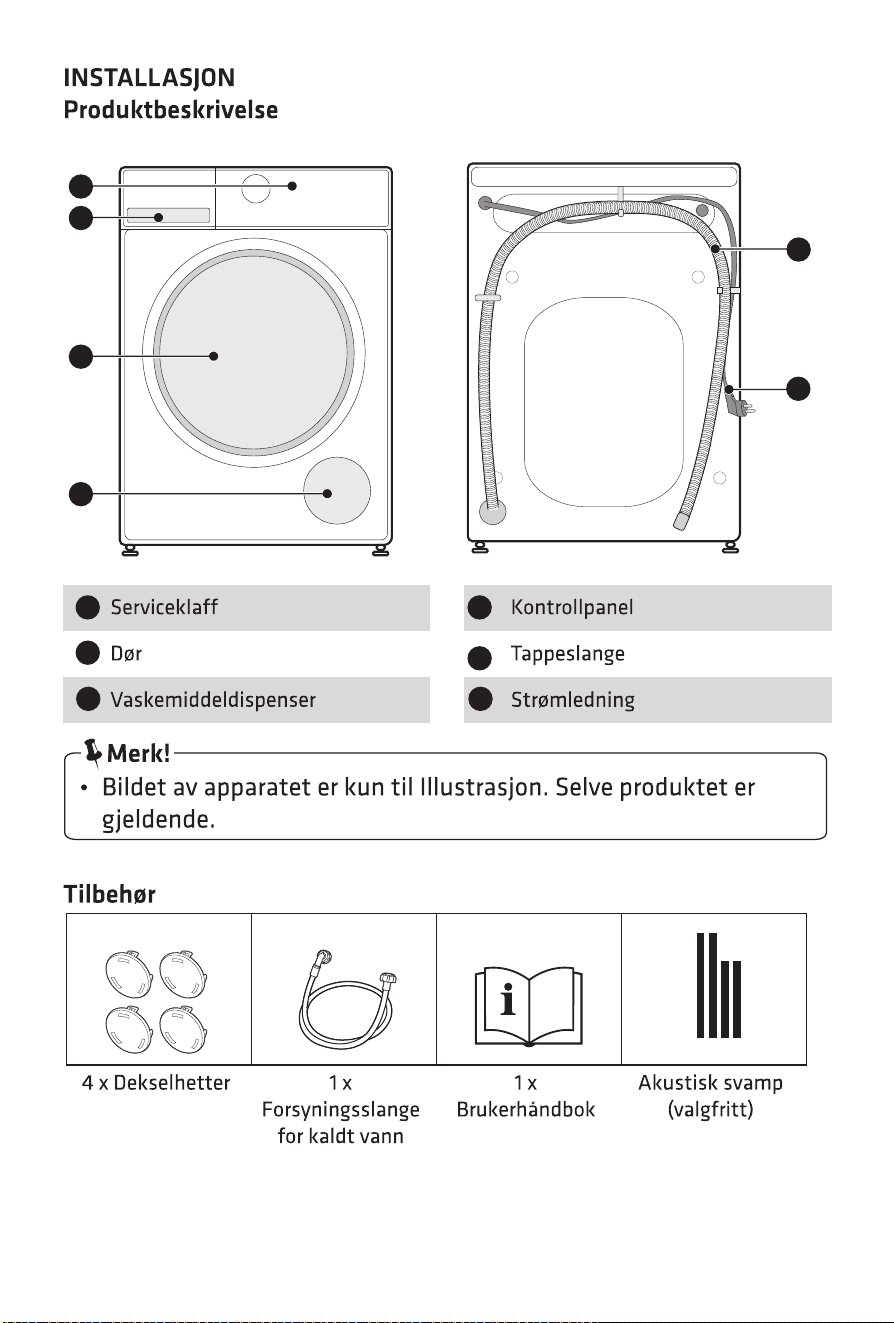

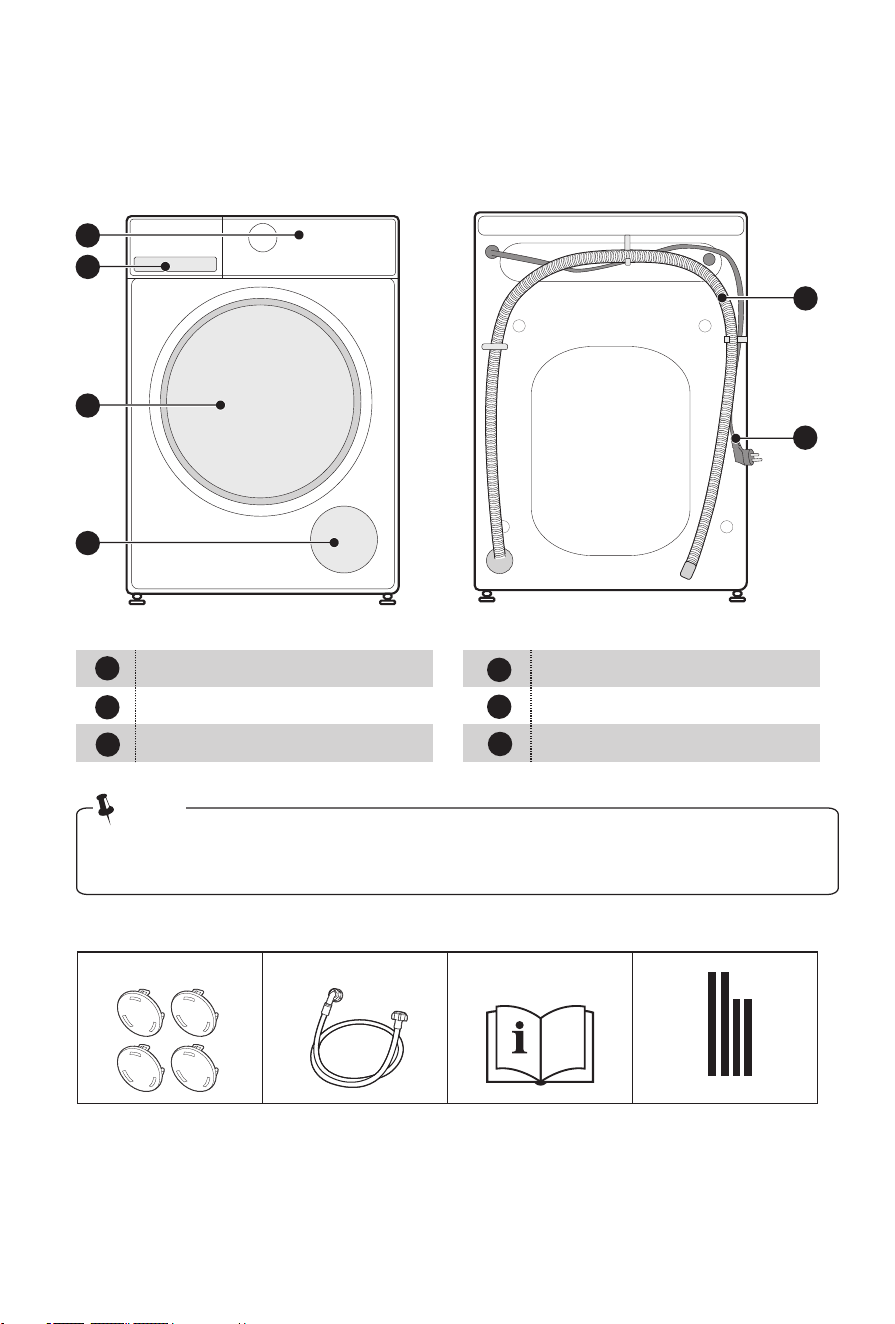

Product Description
1
2
3
4
5
6
1
2
3
4
5
6
Service flap
Door
Detergent dispenser
Control panel
Drain hose
Power supply cord
• The appliance picture is for illustration only, please refer to
real product.
Accessories
4 x Cover caps
1 x Supply hose
cold water
1 x Owner’s
manual
Acoustic sponge
(optional)
Note!

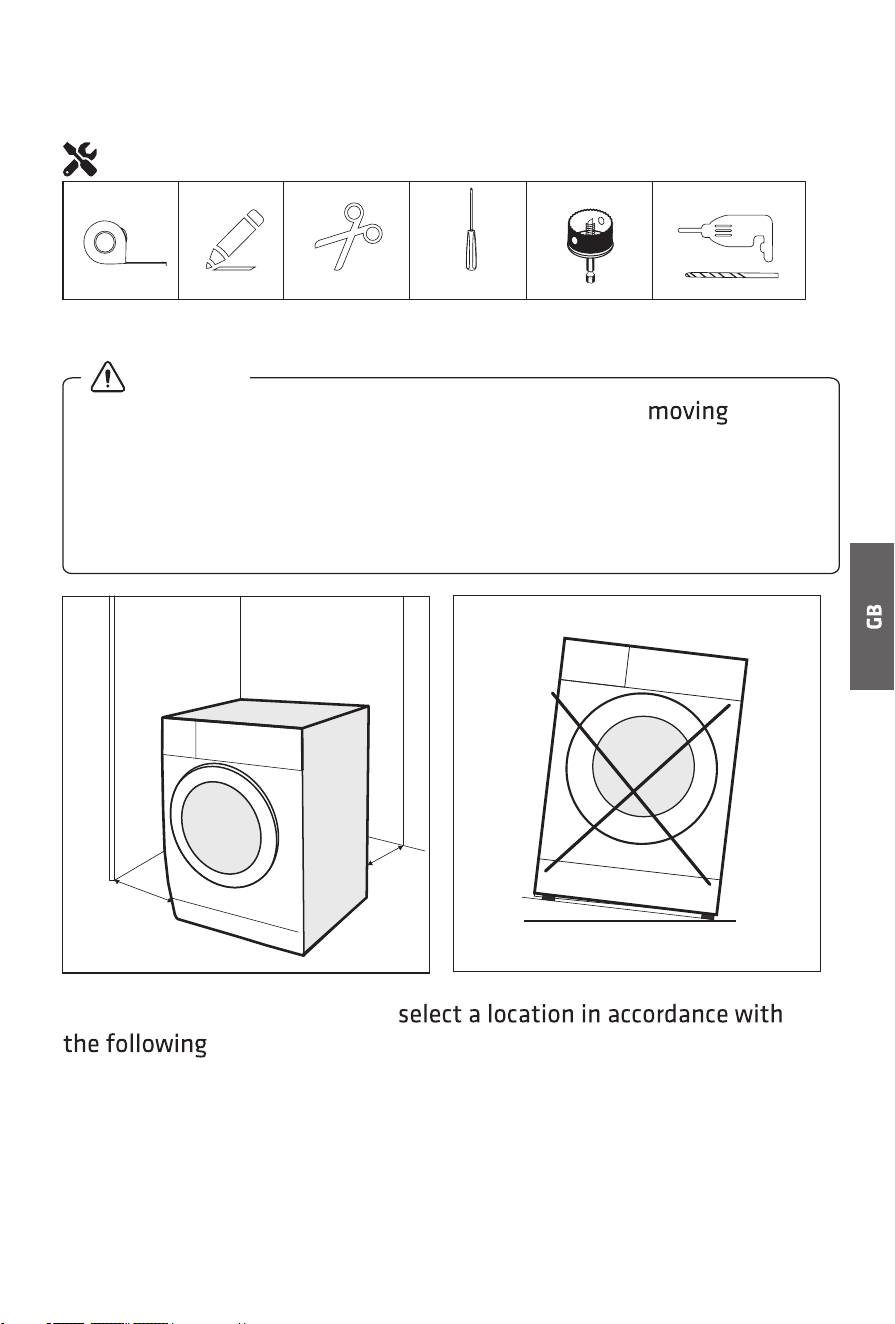

Before installing the machine,
:

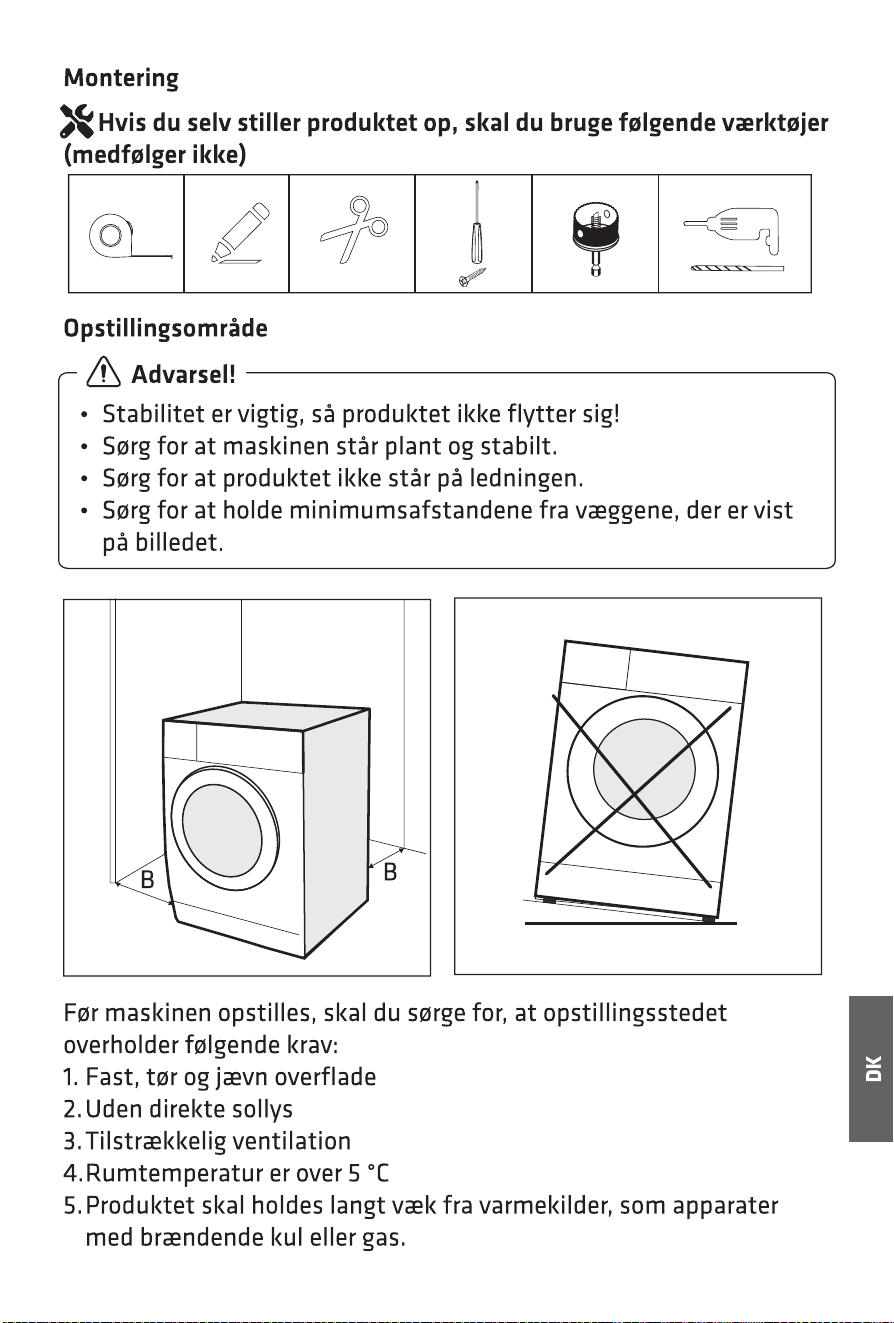

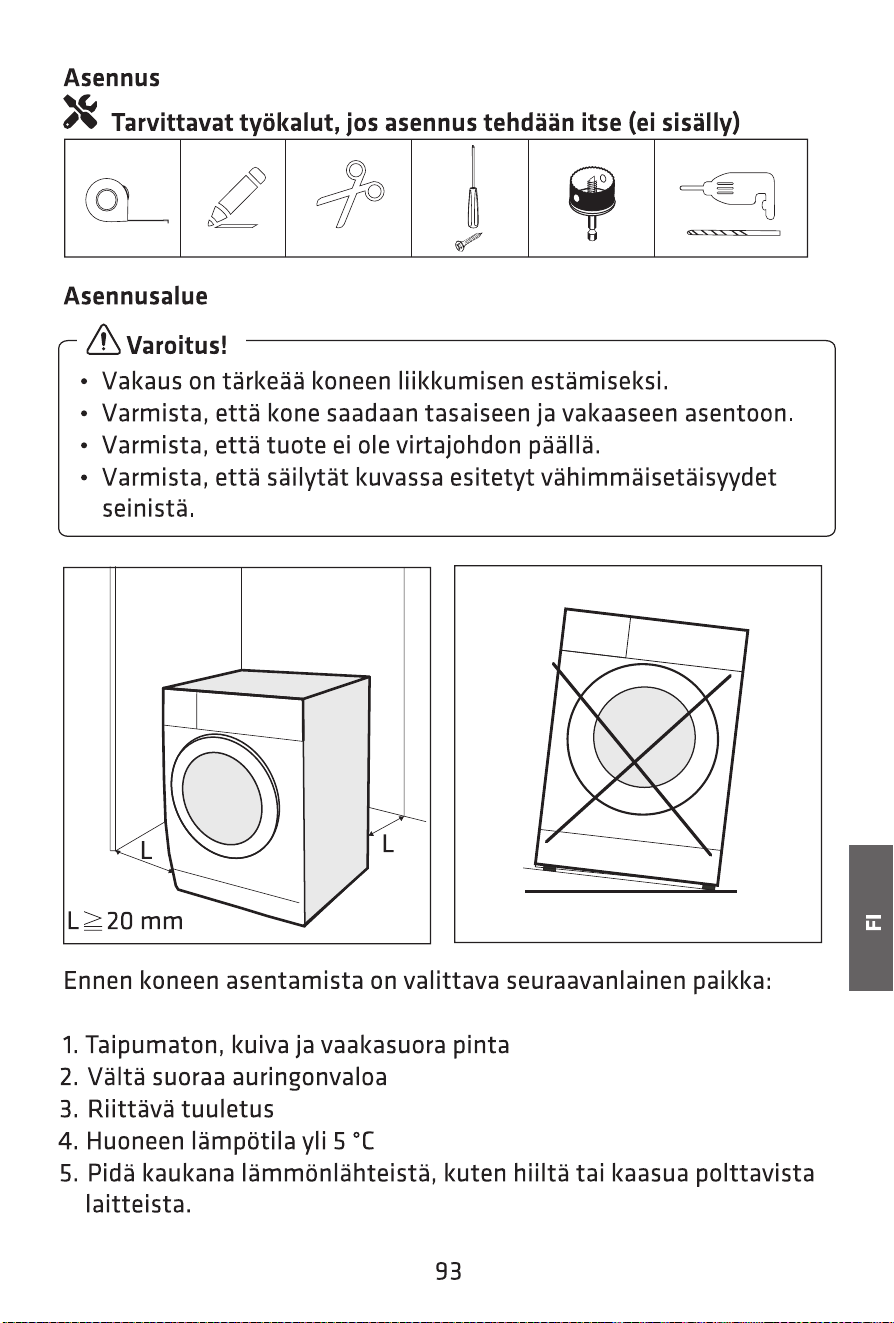

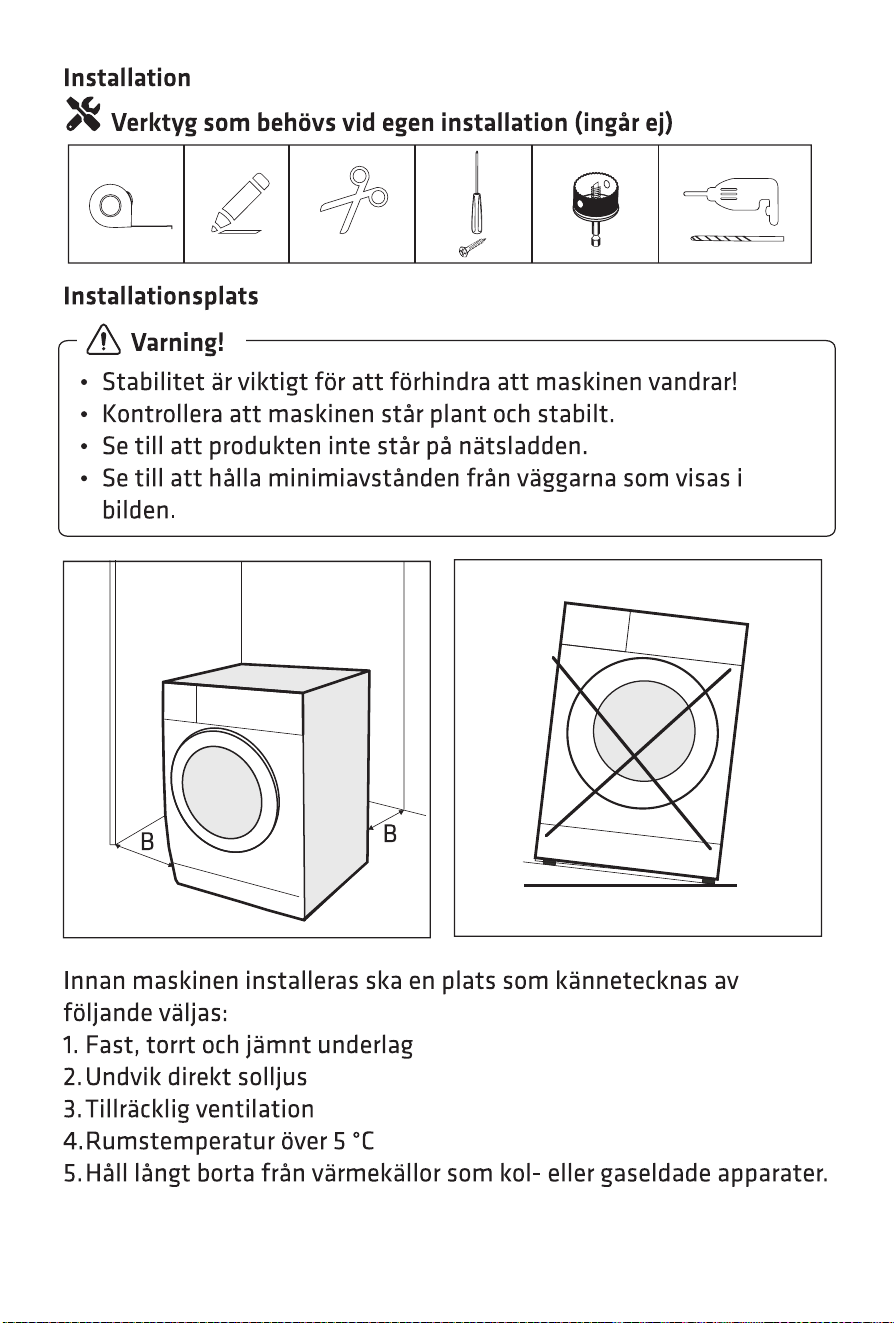

1. Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sucient ventilation
4.Room temperature is above 5°C
5.Keep far away from the heat sources such as coal or gas burning
appliances.
Installation area
13

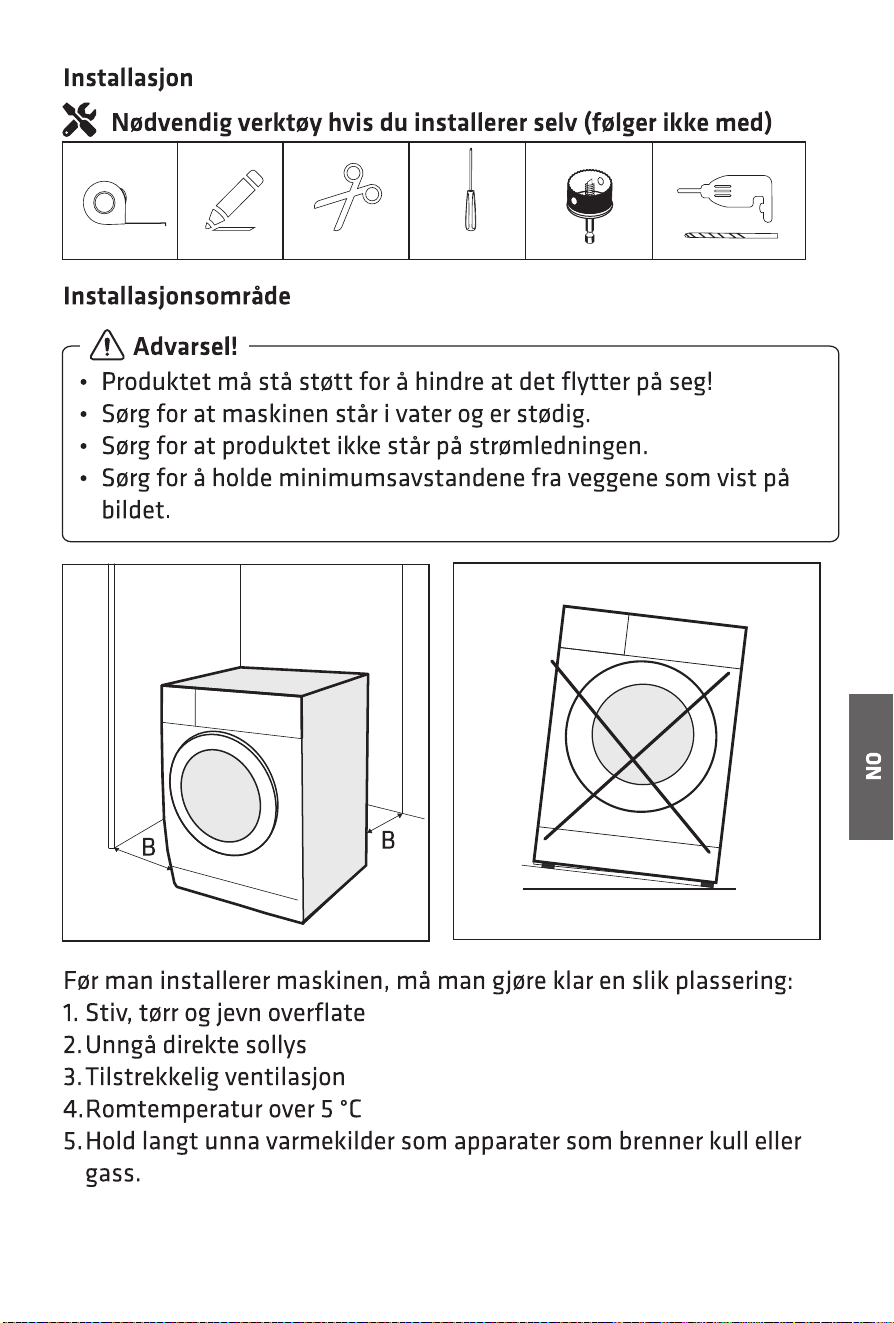

Installation
w
w
·
·
·
·
Make sure the machine is standing leveled and stable.
Make sure that the product does not stand on the power
cord.
as
shown in the picture
Warning!
Tools Needed If Installing Yourself (not included)
Stability is important to prevent the product from
Make sure to maintain the minimum distances from the walls
W≥20mm

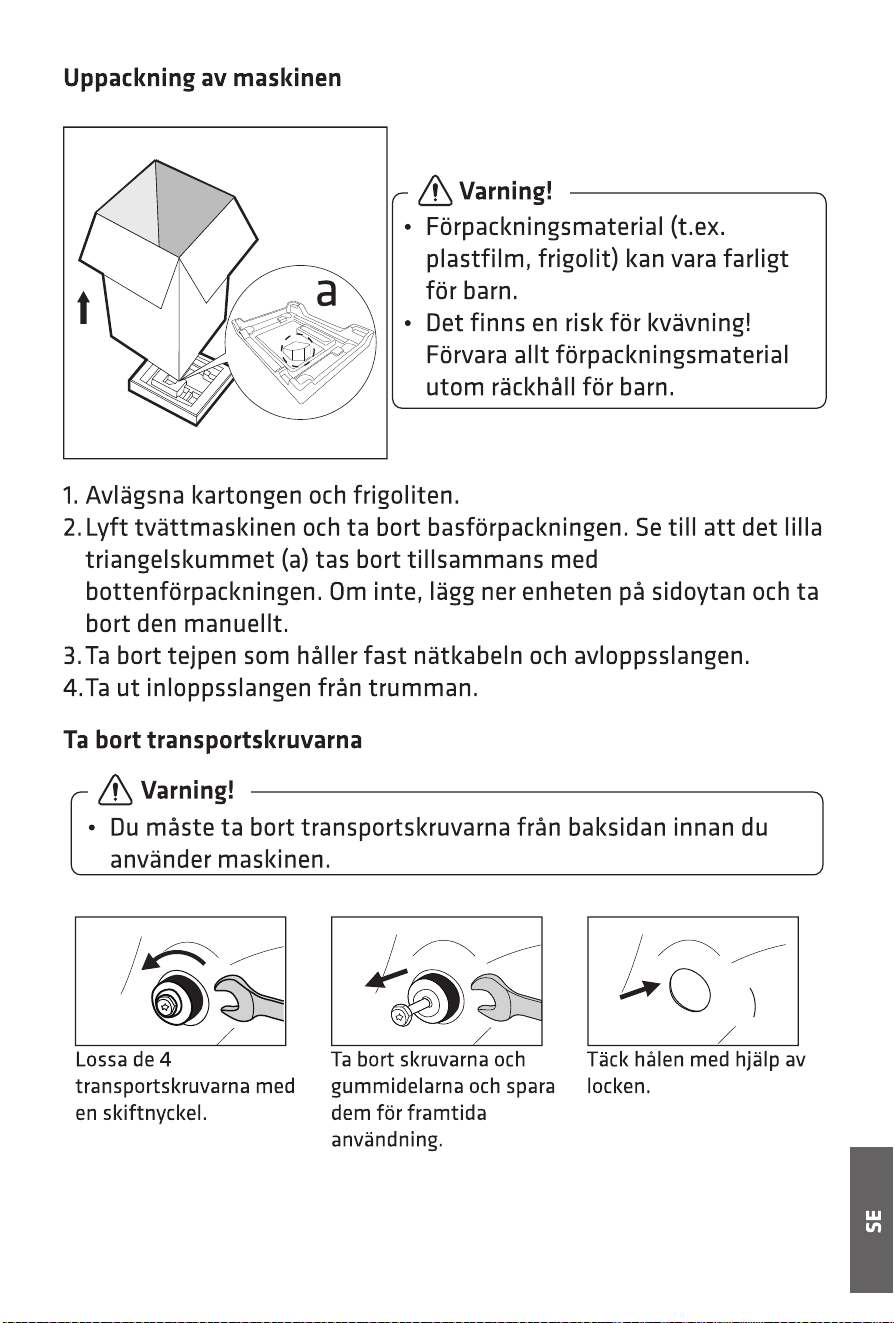

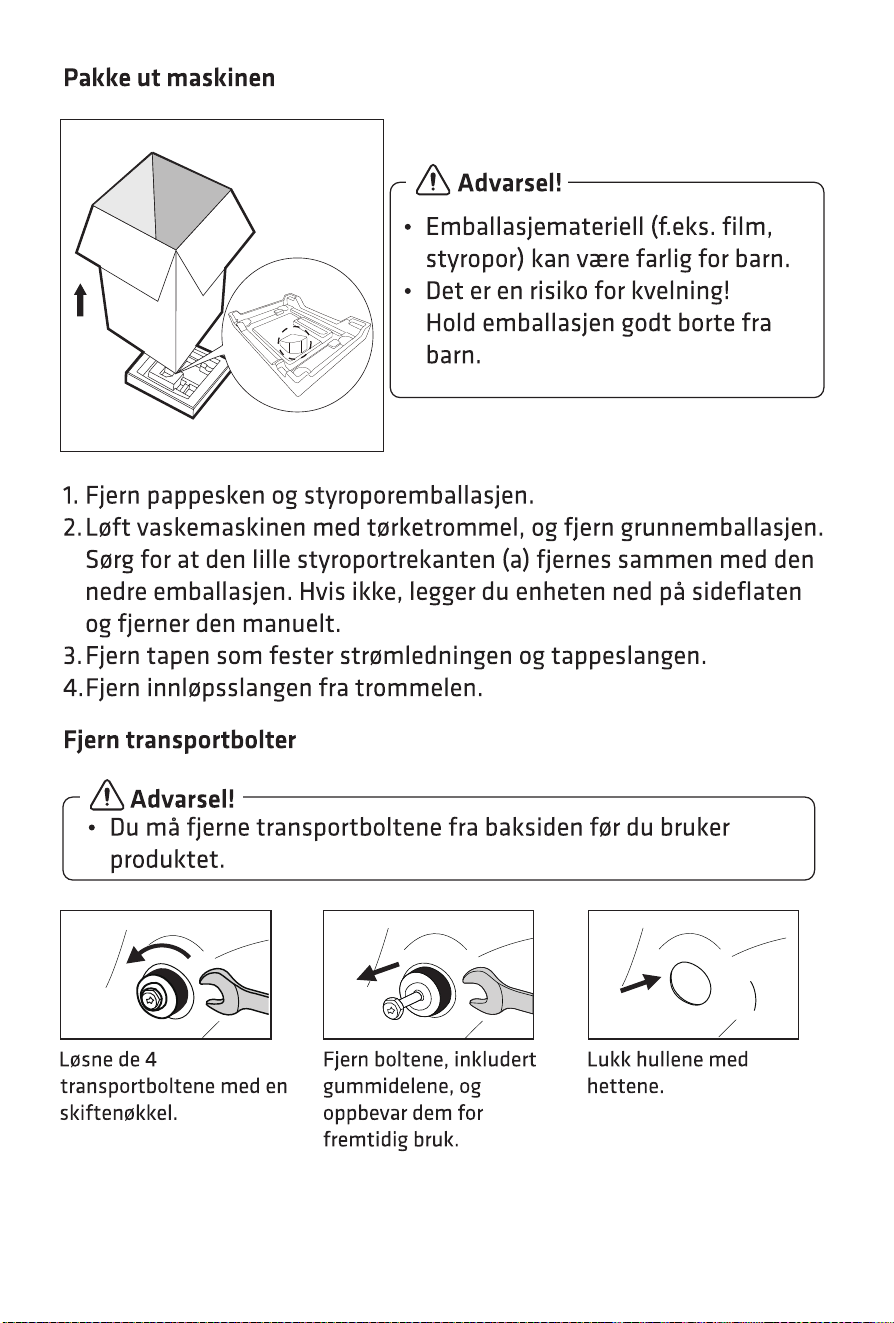

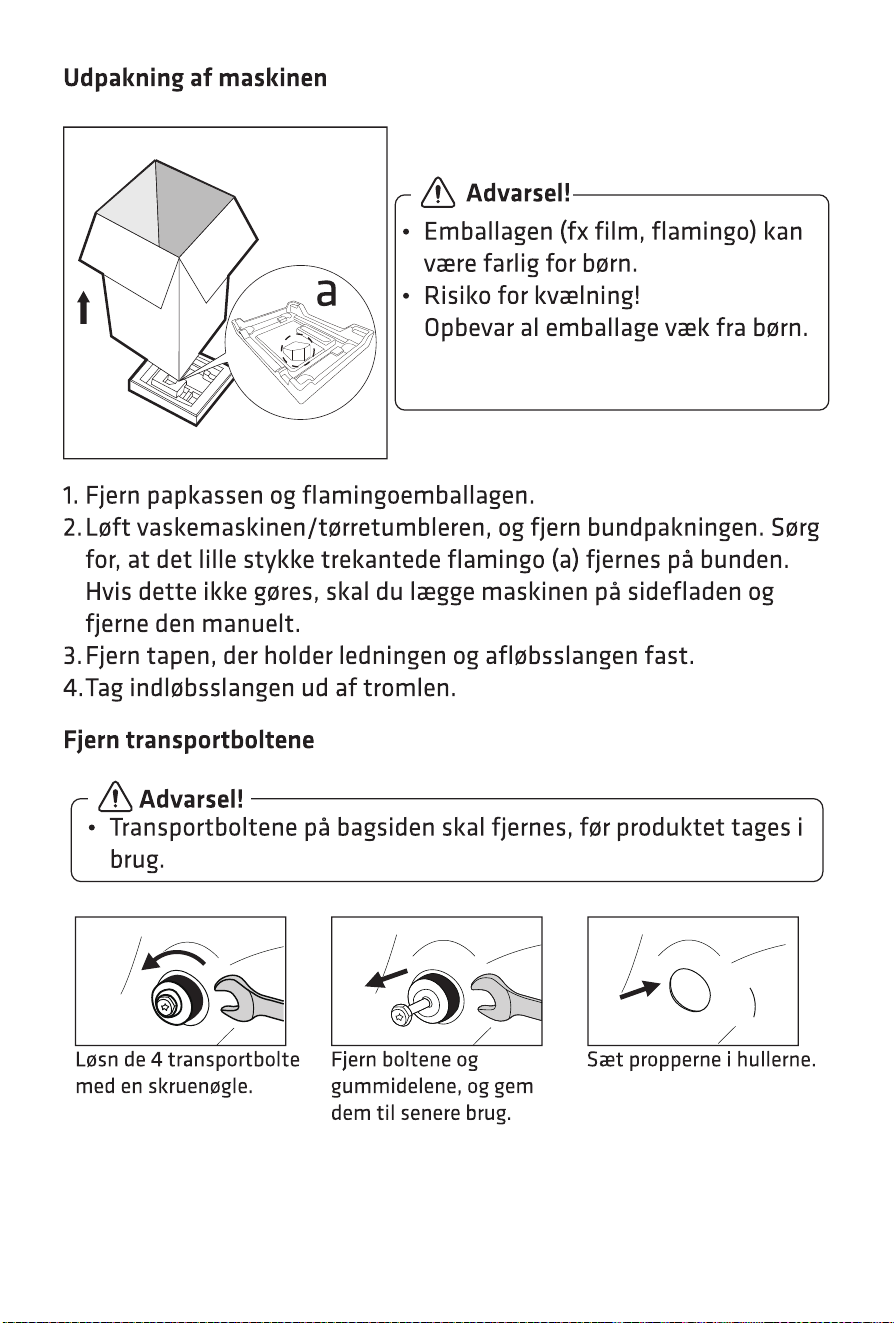

Unpacking the machine
• Packaging material (e.g. f
ilm,
styrofoam) can be dangerous for
children.
• There is a risk of suffocation !
Keep all packaging well away from
children.

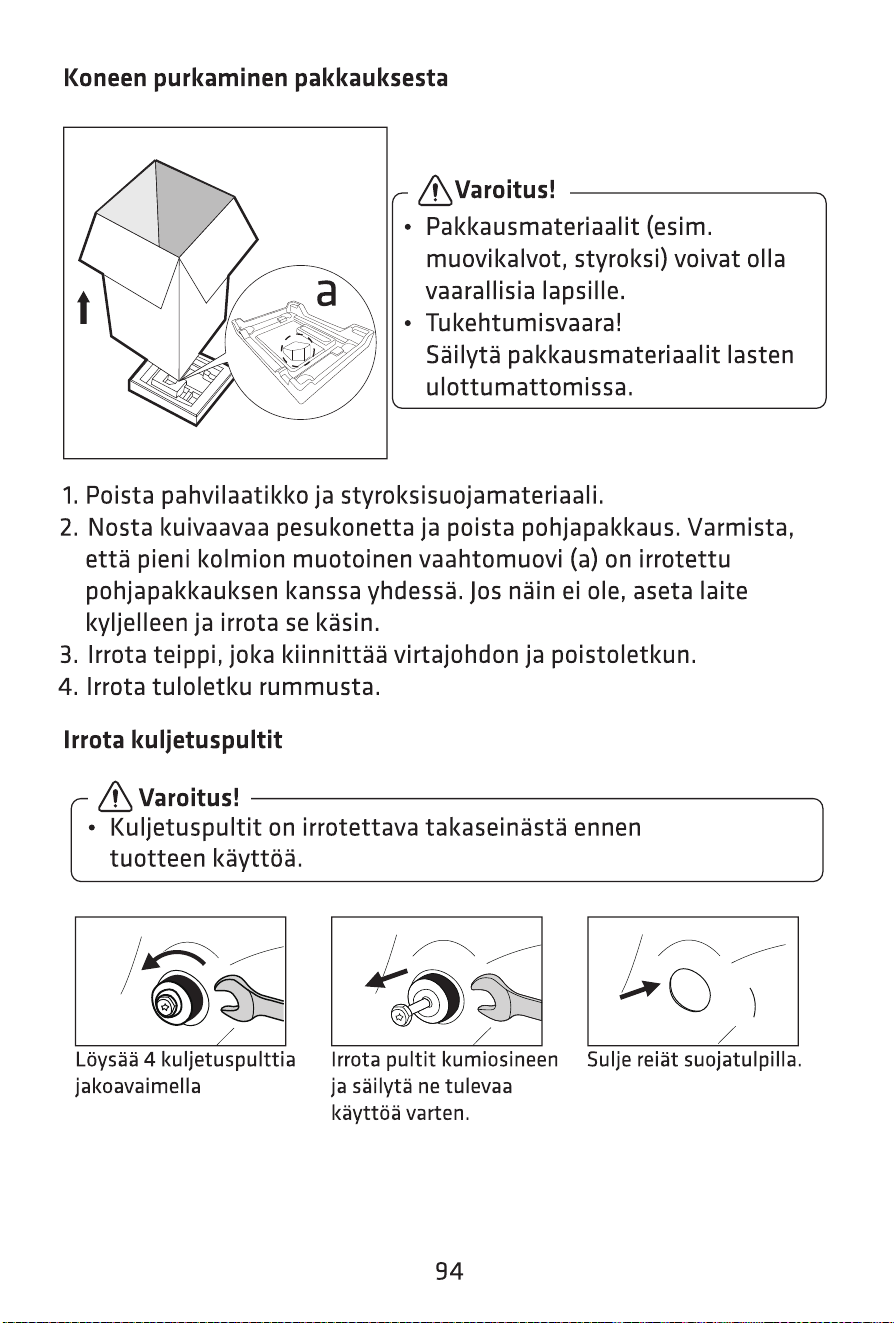

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging. Make sure the
small triangle foam (a)
is removed together with the bottom
packaging. If not, lay the unit down on the side surface and remove
it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

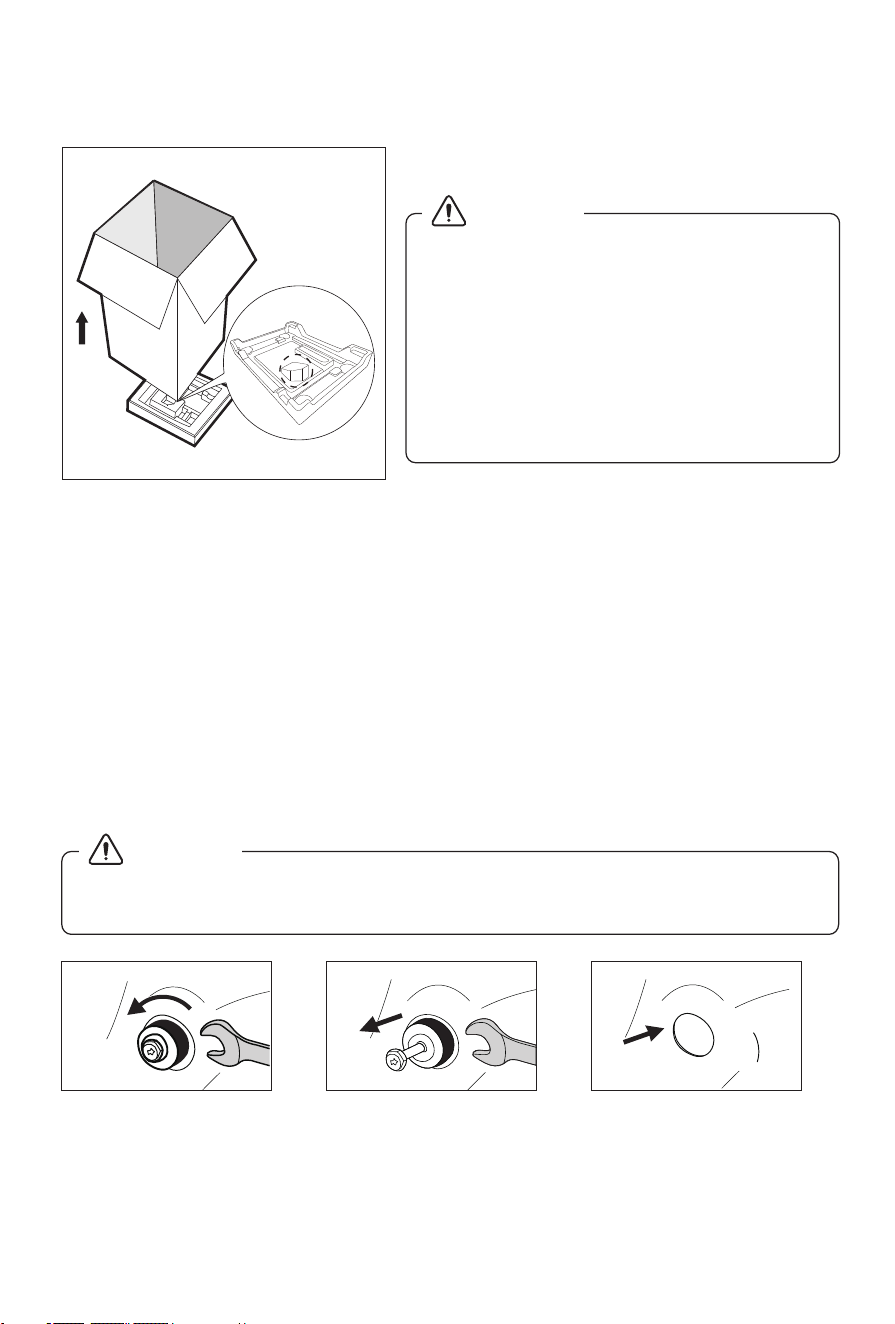

Remove transport bolts
• You must remove the transport bolts from the backside before using
the product.
Loosen the 4 transport
bolts with a spanner.
Close the holes using the
cover caps.
Remove the bolts including
the rubber parts and keep
them for future use.
14
a
Warning!
Warning!
15

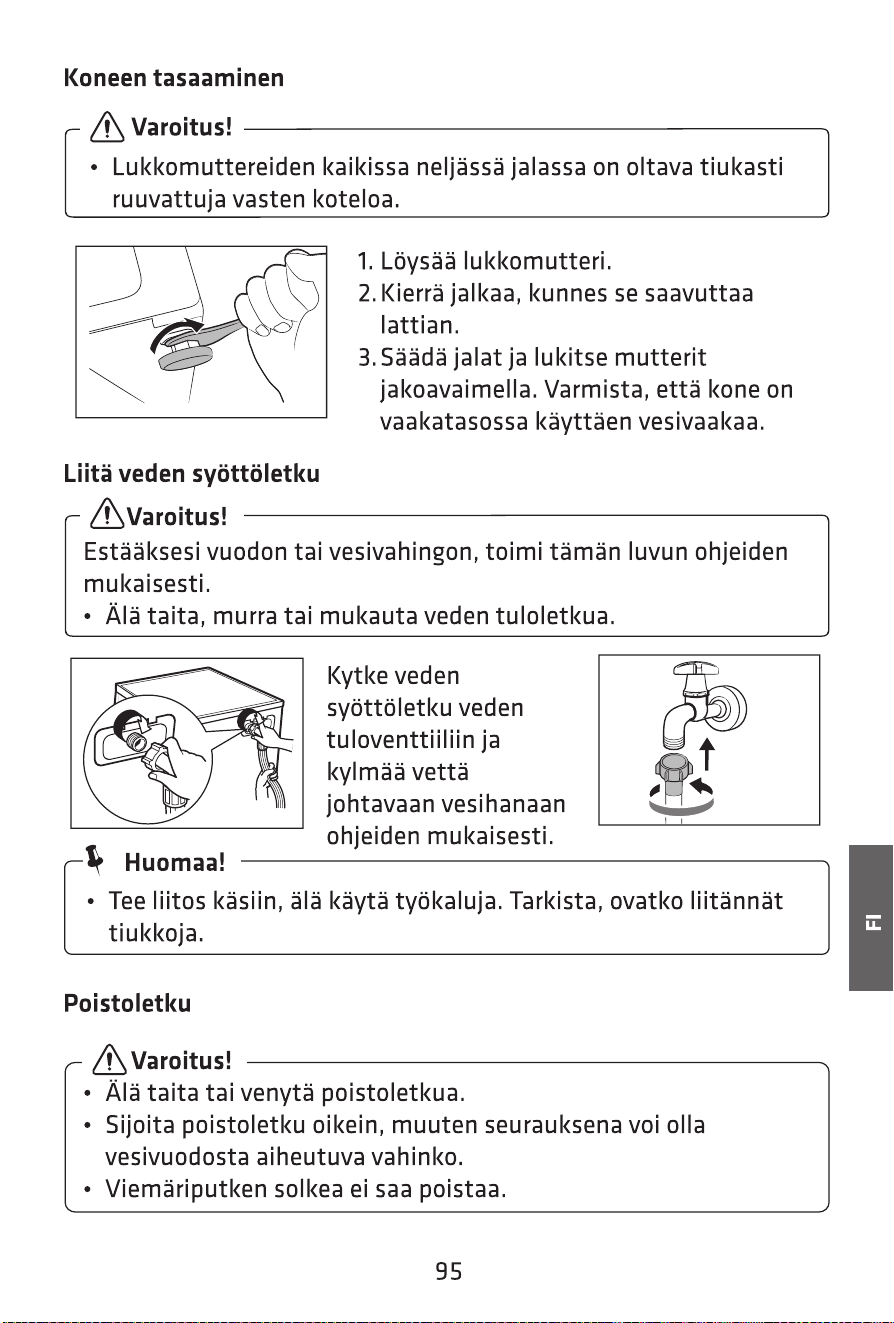

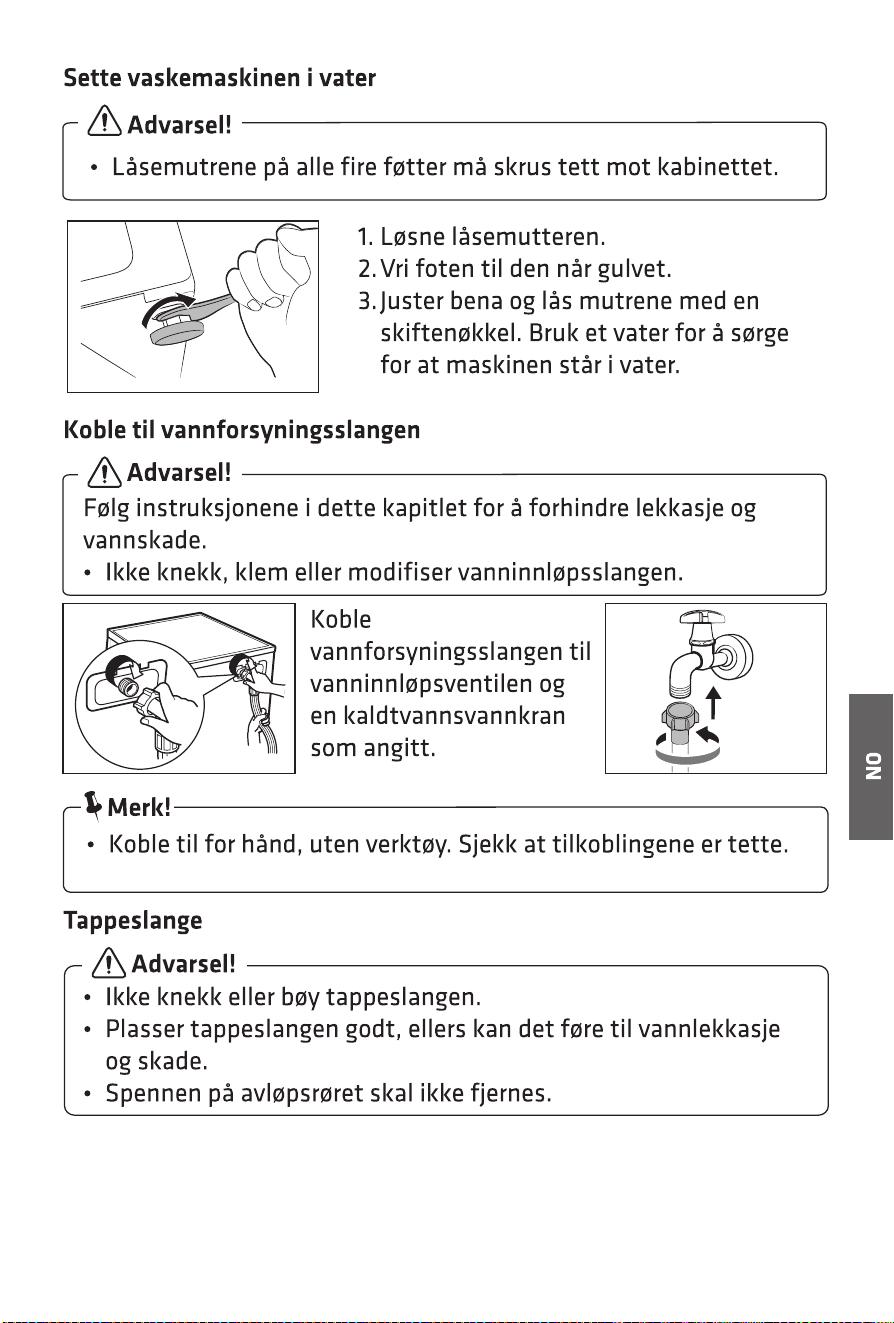

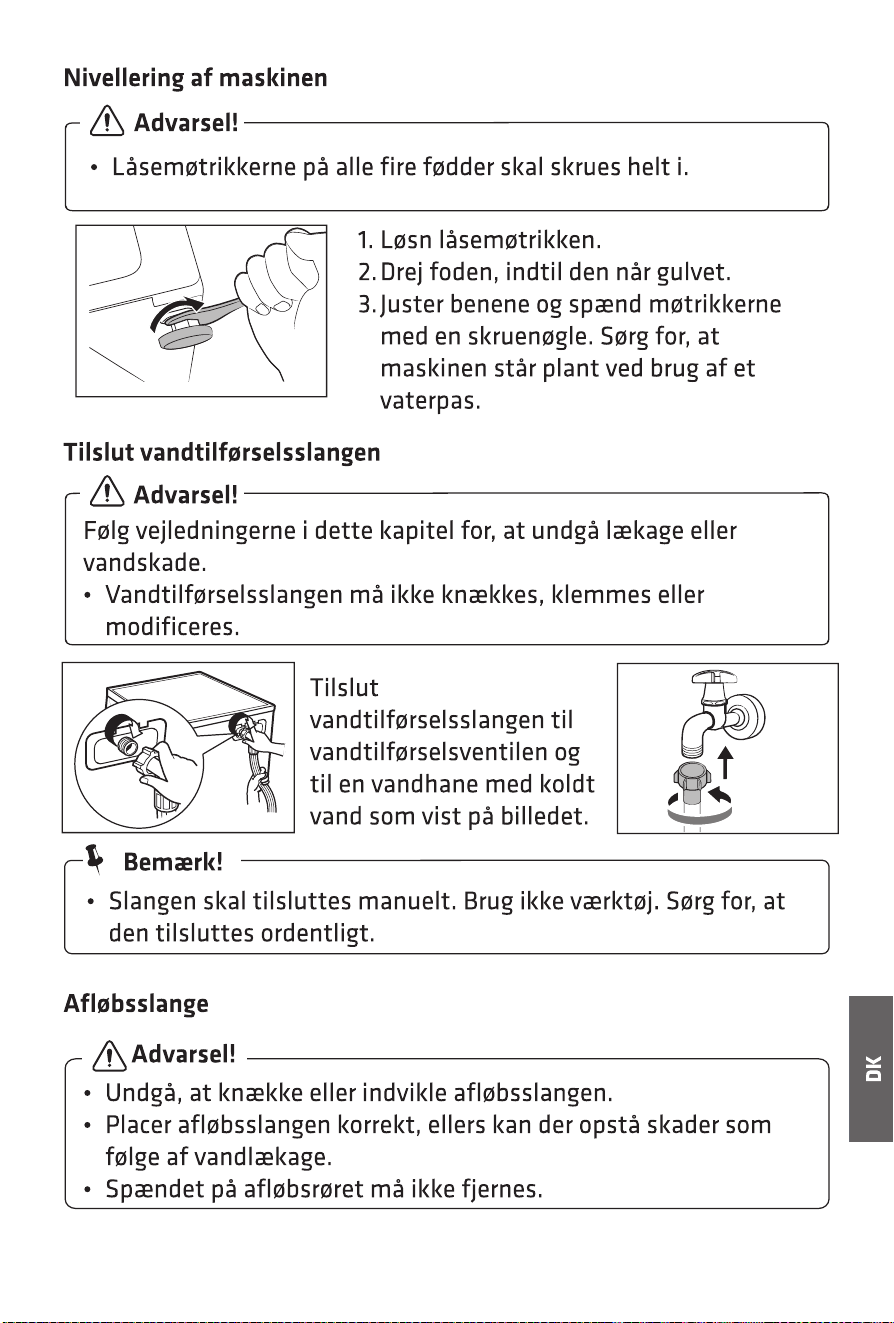

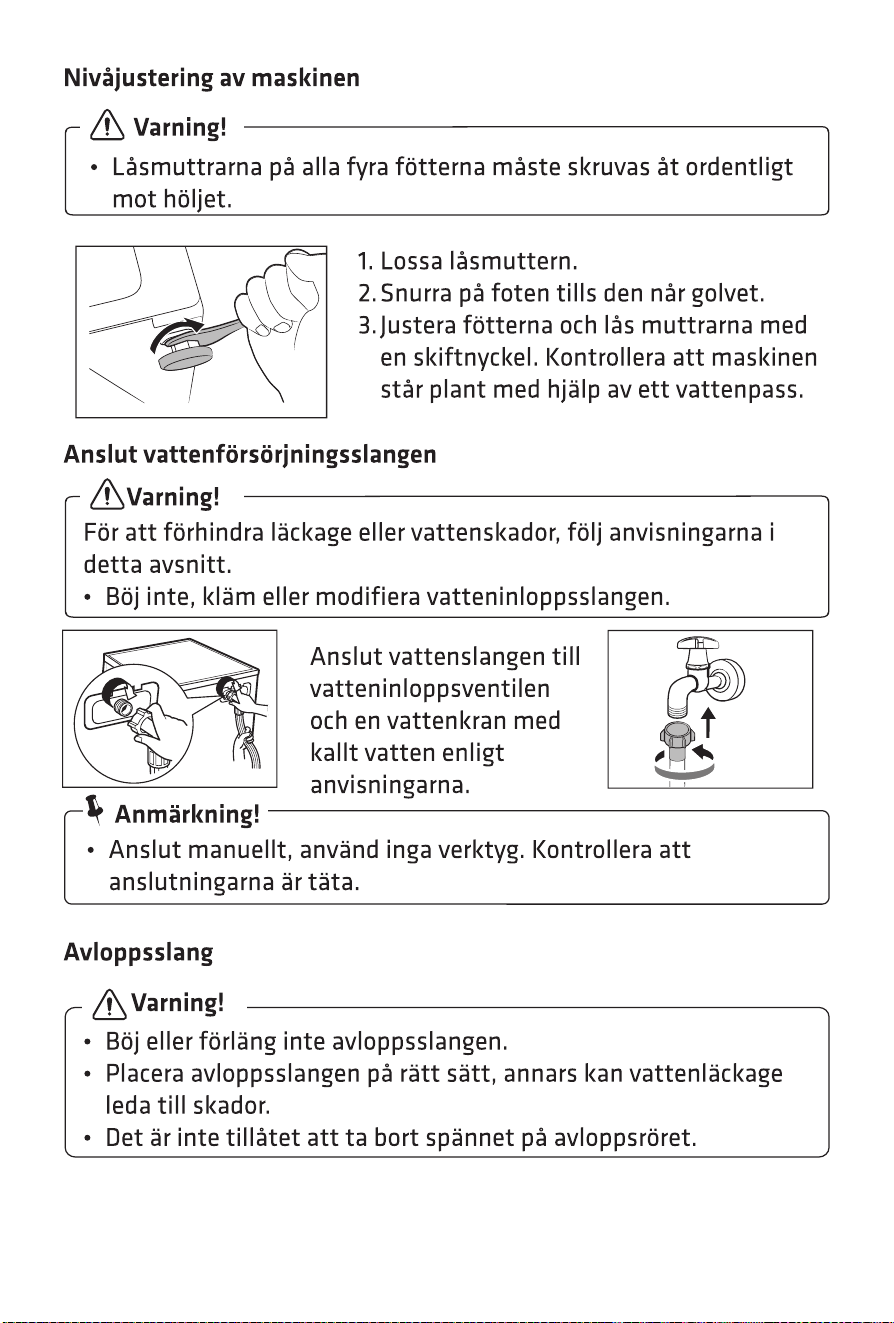

Levelling the machine
• The lock nuts on all four feet must be screwed tightly against the
housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level,
using a spirit level.

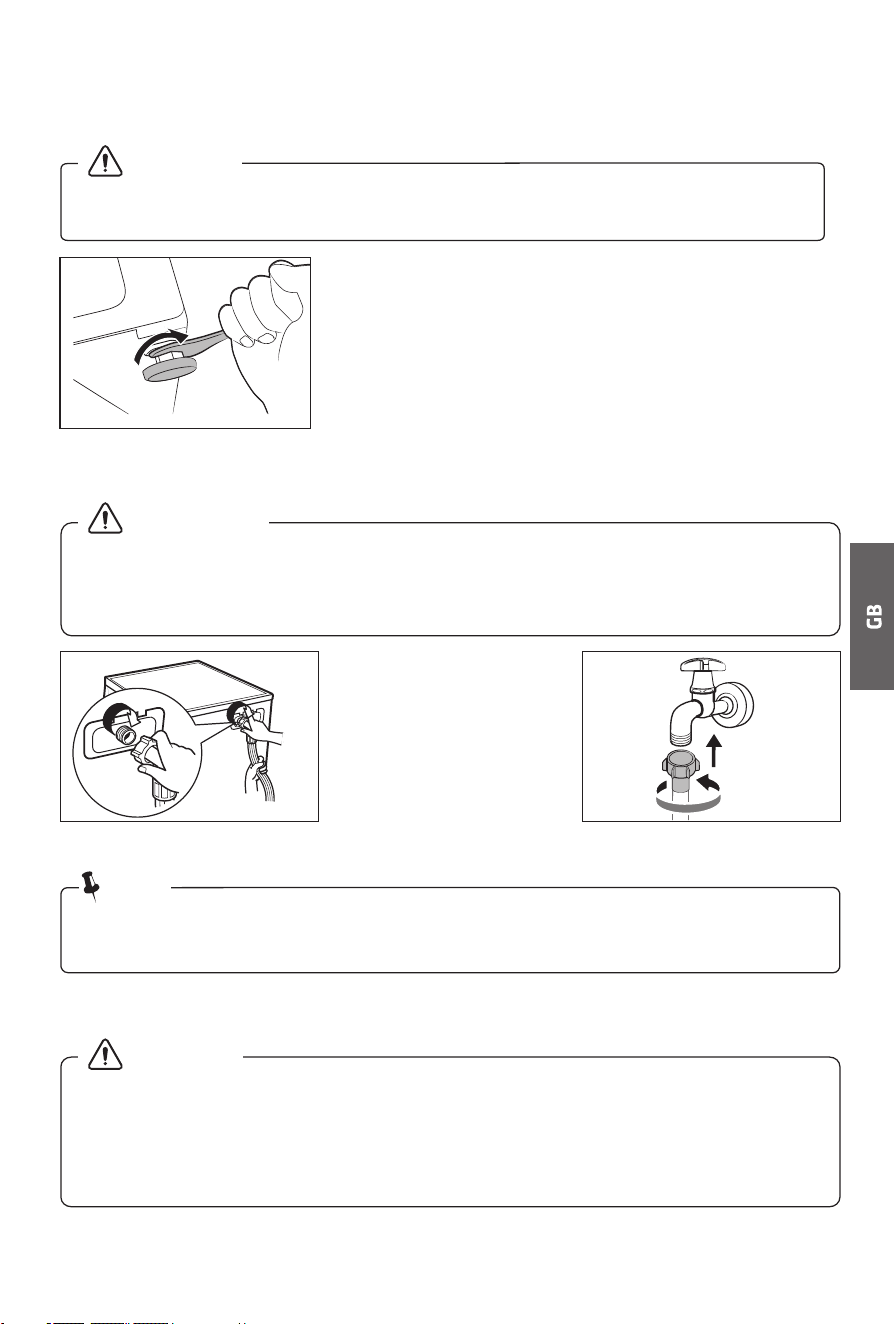

Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this
chapter.
• Do not kink, crush or modify the water inlet hose.
Connect the water
supply hose to the
water inlet valve and
a water tap with cold
water as indicated.
• Connect manually, do not use tools. Check if the connections are
tight.
Drain Hose
•
• Position drain hose properly, otherwise damage might result of water
leakage.
It is not allowed to remove the buckle of drain pipe.
Do not kink or protract the drain hose.
•
Warning!
Warning!
Warning!
Note!

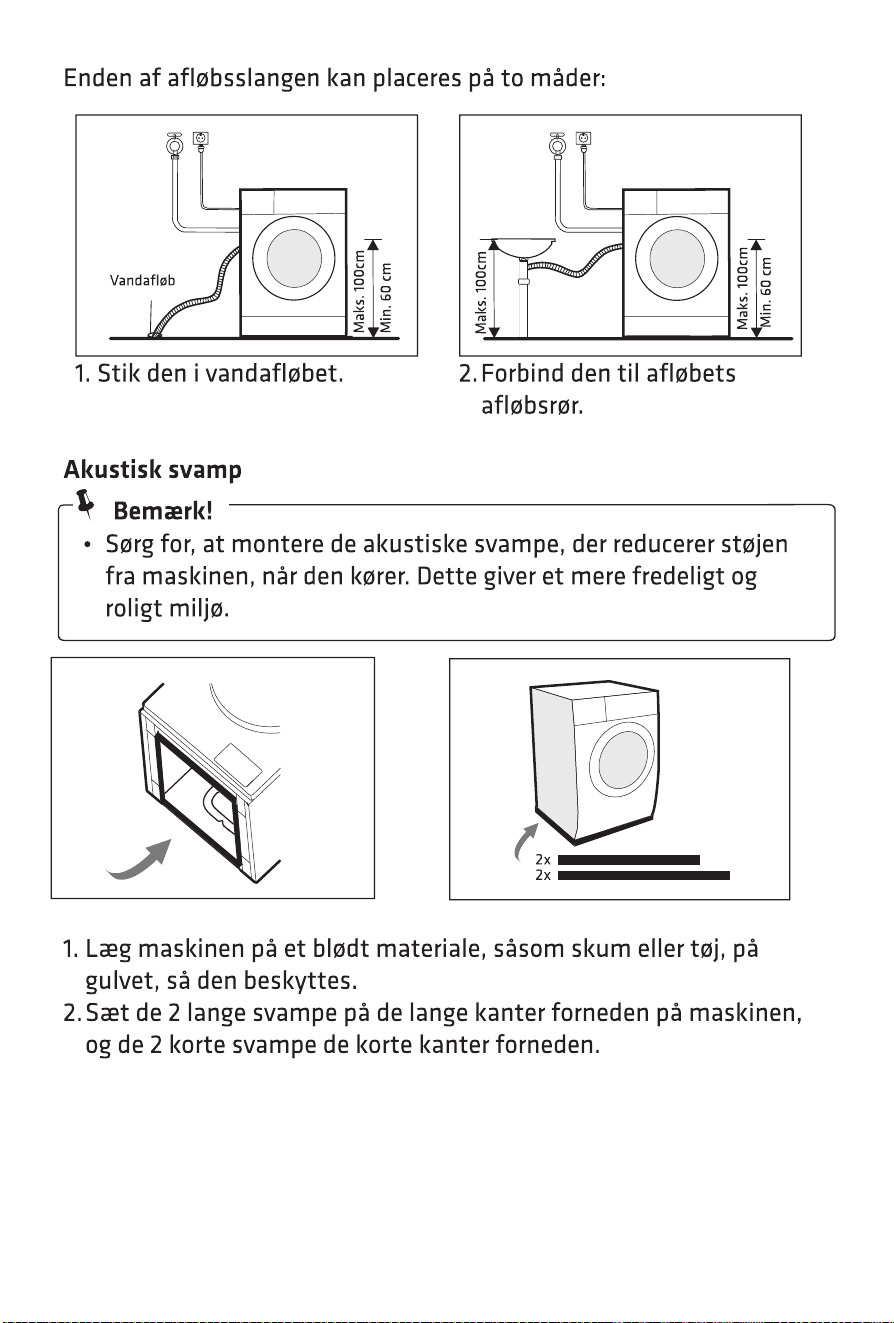

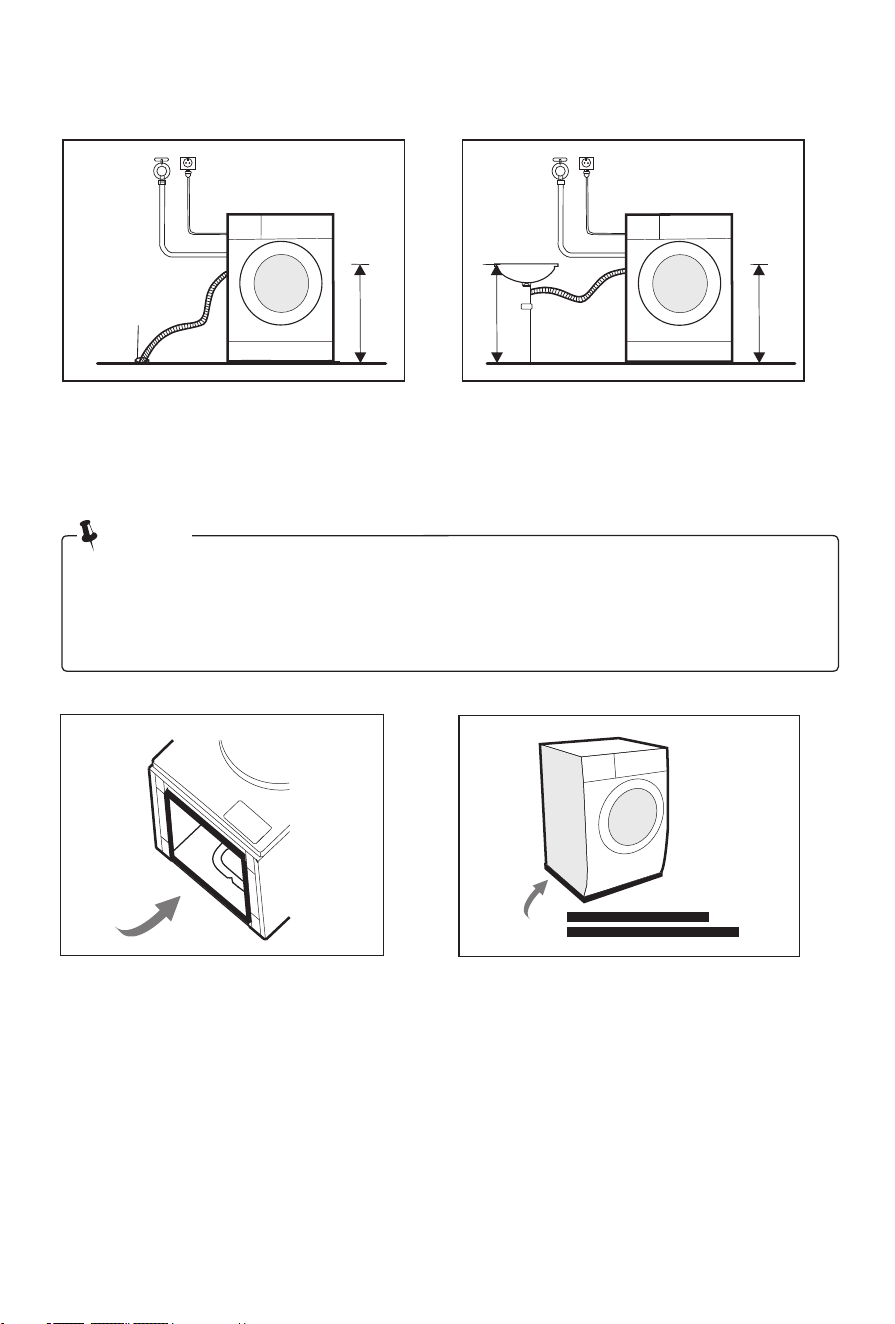

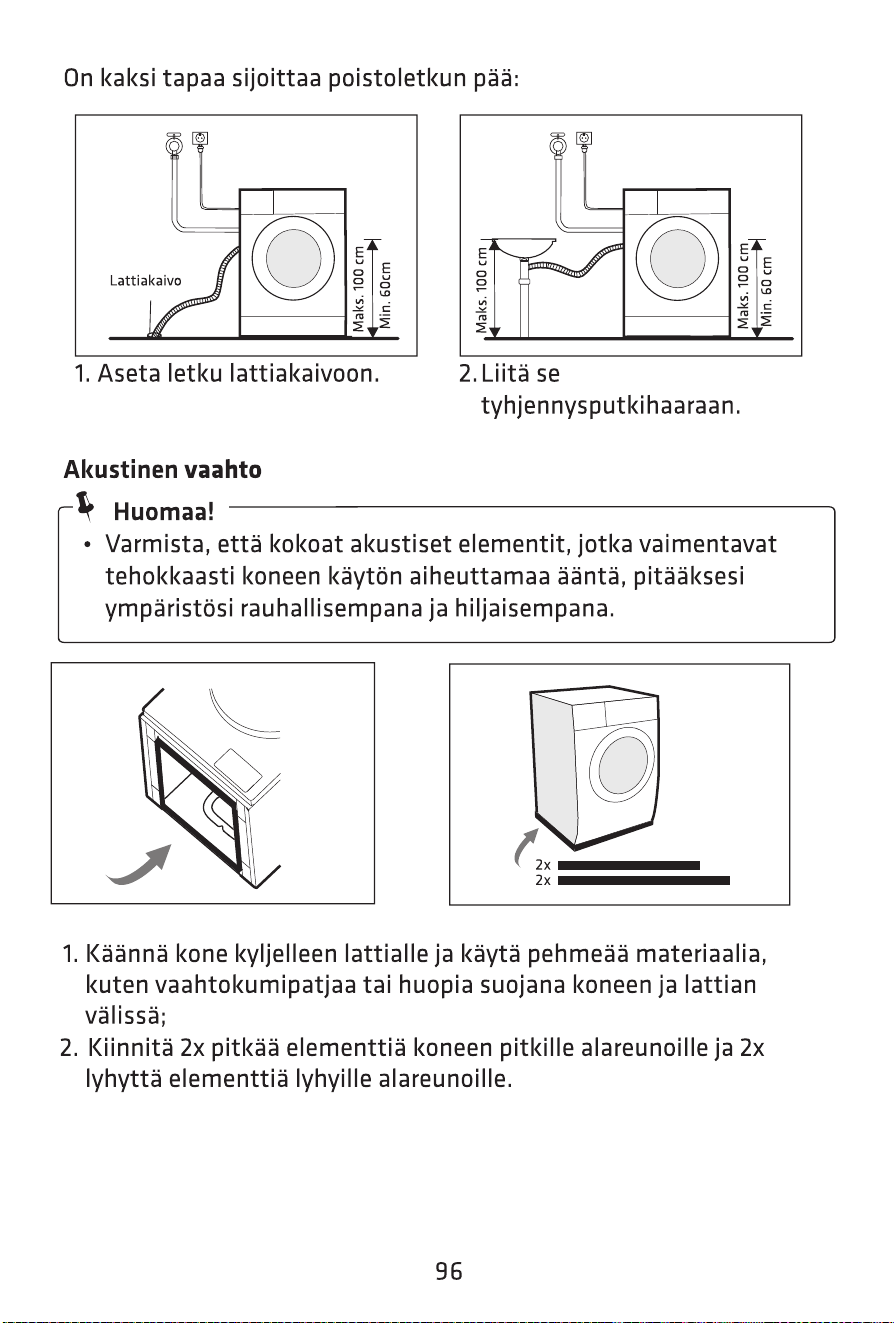

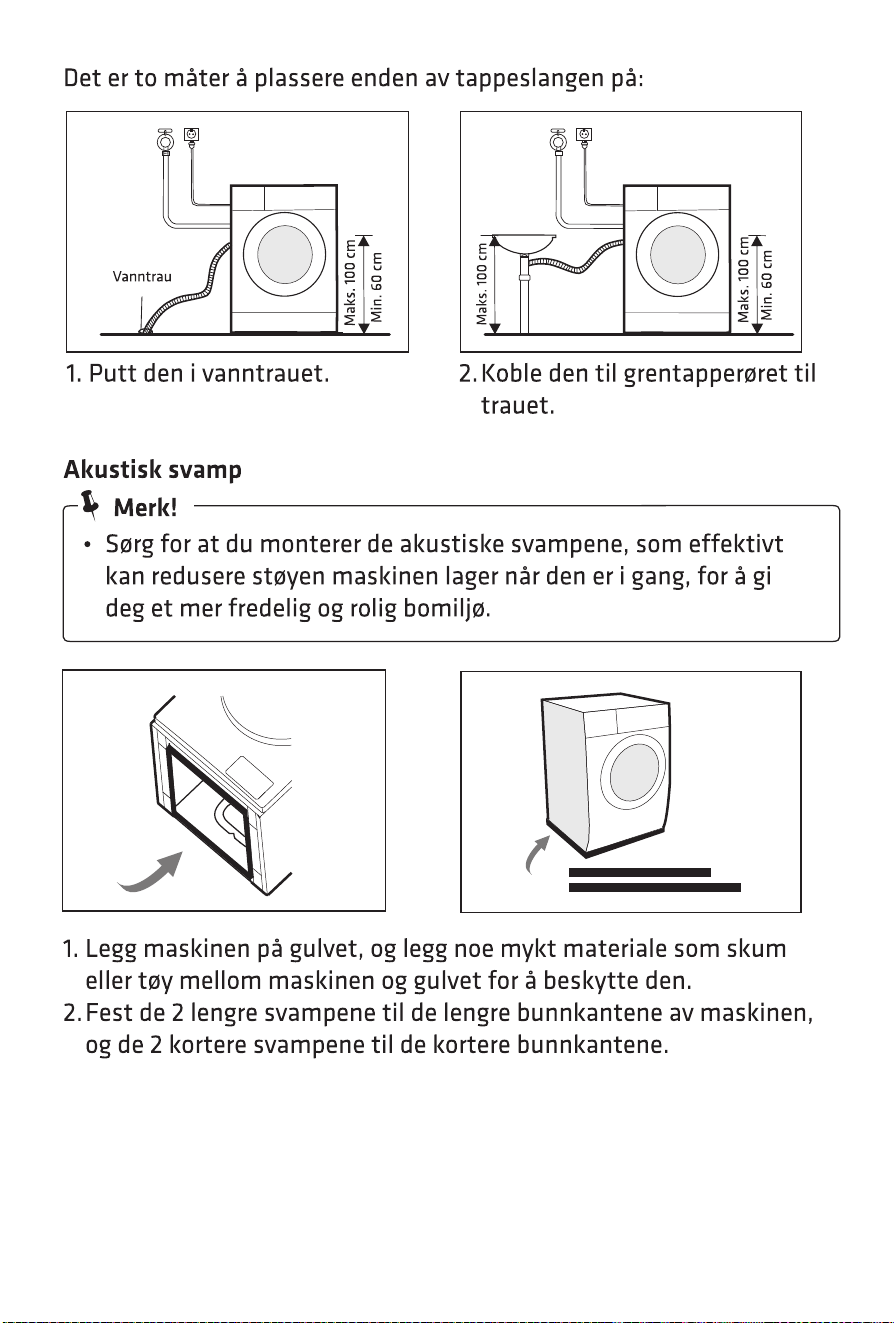

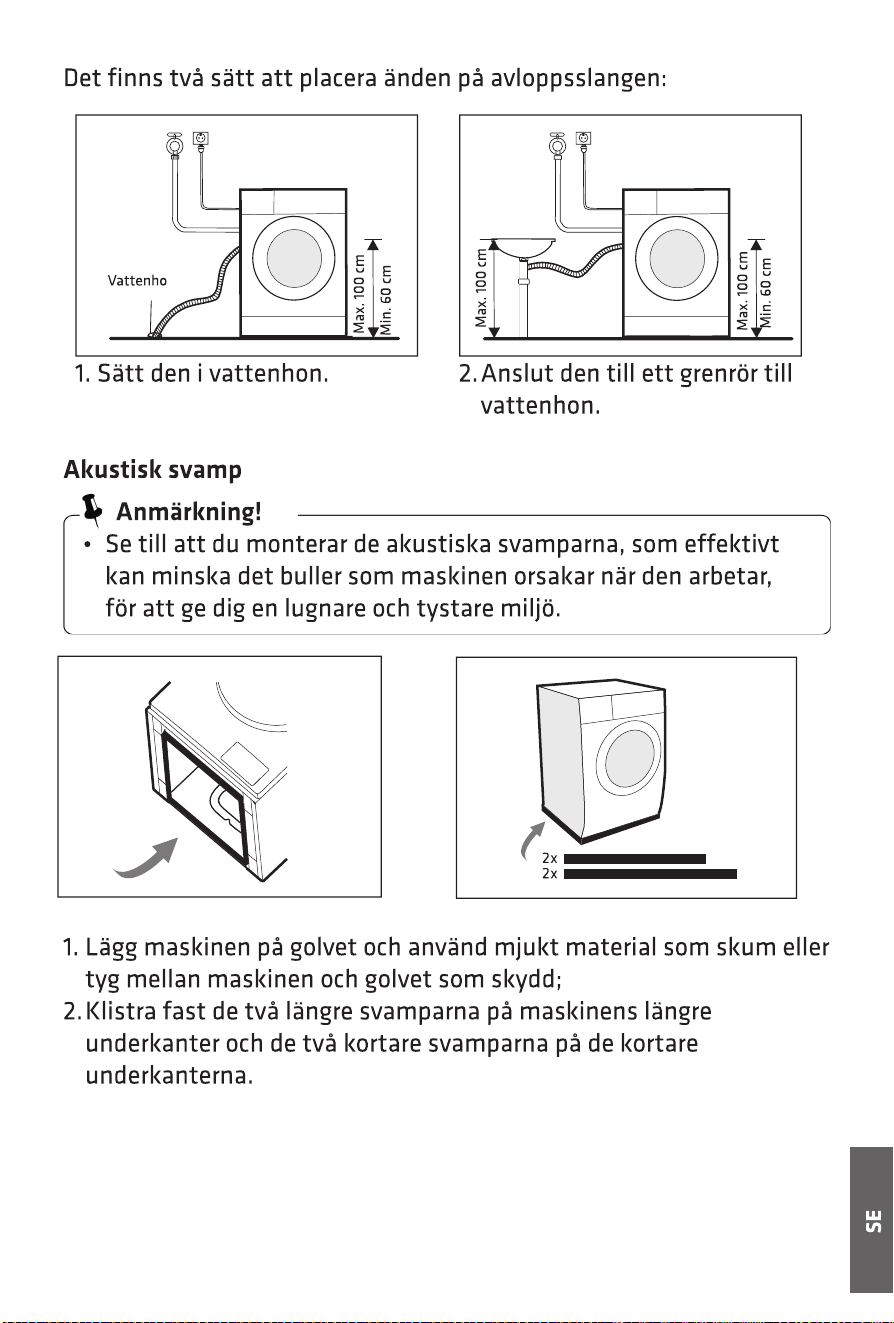

There are two ways to place the end of drain hose:
2.Connect it to the branch drain
pipe of the trough.
100cm
Max.
Min.60cm
100cm
Max.
Water
trough
10
0cm
M
ax.
Min.60cm
16
1.Put it into the water trough.
•
effectively reduce the noise caused by the machine while working,
in order to provide you with a more peaceful and quiet living
environment.
Please make sure to assemble the acoustic sponges, which can
Acoustic Sponge
2x
2x
1. Get the machine laid on the floor, using some soft material like
foam or clothes between the machine and floor for protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine,
and the 2x shorter sponges to the shorter bottom edges.
Note!
4. Press [ ] to start the appliance and wait till “****” is displayed.

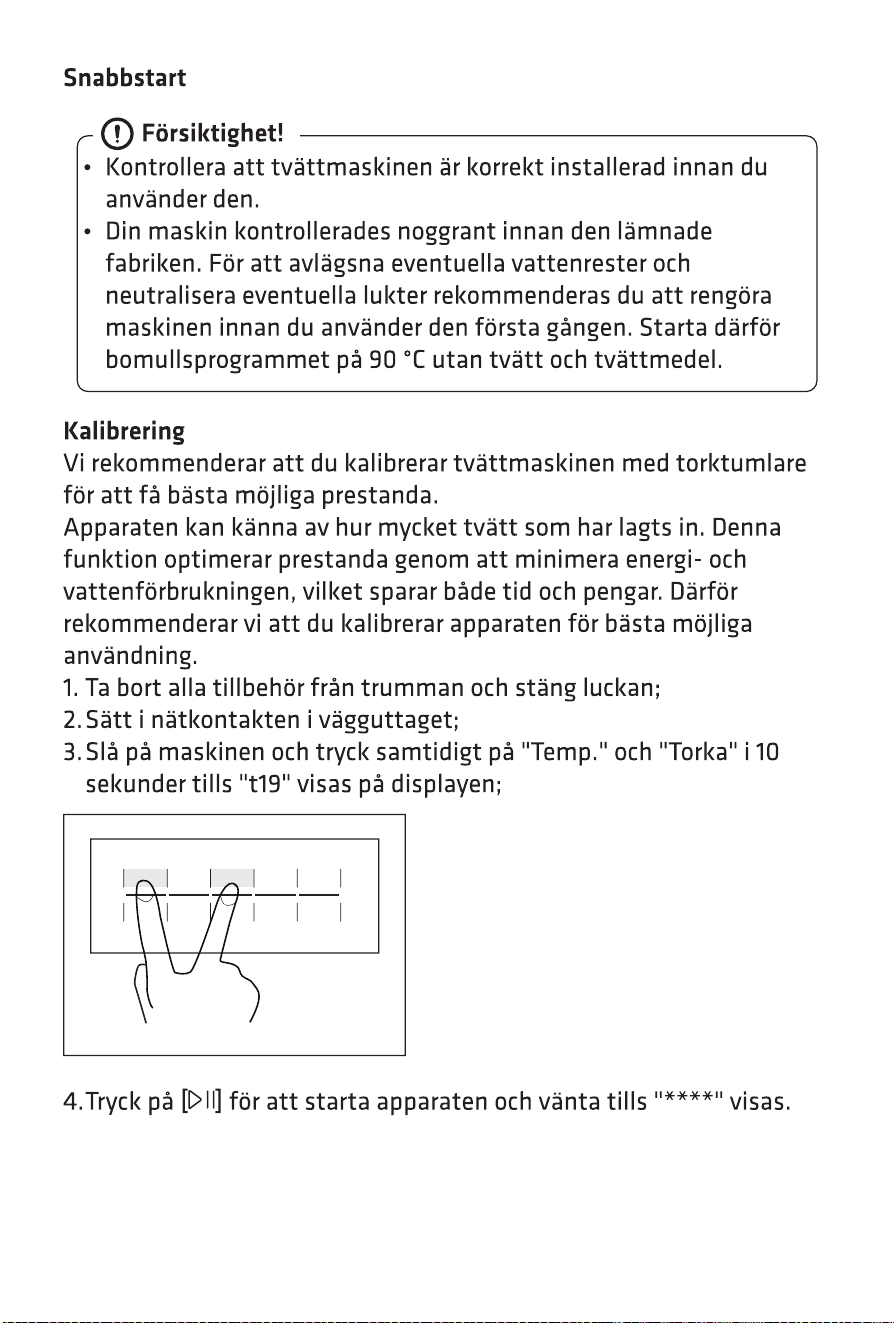

• Before washing, please make sure the washer dryer is installed
properly.
• Your appliance was thoroughly checked before it left the
factory. To remove any residual water and to neutralize
potential odors, it’s recommended to clean your appliance
before first use. For this reason, start the Cotton program at
90°C without laundry and detergent.

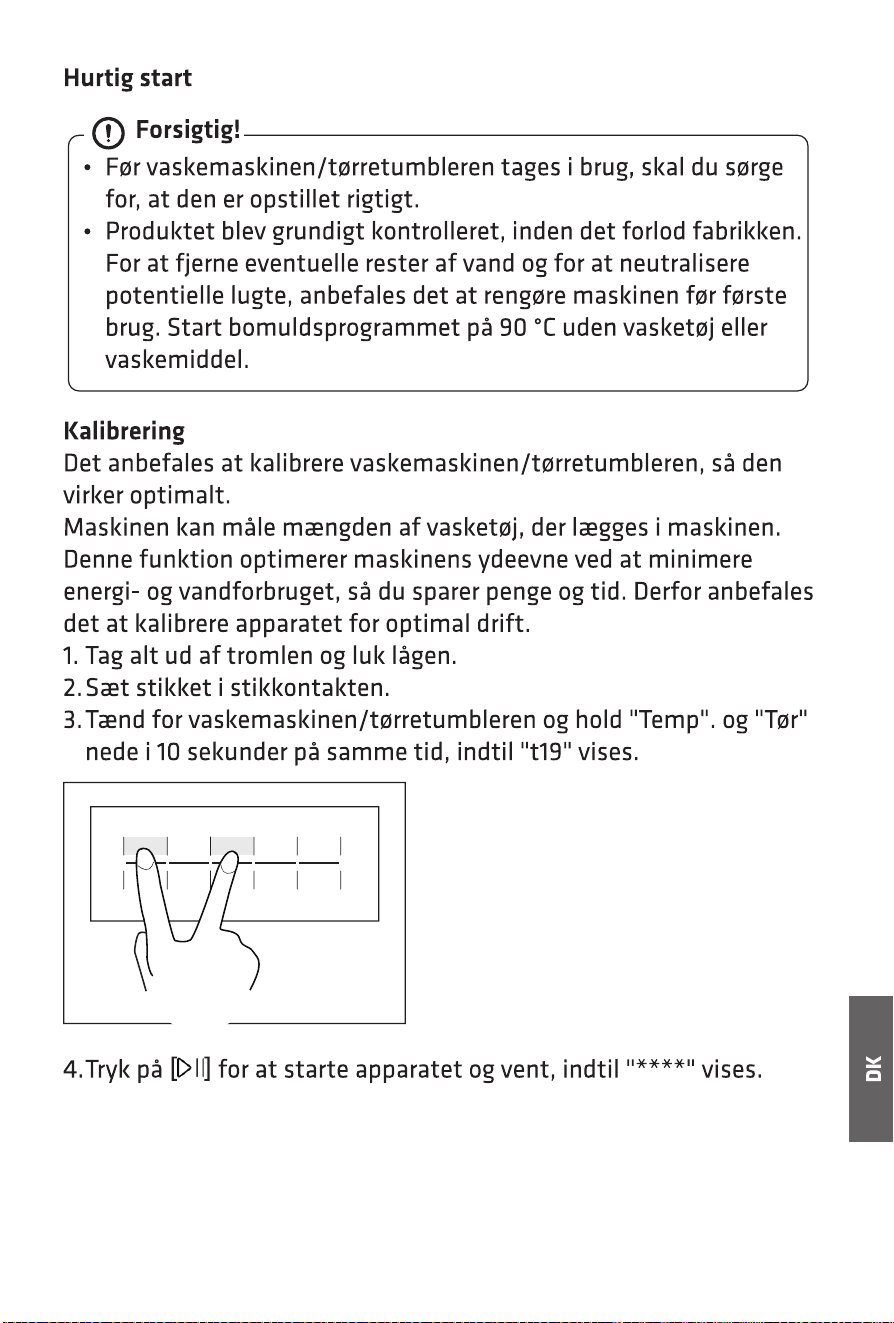

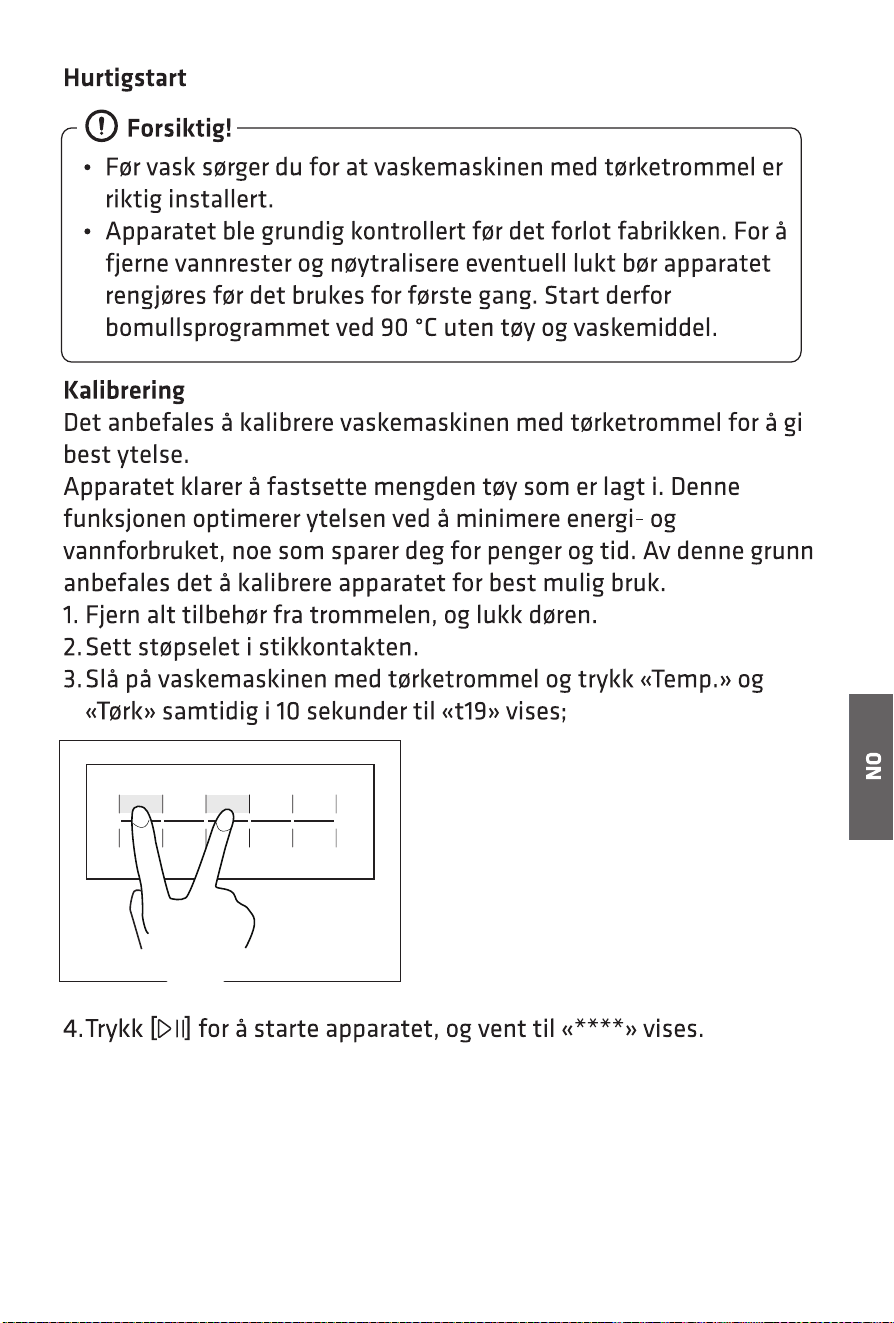

Quick Start
17

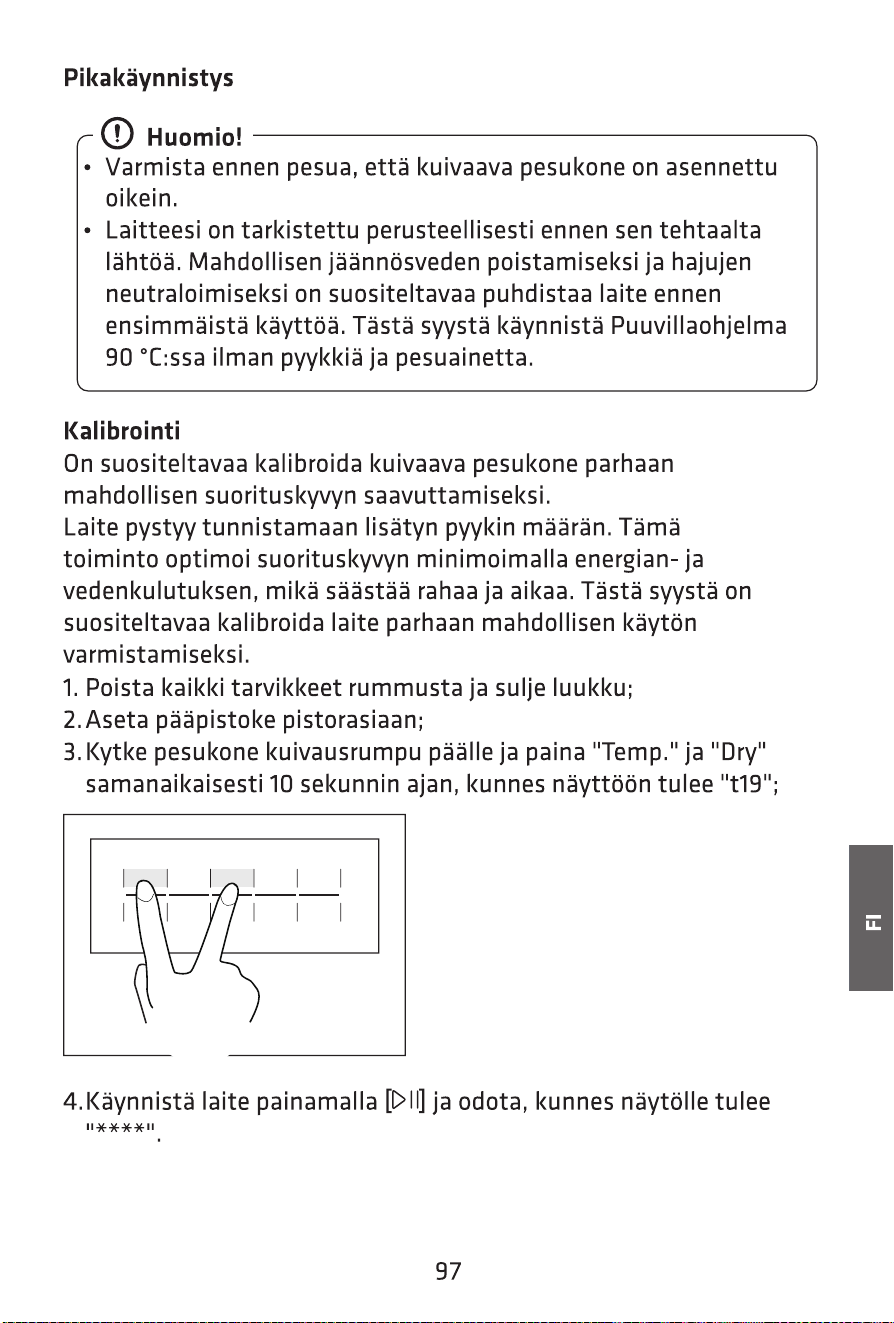

It’s recommended to calibrate the washer dryer to provide the best
performance.
The appliance is able to detect the amount of laundry loaded. This
function is optimizing the performance by minimizing energy and
water consumption, saving you money and time. For this reason, it’s
recommended to calibrate the appliance for best use.
1. Remove all accessories from the drum and close the door;
2. Insert the main plug to the socket;
3. Switch on the washer dryer and press “Temp.” and “Dry”
simultaneously for 10 seconds until “t19” is displayed;
Calibration
Caution!
OPERATION

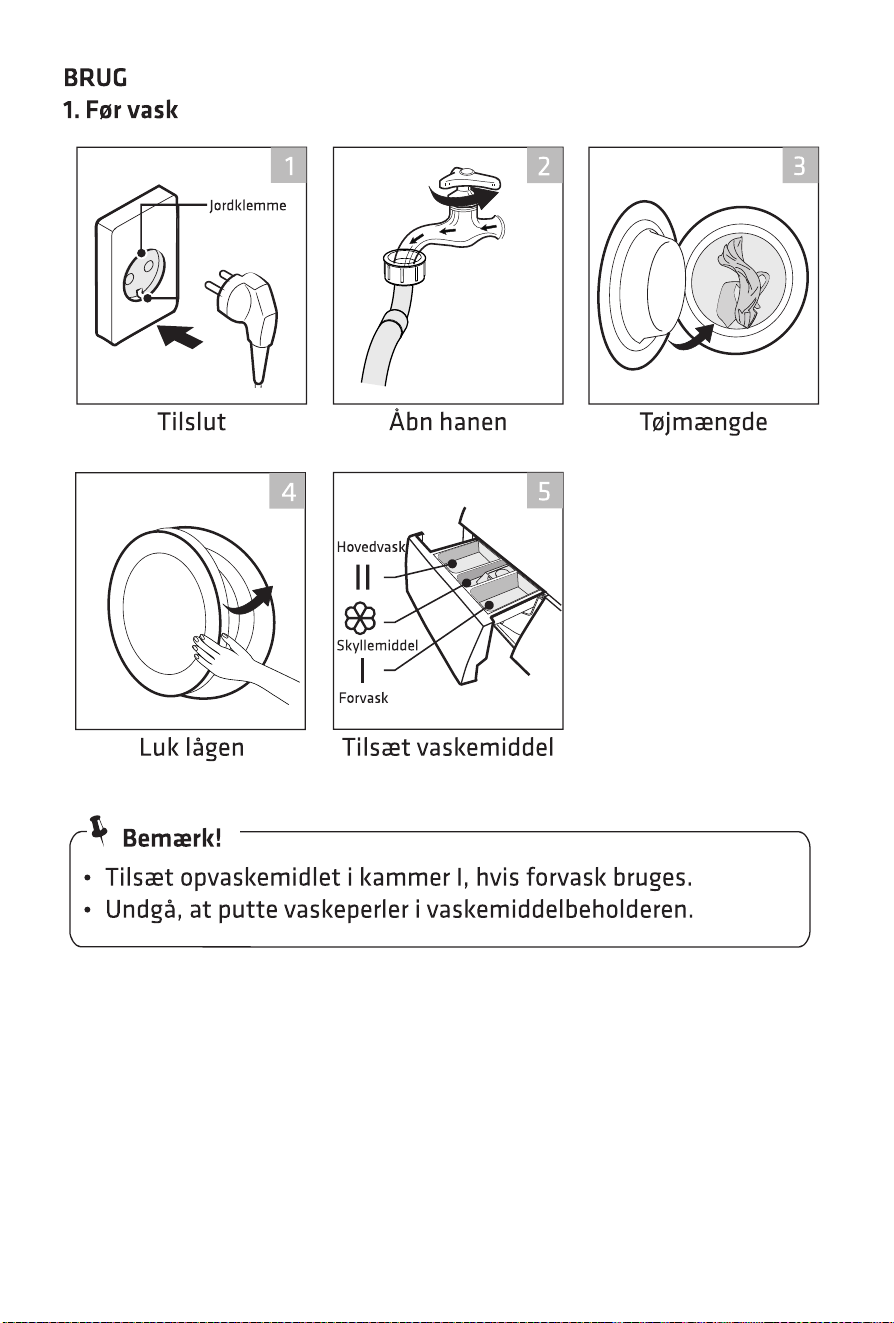

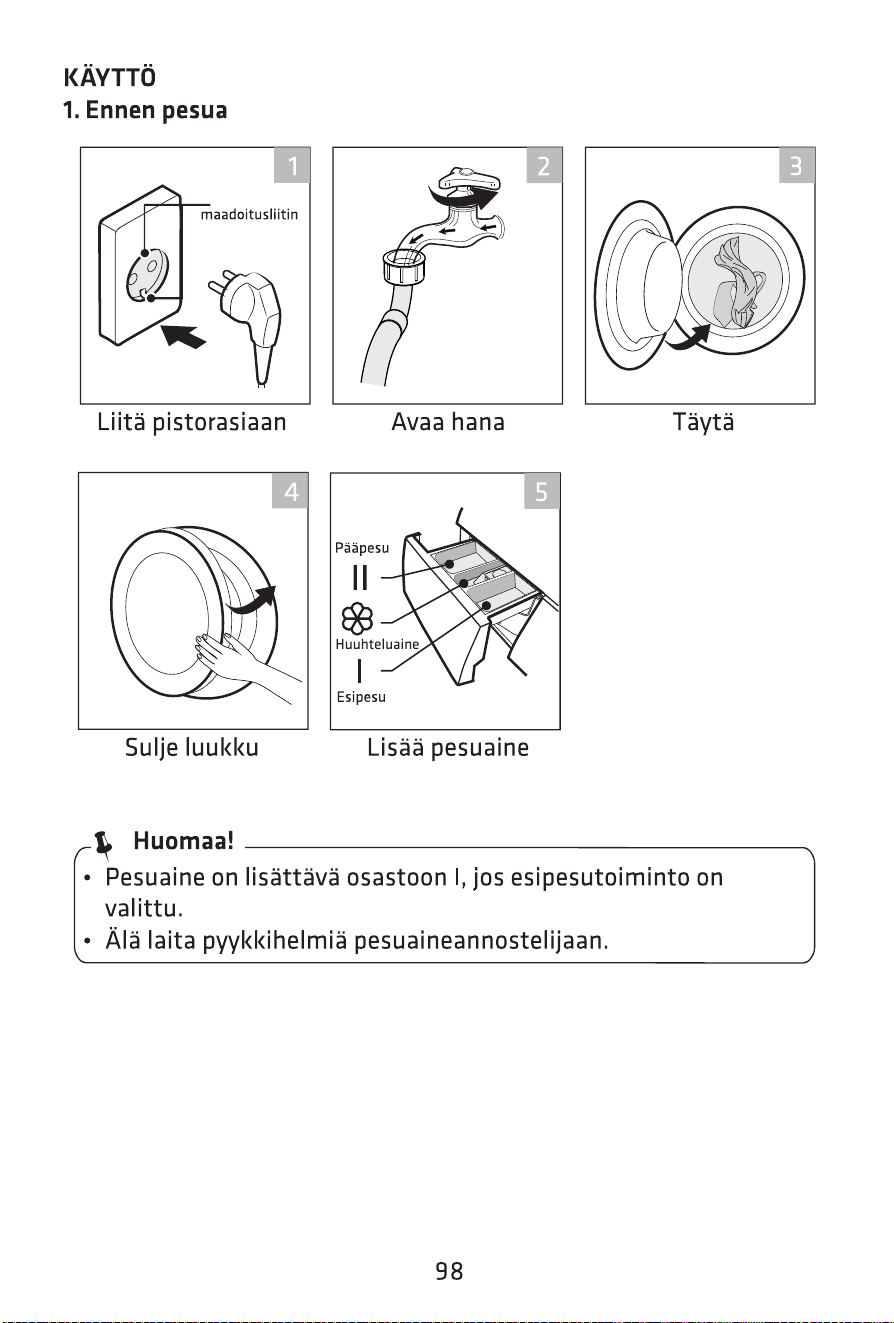

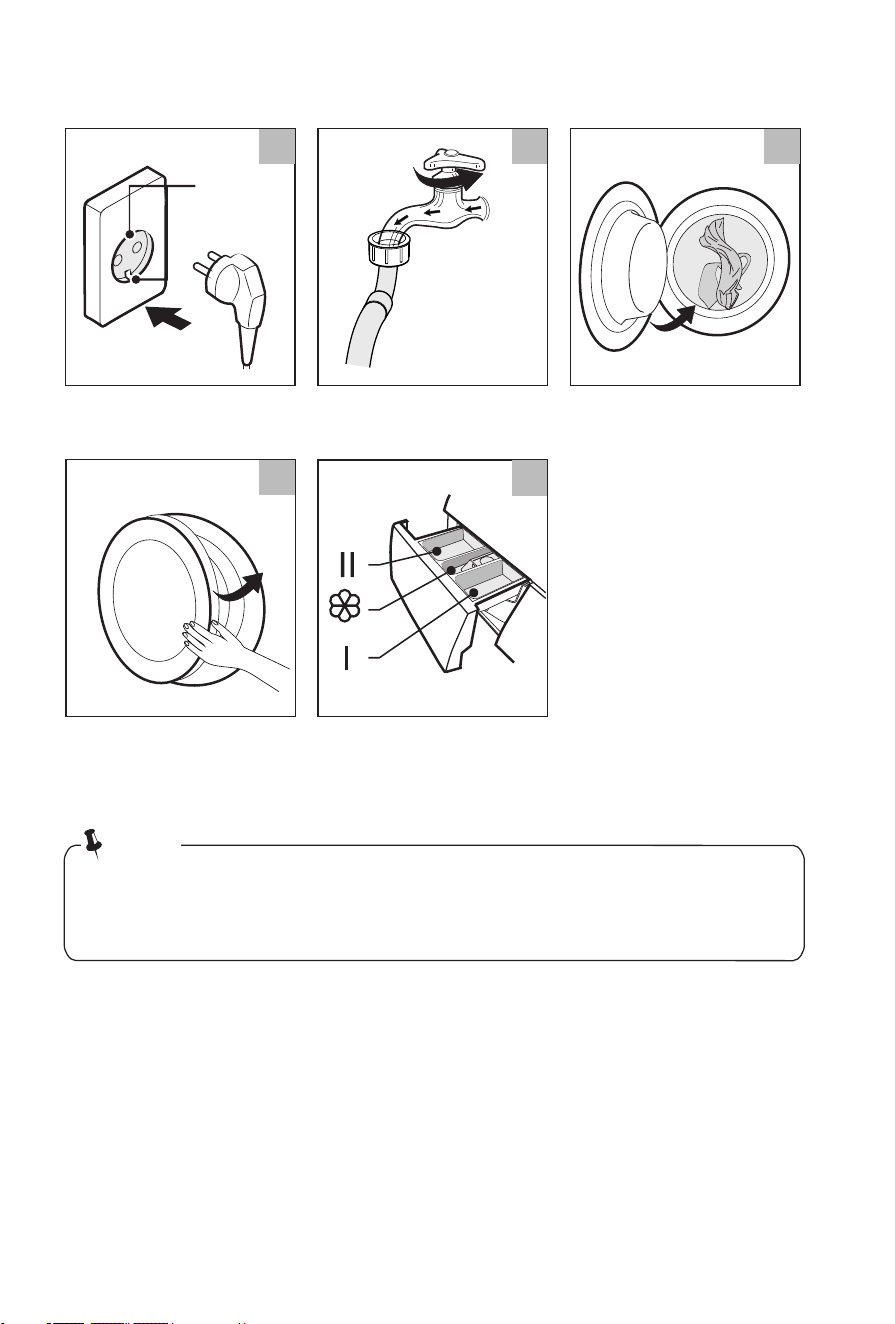

1. Before Washing

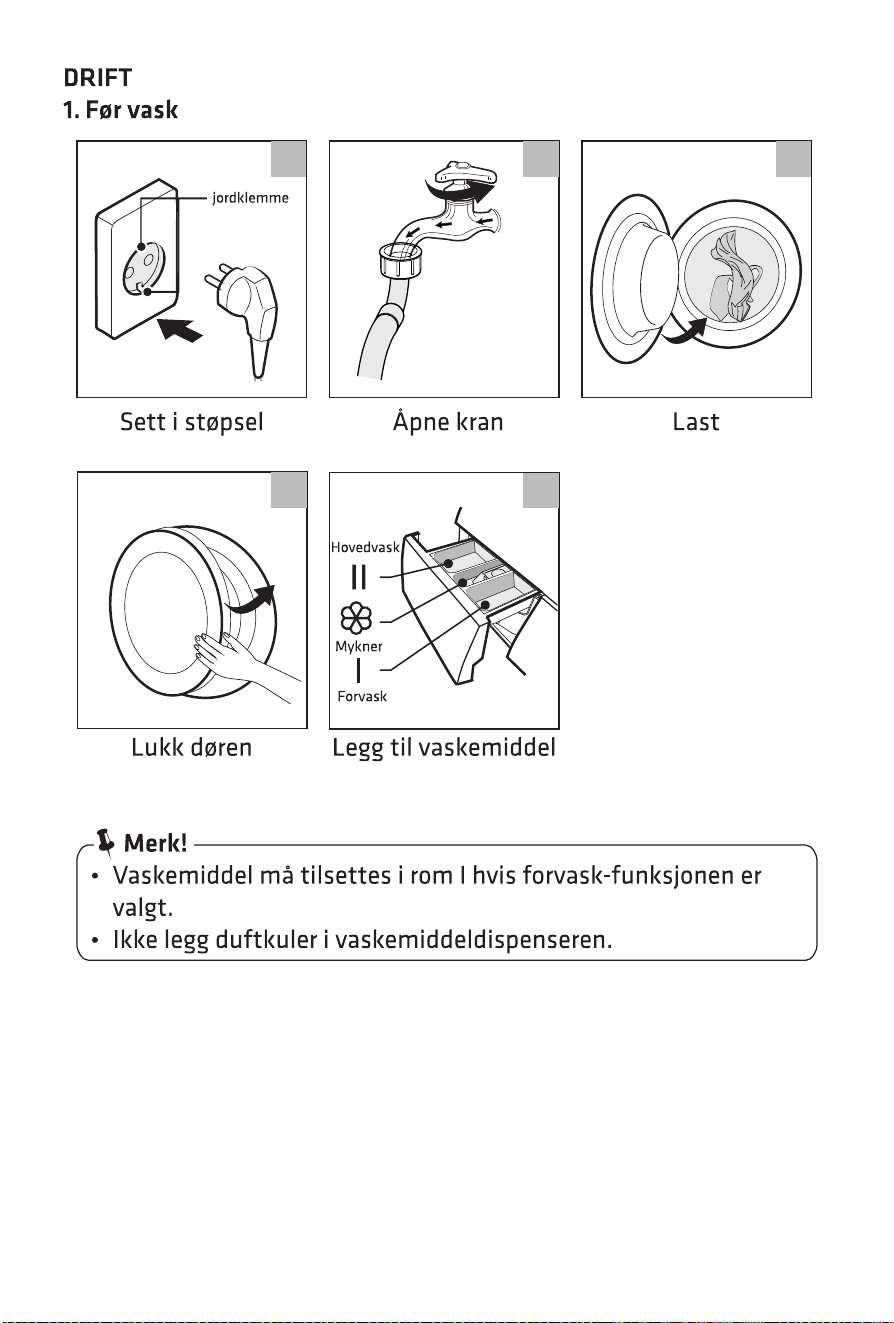

• Detergent needs
to be added in compartment I if the pre-
wash function is selected.
• Do not put laundry beads into the detergent dispenser.
Open tap
Load
Close door
Plug in
Add detergent
Main
wash
Prewash
Softener
earth
terminal
18
1
2
3
5
4
Note!
19
Press Start/Pause to start the program
3. After Washing
Buzzer beeps and “End” shown on display.is
3
4

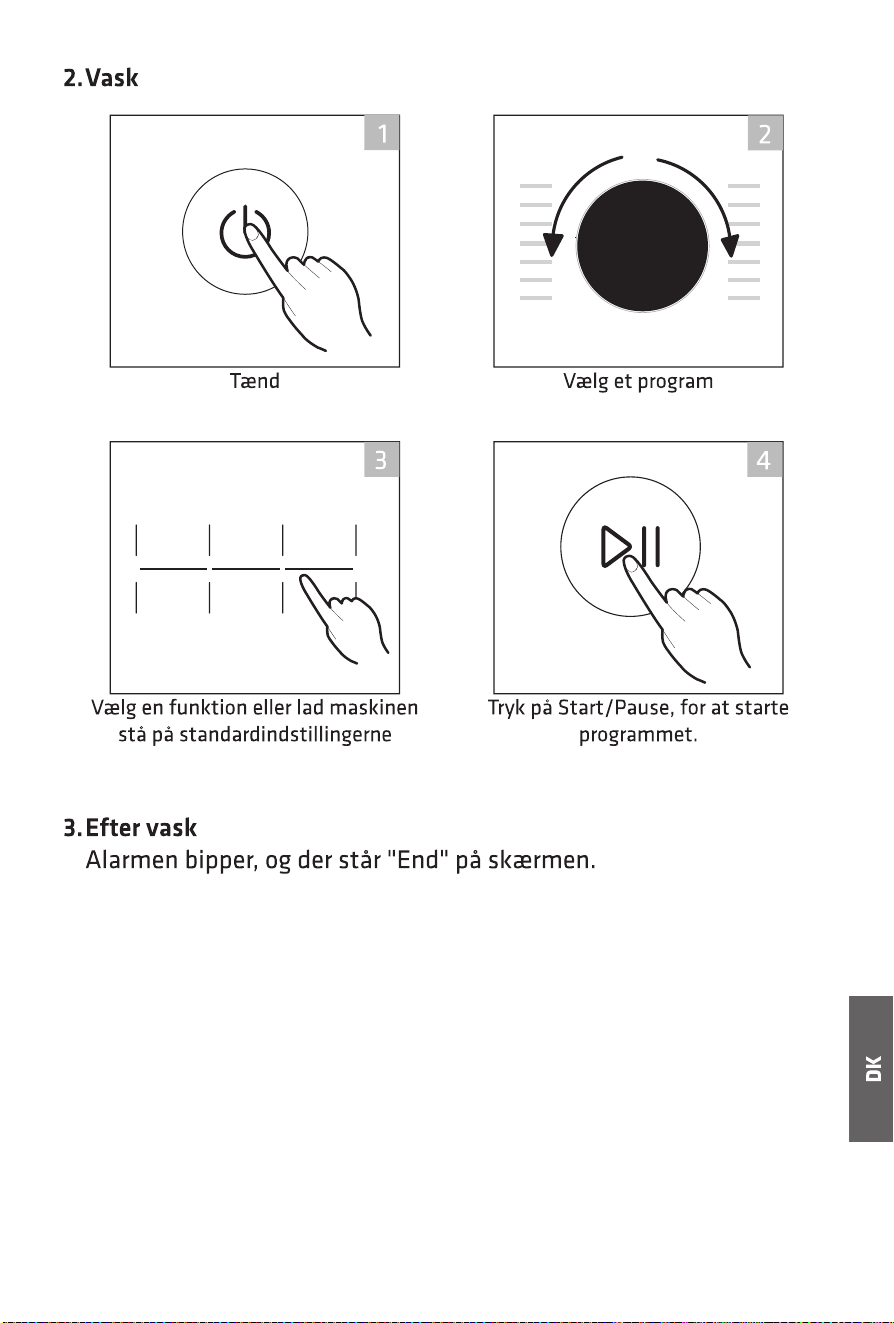

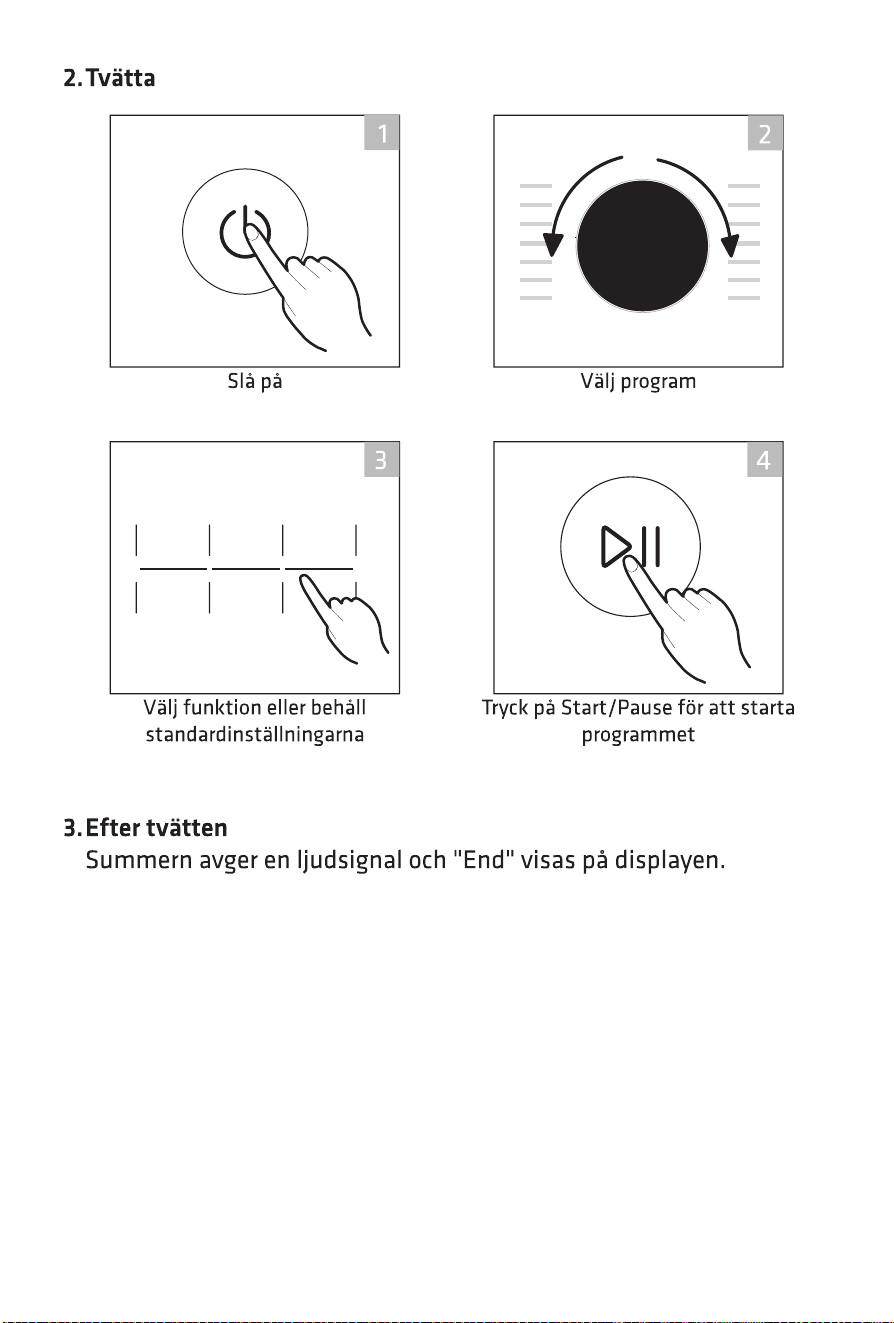

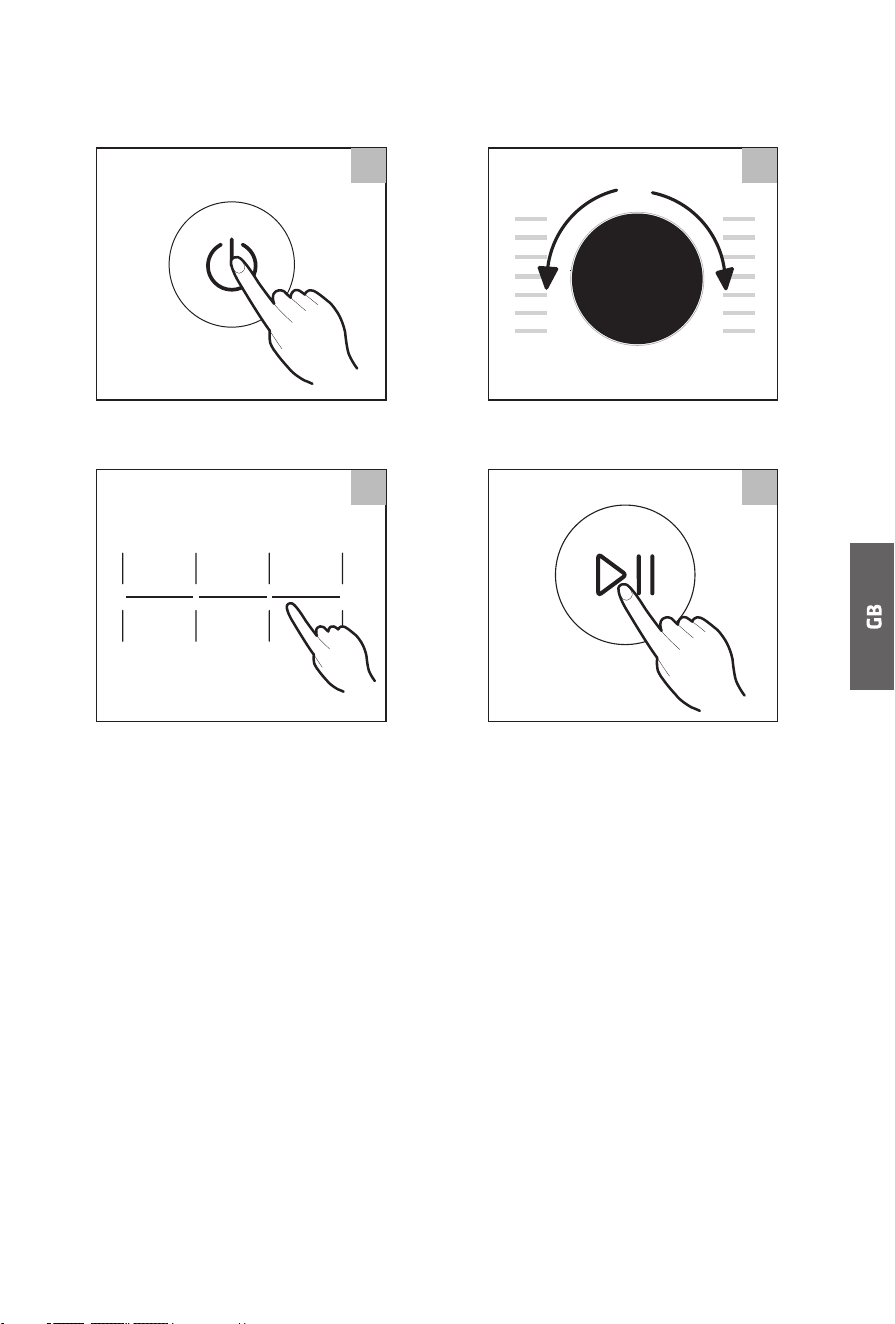

2. Washing
Power on
Select programme
1
2
Select function or keep the default settings
• Do not wash or dry articles that have been cleaned in, washed in,
soaked in, or dabbed with combustible or explosive substances like
wax, oil, paint, gasoline, alcohol, kerosene, and other flammable
materials.
• Washing individual clothes may can cause eccentricity.
Therefore it
is suggested to add one or two more laundry items to the wash so
that spin can be more smooth.
• Do not wash, spin, or dry water-proof seats, mats, or clothing.

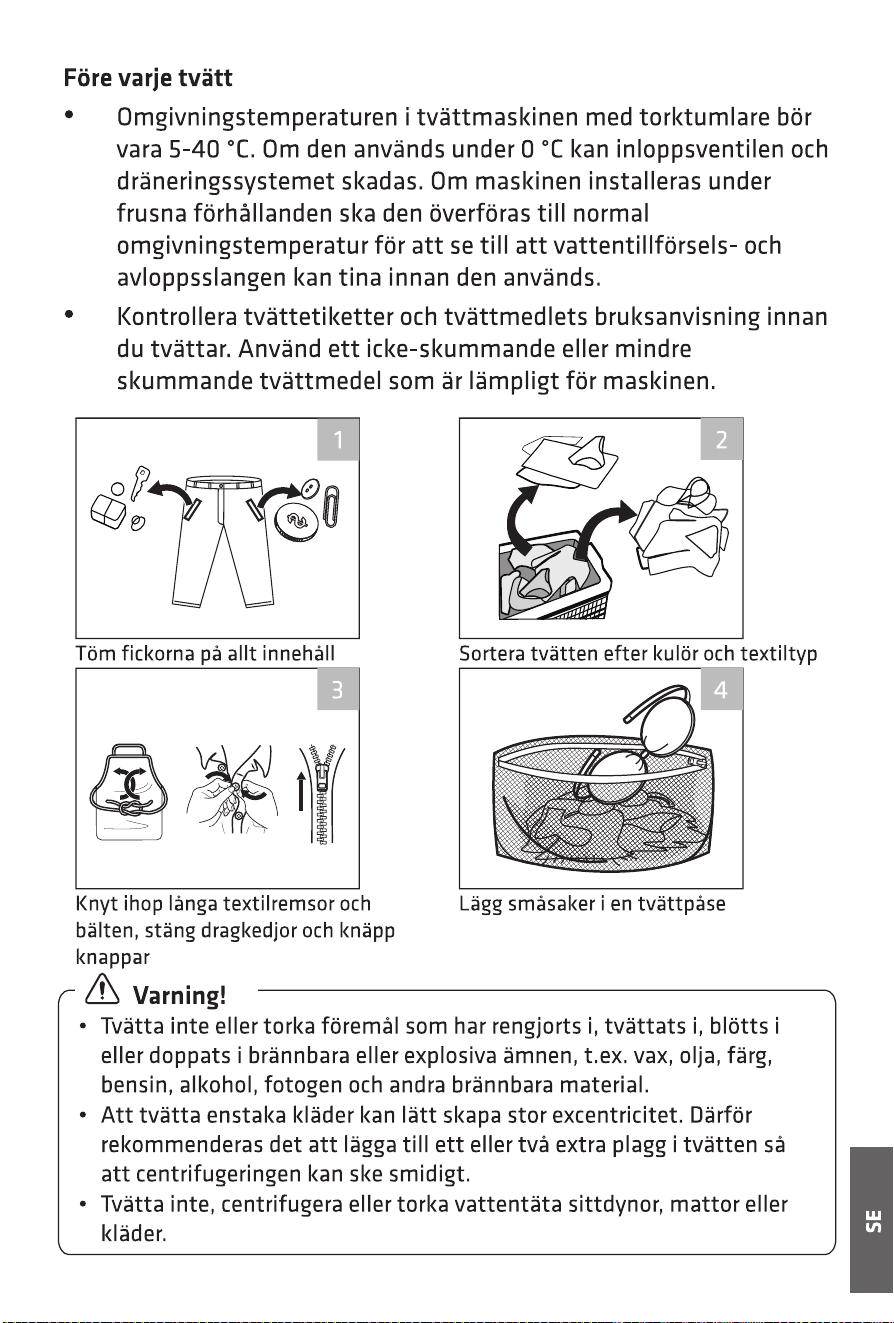

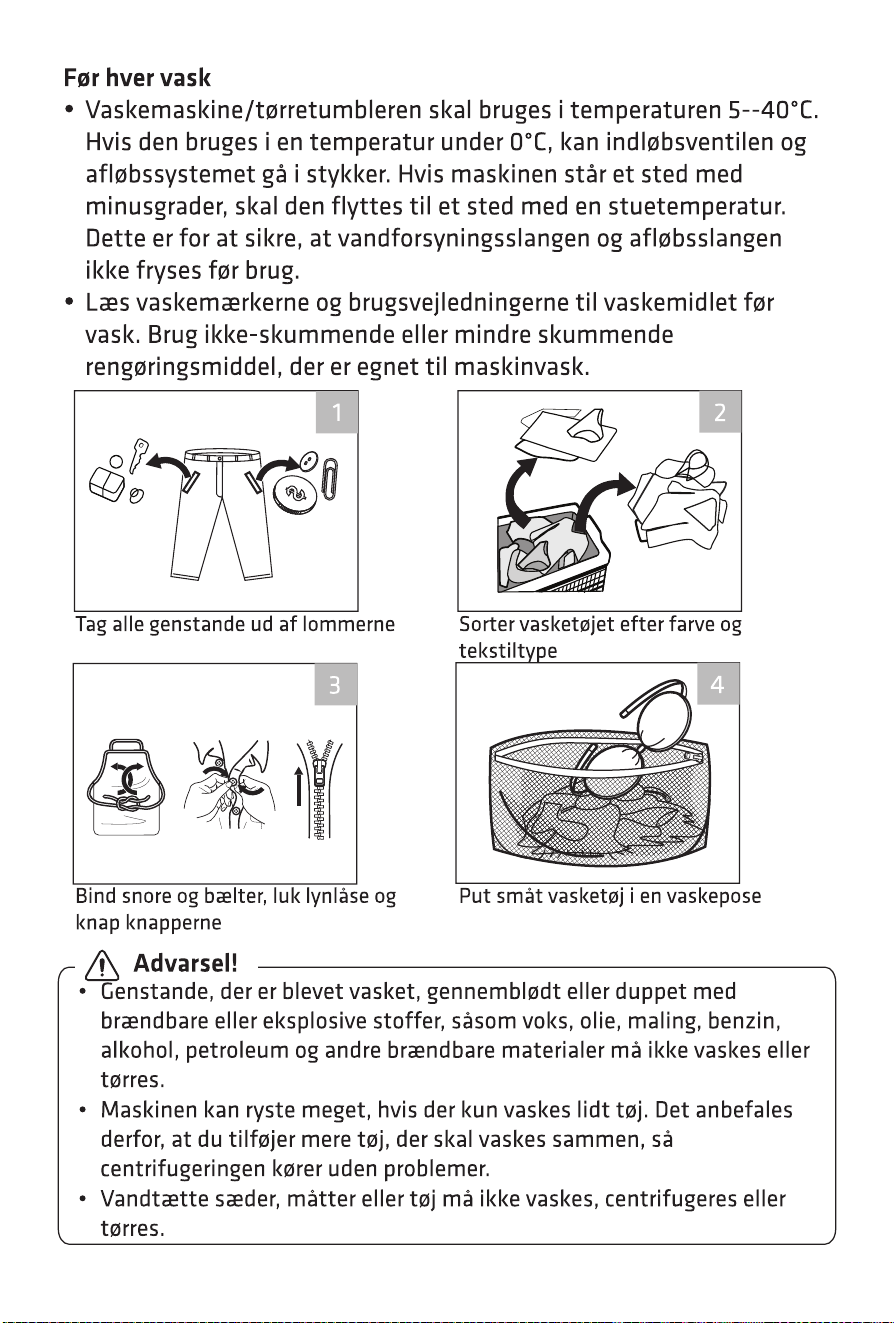

• The ambient temperature of the washer dryer should be 5 -40°C. If
used under 0°C, the inlet valve and draining system may be damaged.
If the machine is installed under freezing conditions, it should be
transferred to normal ambient temperature to ensure the water supply
hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions
before wash. Use non-foaming or less-foaming detergent suitable for
machine washing.
°C

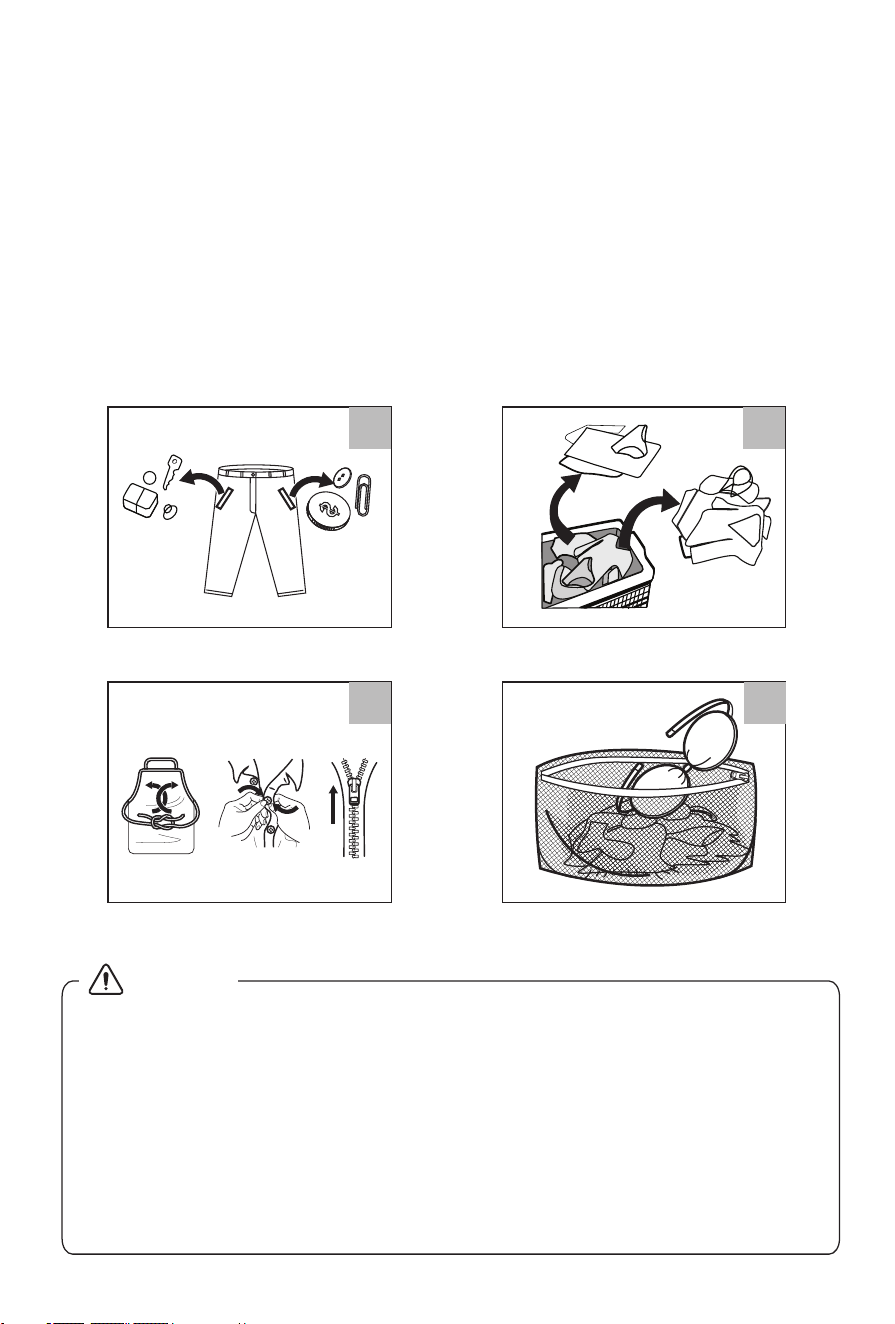

Tie together long textile strips and
belts, close zips and buttons
Take all items out of the pockets
Put small items into a laundry bag

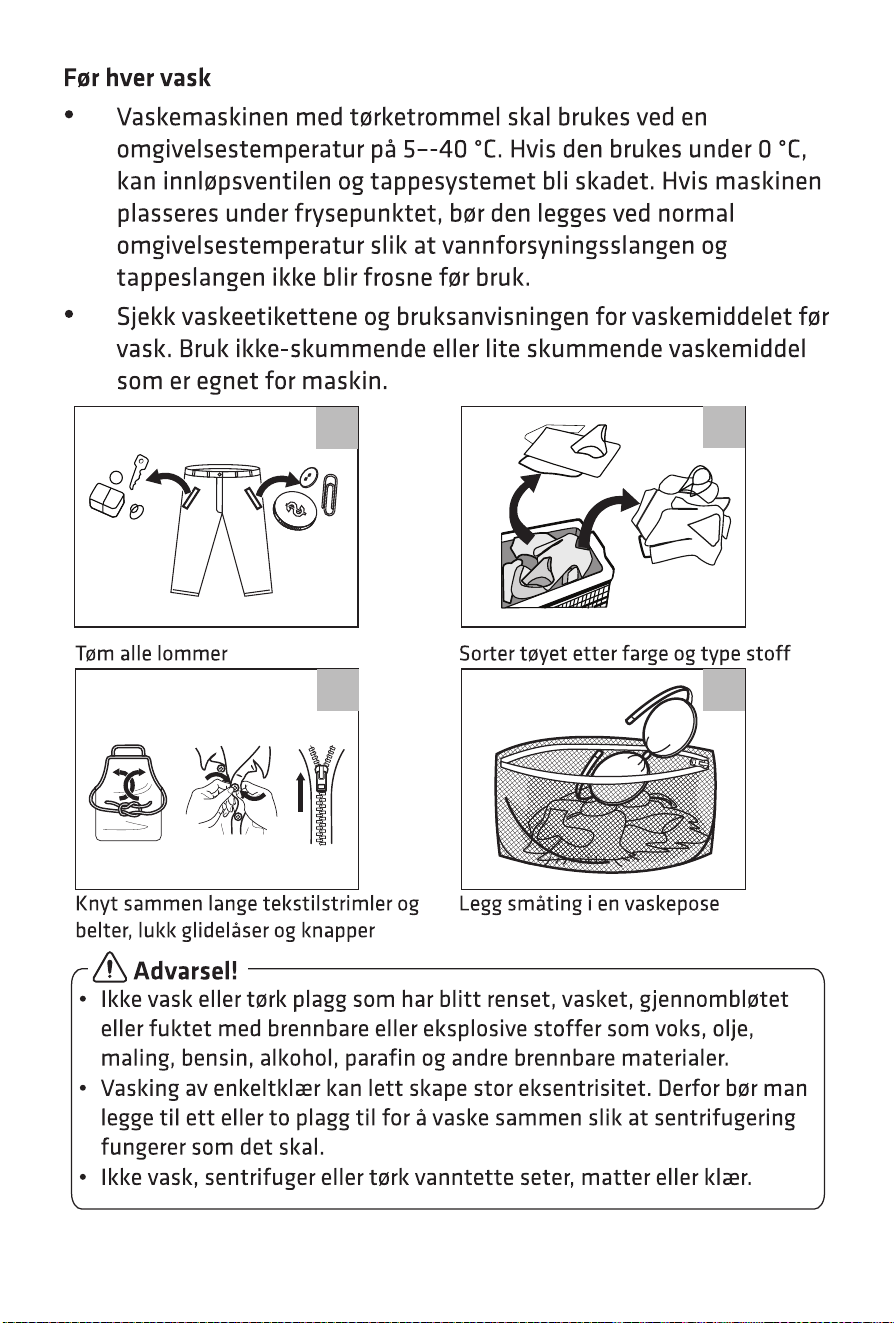

Before Each Washing
Sort laundry according to color and
textile type
2
3
20
4
1
Warning!

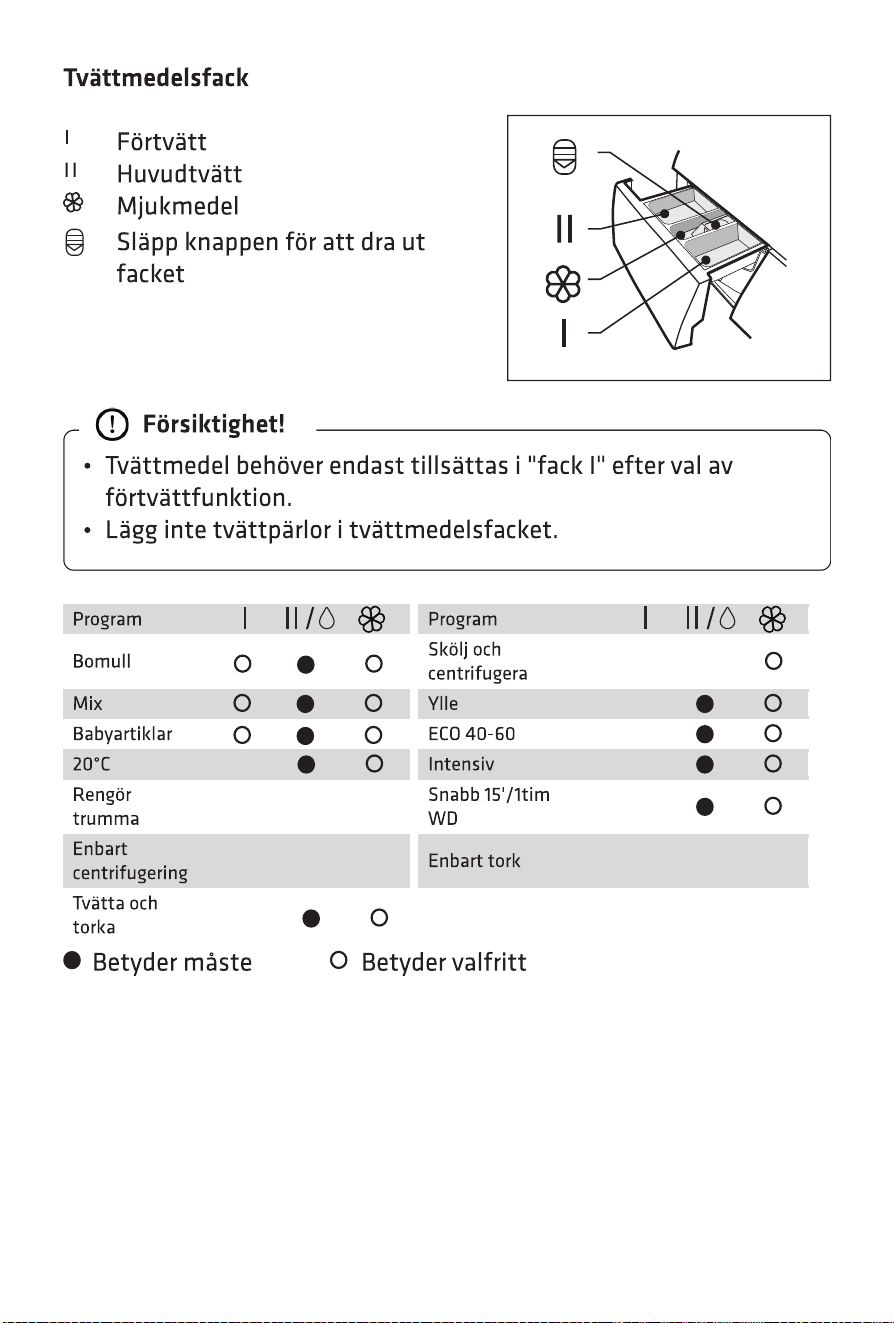

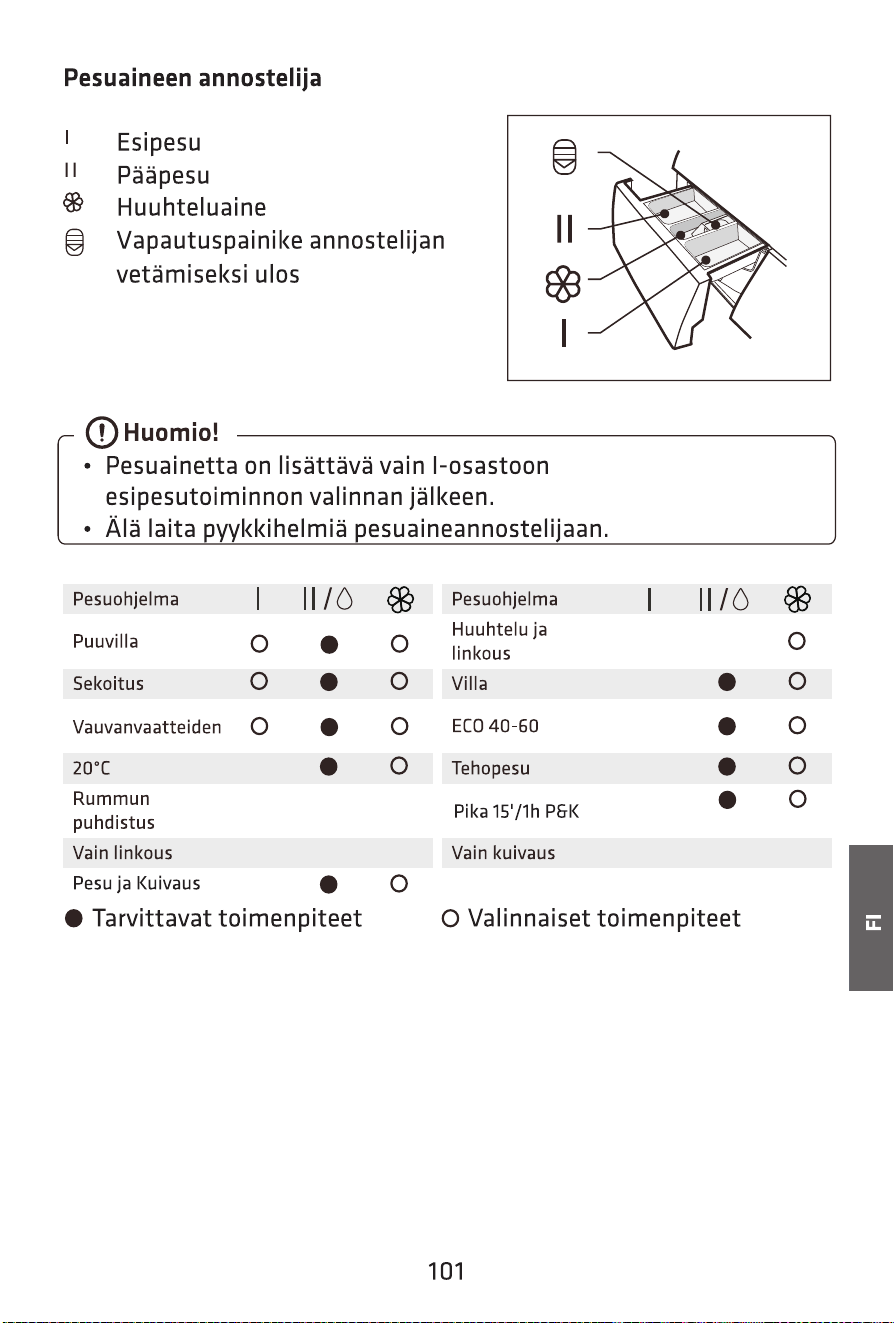

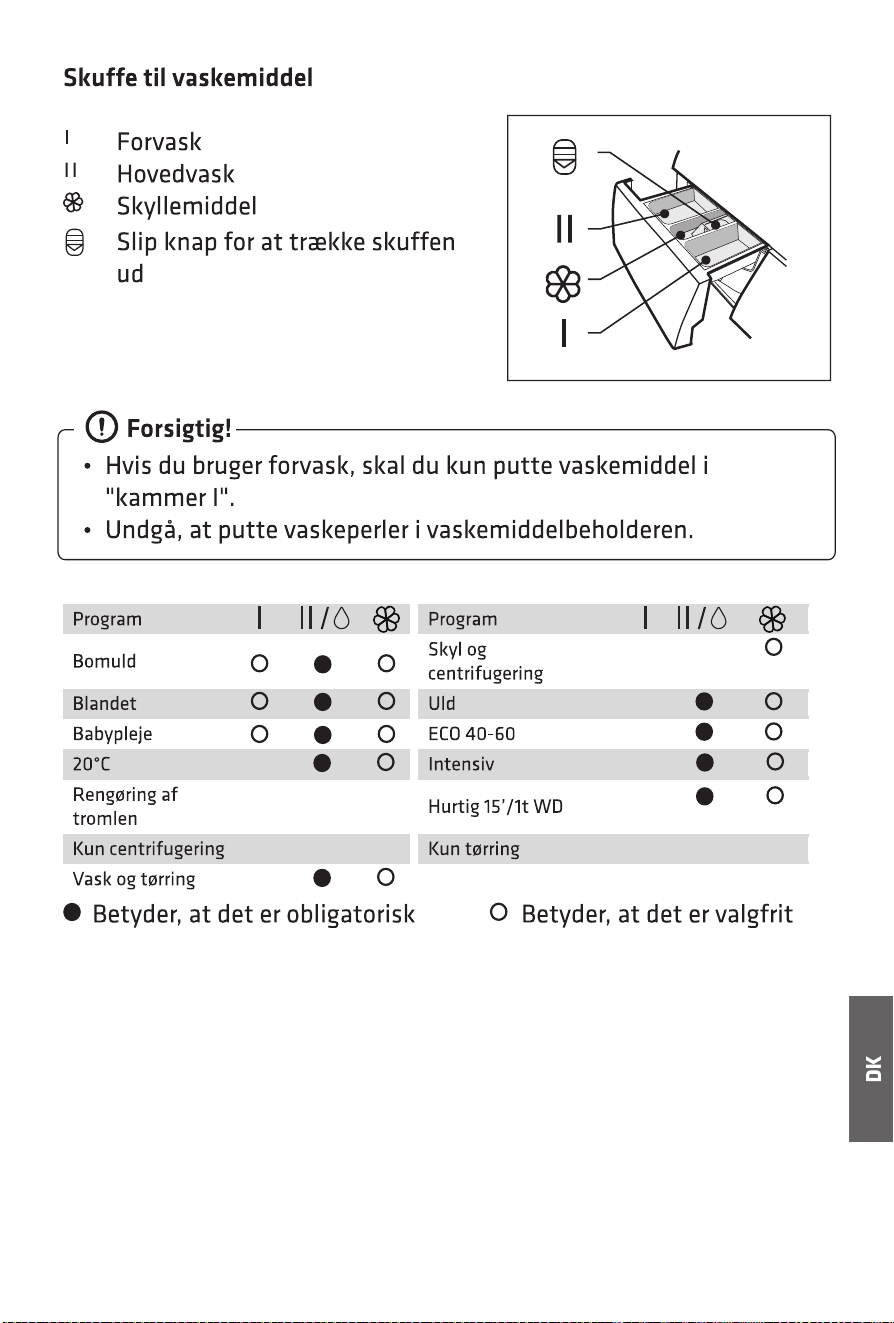

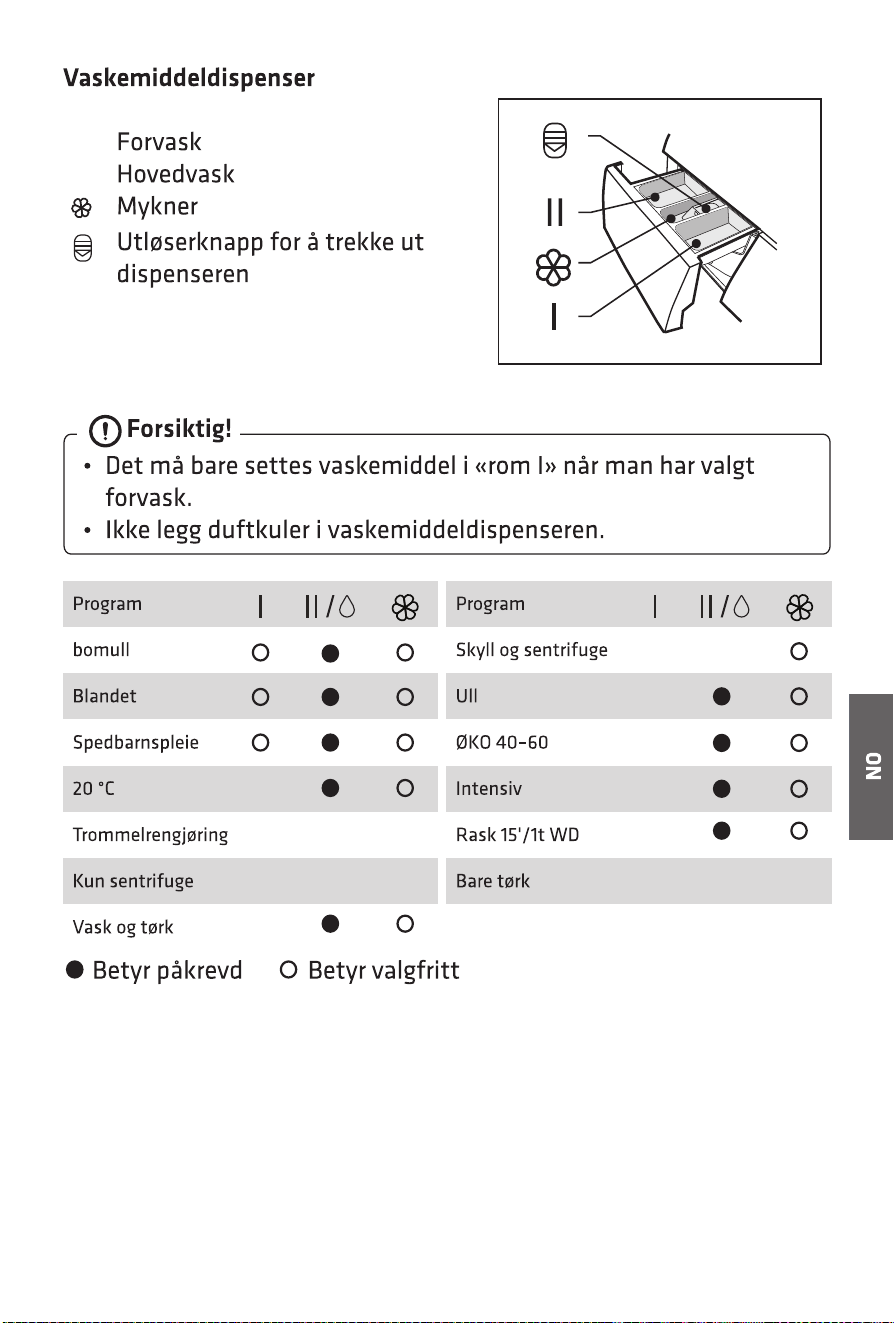

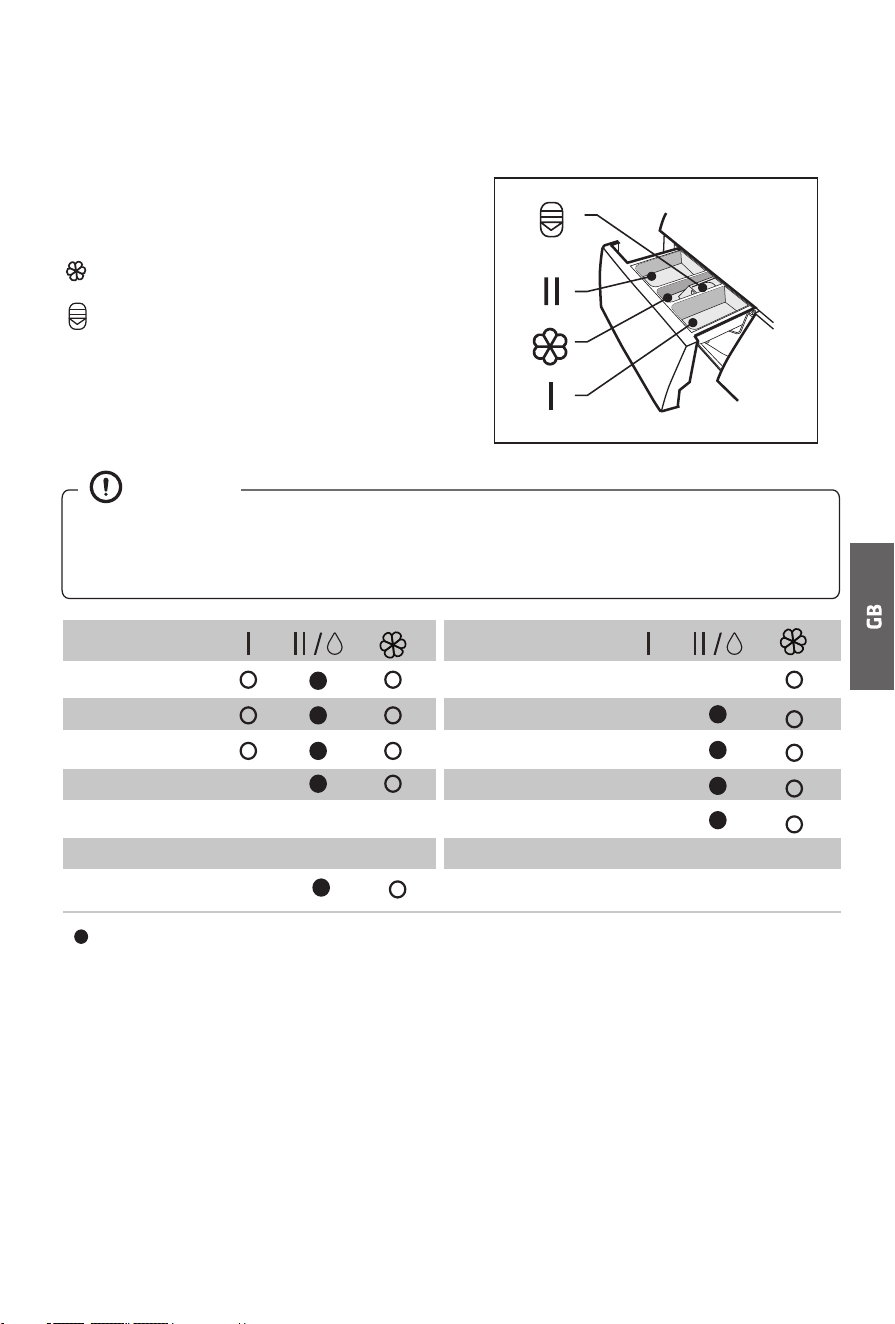

Detergent Dispenser
• Detergent only needs to be added in compartment I ”after
selecting pre-wash function.
“
• Do not put laundry beads into the detergent dispenser.
Pre wash
Main wash
Softener
II
I
Release button to
pull out the dispenser
21
Caution!
Programme
Cotton
Mix
Baby Care
20 C
Drum Clean
Spin Only
Wash and Dry
Programme
Rinse & Spin
Wool
ECO 40-60
Dry Only
Quick 15’/1h WD
Means must ○ Means optional
Intensive
°

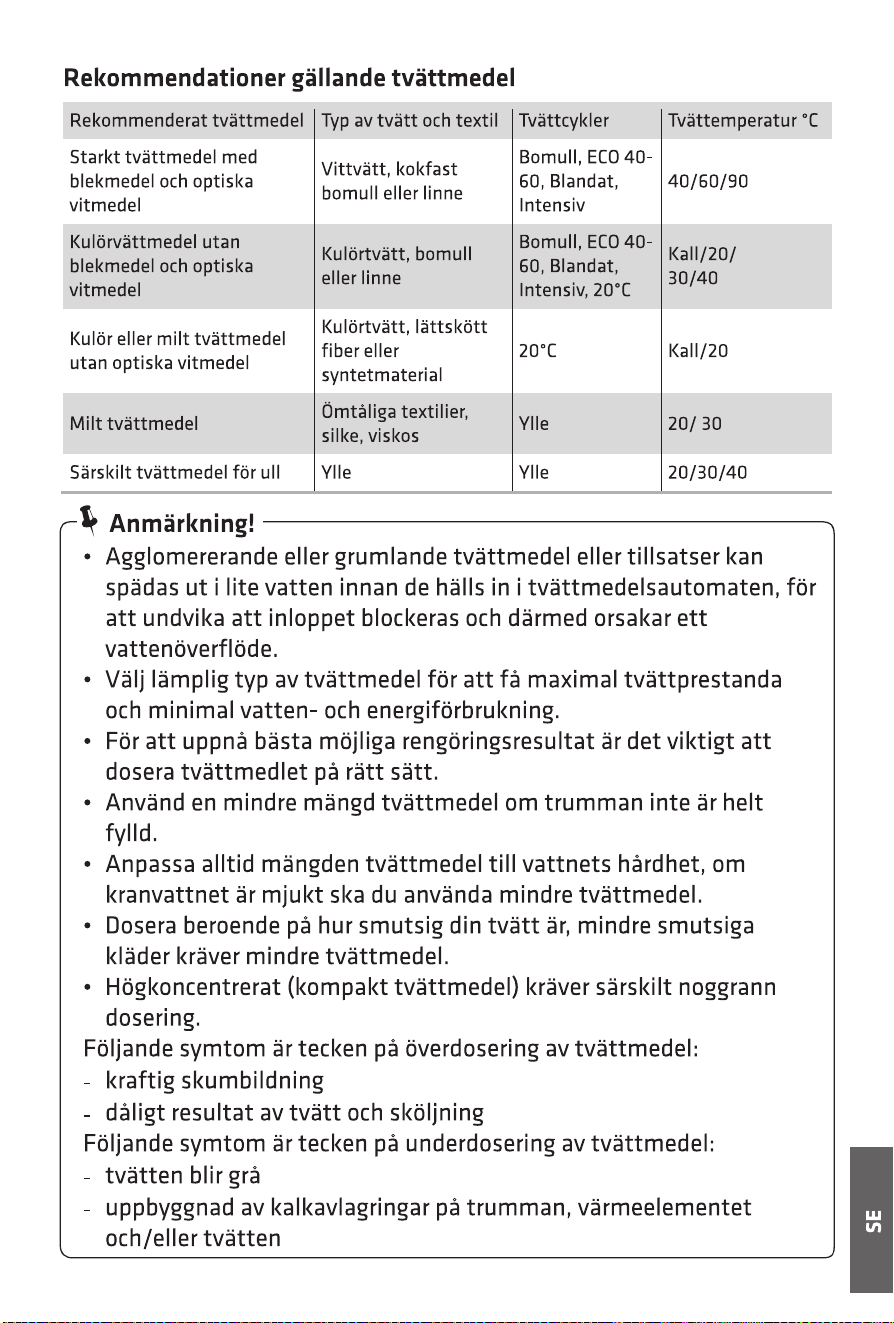

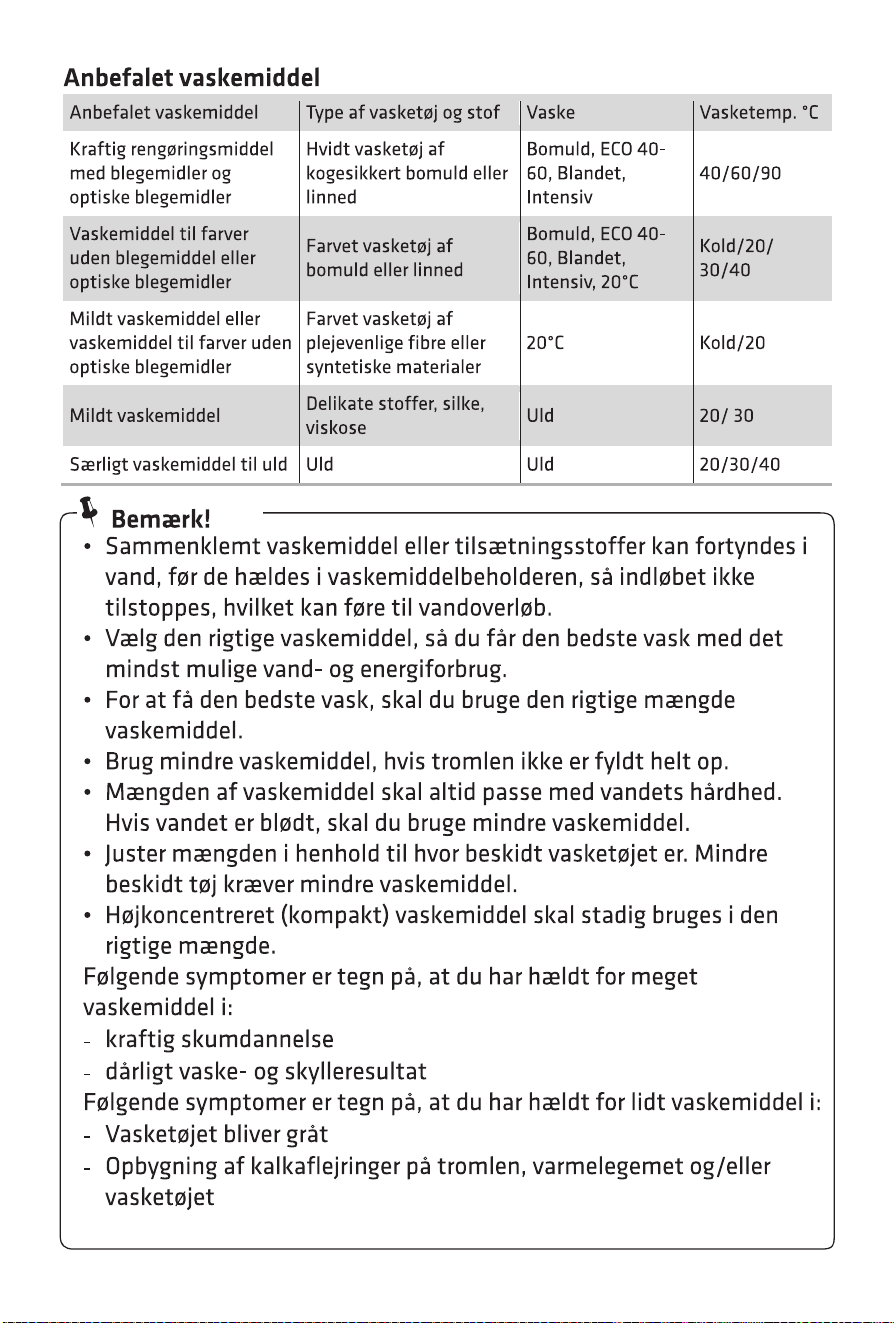

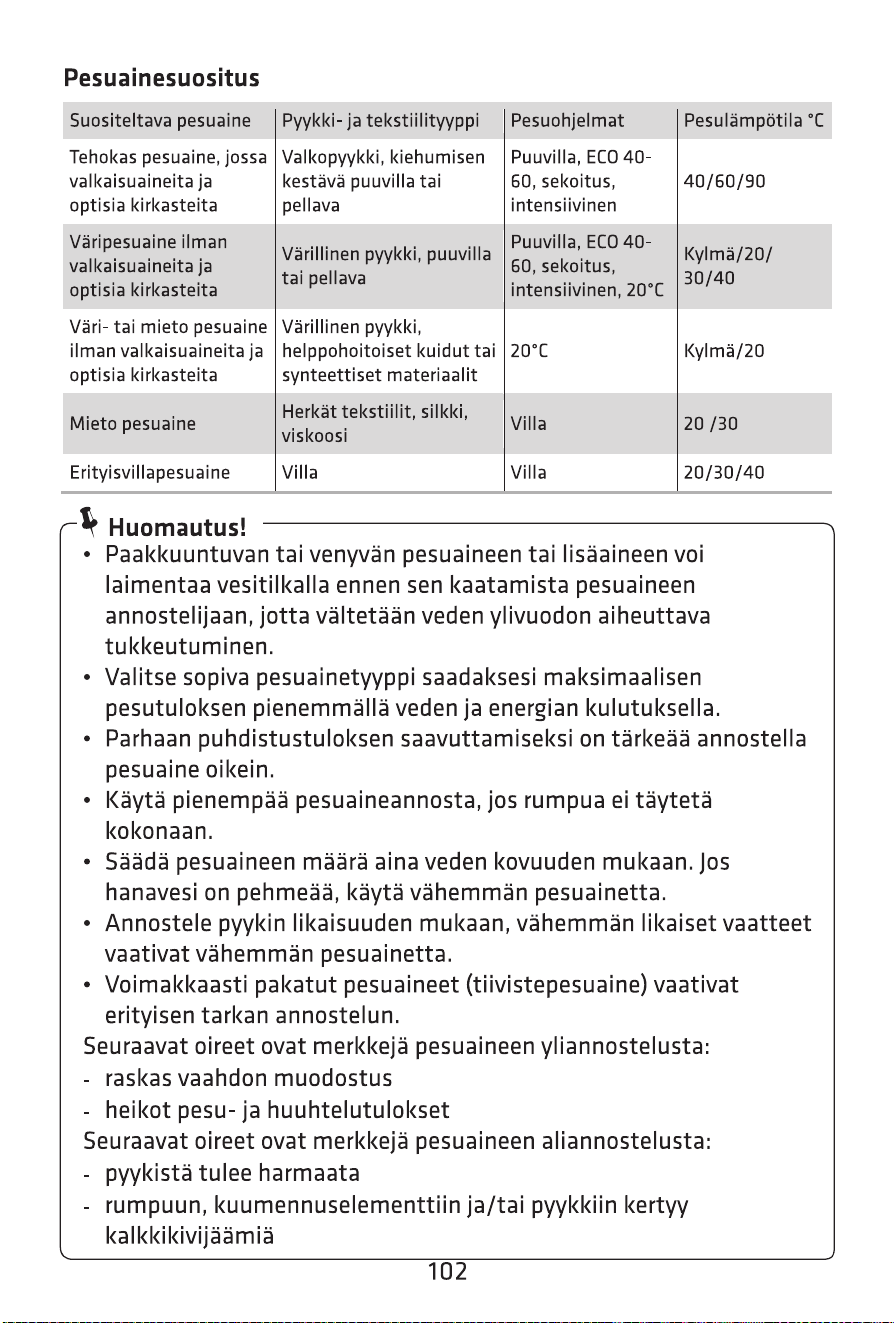

Detergent Recommendation
Agglomerating or ropy detergent or additive can be diluted in some
water before pouring it into the detergent dispenser, to avoid its
inlet getting blocked and thus causing a water overflow.
• Please choose the suitable type of detergent to get the maximum
washing performance with minimum water and energy
consumption.
• To achieve the best cleaning result, a proper detergent dosing is
important.
• Use a reduced detergent amount if the drum is not filled
completely.
• Always adjust the amount of detergent to the water hardness, if
your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes
require less detergent.
• Highly concentrated (compact detergent) requires particularly
accurate dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element
and/or the laundry
•
22
Note!
Recommended washing
detergent
Heavy-duty detergent
with bleaching agents
and optical brighteners
Colour detergent
without bleaching agent
and optical brighteners
Color or mild detergent
without optical
brighteners
Mild washing detergent
Special wool detergent
Wash cycles
Washing
temp. °C
Type of laundry
and textile
White laundry made
from boil-proof
cotton or linen
Coloured laundry
made from cotton
or linen
Coloured laundry
made from easy
care fibres or
synthetic materials
Delicate textiles,
silk, viscose
Wool
Cotton, ECO 40-60,
Mix, Intensive
Cotton, ECO 40-60,
Mix, Intensive,
20°C
20°C
Wool
Wool
40 60 90/ /
20 30/
20 30/40/
Cold/20/
30/40
Cold/20

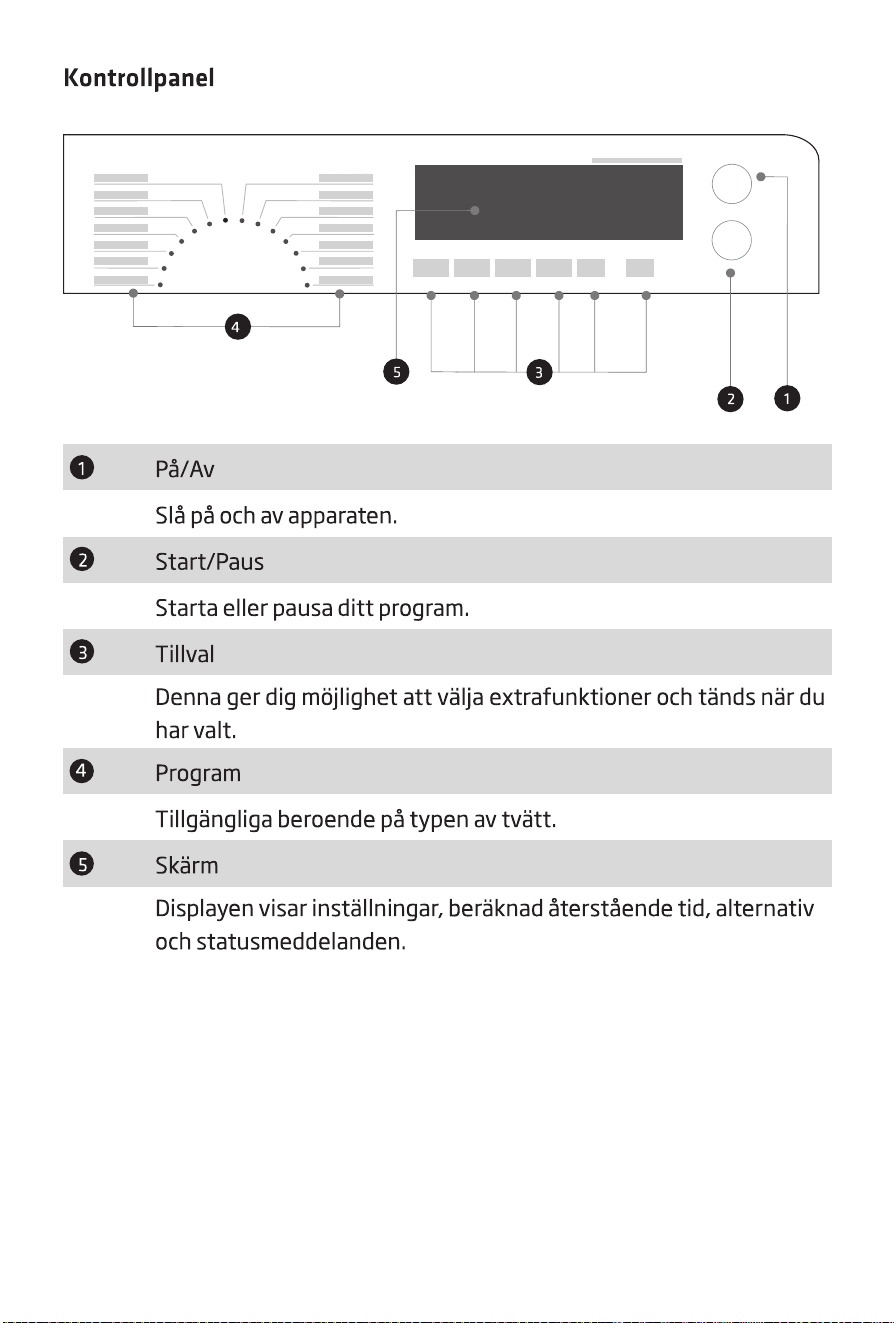

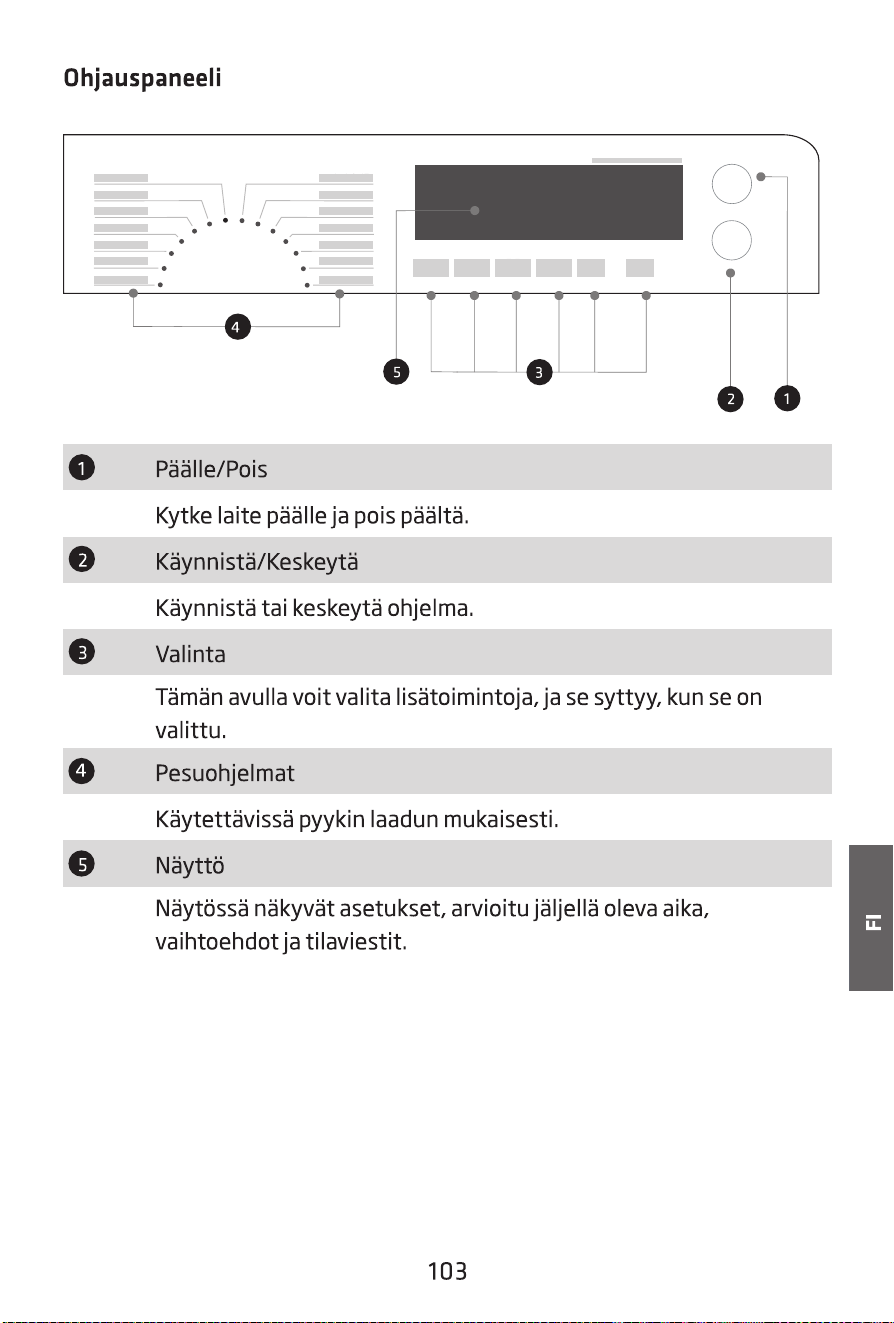

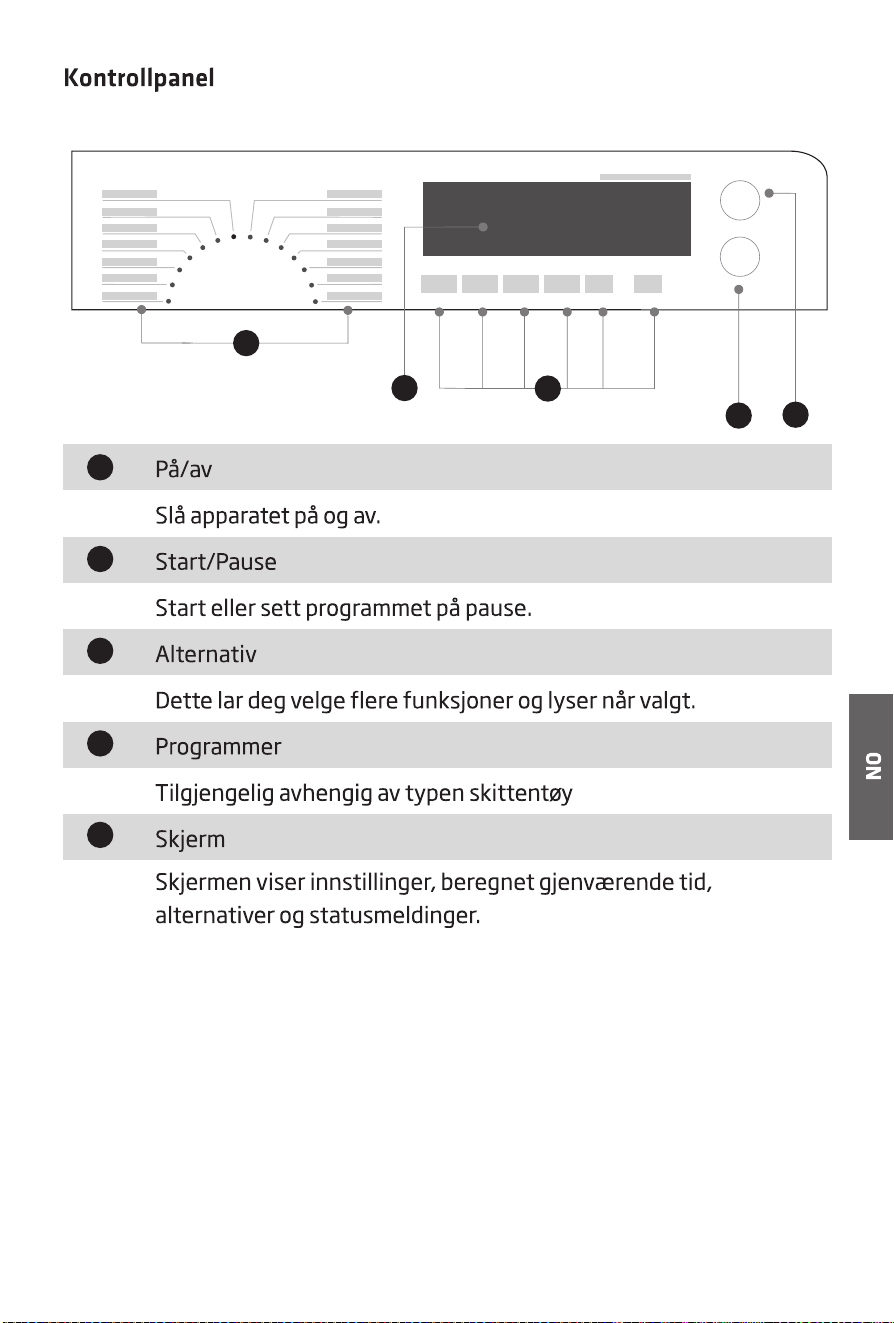

Control Panel
23
On/Off
Turn the appliance on and off.
1
Start/Pause
Start or pause your programme.
2
Option
This allows you to select additional functions and will light when selected.
3
Programmes
Available according to the laundry type.
4
Display
The display shows settings, estimated remaining time, options and
status messages.
5
3
2
1
1
4
5

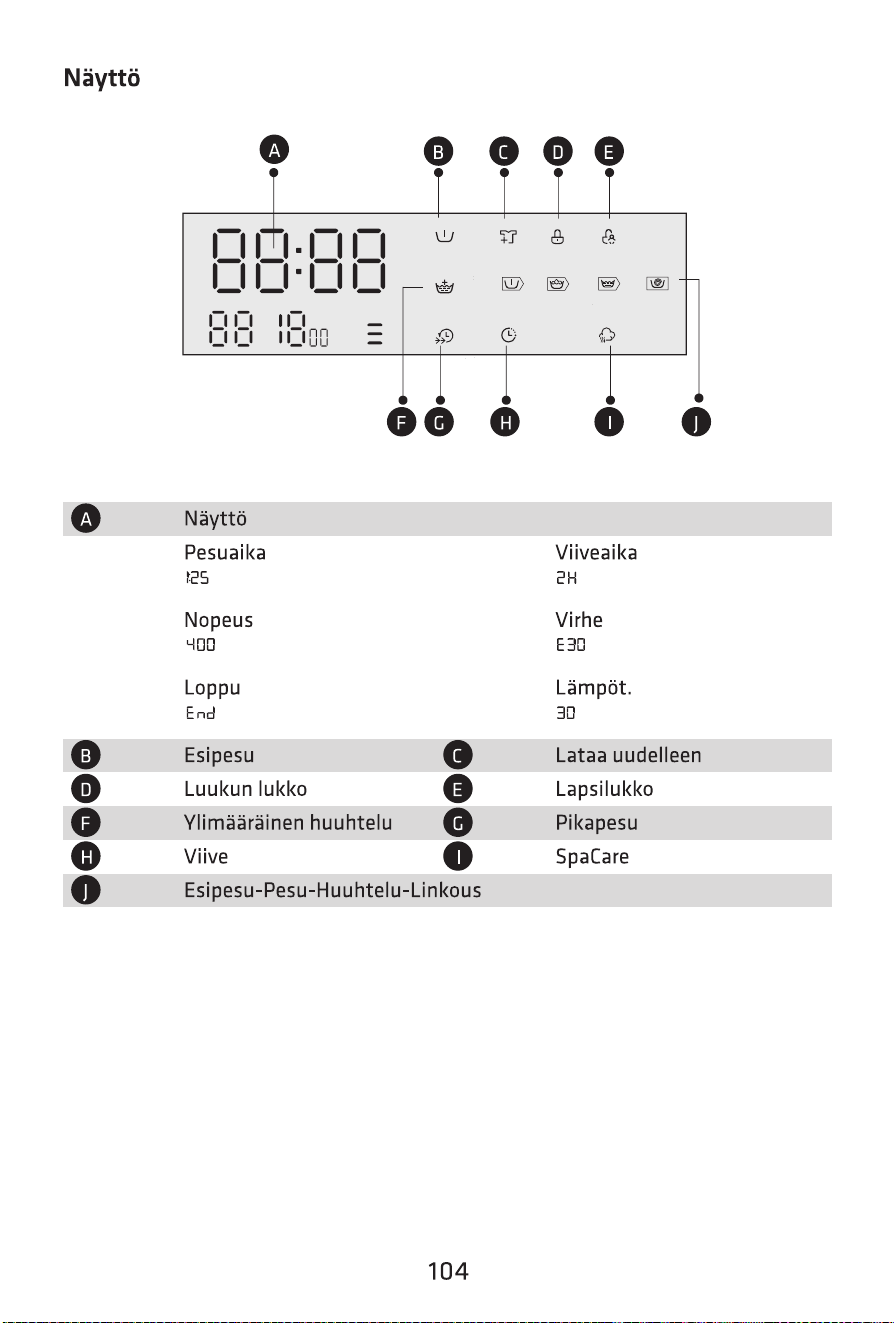

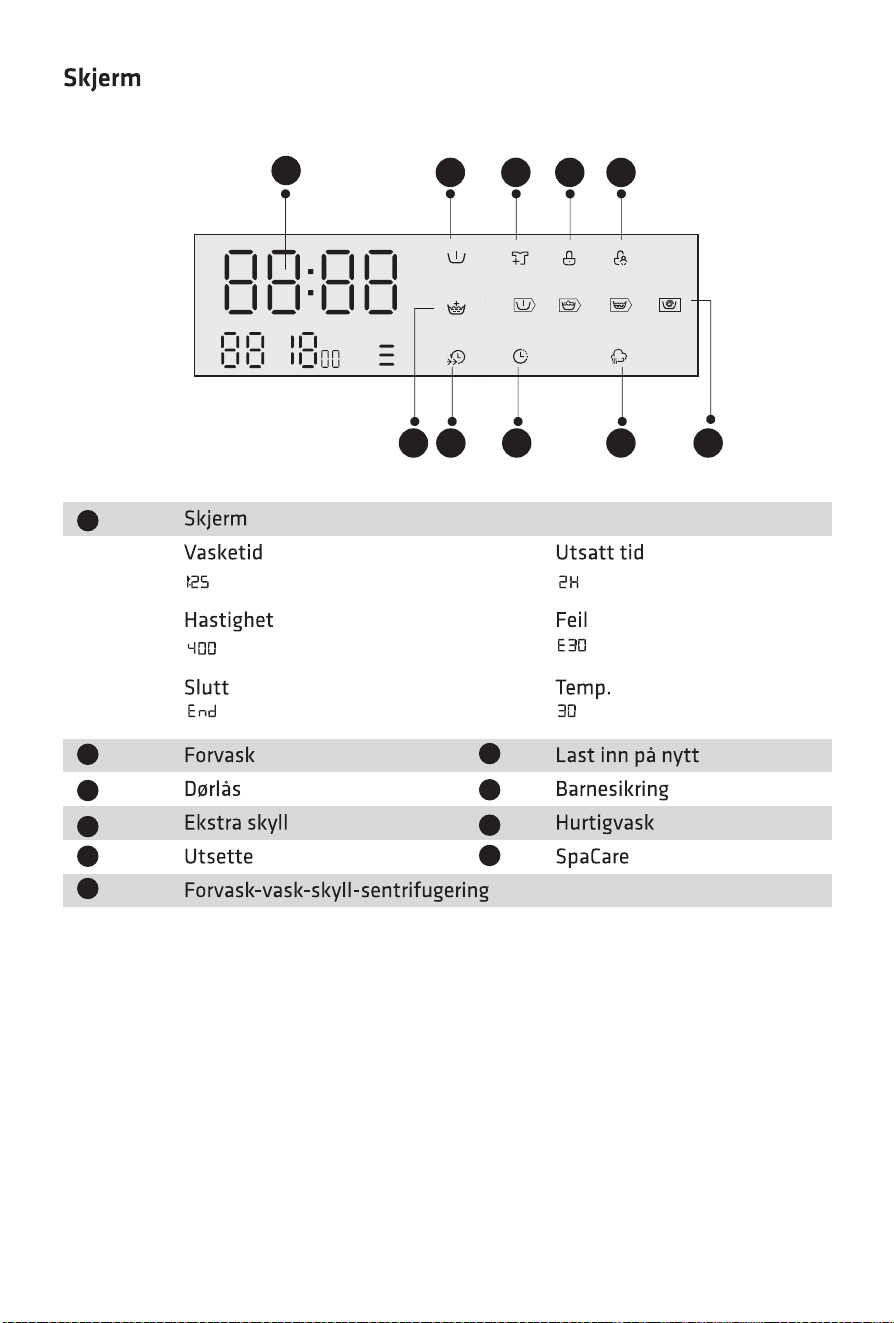

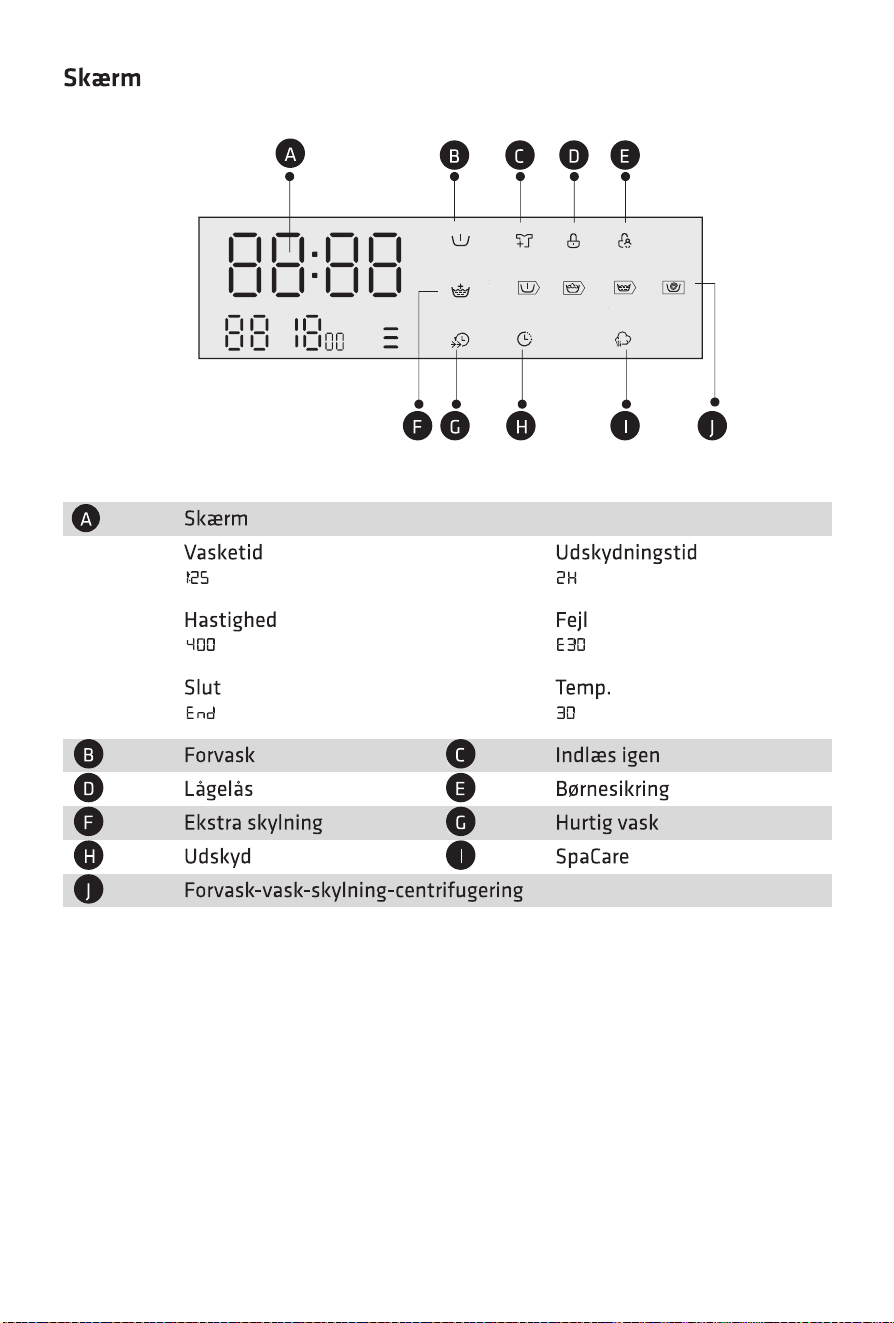

Display
24
Pre Wash
B
Door Lock
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
A
B C
G
Reload
C
Child Lock
E
D E
H IF J
Extra Rinse
F
Speed Wash
G
Delay
H
SpaCare
I
Pre Wash-Wash-Rinse-Spin
J
25

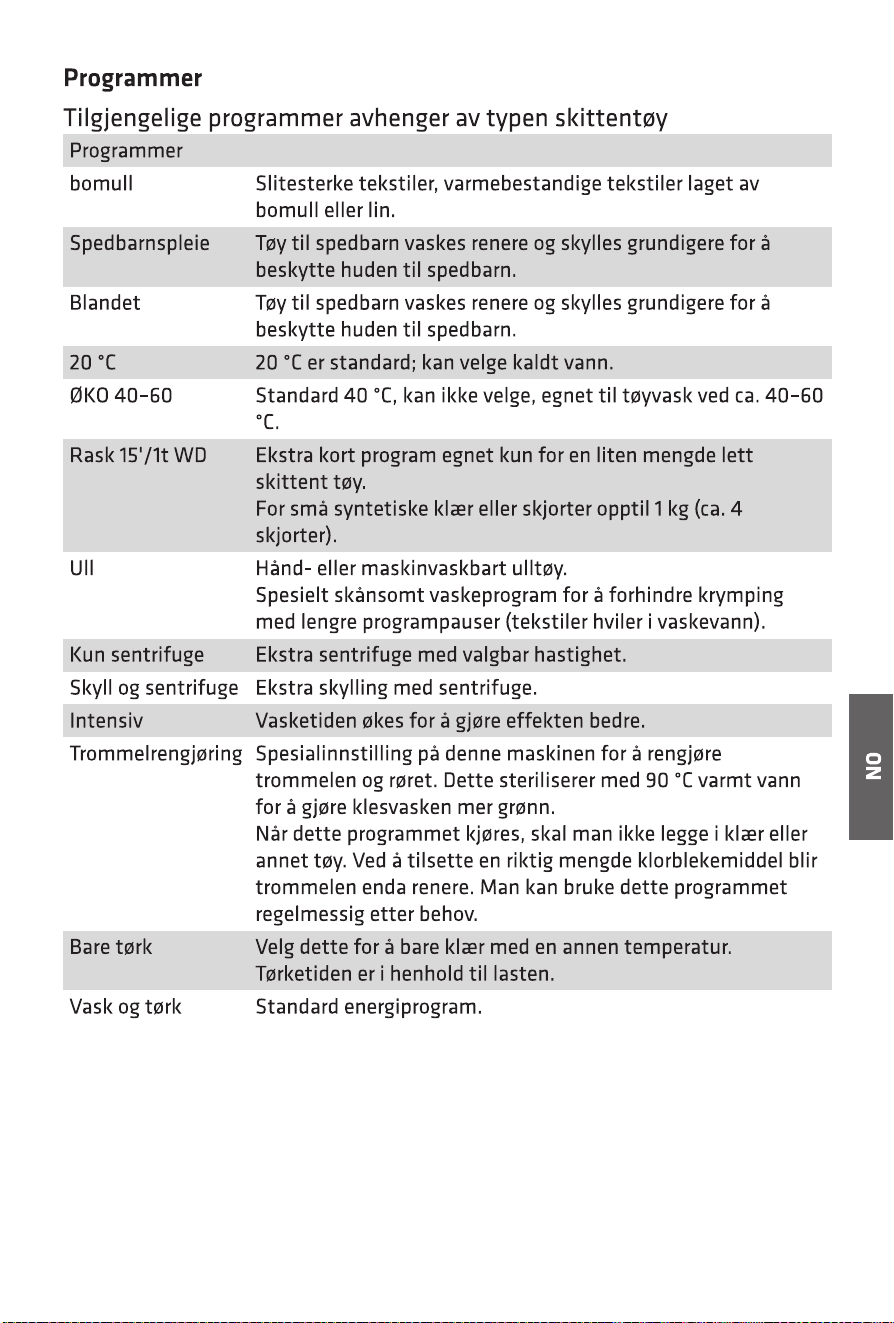

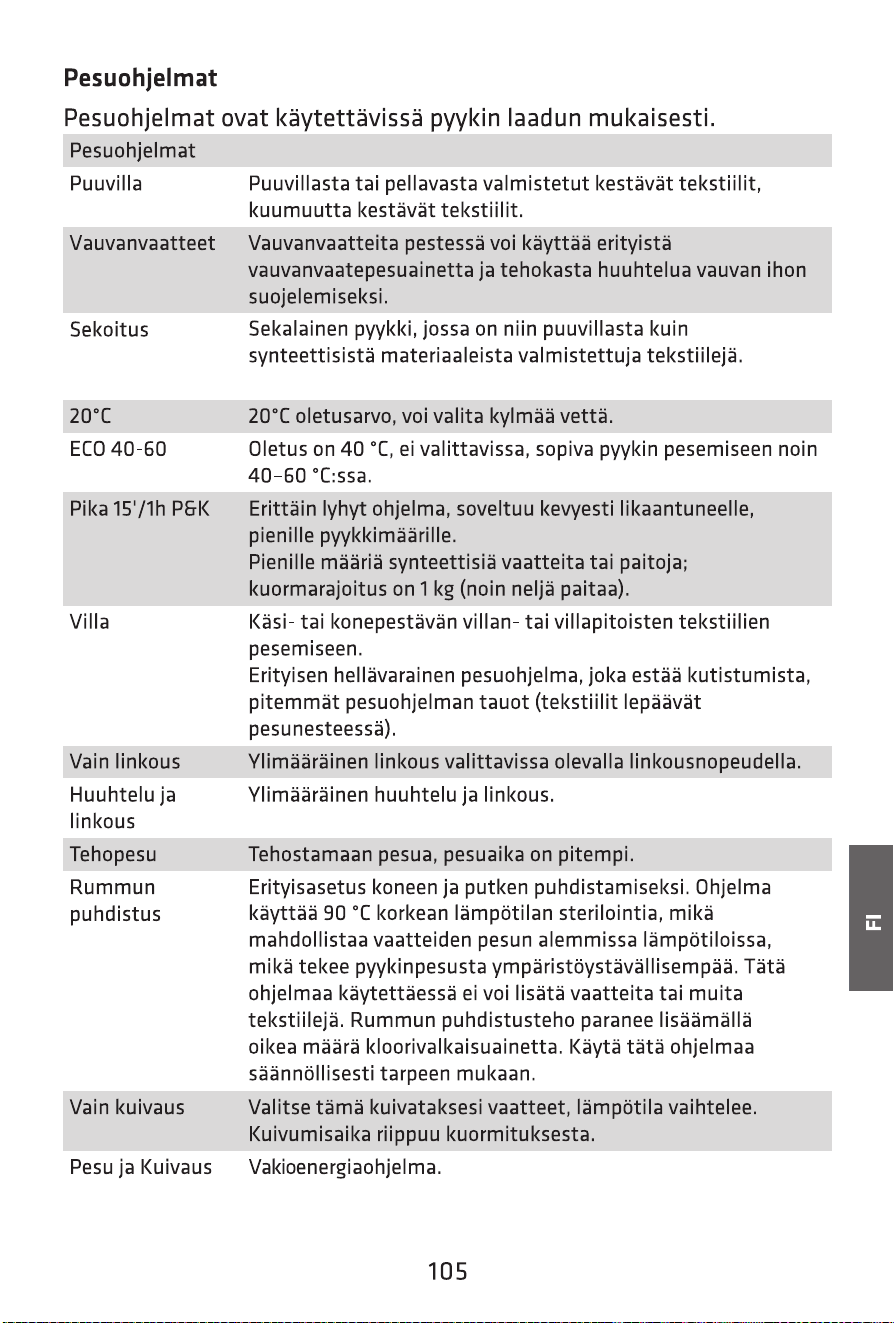

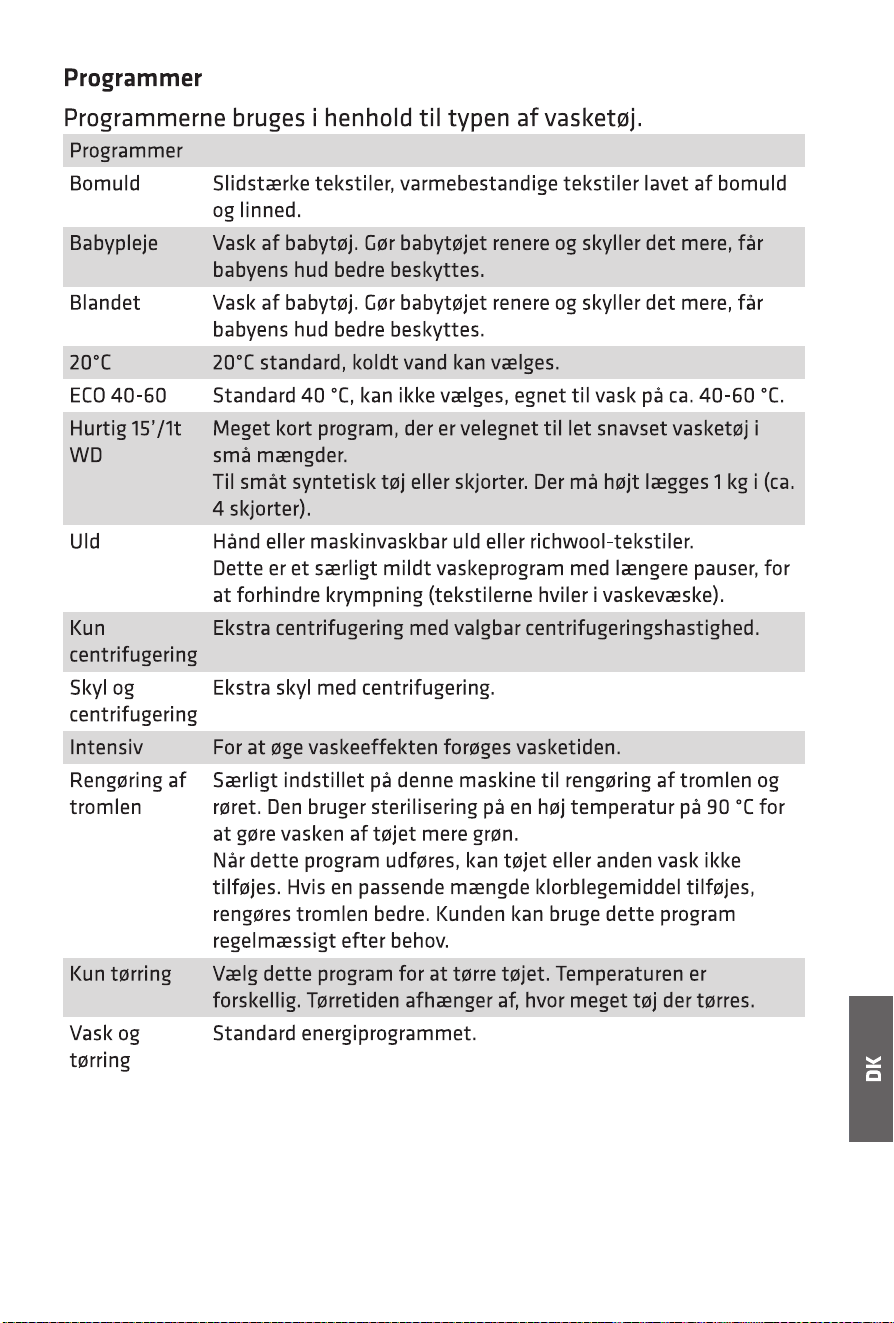

Programmes
Programmes are available according to the laundry type.
Programmes
Quick 15'
Wool
Mix
Cotton
Hard-wearing textiles, heat-resistant textiles made of
cotton or linen.
Washing the baby’s clothes, it can make the baby's
wear cleaner and make the rinse performance better
to protect the baby skin.
Mixed load consisting of textiles made of cotton and
synthetics.
20°C default, can choose cold water.
Default 40°C, not selectable, suitabale for laundry
washing at about 40°C-60°C.
Extra short programme approx, suitable for lightly
soiled washing as a small amounts of laundry.
For small loads of synthetic clothes or shirts, load
limitation is 1 kg (about 4 shirts).
Hand or machine-washable wool or wool blend textiles.
Especially gentle wash programme to prevent shrinkage,
longer programme pauses (textiles rest in wash liquor).
Extra spin with selectable spin speed.
Extra rinse with spin.
To increase the washing effects, washing time is
increased.
Select it to dry clothes, the temperature is different.
The drying time is according to the load.
The standard energy program.
Specially added for the appliance to clean the drum
and tube. The programme uses 90 °C high temperature
sterilization to allow for clothes washing in lower
temperatures, making doing the laundry greener.
When this programme is used, clothes or other
washing cannot be added. The drum cleaning effect
will be better with the addition of a proper amount of
chlorine bleaching. Use this programme regularly
according to the need.
Spin Only
Rinse&Spin
Baby Care
20
°C
Intensive
Drum Clean
Dry Only
ECO 40-60
1h W/D
Wash and Dry

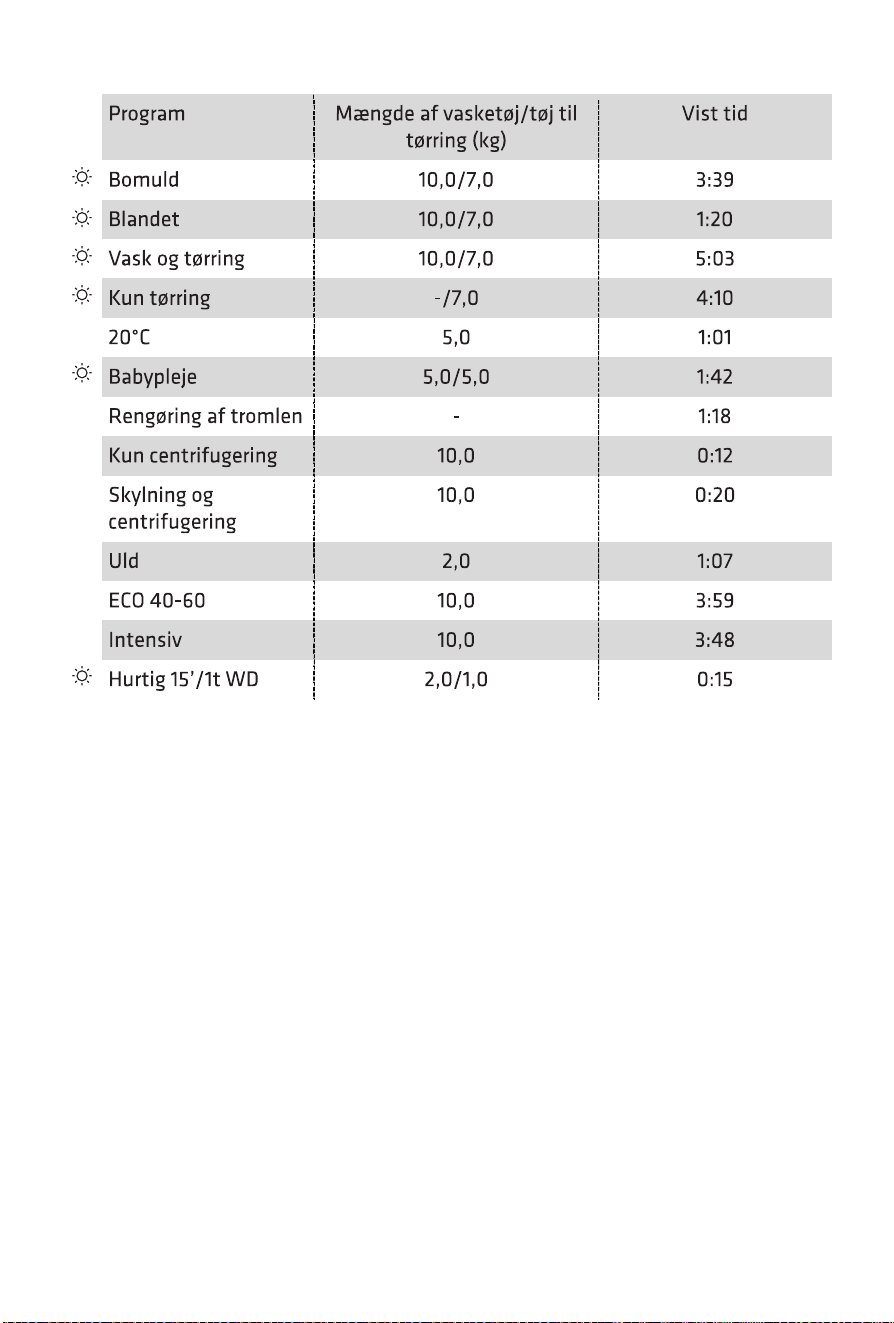

26

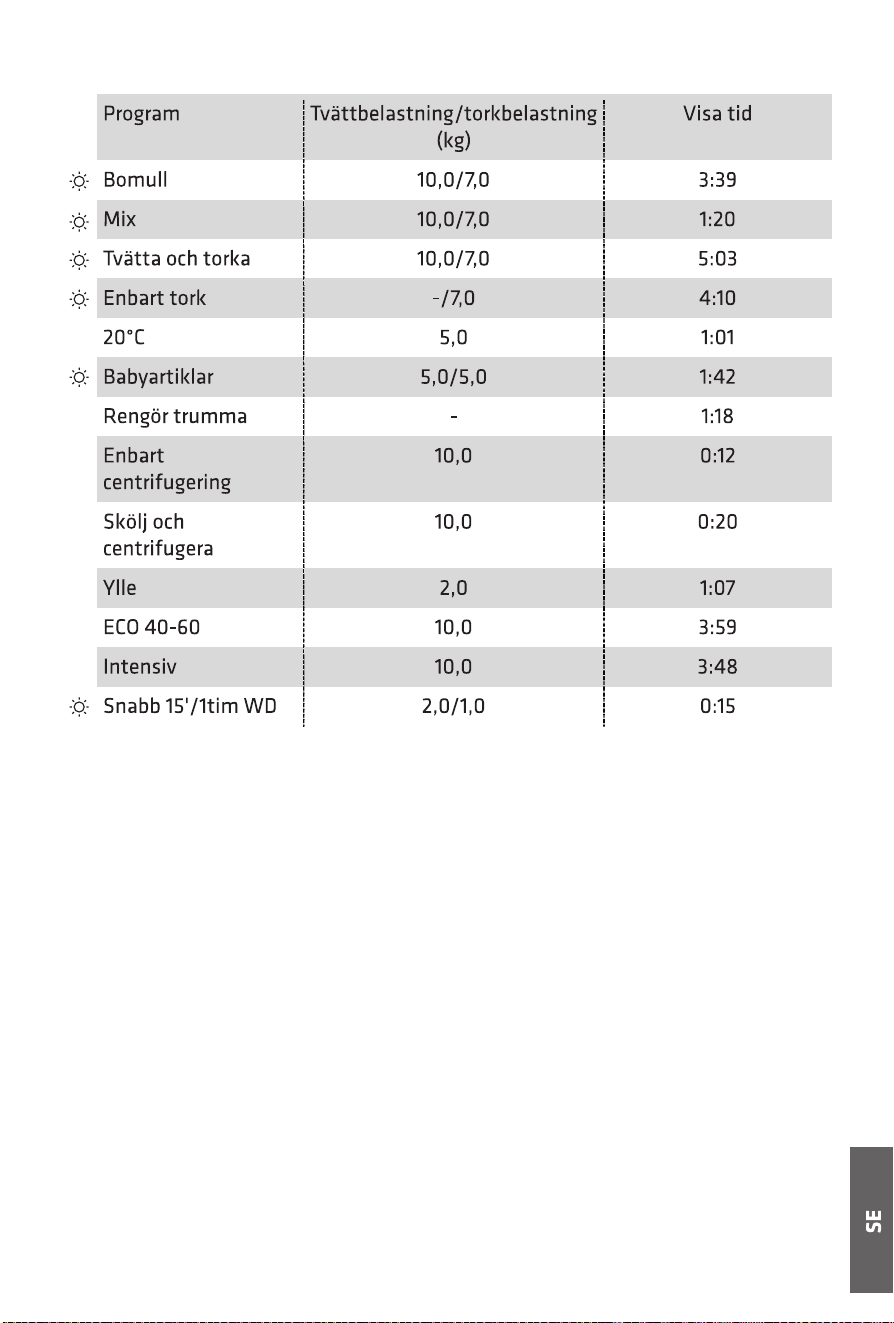

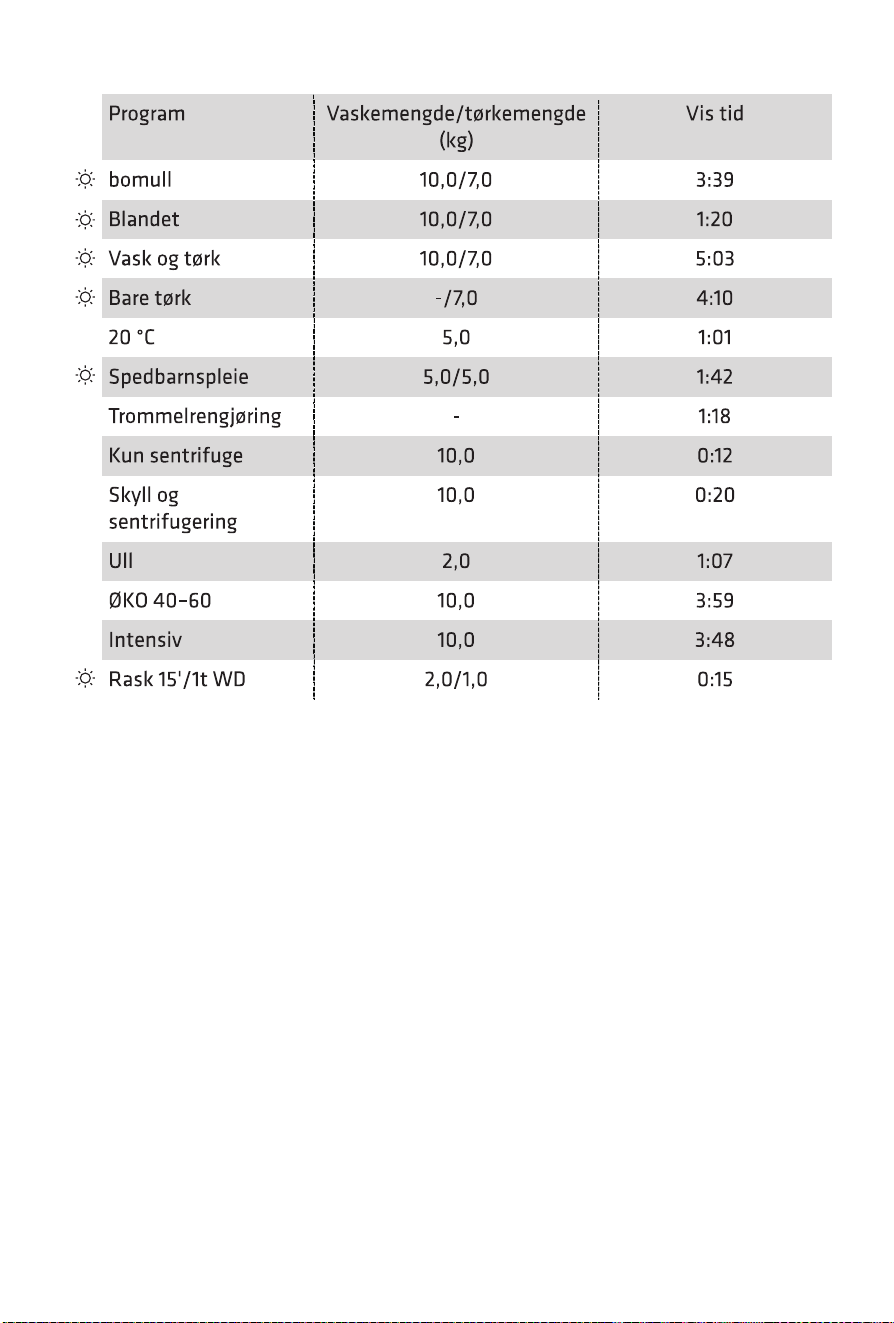

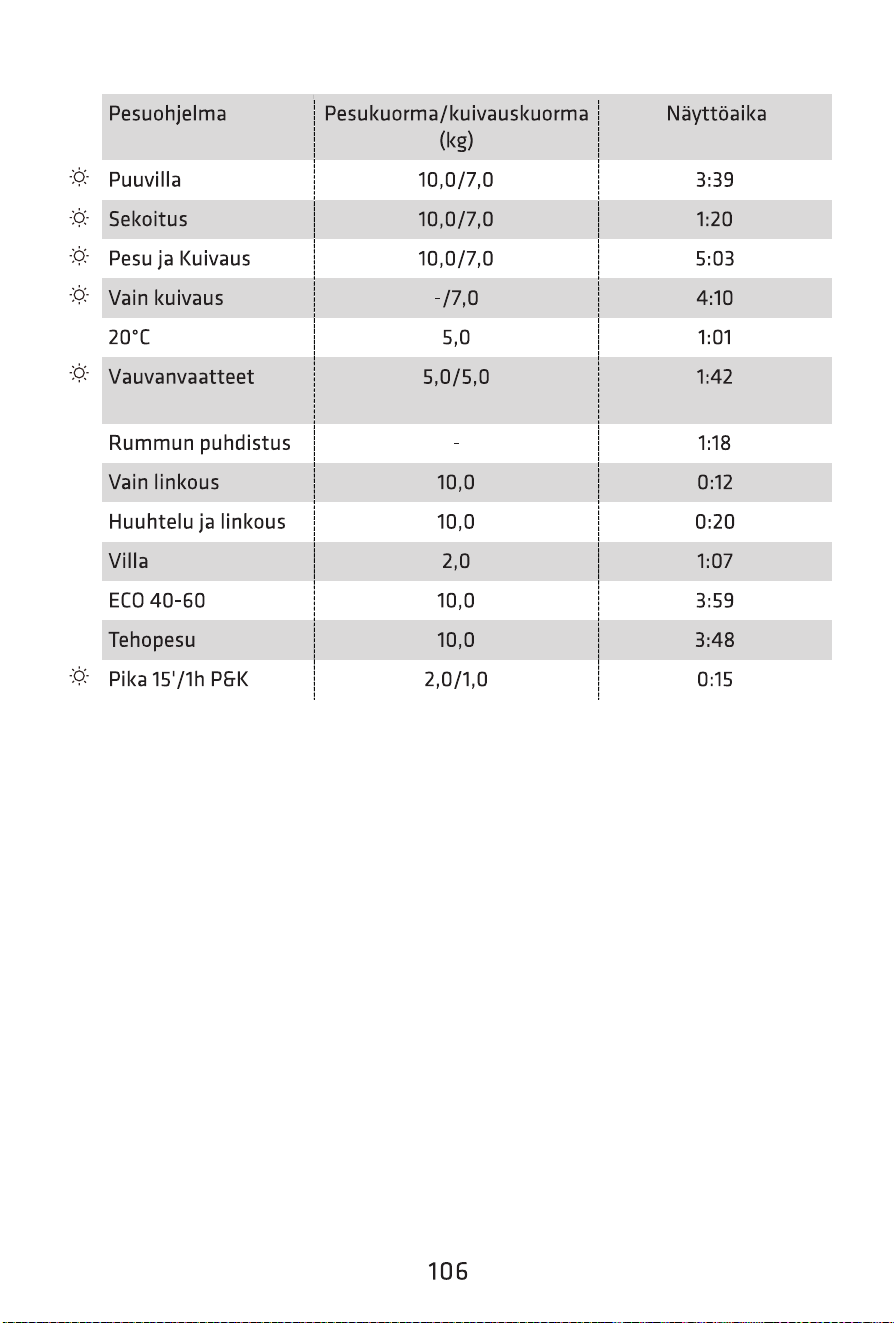

Washing Load/Dry Load(kg)
Programme
Display Time
Cotton
Mix
Wash and Dry
Dry Only
20℃
Baby Care
Drum Clean
Spin Only
Rinse&Spin
Wool
ECO 40-60
Intensive
Quick 15’/1h WD
10.0/7.0
10.0/7.0
2.0/1.0
2.0
–
10.0
-/7.0
5.0
5.0/5.0
10.0
10.0
10.0
10.0
3:39
1:20
5:03
4:10
1:01
1:42
1:18
0:12
0:20
1:07
3:59
3:48
0:15
10.0
10.0/7.0
27

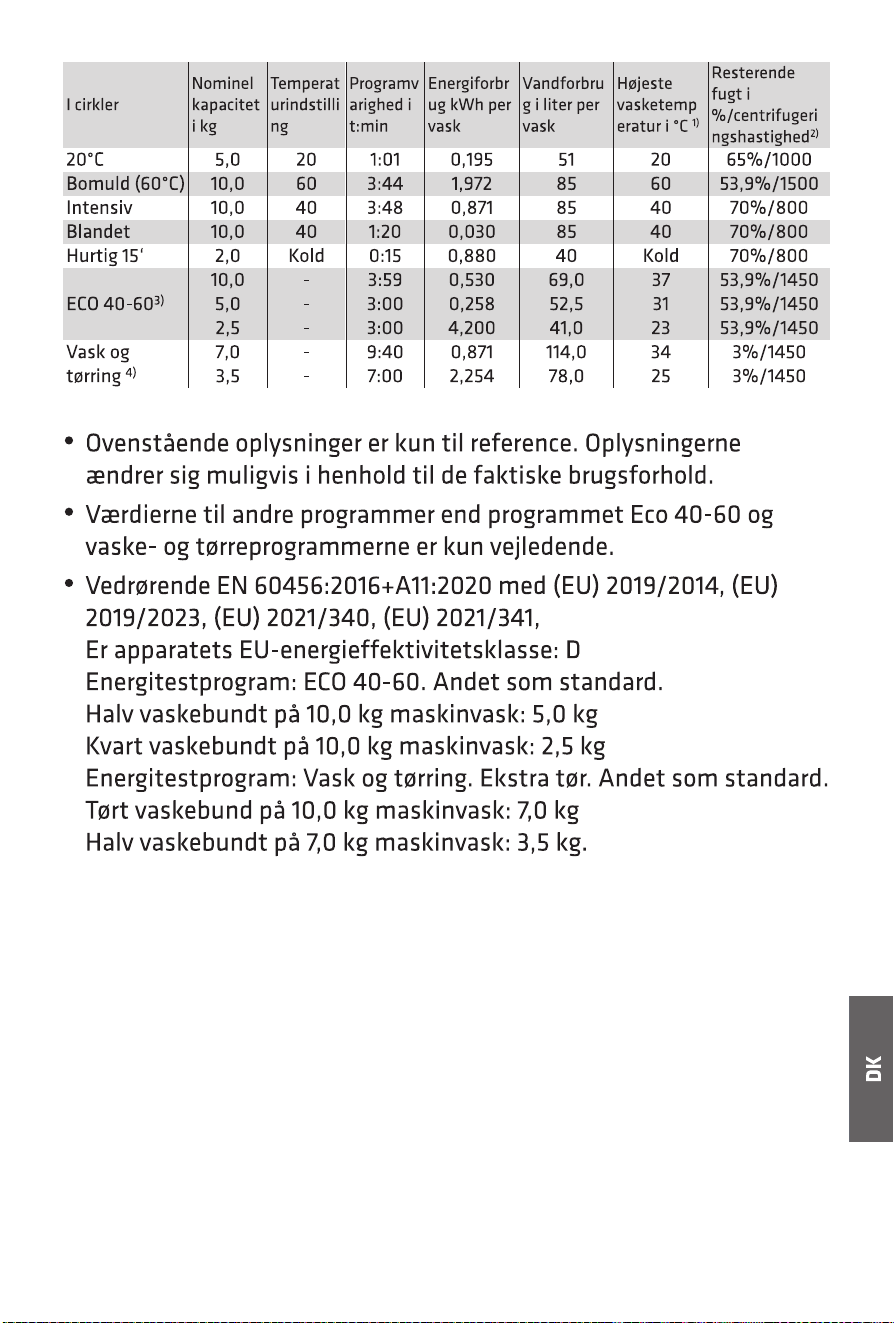

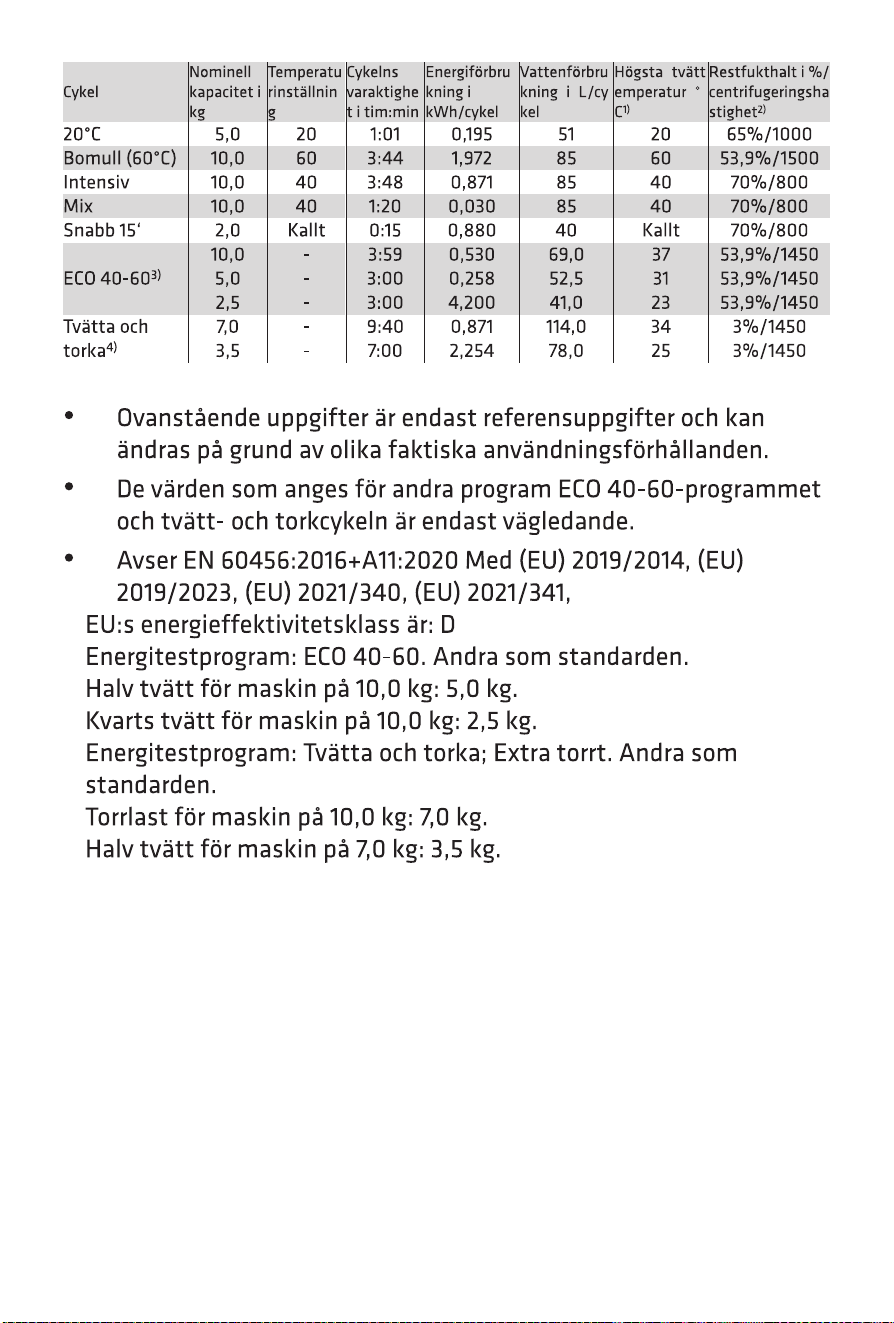

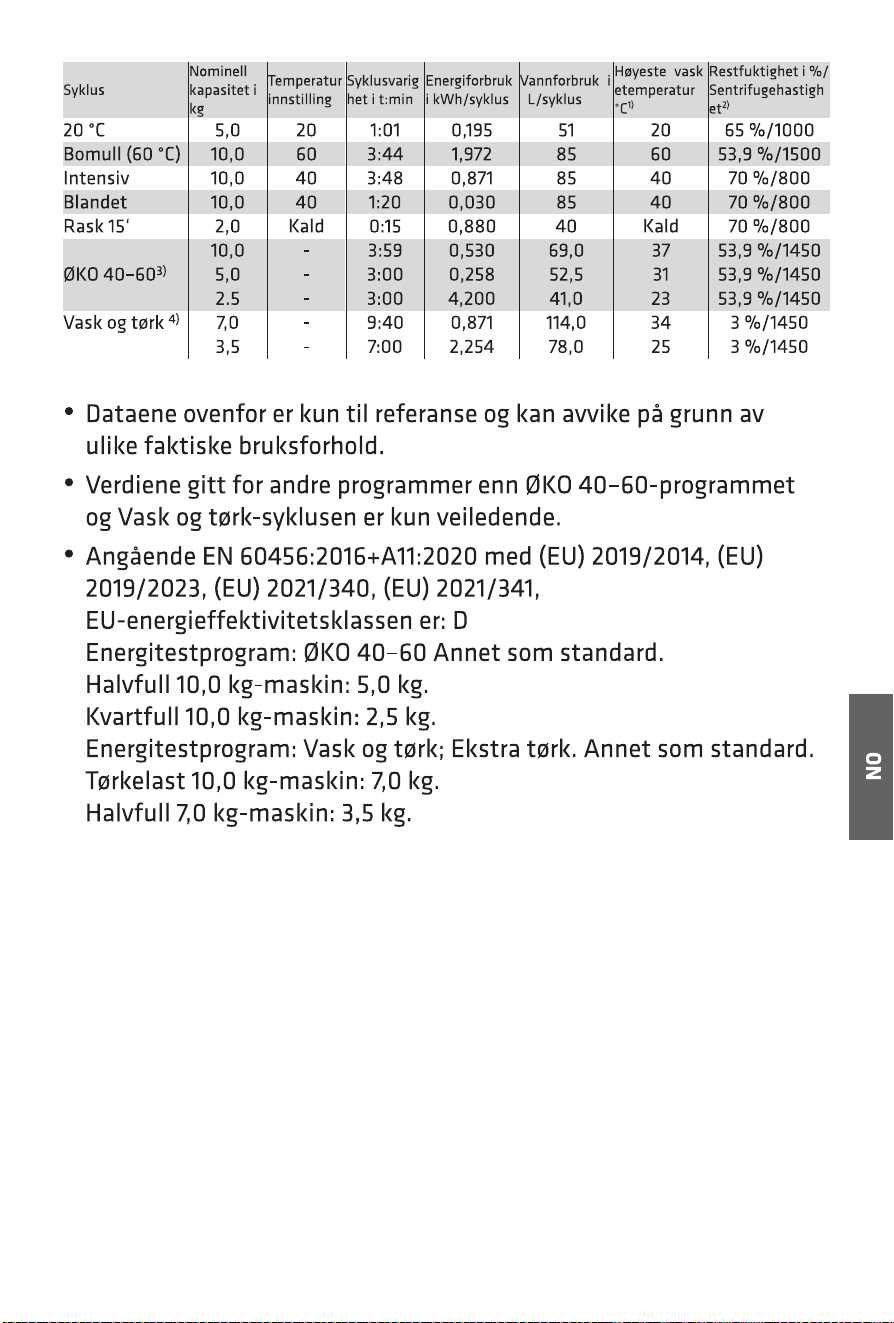

Cycle
Intensive
20°C
Cotton
(60°C)
Mix
Quick 15'
3)
ECO 40-60
Wash and
4)
Dry
Nominal
capacity
in kg
Tempe-
rature
setting
Cycle
duration
in h:min
Energy
consumption
in kWh/cycle
Water
consu-
mption
in L/cycle
Highest
washing
temper-
ature
1)
°C
Residual
moisture
in %/ Spin
speed
2)
10.0 40
3:48
1.130
85
40
70%/800
5.0
10.0
10.0
2.0
10.0
5.0
2.5
7.0
3.5
20
60
40
Cold
–
–
–
–
–
1:01
3:44
1:20
0:15
3:59
3:00
3:00
9:40
7:00
0.195
1.972
0.871
0.030
0.880
0.530
0.258
4.200
2.254
51
85
85
40
69.0
52. 5
41.0
114.0
78.0
20
60
40
Cold
37
31
23
34
25
65%/1000
53.9%/1500
70%/800
70%/800
53.9%/1450
53.9%/1450
53.9%/1450
3%/1450
3%/1450
•
to different actual use conditions.
• The valves given for programmes other than the ECO 40-60
programme and the Wash and Dry cycle are indicative only.
• Concerning to EN 60456:2016+A11:2020 With(EU) 2019/2014,
(EU) 2019/2023, (EU) 2021/340, (EU) 2021/341,
The EU energy efficiency class is: D
Energy test program: ECO 40-60. Other as the default.
Energy test program: Wash and Dry; Extra Dry. Other as the default.
Dry load for 10.0kg machine: 7.0kg.
Half load for 7.0kg machine: 3.5kg.
The above data is for reference only, and the data may change due
Half load for 10.0kg machine: 5.0kg.
Quarter load for 10.0kg machine: 2.5kg.

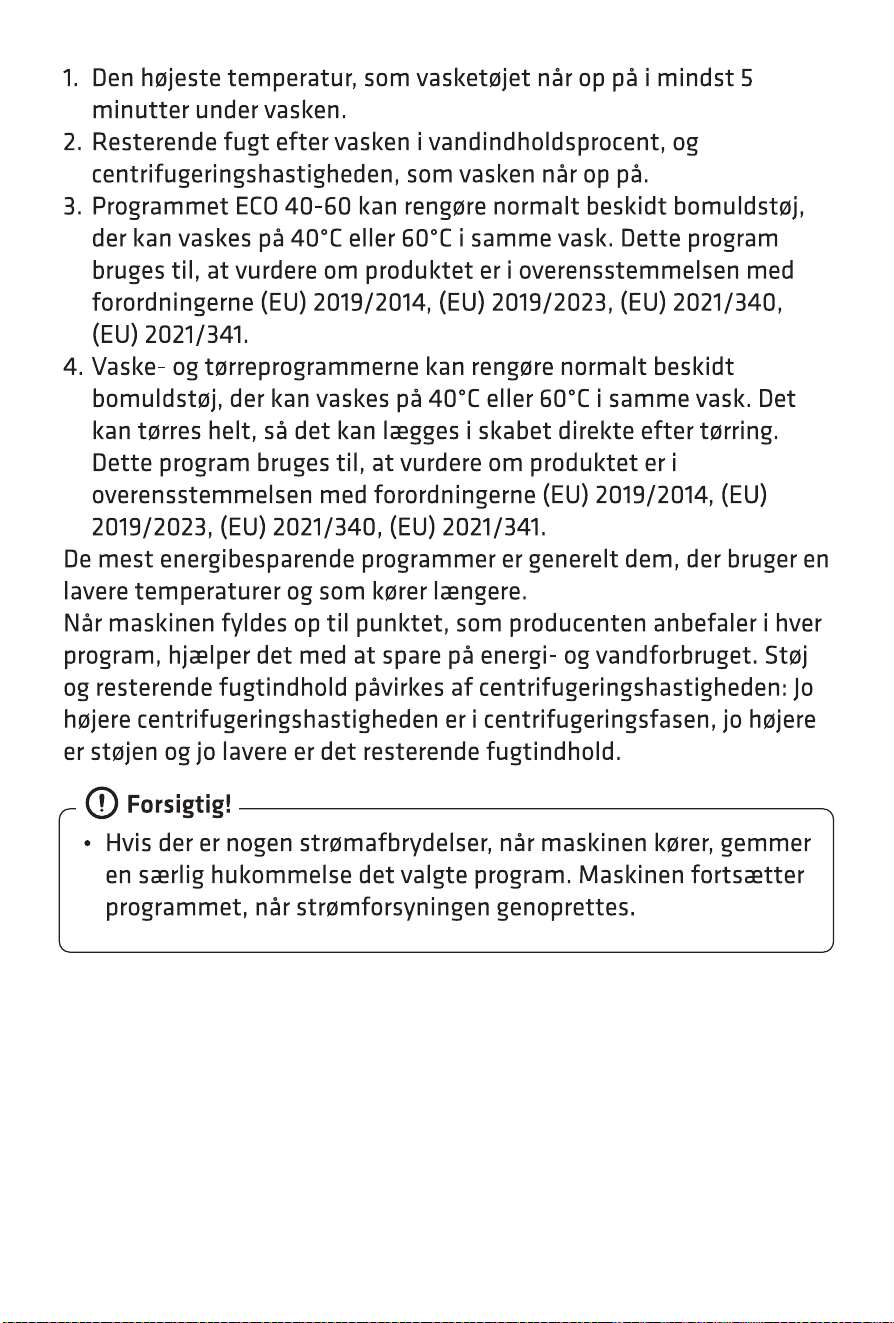

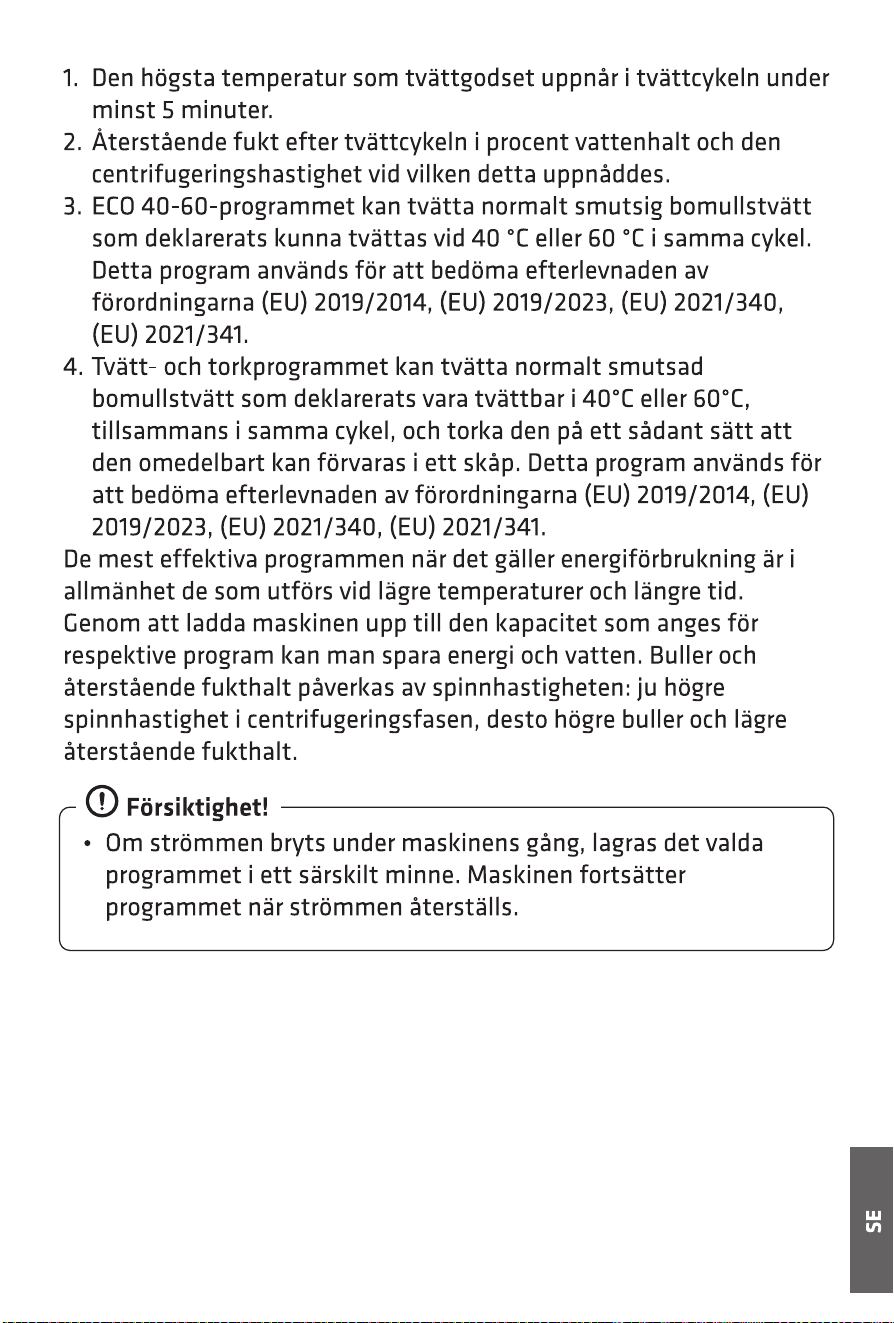

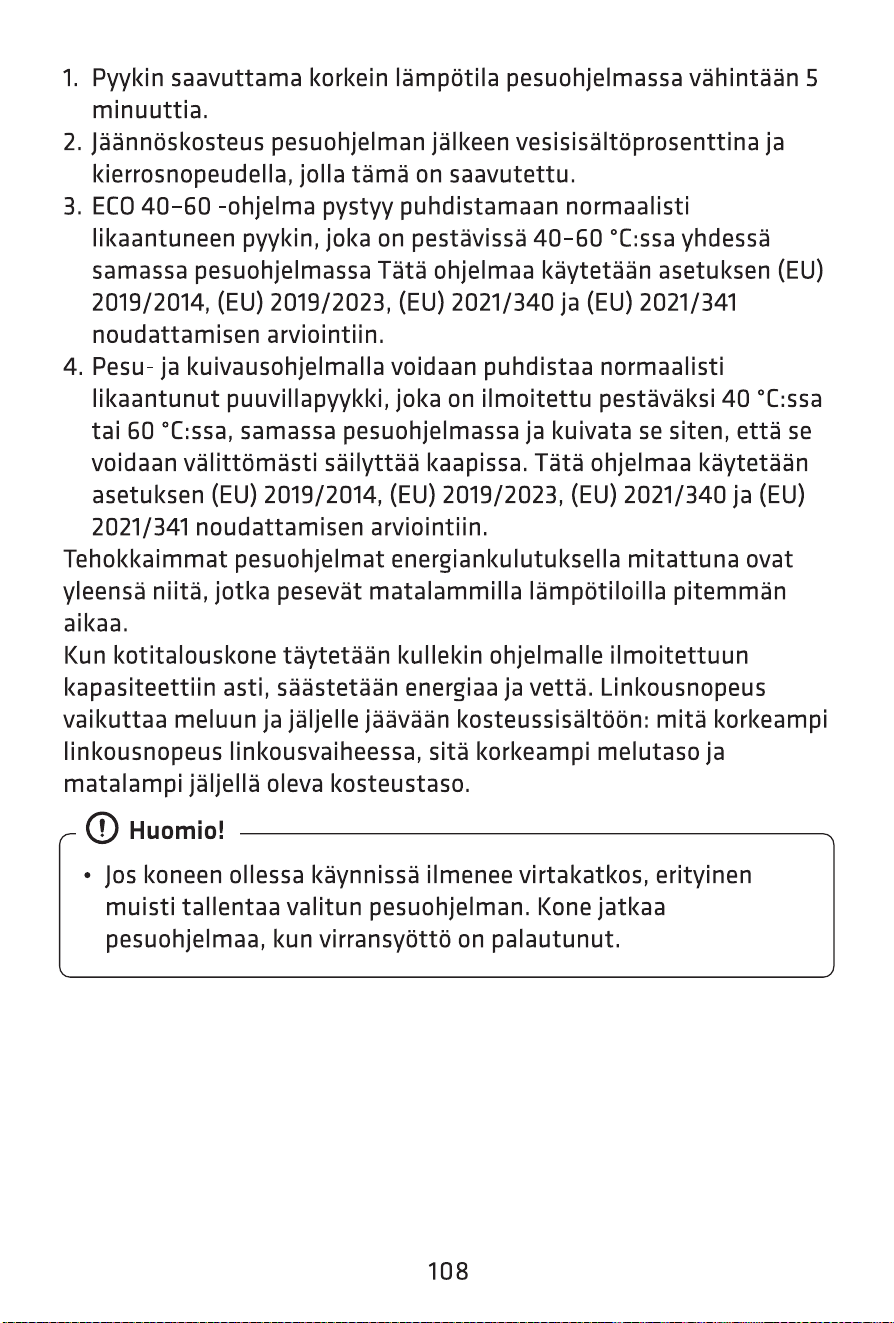

1.
at least 5 minutes.
2. Residual moisture after the wash cycle in water content percent and
the spin speed at which this was achieved.
3. The ECO 40-60 programme is able to clean normally soiled cotton
laundry declared to be washable at 40°C or 60°C, together in the
same cycle. This programme is used to assess the compliance with
the regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU)
2021/341.
4. The Wash and Dry programme is able to clean normally soiled
cotton laundry declared to be washable at 40°C or 60°C, together in
the same cycle, and to dry it in such a way that it can be
immediately stored in a cupboard. This programme is used to assess
the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023,
(EU) 2021/340, (EU) 2021/341.
The most efficient programmes in terms of energy consumption are
generally those that perform at lower temperatures and longer
duration.
Loading the household machine up to the capacity indicated for the
respective programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning
speed: the higher the spinning speed in the spinning phase, the higher
the noise and the lower the remaining moisture content.
The highest temperature reached by the laundry in the wash cycle for
• If there is any break in the power supply while the machine is
operating, a special memory stores the selected programme.
The machine will continue the programme when the power
supply is re-established.
28
Caution!

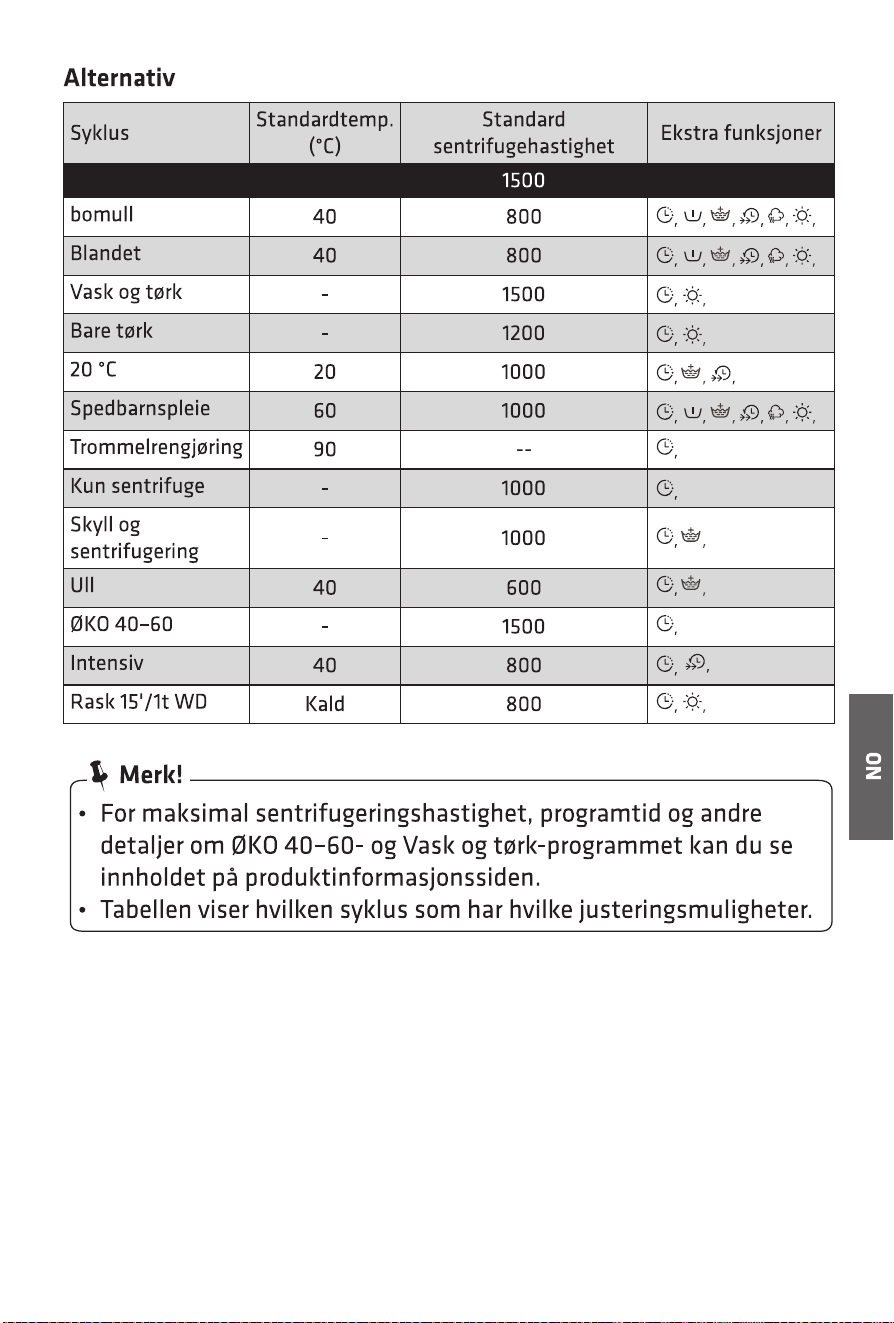

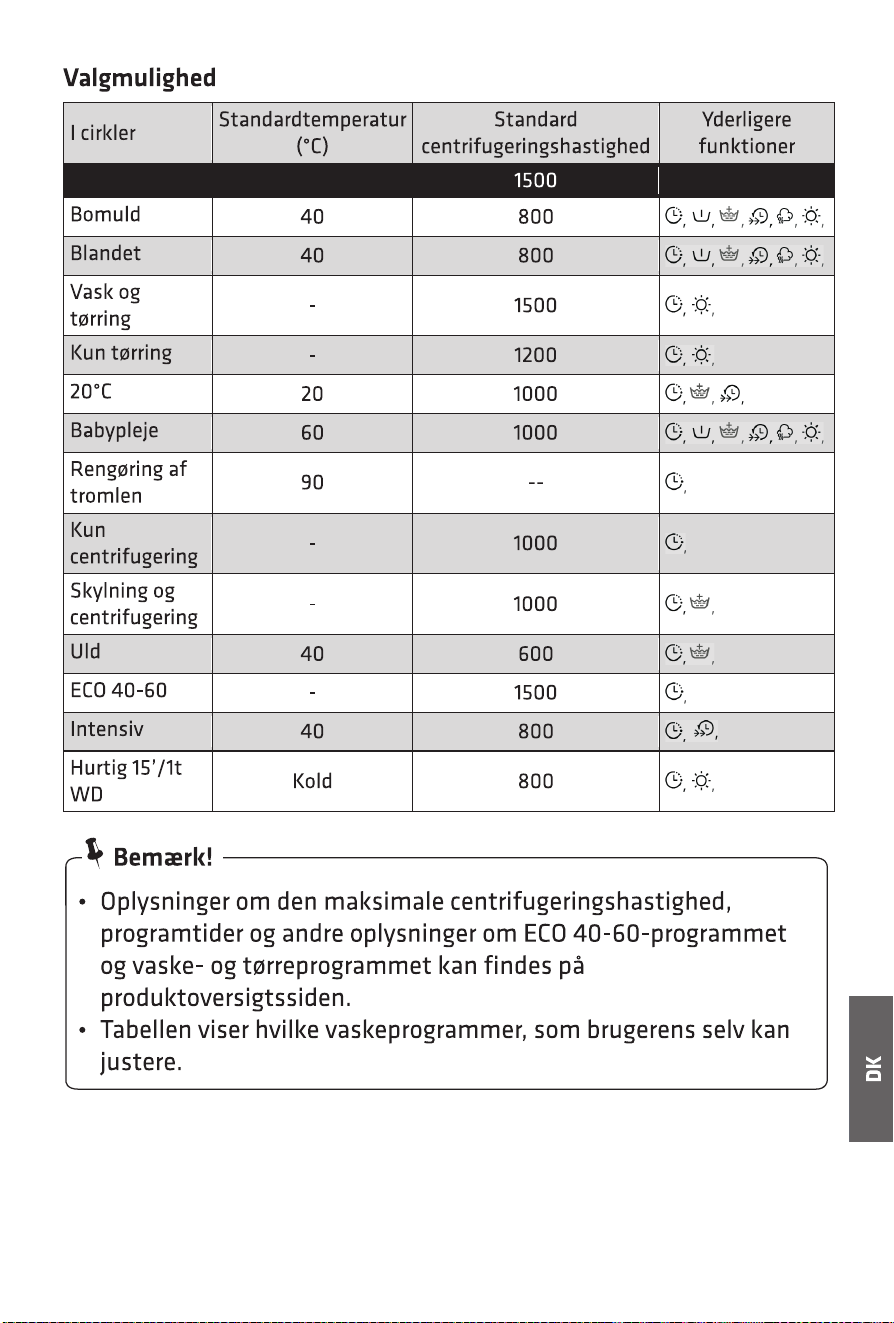

Option
For the maximum spin speed, program time, and other details of
the ECO 40-60 and Wash and Dry programs, please refer to the
content on the Product Fiche page.

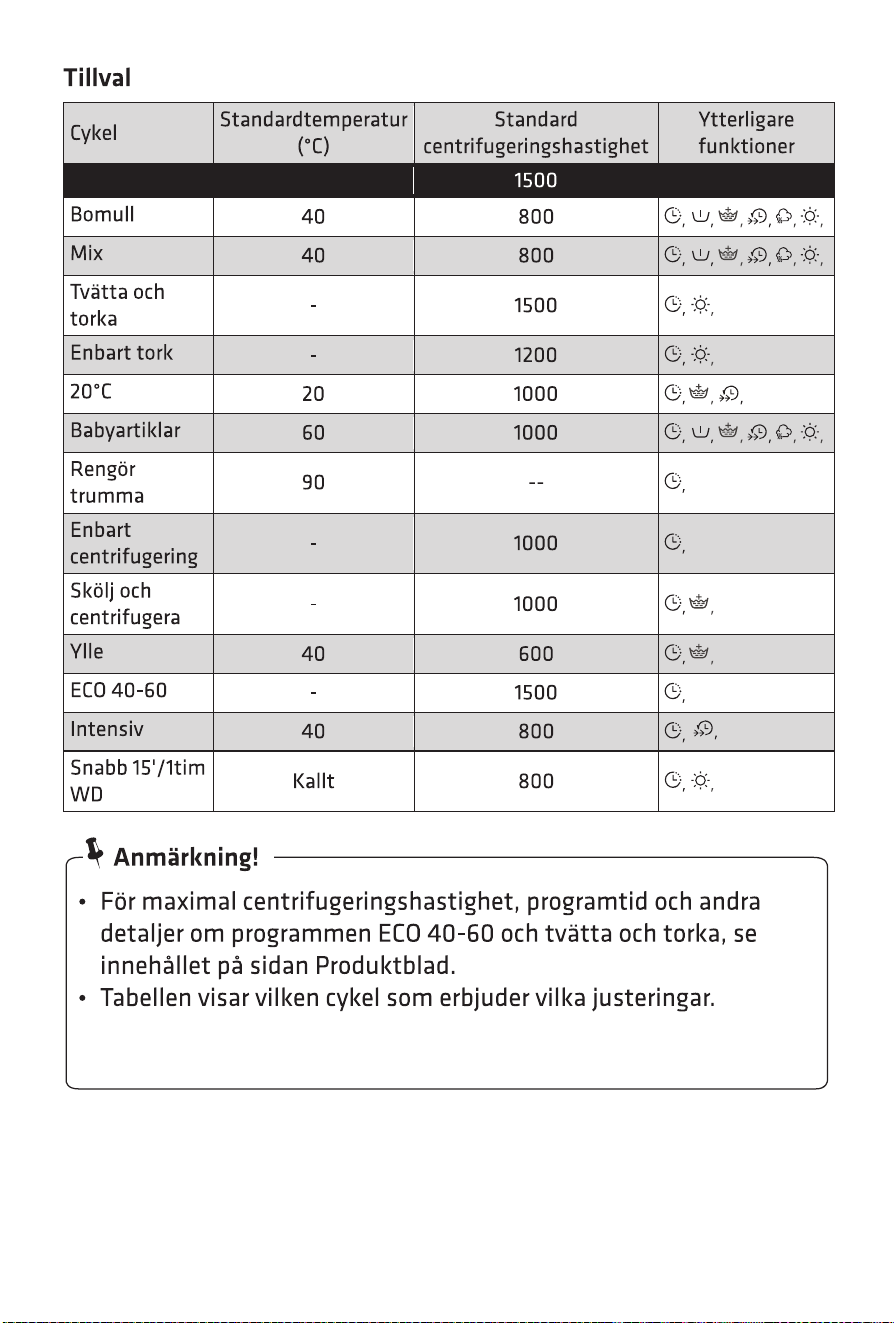

• The table shows which cycle offers which options for adjustment.
•
29
Note!
Default
spin
speed
Cycle
Default
Temp.( )°C
Additional
functions
Cotton
Mix
Wash and Dry
Dry Only
20°C
Baby Care
Drum Clean
Spin Only
Rinse&Spin
Wool
ECO 40-60
Intensive
Quick 15’/1h WD
40
40
–
–
20
60
90
–
–
40
–
40
Cold
1500
800
800
1500
1200
1000
1000
--
1000
1000
600
1500
800
800
30

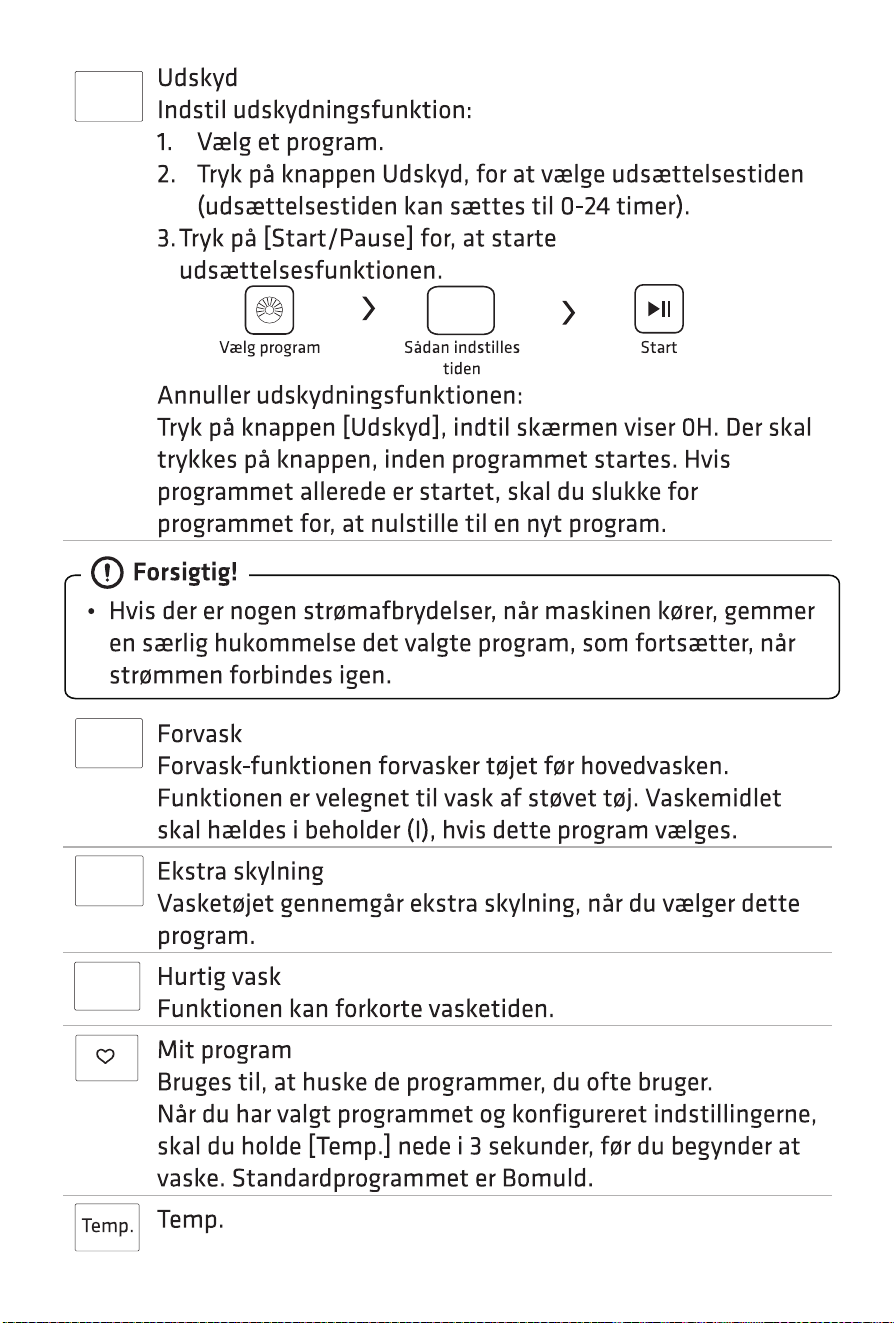

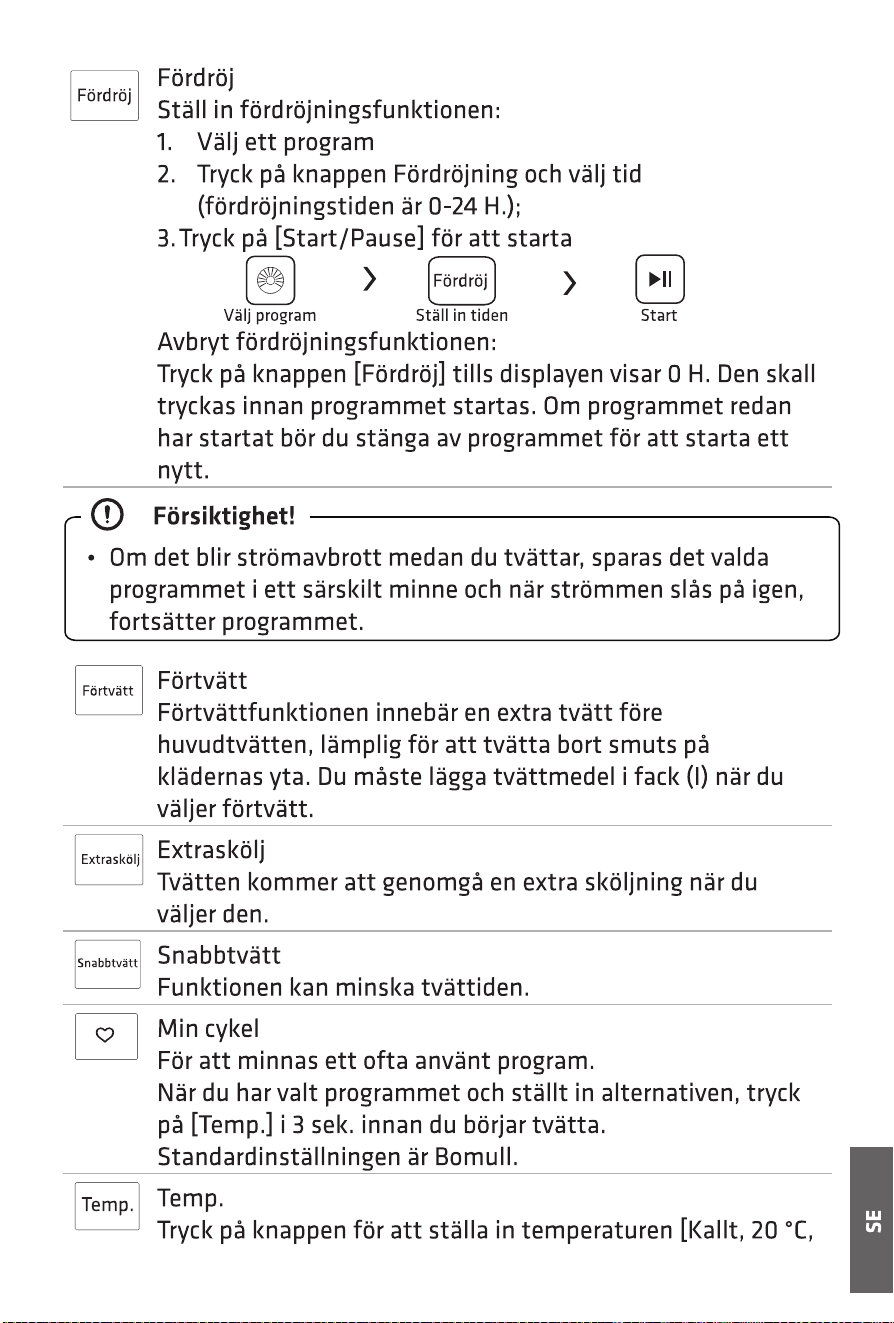

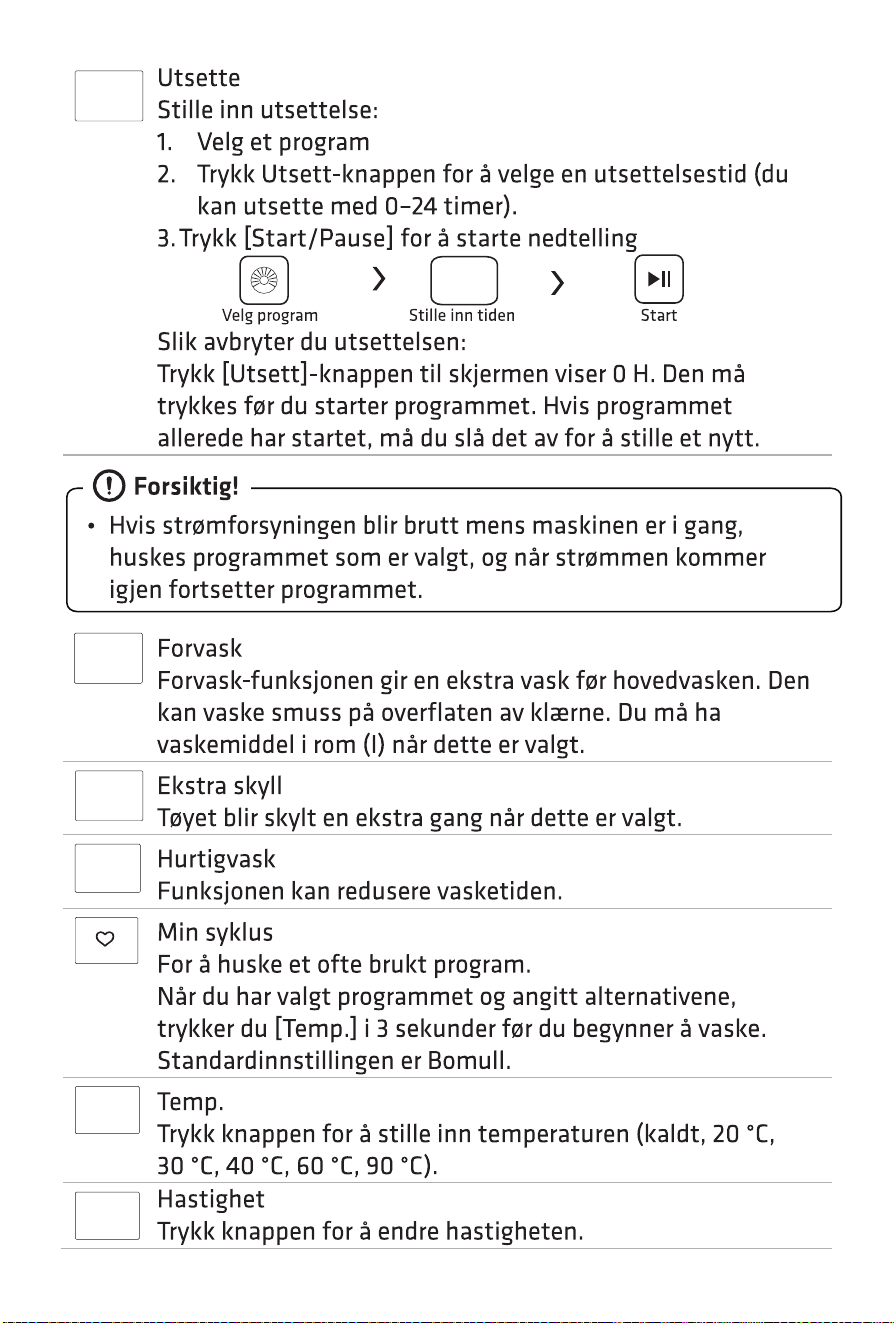

Delay
1. Select a programme;
2.Press the Delay button to choose the time (the delaying
time is 0-24 H.);
3.Press [Start/Pause] to commence the delay operation
Set the Delay function:
Choose the Programme
Start
Setting time
Cancel the Delay function:
Press the [Delay] button until the display be 0H. It should be
pressed before starting the programme. If the programme has
already started, you
should switch off the programme to reset a
new one.
• If there is any break in the power supply while the machine is
operating, a special memory stores the selected programme
and when the power is restarted, the program will continue.
Extra Rinse
The laundry will undergo extra rinse once you select it.
Pre Wash
The
pre-wash function allows an extra wash before the main
wash. It is suitable for washing the dust on the surface of the
clothes. You need to put detergent into the Compartment (I)
when selecting the pre-wash function.
Pre Wash
Extra Rinse
Speed
Wash
Speed Wash
The function can decrease the washing time.
My Cycle
To memorize the frequently used programme.
After choosing the programme and setting the options, press
[Temp.] for 3 sec. before starting to wash. The default setting is
Cotton.
Temp.
Press the button to regulate the temperature
(Cold,20 C,30 C, 40 C,60 ,90 ). C C
Delay
Caution!
Temp.
° ° °° ° °
31
• Don't use the Reload function when the water level is over
the edge of the inner tub or the temperature is higher.

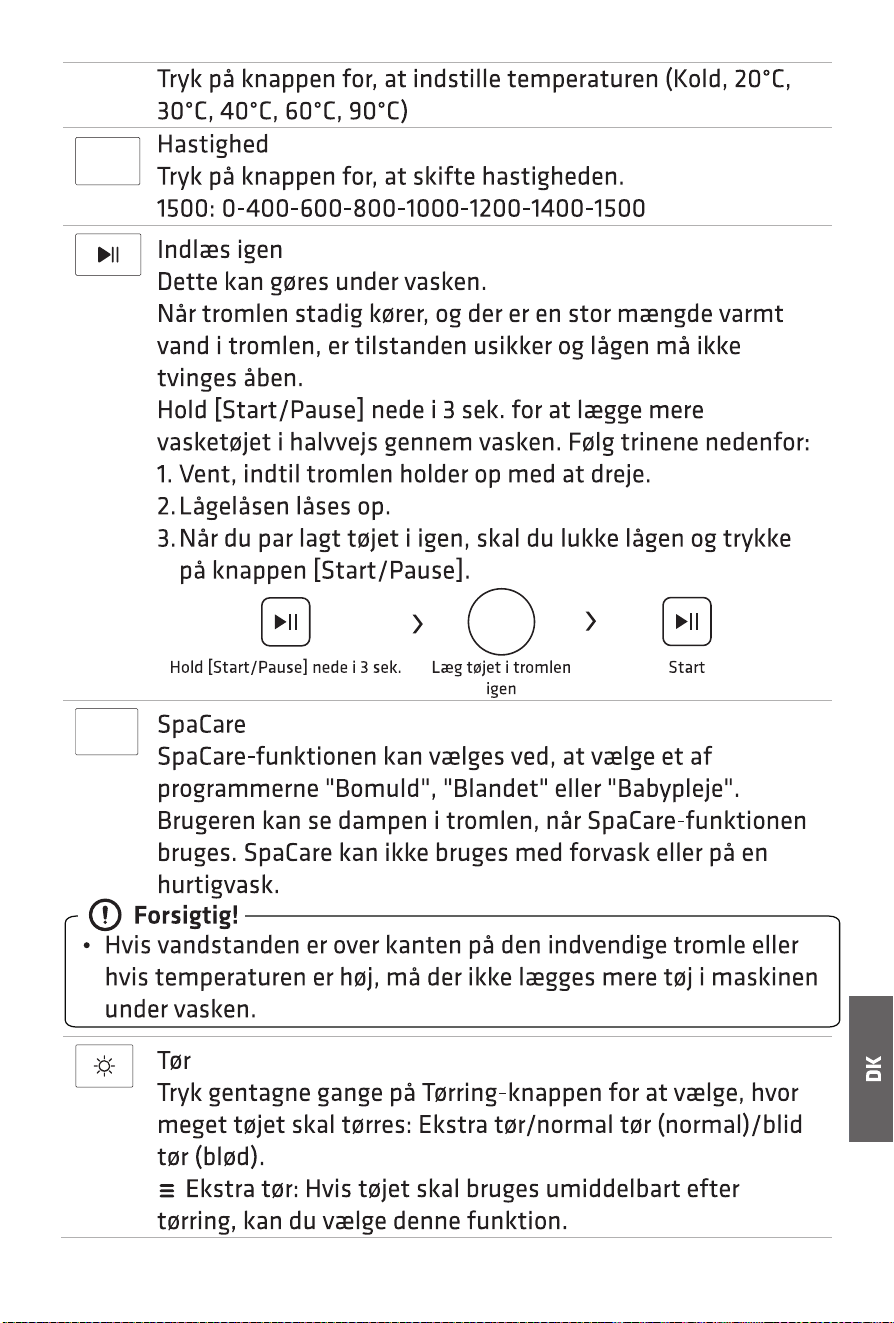

Reload

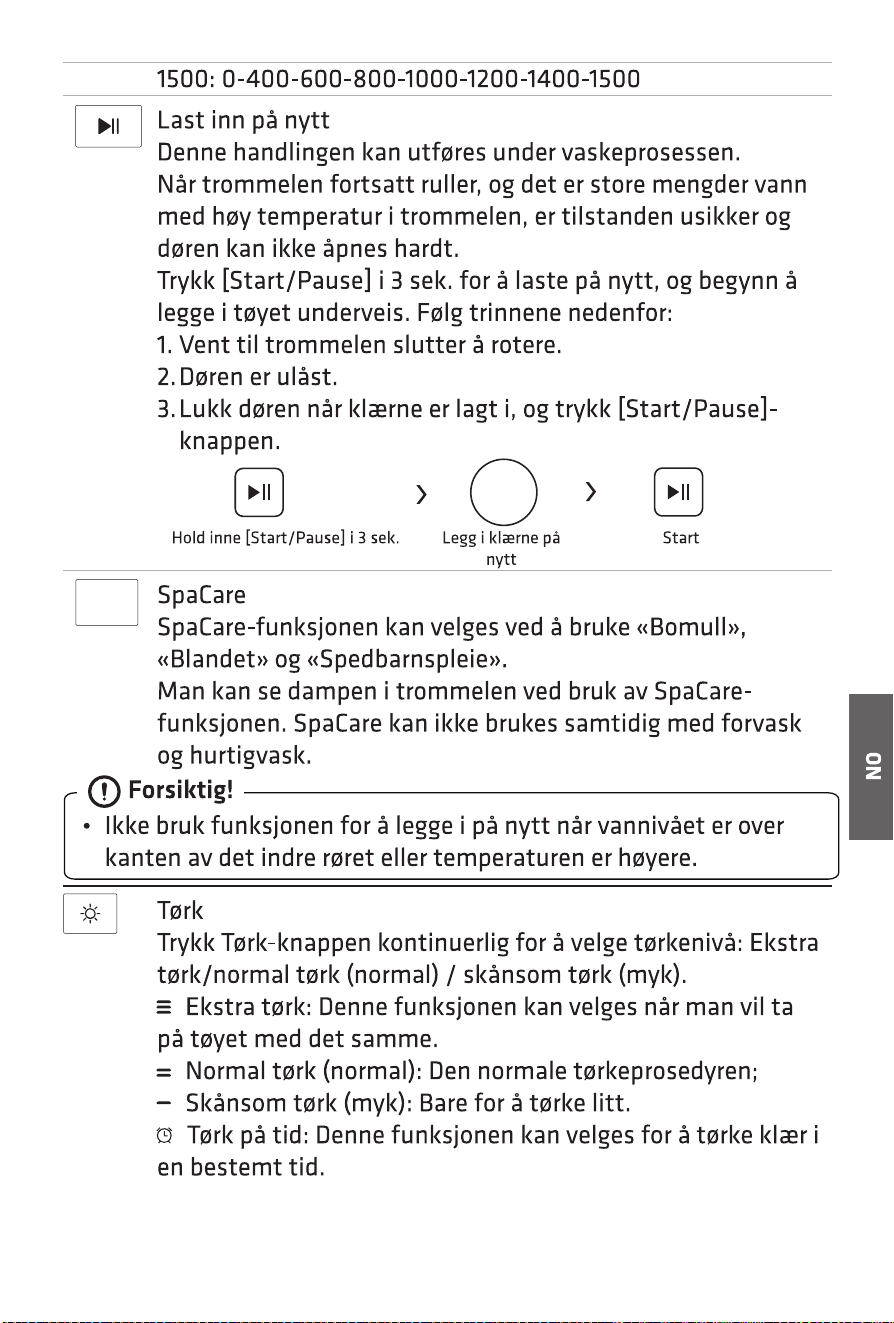

This function can be used during the washing progress. When
the drum is still rolling and there is large amount of water with
high temperature in the drum, the state is unsafe and the door
cannot be opened forcefully.
Press [Start/Pause] for 3 sec. to reload, and to add clothes
midway. Follow the steps below:
1. Wait until the drum stops rotating.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the
[Start/Pause
] button.
Start
P 3sress[Start/Pause] for ec.
Clothes
Reload the clothes
SpaCare
Speed

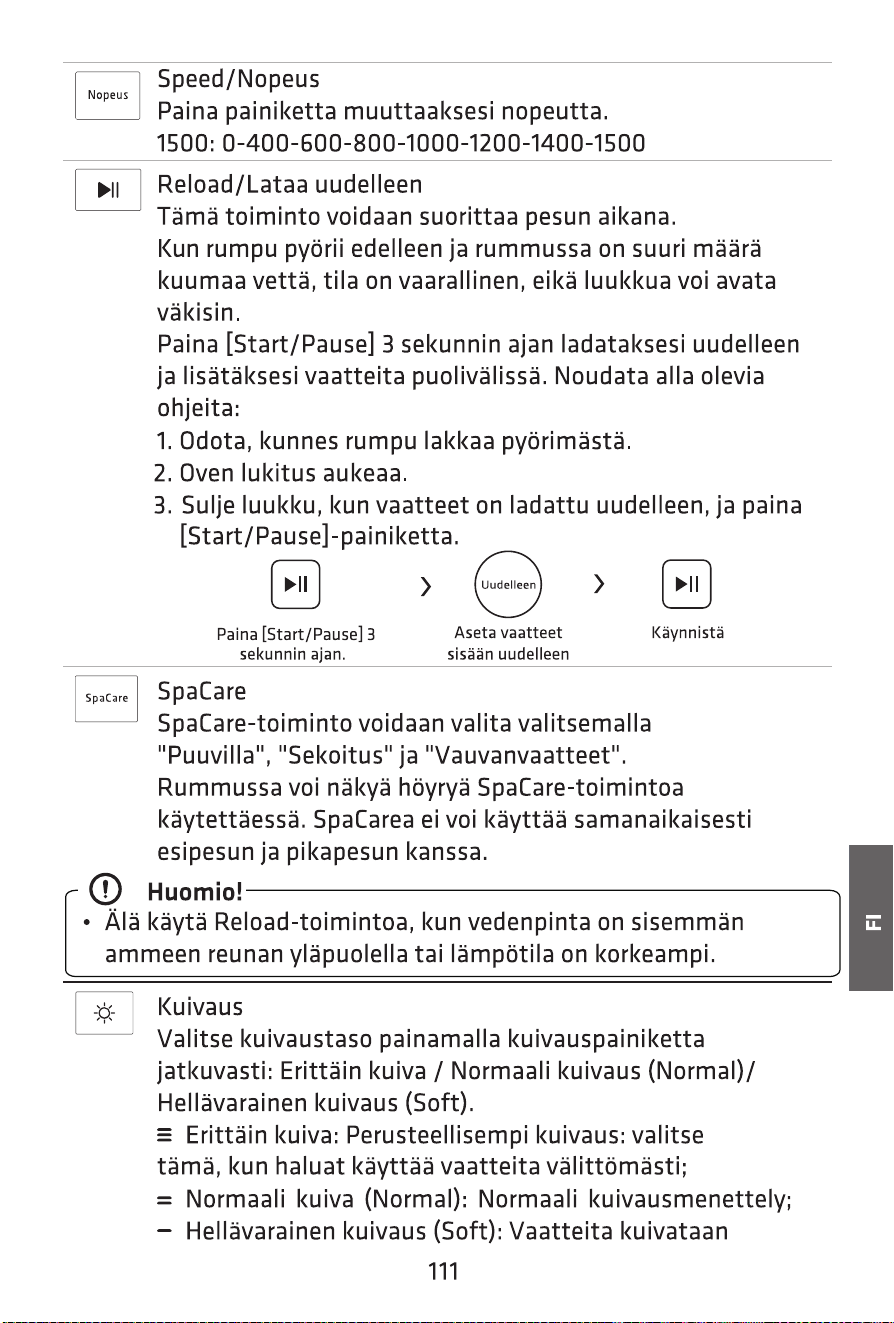

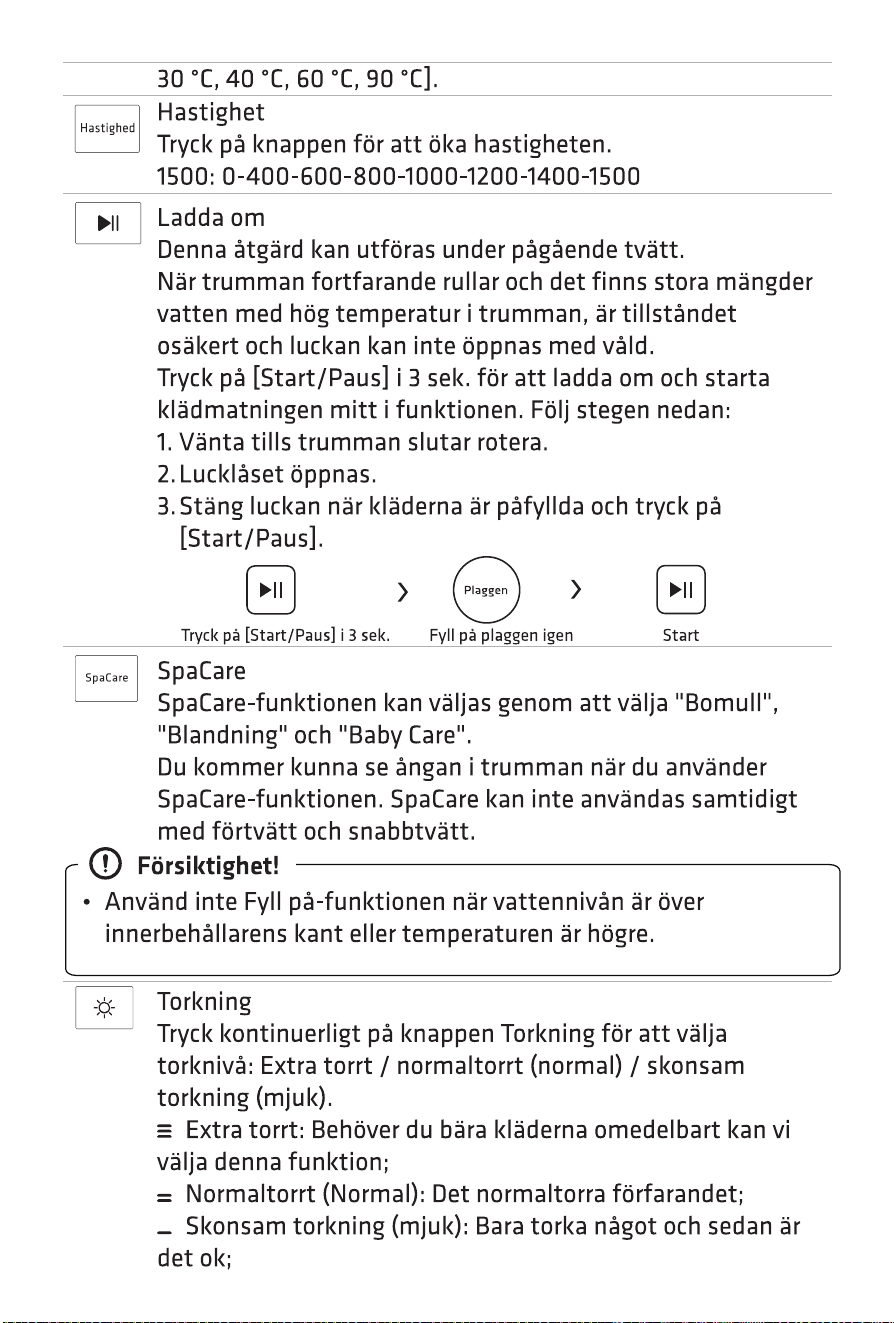

Press the button to change the speed.
1500: 0-400-600-800-1000-1200-1400-1500
Speed
SpaCare
SpaCare function can be selected by choosing “Cotton”,“Mix”
and “Baby Care”.
Steam may show in the drum when using the SpaCare function.
The SpaCare cannot be used simultaneously with Pre Wash and
Speed Wash.
Caution!

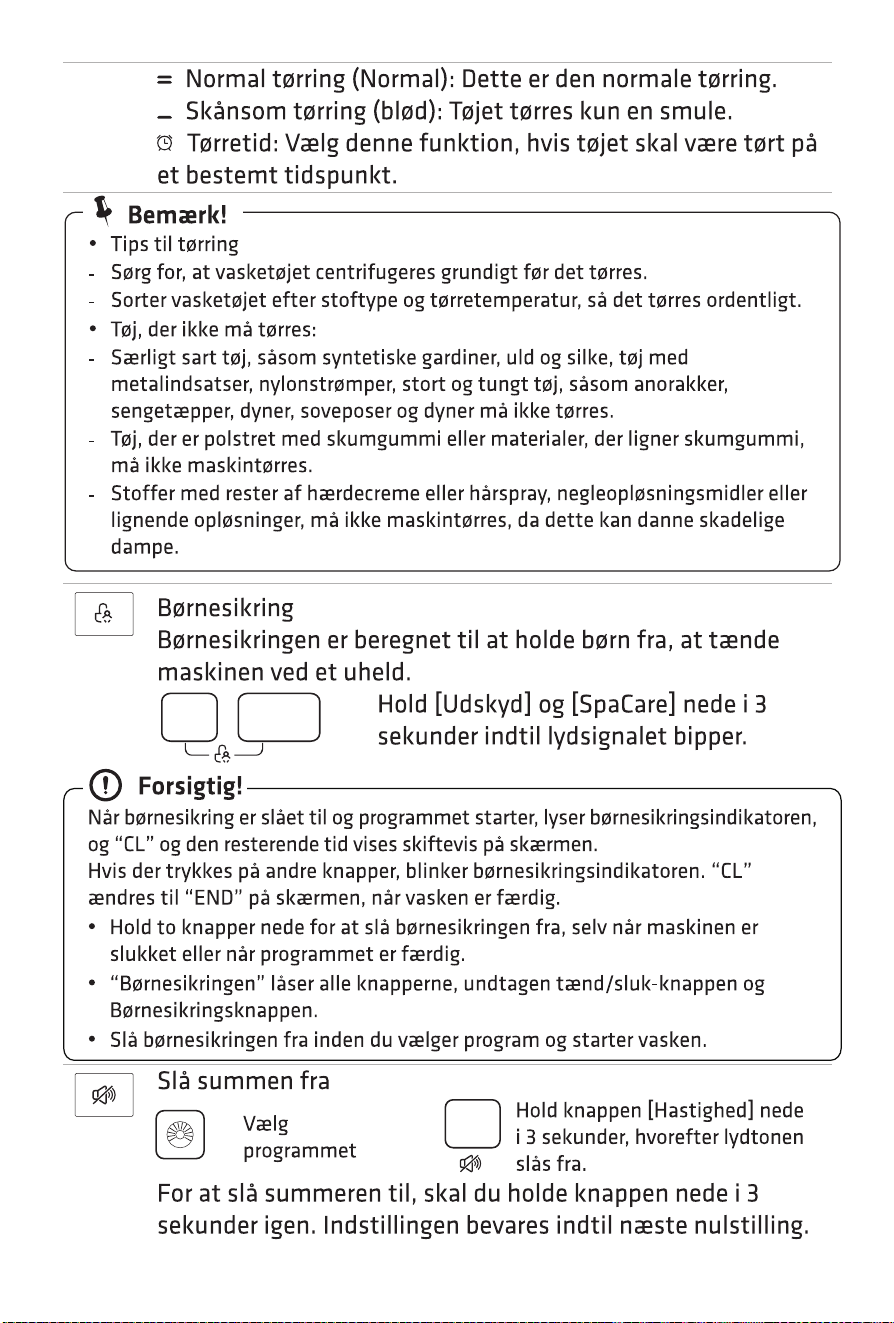

Dry
Press the Dry button continuously to choose the dry level:
Extra Dry/Normal Dry(Normal)/ Gentle Dry(Soft).
Extra Dry: More thorough drying: choose this when you want to
wear the clothes immediately;
Normal Dry(Normal):The normal dry procedure;
Gentle Dry(Soft): Only slight drying

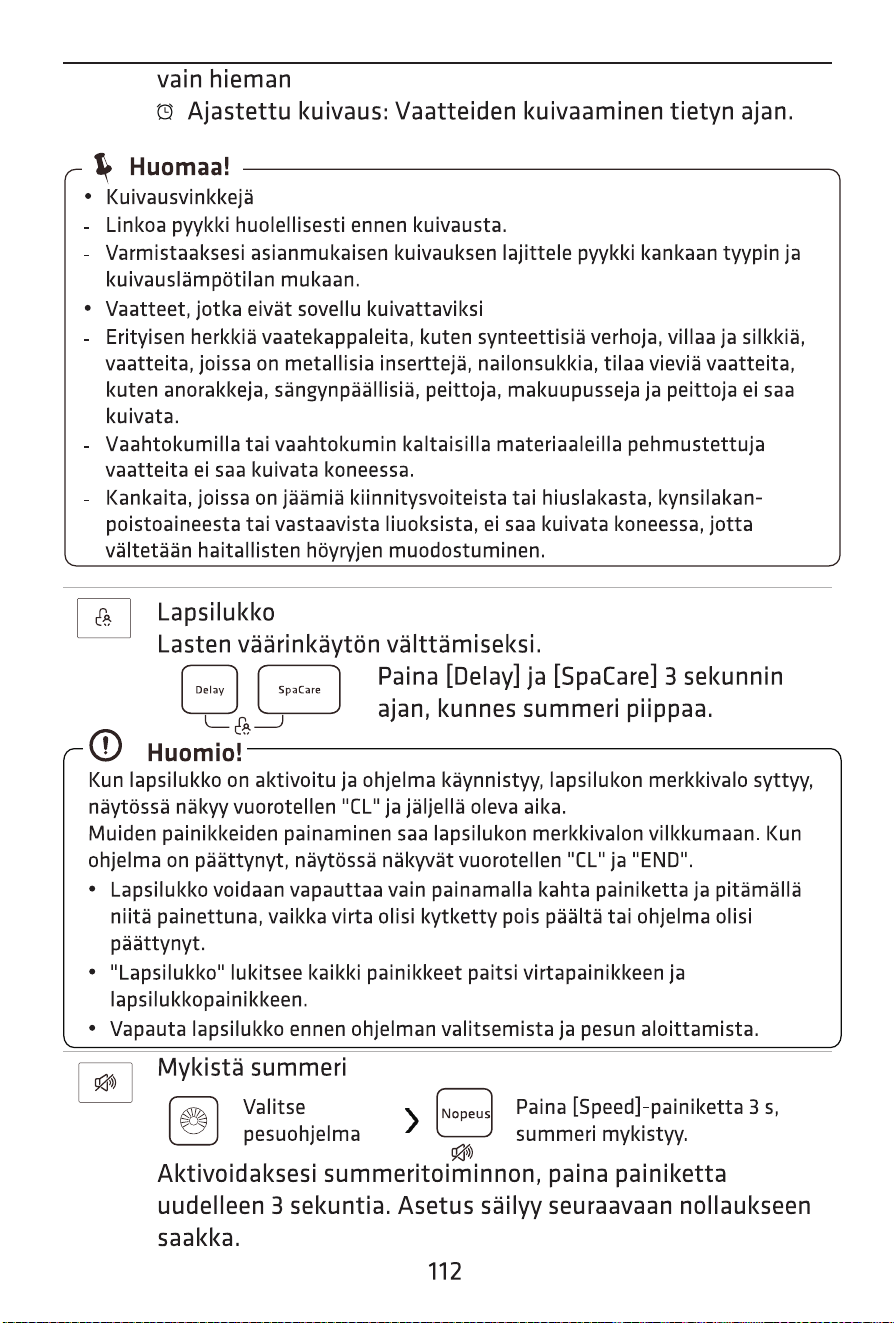

Timed Dry: To dry the clothes for a specific time.
32

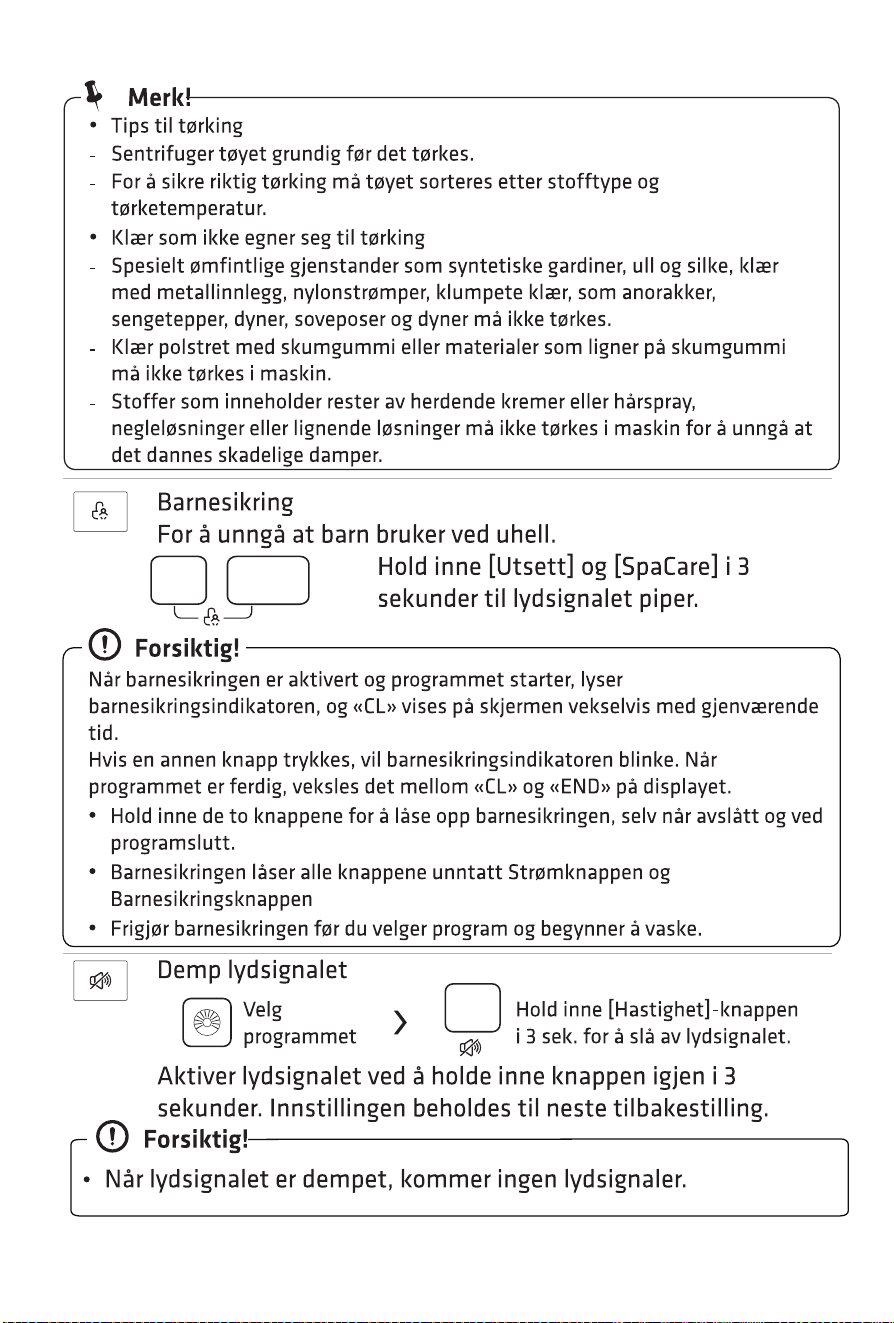

Mute the buzzer
Press the [Speed]button for 3sec.,
the buzzer is mute.
Speed
Choose the
Programme
When child lock is activated and program starts, child lock indicator
will switch on,
“CL”
and remaining time on the display are
alternately displayed.
Pressing the other buttons will make child lock indicator flash.
When program finishes, “CL” and “END” alternate on the display.
Child Lock
To avoid misoperation by children.
Delay
SpaCare
Caution!
Press [Delay] and [SpaCare] for 3 sec. till
buzzer beeps.
Drying hints
- Thoroughly spin your laundry before drying.
- To ensure proper drying, please sort your laundry according to the
fabric type and drying temperature.
• Clothes not suitable for drying
- Particularly delicate it
ems such as synthetic curtains, wool and silk,
clothes with metal inserts, nylon stockings. Bulky clothes, such as
anoraks, bedcovers, quilts, sleeping bags and duvets must not be
dried.
- Clothes padded with foam-rubber or materials similar to foam-
rubber must not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail
polish solvents or similar solutions must not be machine dried in
order to avoid the formation of harmful vapours.
•
Note!
• Only pressing and holding the two buttons can release the child
lock, even
when power off, switched off and program ends.
• The "Child Lock" will lock all buttons except Power button and
Child Lock button.
• Release child lock before selecting program and starting the wash.
To activate the buzzer function, press the button again for 3
seconds. The setting will be kept until the next reset.
• After muting the buzzer function, the sounds will not be
activated any more.
Caution!

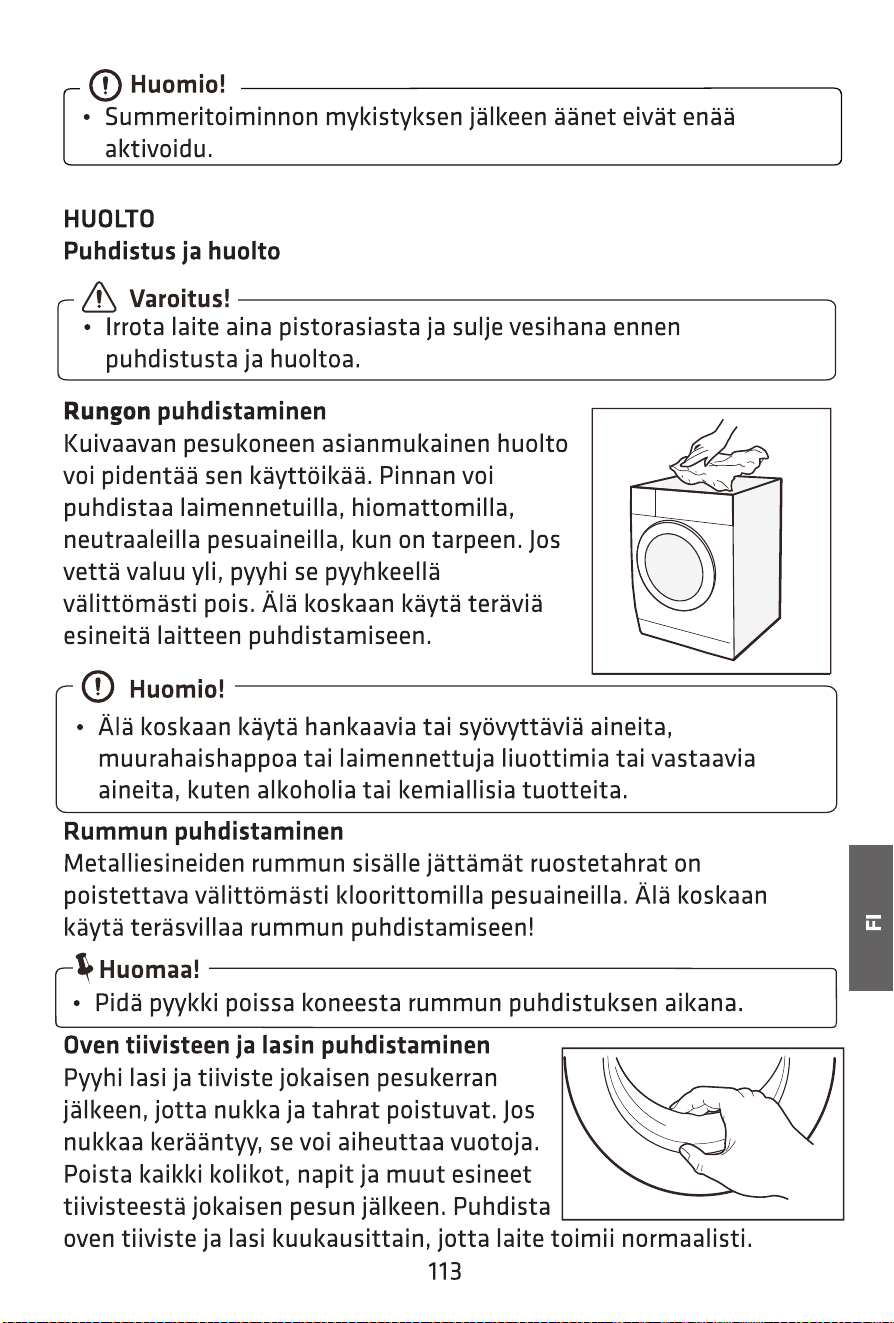

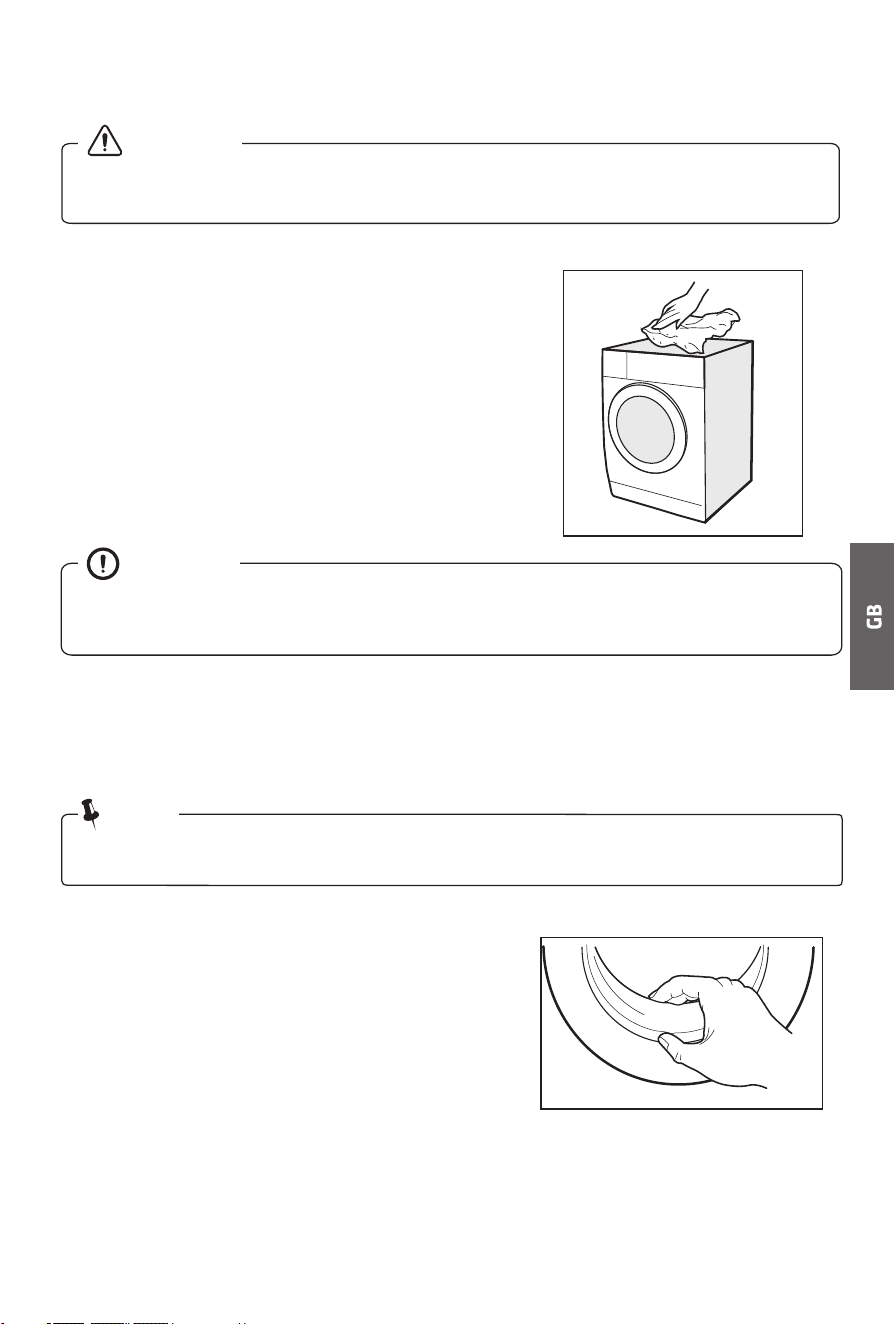

• Always unplug the appliance and close the water tap before cleaning
and maintenance.

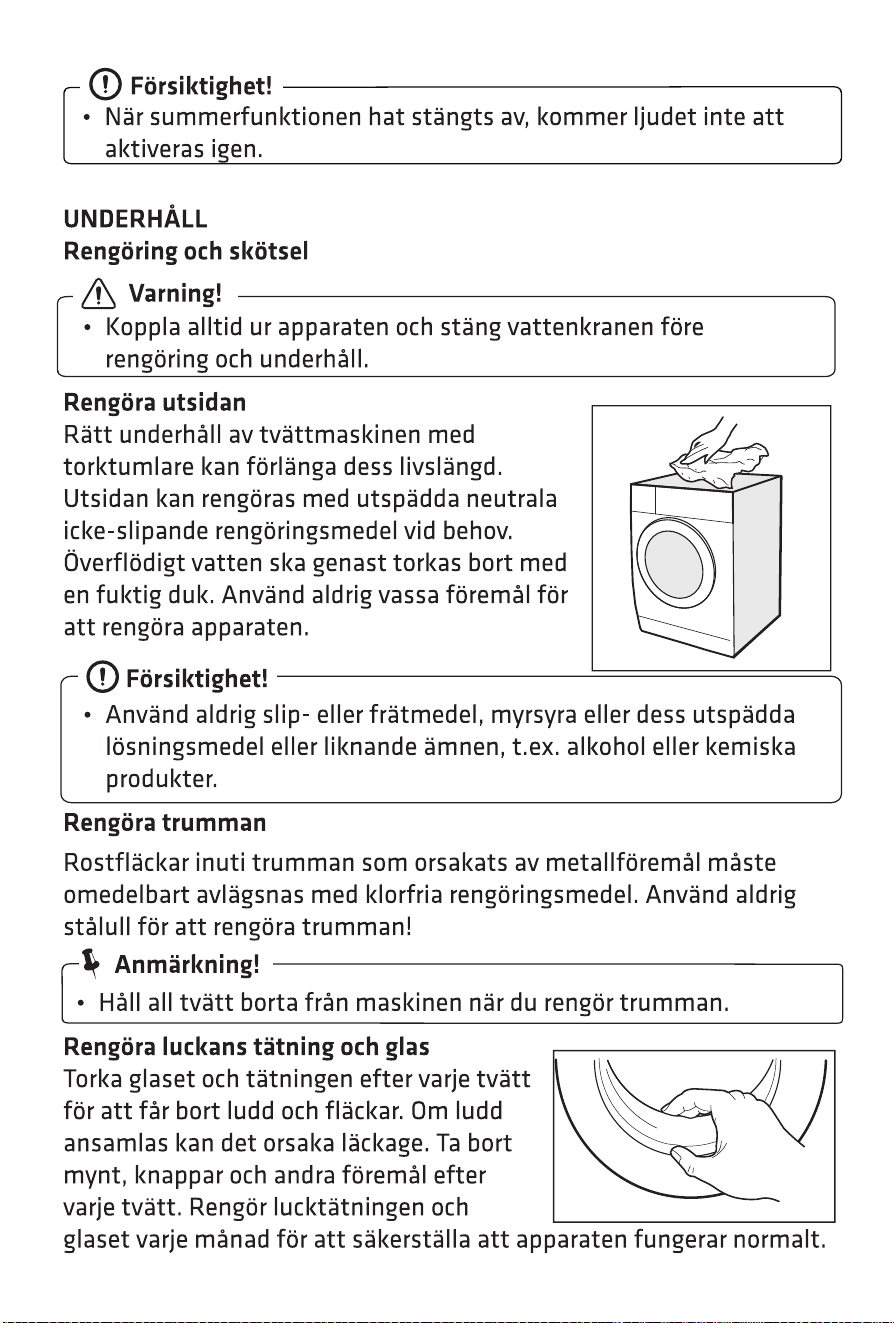

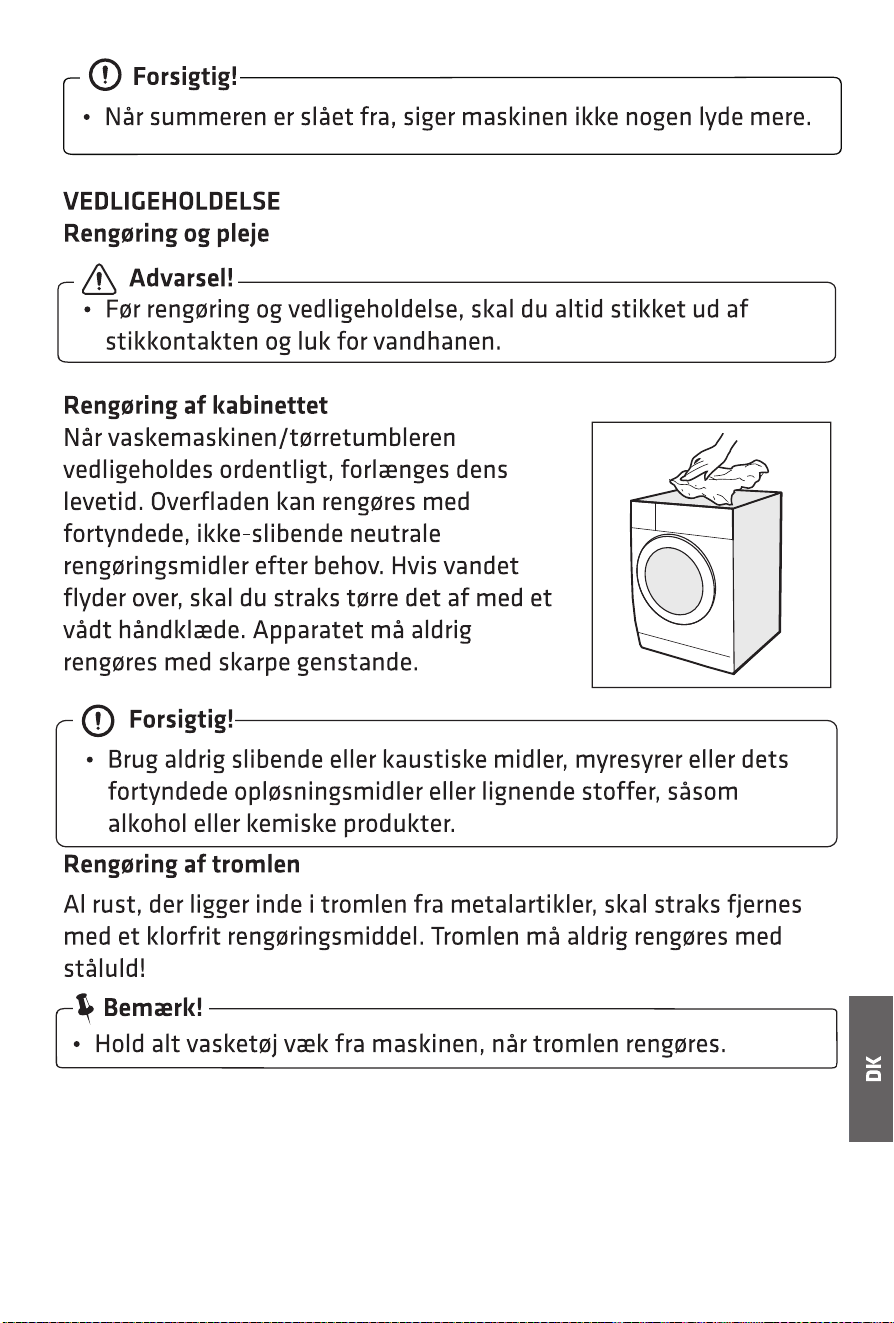

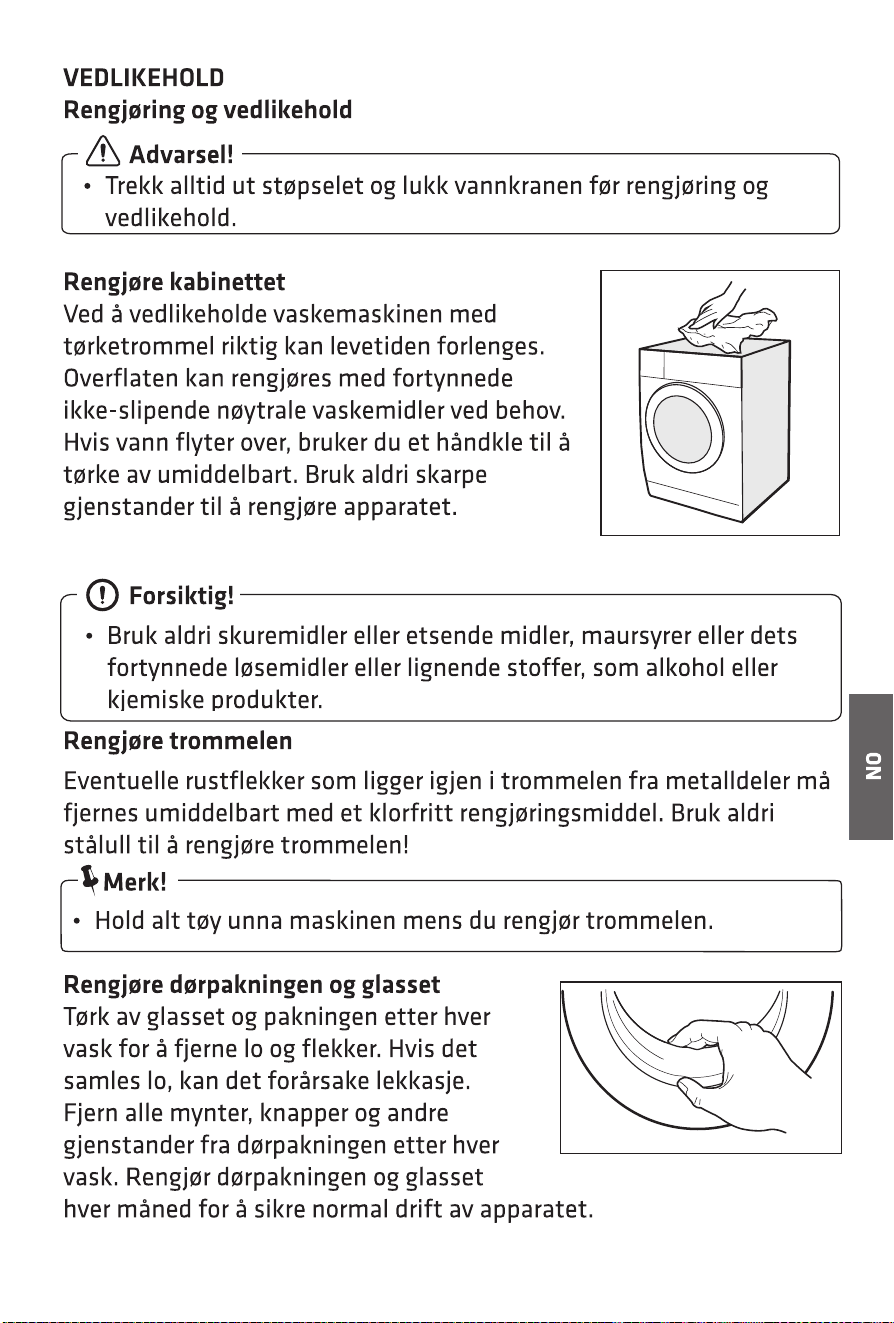

Cleaning the Cabinet
Cleaning the Drum
• Keep any laundry away from the machine while cleaning the drum.

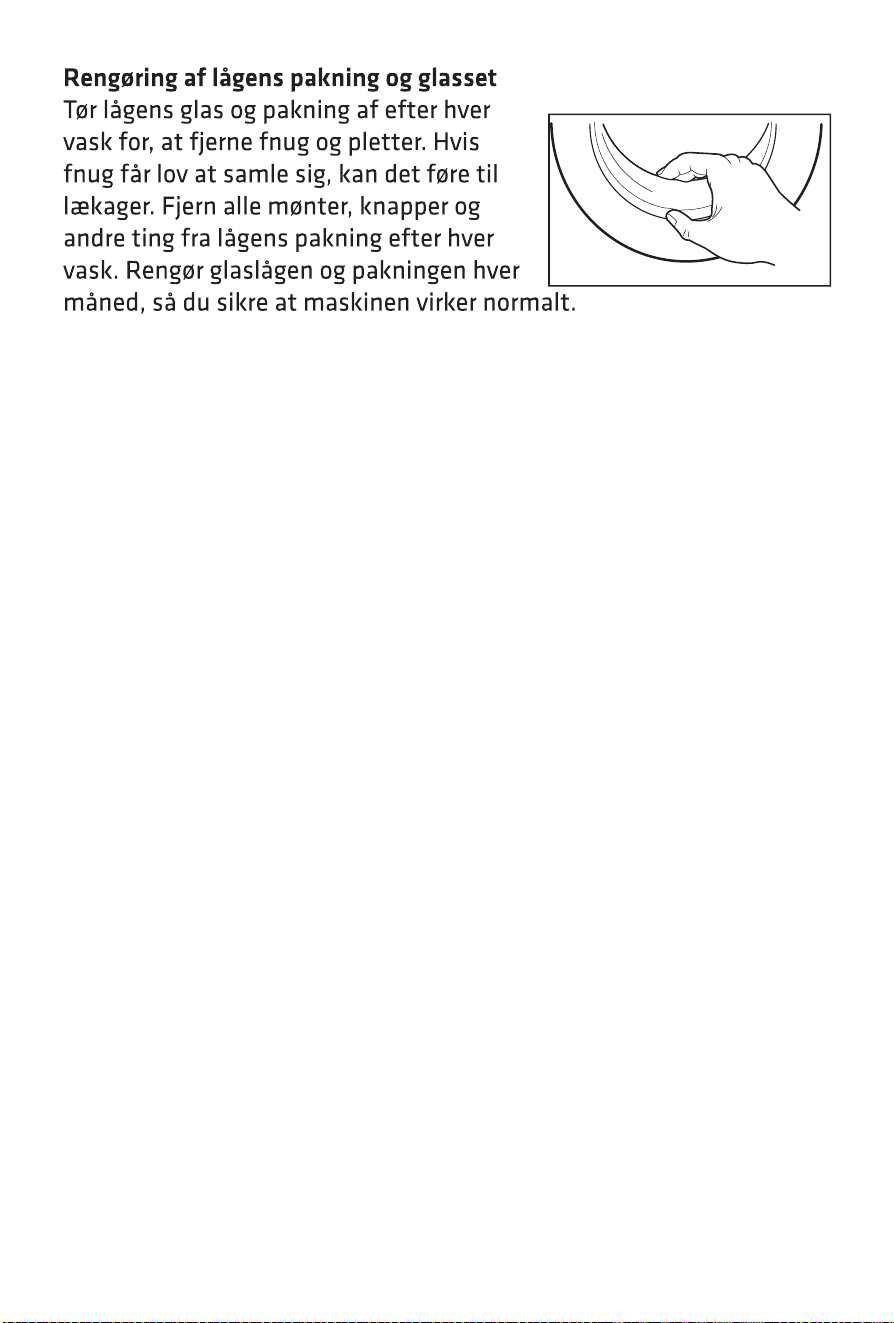

Cleaning the Door Seal and Glass
Cleaning and Care
Any rust stains left inside the drum by metal articles must be removed
immediately using chlorine-free detergents. Never use steel wool for
cleaning the drum!
Proper maintenance on the washer dryer
can extend its working life. The surface
can be cleaned with diluted non-abrasive
neutral detergents when necessary. If
there is any water overflow, use a towel
to wipe it off immediately.
Never use sharp items to clean the
appliance.
MAINTENANCE
• Never use abrasive or caustic agents, formic acids or diluted
solvents or similar substances, like alcohol or chemical products.
Wipe the glass and seal after
each
wash to remove lint and stains. If lint
builds up, it can cause leakages.
Remove any coins, buttons and other
objects from the seal after each wash.
Clean the Door Seal and Glass every
month to ensure the normal operation
of the appliance.
33
Warning!
Caution!
Note!

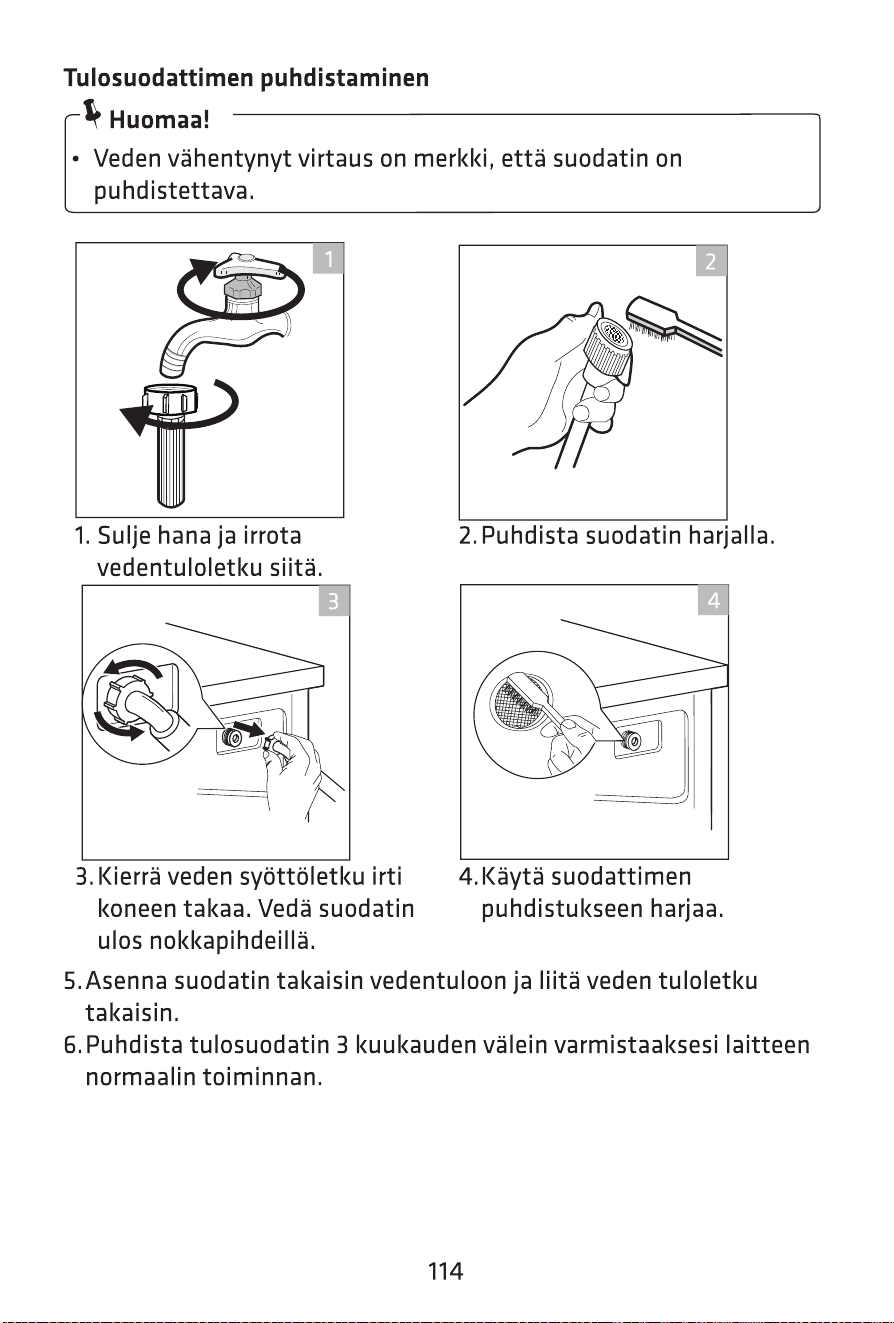

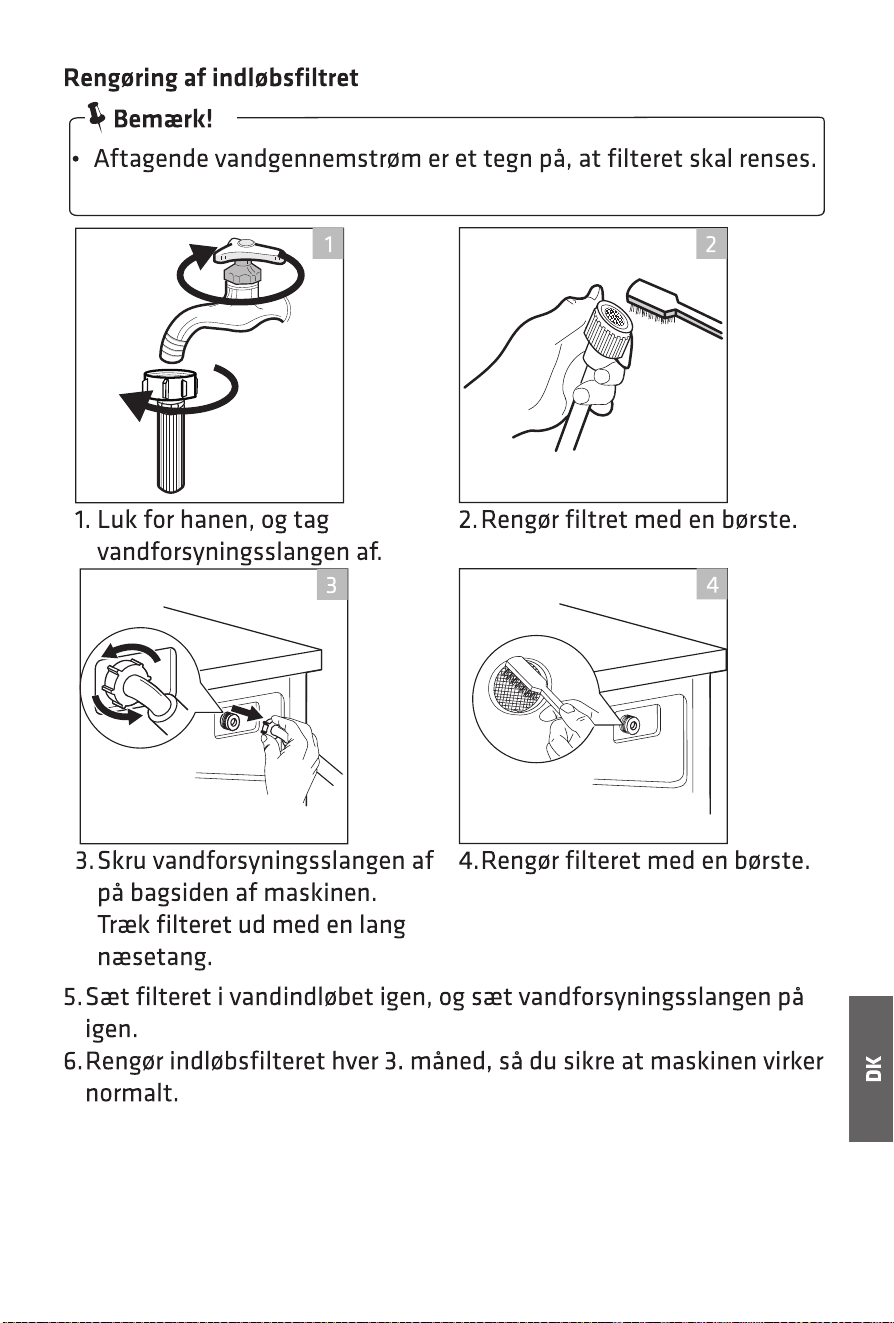

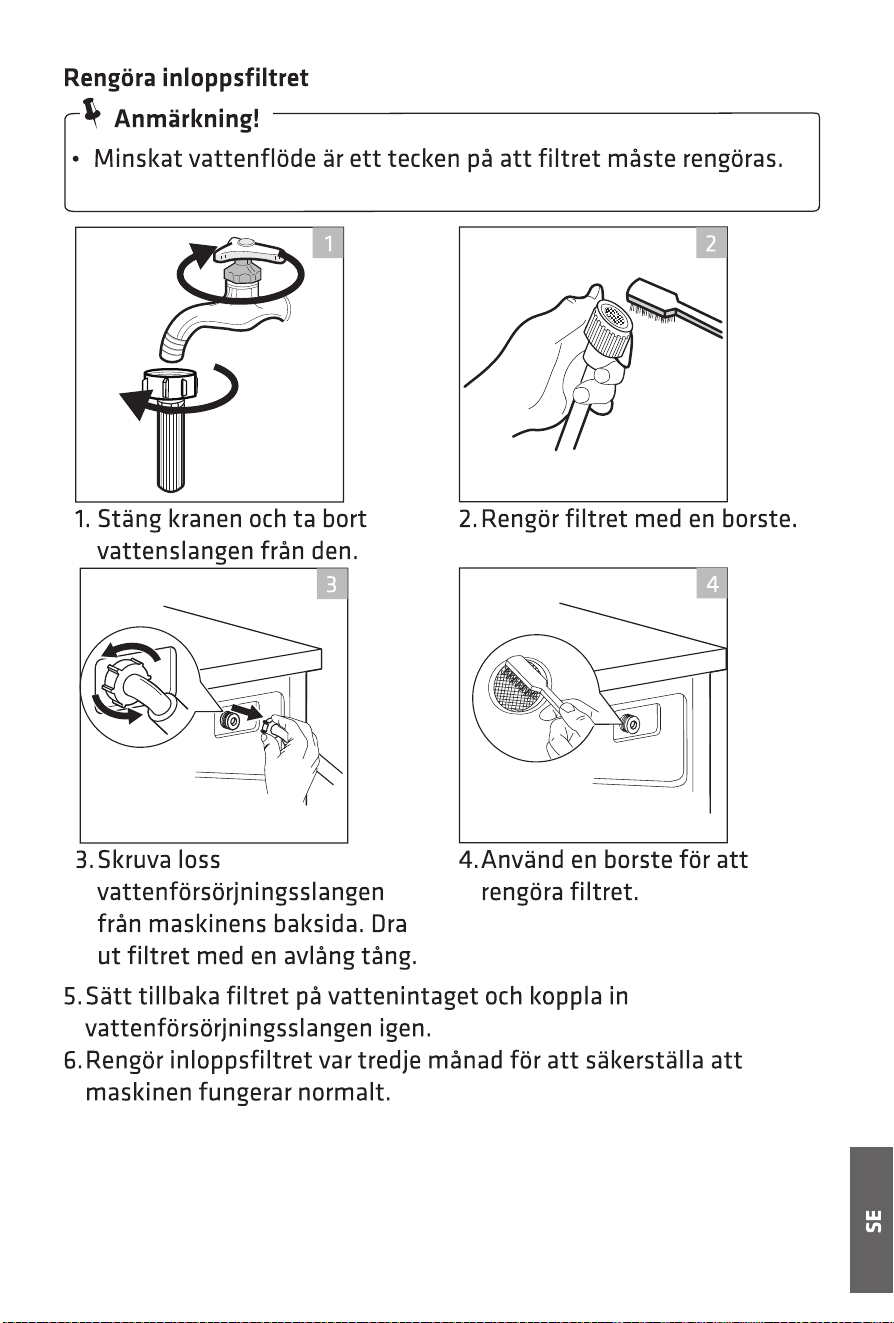

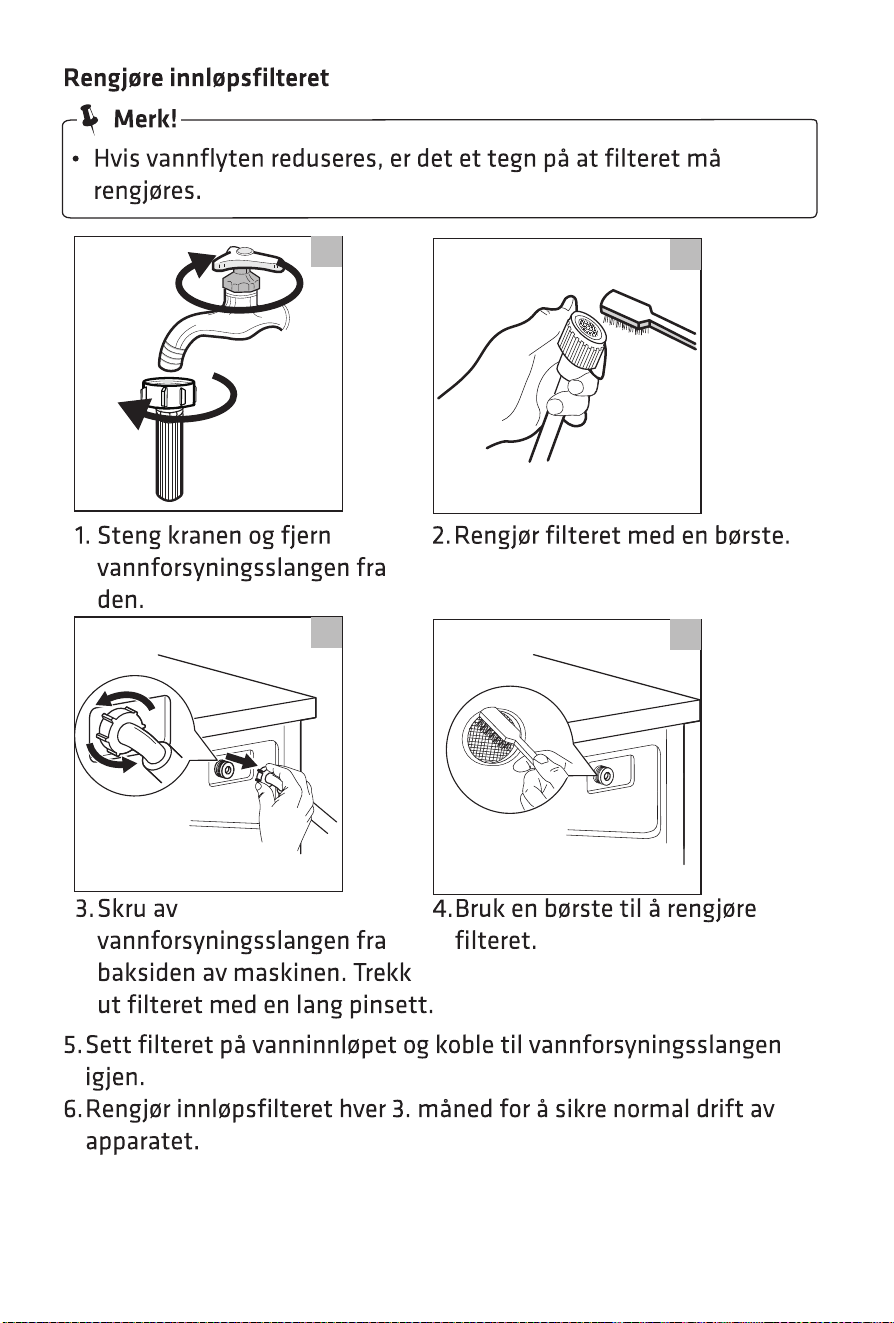

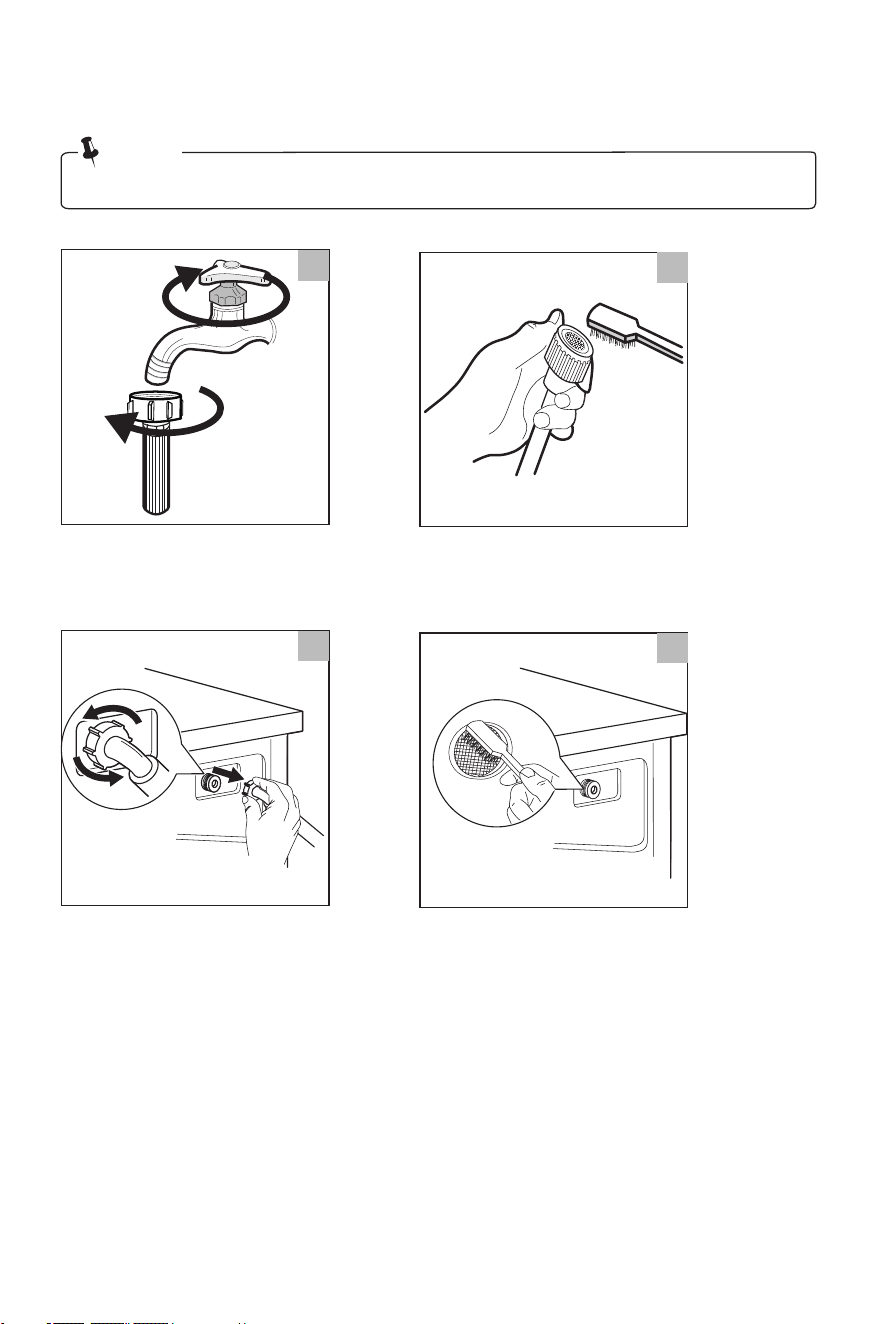

Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter needs to be cleaned.
34
1. Close the tap and remove
the water supply hose
from it.
2. Clean the filter with a
brush.
5. Reinstall the filter to the water inlet and reconnect the water supply
hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation
of the appliance.
3. Unscrew the water
supply hose from the
backside of the machine.
Pull out the filter with
long nose pliers.
4. Use a brush to clean
the filter.
1
2
3
4
Note!
35

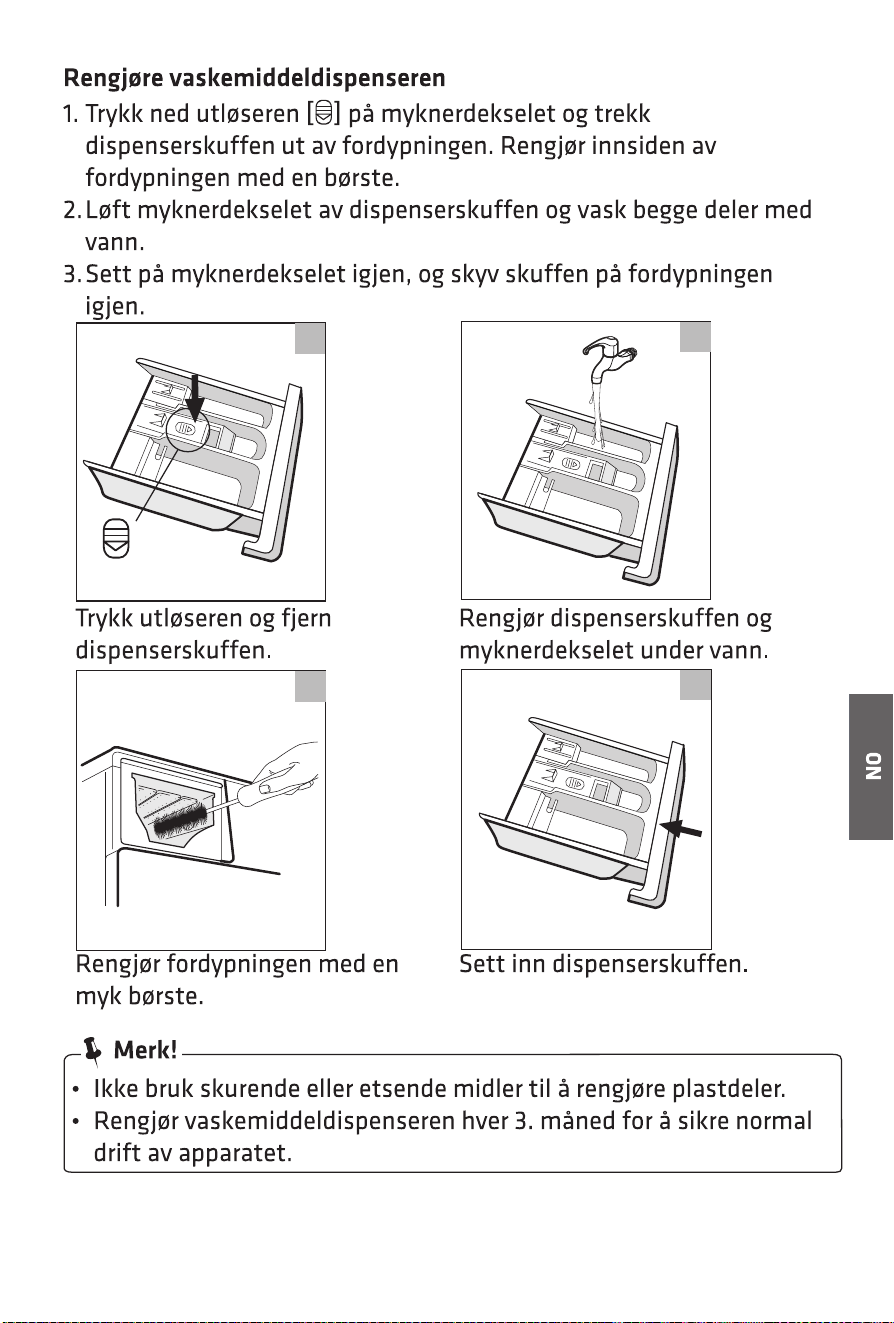

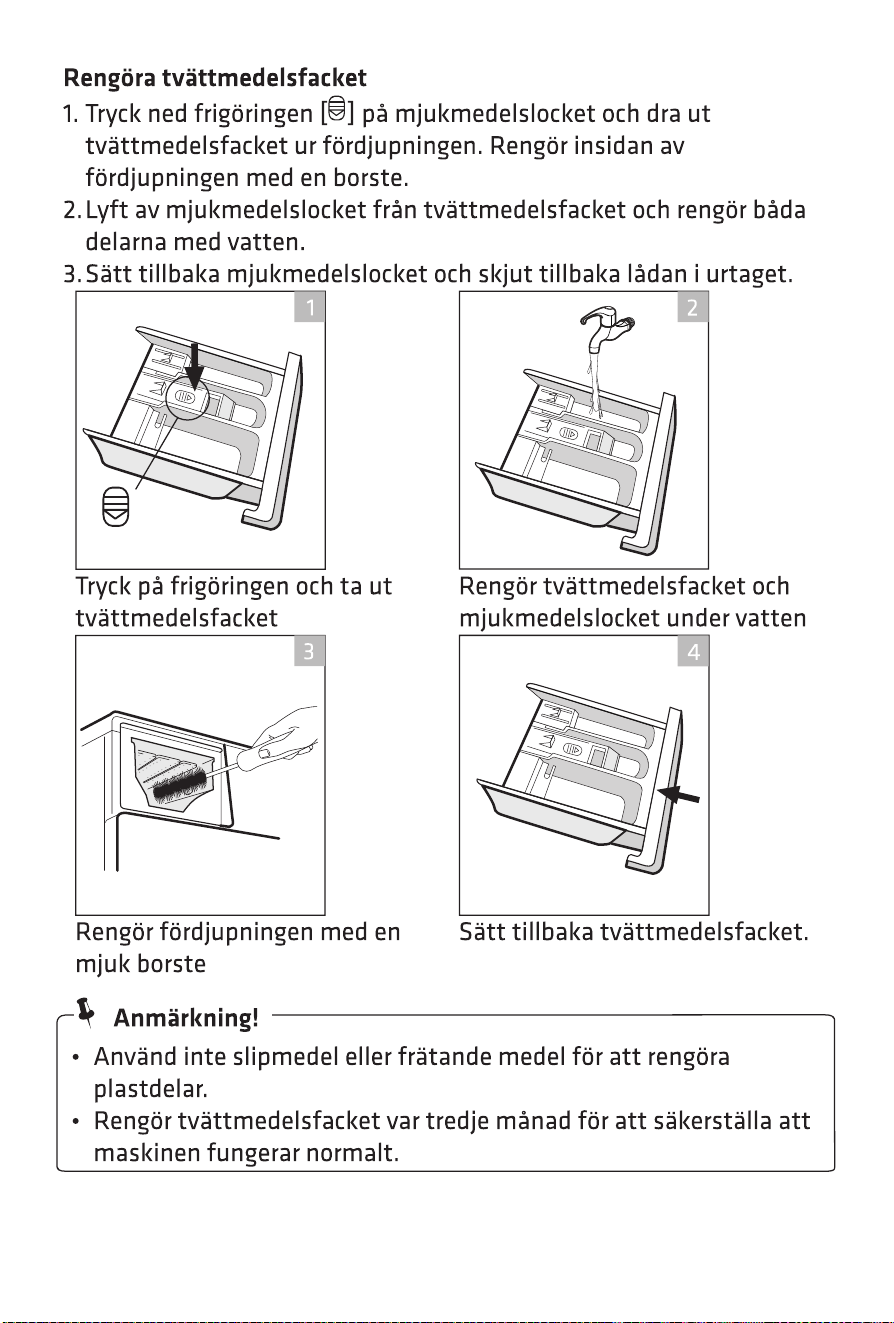

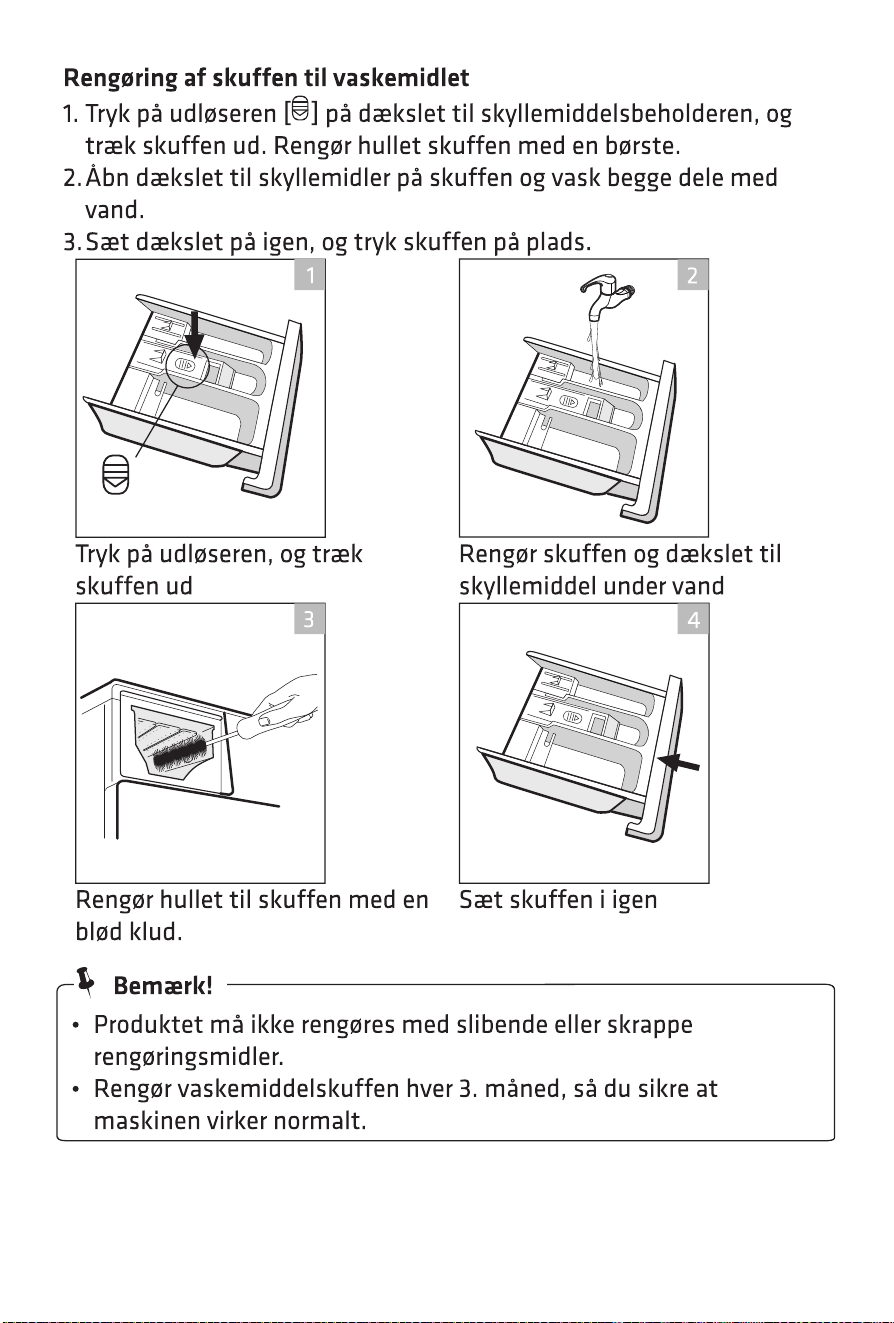

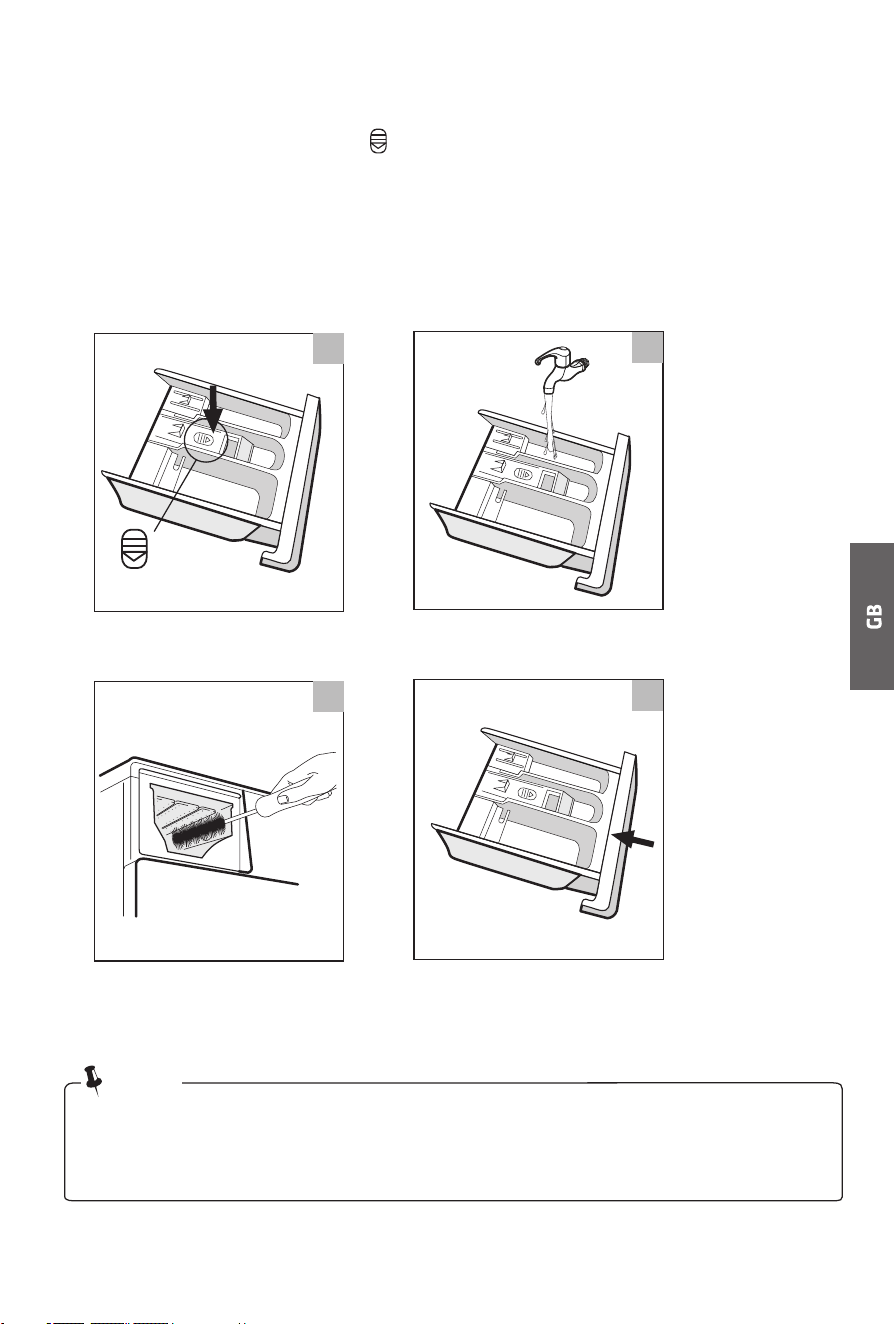

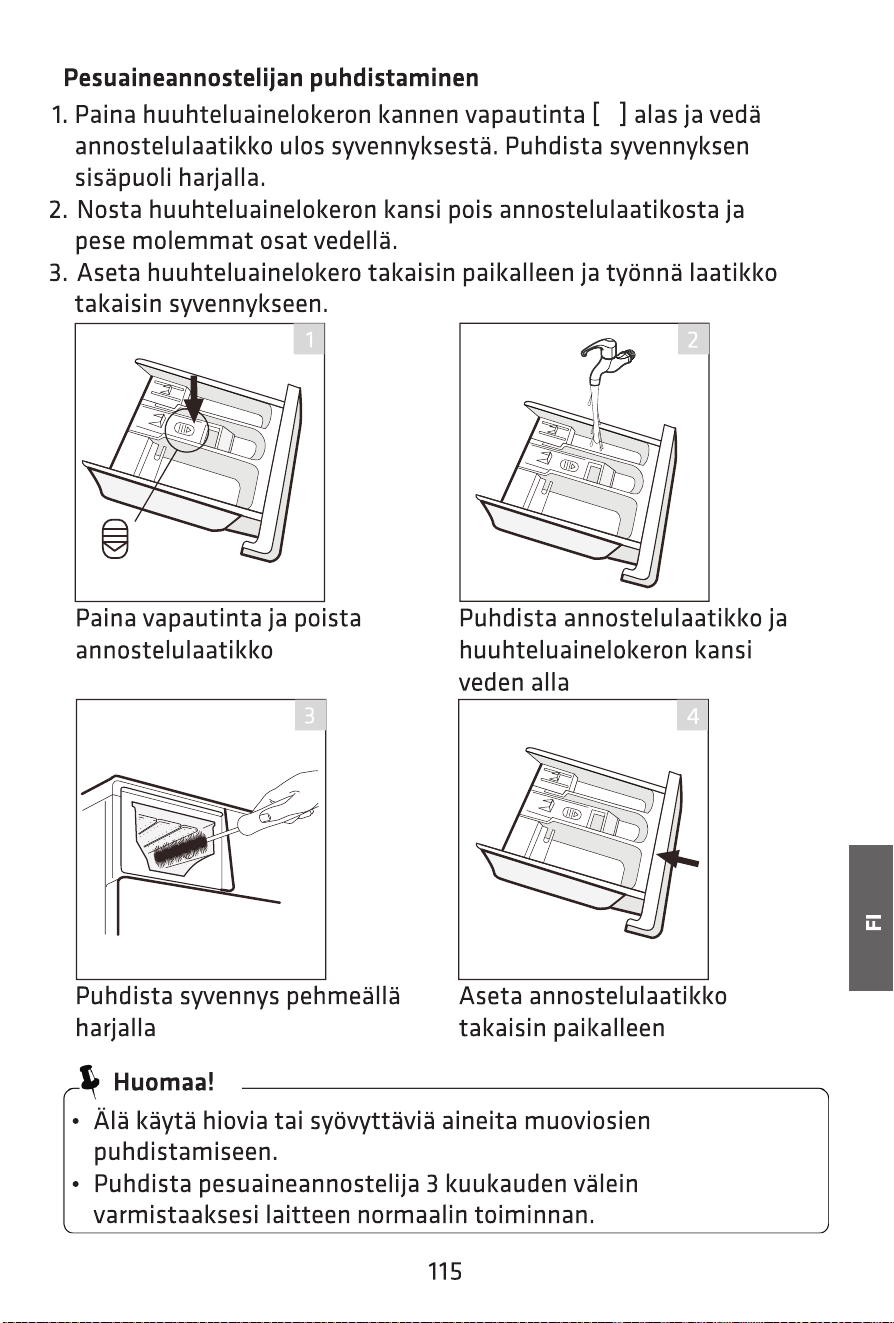

Cleaning the Detergent Dispenser
1. Press down the release [ ] on the softener cover and pull the
dispenser drawer out of the recess. Clean the inside of the recess
with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items
with water.
3. Restore the softener cover and push the drawer back into the recess.
Press the release and remove
the dispenser drawer
Clean the dispenser drawer and
the softener cover under water
Clean the recess with an soft
brush
Insert the dispenser drawer
• Do not use abrasive or caustic agents to clean plastic parts.
Clean the detergent dispenser every 3 months to ensure the normal
operation of the appliance.
•
1
2
3
4
Note!

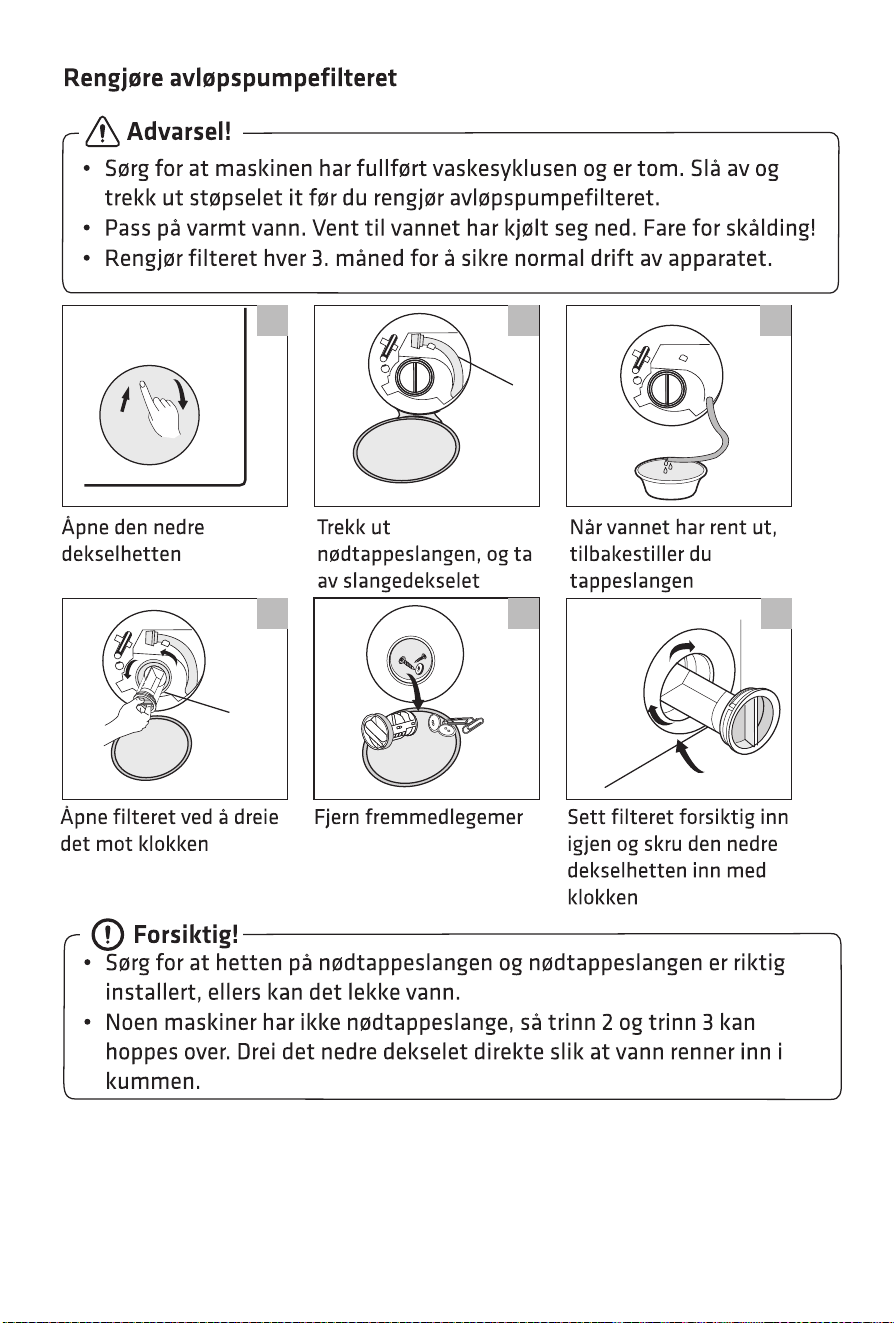

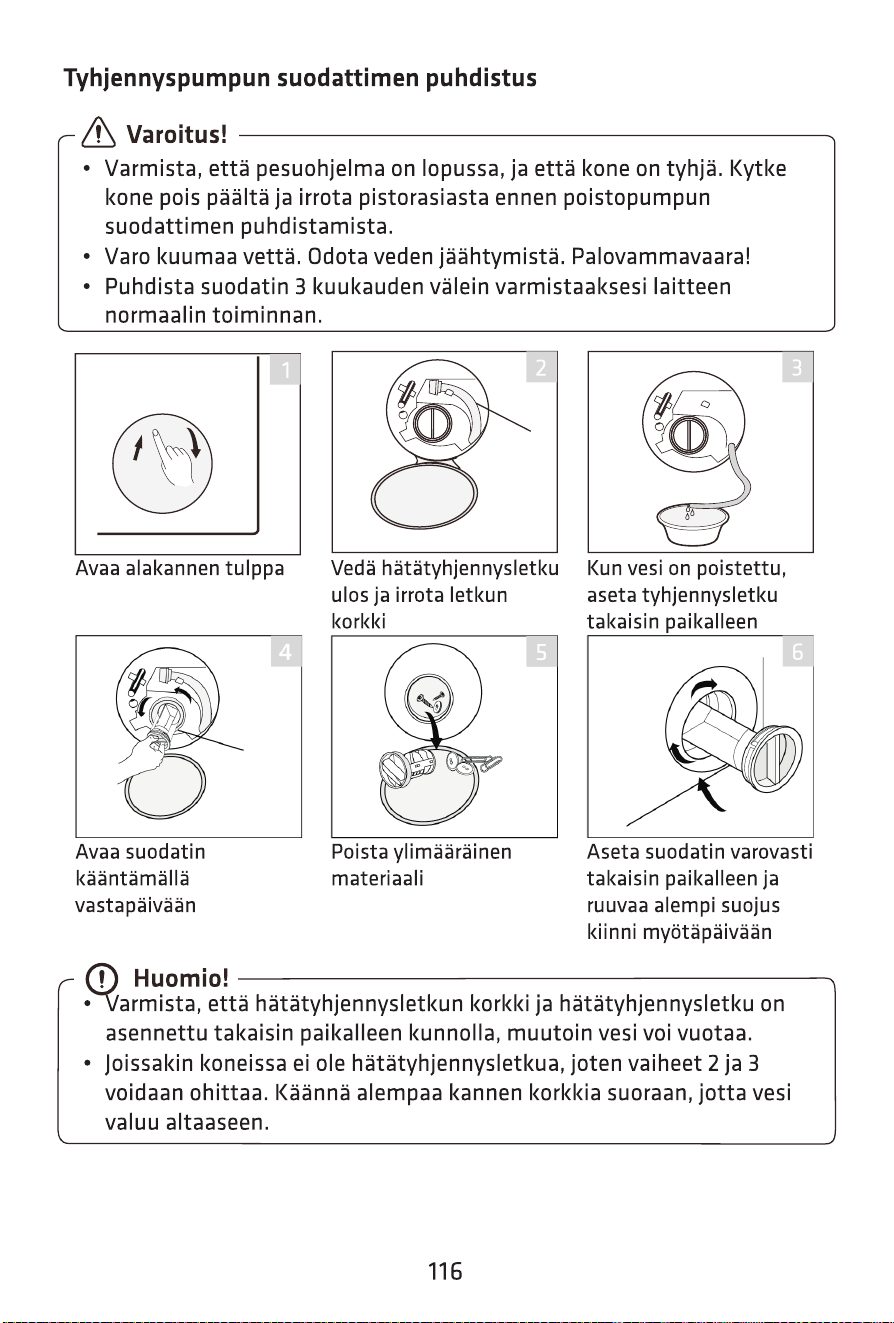

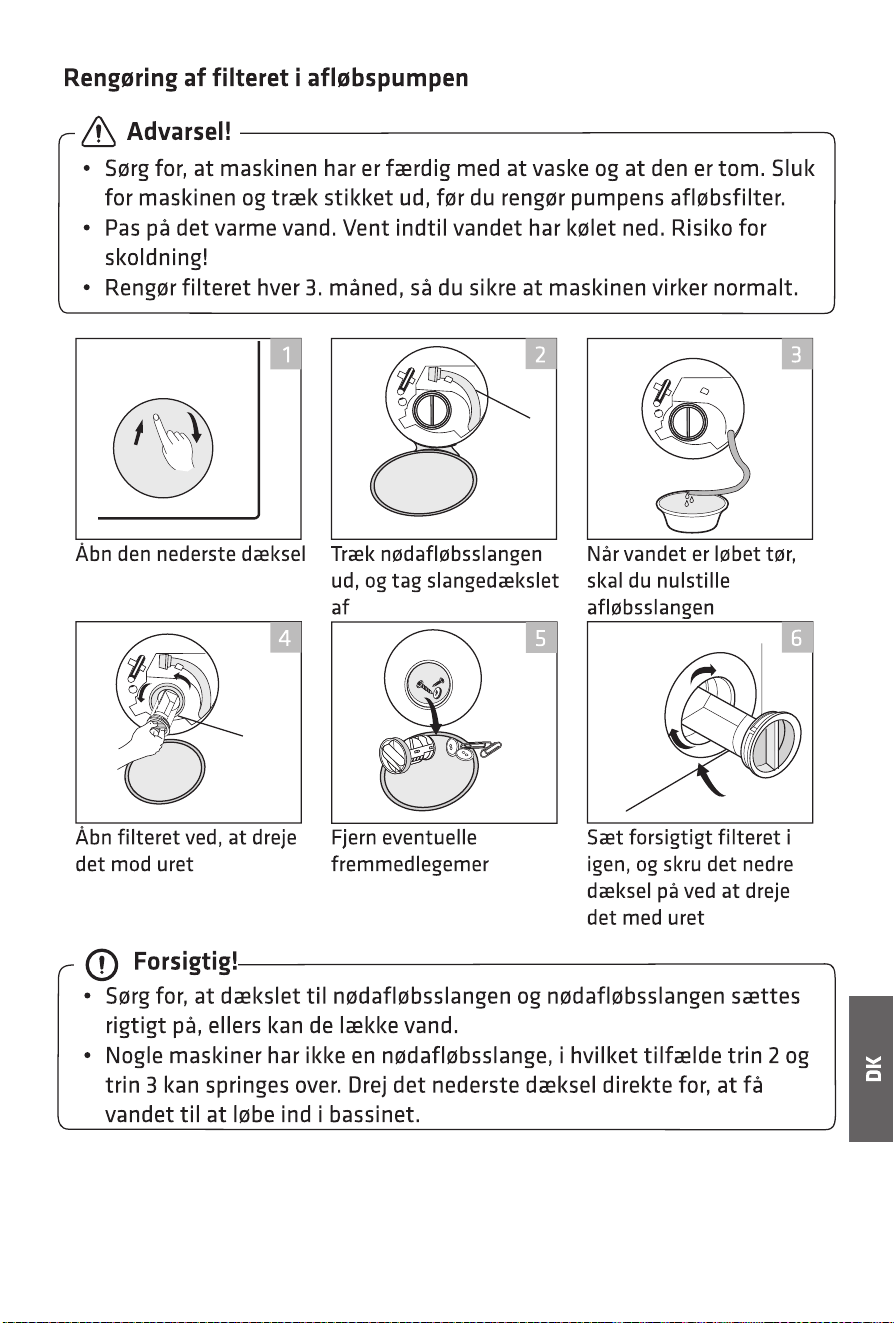

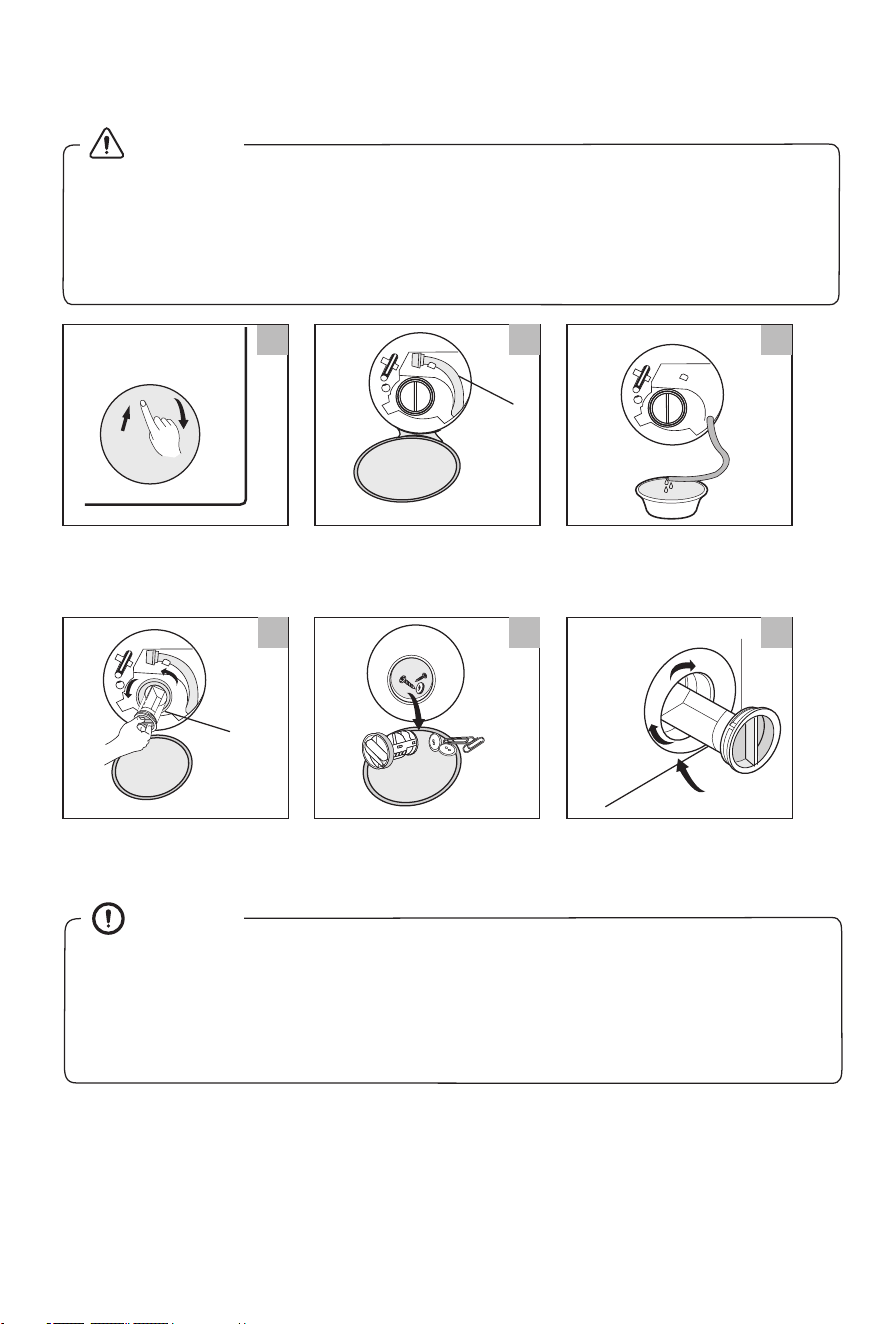

Cleaning the Drain Pump Filter
•
empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Wait for water cooling down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal
operation of the appliance.
Make sure that the machine has finished the washing cycle and is
1
2
3
Emergency
drain hose

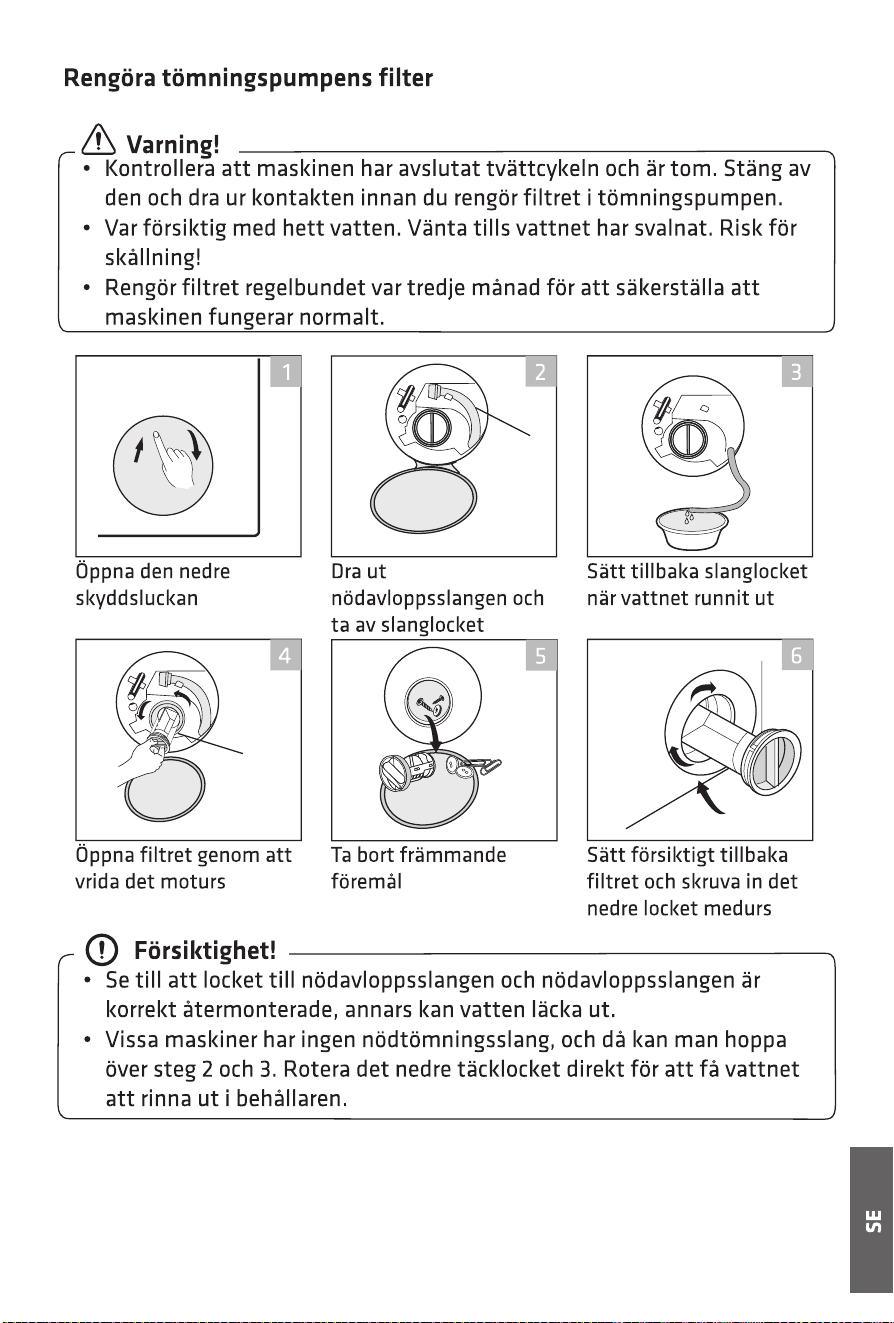

Open the lower cover cap
Pull out the emergency
drain hose, and take
off the hose cap
After water runs out, reset
the drain hose
36
5
4
Filter cap
6
Open the filter by turning
counterclockwise
Remove extraneous matter
Carefully reinsert the filter
and screw the lower cover
cap in clockwise
• Make sure emergency drain hose cap and the emergency drain hose
are reinstalled properly, otherwise water may leak.
• Some machines don’t have emergency drain hose, so step 2 and
step 3 can be skipped. Rotate lower cover cap directly to make
water run into basin.
Warning!
Caution!
37

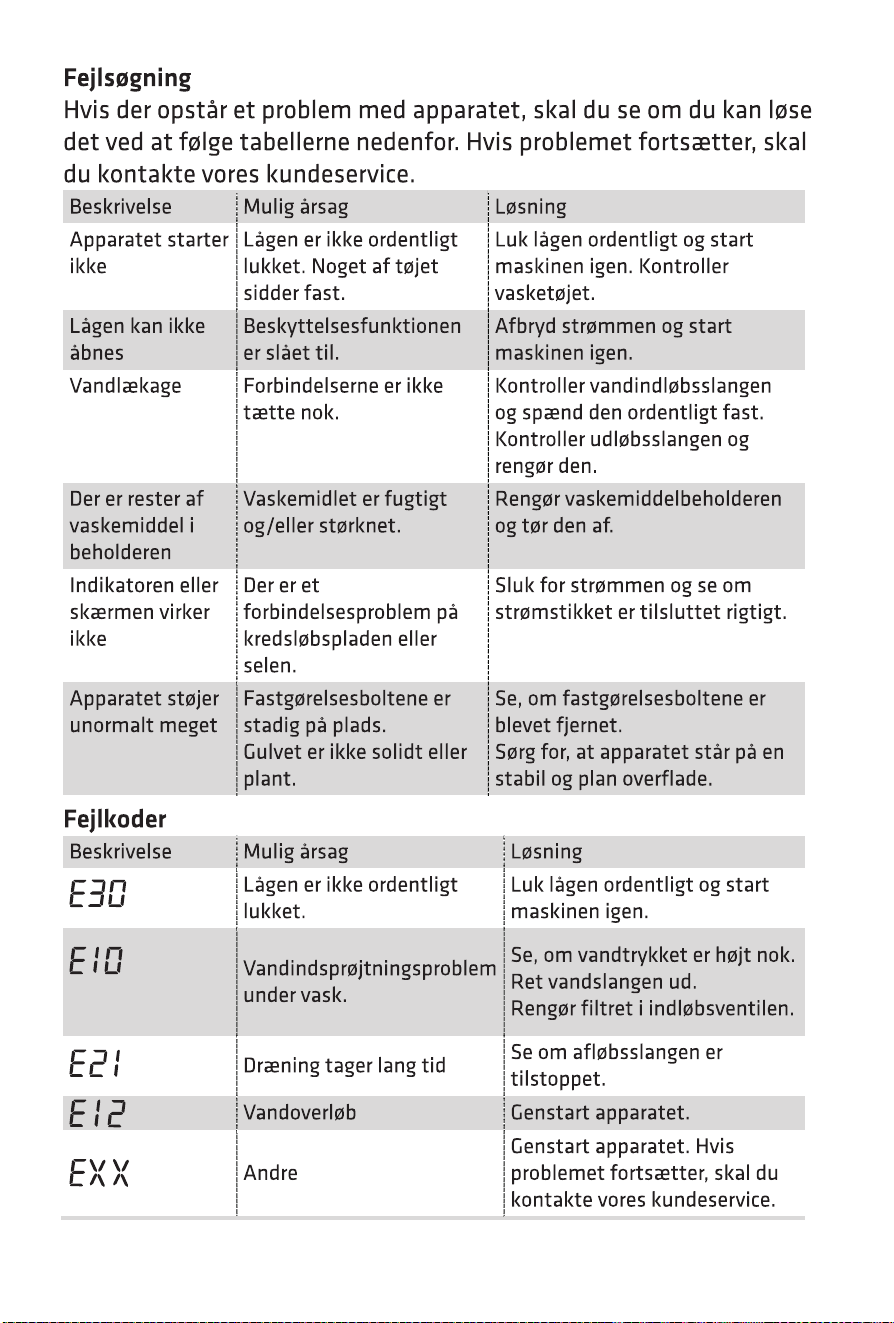

Description
Possible cause
Solution
Check if the water pressure
is high enough.
Straighten the water pipe.
Clean the inlet valve filter.
Check the drain hose for
blockage.
Water injecting
problem during
wash cycle.
Overtime water
draining
Restart the appliance. If
problem persists, please
contact the customer service.
Others
Water overflow
Restart the appliance.
Close the door properly
and restart.
Door is not closed
properly.
Description
Possible cause
Solution
Close the door properly
and restart.
Check the laundry.
Door is not closed
properly.
Clothes are stuck.
Safety protection
is activated.
Disconnect the power and
restart.
Water leakage
Connections are
not tight enough.
Check and fasten the water
inlet pipe. Check and clean
the outlet hose.
Clean and wipe the
detergent dispenser dry.
Abnormal noise
Check if the fixing bolts
have been removed.
Make sure the appliance is
installed on a solid and
level floor.
Indicator or display
does not work
PC board or harness
has connection
problems.
Switch off the power and
check if the mains plug
is connected properly.
Appliance does
not start
Detergent residues
in the detergent
dispenser
Detergent is damp
and/or clotted.
Door can´t be
opened
Fixing bolts still in
place.
Floor is not solid or
level.

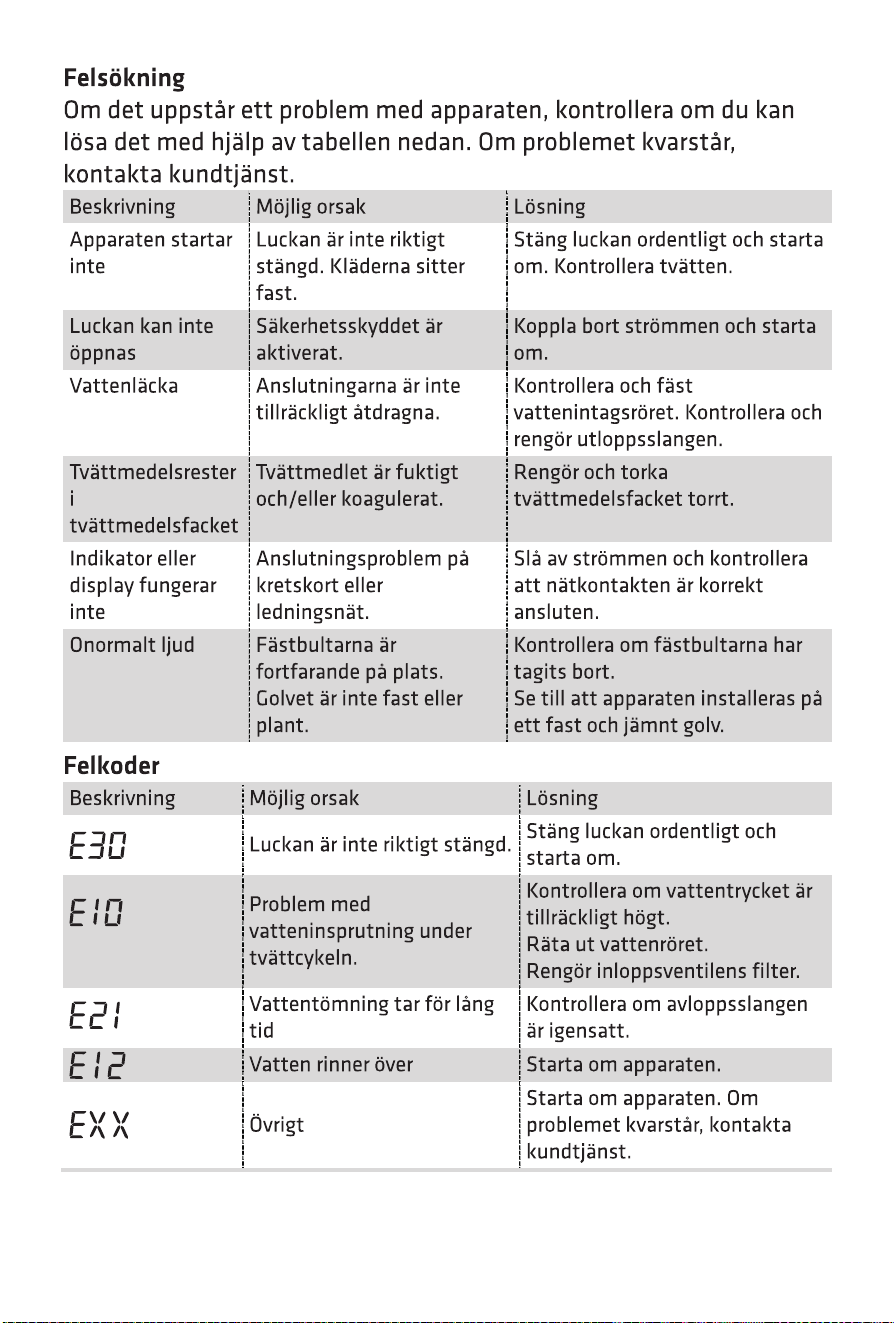

Error Codes
Troubleshooting
Whenever there is a problem with the appliance, check if you can solve
it following the table below. If the problem persists, please contact
customer service.
Risk of electric shock.
• Never try to repair an appliance which is presumed to be defective.
You may put your own and future users' lives in danger.
Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages
can't be recognized!

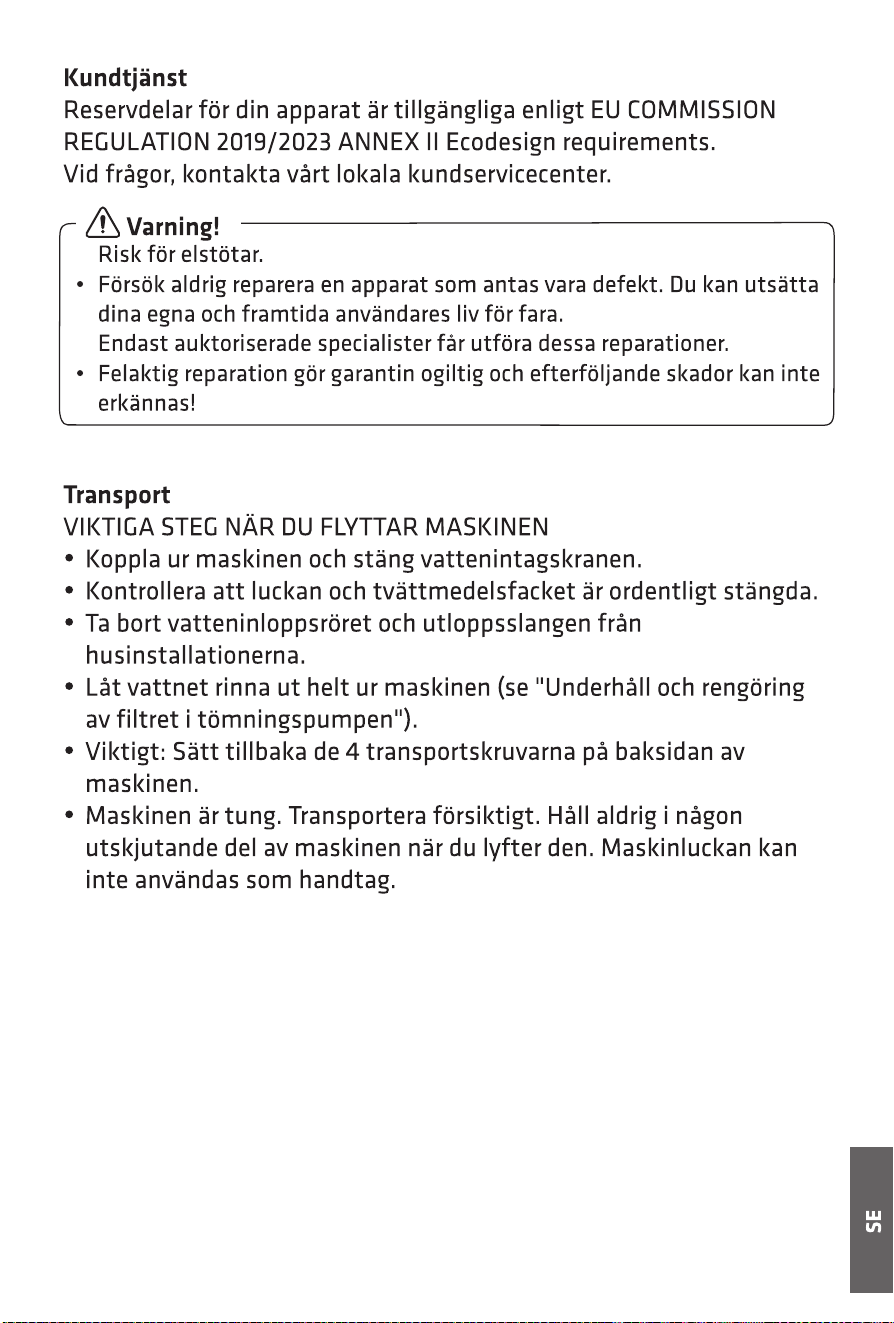

Customer Service
Spare parts
for your appliance are available following EU COMMISSION
REGULATION 2019/2023 ANNEX II Ecodesign requirements.
In case of questions, please contact our local customer service center.

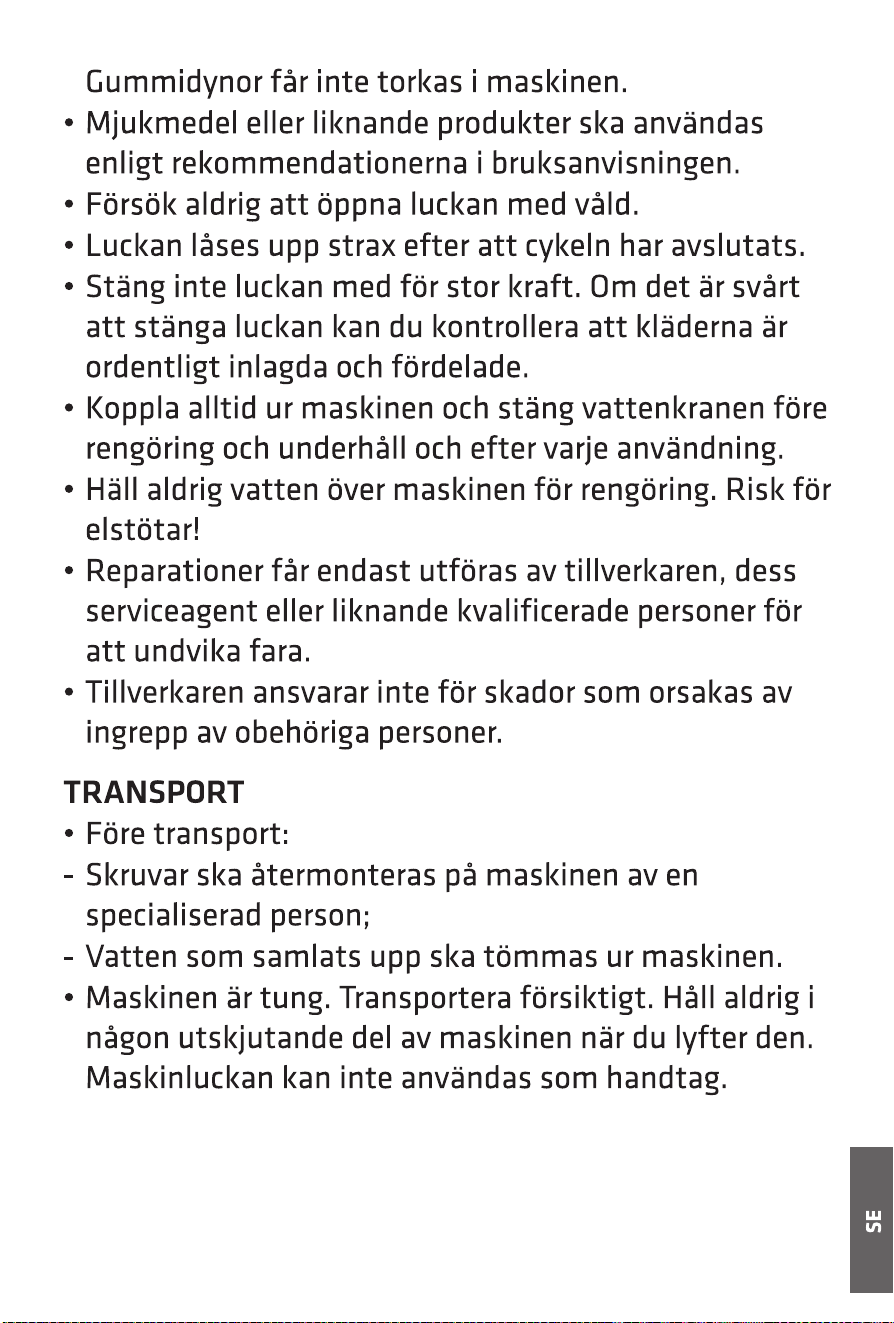

Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house
installations.
• Let the water drained completely from the appliance (see “Maintenance
Cleaning the drain pump filter”).
• Important: Re-install the 4 transport bolts in the back of the
appliance.
• This appliance is heavy. Transport with care. Never hold any
protruding part of the machine when lifting. The machine door can
not be used as a handle.
Unplug the appliance and close the water inlet tap.
38
Warning!

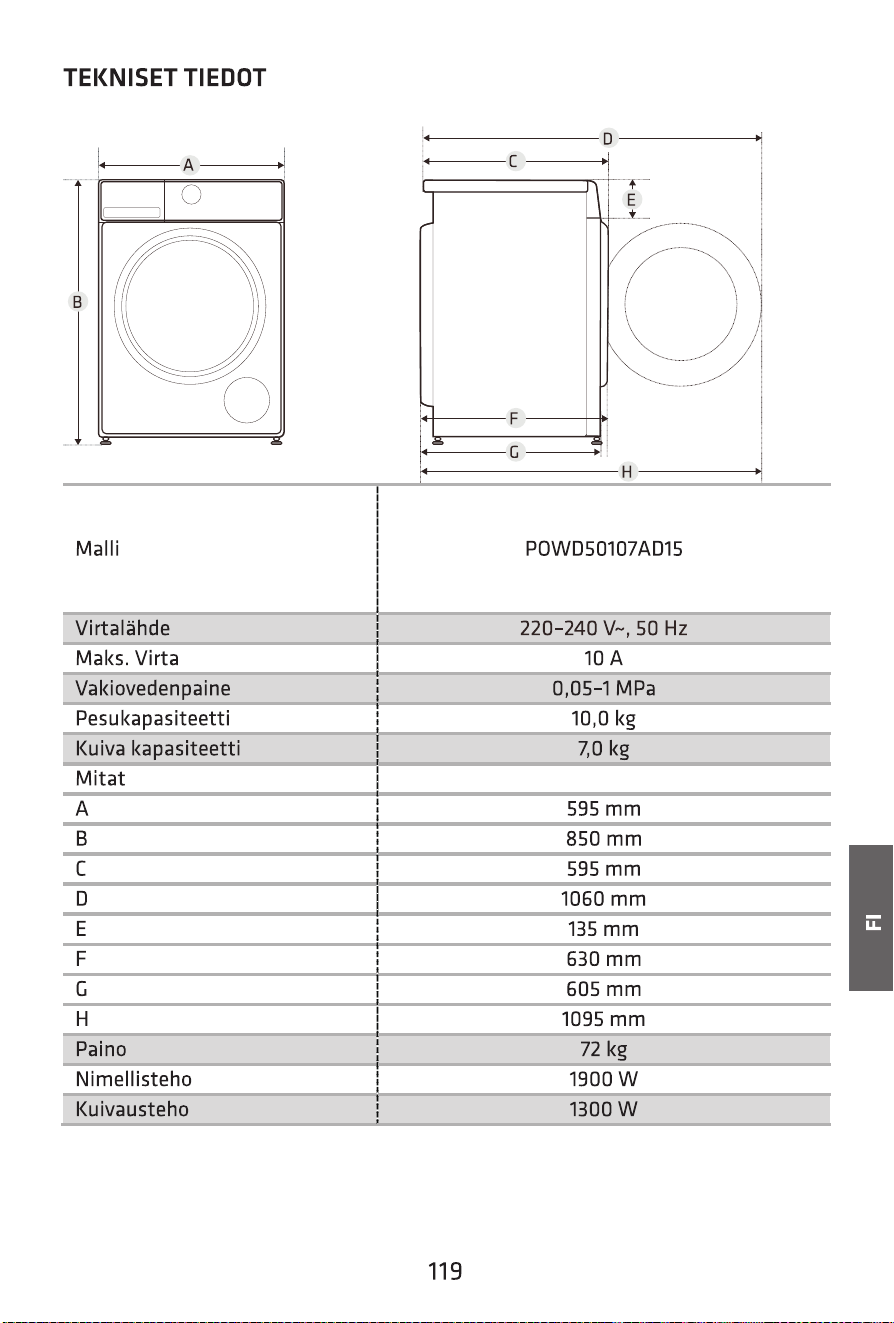

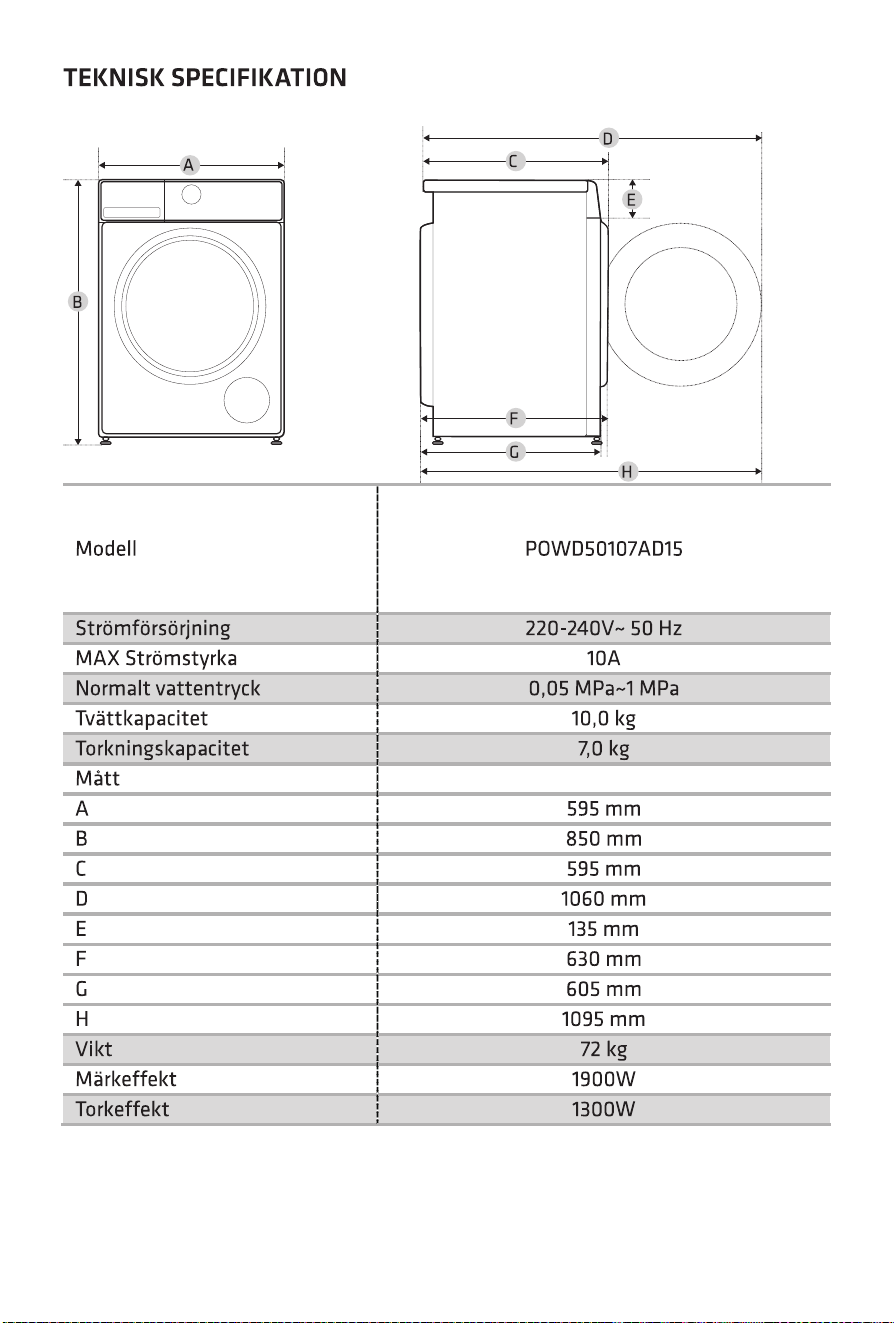

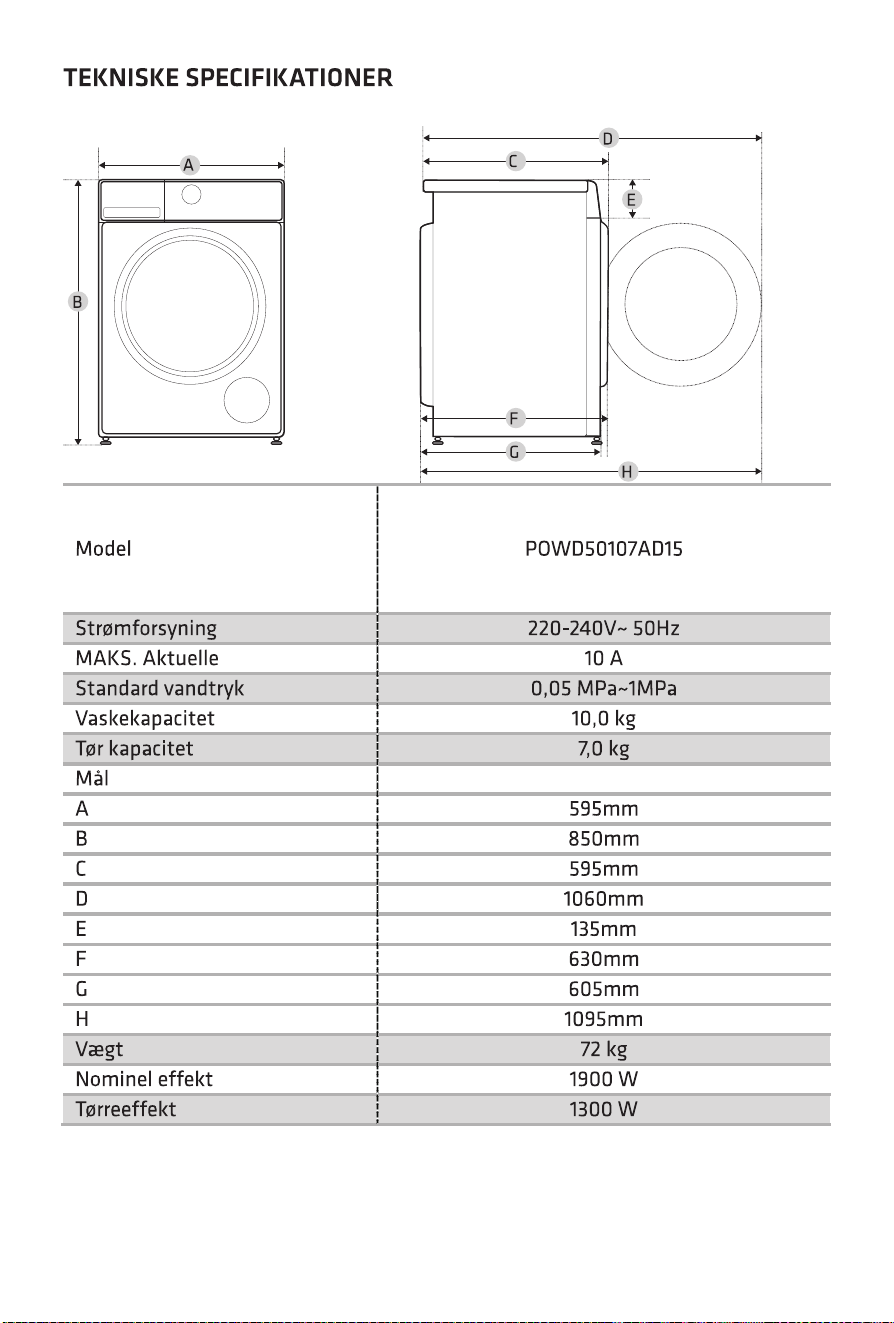

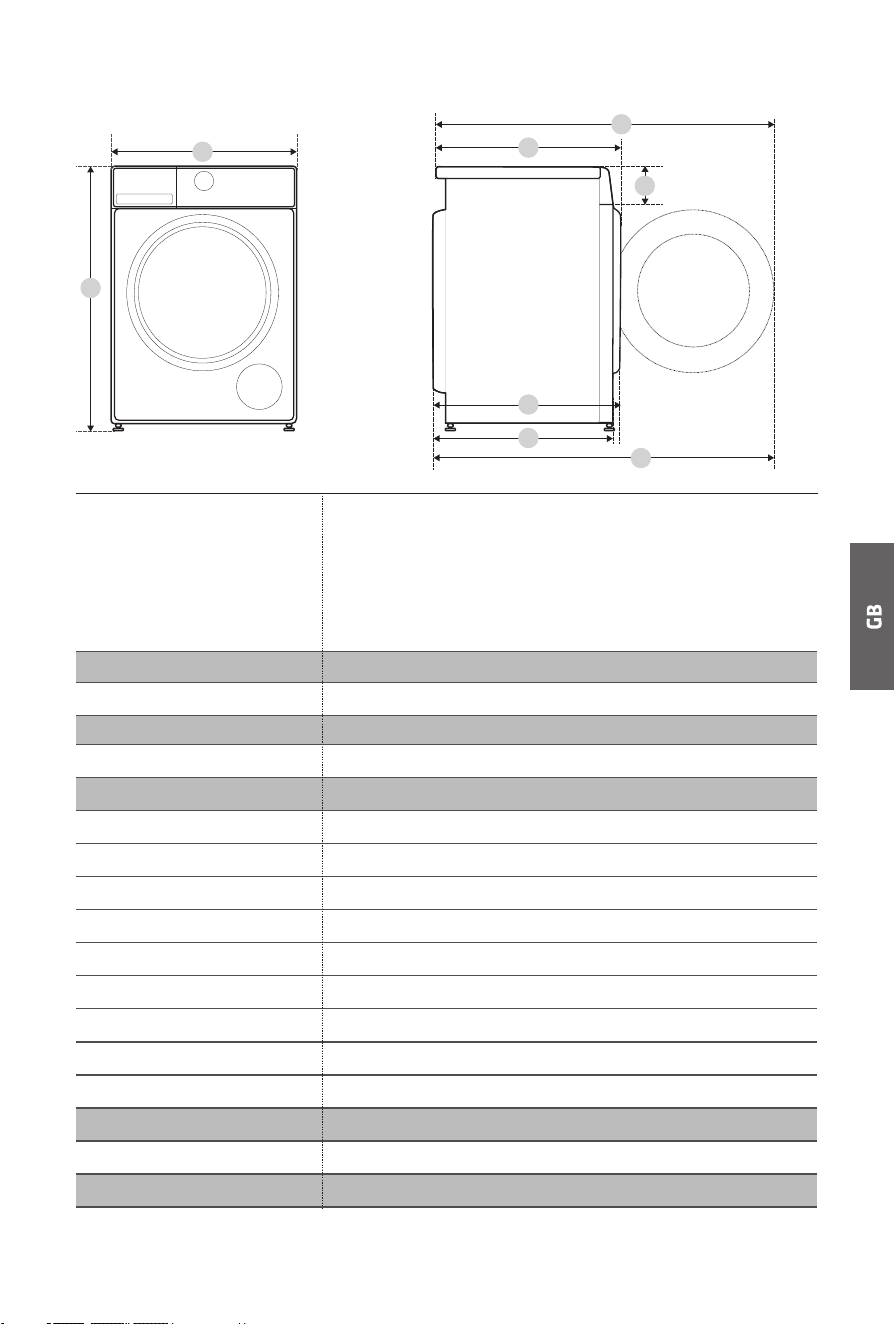

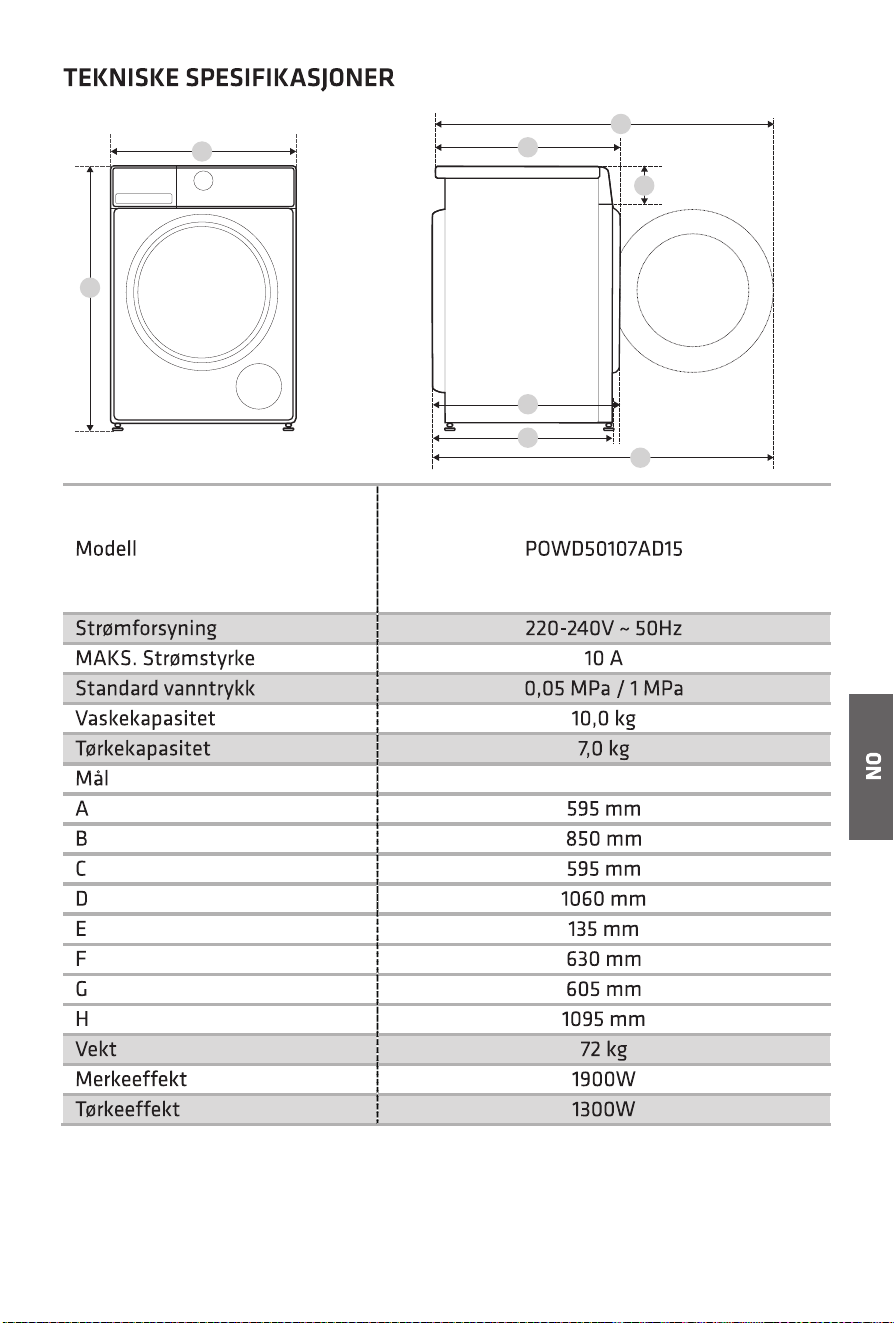

TECHNICAL SPECIFICATION
39
POWD50107AD15
Model
A
B
C
Washing Capacity
Dimension
A
B
C
D
E
F
G
H
Weight
Rated Power
Drying power
Dry Capacity
G
H
F
E
D
10.0kg
7.0kg
595mm
850mm
595mm
1060mm
135mm
630mm
605mm
1095mm
72kg
1900W
1300W
MAX.Current
Standard Water Pressure
Power Supply
220-240V~ 50Hz
0.05MPa~1MPa
10A

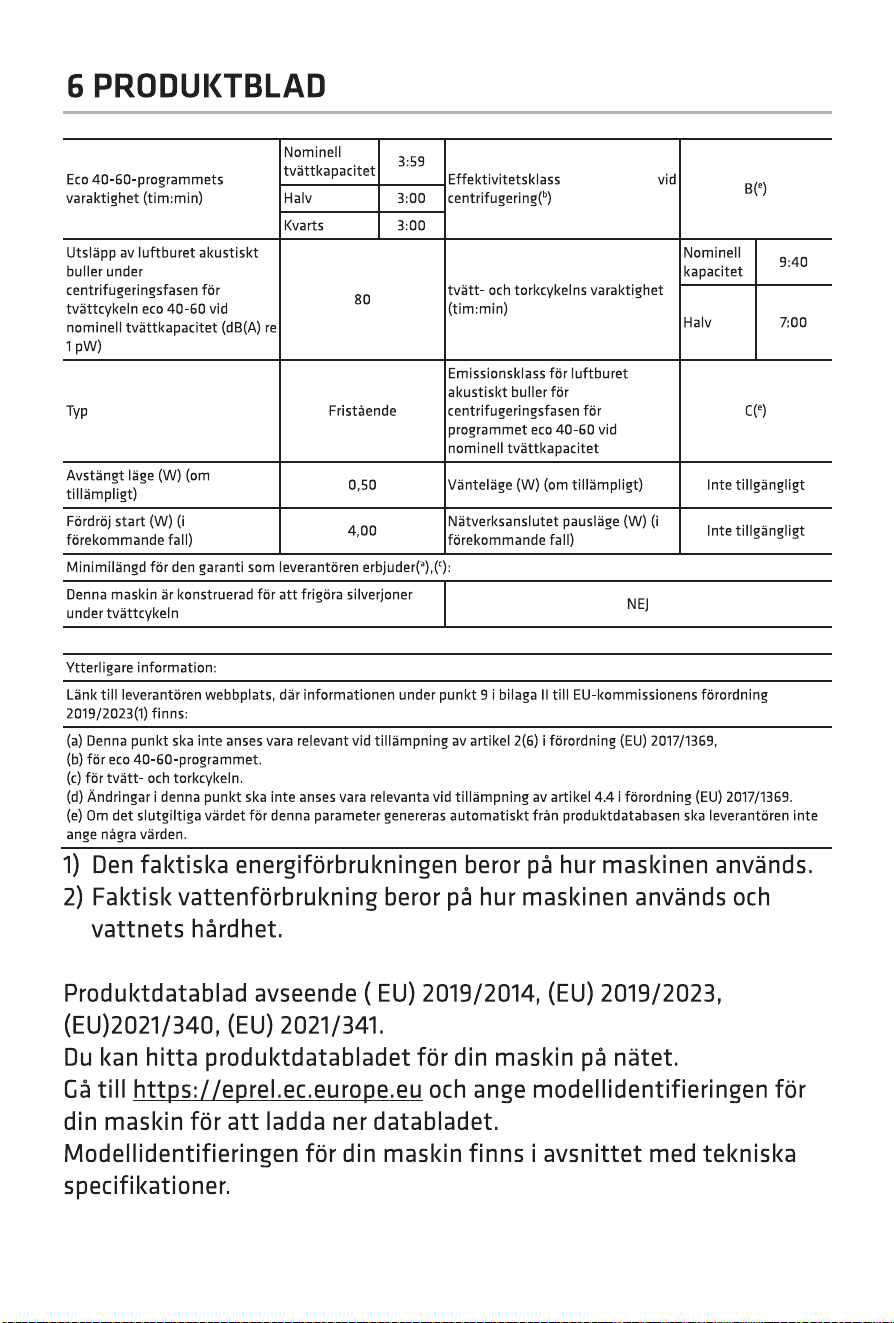

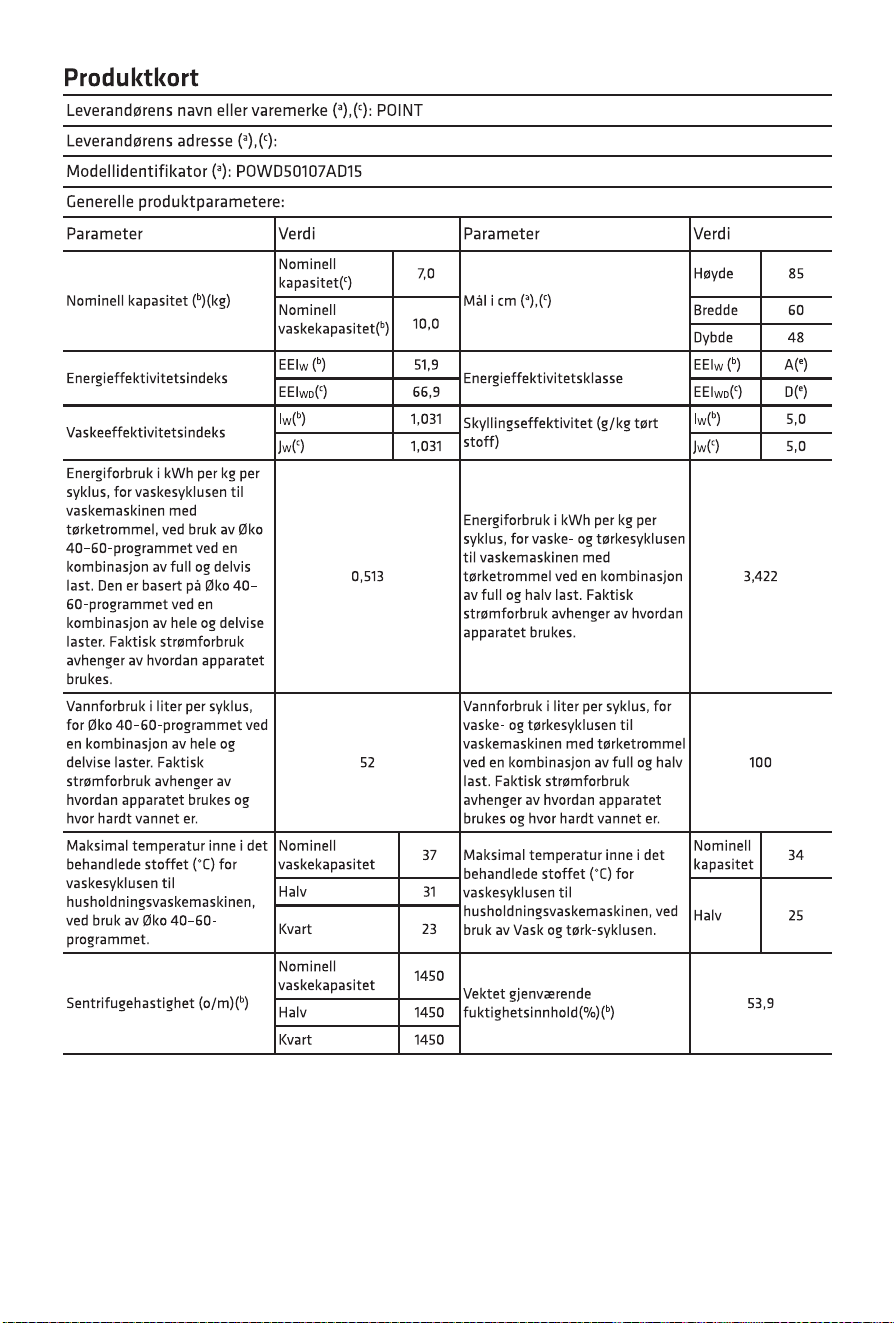

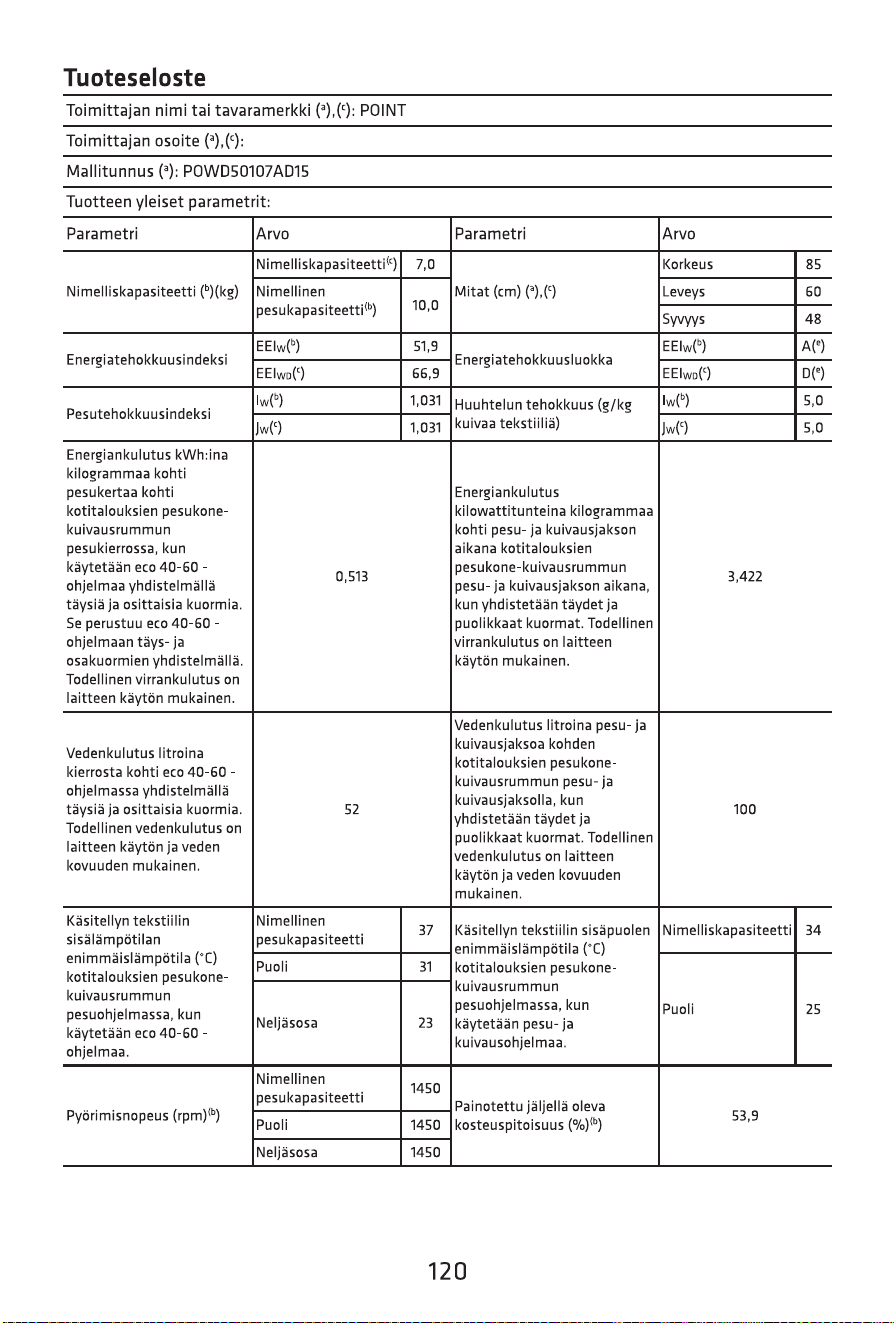

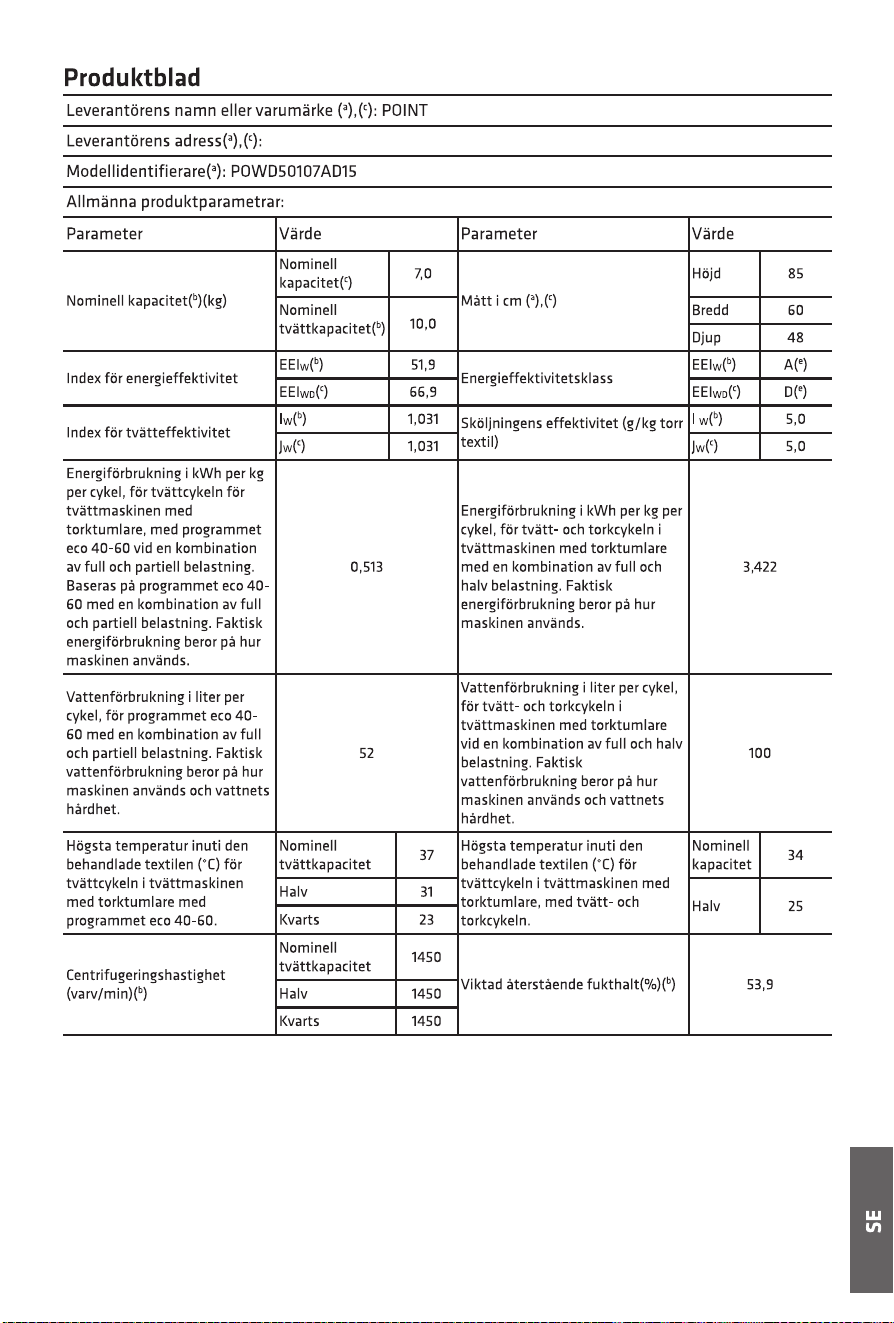

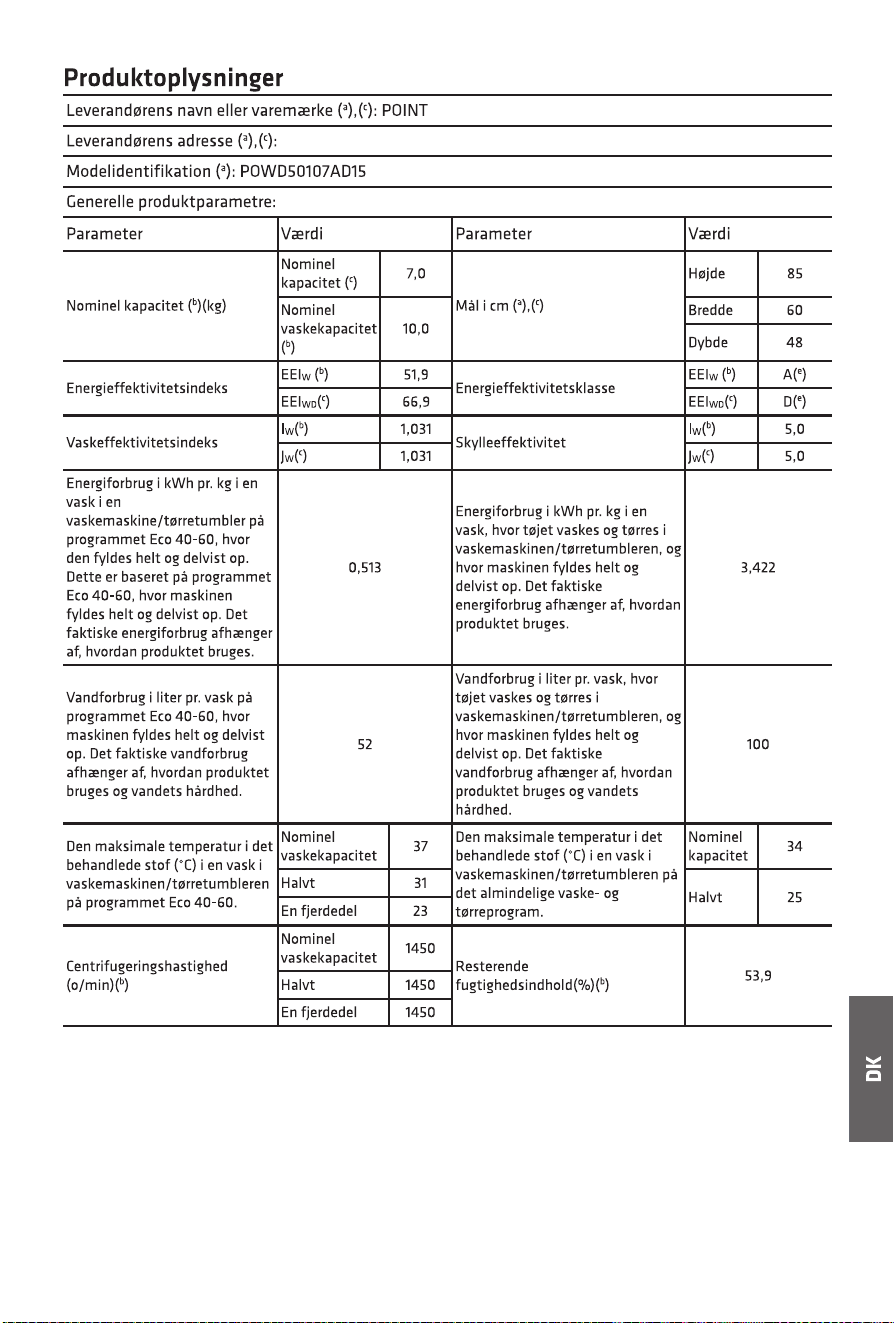

PRODUCT FICHE
40
Rated capacity(kg)
a , d
Dimensions in cm( ) ( )
Height
Energy efficiency index
a , c
Supplier's name or trade mark( ) ( ): POINT
a , c
Supplier's address( )( ):
a
Model identifier( ): POWD50107AD15
General product parameters:
Parameter Value Parameter Value
Rated
c
capacity( )
Rated
washing
b
capacity( )
7.0
10.0
Width
Depth
85
60
57
b
EEI ( )
W
c
EEI ( )
WD
51.9
66.9
1.031
b
I ( )
W
c
J ( )
W
1.031
b
EEI ( )
W
c
EEI ( )
WD
e
A( )
e
D( )
b
I ( )
R
c
J ( )
R
5.0
5.0
Energy efficiency class
Washing efficiency index
Rinsing effectiveness
(g/kg dry textile)
Energy consumption in kWh
per kg per cycle, for the
washing cycle of the
household washer-dryer,
using the eco 40-60
programme at a combination
of full and partial loads. It is
based on the eco 40-60
programme at a combination
of full and partial loads.
Actual energy consumption
will depend on how the
appliance is used.
0.513 3.422
Energy consumption in
kWh per kg per cycle, for
the wash and dry cycle of
the household washer-
dryer at a combination of
full and half loads. Actual
energy consumption will
depend on how the
appliance is used.
Water consumption in litre
per cycle, for the eco 40-60
programme at a combination
of full and partial loads.
Actual water consumption will
depend on how the appliance
is used and on the hardness
of the water.
52
Water consumption in litre
per cycle, for the wash and dry
cycle of the household
washer-dryer at a
combination of full and half
loads. Actual water
consumption will depend on
how the appliance is used and
on the hardness of the water.
100
Maximum temperature
inside the treated textile ( C)
for the washing cycle of the
household washer-dryer,
using the eco 40-60
programme.
°
Rated
washing
capacity
Half
Quarter
37
31
23
Rated
washing
capacity
Half
Quarter
1450
1450
1450
b
Spin speed(rpm)( )
Weighted remaining
b
moisture content(%)( )
53.9
Rated
capacity
Half
34
25
Maximum temperature
inside the treated textile ( C)
for the washing cycle of the
household washer-dryer,
using the wash and dry cycle.
°
1) The actual energy consumption will depend on how the
appliance is used.
2) The actual water consumption will depend on how the
appliance is used and on the hardness of the water.
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model
identifier for your appliance to download the data sheet.
The model identifier for your appliance can be found in the
technical specifications section.
Product Data Sheet concerning (EU) 2019/2014, (EU)
2019/2023, (EU)2021/340, (EU) 2021/341.

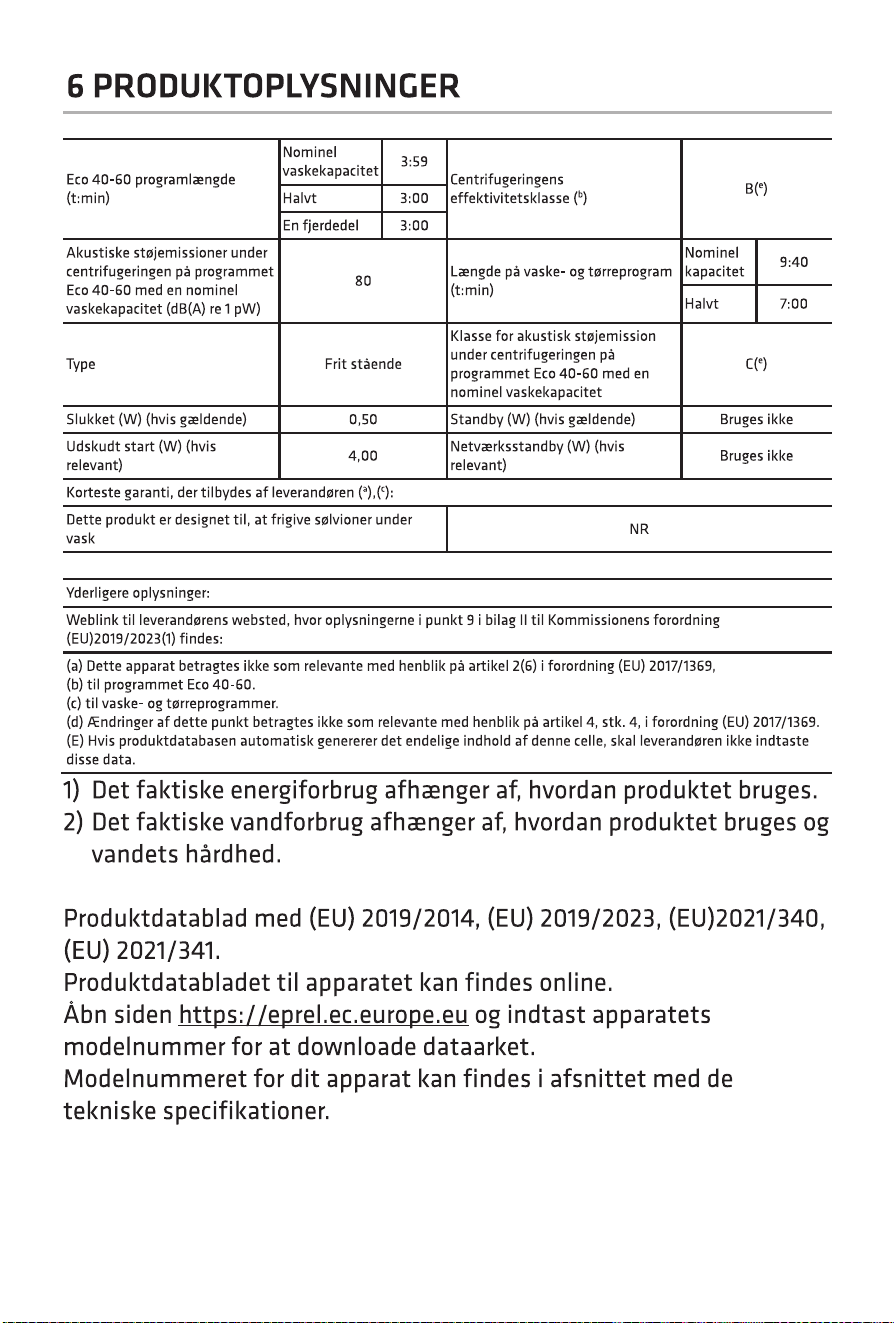

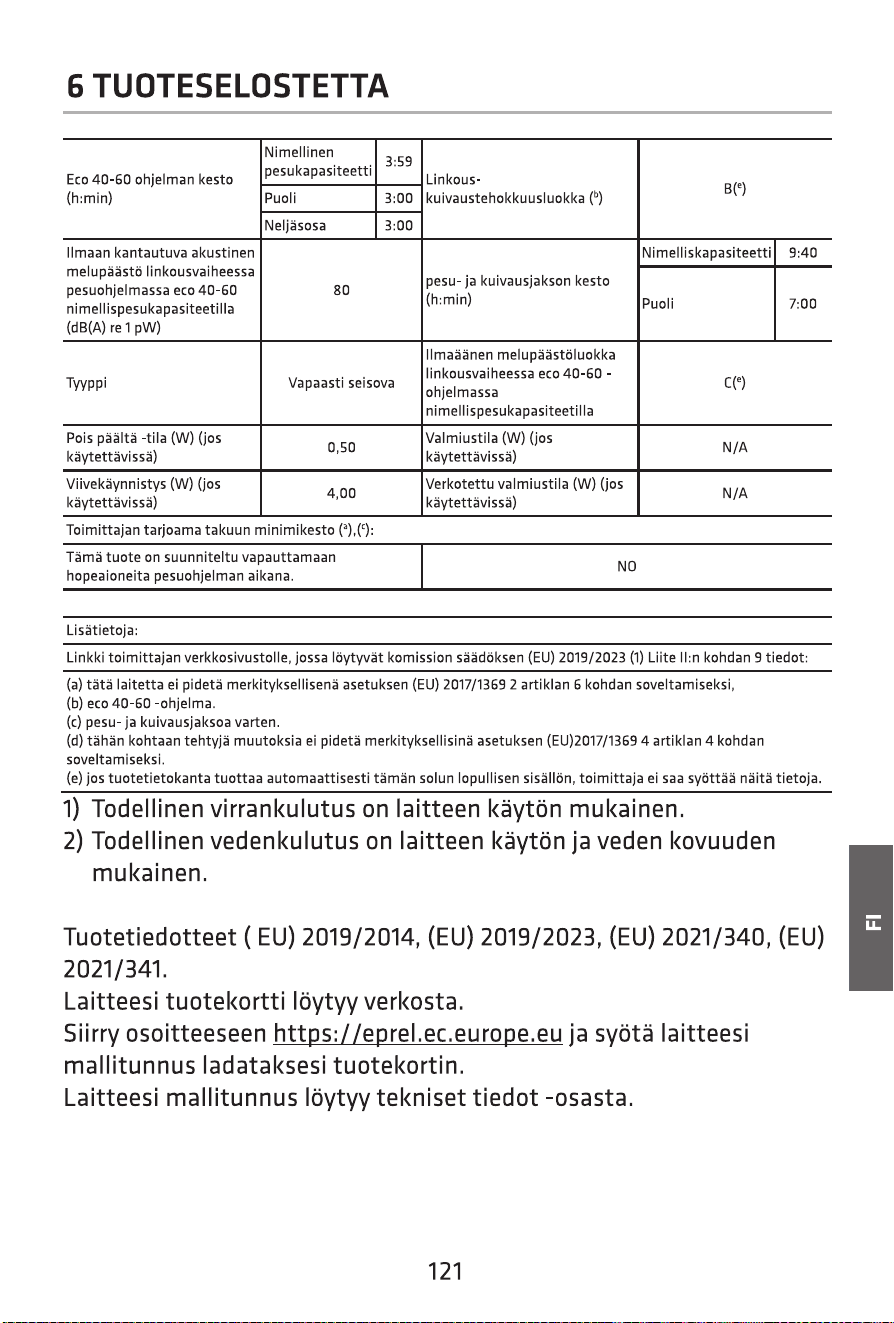

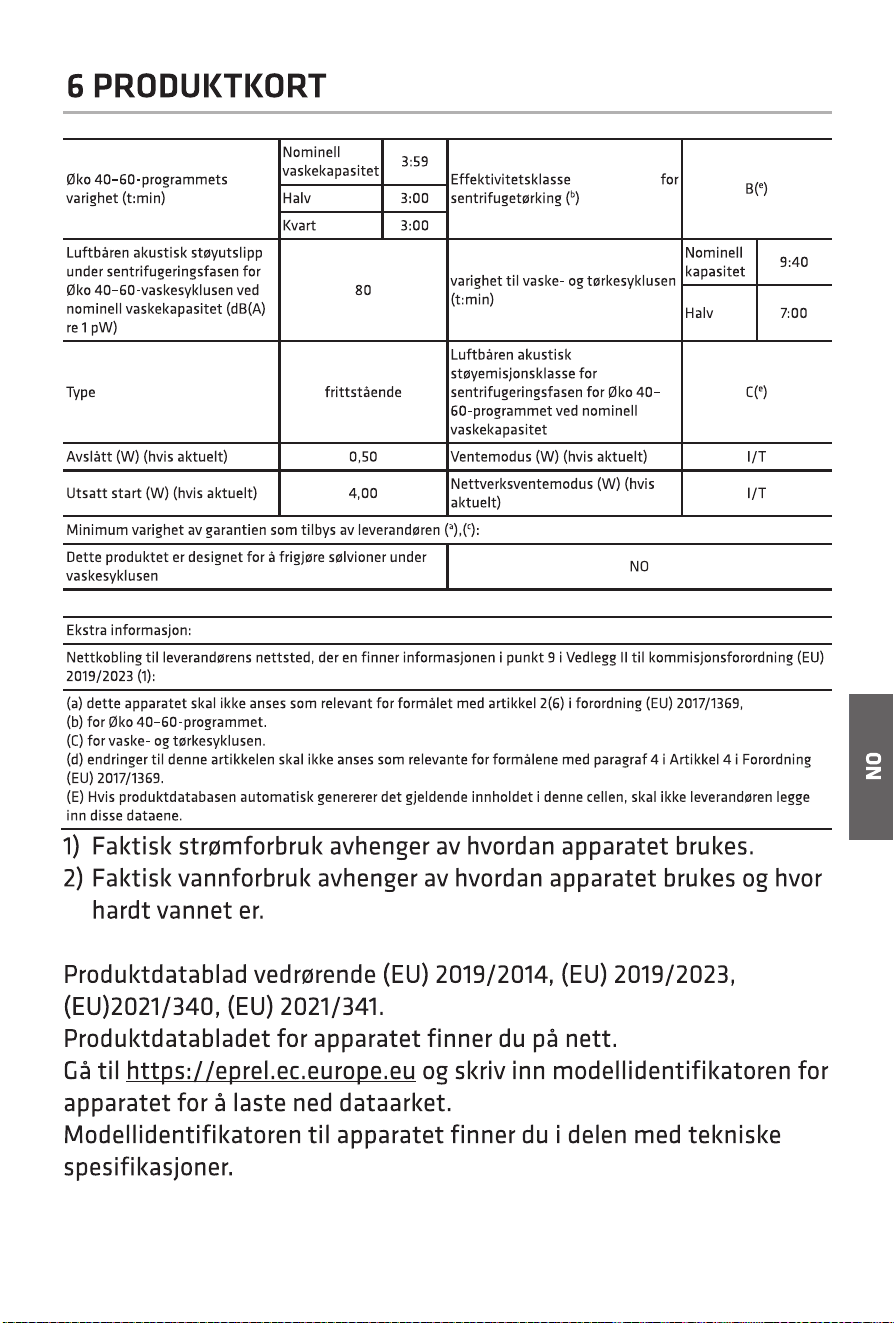

6 PRODUCT FICHE
41
a , c
Minimum duration of the guarantee offered by the supplier ( ) ( ):
This product has been designed to release silver
ions during the washing cycle
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex ll to Commission Regulation
(EU)2019/2023(1) is found:
(a)
(b) for the eco 40-60 programme.
(C) for the wash and dry cycle.
(d) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation
(EU)2017/1369.
(E) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these
data.
this appliance shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,
Off-mode (W) (if applicable)
Delay start (W)
(if applicable)
NO
0.50
4.00
Standby mode (W)
(if applicable)
Networked standby (W)
(if applicable)
N/A
N/A
Type
free-standing
e
C( )
80
7:00
9:40
Rated
capacity
Half
e
B( )
3:59
3:00
3:00
Rated
washing
capacity
Half
Quarter
Airborne acoustical noise
emissions during the spinning
phase for the eco 40-60
washing cycle at rated washing
capacity(dB(A) re 1 pW)
Airborne acoustical noise
emission class for the
spinning phase for the eco
40-60 programme at rated
washing capacity
wash and dry cycle
duration(h:min)
Eco 40-60 programme
duration(h:min)
Spin-drying efficiency class
b
( )
42

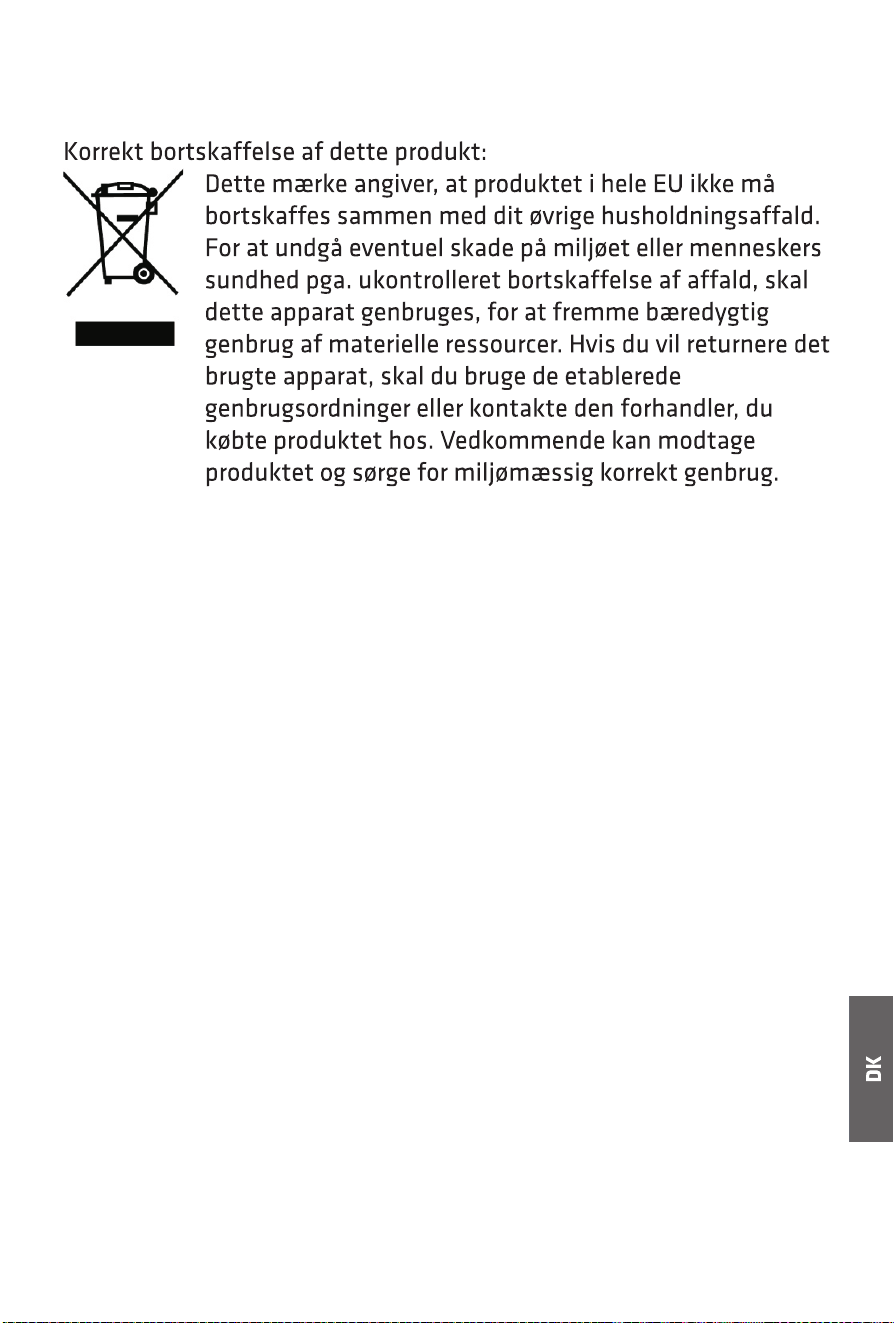

This marking indicates that this product should not be
disposed with other household waste throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device,
please use the return and collection systems or
contact the retailer where the product was purchased.
They can take this product for environmental safe
recycling.
Correct disposal of this product:
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
1
2
3
4
5
6
52
53
B≥20mm
a
54
55
2x
2x
56
57
1
2
3
5
4
58
3
4
1
2
59
2
1
3
4
60
II
I
61
62
3
2
1
1
4
5
1
2
3
4
5
63
A
B C
G
D E
H IF J
B
D
A
C
E
F
G
H
I
J
64
65
66
67
68
69
Hastighet
Temp.
Hurtigvask
Ekstra skyll
Forvask
Utsette
Utsette
70
SpaCare
pånytt
71
Utsett
SpaCare
Hastighet
72

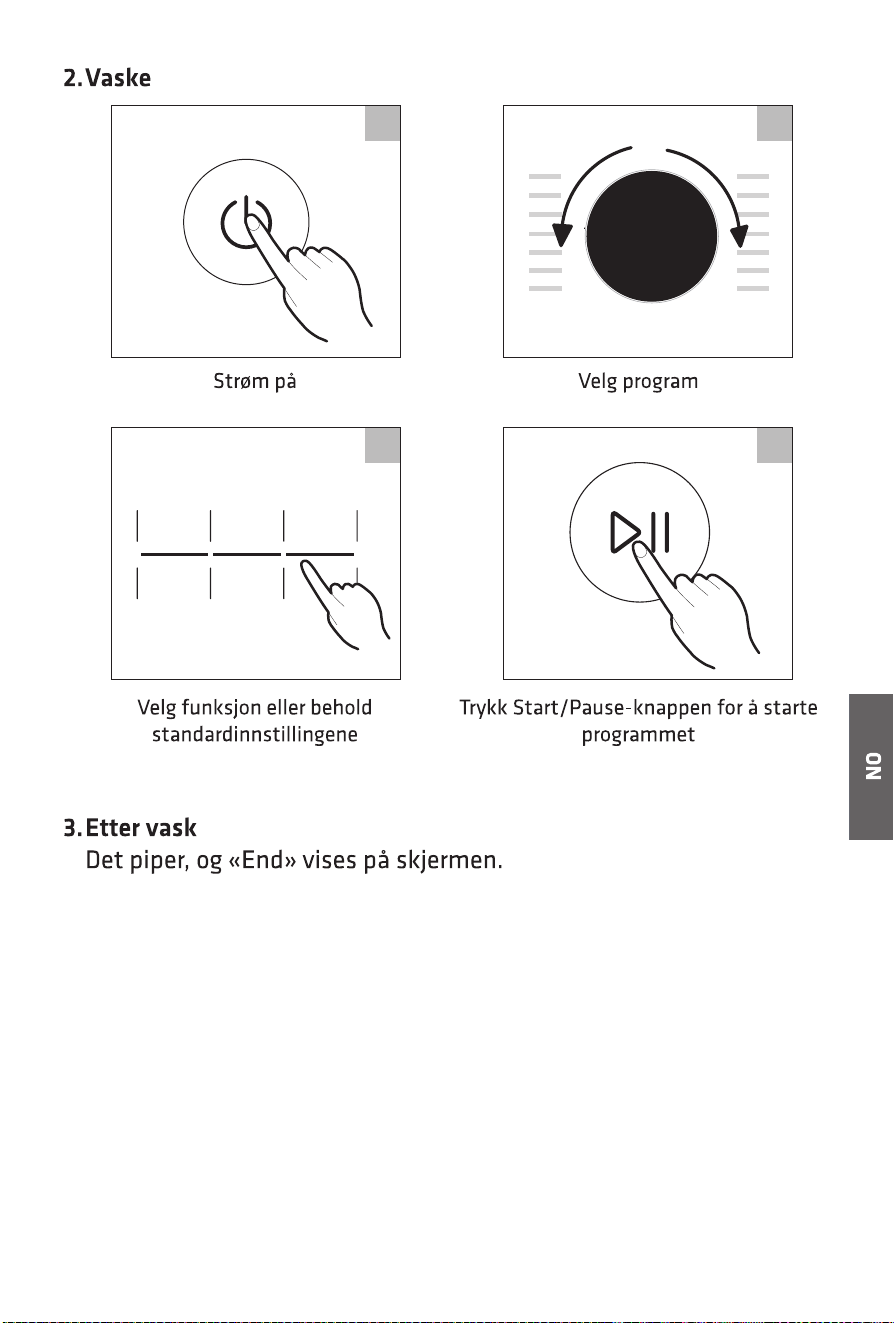

73
1
2
3
4
74
1
2
3
4
75
1
2
3
5
4
Filter cap
6
76

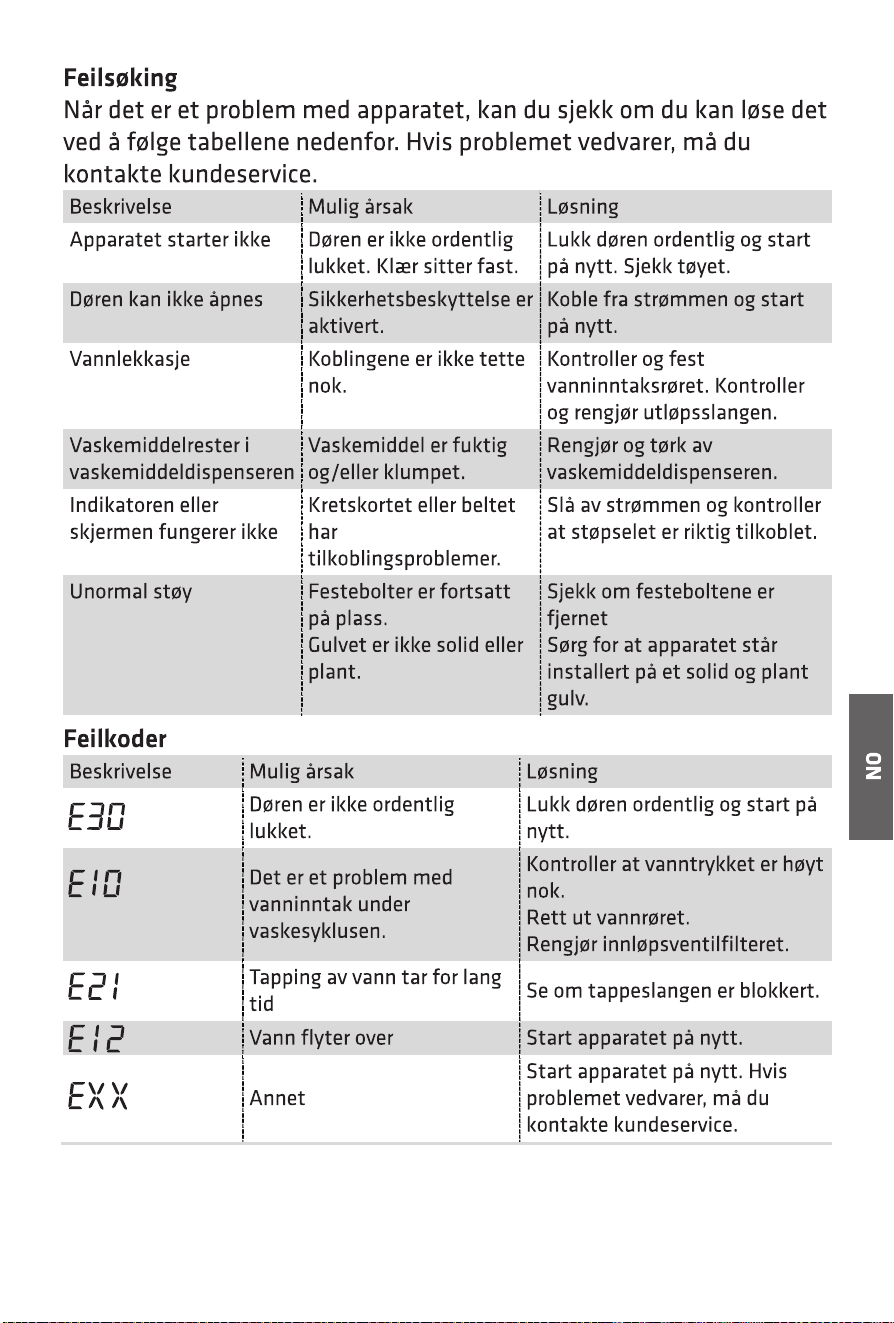

77
78
A
B
C
G
H
F
E
D
79
80
81
82
83
124
125
126
127
128
129
130
131
132
133
B≥20mm
134
135
136
137
138
139
140
141
142
143
144
145
146
147

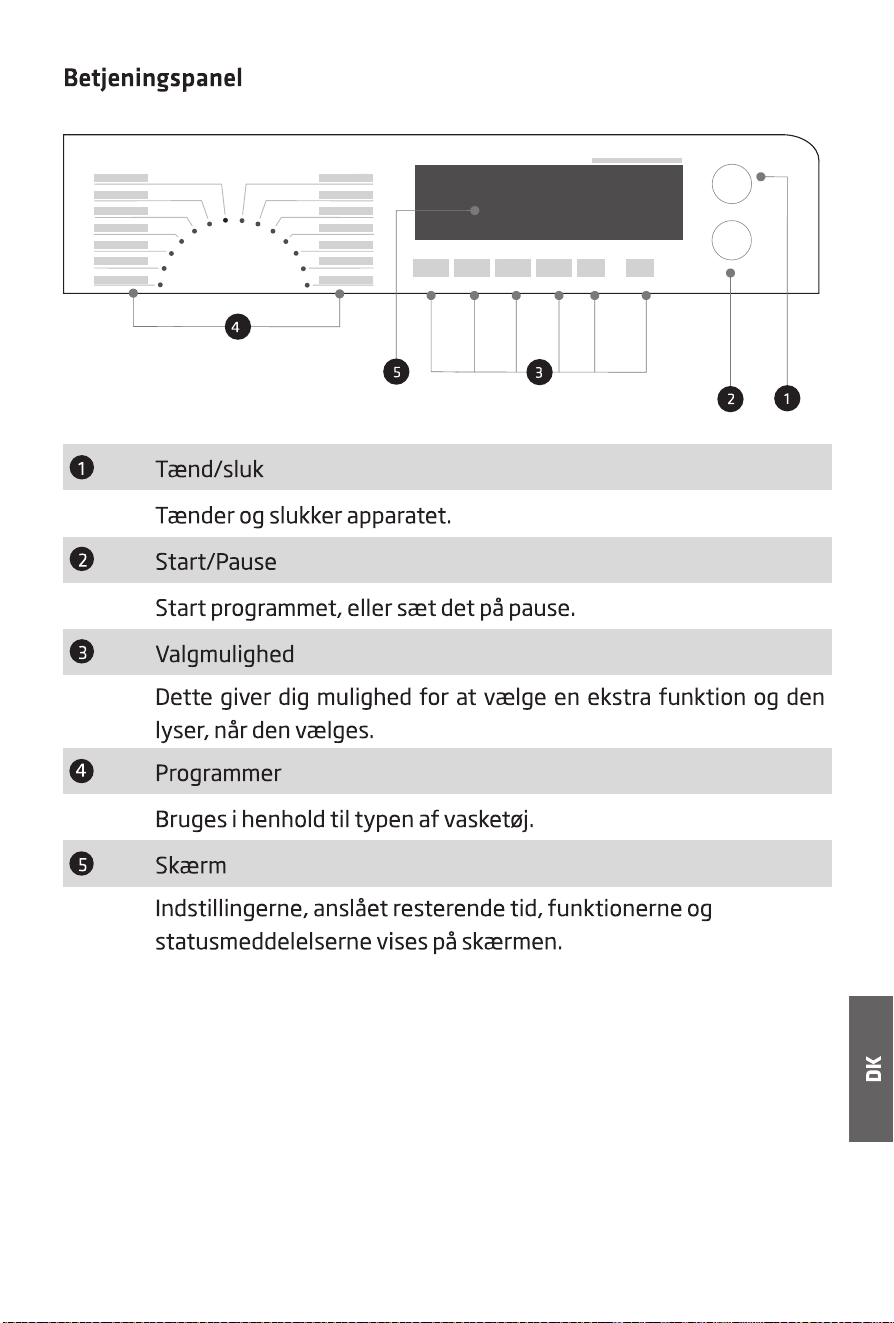

148
149
Hurtig
vask
Ekstra
skylning
Forvask
Udskyd
Udskyd
150
SpaCare
Hastighed
151
Tromlenigen
Udskyd
SpaCare
Hastighed
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
B≥20mm
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
