Technical Support and E-Warranty Certificate www.vevor.com/support
ICE MAKER
INSTRUCTION MANUAL
MODEL: IMB1000C-UL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: IMB1000C-UL
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ICE MAKER
IMB1000C-UL
- 2 -
Read this manual thoroughly before using and save it for future reference.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, explosion, electric shock, or injury when using
your ice maker, follow these important safety instructions:
1.Before using, check that the voltage power corresponds to the one shown on the
appliance nameplate.
2.Do not remove any safety, warning, or product information labels from your ice
maker.
3.Plug the ice maker into an exclusive grounded power outlet. No other appliance
should be plugged into the same outlet. Be sure that the plug is fully inserted into
the receptacle.
4.This appliance must be grounded. It is equipped with a power cord having a
grounding plug. The plug must be plugged into an outlet that is properly installed
and grounded.
5.Avoid using an extension cord because it may overheat and cause a fire risk.
However, if it is necessary to use an extension cord:
1) Use only an extension cord with a grounding plug.
2) The marked rating of an extension cord must be equal to or greater than the
rating of this appliance.
3) It should be positioned such that it does not drape over the counter or tabletop
where it can be pulled on by children intentionally.
6.Do not operate any appliance with a damaged cord or plug or after the appliance
malfunction or has been damaged in any manner. Return the appliance to the
nearest authorized service facility for examination, repair or adjustment.
7.If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
8.Do not let the cord hang over the edge of the table or counter.
9.Do not place on or near a hot gas or electric burner, or in a heated oven.
10.Place power cord in such a way it cannot be pulled on by children or cause a
tripping hazard.
- 3 -
11.Place power cord in such a way that it is not in contact with hot surfaces.
12.The use of attachment not recommended or sold by manufacturer may cause
fire, electric shock or injury.
13.Do not touch the evaporator when using the ice maker or making ice to avoid
frostbite.
14.Do not immerse any part of the product in water.
15.To disconnect, turn any control to “OFF”, then remove plug from wall outlet.
16.Do not plug or unplug product with wet hands.
17.Unplug the product before cleaning, maintaining, and when not in use.
18.Do not use microbiologically unsafe water or of unknown quality.
19.Do not clean your ice maker with any flammable fluids. The fumes may create a
fire hazard or explosion.
20.Do not overturn the ice maker. If the ice maker is overturned accidentally, make
it stand steadily for 2 hours before power it on again.
21.If the ice maker is brought in from outside in wintertime, do not use for a few
hours, allowing the unit to warm up to the room temperature before operating.
22.Never put flammable, explosive and corrosive articles into the ice maker.
23.Never use the ice maker when there is flammable gas leakage.
24.Never store or use gas and other flammable articles near the ice maker to
avoid any fire.
25.Unplug the ice maker before moving it to avoid damaging the refrigerating
system.
26.Do not attempt to disassemble, repair, modify, or replace any part of your
product.
27.This appliance is not intended for used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliances by a person responsible for their safety.
28.Children should be supervised to ensure that they do not play with the
appliance.
29.Close supervision is necessary when any appliance is used by or near children.
30.Do not leave the appliance unattended while in use.
31.Do not use outdoors.
- 4 -
32.Do not use the appliance for other than intended use.
33.Please abandon the ice maker according to local regulators as it uses
flammable blowing gas and refrigerant.
Please according to local regulations regarding disposal of the appliance for its
flammable refrigerant and blowing gas.
SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

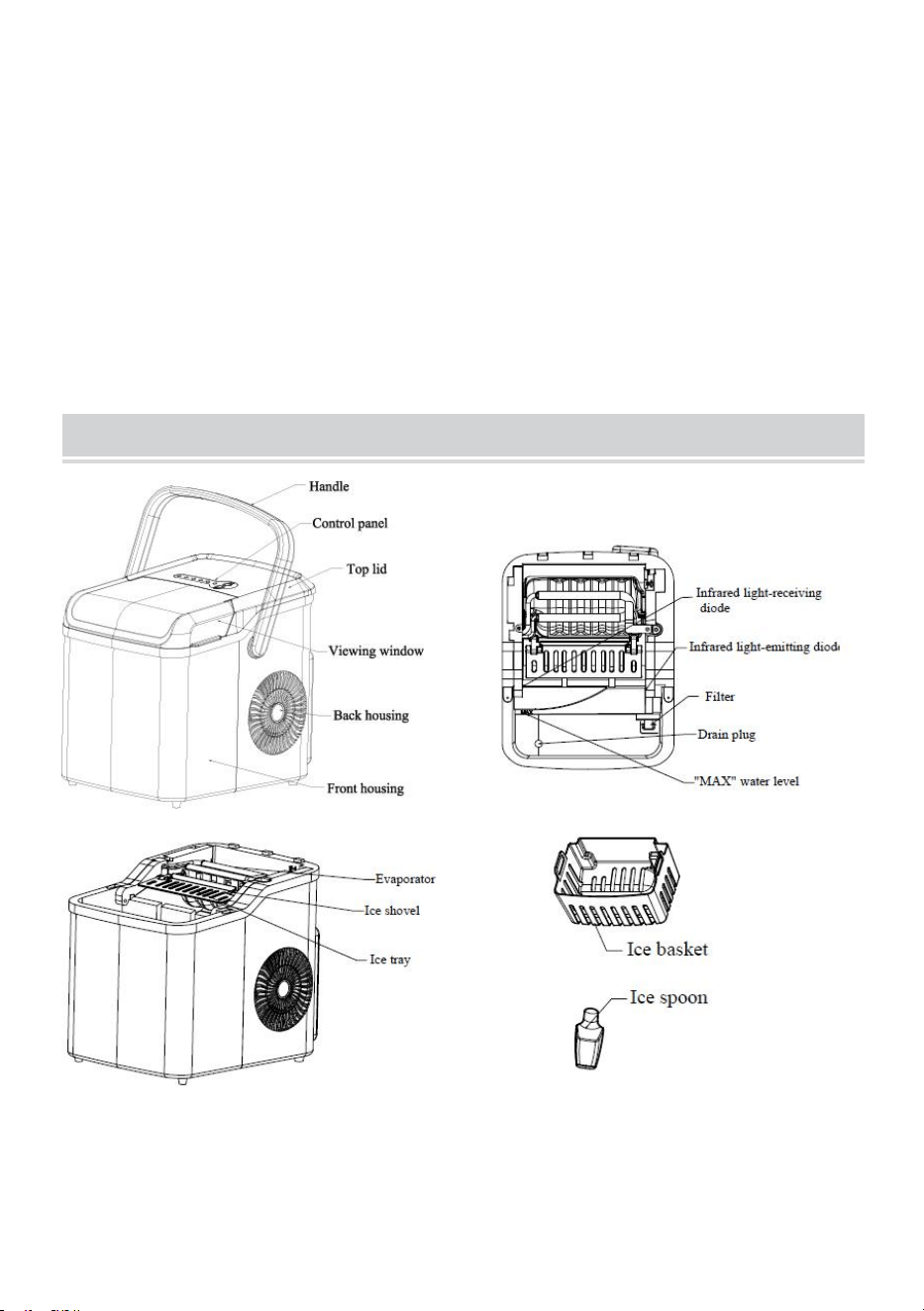

KNOW YOUR ICE MAKER
(Product may be subject to change without prior notice)
- 5 -
CONTROL PANEL
Key (with indicator)
Function
Start or stop the appliance
Standby mode: “ ” indicator blinks;
Working condition: “ ” indicator lights solidly.
“ ” indicator lights up when the ice basket is full.
“ ” indicator lights up when the water reservoir is
lack of water.
The indicator lights up when select small ice.
The indicator lights up when select large ice.
“ ” indicator lights up when the appliance is
cleaned.
Can select “ ”, “ ” or “ ” under
standby mode, after power on, can select “S” or “L”.
- 6 -
BEFORE FIRST USE
1.Unpack the appliance, then check and make sure that all the accessories ,
including the ice basket and ice scoop, etc., are complete. Please contact with the
client service department if some accessories are missing.
2.Please ensure the ice maker is level and on a stable table or platform to avoid
malfunction.
3.The incline angle of the ice maker cabinet should not exceed 45°during
transportation or use. Do not turn the ice maker upside down. Doing so could
cause the compressor or refrigerating system to operate incorrectly. Please allow
time for the fluids in the compressor to settle after the ice maker is moved or
transported. Before using the ice maker for the first time, please wait for 2 hours
after the unit has been leveled and positioned in the proper place.
4.The appliance must be placed on a dry and level surface with sufficient
ventilation, far from heat sources such as ovens, heaters and corrosive gases.
Leave about a 6-inch (15cm) clearance on all sides of the ice maker for proper
ventilation.
5.Do not fill the water reservoir with hot water. This may damage the ice maker. It
is best to fill the water reservoir with water of room temperature or lower.
6.Do not use the appliance in a cold environment (lower than 5℃).
7.Clean the appliance by following the operation of “CLEANING AND
MAINTENANCE” before operate.
USING YOUR ICE MAKER
1.Ensure that the drain plug at the bottom of water reservoir is closed well.
2.Plug the ice maker into the wall outlet, the “ ” indicator blinks.
NOTE: Please rest the ice maker for 30 minutes before plug if it has been moved.
3.Open the top lid and remove the ice basket.
- 7 -
4.Fill the water reservoir with drinking water.
NOTE: Do not fill above the MAX water level mark.
5.Replace the ice basket and close the top lid.
6.Press “ ” key, and the “ ”indicator lights solidly. At that time,
press “ ”key to select the ice size. If need to clean the appliance, press
“ ” key to select “ ” function under standby mode.
7.The ice-making cycle will last approximately 7-15 minutes, depending on the
ambient temperature and water temperature.
8.The ice-making cycle starts with water being pumped into the ice tray situated
below the evaporator. Over the next 7-15 minutes ice forms on the evaporator.
Once this has completed, the ice tray will tilt backwards and the remaining water in
the ice tray is drained back into the water reservoir. The ice cubes are then
dropped from the evaporator and pushed forward into the ice basket by the ice
shovel. The ice tray will automatically move back into position under the
evaporator and start the next cycle.
9.The “ ” indicator will light up when the ice basket is full and then the ice
maker will stop the ice-making cycle automatically. Gently remove the ice from the
ice basket with the ice scoop. About 5 seconds later, the ice maker will restart its
ice making function automatically.
10.The “ ” indicator will light up when the water reservoir is lack of water
and the ice-making cycle will stop automatically. At that time, remove the ice
basket and add water to the water reservoir, and then press “ ” key
again to restart the ice-making cycle. The appliance will start working automatically
after about 30 minutes if the operator forgets to restart the appliance after refill.
11.When you have got your desired amount of ice, stop the ice making cycle by
pressing the “ ” key and unplug the unit from the wall outlet.
12.Open the top lid and transfer the ice to a freezer.
13.Allow the ice maker to reach room temperature.
14.Suggest replacing the water every a week. Please empty the water reservoir if
the ice maker is not used for a long time.
- 8 -
CLEANING AND MAINTENANCE
To keep your ice tasting fresh and your ice maker looking great, we
recommend cleaning your ice maker once per week.
1.Stop the ice-making cycle by pressing the “ ” key, unplug the ice
maker from the wall outlet and allow it to warm up to room temperature.
2.If residual water is found in the ice tray, gently push the ice tray back so that all
water drains into the water reservoir.

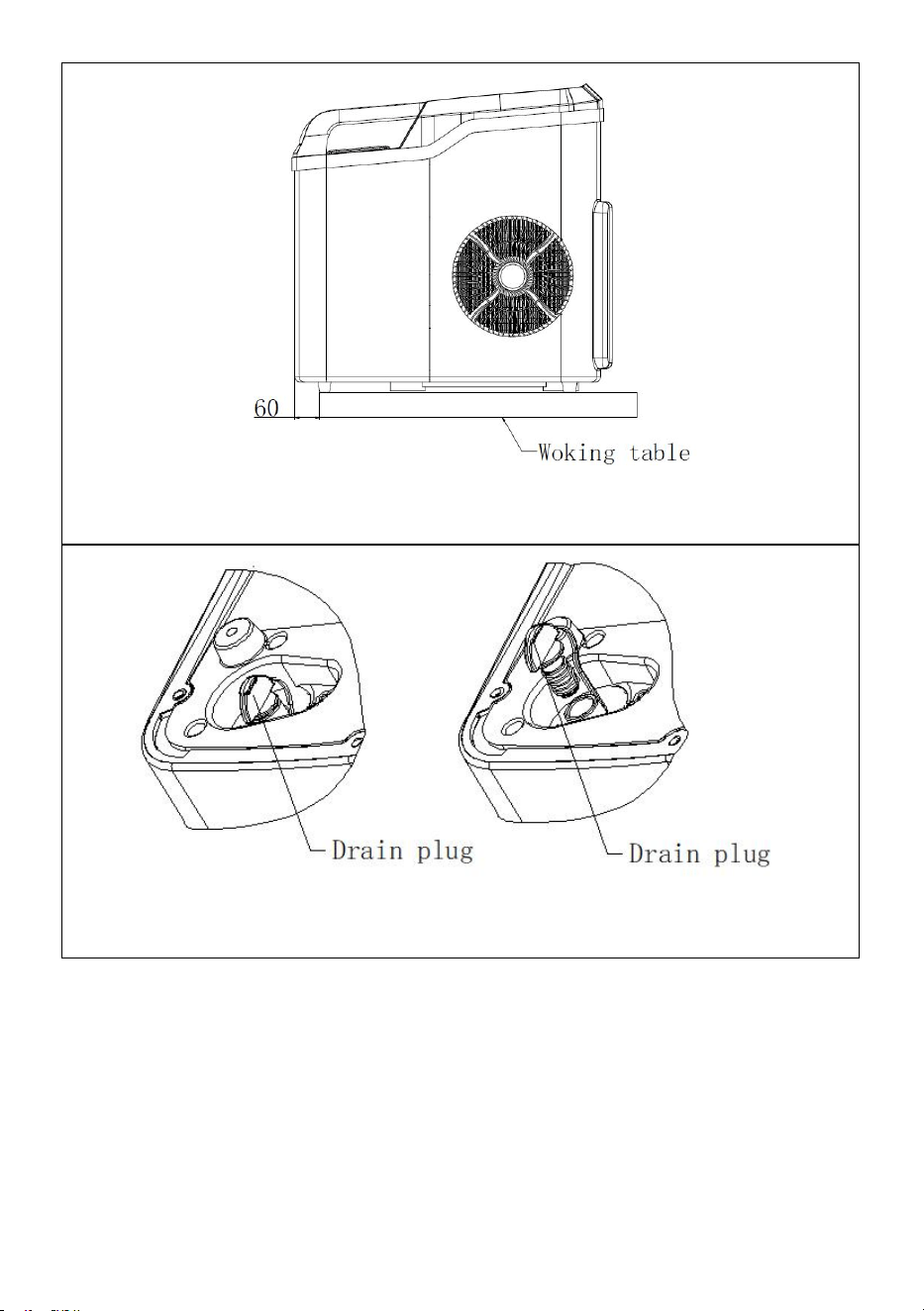

3.Move the appliance forward to a place 60mm away from the working table and
open the drain plug to drain out excess water (see Fig.4, Fig.5 and Fig.6).
4.Check and make sure the drain plug must be closed well. Fill the water reservoir
with clean water, press‘ ’until the ‘ ’ indicator flashes,then press
the “ ” key , the pump will start to pump water and keep running for 6
minutes, and it will enter into standby condition after running for 6 minutes, finally,
open the drain plug and empty the water.
5.Remove the ice basket.
6.Clean the ice maker interior with a soft cloth soaked with warm water and
vinegar, then rinse with clean water and then drain all the water.
7.Replace the drain plug well in position. Wash the ice basket and ice scoop in
warm soapy water. Rinse and dry.
8.Clean the exterior of the ice maker with a soft damp cloth. Use a mild
dishwashing soap, if necessary.
NOTE:
1) Do not use organic solvent, boiled water, detergent, strong acid and strong
alkali etc. for cleaning.
2) Do not clean the evaporator.
9.Please empty the water reservoir and dry it for storage if the ice maker is not
used for a long time.
- 9 -
Fig.1
Fig.2 Fig.3
- 10 -
TROUBLESHOOTING
Problem
Possible causes
Solution
“ ” indicator
turns on
1.Low water level or lack
of water
2.The water screen at the
bottom of water reservoir
is blocked.
3.Pump malfunction.
1.Stop making ice, refill water
and then press “ ”
key to restart ice-making
cycle.
2.Do cleaning
3.Send it to the authorized
department for repair.
“ ” indicator
lights up
1.Ice basket is full and the
infrared light is blocked by
the ice.
2.Infrared light-emitting
diode & light-receiving
diode do not work
1. Remove the ice from ice
basket.
2a. Wipe up the foreign
objects on the infrared
light-emitting diode &
light-receiving diode and
restart the ice maker.
2b. Call Customer Service if
the infrared light-emitting
diode & light-receiving diode
still can not work after wiping
up the foreign objects on
them and restarting the ice
maker.
The ice collects
together.
Making ice takes too much
time.
Stop making ice and restart
the ice-making cycle after the
ice melts.
The water in the water
reservoir is of too low
temperature.
Fill the water reservoir with
water ranges between 8℃
and 25℃.
- 11 -
The ice-making
cycle seems
normal but no ice
is produced.
The ambient temperature
or water temperature is too
high.
Start the ice-making cycle at
a environment with an
ambient temperature less
than 32°C and fill the water
reservoir with some cold
water.
Refrigerating system leaks
Call customer service
Refrigerating system
blocks
Call customer service
Poor ice-making
result
1.Poor heat dissipation.
2.The water temperature is
too high.
3.The ambient
temperature is too high.
1.Leave a 6-inch clearance
on all sides of the ice maker
for proper ventilation.
2.Fill the water reservoir with
water ranges between 8℃
and 28℃.
3.Operate the ice maker at a
environment with an ambient
temperature between 10℃
and 32℃.
Water pump does
not work or
produces noise.
1.Water pump is damaged.
2.The appliance has not
been cleaned for a long
time,which has resulted in
the formation of mucoid
substance at the water
inlet of the water pump, so
that the water-pumping is
not smooth. There is air in
the water pipe, so there
will be resonance noise
produced when pumping
water.
1.Contact the after-sales
department for replacing the
water pump.
2.The appliance should be
cleaned in one to two weeks,
and some neutral cleaning
agents (such as detergent
and soapy water etc.) can be
added if necessary.
- 12 -
TECHNICAL PARAMETERS
Model: IMB1000C-UL
Ice Production: 26 Ibs/day
Applicable climate: ST/SN/N/T
Class: I
Power source: 120V/60Hz
Rated power: 105W
Refrigerant/Refrigerant amount: R600a / 23g
Net weight: 6.1kg
Housing: PP
Unit size(DXWXH): L303×W249×H282mm
