• Page 1 - English - : PRECAUTIONS 2391477A868A e PRECAUTIONS 23 General safety instructions 23 Installation 26 Appliance purpose 27 This user manual 27 Manufacturers liability 28 Identification plate 28 Disposal 28 Energy efficiency information 28 To save energy 28 Information on power consumption in offstandby mode 28 How to read the user manual 28 DESCRIPTION 29 General description 29 USE 30 Precautions 30 Using the hob 30 CLEANING AND MAINTENANCE 31 Cleaning the hob 31 Cleaning the surfaces 32 What to do if 32 INSTALLATION 32 Gas connection 32 Gas types and Countries 35 Burner and nozzle characteristics table 60 cm models 36 Electrical connection 37 Section cut from the countertop 38 Mounting 39 Fixing to the supporting structure 40 Instructions for the installer 40 These instructions apply only to the destination countries listed on the appliances data plate This is a class 3 builtin hob PRECAUTIONS General safety instructions Risk of personal injury CAUTION During use the appliance and its accessible parts become very hot Keep children well away from the appliance Protect hands with heat resistant gloves during use Never try to put out a fire or flames with water Turn off the appliance and smother the flames with a fire blanket or other appropriate cover This appliance may only be used by children aged 8 years and over and by people of reduced physical sensory or mental capacity or lacking in experience in the use of electrical appliances provided that they are supervised or have been given instructions on the safe use of the appliance and of the hazards associated with it Children must not play with the appliance Keep children under the age of eight at a safe distance unless they are constantly supervised Keep children under the age of 8 away from the appliance when it is in use Cleaning and maintenance must not be carried out by unsupervised children Make sure that the flame spreader crowns are correctly
• Page 2 - English - : 24 PRECAUTIONS 91477A868A positioned in their housings with their respective burner caps The cooking process must always be kept under control A short cooking process must be continuously monitored CAUTION Cooking foods containing fat andor oil without monitoring them can be dangerous and can cause a fire Fats and oils can catch fire if they overheat Do not leave the appliance unattended while preparing foods containing oils or fats If fats or oils catch fire never put water on them Place the lid on the saucepan and turn off the burner Do not place metal objects such as dishes or cutlery on the surface of the hob during cooking as they may overheat WARNING leaving food unattended when cooking using fat or oil can be dangerous and can cause a fire DO NOT attempt to extinguish a fire with water Turn off the appliance and smother the flames for example with a lid or a blanket Do not cook foods in closed tins or containers or plastic containers Do not insert pointed metal objects cutlery or utensils into the slots in the appliance Do not use or store flammable materials near the appliance or directly underneath the hob Switch off the appliance immediately after use Do not pull the cable to unplug the appliance if present DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE DO NOT MODIFY THIS APPLIANCE Always wear personal protective equipment PPE before carrying out any work on the appliance installation maintenance positioning or moving Do not clean the appliance if it is still hot or in operation Before performing any work on the appliance switch off the power supply Do not try to repair the appliance yourself or without the assistance of a qualified technician If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards CAUTION A gas cooking appliance produces heat humidity and combustion products in the room where it is installed Make sure there is good ventilation especially when the appliance is in use
• Page 3 - English - : PRECAUTIONS 2591477A868A e keep the natural ventilation openings open or install a mechanical ventilation device Intensive and prolonged use of the appliance may require additional ventilation for example opening a window or more effective ventilation for example by increasing the power of any mechanical suction devices This appliance is not designed to be installed or operated with aftermarket lids or covers Risk of damaging the appliance Do not sit on the appliance Do not use the appliance as a support surface Do not obstruct ventilation openings and heat dispersal slots Do not use the hob if the pyrolytic cycle is taking place inside any oven installed below Do not use steam jets to clean the appliance Never leave the appliance unattended during cooking operations where fats or oils could be released as these could then heat up and catch fire Be very careful Fire hazard Never leave objects on the cooking surfaces DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER Cooking vessels or griddle plates should be placed inside the perimeter of the hob All pans must have smooth flat bottoms If any liquid does boil over or spill remove the excess from the hob Take care not to spill acid substances such as lemon juice or vinegar on the hob Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt or catch fire paper plastic or aluminium foil on the appliance while it is in use Place the cookware directly onto the grids above the burners Do not put empty pans or frying pans on burners that are lit Do not use rough or abrasive materials or sharp metal scrapers Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating Do not wash removable parts such as the hob pan support grids flamespreader crowns and burner caps in the dishwasher
• Page 4 - English - : 26 PRECAUTIONS 91477A868A This appliance is not designed to operate with external timers or with remotecontrol systems To avoid damaging the racks do not drag the pans lift and reposition them instead Installation THIS APPLIANCE MUST NOT BE INSTALLED IN BOATS OR CARAVANS This appliance must not be installed on a dishwasher Position the appliance into the cabinet cutout with the help of a second person Before installation make sure that the local distribution conditions type and pressure of the gas and the regulation of the appliance are compatible This appliance is not connected to a system for extracting combustion products It should be installed and connected in compliance with current installation regulations Pay particular attention to the requirements regarding ventilation The settings for this appliance are shown on the gas settings label Have the gas connection performed by authorised personnel Have the electrical connection performed by authorised technical personnel Installation using a hose must be carried out so that the length of the hose does not exceed 2 metres when fully extended for steel hoses and 15 metres for rubber hoses The gas connection hoses must not come into contact with moving parts of the builtin module for example a drawer and must not be routed through a space that could cause it to be pinched If required use a pressure regulator that complies with current regulations After carrying out any operation check that the tightening torque of gas connections is between 10 Nm and 15 Nm At the end of the installation check for any leaks with a soapy solution never with a flame Check that the carcase has the required openings Check that the carcase material is heat resistant Installation and servicing should be carried out by qualified personnel in accordance with current standards The appliance must be connected to earth in compliance with electrical system safety standards Use cables that can withstand temperatures of at least 90C
• Page 5 - English - : PRECAUTIONS 2791477A868A e Run the power cable in the rear part of the unit Make sure that it does not come into contact with the lower part of the hob or a builtin oven below it Be careful when connecting additional electrical appliances Connection cables must not come into contact with hot cooking zones The tightening torque of the screws of the terminal supply wires must be 15 2 Nm The power cable must only be installed or replaced by a qualified technician If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards Always use any necessary required personal protective equipment PPE before performing any work on the appliance installation maintenance positioning or movement Before performing any work on the appliance switch off the power supply Allow the appliance to be disconnected after installation via an accessible plug or a switch in the case of a fixed connection Fit the power line with an all pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations You should make sure that the appliance is working correctly rotation of knobs positioning of the pan supports etc only once it has been installed and secured to the unit This appliance can be used up to a maximum altitude of 2000 metres above sea level Appliance purpose This appliance is intended for cooking food in the home environment Every other use is considered inappropriate It cannot be used in employee kitchens shops offices and other working environments in farmsfarmhouses by guests in hotels motels and residential environments In bed and breakfast accommodation This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the users reach for the whole working life of the appliance Read this user manual carefully before using the appliance The explanations in this manual include images which describe all that regularly appears on the display However it should be kept in mind that the appliance may be equipped with an updated version of the system and as such all that appears on the display may differ from those in the manual
• Page 6 - English - : 28 PRECAUTIONS 91477A868A Manufacturers liability The manufacturer declines all liability for damage to persons or property caused by use of the appliance other than that specified failure to comply with the instructions in the user manual tampering with any part of the appliance use of nonoriginal spare parts Identification plate The identification plate bears the technical data serial number and brand name of the appliance Do not remove the identification plate for any reason Disposal This appliance conforms to the WEEE European directive 201219EU and must be disposed of separately from other waste at the end of its service life The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment in accordance with current European directives To dispose of the appliance Cut the power cable and remove it Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste or return it to the retailer when purchasing an equivalent product on a one for one basis Our appliances are packaged in nonpolluting and recyclable materials Deliver the packing materials to the appropriate recycling centre Energy efficiency information The information according to the European ecodesign directive can be found in a separate document together with the product instructions This information can be found in the quotProduct information sheetquot that can be downloaded from the page for the specific product on the website To save energy The diameter of the base of the pan must not extend beyond the lines printed on the glass ceramic surface Pans must not be placed outside the perimeter of the hob or on the display When buying a pan check whether the diameter indicated is that of the base or the top of the pan as the top is almost always larger than the base When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also helps to retain vitamins contained in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Information on power consumption in offstandby mode Technical data on the appliances power consumption in offstandby mode can be found at wwwsmegcom under the page corresponding to the product in question How to read the user manual This user manual uses the following reading conventions Power voltage Danger of electrocution Disconnect the mains power supply Unplug the appliance Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended Do not let children play with the plastic bags Under certain circumstances if the hob and the oven are used at the same time the maximum power limit of the electrical system might be exceeded WarningCaution

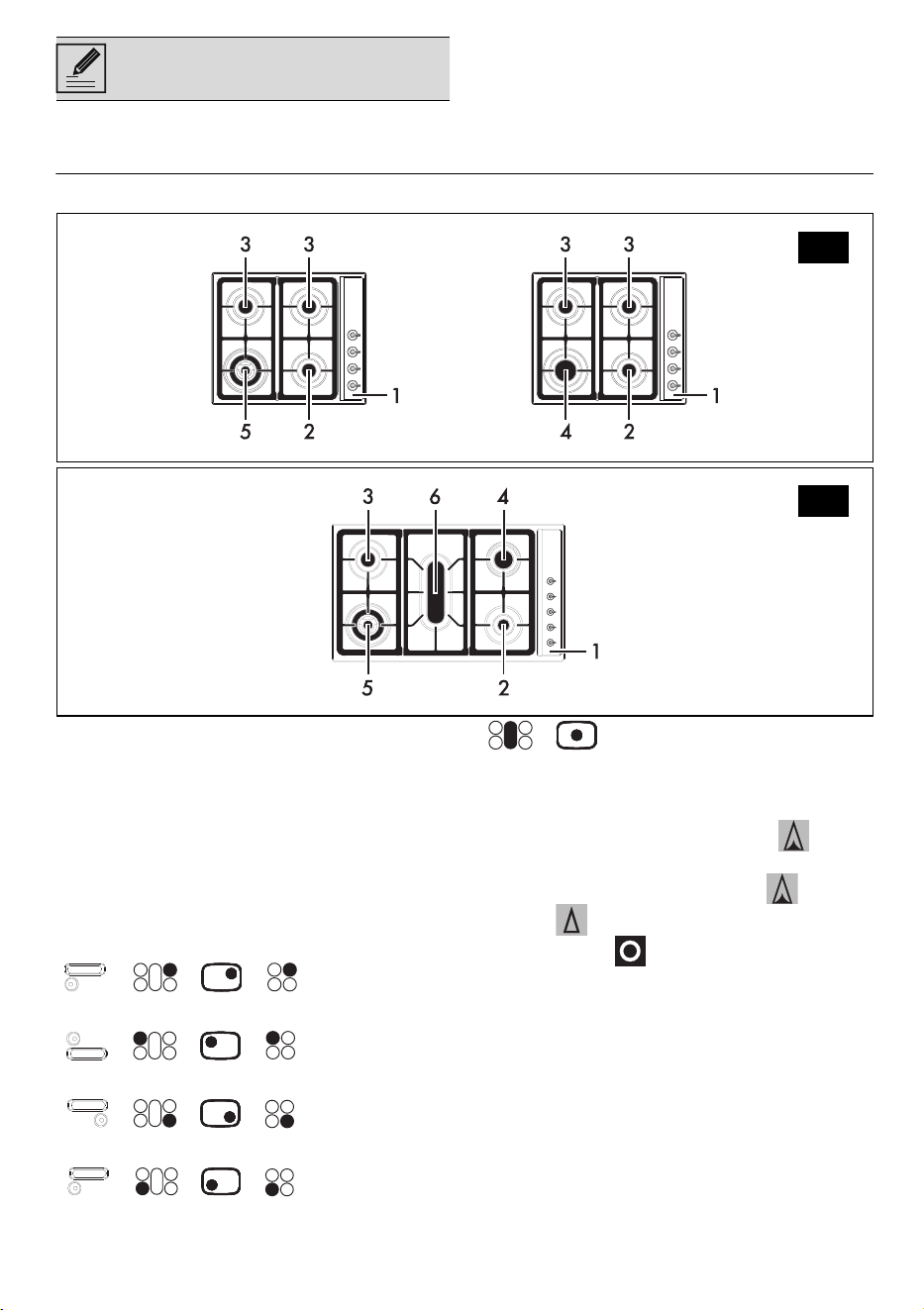

• Page 7 - English - : DESCRIPTION 2991477A868A e DESCRIPTION General description 1 Control panel 2 Auxiliary burner AUX 3 Semirapid burner SR 4 Rapid burner R 5 Ultrarapid burner UR 6 Fish kettle burner FB Rear right cooking zone Rear left cooking zone Front right cooking zone Front left cooking zone Centre cooking zone Burner knobs For lighting and adjusting the hob burners Press and turn the knobs anticlockwise to in order to light the relative burners Turn the knobs to the zone between the maximum and minimum setting to adjust the flame Return the knobs to the position to turn off the burners InformationAdvice

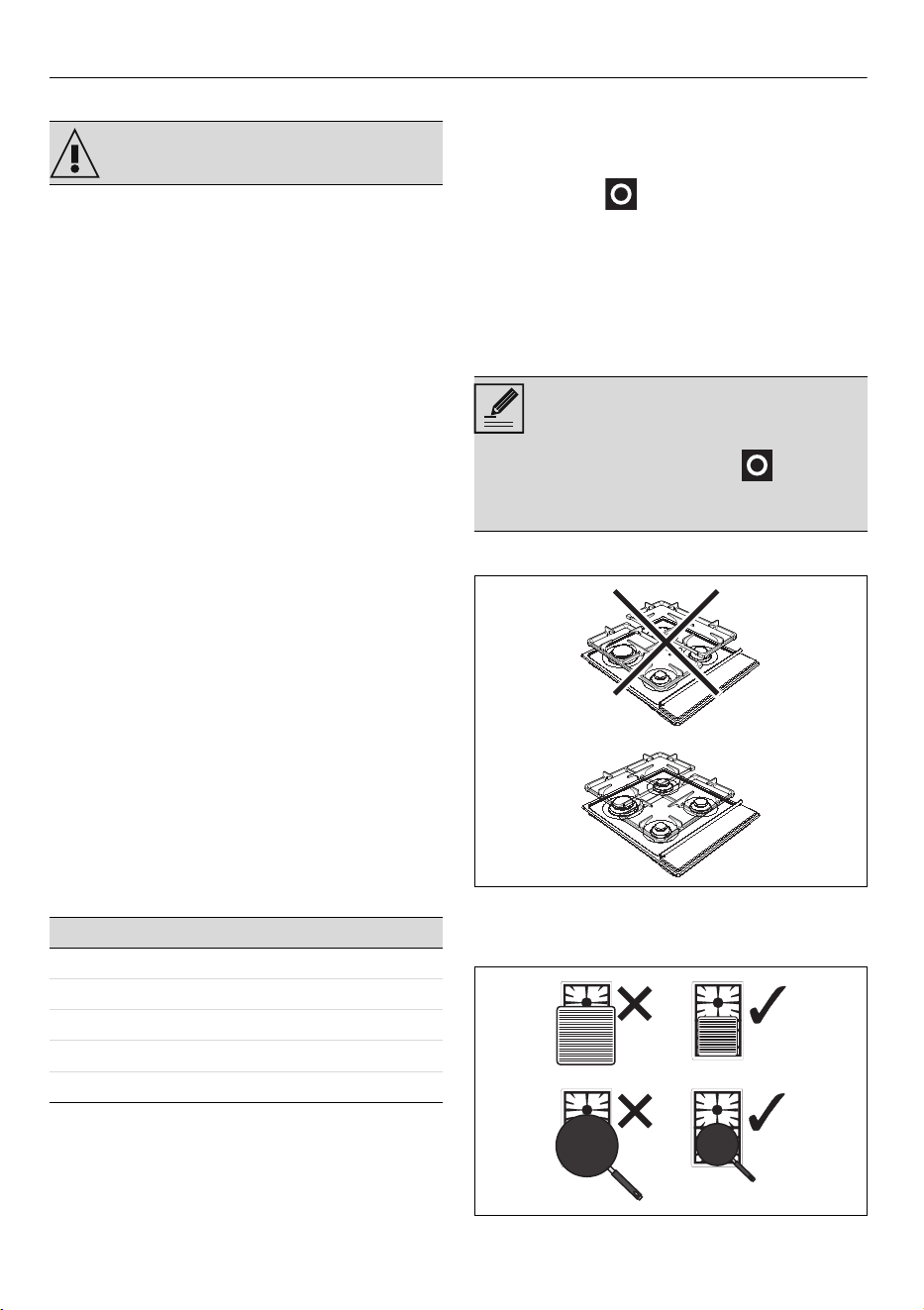

• Page 8 - English - : 30 USE 91477A868A USE Precautions A gas leak can cause an explosion If you smell gas or there are faults in the gas system Immediately turn off the gas supply or close the valve on the gas cylinder Extinguish all naked flames and cigarettes Do not turn on power switches or appliances and do not remove plugs from power sockets Do not use phones or mobile phones inside the building Open the window in order to ventilate the room Call customer assistance services or your gas supplier Malfunctions Any of the following indicate a malfunction and you should contact a service centre The burners do not ignite properly It is difficult to keep the burners lit The burners go out when the appliance is in use It is difficult to turn the gas cocks Practical tips for using the hob For better burner efficiency and to minimise gas consumption use pans with lids and of suitable size for the burner so that the flames do not reach up the sides of the pan Once the contents come to the boil turn down the flame far enough to ensure that the liquid does not boil over Using the hob All the appliances control and monitoring devices are located together on the front panel The burner controlled by each knob is shown next to the knob The appliance is equipped with an electronic ignition device Simply press the knob and turn it anticlockwise to the maximum flame symbol until the burner ignites If the burner does not light in the first 15 seconds turn the knob to and wait 60 seconds before trying again After lighting keep the knob pressed in for a few seconds to allow the thermocouple to heat up The burner may go out when the knob is released In this case the thermocouple has not heated up sufficiently Wait a few moments and repeat the operation Keep the knob pressed in longer Correct positioning of the grids The grids over the burners must be positioned in parallel to the control panel not perpendicular Use of containers When cooking to avoid burns damage to the See General safety instructions Burner Pan diameter AUX 12 14 cm SR 16 20 cm RR 22 26 cm UR 22 26 cm FB Suitable oval containers In case of an accidental switching off a safety device will be tripped cutting off the gas supply even if the gas cock is open Return the knob to and wait at least 60 seconds before lighting it again

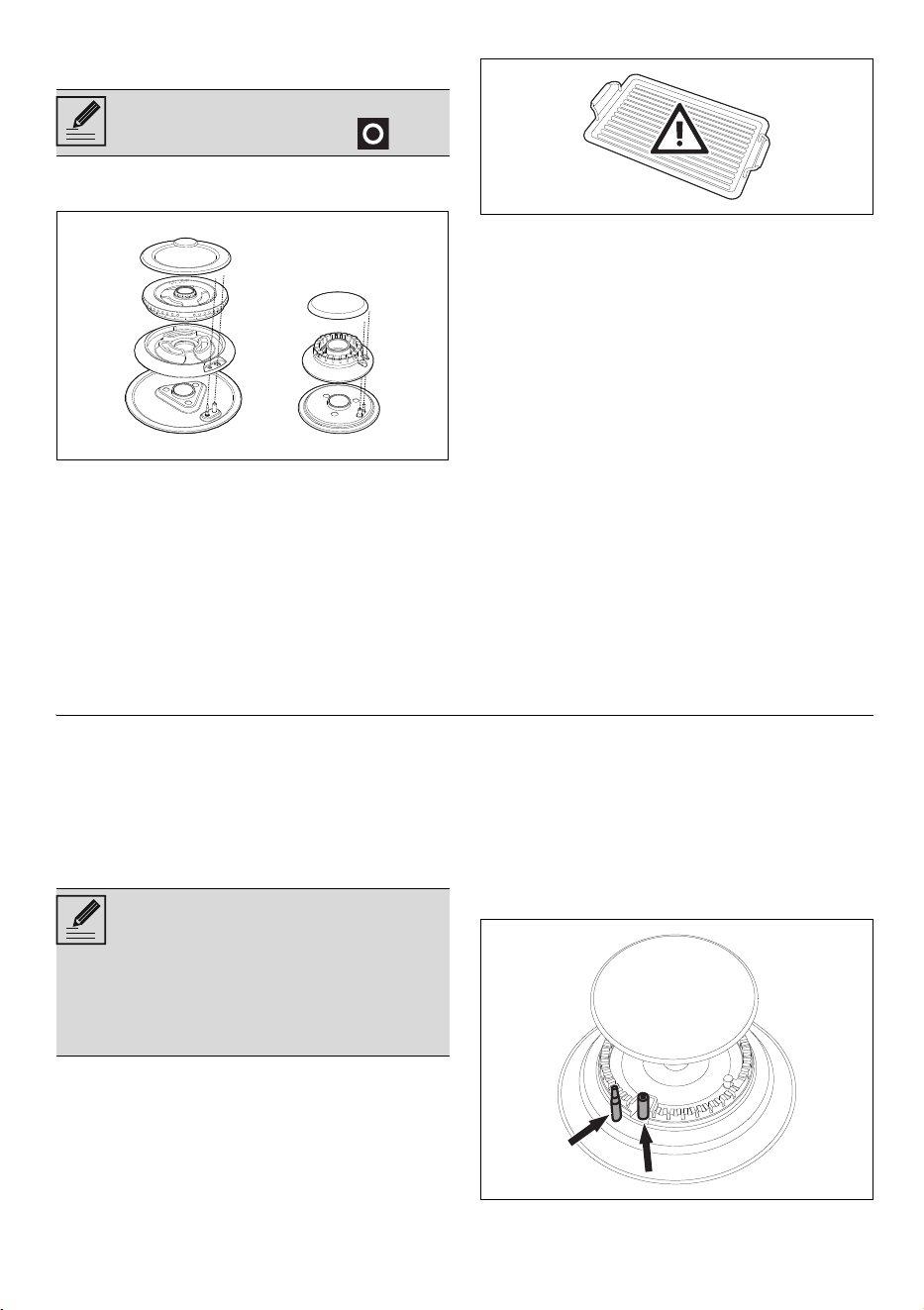

• Page 9 - English - : CLEANING AND MAINTENANCE 3191477A868A e hob or top all containers or steak pans must be positioned within the perimeter of the hob Correct positioning of the flamespreader crowns and burner caps Before lighting the hob burners make sure that the flamespreader crowns are correctly positioned in their seats with their respective burner caps Make sure that the holes in the burners are aligned with the igniters and thermocouples Also ensure that the flame spreader crowns are correctly engaged in the burner holes Precautions when using the griddle A few precautions are necessary if you wish to use a griddle The griddle must not extend beyond the edge of the hob Do not place the griddle over more than one burner at the same time The griddle can be preheated on the burner at maximum power for no more than 10 minutes Make sure that the burner flame does not extend beyond the edge of the griddle Keep a distance of at least 160 mm between the griddle and the side andor rear wall especially if it is placed on an UltraRapid burner Never use the griddle for more than 40 minutes CLEANING AND MAINTENANCE Cleaning the hob Cooking hob pan support grids Remove the pan support grids and clean them in lukewarm water and nonabrasive detergent Make sure to remove any encrustations Dry them thoroughly and return them to the hob Flamespreader crown and burner caps For easier cleaning the flamespreader crowns and the burner caps can be removed Wash them in hot water and nonabrasive detergent Carefully remove any encrustation then wait until they are perfectly dry Replace the flame spreader crowns making sure that they are correctly positioned in their housings with their respective burner caps Igniters and thermocouples For correct operation the igniters and thermocouples must always be perfectly clean Check them frequently and clean them with a damp cloth if necessary Remove any dry residues with a wooden toothpick or a needle At the end of each use always check that the knobs are in position off The continuous contact between the pan supports and the flame can cause modifications to the enamel over time in those parts exposed to heat This is a completely natural phenomenon which has no effect on the operation of this component
• Page 10 - English - : 32 INSTALLATION 91477A868A Cleaning the surfaces To keep the surfaces in good condition they should be cleaned regularly after use Let them cool first Ordinary daily cleaning Always and only use specific products that do not contain abrasives or chlorinebased acids Pour the product onto a damp cloth and wipe the surface rinse thoroughly and dry with a soft cloth or a microfibre cloth Food stains or residues Do not use steel sponges and sharp scrapers as they will damage the surface Use normal non abrasive products and a wooden or plastic tool if necessary Rinse thoroughly and dry with a soft cloth or a microfibre cloth What to do if The hob does not work Make sure that the hob is connected and that the main switch is turned on Make sure that there is no power failure Make sure that the fuse has not blown In this case replace the fuse Make sure that the circuit breaker of the residential electrical system has not tripped In this case reset the circuit breaker The cooking results are unsatisfactory Make sure that the hob is properly ventilated and that the air inlets are unobstructed The hob smokes Let the hob cool down and clean it once cooking is complete Make sure that the food has not spilled out of the pan and use a larger cooking vessel if needed The fuses blow or the circuit breaker of the residential electrical system trips repeatedly Call Technical Support or an electrician INSTALLATION Gas connection Connection to the gas mains can be made using a continuous wall steel hose in compliance with the guidelines established by the standards in force To use other types of gas see the chapter Adaptation to different types of gas The appliances gas connector has a ½ external thread ISO 2281 Connection with a steel hose Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard Carefully screw the connector 3 to the gas connector 1 of the appliance placing the seal 2 between them Connection with a steel hose with conical fitting Make the connection to the gas mains using a continuous wall steel hose whose specifications The appliance must be installed by a qualified technician and according to the regulations in force Appliance factory set for natural gas G20 at a pressure of 20 mbar See General safety instructions

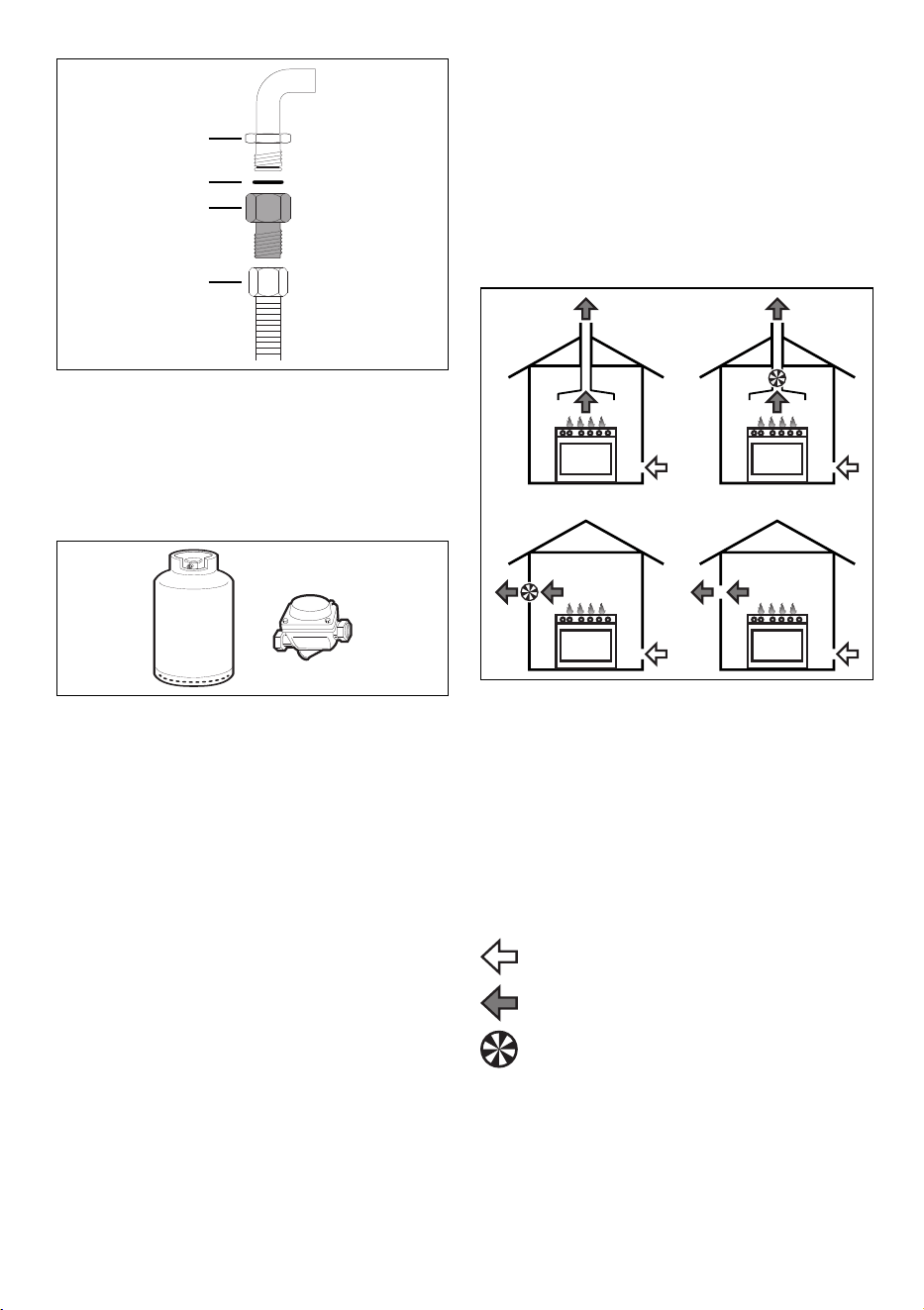

• Page 11 - English - : INSTALLATION 3391477A868A e comply with the applicable standard Carefully screw the hose connector 3 to the appliances gas connector 1 ½ thread ISO 2281 placing the seal 2 provided between them Apply insulating material to the thread of connector 3 and then screw the steel hose 4 onto the connector 3 Connection to LPG Use a pressure regulator and make the connection on the gas cylinder following the guidelines set out in the standards in force The supply pressure must comply with the values indicated in the Burner and nozzle characteristics table Room ventilation The appliance should be installed in rooms that have a permanent air supply in accordance with the standards in force The room where the appliance is installed must have enough air flow for the regular combustion of gas and the necessary air change in the room itself The air vents protected by grilles must be the right size to comply with current regulations and positioned so that no part of them is obstructed not even partially The room must be kept adequately ventilated in order to eliminate the heat and humidity produced by cooking In particular after prolonged use you are recommended to open a window or to increase the speed of any fans Extraction of the combustion products The combustion products may be extracted by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and clearances indicated by the applicable standards When the job is complete the installer must issue a certificate of conformity Adaptation to different types of gas If other types of gas are to be used the nozzles must be replaced and the primary air must be adjusted The top of the hob has to be removed in order to replace the nozzles and adjust the 1 Extraction using a hood 2 Extraction without a hood A Extraction with a single natural draught chimney B Extraction with a single chimney with extractor fan C Extraction directly outdoors with wall or windowmounted extractor fan D Extraction directly outdoors through wall Air Combustion products Extractor fan 1A1A 1B1B 2C2C 2D2D

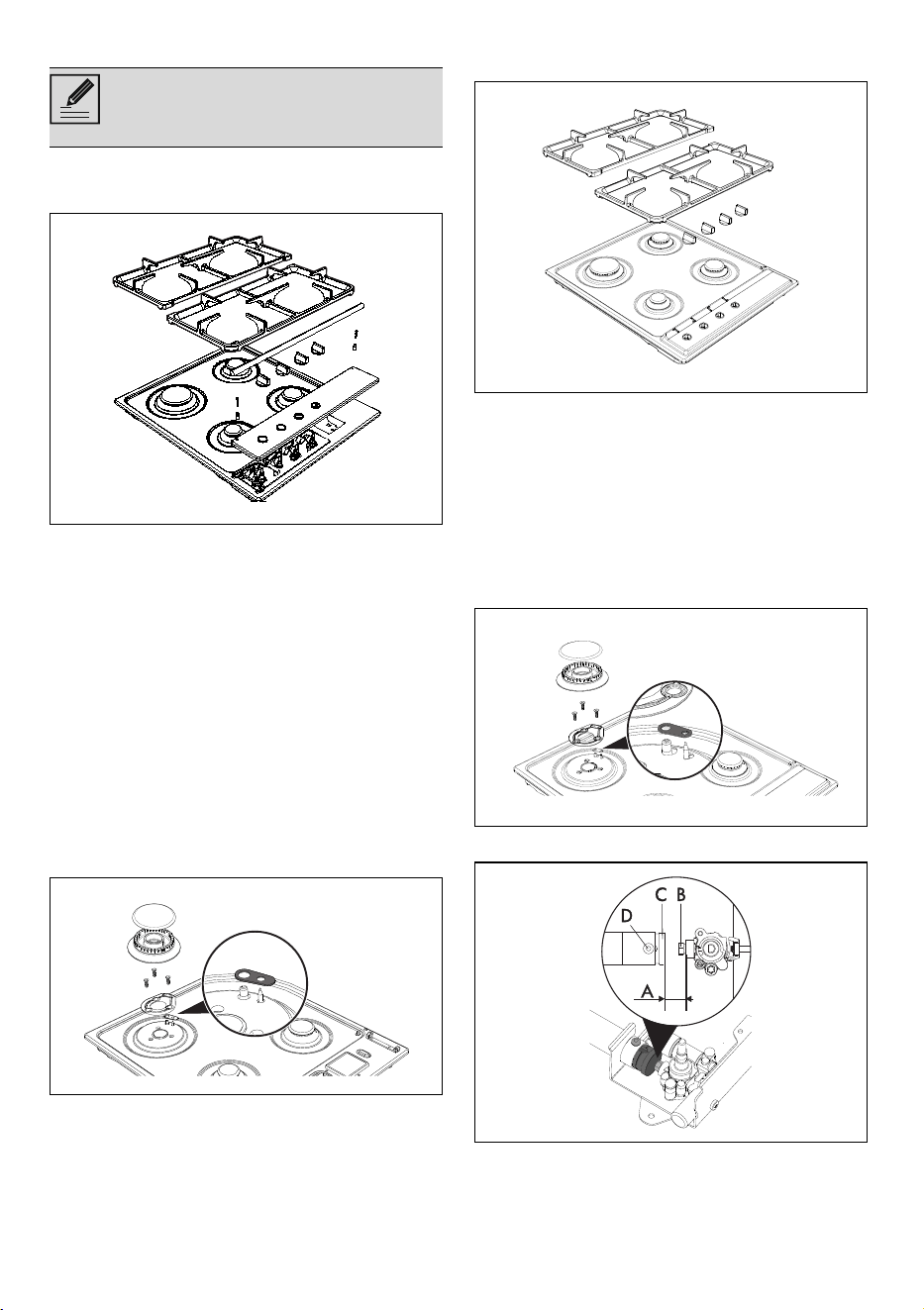

• Page 12 - English - : 34 INSTALLATION 91477A868A burners Removing the hob top models with removable control panel 7 Remove the grids from the hob top 8 Remove the knob guard by pulling it upwards 9 Unscrew the screws of the knob guard support spacers 10Remove the spacers 11Remove the knobs by pulling them upwards 12Remove the front panel by lifting it towards the right 13Remove all the burners from the hob 14Unscrew the screws under each burner to remove the fixing plate 15Remove the gasket on each burners thermocouple and igniter 16Remove the hob top Removing the hob top models with integrated control panel 1 Remove the grids from the hob top 2 Remove the knob guard by pulling it upwards 3 Remove all the burners from the hob 4 Unscrew the screws under each burner to remove the fixing plate 5 Remove the gasket on each burners thermocouple and igniter 6 Remove the hob top Replacing the nozzlesair regulation 7 Loosen the screw quotDquot and push the air regulator quotCquot as far as it will go 8 Use a spanner to remove the nozzles quotBquot and install the new ones for the new gas In order to be able to replace the nozzles the appliance must be removed from the builtin unit
• Page 13 - English - : INSTALLATION 3591477A868A e supply following the indications given in the relevant table see quotGas types and countriesquot 9 Adjust the air flow by moving the Venturi pipe quotCquot to obtain the distance quotAquot given in the corresponding table see quotGas types and countriesquot 10After adjusting each burner reassemble the appliance correctly Adjusting the minimum setting for natural or town gas 1 Light the burner and turn it to the minimum position 2 Remove the gas tap knob and turn the adjustment screw next to the gas cock spindle depending on the model until the correct minimum flame is achieved 3 Refit the knob and verify that the burner flame is stable 4 Turn the knob rapidly from the maximum to the minimum setting The flame should not go out 5 Repeat the operation on all the gas taps Adjusting the minimum setting for LPG Tighten the screw located at the side of the cock spindle clockwise all the way Lubricating the gas cocks Over time the gas cocks may become difficult to turn and get blocked Clean them internally and replace the lubrication grease Gas types and Countries The nozzle tightening torque must be no more than 3 Nm Following adjustment to a gas other than the one originally set in the factory replace the gas setting label on the appliance with the one corresponding to the new gas The label is inserted inside the nozzle pack where present Lubrication of the gas cocks should be performed by a specialised technician Gas types IT GB IE FR BE ES PT RU SE DK FI NO PL HU 1 Natural Gas G20 G20 20 mbar G2025 2025 mbar 2 Natural Gas G20 G20 25 mbar 3 Natural Gas G251 G251 25 mbar 4 Natural Gas G2350 G2350 13 mbar 5 LPG G3031 G3031 283037 mbar G3031 3030 mbar
• Page 14 - English - : 36 INSTALLATION 91477A868A It is possible to identify the available gas types based on the country the appliance is to be installed in Refer to the heading number to identify the correct values in the Burner and nozzle characteristics tablesquot Burner and nozzle characteristics table 60 cm models 6 LPG G3031 G3031 37 mbar 7 Town Gas G110 G110 8 mbar 1 Natural Gas G20 20 mbar AUX SR R UR Rated heating capacity kW 110 180 310 410 Nozzle diameter 1100 mm 73 93 128 142 Reduced flow rate W 400 500 800 1500 Primary air mm 315115 2 Natural Gas G20 25 mbar AUX SR R UR Rated heating capacity kW 110 180 310 410 Nozzle diameter 1100 mm 70 87 120 142 Reduced flow rate W 400 500 800 1500 Primary air mm 3 15 1 2 3 Natural Gas G251 25 mbar AUX SR R UR Rated heating capacity kW 110 180 310 410 Nozzle diameter 1100 mm 82 100 135 150 Reduced flow rate W 400 500 800 1500 Primary air mm 25 1 1 15 4 Natural Gas G2350 13 mbar AUX SR R UR Rated heating capacity kW 110 180 310 410 Nozzle diameter 1100 mm 100 126 175 200 Reduced flow rate W 400 500 800 1500 Primary air mm 25 15 1 1 5 LPG G3031 3037 mbar AUX SR R UR Rated heating capacity kW 110 170 310 410 Nozzle diameter 1100 mm 48 62 85 95 Reduced flow rate W 400 500 900 1500 Primary air mm 3 2 4 open Rated flow rate G30 gh 80 124 225 298 Rated flow rate G31 gh 79 121 221 293 6 LPG G3031 37 mbar AUX SR R UR Rated heating capacity kW 110 180 310 410 Nozzle diameter 1100 mm 48 60 80 92 Reduced flow rate W 450 500 900 1600 Primary air mm 3 2 25 5 Rated flow rate G30 gh 80 131 225 298 Rated flow rate G31 gh 79 129 221 293 7 Town gas G110 8 mbar AUX SR R UR Rated heating capacity kW 110 180 30 41 Nozzle diameter 1100 mm 135 175 230 310 Reduced flow rate W 400 500 800 1500 Primary air mm 2 1 1 25 Gas types IT GB IE FR BE ES PT RU SE DK FI NO PL HU

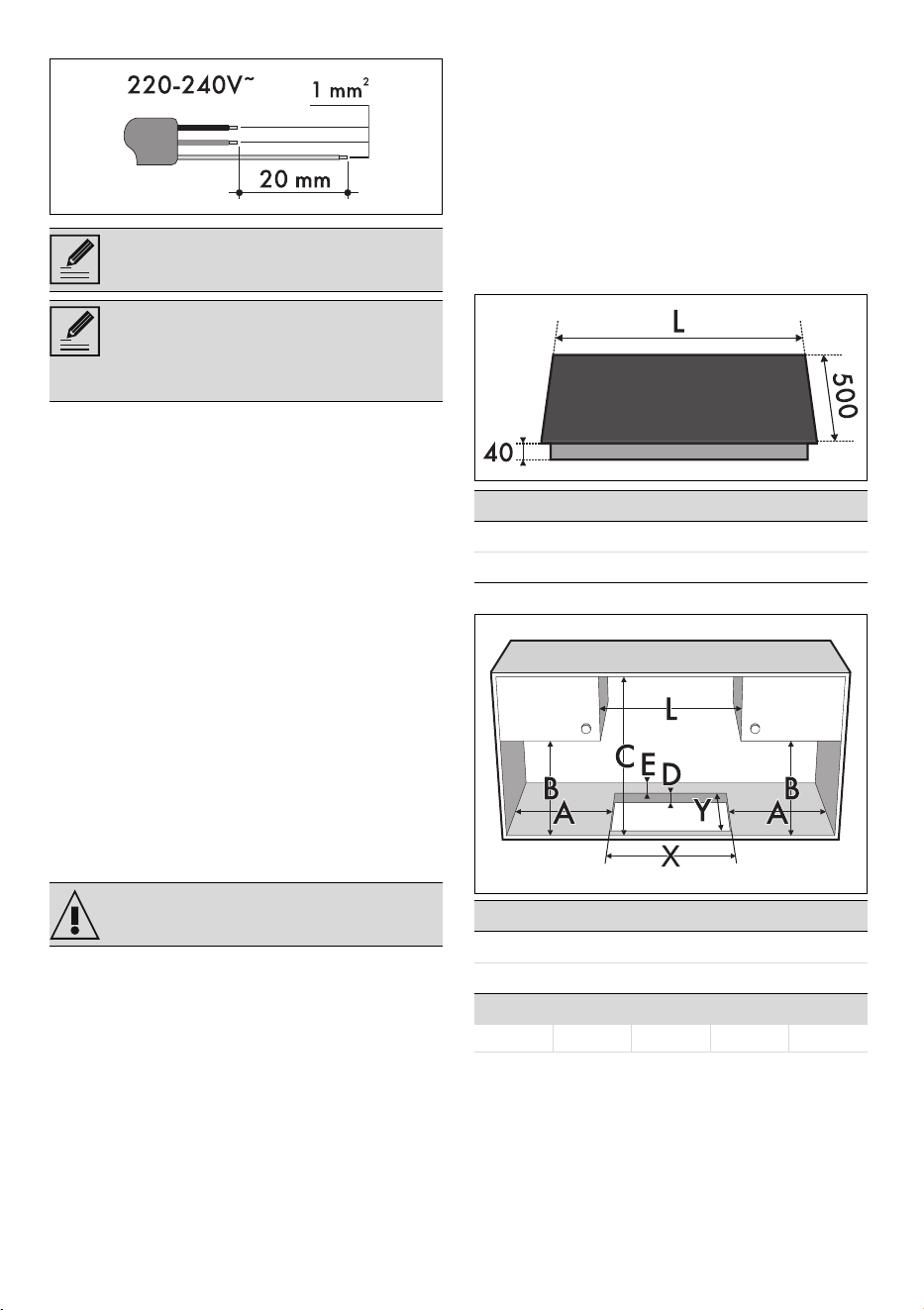

• Page 15 - English - : INSTALLATION 3791477A868A e The nozzles not provided are available at Authorised Service Centres Burner and nozzle characteristics table 90 cm models Electrical connection General information Check the mains characteristics against the data indicated on the plate The identification plate bearing the technical data serial number and brand name is visibly positioned on the appliance Do not remove this plate for any reason The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires The appliance can work in the following modes 1 Natural Gas G20 20 mbar AUX SR R FB UR Rated heating capacity kW 110 180 260 290 410 Nozzle diameter 1100 mm 73 93 115 123 142 Reduced flow rate W 400 500 750 950 1500 Primary air mm 321152 2 Natural Gas G20 25 mbar AUX SR R FB UR Rated heating capacity kW 110 180 260 290 410 Nozzle diameter 1100 mm 70 87 110 115 142 Reduced flow rate W 400 500 750 950 1500 Primary air mm 3211525 3 Natural Gas G251 25 mbar AUX SR R FB UR Rated heating capacity kW 110 180 260 290 40 Nozzle diameter 1100 mm 82 100 123 130 150 Reduced flow rate W 400 500 750 950 1500 Primary air mm 3 2 05 1 2 4 Natural Gas G2350 13 mbar AUX SR R FB UR Rated heating capacity kW 110 175 260 290 410 Nozzle diameter 1100 mm 100 126 160 165 200 Reduced flow rate W 400 500 750 950 1500 Primary air mm 321152 5 LPG G3031 3037 mbar AUX SR R FB UR Rated heating capacity kW 110 170 260 290 410 Nozzle diameter 1100 mm 48 62 76 82 95 Reduced flow rate W 400 500 700 950 1500 Primary air mm 35 8 2 5 open Rated flow rate G30 gh 80 124 189 211 298 Rated flow rate G31 gh 79 121 186 207 293 6 LPG G3031 37 mbar AUX SR R FB UR Rated heating capacity kW 110 180 260 30 410 Nozzle diameter 1100 mm 48 60 73 80 92 Reduced flow rate W 450 500 750 950 1600 Primary air mm 356246 Rated flow rate G30 gh 80 131 189 218 298 Rated flow rate G31 gh 79 129 186 214 293 7 Town gas G110 8 mbar AUX SR R FB UR Rated heating capacity kW 110 180 260 290 410 Nozzle diameter 1100 mm 135 175 210 230 310 Reduced flow rate W 400 500 750 950 1500 Primary air mm 25 15 05 05 25 See General safety instructions
• Page 16 - English - : 38 INSTALLATION 91477A868A 220240 V 1N Fixed connection Fit the power line with an allpole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations For the AustralianNew Zealand market The circuit breaker incorporated in the fixed connection must comply with ASNZS 3000 Connection with plug and socket Make sure that the plug and socket are of the same type Avoid using adapters gang sockets or shunts as these could cause overheating and a risk of burns Section cut from the countertop Safety instructions for positioning and installation Installation can be carried out on various materials such as masonry metal solid wood or plastic laminated wood as long as they are heat resistant gt90C Veneers adhesives or plastic coatings on adjacent furniture should be temperature resistant gt90C otherwise they might warp over time If the piece of furniture does not have the required recess opening either it will have to be cut or masonry work carried out by a competent technician The minimum clearance between exhaust hoods and the cooking surface must be at least the distance indicated in the exhaust hood installation instructions The minimum clearances must also be respected for the edges of the hob on the back as indicated in the assembly instructions If the appliance is to be installed above an oven the oven must be fitted with a cooling fan Appliance overall dimensions mm Builtin cabinet dimensions mm If there is a piece of furniture above the hob In the case of a hood refer to to the dimensions indicated in the relevant manual Hob seal To prevent leakage of liquid between the frame of the hob and the countertop place the The values indicated refer to the cross section of the internal conductor The aforementioned power cables are sized taking into account the coincidence factor in compliance with standard EN 6033526 See General safety instructions L 60 cm models 600 90 cm models 900 Mod mm X mm Y mm 600 555 560 478482 900 839 844 478482 A mm B mm C mm D mm E mm min 150 min 460 min 750 2060 min 50

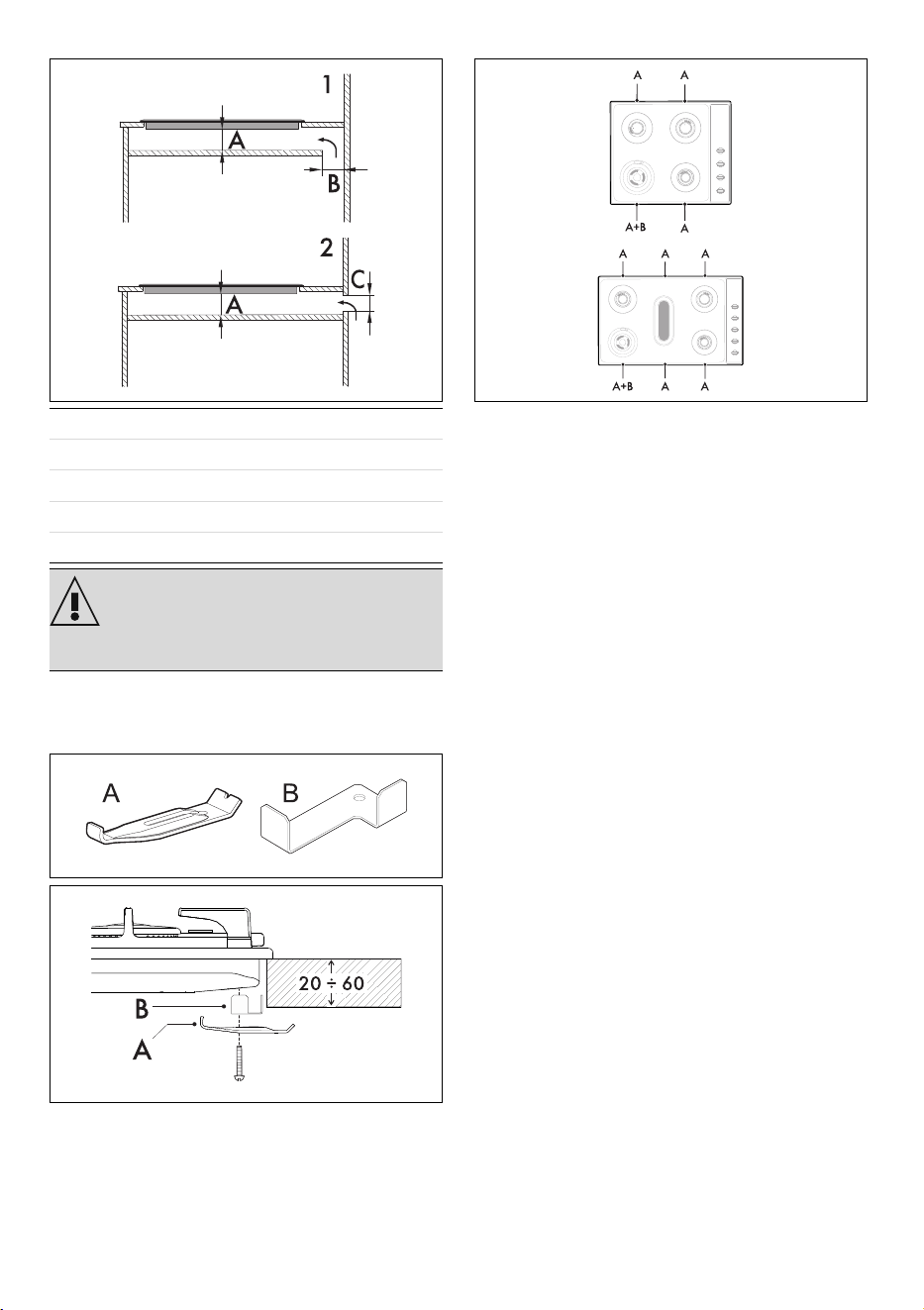

• Page 17 - English - : INSTALLATION 3991477A868A e adhesive seal provided along the entire outer edge of the hob before assembly 1 Refer to the dimensions in the figure bearing in mind that all the sides of the internal seal must be flush with the hole 2 Use light pressure to make the seal stick to the edge around the hole cut in the worktop 3 Carefully trim the surplus away from edge C beyond the seal Connection dimensions mm 60 models 90 models Mounting Over builtin oven unit The clearance between the hob and the kitchen units or other builtin appliances must be enough to ensure sufficient ventilation and air discharge If installed above an oven a space must be left between the bottom of the hob and the top of the appliance installed below On neutral compartment If there are other pieces of furniture under the hob a doublelayer wooden base must be installed at least 20 mm from the bottom of the hob to avoid any accidental contact It must only be possible to remove the doublelayer Do not use silicone to secure the hob This would make it impossible to remove the hob without damaging it Electrical connection Gas connection 1 Opens on bottom 2 Opens on bottom and back
• Page 18 - English - : 40 INSTALLATION 91477A868A base using suitable equipment Fixing to the supporting structure Fix the hob to the unit using the appropriate bracket A and the spacer B supplied This mounting configuration AB should only be used for the front left corner of the appliance as shown in the following figures For other mounting points only use the bracket supplied A Instructions for the installer If you use a plug to connect to the power supply the plug must be accessible after installation Do not bend or trap the power cable The appliance must be installed according to the installation diagrams Do not try to unscrew or force the threaded elbow of the fitting You may damage this part of the appliance which may void the manufacturers warranty Use soap and water to check for gas leaks on all connections DO NOT use naked flames to search for leaks Turn on all the burners separately and at then all together to make sure that the gas valve burner and ignition are working properly Turn the burner knobs to the minimum position and check that the flame is stable for each individual burner and all the burners together If the appliance does not work correctly after having carried out all the checks contact your local Authorised Service Centre Once the appliance has been installed please explain to the user how to use it correctly 1 Opens on bottom 2 Opens on rear A min 10 mm max 50 mm B max 50 mm C max 50 mm Failure to install the doublelayer wooden base exposes the user to possible accidental contact with sharp or hot parts
