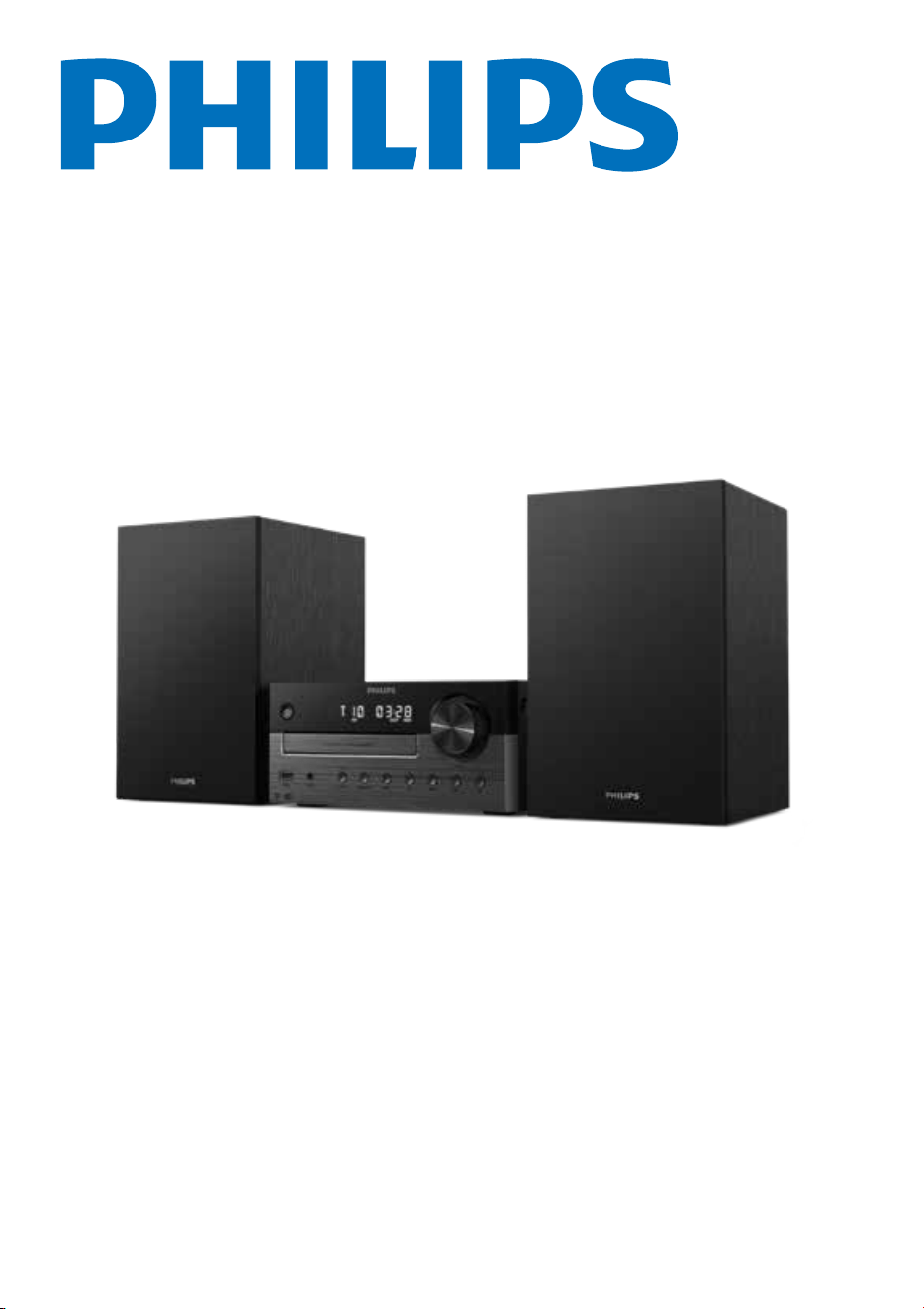

Micro Music System
TAM4505M2
User manual
Register your product and get support at：
www.philips.com/support
EN 1
Contents
1
Important
Notice
Safety
Declaration of conformity
Trademarks
2
2
3
3
4
2
Your Micro Music System
What's in the box
Overview of the main unit
Overview of the remote control
4
4
6
7
3
Get started
Set the clock
Connect speakers
Connect the radio antenna
Connect power
Prepare the remote control
Power on
9
9
9
9
10
10
4
Play
Play from Bluetooth enabled
devices
Play from disc
Play from USB
Control play
Skip tracks
Program tracks
11
11
11
11
12
12
12
6
Listen to the radio
Listen to FM radio
Listen to DAB+ radio
15
15
16
7
Adjust sound
17
8
Other features
Set the alarm timer
Set the sleep timer
Listen to an external device
17
17
18
18
10
Product information
USB playability information
Supported MP3 disc formats
28
28
Specifcations
28
29
11
Troubleshooting 30
10
Play from Auracast 13
Factory reset 18
User guide
19
26
App download
9
Philips Entertainment App
Choose your sound
Clock setting
Remote control
19
20
Choose your sound
20
Select source
20
23
Select Auracast broadcast 25
26
Firmware upgrade 27
5
Auracast operation
Auracast broadcast
Auracast receiver
13
13
14
Disconnect Auracast broadcast 14
Select a preset sound effect
Adjust volume level
Mute sound
17
17
17
2 EN
1
Important
Safety
Read and understand all instructions
before you use this micro music system.
If damage is caused by failure to follow
the instructions, the warranty does not
apply.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO OUALIFIED SERVICE PERSONNEL.
This 'bolt of lightning' indicates
uninsulated material within the device
may cause an electrical shock. For the
safety of everyone in your household,
please do not remove the covering.
The 'exclamation mark' calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of �re or
electric shock, the device should not be
exposed to rain or moisture and objects
�led with liquids, such as vases, should
not be placed on the device.
CAUTION: To prevent electric shock,
fully insert the plug. (For regions with
polarized plugs: To prevent electric
shock, match wide blade to wide slot.)
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never look into the laser beam inside this
apparatus.
Never place this apparatus on other electrical
equipment.
Keep this apparatus away from direct sunlight,
naked �ames or heat.
Ensure that you always have easy access to the
power cord, plug or adaptor to disconnect the
apparatus from the power.
Make sure that there is enough
free space around the product for
ventilation.
Only use attachments/accessories
specifed by the manufacturer.
Battery usage CAUTION -to
prevent battery leakage which may
result in bodily injury, property
damage, or damage to the product:
Install the battery correctly, +
and - as marked on the product.
The battery (packed or installed)
shall not be exposed to
excessive heat such as sunshine,
�re or the like.
Remove the battery when the
product is not used for a long
time.
The product shall not exposed to
dripping or splashing.
Do no place any source of danger
on the product (e.g. liquid �lled
objects. lit candles).
Where the MAlNS plug or an
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily
operable.
Please use the product safely in an
environment with temperature
between 0°C and 45°C.
EN 3
Notice
Any changes or modifcations made to
this device that are not expressly
approved by MMD Hong Kong Holding
Limited may void the user's authority
to operate the equipment.
Compliance
Care of the environment
Disposal of your old product and
battery
Your product is designed and
manufactured with high quality
materials and components, which can
be recycled and reused.
This symbol on a product means that
the product is covered by European
Directive 2012/19/EU.
This symbol means that the product
contains batteries covered by European
Regulation (EU) 2023/1542 which cannot
be disposed of with normal household
waste.
Inform yourself about the local separate
collection system for electrical and
electronic products and batteries.
Follow local rules and never dispose of
the product and batteries with normal
household waste. Correct disposal of old
products and batteries helps prevent
negative consequences for the
environment and human health.
Removing the disposable batteries
To remove the disposable batteries, see
battery installation section.
Environmental information
All unnecessary packaging has been
omitted.
Your system consists of materials
which can be recycled and reused if
disassembled by a specialized company.
Please observe the local regulations
regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Care for your product
Do not insert any objects other than
discs into the disc compartment.
Do not insert warped or cracked
discs into the disc compartment.
Remove the discs from the disc
compartment if you are not using
the product for an extended period
of time.
Only use micro�ber cloth to clean
the product.
This apparatus includes this label:
Note
The type plate is located on the back of the
product.
CLASS 1
LASER PRODUCT
Hereby, TP Vision Europe B.V. declares
that this product is in compliance with
the essential requirements and other
relevant provisions of RED Directive
2014/53/ EU and UK Radio Equipment
Regulations Sl 2017 No 1206. You can
�nd the Declaration of Conformity on
www.philips.com/support.
Trademarks
The Bluetooth word mark and logos
are registered trademarks owned by
Bluetooth SlG, Inc. and any use of such
marks by MMD Hong Kong Holding
Limited is under license.
The Auracast™ word mark and logos are
trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by MMD Hong Kong
Holding Limited is under license. Other trade-
marks and trade names are those of their
respective owners.
The making of unauthorized copies
of copy-protected material, including
computer programs, �ies, broadcasts
and sound recordings, may be an
infringement of copyrights and
constitute a criminal offence. This
equipment should not be used for such
purposes.
4 EN
EN 5
Quick start guide / Warranty card /
Safety sheet
Images, illustrations and drawings
shown on this user manual are for
reference only, actual product may
vary in appearance.
CD Soundmachine
2 Your Micro
Music System
Congratulations on your purchase,
and welcome to Philips! To fully
bene�t from the support that Philips
offers, register your product at
www.philips.com/support.
What's in the box
Check and identify the contents of your
package:
Main unit
Speaker boxes (×2)
Remote control (with one AAA battery)
FM antenna
Power cord (Power cord quantity and
plug type vary by regions)
6 EN
Overview of the main unit
LED indicator
Switch this product on or to
standby.
Display panel
Show current status.
Disc compartment
AURACAST
PAIRING
SOURCE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
4
16
Connect USB storage devices.
AUDIO IN
Connect external audio devices.
Function status (see below table ):
LED Status
Solid Red Standby
Blink Cyan (slow)
Soild Cyan
Blink Cyan
(very slow)
Soild Amber
Blink Amber
two times (slow)
Soild Purple
Blink Purple
two times (slow)
Auracast receiver scanning
Auracast receiver connected
Auracast receiver idle
Encrypted Auracast
broadcast
Deactivated encrypted
Auracast broadcast
Deactivated unencrypted
Auracast broadcast
Unencrypted Auracast
broadcast
EN 7
VOLUME knob
Adjust volume.
FM/DAB+ antenna
Improve FM/DAB+ reception.
AC MAINS ~
Overview of the remote
control
Select CD source.
CD/BT PAIRING
Switch this product on or to
standby.
CD/BT
Select Bluetooth source.
In Bluetooth mode, press and
hold for more than 2 seconds
to or disconnect the current
connected device.
AURACAST
Short press: Enter Auracast
receiving mode.
Long press: Enter Auracast
broadcast mode.
Double click: Delete encrypted
broadcast information.
Start or pause play.
Stop play.
Erase a program.
Skip to previous/next track.
Search within a track/disc. Tune
to a radio station. Adjust time.
In Auracast mode, switch to the
previous/next unencrypted
broadcast.
Press and hold to fast forward
or backward.
Open or close the disc
compartment.
SPEAKER OUT socket
Connect with the speakers.
SOURCE/PAIRING
Press to select a source: DlSC,
BT, AURACAST, DAB, FM, USB,
AUDIO IN.
In Bluetooth mode, press and
hold for more than 2 seconds
to disconnect the currently
connected device and enter
pairing mode.
8 EN
MODE
Select shuffle mode to play
tracks randomly.
Select repeat mode to play a
track or all tracks repeatedly.
ALBUM/PRESET
Select a preset radio station.
Skip to previous/next album.
INFO
Display playback information, or
radio service information.
SLEEP/TIMER
Set sleep timer.
Set alarm timer.
CLOCK
Set the clock.
View clock information.
In standby, press and hold to
toggle clock display on or off.
PROG/SCAN
Program tracks.
Program radio stations.
Auto store radio stations.
Mute or restore volume.
SOUND
Select a preset sound effect.
+/- (volume)
Adjust volume.
DIM
Adjust display brightness.
/MENU
Stop play or erase a program.
Enter or exit DAB+ menu.
/OK
Press to start, pause, or resume
play.
Con�rm or select a DAB+ item.
USB/AUDIO IN
Select USB source.
Select AUDlO IN source.
Select Stereo and Mono sound.
DAB/FM
Select FM or DAB+ source.
In Auracast receiver mode, press
to rescan Auracast broadcast
channel.
Press to switch to Auracast receiver
mode.
Press and hold for more than 3
seconds to activate / deactivate
Auracast broadcast mode.
Tune to a radio station.
Adjust time.
In Auracast mode, switch to the
previous/next unencrypted
broadcast.
Press and hold to fast forward or
backward.
Skip to the previous/next track.
Search within a track/disc.
EN 9
3 Get started
Caution
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
Insert the stripped portion of each speaker
wire into the socket completely.
For better sound quality, use the supplied
speakers only.
Always follow the instructions in this
chapter in sequence.
Connect speakers
Note
Connecting one speaker, �nd the
sockets on the back of the main unit
marked “R”.
Insert the copper wire into the
socket marked “+”, and the silver
wire into the socket marked “-”.
1
Connecting another speaker, �nd the
sockets on the main unit marked “L”.
Repeat step 2 to insert the left
speaker wire.
To insert each speaker wire:
Release the socket �ap.
2
3
4
Insert the speaker wire fully.
Hold down the socket �ap.
1
2
3
Connect the radio
antenna
Connect the supplied radio antenna to
this product before listening to radio.
Connect power
Caution
Risk of product damage! Ensure that the
power supply voltage corresponds to the
voltage printed on the back or the
underside of the unit.
Risk of electric shock! Before you plug the
AC power cord, make sure that the plug is
�xed securely. when you unplug the AC
power cord, always pull the plug, never pull
the cord.
Before you connect the AC power cord,
make sure that you have completed all the
other connections
RISK OF ELECTRIC SHOCK
DO NOT OPEN
10 EN
Connect the power cord to the wall
socket.
Prepare the remote
control
Caution
Risk of product damage! When the remote
control is not used for long periods, remove
the batteries.
Batteries contain chemical substances, so
they should be disposed of properly.
To insert the remote control battery:
Open the battery compartment.
Insert the supplied AAA battery
with correct polarities (+/-) as
indicated.
Close the battery compartment.
1
2
3
Power on
Press
The product switches to the last
selected source.
The product switches to standby mode
after 15 minutes of inactivity.
To achieve the effcient energy saving
performance, unplug any external
electronic device from the USB port when
the device is not in use.
Switch to standby mode
Press again to switch the product to
standby with no clock display, or to
standby with clock display.
The red standby indicator lights up.
In standby, you may press and hold
CLOCK to toggle clock display on
or off.
Set the clock
In power on mode, press and hold
CLOCK for more than 2 seconds to
enter the clock setting mode.
[24H] or [12H] is displayed.
Press to select 24H or 12H
hour format, and then press CLOCK.
The hour digits begin to blink.
Press to set the hour, and
then press CLOCK.
The minute digits begin to blink.
Press to set the minute, and
then press CLOCK.
The clock is set.
1
2
3
4
Tip
To view clock in power on mode, press
CLOCK brie�y.
In standby, you may press and hold
CLOCK to toggle clock display on or off.
If clock display is turned on in standby,
power consumption increases.
To cancel time setting without saving
Press or no button pressed for 30
seconds.
EN 11
4 Play
Play from disc
1
2
3
4
Press CD to select CD source, or press
source button on main unit to switch
to DISC source.
Press to open the disc
compartment.
Insert a disc with the label side up.
Press to close the disc
compartment.
Play from USB
Note
Make sure that the USB device contains
playable audio content.
Insert a USB device into the
socket.
Press AUDlO IN/USB repeatedly to
select the USB source, or press source
button on main unit to switch to
USB source.
Play starts automatically. lf not,
press .
3
1
2
Control play
Start, pause, or resume play.
Stop play.
Select an album or a folder.
Press to skip to the previous
or next track.
Press and hold to search
backward/forward within a
track.
Play a track or all tracks
repeatedly.
Play tracks randomly.
Increase or decrease the
volume.
Mute or unmute sound.
Select a preset sound
equalizer.
Adjust display brightness.
Show playback information.
Play starts automatically. lf not,
press .
CD/BT
CD/BT
PAIRING
PAIRING
Press CD/BT to select the Bluetooth
source, or press source button on
main unit to switch to BT source.
12 EN
Skip tracks
For CD:
Press to select tracks.
Press to select an album or a
folder.
Press to select a track or a
�le.
For MP3 disc and USB:
Program tracks
This function allows you to program
20 tracks in the desired sequence.
1
2
In stop mode, press PROG/SCAN to
activate the program mode.
[P01] is displayed.
For MP3 tracks, press to select
an album.
Press to select a track, and
then press PROG/SCAN to con�rm.
Repeat steps 2 to 3 to program
more tracks.
Press to play the programmed
tracks.
1
2
3
4
5
To erase the program
Press twice.
Play from Bluetooth
enabled devices
Note
Compatibility with all Bluetooth devices is
not guaranteed.
Any obstacle between the unit and the
device can reduce the operational range.
The effective operation range between this
unit and your Bluetooth enabled device is
approximately 30 meters.
The unit can memorize up to 8 previously
connected Bluetooth devices.
[BT] (Bluetooth) is displayed.
On your device that supports
Advanced Audio Distribution Pro�le
(A2DP), enable Bluetooth and
search for Bluetooth devices that
can be paired (refer to the user
manual of the device).
1
2
CD/BT
CD/BT
PAIRING
PAIRING
30
EN 13
3
4
Select 'Philips TAM4505M2'on
your Bluetooth enabled device.
After successful pairing and
connection, you will hear the
prompt sound from the unit.
If you fail to �nd 'Philips
TAM4505M2'or cannot pair
with this product, press and
hold PAlRING on the product
or remote control for more
than 2 seconds to enter pairing
mode.
Play audio on the connected
device.
Audio streams from your
Bluetooth enabled device to
this product.
To disconnect the Bluetooth-enabled
device:
Deactivate Bluetooth on your
device.
Press and hold PAlRING on the
product or remote control for 2
seconds to enter pairing mode.
Press and hold PAlRING on the
remote control for 8 seconds to
clear memorized devices.
Press to select the Auracast source,
or press SOURCE button on main unit
to switch to Auracast source.
[AURACAST RCV] is displayed.
The cyan indicator blinks.
If you enter Auracast source for the
�rst time or if the station list is
empty, the product performs a full
scan automatically.
5
Auracast operation
You can broadcast your music to this
product or any other Auracast-compatible
products.
Auracast receiver
[Scanning] is displayed.
The micro system will automatically
search for nearby Auracast
broadcasts and connect to the
unencrypted broadcast with the
strongest signal.
If Auracast broadcast is not found
within 20 seconds, it will enter idle
mode and the cyan light will blink
slowly.
On your mobile device or dongle
that supports Auracast, follow the
instruction to enable Auracast
broadcast.
4
After successful connection, the cyan
indicator turns solid.
Auracast source name is displayed.
Select and play audio from your
Auracast enabled mobile device or
dongle to this product.
5
6
To disconnect Auracast, you can:
Switch the product to another source.
Deactivate Auracast broadcast on
your mobile device or dongle.
Follow the Auracast connection on
any additional Auracast-compatible
products you want to include.
7
Press to select an Auracast
broadcast.
Note
Only unencrypted broadcast is selected and
encrypted broadcast is skipped.
Manually scan Auracast broadcast
Select Auracast broadcast
In Auracast receiver mode, press to
rescan Auracast broadcast channel.
1
3
2
4
In DISC/Bluetooth/DAB/FM/USB/
Audio in source, press and hold the
/AURACAST button for 3 seconds
or select Source Control on
Philips Entertainment App (
/Auracast broadcast) to enter
into Auracast broadcast.
You can broadcast to any number
of Auracast enabled products,
follow the instruction to enable
Auracast connection.
The LED indicator of product will
turn cyan when Auracast receive
enabled.
When unencrypted broadcast
is selected, LED turns solid purple.
When encrypted broadcast is
selected, LED turns solid amber.
Auracast broadcast
On Philips Entertainment App,
enter General Settings, select
Public (unencrypted broadcast) or
Personal (encrypted broadcast)
from Auracast broadcaster.
If Auracast broadcast channel is
encrypted, Auracast recceiver
products are required to enter the
password in order to listen to it.
5
Press the SOURCE button to switch
between DISC/Bluetooth/DAB/FM/
USB/Audio in to play different audio
sources.
Disconnect Auracast
broadcast
LED blinks purple or amber 3 times.
Press and hold the button for
3 seconds. Exit Auracast broadcast from
your micro system.
Note
Auracast receiver and Auracast broadcast
cannot be turned on simultaneously. If you
try to turn on Auracast broadcast in Auracast
receiver mode, you will not be able to switch
successfully. Vice versa.
14 EN
2
Press and hold PROG/SCAN for
more than 2 seconds.
The product scans and
stores all DAB+ radio stations
automatically.
After scan, the �rst available
station is broadcast.
Select a DAB+ radio station
After DAB+ radio stations are scanned
and stored, press to select a
DAB+ station.
Store DAB+ radio stations
manually
Press to select a DAB+ radio
station.
Press PROG/SCAN to activate
program mode.
[P01] is displayed.
2
1
3
4
Press to allocate a number
from 1-10 to this radio station, and
then press PROG/SCAN to con�rm.
Repeat steps 1-3 to program more
stations.
To select a preset DAB+ radio station:
In DAB+ mode, press .
Use DAB+ menu
In DAB+ mode, press /MENU to
access DAB+ menu.
Press to toggle the menu
options.
[SCAN]: Scan and store all
available DAB+ radio stations.
[MANUAL]: Tune to a DAB+
station manually.
[DRC]: Compress the dynamic
range of a radio signal, so that
the volume of quiet sounds is
increased, and the volume of
loud sounds is reduced.
2
1
EN 15
6
Listen to the
radio
With this product, you can listen to DAB
+ radio and FM radio.
Note
Position the FM antenna as far as possible
from TV, or other radiation source.
For optimal reception, fully extend and
adjust the position of the FM antenna.
Listen to DAB+ radio
Digital Audio Broadcasting+ (DAB+) is
a way of broadcasting radio digitally
through a network of transmitters. lt
provides you with more choice, better
sound quality and more information.
Store DAB+ radio stations
automatically
Note
New stations and services are added in
DAB+ broadcast from time to time. To make
new DAB+ stations and services available,
perform scan regularly.
1
Press DAB/FM repeatedly to select
DAB+ source.
If you enter DAB+ source for the
�rst time or if the station list is
empty, the radio performs a full
scan automatically.
[Scanning] is displayed.
The radio scans and stores all the
DAB+radio stations automatically,
and ther broadcasts the �rst
available station.
The �rst programmed
radio station is broadcast
automatically.
Store FM radio stations
manually
Tune to an FM radio station.
Press PROG/SCAN to activate
program mode.
[P01] is displayed.
1
2
3
4
Press to allocate a number
from 1-10 to this radio station, and
then press PROG/SCAN to con�rm.
Repeat steps 1-3 to program more
stations.
Note
To overwrite a programmed station, store
another station in its place.
Select a preset FM radio station
In FM mode, press to select a
preset number.
While listening to FM radio, you
may press MODE to toggle stereo
and mono sound.
Display RDS information
RDS (Radio Data System) is a service
that allows FM stations to show
additional information.
Tune to an FM radio station.
Press INFO repeatedly to display
various RDS information (if available),
such as station name, program type,
time, etc.
1
2
All available stations are
programmed in the order of
waveband reception strength.
16 EN
3
4
To select an option, press /OK.
If sub-option is available, repeat
steps 2-3.
Display DAB+ information
While listening to DAB+ radio, press
INFO repeatedly to display various
information (if available), such as
frequency, signal strength, time, etc.
Listen to FM radio
Tune to an FM radio station
Press DAB/FM repeatedly to select
FM source.
Press and hold for more
than two seconds
The radio tunes to a station with
strong reception automatically.
Repeat step 2 to tune to more
stations
2
1
3
To tune to a weak station:
Press repeatedly until you �nd
optimal reception.
Store FM radio stations
automatically
Note
You can store a maximum of 20 FM radio
stations.
Press DAB/FM repeatedly to select
FM source.
Press and hold PROG/SCAN for
more than two seconds.
2
1
[PRUNE]: Remove invalid
stations from the station list.
[SYSTEM]: Adiust system
settings.
EN 17
7
Adjust sound
The following operations are applicable
to all supported media.
Adjust volume level
On the remote control, press
VOLUME +/- repeatedly.
On the main unit, rotate the volume
knob.
Mute sound
Press to mute or unmute the
sound.
Select a preset sound
effect
Press SOUND repeatedly to select a
preset sound effect.
8
Other features
Set the alarm timer
This product can be used as an alarm
clock. You can select the disc, radio, or
.mp3 �les on a UiSB storage device as
alarm source.
Note
Alarm timer is not available in AUDlO IN
mode.
If CD/USB source is selected, but no disc is
placed or no UsB device is connected, the
radio source is selected automatically.
Make sure that you have set the
clock.
In standby mode, press and hold
SLEEP/TIMER for more than2
seconds.
The hour digits blink.
Press repeatedly to set the
hour, and then press SLEEP/TIMER
to con�rm.
The minute digits blink.
The last selected alarm source
blinks.
Press to set the minute,
and then press SLEEP/TIMER to
con�rm.
Press to select an alarm
source (disc, USB, FM or DAB+ radio),
and then press SLEEP/TIMER to
con�rm.
XX blinks (XX indicates the
volume level of alarm).
Press to set the alarm
volume, and then press
SLEEP/TIMER to con�rm.
1
2
3
4
5
6
18 EN
Activate/deactivate alarm timer
If timer is activated, TIMER is
displayed.
In standby mode, press SLEEP/TIMER
repeatedly to activate or deactivate
timer.
In standby, you may press and hold
CLOCK to toggle clock display on
or off.
Set the sleep timer
This music system can switch to
standby automatically after a set period
of time.
When the music system is turned
on, press SLEEP/TIMER repeatedly
to select a set period of time (in
minutes)
When sleep timer is activated,
SLEEP is displayed.
Press SLEEP/TIMER repeatedly
until [OFF] (sleep off) is displayed.
When sleep timer is deactivated,
SLEEP disappears.
To deactivate sleep timer
Listen to an external
device
You can listen to an external device
through this unit with an MP3 link cable.
Connect an MP3 link cable (not
supplied) between:
AUDIO IN jack (3.5 mm) on the
product,
and the headphone jack on an
external device.
Press AUDIO IN/USB repeatedly to
select AUDIO IN source.
1
2
Start to play the device (see the
device user manual).
3
Factory reset
Reset device to default setting.
When the device is power on, press and
hold buttons for 5 seconds in
AUDIO IN source at VOLUME 2.
The device is restore to factory defaults
and enters standby mode.
EN 19
9
Philips
Entertainment App
App download
Scan the QR code and press “Download”
button, or search “Philips Entertainment”
in the Apple App Store or Google Play to
download the App.
The Philips Entertainment App puts you
in charge of the music you are listening
to. You can use your smart device to
easily choose the sound style you want,
switch between sources, and more.
philips.to/entapp
Launch the Philips Entertainment
App on your mobile device.
Make sure your mobile device is
enabled the Bluetooth setting.
If you connect the Philips
Entertainment App with your micro
system for the �rst time, you are
asked to pair the App with your
micro system.
Press Play/Pause key on your micro
system to enable the App to discover
and control it.
1
2
3
4
Pair the App with your
micro system
20 EN
Select Source
Press icon on the App to select
CD/BLUETOOTH/AURACAST/DAB/FM
/USB/AUDIO IN.
Press icon on the App to select
prede�ned sound modes to suit your
music: BALANCED/WARM/BRIGHT/
POWERFUL/CLEAR/CUSTOM.
Select Equalizer (EQ) Effect
Choose your Sound
You can choose the ideal sound for your
music.
Receive unencrypted
Auracast broadcast
Select Auracast
TM
receiver source.
1
Press [Auracast
TM
broadcasts] to
enter Auracast
TM
broadcast list.
2
When an unencrypted playback
source from mobile phone or dongle
is selected, the micro system will
search and connect to it.
Make sure to activate Auracast
TM
broadcast on your mobile phone
or dongle.
3
EN 21
Receive encrypted
Auracast broadcast
Select Auracast
TM
receiver source.
Press [Auracast
TM
broadcasts] to
enter Auracast
TM
broadcast list.
1
2
When an encrypted playback source
from mobile phone or dongle is
selected, you will be asked to input a
password. Entering the same password
that you input when setting up
Auracast
TM
broadcast from your mobile
phone or dongle.
Make sure to activate Auracast
TM
broadcast on your mobile phone
or dongle.
3
Select a preset radio statio
Select to enter [FM] source.
1
22 EN
Press to select FM preset station.
2
When there is no preset station stored in
the micro system, the App will remind to
perform auto scanning or manual preset.
Clock Setting
Press icon on the App to enter
clock setting.
[24-Hr Time]: Set 12 or 24-hour time
mode.
[Sync Clock]：When Sync clock is
enable, the App will synchronize the
mobile clock to micro system upon
their connection.
[Clock] : option to swipe and select
the time on the clock page.
24Hr Time is set by default.
Turn off [Sync Clock] so that users
can customize the time for their
micro systems.
EN 23
[Timer] : Press to enter the alarm
timer setting. Set the time to wake
up the micro system.
Select [Enable timer] : The micro
system will automatically turn on
and play after reaching the set time.
1
2
Set Alarm Timer
Select [Wake-up source] :
CD/FM/DAB/USB.
Select [Wake-up volume] : volume
level 0 to32.
Press [Save] to store the wake-up
timer setting.
The micro system will turn on at the
set time.
Note
When clock is not set, alarm timer cannot
be set.
Set Sleep Timer
24 EN
Press [Sleep Timer] to enter sleep
timer setting.
Select 15/30/60/90/120 min.
Press [OK] to store the sleep timer
setting.
The micro system will turn off after
the set time.
1
2
Select Auracast
broadcast
1
Press icon on the App to enter
General Settings list.
Select Public or Personal broadcasts.
2
Set a password when Personal
(encrypted broadcast) is selected.
3
Press and hold button on the
device then it will enter Auracast
scanning mode.
4
AURACAST
PAIRING
SOURCE
EN 25
User guideRemote control
26 EN
Press icon to enter and use your
mobile device via Philips Entertainment
App as a remote control to operate the
micro system.
EN 27
Firmware Upgrade
To get the best features and support,
update your product with the latest
�rmware version.
The �rmware for MCU can be upgraded
to the latest version via Philips
Entertainment App.
Please go to Firmware Update and press
Download & Update. If the upgrade is
released, the Download & Upgrade icon
can be pressed to proceed automatically.
Once this product is connected to Philips
Entertainment App, it can receive
over-the-air �rmware update. Always
upgrade with the latest �rmware version to
improve the performance of this product.
For more information about using this
product, press icon on the App you
can �nd [User Manual] and [Quick Start
Guide].
28 EN
USB playability
information
Compatible USB devices:
Supported USB formats:
USB �ash memory (USB2.0 or
USB1.1)
USB �ash players (USB2.0 or USB1.1)
memory cards (requires an
additional card reader to work with
this unit)
USB or memory �e format: FAT12,
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320
Kbps and variable bit rate
WMA bit rate (data rate) : 48~192
kbps
WAV bit rate (data rate) : Up to 1536
kbps
Directory nesting up to a maximum
of 8 levels
Number of albums/ folders:
maximum 99
Number of tracks/titles: maximum
999
File name in Unicode UTF8
(maximum length: 32 bytes)
.mp3
Extension
Codec
Sample Rate Bitrate
MPEG 1
Layer 1
MPEG 1
Layer 2
MPEG 1
Layer 3
.wma
.wav
.�ac
WMA
WAV
FLAC
32~48 kHz
32~48 kHz
32~48 kHz
8~48 kHz
8~48 kHz
Up to 48 kHz/16 bit
32~320 kbps
32~320 kbps
32~320 kbps
Up to 1536 kbps
48~192 kbps
10
Product
information
Note
Product information is subject to change
without prior notice.
Rated output power:
Total 80W (RMS)
Acoustic frequency response:
66Hz-20KHz
Speaker driver:
2 x 4”woofer
4Ω;
2 x 0.75” tweeter 4Ω ;
Bass enhancement: 2 x bass port
Support disc type: CD-DA, CD-R,
CD-RW, MP3-CD (8/12 cm)
Bluetooth version: V5.4
Bluetooth supported pro�les: A2DP
V1.3, AVRCP V1.6
Bluetooth frequency band / Output
power: 2.402GHz~2.480GHz ISM
Band / ≤ 9dBm
USB playback:
Type A, USB Direct 2.0,5V/1A,
MSC �e format, FAT 16/32
Support USB up to 128G
Tuner frequency range:
FM 87.5-108MHz
DAB 174-240MHz (Band III)
Preset stations: 20 (FM) +20 (DAB+)
AUDlO IN input level:
500mV +100mV RMS
Operation power consumption:
20 W
Standby power consumption:
< 0.5W (clock display off)
Power: 100-240V~, 50/60 Hz(AC
Input)
Dimensions (W x H x D):
220 x105 x 231 mm (Main unit);
148 x 240 x203 mm (Speaker box)
Weight: 1.5 kg (Main unit);
2 x 1.9 kg (Speaker box)
Specifcations
EN 29
Supported MP3 disc
formats
IS09660, Joliet
Maximum title number: 128
(depending on �le name length)
Maximum album number: 99
Supported sampling frequencies:
32 kHz, 44.1 kHz, 48 kHz
Supported Bit-rates: 32~320(kbps),
variable bit rates
Unsupported USB formats:
Empty album: An empty album is an
album that does not include
MP3/WMA/WAV graphics and will
not be displayed.
Unsupported �le formats will be
skipped. For example, Word �les
(. doc) or MP3 �les with the
extension dif will be ignored and will
not be played.
30 EN
Remote control does not work
Before you press any function
button, frst select the correct
source with the remote control
instead of the main unit.
Reduce the distance between the
remote control and the unit.
Insert the batteries with polarities
(+/- signs) aligned as indicated.
Replace the battery.
Aim the remote control directly at
the sensor on the front of the unit.
No disc detected
Insert a disc.
Check if the disc is inserted upside
down.
Wait until the moisture
condensation at the lens has
cleared.
Replace or clean the disc.
Use a �nalized CD or correct format
disc.
Cannot display some �les in USB
device
The number of folders or �les in the
USB device has exceeded a certain
limit. This phenomenon is not a
malfunction.
The formats of these �les are not
supported.
USB device not supported
Poor radio reception
The USB device is incompatible
with the unit. Try another one.
Increase the distance between the
unit and your TV or other radiation
sources.
Fully extend the radio antenna.
Connect an outdoor radio antenna.
You may purchase a replacement
antenna cable with a L-shape plug
on one end, as shown below.
Connect the L-shape plug to this
product, and �t the plug on the
other end into your wall socket.
11
Troubleshooting
Warning
Never remove the casing of this device.
To keep the warranty valid, never try to
repair the system yourself.
If you encounter problems when using
this device, check the following points
before requesting service. lf the problem
remains unsolved, go to the Philips Web
page (www.philips.com/support). When
you contact Philips, make sure that the
device is nearby and the model number
and serial number are availaple.
Make sure that the AC power cord
of the device is connected properly.
Make sure that there is power at the
AC outlet.
As a power-saving feature, the
system switches off automatically
15 minutes after track play reaches
the end and no control is operated.
No power
No sound or poor sound
Adjust the volume.
Check that the speakers are
connected correctly.
Check if the stripped speaker wires
are clamped.
No response from the unit
Disconnect and reconnect the AC
power plug, then turn on the unit
again.
As a power-saving feature, the
system switches off automatically
15 minutes after track play reaches
the end and no control is operated.
For some devices, the Bluetooth
connection may be deactivated
automatically as a power-saving
feature. This does not indicate any
malfunction of this unit.
Timer does not work
Set the clock correctly.
Switch on the timer.
Clock/timer setting erased
Power has been interrupted or the
power cord has been disconnected.
Reset the clock/timer.
How to keep clock display on or off in
standby?
In standby, press and hold CLOCK
to toggle clock display on or off.
EN 31
Music playback is unavailable on this
unit even after successful Bluetooth
connection.
The device cannot be used to play
music through this unit wirelessly.
The Bluetooth reception is poor.
Move the device closer to this unit
or remove any obstacle between
them.
The audio quality is poor after
connection with a Bluetooth-enabled
device.
Bluetooth cannot be connected with
this unit.
The device does not support the
pro�les required for this unit.
The Bluetooth function of the
device is not enabled. Refer to the
user manual of the device to �nd
out how to enable the function.
This unit is not in pairing mode.
This unit is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try
again.
The paired mobile device connects and
disconnects constantly.
The Bluetooth reception is poor.
Move the device closer to this unit
or remove any obstacle between
them.
Some mobile phones may connect
and disconnect constantly when
you make or end calls. This does
not indicate any malfunction of this
unit.
Speci�cations are subject to change without notice.
2025 Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under
license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding
Limited or one of its affiliates, and MMD Hong Kong Holding Limited is the warrantor in relation to this product.
TAM4505M2_12_UM_V1.0
