BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
2024/10
TABLE OF CONTENTS
Wiring Diagram
Troubleshooting Guide
Energy Saving Tips
Power Failure / Vacation Time / Moving Your Appliance
Cleaning Your Appliance
Care and Maintenance
Operating Your Appliance
Parts and Features
Important Safeguards
Appliance Safety
Important Safety Instructions

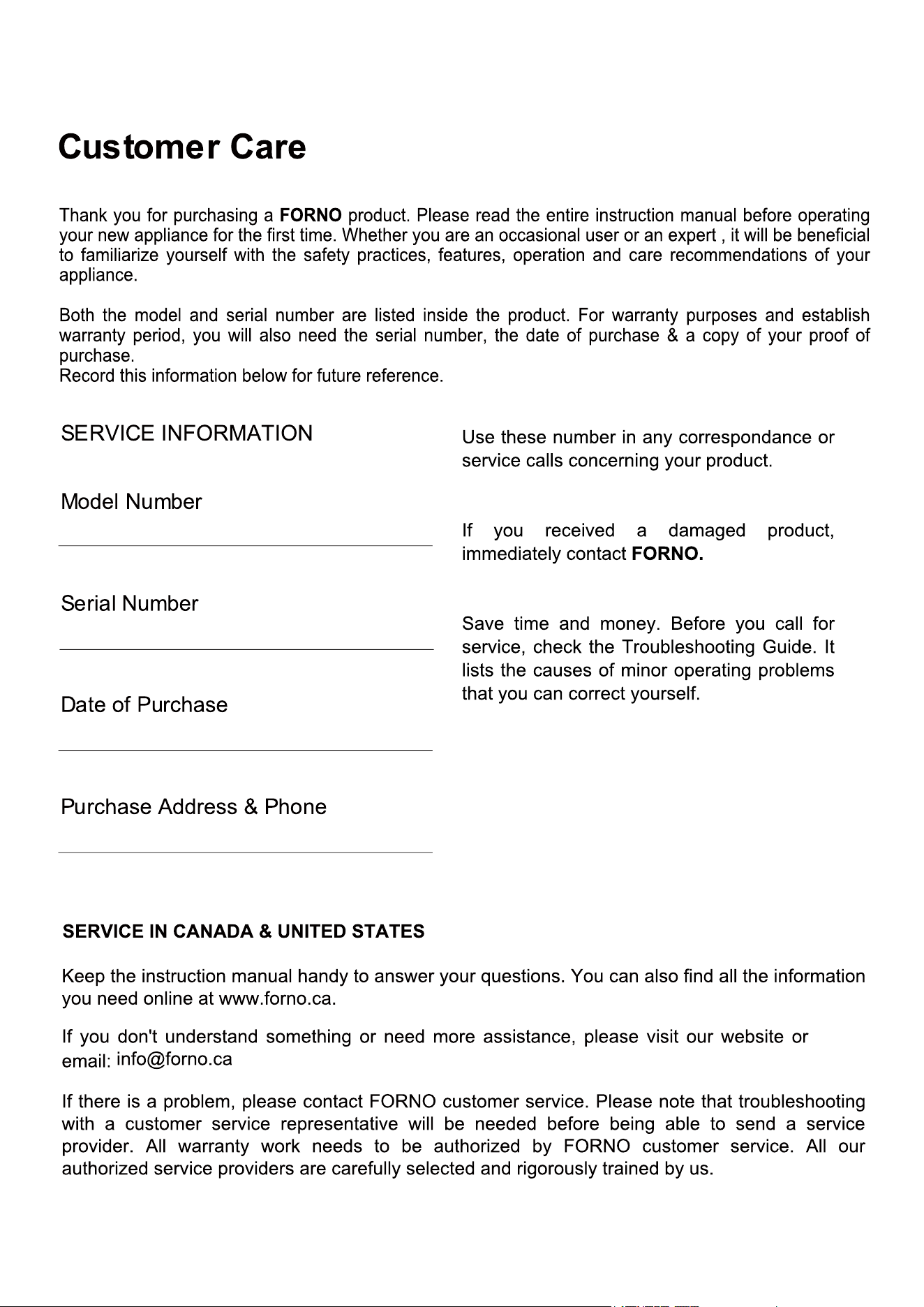

Customer Care
2
Electrical Connection
Ice Maker warning
Sabbath Mode
Installation Instructions
3
1
1
1
3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others.
All safety messages will follow the Safety Alert Symbol and either the words
“DANGER”, “WARNING” or “CAUTION”.
DANGER means that failure to heed this safety
instruction may result in severe personal injury
or death.
WARNING means that failure to heed this safety
instruction may result in extensive product
damage, serious personal injury, or death.
CAUTION means that failure to heed this safety
statement may result in minor or moderate
personal injury, or property or equipment damage.
WARNING:
REFRIGERANT GAS WARNINGS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used.
Consult repair manual / owner’s guide before attempting to service this product.
All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing;
Follow handling instructions carefully. Flammable refrigerant used.
May cause cancer and reproductive harm
Follow handling instructions carefully. Flammable refrigerant used.

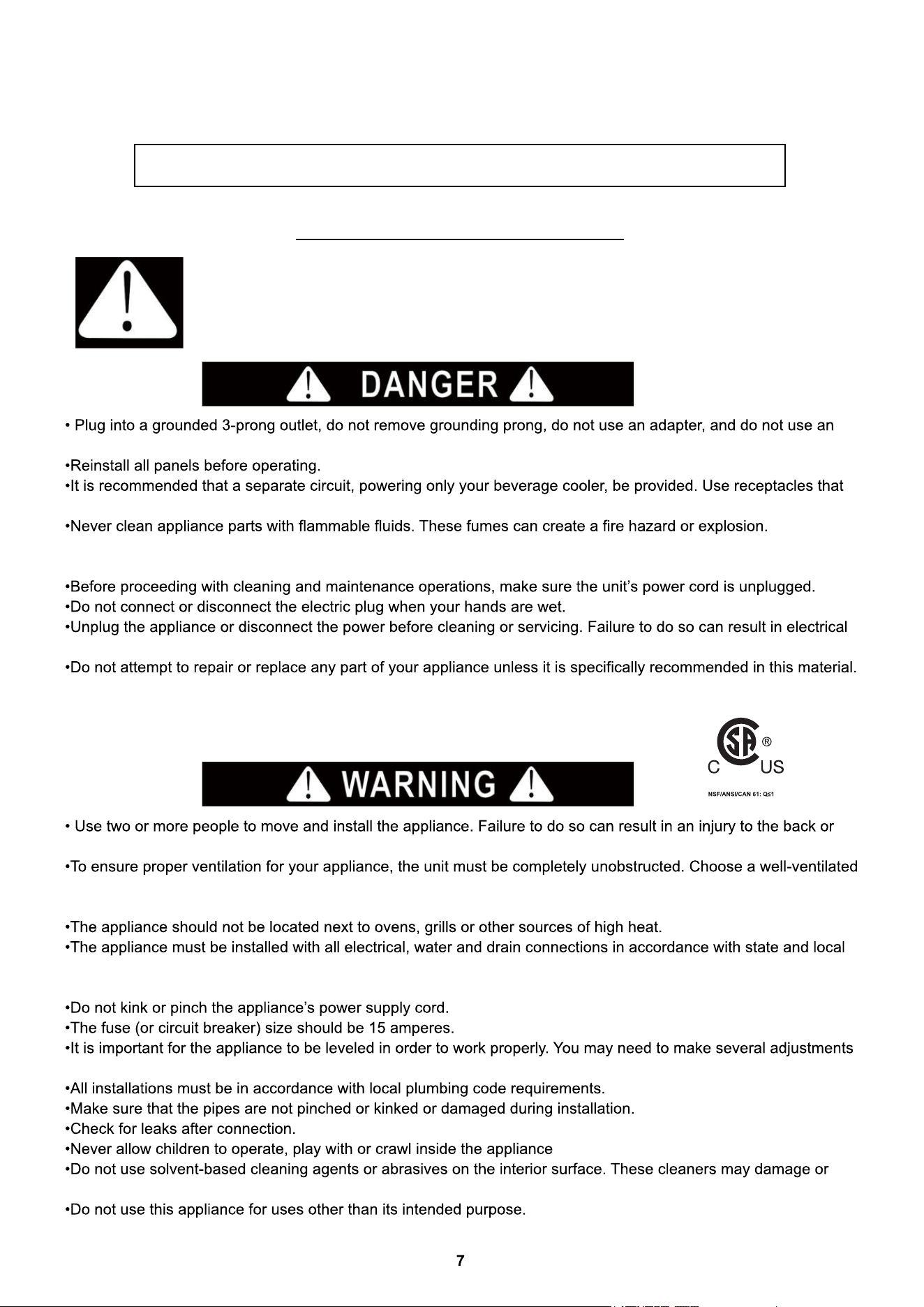

IMPORTANT SAFEGUARDS
Before the beverage cooler is used, it must be properly positioned and installed as described
in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury
when using the beverage cooler, follow basic precautions, including the following:
extension cord.
cannot be turned off by a switch or pull chain.
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
shock or death.
All other servicing should be left to a qualified technician.
other part of the body.
area with temperatures above 55ºF (13ºC) and below 90ºF (32ºC). This unit must be installed in an area protected
from the elements, such as wind, rain, water spray or sunlight.
codes. A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with the National
Electrical Code and local codes and ordinances is required.
to level it.
discolour the interior.
Drinking Water
NSF/ANSI/CAN 372
MC 274353
**
The section separator area contains a condensation-free heater and will be warm to the touch during the
anti-condensation cycle to prevent condensation forming between the two sections.

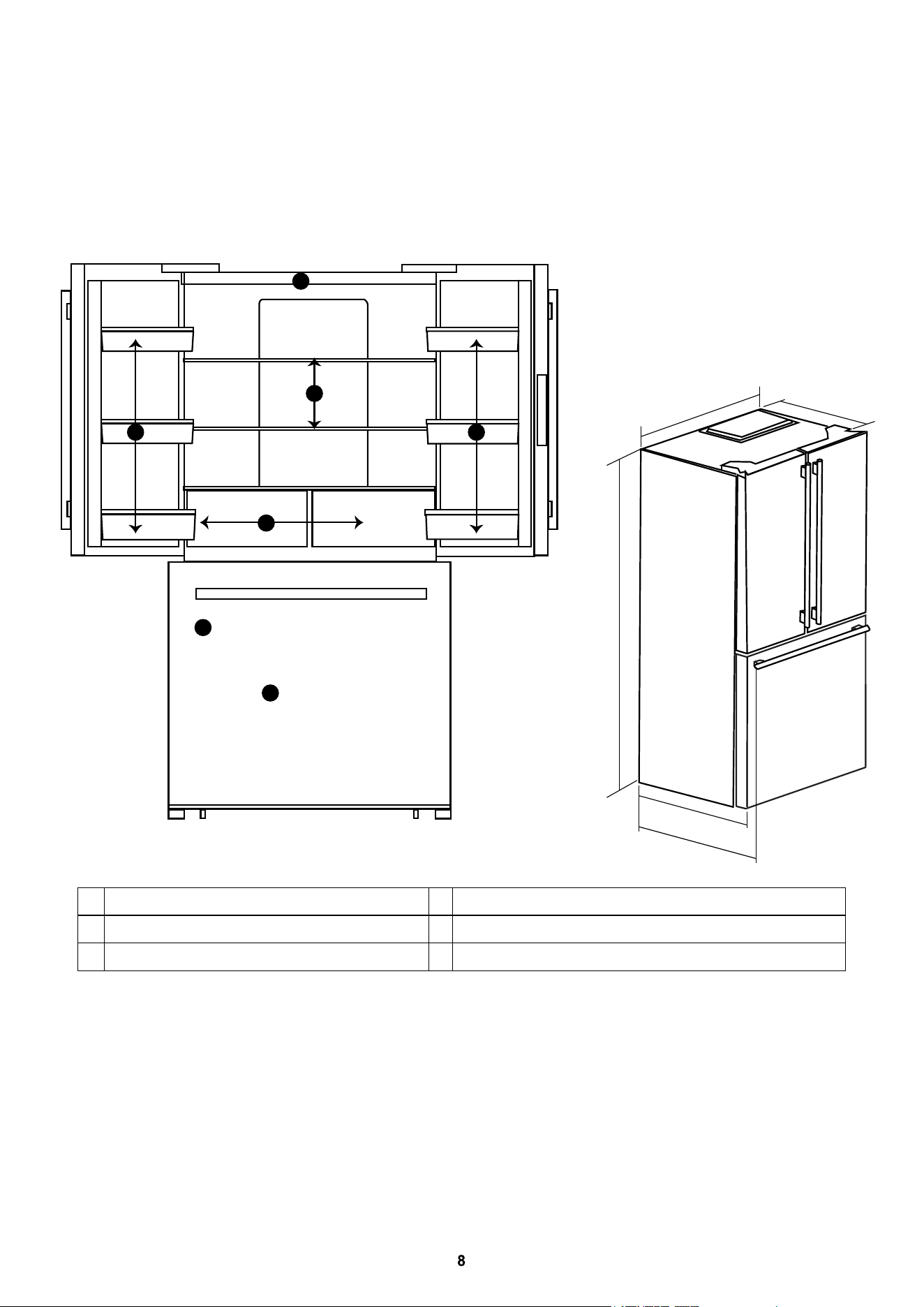

PARTS AND FEATURES
Note
1
(6)Six Refrigerator Door Bins
(2)Two Refrigerator Shelves
(1)Refrigerator LED Light
2
3
4 (2)Two Vegetable Crispers with Glass Cover
(1)Freezer Drawers
(1)Ice maker Assembly Inside the Freezer Drawer
5
6
1 1
5
2
6
3
4
29.9〃
25.9〃
70.08〃
29.5〃
31.5〃

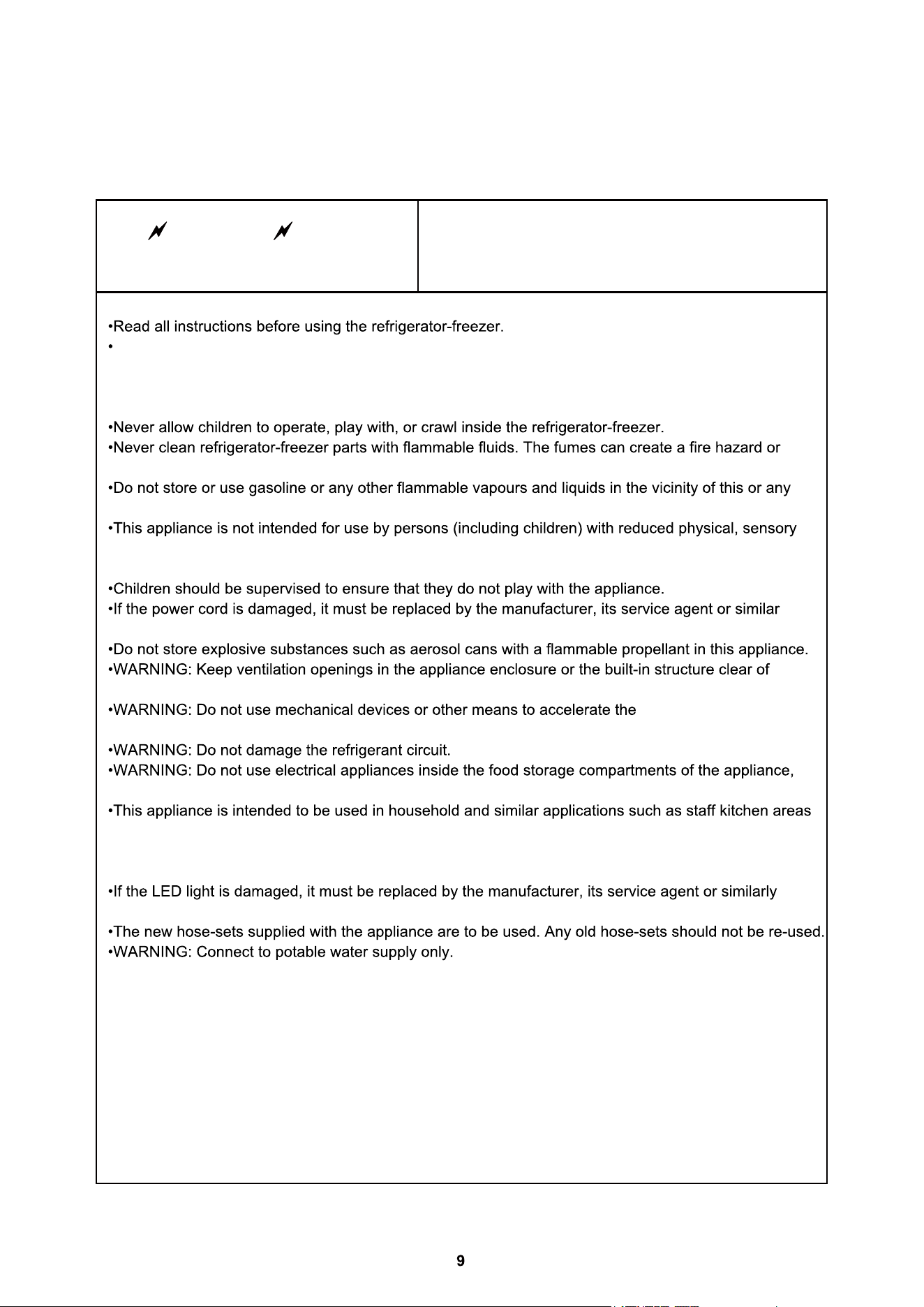

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or
injury when using your refrigerator-freezer,
follow these basic precautions:
DANGER or WARNING: Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
explosion.
other refrigerator-freezer. The fumes can create a fire or explosion hazard.
or mental capabilities, or lack of experience and knowledge, unless they are being supervised or given
instructions on the use of the appliance by a person who is responsible for their safety.
qualified person in order to avoid a hazard.
obstruction.
defrosting process, other than those recommended by the manufacturer.
unless they are of the type recommended by the manufacturer.
in shops, offices and other work environments; farmhouses and by clients in hotels, motels and other
hospitality environments; bed and breakfast type environments; catering and similar non-retail
applications.
qualified person in order to avoid hazards.
-Save these instructions-
INSTALLATION INSTRUCTIONS
1
(6)Six Refrigerator Door Bins
(2)Two Refrigerator Shelves
(1)Refrigerator LED Light
2
3
4 (2)Two Vegetable Crispers with Glass Cover
(1)Freezer Drawers
(1)Ice maker Assembly Inside the Freezer Drawer
5
6
Before Using Your Appliance
it is fully loaded. To level your refrigerator-freezer, adjust the leveling legs at the bottom of unit.
affect the acrylic coating and heat sources may increase power consumption. Extreme cold room temperatures
may also cause the refrigerator- freezer to not perform properly.
remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should
be directed to a certified electrician or an authorized FORNO Products service centre.
the possibility of a malfunction in the cooling system due to handling during transportation.
Installing Your Appliance
※The appliance is equipped with an automatic alarm which indicates that one of the doors of the appliance are
opened for a longer period of time.
1. If one of the doors is opened for more than 1 minute,an acoustic warning signal sound.
2. If the door is opened for a prolonged period of time, the acoustic warning signal will sound three times every
30 seconds.
The door alarm can also be quitted permanently by closing the corresponding door.
In order to save energy a prolonged opening of the doors should be avoided.
Door alarm
※Long press"fridge"button for 5 seconds to set fridge compartment on/off,when fridge compartment is switched
off,the fridge temperature digital display will go off;under the fridge compartment switched off state,long press
"fridge"button for 5 seconds to restart fridge function.
Fridge compartment switch off/on
(2)INCHES OF SPACE BETWEEN THE BACK OF THE APPLIANCE AND THE
WALL AS WELL AS A MINIMUM OF TWO (2)INCHES AT EACH SIDE OF THE UNIT AND FOUR
(4) INCHES AT THE TOP, WHICH ALLOWS PROPER AIR CIRCULATION TO COOL THE
COMPRESSOR AND CONDENSER.
Minimum Space Allowances
Top Four (4) inches
Two (2) inches at the back
Two (2) inches on each side
Sides
Back
Improper use of the grounded plug can result in an electrical shock hazard. If the power cord is damaged, have
it replaced by an authorized FORNO Products service centre.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with
a three-prong plug, which mates with standard three prong wall outlets to minimize the chance of electrical shock.
Do not under any circumstances cut or remove the third (ground) prong from the supplied power cord.
This appliance requires a standard 115 Volt~/60Hz electrical outlet with three-prong ground plug.
The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or
service technician install an outlet near the appliance.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use
an extension cord with this unit. However, if you must use an extension cord it is absolutely necessary that it
be a UL/CUL-Listed,3-wire grounded appliance-type extension cord with a ground plug and outlet, and that
the electrical rating of the cord be 115 volts and at least 15 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible
to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is
suggested that you use a power surge protector for all electrical devices / appliances you use. The surge
protector that you select must have a surge block high enough to protect the appliance it is connected to.
If you have any questions regarding the type and size of surge protector needed, contact a licensed electrician
in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your product
warranty.
Electrical Connection
Warning

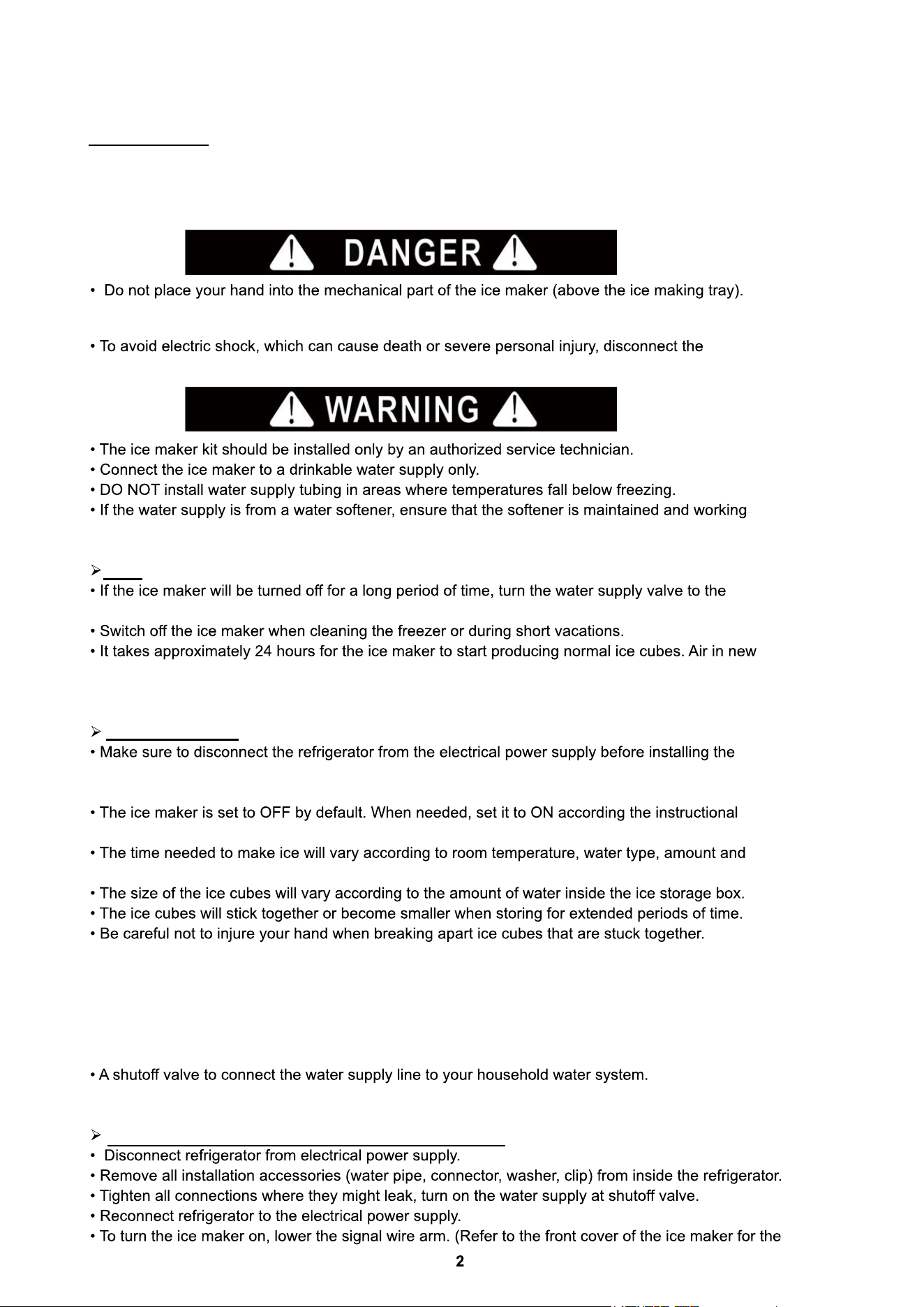

Ice Maker
This ice maker works automatically (automatic water supply, automatic production and detaching of ice
cubes), therefore there is no need to supply water manually. When the ice cube storage is full, the sensor
rod will automatically send a signal to the machine to stop making ice.
Doing so may result in injury.
refrigerator from electrical power before connecting a water supply line to the refrigerator.
properly. Chemicals from a malfunctioning softener can damage the ice maker.
Tips
closed position.
plumbing lines may cause ice maker to cycle two or three times before making a full tray of ice.
New plumbing may cause ice to be discoloured or to have poor flavour during the first 24 hours.
Making Ice Cubes
water supply pipes properly according to the installation manual. Once the water supply is connected
properly, connect the refrigerator to the electrical power supply.
diagram on the machine’s cover.
temperature of the water inside the ice making tray, as well as the machine’s status.
Before Installing the Water Supply Line, You Will Need:
(WARNING: Connect to drinkable water supply only.)
Access to a household cold water line with water pressure between 30 and 100 psi
(2 and 6.9 bar).
DO NOT use a self-piercing type shutoff valve.
To Connect Water Supply Line to Ice maker Inlet Valve
arm’s on/off positions).
1
1
OPERATING YOUR APPLIANCE

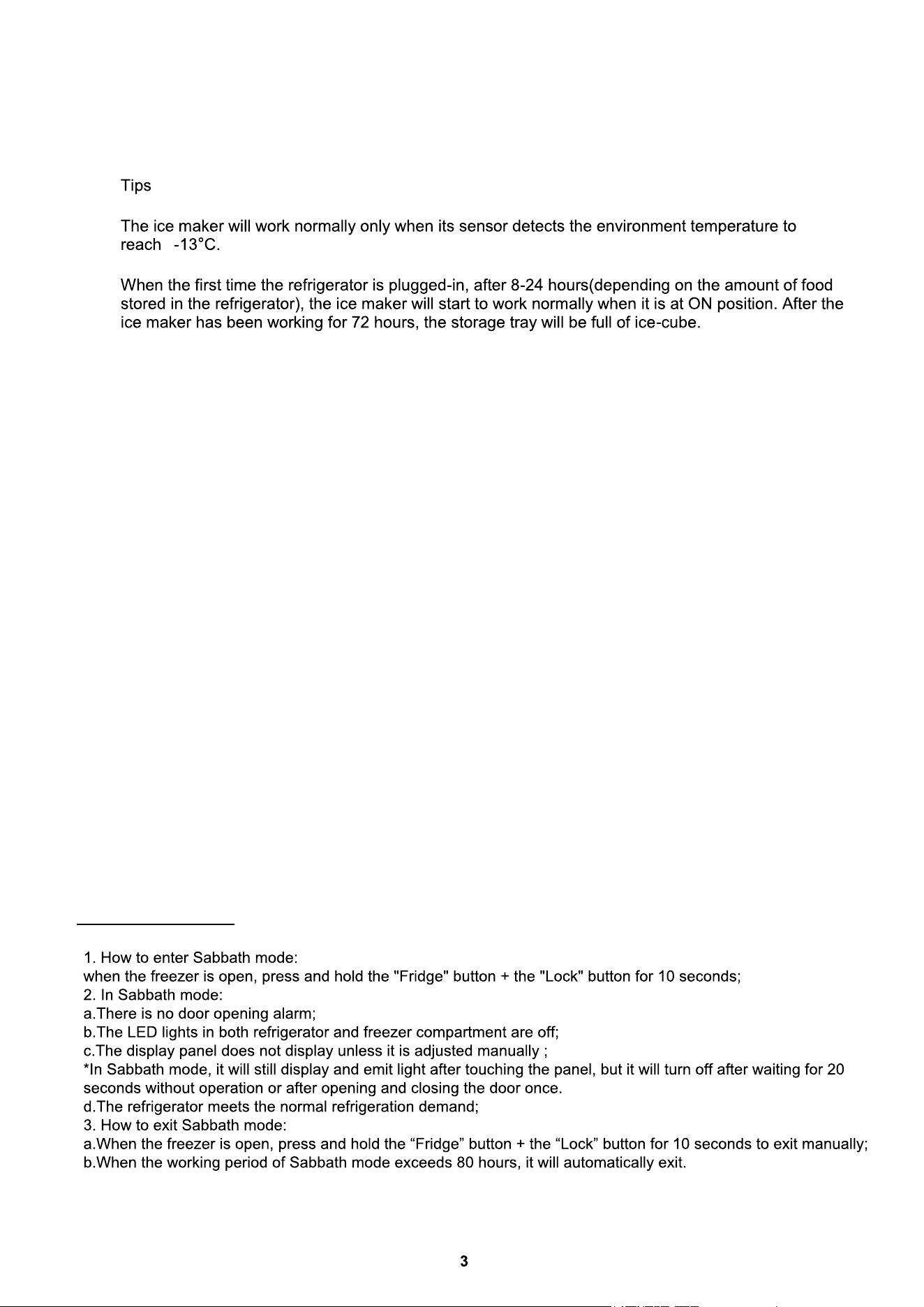

Sabbath Mode
1
OPERATING YOUR APPLIANCE
Default is Fahrenheit when power is on.
Press "MODE" button 5 seconds, to switch between °C and °F.
Other buttons use the same method to switch between two modes.
Set temperature range: Celsius degree mode
1.Fridge temperature range: 0~6℃ (Default value 3℃)
2.Freezer temperature range: -23~-15℃ (Default value -19℃)
Set temperature range: Fahrenheit degree mode
1.Fridge temperature range: 32~43°F (Default value 38°F)
2.Freezer temperature range: -10~5°F (Default value -2°F)

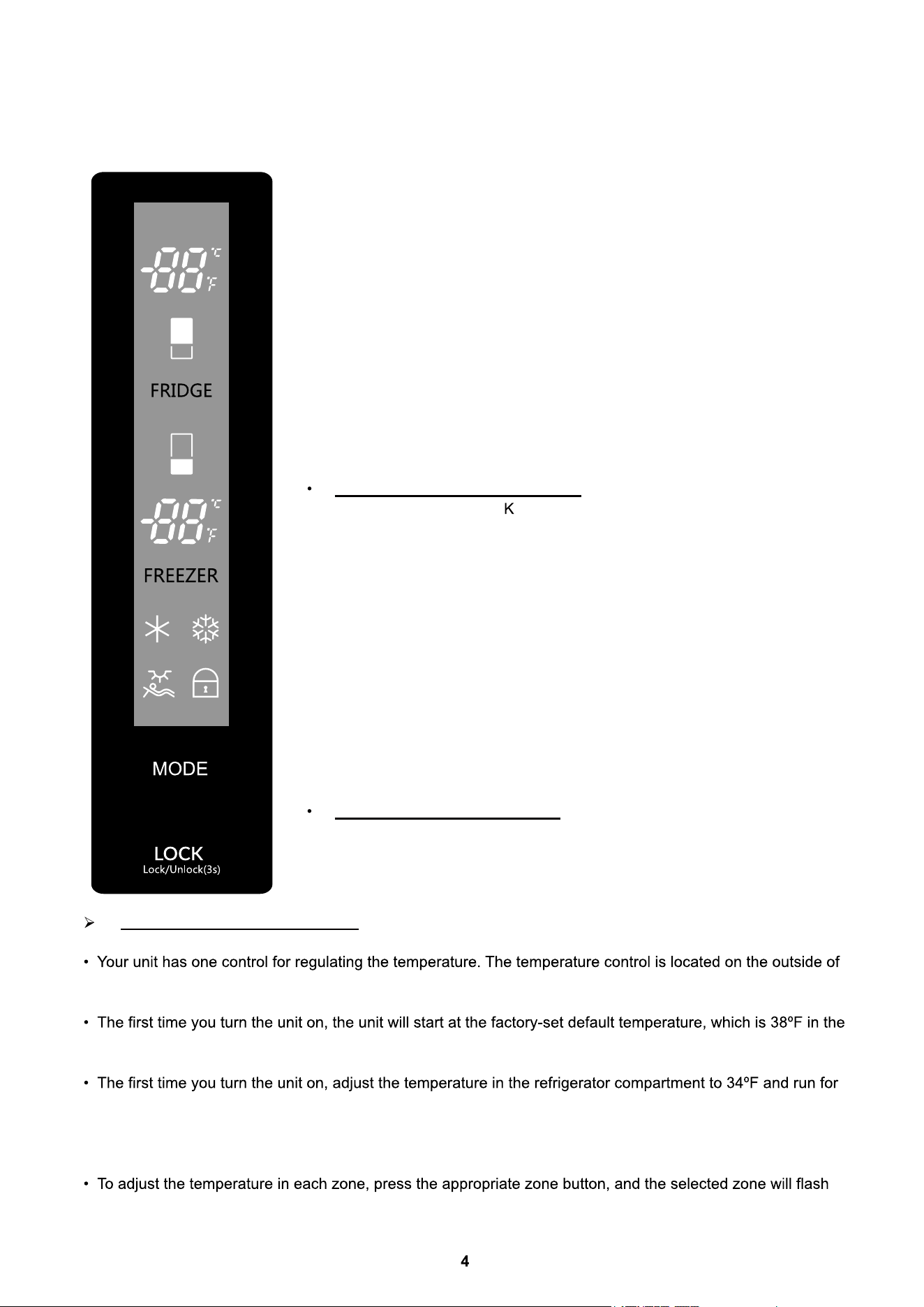

CONTROL PANEL – CHILD LOCK
The CONTROL PANEL LOC is designed to prevent any changes to the
settings to the refrigerator.
To enable the CHILD LOCK, press the LOCK button, the CHILD LOCK
icon will turn on.
The control panel will be locked until unlocked at the control panel or
there is a loss of power.
To disable the CHILD LOCK, press and hold the lock button for
approximately 3 seconds until the LOCK icon turns off and the control
panel is working in normal operation mode.
CONTROL PANEL – STANDBY
The CONTROL PANEL will go dark after approximately 20 seconds of no
activity.
To reactivate the display, simply press any of the buttons on the control
panel.
Setting the Temperature Control
the refrigerator compartment door.
refrigerator compartment and -02ºF in the freezer compartment.
at least 4 hours before placing food inside. This will ensure that the freezer compartment is thoroughly chilled
and the refrigerator compartment is stabilized before food is placed inside. Then adjust the temperature setting
to your desired setting.
on and off. The temperature will change according to the pre-set temperatures as shown below. You will hear
a bell chime with each press of the control panel buttons.
1

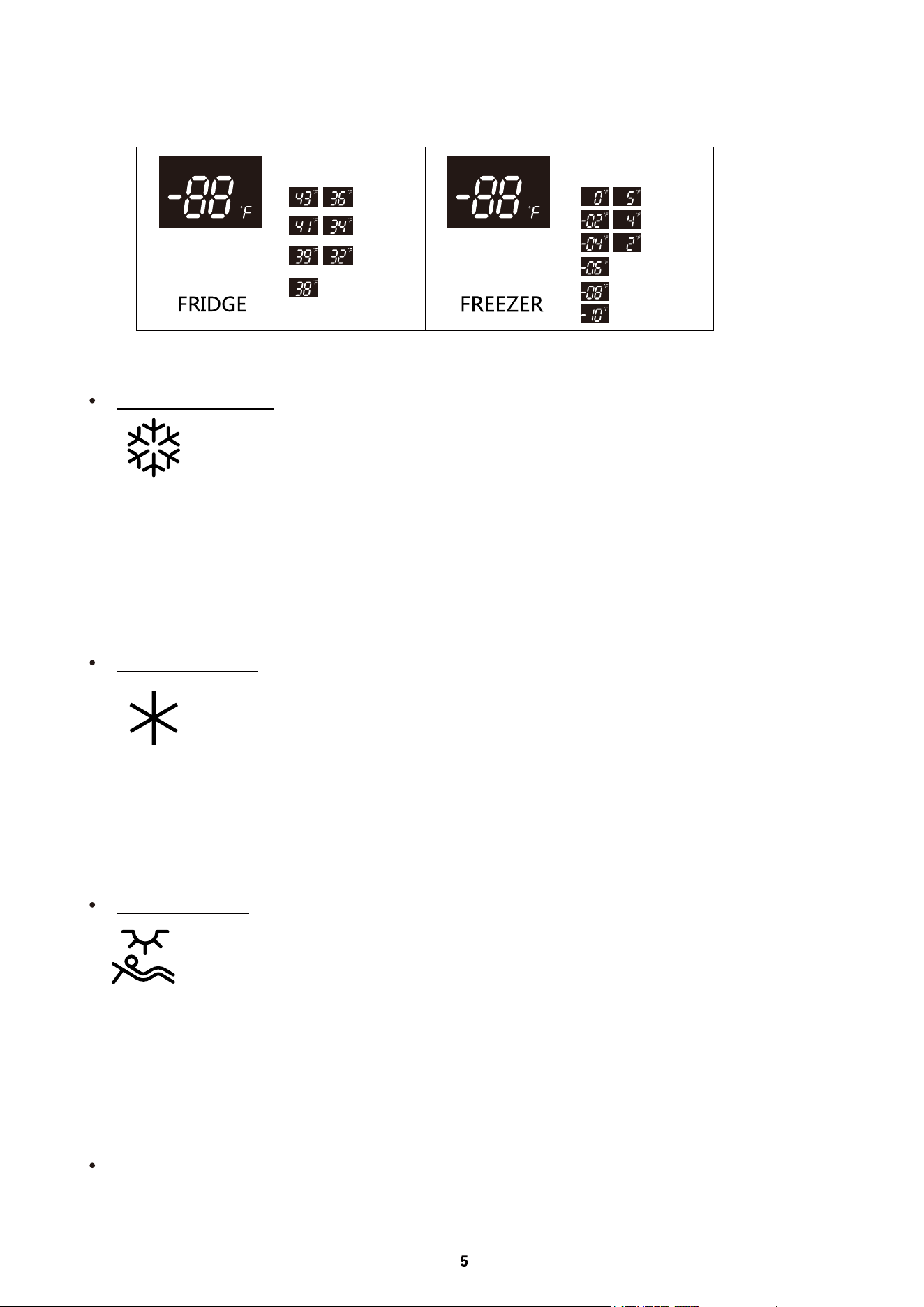

PRE-PROGRAMMED FUNCTIONS:
FAST FREEZE MODE
This mode will set the freezer temperature to -10ºF for a quick drop in temperature
when storing large amounts of warm or room-temperature foods in the freezer.
The unit will remain in FAST FREEZE mode for 24 hours or until the temperature
reaches -10ºF and will then return to the original setting, or until the function is
turned off at the control panel. FAST COOL and FAST FREEZE can be run simultaneously.
To enable the FAST FREEZE mode, press the feature button until the FAST FREEZE icon is
illuminated. The icon will remain illuminated when activated.
To disable the FAST FREEZE mode, press the function button until the FAST FREEZE icon is
turned off.
FAST COOL MODE
This mode will set the refrigerator temperature to 32ºF for quick drop in temperature
when storing large amounts of warm or room temperature foods in the refrigerator.
The unit will remain in FAST COOL mode for 2 hours and 30 minutes or until the
temperature reaches 32ºF and will then return to the original setting, or until the function
is turned off at the control panel. Both FAST COOL and FAST FREEZE can be run together at the
same time.
To enable the FAST COOL mode, press the feature button until the FAST COOL icon is illuminated.
The icon will remain illuminated when activated.
To disable the FAST COOL mode, press the function button until the FAST COOL icon is turned off.
VACATION MODE
Use this mode when leaving for long periods of time, where you will remove the large
majority of the refrigerator contents but leave contents in the freezer.
Vacation mode will automatically set the refrigerator section to 43ºF and the freezer
section to 5ºF. The unit will remain in VACATION MODE until the feature is
To enable VACATION mode, press the feature button until the VACATION icon is illuminated.
The icon will remain illuminated when activated.
To disable VACATION mode, press the function button until the VACATION icon is turned off.
deactivated at the control panel.
NOTE:
IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IT IS TURNED OFF. YOU MUST WAIT
3 TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE
THIS TIME DELAY, THE REFRIGERATOR-FREEZER WILL NOT START.
NOTE:
WE DO NOT RECOMMEND INSTALLING THE REFRIGERATOR WHERE THE TEMPERATURE
WILL DROP BELOW 32ºF (0ºC) OR RISE ABOVE 110ºF (43ºC). THE COMPRESSOR WILL NOT
BE ABLE TO MAINTAIN PROPER TEMPERATURES INSIDE THE REFRIGERATOR.
FOR INSTALLATIONS WHERE THE TEMPERATURES WILL DROP BELOW 32º, SET THE
FREEZER TEMPERATURE CONTROL TO THE “COLDEST” SETTING. THIS WILL IMPROVE
THE FUNCTIONING THE REFRIGERATOR UNDER THESE CONDITIONS.
CARE AND MAINTENANCE
Cleaning Your Appliance
of baking soda to a quart of water.
CAUTION
Failure to unplug the refrigerator-freezer could result in electrical shock or personal injury.
Power Failure
refrigerator-freezer if you minimize the number of times the door is opened. If the power is going to be off
for a longer period of time, you need to take the proper steps to protect your food.
Vacation Time
Short vacations: Leave the unit operating during vacations lasting less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all food and unplug the power
cord. Clean and dry the interior thoroughly. To prevent odour and mold growth, leave the door open slightly,
wedging it open if necessary.
Moving Your Appliance
Energy Saving Tips
heating ducts, and out of direct sunlight.
compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
on frost build-up inside the freezer.
the unit. Remove as many items as needed at one time and close the door as soon as possible.
1
PROBLEMS WITH YOUR APPLIANCE?
You can solve many common refrigerator-freezer problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling for service.
Unit does not operate.
Not plugged in.
The circuit breaker tripped or there is a blown fuse.
Compressor turns on and
off frequently.
The room temperature is hotter than normal.
A large amount of food has been added to the refrigerator - freezer.
The door is being opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The refrigerator-freezer does not have the correct clearances.
Vibrations. Check to make sure that the refrigerator-freezer is level.
Section separator seems to
be warm to the touch.
This is normal.
The section separator area contains an
anti-condensation heater and will be warm to the touch during the
anti-condensation cycle to prevent condensation forming between
the twosections.
The unit seems to make too
much noise.
The rattling noise may come from the flow of refrigerant,
which is normal.
As each cycle ends, you may hear gurgling sounds caused by the
flow of refrigerant in your refrigerator - freezer.
Contraction and expansion of the inside walls may cause popping
and crackling noises.
The unit is not level.
The door will not close
properly.
The unit is not level.
The door is reversed and not properly installed.
The gasket is dirty.
The bins are out alignment.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
1
1
WIRING DIAGRAM
a-Power
c-Compressor
d-Inverter
e-Signal
g-Ice water valve
h-Protector
i-Def. Heater
j-Protector
k-Ice Maker
L-Piller Heater
m-Water inlet pipe heater
n-Stepping motor
o-C.Fan
p-F.Fan
q-R.Lamp
r-F.Lamp
s-Display board
t-Temp. And Humidity Snr
u-R. Snr
v-F. Snr
w-Def. Snr
x-RL.door switch
y-RR.door switch
z-F.door switch
L
N
a
d
c
g
k
L
h
i
j
e
n
o
p
q
r
s
t
u
v
w
x
y
z
MS3~
m
Control Board
