ESSENTIALS FOR LIFE
User
Manual
MODEL: SMW20
V 1.0 | 1224
Freestanding 20ltr
Solo Microwave
White
Black
Silver
Welcome Congratulations on purchasing
your new microwave!
The Sôlt brand is now also proudly
distributed within the UK.
Please refer to the warranty card at the rear of this manual
for information regarding your product’s parts and labour
warranty, or visit us online at
wwwwww..solt.house
At Sôlt Brand, we are customer obsessed and our Support
Team are there to ensure you get the most out of your
appliance. Should you want to learn more about your
cooker's features, and importantly taking care of your
appliance when cleaning, our Support Team are here to
help.
You can use our online job booking service anytime, by
visiting www.appliancesupport.co.uk/solt or by emailing
It is important that you read through the following use and
care manual thoroughly to familiarise yourself with the
installation and operation requirements of your appliance to
ensure optimum performance.
Again, thank you for choosing an Sôlt appliance and we look
forward to being of service to you.
Kind Regards,
The Solt Team
Sôlt
—
Online Job Booking.
www.appliancesupport.co.uk/solt
_
Instagram.
/solt.house
—
Facebook.
/solt.appliances
2
Household use only
SAVE THESE INSTRUCTIONS
.IMPORTANT
SAFEGUARDS…………。。……………… …..
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
trained person.
WARNING: It is hazardous for anyone other than a trained
person to carry out any service or repair operation, which
involves the removal of any cover, which gives protection
against exposure to microwave energy. WARNING: Liquids or
other food must not be heated in sealed containers since
they are liable to explode.
1. Only use utensils that are suitable for use in microwave
ovens.
2. Metallic containers for food and beverages are not
allowed during microwave cooking.
3. When heating food in plastic or paper containers, keep an
eye on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance
and keep the door closed in order to stifle any flames
microwave heating of beverages can result in delayed
eruptive boiling, therefore care has to be taken when
handling the container.
6. The contents of feeding bottles and baby food jars are to
be stirred or shaken and the temperature is to be
checked before consumption, in order to avoid burns.
7. Eggs in their shell and whole hard- boiled eggs shall
3
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
8. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
9. The appliance must not be placed in a cabinet.
10. Care should be taken not to displace the turntable
when removing containers from the appliance.
11. The appliance shall not be cleaned with a steam
cleaner.
12. The appliance must not be installed equal or higher
than 900 mm above the floor. Minimum height of free
space necessary above the top surface of the oven:
100mm.
Warning: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated.
CAUTION: HOT SURFACE
13. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
14. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
15. Children shall not play with the appliance.
4
16. Cleaning and user maintenance shall not be made by
children without supervision.
17. Do not directly put cold water into the glass plate after
use. It needs to place the glass plate for at least 20
minutes, and then put it into the water to avoid
cracking.
18.
19.
Group 2 Class B appliance
Group 2 ISM equipment: group 2 contains all ISM
equipment in which radio-frequency energy is
intentionally generated and/or used in the form of
electromagnetic radiation for the treatment of material,
and EDM and arc welding equipment.
Class B equipment is equipment suitable for use in
domestic establishments and in establishments
directly connected to a low voltage power supply
network which supplies buildings used for domestic
purposes.
This product internal light source LED light on < 60lm.
20. “To be in compliance EN 61000-3-11, the product shall
be connected only to a supply of the system impedance:
Zsys = 0.40089 ohms or less. Before connect the
product to public power network, please consult your
local power supply authority to ensure the power
network meet above requirement.”
.INSTALLATION……………………………………………………..……….
1. Take out all the packing. If there is a safe film over the
oven, tear it off before use. Check carefully for damage. If
any, immediately notify dealer or send to the
manufacturer’s service center.
2. Microwave ovens must be placed under dry and
non-corrosiveness environments, kept away from heat
and humidity, such as gas burner or water tank.
5
3. To ensure sufficient ventilation, the distance of the back of
microwave to the wall should be at least 10 cm, the side
to the wall should be at least 5 cm, the free
distance above the top surface at least 20 cm. the
distance of the microwave to the ground should be at
least 85 cm.
4. The position of the oven shall be such that it is far from
the TV, Radio or antenna as picture disturbance, or
noise may occur. The distance should be more than 5m.
5. The appliance must be positioned so that the plug is
accessible, and must ensure a good grounding in case
leakage, ground loop can be formed to avoid electric
shock.
6. The microwave oven must be operated with the door
closed.
7. The microwave oven must not be placed in a cabinet.
The microwave oven is intended to be used
freestanding.
8. As there is manufacturing residue or oil remained on the
oven cavity or heat element, it usually would smell the
odor, even a slight smoke, It is normal case and would
not occur after several times use, keep the door or
window open to ensure good ventilation. So it is
strongly recommended to place a cup of water in the
cavity, setting at high power and operate for several
times.
…………………… …… ……
.CLEANING MICROWAVE
OVEN CARE
The oven should be cleaned regularly and any food
deposits removed.
6
a. Remove the power cord from the wall outlet before
cleaning. After cooling products. Don't immerse the
appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or
metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long
time, there may be some strange odors exist in oven,
following 3 methods can get rid of them:
1) Place several lemon slices in a cup, then heat with
high micro power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high
micro power.
3) Put some orange peel into oven, and then heat
them with high micro power for 1 minute.
f. When the product is not used, it should be placed in
dry and ventilated areas as well as possible.
Details how to clean surfaces in contact with food:
After use wipe the waveguide cover with a damp cloth,
followed by dry cloth to remove any food splashes and
grease. Built -up grease may overheat and begin to cause
smoke or catch fire.
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent
parts:
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
7
Using a dampened soft cloth, wipe clean the door and
window
Wipe the door seals and adjacent parts to remove any
spill or spatter
Wipe the control panel with a slightly dampened soft
cloth
Interior walls:
Wipe clean the interior surfaces with a dampened soft
cloth
Wipe clean the waveguide cover to remove any food
splashed
Turntable / Rotation ring / Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
.PRODUCT
INSTRUCTION…………………………....
............. . ....
1) Door lock
Microwave oven door must be properly closed in order
for it to operate
Waveguard cover
8
2) Viewing window
Allow user to see the cooking status
3) Rotating ring
The glass turntable sits on its wheels; it supports the
turntable and helps it to balance when rotating
4) Rotating axis
The glass turntable sits on the axis; the motor underneath it
drives the turntable to rotate
5) Turntable
The food sits on the turntable, its rotation during operation
helps to cook food evenly
- Place the rotating ring first
- Fit the turntable onto the rotating axis and make sure that it
is geared in properly
6) Control panel
See below in details (the control panel is subject to change
without prior notice)
7) Waveguide cover
It is inside the microwave oven, next to the wall of control
panel.
Never remove the waveguide cover
9

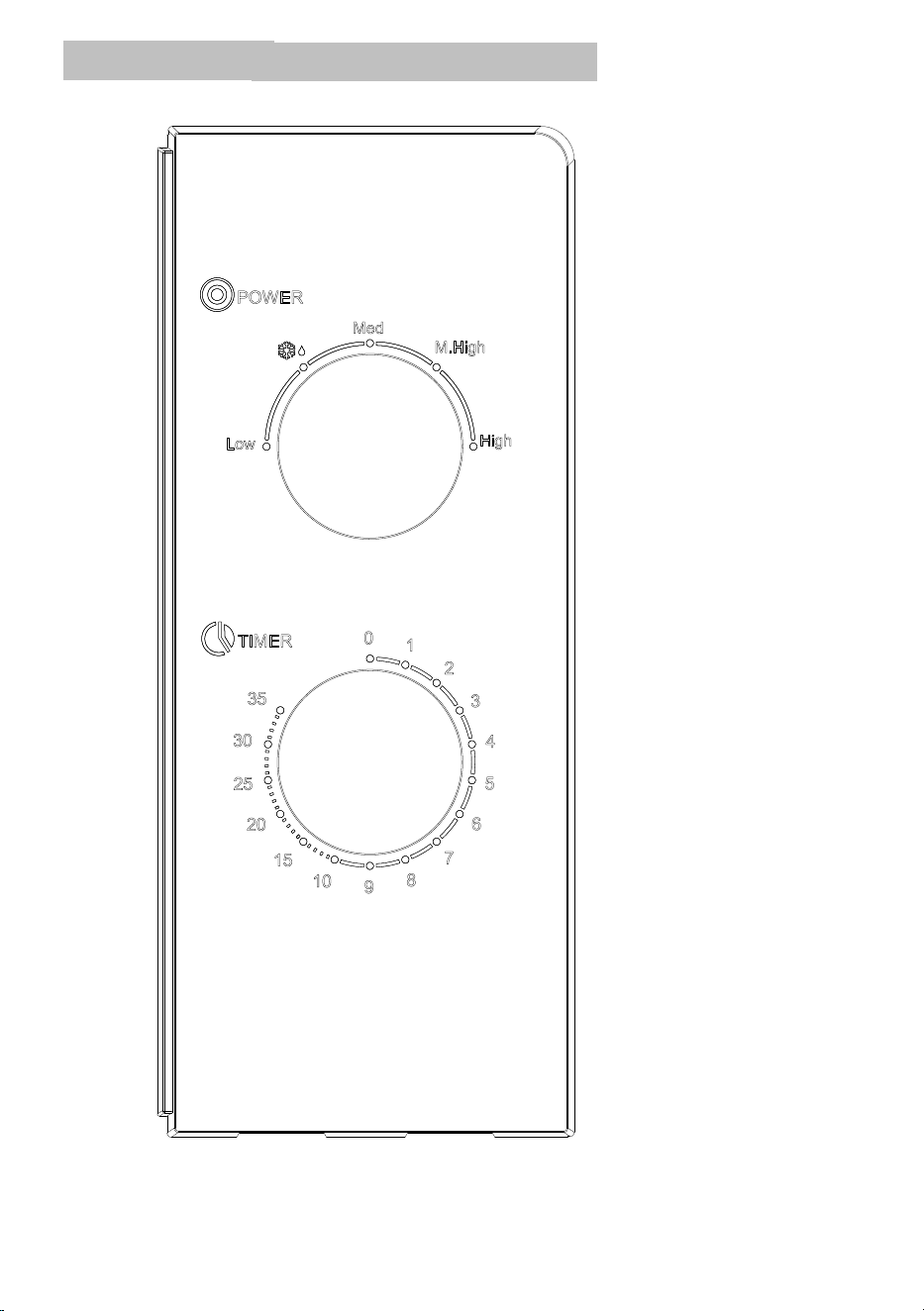

.OPERATION
OF CONTROL
PANEL…
10
The maximum setting is 35 minutes, there is a ringtone at the
end, and the knob returns to the “0” position.
2. MICROWAVE FUNCTION
No. MICROWAVE POWER MICROWAVE OUTPUT RATIO
1 Low 17% power output
2 Defrost/M.Low 30% power output
3 Med 55% power output
4 M.High 80% power output
5 High 100% power output
Below is some food defrosting time advice:
No. Weight (g) Defrost time
1 200g About 4 minutes
2 400g About 8 minutes
3 600g About 12 minutes
.OPERATION ……….。。。。。。。。。…
……………………… …….. ...。…....
1)Connect the cord
-Before connecting the cord, make sure the timer is set to “0”
position.
-Do not block the ventilation.
2)Place the food on the glass turntable and close the door -
Food must be contained in a utensil.
1. CLOCK SETTING
11
- Do not operate the microwave oven without load,
otherwise it will cause damage to the microwave oven.
3)Select the desired microwave power level.
4)Set the timer.
If the desired time is less than 2 minutes, turn the
microwave power knob to over 3 minutes position and then
turn back to the desired time setting.
5)Once the desired time is set, the cooking begins. If
pausing in midway is needed, just open the door at any
time, and close it to resume operation.
6)When it times out and cooking ends, the microwave
oven produces a bell ring, the inside lamp will also be
automatically turned off.
If food is removed before time out, make sure to set back the
timer to “0” position, this avoids the microwave oven from
operating in empty load.
7)It is recommended to wear gloves when removing the
cooked food from oven and be careful do not touch the
heat element on the top of cavity.
Heating food fast, generally only 2 to 3 minutes, please
control in 5 minutes. Please pay attention to the cooking
condition of the food at any time and adjust it according to
your taste preference. Avoid overheating. When heating
porridge, congee, should first stir evenly, and then covered with
plastic film (leave corners for ventilation) or with a
perforated lid heating.
At mid-point to defrosting time, please open the door to
turn the food, so that the defrosting effect is more uniform.
.UTENSILS GUIDELINE…… 。。……………… … …..
Depending on the cooking method, it is necessary to
12
choose a safe and suitable vessel. If it is not properly
selected, it will not only affect the cooking effect, but also
cause damage to the vessel or microwave oven. Please
refer to the table below for use:
Material of container Microwave Notes
Heat-resistant
ceramic
Yes
Never use the ceramics
which are decorated with
metal rim or glazed
Heat-resistant plastic Yes
Cannot be used for long
time microwave cooking
Heat-resistant glass Yes
Grill rack No
Plastic film
Yes
It should not be used
when cooking meat or
chops as the
over-temperature may do
damage to the film
COOKING TIPS……
.…
The following factors may affect the cooking result: Food
arrangement
Place thicker areas towards outside of dish, the thinner
part towards the centre and spread it evenly. Do not
overlap if possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it
times out and extend it according to the actual need. Over
cooking may result in smoke and burns.
Cooking food evenly
13
Food such as chicken, hamburger or steak should be
turned once during cooking.
Depending on the type of food, if applicable, stir it from
outside to centre of dish once or twice during cooking
Allow standing time
After cooking times out, leave the food in the oven for an
adequate length of time, this allows it to complete its
cooking cycle and cooling it down in a gradual manner
Whether the food is done
Color and hardness of food help to determine if it is done,
these include:
- Steam coming out from all parts of food, not just the
edge
- Joints of poultry can be moved easily
- Pork or poultry shows no signs of blood
- Fish is opaque and can be sliced easily with a fork
Browning dish
When using a browning dish or self-heating container,
always place a heat-resistant insulator such as a porcelain
plate under it to prevent damage to the turntable and
rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the
plastic wrap come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be
suitable for cooking foods with high fat and sugar content.
Also, the preheating time specified in the dish instruction
manual must not be exceeded.
。……………………… ……
.MAINTENANCE SERVICING
14
Please check the following before calling for services.
1. Place one cup of water (approx.150ml) in a glass
measure in the oven and close the door securely. Oven
lamp should go off if the door is closed properly. Let the
oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
4. Does the turntable rotate?
(The turntable can rotate clockwise or counter
clockwise. This is quite normal.)
5. Is the water inside the oven hot?
If “NO” is the answer to any of the above questions,
please check your wall socket and the fuse in your meter
box.
If both the wall socket and the fuse are functioning
properly, CONTACT YOUR NEAREST SERVICE CENTER
APPROVED.
SERVICING SAFEGUARDS Caution:
MICROWAVE RADIATION
1. The high voltage capacitor remains charge after
disconnection; short the negative terminal of H. V
capacitor to the oven chassis (use a screwdriver) to
discharge before touching.
2. During servicing below listed parts are liable to be
removed and give access to potentials above 250V to
earth.
● Magnetron
● High voltage transformer
● High voltage capacitor
● High voltage diode
● High voltage fuse
3. The following conditions may cause undue
microwave exposure during servicing.
15
● Improper fitting of magnetron;
● Improper matching of door interlock, door hinge
and door;
● Improper fitting of switch support;
● Door, door seal or enclosure has been damaged.
Correct disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems or
contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
Product support
If you still require further assistance, call one of our service experts on 01759 48 78 26. To help give us fast
and efficient service, please have the following information ready:
Model Ref
Serial Number
Date of purchase
You can find these on
the
rating plate - a
small information panel
(usually a sticker or metal
plate) on
the
rear of your
appliance
This will be shown on
your receipt
Help and assistance
If you require any technical guidance or find that your tumble dryer is not operating as intended, a simple
solution can often be found in
the
Troubleshooting section of these instructions.
16
Declaration of conformance to
product standards
This appliance conforms to all relavant standards
applicable to domestic appliances sold in the UK
Disposal
This appliance/fitting is marked
according to the European directive
2012/19/EU on Waste Electrical
and Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of
this product.
The symbol on the product, or on the
documents accompanying the product, the
crossed out wheelie bin symbol, indicates
that this appliance/tting may not be treated
as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance
with local environmental regulations for waste
disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local authority,
your household waste disposal service or the
retailer where you purchased the product.
17
16
T. 01759 48 78 26
E. admin@appliancesupport.co.uk
Online. www.appliancesupport.co.uk/solt
ESSENTIALS FOR LIFE
Solt Service:
www.solt.house
