CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
TANK LZ
Form No. 769-10658
March 2, 2015
2
To The Owner
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Table of Contents
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
Thank You
Thank you for purchasing a Cub Cadet Zero-Turn Tractor. It was
carefully engineered to provide excellent performance when
properly operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Frame ....................................................................... 3
Seat Assembly .......................................................... 4
Hydro Controls ......................................................... 6
Control Group .......................................................... 8
Fuel Tank Assembly ................................................10
Front Axle Assembly .............................................. 11
Control Assembly ...................................................12
Deck Lift Assembly .................................................14

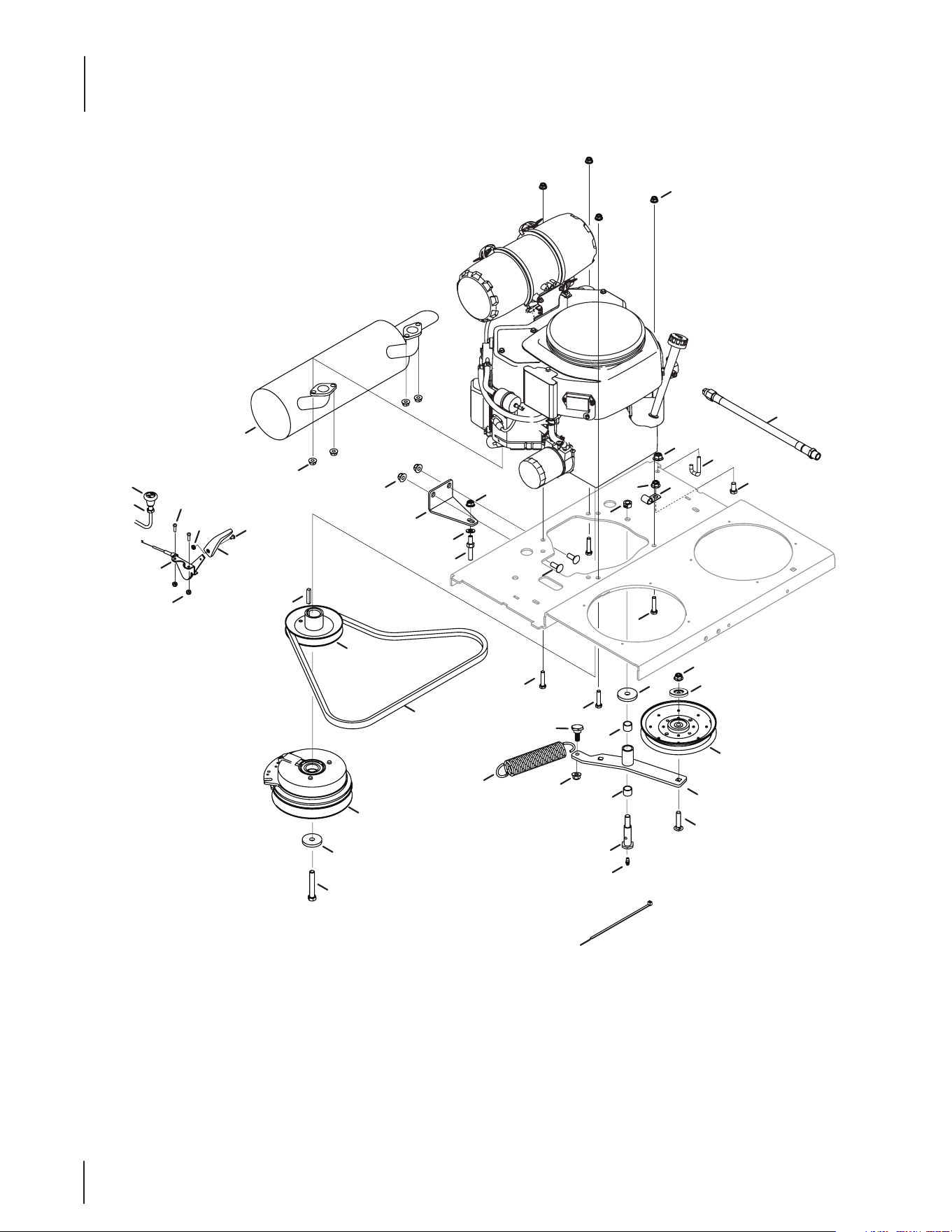

Engine Accessories (Kohler) ...................................16

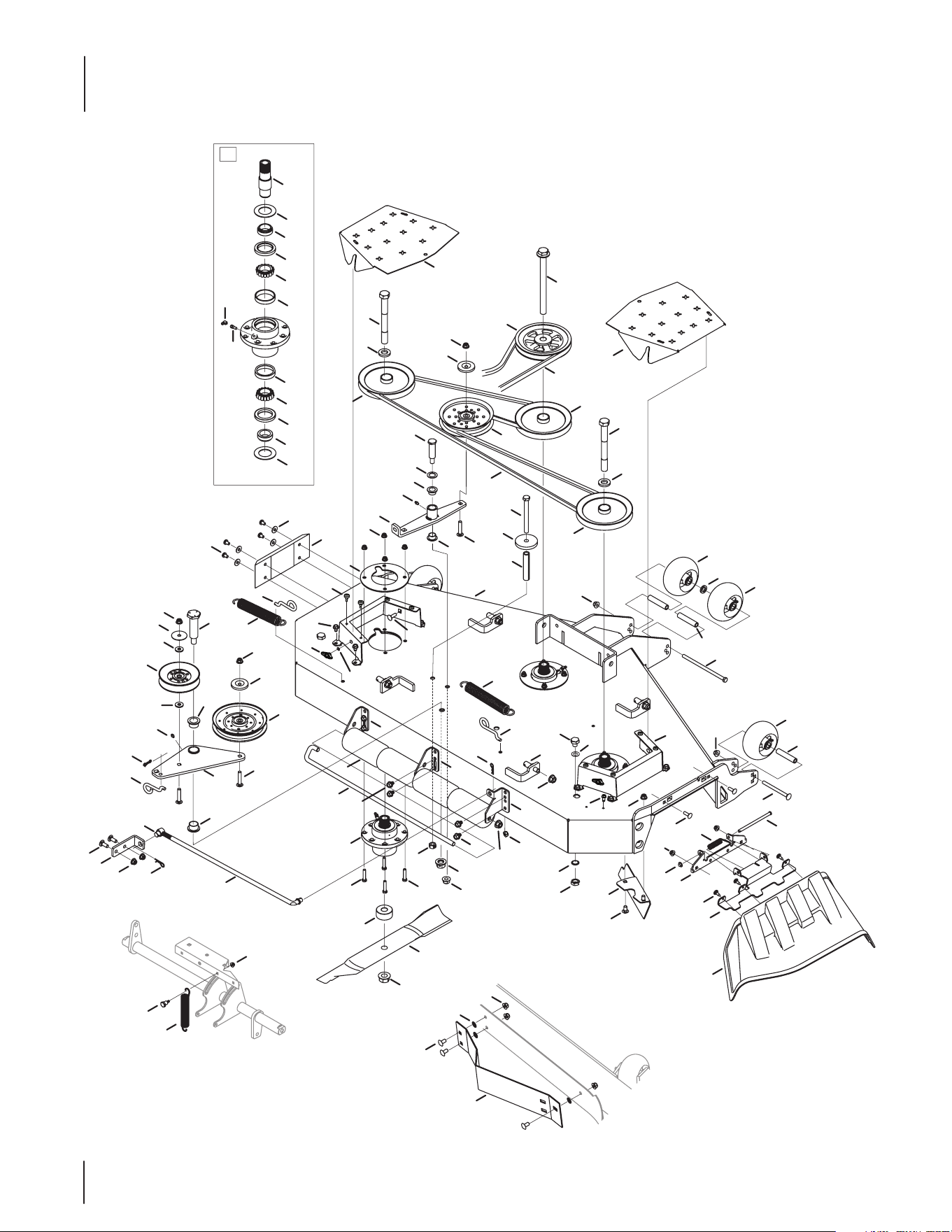

60” Deck ..................................................................18

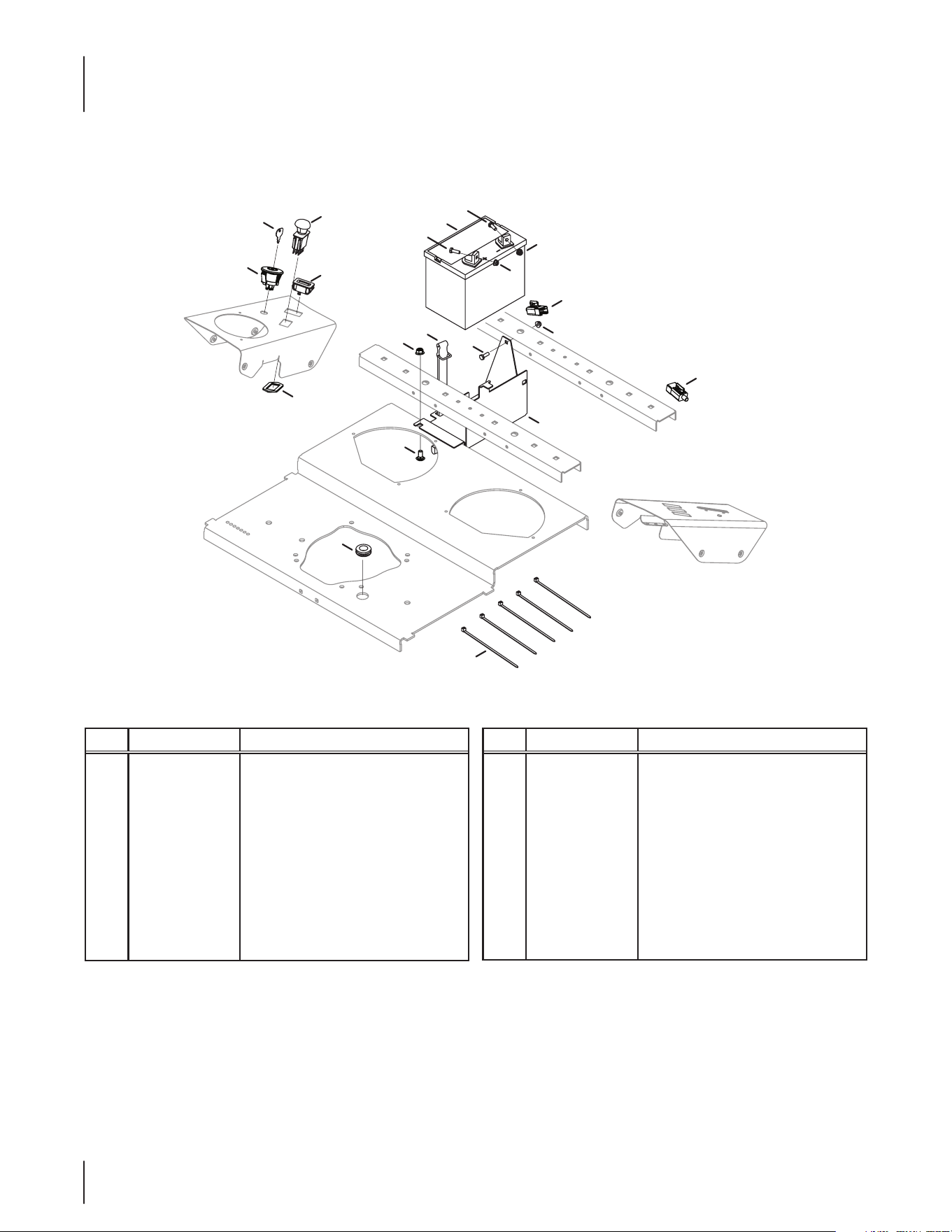

Electrical ................................................................. 22

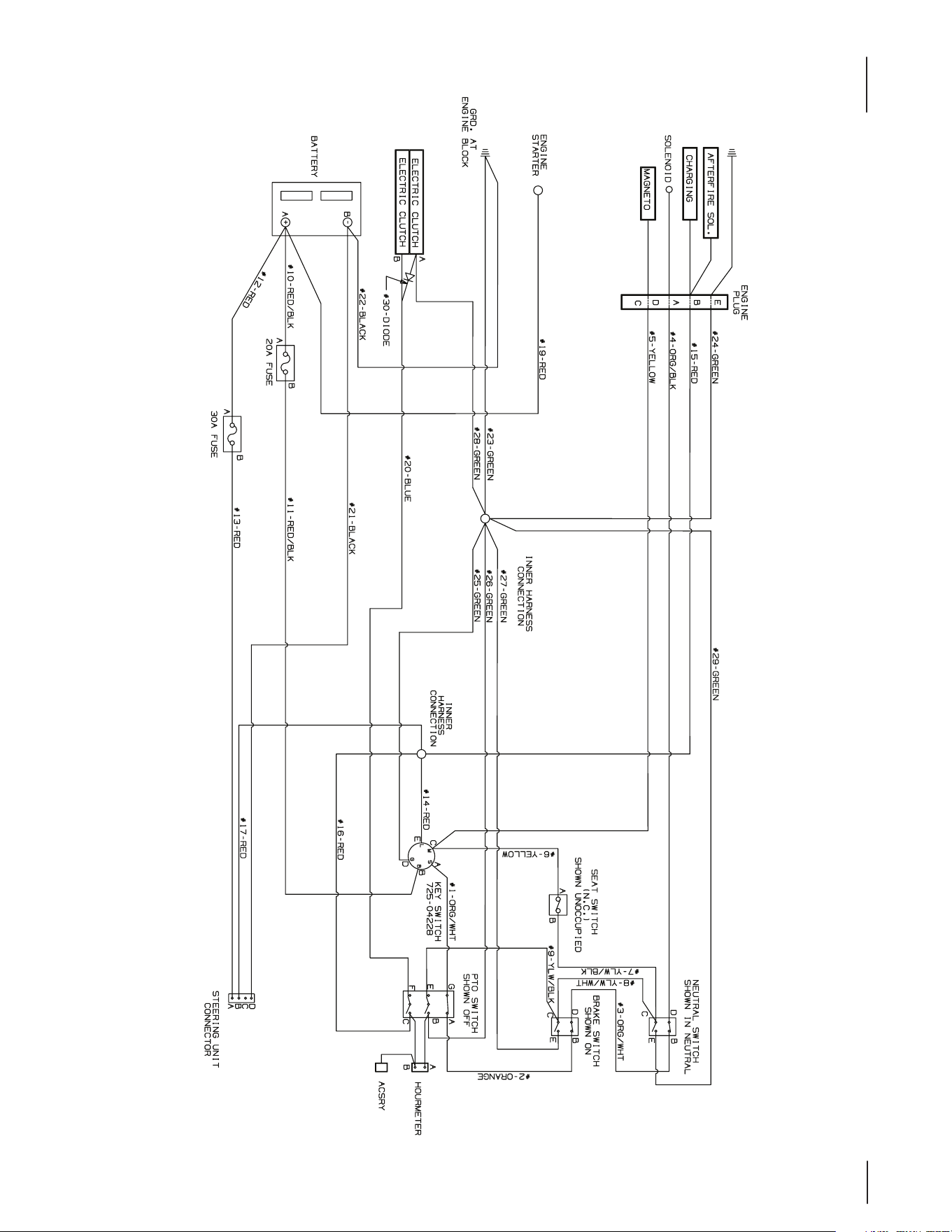

Electrical Schematic .............................................. 23

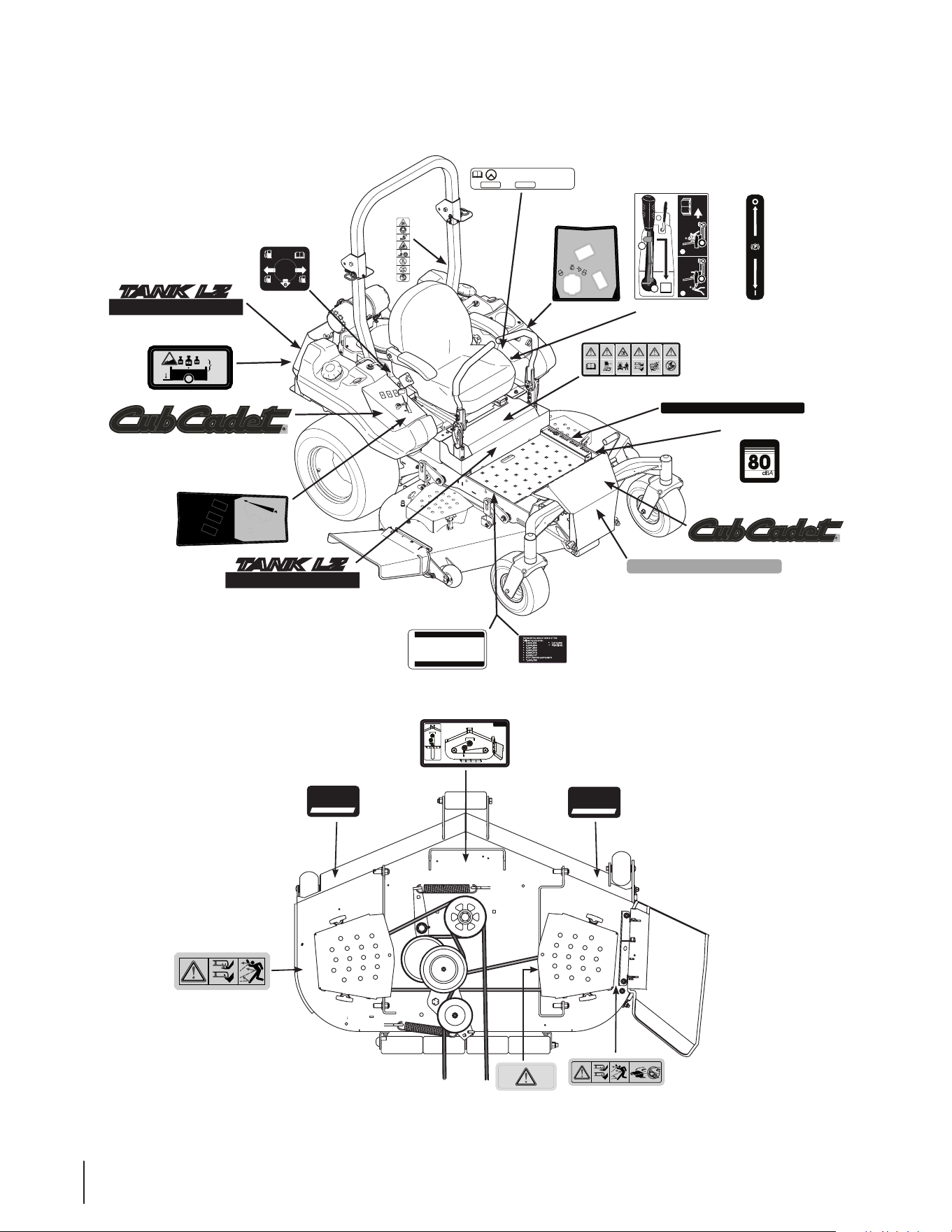

Tank LZ Labels ....................................................... 24

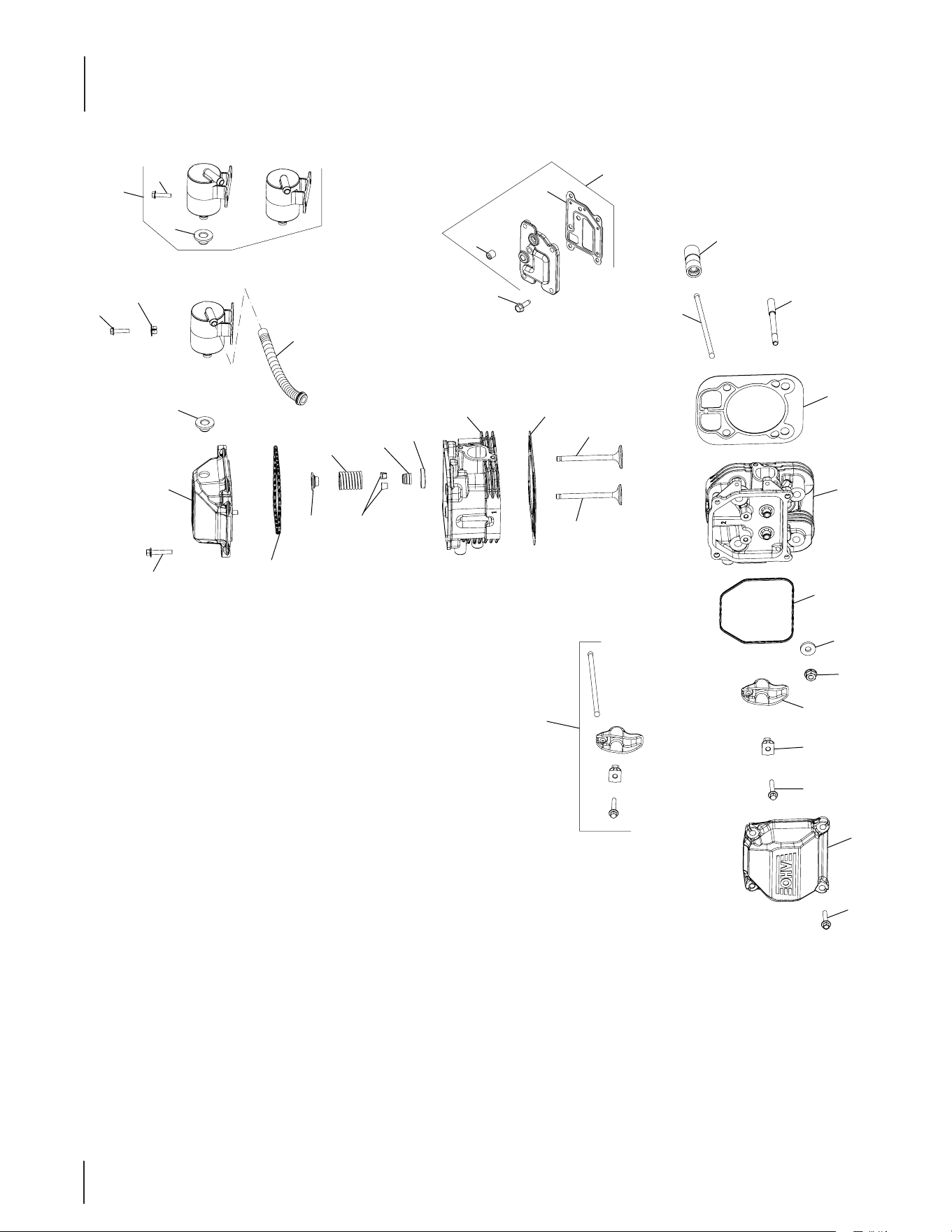

Kohler CV742-3032 ................................................ 26
3

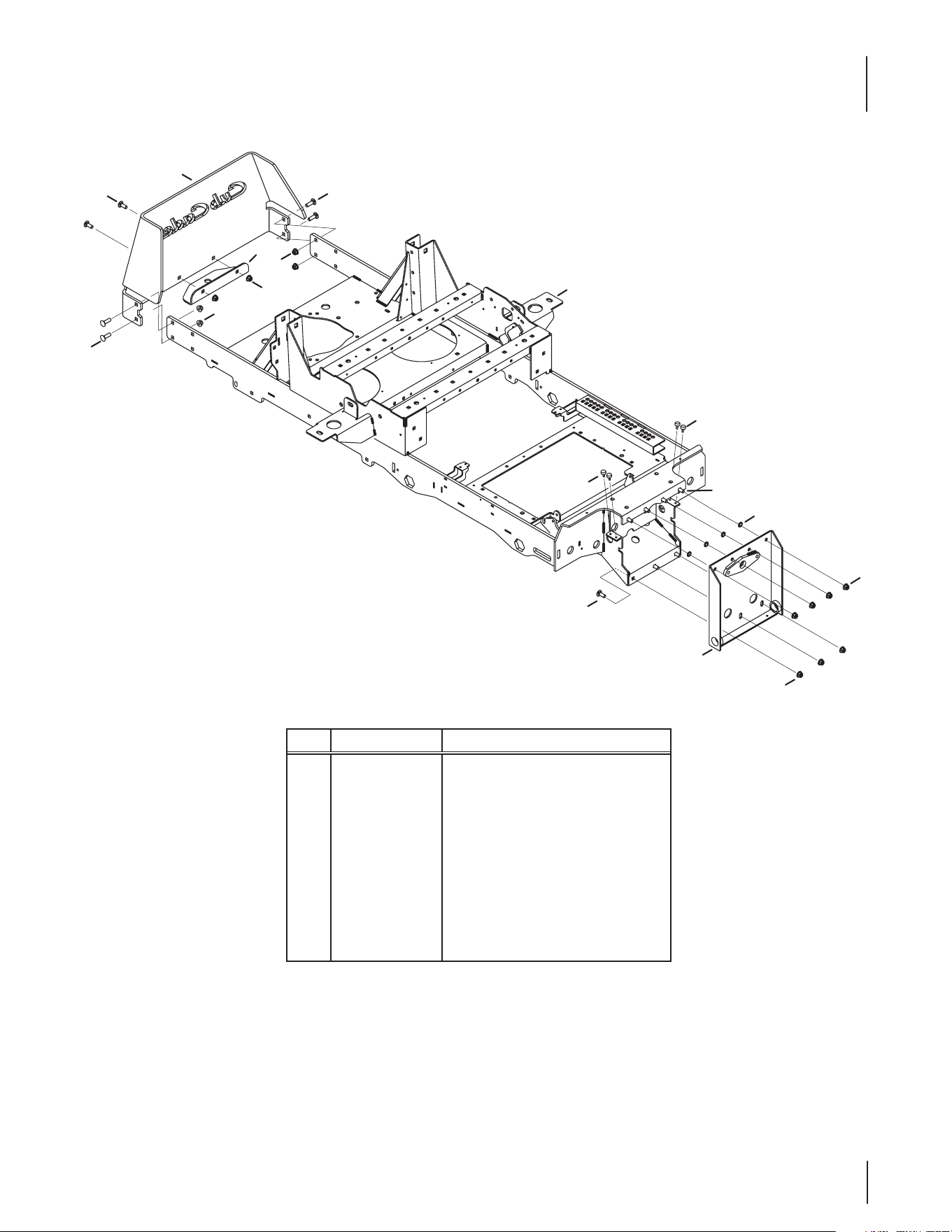

Frame
3
8
7
6
7
9
2
8
8
6
8
4
1
9
5
8
7
Ref Part Number Description
1 680-00348 Frame Assembly
2 680-00341 Front Axle Bracket Assembly
3 703-09461 Rear Bumper
4 703-09543 Hitch Bracket
5 712-0229 Push Nut, 3/8
6 710-05408 Carriage Bolt, 3/8-16 x 1.25
7 710-3168 Carriage Bolt, 3/8-16 x 1.00
8 712-04065 Nylock Nut, 3/8-16
9 735-0271A Bumper, .62 Dia. x .3
4

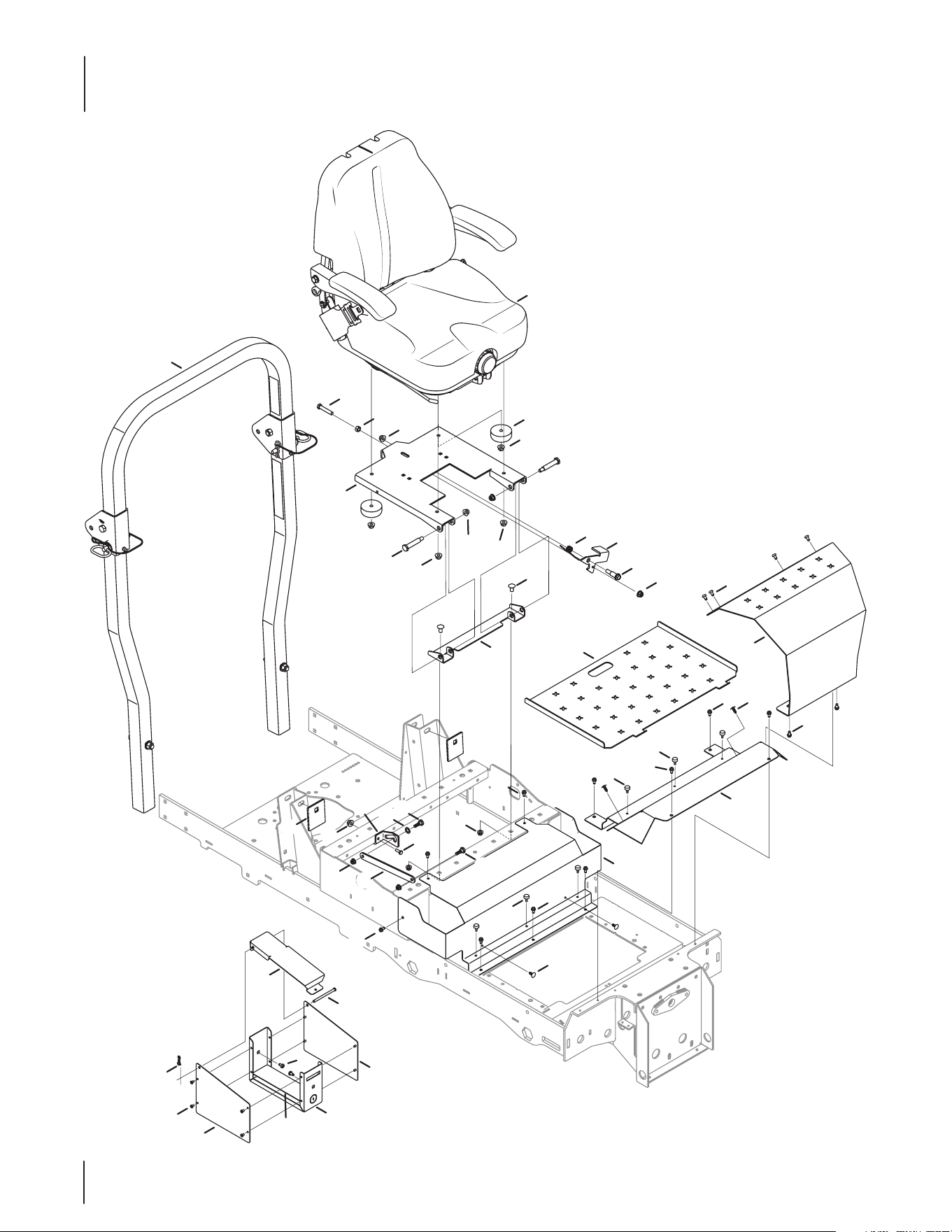

Seat Assembly
18
30
27
18
4
23
15
22
5
10
24
33
33
20
32
18
36
16
17
25
24
19
31
9
34
24
1
22
18
27
18
35
3
22
22
6
8
7
2
24
30
18
30
12
18
26
13
11
13
28
21
14
29
5
Ref. Part Number Description
1 01008140P Torsion Spring, .725 x 1.0 x .09
2 680- 00175 Folding ROPS Assembly
3 703-07814 Seat Mounting Bracket
4 703-07880 Deck Reinforcement Plate
5 703- 08198 Seat Lockout Bracket
6 703-08241 Seat Mounting Bracket
7 703-08324 Floor Panel Tray
8 703-08416 Floor Panel
9 703-08480 Seat Lever Latch
10 703-08496 Control Panel Cover
11 703- 0 8511 Storage Box
12 703-08513 Storage Box Lid
13 703-08519 Storage Box Side Panel
14 703-08633A Front Panel Cover
15 703-08758A Seat Lockout Mount
16 710-0389 Carriage Bolt, 3/8-16 x .75
17 710-05070A Screw, 1⁄4-20 x .5
18 710-0599 Hex Flange Screw, 1/4-20 x .500
Ref. Part Number Description
19 710-0859 Hex Cap Screw, 3/8-16 x 2.50
20 710 -3015 Hex Cap Screw, 1/4-20 x .75
21 711- 05607A Clevis Pin, .25 x 3.5
22 712- 04063 Nut, 5/16-18, Flangelock
23 712- 04064 Nut, 1/4-20, Flangelock
24 712-04065 Nut, 3/8-16, Flangelock
25 912-3017 Nut, 3/8-16, Hex
26 714-04040 Cotter Pin, Bow Tie
27 726-3046 Clip, .250 Dia.
28 727-04385 Adhesive Pad
29 728-04016 Rivet, 3/16 x .325
30 735- 0271A Bumper, .62 Dia. x .3
31 735-04286 Rubber Bumper, 2.5 x 1.0
32 736-3024 Flat Washer, .469 x .750 x .06
33 938-0296 Shoulder Screw, 5/16-18 x .437 x .268
34 738-0966A Shoulder Bolt, .50 x .925, 3/8-16
35 738 -1011A Shoulder Bolt, .500 x 2.23, 3/8-16
36 757-05011A Seat
Seat Assembly
6

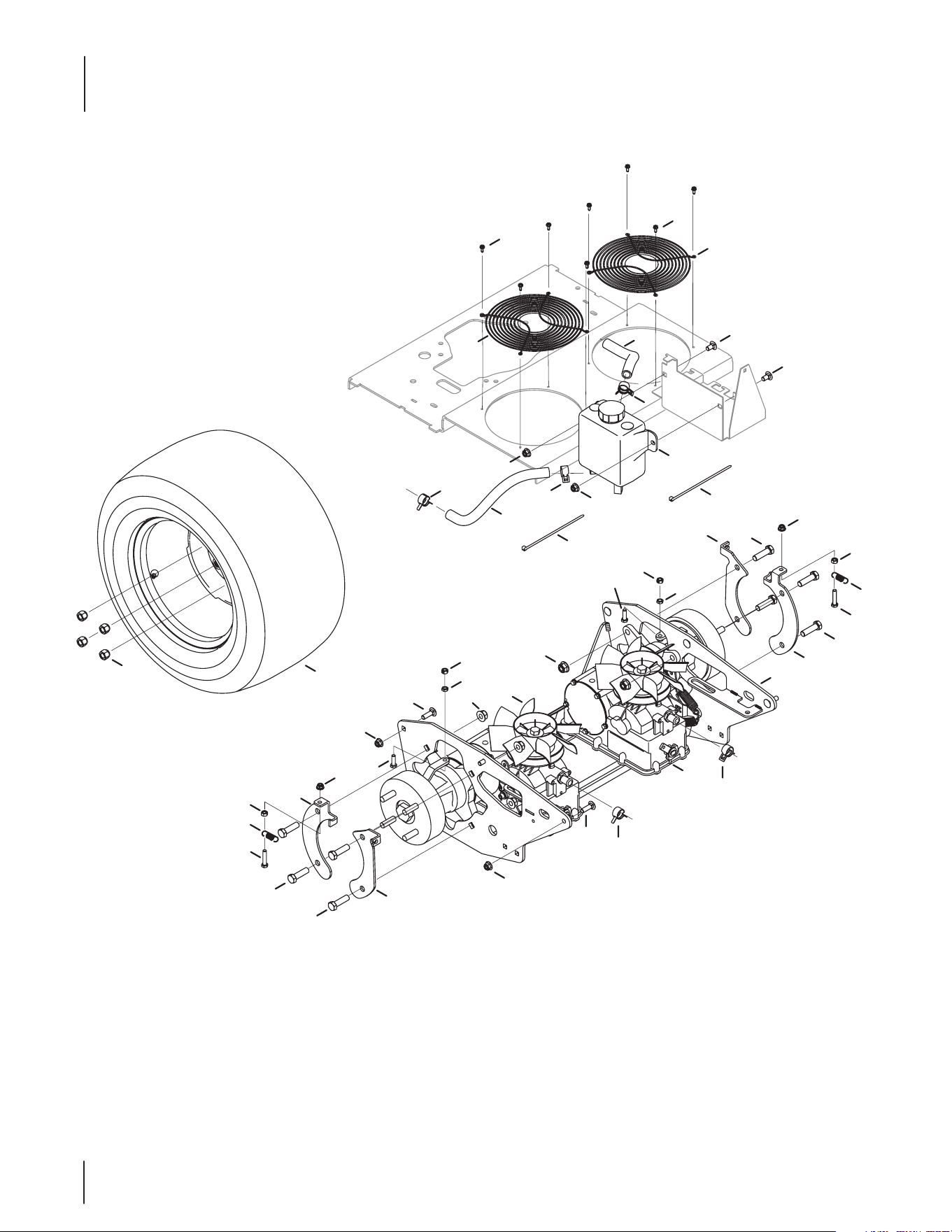

Hydro Controls
1
13
6
9
17
17
14
2
14
25
12
23
11
11
24
13
5
15
19
10
9
A
B
6
5
10
25
11
11
12
23
15
24
19
3
16
16
13
13
20
22
21
17
7
7
20
8
18
8
17
17
18
A
B
4
7
Hydro Controls
Ref. Part Number Description
1 918-07021 Transmission, LH
2 918-07022 Transmission, RH
3 931-04566 Hydro Tank Assembly
4 680-00336 Transmission Bracket Assembly
5 703-09657 Spring Brake Mounting Bracket
6 703-09658 Brake Cable Mounting Bracket
7 710-0389 Carriage Bolt, 3/8-16 x .75
8 1767754 Screw, 10-24 x .500
9 710-05408 Carriage Bolt, 3/8-16 x 1.25
10 710-0805A Hex Cap Screw, 5/16-18 x 1.50
11 710-3067 Hex Cap Screw, 1/2-13 x 1.75
12 712-04063 Nut, 5/16-18, Flangelock
13 712- 04065 Nut, 3/8-16, Flangelock
14 712- 04150 Nut, 1/2-13, Flangelock
15 912-3010 Nut, 5/16-18, Hex
16 725-0157 Cable Tie
17 726-05017 Hose Clamp, .9375
18 732-04833 Fan Cover
19 732-05147 Extension Spring, .50 OD x 1.71
20 751-12281 Hose, 5/8 ID x 12.00 LG
21 634-05088 Wheel Assembly, 24 x 12-12
22 712- 0 4311 Lug Nut, 1/2-13
23 710-0376 Hex Cap Screw, 5/16-18 x 1.00
24 712-3007 Jam Nut, 5/16-18
25 912-3009 Nut, Hexlock 5/16-18
8

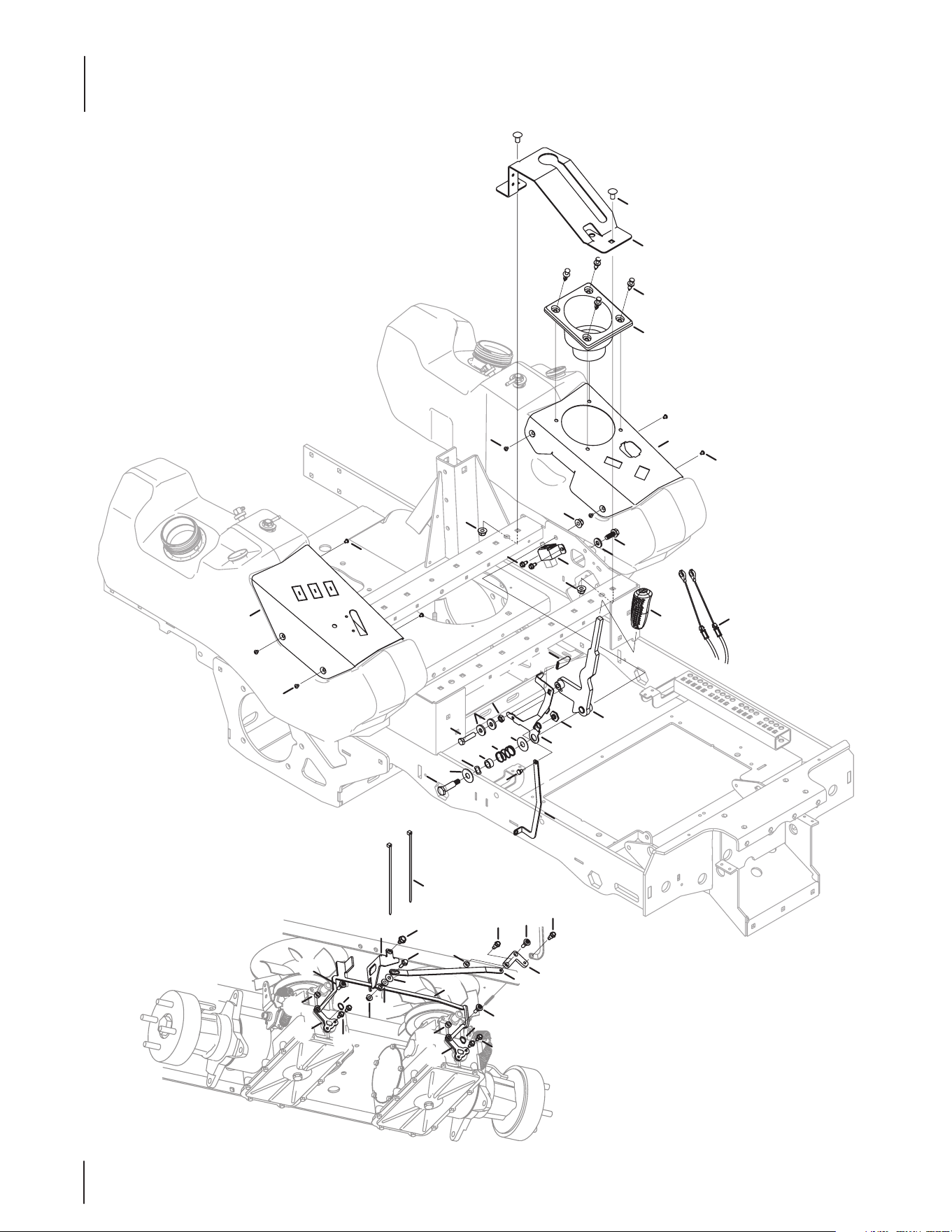

Control Group
3
42
20
43
25
8
14
25
7
43
43
7
4
38
41
38
17
22
21
21
6
17
17
30
29
5
13
15
36
28
10
9
41
34
40
24
18
41
18
18
17
26
1
39
12
11
16
27
23
33
19
31
44
32
35
37
35
2
9
Control Group
Ref. Part Number Description
1 680-00339 Brake Handle Assembly
2 703-08123 LH Control Panel
3 703-08482 RH Control Panel
4 703-09587A Dump Valve Actuator Bracket
5 703-09592 Boot Brake Bracket
6 703-09604 Brake Switch Mount
7 703-09665 Transmission Bypass Lever
8 703-09701 Neutral Switch Bracket
9 703-09703 Transmission Actuator Arm
10 703-09731 Neutral Pivot Control Lever
11 703-09739A Neutral Arm
12 703-09912 Dump Valve Release Lever
13 710-0389 Carriage Bolt, 3/8-16 x .75
14 710-04666 Hex Flange Screw, 1/4-20 x .75
15 710-04683C Screw, 3/8-16 x 1.00
16 710-05132 Screw, M6 x 8mm
17 710-05421 Machine Screw, #10-32 x .25
18 710-0599 Hex Flange Screw, 1/4-20 x .500
19 710-06021 Hex Cap Screw, 3/8-16 x 1.50
20 710-0607 Screw, 5/16-18 x .50
21 712- 04065 Nut, 3/8-16, Flangelock
22 912- 0431 Nut, 3/8-16, Flangelock
Ref. Part Number Description
23 912-3008 Jam Nut, 3/8-16
24 912-3027 Nut, 1/4-20, Hexange
25 916 - 0114 Retainer Ring
26 720-04139B Grip, .50 ID
27 720-0433 Grip, Seat, Adjustment (Yellow)
28 725- 0157 Cable Tie
29 728-0199 Rivet, .3125
30 731-08438 Cup Holder
31 732-04481 Compression Spring, .844 x .97 x 1.5
32 936-0232 Washer, Wave, .531 x .781 x .013
33 736-0258 Flat Washer, .385 x 1.00 x .135
34 736-0342 Flat Washer, .283 x .750 x .030
35 736-04237 Flat Washer, .508 x 1.325 x .040
36 936-3004 Flat Washer, .406 x .875 x .105
37 738-0213 Shoulder Screw, .498 x 1.445
38 738-04425 Shoulder Screw, .342 x .335, 1/4-28
39 738-04446 Shoulder Spacer, M6
40 738-04483 Shoulder Spacer, .375 x .625 x .20
41 738-0706C Shoulder Screw, .375 x .280, 1/4-14
42 946-05103 Brake Cable
43 750-05297 Spacer, .256 x .500 x .240
44 750-06360 Spacer, .51 x .75 x .390
10
Ref. Part Number Description
1 651- 04319A Fuel Tank Assembly, RH
2 651-04320A Fuel Tank Assembly, LH
3 703-08484 Rear Fuel Bracket, RH
4 703-08495 Rear Fuel Bracket, LH
5 710-05412 Hex Cap Screw, 3/8-16 x .500
6 710-3168 Carriage Bolt, 3/8-16 x .500
7 712-04065 Nut, 3/8-16, Flangelock
8 725-0157 Cable Tie
9 726 - 04123A Hose Clamp, .500 Dia.
10 751-10349-84 Fuel Hose., 1/4

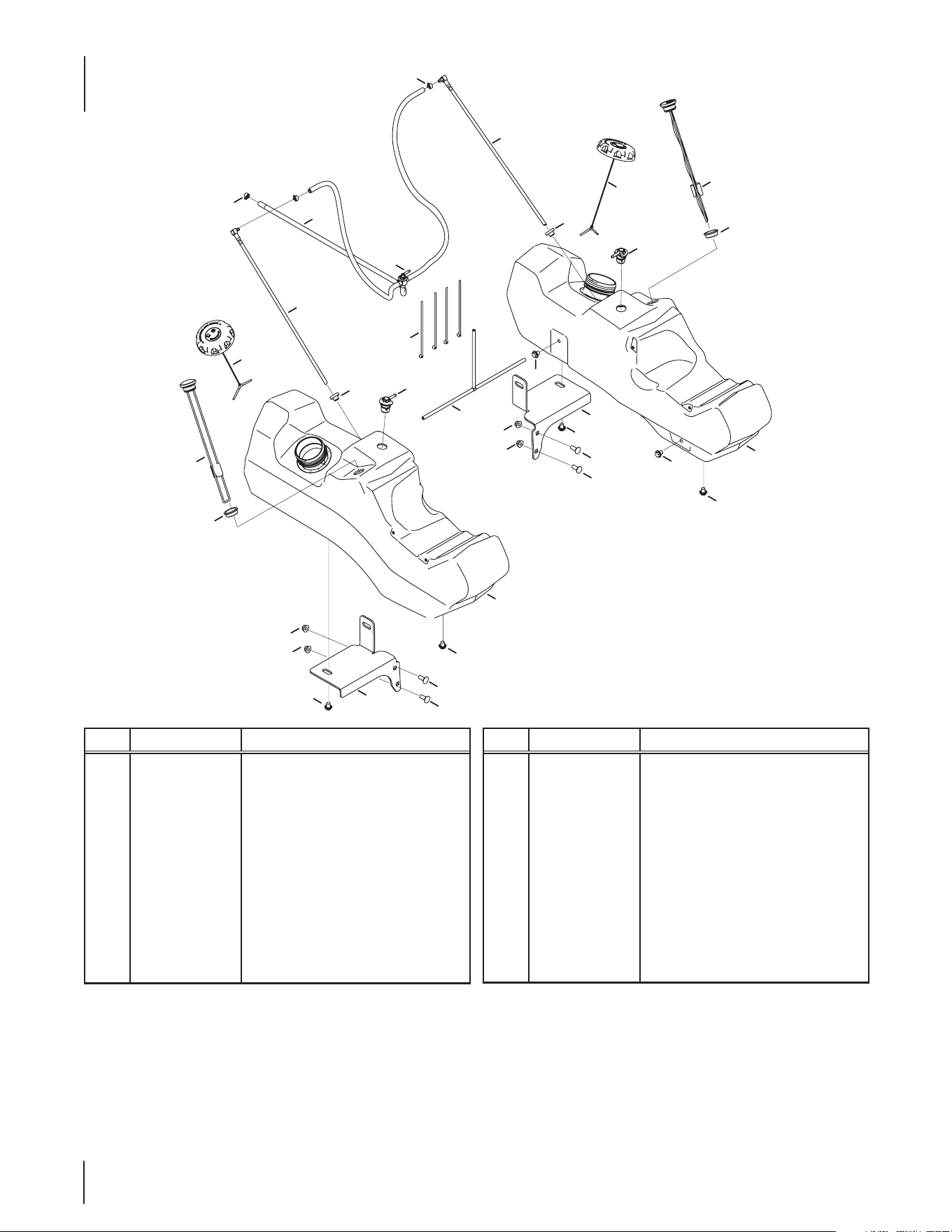

Fuel Tank Assembly
5
1
5
5
6
4
5
6
6
6
3
5
12
7
7
8
7
7
15
18
13
16
5
2
14
18
15
17
16
10
9
11
9
14
13
17
Ref. Part Number Description
11 751-12484 Fuel Switch
12 751-12282 Fuel Hose Assembly includes:
- - Hose, 3/16” Fuel Line (in inches)
737-04341 Tee Fitting, Fuel
13 02002253 Grommet, Fuel Tank
14 951-12754 Fuel Cap
15 735-0699 Grommet, 1.58 OD x 1.21 ID x .5
16 951-12117 Fuel Pickup Valve
17 951-10375 Fuel Rollover Valve
18 951-12366 Fuel Gauge
11

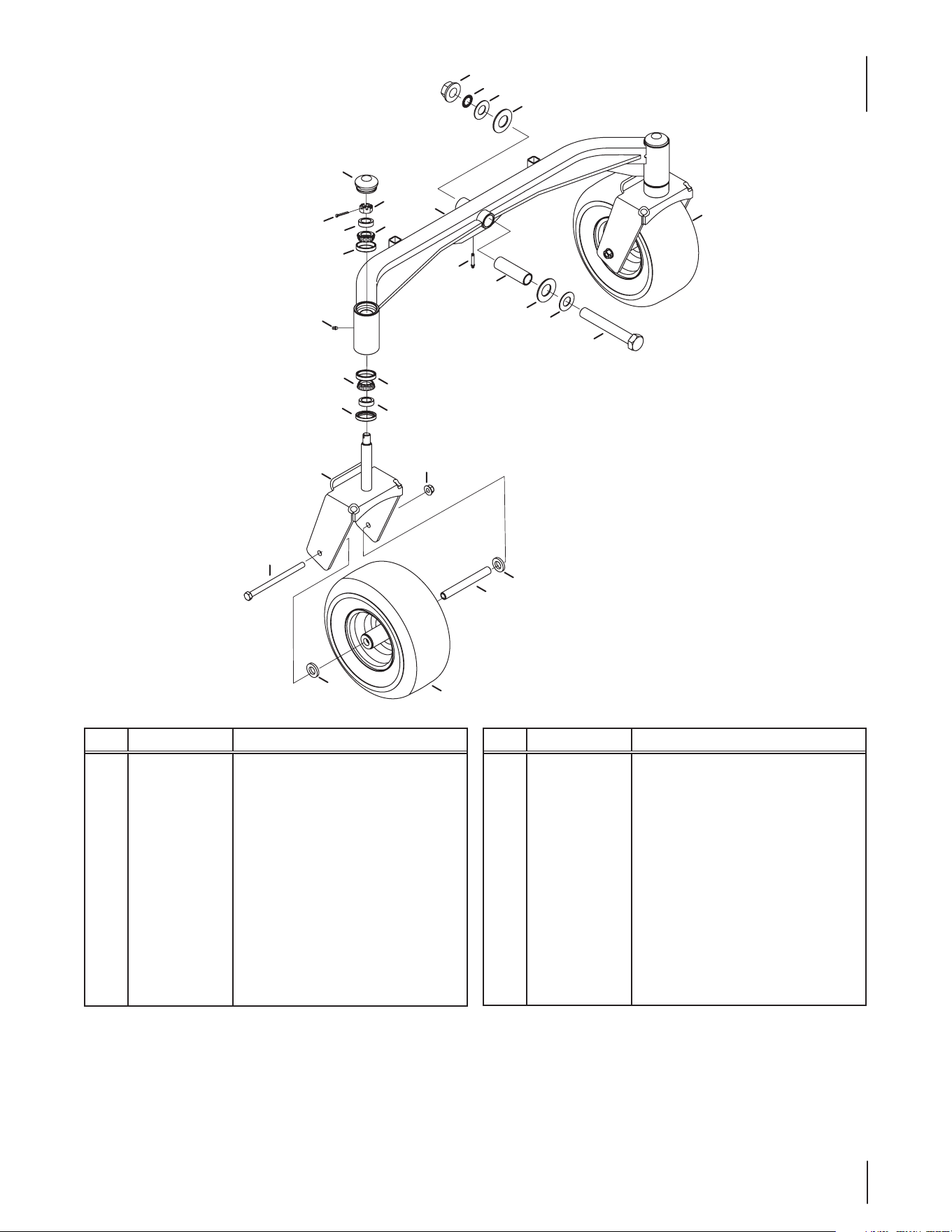

Front Axle Assembly
Ref. Part Number Description
1 634-04750 Wheel Assembly, 13 x 6.50-6
2 680-00323 Front Axle
3 680-00324 Yoke, Caster Wheel
4 710-05189 Hex Cap Screw, 1-14 x 7.0
5 710-05394A Hex Cap Screw, 1/2-13 x 7.75
6 712- 0359 Nut, 3/4-16, Slotted
7 712- 04150 Nut, 1/2-13, Flangelock
8 712- 04310 Nut, 1.0-14, Flangelock
9 716 -04191 Retainer Ring
10 731-07348 Axle Grease Cap
11 714-0162 Cotter Pin, 5/32 x 1.25
Ref. Part Number Description
12 736-04604 Bell Washer, 1.25 x 2.50 x .180
13 736-04605 Washer, 1.00 x 2.00 x .075
14 737-04345 Grease Fitting, 1/4-28
15 737-04352 Grease Fitting, 1 39/64
16 721-04462 Seal
17 750-05438 Spacer, 1.005 x 1.247 x 4.1
18 741- 04548 Cup Bearing
19 750-05553 Spacer, .812 ID x .218 LG
20 750-05625 Spacer, .515 x .749 x 6.313
21 741-04549 Cone Bearing
22 750-05600 Spacer, 1.00 x 1.50 x .437
3
19
1
20
19
14
7
5
10
2
8
12
17
12
13
4
9
13
1
15
16
22
21
18
18
11
22
21
6
12

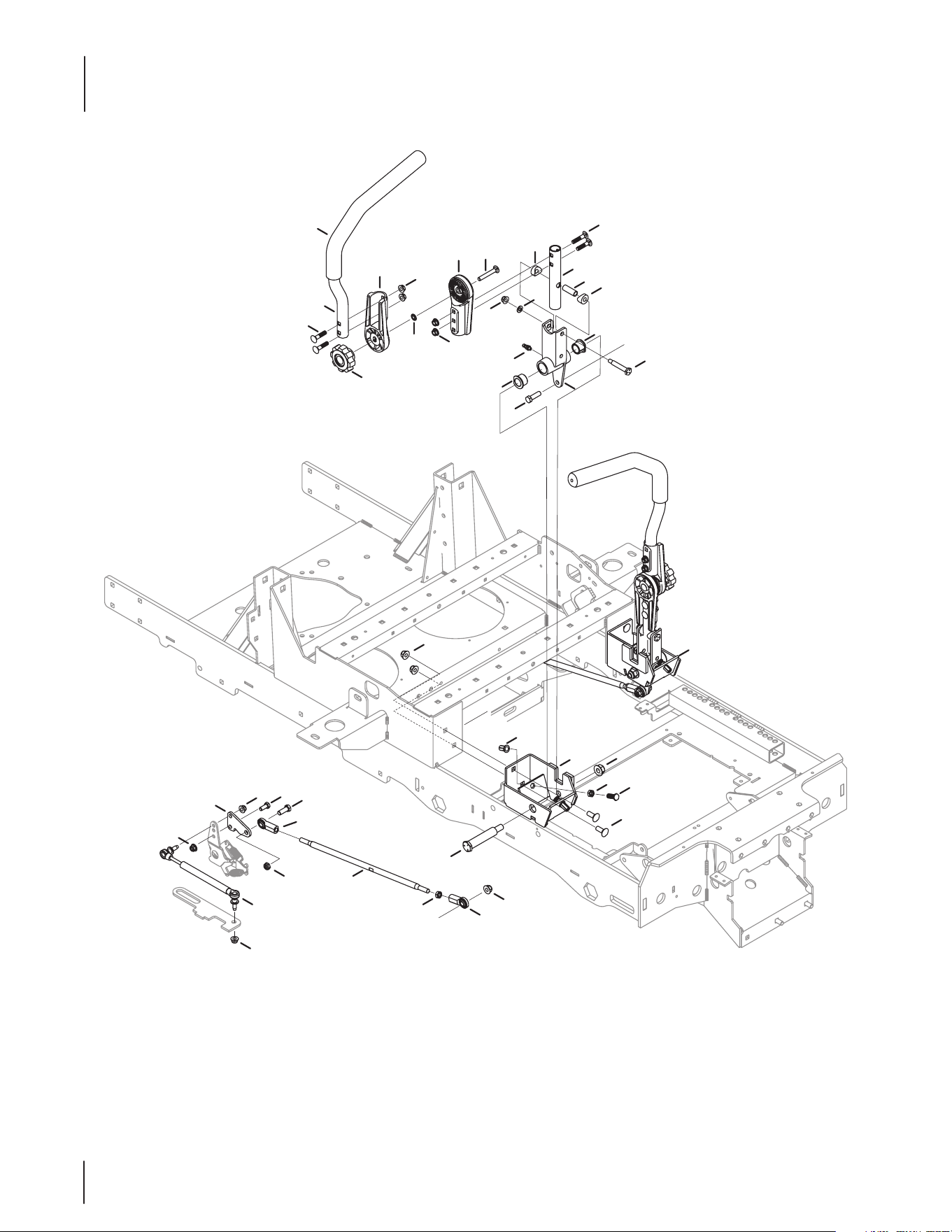

Control Assembly
31
4
14
15
12
7
18
28
3
A
A
16
30
33
17
34
10
13
35
20
8
20
6
36
35
29
33
32
9
11
13
1
23
26
16
21
24
14
19
13
13
27
6
22
2
5
25
13
Ref. Part Number Description
1 680-00237 Lower Pivot Tube Weldment
2 680-00242 Lapbar Tube Weldment
3 680-00342A Pivot Housing Weldment, RH
4 680-00343A Pivot Housing Weldment, LH
5 703-08789 Return to Neutral Control Bracket
6 710-0262 Carriage Bolt, 5/16-18 x 1.50
7 710-04095 Hex Cap Screw, 3/8-16 x 1.00
8 710-0572 Carriage Bolt 5/16-18 x 2.25
9 710-0514 Hex Cap Screw, 3/8-16 x 1.00
10 710-3005 Hex Cap Screw, 3/8-16 x 1.25
11 710-3008 Hex Cap Screw, 5/16-18 x .75
12 710-3168 Carriage Bolt, 3/8-16 x 1.00
13 712- 04063 Nut, 5/16-18, Flangelock
14 712-04065 Nut, 3/8-16, Flnagelock
15 712- 04150 Nut, 1/2-13, Flangelock
16 712- 04339 Nut, 5/16-18, Centerlock
17 712-0711 Jam Nut, 3/8-24
18 912-3008 Jam Nut, 3/8-16
Ref. Part Number Description
19 912-3020 Jam Nut, 3/8-16
20 719-04718 Handle Adjustment
21 719-04753 Pivot Control
22 720-04188 Grip, 1.0 ID
23 720-05057 Knob, 5/16 -18
24 723-04080 Ball Joint, 3/8-24
25 723-04098 Ball Joint, 3/8-24, LH
26 726-0201 Speed Nut, .3125
27 727-04391 Damper Control Cylinder
28 728-04062A Rivet Nut, 3/8-16
29 936-0264 Washer, .330 x .630 x .064
30 737-3001 Grease Fitting, 1/4-28
31 738-05033 Shoulder Bolt, .75 x 3.25, 1/2-13
32 738-04535 Shoulder Screw, .375 x 1.813, 5/16-18
33 741-04050 Bearing, .75 x 1.00 x .73
34 747-05678 Control Rod
35 750-05622 Spacer, .500 x .875 x .250
36 750-05673 Spacer, .385 x .500 x 1.40
Control Assembly
14
30
32
35
34
17
25
8
44
33
43
1
20
18
9
27
31
35
2
25
25
44
25
25
8
44
8
29
22
22
13
28
12
36
12
36
25
17
14
41
14
40
42
39
42
4
5
39
42
10
40
41
14
29
39
24
10
41
24
44
42
40
14
29
7
17
40
14
29
39
28
36
38
24
10
11
24
6
38
20
3
19
41
21
15
16
37
23
23
37
16
26
16
26
16
47
47
45
45
46

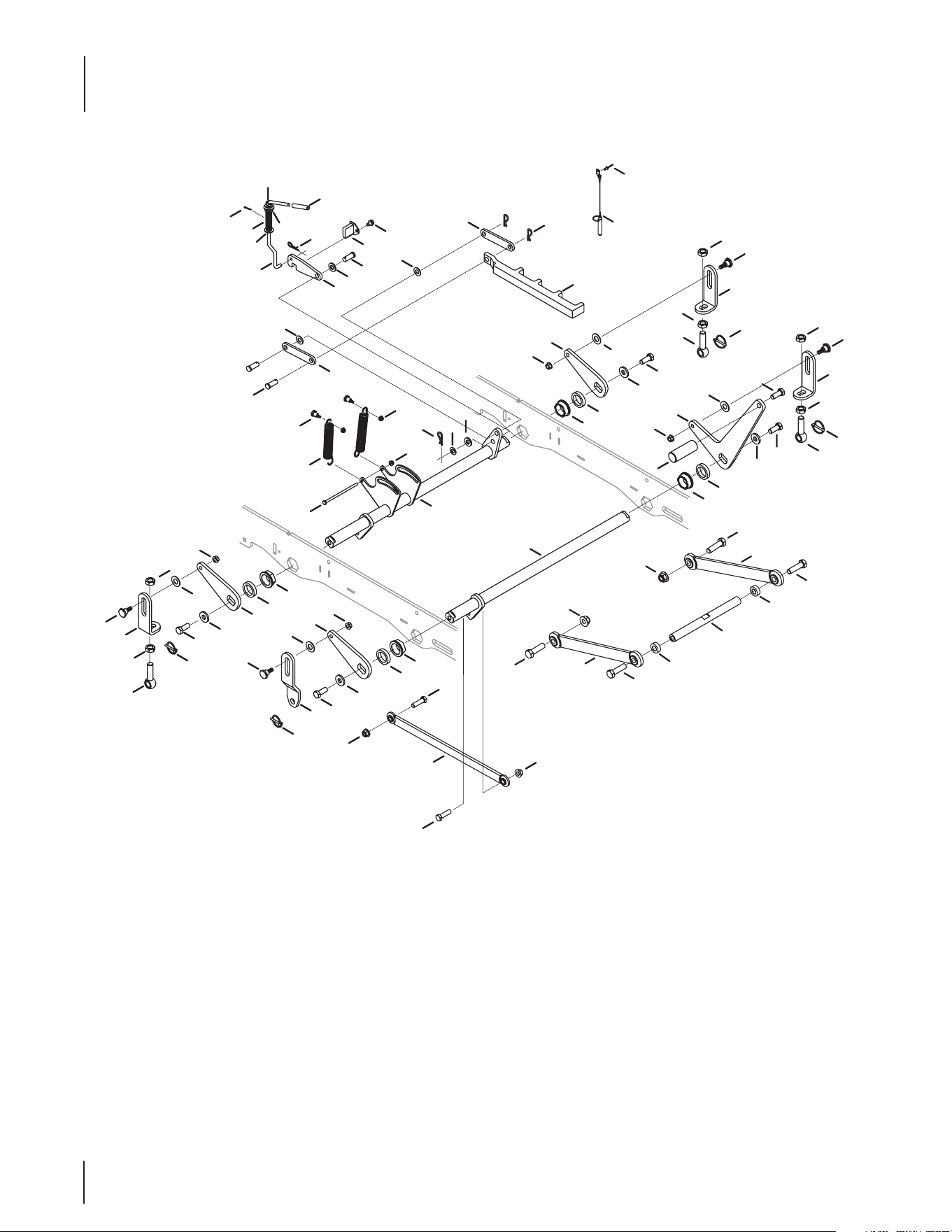

Deck Lift Assembly
15
Deck Lift Assembly
Ref. Part Number Description
1 02002596 Deck Lift Foot Pedal
2 941-0475 Bearing, .385 ID
3 680 - 00158 Lift Lock Mount
4 680-00350 Deck Lift Shaft, Rear
5 680-00349 Deck Lift Shaft, Front
6 703-08032 Latch Lock Bracket
7 703-08060 Lift Link Arm
8 703-08062 Deck Adjustment Lift Link Arm
9 680-00347 Deck Lift Arm Assembly
10 703-08070 Deck Lift Bellcrank
11 703-08252 Deck Lift Foot Pedal
12 703-08384 Deck Index Link Arm
13 703-08388A Lift Index Slider Arm
14 710-04186 Hex Cap Screw, 1/2-13 x 1.25
15 728-04016 Rivet, 3/16 x .325
16 710-06047 Hex Cap Screw, 5/8-11 x 2.25
17 710-05355 Eye Bolt, 5/8-18 x 2.63
18 710 -05418 Hex Cap Screw, 1/4-20 x 5.00
19 710-0607 Screw, 5/16-18 x .500
20 711- 04061 Clevis Pin, .500 x 1.25
21 711- 05629 Clevis Pin, .438 x 1.5
22 712- 04064 Nut, 1/4-20, Flangelock
23 712- 04151 Nut, 5/8-11, Flangelock
24 712-05007 Nut, 3/8-16, Flange Centerlock
Ref. Part Number Description
25 912-3015 Jam Nut, 5/8-11
26 950-0960A Spacer, .635 x 1.25 x .445
27 914-0145 Click Pin, .092 x 1.64
28 914-0149B Internal Cotter Pin
29 753-04070 Lynch Pin, .1875
30 914-0507 Cotter Pin, 3/32 x .750
31 720-04183 Lift Handle Grip
32 747-05465A Lift Lock Rod
33 732-04929 Extension Spring, .969 OD x 6.180
34 732-0992 Compression Spring, .656 OD x 2.445
35 736-0242 Bevel Washer, .340 x .872 x .060
36 936-0272 Washer, .510 x 1.00 x .125
37 680-00322 Deck Rod Assembly
38 936-0326 Washer, .510 x 1.00 x .125
39 948-3051 Hex Flange Bearing
40 703-09695 Flat Washer, .531 x 2.125 x .250
41 736-04602 Washer, .640 x 1.25 x .050
42 750-05468 Spacer, 1.27 x 1.75 x .375
43 738-04222 Shoulder Screw, .437 x .50, 1/4-20
44 738 -1127B Shoulder Screw, .625 x .442, 3/8-16
45 710-3067 Hex Cap Screw, 1/2-13 x 1.75
46 711-05072 Front Lift Link Shaft, Threaded
47 712- 04150 Nut, 1/2-13, Flangelock
16
Engine Accessories (Kohler)
33
23
28
5
20
39
6
1
40
38
34
11
4
9
12
19
17
15
2
7
24
16
27
15
22
3
14
36
26
21
29
31
32
32
7
7
13
8
37
10
25
14
35
15
15
30
18
17
Engine Accessories (Kohler)
Ref. Part Number Description
1 680-00227A Idler Bracket
2 703-08607 Clutch Retainer Bracket
3 710-0216 Hex Cap Screw, 3/8-16 x .75
4 710-0425 Screw, #10-24 x .625
5 710-04377 Hex Cap Screw, 7/16-20 x 2.75
6 710-05376 Carriage Bolt, 3/8-16 x 1.00
7 710-0805A Hex Cap Screw, 5/16-18 x 1.50
8 710-3168 Carriage Bolt, 3/8-16 x 1.00
9 710-3217 Screw, #8-32 x .375
10 711-1637 Stud, Pivot Ball Joint
11 712- 0142 Nut, #8-32, Hex
12 712- 0161 Nut, #10-24, Hexlock
13 712- 0290 Nut, 7/16-14, Hexlock
14 712-04063 Nut, 5/16-18, Flangelock
15 712- 04065 Nut, 3/8-16, Flangelock
16 912- 0431 Nut, 3/8-16, Flangelock
17 712- 04312 Nut, M8-1.25, Hexlock
18 712-0711 Jam Nut, 3/8-24
19 714 - 0118 Key, 1/4 x 1.50
20 917-04967 Electric PTO Clutch
21 725- 0157 Cable Tie
22 726 - 04124 Clip, .407 x 1.80
23 731-04914 Throttle Control Knob
24 732-04915A Extension Spring, 1.5 x 7.5
25 936-0275 Washer, .344 x .688 x .065
26 736-3017 Washer, .471 x 1.50 x .225
27 721-04516 Pulley Cap
28 736-3082A Washer, .471 x 1.50 x .225
29 937- 0146 Grease Fitting
30 73 8 -1126 Shoulder Screw, .625 x .302, 3/8-16
31 738-3102 Shoulder Bolt, .625 x 1.947, 7/16-14
32 741-04555 bearing, .638 x .753 x .615
33 946-04812 Choke Control Cable
34 946-04840 Throttle Cable
35 747-05707 Transmission Spring Hook
36 751-10291A Oil Drain Hose
37 751-12519 Muer
38 954-04320 Belt
39 756-04480A Drive Pulley
40 756-04487 Idler Pulley
18
15
24
72
1
54
69
19
2
16
42
40
65
25
48
73
57
62
35
65
26
58
29
26
39
33
7
18
21
74
74
8
74
50
68
4
36
4
12
41
4
41
58
27
67
3
49
19
83
79
77
80
81
78
82
52
37
28
17
27
84
11
6
6
32
64
48
71
51
27
26
49
55
26
23
66
22
67
56
61
26
59
60
76
14
52
43
61
34
64
63
73
10
47
45
70
38
26
26
68
50
26
75
57
46
67
60
44
53
90
91
87
89
88
88
42
89
87
91
90
86
85
92
A
A
A
A
5
20
30
34
13
78
31
94
95
9
93
60” Deck
19
60” Deck
Ref. Part Number Description
1 02005195 Chute Bae
2 02005694 Bae, 60” Adjustment
3 631- 05115 Anti-Scalp Roller Assembly
4 634-3159 Complete Wheel, 5.00 Dia.
5 680-00329 60” Deck Assembly
6 703- 09137 Rear Roller Mount Bracket
7 703-09380 Deck Stabilizer Mount Bracket
8 703-09922 Deck Belt Cover, RH
9 703-09921 Deck Belt Cover Bracket
10 703-09924 Deck Belt Cover, LH
11 703-09579 Rear Roller Bracket, RH
12 710-04692 Hex Cap Screw, 3/8-16 x 7.25
13 710-0607 Screw, 5/16-18 x .500
14 710-06156 Screw, 5/16-18 x .500
15 710-0623 Screw, 3/8-16 x .750
16 710-0773 Screw, 3/8-16 x .500
17 710-1649 Carriage Screw, 3/8-16 x 4.50
18 710-3168 Carriage Bolt, 3/8-16 x 1.00
19 710-3178 Carriage Bolt, 3/8-16 x .750
20 711- 0560 4 Pin, 1/2-13 x .625 x 1.2
21 711- 056 6 4 J-Hook w/ Threaded Roller
22 911- 0770 Ferrule
23 712- 0229 Push Nut, 3/8
24 712-0266A Jam Lock Nut, 3/8-16
25 712- 04064 Nut, 1/4-20, Flangelock
26 712- 04065 Nut, 3/8-16, Flangelock
27 712- 04150 Nut, 1/2-13, Flangelock
28 912-0641 Hex Nut, M16-1.5
29 914-0145 Click Pin, .092 x 1.64
30 914-04023 Internal Cotter Pin
31 720 -04122 Wing Knob
32 731-10336 Skid Guard Plate
33 732-04929 Extension Spring, .969 x 6.180
34 936-0287 Washer, .793 x 1.24 x .06
35 736-0371 Flat Washer, .343 x .880 x .062
36 736-04296 Flat Washer, .632 x 1.00 x .160
37 936-0760 Lock Washer, 17 x 23.8 x 1.95
38 738-04146 Plug, Screw, M16-1.5
39 738-04222 Shoulder Bolt, .437 x .50, 1/4-20
40 747- 06273 Deck Support Rod, 1/2” Dia.
Ref. Part Number Description
41 750-3193 Wheel Spacer
42 918-05132 Spindle Assembly
43 680-00167A Deck Idler Arm
44 680 -00319 Idler Assembly
45 703-08855 Spacer, .5375 x 2.75 x .375
46 703-09434 Spindle Support Plate
47 710-0382 Hex Cap Screw, 1/2-13 x 5.00
48 710 - 04157 Screw, 3/8-16 x 2.00
49 710-04831A Bolt, 5/16-18 x 1.25
50 710-05387 Hex Cap Screw, 3/4-16 x 7.00
51 710-05388 Hex Cap Screw, 3/4-16 x 9.00
52 712-04063 Nut, 5/16-18, Flangelock
53 712- 04327 Nut, 5/8-18, Flangelock
54 712-3022 Nut, 1/2-13, Hexlock
55 712-3078 Nut, 3/4-16, Flangelock
56 714-04040 Bow Tie Cotter Pin
57 721-04516 Pulley Cap
58 732- 04911 Extension Spring, 1.248 x 8.5
59 736-3040 Washer, .406 x 1.92 x .060
60 736-3052 Washer, .406 x 1.00 x .105
61 937-0146 Grease Fitting
62 738-05030 Shoulder Bolt, 1.0 x 3.15, 5/8-18
63 938 -3110 Shoulder Bolt, .750 x 2.23, 1/2-13
64 741- 0338 Flange Bearing, .75 x .52
65 741- 04552 Flange Bearing, 1.00 x .75
66 942-04415 Hi-Lift Blade, 21.0
67 747-05658 Spring Rod Hook
68 750-05553 Spacer, .812 x .218
69 750-05617 Spacer, .760 x 2.00 x .925
70 750-3213 Spacer, .405 x .75 x 3.875
71 954-04296 V-Belt
72 954-04319 Deck Belt
73 756-04487 Idler Pulley
74 756-04489 Spindle Pulley
75 756-04496A Drive Pulley
76 756-04522 Idler Pulley
77 631-05176 Discharge Chute Assembly
78 710-0276 Carriage Bolt, 5/16-18 x 1.00
79 703-09625A Chute Bracket
80 703-09626 Chute Bracket
Continued on next page
20
60” Deck
Ref. Part Number Description
81 726-04009 Push Cap
82 732- 05128A Torsion Spring
83 738-04549A Shoulder Screw, 1/4-20
84 747-06318 Chute Rod
85 737-3001 Grease Fitting, 45 degree, 1/4-28
86 911- 05758 Spindle Shaft
87 921-0385 Seal, Oil
88 941-3050 Cup Bearing
89 941-3051 Cone Bearing
90 736-04642 Washer, 1.50 x 2.52 x .075
91 750-05695 Ring, Seal
92 737-04373 Straight Adapter Fitting
93 710-0599 Hex Flange Screw, 1/4-20 x .500
94 726-0201 Speed Nut, .3125
95 735-0271A Bumper, .62 Dia. x .3
21
This page left intentionally blank.
22
Electrical
9
5
13
15
10
5
2
6
3
7
4
14
4
5
4
1
8
11
12
12
Ref. Part Number Description
1 01009905 PTO Switch Bracket
2 703-07855 Battery Bracket
3 710-0389 Carriage Bolt, 3/8-16 x .750
4 710-3015 Hex Cap Screw, 1/4-20 x .75
5 712- 04064 Nut, 1/4-20, Flangelock
6 712- 04065 Nut, 3/8-16, Flangelock
7 723-3064 Battery Strap
8 725- 0157 Cable Tie
9 925-04174 Electric PTO Switch
Ref. Part Number Description
10 925-04228 Key Switch
11 735-04285 Rubber Grommet, .75 x 1.062 x .50
12 925-3164A Plunger Switch, NO/NC
13 725-05438 Hour Meter
14 925-1707D Battery
15 925-2054A Key
NS 725-06220 Wire Harness
NS 929-04195 Hour Meter Harness
23
Electrical Schematic
24
PIVOTING FRONT AXLE
D16547
777I25296
777I25293
777D20251
777D20248
777D16547
777D20217
777I25298
777S35584
777I25336
777I25294
777D19179
777I25299
777S35375
777S32854
777S35376
777S34026
777D20251
777I25005
Place on both sides of
parking brake lever
777I25297
777D19179
777I23524
COMMERCIAL
TANK LZ
60
FABR ICATED
D19179
60
FABR ICATED
D19179
S3
5
3
76
S35 37
5
COMMERCIAL
TANK LZ
777X40182
54 / 60
I25299
I23717
9%
max.
22KG
max.
225KG
S34026
114
89
64
38
12
1
95
70
44
127
102
76
51
25
83
108
57
32
MAX 27%
1
1
2
2
N
30
I25297
25
I25296
S35581 AC
777S35581
777X45654
h
is equipment is solely for export and is
h
erefore exempt under 40 CFR 1068.230
from U.S.emission standards and
related requirements.
MTD CONSUMER GROUP INC.
EMISSION CONTROL INFORMATION
X45654
Tank LZ Labels
25Notes
26

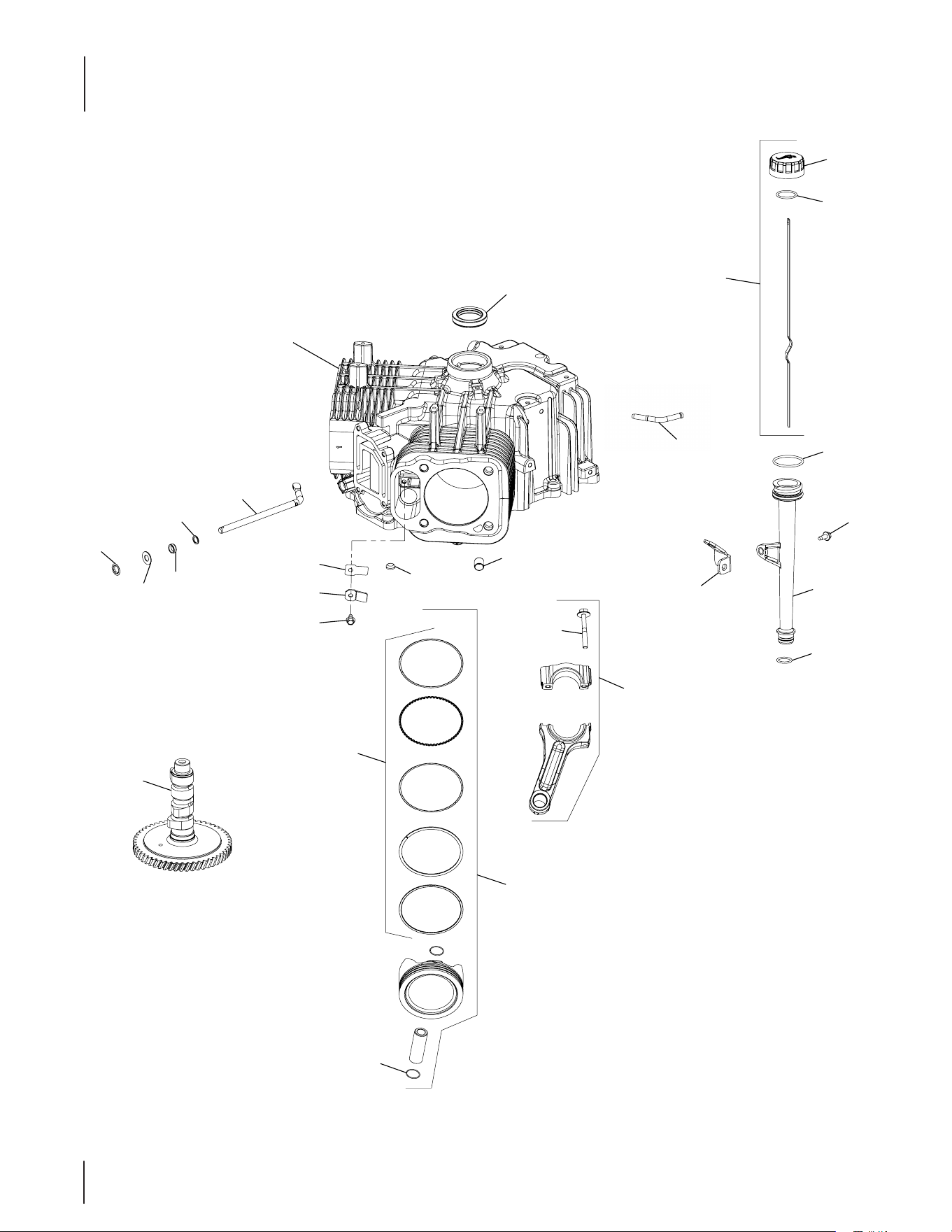

Kohler CV742-3032 Crankcase
CRANKCASE
2
22
21
23
20
25
26
18
3
4
6
12
24
5
14
15
13
17
8
10
9
11
16
1
7
19
27
Kohler CV742-3032 Crankcase
Ref.
Part Number Description
1 KH-24-018-04-S Breather Reed Retainer
2 KH-24-032-19-S Oil Seal
3 KH-24-294-13 Fitting
4 KH-24-380-16-S Locating Pin
5 KH-24-402-05-S Breather Reed
6 KH-52-139-09-S Cup Plug
7 KH-M-0545010 Flange Screw, M5 x 0.8 x 10
8 KH-24-012-29-S Camshaft Kit
9 KH-24-018-01-S Piston Pin Retainer
10 KH-25-108-01-S Piston Ring Set (STD)
— KH-25-108-02-S Piston Ring Set (.08)
— KH-25-108-03-S Piston Ring Set (.25)
— KH-25-108-04-S Piston Ring Set (.50)
11 KH-25-874-14-S Piston Kit w/ Ring (STD) (Inc. 9 & 10)
— KH-25-874-18-S Piston Kit w/ Ring (.08)
— KH-25-874-19-S Piston Kit w/ Ring (.25)
— KH-25-874-20-S Piston Kit w/ Ring (.50)
12 KH-24-067-34-S Connecting Rod Kit (Inc. 24)
13 KH-24-018-09-S Ring Retainer
14 KH-24-144-38-S Governor Cross Shaft
15 KH-24-468-15-S Flat Washer, 11/32”
16 KH-28-032-09-S Governor Cross Shaft Seal
17 KH-M-931010-S Flat Washer, 9 mm
18 KH-24-126-243-S Oil Fill Tube Bracket
19 KH-32-755-04-S Oil Fill Assembly Tube
20 KH-M-545013-S Flange Screw, M5 x 0.8 x 13
21 KH-25-153- 02-S Dipstick O-Ring
22 KH-24-755-46 Oil Fill Cap Kit (Yellow)
23 KH-24-038-04-S Dipstick, Assembly (Inc. 21 & 22)
24 KH-25-086-452-S Connecting Rod Bolts Kit
25 KH-12-153-01-S Lower Oil Fill Tube O-Ring
26 KH-12-153-02-S Upper Oil Fill Tube O-Ring
28
Kohler CV742-3032 Crankshaft
Ref.
Part Number Description
1 KH-24-014-203-S Crankshaft
2 KH-52-139-09-S Cup Plug
1
2
29

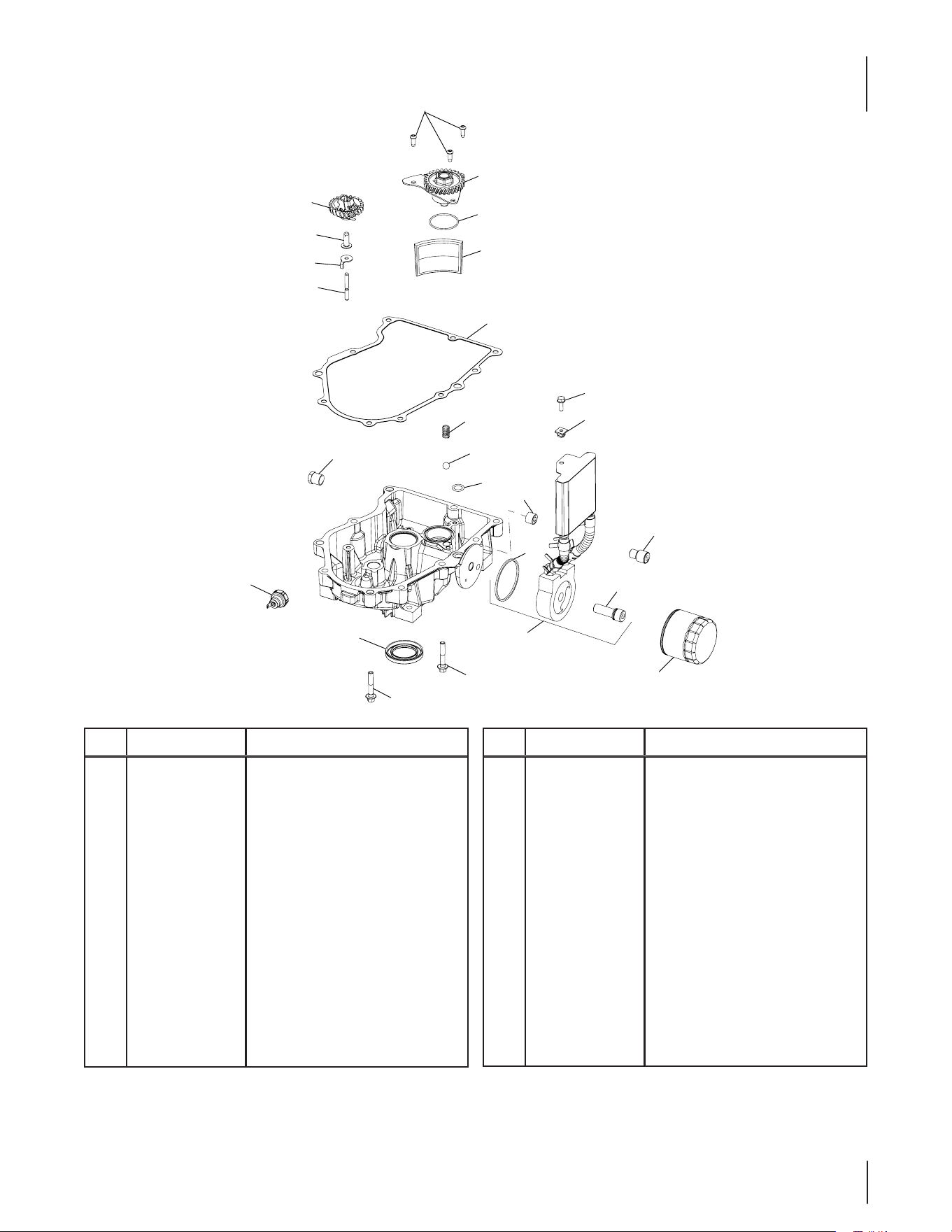

Kohler CV742-3032 Oil Pan/Lubrication
Ref.
Part Number Description
1 KH-24-041- 66 -S Oil Pan Gasket
2 KH-24-086-17-S Flange Screw, M8 x 1.25 x .45
3 KH-24-153- 08-S O-Ring
4 KH-25-032-06-S Oil Seal
5 KH-25-086-17-S Screw
6 KH-25-139-62-S Countersink Pipe Plug, 3⁄8
7 KH-12-144-02 Governor Gear Shaft
8 KH-12-380-01 Governor Regulating Pin
9 KH-24-043-12 Governor Gear Kit w/Pin
10 KH-24-448-02-S Locking Tab
11 KH-12-153- 05 O-Ring (1.78” Dia.)
12 KH-24-089-74-S Compression Spring
13 KH-25-194-03-S Pressure Relief Ball
Ref.
Part Number Description
14 KH-32-162-06-S Oil Screen
15 KH-24-393-71-S Oil Pump Assembly
16 KH-25-086-414-S Button Head Screw
17 KH-12-050-01-S Oil Filter
18 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
19 KH-24-136-05-S Oil Filter Nipple
20 KH-24-153-21-S Oil Cooler O-Ring
21 KH-54-755-21-S Oil Cooler Kit (Inc. 19 & 20)
22 KH-25-100-37-S Plastic Nut (Black)
23 KH-25-099-27-S Oil Pressure Switch
24 KH-52-139-02 Pipe Plug, 3/8
N/A KH-24-199-35-S Oil Pan Assembly Kit (Not Shown)
9
8
10
16
15
11
14
1
12
18
22
21
5
2
4
20
6
19
30
17
13
23
24
3
7
30
Kohler CV742-3032 Head/Valve/Breather
26
24
25
27
26
30
27
20
23
21
13 11
12
4
1
7
9
8
10
31
28
29
18
14
2
1
5
21
32
6
3
16
15
19
22
23
17
31
Kohler CV742-3032 Head/Valve/Breather
Ref.
Part Number Description
1 KH-24-841-04-S
Cylinder Head Gasket Kit (Inc. Head
Mounting Hardware)
2 KH-24-072-09-S Stud, M8 x 1.25
3 KH-24-100 -10-S Flange Nut, M8 x 1.25
4 KH-24-318-155-S #1 Cylinder Head Assembly Kit
5 KH-24-318-156-S #2 Cylinder Head Assembly Kit
6 KH-24-468-16-S Flat Washer, 8.6 mm
7 KH-24-017-01 Intake Valve (STD)
— KH-24-017-02 Intake Valve (.25)
8 KH-25-032-14-S Valve Band Seal
9 KH-24-016-01 Exhaust Valve (STD)
— KH-24-016-02 Exhaust Valve (.25)
10 K H -235011-S Spring Retainer
11 KH-12-755-03 Retainer Kit
12 KH-24-089-02 Valve Spring
13 KH-25-173-28-S Valve Spring Cap
14 K H -24 -411- 05 Push Rod
15 KH-24-599-02-S Rocker Arm Pivot
16 KH-25-186-01 Rocker Arm
17 KH-24-755-66 Valve Train Kit
18 KH-25-351-11-S Hydraulic Valve Lifter Kit
19 KH-M-640034-S Flange Screw, M6 x 1.0 x 34
20 KH-24-755-142-S Valve Cover Kit
21 KH-24-153-30-S Valve Cover O-Ring
22 KH-24-755-141-S Plain Rocker Cover Kit
23 KH-M-651030-S Flange Screw, M6 x 1.0 x 30
24 KH-24-100-02-S Plastic Nut
25 KH-24-755-241-S Breather Separator Kit (Inc. 26-27)
26 KH-25-086-157-S Hi-Lo Hex Flange Screw
27 KH-25-313-05-S Rubber Grommet
28 KH-24-041-67-S Breather Gasket
29 KH-24-033-03 Breather Cover Kit w/ Gskt. (Inc. 28 & 32)
30 KH-24-326-124-S Breather Hose
31 KH-25-086-396-S Flange Screw, M6 x 1.0 x 20
32 KH-25-139-60 -S Pipe Plug, 1/8
32

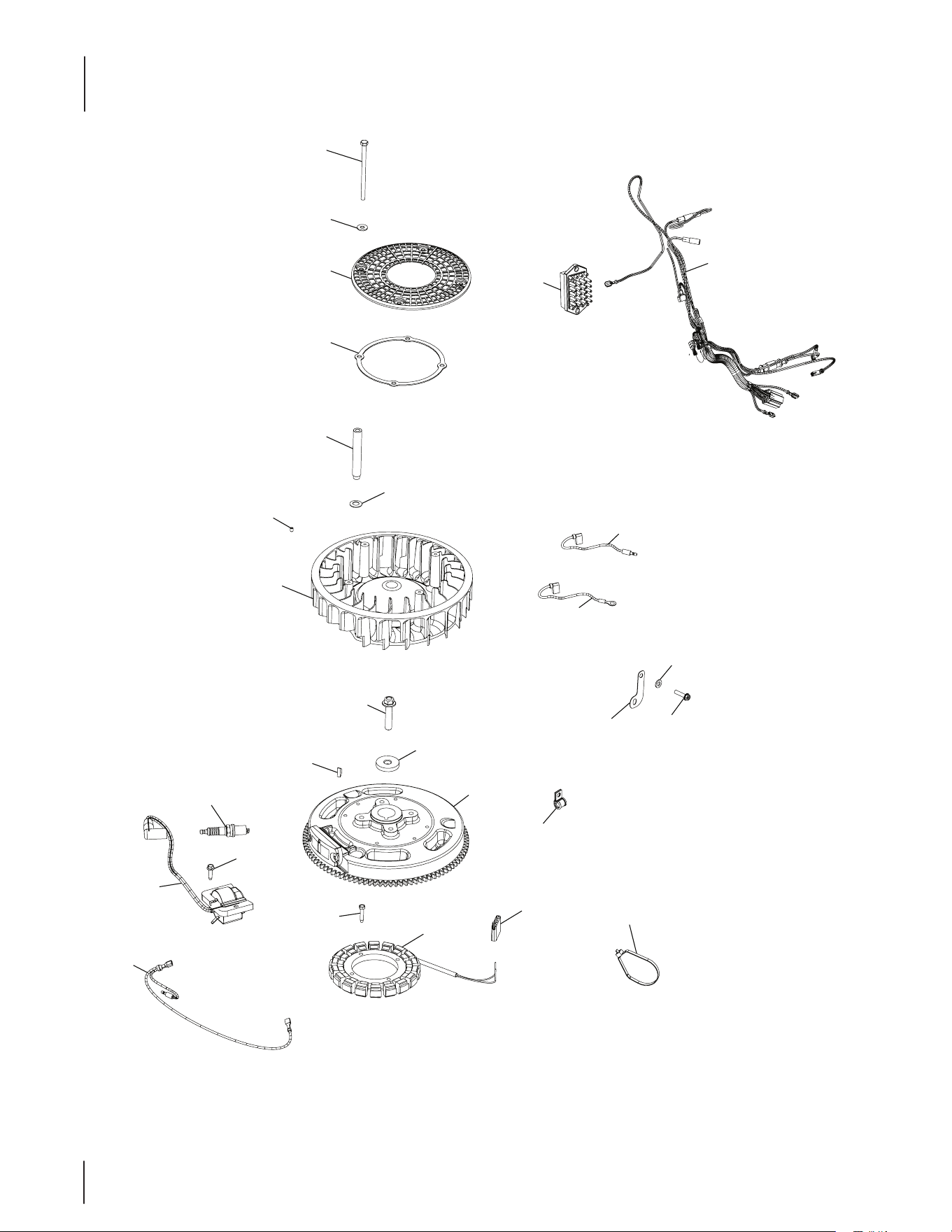

Kohler CV742-3032 Ignition/Electrical
25
26
16
17
22
21
20
23
27
28
24
4
15
12
11
13
19
5
6
7
1
10
9
18
2
14
3
8
33
Kohler CV742-3032 Ignition/Electrical
Ref.
Part Number Description
1 KH-25-132-14-S Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-25-086-402-S Thread Forming Screw
4 KH-25-086-361-S Flange Screw, M10 x 1.5 x 45
5 KH-12-468-03 Flat Washer, 13/32”
6 KH-24-025-58-S Flywheel
7 KH-X-42-15 Key, 3/16 x 5/8
8 KH-24-157-12-S Fan
9 KH-24-584-93-S Ignition Module
10 KH-25-086-473-S Thread Forming Screw
11 KH-X-25-63 Flat Washer, 1/4
12 KH-24-126 -137-S Ground Strap Bracket
13 KH-25-086-157-S Hi-Lo Hex Flange Screw
14 KH-25-155-41-S Connector
15 KH-210281-S Clip
16 KH-24-176-150-S Wiring Harness
17 KH-25-403-21-S Rectier Regulator
18 KH-24-176-41-S Duplex Lead
19 KH-25-454-07-S Tie
20 KH-24-112-14 Spacer
21 N/A Support Ring
22 KH-24-162-41-S Grass Screen
23 K H -24 - 4 6 8 -11 Spring Washer, 10 mm
24 KH-25-086-43 Set Screw, #10-24 x 1/4
25 KH-M-603100 Cap Screw, M6 x 1.0 x 99.5
26 KH-X-25-53 Flat Washer, 1/4
27 N/A Oil Sentry Lead
28 KH-25-518-34-S Lead
34

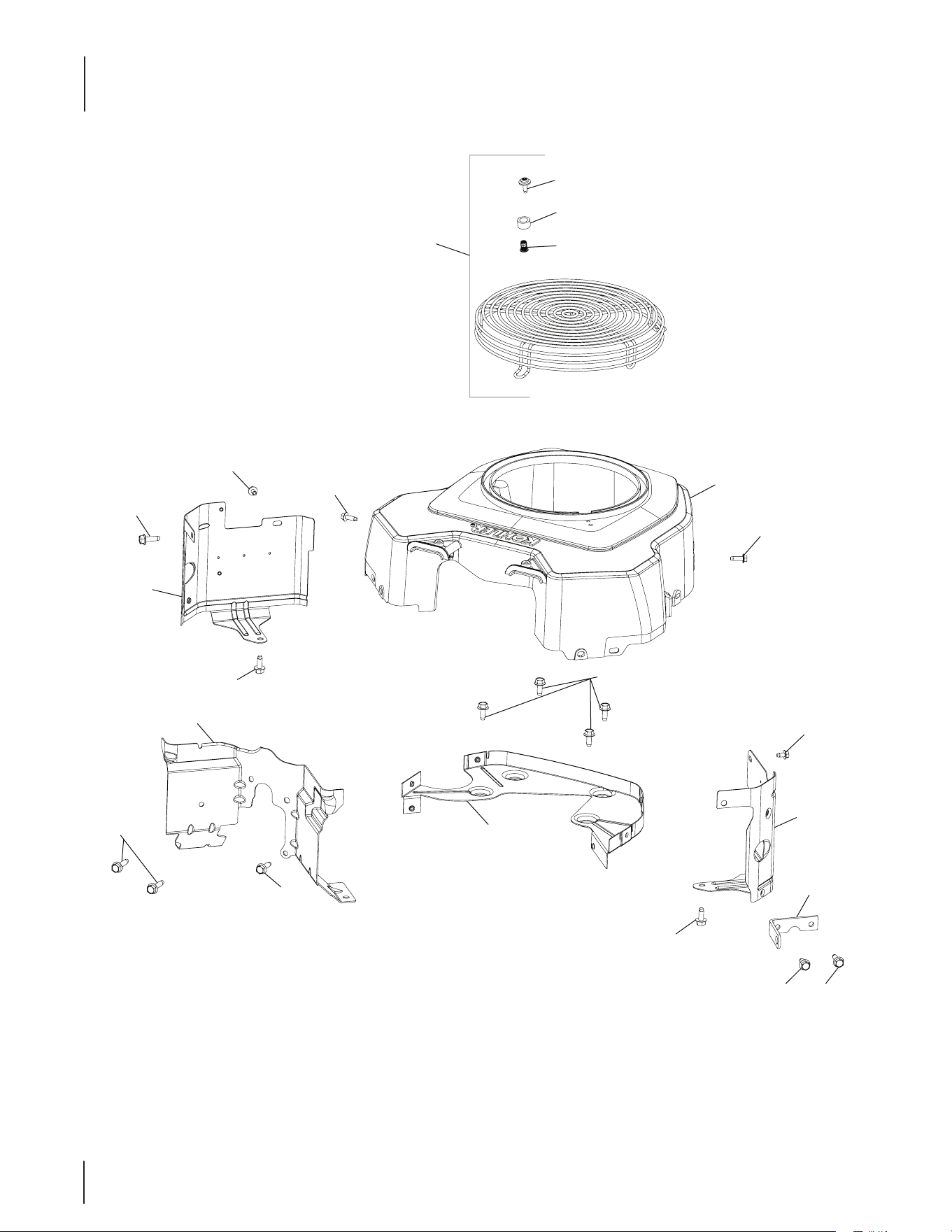

Kohler CV742-3032 Blower Housing & Baffles
14
10
12
1
11
3
8
4
7
3
4
6
11
9
5
4
2
16
13
15
4
4
35
Kohler CV742-3032 Blower Housing & Baffles
Ref.
Part Number Description
1 KH-24-027-428-S Blower Housing
2 KH-25-086-395-S Thread Forming Screw
3 KH-25-086-396-S Thread Forming Screw
4 KH-25-086-397-S Thread Forming Screw
5 KH-25-445-03-S Lift Strap
6 KH-24-146-59-S Backing Plate Kit
7 KH-24-063-108-S Bae
8 KH-24-063-85-S Cylinder Barrel Kit, #1 Side
9 KH-24-063-88-S Cylinder Bae Kit, #2 Side
10 KH-25-086-398-S Thread Forming Screw
11 KH-25-086-400-S Thread Forming Screw
12 KH-25-086-426-S Thread Forming Screw
13 KH -24 -112- 0 9 -S Spacer
14 KH-24-755-94-S Guard Kit (Inc. 13, 15-16)
15 KH-24-332-01-S Threaded Insert
16 KH-25-086-160-S Sems Screw
36

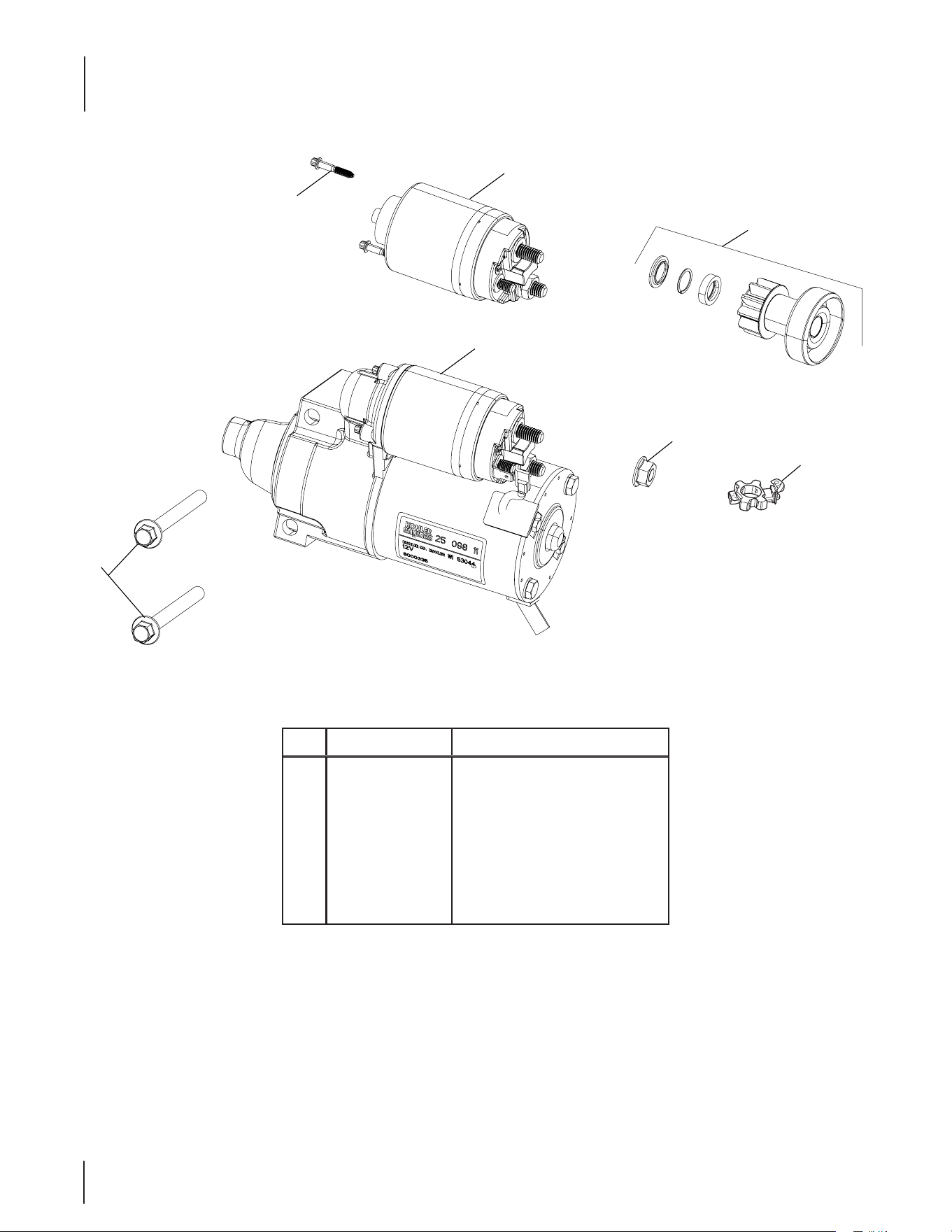

Kohler CV742-3032 Starting System
1
2
3
4
6
7
5
Ref.
Part Number Description
1 KH -25- 098 -11-S Solenoid Shift Starter Assembly
2 712-3086 Flange Nut, M8x1.25
3 KH-M-851080-S Flange Screw, M8 x 1.25 x 80
4 KH-25-086-113-S Torx Head Screw
5 KH-25-221-01-S Brush Holder Kit
6 KH-25-435-06-S Solenoid Kit (Inc. 4)
7 KH-25-755-33-S Starter Pinion Kit
37

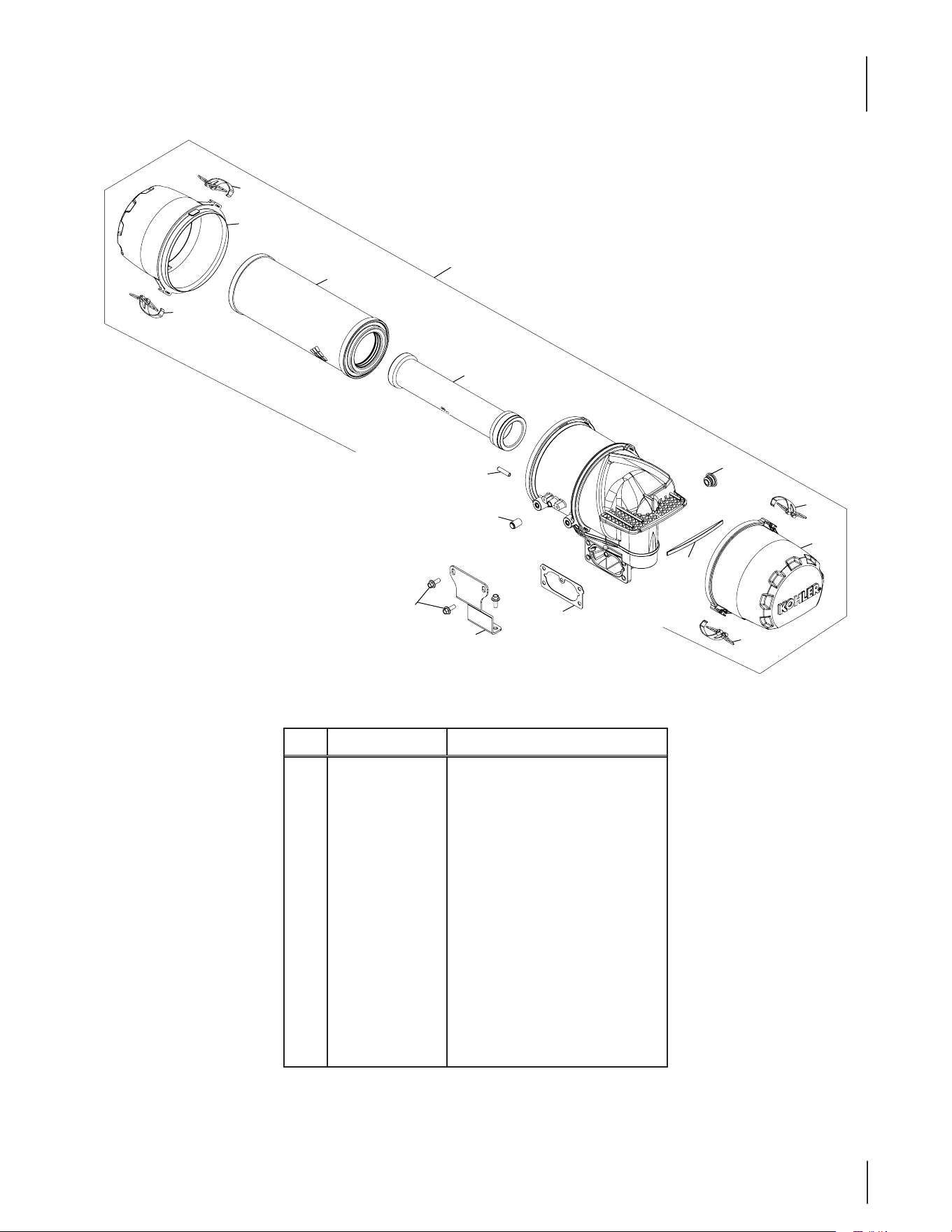

Kohler CV742-3032 Air Intake/Filtration
3
11
8
9
2
10
1
6
7
13
12
4
5
6
6
6
Ref.
Part Number Description
1 KH-24-041-70-S Air Cleaner Gasket
2 KH-25-173-34-S Masking Cap
3 KH-24-048-51-S Air Cleaner Kit
4 KH-24-126-218-S Support Bracket
5 KH-M-639016-S Flange Screw, M6 x 1.0 x 16
6 KH-62-154-07-S Assembly Clip
7 KH-62-263-03-S Foam Insert Damper
8 KH-25-083-01-S Element, Air Filter - PRIMARY
9 KH-25-083-04-S Element, Air Filter - SAFETY
10 KH-25-173-37-S Masking Cap
11 KH-62-096-22-S Air Filter Cover
12 KH-62-096-25-S Rain Cap Cover
13 KH-62-139-02-S Hole Plug
38

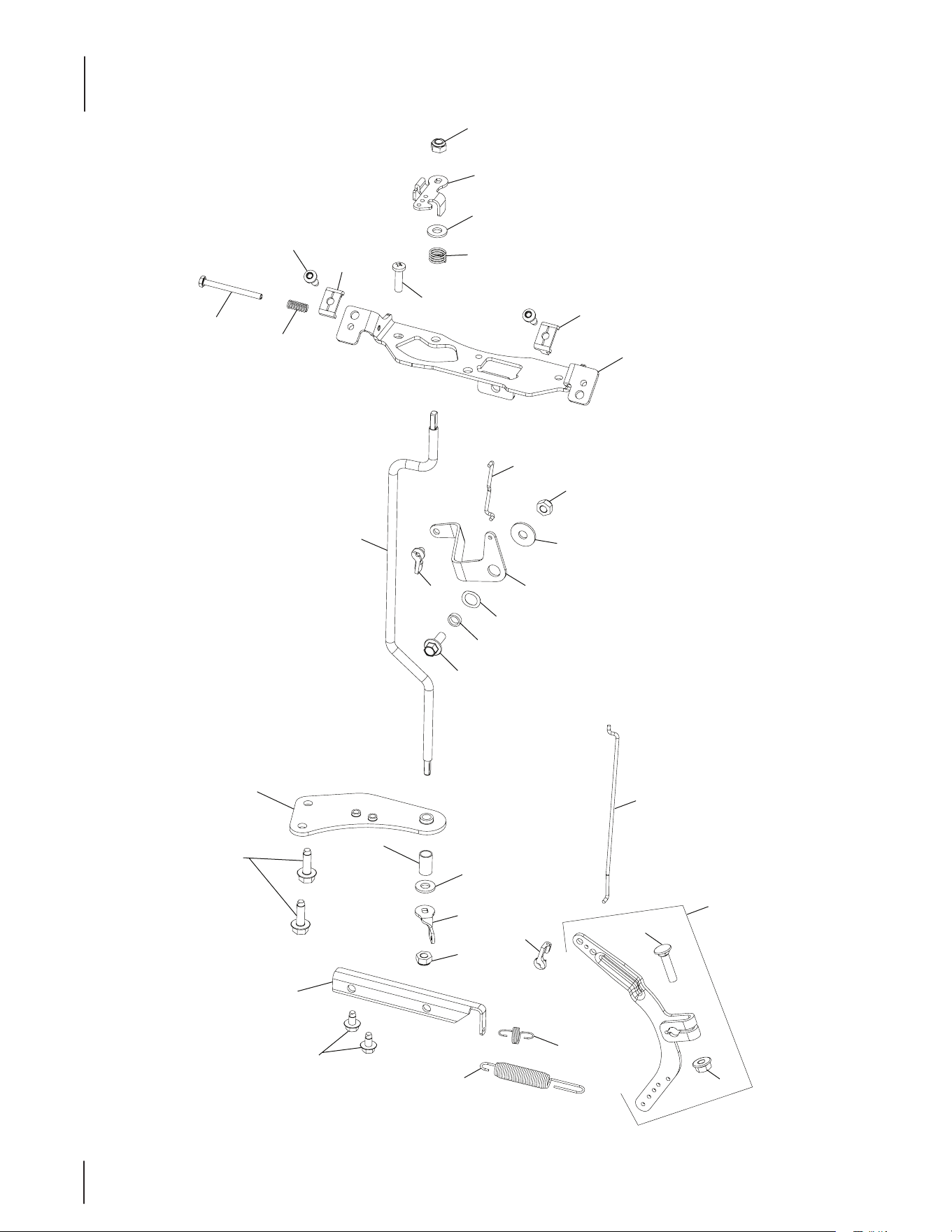

Kohler CV742-3032 Engine Controls
13
27
26
23
15
20
24
16
7
26
22
6
13
14
8
5
11
12
1
3
21
24
19
13
10
25
29
27
28
18
17
4
2
10
9
39
Kohler CV742-3032 Engine Controls
Ref.
Part Number Description
1 KH-24-126-162-S Throttle Shaft Bracket
2 KH-24-126 -163-S Governed Idle Bracket
3 KH-25-086-396-S Thread Forming Screw
4 KH-25-086-400-S Thread Forming Screw
5 KH-277341 Spring Washer, 3/8
6 KH-24-079-53-S Choke Linkage
7 KH-24-086-06 Screw, 11-16 x 3/4
8 KH-24-090-50-S Choke Lever
9 KH-24-126-231-S Control Bracket
10 KH-25-158-11 Throttle Linkage Bushing
11 KH-25-431-01-S Spacer
12 KH-M-639016-S Flange Screw, M6 x 1.0 x 16
13 N/A Lock Nut, M6 x 1.0
14 736-0173 Flat Washer, 1/4
15 KH-25-086-297-S Speed Control Spring
16 KH-24-089-20 Throttle Shaft Spring
17 KH-24-089-47-S Governor Spring
18 KH-24-089-68-S Governed Idle Spring
19 KH-24-090-12 Throttle Control Lever
20 KH-24-090-71-S Throttle Control Lever
21 KH-24-112-10 Spacer
22 KH-24-144-37-S Control Shaft
23 KH-25-086-428-S Hex Head Screw
24 KH-X-25-72 Flat Washer, 1/4
25 KH-24-090-69-S Governor Lever
26 KH-25-237-41-S Cable Clamp
27 KH-M-641060-S Flange Nut, M6 x 1.0
28 KH-24-079-42-S Throttle Linkage
29 KH-24-211-03-S Bolt, M6 x 1.0 x 25
N/A KH-25-086-398-S Thread Forming Screw
40

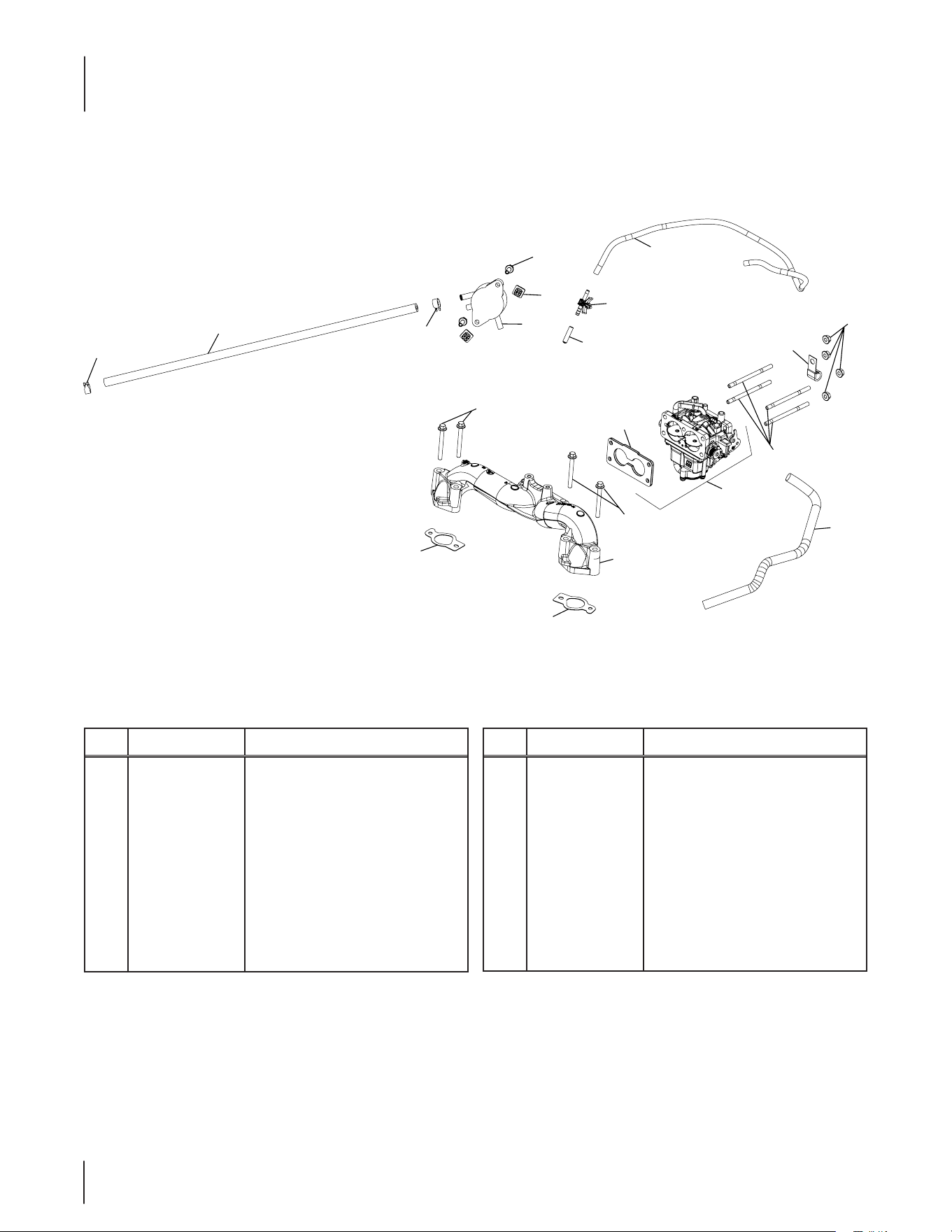

Kohler CV742-3032 Fuel System
Ref.
Part Number Description
1 KH-25-086-84-S Flange Screw, M6 x 1.0 x 55
2 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
3 KH-24-393-16 Fuel Pump
4 KH-25-100-37-S Plastic Nut
5 KH-25-237-31-S Hose Clamp
6 KH -25-111- 81-S Fuel Line, 24"
7 KH-24-853-227-S Carburator Kit
8 KH-25-431-22-S Anti-Abrasion Sleeve
9 KH-25-155-51-S Evaporative Connector
Ref.
Part Number Description
10 KH-25-173-33-S Masking Cap
11 KH-25-326-28-S Evaporative Hose
12 KH-47-154-01-S Cable Clip
13 KH-M-641060-S Flange Nut, M6 x 1.0
14 KH-24 -041-79-S Intake Manifold Gasket
15 KH-24-041-83-S Carburetor Gasket
16 KH-24-164-138-S Intake Manifold
17 KH-M-629095-S Stud, M6 x 1.0 x 96
N/A KH-25-050-22-S1 Fuel Filter
1
5
6
7
2
4
3
10
9
13
12
17
16
14
14
15
8
11
5
1
41

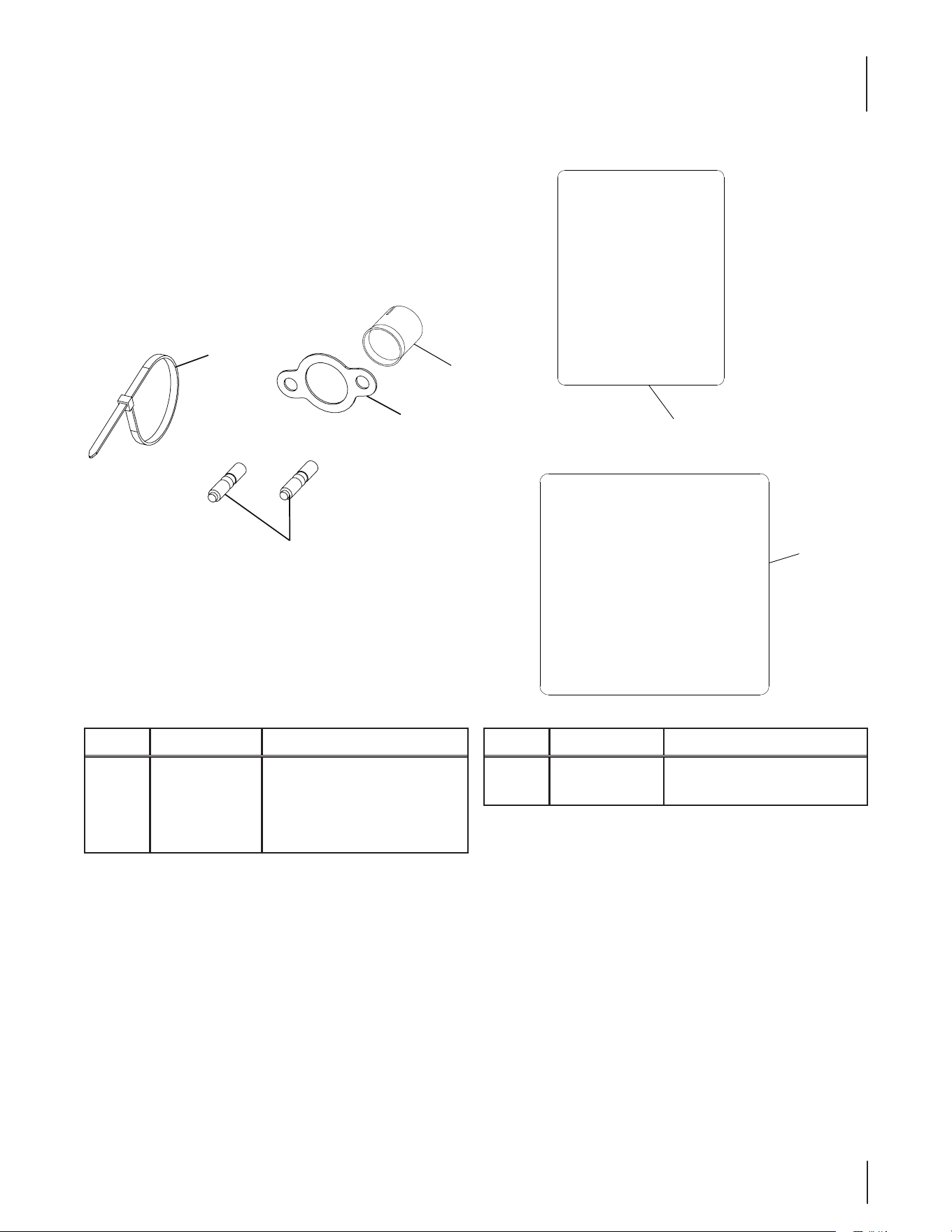

Kohler CV742-3032 Exhaust & Labels
Ref.
Part Number Description
1 KH-25-072-24-S Stud, M8 X 1.25 X 33
2 KH-25-454-05-S Tie
3 KH-24-041-49-S Exhaust Gasket
4 KH-24-605-07-S Exhaust Port Liner
Ref.
Part Number Description
1 K H -25-113 -70 -S Clear Laminate Decal
2 KH-24-113-360-S HDAC 747cc/CV- CH742 Decal
1
2
3
4
1
2
No tes
42
43Notes
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
G
E
N
U
I
N
E
F
A
C
T
O
R
Y
P
A
R
T
S
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
