Active Powered Subwoofer Box System
PW12SUBA - PW15SUBA - PW18SUBA
www.PyleUSA.com2 www.PyleUSA.com 3
READ ALL INSTRUCTIONS BEFORE USING THE SUBWOOFER.

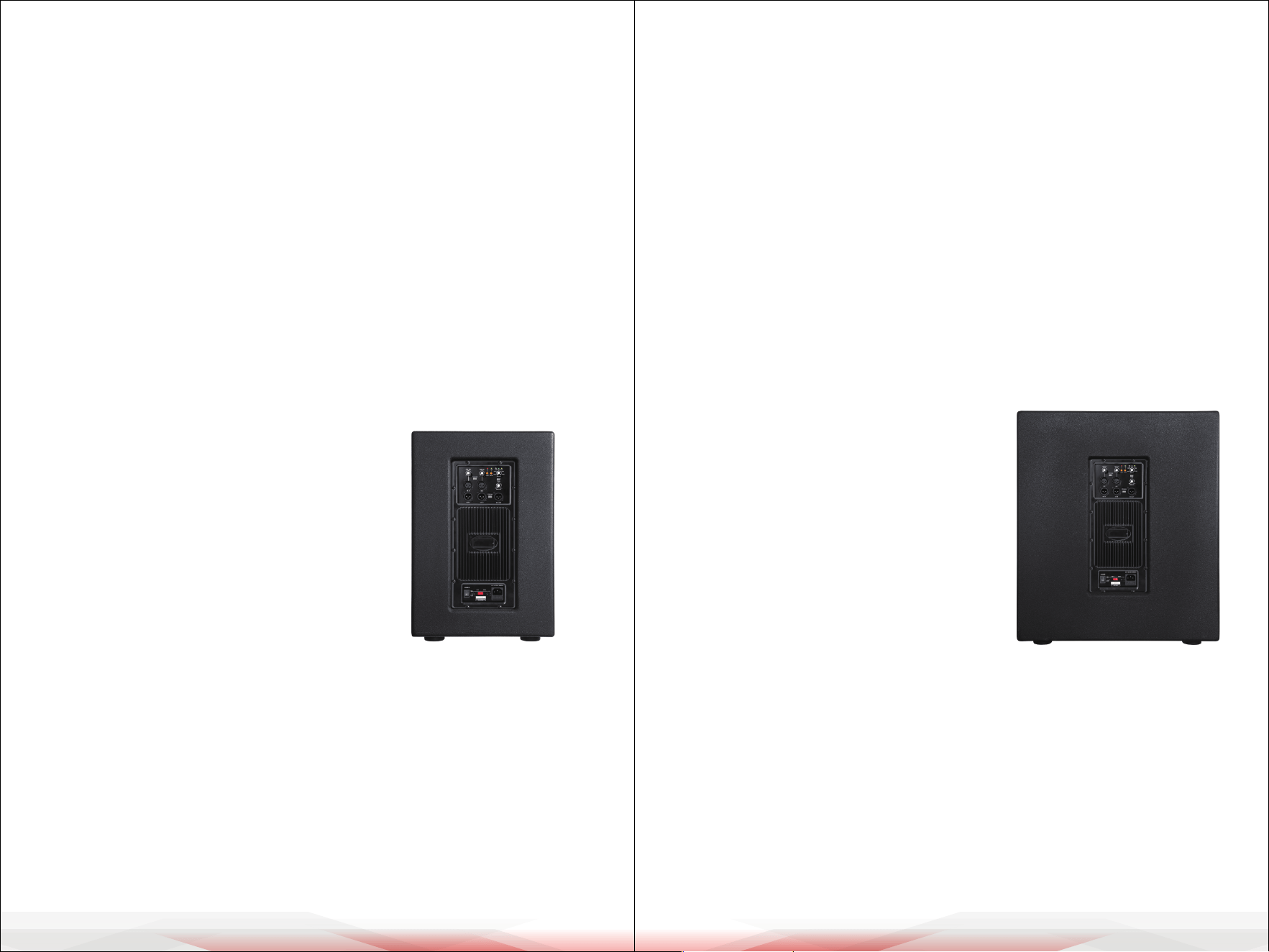

PW12SUBA
12" 1800W Active Powered Subwoofer Box System with Professional Design
Features:
• DSP Digital Signal Processor
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator
• Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling
• Subwoofer Crossover 80Hz/100Hz/120Hz/150Hz/200Hz Low Pass
• Subwoofer Level Adjustment
• Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles
• Custom Metal Grill
What's in the Box:
• Wooden Subwoofer
• Power Cable
Technical Specs:
• Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 450 Watts RMS / 900 Watts Program / 1800 Watts Peak Power
• Woofer: 12"
• Magnet: 70oz
• Voice Coil: 3''
• Frequency Response: (+/-3dB) 48Hz - 200Hz
• Maximum SPL: 127dB Peak / 124dB Continuous
• Product Dimensions: 13.78'' x 20.87'' x 20.47'' -inches
PW15SUBA
15" 2400W Active Powered Subwoofer Box System with Professional Design
Features:
• DSP Digital Signal Processor
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator
• Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling
• Subwoofer Crossover 80Hz/100Hz/120Hz/150Hz/200Hz Low Pass
• Subwoofer Level Adjustment
• Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles
• Custom Metal Grill
What's in the Box:
• Wooden Subwoofer
• Power Cable
Technical Specs:
• Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 600 Watts RMS / 1200 Watts Program / 2400 Watts Peak Power
• Woofer: 15"
• Magnet: 126oz
• Voice Coil: 4''
• Frequency Response: (+/-3dB) 45Hz - 200Hz
• Maximum SPL: 128dB Peak / 125dB Continuous
• Product Dimensions: 23.23'' x 19.69'' x 21.65'' -inches
www.PyleUSA.com4 www.PyleUSA.com 5
PW18SUBA
18" 3200W Active Powered Subwoofer Box System with Professional Design
Features:
• DSP Digital Signal Processor
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator
• Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling
• Subwoofer Crossover 80Hz/100Hz/120Hz/150Hz/200Hz Low Pass
• Subwoofer Level Adjustment
• Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles
• Custom Metal Grill
What's in the Box:
• Wooden Subwoofer
• Power Cable
Technical Specs:
• Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 800 Watts RMS / 1600 Watts Program / 3200 Watts Peak Power
• Woofer: 18"
• Magnet: 126oz
• Voice Coil: 4''
• Frequency Response: (+/-3dB) 40Hz - 200Hz
• Maximum SPL: 131dB Peak / 128dB Continuous
• Product Dimensions: 20.87'' x 25.98'' x 24.21'' -inches

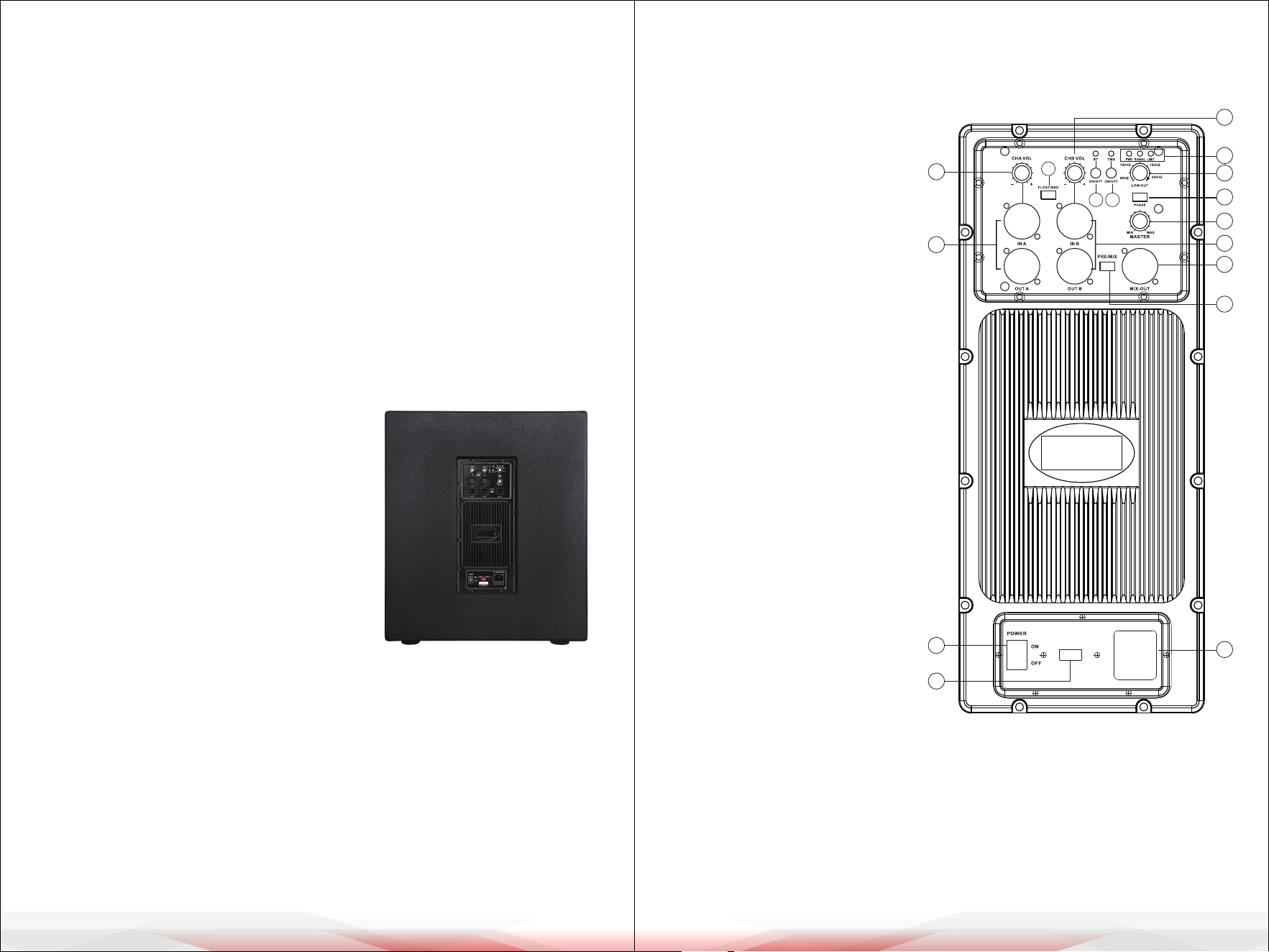

Control Panel Layout
PW12SUBA - PW15SUBA - PW18SUBA
1. Channel A Volume Control
2. Ground and Float Switches
3. Channel B Volume Control
4. Bluetooth Indicator:
Flashes when Bluetooth is on
and stays lit after connection.
5. TWS Indicator: Flashes when TWS
is on and stays lit after connection.
6. LED Indicators:
• Power LED
• Signal LED
• Limit LED
7. Low Out for 80Hz/100Hz/
150Hz/200Hz
8. Phase Switch
9. Channel A:
Balanced Input
Balanced Output
10. Channel B:
Balanced Input
Balanced Output
11. Master Volume Control
12. XLR Balanced Output
13. PRE-Output and Mixed Output:
PRE-Output: Main frequency
Mixed Output: Low frequency 120Hz excision
14. Fused IEC Mains Inlet
15. Power Switch (ON/OFF)
16. Voltage Selector Switch (110V/220V)
9
1
2
6
4 5
3
8
11
10
14
15
16
12
13
7
AC 110/220V 50/60Hz
110V 220V
www.PyleUSA.com6 www.PyleUSA.com 7
Safety Instructions
Important Safety Guidelines
• Read all instructions before using the subwoofer.
• Keep the subwoofer away from water, moisture, and extreme temperatures.
• Ensure that the subwoofer is placed on a stable surface to prevent it from
falling.
• Do not attempt to open or repair the subwoofer yourself.
Refer servicing to qualied personnel.
Electrical Safety Precautions
• Use only the power cable provided with the subwoofer.
• Ensure the power source matches the voltage requirement specied on the
subwoofer.
• Unplug the subwoofer during lightning storms or when not in use for
extended periods.
Installation
Unboxing and Inspection
• Carefully remove the subwoofer from its packaging.
• Inspect the subwoofer for any signs of damage during transit.
• Ensure all components listed in the package contents are included.
Placement Recommendations
• For optimal sound, place the subwoofer near a wall or in a corner of the
room.
• Avoid placing the subwoofer near heat sources or in direct sunlight.
• Ensure there is adequate ventilation around the subwoofer to prevent
overheating.
Connecting to an Audio Source
• Use the RCA input cables to connect the subwoofer to your receiver or
audio source.
• If using speaker-level inputs, connect the subwoofer to the amplier or
receiver’s speaker outputs.
• Ensure all connections are secure before powering on the subwoofer.
Cleaning, Maintenance, and Storage
Cleaning the Subwoofer
• Unplug the subwoofer before cleaning.
• Use a soft, dry cloth to wipe down the exterior.
• Avoid using harsh chemicals or abrasive materials that could damage the
nish.
Regular Maintenance Tips
• Periodically check all connections to ensure they remain secure.
• Avoid placing heavy objects on top of the subwoofer to prevent damage.
• Ensure the subwoofer’s ventilation openings are clear of dust and debris.
Proper Storage Instructions
• If storing the subwoofer for an extended period, place it in a dry, cool
environment.
• Cover the subwoofer with a cloth to protect it from dust.
• Disconnect all cables and store them separately to prevent tangling or
damage.
Register Product
Thank you for choosing PyleUSA. By registering your
product, you ensure that you receive the full benets of
our exclusive warranty and personalized customer
support. Complete the form to access expert support and
to keep your PyleUSA purchase in perfect condition.
PyleUSA.com/register
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
