THANK YOU
USE AND CARE GUIDE
48 IN. GRANTWAY
INDOOR/COVERED OUTDOOR CEILING FAN
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1009 701 722
1009 757 063
1009 697 761
Model #RD5114B-BN
RD5114B-MBK
RD5114B-MWH
Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
12
13
13
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb (15.9 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All set screws must be checked and retightened where
necessary before installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
Safety Information
NOTE: Suitable for use in damp locations.
Pre-Installation

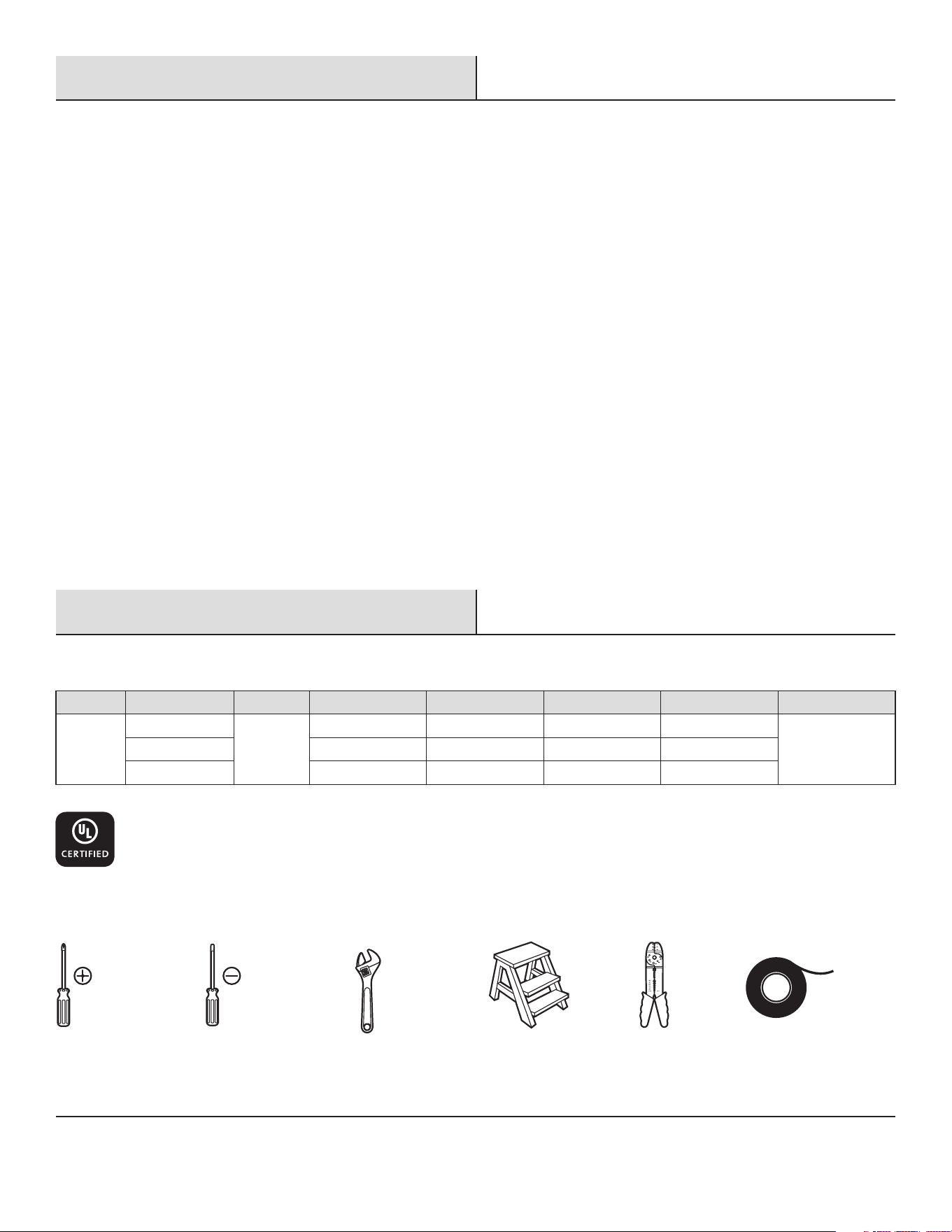

SPECIFICATIONS
TOOLS REQUIRED
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
48 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
0.28
0.39
0.54
12.00
30.05
60.00
62
119
165
1630
2927
4004
6.00 kg
(13.20 lb)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
3
4
NOTE: Hardware not shown to actual size.
AA
BB
CC
Plastic wire nut
Blade attachment screw and ber washer
Pull chain and fob
Part Description
3
16
1
Quantity
HARDWARE INCLUDED
Pre-Installation (continued)
AA CCBB
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
5
Part
E
F
G
Description
Blade arm
Switch housing mounting plate
Switch housing
Quantity
5
1
1
Part
A
B
C
D
Quantity
1
1
1
5
Description
Mounting plate
Fan motor assembly
Motor housing
Blade
A
B
C
F
G

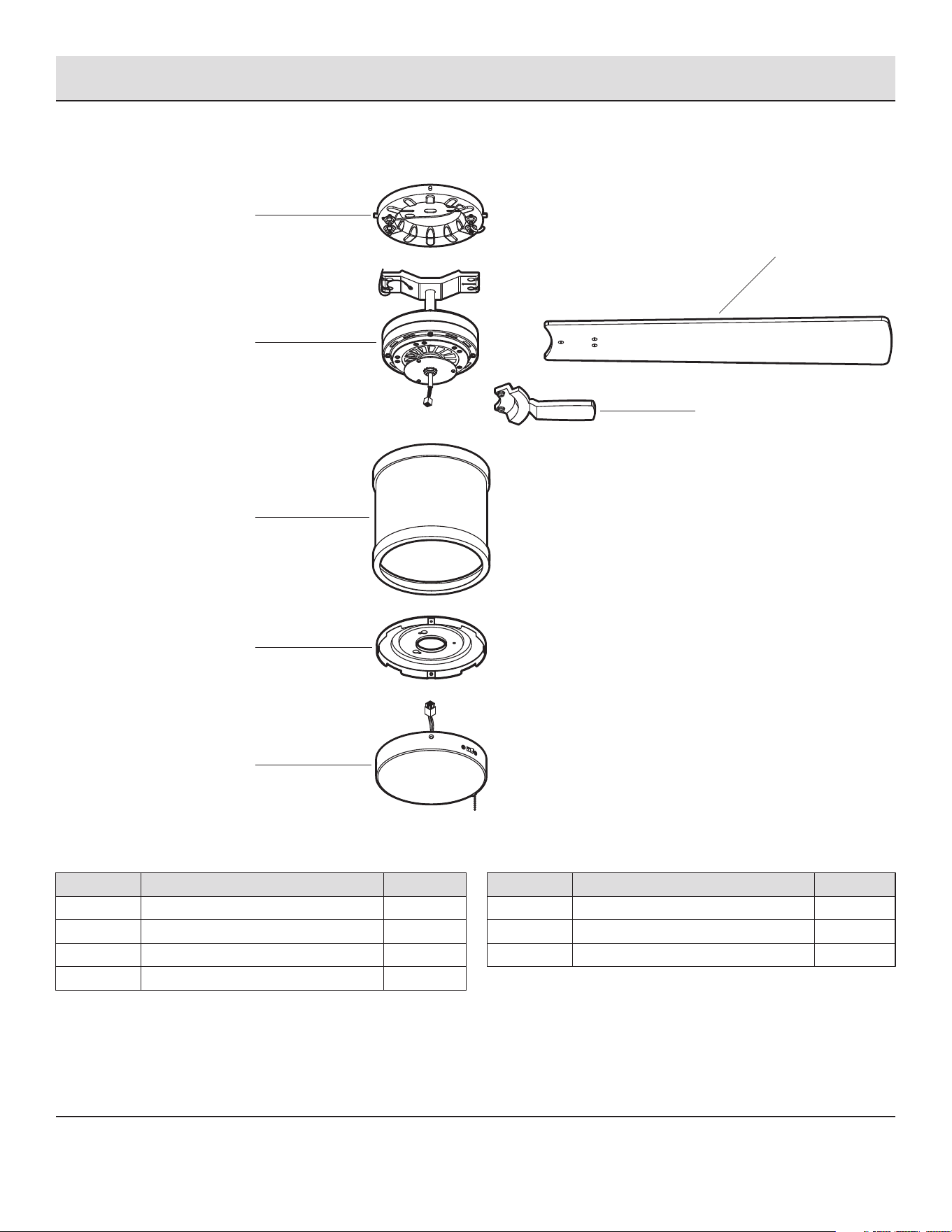

PACKAGE CONTENTS
Pre-Installation (continued)
D
E
6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb). Do not
use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.

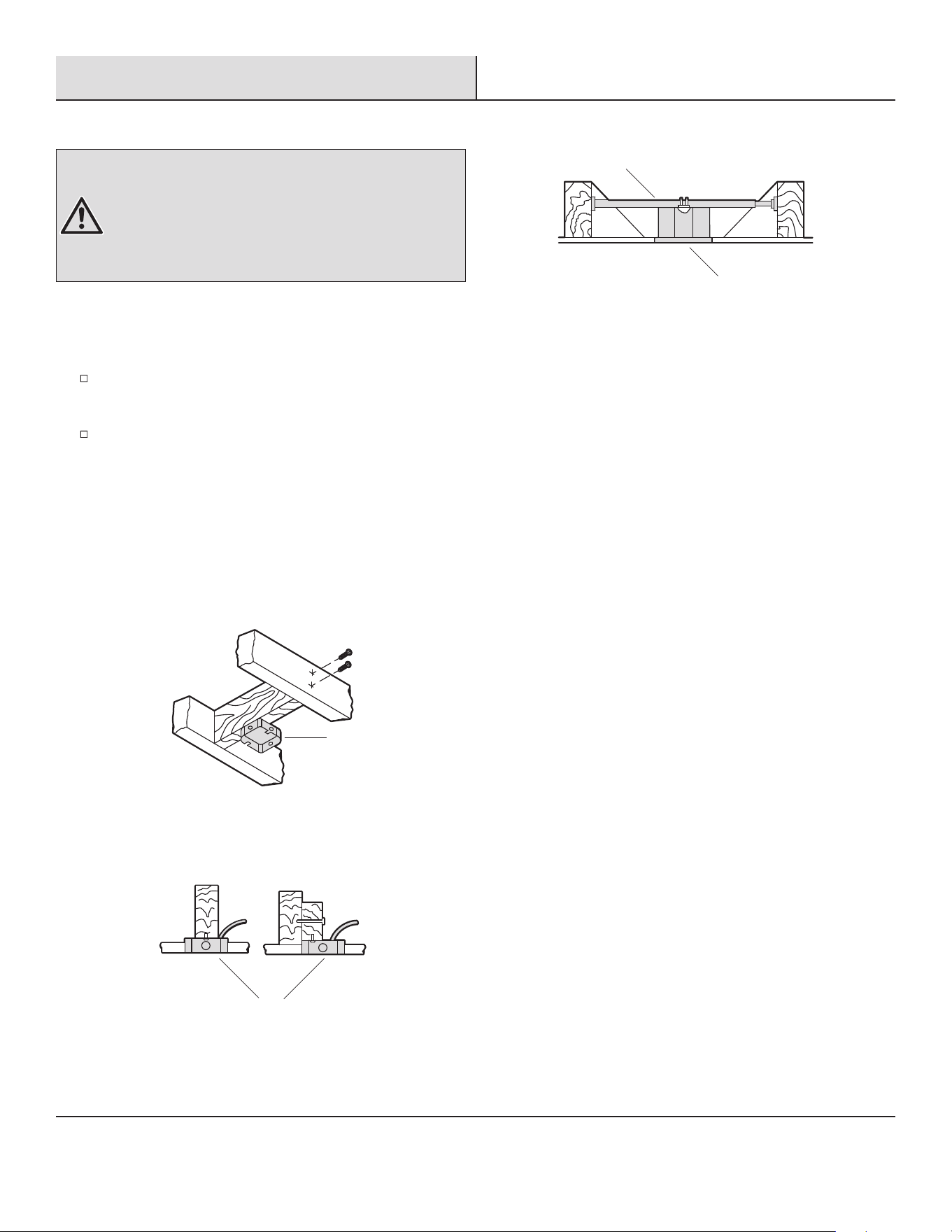

MOUNTING OPTIONS
Installation
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
7

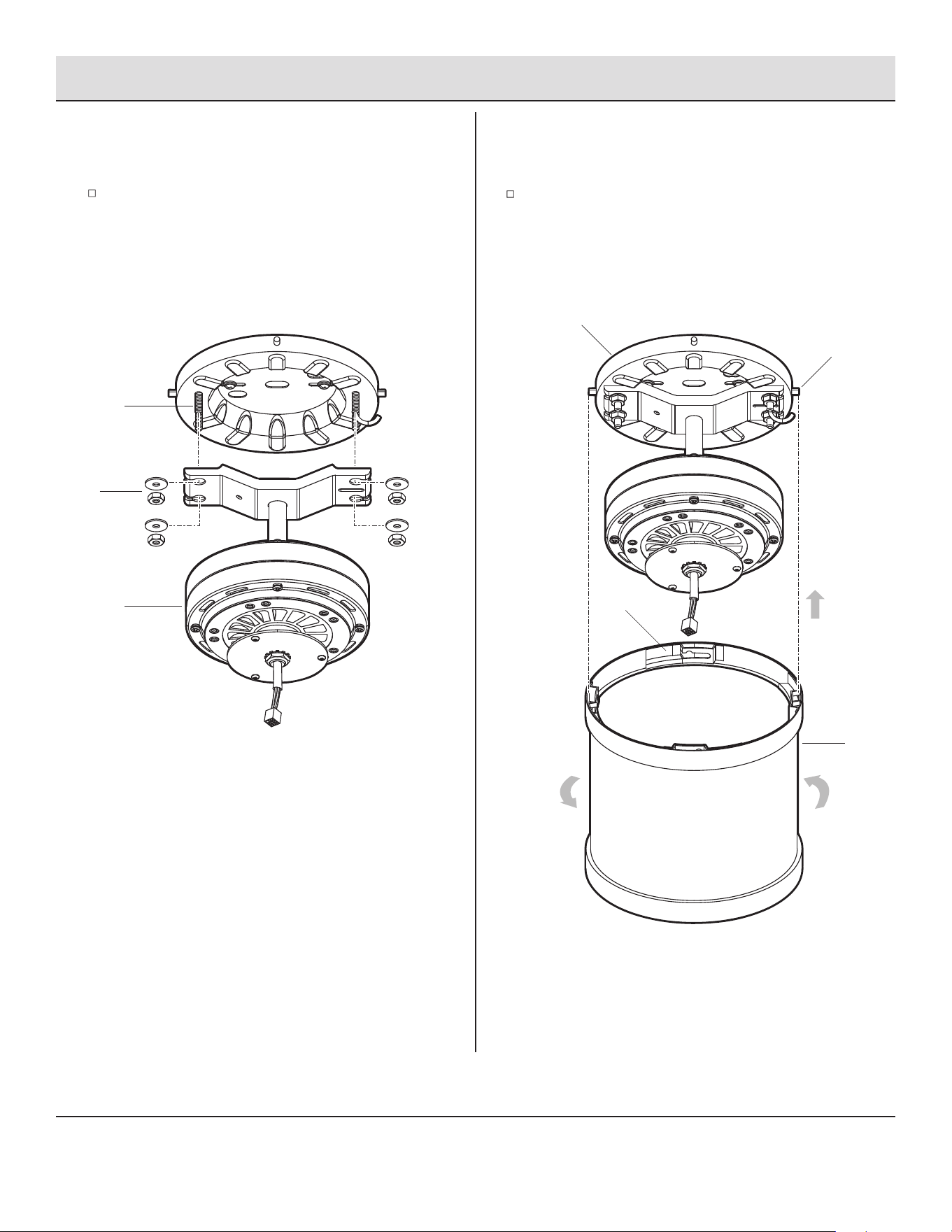

Assembly — Hanging the Fan

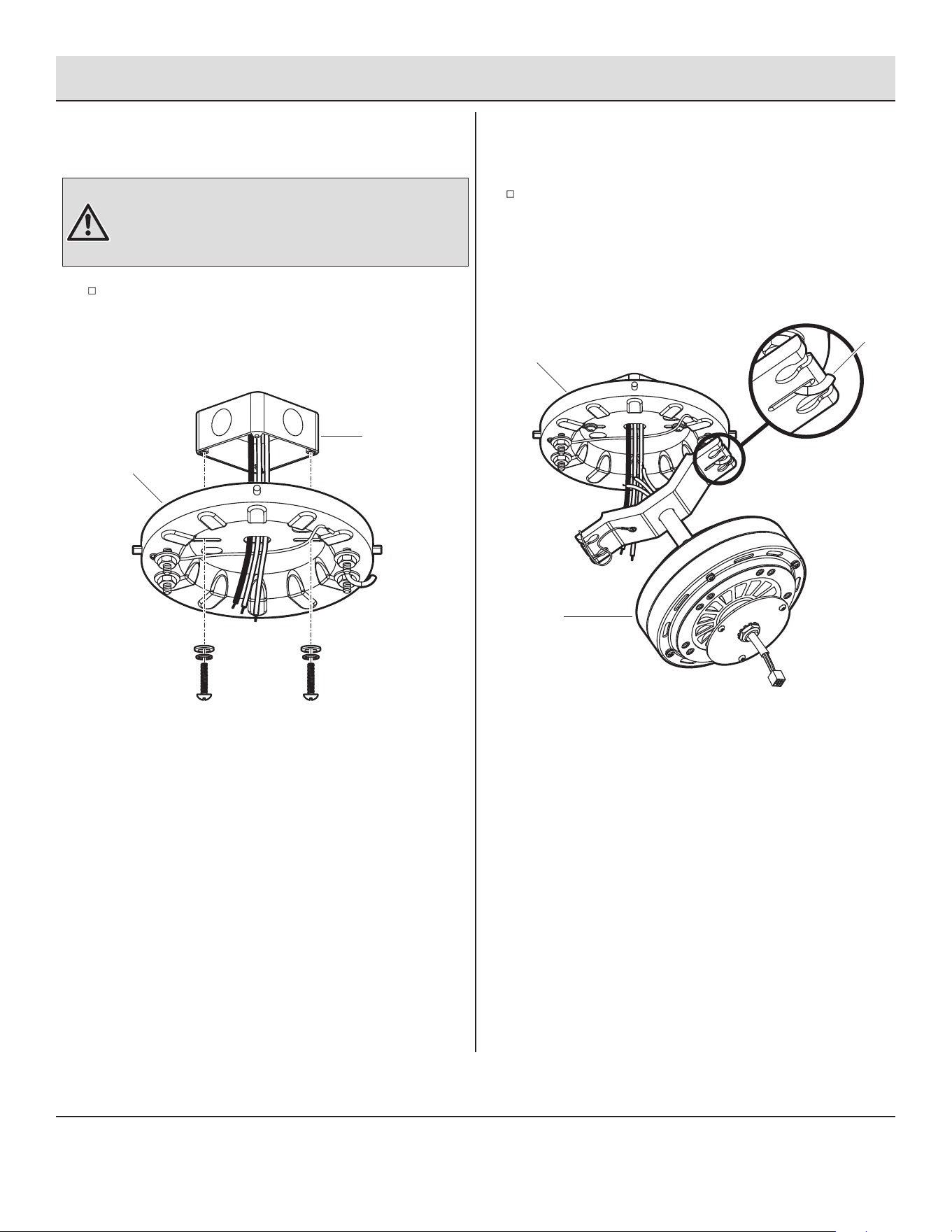

1
Attaching the mounting plate to the
electrical box
Hanging the fan from the mounting
plate
2
Carefully lift the fan motor assembly (B) up to the
mounting plate (A) and hang the fan on the hook (DD)
provided using one of the holes at the outer rim of the
fan motor assembly (B).
Attach the mounting plate (A) to the outlet box (not included)
with two screws and washers provided with the outlet box.
Ensure the mounting plate (A) is tight and secured.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
A
Outlet Box
B
DD
A
8
Assembly — Hanging the Fan (continued)
3

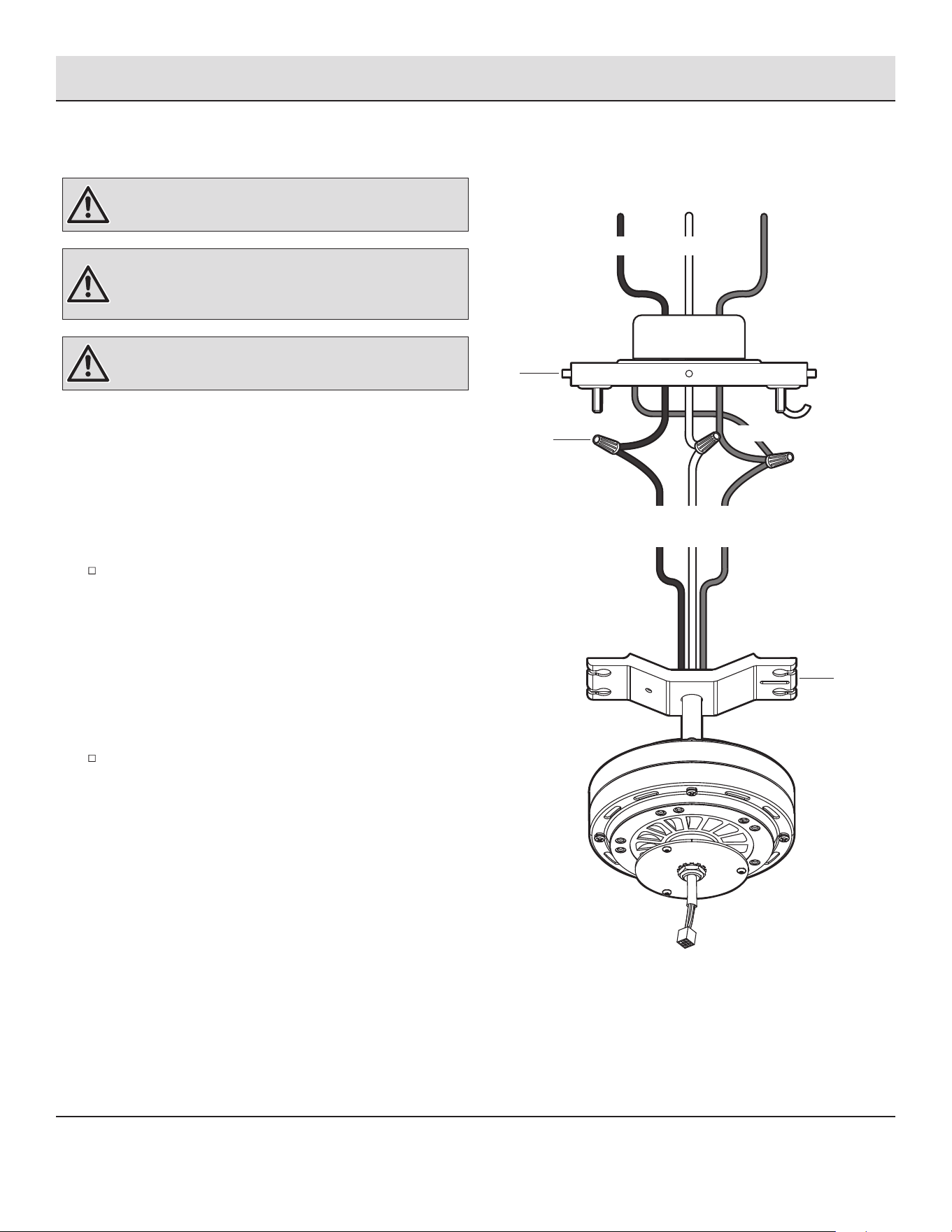

Making the electrical connections
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Make wire connections as follows, using the wire nuts (AA).
From Fan To Outlet Box
Black ------------------------ Black wire (Hot)
White wire ------------------- White wire (Neutral)
Green wires* ---------------- Green or bare wire (Ground)
* There are two green grounding leads: one from the mounting plate
(A) and one from the mounting bar (EE).
Turn the wire nut connections upward, spreading them apart
so the green (ground) and white wires will be on one side and
the black and blue wires will be on the other side.
AA
A
EE
Hot
Ground
conductorNeutral
Black
White
Outlet Box
Green
Green
Black
White
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
9
Assembly — Hanging the Fan (continued)
4
Finishing the fan installation
Attaching the motor housing to the
mounting plate
5
Raise the motor housing (C) up against the mounting plate (A).
The four supports (HH) inside the motor housing (C) should
be placed against the four studs (II) on the mounting plate (A).
Twist the motor housing (C) clockwise until snug.
Move the fan motor assembly (B) into position over the four
mounting plate studs (FF) and secure with the provided nuts
and washers (GG).
GG
FF
B
A
II
HH
C
10

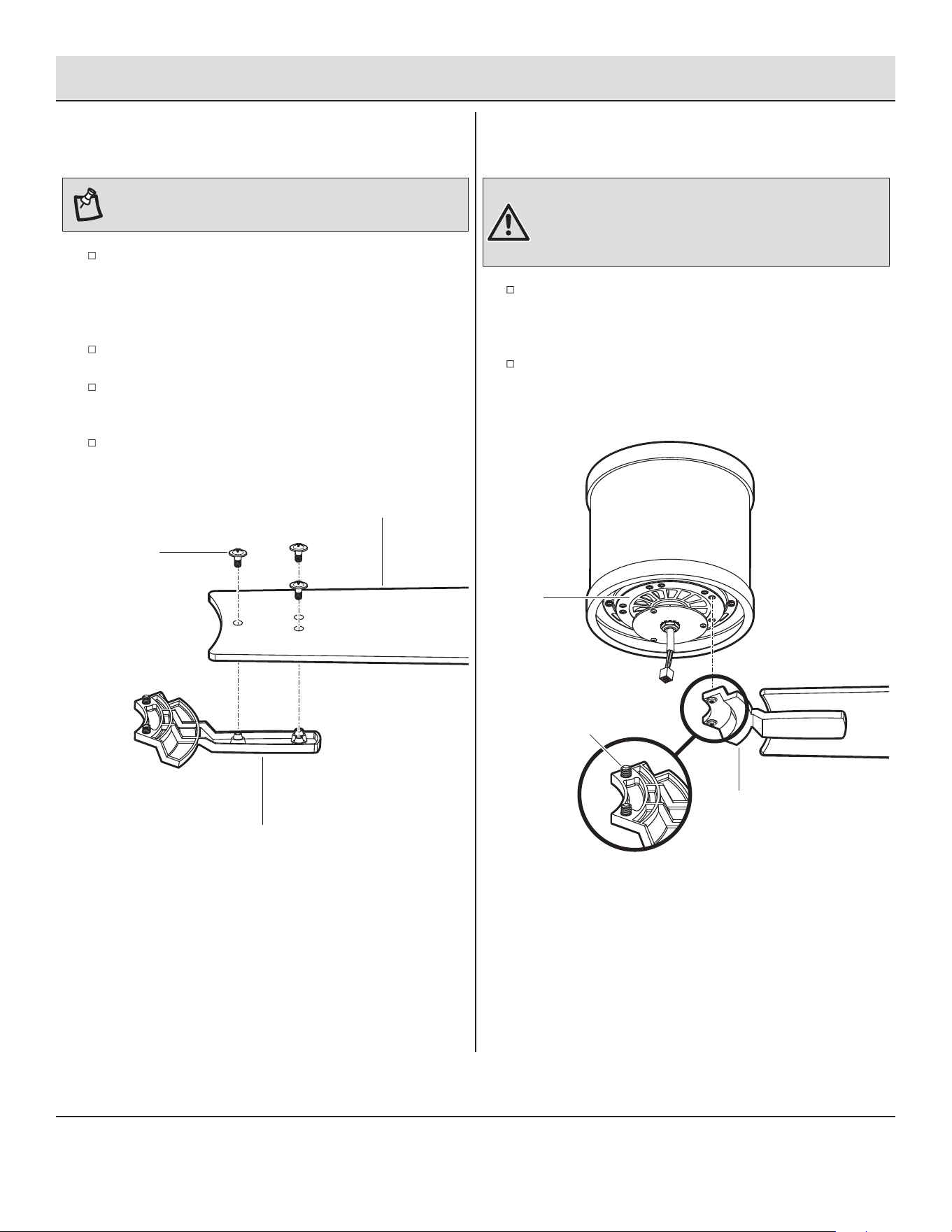

Assembly — Attaching the Fan Blades
6
Attaching the blades to the blade
arms
Fastening the blade assemblies to the
motor
7
B
E
Attach the blades (D) to the blade arms (E) using the three
blade attachment screws and ber washers (BB). Insert a
blade attachment screw and ber washer (BB) into the blade
arm (E), but do not tighten.
Repeat for the two remaining screws and ber washers (BB).
Tighten each screw securely starting with the center screw.
Make sure the blade (D) is straight.
Repeat these steps for the remaining blades.
BB
D
E
Fasten the blade assemblies to the fan motor assembly (B),
tighten the two blade arm screws with lock washers (JJ)
already installed in the blade arms (E).
Repeat this procedure for the remaining blade arms (E).
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (E) while installing, balancing the blades (D), or
cleaning the fan. Do not insert foreign objects between rotating
fan blades (D).
JJ
NOTE: Your fan blades are reversible. Select the blade side
nish which best accentuates your decor.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
11
KK
F
NN
G
MM
LL

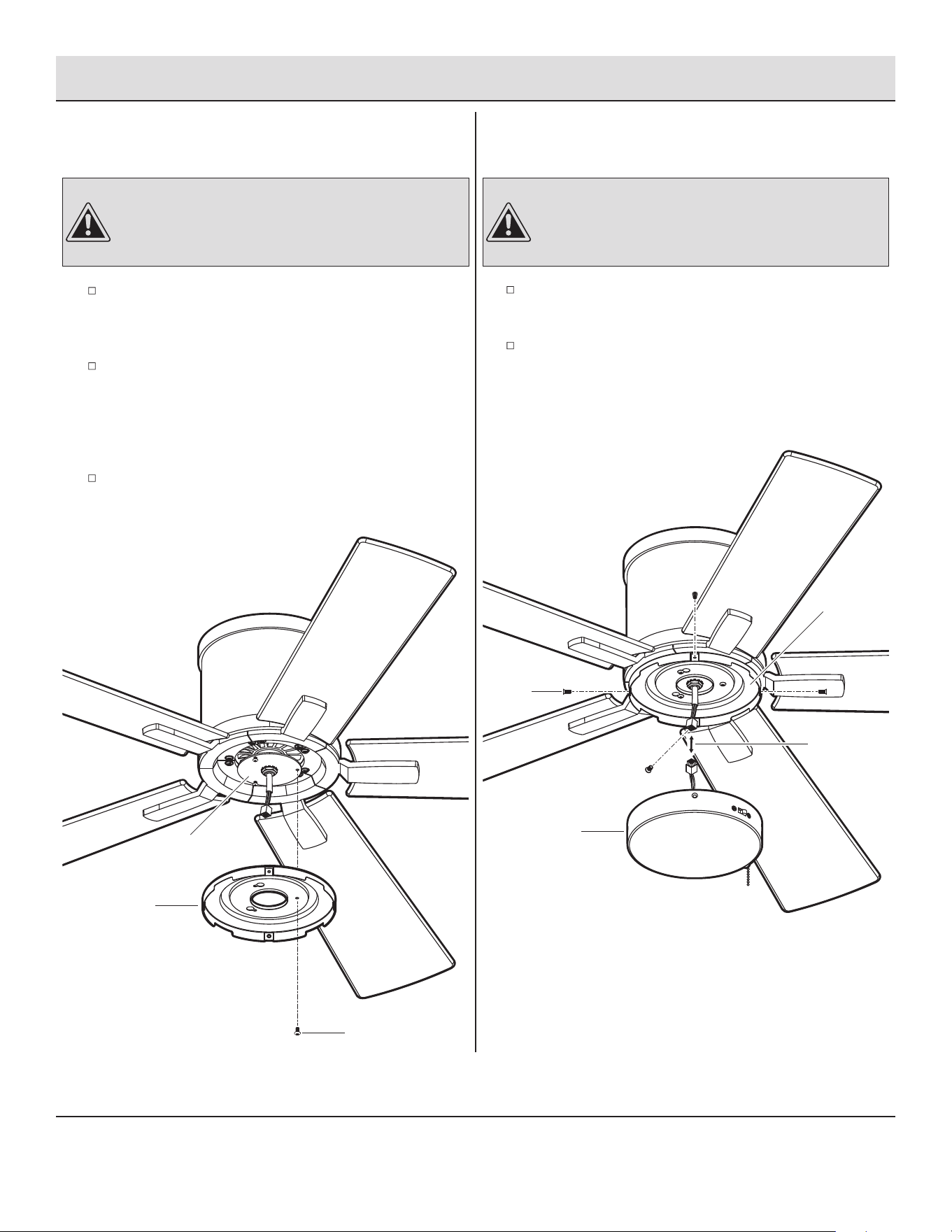

Assembly — Installing the Switch Housing
8
Attaching the switch housing
mounting plate to the mounting ring
Attaching the switch housing to the
switch housing mounting plate
9
Remove one of the three switch housing mounting plate
screws (KK) from the mounting ring (LL) and loosen the
other two screws (KK). (Do not remove)
Place the key holes in the switch housing mounting plate (F)
over the two screws (KK) previously loosened from the
mounting ring (LL), and turn the switch housing mounting
plate (F) until the switch housing mounting plate locks in
place at the narrow section of the key holes.
Securely tighten the two switch housing mounting plate
screws (KK) previously loosened and the one previously
removed.
While holding the switch housing (G) under the fan, snap
together the wire connection plugs (MM).
Carefully push all wires back into the switch housing. Install
the switch housing (G) onto the switch housing mounting
plate (F) with the switch housing mounting screw (NN)
provided. Be sure to tighten all screws.
CAUTION: Before starting installation, disconnect the power
by turning off the circuit breaker or removing the fuse at the
fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
CAUTION: Before starting installation, disconnect the power
by turning off the circuit breaker or removing the fuse at the
fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
F
12

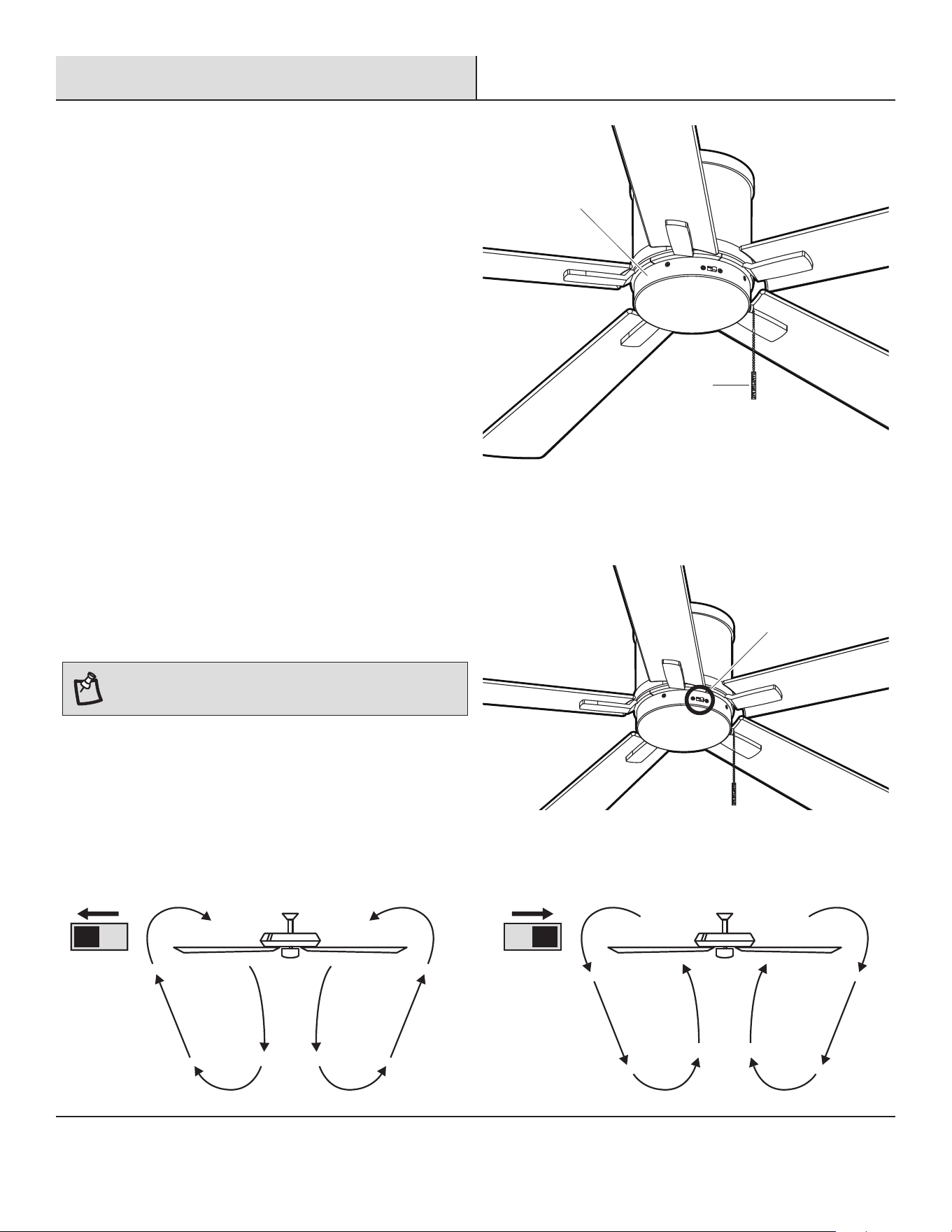

Installation
Attach the pull chain and fob (CC) to the pull chain located on the
switch housing (G). Turn on the power and check the operation of
the fan.
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse
(switch up).
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
Operation
PULL CHAIN OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
CC
Reverse switch
G
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
13
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting bracket
and outlet box.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary blade balancing kit.
If deviation is greater than 1/8 in., please call Customer Service (1-855-HD-HAMPTON) to order complimentary
replacements of your brackets.
The fan will not start.
The fan sounds noisy.
The fan wobbles.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
