Operating and Installation
Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 12 253 820
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Description of functions ................................................................................... 12
Con@ctivity 2.0 function...................................................................................... 13
Guide to the appliance...................................................................................... 14
Caring for the environment .............................................................................. 16
Operation (Automatic mode) ............................................................................ 17
Cooking with Con@ctivity 2.0 (Automatic mode) ................................................ 17
Temporarily exiting Automatic mode................................................................... 18
Resuming Automatic mode................................................................................. 18
Operation (Manual mode) ................................................................................. 19
Cooking without Con@ctivity 2.0 (Manual mode) ............................................... 19
Turning on the blower.......................................................................................... 19
Selecting the power level .................................................................................... 19
Selecting the delayed shutdown time ................................................................. 19
Turning off the blower.......................................................................................... 19
Turning the overhead lighting on/off.................................................................... 19
Power management ............................................................................................ 20
Operation (Automatic and Manual modes) ..................................................... 21
Filter saturation indicator..................................................................................... 21
Adjusting the grease filter filter saturation indicator ....................................... 21
Activating/changing the charcoal filter saturation indicator ........................... 22
Checking the filter saturation indicator........................................................... 22
Cleaning and care ............................................................................................. 23
Stainless steel housing........................................................................................ 23
Important information for appliances with lacquered casing......................... 23
Panels and grease filters for edge extraction ...................................................... 24
Replacing the grease filter.............................................................................. 26
OdorFree Charcoal Filter ..................................................................................... 26
Resetting the filter saturation counter for the filter......................................... 27
Disposing of charcoal filters ........................................................................... 27
Customer Service.............................................................................................. 28
Contact in the event of a fault ............................................................................. 28
Location of the data plate ................................................................................... 28
Installation.......................................................................................................... 29
Before installation................................................................................................ 29
Installation parts .................................................................................................. 29
Contents
3
Appliance dimensions ......................................................................................... 30
Distance between cooktop and ventilation hood (S)........................................... 31
Installation recommendations ............................................................................. 32
Structural support ............................................................................................... 32
Removing the protective film............................................................................... 32
Air venting ........................................................................................................... 44
Non-return flap ............................................................................................... 44
Condensate .................................................................................................... 45
Reducing Collar ............................................................................................. 45
Electrical connection ........................................................................................... 46
Grounding Instructions................................................................................... 46
Activating Con@ctivity 2.0 ................................................................................ 47
Installation of the Con@ctivity 2.0 stick............................................................... 47
Activating the Con@ctivity 2.0 function............................................................... 47
Activating the ventilation hood....................................................................... 47
Activating the cooktop ................................................................................... 48
Activation failed.............................................................................................. 48
Deactivating Con@ctivity 2.0............................................................................... 48
Technical data................................................................................................... 49
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is designed for domestic use and for use in
similar residential environments.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
Where a recirculation ventilation hood is installed above a gas
cooktop, please check that all local codes are observed to insure an
adequate supply of fresh air.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Children must not be allowed to clean or service the hood.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Avoid looking directly into the light for prolonged periods of time.
Danger of suffocation. While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
IMPORTANT SAFETY INSTRUCTIONS
6
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronized
with the grid power supply (e.g., island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
IMPORTANT SAFETY INSTRUCTIONS
7
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE FIRE:
- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not permitted.
To avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the ventilation hood could draw flames into the
filter. Fat deposits could ignite, presenting a fire hazard.
IMPORTANT SAFETY INSTRUCTIONS
8
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that any
burners in use are always covered by cookware. Turn burners off
when removing the cookware, even if doing so for just a short time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
IMPORTANT SAFETY INSTRUCTIONS
9
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance’s manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
IMPORTANT SAFETY INSTRUCTIONS
10
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this manual must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
The information provided in “Installation” must be observed when
installing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service. Always observe local building
code requirements when selecting duct material.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
IMPORTANT SAFETY INSTRUCTIONS
11
Accessories and parts
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become void.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
Miele will guarantee to supply functional parts for a minimum of
10years and up to 15years following the discontinuation of your
ventilation unit.
FCC Declaration of Conformity
These devices comply with FCC Rules Part 15. This equipment
has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20cm) between
the radiator and your body.
Industry Canada Statement
This digital apparatus does not exceed the Class B limits for
Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
Description of functions
12
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
The air is drawn into the ventilation
hood. It is then cleaned by the edge
extraction panels and the grease filters
and directed outside.
Non-return flap
A non-return flap installed in the vent
system ensures that when the
ventilation hood is not in operation, the
duct is closed and no exchange of
room and outside air can take place.
The flap is closed when the ventilation
hood is switched off.
When the ventilation hood is switched
on, the non-return flap opens for the
cooking vapors to be blown directly
outside.
In case the on-site vent system does
not have a non-return flap, one is
supplied with the ventilation hood. It
must be installed in the exhaust socket
on the motor unit.
Recirculation mode
(Only DA 6596 D requires a
Recirculation kit and OdorFree Charcoal
Filter (available as optional
accessories); see “Technical data” for
more information.)
The air is drawn in and cleaned first by
the edge extraction panels and the
grease filters, and then by an OdorFree
Charcoal Filter. The cleaned air is then
recirculated back into the kitchen.
Description of functions
13
Con@ctivity 2.0 function
Automatic control
This hood features a communication
function which enables the automatic
control of the hood based on the
operational status of a Miele induction
cooktop.
To enable the communication function,
the cooktop must be equipped with the
corresponding Con@ctivity 2.0 stick .
Please refer to the installation
instructions for the Con@ctivity 2.0
stick to determine whether connection
to your cooktop is possible.
There must be radio contact between
the cooktop and the hood for you to be
able to use the Con@ctivity 2.0 function
(see “Activating Con@ctivity 2.0”).
The cooktop transmits information
about its operational status to the hood
using a radio signal.
- When a burner is turned on, the
cooktop lighting on the hood turns on
automatically. After a brief delay, the
ventilation hood fan also comes on.
- During cooking, the hood
automatically selects the fan level
based on the number of burners in
operation and their power levels.
- Once you have turned off the
cooktop, the fan and the lighting will
turn off automatically after a
predetermined delay.
Detailed information about this function
can be found under “Operation.”

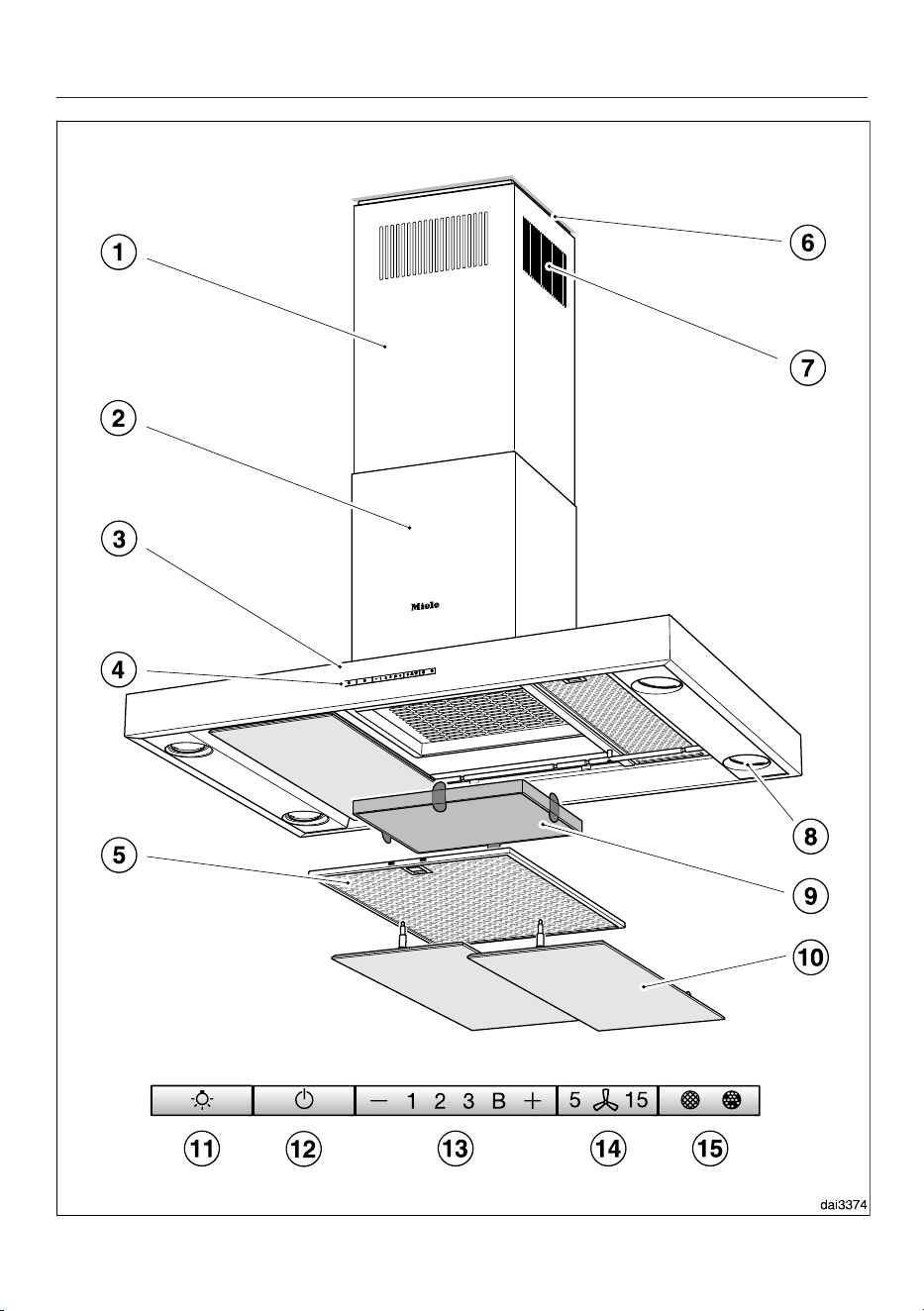

Guide to the appliance
14
Guide to the appliance
15
a
Telescopic chimney
b
Chimney
c
Canopy
d
Control panel
e
Grease filter
f
Spacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The hood can be installed with or without the spacer frame.
g
Recirculation vent
(only for recirculation mode, DA 6596 only)
h
Cooktop lighting
i
OdorFree Charcoal Filter
Optional accessory for recirculation mode (DA 6596 D only)
j
Edge extraction panels
Optional accessories
DRP 6590 D glass (3 elements)
DRP 6590 D stainless steel (3 elements)
DRP 6520 D glass (4 elements)
DRP 6520 D stainless steel (4 elements)
k
Button for cooktop lighting
l
On/Off button for fan
m
Buttons for setting the fan power
n
Button for delayed shut-down function
o
Filter saturation indicator
Caring for the environment
16
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
Operation (Automatic mode)
17
When Con@ctivity 2.0 is active, the
hood always operates in Automatic
mode (see “Activating Con@ctivity 2.0”).
See “Cooking without Con@ctivity 2.0”
for information on manually operating
the hood.
Cooking with Con@ctivity 2.0
(Automatic mode)
Turn on a burner to the desired power
setting.
Overhead cooktop lighting.
After a few seconds, the fan will come
on, briefly operating at power level 2
before immediately switching to level 1.
The hood selects the fan level
automatically during cooking.
This level is determined by the total
output of the cooktop, i.e. the number
of burners in operation and the power
settings selected.
If you select a higher power setting
on the cooktop or switch on multiple
burners, the hood will switch to a
higher fan level.
If you select a lower power setting on
the cooktop or turn off a burner, the
hood will accordingly switch to a
lower fan level.
Examples for fan levels 1 to 4
Reaction time
Changing the power setting on the
cooktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the cooktop transmits the information to
the hood in intervals.
The reaction time can vary from a few
seconds to a couple of minutes.
Cooking process
If, for example, you switch on a
burner at the highest power setting to
heat cookware in preparation for
searing and then reduce the power
level after approx. 60 to 90 seconds,
a cooking process is recognized.
The hood turns on automatically and,
after the cooktop power level has been
reduced, switches back to fan level 3,
where it remains for approx. 5minutes.
After this, the fan level is once again
determined by the Con@ctivity function.
You can also manually select a
different fan level before then.
Switching off
Turn off all burners.
Over the next few minutes, the
ventilation hood blower setting will
decrease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air.
- From the Booster setting, the blower
switches immediately to level3.
Operation (Automatic mode)
18
- From level 3, it will switch to level 2
after approx. 1minute.
- From level 2, it will switch to level 1
after 2minutes.
- After 2minutes at level 1, the blower
automatically turns off.
- After another 30seconds, the
overhead lighting turns off.
The cooking process is then finished.
Temporarily exiting Automatic
mode
To temporarily exit the Automatic mode
when cooking:
Manually select a different fan level,
or
Manually turn the hood off, or
Activate the Delayed shut down
function on the ventilation hood.
The fan turns off after the delay time
selected, and the lighting will remain
on.
The ventilation hood functions can now
be operated manually (see “Cooking
without Con@ctivity 2.0”).
Resuming Automatic mode
The ventilation hood resumes
Automatic mode:
If the ventilation hood has not been
used for a period of approx.
5minutes after the manual selection
of a fan level, or
If the manually selected fan level
once again matches the automatic
setting, or
If the ventilation hood fan and the
cooktop have been turned off for at
least 30 seconds.
Automatic mode will resume the next
time the cooktop is turned on.
If you wish to manually operate the
ventilation hood for a complete
cooking process, turn on the
ventilation hood fan before turning
on the cooktop.
If the ventilation hood and the
cooktop have been turned off for at
least 30 seconds after you have
finished cooking, Automatic mode
will resume the next time the cooktop
is turned on.
Operation (Manual mode)
19
Cooking without Con@ctivity
2.0 (Manual mode)
The hood can be operated manually if:
- The Con@ctivity 2.0 function is not
activated.
- You have temporarily deactivated the
Con@ctivity 2.0 function (see
“Temporarily exiting Automatic
mode”).
Turning on the blower
Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.
Press the On/Off control.
The blower turns on at level 2. The
symbol and 2 will light up in the blower
level display.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Select the power level you want by
pressing the or control.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the blower
automatically switches back to level 3
after 5minutes.
Selecting the delayed
shutdown time
It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.
It also reduces the risk of odors and
residues accumulating in the ventilation
hood.
The delayed shutdown function enables
the blower to continue running for a
pre-determined time before switching
itself off automatically.
After you have finished cooking,
press the delayed shutdown
control while the blower is still
running.
- Once: blower turns off after
5minutes (5 lights up).
- Twice: blower turns off after
15minutes (15 lights up).
- If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).
Turning off the blower
Press the On/Off control to turn
the blower off.
The symbol will go out.
Turning the overhead lighting
on/off
The overhead lighting can be turned on
and off separately from the blower.
To do this, press the lighting
control.
Operation (Manual mode)
20
The symbol will light up when the
overhead lighting is turned on.
Power management
The ventilation hood is equipped with a
power management system. Power
management helps to save energy. It
ensures that the blower power level is
reduced automatically and that the
lighting is switched off.
- If the booster level is selected, the
blower automatically switches to
level 3 after 5 minutes.
- If the blower is set to level 3, 2, or 1,
it switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.
- The overhead lighting will switch off
automatically after 12hours.
Turning power management on/off
You can deactivate power
management.
Keep in mind that this may increase
energy consumption.
Switch off the blower and the lighting.
Press the delayed shutdown
control for approx. 10seconds
until the 1 indicator appears in the
blower level display.
Then press in order:
- the lighting control,
- the control, and then
- the lighting control.
If power management is turned on, the
1 and B indicators will be continuously
lit.
If it is turned off, the 1 and B indicators
will flash.
Press the control to turn power
management off.
The 1 and B indicators will flash.
To turn it on, press the control.
The 1 and B indicators will be
continuously lit.
Confirm the setting by pressing the
delayed shutdown control.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Operation (Automatic and Manual modes)
21
Filter saturation indicator
The ventilation hood registers the length
of time it has been operated.
The filter saturation indicators show
when the filters need to be cleaned or
changed by lighting up the grease filter
symbol or charcoal filter symbol .
Additional information on cleaning and
changing the filters and resetting the
filter saturation indicators can be found
under “Cleaning and care”.
Adjusting the grease filter filter
saturation indicator
The filter saturation indicator can be set
to suit the customer’s cooking habits.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter interval of 20hours if
food is fried regularly.
- A shorter cleaning interval is also
recommended if the customer only
cooks occasionally. This will prevent
grease buildup from hardening and
making cleaning more difficult.
- Select a longer cleaning interval of 40
or 50hours if the customer uses very
little fat when cooking.
Switch off the blower and the lighting.
Press the delayed shutdown
control and the filter saturation
control at the same time.
The grease filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1............................................... 20hours
2............................................... 30hours
3............................................... 40hours
B .............................................. 50hours
Press the control for a shorter
duration, or for a longer duration.
Confirm the selection by pressing the
filter saturation indicator.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Operation (Automatic and Manual modes)
22
Activating/changing the charcoal
filter saturation indicator
The charcoal filter is required for the
recirculation mode.
The filter saturation indicator for the
charcoal filter must be activated once
and should be set to match your
cooking habits.
Press the On/Off button to turn the
blower off.
Press the “” symbol and the filter
saturation indicator at the same
time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
Indicator 1 ............................ 120 hours
Indicator 2 ............................ 180 hours
Indicator 3 ............................ 240 hours
Indicator B.......................... deactivated
Press the “” symbol for a shorter
operating time, or the “” symbol to
select a longer operating time.
Confirm the selection by pressing the
filter saturation indicator .
All the indicator lights go out.
If the new setting is not confirmed
within 4minutes, the hood reverts to
the previous setting.
Checking the filter saturation
indicator
Before the set operating time has run
out, you can check what percentage of
the time has elapsed.
Press the On/Off control to turn the
blower on.
Press and hold the filter saturation
indicator.
- Once, to check the grease filter
operating time. The grease filter
symbol lights up.
- Twice, to check the charcoal filter
operating time. The charcoal filter
symbol lights up.
One or more of the blower power level
indicators will flash simultaneously.
The number of flashing indicators
shows the elapsed operating time as a
percentage.
Indicator 1 .................................... 25%
Indicators 1 and 2 ......................... 50%
Indicators 1 to 3 ........................... 75%
Indicators 1 toB ......................... 100%
The number of elapsed operating
hours remains stored in memory when
the ventilation hood is turned off or if
there is a power outage.
Cleaning and care
23
WARNING: TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride, or
solvent.
Do not use any abrasive cleaning
agents, e.g., powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents
Moisture in the ventilation hood
can cause damage.
Make sure that water does not get
into the ventilation hood.
Clean all surfaces and control buttons
using a small amount of warm water
and liquid dish soap. Apply with a
sponge cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered casing
(Customization on request)
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Important information for the
controls
If soiling is not removed promptly, it
could cause the control elements to
alter or discolor.
Remove soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.
Cleaning and care
24
Panels and grease filters for
edge extraction
The edge extraction panels and the
reusable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the hood.
Risk of fire
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
The filter saturation indicator reminds
you to regularly clean the grease filters
by illuminating the grease filter
symbol.
You can adjust the interval for the filter
saturation indicator to match your
cooking habits (see “Operation
(Automatic and Manual modes)”).
Removing the panels and grease
filters
The grease filters and panels can
fall out when you are handling them.
This can result in damage.
Make sure you hold the filters and
panels securely at all times when
handling them.
DA 6596 D: Pull the front edge of the
panels down out of the lock, lower
them slightly, unhook them at the
back, and take them out.
DA 6526 D: Pull the outer edge of the
panels down out of the lock, lower
them slightly, unhook them in the
middle, and take them out.
To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning and care
25
Cleaning the panels by hand
Follow the instructions under
“Housing.”
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning the panels and grease
filters in the dishwasher
Place the panels and filters as upright
or inclined as possible in the lower
basket. Ensure that the spray arm is
not obstructed.
Use a household dishwasher
detergent.
Select a program with a wash
temperature between 122°F (50°C)
and 149°F (65°C).
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the filters
in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the panels and
grease filters for cleaning, also clean
off any accessible oil or grease
buildup from the housing. Doing so
will prevent a fire hazard.
Reinstall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.

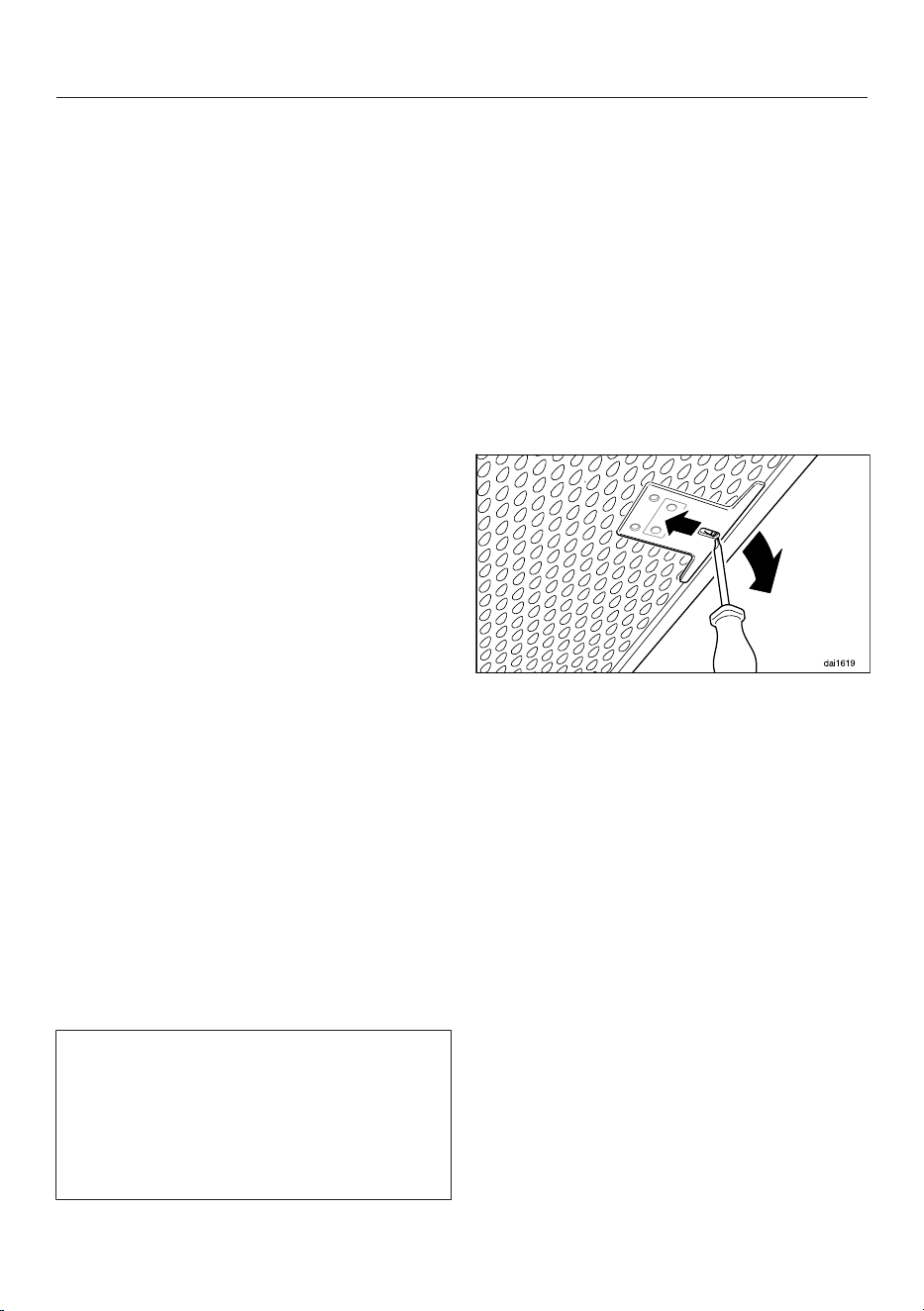

If the filters have been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Hook the panels onto the support
rod.
Lift up the front of the panels and
push them into the lock until they
engage.
Cleaning and care
26
Resetting the filter saturation
indicator for the grease filters
Once cleaning is complete, the filter
saturation indicator must be reset.
While the blower is turned on, press
the filter saturation indicator for
approx. 3seconds until 1 is the only
indicator flashing.
The grease filter symbol goes out.
When cleaning the grease filters before
the full operating time has elapsed:
Press the filter saturation
indicator for approx. 6seconds
until 1 is the only indicator flashing.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
Miele Customer Service (see end of
these operating instructions for contact
details) or from your Miele dealer.
OdorFree Charcoal Filter
With recirculation mode, a charcoal
filter must be installed in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odors.
The charcoal filter is installed in the
canopy above the grease filters.
Charcoal filters are available to order via
the Miele Web Store, Miele Technical
Service (see end of this manual for
contact details), or from your Miele
dealer. The model designations are
listed in the “Technical data” chapter.

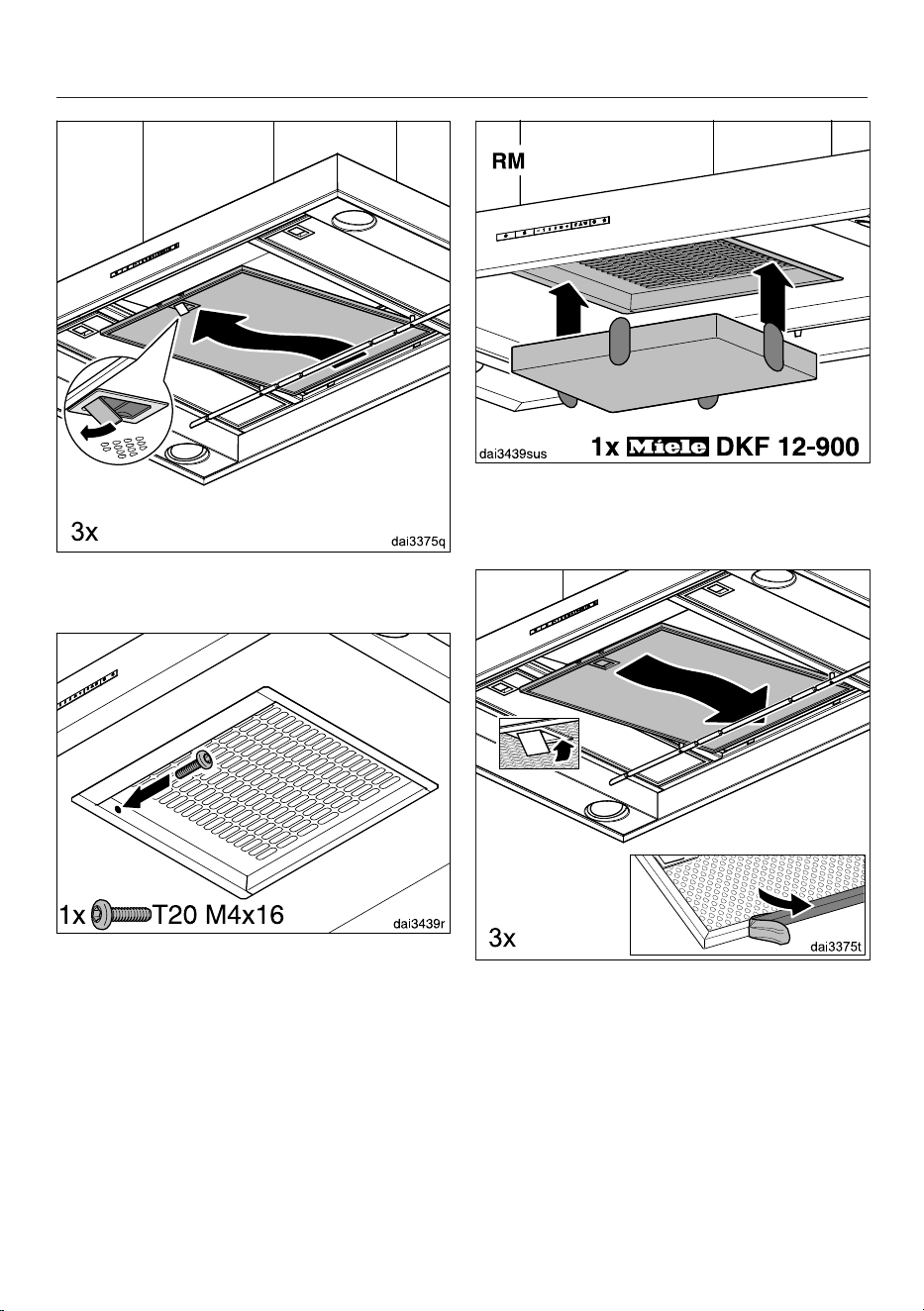

Installing/replacing the OdorFree
Charcoal Filter

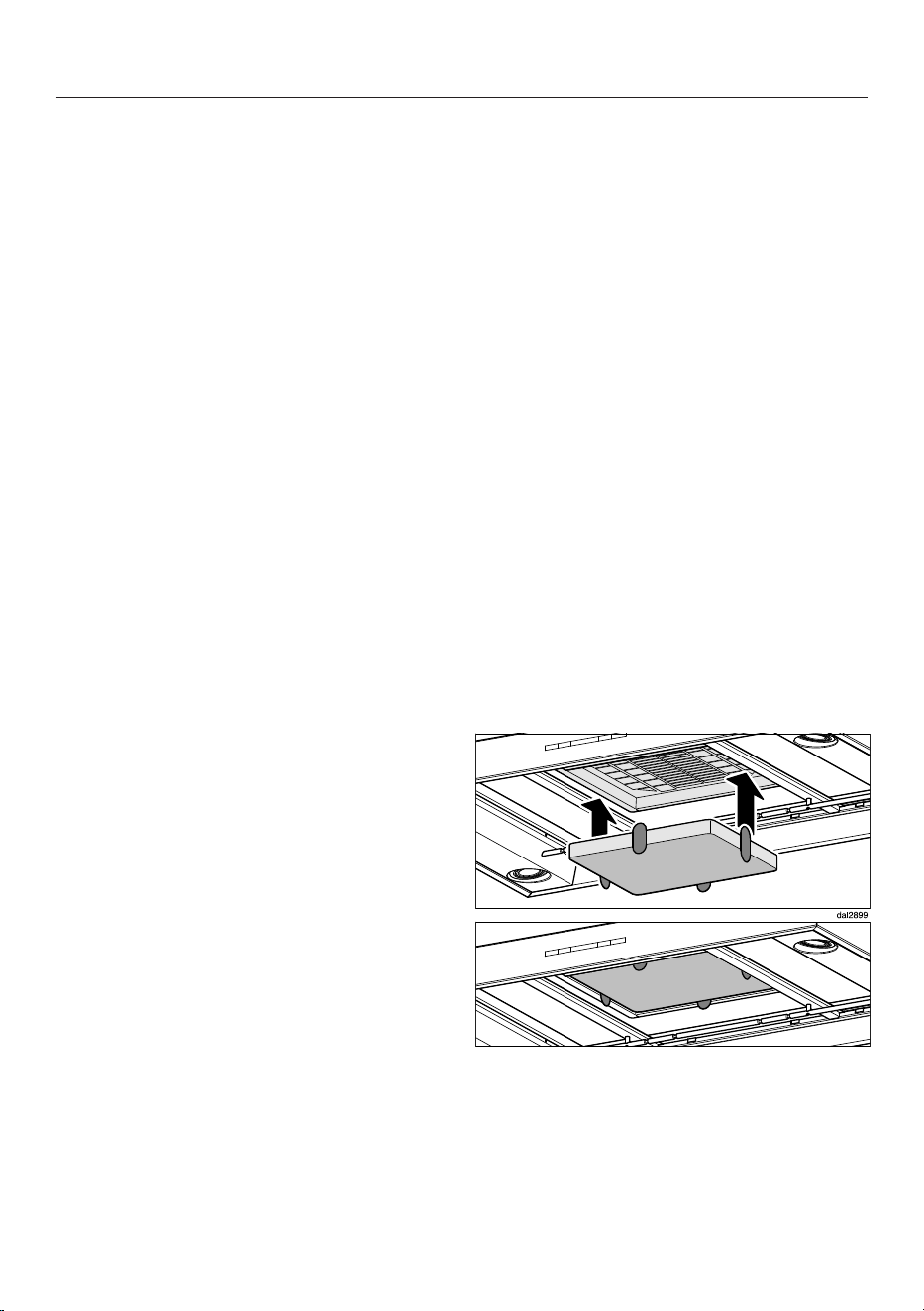

To install or replace the OdorFree
Charcoal Filter, the grease filters must
first be removed as described above.
Remove the OdorFree Charcoal Filter
from its packaging.

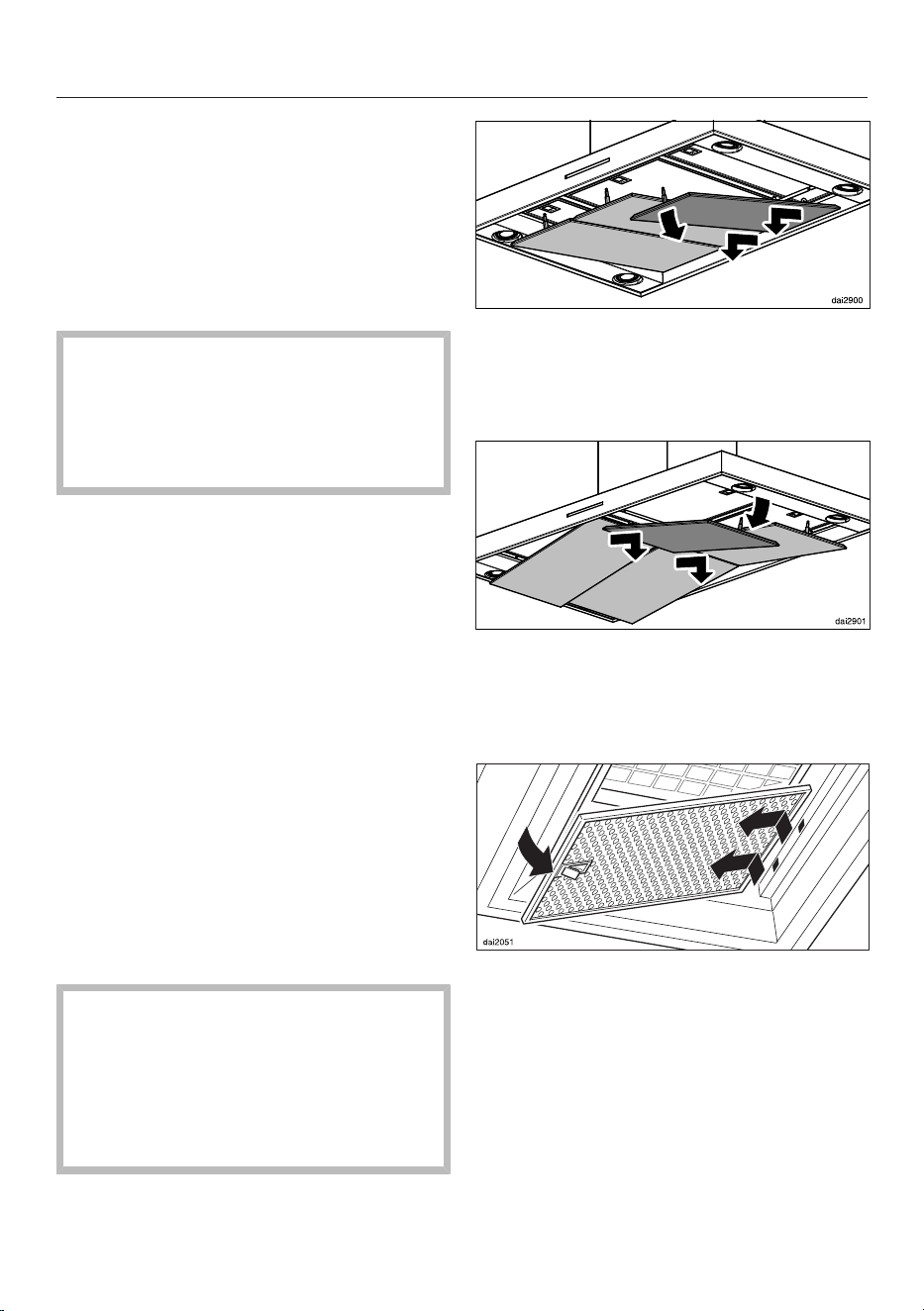

Press the OdorFree Charcoal Filter
into the frame.
Reinsert the grease filters and the
panels.
Cleaning and care
27
When installing the filter for the first
time, activate the filter saturation
counter (see “Operation”).
When to change the OdorFree
Charcoal Filter
Replace the charcoal filter when it no
longer absorbs kitchen odors
effectively.
It should be replaced at least every 6
months.
The OdorFree Charcoal Filter saturation
counter will light up to remind you to
change the charcoal filter regularly.
The OdorFree Charcoal Filter
saturation counter requires one-time
activation before use (see the
“Operation” chapter).
Resetting the filter saturation counter
for the filter
If the filter saturation counter is
activated, it must be reset each time the
filter is changed.
To do this, press the filter saturation
indicator twice with the fan
turned on and hold it for approx. 3
seconds until 1 is the only indicator
flashing. The OdorFree Charcoal Filter
symbol will go out.
If you replace the OdorFree Charcoal
Filter before the full operating time
elapses:
Press the filter saturation indicator
twice and hold it for approx. 6
seconds until 1 is the only indicator
flashing.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Customer Service
28
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
Installation
*INSTALLATION*
29
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
“IMPORTANT SAFETY
INSTRUCTIONS” section.

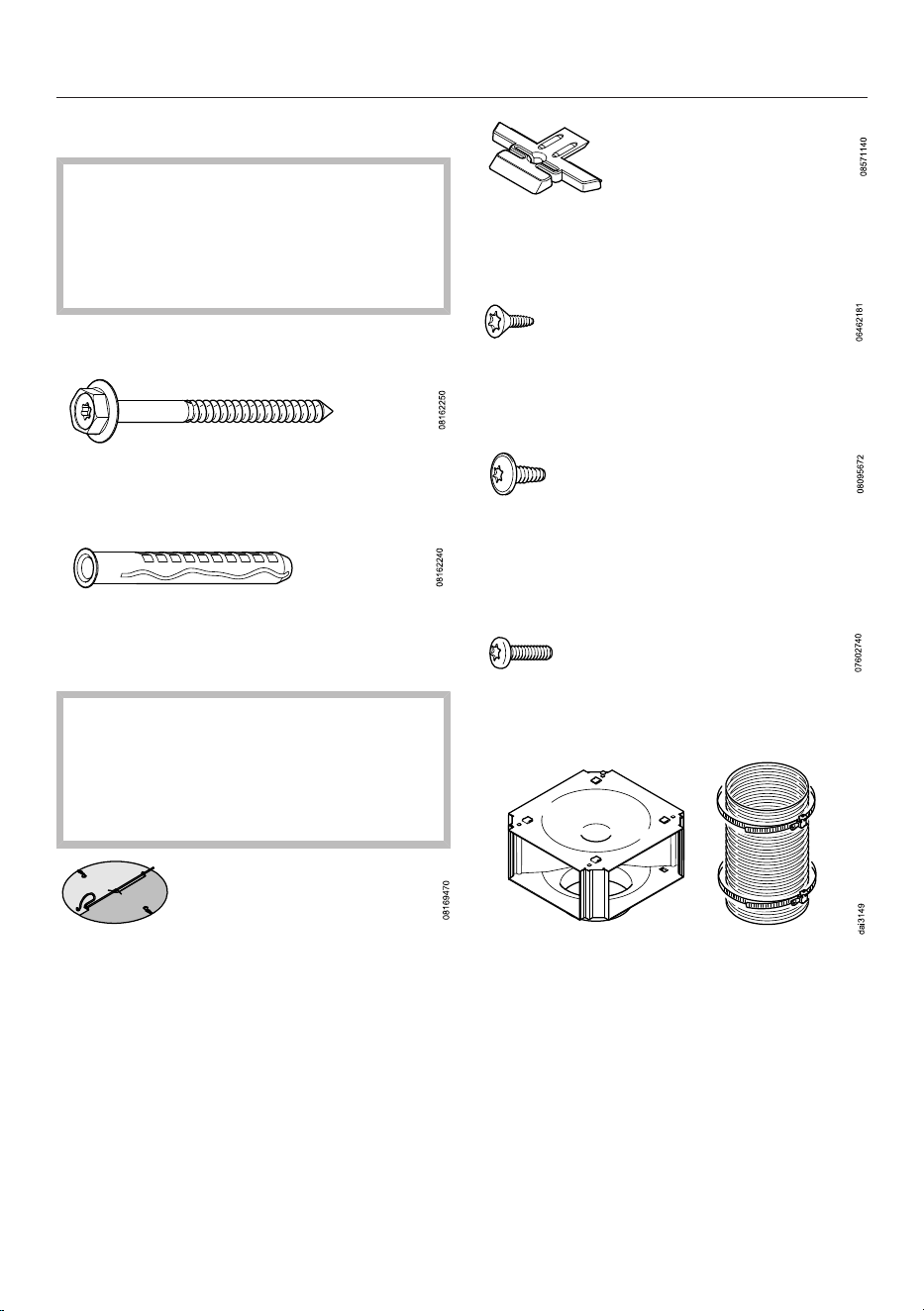

Installation parts
4 screws, 7 x 110mm and
4 plugs, 10 x 80mm
for securing the ventilation hood to the
ceiling (not for use in USA / CDN).
The screws and plugs are designed
for use in solid ceilings only.
Use different fasteners for other
ceiling construction types. Make sure
that the ceiling can support the load.
1 non-return flap
for fitting into the exhaust socket on
the motor unit (not needed for
recirculation mode). Depending on the
model, the non-return flap may already
be mounted.
4 extension piece holders
for aligning and securing the telescopic
chimney
4 screws, M4 x 8.5mm
for securing the extension piece
holders.
14 screws, M4 x 8mm
for securing the spacer frame and
securing the hood to the installation
frame.
1 screw, M4 x 16mm
for securing the chimney.
DUI 32 recirculation kit for
recirculation mode
(not supplied, available as an optional
accessory). The kit includes a
directional unit, aluminum hose, and
hose clips.
Installation
*INSTALLATION*
30

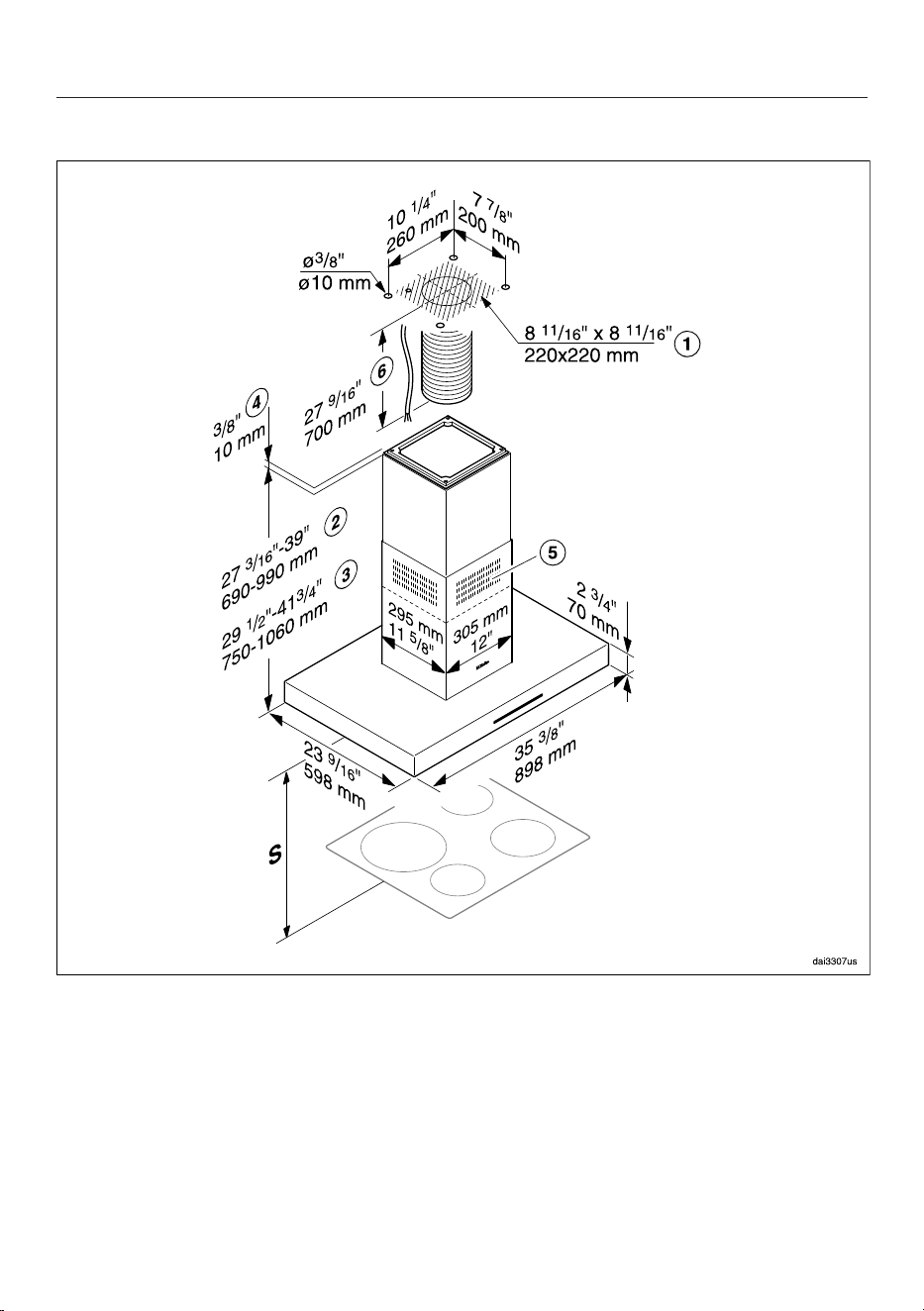

Appliance dimensions
a
Mounting area for the exhaust ducting and power cable. In recirculation mode,
only the power cord is required.
b
Possible height range for appliance in extraction mode
c
Possible height range for appliance in recirculation mode
d
Alternative installation with spacer frame
e
Air vent positioned at the top for recirculation
Installation
*INSTALLATION*
31
f
A power cord is required to connect the hood to the socket in the ceiling. With
extraction mode flexible ducting is also required.
Exhaust connection 6" (150mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660mm) 30" (760mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660mm) 30" (760mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
Installation
*INSTALLATION*
32
Installation recommendations
- A distance of at least 26" (660mm) is
recommended above electric
cooktops to provide more workspace
and easier cooking under the hood.
- When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
- Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
- To achieve optimum vapor extraction,
the ventilation system must be
centered over the cooktop, not to the
side or behind.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.

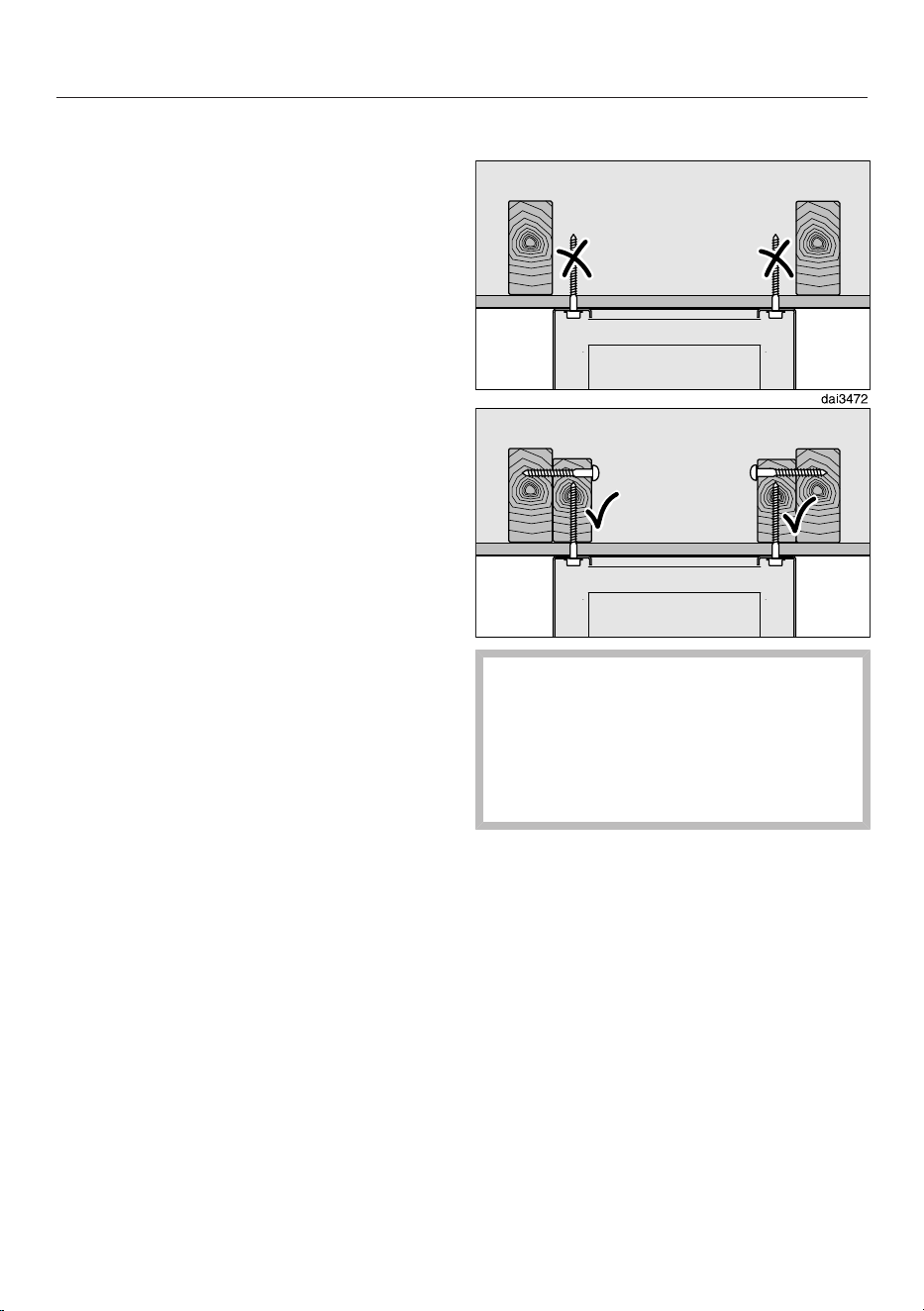

Structural support
The hood must be attached to rigid
structural framing that is supported
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from damage during transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation
*INSTALLATION*
33
8
5
/
8
"
220 mm
8
5
/
8
"
220 mm
dai3435aus

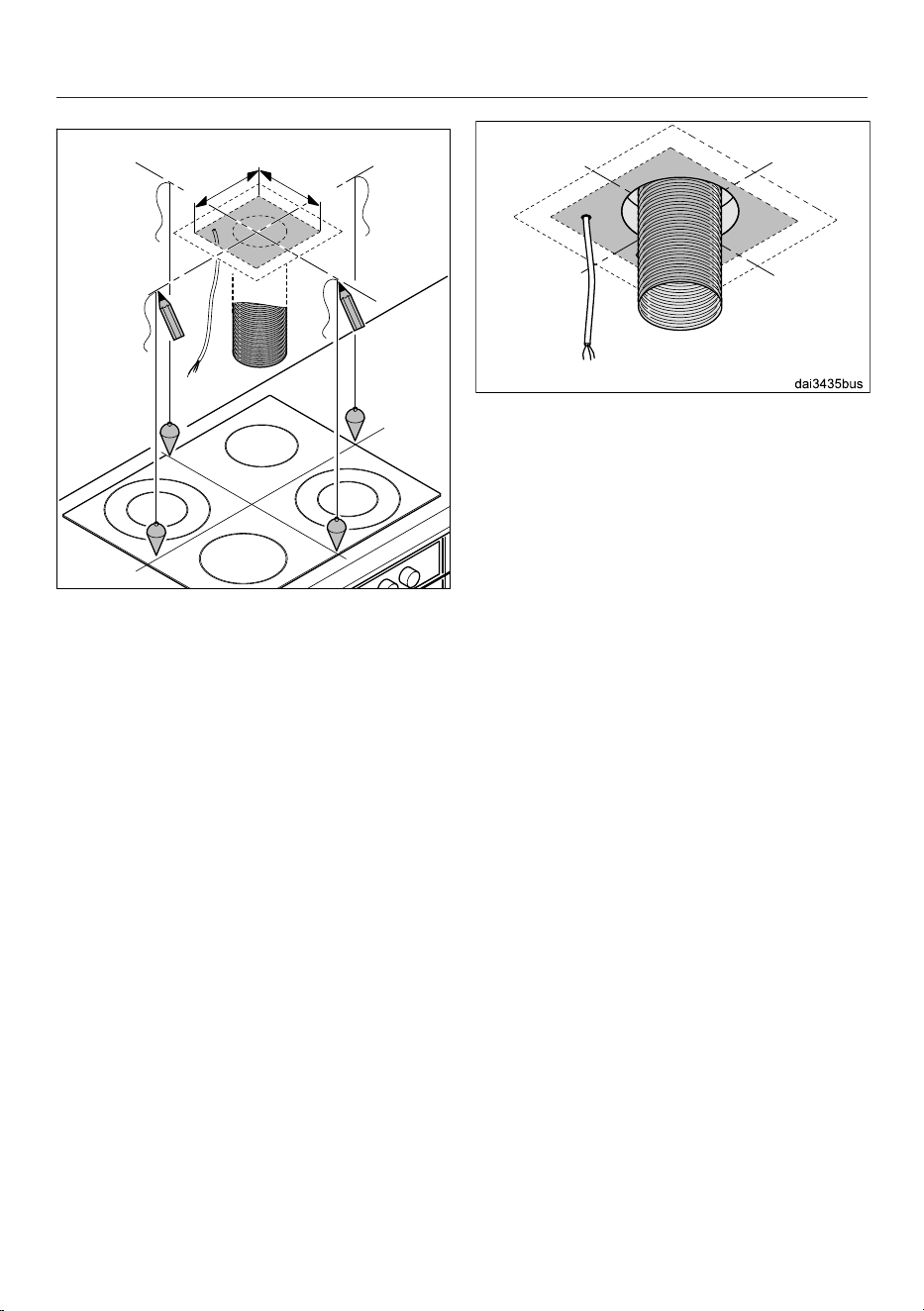

Draw two intersecting lines on the
ceiling.
For extraction mode:
- Lay the vent duct and feed it down
through the ceiling in the area shown.
A section of flexible vent duct
approx. 28"(700mm) long is needed
between the ceiling and the
ventilation hood’s vent socket.
Lay the power cord and feed it down
through the ceiling in the area shown.
A power cord approx. 28"(700mm)
long is needed between the ceiling
and the ventilation hood’s power
connection.
Installation
*INSTALLATION*
34

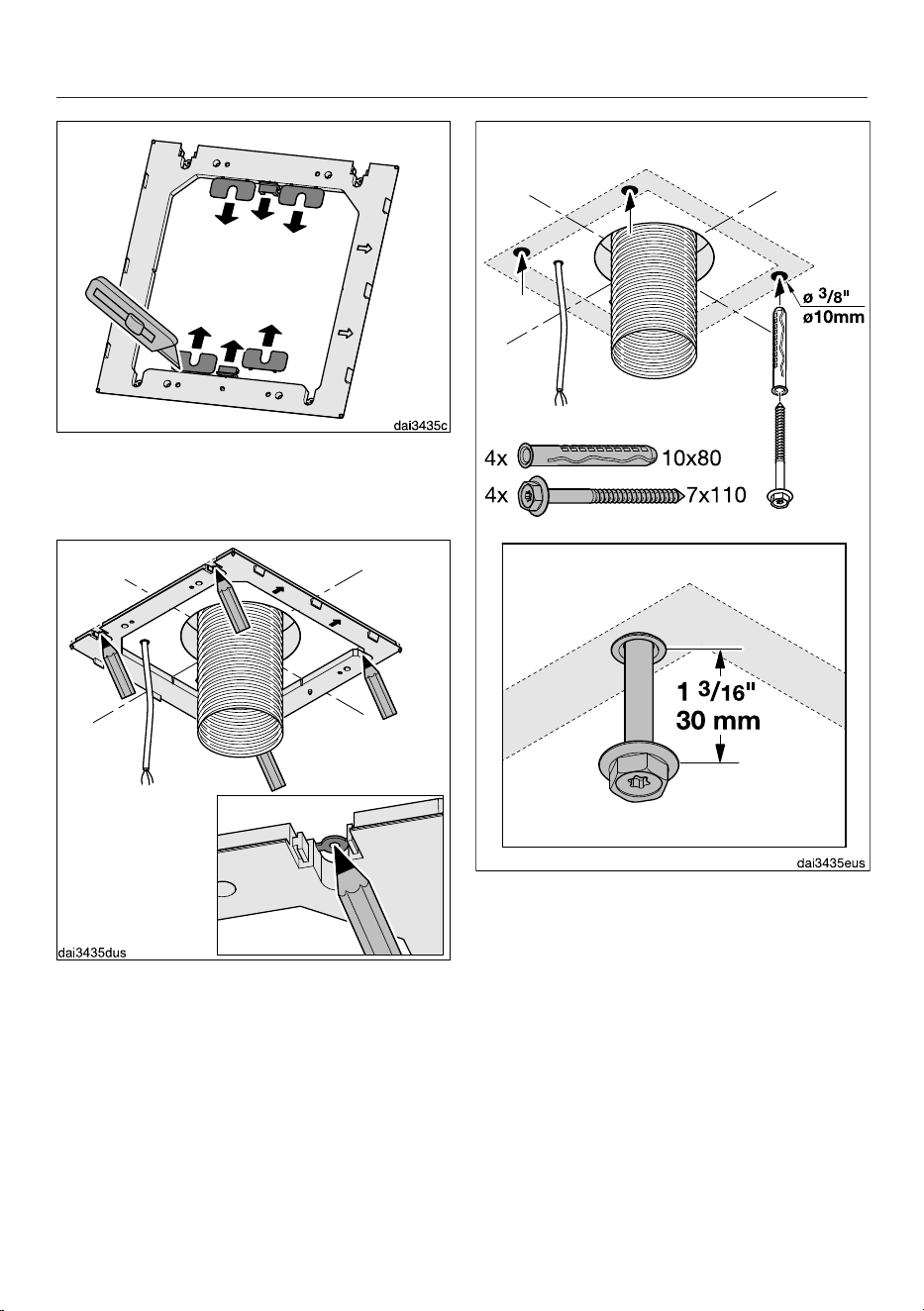

Use a knife to release the four
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
Drill four holes ³/₈“ (10mm),
approx. 4 ¹/₂” (115mm) deep for the
plugs supplied.
Place the four plugs in the holes and
screw in the four screws so that they
protrude by approx. 1 ³/₁₆" (30mm).
Installation
*INSTALLATION*
35

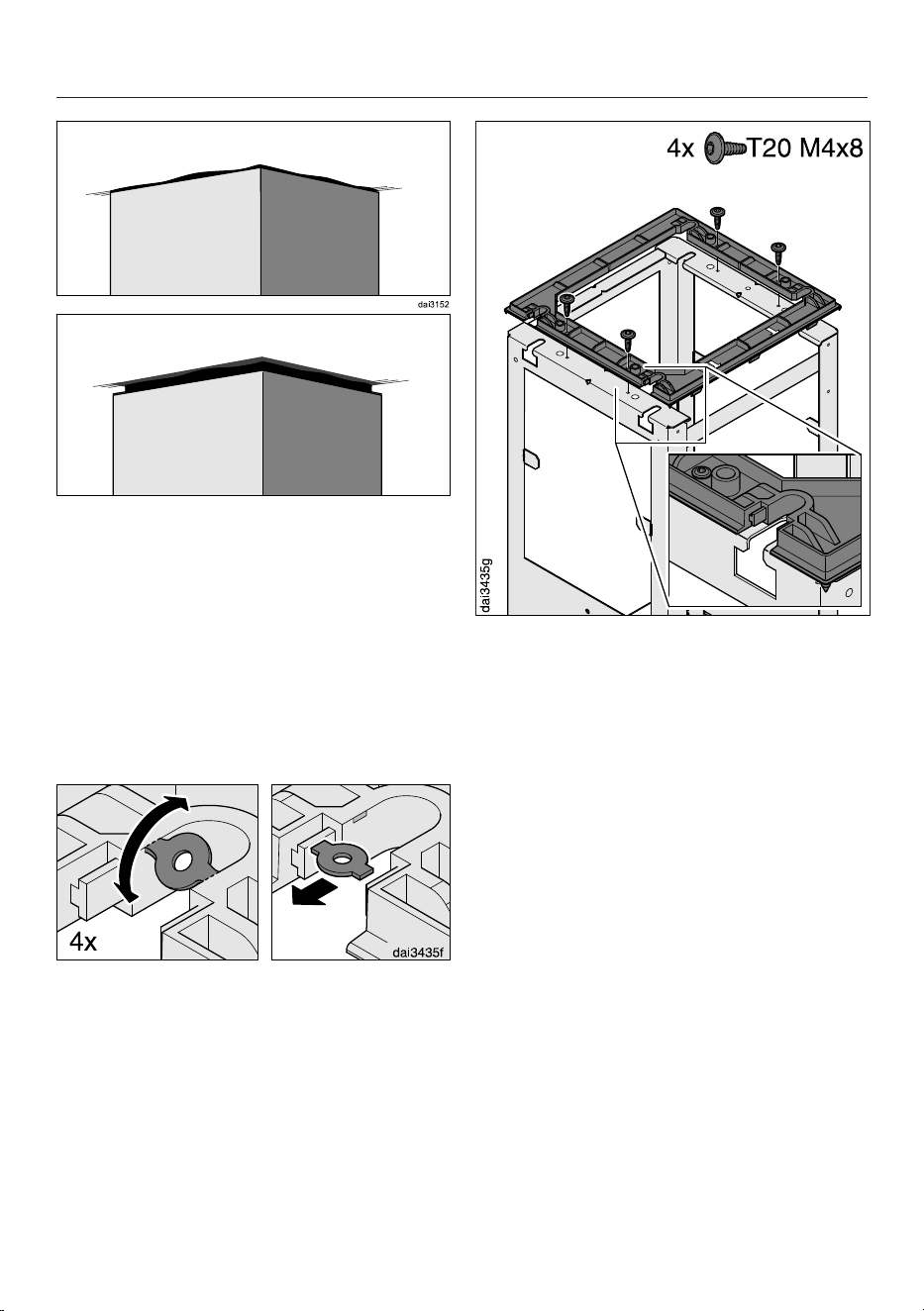

The spacer frame can be installed
between the chimney and the ceiling.
This creates a shadow which gives the
illusion of a gap between the ceiling and
the chimney. This is useful if the ceiling
is not level or is uneven. The hood is
aligned vertically with the spacers
supplied. Visual irregularities between
the chimney and the ceiling are then
concealed by the shadow.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
Mount the spacer frame onto the
installation frame.
Installation
*INSTALLATION*
36

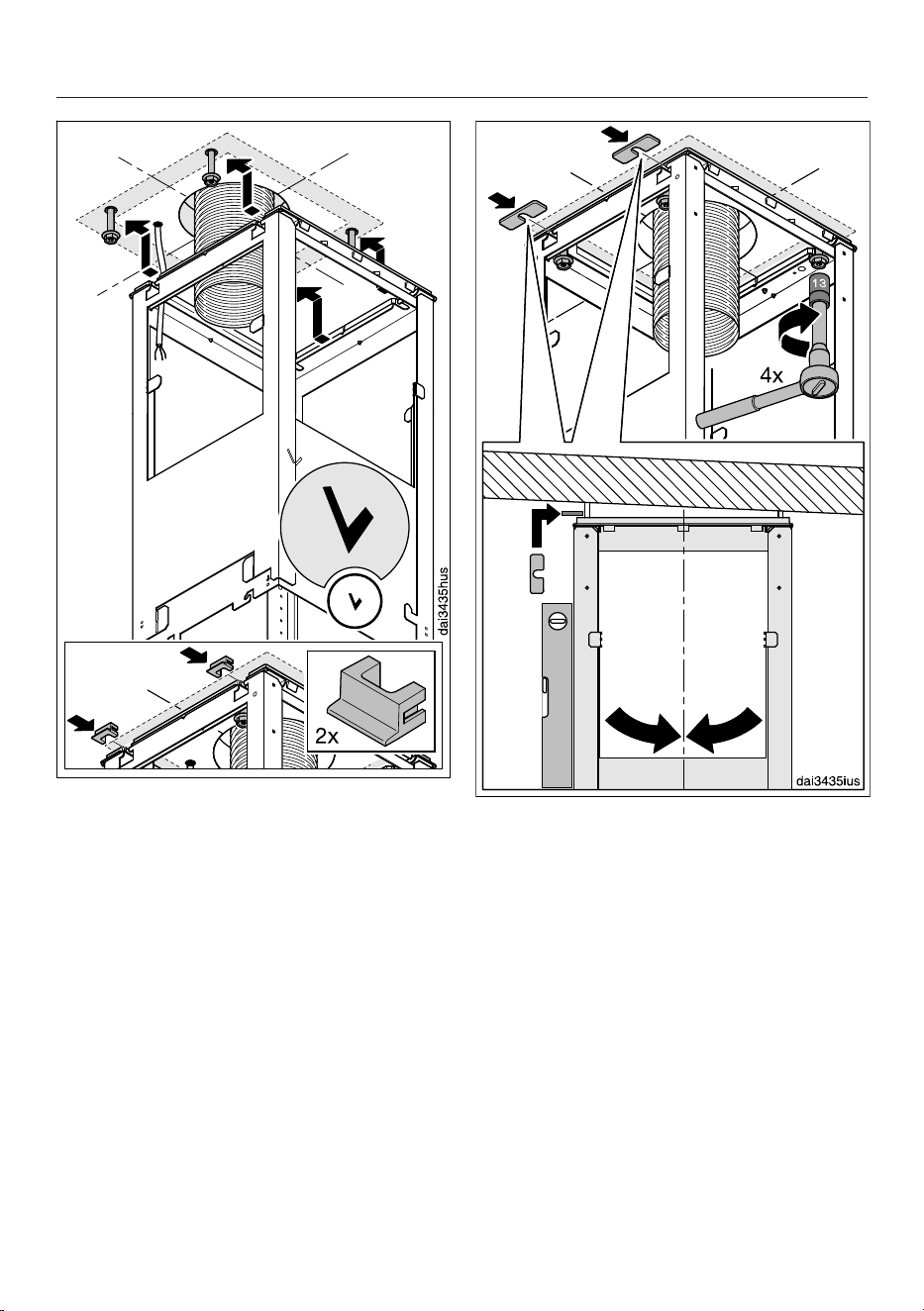

Hang the installation frame on the
four screws. The front of the frame is
marked with a “V”.
If using the spacer frame, place the
two covers into the fixing holes.
Align the installation frame and
secure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood
vertically.
Installation
*INSTALLATION*
37

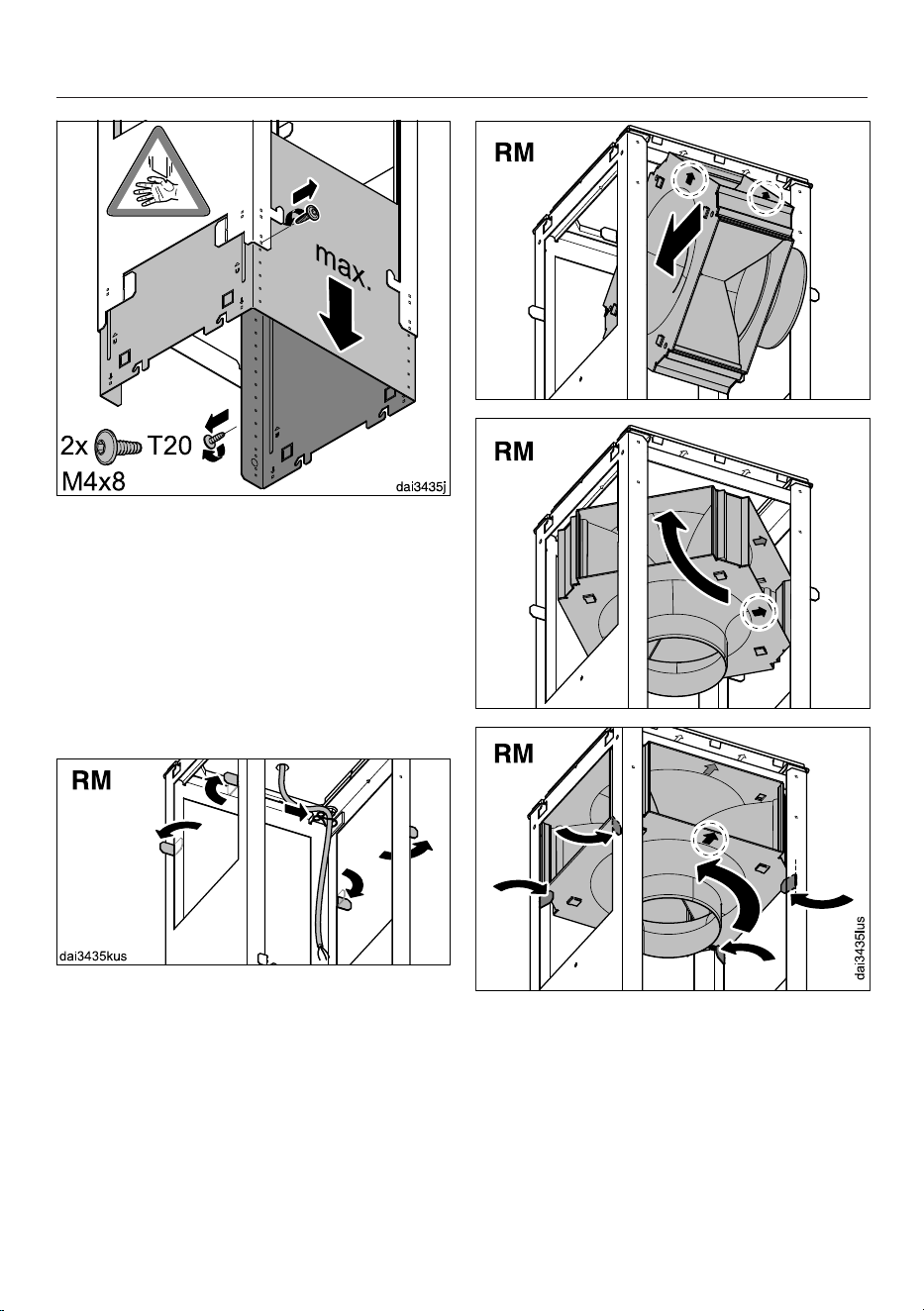

Holding the installation frame
securely, remove the two fixing
screws and extend the installation
frame to its maximum length.
Replace the screws.
The directional unit from recirculation kit
DUI 32 (optional accessory) is installed
for recirculation mode (RM):
Bend the four retaining tabs on the
installation frame outward.
Place the power cord inside the
installation frame.
Install the directional unit as shown.
Note the marking on the front.
Bend the retaining tabs back and
approx. 45° inward to hold the
directional unit in place.
Installation
*INSTALLATION*
38

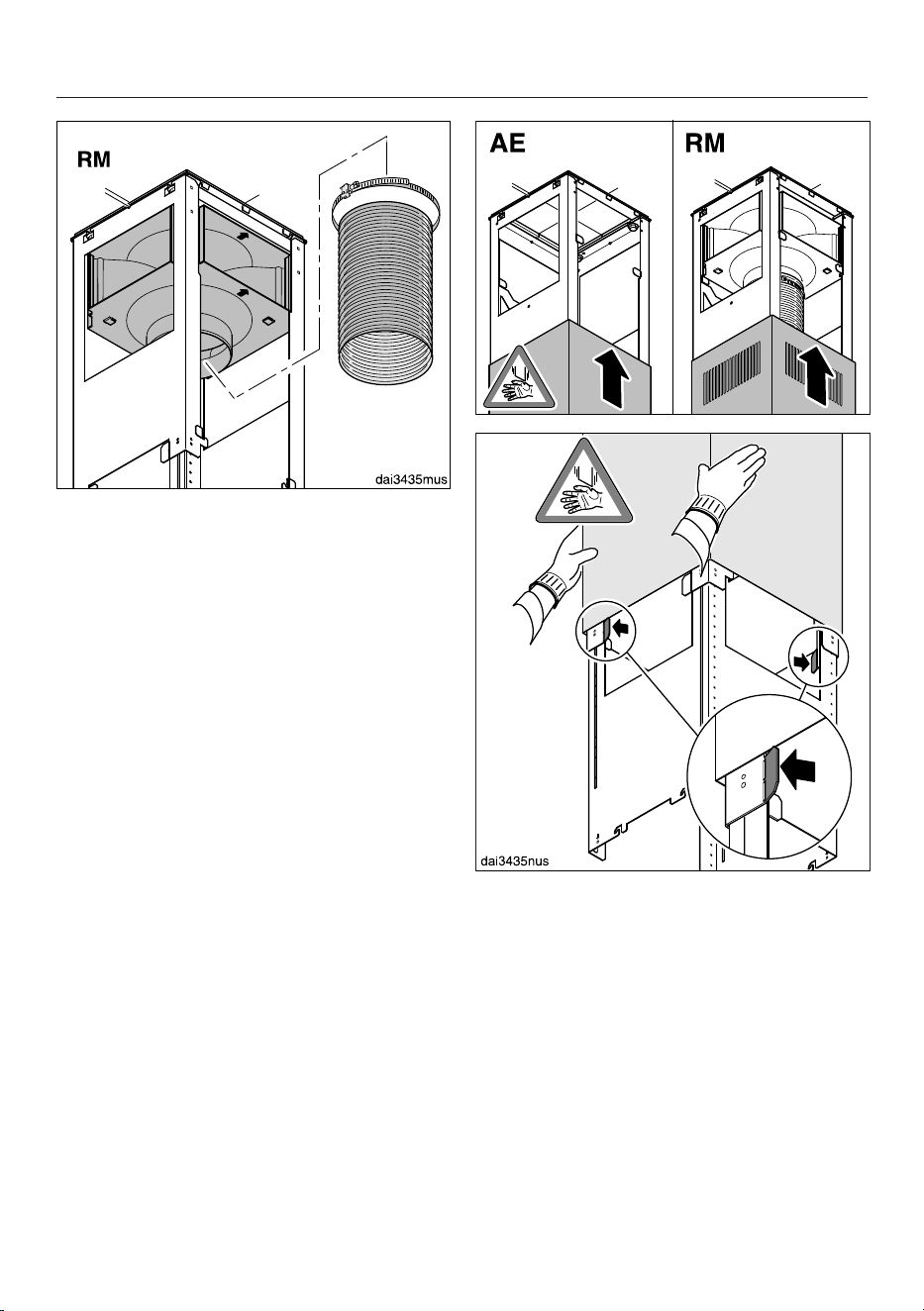

Secure the hose to the directional unit
socket using a hose clip.
Check that the hose is held securely.
Push the telescopic chimney over the
installation frame:
- with the recirculation grilles at the
bottom for extraction mode (AE),
- with the recirculation grilles at the top
for recirculation mode (RM).
Bend the two retaining tabs outwards
to prevent the telescopic chimney
from slipping down again.
Installation
*INSTALLATION*
39

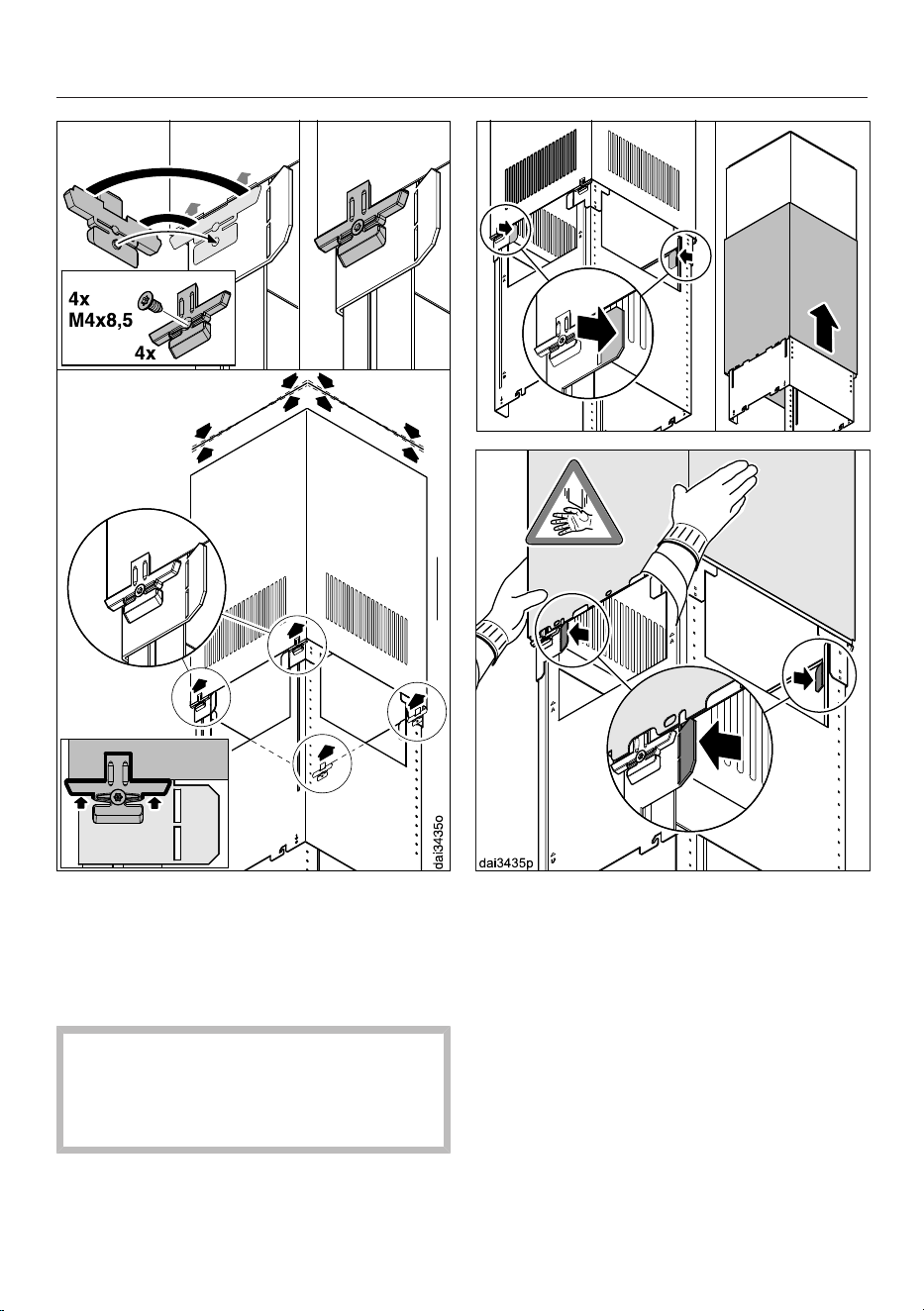

Fit the four telescopic chimney
clamps. When the screws are
tightened, the clamps spread out and
push the telescopic expansion piece
upwards.
Tighten the screws only until the top
edge of the telescopic chimney is
evenly aligned with the ceiling or the
spacer frame.
Bend back the two retaining tabs.
Push the chimney over the telescopic
extension piece and bend the
retaining tabs outward again to
prevent the chimney from slipping
down again.
Installation
*INSTALLATION*
40

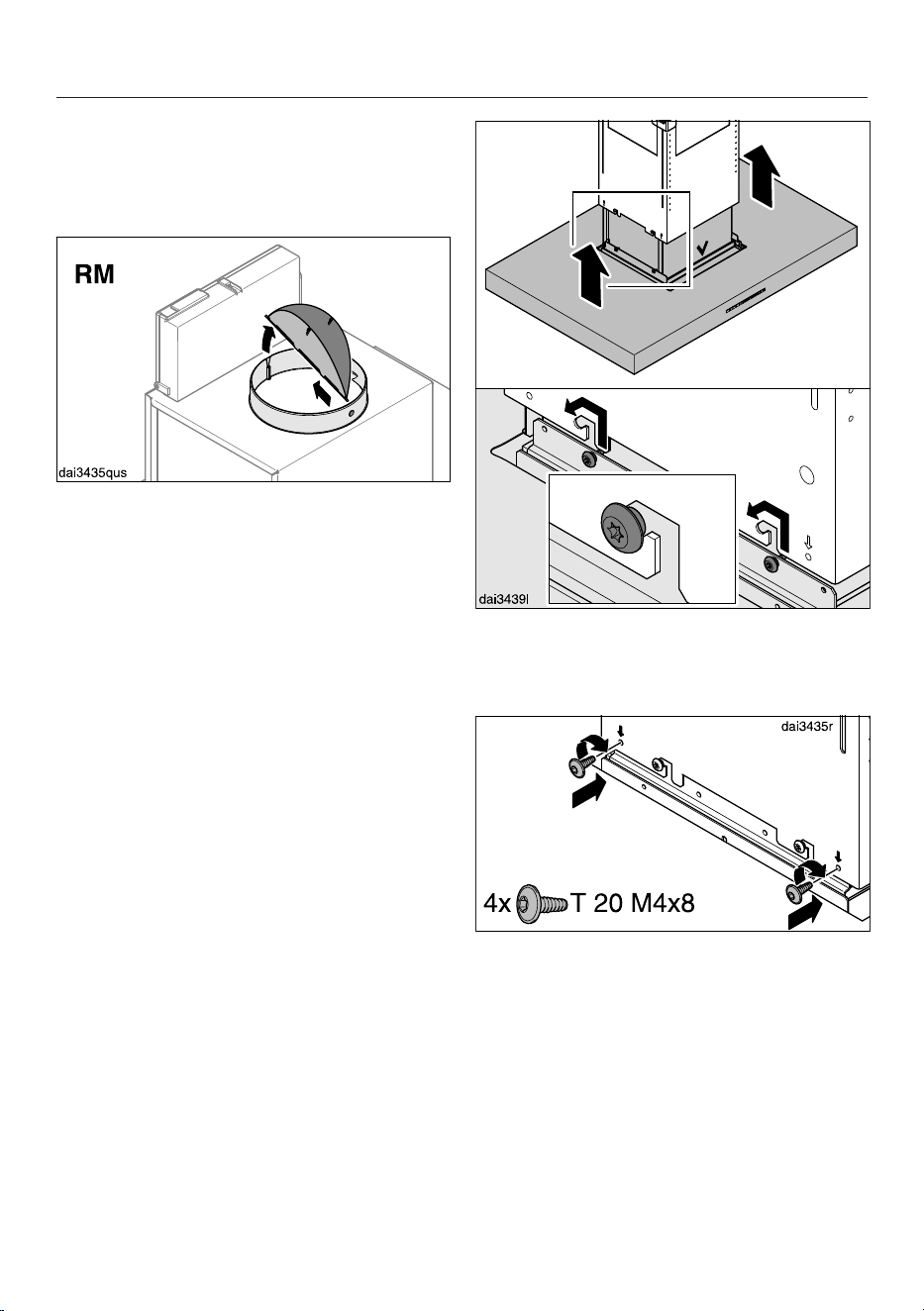

A non-return flap is supplied with the
hood or is already fitted in the exhaust
socket of the motor unit (depending on
model).
With vented mode (AE) insert the
non-return flap in the exhaust socket
if your ducting system is not
equipped with one.
Recirculation mode (RM) does not
require the non-return flap to be
inserted. If there is one present, it
should be removed.
Hang the hood on the brackets,
making sure that the controls are at
the front.
Secure the hood with the screws
supplied.
Installation
*INSTALLATION*
41

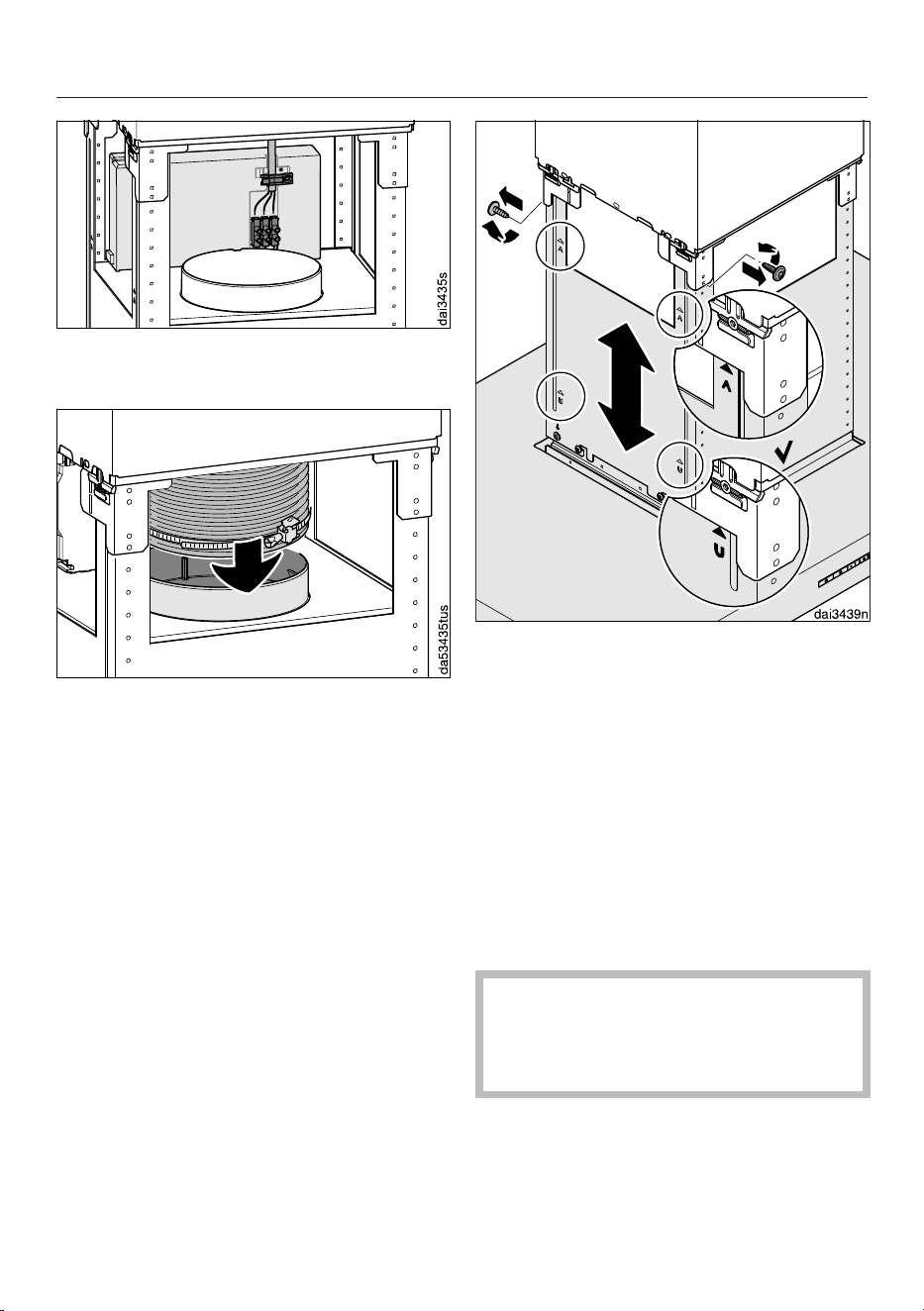

Connect the power cord. See
“Electrical connection.”
Slide the vent duct onto the vent
socket and secure it (using a hose
clip, for example).
Unscrew both screws from the
installation frame again.
The canopy can now be adjusted to the
desired height, observing the
permissible height ranges:
- With extraction mode: upwards as far
as it will go, downwards only to the
“A” marking.
- With recirculation mode: upwards as
far as the “U”, downwards as far as it
will go.
Follow the instructions in “Appliance
dimensions.” Safety distances
between the cooktop and ventilation
hood must be observed.
Installation
*INSTALLATION*
42

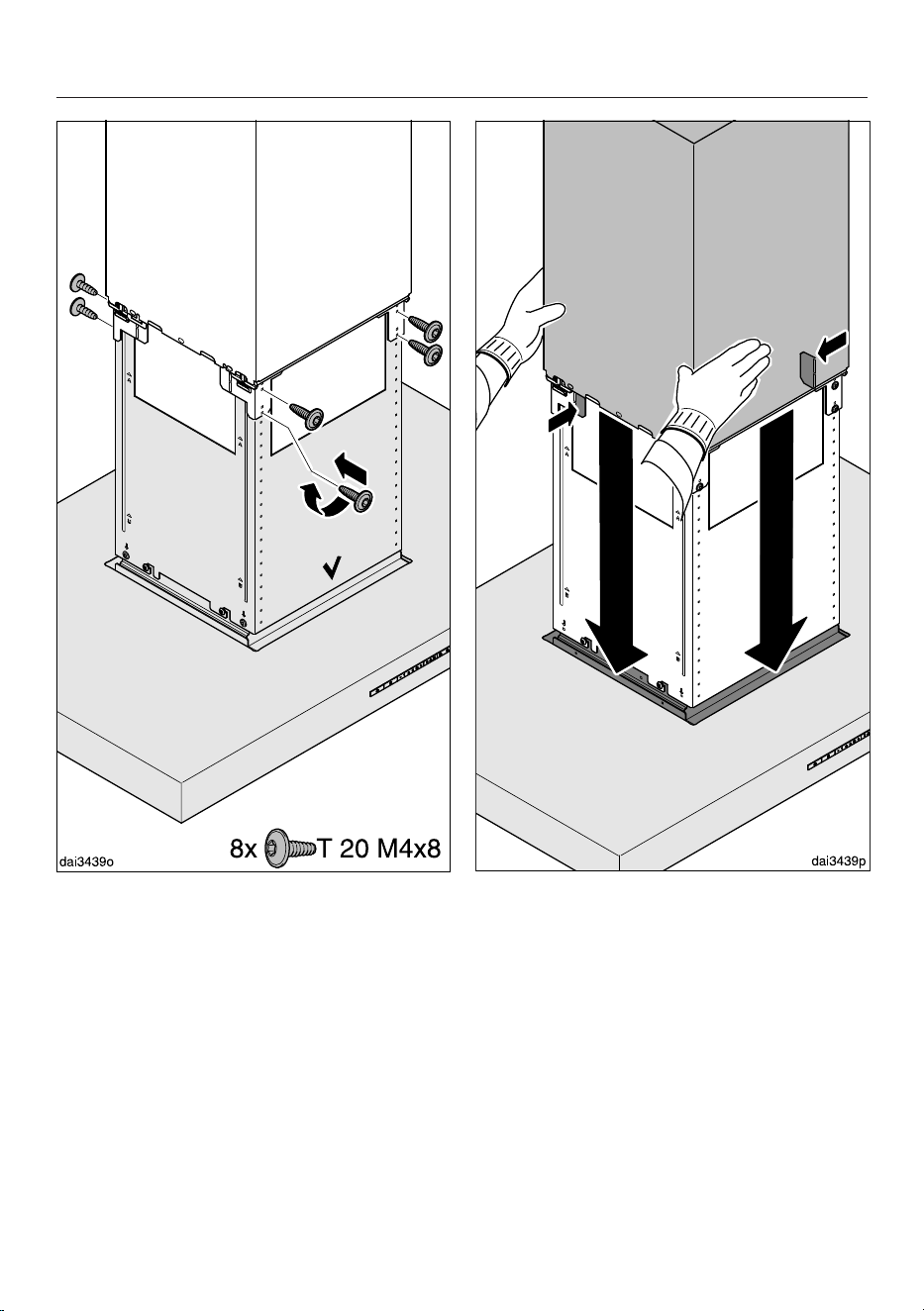

Raise the canopy to the desired
height and secure it with the screws.
Hold the chimney securely, bend
back the retaining tabs and carefully
lower it.
The chimney will locate in the cut-out in
the canopy.
Installation
*INSTALLATION*
43
Remove the grease filters from the
hood.
Insert the safety screw on the inside.
With recirculation mode (RM)
ventilation hoods, insert the OdorFree
Charcoal Filter.
Carefully remove the protective foil
from the grease filters.
Reinsert the grease filters.
Installation
*INSTALLATION*
44
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
ducting made from approved non-
flammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting
must not be smaller than the cross-
section of the vent collar (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
- If the ducting has flaps, these must
be opened whenever the ventilation
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.

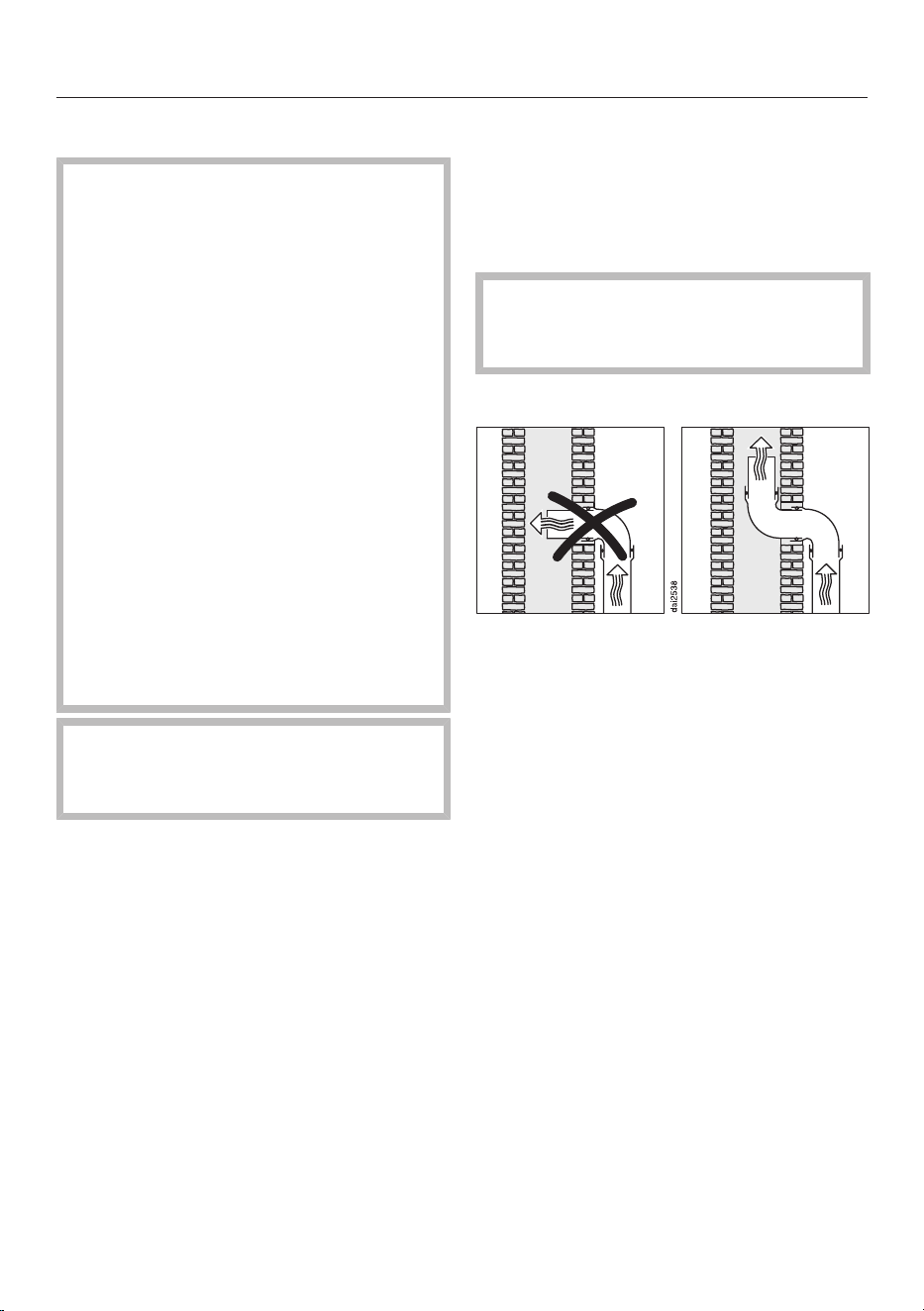

Ventilation stack
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the vent
system.
A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
Installation
*INSTALLATION*
45
If the on-site vent system does not have
a non-return flap, one is supplied with
the ventilation hood.
The non-return flap is installed in the
exhaust socket of the fan.

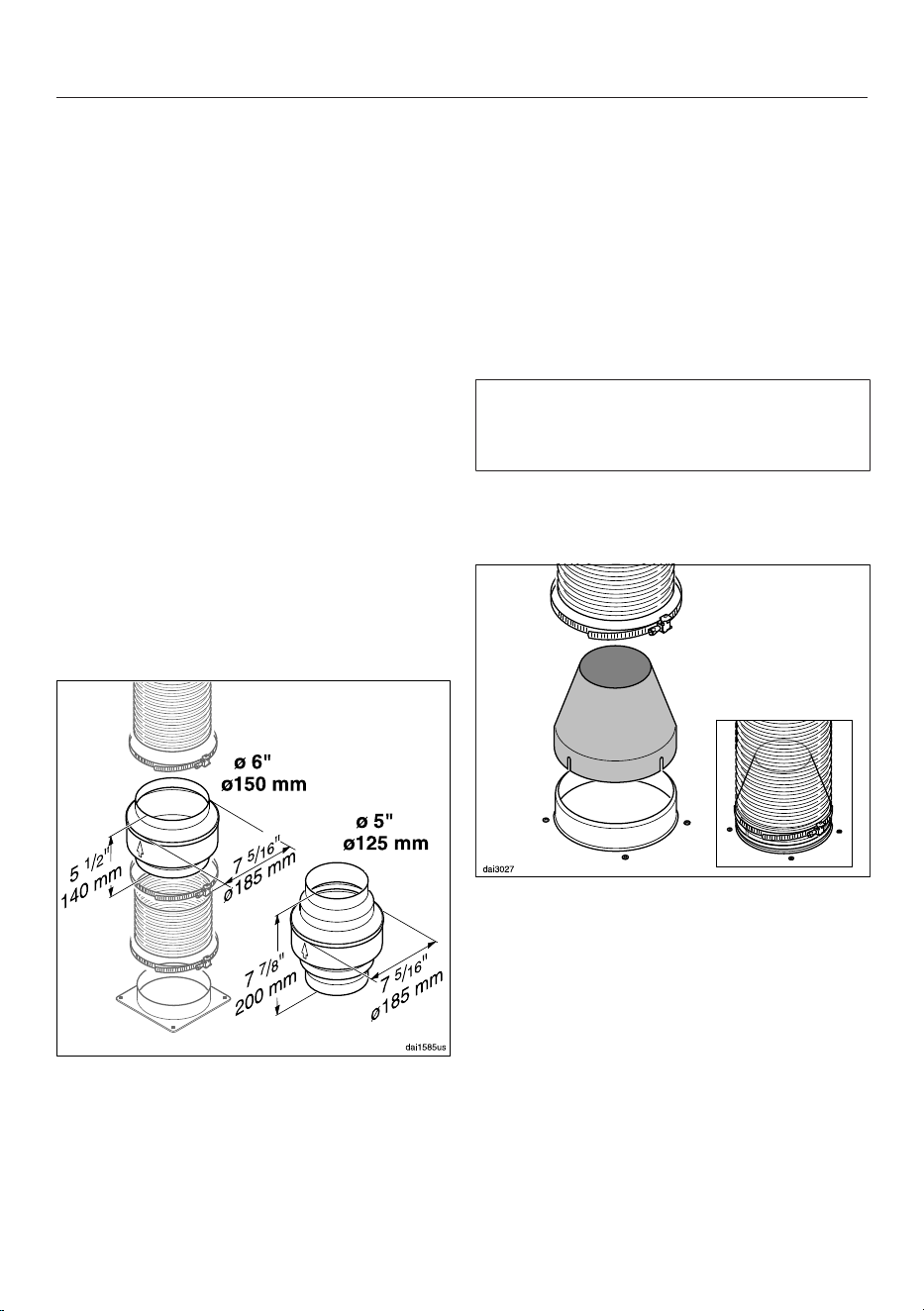

Condensate
If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.
If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per meter.
This is to ensure that condensate
cannot drain back into the ventilation
hood.
In addition to insulating the ducting, it is
advisable to also install a condensate
trap for collecting and evaporating any
potential condensate.
Condensate traps for 5" (125mm) or
6" (150mm) diameter ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the
ventilation hood above the exhaust
vent. The arrow on the casing indicates
the direction of airflow.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Installation
*INSTALLATION*
46

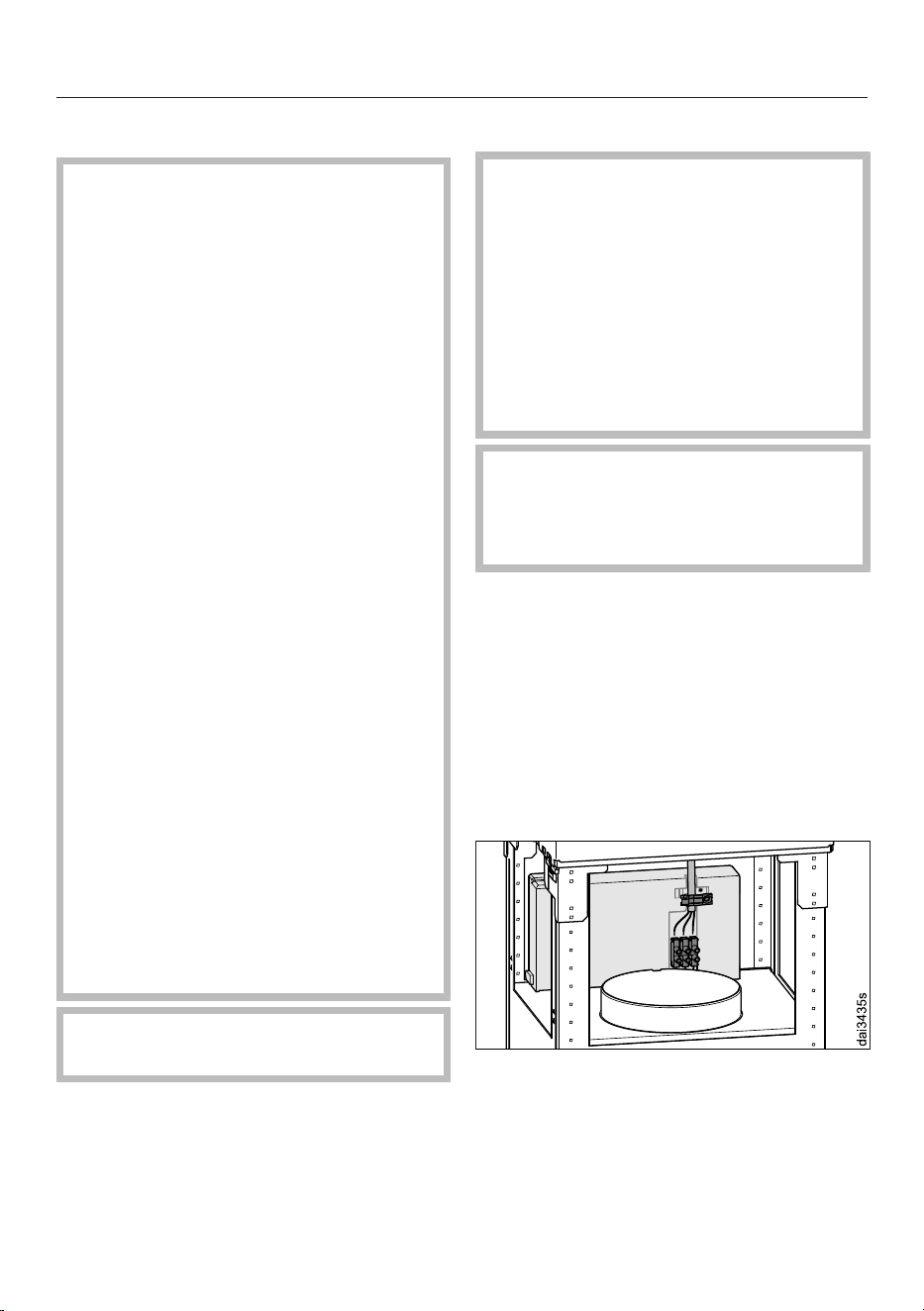

Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short
circuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the
electrical system of the house
checked by a qualified electrician.
To increase security before the
machine is installed, it is
recommended to install a protective
switch (30 mA).
The hood must be hard wired
accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
If the unit will be hard wired to the
electricity supply, the wire gauge of the
individual leads must be between 18
AWG and 16 AWG.
The strain relief must be used to ensure
problem-free connection.
Activating Con@ctivity 2.0
47
Installation of the Con@ctivity
2.0 stick
In order for you to be able to use the
Con@ctivity 2.0 function, the cooktop
must be equipped with a Con@ctivity
2.0 stick.
See the relevant installation
instructions of the Con@ctivity 2.0
stick.
Activating the Con@ctivity 2.0
function
To use the Con@ctivity 2.0 function, the
radio link between the cooktop and the
ventilation hood must be activated.
Both appliances must be installed and
operational.
Wireless connection must be activated
on the ventilation hood and the cooktop
at the same time. Activation on the
ventilation hood is described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.
Activating the ventilation hood
The cooktop and ventilation hood
must be turned off.
Press and hold the delayed shutdown
button 515 for approx. 10 seconds
until the 1 indicator appears in the fan
level display.
Then, press the following buttons in
order:
- The button
- Followed by the button
- And then the lighting button .
The hood is in log on / log off mode.
If the wireless connection is activated, 2
and 3 will light up at the same time.
If there is no wireless connection, 2 and
3 will flash constantly (Con@ctivity 2.0
is already activated or a remote control
is logged on).
To activate Con@ctivity 2.0, press the
“” button.
The search for a wireless connection
will start.
As this is happening, activate the
cooktop.
Activating Con@ctivity 2.0
48
Activating the cooktop
While the ventilation hood is
searching for a wireless connection,
start activation on the cooktop.
More information can be found in the
operating instructions for the
cooktop.
When the cooktop registers that
connection has been established,
confirm activation on the ventilation
hood with the delayed shut-down
button 515. All indicators will go
out.
Confirm activation on the cooktop.
The Con@ctivity 2.0 function is now
ready for use.
If you do not confirm within 4minutes,
activation will be canceled.
You only need to carry out the
activation procedure once. If the
appliances are disconnected from the
electricity supply, for example during a
loss of power, they will still remain
activated.
Activation failed
If a wireless connection cannot be
established despite activation of the
Con@ctivity function on the ventilation
hood and cooktop, the function must
first be deactivated and then
reactivated on both appliances.
Deactivating Con@ctivity 2.0
Deactivation on the ventilation hood
is carried out in the same way as
activation, by selecting instead of
.
To deactivate the burner, please refer
to the corresponding operating
instructions.
Please keep in mind that disabling the
connection will also disable any
remote control function being used.
The remote control must then be
reactivated.
Technical data
49
Fan motor 350W
Cooktop lighting 4 x 3W
Total connected load 362W
Voltage, Frequency 120V AC, 60Hz
Fuse rating 15A
Weight 74.8lbs (34kg)
Optional accessories for recirculation mode:
Recirculation kit DUI32 and OdorFree Charcoal Filter DKF12-900
Contains
FCC ID: 2ACUWEI8800
IC: 5669C-EI8800
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 12 253 820 / 00en-US
DA 6596 D
