TABLE OF CONTENTS
WINE CHILLER SAFETY 3
IMPORTANT SAFE-GUIDES 4-5
PARTS BREAKDOWN 6
IMPORTANT SAFETY INSTRUCTIONS 7
INSTALLATION INSTRUCTIONS 8
Before using your wine chiller 8
Installation of your wine chiller 8
Electrical connection 8
Extension cord 9
Power bar with surge protector 9
Installing stainless steel handle 9
OPERATING YOUR WINE chiller 10
Recommended temperature settings 10
Storage 11
Door lock 11
Cleaning your wine chiller 12
Shelves 12
Power failure 12
Moving your wine chil
ler 12
Energy saving tips 13
Charcoal filtration system 13
TROUBLESHOOTING GUIDE 14-15
3
WINE CHILLER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure
you and others. All safety messages will follow the Safety Alert Symbol and either the words
“DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this safety
statement may result in severe personal
injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this safety
statement may result in minor or moderate
personal injury, or property or equipment
damage.
All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and
let you know what can happen if the instructions are not followed.
4
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as described in this
manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when
using the appliance, follow basic precaution, including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not
use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that
cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapour and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this material. All other servicing should be referred to a qualified technician.
The symbol is a warning symbol for risk of fire/flammable material. WARNING:
When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
5
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel.
DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s guide before
attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable
refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.
Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of the cooler.
Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 16°C (60°F) and below 32°C (90°F). This unit
must be installed in an area protected from the element, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with state
and local codes. A standard electrical supply (115V/60Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances is required.
Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 13 amperes.
It is important for the appliance to be leveled in order to work properly. You may need to make several
adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or
discolour the interior.
Do not use this apparatus for other than its intended purpose.
6
PARTS BREAKDOWN
6
5
1
2
7
4
3

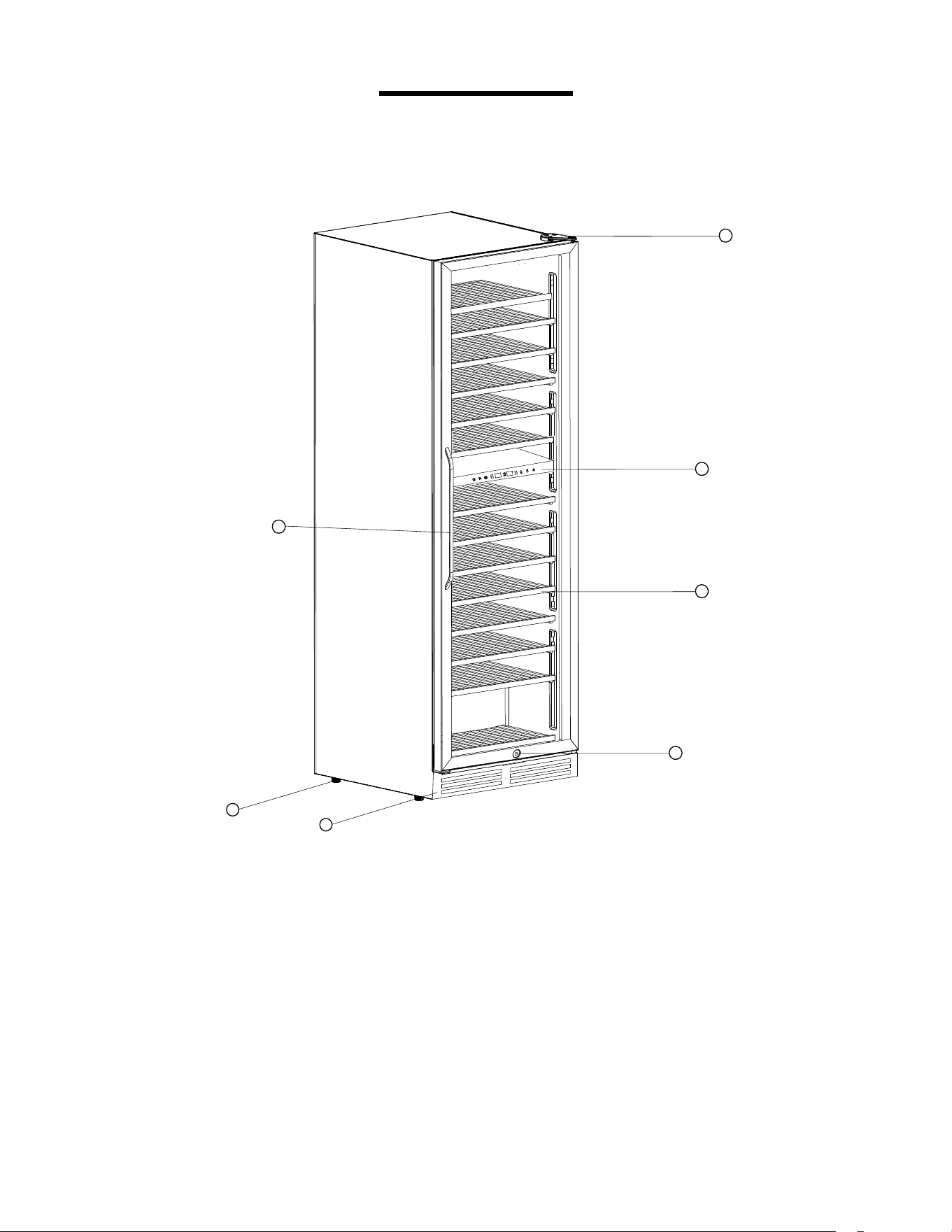

1 Control Panel
5 Top Hinge
2 Shelves
4 Glass Door with Handle
3
6 Safety Child Lock
Leveling Legs
7 Exhaust Window
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury when
using your appliance, follow these basic precautions:
Read all instructi ons before using the wine chiller.
DANGER or WARN IN G: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned applianc es are still
dangerous.
Before you throw away your old wine chiller, take off the door but leave the shelves in place so that
children may not easily climb inside.
Never all
ow children to operate, play with, or cr awl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
-
-
-
-
-
-
7
8
INSTALLATION INSTRUCTIONS
Before using your wine chiller
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
o
14 shelves
o
2 Keys
o
Stainless Steel Handle
o
Instruction Manual
Before connecting the Wine Chiller to the power source, let it stand upright for approximately 2 hours. This will
reduce the possibility of a malfunction in the cooling system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of t
he door.
Installation of your wine chiller
This appliance is designed to be for free standing installation or flush-in.
Place your wine chiller on a floor that is strong enough to support it when it is fully loaded. To level your wine
chiller, adjust the front leveling legs at the bottom of the wine chiller.
Locate the wine chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct
sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme
cold
ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power
and/or grounding should be directed toward a certified electrician or an authorized Products service center.
Electrical connection
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a
three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the powe
r cord supplied. For personal
safety, this appliance must be properly grounded.
This appliance requires a standard 115V/60Hz electrical ground outlet with three-prong. Have the wall outlet and
circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong
wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded
-
-
-
-
-
-
-
-
-
-
9
3-prong wall outlet. The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevent overloading
house wiring circuits that could cause a fire hazard f rom overheated. Never unplug the appliance by pulling the
power c ord
. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately
all power cords that have become frayed or otherwise dam aged. Do not use a cord that shows cracks or abrasion
damage along its length or at either end. When moving the appliance, be careful not to damage the power c ord.
Extension cord
Because of potential safety hazards under cer tain conditions, it is strongly recommended that you do not us e an
extension cord with this appliance. However, if you must use an extension cord with this appliance, it must be
operated by professionals.
Power bar with surge protection
Most electrical appliances use a series of electr ic control boards to operate. These boards are very susceptible
to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is
suggested that you use a power surge pr otector for all electrical devices / appliances you use. The surge
protector that you select must have a surge block high enough to protect the appliance it is connecte
d to. If you
have any questio ns regarding the type and size of surge protector needed contact a licensed electrician in your
area.
Damages due to power surges are not conside red a manufacturer covered defec t and will void your product
warranty.
Installing the stainless steel handle
This wine chiller includes a stainless steel handle. To install the handle please follow the below instructi ons:
1.
Pull away the door gasket in the area where the handle is to be installed on the left side as shown below in
Illustration # 1. The gasket is easily displaced by hand, no tools are necessary.
2.
Align the handle with the screws installed. Tighten the screws using a Phillips head scr ewdriver until the
handle sets both flush and secured tightly against the door frame.
(DO NOT over tighten as this wil l cause
damage to the handle assembly).
10
3.
Replace the door gasket to its original position.
4.
If you choose not to use the handle supplied, simply follow step 1 to access the installation screws and
remove them and then place the two decorative plugs into the two holes separately. Continue on to step 3
to replace the door gasket to its original position.
*Temperature may varies ± 2 ºC (4°F)
Red wines: 14°C-18ºC (59°F-65ºF)
Dry/white wines: 9°C-12ºC (48°F-53ºF)
Rose and sparkling w ines: 5°C-8ºC (41°F-46ºF)
Wine conservation: 12°C-14ºC (53°F-57ºF)
Recommended temperature settings
hot conditions may cause interior temperatures to fluctuate.
temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or
(66ºF-75ºF), and humidity is under 60%. If the ambient temperature is above or belo
w recommended
It is recommended you install the wine chiller in a place where the ambient temperature is between 19ºC-24ºC
OPERATING YOUR WINE CHILLER
.

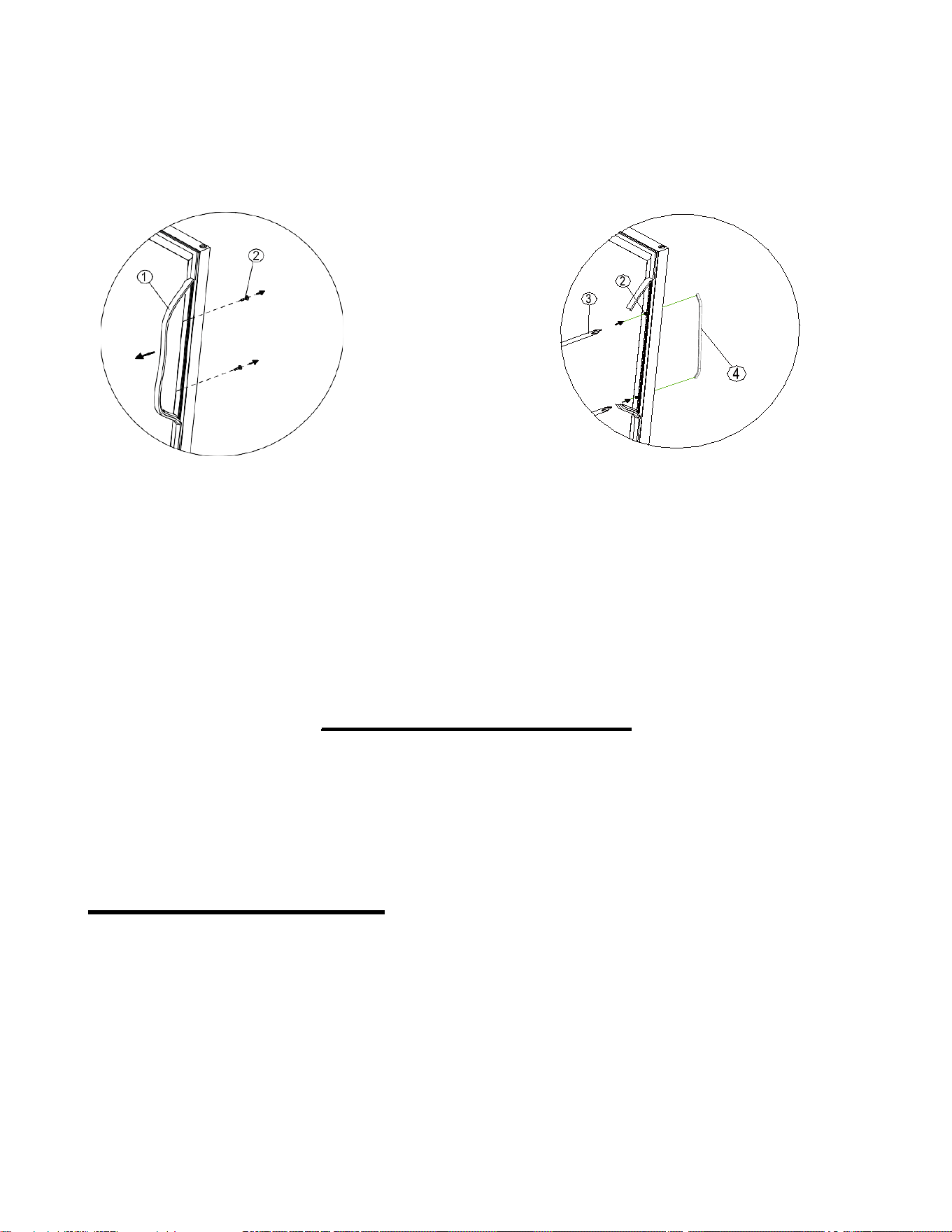

Phillips Head Screw 4. Handle
2
.
Gasket 3. Phillips Head Screw Driver
1
Illustration # 1 Illustration # 2
11

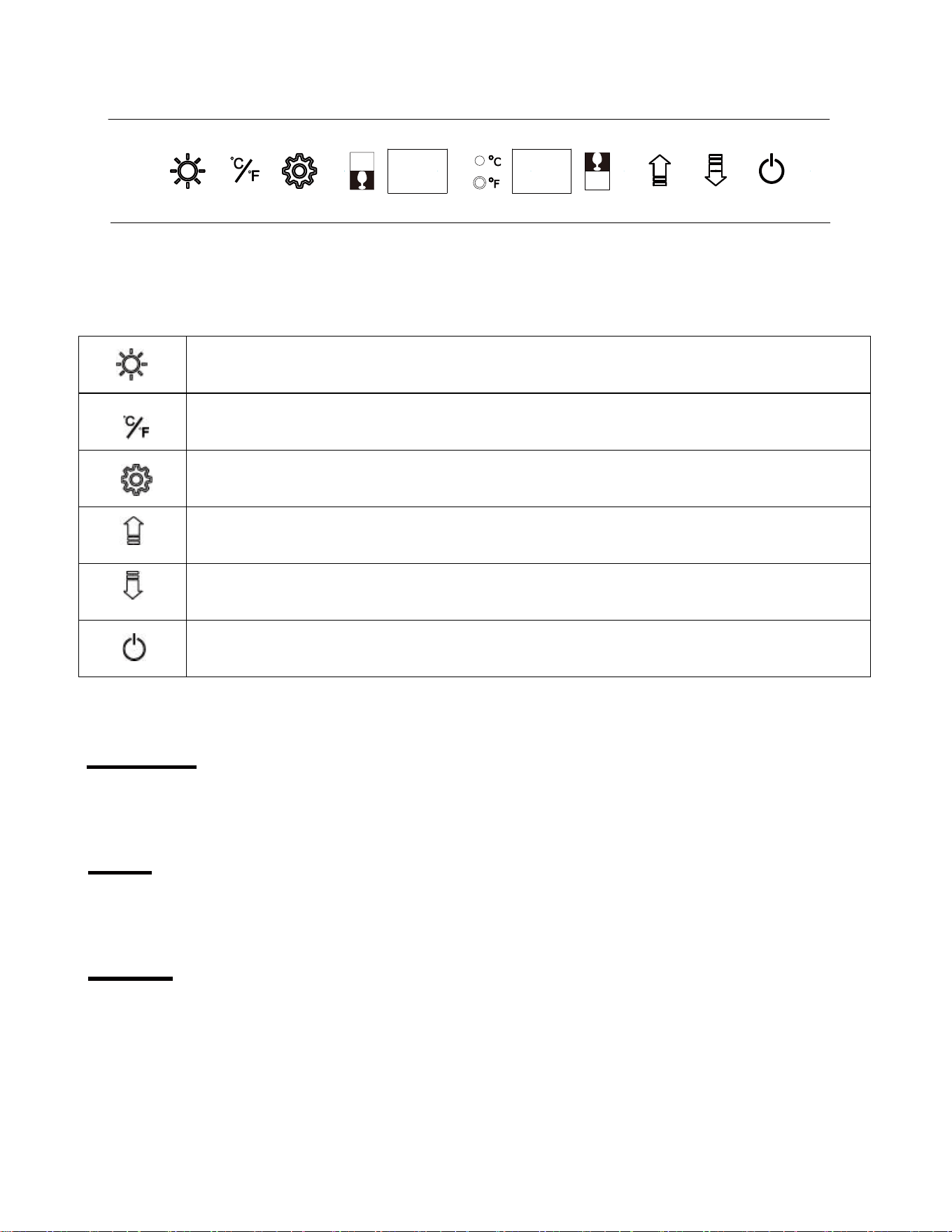

Turns the interior light on or off
Toggles the temperature display between Celsius and Fahrenheit
Press to begin adjusting the temperature for upper or lower zone
Adjusts the temperature in 1 degree incr ements
Adjusts the temperature in 1 degree decrements
Press for 3 seconds to turn on /off the applianc e
Dual Zones Temperature setting range
：
5-13℃(40-55℉)/13-18℃(55-65℉)
Storage
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store
may vary. The bottle capacity is based on standard Bordeaux bottles.
Door Lock
Your unit is provided with a lock and key. The keys are located inside the plastic bag that contains the Instruction
Manual. Insert the key into the lock and turn it counter clockwise to unlock the door. To lock the door do the
reverse oper ation making sure m etal pin is engaged completely. Remove the key and place it in a secure place
for safekeeping.
Light Control
The light will automaticall turns off 10 mins later for energy saving.
Note: To keep the light staying on always, please press the lighting mark unil you hear 2 “beep”
12
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if
you minimize the number of times the door is opened. If the power is going to be off for a longer period of time,
you need to take the proper steps to protect your contents.
Moving your wine chiller
Remove all items (bottles)
Tape down securely all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. If you absolutely need to
transport the chiller horizontally, transport the chiller on its back (door on top). Also protect outside of
appliance with a blanket, or similar item.
-
-
-
-
-
Shelves

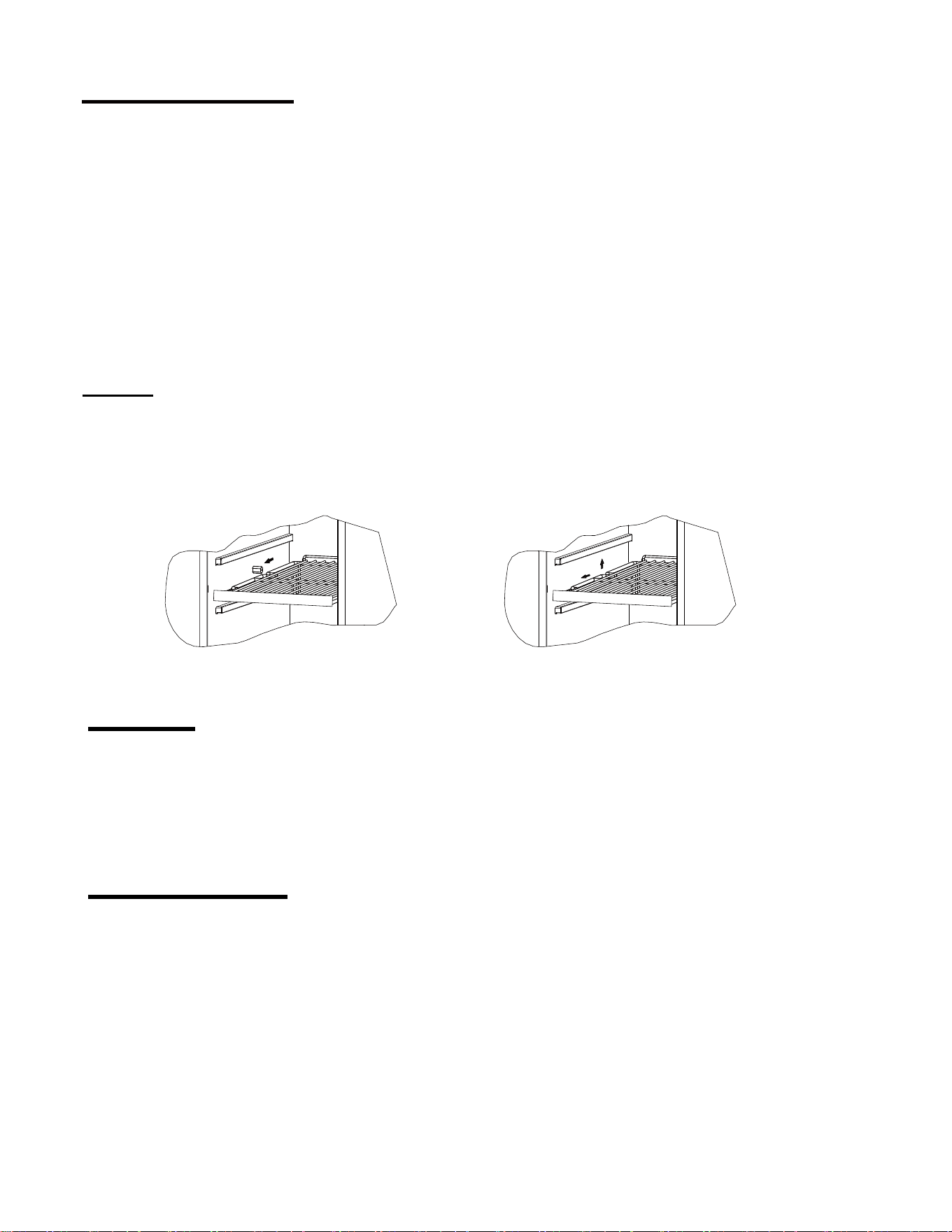

Figure A
Figure B
To remove the shelves from the track, pull each shelf out to the shelf post,as shown in figure A.
Lift it up again, then slowly pull the shelf out, as shown in figure B.
Cleaning your wine chiller
Turn off the power, unplug the appliance, and remove all items including shelves. Wash the inside surfaces with a
warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to 1 cup of
water.
Wash the shelves with a mild detergent solution. Wring excess water out of the sponge or cloth when cleaning
area of the controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a cl
ean soft
cloth. Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with
steel particles and rusting may occur.
13
1
Remove the bottles of wine stored on the two (2)
shelves in front of the filter.
Turn Left to remove filter.
2
Remove the shelves and s et aside to be replaced
once you have changed the filter
3
Hold the filter and turn it at 45 degrees in the
counter-clockwise direction and then pull it out.
4
Remove the existing filter and replace with a new
one.
5
Put the new filter into the hole and then turn the filter
at 45 degrees in clockwise direction.
cabinet for the storage of your fine wines. T he filter assembly is located at the rear panel inside your cellar.
with an active charcoal filtration system to ensur e air purity, c ooli ng efficiency, and to maintain an odor free
of your fine wines, they must be stored at the ideal temperature and ambient conditions. Your cellar is equipped
Your wine is a living object that breathes through the cork ofits bottle. In order to preserve the quality and taste
Charcoal filtration system
of the direct sunlight.
The wine chiller should be located in t
he coolest area of the room, away from heat producing appliances, and out
Energy saving tips
14
TROUBLESHOOTING GUIDE
You can solve many common wine chiller problems easily, saving you the cost of a possible ser vice call. Try the
suggestions below to see if you can solve the problem bef ore calling the servicer.
PROBLEM POSSIBLE CAUSE SOLUTION
chiller does not
operate.
Not plugged in.
The appliance is tur ned off.
The circuit breaker tripped or a blown
fuse.
Plug the unit.
Press to turn on the unit.
Check the breaker and/or fuses.
chiller is not cold
enough.
External environment may require a
hi
gher setting.
The door is opened too often.
The door is not closed completely.
The door gask et does not seal properly.
Check the temperature control s etting.
Close the door properly.
Check the door gasket.
The compressor turns
on and off frequently.
The room temperature is hotter than
normal.
A large amount of contents has been
added to the chiller.
The door is opened too often.
The door is not closed completely.
The temperature control is not set
correctly.
The door gask et do
es not seal properly.
Close the door properly.
Check the door gasket.
The fans turn on and of f
frequently.
In order to circulate the air and maintain the set temperature inside the cabinet the
fans must cycle on and off even when the compressor is off. The fans will cycle ON
and OFF while the compressor is off approximately every 10 seconds, this is called
“Semi-speed status”. This cycle is normal and meant both to c irculate the air as
well as ensure the continued operational stat
us of the fans. If the fan stops
completely and doe s not complete this cycle the fan is non-operational.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown
fuse.
The light button is “OFF”.
Plug the unit.
Check the breaker and/or fuses.
15
Vibrations.
The chiller is not leveled
The bottles are vibratin g.
There is an object under the chiller.
Check to assure that the chiller is level.
Make sure the bottles don’t touch each
others.
Remove the object.
The chiller seems to
make too much noise.
The chiller is not level.
Level the chiller.
The rattling noise may com e from the
flow of the refrigerant, which is normal.
As each cycle ends, you may hear
gurgling sounds caused by the flow of
refrigerant in your chiller. Contr
action
and expansion of the inside walls may
cause popping and crackling nois es.
The door will not close
properly.
The chiller is not level.
The door was reversed and not pr operly
installed.
The gasket is dirty.
The shelves are out of position.
Level the chiller.
Close the door properly.
Clean the door gasket.
Place the shelves properly.
Error Code:
E1-E2-E3-
E4-E7-E8
A sensor has failed. Contact us for a service c all .
16
Warranty Terms
Warranty Period
1. Customers are entitled to replacement or free repair service in case of quality defect(s) found
in the product with in 15 days upon receipt of the product.
2. Customers are entitled to free repair service for any product proven defective in material or
workmanship that results in product failure during normal consumer usage and conditions within
the valid warranty period, which is 12 months counting from the date of selling.
However, warranty period varies by product component and country of purchase. Please contact
our after-sales service team via
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect, mishandling, soaking,
accident, and unauthorized alteration.
2. Products subjected to improper use or whose labels or security tags have been torn off or
altered.
3. Products whose warranty has expired.
4. Products damaged due to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please contact us ,
or you can always contact our customer service through email at [email protected].
2.
Our customer service will guide you through the whole service procedure regarding any
product issue or problem you have encountered.
We reserve the right to reexamine damaged or returned products.
Contact Card
Support Phone : (213)432-5433
Support Email : [email protected]
