BOF18B2
Original instructions
2
2
Important!
It is essential that you read the instructions in this manual before
assembling, operating, and maintaining the product.
Subject to technical modifications.
3
3
1
2
3
4
5
6
10
14
15
9
8
7
11
12
13

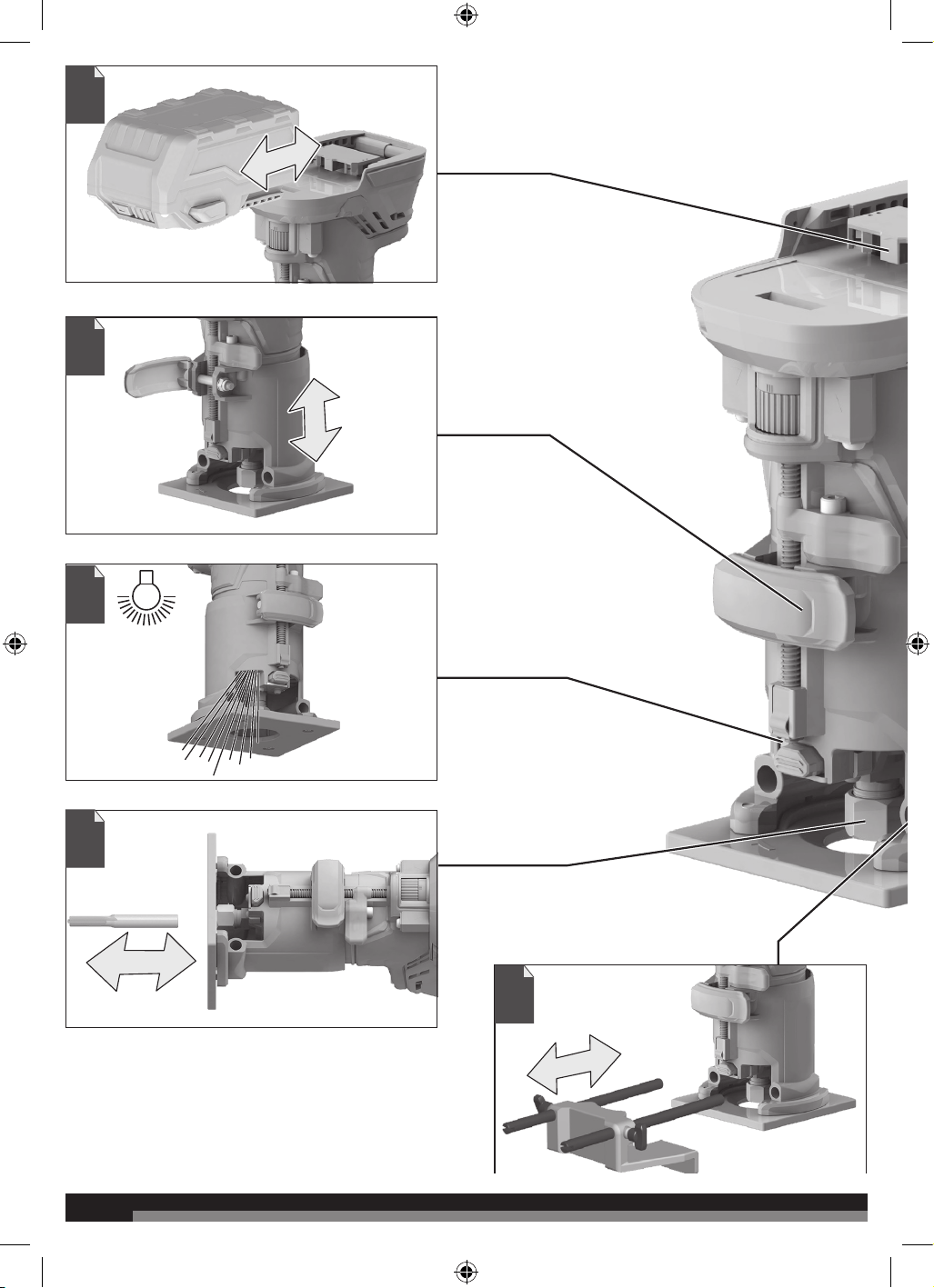

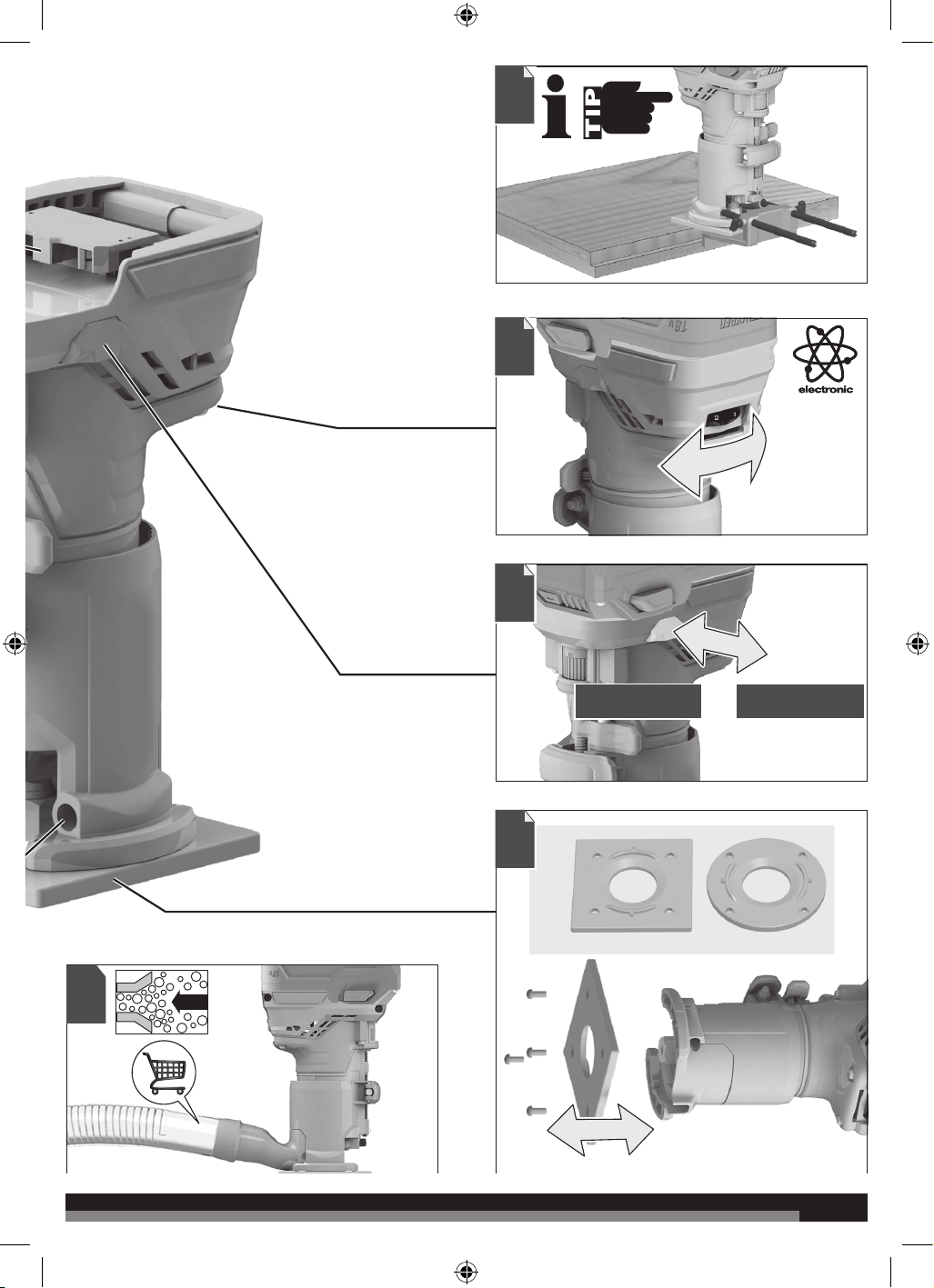

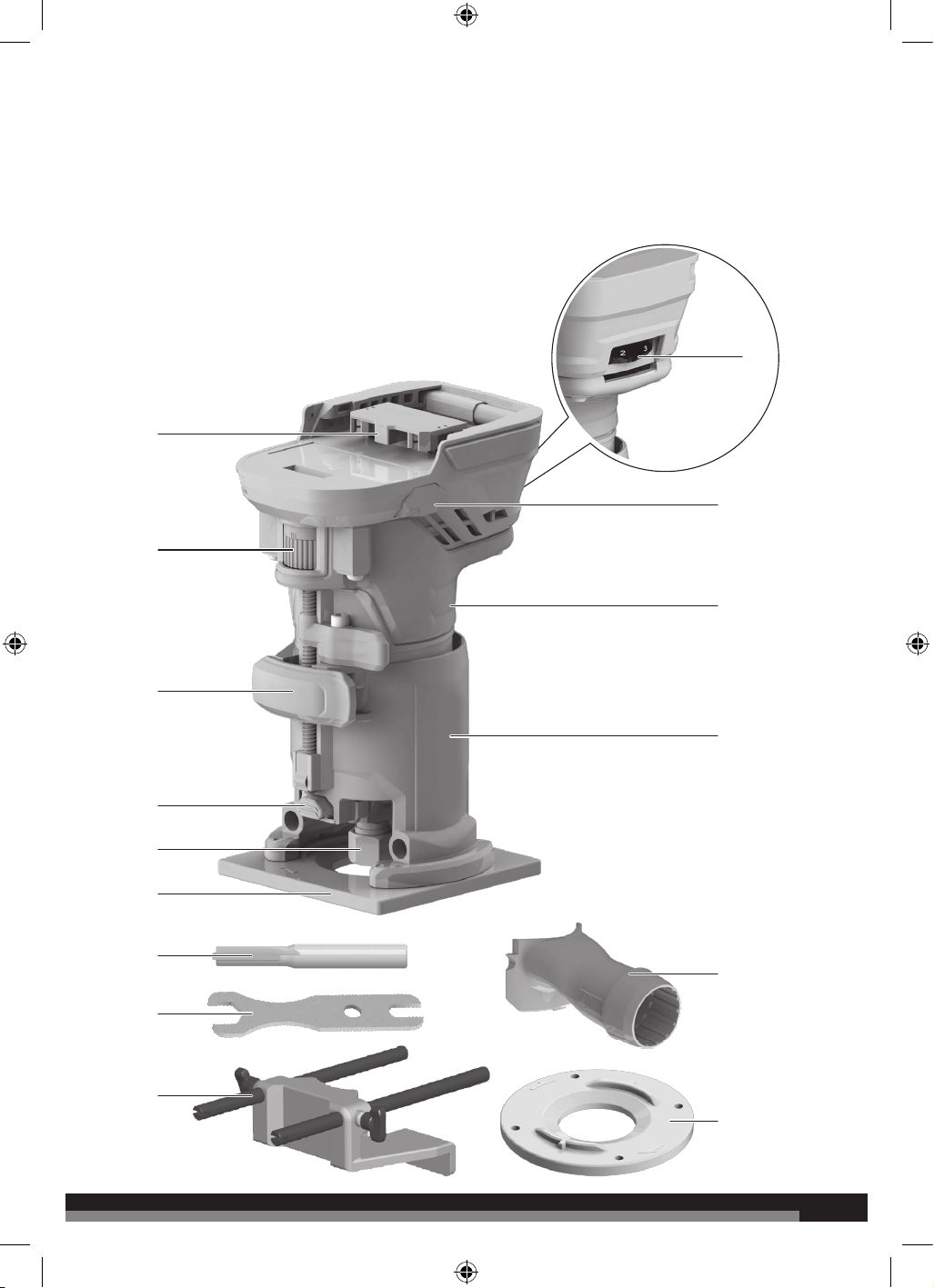

1. Battery port
2. Micro depth adjustment knob
3. Quick release lever
4. Spindle lock
5. Collet nut
6. Square subbase
7. Speed selector
8. On/off switch
9. Motor housing
10. Removable base
11. Straight bit(6.35 mm)
12. Wrench
13. Edge guide
14. Dust pipe joint
15. Round sub base
4
4
4 5
18
6
10
13
8
15
16
14
12
START
STOP
9
5
5
4 5
18
6
10
13
8
15
16
14
12
START
STOP
9

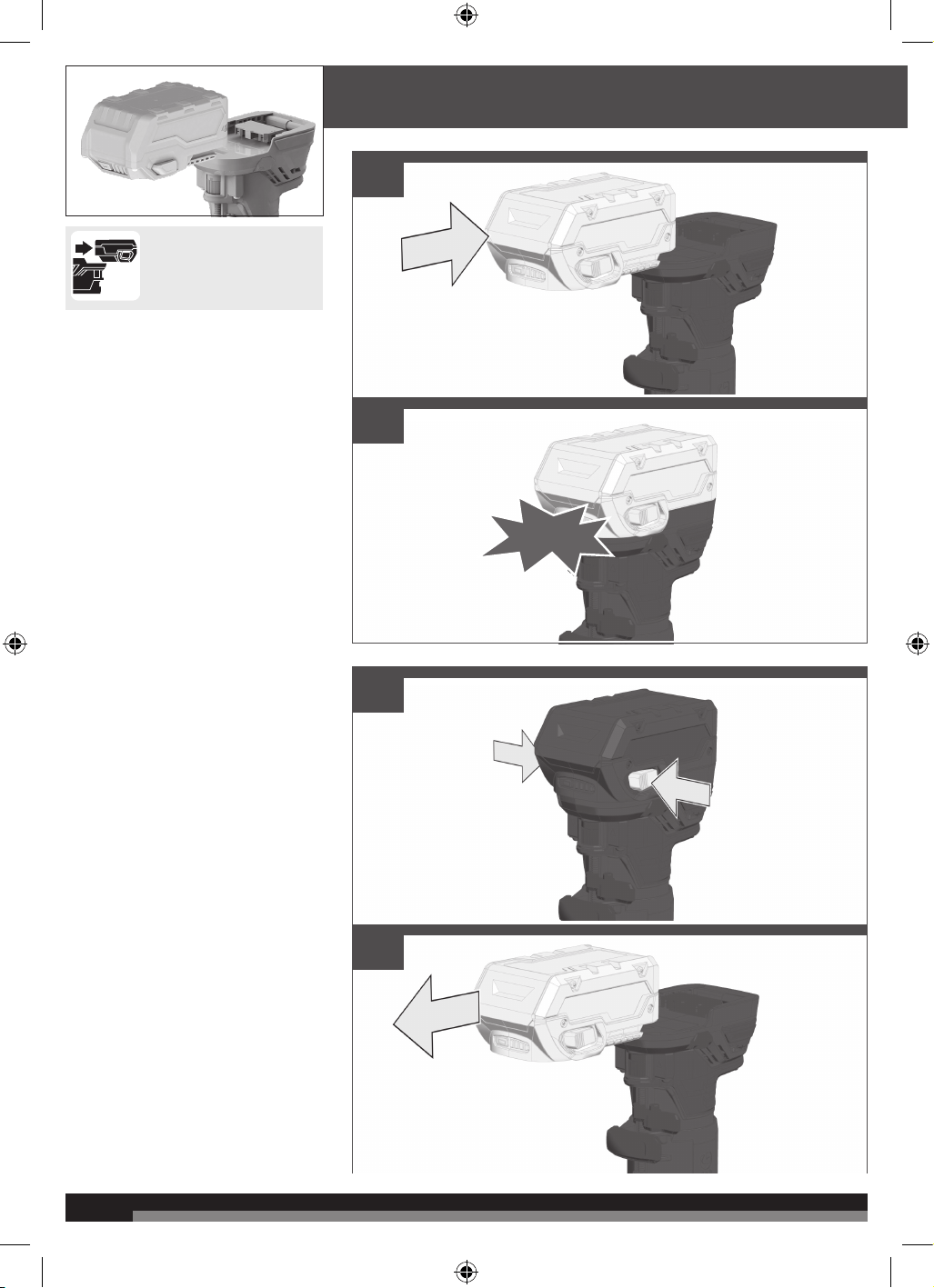

6
6
6 7
click
1
1
2
2
75-100 %
50-75 %
25-50 %
0-25 %
R
emove the battery pack
before starting any work
on the machine.

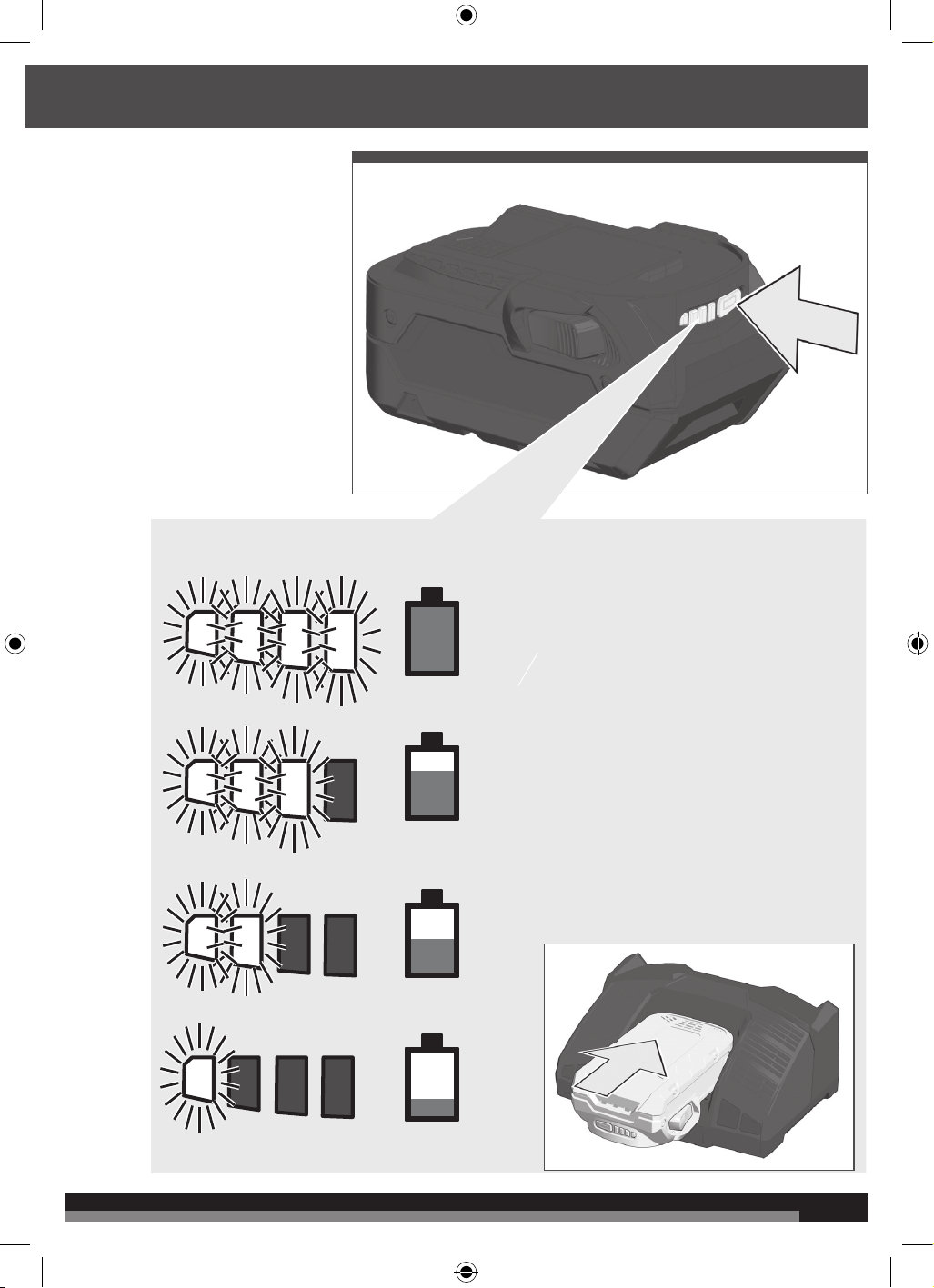

7
7
6 7
click
1
1
2
2
75-100 %
50-75 %
25-50 %
0-25 %
R
emove the battery pack
before starting any work
on the machine.

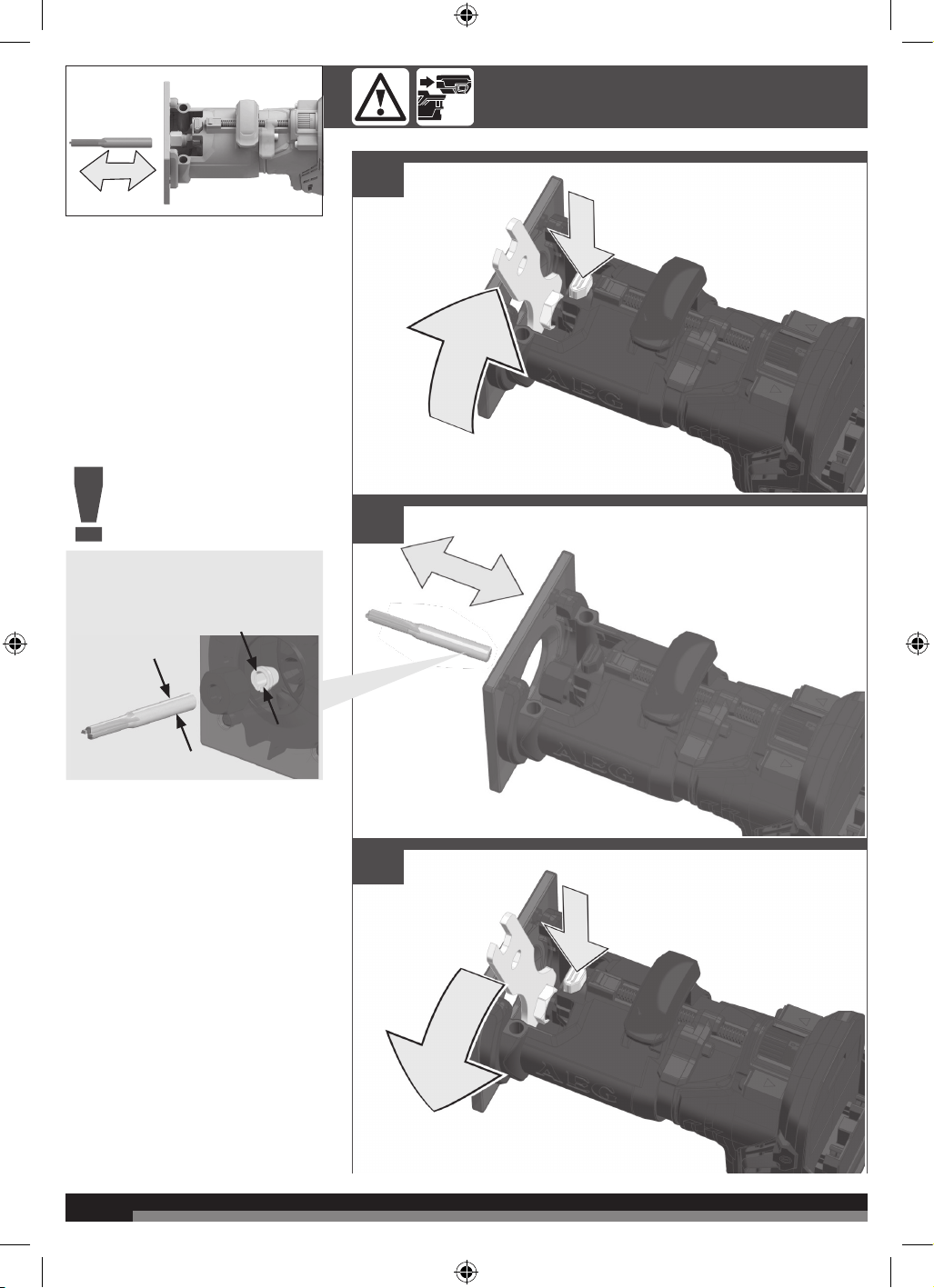

8
8
8 9
1
1
2
2
3
3
ø 6 mm (EU)
ø 6.35 mm
(1/4”)
A
ø 6.35 mm
(1/4”)
B
A = B
9
9
8 9
1
1
2
2
3
3
ø 6 mm (EU)
ø 6.35 mm
(1/4”)
A
ø 6.35 mm
(1/4”)
B
A = B

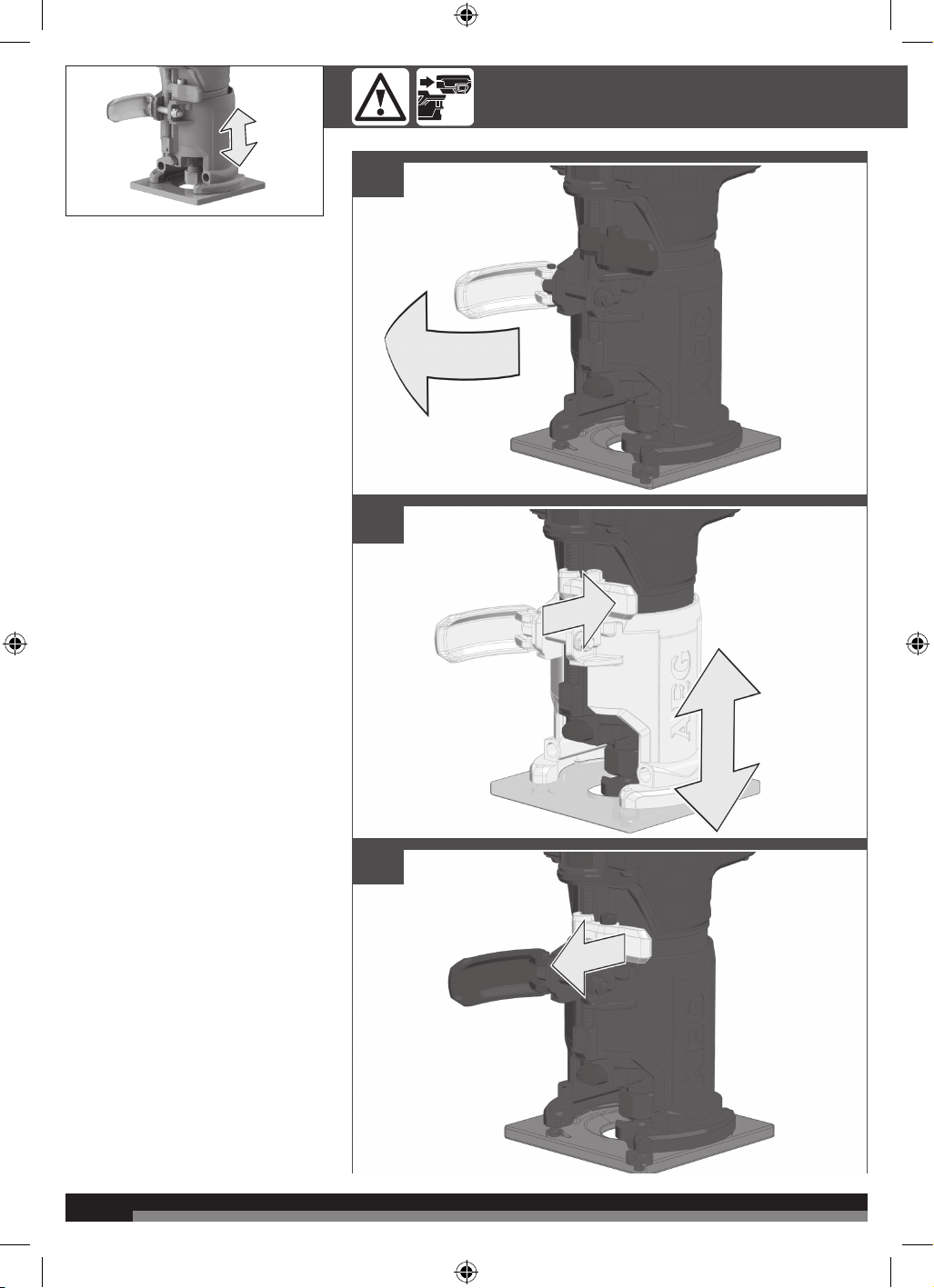

10
10
10 11
1
4
2
5
3

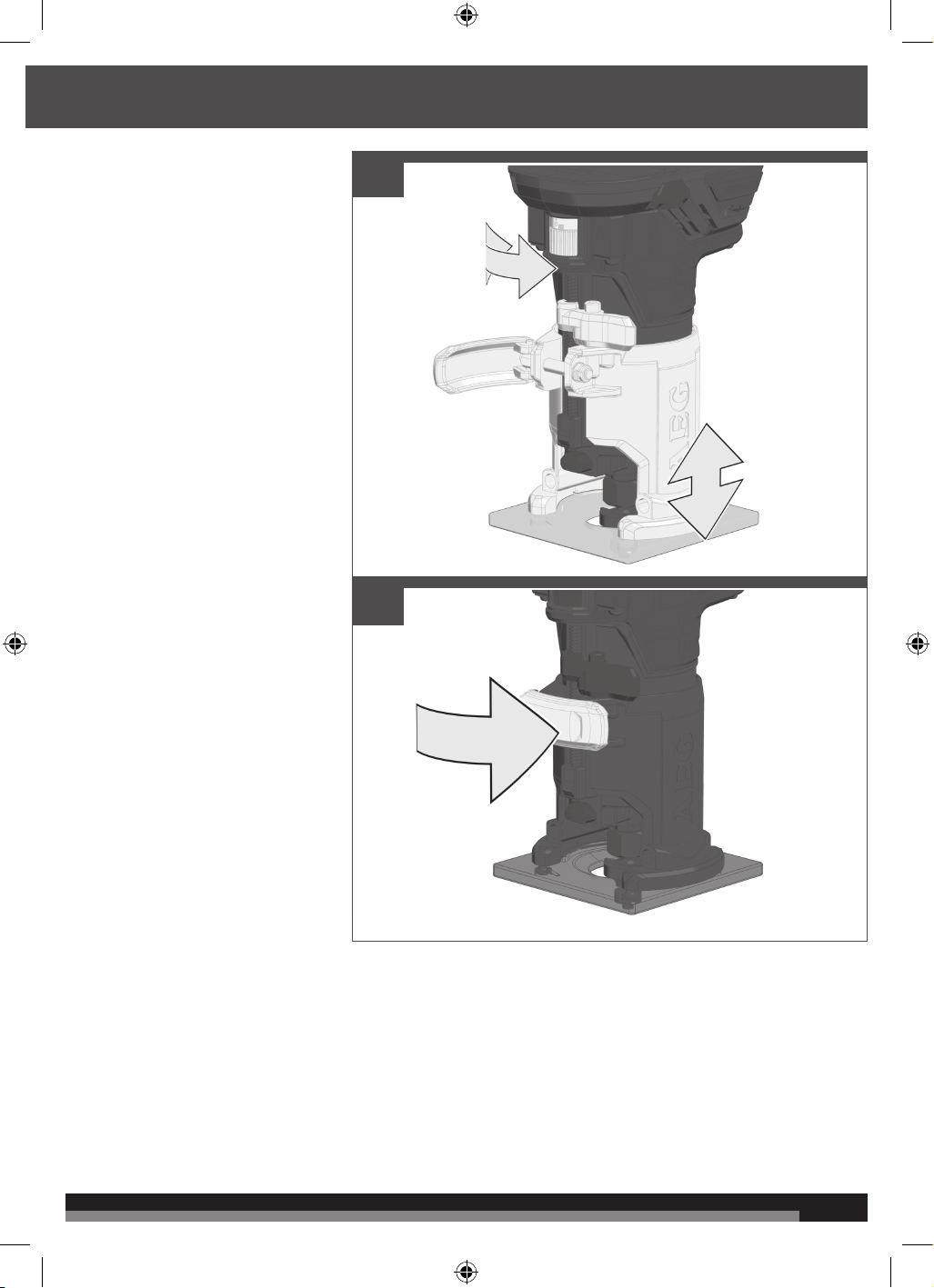

11
11
10 11
1
4
2
5
3

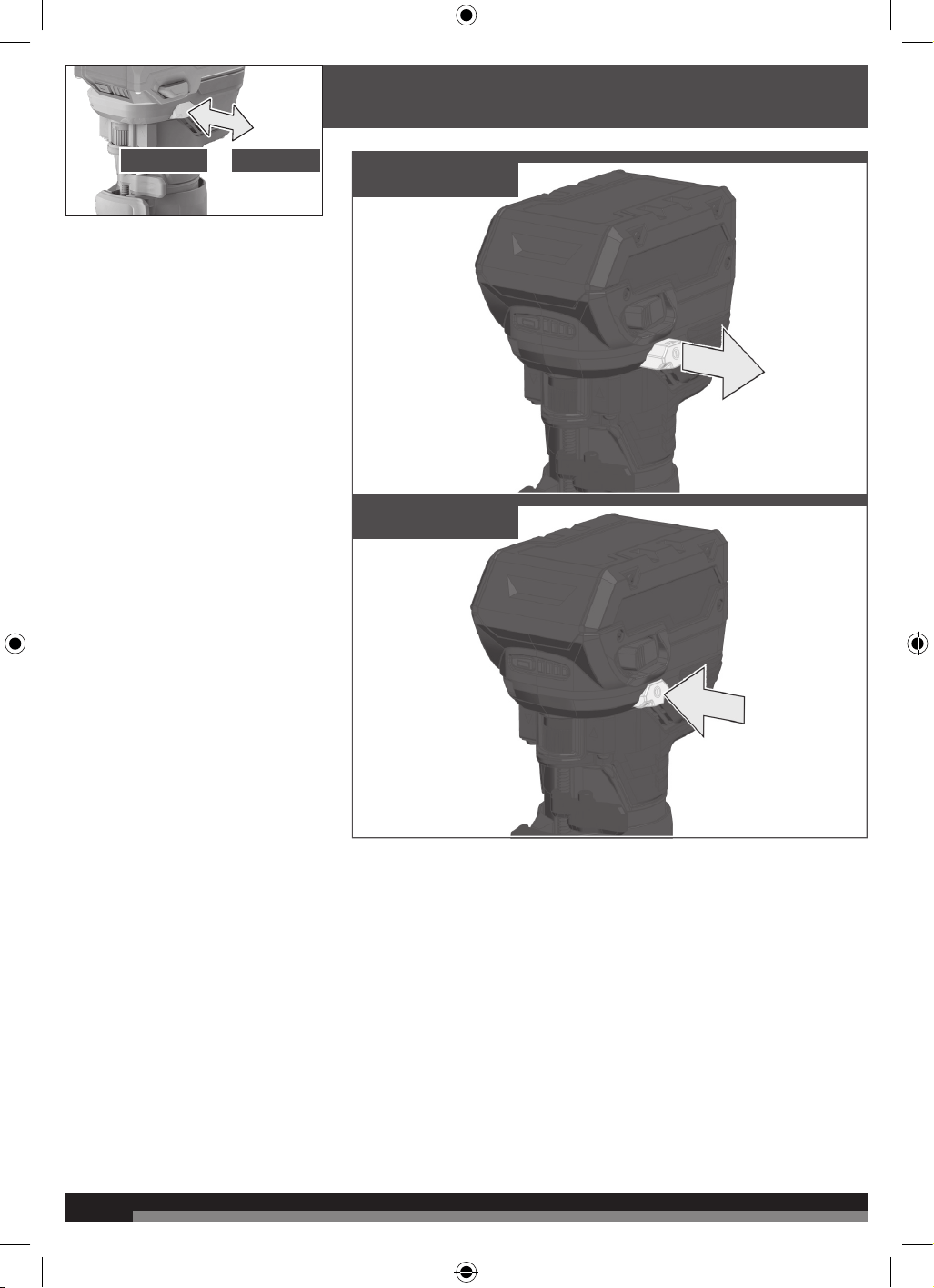

12
12
12 13
START
STOP
START
STOP

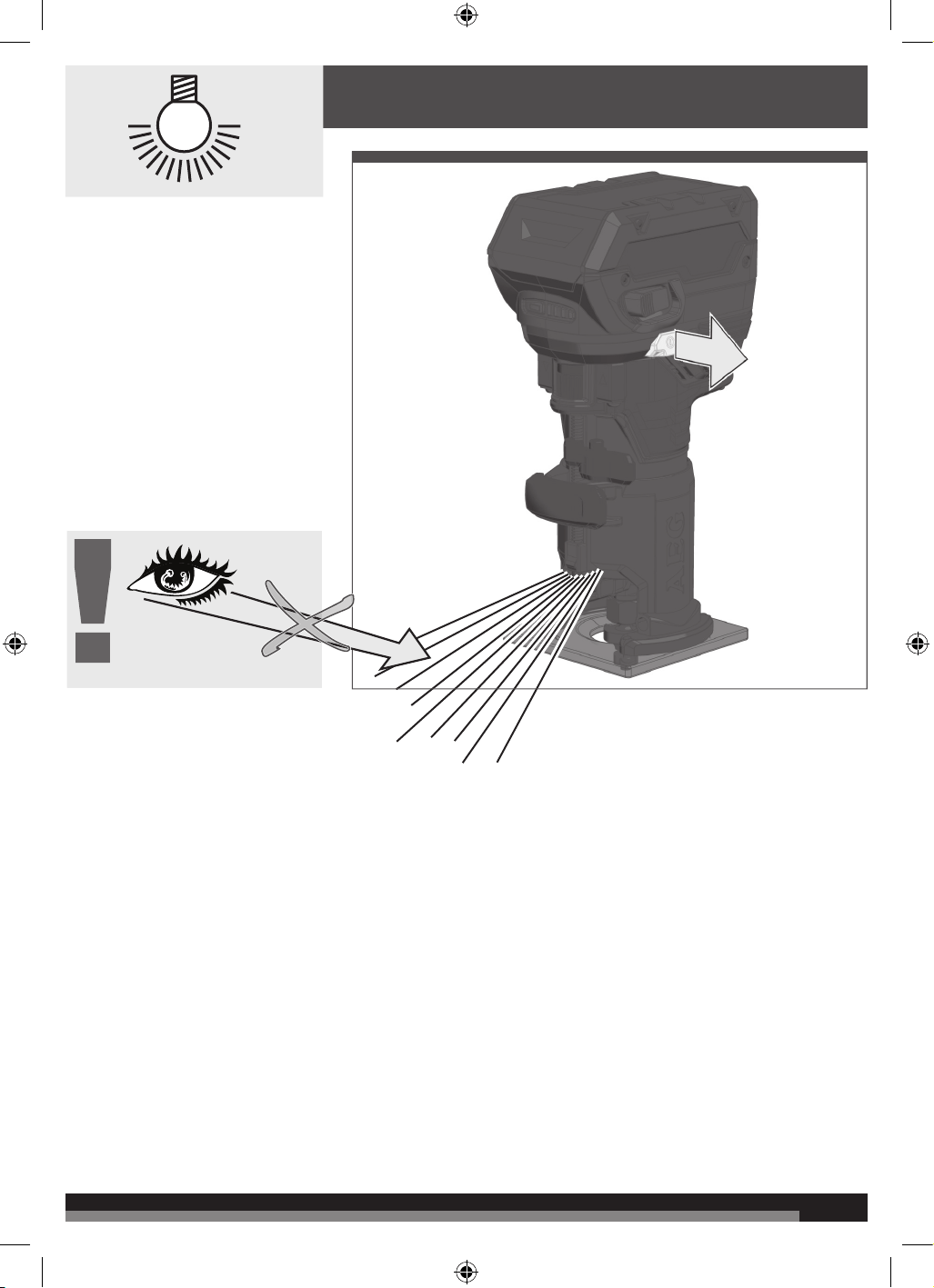

13
13
12 13
START
STOP
START
STOP

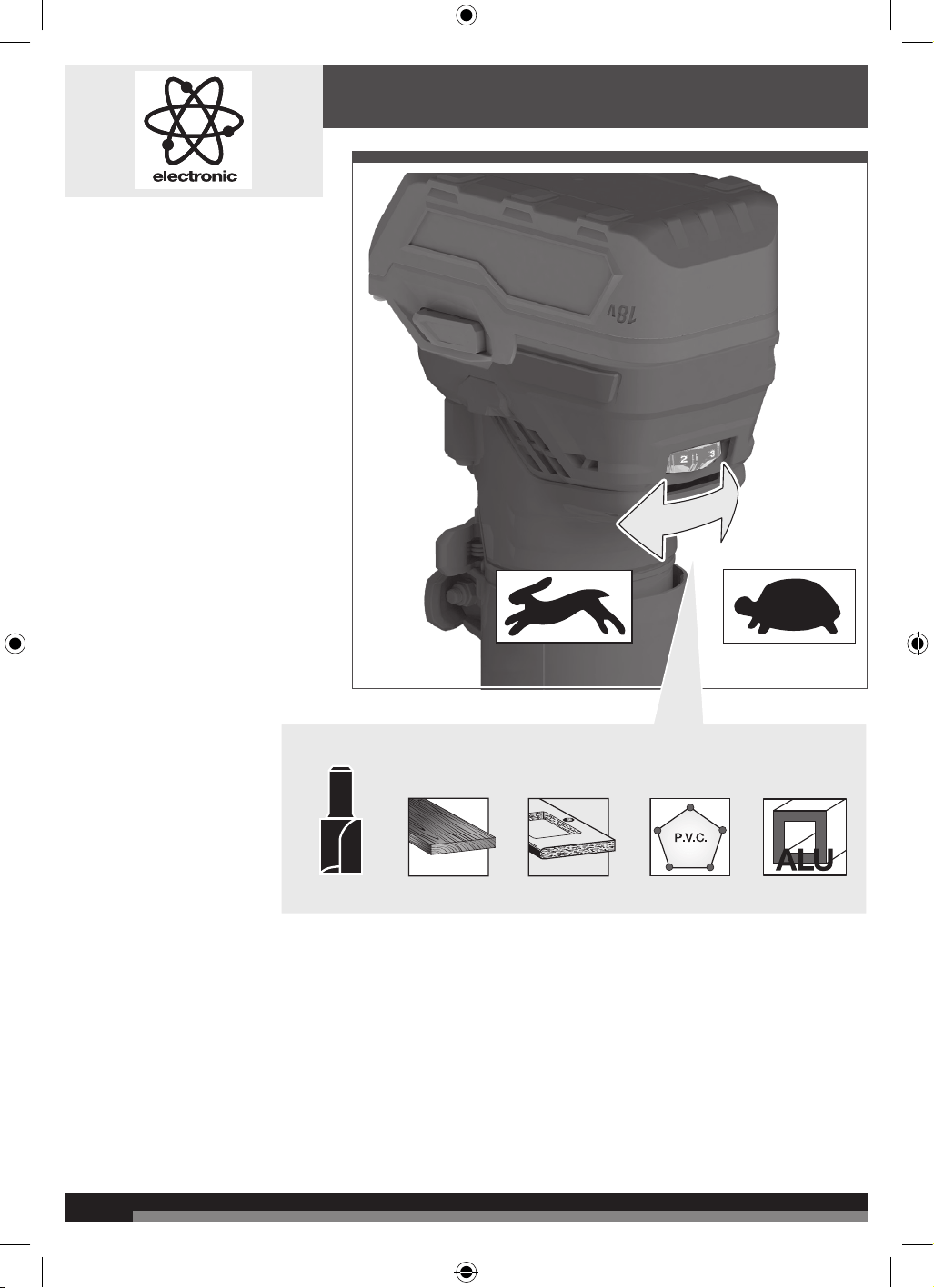

14
14
14 15
1
2
3
soft wood
hard wood
plastics
aluminium

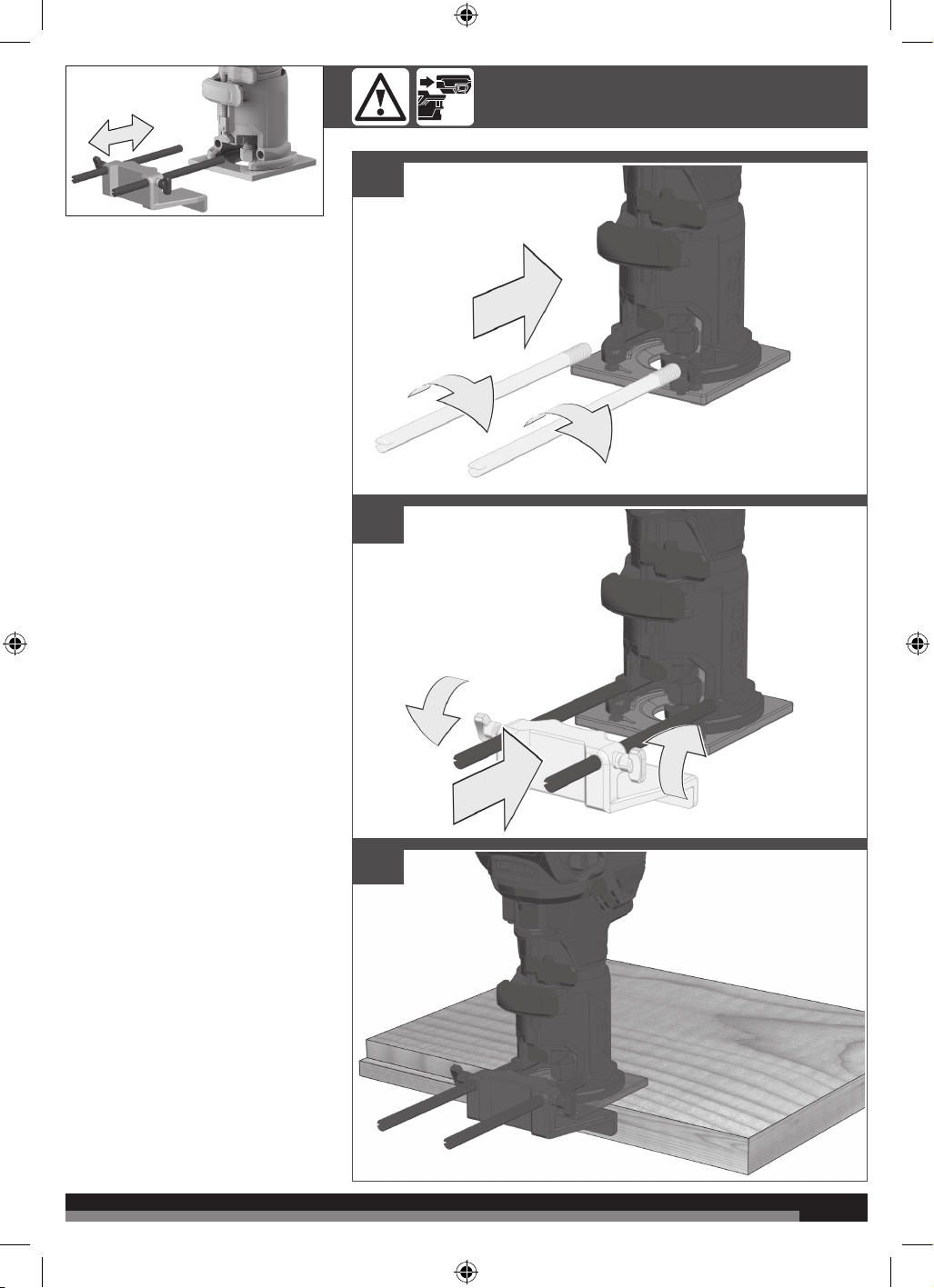

15
15
14 15
1
2
3
soft wood
hard wood
plastics
aluminium

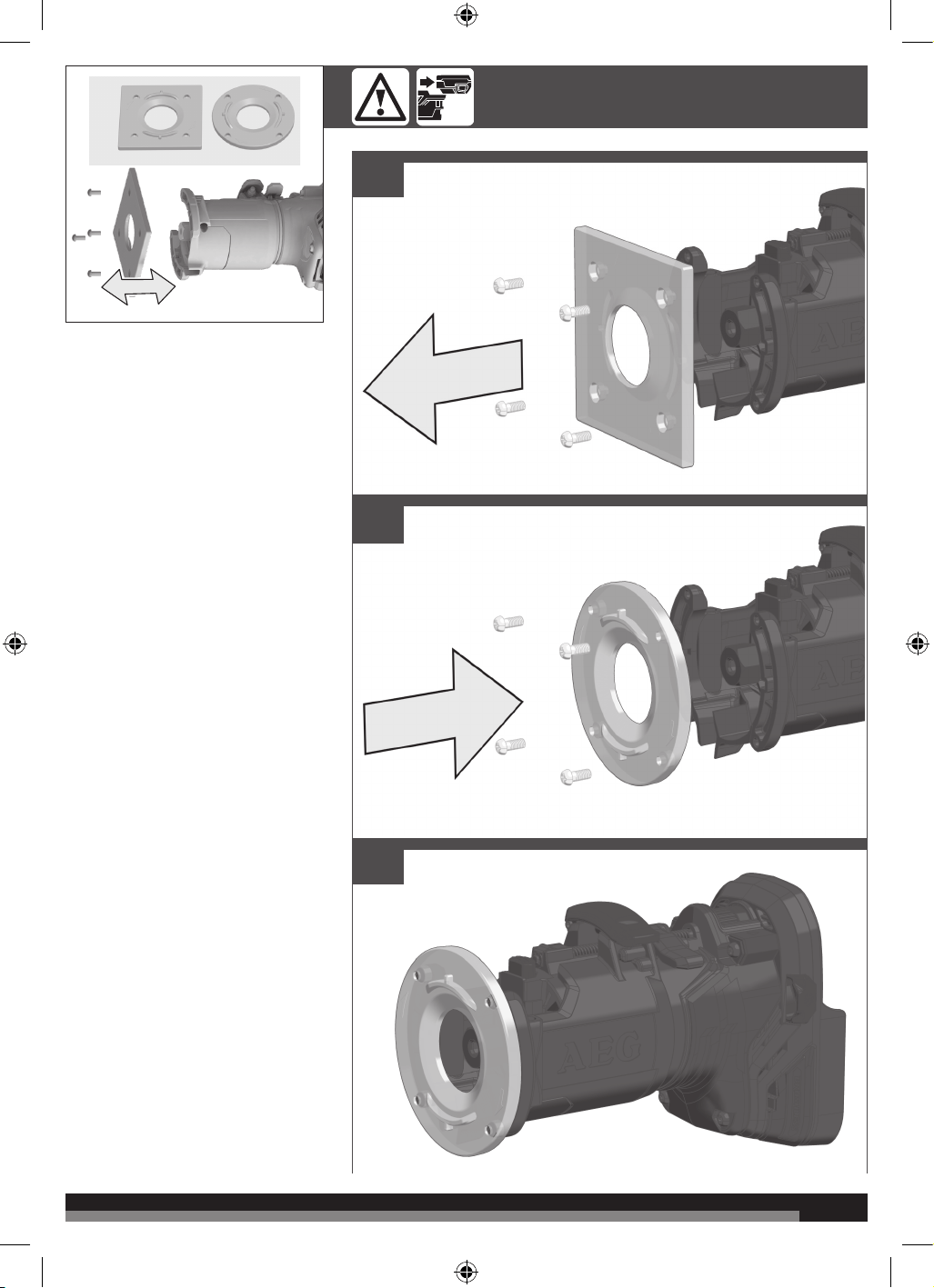

16
16
10 11
1
2
3
2
2
1
1
2
1
4
5
ø 30 mm

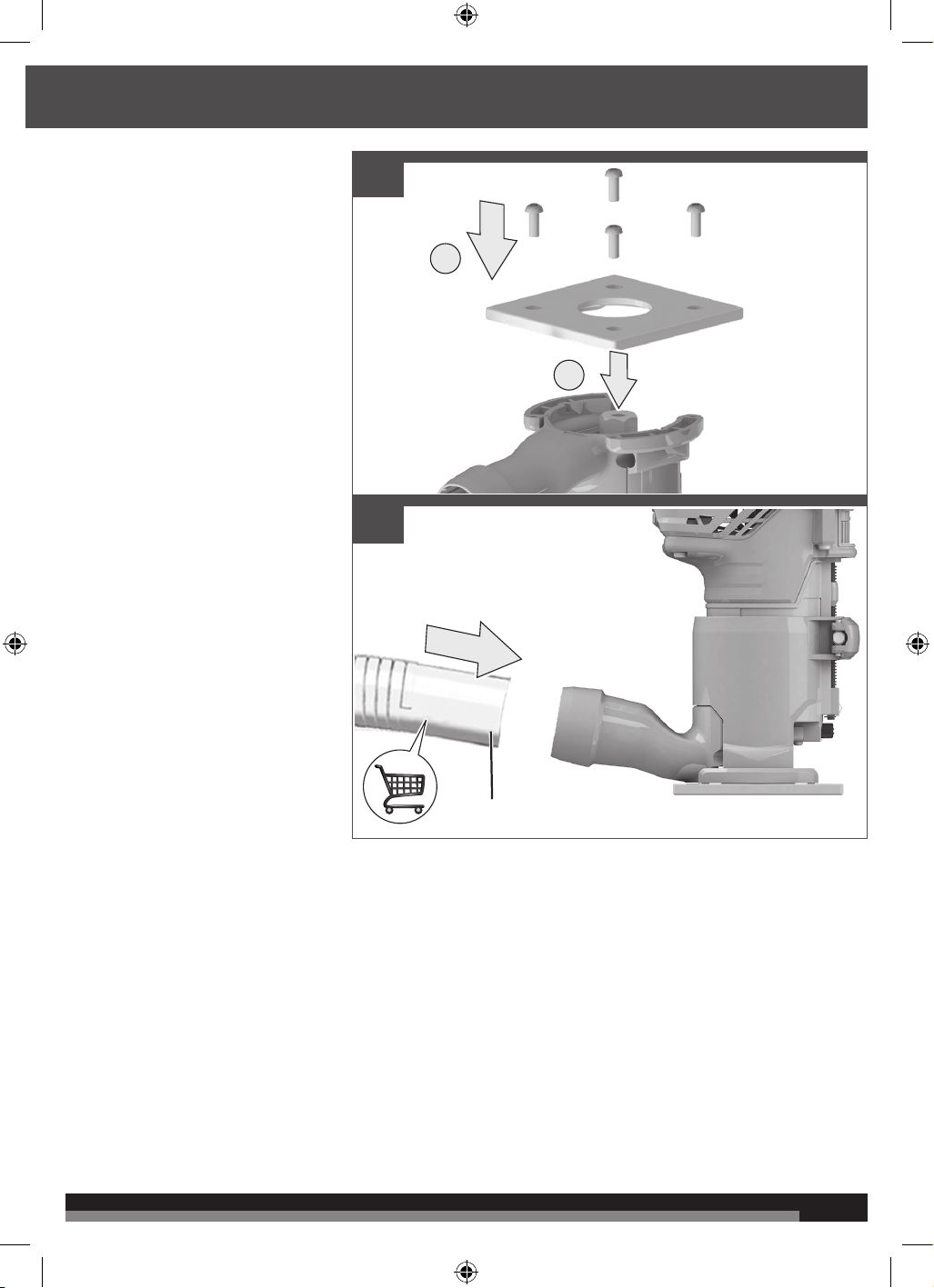

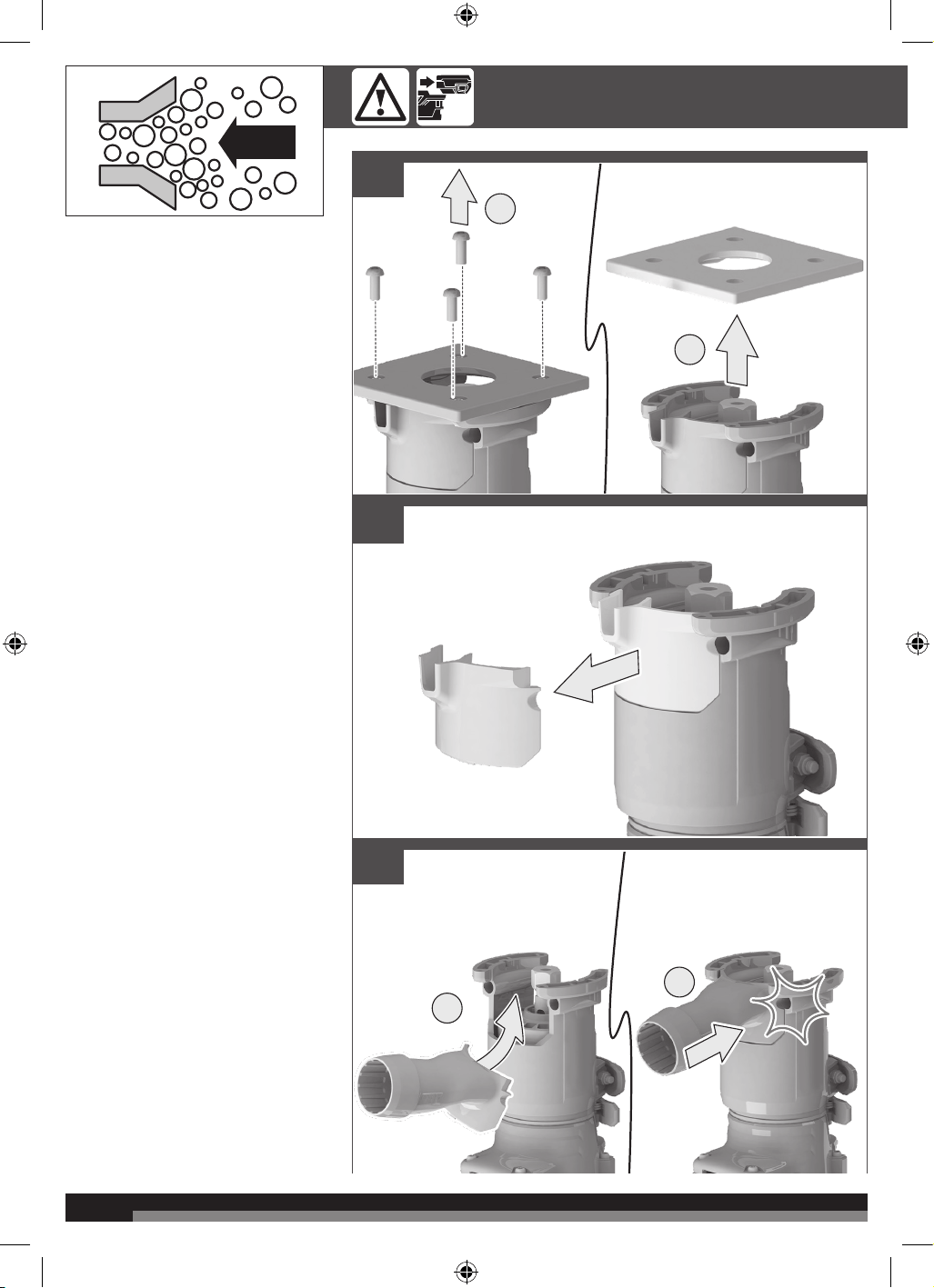

17
17
10 11
1
2
3
2
2
1
1
2
1
4
5
ø 30 mm

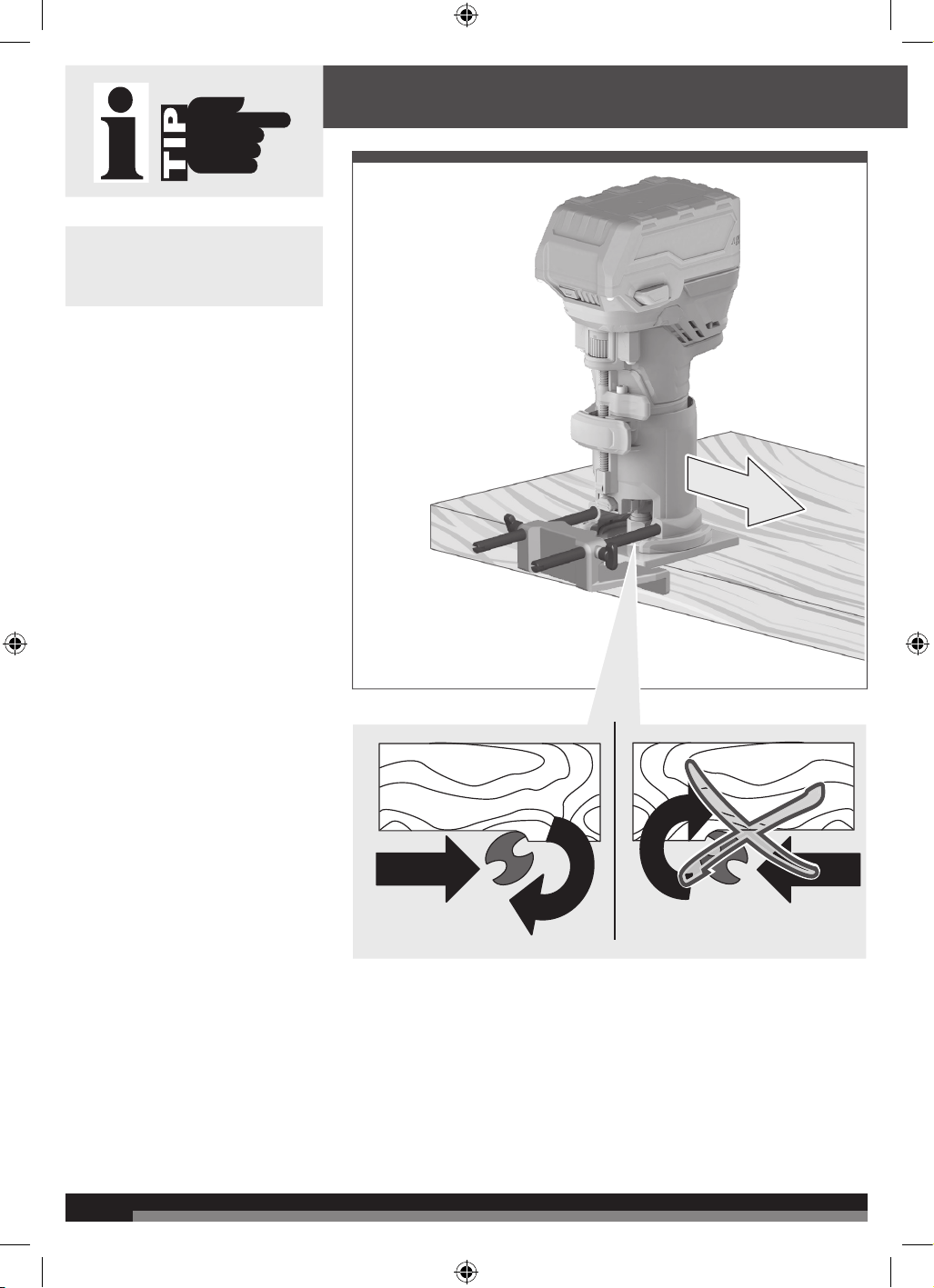

18
18
16 17
Only work oppositely oriented!

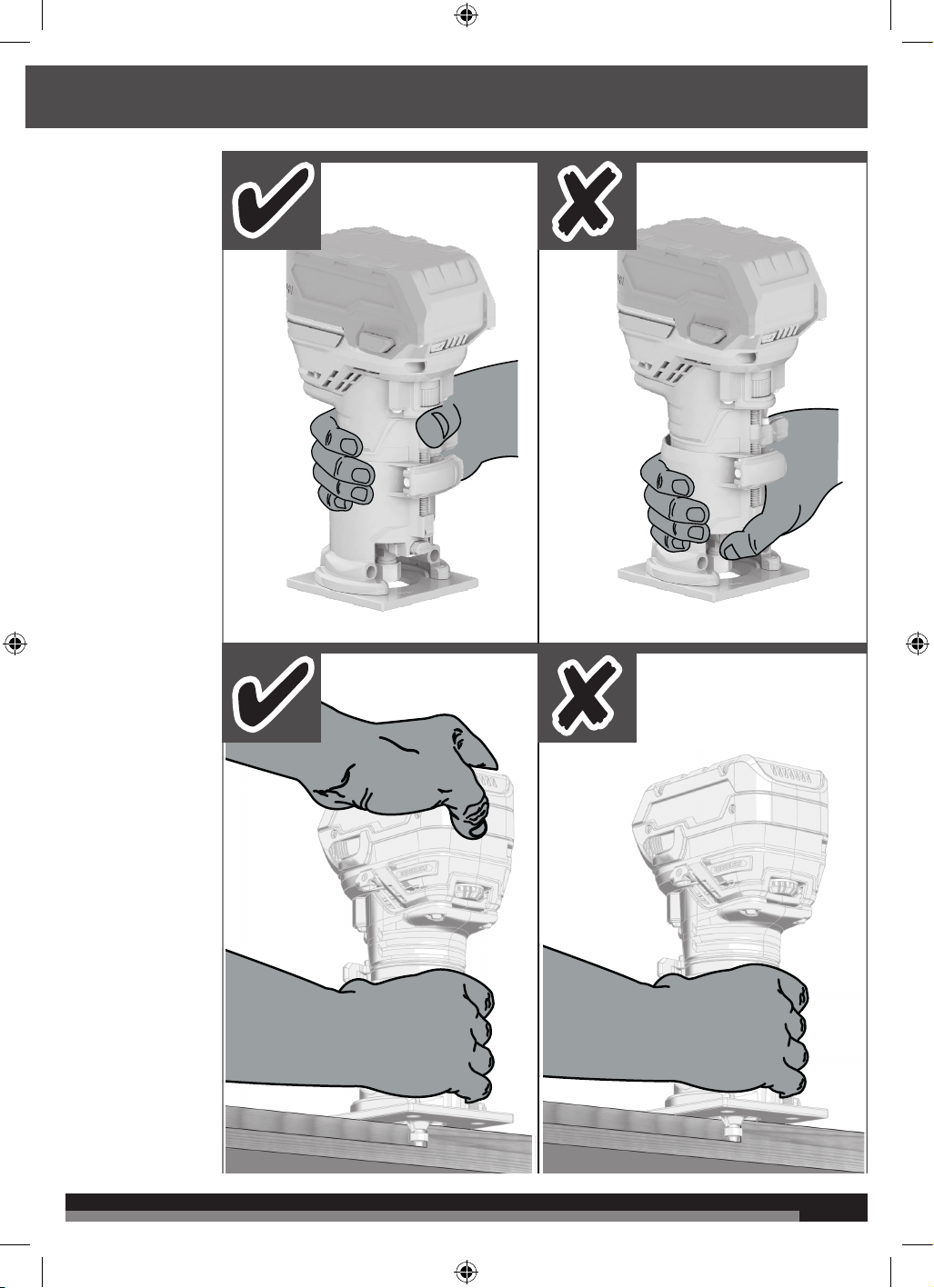

19
19
16 17
Only work oppositely oriented!
18
18
BATTERY AND CHARGER
Compatible battery pack
(not included)
Compatible charger
(not included)
L1815R
L1820R
L1825R
L1830R-X5
L1840R
L1850R
L1860R
L1860R-X5
L1890R
AL18G
AL1218G
BL1218
BLK1218
BL18DP-X5
BL18DP2-X5
BL18DPS
Use AEG 18V battery and charger only
WARNING!
WARNING! Read all safety warnings, instructions, illustrations
and specifications provided with this power tool. Failure to follow
all instructions listed below may result in electric shock, fire and/
or serious injury. Save all warnings and instructions for future
reference.
TRIM ROUTER SAFETY WARNINGS
Use clamps or another practical way to secure and support the
workpiece to a stable platform. Holding the work by your hand or
against the body leaves it unstable and may lead to loss of control.
Use only rotary cutting bits of the correct shank diameter for the
collet mounted.
Use only rotary cutting bits suitable for the speed of the product.
Use the dust collection device or connect a dust extraction vacuum
when operating the product. (applicable to tool with dust port.)
Ambient temperature range for tool during operation is between 0°C
and 40°C.
Ambient temperature range for tool storage is between 0°C and 40°C.
The recommended ambient temperature range for the charging
system during charging is between 10°C and 38°C.
ADDITIONAL SAFETY WARNINGS
Hold power tool by insulated gripping surfaces, when performing
an operation where the cutting accessory may contact hidden
wiring. Cutting accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the operator an
electric shock.
Always use bits of the correct shank diameter that are suitable
for the speed of the product.
Know your power tool. Read operator’s manual carefully. Learn
its applications and limitations, as well as the specific potential
hazards related to this power tool. Following this rule will reduce
the risk of electric shock, fire, or serious injury.
Always wear safety glasses with side shields. Everyday glasses
have only impact resistant lenses. They are NOT safety glasses.
Following this rule will reduce the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the operation
is dusty. Following this rule will reduce the risk of serious personal
TECHNICAL DATA TRIM ROUTER
BOF18B2
Rated voltage 18 V
No-load speed 17000 - 30000 min
-1
Collect diameter 6.35 mm(1/4”)
Maximum base adjustment 38 mm(1½”)
Maximum depth of cut 3 mm(1/8”)
Weight - not including battery pack 1.1 kg
Measured values determined according to EN 60745:
A-weighted sound pressure level L
p
= 76.0 dB(A)
Uncertainty K 3 dB(A)
A-weighted sound power level L
W
= 87.0 dB(A)
Uncertainty K 3 dB(A)
Wear ear protectors.
The vibration total values (triaxial vector sum) determined according to EN 60745:
Vibration emission value a
h
= 1.5 m/s
2
Uncertainty K 1.5 m/s
2
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and
may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level
represents the main applications of the tool. However if the tool is used for dierent applications, with dierent accessories or poorly maintained,
the vibration emission may dier. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched o or when it is running but
not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration such as: maintain the tool and the accessories, keep the
hands warm, organisation of work patterns.
19
19
injury.
Protect your hearing. Wear hearing protection during extended
periods of operation. Following this rule will reduce the risk of
serious personal injury.
Do not reach into the product while it is running.
Switch the device o immediately if the insertion tool stalls! Do not
switch the device on again while the insertion tool is stalled, as doing
so could trigger a sudden recoil with a high reactive force. Determine
why the insertion tool stalled and rectify this, paying heed to the
safety instructions.
The possible causes may be:
■ it is tilted in the workpiece to be machined
■ it has pierced through the material to be machined
■ the power tool is overloaded
Chips and splinters must not be removed while the product is running.
Only use tools whose permitted speed is at least as high as the
highest no-load speed of the product.
The product is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the product by a person responsible
for their safety.
Children should be supervised to ensure that they do not play with
the product.
Always use the shields on the product.
When working in walls, ceiling, or floor, take care to avoid electric
cables and gas or water-pipes.
The insertion tool may become hot during use. Pay extra attention
when:
■ changing tools.
■ setting the device down.
Do not at any time let brake fluids, gasoline, petroleum based
products, penetrating oils, etc., come in contact with plastic parts.
They contain chemicals that can damage, weaken or destroy plastic.
Avoid using solvents when cleaning plastic parts. Most plastics are
susceptible to various types of commercial solvents and may be
damaged by their use. Use clean clothes to remove dirt, carbon dust,
etc.
Battery tools do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware
of possible hazards when not using your battery tool or when
changing accessories. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
Do not place battery tools or their batteries near fire or heat. This
will reduce the risk of explosion and possibly injury.
Do not crush, drop or damage battery pack. Do not use a battery
pack or charger that has been dropped or received a sharp blow.
A damaged battery is subject to explosion. Properly dispose of a
dropped or damaged battery immediately.
Batteries can explode in the presence of a source of ignition, such
as a pilot light. To reduce the risk of serious personal injury, never
use any cordless product in the presence of open flame. An exploded
battery can propel debris and chemicals. If exposed, flush with water
immediately.
Do not charge battery tool in a damp or wet location. Following
this rule will reduce the risk of electric shock.
For best results, your battery tool should be charged in a location
where the temperature is more than 10°C but less than 37.8°C. Do
not store outside or in vehicles.
Remove the battery pack before starting any work on the product.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors oer to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System GBS chargers for charging System GBS battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it o immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool, battery pack
or charger in fluid or allow a fluid to flow inside them. Corrosive or
conductive fluids, such as seawater, certain industrial chemicals, and
bleach or bleach containing products, etc., can cause a short circuit.
Ambient temperature range for battery during use is between 0°C
and 40°C.
Ambient temperature range for battery storage is between 0°C and
20°C.
Segregate electronic waste properly by removing integrated battery
packs from the main unit before disposal. Hand them over to
applicable collection points.
To remove the integrated battery pack: Separate the housing shells
from one another by removing the screws. Disconnect the battery
pack from the circuit and remove.
NOTE: When opened, the product is no longer reusable or serviceable
and should be disposed of properly.
Before removing the battery pack from the power tool, switch on the
product until the battery pack is fully discharged.
Ensure that the battery pack to be disposed of cannot come in
contact with batteries, other battery packs, or conductive materials
by protecting exposed connectors with insulating, non-conductive
caps or tape.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise and the operator should pay special attention to
avoid the following:
■ Injury caused by vibration
– Limit exposure. See Risk Reduction.
■ Injury caused by flying debris
– Wear eye protection at all times.
■ Injury caused by dust
20
20
– Wear appropriate dust mask with suitable filters which can
protect against particles from the material of the workpiece.
Do not eat, drink, or smoke in the work area. Ensure adequate
ventilation and use the dust extraction accessories provided.
■ Injury from contact with the cutting bits
– The bits are sharp and will become hot during use. Wear
gloves when changing bits. Keep hands away from the
cutting area at all times. Never hold the workpiece being
cut in your hands or across your leg. Secure the workpiece
whenever possible.
RISK REDUCTION
It has been reported that vibrations from hand-held tools may
contribute to a condition called Raynaud’s Syndrome in certain
individuals. Symptoms may include tingling, numbness and blanching
of the fingers, usually apparent upon exposure to cold environments.
Hereditary factors, exposure to cold and dampness, diet, smoking and
work practices are all thought to contribute to the development of
the these symptoms. There are measures that can be taken by the
operator to possibly reduce the eects of vibration:
■ Keep your body warm in cold weather. When operating the unit
wear gloves to keep the hands and wrists warm. It is reported
that cold weather is a major factor contributing to Raynaud’s
Syndrome.
■ After each period of operation, exercise to increase blood
circulation.
■ Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your doctor.
WARNING! Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods, ensure you
take regular breaks.
SPECIFIED CONDITIONS OF USE
The trim router is intended for precision woodworking tasks. The
trim router is ideal for shaping the edge onto wood and trimming
laminates.
Do not use the product in any way other than those stated for
intended use.
FEATURES
LINE LOCK OUT FUNCTION
The product will not start if a battery is fitted whilst the switch is in
the on position.
Switch the product o and then on again to reset and start the
product.
BATTERIES
New battery packs reach full loading capacity after 4 - 5 chargings
and dischargings. Battery packs which have not been used for some
time should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legislation
requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
■ The user can transport the batteries by road without further
requirements.
■ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately.
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
■ Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
■ Ensure that battery pack is secured against movement within
packaging.
■ Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch o the battery-lamp automatically. To
restart, switch the battery-lamp o and then on again. If the battery-
lamp does not start up again, the battery pack may have discharged
completely. In this case it must be recharged in the battery charger.
MAINTENANCE
The ventilation slots of the product must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should components
need to be replaced which have not been described, please contact
one of our AEG service agents (see our list of guarantee/service
addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the product type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
21
21
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
SYMBOLS
Safety alert
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Please read the instructions carefully before starting
the product.
Wear eye protection
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the end of
their life must be collected separately and returned
to an environmentally compatible recycling facility.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trademark used under
license from AB Electrolux (publ).961099008-01A
