What's in the Box
QSG
Wire with T Connectors
Pathway Lights ×4 Control UnitPower Adapter
Ground Stakes ×4
Quick Start Guide
At a Glance
③
④
①②
0.9ft (0.3m)
4.9ft+9.8ft+9.8ft+9.8ft (1.5m+3m+3m+3m)
13.4ft (4.1m)
①
Power Adapter
②
Waterproof Cap
③
Control Unit (Power Button)
• Press to turn on/o the lights.
• Press and hold for 2 seconds to enable the pairing mode.
④
Pathway Lights

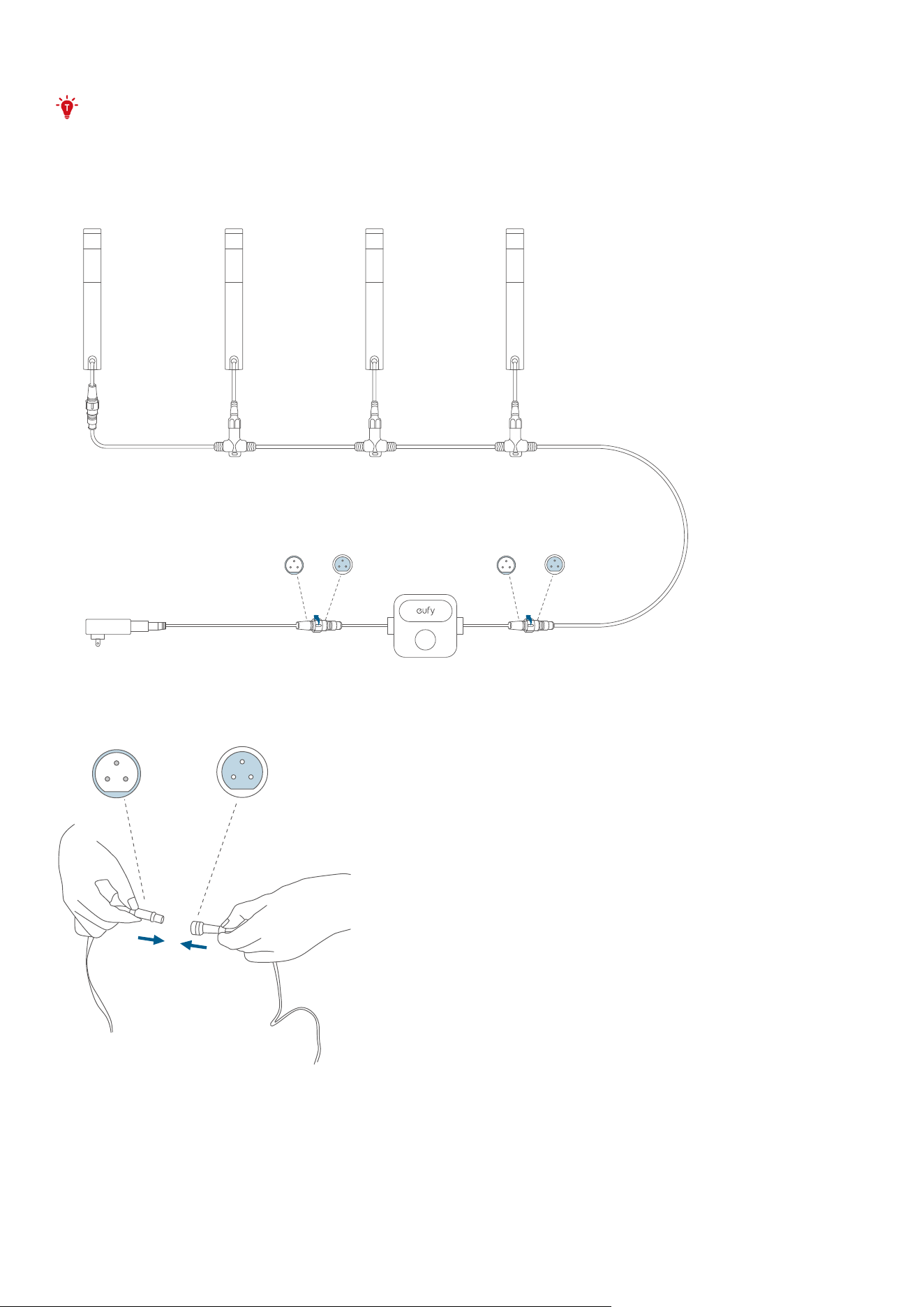

Testing the Lights
• Connect the lights with the adapter unplugged. Avoid connecting while the adapter is
plugged. If you connect the lights while adapter is plugged, the lights may not light up.
• A maximum of 4 lights can be connected to the power adapter.

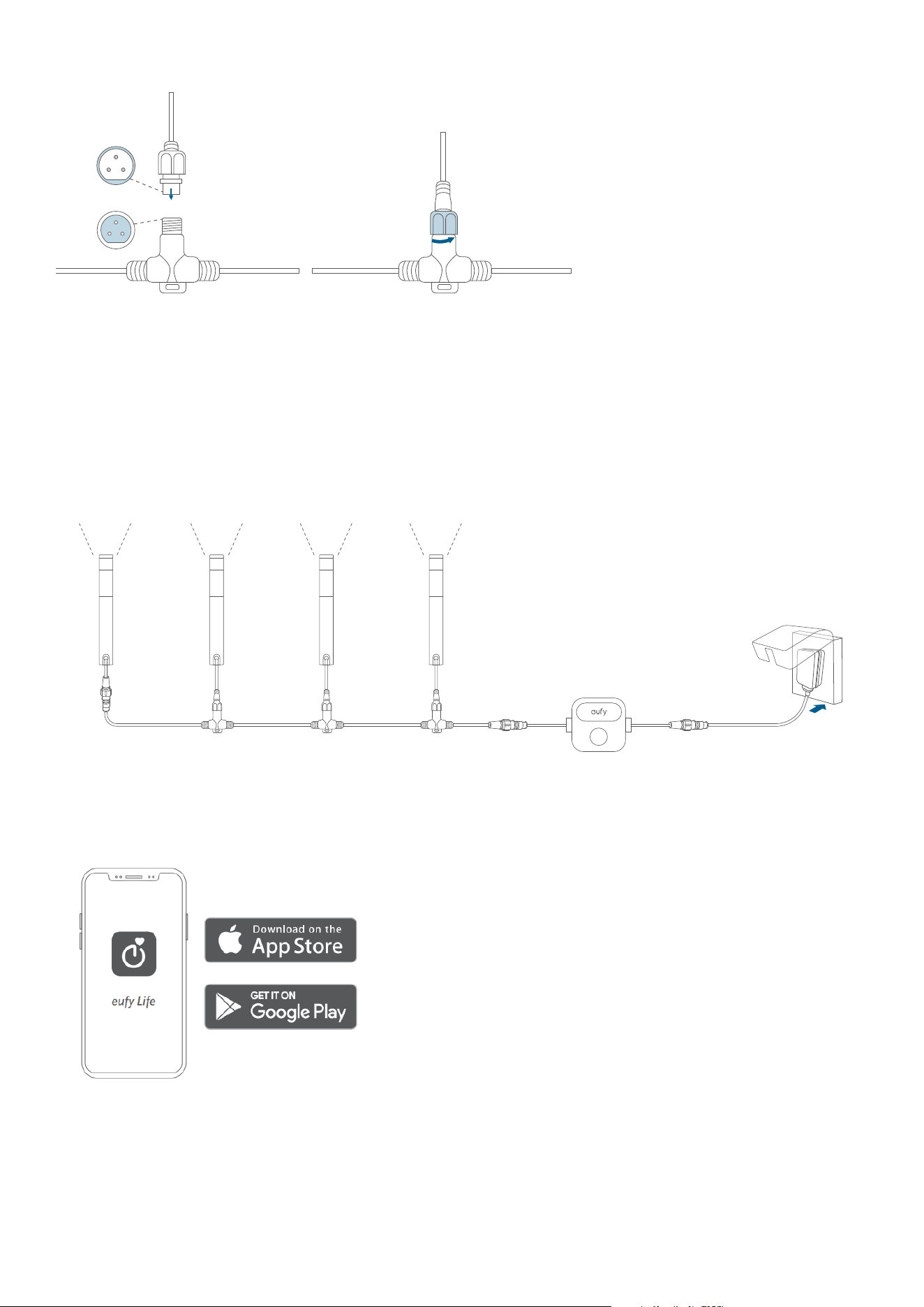

1. Connect all lights together, then connect them to the control unit and power adapter.
• Make sure the pin connections on the interface are correct.
• Avoid using brute force to prevent damage to the product.
2. Secure the waterproof caps for each connection.
①②
3. Plug in the power supply to verify that each light is working properly.
• The power adapter is rated as IP44 waterproof. It is recommended to plug the adapter into
an outdoor socket with a waterproof cover.
• If some of the lights do not light up, unplug and reconnect the power adapter. Make sure
the lights are working properly before proceeding to the next step.
• See "Troubleshooting" for other lighting problems that may occur.
Setting up the System
1. Download and install the eufy Life app, then sign in or create an account.
• Make sure that the eufy Life app is version 2.11.0 or later to support this light strip.
2. Follow the in-app instructions to add this device and complete the setup.

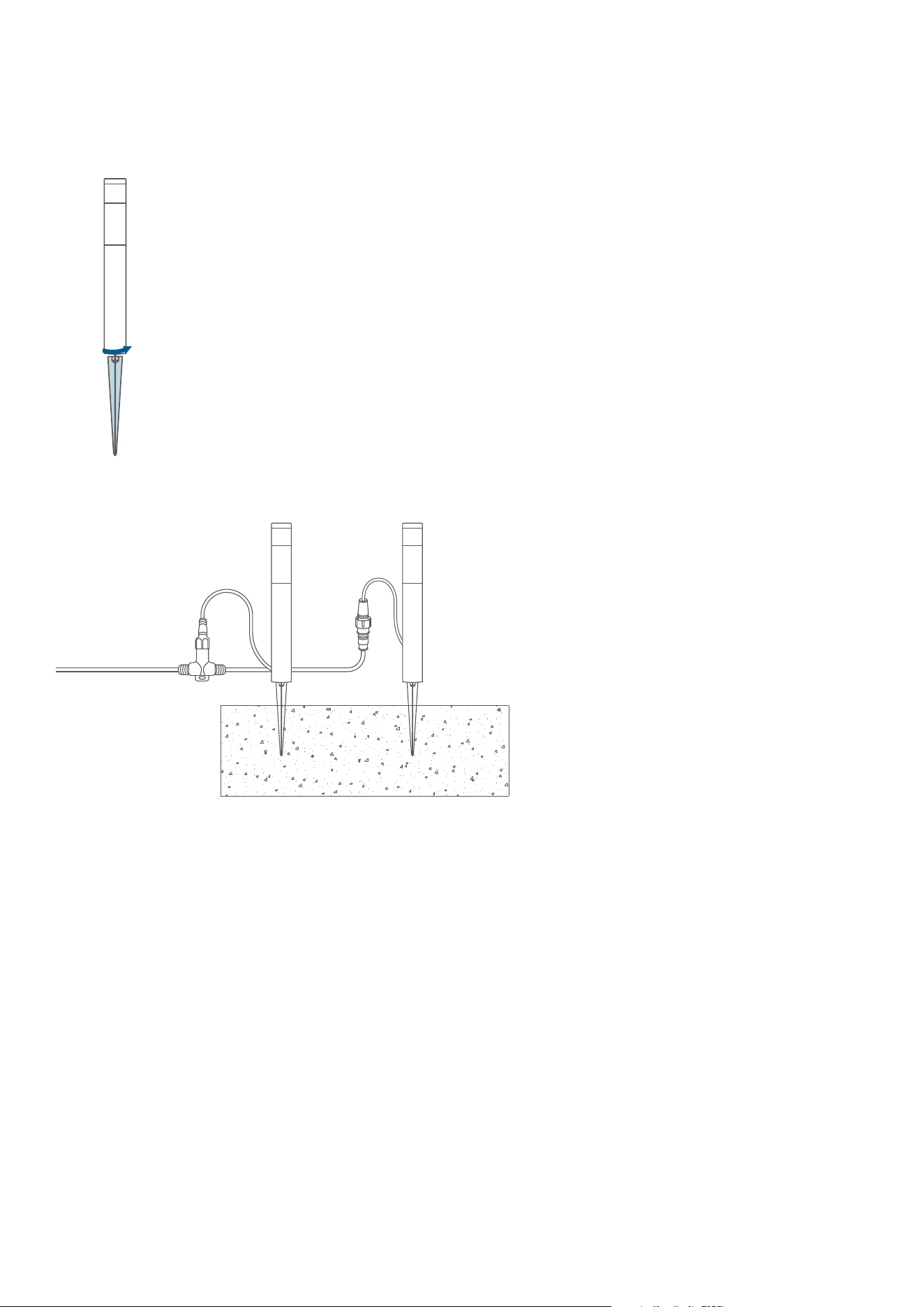

Installing your Outdoor Lights
Install the lights on the ground. The installation will take approximately 15 to 20 minutes.
1. Screw the ground stake into the bottom of the pathway light.
2. Insert the ground stake into the ground, and ensure that it is securely installed.
Specifications
Input (Power Adapter)
24W
120V AC ~, 50/60Hz (US)
100-240V AC ~, 50/60Hz (EU, UK, Australia)
Input (Lights) 27V
⎓
0.88A
Length 50ft (15m) (4 packs)
Length (Other Components)
Control Unit Cable: 13.4ft (4.1m)
Power Adapter Cable: 0.9ft (0.3m)
Wire with T connectors: 4.9ft+9.8ft+9.8ft+9.8ft
(1.5m+3m+3m+3m)
IP Ratings
Light: IP65
Control Unit: IP65
Power Adapter: IP44
Light Displaying Technology RGBWWIC
Working Temperature
Product Set: -20
℃
to 40
℃
(-4
℉
to 104
℉
)
Lights: -20
℃
to 60
℃
(-4
℉
to 140
℉
)
Troubleshooting
1. Cannot connect to Wi-Fi.
• The 5GHz network is not supported. Please set the router to 2.4GHz and then reset it.
• Do not skip the Wi-Fi connection steps in the app.
• Make sure you have entered the correct Wi-Fi name and password.
• Connect the hotspot of your phone to the product.
2. Some lights do not glow.
• Unplug the power adapter, disconnect and reconnect all components, and plug the power
adapter in again.
• If the problem persists, contact eufy support team for a product replacement.
Customer Service
• Lifetime Technical Support
• 18-month Limited Warranty
Important Safety Instructions
• This product is IP65 rated. It can be used outdoors, but immersion in water is not
recommended.
• This power adapter is IP44 rated. It can be used outdoors, but immersion in water is not
recommended. An outdoor socket with a waterproof cover is preferred.
• Tighten up the waterproof cap before using the light.
• The lamp bead and other internal parts of the product cannot be replaced. If damaged,
please contact eufy@support.com for a product replacement.
• Do not allow children to assemble or install this product.
• Be careful with the sharp ground stakes of the product.
• Avoid installing this product in a closed environment or near large heat sources.
• The recommended temperature range for devices and accessories is -20°C to 40°C (-4°F to
104°F) .
• Unless specifically indicated that it is safe to do so in the user guide or instruction manual,
do not use this device in an environment that exceeds the recommended low or high
temperature.
• Unless specifically indicated that it is safe to do so in the user guide or instruction manual,
avoid exposing your device to direct sunshine or excessively wet environments.
• For pluggable equipment, the socket outlet should be easily accessible.
• Use only the adapter provided by the manufacturer. Using unauthorized adapters may
cause danger and violate the authorized use of the device or the warranty article. External
dimmers cannot be used with this product.
