Wine Cooler CB100A
USER MANUAL
MODEL: CB100A
Read this manual and follow all safety rules and operating
instructions before f irst use of this wine cooler .
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
3
PRODUCT DIAGRAM
6
INSTALLATION INSTRUCTIONS
7
Before Using Your Cooler
7
To Install Handle
8
To Install Your Cooler
8
OPERATION INSTRUCTIONS
9
Controls
9
Storage
10
Door Lock
10
Wood Shelves
11
CARE & MAINTENANCE
11
Cleaning Your Cooler
11
Power Failure
12
Vacation Time
12
Moving Your Cooler
12
Energy Saving Tips
12
Charcoal filtration system
13
TROUBLESHOOTING GUIDE
14
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This cooler complies with the applicable safety requirements and is safe for daily use. However,
basic safety precautions should always be followed when using an electrical appliance, to reduce
the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler (115V /60Hz). Use receptacles that cannot be turned off by a switch
or pull chain. Be sure that the plug is fully inserted into the receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
To protect against electric shock, do not immerse the cooler, plug or cord in water or
other liquids.
Never unplug the cooler by pulling the power cord. To disconnect the cooler, always
grip the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the cooler or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
When moving the cooler, be careful not to roll over or damage the power cord.
Never clean cooler parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapor and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
Do not attempt to repair or replace any part of your cooler unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified
technician.
An empty cooler can be dangerous to children. Remove any latches, lids, locks, and/or
doors from unused or discarded coolers to prevent child entrapment and suffocation.
Never allow children to operate, play with or crawl inside this cooler.
4
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of obstruction.
9. Do not use mechanical devices or other means to accelerate the defrosting process,other than those
recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
13. This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
14. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h, flush the water system connected to a water
supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
5
Do not use this wine cooler for other than its intended purpose. For indoor, household
use only.
Move this wine cooler by 2 people. Failure to do so can result in injury.
Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and
below 32°C (90°F).
To ensure proper ventilation for your wine cooler, the front of the cooler must be
completely unobstructed.
This wine cooler must be installed in an area away from wind, rain, water spray or drips.
The wine cooler should not be located next to ovens, grills or other sources of high heat.
Do not kink or pinch the power supply cord of wine cooler.
It is important for the wine cooler to be leveled in order to work properly. You may need
to make several adjustments to level it.
This wine cooler is designed for storing and cooling wines. Do not store perishable food
or medical products inside the cooler.
When disposing of refrigeration wine coolers, special handling is often required. It is the
consumer’s responsibility to comply with federal and local regulations when disposing of
this product.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.

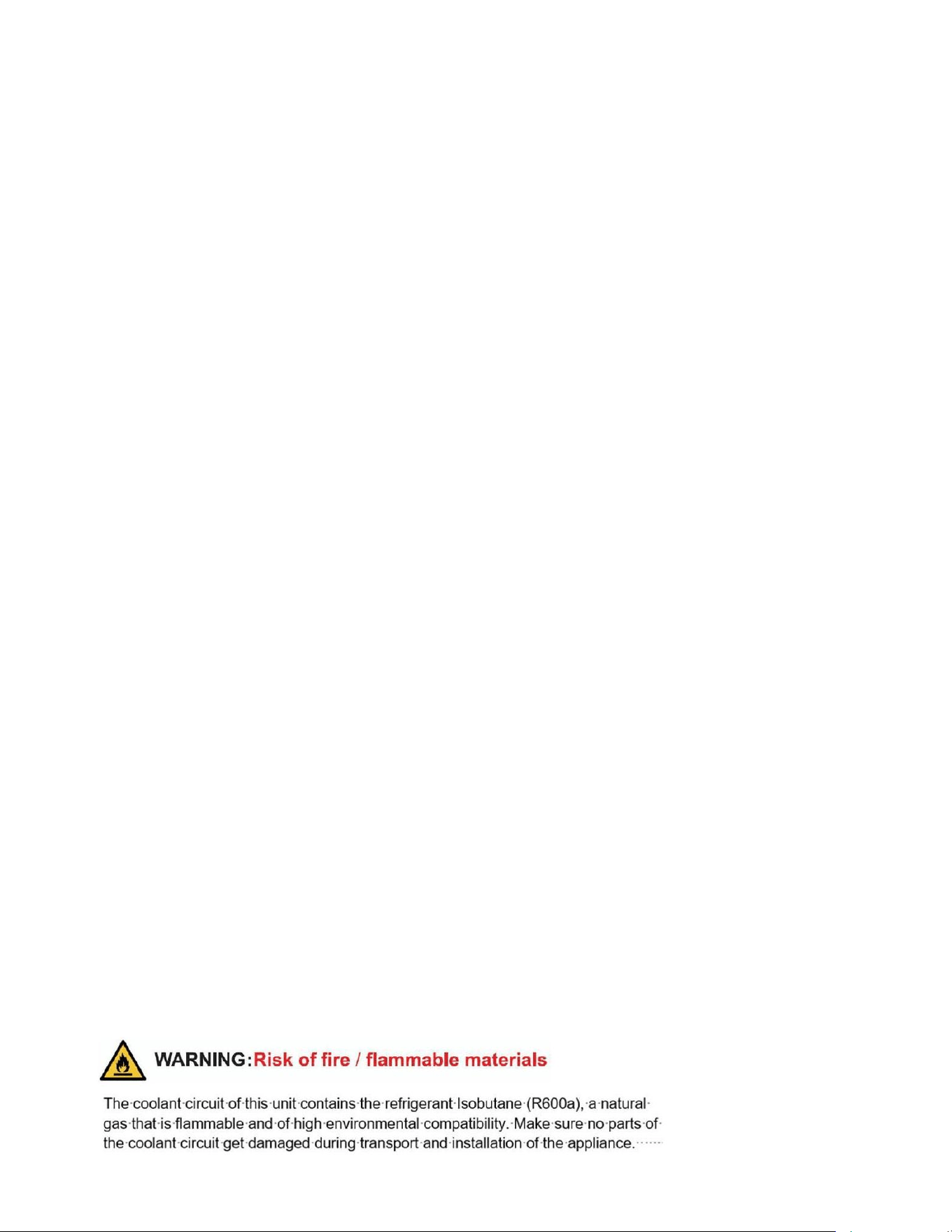

FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
6

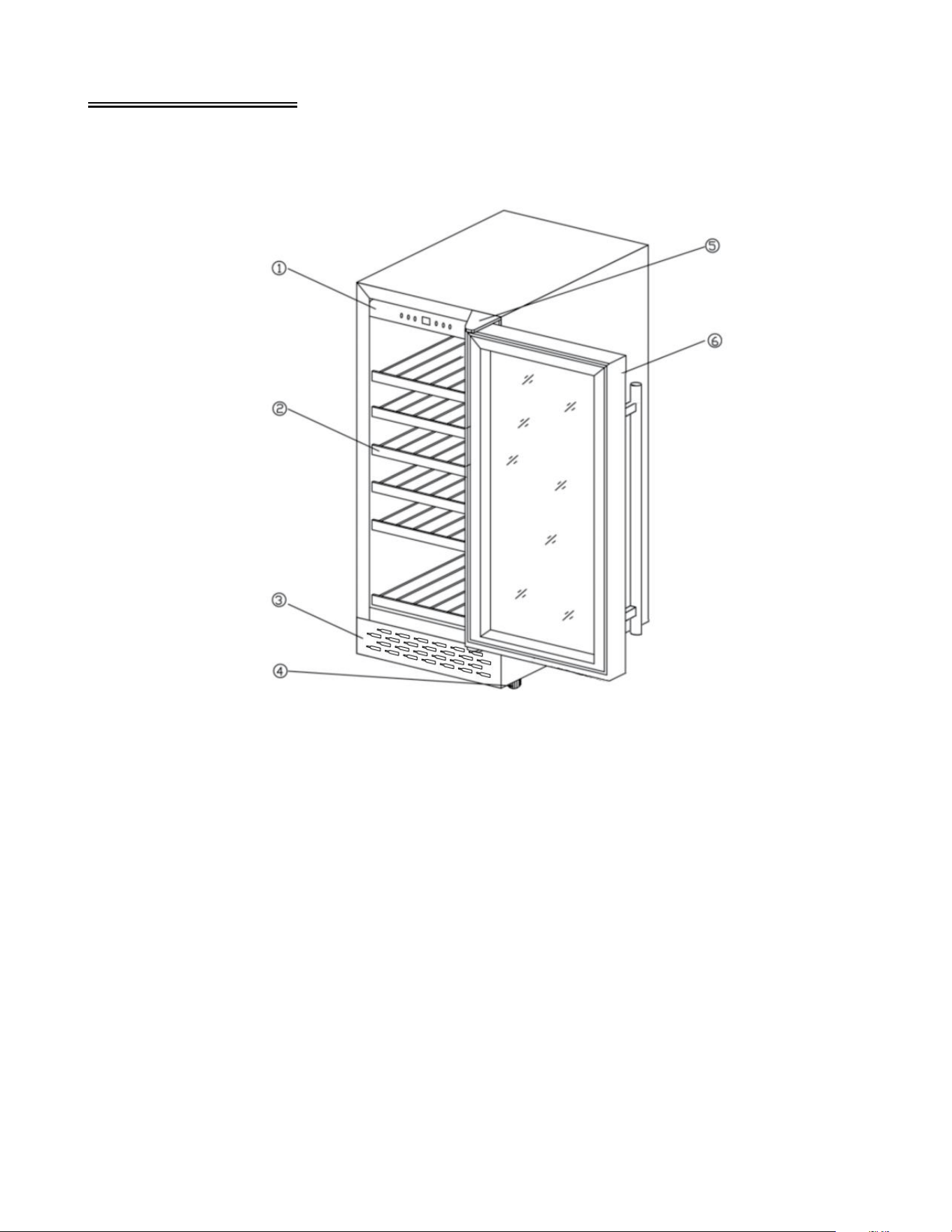

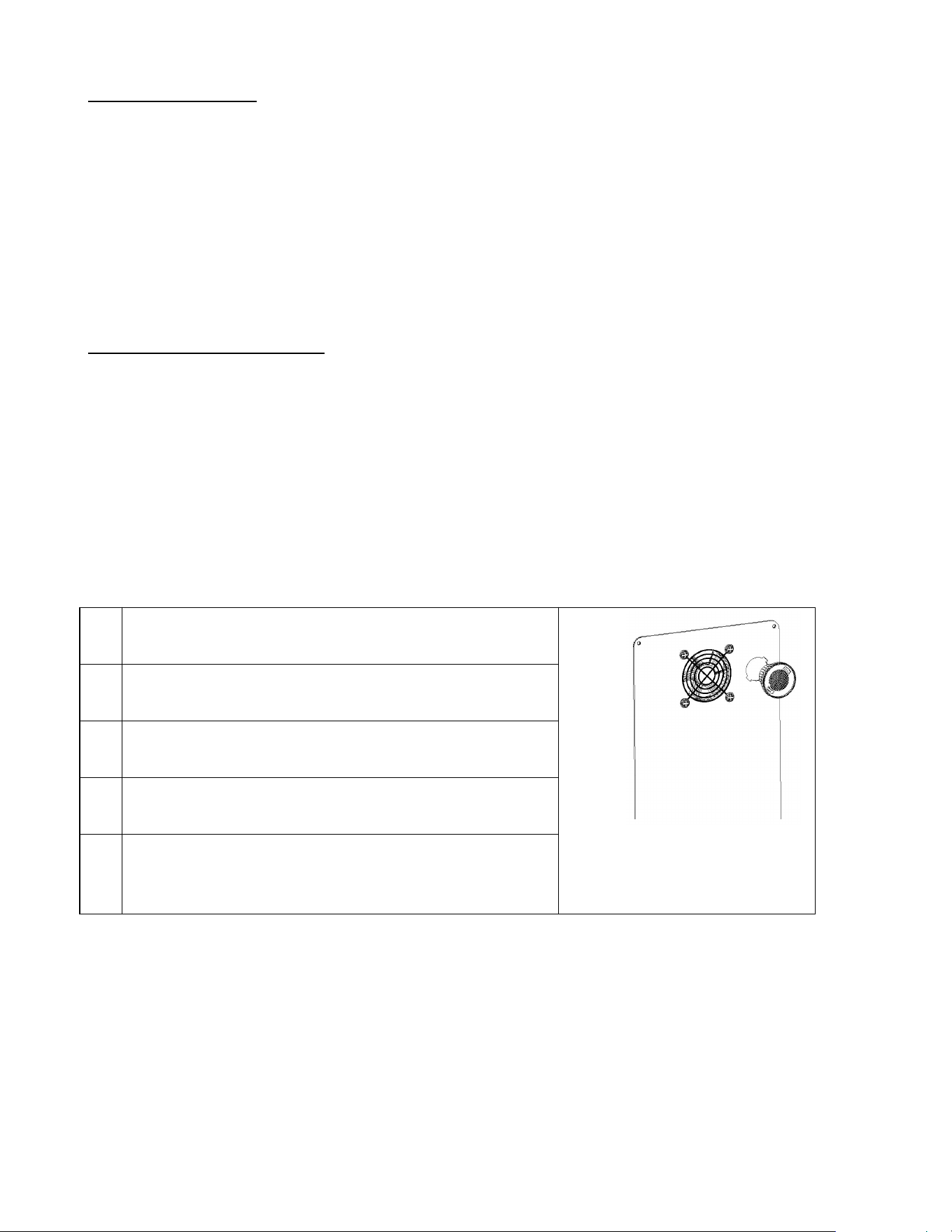

PRODUCT DIAGRAM
1
Control Panel
4
Leveling Legs
2
Wood Shelves
5
Hinge
3
Exhaust Window
6
Glass Door with Handle
7
INSTALLATION INSTRUCTIONS
Before Using Your Cooler
Remove the exterior and interior packaging.
Check to be sure you have all of the following parts:
o
6 Shelves
o
Handle
o
Instruction Manual
o
2 Extra Screws for Installing Handle
IMPORTANT: Before connecting this cooler to a power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
To Install Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the preinstalled screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This cooler includes handles that are not required to operate this cooler. If you
choose not to use the handle supplied, simply follow step 1 to access the pre-installed screws
and remove them and then place 2 decorative plugs (NOT included) into the two holes
separately. Continue on to step 3 to replace the door gasket to its original position.
8
Illustration #1 Illustration #2
To Install Your Cooler
This cooler is designed for free standing or built-in (fully recessed) installation.
Place your cooler on a solid and level floor that is strong enough to support it when it is fully
loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling legs in
and out to stabilize the cooler horizontally. If the legs are not properly adjusted, the cooler
may be unstable and result in excess noise or vibration.
Locate the cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the cooler not to perform
properly.
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
It is recommended you install the cooler in a place with temperatures above 60°F (15°C)
and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is above
or below recommended temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to
fluctuate, and the temperature range of 5ºC-18ºC (40ºF-65ºF) may not be reached.
1
Gasket
2
Screw
3
Screw Driver
4
Handle
9
Connect the cooler to an exclusive, properly grounded, standard electrical supply
(115V/60 Hz), in accordance with the National Electrical Code and local codes and
ordinances. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized products service center.
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
The cooler should always be plugged into its own individual electrical outlet which has
a voltage rating that matches the rating label on the cooler. This provides the best
performance and also prevents overloading house wiring circuits that could cause a fire
hazard from overheated.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding type cooler
extension cord having a grounding type plug and outlet and that the electrical rating of
the cord is 10 amperes (minimum) and 120 volts.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
If the cooler is going to be used in an area that is prone to power surges/outages, it is
suggested that you use a power surge protector. The surge protector that you select
must have a surge block high enough to protect the cooler it is connected to. Damages
due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
OPERATION INSTRUCTIONS
Controls
After plugging the cooler into a wall outlet, the cooler would turn on automatically and the LCD
screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing wine bottles in the cooler.
10

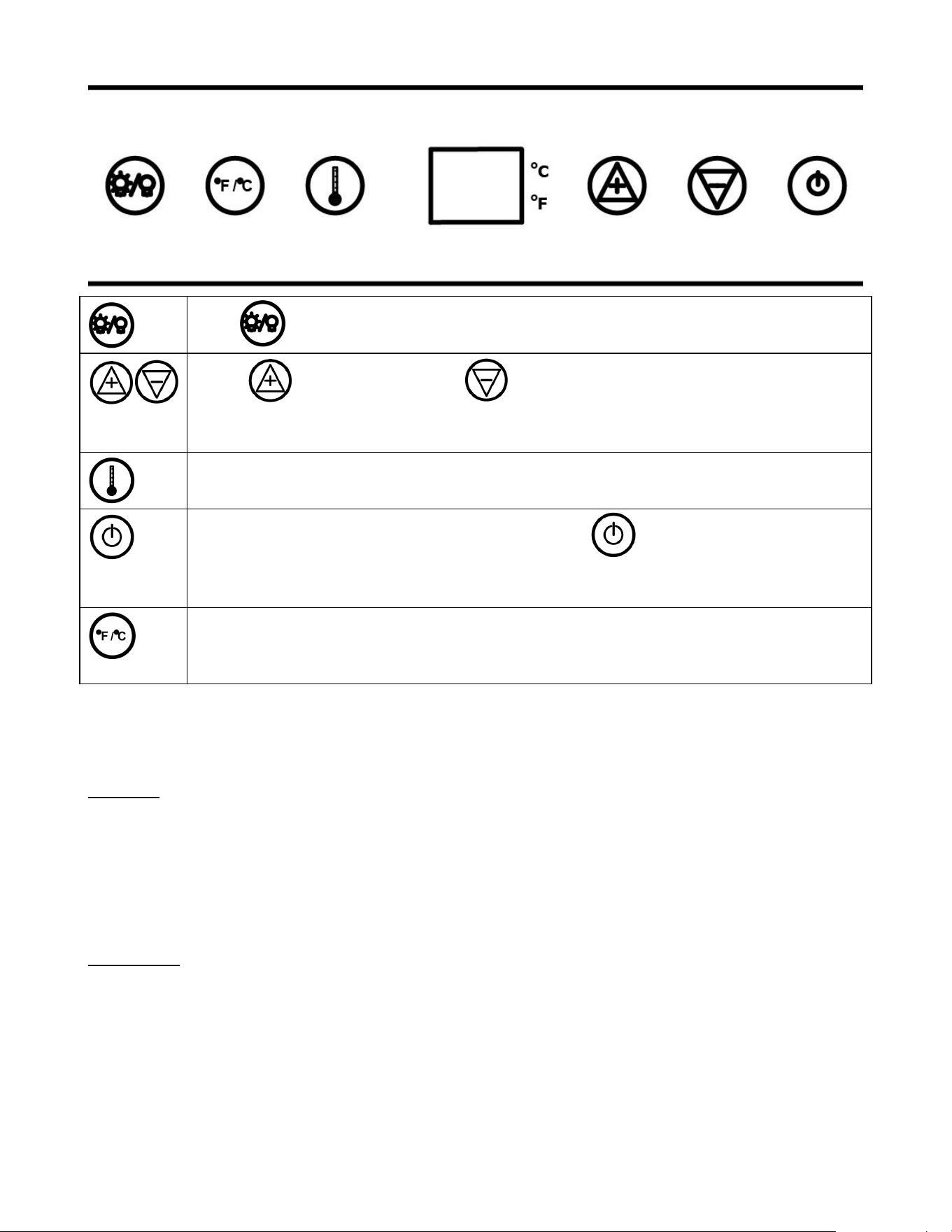

Press once to turn the interior light ON or OFF.
Press to increase or press to decrease the temperature in 1 degree
increments between 5°C and 18°C or between 40°F and 65°F.
Press to begin adjusting the temperature for upper or lower zone
Press once to turn ON the cooler. Press and hold about 3 seconds to turn OFF
the cooler.
Toggles the temperature display between Celsius and Fahrenheit.
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary..
Door Lock
This cooler can be secured with a lock and key. The keys are located inside the plastic bag that
contains the Instruction Manual. Insert the key into the lock and turn it clockwise to lock the
door, making sure the metal pin is engaged completely. To unlock the door, do the reverse.
Remove the key and put it in a secure location.
11
Wood Shelves
This wine cooler is equipped with a sliding rail assembly and you can move the wooden shelves
out and in smoothly.
The slide-out shelves allow bottles of wine to be viewed and removed more easily. Any of the
shelves can be removed to store larger bottles.
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment. For easy access to the bottles, you may need to pull
the shelves approximately 1/2 out of the rail compartment.
To Remove a Sliding Shelf
1. Remove all bottles from the shelf.
2. Pull the shelf out as far as it will go.

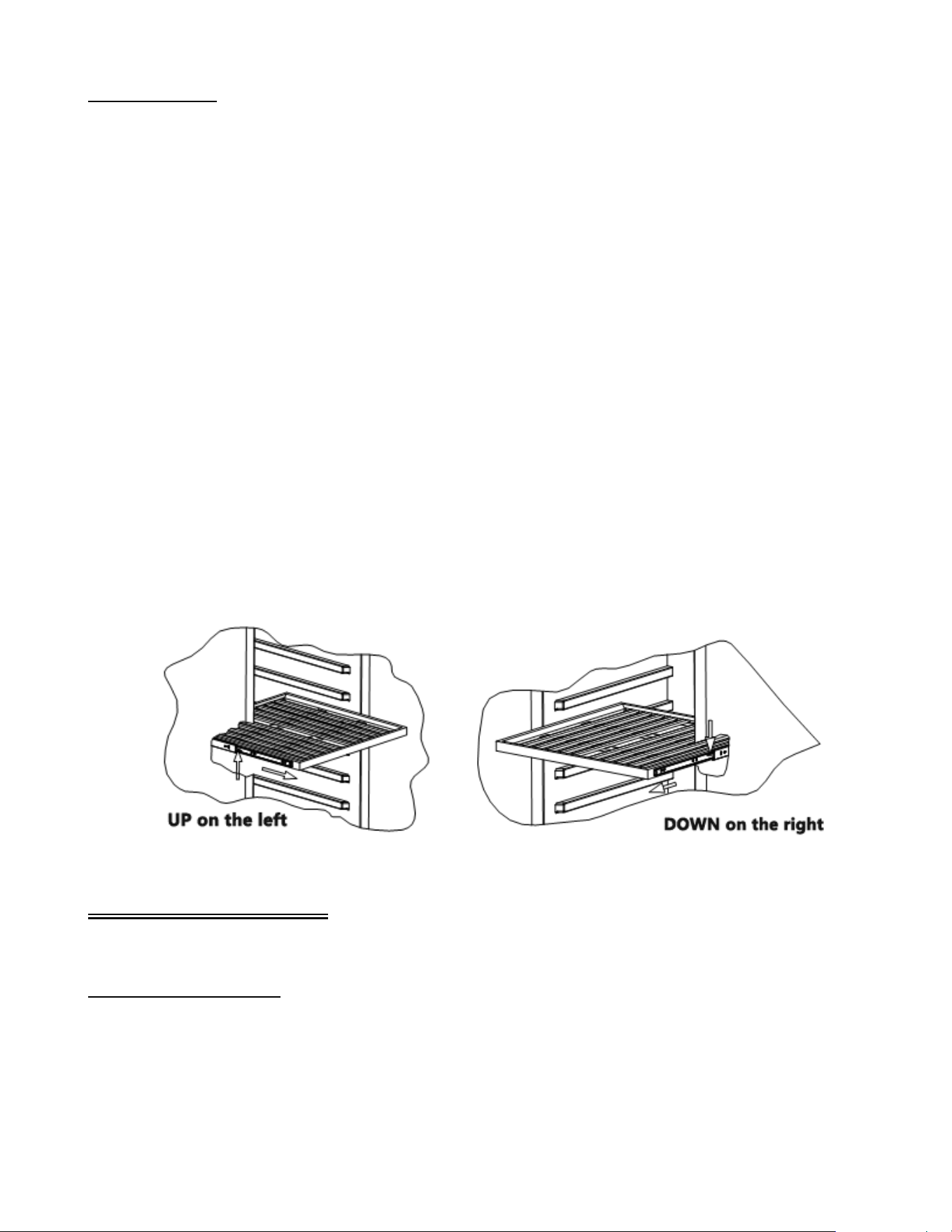

3. Adjust the lever on each side of the shelf, as shown below (UP on the left, DOWN on the
right) and at the same time, pull the shelf out completely.
CARE & MAINTENANCE
Cleaning Your Cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
12
Turn off the power, unplug the cooler, and remove all items including shelves.
Wash the inside surfaces with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the , which
will contaminate the with steel particles and rusting may occur.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your cooler. If the power is off for an extended period of time, proper steps should be taken to
protect your contents.
Vacation Time
Leave the cooler operating during vacations of less than three weeks. For periods longer than
this, turn the cooler off and leave the door slightly ajar to prevent odor from building inside the
cooler.
Moving Your Cooler
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the cooler stays securely in the upright position during transportation. Protect
the outside of the cooler with a blanket or a similar item.
13
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
Charcoal filtration system
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the
quality and taste of your fine wines, they must be stored at the ideal temperature and ambient
conditions. Your wine cooler is equipped with an active charcoal filtration system to ensure air
purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines.
To replace the filter
1
Remove the bottles of wine stored on the two (2)
shelves in front of the filter.
Turn Left to remove filter.
2
Remove the shelves and set aside to be replaced
once you have changed the filter
3
Hold the filter and turn it at 45 degrees in the
counter-clockwise direction and then pull it out.
4
Remove the existing filter and replace with a new
one.
5
Put the new filter into the hole and then turn the
filter at 45 degrees in clockwise direction.
14
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
SOLUTION
The cooler
does not run.
The cooler may not be plugged in,
or plug may be loose.
Ensure the cooler has been plugged
in properly.
The cooler is turned off.
Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The cooler is
not cold
enough.
External environment may require a
higher setting.
Set a colder setting. Allow several
hours for the temperature to stabilize.
The cooler has recently been
disconnected for a period of time.
It takes 3-4 hours for the cooler to
cool down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not closed completely.
Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter
than normal.
It’s normal for the cooler to work
harder under these conditions.
A large amount of contents has
been added to the cooler.
A large amount of contents cause the
cooler to run more until the desired
temperature is reached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed completely.
Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
15
PROBLEM
POSSIBLE CAUSE
SOLUTION
The light does not
work.
Not plugged in.
Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is
“
OFF
”
.
Press to turn the light ON.
Vibrations.
The cooler is not leveled.
Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don
’
t touch each
others.
There is an object under
the cooler.
Remove the object under the cooler.
The cooler seems
to make too much
noise.
The cooler is not level.
Level the cooler.
Normal noise from the
flow of the refrigerant
The rattling noise may come from the
flow of the refrigerant, which is normal.
As each cycle ends, you may hear
gurgling sounds caused by the flow of
refrigerant in your cooler. Contraction
and expansion of the inside walls may
cause popping and crackling noises.
The door will not
close properly.
The cooler is not level.
Level the cooler.
The door was reversed and
not properly installed.
Re-install the door properly.
The gasket is dirty.
Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up
on interior or
exterior of the
cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and
avoid heat and sunlight.
Prolonged or frequent
door openings.
Open the door less often.
The door does not seal
completely.
Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has failed.
Contact the customer service
Model:CB100A
Company：Creative Innovation INC，
Address：3001 WOODRIDGE AVE, EDISON,
NJ 08837-3461 992
Made in China
