3.6V RECHARGEABLE
CORDLESS BIT DRIVER
1. PRODUCT FEATURES
• Designed to remove and install light parts such as headlights, trim
and others, by quickly driving fasteners in and out.
• LED spotlight turns on during operation to illuminate working area.
• Quick-release bit holder.
•
Designed to automatically stop and lock upon reaching 1.5 lb.ft. (2 N.m)
of torque, allowing user to safely continue turning by hand.
• Field serviceable.

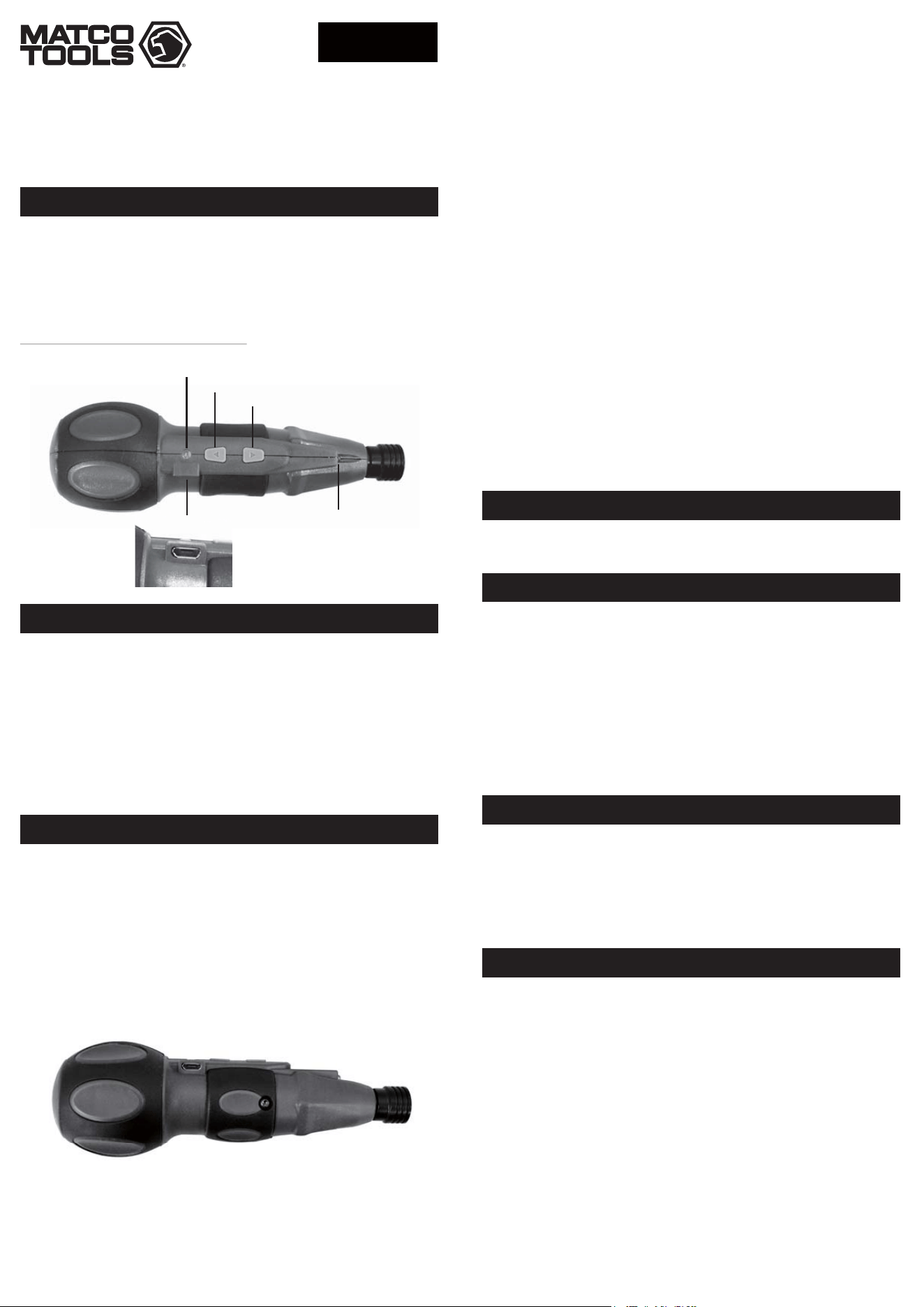

Parts function and description:
CHARGING INDICATOR
REVERSE SWITCH
FORWARD SWITCH
CHARGING PORT
LED SPOTLIGHT
2. TECHNICAL SPECIFICATIONS
3. WARRANTY POLICY
4. BEFORE USING THIS PRODUCT
5. OPERATION
6. CHARGING
7. WARNINGS AND TIPS
• Drive size: 1/4" hex.
•
Battery: 3.6V 900 mAh Li-ion battery, rechargeable up to approx. 500 times.
• Electric motor maximum torque: 1.5 lb.ft. (2 N.m)
• Manual maximum torque: 7.5 lb.ft. (10 N.m)
• Free speed: 280 RPM
• Battery life (continuous operation): 40 minutes after full charge
• Full charge time: 60 minutes
• Charging port type: Micro USB
• Charger input: 100-240V – 50/60 Hz 0.2A
• Charger output: 5.0VDC – 1000 mA 5W
■ Product Warranty
■ Serial Number
This product is covered by a 1-year warranty against defects in material
and/or workmanship. The warranty does not cover items that have been
abused, misused, modified, not given proper maintenance and worn
out from normal use.
Product serial number is located on the side of the housing.
Please consult with your local dealer for warranty claims.
■ Warranty Limitations
During the warranty period, if there is any defect or deficiency related
to the product’s material or manufacturing process which affects its
operation (this excludes external damage and human factor), repair
parts and services will be provided (field serviceable).
■ Warranty Exclusions
Conditions are listed below:
• Driver has been over torqued and damaged due to usage as a
conventional screwdriver, added leverage, removal of rusted and/or
jammed fasteners, etc.
•
Product has not been purchased from authorized distribution channels
and/or proof of purchase cannot be provided.
• Product’s serial number has been tampered with or is unclear.
• Customer did not comply with the user’s guide resulting in damages
due to improper use. In addition, any damages caused by natural
disasters (such as floods, fires, earthquakes, hurricanes, lightning, etc.),
external factors (liquid filtration, insect or animal damage, etc.) or
human factors (surface scratching, dropping, hitting, etc.)
• Surface scratching and abrading of any parts of the product are
regarded as normal wear during normal use and therefore
considered non-warranty.
• Damages due to modifications or alterations done to the product
without authorization, or from abnormality of other equipment.
• Damages during product transportation.
• User attempts to disassemble the device.
• Plastic charging port cap is missing.
If any of the following conditions apply, the product’s warranty will be
voided. These non-normal conditions will require that the customer
pays for required repair parts and associated costs determined by the
local dealer.
Acceptable product warranty conditions are as follow:
• Product does not power on / operate.
• Buttons cannot be operated.
• Product’s rotational speed is too low.
• Product does not charge.
• Fully charge battery for 60 minutes.
• This product has been designed to be utilized only as a bit driver for
low torque applications (max. manual torque: 7.5 lb.ft.). It must not
be used to break loose rusted and/or jammed fasteners or for any kind
of high torque applications.
• Place bit in driver and slide holder sleeve outwards to secure bit in
place. To switch bit, slide the sleeve outwards and pull bit out.
• Driving fasteners out: With fastener previously loosened, press and
hold the reverse button to drive the fastener out.
• Driving fasteners in: Place fastener in position, then press and hold
forward button to drive fastener in. Drive fastener in until driver
automatically stops, then turn driver by hand to lightly tighten fastener.
If more torque is needed, continue with any other hand tool of your choice.
• Let driver cool after use, before charging.
• Plug charger to wall outlet and plug micro USB connector in driver’s
micro USB port, LED charging indicator will light solid red.
• When fully charged, LED charging indicator will turn solid green.
• Do not charge this product with a charger of different specifications.
(Please refer to section 2. Technical specifications)
• Do not use any additional tools to add leverage.
• Exceeding the product’s maximum torque specification will
result in damages.
• Do not strike the product with a hammer or similar tools.
• Do not use any organic solvents to clean the product
(alcohol, paint thinner, etc.)
• Avoid contact with water.
• Do not expose the product to high temperatures or high humidity
environments.
• Avoid dropping the product.
• Please read guide carefully and follow all instructions before using
this product.
MCL36S
Rev.032020
Made in Taiwan
to Matco specifications
2005068-27
MCL36S
4AW240001
