PV COMBINER BOX
Model: SP-HL-P202010-10A
SP-HL-P202010-15A
SP-HL-P281913-15A
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
Model:SP-HL-P202010-10A \SP-HL-P202010-15A \SP-HL-P281913-15A
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
PV COMBINER BOX
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:(1)This device may
not cause harmful interference, and (2)this device must accept
any interference received, including interference that may
cause undesired operation.
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed
through indicates that the product requires separate refuse
collection in the European Union. This applies to the product
and all accessories marked with this symbol. Products marked
as such may not be discarded with normal domestic waste, but
must be taken to a collection point for recycling electrical and
electronic devices
Identification and Description
In order to better use product,please read the following instructions symbol：
WARNING!
This symbol identification for informal operation might
be in the safety of users dangerous or may cause
significant hardware damage.
Installation before use, please read this manual.
WARNING!
All the operation and line connection ask professional
personage to operation.
- 3 -
WARNING!
Please pay attention to personal and equipment safety.
WARNING!
Please note that photovoltaic array input of positive
and negative polarity and the total output of the positive
and negative polarity.
WARNING!
Installation or connection pv modules,please note pv
modules high voltage,avoid produce shock hazard.
WARNING!
Ensure that the connection of fastening,for the user to
use improper or cable wiring the loss caused by
unstable, vevor company does not undertake any
responsibility.
Product Introduction
Photovoltaic power generation system,in order to reduce the photovoltaic
module and inverter between the connecting cables,convenient
maintenance, reduce the loss and improve the safety and reliability of the
product, generally require in the photovoltaic module and inverter added
between confluence device.
Photovoltaic junction box besides having the function of pv bus outside,
and at the same time, should also have a current counter-attack, over
current protection, over-voltage protection, lightning protection and a series
of perfect protection function.
This company produces the photovoltaic junction box with the above
various functional requirements, and photovoltaic (PV) grid, from network
type inverter supporting the use can form a complete set of photovoltaic
power generation system solutions.
- 4 -

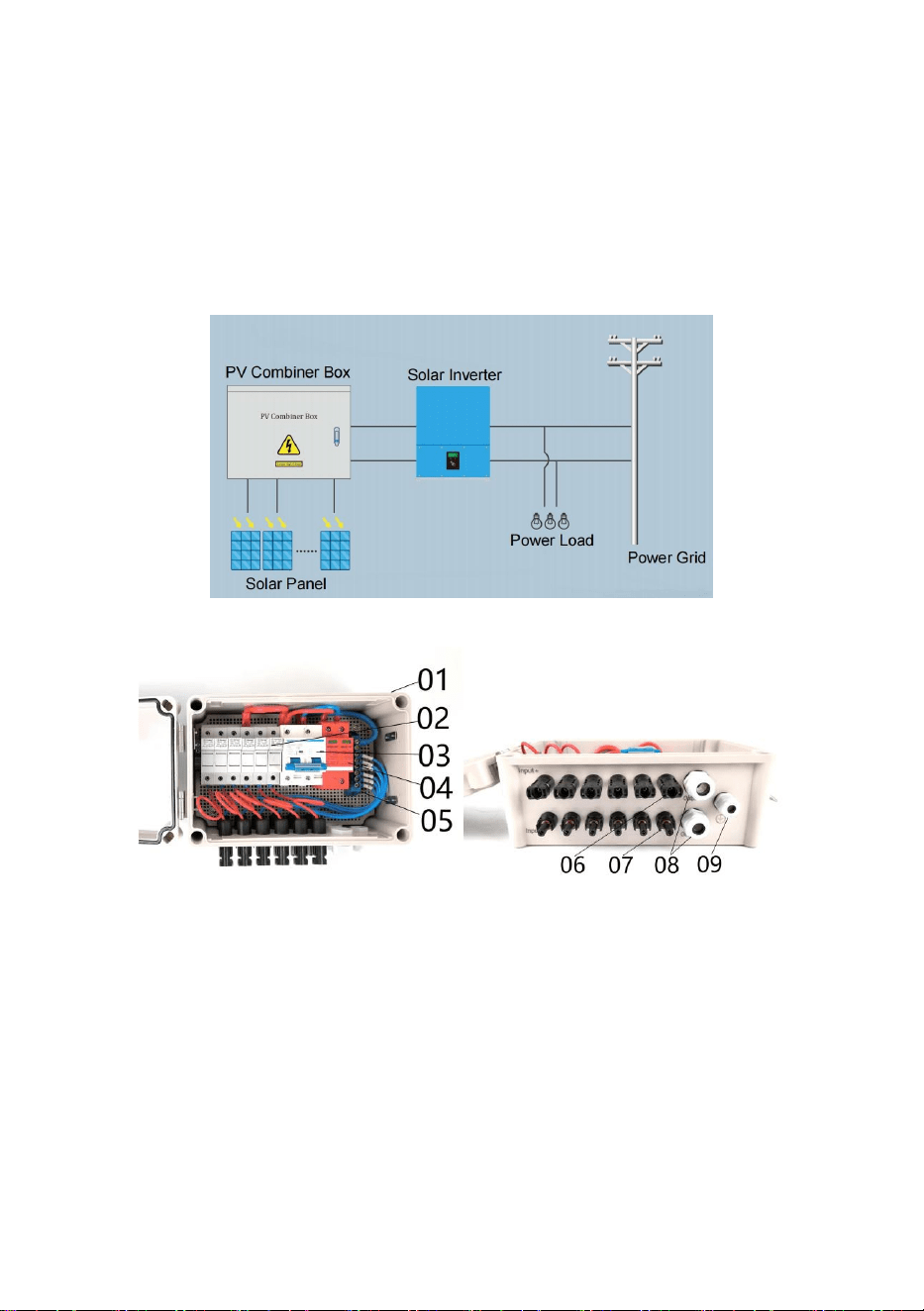

Select photovoltaic junction box, the user can according to the back end
inverter input voltage range, output power size, a certain number of
specifications of the same pv module series, parallel composition pv
module series coordinate access photovoltaic junction box (see Figure1)
bus, and then after circuit breaker control and lightning protection device
protection after output for level inverter use.
Figure 2 showed related parts and its specification.
Figure 1
Figure 2
01---Waterproof Plastic Box
02---4pcs/6pcs DC500V Fuse holder with 10/15A fuse
03---63A/125A 2P DC500V MCB
04---SU6-40KA 2P DC500V SPD
05---Neutral Bar
06---4pcs/6pcs Solar Female Connector
07---4pcs/6pcs Solar Male Connector
08---2pcs Output PG16 Cable Gland
09---Earthing PG9 Cable Gland
- 5 -

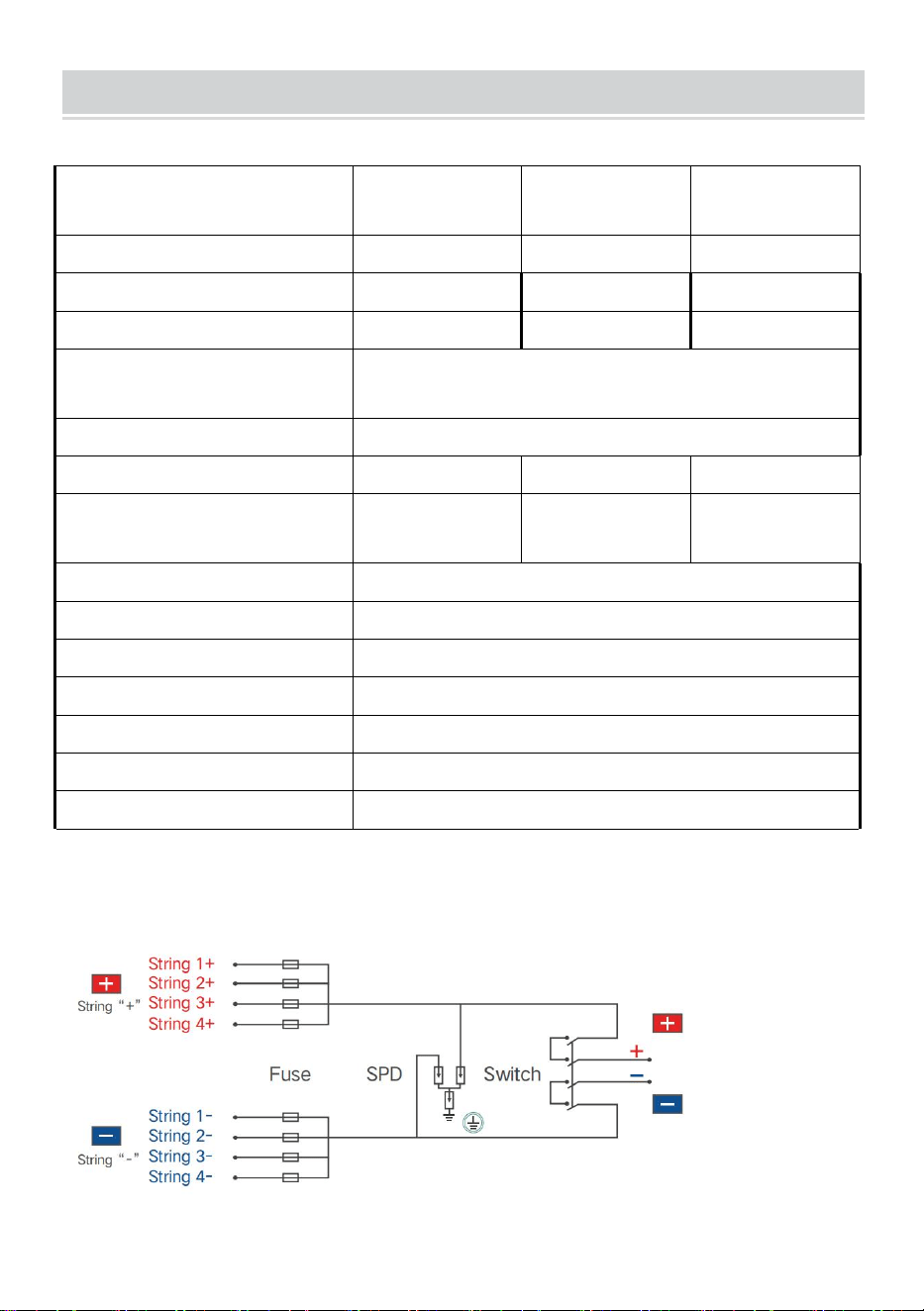

Production Specification
Model
SP-HL-P20201
0-10A
SP-HL-P20201
0-15A
SP-HL-P28191
3-15A
PV array input numbers
4
4
6
Max single PV array current
10A
15A
15A
Single PV array fuse
10A
15A
15A
Single PV array wire size
2.5mm
2
Output numbers
1
Max output current
40A
60A
90A
Output wire size
10mm
2
10mm
2
16mm
2
Max output voltage
500VDC
DC output circuit breaker
yes
Protection level
IP66
Temperature range
-30℃ ~ +60℃
Cooling way
Natural cooling
SPD protection
yes
Ground wire size
≥2.5mm²
SP-HL-P202010-10A and SP-HL-P202010-10A 4 input 1 output PV
combiner box wiring diagram as follows:
- 6 -

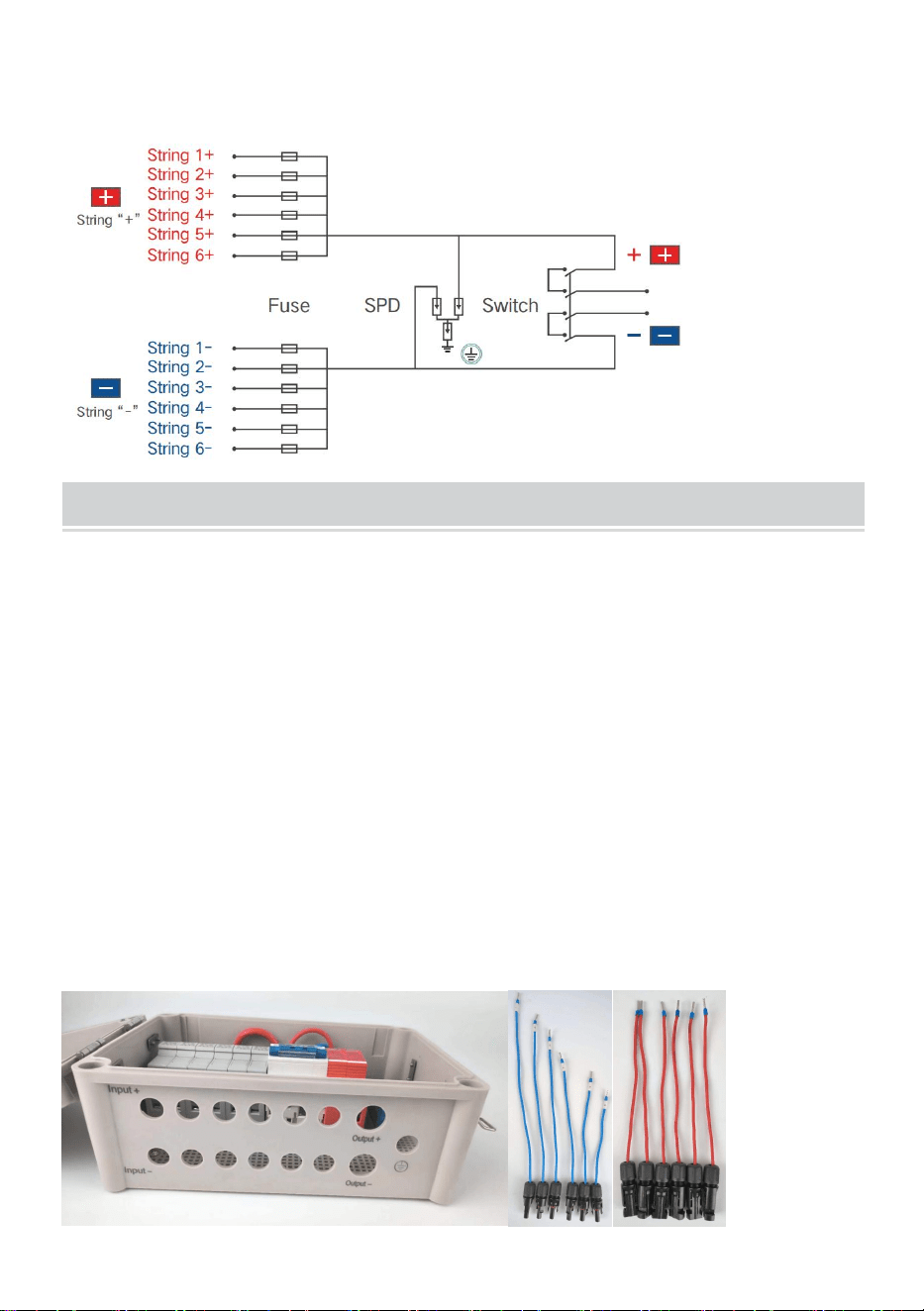

SP-HL-P281913-15A 6 input 1 output PV combiner box wiring diagram as
follows:
PV Combiner Box Assembly Process

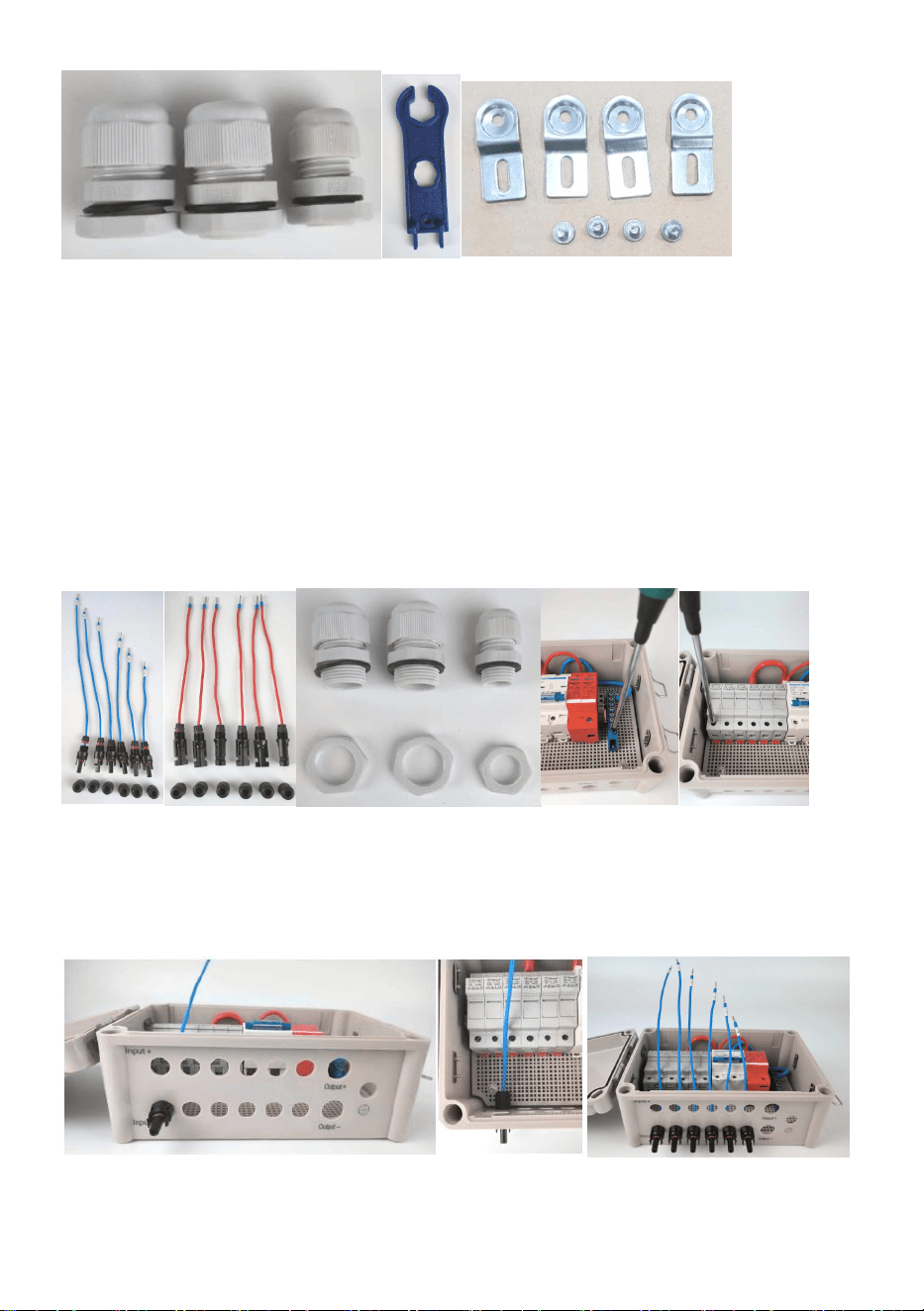

1. Accessories list:
(1) half-finished PV combiner box---1pcs;
(2) Input- MC4 male connector with cable----4pcs(for 4ways PV combiner
box)/6pcs(for 6ways PV combiner box);Tips:each cable is different
length,there have number label on each cable,notice to distinguish.
(3) Input+ MC4 female connector with cable----4pcs(for 4ways PV
combiner box)/6pcs(for 6ways PV combiner box);Tips:each cable keep
same length.
(4) Output+ PG13.5 cable gland--1pcs;
(5) Output- PG13.5 cable gland--1pcs;
(6) Earthing PG9 cable gland--1pcs;
(7) MC4 tool---1pcs;
(8) Wall mounting brackets bag---1set;
- 7 -
2. Preparatory work
(1) Loose Input- MC4 female connector’s mounting nut;
(2) Loose Input+ MC4 female connector’s mounting nut;
(3) Loose 3pcs cable glands’ mounting nut;
(4) Loose terminal block’s input terminals,make sure the following wiring
process easy to fix;
(5) Loose fuse holders’ input fix screws,make sure the following wiring
process easy to fix;

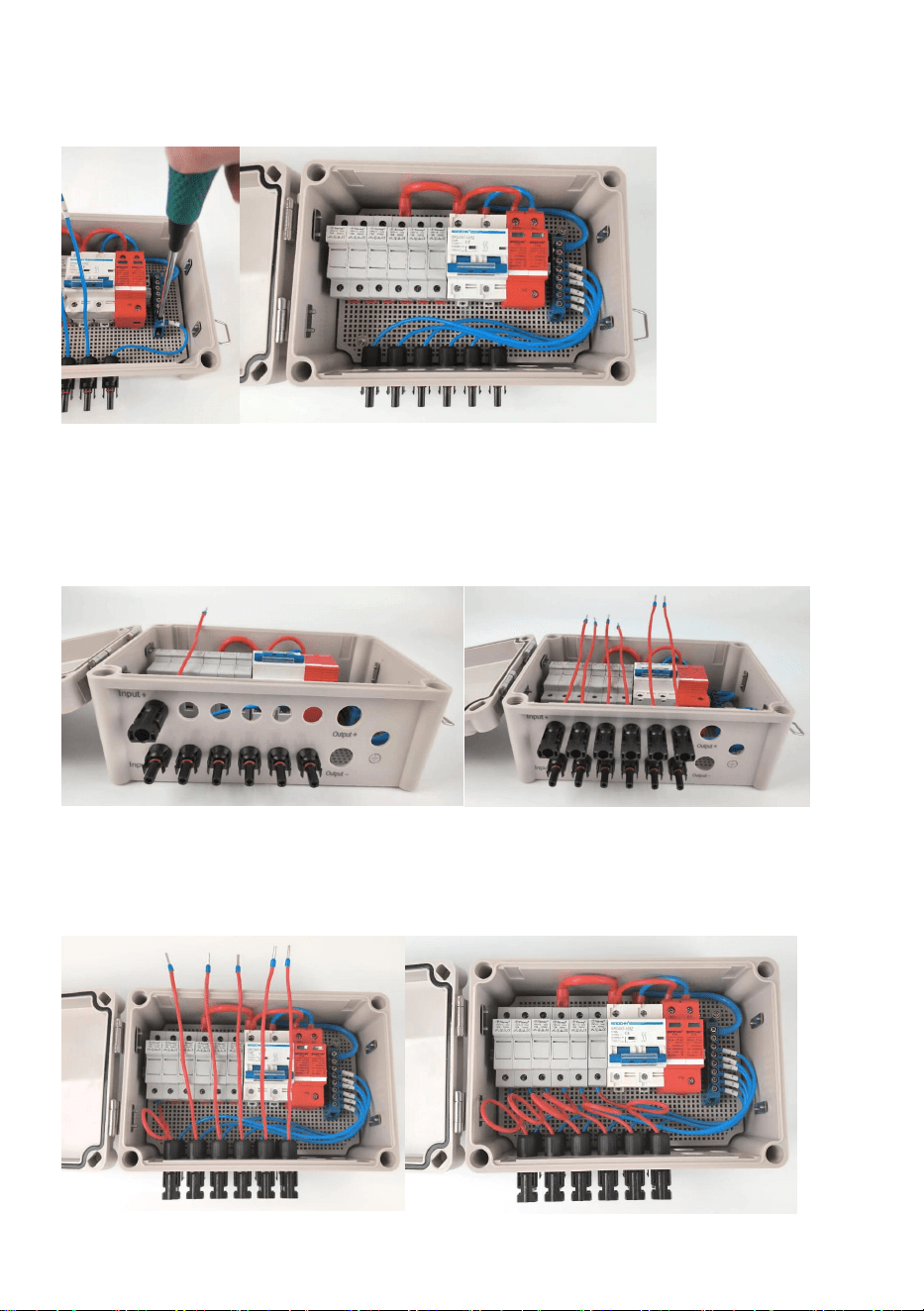

3. Wiring Input- MC4 male connector with cable
(1) Mounting No.1 cable on the picture 8 showed position,fix with nut;
(2) Mounting the rest of cables on the picture 9 showed position,fix with
nut.the cable number from left to right shall is No.1-No.6;
(3) Wiring No.6 cable with terminal block’s position No.1;
- 8 -
(4) Wiring the rest of cables as (3)process step by step,the finial status as
follows picture showed.
4. Wiring Input+ MC4 female connector with cable
(1) Mounting No.1 cable on the picture 12 showed position,fix with nut;
(2) Mounting the rest of cables on the picture 13 showed position,fix with
nut.
(3) Wiring No.1 cable with No.1 fuse holder,fix the fuse holder screw;
(4) Wiring the rest of cables as (3)process step by step,the finial status as
follows picture showed.
- 9 -

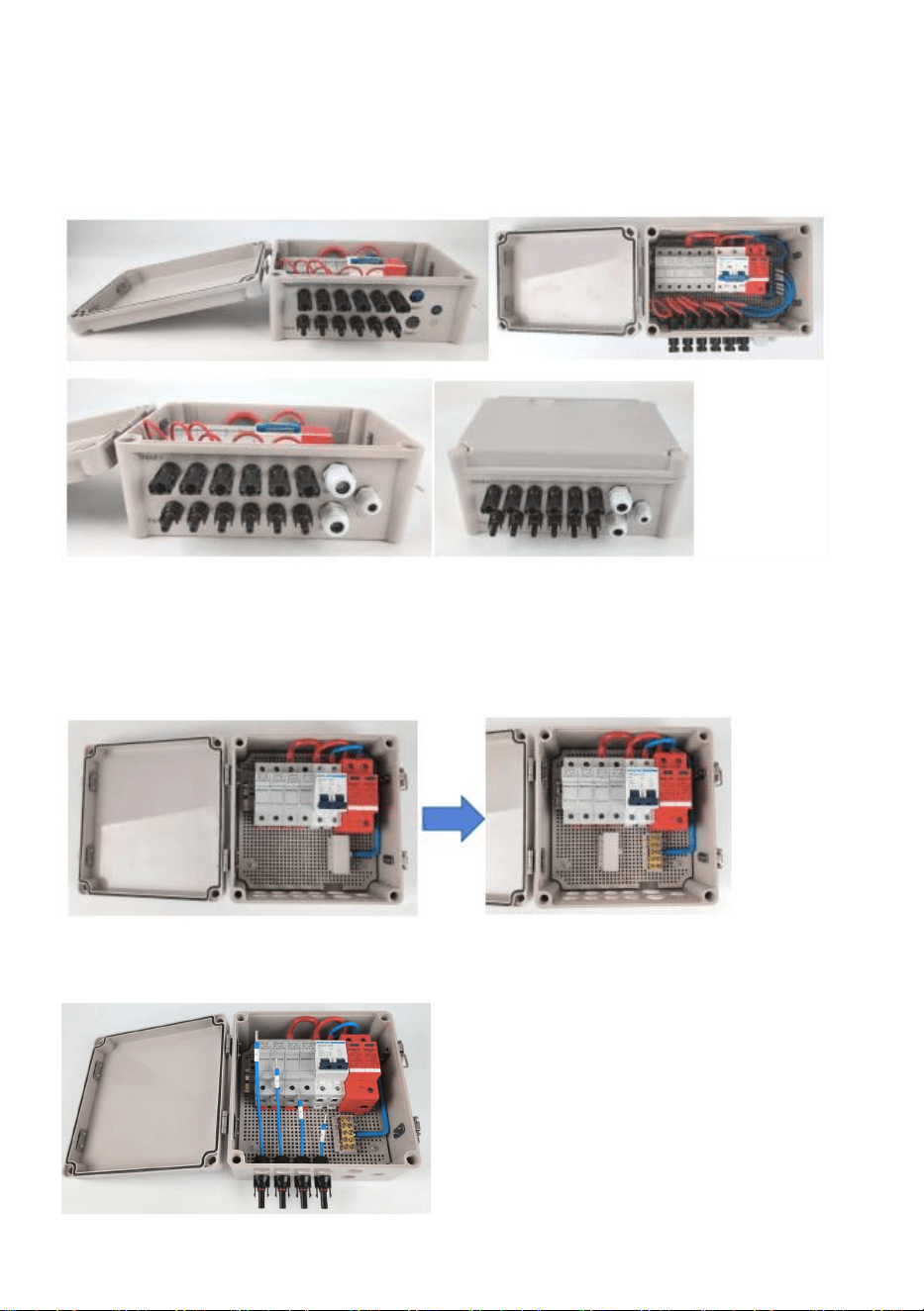

5. Mounting output cable glands and earthing cable gland.
(1) Mounting 2pcs PG13.5 cable glands on marked 2 positions;
(2) Mounting 1pcs PG9 cable gland on marked position,the finial status as
follows picture showed

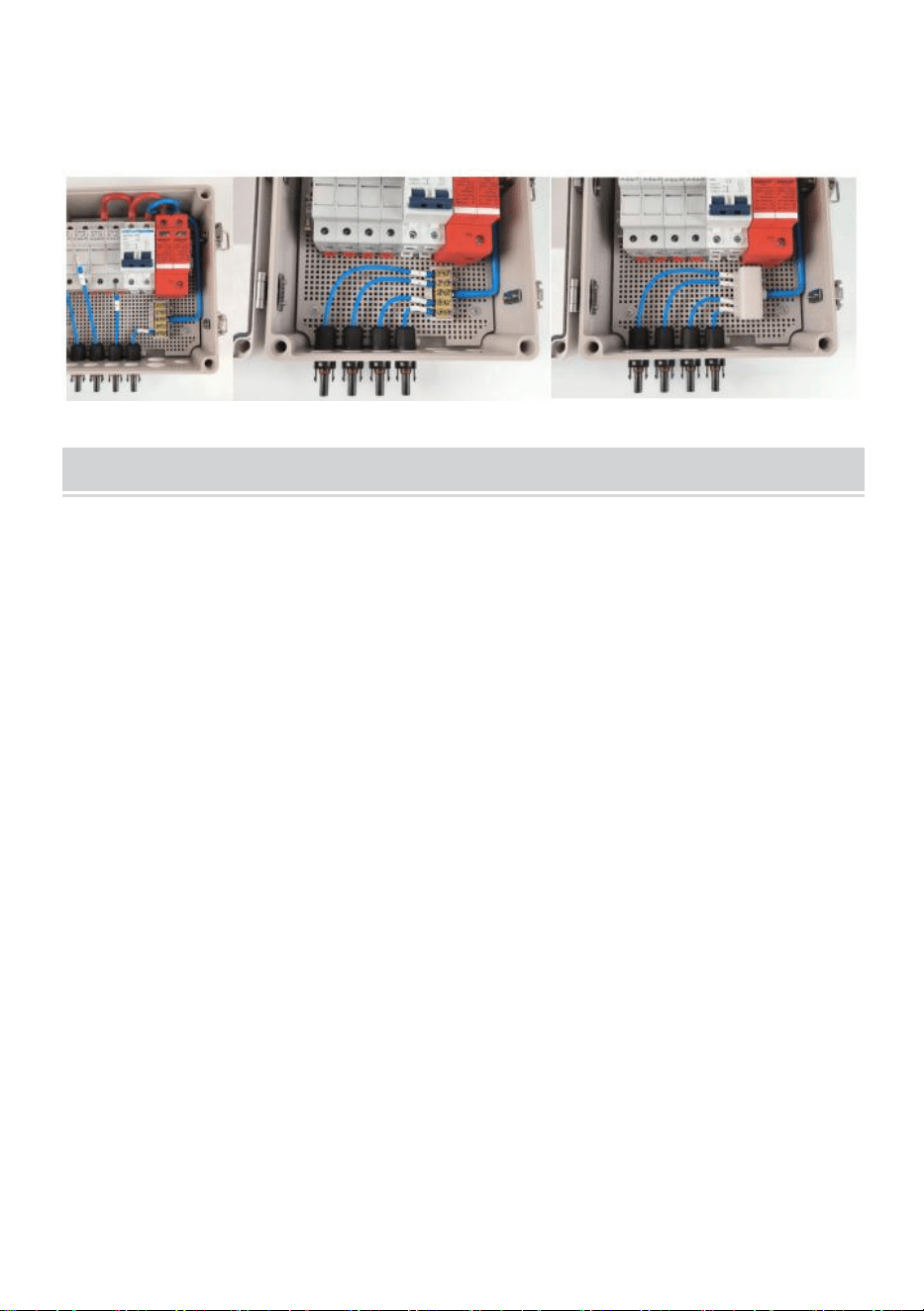

Tips:for 4ways PV combiner box,here have some different steps on wiring
Input- MC4 male connector with cable compare with 6ways PV combiner
box.the rest of process keep same.
(1) Open terminal block’s cover as follows:
(2)Mounting 4pcs Input- MC4 male connector with cable and fix with nut as
same as the above process;
- 10 -
(3) Wiring No.4 cable with terminal block’s position No.1;
(4) Wiring the rest of cables as (3)process step by step,close the terminal
block cover,the finial status as follows showed.
Installation & Use
Installation: Adopts matched screws fix 4 mounting buckles on box back
side’s 4 holes.Users can select correct position mount the combiner box on
the wall or panel.
Fast connection
(1) In order to improve the connection of rapidity and convenience, use key
to open the door of combiner box ,the photovoltaic array input wire
connected to the corresponding terminal,pay attention to the photovoltaic
array input line of the positive and negative polarity connection.
(2) The combiner is a independent one sets of photovoltaic array
input/output design,through reasonable photovoltaic array input
connection, output power will be one way, to match the one way
independent input controller is used.
(3) When users connection system, please make sure that all the lines and
equipment is reliable.
Over-current protection
When the pv module input current is too large, the fuse will break for
protection; In addition, miniature circuit breaker also can prevent the
system from current is too large, have over-current protection function.
- 11 -
WARNING!
It is strictly prohibited to work in touch fuse,
inspection or replacement is required before the
fuse will dc circuit breaker off; Must be replaced with
the original model of the same magnitude fuse.
Over-voltage protection
When the pv module input voltage is high, the miniature circuit breaker
will automatically disconnect,have overvoltage protection function.
Appendix
Quality assurance
This product quality assurance period 1 year, otherwise stipulated in the
contract period of the contract shall prevail.
Evidence
Products in the quality assurance period requirecustomers to buy the
products show the invoice and date. At the same time the product of the
trademark shall be clearly visible, or shall have the right to not be quality
assurance.
The following situation, this company has the right to not to quality
assurance:
1.Man-made damage to the equipment
2.Wrong installation and use
3.When using the maximum limit parameters beyond equipment
requirements;
4.Abnormal natural environment damage caused;
5.Beyond that in this manual are very bad environment operation;
6.Beyond the relevant international standards specified in the installation
and use of range.
