EN
Operating and installation instructions X Pure
umim-xpure-01-en
www.bora.com
2 bora.com
Contents
1 General information 4
1.1 Validity..............................................................4
1.2 Liability.............................................................4
1.3 Product conformity..........................................4
1.4 Presentation of information ............................4
2 Safety 5
2.1 Intended use .................................................... 5
2.2 People with limited abilities ............................5
2.3 General safety instructions .............................6
2.4 Safety information for installation .................. 8
2.4.1 Safety instructions – cooktop extractor
installation...................................................... 10
2.4.2 Safety information for cooktop installation..... 10
2.5 Safety instructions – operation ....................11
2.5.1 Safety instructions – cooktop extractor
operation ........................................................ 13
2.5.2 Safety instructions – cooktop operation......... 14
2.6 Safety instructions – cleaning and
maintenance ..................................................15
2.6.1 Safety instructions – cleaning and maintenance
of cooktop extractors ..................................... 16
2.6.2 Safety instructions – cleaning and maintenance
of cooktops .................................................... 16
2.7 Safety instructions – repairs, servicing and
spare parts .....................................................17
2.8 Safety instructions – disassembly and
disposal ..........................................................17
3 Technical data 19

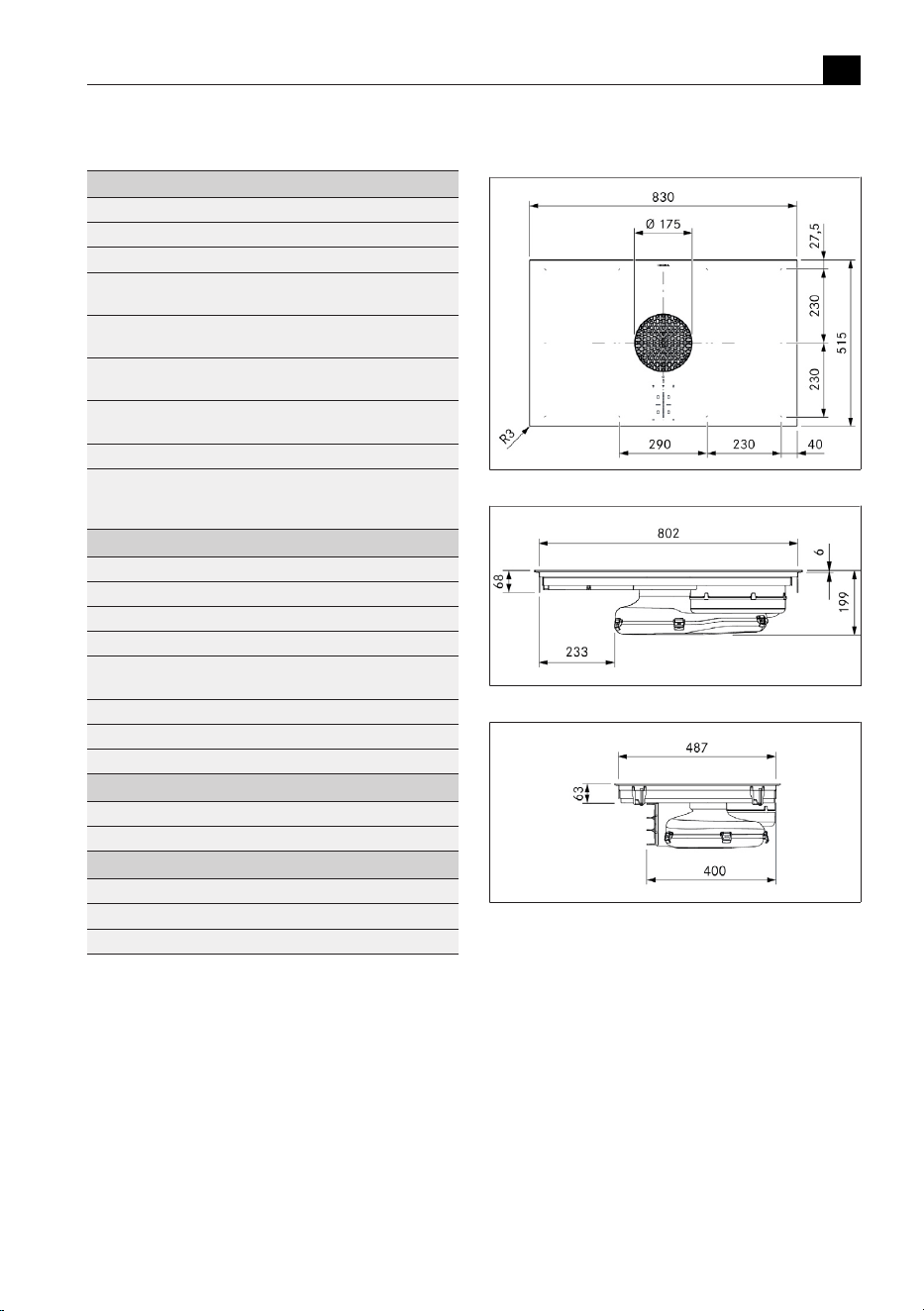

3.1 PUXA2/R appliance dimensions ...................19

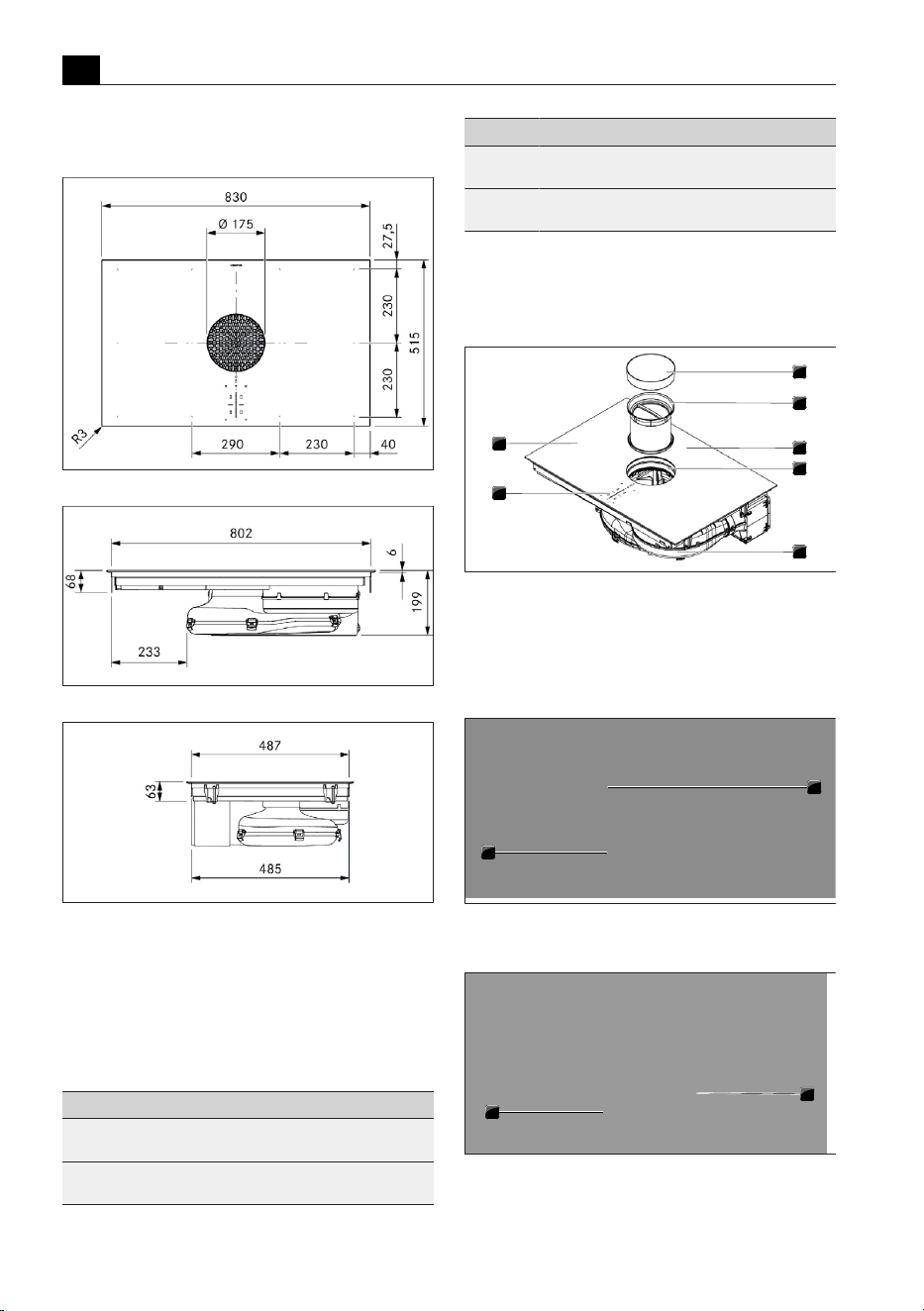

3.2 PUXU2/R appliance dimensions...................20
4 Appliance description 20
4.1 Model description ..........................................20
4.2 System description .......................................20
4.2.1 Structure ........................................................ 20

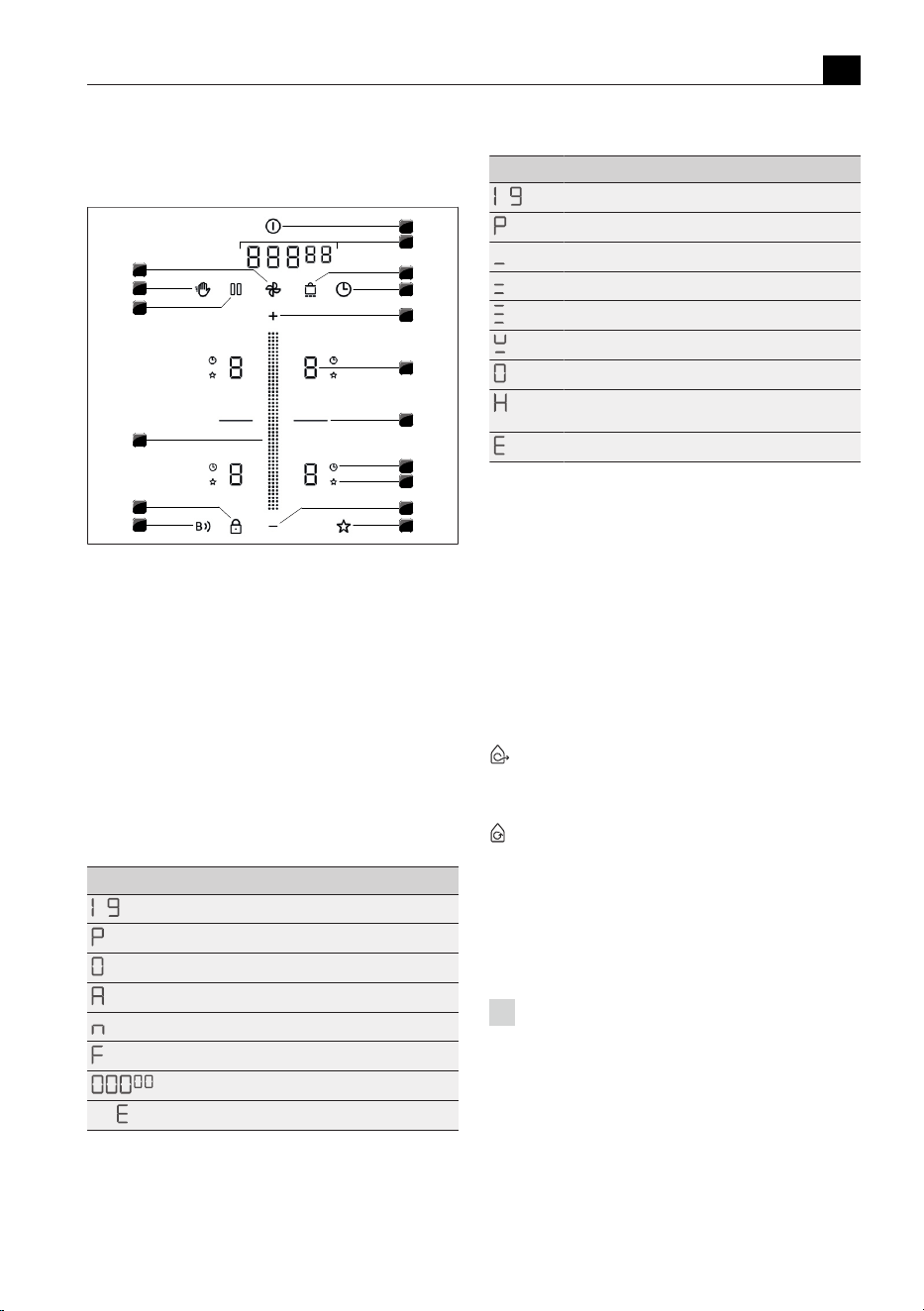

4.2.2 Operating panel .............................................. 21
4.2.3 7-segment display .......................................... 21
4.2.4 Lighting........................................................... 21
4.3 How the cooktop extractor works ................21
4.4 How the induction cooktop works................22
5 Functions and operation 22
5.1 General operating instructions .....................22
5.2 Touch control .................................................22
5.3 Operating the system ....................................22
5.3.1 Switch on/off ................................................. 22
5.3.2 Short-time timer ............................................. 23
5.3.3 Recovery function........................................... 23
5.4 Cooktop extractor functions .........................23
5.4.1 Fan power levels............................................. 23
5.4.2 Fan power setting........................................... 23
5.4.3 Automatic extractor function ......................... 23
5.4.4 Switching the fan off ...................................... 24
5.4.5 Automatic after-run........................................ 24
5.4.6 Filter service display ...................................... 24
5.5 Cooktop functions ......................................... 24
5.5.1 Pan size recognition ....................................... 24
5.5.2 Selecting a cooking zone ............................... 24
5.5.3 Setting cooking zone power levels ................. 24
5.5.4 Cooking zone power setting........................... 24
5.5.5 Cooking zone timer ........................................ 25
5.5.6 Pause function ............................................... 25
5.5.7 Variable heat retention function..................... 25
5.5.8 Bridging function............................................ 26
5.5.9 Automatic bridging function........................... 26
5.5.10 Switching off the cooking zone ...................... 26
5.6 Safety features .............................................. 26
5.6.1 Child lock ....................................................... 26
5.6.2 Cleaning lock ................................................. 26
5.6.3 Residual heat indicator................................... 26
5.6.4 Safety shut-down ........................................... 27
5.6.5 Overheating protection .................................. 27
6 Connect 27
6.1 Installing the app........................................... 27
6.2 Account.......................................................... 27
6.3 Pairing ............................................................ 27
6.4 BORAJOYapp ................................................ 27
7 BORA Assist 28
7.1 Cookware....................................................... 28
7.2 BORA Assist ................................................... 28
7.2.1 Allocating Assists using the BORA JOY app .... 28
7.3 Activating BORA Assist ................................. 28
7.3.1 Adjusting the cooking programme ................. 28
7.3.2 Fry – accurate frying to the last degree.......... 28
7.3.3 Boil – for boiling water ................................... 28
7.3.4 Adjusting the cooking zone timer................... 29
7.4 Starting BORA Assist using the BORA JOY app
........................................................................ 29
7.5 Switching BORA Assist off early ................... 29
7.6 Completion of a BORA Assist........................ 29
7.6.1 Extending the time ......................................... 29

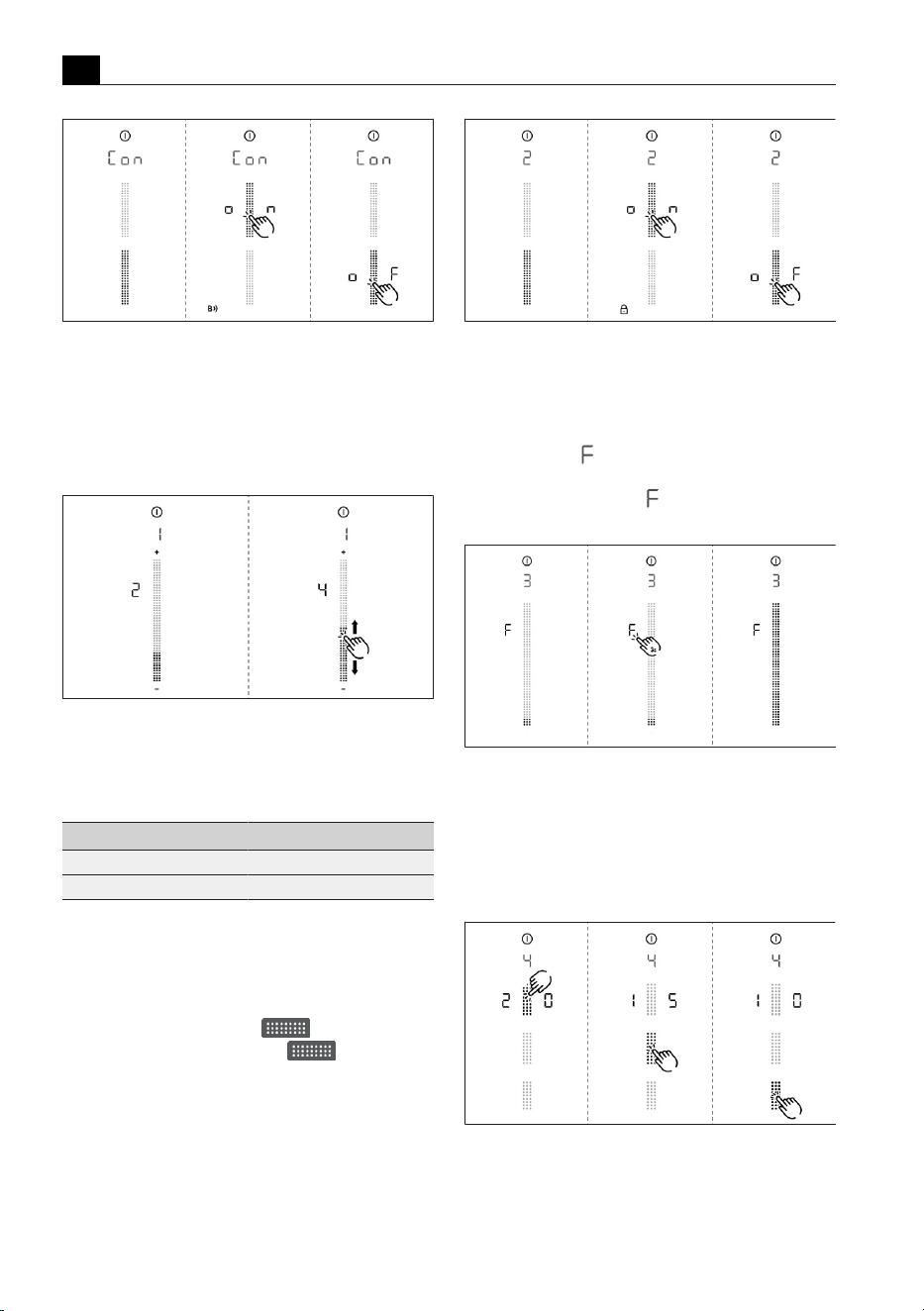

8 User menu 29
8.1 Menu item Con: connectivity ........................ 29
8.2
Menu item 1: volume of the acoustic signals .. 30
8.2.1 Sounds........................................................... 30
8.3 Menu item 2: Child lock ................................ 30
8.4 Menu item 3: Show filter status and reset
filter service display ...................................... 30
8.5 Menu item 4: Duration of the automatic after-
run function ................................................... 30
bora.com 3
8.6 Menu item 5: Touch zone reaction speed.....31
8.7 Menu item 6: LED test ...................................31
8.8 Menu item 7: Permanent pan size recognition
........................................................................31
8.9 Menu item 8: Show software/hardware
version............................................................31
8.10 Menu item 9: Safety shut-down ....................31
8.11 Menu item 0: Reset to factory settings ........32
9 Cleaning and maintenance 32
9.1 Cleaning agents .............................................32
9.2 Maintenance ..................................................32
9.3 Cleaning the cooktop.....................................32
9.4 Cleaning the cooktop extractor ....................32
9.4.1 Cleaning the air inlet nozzle and stainless steel
grease filter .................................................... 33
9.4.2 Removing liquids from the appliance.............. 33
9.5 Cleaning the air guiding housing...................33

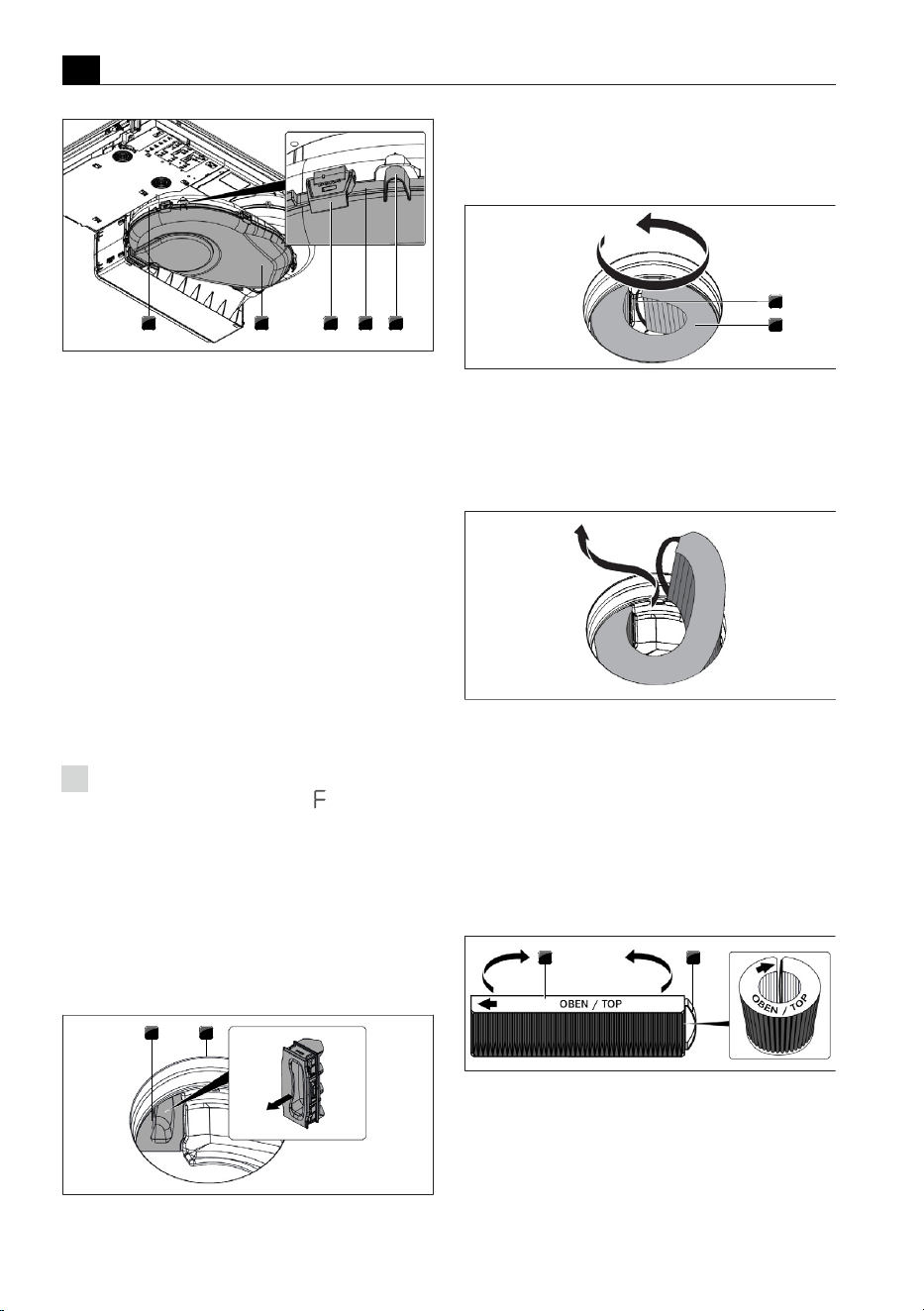

9.6 Replace the activated charcoal filter ............34
10 Troubleshooting 36
11 Installation 37
11.1 General installation instructions...................37
11.1.1 Simultaneous operation of the cooktop
extractor in the exhaust air mode with a
fireplace dependent upon the air supply in the
room............................................................... 37
11.2 Scope of delivery ...........................................37
11.3 Tools and aids ................................................38
11.4 Assembly instructions ...................................38
11.4.1 Installation clearances.................................... 38
11.4.2 Minimum unit dimensions for X Pure.............. 38
11.4.3 Information on kitchen units........................... 38
11.5 Worktop cut-out.............................................38
11.5.1 Cut-out dimensions ........................................ 38
11.6 Preparing kitchen units for exhaust air models
........................................................................39
11.6.1 Adapting kitchen units.................................... 39
11.6.2 Installation dimensions................................... 39
11.7 Preparing kitchen units for recirculation
models............................................................40
11.7.1 Recirculation of air from the kitchen unit ....... 40
11.7.2 Installation variants A and B for recirculation
appliances ...................................................... 40
11.7.3 Preparing the kitchen unit for installation variant
A..................................................................... 40
11.7.4 Installation dimensions for installation variant A
....................................................................... 41
11.7.5 Extending the telescopic pull-out of the air
purification box............................................... 41
11.7.6 Preparing the kitchen unit for installation variant
B..................................................................... 41
11.7.7 Installation dimensions for installation variant B
....................................................................... 42
11.8 Preparing the appliance ................................ 42
11.9 Installing the cooktop ................................... 42
11.9.1 Inserting the cooktop ..................................... 42
11.9.2 Securing the cooktop..................................... 43
11.9.3 Connecting the exhaust air duct .................... 43

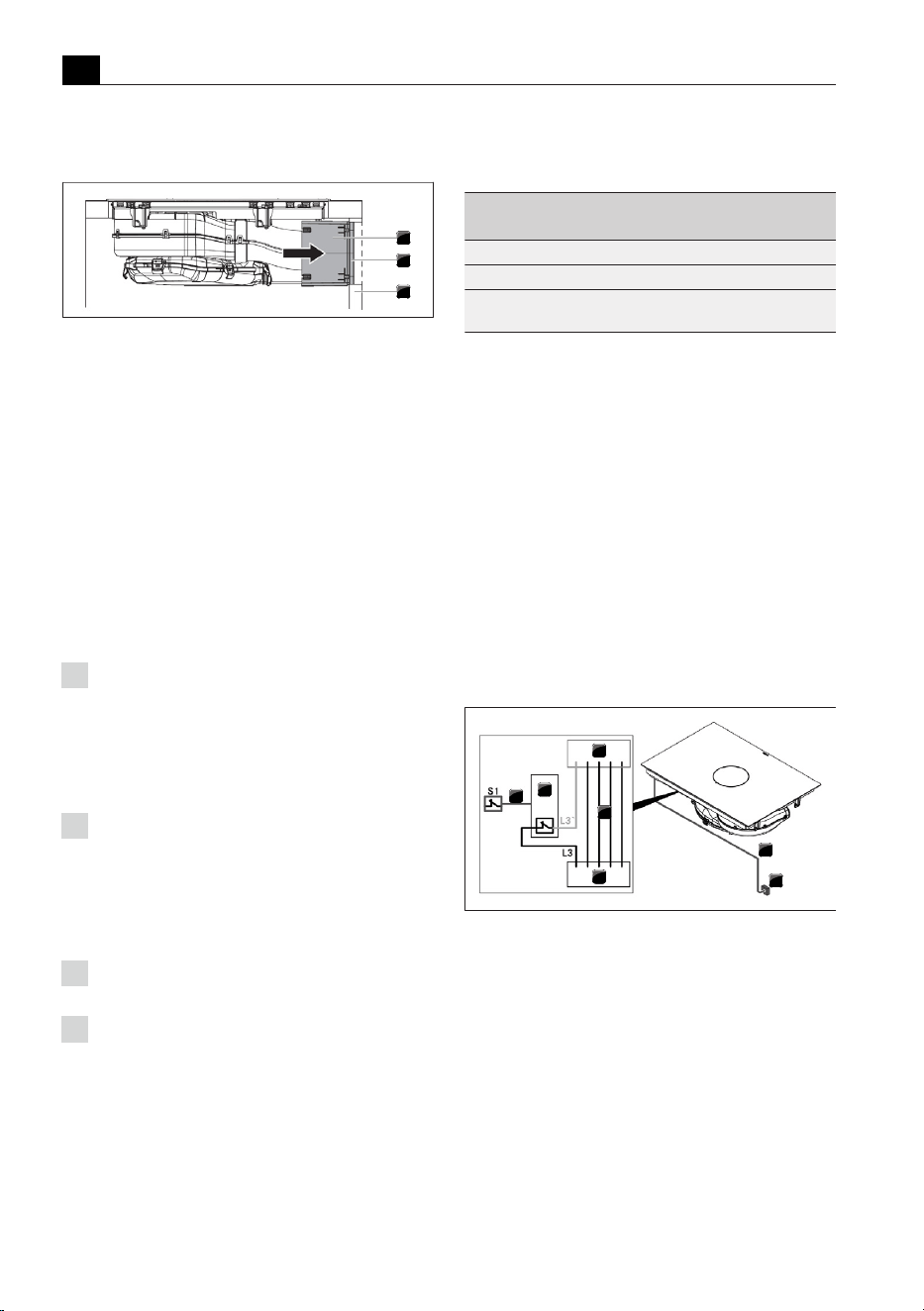

11.9.4 Connecting to the back panel in recirculation
model A.......................................................... 44
11.9.5 Inserting the activated charcoal filter for
recirculation ................................................... 44

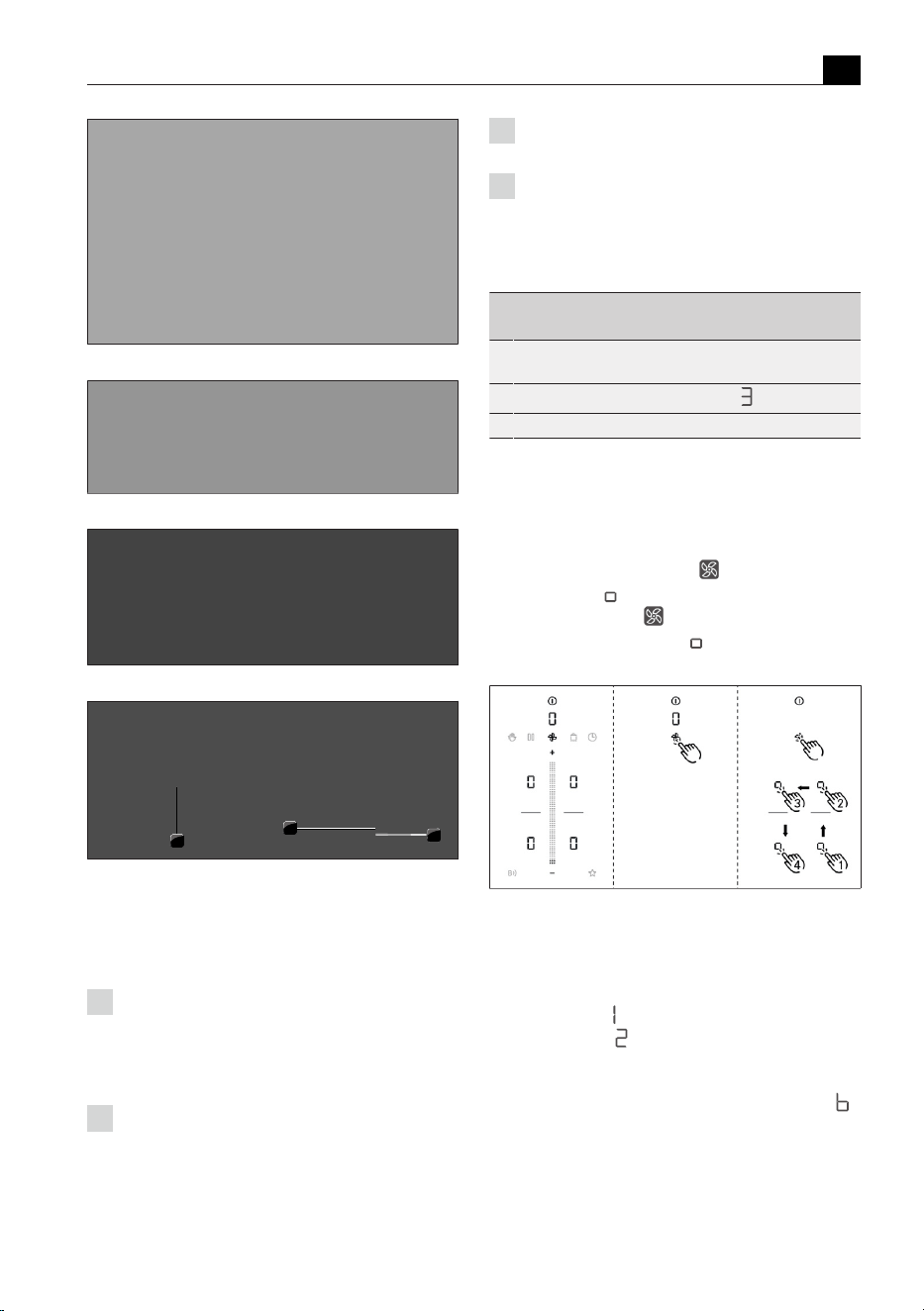

11.10 Connecting the power supply ....................... 44
11.11 Initial operation ............................................. 45

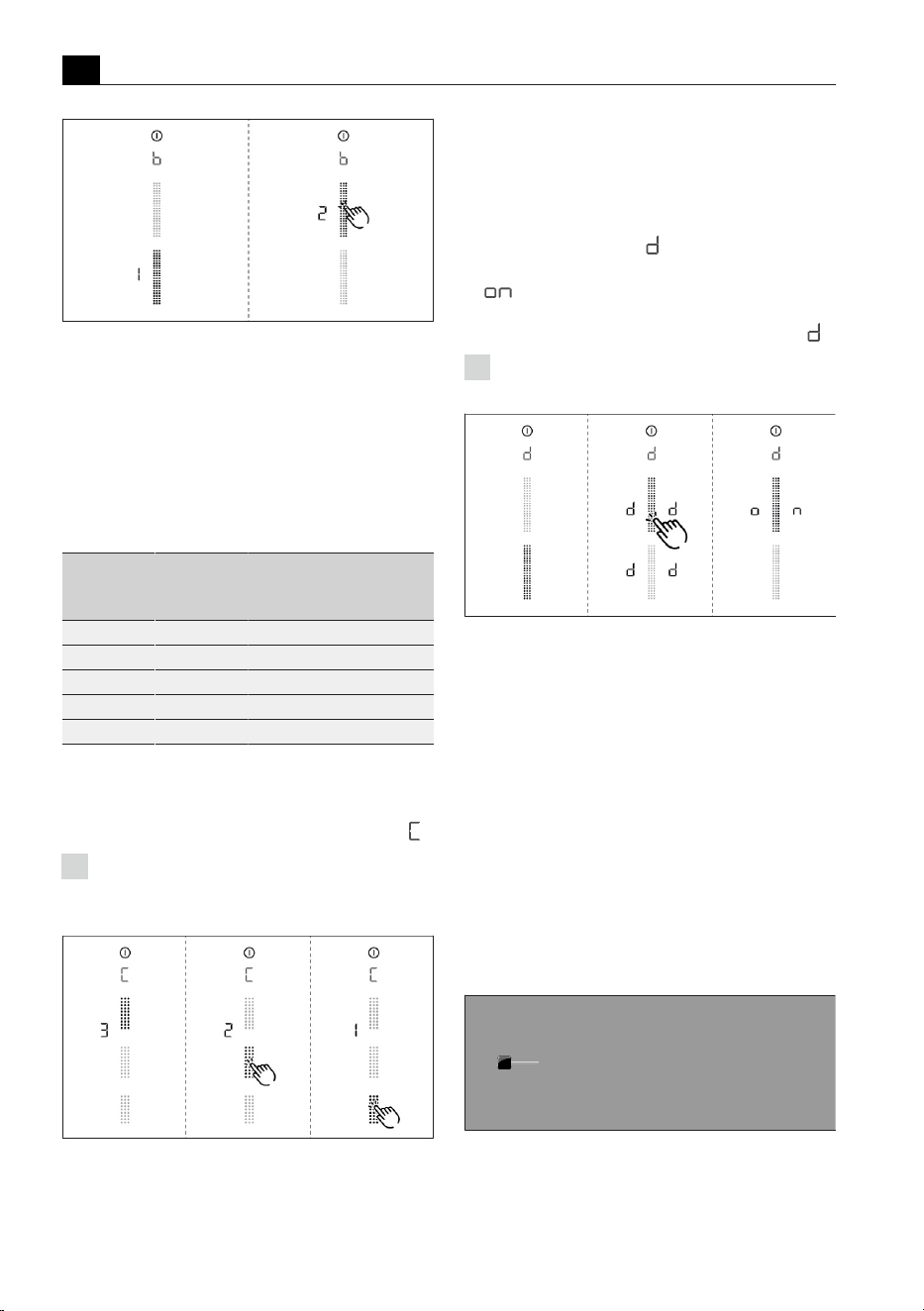

11.11.1 Dealer and service menu................................ 45
11.11.2
Menu item B: Extraction system configuration
......................................................................... 45
11.11.3 Menu item C: Power management ................. 46
11.11.4 Menu item D: Demo mode ............................. 46
11.11.5 Function test.................................................. 46
11.12 Sealing the appliance .................................... 46
11.13 Handover to user........................................... 47
12 Decommissioning, disassembly and
disposal 47
12.1 Decommissioning .......................................... 47
12.2 Disassembly................................................... 47
12.3 Environmentally-friendly disposal ................ 47
12.3.1 Disposal of transport packaging..................... 47
12.3.2 Disposal of accessories.................................. 47
12.3.3 Disposal of the old appliance ......................... 47
13 Warranty, technical service, spare
parts, accessories 48
13.1 BORA manufacturer’s warranty .................... 48
13.1.1 Warranty extension ........................................ 48
13.2 Service ........................................................... 48
13.3 Spare parts .................................................... 49
13.4 Accessories.................................................... 49
14 Product data sheets 50
14.1 PUXA2 | PUXA2R product data sheet –
cooktop extractor.......................................... 50
14.2 X Pure cooktop product data sheet.............. 51
General information
EN
4 bora.com
1
General information
These instructions and all accompanying documents
contain important information to protect you from injury
and prevent damage to the appliance.
u
Please by all means adhere to all documents that
form part of the scope of delivery.
Assembly, installation and commissioning must always
occur in line with national laws, regulations and
standards. The work must be performed by qualified
specialists who know and comply with the additional
regulations of the local energy supply companies.
All safety and warning information as well as the
handling instructions in the accompanying documents
must be observed.
Please keep these instructions in a safe place and pass
them on to the next owner where applicable.
1.1
Validity
These instructions apply to several appliance versions.
It is therefore possible that some of the features
described do not apply to your appliance. The details of
the figures contained herein may differ and are to be
understood as schematic diagrams.
1.2
Liability
. BORA Holding GmbH, BORA Vertriebs GmbH & Co KG,
BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH –
hereinafter referred to as BORA – do not assume any liability
for damage arising from disregard for or non-adherence to
the documents included in the scope of delivery!
Furthermore, BORA shall not be held liable for damage
caused by improper installation or failure to observe the
safety and warning information!
1.3
Product conformity
The appliances comply with the following EU/
EC regulations:
T
2009/125/EC Ecodesign Directive
T
2011/65/EU RoHS Directive
BORAVertriebsGmbH&CoKG hereby declares that
the PUXA2, PUXA2R, PUXU2 and PUXU2R radio
equipment complies with directive 2014/53/EU.
The appliance supports the following frequency bands:
T
2.4 GHz: 100 mW max.
The appliances comply with the following UK
regulations:
UK – Statement of Compliance The Product Security and
Telecommunications Infrastructure (Security Requirements
for Relevant Connectable Products) Regulations 2023.
The full text of the EU declaration of conformity and the
UK statement of compliance is available at the following
address:
https://www.bora.com
1.4
Presentation of information
The article described in these instructions is hereinafter
also referred to as an appliance. All measurements are
provided in millimetres.
Operating instructions
u
Always follow all instructions in the prescribed order.
Enumerations
T
Enumeration 1
T
Enumeration 2
Info points
Information notes point to special features that
must be taken into account.
Safety and warning information
ö
DANGER
Type and source of danger
Results of non-compliance
u
Measures to minimise risk
Please note:
T
warning symbols draw attention to a high risk of injury.
T
The signal word indicates the severity of that risk.
Warning
symbol
Signal word Risk
Danger Indicates an immediate, hazard-
ous situation which causes death
or serious injury if not respected.
Warning Indicates a potentially hazardous
situation which can cause death
or serious injury if not respected.
Caution Indicates a potentially hazardous
situation which can cause minor
injury if not respected.
Note Indicates a potentially hazardous
situation which can cause prop-
erty damage if not respected.
Tab.1.1
Meaning of the warning symbols and signal
words
Safety
EN
bora.com 5
2
Safety
The appliance complies with the stipulated safety requirements. The user is responsible for the safe use of the
appliance, cleaning and maintenance. Improper use can lead to personal injury and damage to property.
2.1
Intended use
The appliance is solely intended for preparing food in private households.
This appliance is not intended for:
T
outdoor use
T
heating rooms
T
cooling, ventilating or dehumidifying rooms
T
use in mobile installation sites such as motor vehicles, ships or aeroplanes
T
use with an external timer or a separate remote control system
T
use at altitudes of over 2000m (metres above sea level)
T
use when not fully installed
Any other use or any use that goes beyond that which is described here is classed as unintended.
BORA does not assume any liability for damages caused by incorrect installation, improper use or incorrect
operation.
All misuse is prohibited!
2.2
People with limited abilities
Children
The appliance can be used by children aged 8 and over if they are supervised or have been instructed how to use the
appliance safely and understand the resultant risks. Children must not play with the appliance.
u
Use the childproofing feature in order to prevent children from switching on the appliance or changing the settings
when they are unattended.
u
Supervise children in the vicinity of the appliance.
u
Do not store any items that could be of interest to children in storage spaces above or behind the appliance.
Otherwise, they will be tempted to climb onto the appliance.
Any work involving cleaning and maintenance must not be carried out by children unless they are
supervised at all times while doing so.
People with reduced physical, sensory or mental capacities
The appliance can be used by people with reduced physical, sensory or mental capacities or a lack of experience
and/or knowledge if they are supervised or have been instructed how to use the appliance safely and understand the
resultant risks. Operation can be restricted using the child lock.
Safety
EN
6 bora.com
ö
DANGER
Risk of burns from hot cookware and food
Handles projecting over the edge of the worktop are asking to be grabbed.
u
Keep children away from hot cooking zones or ensure they are supervised at
all times.
u
Do not turn pot and pan handles so they stick out beyond the work surface.
u
Make sure that hot pots and pans cannot be pulled down.
u
If necessary, use suitable stove guards or covers.
u
Only use stove guards and covers that are approved by the appliance
manufacturer; otherwise, there is a risk of accidents.
u
To choose a suitable stove guard, contact your specialist retailer or the
BORA Service Team.
2.3
General safety instructions
ö
DANGER
Packaging components are a choking hazard
Packaging components (e.g. film, polystyrene) can be life-threatening for
children.
u
Store all packaging components out of reach of children.
u
Dispose of the packaging properly and immediately.
ö
DANGER
Risk of electric shock or injury from damaged surfaces
The underlying electronics can be exposed or damaged due to fissures,
fractures or cracks in appliance surfaces (e.g. damaged glass), particularly in
the vicinity of the operating unit. This can cause an electrical shock.
Furthermore, a damaged surface can cause injuries.
u
Do not touch the damaged surface.
u
If there are any cracks, fissures or fractures, switch the appliance off
immediately.
u
Securely disconnect the appliance from the mains using the circuit breaker,
fuses, automatic circuit breakers or contactor.
u
Contact the BORA Service Team.
Safety
EN
bora.com 7
ö
WARNING
Risk of injury or damage due to incorrect components or unauthorised
modifications
Incorrect components can lead to personal injury or damage to the appliance.
Modifications, additions or alterations to the appliance can lead to safety risks.
u
Only use original components.
u
Do not make any modifications, additions or alterations to the appliance.
ö
WARNING
Risk of injury due to mechanical damage on the appliance
Mechanical damage (e.g. cracks, deformation, separation of adhesive seals,
etc.) to the appliance, as well as to cables and accessories can cause injuries.
u
Do not operate the appliance.
u
Do not try to repair or replace damaged components yourself.
u
Contact the BORA Service Team.
CAUTION
Appliance components can cause injury if dropped
Appliance components can cause injury if you drop them.
u
Place any appliance components that have been removed in a safe place
near the appliances.
u
Ensure that no components removed from the appliances can fall on the
floor.
CAUTION
Risk of injury from heavy lifting
If not handled correctly, carrying and installing appliances can cause injury to
the limbs or torso.
u
If necessary, carry and install the appliance with another person.
u
Use appropriate aids to prevent damage or injury.
CAUTION
Damage from improper use
The appliance surfaces must not be used as work or storage surfaces. This can
damage the appliances (particularly in the case of hard and sharp objects).
u
Never use the appliances as work or storage surfaces.
u
Keep hard or sharp objects away from the appliance surfaces.
Safety
EN
8 bora.com
PLEASE NOTE
Faults and errors
In the event of faults or incorrect use, error messages will be displayed.
u
In the case of faults and errors, follow the instructions in the
“Troubleshooting” chapter.
u
In the event of any faults or errors that are not mentioned, switch the
appliance off and contact BORA Service.
PLEASE NOTE
Appliance damage caused by pets
Pets may damage the appliance or injure themselves.
u
Keep pets away from the appliance.
2.4
Safety information for installation
ö
DANGER
Risk of injury from incorrect assembly
Failure to observe the installation instructions can lead to injury.
u
The appliance must only be installed and assembled by trained specialists
who are familiar with and comply with the standard national regulations and
supplementary regulations of the local utility companies.
u
The appliance may only be installed with the power disconnected.
u
Work on electrical components must only be conducted by trained electrical
personnel.
u
Conduct all work extremely attentively and conscientiously.
u
Before handing the appliance or system over to the end user, ensure that it
has been correctly installed.
ö
DANGER
Risk of electric shock from damaged appliance
A damaged appliance can cause an electric shock.
u
Check the appliance for visible damage prior to installation.
u
Do not install or connect any damaged appliances.
u
Do not operate any damaged appliances.
Safety
EN
bora.com 9
ö
DANGER
Risk of electric shock from incorrect stripping of cables
Incorrect stripping of the connection cable to external switching devices results
in a risk of electric shock.
u
Ensure that the connection cable is secured with the strain relief clamp
within the control unit.
u
Ensure that the stated stripping lengths are adhered to.
PLEASE NOTE
Appliance damage caused by incorrect wiring
The electrical safety of the appliance is only guaranteed if it is connected to a
protective conductor system that has been installed in line with regulations.
u
Work on electrical components must only be conducted by trained electrical
personnel.
u
Ensure that this basic safety precaution is met. The appliance must be
suitable for the regional voltage and frequency.
u
Check the information on the identification plate and in the event of
deviations, do not connect the appliance.
u
Do not connect the appliance to the mains until the duct system has been
installed or the recirculation filter has been fitted.
u
Only use the connection cables supplied.
PLEASE NOTE
Appliance damage caused by incorrect installation clearances
Failure to adhere to installation clearances can lead to damage to the appliance
and kitchen units, as well as restricted functions.
u
During installation maintain the minimum clearance stated in the Installation
chapter.
Safety
EN
10 bora.com
2.4.1
Safety instructions – cooktop extractor installation
ö
DANGER
Risk of smoke inhalation
When the cooktop extractor is used in exhaust air mode, it draws in air from
the room it is installed in and from neighbouring rooms. Without sufficient air,
there will be a drop in air pressure. When used at the same time as a fireplace
that is dependent on the air in the room, noxious gases can be sucked into the
living areas from the chimney or outlet shaft.
u
Make sure that there is always a sufficient air supply.
u
Only use reliable, tried-and-tested switching devices, (e.g. window contact
switch, low pressure warning device) and have them approved by a qualified
expert (certified chimney sweep).
ö
WARNING
Risk of injury due to turning fan wheel
There is a risk of injury while the fan is turning.
u
Only install the device with the power disconnected.
u
Connect both sides of the fan to the duct system before commissioning.
CAUTION
Risk of injury due to turning fan wheel
There is a risk of the vicinity of the fan being reached in the case of short air
channels.
u
Never reach through the air outlet into the vicinity of the fan.
u
Always install fans so that it is not possible to touch them via the air outlet.
u
In the case of air channels shorter than 900 mm between the fan and air
outlet, install a guard to prevent access.
u
Activated charcoal filters do not provide sufficient protection.
2.4.2
Safety information for cooktop installation
ö
DANGER
Risk of electric shock from damaged power supply cable
If the power supply cable is damaged (e.g. during installation or by coming into
contact with hot cooking surfaces), this can cause an (lethal) electric shock.
u
Make sure that the connection cable does not become trapped or damaged.
u
Make sure that the power supply cable does not come into contact with hot
cooking surfaces.
Safety
EN
bora.com 11
ö
DANGER
Risk of electric shock from incorrect mains connection
Connecting the appliance to the mains incorrectly poses a risk of electric
shock.
u
Make sure that the appliance has a fixed connection to the mains voltage.
u
Make sure that the appliance is connected to a properly installed protective
conductor system.
u
Make sure that technical equipment is provided to enable all of the
appliance’s poles to be disconnected from the mains with a contact opening
width of at least 3mm (circuit breaker and automatic circuit breakers, fuses,
contactor).
2.5
Safety instructions – operation
ö
DANGER
Risk of fire from overheated oil or fat
Oil or fat in the pot can quickly heat up and ignite.
u
Never leave the appliance unattended when cooking with oil or fat.
u
Never extinguish oil and fat fires with water.
u
Switch off the appliance.
u
Extinguish the fire using a pan lid or a fire blanket, for example.
ö
WARNING
Risk of burning from hot appliances
Certain appliances and their exposed parts become hot during use. They
should be left to cool down completely after switching off. Touching hot
surfaces can cause serious burns.
u
Do not touch hot appliances.
u
Pay attention to the residual heat indicator.
ö
WARNING
Risk of burns due to power cut
During or after a power cut a cooktop that was previously in operation may still
be hot.
u
Do not touch the appliance while it is still hot.
u
Keep children away from the hot appliance.
Safety
EN
12 bora.com
ö
WARNING
Risk of burning and fire from hot objects
The appliance and its exposed parts are hot during operation and the cooling
phase. Objects in contact with hot appliance components heat up very quickly
and can cause severe burns (this particularly applies to metal objects such as
knives, forks, spoons, lids or appliance components) or catch fire.
u
Do not place any items on the appliance.
u
Please use suitable accessories (pot holders, oven gloves).
u
Do not simply rely on the pan size recognition function on induction
cooktops; always switch the appliance off after use.
CAUTION
Damage caused by hot cookware
Hot cookware can damage certain components in the appliance.
u
Do not put hot cookware down in the area of the operating panel or cooktop
display.
u
Keep hot cookware away from the air inlet nozzle.
PLEASE NOTE
Appliance damage
Incorrect use may cause damage to the appliance.
u
Make sure that the base of the cookware as well as the appliance surfaces
are clean and dry.
u
Always lift (do not drag) cookware to prevent scratching and abrasion on the
appliance surface.
u
Do not use the appliance as a storage surface.
u
Always switch off the appliance after use.
Safety
EN
bora.com 13
2.5.1
Safety instructions – cooktop extractor operation
ö
DANGER
Risk of smoke inhalation
When the cooktop extractor is used in exhaust air mode, it draws in air from
the room it is installed in and from neighbouring rooms. Without sufficient air,
there will be a drop in air pressure. When used at the same time as a fireplace
that is dependent on the air in the room, noxious gases can be sucked into the
living areas from the chimney or outlet shaft.
u
Make sure that there is always a sufficient air supply.
u
Only use reliable, tried-and-tested switching devices, (e.g. window contact
switch, low pressure warning device) and have them approved by a qualified
expert (certified chimney sweep).
ö
WARNING
Fire risk from flambéing
While the cooktop extractor is working, it sucks up grease from cooking.
Flambéing food can cause the grease to catch fire.
u
Clean the cooktop extractor regularly.
u
Never work with a naked flame while the cooktop extractor is running.
CAUTION
Damage caused by objects or paper suctioned in
Small and light items, such as cleaning cloths made from material or paper, can
be suctioned into the cooktop extractor. This can damage the fan or impair the
exhaust performance.
u
Do not store any items or paper on the cooktop extractor.
u
Only operate the integrated cooktop extractor with the grease filter fitted.
CAUTION
Damage caused by grease and dirt deposits
Grease and dirt deposits can prevent the cooktop extractor from functioning
properly.
u
Never use the cooktop extractor without a correctly fitted stainless steel
grease filter.
Safety
EN
14 bora.com
PLEASE NOTE
Increased humidity
When cooking, additional moisture is released into the ambient air. In
recirculation mode, only a slight amount of moisture is removed from the
cooking vapour.
u
When using the recirculation mode, ensure a sufficient supply of fresh air,
e.g. by opening a window.
u
Ensure a normal and comfortable room climate (humidity of 45 – 60%), e.g.
by opening natural ventilation openings or using domestic ventilation
systems.
2.5.2
Safety instructions – cooktop operation
ö
DANGER
Danger of fire caused by leaving the cooktop unattended
Oil or fat in the pot can quickly heat up and ignite.
u
Never leave oil or fat to heat up unattended.
u
Never extinguish oil and fat fires with water.
u
Switch off the cooktop.
u
Extinguish the fire using a pan lid or a fire blanket, for example.
u
Use only the intended cookware when using BORA Assist and do not leave
the cooktop unattended.
ö
DANGER
Danger of explosion caused by flammable liquids
Flammable liquids in the vicinity of a cooktop can explode and cause serious
injury.
u
Do not spray aerosols near the appliance when it is in use.
u
Do not place any flammable liquids in the vicinity of a cooktop.
ö
WARNING
Risk of burns from hot liquids boiling over
Unattended pans can boil over allowing hot liquids to escape.
u
Keep an eye on pans when cooking.
u
Ensure that pans do not boil over.
u
Always switch off the appliance after use.
u
Use only the intended cookware when using BORA Assist and do not leave
the cooktop unattended.
Safety
EN
bora.com 15
ö
WARNING
Risk of burns from hot steam
Liquid between the cooking zone and cookware base can evaporate and cause
burns.
u
Make sure that the cooking zone and the cookware base are always dry.
PLEASE NOTE
Damage caused by sugary and salty foods
Sugary and salty foods and juices can damage the hot cooking zone.
u
Make sure sugary and salty foods or juices do not get onto the cooking zone
while it is hot.
u
Remove sugary and salty foods and juices from the hot cooking zone
immediately.
CAUTION
Electromagnetic radiation
Effect on pace makers, hearing aids and metal implants. Induction cooktops
generate a high-frequency electromagnetic field in the area of the cooking
zones. The cooking zones may affect pacemakers, hearing aids or metal
implants negatively or disturb their function when in close proximity.
u
If in doubt, contact the manufacturer of your medical device or your doctor.
2.6
Safety instructions – cleaning and maintenance
PLEASE NOTE
Appliance damage due to soiled appliances
Dirt can lead to damage, restriction of functions, or bothersome odours.
u
Clean the appliance regularly.
u
Remove dirt immediately.
u
When cleaning, only use non-abrasive detergents to prevent scratching and
abrasion on the surface.
u
When cleaning, ensure that no water penetrates the appliance. Use only a
slightly damp cloth. Never spray the appliance with water. Water penetration
can cause damage.
u
Do not use a steam cleaner for cleaning. Steam can cause a short circuit on
live parts and thus lead to property damage.
u
Please follow all instructions in the “Cleaning and Maintenance” chapter.
Safety
EN
16 bora.com
2.6.1
Safety instructions – cleaning and maintenance of cooktop extractors
ö
DANGER
Risk of fire from fat deposits
The risk of fire can be increased by failure to clean the grease filter properly
and on a regular basis, or if the filter change is overdue.
u
Clean and replace the filter at regular intervals.
ö
WARNING
Risk of injury when opening the bottom housing cover
There is a risk of injury while the fan is turning.
u
Switch off the appliance and disconnect it from the mains before removing
covers in the vicinity of the fan.
ö
WARNING
Risk of injury due to turning fan wheel
If the fan wheel is turning during a filter change, this may result in injuries.
u
Ensure that the appliance is switched off before changing the activated
charcoal filter.
PLEASE NOTE
Appliance damage and malfunctions
Soiled ventilation openings can lead to component damage and malfunctions.
u
Keep all ventilation openings open and clean.
2.6.2
Safety instructions – cleaning and maintenance of cooktops
ö
WARNING
Risk of burns from hot surfaces
There is a risk of burns when cleaning hot cooktops.
u
Only clean the cooktops once they have cooled.
u
Pay attention to the residual heat indicator.
Safety
EN
bora.com 17
2.7
Safety instructions – repairs, servicing and spare parts
ö
DANGER
Risk of injury when carrying out repairs
Insufficient expertise can lead to injury when carrying out repairs.
u
The appliance must only be repaired and serviced by trained specialists who
are familiar with and comply with the standard national regulations and
supplementary regulations of the local utility companies.
u
Safely disconnect the appliance from the mains supply.
u
Work on electrical components must only be conducted by trained electrical
personnel.
u
A damaged power supply cable must be replaced by a suitable power supply
cable.
ö
WARNING
Risk of injury or damage from improper repairs
Incorrect components can lead to personal injury or damage to the appliance.
Modifications, additions or alterations to the appliance can lead to safety risks.
u
Only use original spare parts for repairs.
u
Do not make any modifications, additions or alterations to the appliance.
2.8
Safety instructions – disassembly and disposal
ö
DANGER
Risk of injury during disassembly
Insufficient expertise can lead to injury when disassembling the appliance.
u
It must only be disassembled by trained specialists who are familiar with and
comply with the standard national regulations and supplementary
regulations of the local utility companies.
u
Safely disconnect the appliance from the mains supply.
u
Work on electrical components must only be conducted by trained electrical
personnel.
Safety
EN
18 bora.com
ö
DANGER
Risk of electric shock from incorrect disconnection
Incorrectly disconnecting the appliance from the mains results in a risk of
electric shock.
u
Safely disconnect the appliance from the mains supply.
u
Use an authorised measuring device to ensure that there is no power to the
appliance.
u
Do not touch exposed contacts on the electronic unit as they may contain
residual charge.
ö
DANGER
Risk of electric shock from residual charge
Electrical components in the appliance can contain residual charge and cause
an electric shock.
u
Do not touch any exposed contacts.
Technical data
EN
bora.com 19
3
Technical data
Parameter Value
Multiphase supply voltage 380–415 V 2N/3N
Single-phase supply voltage 220–240V
Frequency 50–60 Hz
Maximum power consumption 7600W
(4400W/3600W)
Three-phase power supply/fuse protec-
tion
3 x 16 A
Two-phase power supply/fuse protec-
tion
2 x 16A
Single-phase power supply/fuse protec-
tion
1 x 32 A
(1 x 20 A /1 x 16 A)
Dimensions (width x depth x height) 830 x 515 x 199 mm
Weight (incl. accessories/packaging) 23,8 kg (PUXA2,
PUXA2R) 25,5 kg
(PUXU2, PUXU2R)
Cooktop
Surface material Glass ceramic
Cooktop power levels 1–9, P
Front cooking zone size 230 x 230 mm
Front cooking zone output 2100 W
Front cooking zone power setting out-
put
3000 W
Rear cooking zone size 230 x 230 mm
Rear cooking zone output 2100 W
Rear cooking zone power setting output 3000 W
Exhaust air system
Cooktop extractor power levels 1–9, P
Exhaust air connection BORA Ecotube
Recirculation system
Cooktop extractor power levels 1–9, P
Size of exhaust opening (W x H) 445 x 137 mm
Activated charcoal filter service life 150 hrs (1 year)
Tab.3.1
Technical data for X Pure
3.1
PUXA2/R appliance
dimensions
Fig.3.1
PUXA2/R appliance dimensions top view
Fig.3.2
PUXA2/R appliance dimensions front view
Fig.3.3
PUXA2/R appliance dimensions side view
Appliance description
EN
20 bora.com
3.2
PUXU2/R appliance
dimensions
Fig.3.4
PUXU2/R appliance dimensions top view
Fig.3.5
PUXU2/R appliance dimensions front view
Fig.3.6
PUXU2/R appliance dimensions side view
4
Appliance description
u
Observe all safety and warning information
(see"2Safety").
4.1
Model description
Model Long description
PUXA2 X Pure surface induction cooktop with integrated
cooktop extractor – exhaust air
PUXA2R X Pure Rough surface induction cooktop with in-
tegrated cooktop extractor – exhaust air
Model Long description
PUXU2 X Pure surface induction cooktop with integrated
cooktop extractor – recirculation
PUXU2R X Pure Rough surface induction cooktop with in-
tegrated cooktop extractor – recirculation
Tab.4.1
Model description
4.2
System description
4.2.1
Structure
1
2
3
4
5
6
7
Fig.4.1
Structure
[1]
Air inlet nozzle
[2]
Stainless steel grease fil-
ter
[3]
Cooktop
[4]
Air inlet opening
[5]
Fan
[6]
Operating panel
[7]
Cooking zone (x 4)
1
2
Fig.4.2
Exhaust air variant rear view
[1]
Exhaust opening
[2]
Air guiding housing
1
2
Fig.4.3
Recirculation variant rear view
[1]
Air purification box
[2]
Air guiding housing
Appliance description
EN
bora.com 21
4.2.2
Operating panel
The appliance is operated via a central touch operating
panel.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Fig.4.4
Operating panel
[1]
Power button
[2]
Multi-function display
[3]
Warming button
[4]
Short-time timer
[5]
Plus button
[6]
Cooking zone indicator
[7]
Bridging button
[8]
Cooking zone timer indic-
ator
[9]
Assist indicator
[10]
Minus button
[11]
Assist button
[12]
Connect button
[13]
Child lock button
[14]
Slider
[15]
Pause button
[16]
Cleaning button
[17]
Fan button
4.2.3
7-segment display
Multi-function display
Indicator Meaning
‑
Power levels
Power setting
Inactive
Automatic extractor function
Automatic after-run
Filter service indicator
Time (minutes
seconds
)
e.g.
Error code
Tab.4.2
Meaning of the 7-segment displays
Cooking zone indicator
Indicator Meaning
‑
Power level
Power setting
Heat retention level 1
Heat retention level 2
Heat retention level 3
Pan size recognition
Inactive
Residual heat indicator (cooking zone is switched
off but still hot)
Error
Tab.4.3
Meaning of the 7-segment displays
4.2.4
Lighting
The appliance automatically adapts the display lighting
to the current operating conditions. Unavailable
functions are not shown and inactive functions are
dimmed.
4.3
How the cooktop extractor
works
The cooktop extractor is either operated as an exhaust
air system or recirculation system.
Exhaust air operating mode
The cooking vapour is guided by the fan into the open
air via the duct system.
Recirculation mode
The fan channels the cooking vapours into the activated
charcoal filter. The activated charcoal filter absorbs
cooking odours that arise during cooking. The purified
air is fed back into the room.
For health and hygiene reasons, the activated charcoal
filter must be replaced at the recommended intervals
(Cleaning and maintenance).
In recirculation mode, ensure sufficient
ventilation and aeration to expel humidity.
Functions and operation
EN
22 bora.com
4.4
How the induction cooktop
works
Induction cooking zones heat the cookware via a
magnetic field. The pot base is heated directly. The
cooking zone is only heated indirectly. Cooking zones
featuring induction technology only work with suitable
cookware (magnetisable base with sufficient diameter).
Power levels
The high power output of induction cooktops results in
the very quick heating up of cookware. In order to avoid
burning food, slight adjustment is needed in comparison
to conventional cooking systems when selecting the
power level.
The specifications provided in the table are standard
values. The power level should be adjusted according to
the cookware and fill level.
Power level Activity
Melting butter and chocolate, breaking up
gelatine
-
Keeping sauces and soups warm, soaking
rice
-
Cooking potatoes, pasta, soups and rag-
outs, steaming fruit, vegetables and fish,
defrosting food
-
Frying in coated pans, moderate frying
(without overheating the fat) of pork cutlets
or fish
-
Heating up fat, browning meat, cooking
thickened sauces and soups, making om-
elettes
Bringing large amounts of liquid to the boil,
searing steaks
Heating up water
Tab.4.4
Recommendations for power levels
Suitable cookware
Cookware with this symbol is suitable for induction
cooktops.
u
Observe the minimum cookware base diameter:
Appliance Cooking zone Minimum cookware base
diameter
X Pure Front 120 mm
Back 120 mm
Tab.4.5
Minimum cookware diameter
u
Place the cookware (without a mat or similar) directly
onto the glass ceramic.
The heating and heat-through times and
cooking results are significantly influenced by
the structure and material of the cookware.
The cookware base must not be warped or have
any sharp grooves or sharp edges. If the base is
warped, the cookware may not be recognised or
may overheat. Sharp grooves or edges may
scratch the cooktop surface.
Noises
When operating induction cooktops, noises may occur
due to material and processing of the cookware
(humming, crackling, whistling, clicking or buzzing).
5
Functions and
operation
u
Observe all safety and warning information
(see"2Safety").
The appliance should only be operated when the
filter replacement cover, stainless steel grease
filter and air inlet nozzle are installed (as well as
the activated charcoal filter in the recirculation
model).
5.1
General operating
instructions
The appliance is operated via a central touch operating
panel. The operating panel is equipped with touch zones
and display zones. Operate the appliance with your
finger, touch controls and swipe gestures (slider
operation).
5.2

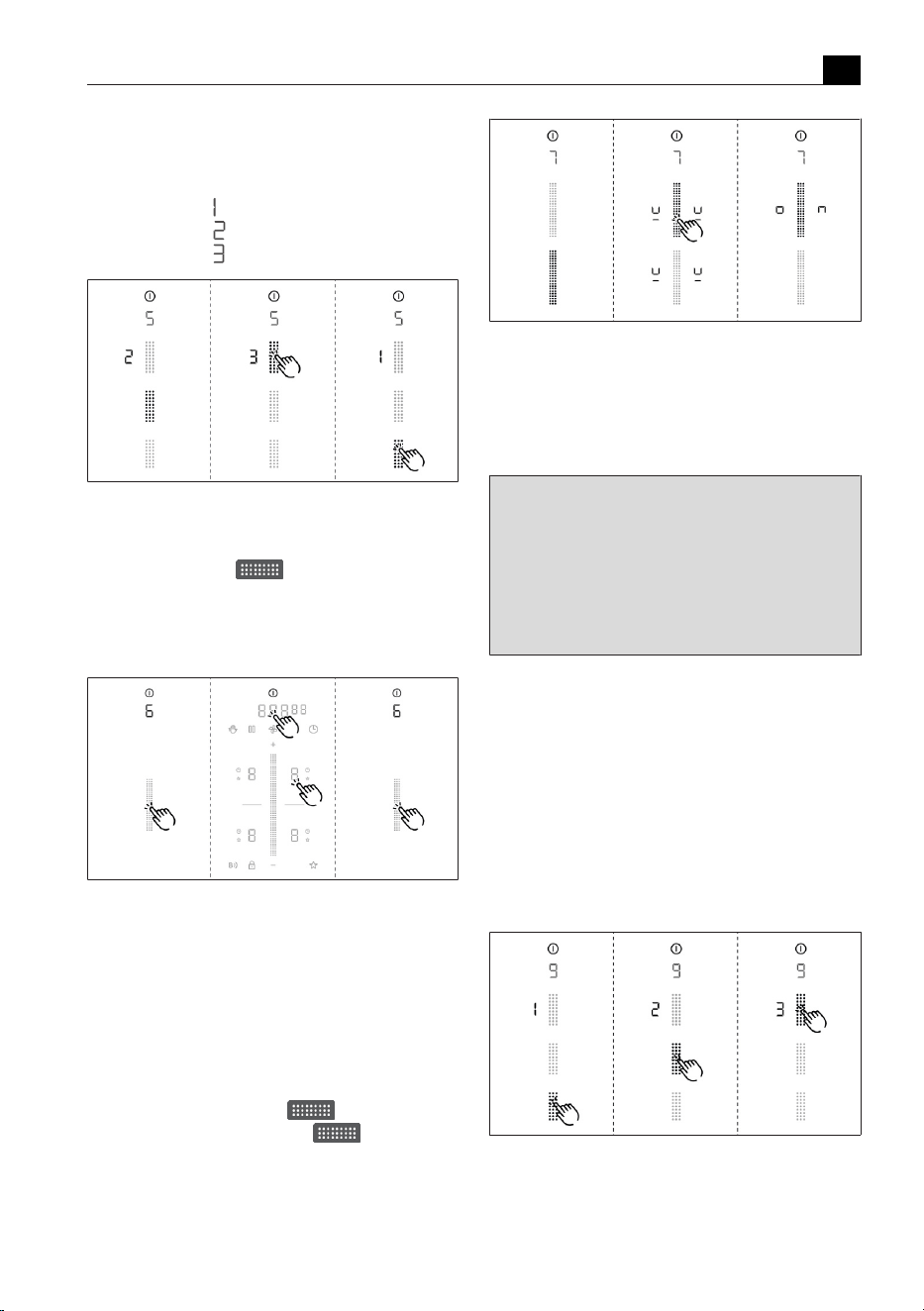

Touch control
The system recognises different touch commands.
Touch commands Applicable to Time (contact)
Tap Buttons + slider 0.3 s
Long press Buttons + slider 1–8 s
Swipe Slider 0.1–8 s
Tab.5.1
Touch control
5.3
Operating the system
5.3.1
Switch on/off
u
Long press on the power button .
Following start-up, the standard display will appear:
Functions and operation
EN
bora.com 23
Fig.5.1
Standard display after switching on
When the child lock is active, the lock button
lights up after system start
.
5.3.2
Short-time timer
The short-time timer emits both a visual and an acoustic
signal after a set time (egg-timer function).
Activating the short-time timer
u
Tap the short-time timer button .
The time entered is shown in the multi-function display
(
).
Setting the time
u
Set the desired time:
Command Selection in min/sec.
Tap
Command Increase time Decrease time
Tap
Swipe
upwards down-
wards
Tab.5.2
Setting the time
Starting the short-time timer
u
Tap the short-time timer button .
The set time starts to count down. The remaining time
is shown on the multi-function display.
Time lapsed
In the last 10 seconds of the countdown, the remaining
time will flash and is displayed down to the second.
When the time has lapsed, you will hear an acoustic
signal.
Deactivating the short-time timer early
u
Long press on the short-time timer button .
5.3.3
Recovery function
If the appliance is switched off by accident, if switched
back on within 15 seconds, the recovery function will
restore the previous settings.
u
Switch the appliance back on within 15 seconds.
T
The pause button will flash and the previous settings
will be shown faintly.
Restoring settings
u
Tap the pause button .
T
The settings will be restored and started.
Declining settings
u
Wait 15 seconds
or
u
long press on the pause button .
T
The standard display appears.
5.4
Cooktop extractor functions
5.4.1
Fan power levels
The fan power levels can be adjusted in different ways:
u
by tapping or
u
adjustment using the slider
u
by tapping a certain position on the slider
5.4.2
Fan power setting
When the power setting is activated, maximum extractor
power is available for a predefined time. After 5
minutes, the power setting is automatically switched
back to power level 9.
Activating the fan power setting
u
Tap when power level 9 is active.
T
appears in the fan display.
Deactivating the fan power setting
The fan power setting is deactivated early if another
power level is set.
5.4.3
Automatic extractor function
After a brief delay, the extractor power is automatically
adjusted to the highest power level used on all cooking
zones that are currently in use.
Function Power levels
Cooking level 1 2 3 4 5 6 7 8 9 P
Extractor power 4 4 4 4 5 6 7 8 9 P
Tab.5.3
Extractor power when automatic extractor
function is active
Functions and operation
EN
24 bora.com
Activating the automatic extractor function for
a cooking session:
u
tap the fan button .
T
is displayed.
Deactivating the automatic extractor function:
u
Swipe to a fan power level.
or
u
tap the fan button .
5.4.4
Switching the fan off
Switching the fan off
u
Swipe downwards to power level 0
or
u
tap until power level 0 is reached
or
u
long press on the fan button
T
When the extractor is switched off, the automatic
after-run function is activated.
5.4.5
Automatic after-run
The cooktop extractor continues to run at a lower level
and switches off automatically after a defined time. The
duration of the after-run function can be set in the
menu (factory setting is 20 minutes).
Switching off the automatic after-run early
u
Long press on the fan button
BORA expressly recommends use of the
cooktop extractor after-run function.
5.4.6
Filter service display
The cooktop extractor filter service display is
automatically activated when the end of the activated
charcoal filter service life is reached (only in
recirculation mode).
T
is displayed in the multi-function display.
T
The cooktop extractor can still be operated without
limitations.
5.5
Cooktop functions
5.5.1
Pan size recognition
On induction cooktops the cooking zone recognises the
size of the cookware automatically and only targets the
energy at that area. An induction cooking zone is not
working if the display alternates between
/ .
Possible causes:
T
Missing cookware
T
Unsuitable cookware
T
The base diameter of the cookware is too small
If no pot is detected 10 minutes after setting a power
level, the cooking zone will switch off automatically.
Permanent pan size recognition
The appliance automatically recognises cookware and
activates the corresponding cooking zone controls.
Manual selection of the cooking zone is not necessary
(Menu item 7: Permanent pan size recognition).
Do not simply rely on the pan size recognition
function on induction cooktops; always switch
the appliance off after use.
5.5.2
Selecting a cooking zone
u
Tap a cooking zone display.
Cooking zone operation is activated and settings can be
made until the operating panel switches to the standard
display.
5.5.3
Setting cooking zone power
levels
After selecting the cooking zone, the power level can be
set in 3 different ways:
u
by swiping until you reach the required power level
or
u
by tapping a certain position on the slider
or
u
by tapping or .
Repeat this process to operate further cooking zones if
necessary.
The power level set is shown in the respective
cooking zone display.
Five seconds after the power level is changed,
the operating panel display automatically
returns to the standard display.
5.5.4
Cooking zone power setting
When the power setting is activated, maximum cooking
zone power is available for a cooking zone. After 5
minutes, the power setting is automatically switched
back to power level 9. For the second cooking zone on
the same side, the maximum power is temporarily
lowered to power level 7.
If the power setting is set too high for the
second cooking zone, the power setting will be
automatically reset to power level 9 for the
other cooking zone.
Functions and operation
EN
bora.com 25
Activating the power setting for a cooking zone
u
Tap when power level 9 is active.
T
appears in the cooking zone display.
Deactivating the power setting early
u
Setting another power level
Never heat up oil, fat and the like on the power
setting. The bottom of the pan can overheat due
to the high power output.
5.5.5
Cooking zone timer
This automatic cut-off function automatically switches
off the selected cooking zone once a preset time has
lapsed. The cooking zone timer function can also be
used on several cooking zones at the same time (multi-
timer).
Activating cooking zone timers
Prerequisite: Cooking zone is active (power level is set).
u
Tap the timer button .
T
The time entered is shown in the multi-function
display (
).
Setting the time
u
Set the desired time:
Command Selection in min/sec.
Tap
Command Increase time Decrease time
Tap
Swipe
upwards down-
wards
Tab.5.4
Setting the time
Starting the timer
u
Tap the flashing timer button .
The set time starts to count down. The remaining time
is shown on the multi-function display.
Showing the remaining time
u
Tap the cooking zone display with an active cooking
zone timer.
T
The remaining time is shown in the multi-function
display.
Changing active timers
u
Tap the cooking zone display with an active cooking
zone timer.
u
Tap the timer button .
T
The cooking zone timer is stopped.
T
The remaining time flashes in the display.
u
Change the set time and restart the cooking zone
timer.
Multi-timer
u
Repeat the process for additional cooking zones.
Switching the timer off early
u
Tap the cooking zone display with an active cooking
zone timer.
u
Long press on the timer button .
Time lapsed
In the last 10 seconds of the countdown, the remaining
time will flash and is displayed down to the second.
At the end of the set time, an acoustic signal is heard
and the cooking zone is automatically switched off (=
power level
).
5.5.6
Pause function
With the pause function all cooking zones can be
quickly and easily deactivated temporarily. The cooking
processes can be interrupted for a maximum of 10
seconds. If the pause function is deactivated, operation
will resume with the original settings. Once 10 minutes
have lapsed, the cooking session is automatically
ended.
The fan function, the bridging function and the
(active) minute minder cannot be interrupted.
Active cooking zone timers are stopped.
Activating the pause function
u
Tap the pause button .
Deactivating the pause function
u
Long press on the pause button .
5.5.7
Variable heat retention function
You can choose from 3 heat retention levels according
to the situation:
Heat retention
level
Symbol Temperature
1 (melting) ≈ 42°C
2 (keeping warm) ≈ 74°C
3 (simmering) ≈ 94°C
Tab.5.5
Heat retention levels
In practice the temperatures of the heat
retention levels may vary slightly as they are
influenced by different factors.
Functions and operation
EN
26 bora.com
This function is designed for use with cookware
lids. To maintain the specified temperatures, a
cookware lid must be used.
Activating the heat retention function
u
Selecting a cooking zone
u
Tap the heat retention button .
Increasing or reducing the heat retention level
u
Swipe to reach the required heat retention level
or
u
tap or until the required heat retention level is
reached
u
Tap the heat retention button to confirm.
Deactivating the heat retention function
u
Tap the corresponding cooking zone display.
u
Long press on the heat retention button .
or
u
swipe right down to the bottom (power level 0).
T
The heat retention function is deactivated.
5.5.8
Bridging function
With the bridging function, two cooking zones located
one behind the other can be combined to form one
large cooking zone. The power for the combined zones
is then adjusted by a single operating control. Power
adjustment takes place simultaneously (both cooking
zones are operated on the same power level). The
bridging function is suitable for heating food, e.g. in a
roaster.
If both cooking zones are active before the
bridging function is activated, the lower power
level is adopted. If timers are active on the
cooking zones, the lower timer value will be
adopted for the bridging timer.
The bridging function finishes and the cooking
zones are deactivated if no suitable cookware is
detected (pan size recognition) on any or only
one of the two cooking zones for 10 seconds.
Activating the bridging function
u
Tap the bridging button
T
Both cooking zone displays show the same power
level.
T
Active additional cooking zone functions are adopted
(dual display).
Deactivating the bridging function
u
Long press on the bridging button.
or
u
long press on one of the two cooking zone displays.
T
The power levels are set to 0.
T
If a cooking zone timer was active, it is deactivated.
5.5.9
Automatic bridging function
If a large enough piece of cookware is placed on the
two cooking zones that are one behind the other, they
will automatically be combined to form one large
cooking zone.
If the permanent pan size recognition function
is switched on (Menu item 7: Permanent pan
size recognition), the automatic bridging
function is also activated.
5.5.10
Switching off the cooking zone
u
Selecting a cooking zone
u
Set power level to 0
or
u
long press on the cooking zone display
5.6
Safety features
5.6.1
Child lock
The child lock prevents the appliance from being
switched on accidentally. If the child lock is active, the
lock button
will light up in the operating panel
display.
Permanently activating/deactivating the child
lock
(see"8User menu")
Deactivating the child lock for a cooking
session
u
Long press on the lock button .
5.6.2
Cleaning lock
The cleaning lock blocks the operating panel. If no
wiping motions are detected on the operating panel, the
cleaning lock will automatically deactivate after 5
seconds.
Activating the cleaning lock
u
Tap the cleaning button .
Prematurely deactivating the cleaning lock
u
long press on the cleaning button .
5.6.3
Residual heat indicator
If a cooking zone is still hot after switching off, H is
displayed.
Connect
EN
bora.com 27
u
Do not touch hot cooking zones.
u
Do not place any objects on the cooking zones while
hot.
The display goes out after a sufficient cooling time
(temperature < 55°C).
5.6.4
Safety shut-down
Cooktop extractor
The cooktop extractor switches to automatic mode after
120min if there has been no input or changes to the
power level.
Cooktops
Each cooking zone is automatically switched off after a
predefined operating time in which the power level has
not been changed. The period of time until safety shut-
down is triggered can be set in the customer menu.
Power level Safety shut-down after hrs:min.
Level 1 Level 2 Level 3
12:00 8:24 6:00
10:00 6:24 4:00
9:00 5:12 2:30
8:00 4:12 2:00
6:00 3:18 1:30
4:00 2:12 1:00
4:00 2:12 1:00
3:00 1:48 0:45
2:00 1:18 0:30
0:05 0:05 0:05
Tab.5.6
Safety shut-down on the different power levels
Heat reten-
tion level
Safety shut-down after hrs:min.
Level 1 Level 2 Level 3
12:00 8:00 4:00
Tab.5.7
Safety shut-down on the different heat retention
levels
5.6.5
Overheating protection
In the event of overheating, the cooktop power is
reduced or the appliance is switched off completely.
The overheating protection is triggered when:
T
cookware is heated up empty;
T
oil or fat is heated on high power;
T
a hot cooking zone is switched on again after a
power cut.
Whilst the overheating protection is active, one of the
following steps is taken:
T
the activated power setting is switched back to the
previous level;
T
the power setting can no longer be activated;
T
the set power level is reduced;
T
the cooktop switches off completely.
After a sufficient cooling period, the cooktop can be
used again in full.
6
Connect
6.1
Installing the app
The BORA JOY app is free to download from the Google
Play Store™ or Apple App Store®.
u
Install the BORA JOY app on your smartphone.
6.2
Account
Only one smartphone at a time can be linked to the
appliance via the BORA JOY app.
The appliance can only be linked to one BORA JOY
account. If the appliance is linked to more than one
smartphone, the BORA JOY app on all smartphones
must be linked to the same BORA JOY account.
Customers cannot restore the link between appliances
and accounts. If you need to create a link to a new
BORA JOY account, contact the BORA Service Team.
6.3
Pairing
u
Activate connectivity in the customer menu
(see"8User menu").
T
The Connect button should be only faintly lit.
u
Open the BORA JOY app on your smartphone.
u
Select the desired BORA appliance and start
connection.
T
The Connect button will fade in and out.
u
Tap the Connect button to confirm the
connection.
T
The Connect button will light up fully.
T
If the connection is interrupted, the Connect button
will be dimmed again.
6.4
BORAJOYapp
Certain settings and programmes can be selected,
customised and started using the BORA JOY app.
u
Adjust the settings in the app. To do this, follow the
instructions in the app.
u
Select “Transfer settings”.
BORA Assist
EN
28 bora.com
T
The Assist button on the operating panel will fade in
and out.
u
Tap the Assist button to confirm the setting.
T
The settings are transferred.
7
BORA Assist
u
Observe all safety and warning information
(see"2Safety").
BORA Assists are programmes designed to help you
with certain dishes and cooking processes.
7.1
Cookware
BORA Assists are specially adapted to the BORA Assist
cookware, which is marked with the Assist icon
.
BORA Assist cookware is available from your specialised
retailer or the BORA shop via the website
www.mybora.com.
u
When starting BORA Assist, use only cookware and
water at room temperature.
7.2
BORA Assist
There are 5 places available for Assist functions on the
appliance that can also be used without the BORA JOY
app. P1 (Fry) and P2 (Boil) are already allocated. The
Assists P3, P4 and P5 can be allocated as you wish
using the BORA JOY app.
7.2.1
Allocating Assists using the
BORA JOY app
u
Select the desired Assist in the BORA JOY app.
u
Select “Transfer selection”.
u
Tap the Assist button to confirm the transfer.
7.3
Activating BORA Assist
Only one Assist can be used on each side of the
appliance.
T
There must be no residual heat displayed at the
desired cooking zone.
u
Tap the desired cooking zone display
u
Tap the Assist button .
u
Select the desired Assist using the slider or the +/-
button.
u
Tap the Assist button to confirm the selection.
T
is shown in the cooking zone display with the
Assist icon beside it.
T
The heating-up animation appears in the slider or
flashes in the cooking zone display.
T
If manual cooking processes are required, the
cooking zone display will fade in and out. If the
necessary cooking processes have been completed,
the Assist requires confirmation in order to continue.
u
Tap the cooking zone display.
u
Tap the Assist button to confirm the next step
7.3.1
Adjusting the cooking
programme
When Assists are active, it is possible to slightly adjust
the power level. You can increase or decrease the level
by one digit.
u
Tap the cooking zone display with the active Assist.
u
Adjustment using the slider or / button
7.3.2
Fry – accurate frying to the last
degree
Frying temperatures can be set using the Assist Fry
programme. This function is designed for Assist-
compatible frying pans.
u
Tap the cooking zone display with the active
programme.
u
Using the slider or / button, set the
desired frying temperature.
T
The temperature is shown in °C in the multi-function
display.
T
flashes in the cooking zone display until the target
temperature is reached for the first time and an
acoustic signal is heard.
Activity Temperature in
°C
Stewing fruit and vegetables
-
Fried eggs, omelette, scrambled egg
-
Desserts containing flour, pancakes, blinis,
Kaiserschmarren
-
Frying meat, grilled vegetables, breaded
food (fish, escalopes, vegetables), frying
fruit
-
Frying steak, prawns, fish fillets, fried pota-
toes
-
Tab.7.1
Temperature recommendations (the
specifications provided in the table are standard
values)
7.3.3
Boil – for boiling water
The Assist Boil programme enables you to boil water.
u
Add water to suitable BORA Assist cookware up to
the Boil mark
.
u
Start the Assist Boil programme.
User menu
EN
bora.com 29
T
The cooking zone deactivates automatically when the
water boils and an acoustic signal is heard.
7.3.4
Adjusting the cooking zone timer
Cooking zone timers can be adjusted manually.
u
Tap the cooking zone display with the active Assist
programme.
u
Tap the timer button .
u
The time can be adjusted using the slider or
/ button.
7.4
Starting BORA Assist using
the BORA JOY app
Assists that have not been saved on the appliance can
only be started using the BORA JOY app.
u
Select the Assist in the BORA JOY app.
u
Select “Start programme” in the BORA JOY app.
u
Tap the Assist button to confirm the special
programme.
7.5
Switching BORA Assist off
early
Assists can always be switched off early.
u
Tap the cooking zone display with the active Assist
programme.
u
Long press on the Assist button
or
u
long press on the cooking zone display.
7.6
Completion of a BORA Assist
Depending which BORA Assist has been activated, it will
be deactivated once the timer lapses or must be
switched off manually.
7.6.1
Extending the time
When the Assist time has ended, it can be manually
extended.
u
Tap the cooking zone display in which the Assist
function has stopped.
T
The 1-minute cooking zone timer will be suggested in
the multi-function display.
T
The cooking zone timer can be adjusted manually.
u
Tap the Assist button .
T
The Assist programme will be extended.
8
User menu
Calling up the user menu
Prerequisite: the appliance is switched on, all cooking
zones and the cooktop extractor are inactive and there
is no residual heat.
u
Long press on the multi-function display.
Navigating the user menu
Navigate to the next menu item:
u
Tap the multi-function display.
T
Any changed settings are automatically applied when
changing to another menu item or when exiting the
menu.
Closing the user menu
u
Long press on the multi-function display.
or
u
long press on the power button
T
The menu is closed and the appliance is switched off.
User menu overview
Menu item/Description/Selection Factory
setting
Con Connectivity Off
1 Volume of the acoustic signals (0–9) 0
2 Child lock (On/Off) Off
3 Show filter status (reset filter service dis-
play)
4 Duration of the automatic after-run function
(10, 15, 20 min.)
20 min
5 Touch zone reaction speed (1 slow, 2 me-
dium, 3 fast)
2
6 LED test
7 Permanent pan size recognition Off
8 Software/hardware version
9 Safety shut-down (1 long, 2 medium, 3
short)
2
0 Reset to factory settings
Tab.8.1
User menu overview
8.1
Menu item Con: connectivity
The connectivity function can be permanently activated
or deactivated.
u
Tap the top slider segment to activate.
u
Tap the bottom slider segment to deactivate.
User menu
EN
30 bora.com
Fig.8.1
Menu item Con: connectivity
8.2
Menu item 1: volume of the
acoustic signals
It is possible to set different acoustic signal volume
levels. This does not apply to safety-relevant acoustic
signals.
Fig.8.2
Menu item 1: Volume of the acoustic signals
8.2.1
Sounds
The system distinguishes between different signal
acoustic signals:
Acoustic signal Purpose
Short beep (0.25 s ) Confirmation of a selection
Sequence of beeps Interaction required
Tab.8.2
Sounds
8.3
Menu item 2: Child lock
The child lock can be permanently activated or
deactivated.
u
Tap the top slider segment to activate.
u
Tap the bottom slider segment to deactivate.
Fig.8.3
Menu item 2: Child lock
8.4
Menu item 3: Show filter
status and reset filter service
display
u
Long press on .
T
The filter status will be reset to 100%.
T
The filter service display will no longer be shown
when switching on.
Fig.8.4
Menu item 3: Reset filter status and the filter
service display
8.5
Menu item 4: Duration of the
automatic after-run function
There are three times to choose from:
20 minutes / 15 minutes / 10 minutes
Fig.8.5
Menu item 4: Selecting the duration of the
automatic after-run function
User menu
EN
bora.com 31
8.6
Menu item 5: Touch zone
reaction speed
u
Select the required reaction speed.
T
Reaction speed : slow
T
Reaction speed : medium
T
Reaction speed : fast
Fig.8.6
Menu item 5: Reaction speed
8.7
Menu item 6: LED test
u
Tap the slider zone .
T
All indicators are displayed at 50% brightness.
u
Tap any indicator you wish.
T
The selected indicator will be displayed at 100%
brightness for 1 second for testing purposes.
Fig.8.7
Menu item 6: LED test
Ending the LED test:
u
Long press on the multi-function display.
T
The LED test will be automatically ended when there
has been no activity for 5 seconds.
8.8
Menu item 7: Permanent pan
size recognition
Activate or deactivate permanent pan size recognition.
u
Tap the top slider segment to activate.
u
Tap the bottom slider segment to deactivate.
Fig.8.8
Menu item 7: Permanent pan size recognition
8.9
Menu item 8: Show
software/hardware version
The software/hardware version is shown via the four 4
cooking zones indicators.
Fig.8.9
Menu item 8: Software/hardware version
8.10
Menu item 9: Safety shut-
down
The time span (level) until automatic safety shut-down
of the cooking zones can be selected.
T
Level 1: long time span until automatic safety shut-
down
T
Level 2: medium time span until automatic safety
shut-down (factory setting)
T
Level 3: short time span until automatic safety shut-
down
Fig.8.10
Menu item 9: Safety shut-down
Cleaning and maintenance
EN
32 bora.com
8.11
Menu item 0: Reset to
factory settings
Menu item 0 enables all settings in the user
menu to be reset to the factory settings.
Resetting to factory settings
u
Long press on the slider zone .
T
After resetting, the appliance is switched off.
9
Cleaning and
maintenance
u
Observe all safety and warning information
(see"2Safety").
u
When conducting cleaning and maintenance, ensure
that the cooktop and cooktop extractor are fully
switched off and cooled so as to prevent injury.
u
Adhere to the following cleaning and maintenance
cycles:
Component Cleaning and maintenance cycles
Operating panel Immediately after every soiling
Cooktop Immediately after every soiling
Cooktop
extractor
Weekly
Air inlet nozzle
and stainless
steel grease filter
T
After cooking very greasy dishes,
but at least once a week
T
If the filter service indicator
appears
Air guiding
housing
Every 6 months or when replacing the ac-
tivated charcoal filter
Activated char-
coal filter (with
recirculation only)
Replace if odours have built up, extraction
power is dwindling or filter service indicator
appears
Tab.9.1
Cleaning cycles
Regular cleaning and maintenance ensures long
service life of the product and optimal function.
9.1
Cleaning agents
u
Do not use any chemically aggressive cleaning agents
or agents containing acid or lye (e.g. oven spray).
u
Make sure that the cleaning agent does not contain
any sand, soda, acids, lyes or chloride.
u
Never use a steam cleaner, abrasive sponges or
scouring pads.
Aggressive cleaning agents and abrasion
caused by the pot bases will damage the
surface and dark stains will occur.
9.2
Maintenance
u
Never use the cooktop as a work or storage surface.
u
Do not push or pull cookware over the cooktop.
Any changes in colour or glossy spots do not mean that
the cooktop is damaged. They do not affect the
functionality of the cooktop or the stability of the glass
ceramic panel.
Changes in the colour of the cooktop are the result of
residues which have not been removed and have burnt on.
Glossy spots are the result of wear by the pan base,
especially if aluminium-based cookware or unsuitable
cleaning agents are used. These are difficult to remove.
9.3
Cleaning the cooktop
To clean the cooktop, you need a special glass
ceramic scraper and suitable cleaning agents.
Scheduled cleaning
u
Remove all coarse dirt and food residues from the
cooktop using a glass ceramic scraper.
u
Apply the cleaning agent to the cold cooktop.
u
Spread the cleaning agent using kitchen roll or a
clean cloth.
u
Wipe the cooktop clean with a damp cloth.
u
Dry the cooktop with a clean cloth.
Heavy soiling
u
Remove heavy soiling and marks (limescale marks,
mother-of-pearl-like shiny marks) using cleaning
products while the cooktop is still warm.
u
Wipe off any food that boils over with a damp cloth.
u
Remove any remaining dirt with the glass ceramic
scraper.
Surface cleaning during operation
u
Always remove any seeds, crumbs or similar
immediately to avoid scratching the surface.
u
Remove stubborn residues of plastic, aluminium foil,
sugar or sweet dishes from the hot cooking zone
immediately using a glass ceramic scraper to prevent
burning.
9.4
Cleaning the cooktop
extractor
u
Clean the surfaces of the extraction system using a
soft, damp cloth, detergent or a mild window
cleaning agent.
u
Soften dried on dirt using a damp cloth (do not
scrape it off!).
Cleaning and maintenance
EN
bora.com 33
9.4.1
Cleaning the air inlet nozzle and
stainless steel grease filter
The air inlet nozzle and stainless steel grease
filter absorb the greasy particles from cooking
vapours.
Removing the X Pure air inlet nozzle
Prerequisite: the fan display shows .
1
Fig.9.1
Removing the air inlet nozzle
[1]
Air inlet nozzle
Removing the stainless steel grease filter
1
2
3
Fig.9.2
Removing the stainless steel grease filter
[1]
Stainless steel grease fil-
ter
[2]
Handle
[3]
Inlet opening
Manual cleaning
u
Use a cleaner and degreaser in one.
u
Rinse the components with hot water.
u
Clean the components with a soft brush.
u
Rinse the components in clean water after cleaning.
Cleaning in the dishwasher
u
Place the components in the dishwasher in such a
way that water cannot accumulate inside then.
u
Select a rinse programme with a maximum
temperature of 65 °C.
The stainless steel grease filter must be
replaced when it can no longer be fully cleaned.
(see"13Warranty, technical service, spare parts,
accessories").
Fitting the components
u
To install the components, follow the steps in reverse
order.
Only insert dry, clean components inside the
appliance.
9.4.2
Removing liquids from the
appliance
Any liquids that flow into the appliance through
the inlet opening are caught by the stainless
steel grease filter (up to 150ml) and in the air
guiding housing.
Do the following:
u
Remove the air inlet nozzle and stainless steel grease
filter.
u
Empty the stainless steel grease filter.
u
Check whether any liquid has gathered in the base of
the air guiding housing.
u
Remove the liquid from the air guiding housing.
u
To dry the activated charcoal filter and duct parts,
switch on the cooktop extractor at a minimum power
level of 5.
T
After 120 minutes, the cooktop extractor will
automatically switch off and the automatic after-run
function will be activated.
9.5
Cleaning the air guiding
housing
The air guiding housing can be found on the bottom of
the cooktop inside the floor unit. Grease particles and
limescale residues can settle on the surface of the air
guiding housing.
Opening the air guiding housing
u
Remove the air inlet nozzle and stainless steel grease
filter.
u
Remove the filter replacement cover.
u
Release the 6 locks around the edge of the base.
u
Remove the housing base.
u
Clean the air guiding housing and the housing base
with a mild cleaning agent.
Cleaning and maintenance
EN
34 bora.com
12345
Fig.9.3
Air guiding housing
[1]
Spigot
[2]
Sealing groove
[3]
Lock
[4]
Housing base
[5]
Air guiding housing
Closing the air guiding housing
u
Position the housing base with the help of the 3
spigots around the edges.
u
Push the housing base upwards into the sealing groove.
u
Close the 6 locks.
u
Check that the housing base is positioned correctly.
u
Insert the filter replacement cover.
u
Check that the filter replacement cover is positioned
correctly.
u
Insert the stainless steel grease filter and the air inlet
nozzle.
9.6
Replace the activated
charcoal filter
The activated charcoal filter must be replaced
when the fan indicator is shown
(filter service
display). You can obtain activated charcoal filters
from your specialist supplier or from the BORA
Shop via the website at http://www.mybora.com.
Removing the activated charcoal filter
u
Remove the air inlet nozzle and stainless steel grease
filter.
u
Inside the inlet opening pull the filter replacement
cover out through the opening in the filter housing.
1
2
Fig.9.4
Removing the filter replacement cover
[1]
Filter replacement cover
[2]
Air inlet opening
u
Take hold of the activated charcoal filter by the grip
strap and pull it out as far as possible.
1
2
Fig.9.5
Turning the activated charcoal filter from the
filter housing
[1]
Grip strap
[2]
Activated charcoal filter
u
Pull the activated charcoal filter upwards and twist to
take it out of the air inlet opening.
Fig.9.6
Removing the activated charcoal filter through
the inlet opening

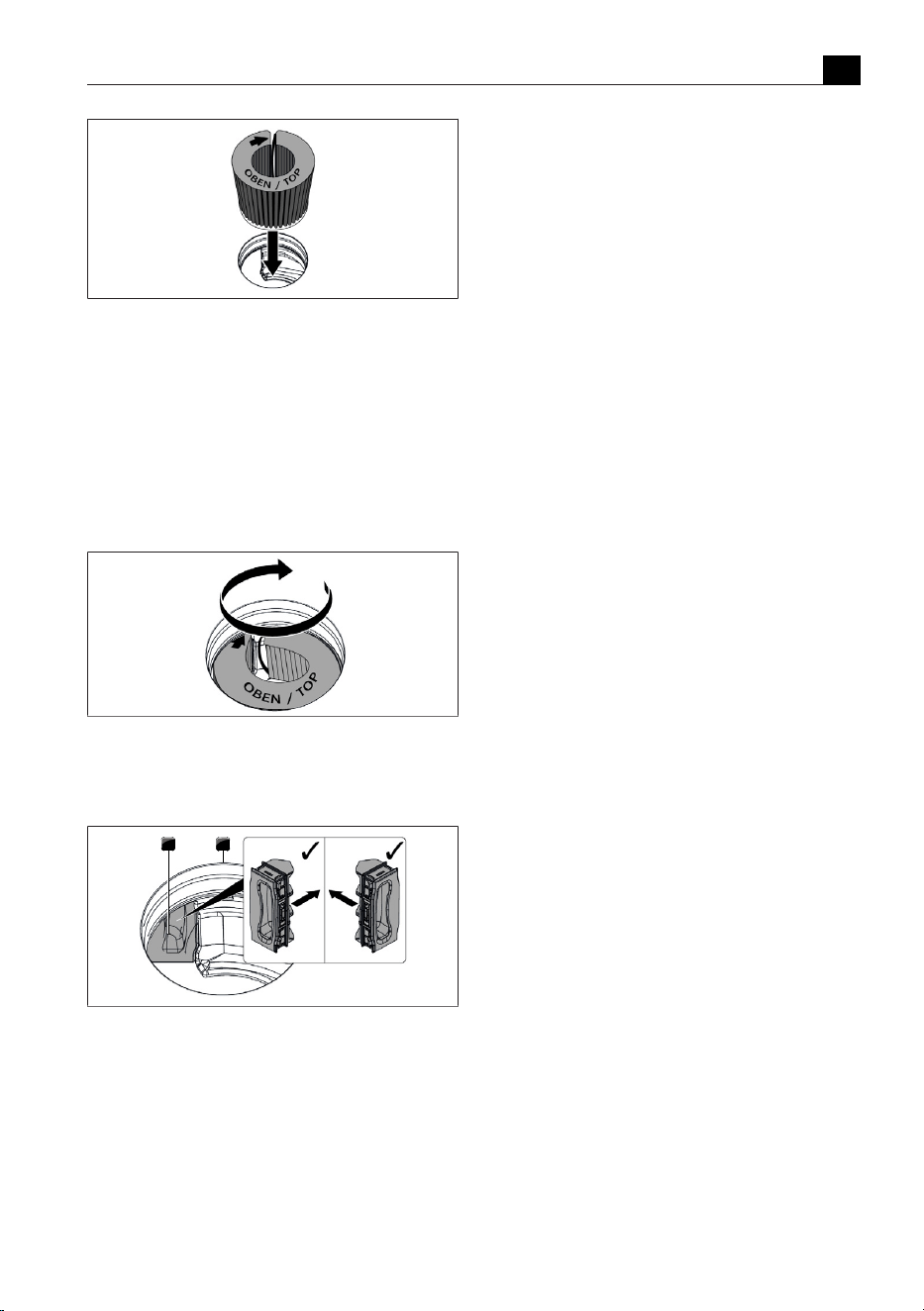

Inserting the activated charcoal filter
u
Remove the packaging from the activated charcoal
filter.
u
Position the activated charcoal filter correctly with
the help of the printed symbols (arrow left, grip strap
right).
u
Hold the activated charcoal filter at both ends.
u
Bend the activated charcoal filter to form a cylinder.
1 2
Fig.9.7
Activated charcoal filter
[1]
Activated charcoal filter
[2]
Grip strap
u
Tilt the activated charcoal filter slightly and insert it
through the inlet opening.
Cleaning and maintenance
EN
bora.com 35
Fig.9.8
Inserting the activated charcoal filter through
the vent opening
u
Guide the left end of the filter into the opening in the
filter housing.
u
Push the activated charcoal filter into the filter
housing until it will go no further (to do this, you can
place one finger between the slats and gradually
push the filter into the housing).
T
The end position of the activated charcoal filter is
reached when the filter has been fully pushed inside
the filter housing.
Fig.9.9
Placing the activated charcoal filter in the end
position
u
Reinsert the filter replacement cover and check that
it is in the correct position.
1
2
Fig.9.10
Inserting the filter replacement cover
[1]
Filter replacement cover
[2]
Air inlet opening
u
Insert the stainless steel grease filter and the air inlet
nozzle.
u
Reset the filter service display (Menu item 3: Show
filter status and reset filter service display).
Troubleshooting
EN
36 bora.com
10
Troubleshooting
You can often remedy faults and errors yourself. This saves time and money as you don’t need to call out
customer services.
u
Observe all safety and warning information (see"2Safety").
Operating situation Cause Remedy
Appliance cannot be switched on Fuse/automatic circuit breaker defective Replace the fuse;
Switch the automatic circuit breaker back
on
The fuse/automatic circuit breaker trips
several times
BORA Contact the Service Team.
The power supply is disconnected Have a specialist electrician inspect the
power supply
Odour formation when operating a new ap-
pliance
This is normal with brand new appliances Odours stop forming after a few operating
hours
A cooking zone display shows
No or unsuitable cookware Use suitable, appropriately sized cookware
(see “Appliance description”)
The lock button lights up
Active child lock deactivate the child lock
Cooking zone/cooktop switches off auto-
matically
The maximum cooking zone operating time
has been exceeded
Put the cooking zone back into operation
Power setting prematurely cancelled The overheating protection has tripped
see"5.6.5Overheating protection"
The cooktop cooling fan continues to run
when the cooktop has been switched off
The cooling fan runs until the cooktop has
cooled
Wait until the cooling fan switches off auto-
matically
Decreased extraction performance of the
cooktop extractor
Grease filter extremely dirty Clean or replace the grease filter
Activated charcoal filter extremely dirty (re-
circulation only)
Replace the activated charcoal filter
Item in air guiding housing (e.g. cleaning
cloth)
Remove the object
is displayed
Use of a phase-separating window contact
switch
Open the window
Fan defective or a duct connection has be-
come loose
Contact the BORA Service Team
is displayed
The overheating protection has tripped
see"5.6.5Overheating protection"
is displayed
Object on the operating panel Remove the object from the operating
panel
The operating panel is dirty Clean the operating panel
, , , or is dis-
played
Faulty connectivity module Contact the BORA Service Team.
is shown (recirculation only)
End of activated charcoal filter service life
reached
Insert a new activated charcoal filter
(see"9.6Replace the activated char-
coal filter").
Tab.10.1
Troubleshooting
Faults and errors not covered:
u
Switch off the appliance.
u
Contact the BORA Service Team (see"13Warranty, technical service, spare parts, accessories") and enter the
error number displayed and the appliance type.
Installation
EN
bora.com 37
11
Installation
u
Observe all safety and warning information
(see"2Safety").
11.1
General installation
instructions
The power supply cable must be provided by the
customer.
The appliance must not be installed above
cooling devices, dishwashers, stoves, ovens,
washing machines or dryers.
The contact surfaces of the worktops and wall
sealing strips must be made of a heat-resistant
material (up to approx. 100°C).
Worktop cut-outs must be moisture-sealed
using suitable means and, where necessary,
fitted with a thermal insulator.
The integrated cooktop extractor must not be
used with other cooktops.
To maintain the level of performance and avoid
overheating, sufficient ventilation must be
ensured below the cooktops.
If cable protection (false floor) is planned
beneath the appliance, this must be fitted so it
does not obstruct ventilation.
11.1.1
Simultaneous operation of the
cooktop extractor in the exhaust
air mode with a fireplace
dependent upon the air supply in
the room
Fireplaces that depend on the air in the room (e.g. gas,
oil, wood or coal-fired heaters, continuous-flow water
heaters, instantaneous water heaters) draw in air from
the room in which they are installed and release the
exhaust fumes into the outside air via an exhaust
system (e.g. chimney).
If the cooktop extractor is used in exhaust air mode, it
draws in air from the room in which it is installed as well
as from neighbouring rooms. Without sufficient air,
there will be a drop in air pressure. Toxic gases could be
drawn out of the chimney or extraction ducting and
back into the room.
Fig.11.1
Exhaust air installation – not permitted
Fig.11.2
Exhaust air installation – correct
u
If simultaneously operating both the cooktop with a
fireplace and the cooktop extractor in the room they
are installed, ensure that...
T
...the maximum low pressure is 4Pa;
T
...a safety device (e.g. window contact switch, low
pressure warning device) is used to ensure that a
sufficient supply of fresh air is guaranteed;
T
...the exhaust air is not channelled into a chimney
that is used for exhaust gases of appliances operated
with gas or other combustibles;
T
...the installation is checked and approved by an
authorised certified engineer (e.g. heating engineer).
If the cooktop extractor is used exclusively in
recirculation mode, simultaneous operation with a
fireplace dependent on the air in the room is
possible without any additional safety measures.
11.2
Scope of delivery
Scope of delivery Quant-
ity
Cooktop with integrated cooktop extractor 1
Air inlet nozzle 1
Stainless steel grease filter 1
Operating and installation instructions 1
Installation clamps 4
Sealing tape 1
Height adjustment plate set 1
Bag containing various small parts for assembly 1
Additional scope of delivery for PUXU2, PUXU2R
Activated charcoal filter 1
Template for back panel cut-out 1
Tab.11.1
Scope of delivery
Installation
EN
38 bora.com
Checking the scope of delivery
u
Make sure the delivery is complete and check it for
damage.
u
Immediately notify the BORA Service TeamTeam if
parts are missing or damaged.
u
Do not under any circumstances install parts which
are damaged.
u
Dispose of transport packaging in the proper manner
(see"12Decommissioning, disassembly and disposal").
11.3
Tools and aids
The following tool, among others, is required to
correctly install the appliance:
T
Jigsaw or handsaw
T
size 20 Torx screwdriver key
T
black, heat-resistant silicone sealant
T

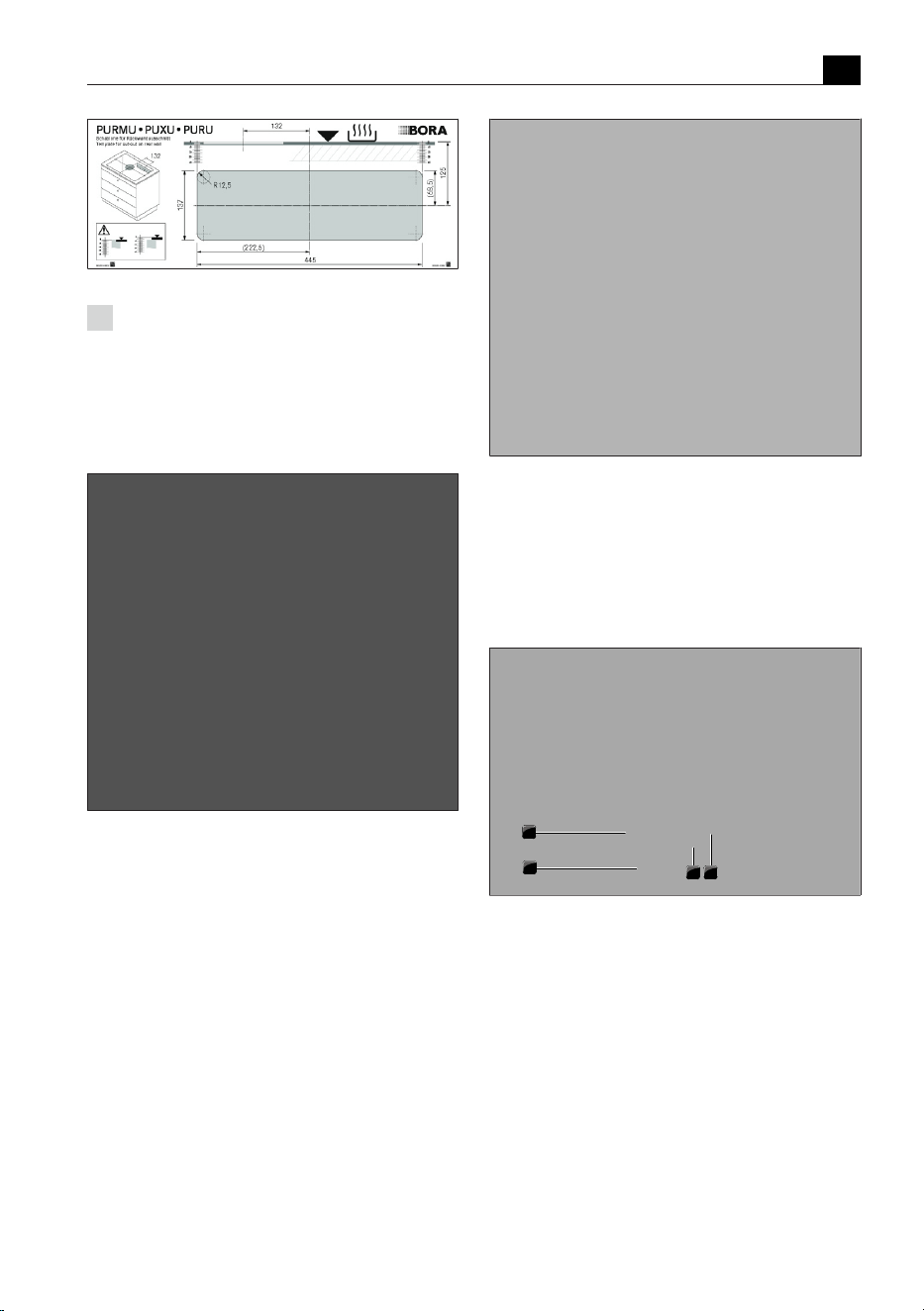

Template for cut-out on back panel (recirculation only)
11.4
Assembly instructions
11.4.1
Installation clearances
u
Observe the required clearance around the worktop
cut-out.
1
2
Fig.11.3
Required clearance
[1]
Required clearance
[2]
Worktop cut-out
11.4.2
Minimum unit dimensions for X Pure
Fig.11.4
Minimum unit dimensions for X Pure
11.4.3
Information on kitchen units
T
Cross bars on the kitchen unit in the area of the
worktop cut-out may need to be removed.
T
In the case of thin worktops, there must be a
sufficiently rigid support plate on the unit.
T
The drawers and/or shelves in the floor unit must be
removable.
T
The drawers of the floor unit must be shortened
depending on the installation situation.
If false floor (cable protection) is planned, the following
must be taken into account:
T
It must be fitted in such a way that it can be removed
from below for maintenance work.
T
To ensure sufficient cooktop ventilation, a minimum
distance of 15mm to the bottom edge of the
cooktop is to be observed.
11.5
Worktop cut-out
The minimum measurement of 50 mm from the
front edge of the worktop to the worktop cut-
out is a recommendation from BORA.
u
Create the worktop cut-out taking into account the
specified cut-out dimensions.
u
Make sure that the cut surfaces of the worktops are
properly sealed.
u
Comply with the instructions of the worktop
manufacturer.
11.5.1
Cut-out dimensions
Flush installation of X Pure
(≥ 50)
≥ 50
834 ± 2
810 ± 2
≤ R5
≤ R5
≥ 600
519 ± 2
495 ± 2
Fig.11.5
Cut-out dimensions for flush installation
Installation
EN
bora.com 39
12
7 + 0.5
10–40
Fig.11.6
Rebate dimensions for flush installation
Surface mounting of X Pure
810 ± 2
≤ R5
(≥ 50)
≥ 600
495 ± 2
≥ 50
Fig.11.7
Cut-out dimensions for surface mounting
screwdriver
10–40
Fig.11.8
Overlay dimensions for surface mounting
11.6
Preparing kitchen units for
exhaust air models
National and regional laws and regulations must
be observed with regard to the exhaust duct
design.
A sufficient air supply must be ensured.
The exhaust air must be directed to the outside
by appropriate exhaust air ducts.
The minimum cross section of the exhaust air
duct must be 176 mm
2
which equates to a
round pipe with a diameter of 150mm or the
BORA Ecotube duct system.
As a general rule, with the built-in fan, a length
of duct of up to 6 metres with six 90° bends, 8
metres with four 90° bends or 10 metres with
two 90° bends can be installed.
Not compatible with BORA Universal fans.
Planning instructions for the installation of the
exhaust air ducts are provided in the BORA
planning guide.
11.6.1
Adapting kitchen units
T
The back panel of the floor unit must be adapted for
the exhaust air duct.
T
A clearance of 120 mm must be provided for behind
the rear panel of the unit for the exhaust air duct.
T
No false floor is necessary below the cooktop.
Adjusting the back panel of the unit
u
Before installation, check the suitability of the floor
unit with regard to the necessary installation
dimensions for the appliance and the planned duct
system.
u
If necessary, adjust the position of the back panel
according to the required installation dimensions.
11.6.2
Installation dimensions
Fig.11.9
Installation dimensions for exhaust air, worktop
depth 600mm
Installation
EN
40 bora.com
11.7
Preparing kitchen units for
recirculation models
11.7.1
Recirculation of air from the
kitchen unit
In the case of recirculation systems, a return flow
aperture must be provided in the kitchen unit to guide
the clean recirculated air out of the unit and back into
the room. The return flow aperture can be created
above a shortened plinth. A slatted plinth with at least
the minimum opening cross-section can also be used.
u
Decrease the height of the plinth panel or create
corresponding openings in the plinth.
u
The cross-section of the return flow aperture must be
≥ 500cm² for each cooktop extractor.
1
2
Fig.11.10
Return flow aperture in the plinth area
[1]
Return flow aperture in the
plinth ≥500 cm²
[2]
Return flow of recirculated
air
11.7.2
Installation variants A and B for
recirculation appliances
There are 2 installation variants for recirculation
appliances:
A: floor unit with continuous back panel
The recirculated air is guided through the connection
with the back wall of the air purification box directly
behind the back panel of the unit. The recirculated air
goes back in to the room through the return flow
aperture.
For installation purposes, this means that:
T
No false floor is necessary below the cooktop.
T
There must be a cut-out in the back panel.
B: floor unit with false floor under the cooktop
The recirculated air is blown into the free space
between the worktop and the false floor (the air
purification box does not connect with the back panel).
The recirculated air goes behind the back panel of the
unit and through the return flow aperture back into the
room.
For installation purposes, this means that:
T
a false floor is necessary below the cooktop.
T
There does not need to be a cut-out in the back
panel of the unit.
11.7.3
Preparing the kitchen unit for
installation variant A
T
The floor unit must have a continuous back panel so
that the recirculated air is not directed into the front
furniture body compartment.
T
There must be a cut-out in the back panel.
T
A minimum clearance of 25 mm between the back
panel of the unit and an adjacent kitchen unit or
room wall must be kept for the return flow aperture.
T
No false floor is necessary below the cooktop.
Adjusting the back panel of the unit
u
Adapt the back panel according to the required
installation dimensions.
u
If necessary, move the back panel.
u
If necessary, extend the height of the back panel so
that the unit is closed to the front.
u
Position the template on the back panel of the unit
with the help of the markings and instructions.
u
Mark out the back panel cut-out.
u
Cut out the back panel cut-out with a saw.
Fig.11.11
Back panel cut-out
Installation
EN
bora.com 41
Fig.11.12
Template for back panel cut-out
Flush and surface mounting options must be
taken into account when positioning the
template. 125mm from top edge of the
cooktop to centre of cut-out.
11.7.4
Installation dimensions for
installation variant A
Fig.11.13
Installation dimensions in the case of
recirculated air, installation variant A
11.7.5
Extending the telescopic pull-out
of the air purification box
The telescopic pull-out is used to connect the duct to
the back panel of the kitchen unit. This can be used to
flexibly bridge a gap of max. 80mm between the
cooktop and the back panel of the kitchen unit. If the
depth of the worktop exceeds 675mm in installation
variant A, the telescopic pull-out must be extended
using the accessory PULBTA (+ max. 105 mm).
Fig.11.14
Installation dimensions for recirculation
installation variant A, depth of worktop 675 mm
and over
u
Remove the protective film from the adhesive tape
on the telescopic pull-out.
u
Fit the PULBTA extension on the telescopic pull-out.
u
Remove the protective film from the adhesive tape
on the PULBTA extension.
12
3
4
Fig.11.15
Extending the telescopic pull-out
[1]
Telescopic pull-out
[2]
Adhesive tape
[3]
Adhesive tape
[4]
PULBTA extension
11.7.6
Preparing the kitchen unit for
installation variant B
T
A false floor must be provided for under the cooktop.
T
The back panel of the unit must be flush with the
false floor so that the recirculating air is not directed
into the front of the unit.
T
A minimum clearance of 25 mm between the back
panel of the unit and an adjacent kitchen unit or
room wall must be kept for the return flow aperture.
Installation
EN
42 bora.com
Adjusting the back panel of the unit
u
Adapt the back panel according to the required
installation dimensions.
u
If necessary, move the back panel.
u
Adjust the height of the back panel to the false floor
so that they are flush with one another.
11.7.7
Installation dimensions for
installation variant B
Fig.11.16
Installation dimensions for recirculation
installation variant B, depth of worktop 600 mm
11.8
Preparing the appliance
Attaching the sealing tape
u
In the case of surface mounting, attach the enclosed
sealing tape around the outer edges of the underside
of the cooktop. Do not leave any gaps.
u
In the case of flush installation, attach the sealing
tape to the contact surfaces in the worktop cut-out,
even if you are sealing the cooktop with a silicone
sealing compound or similar.
1
2
Fig.11.17
Sealing tape in the case of surface mounting
[1]
Silicone sealant
[2]
Sealing tape
1
2
Fig.11.18
Sealing tape in the case of flush installation
[1]
Silicone sealant
[2]
Sealing tape
Fitting the installation clamps
u
Push 2 installation clamps onto each side of the
cooktop until they come to a stop in the retaining
brackets provided.
1
2
Fig.11.19
Fitting the installation clamps
[1]
Retaining brackets
[2]
Installation clamps
11.9
Installing the cooktop
11.9.1
Inserting the cooktop
1
2
3
4
5
6
Fig.11.20
Positioning the cooktop in the centre
[1]
Cooktop
[2]
Air inlet opening
[3]
Air inlet nozzle
[4]
Stainless steel grease filter
[5]
Worktop cut-out
[6]
Adhesive tape
u
Before inserting the cooktop, remove the air inlet
nozzle and the stainless steel grease filter.
u
Remove the protective film from the adhesive tape
on the front of the telescopic pull-out.
u
Use the inlet opening as a handle during insertion.
u
Keep the cooktop straight as you lift it into the
worktop cut-out.
Installation
EN
bora.com 43
u
Insert the cooktop into the centre of the worktop
cut-out.
u
Precisely align the cooktop.
Make sure that the cooktop sealing tape is flat
against the worktop in the case of surface
mounting.
Make sure that the cooktop sealing tape is well
sealed all the way round in the case of flush
installation.
Height adjustment plates for flush installation
(optional)
To prevent slipping, the height adjustment plates are
self-adhesive.
u
If applicable, insert the height adjustment plates.
u
Place the height adjustment plates next to the
sealing tape.
1
2
Fig.11.21
Positioning the height adjustment plates
[1]
Cooktop
[2]
Height adjustment plate
1 2
Fig.11.22
Height adjustment plates
[1]
Sealing tape
[2]
Height adjustment plate
11.9.2
Securing the cooktop
u
Secure the cooktop to the worktop with the fixing
bracket on the installation clamp.
u
Tightening torque: max. 2.2Nm.
1
2
3
Fig.11.23
Securing the cooktop in the middle
[1]
Cooktop
[2]
Mounting bracket
[3]
Fixing bracket
11.9.3
Connecting the exhaust air duct
The duct system must be fitted to the appliance
free of load and with the power supply switched
off.
When attaching the seals, ensure that an
airtight seal is created with the connecting duct
piece when the seals are compressed.
u
Use only BORA Ecotube duct parts.
u
Do not use flexible or fabric hoses.
u
Pull the seal onto the exhaust opening on the
appliance. The seal will need to be stretched slightly.
u
Push the duct part to be connected with the coupling
onto the exhaust opening with the seal.
u
Ensure that the seal is not displaced.
1
2
3
Fig.11.24
Connecting the duct system
[1]
Seal
[2]
Duct part
[3]
Exhaust opening
Installation
EN
44 bora.com
11.9.4
Connecting to the back panel in
recirculation model A
1
2
3
Fig.11.25
Connection with the back panel
[1]
Telescopic pull-out
[2]
Adhesive tape
[3]
Back panel of unit
u
Push the telescopic pull-out until it is tight up against
the back panel of the unit.
T
With the telescopic pull-out the distance to the back
panel of the unit can be flexibly bridged.
u
Check that the telescopic pull-out fits accurately, is
flush with the cut-out on the back panel of the unit
and closes it off.
u
Secure the telescopic pull-out to the back panel of
the unit using the adhesive tape.
11.9.5
Inserting the activated charcoal
filter for recirculation
See chapter Cleaning and maintenance, “7.6
Replacing the activated charcoal filter”
11.10
Connecting the power supply
u
Observe all safety and warning information
(see"2Safety").
Assembly, installation and commissioning must
always occur in line with national laws,
regulations and standards. The work must be
performed by qualified specialists who know
and comply with the additional regulations of
the local energy supply companies.
Connections via plug-in contacts (Schuko plugs)
are not permitted.
Single-phase connection: the appliance
complies with the requirements of IEC
61000-3-12.
u
Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
u
Secure the main switch/automatic circuit breaker
against being switched back on without permission.
u
Make sure the power to the appliance is
disconnected.
u
Connect the cooktop exclusively via a fixed
connection to an H 05 VV-F power supply cable with
corresponding minimum cross-section.
Connection Fuse protection Minimum cross-
section
3-phase connection 3 x 16A 2.5mm²
2-phase connection 2 x 16A 2.5mm²
Single-phase
connection
1 x 32A 4mm²
Tab.11.2
Fuse protection and minimum cross-section
u
Connect the power supply cable to the power supply
of the appliance in accordance with the relevant
connection diagram.
u
For a single-phase or two-phase connection, connect
the relevant contacts using the bridge provided.
u
Secure the power supply cable with the strain relief
clamp.
u
Close the power supply housing with the power
supply cover.
u
Lay the connection cable along the mounting eyes
with the help of the cable ties.
u
Ensure that the cable is not trapped or damaged and
is not able to come into contact with any hot areas
on the cooktop.
u
Check that installation has been carried out
correctly.
1
2
3
4
5
1
2
S1
Fig.11.26
Connection diagram with external switch
contact
[1]
Power supply cable
[2]
Power supply
[3]
Appliance power supply
[4]
Switch relay
[5]
Switch connection S1 and
switch relay
[S1]
External switch contact
Installation
EN
bora.com 45
Fig.11.27
Connection diagram for 3-phase connection
Fig.11.28
Connection diagram for 1-phase connection
Fig.11.29
Connection diagram for 2-phase connection
1
2
3
Fig.11.30

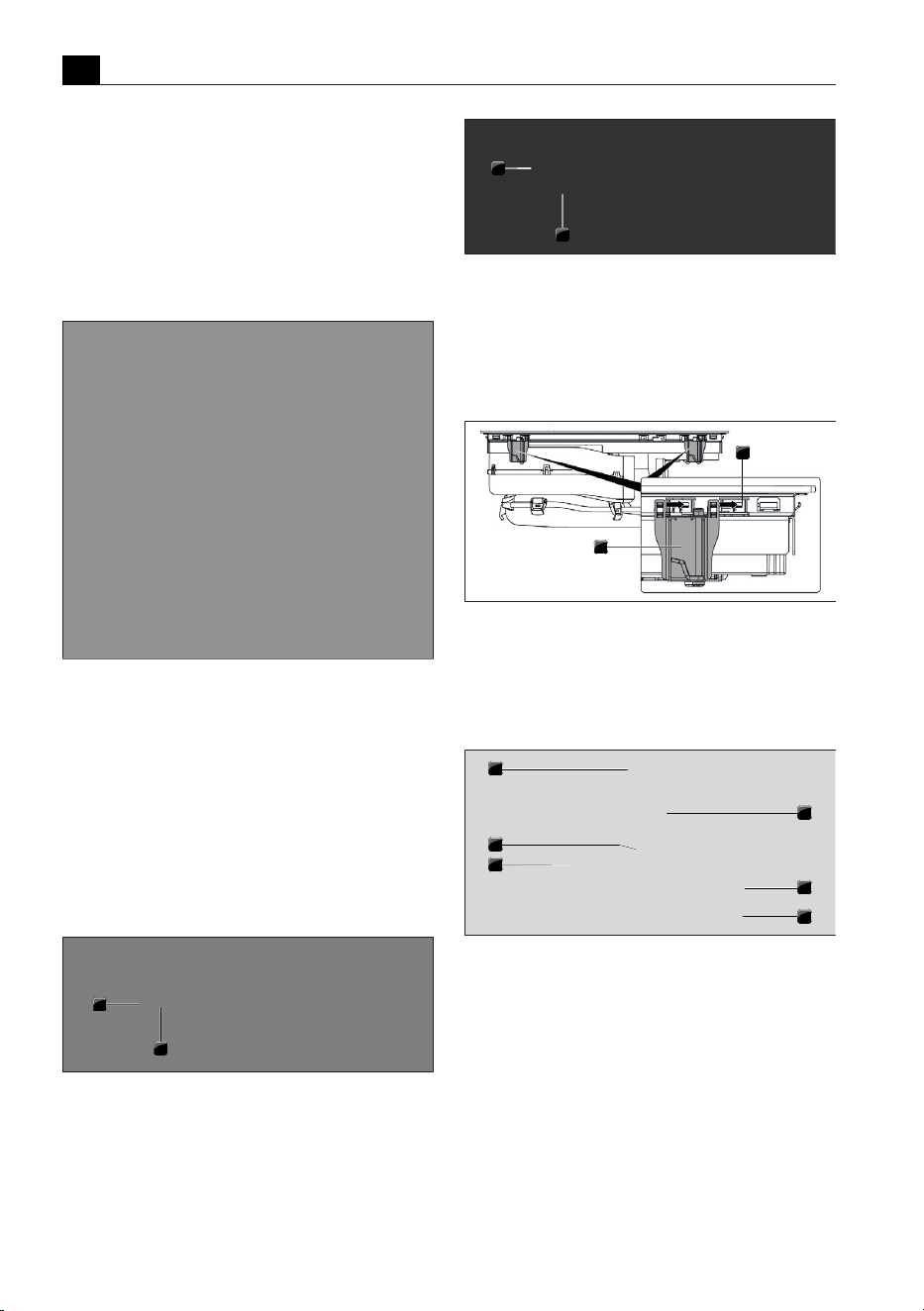

Electrical connections of the cooktop
[1]
Power supply
[2]
Power supply cover
[3]
Mounting eyes
11.11
Initial operation
During initial operation some basic settings
(basic configuration) must be applied using the
dealer and service menu.
11.11.1
Dealer and service menu
The dealer and service menu can be called up
up to 2 minutes after the appliance has been
connected to the power supply.
The system adopts and saves the settings made
when you exit the corresponding menu item.
Below you will find explanations on how to use
the menu and a description of the most
important menu items.
Dealer and service menu overview
Menu item/Description/Selection
area
Factory setting
B Extraction system (exhaust air/
recirculation system)
Recirculation
C Power management
D Demo mode Off
Tab.11.3
Menu overview
Calling up the dealer and service menu
u
Connect the appliance to the power supply.
T
The standard display appears and the fan symbol
pulses for 2 minutes.
u
Long press on the fan button .
T
4 input points are shown.
u
Keep the fan button pressed and at the same
time press the input points
in the specified order.
T
Menu item B is displayed.
Fig.11.31
Calling up the dealer and service menu
11.11.2
Menu item B: Extraction system
configuration
There are two operating modes to choose from:
T
Operating mode : recirculation system (factory setting)
T
Operating mode : exhaust air system
u
Select the appropriate operating mode.
u
Confirm and save the setting by moving to the next
menu item (tap the multi-function display/indicator
).
Installation
EN
46 bora.com
Fig.11.32
Display Menu item B: Configuring the extraction
system
11.11.3
Menu item C: Power
management
The total appliance power can be reduced if the
required electrical power cannot be provided at the
installation site.
There are three power management settings to choose
from:
Power man-
agement set-
tings
Connection Maximum
power con-
sumption
Fuse protec-
tion
C3 3-phase 7600 W 3 x 16 A
C3 2-phase 7600 W 2 x 16 A
C3 1-phase 7600 W 1 x 32 A
C2 1-phase 4400 W 1 x 20 A
C1 1-phase 3600 W 1 x 16 A
Tab.11.4
Power management
u
Select the appropriate setting.
u
Confirm and save the setting by moving to the next
menu item (tap the multi-function display/indicator
).
The cooking zone power restrictions
automatically implemented by the appliance are
determined according to the total power set.
Fig.11.33
Display menu item C: Power management
11.11.4
Menu item D: Demo mode
The appliance can be set to demo mode, which includes
all operating functions, but the heating function of the
cooktops is deactivated.
u
Tap the top slider segment.
T
The demo mode symbol is displayed on all
cooking zones for one second.
T
is displayed.
u
Confirm and save the setting by moving to the next
menu item (tap the multi-function display/indicator
).
Pan size recognition is deactivated in demo
mode.
Fig.11.34
Display Menu item D: Demo mode
Closing the dealer and service menu
When you have been through all of the basic
configuration menu items:
u
Long press on the multi-function display.
11.11.5
Function test
u
Carry out a thorough function test on all appliances.
u
In the event of error messages, see the
“Troubleshooting” chapter.
11.12
Sealing the appliance
u
Once all of the installation work is complete, seal the
appliance with black, heat-resistant silicone sealant.
u
Make sure that no silicone sealant gets under the
cooktop.
1
Fig.11.35
Silicone sealant for surface mounting
[1]
Silicone sealant
Decommissioning, disassembly and disposal
EN
bora.com 47
1
Fig.11.36
Silicone sealant for flush installation
[1]
Silicone sealant
11.13
Handover to user
Once installation is complete:
u
Explain the main functions to the user.
u
Explain all safety-related aspects of operation and
handling to the user.
u
Provide the user with the accessories and operating
and installation instructions, which are to be kept in
a safe place.
12
Decommissioning,
disassembly and
disposal
u
Observe all safety and warning information
(see"2Safety").
u
Follow the enclosed manufacturer’s information.
12.1
Decommissioning
Decommissioning refers to ultimate decommissioning
and disassembly. Following decommissioning, the
appliance can either be installed in another unit, sold on
privately or disposed of.
The electricity connection may only be
disconnected and cut off by certified specialists.
u
Switch the appliance off before decommissioning
(see operating instructions)
u
Disconnect the appliance from the power supply.
12.2
Disassembly
To be removed, the appliance must be accessible for
disassembly and disconnected from the power supply.
u
Remove the appliance fastenings.
u
Remove the silicone seals.
u
Lift the appliance up and out through the top of the
worktop.
u
Remove any other accessories.
u
Dispose of the old appliance and any soiled
accessories as described under “Environmentally-
friendly disposal”.
12.3
Environmentally-friendly
disposal
12.3.1
Disposal of transport packaging
The packaging protects the appliance from
damage during transport. The packaging
materials have been selected taking into
account the environment and their disposal and
are therefore recyclable.
Recycling the packaging saves raw materials and
reduces waste. Your specialist retailer will take the
packaging back.
u
Give the packaging to your specialist retailer
or
u
dispose of the packaging correctly observing regional
regulations.
12.3.2
Disposal of accessories
Dispose of unnecessary or used accessories (activated
charcoal filters, etc.) accordingly taking into account
the regional regulations.
12.3.3
Disposal of the old appliance
Electrical appliances with this mark must
not be disposed of in the household
waste at the end of their service life. They
must be disposed of at a collection point
for the recycling of electrical or elec-
tronic appliances. Information on this can
be obtained from the city or local coun-
cils.
Waste electrical and electronic appliances often still
contain valuable materials. However, they also contain
harmful substances that were necessary to make them
work and ensure their safety. If placed in the household
waste or handled incorrectly, they may harm human
health and damage the environment.
u
Never dispose of your old appliance in the household
waste.
u
Take the appliance to a regional collection point for
the return and further processing of electrical and
electronic components and other materials.
Warranty, technical service, spare parts, accessories
EN
48 bora.com
13
Warranty, technical
service, spare
parts, accessories
u
Observe all safety and warning information
(see"2Safety").
13.1
BORA manufacturer’s
warranty
BORA provides its end customers with a 2-year
manufacturer’s warranty for its products. The end
customer is entitled to this warranty in addition to the
statutory claims for defects against the sellers of our
products.
The manufacturer’s warranty applies to the BORA
products listed here, which are sold by authorised BORA
retailers or by BORA trained salespersons and are
installed within the European Union (overseas territories
excluded), Switzerland, Liechtenstein, Ukraine, Russia,
Norway, Serbia, Israel, UK, Iceland, India, Australia and
New Zealand, with the exception of BORA products
labelled as universal or accessories:
T
Cooktops
T
Cooktop extractor systems
T
Fans
The manufacturer’s warranty starts as soon as the
BORA product is handed over to the end customer and
is valid for 2 years. Registering on www.mybora.com
enables the manufacturer’s warranty to be extended to
3 years.
The manufacturer’s warranty requires expert installation
(in accordance with the valid BORA planning guide and
operating instructions at the time of installation) of the
BORA products by an authorised BORA retailer. During
use, the end customer is to adhere to the specifications
and instructions in the operating manual.
When filing a warranty claim, BORA must be directly
notified of the fault and the receipt must be presented.
Alternatively, proof of purchase can be provided by
registering on www.mybora.com.
BORA guarantees that all BORA products are free from
material and production defects. The defect must exist
prior to delivery of the product to the end customer.
Filing a warranty claim does not interrupt the warranty
period, nor shall the period start anew.
BORA will correct defects in BORA products at its own
discretion by repairing or replacing the product. All
costs for the correction of defects under the
manufacturer’s warranty shall be assumed by BORA.
Expressly not covered by the BORA manufacturer’s
warranty are:
T
BORA products that were not sold by authorised
BORA dealers or salespersons trained by BORA
T
Damage caused by non-adherence to the operating
instructions (including product care and cleaning).
This represents improper use.
T
Damage caused by normal use, e.g. traces of usage
on the cooktop
T
Damage caused by external influences (such as
transport damage, ingress of condensation, damage
caused by the elements such as a lightning strike)
T
Damage caused by repairs or repair attempts that
were not carried out by BORA or by persons
authorised by BORA .
T
Damage to the glass ceramic
T
Injury caused by electrical voltage fluctuations
T
Secondary damage or claims for damages beyond
the defect
T
Damage to plastic parts
Legal claims, particularly statutory claims for defects or
product liability are not limited by the warranty and can
be asserted free of charge.
If a defect is not covered by the manufacturer’s
warranty, a claim may be made against the BORA
Technical Service.
BORA shall not assume the resulting costs.
The laws of the Federal Republic of Germany apply to
these warranty conditions.
You can contact us at:
BORA Vertriebs GmbH & Co KG, Innstraße 1, 6342
Niederndorf, Austria
T
Telephone: 00800 7890 0987
Monday to Thursday from 08:00-18:00 and Friday
from 08:00-17:00
T
Email: [email protected]
13.1.1
Warranty extension
You can extend the warranty by registering at
www.bora.com/registration .
13.2
Service
BORA Service:
see reverse side of operating and assembly instructions
u
In the case of faults you cannot fix yourself, contact
your BORA specialist retailer or the BORA Service
Team Team.
Warranty, technical service, spare parts, accessories
EN
bora.com 49
The BORA Service Team Team will require the type
designation and serial number of your appliance (FD
number).
This information is provided on the nameplate on the
warranty form as well as on the bottom of the
appliance.
13.3
Spare parts
u
Only use original spare parts for repairs.
u
Repairs may only be carried out by the BORA Service
Team.
Spare parts can be obtained from your BORA
dealer, the BORA online service website at
www.bora.com/service or by calling the service
number provided.
13.4
Accessories
Accessories PUXA2
PUXA2R
PUXU2
PUXU2R
Activated charcoal filter PUAKF 3
Stainless steel grease filter PUEF 3 3
Air inlet nozzle PUXED2 3 3
Trim USL515 3 3
Trim All Black USL515AB 3 3
Cooktop frame KFR830AB 3 3
Glass ceramic scraper UGS 3 3
Window contact switch UFKS 3
Air purification box PULB (for conver-
sion from exhaust air to recirculation)
3
Grill pan for surface induction KWGPFI 3 3
Tab.13.1
Accessories for X Pure
Product data sheets
EN
50 bora.com
14
Product data sheets
14.1
PUXA2 | PUXA2R product data sheet – cooktop extractor
Product information according to Commission Delegated Regulation (EU) No. 65/2014 and Regulation (EU) No. 66/2014.
Manufacturer BORA
Model identification PUXA2 | PUXA2R
Symbol Value Unit
Energy consumption
Annual energy consumption AEC
hood
32.6 kWh/a
Energy efficiency class – A+ –
Energy efficiency index EEI
hood
42.5 –
Flow volume
Fluid dynamic efficiency FDE
hood
33.1 –
Fluid dynamic efficiency class – A –
Air flow at minimum speed in normal operation – 182 m³/h
Air flow at maximum speed in normal operation – 549 m³/h
Air flow when operated on the intensive level or fast mode level (power setting) - 597 m³/h
Maximum air flow Q
max
613.1 m³/h
Measured air flow rate at the best efficiency point Q
BEP
299.3 m³/h
Measured air pressure at the best efficiency point P
BEP
444 Pa
Measured electric power input at the best efficiency point W
BEP
111.6 W
Time increase factor f 0.8
Lighting
Lighting efficiency LE
hood
* lx/W
Lighting efficiency class – * –
Nominal power of the lighting system W
L
* W
Average illumination of the lighting system on the cooking surface E
middle
* lx
Grease filtering
Grease filtering efficiency GFE
hood
95.9 %
Grease filtering efficiency class – A –
Airborne acoustical noise emission
Sound power level at minimum available speed in normal operation L
WA
42 dB re 1 pW
Sound power level at maximum available speed in normal operation L
WA
67 dB re 1 pW
Sound power level when operated on the intensive level or fast mode level
(power setting)
L
WA
69 dB re 1 pW
Sound pressure level at minimum available speed in normal operation** L
pA
29 dB re 20 µPa
Sound pressure level at maximum available speed in normal operation** L
pA
54 dB re 20 µPa
Sound pressure level when operated on the intensive level or fast mode level
(power setting)**
L
pA
56 dB re 20 µPa
Power consumption
Power consumption in off mode P
o
* W
Power consumption in standby mode P
S
0.19 W
Tab.14.1
Product datasheet
Product data sheets
EN
bora.com 51
* Does not apply to this product.
** Voluntary declaration
14.2
X Pure cooktop product data sheet
Product information according to Regulation (EU) Nr. 66/2014.
Manufacturer BORA
Model identification PUXA2 | PUXA2R | PUXU2 | PUXU2R
Type of hob Glass ceramic cooktop
Number of cooking areas 4
Heating technology Induction cooktops
Symbol Value Unit
Size of usable surface
Front left cooking area LxW 23.0×23.0 cm
Rear left cooking area LxW 23.0×23.0 cm
Front right cooking area LxW 23.0×23.0 cm
Rear right cooking area LxW 23.0×23.0 cm
Energy consumption
Front left cooking area EC
electric cooking
181.0 Wh/kg
Rear left cooking area EC
electric cooking
180.9 Wh/kg
Left bridged cooking areas EC
electric cooking
188.5 Wh/kg
Front right cooking area EC
electric cooking
182.0 Wh/kg
Rear right cooking area EC
electric cooking
182.7 Wh/kg
Right bridged cooking areas EC
electric cooking
190.0 Wh/kg
Energy consumption of the hob EC
electric hob
184.2 Wh/kg
Tab.14.2
Product datasheet
D
A
INT
AU
NZ
BORA Lüftungstechnik GmbH
Rosenheimer Str. 33
83064 Raubling
Deutschland
T +49 (0) 8035 / 9840-0
F +49 (0) 8035 / 9840-300
bora.com
BORA Vertriebs GmbH & Co KG
Innstraße 1
6342 Niederndorf
Österreich
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
bora.com
BORA Holding GmbH
Innstraße 1
6342 Niederndorf
Austria
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
bora.com
BORA APAC Pty Ltd
100 Victoria Road
Drummoyne NSW 2047
Australia
T +61 2 9719 2350
F +61 2 8076 3514
bora-australia.com.au
umim-xpure-01-en
umim-xpure-01-en
