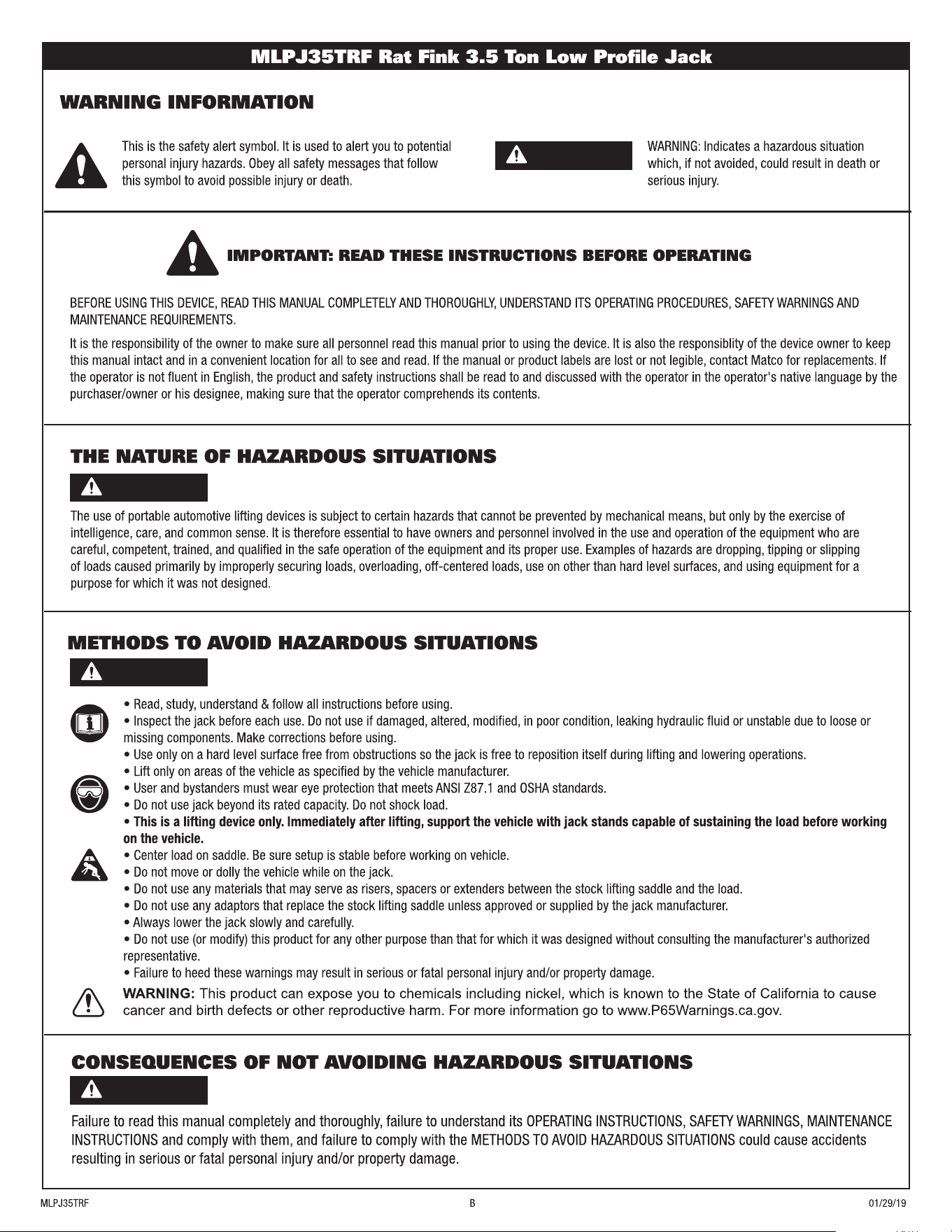

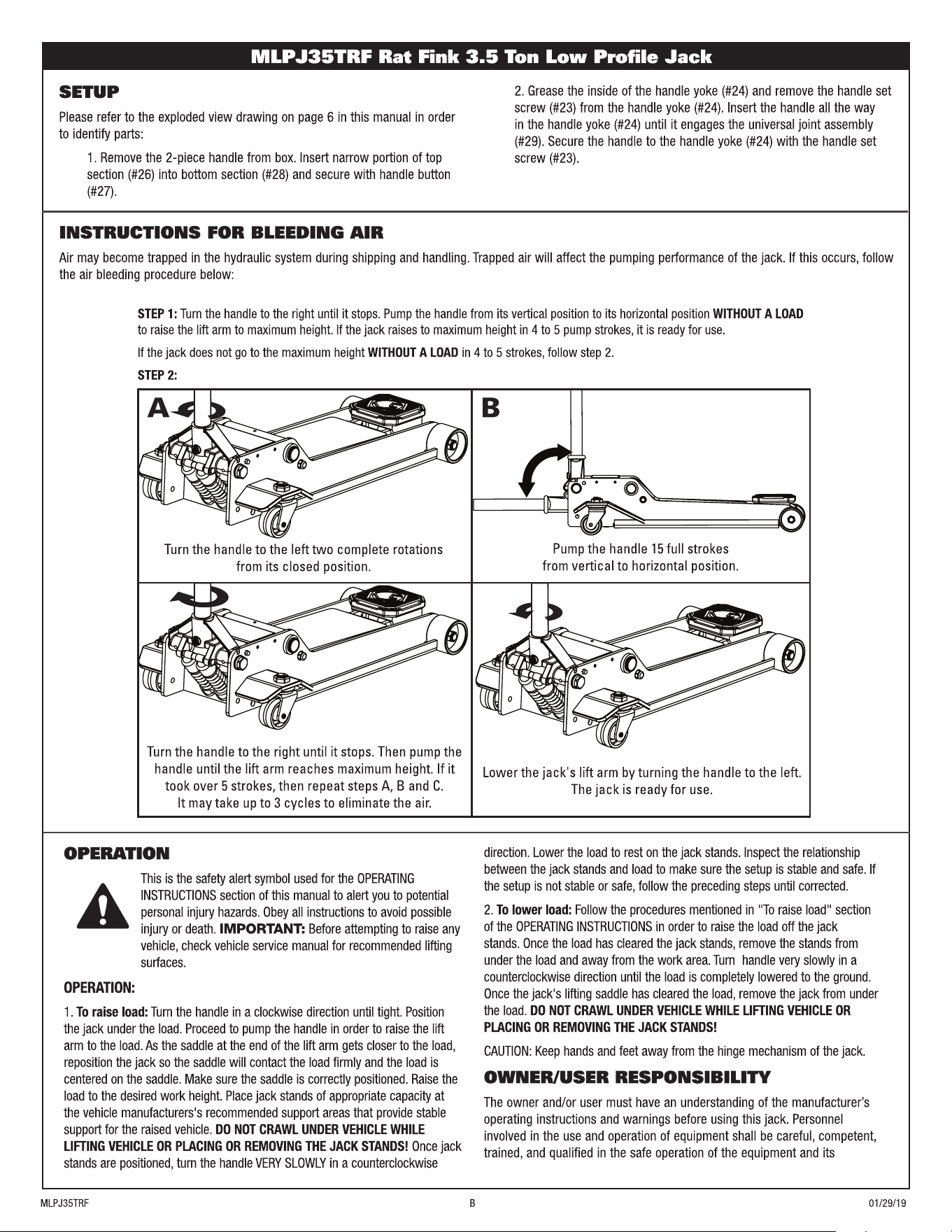

WARNING
WARNING
WARNING
WARNING
2 X
C
D
15 X

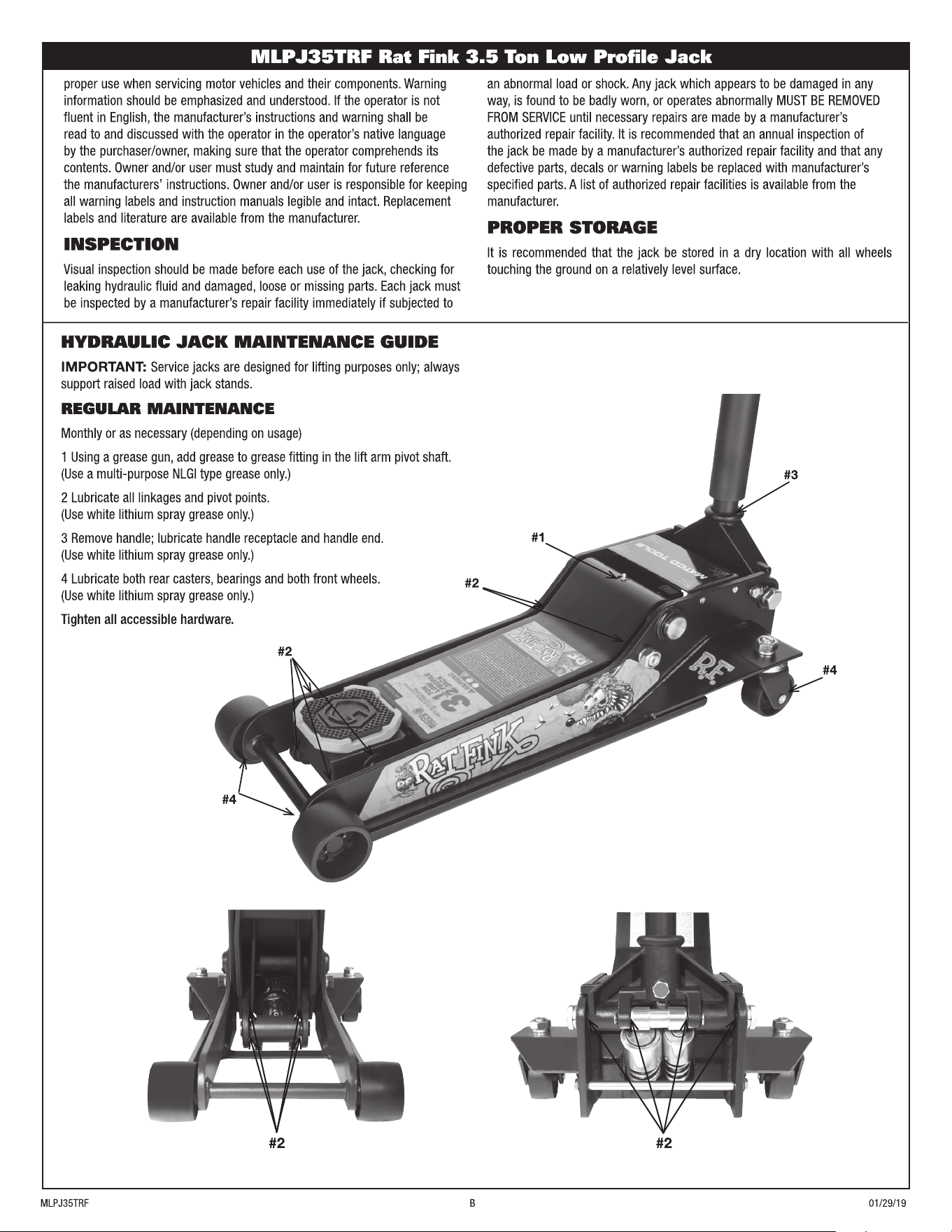

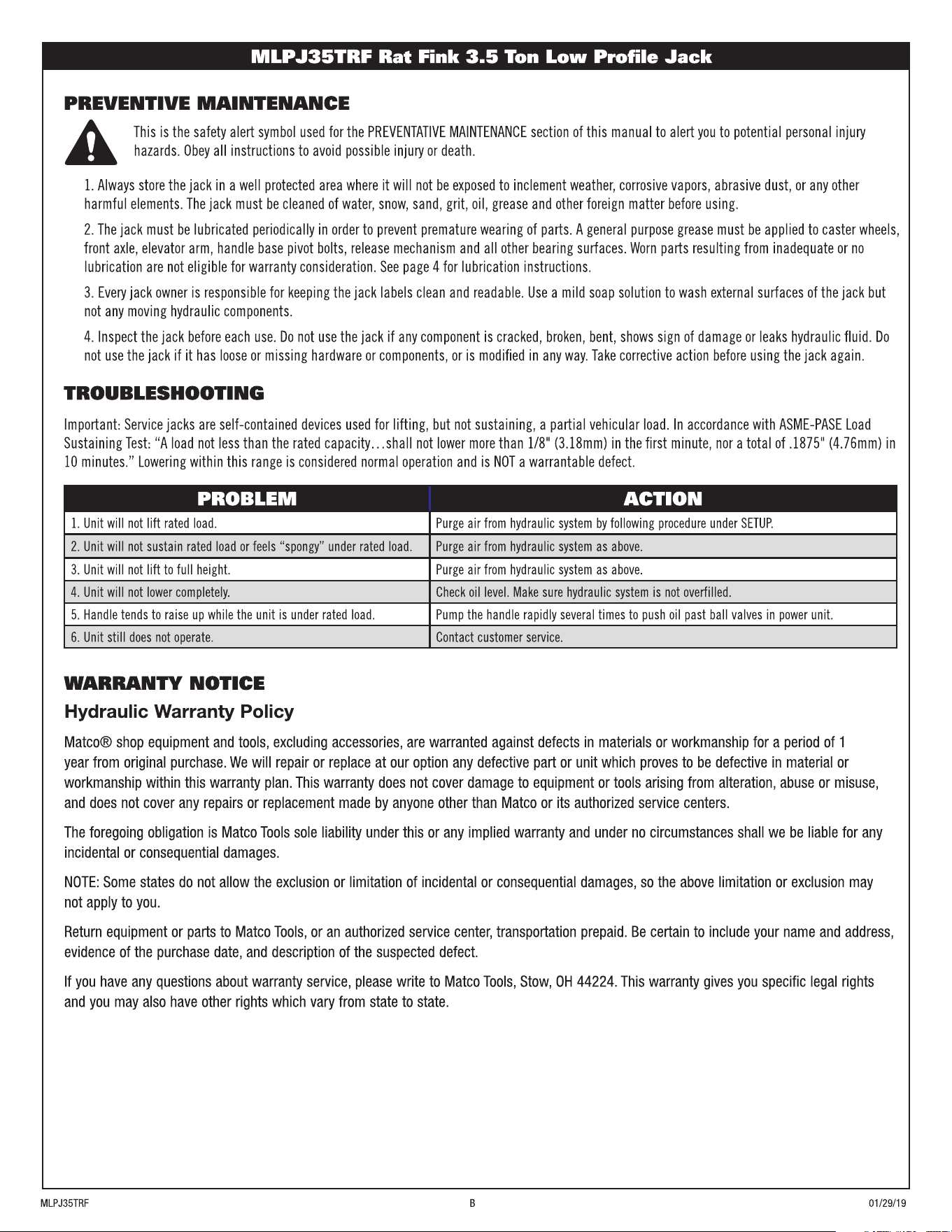

Important: Service jacks are self-contained devices used for lifting, but not sustaining, a partial vehicular load. In accordance with ASME-PASE Load
Sustaining Test: “A load not less than the rated capacity…shall not lower more than 1/8" (3.18mm) in the first minute, nor a total of .1875" (4.76mm) in
10 minutes.” Lowering within this range is considered normal operation and is NOT a warrantable defect.
PROBLEM ACTION
1. Unit will not lift rated load. Purge air from hydraulic system by following procedure under SETUP.
2. Unit will not sustain rated load or feels “spongy” under rated load. Purge air from hydraulic system as above.
3. Unit will not lift to full height. Purge air from hydraulic system as above.
4. Unit will not lower completely. Check oil level. Make sure hydraulic system is not overfilled.
5. Handle tends to raise up while the unit is under rated load. Pump the handle rapidly several times to push oil past ball valves in power unit.
6. Unit still does not operate. Contact customer service.

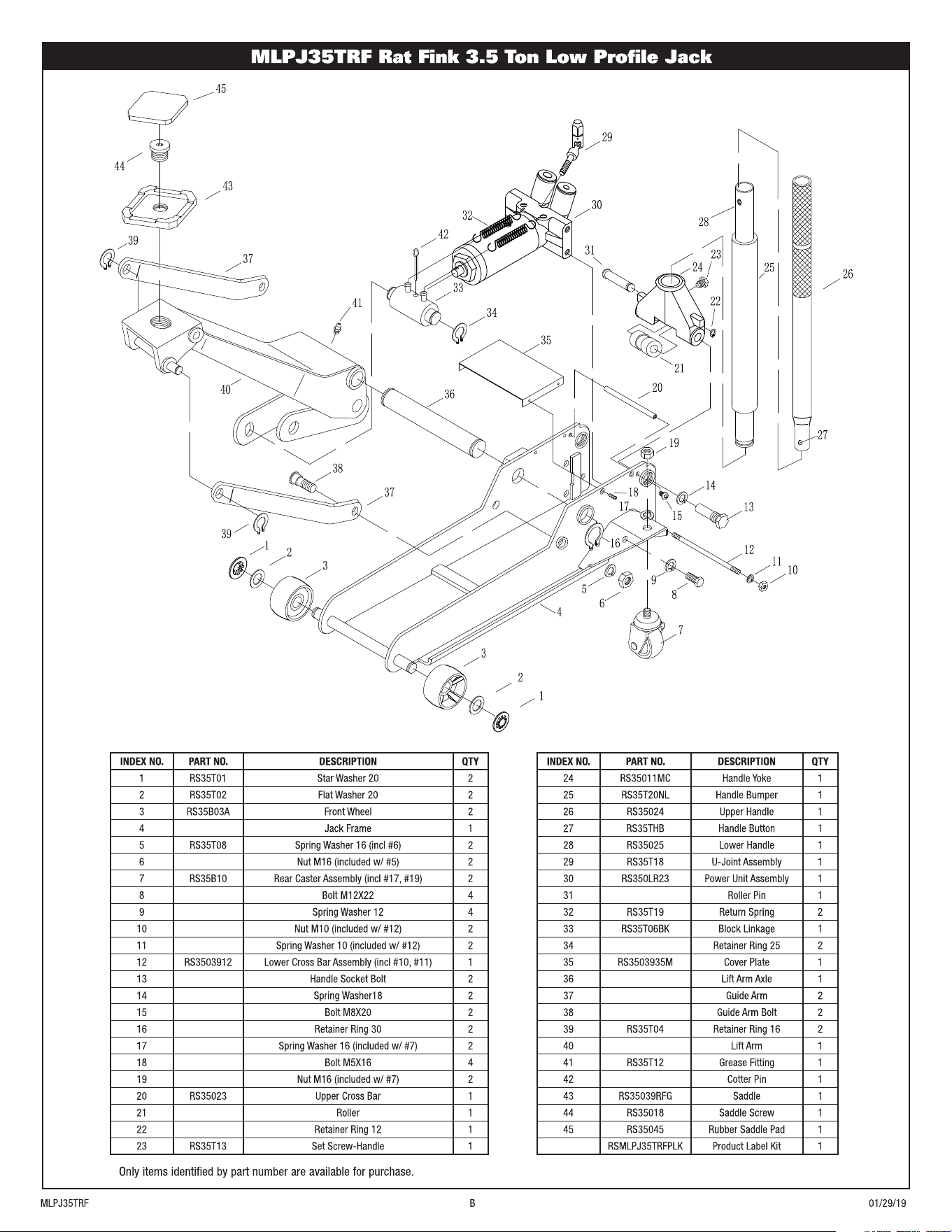

INDEX NO. PART NO. DESCRIPTION QTY
1 RS35T01 Star Washer 20 2
2 RS35T02 Flat Washer 20 2
3 RS35B03A Front Wheel 2
4 Jack Frame 1
5 RS35T08 Spring Washer 16 (incl #6) 2
6 Nut M16 (included w/ #5) 2
7 RS35B10 Rear Caster Assembly (incl #17, #19) 2
8 Bolt M12X22 4
9 Spring Washer 12 4
10 Nut M10 (included w/ #12) 2
11 Spring Washer 10 (included w/ #12) 2
12 RS3503912 Lower Cross Bar Assembly (incl #10, #11) 1
13 Handle Socket Bolt 2
14 Spring Washer18 2
15 Bolt M8X20 2
16 Retainer Ring 30 2
17 Spring Washer 16 (included w/ #7) 2
18 Bolt M5X16 4
19 Nut M16 (included w/ #7) 2
20 RS35023 Upper Cross Bar 1
21 Roller 1
22 Retainer Ring 12 1
23 RS35T13 Set Screw-Handle 1
INDEX NO. PART NO. DESCRIPTION QTY
24 RS35011MC Handle Yoke 1
25 RS35T20NL Handle Bumper 1
26 RS35024 Upper Handle 1
27 RS35THB Handle Button 1
28 RS35025 Lower Handle 1
29 RS35T18 U-Joint Assembly 1
30 RS350LR23 Power Unit Assembly 1
31 Roller Pin 1
32 RS35T19 Return Spring 2
33 RS35T06BK Block Linkage 1
34 Retainer Ring 25 2
35 RS3503935M Cover Plate 1
36 Lift Arm Axle 1
37 Guide Arm 2
38 Guide Arm Bolt 2
39 RS35T04 Retainer Ring 16 2
40 Lift Arm 1
41 RS35T12 Grease Fitting 1
42 Cotter Pin 1
43 RS35039RFG Saddle 1
44 RS35018 Saddle Screw 1
45 RS35045 Rubber Saddle Pad 1
RSMLPJ35TRFPLK Product Label Kit 1

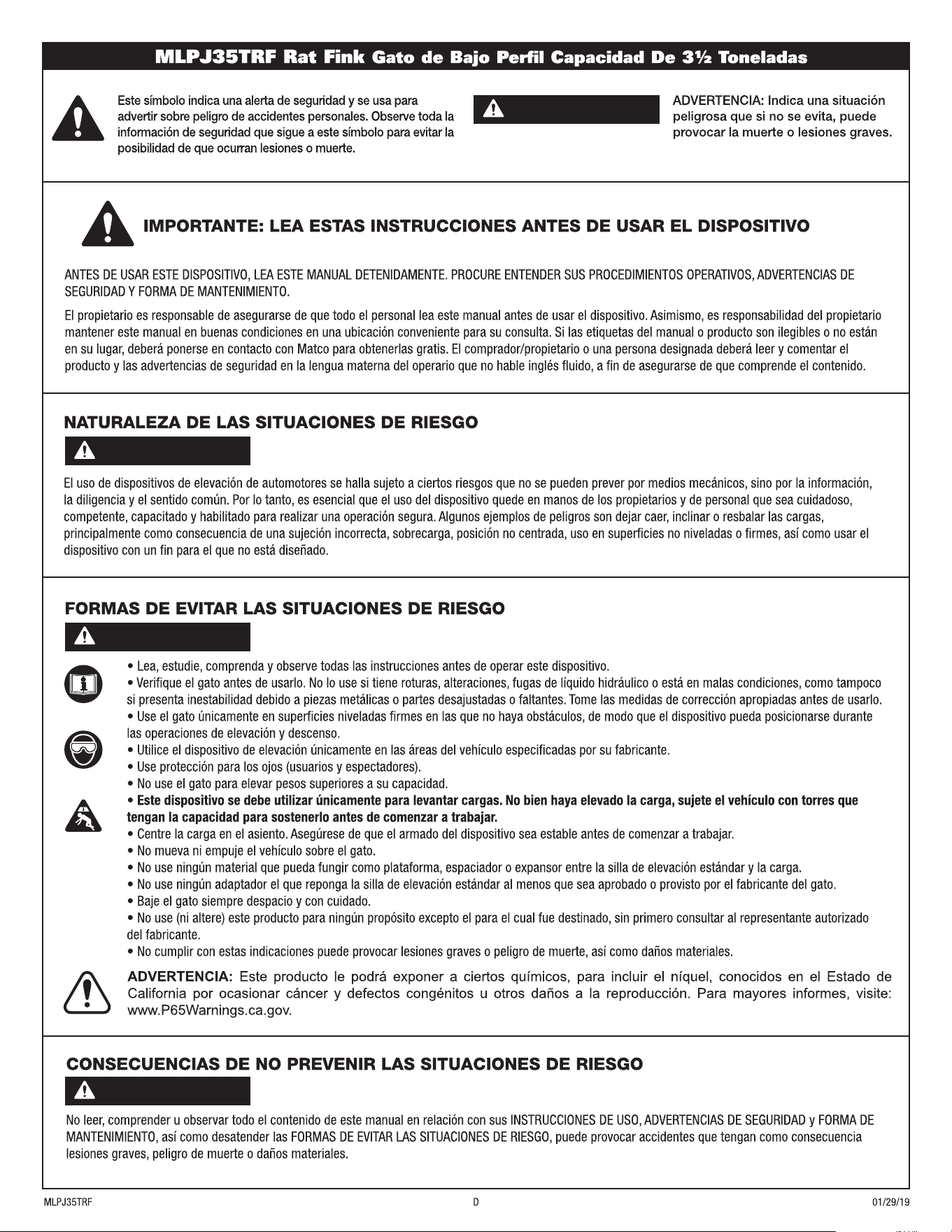

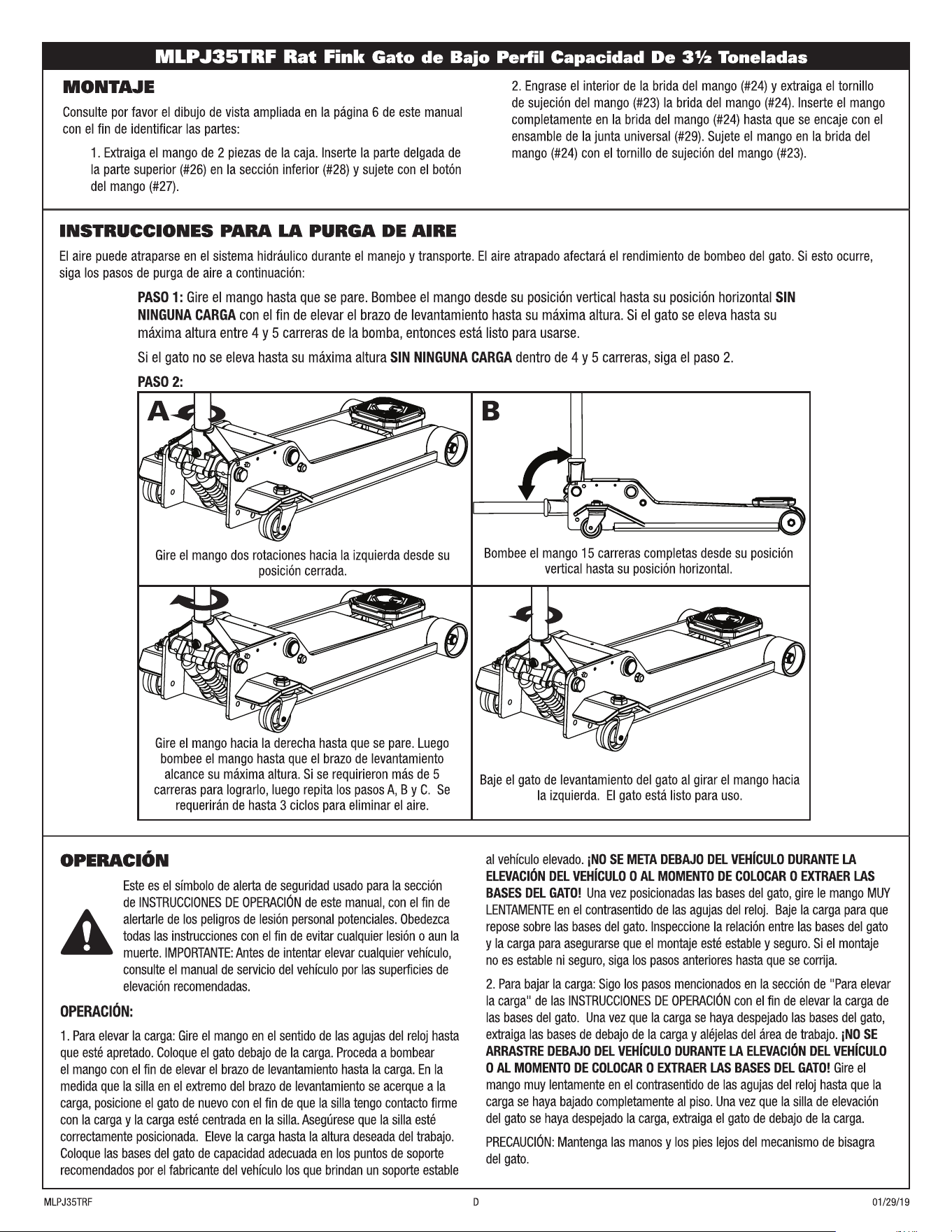

ADVERTENCIA
ADVERTENCIA
ADVERTENCIA
ADVERTENCIA
2 X
C
D
15 X

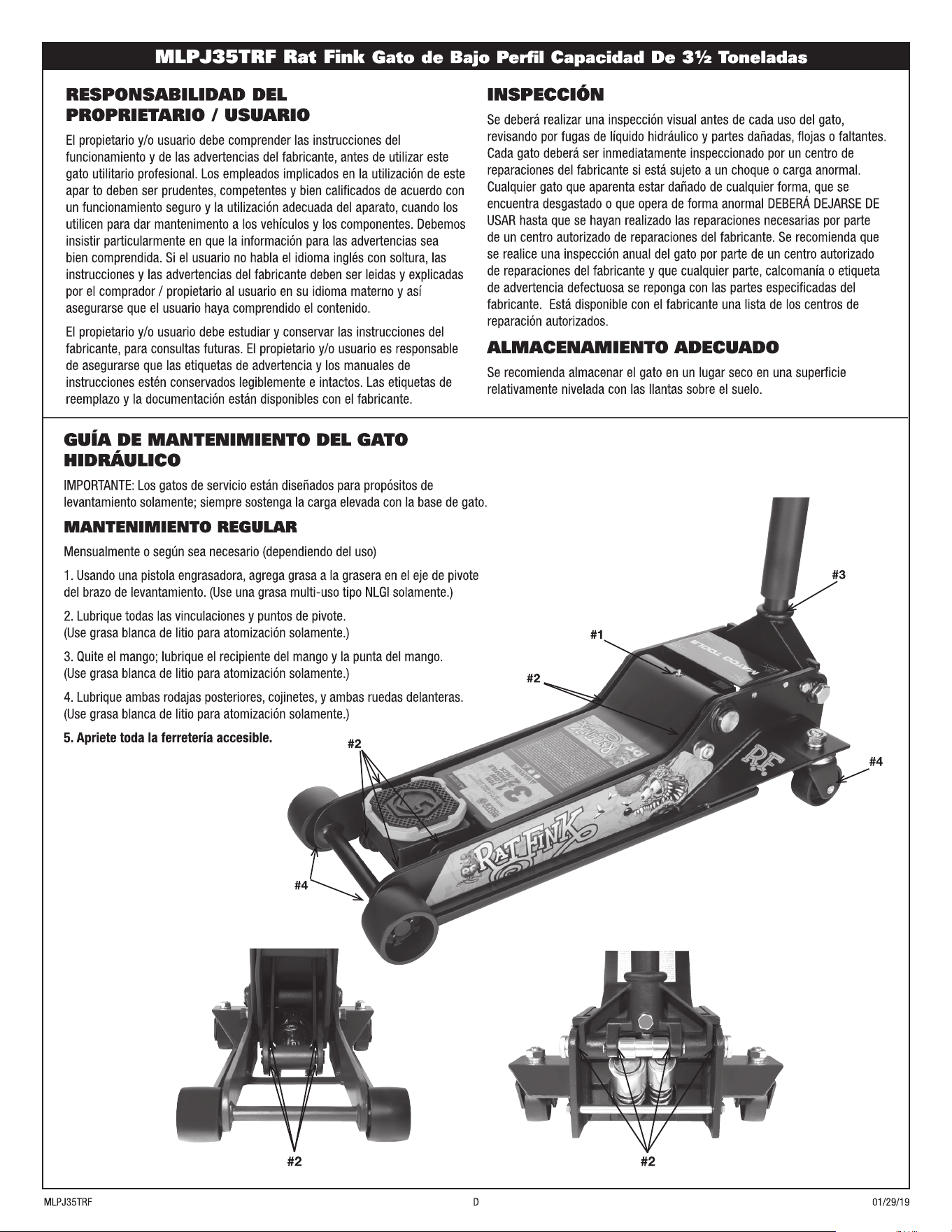

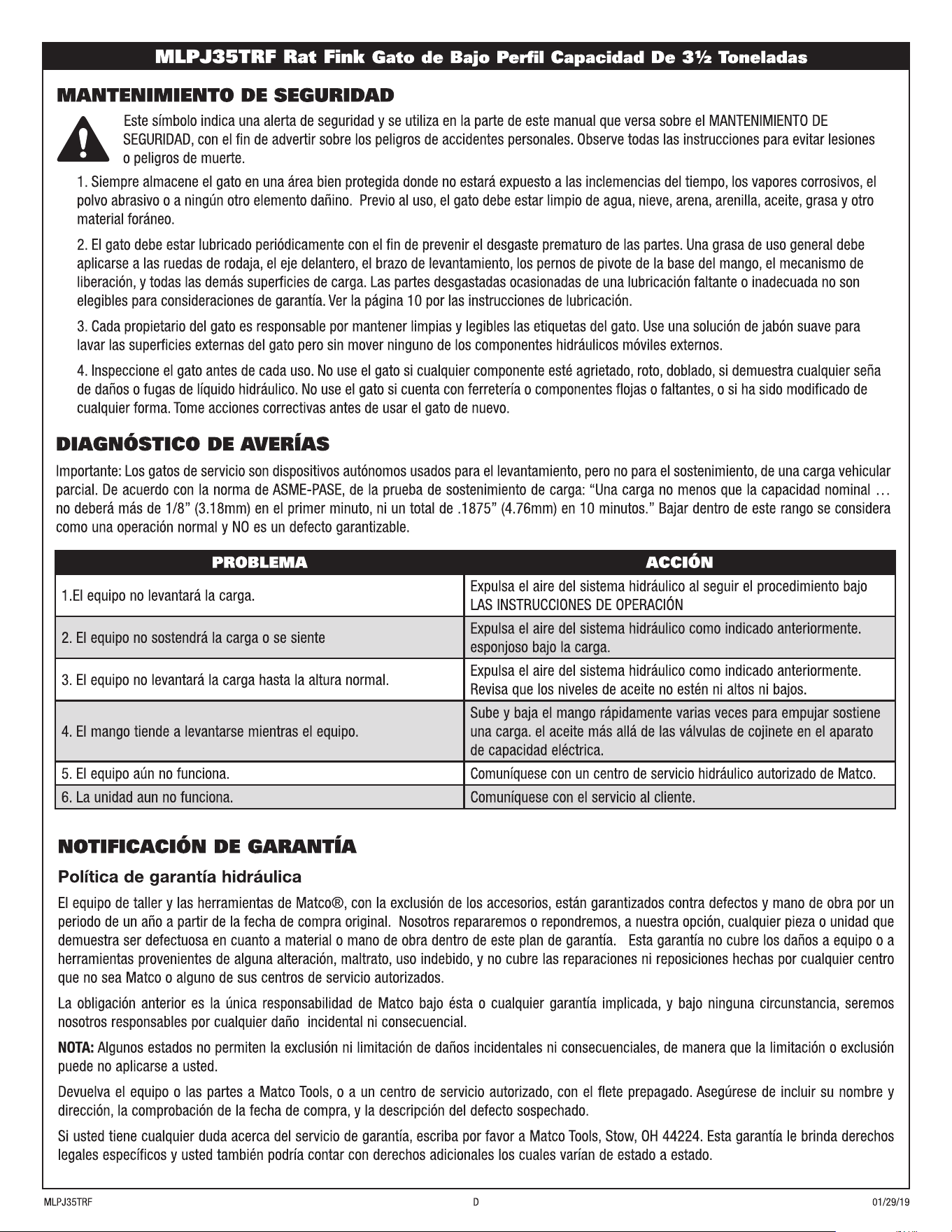

PROBLEMA ACCIÓN
1.El equipo no levantará la carga.
Expulsa el aire del sistema hidráulico al seguir el procedimiento bajo
LAS INSTRUCCIONES DE OPERACIÓN
2. El equipo no sostendrá la carga o se siente
Expulsa el aire del sistema hidráulico como indicado anteriormente.
esponjoso bajo la carga.
3. El equipo no levantará la carga hasta la altura normal.
Expulsa el aire del sistema hidráulico como indicado anteriormente.
Revisa que los niveles de aceite no estén ni altos ni bajos.
4. El mango tiende a levantarse mientras el equipo.
Sube y baja el mango rápidamente varias veces para empujar sostiene
una carga. el aceite más allá de las válvulas de cojinete en el aparato
de capacidad eléctrica.
5. El equipo aún no funciona.
Comuníquese con un centro de servicio hidráulico autorizado de Matco.
6. La unidad aun no funciona. Comuníquese con el servicio al cliente.

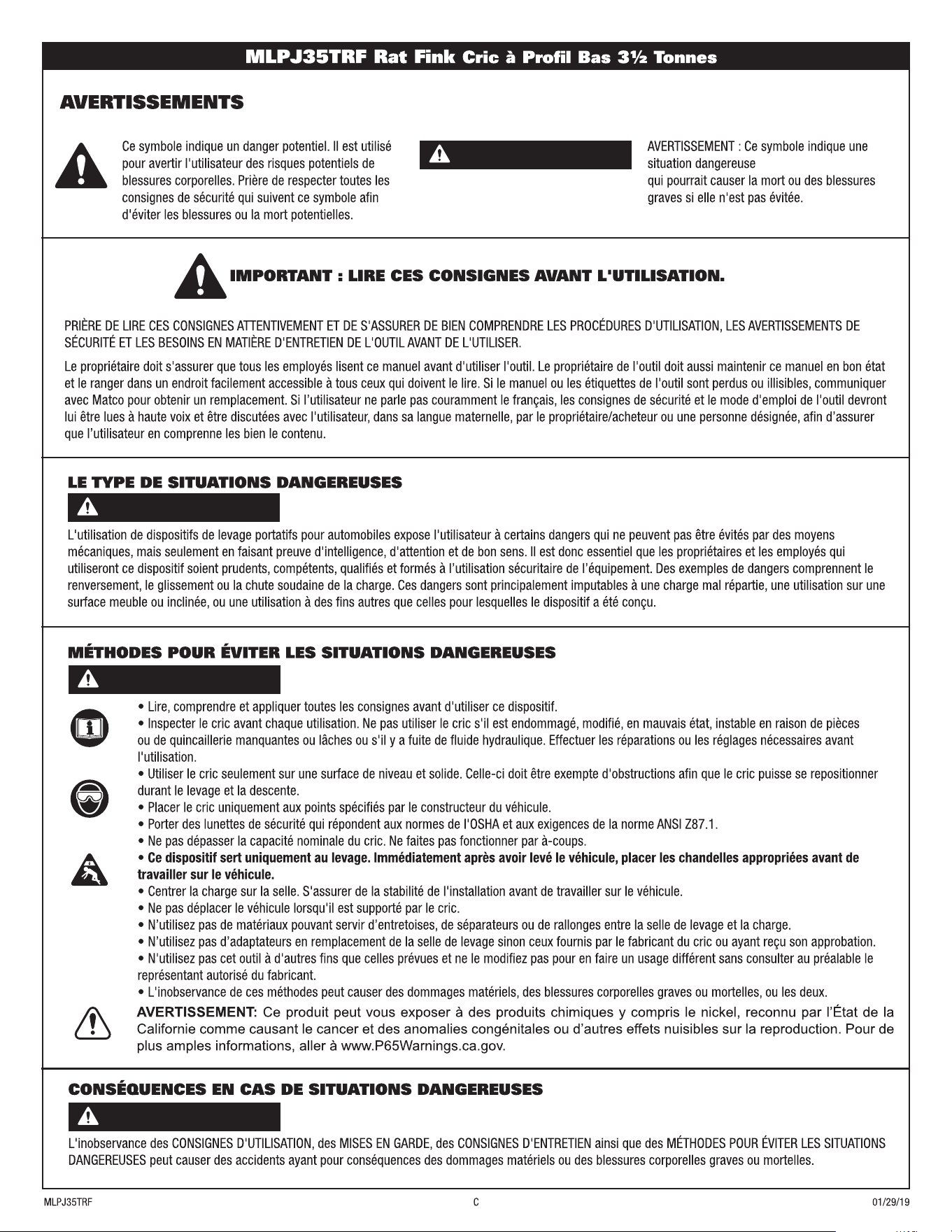

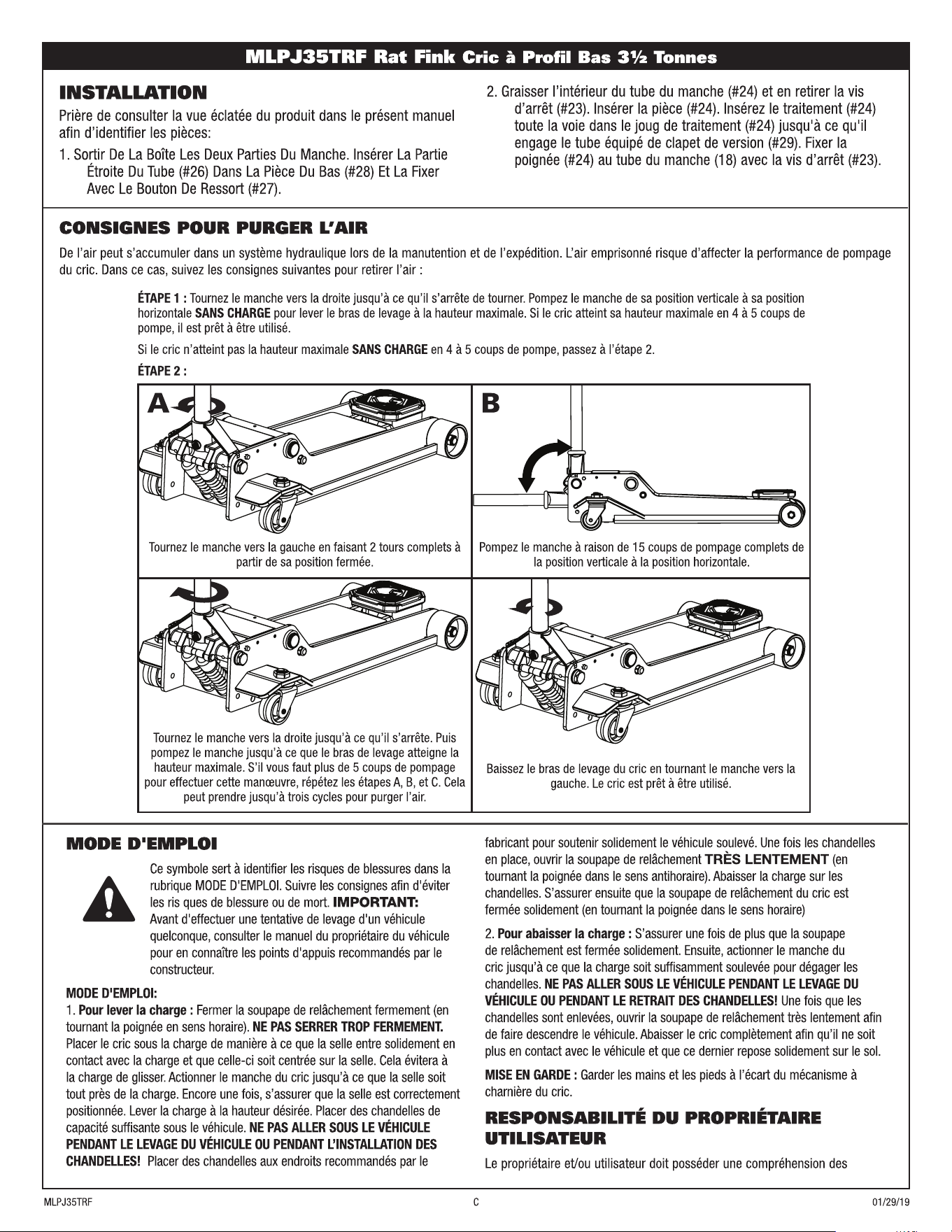

AVERTISSEMENT
AVERTISSEMENT
AVERTISSEMENT
AVERTISSEMENT
2 X
C
D
15 X

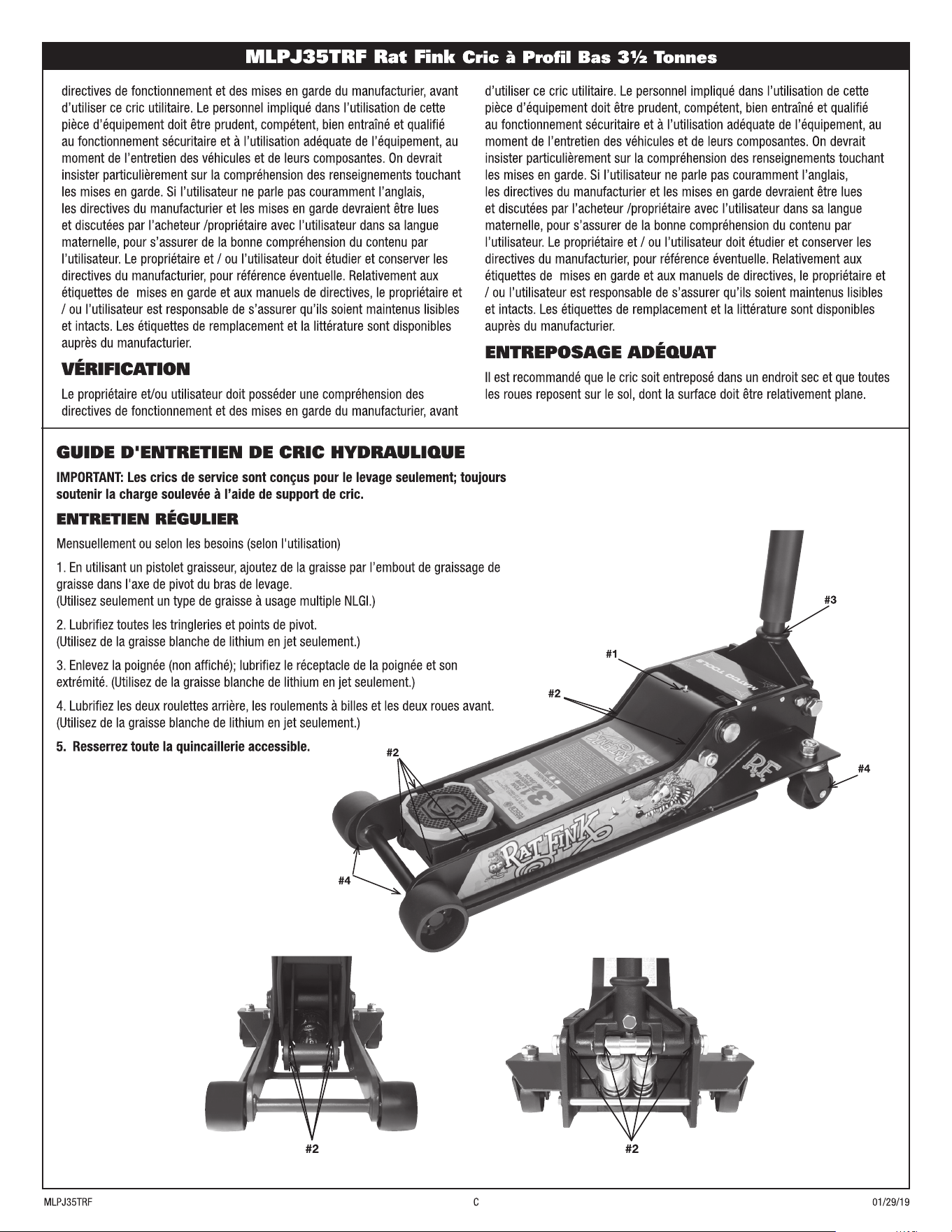

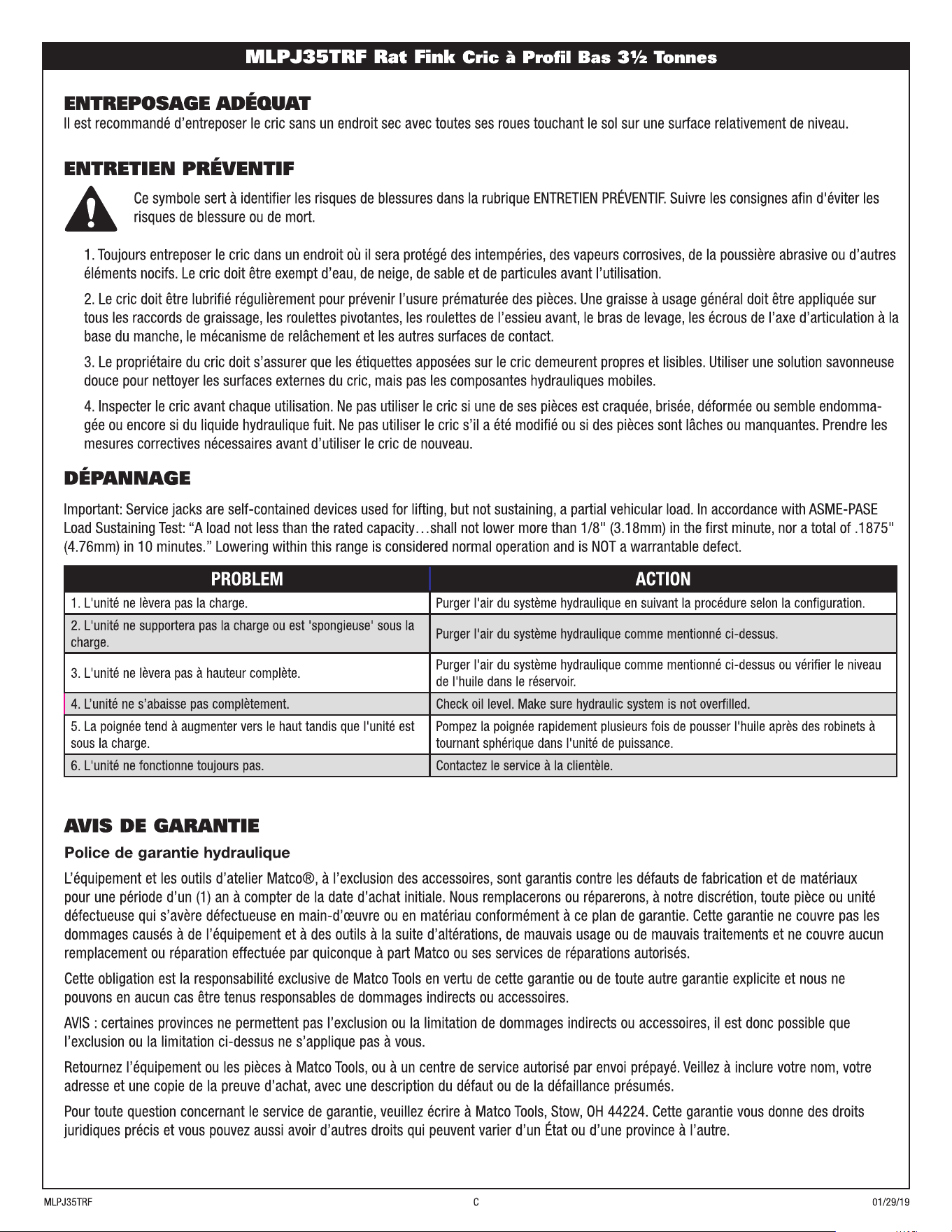

Important: Service jacks are self-contained devices used for lifting, but not sustaining, a partial vehicular load. In accordance with ASME-PASE
Load Sustaining Test: “A load not less than the rated capacity…shall not lower more than 1/8" (3.18mm) in the first minute, nor a total of .1875"
(4.76mm) in 10 minutes.” Lowering within this range is considered normal operation and is NOT a warrantable defect.
PROBLEM ACTION
1. L'unité ne lèvera pas la charge. Purger l'air du système hydraulique en suivant la procédure selon la configuration.
2. L'unité ne supportera pas la charge ou est 'spongieuse' sous la
charge.
Purger l'air du système hydraulique comme mentionné ci-dessus.
3. L'unité ne lèvera pas à hauteur complète.
Purger l'air du système hydraulique comme mentionné ci-dessus ou vérifier le niveau
de l'huile dans le réservoir.
4. L’unité ne s’abaisse pas complètement. Check oil level. Make sure hydraulic system is not overfilled.
5. La poignée tend à augmenter vers le haut tandis que l'unité est
sous la charge.
Pompez la poignée rapidement plusieurs fois de pousser l'huile après des robinets à
tournant sphérique dans l'unité de puissance.
6. L'unité ne fonctionne toujours pas. Contactez le service à la clientèle.
