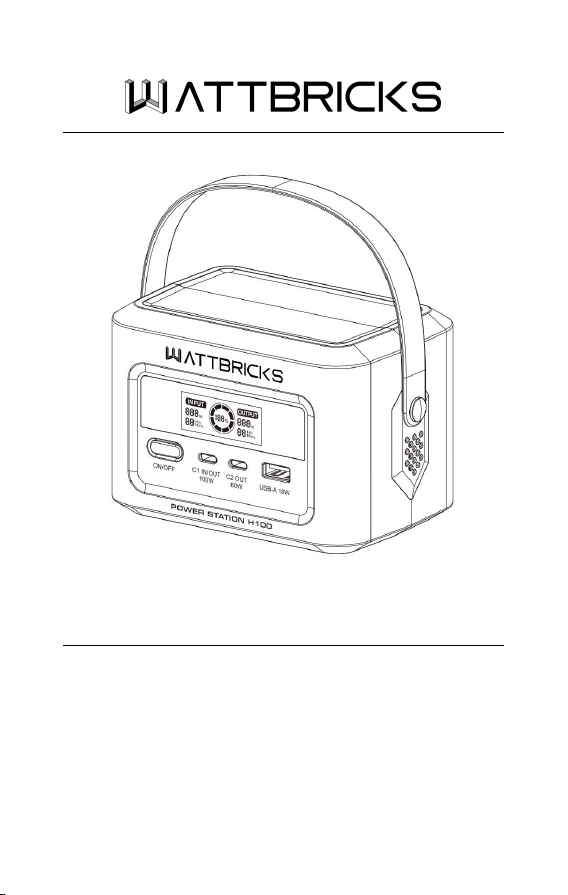

H100
USER MANUAL
Thank you for purchasing H100 Series Portable Power Station.
To ensure your personal safety, Property safety and good user
experience, Please read this User Manual carefully before operation
and keep it for future reference.
⚠ Charging instructions
Before using your new Portable Power Station H100 Series, plug it
into a suitable power outlet until it is fully charged. Then you can start
your exciting journey with it.
⚠ WARNING
Please read the following instructions for safety before use. Improper use may result in fire,
property damage or personal injury or death. DO NOT use the product with incompatible
components or alter the product in any way.
⚠ WARNING
Improper use may result in fire, property
damage, or personal injury. Make sure to
use the product according to the following
safety rules and guidelines.
⚠ WARNING
Do not expose the product to any liquid or
submerge in water. If the battery comes into
contact with water, it may cause chemical
decomposition of the battery. This may
cause the battery to catch fire or explode.
SAFETY INSTRUCTIONS
Read the following instructions to ensure safe usage:
⚠ DANGER
Noncompliance may very likely
lead to serious injury*or death.
• DO NOT disassemble, repair or
modify the unit or the battery.
• DO NOT place the unit close to or
in a fire or expose it to heat. Keep
out of direct sunlight.
• DO NOT charge, use or store the
unit in a bathroom or in an area
exposed to rain or moisture. Only
use the output socket to power
external devices.
• Never connect the output to
mains power under any
circumstances.
• DO NOT touch the unit or the plug
in points if your hands are wet.
• DO NOT connect any metallic
objects to the AC input or output.
• DO NOT rub your eyes if fluid
from inside the unit should get in
your eyes.
• DO NOT dispose the unit together
with household waste.
• DO NOT use any inappropriate
power cords.
• DO NOT operate the unit above
the specified input voltage.
• DO NOT use the unit if it is not
functioning correct.
• DO NOT move the unit if it is
recharging or in use.
⚠ WARNING
Noncompliance may lead to
serious injury** or death.
• Use and store the unit only in
a clean and dry environment.
Do not use and store in dusty
and wet environment.
• Check the unit prior to every
use. Do not use the unit if it is
damaged, broken.
• DO not use the unit if the
power cord is damaged or
broken. Keep the unit away
from children.
• DO NOT let children use the
power supply unit. Keep this
product away from pets.
• DO NOT use or store the unit
in an area or environment with
high temperature.
• Should fluid from inside of the
unit come in contact with your
skin or clothing, wash the
affected areas with tap water. In
a storm, unplug the power cord
from the socket.
• DO NOT charge the device
through a power system other
than the rated voltage.
• DO NOT place the unit on its
side or upside down while in
use or storage.
• DO NOT use accessories for
other usage.
⚠ CAUTION
Noncompliance may lead to
injuries and/or property
damage**
• If rust peculiar odors.
overheating or other abnormal
circumstances are observed, stop
using the unit immediately and
contact the dealer or our
customer service center.
• The unit complies with all legal
requirements for transport of
dangerous goods.
• Make sure that the unit is
properly secured when
transporting it in a motor vehicle.
• Only charge, use and store the
unit within an ambient
temperature of 0 to 40℃ (32
~104℉).
• Switch the unit off immediately if
it has accidentally fallen, was
dropped or was exposed to
vibrations.
• Once the unit is fully charged,
unplug the charging cable. We is
not liable for any damage caused
by using different brand charging
cables.
• Use of different cables will void
the products warranty and may
cause damage or serious bodily
injury.
Carefully read the instructions for the electric devices that you intend to connect to your
power.
Product Maintenance:
1. Battery life may be reduced or become nonfunctional if not properly maintained.
2. Fully charge and discharge at least every 3 months to ensure battery life.
3. Do not store battery with less than 50% charge.
CONTENTS
SAFETY INSTRUCTIONS ...........................................................4
PRODUCT INTRODUCTION ...................................................... 5
PRODUCT FUNCTION DESCRIPTION ......................................5
BUTTON INDICATOR ..................................................................6
LCD DISPLAY ..............................................................................7
CHARGING FUNCTION DESCRIPTION .................................... 8
TECHNICAL SPECIFICATIONS ................................................10
LOAD CAPACITY .......................................................................11
PACKING LIST ...........................................................................11
OPERATING INSTRUCTIONS ..................................................12
TROUBLE REMOVAL ............................................................... 12
PRODUCT MAINTENANCE ......................................................13
WARRANTY.............................................................................. 15
5
PRODUCT INTRODUCTION
H100 Portable Power Station adopts lithium iron phosphate battery,
which is safe and reliable. The battery capacity is up to 99.2Wh,
which can meet your electricity needs for a long time. With an output
power of 100W, it can power a variety of devices, such as mobile
phones, computers, cameras, etc. Whether camping outdoors,
emergency backup, or daily travel, it is your right hand. Small and
lightweight, easy to carry, so you can enjoy convenient electricity
anytime, anywhere.

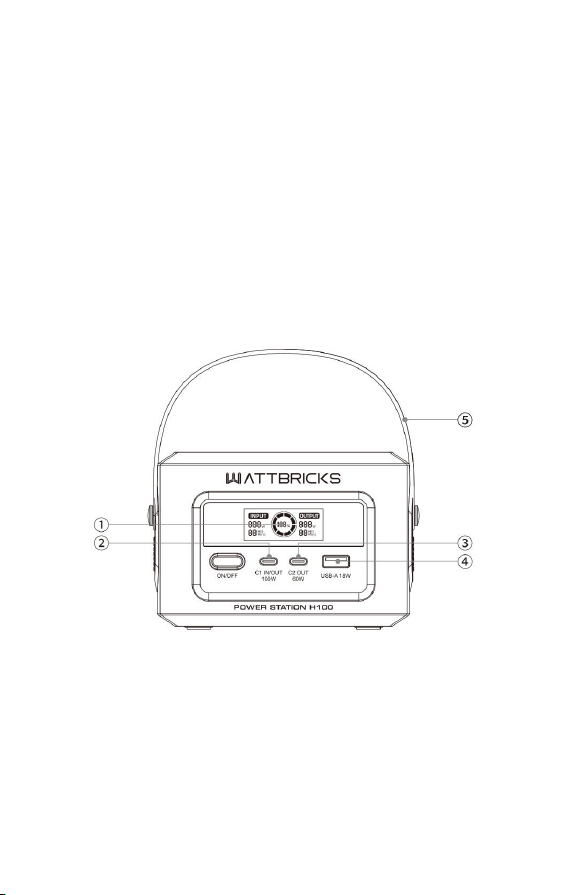

PRODUCT FUNCTION DESCRIPTION
① LCD Screen Display
② USB-C1 Output / Input
③ USB-C2 Output
④ USB-A Output
⑤ Silicone handle
⚠ Note: If the battery with low power, please charges it before
use.
6

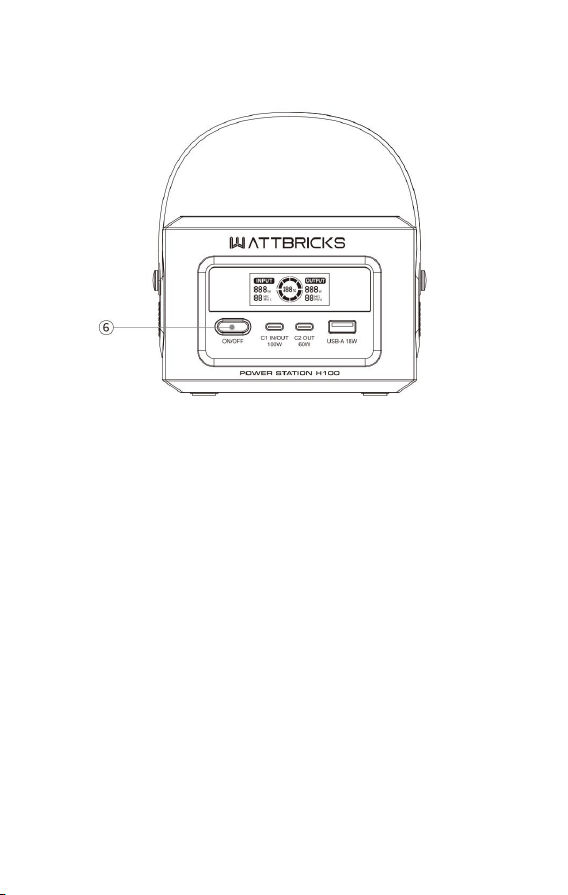

BUTTON INDICATOR
Button ⑥ Power ON/OFF
Short press the ⑥ button, LED display and USB output work.
Long press the ⑥ button to turn off the LED display and USB
output.
⚠ Note: Off state, USB automatically detects load, LED display
works and displays output power.
7
LCD DISPLAY
⑦
Battery level
indicator
When the power switch is turned on, the
power icon shows the current product
power, and each bar represents the 12.5%
power range.
•Charging: has been full of the interval, the
power indicator is steady on, is charging
interval, the indicator flashes.
•Discharge: full power is always on, when
the power is lower than the current range,
the power indicator is off.
⑧
Power input
When charging, the " INPUT " icon lights up
and displays the charging power.
⑨
Input
remaining time
The time it takes for the battery to fully
charge during charging.
⑩
Power output
When charging, the "OUTPUT" icon lights
up and displays the charging power.
⑪
Output
remaining time
The time it takes for the battery to run out
during discharge.
⚠ Note: The LCD screen will go into sleep mode after 120
seconds of inactivity, enter the charging cable or press any
button to wake up.
8

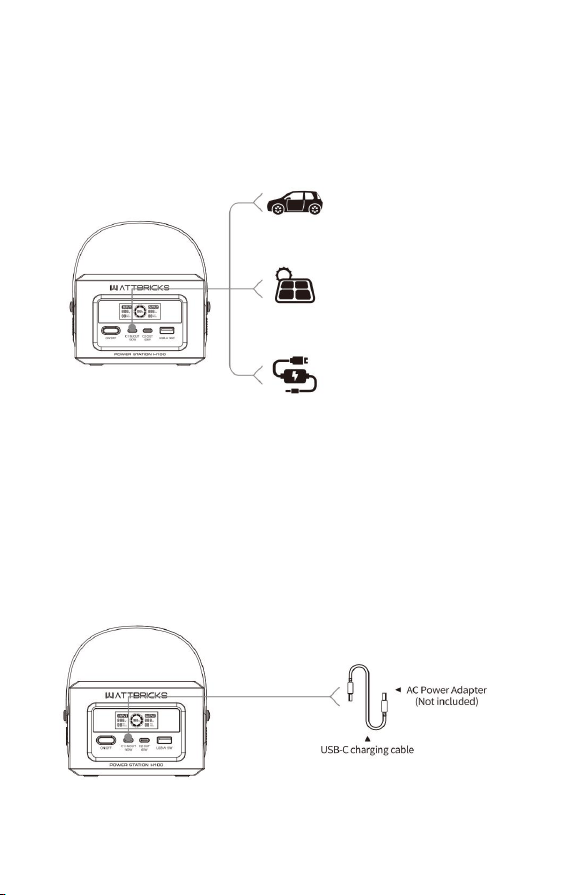

CHARGING FUNCTION DESCRIPTION
Re-charging time
When charging the H100, the portable power station can be charged
through the USB-C1 port or the DC7909 port.
From Car Charging
60W, 1.8-3 hours
From Solar Panel PV
Charging
100W, 1.1-2.8 hours
(Depending on Solar Conditions)
From USB-C1 Charging
100W, 1.2-1.8 hours
(Depending on charger plug)
⚠ Note:Do not use the USB-C1 port and DC7909 port to charge
the portable power station at the same time.
Charge using USB-C port
Charge your device using the charging cable we provide. It takes
1.2-1.8 hours to run at full capacity. The power indicator starts to
display from the bottom up, the full range, the power indicator is
steady on, the charging range, the indicator flashes.
9

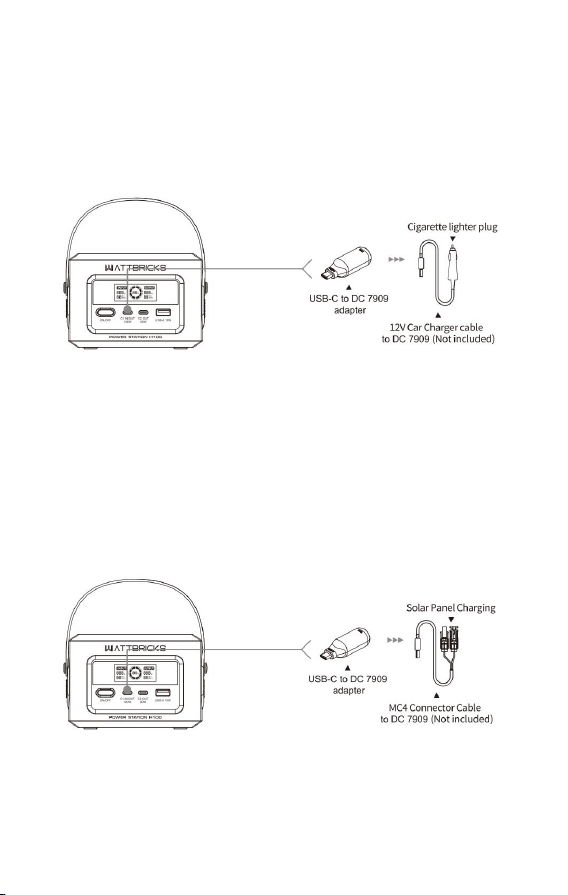

12V car charging (Via USB-C to DC 7909 adapter)
Charge with car charging cable (not included). It takes1.8-3 hours to
fully charge. The power indicator starts to display from the bottom up,
the full range, the power indicator is steady on, the charging range,
the indicator flashes.
⚠ Note: Do not charge the product with solar PV input and car
port at the same time!
Solar PV charging (Via USB-C to DC 7909 adapter)
Support 100W solar panel charging at DC12-26V, the charging time
is determined by the sunlight intensity. Please place as many solar
panels in direct sunlight as possible.
⚠ Note: The total open circuit voltage of solar modules after
series parallel connection should not exceed the specified
voltage! please confirm the same voltage specification.
10
TECHNICAL SPECIFICATIONS
General parameters
Battery Type
Lithium Iron Phosphate
Rated Capacity
16V, 6.2Ah/99.2Wh
Net Weight
≈1kg
Product Size
129mm*87mm*89mm
Operating Temp
14 to 104℉ (-10 to 40℃)
Charging Temp
32 to 104℉ (0 to 40℃)
Storage Temp
-4 to 113℉ (-20 to 45℃)
Input
DC/PV Input
12V-26V⎓ 8A, 100W Max
(Via USB-C to DC 7909 adapter)
USB-C1 Input
5V/9V/12V/15V⎓ 3A, 20V⎓ 5A, 100W Max
Output
USB-A Output×2
5V⎓ 3A, 9V⎓ 2A, 12V⎓ 1.5A, 18W Max
USB-C1 Output×1
5V/9V/12V/15V⎓ 3A, 20V⎓ 5A, 100W Max
USB-C2 Output×1
5V/9V/12V/15V/20⎓ 3A, 60W Max
Total USB Output
USB-C1 + USB-C2, Total 120W Max
USB-C1 + USB-A, Total 120W Max
USB-C2 + USB-A, Total 18W Max
USB-C1 + USB-C2 + USB-A, Total 120W Max
11
LOAD CAPACITY
Laptops (41.4Wh)
Around
2 hours
GoPro (5.9Wh)
Around
14.3. Recharges
Floodlight (3W)
Around
28.1hours
Mini Fridge (40W)
Around
2.1 hours
+MORE
DJ Drone
(89.2Wh) Around
1 Recharges
Smart phone
(10Wh) Around
8.4 Recharges
Switch (16Wh)
Around
3.5 Recharges
⚠ Note: To charge your laptop, connect it to the USB-C1 port.
⚠ Note: Data reference conversion efficiency is 85%, due to the
environment and use method will fluctuate, the data is for
reference only.
PACKING LIST
Principal
machine
User Manual
USB-C charging
cable
USB-C to DC
7909 adapter
⚠ Note: USB-C to DC 7909 adapter only the user external
power supply charging use, do not use for mobile phones
and other devices charging!
12
OPERATING INSTRUCTIONS
Power output attention
When activated, the output is active, and the LCD display will open
and provide details about the charging output. When no output is
activated, the LCD screen will turn off automatically.
Charge and discharge simultaneously
An advanced battery management system allows it to charge
connected devices via both DC output and USB output while
charging the H100.
Overload protection and short circuit protection
If the output port is overloaded or shorted, the H100 will automatically
shut down the output. But the LCD screen is still on. Please insert the
charging cable that meets the specifications. The output port
automatically recovers.
TROUBLE REMOVAL
The device does not discharge
① Check whether the connecting wire has been inserted in right
place.
② Check whether the total output power exceeds the rated output
power.
③Check whether the temperature of the equipment is too high.
The device is not charging
Confirm that the AC socket on the wall and the charging cable are
fully inserted into the input terminal.
⚠ Note: The device cannot be charged immediately after
discharge. Leave for 30 minutes to cool before charging to avoid
entering the high temperature protection state.
13
PRODUCT MAINTENANCE
Maintenance
Check as needed. If the H100 Series power station cannot working
regularly, please charge and discharge it every 3 months under
normal temperature to keep the service life. Regularly check all ports
and wall chargers for any debris, dirt, damage, and corrosion.
Do not disassemble the device privately.
Do not cover the equipment with towels, clothes or other items.
Regularly observe the side vents for dust and foreign matter, and
clean them according to the cleaning procedures specified in the
manual.
Equipment cleaning
Please make sure that the device is disconnected from all input
power and output devices. Wipe with a clean, dry, non-soft cotton
cloth. Remove all any foreign objects, dirt or other obstructions on the
vents on both sides. While cleaning foreign objects in the side vents,
do not allow debris, dirt or other blockage to enters the equipment.
Do not use corrosive cleaners or solvents.
Do not use compressed air to clean the side cooling vents, as it will
cause foreign particles to enter the interior and cause a short circuit.
⚠ Note: To avoid the risk of electric shock, do not use metal
objects to clean the ports.
Storage
If it will be stored for more than 1 month, please charge it to 50%
capacity and keep it indoors, at normal temperature, and the
maximum storage time shall not exceed 6 months. Please keep it
away from direct sunlight.
Excessive temperature will lead to reduced service life, overheating
and fire. Extremely cold conditions below the specified storage range
can also impair the performance and service life of the equipment.
Please keep away from corrosive chemicals and gases.
After taking it out of storage, perform a visual inspection to ensure
that the appearance of the equipment and all accessories are
qualified. Check the vents on the intake and exhaust sides to make
sure they are free of foreign objects.
14
Disposal/recycling
Do not put the device and its accessories in the trash can. Items must
be properly handled in accordance with local laws and regulations.
For additional information, please see www.epa.gov.
Affirm
Copyrighted equipment. We all rights reserved. All trademarks cited
here are the property of their respective owners. The information
contained in this agreement is subject to change without notice. The
we is not responsible for technical or editorial errors or omissions
contained in this agreement. First Edition: August 2024.
To preserve the
battery
lifespans,
please use and
recharge at
least once
every 3 months
Please dispose
of batteries and
electronic
goods in
accordance
with local
regulations
Use an original
or certified
charger or
cable
It's not
waterproof, do
not expose to
liquids
Avoid extreme
temperature
Do not
disassemble
15
WARRANTY
We assure the original purchaser that our products are free of defects
in workmanship and materials during the applicable warranty period
determined in the "Warranty Period" section below, but the exclusions
set below is excluded.
This warranty statement sets total and exclusive obligations of us.
We will not assume, nor authorize any person to assume for us any
other liability related to the sale of our products.
Warranty time
The warranty is 12 months, and the warranty period is calculated by
the original consumer purchaser from the date of purchase. In order
to determine the start date of the warranty period, a sales receipt
from the first consumer purchase or other reasonable documentary
proof is required.
Repair processing
We will repair or replace any products that cannot be operated due to
defects in workmanship or materials within the applicable warranty
period. If a valid claim is filed within the applicable period, we can
choose: (1) Replacement product. (2) It can be exchanged with
products of equal value. The replacement product bears the
remaining warranty period of the original product or replaces it (90)
days from the date of warranty, whichever is greater. The customer is
responsible for the shipping cost of the return.
Exclusions
The warranty of H100 Series does not apply to 1) any product that is
modified, misused, abused, damaged by accident, or used for
anything other than normal consumer use as authorized in current
product literature or 2) any product purchased through an online
auction house. The warranty of H100 Series does not apply to the
battery cell unless the battery cell is fully charged by you within seven
days after your purchase the product and at least every 6 months
thereafter.
After-sales service
For after-sales maintenance service, please contact our customer
(800) 370-0323
Due to constant technology update, product specifications and configuration changes,
please refer to the actual product.
—— www.wattbricksenergy.com ——
WATTBRICKS is an American Company with US Based Customer Service.
Please reach out to us at support@wattbricksenergy.com so we can
answer any questions or resolve any issues. Thank you for
purchasing our products!
H100I V1.0.01
3.06.03.0442
