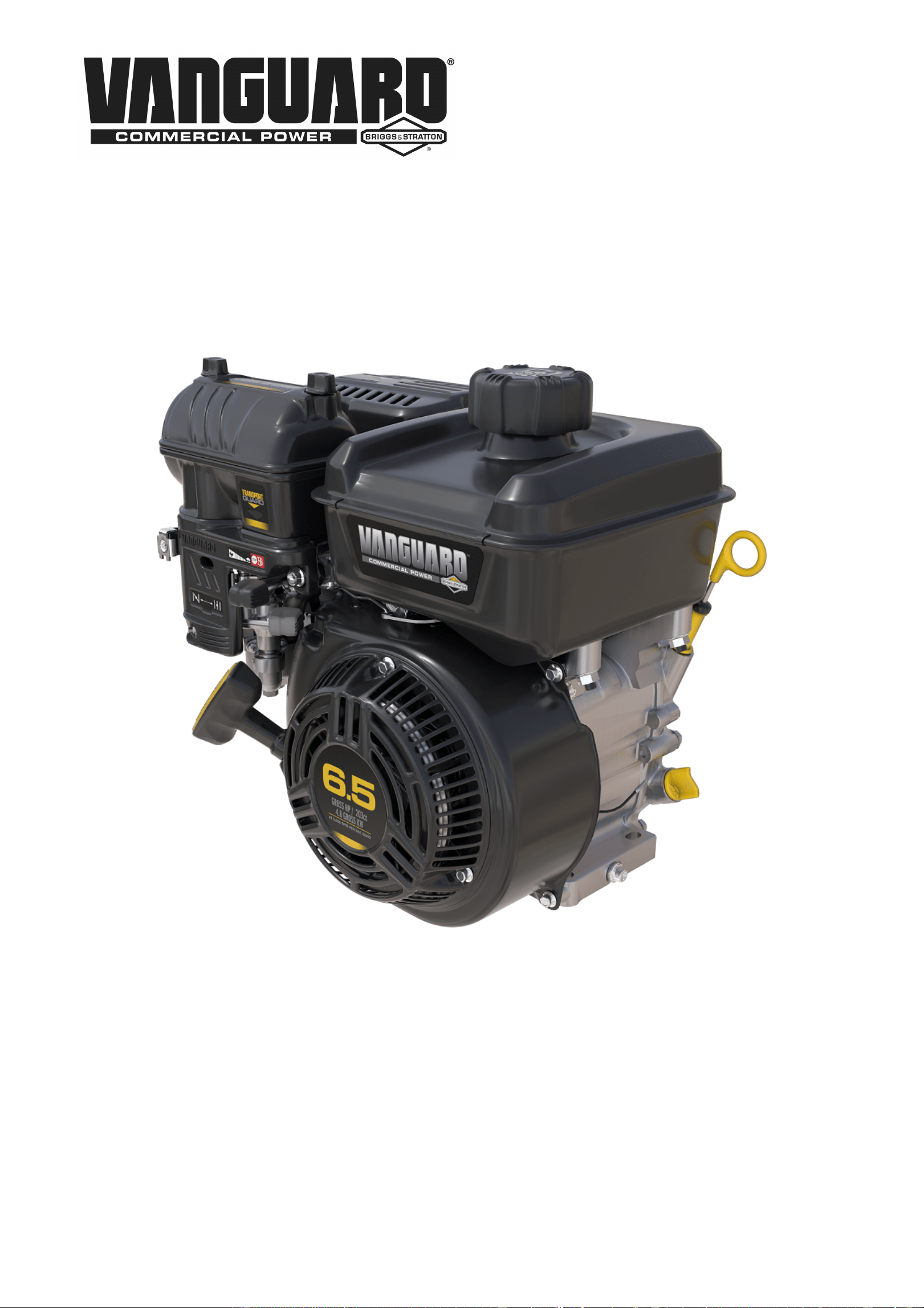

Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 12V332-0002-01
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Carburetor Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankcase Cover/Sump and Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Exhaust Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

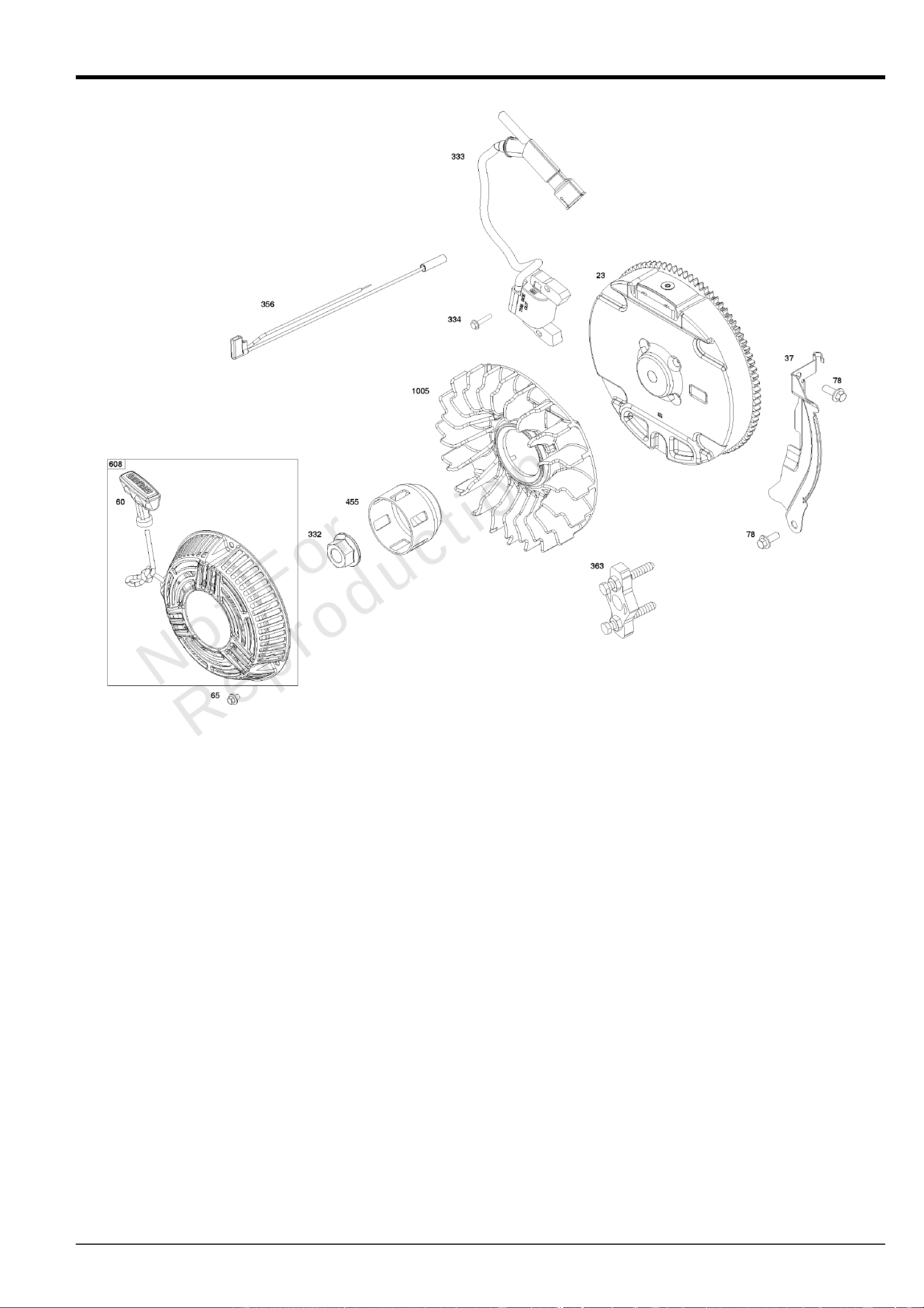

Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

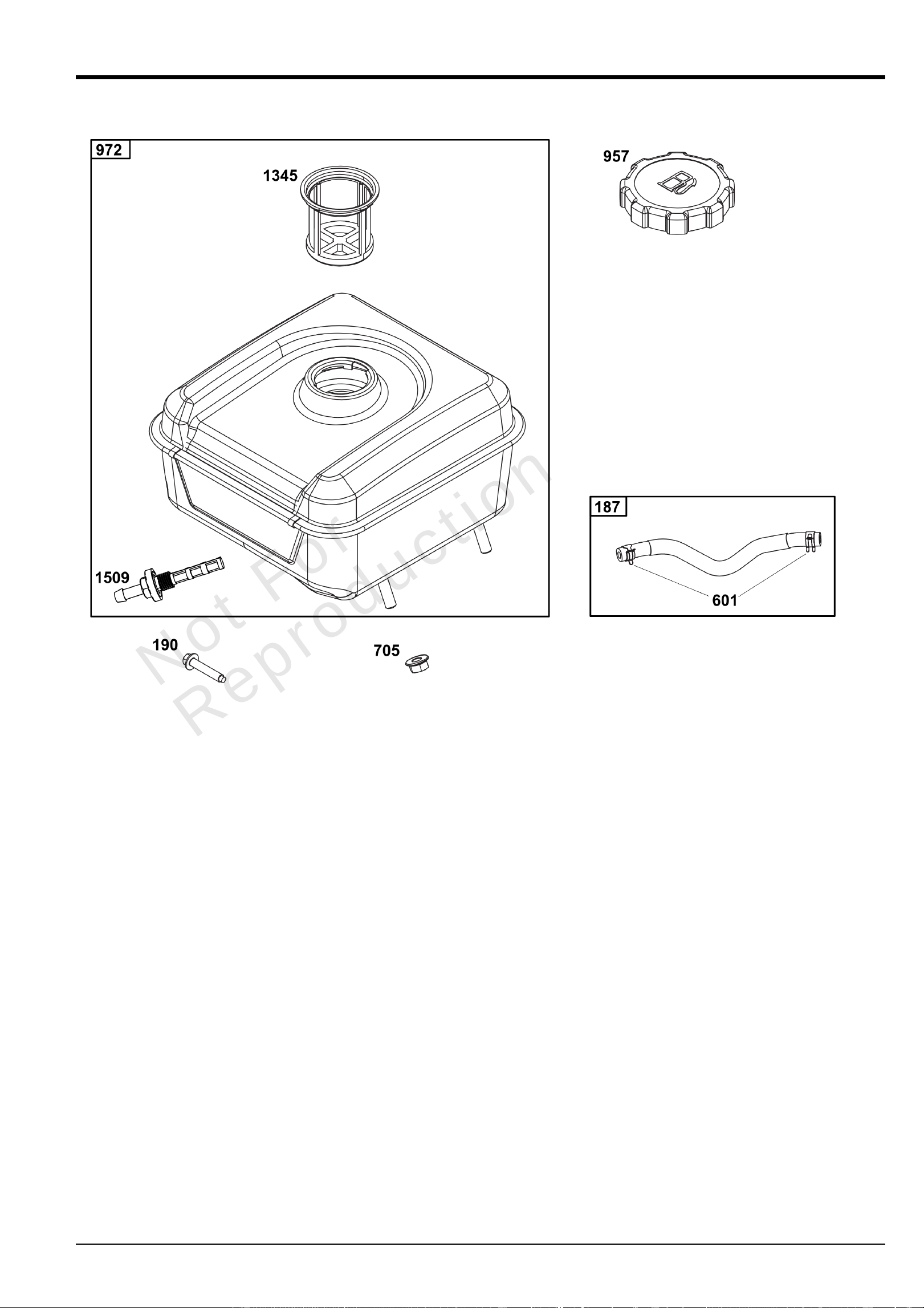

Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025

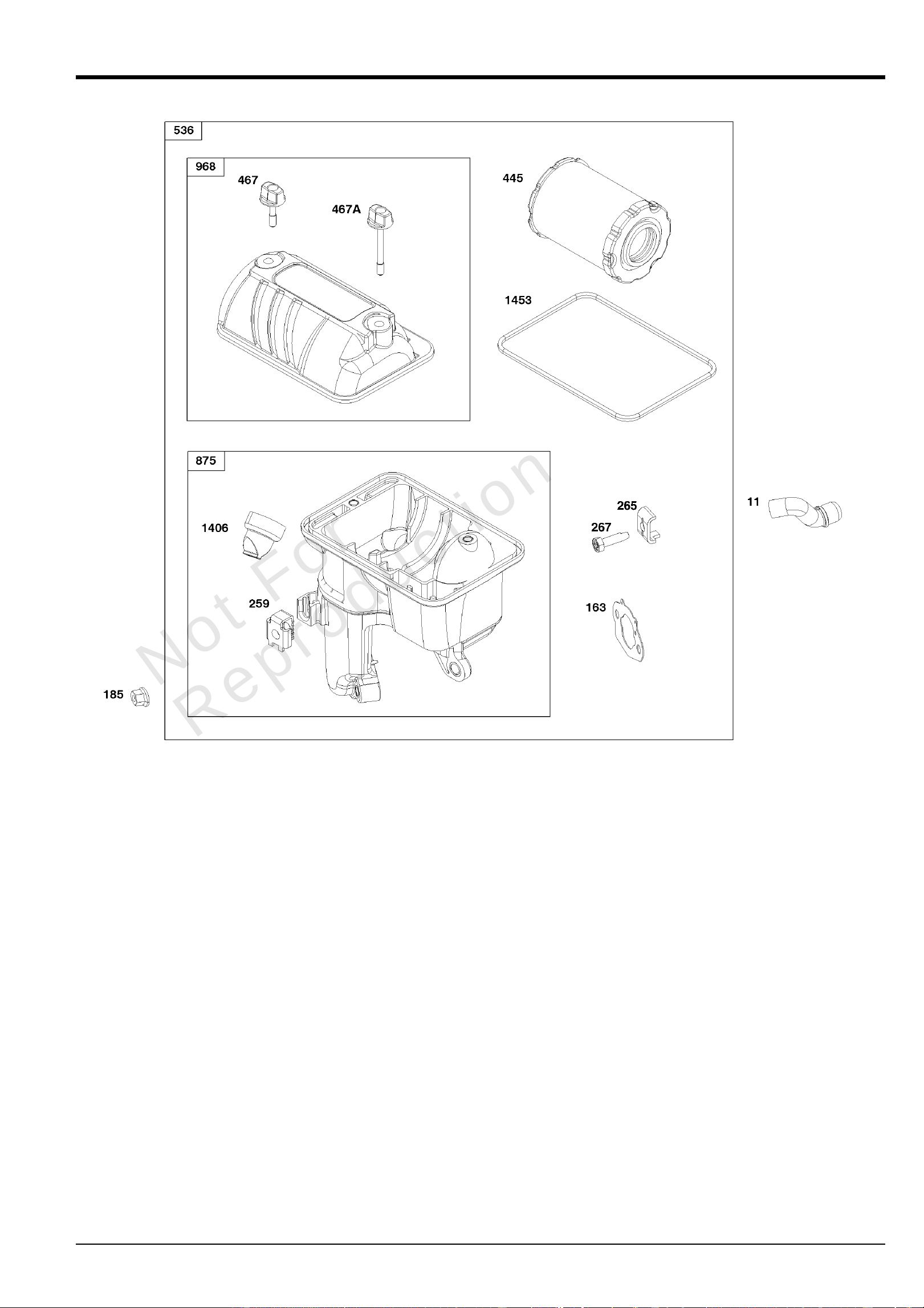

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
11 597013 1 TUBE, Breather
163 596768 1 GASKET, Air Cleaner
185 590692 1 NUT
-(Air Cleaner Base)
259 691189 1 BRACKET, Casing Clamp
265 691024 1 CLAMP, Casing
267 597027 1 SCREW
-(Casing Clamp)
445 596760 1 FILTER, A/C Cartridge
467 596759 1 KNOB, Air Cleaner Cover
467A 596758 1 KNOB, Air Cleaner Cover
536 597060 1 CLEANER, Air
875 597061 1 BASE, Air Cleaner
968 597062 1 COVER, Air Cleaner
1406 597065 1 VALVE, Debris
1453 596756 1 SEAL, Air Cleaner Cover
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025

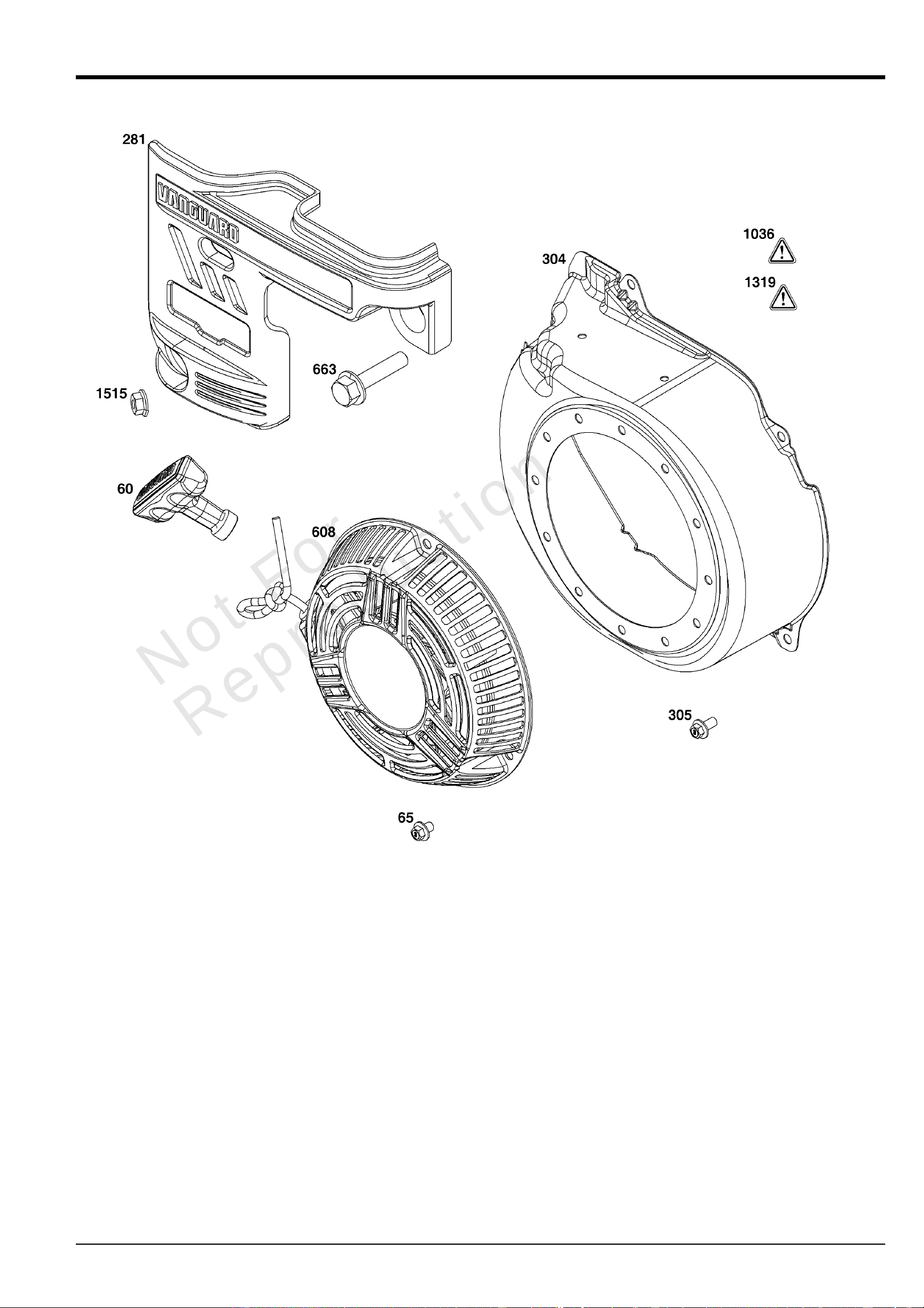

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
60 ----- 2 GRIP, Starter Rope
-(Part information located in Flywheel/Ignition/Starter Group.)
65 ----- 3 SCREW
-(Part information located in Flywheel/Ignition/Starter Group.)
281 ----- 1 PANEL, Control
-(Part information located in Controls Group.)
304 597073 1 HOUSING, Blower
-(For use on engines without electric start & without regulator)
305 597078 4 SCREW
-(Blower Housing)
608 ----- 2 STARTER, Rewind
-(Part information located in Flywheel/Ignition/Starter Group.)
663 ----- 2 SCREW
-(Part information located in Controls Group.)
1036 ----- 1 LABEL, Emissions
-(Available from a Briggs & Stratton Authorized Dealer)
1319 797669 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1515 ----- 1 NUT, Hex Flange
-(Part information located in Controls Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025

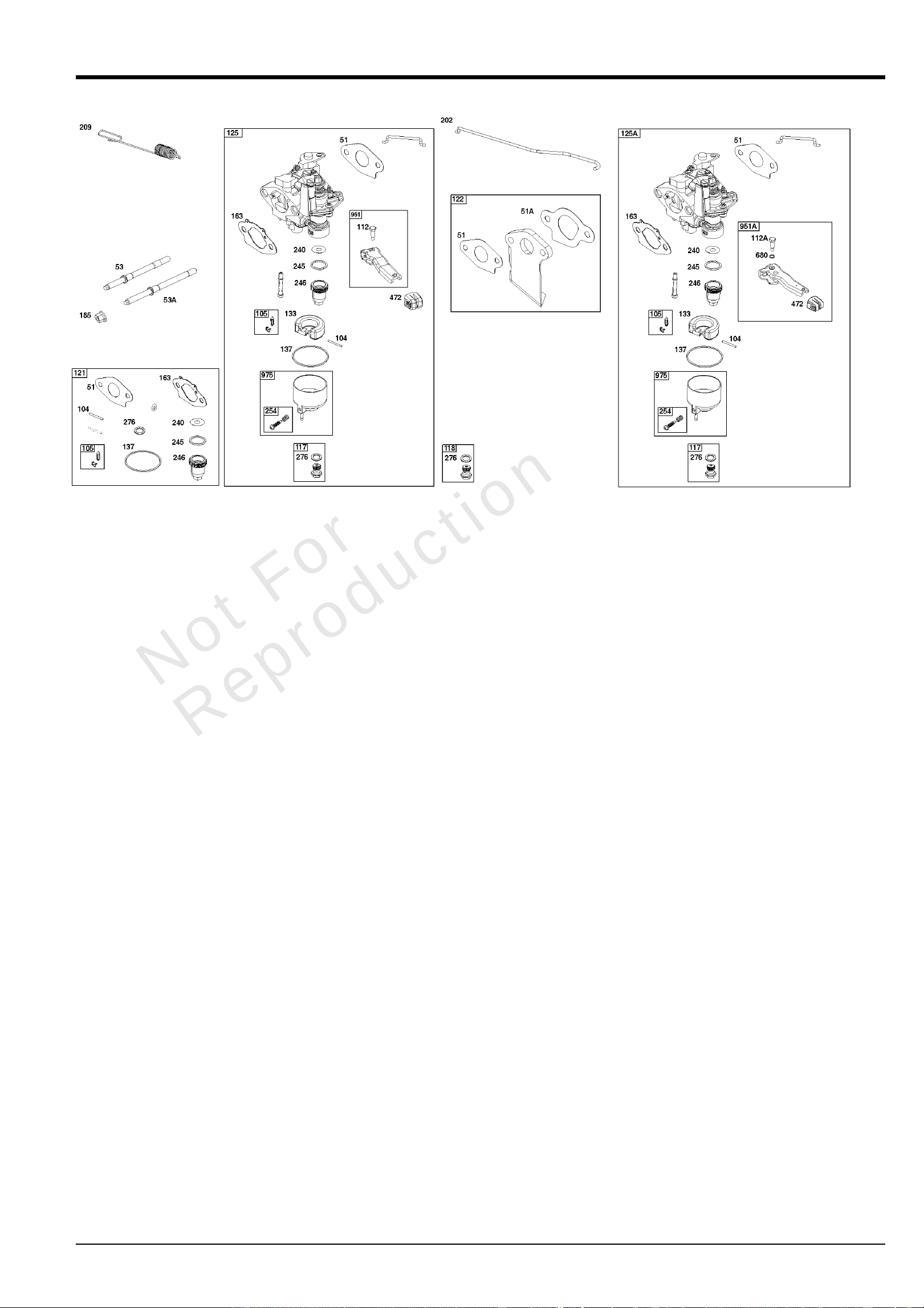

Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 596769 1 GASKET, Intake
51A 596770 1 GASKET, Intake
53 597052 1 STUD
-(Carburetor) (Short)
53A 597051 1 STUD
-(Carburetor) (Long)
104 597533 1 PIN, Float Hinge
105 797139 1 VALVE, Float Needle
112 84005081 1 SCREW
-(Choke Lever)
-Used Before Code Date 19060100
112A 84003640 1 SCREW
-(Choke Lever)
-Used After Code Date 19053100
117 597453 1 JET, Main
-(Standard)
-Used Before Code Date 19060100
117 84004447 1 JET, Main
-(Standard)
-Used After Code Date 19053100
118 597454 1 JET, Main
-(High Altitude)
-Used Before Code Date 19060100
118 597048 1 JET, Main
-(High Altitude)
-Used After Code Date 19053100
121 597138 1 KIT, Carburetor Overhaul
-(Service Kits may include extra parts not specific to this engine.)
122 84003331 1 SPACER, Carburetor
125 596764 1 CARBURETOR
-Used Before Code Date 19060100
125A 84002952 1 CARBURETOR ASSEMBLY
-Used After Code Date 19053100
133 597473 1 FLOAT, Carburetor
137 798932 1 GASKET, Float Bowl
163 596768 1 GASKET, Air Cleaner
185 ----- 1 NUT
-(Part information located in Air Cleaner Group.)
202 597033 1 LINK, Mechanical Governor
209 597115 1 SPRING, Governor
240 597039 1 FILTER, Fuel
245 597042 1 GASKET, Fuel Bowl
-(Use Before Date Code 18051700)
245 597735 1 GASKET, Fuel Bowl
-(Use After Date Code 18051600)
246 597043 1 BOWL, Fuel Filter
254 595322 1 DRAIN, Carburetor Bowl
276 797632 1 WASHER, Sealing
472 84002963 1 KNOB, Control
680 84005074 1 WASHER
-(Choke Lever)
951 597044 1 LEVER, Choke
-Used Before Code Date 19060100
951A 84003872 1 LEVER, Choke
-Used After Code Date 19053100
975 597049 1 BOWL, Float
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025

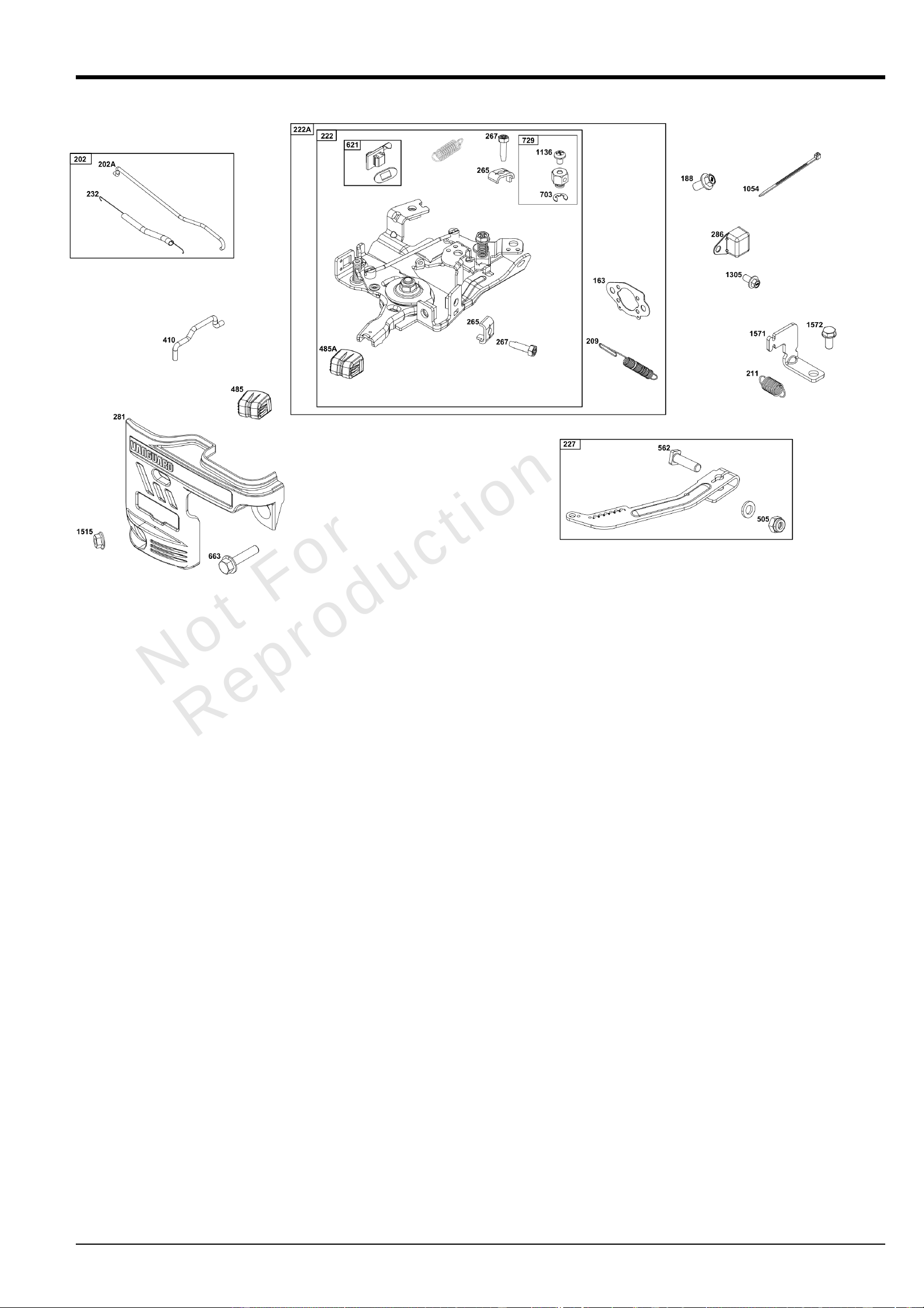

Controls GroupControls GroupControls GroupControls Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor Group.)
188 590850 2 SCREW
-(Control Bracket)
202 597032 1 LINK, Mechanical Governor
202A 597033 1 LINK, Mechanical Governor
209 84003519 1 SPRING, Governor
-Used Before Code Date 20110600
209 84005970 SPRING, Governor
-Used After Code Date 20110500
211 691278 1 SPRING, Governor
222A 84007746 BRACKET, Control
-Used Before Code Date 20110600
222 84006188 1 BRACKET, Control
-Used After Code Date 20110500
227 597028 1 LEVER, Governor Control
232 597034 1 SPRING, Governor Link
265 691024 2 CLAMP, Casing
267 597027 2 SCREW
-(Casing Clamp)
281 597067 2 PANEL, Control
286 84002122 1 MODULE, Oil Sensor
-Used After Code Date 18121400
286 590702 1 MODULE, Oil Sensor
-Used Before Code Date 18121500
410 597024 1 LINK, Control
485 597025 1 KNOB, Control
-Used Before Code Date 19051000
485A 84004631 1 KNOB, Control
-Used After Code Date 19050900
505 590641 1 NUT
-(Governor Control Lever)
562 597121 1 BOLT
-(Governor Control Lever)
621 84007989 1 SWITCH, Stop
663 597460 2 SCREW
-(Control Panel)
703 597021 2 CLIP
729 597019 2 CLIP, Wire
1054 280275 1 TIE, Cable
1136 597020 2 SCREW
-(Control Bracket)
1305 590703 1 SCREW
1515 590692 1 NUT
-(Control Panel)
1571 597035 1 BRACKET, Governor Control
1572 597036 1 SCREW
-(Governed Idle Spring Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025

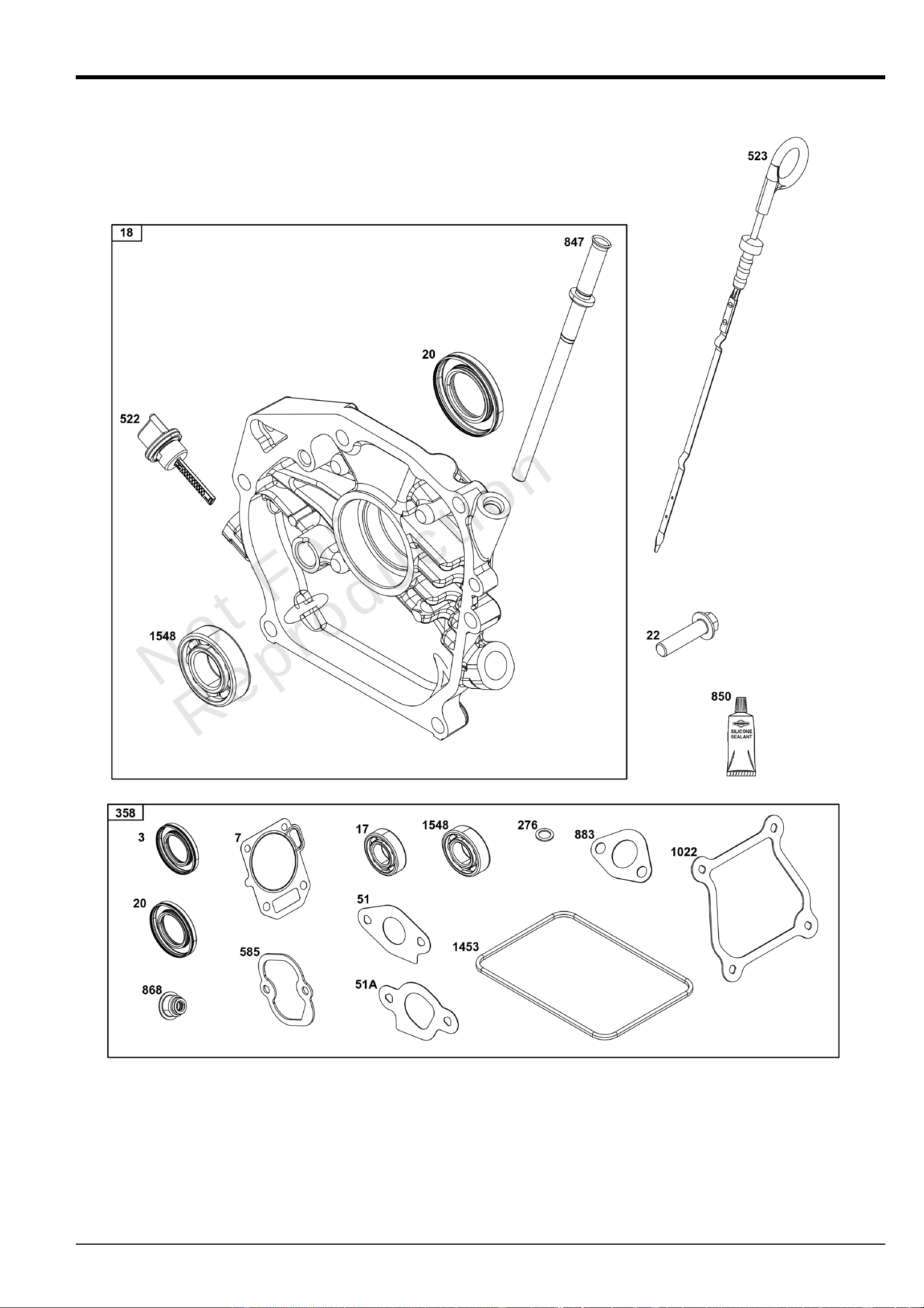

Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
7 ----- 1 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
17 ----- 1 BEARING, Ball
-(Part information located in Cylinder Group.)
18 596985 1 COVER, Crankcase
-(METRIC)
20 596991 1 SEAL, Oil
-(PTO Side)
22 590714 6 SCREW
-(Crankcase Cover/Sump)
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
276 ----- 1 WASHER, Sealing
-(Part information located in Carburetor Group.)
358 ----- 1 GASKET SET, Engine
-(Part information located in Cylinder Group.)
522 590716 2 PLUG, Dipstick/Fill
523 596992 1 DIPSTICK
585 ----- 1 GASKET, Breather Passage
-(Part information located in Cylinder Head Group.)
847 596989 1 DIPSTICK/TUBE ASSEMBLY
850 100106 1 SEALANT, Liquid
868 ----- 1 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 ----- 1 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1453 ----- 1 SEAL, Air Cleaner Cover
-(Part information located in Air Cleaner Group.)
1548 596990 1 BEARING, Ball
-(Crankcase Cover/Sump)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025

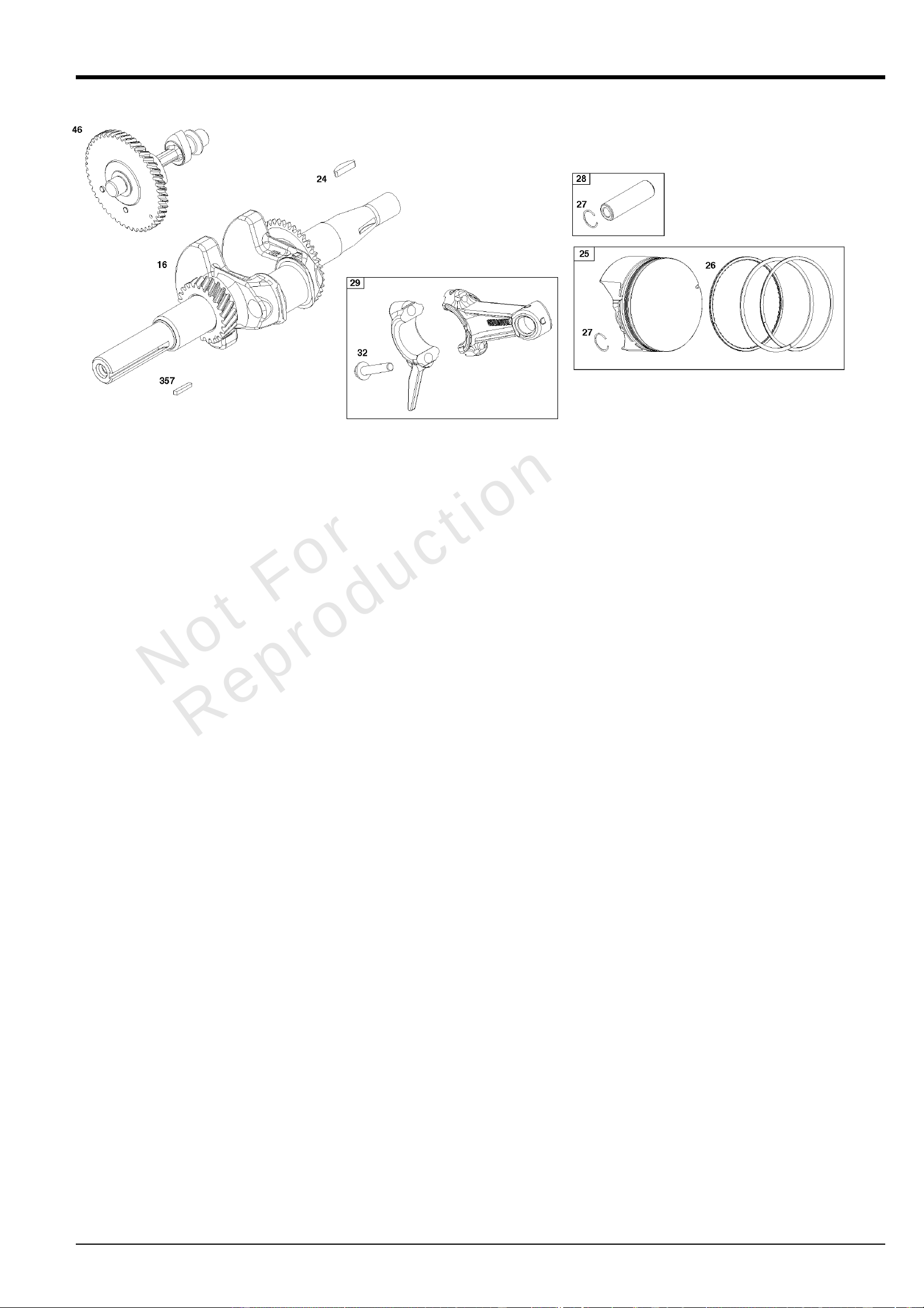

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 596963 1 CRANKSHAFT
24 596976 1 KEY, Flywheel
-(Crankcase Cover/Sump)
25 596978 1 PISTON ASSEMBLY
-(.020 Oversize)
25 596977 1 PISTON ASSEMBLY
26 596980 1 SET, Ring
-(.020 Oversize)
26 596979 1 SET, Ring
27 596982 1 LOCK, Piston Pin
28 596981 1 PIN, Piston
29 596983 1 ROD, Connecting
32 596984 2 SCREW
-(Connecting Rod)
46 596993 1 CAMSHAFT
357 798869 1 KEY, Drive Pulley
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025

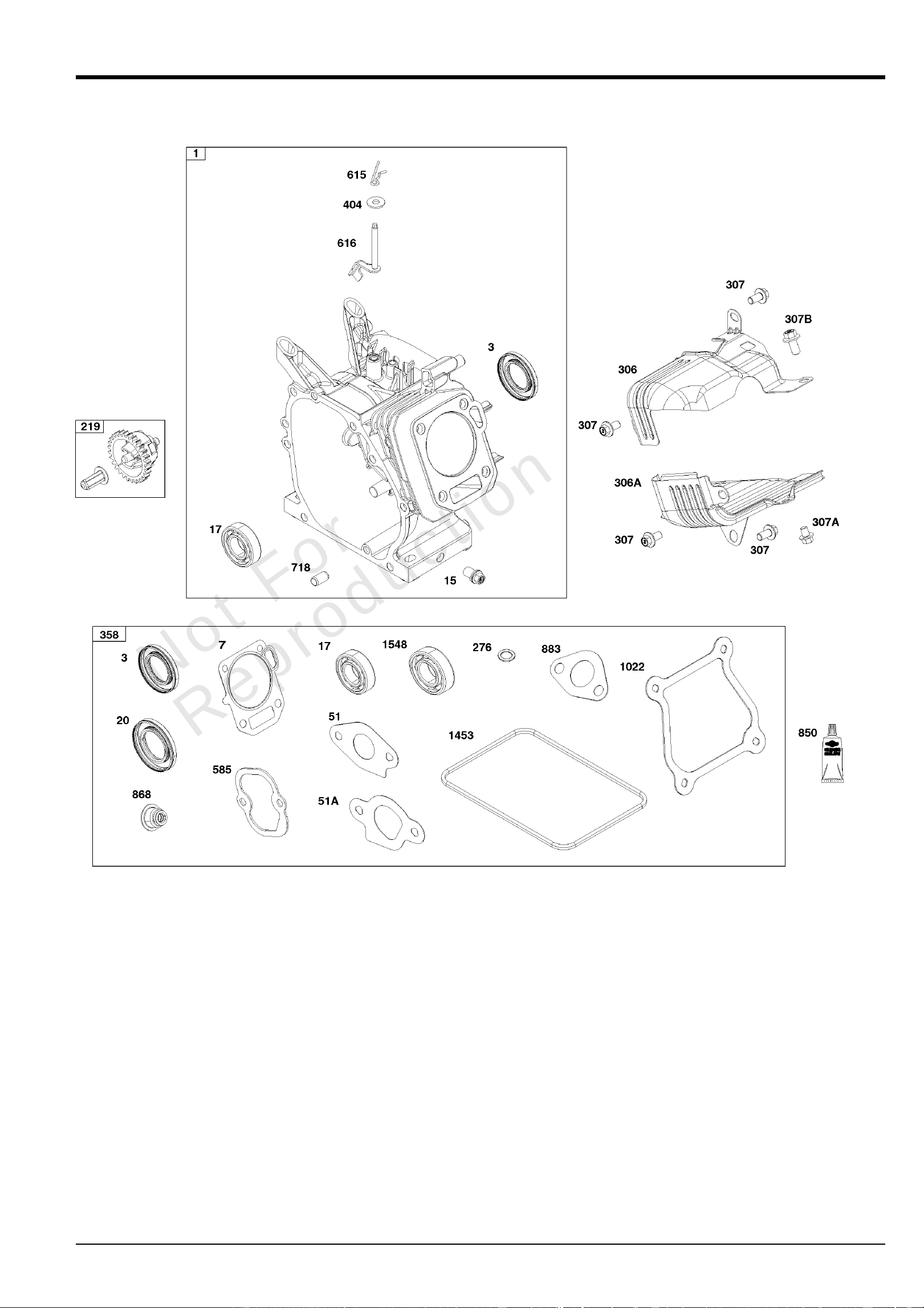

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 597750 1 CYLINDER ASSEMBLY
3 84002132 1 SEAL, Oil
-(Magneto Side)
7 ----- 1 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
15 590678 2 PLUG, Oil Drain
17 596990 1 BEARING, Ball
-(Cylinder)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
51 ----- 1 GASKET, Intake
-(Part information located in Carburetor Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Carburetor Group.)
219 597038 1 GEAR, Governor
276 797632 1 WASHER, Sealing
306 597076 1 SHIELD, Cylinder
-(Bottom)
306A 597077 1 SHIELD, Cylinder
-(Top)
307 590850 3 SCREW
-(Cylinder Shield)
307A 590683 3 SCREW
-(Cylinder Shield)
307B 590638 1 SCREW
-(Cylinder Shield)
358 597139 1 GASKET SET, Engine
-(Service Kits may include extra parts not specific to this engine.)
404 597030 1 WASHER
-(Governor Crank)
585 ----- 1 GASKET, Breather Passage
-(Part information located in Cylinder Head Group.)
615 597031 1 RETAINER, Governor Shaft
616 597029 1 CRANK, Governor
718 590713 2 PIN, Locating
850 ----- 1 SEALANT, Liquid
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
868 597001 1 SEAL, Valve
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 ----- 1 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1453 ----- 1 SEAL, Air Cleaner Cover
-(Part information located in Air Cleaner Group.)
1548 ----- 1 BEARING, Ball
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025

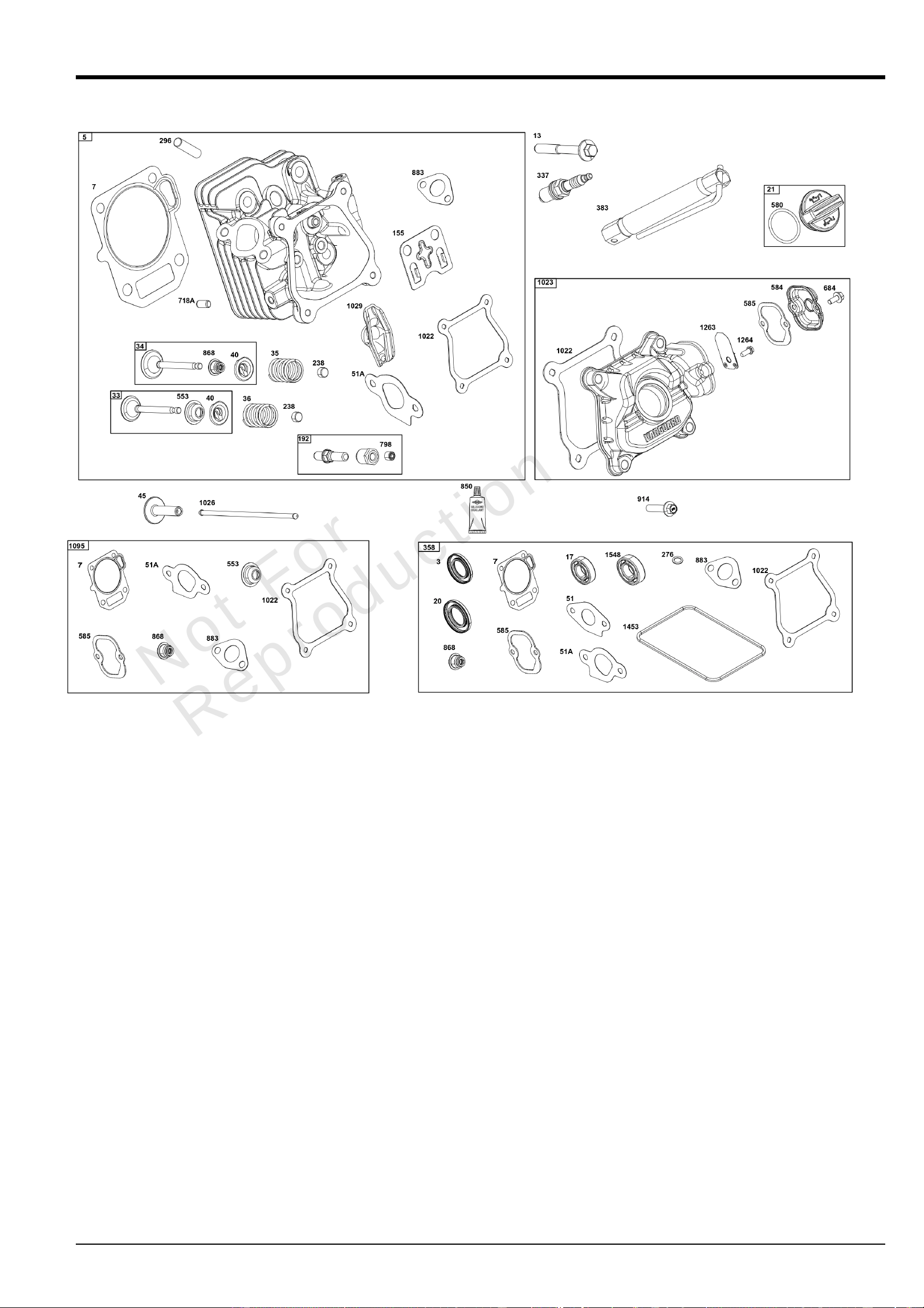

Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
5 596998 1 HEAD, Cylinder
7 597007 1 GASKET, Cylinder Head
13 597008 4 SCREW
-(Cylinder Head)
17 ----- 1 BEARING, Ball
-(Part information located in Cylinder Group.)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
21 597014 1 CAP, Oil Fill
33 597005 1 VALVE, Exhaust
34 597004 1 VALVE, Intake
35 597002 1 SPRING, Valve
-(Intake)
36 597002 1 SPRING, Valve
40 590654 2 RETAINER, Valve
45 591449 2 TAPPET, Valve
51 596769 1 GASKET, Intake
51A 596770 1 GASKET, Intake
155 592874 1 PLATE, Cylinder Head
192 597006 2 ADJUSTER, Rocker Arm
238 590649 2 CAP, Valve
276 ----- 1 WASHER, Sealing
-(Part information located in Carburetor Group.)
296 590631 2 STUD
-(Muffler)
337 597383 2 PLUG, Spark
358 ----- GASKET SET, Engine
-(Part information located in Cylinder Group.)
383 19576S 1 WRENCH, Spark Plug
553 597003 1 RETAINER, Valve Spring
580 809894 1 SEAL, O-Ring
-(Oil Fill Cap)
584 597011 1 COVER, Breather Passage
585 597010 1 GASKET, Breather Passage
684 597012 2 SCREW
-(Breather Passage Cover)
718A 590637 2 PIN, Locating
798 597000 2 SCREW
-(Rocker Arm)
850 ----- 1 SEALANT, Liquid
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
868 597001 1 SEAL, Valve
883 597072 1 GASKET, Exhaust
914 597016 4 SCREW
-(Rocker Cover)
1022 597015 1 GASKET, Rocker Cover
1023 597009 1 COVER, Rocker
1026 597017 2 ROD, Push
1029 596999 2 ARM, Rocker
1095 597140 1 GASKET SET, Valve
-(Service Kits may include extra parts not specific to this engine.)
1263 697124 1 REED, Breather
1264 793453 1 SCREW
-(Breather Reed)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1453 ----- 1 SEAL, Air Cleaner Cover
-(Part information located in Air Cleaner Group.)
1548 ----- 1 BEARING, Ball
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025

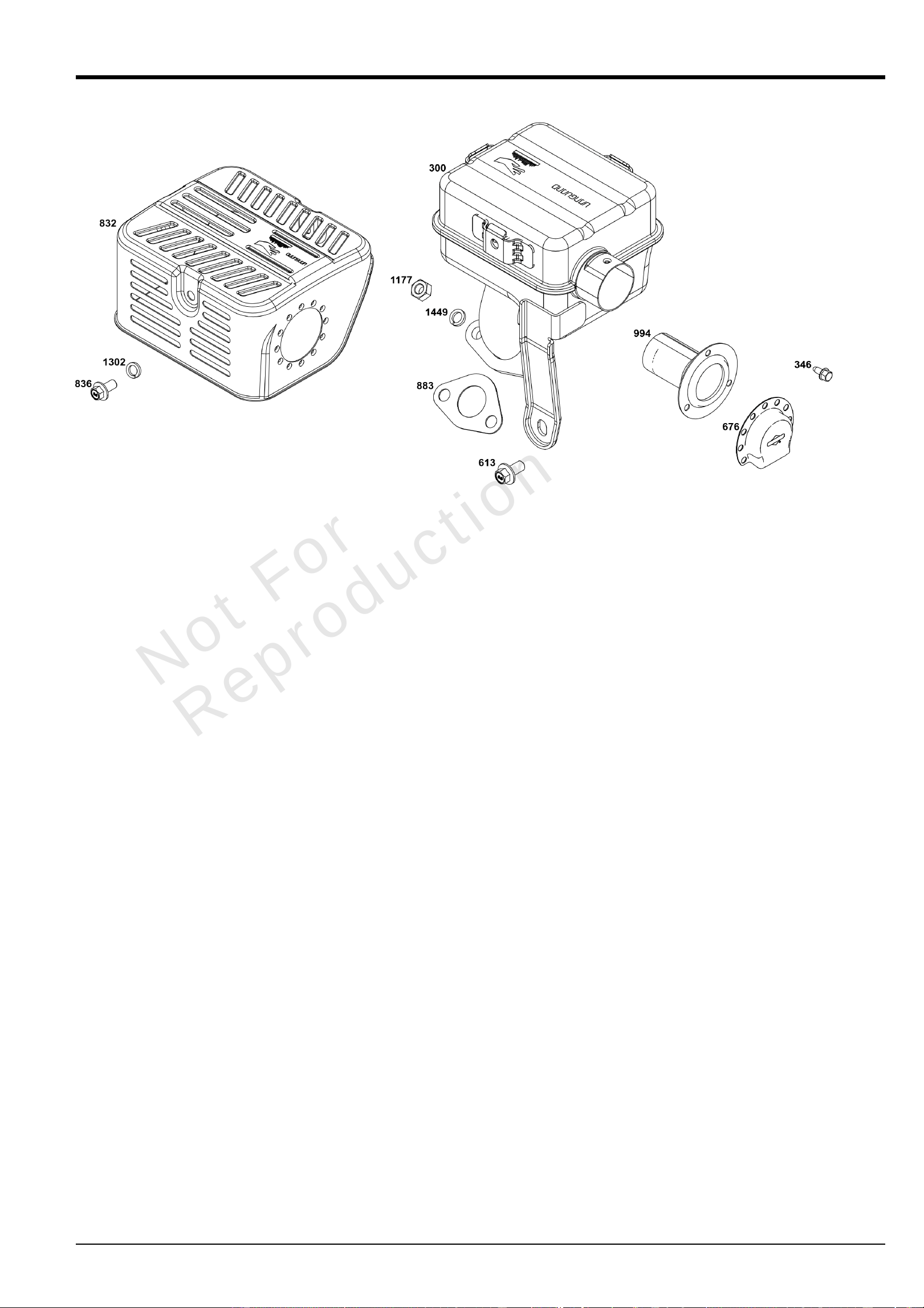

Exhaust GroupExhaust GroupExhaust GroupExhaust Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 84003121 1 MUFFLER ASSEMBLY
-Used Before Code Date 19061200
300 84003517 1 MUFFLER ASSEMBLY
-Used After Code Date 19061100
346 699203 3 SCREW
-(Spark Arrestor)
613 590850 1 SCREW
-(Muffler)
676 798467 1 DEFLECTOR, Muffler
832 597069 1 GUARD, Muffler
836 590706 3 SCREW
-(Muffler Guard)
883 597072 1 GASKET, Exhaust
994 793985 1 ARRESTOR, Spark
1177 590632 2 NUT
-(Muffler)
1302 704133 3 LOCKWASHER, Split,1/4
-(Muffler Guard)
1449 590633 2 WASHER
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 597085 1 FLYWHEEL
37 597075 1 GUARD, Flywheel
60 597080 2 GRIP, Starter Rope
65 590683 2 SCREW
-(Rewind Starter)
78 590850 3 SCREW
-(Flywheel Guard)
332 591988 1 NUT
333 596763 2 ARMATURE, Magneto
334 699477 2 SCREW
-(Magneto Armature)
356 597055 1 WIRE, Stop
363 19203 1 PULLER, Flywheel
455 597088 1 CUP, Flywheel
608 596772 2 STARTER, Rewind
1005 794273 1 FAN, Flywheel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
Mfg. No: 12V332-0002-01
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
187 597058 1 LINE, Fuel
190 591476 1 SCREW
-(Fuel Tank)
601 791850 1 CLAMP, Hose
705 707919 2 NUT
-(Fuel Tank)
957 794641 1 CAP, Fuel Tank
972 597057 1 TANK, Fuel
1345 792917 1 FILTER, Filler Neck
1509 797346 1 OUTLET, Tank
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
