Please read the instruction manual carefully before operating.
PROFESSIONAL RESTAURANT
EQUIPMENT SUPPLIER
Sealing Machine
INSTRUCTION MANUAL
Parameter list
4 1
：Failure and solution
Accessory:

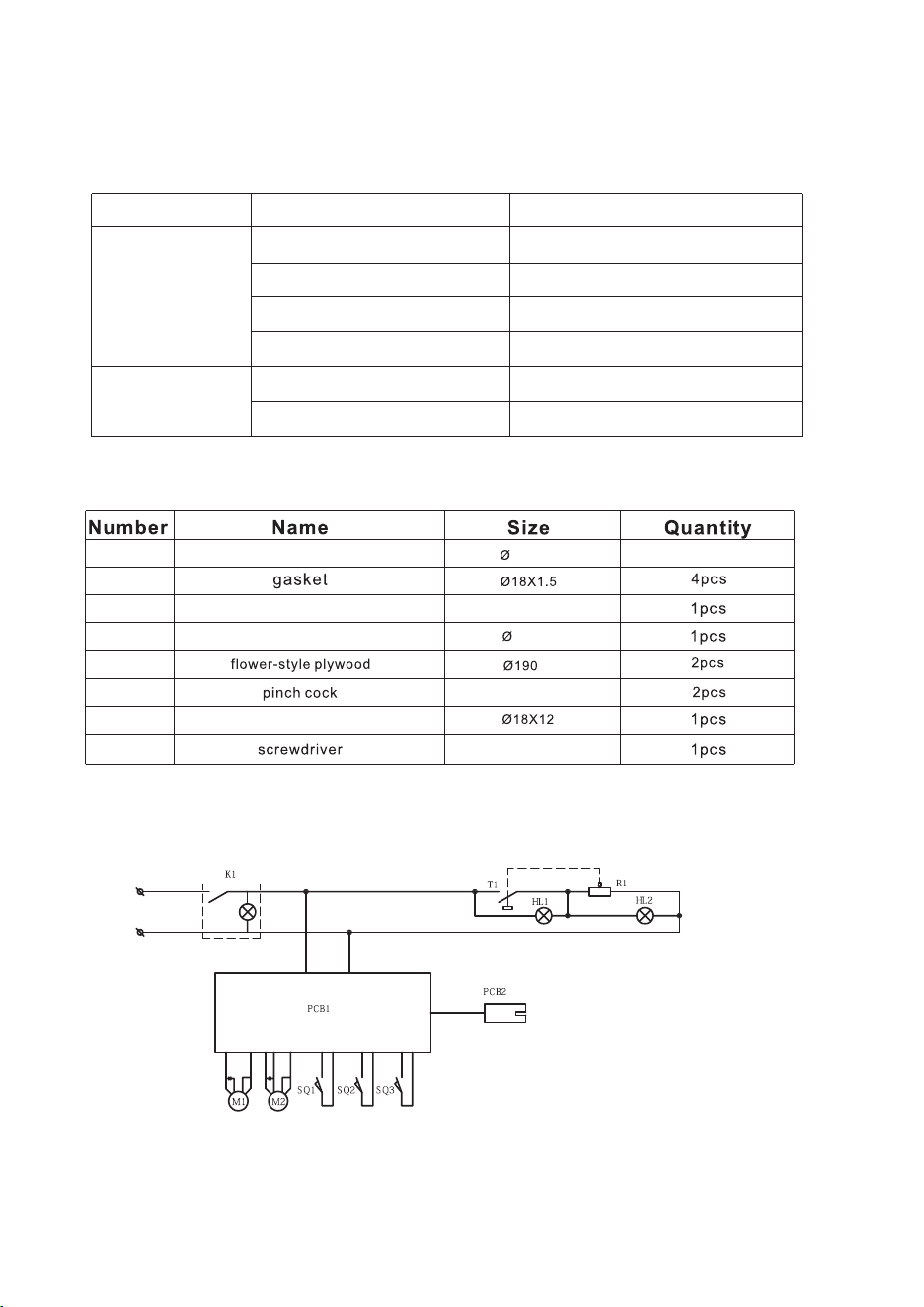

Circuit Diagram:
The film seal temperature:
1. PE: 160 ~190℃ ℃
2. PP: 160 ~210℃ ℃
3. PS: 160 ~190℃ ℃
4. Easy ripping film:: 120 ~180℃ ℃
220Vac
Operating and fixing of this product must be conducted by qualified person.
Please install this machine according to our instruction .
Please keep this manual in case of needed.
Once unpack the machine, check it throughout to make sure it is complete.
Any missing or damage please consult it before operating.
The packing material should be placed beyond the reach of children.
Please turn off the machine when the operator is absent .
In case of repairing, please ask for the expert and use the original spare part.
Do not rinse the machine with water directly.
Clean the surface of stainless steel periodically in appropriate method to prevent
any damages brought by oxidization or chemical interference.
A t t e n t i o n
Ou r f a c tor y i s a m a nuf a c t u rer o f w e s ter n k i t che n e q u ipm e n t a n d sn a c k
fo o d m a chi n e . O ur pr o d u c ts c o v e r f rye r, g rid d l e , r oa s t i n g mac h i n e,
wa r m i ng sh o w c ase , s n a ck ma k i n g m ach i n e , etc . The r e a r e m or e t h a n 4 00
mo d e l s of pr o d u cts f o r y o u t o ch o o s e .
This se r i e s of el e c t r ic ov e n f e atu r e s i ts re a s o nab l e d e s ig n a n d
co n v e nie n t o p era t i o n . It sa n i d eal c h o i ce fo r b a k ery, s nac k b a r a nd
re s t a ura n t .
HL1~2 ： Indicator light
R1 ： Heating plate
T1 ： Thermostat
K1 ： Switch
PCB1 ： Main board
PCB2: Electric eye plate
SQ1~3 ： Travel switch
M2 ： Motor 1
M1 ： Motor 2
T h a n k s f o r ch o os i ng o u r p ro d uc t s .
Symptom of failure
The cup don't seal
steadily.
Reasons
1.There is foreign substance on the mould
2.The film has wrinkled
3.The lip of a cup has foreign substance.
4.Low or excess temperature
1.The serrated knife had syrup.
2.The serrated knife was damaged.
Solutions
1.Power off and clean the mould after cooling.
2.Keep the film smoothly
3. Cleaning the lip of bowl.
4.Ajust the appropriate working temperature
1.Cleaning the serrated knife.
2.Repair or change the serrated knife.
The film can't be
trimmed off.
1
2
3
4
5
6
7
8
film assembly
rubber ring
cup ring
nylon gasket
125X4
90
1pcs
Voltage
Power
Size（CM）
Output
220V~50Hz
350W
37X36X68
WY-680
Model
300-500 cup/h
3
2
Transportation and storage:
Attention:

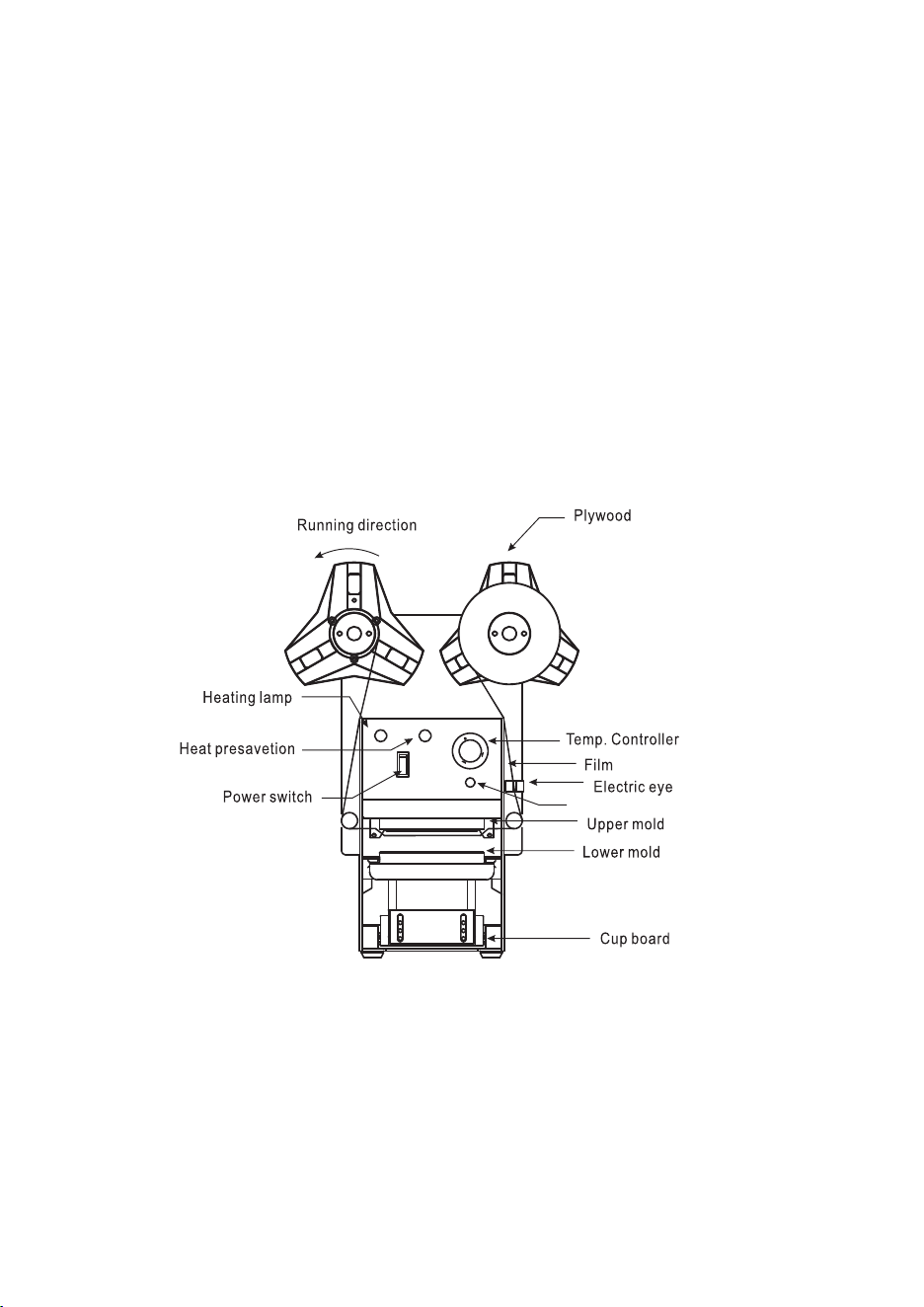

Installation diagram of setting the film:
Cleaning and maintain:
1)Installation diagram of setting the film which was shown on the body of
machine
1.Cut off the power before placing film, and taking care of the winding direction
of film that was shown as yellow sticker.
2.Please check whether the Flower-type plastic splint is well connected
with the film or not.
3.After setting the film, please taped the film on the paper cylinder.
2) Operating steps
1.Plug in the machine, turn on the switch of power and choose the specified
temperature, the green lamp will be on in the mean time, which means the heating
tube is working. When the lamp turn to yellow, it means the setting temperature
was reached. Then constant temperature device makes sure the temperature inside
the case is within the designated level by stopping and restarting the heating
tubes' working circularly.
2.Set the cup in the lower mould and push it to the prescribed place. The upper
mould will be pressed for sealing automatically, and then the film will be ready
for next use.
3.Pull the cup out of the lower mould and repeat the action's of step 2.
Operation
1. The appliance must be connected with qualified ground wire.
2. Whenever the machine breaks down, please turn off the power and check if
any abnormal occurred, stop immediately for overhaul and maintenance.
3. The actual voltage should be the same as or within the range of 5% on either
side of voltage marked on the parameter sticker.
4. Never put your hand into the machine when it working.
5. Please confirm that when used by film has the color patches, the firm has
been placed in the notch. If not correct use, the motor will out of control.
6. If the motor can not operate with the light color of the patches, please adjust
the potentiometer of electric eye to improve the sensibility.
Please handle the appliance with care and avoid any violent vibration, collision or
inversion. The places for storage should have good ventilation and no corrosive
gas. Long-time Open-air storage is not encouraged, if it is inevitable, measures
should be taken to protect the machine from rain and blazing sun.
1.Before clearing, cut off the electricity and please use dry cloth to clean the
surface of machine, bottom of plate and fixed axle.
2.Please put grease on the bearings and moving parts of the machine to make it
turn more easily.
3.The way of cleaning serrated knife: please plug up the leak on the lower mould
and pour boiling water into the mould. Then push it to the prescribed place,
pressthe handle downward to the maximum extent possible and keep for a few
minutes,repeat the action circularly.
Our machines can seal disposable paper cups as well, please
be sure to useexclusive paper cup and paper-plastic films.
*
Sealing time controller
4. The sealing time controler set up on the Panel , the user can adjust the
sealing dwell time according to the situation, the range of time adjusting:
0.1~3seconds.
3
2
Transportation and storage:
Attention:
Installation diagram of setting the film:
Cleaning and maintain:
1)Installation diagram of setting the film which was shown on the body of
machine
1.Cut off the power before placing film, and taking care of the winding direction
of film that was shown as yellow sticker.
2.Please check whether the Flower-type plastic splint is well connected
with the film or not.
3.After setting the film, please taped the film on the paper cylinder.
2) Operating steps
1.Plug in the machine, turn on the switch of power and choose the specified
temperature, the green lamp will be on in the mean time, which means the heating
tube is working. When the lamp turn to yellow, it means the setting temperature
was reached. Then constant temperature device makes sure the temperature inside
the case is within the designated level by stopping and restarting the heating
tubes' working circularly.
2.Set the cup in the lower mould and push it to the prescribed place. The upper
mould will be pressed for sealing automatically, and then the film will be ready
for next use.
3.Pull the cup out of the lower mould and repeat the action's of step 2.
Operation
1. The appliance must be connected with qualified ground wire.
2. Whenever the machine breaks down, please turn off the power and check if
any abnormal occurred, stop immediately for overhaul and maintenance.
3. The actual voltage should be the same as or within the range of 5% on either
side of voltage marked on the parameter sticker.
4. Never put your hand into the machine when it working.
5. Please confirm that when used by film has the color patches, the firm has
been placed in the notch. If not correct use, the motor will out of control.
6. If the motor can not operate with the light color of the patches, please adjust
the potentiometer of electric eye to improve the sensibility.
Please handle the appliance with care and avoid any violent vibration, collision or
inversion. The places for storage should have good ventilation and no corrosive
gas. Long-time Open-air storage is not encouraged, if it is inevitable, measures
should be taken to protect the machine from rain and blazing sun.
1.Before clearing, cut off the electricity and please use dry cloth to clean the
surface of machine, bottom of plate and fixed axle.
2.Please put grease on the bearings and moving parts of the machine to make it
turn more easily.
3.The way of cleaning serrated knife: please plug up the leak on the lower mould
and pour boiling water into the mould. Then push it to the prescribed place,
pressthe handle downward to the maximum extent possible and keep for a few
minutes,repeat the action circularly.
Our machines can seal disposable paper cups as well, please
be sure to useexclusive paper cup and paper-plastic films.
*
Sealing time controller
4. The sealing time controler set up on the Panel , the user can adjust the
sealing dwell time according to the situation, the range of time adjusting:
0.1~3seconds.
