CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
RZT-L 42, 46, 50 & 54-inch Cutting Decks
Form No. 769-08793
January 11, 2013
Thank you for purchasing a Cub Cadet Zero-Turn Tractor. It was
carefully engineered to provide excellent performance when
properly operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Thank You
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
To The Owner
2
Axles ...................................................................12-13
Battery ...................................................................... 6
Controls ...................................................................16
Deck, 42-inch ..........................................................18
Deck, 46-inch ......................................................... 20
Deck, 50-inch ......................................................... 22
Deck, 54-inch ......................................................... 24
Deck Lift Handle/Linkage ....................................... 3
Drive System ............................................................ 4
Electrical Schematic .............................................. 26
Engine, Kawasaki FR691-S05 ..........................28-40
Engine, Kohler SV715-3027 .............................. 41-57
Engine, Kohler SV720-3050 ............................. 58-73
Engine, Kohler SV725-3030 .............................74-89
Engine Accessories ............................................... 8-9
Frame ....................................................................... 6

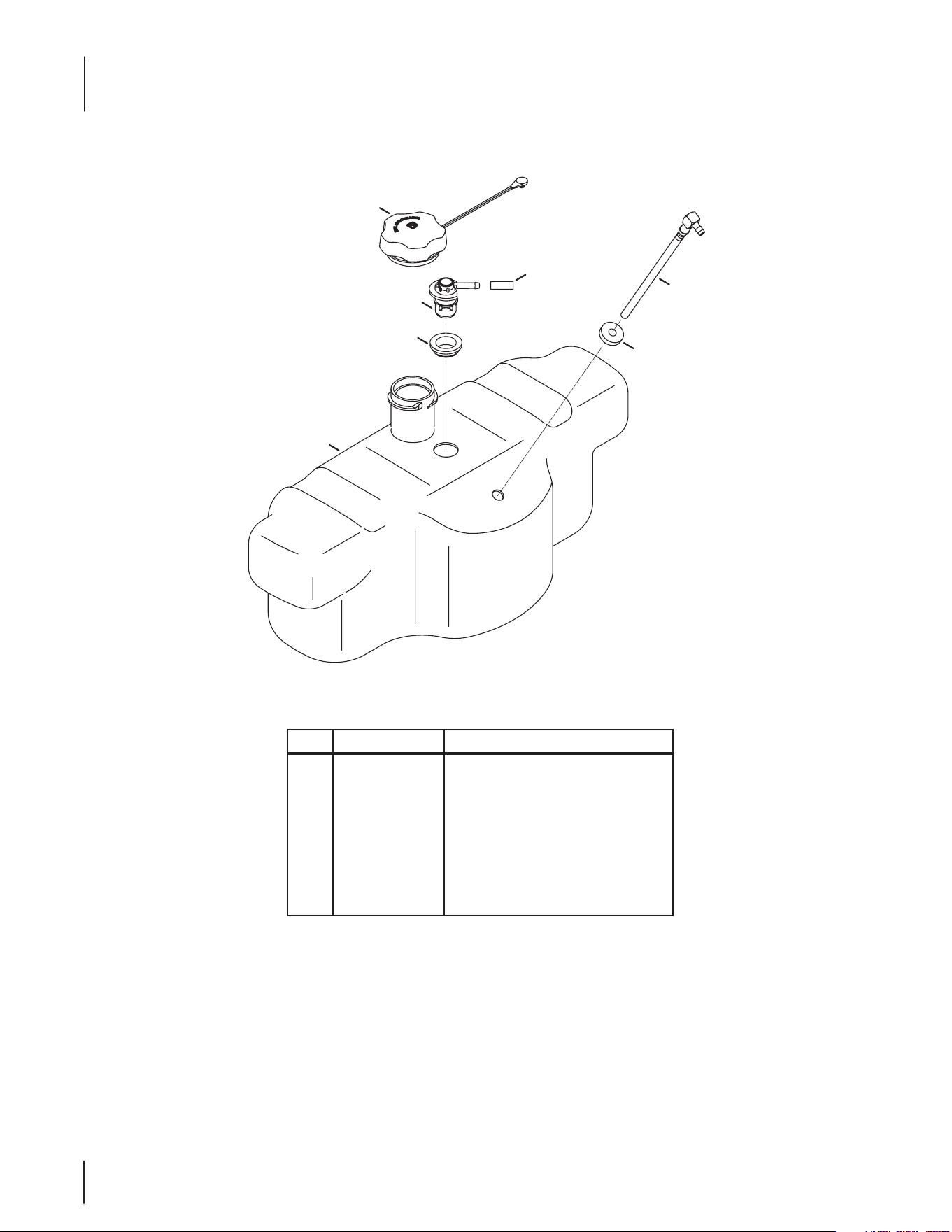

Fuel Tank ........................................................... 14-15
Labels ..................................................................... 27
Meter, Systems Indicator ........................................ 6
Muer ................................................................... 8-9
Operator’s Platform ...............................................10
PTO Switch ............................................................... 6
Seat .......................................................................... 11
Solenoid ................................................................... 6
Switches, Interlock .................................................. 6
Throttle Control .................................................... 8-9
Transmission ............................................................ 4
Wheels, Front .....................................................12-13
Wheels, Rear ............................................................ 4
Table of Contents
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:

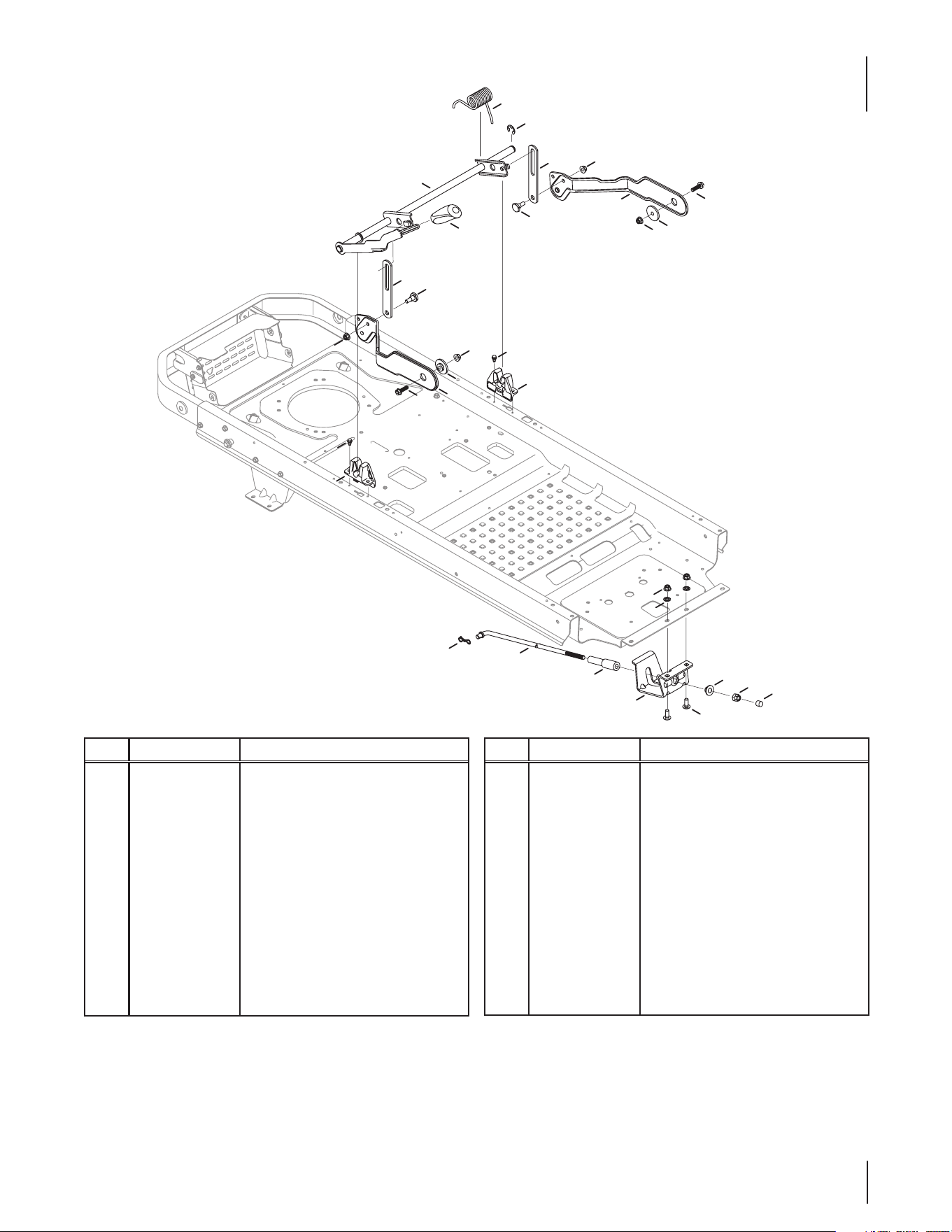

Deck Lift
Ref Part Number Description
1 603-04983A Deck Lift Shift Assembly
2 703-08591A Lift Link Plate
3 703-08592 Deck Lift Plate, RH
4 703-08593 Deck Lift Plate, LH
5 703-08644 Rod Support Mounting Bracket
6 710-1315 Hex Washer Screw, 3⁄8-16 x 1.250
7 710-3168 Carriage Bolt, 3⁄8-16 x 1.00
8 712-0229 Push Nut, 3/8
9 712-04065 Flange Lock Nut, 3⁄8-16
10 712-04243 Flange Lock Nut, 1⁄2-13
11 714-04043 Bow-Tie Cotter Pin
Ref Part Number Description
12 916-0231 E-Type Ring, .750
13 720 - 04139B Grip, .50 ID
14 726-05009 End Cap
15 731-08782 Deck Lift Bracket
16 738-04162C Shoulder Spacer, .884 x .190
17 738-04278 Shoulder Screw, .500 x 1⁄4-20
18 938-0507B Shoulder Screw, .500 Dia. x .434
19 747-05552A Deck Lift Rod
20 748-04069 Deck Lift pivot Cup
21 750-05658 Nylon Sleeve, .55 ID x 4.50 LG
22 732- 04947A† Torsion Spring, 1.323 ID x 2.83 LG
17
9
12
22
50/54 inch decks only
2
18
2
17
9
8
19
21
11
5
4
9
15
9
16
3
6
7
9
13
18
16
6
1
15
20
10
14
† If Equipped
3

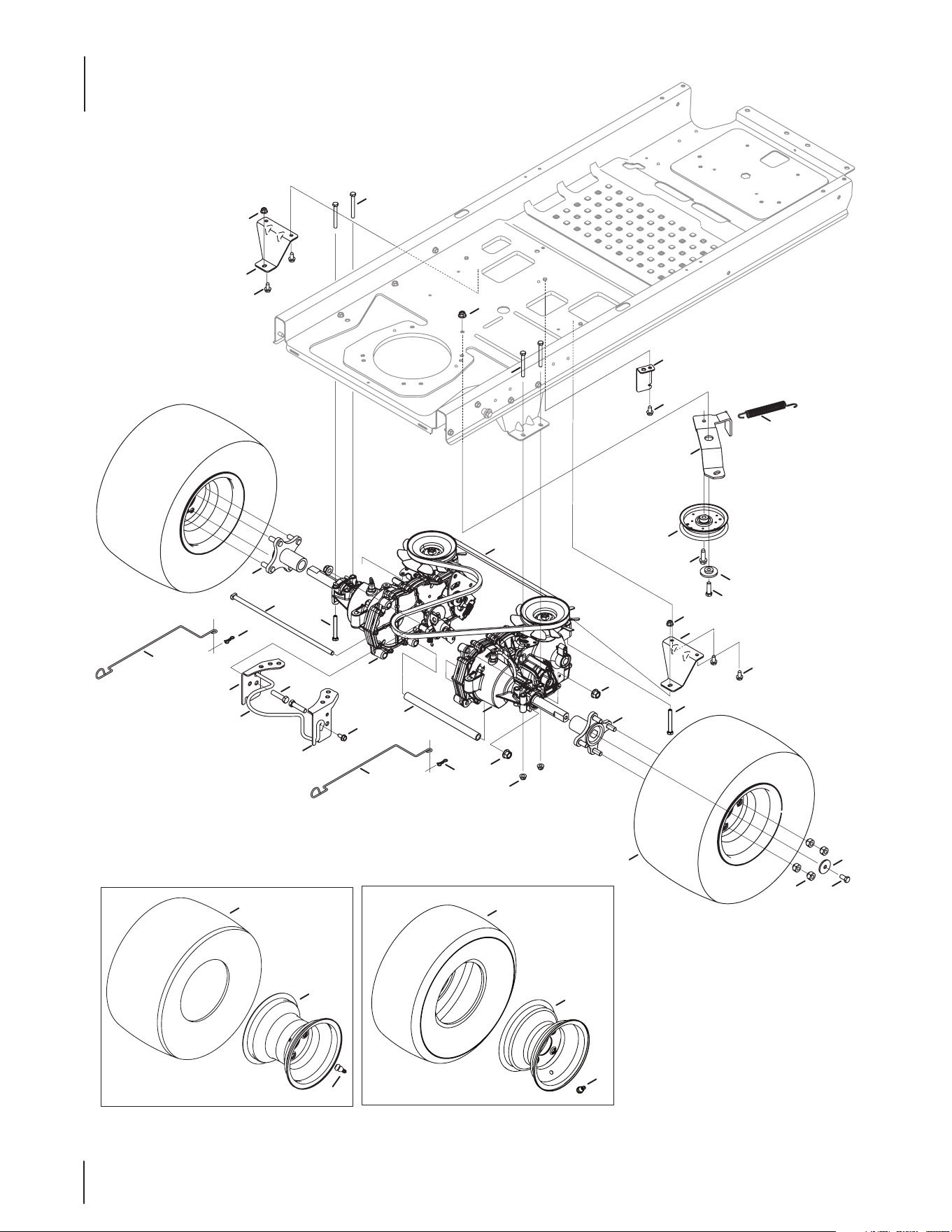

Drive System
A
A
4/35
21
16
20
32
2
3
22
31
31
11
17
13
7
13
33
22
26
1
13
10
5
17
10
19
20
1
11
24
5
17
6
23
25
15
34
14
4
35
30
28
27
18
18
29
13
12
36
9
8
4
Drive System
Ref. Part Number Description
1 918- 04317 Wheel Hub Assembly
2 918-05128 Transmission Assembly, LH
3 918-05129 Transmission Assembly, RH
4 634-04293-0911 Complete Wheel, 18 x 8.5-8 (42” & 46)
5 703-08570 Transmission Mounting Bracket
6 703-08605 Idler Bracket
7 703-08613 Spring Mounting Bracket
8 703-08614A Transmission Bracket
9 703- 08615A Transmission Bracket
10 710 -0176 Hex Screw, 5⁄16-18 x 2.75
11 710-0395 Hex Screw, 5⁄16-18 x 2.25
12 710-04092 Hex Screw, 7⁄16-20 x 1.75
13 710-04484 Hex Washer Screw, 5⁄16-18 x .750
14 710 -1315 Hex Washer Screw, 3⁄8-16 x 1.250
15 710-0514 Hex Screw, 3⁄8-16 x 1.00
16 710 -3119 Hex Screw, 3⁄8-16 x .75
17 712- 04063 Flange Lock Nut, 5⁄16-18
18 934-0255 Valve Tubeless
19 712- 04065 Flange Lock Nut, 3⁄8-16
20 712-0459 Flange Lock Nut, 7⁄16-20
21 712-3050 Lug Nut, 7⁄16-14
22 714-04040 Bow-Tie Cotter Pin
23 732-04229 Extension Spring, .75 Dia. x 6.02
24 936-0227 Flat Washer, .390 x 1.50 x .134
25 738- 04162C Shoulder Spacer, .884 x .190
26 738-04423 Rod, .328 Dia. x 14.0 LG
27 603-04173-0499 Rim Only, (42” & 26”)
28 734-04246-0901 Tire Only, 18 x 8.5-8 (42” & 46”)
29 603-04175-0499 Rim Only, (50” & 54”)
30 734 -1729 -0901 Tire Only, 18 x 9.5-8 (50” & 54”)
31 747-05657 Bypass Rod
32 750-04561 Tube, .51 ID x .75 OD x 10.2
33 954 - 04317 Belt, A-Type x 67.0
34 756 - 04129B Idler Pulley, 4.25 Dia.
35 634-04128-0911 Complete Wheel, 18 x 9.5-8 (50” & 54”)
36 747-06037 Engine Keeper Rod (42”)
747- 06070 Engine Keeper Rod (46”, 50” & 54”)
5
6

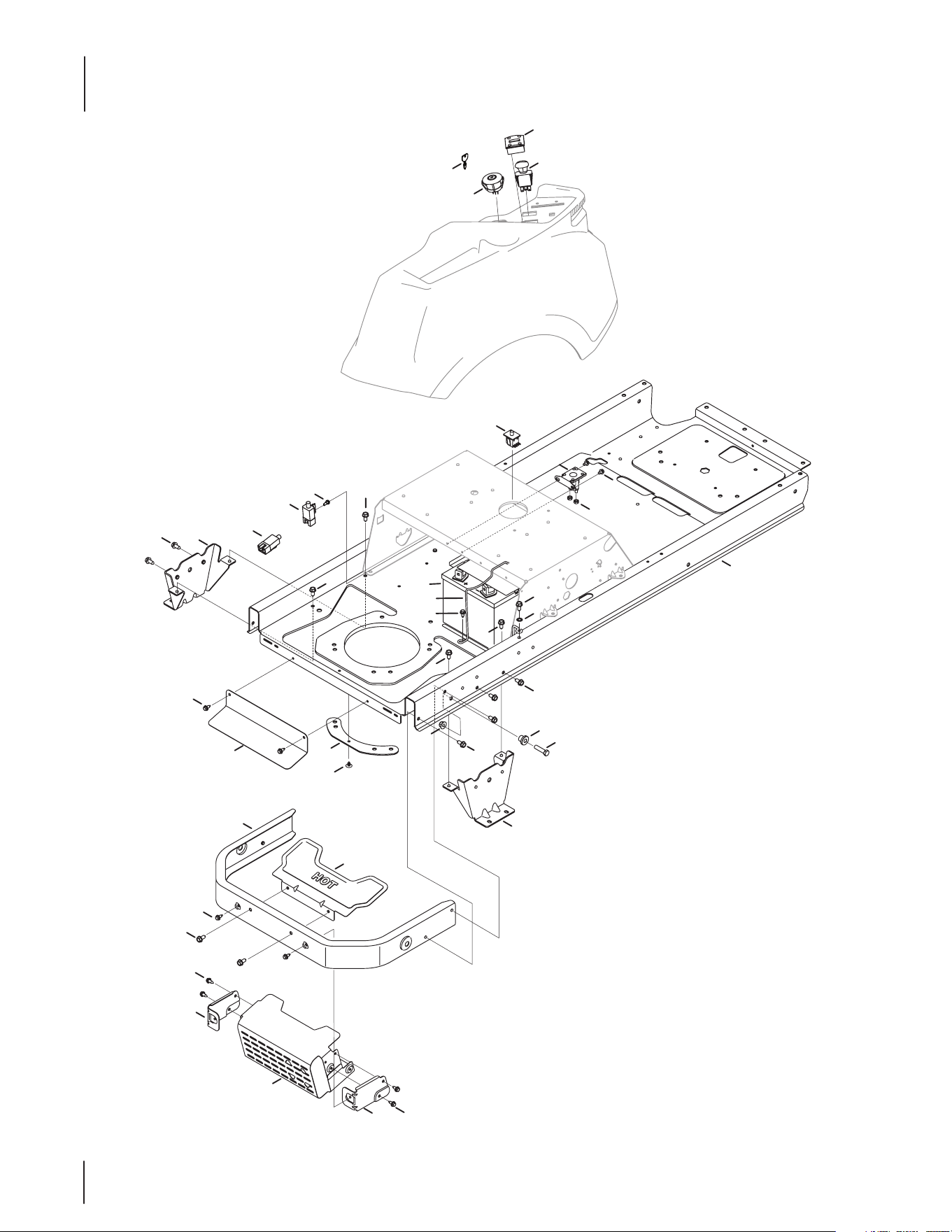

Frame & Electrical
9
14
25
4
9
27
23
22
9
4
9
3
17
10
18
19
20
24
9
16
11
13
10
26
9
9
12
2
15
10
8
1
9
10
7
10
5
9
10
6
21
21
7
Frame & Electrical
Ref Part Number Description
1 683-04549 Muer Shield Assembly
2 703-05383B Retainer Plate
3 703-08884B Frame Assembly
4 703-08555 Transmission Mounting Bracket
5 703-08558 Rear Bumper
6 703-08671 Muer Mounting Shield Bracket, RH
7 703-08695 Muer Mounting Shield Bracket, LH
8 703-09083 Muer Shield
9 710-04484 Hex Washer Screw, 5⁄16-18 x .750
10 710-1652 Hex Washer Screw, 1⁄4-20 x .625
11 710-3005 Hex Screw, 3⁄8-16 x 1.25
12 703-09195 Lower Heat Shield
13 747-05685 Battery Rod
14 712-04065 Flange Lock Nut, 3⁄8-16
15 726-04072A Clip, .250 Dia. x .500 LG
16 738-04058 Shoulder Spacer, .38 x 1.0 x .70
17 712- 04064 Flange Lock Nut, 1⁄4-20
18 925-04022B Hour Meter/Service Minder
19 925-3233 Electric PTO Switch
20 925-04228 Key Switch
21 725-04363 Interlock Switch
22 725-04439 Solenoid
23 925-05013 Seat Switch
24 625-05000 Key, Assembly
25 925-1707D Battery
26 736-0607 Lock Washer, 5/16
27 738- 04237A Shoulder Screw, #10-32 x .500
— 925-06000 Harness Assembly
8
Engine Accessories (Kawasaki)
6
10
2
11
16
12
5
13
15
7
14
8
3
9
9
3
3
20
3
1
4
17
18
19
Ref. Part Number Description
1 710-0227 Hex Washer Screw, #8-18 x .500
2 710-05070 Screw, 1⁄4-20 x .50
3 710-1315 Tap Screw, 3/8-16 x 1.25
4 710-1376 Hex Screw, M8-1.25 x 16
5 710 -3217 Screw, #8-32 x .375
6 712-0142 Hex Nut, #8-32
7 712-04064 Flange Lock Nut, 1⁄4-20
8 912-3005 Flange Lock Nut, 3⁄8-16
9 726-0205 Hose Clamp, .490 Dia.
10 731-04914 Throttle Control Knob
Ref. Part Number Description
11 936-0300 Flat Washer, .406 x .875 x .059
12 737- 04138 Oil Drain
13 946-04352A Throttle Cable
14 946-1085A Choke Cable
15 751-10349-28 Fuel Hose, 1/4
16 951-10517A Oil Drain
17 751-11053A Deector, Muer, Long
18 751-11471A Muer, Kawasaki Twin
19 751-3141-14 Oil Drain Hose
20 756-04494 Engine Pulley
9

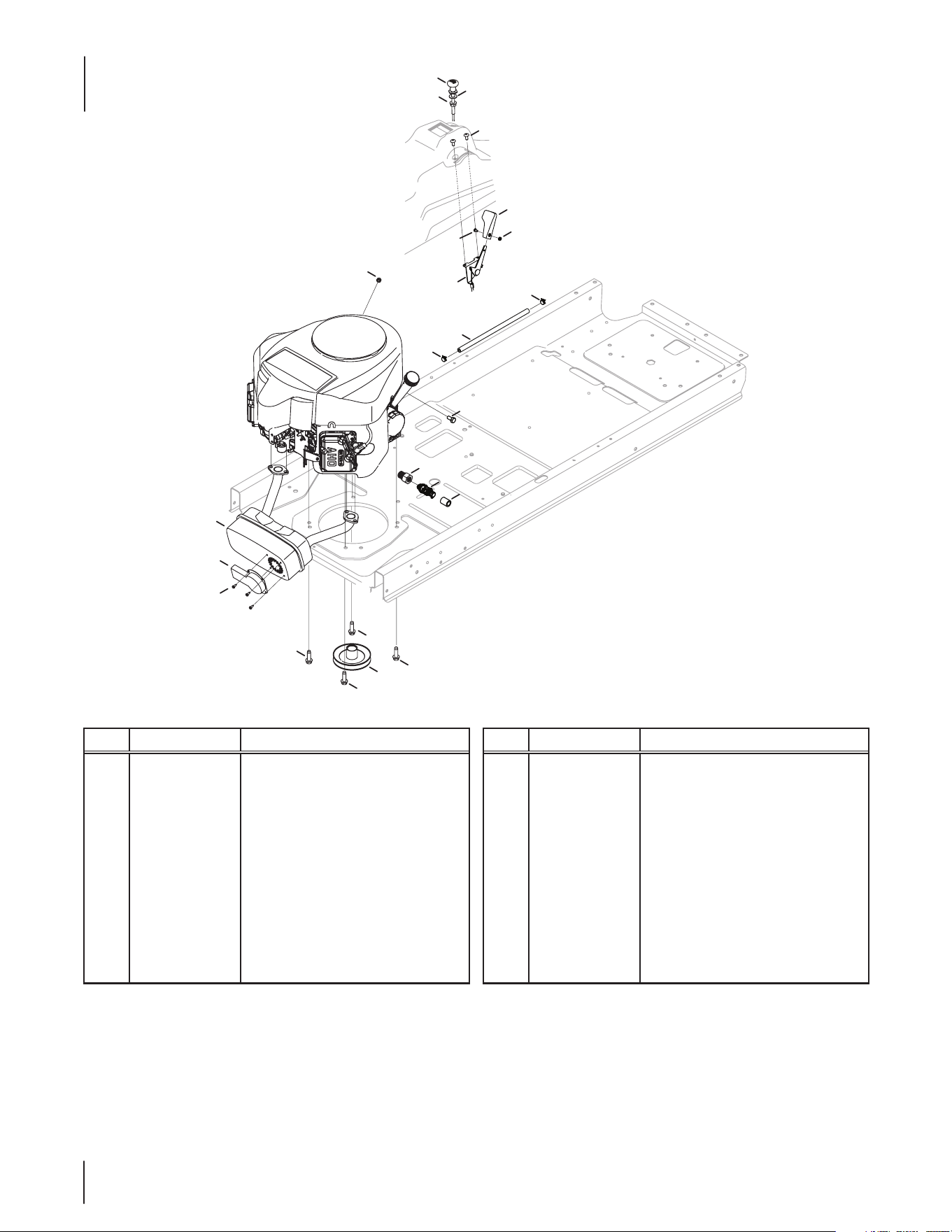

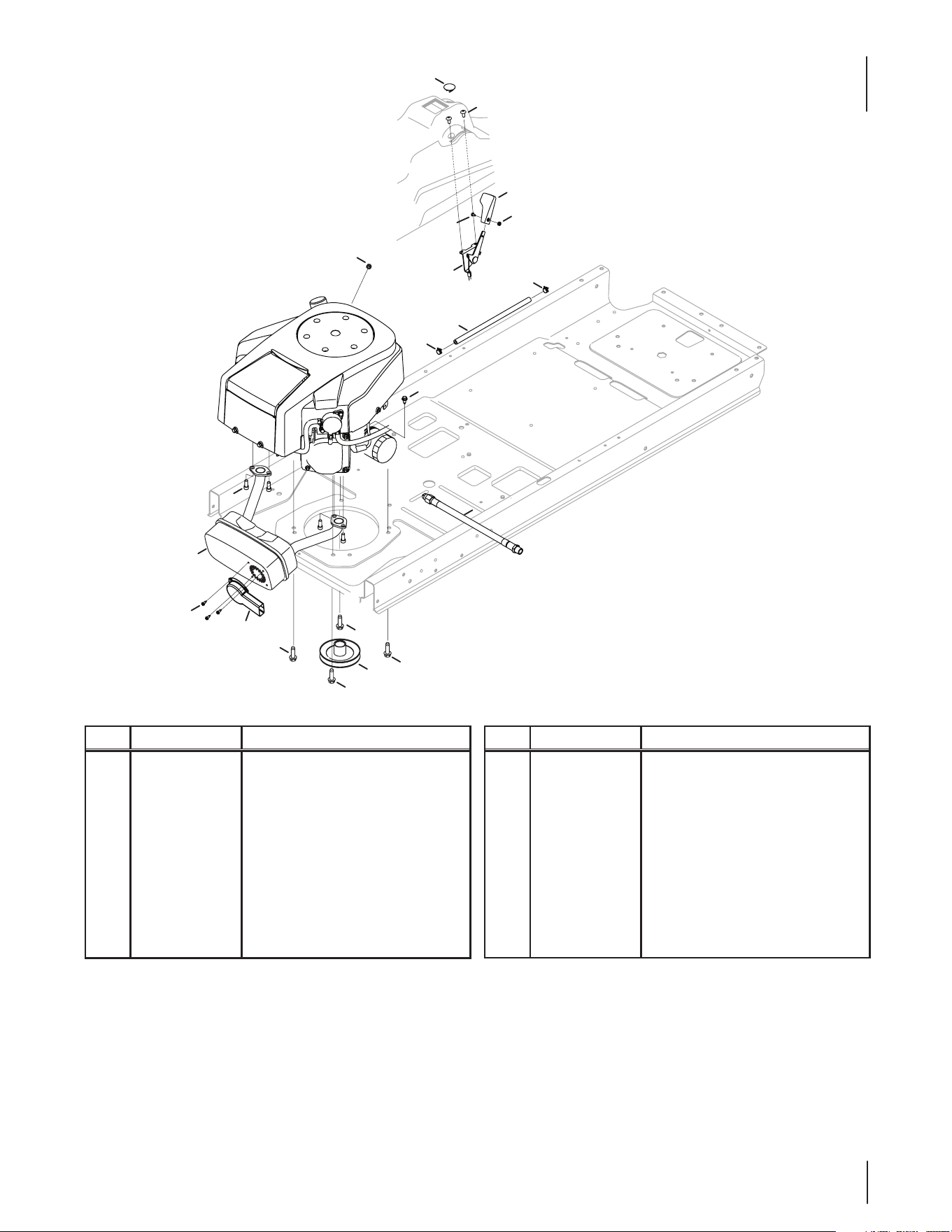

Engine Accessories (Kohler)
Ref. Part Number Description
1 710-0227 Hex Washer Screw, #8-18 x .500
2 710-04683A Hex Washer Screw, 3⁄8-16 x 1.00
3 710-05070 Screw, 1⁄4-20 x .50
4 710-1314A Socket Head Screw, 5⁄16-18 x .750
5 710 -3217 Screw, #8-32 x .375
6 712-0142 Hex Nut, #8-32
7 712-04064 Flange Lock Nut, 1⁄4-20
8 710-1652 Hex Washer Screw, 1⁄4-20 x .625
9 726-0205 Hose Clamp, .490 Dia.
Ref. Part Number Description
10 731-1999 Choke Plug
11 731-04914 Throttle Control Knob
12 946-04830A Throttle/Choke Control Cable
13 751-0564B Muer Deector
14 751-10291A Oil Drain Hose
15 751-10349-28 Fuel Hose, 1/4
16 751-10528A Twin Muer
17 756-04494 Engine Pulley
6
11
3
14
13
1
16
4
5
12
15
7
2
9
9
2
2
17
2
10
8
10

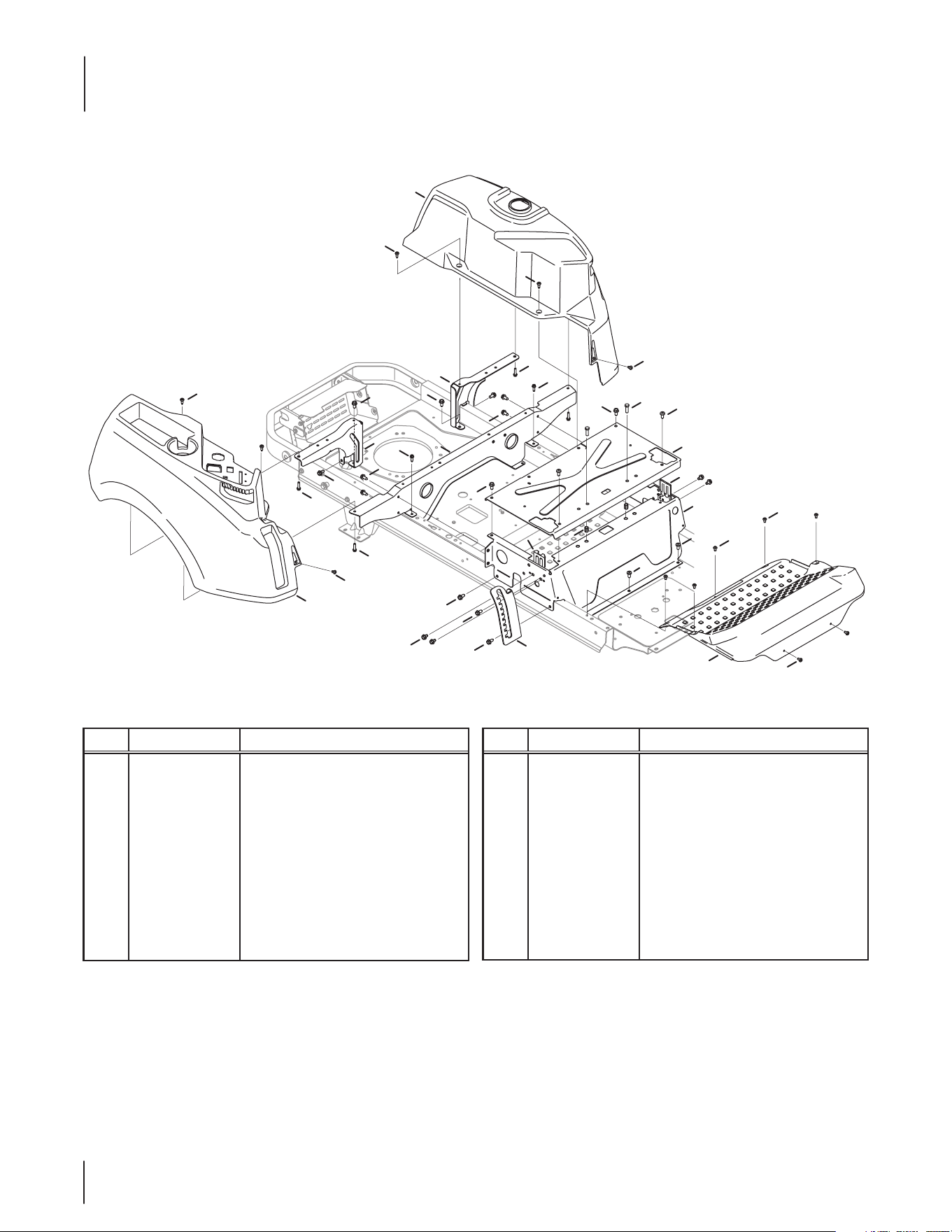

Operator’s Platform
18
10
10
1
10
13
4
6
9
5
7
12
8
18
13
11
10
10
10
10
16
18
18
2
7
10
13
17
18
11
3
15
11
10
1
10
9
12
12
14
Ref. Part Number Description
1 703-08720A Rear Tank Bracket
2 703-08722 Rear Seatbox Brace
3 703-08762B Height Index Bracket
4 703-08902 Floor Board
5 703-09045 Seatbox Plate
6 703- 09175 Seat Frame
7 703- 09211 Lapbar Brace Bracket
8 710-0376 Hex Cap Screw, 5⁄16-18 x 1.00
9 710-04483 Self Tapping Screw, 1⁄4-20 x .50
Ref. Part Number Description
10 710-04484 Hex Washer Screw, 5⁄16-18 x .750
11 710-05109 Hex Washer Screw, 5⁄16-14 x 1.00
12 710-05424 Self Tapping Screw, 5⁄16-18 x .750
13 710-0607 Hex Washer Screw, 5⁄16-18 x .50
14 710 -1611B Screw, Self-Tapping, 5⁄16-18, 0.750
15 728-05012 Nut, 5/16-18
16 931-08687A LH Console
17 931-08771A RH Console
18 738-04549A Shoulder Screw, 1/4-20
11

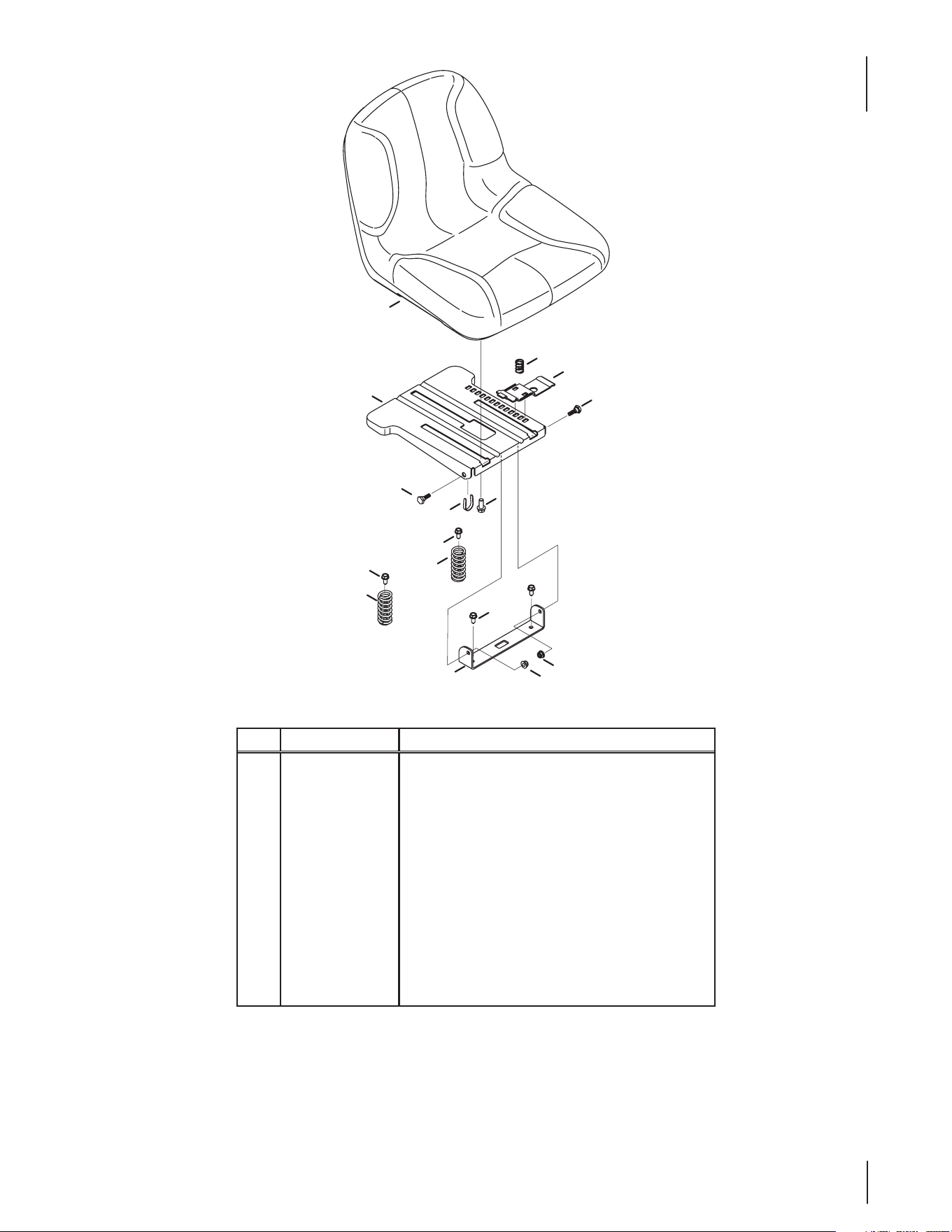

Seat Adjustment
5
10
3
8
2
11
1
3
6
3
8
4
4
9
6
7
Ref. Part Number Description
1 703-08734 Seat Bracket
2 710-04482 Hex Flange Bolt, 3⁄8-16 x .875
3 710-04484 Hex Washer Screw, 5⁄16-18 x .750
4 712-04063 Flange Lock Nut, 5/16-18
5 732-04563 Compression Spring, .68 x 1.065 x .055
6 732-04849 Compression Spring, 1.50 x 3.90 x .200
7 757- 04131 Seat
8 938-0296 Shoulder Screw, 5⁄16-18 x .437 x .268
9 783-06049 Seat Mount Bracket
10 783-06050 Seat Adjustment Lever
11 783-06448 Clip
12

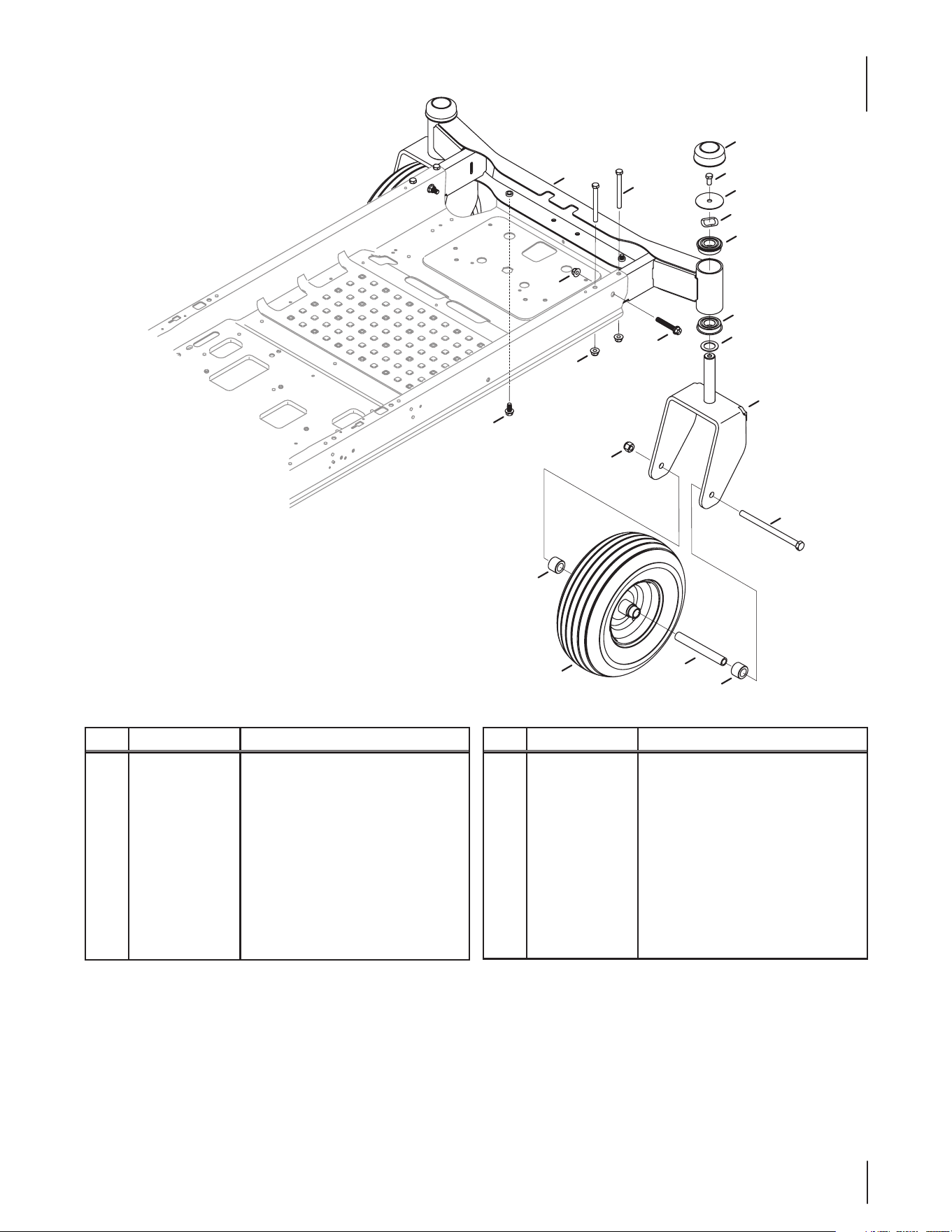

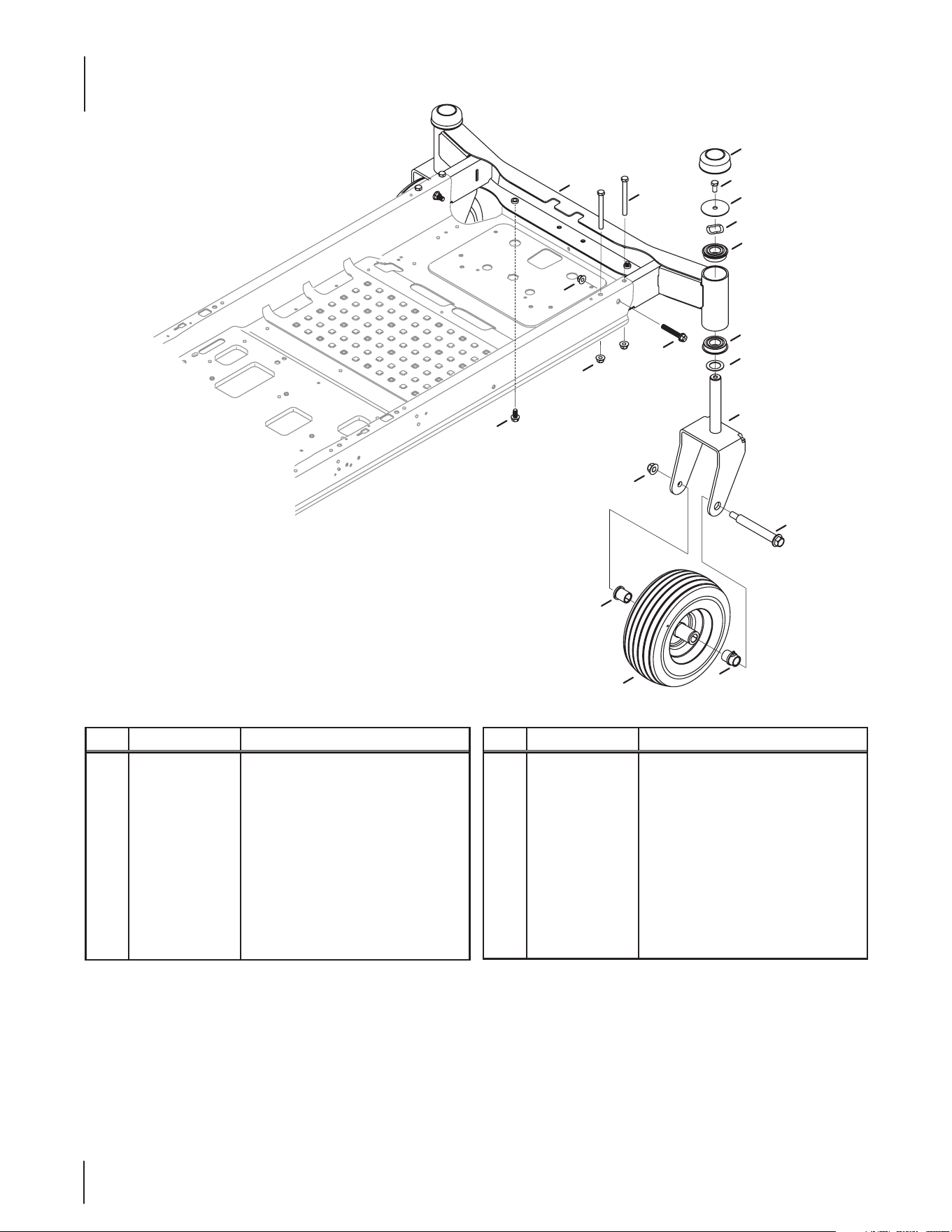

Front Axle 42”
13
12
2
7
5
4
8
15
17
16
14
14
11
10
6
9
3
1
7
Ref. Part Number Description
1 603-05053 Front Axle
2 603-05057A Caster Wheel Bracket
3 710-04576 Hex Cap Screw, 3⁄8-16 x 3.75
4 710-06045 Hex Flange Screw, 3⁄8-16 x 2.25
5 710-0623 Screw TT, 3⁄8-16 x .750
6 710 -3119 Hex Cap Screw, 3⁄8-16 x .750
7 712-04065 Flange Lock Nut, 3⁄8-16
8 712-04150 Flange Lock Nut, 1/2-13
9 731-09347 Cap
Ref. Part Number Description
10 736-05022 Flat Washer, .406 x 2.50 x .060
11 736-05033 Wave Washer, 1.25 x 1.00 x .300
12 736-0745 Flat Washer, 1.010 x 1.56 x .060
13 738-04182B Shoulder Screw, 1/2-13
14 941-05022 Ball Bearing
15 741-0516B Flange Bearing, .76 x 1.0 x 1.2
16 741-0990B Flange Bearing, .76 ID w/Lube Ftg.
17 634-04212B Wheel Assembly, 11.0 x 4.0 x 5.0
13
Front Axle 46/50/54”
4
2
8
6
5
9
16
17
15
16
13
14
14
12
11
7
10
3
1
8
Ref. Part Number Description
1 603-05001 Front Axle
2 603-05058A Caster Wheel Bracket
3 710-04576 Hex Cap Screw, 3⁄8-16 x 3.75
4 710-04652 Hex cap Screw, 1/2-20 x 7.25
5 710-06045 Hex Flange Screw, 3⁄8-16 x 2.25
6 710-0623 Screw TT, 3⁄8-16 x .750
7 710 -3119 Hex Cap Screw, 3⁄8-16 x .750
8 712-04065 Flange Lock Nut, 3⁄8-16
9 912-3058 Hex Lock Nut, 1/2-20
Ref. Part Number Description
10 731- 09347 Cap
11 736-05022 Flat Washer, .406 x 2.50 x .060
12 736-05033 Wave Washer, 1.25 x 1.00 x .300
13 736 - 0745 Flat Washer, 1.010 x 1.56 x .060
14 941-05022 Ball Bearing
15 750-04775A Spacer, .51 x .75 x 5.825
16 750-04792 Hub, .76 x 1.23 x .92
17 634-04711-0931 Wheel Assembly, 13 x 5 x 6
14
Fuel Tank
Ref. Part Number Description
1 951-04395 Fuel Tank
2 935-0149 Fuel Tank Bushing
3 735-04081 Rubber Grommet
4 751-10442 Fuel Pickup Fitting
5 751-12118 Rollover Valve
6 951-12428 Fuel Cap
7 751-12089-51 Vent Hose
6
5
7
3
1
2
4
15

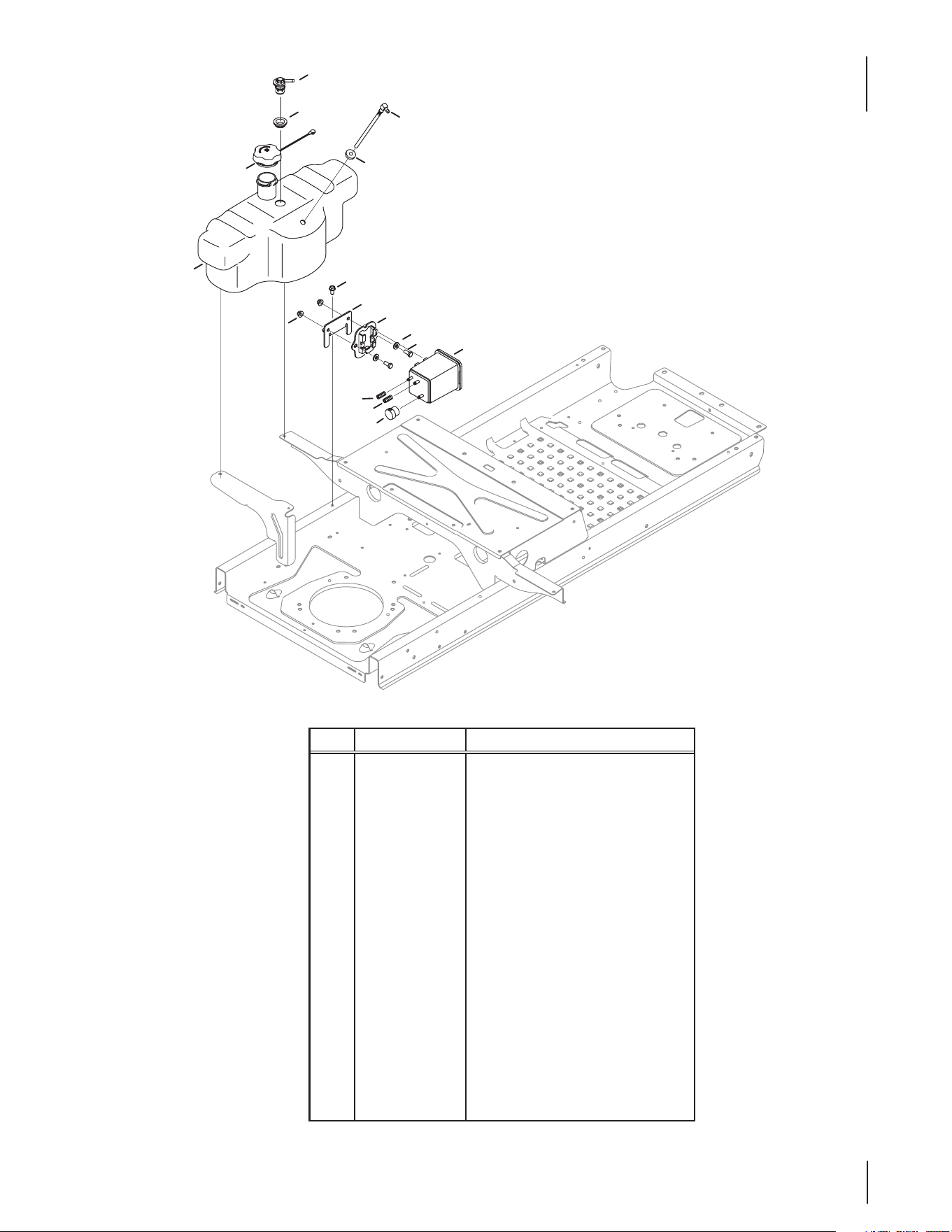

Fuel Tank (CA Models)
Ref. Part Number Description
1 951-04395 Fuel Tank
2 703-08769 Carbon Canister Bracket
3 710-04484 Hex Washer Screw, 5⁄16-18 x .750
4 710-3008 Hex Screw, 5⁄16-18 x .75
5 712-04063 Flange Lock Nut, 5⁄16-18
6 936-3008 Flat Washer, .344 x .750 x .120
7 951-10589 Carbon Canister
8 951-10590 Cannister Filter Vent
9 951-10610 Cannister Adapter Bracket
10 751-10750 Low Perm Fuel Hose 7/32 Yellow
11 751-10749 Vent Hose, Carb
12 935-0149 Fuel Tank Bushing
13 735-04081 Rubber Grommet
14 751-10442 Fuel Pickup Fitting
15 751-12118 Rollover Valve
16 951-12429 Fuel Cap
7
11
5
1
16
8
4
6
9
2
3
15
13
12
14
10
16

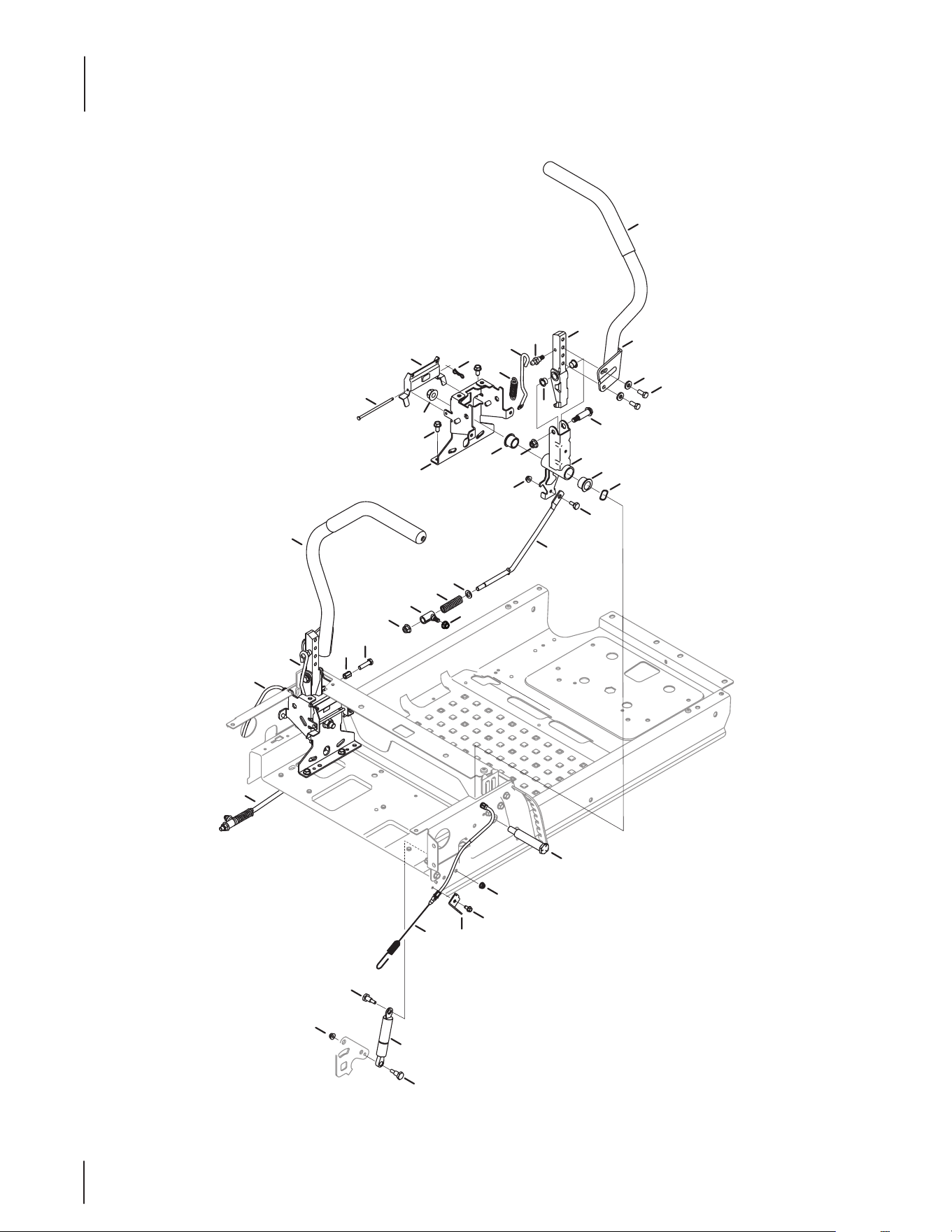

Controls
24
11
25
1
38
37
18
26
4
12
16
20
9
32
36
15
29
34
13
21
23
27
15
16
33
22
7
31
30
6
8
17
35
28
15
10
5
32
29
19
30
3
2
14
17
Controls
Ref. Part Number Description
1 603-05016A RH Lapbar Lever Assembly
2 603-05019A LH Labpar Lever Assembly
3 603-05033A Lapbar Pivot bracket
4 703-09069 Brake Lever Actuator
5 703-09220 Brake Cable Bracket
6 703-09325 Lapbar Pivot Support Bracket
7 710-04471 Screw, Shoulder Ball, 5⁄16-18 x .48
8 710-04484 Hex Washer Screw, 5⁄16-18 x .750
9 710-0528 Hex Cap Screw, 5⁄16-18 x 1.25
10 710-0599 Hex Washer Screw, 1⁄4-20 x .500
11 710-1880 Hex Head Screw, 5⁄16-18 x .75, Patch
12 711-06068 Pin, .188 x 4.1
13 711- 0 6094A Ferrule, 3/8 ID x .420 Shldr
14 712- 04063 Flange Lock Nut, 5⁄16-18
15 712-04064 Flange Lock Nut, 1⁄4-20
16 712-04065 Flange Lock Nut, 3⁄8-16
17 712-04150 Flange Lock Nut, 1/2-13
18 714-04040 Bow-Tie Cotter Pin
19 727-04400A Dampener, .87 OD x 7.06 Lg
20 728-05012 Nut, 5/16-18
Ref. Part Number Description
21 732-05075 Compression Spring, .45 x 3.215
22 732-1162 Extension Spring, .56 x 2.31 x .105
23 936-0140 Flat Washer, .385 x .62 x .063
24 736-0621 Washer, Wave, .785 x 1.0 x .012
25 936-3008 Flat Washer, .344 x .750 x .120
26 738- 04419A Shoulder Screw, .375 x .148 x 1⁄4-20
27 738-05025 Shoulder Screw, .498 Dia. x 1.296
28 738-05033 Shoulder Screw, .75 x 3.25 x 1/2-13
29 738-05034 Shoulder Screw, .395 Dia. x .56
30 741- 04050 Bearing, .75 x 1.00 x .73
31 741-0491 Flange Bearing, .500 x .34
32 946-05008 Park Brake Cable
33 747-06085 Lapbar Detent Rod, RH
34 747-06086 Lapbar Detent Rod, LH
35 747-06149 Hydro Control Rod, RH
36 747- 06160 Hydro Control Rod, LH
37 748-05000 Lower Arm
38 720-05008 Lapbar Grip, Long 1.125 x 12.00 Lg
720-05007 Lapbar Grip, Short 1.125 x 5.0 Lg
18

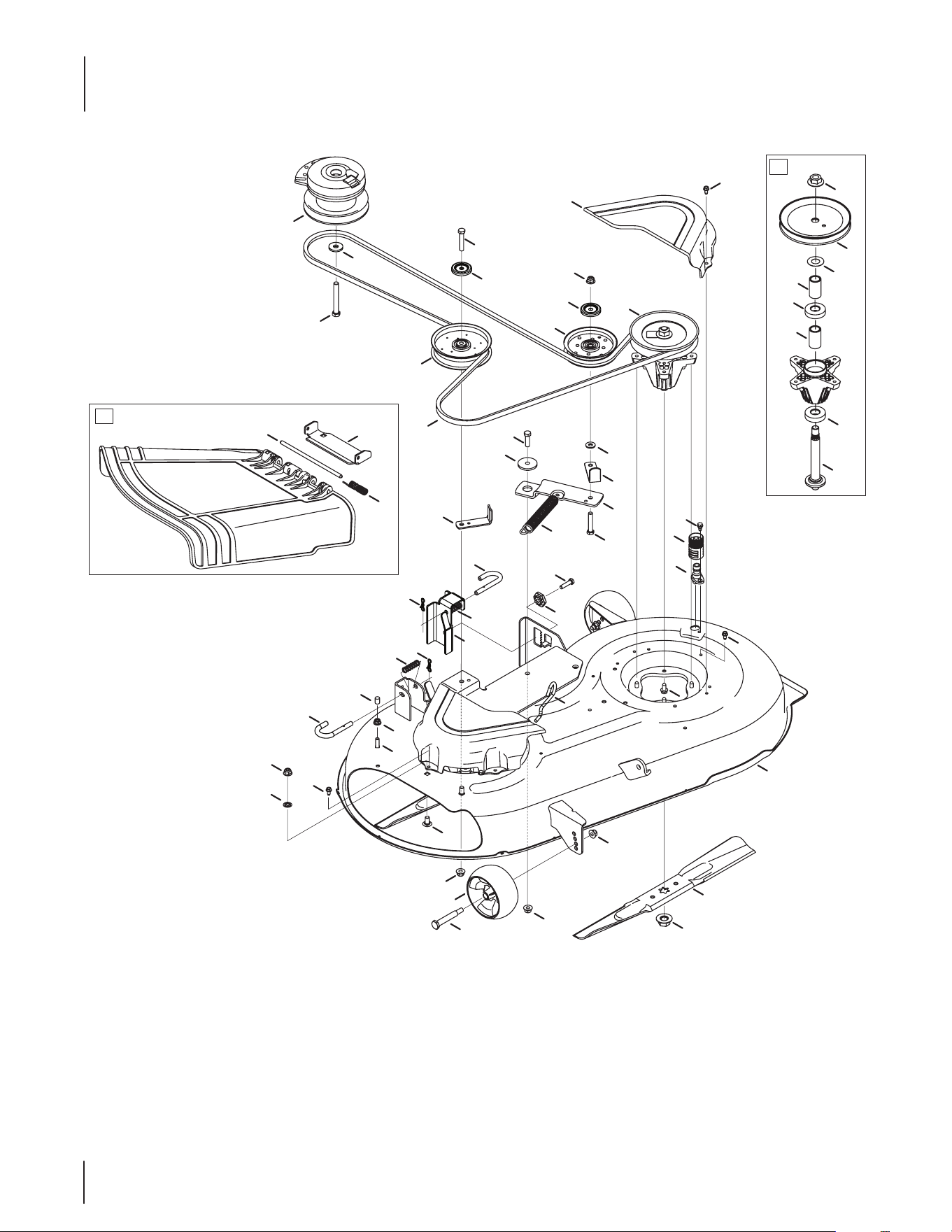

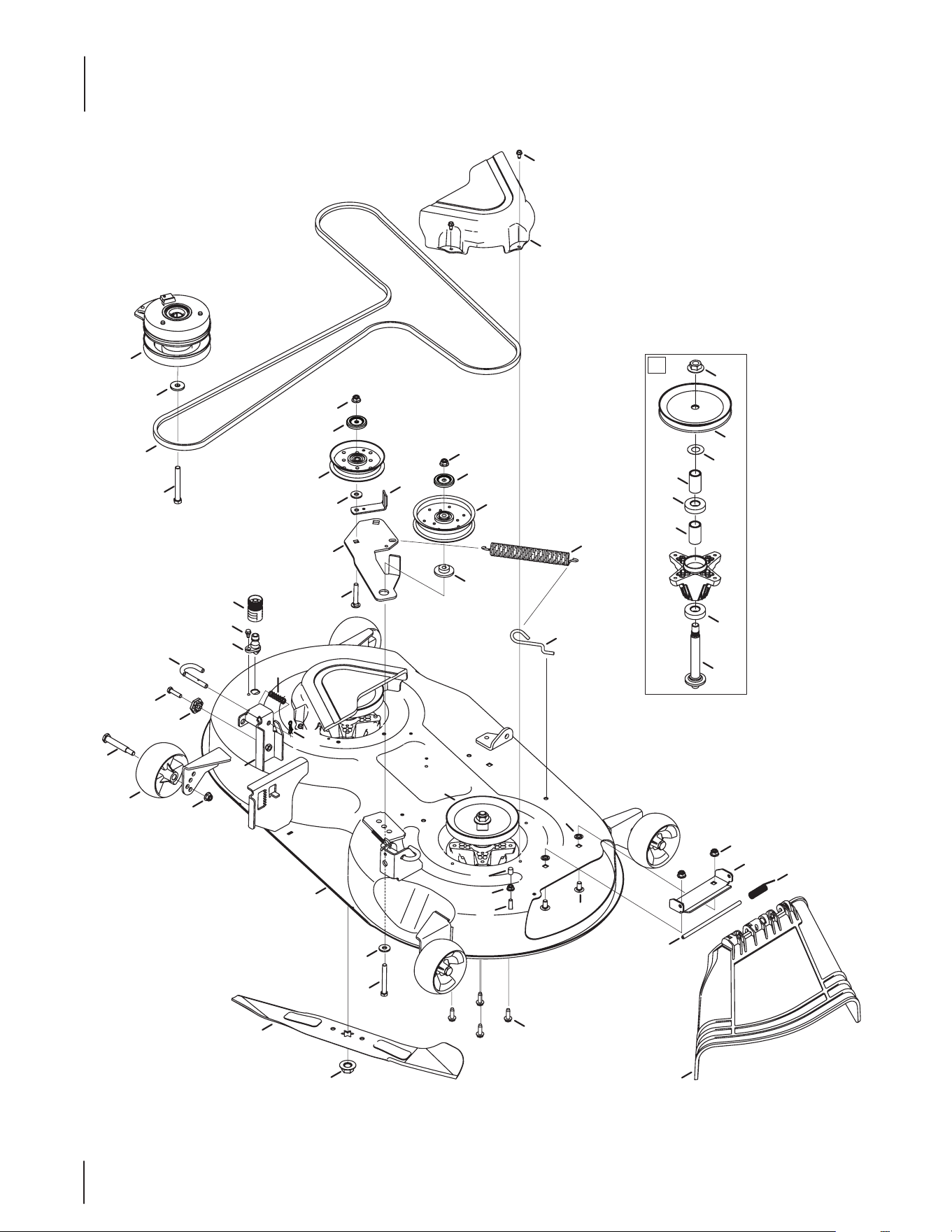

42” Deck
49
9
15
39
12
37
20
25
3
47
15
9
35
23
18
18
23
10
31
35
19
8
15
22
41
2
38
6
14
48
13
15
1
9
7
4
24
11
5
40
27
28
11
41
16
33
32
2
43
44
16
46
42
45
44
45
15
34
26
17
29
21
30
36
19
42” Deck
Ref. Part Number Description
1 903-04927A 42” Deck Assembly
2 918-04822A Spindle Assembly
3 631-04288 Discharge Chute Assembly
4 683-05031 Deck Lift Bracket
5 703-08336C Pivot Idler Bracket
6 703-08705 Bracket, Belt Guard
7 710 -1260A Hex Washer Head Screw, 5⁄16-18 x .75
8 710-0573 Hex Cap Screw, 5⁄16-18 x 1.25
9 710-1652 Hex Washer Screw, 1⁄4-20 x .625
10 710-3005 Hex Cap Screw, 3⁄8-16 x 1.25
11 710-3144 Hex Cap Screw, 3⁄8-16 x 2.00
12 710 -3157A Screw, 7/16-20 x 3.25
13 710 -3178 Carriage Screw, 3⁄8-16 x .75
14 712- 0229 Push Nut, 3/8
15 712-04065 Flange Lock Nut, 3⁄8-16
16 712- 0417A Hex Flange Nut, 5⁄8-18
17 710-0376 Hex Cap Screw, 5⁄16-18 x 1.00
18 714-04040 Bow-Tie Cotter Pin, 72
19 917-04074 Deck Adjustment Gear
20 917-05121 Electric PTO Clutch
21 921-04041 Water Nozzle Adapter
22 731-08698 Belt Cover
23 732-04652 Compression Spring, .535 x 1.751
24 732-04960 Extension Spring, .94 Dia. x 7.57
25 734-04155 Deck Ball Wheel, 5.0
Ref. Part Number Description
26 712- 04063 Flange Lock Nut, 5/16-18
27 736-0262 Flat Washer, .385 x .870 x .092
28 736-0322 Flat Washer, .450 x 1.25 x .164
29 720-05010 Cap, .290 x .500
30 731-07487 Deck Wash Nozzle
31 738- 04162C Shoulder Spacer, .884 x .190
32 938-3056 Shoulder Screw, .5 x 2.5 x 3⁄8-16
33 942- 04312 Blade, 2 in 1, 21.23
34 747- 05608 Deck Spring Rod
35 747-06082 Deck Hanger Rod
36 738-04278 Shoulder Screw, .500 x 1⁄4-20
37 954-04033A V-Belt
38 756-04129B Idler Pulley, 4.25 Dia.
39 756 - 0 4511A Idler Pulley, 5.00 Dia.
40 783-06368A Bracket Belt Guard
41 783-07236 Pulley Cap
42 936-0351 Washer, .760 x 1.50 x .030
43 738-1186A Spindle Shaft
44 941- 0919A Ball Bearing
45 750-04936 Spacer, .792 x 1.060 x 1.860
46 956-1227 Deck Pulley
47 711- 0 48 47B Hinge Pin
48 732-04372 Torsion Spring
49 783-06074A Chute Bracket
41
2
42
6
17
21
10
12
43
46
15
31
9
8
5
26
37
40
14
4
18
24
28
7
32
11
36
27
33
23
14
40
38
22
14
49
48
15
47
3
14
1
34
45
43
44
2
13
19
39
50
25
29
16
20
35
30
20
46” Deck
Ref. Part Number Description
1 903-04898A 46”Deck Assembly
2 918-05078 Spindle Assembly
3 631-04288 Chute Deector Assembly
4 683-05031 Deck Lift Bracket
5 703-08612A Idler Bracket
6 710-04484 Hex Washer Screw, 5⁄16-18 x .750
7 710-3085 Hex Cap Screw, 3⁄8-16 x 3.50
8 710-05376 Carriage Screw, 3⁄8-16 x 1.75
9 710-0573 Hex Cap Screw, 5⁄16-18 x 1.25
10 710-1652 Hex Washer Screw, 1⁄4-20 x .625
11 710 -3157A Screw, 7/16-20 x 3.25
12 710-3178 Carriage Screw, 3⁄8-16 x .75
13 712-0229 Push Nut, 3/8
14 712- 04065 Flange Lock Nut, 3⁄8-16
15 712- 0417A Hex Flange Nut, 5⁄8-18
16 710-0376 Hex Cap Screw, 5⁄16-18 x 1.00
17 714-04040 Bow-Tie Cotter Pin, 72
18 917-04074 Deck Adjustment Gear
19 917-05122 Electric PTO Clutch
20 921-04041 Water Nozzle Adapter
21 731-08698 Belt Cover
22 732-04652 Compression Spring, .535 x 1.751
23 732-04927 Extension Spring, 1.25 OD x 1.751
24 734-04155 Deck Ball Wheel, 5.0
25 712- 04063 Flange Lock Nut, 5/16-18
Ref. Part Number Description
26 736-0262 Flat Washer, .385 x .870 x .092
27 736-0322 Flat Washer, .450 x 1.25 x .164
28 736-3052 Flat Washer, .406 x 1.00 x .105
29 720-05010 Cap, .290 x .500
30 731- 07487 Deck Wash Nozzle
31 938-3056 Shoulder Screw, .5 x 2.5 x 3⁄8-16
32 942-04244A Blade, 2 in 1, 23.25
33 747-05608 Deck Spring Rod
34 747- 06082 Deck Hanger Rod
35 738-04278 Shoulder Screw, .500 x 1⁄4-20
36 954-04325 V-Belt
37 756 -04129B Idler Pulley, 4.25 Dia.
38 75 6 - 0 4511 Idler Pulley, 5.00 Dia.
39 783-06368A Bracket Belt Guard
40 783-07236 Pulley Cap
41 936-0351 Washer, .760 x 1.50 x .030
42 93 8 -1128 Spindle Shaft
43 941- 0919A Ball Bearing
44 750-04936 Spacer, .792 x 1.060 x 1.860
45 750 -1343 Spacer, .8 x 1.1 x 2.26
46 756-04356 Deck Pulley
47 711- 0 48 47B Hinge Pin
48 732-04372 Torsion Spring
49 783-06074A Chute Bracket
50 738-05013A Shoulder Spacer
21
46” Deck
22

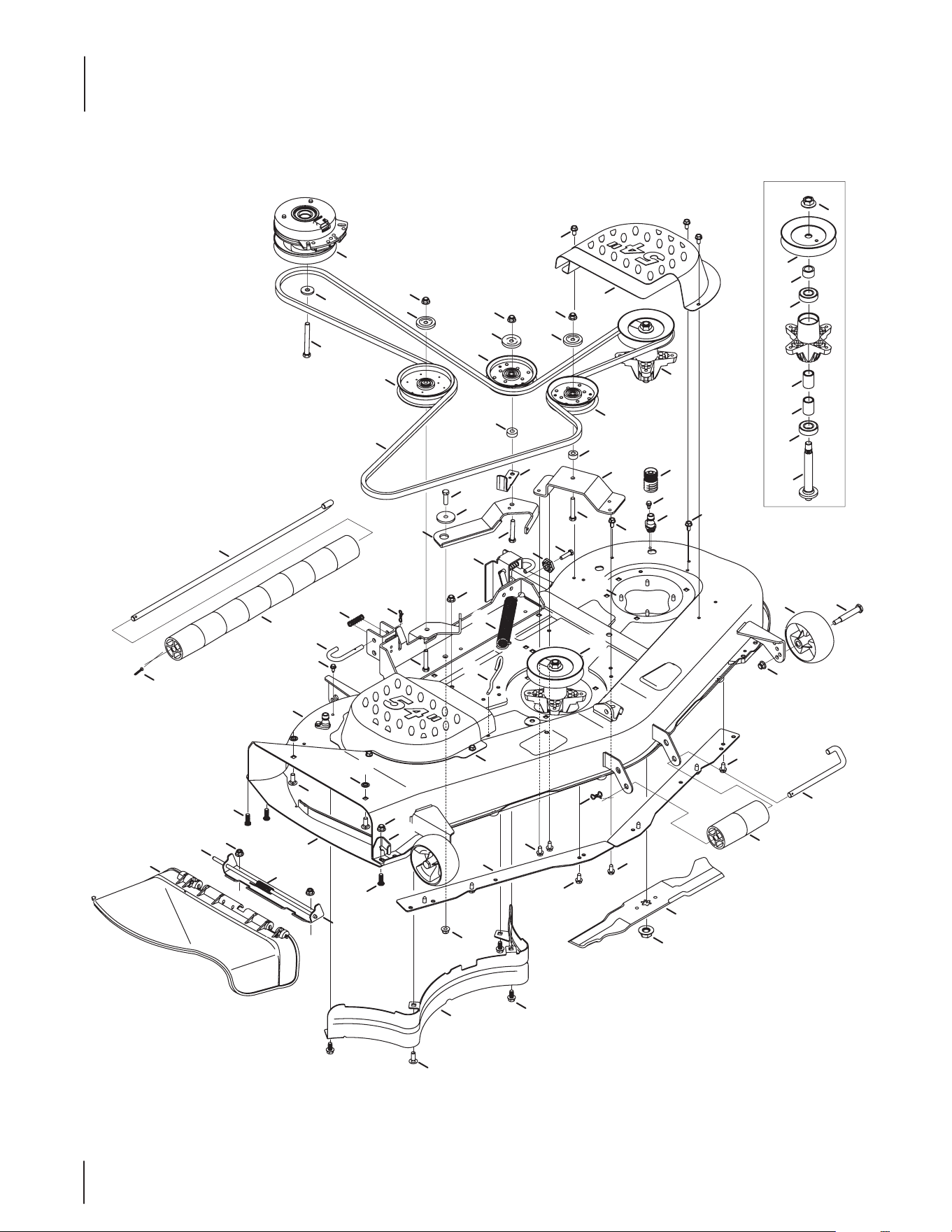

50” Deck
45
42
6
2
13
7
42
19
19
45
14
41
45
35
40
12
10
19
8
39
23
36
48
19
38
20
47
32
44
29
49
47
50
34
19
19
16
37
46
53
1
11
28
18
26
21
16
51
17
19
19
27
25
52
31
4
9
4
15
33
24
43
5
22
10
30
55
59
56
58
58
56
57
54
4
20
60
3
23

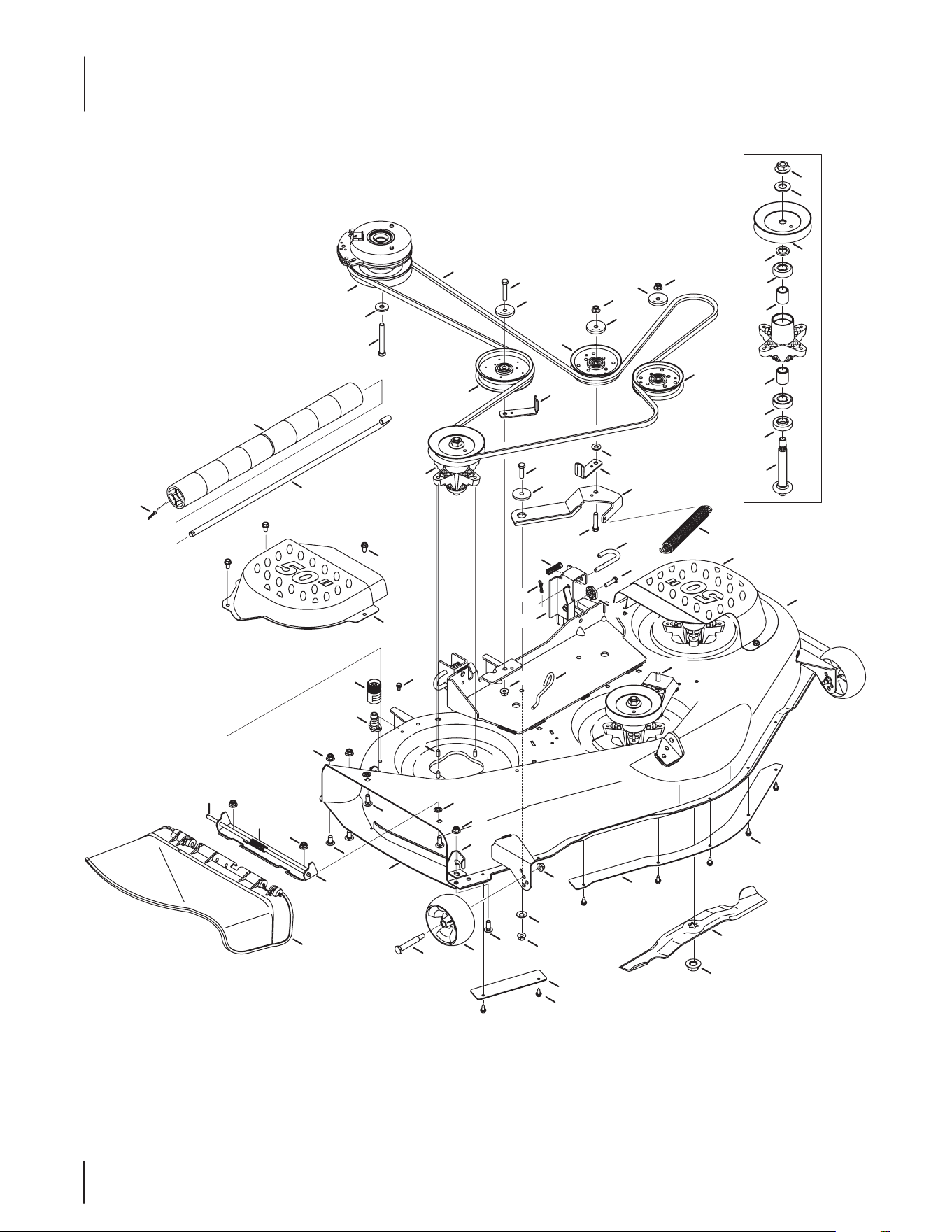

50” Deck
Ref. Part Number Description
1 603-04947 Belt Cover, RH
2 603-04948 Belt Cover, LH
3 903-05037 50” Deck Assembly
4 918 - 04125B Spindle Assembly
5 683-05031 Deck Lift Bracket
6 703-05825C Idler Arm
7 703-08705 Bracket, Belt Guard
8 703-3279 Stop Bracket
9 703-3511B Finger Guard
10 710-0347 Hex Cap Screw, 3⁄8-16 x 1.75
11 710-04484 Hex Washer Screw, 5⁄16-18 x .750
12 710-0573 Hex Cap Screw, 5⁄16-18 x 1.25
13 710-3005 Hex Cap Screw, 3⁄8-16 x 1.25
14 710 -3144 Hex Cap Screw, 3⁄8-16 x 2.00
15 710-3157A Screw, 7/16-20 x 3.25
16 710-3168 Carriage Screw, 3⁄8-16 x 1.00
17 710 -3178 Carriage Screw, 3⁄8-16 x .75
18 711- 0 6092 J-Hook
19 712-04065 Flange Lock Nut, 3⁄8-16
20 712- 0417A Hex Flange Nut, 5⁄8-18
21 714-0162 Cotter Pin, 5.32 x 1.25
22 714-04040 Bow-Tie Cotter Pin, 72
23 917-04074 Deck Adjustment Gear
24 917-05122 Electric PTO Clutch
25 921-04041 Water Nozzle Adapter
26 731-05679 Front Roller
27 731-07487 Deck Wash Nozzle
28 732-04652 Compression Spring, .535 x 1.751
29 732-04927 Extension Spring, 1.25 OD x 1.751
30 710 -1260A Hex Washer Head Screw, 5⁄16-18 x .75
Ref. Part Number Description
31 734-04155 Deck Ball Wheel, 5.0
32 736-0262 Flat Washer, .385 x .870 x .092
33 736-0322 Flat Washer, .450 x 1.25 x .164
34 736-0407 Bell Washer, .45 x 1.0 x .062
35 738-04162C Shoulder Spacer, .884 x .190
36 738-04278 Shoulder Screw, .500 x 1⁄4-20
37 938-3056 Shoulder Screw, .5 x 2.5 x 3⁄8-16
38 942-04053C Blade, 2 in 1, 17.9
39 747- 05608 Deck Spring Rod
40 747-06082 Deck Hanger Rod
41 954-05008 V-Belt
42 756 - 04129B Idler Pulley, 4.25 Dia
43 756 - 0 4511A Idler Pulley, 5.00 Dia.
44 783-06368A Bracket, Belt Guard
45 783-07236 Pulley Cap
46 631-05058 Discharge Chute Assembly
47 710-1652 Hex Washer Screw, 1⁄4-20 x .625
48 712- 0229 Push Nut, 3/8
49 783-04414A Center Skirt
50 783- 04415 RH Skirt
51 711- 0 4565 Hinge Pin
52 732-04372 Torsion Spring
53 703-09219 Chute Bracket
54 736 - 0315 Flat Washer, .76 x 1.50 x .12
55 738-1010A Spindle Shaft, 5.75
56 941-0919A Ball Bearing
57 748-0160A Spacer, .79 x 1.25 x .175
58 750-1000 Spacer, .80 x 1.10 x 1.32
59 750-1349A Spacer, .79 x 1.82 x .55
60 756-04216 V-Type Pulley, 5.39
24
54” Deck
32
7
20
14
25
58
23
17
39
52
50
45
31
12
12
40
33
4
10
12
28
15
9
23
8
53
57
23
56
10
20
54
26
21
44
12
55
42
24
1
32
22
16
3
34
6
47
11
38
30
49
23
51
23
51
48
46
23
51
5
13
12
41
37
12
18
23
48
24
4
4
29
18
59
60
62
62
60
61
36
12
2
27
19
43
35
A
A
25
54” Deck
Ref. Part Number Description
1 603-05004 Belt Cover, RH
2 603-05005 Belt Cover, LH
3 903-05048 54” Deck Assembly
4 918-05137 Spindle Assembly
5 683-05031 Deck Lift Bracket
6 703-05825C Idler Arm
7 703-2093C Inner Bae
8 703-3279 Stop Bracket
9 703-3511B Finger Guard
10 710-04095 Hex Cap Screw, 3⁄8-16, 1.00
11 710-04379A Hex Cap Screw, 7⁄16-20 x 3.50
12 710-04484 Hex Washer Screw, 5⁄16-18 x .750
13 710-0573 Hex Cap Screw, 5⁄16-18 x 1.25
14 710-0623 Hex Washer Screw, 3⁄8-16 x .75
15 710-0650 Self Tapping Screw, 5⁄16-18 x .875
16 710-1652 Hex Washer Screw, 1⁄4-20 x .625
17 710-3005 Hex Cap Screw, 3⁄8-16 x 1.25
18 710 -3011 Hex Cap Screw, 3⁄8-16, 2.25
19 710-3144 Hex Cap Screw, 3⁄8-16 x 2.00
20 710-3168 Carriage Screw, 3⁄8-16 x 1.00
21 711- 0 6 0 92 J-Hook
22 911-3314 Roller Pin, 1/2” x 7.31 Lg
23 712- 04065 Flange Lock Nut, 3⁄8-16
24 712- 0417A Hex Flange Nut, 5⁄8-18
25 712-04217 Flange Lock Nut, 3⁄8-16
26 714-0162 Cotter Pin, 5.32 x 1.25
27 714-04040 Bow-Tie Cotter Pin, 72
28 714-04043 Bow-Tie Cotter Pin
29 917-04074 Deck Adjustment Gear
30 917-05123 Electric PTO Clutch
31 921-04041 Water Nozzle Adapter
Ref. Part Number Description
32 731-05679 Front Roller
33 731-07487 Deck Wash Nozzle
34 732-04652 Compression Spring, .535 x 1.751
35 732-04927 Extension Spring, 1.25 OD x 1.751
36 756-04216 V-Type Pulley, 5.39
37 734-04155 Deck Ball Wheel, 5.0
38 736-0322 Flat Washer, .450 x 1.25 x .164
39 738-04162C Shoulder Spacer, .884 x .190
40 738-04278 Shoulder Screw, .500 x 1⁄4-20
41 938-3056 Shoulder Screw, .5 x 2.5 x 3⁄8-16
42 942-0677B Blade, 18.5
43 747-05608 Deck Spring Rod
44 747-06082 Deck Hanger Rod
45 750-05635 Spacer, .385 ID x .875 OD x .458
46 750 -3119 Spacer, .406 ID x 1.00 OD x .380
47 954-04329 V-Belt
48 756 - 04129B Idler Pulley, 4.25 Dia
49 756 - 0 4511A Idler Pulley, 5.00 Dia.
50 783-04726 Bracket, Idler, Stationary
51 783-07236 Pulley Cap
52 783-08027 Belt Guard Bracket
53 631-05058 Discharge Chute Assembly
54 712-0229 Push Nut, 3/8
55 783-04690B Deck Skirt
56 703- 09219 Chute Bracket
57 711- 04565 Hinge Pin
58 732-04372 Torsion Spring
59 738-1186A Spindle Shaft, 6.11 Long
60 941-0919A Ball Bearing
61 748- 04302 Spacer, .82 x 1.15 x .69
62 750-06055 Spacer, .792 x 1.06 x 1.52
26
Wiring Harness Schematic - 725-06000
27

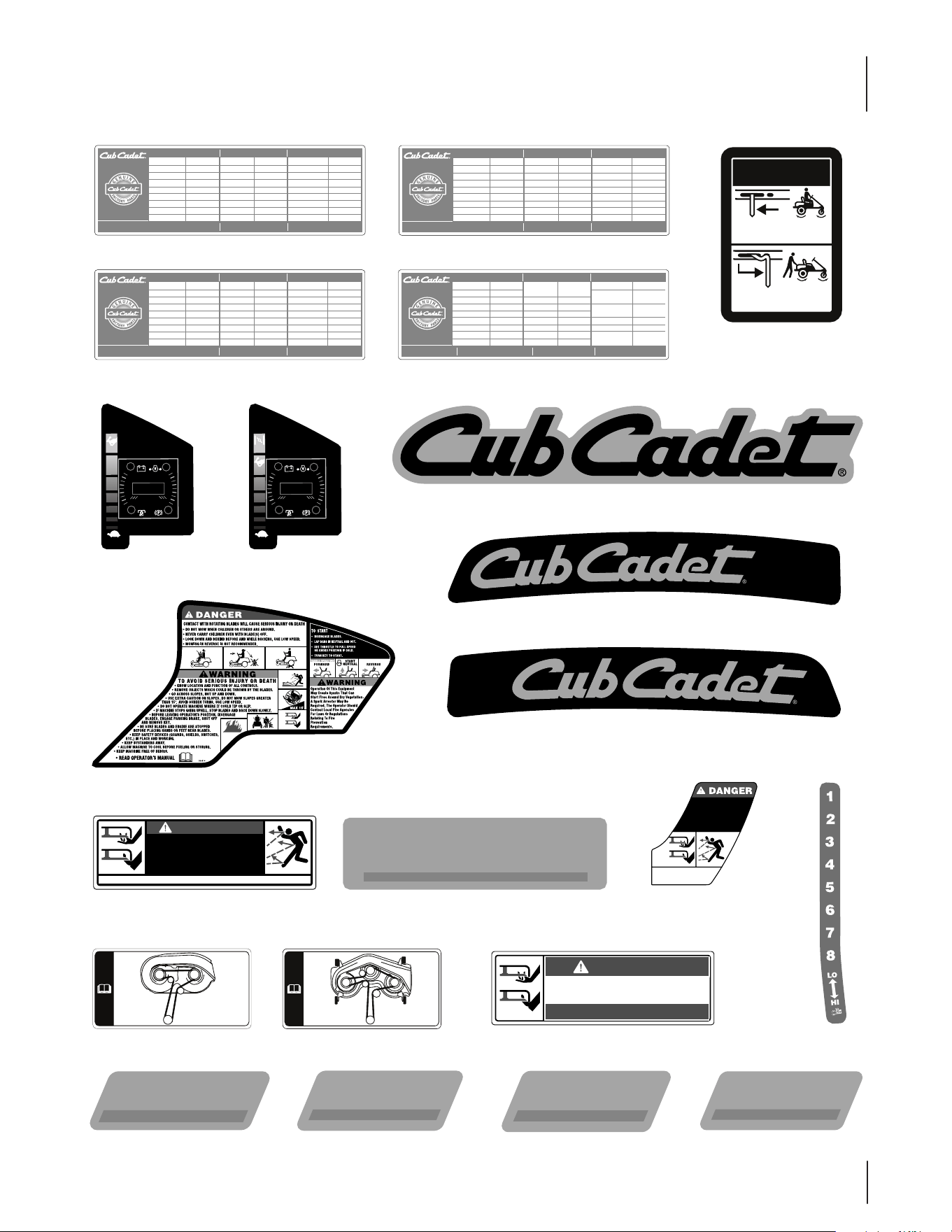

Labels
942-04312 (X2)
954-04317
954-04033A
918-04822A (X2)
925-2054A
725-04439
KH-12-050-01-S
KH-32-883-03-S1
KH-12-132-02-S
KH-25-050-22-S1
951-12428
734-04155
925-1707D
946-04830A
634-04212B
634-04293-0931
703-08558-4021
631-04288
BLADES
LOWER DRIVE BELT
DECK SPINDLE BELT
DECK SPINDLES
IGNITION KEYS
SOLENOID
OIL FILTER
AIR FILTER
SPARK PLUG
PART PART NUMBER
X46407
RZT 42
PART PART NUMBERPARTPART NUMBER
FUEL FILTER
GAS CAP
DECK WHEEL
BATTERY
THROTTLE/CHOKE CTRL. CABLE
CASTER WHL. ASSY.
WHEEL ASSY.
REAR BUMPER
DISCHARGE CHUTE ASSY.
19A30006100
19A70026100
19A70030100
490-290-0013
490-850-0005
490-850-0008
490-900-0045
SPW-136
22216
MULCH KIT
BAGGER
FRONT WEIGHT KIT
COVER
BLADE REM. TOOL
OIL SIPHON
OIL FILTER WRENCH
SPARK PLUG WRENCH
32 oz STA-BIL
www.cubcadet.com
HEADLIGHT KIT:
NO.
19A70032100
TIRE CHAINS:
NO.
490-241-0021
REAR SPREADER:
NO.
19A-116-100
REAR BUMPER:
NO.
not yet available
DELUXE TIRE PLUG KIT BY TIRE SCIENCE: 490-850-0014
TIRE &TUBE SEALANT
BY
TIRE SCIENCE: 16
OZ:
490-325-0022 / 32
OZ:
490-325-0020
777X46407 42”
777X46408 50”
777X46574 46”
777X46308 54”
777I22281 (42” & 46”) 777I22282 (50” & 54”)
Release Both Transmission
Release Levers Before
Moving Vehicle
To Drive (Transmission Engage),
Release Rod By Moving Rod
To The Left And Release.
To Push (Transmission Disengage),
Pull Out Towards The Right And
Release, (Both Sides).
I23744
777I23744
DANGER
KEEP HANDS AND FEET AWAY FROM
ROTATING PA RTS.
READ OPERATOR’S MANUAL. KEEP SAFETY
DEVICES IN PLACE AND WORKING.
AVOID SERIOUS INJURY OR DEAT H
S34226
777S34226
42
INCH
DECK
CYCLO-CUT SYSTEM
777D15397 777D15399 777D15400 777D15468
ASSEMBLE CHUTE
DEFLECTOR TO THIS UNIT
BEFORE OPERATING.
KEEP HANDS AND FEET
AWAY. DO NOT OPERATE
MOWER UNLESS CHUTE
DEFLECTOR OR ENTIRE
GRASS CATCHER IS IN
ITS PROPER PLACE.
S33896
777S33896 777I25034
46
INCH
DECK
CYCLO-CUT SYSTEM
50
INCH
DECK
CYCLO-CUT SYSTEM
54
INCH
DECK
CYCLO-CUT SYSTEM
DANGER
KEEP HANDS AND FEET AWAY.
DO NOT OPERATE MOWER
UNLESS CHUTE DEFLECTOR
OR ENTIRE GRASS CATCHER IS
IN ITS PROPER PLACE.
ASSEMBLE CHUTE DEFLECTOR TO THIS UNIT BEFORE OPERATING.
S30503
777S30503
777D18392
942-04244A (X2)
954-04317
954-04325
918-05078 (X2)
925-2054A
725-04439
KH-12-050-01-S
KH-32-883-03-S1
KH-12-132-02-S
KH-25-050-22-S1
951-12428
703-08558-4021
BLADES
LOWER DRIVE BELT
DECK SPINDLE BELT
DECK SPINDLES
IGNITION KEYS
SOLENOID
OIL FILTER
AIR FILTER
SPARK PLUG
PART PART NUMBER
X46574
RZT 46
PART PART NUMBERPARTPART NUMBER
FUEL FILTER
GAS CAP
REAR BUMPER
19A30005100
19B70027100
19A70030100
490-290-0013
490-850-0005
490-850-0008
490-900-0045
SPW-136
22216
MULCH KIT
BAGGER
FRONT WEIGHT KIT
COVER
BLADE REM. TOOL
OIL SIPHON
OIL FILTER WRENCH
SPARK PLUG WRENCH
32 oz STA-BIL
www.cubcadet.com
HEADLIGHT KIT:
NO.
19A70032100
TIRE CHAINS:
NO.
490-241-0022
DELUXE TIRE PLUG KIT BY TIRE SCIENCE: 490-850-0014
TIRE &TUBE SEALANT
BY
TIRE SCIENCE: 16
OZ:
490-325-0022 / 32
OZ:
490-325-0020
REAR SPREADER:
NO.
19A-116-100
REAR BUMPER:
NO.
not yet available
942-04053C (X3)
954-04317
954-05008
918-04125B (X3)
925-2054A
725-04439
KH-12-050-01-S
KH-32-883-03-S1
KH-12-132-02-S
KH-25-050-22-S1
951-12428
734-04155
925-1707D
946-04830A
634-04711-0931
634-04128-0931
703-08558-4021
631-05058
BLADES
LOWER DRIVE BELT
DECK SPINDLE BELT
DECK SPINDLES
IGNITION KEYS
SOLENOID
OIL FILTER
AIR FILTER
SPARK PLUG
PART PART NUMBER
X46408
RZT 50
PART PART NUMBERPARTPART NUMBER
FUEL FILTER
GAS CAP
DECK WHEEL
BATTERY
THROTTLE/CHOKE CTRL. CABLE
CASTER WHL. ASSY.
WHEEL ASSY.
REAR BUMPER
DISCHARGE CHUTE ASSY.
190-193-000
19A70027100
19A70030100
490-290-0013
490-850-0005
490-850-0008
490-900-0045
SPW-136
22216
MULCH KIT
BAGGER
FRONT WEIGHT KIT
COVER
BLADE REM. TOOL
OIL SIPHON
OIL FILTER WRENCH
SPARK PLUG WRENCH
32 oz STA-BIL
www.cubcadet.com
HEADLIGHT KIT:
NO.
19A70032100
TIRE CHAINS:
NO.
490-241-0022
DELUXE TIRE PLUG KIT BY TIRE SCIENCE: 490-850-0014
TIRE &TUBE SEALANT
BY
TIRE SCIENCE: 16
OZ:
490-325-0022 / 32
OZ:
490-325-0020
REAR SPREADER:
NO.
19A-116-100
REAR BUMPER:
NO.
not yet available
942-0677B (X3)
N/A
954-04317
954-04329
N/A
918-05137 (X3)
925-2054A
725-04439
KH-12-050-01-S
KH-32-883-03-S1
N/A
N/A
KH-25-132-14-S
KH-25-050-22-S1
N/A
951-12428
734-04155
BLADES
UPPER DRIVE BELT
LOWER DRIVE BELT
DECK SPINDLE BELT
ENGINE TO DECK BELT
DECK SPINDLES
IGNITION KEYS
SOLENOID
OIL FILTER
BATTERY
THROTTLE/CHOKE
CONTROL CABLE
CASTER WHEEL
ASSEMBLY
WHEEL ASSEMBLY
REAR BUMPER
DISCHARGE CHUTE
ASSEMBLY
AIR FILTER
W/PRE CLEANER
AIR FILTER
PRE-CLEANER
SPARK PLUG
FUEL FILTER
OIL CAPACITY
GAS CAP
DECK WHEEL
925-1707D
946-04830A
19A-116-100
634-04128-0931
703-08558-4021
631-05058
PART PART NUMBER
X46308
RZT 54
PART PART NUMBERPARTPART NUMBER
www.cubcadet.com
FRONT WEIGHT
(FOR BAGGER)
:
STOCK NO.
N/A
REAR SPREADER:
STOCK NO.
19A-116-100
MULCH KIT:
STOCK NO.
190-841-190
BAGGER:
STOCK NO.
19A70027100
TIRE CHAINS:
STOCK NO.
490-241-0022
REAR HITCH:
STOCK NO.
19A70025100
WHEEL WEIGHTS:
STOCK NO.
OEM-190-215
SNOW BLADE:
STOCK NO.
N/A
Every 50 Hours Use
“Change Oil” Will Flash
Oil Change Info in Manual
METER MINDER
FAST
SLO W
HOURS 1/10
PTO /
BLADE
PARK
BRAKE
OIL
BAT
T.
FOR BEST PERFORMANCE,
RUN AT FULL THROTTLE.
777I25048 (Koh.) 777I25049 (Kaw.) 777D13929
777D17302
777D17303
CHOKE
FAST
SLO W
Every 50 Hours Use
“Change Oil” Will Flash
Oil Change Info in Manual
METER MINDER
HOURS 1/10
PTO /
BLADE
P
ARK
BRAKE
OIL
BATT.
FOR BEST PERFORMANCE,
RUN AT FULL THROTTLE.
777S35114
Z E R O - T U R N R I D E R
R Z T
28

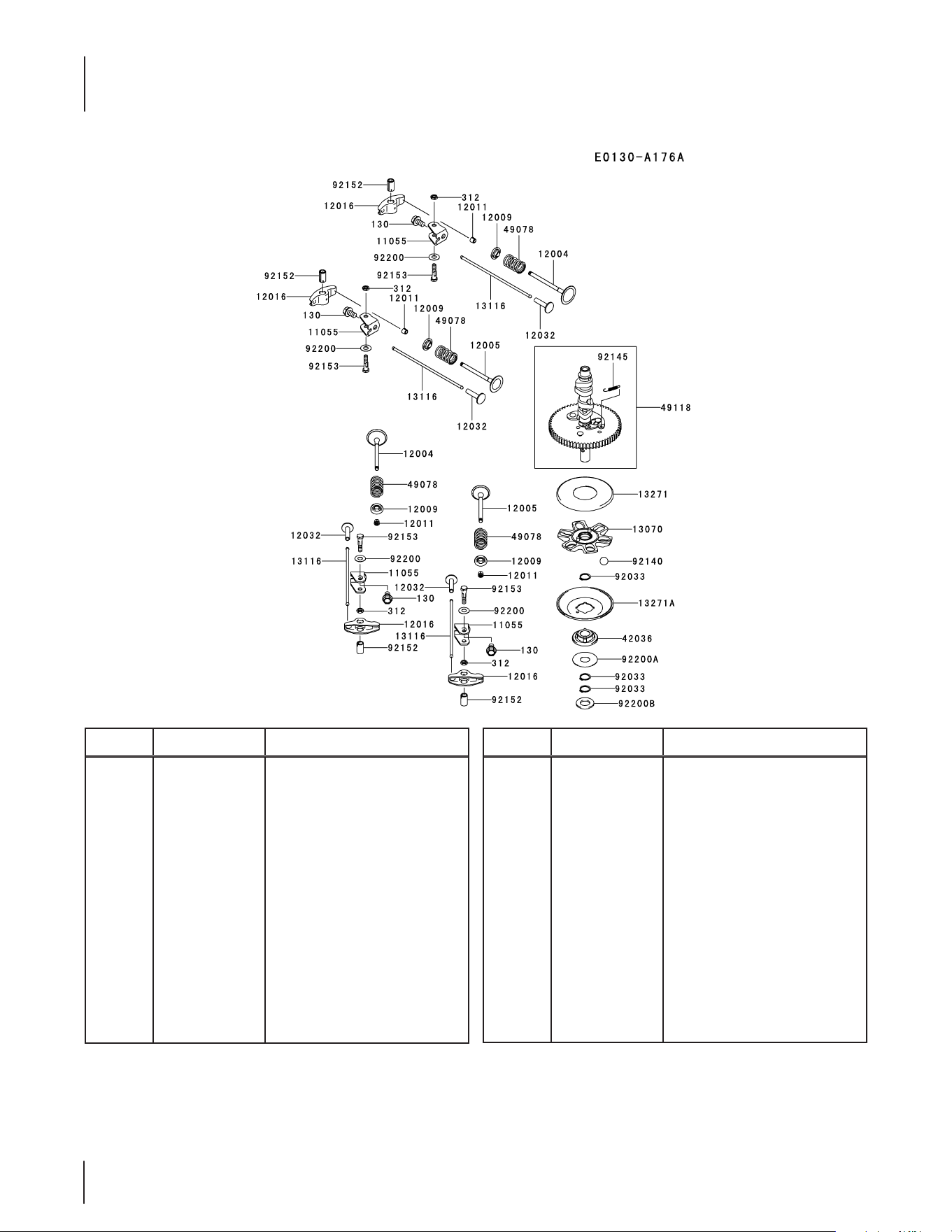

Kawasaki FR691V-AS05 Valve/Camshaft
Ref.
Part Number Description
11055 KM-11055-7009 Bracket
12004 KM-12004-7008 Intake Valve
12005 KM-12005-7009 Exhaust Valve
12009 KM-12009-7001 Valvespring Retainer
12011 KM-12011-2056 Collet
12016 KM-12016-2066 Rocker Arm
12032 KM-12032-7001 Tappet
13070 KM-13070-7017 Governor Guide
13116 KM-13116-7007 Push Rod
13271 KM-13271-7007 Plate
13271A KM-13271-7021 Governor Plate
42036 KM-42036-7010 Sleeve
Ref.
Part Number Description
49078 KM-49078-7002 Engine Valve Spring, IN
49118 KM-49118-7022 Complete Camshaft
92033 KM-92033-7001 Snap Ring
92140 KM-92140-7005 Ball
92145 KM-92145-7001 Spring
92152 KM-92152-7020 Collar
92153 KM-92153-7100 Bolt, 6 X 29.5
92200 KM-92200-2151 Washer, 8.1 X 18 X 0.5
92200A KM-92200-7009 Washer, 16 X 42 X 0.91
92200B KM-92200-7048 Washer, 16.3 X 30 X 2.28
130 KM-130AA0814 Flanged Bolt, 8 X 14
312 KM-312AA0600 Hex Nut, 6mm
29
Ref.
Part Number Description
13001 KM-13001-7027 Engine Piston
13002 KM-13002-7006 Piston Pin
13008 KM-13008-7005 Piston Ring Set
13025 KM-13025-7009 Piston Ring Set, L ,0.5
13029 KM-13029-7010 Engine Piston, L, 0.5
13031 KM-13031-7084 Complete Crankshaft
13251 KM-13251-7025 Connecting Rod Assembly
92033 KM-92033-7016 Snap Ring
92151 KM-92151-7017 Bolt, 6 X 35

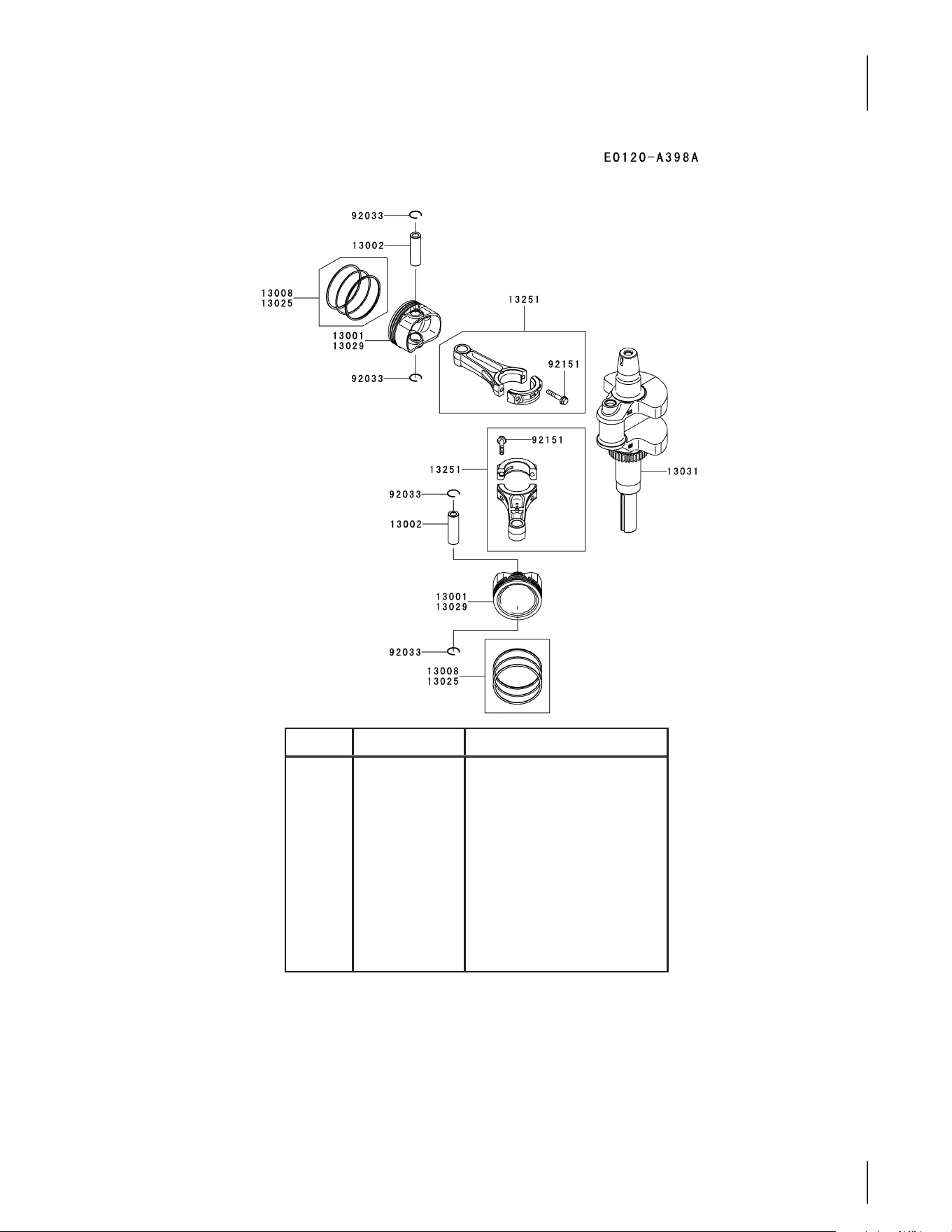

Kawasaki FR691V-AS05 Piston/Crankshaft
30

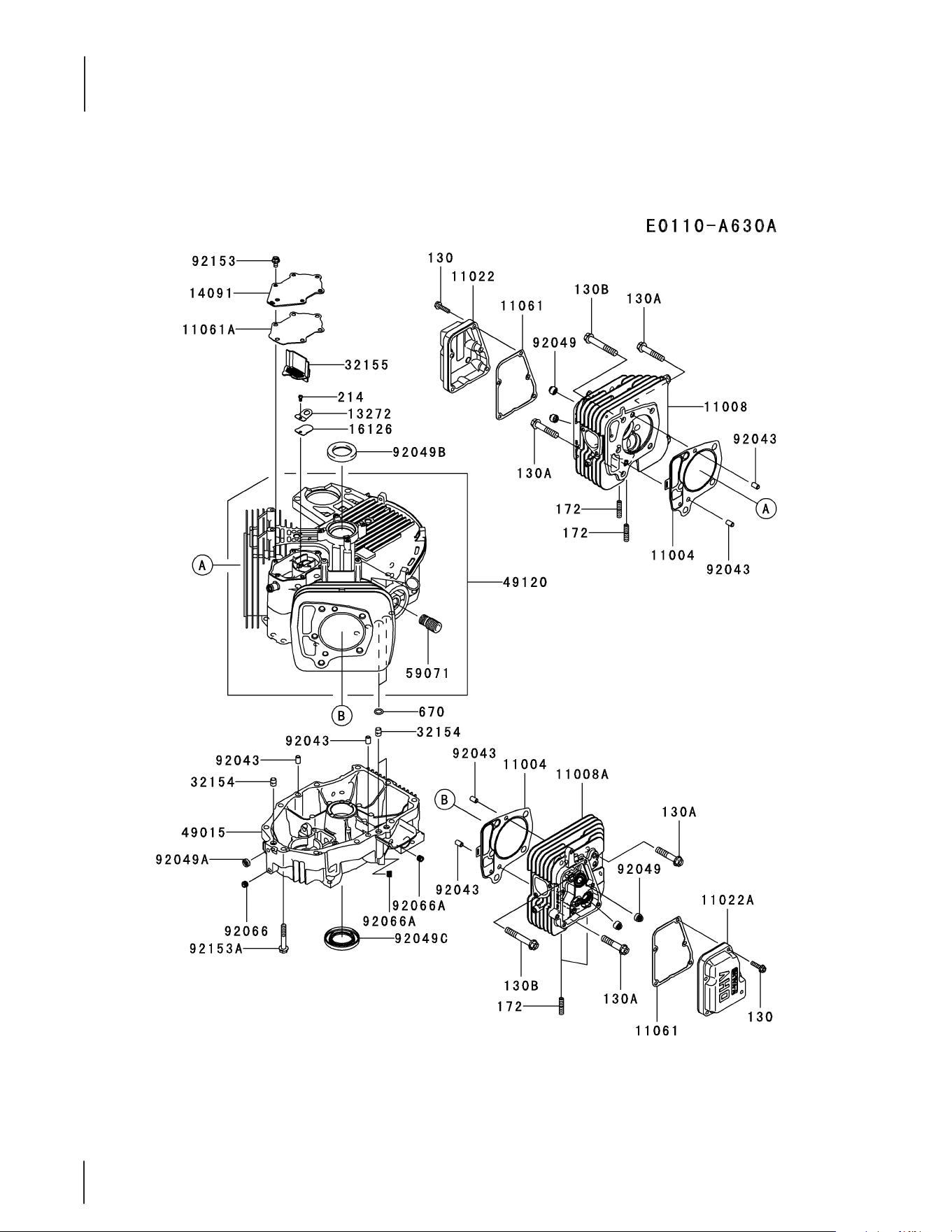

Kawasaki FR691V-AS05 Cylinder/Crankcase
31
Kawasaki FR691V-AS05 Cylinder/Crankcase
Ref.
Part Number Description
110 0 4 KM-11004-7026 Head Gasket
110 08 KM-11008-7039 Complete Cylinder Head, #1
110 08A KM-11008-7040 Compete Cylinder Head, #2
11022 KM-11022-7019 Rocker Case, #1
11022A KM-11022-7020 Rocker Case, #2
110 61 KM-11061-7083 Rocker Case Gasket
110 61A KM-11061-7094 Breather Gasket
13272 KM-13272-7004 Breather Plate
14091 KM-14091-7064 Breather Cover
16126 KM-16126-7020 Breather Valve
32154 KM-32154-7019 Pipe
32155 KM-32155-7003 Breather Pipe
49015 KM-49015-7106 Crankcase Cover
49120 KM- 49120 -7129 Complete Crankcase
59071 KM-59071-2079 Joint
92043 KM-92043-1263 Pin
92049 KM-92049-7001 Oil Seal, RVC 26 x 11 x 10.2
92049A KM-92049-7019 Oil Seal, SO 8 x 14 x 5 HS
92049B KM-92049-7010 Oil Seal, SD 35 x 48 x 8 RHS
92049C KM-92049-7028 Oil Seal, 38 x 62 x 8 MTCLV
92066 KM-92066-7023 Plug
92066A KM-92066-7026 Plug
92153 KM-92153-7043 Bolt, 6 x 12
92153A KM-92153-7054 Bolt, 8 x 50
130 KM-130AA0625 Flanged Bolt, 6 x 25
130A KM-130CA1050 Flanged Bolt, 10 x 50
130B KM-130CA1065 Flanged Bolt, 10 x 65
172 KM-172BA0818 Stud Bolt, 8 x 18
214 KM-214AA0408 Pan Screw +-, 4 x 8
670 KM-670B2011 O - Ring, 11mm
32

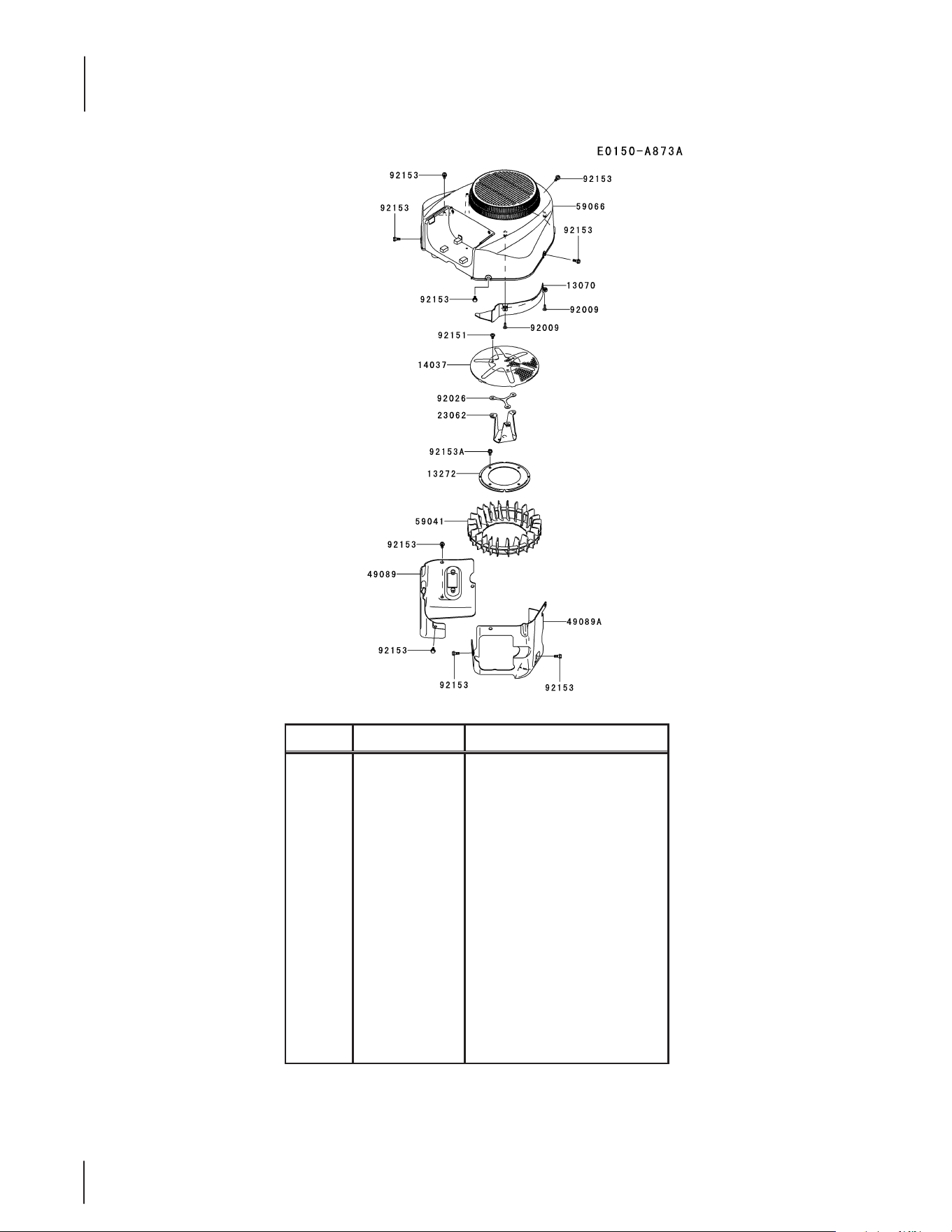

Kawasaki FR691V-AS05 Cooling Equipment
Ref.
Part Number Description
13070 KM-13070-7019 Cooling Air Guide
13272 KM-13272-7006 Fan Plate
14037
KM-14037-70089H
Screen
23062 KM-23062-7005 Complete Bracket
49089 KM-49089-7079 Engine Shroud
49089A KM-49089-7080 Engine Shroud
59041 KM-59041-7014 Fan
59066 KM-59066-7063 Fan Housing
92009 KM-92009-2303 Screw
92026 KM-92026-7007 Spacer
92151 KM-92151-7012 Bolt, 6 X 12
92153 KM-92153-7007 Bolt
92153A KM-92153-7043 Bolt, 6 X 12
33
Ref.
Part Number Description
13272 KM-13272-7011 Rotor Plate
14075 KM-14075-7013 Oil Gauge Cap Assembly
16154 KM-16154-7010 Outer Pump Rotor
16154A KM-16154-7011 Inner Pump Rotor
49065 KM-49065-7006 Oil Filter
49065A KM-49065-7007 Oil Filter
59231 KM-59231-0712 Filler
92066 KM-92066-7003 Plug
92066A KM-92066-7028 Plug
92140 KM-92140-7003 Ball
92145 KM-92145-7002 Spring
92153 KM-92153-7008 Bolt
92153A KM-92153-7043 Bolt, 6 X 12
555 KM-555A0420 Spring Pin, 4 X 20
670 KM-670D2016 O-Ring, 16mm

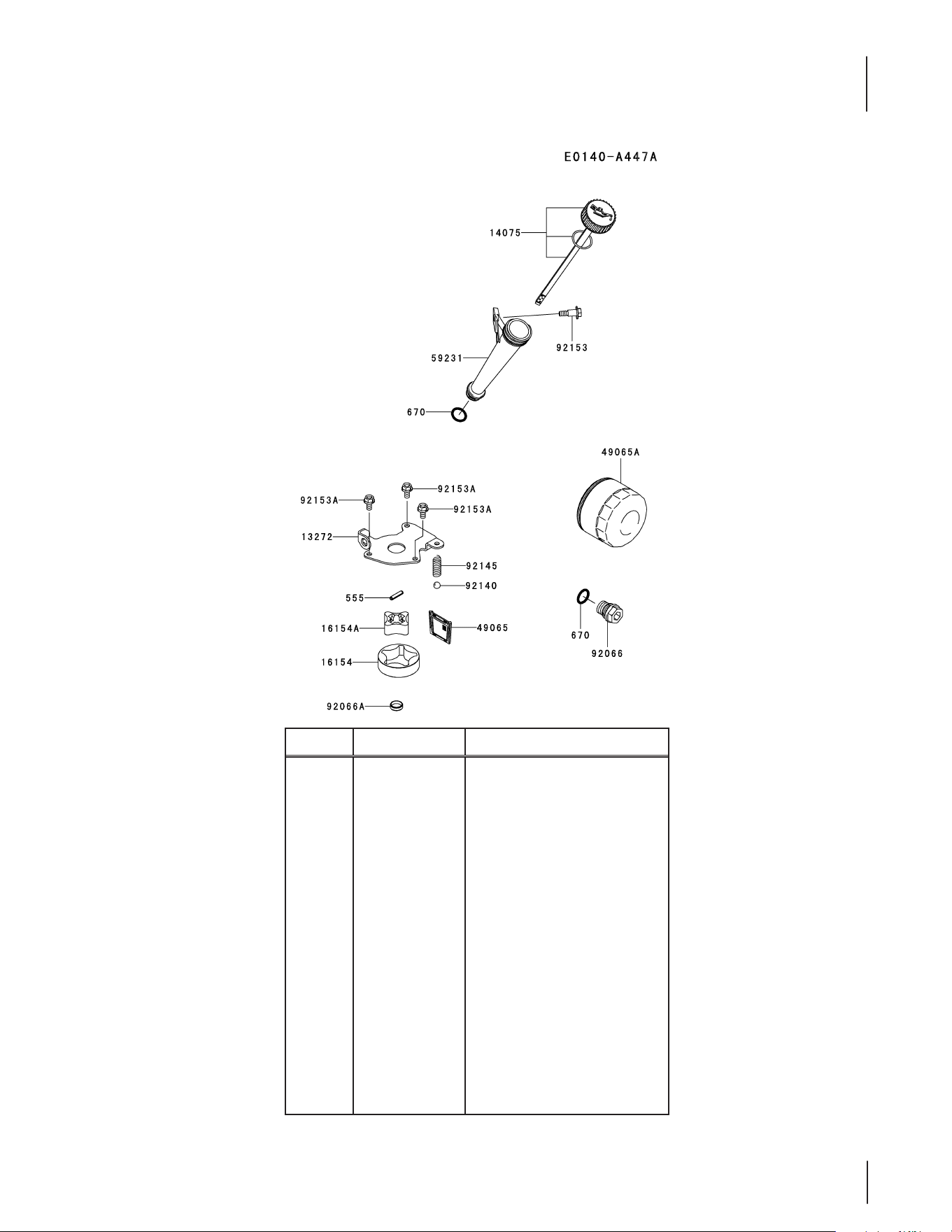

Kawasaki FR691V-AS05 Lubrication Equipment
34

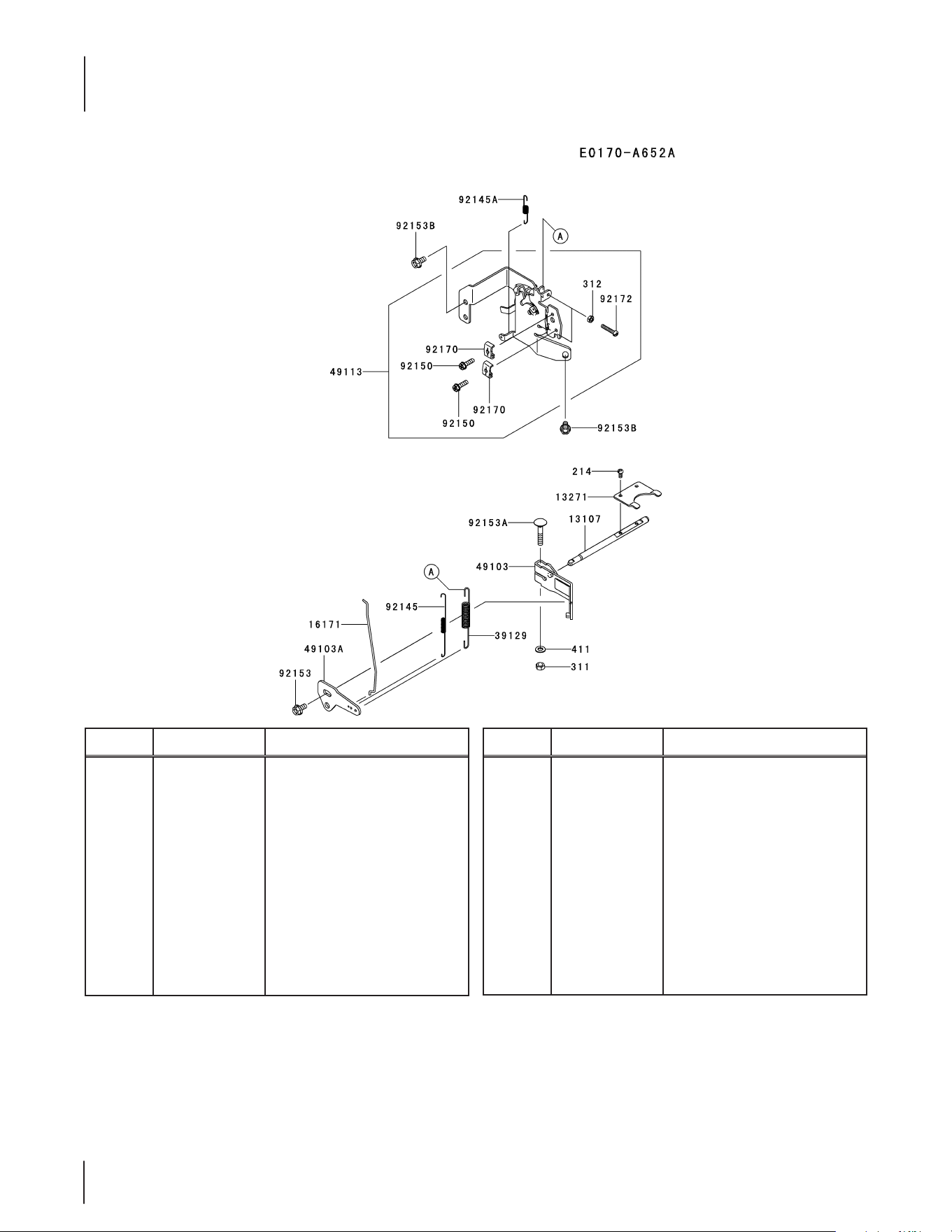

Kawasaki FR691V-AS05 Control Equipment
Ref.
Part Number Description
13107 KM-13107-7047 Shaft
13271 KM-13271-7038 Plate
16171 KM-16171-7022 Link
39129 KM-39129-7035 Governor Spring
49103 KM-49103-7014 Governor Arm
49103A KM-49103-7015 Governor Arm
49113 KM-49113-7050 Complete Control Panel
92145 KM-92145-7057 Spring
92145A KM-92145-7058 Spring
92150 KM-92150-2182 Bolt, 5 X 18
Ref.
Part Number Description
92153 KM-92153-0009 Bolt, 6 X 12
92153A KM-92153-7033 Bolt, 6 X 35
92153B KM-92153-7043 Bolt, 6 X 12
92170 KM-92170-7001 Clamp
92172 KM-92172-7035 Screw, 5 X 30
214 KM-214AA0408 Pan Screw +-, 4 X 8
311 KM-311AA0600 Hex Nut, 6mm
312 KM-312AA0500 Hex Nut, 5mm
411 KM- 411AA0600 Plain Washer, 6mm
35
Ref.
Part Number Description
13272 KM-13272-7012 Plate
21066 KM-21066-7017 Voltage Regulator
21171 KM-21171- 0711 Ignition Coil Assembly
21193 KM-21193-7038 Flywheel Assembly
26 011 KM-26011-7025 Lead Wire, L = 95
26031 KM-26031-7040 Harness
26031A KM-26031-7041 Harness
26031B KM-26031-7044 Harness
59031 KM-59031-7017 Charging Coil
92009 KM-92009-2303 Screw
Ref.
Part Number Description
92009A KM-92009-2308 Screw
92066 KM-92066-7026 Plug
92070 759-3339 Spark Plug
92072 KM-92072-7003 Band
92151 KM-92154-7003 Bolt, 12 X 30
92171 KM-92171-7008 Clamp
92172 KM-92172-7018 Screw, 5 X 20
92200 KM-92200-7002 Washer
130 KM-130AA0620 Flanged Bolt, 6 X 20
510 KM-510A5100 Woodru Key

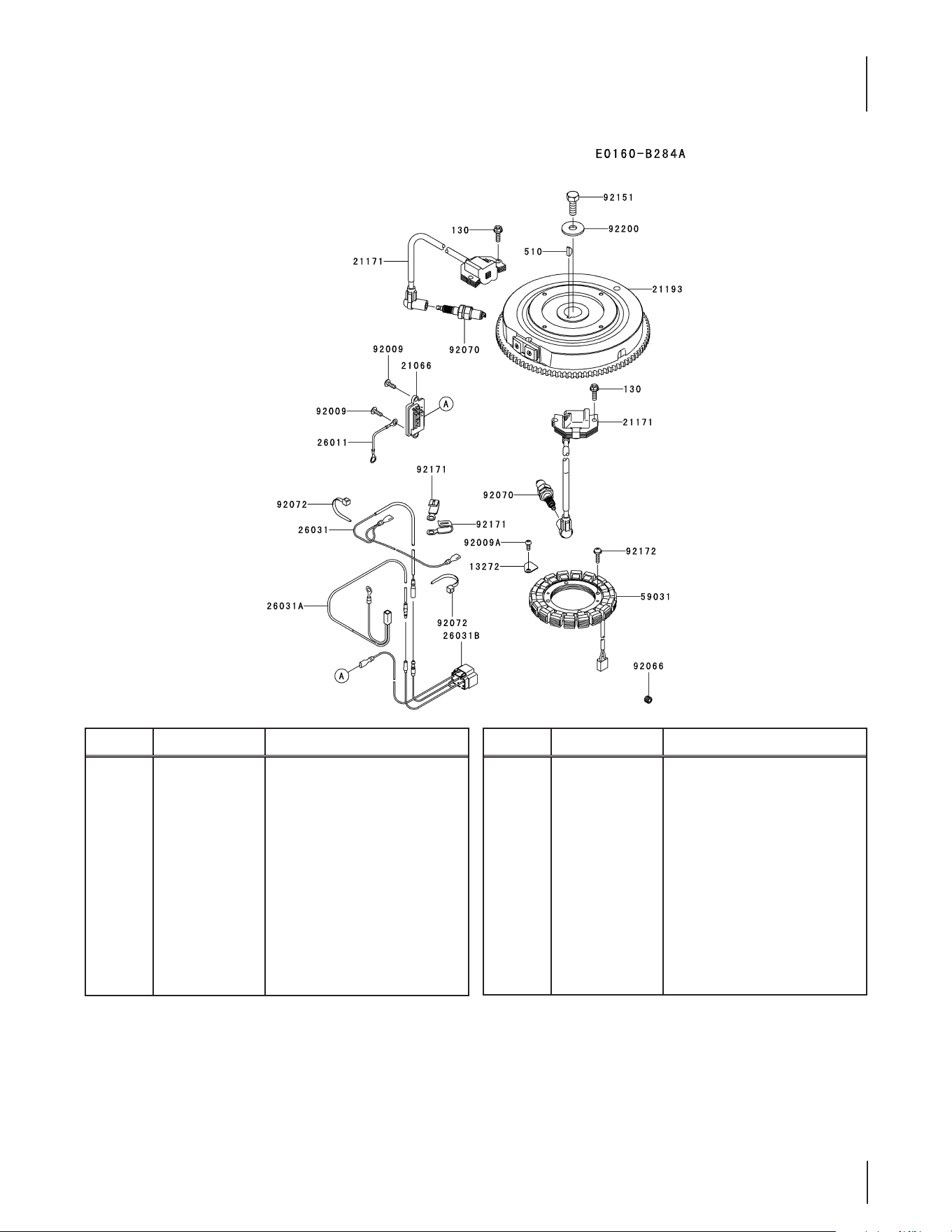

Kawasaki FR691V-AS05 Electric Equipment
36

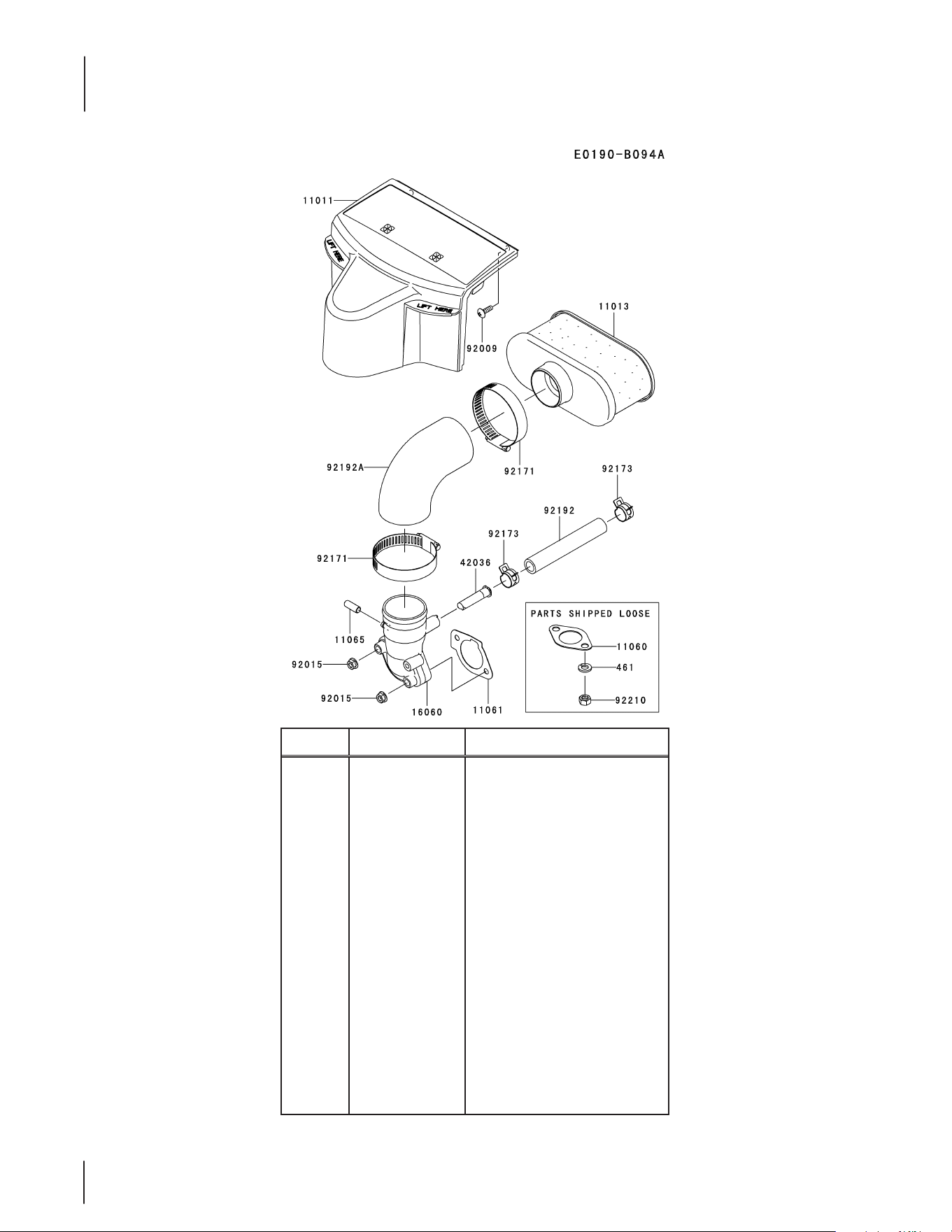

Kawasaki FR691V-AS05 Air Filter/Muffler
Ref.
Part Number Description
11011 K M -11011-70 65 Air Filter Case
11013 KM-99999-0384 Air Filter Element
110 60 KM-11060-7016 Muer Gasket
110 61 KM-11061-7086 Carburetor/Pipe Intake Gasket
110 65 KM-11065-7023 Cap
16060 KM-16060-7038 Intake Pipe
42036 KM-42036-7017 Breather Sleeve
92009 KM-92009-2303 Screw
92015 KM-92015-1367 Nut
92171 KM-92173-1001 Clamp
92173 KM-92173-7003 Clamp
92192 KM-92192-7146 Tube, 12.6 X 18.6 X 118
92192A KM-99999-7082 Air Filter Tube
92210 KM-92210-7027 Nut, M8
461 KM-461DA0800 Spring Washer, 8mm
37
Ref.
Part Number Description
110 61 KM-11061-7009 Chamber Gasket
110 61A KM-11061-7010 Screw Gasket
110 61B KM-11061-7093 Manifold Gasket
110 61C KM-11061-7087 Insulator Gasket
110 61D KM-11061-7088 Insulator/Manifold Gasket
13107 KM-13107-7018 Shaft
15004 KM-15004-0829 Carburetor Assembly
16014 KM-16014-7010 Pilot Air Screw
16020 KM-16020-7003 Float Chamber
16025 KM-16025-7017 Throttle Valve
16030 KM-16030-7003 Float Valve
16031 KM-16031-7002 Float
16041 KM-16041-0007 Choke Carburetor Shaft
16041A KM-16041-7051 Throttle Carburetor Shaft
16073 KM-16073-7013 Insulator
16186 KM-16186-7006 Choke Valve Assembly
Ref.
Part Number Description
2118 8 KM-21188-7002 Solenoid
39074 KM-39074-7001 Throttle Lever Assembly
49121 KM-49121-7018 Main Nozzle
59076 KM-59076-7019 Intake Manifold
92009 KM-92009-2083 Screw
92009A KM-92009-2349 Screw
92009B KM-92009-2402 Screw
92063 KM-92063-7141 Main Jet, #122
92063A KM-92063-7142 Main Jet, #124
92063B KM-92063-7149 Main Jet, #120
92081 KM-92081-2234 Spring
92093 KM-92093-2100 Seal
92093A KM-92093-7003 Seal
92145 KM-92145-2122 Spring
130 KM-130AA0630 Flanged Bolt, 6 X 30
172 KM-172BA06115 Stud Bolt, 6 X 115

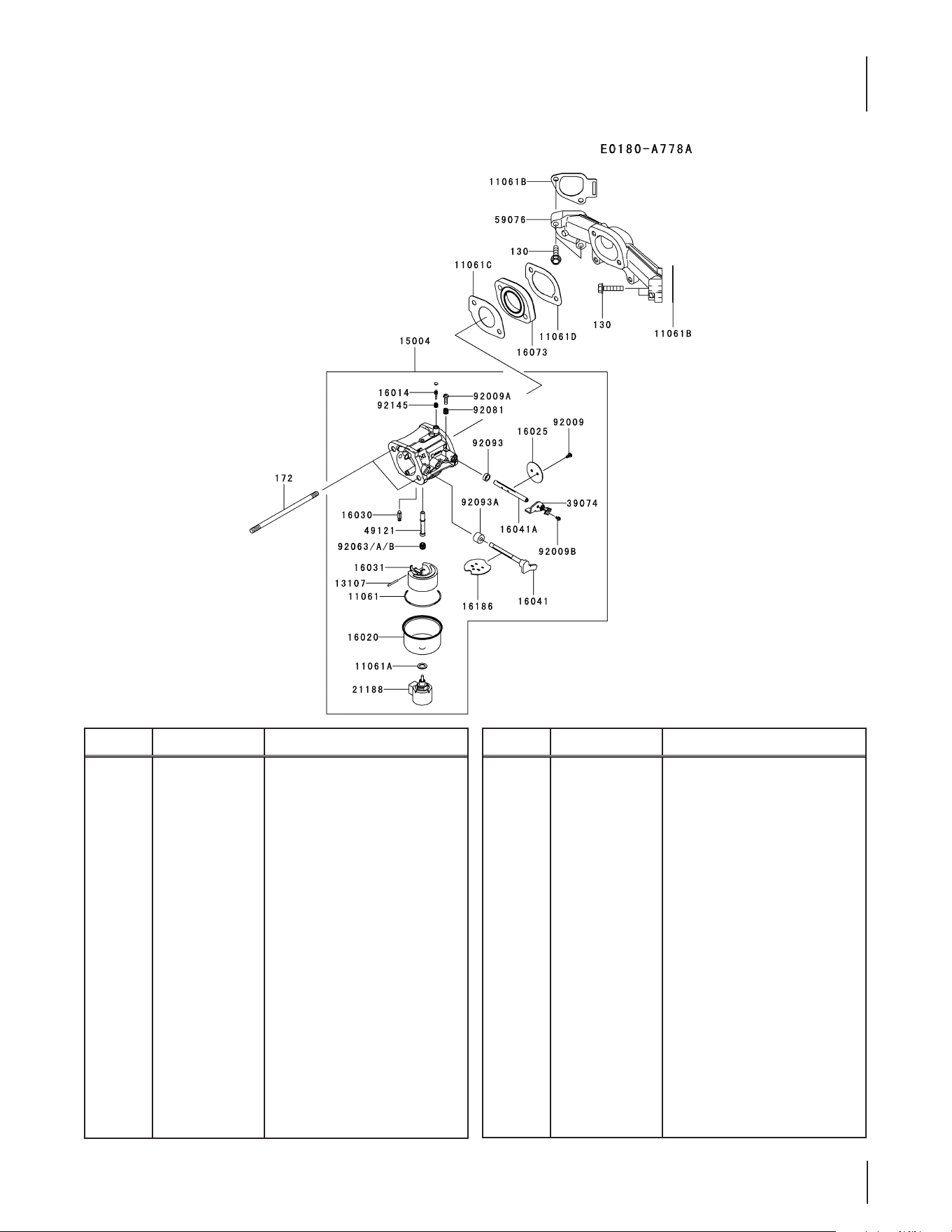

Kawasaki FR691V-AS05 Carburetor
38

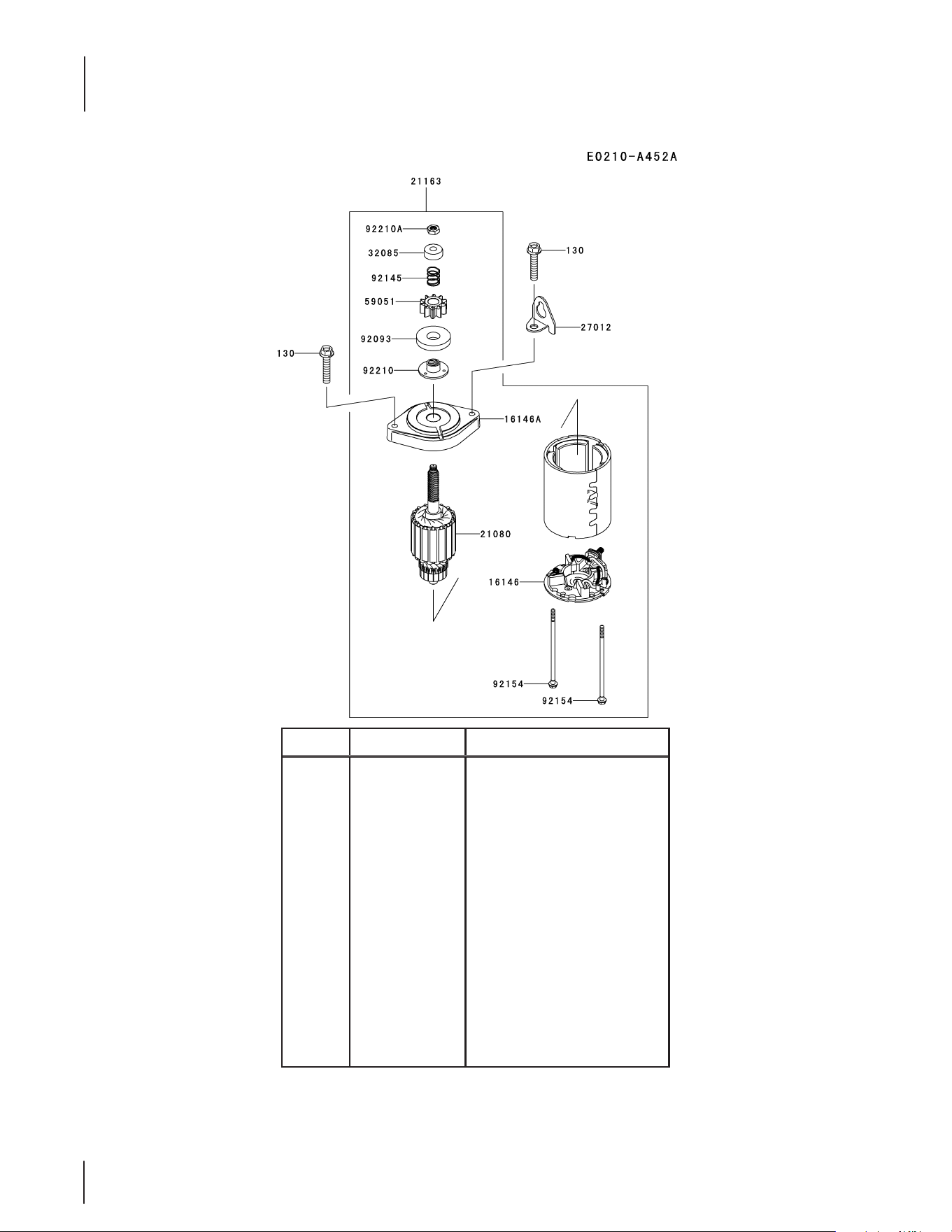

Kawasaki FR691V-AS05 Carburetor
Ref.
Part Number Description
16146 KM-16146-7027 Cover Assembly
16146A KM-16146-7028 Cover Assembly
21080 KM-21080-7006 Armature
21163 KM-21163-0727 Electric Starter
27012 KM-27012-7004 Hook
32085 KM-99999-0309 Stopper
59051 KM-59051-7034 Spur Gear
92093 KM-92093-7007 Seal
92145 KM-92145-7060 Spring
92154 KM-92154-7001 Bolt
92210 KM-92210-7017 Nut
92210A KM-99999-0309 Nut
130 KM-130AA0840 Flanged Bolt, 8 X 40
39
Ref.
Part Number Description
42036 KM-42036-7015 Sleeve
49019 KM-49019-0707 Fuel Filter
49040
KM-49040-7008
Fuel Pump
92009 KM-92009-2303 Screw
92170 KM-92170-2009 Clamp
92171 KM-92171-7008 Clamp
92192 KM-92192-7145 Tube, 6.35 X 12.7 X 185
92192A KM-92192-7148 Tube, 6.4 X 12.7 X 150
92192B KM-92192-7188 Tube, 6.35 X 12.7 X 390
Kawasaki FR691V-AS05 Fuel Tank/Fuel Valve
40
Ref.
Part Number Description
56033 KM-56033-7001 Manual Label
56070 KM-56070-7001 Warning Label
Kawasaki FR691V-AS05 Engine Labels
41

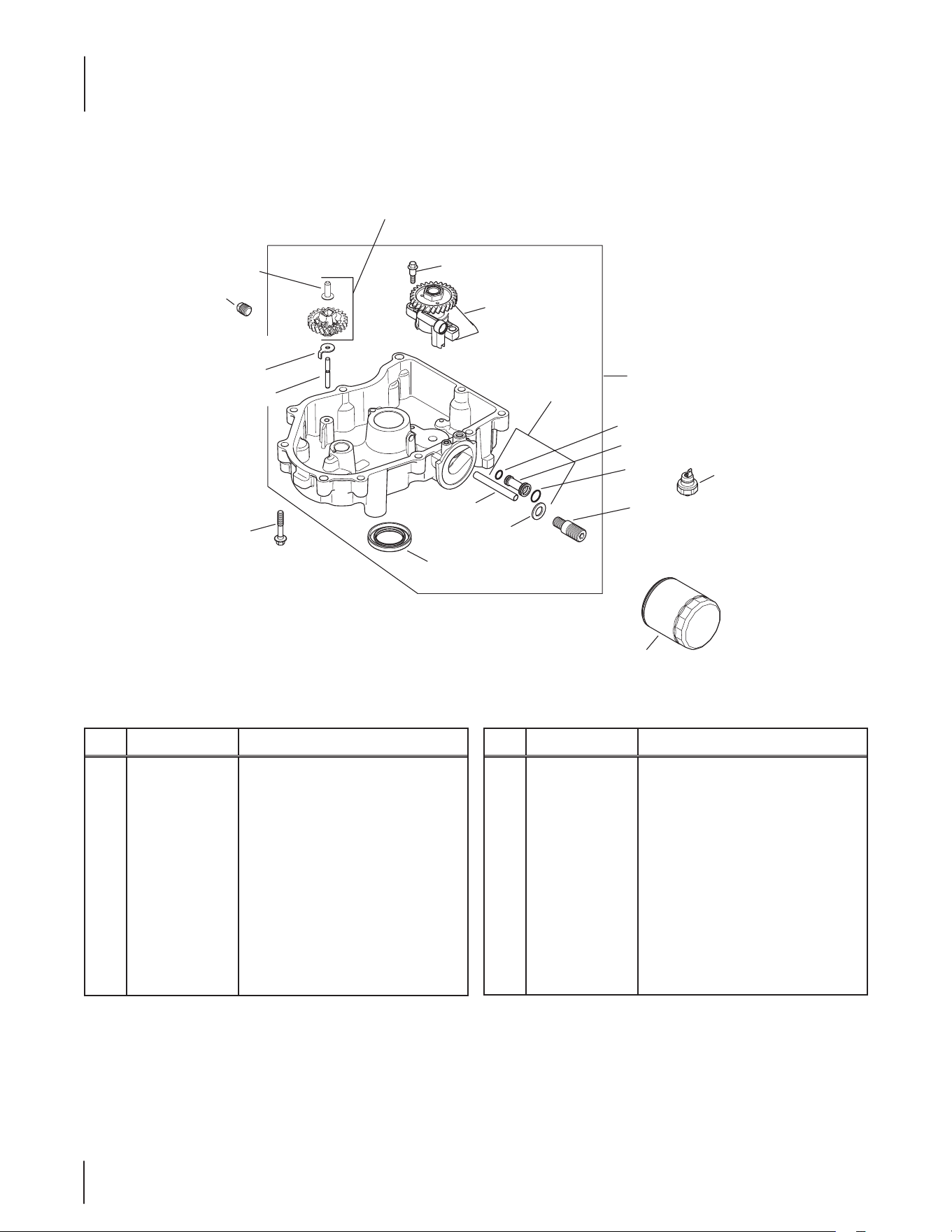

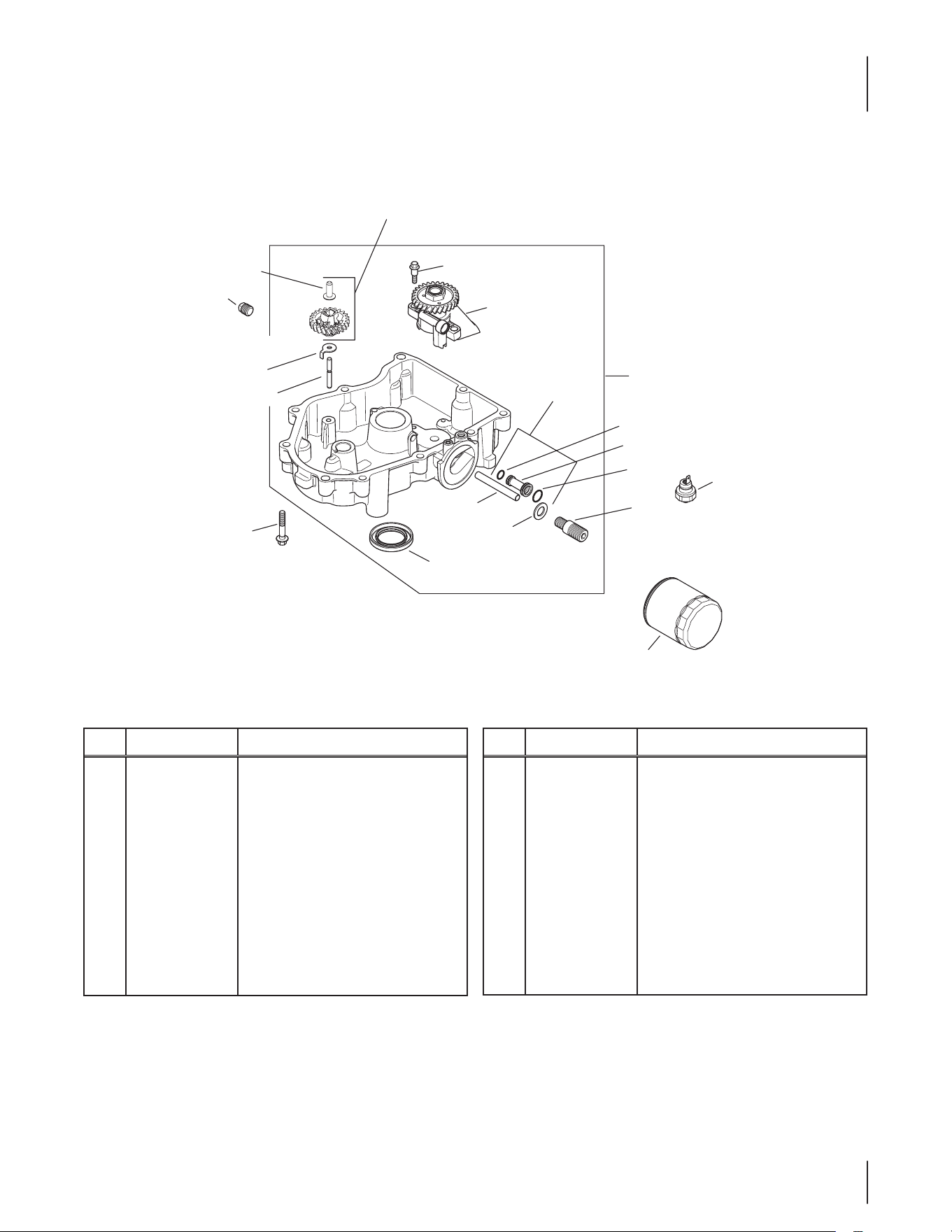

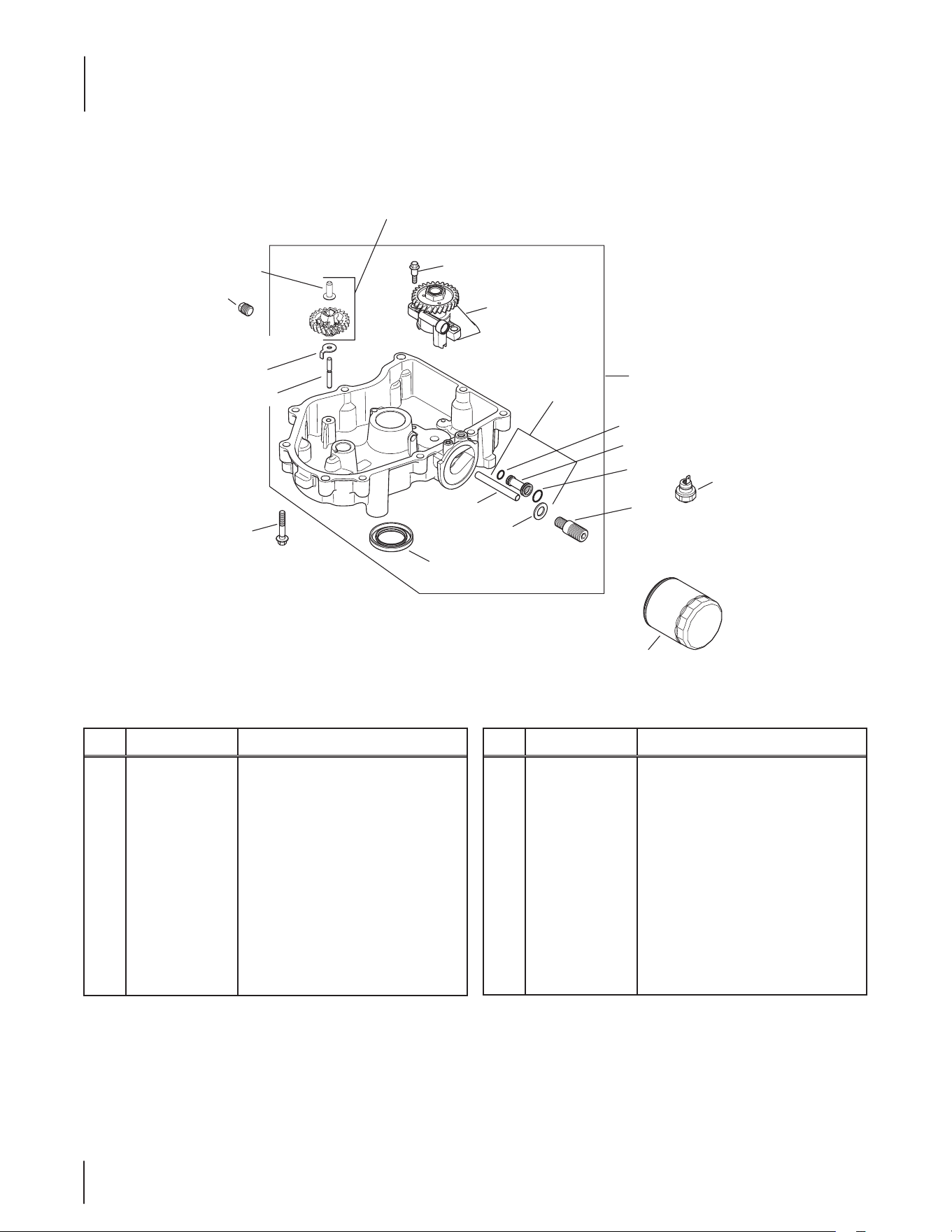

Kohler SV715-3027 Oil Pan Lubrication
Ref. Part Number Description
1 KH-24- 086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-25-139-57-S Square Head Pipe Plug, 3⁄8
4 KH-32-199-14-S Oil Pan Assembly
5 KH-12-144-02 Governor Gear Shaft
6 KH-12-380- 01 Governor Regulating Pin
7 KH-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 KH-24 -153-01 Oil Pick-Up O-Ring
10 KH-32-086-01-S Screw
Ref. Part Number Description
11 KH-32-393-16-S Oil Pump Assembly
12 KH-32-123-01-S Oil Feed Tube (Filter to Oil Pan)
13 KH-32-123-09 -S Oil Feed Tube Assembly
14 KH-12-050-01-S Oil Filter
15 KH-32-136 - 05-S Oil Filter Nipple
16 KH-32-468-02-S Flat Washer
17 KH-25-099-27-S Oil Pressure Switch
18 KH-32-123-06 -S Oil Feed Tube
19 KH-32-153- 05-S O-Ring
1
14
3
10
11
2
12
16
18
19
15
9
17
4
13
8
6
7
5
42
7
20
6
19
5
18
14
9
12
3
21
4
8
10
11
15
13
17
16
1
2

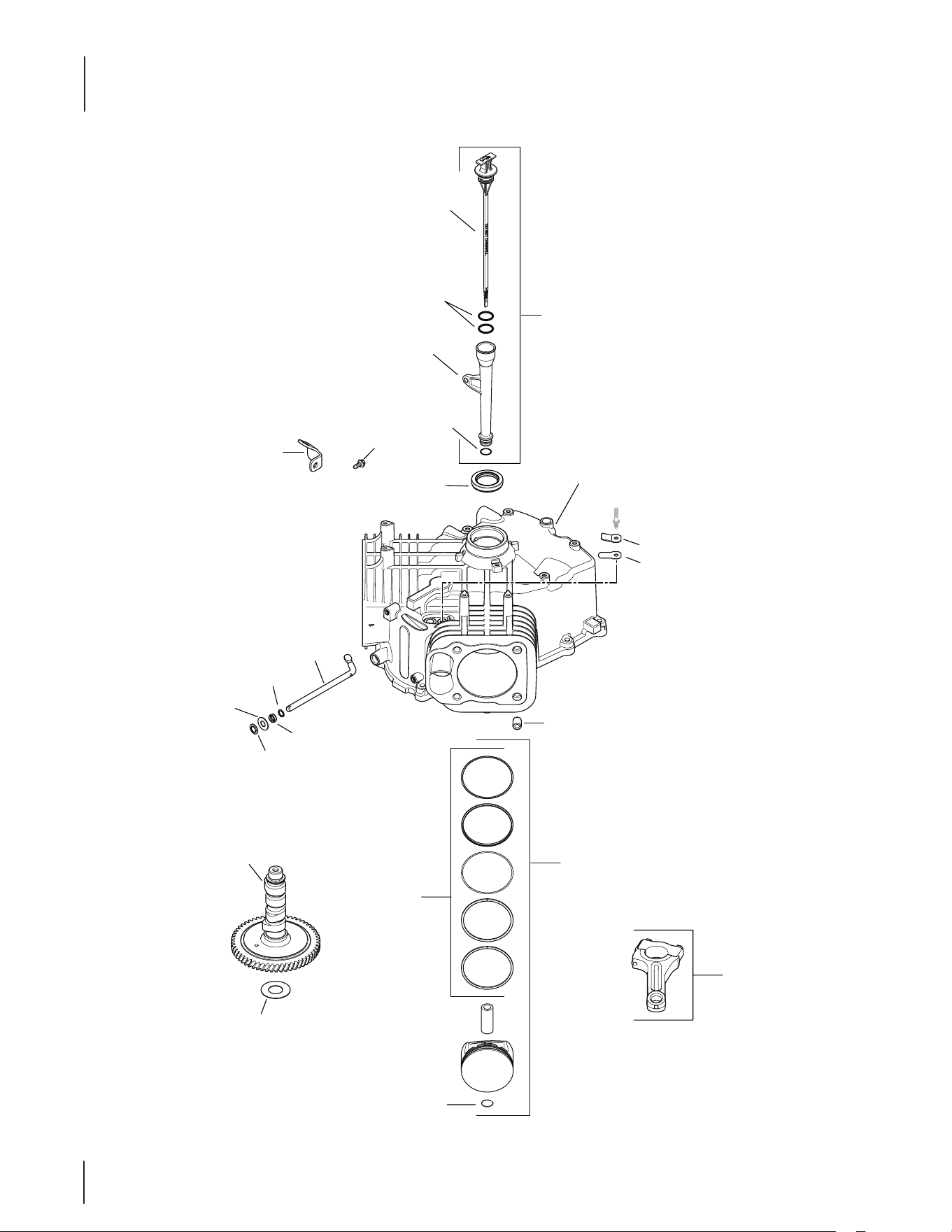

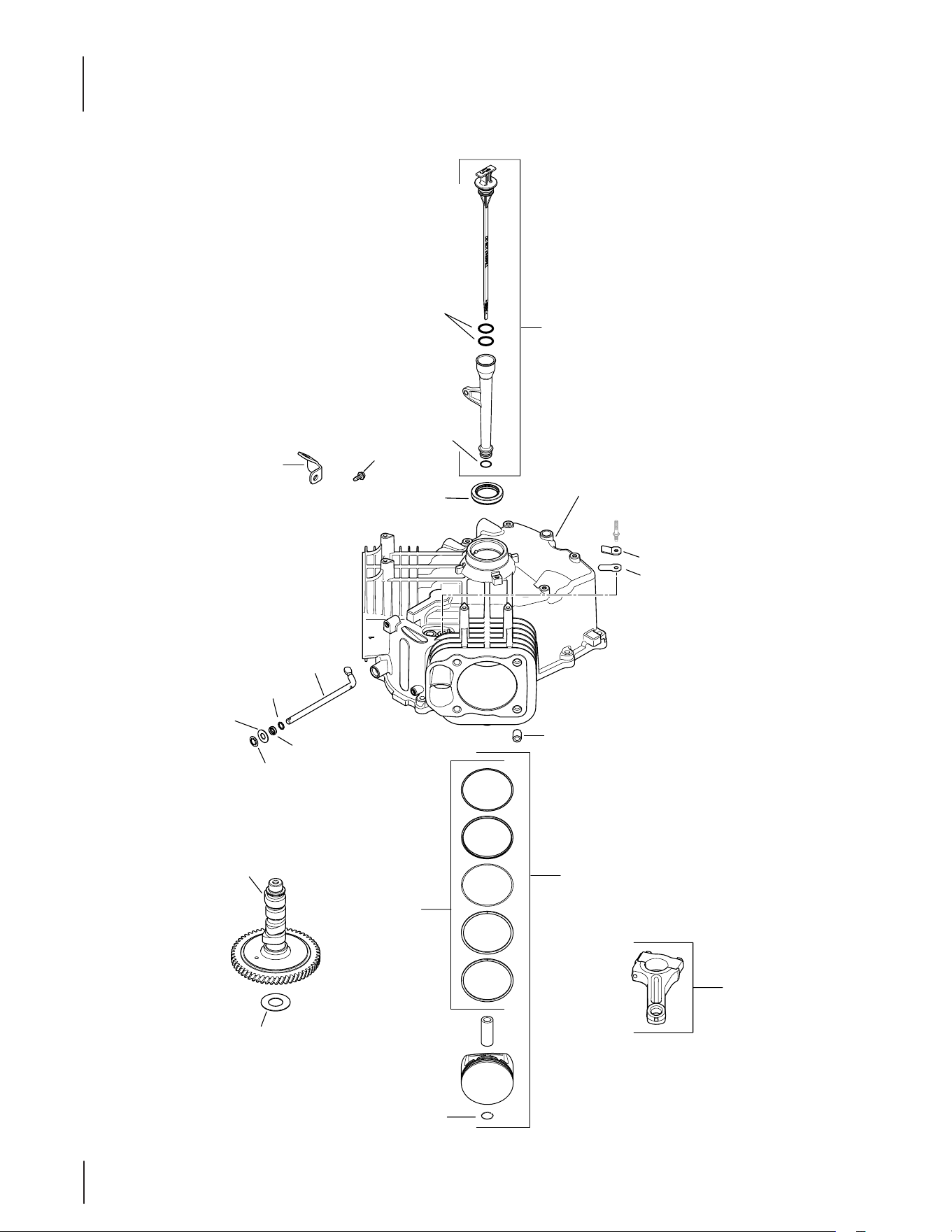

Kohler SV715-3027 Crankcase
43
Kohler SV715-3027 Crankcase
Ref. Part Number Description
1 KH-12-402-02 Breather Reed
2 KH-24-018-04-S Breather Reed Retainer
3 KH-24-380-16-S Locating Pin
4 KH-24-032-19-S Oil Seal, 1.78 x 1.26
5 KH-12-422-07-S Camshaft Shim (White, .028)
— KH-12-422-08-S Camshaft Shim (Blue, .03)
— KH-12-422-09-S Camshaft Shim (Red, .032)
— KH-12-422-10-S Camshaft Shim (Yellow, .034)
— KH-12-422-11-S Camshaft Shim (Green, .036)
— KH-12-422-12-S Camshaft Shim (Gray, .038)
— KH-12-422-13-S Camshaft Shim (Black, .04)
6 KH-24-018-01-S Piston Pin Retainer
7 KH-24-067-30-S Connecting Rod (STD)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, 11⁄32
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH-24-126-19 Oil Fill Tube Bracket
13 KH-M-545013-S Flange Screw, M5 x .8 x 13
14 KH-M-931010-S Flat Washer, 9mm
15 KH-32-755-04-S Dipstick & Tube Kit
— KH-32-038-08-S Dipstick Only
— KH-32-123-11-S Tube Only
16 KH-25-153- 09-S O-Ring
17 KH-12-153-01-S Lower Oil Fill Tube O-Ring
18 KH-32-010-05-S Camshaft Assembly
19 KH-25-874-05-S Piston W/ Ring Kit (STD)
— KH-25-874-02-S Piston W/ Ring Kit (0.08)
— KH-25-874-03-S Piston W/ Ring Kit (0.25)
20 KH-24-108-14-S Ring Set (STD)
— KH-24-108-15-S Ring Set (.08)
— KH-24-108-16 -S Ring Set (.25)
21 N/A Crankcase (Use Short Block)
44

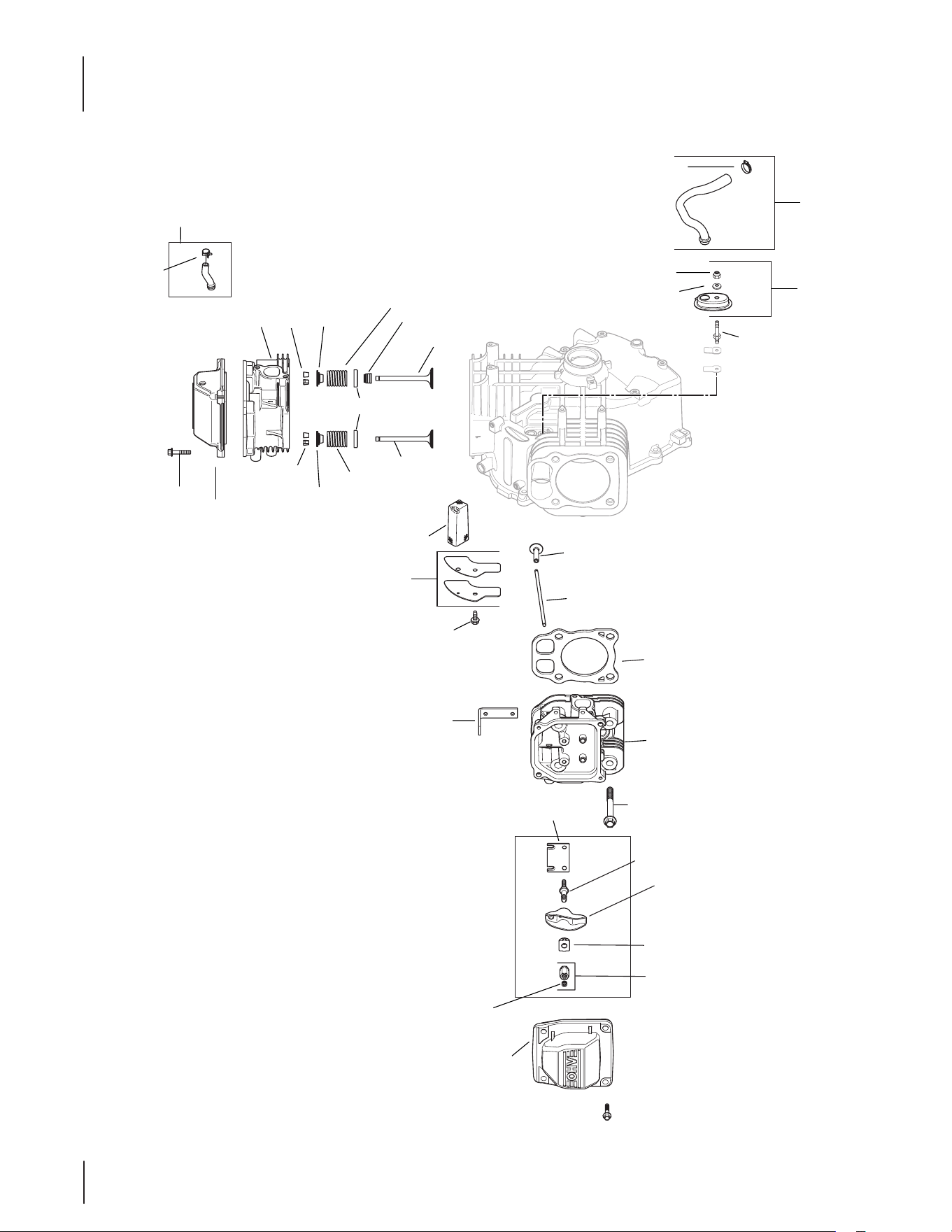

Kohler SV715-3027 Head/Valve/Breather
24
17
1
33
27
2
4
5
3
34
13
21
23
14
18
20
12
32
22
28
29
11
26
8
9
6
10
7
15
16
19
25
27
1
33
31
30
45
Ref. Part Number Description
1 KH-12-755-03 Retainer Kit
2 K H -235011-S Spring Retainer
3 KH-66-032-05-S Valve Stem Seal
4 KH-24-016-01 Exhaust Valve (STD)
5 KH-24-017-01 Intake Valve (STD)
6 KH-32-326-06-S Breather Hose Kit (Inc. #7)
7 KH-25-237-31-S Hose Clamp, 1⁄2
8 KH-32-081-02-S Housing Breather Kit (Inc. #9 & 10)
9 KH-M-547050-S Lock Nut, M5 x 8
10 KH-32-468-01-S Sealing Washer
11 KH-32-072-03-S Breather Cover Stud
12 KH-32-019-02-S Tappet
13 KH-32-841-02-S Cylinder Head Gasket Kit
14 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
15 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
16 KH-32-096-04-S Breather Cover
17 KH-32-318-13-S
Cylinder Head Assembly Kit, #1
(Inc. Exhaust Mounting Hardware)
18 KH-32-318-14-S
Cylinder Head Assembly Kit, #2
(Inc. Exhaust Mounting Hardware)
19 KH-32-146-09-S Guide Plate
20 KH-32-072-04-S Rocker Stud
21 KH-32-186-03-S Rocker Arm
22 KH-32-100 -05-S Hex Nut Assembly (Inc. #32)
23 KH-25-599-01-S Rocker Arm Pivot
24 KH -32- 411- 0 4 -S Push Rod
25 KH-32-326-07-S Fuel Pump Hose Kit (Inc. #29)
26 KH-32-050-05-S Breather Filter
27 KH-32-089-05-S Valve Spring
28 KH-25-086-374-S Pan Head Screw
29 KH-25-237-01-S Hose Clamp
30 KH-25-096 -10-S Rocker Cover
31 KH-25-096-09-S Rocker Cover
32 KH-25-086-168-S Set Screw
33 KH-25-173-28-S Valve Spring Cap
34 KH-25-445-03-S Lifting Strap
NS KH-32-755-03-S Cylinder Head Hardware Kit
Kohler SV715-3027 Head/Valve/Breather
46
Ref. Part Number Description
1 KH-52-139-09-S Cup Plug
2 KH-32-014-313-S Crankshaft
3 KH-X-43-1-S Key, 1/8” x 1/2”
2
1
3
Kohler SV715-3027 Crankshaft
47

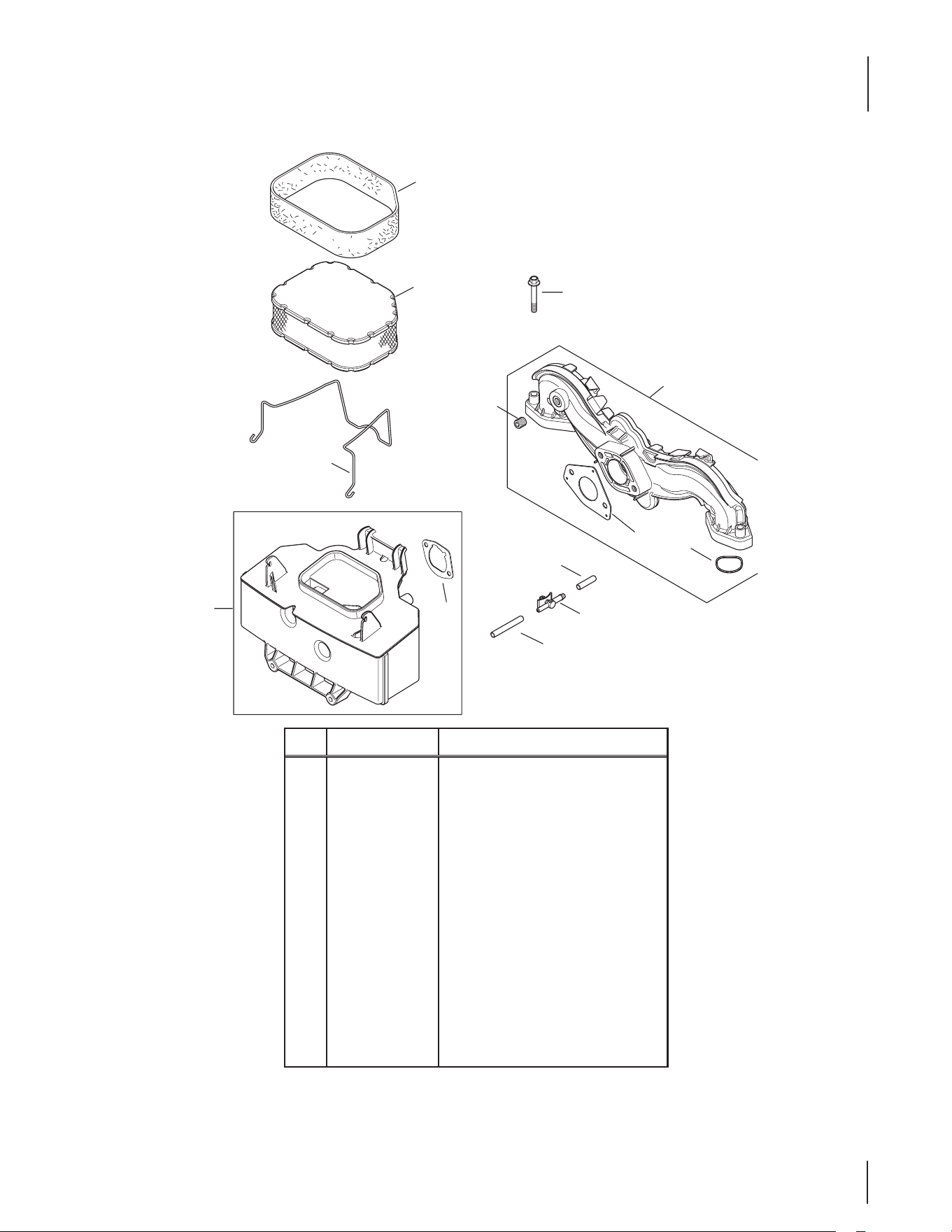

Kohler SV715-3027 Air Intake/Filtration
1
0
1
5
12
4
3
2
11
6
8
7
9
13
Ref. Part Number Description
1 KH-24-041-14 Air Cleaner Base Gasket
2 KH-32-883-03-S1 Pre-Cleaner Element
3 KH-32-344-02-S Air Cleaner Element Latch
4 KH-32-883-03-S1 Air Filter Element
5
KH-24-164-91-S
Intake Manifold Kit
6 KH-M-651040-S Flange Screw, M6 x 1.0 x 40
7 KH-25-155-51-S Evaporative Connector
8 KH-25-173-33-S Evaporative Mask
9 KH-25-326-08-S Evaporative Hose, 20”
10 KH-32-094-08-S Air Cleaner Base
11 KH-25-139-60 -S Pipe Plug, 1⁄8
12 KH-24-041-52-S Carburetor Gasket
13 KH-24-153-27-S Intake Port O-Ring
48

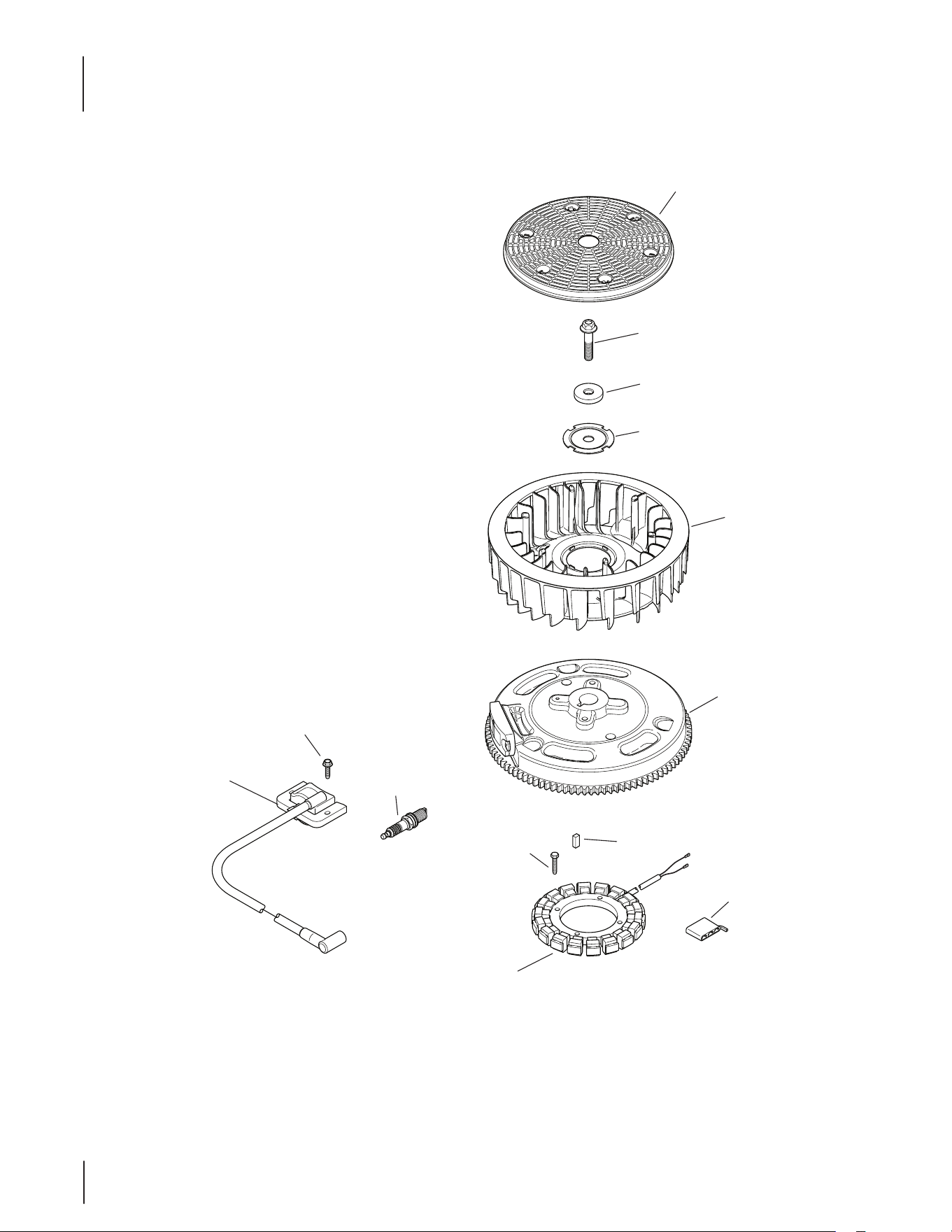

1
13
3
2
11
12
7
9
10
8
4
6
5
Kohler SV715-3027 Ignition/Electrical
49
Ref. Part Number Description
1 759-3336 Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-M-548025-S Screw, M5 x 0.8 x 25
4 KH-25-086-361-S Hex Flange Screw
5 KH-25-340-04-S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-32-025-22-S Flywheel Assembly
8 KH-20-146-05-S Fan Mounting Plate
9 KH-32-157- 01-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-24-584-45-S Module Ignition Kit
12 KH-M-545020-S Screw, M5 x .8 x 20
13 KH-25-155-41-S Connector
N/A KH-25-454-03-S Wire Tie
N/A KH-32-176-24-S Wiring Harness
Kohler SV715-3027 Ignition/Electrical
50
Kohler SV715-3027 Blower Housing & Baffles
11
2
4
1
6
7
9
5
7
13
8
7
4
10
3
3
14
4
12
13
51
Kohler SV715-3027 Blower Housing & Baffles
Ref. Part Number Description
1 KH-32-027-08-S Blower Housing Kit
2 KH-32-096-08-S Air Cleaner Cover
3 KH-M-0545010 Flange Screw, M5 x .8 x 10
4 KH-M-545016-S Flange Screw, M5 x .8 x 16
5 KH-32-146-05-S Backing Plate Kit
6 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
7 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
8 KH-24-063-94-S Valley Bae, #2 Cylinder
9 KH-24-063-93-S Valley Bae, #1 Cylinder
10 KH-32-063-10-S Cylinder Barrel Bae, #1 Side
11 KH-24-086-12 Screw, M6 x 1.7 x 18
12 KH-32-314-05-S Fixed Guard
13 KH-25-086 -158-S Flange Screw, M6 x 1.0 x 10
14 KH-41-403-10-S Regulator/Rectier
NS KH -32-113 -11-S Fixed Guard Decal
NS
KH-41- 037-10 -S
Nameplate Service
52
Kohler SV715-3027 Engine Controls
17
16
16
19
18
22
20
14
13
12
11
9
8
10
15
23
21
6
1
2
3
5
7
4
24
25
26
53
Ref. Part-Number Description
1 KH-24-211-03-S Bolt, M6 x 1.0 x 25
2 KH-24-090-51-S Governor Lever
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-089-01 Linkage Spring
5 KH-25-158- 08 Linkage Retaining Bushing
6 KH-24-079-04 Throttle Linkage
7 KH-25-158-11 Throttle Linkage Bushing
8 KH-M-547050-S Lock Nut, M5 x .8
9 KH-24-089-03 Choke Return Spring
10 KH-32-126-04-S Control Bracket
11 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
12 KH-12-237- 01 Cable Clamp
13 KH-24-086-43-S Screw, M5 x .8 x 16
14 KH-24-079-22-S Choke Linkage
15 KH-32-090-09-S Speed Setting Lever
16 KH-24-112-27-S Control Assembly Spacer
17 KH-24-468-01 Flat Washer, 5.5mm
18 KH-25-086-151-S Screw, M5 x .8 x 25mm
19 KH-41-468-03 Spring Washer, 1⁄4
20 KH-32-090-12-S Choke Lever
21 KH-32-090-08-S Speed Control Lever
22 KH-32-089-03-S Speed Control Spring
23 KH-32-090-07-S Governor Spring Lever
24 KH-M-545016-S Flange Screw, M5 x .8 x 16
25 KH-24-089-55-S Governor Spring
26 KH-24-089-18 Governor Spring
Kohler SV715-3027 Engine Controls
54
6
4
7
7
7
7
5
8
2
3
1
10
9
11
6
Ref. Part-Number Description
1 KH-32-853-22-S Carburetor Kit
2 KH-M-629105-S Stud, M6 x 1.0 x 106
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
5 KH-24-393-16 Fuel Pump
6 K H -25 -111- 81-S Fuel Line
7 KH-25-237-31-S Hose Clamp, 1⁄2
8 KH-25-050-22-S1 Fuel Filter
9 KH-24-041-14 Air Cleaner Base Gasket
10 KH-24-041-52-S Carburetor Gasket
11 KH-47-154-01-S Cable Clip

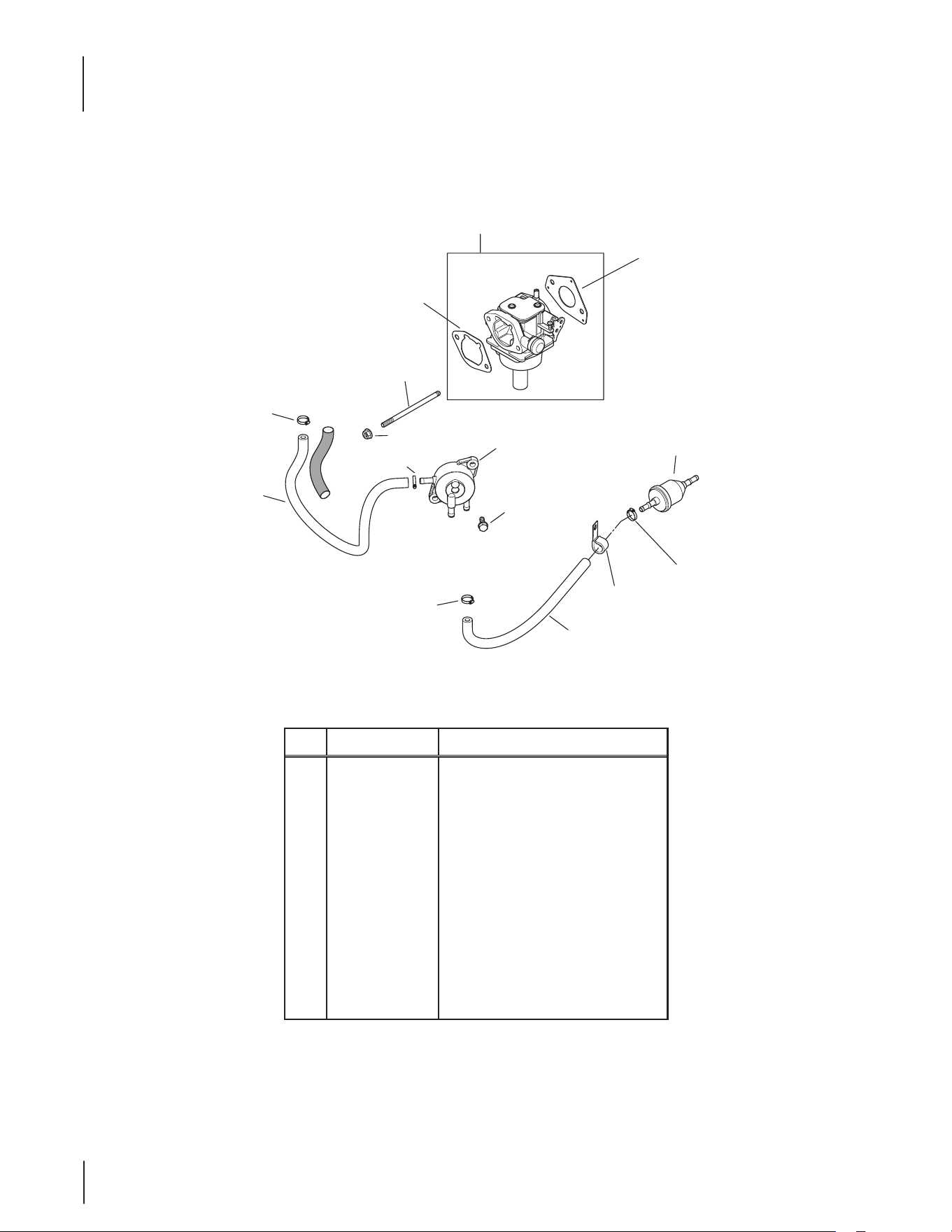

Kohler SV715-3027 Fuel System
55

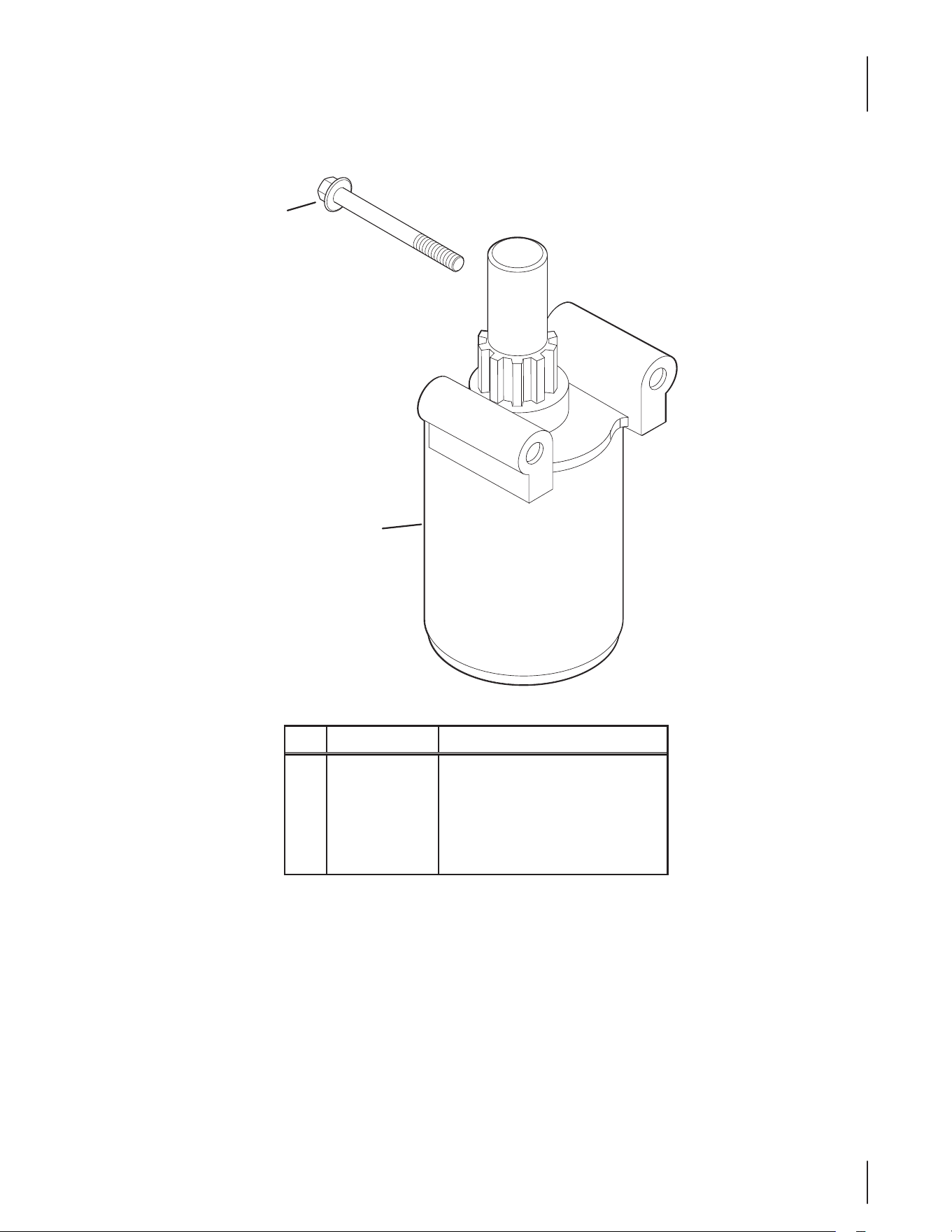

1
2
Ref. Part Number Description
1 KH-32-098-04-S Starter Assembly
2 KH-M-851080-S Flange Screw, M8 x 1.25 x 80
— KH-12-243- 04-S Brush Assembly
— KH-32-211-01-S Thru Bolt
— KH-32-227-01-S End Cap
Kohler SV715-3027 Starting System
56
Ref. Part Number Description
1 K H -25 -113-39 -S Clear Laminate Decal
2 K H -32-113-76 -S Decal, 22 HP
2
1
Artwork is representative.
Actual labels may differ depending on model and specification number.
Kohler SV715-3027 Labels
57
This page left intentionally blank.
58
Kohler SV720-3050 Crankcase
7
20
6
19
5
18
14
9
12
3
21
4
8
10
11
15
13
17
16
1
2
59
Kohler SV720-3050 Crankcase
Ref. Part Number Description
1 KH-12-402-02 Breather Reed
2 KH-24-018-04-S Breather Reed Retainer
3 KH-24-380-16-S Locating Pin
4 KH-24-032-19-S Oil Seal, 1.78 x 1.26
5 KH-12-422-07-S Camshaft Shim (White, .028)
— KH-12-422-08-S Camshaft Shim (Blue, .03)
— KH-12-422-09-S Camshaft Shim (Red, .032)
— KH-12-422-10-S Camshaft Shim (Yellow, .034)
— KH-12-422-11-S Camshaft Shim (Green, .036)
— KH-12-422-12-S Camshaft Shim (Gray, .038)
— KH-12-422-13-S Camshaft Shim (Black, .04)
6 KH-24-018-01-S Piston Pin Retainer
7 KH-24-067-30-S Connecting Rod (STD)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, 11⁄32
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH-24-126-19 Oil Fill Tube Bracket
13 KH-M-545013-S Flange Screw, M5 x .8 x 13
14 KH-M-931010-S Flat Washer, 9mm
15 KH-32-755-04-S Dipstick & Tube Kit
— KH-32-038-08-S Dipstick Only
— KH-32-123-11-S Tube Only
16 KH-25-153- 09-S O-Ring
17 KH-12-153-01-S Lower Oil Fill Tube O-Ring
18 KH-32-010-05-S Camshaft Assembly
19 KH-25-874-05-S Piston W/ Ring Kit (STD)
— KH-25-874-02-S Piston W/ Ring Kit (0.08)
— KH-25-874-03-S Piston W/ Ring Kit (0.25)
20 KH-24-108-14-S Ring Set (STD)
— KH-24-108-15-S Ring Set (.08)
— KH-24-108-16 -S Ring Set (.25)
21 N/A Crankcase (Use Short Block)
60

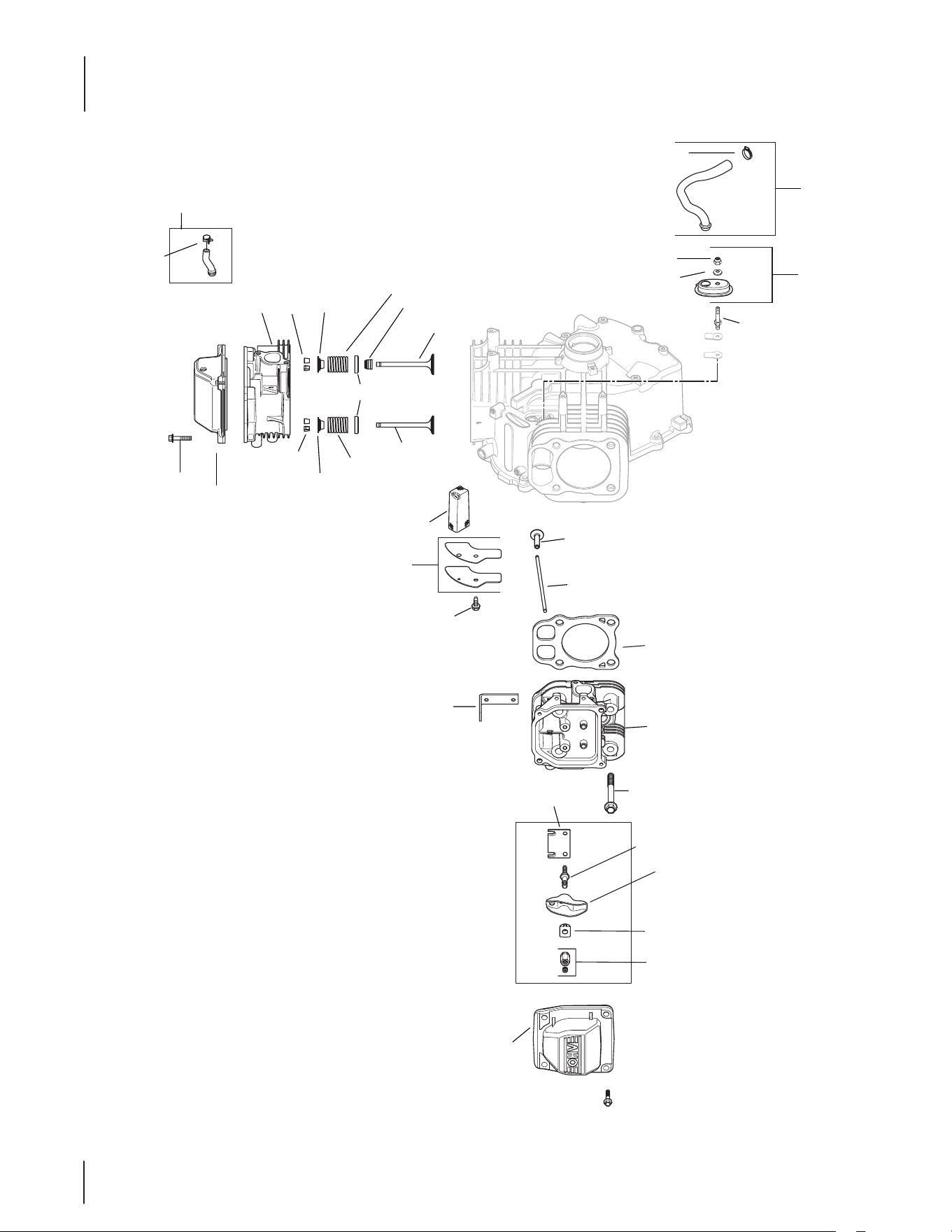

Kohler SV720-3050 Head/Valve/Breather
24
17
1
33
27
2
4
5
3
32
13
21
23
14
18
20
12
22
28
29
11
26
8
9
6
10
7
15
16
19
25
27
1
33
31
30
61
Kohler SV720-3050 Head/Valve/Breather
Ref. Part Number Description
1 KH-12-755-03 Retainer Kit
2 K H -235011-S Spring Retainer
3 KH-66-032-05-S Valve Stem Seal
4 KH-24-016-01 Exhaust Valve (STD)
5 KH-24-017-01 Intake Valve (STD)
6 KH-32-326-06-S Breather Hose Kit (Inc. #7)
7 KH-25-237-31-S Hose Clamp, 1⁄2
8 KH-32-081-02-S Housing Breather Kit (Inc. #9 & 10)
9 KH-M-547050-S Lock Nut, M5 x 8
10 KH-32-468-01-S Sealing Washer
11 KH-32-072-03-S Breather Cover Stud
12 KH-32-019-02-S Tappet
13 KH-32-841-02-S Cylinder Head Gasket Kit
14 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
15 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
16 KH-32-096-04-S Breather Cover
17 KH-32-318-13-S
Cylinder Head Assembly Kit, #1
(Inc. Exhaust Mounting Hardware)
18 KH-32-318-14-S
Cylinder Head Assembly Kit, #2
(Inc. Exhaust Mounting Hardware)
19 KH-32-146-09-S Guide Plate
20 KH-32-072-04-S Rocker Stud
21 KH-32-186-03-S Rocker Arm
22 KH-32-100 -05-S Hex Nut Assembly (Inc. #32)
23 KH-25-599-01-S Rocker Arm Pivot
24 KH -32- 411- 0 4 -S Push Rod
25 KH-32-326-07-S Fuel Pump Hose Kit (Inc. #29)
26 KH-32-050-05-S Breather Filter
27 KH-32-089-05-S Valve Spring
28 KH-25-086-374-S Pan Head Screw
29 KH-25-237-01-S Hose Clamp
30 KH-25-096 -10-S Rocker Cover
31 KH-25-096-09-S Rocker Cover
32 KH-25-445-03-S Lifting Strap
33 KH-25-173-28-S Valve Spring Cap
NS KH-32-755-03-S Cylinder Head Hardware Kit
62
Kohler SV720-3050 Oil Pan/Lubrication
Ref. Part Number Description
1 KH-24- 086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-25-139-57-S Square Head Pipe Plug, 3⁄8
4 KH-32-199-14-S Oil Pan Assembly
5 KH-12-144-02 Governor Gear Shaft
6 KH-12-380- 01 Governor Regulating Pin
7 KH-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 KH-24 -153-01 Oil Pick-Up O-Ring
10 KH-32-086-01-S Screw
Ref. Part Number Description
11 KH-32-393-16-S Oil Pump Assembly
12 KH-32-123-01-S Oil Feed Tube (Filter to Oil Pan)
13 KH-32-123-09 -S Oil Feed Tube Assembly
14 KH-12-050-01-S Oil Filter
15 KH-32-136 - 05-S Oil Filter Nipple
16 KH-32-468-02-S Flat Washer
17 KH-25-099-27-S Oil Pressure Switch
18 KH-32-123-06 -S Oil Feed Tube
19 KH-32-153- 05-S O-Ring
1
14
3
10
11
2
12
16
18
19
15
9
4
13
8
6
7
5
17
63
2
1
Kohler SV720-3050 Starting System
Ref. Part Number Description
1 KH-M-851080-S Flg. Screw, M8 X 1.25 X 80
2 KH-32-098-04-S Starter Assembly
— KH-12-243- 04-S Brush Assembly
— KH-32-211-01-S Thru Bolt
— KH-32-227-01-S End Cap
64

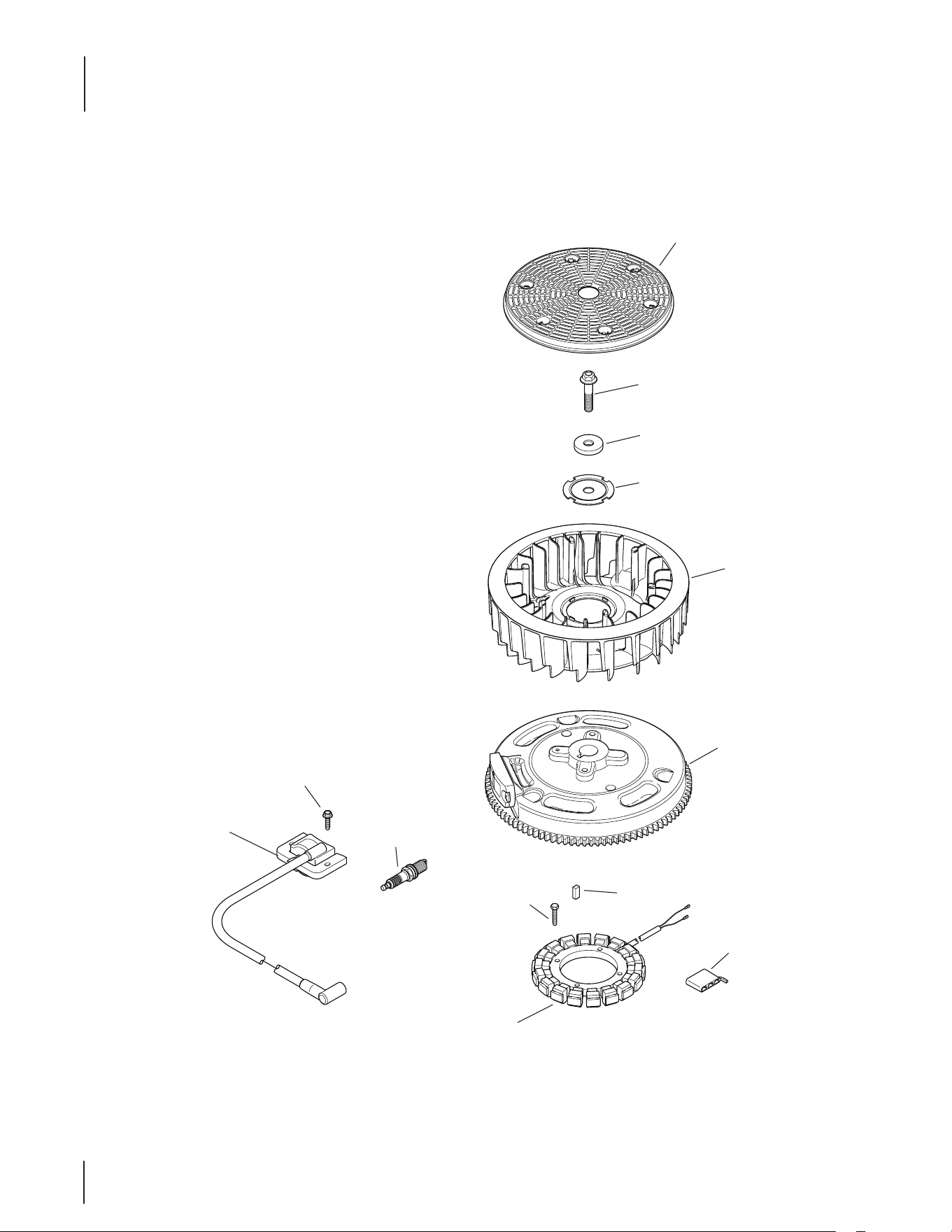

Kohler SV720-3050 Ignition/Electrical
1
13
3
2
11
12
7
9
10
8
4
6
5
65
Kohler SV720-3050 Ignition/Electrical
Ref. Part Number Description
1 759-3336 Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-M-548025-S Screw, M5 x 0.8 x 25
4 KH-25-086-361-S Hex Flange Screw
5 KH-25-340-04-S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-32-025-22-S Flywheel Assembly
8 KH-20-146-05-S Fan Mounting Plate
9 KH-32-157- 01-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-24-584-45-S Module Ignition Kit
12 KH-M-545020-S Screw, M5 x .8 x 20
13 KH-25-155-41-S Connector
N/A KH-25-454-03-S Wire Tie
N/A KH-32-176-24-S Wiring Harness
66
Kohler SV720-3050 Blower Housing & Baffles
11
2
4
1
6
7
9
5
7
13
8
7
4
10
3
3
14
4
12
13
67
Kohler SV720-3050 Blower Housing & Baffles
Ref. Part Number Description
1 KH-32-027-08-S Blower Housing Kit
2 KH-32-096-08-S Air Cleaner Cover
3 KH-M-0545010 Flange Screw, M5 x .8 x 10
4 KH-M-545016-S Flange Screw, M5 x .8 x 16
5 KH-32-146-05-S Backing Plate Kit
6 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
7 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
8 KH-24-063-94-S Valley Bae, #2 Cylinder
9 KH-24-063-93-S Valley Bae, #1 Cylinder
10 KH-32-063-10-S Cylinder Barrel Bae, #1 Side
11 KH-24-086-12 Screw, M6 x 1.7 x 18
12 KH-32-314-05-S Fixed Guard
13 KH-25-086 -158-S Flange Screw, M6 x 1.0 x 10
14 KH-41-403-10-S Regulator/Rectier
NS KH -32-113 -11-S Fixed Guard Decal
NS
KH-41- 037-10 -S
Nameplate Service
68

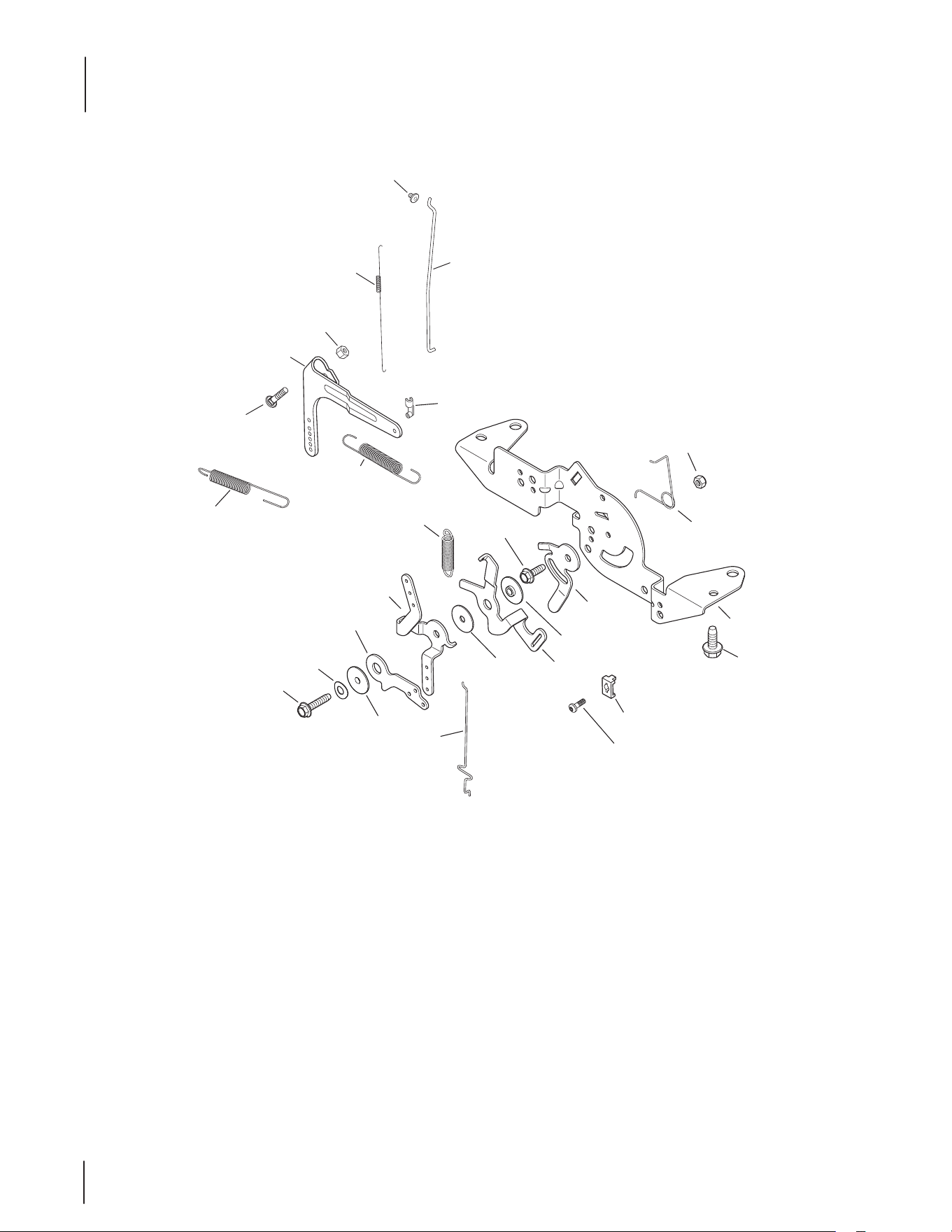

Kohler SV720-3050 Engine Controls
17
16
16
19
18
22
20
14
13
12
11
9
8
10
15
23
21
6
1
2
3
5
7
4
24
25
26
69
Kohler SV720-3050 Engine Controls
Ref. Part-Number Description
1 KH-24-211-03-S Bolt, M6 x 1.0 x 25
2 KH-24-090-57-S Governor Lever
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-089-01 Linkage Spring
5 KH-25-158- 08 Linkage Retaining Bushing
6 KH-24-079-04 Throttle Linkage
7 KH-25-158-11 Throttle Linkage Bushing
8 KH-M-547050-S Lock Nut, M5 x .8
9 KH-24-089-03 Choke Return Spring
10 KH-32-126-04-S Control Bracket
11 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
12 KH-12-237- 01 Cable Clamp
13 KH-24-086-43-S Screw, M5 x .8 x 16
14 KH-24-079-22-S Choke Linkage
15 KH-32-090-09-S Speed Setting Lever
16 KH-24-112-27-S Control Assembly Spacer
17 KH-24-468-01 Flat Washer, 5.5mm
18 KH-25-086-151-S Screw, M5 x .8 x 25mm
19 KH-41-468-03 Spring Washer, 1⁄4
20 KH-32-090-12-S Choke Lever
21 KH-32-090-08-S Speed Control Lever
22 KH-32-089-03-S Speed Control Spring
23 KH-32-090-07-S Governor Spring Lever
24 KH-M-545016-S Flange Screw, M5 x .8 x 16
25 KH-24-089-55-S Governor Spring
26 KH-24-089-18 Governor Spring
70
Kohler SV720-3050 Air Intake/Filtration
10
1
5
12
4
3
2
11
6
8
7
9
13
Ref. Part Number Description
1 KH-24-041-14 Air Cleaner Base Gasket
2 KH-32-883-03-S1 Pre-Cleaner Element
3 KH-32-344-02-S Air Cleaner Element Latch
4 KH-32-883-03-S1 Air Filter Element
5
KH-24-164-91-S
Intake Manifold Kit
6 KH-M-651040-S Flange Screw, M6 x 1.0 x 40
7 KH-25-155-51-S Evaporative Connector
8 KH-25-173-33-S Evaporative Mask
9 KH-25-326-08-S Evaporative Hose, 20”
10 KH-32-094-08-S Air Cleaner Base
11 KH-25-139-60 -S Pipe Plug, 1⁄8
12 KH-24-041-52-S Carburetor Gasket
13 KH-24-153-27-S Intake Port O-Ring
71

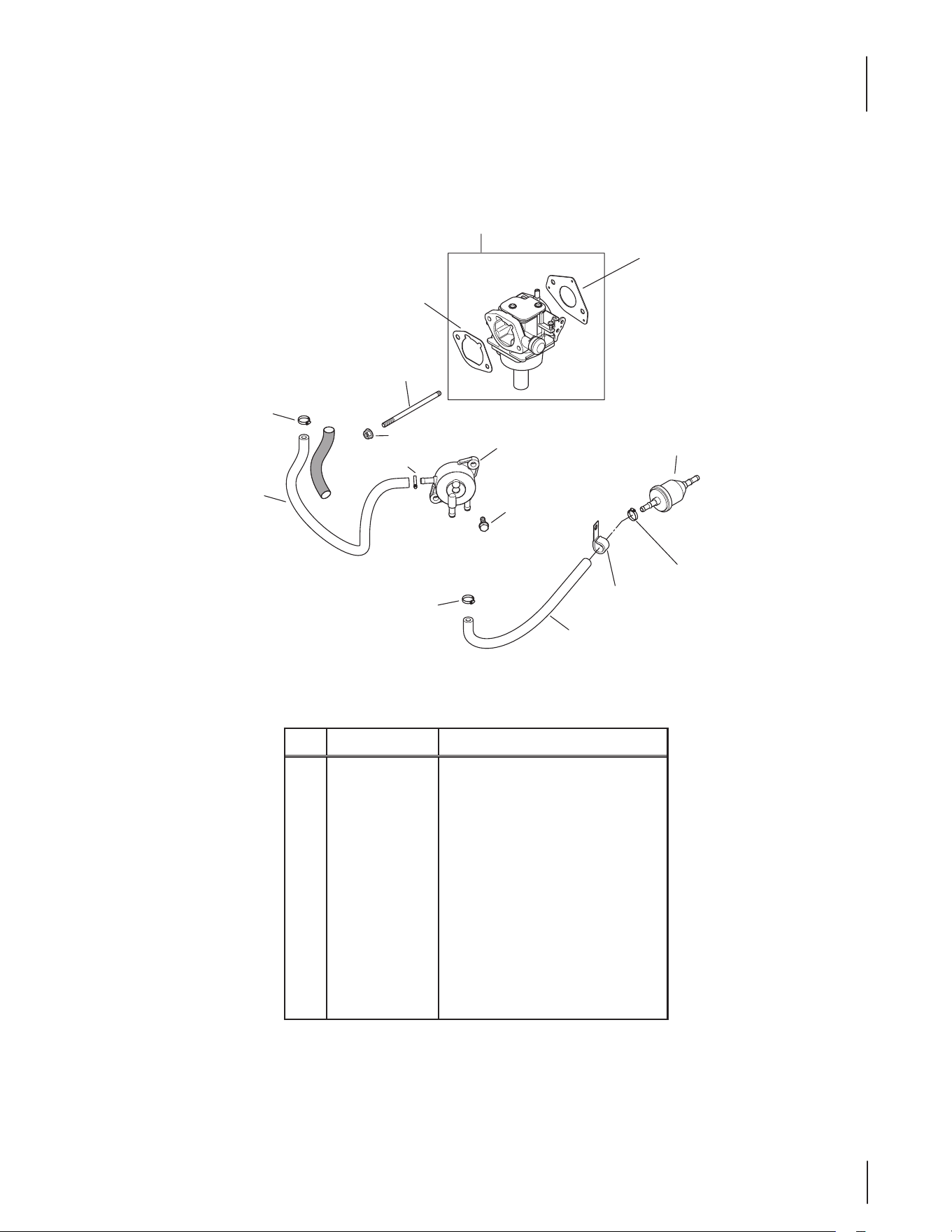

Kohler SV720-3050 Fuel System
6
4
7
7
7
7
5
8
2
3
1
10
9
11
6
Ref. Part-Number Description
1 KH-32-853-22-S Carburetor Kit
2 KH-M-629105-S Stud, M6 x 1.0 x 106
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
5 KH-24-393-16 Fuel Pump
6 K H -25 -111- 81-S Fuel Line
7 KH-25-237-31-S Hose Clamp, 1⁄2
8 KH-25-050-22-S1 Fuel Filter
9 KH-24-041-14 Air Cleaner Base Gasket
10 KH-24-041-52-S Carburetor Gasket
11 KH-47-154-01-S Cable Clip
72
Kohler SV720-3050 Crankshaft
2
1
3
Ref. Part Number Description
1 KH-52-139-09-S Cup Plug
2 KH-32-014-312-S Crankshaft
3 KH-X-43-1-S Key, 1/8” x 1/2”
73
Kohler SV720-3050 Miscellaneous
Ref. Part Number Description
1 K H -25 -113-39 -S Clear Laminate Decal
2 K H -32-113- 07-S Decal, 23 HP
2
1
Artwork is representative.
Actual labels may differ depending on model and specification number.
74
7
20
6
19
5
18
14
9
12
3
23
4
8
10
11
15
13
17
16
1
2
21
22
Kohler SV725-3030 Crankcase
75
Kohler SV725-3030 Crankcase
Ref. Part Number Description
1 KH-12-402-02 Breather Reed
2 KH-24-018-04-S Breather Reed Retainer
3 KH-24-380-16-S Locating Pin
4 KH-24-032-19-S Oil Seal, 1.78 x 1.26
5 KH-12-422-07-S Camshaft Shim (White, .028)
— KH-12-422-08-S Camshaft Shim (Blue, .03)
— KH-12-422-09-S Camshaft Shim (Red, .032)
— KH-12-422-10-S Camshaft Shim (Yellow, .034)
— KH-12-422-11-S Camshaft Shim (Green, .036)
— KH-12-422-12-S Camshaft Shim (Gray, .038)
— KH-12-422-13-S Camshaft Shim (Black, .04)
6 KH-24-018-01-S Piston Pin Retainer
7 KH-24-067-30-S Connecting Rod (STD)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, 11⁄32
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH-24-126-19 Oil Fill Tube Bracket
13 KH-M-545013-S Flange Screw, M5 x .8 x 13
14 KH-M-931010-S Flat Washer, 9mm
15 KH-32-755-04-S Dipstick & Tube Kit
16 KH-25-153- 09-S O-Ring
17 KH-12-153-01-S Lower Oil Fill Tube O-Ring
18 KH-32-010-05-S Camshaft Assembly
19 KH-25-874-05-S Piston W/ Ring Kit (STD)
— KH-25-874-02-S Piston W/ Ring Kit (.08)
— KH-25-874-08-S Piston W/ Ring Kit (.25)
20 KH-24-108-14-S Ring Set (STD)
— KH-24-108-15-S Ring Set (.08)
— KH-24-108-16 -S Ring Set (.25)
21 KH-32-123-11-S Tube Assembly
22 KH-32-038-08-S Dipstick Assembly
23 N/A Crankcase (Use Short Block)
76
24
17
1
33
27
2
4
5
3
34
13
21
23
14
18
20
12
32
22
28
29
11
26
8
9
6
10
7
15
16
19
25
27
1
33
31
30
Kohler SV725-3030 Head/Valve/Breather
77
Kohler SV725-3030 Head/Valve/Breather
Ref. Part Number Description
1 KH-12-755-03 Retainer Kit
2 K H -235011-S Spring Retainer
3 KH-66-032-05-S Valve Stem Seal
4 KH-24-016-01 Exhaust Valve (STD)
5 KH-24-017-01 Intake Valve (STD)
6 KH-32-326-06-S Breather Hose Kit (Inc. #7)
7 KH-25-237-31-S Hose Clamp, 1⁄2
8 KH-32-081-02-S Housing Breather Kit (Inc. #9 & 10)
9 KH-M-547050-S Lock Nut, M5 x 8
10 KH-32-468-01-S Sealing Washer
11 KH-32-072-03-S Breather Cover Stud
12 KH-32-019-02-S Tappet
13 KH-32-841-02-S Cylinder Head Gasket Kit
14 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
15 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
16 KH-32-096-04-S Breather Cover
17 KH-32-318-13-S
Cylinder Head Assembly Kit, #1
(Inc. Exhaust Mounting Hardware)
18 KH-32-318-14-S
Cylinder Head Assembly Kit, #2
(Inc. Exhaust Mounting Hardware)
19 KH-32-146-09-S Guide Plate
20 KH-32-072-04-S Rocker Stud
21 KH-32-186-03-S Rocker Arm
22 KH-32-100 -05-S Hex Nut Assembly (Inc. #32)
23 KH-25-599-01-S Rocker Arm Pivot
24 KH -32- 411- 0 4 -S Push Rod
25 KH-32-326-07-S Fuel Pump Hose Kit (Inc. #29)
26 KH-32-050-05-S Breather Filter
27 KH-32-089-05-S Valve Spring
28 KH-25-086-374-S Pan Head Screw
29 KH-25-237-01-S Hose Clamp
30 KH-25-096 -10-S Rocker Cover
31 KH-25-096-09-S Rocker Cover
32 KH-25-086-168-S Set Screw
33 KH-25-173-28-S Valve Spring Cap
34 KH-25-445-03-S Lifting Strap
NS KH-32-755-03-S Cylinder Head Hardware Kit
78
Kohler SV725-3030 Oil Pan/Lubrication
1
14
3
10
11
2
12
16
18
19
15
9
17
4
13
8
6
7
5
Ref. Part Number Description
1 KH-24- 086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-25-139-57-S Square Head Pipe Plug, 3⁄8
4 KH-32-199-14-S Oil Pan Assembly
5 KH-12-144-02 Governor Gear Shaft
6 KH-12-380- 01 Governor Regulating Pin
7 KH-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 KH-24 -153-01 Oil Pick-Up O-Ring
10 KH-32-086-01-S Screw
Ref. Part Number Description
11 KH-32-393-16-S Oil Pump Assembly
12 KH-32-123-01-S Oil Feed Tube (Filter to Oil Pan)
13 KH-32-123-09 -S Oil Feed Tube Assembly
14 KH-12-050-01-S Oil Filter
15 KH-32-136 - 05-S Oil Filter Nipple
16 KH-32-468-02-S Flat Washer
17 KH-25-099-27-S Oil Pressure Switch
18 KH-32-123-06 -S Oil Feed Tube
19 KH-32-153- 05-S O-Ring
79
2
1
Ref. Part Number Description
1 KH-M-851080-S Flg. Screw, M8 X 1.25 X 80
2 KH-32-098-04-S Starter Assembly
— KH-12-243- 04-S Brush Assembly
— KH-32-211-01-S Thru Bolt
— KH-32-227-01-S End Cap
Kohler SV725-3030 Starting System
80
Kohler SV725-3030 Ignition/Electrical
1
13
3
2
11
12
7
9
10
8
4
6
5
81
Kohler SV725-3030 Ignition/Electrical
Ref. Part Number Description
1 KH-25-132-14-S Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-M-548025-S Screw, M5 x 0.8 x 25
4 KH-25-086-361-S Hex Flange Screw
5 KH-25-340-04-S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-32-025-22-S Flywheel Assembly
8 KH-20-146-05-S Fan Mounting Plate
9 KH-32-157- 01-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-24-584-45-S Module Ignition Kit
12 KH-M-545020-S Screw, M5 x .8 x 20
13 KH-25-155-41-S Connector
N/A KH-25-454-03-S Wire Tie
N/A KH-32-176-24-S Wiring Harness
82

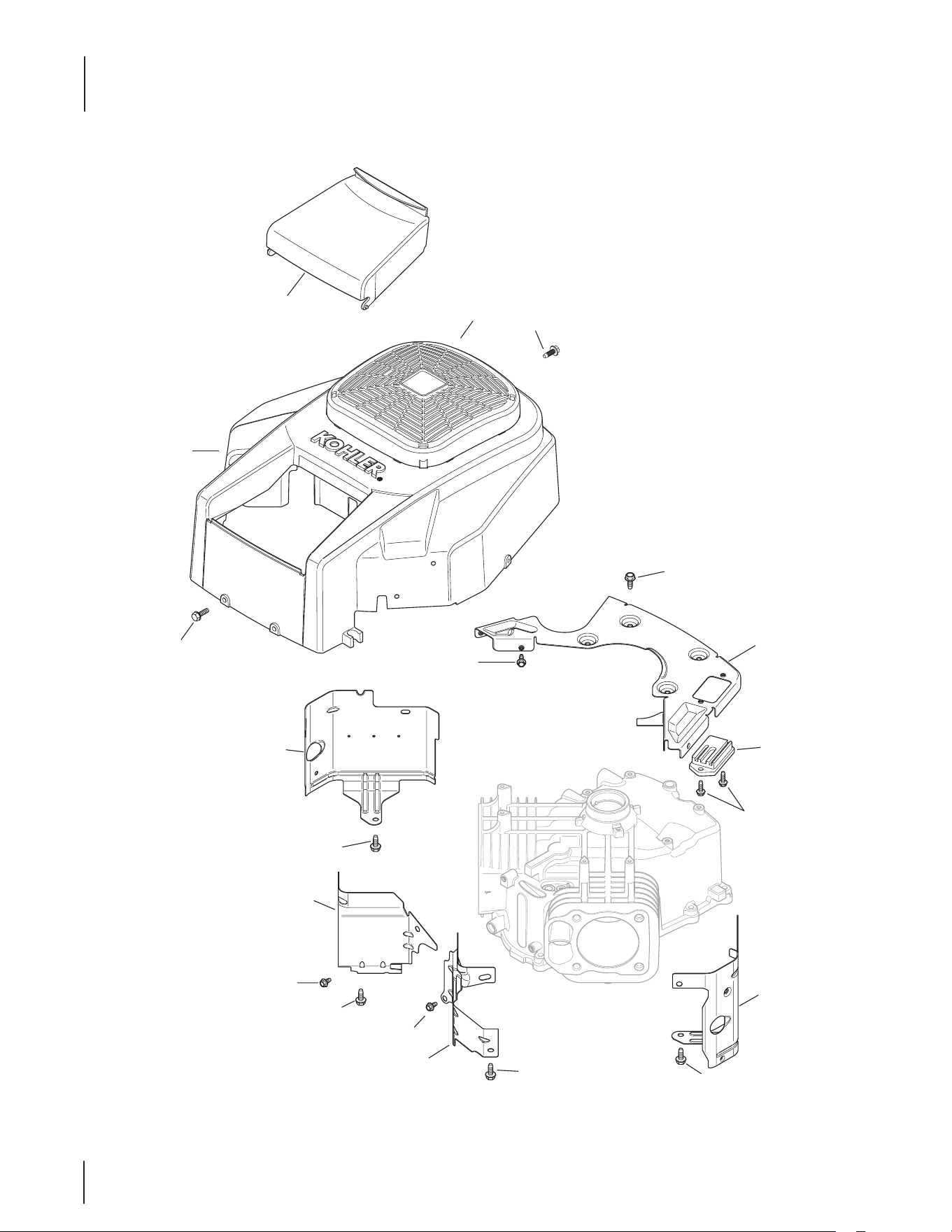

Kohler SV725-3030 Blower Housing & Baffles
1
3
2
11
6
7
4
6
9
8
6
3
10
12
12
5
3
9
14
13
83
Kohler SV725-3030 Blower Housing & Baffles
Ref. Part Number Description
1 KH-24-086-12 Screw, M6 x 1.7 x 18
2 KH-32-027-08-S Blower Housing Kit
3 KH-M-545016-S Flange Screw, M5 x .8 x 16
4 KH-32-146-05-S Backing Plate Kit
5 KH-41-403-10-S Regulator/Rectier
6 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
7 KH-24-063-93-S Valley Bae, #1 Cylinder
8 KH-24-063-94-S Valley Bae, #2 Cylinder
9 KH-25-086 -158-S Flange Screw, M6 x 1.0 x 10
10 KH-32-063-10-S Cylinder Barrel Bae, #1 Side
11 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
12 KH-M-0545010 Flange Screw, M5 x .8 x 10
13 KH-32-096-08-S Air Cleaner Cover
14 KH-32-314-05-S Fixed Guard
NS KH-41-037-10 -S Nameplate Service
NS KH -32-113 -11-S Fixed Guard Decal
84

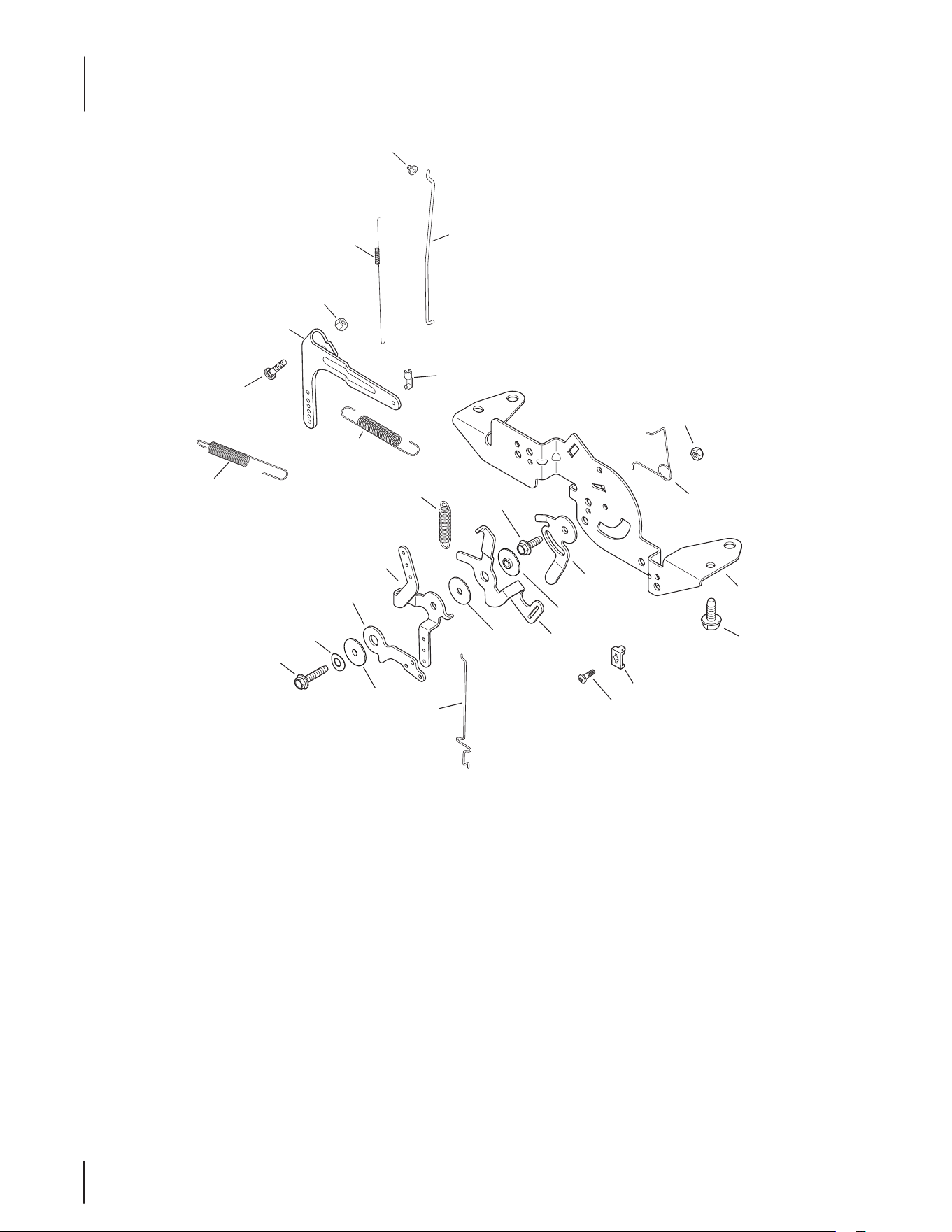

Kohler SV725-3030 Engine Controls
17
16
16
19
18
22
20
14
13
12
11
9
8
10
15
23
21
6
1
2
3
5
7
4
24
25
26
85
Kohler SV725-3030 Engine Controls
Ref. Part-Number Description
1 KH-24-211-03-S Rd. Hd. Sq. Neck Bolt, M6 x 1.0 x 25
2 KH-24-090-51-S Governor Lever
3 KH-M-641060-S Flg. Nut, M6 x 1.0
4 KH-24-089-01 Linkage Spring
5 KH-25-158- 08 Linkage Retaining Bushing
6 KH-24-079-04 Throttle Linkage
7 KH-25-158-11 Throttle Linkage Bushing
8 KH-M-547050-S Lock Nut, M5 x .8
9 KH-24-089-03 Choke Return Spring
10 KH-32-126-04-S Control Bracket
11 KH-M-645016-S Flg. Thd. Frm. Screw, M6 x 1.0 x 16
12 KH-12-237- 01 Cable Clamp
13 KH-24-086-43-S Lbd. Thd. Frm. Screw, M5 x 0.8 x 16
14 KH-24-079-22-S Choke Linkage
15 KH-32-090-09-S Speed Setting Lever
16 KH-24-112-27-S Control Assembly Spacer
17 KH-24-468-01 Flat Washer, 5.5MM
18 KH-25-086-151-S Thd. Frm. Screw, M5 x 0.8 x 25MM
19 KH-41-468-03 Spring Washer, 1/4”
20 KH-32-090-12-S Choke Lever
21 KH-32-090-08-S Speed Control Lever
22 KH-32-089-03-S Speed Control Spring
23 KH-32-090-07-S Governor Spring Lever
24 KH-M-545016-S Flg. Thd. Frm. Screw, M5 x 0.8 x 16
25 KH-24-089-55-S Governor Spring
26 KH-24-089-18 Governor Spring
86

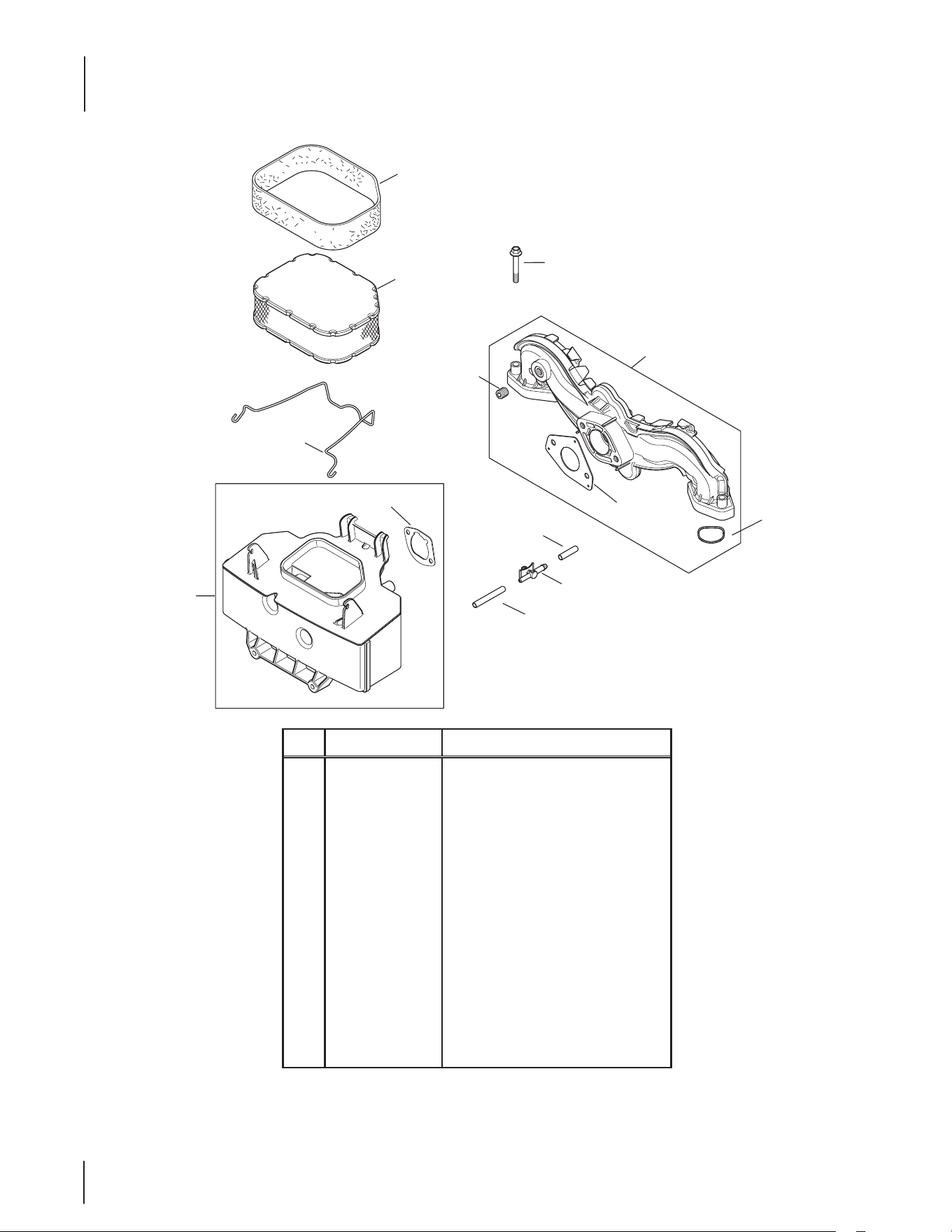

Kohler SV725-3030 Air Intake/Filtration
10
1
5
8
7
3
2
4
9
6
11
12
13
Ref. Part Number Description
1 KH-24-041-14 Air Cleaner Base Gasket
2 KH-32-344-02-S Air Cleaner Element Latch
3 KH-32-883-03-S1 Air Filter Element
4 KH-32-883-03-S1 Pre-Cleaner Element
5 KH-24-164-91-S Intake Manifold Kit
6 KH-M-651040-S Flg. Screw, M6 x 1.0 x 40
7 KH-24-153-27-S O-Ring, Intake Port
8 KH-24-041-52-S Carburetor Gasket
9 KH-25-139- 60-S Pipe Plug, 1/8”
10 KH-32-094-08-S Air Cleaner Base
11 KH-25-173-33-S Masking Cap
12 KH-25-155-51-S Evaporative Connector
13 KH-25-326-08-S Evaporative Hose, 20”
87

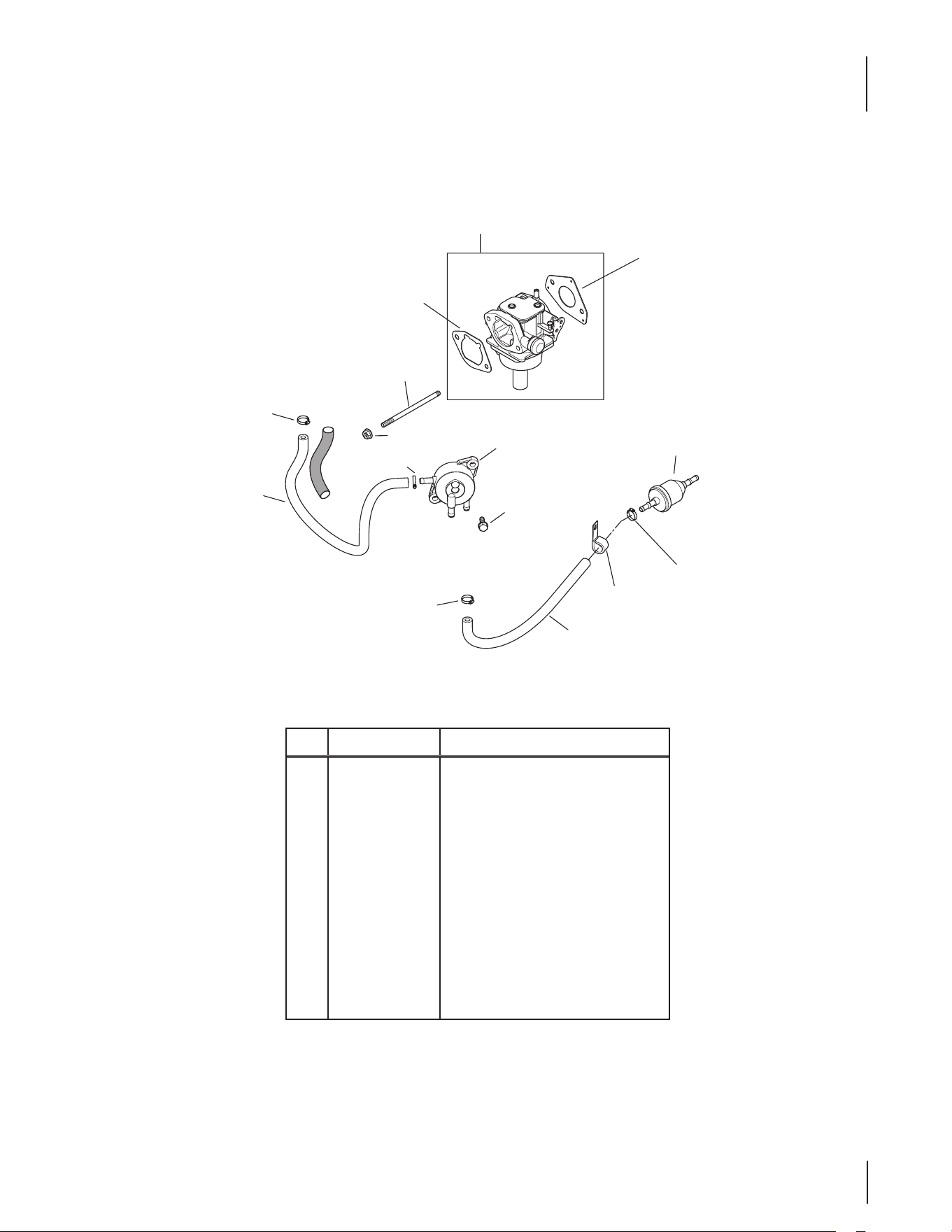

Kohler SV725-3030 Fuel System
6
4
7
7
7
7
5
8
2
3
1
10
9
11
6
Ref. Part-Number Description
1 KH-32-853-28-S Carburetor Kit
2 KH-M-629105-S Stud, M6 x 1.0 x 106
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
5 KH-24-393-16 Fuel Pump
6 K H -25 -111- 81-S Fuel Line
7 KH-25-237-31-S Hose Clamp, 1⁄2
8 KH-25-050-22-S1 Fuel Filter
9 KH-24-041-14 Air Cleaner Base Gasket
10 KH-24-041-52-S Carburetor Gasket
11 KH-47-154-01-S Cable Clip
88
Kohler SV725-3030 Crankshaft
2
1
3
Ref. Part Number Description
1 KH-52-139-09-S Cup Plug
2 KH-32-014-313-S Crankshaft
3 KH-X-43-1-S Key, 1/8” x 1/2”
89
2
1
Artwork is representative.
Ac
r.
Kohler SV725-3030 Decals
Ref. Part Number Description
1 K H -25 -113-39 -S Clear Laminate Decal
2 KH-32-113-39-S Decal, 24HP
Notes
90
91Notes
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
G
E
N
U
I
N
E
F
A
C
T
O
R
Y
P
A
R
T
S
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
